Panasonic TXL22D28BW, TXL22D28BP, TXL19D28BW, TXL19D28BP Operating Instructions

Page 1

Operating Instructions

LCD Television

Model No.

TX-L19D28BP TX-L19D28BW TX-L22D28BP TX-L22D28BW

Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only. “B” model no. suffix denotes UK model.

English

U.K. Standard

Page 2

Features

DVB-T tuner built-in 

Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts

Easily select the programme or set Timer Programming by using TV Guide. (p. 18 - 20) Instantly call up favourite channels with Favourites Edit. (p. 39)

GUIDE Plus+  (p. 18)

This TV supports Gemstar-TV Guide sent from the GUIDE Plus+ system.

Sharp pictures and clear sound with HDMI connection  (p. 72)

Enjoy high definition digital picture and high quality sound by using an HDMI cable.

This TV incorporates HDMI (Version 1.4 with Audio Return Channel) technology. 

VIERA IMAGE VIEWER - Media Player  (p. 50 - 53)

Enjoy your photos or videos recorded on an SD Card on the TV screen.

SDXC Card 

This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.

AVCHD 

It is possible to play moving pictures recorded on an SD Card in AVCHD format.

AVCHD is a high definition video recording format. (p. 52)

Dolby Digital decoder 

It is possible to decode Dolby Digital audio track (multi-channel sound) and output as a Dolby Digital

multi-channel sound signal from the DIGITAL AUDIO OUT terminal.

Link up and control the connected equipment with “Q-Link” and “VIERA Link”  (p. 60 - 67)

Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated

settings, etc.

VIERA TOOLS - Display special feature icons for easy accessibility  (p. 26)

Special features (such as VIERA Link and Media Player) can be accessed easily by using the VIERA TOOLS

button.

Owner ID  (p. 47)

Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the

Police to determine the owner in the case of theft.

Supports Audio Description signal  (p. 15 and p. 29)

Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and

aids understanding and enjoyment, particularly for visually-impaired viewers. You can switch Audio Description service Auto or Off, and adjust the volume of the description soundtrack independently of the main volume.

Digital Switchover for Terrestrial broadcasts

Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region. If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and some Digital TV channels will be missing. You will need to retune your TV each time this happens to recover your digital channels. Analogue channels are permanently turned off, it will not be possible to recover them.

To retune your TV

 “Auto Setup” in “DVB Tuning Menu”-DVB mode (p. 36)

Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels via their aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new position.)

Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some  cases, despite good reception of analogue channels.

Page 3

Eco Mode

Adjusts picture settings automatically dependent on ambient lighting conditions.

Provides suitable images for playing games

Selecting “Game” in Viewing Mode provides fast resp

onse to the input signal and you can enjoy

pla

ying games.

V-Audio Surround

Utilises Panasonic’s advanced digital amplification technology. (p. 29)

digital tick

The digital tick logo indicates that a digital tuner is built-in.

Freeview

Freeview is the way to enjoy digital TV for free.

(p. 28)

Contents

Be Sure to Read

Safety Precautions (Warning / Caution)  ················· 4

Quick Start Guide

Accessories / Options  ·······························6



Identifying Controls



Basic Connection



Auto Setup

··············································12

Enjoy your TV!

Basic Features

Watching TV  ························································· 14 Using TV Guide

 ···················································· 18

Viewing Teletext  ···················································· 21 Watching External inputs  ······································ 24 How to Use VIERA TOOLS  ·································· 26 How to Use Menu Functions

 ································ 27

···································8

···································· 10

Quick Start

Quick Start Guide

Guide

Basic

Basic Advanced FAQs, etc.

Turn your living room into a home theatre!

Enjoy rich multi-media

iPod

SD Card

Camcorder

Personal

computer

Amplifier with Speaker system

DVD Recorder

VCR

Satellite receiver

DVD player

Advanced Features

Retuning from Setup Menu  ·································· 36 Tuning and Editing Channels  ······························· 38 Timer Programming  ·············································· 42 Child Lock

 ····························································· 44

Input Labels  ·························································· 45 Shipping Condition  ··············································· 46 Owner ID  ······························································ 47 Using Common Interface

 ······································ 48

Updating the TV Software  ···································· 49 Using Media Player  ·············································· 50 Displaying PC Screen on TV  ································ 54 Playing an iPod on TV  ·········································· 56 Link Functions

 ····················································· 60

(Q-Link / VIERA Link) External Equipment  ·············································· 68

FAQs, etc.

Technical Information  ··········································· 70 FAQs  ···································································· 74 On screen messages

 ··········································· 76

Glossary  ······························································· 77 Maintenance  ························································· 78 Licence  ································································· 78 Index

 ····································································· 78

Specifications  ······················································· 79

Advanced

FAQs, etc.

Page 4

Safety Precautions

Warning

Mains plug and lead 

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

This TV is designed to operate on AC 220-240 V,  50 Hz. Insert the mains plug fully into the socket outlet.  Ensure that the mains plug is easily accessible.  Remove the mains plug when cleaning the TV. 

Do not touch the mains plug with a wet hand. 

Do not damage the mains lead. 

Do not place a heavy • object on the lead.

Do not place the lead • near a high temperature object.

AC 220-240 V

If you detect anything unusual, immediately switch off the mains supply switch and remove the mains plug.

50 Hz

Do not pull on the lead. • Hold onto the mains plug body when disconnecting the plug.

Do not move the TV with the lead plugged into a • socket outlet.

Do not twist the lead, bend it excessively or • stretch it.

Do not use a damaged mains plug or socket outlet.• Ensure the TV does not crush the mains lead.•

IMPORTANT: THE MOULDED MAINS PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted

in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.

A replacement fuse cover may be purchased from your local dealer.

If the fitted moulded mains plug is unsuitable for the socket outlet in your home, then the fuse shall be removed and the mains plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off mains plug is inserted into any 13 amp socket.

If a new mains plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

IMPORTANT: – The wires in this mains lead are coloured in accordance with the following code: –

Blue: Neutral Brown: Live As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your mains plug, proceed as follows. The wire which is coloured BLUE must be connected to the terminal in the mains plug which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the mains plug which is marked with the letter L or coloured RED. Under no circumstances should either of these wires be connected to the Earth terminal of the three pin mains plug, marked with the letter E or the earth symbol How to replace the fuse

For plug type shown in example 1:

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (see example 1).

For plug type shown in example 2:

Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely (see example 2).

or the BSI mark on the body of the fuse.

ASA

Example 1

Example 2

Page 5

Warning

Take care 

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

Do not remove covers and never modify the TV yourself as live parts are accessible when they are  removed. There are no user serviceable parts inside.

Do not expose the TV to rain or excessive moisture. This TV must not be exposed  to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

Do not expose the TV to direct sunlight and other sources of heat. To prevent fire  never place any type of candle or naked flame on top or near the TV.

Do not place the TV on sloped or unstable surfaces. 

Do not insert foreign objects into the TV through the air vents.  Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to  perform the setup or installation of approved wall-hanging brackets. Do not apply strong force or impact to the display panel. 

To prevent the spread of fire, keep candles or other open flames away from this product at all times

Small object 

This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.

Keep the dangerous parts out of reach of young children.  Do not allow children to handle SD Card. As with any small object, the SD Card could be  swallowed by young children. Please remove SD Card immediately after use and store out of reach of young children.

Caution

Ventilation 

Allow sufficient space around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.

Ventilation should not be impeded by covering the  ventilation openings with items such as newspapers, tablecloths and curtains. Whether you are using the pedestal or not, always ensure the vents in the  bottom of the TV are not blocked and there is sufficient space to enable adequate ventilation.

Moving the TV 

Before moving the TV, disconnect all cables.

Transport only in upright position. 

When not in use for a long time 

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.

Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time. 

Excessive volume 

Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.

Minimum distance

(cm)

Page 6

Accessories / Options

Standard accessories Check that you have the accessories and items shown

Remote Control 

N2QAYB000506  ( TX-L19D28BP

TX-L22D28BP)

N2QAYB000505



( TX-L19D28BW

TX-L22D28BW)

Operating Instructions  Product Registration Leaflet 

iPod

Batteries for the Remote 

Control (2)

R6 (UM3) 

Pedestal (p. 7) 

TBL0E0114  ( TX-L19D28BP

TX-L19D28BW)

TBL0E0130  ( TX-L22D28BP

TX-L22D28BW)

Universal Dock for iPod  (p. 56)

TNM2AX0014 

Assembly screw for 

Pedestal (3)

XYN4+F12FJ 

Optional accessories

Wall-hanging bracket

TY-WK23LR2W



Warning

Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself has the risk of personal  injury and product damage. In order to maintain the unit’s performance and safety, be sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty. Carefully read the instructions accompanying optional accessories, and be sure to take steps to prevent the  TV from falling off. Handle the TV carefully during installation since subjecting it to impact or other forces may cause product  damage which will void your warranty. Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically give off  high heat. Doing so may warp or damage plastic cabinet parts. Take care when fixing wall brackets to the wall. Wall mounted equipment must not be grounded by metal  within the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket. To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an extended  period of time.

Please contact your nearest Panasonic dealer to purchase the recommended wall-hanging bracket. For additional details, please refer to the wall-hanging bracket installation manual.

Screw for fixing the TV onto the

Rear of the TV

100 mm

Holes for wall-hanging bracket installation

wall-hanging bracket (not supplied with the TV)

Depth of screw: minimum 9 mm, maximum 12 mm

Diameter: M4

(View from the side)

Installing / removing remote’s batteries

Pull

Hook

Caution

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.  Do not mix old and new batteries.  R 

eplace only with same or equivalent type. Do not mix different battery types (such as alkaline and manganese batteries).

Do not use rechargeable (Ni-Cd) batteries.  Do not burn or break up batteries.  Batteries must not be exposed to excessive heat such as sunshine, fire, etc. Make sure you dispose of batteries correctly.  Ensure batteries are replaced correctly, there is danger of explosion and fire if battery is reversed.  Do not disassemble or modify the remote control. 

open

Note the correct polarity (+ or -)

Page 7

Attaching the pedestal

To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and cautions below:

Warning

Do not disassemble or modify the pedestal. 

Caution

Do not use with any other TVs or displays.  Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest  Panasonic dealer immediately. During setup, make sure that all screws are securely tightened.  Ensure that the TV does not suffer any impact during installation of the pedestal.  Ensure that children do not climb onto the pedestal.  Install or remove the TV from the pedestal with at least two people. 

Quick Start Guide

Do not tilt the TV by placing something between the pedestal and the floor. TV may fall over and become damaged, and personal injury may result.

Securing the TV 

Use only the supplied assembly screws to fasten securely.

Remove the mains lead from holder before pedestal installation.  Make sure that the screws are securely tightened.  Carry out the work on a horizontal and level surface. 

Pedestal is very heavy. Please handle with both hands as shown in image.

Accessories / Options 

Hole for pedestal installation

Foam mat or thick soft cloth

Page 8

Identifying Controls

Remote Control

Media Player (p. 50)

Switches to SD Card viewing mode



(VIERA IMAGE VIEWER)

Standby On / Off switch

Switches TV On or Off standby 

Main Menu (p. 27)

Press to access the Picture, Sound and



Setup Menus

Aspect (p. 16)

Channel / Programme Information

Displays channel and programme



information

VIERA Link Menu (p. 64)

Accesses VIERA Link Menu



Confirms selections and choices  Press after entering channel position  by using numeric buttons to change a channel quickly

(p. 15)

OPTION

SD CARD

ASPECT iPod

INPUT

AVTV

DIRECT TV REC

EXIT

BACK/

RETURN

Input mode selection

TV - switches between DVB and 

Analogue modes (p. 14)

AV - switches to AV input mode from Input



Selection list (p. 24)

Direct TV Recording (p. 62 and p. 64)

Records programme immediately in



DVD Recorder / VCR with Q-Link or VIERA Link connection

iPod (p. 58 )

Displays main window of iPod on your TV



Exit

Returns to the normal viewing screen 

VIERA TOOLS (p. 26)

Easily accesses special features such as



VIERA Link and Media Player

TV Guide (p. 18)

Displays TV Guide



Cursor buttons

Makes selections and adjustments 

Option Menu (p. 17)

Easy setting for viewing and



sound options

Coloured buttons (red-green-yellow-blue)

Used for the selection, navigation and  operation of various functions

Teletext (p. 21)

Switches to teletext mode



Subtitles (p. 15)

Displays subtitles



Numeric buttons

Changes channel and teletext pages  Sets characters  When in Standby mode, switches TV On  (Press for about 1 second)

Sound Mute

Switches sound mute On or Off 

Volume Up / Down

TEXT

ghi

STTL

REC

INDEX HOLD

abc def

jkl

tuvpqrs

mno

wxyz

LAST VIEW

PROGRAMME

DVD/VCR

Return

Returns to the previous menu / page 

Hold

Freeze / unfreeze picture (p. 15)  Holds the current teletext page (teletext  mode) (p. 22)

Index (p. 23)

Returns to the teletext index page



(teletext mode)

Last view (p. 17)

Switches to previously viewed channel or



input mode

Channel Up / Down

Selects channel in sequence 

Connected equipment operations

(p. 25, 58 and p. 66)

Page 9

SD Card slot (p. 50)

CI Slot (p. 48)

Headphones jack (p. 68)

Function select

Volume / Contrast / Brightness / Colour / Sharpness /  Tint (NTSC signal) / Bass (“Music” or “Speech” mode in the Sound Menu) / Treble (“Music” or “Speech” mode in the Sound Menu) / Balance / Auto Setup (p. 36 and p. 37)

For changing TV channel up or down. When a function is selected by the ‘F’ button, press to increase or decrease the setting of the selected function. When in Standby mode, press either button for about 1 second to switch the TV On.

Changes the input mode

Mains power On / Off switch

Use to switch mains power On / Off.

•

If TV was switched off whilst in Standby mode, using the Mains Power On / Off switch, then it will be in Standby mode when switched back on using the same switch.

Power and Timer LED

Red  : Standby

Green: On Orange: Timer Programming On Orange (flash): Ext Rec. of Timer Programming or Direct TV Recording in progress Red with orange flash: Standby with Timer Programming On or Direct TV

The LED blinks when the TV receives a command from the remote control.



C.A.T.S. (Contrast Automatic Tracking System) sensor

Senses brightness to adjust picture quality when “C.A.T.S.” in the Picture Menu is set to

•

“On” (p. 28).

Remote control signal receiver

Do not place any objects between the TV remote control signal receiver and remote control. 

Recording

Quick Start Guide

Identifying Controls 

Auto power standby function 

The TV will automatically go to Standby mode in the following conditions: 

no signal is received and no operation is performed for 30 minutes in Analogue TV mode• “Off Timer” is active in the Setup Menu (p. 17)• no operation is performed for the period selected in “Auto Standby” (p. 32)•

This function does not affect Ext Rec. of Timer Programming and Direct TV Recording. 

Using the On Screen Displays

Many features available on this TV can be accessed via the On Screen Display menu.

How to use remote control 

Open the main menu

Move the cursor / select the menu item

Access the menu / store settings after adjustments have been made or options have been set

ON SCREEN HELP Instructions box - Operation guide 

(example: Owner ID)

Owner ID

Please enter new PIN

PIN * * * *

EXIT

BACK/

RETURN

Exit the menu system and return to the normal viewing screen

Move the cursor / adjust levels / select from a range of options

Return to the previous menu

EXIT

RETURN

0 9

PIN entry

Operation guide will help you.

Page 10

Basic Connection

External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.

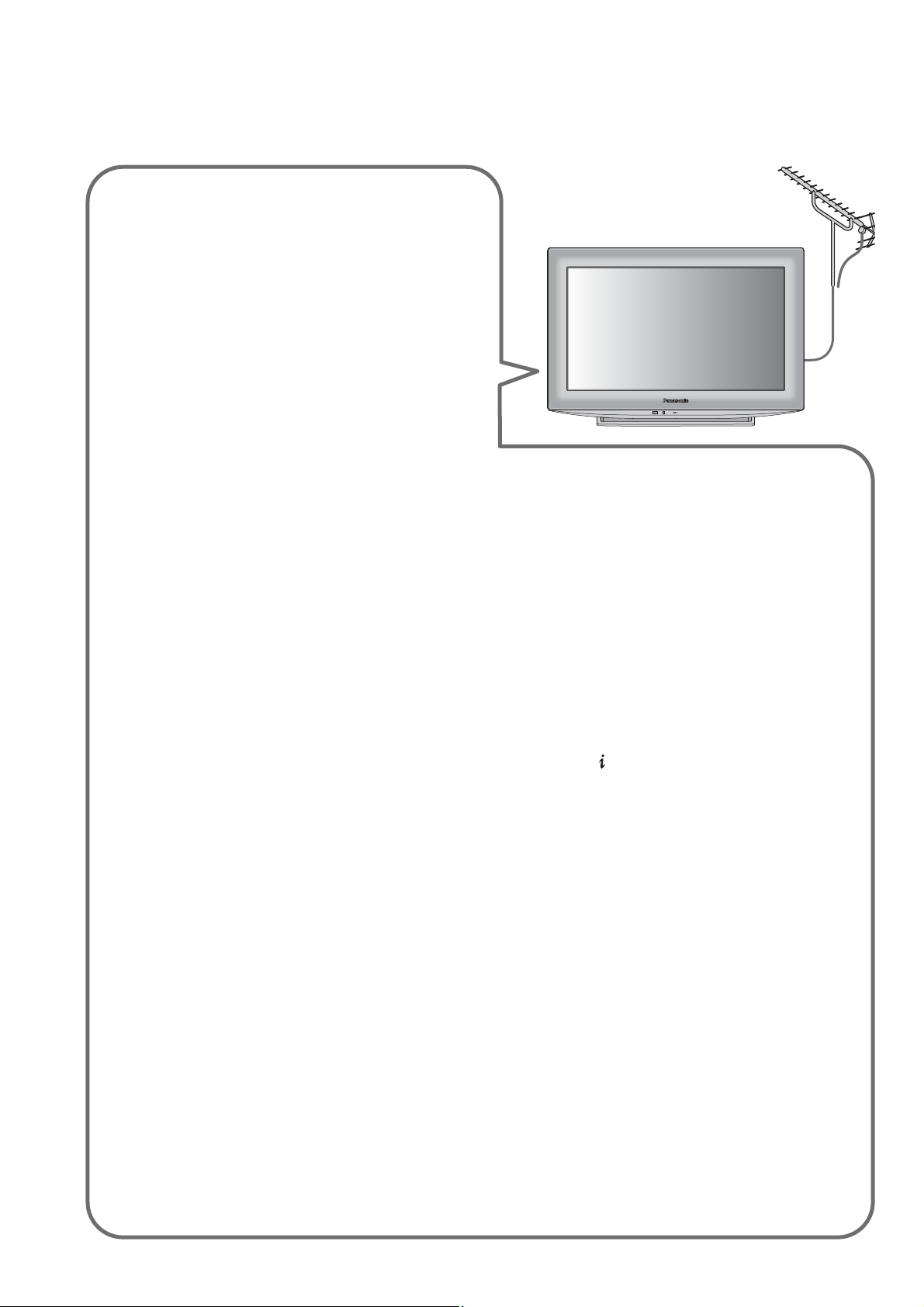

Example 1 Connecting aerial

Example 2 Connecting DVD Recorder / VCR

TV only TV, DVD Recorder or VCR

Rear of the TV Rear of the TV

AC 220-240 V 50 Hz

Mains lead

AUDIO

OUT

LRL

AUDIO IN

Terrestrial

RF cable

aerial

Mains lead

AUDIO

OUT

LRL

AUDIO IN

Terrestrial

aerial

AC 220-240 V 50 Hz

Aerial input terminal

Note

Connect to the TV”s AV2 for a DVD Recorder / VCR supporting Q-Link (p. 62).  Connect to the TV”s AV1 for a Satellite Receiver.  For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2) by using HDMI cable  (p. 68 and p. 69). Q-Link connection

 p. 60

VIERA Link connection  p. 60 and p. 61 Please also read the manual of the equipment being connected.



Fully wired SCART cable

DVD Recorder or VCR

Aerial input terminal

RF OUT

RF IN

RF cable

Page 11

Example 3 Connecting DVD Recorder / VCR and Satellite receiver

TV, DVD Recorder / VCR and Satellite receiver

Rear of the TV

AC 220-240 V 50 Hz

Mains lead

(

ARC

)

DIGITAL

AUDIO

OUT

AUDIO

OUT

LRL

AUDIO IN

RF cable

Quick Start Guide

Terrestrial

aerial

Basic Connection 

Fully wired HDMI compliant cable

Fully wired SCART cable

Aerial input terminal

DVD Recorder or VCR

Fully wired SCART cable

Satellite receiver

RF OUT

RF IN

RF OUT

RF IN

RF cable

Page 12

Auto Setup

Search and store TV channels automatically.

These steps are not necessary if the setup has been completed by your local dealer.  Please complete connections (p. 10 and p. 11) and settings (if necessary) of the connected equipment before  starting Auto Setup. For details of settings for the connected equipment, read the appropriate manual.

Plug the TV into mains socket and switch On

(Takes a few seconds to be displayed)

If the red LED shows on the TV, press the  Standby On / Off switch on the remote control for at least 1 second to turn the TV On.

Auto Setup - DVB and Analogue

DVB Scan CH 21 68 Analogue Scan

This will take about 6 minutes.

CH Channel Name Type Quality

CBBC Channel Free TV 10 62 BBC Radio Wales Free TV 10 62 E4 Free TV 10 62 Cartoon Nwk Free TV 10 29 Analogue

BBC1 Analogue

Free TV: 8 Pay TV: 0 Radio: 0 Data: 0 Analogue: 2

CH 21 68

Searching

Auto Setup will start to search for TV channels and store them in the numbered order as specified by the broadcasters.

Actual number of channels may differ due  to channel duplication.

ghi

EXIT

RETURN

abc def

jkl

mno

tuvpqrs

wxyz

BACK/

Sending Preset Data

Please wait!

0% 100%

Remote control unavailable

Input Owner ID

Owner ID

Please enter new PIN

PIN * * * *

Select “Home”

Please select your viewing environment.

Home Shop

If Q-Link, or similar technology (p. 56), compatible recorder with analogue tuner is connected, analogue channel setting is automatically downloaded to the recorder. (Digital channel setting is not downloaded.)

If downloading has failed, you can download



later through the Setup Menu.

“Q-Link Download” (p. 30)

Please enter your own choice of PIN number, name, etc. (p. 13) to help the police to crack crime.

Make a note of the PIN number in case you



forget it. The PIN number cannot be reset. You can input or change the Owner ID later. 

“Owner ID” (p. 47)

To skip this step 

EXIT

This step will be skipped in the Auto  Setup after “Shipping Condition” (p. 46) is performed.

select

set

Select “Home” viewing environment (highlight “Home” in yellow) to use in your home environment.

Auto Setup is now complete and your TV is ready for viewing.

To check channel list at-a-glance 

“Using TV Guide” (p. 18)

To edit or hide (skip) channels 

“Tuning and Editing Channels” (p. 38 - 41)

If tuning has failed, check the connection of  the RF cable, and then, follow the on screen instructions.

Page 13

How to input Owner ID 

Enter the PIN number (4 digits)

Owner ID

Please enter new PIN

PIN * * * *

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Enter the PIN number twice at first setting. 

Enter your name, house number, and postcode, in that order

Select the item (NAME / HOUSE NO / POSTCODE)

Owner ID-Data Entry

NAME

HOUSE NO POSTCODE



Set characters one by one

User input

NAME

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T 7 8 9 ! : # o p q r s t

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

Return to select other items

RETURN

BACK/

access

select

set

You can set characters by using numeric  buttons.

“Characters table for numeric buttons” (p. 71)

Select the next item and repeat the operations. 

Quick Start Guide

Auto Setup 

Exit to go to next step

EXIT

“Shop” viewing environment (for shop display only) 

“Shop” viewing environment is the demonstration mode to explain main features of this TV.

Select “Home” viewing environment to use in your home environment.

You can return to viewing environment selection screen at the stage of Shop confirmation screen and  Automatic Demo Off / On selection screen.

Return to viewing environment selection screen

Shop

You have selected shop mode

Automatic Demo

Off On

BACK/

RETURN

Select “Home”

Please select your viewing environment.

Home Shop

select set

Auto Setup is complete

To change viewing environment later on, you will need to initialise all settings by accessing  Shipping Condition.

“Shipping Condition” (p. 46)

Note

If tuning has failed or to retune all channels  “Auto Setup” (p. 36 and p. 37) To re-initialise all settings  “Shipping Condition” (p. 46) If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On  with Mains power On / Off switch.

Page 14

Watching TV

Turn power on

(Press for about 1 second)

Select DVB or Analogue

ASPECT

INPUT

EXIT

Mains power On / Off switch should be On. (p. 8) 

Also possible by pressing the TV button on the top panel of the  TV. (p. 9)

OPTION

STTL

ghi

HOLD

abc def

jkl

mno

tuvpqrs

wxyz

LAST VIEW

Volume

Note

To watch pay-TV 

“Using Common Interface”

(p. 48)

1 BBC ONE WALES

Coronation Street 19:30 - 20:00

All DVB Channels

19:35

For info press

Now

Select a channel

ghi

down

Information banner appears whenever you select a channel

For details

 p. 15

abc def

jkl

tuvpqrs

mno

wxyz

DVB channel position numbers run from 1 onwards. Analogue channel position numbers run in the ranges 0 - 99.

To select a two or three-digit channel



position number, e.g. 399

wxyz

def

wxyz

Select a channel using Information banner  (p. 15)

It is possible to confirm the channel name and programme information by using the Information banner before changing channels.

Display Information banner if it is not displayed

While the banner is displayed, select the channel

select channel

watch

Possible to set display timeout in  “Banner Display Timeout” (p. 31).

Select a channel using TV Guide  (p. 18)

It is possible to confirm the channel and programme information by using the TV Guide (EPG) before changing channels.

Display TV Guide

Select a current programme or channel

select

access

Select “View” (DVB mode)

Eastender 19:30- 20:00

View

Timer Programming

To use Timer Programming  p. 19

select

watch

Page 15

Other useful functions



Hold

Freeze / unfreeze picture

Display Information banner

Also appears when changing a channel 

Channel position and name

Example (DVB):

1 BBC ONE Wales

Programme

Programme Start / Finish time

Example (Analogue):

3 ITV

itv1 CH23

Mute

Encrypted

Channel number

To confirm another tuned  channel name

To watch the channel listed in the banner 

Information on the next programme 

(DVB)

EXIT

To hide 

Extra information  (DVB)

To set display timeout



“Banner Display Timeout” (p. 31)

Coronation Street 19:30 - 20:00

Mute

Progress time indicator of the selected programme

All Analogue Channels

Radio

19:35

SubtitlesAD

(press again to hide the

banner)

Encrypted

For info press

NICAMTEXT 45

HOLD

“All DVB Channels” or “Favourites1-4” (p. 39)

Channel type (if it is Radio or Data channel)

Current time

19:35Radio

Now

STTLAD TEXT Multi Audio 45

Features available / Message meanings

Mute

Sound mute On

Bad signal

Poor TV signal quality

Encrypted

Scrambled programme

Audio Description service available

This function can aid visually-impaired viewers by



adding an additional audio track to describe events on screen.

For settings

 p. 29

STTL

Subtitle service available

TEXT

Teletext service available

Multi Audio

Multiple audio available

Stereo, Mono, NICAM

Audio mode

1 - 90

Off Timer remaining time

For settings

 p. 17

To switch 

blue

All DVB Channels

Select favourites

For info press

Basic

Watching TV 

“AD”, “STTL”, “TEXT”, “Multi Audio” indications are displayed as  available on particular programmes, but may not be available for all individual programmes being broadcast. Display the extra information to confirm availability of these functions.

Example:

1 BBC ONE Wales

Coronation Street 19:30 - 20:00

[AD]

Now

All DVB Channels

19:35

Select favourites

Exit info

Page 16

Watching TV

Other useful functions



Display subtitles

DVB mode 

Display / hide subtitles (if available)

To change the language for DVB (if available) 

“Preferred Subtitles” (p. 31)

Analogue mode 

Display subtitles

To hide subtitles 

Note

This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service). (p. 23)  You cannot change the channel when this function is active. 

Aspect

EXIT

STTL

Change the aspect ratio (image size)

ASPECT

Enjoy viewing the image at its optimum size and aspect. Programmes usually contain an Aspect Control Signal (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the Aspect Control Signal (p. 70).

If you would like to change the aspect ratio manually 

Display Aspect Selection list While the list is displayed, select the mode

ASPECT

Aspect Selection list

To change the mode using the ASPECT button only 

ASPECT

(Press repeatedly until you reach the desired mode)

Auto

16:9 Zoom1

The best ratio is chosen and the image expanded to fill the screen. For details

Directly displays the image at 16:9 without distortion (anamorphic).

Aspect Selection

Auto

16:9 14:9 4:3 Zoom1 Zoom2 Zoom3

Select

Change

EXIT

RETURN

p. 70

store

select

Displays a 16:9 letterbox or 4:3 image without distortion.

14:9 Zoom2

Displays the image at the standard 14:9 without distortion.

4:3 Zoom3

Displays the image at the standard 4:3 without distortion.

Note

Only “16:9” and “4:3” are available in PC input mode.  Aspect is fixed to “16:9” when “Viewing Mode” is set to “Game” in the Picture Menu.  Not available when the subtitle function is active.  Not available in teletext service.  Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals. 

Displays a 16:9 letterbox (anamorphic) image full-screen without distortion.

Displays a 2.35:1 letterbox (anamorphic) image full-screen without distortion. At 16:9, displays the image at its maximum (with slight enlargement).

Page 17

Other useful functions



Display the selectable settings for the current programme

Check or change the current

OPTION

programme status instantly

Multi Audio (DVB mode)

Allows you to select between alternative language for sound tracks (if available)

This setting is not memorized and it will return to the  default setting once you exit the current programme.

Monaural Audio (DVB mode) Allows you to select stereo / monaural (if available)

Subtitle Language (DVB mode) Allows you to select the language in which subtitles should appear (if available)

Note

Also possible to change the settings in Menu list (p. 28 - 32). 

Last view

Switch to previously viewed channel or input mode easily

LAST VIEW

To change 

change select

NICAM (Analogue mode) Switches NICAM sound (if available)

Sound Menu (p. 29)

Volume Correction

Adjusts volume of individual channel or input mode

Audio Description (DVB mode) Set to “Auto” if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen

To adjust the volume for Audio Description



“Audio Description Menu” (p. 29)

Press again to return to the present view. 

Basic

Note

Switching channel is not available while Ext Rec. of Timer Programming or Direct TV Recording is in progress.  Watching less than 10 sec. is not regarded as the previously viewed channel or input mode. 

Off Timer

Turn the TV off automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)

Display the menu Select “Setup” Select “Off Timer” and set the time

Main Menu


Sound

Setup

access

select

To cancel  Set to “Off” or turn the TV off. To display the remaining time

 Information banner (p. 15)

Note

When the remaining time is within 3 minutes, the remaining time will flash on the screen. 

Setup Menu

Timer Programming

Off Timer Off

Link Settings Child Lock DVB Tuning Menu Display Settings System Menu Other Settings

Watching TV 

set select

Page 18

Using TV Guide

TV GuideElectronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).

This TV supports the GUIDE Plus+ system.  The Gemstar branding partner will supply the rating informations in the programme information and the  recommended group in the Search list. DVB and Analogue channels are displayed on the same TV Guide screen. “D” means DVB channel and “A”  means Analogue channel. There will be no programme listings for Analogue channels. When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time  before the TV Guide is completely shown.

Select DVB or Analogue

OPTION

INPUT

EXIT

BACK/

RETURN

1 2

View TV Guide

TV Guide time

D: DVB A: Analogue

Example:

Wed 28 Oct 2009 10:46

Timer Programming

-24 hours +24 hours Search Category

Current date and time

TV Guide date

Wed 28 Oct

1 BBC ONE 20:00 - 20:30 DIY SOS : We open in the Battersbys

105

719

D Rugby 15 To 1 Sports

Select channel

19:30

Time: 20:00 20:30 21:00

Eastender

BBC ONE BBC THREE

Hot Wars Holiday Program

Emmerdal. Coronation Street The Bill

BBC FOUR

10 O’ clock News BBC Pepsi Char. Good bye

BBC 2W

Panorama Spring watch Coast

BBCi

I’m A Celebrity Pop Idol News

BBC Radi

EXIT Select programme RETURN

Programme

TV Guide

Search All Channels

DIY SOS Holiday News

Info

GUIDE

RETURN

OPTION

Select Advert

Logo of the Gemstar branding partner

Channel position

Page up

Page down

and name

To return to TV 

EXIT

To view a 

channel list of the selected category

blue

To search 

programme types and view a channel list of the searched programmes

(DVB mode)

yellow

To watch the programme 

Select a current programme or channel

select

access

Category

All Channels

All DVB Channels

All Analogue Channels

Free DVB Channels

TV/Data DVB Channels

Favourites1

Favourites2

Favourites3

Favourites4

Search Titles...

Movie

News and Factual

Entertainment

Sport

Children’s

. . .

(Category list)

Only Analogue channels are listed

To list favourite channels  p. 39

(Search list)

Select “View” (DVB mode)

Eastender 19:30- 20:00

View

To use Timer Programming  p. 19

select category

view

select type

view

Timer Programming

select

watch

To the previous day 

(DVB mode)

red

To the next day 

(DVB mode)

green

To search 

programme titles and view a list of the searched programmes

(DVB mode)

yellow

All the programme titles including the word you set will be listed.  Searching without any characters will list all programmes including current programmes. 

Search Titles...

Movie

News and Factual

Entertainment

Sport

Children’s

. . . .

(Search list)

select

“Search Titles...”

access

Set characters one by one

(maximum: 19 characters)

select

set

You can set characters by using numeric buttons.

“Characters table for numeric

buttons” (p. 71)

green

Page 19

Other useful functions



Timer Programming (DVB mode)

Timer Programming can remind you to watch a programme or record one on an external recorder.

Select the forthcoming programme

select

set

Select the function (Reminder or Ext Rec.)

Timer Programming Wed 28 Oct 2009 10:46

Ext Rec.

Channel NameFunction No.

1D BBC ONE

DIY SOS

--- --/-- --:-- --:--

---

--- --/-- --:-- --:--

---

--- --/-- --:-- --:--

Date Start End

Wed 28 Oct 20:00 20: 30

Guide

--/-- --:-- --:--

(30 min.)

(--- min.)

(Timer Programming screen)

Ext Rec. : to record the programme to the recorder

When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2 mins. before the starting time, a reminder message appears if you are watching TV.

Reminder

: to remind you to watch the programme

When you are watching TV, a reminder message appears 2 mins. before the start time. Press the OK button to switch to the programmed channel.

store

select

LED will turn to orange if Timer Programming is set. (Orange LED will flash if Ext Rec. of Timer Programming is in progress.)

LED

To check / change / cancel a timer programming event  “Timer Programming” (p. 43) To return to TV Guide 

BACK/

RETURN

If you select a current programme 

A confirmation screen asking whether you wish to watch or record the programme will appear. Select “Timer Programming” and set “Ext Rec.” to record from the time you finish programming the timer event setting.

Eastender 19:30- 20:00

View

Timer Programming

select access

Note

This function is not available in Analogue mode.  Timer Programming can store up to 15 events.  Timer Programming reminder messages will remain displayed until one of the following occurs: 

You press the OK button to view the programme or the EXIT button to cancel the reminder.• The timer programming event that the reminder is set for ends.•

No other channel can be selected while Ext Rec. of Timer Programming is in progress.



When recording programmes, be sure to make the proper settings on the recorder connected to the TV.  If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 62) and the “Link Settings” (p. 30) are completed, no setting of the recorder is required. Also read the manual of the recorder.

Guide link programming (Timer Programming from the TV Guide signal)

Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme start and end times are changed by the broadcaster, the timer programming event will follow the change. A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes. Note that Guide link programming (including Split Programme programming) only works reliably if correct information is received from broadcasters.

Timer Programming

Function Channel Name

Ext Rec.

Reminder

Ext Rec.

---

No.

1D Wed 28 Oct 20:00 20:30

BBC ONE DIY SOS

14DE4

The Bill

72D BBC 2W

<TIMER>

D BBC ONE

Red Cap

---

Wed 28 Oct 2009 10:46

Date Start End

Guide

Wed 28 Oct 21:00 22:30

Guide

Wed 28 Oct 22:45 23:00

Thu 29 Oct 10:3 0 11:30

S/P

(30 min.)

(90 min.)

(15 min.)

(60 min.)

--/-- --:-- --:-(--- min.)

(Timer Programming screen)

“Guide” is displayed if the timer is set from the TV Guide (Guide link programming)

“S/P” is displayed if the timer is set from the TV Guide and the programme is a Split Programme

“ ” or “ ” will be displayed in the TV Guide if Timer Programming is set as the Guide link programming.

Wed 28 Oct 2009 10:46

Wed 28 Oct

1 BBC ONE 20:00 - 20:30 DIY SOS : We open in the Battersbys

BBC ONE BBC THREE

BBC FOUR

BBC 2W

105

BBCi

719

BBC Radi

D Rugby 15 To 1 Sports

TV Guide

Search All Channels

Time:

19:30 20:00 20:30 21:00

Eastender DIY SOS Holiday News

Hot Wars Holiday Program

Emmerdal. Coronation Street The Bill

10 O’ clock News BBC Pepsi Char. Good bye

Panorama Spring watch Coast

I’m A Celebrity Pop Idol News

Basic

Using TV Guide 

Note

If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no  longer follow the broadcaster’s changes to the start or end time. The start and end times will become fixed. Whilst making the Split Programme programming event for Ext Rec., you cannot record any channels



between the interrupted programmes. The Split Programme programming event for Reminder will be cleared by pressing the OK button once to  view. The Split Programme programming event for Reminder will switch to the programmed channel by pressing  the OK button even if it is between the interrupted programmes. The Split Programme programming does not work if the separated parts are broadcast on different channels.



Page 20

Using TV Guide

Other useful functions



View details of the programme (DVB mode)

Wed 28 Oct 2009 DIY SOS BBC ONE 20:00 - 20:30, 30 min.

EXIT

RETURN

TV Guide

Details

Return to list

Select the programme View details

select

Wed 28 Oct 2009 10:46

Timer Programming

Press again to return to TV Guide. 

View advertisement

Enter your postcode when using this function for the first time

“Postcode” in “GUIDE Plus+ Settings” (p. 32) If you have already entered your postcode in “Auto Setup” - when first using the TV (p. 12), you do not have to enter it again. If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be displayed correctly.

Display advertisement information

OPTION

To display the latest advertisement, you will need to update the information.  To update the information continuously, the TV must be left in Standby mode at night.

To change advertisements 

BACK/

RETURN

To return to TV Guide 

OPTION

Note

Some advertisements are for future programmes.  In this case it is possible to use the Guide link programming function (p. 19). The advertisements displayed on the TV Guide are sent from the GUIDE Plus+ system so that they cannot  be deleted manually or will not be lost even when the TV is turned Off with Mains power On / Off switch.

Page 21

Viewing Teletext

You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)

The availability of teletext services for a programme is indicated by “TEXT” in the information banner. 

1 BBC ONE Wales

Coronation Street 19:30 - 20:00

All DVB Channels

19:35

Select favourites

TEXT

For info press

Now

Information banner (p. 15)

Displayed if programme has teletext service

Digital teletext (MHEG)

Digital teletext services

Digital teletext services differ greatly from analogue teletext. When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and controlled in a manner decided by the broadcaster.

Select DVB

DVB programmes have digital teletext services (MHEG). 

17:51 28 Feb

TEXT

ghi

INPUT

abc def

jkl

mno

Switch to Teletext

TEXT

How to use

In all cases, it is possible to navigate the pages using buttons on the remote control, but because the commands available must apply to all manufacturers of digital equipment, some on screen commands may not correspond exactly to the remote control buttons.

For example:

When “select” or “go” is displayed 

Basic

Viewing Teletext 

Using TV Guide 

tuvpqrs

wxyz

When “”, “”, “”, “” symbol is displayed 

When the key words are displayed on colour bar 

abc def

jkl

When options with numbers are displayed 

TEXT

ghi

tuvpqrs

red green yellow blue

mno

wxyz

To return to TV 

Note

As soon as you switch to a digital channel with links to a teletext service,  software is downloaded in the background to enable the teletext function. This means that when switching to a digital channel, you should wait for approximately 5 seconds before pressing the TEXT button - this will allow the software to download. If you press the TEXT button before download is complete, it will be ignored and you will have to press the TEXT button again when the download is complete. While navigating digital teletext, you will find there is a short delay when



moving between pages while the page downloads. There is often a prompt shown somewhere on the page (for example “Loading”) to let you know that this is happening.

Page 22

Viewing Teletext

Analogue teletext

Analogue teletext services

Analogue teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters.

What is FASTEXT mode?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 23)

To change mode  “Teletext” in the Setup Menu (p. 31)

TEXT STTL

ghi

INPUT

EXIT

INDEX HOLD

abc def

jkl

mno

tuvpqrs

wxyz

Select Analogue

Switch to Teletext

TEXT

Displays the  index page (content varies depending on the broadcasters)

Select the page

abc def

jkl

ghi

mno

tuvpqrs

To adjust contrast 

To return to TV 

wxyz

EXIT

down

(press twice)

Current page number

Sub page number

<< 01 02 03 04 05 06 07 >>

17:51 28 Feb

TELETEXT

INFORMATION

Colour bar

green

red

(Corresponds to the colour bar)

As the blue bar is displayed

yellow blue

Time / date

Reveal hidden data

Reveal hidden words e.g. quiz page answers

red

To rehide 

red

FULL / TOP / BOTTOM

(TOP) (BOTTOM) Normal (FULL)

green

(Expand the TOP half) (Expand the BOTTOM half)

HOLD

Stop automatic updating

(If you wish to hold the current page without updating)

HOLD

To resume 

HOLD

Page 23

INDEX

Return to the main index page

INDEX

Subtitles

View a favourite page stored

STTL

Factory setting is “P888” (subtitle service) on  the blue button (List mode).

View in multi window

Watch TV and Teletext in two windows at once

TEXT

Operations can be made only in Teletext screen.  Each time pressed: Teletext  TV and Teletext

Store frequently viewed pages

Store frequently viewed pages in the colour bar

As page is displayed

To change stored pages 

Coloured button you want to change

Corresponding coloured button

Enter new page number

press and hold

abc def

jkl

ghi

tuvpqrs

The number changes to white.

press

mno

wxyz

and hold

View sub page

View sub page (Only when teletext is more than one page)

Appears at top of the screen

To view specific sub page 

blue

Sub pages:  The number of sub pages varies depending on the broadcasters (up to 79 pages). It may take some time for searching, during which time you can watch TV.

Enter the 4-digit number

example: P6

mno

(List mode only)

If you wish to use Subtitles,  do not change number on blue button.

Basic

Viewing Teletext 

Watch TV while waiting for update

View the TV picture while searching for a teletext page

Teletext automatically updates itself when new information becomes available.

The news page provides a function that indicates arrival of latest news (“News Flash”). 

yellow

Changes to TV screen temporarily

P108

(You cannot change the channel.)

Appears when updating is completed

View the updated page

yellow

Page 24

Watching External inputs

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the AV input.

To connect the equipment  p. 10 - p. 11 and p. 68 - p. 69

The Remote Control is capable of operating some functions of selected external equipment.

Turn the TV on

INPUT

AVTV

abc def

When connecting with SCART as example 2 or 3  (p. 10 and p. 11)

Receives input signals automatically when playback starts Input signals are automatically identified by the SCART (pin 8)



terminal. T



his function is also available for HDMI connections (p. 68 and p. 69).

If input mode is not switched automatically 

Perform and Check the setup of the equipment. 

Display the Input select menu

Select the input mode connected to the equipment

Input Selection

AV1

AV2/S

AV3 COMPONENT PC HDMI1 HDMI2 TV

select

watch

jkl

ghi

REC

To return to TV 

mno

tuvpqrs

wxyz

PROGRAMME

DVD/VCR

Note

If the external equipment has an aspect adjustment function, set to “16:9”.  For details, see the manual of the equipment or ask your local dealer. 

You can also select the input using the AV button on the remote  control or the top panel of the TV. Press the button repeatedly until the desired input is selected. In order to switch between AV2 and AV2S, move the indicator by



pressing left and right cursor button. You can label or skip each input mode

 “Input Labels” (p. 45)

Skipped inputs will not be displayed when the AV button is pressed.

View

Displays the selected mode

Page 25

Screen display

Terminal

Manual input

default setting in

(

“Input Labels”

Auto input

EC mode or

(

VIERA Link

If the above information is permanently displayed on the top left of the screen, press the  button to clear.

)

AV1 AV 2 AV 3

AV1

AV1-RGB

EC/AV1

EC/AV1-RGB

AV2

AV2-S-Video

AV2-RGB

EC/AV2

EC/AV2-S-Video

EC/AV2-RGB

COMPONENT

AV3 COMPONENT PC HDMI1 HDMI2



PC HDMI1 HDMI2



EC/HDMI1

Applicable for  EC mode and VIERA Link

EC/HDMI2

Applicable for  VIERA Link

Operating the equipment with the TV remote control

The Panasonic equipment connected to the TV can be directly operated with the below buttons of this TV remote control.

Selection Switch for operating the connected equipment

Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player

DVD/VCR



How to change the code for the type of the equipment

Each type of the Panasonic equipment has its own remote control code. Please change the code according to the equipment you want to operate.

PROGRAMME

REC

Set the position to “DVD/VCR”

theatre, Blu-ray Disc theatre or VCR

“How to change the code for the type of the equipment” (see below)

Select “TV” to use Media Player, iPod or VIERA Link

“Media Player” (p. 52) “Playing an iPod on TV” (p. 56) “VIERA Link Control” (p. 66)

Standby

Set to Standby mode / Turn on

Play

Playback videocassette / DVD / video content

Stop

Stop the operations

Rewind / Skip / Search

VCR: Rewind, view the picture rapidly in reverse DVD / video content: Skip to the previous track or title

Press and hold to search backward

Fast-forward / Skip / Search

VCR: Fast-forward, view the picture rapidly forward DVD / video content: Skip to the next track or title

Press and hold to search forward

Pause

Pause / Resume DVD: Press and hold to play at slow speed

Channel Up / Down

Select channel

Record

Start recording

DVD/VCR

Basic

Watching External inputs 

Press and hold during the following operations

abc def

jkl

ghi

Enter the appropriate code, see table below

Type of the equipment Code

DVD Recorder, DVD Player 70 (default)

Player theatre, Blu-ray Disc theatre 71

VCR 72

mno

tuvpqrs

wxyz

Press

Note

Confirm if the remote control works correctly after changing the code.  The codes may be reset to default values if batteries are replaced.  Some operations may not be possible on some equipment models. 

Page 26

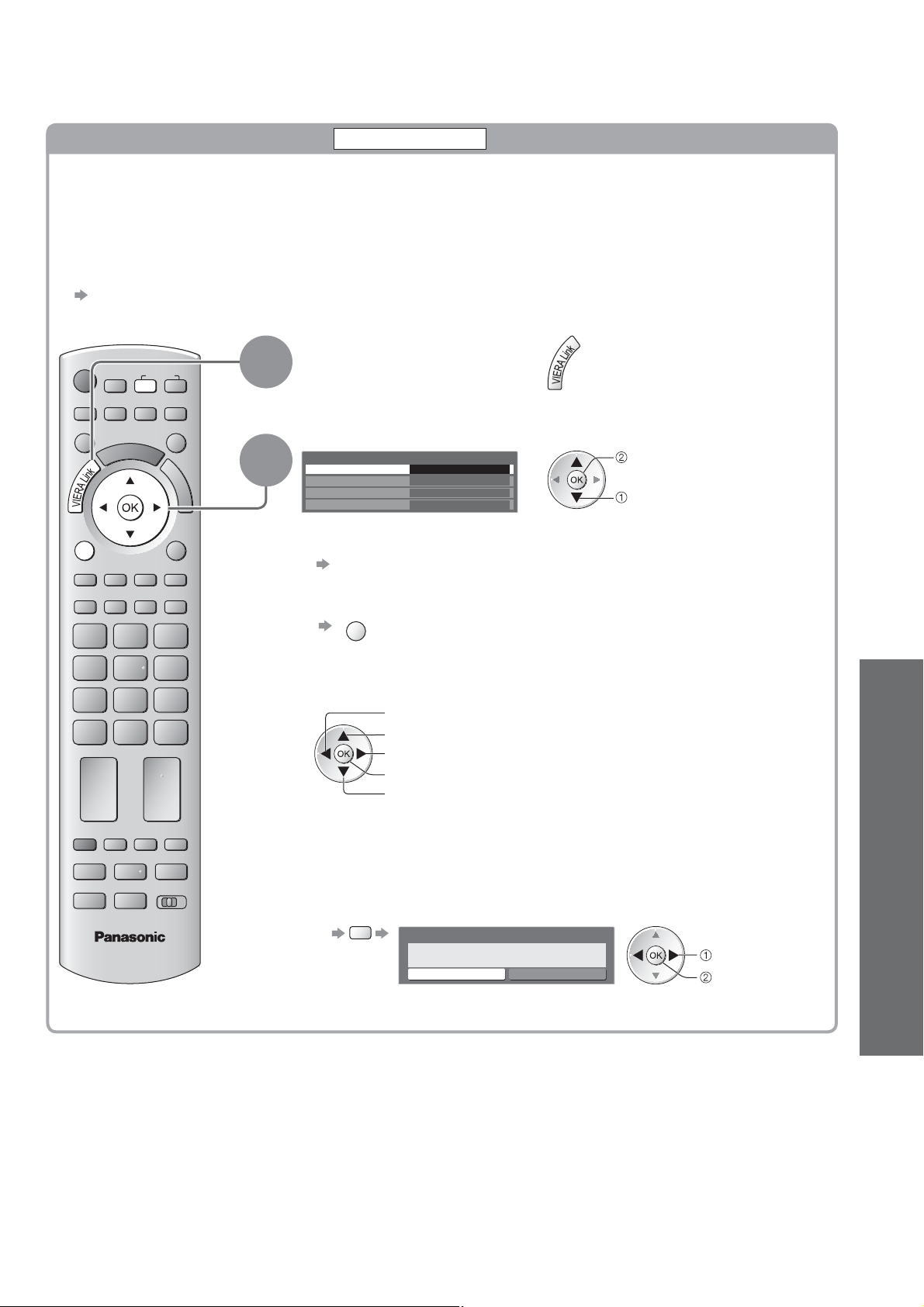

How to Use VIERA TOOLS

You can access some special features easily by using the VIERA TOOLS function.

For “VIERA Link Control” and “Pause Live TV” functions to operate correctly, ensure the connections and settings  are completed.

“Summary of Q-Link and VIERA Link features” (p. 60 and p. 61), “Preparations” (p. 63)

After connection, turn the equipment on and then switch the TV on.

For “Photo” and “Video” functions to operate correctly, ensure the SD Card has photo or video data on it and  insert it into the SD Card slot properly.

”Using Media Player” (p. 50)

Display icons of the feature

EXIT

Select a feature

select

access

To return to TV 

EXIT

VIERA Link Control

Follow the operations of each feature

VIERA Link Control  “VIERA Link Control” (p. 66)

When two or more compatible equipment are connected, a selection screen will be displayed. Please select the correct description and access.

Pause Live TV

 “Pause Live TV” (p. 65)

Photo  “Photo mode” (p. 50)

Video  “Video mode” (p. 52)

iPod  “Playing an iPod on TV” (p. 56 – p. 59)

Note

If the selected feature is not available, the demonstration to explain how to use it  can be displayed. Press the OK button to view the demonstration after selecting the unavailable feature.

Page 27

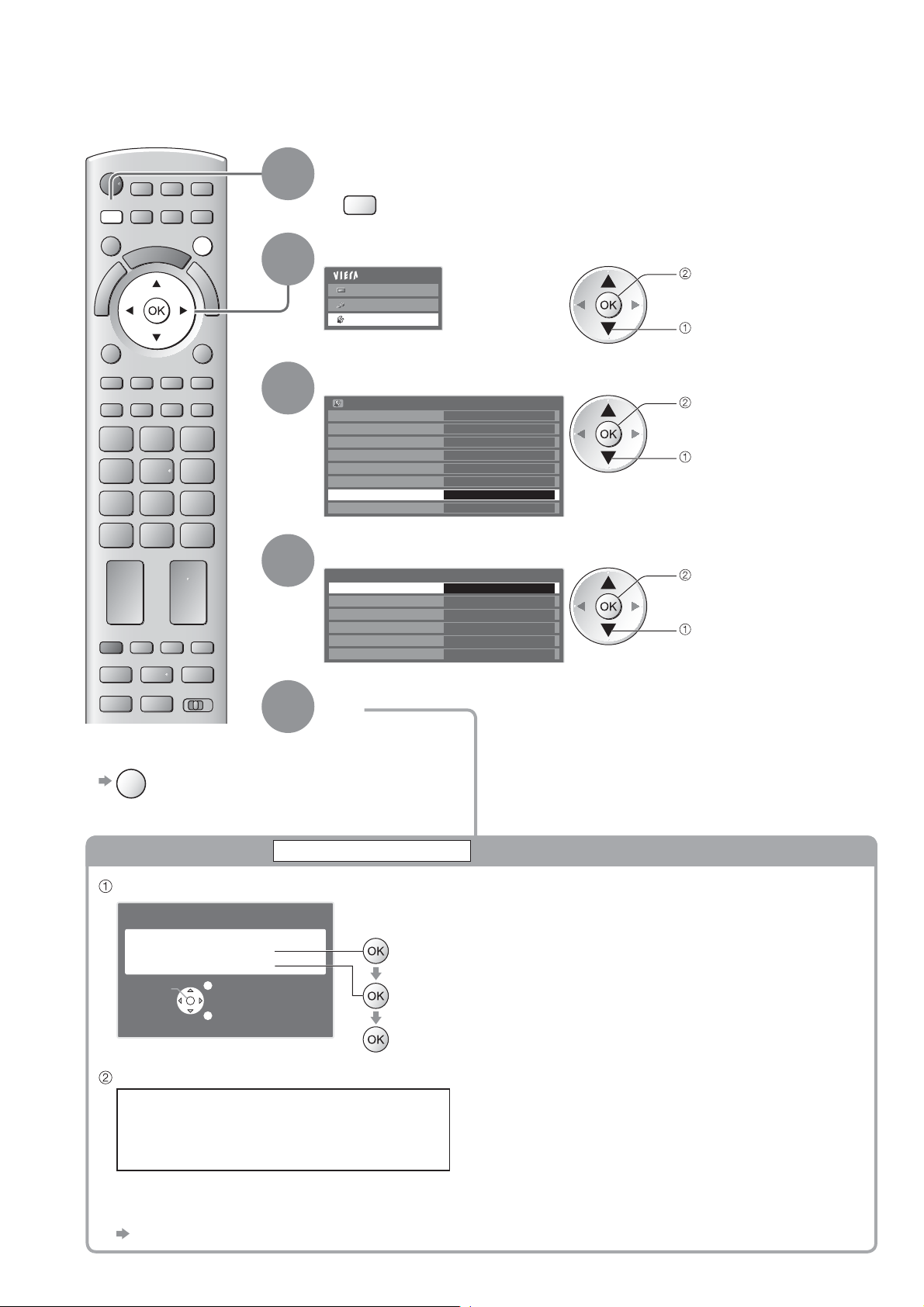

How to Use Menu Functions

Various menus allow you to make settings for the picture, sound, and other functions.

Display the menu

Displays the functions that can be set  (varies according to the input signal)

access

select

1/2

select

Warm Off Off

EXIT

BACK/

RETURN

Select the menu

Main Menu


Sound

Setup

Select the item

Example (Picture Menu):

Picture Menu

Viewing Mode Dynamic

Contrast Brightness Colour Sharpness Tint Colour Balance Vivid Colour C.A.T.S.

To return to TV 

at any time

EXIT

To return to 

the previous screen

BACK/

RETURN

Adjust or select

Example (Picture Menu):

Picture Menu

Viewing Mode Dynamic Contrast Brightness Colour Sharpness Tint Colour Balance Vivid Colour C.A.T.S.

Warm Off Off

Choose from among 

alternatives

Number and positions of alternatives

Colour Balance

Normal

Changed

Adjust using the slide bar 

Sharpness

Moved

Go to the next screen 

Child Lock Access

Displays the next screen

1/2



To reset the settings

To reset the picture settings only 

“Reset to Defaults” in the

Picture Menu (p. 28)

To reset the sound settings only 

“Reset to Defaults” in the

Sound Menu (p. 29)

To initialize all settings



“Shipping Condition” in the

Setup Menu (p. 46)

change

store or access

( Required by

some functions)

Basic

How to Use Menu Functions 

How to Use VIERA TOOLS 

To change 

menu pages

down

Enter characters by free input menu 

You can enter names or numbers freely for some items.

User input

Name

A B C D E F G H I J K L M N

U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T 7 8 9 ! : # o p q r s t

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

You can set characters by using numeric buttons. 

“Characters table for numeric buttons” (p. 71)

Set characters one by one Store

select

set

BACK/

RETURN

Page 28

How to Use Menu Functions

Menu list 

Item Adjustments / Configurations (alternatives)

Viewing Mode

Contrast, Brightness, Colour, Sharpness

Basic picture mode (Dynamic / Normal / Cinema / True Cinema / Game) In each Viewing Mode, Contrast, Brightness, Colour, Sharpness, Tint, Colour Balance, Vivid Colour, C.A.T.S., P-NR and 3D-COMB can be adjusted and stored to suit your particular viewing requirement.

Set for each input signal.



Dynamic : Provides enhanced picture contrast and sharpness when viewing in a

bright room.

Normal : Recommended for viewing under normal ambient room lighting

conditions.

Cinema : For watching movies in a darkened room with the improved performance

of contrast, black and colour reproduction True Cinema : Game : Fast response signal specifically to provide suitable images for playing

Increases or decreases the levels of these options according to your personal preference

Precisely reproduces the original quality of the image without any revision.

games

Not valid on TV mode



A continuous record of time spent using Game mode can be displayed  in the top right of the screen.

“Playing Time Display” (p. 31)

Tint


Colour Balance

Vivid Colour

C.A.T.S.

P-NR

3D-COMB

With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit your taste

For NTSC signal reception only



Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)

Not valid when “Viewing Mode” is set to “True Cinema”



Automatically adjusts colours to vivid ones (Off / On)

Not valid on PC signal



Contrast Automatic Tracking System (Automatic Brightness Control function) Adjusts picture settings automatically dependent on ambient lighting conditions

(Off / On)

Picture Noise Reduction Automatically reduces unwanted picture noise and flicker noise in the contoured parts of a picture (Off / Min / Mid / Max)

Not valid on PC signal



Makes still or slow moving pictures look more vivid (Off / On)

Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen.



Set to “On” to display sharper and more accurate colours. Not valid on RGB, S-Video, Component, PC, HDMI and SD Card inputs



Picture Display

Reset to Defaults

Turns the screen off when you select “Off” (Off / On)

The sound is active even if the screen turns off.



Press any button (except Standby) to turn the screen on.  This function is effective in reducing power consumption when listening to the sound  without watching the TV screen.

Press the OK button to reset the present Picture Viewing Mode to the default settings

Page 29

Mode

Item Adjustments / Configurations (alternatives)

Selects the basic sound mode (Music / Speech / User)

The selected mode affects all input signals.



Music: Improves sound quality for watching music videos, etc. Speech: Improves sound quality for watching news, drama, etc.

In Music and Speech modes, you can adjust “Bass” and “Treble” settings, and those



settings will be stored for each mode.

User: Adjusts the sounds manually by using the equalizer to suit your favourite sound quality.

For the User mode, “Equalizer” will appear on the Sound Menu instead of “Bass” and  “Treble”. Select the “Equalizer” and adjust the frequency. “Equalizer” (below)

Bass

Treble

Equalizer

Balance

Headphone Volume

Surround

Sound

Volume Correction

Speaker Distance to Wall

Preferred Multi Audio

Increases or decreases level to enhance or minimise lower, deeper sound output

Increases or decreases level to enhance or minimise sharper, higher sound output

Adjusts the frequency level to suit your favourite sound quality

This function is available when “Mode” is set to “User”.



Select the frequency and change the frequency level by using the cursor button.  If you want to enhance the bass sound, raise the level of the lower frequency. If you  want to enhance the treble sound, raise the level of the higher frequency. To reset the levels of each frequency to the default settings, select the “Reset to



Defaults” by using cursor button, and then press the OK button.

Adjusts volume level of right and left speakers

Adjusts the volume of the headphones

Surround sound settings (Off / V-Audio / V-Audio Surround) V-Audio: Provides a dynamic enhancer of width to simulate improved spatial effects V-Audio Surround: Provides a dynamic enhancer of width and depth to simulate

Adjusts the volume of individual channel or input mode

Adjusts the low frequency sound (Over 30cm / Up to 30cm)

If the gap between the TV and wall is over 30 cm, “Over 30cm” is recommended.



If the gap between the TV and wall is within 30 cm, “Up to 30cm” is recommended. 

Selects the preferred language for digital channel multi audio (depending on the broadcaster) (English / Welsh / Gaelic)

improved spatial effects

Basic

How to Use Menu Functions 

NICAM

HDMI1 / 2 Input

Audio Description Menu

Audio Description

Volume

Speakers

Headphones

Reset to Defaults

A different menu will be displayed while SD Card or PC is used. (p. 50 - p. 53 and p. 54 - p. 55)  Only available items can be selected. 

Near Instantaneous Companded Audio Multiplex Reproduces NICAM stereo sound (Off / On)

Off if reception is poor (FM monaural sound)



Analogue mode only 

Select to fit the input signal (Digital / Analogue) (p. 72) Digital : When sound is carried via the HDMI cable connection Analogue : When sound is not carried via the HDMI cable connection

HDMI input mode only



Useful for visually-impaired viewers(Off / Auto)

Set to “Auto” to activate the description sound track if available

The availability of audio description sound track is indicated by “AD” in the information



banner (p. 15). DVB mode only



Adjusts the volume for Audio Description

DVB mode only



Set to “On” to activate the description sound track from TV speakers (Off / On)

DVB mode only



Set to “On” to activate the description sound track from headphones (Off / On)

DVB mode only



Press the OK button to reset the present Sound Mode, Balance, Headphone Volume and Surround to the default settings

Page 30

How to Use Menu Functions

Item Adjustments / Configurations (alternatives)

Timer Programming

Off Timer

VIERA Link

Q-Link

Link Settings

AV1 / AV2 out

Standby Power Save

Intelligent Auto Standby

Sets a timer to remind watching or record forthcoming programmes (p. 42)

Sets the time until the TV automatically goes to Standby mode (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes) (p. 17)

Sets to use VIERA Link functions (Off / On) (p. 63)

Selects which AV terminal is to be used for data communication between this TV and a compatible recorder (AV1 / AV2) (p. 62)

Select the connected terminal to the recorder even it is not compatible with Q-Link.



Chooses the signal to be transmitted from the TV to Q-Link

(TV / AV1 / AV2 / AV3 / Monitor)

Monitor: Image displayed on screen



Component, PC and HDMI signals cannot be outputted. 

Controls the power consumption in Standby mode of the connected equipment to reduce the consumption (Off / On) (p. 64)

This function is available when “VIERA Link” is set to “On”.



Makes non-watched or non-used connected equipment go into Standby mode to reduce the power consumption (Off / On (With reminder) / On (No reminder)) (p. 64)

This function is available when “VIERA Link” is set to “On”.



Setup

Child Lock

DVB Tuning Menu

Analogue Tuning Menu

Q-Link Download

Favourites Edit

Channel List

Auto Setup

Channel Sorting by Region

Manual Tuning

Update Channel List

New Channel Message

Signal Condition

Downloads analogue channel information to a Q-Link compatible equipment connected to the TV

Locks a channel / AV input to prevent access to it (p. 44)

Creates list of favourite DVB channels (p. 39)

Skips the unwanted DVB channels or edits DVB channels (p. 39)

Automatically sets the DVB channels received in the area (p. 36)

Automatically sorts tuned channels according to the available region (p. 38)

Sets the DVB channels manually (p. 38)

Updates DVB Channel List while keeping your settings (p. 40)

Selects whether to give a notification message when a new DVB channel is found (Off / On) (p. 40)

Checks the DVB signal condition (p. 40)

Channel List

Auto Setup

Manual Tuning

Skips the unwanted Analogue channels or edits Analogue channels (p. 41)

Automatically sets the Analogue channels received in the area (p. 37)

Sets the Analogue channels manually (p. 41)

Page 31

Item Adjustments / Configurations (alternatives)

Teletext

Preferred Subtitles

Input Labels

Display Settings

Banner Display Timeout

Playing Time Display

Analogue teletext display mode (FASTEXT / List) (p. 22)

Selects the preferred language for digital channel subtitles (depending on the broadcaster) (English / Welsh / Gaelic)

To display subtitles

 p. 16

Labels or skips each input terminal (p. 45)

Sets how long the Information banner (p. 15) stays on screen

(0 (No display) / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 seconds)

Set to “On” to display a continuous record of time spent using Game mode every 30 mins (Off / On)

This function is available when “Game” is selected in “Viewing Mode” (p. 28).



Basic

Setup

System Menu

Radio Mode

Shipping Condition

Owner ID

Common Interface

System Update

Sets the timer for turning off the screen automatically when a radio channel is selected (Off / 5 / 10 / 15 / 20 seconds)

The sound is active even if the screen turns off.



Press any button (except Volume Up / Down and Sound Mute buttons) to turn  the screen on. This function is effective in reducing power consumption when listening to a



radio channel.

Resets all settings, for example, when moving house (p. 46)

Inputs the owner ID (p. 47)

Uses include to watch pay-TV (p. 48)

Downloads new software to TV (p. 49)

How to Use Menu Functions 

Software Licence

System Information

A different menu will be displayed while SD Card or PC is used. (p. 50 - p. 53 and p. 54 - p. 55)  Only available items can be selected. 

Displays the software licence information

Displays the system information of this TV

Page 32

How to Use Menu Functions

Item Adjustments / Configurations (alternatives)

GUIDE Plus+

Settings

Power on Preference

Power on Channel List

Other Settings

Postcode

System Information

Sets your postcode to display advertisements in the GUIDE Plus+ system (p. 20)

Displays the system information of the GUIDE Plus+ system

Automatically selects the input when the TV is turned on (TV / AV) Set to “TV” to view picture from TV tuner. Set to “AV” to view input from an external equipment connected to a SCART terminal, e.g. satellite receiver.

The external equipment must be switched on and sending a control signal for



automatic switching at power on to occur.

Automatically selects All Channels or Favourites list in the Information banner (p. 15) when the TV is turned on (All Channel List / Last) Set to “All Channel List” to display all the channels. Set to “Last” to display the one you selected last time.

Not available on analogue mode



Setup

Auto Standby

Power Save

16:9 Overscan

DVI Input Setting

Sets the time the TV automatically goes to Standby mode when no operation is performed for the selected times (Off / 2 / 4 hours)

Starting Timer Programming automatically does not affect this function.



Automatic input switching with the connected equipment affects this function and  time-count will be reset. The notification message will appear 3 minutes before going to Standby mode.



Reduces brightness of picture to economise on power consumption (Off / On)

Selects the screen area displaying the image (Off / On) On : Enlarges the image to hide the edge of the image. Off : Displays the image in the original size.

Set to “On” if noise is generated on the edge of the screen.



This function is available when aspect is set to Auto (16:9 signal only) or 16:9.  This function can be memorized separately for SD (Standard definition) and HD  (High definition) signals.

Changes the black level in the image for HDMI input mode with DVI input signal manually (Normal / Full)

When the DVI input signal from the external equipment, especially from PC, is



displayed, the black level may not be suitable. In this case, select “Full”. The black level for HDMI input signal will be adjusted automatically.



For HDMI input mode with DVI input signal only 

A different menu will be displayed while SD Card or PC is used. (p. 50 - p. 53 and p. 54 - p. 55)  Only available items can be selected.  If “Demo Settings” item is displayed in the Setup Menu, the TV is in “Shop” viewing environment.  To return to “Home” viewing environment initialise all settings by accessing Shipping Condition.

”Shipping Condition” (p. 46)

Page 33

Overview  (Picture, Sound)

How to operate  p. 27

Main Menu


Sound

Setup

Picture Menu

Viewing Mode Dynamic Contrast Brightness Colour Sharpness Tint Colour Balance Vivid Colour C.A.T.S.

Picture Menu

P-NR 3D-COMB Picture Display Advanced PC Settings Reset to Defaults

Sound Menu

Mode Music Bass Treble Equalizer Balance Headphone Volume

Volume Correction Speaker Distance to Wall Over 30cm Preferred Multi Audio

Sound Menu

NICAM Off HDMI1 Input Audio Description Reset to Defaults

Warm Off Off

Off Off On Access Reset

Access

OffSurround

English

Digital Access Reset

1/2

2/2

(p. 28)

1/2

2/2

(p. 29)

Available in NTSC

Not available when “Viewing Mode” is set to “True Cinema”

Available in NTSC / PAL

Available in PC

Advanced PC Settings

R-Gain G-Gain B-Gain R-Cutoff G-Cutoff B-Cutoff Gamma 2.2 Reset to Defaults Reset

(p. 54 - p. 55)

Available when “Mode” is set to “Music” or “Speech”

Available when “Mode” is set to “User”

Equalizer

Reset to Defaults

150 250 500 1k 2k 4k 8k 12k Hz

Available in DVB

Basic

How to Use Menu Functions 

Available in Analogue

Available in HDMI

Available in DVB

Audio Description Menu

Audio Description Off Volume Speakers Headphones

Off Off

(p. 29)

Page 34

How to Use Menu Functions

Overview  (Setup)

How to operate  p. 27

Main Menu


Sound

Setup

Other Settings

GUIDE Plus+ Settings Power on Preference Power on Channel List Auto Standby Off Power Save 16:9 Overscan DVI Input Setting Normal

Access TV Last

Off On

Setup Menu

PC Setup Access Timer Programming Access Off Timer Off Link Settings Child Lock DVB Tuning Menu Analogue Tuning Menu Display Settings System Menu Other Settings

(p. 32)

Available in DVB

Available in HDMI with DVI input signal

Guide Plus+ Settings Menu

Postcode System Information

Enter Postcode

Postcode

A B C D E F G H I J K L M N

U V W X Y Z 0 1 2 3 4 5 6

Access Access

Access Access Access Access Access Access Access

(p. 30 - 32)

(p. 32)

O P Q R S T

7 8 9

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

(p. 32)

Available in PC

PC Setup

Input Resolution Clock H-pos V-pos Clock Phase Sync Reset to Defaults Reset

1024 × 768

H & V

(p. 54 - p. 55)

Child Lock-PIN Entry

Please enter new PIN

PIN * * * *

Available in DVB

DVB Tuning Menu

Favourites Edit Access Channel List Auto Setup Channel Sorting by Region Manual Tuning Update Channel List New Channel Message Signal Condition

(p. 36 and p. 38 - p. 40)

DVB Signal Condition

Channel Name 70 CBBC Channel

Signal Quality Signal Strength Bit Error Rate 0.00E+00 Network Name Parameter [CH62] 802 MHz

Access Access Access Access Access On Access

0 10 010

Wenvoe

(p. 44)

(p. 40)

Display Settings

Teletext Preferred Subtitles Input Labels Banner Display Timeout Playing Time Display Radio Mode Off

FASTEXT English Access 3 seconds On

(p. 31)

Available in Analogue

Available in DVB

Input Labels

AV1 DVD AV2/S AV3 COMPONENT PC PC HDMI1 HDMI2 DVB DVB Analogue Analogue

AV2/S AV3 COMPONENT

HDMI1 HDMI2

(p. 45)

Available in Analogue

Analogue Tuning Menu

Channel List Auto Setup Manual Tuning

Access Access Access

(p. 37 and p. 40 - p. 41)

System Menu

Shipping Condition Access Owner ID Access Common Interface Access System Update Software Licence System Information

Access Access Access

(p. 31)

Page 35

Timer Programming

No.

Function Channel Name

1D Wed 28 Oct 20: 00 2 0:30

Ext Rec.

BBC ONE DIY SOS

Reminder

14DE4

The Bill

72D BBC 2W

Ext Rec.

<TIMER>

D BBC ONE

Ext Rec.

Red Cap

---

Wed 28 Oct 2009 10:46

Date Start End

Guide

Wed 28 Oct 21:00 22:30

Guide

Wed 28 Oct 22:45 23:00

Thu 29 Oct 10:30 11:30

S/P

--/-- --:-- --:--

(p. 43)

(30 min.)

(90 min.)

(15 min.)

(60 min.)

(--- min.)

Link Settings

VIERA Link On Q-Link AV2 out Standby Power Save Intelligent Auto Standby Q-Link Download

AV2 TV On On (No reminder) Access

(p. 30)

Child Lock

Change PIN Access Child Lock List Access

(p. 44)

DVB Auto Setup

Progress CH 21 68

This will take about 3 minutes.

CH Channel Name Type Quality

CBBC Channel Free TV 10 62 BBC Radio Wales Free TV 10 62 E4 Free TV 10 62 Cartoon Nwk Free TV 10

Free TV: 4 Pay TV: 0 Radio: 0 Data: 0

Searching

(p. 36)

DVB Update Channel List

Progress CH 21 68

Analogue Scan 21 68

This will take about 3 minutes.

CH Channel Name Type Quality

1/2

Sending Preset Data

Please wait!

0% 100%

Remote control unavailable

(p. 30)

Child Lock List - TV and AV

Name Input LockType

BBC 1 Wales Free TV BBC THREE DVB LockFree TV

E4 DVB LockFree TV

VCR Analogue LockAnalogue

BBC1 Analogue LockAnalogue

***** Analogue LockAnalogue AV1 External LockAV AV2/ S

DVB

External LockAV

(p. 44)

All DVB Channels

CBBC Channel

Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

BBC ONE Wales

BBC THREE

DVB Favourites Editor

(p. 39)

Channel Sorting by Region

DVB Manual Tuning

Frequency Signal Quality 0 10

Analogue Scan 21 68 Signal Strength 010

No. Channel Name Type New

474[CH21]

MHz

GBR> Best signal quality (All Regions)

England Regions>

All DVB Channels

BBC One Wales BBC THREE7 E414 CBBC Channel70 Cartoon Nwk72 BBCi105 BBC Radio Wales719 BBC Radio Cymru720

Favourites1

(p. 39)

Basic

How to Use Menu Functions 

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

Searching

(p. 40)

Analogue Manual Tuning

1 BBC1 CH33

Manual Tuning 21 68

(p. 41)

Available in DVB

Common Interface

Slot 1:

Module inserted

(p. 48)

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

Stopped

(p. 38)

Analogue Auto Setup

Scan CH 21 68

This will take about 3 minutes.

CH Channel Name

Analogue: 2

Searching

(p. 37)

Owner ID

Please enter PIN for access

PIN * * * *

(p. 47)

Region choice available

Analogue Channel List

BBC1

*****

3 4 5 6 7

Shipping Condition

All tuning data will be erased

Are you sure? Are you sure?

(p. 46)

System Update

Auto Update Search in Standby System Update Search Now Access

(p. 38)

(p. 41)

(p. 49)

Page 36

Retuning from Setup Menu

Auto Setup retunes all channels automatically.

DVB channels

Automatically retune all DVB channels received in the area.

Only DVB channels are retuned in DVB mode.  All the previous tuning settings (Favourites Edit and Channel List, etc.) are erased.  If a Child Lock PIN number (p. 44) has been set, it must be entered. 

Select DVB

Display the menu

Select “Setup”

Main Menu


Sound

Setup

access

select

INPUT

EXIT

To return to TV 

EXIT

For Auto Setup, using 

the buttons on the side panel of the TV (p. 9)

Press repeatedly until

“Auto Setup” appears

Access “Auto Setup”

Start “Auto Setup”

Select “DVB Tuning Menu”

Setup Menu

Timer Programming Off Timer Off Link Settings Child Lock

DVB Tuning Menu

Display Settings System Menu Other Settings

Access

Select “Auto Setup”

DVB Tuning Menu

Favourites Edit Channel List

Auto Setup

Channel Sorting by Region Manual Tuning Update Channel List New Channel Message Signal Condition

Access

Start Auto Setup

DVB Auto Setup

All DVB tuning data will be erased

DVB Auto Setup

Progress CH 21 68

This will take about 3 minutes.

CH Channel Name Type Quality

62 62 BBC Radio Wales Free TV 10 62 E4 Free TV 10 62 Cartoon Nwk Free TV 10

Free TV: 4 Pay TV: 0 Radio: 0 Data: 0

Settings are made automatically

access

select

access

select

CBBC Channel Free TV 10

Searching

To return to TV 

When the operation is completed, the channel at channel position “1” will be displayed.

Note

If tuning has not been done completely 

“Manual Tuning” (p. 38)

Page 37

Analogue channels

Automatically retune all Analogue channels received in the area.

Only Analogue channels are retuned in Analogue mode.  All the previous tuning settings are erased.  If a Child Lock PIN number (p. 44) has been set, it must be entered. 

Select Analogue

Display the menu

INPUT

EXIT

1 2

To return to TV 

EXIT

For Auto Setup, using 

the buttons on the side panel of the TV (p. 9)

Press repeatedly until

“Auto Setup” appears

Access “Auto Setup”

Select “Setup”

Main Menu


Sound

Setup

Select “Analogue Tuning Menu”

Setup Menu

Timer Programming Off Timer Off Link Settings Child Lock

Analogue Tuning Menu

Display Settings System Menu Other Settings

Access

Select “Auto Setup”

Analogue Tuning Menu

Channel List

Auto Setup

Manual Tuning

Access

Start Auto Setup

Analogue Auto Setup

All analogue tuning data will be erased

Analogue Auto Setup

Scan CH 21 68

This will take about 3 minutes.

CH Channel Name

29 30

access

select

access

select

access

select

Retuning from Setup Menu 

Advanced

Start “Auto Setup”

To return to TV 

Analogue: 2

Settings are made automatically

The analogue settings are downloaded to a Q-Link compatible  equipment connected to the TV in Analogue mode.

When the operation is completed, the channel at channel position “1” will be displayed.

Searching

Note

If tuning has not been done completely 

“Manual Tuning” (p. 41)

Page 38

Tuning and Editing Channels

(DVB)

You can retune channels or make your favourite channel lists, skip unwanted channels, etc.

Select DVB

1 2 3

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “DVB Tuning Menu”

Setup Menu

Timer Programming Off Timer Off Link Settings Child Lock

DVB Tuning Menu

Display Settings System Menu Other Settings

Access

access

select

access

select

ghi

INPUT

EXIT

RETURN

abc def

jkl

mno

tuvpqrs

wxyz

BACK/

Select one of the following functions

DVB Tuning Menu

Favourites Edit Access Channel List Auto Setup Channel Sorting by Region Manual Tuning Update Channel List New Channel Message Signal Condition

Access Access Access Access Access On Access

Auto Setup 

“Retuning from Setup Menu” (p. 36)

To return to TV



EXIT

Sort DVB channels according to the region

Set

Channel Sorting by Region

You can sort DVB channels so that those with the best signal quality, or those for your preferred region, appear nearer the top of your Channel List. Normally, you should select “Best signal quality (All Regions)”.

Channel Sorting by Region

GBR> Best signal quality (All Regions)

England Regions>

access

select region

(select repeatedly until you reach the available region)

Region choice available

If you choose to select your preferred region, you could find channels with a weaker signal appear nearer the



top of your Channel List. If you have any image or sound problems, select “Best signal quality (All Regions)” instead.

access

select

Set DVB channel manually

Manual Tuning

Normally use “Auto Setup” or “Update Channel List” to retune DVB channels. If tuning has not been done completely or for adjusting the direction of the aerial, use this function.

DVB Manual Tuning

Frequency Signal Quality 0 10

Analogue Scan 21 68 Signal Strength 010

No. Channel Name Type New

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

Stopped

474[CH21]

MHz

select frequency

All channels found will be added to the Channel List. 

Page 39

List favourite DVB channels

Favourites Edit

Create your favourite channel lists from various broadcasters (up to 4: Favourites1 to 4). The DVB Favourites lists are available for switching in the Information banner (p. 15) and from “Category” in the TV Guide (p. 18).

Select a channel to list

DVB Favourites Editor

All DVB Channels

BBC One Wales

BBC THREE7 E414 CBBC Channel70 Cartoon Nwk72 BBCi105 BBC Radio Wales719 BBC Radio Cymru720

Favourites1

select

Encrypted channel

To display other Favourites 

green

Add it to the Favourites list

DVB Favourites Editor

All DVB Channels

BBC One Wales

1 BBC One Wales1

BBC THREE7 E414 CBBC Channel70 Cartoon Nwk72 BBCi105 BBC Radio Wales719 BBC Radio Cymru720

Favourites1

A channel is added

To add all channels to the list 

yellow

To edit Favourites list 

Select the field of Favourites to edit and:

Tuning and Editing Channels 

To delete a channel  Select the channel To delete all channels 

Set characters one by one Store

To name the Favourites 

To move the channel 

red

green

(maximum: ten characters)

User input

Name

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : # o p q r s t

Select the new position Confirm

Select the turn

Store

BACK/

RETURN

Note

Channel position numbers (known as logical channel numbers) can be swapped in Channel List.  To swap the channel position number “Channel List” (below)

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

abc def

jkl

ghi

tuvpqrs

BACK/

select

RETURN

set

You can set characters by using numeric buttons.

“Characters table for numeric

buttons” (p. 71)

green

mno

wxyz

yellow

Advanced

Skip unwanted DVB channels, Edit DVB Channels

Channel List

You can hide unwanted DVB channels. The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

All DVB Channels

CBBC Channel

Cartoon Nwk

BBCi

105

BBC Radio Wales

719

BBC Radio Cymru

720

BBC ONE Wales

BBC THREE

reveal / hide

select

: reveal : hide (skip)

To reveal all channels 

yellow

To edit channels 

You can also edit each channel in Channel List.

Select a channel to edit and:

To retune each channel - Manual Tuning (p. 38)



(only for the revealed channels) To swap the channel position number 

(logical channel number)

green

red

Enter the new position number

Channel position number

1 BBC ONE Wales

Coronation Street 19:30 - 20:00

19:35

Now

abc def

jkl

ghi

tuvpqrs

All DVB Channels

Select favourites

For info press

mno

wxyz

Store

green

Page 40

Tuning and Editing Channels

Update DVB channel automatically

Update Channel List

You can add new channels, delete removed channels, update channel name and position automatically to Channel List.

DVB Update Channel List

Progress CH 21 68

Analogue Scan 21 68

This will take about 3 minutes.

CH Channel Name Type Quality

Free TV: 0 Pay TV: 0 Radio: 0 Data: 0

Searching

Display a notification message

Channel List is updated while keeping your settings in Favourites Edit,  Channel List, Child Lock, Timer Programming, etc.

New Channel Message

Selects whether to give a notification message when a new DVB channel is found. (Off / On)

New channels found!

Press OK to update channel list.

Press EXIT to ignore.

Check DVB signal

Signal Condition

Selects a channel and checks the DVB signal condition.

DVB Signal Condition

Channel Name 70 CBBC Channel

Signal Quality Signal Strength Bit Error Rate 0.00E+00 Network Name Parameter [CH62] 802 MHz

0 10 010

Wenvoe

Selecting OK will perform “Update Channel List”. 

To change the channel 

A good Signal Strength is not an indication of best signal for DVB reception. Please use the Signal Quality indicator as follows:

Signal Quality:

Green bar

 Good

Yellow bar

 Poor

Red bar

 Bad (Check the Terrestrial aerial)

(Analogue)

You can retune channels or skip unwanted channels, edit channels etc.

Select Analogue

1 2

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “Analogue Tuning Menu”

Setup Menu

Timer Programming Off Timer Off Link Settings Child Lock

Analogue Tuning Menu

Display Settings System Menu Other Settings

Access

ghi

INPUT

EXIT

RETURN

abc def

jkl

mno

tuvpqrs

wxyz

BACK/

access

select

access

select

To return to TV



EXIT

Select one of the following functions

Analogue Tuning Menu

Channel List Auto Setup Manual Tuning

Access Access Access

Auto Setup 

“Retuning from Setup Menu” (p. 37)

Set

access

select

Page 41

Skip unwanted Analogue channels, Edit Analogue channels

Channel List

You can hide unwanted Analogue channels. The hidden channels cannot be displayed except in this function. Use this function to skip unwanted channels.

Select a channel and reveal / hide

Analogue Channel List

BBC1

*****

3 4 5 6 7

reveal / hide

select

: reveal : hide (skip)

To reveal all channels 

yellow

To edit channels 

You can also edit each channel in Channel List.

Select a channel to edit and:

Channel position

Channel name

3 ITV

itv CH23

Mute Encrypted

Radio

23:35

SubtitlesAD TXT

All Analogue Channels

For info press

45Multi Audio

Tuning and Editing Channels 

To retune each channel - Manual Tuning (below) 

To move the channel position 

To rename the channel name 

green

blue

Note

If a VCR is connected only with the RF cable, edit “VCR”. 

Set Analogue channel manually

Set Analogue channel manually after Auto Setup.

If a VCR is connected only with the RF cable, it is recommended to select channel position “0”. 

Analogue Manual Tuning

1 BBC1 CH33

Manual Tuning 21 68

red

Select the new position

Store

green

Set characters one by one (maximum: five characters)

Edit channel name

Name

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T

7 8 9 ! : # o p q r s t

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

You can set characters by using numeric buttons. 

“Characters table for numeric buttons” (p. 71)

Manual Tuning

select

set

Store

BACK/

RETURN

Advanced

Select the channel position Select the channel Search and store

abc def

jkl

ghi

mno

tuvpqrs

wxyz

store

Page 42

Timer Programming

Timer Programming from Menu

The Timer Programming menu allows you to choose programmes that you wish to remind watching or record to the external recorder. At the correct time, the TV will tune to the correct channel automatically to record even if the TV is in Standby mode. TV Guide may also be used to set timer programming event

Timer Programming can store up to 15 events.  For recording using Timer Programming, the TV must be either On or in standby. For reminders to be displayed,  the TV must be On. No other channel can be selected while Ext Rec. of a Timer Programming is in progress.  It may not be possible to record an encrypted programme (which is copy-protected).  When recording programmes, be sure to make the proper settings on the recorder connected to the TV.  If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 62) and the “Link Settings” (p. 30) are correct, no setting of the recorder is required. Also read the manual of the recorder. If the recorder is not compatible with Q-Link or similar technologies, set “Q-Link” in the Setup Menu (p. 30) to the  connected terminal (AV1 or AV2), and set the timer of the recorder in addition to the Timer Programming on the TV. For preparations of a recorder, read the manual of the recorder. Recordings are always in standard definition composite video via SCART, even if the original programme is in  high definition.

(p. 19).

INPUT

EXIT

abc def

jkl

ghi

mno

tuvpqrs

wxyz

To return to TV 

EXIT

To unlock the tuner 

(stop recording)

EXIT

Select the tuner you want to use (DVB or Analogue)

Display the menu

Select “Setup”

Main Menu


Sound

Setup

access

select

Select “Timer Programming”

Setup Menu

Timer Programming

Off Timer Off Link Settings Child Lock DVB Tuning Menu Display Settings System Menu Other Settings

Access

access

select

Set

Note

Check that the LED is orange. If not, timer programmes are not active or not stored.  Timer Programming reminder messages will remain displayed until one of the following occurs: 

You press the OK button to view the programme or the EXIT button to cancel the reminder.• The timer programming event that the reminder is set for ends.•

“!” identifies that any timer programming events have overlapped. “Ext Rec.” is given priority over “Reminder”.



When two or more “Ext Rec.” overlap, the first timer programming event starts and finishes as programmed. The next timer programming event will then start. 2 mins. before the starting time, a reminder message appears if you are watching TV. 

To remove the message and start the programme •

Ext Rec. of Timer Programming will automatically change to the programmed channel 10 seconds before the  start time. To stop recording of the timer programming event, it may be necessary to stop the recorder manually.  Ext Rec. of Timer Programming will be performed even if the TV is in Pause Live TV recording (p. 65). In this  case, the Pause Live TV recording will be cancelled.

To cancel the Timer Programming •

EXIT

Page 43

Set timer programming event details

Timer Programming

Start making the settings

Select the function (Reminder or Ext Rec.)

Ext Rec.

select

Reminder

: to record the programme to the recorder

: to remind you to watch the programme

When you are watching TV, a reminder message appears 2 mins. before the start time. Press the OK button to switch to the programmed channel.

Set the channel, date and time (repeat the operations as below)

Set items in the order of

to .

 , and can also be

select the item

set

entered with numeric buttons.

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Displayed if the timer programming

Timer programming - Programmes according to the time setting

Guide: Guide link programming - Programmes according to the TV Guide signal (p. 19)

events are overlapped

Timer Programming

Function Channel Name

Ext Rec.

Reminder

Ext Rec.

No.

72D Wed 28 Oct 20:00 2 1:3 0

BBC 2W <TIMER>

14DE4

D BBC ONE

---

The Bill

1D BBC ONE

DIY SOS

<TIMER>

---

Guide

STTL

Channel number

D: DVB A: Analogue

You can

 not change the

mode within the menu.

Store

To change a timer programming event 

Select the programme to be changed

To cancel a timer programming event 

S/P: Split Programme programming (p. 19)

Wed 28 Oct 2009 10:46

Date Start End

Wed 28 Oct 21:00 2 2:0 0

Wed 28 Oct 22:45 2 3:0 0

S/P

Thu 29 Oct 10 :30 11 :30

--/-- --:-- --:--

(90 min.)

(60 min.)

(15 min.)

(60 min.)

Records with subtitles (if available)

To indicate this 

Duration (automatic display)

Ending time Starting time

Date

one day ahead

daily or weekly (press repeatedly)

access

select

Correct as necessary

(as above)

Daily Sun-Sat: Sunday to Saturday  Daily Mon-Sat: Monday to Saturday  Daily Mon-Fri: Monday to Friday  Weekly Sat/Fri/Thu/Wed/Tue/Mon/Sun:  Same time on the same day every week

( press again to

yellow

remove subtitles)

Timer Programming 

Advanced

Select the programme to be deleted

red

To record with subtitles  (if available)

Select the programme to record with subtitles

yellow

Each time pressed:  auto off

To cancel a timer programming event temporarily 

Select the programme to be cancelled

blue

Each time pressed:  cancel stop cancelling

To view details of the programming  (only for Guide link programming)

Select the programme to be viewed

Press again to return to  Timer Programming menu.

Guide link programming (Timer Programming from the TV Guide signal)  p. 19

This function is not available in Analogue mode. 

Page 44

Child Lock

You can lock specific channels / AV input terminals and control who watches them. When the locked channel / input is selected, a message appears; by entering the PIN number, you can watch it.

Display the menu

ghi

EXIT

abc def

jkl

mno

tuvpqrs

wxyz

Select “Setup”

Main Menu


Sound

Setup

Select “Child Lock”

Setup Menu

Timer Programming Off Timer Off Link Settings

Child Lock

DVB Tuning Menu Display Settings System Menu Other Settings

Access

access

select

access

select

To return to TV 

Set

EXIT

Control channel audience

Child Lock

Enter the PIN number (4 digits)

Child Lock-PIN Entry

Please enter new PIN

PIN * * * *

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Enter the PIN number twice at first setting.  Make a note of the PIN number in case you forget it. 

Select “Child Lock List”

Child Lock

Change PIN

Child Lock List Access

access

select

Select the channel / input to be locked

Child Lock List - TV and AV

Name Input LockType

BBC 1 Wales Free TV BBC THREE DVB LockFree TV

E4 DVB LockFree TV

VCR Analogue LockAnalogue

BBC1 Analogue LockAnalogue

***** Analogue LockAnalogue AV1 External LockAV AV2/ S

DVB

External LockAV

Appears when the channel / input is locked

lock

select

To cancel  Select the locked channel / input To jump to the top of the next input  To lock all  To cancel all locks 

green

yellow

To change the PIN number 

Select “Change PIN” Enter a new PIN number twice

Child Lock

Change PIN Access

Child Lock List

access

select

abc def

jkl

ghi

mno

tuvpqrs

wxyz

red

Note

Setting “Shipping Condition” (p. 46) erases the PIN number and all settings. 

Page 45

Input Labels

For easier identification and selection of the input mode, you can label each input mode or skip terminals that are not connected to any equipment.

To select the input mode  p. 24

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “Display Settings”

Setup Menu

Timer Programming Off Timer Off Link Settings Child Lock DVB Tuning Menu

Display Settings

System Menu Other Settings

Access

Select “Input Labels”

Display Settings

Preferred Subtitle Type English

Input Labels

Banner Display Timeout Playing Time Display Radio Mode

Access 3 seconds On Off

access

select

access

select

access

select

EXIT

BACK/

RETURN

Input Labels 

Child Lock 

To return to TV 

EXIT

Select a input terminal and set

User input 

You can name each input mode yourself.

Select “User input” Set characters one by one Store

Input Labels

AV1 DVD AV2/S AV3 COMPONENT PC PC HDMI1 HDMI2 DVB DVB Analogue Analogue

AV2/S AV3 COMPONENT

HDMI1 HDMI2

set

select

The labels you set will be displayed in the “Input Selection” menu (p. 24) or banner.

If “Skip” is selected, the input will not be displayed in the “Input Selection”



menu and you cannot select the mode.

(maximum: ten characters)

User input

select

access

Name

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6 a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T 7 8 9 ! : # o p q r s t

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

select

set

You can set characters by using numeric buttons. 

“Characters table for numeric buttons” (p. 71)

BACK/

RETURN

Advanced

Page 46

Shipping Condition

Resets the TV to its original condition with no channels tuned in. All settings other than “Owner ID” are reset (channels, picture, sound settings, etc.).

Display the menu

EXIT

Select “Setup”

Main Menu


Sound

Setup

Select ”System Menu”

Setup Menu

Timer Programming Off Timer Off Link Settings Child Lock DVB Tuning Menu Display Settings

System Menu

Other Settings

Access

access

select

access

select

Select “Shipping Condition”

To return to TV



EXIT

Restore Settings

Check the message and initialise

Shipping Condition

All tuning data will be erased

Confirm

Are you sure? Are you sure?

EXIT

RETURN

System Menu

Shipping Condition Access

Owner ID Common Interface System Update Software Licence System Information

Set

Shipping Condition

(confirm)

(start Shipping Condition)

access

select

Follow the on screen instructions

Reset to Factory Shipping Condition

Completed.

Please switch off TV.

“Auto Setup” will automatically start when Mains power On / Off switch is next turned On. (p. 12) 

To retune TV channels only, e.g. after moving house 

“Retuning from Setup Menu” (p. 36 and p. 37)

Page 47

Owner ID

Entry of the PIN number and personal information (your name, address and postcode). In the unfortunate event of theft, the Owner ID will help the Police to determine the owner.

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “System Menu”

Setup Menu

Timer Programming Off Timer Off Link Settings Child Lock DVB Tuning Menu Display Settings

System Menu

Other Settings

Access

Select “Owner ID”

System Menu

Shipping Condition

Owner ID Access

Common Interface System Update Software Licence System Information

ghi

EXIT

RETURN

abc def

jkl

mno

tuvpqrs

wxyz

BACK/

access

select

access

select

Shipping Condition 

access

Owner ID 

select

To return to TV 

EXIT

Set

Input owner ID

Owner ID

Enter the PIN number (4 digits)

Owner ID

Please enter new PIN

PIN * * * *

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Enter the PIN number twice at first setting.  Make a note of the PIN number in case you forget it.  The PIN number cannot be reset.

Enter your name, house number, and postcode, in that order

Select NAME / HOUSE NO / POSTCODE Set characters one by one Return to select

Owner ID-Data Entry

NAME

HOUSE NO POSTCODE



access

select

User input

NAME

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

select

set

O P Q R S T

7 8 9 ! : # o p q r s t

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

other items

BACK/

RETURN

Exit the menu

EXIT

You can set characters by using numeric buttons. 

“Characters table for numeric buttons” (p. 71)

To check the personal information stored 

Hold down for about 6 sec.

Owner ID

NAME HOUSE NO POSTCODE

EXIT

  

Advanced

The PIN number is not displayed. 

To change the PIN number 

Select “PIN” Enter a new PIN number twice

Owner ID-Data Entry

NAME HOUSE NO POSTCODE



access

select

abc def

jkl

ghi

mno

tuvpqrs

wxyz

Page 48

Using Common Interface

The Common Interface Module menu provides access to software contained on Common Interface (CI) Modules. This TV works only Pay TV modules complying with CI standard.

This function is not available for BSkyB’s Sky channels. 

Caution

Turn Off Mains power On / Off switch whenever inserting  or removing the CI module. If a viewing card and a card reader come as a set, first  insert the card reader, then insert the viewing card into the card reader. Insert the module in the correct direction.



Side of the TV

Insert the CI module (optional)

The features that appear on screen are dependent on the contents of the selected CI module.  Follow the instructions that came with the viewing card to tune in the pay-TV channels. If pay-TV channels do not  appear, perform the below to verify the card is recognized by the TV. For more details, see the manual of the CI module, or check with the broadcaster. 

Select DVB

INPUT

Display the menu

EXIT

CI slot



Remove the cover before using CI slot.

Insert or remove straightly and completely

CI module

Select “Setup”

Main Menu


Sound

Setup

Select ”System Menu”

Setup Menu

Timer Programming Off Timer Off Link Settings Child Lock DVB Tuning Menu Display Settings

System Menu

Other Settings

Access

Select “Common Interface”

System Menu

Shipping Condition Owner ID

Common Interface Access

System Update Software Licence System Information

Access Common Interface

Common Interface

Slot 1:

Module inserted

access

select

access

select

access

select

To return to TV 

EXIT

Follow the on screen operation guide (Check the instructions provided with the CI module)

For example: select, go

Coloured characters

On screen operation guide may not correspond to the remote control  buttons.

red green yellow blue

Page 49

Updating the TV Software

From time to time, a new version of software may become available for download to enhance the performance or operations of the TV. In DVB mode, a notification banner will appear when one of the BBC channels is turned to if a new available software is found.

To download  If you choose not to download 

You can update any new software automatically, or manually.

EXIT

Display the menu

Select “Setup”

Main Menu


Sound

Setup

Select “System Menu”

Setup Menu

Timer Programming Off Timer Off Link Settings Child Lock DVB Tuning Menu Display Settings

System Menu

Other Settings

Access

access

select

access

select

Using Common Interface 

Updating the TV Software 

Select “System Update”

To return to TV



EXIT

Update TV’s software system

System Menu

Shipping Condition Owner ID Common Interface

System Update

Software Licence System Information

Set

Access

System Update

To update automatically 

Select “Auto Update Search in Standby” and set to “On”

System Update

Auto Update Search in Standby

System Update Search Now

If System Update is performed, the software will be updated (it may change TV functions). If you do not wish to do so, set “Auto Update Search in Standby” to “Off”. The notification banner will keep appearing during the period of new software availability, usually 2 to 3 days.

set select

Automatically performs a search in standby and  downloads an update, if any software updates are available. The automatic updating is performed at night under



the following conditions:

Standby (TV turned Off with the remote control)• Ext Rec. of Timer Programming or Direct TV • Recording is not in progress.

access

select

Advanced

To update immediately 

Select “System Update Search Now” Download

System Update

Auto Update Search in Standby

System Update Search Now Access

Off

access

select

Searches for an update (for several mins.) and displays a corresponding message if any

Note

Download may take up to 60 mins.  During software download and update, DO NOT perform any operations on the TV or switch Off the TV. 

Page 50

Using Media Player

Viewing from SD Card (VIERA IMAGE VIEWER)

Photo mode : Still pictures recorded by digital cameras will be displayed. Video mode : Moving pictures recorded by digital video cameras will be played back.

During the operation, audio signal is output from AV1, AV2, AUDIO OUT and DIGITAL AUDIO OUT terminals,  but no video signals are output. AV1 and AV2 can output audio signal if “AV1 / AV2 out” is set to “Monitor” in the Setup Menu (p. 30). “Date” shows the date on which the recording was made by the digital camera or digital video camera. The file



without record of the date is shown “**/**/****”. For details on SD Cards  p. 71

To insert the SD Card 

Gently insert the

SD Card label surface facing front.

Label surface

To remove the 

SD Card

Push until a click is heard

Cutout

Photo mode

Photo mode will read all “.jpg” extension files in the card.

Insert the SD Card and start Media Player

Media Player

Signal output from all AV terminals will be

disabled during Media Player view.

Press OK to proceed.

Press EXIT to return to TV viewing.

Select “Photo”

Media Player

Contents Select

EXIT

Select

RETURN

Access

Media Player Photo All photos

View

Select

Slideshow Contents Select

Single view  - Photos are displayed one at a time.

Select the file from the thumbnail of photos to be viewed

select

access

Slideshow  - S

Select the file from the thumbnail of photos for the first view

select

Photo Video

EXIT

RETURN

View Select

Info

(Thumbnail - All photos)

Single view

Rotate

EXIT Select RETURN

Slideshow

Operation guide

lideshow will complete when all photos have been viewed within the present thumbnail.

SD CARD

To return to TV 

EXIT

SD CARD

To return to 

the previous screen

BACK/

RETURN

EXIT

BACK/

RETURN

Push the centre

of the card

You can also access Photo mode directly  by using VIERA TOOLS.

“How to Use VIERA TOOLS” (p. 26)

images that could not be loaded etc.

The thumbnail of all the photos on the SD Card will be displayed.

To change the background music 

“Photo Setup” (p. 51)

To display the information of the



highlighted photo

To display / hide the operation guide 

To operate Single view 

Single view

(Single view)

To return to thumbnail 

Start Slideshow

To display / hide the operation guide  To pause (return to Single view) 

red

To return to thumbnail 

File name

Date

Size

select

access

1/48

file number /


total file number

23/10/2009

1600X1200

To the previous photo Rotate 90 (anti-clockwise) To the next photo Slideshow Rotate 90 (clockwise)

BACK/

RETURN

BACK/

RETURN

Page 51

Photo Setup

Choose the settings for Photo mode.

Display the menu

Menu Item Adjustments / Configurations (alternatives)

Back Ground Music

Frame

Colour Effect

Photo Setup

Transition Effect

Aspect

Interval Selects slideshow interval (Short / Normal / Long) Repeat Slideshow repeat (Off / On)

Select “Photo Setup” Select the items and set

Main Menu


Sound

Photo Setup

Video Setup

access

select

Photo Setup Menu

Back Ground Music Type1 Frame Off Colour Effect Transition Effect Aspect Interval Normal Repeat On

Off Fade Original

Other items  p. 28, 29 and p. 53

Selects the back ground music during the Photo mode (Off / Type1 / Type2 / Type3)

Type1, Type2 and Type3 are the fixed music each installed in this TV. 

Selects the frame type of the slideshow (Off / Multi / Collage) Multi : 9 photos are displayed orderly at once. Collage : Each photo is displayed at a random position and random scale. Selects the colour effect of photos on Single view and Slideshow

(Off / Sepia / Gray scale)

Selects the transition effect for switching the photo during the slideshow

(Off / Fade / Slide / Dissolve / Motion / Random)

Fade : The next photo fades in gradually. Slide : The next photo slides and appears from the left side. Dissolve : Each photo is dissolved when switching to the next photo. Motion : Each photo is displayed with an effect of enlarging, reducing, moving up

or moving down.

Random : Each transition is selected at random.

This function is available when “Frame” is set to “Off”.



Selects whether enlarged or original viewing on Single view and Slideshow

(Original / Zoom)



Depending on the photo size, it may not be fully enlarged to fill the screen, e.g. portrait style picture.

set select

Using Media Player 

Change to the Video mode

You can switch to the Video mode of the Media Player from the thumbnail view.

While the thumbnail is displayed, display the contents selection

blue

To sort by folder, recorded date or recorded month 

Display the view selection

green

To return to the thumbnail  of all photos

green

Select the sort type

Folder view

Sort by Date

Sort by Month

access

select

access

select

“All photos”

Select “Video”

Media Player Photo All photos

Contents Select

EXIT

Select

RETURN

View

EXIT

RETURN

View Select

Photo Video

Info

Access

Select

Slideshow Contents Select

Displays the thumbnail grouped by folder

The files which are not into a  folder will be collected to the folder named “/”.

Displays the thumbnail grouped by the same date

The group of the photos  without recorded date is shown as “Unknown”.

Displays the thumbnail grouped by the same month

The group of the photos  without recorded date is shown as “Unknown”.

select access

For details of the Video mode operations 

“Video mode” (p. 52)

Select one of the sorted group to display the thumbnail of the selected group

Media Player Photo

23/10/2009 25/10/2009 01/11/2009 05/11/2009 10/11/2009 22/11/2009 23/11/2009

24/11/2009 01/12/2009 03/12/2009 20/12/2009 22/12/2009

Access

EXIT

Select

RETURN

View Select

Slideshow Contents Select

select

thumbnail of the

selected group

To display the information of the  highlighted group

23/10/2009

Info

Folder name

23/10/2009

Number of files

Sort by Date

group number /

1/12

total group number

date or month

Advanced

Page 52

Using Media Player

Viewing from SD Card (VIERA IMAGE VIEWER)

Video mode

Video mode supports AVCHD and MPEG2 file formats.

Insert the SD Card and start Media Player

Media Player

Signal output from all AV terminals will be

disabled during Media Player view.

Press OK to proceed.

Press EXIT to return to TV viewing.

Select “Video”

Media Player

Contents Select

EXIT

Select

RETURN

Access

Media Player Video Title view

Trip1 Trip2 Trip3 Trip4 Trip5 Room Nature1

Nature2 Nature3 Nature4 Nature5 Nature6 2009_4 2009_7

2009_9

Access

Select

Play Contents Select

Playback from Title view 

Select the title Start playback

select

Photo Video

EXIT

RETURN

Info

(Thumbnail - Title view)

images that could not be loaded etc.

red

select

access

You can also access Video mode directly  by using VIERA TOOLS

“How to Use VIERA TOOLS” (p. 26)

The thumbnail of video titles on the SD Card will be displayed. The preview will start when the title is highlighted if it supports a preview.

To turn off the preview



“Video Setup” (p. 53)

To display the information of the  highlighted title

Trip1

Title

Date & Time

19/02/2009 11:21

Number of scenes

Duration

00h15m39s

file format

1/15

title number /

Trip1

total title number

OPTION

SD CARD

ASPECT

EXIT

BACK/

RETURN

Playback of the selected title will start.

To return to TV 

EXIT

SD CARD

To return to 

the previous screen

BACK/

RETURN

Playback from the selected scene in the title 

Playback will start from the selected scene to the end of the title.

Select the title Select the scene to start playback

select

Media Player Video

Trip1_1 Trip1_2 Trip1_3 Trip1_4 Trip1_5 Trip1_6 Trip1_7

Title view > Trip1

access

Trip1_8

The preview will start when the scene is highlighted if it supports a

Play

To repeat playback 

“Video Setup” (p. 53)

EXIT

Select

RETURN

Info

Contents Select

(Thumbnail - Scene view)



To display the information of the highlighted scene

Scene

Trip1

Date & Time

19/02/2009 11:21

Duration

Trip1_1

00h04m12s

preview.

To turn off the preview



file format

1/8

scene number / total scene number

How to operate in the playback 

To display / hide the operation guide  and information banner

EXIT

RETURN

Title

Trip1

Date & Time

19/02/2009 11:21

00:02.05 / 00:15.39

Operation guide

(Playback)

information banner

To change aspect  (only for the 4:3 video content)

SPECT

To return to thumbnail 

BACK/

RETURN

To operate the playback 

Rewind

Pause / Playback

Playback

Fast forward

Stop

To the previous scene 

To the next scene 

select

playback

“Video Setup” (p. 53)

red

green

Page 53

Sound Settings

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT terminal.

To confirm or change the current sound status

 (during playback)

Display the Option menu Change the sound (if the video has multiple audio signals)

Option Menu

OPTION

Multi Audio Stereo

Audio output settings 

Display the menu

(current sound status)

Select “Sound” Select “SPDIF Selection” and set

Main Menu


Sound

Photo Setup

Video Setup

change

access

select

It may take several seconds to change the sound. 

Sound Menu

Mode Music Bass Treble Balance Headphone Volume

Volume Correction Speaker Distance to Wall Over 30cm

SPDIF Selection

OffSurround

Auto

1/2

set select

Menu Item Adjustments / Configurations (alternatives)

Sound

SPDIF Selection

SPDIF : A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT terminal

(Auto / PCM)

Auto: Dolby Digital is output as Dolby Digital Bitstream. MPEG is output as PCM. PCM

: Digital output signal is fixed to PCM.

Video Setup

Choose the settings for Video mode.

Display the menu

Menu Item Adjustments / Configurations (alternatives)

Setup

Settings

Video

Other

Video Preview

Repeat Playback repeat within the title (Off / On)

Select “Video Setup” Select “Other Settings” Select the items and set

Main Menu


Sound

Photo Setup

Video Setup

Other items



p. 28, 29 and p. 51

Video Setup Menu

Display Settings

Other Settings Access

access

select

Display Settings



p. 31

Sets to start the preview of the title or scene in the thumbnail screen (Off / On)

Image may not be displayed for an instant in the thumbnail screen. Set the preview



“Off” to resolve this.

Change to the Photo mode

Other Settings

16:9 Overscan On

Video Preview On Repeat Off

set select

16:9 Overscan 

p. 32

Using Media Player 

Advanced

You can switch to the Photo mode of the Media Player from the thumbnail view.

While the thumbnail is displayed, display the contents selection

blue

Select “Photo”

Media Player Video Title view

Trip1 Trip2 Trip3 Trip4 Trip5 Room Nature1

Nature2 Nature3 Nature4 Nature5 Nature6 2009_4 2009_7

Contents Select

EXIT

Select

2009_9

RETURN

Access

EXIT

Access

Play Contents Select

Photo Video

Select

RETURN

Info

select access

For details of the Photo mode operations 

“Photo mode” (p. 50)

Note

The structure of titles and scenes may vary depending on the digital video camera used. 

Page 54

Displaying PC Screen on TV

The screen of the PC connected to the TV can be displayed on the TV. You can also listen to PC sound with the audio cable connected.

To connect PC  p. 69

INPUT

AVTV

Select the external input

Select “PC”

Input Selection

AV1 AV2/S AV3 COMPONENT

HDMI1 HDMI2 TV

Corresponding signals  p. 73 If “H-freq.” or “V-freq.” is shown in red,  the signals may not be supported.

access

select

To return to TV 

Page 55

PC menu setting  (changed as desired)

To make settings  “How to Use Menu Functions” to (p. 27)

Menu Item Adjustments / Configurations (options)

R-Gain Adjusts the white balance for red areas

G-Gain Adjusts the white balance for green areas


Advanced PC Settings

Setup

PC Setup

B-Gain Adjusts the white balance for blue areas

R-Cutoff Adjusts the white balance for red areas

G-Cutoff Adjusts the white balance for green areas

B-Cutoff Adjusts the white balance for blue areas

Gamma Switches the gamma curve (1.8 / 2.0 / 2.2 / 2.4 / 2.6)

Reset to Defaults

Input Resolution

Clock Set to the minimum level if noise occurs

H-pos

V-pos

Press the OK button to reset to the default Advanced PC Settings

Switches to a wide view

VGA (640 × 480 pixels), WVGA (852 × 480 pixels),



XGA (1,024 × 768 pixels), WXGA (1,280 × 768 pixels, 1,366 × 768 pixels) Options change depending on signals



Adjusts horizontal position

Adjusts vertical position

Displaying PC Screen on TV 

Clock Phase

Sync

Reset to Defaults

Other items  p. 28 - 32

Note

For HDMI-compatible PC, possible to connect to HDMI terminals (HDMI1 / HDMI2) by using HDMI cable (p. 72). 

Eliminates flicker and distortion

Adjust after Clock adjustment

 Set to the minimum level if noise occurs 

Chooses another synchronous signal if the image is distorted (H & V / On Green)

H & V : by the horizontal and vertical signals from your PC  On Green : by the green signal from your PC (if available)

Press the OK button to reset to the default PC Setup settings

Advanced

Page 56

Playing an iPod on TV

You can enjoy iPod on your TV, and you can also charge the battery by connecting the Universal Dock for iPod to your TV.

Set up Universal Dock for iPod

Controls and basic functions 

Plug

Connect to the back panel of this

TV.

Indicator

This indicator lights up when the

iPod is connected.



Connecting the Universal Dock for iPod

Ensure that the power of this TV is switched off before you connected the Universal Dock. Connect the plug of the Universal Dock to the Dock for iPod terminal of this TV.

Connecting your iPod 

Insert your iPod into the connector’s terminal of the Universal Dock.

iPod (not included)

The indicator lights up when the iPod is inserted, and charging begins.

Rear of the TV

Note

Do not connect any other optional dock. (Available  included Universal Dock for iPod only)

Note

Attach the dock adapter (which should be supplied  with your iPod) to the dock for the stable use of the iPod. If you need an adapter, consult your iPod dealer. Do not twist your iPod when inserting it or taking it off



from the universal dock, and be careful not to knock over this universal dock when your iPod is inserted. Do not take off your iPod from the universal dock



while you play your iPod with the TV. It is recommended that you update your iPod software



before using it with the universal dock. The updater for the iPod software is available on the Apple website. Panasonic has no warranty for iPod data



management.

iPod connector terminal

Connects your iPod.

Charging your iPod 

Your iPod can be recharged while your iPod is connected to the Universal Dock. iPod will start recharging regardless of whether this TV is on or off (standby).

Disconnecting the Universal Dock for iPod 

Ensure that the power of this TV is switched off before you pull out the Universal Dock. Switch off the iPod. Pull out the plug of the Universal Dock from the Dock for iPod terminal of the TV.

Page 57

Basic feature

You can enjoy music / videos / photos (“Remote” mode only) on your iPod on the TV screen.

Available modes for your iPod

TV control mode Remote mode

You can operate your iPod through the TV screen using TV remote control. (p. 58)

You can operate your iPod through the iPod screen using either TV remote control or the iPod itself. (p. 59)

Music

Videos

Podcasts

Remote

Select

Remote mode let you view videos recorded by iPod nano 5G Videos Camera function. 

Music

EXITOK Select RETURN

Playlists

Songs Artists

People

Albums

Good morning

Songs

Stand up

Audiobooks

Sing a song

Monday Star Thank you

4 / 7

AXX

Correction

Sing a song

01:02 / 05:231

iPod is in operation. Please observe your

iPod screen and use the TV’s remote to

control it.

Presss OPTION to go back.

iPod menu feature

iPod viewer (Main window) Full screen (Only for video playback)

Selector tab List window Playback window

Music

Videos

Podcasts

Remote

Select

EXITOK Select RETURN

Switches categories

Playlists

Songs Artists

People

Albums

Good morning

Songs

Stand up

Audiobooks

Sing a song

Monday Star Thank you

4 / 7

Displays list of categories

AXX

Correction

Sing a song

01:02 / 05:231

Operation guide

Track information

Artist name Album name Song name Video name

Video window

Displays track information of playing data.

EXIT

RETURN

BMW X COUPE CONCEPT

Video information

iPod

0:52 / 1:11

Playing an iPod on TV 

Advanced



Compatible models

Model Generation, Version

iPod 4G or later, Version 3.0.2 or later iPod shuffle Not supported iPod mini All generation, Version 1.1.1 or later iPod nano All generation, All version iPod classic All generation, All version iPod touch All generation, All version iPhone All generation, All version

Compatibility depends on the software version of your iPod.  For the iPod touch and iPhone only music / video / photos (Remote mode only) services can be enjoyed on  this TV.

Note

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.  Please also read the manual of the equipment being connected. 

Page 58

Playing an iPod on TV

TV control mode

Set up Universal Dock for iPod (p. 56).  Before connecting / disconnecting the iPod, turn the TV off or reduce the volume of the TV to its minimum.  Use the menu on your iPod to select the appropriate video / photo output settings for your TV. (Refer to the  operating instructions of your iPod.)

Display main window

ASPECT

iPod

EXIT

Connect your iPod firmly

if “Plug and Play” setting 

BACK/

RETURN

is “On” (p. 59)

Select the category in Selector tab

Music

Playlists

Music

Artists Albums Songs

Videos

Audiobooks

Podcasts

Remote

Select

EXITOK Select RETURN

0:00 / 0:001

Press iPod button on remote control

Select iPod icon in VIERA TOOLS (p. 26)

iPod

Remote mode (p. 59)

TV control mode



(Music / Video / Podcasts)

iPod

next / set

select

DVD/VCR

To return to TV 

EXIT

Press to return 

to the previous screen

BACK/

RETURN

Select track in List window and play

Music

Videos

Podcasts

Remote

Select

Videos

Playlists

Movies Artists

BMW X COUPE CONCEPT

Albums

Good morning

Songs

Stand up

Audiobooks

EXITOK Select RETURN

BMW X COUPE CONCEPT

1/ 3

00:52 / 01:111

access

select

Go back to previous page

Proceed to next page

Available TV remote control buttons  (Set the position to “TV”)

Play Set / Access

Stop

Skip to the previous track or title Press and hold to search backward

BACK/

RETURN

EXIT

RETURN

BMW X COUPE CONCEPT

To display / hide the operation 

guide To change the aspect ratio (during 

Full Screen mode only)

ASPECT

For more information, refer to the



(16:9 / 4:3 Full)

operating instructions for iPod.

BACK/

RETURN

Return to previous menu / pages

EXIT

Exit

iPod

0:52 / 1:11

Skip to the next track or title Press and hold to search forward

Pause

Move the cursor / select the menu item

Sound Mute

Volume up / down

Page 59

Remote mode

Operate your iPod through the iPod screen using either TV remote control or the iPod.

Change to the Remote mode

Select “Remote”

Music

Playlists

Music

Artists Albums Songs

Videos

Audiobooks

Podcasts

Remote

Select

EXITOK Select RETURN

iPod Setup

Display the menu

Operate your iPod through the iPod

To go back to iPod menu screen using either TV remote control or the iPod.

set

iPod is in operation. Please observe your iPod screen and use the TV’s remote to

control it.

Presss OPTION to go back.

Screen will be switched when

Back to iPod menu?

Yes No

EXITOK Select RETURN

set

select

“Remote” is set. For iPod with touch screen, please

select

use the touch screen to operate it.

Select “iPod Settings” Select the items and set

Main Menu


Sound

Video Setup

iPod Settings

access

select

iPod Settings

Plug and Play Shuffle Repeat

Model Version

On Off Off MC031

1.0.2

select

change

Playing an iPod on TV 

Other items



p. 26 – 27 and p. 53

Menu Item Adjustments / Configurations (alternatives)

Plug and Play

iPod Settings

When iPod was inserted to iPod Cradle and the setting of “Plug and Play” is On, iPod view is launched up by automatically. (Off / On)

Shuffle Select shuffle mode (Off / Songs / Albums)

Repeat Select repeat mode (Off / One / All)

Model

Version

The model name of connected iPod is displayed.

For example, “MC031” is displayed.



The firmware version of connected iPod is displayed.

For example, “1.0.2” is displayed. 

Advanced

Page 60

Q-Link

Link Functions

Q-Link connects the TV and DVD Recorder / VCR, and enables easy recording, playback, etc. (p. 62) VIERA Link (HDAVI Control™) connects the TV and the equipment with VIERA Link function, and enables easy control, convenient recording, playback, energy saving, creation of a home theatre, etc., without complicated setting. (p. 63 - 67) You can use Q-Link and VIERA Link functions together.

This TV supports “HDAVI Control 5” function. But available features are depending on the connected equipment’s  version of HDAVI Control. Please refer to the manual of the equipment to confirm the version. VIERA Link features may be available even with other manufacturers’ equipment supporting HDMI CEC.



Summary of Q-Link and VIERA Link features

Q-Link (SCART connection only) 

Connected equipment

Features

Analogue channel download

Easy playback

Power on link

Power off link

Direct TV Recording

VIERA Link (HDMI connection only) 

Connected equipment

Features

Analogue channel download Easy playback Power on link Power off link Reduce unnecessary power consumption

in standby Auto standby for unnecessary equipment Pause Live TV programme Direct TV Recording Control the menu of the connected

equipment by VIERA remote control Speaker control

Connection

DVD Recorder / VCR

with

Q-Link function

DIGA Recorder with

VIERA Link function

–––

(

VIERA Link

)

Connection

SCART cable

DVD Recorder / VCR with Q-Link function

Use a fully wired SCART cable.  Connect the DVD Recorder / VCR supporting Q-Link  to the TV’s AV1 or AV2 terminal via a SCART cable.

DVD Player /

Blu-ray Disc Player with

VIERA Link function



–– ––



HD Video Camera /

LUMIX Camera with

VIERA Link function

–



HDMI cable

Use a fully wired HDMI compliant cable.  Connect the equipment supporting VIERA Link to the TV’s HDMI1 or HDMI2 terminal via an HDMI cable.  For information about using HDMI cables for connecting Panasonic HD Video Camera or LUMIX Camera, read  the manual of the equipment.

VIERA Link (HDMI and SCART connections) 

Connected equipment

Features Analogue channel download Easy playback Power on link Power off link Reduce unnecessary power consumption

in standby Auto standby for unnecessary equipment Pause Live TV programme Direct TV Recording Control the menu of the connected

equipment by VIERA remote control Speaker control

DIGA Recorder with

VIERA Link function



–

DIGA Recorder / DVD Player / Blu-ray Disc Player / HD Video Camera / LUMIX Camera with VIERA Link function

Connection

HDMI cable

DIGA Recorder with VIERA Link

SCART cable

function

Use a fully wired HDMI compliant cable.  Connect the equipment supporting VIERA Link to  the TV’s HDMI1 or HDMI2 terminal via an HDMI cable. Use a fully wired SCART cable.



Connect the equipment supporting VIERA Link to  the TV’s AV1 or AV2 terminal via a SCART cable.

Page 61

VIERA Link (HDMI and Audio out connections) 

Features

Connected equipment

Analogue channel download Easy playback Power on link Power off link Reduce unnecessary power consumption

in standby Auto standby for unnecessary equipment Pause Live TV programme ––– Direct TV Recording ––– Control the menu of the connected

equipment by VIERA remote control Speaker control

Connection

To use Player theatre / 

Speaker system

Blu- ray Disc theatre:

Player theatre with

VIERA Link function

–––



–



To use Amplifier: 

Blu-ray Disc theatre with

VIERA Link function



Amplifier with

VIERA Link function

– –

–



–

Speaker system

(Q-Link / VIERA Link)

HDMI cable

Optical digital

audio cable

RCA cable

SCART cable

Player theatre / Blu-ray Disc theatre with VIERA Link function



HDMI cable

HD Video Camera / LUMIX Camera with VIERA Link function

HDMI cable

Optical digital

audio cable

RCA cable

SCART cable

Amplifier with VIERA Link function

HDMI cable



DIGA Recorder with VIERA Link function

Use a fully wired HDMI compliant cable.  C 

onnect the equipment supporting VIERA Link to the TV’s HDMI2 terminal via an HDMI cable.

Use a fully wired SCART cable.  If you use a SCART cable for audio output, connect the equipment supporting VIERA Link to the TV’s AV1 or  AV2 terminal and set “AV1 / AV2 out” to “Monitor” in the Setup Menu (p. 30). Use any one of the optical digital audio cable, RCA cable and SCART cable for audio output from the TV. 



1: Available with the equipment which has “HDAVI Control 2 or later” function.



2: Available with the equipment which has “HDAVI Control 3 or later” function.



3: Available with the equipment which has “HDAVI Control 4 or later” function.



4: Available with DIGA Recorder which has HDD.



5: while playingback a disc



6: except for watching a disc



7: If the connected equipment has “HDAVI Control 5” function, you do not have to use this audio cable (Optical

digital audio cable, RCA cable or SCART cable). In this case, connect the equipment to the TV’s HDMI2 terminal via an HDMI cable.

VIERA Link Control of compatible equipment  (VIERA Link Control p. 66)

Table below displays maximum number of compatible equipment that can be controlled by VIERA Link Control.  This includes connections to equipment already connected to the TV. For example, DIGA Recorder connected to Amplifier which is connected to the TV via an HDMI cable.

Type of the equipment Maximum number Recorder (DIGA Recorder, etc.) 2 Player (DVD Player, Blu-ray Disc Player, HD Video Camera, LUMIX Camera,

Digital Camera, Player theatre, Blu-ray Disc theatre, etc.) Audio system (Player theatre, Blu-ray Disc theatre, Amplifier, etc.) 1 Tuner (Set top box, etc.) 3

Link Functions 

Advanced

Page 62

Q-Link

Link Functions

Q-Link

Preparations 

Connect the DVD Recorder / VCR with the following logos:  “Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC”, “Easy Link”, “Megalogic” or “SMARTLINK” Q-Link connection  p. 60 Use fully wired SCART cable.



Set up the DVD Recorder / VCR. Read the manual of the recorder.  Q-Link terminal setup in the Setup Menu  “Q-Link” (p. 30), “AV1 / AV2 out” (p. 30) Download Analogue channel setting  “Analogue channel download” (see below)

Features available 

Analogue channel download

Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue is still broadcast). Digital channel settings are not downloaded.

To download the Analogue channel settings 

Direct TV Recording - What you see is What you record

Recording the current programme on a DVD Recorder / VCR immediately.

Available conditions: 

DIRECT TV REC

EXIT

DIRECT TV REC

Analogue

DVB TV TV monitor out AV ( watching recorder’s tuner) AV ( watching recorder’s external input) AV ( watching TV’s external input)

When Direct TV Recording is performed, the recorder is automatically  turned on if it is in Standby mode. Changing channel or turning off the TV is available while the recorder is  recording from its own tuner. Changing channel is not available while the recorder is recording from  the TV tuner.

“Q-Link Download” (p. 30) or “Auto Setup” in Analogue mode (p. 37) or “Auto Setup” - when first using the TV (p. 12)

Picture source Mode Recording from

(

VIERA Link

TV TV monitor out AV Recorder’s tuner

AV Recorder’s tuner

AV TV monitor out

)

Recorder’s

external input

To stop recording 

Unlock the tuner

Any timer programme in progress will also be deleted.

Tuner Locked

Press EXIT to unlock.

Continue

Unlock

EXIT

Power on link and Easy playback

When the DVD Recorder / VCR starts playback or the direct navigator / function menu for the equipment is activated, the TV is turned on and the input mode is switched automatically so that you can view the content. (Only when the TV is in Standby mode.)

Power off link

When the TV is set to Standby mode, the recorder is also automatically set to Standby. (Only when the videocassette or disc is not active.)

This function will work even if the TV enters Standby mode automatically by auto power standby function. 

“DATA LOGIC” (a trademark of Metz Corporation)• “Easy Link” (a trademark of Philips Corporation)•

Note

Some recorders are not compatible. Read the manual of the recorder. 

“Megalogic” (a trademark of Grundig Corporation)• “SMARTLINK” (a trademark of Sony Corporation)•

Page 63

VIERA Link “ Control™”

Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function. This TV supports “HDAVI Control 5” function. Connections to the equipment (DIGA Recorder, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI and SCART cables allow you to interface them automatically (p. 60 and p. 61). These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.

Some functions are not available depending on the equipment’s version of HDAVI Control. Please confirm the  connected equipment’s version of HDAVI Control. VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard  known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed. Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function.



For information about applicable Panasonic equipment, consult your local Panasonic dealer  or refer to www.panasonic.co.uk

Preparations 

Connect the equipment that supports VIERA Link.  VIERA Link connection  p. 60 and p. 61 Use a fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilized.  Recommended Panasonic HDMI cables’ part numbers:

RP-CDHS15 (1.5 m)• RP-CDHS30 (3.0 m)• RP-CDHS50 (5.0 m)•

Use a fully wired SCART cable.



Set up the connected equipment. Read the manual of the equipment.  For optimal recording, the settings of the recorder may need to be changed. For details, read the manual  of the recorder. Download Analogue channel setting  “Analogue channel download” (see below) Set VIERA Link On in the Setup Menu  “VIERA Link” (p. 30) Set up the TV 

After connection, turn the equipment on and then switch the TV on.

Select the input mode to HDMI1 or HDMI2 (p. 24), and make sure that an image is displayed correctly.

This setup should be done each time when the following conditions occur:

for the first time• when adding or reconnecting equipment• when changing setup•



(Q-Link / VIERA Link)

Link Functions 

Features available 

Analogue channel download

Analogue channel settings can be downloaded to a recorder with an analogue tuner (where Analogue is still broadcast). Digital channel settings are not downloaded.

To download the Analogue channel settings 

“Q-Link Download” (p. 30) or “Auto Setup” in Analogue mode (p. 37) or “Auto Setup” - when first using the TV (p. 12)

Easy playback

Automatic Input switching - When the connected equipment is operated (during playback or menu operations, etc.), the input mode is switched automatically. When playback is stopped or menus are exited, the input mode returns to the original setting.

Power on link

When the connected equipment starts playback or the direct navigator / function menu for the equipment is activated, the TV is automatically turned on and the input mode is switched automatically so that you can view the content. (Only when the TV is in Standby mode.)

Power off link

When the TV is set to Standby mode, the connected equipment is also automatically set to Standby.

This function will work even if the TV enters Standby mode automatically by auto power standby function. 

Advanced

Page 64

Link Functions

Features available 

Q-Link

(

VIERA Link

)

Reduce unnecessary power consumption in standby

Standby Power Save

Set Standby Power Save “On” in the Setup Menu to use this function

“Standby Power Save” (p. 30)

The power consumption in Standby mode of the connected equipment is controlled in synchronization with the TV On / Off state. When the TV is set to Standby mode, the connected equipment is automatically set to Standby and the power consumption in Standby mode of the connected equipment is automatically minimized. When the TV is turned on and the connected equipment is still in Standby mode, the power consumption of the connected equipment is increased to reduce the startup time.

This function is effective if the connected equipment can change the power consumption in Standby mode



and is set to higher consumption.

Auto standby for unnecessary equipment

Intelligent Auto Standby

Set Intelligent Auto Standby “On (With reminder)” or “On (No reminder)” in the Setup Menu to use this function

“Intelligent Auto Standby” (p. 30)

When the TV is On, non-watched or non-used connected equipment goes into Standby mode automatically to reduce power consumption. For example, when the input mode is switched from HDMI, the connected equipment will go into Standby mode / when Speaker Selection is changed to “TV”, the Player theatre will go into Standby mode (except when watching a disc).

If you select “On (With reminder)”, the on screen message will be displayed before the connected equipment



turns to Standby. This function may not work properly depending on the connected equipment. If required, set to “Off”. 

Features available  (Using VIERA Link Menu)

Direct TV Recording - What you see is What you record

Direct TV Rec

Recording the current programme on a DIGA Recorder immediately.

If you connect a variety of recorders including other manufacturers’ recorders at the same time, please  connect the DIGA Recorder to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, connect the DIGA Recorder to HDMI1. If Direct TV Recording does not operate, check the settings and the equipment 

“Summary of Q-Link and VIERA Link features” (p. 60 and p. 61), “Preparations” (p. 63)



If you wish to record a programme that the DIGA Recorder does not support, a SCART connection is required and the programme is recorded by Q-Link function (p. 62). Depending on the programme, a SCART connection may be required to record.  Changing channel or turning off the TV is available while the recorder is recording from its own tuner.  Changing channel is not available while the recorder is recording from the TV tuner. 

Display “VIERA Link Menu”

DIRECT TV REC

EXIT

Select “Direct TV Rec” and start recording

VIERA Link Menu

Pause Live TV Start

Direct TV Rec

VIERA Link Control Speaker Selection

You can also start recording directly 

Start Recorder Home Cinema

start

select

DIRECT TV REC

To stop recording 

Select “Stop” in “Direct TV Rec” and access

VIERA Link Menu

Pause Live TV Start

Direct TV Rec

VIERA Link Control Speaker Selection

You can also stop recording directly. 

Unlock the tuner

Stop Recorder Home Cinema

Any timer programme in progress will also be deleted.

Press EXIT to unlock.

Continue

Tuner Locked

Unlock

select

stop

EXIT

Page 65

Features available  (Using VIERA Link Menu)

Pause Live TV programme

Pause Live TV

You can pause the live TV programme and resume the programme later. The live TV programme will be recorded on HDD of the connected DIGA Recorder.

This function is available with a DIGA Recorder which has HDD.  If you connect a variety of recorders including other manufacturers’ recorders at the same time, please  connect the DIGA Recorder which has HDD to the TV’s lower HDMI terminal number. For example, if you use HDMI1 and HDMI2 for two recorders, connect the DIGA Recorder which has HDD to HDMI1. If Pause Live TV does not operate, check the settings and the equipment 

“Summary of Q-Link and VIERA Link features” (p. 60 and p. 61), “Preparations” (p. 63)

Access and pause the live TV programme

Display “VIERA Link Menu”

INPUT

Select “Pause Live TV” and pause

pause

select

OPTION

VIERA Link Menu

Pause Live TV Start

Direct TV Rec VIERA Link Control Speaker Selection

The TV picture will be paused.

You can also pause directly by using VIERA TOOLS 

“How to Use VIERA TOOLS” (p. 26)

Live TV programme is recorded on HDD from where it was paused.  If the paused TV picture disappears after a few minutes 

OPTION

Follow the operation guide to operate Pause Live TV function.



(the paused picture will be restored)

Start Recorder Home Cinema

(Q-Link / VIERA Link)

Link Functions 

To operate Pause Live TV 

search backward pause search forward playback stop

If you stop playback, the recorded programme  will be deleted from HDD.

Operations may be different  depending on the recorder. In this case, follow the operation guide or read the manual of the recorder.

To return to Live TV 

(stop playback of Pause Live TV / cancel pause)

Select “Yes”

If you stop playback or cancel pause, the recorded programme will be  deleted from HDD.

Pause Live TV

Stop Pause Live TV?

Yes No

Advanced

select

stop

Page 66

Q-Link

Link Functions

Features available  (Using VIERA Link Menu)

Control the menu of the connected equipment by VIERA remote control

VIERA Link Control

You can control some functions of the connected equipment with this TV remote control (point the remote control at the TV’s signal receiver).

If you cannot operate the menu of the connected equipment, check the settings and the equipment 

“Summary of Q-Link and VIERA Link features” (p. 60 and p. 61), “Preparations” (p. 63)

For details of the operations for the connected equipment, read the manual of the equipment. 

Access and operate the menu of the equipment

Display “VIERA Link Menu”

(

VIERA Link

)

Select “VIERA Link Control”

VIERA Link Menu

Pause Live TV Start Direct TV Rec

VIERA Link Control

Speaker Selection

Start Recorder Home Cinema

select

Select the equipment you want to access

The type of the connected equipment is displayed. Select the type of the equipment and access.

VIERA Link Menu

Pause Live TV Start Direct TV Rec

VIERA Link Control

Speaker Selection

Recorder / Player / Home Cinema / Video Camera / LUMIX / Digital Camera / Other

Start Recorder Home Cinema

select

access

You can also access directly by using VIERA TOOLS 

“How to Use VIERA TOOLS” (p. 26)

The displayed item may vary depending on the connected  equipment. “Home Cinema” means Player theatre, Blu-ray Disc theatre or



Recorder theatre. “Other” means Tuner set top box.



The menu of the accessed equipment

(Input mode will be changed automatically)

Operate the menu of the equipment

Available VIERA remote control buttons: (depending on the connected equipment)

Set the position to “TV”

DVD/VCR

EXIT

Follow the operation guide

OPTION

To display the operation guide  If other manufacturers’ equipment is

OPTION

BACK/

RETURN

accessed, Setup / Contents Selection

TEXT

STTL

abc def

jkl

ghi

mno

tuvpqrs

wxyz

menu may be displayed.

When the key words are displayed on



colour bar

red green yellow blue

Note

Some operations may not be available 

REC

PROGRAMME

DVD/VCR

depending on the equipment. In this case use its own remote control to operate the equipment.

If multiple recorders or 

players are connected

VIERA Link Menu

Pause Live TV Start Direct TV Rec

VIERA Link Control

Speaker Selection

Start Recorder2 Home Cinema

Recorder1-2 / Player1-2

The number is given from the TV’s lower HDMI terminal number connected to the same type equipment. For example, two recorders to HDMI1 and HDMI2, in this case the recorder connected to HDMI1 is displayed as “Recorder1”, and the recorder connected to HDMI2 is displayed as “Recorder2”.

If you access 

non-VIERA Link equipment

VIERA Link Menu

Pause Live TV Start Direct TV Rec

VIERA Link Control

Speaker Selection

Start Recorder Home Cinema

The type of the connected equipment is displayed. You can access the menu of the equipment. But you cannot operate it. Use its own remote control to operate the equipment.

Page 67

Features available  (Using VIERA Link Menu)

Speaker control

You can control the home theatre speakers with this TV remote control (point the remote control at the TV’s signal receiver).

If you cannot control the home theatre speakers with this remote control, check the settings and the  equipment

“Summary of Q-Link and VIERA Link features” (p. 60 and p. 61), “Preparations” (p. 63)

Access and control the speaker volume

Speaker Selection

Display “VIERA Link Menu”

Select “Speaker Selection”

VIERA Link Menu

Pause Live TV Start Direct TV Rec VIERA Link Control

Speaker Selection

Set to “Home Cinema” or “TV”

Start Recorder Home Cinema

select

set

(Q-Link / VIERA Link)

Link Functions 

Home Cinema 

The Player theatre, Blu-ray Disc theatre or Amplifier will be

automatically turned on if it is in Standby mode and the sound will be output from theatre speakers connected to the equipment.

Volume up / down 

Mute



The sound of the TV speakers is muted.  When the equipment is turned off, the TV speakers will be activated. 

TV 

TV speakers are active.

Note

If you wish to enjoy multi-channel sound (e.g. Dolby Digital 5.1ch) via an 

Amplifier, connect the Amplifier to the TV with an HDMI cable and an Optical

digital audio cable (p. 61), and then select “Home Cinema”. If your Amplifier has

“HDAVI Control 5” function, you only need to connect with an HDMI cable. In this

case, connect your Amplifier to the TV’s HDMI2 terminal.

To enjoy the sound from the DIGA Recorder in multi-channel sound, connect an

HDMI cable from the DIGA Recorder to the Amplifier (p. 61).

Advanced

Note

These functions may not work properly depending on the connected equipment.  Image or sound may not be available for the first few seconds when Input mode is switched.  Easy playback may be available by using the remote control for Player theatre, Blu-ray Disc theatre or Amplifier.  Read the manual of the equipment. “HDAVI Control 5” is the newest standard (current as of December, 2009) for HDAVI Control compatible  equipment. This standard is compatible with conventional HDAVI equipment. To confirm this TV’s version of HDAVI Control

 “System Information” (p. 31)

Page 68

External Equipment

These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment, the table below, and the specifications (p. 79).

To listen with speakers

( M3 stereo

mini plug)

Headphones

 To adjust volume

“Headphone Volume” in the Sound Menu (p. 29)

Types of connectable equipment to each terminal 

Ampli er with speaker system

Camcorder /

Game equipment

To enjoy the sound from the external equipment in multi-channel sound (e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. For the connections, read the manuals of the equipment and amplifier.

Optical digital audio cable

RCA cable

(Viewing)

(Listening)

To watch DVDs

DVD player

Terminal

Recording / Playback (equipment)

To record / playback videocassettes / DVDs (VCR / DVD Recorder)

To watch DVDs (DVD Player) To watch camcorder images (Video camera) To watch satellite broadcasts (Set top box) To play games (Game equipment) To use amplifier with speaker system Q-Link

VIERA Link

Direct TV Recording

: Recommended Connection



1 : applicable if your amplifier has ARC (Audio Return Channel) function

AV1 AV2 AV3

(with HDMI) (with HDMI)

Page 69

Conversion adapter (if necessary)

PC iPod

HDMI equipment

“HDMI connection” (p. 72)

Terrestrial aerial

(Viewing)

DIGITAL

AUDIO

OUT

(Listening)

AUDIO

OUT

COMPONENT

LRL

AUDIO IN

Computer

DVD Recorder

Dock for iPod

Fully wired HDMI

compliant cable

(ARC)

RF cable

External Equipment 

To record /

playback

(Listening)

(Viewing)

COMPONENT

PBL

AUDIO OUT

SCART cable

Fully wired HDMI compliant cable

To watch satellite

HD Satellite receiver

DIGITAL AUDIO OUT

broadcasts

DVD Recorder / VCR

SCART cable

Advanced



Page 70

Technical Information

Auto Aspect

The optimum size and aspect can be chosen automatically, and you can enjoy finer images. (p. 16)

Aspect Control Signal 

“WIDE” will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART / HDMI terminal is found. The aspect will switch to the appropriate 16:9 or 14:9 widescreen ratio. This function will work in any aspect mode.

Aspect Control Signal

Input terminal Input signal format

DVB

AV1 (Composite) AV2 (Composite or S-Video) AV3

COMPONENT

HDMI1 HDMI2

PAL I PAL 525/60 6.0 MHz – M.NTSC 6.0 MHz – PAL PAL 525/60 – M.NTSC – NTSC – 525 (480) / 60i – 525 (480) / 60p – 625 (576) / 50i 625 (576) / 50p 750 (720) / 60p – 750 (720) / 50p – 1,125 (1,080) / 60i – 1,125 (1,080) / 50i – 525 (480) / 60i – 525 (480) / 60p – 625 (576) / 50i – 625 (576) / 50p – 750 (720) / 60p – 750 (720) / 50p – 1,125 (1,080) / 60i – 1,125 (1,080) / 50i – 1,125 (1,080) / 60p – 1,125 (1,080) / 50p – 1,125 (1,080) / 24p –

Widescreen signal (WSS)

Control signal through SCART (pin8) / HDMI terminal

Auto mode 

Auto mode determines the best aspect ratio to fill the screen. It does this using a four step process (WSS, Control signal through SCART / HDMI terminal, Letterbox detection, or Justify to fill the screen).

This process may take several minutes, depending on the darkness of the image.

Letterbox detection: If black bands at the top and bottom of the screen are detected, Auto mode chooses the best ratio and expands the image to fill the screen. If no aspect signals are detected, Auto mode enhances the image for optimum viewing pleasure.

Note

The ratio varies depending on the programme, etc. If the ratio is out of the standard 16:9, black bands at the top  and bottom of the screen may appear. If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the  tracking of the VCR. Read the manual of the VCR.

Page 71

SD Card

2.1 mm

If the SD Card does not meet SD standards, it may cause the TV to malfunction.

32 mm

24 mm

Cautions in handling SD Card 

Do not remove the card while the TV is accessing data (this can damage card or TV).  Do not touch the pins on the back of the card.  Do not subject the card to a high pressure or impact.  Insert the card in the correct direction (otherwise the card or TV may be damaged).  Electrical interference, static electricity, or erroneous operation may damage the data or card.  Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of  the TV. (Panasonic is not liable for any deterioration or damage of recorded data.)

Data format for Card browsing 

Photo : Still images recorded with digital still cameras compatible with JPEG files of DCF 

Data format - Baseline JPEG (Sub-sampling 4:4:4, 4:2:2 or 4:2:0) Image resolution - 8 × 8 to 30,719 × 17,279 pixels

Video : SD-Video Standard Ver. 1.2 [MPEG-2 (PS format)] and AVCHD Standard compatible files with an audio



format that is either MPEG-1/Layer-2 format or Dolby Digital format (Files recorded with vertical frequency 50 Hz are applicable. A modified data with a PC may not be

displayed correctly.)

Card format : SDXC Card - exFAT



SDHC Card / SD Card - FAT16 or FAT32

Compliant card type (maximum capacity): SDXC Card (64 GB), SDHC Card (32 GB), SD Card (2 GB), 

miniSD Card (2 GB) (requiring miniSD adapter)

If miniSD Card is used, insert / remove it together with the adapter.  Check the latest information on the card type at the following website. (English only)  http://panasonic.jp/support/global/cs/tv/



DCF (Design rule for camera file system): Unified standard established by Japan Electronics and Information Technology Industries Association (JEITA).



and EXIF standards

Note

Format the card with the recording equipment.  The picture may not appear correctly on this TV depending on the recording equipment used.  Display may take some time when there are many files and folders.  This function cannot display Motion JPEG or still images that are not JPEG format (i.e. TIFF, BMP).  Data modified with a PC may not be displayed.  Images imported from a PC must be compatible with EXIF (Exchangeable Image File) 2.0, 2.1, and 2.2.  Partly degraded files might be displayed at a reduced resolution.  The folder and file names may be different depending on the digital camera or digital video camera used.  Do not use two-byte characters or other special codes.  The card may become unusable with this TV if the file or folder names are changed. 

Characters table for numeric buttons

You can enter characters by using numeric buttons for free input items. Press the numeric button repeatedly until you reach the desired character.

abc def

jkl

ghi

tuvpqrs

The character is set automatically if you do not press the button 

mno

for one second.

wxyz

You can also set the character by pressing the OK button or other



numeric buttons within one second.

Characters table:

The number of

times to

Numeric

press

buttons

abc

def

ghi

jkl

mno

pqrs

tuv

wxyz

1234567891011

.1! :#+-*_() abc2ABC de f 3DEF gh i 4GHI

jkl5JKL

mn o 6MNO

pqr s7PQRS

tuv8TUV

wxyz9WXYZ

Space 0

User input

Name

A B C D E F G H I J K L M N U V W X Y Z 0 1 2 3 4 5 6

a b c d e f g h i j k l m n u v w x y z ( ) + - . * _

O P Q R S T 7 8 9 ! : # o p q r s t

.!:#2abc3def

ghi5jkl6mno

pqrs8tuv9wxyz

Technical Information 

FAQs, etc.

Page 72

Technical Information

SCART and HDMI terminal information

AV1  SCART terminal

(RGB, VIDEO, Q-Link)

Suitable inputs for AV1 include RGB (Red / Green / Blue).

AV2  SCART terminal

(RGB, VIDEO, S-VIDEO, Q-Link)

AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO switching.

Socket Earth 21 CVBS out (video) 19 CVBS earth 17 Red in 15 Red earth 13 Green in 11 Green earth 9 Blue in 7 Blue earth 5 Audio out (L) 3 Audio out (R) 1

20 CVBS in (video) 18 RGB status earth 16 Status RGB 14 Earth 12 -10 Q-Link data 8 Status CVBS 6 Audio in (L) 4 Audio earth 2 Audio in (R)

Socket Earth 21 CVBS out (video) 19 CVBS earth 17 Red in, S.C. - in 15 Red earth 13 Green in 11 Green earth 9 Blue in 7 Blue earth 5 Audio out (L) 3 Audio out (R) 1

20 CVBS in (video) 18 RGB status earth 16 Status RGB 14 Earth 12 -10 Q-Link data 8 Status CVBS 6 Audio in (L) 4 Audio earth 2 Audio in (R)

HDMI  terminal

Hot Plug Detect 19 DDC/CEC Ground 17 SCL 15 CEC 13 TMDS Clock Shield 11 TMDS Data0 9 TMDS Data0+ 7 TMDS Data1 Shield 5 TMDS Data2 3 TMDS Data2+ 1

18 +5V Power 16 SDA 14 Reserved

(in cable but N.C. on device) 12 TMDS Clock 10 TMDS Clock+ 8 TMDS Data0 Shield 6 TMDS Data1 4 TMDS Data1+ 2 TMDS Data2 Shield

HDMI connection

HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying with a non-compression standard. HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment. HDMI-compatible equipment game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable. For information about connections, see “External Equipment” (p. 68 and p. 69).

Applicable HDMI features 

Input audio signal : 2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)  Input video signal : 480i, 480p, 576i, 576p, 720p, 1080i and 1080p 

Input PC signal :

 “Input signal that can be displayed” (p. 73)

VIERA Link (HDAVI Control 5) :  “VIERA Link” (p. 63) Audio Return Channel



DVI connection 

If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (HDMI1 / 2: use COMPONENT-AUDIO terminals).

Note

Audio settings can be made on the “HDMI1 / 2 Input” in the Sound Menu. (p. 29)  If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.  These HDMI connectors are “type A”.  These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright  protection. Equipment having no digital output terminal may be connected to the input terminal of either “COMPONENT”,



“S-VIDEO”, or “VIDEO” to receive analogue signals. This TV incorporates HDMI™ technology. 

(1)

with an HDMI or DVI output terminal, such as a DVD player, a set top box or a

“Input signal that can be displayed” (p. 73)

Match the output setting of the digital equipment.

Match the output setting of the PC.

(3)

(HDMI2 terminal only)

(1): The HDMI logo is displayed on HDMI-compliant equipment. (2): Enquire at your local digital equipment retailer shop. (3): Audio Return Channel (ARC) is a function to be able to

send digital sound signals via an HDMI cable.

(2)

Page 73

PC connection

A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.

PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning frequency  59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image). A PC adapter is not necessary for the DOS/V-compliant D-sub 15-pin connector. 

Note

Some PC models cannot be connected to this TV.  To listen to PC sound from the TV, connect the audio cable to COMPONENT-AUDIO terminals. (p. 69)  When using PC, set the colour display quality of PC to the highest position.  For details of the applicable PC signals  “Input signal that can be displayed” (below) Max. display resolution 

Aspect

D-sub 15-pin connector signal 

4:3

16:9

1,024 × 768 pixels 1,366 × 768 pixels

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

R GND (Ground) NC (not connected) G GND (Ground) NC (not connected) B GND (Ground) HD (HSYNC)

NC (not connected) NC (not connected) VD (VSYNC)

GND (Ground) GND (Ground) NC (not connected)

Input signal that can be displayed

COMPONENT (Y, PB, PR), HDMI

* Mark: Applicable input signal

Signal name COMPONENT HDMI

525 (480) / 60i 525 (480) / 60p 625 (576) / 50i 625 (576) / 50p 750 (720) / 60p 750 (720) / 50p 1,125 (1,080) / 60i 1,125 (1,080) / 50i 1,125 (1,080) / 60p 1,125 (1,080) / 50p 1,125 (1,080) / 24p

       

  

PC (from D-sub 15P) Applicable input signal for PC is basically compatible to VESA standard timing.

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 × 400 @70 Hz 31.47 70.07 640 × 480 @60 Hz 31.47 59.94 640 × 480 @75 Hz 37.50 75.00 800 × 600 @60 Hz 37.88 60.32 800 × 600 @75 Hz 46.88 75.00 800 × 600 @85 Hz 53.67 85.06 852 × 480 @60 Hz 31.44 59.89 1,024 × 768 @60 Hz 48.36 60.00 1,024 × 768 @70 Hz 56.48 70.07 1,024 × 768 @75 Hz 60.02 75.03 1,024 × 768 @85 Hz 68.68 85.00 1,280 × 768 @60 Hz 47.70 60.00 1,280 × 1,024 @60 Hz 63.98 60.02 1,366 × 768 @60 Hz 48.39 60.04 Macintosh13” (640 × 480) 35.00 66.67 Macintosh16” (832 × 624) 49.73 74.55 Macintosh21” (1,152 × 870) 68.68 75.06

PC (from HDMI terminal) Applicable input signal for PC is basically compatible to HDMI standard timing.

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 × 480 @60 Hz 31.47 60.00 750 (720) / 60p 45.00 60.00 1,125 (1,080) / 60p 67.50 60.00

Technical Information 

FAQs, etc.

Note

Signals other than above may not be displayed properly.  The above signals are reformatted for optimal viewing on your display.  P 

C signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.

Page 74

FAQs

Before requesting service or assistance, please follow these simple guides to resolve the problem. If the problem still persists, please contact your local Panasonic dealer or Panasonic Customer Care Centre for assistance. For details (p. 80)

Block noise, frozen or disappearing image occurs in digital mode / White spots or shadow image (ghosting) occurs in analogue mode / Some channels cannot be tuned

Check the position, direction and connection of the  aerial. Check “Signal Condition” (p. 40). If “Signal Quality” is  displayed in red, the digital signal is weak. Check your postcode area is able to receive the



Freeview channels at www.freeview.co.uk Digital signals may be relatively low to prevent  interference with analogue signals for the period of Digital Switchover. Check the schedule of Digital Switchover at www.digitaluk.co.uk Weather conditions will affect signal reception (heavy



rain, snow, etc.), in particular in poor reception areas. Even during good weather, high pressure can cause poor reception of some channels. Due to the digital reception technologies involved,  quality of the digital signals may be relatively low in some cases, despite good reception of analogue channels. Turn the TV off with the Mains power On / Off switch,



and then on again. If problem persists, consult your local dealer. 

S-Video / black and white picture

A black and white picture may be seen when  the TV is set to S-Video when the connected equipment is not. Change the setting on the TV (p. 24). Check that the output of the external equipment  matches the input of the TV. If the output of the external equipment is set to S-Video, the TV must also be set to S-Video (p. 24).

Input mode, i.e. EC/AV1 remains on the screen

Press the  button to clear this message. Press again to redisplay.

Neither image nor sound is produced

Is the TV in AV mode?  Check the correct AV input mode is selected.  Check the mains lead is plugged into the socket  outlet. Has the TV been turned On?  Check the Picture Menu (p. 28) and volume.  Check all required cables and connections are firmly  in place.

Auto aspect

Auto aspect is designed to provide you with the best  ratio to fill the screen. (p. 70)



Press the ASPECT button if you would like to change the aspect ratio manually (p. 16).

Q-Link function does not work

Confirm SCART cable and connection.  Also set “AV1 / AV2 out” in the Setup Menu (p. 30).

“VIERA Link” function does not work and an error message appears

Confirm the connection. (p. 60 and p. 61)  Turn the connected equipment on and then  switch the TV on. (p. 63)

Recording does not start immediately

Check the settings of the recorder. For details,  read the manual of the recorder.

Page 75

Problem Actions

Chaotic image, noisy

Screen

No image can be displayed

Blurry or distorted image

(no sound or low volume)

Set “P-NR” in the Picture Menu (to remove noise). (p. 28)  Check nearby electrical products  (fluorescent lamp, DECT phones, mobile phones, microwave, etc.).

Is “Contrast”, “Brightness” or “Colour” in the Picture Menu set to the  minimum? (p. 28) Please also refer to “Neither image nor sound is produced” (p. 74)



Reset channels. (p. 36 and p. 37)  Please also refer to “Neither image nor sound is produced” (p. 74) 

Unusual image is displayed

Sound

No sound is produced

Sound level is low or sound is distorted

Digital Channel

No programmes shown on TV Guide

Cannot find a channel you have previously watched

Sound is unusual

HDMI

Pictures from external equipment are unusual when the equipment is connected via HDMI

The TV does not switch On

The TV goes into Standby mode

The remote control does not work or is intermittent

Other

Turn the TV Off with Mains power On / Off switch, then turn it On again.  If the problem persists, perform “Shipping Condition” (p. 46). 

Is “Sound mute” active? (p. 8)  Is the volume set to the minimum?  Is Speaker Selection (VIERA Link) set to “TV”?  Please also refer to “Neither image nor sound is produced” (p. 74) 

Sound signal reception may be deteriorated.  Set “NICAM” (p. 29) in the Sound Menu to “Off”. (Analogue only)  Please also refer to “Neither image nor sound is produced” (p. 74) 

Reset channels. (p. 36 and p. 37)  Check the digital transmission by contacting Digital UK on  08456 50 50 50 or at www.digitaluk.co.uk Check the analogue broadcast (if still available in your area).



Consult an aerial engineer to check the alignment of your aerial. 

The channel may broadcast for part of the day.  Check the channel in the TV Guide. (p. 18 and p. 19)  Channel position numbers may be changed by broadcasters.  Reset channels. (p. 36 and p. 37) 

Set the sound setting of the connected equipment to “2ch L.PCM”.  Check the “HDMI1 / 2 Input” setting in the Sound Menu. (p. 29)  If digital sound connection has a problem, select analogue sound  connection. (p. 72)

Check the HDMI cable is connected properly. (p. 68 and p. 69)  Turn the TV and equipment Off, then turn them On again. (p. 63)  Check an input signal from the equipment. (p. 73)  Check the output resolution from the equipment. (p. 73)  Use an equipment compliant with EIA/CEA-861/861B. 

Press and hold the standby On / Off switch on the remote control  for about 1 second if Power LED is red. Check the mains lead is plugged into the socket.



The fuse in the mains plug may have blown. Replace it with one of  an identical rating (p. 4).

Auto power standby function is activated. (p. 9)  The TV enters Standby mode about 30 mins. after analogue  broadcast ends.

Are the batteries installed correctly? (p. 6)  Has the TV been switched On?  The batteries may be running low. Replace them.  Point the remote control directly at the front of the TV (within about  7 m and a 30 degree angle of the front of the TV). Situate the TV so that sunshine or other sources of bright light do  not shine on the TV’s remote control signal receiver.

Frequently Asked Questions 

Parts of the TV become hot

The LCD panel moves slightly when it is pushed with a finger Clattered sound might be heard

There may be red spots, blue spots, green spots and black spots on the screen

An error message appears

Temperature rises of parts of the front, top and rear panels will not  pose any problems in terms of performance or quality of the TV.

There is some flexibility around the panel to prevent damage to the  panel. The panel might move slightly when it is pushed with a finger, and  clattered sound might be heard. This is not a malfunction.

This is a characteristic of liquid crystal panels and is not a problem.  The liquid crystal panel is built with very high precision technology giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue or black. Please note this does not affect the performance of your LCD.

Follow the message’s instructions.  If the problem persists, contact your local Panasonic dealer or the  authorized Service Centre.

FAQs, etc.

Page 76

On screen messages

Message Meaning / Action

All tuning data will be erased “Shipping Condition” will erase all tuning data (p. 46). 

Are you sure ?

Are you sure you want to delete this timer ? Press OK to delete timer. Press RETURN to return.

Bad signal

Child Lock is active! Press OK to enter PIN.

Feature not available.

Feature not available. Press OK to view how it works.

Found new software version ***. Press OK to start update (may take 40 mins) or Press EXIT to ignore and you can update when TV is in standby

Invalid operation - Please check settings and connections.

Invalid system time. Please exit !

Invalid system time, Timer Programming will not work. Please press TV button on remote control and check time display on Banner

Confirm correct operation. 

The signal is weak. Check the aerial is plugged in properly. It may be  necessary to have an aerial installer check the signal and aerial alignment. Reset channels. (p. 36 and p. 37) 

The selected channel is locked in Child Lock (p. 44). You must enter the  PIN number before the channel will be displayed.

It is not possible to record from COMPONENT, HDMI or PC. Connect the recorder  to the TV using a fully wired SCART cable for recording from the TV tuner. Confirm Q-Link or VIERA Link settings (p. 60 - p. 61) 

The selected feature on VIERA TOOLS is not available. Press the OK  button to view the demonstration to explain how to use it.

There is a new software available. 

Check the Q-Link or VIERA Link connection and setting (p. 60 - p. 61). 

Cannot get the time information and cannot edit Timer Programming  screen. Check the connection of the RF cable.

Cannot get the time information. If there is no time displayed on the  Information banner, check the connection of the RF cable.

Max. number of timers already set !

New channels found! Press OK to update channel list Press EXIT to ignore.

No channel found. Please check aerial or local signal availability. Press OK to start Auto Setup.

No module inserted

No recording - Already recording

No recording - Check media

No recording - Playing

No recording - Unknown reason

No service

No signal

PIN incorrect!

Please check settings and connections on HDMI devices.

The maximum number of timer programming events is 15.  There may be new channels available. 

This message will appear each time a change is made by the broadcasters.  This message can be deactivated by setting “New Channel Message” to Off in “DVB Tuning Menu”. Selecting OK will perform “Update Channel List”.

Follow the on screen instructions.  Please also refer to p. 74.  If channels are still not found, consult your local Panasonic dealer. 

Check the CI module is inserted completely (p. 48). 

The equipment may already be recording. 

The tape or disc may be “write protected”, fully missing or damaged. 

The equipment may be playing the tape or disc. 

The recording may not be performed. Check the equipment.  The broadcaster has stopped the service. Check the channel in the TV 

Guide. (p. 18 and p. 19)

The TV cannot detect the signal. Check the connection of the RF cable. 

The PIN number you entered is wrong. 

Communication error in VIERA Link function (p. 63). 

Please wait.

Recording this channel now

Reset to Factory Shipping Condition Completed. Please switch off TV.

Sending Preset Data

A function is in progress.  The recorder is recording the programme from its own tuner. You can turn 

the TV off and leave the equipment recording in the normal way. “Auto Setup” will automatically start when Mains power On / Off switch is 

next turned On. (p. 12)

Q-Link or VIERA Link channel download is in progress. 

Page 77

Message Meaning / Action

Software successfully updated. Press EXIT to continue.

Software update failed. Please try again later. Press EXIT to continue.

This timer will not follow the TV Guide information. Press OK to continue, RETURN to restore original timer.

Timer already expired !

Timer Event Due to Start

:

programmed for External recording at :

Timer incorrect !

Timer overlap. Press OK to keep, RETURN to edit.

Tuner Locked Press EXIT to unlock. Any timer programme in progress will also be deleted.

Unable to download, please check equipment

has been



The software updating is finished. 

Perform “System Update Search Now” in System Update (p. 49).  If this is still unsuccessful, there may not be any new software available.

If you edit the start time or end time of Guide link programming more than  10 minutes, it will no longer be performed as Guide link programming. The programming will be performed according to the time setting.

The starting time in Timer Programming has already passed. Set the  timer correctly (p. 43).

This message will appear 2 mins. before timer programming event for  external recording due to start.

Set the start and end times in Timer Programming correctly (p. 43).  T 

imer programming events are overlapped. Press the OK button to keep the overlapped setting. “Ext Rec.” is given priority over “Reminder”. When two or more “Ext Rec.” overlap, the first timer programming event starts and finishes as programmed. The next timer programming event can then start.

If you want to unlock the tuner, cancel Direct TV Recording (p. 58 and  p. 60) or Ext Rec. of Timer Programming (p. 43).

The tape or disc is active. Stop the equipment and try again. 

Media Player 

Cannot read file

No SD card inserted

No valid file to play

Please confirm the SD card is OK

This operation is not possible

The file is damaged or unreadable.  The TV does not support the format.  (For the applicable formats and data p. 71)

Confirm the SD Card is inserted correctly. 

The card has no data. 

The inserted SD Card has a problem. 

The selected operation is not available. 

Glossary

AVCHD 

Advanced Video Codec High Definition - A standard for high definition video cameras that can be used to

record and play high resolution HD images

DVB 

Digital Video Broadcasting

DVD 

Digital Versatile Disc

DVI 

Digital Visual Interface - A high quality video interface standard to connect to the display

EPG 

Electronic Programme Guide - A digital guide showing scheduled programmes

HDMI 

High-Definition Multimedia Interface - A digital audio and video interface for transmitting uncompressed digital signals on a single cable

JPEG 

Joint Photographic Experts Group - A standard for compressing colour still pictures

MPEG2 

oving Picture Experts Group phase 2 - A standard for

efficiently compressing and expanding colour videos

NICAM 

Near Instantaneous Companded Audio Multiplex A format for digital sound over television

NTSC 

National Television System Committee - One of the television signals used in USA, etc.

RF 

Radio Frequency - Signal received from terrestrial aerial

RGB / S-Video / Video 

Choose between these three video formats depending on personal preference and equipment requirement

(RGB - Red, Green and Blue)

SCART 

21 pin connection used for video, audio and switching signals (Also known as Euro SCART and Peritel)

Shop viewing environment 

Shop viewing environment is the demonstration mode to explain main features of this TV in an easy understandable way. This mode will work if you select “Shop” in “Auto Setup” (p. 12 and p. 13).

SPDIF 

A standard audio transfer file format

VCR 

Video Cassette Recorder

On screen messages 

Glossary 

FAQs, etc.

Page 78

Maintenance

First, remove the mains plug from the socket outlet.

Display panel, Cabinet, Pedestal

Regular care: Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to clean the dirt or fingerprints. For stubborn dirt: Dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water). Then wring the cloth and wipe the surface. Finally, wipe away all the moisture.

Caution

Do not use a hard cloth or rub the surface too hard. This may cause scratches on the surface.  T 

ake care not to subject the TV’s surfaces to water or detergent. A liquid inside the TV could lead to product failure.

Take care not to subject the surfaces to insect repellent, solvent, thinner, or other volatile substances. This may  degrade surface quality or cause peeling of the paint. Take care not to tap or scratch the surface with your fingernail or other hard objects.  Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may  degrade surface quality.

Mains plug

Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.

Licence

Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.

DVB and the DVB logos are trademarks of the DVB Project.  VGA is a trademark of International Business Machines Corporation.  S-VGA is a registered trademark of the Video Electronics Standard Association.  Macintosh is a registered trademark of Apple Inc., USA.  iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.  “Made for iPod” and “Works with iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone and has been certified by the developer to meet Apple performance standards. SDXC Logo is a trademark of SD-3C, LLC.  HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of  HDMI Licensing LLC in the United States and other countries. HDAVI Control™ is a trademark of Panasonic Corporation.  “AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation.  Manufactured under license from Dolby Laboratories.  Dolby and the double-D symbol are trademarks of Dolby Laboratories. GUIDE Plus+ is (1) a registered trademark or trademark of, (2) manufactured under license from and (3)  subject of various international patents and patent applications owned by, or licensed to, Gemstar-TV Guide International, Inc. and/or its related affiliates.

Index

Accessories ···································· 6

Analogue Tuning Menu Aspect ···································· 16, 70 Audio Description ···················17, 29

Auto Setup ························ 12, 36,37

Auto Standby ································ 32 AV1 / AV2 out ·························· 30, 62

Banner Display Timeout ··············· 31

Category list ·································18

C.A.T.S. ···································· 9, 28 Channel List ··························· 39, 41 Channel Sorting by Region ·········· 38 Child Lock ····································· 44 CI module ····································· 48 COMPONENT ························69, 72 Connection ····· 10, 11, 60, 61, 68, 69

Direct TV Recording ···············62, 64

D-sub 15-pin ································· 73 DVB Tuning Menu ··················36, 38 DVI ··············································· 72 DVI Input Setting ··························32 DVD Recorder ············ 10, 11, 24, 25

EPG ·············································· 18

Equalizer ······································ 29 External equipment ····10, 11, 24, 68, 69 External input ························· 24, 45

FAQs ······································74, 75

Favourites Edit ····························· 39 Free input menu ···························27

Glossary ·······································77

Guide link recording ····················· 19 GUIDE Plus+ Settings ··················32

HDMI ············································72

·····

37, 40, 41

Hold ········································15, 22 Home Cinema ························ 61, 67

Information banner ······················· 15

Input Labels ·································· 45 Input signal ··································· 73 iPod ···················8, 25, 56-59, 69, 79

Last view ······································17

Licence ·········································78

Mains Lead ························· 4, 10, 11

Mains power On / Off switch ····9, 12 Maintenance ································· 78 Manual Tuning ························ 38, 41 Media Player ··························· 50-53 Menu Functions ······················· 27-32 Mode ············································ 29 Monaural Audio ···························· 17 Multi Audio

New Channel Message ················40

NICAM ···································· 29, 77 NTSC ······································28, 77

Off Timer ································· 17, 30

Optional accessories ······················ 6 Owner ID ································12, 47

PAL ··············································· 79

PC ···································· 54, 55, 73 Pedestal ····································· 6, 7 Photo Mode ·································· 50 PIN number ······················13, 44, 47 Playing Time Display ···················· 31 P-NR ·············································28 Power and Timer LED ········9, 19, 42

Q-Link ······························· 30, 60, 62

Q-Link Download ···················· 12, 30

······································ 17

Quick Start Guide ······················6-13

Radio Mode ·································· 31

Remote control ···························6, 8 Reset to Defaults ·············· 28, 29, 46 RGB ········································77, 79

Sales and Support Information ····· 80

Satellite receiver ····················· 11, 68 SCART ·····························10, 60, 72 SD Card ·································· 50, 71 Search list ····································· 18 Shipping Condition ······················· 46 Signal Condition ··························· 40 Slideshow ·······························50, 51 SPDIF Selection ··························· 53 Specifications ······························· 79 Split Programme ··························· 19 Subtitles ··································15, 23 S-Video ·········································72 System Update ····························· 49

Teletext ····································21-23

Timer Programming ······················ 42 TV Guide ································· 18-20

Update Channel List ····················· 40

V-Audio Surround ························· 29

VCR ······················ 10, 11, 24, 25, 69 Video Mode ·································· 52 VIERA Link ··················60, 61, 63-67 VIERA TOOLS ······························ 26 Viewing Mode ······························· 28 Vivid Colour ·································· 28 Volume Correction ························29

WSS ·············································70

Zoom ············································16

Page 79

Specifications

TX-L19D28BP, TX-L19D28BW TX-L22D28BP, TX-L22D28BW

Power Source AC 220-240 V, 50 Hz Rated Power Consumption 39 W 44 W

Standby Power Consumption

Display

panel

Aspect Ratio 16:9

Visible screen size

Number of pixels 1,049,088 (1,366 (W) × 768 (H))

Sound

Speaker 85 mm × 28 mm × 2 pcs, 8 Audio Output 6 W (3 W + 3 W), 10% THD

Headphones M3 (3.5 mm) stereo mini Jack × 1

PC signals

Receiving Systems / Band name

Aerial input UHF

Operating Conditions

Connection Terminals

AV1 (SCART terminal) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link)

AV2 (SCART terminal) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, S-Video in, Q-Link)

AV3

COMPONENT

Others

Output

Dimensions ( W × H × D )

Mass

VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 :)

AUDIO L - R

VIDEO

HDMI 1 / 2

Dock for iPod

Card slot

AUDIO L - R

DIGITAL AUDIO OUT

Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.  This equipment complies with the EMC standards listed below.  EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024.

0,3 W 13 W (With monitor out recording)

47 cm (diagonal) 409 mm (W) × 230 mm (H)

VGA, SVGA, XGA SXGA ······ (compressed) Horizontal scanning frequency 31 - 69 kHz Vertical scanning frequency 59 - 86 Hz

PAL I UHF E21-68 PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR) or NTSC disc

DVB-T Digital terrestrial services via UHF aerial input. M.NTSC Playback from M.NTSC Video recorders (VCR). NTSC (AV input only) Playback from NTSC Video recorders (VCR).

Temperature : 0 °C - 35 °C Humidity : 20 % - 80 % RH (non-condensing)

RCA PIN Type × 2 0.5 V[rms]

Y 1.0 V[p-p] (including synchronization) PB, PR ±0.35 V[p-p]

TYPE A Connectors HDMI2 : HDMI (Version 1.4 with Audio Return Channel)



This TV supports “HDAVI Control 5” function.

HIGH-DENSITY D-SUB 15PIN R,G,B/0.7 V[p-p] (75 :) HD, VD/TTL Level 2.0 - 5.0 V[p-p] (high impedance)

DC 5 V, Max 500 mA

SD Card slot × 1 Common Interface slot × 1

RCA PIN Type × 2 0.5 V[rms] (high impedance)

PCM / Dolby Digital, Fiber optic

491 mm × 341 mm × 175 mm (With Pedestal) 491 mm × 326 mm × 58 mm (TV only)

6.5 kg Net (With Pedestal)

4.0 kg Net (TV only)

playback from DVD player and recorder.

55 cm (diagonal) 478 mm (W) × 269 mm (H)

556 mm × 378 mm × 175 mm (With Pedestal) 556 mm × 364 mm × 58 mm (TV only)

8.0 kg Net (With Pedestal)

5.0 kg Net (TV only)

Maintenance Licence Index

Specifications 

This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM.

http://www.europe.guideplus.com/

FAQs, etc.

Page 80

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Sales and Support Information

Customer Care Centre

For customers within the UK: • 0844 844 3852 For customers within the Republic of Ireland: • 01 289 8333 Visit our website for product information: • www.panasonic.co.uk E-mail: • customer.care@panasonic.co.uk

Direct Sales at Panasonic UK

For customers: • 0844 844 3856 Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care Centre • Monday  Thursday 9:00am  5:30pm, Friday 9:30am  5:30pm (Excluding public holidays). Or go on line through our Internet Accessory ordering application at • www.pas-europe.com Most major credit and debit cards accepted.• All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.• It couldn’t be simpler!• Also available through our Internet is direct shopping for a wide range of finished products, take a browse on our website • for further details.

Declaration of Conformity (DoC)

Authorized Representative: Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany

Customer’s Record

The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Panasonic (U. K.) Ltd.

Willoughby Road, Bracknell, Berks RG12 8FP Web Site : http://panasonic.net

Printed in Czech Republic

Panasonic TXL22D28BW, TXL22D28BP, TXL19D28BW, TXL19D28BP Operating Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
