Page 1

Panasonic

Stereo Colour Television

With TELETEXT

Operating Instructions

TX-86PW1OOA

TX-76PW1 OOA

TX-76PW50A

Widescreen

tur n y our li fe on

Please read these operating instructions completely before operating this set and retain the booklet for future reference.

Doiby, Pro Logic and theQOsymbot are trademarks of Dolby Laboratories. Manufactured under licence from Ddby Laboratories. Manu^ctured under licence from Digital Theatre Systems, Inc. US Pat. No. 5,451,942 and other wortdwide patents issued and pending. “DTS** and "DTS Digital Surround'* are trademarks of Digital Theatre Systems, Inc. Cop^ght 1996 Digital Theatre Systems, Inc. All Rights Reserved.

TQB4A0152

Page 2

Dear Panasonic Customer,

Welcome to the Panasonic family. We hope that you will have many years of enjoyment from your new

Colour Television.

Please retain your proof of purchase along with these operating instructions. Space has been made available on the back page of this instruction book for recording the Serial Number. The Serial Number can be found on the back cover of the set and on the packing carton.

Important Information

The picture tube has a special coating.

Please only use a soft cloth when you clean the surface of the picture tube The film can be easily scratched. DO NOT rub the surface with a hard material. DO NOT use salt water, insecticide, chloric or acidic cleaning solvent or cleaning agent with abrasive

materials. DO NOT heat the screen surface to 80“C or higher.

Programme Location Numbers

This television comes to you “factory tuned” to all the major capital city broadcast stations. Adjustments to the tuning should not be necessary. However, if you have to make adjustments, please read these instructions carefully first. Throughout ttils booklet "Programme Location Numbers” are referred to. These are memory

locab'ons into which you can tune television broadcast stations. Any television station can be tuned into any

Programme Location Number.

Picture Quality

All televisions are affected by Magnetic Interference.

Magnetic Interference may come from such things as unshielded motors, moving the TV while it is switched ON, turning off a vacuum cleaner too close to the TV, lightning strikes nearby or many other things. The interference shows up as coloured patches that appear while the TV is switched ON.

A typical result may look like the picture shown.

Your Panasonic Television is designed to overcome this with the inclusion of a demagnetising (degaussing) function.

To activate this feature, simply switch your Television OFF with the Power On/Off Switch (not with the remote control) for 30 minutes and then switch it back ON.

If the television is to be left unattended for extended periods (several days or more), turn the power off to

the unit. DO NOT leave in Standby mode. This will ensure that you enjoy the picture clarity as it was meant to be.

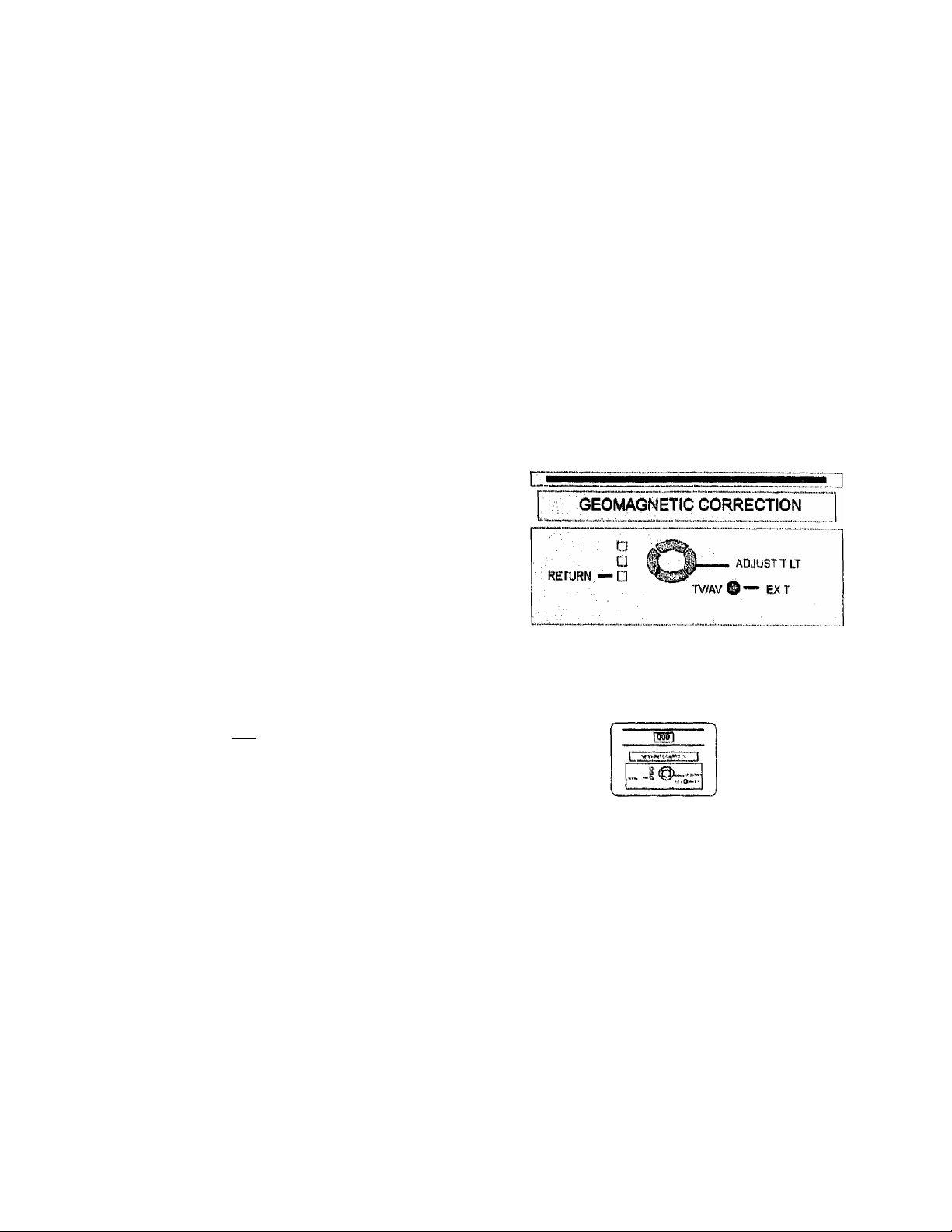

Refer to page 32 for operating instructions for the GEOMAGNETIC feature.

Page 3

Getting Started Connect the Aerial

The RF (Aerial) Input impedance of this television is 750. if your aerial iead is 3000 ribbon (two wires separated by a flat plastic strip) you will require a 3000/750 Baiun in order to connect your aerial to the television.

To Antenna

For your safety any externai aerial should be installed by a reputable qualified instaiier and should comply with Australian Standard AS1417.1. In New Zealand the installation should comply with International Standard IEC597-1.1.

TX-86PW100Aa TX-76PW100A

Connect the Power Plug

This television is designed for the Australian Standard Mains Voltage of 240V 50Hz and the New Zealand

Standard Mains Voltage of 230V 50Hz.

li;

NOTE;

If the television is not going to be used for an extended period, remove the power piug from the waii outiet.

Turn on the Television

Push the Power Switch to turn the television ON. Sit back and enjoy your new Panasonic teievision.

Page 4

CONTENTS

Battery installation and Replacement....................................................................................................-

Control Panel Buttons.....................................................................................................................................7

Remote Control Buttons .................................................................................................................................7

SIR.............................................................................................................................................8

F................................................................................................................................................8

-N...............................................................................................................................................8

+/A.............................................................................................................................................8

TV/AV........................................................................................................................................8

(1) STANDBY..................................................................................................................................9

PICTURE...................................................................................................................................

SOUND..................................................................................................................................... 9

== SET UP......................................................................................................................................9

ayv/ (/II STEREO / MONO / BILINGUAL*...............................................................................................9

100Hz/PROGRE.......................................................................................................................9

ee SURROUND...............................................................................................................................9

.1- ASPECT.....................................................................................................................................9

^ MULTI PIP (TX-86PW100A & TX-76PW100A only)..................................................................9

RECALL..................................................................................................................................10

N NORMALISATION....................................................................................................................10

m SIR............................................................................................................................................10

? HELP........................................................................................................................................10

M SOUND MUTE.........................................................................................................................11

PROGRAMME NUMBER UP AND DOWN............................................................................11

a § VOLUME DOWN AND UP.......................................................................................................11

TV/AV....................................................................................................................................11

i i 0 I COLOURED BUTTONS................................................................................................................. 11

STILL.......................................................................................................................................

CH SEARCH (TX-86PW100A & TX-76PW100A only)...........................................................12

0 ~ 9 DIRECT PROGRAMME NUMBER SELECTION.....................................................................12

_ / „ „ TWO DIGIT PROGRAMME NUMBER SELECTION

Using the On Screen Displays............................................................................................................. 13

Picture Menu Operation

MENU......................................................................................................................................14

CONTRAST, BRIGHTNESS, COLOUR, SHARPNESS. NTSC-TINT

C. TEMP (Colour Temperature)............................................................................................. 15

P-NR (Picture Noise Reduction).............................................................................................15

Al (Artificial Intelligence)..........................................................................................................15

SCAN MODE........................................................................................................................ 15

Sound Menu Operation

MENU......................................................................................................................................16

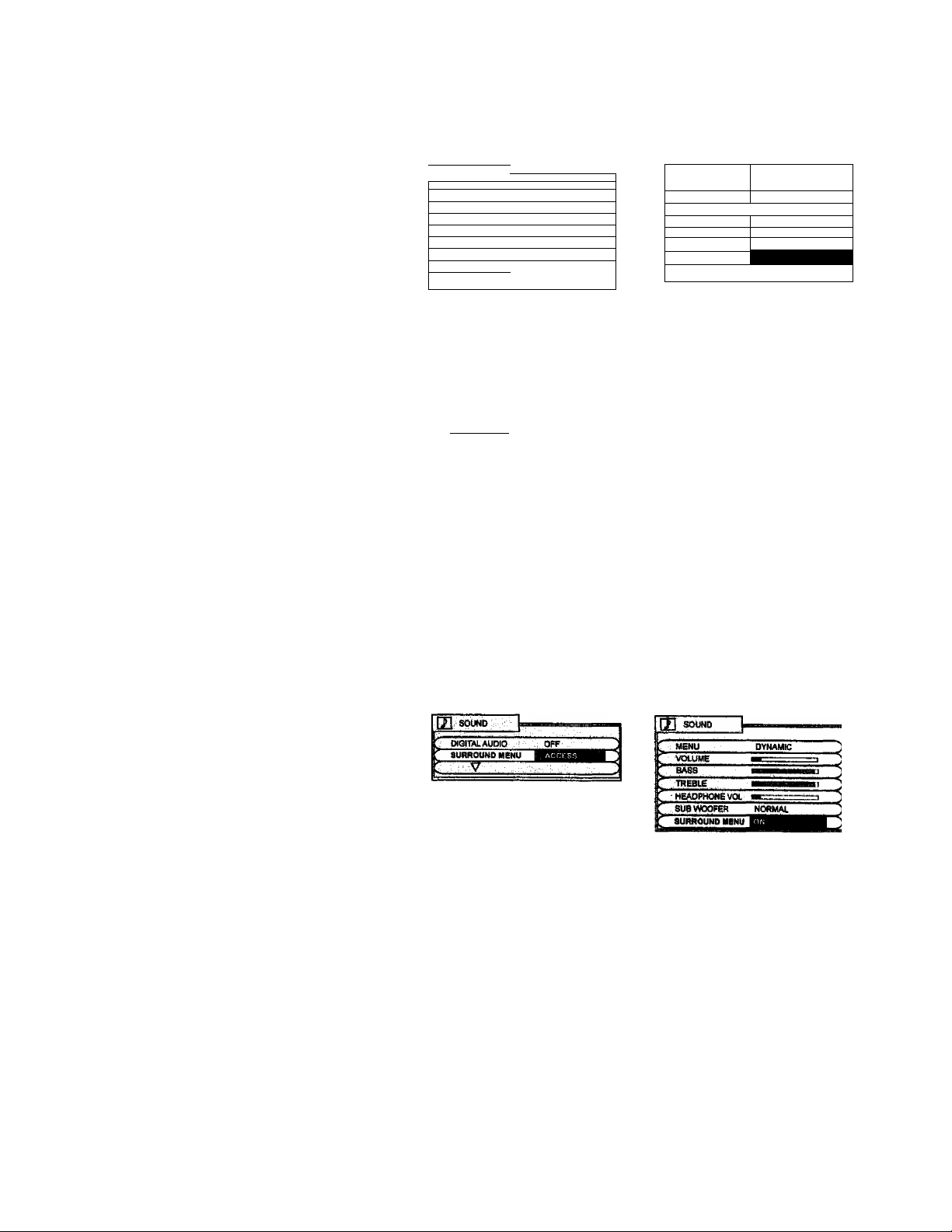

VOLUME, BASS, TREBLE, BALANCE, HEADPHONE VOL, SUBHEADPHONE

SUBWOOFER........................................................................................................................17

DIGITAL AUDIO (TX-86PW100A & TX-76PW100A only)

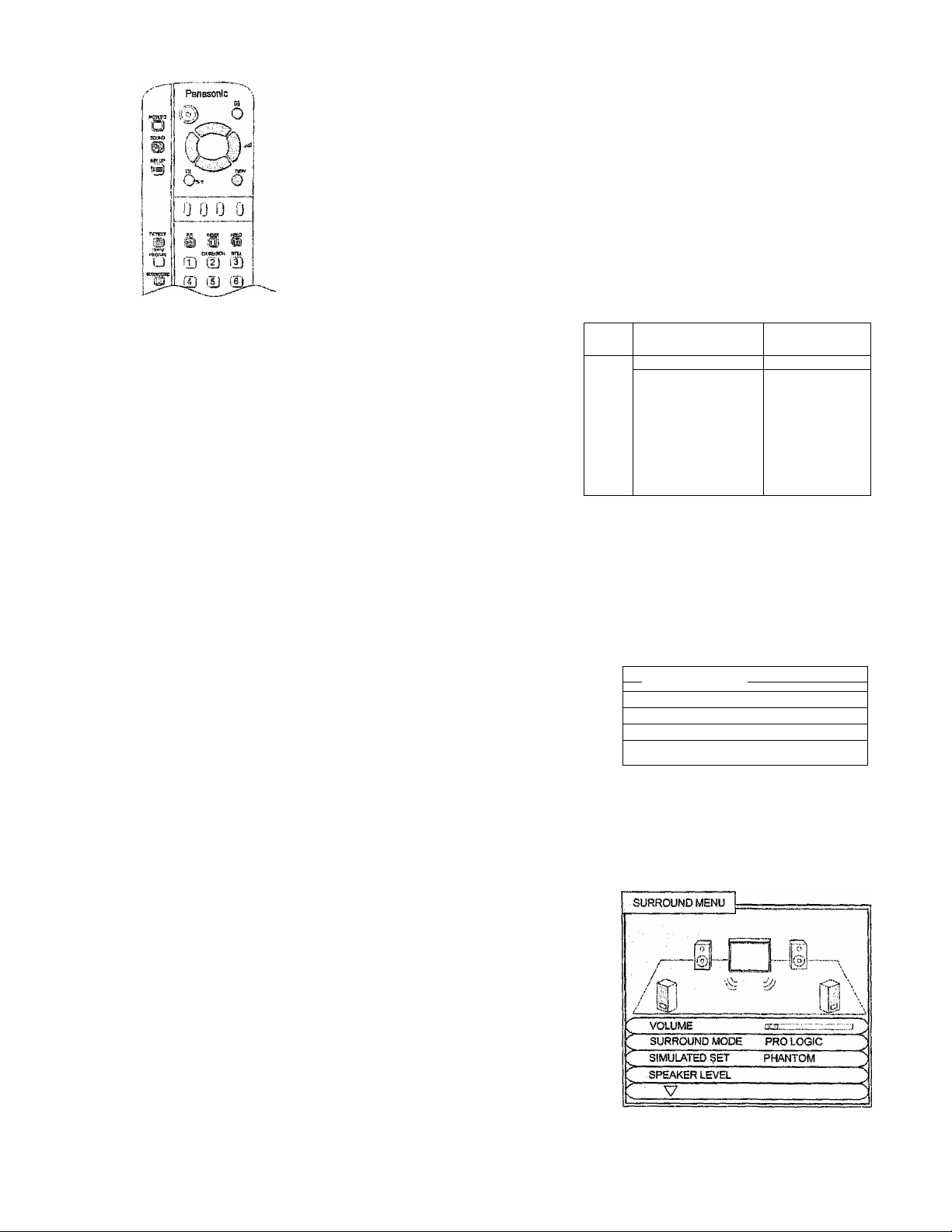

SURROUND MENU................................................................................................................17

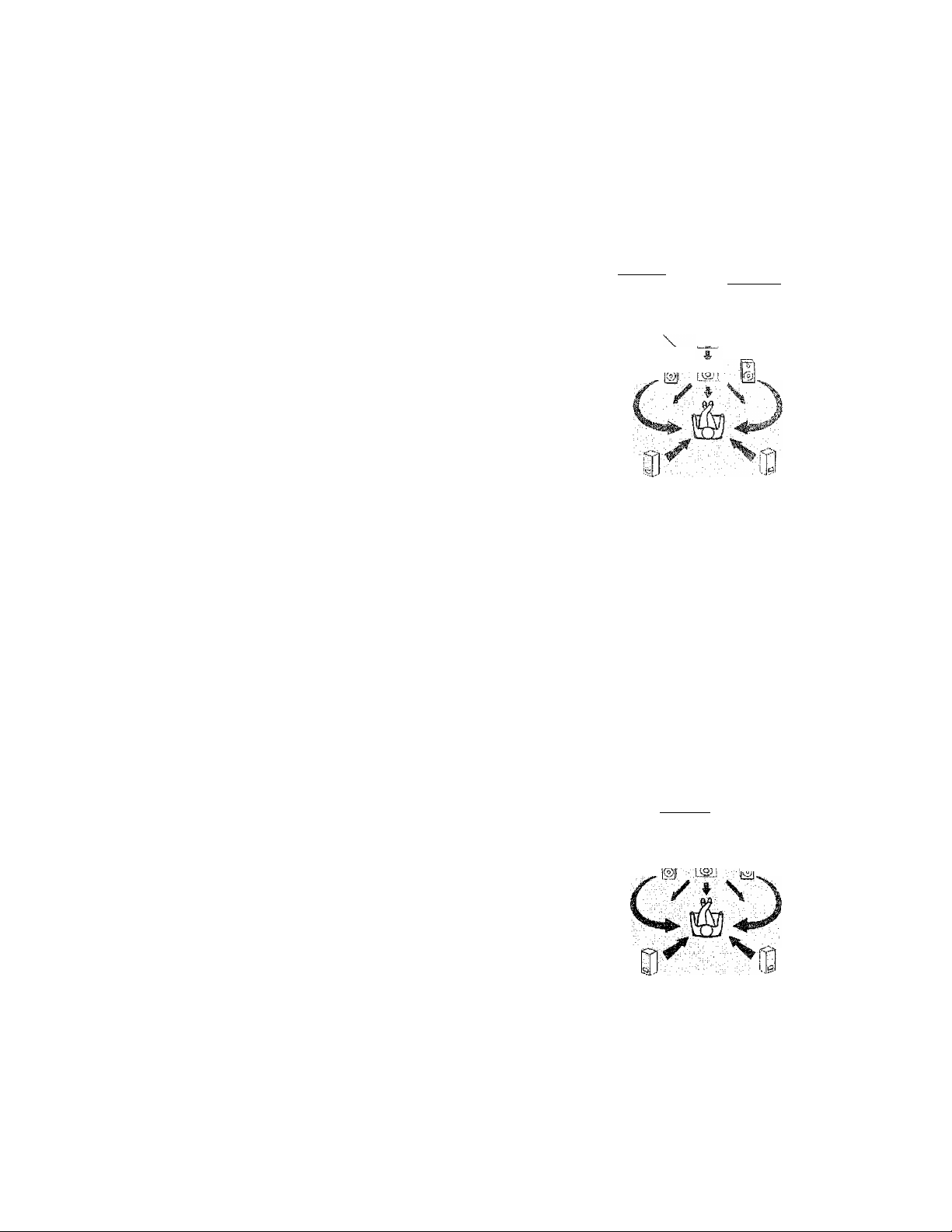

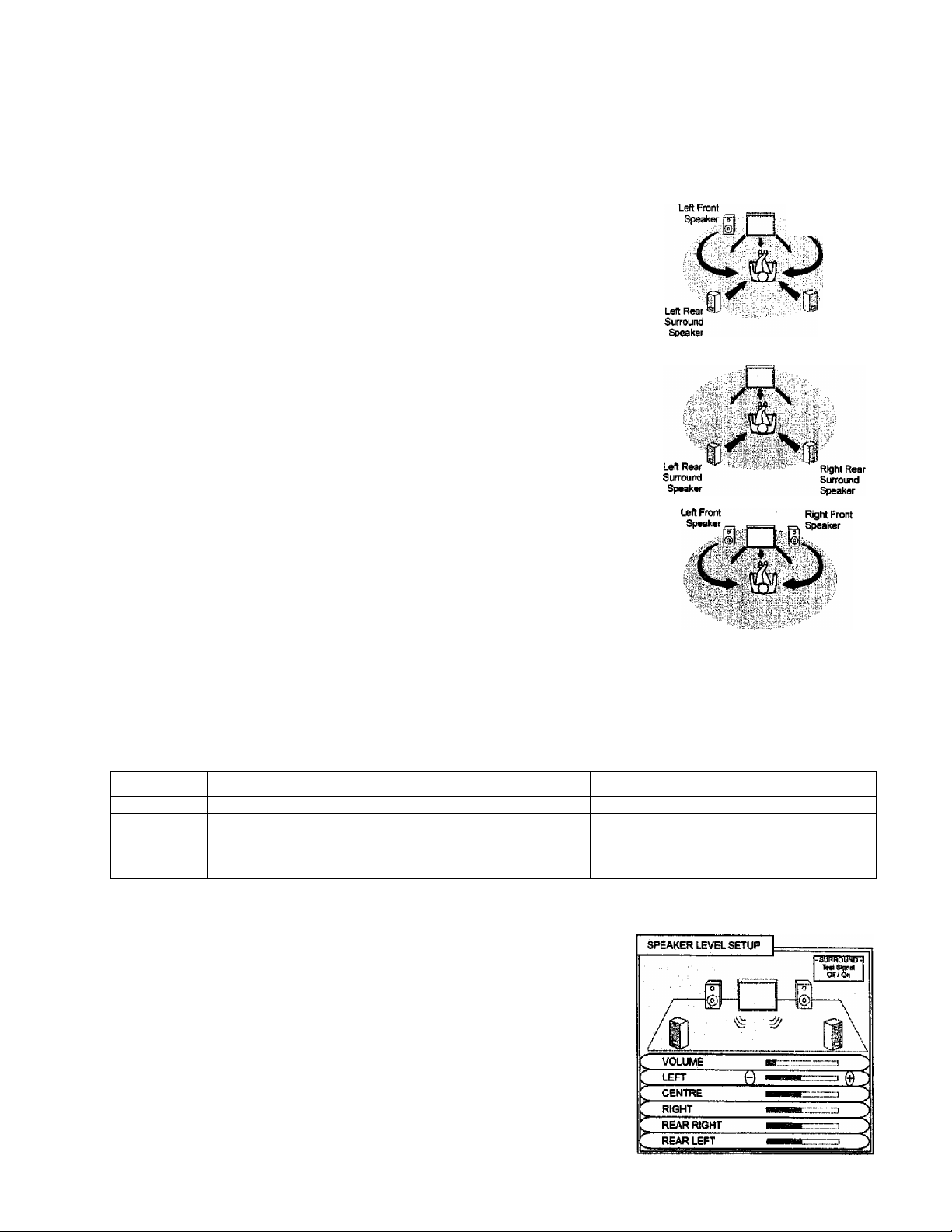

Surround Sound Operation (TX-86PW100A & TX-76PW100A only)

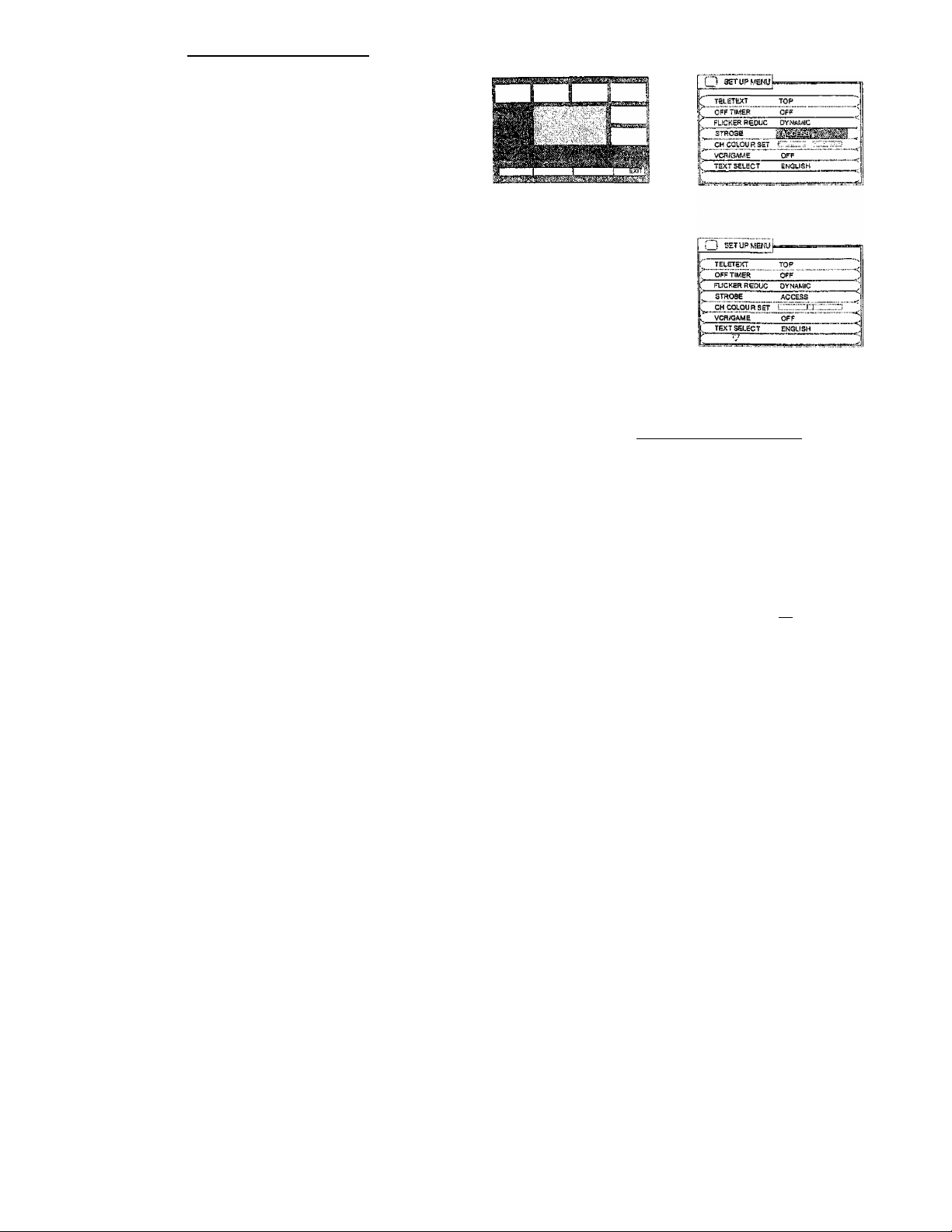

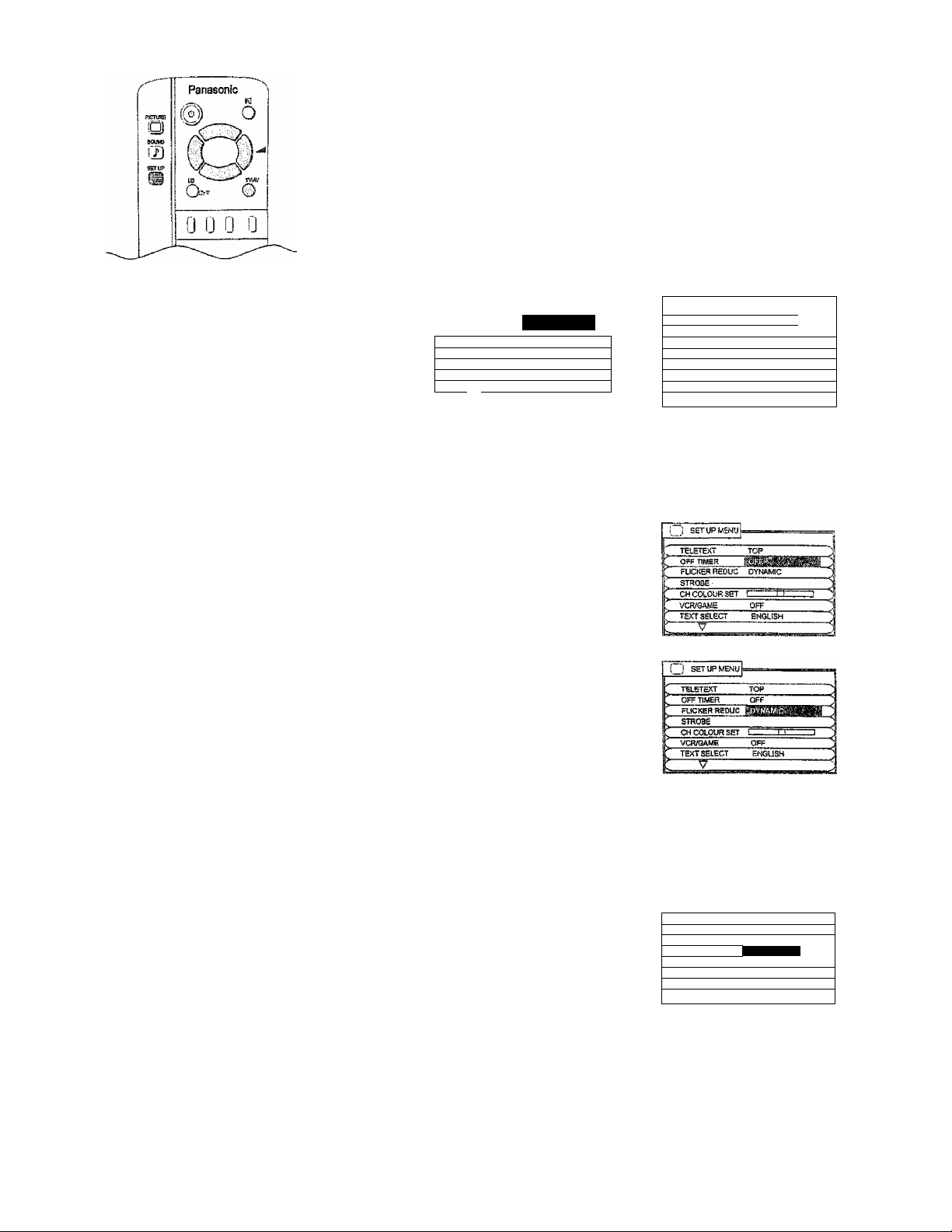

Set Up Menu Operation........................................................................................................................21 22

TELETEXT..............................................................................................................................21

OFF TIMER............................................................................................................................21

FLICKER REDUCTION.;........................................................................................................21

STROBE.................................................................................................................................21

CH COLOUR SET..................................................................................................................21

VCR/GAME.............................................................................................................................22

TEXT SELECT........................................................................................................................22

CHILD LOCK...........................................................................................................................22

COLOUR SYS........................................................................................................................ 22

TUNING MENU.......................................................................................................................22

GEOMAGNETIC.....................................................................................................................22

LANGUAGE.......................................................................................................................... 22

....................................................................................................................

...................................................................................

...............................................................

...................................

-...................................16 - 17

.....................................................

...................................................18 - 20

.......

14-- 15

................

16 17

Page 5

CONTENTS

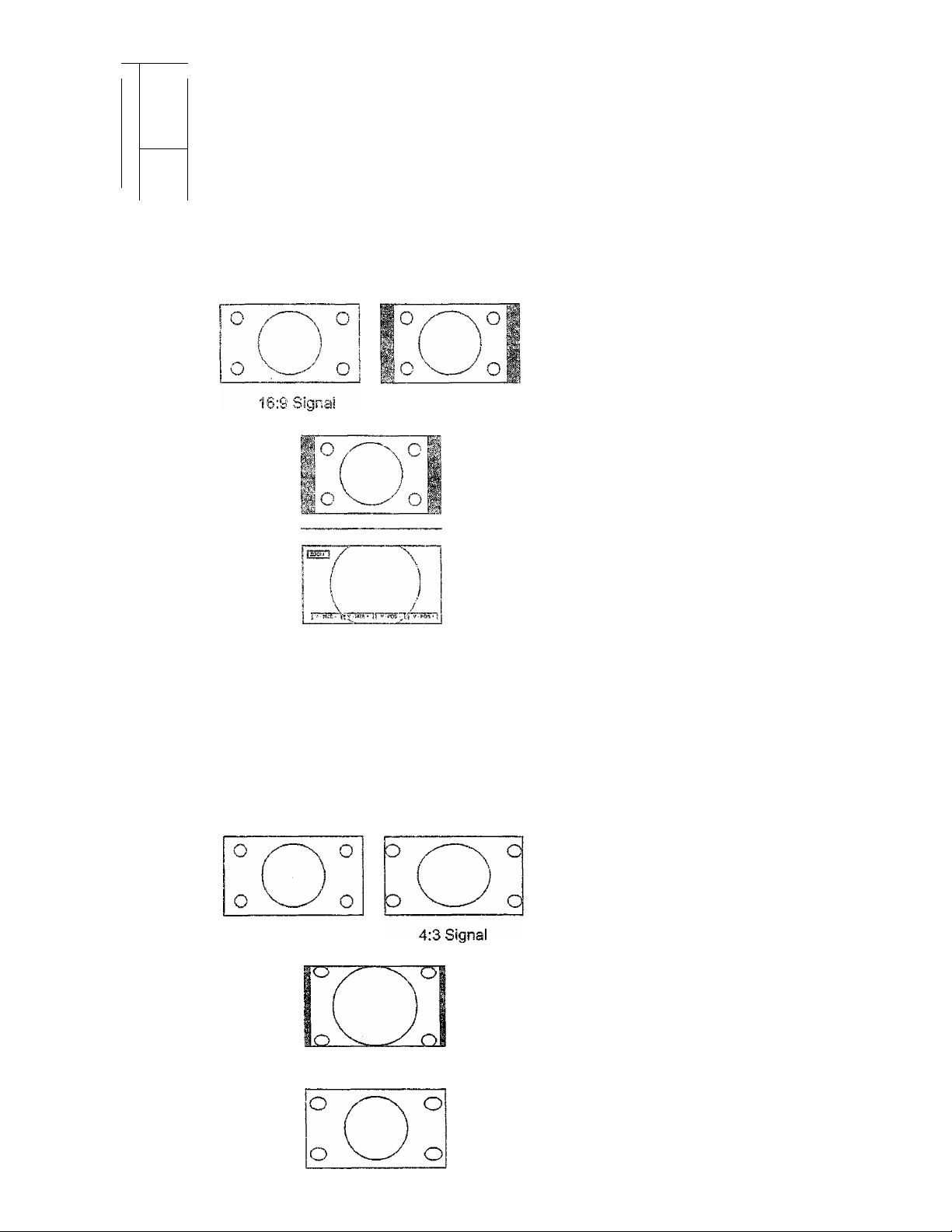

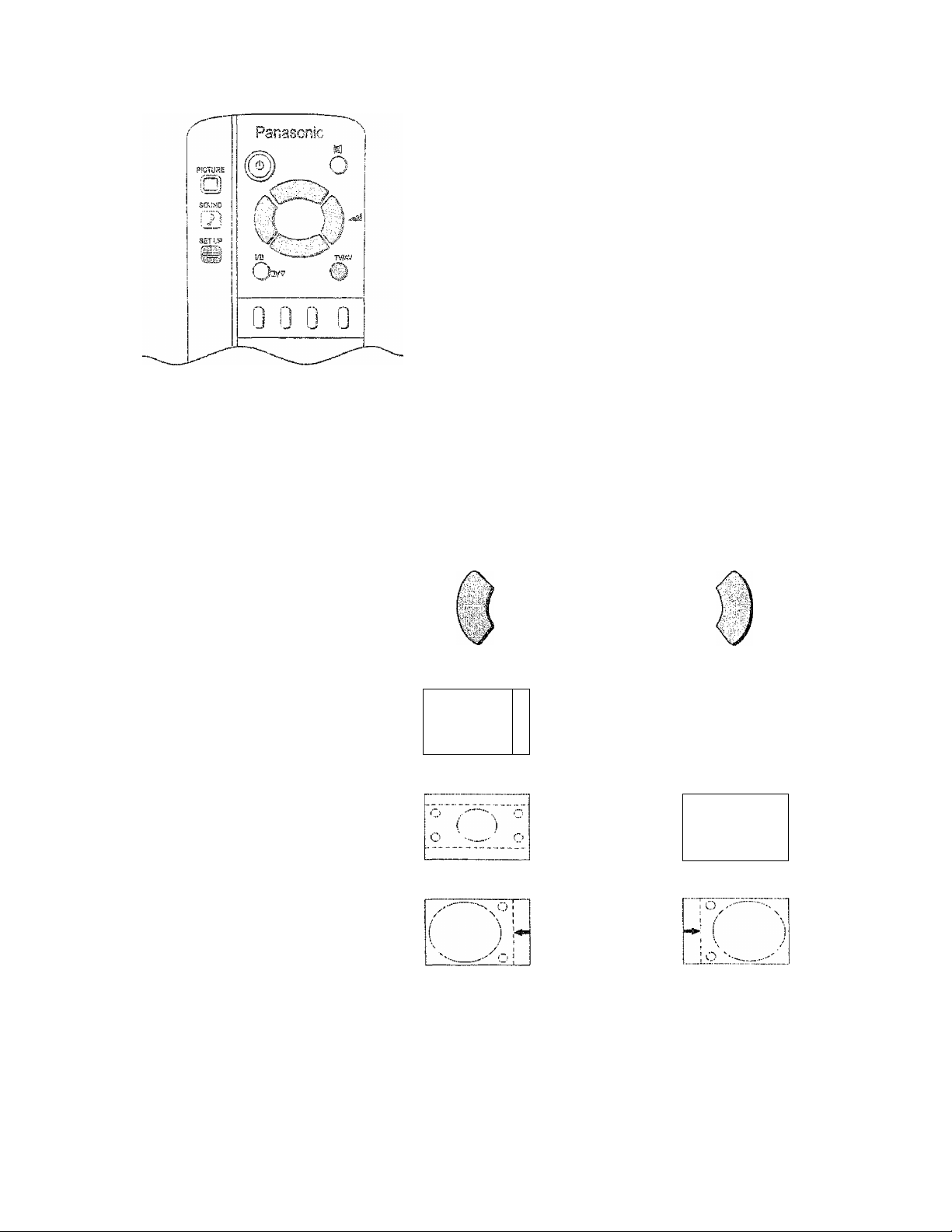

Aspect Control Teletext Operation

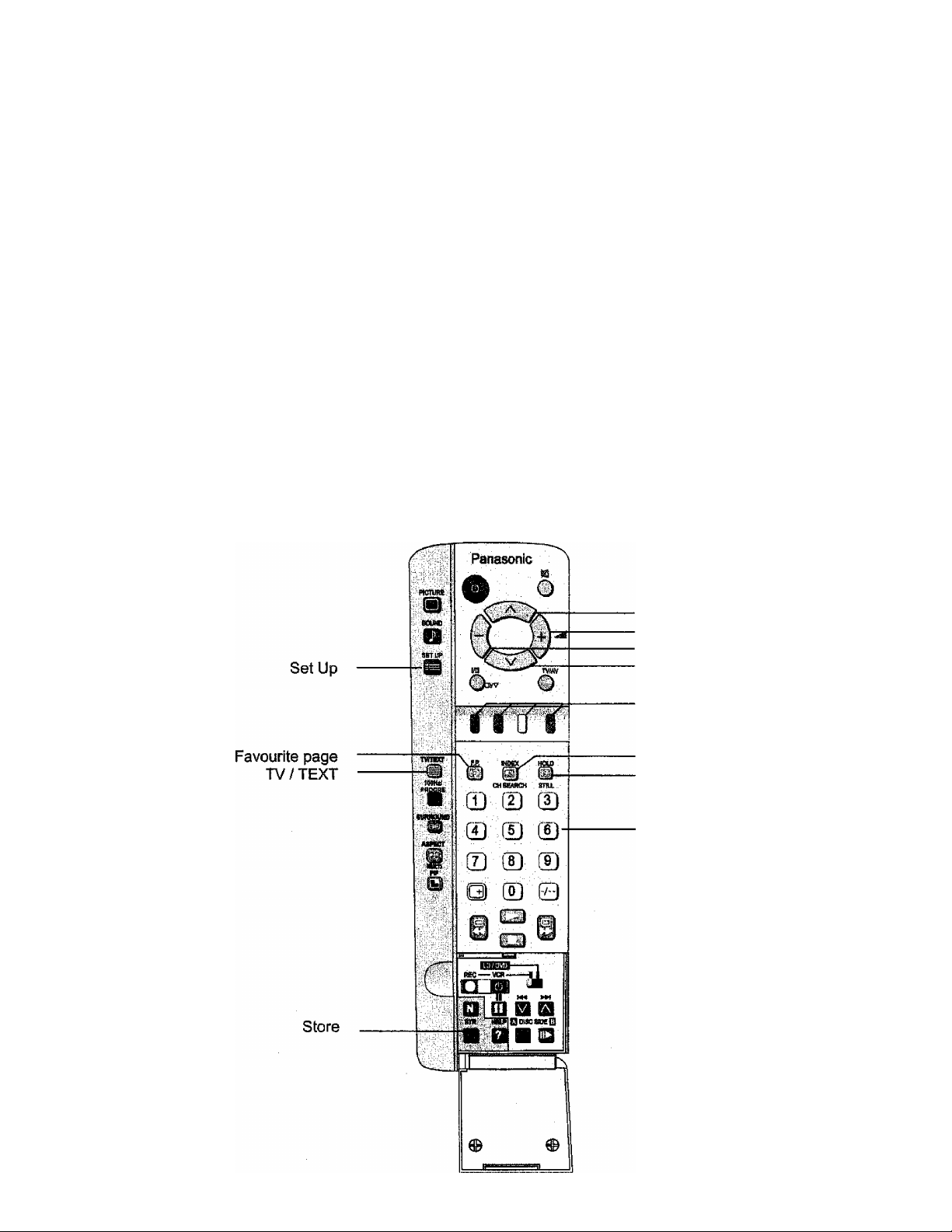

™ SETUP

= TV/TEXT...................................................................................................................................25

^ SIR (Store)...............................................................................................................................

Ci7> page numbers up and down

i> 5 SUB-PAGE NUMBERS DOWN AND UP.......................................................................................25

I I G S COLOURED BUTTONS

s ^ INDEX.......................................................................................................................................25

0-9 PAGE HUMBER BUTTONS

Tisnfnc? fienu

Qsooiagnetto Correction

Remote Control VCR/LD/DVD Operation..........33 - 35

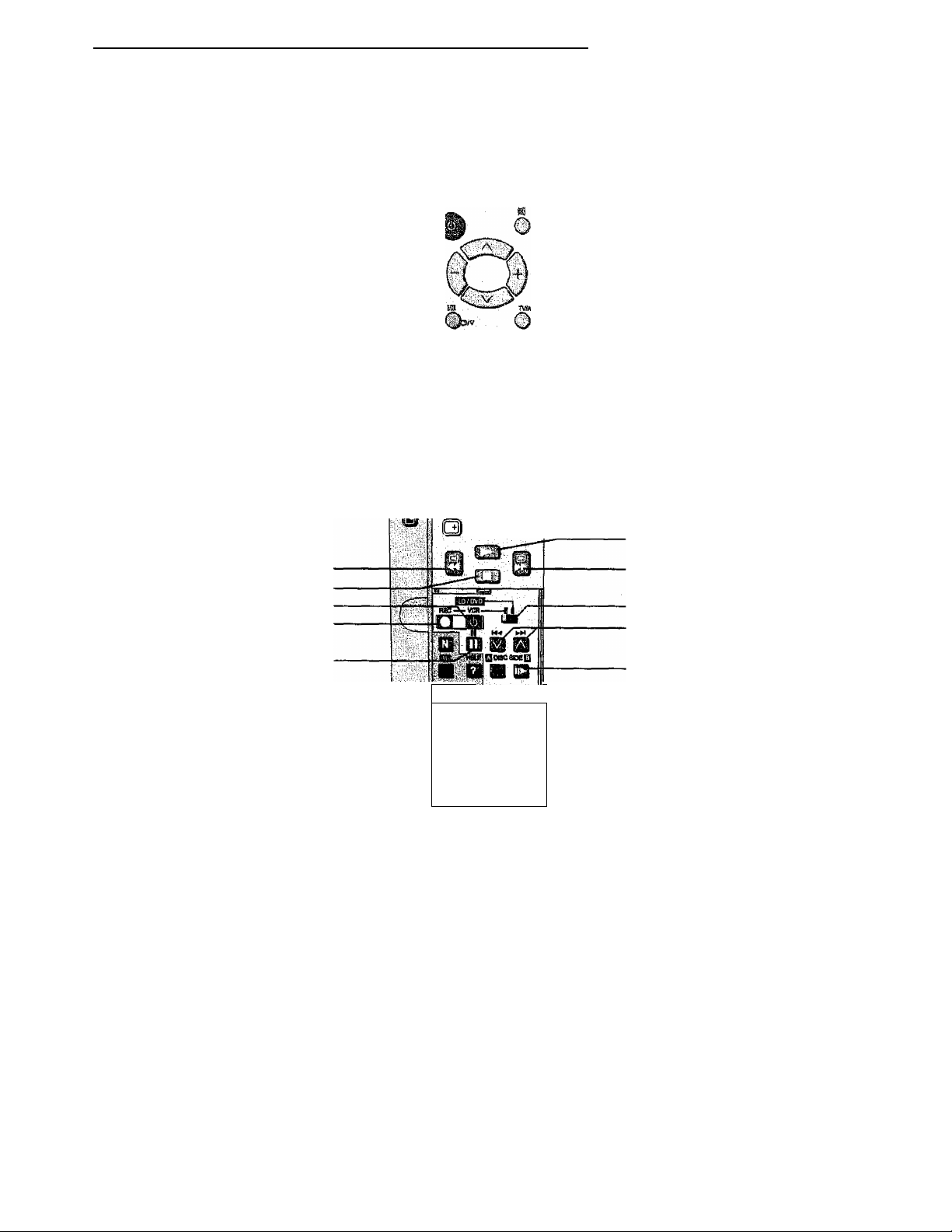

Remote Control VGR/LD/DV'D Buttons

-44 REWIND / REVIEW

□ STOP

...

.......................................................................-....................................................

...

.................................................................................................................. 24 27

F.P. (Favourite Page)..............................................................................................................25

........................................................................

........................................................

................................................................................................................

HOLD......................................................................................................................................25

....................................................................................................

REVEAL...................................................................................................................................26

F/T/B (FuH / Top / Boitorn) Display Cancel

TÍME TEXT ............................................................................................................................

........................................................................................... 2? - 31

SYS SELECT AUTO TUNE

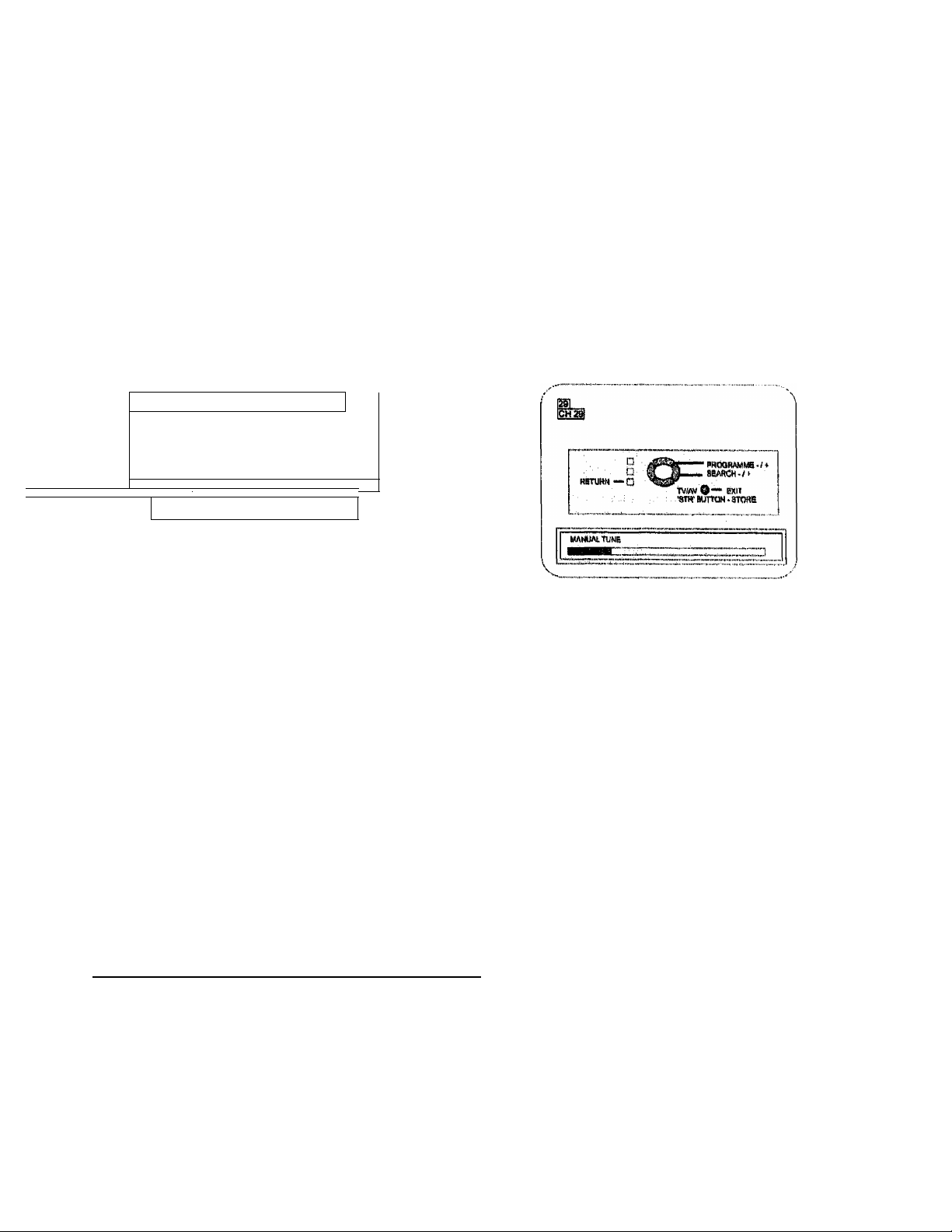

MANUAL TUNE.....................................................................................................................

Tuning the Television to a VCR

FINE TUNE.................................................................................................

SKIP

......................................................................................................................

..............................................................................

.........................................................................................................................26

........................................................................................

..........................................................................................

...

.............................. 32

....................................................................................................

.............................................................................................

.............................

.......................................................................................................... 34

......................................................................

............................................................25

..........................................

...........................

................................

...........................

........................................................

.........23

.....27

...............

26 26 26

23 29

29 30 Oi

34 34

m POWER BUTTON............................................................................................................... 34.

O RECORD ......................................................................................................................... 34

II PAUSE

eS> PLAY.................................................................................................................................... 34

V A PROGRAMME NUMBER DOWN AND UP / PROGRAMME SKIP..................................... 34

IISTILL ADVANCE DISC SIDE B SELECTION

Manufacturers' Code Settings.....................................................................................................................

Corsnectlog Eqylpmesit to the TV...................................................... 36 - 42

Front Pane! Connections

Rear Panel Connections.............................................................................................................................

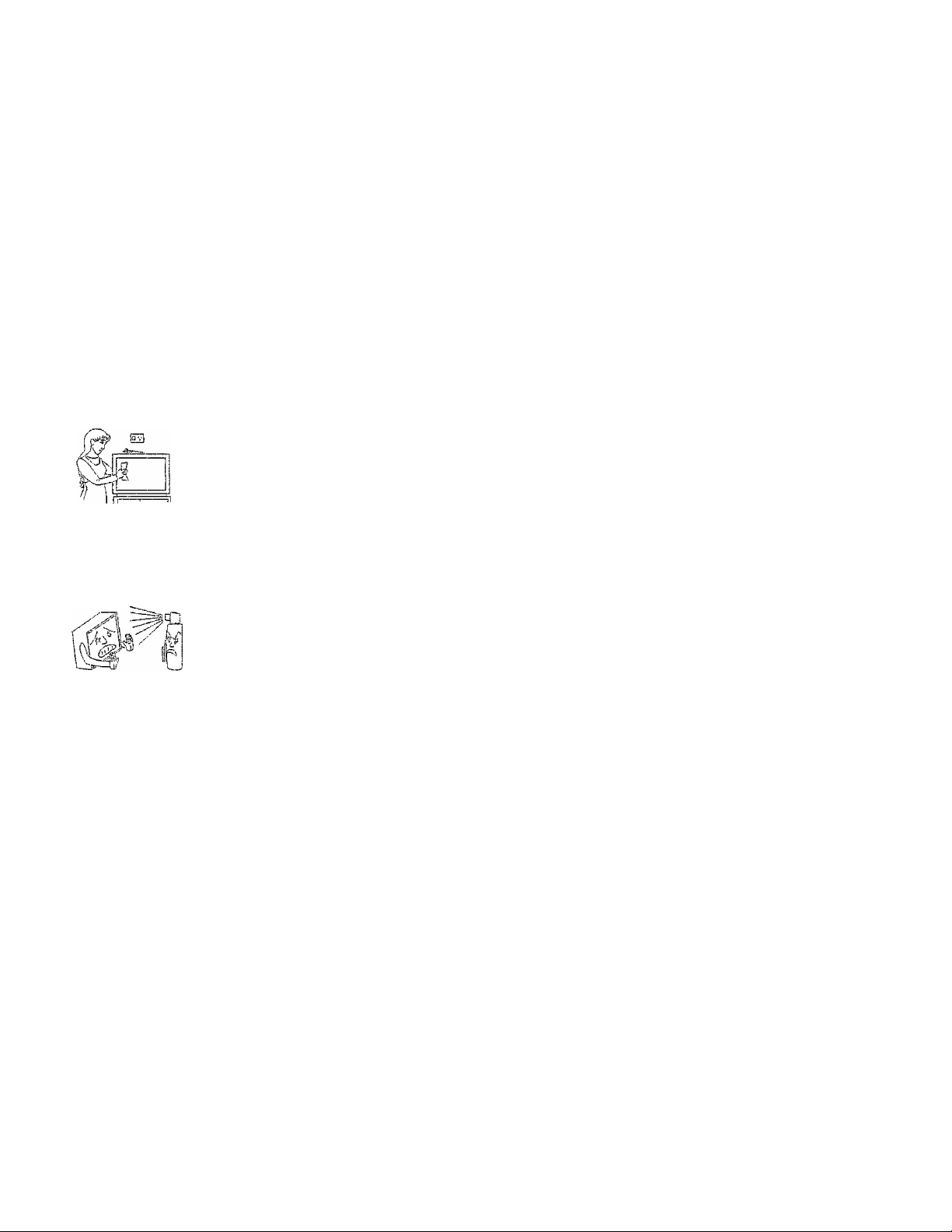

Cystomer Information Cleaning the Television

Cleaning the Remote Control......................................................................................................................44

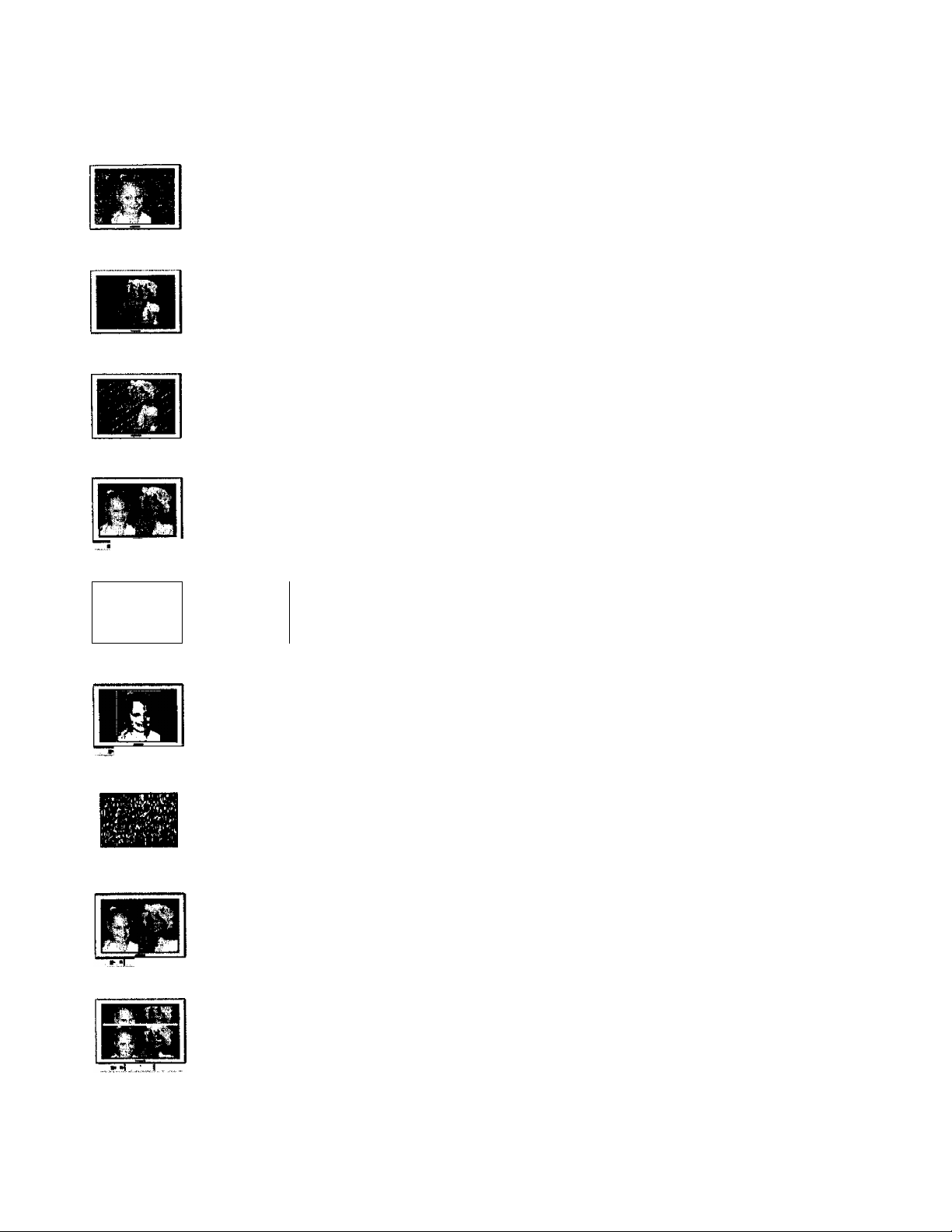

Frequently Asked Questions........................................................................................................................45

Troubleshooting............................................................................................................................................46

Specifications...............................................................................................................................................47

Customer's Record.......................................................................................................................... Back Page

.........

.............................................................................................................. 34

FAST FORWARD / CUE

VCR/LD/DVD

DISC 3!DE A SELECTION

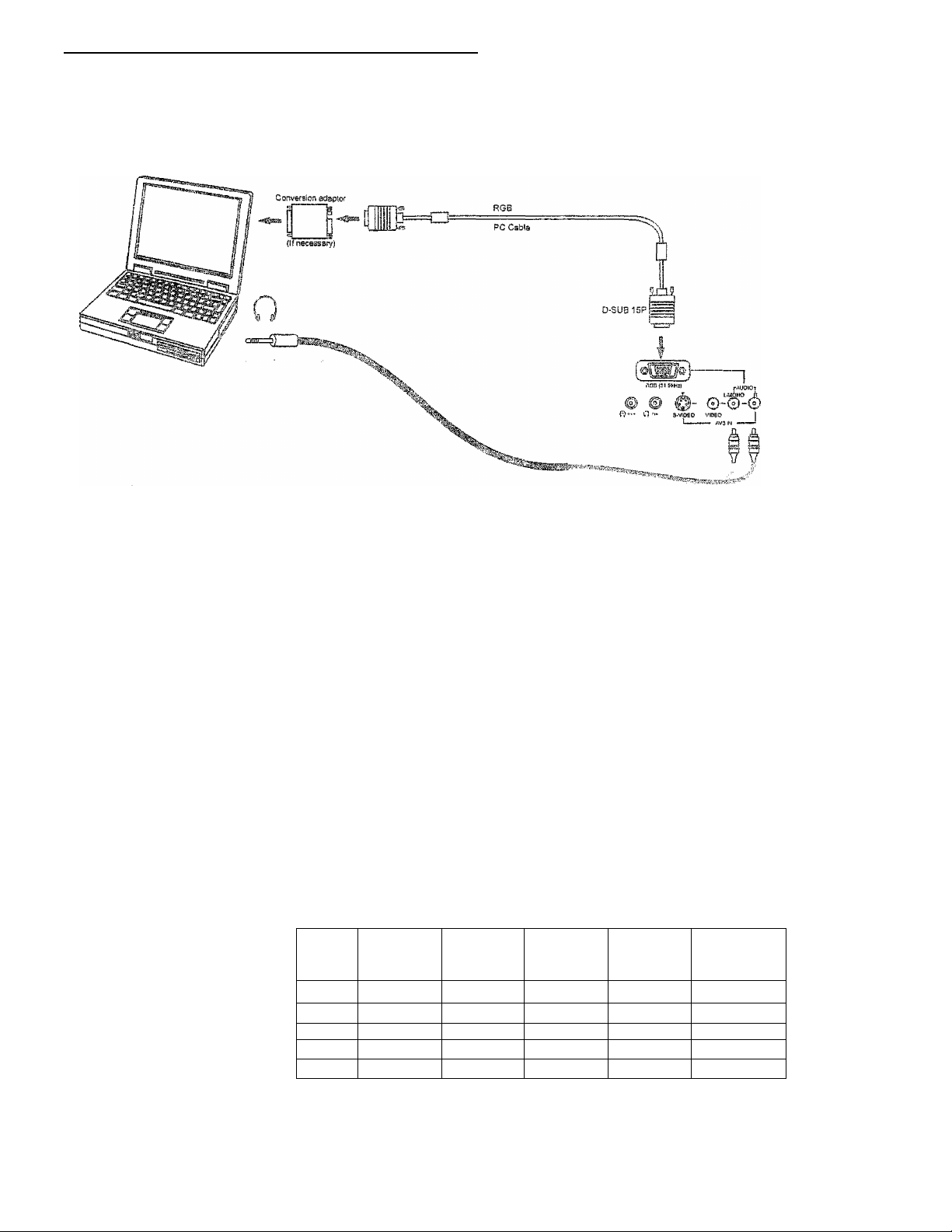

Connecting to the RGB Input Terminais................................................................................

Adjusting the RGB Picture......................................................................................................37

AV Equipment.........................................................................................................................38

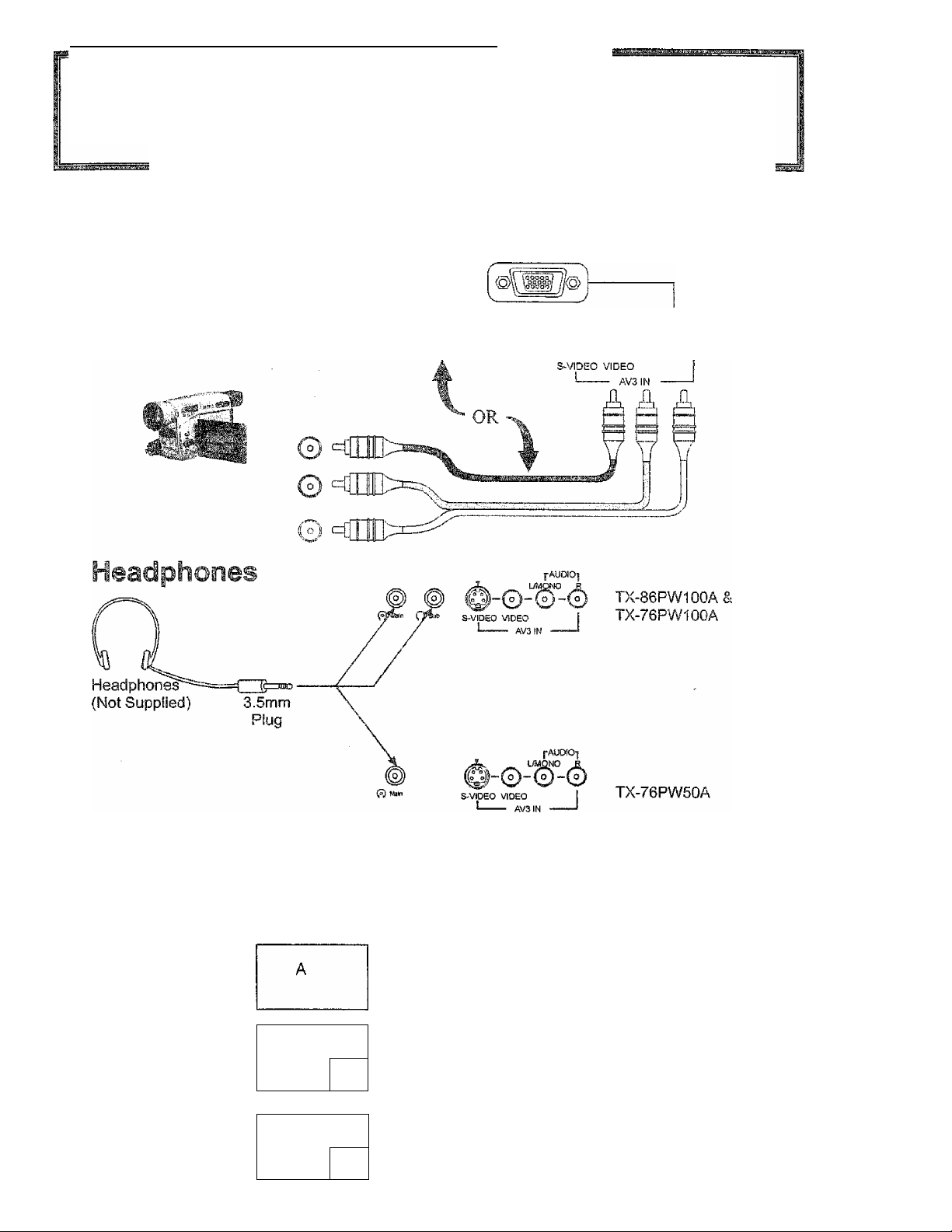

Headphones........................................................................................................................... 38

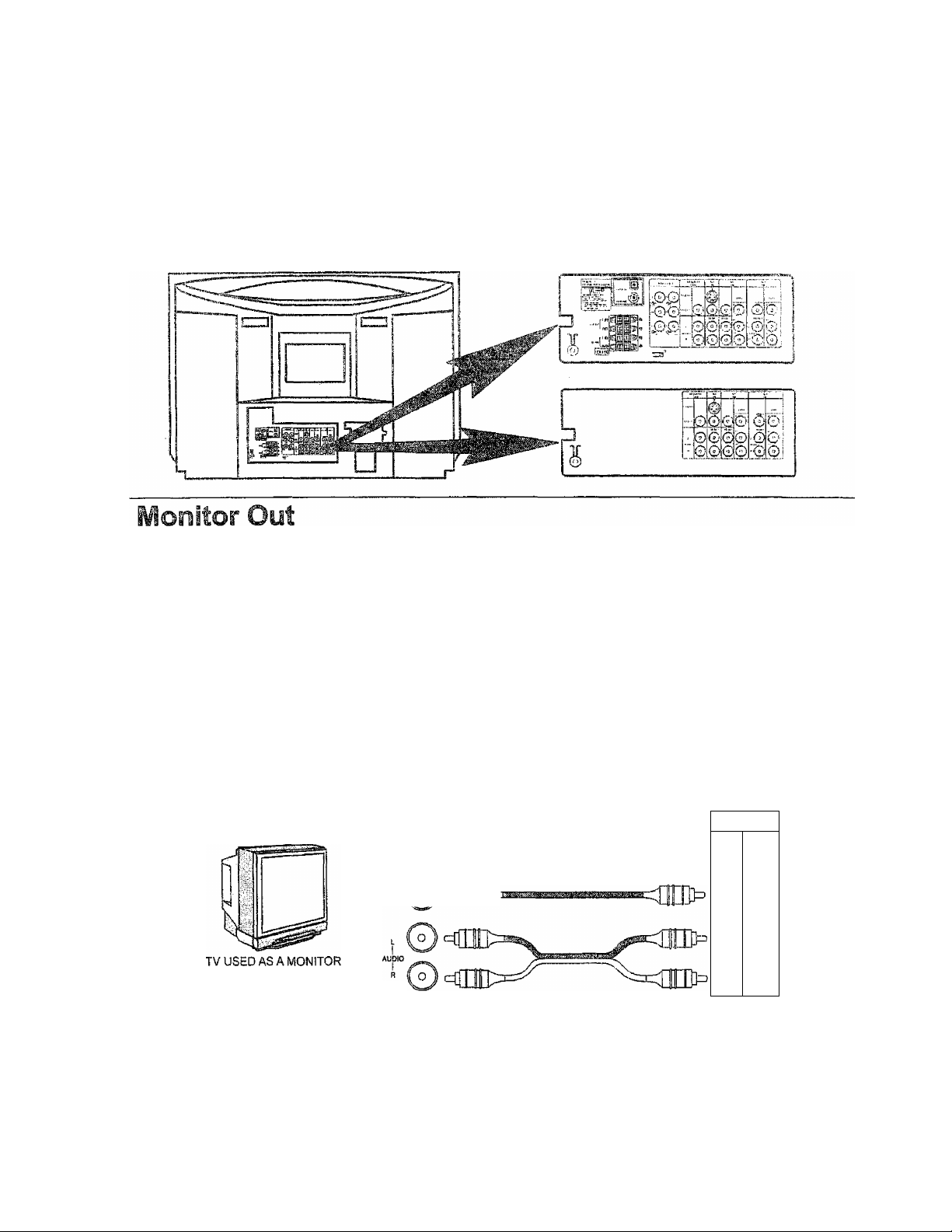

Monitor Out.............................................................................................................................39

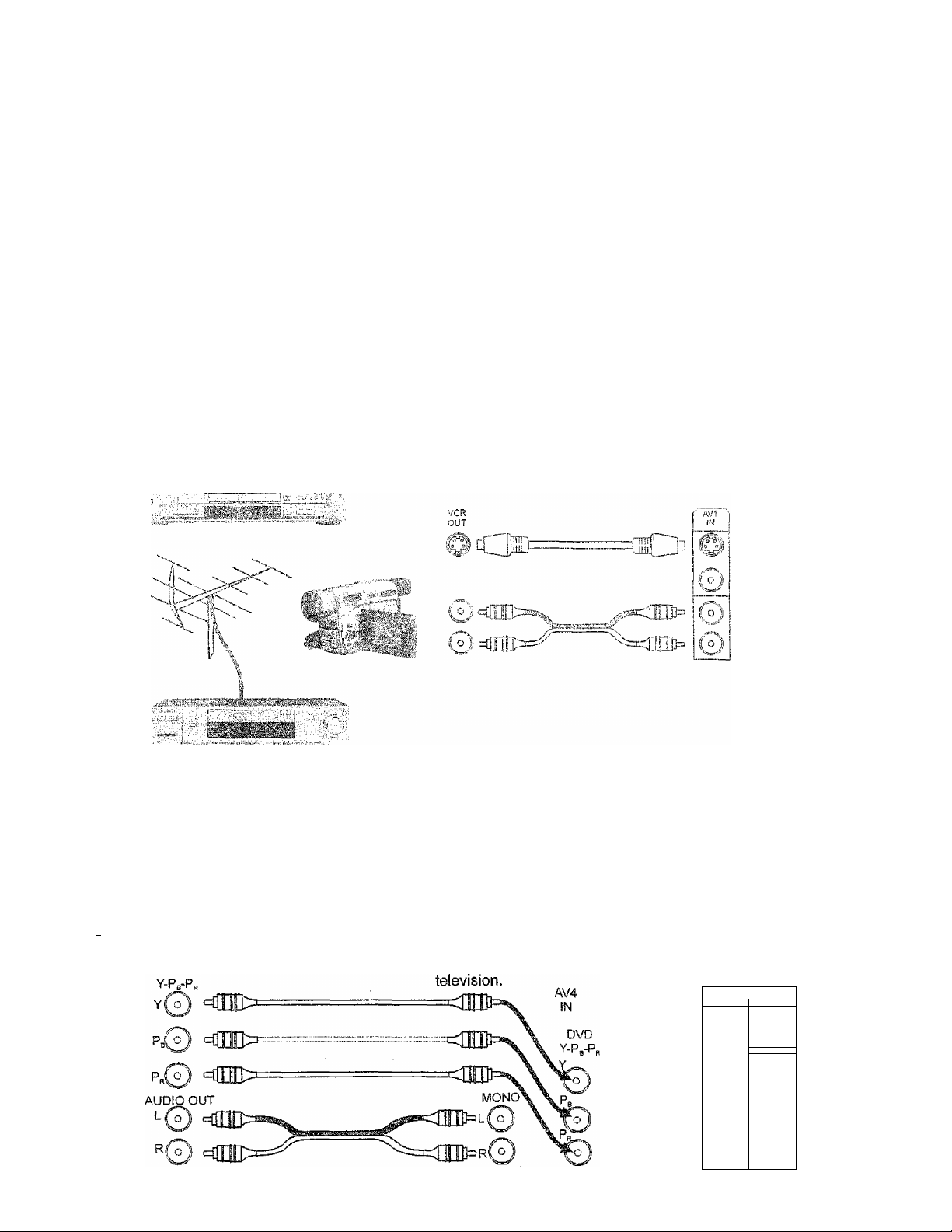

Connecting a Standard VCR to the AV Input..........................................................................40

Connecting S-Video Equipment to the AV Input

Connecting DVD Equipment to the AV input..........................................................................40

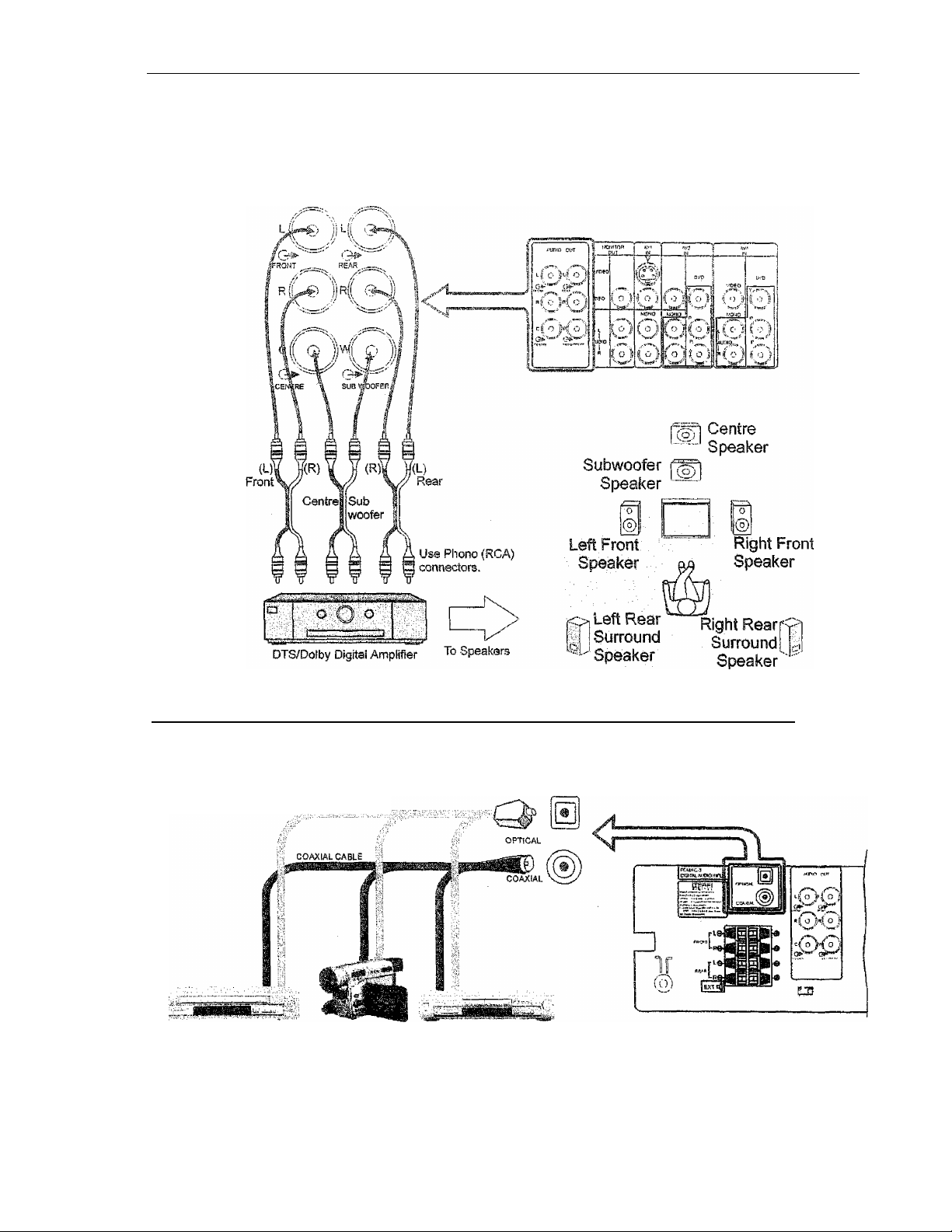

Connecting the Audio Out Terminals (TX-86PW100A & TX-76PW100A only) Connecting the Digital Audio input (TX-86PW100A S: TX-76PW100A only)

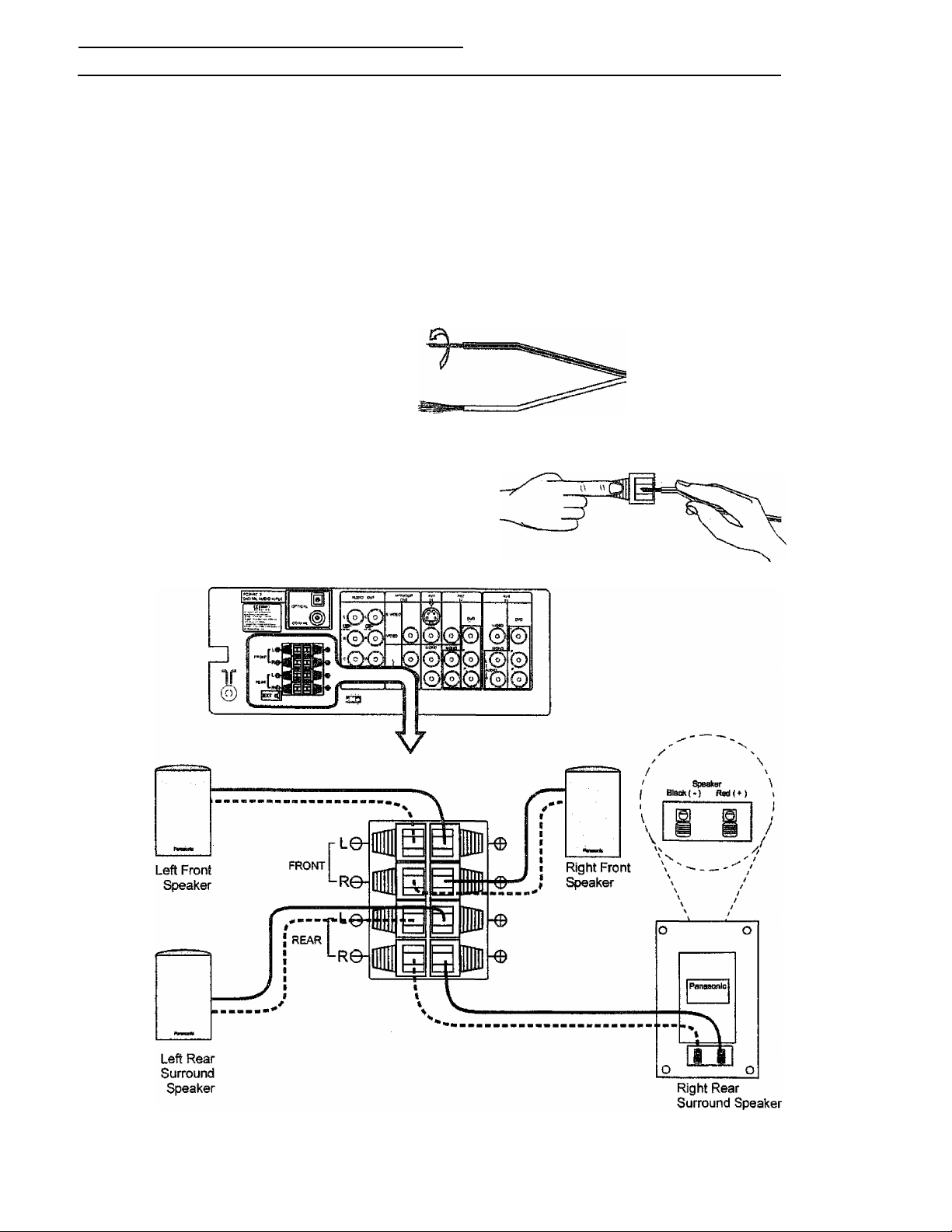

Connecting the Externa! Speakers (TX-86PW100A & TX-76PW100A only).........................42

.................................................................................

.............................................................................................................................36

....

.................................................................................................................... 43 ™ 48

................................................................................................................................44

......................................................................................................

...............................

........................................................................

.....................................................................................................

....................................................................

......................

.........................

........

34 34

34 34 35

41 41

Page 6

Battery Precautions Open Battery Cover

Place your thumb on the battery cover triangle. Apply a slight downward pressure with the thumb and slide the cover back. This allows the cover to be removed.

Insert Batteries

Insert the batteries ensuring the correct polarity. The polarity is identified by the “ + “ symbol on the battery and the “ + “ and “ - “ symbols on the battery compartment. The springs inside the battery compartment connect to the negative terminal of the battery.

_____________

oiuoseuDdl

“ Panasonic^

Two “AA” size batteries

Replace Battery Cover

Fit the battery cover and slide it forward until it "clicks" into place.

Battery Precautions

Do Not use rechargeable batteries. Differences in size and performance may cause incorrect operation.

Do Not mix battery types {Alkaline with zinc-carbon etc.) Do Not mix old and new batteries. Replace both batteries at the same time. Do Not attempt to recharge batteries. Do Not short circuit batteries. Do Not disassemble batteries. Do Not heat or burn batteries.

Page 7

Control Panel Buttons

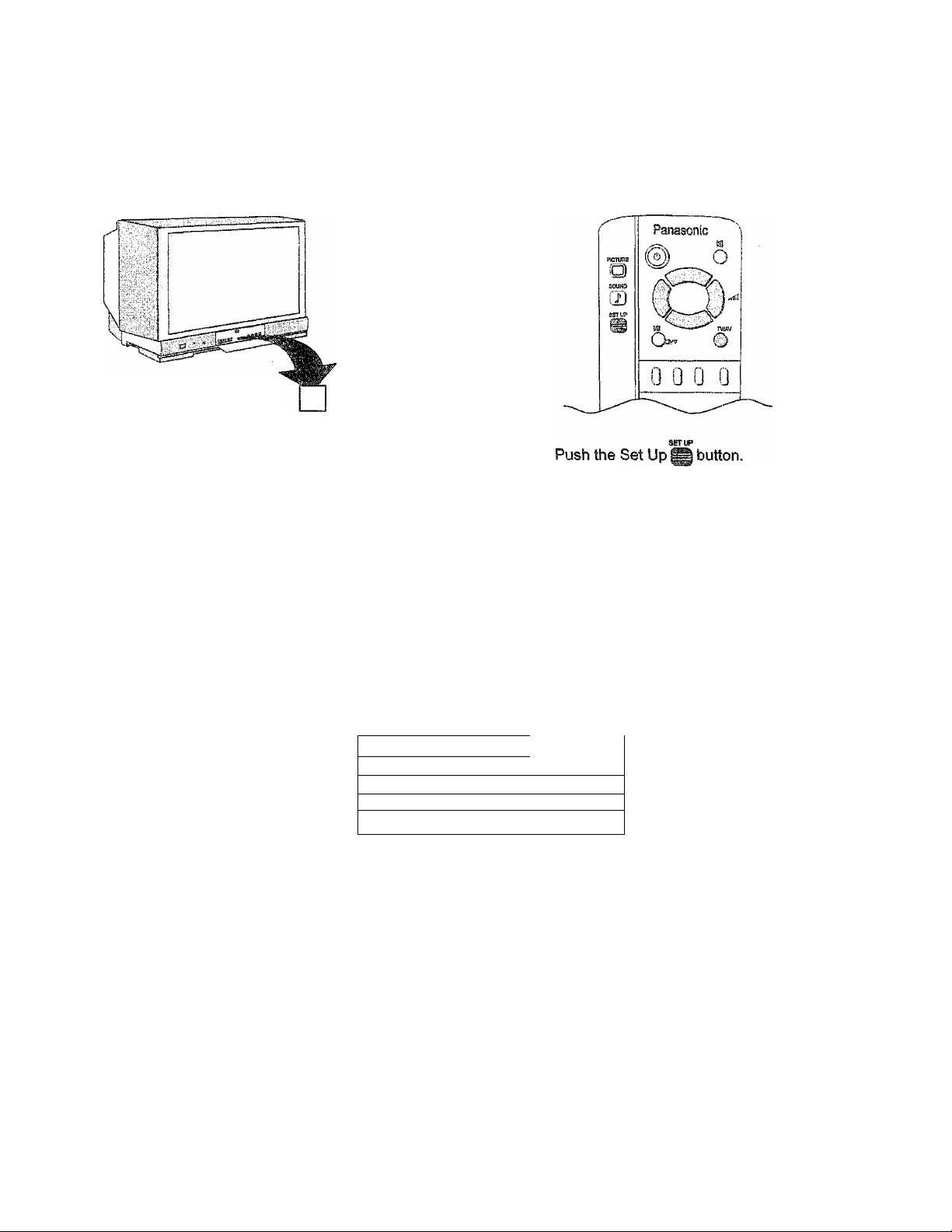

Open the control panel door to gain access to the Television Controls Push the door at the point marked A to open. Push again to close.

□ □□ □ □

SIR F -N Hf\ TV/AV

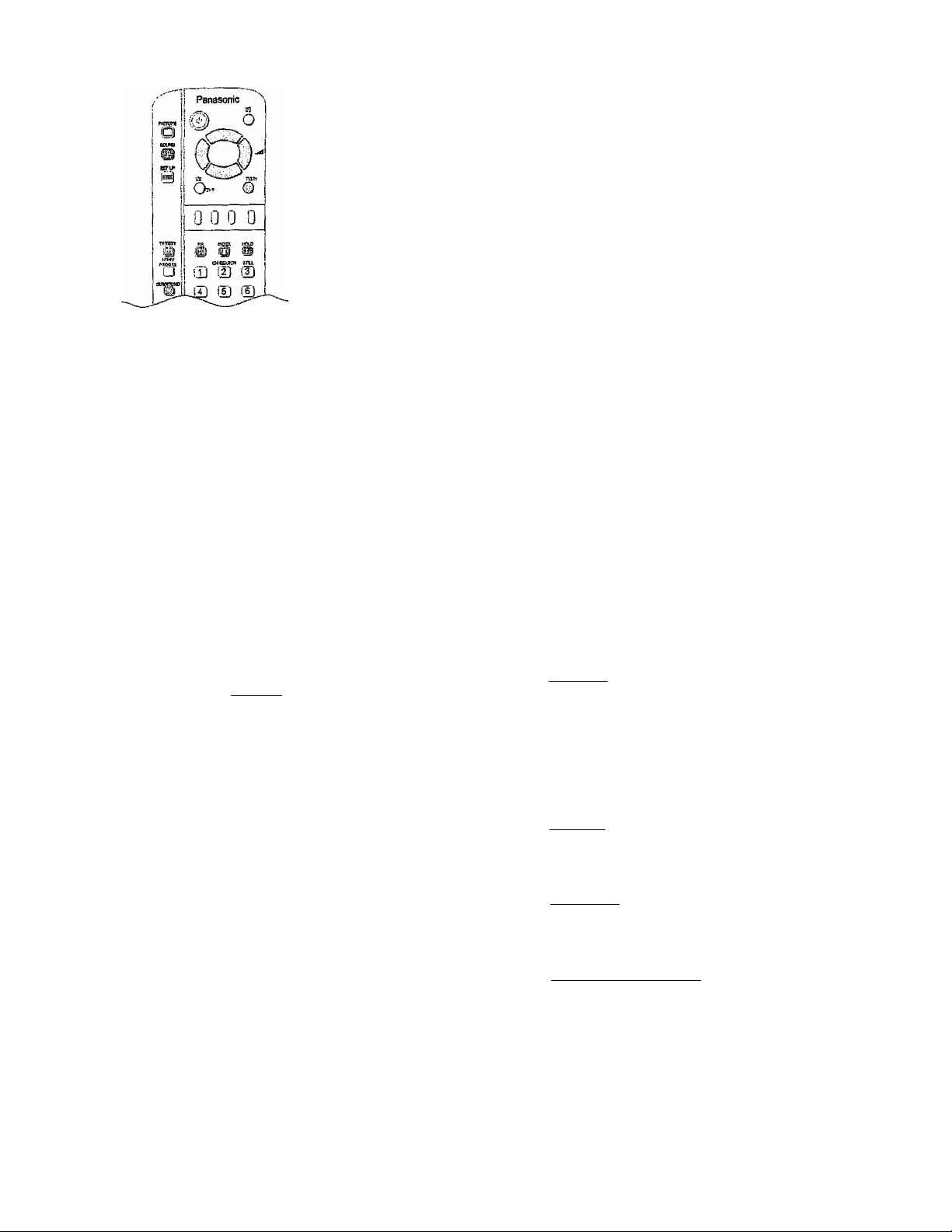

Remote Control Buttons

P," - a 1 ocaoo I

Mute Programme Number Up

Volume Up Volume Down

Programme Number Down

TV/AV/RGB

Coloured Buttons. Used for Aspect Functions, AV Selection Teletext Functions

Still

Direct Programme Numbers

Two Digit Programme Numbers

For details of TELETEXT Operation remote control operation, please refer to page 24. For details of VCR, LD player and DVD player remote control operation, please refer to page 33. * Bilingual broadcasting Is not currently available in Australia or New Zealand.

# “MULTI PIP” and "CH SEARCH” buttons have no effect on the TX-76PW50A.

Page 8

Television Control Panel Buttons

SIR

This button is used to store tuning information and other function settings, it

SIR

is aiso used to start the menu demonstration.

The F button is used to select the on screen display functions. Press the button to select the following functions sequentially.

WHAT IT DOES

VOLUME

CONTRAST

BRIGHTNESS

COLOUR

SHARPNESS

NTSC-TINT

Notes: NTSC-TINT: Only displayed when receiving NTSC signals. TUNING MODE; Not displayed when in AV mode. BALANCE: Not displayed when SURROUND is on.

GEOMAGNETIC

TUNING MODE

BALANCE

TREBLE

BASS

-/y

This button is used to select the next lower programme number,

it is aiso used with the F button to adjust function settings.

+ /A

This button is used to select the next higher programme number.

-/A

It is also used with the F button to adjust function settings.

TV/AV

This button is used to switch between the TV mode, the four AV modes and

V/AV

Please refer to drawing on Page 7 for location of Remote Control Buttons.

the RGB mode.

Page 9

Remote Control Television Operatioo

BOTTON

PiCTURc

SOUND

SETUP

WHAT IT DOES

STAMDBY

The remote control button is used to turn the television into Standby mods. When

the televisión is in Stand-By it is possible to turn it back on by pressing this remote controi Power Button, the Programme Number UP or DOWN Button {front panel or

remote corítro!) or any of the direct Programme Number Buttons.


[ his button is used to select the picture menu. Please rater to page 14 tor detailed

operating instructions.

SOUND This button is used to select the sound menu. Please refer to page 16 for detailed operating instructions.

SET yP This button is used to select the set up menu. Piease refer to page 22 for detailed operating instructions.

STEREO 1 mUQ Pushing the button changes the mode from StereoQ) to iVlono u and back again. NDiTiialiy the television will detect whether the broadcast signal is Mono or Stereo and will set the mode accordingiy. If the Stereo signal is weak or if the receiving conditions are not the best, It is recommended that the Mono mode be manualiy selected.

BILII^GOAL

I his system allows two languages to be transmitted for one broadcast. Switching between the Main (1) and (Í) selects the desired language. * Mote: Bilingual sound is not currently avaiiabie in Australia or New Zealand.

100Hz/

-‘DO^GtRE

SLifSOWiD

ASPEOT

lOOHz/PROGRE This button allows you to change the Picture refresh setting bettveen AUTO, 100Hz MODE and PROGRESSIVE. Please referto SCAN MODE on page 15.

SURROUi^lD

This button switches the SURROUND on and off.

ASPECT

This button Is used to move through the different aspect options of AUTO, 4:3,

ZOOM, S-ZOOM, 16:9,14:9 and JUST. Please refer to page 23.

MULTI PIP (TX»86PW100A & TX-76PW10OA only) Pressing this button will access the Picture in Picture options. !f the 4:3 aspect ratio is selected you can choose between normal, Picture And Picture and Picture Out Of Picture. Ail other aspect ratio settings let you choose between normal, Picture And Picture and Picture In Picture. Notes: The MULTI PIP picture can be another television channel or an AV input. While the On Screen Display is shown the sub-picture can be changed using the 0 ~

9 and the buttons, as shown on page 12.

When the On Screen Display disappears the main picture can be changed using the

0-9 and the buttons, as shown on page 12. MULTI PiP is not available on the TX-76PW50A.

-a' . if-

Please refer to drawing on Page 7 for location of Remote Control Buttons.

Page 10

Remote Control Teievision Operation

BUTTON

WHAT !T DOES

Piciure Sn Picture lUSod©

Allows two pictures to be viewed at the same time. Pressing the Red button will change the position of the small picture. The Yellow button swaps be’ween the wo pictures. The Blue button removes the option bar. This mode is not available in 4:3 mode.

Piotyre Out Of Picture RIode (4:3 Rifode only) Allows two pictures to be viewed at the same time. The pictures will be shown side by side. The Yellow button swaps between the two pictures. The Blue button removes the option bar.

Picture And Picture Mode Allows two pictures to be viewed at the same time. The pictures will be shown side by side.

Both pictures will be the same size. The Yellow button swaps between the two pictures. The Blue button removes the option bar.

jlOCATg

I ^

If LOCATE I

CHANGE EXIT

I CHANi

STR

HELP

RECALL

Pressing this button will display all current active functions. The functions that can be displayed include AV Number, Programme Number, Sound Option, Picture Option, Stereo or Mono and Off-Timer setting. Pressing the button again cancels the

recall function and removes the text being displayed on the screen,

If the button is not pressed within about 2 seconds it automatically switches to

display the Programme Number or the AV Number and the Off-Timsr setting.

Pressing the button again cancels the recall function and removes the text being

displayed on the screen.

i^ORMALiSATlOM

The Normalisation Button is used to reset the teievision to factory set levels. Colour.

Sharpness, Contrast Brightness, Treble, Bass and Balance will be reset. The button

will only operate if the menu is displayed on the screen.

STR

The STR (Store) button is used with a number of features to store settings after adjustments have been made or options have been set. It is also used in TELETEXT and tuning functions.

HELP

Pressing this button displays on screen instructions on how to adjust various settings and how to connect external equipment. Press the HELP button and select one of the options. Please refer to page 13.

Please refer to drawing on Page 7 for location of Remote Control Buttons.

Page 11

Remote ControS Television Operation

BUTTON

TV/AV

WHAT IT DOES

SOUND MUTE

Pressing this buiton reduces the sound from the television to nil. Pressing the button again returns the sound to the original setting. Pressing the Volume Up { + ) or Down (-) will also restore the volume level setting.

PROGRAriME NUMBER UP AHD DOWN

Pressing this button selects the next higher ( A) or lower {V) Programme Number in sequence. Programme Numbers which have been “Skipped” (See page 31) will be bypassed when this button is used.

VOLUME DOWN AND UP

This button is used to increase (+ ) or decrease (-) the volume output level from the television.

■TV/AV

Pressing the ! V/AV Button v/iil cycle between TV, the current AV Input, RGB and back to TV. While the AV indicator is still on screen the different AV inputs can be selected using the coloured buttons.

i I Q I

RED

GREEN YELLOW

I e

AVI

COLOURED BOTTOMS

These buttons are used for:

selecting different aspect ratios selecting different AV inputs teletext functions

STILL

Press this button to freeze the picture on the screen. Press it again to return to normal viewing.

If Multi Pip has been selected, pressing the Still button once will freeze the main picture while the sub picture remains normal. Pressing the Still button again will

freeze the sub picture while the main picture returns to normal. Pressing the Still

button for a third time will return both pictures to normal.

AV2 AV3 / RGB AV4

Please refer to drawing on Page 7 for location of Remote Control Buttons.

Page 12

Remote Control Television Operation

BUTTON

CH SEARCH (TX»S6PW100A â TX^-Î6PW100A oïûÿ) This option is used to show freeze frames of the programmes being broadcast cn aii

CH SEARChl

the stored channels. The images are displayed dockwisa around the edge of the screen starting from the top let corner. The current programme is displayed in the centre of the screen. When the display gets back to the top left corner it will overwrite the first picture with the next one in senes. The display will continue to change until either iiie STILL buton is pressed to pause

or CH SEARCH is pressed to exit the feature. The Red button is used to select each programme in turn. The green button is used to swap the main display between the current programme and the one selected by the red button. The Blue button returns to normal viewing.

RED GREEN YELLOW BLUE

I I

(5)

SELECT OK

DIRECT PROGRAMME NUMBER SELECTION

Single Digit Programme Numbers (0 to 9) can be accessed directly by pressing the corresponding number on the Remote Control Transmitter.

TWO DIGIT PROGRAMME NUMBER SELECTION

To directly access Programme Numbers 10 to 99, press the Button followed

by the two digits required. For example, to select Programme Number 12:

EXIT

The On-Screen display will be as shown:

Please refer to drawing on Page 7 for location of Remote Control Buttons.

Page 13

Using The On Screen Displays

Many features available on this TV can be accessed via the On Screen Display menu system. Use the remote control to access and adjust features as required.


SOUND

[1}

VOLUME

BASS

TREBLE

HEADPHONE VOLfrarz"—:::"::::“:::::!

SUBHEADPHONE

"^uivTOOPER

[Z]

■I

SURROUND MENU

...........

.......

..iztzz

NORÌvìAL''

An on screen help box is displayed whenever a menu Is

displayed on the TV. This help box indicates \Aihich keys on the remote control are used to navigate the menu shown. See above for descriptions of button functions.

Note: The help box is not shown In the menu pictures in this manual due to soace limitations.

LANGUAGE

ON SCREEN HELP

. Inatruction box

O PICTURE

" CONTRAST

P BRIGHTNESS

' COLOUR -—I

SHARPNESS r NTSC-TIMT Xi " C, TEMP r" P-NR

: V 1

OFF TIMER FUCKER REDUC OFF STROBE

CH COLOUV 3ÈT y

vcr/gamì off

TEXT SELECT

ENGLISH

(

ST/y^DARD i

AUTO 1

SETUP

OFF

ENGLISH

r/i/S/

...

Q — tTTi /

Pressing the HbLP (?) button displays on screen instructions on how to adjust various settings and how to

connect external equipment

EXTERNAL CONNECTION Press the UP or DOWN button to select the EXT. CONNECTION option. Use the LEFT or RIGHT button to view

information on how to connect external equipment. MENU DEMO

Press the UP or DOWN button to select the MENU DEMO option. Use the LEFT or RIGHT button to view the demonstration.

HELP MENU HOWTO USE THE HELP MENUS

; MOVE BETWEEN MENU

OPTIONS

I ®

ADJUST OR ACCESS

CHOSEN OPTION/MENU.

□ OPEN OR CLOSE THE MENUS O GO BACK TO WATCHING

EXT. CONNECTION ACCESS

MENU DEMO

Page 14

Picture Menu Operation


1 Push the PICTURE button. a

MEm

DYNAMIC

2 Select the option menu using the 3

TV/AV

buttons.Adjust the chosen option using the

buttons,

Push the TV/AV button at any time to return to watching TV.

O PICTURE

The MENU control allows you to change the Picture

setUng between Dynamic, Standard and Soft. Use the'u ^ buttons to switch between settings.

CONTRAST BRIGHTNESS COLOUR

SHARPNESS

r NTSC-TINT i3SE=DE=3

C.TEWP

P-NR AUTO

For viewing in brightly lit rooms. This menu selects higher than normal levels of

Brightness and Contrast.

STANDARD For viewing in normal {evening lighting) environments. This menu

selects the normal levels of Brightness and Contrast.

SOFT For viewing in a dark room. This menu selects reduced levels of

Brightness and Contrast.

OVNAUIC

STANDARD

CONTRAST, BRIGHTNESS, COLOUR, SHARPNESS, NTSC-TINT

Item

CONTRAST

Effect Function On-Screen Indication

I I

Less More

Adjust for best picture contrast.

C CONTRAST C-) C

HZ)

Adjust for easier viewing

BRIGHTNESS

COLOUR

SHARPNESS

NTSC-TINT

I s

Darker Srighter

I I

Less More

I 9

Softer Sharper

I I

Reddish Greenish

of dark pictures such as night scenes.

Adjust the level of colour in the picture.

Adjust to make the

picture sharper or softer. Adjust for best skin

tones.

C BRIGHTNESS '

C COLOUR (-) c

C SHARPNESS H

C NTSC-TINT

sz:)

Notes:

1. You can change the level for each function (Contrast, Brightness, Colour, Sharpness and NTSC-Tint) for each picture menu option.

2. Picture menu levels can be set for TV, AV1, AV2, AV3 and AV4 modes.

3. NTSC-TINT only appears when the TV is receiving NTSC signals.

4. Only CONTRAST will be displayed in TELETEXT mode.

Page 15

Picture Menu Operation

C. TEMP

p-m

The C. TEMP (Colour Temperature) control allows you to change the White balance setting between Standard, Warm and Cool.

Use the U or f) buttons to switch between settings.

The P-NR (Picture Noise Reduction) system is

designed to reduce picture noise during poor quality reception conditions. Pushing the left or right buttons will change the setting between OFF, STRONG, WEAK and AUTO.

Use the 0 or Q buttons to switch between settings.

When the Al (Artificial Intelligence) is turned on it continually and precisely detects fine differences in the picture signal, it also detects the differences in

the brightness, black level and contrast levels.

O PICTURE

C MENU

!L contrast rin-vT:' J

" BRIGHTNESS

COLOUR

SHARPNESS ' NTSC-TINT : C.TEMP I 5 P-NR

L V

o PICTURE

CONTRAST

BRIGHTNESS

'■

COLOUR

SHARPNESS

NTSC-TINT

C. TEMP

P-NR

DYNAMIC

.........

........

. STj^NQARD I

AUTO

DYNAMIC

----

fT? .'i:-

........

iJ''SSSEr.;--rr:j

y,-A-

STANDARD

IMIMmiMMIII

----

---

ZZ3

—^

)

..... ^

;S:li

■II :■ äi ;

ViK:i

:.;Ä

Use the Qor ^buttons to switch the Al on or off.

SCAM MODE

The SCAN MODE control allows you to change the

Picture refresh setting between AUTO, 100Hz MODE and PROGRESSIVE.

o PICTURE

SCAN MODE

AUTO

Use theQ or^ buttons to switch between settings.

AUTO

The TV software will select the best mode for the signal being viewed.

10OHz MODE 10OHz will give a steady picture for most signals.

«r№№« cru.

0 © @

ill

PROGRESSIVE Recommended when receiving NTSC signals. NOTE:

The scan mode function is not available when Picture in Picture is

being used.

Switching is also possible using the'li button on the remote control.

Note:

We recommend that you set the SCAN MODE to PROGRESSIVE when viewing a PAL 60 or NTSC transmission. When viewing a PAL transmission (other than PAL 60) with the SCAN MODE set to

PROGRESSIVE, the screen will flicker. This is not a fault.

Normalisation □

Pressing the Normal Button (O) on the remote control, when the Picture Menu is displayed will return all picture settings to the factory preset levels. This is called “Normalisation”.

Normalisation w///nof occur if the Picture Menu is not displayed when the Normal Button is pressed.

Page 16

Sound Menu Operation

1 Push the SOUND button 8. 2 Move to the option menu using Of ^-203 Adjust the chosen option using 0 or @.

jrV/AV

Push O 3i any time to return to watching TV.

Some features are only available with the SURROUND feature

switched off. Push the ® button to switch the SURROUND on or off.

The MENU control allows you to change the Sound setting between Dynamic, Standard and Soft.

Use the @ or§ buttons to switch between settings. DYNAMIC Amplifies the low frequencies and outputs optimum sound. Used

for music programmes.

STANDARD For normal use.

SOFT Human voices (middle pitch sounds) will be clearer. Used for News

broadcasts etc.

VOLUME, BASS, TREBLE, BALANCE, HEADPHONE VOL, SUB HEADPHONE.

Item

VOLUME

BASS

TREBLE

Effect Function On-Screen Indication

I I

Quieter Louder

I t

Cut Boost

S I

Cut Boost

Adjusts the output volume.

(.VOLUME

Used to boost or cut low

frequency sounds.

Used to boost or cut high frequency sounds.

Ctrebie

s 13

Si S3

Adjusts the sound balance

BALANCE

HEADPHONE VOL

SUB HEADPHONE

(Not on

TX-76PW50A)

e I

Left SP Right SP

I s

Quieter Louder

I I

Quieter Louder

between the left and right speakers.

Adjust for output volume for the headphones.

Adjust for output volume

for the sub-picture headphones.

Cbalance

C'headphonevol " [-)l

C SUB HEADPHONE

Notes:

1. You can change the level for each function (Bass and Treble) for each sound menu option.

2. Sound menu levels can be set for TV, AV1, AV2, AV3 and AV4 modes.

3. BALANCE is not displayed when SURROUND is on.

Page 17

Sound Menu Operation

SUBWOOFER

This function allows you to switch the SUBWOOFER between OFF, NORMAL and FULL modes.

Use the Qor § buttons to switch between settings.

1 .

--------------------1

------------

9ESIBHHO

-1 :

DYNAMIC J

m SOUND

L MENU

|L_.yo<-UME

It SURROUND MENU ON

..............................

1 BASS

1 TREBLE ' HEADPHONE VOL

SUB WOOFER

TX-76PW50A

h—-----------

DYNAMIC j!

i>0RWAi. ■ jm

-------------

ftp!".:.,'"- ,

OFF Turns the SUBWOOFER off. NORMAL Provides a mid-level bass effect. FULL Provides enhanced bass effect.

DIGITAL AUDIO (TX-86PW100A & TX-76PW100A only)

Ifn SOUND 1

r MENU ' VOLUME

BASS 111...

t TREBLE J r HEADPHONE vex. Ji

' SUBHEADPHONE ^ SUBWOOFER

TX-86PW100A & TX-76PW100A

m SOUND

OroiTAL AUDIO SURROUND MENU

Use the § or 0 buttons to switch the digital audio input between the different AV inputs. (AV1, AV2, AV3 and AV4).

If you do not have a digital audio Input, set the option to OFF. If you have a digital audio input from externai equipment such as a DVD player switch the digital audio to the corresponding AV input. For example if the DVD is connected to AV2, set the digital audio to AV2.

SURROUND MENU This function allows you to select the Surround options (TX-86PW100A & TX-76PW100A) or switch the Surround Sound onoroff{TX-76PW50A).

Use the ^ or^ buttons to switch between

settings.

TX-86PW100A & TX-76PW100A

TX-76PW50A

Normalisation □

Pressing the Normal Button (O) on the remote control, when the Sound Menu is displayed will return all sound settings to the factory preset levels. This is called “Normalisation”.

Normalisation will not occur if the Sound Menu is not displayed when the Normal Button is pressed.

Page 18

Surround Sound Operatiora (TX-36PW100A & TX-76PW100A)

Push the Surround ( ^ ) io confirm that the Surround feature is On. !f the on screen message that appears indicates Surround is Off, Push again to turn the feature On. Note: If Surround is Off, the sound output is two channel (ie: iefi and right) stereo or mono.

Push the SOUND ( W) button. Select to Surround menu by using or . Access Surround menu by using (iJorQ Move to chose menu option by using <r;K>or Adjust chosen option or access chosen menu by using Qori).

Push % to go back to watching TV.

(f a DTS / Dolby Digital input is detected the Surround menu options instantly change - Surround mode is not available. (The DVD output must be labeled “DTS" or “Dolby Digital”). Ensure that the Digital Audio option in the SOUND menu is set to the correct AV input (see pages 17 and 40). A message displayed in the centre of the screen shows whether the signal is DTS or Dolby Digital, and gives a code indicating which channels are detected (see table to the right). Subwoofer output is not listed; if a subwoofer channels is detected then its contents are output.

VOLUME The volume adjustment sets the overall Surround output

volume.

SURROUND When a DTS/ Dolby Digital Input is not detected this MODE option is shown. Choose between PRO LOGIC and

SIMULATED. The mode chosen here dictates the next menu option.

SPEAKER 3 ^TS / Dolby Digital input is detected, or if Pro Logic SETTSNG/ is selected in Surround mode, this menu option is SIMULATED Speaker setting, allowing selection of NORMAL,

PHANTOM or 3 STEREO modes, as described on page

20.

If Simulated is selected in Surround mode, this menu option is Simulated setting, allowing selection of DISCO, MOVIE or STADIUM modes, as described on page 20.

SPEAKER Allows adjustment of the volume for each speaker, as LEVEL described on page 20.

Coda Front

1+1

1/0 Mono output 2/0 3/0 2/1

3/1 2/2 3/2

SURROUND MENU

outputs

Left Right Centre

Dual mono output

/ y / y

y y y

y y

y y y

surround outputs

Mono output Mono output

/fri

VOLUME

'•

SPEAKER SET SPEAKER LEVEL FRONT DISTANCE

■V

PHANTOM

If a DTS / Dolby Digital Input is detected, the Surround menu is as shown above. This does not occur if the DVD output is PCM.

Rear

Left Right

y y y y

■s >

FRONT Allows setting of the distance from the listening position DISTANCE to the front speakers.

Distances or 1, 2, 3, 4, 5, 6,7 or 8M can be selected.

REAR Allows setting of the distance from the listening position DISTANCE to the rear speakers. If the rear surround speakers are

closer to you than the centre speaker, you may hear "dialogue leakage" from the rear surround speakers. It

may be necessary to reduce the volume of the rear speakers. Distances or 1, 2, 3,4, 5, 6, 7 or 8M can be selected.

INTERNAL It" you do not have an external centre speaker connected, SPEAKER s®t to On. If you wish to connect an external centre

speaker then switch Off, see page 42 for connection details.

If no DTS / Dolby Digital input is detected, Surround mode appears as a menu option.

Page 19

Surround Sound Operation (TX-86PW100A & TX-76PW100A)

Surround Sound Systems

Stereo reproduction normally uses left and right speakers, but Digital Theater System and Pro Logic Surround go further, adding a centre and other channels so you are immersed in sound and special effects."

DtgitaS Theater Systems (DTS) / Dolby Digital

Both DTS and Dolby Digital split soundtrack information into 6 separate channels of sound which are output through the speaker setup; five full range channels (left, center, right, left surround, right surround) and a 'O.T (i.e.: limited range) bass channei. This gives you superb sound quality from DTS / Dolby Digital encoded tracks when a compatible speaker system is connected to your TV. Most dialogue comes from the centre channel, which enhances dialogue and focuses it so it seems to come from the action on screen. The separate rear left and right channels give a dramatic sense of

space, with sounds travelling in all directions between front, centre

and rear channei speakers (e.g.: a rocket going overhead starts

behind you to the left and explodes in front of you to the right). The

'0.1' low Frequency Effects (LFE) channei gives impact to bass

sounds and to special effects more felt than heard (e.g.: the thud of

a dinosaur footfail or the rumble of thunder). While DTS and Dolby

Digital are both high quality, ‘5.T channei surround systems, the two systems differ in how they break down and store sound

information They also differ in how they work with existing speaker

setups. Dolby Digital has been designed to be backwardly

compatible with Dolby Pro Logic and conventional stereo setups.

DTS on the other hand, focuses on the high quality, 5.1 channel

surround output choosing not to develop backward compatibility

with existing sound systems.

»■ i If I 1 w

Subwoofer / Centre LFE Speaker Speaker

Left Front

Speaker

Left Rear

Surround

Speaker

iWj

DTS/Dolby DsgiitaS setup

nniomav]'

0 ! G I T ft L

Right Front Speaker

Right Rear Surround Speaker

Note;

Externa! equipment is usually connected to the TV via one of the AV terminals to provide pictures and sound

(e.g. a VCR player connected to AV2). To receive a DTS or Dolby Digital encoded soundtrack from compatible

equipment (e.g.; a DVD player, a set top box) you will also need to connect an optica! or coaxial cable to one of

the TV’s digital audio sockets. See page 41 for connection details. Also see the Digital Audio option in the

SOUND menu, page 17.

Dolby Fro Logic

Dolby Pro Logic surround uses four channels of sound: left, right,

centre and a rear channel giving excellent reproduction of Pro

Logic encoded tracks when a compatible speaker system is connected to your TV. Most dialogue comes from the centre

Left Front _ Speaker Right Front

nni acLiv'

P f1 t> . L 0 Q t C

Centre

Speaker j o|;; : fs) speaker

channel, which enhances dialogue and focuses it so it seems to come from the action on screen. The rear channel is used to immerse you in atmosphere and special effects, the same output is sent to both rear speakers. As with Dolby Digital, Pro Logic is backwardly compatible with a conventional stereo speaker setup.

Left Rear

Surround

Speaker

Right Rear Surround

Speaker

DTS/Do!by Digital setup

Note:

To get Pro Logic information from Pro Logic encoded TV programmes; you must be able to receive stereo

transmissions, if stereo transmissions are not transmitted in your area then the Pro Logic information will not be present on TV transmissions and Pro Logic decoding wili only produce a centre channel output.

• 19

Page 20

Surround Sound Operation (TX-86PW100A & TX-76PW100A)

Dolby Digital and Pro Logic modes

For Dolby Digital input or Pro Logic selected in Surround mode, the following three modes of operation are available as the speaker setting: Normal, Phantom, and 3 Stereo.

Normal If front and rear speakers are connected, use Normal mode. The

TV’s internal left and right speakers will produce centre speaker information. With a DTS/ Dolby Digital 5.1 input, the TV’s internal subwoofer produces the LFE speaker information. If the internal speaker is switched off {see page 18) and an external centre speaker used, the speaker must be connected using RCA cables, via an external amplifier (otherwise It will not output any sound). See page 41 for connection details.

Phantom If front left, and right speakers are not connected, use Phantom

mode. Left, right, and centre information will now be produced by the TV speakers. If you choose to use this mode with the internal speaker switched off and front left and right speakers connected, these must be connected using RCA cables, via an external amplifier (otherwise they will not output any sound). See page 41 for connection details.

3 Stereo This is the best mode to use if rear speakers are not connected.

When using this mode, the surround information is redirected to

the front left and right speakers. The TV’s internal speakers output centre information. If the internal speaker is switched off (see page

18) and an external centre speaker used, it must be connected to the TV using RCA cables, via an external amplifier (otherwise it will not output any sound). See page 41 for connection details.

Right Front Speaker

Right Rear SurrourKj Speaker

Simulated Mode

Simulated modes allow various types of surround effects to be produced by mimicking both the direct sound, as heard by the audience, and the sound reflected back from the surrounding wails, ceiling and floor in places such as a discos, stadiums etc. There are three different effects to choose from, each reflecting a different atmosphere;

Setting Appropriate sources

DISCO Disco, dance or iazz music MOVIE

All movies or music software recorded without Dolby

Effect A crowded nightclub Simulates a surround sound recording

Surround

STADIUM Any live sports occasion

A packed sports stadium

Speaker Level Setup

The speaker output levels from the different options, e.g.; Left, Centre,

Right, Rear right and Rear left, should be adjusted f^m your usual listening position, to obtain the best results. The level can be set using

either the TV sound or the test signal provided. Pushing the SURROUND

button switches between the test signal and TV sound.

Notes:

The adjustment menu available willvary according to the mode chosen, if you have a DTS / Dolby Digital 5.1 input, and are using the internal subwoofer to produce the LFE information, you can change the LFE volume by altering the Subwoofer setting in the SOUND menu, (see page

17).

When using external stereo equipment it is advisable to set the speaker levels to the midpoint position.

Page 21

Set Up Menu Operation

TELETEXT

This control allovi/s you to change between LIST and TOP or FASTEXT modes.

Use the 0or@ buttons to switch beKveen settings.

1 Push the SET UP button .

2 Move to the option menu using or::

3 Adjust the chosen option using 0 orf). Push at any time to return to watching TV,

...

I SET UP MENU t

( PLICKER REDUC □YNAMtC f STROBE

r CH COLOUR SET f vcr/game E TEXT SELECT ENGLISH

OFF

HI s

—^

!_J SET UP MENU

OFF TIMER OFF ; FLICKER REOUC DYNAMIC ^ STROBE

' CH COLOUR SET

f VCR/GAME

. TEXT SELECT

C V

teletext

—

OFF

ENGLISH

mr.'

AUSTRALIA

iOP mode is the current preferred method in Australia.

FASTEXT mode is the current preferred method in New Zealand.

OFF T^MER The Off-Timer turns the television off after a period of time

chosen by you. The timer settings (in minutes) are OFF, 15, 30, 45, 60, 75, 90.

Use the 0or@ buttons to swttch between settings.

FL5CKER This lets you control any unwanted picture movement. The REDUCT50H settings are OFF, NORMAL and DYNAMIC.

Use the 0ori) buttons to switch between settings.

OFF No flicker reduction is applied.

NORMAL Used to correct picture movement or if

slight ghosting occurs when using DYNAMIC.

DYNAMIC Activates motion compensation to smooth the image and gets rid of picture

movement.

NEW ZEALAND

COLOUR SYS

COLOUR SYS is only available in AV mode. This option

allows you to select the correct colour system for the signal being received. If a clear picture with correct colours cannot be obtained, a change to the Colour System may improve the picture. The settings are AUTO, PAL, NTSC4.43 and NTSC3.58. The Australian and New Zealand colour system is

PAL.

O SET UP MENU

TELETEXT

OFF TIMER OFF

FUCKER REDUC

V—

COLOUR SYS

>—

STROBE

W-

>—

CH COLOUR SET

VCR/GMriE OFF

—

TOP

OYNAMIC

AUTO"

I I \—

----------

—

......

—0

zu 1

—<

"■ S

Use the or buttons to switch between settings. Note: PAL and NTSC3.58 are different colour signal broadcast transmission systems

applicable to differing countries. NTSC4.43 is a system used in special VCRs to playback NTSC recorded tapes on a PAL television.

Page 22

Set Up Menu Operation

STROBE

Lets you taks a series of freezeframe photos of a piece of action such as the finish or a race etc. The main picture Is in the centre and smaller freeze-frame pictures appear around the outside.

Use the (|oriJ) buttons to switch S î ROBb on or off.

CH GGLOUR SET Colour density varying between broadcast channels can be

adjusted to three levels for each channel received.

Use the §orQ buttons to switch between settings.

VCR/GA^E Reproduction of irregular signals such as certain video games

or some rental videotapes may be improved by turning the VCR/GAME feature On.

FUCKCTRePUC OYWWJIC

Use the (|or|i| buttons to switch VCR/GAME on or off.

O 3ET№MEHÜ

TELETEmOP

CHCOUJWSCT

TEXT SELECT

—

TEXT SELECT

Select the character set so that all characters needed are available for text on teletext pages. The languages available are ENGLISH, CIS and E.EUROPE.

Use the forj buttons to switch between languages.

CifiSLD LOCK CHILD LOCK allows you to “lock out” a channel to

prevent a child from watching or hearing a particular programme. Select the channel or AV to be locked before

pressing the SET UP button.

Use the Qor)| buttons to switch the CHILD LOCK on or off.

TUNING M E U U

[ his provides access to many other features Including system

select and tuning options.

Use the @or © buttons to access the TUNING MENU.

GEOMAGNETIC

If you notice a slight tilt in the picture or if there are coloured patches at the corners of the screen, use this feature to eliminate them. Refer to page 32.

i 1 aeruPMENul

FUCKED REDUC OVNAMIC

at COLOUR SET

VCmOAME OFF

TCltTsVLCCir “■

Qj SETUP

TUMING MENU GEOMAGNETIC

LJ =

TWIMS MEN(^

“geomàgnetig"

uSeGisi English” liS!

Q SET IP MEHu]™™«

TUNINGMSW

GEOfiAQNETic

Use the Qor© buttons to access the GEOMAGNETIC

Adjustment Menu.

LANGUAGE When you first insiati the TV the On Screen Display language

is set to English. The language can also be set to Chinese.

Use the ©or© buttons to switch between languages.

il ^ UP MENU h

TUNING MENU

GEOMftGNgnc

ÜiiGUAGÇ

Page 23

Aspect Controls

ТЛ

0 @ [} 0

Ш Ш a

0 !D 0

-!l) ffl tilj

Press the ASPECT button W to select the different Aspect options. The options available are AUTO, 4:3, ZOOM, S-ZOOM, 16:9,14:9 and JUST.

^lode

Au s G

4:3

ZOOM


i / \

4:3 Signal

Descrlptiori

The AUTO position can be set to 4:3 or to JUST. When a wide screen signal is detected at the Video terminal the TV wilt seiect. the16;9 aspect ratio.

This option will display a standard 4:3

picture 'Without any stretching or

compression. There will be vertical black lines down either side of the oicture

This option allows you to nrEagnlfy part of tbs

picture. The coloured buttons let you change the position of the magnified area. Red V SIZE - Make picture Shorter. Green VSiZE-i- Make picture Taller. Yeilow V F03 - Move picture Down. Blue V POS Move picture Up.

S-ZOOM displays part of the picture at greater magnification that the ZOOM mode

dess. The coloured buttons let you change

the size of the magnified area.

Red H POS - Move picture Left. Greers H POS Move picture Right.

Yellow V POS" Move picture Down.

Blue V POS + Move picture Up.

16 : 3

14:9

JUST

The 16:9 option will display the picture at its maximum size. Signals in the 4:3 format will be stretched to fit the picture.

16:9 Signal

The 14:9 option will display a 4:3 signal in simulated wide screen. The picture is slightly stretched. It is also slightly cropped top and bottom.

JUST gives you a "best fit" option when showing 4:3 on wide screen. The centre of the picture is not affected but there is some stretching at the edges.

Page 24

TELETEXT Operation

Teletext is only available on certain broadcast channels. The time taken to display the pages and sub-pages is

set by the teletext transmitter and not by the television.

Teletext is also used for Closed Captioning of television programmes for the hearing impaired. Closed captions

can be found on Teletext Page 801.

TOP (Table Of Pages) MODE

In TOPTEXT mode, the red button moves to the previous page number and the green button moves to the next page number. The yellow and blue buttons correspond to different subjects. These subjects can be accessed by Pushing the coloured button. This is the current preferred method of operation in Australia.

FASTEXT MODE In FASTEXT mode, four differently coloured subjects are displayed at the bottom of the screen. To access more information about one of these subjects, push the corresponding colour coded button on the remote control. This is the current preferred method of operation in New Zealand.

LIST MODE In LIST mode, four different coloured page numbers are shown at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory. These coloured page numbers correspond to the colour coded buttons on the remote control.

Please refer to page 21 for instructions on how to change modes between TOP/FASTEXT and LIST.

Page Number Up Sub Page Number Up Sub Page Number Down Page Number Down

Coloured Buttons

Index Hold

Page Numbers

Page 25

TELETEXT Operation

BUTTON

F.P. F.P. (FAVOURITE PAGE)

This feature will store a favourite page in the TV memory.

2. Push the Blue button.

3. Select the page number.

4. Push and hold the STR button.

5. The page number is now stored.

SETUP

TVn-BCT

SETUP

WHAT IT DOES

1. The TV must be in the LIST mode, receiving a teletext broadcast and the programme number must be between 1 and 25.

Push F.P. to recall this page.

Used with the Coloured buttons to access the Reveal, Full / Top / Bottom, Display Cancel and Time Text functions. Push the TV/TEXT Button fpto return to normal television viewing.

TV / TEXT

Pressing this button switches the screen between;

TELETEXT Television picture on the left of the screen and the TELETEXT on the right of the screen.

Normal television viewing. When TEXT is on, the sound from the broadcast channel is still audible. To adjust the volume press the Sound H button or the F button to display the volume indicator. The volume can then be adjusted normally.

STR

I I G I

INDEX

HOLD

STR

This button is used to store page numbers into the coloured buttons or the Favourite

Page button. The STR button is located behind the remote control door.

PAGE NUMBERS UP AND DOWN

These buttons are used to move to higher or lower page numbers.

SUB PAGE NUMBERS DOWN AND UP

These buttons are used to move to higher or lower sub page numbers.

COLOURED BUTTONS

These buttons refer to different page numbers in LIST mode and different subjects in TOP mode.

INDEX

Pressing this button returns you to the main index page.

HOLD

Some TELETEXT pages contain multi-page information. Use this button to stop the

page changing. Push it again to release the hold.

Please refer to drawing on Page 24 for location of Teletext Control Buttons.

Page 26

TELETEXT Operation

PAGE NUMBER BUTTONS

These buttons allow you to directly enter the page number that you want to view.

REVEAL

F/T/B

DiSPLAY CANCEL

Some Text pages contain concealed information, e.g. the solution to a puzzle. To

reveal this information Push the Set Up button ^followed by the Red button. To hide the information, push the Red button again.

(FULL/TOP/BOTTOSVI) This button Is used when difficulty is experienced in reading text on the screen. To operate the F/T/B Push the Set Up button ^foiiowed by the Green button.

Operating the F/T/B expands and displays the upper half of the screen. Operating the F/T/B Button again expands and displays the lower half of the screen.

Operating the F/T/B Button a third time returns the display to normaÍ condition.

if you wish to watch the television while you are waiting for a page to be

transmitted you can use the DiSPLA.Y CANCEL function.

This function is not available (or necessary) when the picture end the TELETEXT are both being displayed side by side.

Push the Set Up button foliowed by the Yellow button to view the TV^ picture while waiting for a teletext page to be transmitted, ^/\/heп found, the page number wiK be displayed at the top left of the screen.

Mevifs Flash or Other Updates Whan a news flash page (or another page which provides regular updates) has

been selected Push the Set Up button Si foil owed by the Yel!ov\/ button to viev-^ thi TV picture. When a news flash is received the page number wl!i be displayed on the screen. Push the Yellow button to display the news flash.

When a Page has more than one screen (sub-page) of information, you may have

to wait 'for some time before the sub-page you require becomes available. ’Aflth this

function it is possible to enter the number of the desired sub-page.

1. Select Text Mode and choose a page,

2. Push the Set Up button ^ followed by the Blue button. T""'"* vi/lil be displayed at the top ieft of the screen.

3. Enter the sub page number before the disappears. The sub-page number must be entered as a four digit number e.g. sub-page 3 would be entered as

0003. (if in LIST mode, a “T" will appear in the current box at the bottom).

4. Push the Yellow button to view the TV picture while waiting for the sub-page to

be found. (This function is not necessary when the picture and the TELETEXT are both being displayed side by side).

5. When the page has been found, push the Yellow button

To dear the page perform one of the following;

- Push the Set Up button.© Select a new page number.

- Push the TV/TEXT Button @to return to normal television viewing.

* Note: TIME TEXT is not currently available in Australia.

Please refer to drawing on Page 24 for location of Teletext Control Buttons.

Page 27

This option allows you to switch the television system between the Australian and the New Zealand/ Indonesian

system.

Front ■ !

□ □ □ □

SIR F -A/ +/A

1. Push the F button repeatedly until the Tuning Mode is reached.

TUNING MODE

R NO +; YES

ing 1 ^6 © Rs mo ts G on ir c

TifiSl til r*» f

2, Push the Q or)} button to access the Tuning

Menu.

•.-vSi

1] fl

-A/

STR

Push the or d/\ Button to access the

□

+/a:

■■

TV/AV

Tuning Menu.

TUNING MENU

SYS SELECT AUTO TUNE

MANUALTUNE FINE TUNE ^

SKIP OFF

Push the T button to select SYS SELECT.

Push the -A/ or +/A Button to switch between

AUSTRALIA and MZ'INDONES. To return the television to normal operation

push the ©button on the remote control or repeatedly push the ® button until the volume display appears.

3. Push the 0 or§ button to select the Tuning Menu,

Push the 0 oriA button to select the SYS

SELECT.

Push the 0 or@ button to switch between

AUSTRALIA and NZ/INDONES.

Push the © button to return the television to normal operation.

Push the@ button at any time to return the television to normal operation.

''V

Page 28

Tuning Menu Auto Tune

This television has been factory tuned to all major city channels. Use the automatic tuning procedure only if you

wish to reset ALL Programme Location Numbers. Refer to “Manual Tune” on page 29 if you only want to retune

one or two Programme Location Numbers.

The television should be switched ON and the TV/AV Switch set to TV.

When you start the automatic search, the television will automatically search for television broadcasts through both VHP bands and the UHF band. During this process all of the available television broadcast channels will be automatically allocated to sequential Programme Number locations.

Using the Front Panel Using the Remote Control

1. Push the F button repeatedly until the Tuning Menu is reached.

2. Push the »/ V or “F / A button to access the

Tuning Menu. (See page 27).

3. Push the r button to access the Auto Tune.

1. Push the SET UP ^ button,

2. Push the A or V button to select the Tuning Menu. (See page 27).

3. Push the “ or button to access the Tuning Menu.

4. Push the A or V button to select the Auto

4. Push “ / \/ or 4- / A button to start the search.

Tune.

5. Push the - or -h button to start the Auto Tune.

The television will automatically aiiocate each received broadcast signal to a Programme Number, starting

at position number 1. As each station is stored the Panasonic logo will appear momentarily. The operation will cease \when ali available channels have been tuned.

CH 29

Pan am ic

ftnascmie

AUTO SETUP IN PROGRESS

SEARCHING :

STORED CH29

F TV/AV

: RETURN TO TUNING MENU ; TO EXIT

Push the F button to return the television to the

Tuning Menu.

Push the© button on the remote control to return the television to normal operation.

AUTO SETUP IN PROGRESS SEARCHING:

STORED CH29

r-7;:-'vv ;

SETUP

TV/AV

: RETURN TO TUNING MENU ; TO EXIT

Push the Set Up» button to return the television

to the Tuning menu.

Page 29

Manual Tune

This Television has been factory tuned to all the major city channels. Use this tuning procedure only if you wish

to reset individual Programme Numbers,

The television should be switched ON and the TV/AV Switch set to TV.

Using the Front Panel

Push the F button repeatedly until the Tuning

Menu is reached.

Push the - / V or + / A button to access the

Tuning Menu, (See page 27).

Push the F button to access the Manual

Tune.

Push the • / V or + / A buttons to select the Manual Tune.

MANUAL TUNE (FRONT FWNEL)

TV/AV : MOVECURSOR

STR : TO STORE

10.

11.

12.

'Ü

Push the F button to switch to "Change Programme". Use the - / V or + / A buttons to select the programme location number to tune.

Push the F button to switch to "Search". Push the - / V or + / A Button to start the

search. The television will automatically search for the next broadcast signal. As each station is found the search will stop. If you do not want

this station restart the search. Push the STR to store the selected station. Push the F button to return the television to

the Tuning Menu. To return the television to normal operation

push the F button repeatedly until the volume display appears.

: SEARCH

: TO EXIT

" 0- ■

TVWV

Using the Remote Control

Push the Set Up@ button.

Push the A or V button to select the Tuning Menu. (See page 27).

Push the - or + button to access the Tuning Menu.

Push the A or V button to select the Manual Tune.

Push the - or + button to access the Manual Tune.

Push the A or V button to select the

programme location number to tune.

Push the - or + button to start the search.

The television will automatically search for the next broadcast signal. As each station is found the search will stop. If you do not want this station restart the search.

Push the STR to store the selected station.

10.

Push the Set Up button to return the television to the Tuning menu.

TV№V

Push the HP button on the remote control to return the television to normal operation.

Tuning the Television to a VCR

1. Turn the VCR On and either start a known tape playing or set the VCR Test Signal, if fitted, to On

(refer to the VCR operating instructions).

2. Repeat steps 2,3 and 4 of the Manual Tuning procedure above. The television will treat the VCR as if

it was a normal television broadcast station.

NOTES:

1. The antenna lead must be connected to the VCR and the VCR RF-Out must be connected to the TV

RF-ln. Please refer to page 39.

2. The picture and sound quality are usually much better if the VCR Is connected using the AV

Terminals. Please refer to page 40.

Page 30

Tuning Menu

Fine Tune

in areas of poor reception or constant interference a slight adjustment to the tuning may improve the picture

quality.

Using the Front Panel

Select the Programme location number you want to fine-tune.

Push the F button repeatedly until the Tuning

Mode is reached. (See page 27). Push the " / V or / A button to access the

3. Tuning Menu,

Push the F button, to access Fine Tune.

TUNING MENU

SYS SELECT AUTO TUNE

^ MANUALTUNE )

FINE TUNE

C SKIP

----- --------------------

Push the " / V or -^ / A button to fine tune

Ö.

the station.

The television will fine tune in the direction

chosen by you.

Push the STR to store the selected station. Push the F button to return the television to

the Tuning Menu. To return the television to normal operation

push the F button repeatedly until the volume display appears. The on screen display will disappear after a

10.

few seconds.

--------------

Using the Remote Control

1. Select the Programme location number you

2. Push the Set Up ^ button.

3. Push the A or V button to select the Tuning

4. Push the - or + button to access the Tuning

5. Push the A or V button to select the Fine

AUSTRALIA )

"OFF )

------------ -------—

6. Push the - or + button to start the fine tune.

7. The television will fine tune in the direction

8. To store the selected station, push the STR

9. Push the Set Up button twice to return the

want to fine-tune.

Menu. (See page 27).

Menu.

Tune.

...

. •

..................

chosen by you.

button. television to the Set Up menu.

.....

.—....

TV/AV

Push the button on the remote control to return the television to norma! operation.

Canceling the Fine Tuning

To cancel the Fine Tuning follow the Manual Tune procedure on page 29.

Page 31

This option allows you to “Skip’'(bypass) the unused or undesired Programme Numbers. The Function is only

applicable when the Programme Number Up or down buttons are Pushed. The use of the remote control Direct

Programme Number Buttons overrides the Skip function.

Ííl '■■■ '-i

H Í

181

1. Select the Programme location number you want to “Skip"

2. Push the F button repeatedly until the Tuning Mode is reached. {See page 27).

3. Push the »/ V or / A button to access the

Tuning Menu.

4. Push the F button to select SKIP.

TUNING MENU

SYS SELECT AUTO TUNE

MANUALTUNE

■

FINE TUNE

SKIP

Push the “ / V or *^ / A button to turn the

SKIP on or off. To store the SKIP setting, push the STR

6. button.

To return the television to normal operation

7. push the F button repeatedly until the volume

display appears.

The on screen display will disappear after a

8. few seconds.

1. Select the Programme iocaiion number you

2. Push the Set Up® button.

3. Push the A or V button to access the Tuning

4. Push the ■■ or button to select the Tuning

5. Push the A or V button to select the SKIP.

AUSTRALIA

1 OFF

6. Push the - or -5- button to turn SKIP on or off.

7. To store the SKIP setting, push the STR

want to “Skip”.

Menu. (See page 27).

Menu.

■■ ^

r . :

, ——

button.

it«

iiiroi

TV/AV

Push Oie button on the remote control to return the television to normal operation.

5:;;

Page 32

Geomagnetic Correction

Magnetic interference may come from such things as unshielded motors, moving the TV while it is switched ON, turning off a vacuum cleaner too close to the TV, lightning strikes nearby or many other things.

Slight tilting of the picture may be noticeable or coloured patches may sometimes appear at the corners of the screen (colour purity).

The Geomagnetic Correction feature can be used to eliminate some interference problems. Quite often simply switching your Television OFF with the Power On/Off Switch (not with the remote control) for

30 minutes and then switching it back ON will cure the problem. Geomagnetic corrections can be made from the remote control or from the TV set.

Using the Front Panel

1. Push the F button repeatedly to access the Geomagnetic Correction Menu.

GEOMAGNETIC CORRECTION

ADJUST TILT

; to EXIT

'9; Q

2. Push - / V or + / A to adjust the picture tilt or coloured patches as necessary.

rgsri

□

VitM

Using the Remote Control

Push the SET UP • button.

Select the Geomagnetic Correction Menu by Pushing the A or V button.

Push - or + to access the Geomagnetic

Correction.

Push - or + to adjust the picture tilt or coloured patches as necessary.

,1 T Ï S -i.

The adjustment range is from -8 to +8.

Push the F button to return to normal

viewing.

TV/AV

Push theM button on the remote control to return the television to normal operation.

Push the SET UP button to return the TV to the Set Up Menu.

Helpful Hint

1. If geomagnetic changes cause colour patches on the screen switch your Television OFF with the Power On/Off Switch (not with the remote control) for 30 minutes and then switch It back ON.

2. Adjustment for geomagnetic should be performed every time the location of the TV is changed.

3. In some cases colour patches will not be completely eliminated even after adjustment, particularly in ferroconcrete buildings and other structures susceptible to geomagnetic effects. In these cases the TV location will have to be changed.

Page 33

Remote Control VCR/LD/DVD Operation

This remote control has been designed to work with a variety of VCRs, Laser Disc players and DVD players. Please refer to page 35 for details of manufacturers' codes.

Panasonic

noivna

SOUND :

____ ___ ___ __

■ ii«B! : ijotp

® ^

CriSEUtCH snu.

(D (ID a

(4) ® ®

REWIND REVIEW

STOP

POWER

RECORD

PAUSE

ir“

é; ;

®,0

PLAY FAST FORWARD / CUE

VCR - LD/DVD SWITCH

PROGRAMME NUMBER DOWN & UP STILL ADVANCE/SIDE B

* WARNING:

Unauthorised recording of material from Television Broadcasts or from other video

and / or audio sources may contravene copyright laws.

Page 34

Remote Control VCR/LD/DVD Operation Remote Control VCR/LD/DVD Buttons

Function

Button

□

VCR

REWIND / REVIEW

Used to rewind the tape quickly or watch the tape reverse while watching the

in reverse.

STOP Used to stop the VCR.

POWER BUTTON Used io switch the VCR ON or OFF (Standby).

RECORD Push this button and the PLAY button to start

recording. PAUSE

Pauses the tape during play.

LD/DVD

REWIND / REVIEW

Used to play the disc in

picture.

STOP Used to stop the LD/DVD.

POWER BUTTON Used to switch the D/DVD ON or OFF (Standby).

PAUSE Pauses the disc during play.

fti

14^ (i-H

Q m

DISC SIDE SO

E3 DISC SIDE

PLAY Used to Start the VCR playing.

FAST FORWARD / CUE

Used to wind the tape forward quickly or to watch the tape at fast speed.

VCR Switch Setting

Selects VCR.

PROGRAMME NUMBER

DOWN AND UP

Used to select the next Used to skip tracks on the

Higher or Lower Programme

Number.

STILL ADVANCE

Used to advance the tape DISC SIDE B SELECTION one frame at a time. Used

with the Pause button. of the disc.

PLAY

Used to start the LD/DVD

playing.

FAST FORWARD / CUE

Used to watch the disc at

fast speed.

LD/DVD Switch Setting

Selects LD/DVD.

PROGRAMME SKIP

disc.

Used to select the B-side

DISC SIDE A SELECTION

Used to select the A-side of the disc.

Page 35

Remote Control VCR/LD/DVD Operation Manufacturers’ Code Settings

This remote control has been designed to work with a variety of VCRs, Laser Discs and DVD players, in order for this to occur, the setting for the VCR, LD or DVD must be programmed into the Remote Control.

1. To set a VCR, slide the remote control VCR-LD/DVD switch to VCR. To set a LD or DVD, slide the remote control VCR-LD/DVD switchto LD/DVD.

2. Push the remote control VCR - LD/DVD Power Button B and keep it Pushed.

3. Enter the Manufacturer’s two-digit code number using the remote control Number Buttons (The codes

are shown below).

6. Check the operation of the VCR. LD or DVD. If it does not operate correctly, repeat steps 1 to 5 and use an alternate code (if there is one).

Push the STQPoZiJ button . Release the remote control VCR or LD/DVD Power button.

VCR CODES

Manufacturer Panasonic / 10,11,12,13 NEC 40,41,42,43

National AIWA FUJITSU HITACHI JVC MITSUBISHI 35, 36

LD CODES

Manufacturer

Code Manufacturer

ORION

15,16 Philips 20 SANYO 55, 56, 57, 58 25, 26, 27 SHARP 60,61 30, 31,32 SONY

TOSHIBA

Code Manufacturer

Code

45, 46 50

65, 66, 67 70,71

Code

Panasonic KENWOOD PHILIPS

PIONEER

DVD CODES Manufacturer Code Panasonic 70

NOTES:

1. If the batteries are removed from the remote control the Manufacturer’s codes are lost and must be reprogrammed.

2. The list of manufacturer’s codes is given as a guideline only. Panasonic cannot guarantee that any other manufacturer’s product will work with this remote control.

10,11,12,13

15,16 20 25

SAMSUNG 30 SHARP SONY 40,41,42, 43

Page 36

Connecting Equipment to the TV

Front Panel Connections

Connecting to the RGB Input Terminafs

Behind the front panel door is the headphone socket, the AV3 input and the RGB input.

Personal computers (PC) with 640 x 480 (31.5kHz / 60Hz) or 640 x 400 (31,5kHz / 70Hz) resolution can be connected to this television. Mole: the display will prompt you to set the resolution to 640 x 480. The computer must be set to High Colour (16 bit).

In some cases other PCs may not work with this TV set.

There is no audio signal in RGB mode.

Connect the sound cables to the AV3 Audio input terminals.

Some computers such as PC-98 and Macintosh require a commercially sold adapter betvreen the

RGB cable (D-Sub 15P) and the computer. There is no need for an adapter when using computers with a DOS/V compatible D-Sub 15P terminal.

With some computers it may be necessary to press Function F4 twice to give a display on the

television. There are no computer connection cables included with this television.

Signal names for D-Sub 15P Connector

Signal Pin

Name No.

G 7 GND

В 8 GND GND 9 NC GND

6 GND

NC is Not connected

Signal Name

GND

Pin Signal

No. Name

11 GND 12

13 14 15

@©@©©1

Pin layout for RGB Terminal

Pin No.

2 3 4 5

GND is Ground

HD/SYNC

VD NC

Page 37

1. Push the TV/AV button i

2. Push the Yeiiow button to select RGB mode. The

yellow button switches bsbjveen RGB and AV3.

3. Push the SET UP button 'Tib,

4. Move to the option using <RTT>or Cy"y>.

5. Adjust the chosen option using the Aor A buttons Push at any time to return to watching TV.

EFFECT

OPTION Push Push

<*-

)

H - SIZE

h^l 1

I > 1 \

V-SIZE

i .1 _„1.

H-POS

V-POS

/ N

......

/ i 1

....

PARABOLA

________

, i

i-t

! 'i-L

.JJ...

Page 38

Connectinq Equipment to the TV Rear Panel Connections

When using a VCR with the teievision always connect the Aerial to the VCR and connect an RF Cabh (not supplied) between the VCR RF-Out and the television RF-in.

You can watch videos by either tuning the television to the VCR (see page 29} or by connecting the VCR to the rear

0 №:

RF Cable

« ©ir

AV terminais. Note; When connecting a mono VCR through the RF-!n, please switch the TV to mono.

i he Monitor Out terminals reproduce the signals currently on the television screen. The on-screen signals

could be a television programme or signals connected to one of the AV inputs. The Monitor Out facility can be used to allow one video source (videotape, video disc etc.) to be

connected to more than one television. Connect the Monitor out from this television to the AV input of the

second television. If a video recorder is connected to the Monitor Out and video sources (VCR, video disc, camera etc.) are

connected to one or more of the AV inputs, the television becomes a visua! display for tape editing or copying. *

The Monitor Out Audio can also be connected to a stereo amplifier or other hi-i1 equipment.

VCR

^tONITOR

OUT

AVIN

(( o s cidTin^

VIDEO

AUOtO

('0j

C O )

NOTE:

AUDIO AMPLIFIER

(No Video Connection)

Never connect the same video recorder or other device to both the VIDEO IN and MONITOR OUT terminals of this television

* WARNING

Unauthorised recording of material from Television Broadcasts or from other video

and/or audio sources may contravene copyright laws.

Page 39

Connecting Equipment to the TV

NOTE •k'k'ii

Headphones and connecting cables for Antennas, VCRs, IDs DVDs, Amplifiers and

Speakers etc. are not supplied with this television.

Front Pane! Connections

he front input ierminais allow quick and easy access for computer games, video cameras and other

equipment which is not usually permanently connected.

AV Equipment

©n3!»

RGB (31,5kHz)

.'ins. UMONO R

pAUDIO^

Screen Condition Speaker

Single picture/ Teletext

Picture in Picture

Picture in Picture CHANGE

Main

Sound

(Stereo)

Headphones

(Stereo)

Sub

Headphones

(Stereo)

(Mono)

(Stereo)

Monitor

Output

(Stereo)

(Mono)

Page 40

iHC

J OI VI

Most standard Video Cassette Recorders use RCA type video and audio connectors, if your VCR has different type connectors please refer to the VCR instruction book for details.

f'-iOTE: A mono VCR can be

)

ifo }

^lOIb V.. (o;

connected to this television.

Connect the VCR Audio out

1^© <nr>^

to the Left Audio input on the

television. The sound will

automaticaiiy be directed to both speakers.

CoiinectiEics S“¥ideo Eauiomenì to the AM input

S'-Video equipmeni uses a 4Pin Mini Din (Male) plug for the video and RCA plugs for the audio. When a?s

S--Video cable is connected to an S-Videc input terminal, the RCA yldeo terminal for that AV position vi/iii be disconnented.

The audio and video inputs on the television are RCA type connectors. Connect the Y, PB and PR outputs from the DVD to the AV4 IN DVD inputs on the television, as shown beiow. Connect the “AUDIO OUT" to the AV4 IN AUDIO terminals on the television.

Mote: Some DVD players only have an RCA "VIDEO OUT"

' " n DI Avco terminal. This can be connected to any of the VIDEO

DVD PLAYER Inputs on the television. Connect the “AUDIO OUT”

DVD OUT corresponding AUDIO terminals on the

AV4

DVD

VIDEO

MONO

i©

P.V

AUDIji^ R

(Г П 1

Page 41

Connecting the AucIIq Oot Terminals (TX-86PW100A & TX°76PW1QQA|

The Audio Out sockets on the rear of the TV allow you to create a custom sound system using an external amplifier and external speakers. You may decide, for example to use an external DTS/Doiby Digital amplifier to connect external left and

right front speakers, left and right rear surround speakers and a subwoofer (LFE speaker) as shown

below.

Connecting the Digital Audio Input (TX-86PW100A & TX-76PW100A)

Additional equipment can be connected to the rear of the AV1/AV2/AV3/AV4 and via the two digital audio input sockets (coaxial or optical).

OPTICAL CA0LE

Video Disk Player

Camcorder

DVD Player

Page 42

Connecting Equipment to the TV

Connectang the External Speakers (TX-86PW100A & TX"76PW100A)

The external speaker connections (EXT) on the rear of the TV allow you to create your own system using external speakers.

You may decide, for example, to connect external left and right front speakers and left and right rear surround speakers as shown here.

The TV must be turned OFF before connecting external equipment.

1. Twist the bare wire ends of the speaker wires before inserting into the speaker terminais.

Left Front

Speaker

y s

Left Rear ¡si

Surround

Speaker

Right Front

Right Rear

Surround Speaker

2. insert into terminals.

Ensure that bare speaker wires are not touching

and are fully inserted into the terminais.

Push lever

Insert Wire

Page 43

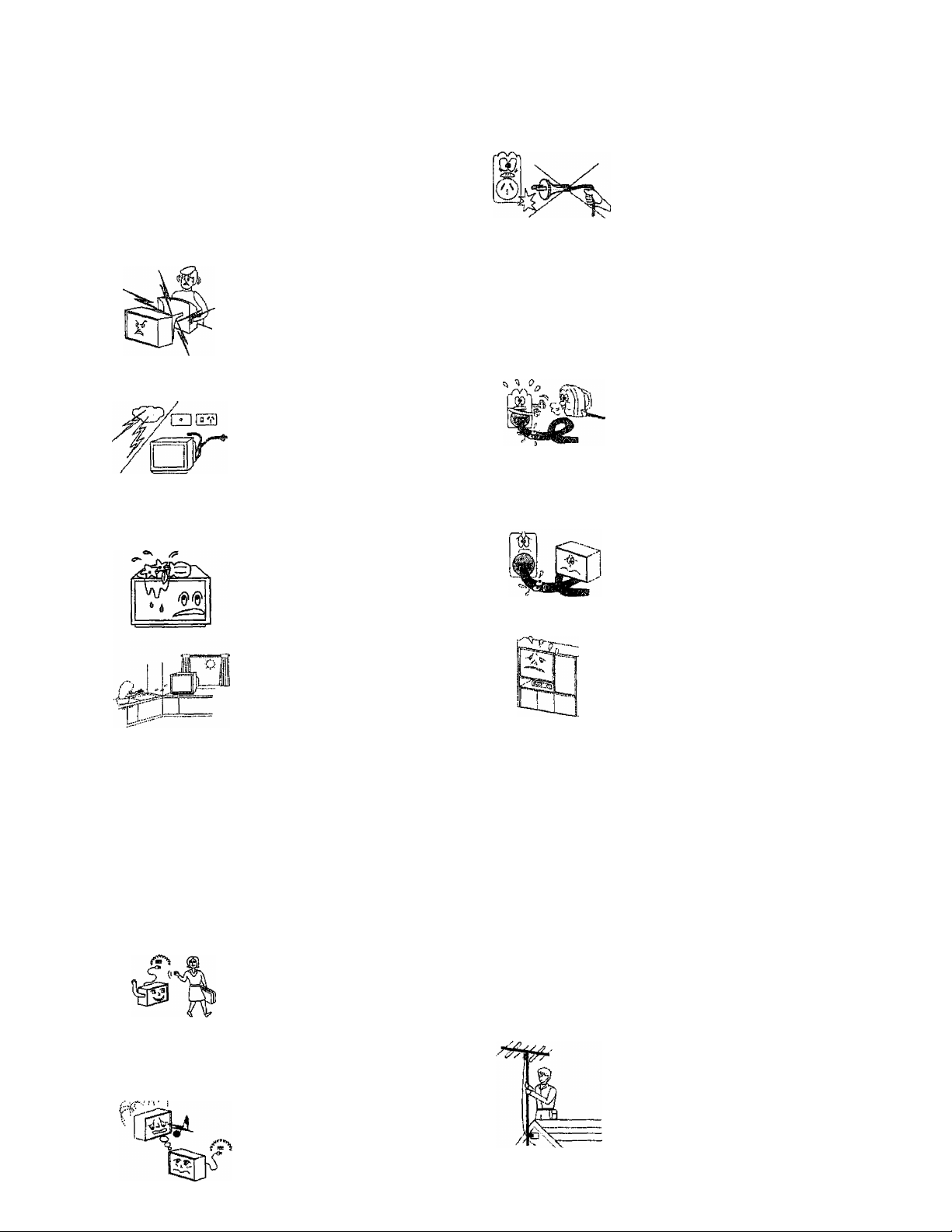

Customer Information

To keep your Panasonic Television in good working order please observe the following warnings and cautions. Please be careful with this television. Like all electrical equipment it can cause serious injury or damage if it is mistreated

Danger

Do not insert foreign objects. (Keep metal or easily inflammable objects out of this television).

Danger: High Voltage

Do not remove the rear cover, as

High Voltage components will be

exposed.

DO NOT touch the aerial cabie

and metal parts of the television

when there is lightning around.

During storms switch the television off. DO NOT leave in standby. Remove the plug from the wall socket.

Do not place any containers of water or other liquids on or near this television.

Danger

Always pull the plug out of the

wall outlet by holding the plug itself. Do not puli the plug by the power cord.

Danger Do not after the power cord. Do not use if the power cord or plug is damaged or if the plug does not fit tightly into the socket.

Do not allow the power cord to come into contact with flame or hot surfaces.

Do not place heavy objects on the power cord.

Safety

First

Do not place the TV in humid or

dusty locations, or areas exposed

to smoke or steam.

Avoid exposing the television to

direct sunlight or any other sources of direct heat.

Do not stand or place heavy objects on top of the television.

Remove the Power Plug from the wall socket when the Television is not going to be used for an extended period of time.

in the advent of unusual operation (e.g. odd sounds, smoke or aromas), turn the television Off and remove the power cord from

the waii socket Then call the Television Service Centre: this

may reduce the possibility of

expensive repair costs.

W l¿1

Adequate ventilation is essential. Allow a gap of at least 10cm around the TV, even in a cabinet

or between shelves.

Do not subject the TV to any physical shocks. Always remove any connector cables when moving the TV. When moving the TV from one place to another wrap it in something protective.

Turn the power OFF before connecting other electrical

equipment.

Any externa! aerial should be

installed by a reputable qualified installer and should comply with Australian Standard AS 1417.1.

Page 44

Customer information

The picture tube has a special coating.

Please only use a soft cloth when you dean the surface of the picture tube

The film can be easily scratched.

DO NOT rub the surface with a hard material. DO NOT ÜS8 salt water, insecticide, chloríc or acidic cleaning solvent or cleaning agent with

abrasive materials. DO NOT heat the screen surface to 80°C or higher.

iSiOri

Cabmet and Picttsre Tube Care The cabinet arid picture tube can be kept in good condition by wiping with a clean, lint free cfoth

moistened with miid detergent

and water. For safety^ remove the psug from the power outlet when cleaning.

Do spray insecticide or

voiatsie solvent on the TV. Do

raot allow rubber and vinyl

products to stay In contact vt/ith

the TV for long periods of time.

They may cause changes in

paint quality.

Caring for the Remote Control

This television contains many

plastic parts. For this reason Do

Hot use benzene, thinners or any solutions containing petroieum or other chemicais.

Remove dirt and soiling by wiping with a sort csoth. Even if the television is heavily soiled do

not apply cleaner directly to the

unit. Soak a cloth in a solution of

neutrai cleanser thinned with

water. Wring out the cloth, wipe

the television dean and finish by

wiping with a dry doth.

The lens of the Remote Control should be kept clean and free of dirt and grease. Use a soft cloth moistened with water and a mild detergent to keep the lens clean.

Lens

Remote Control

Page 45

Customer Information

Frequently Asked Questions

Some minor problems can be corrected very quickly and easily without the cost of a service call. Panasonic has a Customer Care Centre that can answer most questions over the phone. Before you contact the Customer Care Centre with your

question we have included the most commonly asked questions.

Question; Why are my channels on 1,2,3,4,57

Answer; Someone has performed an "Automatic Search” tune of your television. You will have to retune each channel

individually using the Manual Search Instructions on page 29.

Question; How do I get Channel 10?

Answer: You have three methods of selecting Channel 10

1. You can use the two digit channel selector on the remote control ("/--)■ Press this button followed by

the number 1 button, then the 0 button.

2. You can press the 9 button followed by the channel up button (A).

3. You can tune channel 10 into another position such as programme location 0.

Question: My channel number is still on the screen. How do! turn it off?

Answer: If the channel number is a small green number on the top left of the screen, press the recall® button on the

remote control. Any other channel number is one being broadcast by the television station. There is no way to turn this off.

Question: How do I tune my stations?

Answer; The instructions for tuning the stations are on page 28 for automatic tuning and on page 29 for tuning

individual stations.

Question: I have done an auto tune because the book told me to. If I am only to do manual search why is

automatic search first in the book?

Answer; The automatic search and the manual search each have specific uses. The reason for each is clearly

described in the book. The reason that automatic search is described first is because this is the first option on the screen.

Question: Why does the screen turn blue?

Answer: The television has been designed so that the screen turns blue when the signal strength is very weak or

nonexistent. The reasons may be;

1. The television station may have stopped transmitting.

2. You may have selected a programme number that has not yet been tuned.

3. You may have been watching a videotape or DVD and it has stopped playing.

4. Your aerial connection may have come loose.

Question: When I skip a station why is a picture still coming up when I press the number that the channel is on?

Answer; The Skip operation only works when you use the Channel Up ( A ) or Down ( V ) Buttons.

Question; When I use the channel up or chartnel down why don't I get all the channels?

Answer. Some of the channels may be “Skipped”. See page 31.

Question: Why doesn’t the channel change when I press the channel button?

Answer; The television might be switched to Teletext mode. If it has been switched to text mode for closed captions

and they are not being transmitted there may not be any indication on the screen to let you know that you are in Text mode. See pages 24,25 and 26.

Question; t turned my television to Standby with the remote control and then I turned it off with the power

switch. I turned the TV back on with the power switch but it’s still in Standby and I can’t find my

remote control. How can I turn the TV back on?

Answer: Press the front panel Up (+ / A) or Down (-1V) button. See page 9.

If the answer to your problem is not in this list, determine the symptoms and make a few simple checks as shown on the

next page. The location of the nearest service centre can be obtained from the Panasonic Customer Care Centre on

132600.

Page 46

Troubleshooting

Before calling for service, determine the symptoms and make a few simple checks as shown below.

Picture Sound

....

L.„,

Snowy Picture

Multiple Image

Noisy Sound

Normal Sound

-O'

Interference

Normal Picture

■■

Noisy Sound

No Sound

Check

Aerial Location, Direction or Connections.

If you are watching a tape playback check the state of the Video heads - they may need to be cleaned or replaced. The tape may be old. Check the tracking.

Aerial Location, Direction or Connections.

Electrical Appliances, Motorcycles, Cars or Fluorescent Lamps.

Volume {Check the Mute ftjnction)

Not plugged in, switched OFF or Set to Stand By. Check volume, brightness, and contrast levels. Various internal safety devices may have been triggered. Switch the TV off for a few minutes and try again.

No Picture

No Colour

Scrambled

zit:

Colour Patches

Rolling Picture

No Sound

Normal Sound

-0^

Normal or Weak Sound

Normal Sound

- O '

Noisy Sound

Colour Control. If the picture is from a tape playback, try adjusting the tracking.

Retune the Television. Refer to page 29.

Magnetic Interference from unshielded equipment or the television may have been moved while it was switched ON. (Switch the television OFF with the main power switch and leave it OFF for about 30 minutes). Refer to page 32.

Picture Menu (Refer to page 14). Sound Menu (Refer to page 16).

Page 47

Specifications

Tuning System

RF Channels

Receiving Systems

Power Requirements Power Consumption

Chassis

Picture Tube

Audio Output

External Speaker Connections

Frequency synthesized 100 Position ( 0 to 99 ). VHF 0to12

UHF 21 to 69 S’1 to S’3 SI to S41

1. PALB/G

2. NTSC 4.43

3. NTSC 3.58

4. PAL 60Hz

220 ~ 240Voits + 10% 50Hz

TX-S6PW100A TX-76PW100A & TX-76PW50A

EUR07

TX-86PW100A 86cm Viewable (Measured diagonally) TX-76PW100A & TX-76PW50A 76cm Viewable (Measured diagonally)

Two Way Four Speakers Plus Woofer (10W + 10W + 12W) TX-86PW100A & TX-76PW100A 10W x Four Speakers (Not supplied)

PALB PALO HYPER TUNER

Receotion of Off air broadcasts Playback from Video Tape Recorders Playback from Special Video Tape Recorders and Special Video Disc Players (Via the AV Sockets) only.

228W Max

211WMax

3W Stand-By 3W Stand-By

Headphone Socket

Aerial Impedance

Component Video

Video / Audio Terminals

Digital Audio input

Video / Audio Input

Monitor Out Accessories Supplied

TX-86PW100A & TX-76PW100A 3.5mm Stereo (Main and Sub) TX-76PW50A 3.5mm Stereo (Main)

75Q Unbalanced coaxial

TX-86PW100A & TX-76PW100A 1080i and 576P TX-76PW50A 576P

AV1 IN (Rear) : S-Video, Video, Audio UR Terminals AV2 IN (Rear) Video or YIPJP^, Audio UR Terminals

AV3 IN (Front) : S-Video, Video, Audio UR Terminals AV4 IN (Rear) Video or Y/Pg/P^, Audio UR Terminals

TX-86PW100A & TX-76PW100A coaxial, optical S-Video

Video in Audio in

Video Out

Remote Control EUR511229 2 Type ‘AA’ Batteries Instruction Manual TQB4A0152

Y: 1.0Vp-p75n I.OVp-p, 750 Approx. 400mV IkO

1.0Vp-p, 750

C: 0.3Vp-p 75ÎÎ

Audio Out Approx. 400mV IkO

Dimensions

TX-86PW100A 92.6cm TX-76PW100A & TX-76PW50A 82.7cm

Note:

Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.

65.1cm

53.5cm

58.4cm

57.9cm

Weight 86kg 60kg

Page 48

Customer’s Record

The serial number of this product can be found on its rear cover and on the carton. It is recommended that you note the serial number and other details in the space provided and retain this booklet in a safe place as a permanent record of your purchase to aid in identification in the event of theft or loss.

Model No. Serial No. Purchase Date Purchased From

AUSTRALIA

Panasonic

Customer

care

Centre

132600

PA-

NEW ZEALAND

Distributed in New Zealand by

Panasonic New Zealand Limited

360 Te Irirangi Drive

East Tamaki, Auckland

Customer Care Center

Ph; 0800 726 276

Email: [email protected]

www.panasonic.co.nz

QUALITY MANAGEMENT

SYSTEM

Printed in Australia

Matsushita Electric Co. (Aust) Pty Ltd

P.O. Box 326 Penrith NSW 2751

ABN: 25 000 611 389

Certified to International Quality Standard AS/NZS ISO9001

Certified to International Environmental Standard ISO14001

ENVidONMENTAL

MANAOEMENT

SYSTEM №l4M0i iVAM onrmu

TQB4A0152
