Panasonic TX-47P600X User Manual

Wide Projection Television

Operating Instructions

Model No.

TX-47P600H
TX-47P600X

This is a combined Operating Instruction
manual for all the above series of models.

Please read these instructions before
operating your set and retain them for
future reference.

TQBC0515

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have
many years of enjoyment from your new Wide Projection television set.
To obtain maximum benefit from your set, please read these Instructions before
making any adjustments, and retain them for future reference.
Retain your purchase receipt also, and note down the Model Number and Serial
Number of your set in the space provided on the rear cover of these Instructions.

Visit our Panasonic Web Site http://www.panasonic.co.jp/global/

Important Information

(1) The long time (max. 2 hours) use of a TV game on this set is not recommended, since the signal from

the TV game may cause damage to the picture projection tubes of the set.

(2) Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-

image to remain on the Wide Projection TV screen.
Examples of still pictures include logos, video games, computer images and teletext.
If still picture cannot be avoided, reduce the brightness and contrast levels of the picture to minimize

any damage that might occur.
(3) In order to minimize any damage to the projection tubes, this set uses the PICTURE SHIFT function

(Refer to page 27) to change (shift) the entire picture approximately 2 mm every 15 minutes.

Table of contents

Table of contents

Warnings and Cautions ................................................................. 4

Before Operating This Set............................................................. 6

How to Use This Manual ........................................................................ 6

Safety Precaution / Securing the casters ............................................... 6

Connecting the Plug to the Wall Outlet................................................... 7

How to Turn the Power On..................................................................... 7

Battery Installation.................................................................................. 7

Battery cautions...................................................................................... 7

Location of Controls ...................................................................... 8

Controls and Terminals on the TV .......................................................... 8

Connections ................................................................................... 9

Connecting the Aerial Cable to the RF In Terminal ................................ 9

Connecting Headphones........................................................................ 9

How to connect the “AV1, 2, 3 or 4” Input Terminals ............................ 10

How to connect the DVD Input Terminals ..............................................11

How to connect the AV Monitor Output Terminals to other equipment ..11

General Operation........................................................................ 12

On-Screen menu Display from Remote Control ................................... 14

Convergence Adjustment........................................................................ 16

Convergence Adjustment mode ........................................................... 16

Convergence1 Adjustment for RED, BLUE and GREEN ..................... 17

Convergence2 Adjustment for RED and BLUE.................................... 18

Tuning Channels ...................................................................................... 19

Channel Selection ................................................................................ 20

Channel Allocation................................................................................ 21

Automatic Tune .................................................................................... 22

Manual Tune......................................................................................... 23

Fine Tuning........................................................................................... 24

How to Cancel the Fine Tuning ............................................................ 24

Programme Number Skip..................................................................... 25

How to Cancel the Skip Function ......................................................... 25

Sound System Selection (Different region use differing systems) ............

Colour System Selection (Different region use differing systems)............

Setup Adjustment .................................................................................... 27

OFF TIMER .......................................................................................... 27

FLICKER REDUCTION........................................................................ 27

COLOUR SYSTEM .............................................................................. 27

CH COLOUR SET................................................................................ 27

VCR/GAME .......................................................................................... 27

CHILD LOCK........................................................................................ 27

PICTURE SHIFT .................................................................................. 27

LANGUAGE .........................................................................................

Picture Adjustment .................................................................................. 28

Sound Adjustment ................................................................................... 30

Aspect Controls ....................................................................................... 32

Multi Screen.............................................................................................. 34

Multi PIP ............................................................................................... 34

Channel search .................................................................................... 35

Strobe................................................................................................... 35

TELE TEXT................................................................................................ 36

Advanced Remoto Control Operation.................................................... 39

Stereo Bilingnal Sound Selection ......................................................... 39

VCR / LD / DVD Control ....................................................................... 39

Manufacturer setting............................................................................ 40

Troubleshooting....................................................................................... 41

Cleaning .................................................................................................... 42

Specifications........................................................................................... 43

26
26

27

3

Warnings and Cautions

Warnings

Unplug the power cord in the
event of any malfunction
(screen goes blank, no sound,
odd sounds, smoke or unusual
odors coming from the unit).
Unplug the power cord if
foreign matter or water falls
into the unit, or if the unit is
dropped or the cabinet is
damaged.

DO NOT place any of the
following on the unit:
Flower vases, flower pots,
cups, small metal objects, or
cosmetics containers,
chemicals or water.

DO NOT insert foreign objects
(metal or easily flammable
objects).

TAKE CARE NOT to damage
the power cord.

DO NOT use this unit near
water. (Near a bath tub, etc.)

DO NOT use if the power cord
or power plug is damaged, or if
the plug does not fit tightly into
the socket.

DO NOT use at a voltage other
than indicated

DO NOT remove the rear
cover as live parts and High
Voltage components are
accessible when the rear cover
is removed.

Cautions

After-images appear

DO NOT touch the aerial cable
and this unit when there is
lightning.

Do not allow a still picture to be displayed for an extended period, as this can cause a
permanent after-image to remain on the Wide Projection TV screen.
Examples of still pictures include logos, video games, computer images, teletext and images
displayed in 4:3 mode.

Note:

The permanent after-image on the Wide Projection TV screen resulting from fixed image use
is not an operating defect and as such is not covered by the Warranty.
This product is not designed to display fixed images for extended periods of time.

DO NOT touch the power plug
if your hands are wet.

4

Cautions

Warnings and Cautions

DO NOT place in humid or
dusty location, or areas
exposed to smoke or steam.
DO NOT place in direct
sunlight and other sources of
direct heat.

DO NOT stand, or place
heavy objects on the unit.
Particular care should be
taken by families with small
children.

When inserting batteries,
ensure that the polarities
(positive and negative) are
correctly aligned. Insert as
shown on remote control. If
inserted incorrectly, battery
fluid may leak, and fire, injury,
or damage to surrounding
components may result.

Adequate ventilation is
essential to prevent failure of
electrical components, we
recommend that a gap of at
least 10 cm ( ) is left all
around this unit even when it
is placed inside a cabinet or
between shelves.

DO NOT place in an unstable
location.

Place in a safe location.
Fix the TV to a wall.

(refer to page 6)

Do not mix new and old
batteries. Use only the
specified batteries. Failure to
follow this precaution may
result in leakage of battery
fluid. Fire, injury, or damage to
surrounding components may
also result.

Turn the power “Off” before
connecting other electrical
equipment.

Before cleaning, unplug the
power plug from the socket.

Unplug the power plug from
the socket if you are not going
to use the unit for an extended
period.

DO NOT Jolt the unit.

Ask your sales outlet to install
the aerial.

To ensure continued excellent performance by this product, periodic cleaning is recommended. See page 42 for more
information.

5

Before Operating This Set

How to Use This Manual

Check the Model Number of your TV set;
the Model Number is shown on the rear
cover name plate on the set.
Use the table on the right to confirm which
features your particular Model is equipped
with. This will help you to know which
sections of the manual apply to your set.

TX-47P600H

TX-47P600X

CH SELECT

Safety Precaution / Securing the casters

Please take safety precautions to prevent the unit form
falling over.
The unit may fall over during earthquakes, or if someone
stands on or shakes the TV.

Fixing to a wall

Use a strong rope or a chain
to fasten the TV firmly to a
strong support such as a wall
or a pillar.

To prevent the set from tipping forward, turn the two
casters on the front of the TV so they face forward, as
shown in the picture.

6

Before Operating This Set

Connecting the Plug to the Wall Outlet

Note:

Main plug types vary between countries. The main plug shown at left may
therefore not be the type fitted to your set.

How to Turn the Power On

Power OFF

Note: Even when the Power Switch is "OFF", the TV set

will still consume a small amount of power.

Power Indicator

Power ON

Power Switch

Notes:

• When in the Stand-by condition (Refer to page 13), it is also possible to turn the TV set on by pressing any of the
“Direct Programme Number Selection buttons” (0-9) or “Programme Number Up or Down buttons” on the TV set or

on the Remote Control.

•

If the Wall Outlet is switched OFF or the Main Plug is unplugged, when the TV set is again turned ON (by either

connecting the Main Plug to the Wall Outlet or switching the W all Outlet ON), it will have returned to the original state.

Push the Power switch on Television to turn the set on.

Power Indicator
No light: Power OFF condition

Power Indicator
No light: Normal viewing condition
Red : Stand by

Battery Installation

Open the cover.

1

Apply slight downward pressure
while pulling towards the bottom.

Batteries: Use two “R6 (AA)” size

2

batteries.

Insert the batteries ensuring the correct
polarities.
This is identifiable by the “+” and “−” symbols
on the batteries and inside the battery
compartment.

Two “R6 (AA)” size

3 Replace the cover.

Do not use rechargeable (Ni-Cd) batteries.
They are different in shape and performance and may fail to ensure correct operation.

Battery cautions

The incorrect use of batteries can cause electrolyte leakage which will corrode the Remote Control or cause the
batteries to burst.

Old Batteries New Batteries

Replace both batteries at the same time. Don't mix diffrent battery types.

(alkaline with carbon zinc, etc.)

Don't Recharge.

7

Location of Controls

Controls and Terminals on the TV

AV3

IN

S VIDEO

Sub.Main

VIDEO L/MONO

R

AUDIO

STR F

TV/AV

MONITOR

OUT

S VIDEO

VIDEO

L

AUDIO

R

AV1INAV2

MONO

IN

MONO

AV4

IN

DVD

[

]

B-PR

Y-P

Y

P

B

P

R

L

AUDIO

R

VIDEO

MONO

DVD

[

]

B-PR

Y-P

Y

P

B

P

R

Item

No.

8

Function Refer to

Main Headphones Jack 9
Sub Headphones Jack 9
AV3 Input Terminals 10
STR 12
Function 12

Volume Down (−) /
Programme Number

Volume Up (+) /
Programme Number

Down ( )
Up ( )

Page

12
12

Item

No.

Function Refer to

Page

TV/AV Selection 12
Aerial Terminal (RF In Terminal) 9
Monitor Output Terminals 11
AV1 Input Terminals 10
AV2 Input Terminals 10
AV4 Input Terminals 10

B

DVD ( Y. P

. PR ) Input 11

Connections

Connecting the Aerial Cable to the RF In Terminal

VHF Aerial

Mixer

75 Ohm
Coaxial Cable

Notes:

• To obtain optimum quality picture and sound, an Aerial, the correct cable (75 Ohm coaxial) and the correct terminating
plug are required.

• If a communal Aerial system is used, you may require the correct connection cable and plug between the wall Aerial
socket and your set.

• Your local Television Service Centre or Dealer may be able to assist you in obtaining the correct Aerial system for
your particular area and accessories required.

• Any matters regarding Aerial installation, upgrading of existing systems or accessories required, and the costs
incurred, are the responsibility of you, the Customer.

UHF Aerial

RF In Terminal

Coaxial Aerial Plug

Coaxial aerial plug

RF in
Terminal

75 Ohm Coaxial Cable

Connecting Headphones

Connect headphones as follows.

Sub.Main

S VIDEO

Screen condition

Single picture/
Teletext

Picture in Picture

Picture and Picture

VIDEO L/MONO

AUDIO

(3.5mm Plug)

A

A

AB

AV3

IN

R

Speaker

Sound

A

(Stereo)

A

B

(Stereo)

A

(Stereo)

Headphones

(Optional)

(not supplied)

You can listen to sound from each of the
headphones plugs as shown below.

Main

A

(Stereo)

A

(Stereo)

A

(Stereo)

Sub

Headphones

A

(Mono)

B

(Mono)

B

(Mono)

Monitor

Output

A

(Stereo)

A

(Stereo)

A

(Stereo)

Main Headphones plug:

When a Main Headphones plug is inserted into the Headphones socket, all speakers will be automatically disconnected;
only the Main Headphones will function.
Use Volume Up “+” or Down “-” button to control volume level.

Sub Headphones plug:

For the sub Headphones volume control, refer to page 30.

9

Connections

How to connect the “AV1, 2, 3 or 4” Input Terminals

Connect VCRs and other peripheral equipment

(VHS VCR)

Audio

OUT

R L

Video

OUT

VIDEO

AUDIO

(Super-VHS VCR)

Audio

OUT

R L

Video

OUT

S Video

OUT

AUDIO

VIDEO

AV1

IN

MONO

AV1

IN

MONO

S VIDEO

VIDEO

L

AUDIO

R

S VIDEO

VIDEO

L

AUDIO

R

MONITOR

OUT

S VIDEO

VIDEO

L

AUDIO

R

MONITOR

OUT

S VIDEO

VIDEO

L

AUDIO

R

AV1INAV2

MONO

AV1

MONO

IN

MONO

AV2

IN

MONO

AV4

IN

DVD

[

]

B-PR

Y-P

Y

PB

PR

IN

DVD

[

]

B-PR

Y-P

Y

PB

PR

L

AUDIO

R

L

AUDIO

R

VIDEO

MONO

VIDEO

MONO

AV4

DVD

[

]

B-PR

Y-P

Y

PB

PR

IN

DVD

[

]

B-PR

Y-P

Y

PB

PR

Notes:

• When an S Video cable is connected to the S Video terminal, the corresponding V ideo input will be switched of f and
the signal from the S Video input will be used.

• When a Monaural VCR is used, connect the Monaural Audio cable to the Audio “L” (Left) terminal.

• Select the desired AV input position by pressing the TV/AV button. (Refer to page 13)

• Input 3 is located on the front of the unit.

• The A V2 and AV4 audio input terminals serve as the audio input terminal for both the Video input and the DVD input.

10

How to connect the DVD Input Terminals

DVD Player

Connections

Audio

OUT

LR

DVD(

Y-PB-P

R

) OUT

R

P

PBY

MONO

L

AUDIO

R

P

P

[

Y

DVD

Y-P

B

R

MONITOR

]

B-PR

S VIDEO

VIDEO

L

AUDIO

R

OUT

AV1INAV2

MONO

IN

MONO

AV4

IN

DVD

[

]

B-PR

Y-P

Y

P

B

P

R

L

AUDIO

R

VIDEO

MONO

DVD

[

B-PR

Y-P

Y

P

B

P

R

Notes:

• The AV4 audio signal is common for both AV4 and DVD input signal terminals.

• The DVD signal input terminal takes priority over the AV4 video signal input terminal.

• Similar connection are available at the COMPONENT VIDEO input 2 terminal.

How to connect the AV Monitor Output Terminals to other equipment

The “Monitor Out” Terminals output the same signals as main picture on the TV screen and sound from the speaker at
that time, e.g. TV programmes or signals from AV1, AV2, AV3 or AV4 input.

]

Recording Equipment

(VHS VCR)

Audio

R

Video

IN

IN

L

MONITOR

VIDEO
AUDIO

OUT

S VIDEO

VIDEO

L

AUDIO

R

MONITOR

OUT

S VIDEO

VIDEO

L

AUDIO

R

AV1INAV2

MONO

MONO

IN

DVD

[

Y-P

Y

P

B

P

R

AV4

IN

L

AUDIO

R

VIDEO

MONO

DVD

[

Y-P

B-PR

Y

P

B

P

R

]

B-PR

Notes:

• Never connect the same video recorder with both the VIDEO IN and MONITOR OUT terminals on this TV set, as this
could cause incorrect operation.

• The monitor output emits the main picture normal video and audio signals.

• Teletext display on screen will not be output at the MONITOR OUT terminals.

• Even if the television is in picture-in-picture condition, MONITOR OUT terminals output the same signals as main
picture on the screen and sound from speakers. Sub picture including strobe, still, channel search, etc. will not be
output at the MONITOR OUT terminals.

• The DVD signal (Y, PB, PR) is not output at the MONITOR out terminals.

]

11

General Operation

STR

Power switch

STR

Used to store tuning and other
function settings. Also used to
start the menu demonstration.

TV/AV Selection

F

Volume Down (-) / Programme Number Down ( )

TV/AV

Press to select TV, AV1, AV2, AV3 and
AV4 input signal modes sequentially.

Volume Up (+) /
Programme Number Up ( )

Picture Menu (see page 14, 28)

Sound Menu (see page 14, 30)

Function selection

Displays the on screen display functions, use repeatedly
to select from the available functions.
The following adjustments can be accessed directly.

VOLUME

CONTRAST

BRIGHTNESS

COLOUR

SHARPNESS

TUNING MODE

BALANCE

TREBLE

BASS

NTSC-TINT

Notes:

• NTSC-TINT: Displayed when
receiving NTSC signals.

• TUNING MODE : Not displayed
during AV mode.

Recall

Press to display the current system
status, for example, Programme
number, Channel number, Stereo
mode, Picture menu, Sound menu,
Scan mode, Sound system and colour
system.

Set up Menu (see page 15, 27)

Stereo/Bilingual Sound Selection

(see page 39)

TEXT Favourite Page Selection

(see page 37)

TV/TEXT Selection (see page 36)

100Hz/PROGRE (see page 29)

Surround (see page 30, 31)

Aspect Controls (see page 32)

Press to select the different
Aspect options.

Multi P in P Selection

(see page 34)

VCR/LD/DVD Rewind/Review

Normalization (see page 29, 31, 32)

12

Store

Stores some settings in TUNING
menus and TELE TEXT.

Help (see page 14)

General Operation

Volume Adjustment


SOUND

SET UP

TV/TEXT

100Hz/

PROGRE

SURROUND

ASPECT

MULTI

PIP

Power (Stand-by) (see page 7)

The TV set must first be plugged into the wall
outlet and turned on at the power switch.
Press this button to turn the TV set On from
Standby mode, Press it again to turn the TV
set OFF to Standby mode.

Sound Mute

Press to mute the sound completely the “Mute” symbol will appear.
Press again to restore the previous sound level, and cancel the mute.

Programme Number Selection

Press to select the next higher
or lower Programme number.

Coloured buttons used for
Multi Screen functions

(see page 34)

Teletext functions (see page 36)
AV selection (see page 13)

TEXT Index (see page 38)
/Channel Search (see page 35)

TEXT hold (see page 37)
/Still (see page 35)

F.P.

CH SEARCH

TV/AV

INDEX HOLD

STILL

1 2 3
456
789

0

VCR/LD/DVD Play

VCR/LD/DVD
Fast Forward/cue

LD/DVD

REC-VCR

N

STR HELP

?

A B

DISC SIDE

VCR/LD/DVD Stop

VCR/LD/DVD Control

(see page 39)

Note:

• It is also possible to turn the TV set on from
STANDBY mode by pressing the “Direct
Programme Number Selection” Buttons (0-9) and

Volume Adjustment

the “Programme Number Up or Down” Button,
either on the set or on the Remote Control.

Volume Adjustment

Press to increase or decrease
the sound volume level.

VOLUME 18

TV/AV Mode Selection

Press to select TV, AV1, AV2, AV3
and AV4 input signal modes
sequentially.

Remote control :

AV1 AV2 AV3 AV4

Press to display AV1 - AV4 at the
bottom of the screen. Each
coloured button corresponds to
each input signals. For example,
pressing the Red button selects
AV1.

Direct programme Number

• Direct Programme Number
Selection (CH SELECT = DIRECT)

You can select the number directly by
pressing the corresponding programme
number buttons.

Programme Number 8.......

Programme Number 36..... ,

Programme Number 124... , ,

• Direct Programme Number
Selection (CH SELECT = POSITION)

You can select the numbers directly by
pressing “Number 0-9” buttons or by
pressing “Two Digit” and “Number 0-9”
buttons.

Programme Number 8 .....

TV/AV

8
3
1

8

6
2

4

Programme Number 12.... , ,

Note:

• When the Skip setting for Programme
Number 100 through 125 is on, the
channel selection time will be
shortened, and thus you can not input
three digits at a time.

1

2

13

On-Screen menu Display from Remote Control

To PICTURE adjust menu
(see page 28)


MENU

CONTRAST
BRIGHTNESS
COLOUR
SHARPNESS
NTSC-TINT
C. TEMP


P

-

NR

AI
SCAN MODE AUTO

STANDARD

STANDARD

AUTO
ON


SOUND

SET UP

TV/TEXT

F.P.

TV/AV

INDEX HOLD

To SOUND adjust menu
(see page 30)

SOUND

MENU

VOLUME
BASS
TREBLE
BALANCE
HEADPHONE VOL.
SUB HEADPHONE
SURROUND

DYNAMIC

OFF

To HELP MENU

HELP MENU

HOW TO USE THE MENUS

: OPEN OR CLOSE THE MENUS
: GO BACK TO WATCHING

EXT. CONNECTION

MENU DEMO

: MOVE BETWEEN
MENU OPTIONS

: ADJUST OR ACCESS
CHOSEN OPTION/MENU

ACCESS

100Hz/

PROGRE

SURROUND

ASPECT

MULTI

PIP

CH SEARCH

STILL

1 2 3
456
789

0

LD/DVD

REC-VCR

N

?

A B

DISC SIDE

STR HELP

14

The HELP button runs a
demonstration of on screen
display menus available.
Press the HELP button and
select one of the options.

To SETUP MENU
(see page 37)

SETUP MENU

TELETEXT

OFF TIMER
FLICKER REDUC.
STROBE
CH COLOUR SET
VCR / GAME
TEXT SELECT ENGLISH

SETUP MENU

CHILD LOCK
PICTURE SHIFT

TUNING MENU

CONVERGENCE
LANGUAGE

FASTEXT
OFF
DYNAMIC

OFF

ENGLISH

OFF
OFF
ACCESS

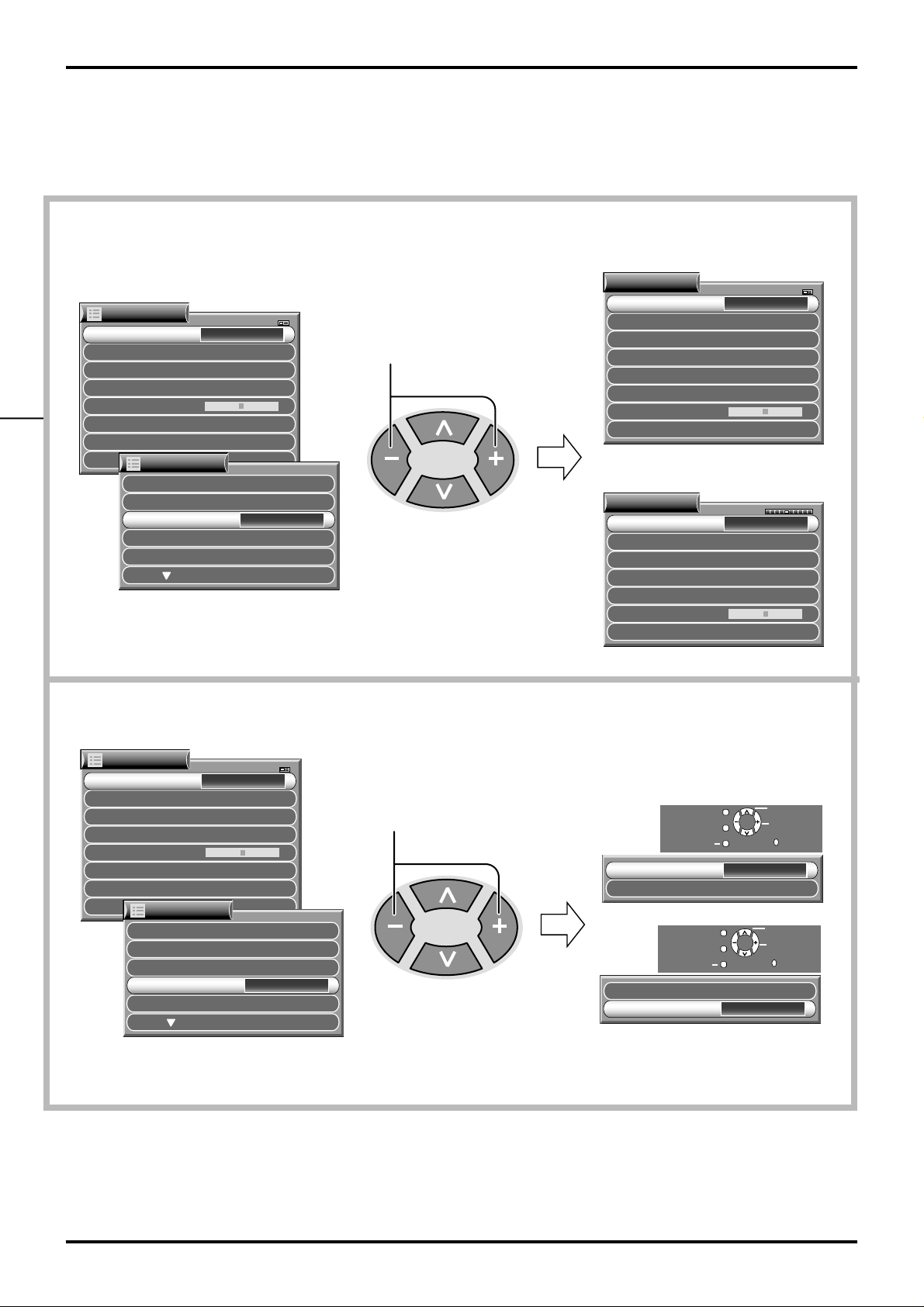

On-Screen menu Display from Remote Control

To TUNING MENU (see page 19)
Other than Australia

TUNING MENU

Press to access to TUNING MENU

CH SELECT

SYS SELECT
AUTO TUNE
MANUAL TUNE
SOUND SYS 6. 0MHz
COLOUR SYS
FINE TUNE
SKIP

For Australia only

TUNING MENU

SYS SELECT

AUTO TUNE
MANUAL TUNE
SOUND SYS 6. 0MHz
COLOUR SYS
FINE TUNE
SKIP

POSITION
E.EUROPE

AUTO

OFF

AUSTRALIA

AUTO

OFF

SETUP MENU

TELETEXT

OFF TIMER
FLICKER REDUC.
STROBE
CH COLOUR SET
VCR / GAME
TEXT SELECT ENGLISH

SETUP MENU

CHILD LOCK
PICTURE SHIFT

TUNING MENU

CONVERGENCE

LANGUAGE

FASTEXT
OFF
DYNAMIC

OFF

OFF
OFF

ACCESS

ENGLISH

Press to access to CONVERGENCE

CONVERGENCE 1

CONVERGENCE 2

To CONVERGENCE
(see page 16)

RETURN

CONVERGENCE 1

CONVERGENCE 2

RETURN

Note:

Models intended for markets other than Australia have the CH SELECT function (see page 19).
Examples in this manual show a model that has the CH SELECT function.

TV / AV -

ACCESS

TV / AV -

ACCESS

SELECT
ACCESS

EXIT

SELECT
ACCESS

EXIT

15

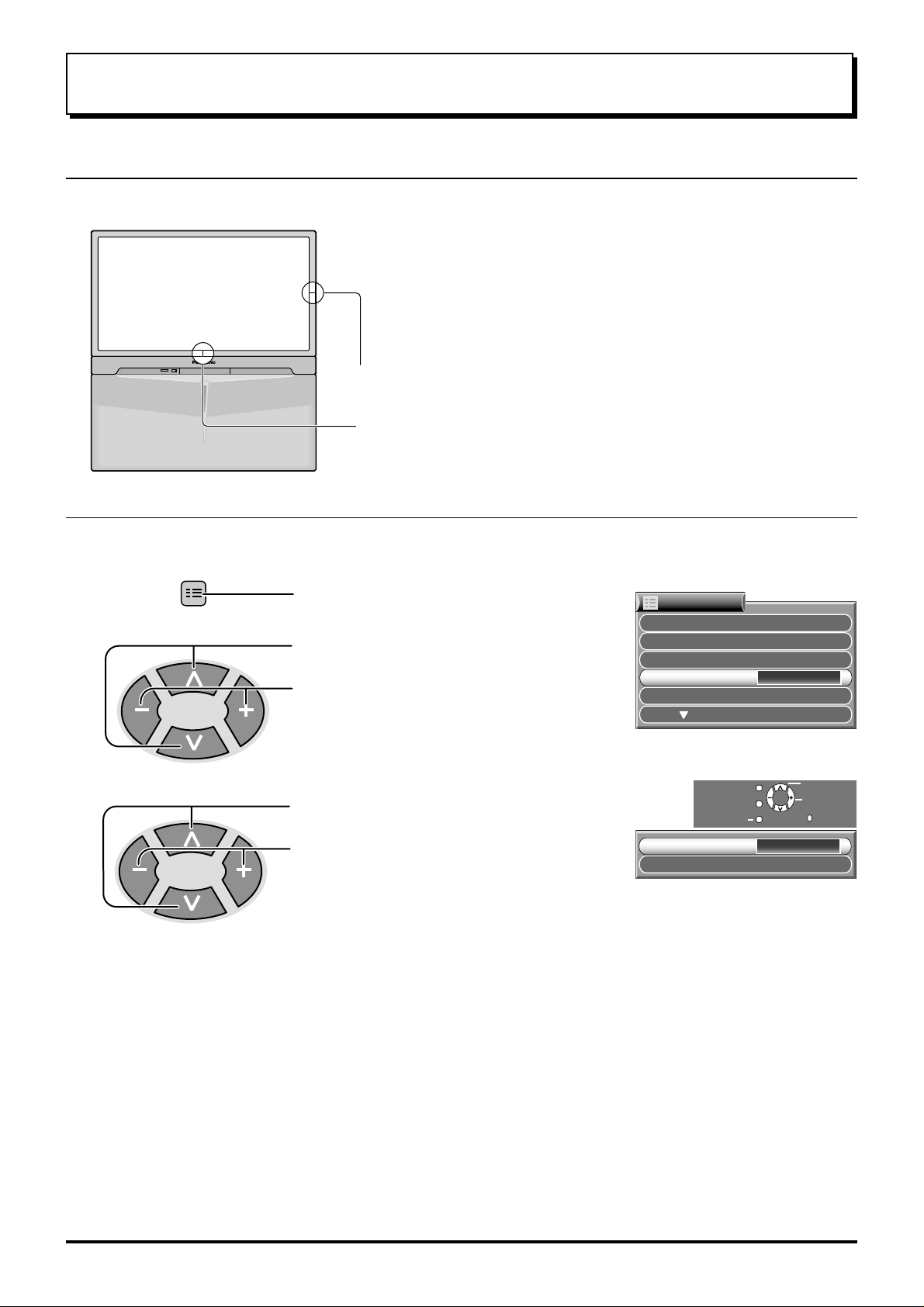

Convergence Adjustment

Convergence Adjustment mode

Prior to adjustment, tune the broadcast signal to the video input
signal and operate the set for more than 60 minutes. If the location
or direction of the set is changed or moved, the display may be
out of alignment.
If necessary, carry out the following procedures once with PAL
signal and again with the NTSC signal.

Vertical centre marker

Horizontal centre marker

1

2

3

SET UP

Press to display the Setup Menu.

Press to select the “CONVERGENCE”.

Press to access to the “CONVERGENCE”
menu.

Press to select the “CONVERGENCE1”
or the “CONVERGENCE2”.

Press to access to the function.

Example: CONVERGENCE1 is selected.

SETUP MENU

CHILD LOCK
PICTURE SHIFT

TUNING MENU

CONVERGENCE

LANGUAGE

RETURN

CONVERGENCE 1

CONVERGENCE 2

OFF
OFF

ACCESS

ENGLISH

ACCESS

SELECT
ACCESS

TV / AV -

EXIT

16

Convergence Adjustment

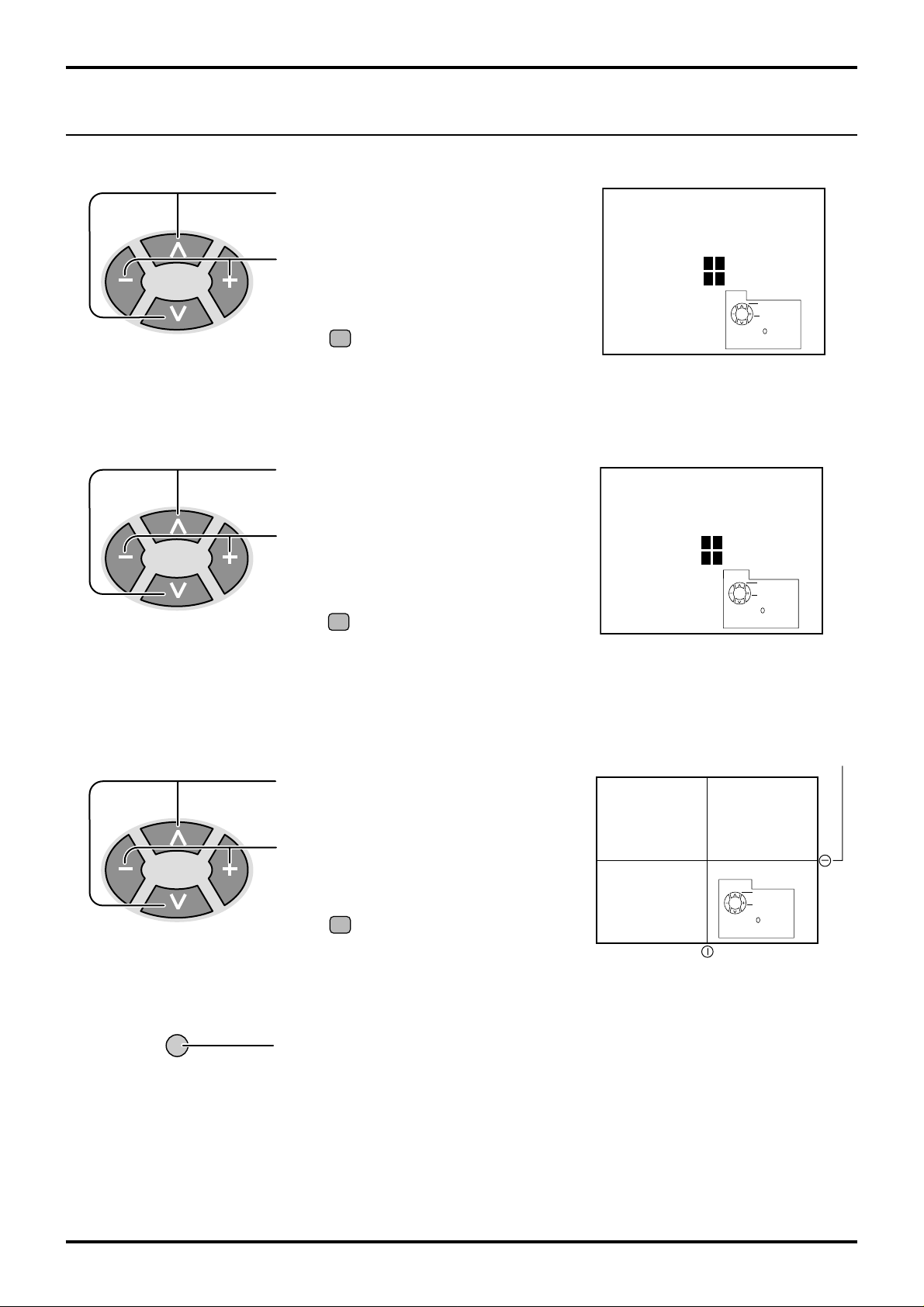

Convergence1 Adjustment for RED, BLUE and GREEN

RED

BLUE

Press to align the horizontal red line with
the horizontal blue line.
(Becomes a white line)

Press to align the vertical red line with the
vertical blue line.
(Becomes a white line)

Press N button to adjust the blue mode.

Press to align the horizontal blue line with
the horizontal yellow line.
(Becomes a white line)

Press to align the vertical blue line with the
vertical yellow line.
(Becomes a white line)

Press N button to adjust the green mode.

CONVERGENCE

RED

ADJUST

ADJUST
TV / AV -EXIT
N-BLUE

CONVERGENCE

BLUE

ADJUST

ADJUST
TV / AV -EXIT
N-GREEN

GREEN

Only when you cannot adjust with RED and BLUE, proceed to the following GREEN Adjustment.

Vertical centre marker

Press to align the horizontal green line with
the vertical centre maker.

CONVERGENCE

Press to align the vertical green line with
the horizontal centre maker.

GREEN

ADJUST
ADJUST

Press N button to adjust the red mode.

TV/AV

TV / AV -EXIT
N-RED

Horizontal centre marker

Press at any time to return to the normal viewing.

17

Convergence Adjustment

Convergence2 Adjustment for RED and BLUE

This function adjust the convergence of the side part of the screen.

Press to select the CONVERGENCE2.

Press to access to the function.

RETURN

CONVERGENCE 1

CONVERGENCE 2

ACCESS

SELECT
ACCESS

TV / AV -

EXIT

TV/TEXT

100Hz/

PROGRE

SURROUND

ASPECT

MULTI

PIP

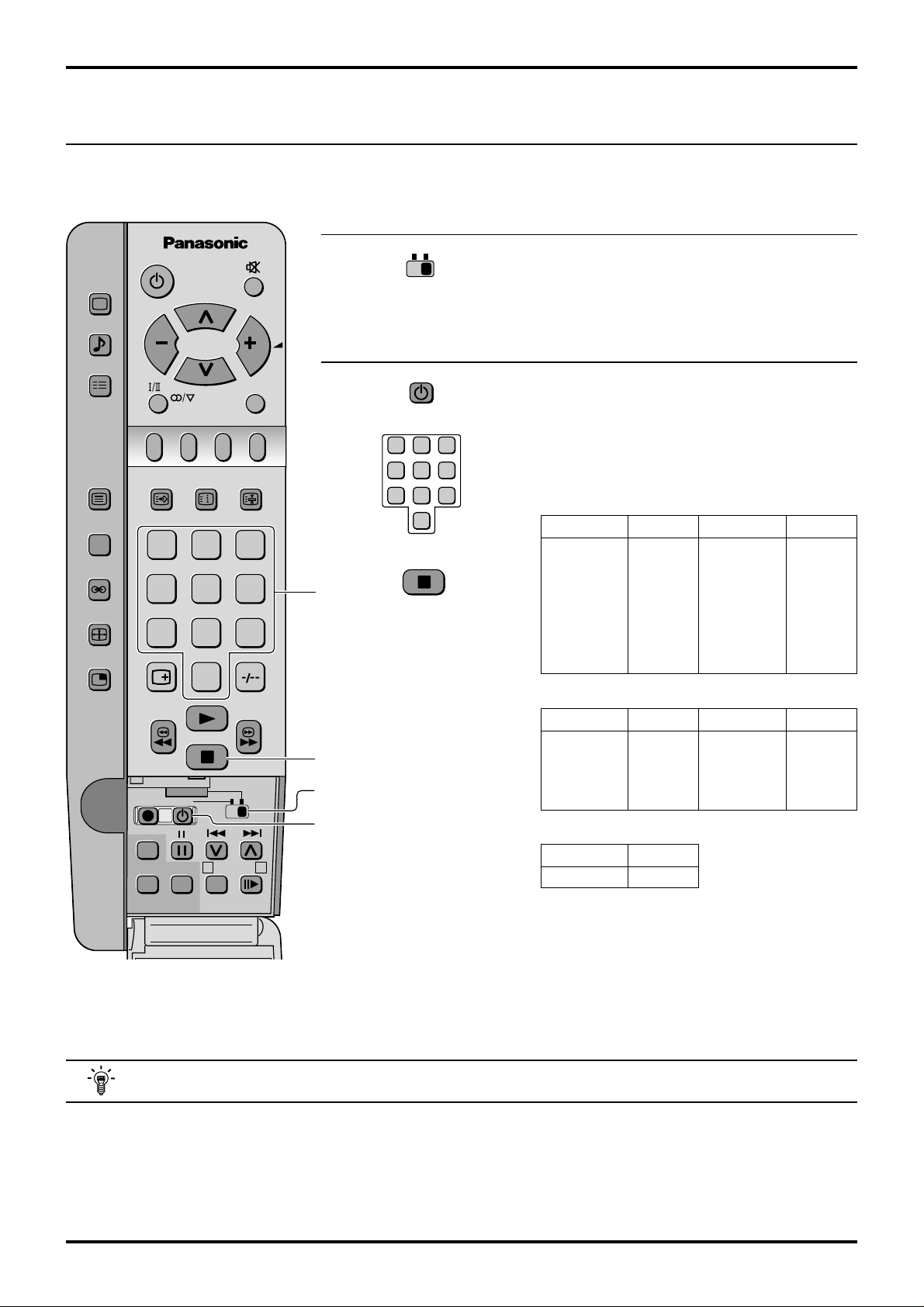

Remote control

RED

INDEX HOLD

F.P.

CH SEARCH

1 2 3
4 5 6
7 8 9

0

STILL

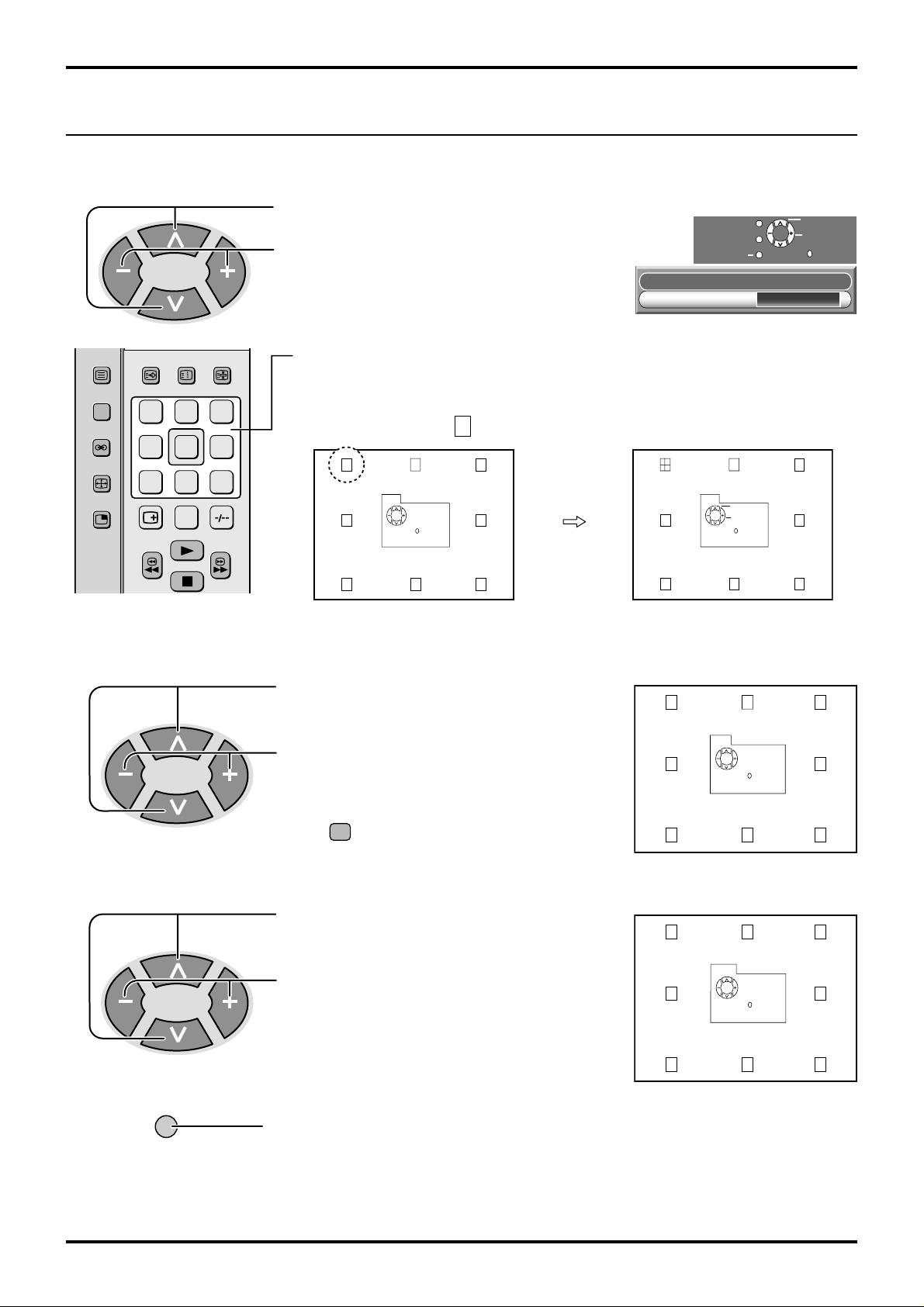

Press the Number button on the Remote Control to
select the position which you would like to adjust.

(Example) Position 1 is selected.

1

4 6

7 89

2 3

RED

TV / AV -EXIT
N-BLUE

Press to align the horizontal red line with
the horizontal blue line.
(Becomes a white line)

Press to align the vertical red line with the
vertical blue line.
(Becomes a white line)

2 3

RED

ADJUST

4 6

7 89

1

4 6

ADJUST
TV / AV -EXIT
N-BLUE

2 3

RED

TV / AV -EXIT
N-BLUE

Press N button to adjust the blue mode.

7 8 9

BLUE

Press to align the horizontal blue line with
the horizontal yellow line.
(Becomes a white line)

Press to align the vertical blue line with the
vertical yellow line.
(Becomes a white line)

Repeat above adjustment for each position.

TV/AV

Press to return to the normal viewing.

Note:

If you wish to view a video with a different colour system (PAL / SECAM, NTSC), repeat the steps above
while displaying a picture.

1 2 3

BLUE

4 6

TV / AV -EXIT
N-RED

7 89

18

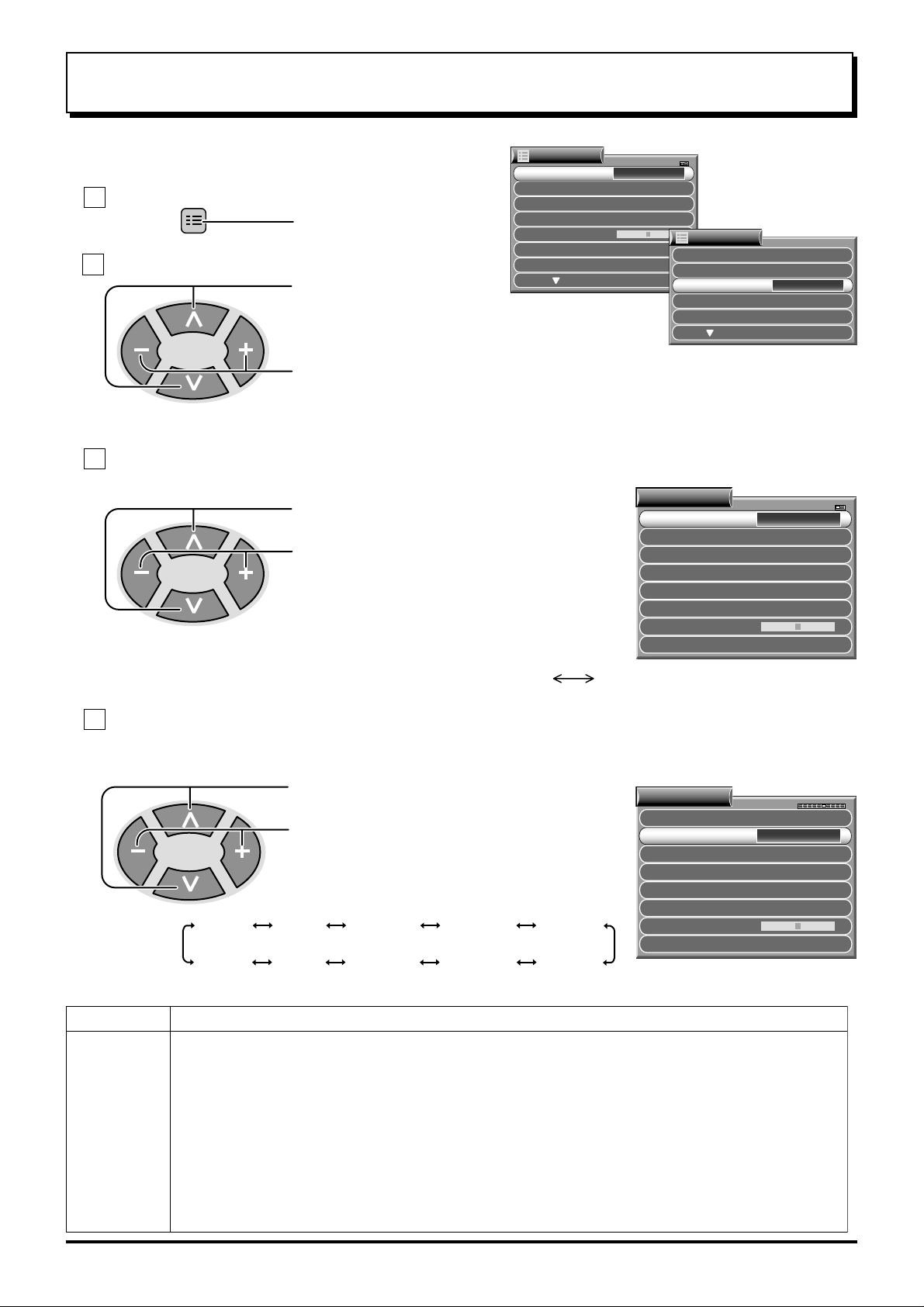

Tuning Channels

Display the TUNING MENU

1

1

SET UP

2

Press to display the
SETUP MENU.

SETUP MENU

TELETEXT

OFF TIMER
FLICKER REDUC.
STROBE
CH COLOUR SET
VCR / GAME
TEXT SELECT ENGLISH

FASTEXT
OFF
DYNAMIC

OFF

Press to select the
TUNING MENU.

Press to display the TUNING MENU.

2

1 Select the “POSITION” or the “DIRECT” [Other than Australia]

CH SELECT

Press to select the “CH SELECT (Channel
Select) ” Mode.

Press to select the “POSITION” or the “DIRECT”.
Setting range when the “POS.” (Position) has

been selected: Position 0-99
Setting range when the “DIRECT” has been
selected: Channel 0-125

TUNING MENU

CH SELECT

SYS SELECT
AUTO TUNE
MANUAL TUNE
SOUND SYS 6. 0MHz
COLOUR SYS
FINE TUNE
SKIP

SETUP MENU

CHILD LOCK
PICTURE SHIFT

TUNING MENU

CONVERGENCE
LANGUAGE

ENGLISH

POSITION
E.EUROPE

AUTO

OFF

OFF
OFF
ACCESS

The channel select indicator will change as follows. DIRECT POSITOIN

2 Regional System Selection

SYS SELECT (Before AUTO tuning and MANUAL tuning, set the “SYS SELECT” mode, as detailed below.)

CHINA HK/UK

JAPAN CATV AMERICA

System Select by Regional

SYSTEM SELECT

CHINA
HK / UK
ASIA/M.EAST
NZ / INDONES
AUSTRALIA
E.EUROPE
SPECL VER
AMERICA
CATV
JAPAN

China
Hong Kong, United Kingdom
Malaysia, Singapore, Thailand, Asia countries, Kuwait, Saudi Arabia, United Arab Emirates, Middle East countries, etc.
New Zealand, Indonesia, etc.
Australia
CIS, Poland, etc.
South Africa
U.S.A., Chile, Mexico, Panama, Pelu, Philippines, Taiwan, Venezuela, etc.
USA CATV
Japan

Press to select the “SYS SELECT”.

Press to select the appropriate system.

The system select indicator will change as
follows.

ASIA/M.EAST

NZ/INDONES

SPECL VER

Region

AUSTRALIA

E.EUROPE

TUNING MENU
CH SELECT

SYS SELECT

AUTO TUNE
MANUAL TUNE
SOUND SYS 6. 0MHz
COLOUR SYS
FINE TUNE
SKIP

POSITION
E.EUROPE

AUTO

OFF

19

Tuning Channels

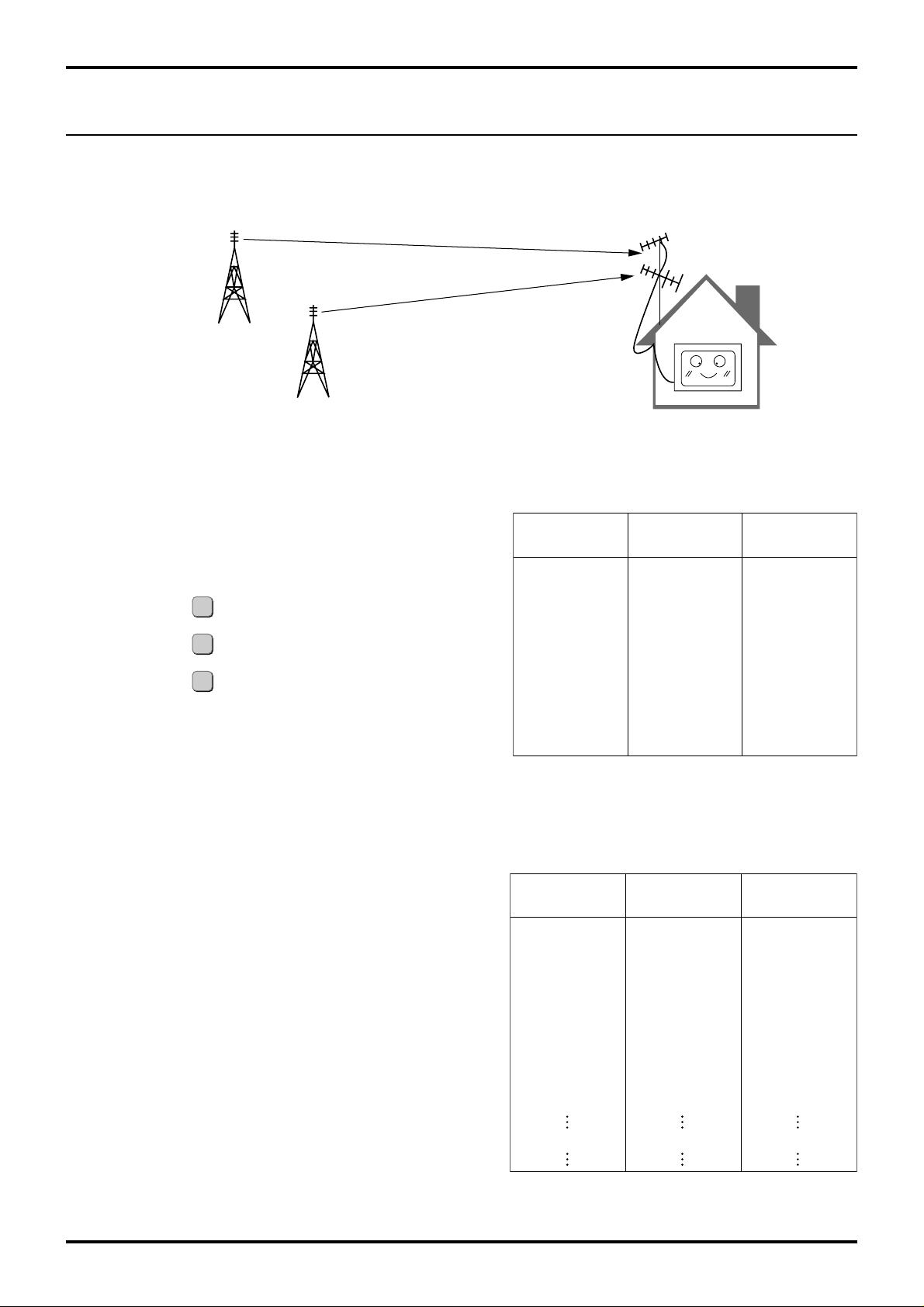

Channel Selection

Select the most easily viewed channel selection method.

2ch
4ch
6ch

8ch
10ch
12ch

14ch
16ch
18ch
20ch

POSITION SELECT

When the Channel Selection is on POS. (Position), and
Auto Tune is performed, the unit memories the channels
tuned in order from programme No.1.

Press the button 1 to view channel 2.
Press the button 2 to view channel 4.
Press the button 3 to view channel 6.
During position mode various reception channels can be

viewed.

DIRECT SELECT

When the Channel Selection is on DIRECT , and Auto Tune
is performed, the unit memories the programme number
which is the same as the channel tuned.
This method allows you to select the desired channel by
pushing the channel display number directly on the remote
control to select the station. The channel display numbers
for the broadcast stations in each region are listed on page

21.

Example

Programme

Number

10

Example

Programme

Number

1
2
3
4
5
6
7
8
9

10

Channel

Display

1
2
3
4
5
6
7
8
9

2
4
6

8
10
12
14
16
18
20

Channel

Display

–

2

–

4

–

6

–

8

–

10

Received

Channel

2
4
6

8
10
12
14
16
18
20

Received

Channel

–

2

–

4

–

6

–

8

–

10

20

20

20

20

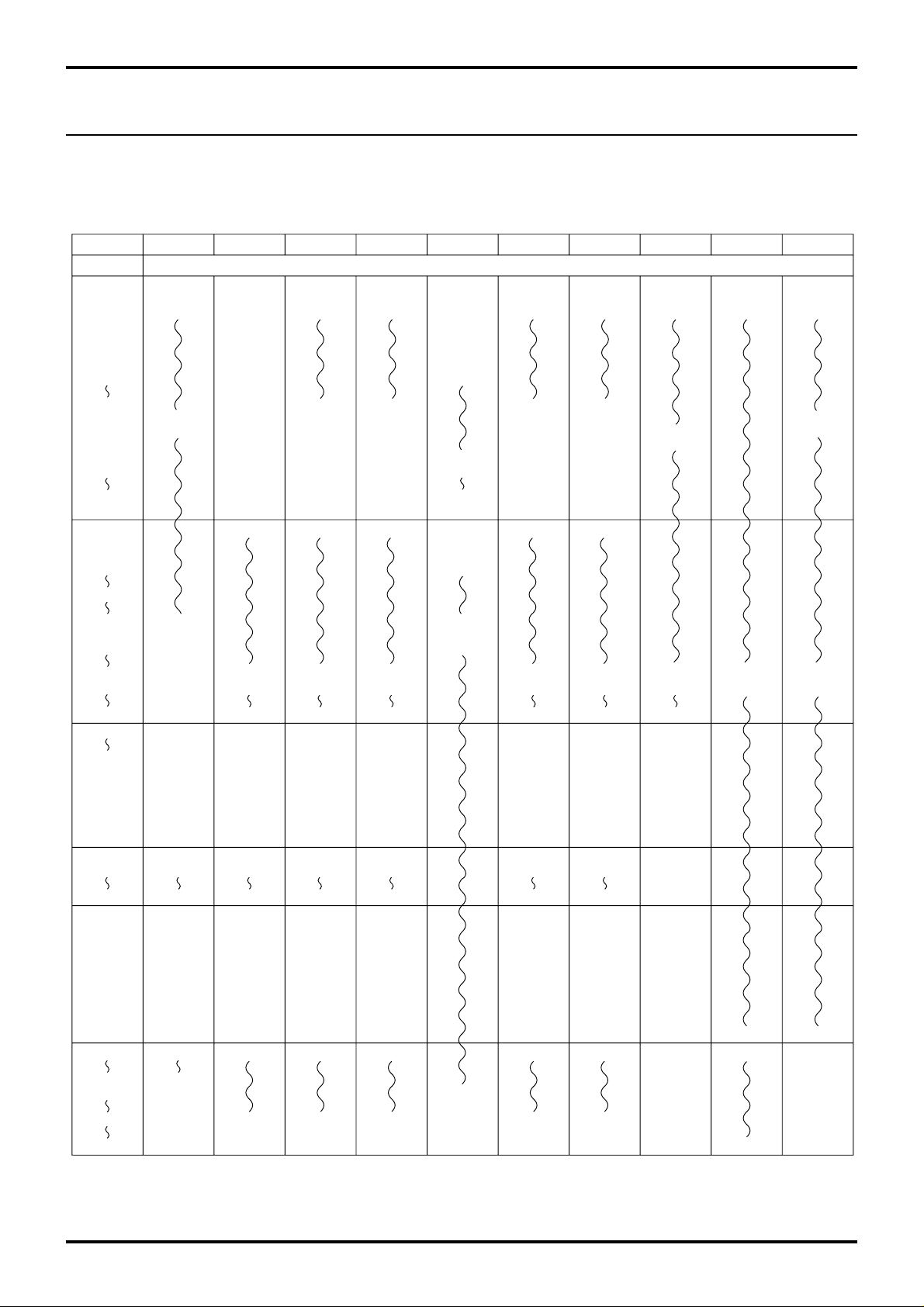

Tuning Channels

Channel Allocation

• CA TV (USA CATV) channel numbers as recommended by the joint EIA/NCT A Engineering committee and published
as EIA INTERIM STANDARD No.6-CABLE TELEVISION CHANNEL IDENTIFICATION PLAN-MA Y 1983.

• The receiving channels are as follows;

SYS SELECT

CH DISPLAY

0
1
2
3
4
5
6
7

11
12
13
14
15
16

19
20

21
22
23
24

28
57

58
59

62
63

69
70

73
74
75
76
77
78
79

80
81

89
90

91
92
93
94
95
96
97
98
99

100
117

118
120
125

CHINA HK/UK

–

1
2

12
13

57

–
–
–
–
–
–
–

–
–
–
–
–
–
–
–
–

–

Z1
Z9

Z10
Z11
Z12
Z13
Z14
Z15
Z16
Z17
Z18
Z19

Z20
Z37

–
–
–
–
–

–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–

21

62
63

69

–
–
–

S'1
S'2
S'3

–
–
–

S1
S2

S10
S11

S12
S13
S14
S15
S16
S17
S18
S19
S20

S21

S41

–
–

ASIA/M.EAST

11
12

21

62
63

69

S'1
S'2
S'3

S1
S2

S10
S11

S12
S13
S14
S15
S16
S17
S18
S19
S20

S21

S41

NZ/INDONES

–
–

2

–
–
–
–
–
–
–

–
–
–

–
–
–

–
–

–

1
2

11

–
–
–
–
–
–
–
–

21

62
63

69

–
–
–

S'1
S'2
S'3

–
–
–

S1
S2

S10
S11

S12
S13
S14
S15
S16
S17
S18
S19
S20

S21

S41

–
–

AUSTRALIA

E.EUROPE

RECEIVE CHANNEL

–

0
1
2
3
4
5

S2

S10

6
9

9A
10

11
12

S11

S44

20
21

80

–
–
–
–

–

1
2

11
12

–
–
–
–
–
–
–

21

62
63

69

–
–
–

S'1

–
–
–
–
–

S1
S2

S10
S11

S12
S13
S14
S15
S16
S17
S18
S19
S20

S21

S41

–
–

SPECL VER

–

1
2

11
12
13

–
–
–
–
–
–

21

62
63

69

–
–
–

S'1
S'2
S'3

–
–
–

S1
S2

S10

–
–
–

S14
S15
S16
S17
S18
S19
S20

S21

S41

–
–

AMERICA

–
–

2

13
14

62
63

69

–
–
–
–
–
–
–
–
–

–
–
–
–

–
–
–
–
–
–
–
–
–
–

–
–
–
–
–
–
–
–

CATV JAPAN

–

1
2

62
63

99 C49

100

125

–

1
2

12
13

62

C13

–
–
–
–
–
–
–
–

21

Tuning Channels

Automatic Tune

This TV uses automatic tuning to determine whether or not the TV can receive a broadcast signal which is being sent, and
automatically prepares so that the channel selection can respond to both the position select and direct select modes.
Before Automatic Tune, Channel Select and Regional System must already be set (Refer to pages 19).

AUTO TUNE

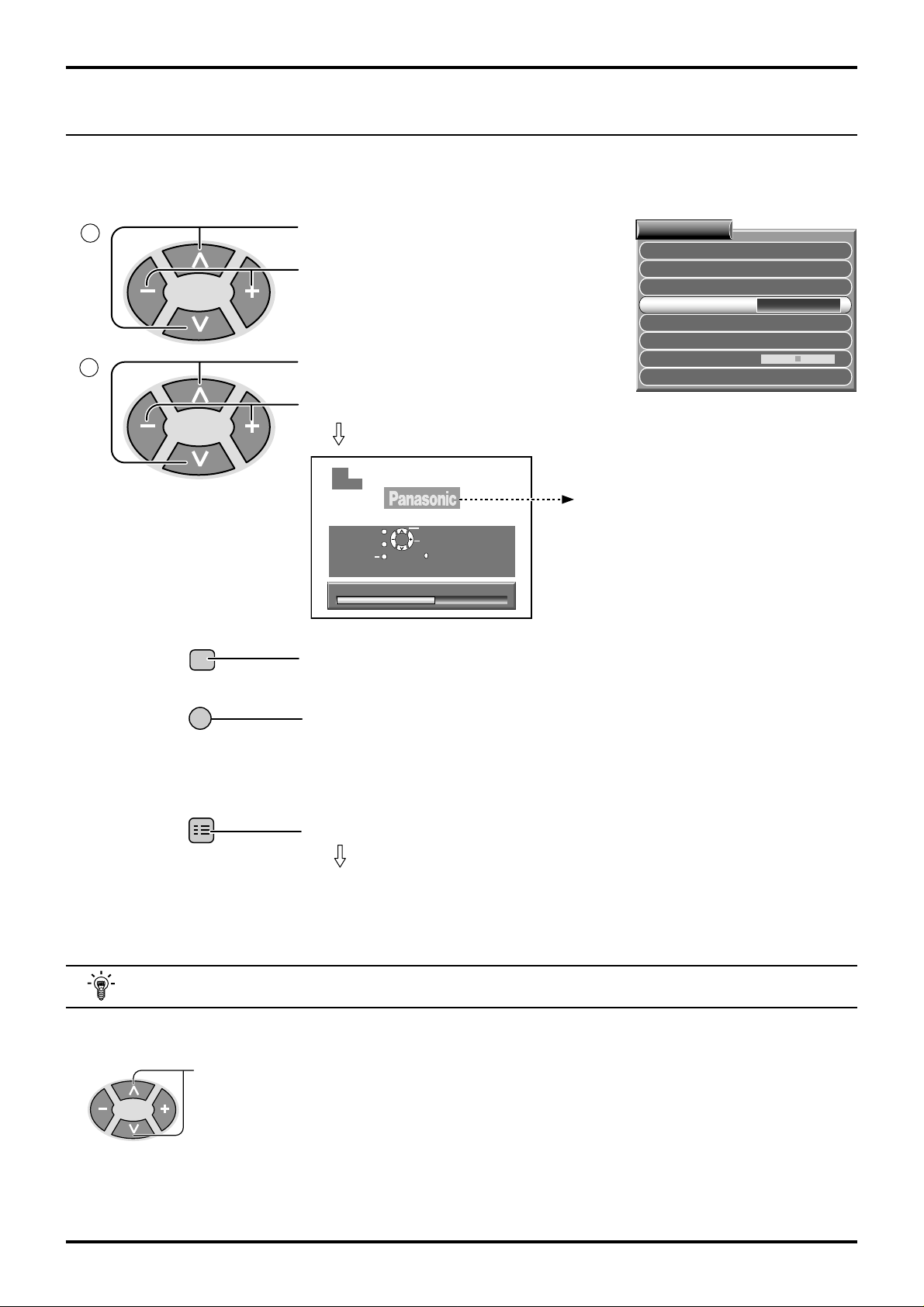

1

Press to select the “AUTO TUNE”.

Press to access to the “AUTO TUNE”.

Search Start.

29

CH 29

AUTO SETUP IN PROGRESS
SEARCHING

: PLESE WAIT

STORED CH29

When a station is found.

TUNING MENU
CH SELECT

SYS SELECT

AUTO TUNE

MANUAL TUNE
SOUND SYS 6. 0MHz
COLOUR SYS
FINE TUNE
SKIP

POSITION
JAPAN
ACCESS

AUTO

OFF

SETUP : RETURN TO TUNING MENU
TV/AV : TO EXIT

SOUND SYS

2

STR

TV/AV

Note:

When the sound volume is too small to confirm, turn it up by using the sound volume button on the remote control.

3

After all stations are tuned, the on-screen display will automatically change from “AUTO
TUNE” to “SOUND SYS” Position.

Press to improve the Sound quality , if the Sound
is not clear or no sound is produced on a
programme Number Position.

4.5MHz

6.5MHz

Press to store the Sound System.

Press to exit from the Tuning Menu.
This returns the set to the normal viewing condition.

Under the normal viewing condition press to enter each programme Number.
Confirm the tuning condition.

5.5MHz

6.0MHz

The best tuning position is automatically
memorized.

TUNING MENU
CH SELECT

SYS SELECT
AUTO TUNE
MANUAL TUNE

SOUND SYS 6. 0MHz

COLOUR SYS
FINE TUNE
SKIP

POSITION
JAPAN

AUTO

OFF

If necessary, repeat step 2 for each Programme Number.

Helpful Hint

(1) If a clear picture with correct colours cannot be obtained when a Broadcast or AV signal is received, refer to the

“Colour System Selection” operation on page 26.

(2)

22

After the Automatic tune is finished, under the normal viewing condition press this button to
confirm the tuning condition for each Programme Number. If some Programme Numbers are
unused (no TV stations), it is possible to skip such Programme Numbers. Please refer to the
Programme Number Skip operation on page 25.

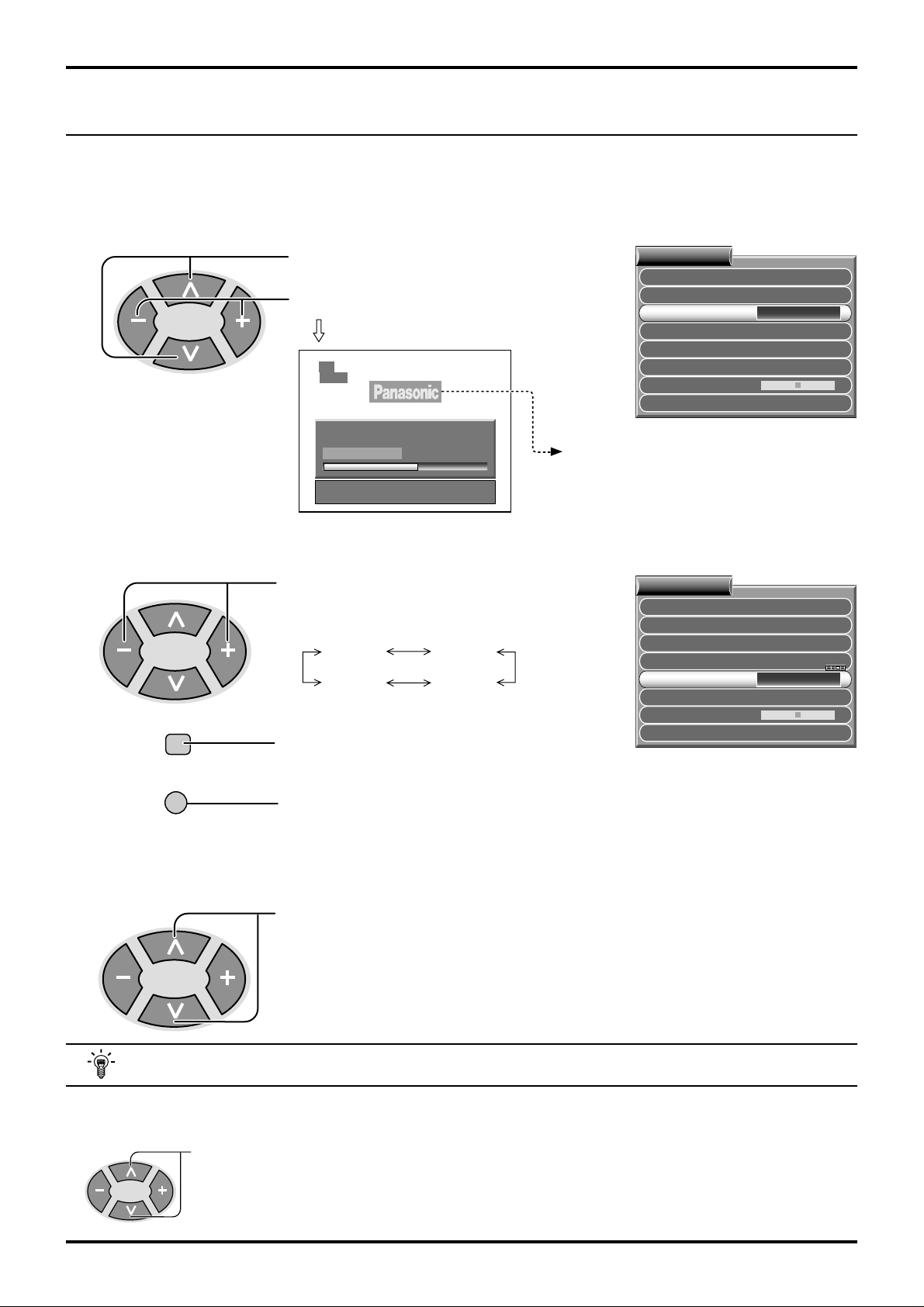

Tuning Channels

Manual Tune

Before Manual Tune, Channel Select and Regional System must already be set (Refer to page 19).

MANUAL TUNE

1

1

2

Press to select the MANUAL TUNE.

Press to access to the MANUAL TUNE.

Press to select the desired Programme
Number.

Press to select the higher or lower channel.

Search Start.

29
CH 12

When a station is found.

TUNING MENU
CH SELECT

SYS SELECT
AUTO TUNE

MANUAL TUNE

SOUND SYS 6. 0MHz
COLOUR SYS
FINE TUNE
SKIP

POSITION
JAPAN

ACCESS

AUTO

OFF

RETURN

MANUAL TUNE

STR

When the desired station is found, press to store.
The tuning position is memorised.

TV/AV

Press to exit from the Tuning Menu.
This returns the set to the normal viewing condition.

SOUND SYS

2

SET UP

Press to display the SETUP MENU.

Proceed to the TUNING MENU, and then to the SOUND SYS ( refer to page 26).

Adjust the Sound System ( refer to page 22 step 2 to 3).

3

TV / AV ­‘STR’ BUTTON-STORE

PROGRAMME - /+

-

EXIT

/+

SEARCH

Helpful Hint

(1) If a clear picture with correct colours cannot be obtained when a Broadcast or AV signal is received, refer to the

“Colour System Selection” operation on page 26.

(2)

(3) When using a VCR without video and audio input/output terminals, it is convenient to connect the aerial cable as

indicated in the instruction manual of VCR and to set the designated channel to programme No. “0”. In that case,
perform manual tune after setting the colour system and sound system in advance. Further, in multi-system VCR,
it is more convenient to set the designated channel to several programme Numbers.

After the Manual tune is finished, under the normal viewing condition press this button to confirm
the tuning condition for each Programme Number. If some Programme Numbers are unused (no
TV stations), it is possible to skip such Programme Numbers. Please refer to the Programme
Number Skip operation on page 25.

23

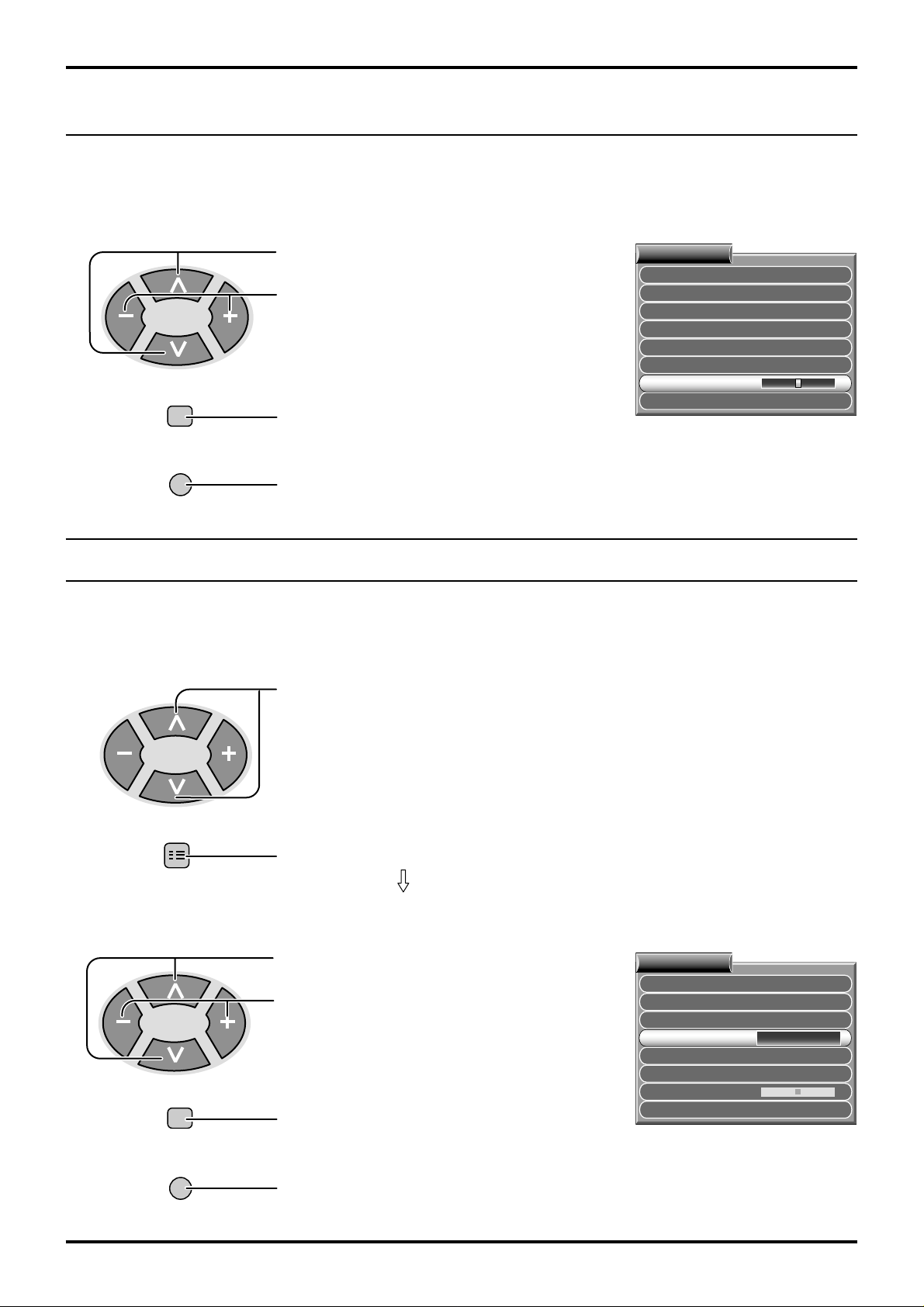

Tuning Channels

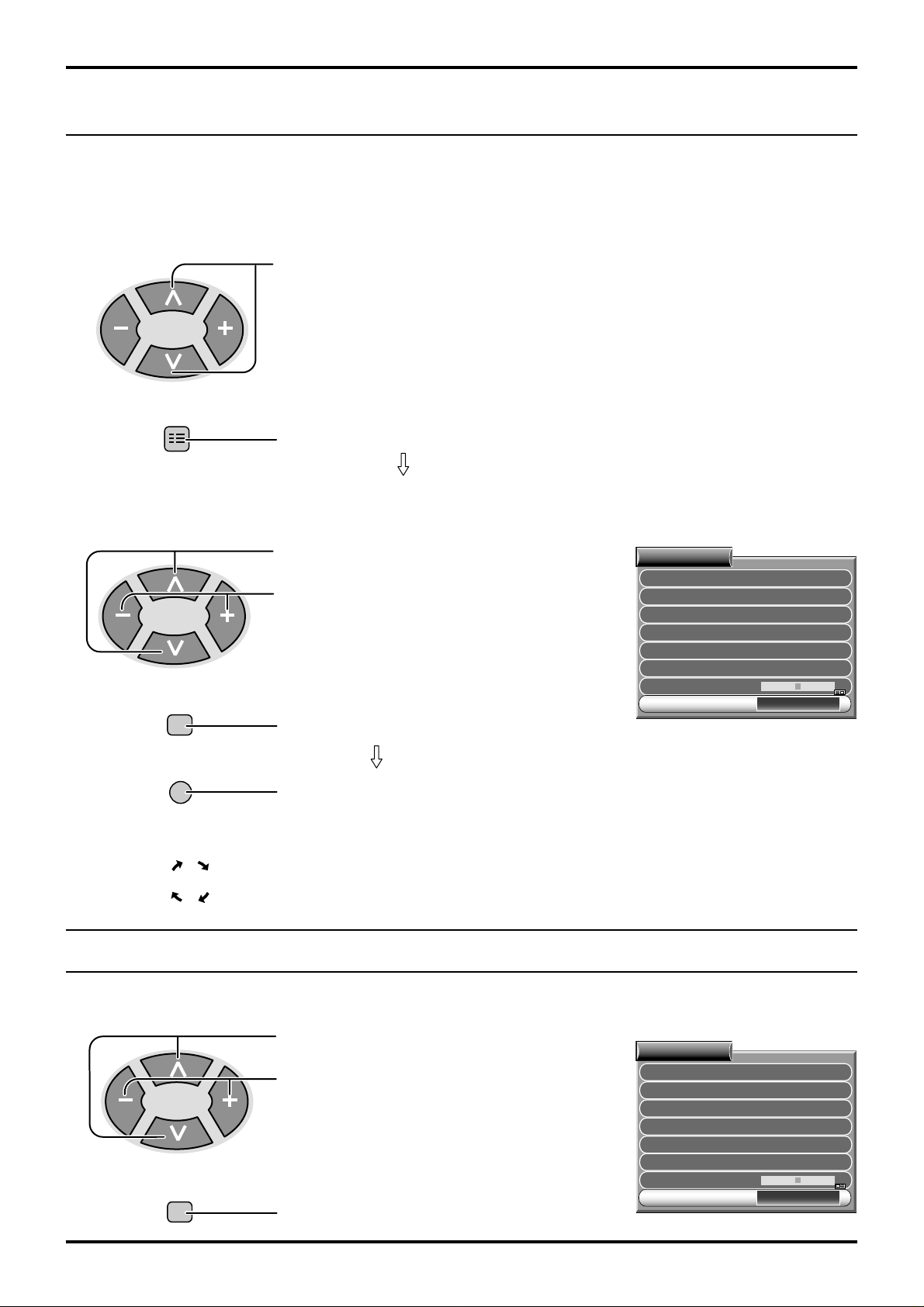

Fine T uning

Under normal reception conditions this function is not required or necessary.
However, in areas of poor reception or constant interference, a slight adjustment of the tuning may improve the
picture and sound quality.

1

2

3

STR

TV/AV

Press to select the FINE TUNE.

Press until the clear picture is received.

Press to store the FINE TUNE.
This stores the FINE TUNE to the selected Programme Number.

Press to exit from the FINE TUNE.
This returns the set to the normal viewing condition.

TUNING MENU
CH SELECT

SYS SELECT
AUTO TUNE
MANUAL TUNE
SOUND SYS 6. 0MHz
COLOUR SYS

FINE TUNE

SKIP

POSITION
JAPAN

AUTO

OFF

How to Cancel the Fine Tuning

Cancelling previously adjusted (manually) fine tuning, means re-activating the AFT (Automatic Fine Tuning).
Re-Activating the Automatic Fine Tuning means allowing the set to automatically tune to the optimum tuning position,
for that Programme Number.

1

Select the Programme Number which you would like to return to Automatic Fine T uning
(cancel the manual fine tuning).

2

3

4

5

24

SET UP

STR

TV/AV

Press to display the SETUP MENU.

Proceed to the TUNING MENU (refer to page 19).

Press to select the MANUAL TUNE.

Press to access to MANUAL TUNE.
Press briefly to tune the best position.

Press to store the AFT.
This stores the re-activated AFT.

Press to exit from the MANUAL TUNE.
This returns the set to the normal viewing condition.

TUNING MENU
CH SELECT

SYS SELECT
AUTO TUNE

MANUAL TUNE

SOUND SYS 6. 0MHz
COLOUR SYS
FINE TUNE
SKIP

POSITION
JAPAN

ACCESS

AUTO

OFF

Tuning Channels

Programme Number Skip

It is possible to skip Programme Number on which no TV stations are tuned appearing on the screen. The function is
only effective when selecting Programme Numbers by pressing the Programme Number Up or Down button either on
the TV set or on the Remote control.

1

2

3

4

SET UP

STR

Under the normal viewing condition press to select the Programme
Number you’d like to skip.

Press to display the SETUP MENU.

Proceed to the TUNING MENU (refer to page 19).

Press to select the SKIP.

Press to change the mode to “ON”.

Press to store the Skip function.

TUNING MENU
CH SELECT

SYS SELECT
AUTO TUNE
MANUAL TUNE
SOUND SYS 6. 0MHz
COLOUR SYS
FINE TUNE

SKIP

POSITION
JAPAN

AUTO

ON

TV/AV

Press to exit from the SKIP.
This returns the set to the normal viewing condition.

1

Repeat Step1 to 4 for each Programme Number for which the Skip function is desired.

5

24

3

How to Cancel the Skip Function

1

Press to select the SKIP.

Press to change the mode to “OFF”.

2

STR

Press to store the Skip function.

TUNING MENU
CH SELECT

SYS SELECT
AUTO TUNE
MANUAL TUNE
SOUND SYS 6. 0MHz
COLOUR SYS
FINE TUNE

SKIP

POSITION
JAPAN

AUTO

OFF

25

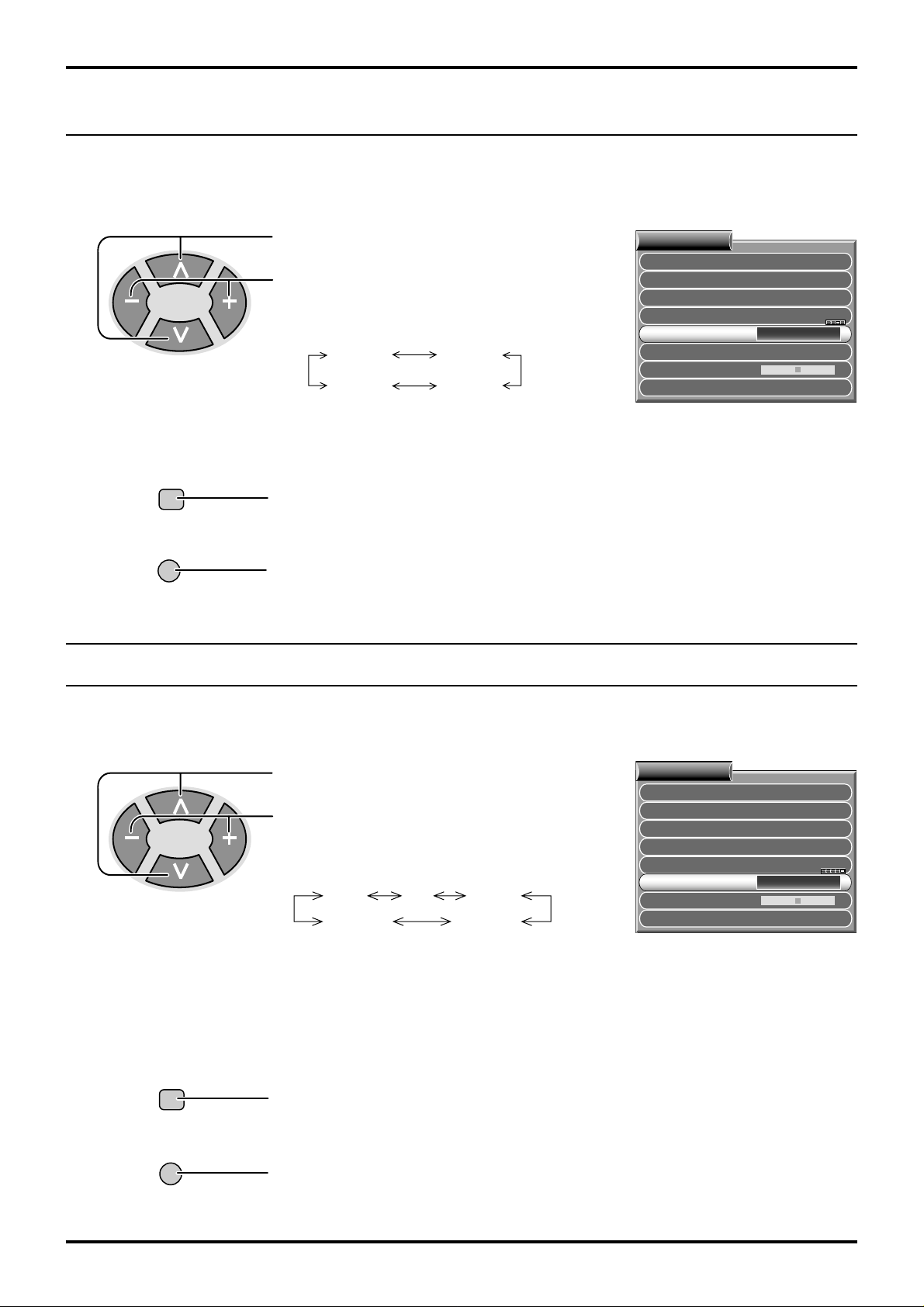

Tuning Channels

Sound System Selection

This function is used only in the TV mode when the sound is not clear or no sound is produced on a Programme
Number, and is not applicable in AV mode .

1

Note:

These are different sound broadcast transmission systems applicable to differing countries.

2

STR

TV/AV

Press to select the “SOUND SYS”.

Press until the optimum sound is obtained.

The sound system will change as shown.

4.5MHz

6.5MHz

Press to store the Sound System.

Press to exit from the “SOUND SYS”.

(Different region use differing systems)

TUNING MENU

5.5MHz

6.0MHz

CH SELECT
SYS SELECT
AUTO TUNE
MANUAL TUNE

SOUND SYS 6. 0MHz

COLOUR SYS
FINE TUNE
SKIP

Sound System Condition.

POSITION
JAPAN

AUTO

OFF

This returns the set to the normal viewing condition.

Colour System Selection (Different region use differing systems)

If a clear picture with correct colours cannot be obtained when a Broadcast or AV signal is received, this function is used.

1

Note:

PAL, SECAM and NTSC 3.58 are dif ferent colour signal broadcast transmission systems applicable to differing countries.
NTSC 4.43 is a trick playback mode used in special VCR to playback NTSC recorded video tapes through PAL
television equipment.

Press to select the “COLOUR SYS”.

Press to produce the optimum image.

The colour system will change as shown.

AUTO PAL
NTSC3.58 NTSC4.43

SECAM

TUNING MENU
CH SELECT

SYS SELECT
AUTO TUNE
MANUAL TUNE
SOUND SYS 6. 0MHz

COLOUR SYS

FINE TUNE
SKIP

Colour System Condition.

POSITION
JAPAN

AUTO

OFF

2

STR

Press to store the Colour System.

TV/AV

Press to exit from the “COLOUR SYS”.
This returns the set to the normal viewing condition.

26

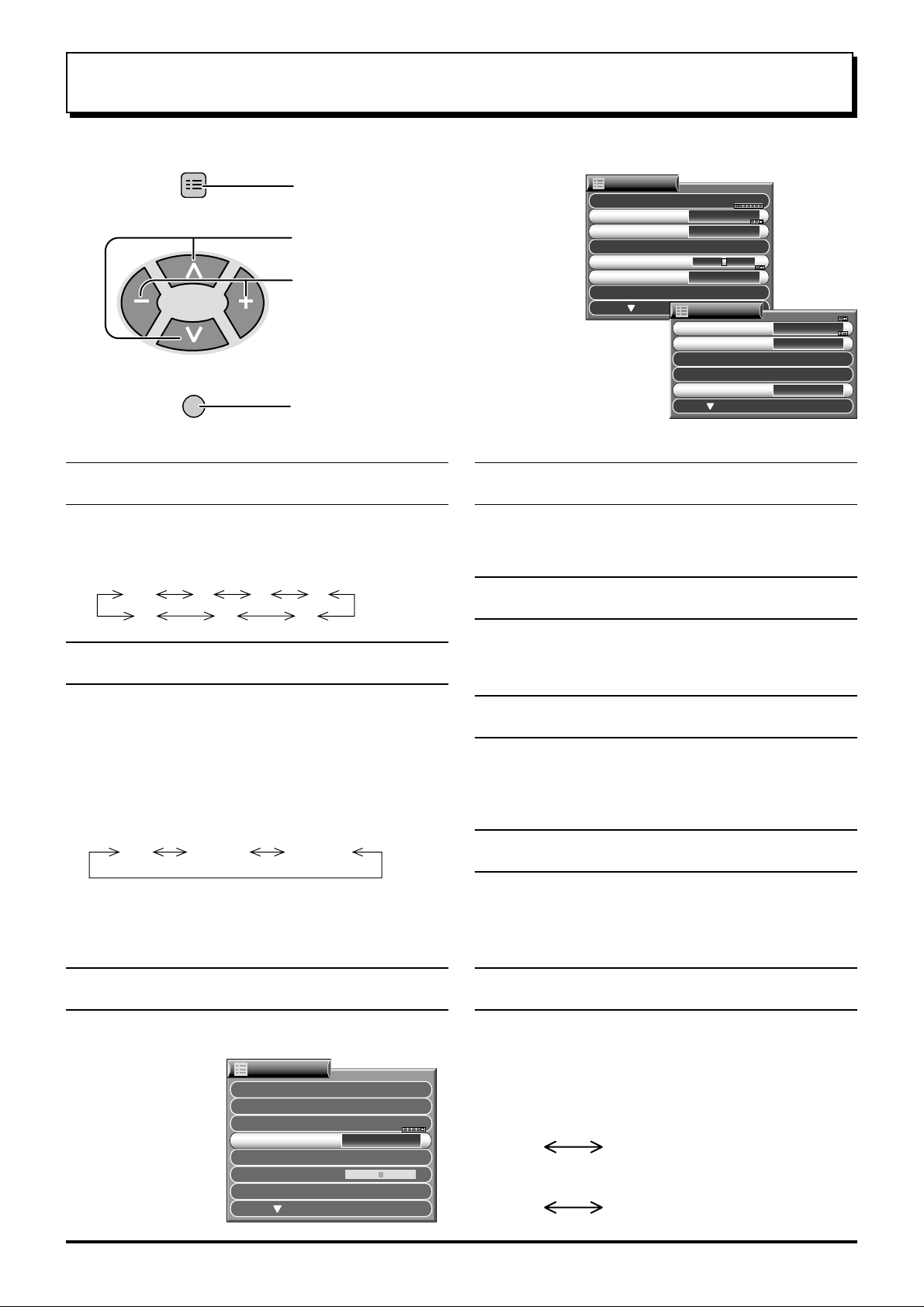

Setup Adjustment

1

2

3

SET UP

Press to display the SETUP MENU.

Press to select the desired function.
Press to adjust or change the function.

TV/AV

Press to go back to watching TV.

OFF TIMER

Switches the TV off within a preset time which you can
choose from between 0 to 90 minutes in 15 minutes
intervals.

OFF

90

3015

45

6075

FLICKER REDUCTION

SETUP MENU

TELETEXT

OFF TIMER
FLICKER REDUC.

STROBE

CH COLOUR SET
VCR / GAME

TEXT SELECT ENGLISH

FASTEXT
OFF
DYNAMIC

ON

SETUP MENU

CHILD LOCK
PICTURE SHIFT

TUNING MENU
CONVERGENCE

LANGUAGE

ON
ON

ENGLISH

CH COLOUR SET

Colour density varying between broadcast channels can
be adjusted to three levels for each reception channel.

VCR/GAME

Reproduction of irregular signals, such as certain TV
games and rental video tapes, may be improved.

Lets you control any picture movement. Set to Dynamic
to activate motion compensation, to smooth the image
and get rid of picture movement. Set to Normal to correct
minor picture movement, or if slight ghosting of figures
occurs when using the Dynamic setting. Set to Off to have
no flicker reduction at aIl, occasional broadcasts may
benefit from using this setting.

DYNAMICNORMALOFF

Note:

In NTSC when set the SCAN MODE to 100Hz MODE,
this function is not available.

COLOUR SYSTEM

During AV mode, COLOUR SYSTEM is displayed. (refer
to page 26)

SETUP MENU

TELETEXT
OFF TIMER
FLICKER REDUC.

COLOUR SYS

STROBE
CH COLOUR SET
VCR / GAME

FASTEXT
OFF
DYNAMIC
AUTO

OFF

CHILD LOCK

If the Child-Lock function is set ON, picture and sound of
the TV/AV mode being viewed will disappear and a Black
screen will appear.

PICTURE SHIFT

For use as a screen saver, this function changes the entire
picture position (shift) approximately 2 mm every 15
minutes.

LANGUAGE

When you first install the TV, the On Screen Display
language is set according to your choice of region.
LANGUAGE lets you change the language used for On
Screen Displays (refer to page 6).

[ for TX-47P600H ]
English Chinese

[ for TX-47P600X ]
English Arabic

27

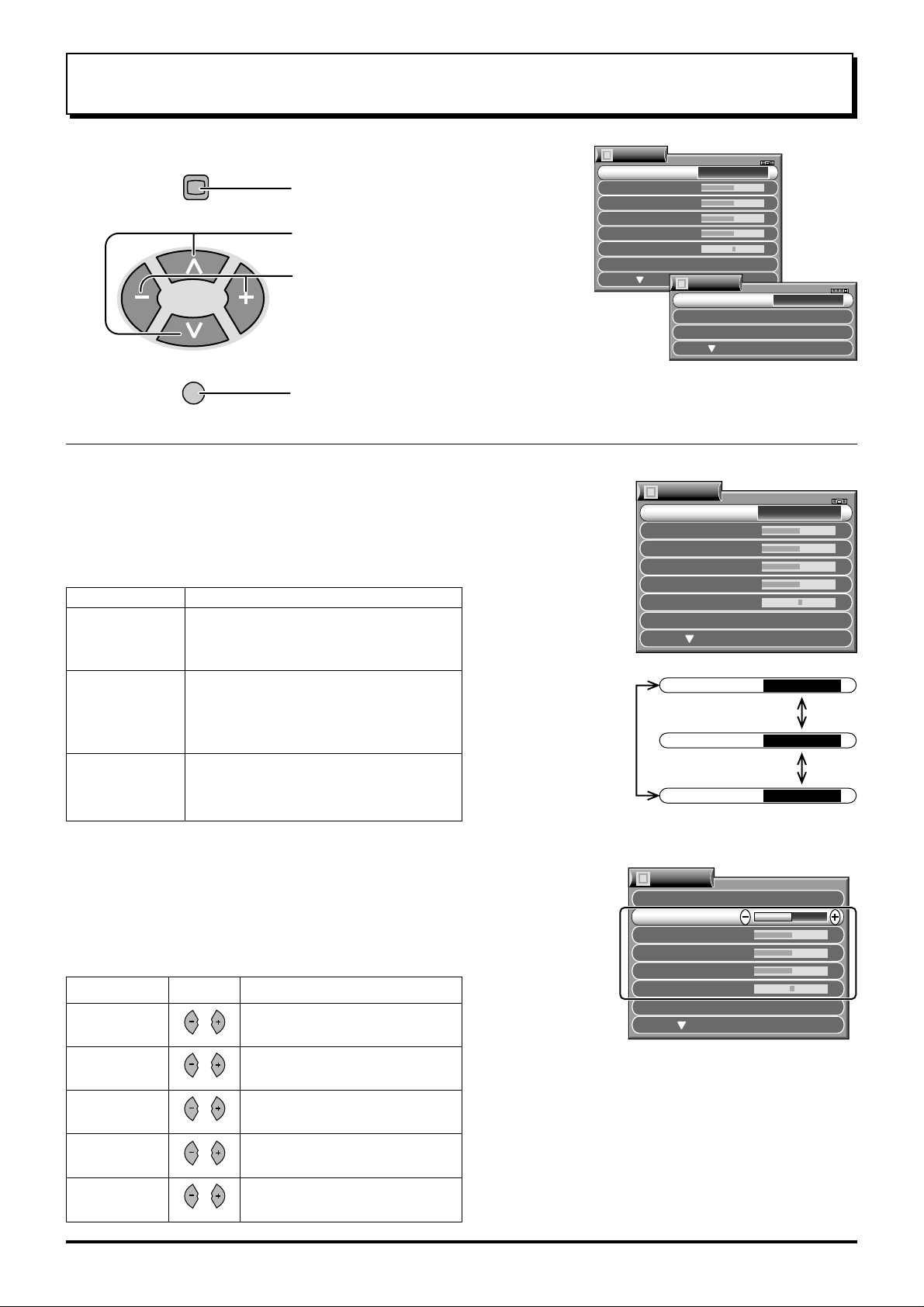

Picture Adjustment

1


Press to display the Picture Menu.

2

Press to select the desired function.

Press to adjust or change the function.

3

TV/AV

Press to go back to watching TV.

MENU

Picture menu mode will be memorized for each TV, AV1, AV2, AV3 and AV4
mode.

• Y ou can change the level of each Item (CONTRAST, BRIGHTNESS, COLOUR,
SHARPNESS and NTSC-TINT) for each Picture Menu (DYNAMIC,
STANDARD and SOFT).

Picture Menu Function

DYNAMIC

For viewing in brighter environments.
This menu selects a higher than normal
levels of Brightness and Contrast.


MENU

CONTRAST
BRIGHTNESS
COLOUR
SHARPNESS
NTSC-TINT
C. TEMP


MENU

CONTRAST
BRIGHTNESS
COLOUR
SHARPNESS
NTSC-TINT
C. TEMP

STANDARD

STANDARD


P

-

NR

AI
SCAN MODE AUTO

AUTO
ON

STANDARD

STANDARD

STANDARD

SOFT

For viewing in normal (evening lighting)
environments.
This menu selects the normal levels of
Brightness and Contrast.

For viewing in a dark room.
This menu selects reduced levels of
Brightness and Contrast.

CONTRAST, BRIGHTNESS, COLOUR, SHARPNESS, NTSC-TINT

Increase or decrease the levels of CONTRAST, BRIGHTNESS, COLOUR
and SHARPNESS options according to your personal preference.
With an NTSC-TINT signal source connected to the TV, the picture hue can
be adjusted to suit your taste.

Item FunctionEffect

CONTRAST

BRIGHTNESS

COLOUR

SHARPNESS

NTSC-TINT

Less More

Darker Brighter

Less More

Less More

Reddish Greenish

Adjusts for contrast.

Adjusts for easier viewing of dark
pictures such as night scenes and hair.

Adjusts slightly to a lighter colour.

Notes:

• When set to Multi PIP mode, the main and sub pictures

Displays a sharp image.

• When the TV is receiving NTSC signals, NTSC-TINT

Adjusts for proper skin colour.

• Only CONTRAST will be displayed during TEXT mode.

are both adjusted simultaneously .
is displayed and level adjustment would be possible.

MENU

MENU

MENU

DYNAMIC

STANDARD

SOFT


MENU

STANDARD

CONTRAST

BRIGHTNESS
COLOUR
SHARPNESS
NTSC-TINT
C. TEMP STANDARD

28

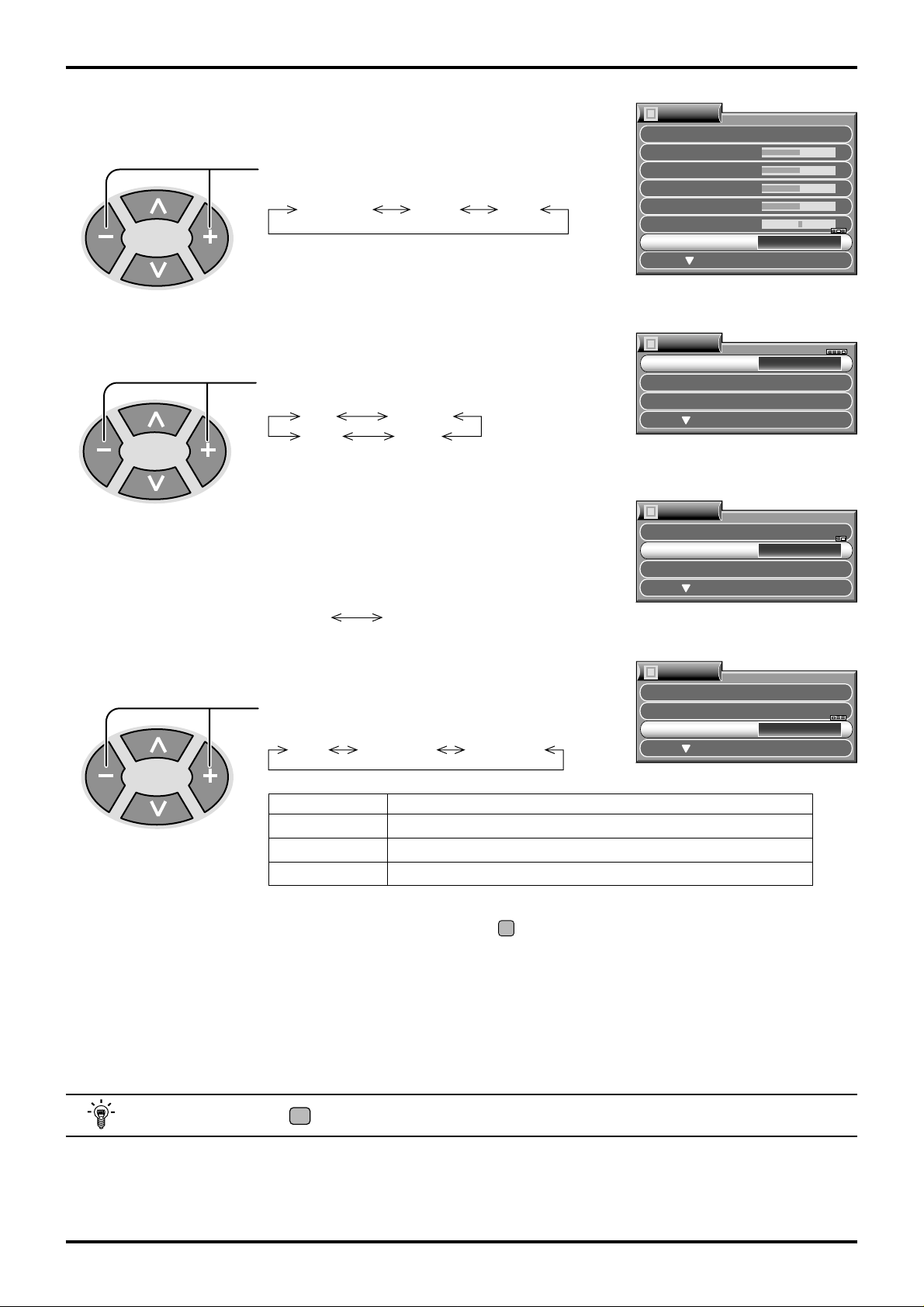

Picture Adjustment

(Colour Temperature)

P-NR

(Picture Noise Reduction)

AI

(Artificial intelligence)

Set the overall colour tone of the picture.C. TEMP

Press to switch between modes

COOLWARMSTANDARD

Automatically reduces undesired picture noise.

Press to switch between modes

OFF

AUTO

STRONG

WEAK

Automatically analyses the incoming picture
and processes it to give improved contrast and
optimum depth of field.


MENU
CONTRAST
BRIGHTNESS
COLOUR
SHARPNESS
NTSC-TINT

C. TEMP


P

-

NR

AI
SCAN MODE AUTO


P

-

NR

AI

SCAN MODE AUTO

STANDARD

STANDARD

AUTO
ON

AUTO
ON

SCAN MODE

ON OFF

Choose the screen refresh method:

Press to switch between modes

AUTO

MODE Function

AUTO
100 Hz MODE
PROGRESSIVE

100 Hz MODE

The TV software will select the best mode for the signal being viewed.
100Hz will give a steady picture for most signal transmission.
Recommended when receiving NTSC signals.

Switching is also possible using

PROGRESSIVE

100Hz/

PROGRE

on the remote control.


P

-

NR
AI

SCAN MODE AUTO

AUTO
ON

Note:

We recommend that you set Scan mode to Progressive when viewing a PAL 60 or
NTSC transmission. When viewing a PAL transmission (other than PAL 60) with Scan

mode set to Progressive, the screen will flicker, this is not a fault.

Helpful Hint (NNormalization)

By pressing the Normal “N” Button on the Remote Control while the Picture menu is displayed, the selected menu will
be changed to the Normal Mode.
Normalization will not occur if the menu is not displayed when the “N” Button is pressed.
The Normal mode is the factory preset condition. Returning to this original condition is called “Normalization”.

29

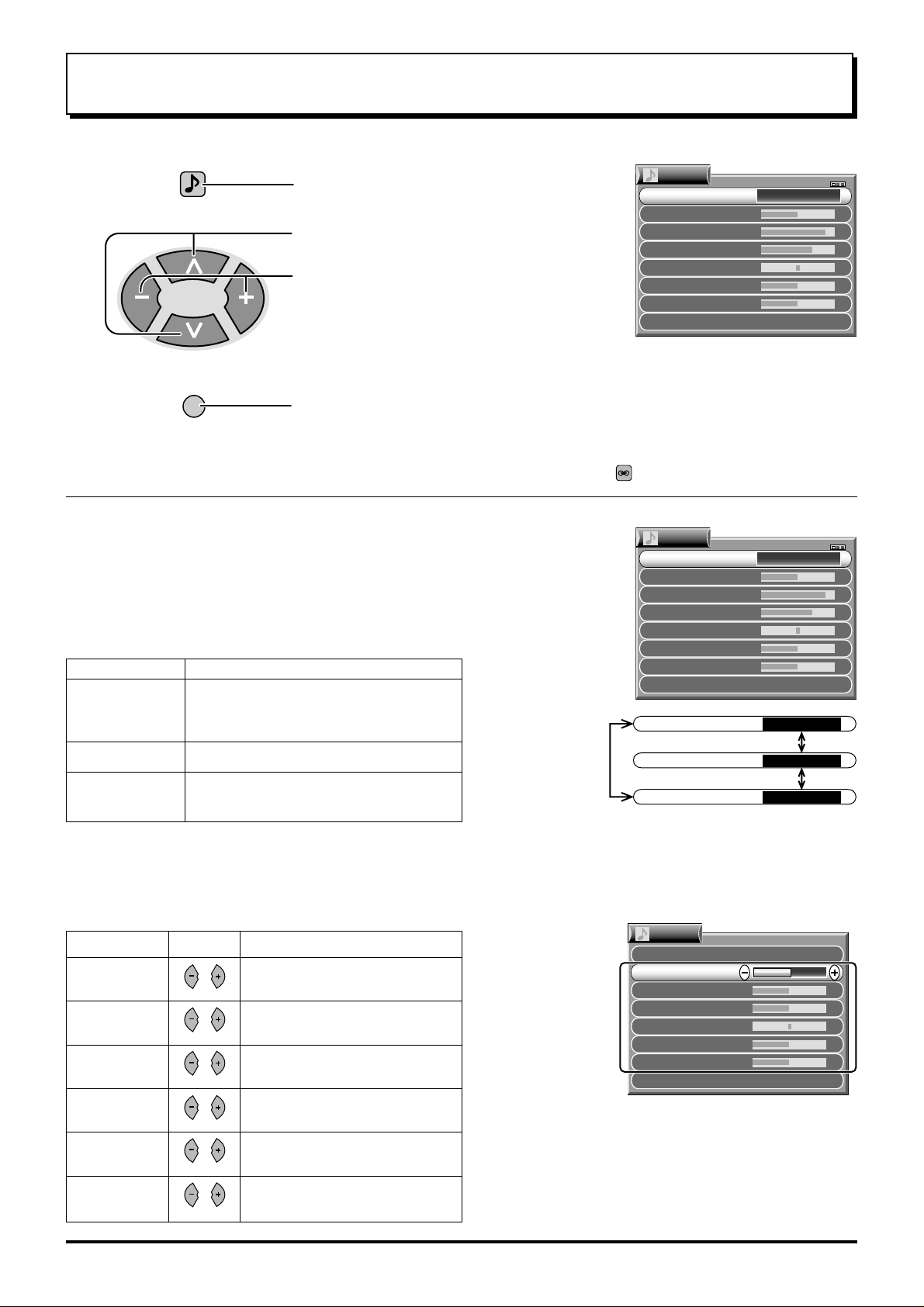

Sound Adjustment

1

SOUND

Press to display the Sound Menu.

2

Press to select the desired function.
Press to adjust or change the function.

3

TV/AV

Press to go back to watching TV.

Note:

Some features are only available with the Surround feature switched off. Press

MENU

Sound menu mode will be memorized for each TV, AV1, AV2, AV3 and
AV4 mode.

• You can change the level of each Item (VOLUME, BASS, TREBLE,
BALANCE, HEADPHONE VOL and SUB HEADPHONE) for each
Sound Menu (DYNAMIC, STANDARD and SOFT).

Sound Menu Function

DYNAMIC

Amplifies the Low frequencies and outputs
optimum sound.
For music programmes for example.

SOUND

MENU

VOLUME
BASS
TREBLE
BALANCE
HEADPHONE VOL.
SUB HEADPHONE
SURROUND

SURROUND

DYNAMIC

OFF

to switch between On and Off.

SOUND

MENU

VOLUME
BASS
TREBLE
BALANCE
HEADPHONE VOL.
SUB HEADPHONE
SURROUND

MENU

DYNAMIC

OFF

DYNAMIC

STANDARD
SOFT

For Normal use.
Human voices (middle pitch sounds) will

sound more clear.

VOLUME, BASS, TREBLE, BALANCE, HEADPHONE VOL., SUB HEADPHONE

Item FunctionEffect

VOLUME

BASS

TREBLE

BALANCE

Less More

Less More

Less More

Left SP. Right SP.

Adjusts output volume.

Adjusts low sounds.

Adjusts high sounds.

Adjusts left and right volumes.

Notes:

• When set to Multi PIP mode, the main and sub sound

HEADPHONE VOL.

SUB HEADPHONE

Less More

Less More

Adjusts Headphone volume.

Adjusts Sub Headphone volume.

are both adjusted simultaneously.

• When using one of the double window features, note
that the headphones will relay the soundtrack for the
programme in the main window, not the sub window .

MENU
MENU

SOUND

MENU

VOLUME

BASS
TREBLE
BALANCE
HEADPHONE VOL.
SUB HEADPHONE
SURROUND

STANDARD
SOFT

DYNAMIC

OFF

30

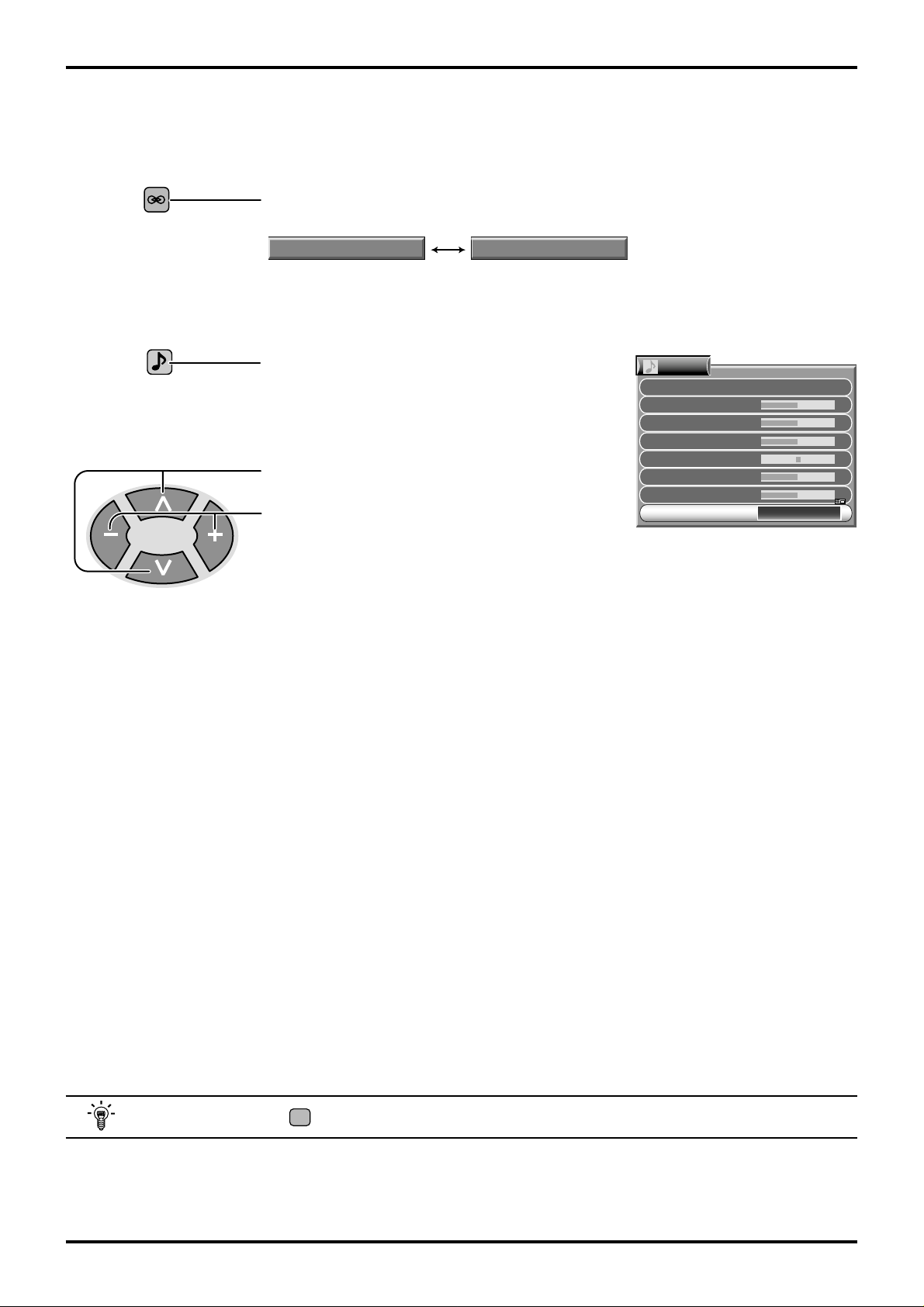

SURROUND MENU

SURROUND

Sound Adjustment

Press to switch between ON and OFF.

SURROUND

ON

SURROUND

OFF

OR

SOUND

Press to display the Sound Menu.

Press to select the SURROUND function.

Press to switch between ON and OFF.

The benefits of surround sound are enormous. You can be completely enveloped in sound; just as if you were at a
concert hall or cinema.
The surround effect can be obtained without the use of external surround speakers.

SOUND

MENU
VOLUME
BASS
TREBLE
BALANCE
HEADPHONE VOL.
SUB HEADPHONE

SURROUND

DYNAMIC

ON

Helpful Hint (NNormalization)

By pressing the Normal “N” Button on the Remote Control while the Sound menu is displayed, the selected menu will
be changed to the Normal Mode.
Normalization will not occur if the menu is not displayed when the “N” Button is pressed.
The Normal mode is the factory preset condition. Returning to this original condition is called “Normalization”.

31

Aspect Controls

ASPECT

TV/TEXT

F.P.

INDEX HOLD

Press to select the different Aspect options.

100Hz/

PROGRE

SURROUND

1 2 3

CH SEARCH

STILL

AUTO

ZOOM

S-ZOOM4:3

16:9JUST 14:9

4 5 6

ASPECT

7 8 9

MULTI

PIP

0

The on screen selector keys (corresponding to the four coloured buttons on the remote control) appear for some
Aspect functions and disappear after a few seconds. If you would like to select an operation when the keys are not
shown, press

ASPECT

once more and the keys will reappear.

Notes:

• Simply press

•

16:9 picture has been used to illustrate all of the aspect modes described in this section.

ASPECT

to display mode information in the top left of the screen.

• 14:9 option is available only in Australia and New Zealand.

Helpful Hint (NNormalization)

By pressing the Normal “N” Button on the Remote Control while the Aspect menu is displayed, the selected menu will
be changed to the Normal Mode.
Normalization will not occur if the menu is not displayed when the “N” Button is pressed.
The Normal mode is the factory preset condition. Returning to this original condition is called “Normalization”.

32

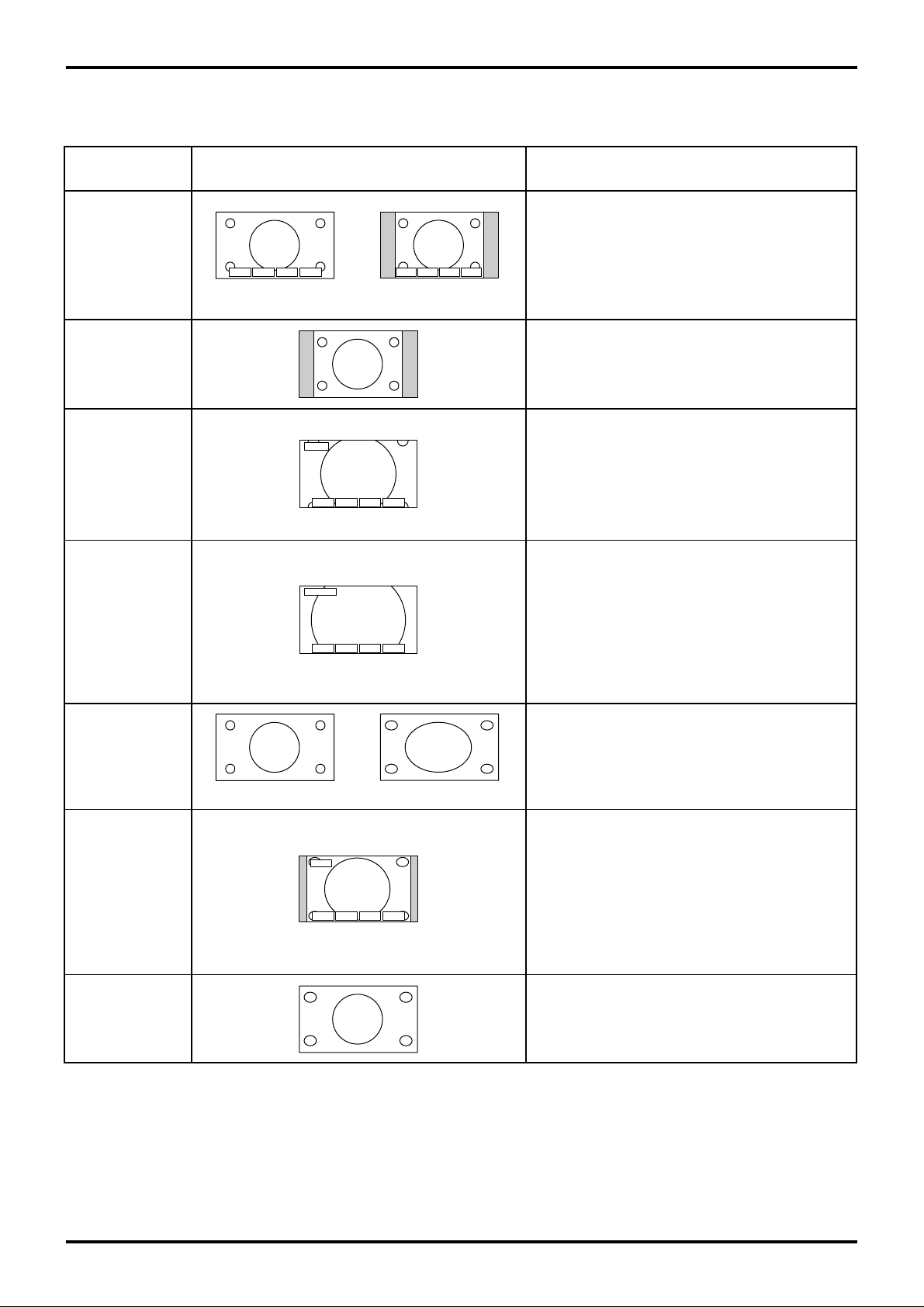

AUTO

4 : 3

ZOOM

4 : 3 JUST

4 : 3 JUST

16:9 Signal 4:3 Signal

ZOOM

V SIZE— V SIZE+V POS— V POS

+

Aspect Controls

ExplanationPictureMode

The AUTO position can be set to 4:3 or to
JUST. When a wide screen signal is
detected at the Video terminal the TV will
select the 16:9 aspect ratio.
Red 4 : 3 Select 4 : 3 mode
Green JUST Select JUST mode

This option will display a standard 4:3
picture without any stretching or
compression. There will be vertical gray
lines down either side of the picture.

This option allows you to magnify or reduce
part of the picture.

Red V SIZE
Green V SIZE + Magnify the picture
Yellow V POS
Blue V POS + Move picture Up

-

Reduce the picture

-

Move picture Down

S-ZOOM

16 : 9

14 : 9

(Australia and
New Zealand only)

JUST

S-ZOOM

H POS— H POS+V POS— V POS

+

16:9 Signal 4:3 Signal

14 : 9

+

V POS— V POS

S-Zoom displays part of the picture at a
greater magnification than the Zoom mode
does. The coloured buttons let you change
the position of the magnified area.

-

Red H POS

Move picture Left

Green H POS + Move picture Right

-

Yellow V POS

Move picture Down

Blue V POS + Move picture Up
The 16:9 option will display the picture at

its maximum size. Signals in the 4:3 format
will be stretched to fit the picture.

The 14:9 option will display a 4:3 signal in
simulated wide screen. The picture is
slightly stretched. It is also slightly cropped
top and bottom.
The colour buttons let you change the
position of the stretched area.

-

Yellow V POS

Move picture Down

Blue V POS + Move picture Up
JUST gives you a best fit option when

showing 4:3 on wide screen. The centre of
the picture is not affected but there is some
stretching at the edges.

Note:

ASPECT operations cannot be made during progressive (Y, PB, PR) or 1080i signal input.

33

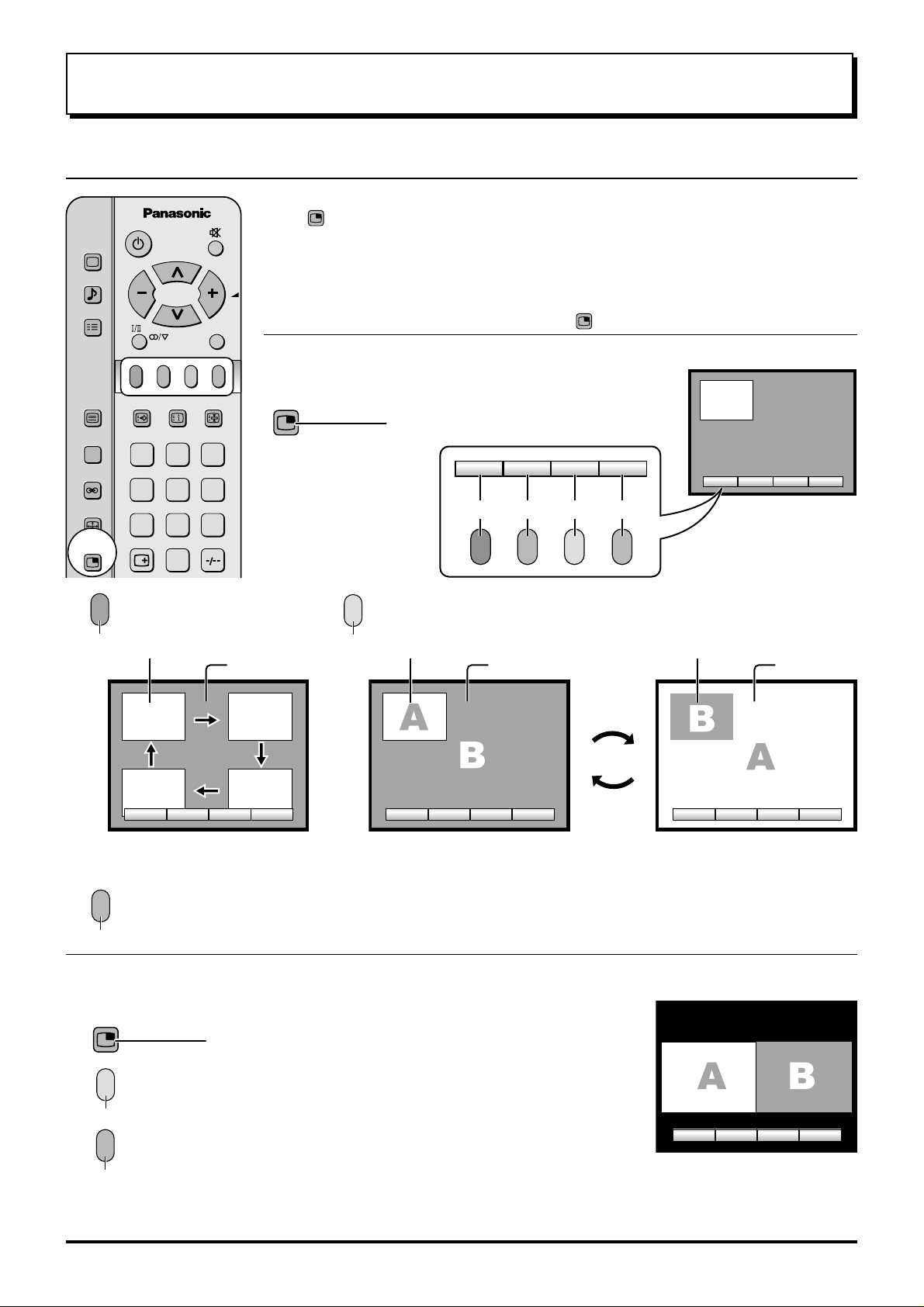

Multi Screen

Multi PIP

Press


SOUND

SET UP

TV/AV

and picture feature.
The on screen selector keys for the features (corresponding to the four coloured buttons on

the remote control) appear and disappear after a few seconds. If you would like to select an
operation when the keys are not shown, press

Picture in Picture (PIP)

MULTI

PIP

to select the current programme, the picture in picture feature, or the picture

MULTI

PIP

once more and the keys will reappear.

TV/TEXT

100Hz/

PROGRE

SURROUND

ASPECT

MULTI

PIP

Red

INDEX HOLD

F.P.

STILL

CH SEARCH

1 2 3
4 5 6
7 8 9

0

Press the Red button:

Sub picture

main picture

LOCATE CHANGE EXIT

MULTI

PIP

Press twice to view two pictures (sub
picture in main picture) at the same time.

LOCATE CHANGE EXIT

Press the Yellow button:

Yellow

Sub picture

LOCATE CHANGE EXIT

Red Green Yellow Blue

main picture

AB

LOCATE CHANGE EXIT

Sub picture

main picture

LOCATE CHANGE EXIT

Each time the location of the sub

Each time the main picture and the sub picture are swapped.

picture is changed.

Press the Blue button to exit from the PIP mode.

Blue

Picture and Picture

MULTI

PIP

Press to view two pictures (picture and picture) at the same
time.

Press the Yellow button:

Each time the picture in the left and the picture in the right are swapped.

Yellow

Press the Blue button to exit from the Picture and Picture mode.

Blue

Note:

MULTI PIP operations cannot be made during progressive (Y, PB, PR) or 1080i signal input.

34

CHANGE EXIT

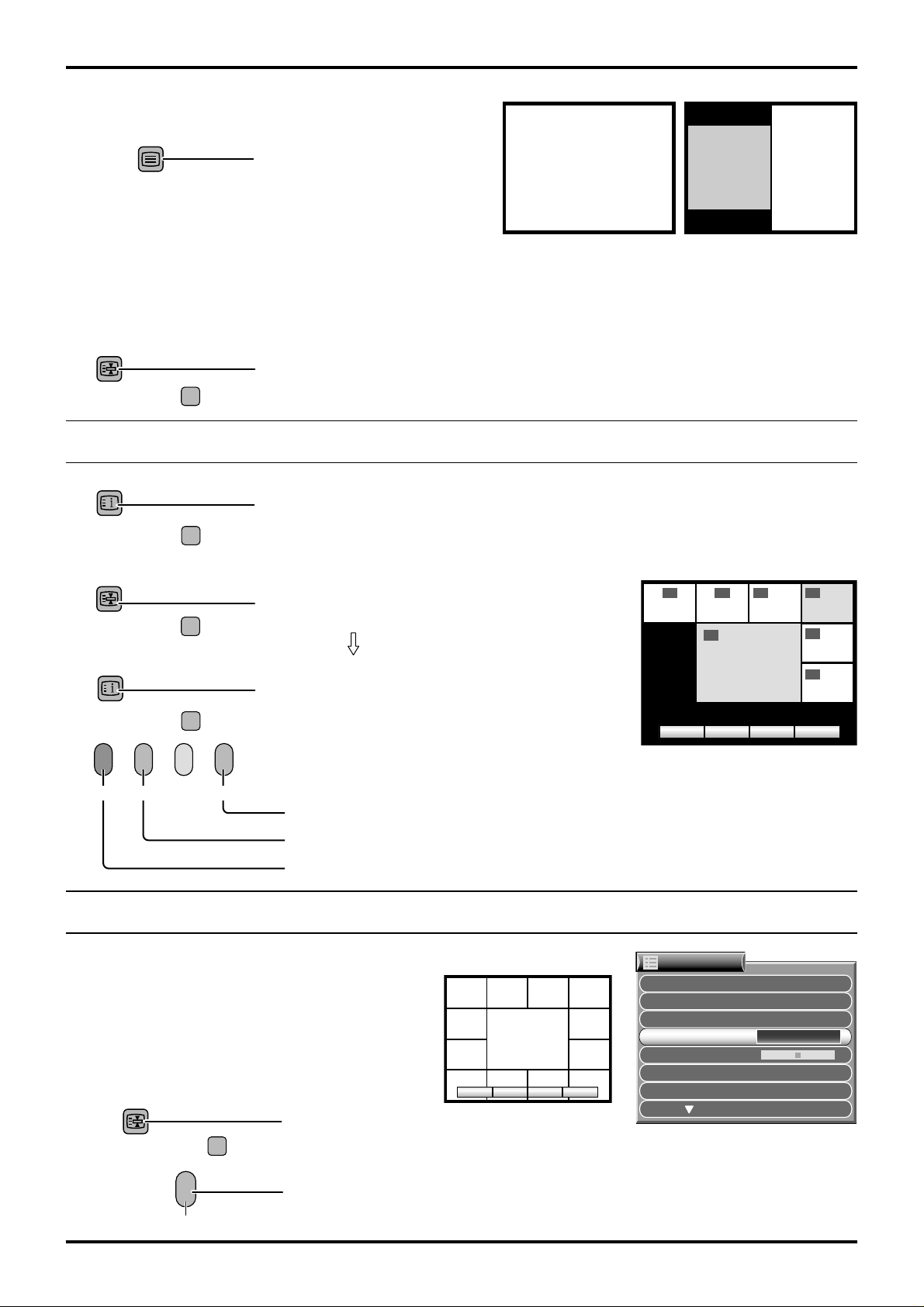

Multi Screen

Picture and text

TV/TEXT

Press to select watching the
current programme, the teletext or
the picture and text feature.

Note:

The remote control affects the teletext page; so select watching the current programme before making any changes
to the programme.

TELETEXT TELETEXT

TELETEXT mode Picture and text mode

Still

HOLD

Press to freeze the picture, press again to return to watching the current programme.

STILL

STILL

( )

Channel search

INDEX

Press to show freeze-frames of the programmes being broadcast on all of the stored
channels. These images are displayed in series clockwise around the edge of the screen,
starting from the top left.
The current programme is displayed in the centre of the screen, still playing.

Press to pause the search.
Press again to cancel the pause.

1 2 3 4

4

5

CH SEARCH

HOLD

STILL

CH SEARCH

( )

STILL

( )

INDEX

CH SEARCH

Red Green Yellow Blue

CH SEARCH

( )

Re-starts the search.
Press to exit from the feature.

Press to watch the current programme (displayed centre screen), exiting the feature.
Press to watch the selected channel, exiting the feature.

Press to select each channel's freeze-frame in turn.

Strobe

Lets you take a series of freeze-frame photos of a piece of action (for example:
the finish of a race).

(Access Strobe via the Setup menu, see page 27).
Takes a series of up to twelve freeze-frame images
(one second delay between each image being taken)
from the current programme watched.

HOLD

STILL

STILL

( )

Press to pause (freeze) the Strobe, press again
to continue taking the freeze-frames.

EXIT

6

SELECT OK EXIT

Channel search

SETUP MENU

TELETEXT
OFF TIMER
FLICKER REDUC.

STROBE

CH COLOUR SET
VCR / GAME
TEXT SELECT ENGLISH

FASTEXT
OFF
DYNAMIC
ACCESS

OFF

Blue

Press to exit from the Strobe feature and return to watching the current programme.

35

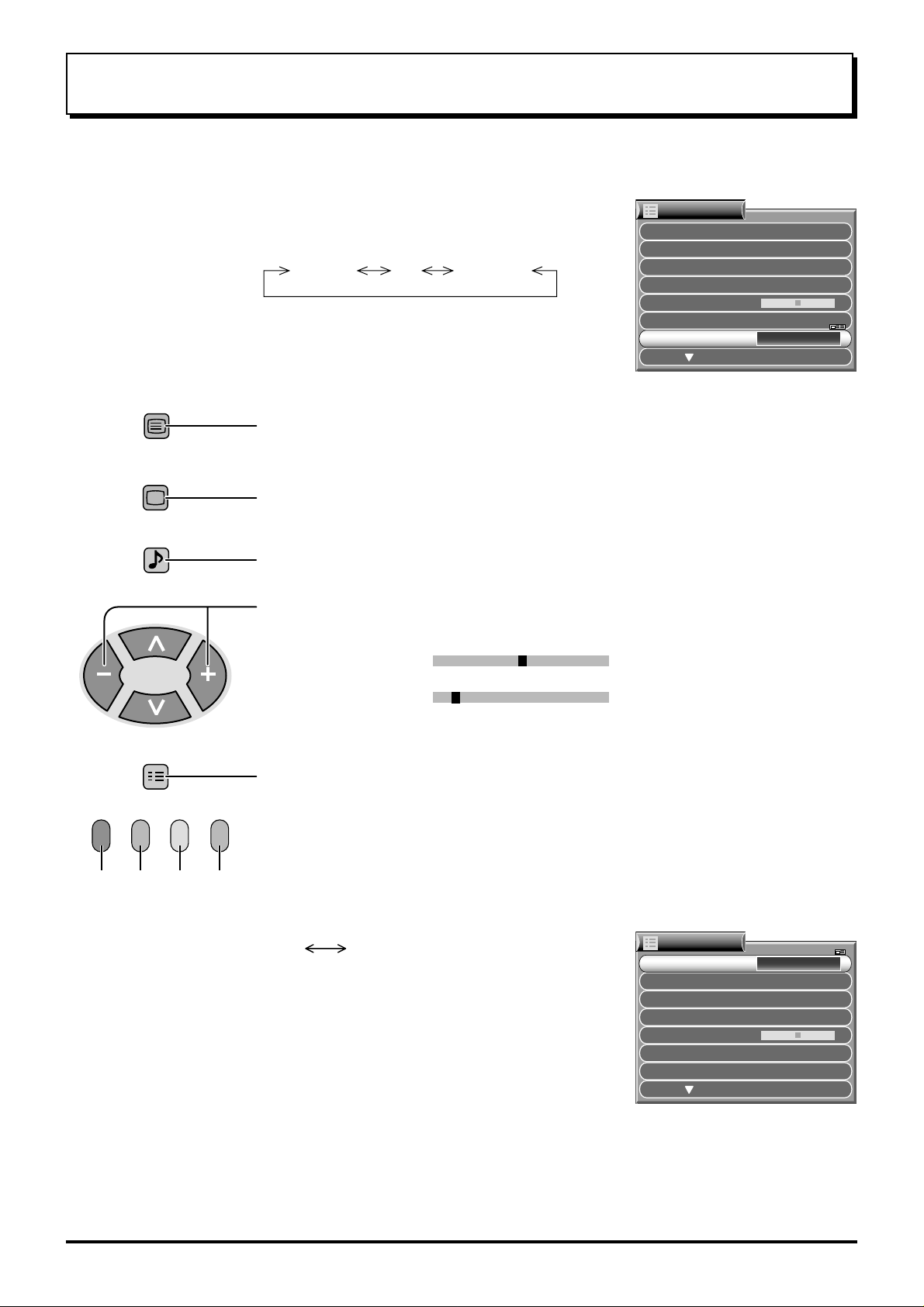

TELE TEXT

Teletext features may vary depending on the Broadcasting Companies and are only available when the channel
selected is transmitting Teletext.

TEXT SELECT

TV / Teletext mode

TV/TEXT


SOUND

Select character set, so that all characters needed
are available for text on teletext pages (eg: cyrillic
characters, etc).

E.EUROPECISENGLISH

SETUP MENU

TELETEXT
OFF TIMER
FLICKER REDUC.
STROBE
CH COLOUR SET
VCR / GAME

TEXT SELECT ENGLISH

FASTEXT
OFF
DYNAMIC

OFF

Press to select the current programme, the teletext and the picture or the telet ext
feature.

Press to display the contrast function with a cyan bar.

Press to display the volume function with a green bar.

Press to alter the s etting as required.

SET UP

Red

Green Yellow Blue

LIST / FASTEXT mode

LIST mode:

FASTEXT mode:

CONTRAST

VOLUME

Press to display special function options at the bottom of the screen.

Press to select the desired function.

Choose 2 modes.
LIST FASTEXT

Four differently coloured page numbers are situated
at the bottom of the screen. Each of these numbers
can be altered and stored in the TV's memory.

Four differently coloured subjects are situated at the
bottom of the display. To access more information,

SETUP MENU

TELETEXT

OFF TIMER
FLICKER REDUC.
STROBE
CH COLOUR SET
VCR / GAME
TEXT SELECT ENGLISH

press the appropriately coloured button. This mode
enables fast access to information on the subjects
shown.

FASTEXT
OFF
DYNAMIC

OFF

Note:

Characters will be illegible unless you select the Text Language which matches the text being received. Select the
correct LANGUAGE (Refer to page 27).

36

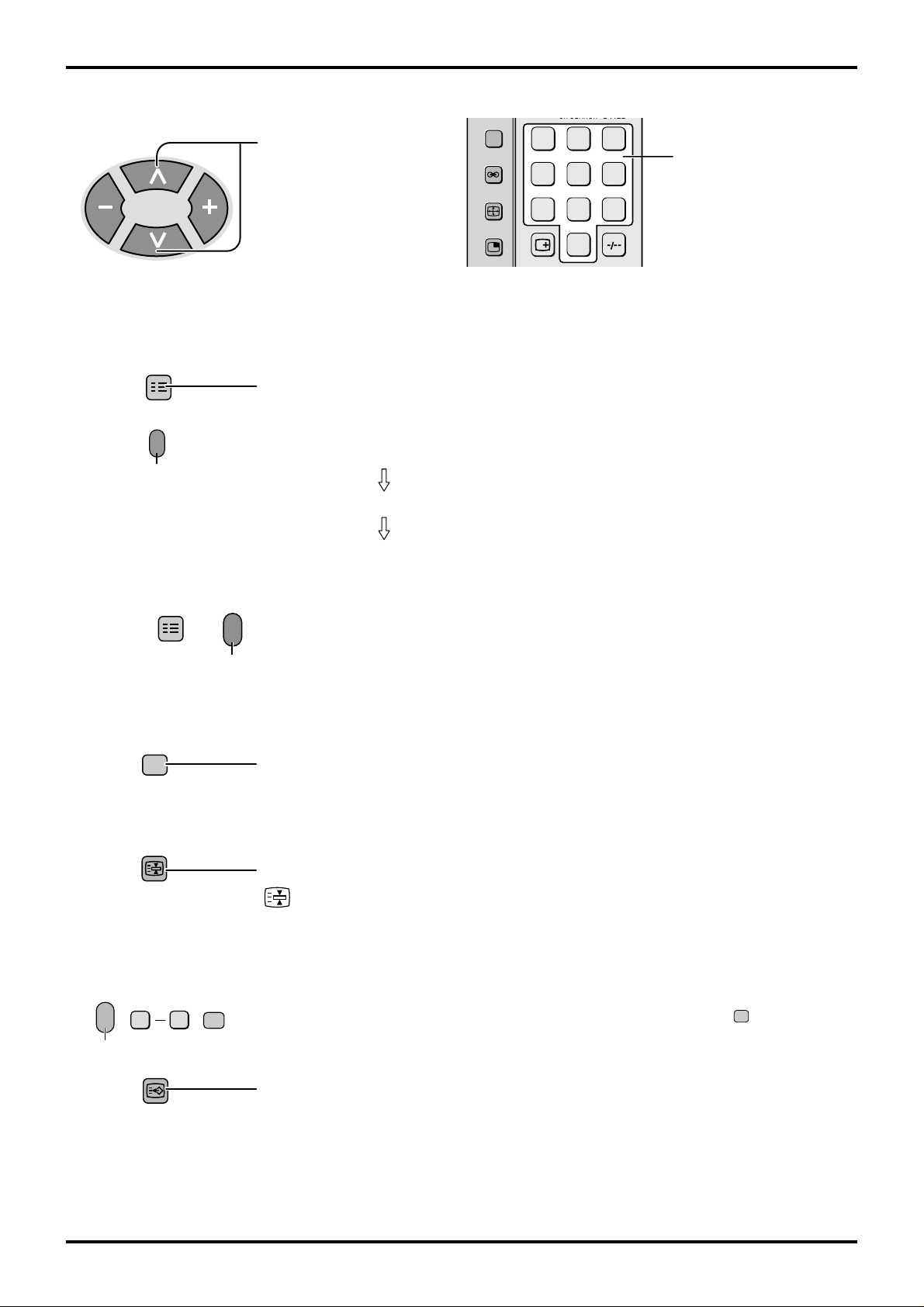

TELE TEXT

STILL

CH SEARCH

100Hz/

Page Selection

(Two ways)

FulI / Top / Bottom

SET UP

Green

PROGRE

Press to increase or
decrease the page
number by one.

SURROUND

ASPECT

1 2 3
4 5 6
7 8 9

MULTI

PIP

0

Press to display special functions.

Press the Green button to expand the Top half.

Press again to expand the Bottom half.

Press again to return to normal (FULL) size.

Enter the page number
directly using 0-9 on
the remote control.

Reveal

SET UP

+

List Store

STR

Hold

HOLD

STILL

Favourite Page (F.P.)

++

Blue

9

0

F.P.

STR

Press to reveal hidden words e.g. quiz page answers. Press again to hide.

Red

In LIST mode the four page numbers can be altered (programme positions 1 - 25 only).
Press one of the four coloured buttons and enter the new page number.

Press and hold, the page numbers will change to white indication and the page is stored.

Press to hold the Teletext page when viewing multi-page information.

is displayed on the top left of the screen.

Press again to return to automatic page update.

Stores a favourite page in memory for instant recall. (programme positions 1 - 25 in List
mode only).
Press the Blue button, select the page number, then press and hold

STR

.

The page number is now stored.

Press to recall the stored page number.

37

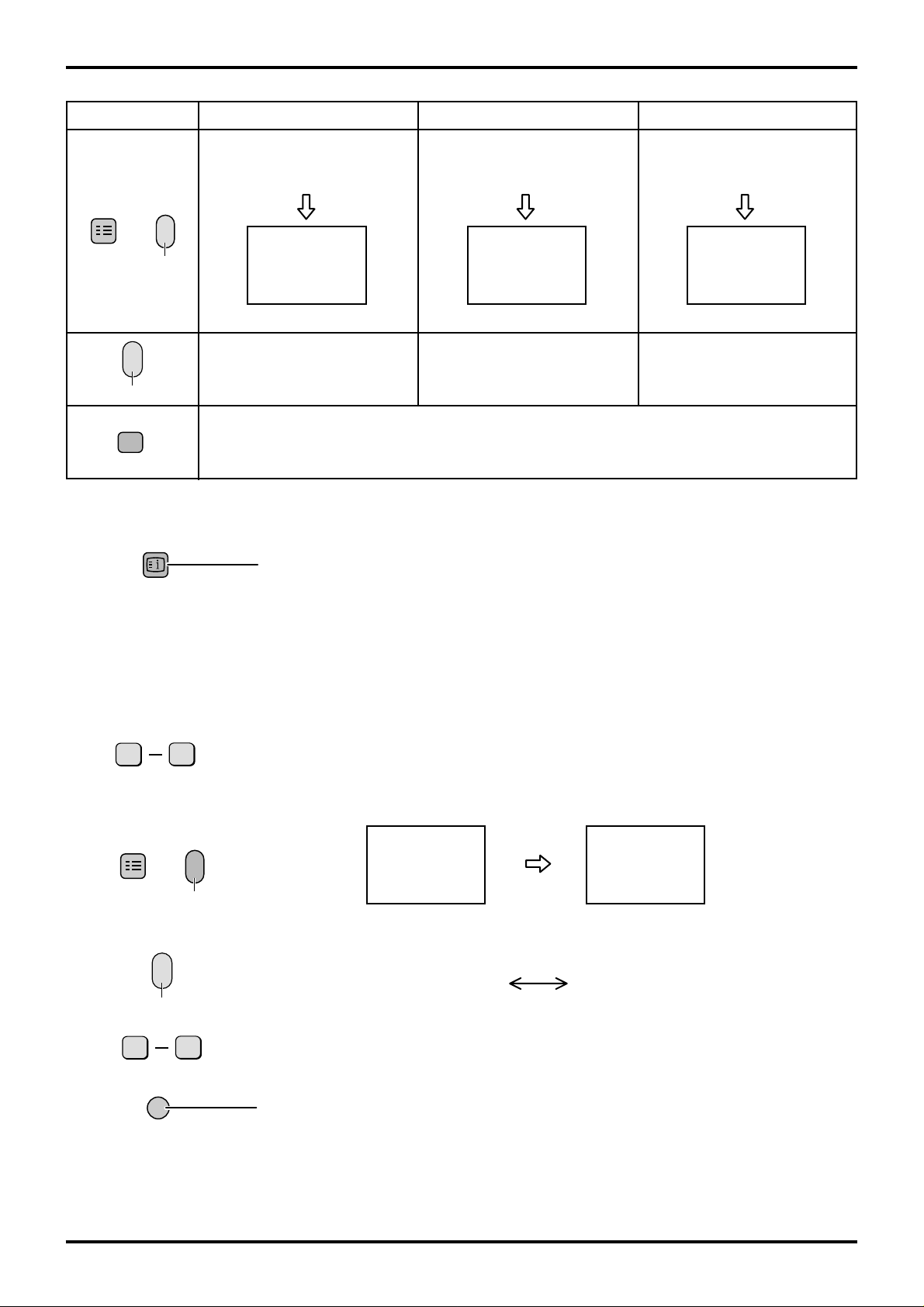

TELE TEXT

SET UP

Index

+

Yellow

Yellow

N

INDEX

CH SEARCH

Teletext page

Press to display special
functions to view the TV picture
whilst searching for a Teletext
page .

P100 P100

When found a page.
Press to view the page.

Return to normal TV operation.

Press to return to the main index page.
Depending on the way information is transmitted, this may have to be pressed more than
once to return to the main index page.

News Flash Update

Press to view the TV picture
When a news flash page has
been selected.

TV picture viewing

Press to display the News
Flash.

Press to see the update of
information on certain pages.

When an update is received.

Press to view the page.

Sub Coded Page Access

0

SET UP

9

+

Blue

Yellow

0

9

TV/AV

When Teletext information exceeds more than one page, it may take some time for the
automatic changing of the sub pages to reach the sub page you require.
It is possible to enter your required sub page and continue watching the normal
programme until the correct sub page is found.

Select the required page number using buttons 0 - 9.
If the top of the page indicates that sub pages are being transmitted yet the page does
not change, then the number at the top of the page is there to indicate that the broadcaster
has updated the page's contents, there are no sub pages.

T

****

Enter desired sub page number before the T∗∗∗∗ disappears. To select page 6 enter 0,
0, 0 and 6.

Viewing a normal TV programme. Viewing the Teletext page.

Select a new page number.

Press to return to normal TV operation.

T0006

38

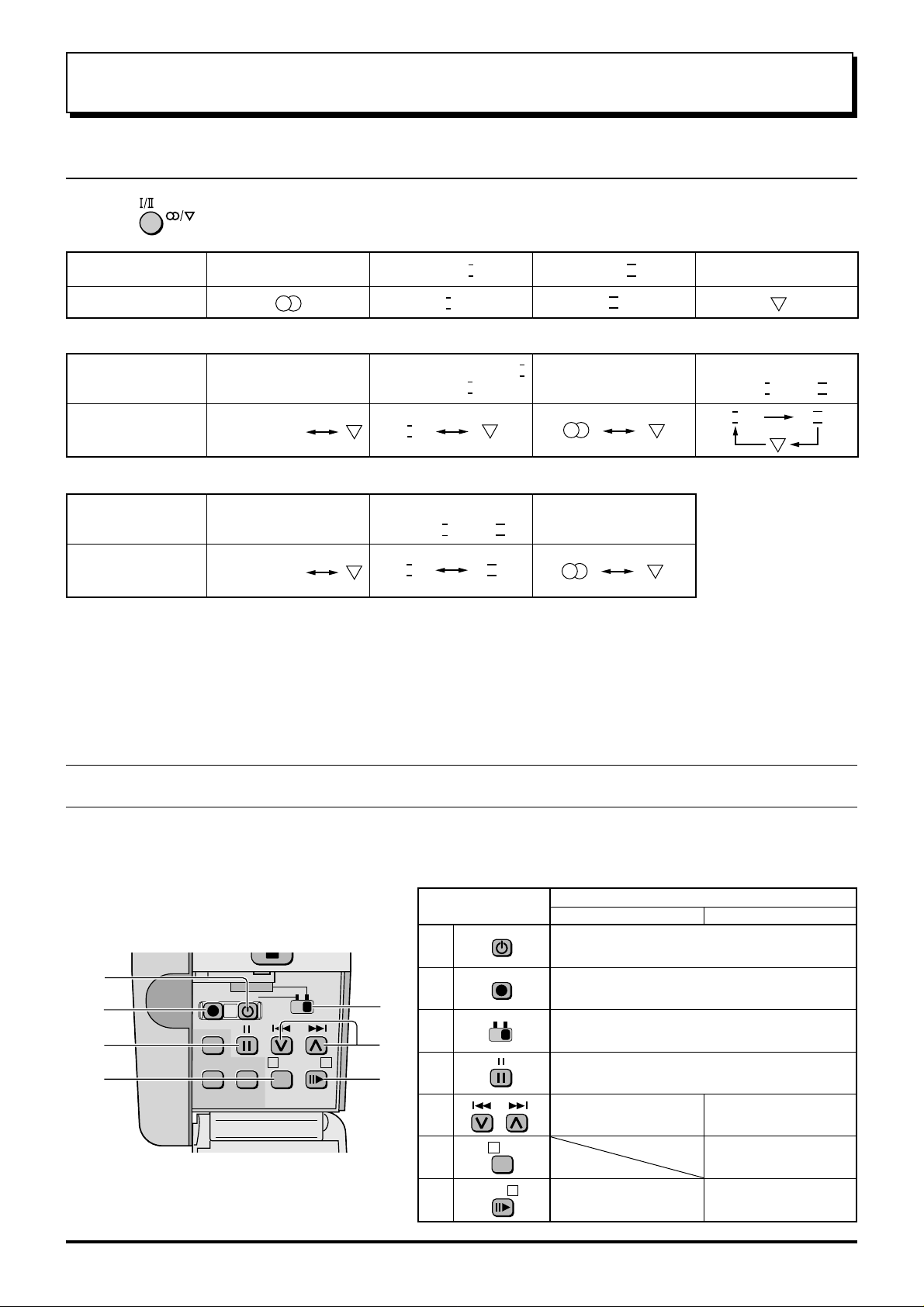

Advanced Remoto Control Operation

Stereo Bilingual Sound Selection

When you receive the stereo/bilingual sound system, sound output modes can be selected
by pressing the stereo/bilingual sound selection button.

Audio Signal

Mode Indicator

STEREO MAIN I SUB II MONO

I

II

NICAM .......Used in New Zealand, Malaysia, Thailand, Indonesia etc.

Type of broadcast

Mode Indicator

Regular broadcast

(Standard Audio)

No Indicator

Regular + NICAM MONO I

(MAIN I )

I

NICAM STEREO

NICAM DUAL MONO

(MAIN I / SUB II )

I

II

A2(German) .......Used in Australia, Malaysia,Singapore, China.

Type of broadcast

Mode Indicator

Regular broadcast

(Standard Audio)

No Indicator

BILINGUAL or DUAL MONO:

MAIN I / SUB II

I

II

STEREO

Notes:

• If the stereo signal is poor or the receiving conditions are not optimum or if STEREO:MONO automatic switching
occurs, it is recommended you switch from STEREO to MONO.

• Even when the contents of the receiving signal undergo changes, selection mode is kept intact.

• When the receiving conditions deteriorate, listening will be easier if the mode is set to the “MONO” position, using
the stereo/bilingual sound selection button.

• “DUAL”, also known as “DUAL MONO” or as “BILINGUAL” is not currently transmitted in some countries.

VCR / LD / DVD Control

The Remote Control is capable of operating some functions of selected Panasonic VCRs, LD and DVD (Digital Versatile
Disc) equipment. Some VCR, LD and DVD equipment have different functions. So to ensure compatibility please refer
to the equipment's instruction book or consult your dealer for details.

Button

1

1
2

4
6

LD/DVD

REC-VCR

N

STR HELP

?

A B

DISC SIDE

2

3

3

5

4

7

5

A

SIDE

DISC

B

6

7

Power Switch

REC (Record)

VCR/LD, DVD Select button

Pause/Still

Programme Number
Up and Down

Still Advance

VCR

Function

LD/DVD

Programme Skip
DISC SIDE A

Selection
DISC SIDE B

Selection

39

Advanced Remoto Control Operation

Manufacturer

Code

Manufacturer

Code

Panasonic/
National
AIWA
FUJITSU
HITACHI
JVC
MITSUBISHI

NEC
ORION
PHILIPS
SANYO
SHARP
SONY
TOSHIBA

10,11,12,13
15,16

20
25,26,27
30,31,32
35,36

40,41,42,43
45,46
50
55,56,57,58
60,61
65,66,67
70,71

VCR

Manufacturer

Code

Manufacturer

Code

Panasonic
KENWOOD
PHILIPS
PIONEER

SAMSUNG
SHARP
SONY

30
35
40,41,42,43

10,11,12,13
15,16
20
25

LD

Manufacturer setting

Remote Control Operation is possible for the VCR’s, LD’s and DVD’s of the various manufacturers.
After completion of setting, execute the various operations .


SOUND

SET UP

TV/TEXT

100Hz/

PROGRE

SURROUND

ASPECT

MULTI

PIP

INDEX HOLD

F.P.

CH SEARCH

STILL

1 2 3
4 5 6
7 8

0

TV/AV

9

1

2

Press to select VCR or LD /DVD.

While pressing the VCR / LD / DVD Power
button, press the manufacturer code (enter the
two digit code), and press the VCR / LD / DVD

1 2 3
4 5 6
7 8

0

9

Stop button.

2

Note:

After setting, execute operation confirmation.
If there is no operation, set a different code.

(1) The respective VCR / LD / DVD manufacturer code is cancelled when battery has been exchanged.
Please set it again.
(2) Depending on the model, operation of VCR’s, LD’s or DVD’s of the manufacturers listed above may not be

(3) In some cases, new products may not be operative.
(4) It will not operate with other than the above manufactures.

40

LD/DVD

REC-VCR

N

STR HELP

?

Helpful Hint

possible.

A B

DISC SIDE

2
1

2

DVD

Manufacturer
Panasonic

70, 71

Code

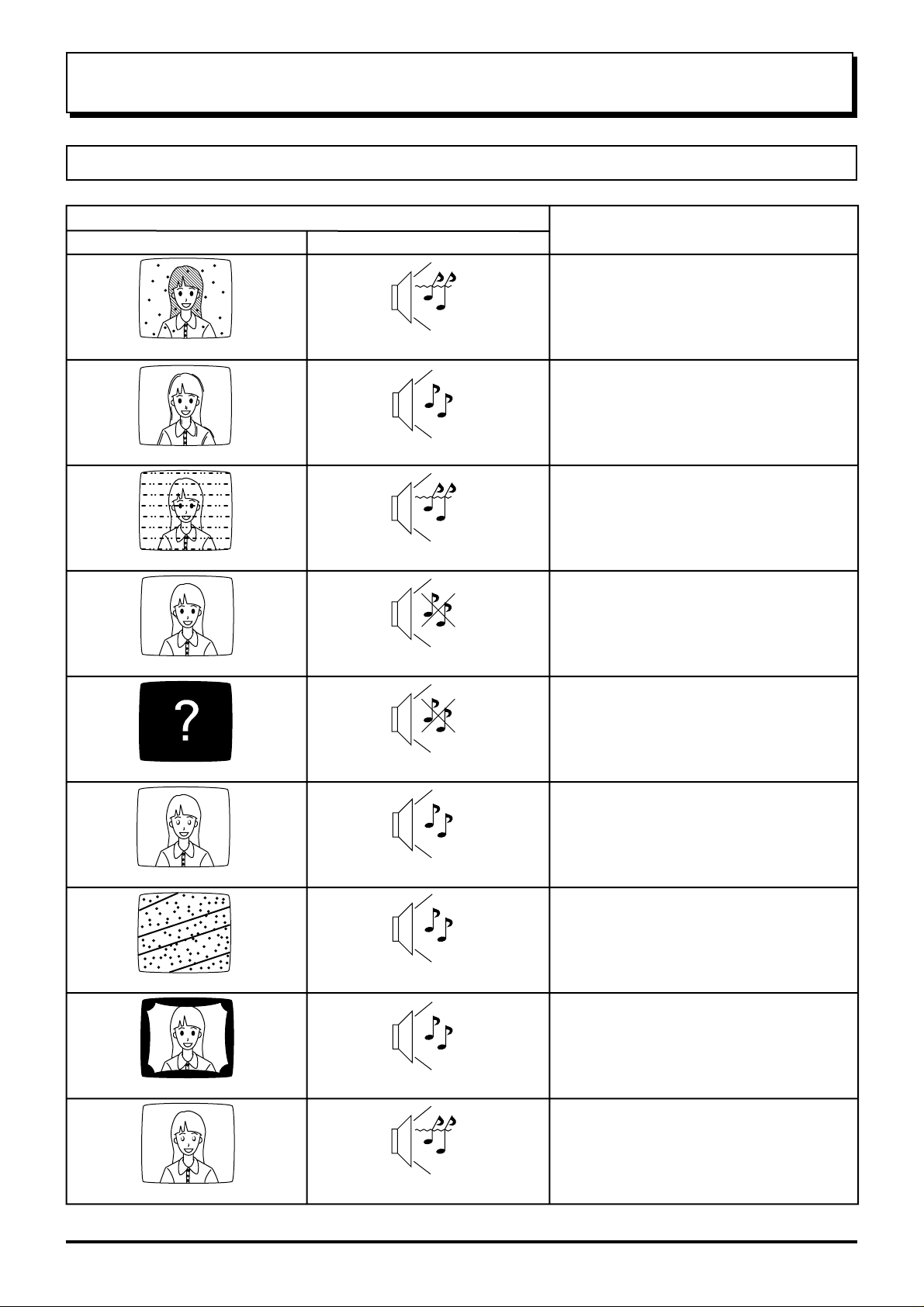

Troubleshooting

Before you call for service, determine the symptoms and make a few simple checks as shown below.

Symptoms

Picture Sound

Snowy Picture

Multiple Image

Interference

Normal Picture

No Picture

Noisy Sound

Normal Sound

Noisy Sound

No Sound

No Sound

Checks

Aerial Location, direction or Connections

Aerial Location, direction or Connections

Electrical Appliances
Cars/Motorcycles
Fluorescent Lamps

Volume (Refer to page 12, 13)
(Check whether the mute function has
been activated on the Remote Control.)

Not plugged into AC outlet
Not switched on
Contrast and Brightness/Volume setting
(Check by pressing the Power Switch or
Stand-by Button on the Remote Control.)

No Colour

Scrambled

Coloured Patches

No Colour

Normal Sound

Normal or

Weak Sound

Normal Sound

Noisy Sound

Colour Control (Refer to page 28, 29)
Colour System (Refer to page 26)

Retune Channels (Refer to page 19)

Magnetic interference from unshielded
equipment;
TV set moved while “ON”.
Turn the TV set off for 30 minutes, using
the “Power” Switch on the TV set.

Sound System (Refer to page 26)
Colour System (Refer to page 26)

41

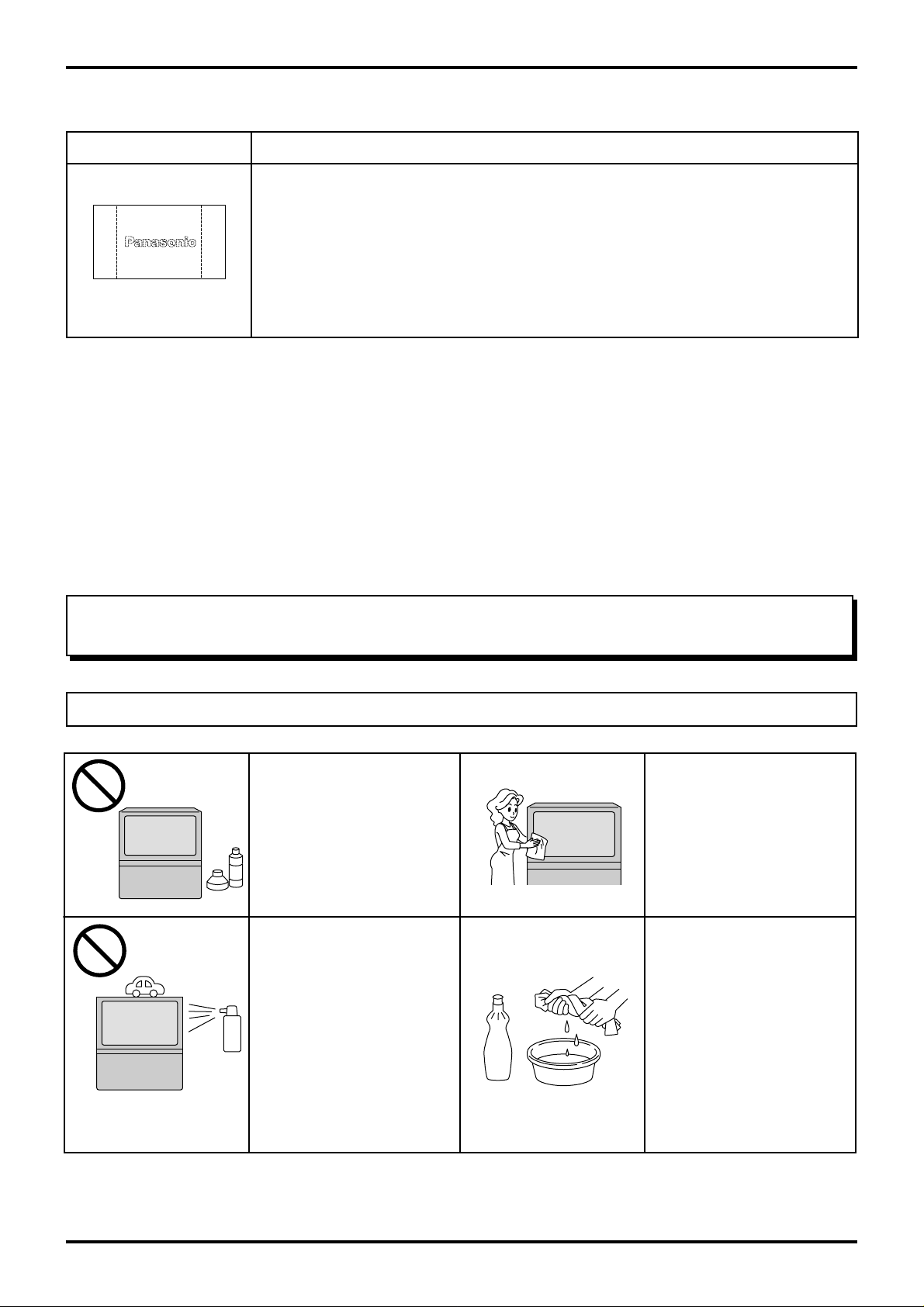

Troubleshooting

Projection TV screen

Symptoms

After-images appear

Checks

Do not allow a still picture to be displayed for an extended period, as this can cause a
permanent after-image to remain on the Wide Projection TV screen.
Examples of still pictures include logos, video games, computer images, teletext and images
displayed in 4:3 mode.

Note:

The permanent after-image on the Wide Projection TV screen resulting from fixed image use
is not an operating defect and as such is not covered by the Warranty.
This product is not designed to display fixed images for extended periods of time.

Cleaning

To ensure continued excellent performance by this product, periodic cleaning is recommended.

The unit contains many plastic
parts. For this reason DO
NOT use benzine, thinner or
other chemicals to clean the
unit.

DO NOT bring into contact
with insecticide or other
volatile substances.
DO NOT allow the unit to
come into contact for
extended periods with rubber
or vinyl products.

Dust will accumulate on the
picture screen. Please wipe
with a soft cloth from time to
time. If you use a chemically
treated cloth, please be
to follow the instructions that
come with the cloth.

Remove dirt and soiling by
wiping with a light cloth.
Even if the unit is heavily
soiled, do not apply cleaner
directly to the unit. Soak a
cloth in a solution of neutral
cleanser thinned with water.
Then wring out the cloth, wipe
the unit clean, and finish by
wiping with a dry cloth.

Do not use any type of
cleansers on the picture
screen.

careful

42

Specifications

TX-47P600X TX-47P600H
Power Source
Power Consumption

Remote control
Transmitter

Dimensions

( W × H × D )

Mass (Weight)

Receiving System

21 Systems Function

PAL B, G, H

1

PAL I

2

PAL D, K

3

SECAM B, G

4

SECAM D, K

5

SECAM K1

6

NTSC M (NTSC 3.58/4.5 MHz)

7

NTSC 4.43/5.5 MHz

8

NTSC 4.43/6.0 MHz

9

NTSC 4.43/6.5 MHz

10

NTSC 3.58/5.5 MHz

11

NTSC 3.58/6.0 MHz

12

NTSC 3.58/6.5 MHz

13

SECAM I

14

AC 220-240 V, 50/60 Hz AC 110-240 V, 50/60 Hz
218 W Stand-by condition 3.0 W

228 W Stand-by condition 3.0 W

EUR511229

R6 (AA) Battery × 2

1095 mm × 1190 mm × 540 mm

59 kg (Net)

21 Systems Function

15

Reception of broadcast
transmis-sions and
Playback from Video
Cassette Tape
Recorders.

Playback from Special
VCR's

PAL 60 Hz/5.5 MHz

16

PAL 60 Hz/6.0 MHz

17

PAL 60 Hz/6.5 MHz

18

SECAM 60 Hz/5.5 MHz

19

SECAM 60 Hz/6.0 MHz

20

SECAM 60 Hz/6.5 MHz

21

NTSC 50 Hz/4.5 MHz

Playback from Special
Disc Players and
Special VCR's

Receiving Channels

Receiving Stereo
System

Tuning System

Audio Output
Speaker System

Headphones
Aerial Impedance

Video/Audio/
Component Terminals

Regular TV

VHF BAND

2-12 (PAL/SECAM B, K1)
0-12 (PAL B AUST.)
1-9 (PAL B N.Z)
1-12 (PAL/SECAM D)
1-12 (NTSC M Japan)
2-13 (NTSC M U.S.A)

UHF BAND

21-69 (PAL G, H, I/SECAM G,
K, K1)
28-69 (PAL B AUST.)
13-57 (PAL D, K)
13-62 (NTSC M Japan)
14-69 (NTSC M U.S.A)

NICAM I , NICAM B/G, NICAM D, A2 (German)

Frequency synthesizer Auto Search Tuning

POSITION : 100 Position
DIRECT : 125 Position

24 W [ 12 W + 12 W ] ( 10 % THD ), 30 W [ 15 W + 15 W ] ( MAX )

Woofer (13 cm 2 ) + TWEETER (6 cm) 2

3.5 mm Plug 2

75 Ω Unbalanced coaxial

AV 1, 2, 3, 4

S-Video In
DVD (Y/P

B/PR

)
Video In
Audio In

Monitor Out

Video Out
Audio Out

AV1 IN (Rear) : S-Video, Video, Audio L/R terminals
AV2 IN (Rear) : Video or Y/P

B/PR

, Audio L/R terminals
AV3 IN (Front) : S-Video, Video, Audio L/R terminals
AV4 IN (Rear) : Video or Y/P

B/PR

, Audio L/R terminals

CATV

S1-S20 (OSCAR)
1-125 (U.S.A CATV)
C13-C49 (JAPAN)
S21-S41 (HYPER)
Z1-Z37 (CHINA)
5A, 9A (AUST.)

Y:1 Vp-p, 75 Ω
C:0.3 Vp-p, 75 Ω

1 Vp-p, 75 Ω
Approx. 0.5 V 47 KΩ
1 Vp-p, 75 Ω
Approx. 0.5 V 1 KΩ

Note: Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.

43

Customer’s Record

The model number and serial number of this product can be found on its cabinet. You should
note this serial number in the space provided below and retain this book plus your purchase
receipt as a permanent record of your purchase to aid in identification in the event of theft or
loss and for Warranty Service purposes.

Model Number Serial Number

Printed in Japan
MBS0802O0

Matsushita Electric Industrial Co., Ltd.

Web Site : http://www.panasonic.co.jp/global/
