Panasonic TX-32CS600EW, TX-32CS600E User Manual

Download
Page 1
TX-32CS600E
TX-32CS600EW
e
HELP
English
Page 2
my Home Screen
my Home Screen
•How to use 11
APPS List
Watching
Basic
•Off Timer 30
External equipment
For best picture
- 2 -
Page 3
For best audio
TV Guide
Teletext
Tuning and editing channels
- 3 -
Page 4
Media Player
Using Media Player
Photo mode
Video mode
Music mode
•Music Setup 110
Technical information
•Device handling caution 111
•USB devices 112
•Photo format 113
•Video format 114
•Music format 117
Network
Internet content
•Information 118
•Selecting internet content 119
DLNA
- 4 -
Page 5
Network connections
Network settings
•Network Connection 129
•Custom - Wireless 131
•VIERA Name 139
•TV Remote App Settings 140
Photos
Videos
Music
- 5 -
Page 6
DIGA Recorder
Technical information
Functions
Mirroring
DVB-via-IP
VIERA Link “HDAVI Control™”
•Intelligent Auto Standby 182
Child Lock
Data Service Application
- 6 -
Page 7
Common Interface
Shipping Condition
Updating the TV Software
Setting characters
Keyboard
Settings
Setting menu
•Copy Adjustment 211
Sound
•Mode 213
- 7 -
Page 8
•Audio Description 217
Network
•Network Connection 220
•VIERA Name 223
•TV Remote App Settings 224
Timer
•Time Zone 230
Setup
•VIERA Link Settings 242
•Data Service Application 243
- 8 -
Page 9
Support
Help menu
FAQs
Maintenance
Optional accessories
•Wall-hanging bracket 257
Licence
OK Letters enclosed in brackets indicate remote control buttons.
Menu Letters in cyan indicate on-screen display items.
References in this eHELP
●
The images shown in this eHELP are for illustrative purposes only.
- 9 -
Page 10

my Home Screen

my Home Screen

Information

“my Home Screen” is a gateway to the TV, applications, and more.
It provides easy access to special features such as Media Player, videos, games, communication tools, etc. as shown below (example).
HOME
OK
OK HOME
Home Screen
Selected content screen (TV, application, etc.)
Home Screen Selection
– Your preferred Home Screen can be selected.
- 10 -
Page 11

How to use

Home Screen provides access to special features such as Media Player, TV, internet content, data services, communication tools, etc.
1. Display Home Screen with HOME. (Example)
●
The last viewed Home Screen is displayed when the TV is turned on.
●
Press again to select or add your preferred Home Screen layout.
my Home Screen > my Home Screen > Settings
2. Select a feature and press OK to access.
●
To watch full-screen TV
1) Select the TV viewer. (Example)
2) Press OK to watch. (Example)
●
Also refer to Tutorial from the tool guide.
- 11 -
Page 12

Settings

Select the setup menu from the tool guide on the top of the screen. (Example)
●
Display the tool guide with HOME if it is not displayed.
■ Home Screen Selection
1. Display Home Screen Selection with HOME. (Example)
2. Select the screen and press OK to set.
Full Screen TV:
Displays full-screen TV.
TV Home Screen:
To make your TV experience more convenient and comfortable
Lifestyle Screen:
Displays the TV with useful information and services for everyday life.
Info Screen:
Enjoy internet content while watching TV.
■ Settings
You can customise any Home Screen. (For example, changing the wallpaper, renaming freely, editing applications, setting the screen launched when the TV is turned on, etc.)
1. Select Settings from the tool guide.
2. Follow the on-screen instructions.
- 12 -
Page 13
■ Search
You can search the content from various features.
1. Select Search from the tool guide.
2. Follow the on-screen instructions.
= Note =
●
To change the colour type of on-screen displays, set OSD Colour.
my Home Screen > my Home Screen > OSD Colour
●
A broadband network environment is required to be able to use this function fully. Ensure the network connections and network settings are completed.
Network > Network connections
Network > Network settings
●
Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated, you may not be able to use my Home Screen. You can update the software later manually.
Network > Network settings > Software Update
- 13 -
Page 14

OSD Colour

1. Display the menu with MENU.
2. Select Setup > Display Settings > OSD Colour and press OK to access.
3. Set the item and press OK to store.
OSD Colour
(Jet black / Pale grey / Organic brown / Sand beige)
Selects the preferred colour type of on-screen displays.
●
This function is available for the information banner, menu screen, Home Screen, etc.
- 14 -
Page 15

APPS List

Information

Various applications (internet content, network content, Media Player, etc.) can be accessed easily from APPS List.
■ APPS List
(Example)
= Note =
●
APPS List is subject to change without notice.
- 15 -
Page 16

How to use

You can access special features such as internet content, network content, Media Player, etc. from APPS List.
1. Display APPS List with APPS. (Example)
●
To exit APPS List
EXIT
2. Select an icon of the features and press OK to access.
Internet content
Network > Internet content
Netflix
●
You can also access the service pressing NETFLIX.
●
A broadband network environment is required to be able to use this function fully.
●
This service may be stopped or changed without notice.
Media Player
Media Player > Using Media Player > Selecting device / mode
Media Server
Network > DLNA > Using DLNA
VIERA Link
Functions > VIERA Link “HDAVI Control™”
- 16 -
Page 17

Settings

You can customise APPS List (screen settings, etc.).
1. Display APPS List with APPS.
2. Select the icon for settings on APPS List and press OK to access.
3. Follow the on-screen instructions.
= Note =
●
Setup menu items may be changed without notice.
- 17 -
Page 18

Watching

Basic

Basic connection

Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables.
●
External equipment and cables shown are not supplied with this TV.
■ Aerial
Terrestrial / cable terminal
RF cable
Terrestrial aerial / Cable
●
For DVB-C, DVB-T, Analogue
- 18 -
Page 19
■ DVD Recorder / VCR
Terrestrial / cable terminal
RF cable
DVD Recorder / VCR
Terrestrial aerial / Cable
AV1 (SCART) terminal
SCART cable
- 19 -
Page 20
■ DVD Recorder (VCR) / Set top box
HDMI terminal
HDMI cable
Set top box
Satellite dish
AV1 (SCART) terminal
SCART cable
Terrestrial / cable terminal
RF cable
DVD Recorder / VCR
Terrestrial aerial / Cable
= Note =
●
For details of DVB-via-IP connections
Functions > DVB-via-IP
●
For details of VIERA Link connections
Functions > VIERA Link “HDAVI Control™” > Summary of VIERA Link
●
Please also read the manual of the equipment being connected.
●
Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor, otherwise distortion of image / sound may occur or operation of other equipment may be affected.
●
Use a fully wired HDMI compliant cable.
●
Use a fully wired SCART cable.
●
Check the terminal type and cable plugs are correct for connection.
- 20 -
Page 21

Selecting channel

1. Select the mode with TV.
DVB-C / DVB-T / DVB-via-IP / Analogue
●
Selectable modes vary depending on the channels stored.
2. Select a channel with Channel Up / Down or Numeric buttons.
●
Press Numeric buttons to select a channel position with 2 or more-digit (e.g. 399, press
).
■ To select a channel from the channel list
1. Display the channel list with OK.
2. Select a channel from the list and press OK to watch.
●
To sort channel names in alphabetical order
(red)
●
To change the category
(blue)
■ To select a channel using information banner
1. Display information banner with if it is not displayed.
2. Select a channel and press OK to watch while the banner is displayed.
Watching > Basic > Information banner
■ To select a channel using TV Guide
1. Display TV Guide with GUIDE.
2. Select the current programme and press OK to access.
– The current programme is displayed on the top left of the screen.
3. Press OK to exit TV Guide.
Watching > TV Guide > Using TV Guide
- 21 -
Page 22
■ To watch pay-TV
●
For details of the encrypted channels
Functions > Common Interface > Using Common Interface
●
Consult the operator / broadcaster or CI module manufacturer for more information and conditions of the services.
- 22 -
Page 23

Information banner

Display information banner with .
●
Also appears when changing a channel. (Example)
Channel position and name
Channel type (Radio, HDTV, etc.) / Encrypted channel ( ) / TV mode ( ,
, , )
Programme
Start time / End time (except Analogue)
Channel position, etc. (Analogue)
Progress time indicator of the selected programme (except Analogue)
Category
●
To change the category (DVB)
1) Display the category list with
(blue).
2) Select the category and press OK to change.
Current time
Features available / message meanings
Bad signal:
Poor quality TV signal
Dolby D+, Dolby D, HE-AAC:
Dolby Digital Plus, Dolby Digital or HE-AAC audio track
AD:
Audio Description service available
●
This function can aid visually-impaired viewers by providing an additional audio track to describe events on screen.
Watching > For best audio > Audio Description
- 23 -
Page 24
:
Subtitle service available
:
Teletext service available
:
Multiple audio available
:
Multiple video available
:
Multiple audio and video available
Stereo, Mono:
Audio mode
:
Data service (Hybrid Broadcast Broadband TV application) available
Functions > Data Service Application > Using Data Service Application
1 – 90:
Off Timer remaining time
Watching > Basic > Off Timer
●
To confirm another tuned channel
/
●
To watch the channel listed in the banner
OK
●
Information on the next programme (DVB)
●
Extra information (DVB)
– Press again to hide the banner.
●
To hide the banner
EXIT
●
To adjust banner timeout, set Banner Display Timeout.
1) Display the menu with MENU.
2) Select Setup > Display Settings > Banner Display Timeout and press
OK to access.
- 24 -
Page 25
3) Set the item and press OK to store.
●
To change the colour type of on-screen displays, set OSD Colour.
my Home Screen > my Home Screen > OSD Colour
●
To display the introduction banner for the internet service
1) Display the menu with MENU.
2) Select Setup > Display Settings > Smart Banner and press OK to
access.
3) Select On / Off and press OK to set.
- 25 -
Page 26

Option Menu

Confirm or change the current status.
1. Display the option menu with OPTION.
2. Select one of the following items and press OK to access.
Voice Guidance Settings / Audio Type / Multi Video / Multi Audio / Dual Audio / Sub Channel / Subtitle Language / Teletext Character Set / Teletext Language / MPX / Volume Correction
●
The function items vary depending on the TV mode and country you select.
3. Set the item and press OK to store.
Voice Guidance Settings
Guidance settings for visually impaired users
Watching > For best audio > Voice Guidance Settings
Audio Type
Set to Audio Description if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen (if available).
●
For DVB
●
To adjust the volume for Audio Description
Watching > For best audio > Audio Description
Multi Video
Selects from a group of multiple videos (if available).
●
This setting is not memorised and it returns to the default setting once you exit the current programme.
●
For DVB
Multi Audio
Selects between alternative language or Audio Description for sound tracks (if available).
●
This setting is not memorised and it returns to the default setting once you exit the current programme.
●
For DVB
- 26 -
Page 27
Dual Audio
Selects stereo / monaural (if available).
●
For DVB
Sub Channel
Selects the multifeed programme - sub channel (if available).
●
For DVB
Subtitle Language
Selects the language for subtitles (if available).
●
For DVB
Teletext Character Set
Sets the teletext language font.
Watching > Teletext > Teletext Character Set
Teletext Language
Selects between alternative languages for teletext (if available).
●
For DVB
MPX
Selects multiplex sound mode (if available).
Watching > For best audio > Advanced settings
●
For Analogue
Volume Correction
Adjusts the volume of each individual channel or input mode.
- 27 -
Page 28

Subtitle

Display / hide subtitles (if available) with STTL.
●
To select the preferred language for DVB subtitles (if available), set
Preferred Subtitles.
Watching > Basic > Language
●
To select the preferred subtitle type
1) Display the menu with MENU.
2) Select Setup > Display Settings > Preferred Subtitle Type and press
OK to access.
3) Select Standard / Hard of Hearing and press OK to set.
– Hard of Hearing provides aids in understanding and enjoyment with
DVB subtitles (depending on the broadcaster).
●
Preferred Subtitles 1 / 2 in Language are given priority.
Watching > Basic > Language
= Note =
●
If you press STTL in Analogue, the TV switches to teletext service and calls up a favourite page. Press EXIT to return to TV mode.
- 28 -
Page 29

Last view

Switch to a previously viewed channel or input mode easily with LAST VIEW.
●
Press again to return to the current view.
= Note =
●
Switching channel may not be available depending on the condition.
●
Watching less than 10 seconds is not reflected in the previously viewed channel or input mode.
- 29 -
Page 30

Off Timer

Turn the TV Standby mode automatically after a fixed period.
1. Display the menu with MENU.
2. Select Timer > Off Timer and press OK to access.
3. Select the time in 15-minute increments and press OK to set.
90 / 75 / 60 / 45 / 30 / 15 / Off (minutes)
●
To cancel, set to Off or turn the TV off.
●
The remaining time is displayed on the bottom right of the screen.
●
When the remaining time is less than 3 minutes, the remaining time will flash on the screen.
- 30 -
Page 31

Energy saving functions

The TV can be eco-friendly using energy-saving functions.
The TV goes into Standby mode in the following conditions:
●
Eco Navigation is set to Set to Eco.
●
Off Timer is active.
Watching > Basic > Off Timer
●
No operation is performed for 4 hours while Auto Standby is set to On.
●
No signal is received and no operation is performed for 10 minutes while
No signal Power off is set to On.
■ Auto Standby
1. Display the menu with MENU.
2. Select Timer > Auto Standby and press OK to access.
3. Select On / Off and press OK to set.
Auto Standby
(On / Off)
Automatically turns the TV to Standby mode for energy saving when no operation is performed for 4 hours.
●
Automatic input switching with the connected equipment affects this function and time-count resets.
●
A notification message will appear 3 minutes before going into Standby mode.
●
Changing the default configuration may result in higher energy consumption of the product.
- 31 -
Page 32
■ No signal Power off
1. Display the menu with MENU.
2. Select Timer > No signal Power off and press OK to access.
3. Select On / Off and press OK to set.
No signal Power off
(On / Off)
Automatically turns the TV to Standby mode to prevent unnecessary power consumption when no signal is received and no operation is performed for 10 minutes.
●
A notification message will appear 3 minutes before going into Standby mode.
■ Eco Navigation
Automatically sets the TV to the most suitable energy-saving mode.
The concerned items and their current settings are displayed. Select Set to
Eco to set them to the energy-saving settings at once.
1. Display the menu with MENU.
2. Select Setup > Eco Navigation and press OK to access.
3. Select Set to Eco and press OK to set.
●
Auto Standby and No signal Power off are active when Eco Navigation is
set to Set to Eco.
■ Radio Mode
Sets the timer for turning off the screen automatically when a radio channel is selected.
1. Display the menu with MENU.
2. Select Setup > Display Settings > Radio Mode and press OK to access.
3. Select the time and press OK to set.
20 / 15 / 10 / 5 / Off (seconds)
●
The sound is active even if the screen turns off. This function is effective in reducing power consumption when listening to a radio channel.
●
Press any buttons except Standby On / Off switch, Volume Up / Down and
MUTE to turn the screen on.
●
Not valid in Analogue
- 32 -
Page 33

Adjusting time

Adjusts the time data.
1. Display the menu with MENU.
2. Select Timer > Time Zone and press OK to access.
3. Set the item and press OK to store.
●
The time data are corrected based on GMT.
- 33 -
Page 34

Language

1. Display the menu with MENU.
2. Select Setup > Language and press OK to access.
3. Select one of the following items and press OK to access.
OSD Language / Preferred Audio 1 / 2 / Preferred Subtitles 1 / 2 / Preferred Teletext
4. Set the item and press OK to store.
OSD Language
Changes language for on-screen displays.
Preferred Audio 1 / 2
Selects the first and second preferred language for DVB multi audio (depending on the broadcaster).
Preferred Subtitles 1 / 2
Selects the first and second preferred language for DVB subtitles (depending on the broadcaster).
●
To display subtitles
Watching > Basic > Subtitle
Preferred Teletext
Selects the preferred language for DVB teletext service (depending on the broadcaster).
- 34 -
Page 35

External equipment

External connection

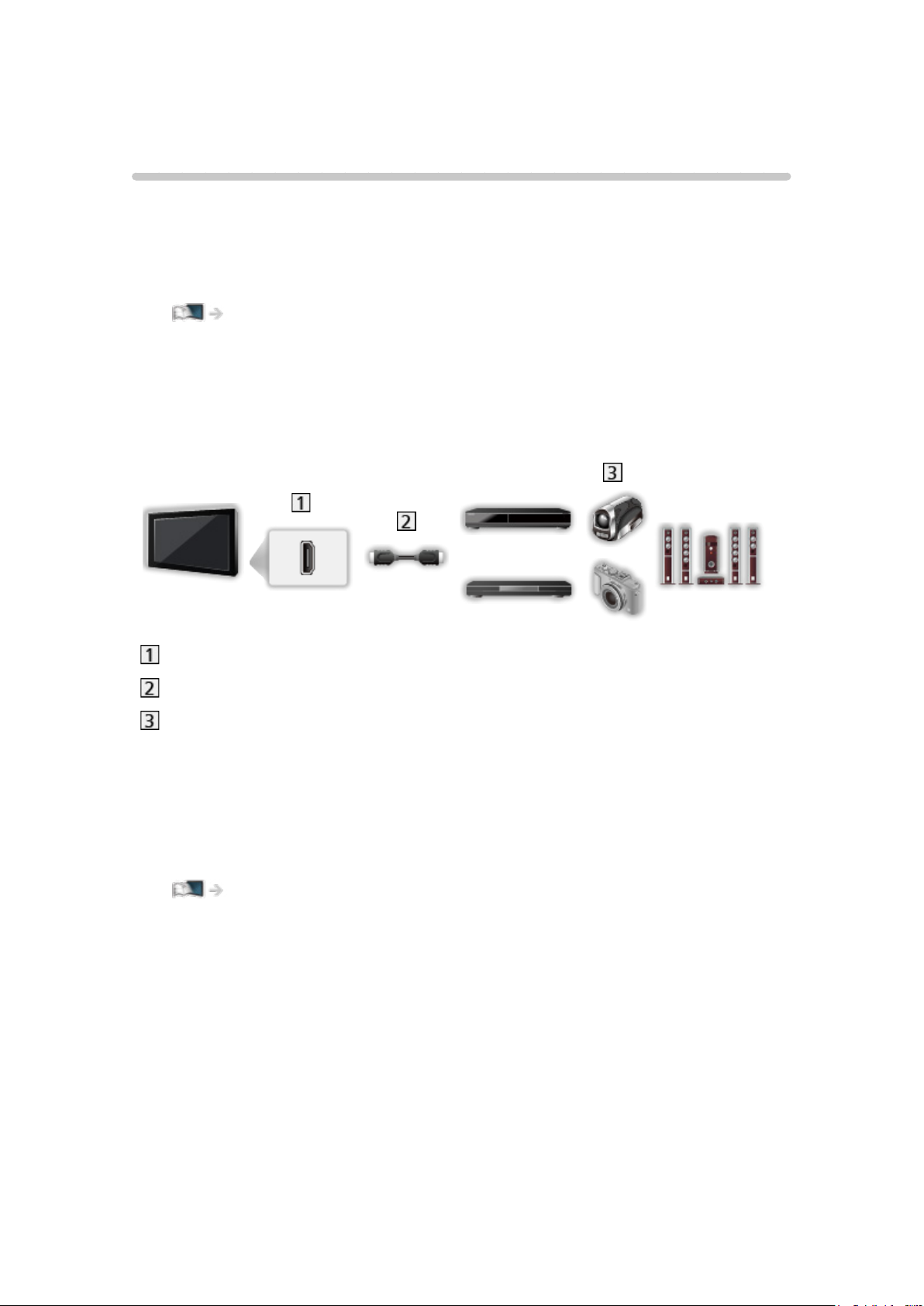

These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment.
●
For details of basic connection
Watching > Basic > Basic connection
●
Check the terminal type and cable plugs are correct for connection.
●
External equipment and cables shown are not supplied with this TV.
■ HDMI equipment
HDMI terminal
HDMI cable
Recorder / Player / Set top box / Camcorder / Amplifier with speaker
system
= Note =
●
Use a fully wired HDMI compliant cable.
●
For details of VIERA Link connections
Functions > VIERA Link “HDAVI Control™” > Summary of VIERA Link
●
Use HDMI2 for connecting an amplifier. This connection is applicable when using an amplifier that has ARC (Audio Return Channel) function.
- 35 -
Page 36

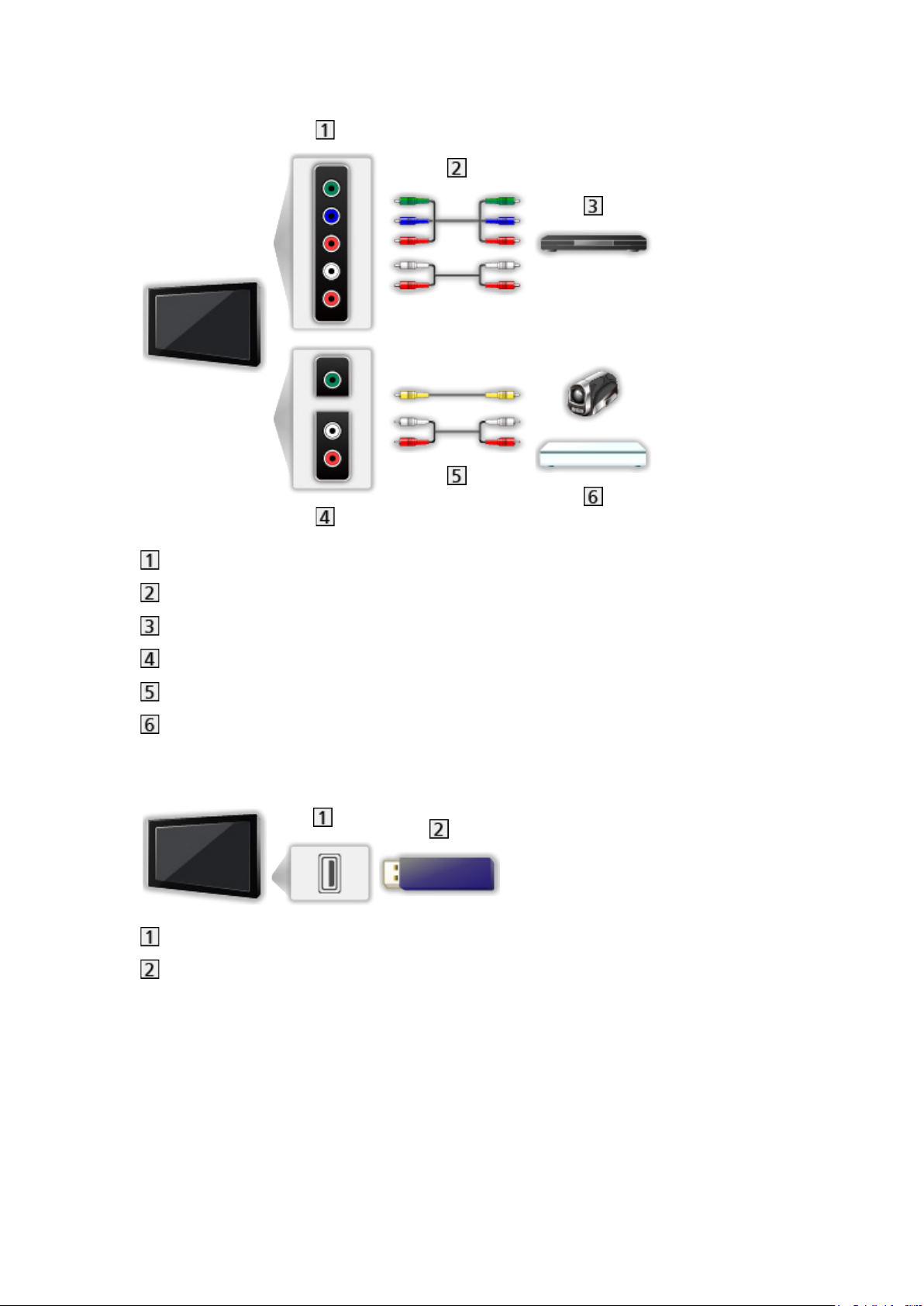

■ AV devices
AV2 (COMPONENT) terminals
Component cables
DVD Player
AV2 (VIDEO) terminals
Composite cables
Camcorder / Game equipment

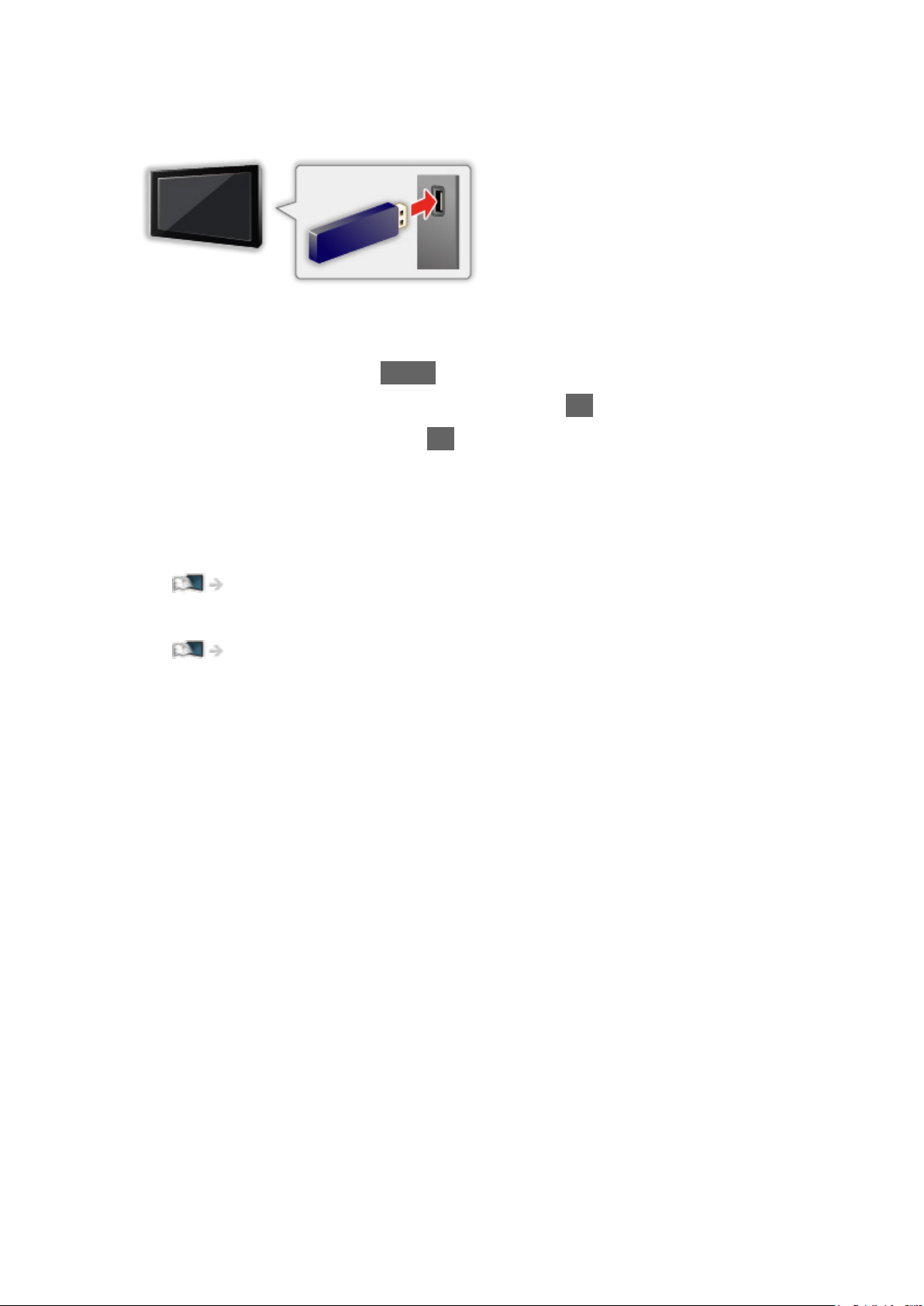

■ USB devices
USB port
USB devices
= Note =
●
It is recommended to connect the device to the TV’s USB port directly.
●
Some USB devices or USB HUB may not be used with this TV.
●
You cannot connect any devices by using USB card reader.
●
Additional information about the devices may be on the following website.
http://panasonic.net/viera/support (English only)
- 36 -
Page 37

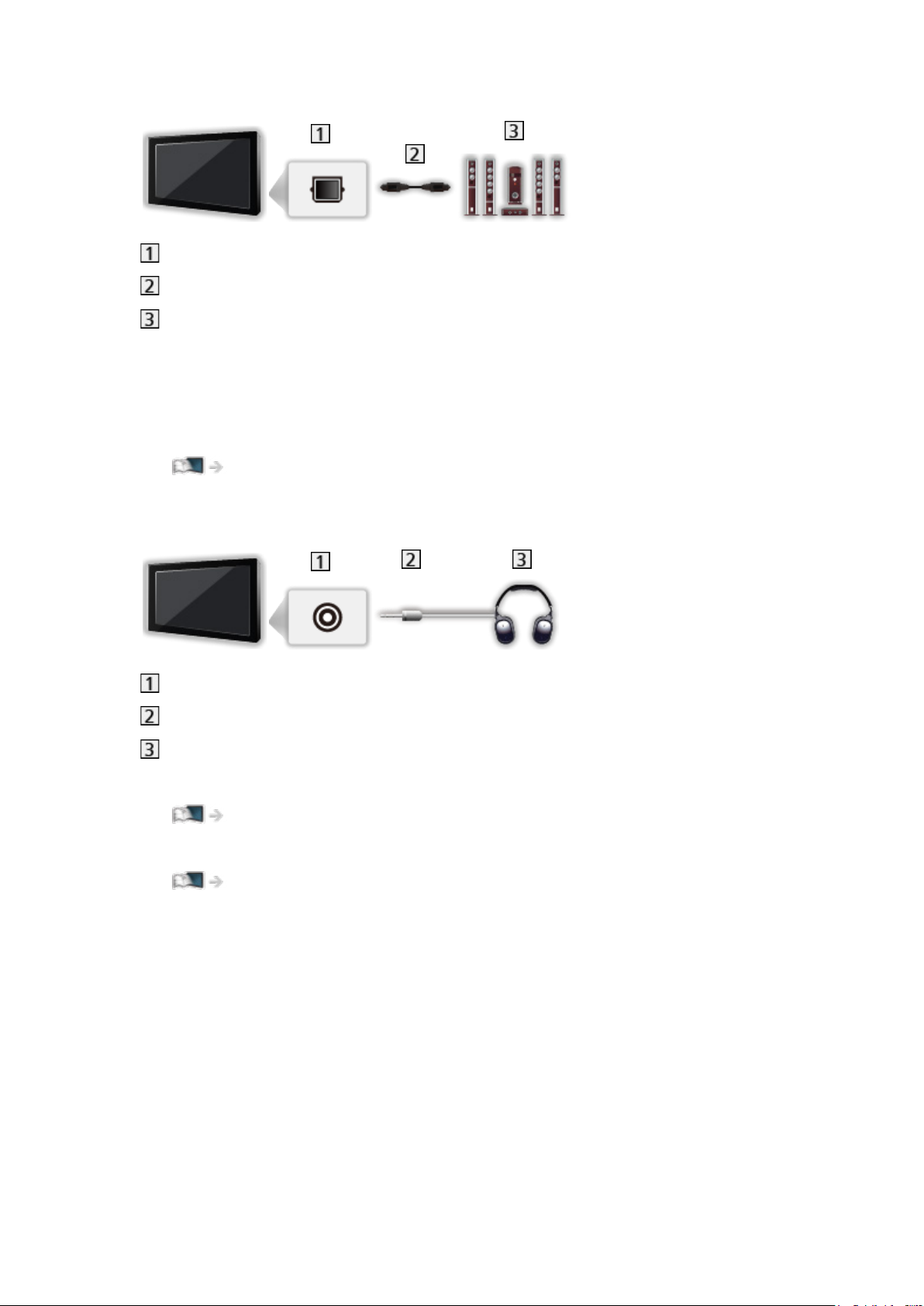

■ To listen with speakers
DIGITAL AUDIO
Optical digital audio cable
Amplifier with speaker system
●
To enjoy multi-channel sound from external equipment (e.g. Dolby Digital
5.1ch), connect the equipment to the amplifier. For information about the connections, read the manuals of the equipment and amplifier.
●
To select the sound output to adjust volume, set Speaker Setting.
Watching > For best audio > Volume settings
■ Headphones
Headphone jack
M3 stereo mini plug
Headphones
●
To adjust volume, set Headphone Volume.
Watching > For best audio > Advanced settings
●
To select the sound output to adjust volume, set Speaker Setting.
Watching > For best audio > Volume settings
- 37 -
Page 38

Watching external input

Connect the external equipment (VCR, DVD, etc.) and you can watch through the input.
1. Display the input selection menu with AV.
2. Select the input mode connected to the equipment and press OK to watch. (The selected mode is displayed on the top left of the screen.)
●
TV receives input signals automatically connecting with SCART when playback starts.
– Input signals are automatically identified by the SCART (pin 8) terminal.
– This function is also available for HDMI connections when VIERA Link
is set to On.
Functions > VIERA Link “HDAVI Control™” > Easy playback
– When input mode is not switched automatically, perform as above or
check the setup of the equipment.
●
You can also select the input pressing AV. Press repeatedly until the desired input is selected.
●
You can select COMPONENT and VIDEO in AV2.
●
You can label or skip each input mode. Skipped inputs will not be displayed when AV is pressed. (Input Labels)
●
The remote control is capable of operating the content or external equipment.
Watching > External equipment > Operating with TV’s remote control
●
To return to TV mode
TV
= Note =
●
If the external equipment has an aspect adjustment function, set it to 16:9.
●
For details, read the manual of the equipment or ask your local dealer.
- 38 -
Page 39
■ Input Labels
Accesses the input labels list to select the label of each input mode or set to skip unconnected one for easier identification and selection in Input Selection or banner.
Watching > Basic > Information banner
1. Display the menu with MENU.
2. Select Setup > Display Settings > Input Labels and press OK to access.
3. Set the item and press OK to set.
●
To name each input mode freely, select User input and set characters (maximum 10 characters).
●
To skip the input mode, select Skip.
- 39 -
Page 40

Operating with TV’s remote control

You can operate the content in Media Player / media server, recording functions or the connected equipment with the following buttons of this TV’s remote control.
:
Playback (VCR / DVD / video content)
:
Stop the operations
:
Rewind, view the picture rapidly in reverse (VCR)
Skip to the previous track, title or chapter (DVD / video content)
:
Rewind, view the picture rapidly in reverse (VCR)
Search backward (DVD / video content)
:
Fast-forward, view the picture rapidly forward (VCR)
Skip to the next track, title or chapter (DVD / video content)
:
Fast-forward, view the picture rapidly forward (VCR)
Search forward (DVD / video content)
:
Pause / Resume
Press and hold to play at slow speed (DVD)
:
Start recording (DVD Recorder / VCR)
- 40 -
Page 41
■ How to change the code
Each Panasonic product has its own remote control code. Change the code according to the product for operation.
1. Press and hold Standby On / Off switch during the following operations.
2. Enter the appropriate code as follows with Numeric buttons.
●
Codes for each product and features
70: DVD Recorder, DVD Player, Blu-ray Disc Player
71: Player theatre, Blu-ray Disc theatre
72: VCR
73 (default):
Using in Media Player, DLNA features or VIERA Link
3. Press
to change.
= Note =
●
Confirm if the remote control works correctly after changing the code.
●
The codes may be reset to defaults if batteries are replaced.
●
Some operations may not be available depending on the equipment.
- 41 -
Page 42

HDMI features

HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying with a non-compression standard.
HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment.
HDMI-compatible equipment
with an HDMI or DVI output terminal, such as a DVD player, a set top box or game equipment, can be connected to the HDMI terminal using a fully wired HDMI compliant cable.
Watching > External equipment > External connection
: The HDMI logo is displayed on HDMI-compliant equipment.
■ Applicable HDMI features
●
Input audio signal:
2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)
●
Input video signal:
Matches the output setting of the digital equipment.
Watching > External equipment > Valid input signals
●
VIERA Link (HDAVI Control 5)
Functions > VIERA Link “HDAVI Control™” > Summary of VIERA Link
●
Content Type
●
Audio Return Channel
– Audio Return Channel (ARC) is a function to send digital sound signals
via an HDMI cable.
– For HDMI2
- 42 -
Page 43
■ DVI connection
If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adaptor cable. When using the DVI to HDMI adaptor cable, connect the audio cable to the audio input terminal (use AV2 audio terminals).
●
Enquire HDMI adaptor cable at your local digital equipment retailer shop.
= Note =
●
Audio settings can be made on HDMI Input in the Sound Menu.
Watching > For best audio > Advanced settings
●
If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.
●
These HDMI connectors are “type A”.
●
These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.
●
Equipment having no digital output terminal may be connected to the input terminal of component or video to receive analogue signals.
●
This TV incorporates HDMI™ technology.
- 43 -
Page 44

Terminal information

■ AV1 (SCART) terminal (RGB, VIDEO)
1 : Audio out (R) 2 : Audio in (R) 3 : Audio out (L) 4 : Audio earth 5 : Blue earth 6 : Audio in (L) 7 : Blue in 8 : Status CVBS 9 : Green earth 10: -­11 : Green in
12: -­13: Red earth 14: Earth 15: Red in 16: Status RGB 17: CVBS earth 18: RGB status earth 19: CVBS out (video) 20: CVBS in (video) 21: Socket Earth
- 44 -
Page 45

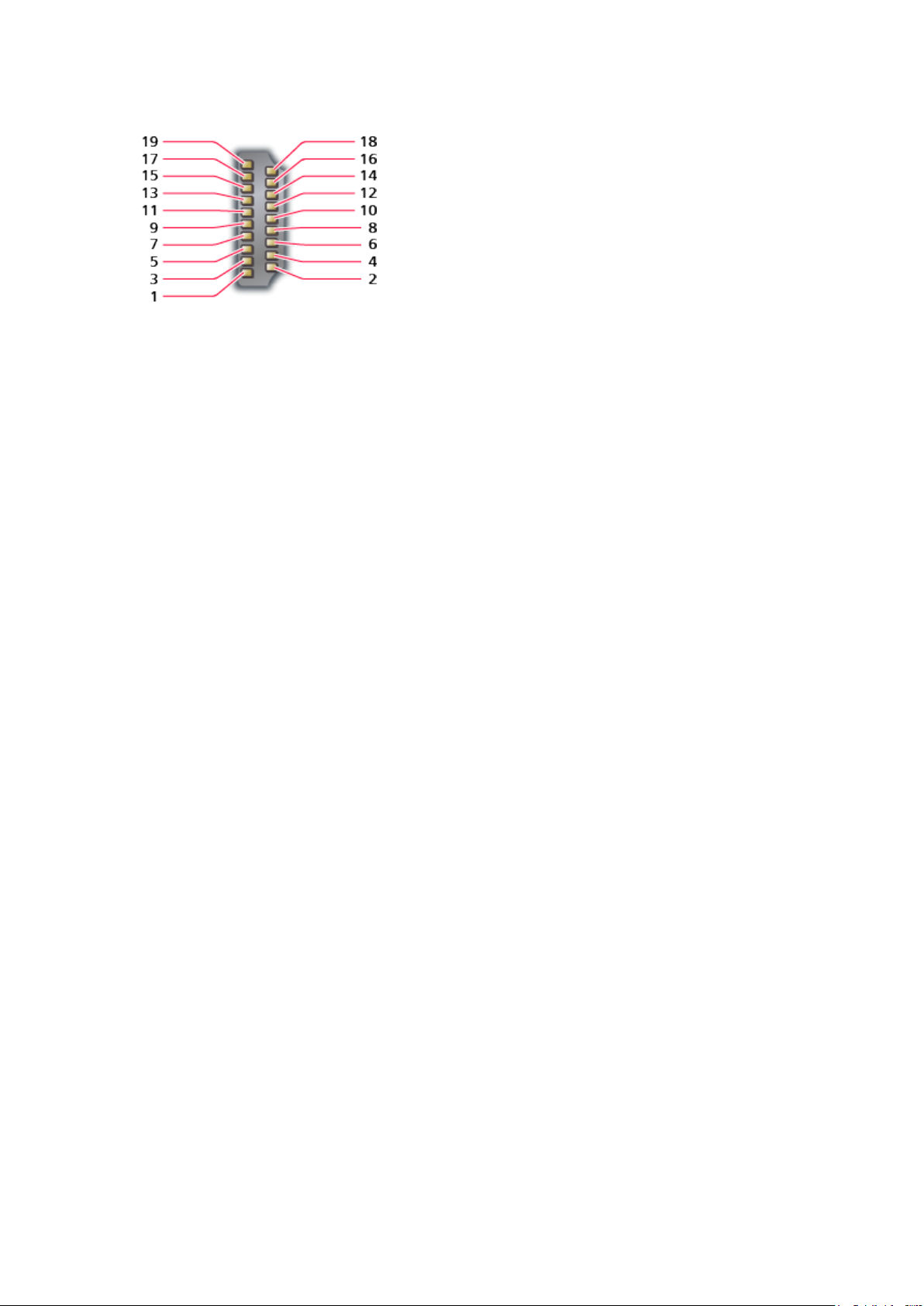

■ HDMI terminal
1 : TMDS Data2+
2 : TMDS Data2 Shield
3 : TMDSData2−
4 : TMDS Data1+
5 : TMDS Data1 Shield
6 : TMDSData1−
7 : TMDS Data0+
8 : TMDS Data0 Shield
9 : TMDSData0−
10: TMDS Clock+
11 : TMDS Clock Shield
12: TMDSClock−
13: CEC
14: Utility
15: SCL
16: SDA
17: DDC/CEC Ground
18: +5V Power
19: Hot Plug Detect
- 45 -
Page 46

Valid input signals

■ COMPONENT, HDMI
Signal name COMPONENT HDMI
525 (480) / 60i, 60p ○ ○
625 (576) / 50i, 50p ○ ○
750 (720) / 60p, 50p ○ ○
1 125 (1 080) / 60i, 50i ○ ○
1 125 (1 080) / 60p, 50p, 24p ○
○:Applicableinputsignal
= Note =
●
Signals other than above may not be displayed properly.
●
The above signals are reformatted for optimal viewing on your display.
- 46 -
Page 47

For best picture

Viewing Mode

1. Display the menu with MENU.
2. Select Picture > Viewing Mode and press OK to access.
3. Select the mode and press OK to set.
Viewing Mode
(Dynamic / Normal / Cinema / True Cinema / Custom)
Selects your favourite picture mode for each input.
Dynamic:
Improves contrast and sharpness for viewing in a bright room.
Normal:
Normal use for viewing in a normal lighting condition.
Cinema:
Improves the performance of contrast, black and colour reproduction for watching movies in a darkened room.
True Cinema:
Reproduces the original image quality precisely without any revision.
Custom:
Adjusts each menu item manually to suit your favourite picture quality.
●
The following items can be adjusted and stored for each mode.
Backlight / Contrast / Brightness / Colour / Tint / Sharpness / Colour Temperature / Vivid Colour / Adaptive Backlight Control / Ambient Sensor / Noise Reduction / MPEG Noise Reduction
- 47 -
Page 48

Ambient Sensor

1. Display the menu with MENU.
2. Select Picture > Ambient Sensor and press OK to access.
3. Select On / Off and press OK to set.
Ambient Sensor
(On / Off)
●
Automatic Brightness Control function
Adjusts picture settings automatically depending on ambient lighting condition.
- 48 -
Page 49

Aspect

Change the aspect ratio (image size) with ASPECT.
■ To change the aspect ratio manually
1. Display Aspect Selection with ASPECT.
2. Select the mode and press OK to set.
●
You can also change the mode pressing ASPECT.
(Press repeatedly until you reach the desired mode.)
Auto:
The best ratio is selected automatically according to the “Aspect Control Signal”.
Watching > For best picture > Aspect Control Signal
16:9:
Directly displays the image at 16:9 without distortion (anamorphic).
14:9:
Displays the image at the standard 14:9 without distortion.
Just:
Displays a 4:3 image full-screen. Stretching is only noticeable at right and left edges.
4:3:
Displays the image at the standard 4:3 without distortion.
Zoom:
Displays a 16:9 letterbox or 4:3 image without distortion.
4:3 Full:
Displays a 4:3 image enlarged horizontally to fit the screen.
●
For HD (High definition) signals
Sidecut Just:
Displays a 16:9 letterbox (anamorphic) image full-screen. Stretching is only noticeable at right and left edges.
●
For HD (High definition) signals
Sidecut Zoom:
Displays a 16:9 letterbox (anamorphic) image full-screen without distortion.
●
For HD (High definition) signals
- 49 -
Page 50
= Note =
●
Display the image (TV, external input, etc.) full-screen to use this function completely.
●
Aspect mode can be memorised separately for SD (Standard definition) and HD (High definition) signals.
●
Aspect cannot be changed in teletext service.
- 50 -
Page 51

Aspect Control Signal

Programmes usually contain an “Aspect Control Signal”. (Widescreen signal, Control signal through SCART / HDMI terminal)
In Auto mode, aspect mode will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART (pin8) / HDMI terminal is found. The aspect switches to the appropriate ratio.
Watching > For best picture > Aspect
■ Available conditions
Terrestrial / cable terminal (WSS only)
●
Valid input signal format:
DVB-C
DVB-T / DVB-T2
PAL B, G, H, I, D, K
SECAM B, G, L, L’, D, K
Invalid input signal format:
PAL 525/60 6.5 MHz
PAL 525/60 6.0 MHz
PAL 525/60 5.5 MHz
M.NTSC 6.5 MHz
M.NTSC 6.0 MHz
M.NTSC 5.5 MHz
AV1 (SCART) terminal / AV2 (VIDEO) terminals
●
Valid input signal format:
PAL
SECAM
PAL 525/60
M.NTSC
NTSC
: Control signal through SCART (pin 8) / HDMI terminal only
- 51 -
Page 52
AV2 (COMPONENT) terminals (WSS only)
●
Valid input signal format:
625 (576) / 50i, 50p
Invalid input signal format:
525 (480) / 60i, 60p
750 (720) / 60p, 50p
1 125 (1 080) / 60i, 50i
HDMI terminal
●
Valid input signal format:
525 (480) / 60i, 60p
625 (576) / 50i, 50p
750 (720) / 60p, 50p
1 125 (1 080) / 60i, 50i
1 125 (1 080) / 60p, 50p, 24p
●
HDMI terminal does not receive WSS signal.
= Note =
●
If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the tracking of the VCR. Read the manual of the VCR.
- 52 -
Page 53

Basic settings

1. Display the menu with MENU.
2. Select Picture and press OK to access.
3. Select one of the following items and press OK to access.
Backlight / Contrast / Brightness / Colour / Tint / Sharpness / Colour Temperature / Vivid Colour / Adaptive Backlight Control
4. Set the item and press OK to store.
Backlight, Contrast, Brightness, Colour, Tint, Sharpness
Adjusts the levels of these options according to your personal preference.
Colour Temperature
Sets the overall colour tone of the picture (bluer - redder).
Vivid Colour
(On / Off)
Automatically adjusts colours to vivid ones.
Adaptive Backlight Control
Automatically controls the level of backlight according to the images.
- 53 -
Page 54

Noise reduction settings

1. Display the menu with MENU.
2. Select Picture > Noise Reduction / MPEG Noise Reduction and press OK
to access.
3. Set the item and press OK to store.
Noise Reduction
(Auto / Max / Mid / Min / Off)
Reduces unwanted picture noise.
●
Not valid when 1080p Pixel Direct is set to On
MPEG Noise Reduction
(Auto / Max / Mid / Min / Off)
Reduces flicker noise in contoured parts of a picture and block noise.
●
Not valid when 1080p Pixel Direct is set to On
- 54 -
Page 55

Advanced Settings

You can adjust and set up the detailed picture settings when Viewing Mode is set to Cinema, True Cinema or Custom. The settings in True Cinema or
Custom can be stored for each input.
Watching > For best picture > Viewing Mode
1. Select the input mode with AV or TV.
2. Display the menu with MENU.
3. Select Picture > Viewing Mode and press OK to access.
4. Select the mode and press OK to set.
Cinema / True Cinema / Custom
■ Adjust the detailed picture settings
1. Display the menu with MENU.
2. Select Picture > Advanced Settings and press OK to access.
3. Select one of the following items and press OK to access.
Contrast Control / White Balance / Colour Management / Gamma / Reset to Defaults
4. Set the item and press OK to store.
■ Contrast Control
Contrast Control
(Auto / Custom / Off)
Automatically adjusts the detailed contrast settings. Select Custom to set
Contrast Control Setting manually.
Contrast Control Setting
Adaptive Gamma Control:
Adjusts the gamma curve to make the image brighter.
Black Expander:
Gradually adjusts the shades of black.
Reset to Defaults:
Resets items for Contrast Control Setting.
- 55 -
Page 56
■ White Balance
R-Gain / G-Gain / B-Gain
Adjusts the white balance of bright red / green / blue areas.
R-Cutoff / G-Cutoff / B-Cutoff
Adjusts the white balance of dark red / green / blue areas.
Reset to Defaults
Resets White Balance to the default settings.
■ Colour Management
R-Hue / R-Saturation / R-Luminance
Adjusts the picture hue / saturation / luminance of red areas.
G-Hue / G-Saturation / G-Luminance
Adjusts the picture hue / saturation / luminance of green areas.
B-Hue / B-Saturation / B-Luminance
Adjusts the picture hue / saturation / luminance of blue areas.
Reset to Defaults
Resets Colour Management to the default settings.
■ Gamma
Gamma
Switches the gamma curve.
●
Please note the numerical values are reference for the adjustment.
Reset to Defaults
Resets Gamma to the default settings.
- 56 -
Page 57
■ Reset to Defaults
Reset to Defaults
Resets Advanced Settings to the default settings.
- 57 -
Page 58

Option Settings

1. Display the menu with MENU.
2. Select Picture > Option Settings and press OK to access.
3. Select one of the following items and press OK to access.
Film Cadence Mode / 1080p Pixel Direct / HDMI Content Type / HDMI RGB Range / AV Colour System / 3D-COMB
4. Set the item and press OK to store.
Film Cadence Mode
(On / Off)
Improves vertical resolution for movie images.
●
This function is available for interlaced signals (except in Network services or when Game Mode is set to On).
●
This function is available for interlaced signals (except in Network services).
1080p Pixel Direct
(On / Off)
Reproduces the original image quality in detail for 1080p (HDMI) input signal.
HDMI Content Type
(Graphics / Photos / Auto / Off)
Adjusts the picture settings of each HDMI input according to the selected content type.
Auto:
Automatically adjusts the picture settings according to the received HDMI content if the connected equipment supports HDMI Content Type.
●
To set the availability of each content type for Auto mode, select Auto
Detail Setting.
●
For HDMI
- 58 -
Page 59
HDMI RGB Range
(Auto / Full / Normal)
Adjusts the black level of the image for each HDMI input.
●
When the black level is not suitable, select Full.
●
For HDMI
AV Colour System
(Auto / PAL / SECAM / M.NTSC / NTSC)
Selects optional colour system based on video signals.
●
For AV
3D-COMB
(On / Off)
Makes still or slow moving pictures more vivid.
●
Occasionally, while viewing still or slow moving pictures, colour patterning may be seen. Set to On to display sharper and more accurate colours.
●
For PAL / NTSC signal reception in TV mode or from composite connection
- 59 -
Page 60

Screen Settings

1. Display the menu with MENU.
2. Select Picture > Screen Settings and press OK to access.
3. Select one of the following items and press OK to access.
16:9 Overscan / H-Size / Zoom Adjustments / Screen Display
4. Set the item and press OK to store.
16:9 Overscan
(On / Off)
Selects the screen area displaying the image for 16:9 aspect.
On:
Enlarges the image to hide the edge of the image.
Off:
Displays the image in the original size.
●
Set to On if noise occurs on the edge of the screen.
●
This function can be memorised for SD (Standard definition) and HD (High definition) signals respectively.
●
Not valid for photo content
H-Size
Switches the horizontal display range to reduce noise on the side edge of the image.
●
For TV mode, AV, HDMI
Zoom Adjustments
Adjusts the vertical position and size when aspect is set to Just, Sidecut Just,
Zoom or Sidecut Zoom.
Screen Display
(On / Off)
Turns the screen off when you select Off.
●
This function is effective in reducing power consumption when listening to the sound without watching the TV screen.
●
Press any buttons (except Standby On / Off switch) to turn the screen on.
- 60 -
Page 61

Copy Adjustment

Copies the picture settings of True Cinema or Custom to those of the other input mode or Viewing Mode.
1. Display the menu with MENU.
2. Select Picture > Copy Adjustment > Destination Viewing Mode /
Destination Input and press OK to access.
3. Select the destination to copy to and press OK to set.
4. Select Copy Start and press OK to copy.
5. When a confirmation screen is displayed, select Yes and press OK to set.
= Note =
●
Option Settings and Screen Settings are not copied.
- 61 -
Page 62

For best audio

Sound mode

1. Display the menu with MENU.
2. Select Sound > Mode and press OK to access.
3. Select the mode and press OK to set.
Mode
(Standard / Music / Speech / User)
Selects your favourite sound mode for each input.
Standard:
Provides the suitable sound quality for all types of scenes.
Music:
Improves sound quality for watching music videos, etc.
Speech:
Improves sound quality for watching news, drama, etc.
User:
Adjusts the sounds manually using the equaliser to suit your favourite sound quality.
●
The following items can be adjusted and stored for each mode.
Bass / Treble / Surround
●
For the User mode, Equaliser is available in the Sound Menu instead of
Bass and Treble. Select Equaliser and adjust the frequency.
Watching > For best audio > Basic settings
●
This function is effective only for the sound from TV speakers.
- 62 -
Page 63

Basic settings

1. Display the menu with MENU.
2. Select Sound and press OK to access.
3. Select one of the following items and press OK to access.
Bass / Treble / Equaliser / Balance / Surround
4. Set the item and press OK to store.
Bass
Adjusts level to enhance or minimise lower, deeper sound output.
Treble
Adjusts level to enhance or minimise sharper, higher sound output.
Equaliser
Adjusts the frequency level to suit your favourite sound quality.
●
This function is available when Mode is set to User.
●
Select the frequency and adjust the frequency level.
●
To enhance the bass sound, raise the level of the lower frequency. To enhance the treble sound, raise the level of the higher frequency.
●
To reset the levels of each frequency to the default settings, select Reset
to Defaults and press OK.
●
This function is effective only for the sound from TV speakers.
Balance
Adjusts volume level of right and left speakers.
Surround
(On / Off)
Provides a dynamic enhancer of width to simulate improved spatial effects.
●
This function is effective only for the sound from TV speakers.
- 63 -
Page 64

Volume settings

1. Display the menu with MENU.
2. Select Sound and press OK to access.
3. Select one of the following items and press OK to access.
Speaker Setting / Headphone Volume / Auto Gain Control / Volume Correction / Speaker Distance to Wall
4. Set the item and press OK to store.
Speaker Setting
(TV Speaker / Headphones / Off)
Selects the sound output to adjust volume. Set to Off when using the external speakers.
●
Sound from TV speaker turns off when Headphone or Off is selected.
Headphone Volume
Adjusts the volume of headphones.
Auto Gain Control
(On / Off)
Automatically regulates large sound level differences between channels and inputs.
Volume Correction
Adjusts the volume of each individual channel or input mode.
Speaker Distance to Wall
(Up to 30cm / Over 30cm)
Compensates for the low frequency sound due to the distance between the speakers and the wall.
●
If the back space between the TV and wall is within 30 cm, Up to 30cm is recommended.
●
If the back space between the TV and wall is over 30 cm, Over 30cm is recommended.
●
This function is effective only for the sound from TV speakers.
- 64 -
Page 65

Voice Guidance Settings

1. Display the menu with MENU.
2. Select Sound > Voice Guidance Settings and press OK to access.
3. Select one of the following items and press OK to access.
Voice Guidance / Speed / Volume / Language / User Level / Web Browser
4. Set the item and press OK to store.
Voice Guidance
(On / Off)
Set to On to enable voice guidance of the basic features (on-screen messages, etc.) for visually impaired users.
Speed
(Fast / Normal / Slow)
Selects the readout speed for the voice guidance.
Volume
(Max / Mid / Min)
Selects the volume for the voice guidance.
Language
Changes language for the voice guidance.
●
All languages may not be available. When the selected language is not supported, Language is set to English automatically.
User Level
(Beginner / Expert)
Selects the level of verbosity for the voice guidance.
Web Browser
(On / Off)
Set to On to enable voice guidance of the network content in web browser function.
- 65 -
Page 66

Audio Description

1. Display the menu with MENU.
2. Select Sound > Audio Description and press OK to access.
3. Select one of the following items and press OK to access.
Preferred Audio Type / Volume / Speakers / Headphones
4. Set the item and press OK to store.
Preferred Audio Type
(Standard / Audio Description)
Narration settings for visually impaired users
Set to Audio Description to activate the narration sound track when available on the broadcast.
●
The availability of audio description sound track is indicated by AD in the information banner.
●
For DVB
Volume
Adjusts the volume for Audio Description.
●
For DVB
Speakers
(Mix / Standard)
Set to Mix to activate the description sound track from TV speakers.
●
For DVB
Headphones
(Mix / Standard)
Set to Mix to activate the description sound track from headphones.
●
For DVB
- 66 -
Page 67

Advanced settings

1. Display the menu with MENU.
2. Select Sound and press OK to access.
3. Select one of the following items and press OK to access.
MPX / Audio Preference / SPDIF Selection / SPDIF Delay / HDMI Input
4. Set the item and press OK to store.
MPX
Selects multiplex sound mode (if available).
Stereo:
Use this normally.
Mono:
When stereo signal cannot be received
M1 / M2:
Available while mono signal is transmitted
●
For Analogue
Audio Preference
(Auto / Multichannel / Stereo / MPEG)
●
Selectable options vary depending on the country you select.
Selects the initial setting for audio tracks.
Auto:
Automatically selects the audio tracks if a programme has two or more tracks. The priority is given in the following order - Dolby Digital Plus, HE-AAC, Dolby Digital, MPEG.
Multichannel:
The priority is given to multi-channel audio track.
Stereo:
The priority is given to stereo (2ch) audio track.
MPEG:
The priority is given to MPEG.
●
Dolby Digital Plus and Dolby Digital are the methods of coding digital signals developed by Dolby Laboratories. Apart from stereo (2ch) audio, these signals can be multi-channel audio.
●
HE-AAC is a perceptual coding method used to compress digital audio for efficient storage and transmission.
- 67 -
Page 68
●
MPEG is an audio compression method that compresses audio to the smaller size without any considerable loss of audio quality.
●
Dolby Digital Plus and HE-AAC are the technologies for HD (High definition) programmes.
●
For DVB
SPDIF Selection
(Auto / PCM)
Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI2 (ARC function) terminals.
●
SPDIF is a standard audio transfer file format.
Auto:
Dolby Digital Plus, Dolby Digital and HE-AAC multi-channel are output as Dolby Digital Bitstream. MPEG is output as PCM.
PCM:
Digital output signal is fixed to PCM.
●
ARC (Audio Return Channel) is a function of digital audio output using HDMI cable.
●
For DVB, video content
Media Player > Video mode > Audio output settings
Network > Videos > Audio output settings
SPDIF Delay
Adjusts the delay time of the sound output from DIGITAL AUDIO and HDMI2 (ARC function) terminals if the sound does not synchronise the image.
●
For DVB
HDMI Input
(Digital / Analogue)
Selects to fit the input signal.
Watching > External equipment > HDMI features
Digital:
When sound is carried via the HDMI cable connection
Analogue:
When sound is not carried via the HDMI-DVI adaptor cable connection
●
For HDMI
- 68 -
Page 69

TV Guide

Using TV Guide

TV Guide - Electronic Programme Guide (EPG) provides an on-screen listing
of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcaster).
1. Select the mode with TV.
DVB-C / DVB-T / DVB-via-IP / Analogue
2. Display TV Guide with GUIDE.
●
Press again to change the layout. (Landscape / Portrait)
– View Landscape to see several channels.
– View Portrait to see one channel by time.
●
You can select the default screen when pressing GUIDE. (Default Guide)
1) Display the menu with MENU.
2) Select Setup > Display Settings > Default Guide and press OK to access.
3) Select Channel List / TV Guide and press OK to set.
TV Guide:
Electronic Programme Guide (EPG) is available.
Channel List:
The channel list appears instead of EPG.
- 69 -
Page 70
(Example)
TV screen
Date
Time
Programme
D (DVB-T) / A (Analogue)
Channel position and name
●
To watch the programme
1) Select the current programme.
– The current programme is displayed on the top left of the screen.
2) Press OK to watch.
●
To the previous day (DVB)
(red)
●
To the next day (DVB)
(green)
●
To view a channel list of the selected type
1) Display the type list with
(yellow).
2) Select the type and press OK to view.
- 70 -
Page 71
●
To search programme titles and view a list of the searched programmes (except Analogue) (if available)
1) Display the search list with
(yellow).
2) Select Search and press OK to access.
3) Enter characters with Cursor buttons or Numeric buttons, and press OK to set.
4) Press (green) to start searching.
– All the programme titles including the word you set are listed.
– Searching without any characters lists all programmes including
current programmes.
●
To view a channel list of the selected category
1) Display the category list with
(blue).
2) Select the category and press OK to view.
– To list favourite channels, set Favourites Edit.
Watching > Tuning and editing channels > Favourites Edit
●
To view more details of the programme (except Analogue)
1) Select the programme.
2) Press
to view.
– Press again to return to TV Guide.
●
To exit TV Guide
EXIT
= Note =
●
When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV Guide is completely shown.
●
DVB-T and Analogue channels are displayed on the same TV Guide screen. D and A may be displayed to distinguish DVB-T and Analogue channels. There is no programme listings for Analogue channels.
- 71 -
Page 72

Teletext

Viewing Teletext

1. Switch to teletext with TEXT.
●
Displays the index page (content varies depending on the broadcaster).
●
Current / sub page numbers are displayed on the top left of the screen.
●
Time / date is displayed on the top right of the screen.
●
Colour bar is displayed on the bottom of the screen.
2. Select the page with Cursor buttons, Numeric buttons or (coloured buttons).
●
To adjust contrast
1) Press MENU three times to display Contrast.
2) Adjust and press OK to set.
●
To exit teletext
EXIT
■ Reveal hidden data
1. Press MENU.
2. Reveal with
●
Press again to rehide.
(red).
■ To view a favourite page stored
Press STTL to view a favourite page.
●
Call up the page stored on (blue). (List mode)
●
Factory setting is “P103”.
■ FULL / TOP / BOTTOM
1. Press MENU.
2. Press
(green) to change the layout.
- 72 -
Page 73
■ Watch TV and teletext in two windows at once
1. Press MENU twice.
2. Set Picture and text to On / Off.
●
Operations can be made only in teletext screen.
■ Store frequently viewed pages in the colour bar (List mode)
1. Press
2. Press and hold OK.
●
The stored page number changes to white.
●
To change stored pages
1) Press
2) Enter a new page number with Numeric buttons.
3) Press and hold OK.
(coloured buttons) while the page is displayed.
(coloured buttons) to change.
■ View sub page
The number of sub pages is displayed on the top of the screen. Press / to view sub page. (Only when teletext has more than one page.)
●
The number of sub pages varies depending on the broadcaster (up to 79 pages).
●
Searching may take time while you are watching TV.
●
To view a specific sub page
1) Press MENU.
2) Press
3) Enter the 4-digit number (e.g. P6, press
(blue).
).
- 73 -
Page 74

Teletext mode

Teletext services are the text information provided by the broadcaster.
●
The features may vary depending on the broadcasters.
1. Display the menu with MENU.
2. Select Setup > Display Settings > Teletext and press OK to access.
3. Select TOP (FLOF) / List and press OK to set.
■ TOP mode (For TOP text broadcasting)
TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.
●
Fast overview of the teletext information available
●
Easy to use step-by-step selection of the topical subject
●
Page status information on the bottom of the screen
●
Available page up / down
(red) / (green)
●
To select among subject blocks
(blue)
●
To select next subject within the subject block
(yellow)
(After the last subject, it moves to the next subject block.)
■ FLOF (FASTEXT) mode (For FLOF (FASTEXT) broadcasting)
In FLOF mode, four differently coloured subjects are situated on the bottom of the screen.
To access more information about one of these subjects, press the appropriate coloured button.
This facility enables fast access to information on the subjects shown.
■ List mode
In List mode, four differently coloured page numbers are situated on the bottom of the screen. Each of these numbers can be changed and stored in the TV’s memory.
Watching > Teletext > Viewing Teletext
- 74 -
Page 75

Teletext Character Set

Selects teletext language font.
1. Display the menu with MENU.
2. Select Setup > Display Settings > Teletext Character Set and press OK to
access.
3. Select the font and press OK to set.
West:
English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc.
East1:
Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.
East2:
Czech, Hungarian, Lettish, Polish, Rumanian, etc.
- 75 -
Page 76

Tuning and editing channels

Setting menu

You can retune channels, create your favourite channel lists, skip unwanted channels, etc.
1. Select the mode with TV.
DVB-C / DVB-T / DVB-via-IP / Analogue
2. Display the menu with MENU.
3. Select Setup > Tuning Menu and press OK to access.
DVB-C Tuning Menu / DVB-T Tuning Menu / DVB-via-IP Tuning Menu / Analogue Tuning Menu
●
The menu name varies depending on the TV mode.
4. Select one of the functions and press OK to access.
Favourites Edit / Channel List / Auto Setup / Manual Tuning / Update Channel List / Favourite Network / New Channel Message / Service Replacement / Signal Condition / Attenuator / Add TV Signal
●
The function items vary depending on the TV mode and country you select.
- 76 -
Page 77

Favourites Edit

■ List favourite DVB channels
Create your favourite channel lists from various broadcasters (up to 4:
Favourites 1 to 4).
The favourites lists are available from Category in the information banner and the TV Guide screen.
Watching > Basic > Information banner
Watching > TV Guide > Using TV Guide
1. Select Favourites Edit and press OK to access.
2. Select a channel to list from all DVB channels.
●
appears when the channel is encrypted.
●
To display other favourites
(green)
●
To sort channel names in alphabetical order
(red)
●
To change the category
(blue)
3. Press OK to add it to favourites list.
●
To add all channels to the list
1) Press
2) Press
●
To add consecutive channels to the list at once
1) Press
(yellow).
(green) to add all.
(yellow).
2) Make the channel block and press OK to add.
4. Press BACK/RETURN and OK to store.
- 77 -
Page 78
■ Edit DVB favourites list
You can edit the favourites list while the cursor is on the channel in the favourites list.
●
To move the channel
1) Select the channel.
2) Press
(green).
3) Select the new position with Cursor buttons or Numeric buttons.
4) Press (green) to store.
●
To delete the channel
1) Select the channel.
2) Press OK to delete.
– Press
●
To name the favourites
1) Press
(yellow) to delete all channels.
(red).
2) Enter characters (maximum 10 characters) with Cursor buttons or
Numeric buttons, and press OK to set.
3) Press BACK/RETURN to store.
- 78 -
Page 79

Channel List

■ Skip unwanted channels
You can hide (skip) unwanted channels. The hidden channels cannot be displayed except in this function.
1. Select Channel List and press OK to access.
2. Select a channel.
3. Press OK to set Reveal / Hide (skip). : Reveal
: Hide (skip)
●
To reveal all channels (DVB / Analogue)
(yellow)
●
To sort channel names in alphabetical order (DVB)
(red)
●
To change the category (DVB)
(blue)
- 79 -
Page 80
■ Edit DVB / Analogue Channels
●
To swap / move the channel position (if available)
1) Press
(green) to edit.
2) Set the new position with Cursor buttons or Numeric buttons, and press (green) to store.
●
To retune each channel (Manual Tuning)
(red)
– For Analogue
Watching > Tuning and editing channels > Manual Tuning
– Only for the revealed channels
●
To rename the channel name (Analogue)
1) Press
(blue) to edit.
2) Enter characters (maximum 5 characters) with Cursor buttons or
Numeric buttons, and press OK to set.
3) Press BACK/RETURN to store.
= Note =
●
If a VCR is connected only with the RF cable in Analogue, edit VCR.
- 80 -
Page 81

Auto Setup

Automatically retunes the channels received in the area.
●
This function is available if channel tuning is already performed.
●
Only the selected mode is retuned. All the previous tuning settings are erased.
●
Child Lock PIN number is required to retune locked channels.
Functions > Child Lock > PIN number
●
If tuning has not been done completely, set Manual Tuning.
Watching > Tuning and editing channels > Manual Tuning
■ DVB-C, DVB-T, Analogue
1. Select Auto Setup and press OK to access.
2. Set DVB-C Auto Setup Settings and press OK to store. (DVB-C)
●
Scan Mode
Full:
Scans the whole frequency range.
Quick:
Scans the suitable frequency in your country.
●
Normally set Frequency, Symbol Rate and Network ID to Auto. If Auto is not displayed or if necessary, enter each value specified by your cable provider with Numeric buttons.
●
After settings, select Start scan and press OK to search.
3. A confirmation screen is displayed and press OK to start Auto Setup. (Settings are made automatically.)
●
When the operation is completed, the channel at the lowest position will be displayed.
- 81 -
Page 82
■ DVB-via-IP
●
Ensure the network connections and network settings are completed.
Functions > DVB-via-IP > DVB-via-IP client connection
Network > Network settings
1. Select Auto Setup and press OK to access.
2. A confirmation screen is displayed and press OK to access.
3. Select a server from Server List.
1) Select a server and press OK to set.
2) Select Search Channels and press OK to access.
4. Select a search mode and press OK to access.
5. Set Client Settings.
1) Select Client Settings and press OK to access.
2) Select Unicast Environment / Multicast Environment and press OK to
set.
●
Select Unicast Environment to use in a home network.
●
Select Multicast Environment to use in multi family housing units, hotel, hospital, etc. (All servers are selected automatically.)
3) Select Server List and press OK to access.
6. Select Search Channels and press OK to access.
7. Set DVB-via-IP Search Mode and press OK to start Auto Setup. (Settings are made automatically.)
●
Set DVB-via-IP Satellite Configuration to tune DVB-S channels.
●
When the operation is completed, the channel at the lowest position will be displayed.
■ Auto Setup using the buttons on the TV
1. Press and hold INPUT/OK/HOLD for MENU button for 3 seconds to display the menu.
2. Set Auto Setup with following control panel buttons.
●
Move the cursor / select from a range of options / select the menu item
●
Access the menu / store settings after adjustments have been made or options have been set with INPUT/OK/HOLD for MENU button
- 82 -
Page 83

Manual Tuning

●
Normally use Auto Setup or Update Channel List to retune DVB channels.
●
If tuning has not been done completely or for adjusting the direction of the aerial, use this function. (DVB)
●
All DVB channels found are added to Channel List.
■ DVB-C
1. Enter the frequency with Numeric buttons.
●
Normally set Symbol Rate and Service ID to Auto.
2. Select Start scan and press OK to search.
■ DVB-T
1. Select a channel and adjust frequency for each channel.
●
Set where the level of Signal Quality becomes the maximum.
2. Press OK to search.
- 83 -
Page 84
■ Analogue
Set Analogue channel manually after Auto Setup.
●
Set Sound System and Colour System, and then perform this function. Normally set Colour System to Auto.
– SC1: PAL B, G, H / SECAM B, G
– SC2: PAL I
– SC3: PAL D, K / SECAM D, K
– F: SECAM L, L’
1. Select the channel position with Numeric buttons.
2. Select the channel with Channel Up / Down.
3. Set Manual Tuning.
4. Select Store and press OK to set.
●
Use Fine Tuning to make small adjustments to the tuning of an individual programme (affected by weather conditions, etc.).
●
If a VCR is connected only with the RF cable, select channel position 0.
■ DVB-via-IP (DVB-S)
●
Please consult the received satellite broadcasting companies for the setting.
1. Select Transponder Frequency / Symbol Rate / Polarisation / Modulation /
FEC / Service ID and set with Cursor buttons or Numeric buttons.
2. Select Start scan and press OK to search.
- 84 -
Page 85
■ DVB-via-IP (DVB-C)
1. Select Frequency / Bandwidth / Modulation Type / Symbol Rate / FEC /
Service ID and set with Cursor buttons or Numeric buttons.
●
Normally set Symbol Rate to Auto.
2. Select Start scan and press OK to search.
■ DVB-via-IP (DVB-T)
1. Select Frequency / Bandwidth / Modulation / FEC / Service ID and set with
Cursor buttons or Numeric buttons.
2. Select Start scan and press OK to search.
= Note =
●
For details of DVB-via-IP connections
Functions > DVB-via-IP > DVB-via-IP client connection
●
Not valid when Client Settings is set to Multicast Environment (DVB-via-IP)
- 85 -
Page 86

Update Channel List

By updating the DVB channel list, you can add new channels, delete removed channels or change channel names and positions automatically.
●
The channel list is updated while keeping your settings in Favourites Edit,
Channel List, Child Lock, etc.
●
Depending on the signal condition, the update may not work properly.
= Note =
●
Not valid when Client Settings is set to Multicast Environment (DVB-via-IP)
- 86 -
Page 87

New Channel Message

Selects whether to give a notification message when a new DVB channel is found or not.
●
When a notification message appears, you can perform Update Channel
List pressing OK.
●
Not valid in DVB-via-IP
- 87 -
Page 88

Signal Condition

Selects a channel and checks the signal condition with indicators.
●
A good Signal Strength is not an indication of suitable signal reception.
●
Vertical lines show the maximum signal value of the selected channel.
●
To change the channel
●
For DVB
- 88 -
Page 89

Other settings

Favourite Network
Selects your favourite network for each broadcaster (only available in some countries).
●
For DVB-C, DVB-T
Service Replacement
(On / Off)
Set to On to display a message to switch to the available service (only available in some countries).
●
For DVB-C
Attenuator
(On / Off)
Sets the antenna system to use plural LNBs for receiving several satellites.
●
If the DVB-C signal is too strong, the interference may occur. In this case, set to On to weaken the signal automatically.
Add TV Signal
Adds the TV mode.
●
This function is available if you skip any modes to tune in Auto Setup for first using the TV.
- 89 -
Page 90

Media Player

Using Media Player

Information

Media Player allows you to enjoy photo, video or music recorded on the USB Flash Memory / network device.
(Example)
Photo mode:
Still pictures recorded with digital cameras are displayed.
Video mode:
Moving pictures recorded with digital video cameras and digital video data are played back.
Music mode:
Digital music data are played back.
●
During the operation, audio signal is output from DIGITAL AUDIO and HDMI2 (ARC function) terminals. But no video signals are output. To use HDMI2 with ARC function, connect an amplifier that has ARC function and set to use theatre speakers.
Functions > VIERA Link “HDAVI Control™”
●
Date shows the date on which the recording was made by the recording
equipment. For a file without a valid record date “ ” is shown.
●
Pictures may not appear correctly on this TV depending on the recording equipment used.
●
Displaying may take some time when there are many files and folders.
●
Partially degraded files may be displayed with reduced resolution.
●
Picture setting may not work depending on the condition.
●
Folder and file names may be different from those on the digital camera or digital video camera used.
- 90 -
Page 91
■ To insert or remove the USB Flash Memory
Ensure alignment is straight and complete when inserting or removing.
●
To remove the USB Flash Memory safely from the TV, perform Safely
remove USB in USB Device Setup.
1) Display the menu with MENU.
2) Select Setup > USB Device Setup and press OK to access.
3) Select the device and press OK to set.
= Note =
●
Check the terminal type and devices are correct for connection.
●
For details of the devices
Media Player > Technical information
●
For details of supported file formats
Media Player > Technical information
- 91 -
Page 92

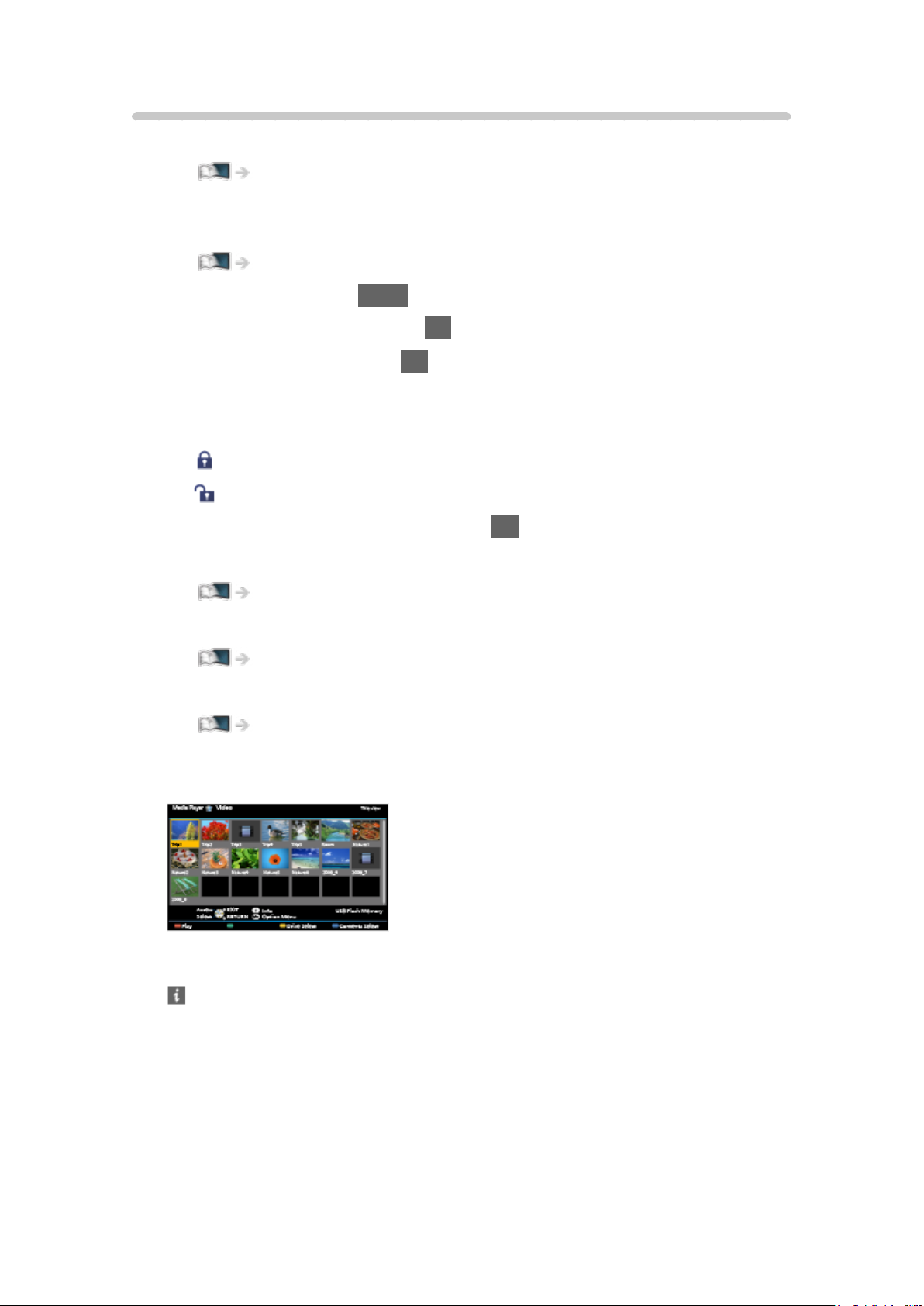

Selecting device / mode

1. Insert the USB Flash Memory to the TV.
Media Player > Using Media Player > Information
●
To play back content in the network device, ensure the connection and settings are completed.
Media Player > Using Media Player > Network device
2. Display APPS List with APPS.
3. Select Media Player and press OK to access.
4. Select the device and press OK to access.
●
If only one device is connected, this step will be skipped.
●
The network device already connected to the TV is also displayed.
: Enter User / Password to access.
: User / Password are already entered.
5. Select Photo / Video / Music and press OK to access.
Media Player > Photo mode
Video
Media Player > Video mode
Music
Media Player > Music mode
6. The thumbnail view is displayed. (Example)
●
To display / hide information of the highlighted content
- 92 -
Page 93
= Note =
●
You may also access each mode directly from APPS List.
my Home Screen > APPS List > How to use
●
Select the appropriate device and content for playing back each file.
●
You can use the following buttons during playback. Confirm the remote control code is “73”.
Watching > External equipment > Operating with TV’s remote control
■ To change the device
You can change the current device to another device directly in the same mode when two or more available devices are connected.
1. Display the device selection screen with
(yellow) while the thumbnail
is displayed.
2. Select the device and press OK to access.
■ To change the mode
You can switch to another mode of Media Player from the thumbnail view.
1. Display the content selection screen with displayed.
2. Select the content and press OK to access.
●
The mode can be switched in the current device.
(blue) while the thumbnail is
- 93 -
Page 94

Network device

You can enjoy photo, video or music stored in the network devices.
●
To enable this function, connect this TV to your home network.
Network > Network connections
Network > Network settings
■ How to set User / Password
1. Display the menu with MENU.
2. Select Network > File Sharing Settings > Network Device List and press
OK to access.
3. Select the network device and press OK to access.
4. Enter User / Password with Cursor buttons or Numeric buttons and press
OK to set.
●
Press BACK/RETURN to store.
●
To register the new network device, set Server Name / Shared Folder. For details, read the manual of the equipment.
5. Select Register and press OK to set.
●
To delete the registered device, select Delete and press OK to set.
= Note =
●
Regarding performance, not all servers are guaranteed. PCs with Windows 7 / Windows 8 / Windows 8.1 have been tested for compatibility with this TV (as of January, 2015). Additional information about the servers may be found on the following website.
http://panasonic.net/viera/support (English only)
- 94 -
Page 95

Photo mode

Selecting file

Select the file in the thumbnail view and press OK to start playback.
: Error display
●
To change the size of photos in the thumbnail view
1) Display the option menu with OPTION.
2) Select Change Size and press OK to change.
●
For details of supported file formats
Media Player > Technical information > Photo format
■ Thumbnail view
●
To display / hide information of the highlighted content
●
To display Slideshow Settings
(red)
Media Player > Photo mode > Using Slideshow
●
To sort
(green)
●
To change the device
(yellow)
●
To change the content
(blue)
- 95 -
Page 96

Viewing photo

■ Playback
●
To operate Single view
: To the previous photo
: To the next photo
: Stop (return to thumbnail)
OK : Slideshow
●
To display / hide the operation guide
●
To rotate 90°
(blue)
●
To return to thumbnail
BACK/RETURN
- 96 -
Page 97

Sorting photos

■ To sort by folder, recorded date or recorded month
1. Display the view selection in the thumbnail view with (green).
2. Select Folder view / Sort by Date / Sort by Month and press OK to set.
Folder view:
Displays the thumbnail grouped by folder.
●
Files which are in the root folder are collected to the folder named “/”.
Sort by Date / Sort by Month:
Displays the thumbnail grouped by the same date or month.
●
The group of the photos without recorded dates is shown as
Unknown.
●
To return to the thumbnail of all photos
1) Display the view selection in the thumbnail view with
2) Select All photos and press OK to set.
(green).
- 97 -
Page 98

Using Slideshow

Slideshow ends when all photos within the current thumbnail are viewed.
1. Select the file from the thumbnail of photos for the first view.
2. Start Slideshow with
●
To display / hide the operation guide
●
To pause (return to Single view)
(red) and OK.
OK
●
To return to thumbnail
BACK/RETURN
●
You can change the back ground music by setting Back Ground Music in Slideshow Settings (see below).
■ Slideshow Settings
Set up the settings for Photo mode.
1. Display the option menu with OPTION.
2. Select Slideshow Settings with OK.
3. Select one of the following items and press OK to access.
Frame / Colour Effect / Transition Effect / Auto Makeup / Screen Mode / Burst Playback / Interval / Repeat / Back Ground Music
4. Set the item and press OK to store.
Frame
(Off / Multi / Collage / Drift (+ calendar) / Drift / Gallery (+ calendar) / Gallery /
Cinema)
Selects the frame type of the slideshow.
Multi:
9 photos are displayed orderly at once.
Collage:
Each photo is displayed at a random position and random scale.
Drift (+ calendar) / Drift:
Photos are displayed with flow images.
●
You can select whether to display the calendar or not. Press / to change the month of calender.
- 98 -
Page 99
Gallery (+ calendar) / Gallery:
Various sizes of photos in the frames are displayed.
●
You can select whether to display the calendar or not. Press / to change the month of calender.
Cinema:
Photos are displayed as old films (sepia tone).
Colour Effect
(Off / Sepia / Gray scale)
Selects the colour effect of photos.
●
Not valid when Frame is set to Drift, Gallery or Cinema
Transition Effect
(Off / Fade / Dissolve / Motion / Random)
Selects the transition effect for switching photos during the slideshow.
Fade:
The next photo fades in gradually.
Dissolve:
Each photo is dissolved when switching to the next photo.
Motion:
Each photo is displayed with an effect of enlarging, reducing, moving up or moving down.
Random:
The transition effect is selected at random.
●
This function is available when Frame is set to Off.
Auto Makeup
(On / Off)
Automatically detects the face in the photo and improves luminance and contrast.
- 99 -
Page 100
Screen Mode
(Normal / Zoom)
Selects enlarged or normal viewing.
●
Not valid in the following conditions:
– Frame is set to Collage, Drift, Gallery, Cinema.
– Transition Effect is set to Motion.
●
Depending on the photo size, the photo may not be fully enlarged to fill the screen (e.g. portrait style picture).
Burst Playback
(On / Off)
Selects whether to display burst photos in a fast-paced slideshow mode or not.
●
Not valid in the following conditions:
– Frame is set to Drift, Gallery, Cinema.
– Transition Effect is set to Motion.
Interval
(Long / Normal / Short)
Selects slideshow interval.
●
Not valid in the following conditions:
– Frame is set to Drift, Gallery, Cinema.
– Transition Effect is set to Motion.
Repeat
(On / Off)
Slideshow repeat
- 100 -
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
