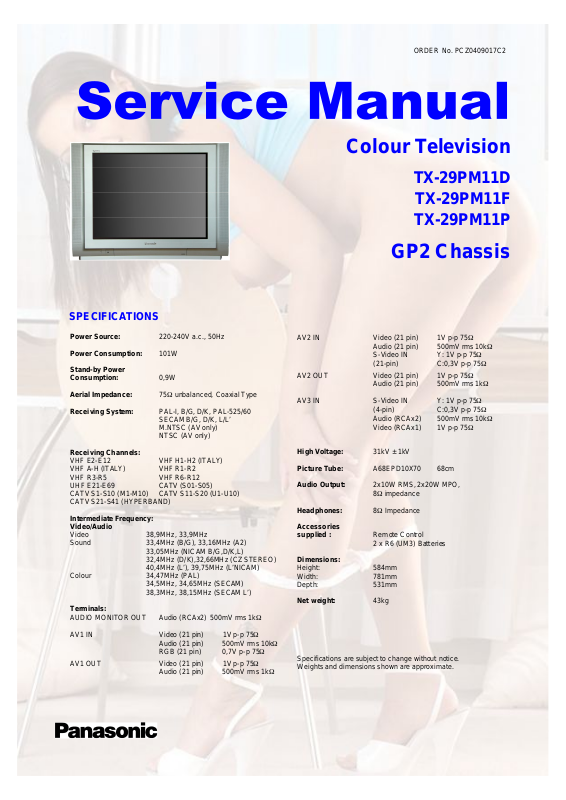

SPECIFICATIONS

ORDER No. PCZ0409017C2

Colour Television

TX-29PM11D

TX-29PM11F

TX-29PM11P

GP2 Chassis

Power Source: 220-240V a.c., 50Hz
Power Consumption: 101W
Stand-by Power

Consumption: 0,9W
Aerial Impedance: 75! unbalanced, Coaxial Type
Receiving System: PAL-I, B/G, D/K, PAL-525/60

SECAM B/G, D/K, L/L’
M.NTSC (AV only)
NTSC (AV only)

Receiving Channels:

VHF E2-E12VHF H1-H2 (ITALY)
VHF A-H (ITALY)VHF R1-R2
VHF R3-R5VHF R6-R12
UHF E21-E69CATV (S01-S05)
CATV S1-S10 (M1-M10)CATV S11-S20 (U1-U10)
CATV S21-S41 (HYPERBAND)

Intermediate Frequency:
Video/Audio

Video38,9MHz, 33,9MHz
Sound33,4MHz (B/G), 33,16MHz (A2)

33,05MHz (NICAM B/G,D/K,L)
32,4MHz (D/K),32,66MHz (CZ STEREO)
40,4MHz (L’), 39,75MHz (L’NICAM)

Colour34,47MHz (PAL)

34,5MHz, 34,65MHz (SECAM)
38,3MHz, 38,15MHz (SECAM L’)

Terminals:

AUDIO MONITOR OUTAudio (RCAx2)500mV rms 1k!

AV2 INVideo (21 pin) 1V p-p 75!

Audio (21 pin) 500mV rms 10k!
S-Video INY: 1V p-p 75!
(21-pin)C:0,3V p-p 75!

AV2 OUTVideo (21 pin) 1V p-p 75!

Audio (21 pin)500mV rms 1k!

AV3 INS-Video INY: 1V p-p 75!

(4-pin)C:0,3V p-p 75!
Audio (RCAx2)500mV rms 10k!
Video (RCAx1)1V p-p 75!

High Voltage: 31kV ± 1kV
Picture Tube: A68EPD10X7068cm
Audio Output: 2x10W RMS, 2x20W MPO,

8! impedance

Headphones: 8! Impedance
Accessories

supplied : Remote Control

2 x R6 (UM3) Batteries

Dimensions:

Height:584mm
Width:781mm
Depth:531mm

Net weight: 43kg

AV1 INVideo (21 pin)1V p-p 75!

Audio (21 pin)500mV rms 10k!
RGB (21 pin)0,7V p-p 75!

AV1 OUTVideo (21 pin)1V p-p 75!

Audio (21 pin)500mV rms 1k!

Specifications are subject to change without notice.
Weights and dimensions shown are approximate.

CONTENTS

SAFETY PRECAUTIONS..........................................................................................................................................................2

SERVICEHINTS.......................................................................................................................................................................3

ADJUSTMENT PROCEDURE AND SELF-CHECK..................................................................................................................4

WAVEFORM PATTERN TABLE...............................................................................................................................................5

ALIGNMENT SETTINGS...........................................................................................................................................................6

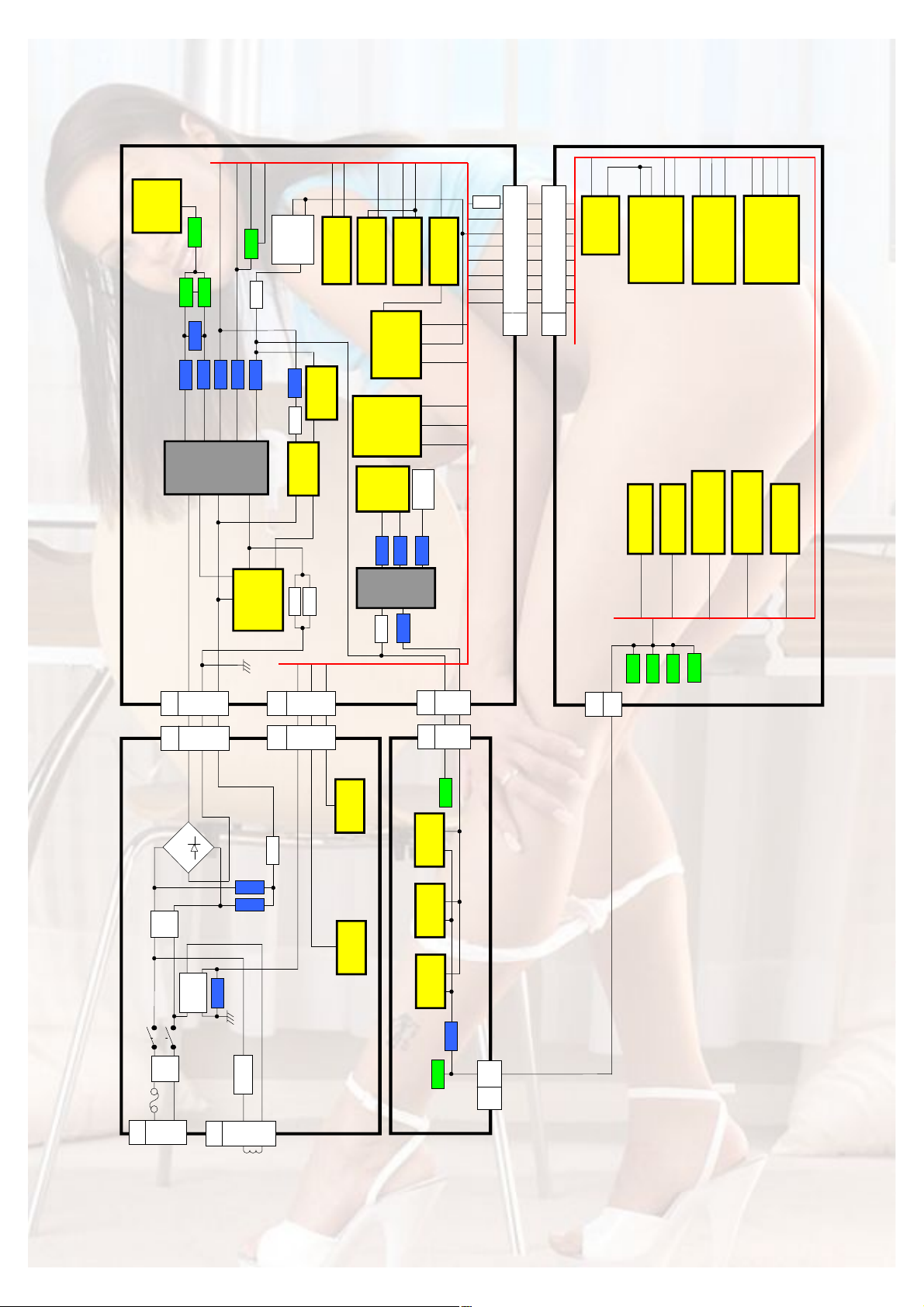

BLOCK DIAGRAMS..................................................................................................................................................................7

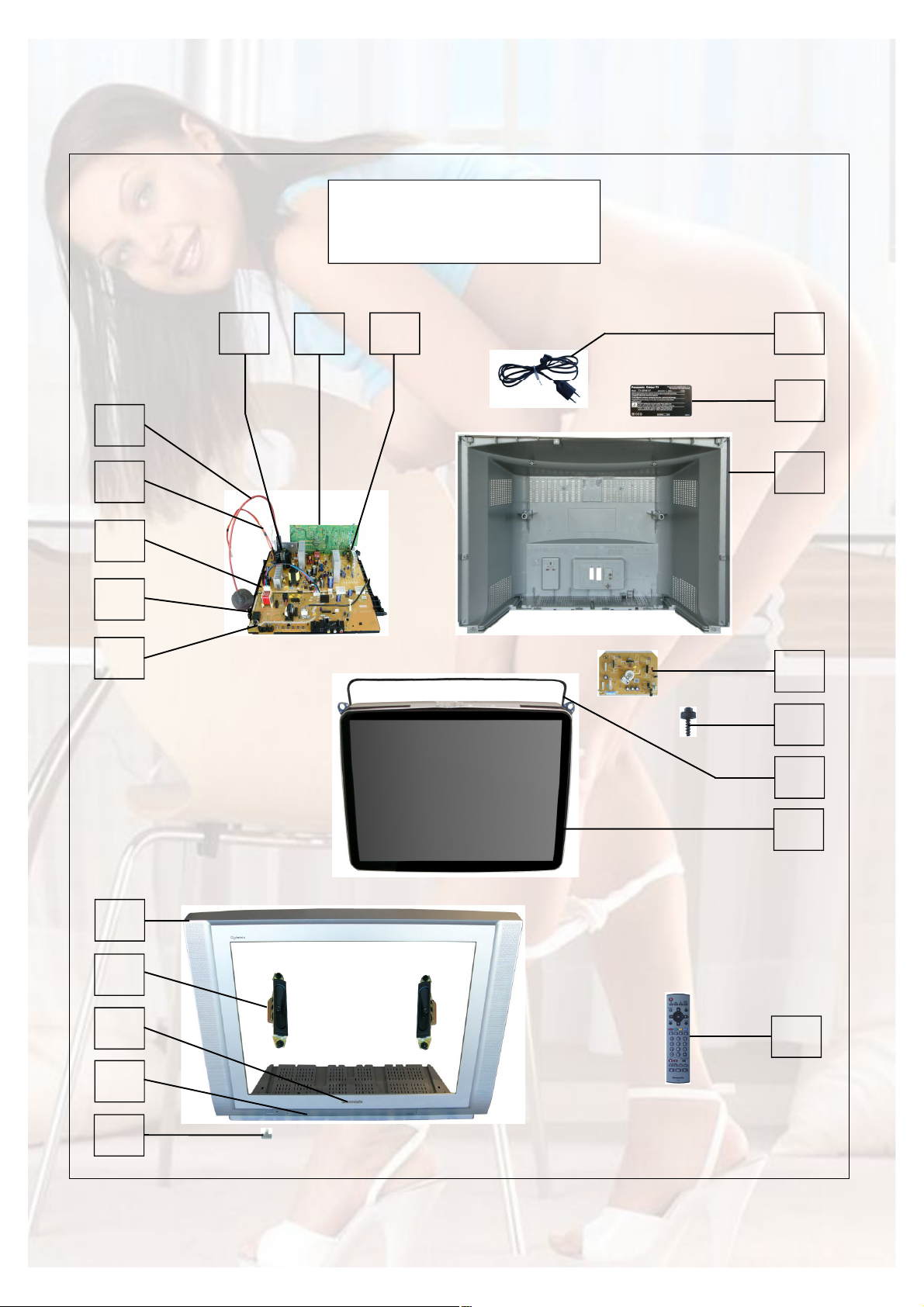

PARTS LOCATION.................................................................................................................................................................12

REPLACEMENT PARTS LIST................................................................................................................................................13

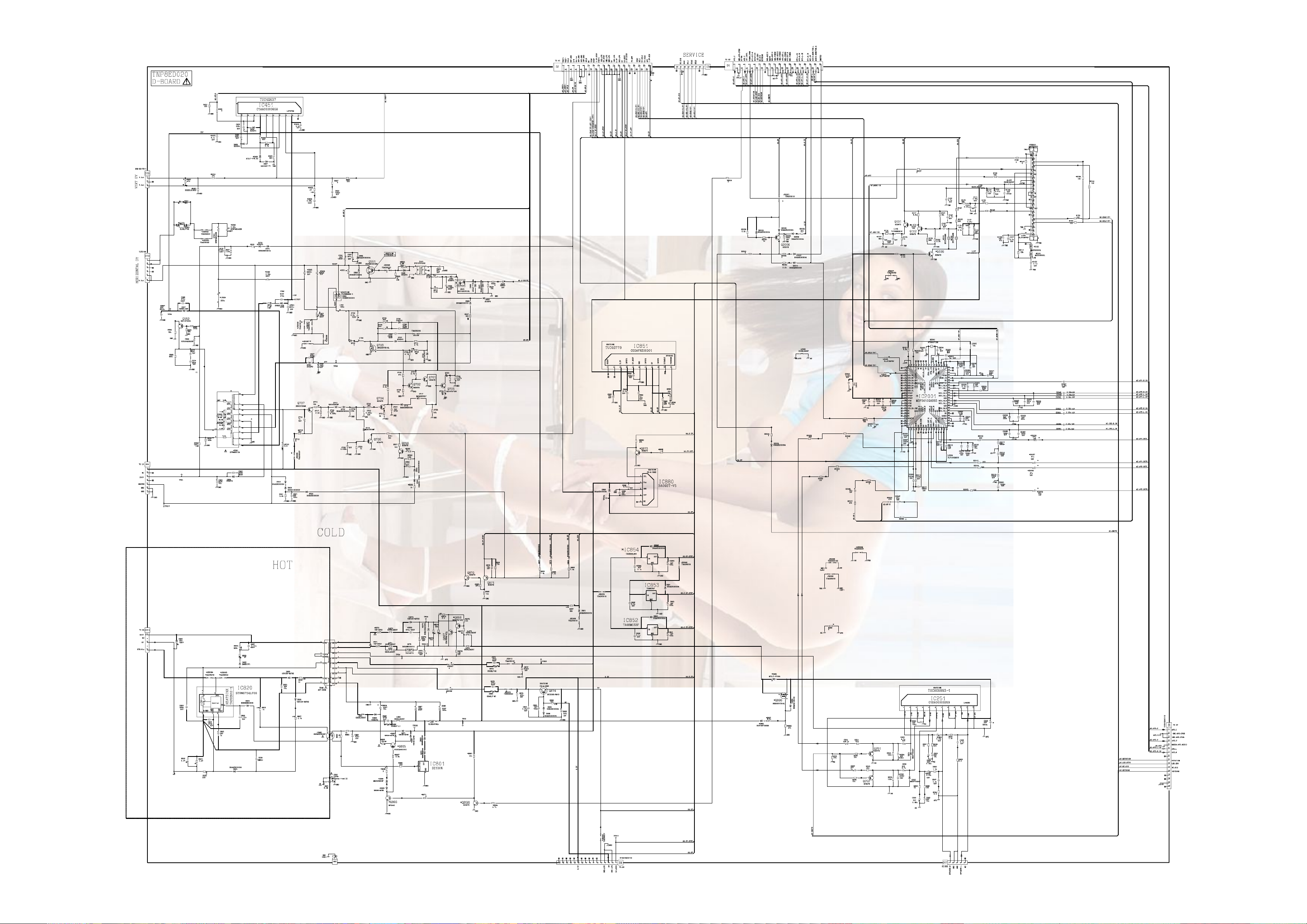

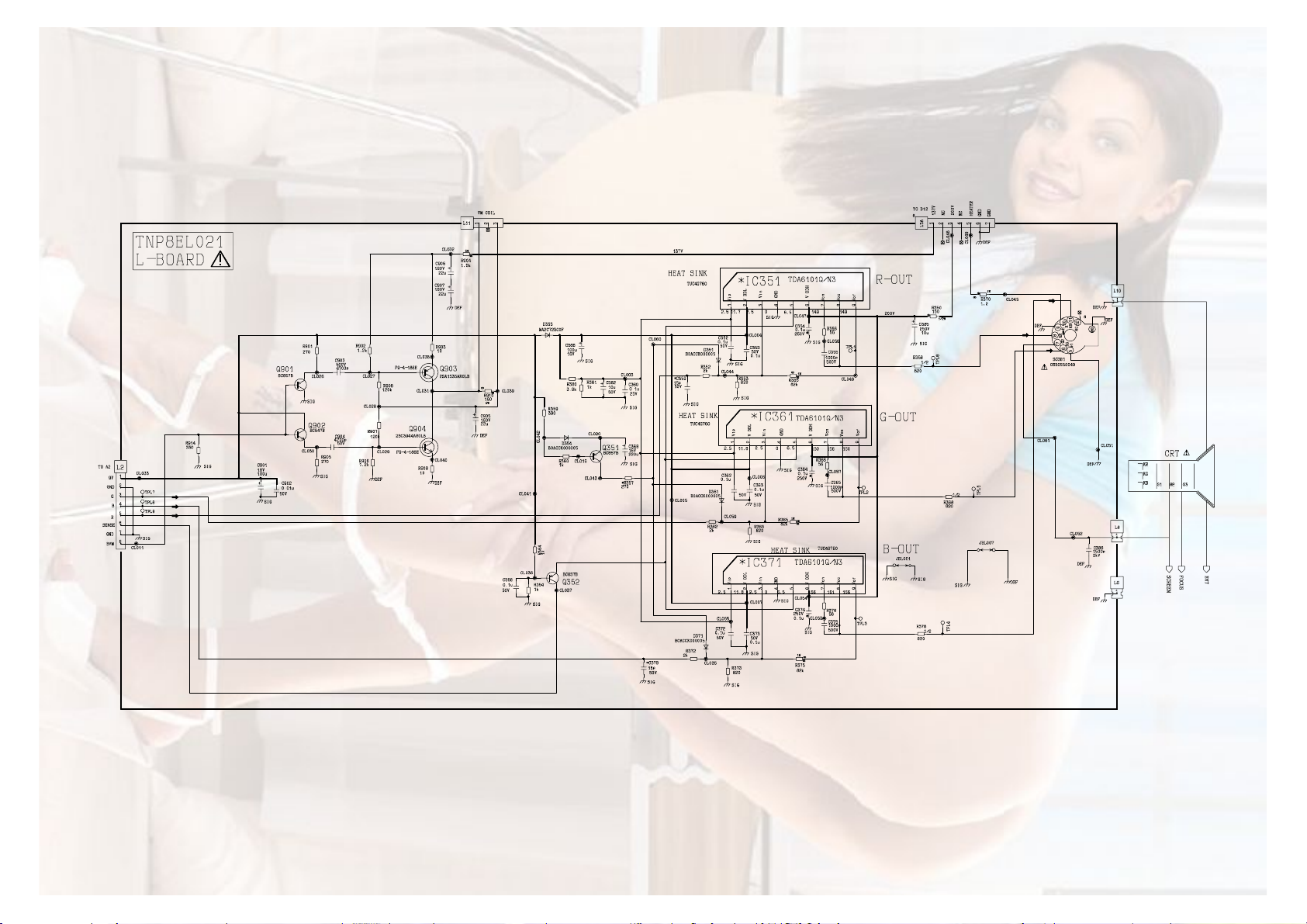

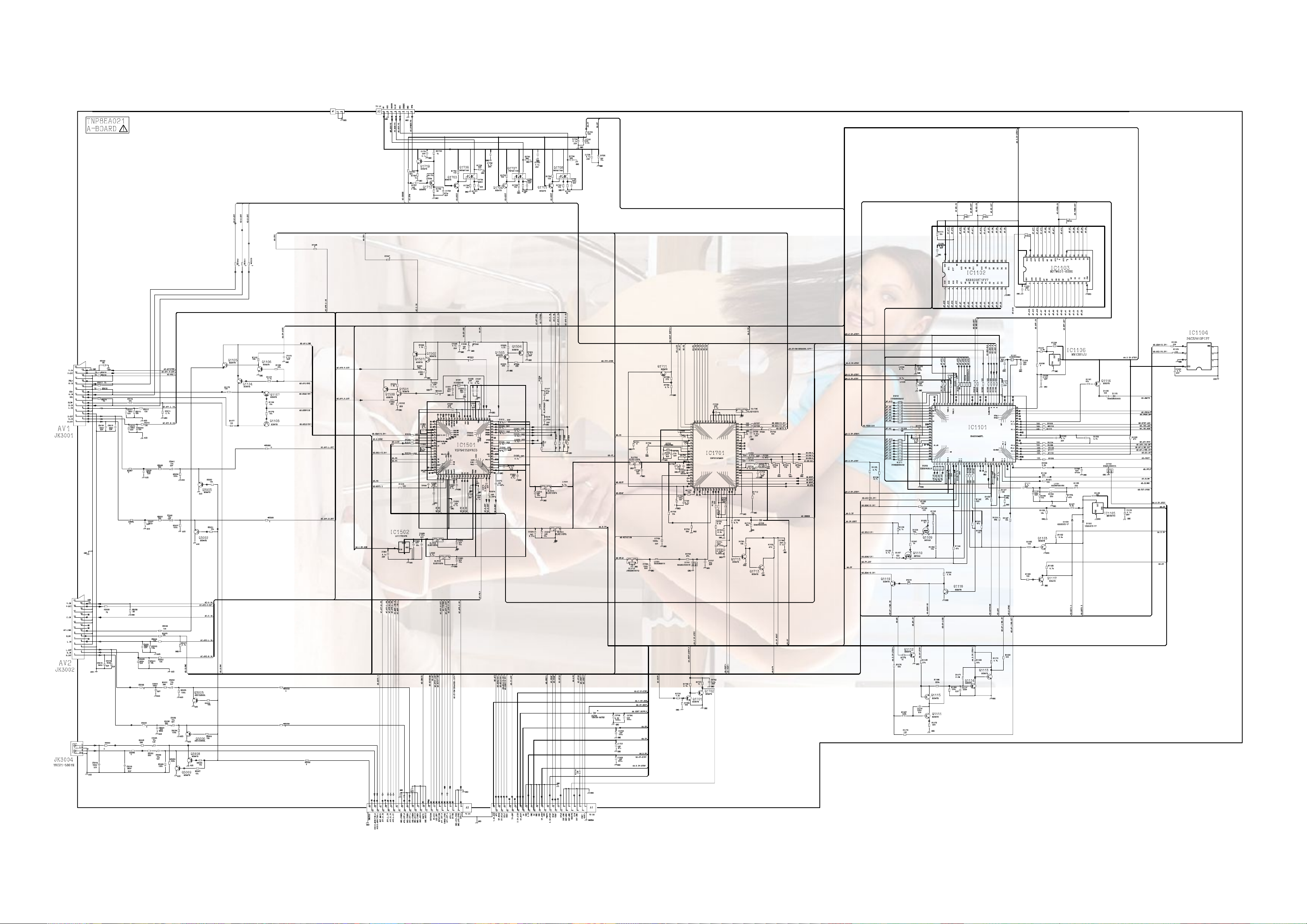

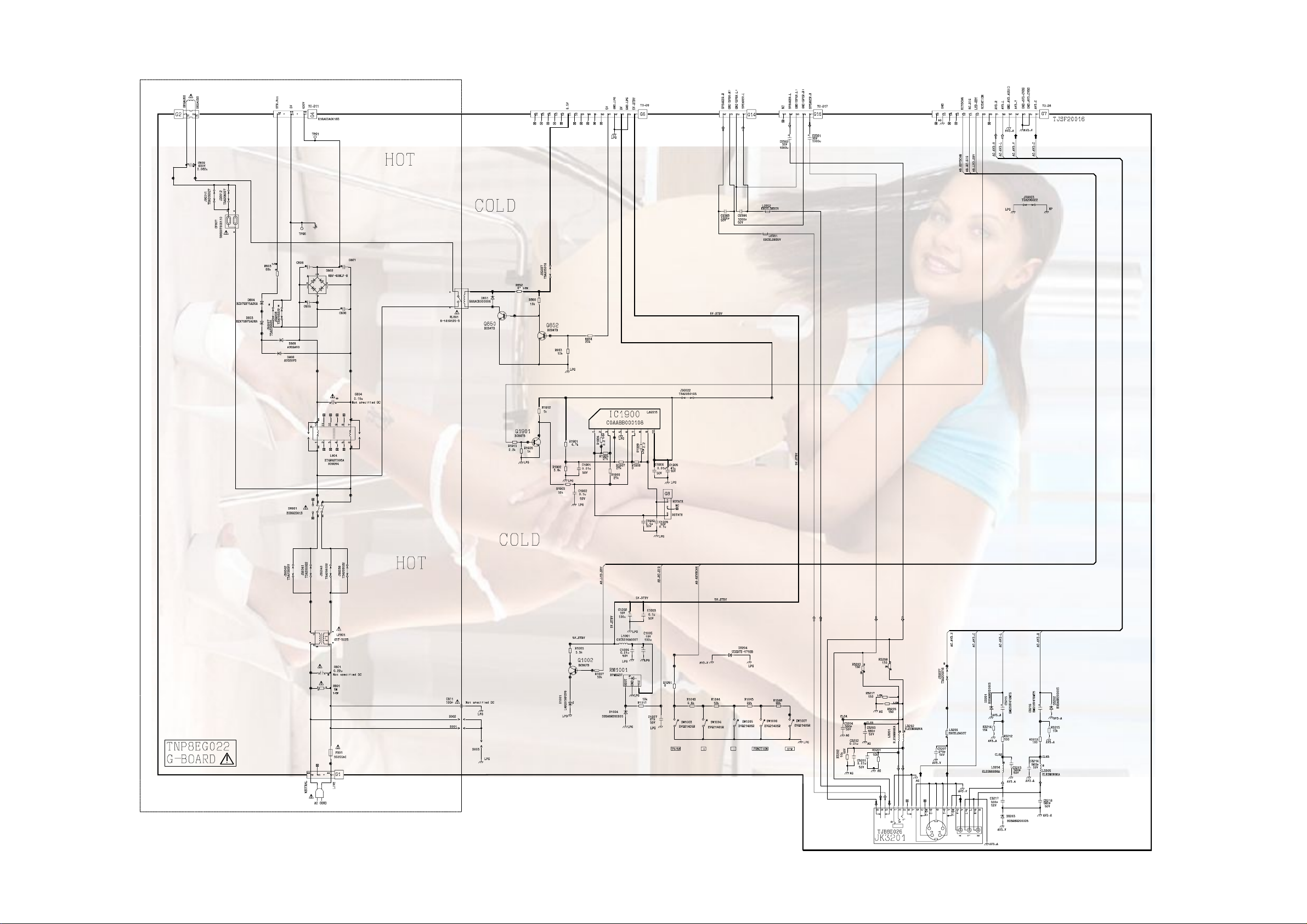

SCHEMATIC DIAGRAMS.......................................................................................................................................................23

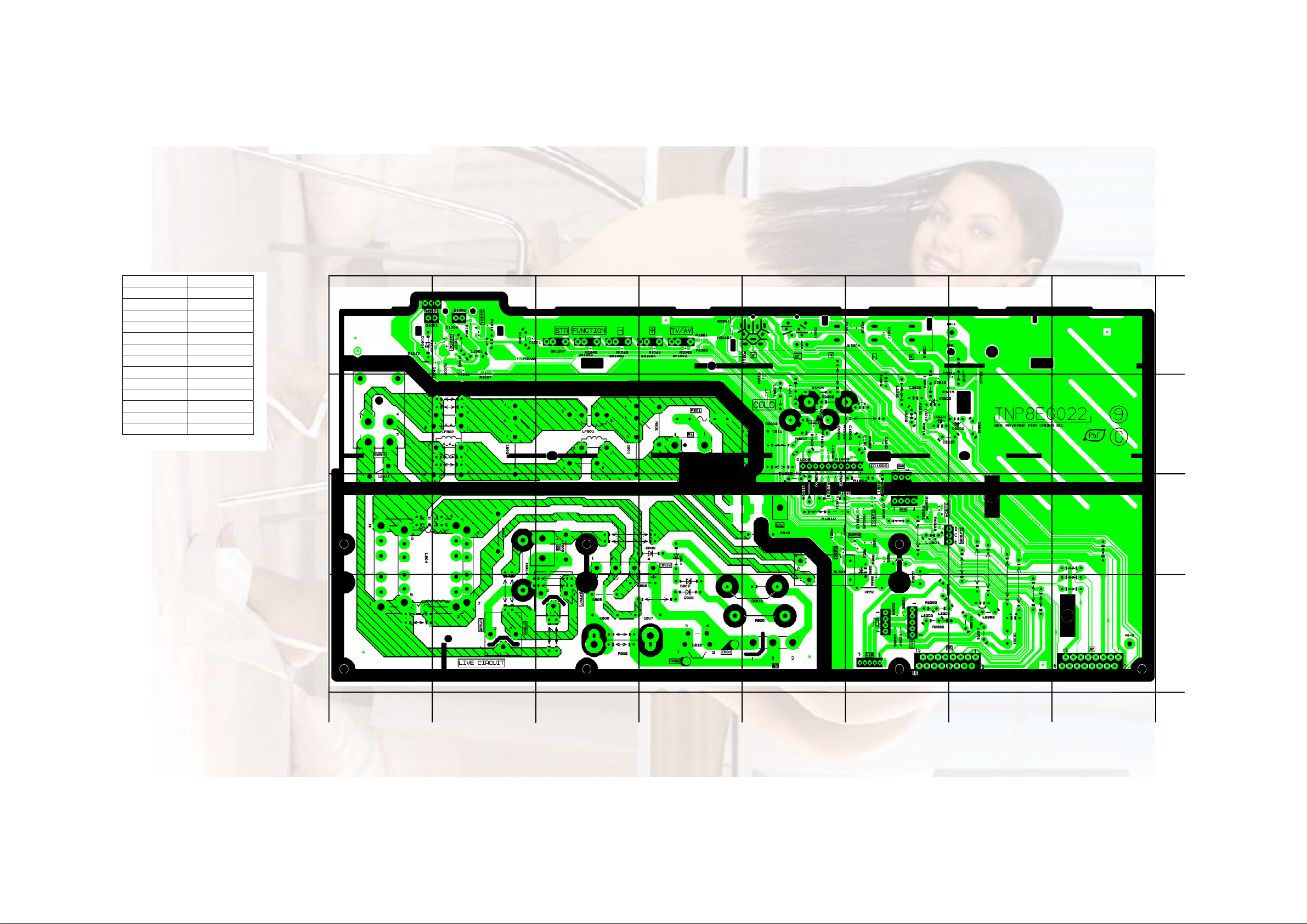

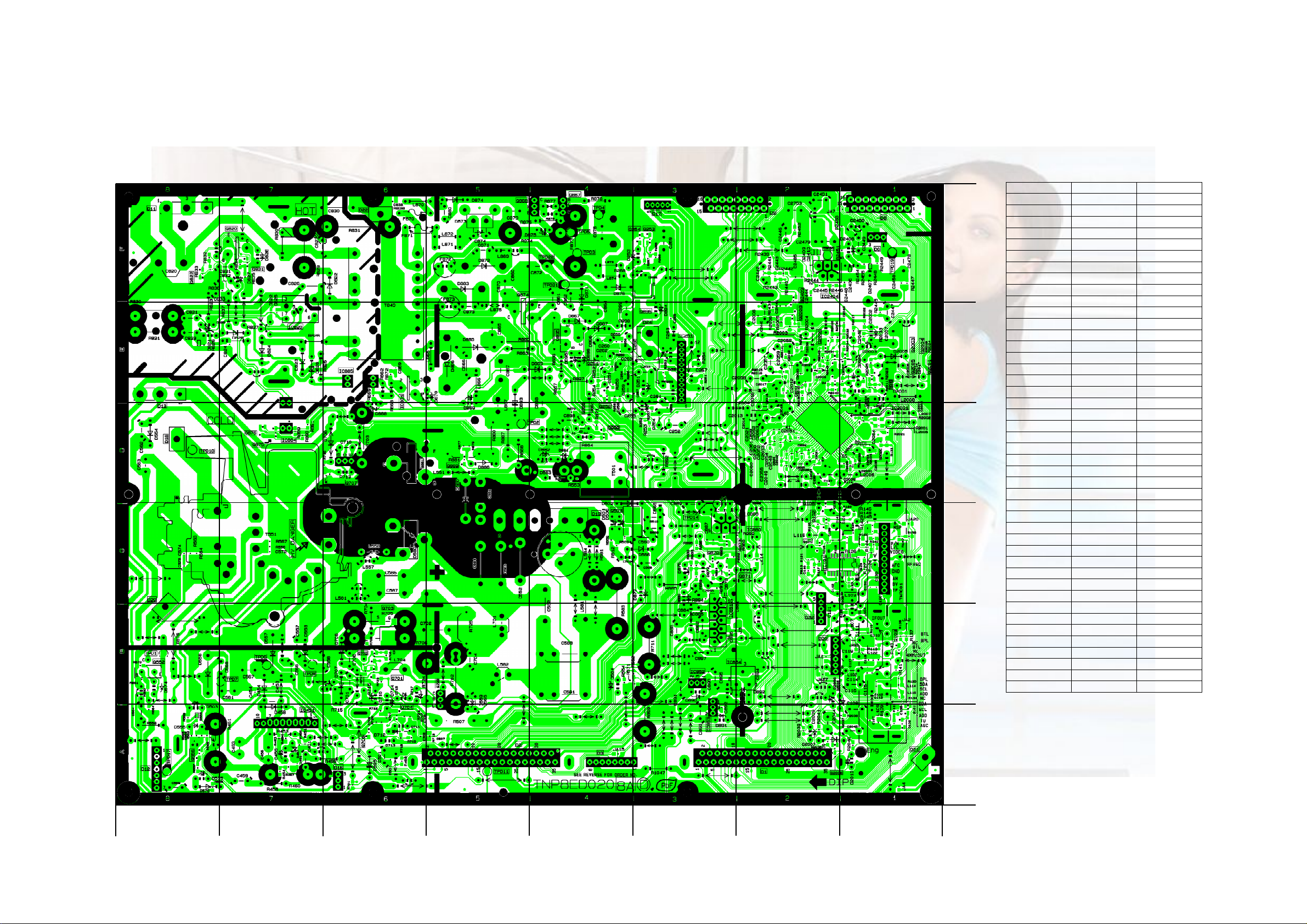

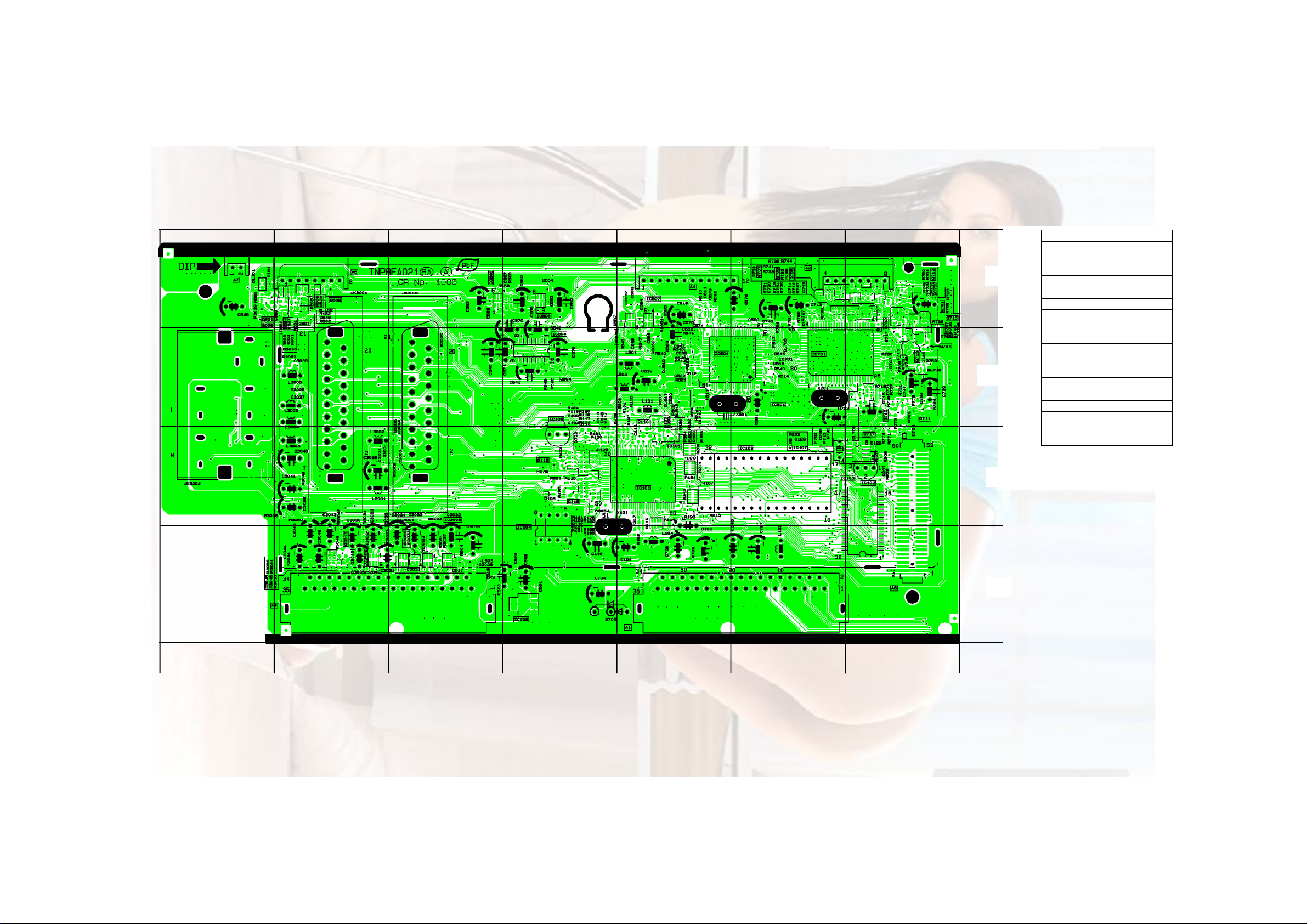

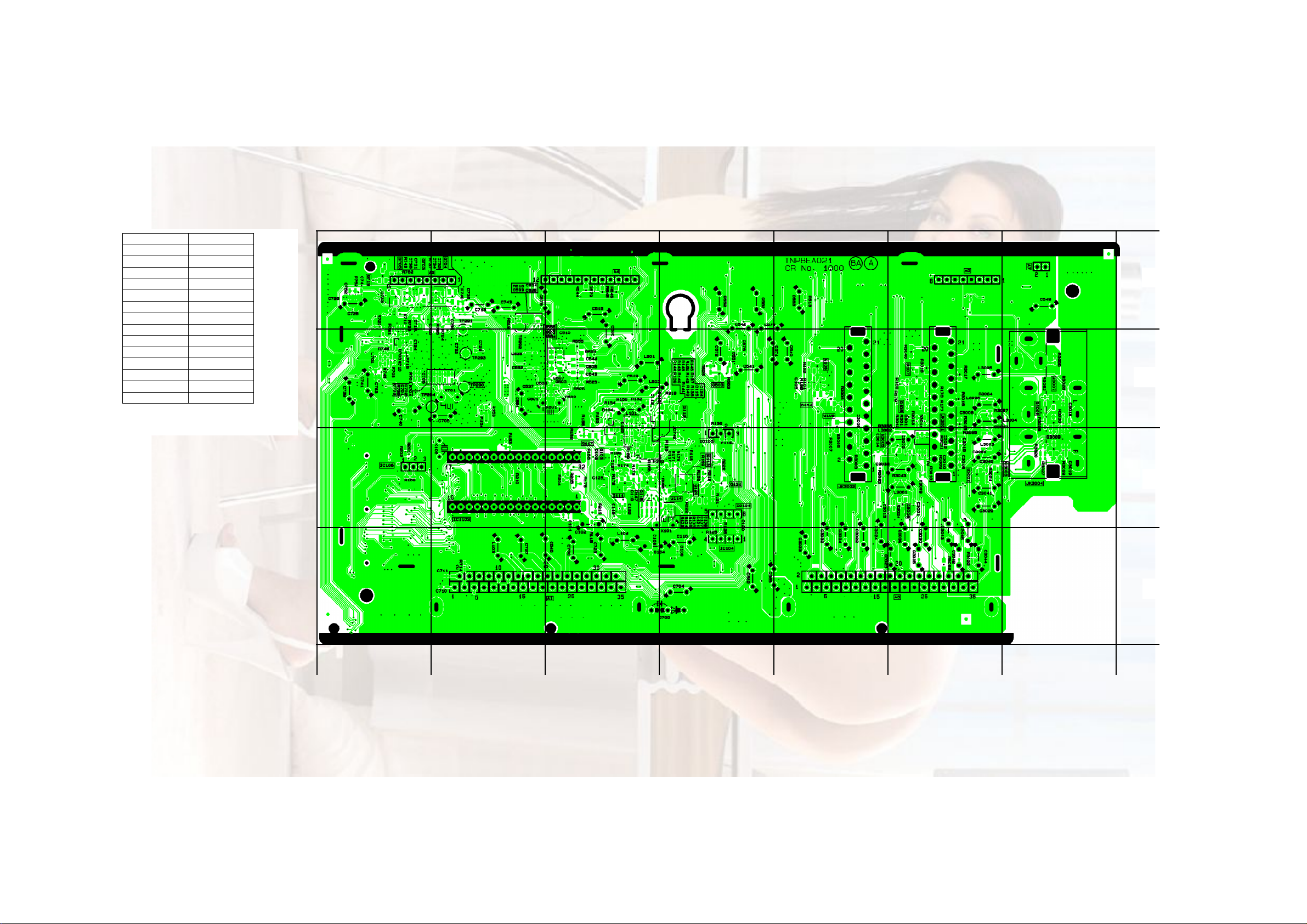

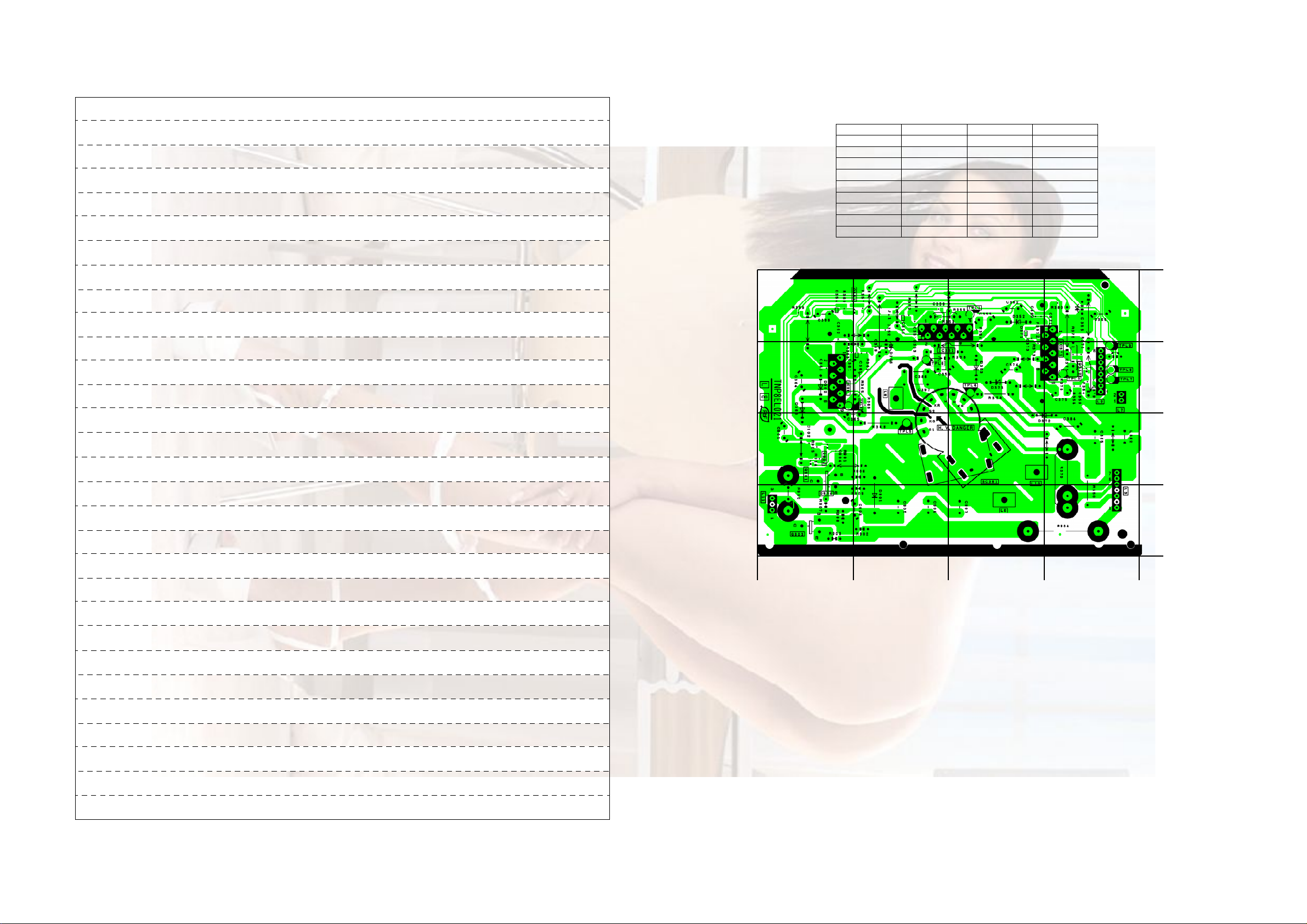

CONDUCTOR VIEWS.............................................................................................................................................................28

SAFETY PRECAUTION

GENERAL GUIDE LINES

1.It is advisable to insert an isolation transformer in the
a.c. supply before servicing a hot chassis.

2.When servicing, observe the original lead dress in the
high voltage circuits. If a short circuit is found, replace
all parts that have been overheated or damaged by
the short circuit.

3.After servicing, see that all the protective devices
such as insulation barriers, insulation papers, shields
and isolation R-C combinations are correctly
installed.

4.When the receiver is not being used for a long period
of time, unplug the power cord from the a.c. outlet.

5.Potentials as high as 32kV are present when this
receiver is in operation. Operation of the receiver
without the rear cover involves the danger of a shock
hazard from the receiver power supply. Servicing
should not be attempted by anyone who is not
familiar with the precautions necessary when working
on high voltage equipment. Always discharge the
anode of the tube.

6.After servicing make the following leakage current
checks to prevent the customer from being exposed
to shock hazard.

LEAKAGE CURRENT COLD CHECK

1.Unplug the a.c. cord and connect a jumper between
the two prongs of the plug.

2.Turn on the receiver’s power switch.

3.Measure the resistance value with an ohmmeter,
between the jumpered a.c. plug and each exposed
metallic cabinet part on the receiver, such as screw
heads, aerials, connectors, control shafts etc. When
the exposed metallic part has a return path to the
chassis, the reading should be between 4M ohm and
20M ohm. When the exposed metal does not have a
return path to the chassis, the reading must be
infinite.

LEAKAGE CURRENT HOT CHECK

1.Plug the a.c. cord directly into the a.c. outlet. Do not
use an isolation transformer for this check.

2.Connect a 2k! 10W resistor in series with an
exposed metallic part on the receiver and an earth,
such as a water pipe.

3.Use an a.c. voltmeter with high impedance to
measure the potential across the resistor.

4.Check each exposed metallic part and check the
voltage at each point.

5.Reverse the a.c. plug at the outlet and repeat each of
the previous measurements.

6.The potential at any point should not exceed
1,4 Vrms. In case a measurement is outside the limits
specified, there is a possibility of a shock hazard, and
the receiver should be repaired and rechecked before
it is returned to the customer.

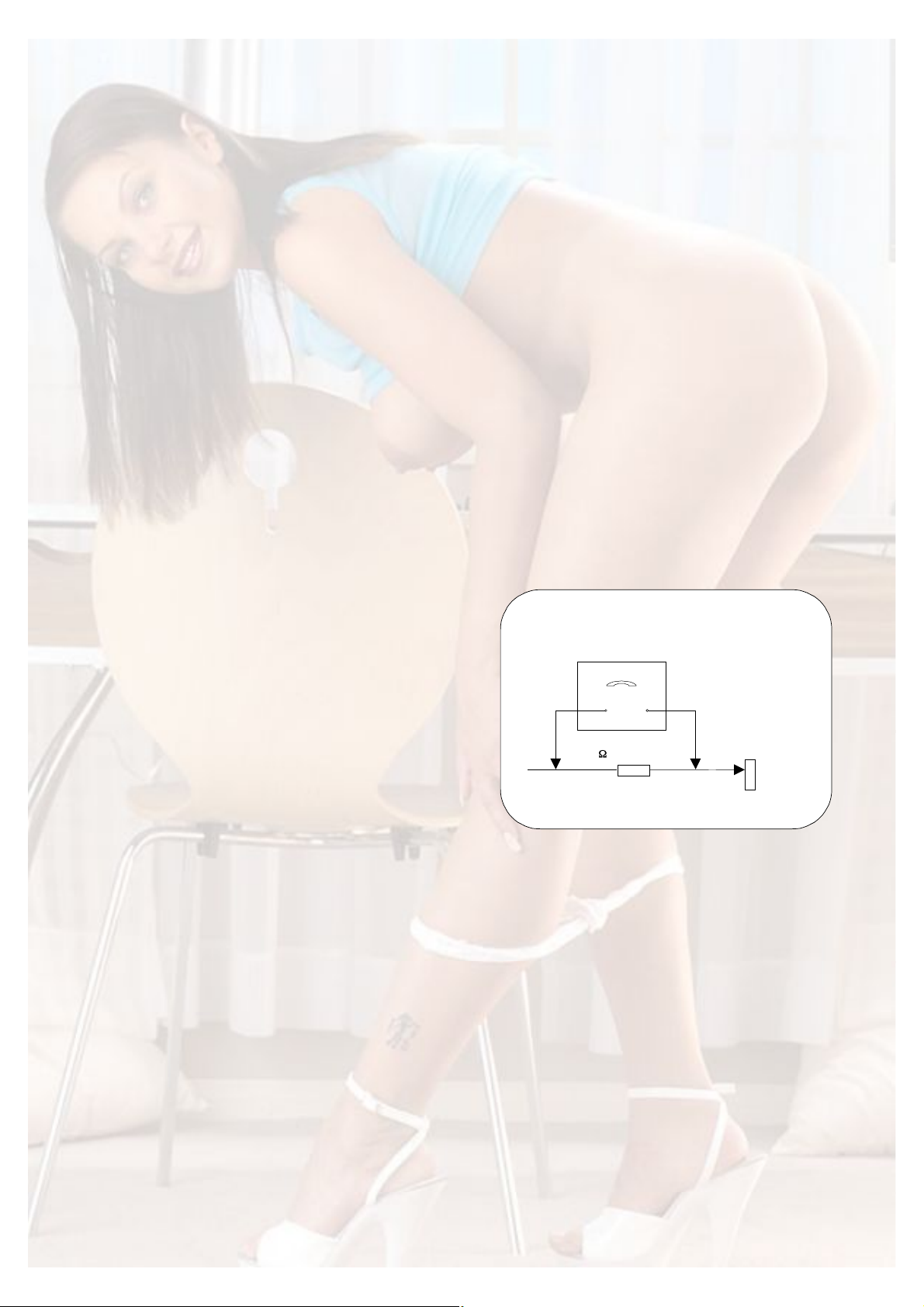

HOT CHECK CIRCUIT

a.c. VOLTMETER

2k 10 Watts

TO INSTRUMENT'S EXPOSED
METALLIC PARTS

Fig. 1.

X-RADIATION WARNING

1.The potential sources of X-Radiation in TV sets are
the high voltage section and the picture tube.

2.When using a picture tube test jig for service, ensure
that the jig is capable of handling 32kV without
causing X-Radiation.

NOTE: It is important to use an accurate periodically

calibrated high voltage meter.

1.Set the brightness to minimum.

2.Measure the high voltage. The meter should indicate:

31kV ± 1kV.
If the meter indication is out of tolerance, immediate
service and correction is required to prevent the
possibility of premature component failure.

3.To prevent any X-Radiation possibility, it is essential
to use the specified tube.

WATER PIPE

(

EARTH)

2

SERVICE HINTS

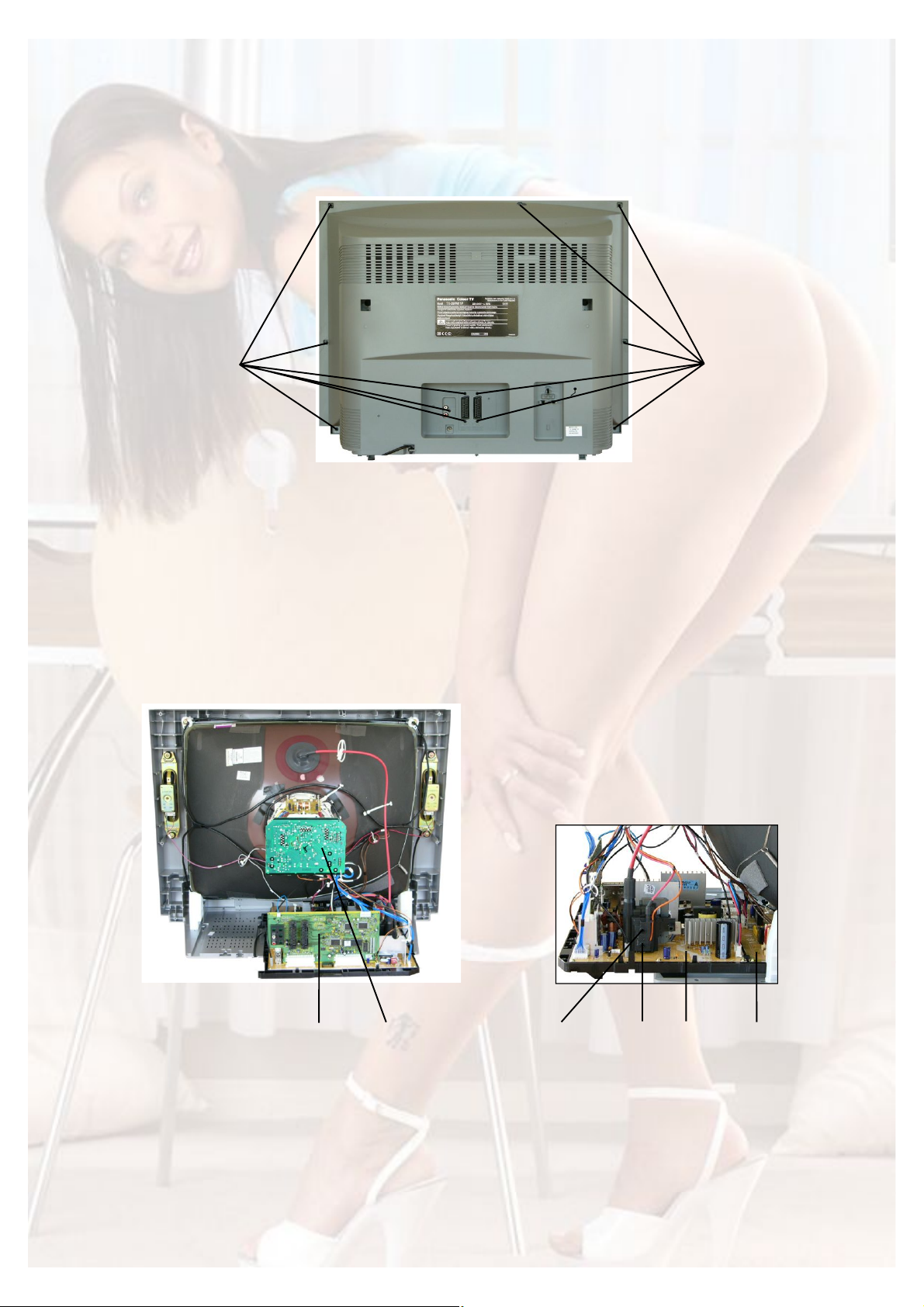

How to remove the rear cover

1.Remove the 12 screws as shown in Fig.2.

SCREWS

LOCATION OF CONTROLS

SCREWS

Fig. 2

L-BoardA-BoardFocus

Fig. 3

3

G-BoardScreenD-Board

ADJUSTMENT PROCEDURE

Item / Preparation Adjustments
+B SET-UP

1.Receive a Window pattern.

2.Set the controls :
BrightnessMinimum
ContrastMinimum
VolumeMinimum

Confirm the following voltages:

TPD1 205±10V D9 pin3 9±0,5V
TPD2 137±2V D9 pin7 10,5±0,5V
TPD3 42±2V D2 pin22 3,3±0,1V
TPD5 42±2V D2 pin26 2,5±0,1V
TPD6 12,5±1V D2 pin14 3,3±0,1V
TPD7-12,5±1V D9 pin5 5±0,5V
TPD8 30,5±1V D9 pin11 6,5±0,5V
TPD11 5±0,5V

CUT OFF / Ug2 Test

1.Receive a Window pattern.

2.Set Viewing Mode: Normal

3.Normalize the TV set.

4.Set brightness: Minimum

To adjust Cutoff connect an oscilloscope to the Blue cathode. Adjust
the screen VR until the black level is 160V +5V/-5V.

Black Level
160V+5V/-5V
GND

SELF CHECK

Self-check is used to automatically check the bus lines and hexadecimal code of the TV set.To enter Self-Check mode, press
the STATUS button on the remote control and at the same time press the down (-/v) button on the customer controls at
the front the TV set. To exit Self Check, switch off the TV set at the power button.

E2O.K.
DDPO.K.
VSPO.K.
VPCDO.K.
AVSWO.K.
TUNO.K.
MSPO.K.
DPL--­MAS---

TX-29PM11DTX-29PM11F

OPTION 10F0F
OPTION 20000
OPTION 3A0A0
OPTION 41111
OPTION 50000
OPTION 60505
OPTION 77F7F
OPTION 8D050
OPTION 90000
OPTION 108080
OPTION 111B1B
OPTION 120000
OPTION 130C0C

CHECKBB3B

SUM**

TX-29PM11P

If the CCU ports have been checked and found to be incorrect or not located then " - - " will appear in place of "O.K.".

4

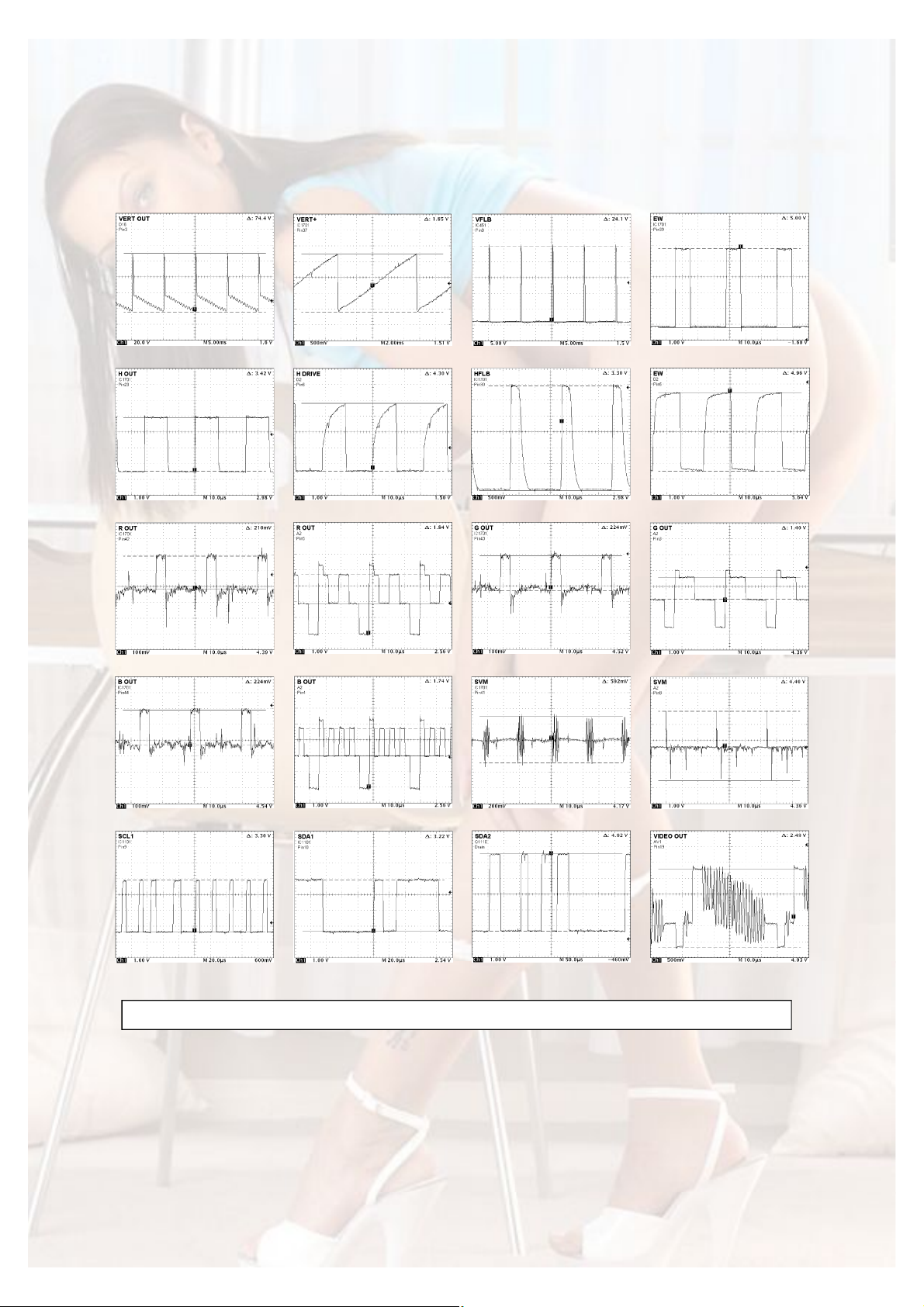

WAVEFORM PATTERN TABLE

CONDITIONS: CONTRAST...MAX, BRIGHTNESS...MID, COLOUR...MID, SHARPNESS...MID

5

ALIGNMENT SETTINGS

(The figures below are nominal and used for representative purposes only.)

1.Set the Bass to maximum position, set the Treble to minimum position, set the Volume to minimum then press the
down button (-/v) on the customer controls at the front of the TV and at the same time press the INDEX button on the
remote control, this will place the TV into the Service Mode 1.

2.Press the RED/GREEN buttons to step up / down through the functions.

3.Press the YELLOW/BLUE buttons to alter the function values.

4.Press the OK button after each adjustment has been made to store the required values.

5.To exit the Service Mode, press the "N" button.

Alignment Function

Horizontal Position

Vertical Position

Horizontal Amplitude

Vert. Amplitude

EW-amplitude

Lower Corner

Trapezium-comp

Upper Corner

Vertical Linearity

Vertical Symmetry

Note: All setting values are approximate

Setting indication

H-Pos

40

V-Pos

30

H-Amp

2

V-Amp

-33

EW-Amp 1

- 36

Lower Corner

1

Trapez 1

-5

Upper Corner

1

V-Lin

-5

V-Sym

38

Settings / Special features

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Optimum setting.

Angle

Bow

DVCO

Highlight

Lowlight

Sub-Brightness

Angle

0

Bow

0

DVCO

0

High040303180350
Low013001500160

Sub-Brightness

13

Optimum setting.

Optimum setting.

Receive a PAL Colour Bar Pattern. For
DVCO alignment press "Blue" button, wait
until the figure colour is changed from red
to black colour.

Optimum setting.

Optimum setting.

6

A

Y

A

Y

V

A

Y

R

Y

8

8

8

A

A

5

5

VM COIL

8

Q903Q904

Q901

A - BOARD

Q902

6 4 3 5

6 4 3 5 8

L2

IC1701

394041

R EXT

A2

Q170 5 Q170 8

Q170 4 Q170 7

Q171 2 Q171 9

SVM

41

DEFL ECTIO N

DDP3315CQAG3

B EXT

G EX T

Q170 3 Q170 6

B OU T

R OU T

G OU T

SENS E

35

43

44

42

PROCE SSOR

0÷Y7

8bit

Y0÷Y7

53

V1_C VBS

AV1 O UT

51 52 53

4

LLC2

9

IC1501

IDEO SIGNAL

PROCE SSOR

VSP941 5BVKC3

56

62

63

55

Y/V_ IN

52

57

58

61

C_IN

V3_C

V3_V /Y

TV_C VBS

AV2 O UT

TXT CVBS

B OS D

G OS D

R OS D

57

59

58

MICRO

IC1101

PROCE SSOR

SDA5550MQBTL

21

TXT CVBS

Q352

CRT

5

IC361

IC351

R OUT

3

IC371

G OUT

B OUT

3

3

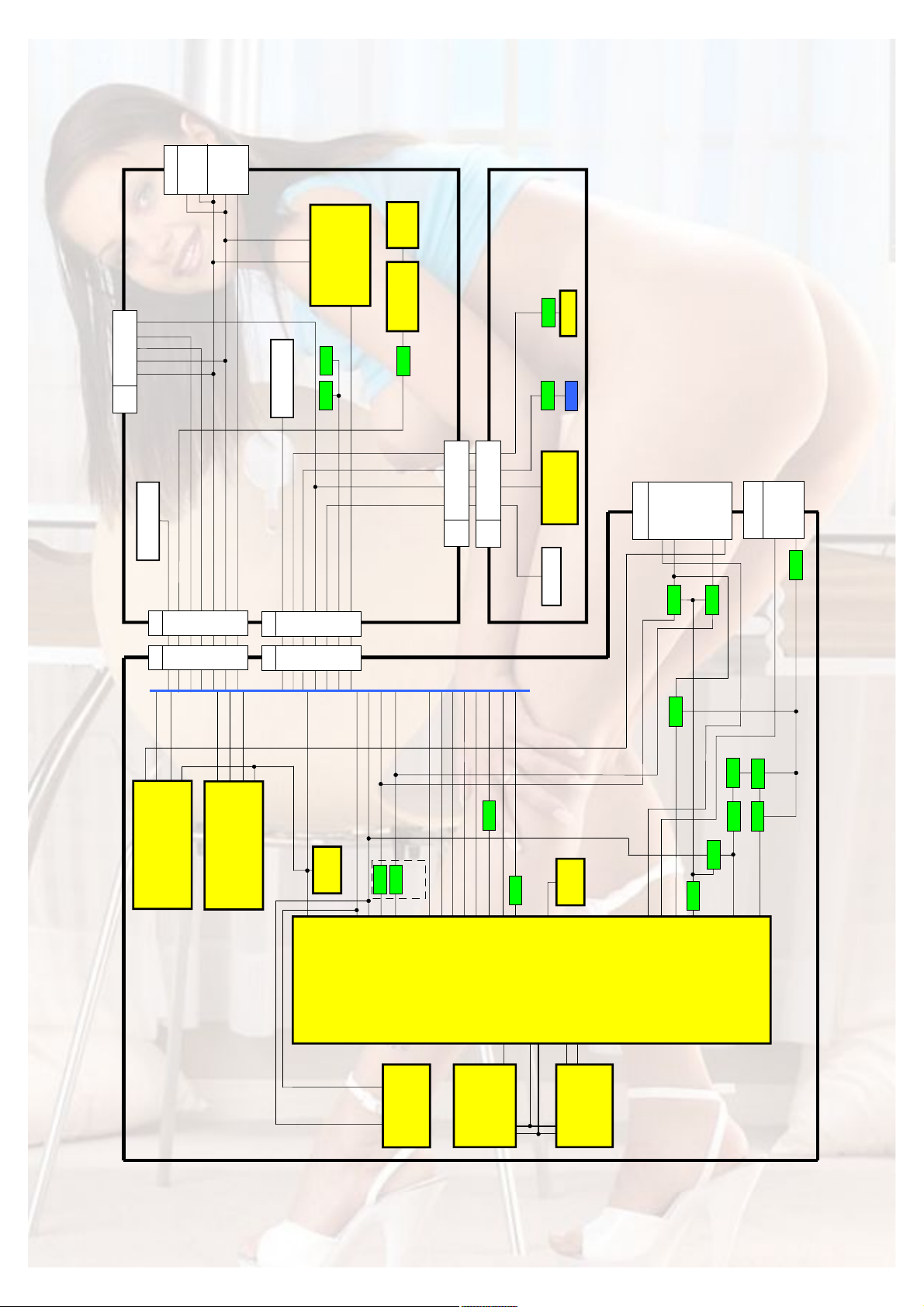

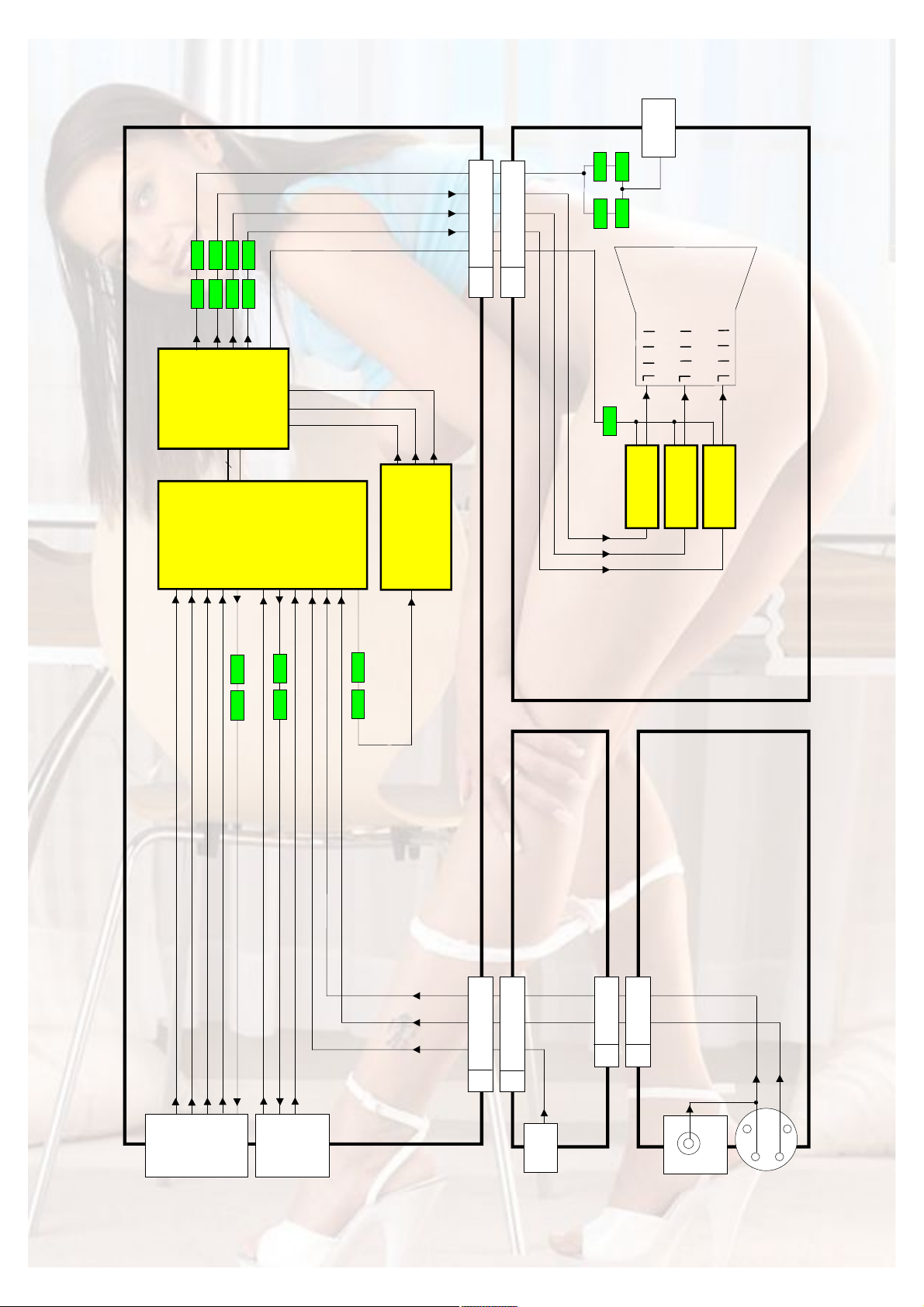

VIDEO BLOCK DIAGRAM

Q150 2Q150 7

Q150 1Q150 8

7

15

11

20

19

BLUE IN

RED IN

AV1

VIDE O IN

GRE EN IN

VIDE O OUT

15

20

19

C IN

/VIDEO IN

VIDE O OUT

Q150 3Q150 4

V3 V/

V3 C

TV CVBS

AV2

L - BOARD

D - BOARD

1 4

7 1 5

7 1 5

A3

D1

VIDE O

G - BOARD

1 4

D8

G7

AV3

TUNE

C

7

A

R

X

X

A

R

A

R

A

L

1

4

AM

MSP

TUNE

102

Q106

101

Q101 Q 102

7

11

R O UT

L O UT

IC251

LA4282

AUD IO O UTPUT

R I N2L IN

5

4 1

G14

4 1

D17

G16

V3

HEADPHONE

5

9

8

4

R

L

2 L

3 R

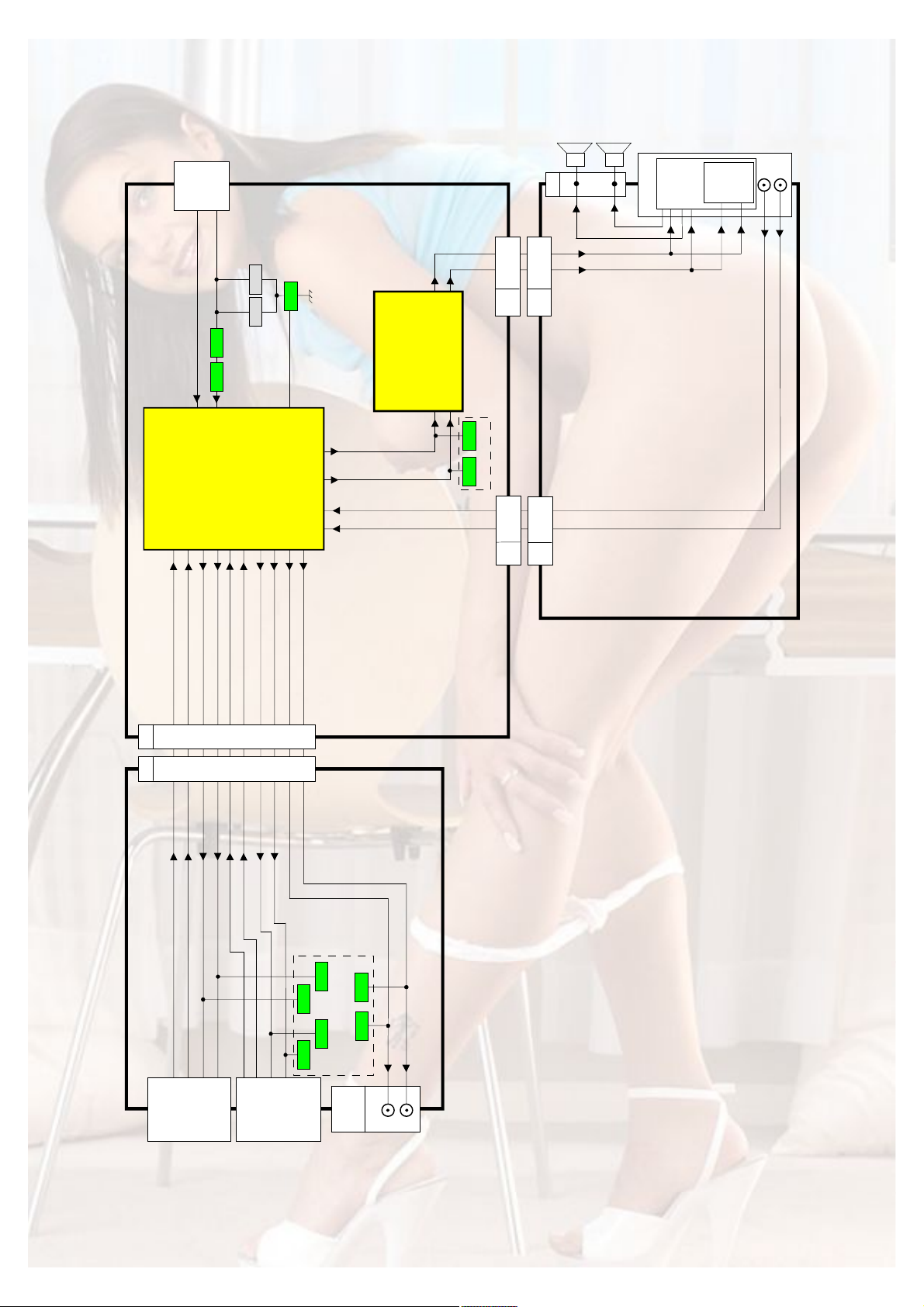

AUDIO BLOCK DIAGRAM

ANA IN 1

MONO IN

67

60

IC2001

UDIO

MSP3410GAB83

57

36

37

56

545333

D CT RL

SPKR OUT L

78

28

SPKR OUT R

27

PROCE SSOR

5150

24

25

34

Q251

SMUT E

Q252

V3

V3 L

7

6

6 7

D8

G7

G - BOARD

D - BOARD

8

6

30

28

27

26

20

22

33

32

8

6

30

28

27

26

20

22

33

A3 D1

AV1 L IN

AV1 R IN

AV2 L IN

AV2 R IN

AV1 L OUT

AV1 R OUT

32

AV2 L OUT

AV2 R OUT

MONITOR L

MONITOR R

A - BOARD

Q3003

Q3002

Q3005

1

3

2

6

LEFT IN

AV1

RIGH T IN

LEFT OUT

RIGH T OUT

1

3

2

6

LEFT IN

RIGH T IN

AV2

LEFT OUT

RIGH T OUT

Q300 9

SMUTE

Q300 8

Q3006

OUT

AUDIO

L

MONIT OR

R

8

V

A

A

A

R

SCL2

SDA2

SCL2

AFC

TUNE

SDA2

7

5 6

3 4

D3

D - BOARD

RC SIG

SDA1

SCL1

SDA2

SCL2

BUS

FBT, HEATE R

PROT 1

D2

TV O FF

SDA1( 3.3V)

SCL1 (3.3V)

1528303132

15A1283031

3

SDA2

IC2001

2

SCL2

RESET

21

Q252

Q251

POWE R SUP PLY

IC851

IC880

CTL

1

Q873

TV O FF

ROTATION

STBY LED

RC SIG

KEYSCAN

G - BOARD

Q190 1

IC1900

D100 1

Q100 2

9

9

12 11 10

12 11 10

D8

G7

RM1001

RC RE CEIVE R

V1

SCL

SLO W1

8

10

/ AV LINK

SDA16 FBL1

12

V2

AV L INK

SLO W2

8

10

Q110 5

SCL2 (5V)

SDA2( 5V)

33

32

33

ST/O N

ROT ATION

STBY LED

RC S IG

KEYS CAN

SMUT E

101112

101112

RST5 .0

15

31

15

31

AFC

4

34

34

9

D1

4A39

KEYSC AN

Q110 8

Q110 7

SER VICE

AV L INK

CONTROL BLOCK DIAGRAM

AFC

ROT ATION

6

13

24

37

FBL1

SDA1( 3,3V)

SCL1 (3,3V)

20

63

62

RST

RST

ROT ATION

SDA1( 3,3V) 64SCL1 (3,3V)

RST5 .0

RST3 .3

SCL 2(5V)

SDA 2(5V)

SCL 1(3.3V )

SDA 1(3.3V )

5V

1

IC1501

IDEO SIGNAL

PROCE SSOR

IC1701

PROCE SSOR

DEFL ECTIO N

IC1105

9

15

RESET

SCL 1(3.3V )

MICRO

IC1101

PROCE SSOR

LEVEL

Q110 9

Q111 0

3,3V

10

11

12

SCL 2(5V)

SDA 2(5V)

SDA 1(3.3V )

6

SCL1

IC1104

5

SDA1

A - BOARD

ST/ON

PROT 1

RC SIG

TV OFF

KEYSCAN

SMUTE

STBY LED

Q111 2

SHIFT ER

62

25

24

13

AFC

ST/ON

TV OFF

KEYS CAN

EAROM

IC1103

Q1116

44

45

33

31

RC IN

SMUTE

PROT 1

STBY LED

PSE N OUT

88

24

G

D0÷D7

0÷A18

EPRO M MEMO RY

1

IC1106

50

RST

WR O UT

D0÷D7

RD OUT

A0÷A19

64

65

24

29

OE

WE

D0÷D7
A0÷A19

SCL2 (5V)

SDA2( 5V)

Q110 4

AV1/AV2

Q111 4

Q111 5

Q111 3

Q111 1

Q11 19

AV LINK IN

AV LINK OUT

Q11 18

27

16

37

SLOW2 26SLOW1

AV1/AV2

SER VICE

SDRA M

IC1102

35

34

AV LI NK IN

AV LI NK OUT

9

V

VERT DY

3

D16

HORIZ DY

5

D19

2

1

6

10

FBT

DIOD E

MODU LATOR

DEFLECTION BLOCK DIAGRAM

3

8

IC451

VERT ICAL

6

LA7876N

HFLB

VFLB

1

3

10

1A13106

H DR IVE

D - BOARD

VERT+

D2

Q551

T501

Q503

EW

6

5

5

Q703

A - BOARD

EW

H DR IVE

Q171 3

Q17 15

Q170 1 Q1 702

VFL B

39

30

23

37

HFL B

VER T+

IC1701

DEF LECT ION

PROC ESSOR

DDP3315CQAG3

10

VS

EW

HOUT

IC1501

VSP9415B VKC3

8

23

VS

H SY NC

IDEO SIGNAL

PROCE SSOR

IC1101

29

30

VFL B

H SY NC

MICRO

PROCE SSOR

SDA5550MQBTL

10

r

r

R

A

POWER BUS

R

A

V

A

V

9V

5V

6,5V

10,5V

10

UDIO

IC251

OUTP UT

Q896

42V

Q868

Q867

D875

D873

D874

11

10

T849

P1

P2

5

9

Q874

R887

10,5V

D872

D883

D866

6,5V

137V

13

18

14

V1

V2

1

2

1

3

4

POW E

SUPP LY

IC820

10,5V

3,3V SB

2,5V SB

2

1

+5V

+5V

+33V

TUNE

D871

2 1

R863

1

IN

IN

IC852

IC8532IC854

4,7,9

IC801

UDIO

PRO C.

IC2001

11,12,13

IC885

VERT

IC451

2

-12,5V

D558

2

9

R8206R821

T551

R703

10,5V

1

IN

IC851

65,66

7

12,5V

D557

7

D554

1

39

5V S B

2

3 5 8

30,5V

10,5V

2

IN

4

9V

8V

5V HOUT

3,3

8V

5V

5V

T501

D553

8

1,8V

1,8V

3,3V

5,28,3 4,66

35,42, 50,64, 68

IC1501

VIDEO

3,3V

7,12,2 5,72

1,8V

5V

R899

2,5V SB

5VHOUT

3,3

IC880

5V SB

3,3V SB

1,8V HDR

35

26

9V

24 25

22

5V

14 17 20

D2

1,8VH DR

2

3

35

26

24 25

22

14 17 20

IC1502

A1

IC1106

2

2

3,3V SB

5V

9V

5V

3,3V

3,3V

3,15

44,59

IC1701

IC1102

IC1105

32

3,3V SB

3,3V SB

2,5V SB

2,5V SB

3,3V SB

75

73

47

DEFL ECTION

SDRAM

3,3V SB

IC1103

EPRO M MEM

32

6,22

56,73

8,40,9 2

MICR O

IC1101

EARO M

IC1104

8

3,3V SB

POWER BUS

POWER SUPPLY BLOCK DIAGRAM

D- BOARD

~

PFC

SW80 1

Line

F801

1G14

MAINS IN

6,5V

9V

5V S B

3

1

3

400V

D802

1G43

+

-

RL801

5

5

0V

STR Vcc

~

D851

D11

Filte

Filt e

D9

G6

R803

D808

D809

1

11

3

1

11

CF807

1G22

DEGAUSS

COIL

POWER BUS

1

3

D12

1L33

137V

200V

VCC

RM1001

10

IC1900

Q903

6

2

IC371

6

2

IC361

6

2

IC351

D355

9V

Q902

1

L2

G - BOARD

L- BOARD

- BOARD

Q170 6

1

A2

Q171 9

Q170 7

Q170 8

11

PARTS LOCATION

NOTE:

The numbers on the exploded view below
refer to the exploded view section of the
Replacement Parts List.

19
18

14

12

15

20

13

3

17

21

9

16

7

11

10

2
5
8
6

1

4

12

Components Identified by mark have special characteristics important for safety.
* When replacing any of these components, use only manufacturers specified parts.
In case of ordering these spare parts, please always add the complete Model-Type
number to your order.

DescriptionCct RefParts Number DescriptionCct RefParts Number

COMMON PARTS

EXPLODED VIEW

CRT 1A68EPD10X70

SPEAKER 2EASG16S503F2

TUNER 3ENG29525G

REMOTE CONTROL 4EUR7628010

PANASONIC BADGE 5TBM0E0101

POWER BUTTON 6TBX0E80800

CRT FIXING SCREW 7THT1062

DOOR LID 8TKP0E12001

BACK COVER 9TKU0E0133

CABINET 10TKY0E0138

DEGAUSS COIL 11TLK8E05210

CHASSIS FRAME 12TMX8E069

A P.C.B. 13TNP8EA021AN

D P.C.B. 14TNP8ED020BB

G P.C.B. 15TNP8EG022AB

L P.C.B. 16TNP8EL021AU

AC CORD ASSY 17TXASX01EFFG

FOCUS LEAD ASSY 18TXJ/FC0DEG1

ANODE LEAD 19ZTBZAD550A

F.B.T. 20ZTFN65013A

MISCELLANEOUS COMPONENTS

BATTERY .R6RC/2P

SET FOOT (FRONT) .TBL8E014

SET FOOT (REAR) .TBLG3020

PRESET LABEL L .TBM0E0232

LID SWITCH .TEK6935

CRT SUPPORT BRACKET R.TKK0E9507

CRT SUPPORT BRACKET L.TKK0E9508

IR WINDOW .TKP0E12101

ROTATION COIL .TLK8E05190

LED HOLDER .TMW8E050-2

CARTON .TPC0E43701

TOP CUSHION .TPD0E0036

BOTTOM CUSHION .TPD0E0037

SPACER CKN2TMM8E18027

I.C.s

AUDIO OUTPUT IC251LA4282

RGB OUTPUT IC351TDA6101Q/N3

RGB OUTPUT IC361TDA6101Q/N3

RGB OUTPUT IC371TDA6101Q/N3

VERTICAL OUTPUT IC451LA7876N

ERROR AMPLIFIER IC801SE130N

POWER SUPPLY IC820STRW6754LF06

REPLACEMENT PARTS LIST

Important Safety Notice

REGULATOR IC851C0DAFKE00001

VOLTAGE REGULATORIC852TA48M033FS

REGULATOR IC853TA48025F

REGULATOR IC854TA4805SLBS1

REGULATOR IC880BA09ST-V5

PHOTO COUPLER IC885B3PAA0000267

MICRO PROCESSOR IC1101SDA5550MQBTL

SRAM IC1102K6X4008T1FV7

4MEG EPROM M27W401-80BIC110315E0/090/0E

RESET IC1105MN1381TU

RESET IC1106MN1381JU

VIDEO PROCESSOR IC1501VSP9415BVKC3

REGULATOR IC1502LD1117S18TR

DEFLECTION PROCESSORIC1701DDP3315CQAG3

EARTH CORRECTION IC1900LA6515

AUDIO PROCESSOR IC2001MSP3410GAB83

LED RECEIVER RM1001RPM-6937

FUSES

FUSE HOLDERF801-LEYF52BC

FUSE HOLDERF801-REYF52BC

FUSE F801S5055AC

FS LINK F870TSF19252

FS LINK F871TSF19632

DIODES

THERMISTOR CF80759890T60B110

DIODE D101MA3020TX

DIODE D102MA3020TX

DIODE D251MA700ATA

DIODE D252MA700ATA

DIODED3511SS355TE-17

DIODED3541SS355TE-17

DIODE D355MA2C72300F

DIODED3611SS355TE-17

DIODED3711SS355TE-17

DIODE D454EU02V0

DIODE D456MTZJT-775.6C

DIODE D4571SS133T-77

DIODE D458EU02V0

DIODE D5011SS133T-77

DIODE D502EU02V0

DIODE D5031SS133T-77

DIODE D5041SS133T-77

DIODE D505MTZJT-7710D

DIODE D506MTZJT-773.9A

DIODE D553EU02V0

DIODE D554EU02V0

DIODE D5551SS133T-77

DIODE D556UDZSTE-1722B

DIODE D557ERB93-02E

DIODE D558ERB93-02E

DIODE D5591SS133T-77

13

DescriptionCct RefParts Number DescriptionCct RefParts Number

DIODE D560RH3GLF102

DIODE D563EU02V0

DIODE D565EU02V0

DIODE D566EU02V0

DIODE D575MTZJT-775.1C

DIODE D576EU02V0

DIODE D580FMV-3GULF730

DIODE D706EU02V0

DIODE D707EU02V0

DIODE D710MTZJT-7716C

DIODE D711MA4056MTA

DIODE D7121SS133T-77

DIODE D713MA4130MTA

DIODE D714MTZJT-775.6A

DIODE D717MA4020LTA

DIODE D802RBV-408LF-B

DIODE D803BZX79B75A26A

DIODE D804BZX79B75A26A

DIODE D808AU02AV0

DIODE D809AU02AV0

DIODE D820MTZJT-776.8B

DIODE D822SARS01V1

DIODE D8231SR124-4AT82

DIODE D8241SR124-4AT82

DIODE D8251SS133T-77

DIODE D8511SS133T-77

DIODE D865RU2BLFC4

DIODE D866RU4BLF-L1

DIODE D8671SR124-4AT82

DIODE D868MAZ40330HF

DIODE D869MTZJT-775.1B

DIODE D8701SS133T-77

DIODE D8711SR124-4AT82

DIODE D872RK46LF-M1

DIODE D873FMGG26S

DIODE D8741SR124-4AT82

DIODE D875MTZJT-7727A

DIODE D8771SS133T-77

DIODE D8781SS133T-77

DIODE D8801SS133T-77

DIODE D881MTZJT-7736A

DIODE D883RK46LF-M1

DIODE D8871SR124-4AT82

DIODE D8881SS133T-77

DIODE D8891SR124-4AT82

DIODE D8901SS133T-77

DIODE D8911SS133T-77

DIODE D8921SS133T-77

DIODE D893BZX79B75A26A

DIODE D894MTZJT-7722C

DIODE D895MTZJT-775.1B

DIODE D8961SS133T-77

DIODE D898MTZJT-7720B

L.E.D. D1001LNH201RFCF6

DIODE D1004MTZJT-778.2C

DIODED11021SS355TE-17

DIODED11041SS355TE-17

DIODED11051SS355TE-17

DIODE D1701DAN217T146

DIODE D1702DAN217T146

DIODED17031SS355TE-17

DIODE D17051SR124-4AT82

DIODE D20051SS133T-77

DIODE D20061SS133T-77

DIODE D20071SS133T-77

DIODE D20081SS133T-77

TRANSISTORS

DIODE D20091SS133T-77

DIODE D2010MTZJT-774.7C

DIODE D3201MTZJT-778.2C

DIODE D3202MTZJT-778.2C

DIODE D3203MTZJT-778.2C

DIODE D3204UDZSTE-1716B

TRANSISTOR Q101BC847B

TRANSISTOR Q102BC847B

TRANSISTOR Q106BC847B

TRANSISTOR Q251BC847B

TRANSISTOR Q252BC847B

TRANSISTOR Q351BC857B

TRANSISTOR Q352BC857B

TRANSISTOR Q5032SD1223TE16L

TRANSISTOR Q5512SC5905000RK

TRANSISTOR Q5522SC1473ATA

TRANSISTOR Q556BC847B

TRANSISTOR Q701BC847B

TRANSISTOR Q702BC847B

TRANSISTOR Q7032SK2231TE16L

TRANSISTOR Q704BC847B

TRANSISTOR Q705BC547B/126

TRANSISTOR Q706BC847B

TRANSISTOR Q7072SA1018QTA

TRANSISTOR Q850BC847B

TRANSISTOR Q852BC847B

TRANSISTOR Q8652SA1668LF603

TRANSISTOR Q866MPSA42/RA

TRANSISTOR Q8672SA1534A-RTA

TRANSISTOR Q868BC557B/126

TRANSISTOR Q870BC847B

TRANSISTOR Q871BC857B

TRANSISTOR Q873BC847B

TRANSISTOR Q8742SD2396/K

TRANSISTOR Q8962SK2231TE16L

TRANSISTOR Q898BC847B

TRANSISTOR Q901BC857B

TRANSISTOR Q902BC847B

TRANSISTOR Q9032SA1535AR0LB

TRANSISTOR Q9042SC3944AR0LB

TRANSISTOR Q1002BC847B

TRANSISTOR Q1103BC847B

TRANSISTOR Q1104BC847B

TRANSISTOR Q1105BC847B

TRANSISTOR Q1106BC847B

TRANSISTOR Q1107BC847B

TRANSISTOR Q1108BC847B

TRANSISTOR Q11092N7002

TRANSISTOR Q11102N7002

TRANSISTOR Q1111BC847B

TRANSISTOR Q1112BC847B

TRANSISTOR Q1113BC847B

TRANSISTOR Q1114BC847B

TRANSISTOR Q1115BC847B

TRANSISTOR Q1116BC857B

TRANSISTOR Q1117BC847B

TRANSISTOR Q1118BC847B

TRANSISTOR Q1119BC847B

TRANSISTOR Q1501BC847B

TRANSISTOR Q1502BC847B

TRANSISTOR Q1503BC847B

TRANSISTOR Q1504BC857B

TRANSISTOR Q1507BC857B

TRANSISTOR Q1508BC857B

TRANSISTOR Q1701BC847B

14

TRANSFORMERS

COILS

DescriptionCct RefParts Number DescriptionCct RefParts Number

TRANSISTOR Q1702BC847B

TRANSISTOR Q1703BC847B

TRANSISTOR Q1704BC847B

TRANSISTOR Q1705BC847B

TRANSISTOR Q1706FMY4AT148

TRANSISTOR Q1707FMY4AT148

TRANSISTOR Q1708FMY4AT148

TRANSISTOR Q1711BC847B

TRANSISTOR Q1712BC847B

TRANSISTOR Q1713BC847B

TRANSISTOR Q1715BC847B

TRANSISTOR Q1719BC847B

TRANSISTOR Q1901BC847B

TRANSISTOR Q2006BC857B

TRANSISTOR Q3002BC847B

TRANSISTOR Q3003BC847B

TRANSISTOR Q3005BC847B

TRANSISTOR Q3006BC847B

TRANSISTOR Q3008BC847B

TRANSISTOR Q3009BC847B

TRANSFORMER T501ETH19Y212AZ

TRANSFORMER T84945T-2029

COILL103EXCELSA35T

COILL104EXCELDR35V

COIL L107TALV35VB100K

COIL L109ELJFC4R7KF

COIL L116ELESN6R8KA

COIL L582ELC18B221G

COIL L584ELH5L7745

COIL L701ELC18B181F

COIL L704ELC18B182F

PFC COIL L804R39264

COILL865EXCELSA35T

COILL866EXCELSA35T

COIL L867ELEKE470KA

COILL870EXCELSA35T

COILL871EXCELSA35T

COILL872EXCELSA35T

COILL873EXCELSA35T

COILL874EXCELSA35T

COIL L1061TLT331K991R

COIL L1101TALV35VB8R2K

COIL L1103ELESN4R7KA

COIL L1104ELESN4R7KA

COIL L1501ELESN4R7KA

COIL L1502ELESN4R7KA

COIL L1503ELJFC2R2KF

COIL L1701EXC3BB221H

COIL L2001TALV35VB100K

COIL L2004ELESN101KA

COIL L2005TALV35VB100K

COIL L2006ELJFC4R7KF

COIL L2007ELJFC4R7KF

COILL2008EXCELSA35T

COILL2351EXCELDR35V

COILL2352EXCELDR35V

COIL L3201ELESN6R8KA

COIL L3202ELESN6R8KA

COIL L3204ELESN6R8KA

COIL L3205ELESN6R8KA

COILL3206EXCELSA35T

COIL LF80145T-3023

FILTERS

CRYSTALS

RESISTORS

FILTER DL1510ELKE103FA

FILTER DL1511ELKE103FA

FILTER DL1512ELKE103FA

FILTER DL1513ELKE103FA

FILTER DL1705ELKE103FA

FILTER DL1706ELKE103FA

FILTER DL1713TLK212T256AL

FILTER X101EFCT6504BN

CERAMIC FILTER X102EFCT7004BN

CRYSTAL X1101AI060006AD

CRYSTAL X1501AI202504E

CRYSTAL X17014730007823

CRYSTAL X20014730007158

S.M.CARBJA1ERJ6GEY0R00Z--0

S.M.CARBJA1ERJ8GEY0R00V.125W-0

S.M.CARBJA2ERJ6GEY0R00Z--0

S.M.CARBJA7ERJ8GEY0R00V.125W-0

S.M.CARBJA14ERJ8GEY0R00V.125W-0

S.M.CARBJA15ERJ8GEY0R00V.125W-0

S.M.CARBJA20ERJ8GEY0R00V.125W-0

S.M.CARBJA27ERJ8GEY0R00V.125W-0

S.M.CARBJA32ERJ6GEY0R00Z--0

S.M.CARBR111ERJ6GEYJ393V0.1W5%39K

SMDR112ERJ6GEYJ101Z.125W5%100

S.M.CARBR113ERJ6GEYJ223V0.1W5%22K

S.M.CARBR114ERJ6GEYJ471V0.1W5%470

SMDR115ERJ6GEYJ102Z0.1255%1K

SMDR116ERJ6GEYJ101Z.125W5%100

S.M.CARBR117ERJ6GEYJ332V0.1W5%3K3

S.M.CARBR118ERJ6GEYJ681V0.1W5%680

S.M.CARBR120ERJ6GEYJ222V0.1W5%2K2

S.M.CARBR121ERJ6GEYJ103V0.1W5%10K

S.M.CARBR122ERJ6GEYJ331V0.1W5%330

SMDR129ERJ6GEYJ101Z.125W5%100

S.M.CARBR133ERJ6GEYJ222V0.1W5%2K2

SMDR134ERJ6GEYJ101Z.125W5%100

SMDR135ERJ6GEYJ101Z.125W5%100

S.M.CARBR137ERJ6GEY0R00Z--0

SMDR139ERJ6GEYJ101Z.125W5%100

SMDR140ERJ6GEYJ101Z.125W5%100

S.M.CARBR142ERJ6GEY0R00Z--0

S.M.CARBR143ERJ6GEY0R00Z--0

S.M.CARBR147ERJ6GEY0R00Z--0

S.M.CARBR148ERJ6GEY0R00Z--0

S.M.CARBR250ERJ6GEYJ103V0.1W5%10K

S.M.CARBR251ERJ6GEYJ471V0.1W5%470

S.M.CARBR252ERJ6GEYJ103V0.1W5%10K

S.M.CARBR253ERJ6GEYJ471V0.1W5%470

S.M.CARBR254ERJ6GEYJ103V0.1W5%10K

S.M.CARBR255ERJ6GEYJ104V0.1W5%100K

S.M.CARBR256ERJ6GEYJ104V0.1W5%100K

S.M.CARBR257ERJ6GEYJ150V.125W5%15

S.M.CARBR258ERJ6GEYJ150V.125W5%15

S.M.CARBR259ERJ6GEYJ121V0.1W5%120

S.M.CARBR260ERJ6GEYJ121V0.1W5%120

S.M.CARBR261ERJ6GEYJ152V0.1W5%1K5

S.M.CARBR262ERJ6GEYJ152V0.1W5%1K5

CARBONR263ERDS2TJ2R2T0.25W5%2R2

CARBONR264ERDS2TJ2R2T0.25W5%2R2

S.M.CARBR269ERJ6GEY0R00Z--0

FUSIBLER350ERQ12AJ151P 0.5W5%150

S.M.CARBR352ERJ6GEYJ202V0.1W5%2K

15

DescriptionCct RefParts Number DescriptionCct RefParts Number

S.M.CARBR353ERJ6GEYJ821V0.1W5%820

SMDR354ERJ6GEYJ102Z0.1255%1K

METALR355ERG1SJ823P1W5%82K

S.M.CARBR356ERJ6GEYJ560V0.1W5%56

S.M.CARBR357ERJ6GEYJ271V0.1W5%270

CARBONR358ERDS1TJ821V0.5W5%820

S.M.CARBR359ERJ6GEYJ391V0.1W5%390

SMDR360ERJ6GEYJ102Z0.1255%1K

S.M.CARBR362ERJ6GEYJ202V0.1W5%2K

S.M.CARBR363ERJ6GEYJ821V0.1W5%820

SMDR364ERJ6GEYJ102Z0.1255%1K

METALR365ERG1SJ823P1W5%82K

S.M.CARBR366ERJ6GEYJ560V0.1W5%56

CARBONR368ERDS1TJ821V0.5W5%820

FUSIBLER370ERQ1CJP1R2S1W5%1.2

S.M.CARBR372ERJ6GEYJ202V0.1W5%2K

S.M.CARBR373ERJ6GEYJ821V0.1W5%820

METALR375ERG1SJ823P1W5%82K

S.M.CARBR376ERJ6GEYJ560V0.1W5%56

CARBONR378ERDS1TJ821V0.5W5%820

S.M.CARBR380ERJ6GEYJ392V0.1W5%3K9

SMDR381ERJ6GEYJ102Z0.1255%1K

S.M.CARBR451ERJ6GEYJ223V0.1W5%22K

S.M.CARBR454ERJ6GEYJ273V0.1W5%27K

CARBONR455ERDS2TJ223T0.25W5%22K

CARBONR458ERDS1TJ270T0.5W5%27

METALR460ERG3SJS271H3W5%270

METALR461ERX2SJS1R0H2W5%1

S.M.CARBR463ERJ6GEYJ621V.125W5%620

S.M.CARBR464ERJ6GEYJ512V0.1W5%5K1

S.M.CARBR465ERJ6GEYJ821V0.1W5%820

S.M.CARBR467ERJ6GEY0R00Z--0

S.M.CARBR501ERJ6GEYJ392V0.1W5%3K9

S.M.CARBR503ERJ6GEYJ103V0.1W5%10K

METALR507ERG3FJ121H3W5%120

METALR509ERG1SJ222E 0.5W5%2K2

METALR510ERG1SJ222E 0.5W5%2K2

METALR553ERX3SJSR68H3W5%R68

S.M.CARBR554ERJ6GEY0R00Z--0

S.M.CARBR555ERJ6GEY0R00Z--0

S.M.CARBR556ERJ6GEYJ124V0.1W5%120K

SMDR557ERJ6GEYJ101Z.125W5%100

CARBONR558ERDS1TJ124T0.5W5%120K

S.M.CARBR559ERJ6GEY0R00Z--0

S.M.CARBR560ERJ6GEYJ274V0.1W5%270K

S.M.CARBR561ERJ6GEYJ223V0.1W5%22K

S.M.CARBR562ERJ6GEYJ104V0.1W5%100K

S.M.CARBR563ERJ6GEYJ564V0.1W5%560K

S.M.CARBR564ERJ6GEYJ563V0.1W5%56K

SMDR566ERJ6GEYJ102Z0.1255%1K

S.M.CARBR567ERJ6GEYJ124V0.1W5%120K

CARBONR568ERDS1TJ120T0.5W5%12

SMDR569ERJ6GEYJ102Z0.1255%1K

FUSIBLER576ERQ12HKR39P0.5W10%R39

METALR581ERG3FJ561H3W5%560

SMDR701ERJ6GEYJ101Z.125W5%100

METALR702ERX3FJ1R0H3W5%1

METALR703343-23R3AY10W5%3R3

CARBONR704ERDS1FJ472V0.5W5%4K7

METALR705ERG3FJ201H3W5%200

METALR706ERG3FJ201H3W5%200

S.M.CARBR707ERJ6GEYJ272V0.1W5%2K7

S.M.CARBR708ERJ6GEYJ103V0.1W5%10K

S.M.CARBR709ERJ6GEYJ473V0.1W5%47K

S.M.CARBR710ERJ6GEY0R00Z--0

METALR711ERG2SJS123H2W5%12K

S.M.CARBR712ERJ6GEYJ203V0.1W5%20K

CARBONR713ERDS2TJ301T0.25W5%300

CARBONR715ERDS2TJ272T0.25W5%2K7

METALR716ERQ12AJ680P 0.5W5%68

S.M.CARBR717ERJ6GEYJ242V0.1W5%2K4

S.M.CARBR718ERJ6GEYJ203V0.1W5%20K

S.M.CARBR720ERJ6GEYJ302V0.1W5%3K

S.M.CARBR721ERJ6GEYJ202V0.1W5%2K

S.M.CARBR722ERJ6GEYJ242V0.1W5%2K4

S.M.CARBR723ERJ6GEYJ473V0.1W5%47K

METALR724ERG2FJ820H2W5%82

METALR725ERG1FJ202P1W5%2K

SOLIDR801ERC12ZGK105C0.5W10%1M

CARBONR803ERDS1TJ683T0.5W5%68K

WOUNDR820D0D2R27KA0032W10%R27

WOUNDR821D0D2R27KA0032W10%R27

CARBONR823ERDS1TJ221T0.5W5%220

CARBONR825ERDS1TJ102T0.5W5%1K

CARBONR827ERDS1TJ272T0.5W5%2K7

CARBONR828ERDS1TJ100T0.5W5%10

METALR829ERG2FJ470H 2W5%47

CARBONR830ERDS1TJ684T0.5W5%680K

CARBONR831ERD75TAJ8251W5%8M2

METALR852ERG12SJ470P0.5W5%47

S.M.CARBR853ERJ6GEYJ103V0.1W5%10K

S.M.CARBR854ERJ6GEYJ203V0.1W5%20K

S.M.CARBR860ERJ6GEYJ103V0.1W5%10K

S.M.CARBR860ERJ6GEYJ473V0.1W5%47K

CARBONR861ERDS2TJ123T0.25W5%12K

CARBONR862ERDS2TJ182T0.25W5%1K8

CARBONR863ERDS2TJ102T0.25W5%1K

CARBONR864ERDS2TJ472T0.25W5%4K7

FUSIBLER865ERQ12HJ180P0.5W5%18

S.M.CARBR867ERJ6GEYJ682V0.1W5%6K8

CARBONR868ERDS2TJ271T0.25W5%270

S.M.CARBR869ERJ6GEY0R00Z--0

S.M.CARBR871ERJ6GEY0R00Z--0

METALR873ERG3FJ151H3W5%150

METALR874ERG3FJ151H3W5%150

CARBONR875ERDS1TJ2R2T0.5W5%2R2

CARBONR876ERDS2TJ101T0.25W5%100

CARBONR877ERDS2TJ202T0.25W5%2K

CARBONR878ERDS1TJ103T0.5W5%10K

S.M.CARBR882ERJ6GEYJ153V0.1W5%15K

S.M.CARBR883ERJ6GEYJ473V0.1W5%47K

S.M.CARBR884ERJ6GEYJ753V0.1W5%75K

CARBONR885ERDS2TJ752T0.25W5%7K5

S.M.CARBR886ERJ6GEYJ752V0.1W5%7K5

CARBONR887ERDS1TJ683T0.5W5%68K

S.M.CARBR889ERJ6GEYJ752V0.1W5%7K5

CARBONR892ERDS1TJ751T0.5W5%750

S.M.CARBR893ERJ6ENF3002V0.1W5%30K

S.M.CARBR894ERJ6ENF1002V0.1W1%10K

S.M.CARBR896ERJ6GEY0R00Z--0

CARBONR897ERDS2TJ622T0.25W5%6K2

CARBONR898ERDS2TJ273T0.25W5%27K

METALR899ERX2FJ3R9H2W5%3.9

S.M.CARBR901ERJ6GEYJ271V0.1W5%270

CARBONR902ERDS2TJ122T0.25W5%1K2

CARBONR903ERDS2TJ100T0.25W5%10

METALR904ERG5FJ152H5W5%1K5

S.M.CARBR905ERJ6GEYJ271V0.1W5%270

CARBONR906ERDS2TJ122T0.25W5%1K2

CARBONR907ERDS2TJ124T0.25W5%120K

CARBONR908ERDS2TJ124T0.25W5%120K

CARBONR909ERDS2TJ100T0.25W5%10

16

DescriptionCct RefParts Number DescriptionCct RefParts Number

METALR910ERG2SJ181E 2W5%180

S.M.CARBR914ERJ6GEYJ331V0.1W5%330

S.M.CARBR1005ERJ6GEYJ332V0.1W5%3K3

S.M.CARBR1007ERJ6GEYJ103V0.1W5%10K

S.M.CARBR1017ERJ6GEYJ103V0.1W5%10K

S.M.CARBR1043ERJ6GEYJ682V0.1W5%6K8

S.M.CARBR1044ERJ6GEYJ123V0.1W5%12K

S.M.CARBR1045ERJ6GEYJ223V0.1W5%22K

S.M.CARBR1046ERJ6GEYJ683V0.1W5%68K

CARBONR1047ERDS2TJ102T0.25W5%1K

S.M.CARBR1101ERJ3GEYJ472V0.1W5%4K7

S.M.CARBR1102ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1103ERJ3GEYJ101V0.1W5%100

S.M.CARBR1104ERJ3GEYJ101V0.1W5%100

S.M.CARBR1105ERJ3GEYJ101V0.1W5%100

S.M.CARBR1106ERJ3GEYJ101V0.1W5%100

S.M.CARBR1107ERJ3GEYJ562V0.1W5%5K6

S.M.CARBR1108ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1109ERJ3GEYJ101V0.1W5%100

S.M.CARBR1110ERJ3GEYJ101V0.1W5%100

S.M.CARBR1111ERJ3GEYJ101V0.1W5%100

S.M.CARBR1114ERJ3GEYJ101V0.1W5%100

S.M.CARBR1115ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1116ERJ3GEYJ101V0.1W5%100

S.M.CARBR1117ERJ3GEYJ101V0.1W5%100

S.M.CARBR1118ERJ3GEYJ101V0.1W5%100

S.M.CARBR1120ERJ3GEYJ101V0.1W5%100

S.M.CARBR1123ERJ3GEYJ473V0.1W5%47K

S.M.CARBR1125ERJ3GEYJ101V0.1W5%100

S.M.CARBR1126ERJ3GEYJ101V0.1W5%100

S.M.CARBR1127ERJ3GEYJ101V0.1W5%100

S.M.CARBR1128ERJ3GEYJ683V0.1W5%68K

S.M.CARBR1129ERJ3GEYJ562V0.1W5%5K6

S.M.CARBR1130ERJ3GEYJ101V0.1W5%100

S.M.CARBR1131ERJ3GEYJ101V0.1W5%100

S.M.CARBR1132ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1133ERJ3GEYJ273V0.1W5%27K

S.M.CARBR1134ERJ3GEYJ471V0.1W5%470

SMDR1135ERJ3GEYJ201V0.1W5%200

S.M.CARBR1136ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1137ERJ3GEYJ822V0.1W5%8K2

S.M.CARBR1138ERJ3GEYJ153V0.1W5%15K

S.M.CARBR1139ERJ3GEYJ101V0.1W5%100

S.M.CARBR1140ERJ3GEYJ101V0.1W5%100

S.M.CARBR1141ERJ3GEYJ101V0.1W5%100

S.M.CARBR1142ERJ3GEYJ101V0.1W5%100

S.M.CARBR1143ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1144ERJ3GEYJ473V0.1W5%47K

S.M.CARBR1145ERJ3GEYJ473V0.1W5%47K

S.M.CARBR1147ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1150ERJ3GEYJ331V0.1W5%330

S.M.CARBR1151ERJ3GEYJ683V0.1W5%68K

S.M.CARBR1152ERJ3GEYJ332V0.1W5%3K3

S.M.CARBR1153ERJ3GEYJ472V0.1W5%4K7

S.M.CARBR1154ERJ3GEYJ472V0.1W5%4K7

S.M.CARBR1155ERJ3GEYJ101V0.1W5%100

S.M.CARBR1156ERJ3GEYJ101V0.1W5%100

S.M.CARBR1157ERJ3GEYJ101V0.1W5%100

S.M.CARBR1158ERJ3GEYJ101V0.1W5%100

S.M.CARBR1159ERJ3GEYJ472V0.1W5%4K7

S.M.CARBR1160ERJ3GEYJ472V0.1W5%4K7

S.M.CARBR1161ERJ3GEYJ102V0.1W5%1K

S.M.CARBR1162ERJ3GEYJ102V0.1W5%1K

S.M.CARBR1163ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1164ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1165ERJ3GEYJ273V0.1W5%27K

S.M.CARBR1166ERJ3GEYJ224V0.1W5%220K

S.M.CARBR1167ERJ3GEYJ104V0.1W5%100K

S.M.CARBR1168ERJ3GEYJ104V0.1W5%100K

S.M.CARBR1169ERJ3GEYJ473V0.1W5%47K

S.M.CARBR1170ERJ3GEYJ472V0.1W5%4K7

S.M.CARBR1171ERJ3GEYJ225V0.1W5%2M2

S.M.CARBR1172ERJ3GEYJ221V0.1W5%220

S.M.CARBR1173ERJ3GEYJ101V0.1W5%100

S.M.CARBR1174ERJ3GEYJ223V0.1W5%22K

S.M.CARBR1175ERJ3GEY0R00V0.1W-0

S.M.CARBR1176ERJ3GEYJ102V0.1W5%1K

S.M.CARBR1177ERJ3GEYJ101V0.1W5%100

S.M.CARBR1178ERJ3GEYJ101V0.1W5%100

S.M.CARBR1179ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1180ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1184ERJ3GEYJ680V0.1W5%68

S.M.CARBR1185ERJ3GEYJ101V0.1W5%100

S.M.CARBR1186ERJ3GEYJ473V0.1W5%47K

S.M.CARBR1188ERJ3GEYJ101V0.1W5%100

S.M.CARBR1189ERJ3GEYJ101V0.1W5%100

S.M.CARBR1190ERJ3GEYJ101V0.1W5%100

S.M.CARBR1191ERJ3GEYJ223V0.1W5%22K

S.M.CARBR1192ERJ3GEYJ101V0.1W5%100

S.M.CARBR1193ERJ3GEYJ472V0.1W5%4K7

S.M.CARBR1194ERJ3GEYJ472V0.1W5%4K7

S.M.CARBR1198ERJ3GEYJ680V0.1W5%68

S.M.CARBR1199ERJ3GEYJ101V0.1W5%100

S.M.CARBR1200ERJ3GEYJ222V0.1W5%2K2

S.M.CARBR1204ERJ3GEY0R00V0.1W-0

S.M.CARBR1206ERJ3GEY0R00V0.1W-0

S.M.CARBR1207ERJ3GEY0R00V0.1W-0

S.M.CARBR1208ERJ3GEY0R00V0.1W-0

S.M.RESR1209EXB38V680JV0.0635%68

S.M.CARBR1210ERJ3GEY0R00V0.1W-0

CHIP RESR1211D1HG6808A0020.25W5%68

CHIP RESR1212D1HG6808A0020.25W5%68

S.M.CARBR1213ERJ3GEYJ680V0.1W5%68

S.M.RESR1214EXB38V680JV0.0635%68

S.M.CARBR1215ERJ3GEYJ680V0.1W5%68

S.M.CARBR1216ERJ3GEY0R00V0.1W-0

S.M.CARBR1217ERJ3GEY0R00V0.1W-0

S.M.CARBR1218ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1251ERJ6GEY0R00Z--0

S.M.CARBR1502ERJ3GEYJ152V0.1W5%1K5

S.M.CARBR1503ERJ3GEYJ152V0.1W5%1K5

S.M.CARBR1504ERJ6GEYJ750V0.1W5%75

S.M.CARBR1510ERJ3GEY0R00V0.1W-0

S.M.CARBR1511ERJ3GEY0R00V0.1W-0

S.M.CARBR1512ERJ3GEY0R00V0.1W-0

S.M.CARBR1513ERJ3GEY0R00V0.1W-0

S.M.CARBR1514ERJ3GEYJ101V0.1W5%100

S.M.CARBR1515ERJ3GEYJ101V0.1W5%100

S.M.CARBR1516ERJ3GEYJ101V0.1W5%100

S.M.CARBR1519ERJ3GEYJ101V0.1W5%100

S.M.CARBR1520ERJ3GEY0R00V0.1W-0

S.M.CARBR1521ERJ6GEYJ750V0.1W5%75

S.M.CARBR1523ERJ6GEYJ750V0.1W5%75

S.M.CARBR1524ERJ6GEYJ750V0.1W5%75

S.M.CARBR1525ERJ3GEYJ152V0.1W5%1K5

S.M.CARBR1526ERJ3GEYJ221V0.1W5%220

S.M.CARBR1540ERJ3GEYJ101V0.1W5%100

S.M.CARBR1547ERJ3GEY0R00V0.1W-0

S.M.CARBR1548ERJ3GEY0R00V0.1W-0

S.M.CARBR1549ERJ6GEY0R00Z--0

S.M.CARBR1551ERJ3GEYJ221V0.1W5%220

S.M.CARBR1552ERJ3GEYJ221V0.1W5%220

17

DescriptionCct RefParts Number DescriptionCct RefParts Number

S.M.CARBR1553ERJ3GEYJ331V0.1W5%330

S.M.CARBR1556ERJ6GEYJ750V0.1W5%75

S.M.CARBR1561ERJ3GEYJ221V0.1W5%220

S.M.CARBR1562ERJ3GEYJ221V0.1W5%220

S.M.CARBR1701ERJ3GEY0R00V0.1W-0

S.M.CARBR1704ERJ3GEY0R00V0.1W-0

S.M.CARBR1705ERJ3GEYJ122V0.1W5%1K2

S.M.CARBR1706ERJ3GEYJ272V0.1W5%2K7

S.M.CARBR1707ERJ3GEYJ102V0.1W5%1K

S.M.CARBR1708ERJ3GEYJ473V0.1W5%47K

S.M.CARBR1709ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1710ERJ3GEYJ563V0.1W5%56K

S.M.CARBR1712ERJ3GEYJ102V0.1W5%1K

S.M.CARBR1714ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1716ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1717ERJ3GEYJ271V0.1W5%270

S.M.CARBR1719ERJ3GEYJ223V0.1W5%22K

S.M.CARBR1720ERJ3GEYJ822V0.1W5%8K2

S.M.CARBR1721ERJ3GEYJ682V0.1W5%6K8

S.M.CARBR1723ERJ3GEYJ561V0.1W5%560

S.M.CARBR1724ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1725ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1726ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1727ERJ3GEYJ101V0.1W5%100

S.M.CARBR1728ERJ3GEYJ101V0.1W5%100

S.M.CARBR1730ERJ3GEY0R00V0.1W-0

S.M.CARBR1732ERJ3GEYJ151V0.1W5%150

S.M.CARBR1733ERJ3GEYJ151V0.1W5%150

S.M.CARBR1734ERJ3GEYJ151V0.1W5%150

S.M.CARBR1735ERJ3GEYJ821V0.1W5%820

S.M.CARBR1736ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1737ERJ3GEYJ560V0.1W5%56

S.M.CARBR1738ERJ6GEYJ561V0.1W5%560

S.M.CARBR1739ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1740ERJ3GEYJ560V0.1W5%56

S.M.CARBR1741ERJ6GEYJ561V0.1W5%560

S.M.CARBR1742ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1743ERJ3GEYJ560V0.1W5%56

S.M.CARBR1744ERJ6GEYJ561V0.1W5%560

S.M.CARBR1745ERJ3GEYJ103V0.1W5%10K

S.M.CARBR1746ERJ3GEYJ472V0.1W5%4K7

S.M.CARBR1750ERJ3GEYJ821V0.1W5%820

S.M.CARBR1751ERJ3GEYJ244V0.1W5%240K

S.M.CARBR1752ERJ3GEYJ560V0.1W5%56

S.M.CARBR1755ERJ6GEYJ471V0.1W5%470

S.M.CARBR1759ERJ3GEYJ101V0.1W5%100

S.M.CARBR1780ERJ3GEYJ331V0.1W5%330

S.M.CARBR1781ERJ3GEYJ101V0.1W5%100

S.M.CARBR1782ERJ3GEYJ102V0.1W5%1K

S.M.CARBR1783ERJ3GEYJ271V0.1W5%270

S.M.CARBR1784ERJ3GEYJ472V0.1W5%4K7

S.M.CARBR1901ERJ6GEYJ472V0.1W5%4K7

S.M.CARBR1902ERJ6GEYJ392V0.1W5%3K9

S.M.CARBR1903ERJ6GEYJ103V0.1W5%10K

CARBONR1904ERDS1TJ2R2T0.5W5%2R2

S.M.CARBR1905ERJ6GEYJ273V0.1W5%27K

S.M.CARBR1906ERJ6GEYJ273V0.1W5%27K

S.M.CARBR1907ERJ6GEYJ273V0.1W5%27K

S.M.CARBR1908ERJ6GEY0R00Z--0

CARBONR1909ERDS1TJ2R2T0.5W5%2R2

CARBONR1911ERDS1TJ6R8T0.5W5%6R8

CARBONR1912ERDS2TJ102T0.25W5%1K

S.M.CARBR1913ERJ6GEYJ222V0.1W5%2K2

SMDR1926ERJ6GEYJ102Z0.1255%1K

S.M.CARBR2011ERJ6GEYJ183V0.1W5%18K

SMDR2013ERJ6GEYJ101Z.125W5%100

SMDR2014ERJ6GEYJ101Z.125W5%100

SMDR2015ERJ6GEYJ101Z.125W5%100

SMDR2016ERJ6GEYJ101Z.125W5%100

S.M.CARBR2017ERJ6GEYJ471V0.1W5%470

SMDR2020ERJ6GEYJ101Z.125W5%100

S.M.CARBR2021ERJ6GEYJ562V0.1W5%5K6

S.M.CARBR2022ERJ6GEYJ221V0.1W5%220

S.M.CARBR2024ERJ6GEY0R00Z--0

SMDR2029ERJ6GEYJ101Z.125W5%100

SMDR2032ERJ6GEYJ101Z.125W5%100

S.M.CARBR2033ERJ6GEYJ471V0.1W5%470

S.M.CARBR2036ERJ6GEY0R00Z--0

SMDR2037ERJ6GEYJ102Z0.1255%1K

S.M.CARBR2038ERJ6GEYJ562V0.1W5%5K6

S.M.CARBR2039ERJ6GEYJ221V0.1W5%220

S.M.CARBR2040ERJ6GEYJ222V0.1W5%2K2

S.M.CARBR2041ERJ6GEY0R00Z--0

S.M.CARBR2042ERJ6GEY0R00Z--0

S.M.CARBR2043ERJ6GEY0R00Z--0

S.M.CARBR2044ERJ6GEY0R00Z--0

S.M.CARBR2045ERJ6GEY0R00Z--0

S.M.CARBR3001ERJ3GEYJ183V0.1W5%18K

S.M.CARBR3002ERJ3GEYJ101V0.1W5%100

S.M.CARBR3003ERJ3GEYJ183V0.1W5%18K

S.M.CARBR3004ERJ3GEYJ101V0.1W5%100

S.M.CARBR3005ERJ6GEYJ123V0.1W5%12K

S.M.CARBR3006ERJ3GEYJ101V0.1W5%100

S.M.CARBR3007ERJ3GEYJ272V0.1W5%2K7

S.M.CARBR3008ERJ6GEYJ750V0.1W5%75

S.M.CARBR3009ERJ3GEYJ183V0.1W5%18K

S.M.CARBR3010ERJ3GEYJ101V0.1W5%100

S.M.CARBR3011ERJ3GEYJ183V0.1W5%18K

S.M.CARBR3012ERJ3GEYJ101V0.1W5%100

S.M.CARBR3013ERJ3GEYJ272V0.1W5%2K7

S.M.CARBR3014ERJ3GEYJ123V0.1W5%12K

S.M.CARBR3015ERJ6GEYJ750V0.1W5%75

S.M.CARBR3016ERJ6GEYJ750V0.1W5%75

S.M.CARBR3017ERJ6GEYJ750V0.1W5%75

S.M.CARBR3018ERJ6GEYJ750V0.1W5%75

S.M.CARBR3019ERJ6GEYJ750V0.1W5%75

S.M.CARBR3020ERJ3GEYJ103V0.1W5%10K

S.M.CARBR3021ERJ3GEYJ103V0.1W5%10K

S.M.CARBR3022ERJ3GEYJ391V0.1W5%390

S.M.CARBR3023ERJ3GEYJ103V0.1W5%10K

S.M.CARBR3024ERJ3GEYJ103V0.1W5%10K

S.M.CARBR3025ERJ3GEYJ391V0.1W5%390

S.M.CARBR3026ERJ3GEYJ103V0.1W5%10K

S.M.CARBR3027ERJ3GEYJ103V0.1W5%10K

S.M.CARBR3029ERJ3GEYJ104V0.1W5%100K

S.M.CARBR3030ERJ3GEYJ104V0.1W5%100K

S.M.CARBR3031ERJ3GEYJ391V0.1W5%390

S.M.CARBR3032ERJ3GEYJ391V0.1W5%390

S.M.CARBR3033ERJ3GEYJ104V0.1W5%100K

S.M.CARBR3034ERJ3GEYJ104V0.1W5%100K

S.M.CARBR3037ERJ3GEYJ104V0.1W5%100K

S.M.CARBR3038ERJ3GEYJ104V0.1W5%100K

S.M.CARBR3039ERJ6GEYJ680V0.1W5%68

S.M.CARBR3040ERJ6GEYJ680V0.1W5%68

S.M.CARBR3043ERJ3GEY0R00V0.1W-0

S.M.CARBR3049ERJ3GEYJ391V0.1W5%390

S.M.CARBR3050ERJ3GEYJ391V0.1W5%390

S.M.CARBR3056ERJ3GEY0R00V0.1W-0

S.M.CARBR3057ERJ3GEY0R00V0.1W-0

S.M.CARBR3058ERJ3GEY0R00V0.1W-0

S.M.CARBR3059ERJ3GEY0R00V0.1W-0

S.M.CARBR3060ERJ3GEY0R00V0.1W-0

18

CAPACITORS

DescriptionCct RefParts Number DescriptionCct RefParts Number

S.M.CARBR3061ERJ3GEY0R00V0.1W-0

S.M.CARBR3062ERJ3GEY0R00V0.1W-0

S.M.CARBR3063ERJ3GEY0R00V0.1W-0

S.M.CARBR3064ERJ3GEY0R00V0.1W-0

S.M.CARBR3065ERJ3GEY0R00V0.1W-0

S.M.CARBR3201ERJ6GEYJ103V0.1W5%10K

S.M.CARBR3202ERJ6GEYJ103V0.1W5%10K

METALR3203ERG2SJS151H2W5%150

CARBONR3205ERDS1TJ151T0.5W5%150

METALR3208ERG2SJS151H2W5%150

SMDR3212ERJ6GEYJ101Z.125W5%100

SMDR3213ERJ6GEYJ101Z.125W5%100

S.M.CARBR3214ERJ6GEYJ153V0.1W5%15K

S.M.CARBR3215ERJ6GEYJ153V0.1W5%15K

CARBONR3217ERDS1TJ151T0.5W5%150

S.M.CAPC107ECJ2VF1H104Z50V 100nF

ELECTC108ECA1CM470B16V 47µF

S.M.CAPC109ECJ2VB1H472K50V 4.7nF

S.M.CAPC110ECJ2VB1H103K50V 10nF

ELECTC111ECA1HMR33B50V 330nF

S.M.CAPC117ECJ2VB1H103K50V 10nF

S.M.CAPC118ECJ2VF1H104Z50V 100nF

ELECTC119ECA1CM221B16V 220µF

S.M.CAPC122ECJ2FB1H104K50V 100nF

S.M.CAPC130ECJ2VB1H103K50V 10nF

S.M.CAPC131ECJ2VB1C104K16V 100nF

S.M.CAPC136ECJ2FB1H104K50V 100nF

S.M.CAPC137ECJ2VC1H560J50V 56pF

S.M.CAPC138ECJ2VC1H220J50V 22pF

S.M.CAPC141ECJ2VB1H103K50V 10nF

S.M.CAPC142ECJ2FB1H104K50V 100nF

ELECTC251ECA1HM010B50V 1µF

ELECTC252ECA1HHG010B50V 1µF

ELECTC253ECA1HM4R7B50V 4.7µF

S.M.CAPC254ECJ2VB1H102K50V 1nF

ELECTC255ECA1HM4R7B50V 4.7µF

S.M.CAPC256ECJ2VB1H102K50V 1nF

FILMC259ECQV1H684JL350V 680nF

FILMC260ECQV1H684JL350V 680nF

ELECTC261ECA1HM100B50V 10µF

ELECTC262ECA1HM100B50V 10µF

ELECTC263ECA1HM101B50V 100µF

FILMC264ECQV1H154JL350V 150nF

FILMC265ECQV1H154JL350V 150nF

S.M.CAPC266ECJ2FB1H104K50V 100nF

S.M.CAPC267ECJ2FB1H104K50V 100nF

ELECTC269ECA1HM332E50V 3300µF

S.M.CAPC352ECJ2VF1H104Z50V 100nF

S.M.CAPC353ECJ2FB1H104K50V 100nF

FILMC354ECQE2104KF3250V 100nF

CERAMICC355ECKR2H102KB5500V 1nF

S.M.CAPC358ECJ2VF1H104Z50V 100nF

S.M.CAPC359ECJ2VC1H150J50V 15pF

S.M.CAPC360ECJ2VF1E104Z25V 100nF

S.M.CAPC362ECJ2VF1H104Z50V 100nF

S.M.CAPC363ECJ2FB1H104K50V 100nF

FILMC364ECQE2104KF3250V 100nF

CERAMICC365ECKR2H102KB5500V 1nF

ELECTC366SMG1CV101MT516V100µF

ELECTC368ECA1CM221B16V 220µF

S.M.CAPC372ECJ2VF1H104Z50V 100nF

S.M.CAPC373ECJ2FB1H104K50V 100nF

FILMC374ECQE2104KF3250V 100nF

CERAMICC375ECKR2H102KB5500V 1nF

S.M.CAPC379ECJ2VC1H150J50V 15pF

ELECTC382ECA1HM100B50V 10µF

ELECTC385ECA2EM100B250V 10µF

CERAMICC386ECKW3D152JBR2KV1.5nF

S.M.CAPC451ECJ2VB1H102K50V 1nF

S.M.CAPC453ECJ2FB1H104K50V 100nF

S.M.CAPC454ECJ2FB1H104K50V 100nF

ELECTC456ECA1HM221B50V 220µF

FILMC459ECWF2684JBB250V680nF

ELECTC463ECA1HM221B50V 220µF

ELECTC501ECA1EM101B25V 100µF

FILMC508ECQB1H392JF350V 3.9nF

ELECTC509ECA1HM470B50V 47µF

CERAMICC551ECKW3D471JBR2KV470pF

FILMC552ECWH20102JVY2kV 1nF

CERAMICC557ECKR2H471KB5500V 470pF

ELECT C558ECA1HHG101B50V100µF

S.M.CAPC559ECJ2FB1H104K50V 100nF

FILMC560ECQE2393KFW250V 39nF

ELECTC561ECA1EM222E25V 2200µF

CERAMICC562ECKR2H101KB5500V 100pF

ELECTC563ECA2EM100B250V 10µF

ELECTC564ECEA2AN2R2SB100V 2.2µF

FILMC565ECQB1H273JF350V 27nF

CERAMICC566ECKR2H471KB5500V 470pF

ELECTC567ECA1EM222E25V 2200µF

CERAMICC568ECKR2H471KB5500V 470pF

S.M.CAPC572ECJ2VB2A102K100V 1nF

S.M.CAPC573ECJ2VC1H221J50V 220pF

S.M.CAPC574ECJ2VC1H221J50V 220pF

FILMC581ECWF4684JBB 400V 680nF

FILMC582ECWF4564JBB 400V560nF

FILMC583ECWH20562JVB2KV5.6nF

FILMC584ECWH20562JVB2KV5.6nF

FILMC587ECQF4333JZH400V33nF

FILMC588ECWF4684JBB 400V 680nF

CERAMICC701ECKR2H152KB5500V 1.5nF

FILMC702ECQE1335KFB100V 3.3µF

S.M.CAPC703ECJ2VB1H333K50V 33nF

FILMC704ECQV1H474JL350V 470nF

CERAMICC706ECKR2H471KB5500V 470pF

S.M.CAPC707ECJ2VB1H471K50V 470pF

S.M.CAPC708ECJ2VB1H333K50V 33nF

S.M.CAPC709ECJ2VB1H333K50V 33nF

ELECTC710ECA1HM010B50V 1µF

FILMC801ECQU2A224MLA275V 220nF

FILMC804ECQU2A154MLA275V 150nF

CERAMICC805ECKWBE472ZER250V 4.7nF

CERAMICC806ECKWBE472ZER250V 4.7nF

CERAMICC807ECKWBE472ZER250V 4.7nF

CERAMICC808ECKWBE472ZER250V 4.7nF

FILMC809ECQE6823KFB630V 82nF

CERAMICC811ECKWNA101MB400V 100pF

ELECTC82043303S9227M5400V 220µF

ELECTC821ECA1HM010B50V 1µF

S.M.CAPC822ECJ2VB1H103K50V 10nF

ELECTC823ECA1HM100B50V 10µF

S.M.CAPC824ECJ2VB1H221K50V 220pF

S.M.CAPC825ECJ2VB1H471K50V 470pF

CERAMICC826ECKW3D681KBP2KV680pF

FILMC827ECQM4103KZB400V 10nF

CERAMICC830ECKCWS332MEB250V 3.3nF

S.M.CAPC860ECJ2VF1H103Z50V 10nF

ELECTC861ECA1CHG101B16V 100µF

ELECTC862ECA1CHG101B16V 100µF

ELECTC864ECA1EHG471B25V470µF

ELECTC865ECA2CM100B 160V 10µF

19

DescriptionCct RefParts Number DescriptionCct RefParts Number

CERAMICC866ECKW3D471KBP2KV470pF

ELECTC867EEUEB2D101E200V100µF

ELECTC868ECA2DHG221E200V220µF

ELECTC870EEUFC1C471B16V 470µF

CERAMICC871ECKR2H471KB5500V 470pF

ELECTC872ECA1CHG472E16V 4700µF

CERAMICC873ECKR2H471KB5500V 470pF

ELECTC875ECA1HHG102E 50V 1nF

ELECTC878ECA1CM100B16V 10µF

ELECTC879ECA1VHG331B 35V 330pF

CERAMICC880ECKR2H471KB5500V 470pF

ELECTC882ECA1HHG100B 50V 10µF

ELECTC883ECA1CHG101B16V 100µF

ELECTC884ECA1HHG100B 50V 10µF

ELECTC886ECA1HHG100B 50V 10µF

S.M.CAPC888ECJ2FB1H104K50V 100nF

ELECTC889ECA1CHG101B16V 100µF

S.M.CAPC890ECJ2FB1H104K50V 100nF

ELECTC891ECA1CHG101B16V 100µF

S.M.CAPC892ECJ2FB1H104K50V 100nF

ELECTC893ECA1CHG101B16V 100µF

S.M.CAPC894ECJ2FB1H104K50V 100nF

ELECTC895ECA1CHG101B16V 100µF

S.M.CAPC896ECJ2FB1H104K50V 100nF

ELECTC901SMG1CV101MT516V100µF

S.M.CAPC902ECJ2VF1H103Z50V 10nF

CERAMICC903ECKR2H472MD5500V 4.7nF

S.M.CAPC904ECJ2VB1H472K50V 4.7nF

ELECTC905ECA2CM220B 160V 22µF

ELECTC906ECA2CM220B 160V 22µF

ELECTC907ECA2CM220B 160V 22µF

ELECTC1002SMG1CV101MT516V100µF

S.M.CAPC1003ECJ2FB1H104K50V 100nF

S.M.CAPC1004ECJ2VB1H103K50V 10nF

ELECTC1005SMG1CV101MT516V100µF

S.M.CAPC1007ECJ2VC1H270J50V 27pF

S.M.CAPC1101ECJ1VF1E104Z25V 100nF

ELECTC1102ECA1CM101B16V 100µF

S.M.CAPC1103ECJ1VF1E104Z25V 100nF

ELECTC1104ECA1CM101B16V 100µF

S.M.CAPC1105ECJ1VF1E104Z25V 100nF

S.M.CAPC1107ECJ1VC1H330J50V 33pF

S.M.CAPC1108ECJ1VC1H330J50V 33pF

S.M.CAPC1109ECJ1VB1H103K50V 10nF

S.M.CAPC1111ECJ1VF1E104Z25V 100nF

S.M.CAPC1112ECJ1VC1H151J50V 150pF

S.M.CAPC1116ECJ1VF1E104Z25V 100nF

S.M.CAPC1117ECJ1VC1H221J50V 220pF

S.M.CAPC1118ECJ1VC1H221J50V 220pF

S.M.CAPC1119ECJ1VF1E104Z25V 100nF

S.M.CAPC1120ECJ1VF1E104Z25V 100nF

S.M.CAPC1121ECJ1VF1E104Z25V 100nF

S.M.CAPC1122ECJ1VF1E104Z25V 100nF

S.M.CAPC1123ECJ1VF1E104Z25V 100nF

S.M.CAPC1124ECJ1VF1E104Z25V 100nF

S.M.CAPC1125ECJ1VF1E104Z25V 100nF

S.M.CAPC1126ECJ1VF1E104Z25V 100nF

S.M.CAPC1127ECJ1VF1E104Z25V 100nF

S.M.CAPC1501ECJ1VC1H220J50V22pF

S.M.CAPC1502ECJ1VC1H220J50V22pF

S.M.CAPC1503ECJ1VF1E104Z25V 100nF

S.M.CAPC1505ECJ2FB1H104K50V 100nF

S.M.CAPC1506ECJ1VF1E104Z25V 100nF

S.M.CAPC1507ECJ1VF1E104Z25V 100nF

S.M.CAPC1508ECJ2FB1H104K50V 100nF

S.M.CAPC1509ECJ1VB1H103K50V 10nF

S.M.CAPC1510ECJ1VF1E104Z25V 100nF

S.M.CAPC1511ECJ2FB1H104K50V 100nF

S.M.CAPC1512ECJ2FB1H104K50V 100nF

S.M.CAPC1514ECJ1VF1E104Z25V 100nF

ELECTC1515ECA1CM100B16V 10µF

S.M.CAPC1516ECJ1VF1E104Z25V 100nF

S.M.CAPC1517ECJ1VC1H271J50V 270pF

S.M.CAPC1518ECJ1VC1H271J50V 270pF

ELECTC1519ECA1CM100B16V 10µF

S.M.CAPC1520ECJ1VB1H103K50V 10nF

S.M.CAPC1522ECJ1VF1E104Z25V 100nF

S.M.CAPC1524ECJ1VF1E104Z25V 100nF

S.M.CAPC1525ECJ1VF1E104Z25V 100nF

S.M.CAPC1526ECJ1VC1H271J50V 270pF

S.M.CAPC1527ECJ1VC1H331J50V 330pF

S.M.CAPC1528ECJ1VC1H331J50V 330pF

S.M.CAPC1530ECJ1VF1E104Z25V 100nF

S.M.CAPC1532ECJ1VF1E104Z25V 100nF

S.M.CAPC1533ECJ1VB1H103K50V 10nF

S.M.CAPC1535ECJ1VF1E104Z25V 100nF

S.M.CAPC1537ECJ1VF1E104Z25V 100nF

S.M.CAPC1543ECJ2FB1H104K50V 100nF

S.M.CAPC1544ECJ2FB1H104K50V 100nF

ELECTC1545ECA1CM221B16V 220µF

S.M.CAPC1548ECJ1VF1E104Z25V 100nF

ELECTC1549ECEA1CKA470B16V 47µF

S.M.CAPC1550ECJ1VF1E104Z25V 100nF

S.M.CAPC1551ECJ1VF1E104Z25V 100nF

S.M.CAPC1560ECJ1VF1E104Z25V 100nF

S.M.CAPC1561ECJ1VF1E104Z25V 100nF

ELECTC1563SMG1HV220MT550V22µF

S.M.CAPC1565ECJ2FB1H104K50V 100nF

S.M.CAPC1573ECJ1VB1C473K16V 47nF

S.M.CAPC1574ECJ1VB1C473K16V 47nF

S.M.CAPC1575ECJ1VB1C473K16V 47nF

ELECTC1580ECA1HM100B50V 10µF

ELECTC1581ECA1HM100B50V 10µF

S.M.CAPC1701ECJ1VC1H270J50V 27pF

S.M.CAPC1702ECJ1VC1H270J50V 27pF

S.M.CAPC1703ECJ1VF1E104Z25V 100nF

ELECTC1704ECEA1AKA221Q10V220µF

S.M.CAPC1705ECJ1VB1H222K50V 2.2nF

ELECTC1706ECA1CM100B16V 10µF

S.M.CAPC1707ECJ1VC1H270J50V 27pF

ELECTC1708ECA0JHG102B 6.3V 1nF

S.M.CAPC1709ECJ1VB1H102K50V 1nF

S.M.CAPC1710ECJ1VB1H153K50V 15nF

S.M.CAPC1711ECJ1VB1H153K50V 15nF

ELECTC1713ECA1CM100B16V 10µF

S.M.CAPC1714ECJ1VF1E104Z25V 100nF

S.M.CAPC1716ECJ1VF1E104Z25V 100nF

S.M.CAPC1719ECJ1VB1H103K50V 10nF

S.M.CAPC1720ECJ1VB1H103K50V 10nF

S.M.CAPC1721ECJ1VB1H103K50V 10nF

S.M.CAPC1722ECJ1VB1H103K50V 10nF

ELECTC1723ECA1CM101B16V 100µF

S.M.CAPC1724ECJ1VB1H222K50V 2.2nF

ELECTC1725ECA1CM100B16V 10µF

S.M.CAPC1726ECJ1VF1E104Z25V 100nF

ELECTC1727ECA1CM470B16V 47µF

S.M.CAPC1728ECJ1VF1E104Z25V 100nF

S.M.CAPC1731ECJ1VF1E104Z25V 100nF

S.M.CAPC1732ECJ1VF1E104Z25V 100nF

S.M.CAPC1733ECJ1VF1E104Z25V 100nF

S.M.CAPC1734ECJ1VC1H391J50V 390pF

S.M.CAPC1735ECJ1VC1H391J50V 390pF

20

DescriptionCct RefParts Number DescriptionCct RefParts Number

S.M.CAPC1736ECJ1VC1H391J50V 390pF

S.M.CAPC1737ECJ2VB1C224K16V 220nF

ELECTC1739ECA1CM101B16V 100µF

S.M.CAPC1740ECJ1VF1E104Z25V 100nF

S.M.CAPC1742ECJ1VB1H472K50V 4.7nF

ELECTC1743ECA1HM3R3B50V 3.3µF

S.M.CAPC1744ECJ1VF1E104Z25V 100nF

S.M.CAPC1745ECJ1VF1E104Z25V 100nF

S.M.CAPC1746ECJ1VF1E104Z25V 100nF

S.M.CAPC1752ECJ1VB1H471K50V 470pF

S.M.CAPC1783ECJ1VC1H151J50V 150pF

S.M.CAPC1901ECJ2VB1H103K50V 10nF

S.M.CAPC1902ECJ2FB1H104K50V 100nF

ELECTC1905ECA1CM470B16V 47µF

S.M.CAPC1906ECJ2VB1H103K50V 10nF

S.M.CAPC1908ECJ2FB1H104K50V 100nF

S.M.CAPC1909ECJ2FB1H104K50V 100nF

ELECTC2001ECA1CM100B16V 10µF

S.M.CAPC2002ECJ2VB1H152K50V1.5nF

S.M.CAPC2003ECJ2VC1H471J50V 470pF

S.M.CAPC2004ECJ2VC1H221J50V 220pF

S.M.CAPC2005ECJ2FB1H104K50V 100nF

S.M.CAPC2006ECJ2VB1H102K50V 1nF

S.M.CAPC2007ECJ2VB1H102K50V 1nF

S.M.CAPC2009ECJ2VB1H102K50V 1nF

S.M.CAPC2010ECJ2VB1H102K50V 1nF

S.M.CAPC2011ECJ2VB1H102K50V 1nF

ELECTC2012ECA1CM100B16V 10µF

ELECTC2013ECA1CM100B16V 10µF

S.M.CAPC2014ECJ2VC1H471J50V 470pF

S.M.CAPC2015ECJ2VB1H152K50V1.5nF

ELECTC2016ECA1HM100B50V 10µF

S.M.CAPC2017ECJ2VB1H102K50V 1nF

S.M.CAPC2018ECJ2VB1H102K50V 1nF

S.M.CAPC2019ECJ2VB1H102K50V 1nF

S.M.CAPC2020ECJ2VB1H102K50V 1nF

ELECTC2021ECA1HM3R3B50V 3.3µF

S.M.CAPC2022ECJ2FB1H104K50V 100nF

S.M.CAPC2023ECJ2VC1H221J50V 220pF

S.M.CAPC2024ECJ2VC1H221J50V 220pF

ELECTC2025ECA1CM100B16V 10µF

S.M.CAPC2026ECJ2FB1H104K50V 100nF

S.M.CAPC2027ECJ2VC1H221J50V 220pF

ELECTC2028ECA1CM100B16V 10µF

S.M.CAPC2029ECJ2VB1H152K50V1.5nF

S.M.CAPC2030ECJ2VC1H471J50V 470pF

S.M.CAPC2031ECJ2VC1H070D50V 7pF

S.M.CAPC2032ECJ2VC1H470J50V 47pF

S.M.CAPC2034ECJ2VC1H010C50V 1pF

S.M.CAPC2035ECJ2VC1H010C50V 1pF

S.M.CAPC2041ECJ2VF1C334Z16V 330nF

S.M.CAPC2042ECJ2VF1C334Z16V 330nF

S.M.CAPC2043ECJ2VB1H103K50V 10nF

ELECT C2044ECA1CM331B16V330µF

ELECTC2046ECA1CM470B16V 47µF

ELECTC2047ECA1CM470B16V 47µF

S.M.CAPC2048ECJ2VF1C334Z16V 330nF

S.M.CAPC2049ECJ2VF1C334Z16V 330nF

S.M.CAPC2050ECJ2VF1C334Z16V 330nF

S.M.CAPC2051ECJ2VF1C334Z16V 330nF

S.M.CAPC2052ECJ2VC1H221J50V 220pF

S.M.CAPC2053ECJ2VC1H221J50V 220pF

S.M.CAPC2054ECJ2VC1H221J50V 220pF

S.M.CAPC2055ECJ2VC1H221J50V 220pF

ELECTC2056ECA1CM470B16V 47µF

ELECTC2057ECA1CM470B16V 47µF

TERMINALS AND LINKS

SWITCHES

RELAYS

DIFFERENCES FOR MODEL TX--29PM11D

EXPLODED VIEW

INSTRUCTION BOOKS

ELECTC2058ECA1CM470B16V 47µF

ELECTC2059ECA1CM470B16V 47µF

S.M.CAPC2060ECJ2VF1C334Z16V 330nF

S.M.CAPC2061ECJ2VF1C334Z16V 330nF

S.M.CAPC2062ECJ2VC1H221J50V 220pF

S.M.CAPC2063ECJ2VC1H221J50V 220pF

ELECTC2361ECA1VM102B 35V 1000µF

ELECTC2362ECA1VM102B 35V 1000µF

S.M.CAPC2363ECJ2VC1H102J50V 1nF

S.M.CAPC2364ECJ2VC1H102J50V 1nF

S.M.CAPC3001ECJ1VC1H561J50V 560pF

S.M.CAPC3002ECJ1VC1H561J50V 560pF

S.M.CAPC3003ECJ1VC1H561J50V 560pF

S.M.CAPC3006ECJ1VC1H561J50V 560pF

S.M.CAPC3007ECJ1VC1H561J50V 560pF

S.M.CAPC3008ECJ1VC1H561J50V 560pF

S.M.CAPC3010ECJ1VC1H561J50V 560pF

S.M.CAPC3011ECJ1VC1H561J50V 560pF

S.M.CAPC3013ECJ1VC1H561J50V 560pF

S.M.CAPC3014ECJ1VC1H561J50V 560pF

S.M.CAPC3015ECJ1VC1H561J50V 560pF

S.M.CAPC3016ECJ1VC1H561J50V 560pF

S.M.CAPC3018ECJ1VC1H561J50V 560pF

S.M.CAPC3019ECJ1VC1H561J50V 560pF

ELECTC3038ECA1CM100B16V 10µF

ELECTC3039ECA1CM100B16V 10µF

ELECTC3040ECA1CM100B16V 10µF

ELECTC3041ECA1CM100B16V 10µF

ELECTC3044ECA1CM100B16V 10µF

ELECTC3045ECA1CM100B16V 10µF

S.M.CAPC3201ECJ2VB1H103K50V 10nF

S.M.CAPC3202ECJ2VB1H103K50V 10nF

S.M.CAPC3203ECJ2VC1H561J50V 560pF

S.M.CAPC3204ECJ2VC1H561J50V 560pF

S.M.CAPC3207ECJ2VC1H271J50V 270pF

S.M.CAPC3213ECJ2VC1H561J50V 560pF

S.M.CAPC3214ECJ2VC1H561J50V 560pF

ELECTC3215SMG1HV470MT550V 47µF

ELECTC3216SMG1HV470MT550V 47µF

S.M.CAPC3217ECJ2VC1H561J50V 560pF

S.M.CAPC3218ECJ2VC1H561J50V 560pF

SCART SOCKET JK3001350536400

SCART SOCKET JK3002350536400

RCA SOCKET JK3004YKC21-5861N

AV TERMINAL JK3201TJB8E026

CRT SOCKET SC381330550049

SWITCH SW801ESB92DA1B

SWITCH SW1003EVQ21405R

SWITCH SW1004EVQ21405R

SWITCH SW1005EVQ21405R

SWITCH SW1006EVQ21405R

SWITCH SW1007EVQ21405R

RELAY RL8018-1419125-3

MODEL LABEL 21TBM0E0274

GERMAN .TQB0E0048A-M

ITALIAN .TQB0E0048C-M

21

DescriptionCct RefParts Number DescriptionCct RefParts Number

FRENCH .TQB0E0048D-M

I.C.s

32K EAROM 24C32A10PI27IC11041500/1JD

DIFFERENCES FOR MODEL TX--29PM11F

EXPLODED VIEW

MODEL LABEL 21TBM0E0275

INSTRUCTION BOOKS

GERMAN .TQB0E0049A-M

DUTCH .TQB0E0049B-M

FRENCH .TQB0E0049D-M

SPANISH .TQB0E0049E-M

SWEDISH .TQB0E0049F-M

NORWEGIAN .TQB0E0049G-M

FINNISH .TQB0E0049H-M

DANISH .TQB0E0049K-M

I.C.s

32K EAROM 24C32A10PI27IC11041500/1JF

DIFFERENCES FOR MODEL TX--29PM11P

EXPLODED VIEW

MODEL LABEL 21TBM0E0276

INSTRUCTION BOOKS

BULGARIAN .TQB0E0050M-M

ROMANIAN .TQB0E0050N-M

POLISH .TQB0E0050P-M

HUNGARIAN .TQB0E0050Q-M

CZECH .TQB0E0050R-M

ENGLISH .TQB0E0050U-M

SLOVAKIAN .TQB0E0050W-M

I.C.s

32K EAROM 24C32A10PI27IC11041500/1JP

22

SCHEMATIC DIAGRAMS FOR MODELS

TX-29PM11D, TX-29PM11F, TX-29PM11P

(GP2 CHASSIS)

IMPORTANT SAFETY NOTICE

Components identified by mark have special characteristics
important for safety. When replacing any of these components, use
only manufacturers' specified parts.

NOTE

1.RESISTOR
All resistors are carbon ¼W resistor, unless marked otherwise.
Unit of resistance is OHM (!) (k=1,000, M=1,000,000)

2.CAPACITORS
All capacitors are ceramic 50V unless marked otherwise.
Unit of capacitance is "F unless otherwise stated.

3.COIL
Unit of inductance is "H, unless otherwise stated.

4.TEST POINT

5.EARTH SYMBOL

6.VOLTAGE MEASUREMENT
Voltage is measured by a d.c. voltmeter.
Measurement conditions are as follows:
Power sourcea.c. 220V-240V, 50Hz
Receiving SignalColour Bar signal (RF)
All customer controlsMaximum position

7.

These schematic diagrams are the latest at time of printing and are subject to change without notice.

Test Point Position

Chassis Earth (Cold)
Line Earth (Hot)

Indicates the Video signal path
Indicates the Audio signal path

REMARKS

a.Do not touch the hot part, or the hot and cold parts at the same time, as you are liable to a shock hazard.
b.Do not short circuit the hot and cold circuits as electrical components may be damaged.

c.Do not connect an instrument, such as an oscilloscope, to the hot and cold circuits simultaneously as this may cause

fuse failure. Connect the earth of the instruments to the earth connection of the circuit being measured.

d.Make sure to disconnect the power plug before removing the chassis.

NOTE

1.The Power Supply Circuit contains a circuit area, which uses a separate power supply to isolate the earth connection.

The circuit is defined by HOT and COLD indications in the schematic diagram. All circuits, except the Power Circuit, are
COLD.

23

CONDUCTOR VIEWS FOR MODELS

345

678

TX-29PM11D, TX-29PM11F, TX-29PM11P

D - BOARD TNP8ED020

F

E

D

C

B

TRAN’S

Q101C2D503A8D881D4
Q102C2D504B4D883F5
Q106C2D505A6D887E4
Q2006A2D506C4D888C2
Q251E4D553B7D889E4
Q252E4D554D8D890B3
Q503C4D555A8D891A3
Q551D6D556A8D892B2
Q552B8D557B7D893D5
Q556A8D558B8D894E3
Q701B6D559B5D895E4
Q702B6D560D5D896E4
Q703B6D563D4D898F3
Q704A6D565C4
Q705B5D566C4
Q706A6D575A8IC2001D2
Q707D6D576A8IC251E3
Q865E4D580C6IC451A7
Q866D4D706B6IC801E6
Q867F4D707B6IC820E7
Q868F4D710B6IC851B3
Q870C3D711A6IC852B3
Q871C3D712A6IC853A3
Q873C3D713A6IC854B2
Q874E5D714B6IC880C3
Q896F3D717B6IC885E6
Q898D4D820E7

DIODES

D101A1D824E7TPD11A5
D102A1D825E8TPD14C3
D2005E1D865E5TPD17A8
D2006B2D866E5TPD18D8
D2007A2D867E4TPD19F1
D2008B1D868D6TPD2D5
D2009A2D869D5TPD20F2
D2010A1D870E5TPD21F4
D251E3D871F4TPD22F4
D252D3D872F5TPD3F4
D454B7D873F5TPD4F4
D456A7D874F5TPD5F4
D457A7D875F4TPD6B7
D458A7D877C3TPD7B7
D501C4D878C3TPD8B7

D502C4D880C3

IC’S

D822F6
D823E7TPD1B8

TP’S

A

2

1

28

G - BOARD TNP8EG022

875

3

6

TRAN’S

Q1002D2D804B4
Q1901B6D808A4
Q850B5D809B4
Q852B6D851B6

DIODEIC‘S

D1001D2IC1900C5
D1004D1RM1001D2
D3201C6
D3202C7
D3203C6TPG1A4
D3204D6TPG6A4
D802B3

D803A4

TP’S

D

C

B

A

1

2

4

29

A - BOARD TNP8EA021 - TOP

643

5

A

B

TRAN’SDIODE

Q1109C5D1105C4
Q1110C5D1701B7
Q1112C4D1702C4
Q1116C4D1705D4
Q1501A1
Q1502A2
Q1504B4IC1101C5
Q1507A2IC1102C7
Q1508A1IC1103C6
Q1701A7IC1104D4
Q1702A7IC1105C4
Q1706A7IC1106C7
Q1707A6IC1501B6
Q1708A7IC1502D4
Q1711C7IC1701B6
Q1712A7
Q1713B7
Q1715A7

IC’S

C

D

1

2

7

30

6

3

5

A - BOARD TNP8EA021 - BOTTOM

TRAN’S

Q1103C3Q1704A2
Q1104B5Q1705A1
Q1105B5Q1719A1
Q1106B5Q3002C6
Q1107B6Q3003C7
Q1108B6Q3005C6
Q1111C3Q3006C6
Q1113C4Q3008B7
Q1114C4Q3009C7
Q1115C3
Q1117C3
Q1118B4D1102C3
Q1119B4D1104B3
Q1503B4D1703B1

Q1703A1

DIODE

A

B

C

31

D

1

2

4

7

A

NOTES

L - BOARD TNP8EL021

TRAN’SDIODEIC‘STP’S

Q351D4D351D3IC351D3TPL1D2
Q352C1D354D4IC361C4TPL2C4
Q901B4D355D1IC371C1TPL3C1
Q902B4D361C3TPL4C2
Q903A4D371D2TPL5B3
Q904B4TPL6C3

TPL7C1
TPL8C1
TPL9C1

D

C

43

B

21

32
