T X --- 2 8 P L 1 D
Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pa
nasonic
sonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panaso
nic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasoni
c¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡
Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pa
nasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pana
sonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panaso
nic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasoni
c¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡
Panasonic
nasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pana
sonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panaso
nic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasoni
c¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡
Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pa
nasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pana
sonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panaso
nic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasoni
This is an unapproved issue --- for your information only
c¡
Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pa
¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panaso
¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pana
Colour television
¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡Pa
Operating Instructions
English
TQB8E3459---eng
Panasonic¡Panasonic¡Panasonic¡Panasonic¡Panasonic¡
Page 2
WELCOME
Dear Panasonic Customer,
Welcome to the Panasonic family of customers. We hope that you have many years of enjoyment from your
new colour television. This is a very advanced television; however, the Quick Start Guide will tell you how to
have the TV operating quickly. You can then read the instructions completely and retain them for future
reference.
CONTENTS
Warnings and Precautions 2.......................
Accessories 3....................................
Quick Start Guide 4...............................
Basic Controls 6..................................
Using the On Screen Displays 7....................
Aspect controls 8.................................
Picture Menu 10..................................
Sound Menu 11...................................
Setup Menu 12...................................
Tuning Menu 13..................................
Tuning Menu -- Programme edit 14.................
Tuning Menu -- Auto Setup 18......................
Tuning Menu -- Manual tuning 19...................
OSD Language 20................................
Q-- Link 21.......................................
AV Select and Setup 22...........................
VCR/DVD Operation 23...........................
Te l e t e x t O p e r a t i on 2 4.............................

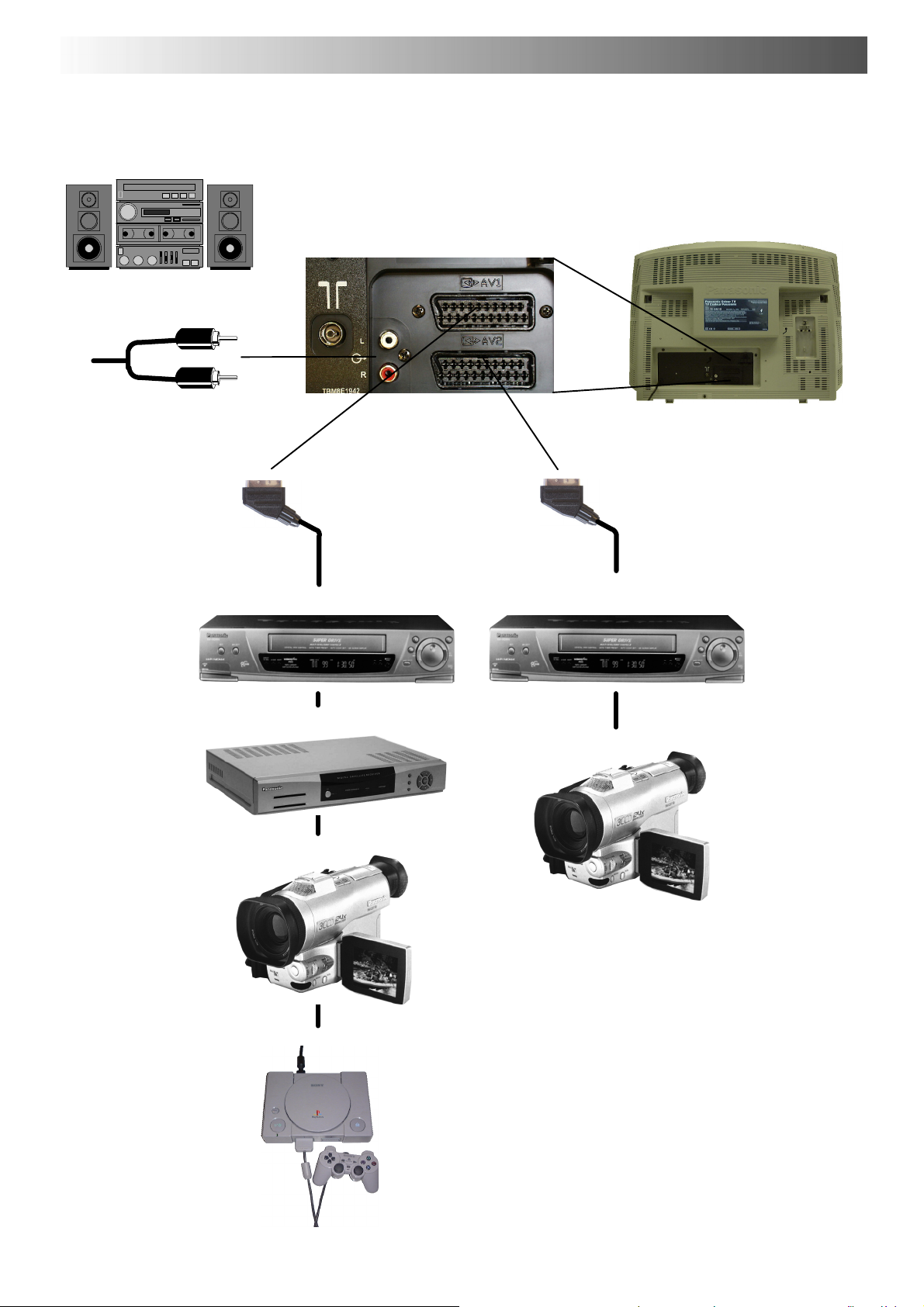

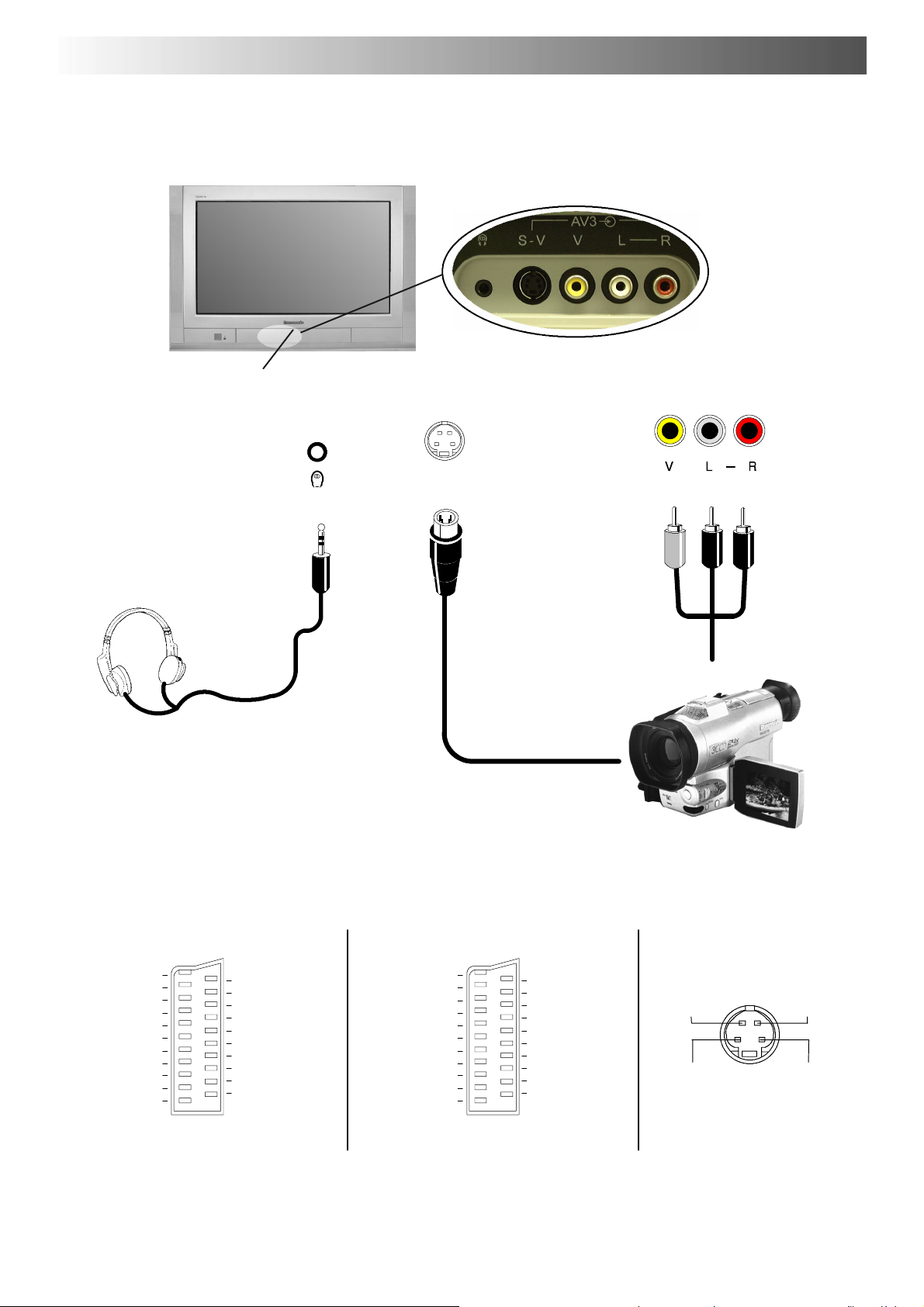

Audio / Video (AV) Connections 27.................
Via the front AV3 Audio / Video (RCA)
and Headphone Sockets 27........................
SCART and S-- Video Terminal Information 27..........
ViatherearAV1/AV221Pin(SCART)
and RCA Audio Out terminals 28.....................
Troubleshooting 29...............................
Foryourguidance 30.............................
Specifications 30.................................
WARNINGS AND PRECAUTIONS
D This TV set is designed to operate on A.C. 220 -- 240V, 50Hz.
D To prevent damage which might result in electric shock or fire,
do not expose this TV set to rain or excessive moisture.
D WARNING : HIGH VOLTAGE !!!
Donotremovetherearcoveraslivepartsareaccessiblewhen
it is removed. There are no user serviceable parts inside.
D Avoid exposing the TV setto direct sunlight and othersources
of heat.
D The On/Off switch onthis modeldoes notfully disconnectthe
TV from the mains supply. Remove the mains plug from the
wall socket when the TV set isnot used fora prolonged period
of time.
2
D CABINET AND PICTURE TUBE CARE
Remove the mains plug from thewall socket. The cabinet and
picture tube can be cleaned with a soft cloth moistened with
mild detergent and water. Do not use solutions containing
benzol or petroleum. TV sets can produce static electricity,
care must be taken whenever touching the TV screen.
D Adequate ventilation is essential to prevent failure of electrical
components, we recommend that a gap of at least 5cm is left
all around this television receiver even when it is placed inside
a cabinet or between shelves.
Page 3
ACCESSORIES
Check that you have the accessories and items shown
Operating Instruction book
Batteries for the Remote Control
T ransmitter.
(2 x R6 (UM3) size)
n
Remote Control Transmitter
EUR511210
Remote control batteries
D Make sure that the batteries are fitted
the correct way round.
D Do not mix old batteries with new
batteries. Remove old, exhausted
batteries immediately.
D Do not mix differentbattery types,i.e.
Alkaline and Manganese or use
rechargeable (Ni ---Cad) batteries.
3
Page 4
QUICK START GUIDE
Plug in aerial and connect ancillary equipment.
1
AV1
AV2
SATELLITE RECEIVER
OR
VCR
3
2
Land
Deutschland
Österreich
France
Italia
España
Portugal
Nederland
Danmark
Sverige
Norge
Suomi
Belgien
Schweiz
ELLADA
E.Eu
AV1
AV2
Auswäh len
StartATP Suchlauf Abbruch
Select your country.
For Switzerland and Belgium,
select the desired language
First, ensure that the VCR is in Standby mode.
Plug in TV and switch on.
4
CH41
ATPAKTIV
SUCHE LÄUFT : BITTE WARTEN
CH41 XYZ
02 78:01 41
TV / AV : Abbruch
Auto setup will begin, your stations will be located and stored.
Use the Programme Edit menu to delete unwanted stations
(see page 14).
Press the TV/AV button to exit.
TV/AV
5
If you are installi ng a new Q---Link compatible VCR, you can now
switch it ON. Downloaded tuning data will match the tel evision’s.
If you are installing a new
need to initiate download manually.
See the VCR handbook for details.
Press the red button.
CH41
NEXTVIEWLINK compatible VCR, you will
D If the VCR has not accepted download data from the TV, you may need to select the Download option from the VCR’s menu.
D If Q---Link is not operating correctly, check it is connected to the television’ sAV2 socket, the SCART lead is a “fullfunction” type,and
the VCR is compatible with Q --- Link,
NEXTVIEWLINK or similar technologies. Ask your dealer for further details.
D For further information on Q---Link and connecting equipment, see pages 21, 27 and 28.
4
Page 5
QUICK START GUIDE
6
Slight tilting of the picture may be noticeable or coloured patches may sometimes appear at the corners of the screen
(colour purity). The Geomagnetic Correction feature can be used to eliminate them, if necessary:
First, ensure the ATP and Q--- Link download procedures are complete.
The screen should not be showing any On---Screen Display menus.
Open the flap on the television’s front panel
Press and release here to open flap
Press the F button repeatedly until the Geomagnetic
Correction feature is displayed
F
7
Press the + or --- buttons repeatedly until the picture
appears to be level
Press the F button again to return to normal viewing.
Close the flap to prevent damage
You are now ready to begin viewing programmes
The cursor controls provide the two basic functions:
--- / v
Geomagnetic Correction
F : To exit
--,+ : Adjust tilt
F
Adjust Volume Change Programme
STR F --/v +/ TV/AV
002
5
Page 6
BASIC CONTROLS : FRONT PANEL AND REMOTE CONTROL
MAINS Power On/Off switch
Red light indicates Standby mode.
STR (Normalisation store)
Used to store tuning and other function settings
F (Function select)
Displays the On Screen Display functions, use repeatedly to
select from the available functions - Volume, Contrast,
Brightness, Colour, Sharpness, Tint (in NTSC mode), Bass,
Treble, Balance, Tuning mode and Geomagnetic correction
Standby ON/OFF switch
Switches TV On or Off standby.
Menu buttons
Press to access the Picture, Sound
and Setup menus (see page 7)
Status button
Press to display programme position,
programme name, channel number,
TV system, time stereo mode
and programme table
Teletext buttons (see page 24)
RCA Audio/Video sockets
(page 27)
S - --VHS socket (see page 27)
Headphonesocket(seepage27)
TV/AV switch (see page 22)
Increases or decreases the programme position by
one. When a function is already displayed, p ress to
increase or decrease the selected function.
Sound mute On/Off
Cursor buttons to make selections and
adjustments
Switch between viewing TV or AV input
(see page 22)
Coloured buttons used for
Programme Edit functions (see page 14)
Teletext functions (see page 24)
AV selection (see page 22)
Direct TV Record button
(see page 21)
Ambience on/off
Aspect control button (see page 8)
Direct Channel Access
During normal TV viewing or when
in the T uning, Programme edit or
Manual tuning menus, press and
then enter channel number using
the numeric buttons
The N button will recall settings
stored with STR
STR (Normalisation store)
6
Programme / channel change
buttons (0- 9) and Teletext page
buttons (see page 24)
Programme position for selection of
two digit programmes (10- 99) using
numeric buttons
VCR / DVD buttons
(see page 23)
The Help button provides a
demonstrationofOnScreen
Display menus
Page 7
USING THE ON SCREEN DISPLAYS
This TV has a comprehensive system of On Screen Display menus to access
adjustments and options
Menu Title
Picture menu
TV/AV
Select
Change
Exit
Instructions
Sub-- menus
Selection bar
Some selections, for example, Contrast, Brightness, Colour and Sharpness
will allow you to increase or decrease their level.
Some selections, for example, Off timer, allow a choice to be made.
Some selections, for example Tuning menu, will lead to a further menu.
The PICTURE, SOUND and SET UP buttons are
used to open the main menus and also to return to
the previous menu.
The up and down cursor buttons are used to move
the cursor up and down the menus.
Contrast
Brightness
Colour
Sharpness
Colour balance Normal
P-- NR Off
AI On
SOUND SET UP
Indicator for options
The left and right cursor buttons are used to access
menus, adjust levels or to select from a range of
options.
The STR button is used to store settings after
adjustments have been made or options have
been set.
The TV/AV button is used to exit the menu system
and return to the normal viewing screen.
The HELP button will run a demonstration of the
menus available. Press the HELP button and
select one of the options.
If the HELP button is pressed whilst a menu is
displayed, the ’Instructions’ box will be hidden
from view. Press the HELP button again to show
the ’Instructions’ box.
STR
TV/AV
HELP
?
7
Page 8
ASPECT CONTROLS
The widescreen TV will allow you to enjoy viewing the picture at its maximum size, including
widescreen ‘cinema format’ pictures.
Note: Just mode is not available when viewing an RGB source.
Press the ASPECT button to move
through the five aspect options:
Panasonic Auto, 4:3, Zoom, 16:9
(Full) and Just
Panasonic Auto
Some broadcasts are transmitted
together with a wide screen
identification signal (WSS). If the TV
receives this signal then it will
automatically switch to wide screen
16:9 mode, maximum display.
The automatic widescreen switching
depends upon reception conditions
and the strength of the signal. If the
signal is poor and therefore the WSS is
weak then it is possible that the picture
may not expand to full size and that the
TV will display black areas around the
edges.
If the original source signal was a
standard 4:3 aspect ratio then you
might prefer to view it in its original size;
the red and green keys that appear will
allow you to choose between viewing at
standard 4:3 size or expanded in Just
mode.
ASPECT
Panasonic Auto
4:3 Just
Panasonic Auto
4:3
4:3 will display a 4:3 picture at its
standard 4:3 size and can be selected if
youwishtoviewinthisformat.
Zoom
Zoom mode magnifies the central
section of the picture.
The picture can be moved and
enlarged vertically using the coloured
keys. The former adjustment is useful
for viewing any sub---titles which may
appear outside the picture.
4:3
4:3
Zoom
VSize-- VSize+ VPos.-- VPos.+
8
Zoom
Page 9
ASPECT CONTROLS
The on screen selector keys that appear
for some aspect functions will clear after
a few seconds. If you subsequently
wish to select an operation then press
the Aspect key once more for the keys
to reappear.
The widescreen aspect ratios of
different films and programmes can
vary. If these are wider than a standard
16:9 aspect picture then a black band
may be visible at the top and bottom of
the screen.
If, in Panasonic Auto mode, you
experience problems with the screen
display size when playing back
widescreen format recordings from
your VCR then it is possible that the
tracking control of your VCR requires
adjustment (your VCR instruction book
will contain adjustment details).
Zoom
VSize-- VSize+ VPos.-- VPos.+
Blue key has been pressed to move picture upwards
16:9 (Full)
16:9 (Full) will display the picture at its
maximum size but with slight
elongation.
Just
Just mode will display a 4:3 picture at
maximum size but with aspect
correction applied to the centre of the
screen so that elongation is only
apparent at the left and right edges of
the screen. The size of the picture will
depend on the original signal.
16:9
16:9 (Full)
Just
Just
9
Page 10
PICTURE M ENU
This menu allows you to make adjustments to the picture quality
Open the Picture menu
Move to your choice
Increase or decrease levels or
set options
Press the TV/AV button to exit
the Picture menu
TV/AV
TV/AV
Picture menu
Contrast
Brightness
Colour
Sharpness
Colour balance Normal
P-- NR Off
AI On
Select
Adjust
Exit
Contrast
Brightness
Colour
Sharpness
Tint
Colour balance
P-- NR
AI
The Contrast, Brightness, Colour and
Sharpness levels can be adjusted to suit
your own preferences and the viewing
conditions.
The Tint adjustment will only appear as
a menu item if you have an NTSC signal
source connected to the TV and will
allow adjustment of the hue.
The Colourbalance settingallowsyou to
set the overall colour tone of the picture.
P-- NR will automatically reduce
unwanted picture interference.
The AI setting automatically analyses
the incoming picture and processes it to
give improved contrast, optimumdepth
of field and vivid colour tones.
TV/AV
Picture menu
Contrast
Brightness
Colour
Sharpness
Colour balance Normal
P-- NR Off
AI On
Sharpness
Select
Adjust
Exit
10
Page 11

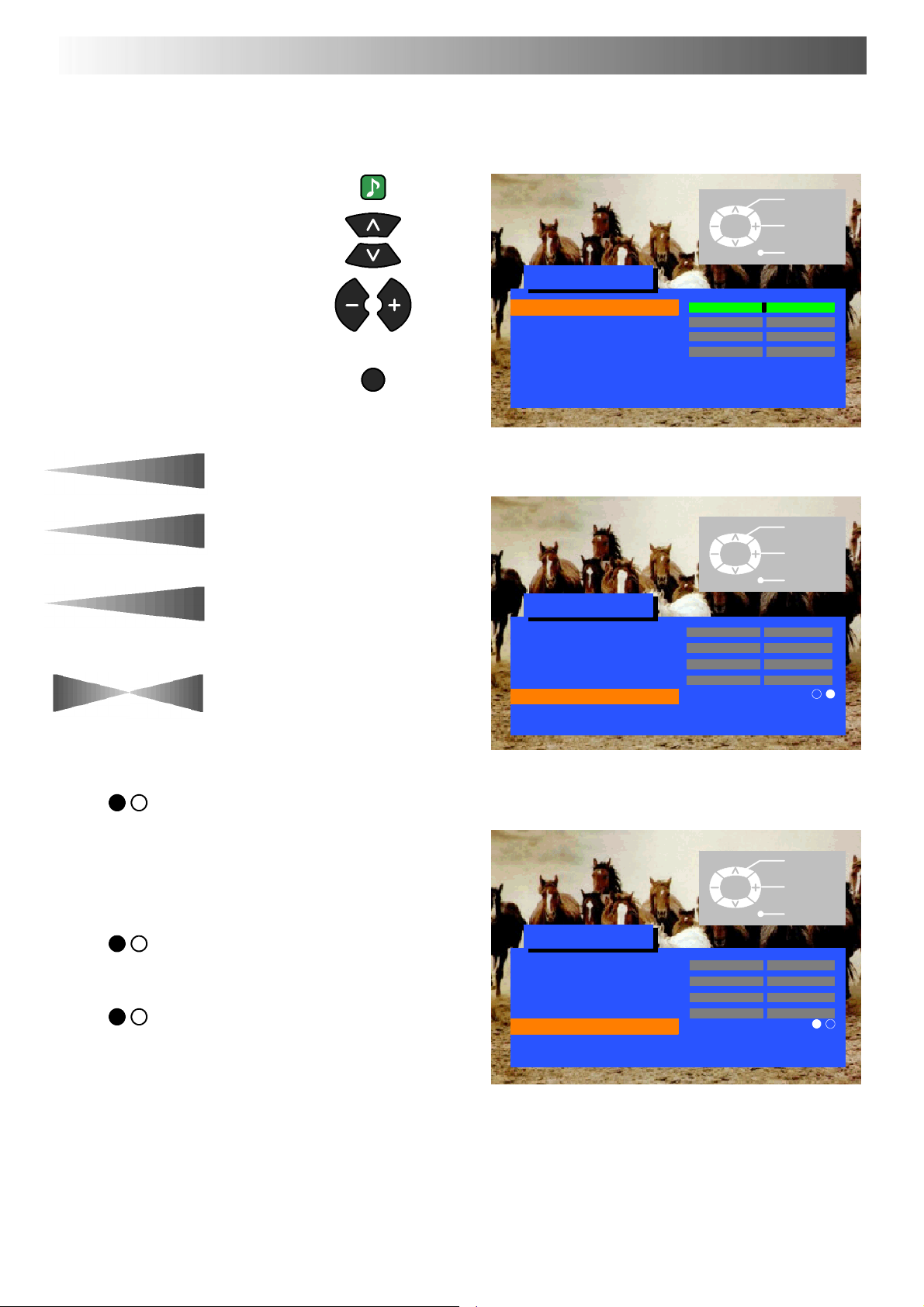

SOUND MENU
The Sound menu will allow you to set your personal preferences for all aspects of sound quality
SOUND
Open the Sound menu
Move to your choice
Increase or decrease levels or
set options
Press the TV/AV button to exit
the Sound menu
TV/AV
TV/AV
Sound menu
Volume
Bass
Treble
Balance
MPX Stereo
Mode Music
Ambience Off
Select
Adjust
Exit
Volume
Treb le
Balance
MPX
Bass
The Volume adjustment sets the overall
output volume.
Bass adjustment will emphasise the
lower, deeper frequencies and can be
increased or decreased.
T reble adjustment will emphasise the
sharper, higher frequencies and can be
increased or decreased.
Balance affects the levels of sound
between the left and right speakers.
Adjustment can be made so that the
level from the speakers will suit your
listening position.
MPX will usually be set to Stereo to
provide the best reproduction, however
if reception deteriorates or if the service
is not available then it is advisable to
switch to Mono. Mono (M1) and (M2)
can also be selected if signals are being
transmitted.
TV/AV
Sound menu
Volume
Bass
Treble
Balance
MPX Stereo
Mode Music
Ambience Off
Select
Change
Exit
Select
Change
Mode
Ambience
The sound can be improved during
Music or Speech mode by selecting the
appropriate function.
Ambience provides a dynamic
enhancer to simulate improved spatial
effects.
TV/AV
Sound menu
Volume
Bass
Treble
Balance
MPX Stereo
Mode Music
Ambience Off
Exit
11
Page 12

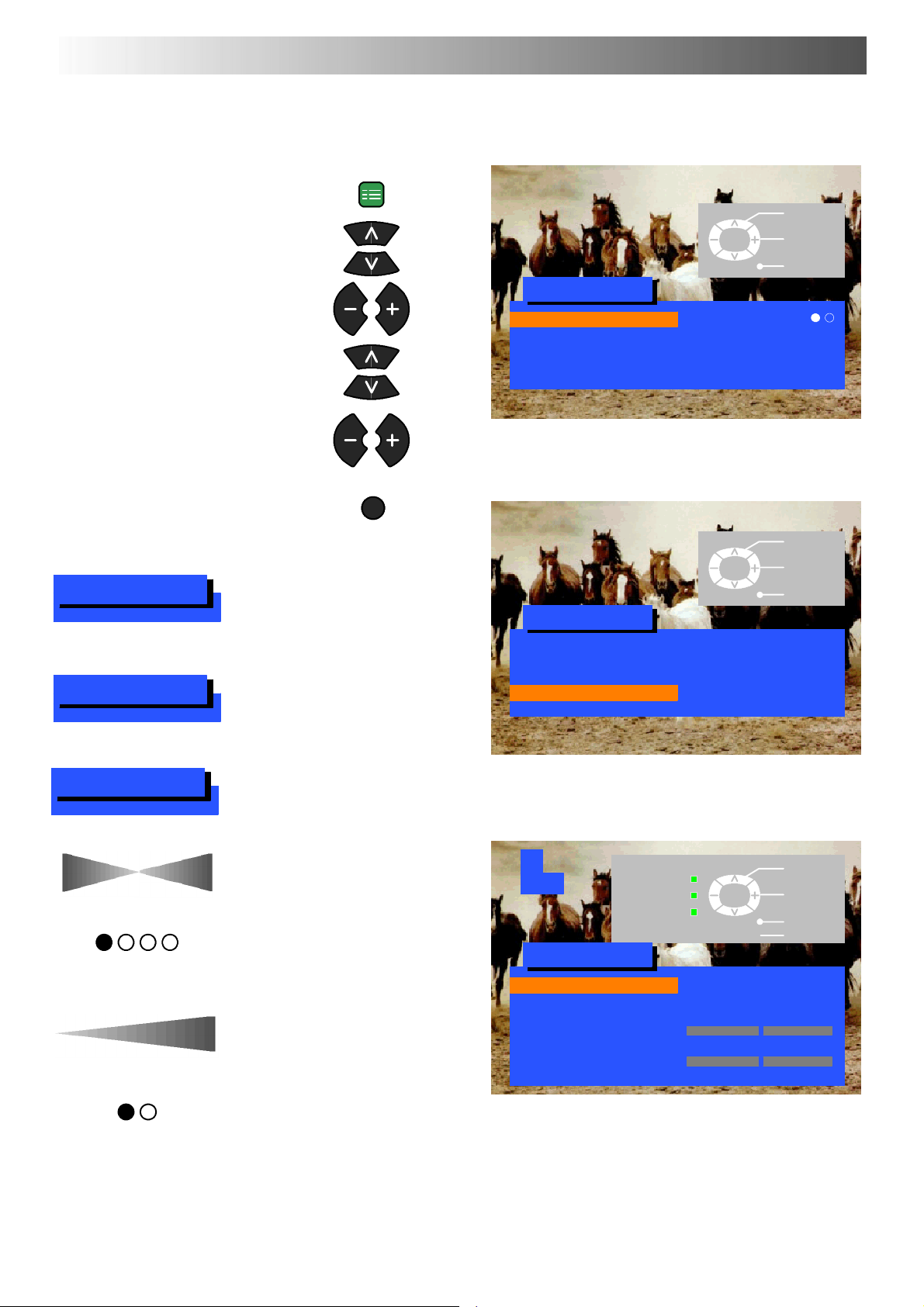

SETUP MENU
The Setup menu provides access to various advanced features and also to the Tuning menu
SET UP
Open the Setup menu
Move to your choice
TV/AV
Increase or decrease levels, set
optionsoraccessfurthermenus
Press the TV/AV button to exit
the Setup menu
TV/AV
Setup menu
Teletext FLOF
Off timer Off
Q-- Link On
Tuning menu
OSD language
Select
Change
Exit
Te let e x t
Off timer
Q-- Link
Tuning menu
OSD language
The Teletext option allows you to choose
between FLOF or LIST mode.
Seepage24.
Off timer will switch the TV off within a
preset time which you can choose from
between 0 to 90 minutes in 15 minute
intervals.
Q-- Link allows you to enable or disable
data communication with a compatible
VCR.Seepage21.
The Tuning menu provides an entry to
many other features including
Programme edit, ATP, Fine tuning,
Manual tuning, Colo ur system and
Volume correction. See page 13.
OSD language allows you to select the
language used for On Screen Displays.
Seepage20.
Setup menu
Teletext FLOF
Off timer Off
Q-- Link On
Tuning menu
OSD language
Setup menu
Teletext FLOF
Off timer Off
Q-- Link Off
Tuning menu
OSD language
TV/AV
TV/AV
Select
Change
Exit
Select
Change
Exit
12
Page 13

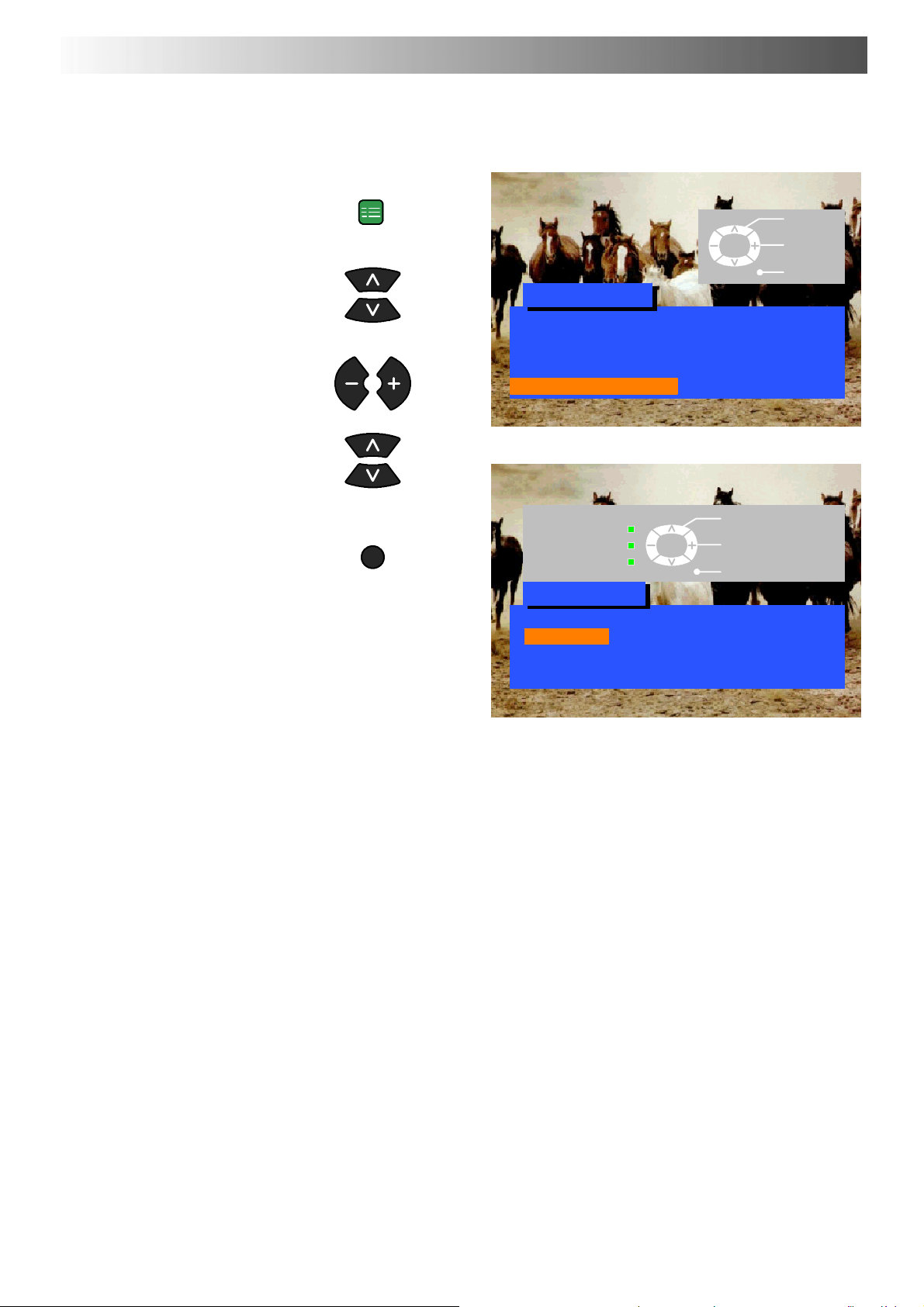

TUNING MENU
The Tuning menu provides access to manual, automatic and fine tuning menus
Open the Setup menu
Move to Tuning menu
Access Tuning menu
Move to your choice
Increase or decrease levels, set
optionsoraccessfurthermenus
Press the TV/AV button to exit
SET UP
TV/AV
Setup menu
Teletext FLOF
Off timer Off
Q-- Link Off
Tuning menu
OSD language
TV/AV
Select
Change
Exit
Programme edit
Auto setup
Manual tuning
Fine tuning
Colour system
Volume correc.
Decoder (AV2)
Accessing the Programme edit menu
will allow stations to be moved, added,
deleted, named or locked and provides
access to the TV -- system.
Seepage14.
The Auto setup menu allows you to
automatically retune the TV.
Seepage18.
The Manual tuning menu allows
individual programme positions to be
tuned manually. See page 19.
Stations can be finely tuned using the
Fine tuning adjustment.
The Colour system menu allows you to
decide the correct choice of
transmission standard.
Volume correction allows you to adjust
thevolumelevelofindividualstations.
This option is used when a decoder is
connected via AV2. Set to On if a
scrambled signal is to be processed by
the decoder. Set to Off after use.
Setup menu
Teletext FLOF
Off timer Off
Q-- Link Off
Tuning menu Access
OSD language
1
CH41
Return --
Tuning menu
Programme edit Access
Auto setup
Manual tuning
Fine tuning
Colour system AUTO
Volume correc.
Decoder (AV2) Off
TV/AV
TV/AV
’STR’
Select
Access
Exit
Select
Access
Exit
Store
13
Page 14

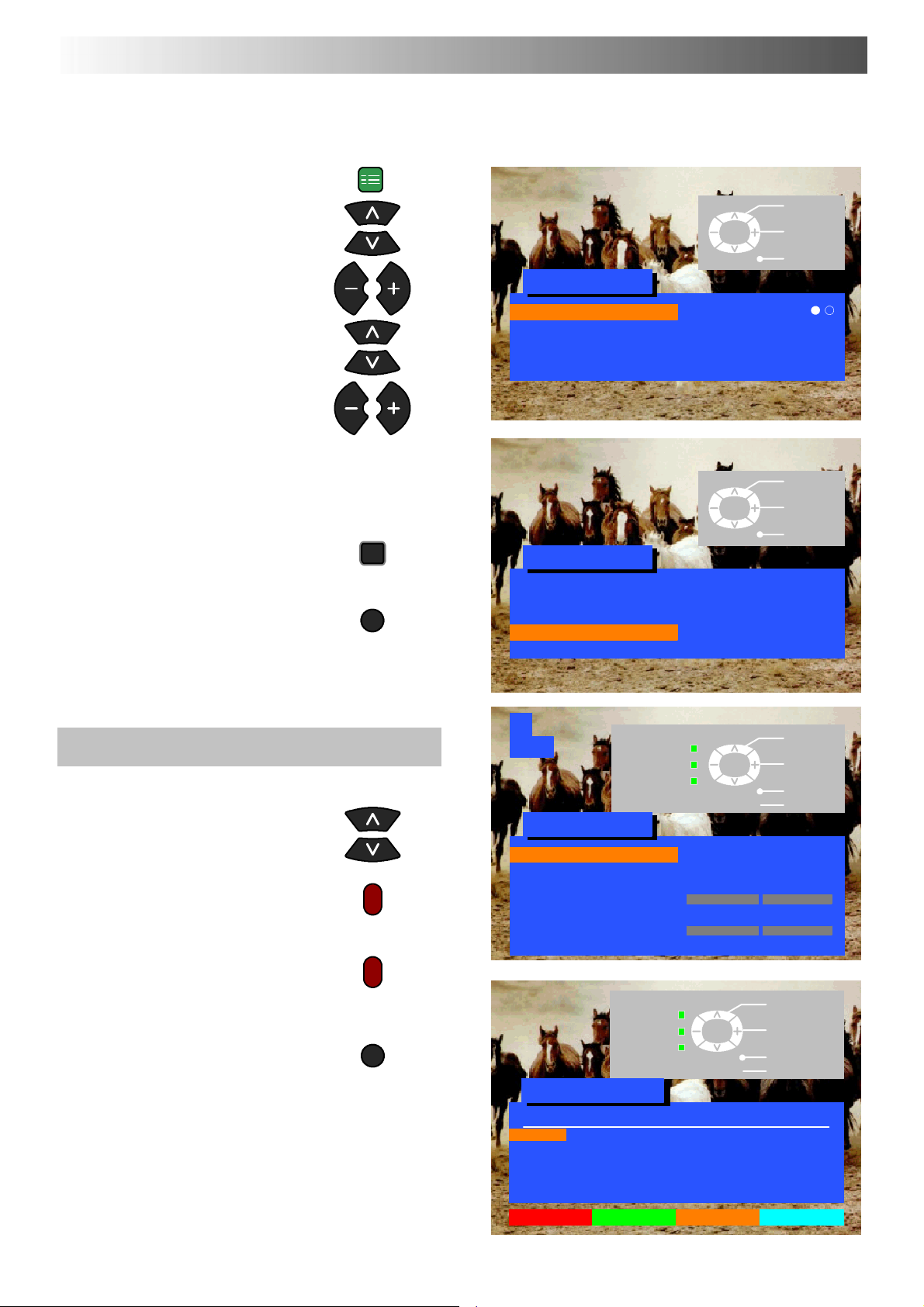

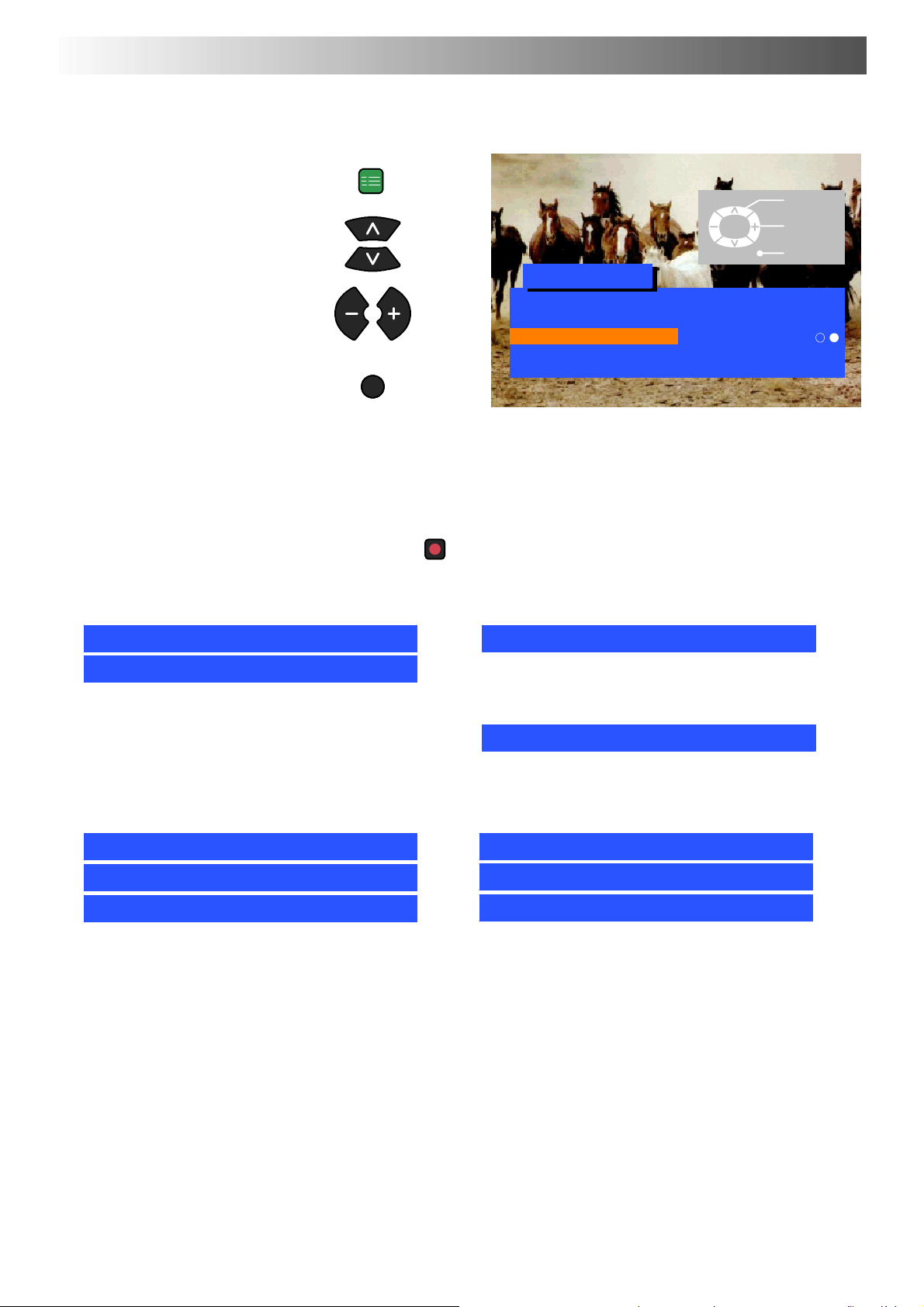

TUNING MENU -- PROGRAMME EDIT
The Programme edit menu allows you to edit the programme position settings
Open the Setup menu
Move to Tuning menu
Access Tuning menu
Move to Programme edit menu
Access Programme edit menu
Make required changes
(see sections below)
Press STR button to store
changes
If you have finished in the
Programme edit menu, press the
TV/AV button to exit
SET UP
STR
TV/AV
TV/AV
Setup menu
Teletext FLOF
Off timer Off
Q-- Link Off
Tuning menu
OSD language
TV/AV
Setup menu
Teletext FLOF
Off timer Off
Q-- Link Off
Tuning menu Access
OSD language
Select
Change
Exit
Select
Access
Exit
To delete an unwanted programme position
Choose the programme position
PresstheRedbuttononremote
control
Press the Red button again to
confirm
If you have finished in the
Programme edit menu, press the
TV/AV button to exit
TV/AV
1
CH41
Return --
Tuning menu
Programme edit Access
Auto setup
Manual tuning
Fine tuning
Colour system AUTO
Volume correc.
Decoder (AV2) Off
Return --
Programme edit
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: -- Off SC2
4: -- Off SC2
5: -- Off SC2
TV/AV
TV/AV
STR
STR
Change
Select
Exit
Store
Select
Access
Exit
Store
programme
option
14
Delete Add Move TV > VCR
Page 15
TUNING MENU -- PROGRAMME EDIT

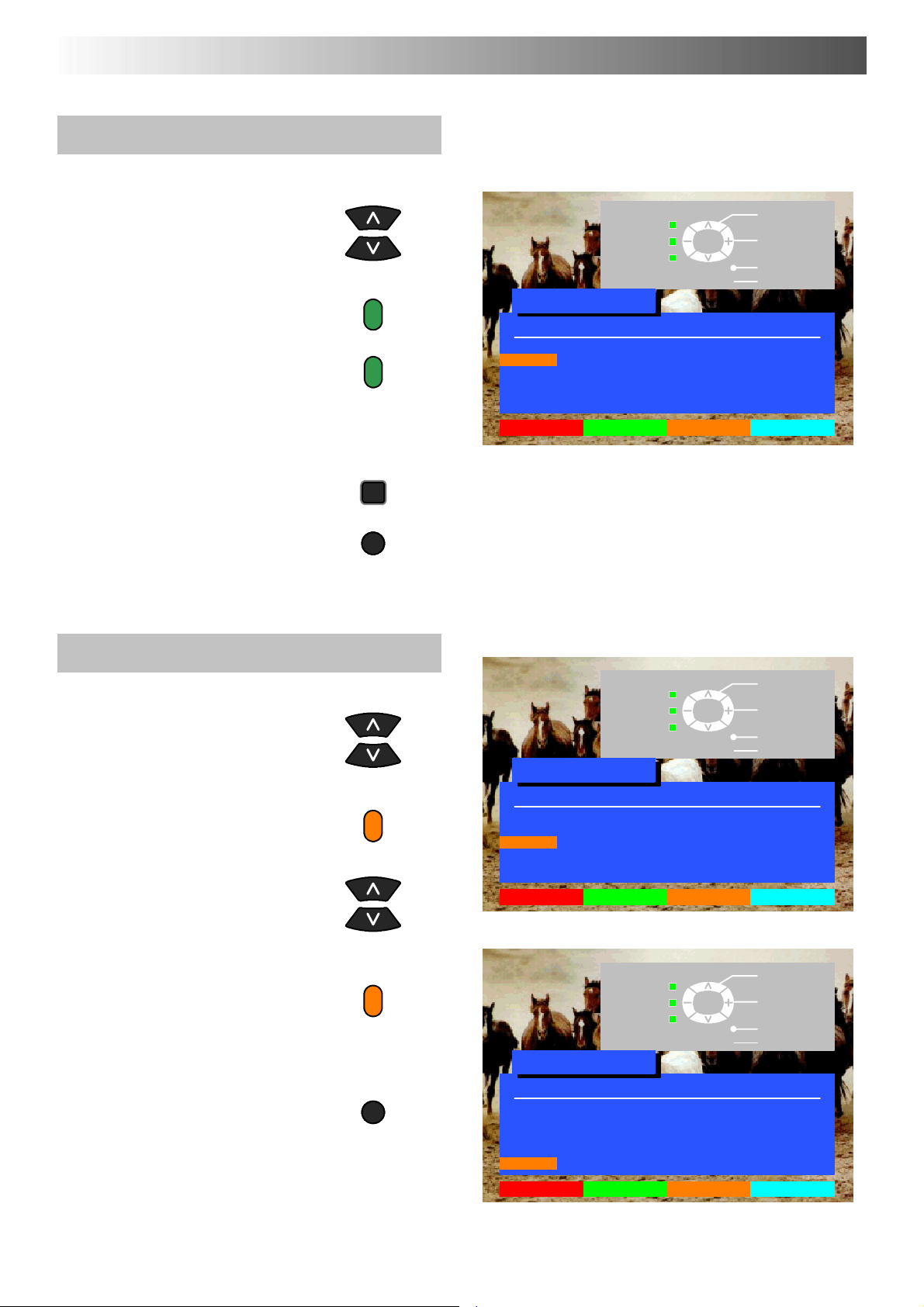

To add a programme position
Choose the programme position
where the new program is to be
inserted
Press the Green button
Press the Green button again to
confirm
Thisblankprogrammecanthenbe
tuned, named, locked and be
allocated your choice of TV-- system
Press S TR to store
STR
If you have finished in the
TV/AV
Programme edit menu, press the
TV/AV button to exit
To move a programme to another position
Change
programme
Select
Return --
’STR’ Button
TV/AV
option
Exit
Store
Programme edit
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: CH44 ZXY Off SC2
4: -- Off SC2
5: -- Off SC2
Delete Add Move TV > VCR
Choose the programme position
to be moved
Press the Yello w button on
remote control
Choose new position
Press the Yellow button again to
confirm
If you have finished in the
Programme edit menu, press the
TV/AV button to exit
TV/AV
Change
programme
Select
Return --
’STR’ Button
TV/AV
option
Exit
Store
Programme edit
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: CH44 ZXY Off SC2
4: -- Off SC2
5: -- Off SC2
Delete Add Move TV > VCR
Change
programme
Select
Return --
’STR’ Button
TV/AV
option
Exit
Store
Programme edit
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: -- Off SC2
4: -- Off SC2
5: CH44 ZXY Off SC2
Delete Add Move TV > VCR
15
Page 16
TUNING MENU -- PROGRAMME EDIT

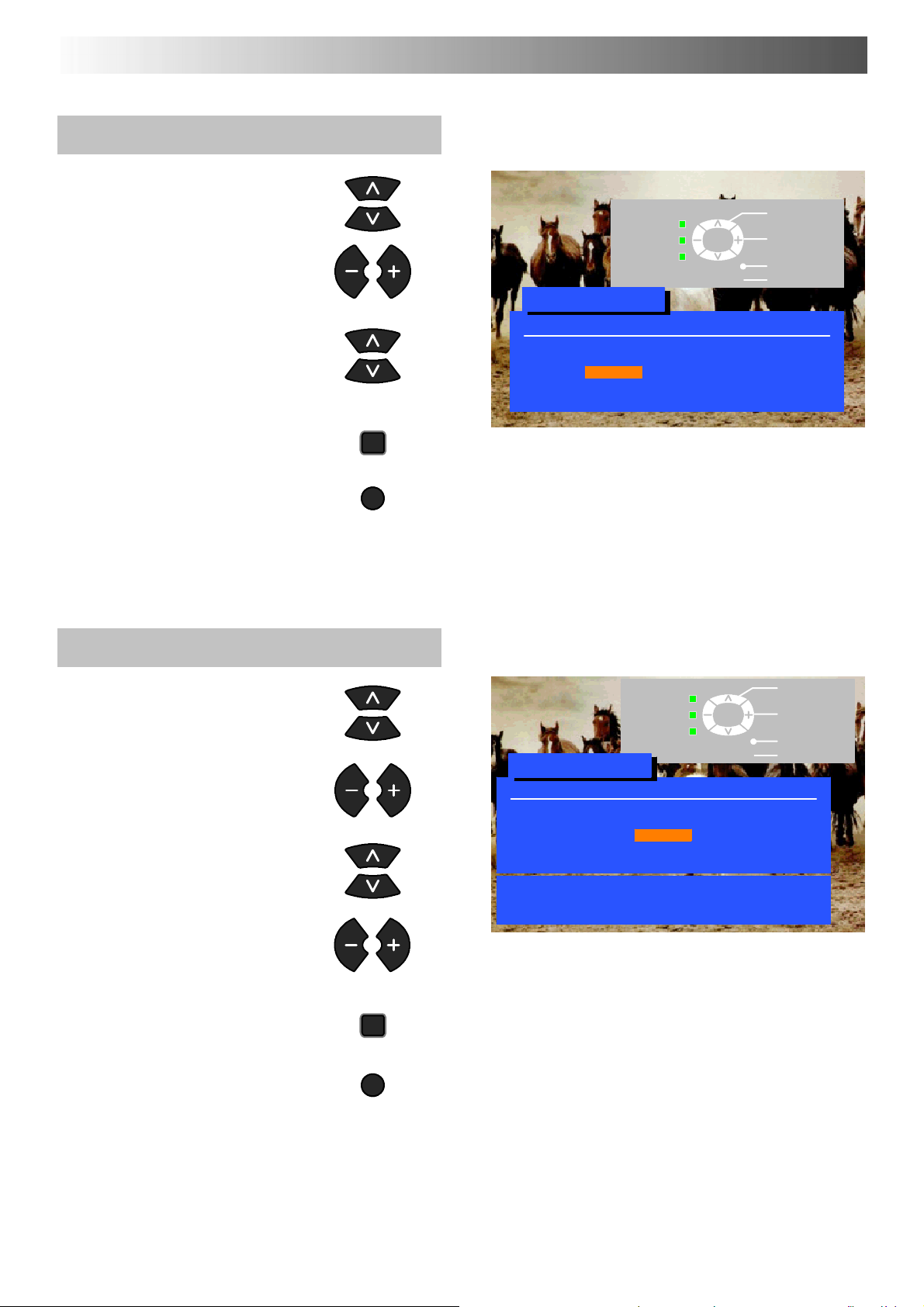

To tune a programme position
Choose the programme position
Move to the channel column
Increase or decrease channel
numberorusethe’C’keyforDirect
Channel Access (see page 6)
Press S TR to store
If you have finished in the
Programme edit menu, press the
TV/AV button to exit
To rename a programme position
STR
TV/AV
Change
channel
Select
Return --
’STR’ Button
TV/AV
option
Exit
Store
Programme edit
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: CH44 ZXY Off SC2
4: -- Off SC2
5: -- Off SC2
Choose the programme position
Move to the Name column
Choose the new character
Move to the next character position
Continue until renaming is done
Press S TR to store
If you have finished in the
Programme edit menu, press the
TV/AV button to exit
STR
TV/AV
Change
Select
Return --
Programme edit
’STR’ Button
TV/AV
Exit
Store
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: CH44 ZXY Off SC2
4: -- Off SC2
5: -- Off SC2
ABCDEFGHIJKLMNOPQ
RSTUVWXYZĂĆČĚŁŘŚŠ
ŞŢŽ +--. 0123456789
character
option
16
Page 17
TUNING MENU -- PROGRAMME EDIT

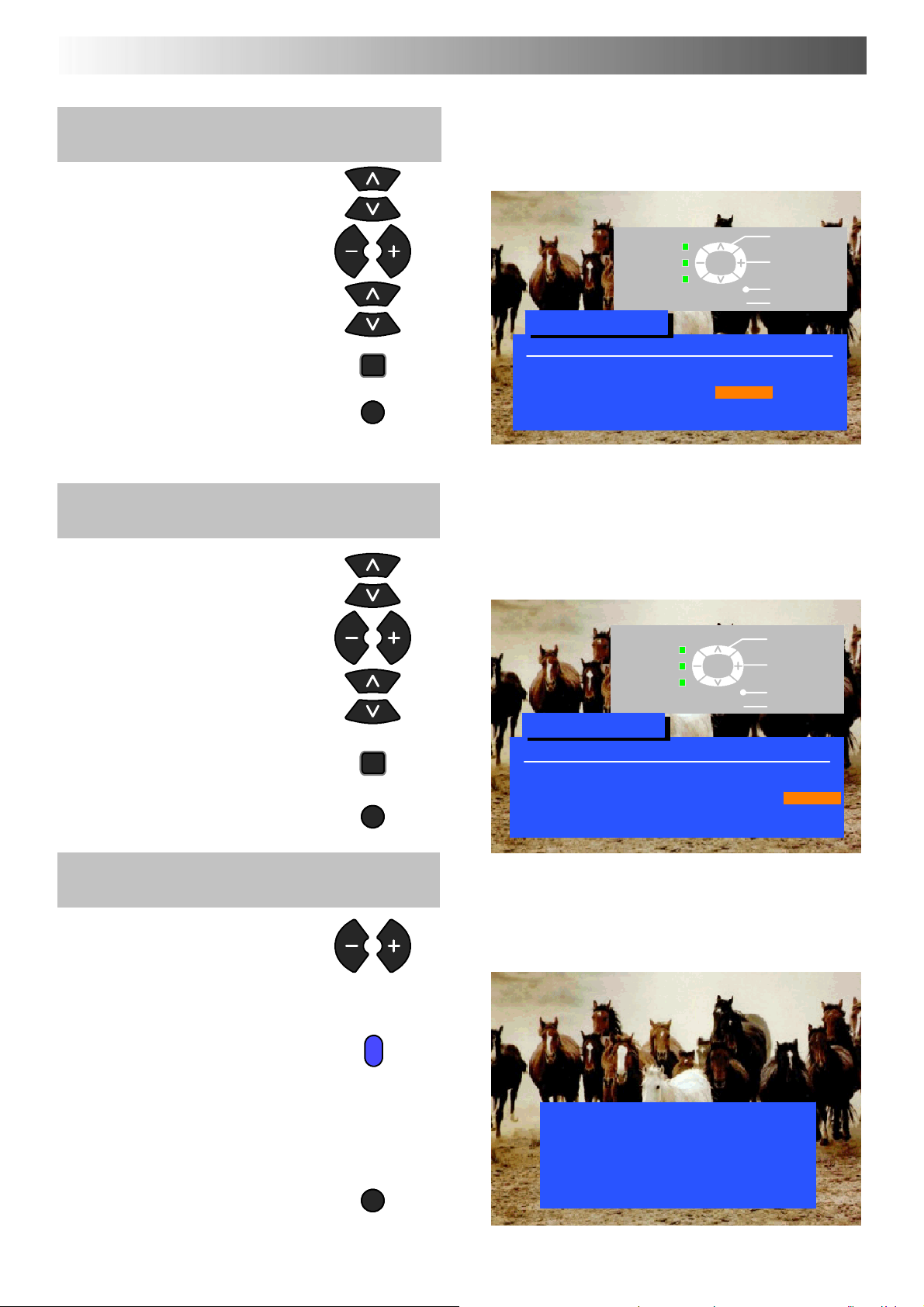

To lock a programme position to prevent
access
Choose the programme position
Move to the lock column
Choose between lock on or lock off
Press S TR to store
STR
If you have finished in the
Programme edit menu, press the
TV/AV button to exit
TV/AV
Note :
When a programme position is locked, Direct Channel
Access using the ’C’ and numeric keys on the remote
control is not available.
To c h a n g e t h e T V -- system for a programme
position
Choose the programme position
Move to the Sys column
Choose the required sound system:
SC1 : PAL B/G, H / SECAM B/G
SC2 : PAL I
SC3 : PAL D/K / SECAM D/K
F:SECAML/L’
Press S TR to store
If you have finished in the
Programme edit menu, press the
TV/AV button to exit
STR
TV/AV
Lock
On/Off
Select
Return --
’STR’ Button
TV/AV
option
Exit
Store
Programme edit
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: CH44 ZXY Off SC2
4: -- Off SC2
5: -- Off SC2
Change
TV system
Adjust
Return --
’STR’ Button
TV/AV
option
Exit
Store
Programme edit
Prog. Chan. Name Lock Sys
1: CH41 XYZ Off SC2
2: -- Off SC2
3: CH44 ZXY Off SC2
4: -- Off SC2
5: -- Off SC2
To copy programme information to a
compatible VCR connected to AV2
Move to the Prog. column
PresstheBluebuttononthe
remote control.
Programme data will now be sent
to the VCR. This might take a few
seconds, depending on the
number of stations stored. If the
message “Unable to download,
checkyourVCR”appearsonthe
screen, the television is unable to
send the programme information
to the VCR. See the VCR
handbook for further information.
If you have finished in the
Programme edit menu, press the
TV/AV button to exit
TV/AV
TV>VCR DOWNLOAD IN PROGRESS
PLEASE WAIT
Programme : 63
Remote control unavailable
17
Page 18

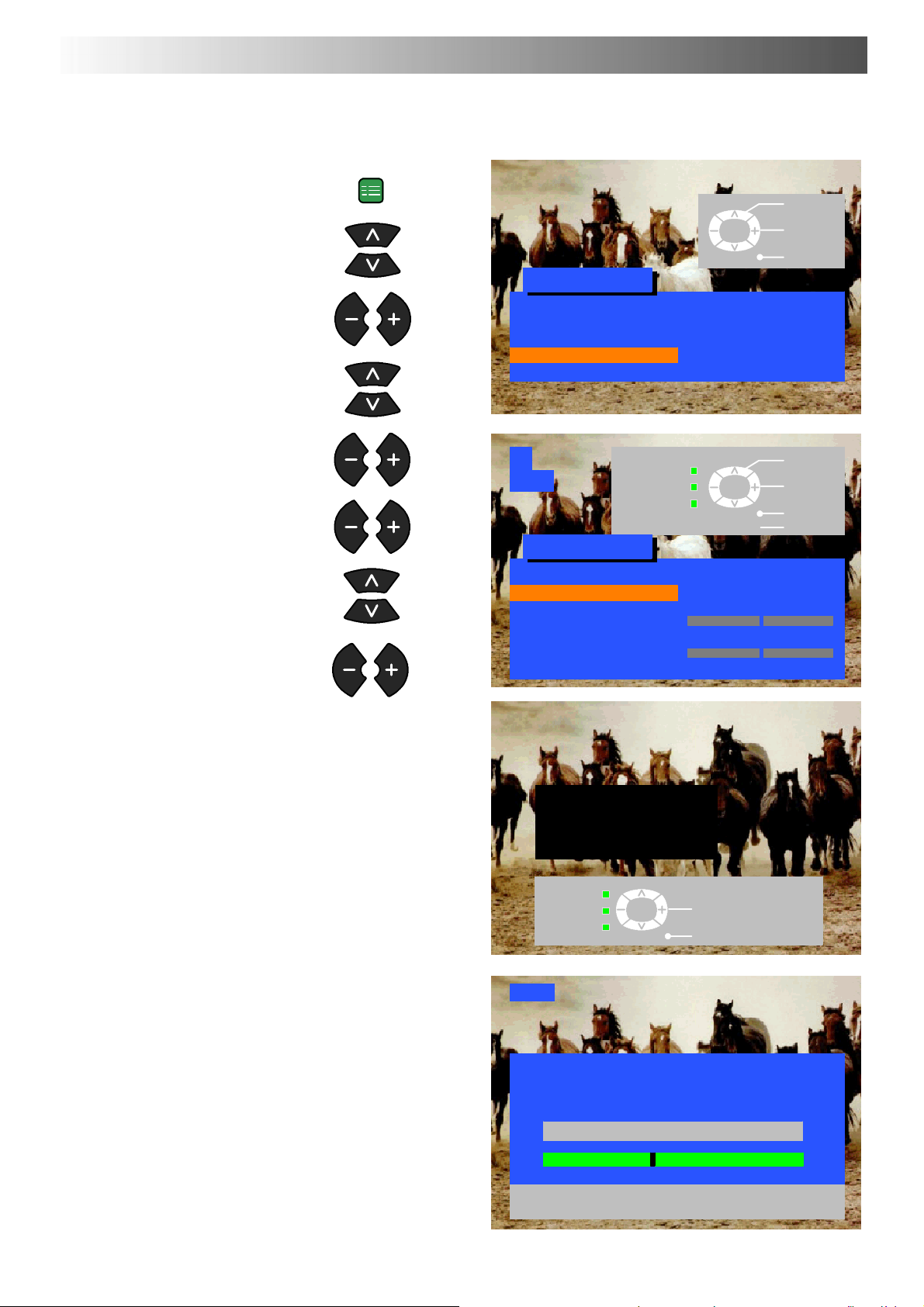

TUNING MENU -- AUTO SETUP (ATP)
The Auto setup menu will allow you to automatically retune the TV to your local stations.
It is useful if you move to a different region
SET UP
Open the Setup menu
Move to Tuning menu
Access Tuning menu
Move to Auto setup
Access Auto setup
Press to confirm start
Select your country
Press to start Auto setup (ATP)
Setup menu
Teletext FLOF
Off timer Off
Q-- Link Off
Tuning menu Access
OSD language
1
CH41
Return --
Tuning menu
Programme edit
Auto setup Access
Manual tuning
Fine tuning
Colour system AUTO
Volume correc.
Decoder (AV2) Off
TV/AV
TV/AV
STR
Select
Access
Exit
Select
Access
Exit
Store
The TV will search for, locate and
sort into order your local stations.
If a compatible VCR is connected
via the AV2 socket, programme
data will be sent to the VCR via
Q-- Link (see page 21).
Once this operation is completed
the TV will display programme
position 1.
WARNING
All current tuning
data will be erased
Start Auto setup
Return --
CH41
AUTO SETUP IN PROGRESS
SEARCHING : PLEASE WAIT
TV/AV
Found : CH41 XYZ
02 78:01 41
SETUP : Return to tuning menu
TV/AV : To exit
Exit
18
Page 19

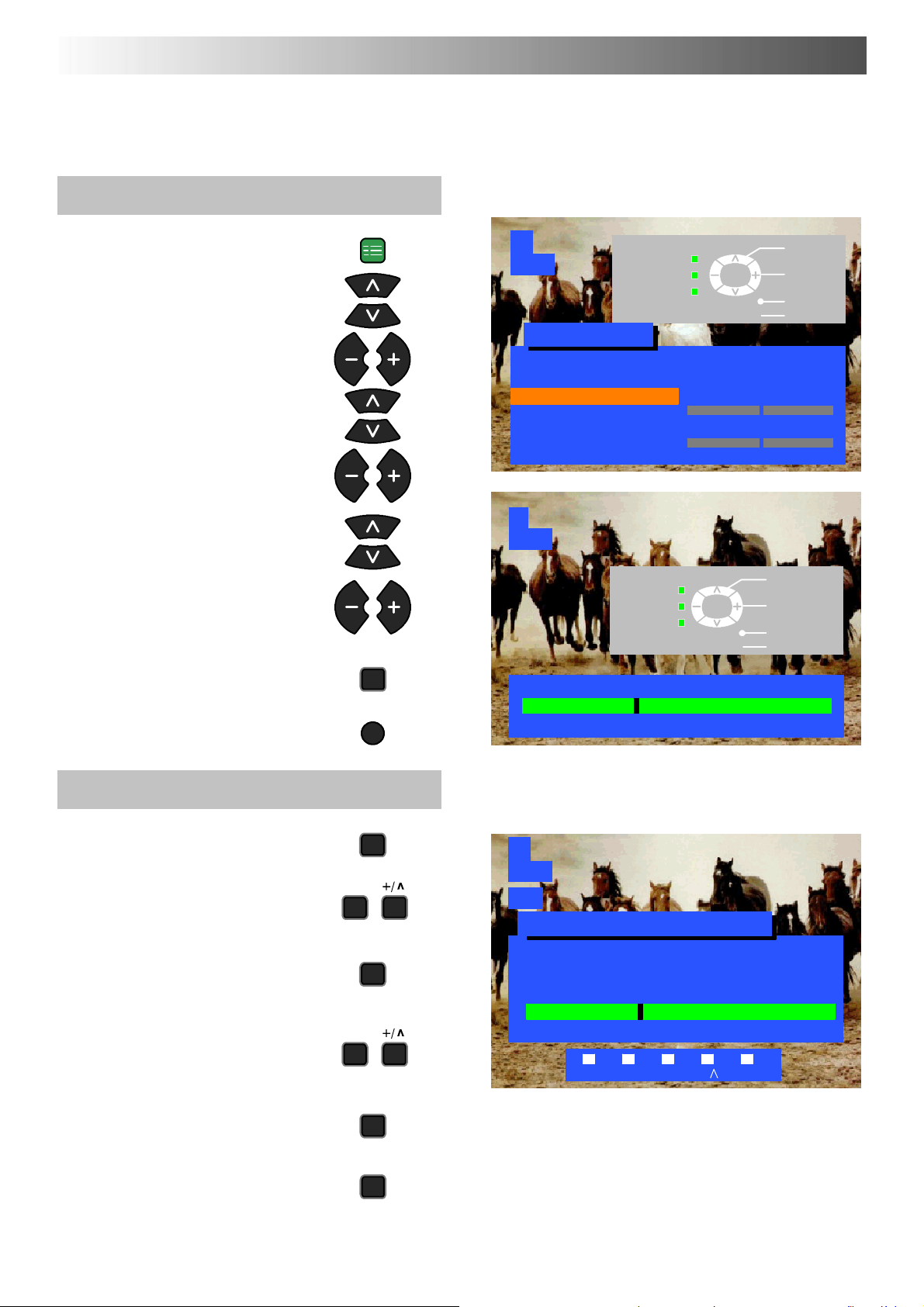

TUNING MENU -- MANUAL TUNING
Manual tuning of the Programme positions is available either from the On Screen Display menu
or from the front panel controls
Manual tuning menu
Open the Setup menu
Move to Tuning menu
Access Tuning menu
Move to Manual tuning
Access Manual tuning
Select the programme position
to be tuned
Start tuning
When the desired programme is
found, press STR to store
Press the TV/AV button to exit.
SET UP
STR
TV/AV
1
CH41
Return --
’STR’ Button
TV/AV
Select
Access
Exit
Store
Tuning menu
Programme edit
Auto setup
Manual tuning Access
Fine tuning
Colour system AUTO
Volume correc.
Decoder (AV2) Off
1
CH41
Programme
down/up
Search
Return --
’STR’ Button
Manual tuning
02 78:01 41
TV/AV
down/up
Exit
Store
Manual tuning (Front panel)
Press the F button (Front panel)
until “Tuning mode” is reached
Press the -- or + button to access
Tuning mode
Press the TV/AV button to move
between “Change programme”,
“Search” or “Change TV system”
Press the -- or + button to change
programme position, start search,
or alter TV system
When the desired station is found,
press STR to store the changes
Repeat above procedure to tune
additional programmes or press the
F button to exit
-- /v
TV/AV
-- /v
STR
F
1
CH41
SC2
Manual tuning (Front panel)
-- ,+ : Search
TV/AV : Move cursor
STR : To store
F : To exit
02 78:01 41
STR F -- /V +/ TV/AV
F
19
Page 20
OSD LANGUAGE
When you first installed the TV the On Screen Display language was set according to your choice of
country. If you wish to use a different language then it can be chosen from the OSD language menu
SET UP
Open the Setup menu
Select
Access
Move to the OSD language
menu
Access the OSD language menu
Move to your choice
Press the TV/AV button to select
and exit
TV/AV
TV/AV
Exit
Setup menu
Teletext FLOF
Off timer Off
Q-- Link Off
Tuning menu
OSD language Access
Select
Select
Return --
TV/AV
Exit
OSD language
Deutsch Español Nederlands
English Norsk Suomi
Français Dansk Türkçe
Italiano Svenska Português
ELLHNIKA
20
Page 21
Q-- LINK
Q-- Link allows the television to communicate with your VCR
Open the Setup menu
Move to Q-- Link
SET UP
TV/AV
Select
Change
Exit
Setup menu
Confirm Q-- Link is set to “On”
TV/AV
Press the TV/AV button to exit
The VCR must be conne cted with a S CA R T lead (full function typ e) attached between the AV2 socket of the television and the
appropriate socket on your VCR . S ee theV CR handbook for f urth er in f ormation. Q-- Link,
the television to instruct a comp a t i b l e VCR to record the programme that is currently being displayed on screen, reg ardless of the
programme position set on the VCR, thus simplifying the process of recording programmes.
Teletext FLOF
Off timer Off
Q-- Link On
Tuning menu
OSD language
NEXTVIEWLINK or simila r technology allows
To record the programme you are currently watching
DIRECT
TV REC
Press the DIRECT TV REC button on the remote control
If the VCR is off, it will automatically switch on when you press the DIRECT TV REC button.
A message, sent from the VCR, will appear on screen showing what is being recorded, or if it is not possible to record:
VCR recording preset prog VCR recording TV source
VCR recording own tuner
VCR is recording the programme signal from its
owntuner.IfyouwishyoucanswitchofftheTV
and leave the VCR recording in the normal way.
Examples of other messages that might be displayed are:
No recording -- NO TAPE
No recording -- VCR IS PLAYING
VCR recording VCR external
VCR is recording the programme signal from the television.
Y ou must not change programme position or switch off the TV: if
you do, the VCR will automatically stop recording and switch off.
No recording -- TAPE IS PROTECTED
The write protection tab on the back of the cassette
has been removed.
No recording -- ALREADY RECORDING
No recording -- TAPE MAY BE DAMAGED
No recording -- NO SOURCE AVAILABLE
To share tuning information
To ensure correc t recordings are made, the television and VCR should share tuning information -- seepage17.
D Whenever the Auto setup (ATP) function is used, tuning data will be downlo aded to the VCR.
Auto Power functions
With Panasonic Q-- Link VCRs these additional features are available:
D If you insert a tape in your VCR and press thePlay button, the televisionwill automatically switch on andselect theAV2 input so youcan
view the tape.
D If you switch off the television whilst the VCR is in Stop, Fast Forward or Rewind modes, the VCR will switch off automatically.
To t urn of f Q -- Link communication
If you do not wish to use the Q-- Link feature, go to the Setup menu and set the Q-- Link option to “Off”. See page 12.
Important Note:
Not all VCRs support thistype of data communicationsystem. Some may supportcertain features,but not others.See the VCR handbook
for further information.
If Q-- Link is inoperative, first confirm that your SCART lead is a full function type. Ask your dealer for further details.
21
Page 22

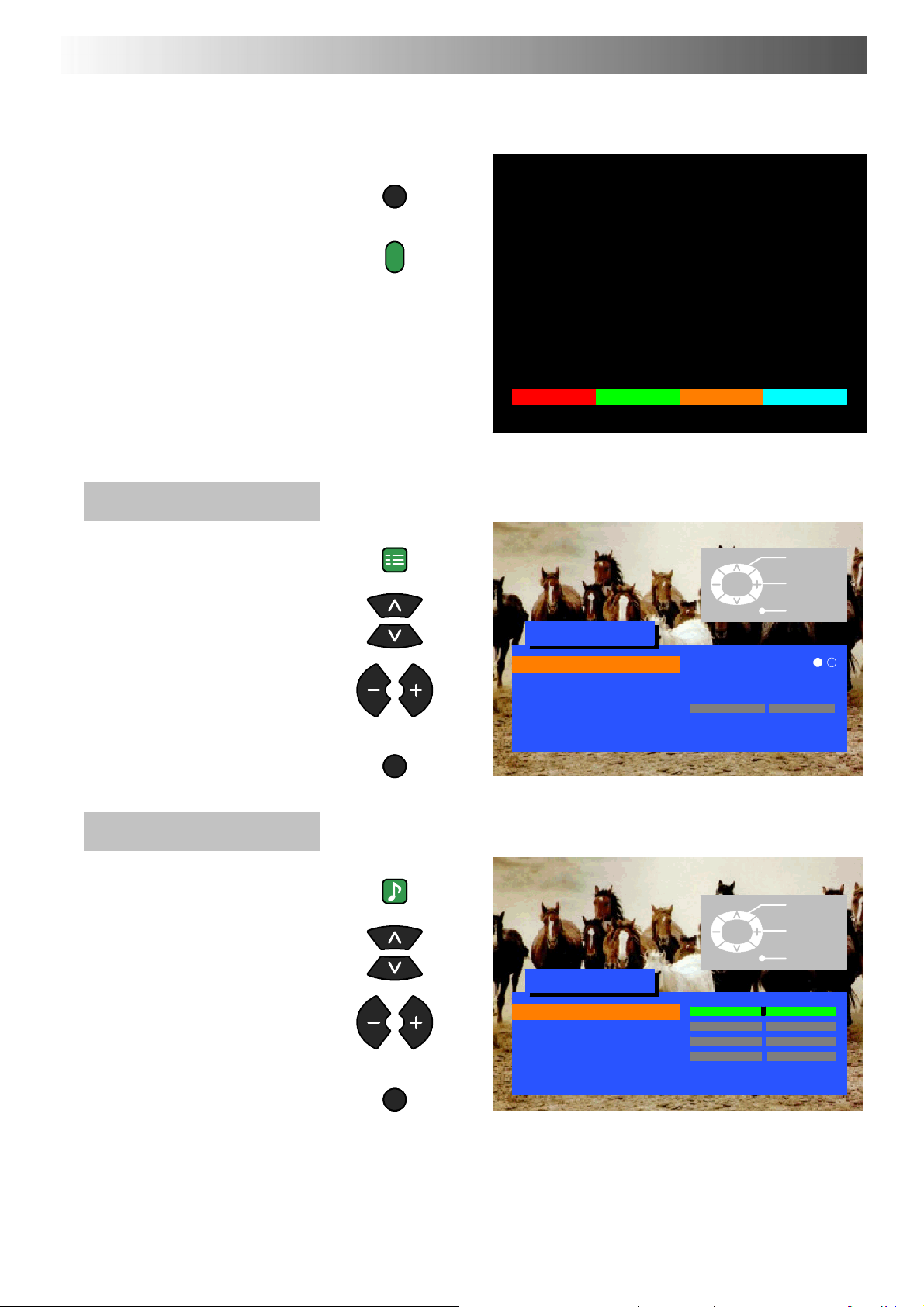

AV SELECT AND SETUP
The AV Select menu will allow you to choose which AV source to view
Press the TV/AV button
Press the appropriate coloured
button of remote control (whilst the
options remain on screen)
The options will disappear
You may wish to make adjustments
to the Setup or Sound menus
Setup menu
Open the Setup menu
Move to your choice
TV/AV
SET UP
AV1
AV1 AV2/S AV3/S
Setup menu
TV/AV
Select
Change
Exit
Access adjustments or options
Press the TV/AV button to exit

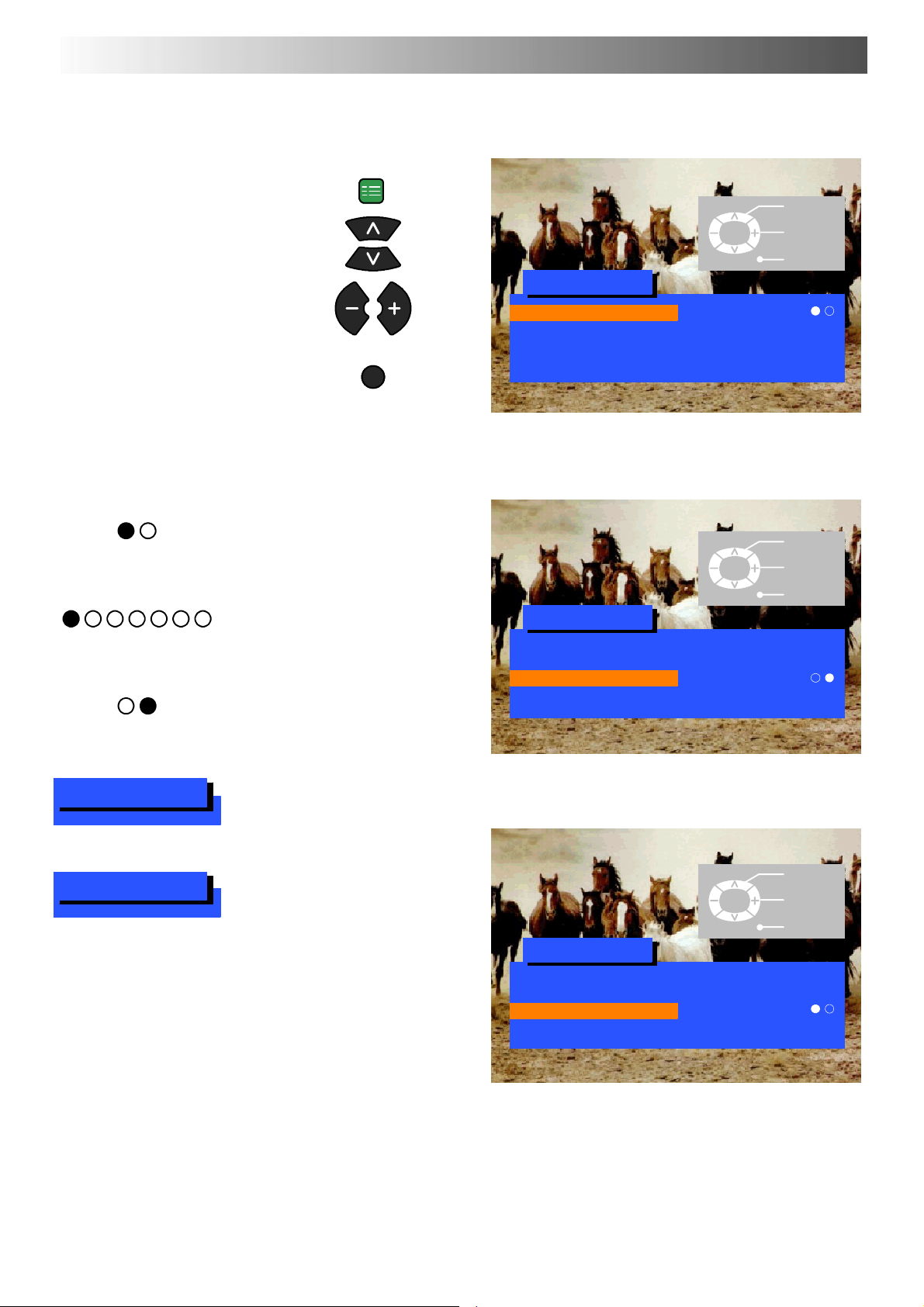

Sound menu
Open the Sound menu
Move to your choice
Access adjustments or options
Press the TV/AV button to exit
TV/AV
SOUND
TV/AV
Teletext FLOF
Off timer Off
Colour system AUTO
Volume correc.
Q-- Link On
OSD language
Sound menu
Volume
Bass
Treble
Balance
Mode Music
Ambience Off
TV/AV
Select
Adjust
Exit
22
Page 23

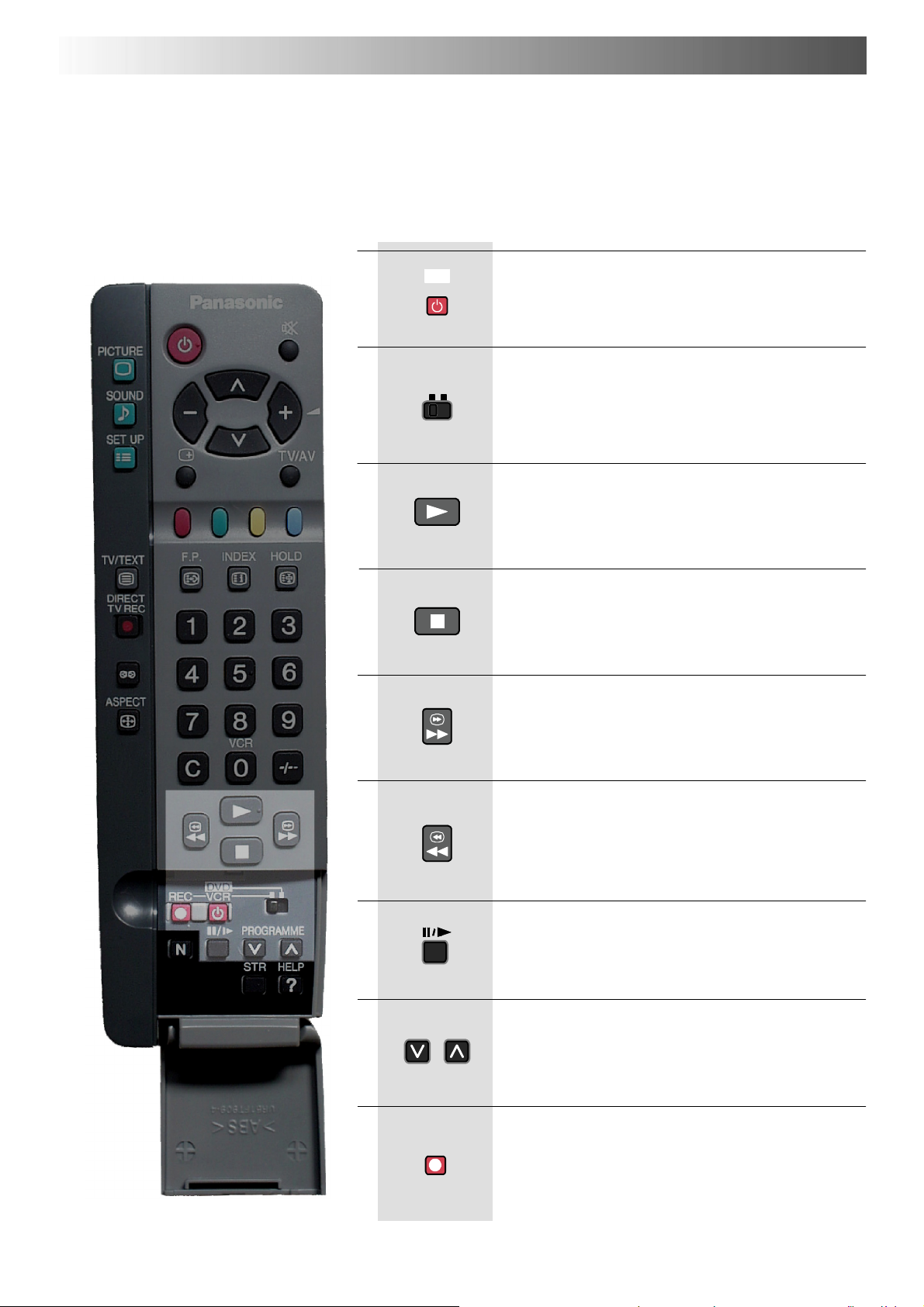

VCR / DVD OPERATION
The Remote Control is capable of operating some functions of selected Panasonic VCRs and DVD (Digital Versatile Disc) equipment.
Some VCR and DVD equipment have different functions, so to ensure compatibility please refer to the equipment’s instruction book or
consult your dealer for details.
DVD
VCR
Standby
Press to switch the VCR or DVD to standby mode.
Press again to switch back on.
VCR / DVD switch
Use this switch to select whether controls operate
DVD equipment or your VCR.
Play
Press to playback the tape or DVD.
Stop
Press to stop the tape or DVD.
Skip/FastForward/Cue
VCR: Press to fast forward the tape. In Play mode, press
to view the picture rapidly forward.
DVD: Press once to skip to the next track. In play mode
press and hold to view the picture rapidly forward.
REC
Skip / Rewind / Review
VCR: Press to rewind the tape. In Play mode, press to
view the picture rapidly in reverse.
DVD: Press once to skip to the previous track. In play
mode press and hold to view the picture rapidly in
reverse.
Pause / Still
Press in playback mode, the picture will pause.
Press again to restart play.
Programme Up / Down
Press to increase or decrease the VCR programme
position by one.
Record
Press this button to start recording.
23
Page 24
TELETEXT OPERATION
D Teletext features may vary depending on the Broadcasting Companies and is only available if
the channel selected is transmitting Teletext.
D Pressing the Picture button whilst in Teletext operation will display the contrast function with a
cyan bar, press A"to alter the setting as required.
D Pressing the Setup button whilst in Teletext operation will display sp ecial function options at
the bottom of the screen.
D Pressing the Sound button whilst in T eletext operation will display the volume function with a
green bar, press A"to alter the setting as required.
What is LIST mode ?
In LIST mode, four differently coloured page numbers are situated at the bottom of the screen. Each
of these numbers can be altered and stored in the TV’s memory.
What is FLOF?
In FLOF mode, four differently coloured subjects are situated at the bottom of the display. To access
more information about one of these subjects, press the appropriately coloured button. This facility
enables fast access to information on the subjects shown.
What is TOP Teletext?
TOP Teletext makes the task of selecting the desired Teletext pages easier and shorter. In fact page
access time is almost instantaneous, just press the button and the page appears.
How does it work?
TOP Teletext uses the four coloured buttons, Red, Green, Yellow and Blue to select the following
information.
D To move between subject blocks (SPORT for example) use the Blue button. Within this SPORT
topic it is possible to select different groups such as Tennis, Football, Baseball etc, by using the
Yellow button. When the last group within theblock is reached, the yellow button moves to the next
block.
D The Green button will select the next available page UP.
D The Red button will select the next available page DOWN.
What are the advantages?
D Page selection at the touch of a single button.
D Easy t o us e s te p --- b y --- step s e l e c t i o n of the t o p i c a l su b j ec t .
D Reduction of waiting time.
D If a non existent page number is entered, a question mark will appear at the bottom of the
screen.
D Page status line at the bottom of the screen so you always know which button will take you to the
information required.
TV/TEXT
SET UP
24
TV / Teletext mode
Press the TELETEXT button to switch between the current programme, teletext
and the picture and text feature (lets you see the current programme and
teletext side by side, see page NO TAG).
Page Selection
Pages can be selected in two ways :
a. Press the Up / Down buttons to increase or decrease the page number by
one.
b. By entering the page number, using 0 ---9 on the remote control.
Full/Top/Bottom
Press the SET UP button to display special functions, followed by the Green
button.
Press the Green button again to expand the BOTTOM half.
Press again to return to normal (FULL) size.
Page 25

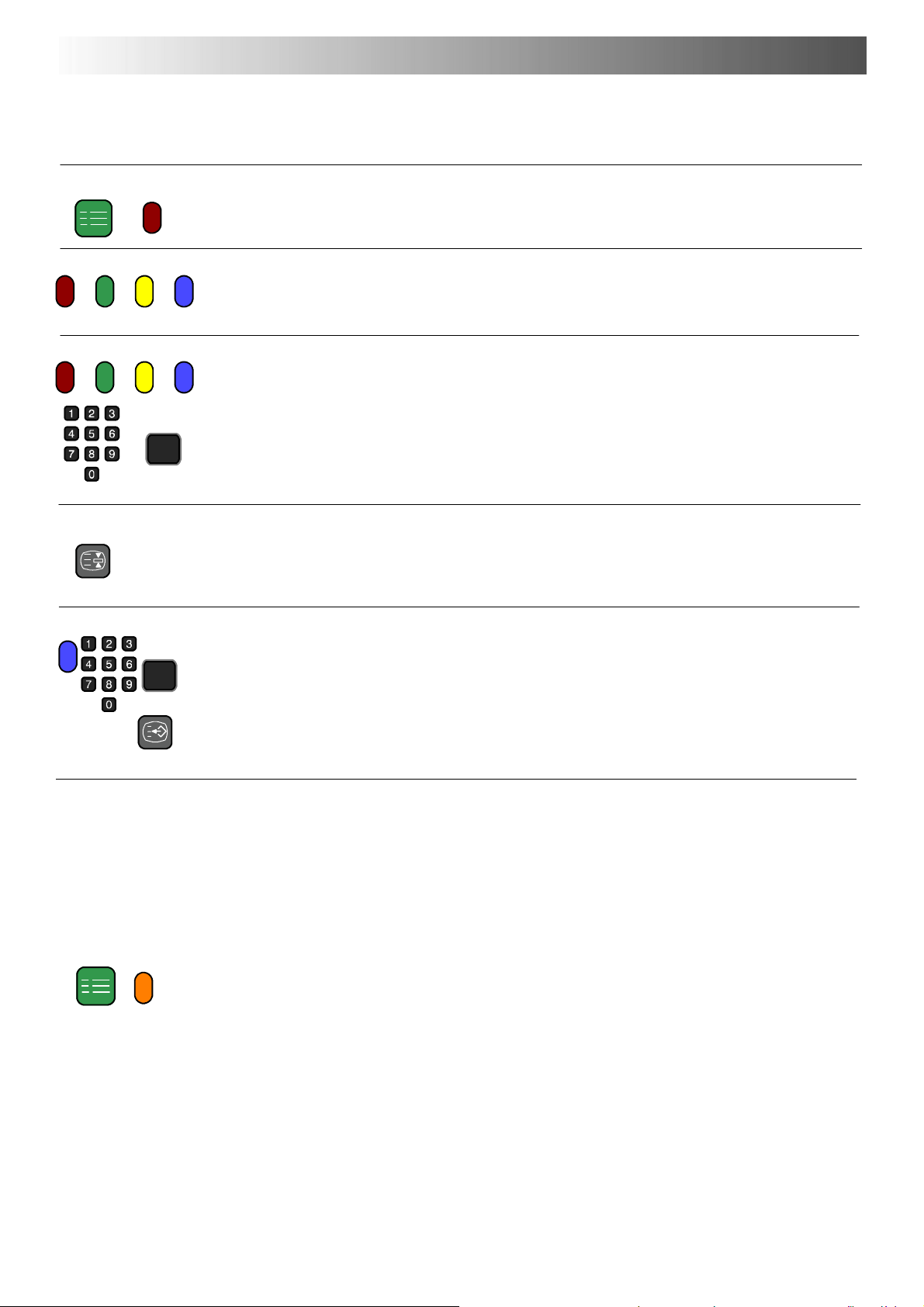

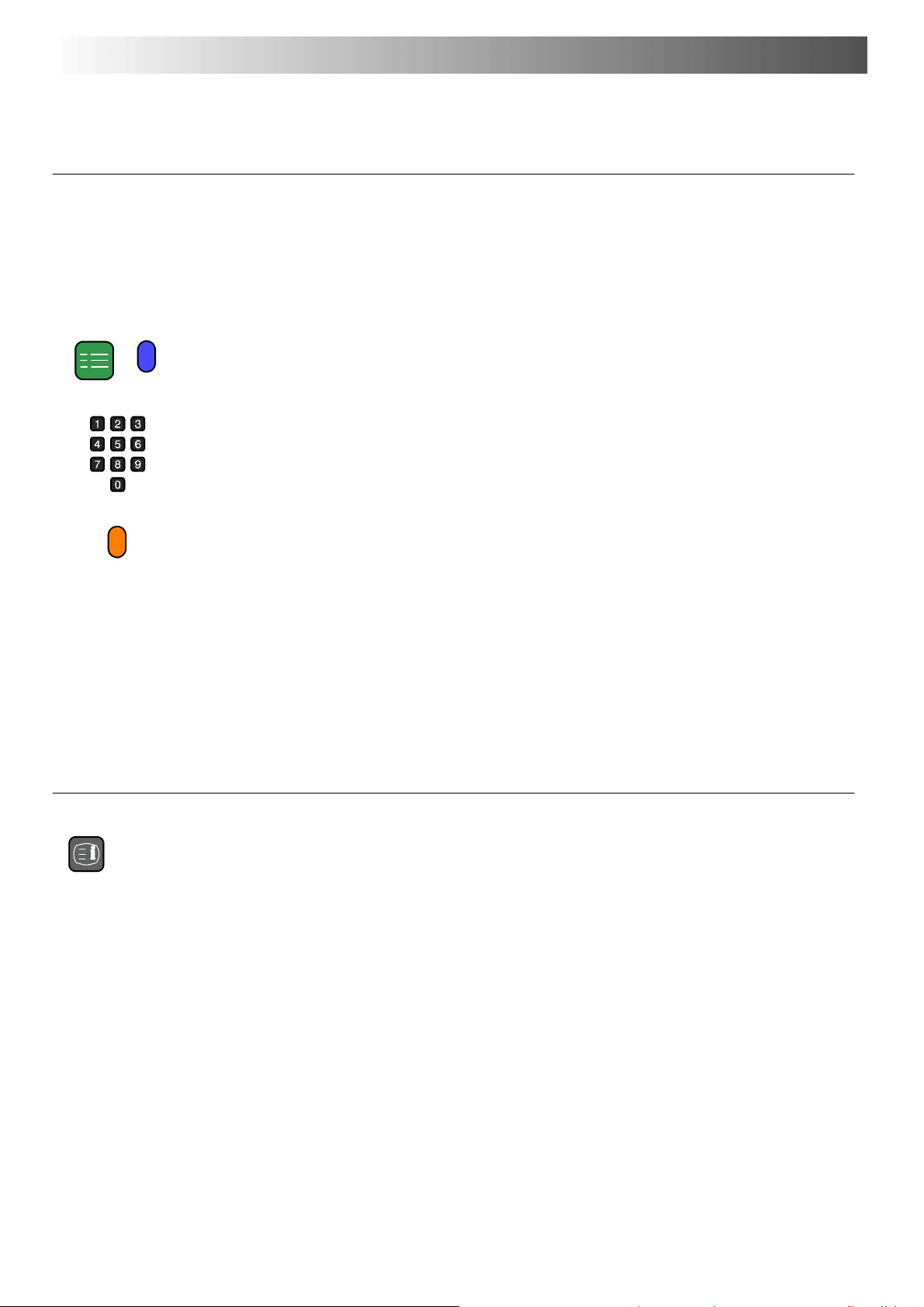

TELETEXT OPERATION
It is not possible to change the programme position when in News flash, Update or Sub Coded Page
Access operation.
SET UP
HOLD
STR
STR
F. P.
Reveal
Press the SET UP button to display special functions, followed by the Red
button to reveal hidden words e.g. quiz page answers. Press again to hide.
Red/Green/Yellow/Bluebuttons
In TOP/FLOF mode these correspond to the differently coloured subjects.
In LIST mode they correspond to the differently coloured page numbers.
List Store
In LIST mode the four page numbers can be altered (programme positions 1
--- 2 5 o n l y ) .
To do this, press one of the four coloured buttons and enter the new page
number .
Press and hold STR, the page numbers will change to white indicating that
thepageisstored.
Hold
To hold the T eletext page when viewing multi---page information.
Press again to return to automatic page update.
FavouritePage(F.P.)
Stores a favourite page in memory for instant recall. To store such a page,
the TV must be in LIST mode, and the programme position must be from 1
--- 2 5.
Press the Blue button, select the page number, then press and hold the
STR button. The page number is now stored.
Press F. P. to recall this page.
SET UP
Update Display
Press the SET UP button to display special functions, followed by the
Yellow button to view the TV picture whilst searching for a Teletext page
(thisisnotnecessaryinpicture and text mode, as the picture is displayed
on the left of the screen)
When found, the screen will display the page number at the top left.
Press the Yellow button to view the page.
Press TV / TEXT again to return to normal TV operation.
News Flash When a news flash page has been selected, press SET UP,
Yellow, to view the TV picture. When an update is received, the page
number will be displayed on screen.
Press the Yellow button to display the News Flash
Press TV / TEXT to return to normal TV. operation.
Update Press SET UP, Yellow to see the update of information on certain
pages.
When an update is received, the page number will be displayed at the top
left of the screen.
Press the Yellow button to view the page.
Press TV / TEXT to return to normal TV operation.
25
Page 26
TELETEXT OPERATION
It is not possible to change the programme position when in News flash, Update or Sub Coded Page
Access operation.
Accessing sub pages
When Teletext information exceeds one page, it may take some time for the
automatic changing of the sub pages to reach the sub page you require. As
each sub page is found its number is displayed at the top of the page so that
you may select it; as more sub pages are picked up, the display at the top of
the page changes, so that you are always offered the most recently
SET UP
transmitted selection of sub pages.
In picture and text mode, use the left and right cursor buttons to select a sub
page from the range displayed at the top of the Teletext window.
In Teletext operation, use the following procedure to access sub pages:
If the sub page you want to look at is not yet available, press the SETUP
button (to display special functions) followed by the Yellow button to view the
TV picture whilst waiting for more sub pages to be found. The sub pages
found will be displayed across the top of the screen.
When the sub page you are waiting for is available press the Yellow button to
return to viewing the Teletext pages, then use the left and right cursor buttons
to select the sub page of your choice.
Notes:
D If you do not want the four coloured special function keys to be displayed
on the TV picture while waiting for a sub page to be found, press either the
PICTURE, SOUND or SETUP menu button to clear the keys from the
screen. Press the SETUP keyoncemoretoredisplaythekeys.
D If you have cleared the special function keys from the screen and then
used the left and right cursor buttons to select a sub page, whilst still
viewing the TV picture, you must press the SETUP button then the Yellow
button to display the Teletext page again.
D If the top of the page indicates that sub pages are being transmitted but
the page displayed never changes, then the ’sub page number’ is there to
show the page contents have been updated, there are no sub pages.
Press TV/TEXT to return to normal TV operation.
INDEX
Index
When in FLOF operation
Press INDEX to return to the main index page.
Depending on the way information is transmitted, this may have to be pressed
more than once to return to the main index page.
26
Page 27
A
V
A
A
AUDIO / VIDEO CONNECTIONS
Front
Press and release to open
Output from
Headphone
socket
3.5mm Stereo Plug
3RC
udio /Video and Headphone Sockets
Video input to
S --- V i de o s o c k e t
S --- V
Video input to
V socket
RCA
Video
Cable
Audio input to
L/R
sockets
2xRCA
Audio
Cables
STEREO HEADPHONES
with 3.5mm Plug
Note :
Ancillary equipment and cables shown are not supplied with this TV set.
H SCART Terminal Information
AV121pinSCARTterminal
Socket Earth
CVBS out (video)
CVBS earth
Red in
Red earth
Green in
Green earth
Blue in
Blue earth
Audio out (L)
Audio out (R)
21
19
17
15
13
11
9
7
5
3
1
20
18
16
14
12
10
8
6
4
2
CVBS in (video)
RGB status earth
Status RGB
Earth
--- ---
--- --Status CVBS
Audio in (L)
Audio earth
Audio in (R)
AV221pinSCARTterminal
Socket Earth
CVBS out (video)
CVBS earth
S.C. -- In
Earth
--- ---
Earth
--- ---
--- --Audio out (L)
Audio out (R)
21
19
17
15
13
11
9
7
5
3
1
20
18
16
14
12
10
8
6
4
2
CVBS in (video)
Earth
--- ---
--- ---
--- --Q --- Li nk da t a
Status CVBS
Audio in (L)
Audio earth
Audio in (R)
CAMCORDER
S --- V i d e o 4 p i n s o c k e t
Chrominance in
Chrominance earth Luminance earth
Luminance in
Suitable inputs for AV1 include RGB
(Red/Green/Blue).
AV2 -- Pins 15 and 20 are dependent on
AV2 S-- VHS / VIDEO switching.
27
Page 28
AUDIO / VIDEO CONNECTIONS
Rear AV1/AV2(S) 21 Pin SCART and RCA Audio Out Terminals
HI-- FI SYSTEM
2xRCAAudioCables
Output from
L-- RAUDIOOUT
Sockets
SCART Cable
Input/Output from
AV1 SCART Socket
VCR
SATELLITE RECEIVER
CAMCORDER
SCART Cable
Q-- LINK COMPATIBLE VCR
Input/Output from
AV2 SCART Socket
Q-- Link data
VCR
S-- VIDEO VCR
S-- VIDEO CAMCORDER
28
GAMES CONSOLE / COMPUTER (RGB)
Notes:
Ancillary equipment and cables shown are not supplied with this TV set.
Do not connect a computer with TTL output (5V) to this set.
Page 29
Check
s

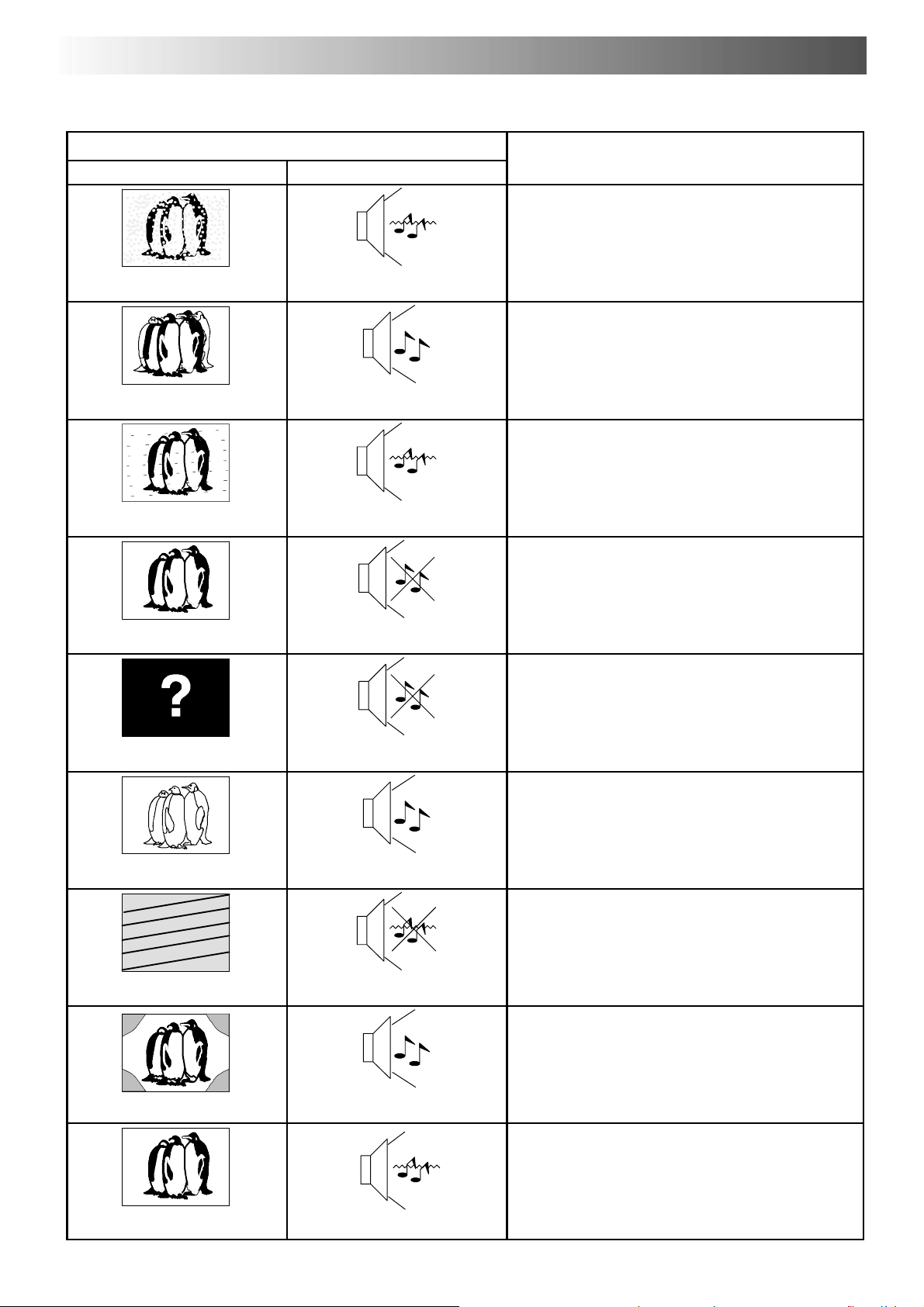

TROUBLESHOOTING
Symptoms
Picture Sound
Aerial location, direction or connection
Snowy Picture
Multiple Images
Interference
Normal Picture
No Picture
Noisy Sound
Normal Sound
Noisy Sound
No Sound
No Sound
Aerial location, direction or connection
Electrical appliances
Cars / Motorcycles
Fluorescent lights
Switch on P --- NR in Picture menu to reduce picture
noise
Volume level
Sound mute switched on
TV set to AV mode
Not plugged into A.C. outlet
Not switched on
Picture / Sound controls set at minimum levels
Check if in standby mode
No Colour
Poor or Distorted Picture
Coloured Patches
Normal Picture
Normal Sound
Weak or No Sound
Normal Sound
Weak or distorted sound
Colour controls set at minimum levels
Retune Channel(s)
Magnetic Interference from unshielded equipment
Receiver moved while switched ON, switch TV off for
30 minutes.
If picture is also tilted, use Geomagnetic Correction
feature (see Quick Start Guide, page 5)
Sound reception may have deteriorated.
Switch MPX setting (Sound menu) to Mono until
reception improves.
29
Page 30
PALD/
K,SECAMD/
K
FORYOURGUIDANCE
H Service
Before requesting service, please refer to the troubleshooting
guide on previous page to determine the symptoms. To obtain
service please contact your local Panasonic dealer quoting the
model number and serial number (both are located at the rear of
the TV).
H TV Games / Home Computers
Extended use of TV games or homecomputers with anytelevision
set can cause a permanent ‘shadow’ on the screen. This type of
irreversible picture tube damage, can be limited by observing the
following points:
D Reduce the brightness and contrast levels to a minimum
viewing level.
D Do not operate the television setfor a continuous period of
time while using TV games or home computers.
D This type of picture tube damage, is not an operating
defect, and as such is not covered by the Panasonic
warranty.
SPECIFICATIONS
H Last Position Memory
Certain functions have a last position memory, i.e. the setting at
thetimeofswitch-- off will be the setting used when the receiver is
switched on again:--
Programme Tint
OSD language (M.NTSC / NTSC only)
AV Position Contrast
Volume Sharpness
MPX Aspect
Bass Standby
T reble Artificial Intelligence (AI) --- Picture
Balance Colour
Colour Balance Brightness
Status Ambience
P-- NR Teletext mode
Volume correction Q-- Link
Decoder (AV2) Geomagnetic correction
H Sleep Feature
If the set is notswitched off when the TV station stops transmitting ,
it will automatically go to standby mode after 30 minutes. This
function will not operate when the TV is in AV mode.
TX-- 28PL1D
Power Source 220 -- 240V 50Hz A.C.
Power Consumption 90W
Standby Consumption
Picture Tube
Visible Diagonal
Audio Output
Music Power
H
Dimensions
Weight 42 kg
Receiving
Systems/
Band name
Number of programme
positions
W
D
PALB/G,H,PALI,SECAMB/G,SECAML/L’
VHF E2 -- E12 VHF H1 -- H2 (ITALY)
VHF A -- H(ITALY) UHFE21-- E69
CATV (S01 -- S05) CATV S1 -- S10 (M1 -- M10)
CATV S11 -- S20 (U1 -- U10) CATV S21 -- S41 (Hyperband)
VHF R1 -- R2 VHF R3 -- R5
VHF R6 -- R12 UHF E21 -- E69
PAL 525/60 Playback of NTSC tape from some PAL video recorders (VCR)
M.NTSC (AV input only) Playback from NTSC 4,43 MHz Videorecorders (VCR)
NTSC (AV input only) Playback from NTSC Videorecorders (VCR)
2 x 7W RMS (2 x 15W MPO), 8Ω impedance
1,4W
66 cm
508,8 mm
763,2 mm
512,2 mm
99 + VCR
Aerial -- Rear UHF / VHF
Headphones -- Front 3,5mm, 8Ω impedance
AV1 -- 21 pin terminal -- Audio/Videoin/out,RGBin.
AV -- Rear
AV -- Front AV3 -- S-- -Video in, 2 x RCA Audio in, 1 x RCA Video in.
Specifications are subject to change without notice. Weight and dimensions shown are approximate.
AV2 -- 21 pin terminal -- Audio / Video in/out, S-- Video in, Q-- Link
2 x RCA Audio Monitor Out.
30
Page 31
NOTES
31
Page 32
2001CX
32
Loading...
