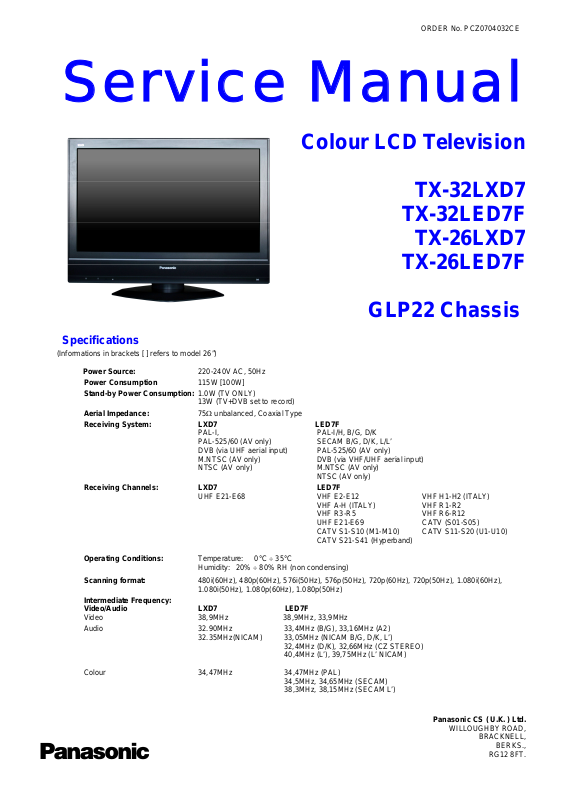

Panasonic TX-26LXD7F Schematic

ORDER No. PCZ0704032CE

Service Manual

Colour LCD Television

TX-32LXD7

TX-32LED7F

TX-26LXD7

TX-26LED7F

GLP22 Chassis

Specifications

(Informations in brackets [ ] refers to model 26”)

Power Source: 220-240V AC, 50Hz

Power Consumption 115W [100W]
Stand-by Power Consumption: 1.0W (TV ONLY)

Aerial Impedance: 75Ω unbalanced, Coaxial Type
Receiving System: LXD7 LED7F

Receiving Channels: LXD7 LED7F

Operating Conditions: Temperature: 0°C ÷ 35°C

Scanning format: 480i(60Hz), 480p(60Hz), 576i(50Hz), 576p(50Hz), 720p(60Hz), 720p(50Hz), 1.080i(60Hz),

Intermediate Frequency:
Video/Audio LXD7 LED7F

Video 38,9MHz 38,9MHz, 33,9MHz
Audio 32.90MHz 33,4MHz (B/G), 33,16MHz (A2)

13W (TV+DVB set to record)

PAL-I, PAL-I/H, B/G, D/K
PAL-525/60 (AV only) SECAM B/G, D/K, L/L’
DVB (via UHF aerial input) PAL-525/60 (AV only)
M.NTSC (AV only) DVB (via VHF/UHF aerial input)
NTSC (AV only) M.NTSC (AV only)

NTSC (AV only)

UHF E21-E68 VHF E2-E12 VHF H1-H2 (ITALY)

VHF A-H (ITALY) VHF R1-R2
VHF R3-R5 VHF R6-R12
UHF E21-E69 CATV (S01-S05)
CATV S1-S10 (M1-M10) CATV S11-S20 (U1-U10)
CATV S21-S41 (Hyperband)

Humidity: 20% ÷ 80% RH (non condensing)

1.080i(50Hz), 1.080p(60Hz), 1.080p(50Hz)

32.35MHz(NICAM) 33,05MHz (NICAM B/G, D/K, L’)
32,4MHz (D/K), 32,66MHz (CZ STEREO)
40,4MHz (L’), 39,75MHz (L’ NICAM)

Colour 34,47MHz 34,47MHz (PAL)

34,5MHz, 34,65MHz (SECAM)
38,3MHz, 38,15MHz (SECAM L’)

Panasonic CS ( U.K. ) Ltd.

WILLOUGHBY ROAD,

BRACKNELL,

BERKS.,

RG12 8FT.

Terminals:

AV1 IN Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin) 0,7V p-p 75Ω

AV1 OUT Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ

AV2 IN Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin) 0,7V p-p 75Ω
S-video IN (21-pin)Y: 1V p-p 75Ω

AV2 OUT Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 1kΩ

C:0,3V p-p 75Ω

AV3 IN S-Video IN (4-pin)Y: 1V p-p 75Ω

HDMI Type A Connector
COMPONENT Video (RCAx3) Y:1V p-p 75Ω (including synchronization)

AUDIO IN Audio (RCAx2) 500mV rms 10kΩ (for YUV; HDMI1)

AUDIO OUT Audio (RCAx2) 500mV rms 1kΩ (high Impedance)

LCD screen: L5EDD8Q00029 [L5EDD6Q00023]

Audio Output: 20W (2x10W)
Headphones: 3,5mm (M3), 8Ω Impedance
Accessories supplied : Remote Control 2 x R6 (UM3) Batteries
Dimensions: LXD7

Including TV stand 615mm 791mm 239mm

TV set only 563mm 791mm 117mm

Net weight: 17,5kg [15kg]
Specifications are subject to change without notice.

Weights and dimensions shown are approximate.

C:0,286V p-p 75Ω
Audio (RCAx2) 500mV rms 10kΩ
Video (RCAx1) 1V p-p 75Ω

Pb, Pr: ±0,35V p-p 75Ω

1366 x 768 XGA, 16:9
Visible Diagonal 800mm [660mm]

Height: Width: Depth:
[525mm] [657mm] [239mm]

[473mm] [657mm] [117mm]]

Warning

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potencial dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the
product or products deal within this service information by anyone else could result in serious injury or death.

2

CONTENTS

SAFETY PRECAUTIONS..........................................................................4

GENERAL GUIDE LINES..................................................................... 4

TOUCH – CURRENT CHECK.............................................................. 4

PREVENTION OF ELECTROSTATIC DISCHARGE (ESD)

TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES..........................5

ABOUT LEAD FREE SOLDER (PBF)........................................................ 6

SUGGESTED PB FREE SOLDER....................................................... 6

APPLICABLE SIGNALS............................................................................. 7

SERVICE HINTS .......................................................................................8

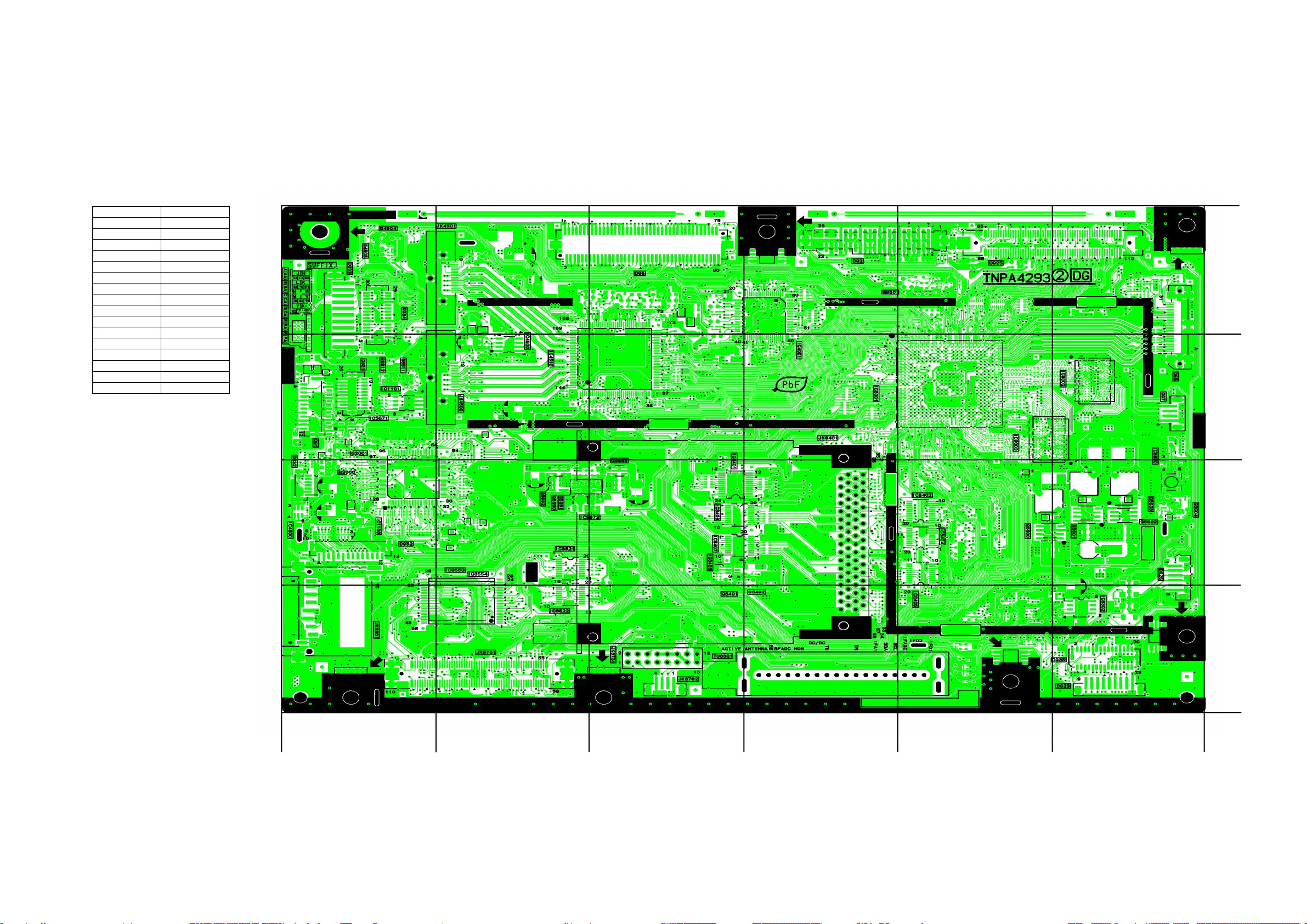

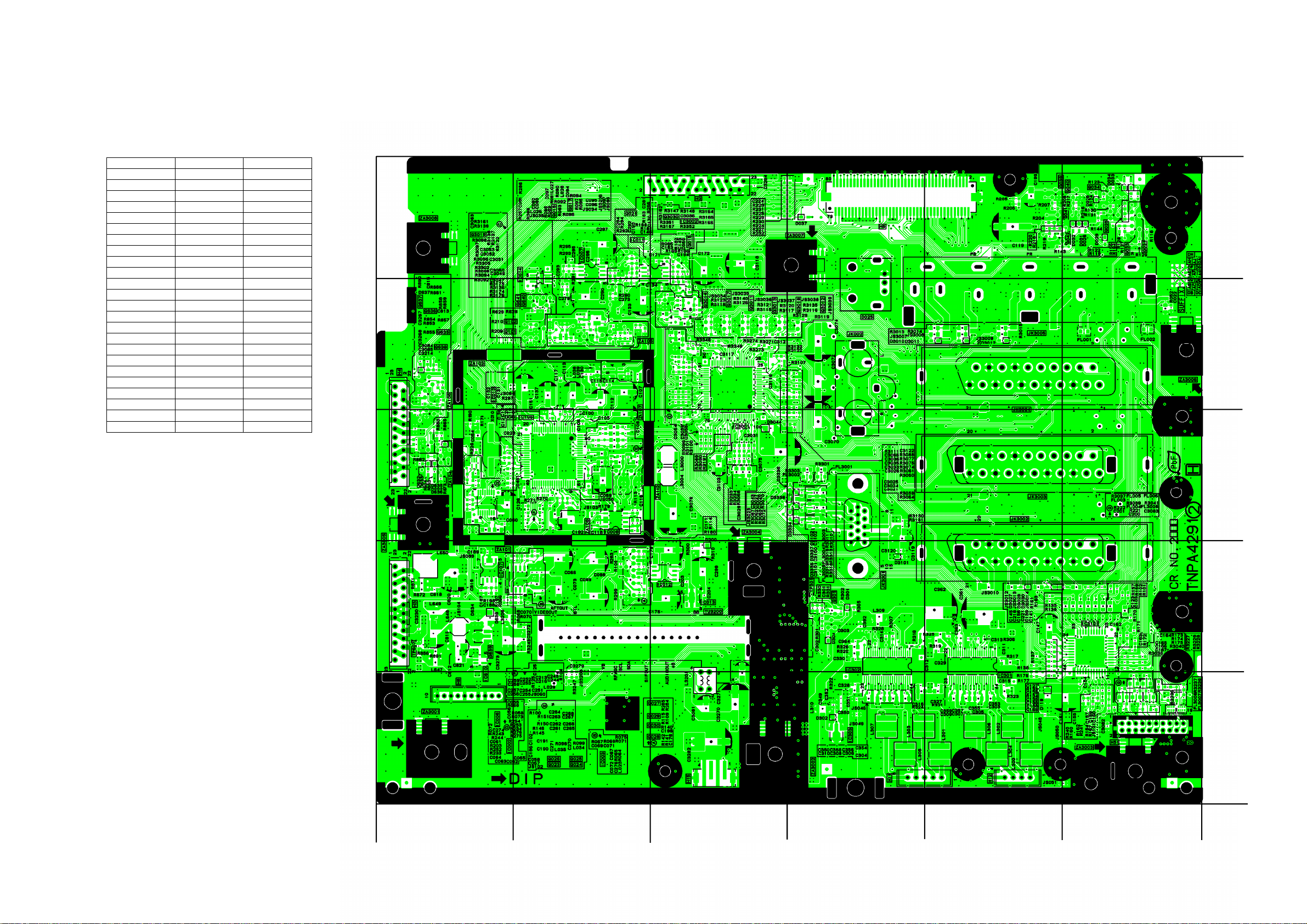

CHASSIS BOARD LAYOUT...................................................................... 9

SETTING INSPECTION............................................................................. 9

SELF-CHECK .......................................................................................... 10

POWER LED BLINKING TIMING CHART...............................................11

SERVICE MODE FUNCTION..................................................................12

SERVICE ................................................................................................ 13

OPTION BYTES DESCRIPTION............................................................. 14

ADJUSTMENT METHOD ........................................................................ 15

WIRING DIAGRAM.................................................................................. 16

BLOCK DIAGRAMS................................................................................. 17

PARTS LOCATION.................................................................................. 20

REPLACEMENT PARTS LIST................................................................. 22

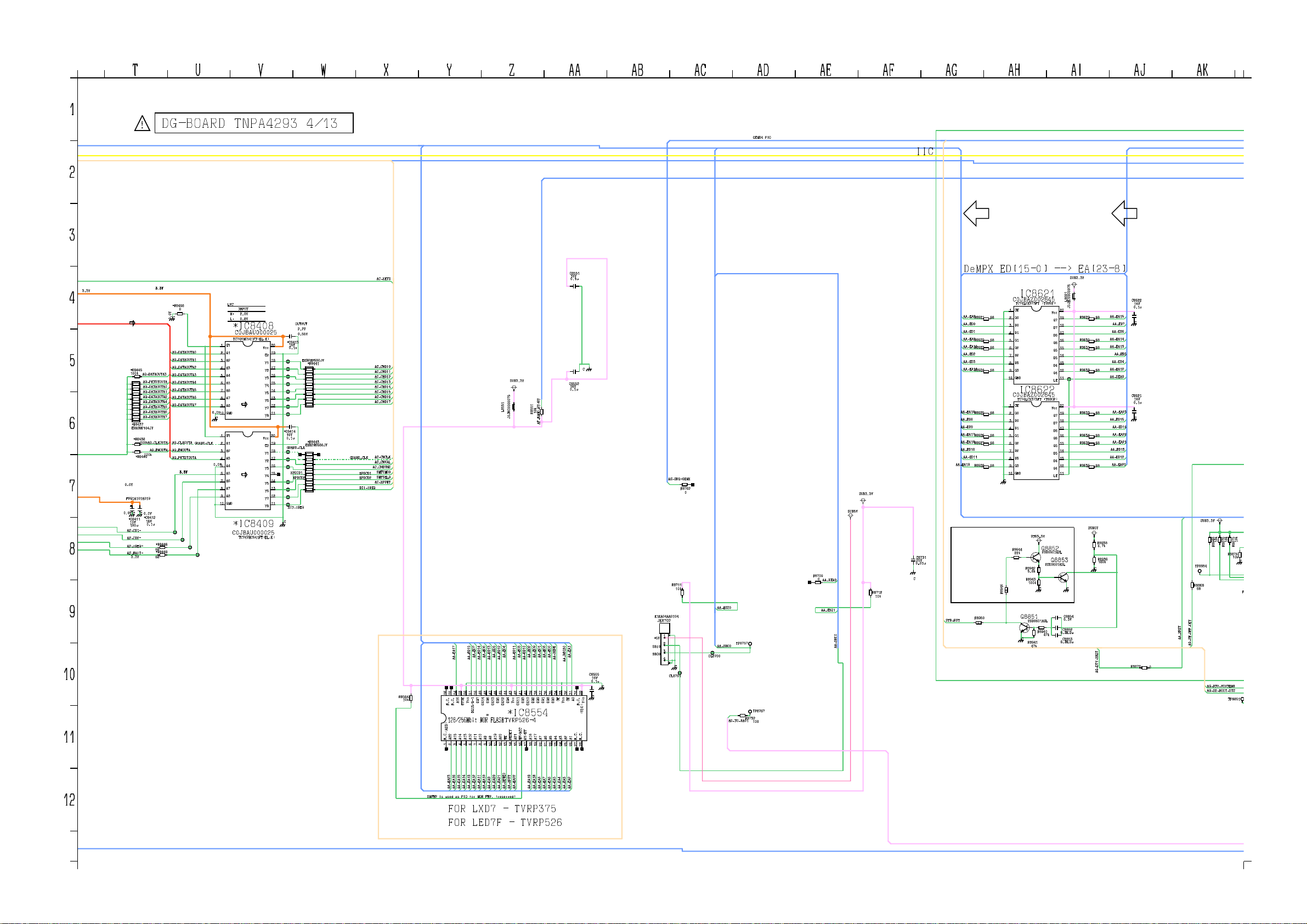

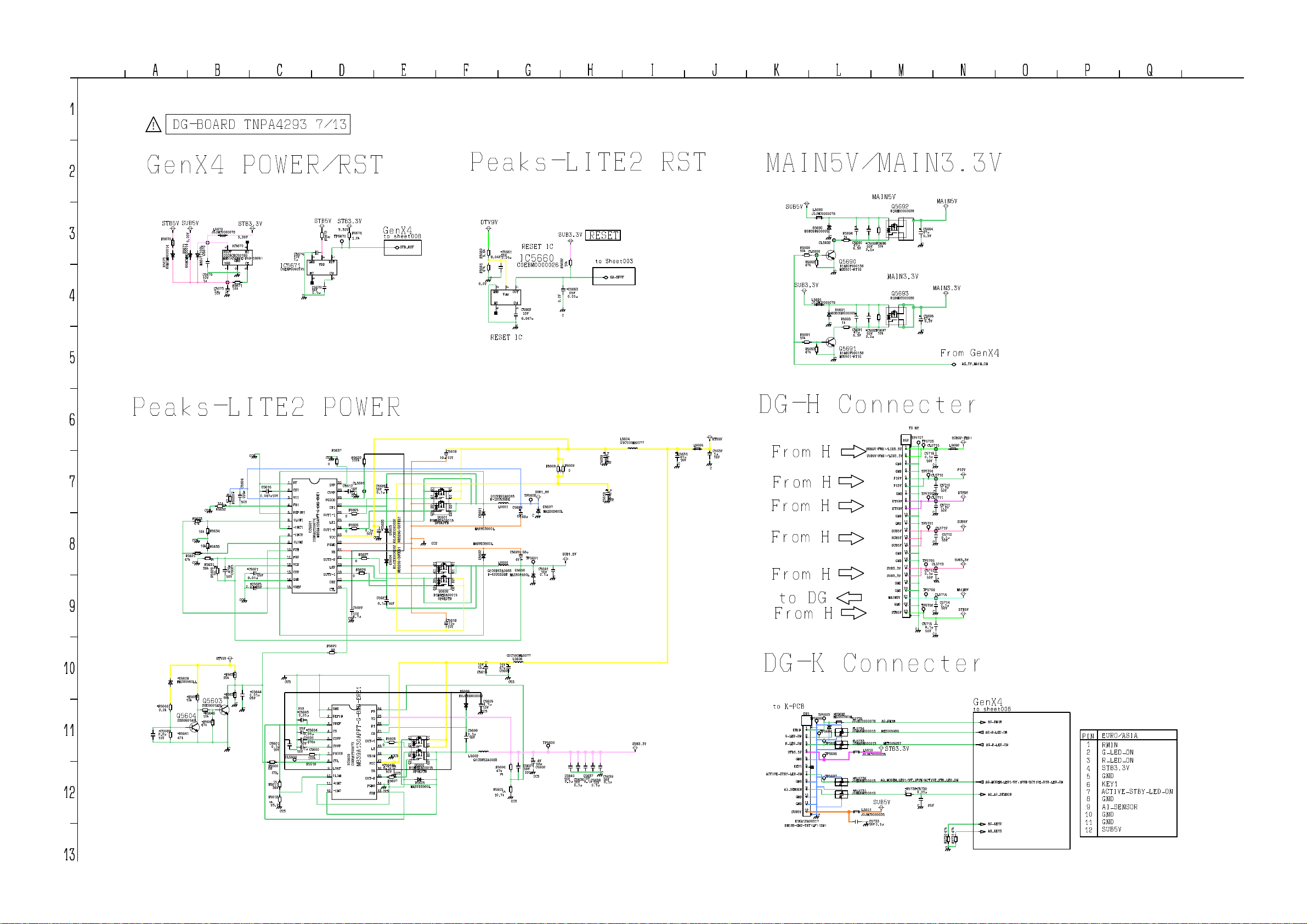

SCHEMATIC DIAGRAMS........................................................................ 41

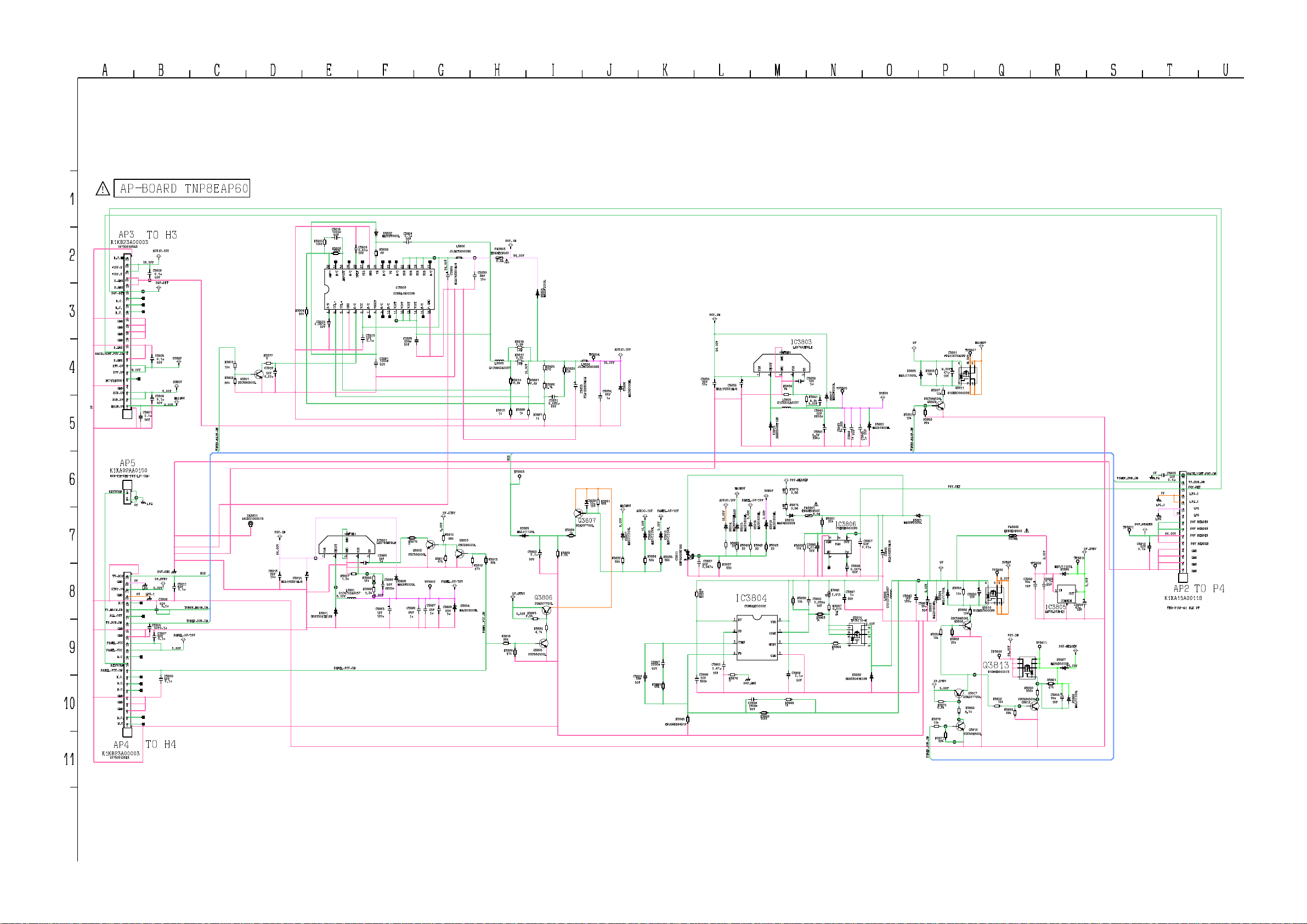

AP-BOARD SCHEMATIC DIAGRAM................................................ 42

G-BOARD SCHEMATIC DIAGRAM................................................... 43

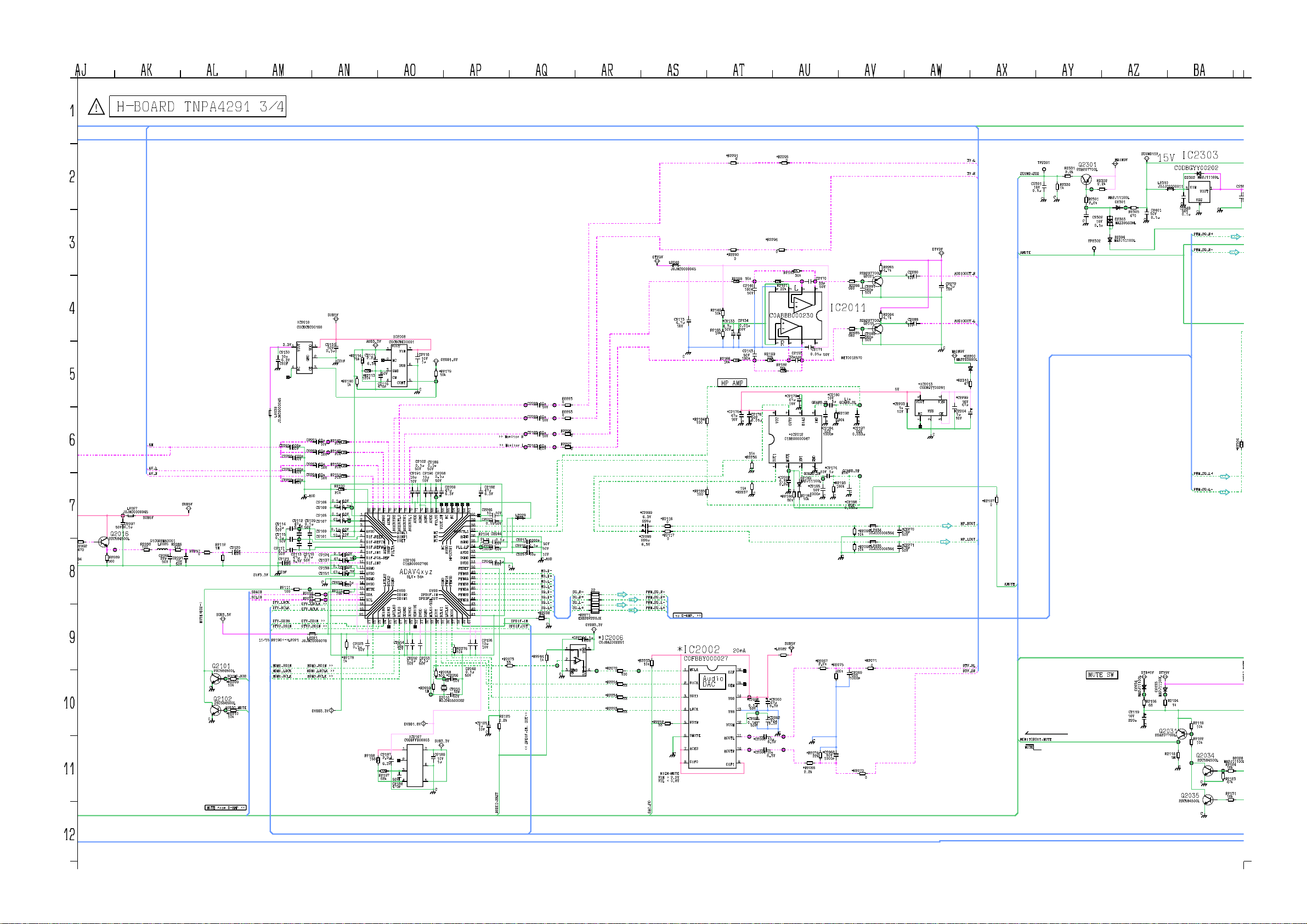

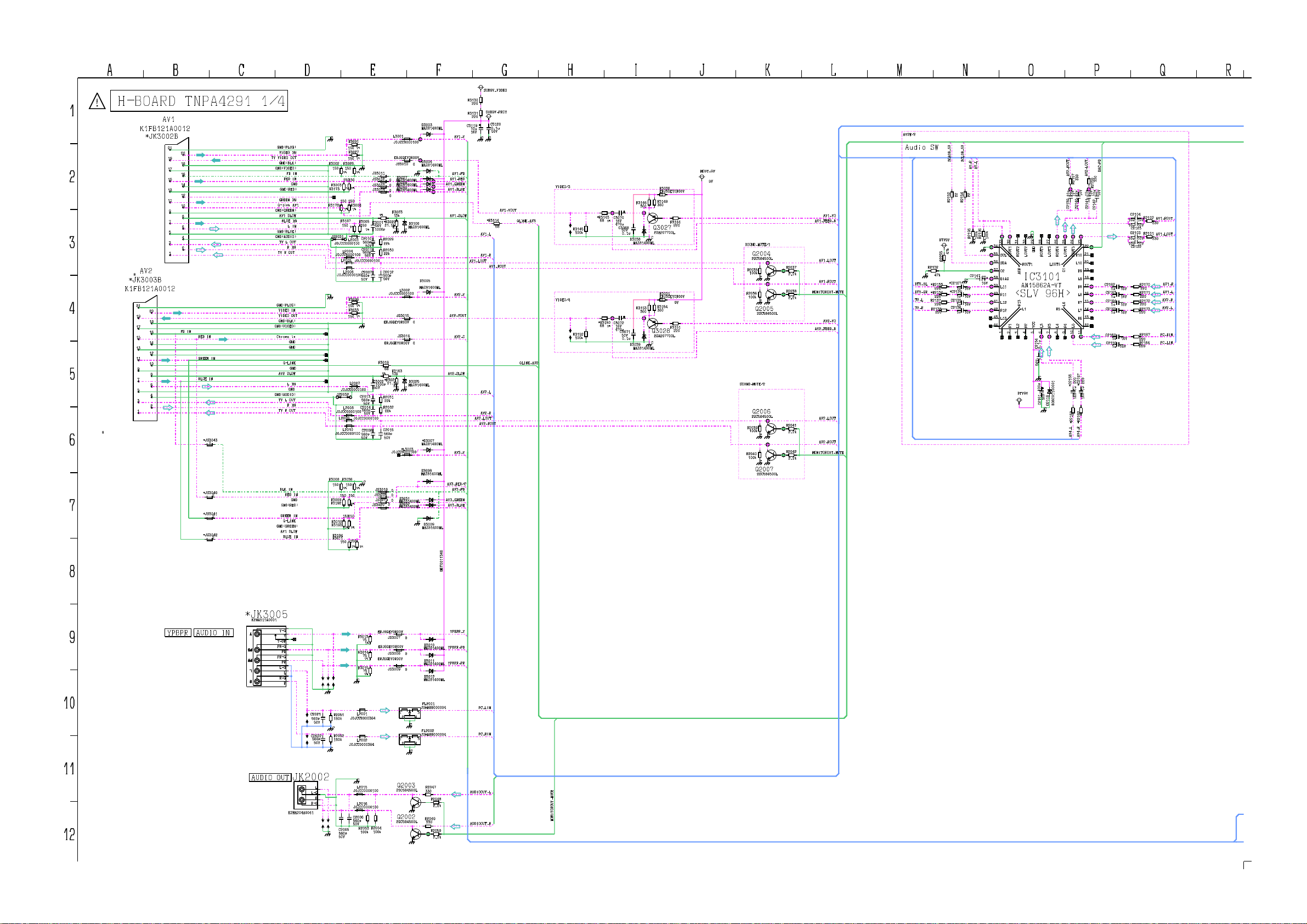

H-BOARD (1 OF 4) SCHEMATIC DIAGRAM..................................... 44

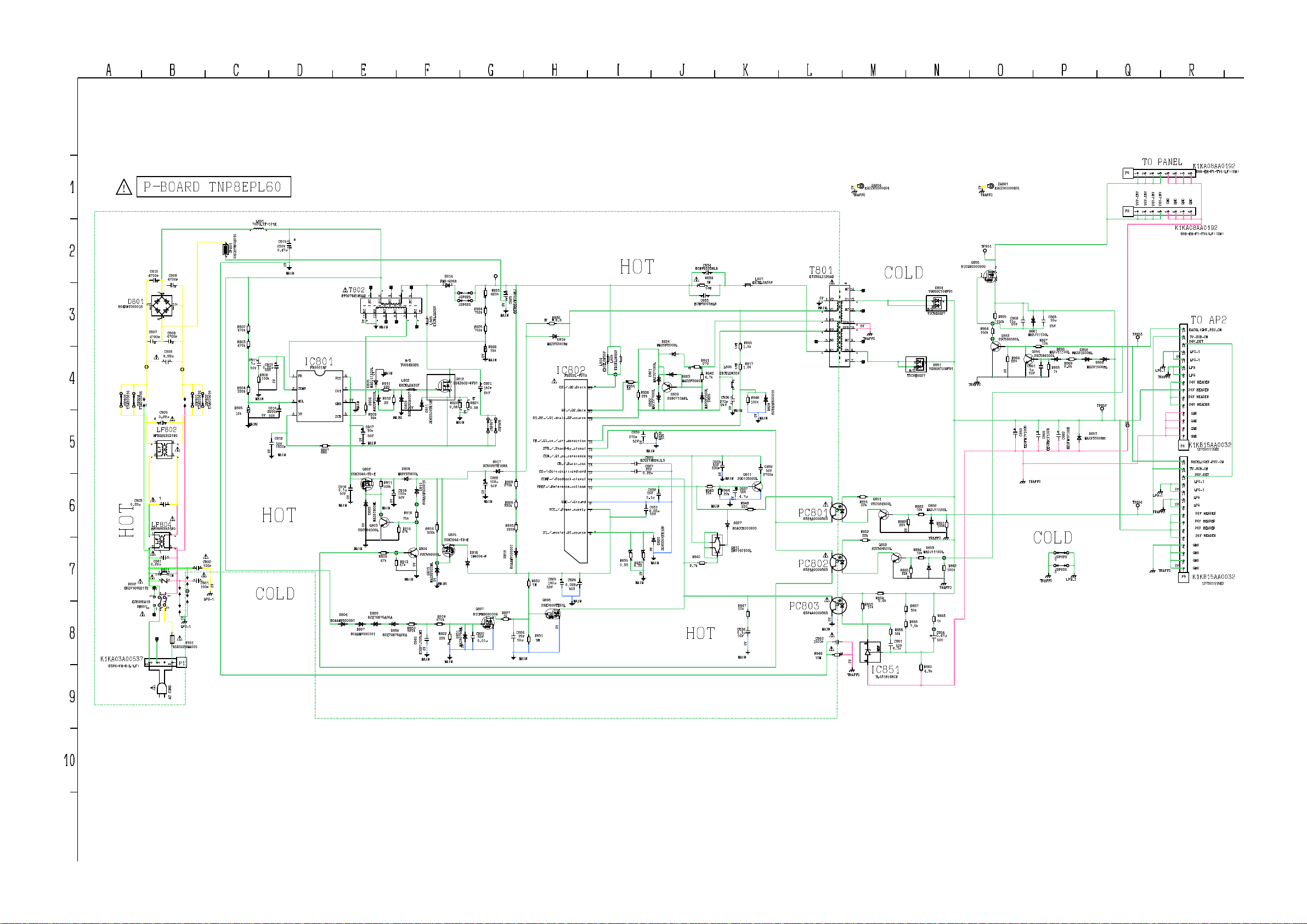

P-BOARD SCHEMATIC DIAGRAM ................................................... 48

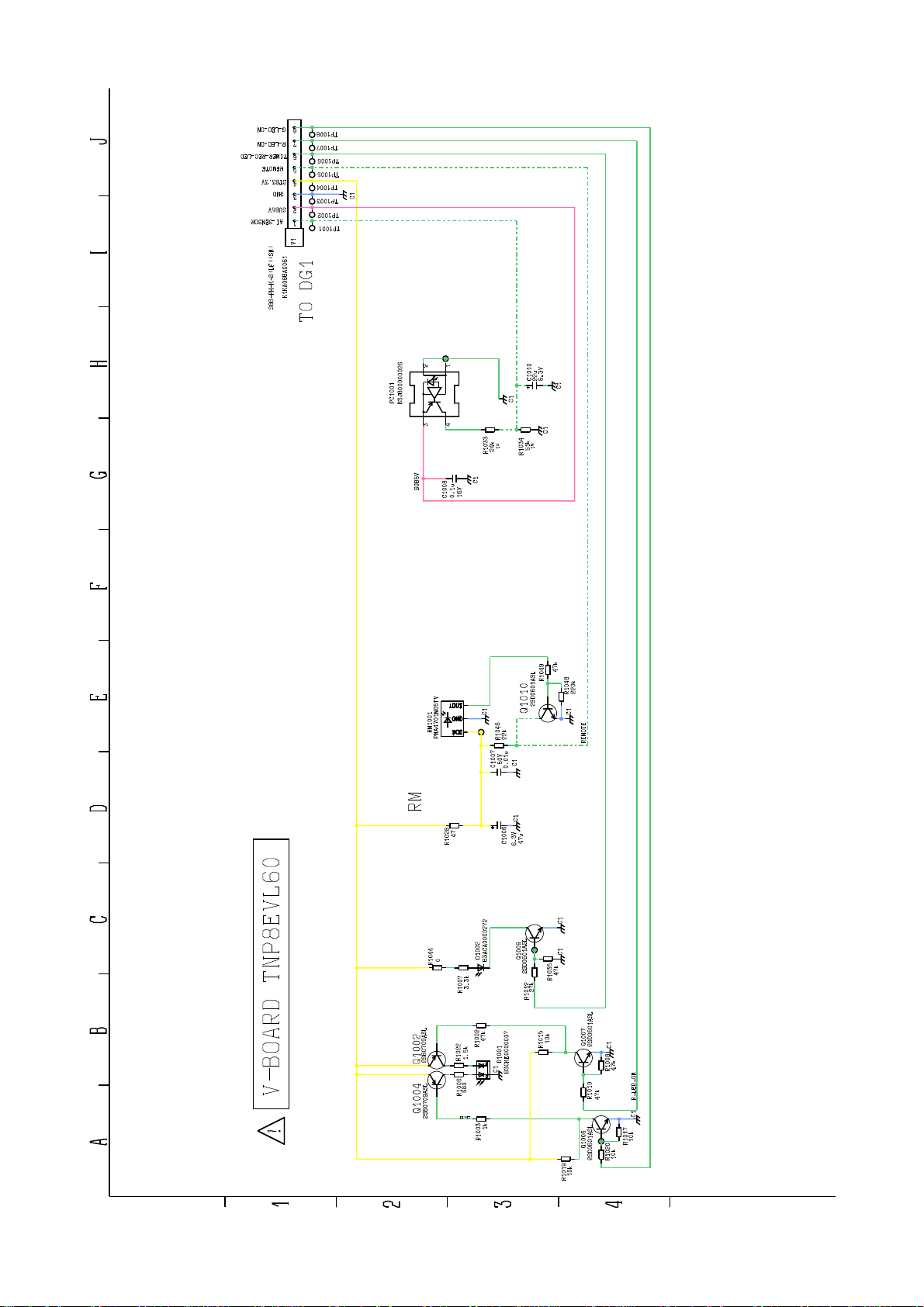

V-BOARD SCHEMATIC DIAGRAM ................................................... 49

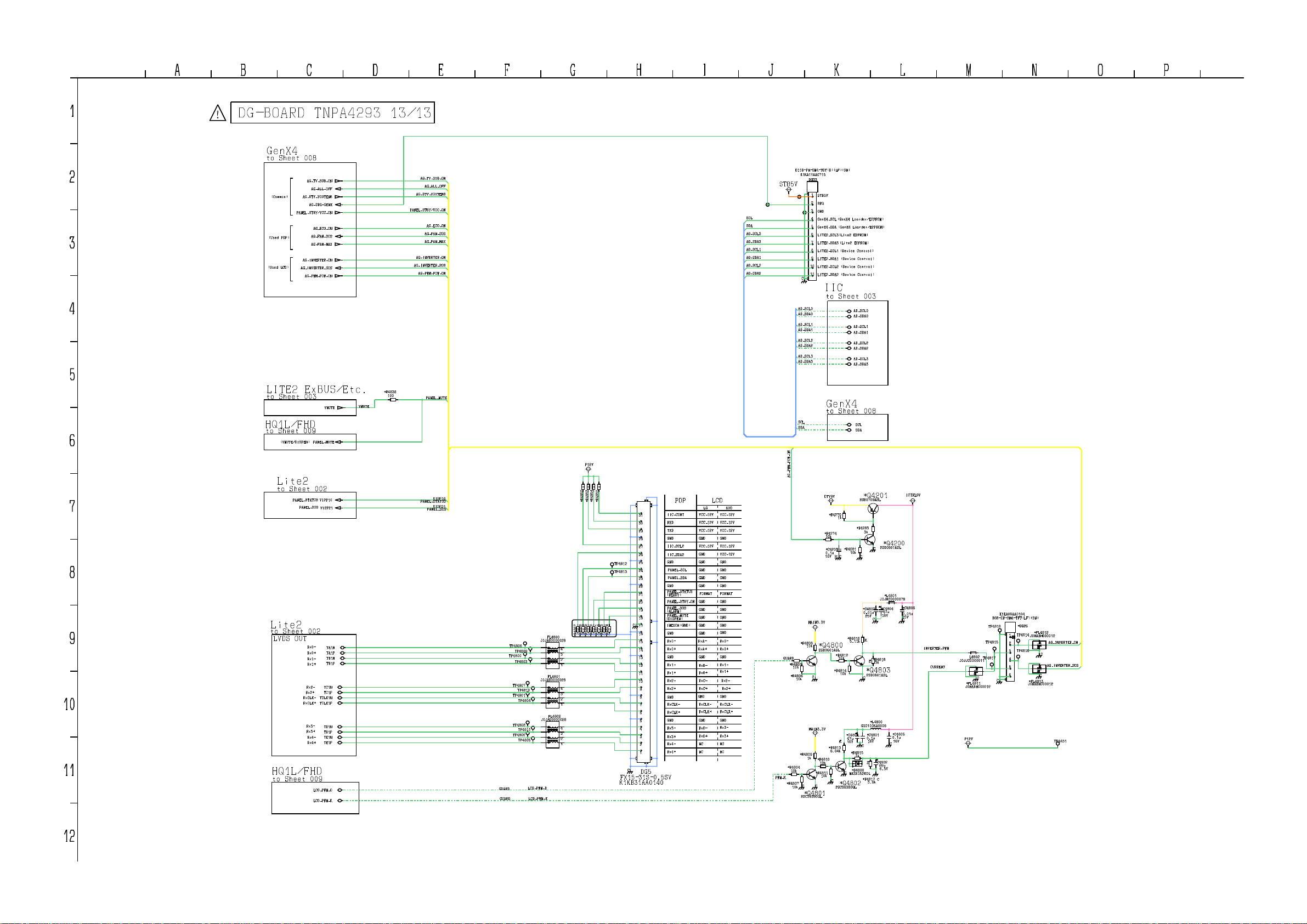

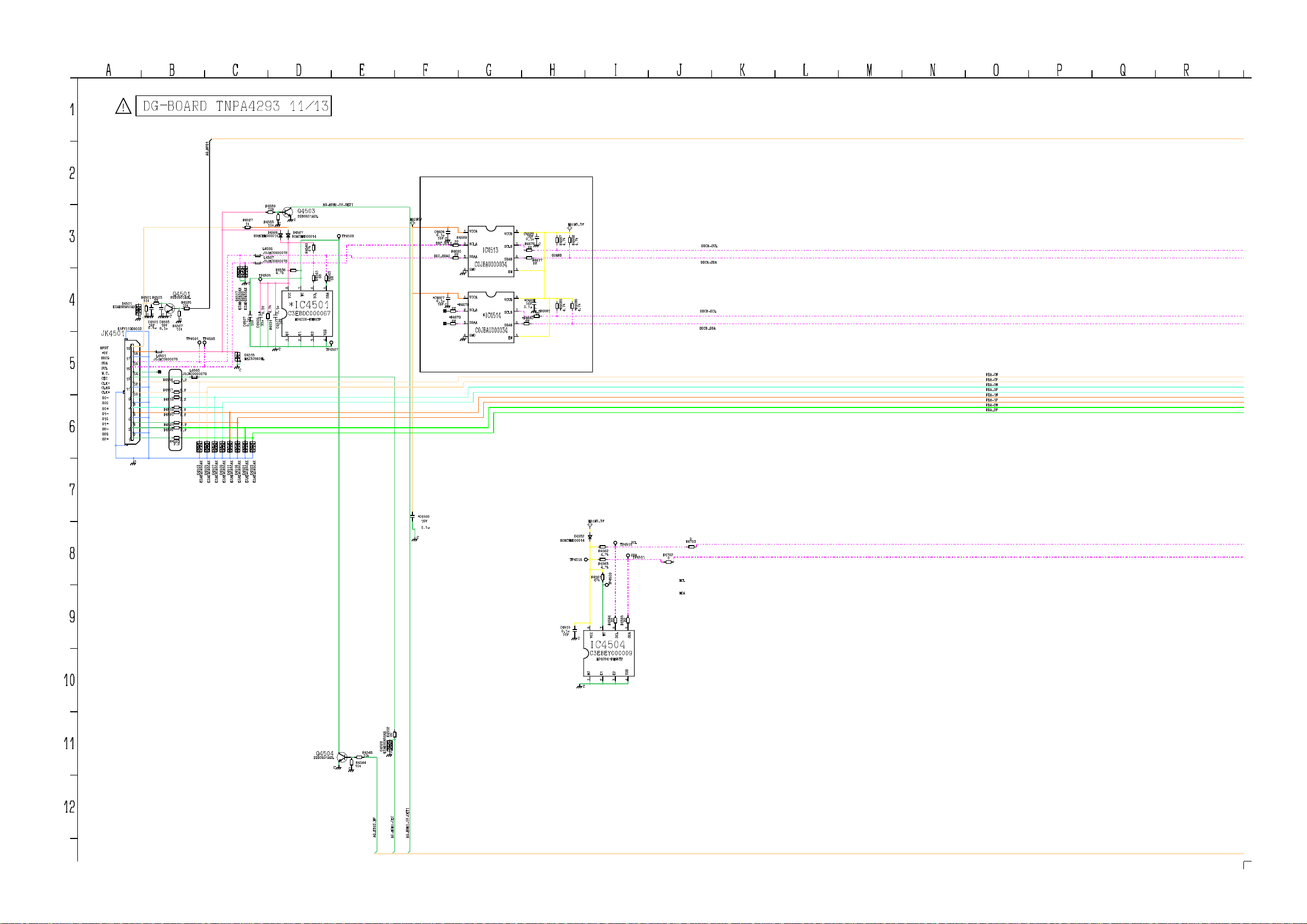

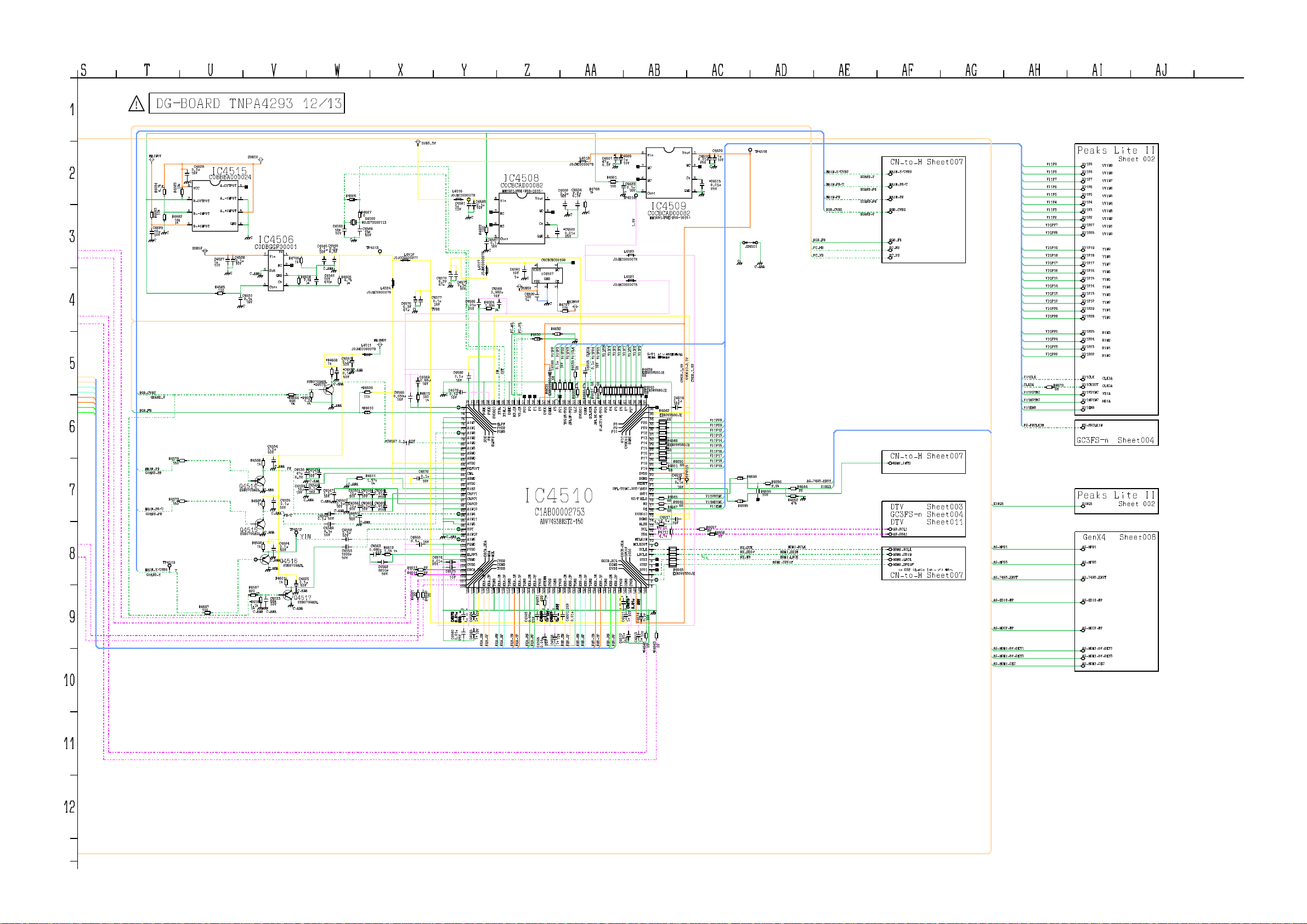

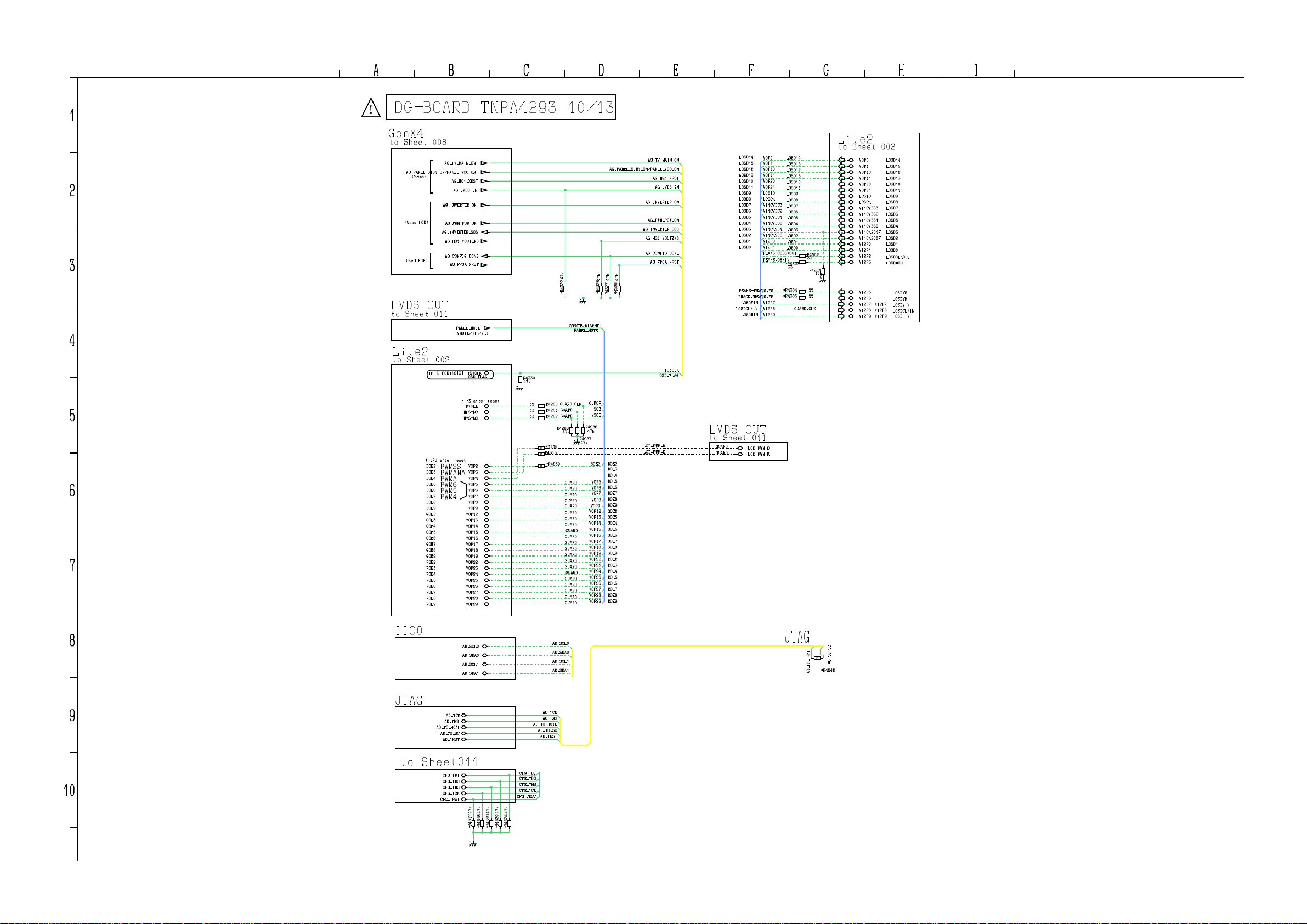

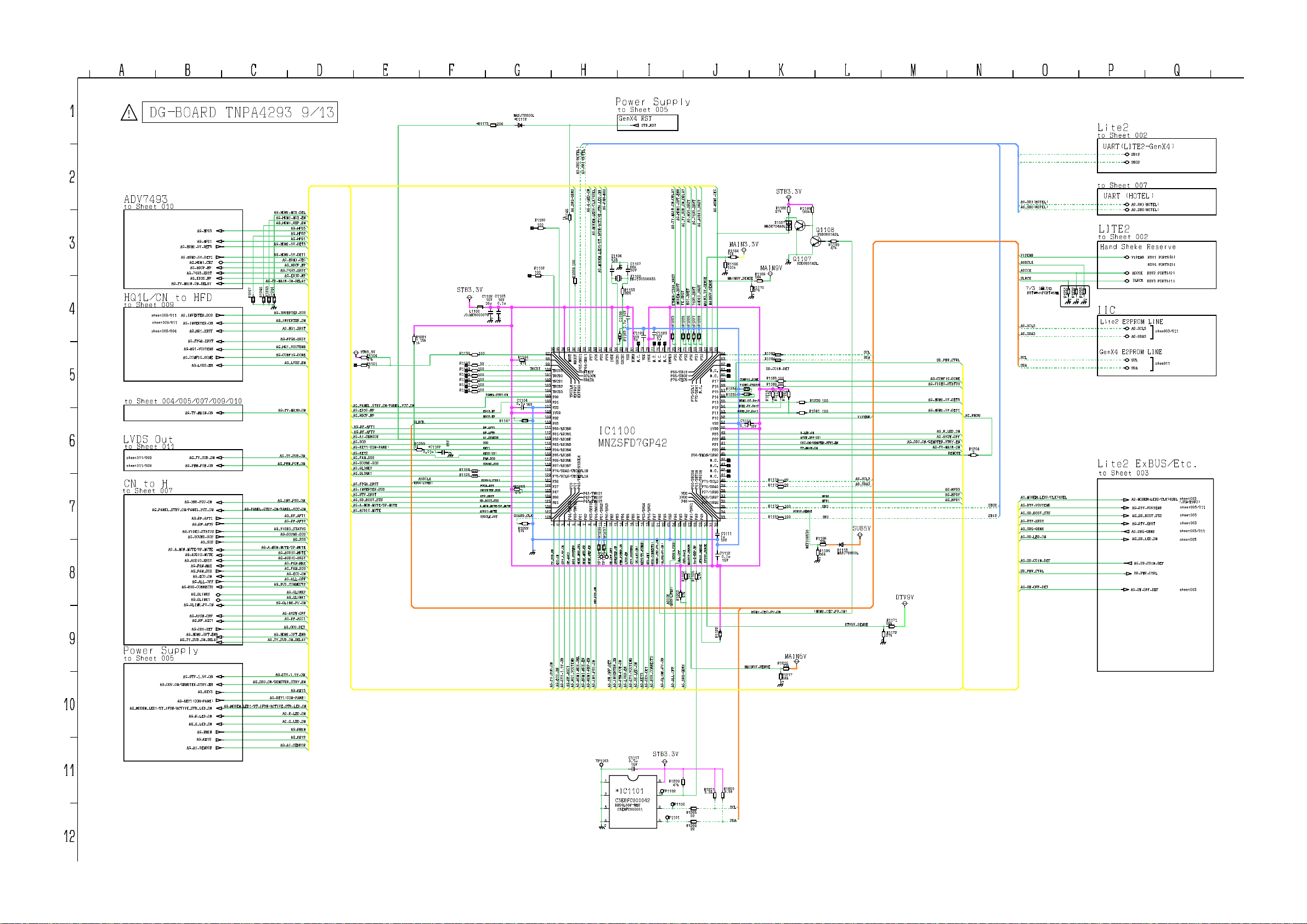

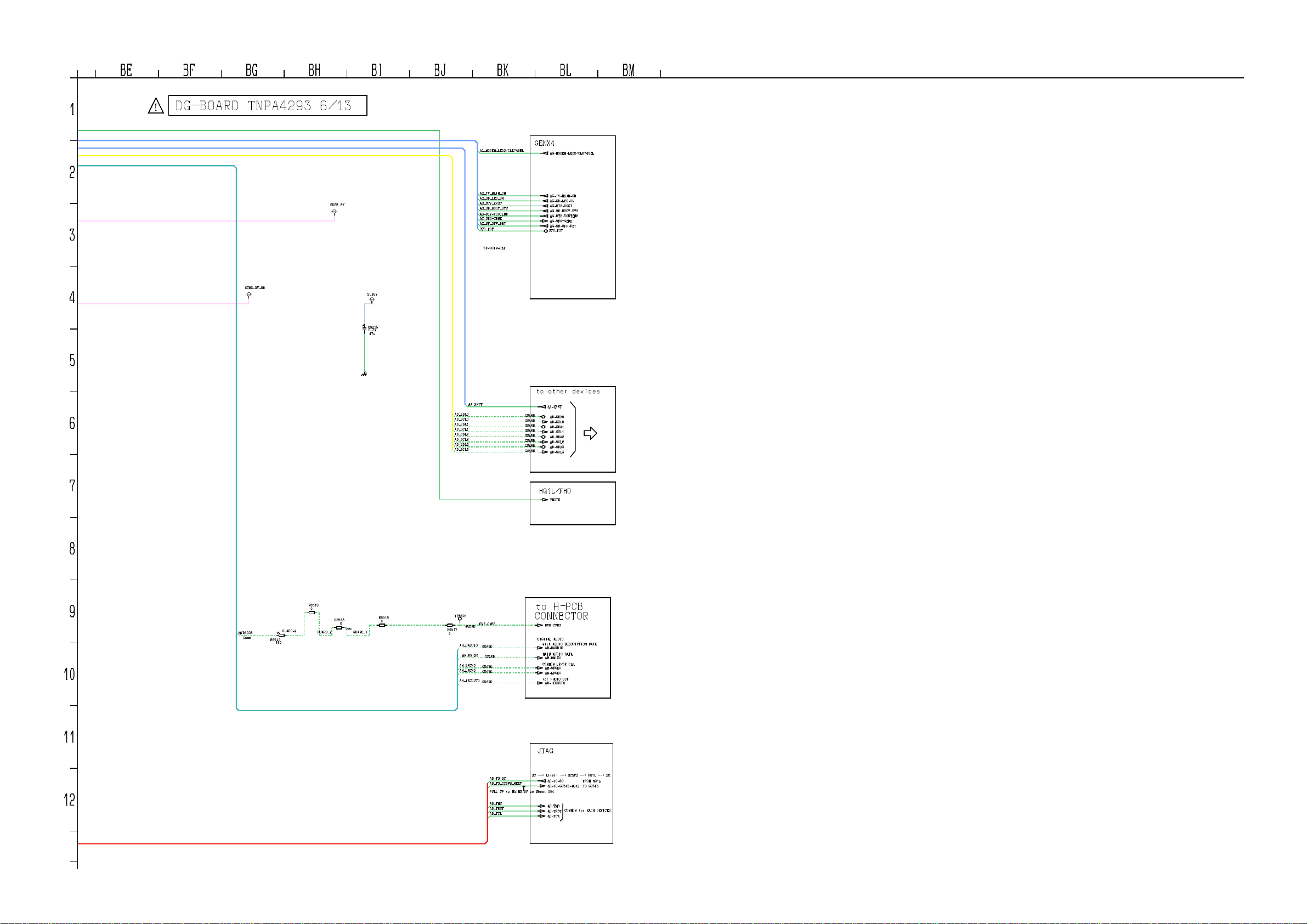

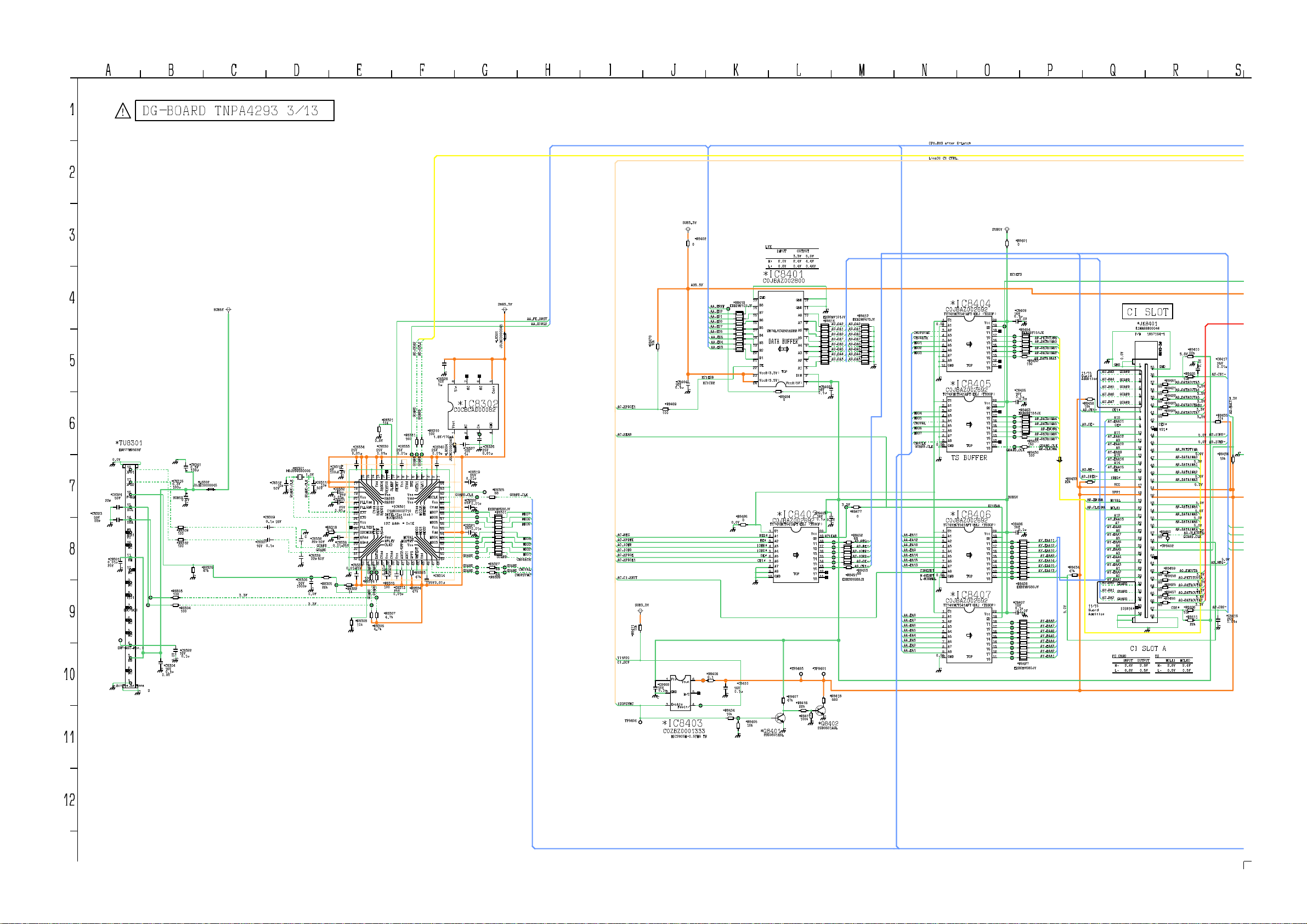

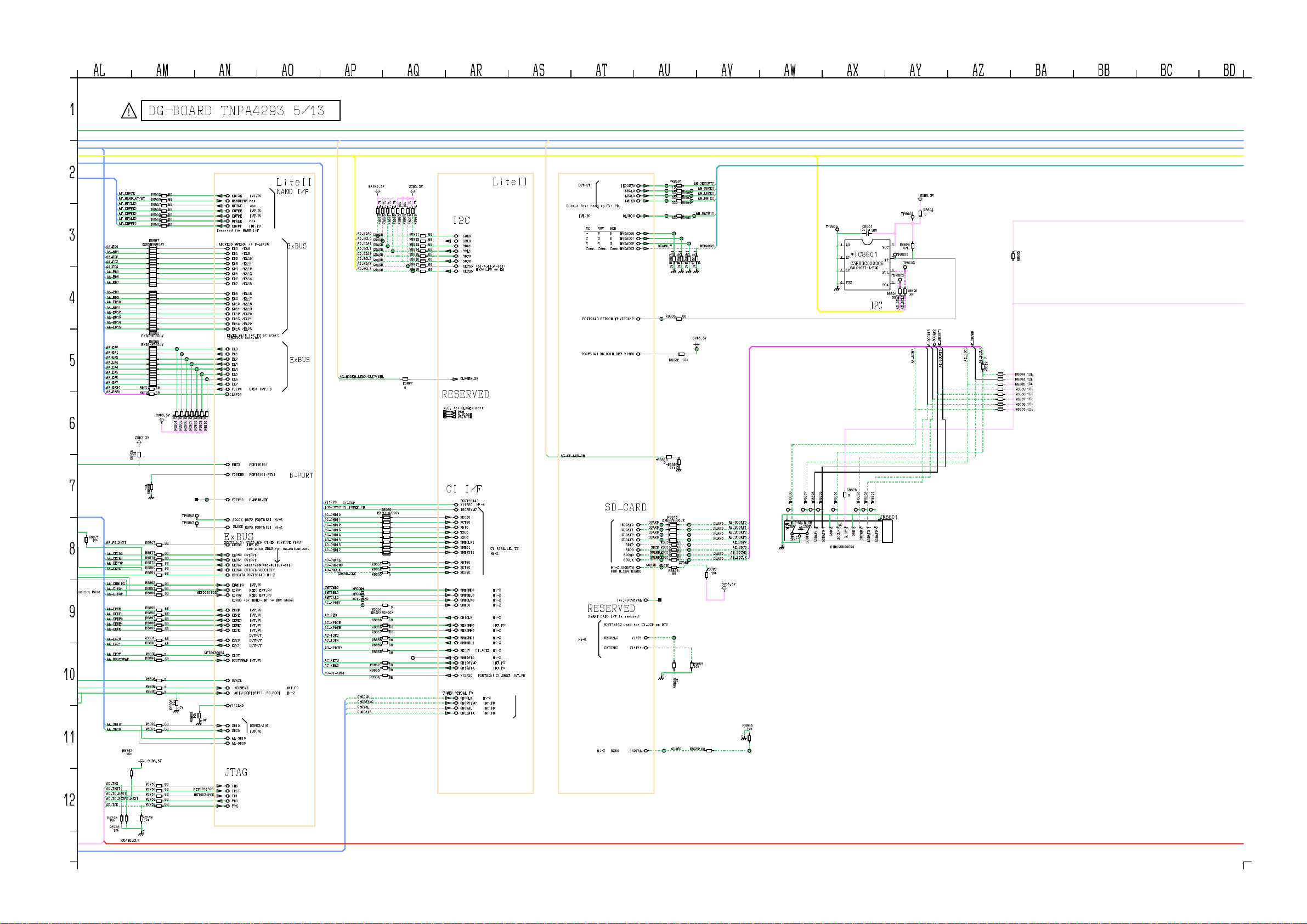

DG-BOARD (1 OF 13) SCHEMATIC DIAGRAM................................ 50

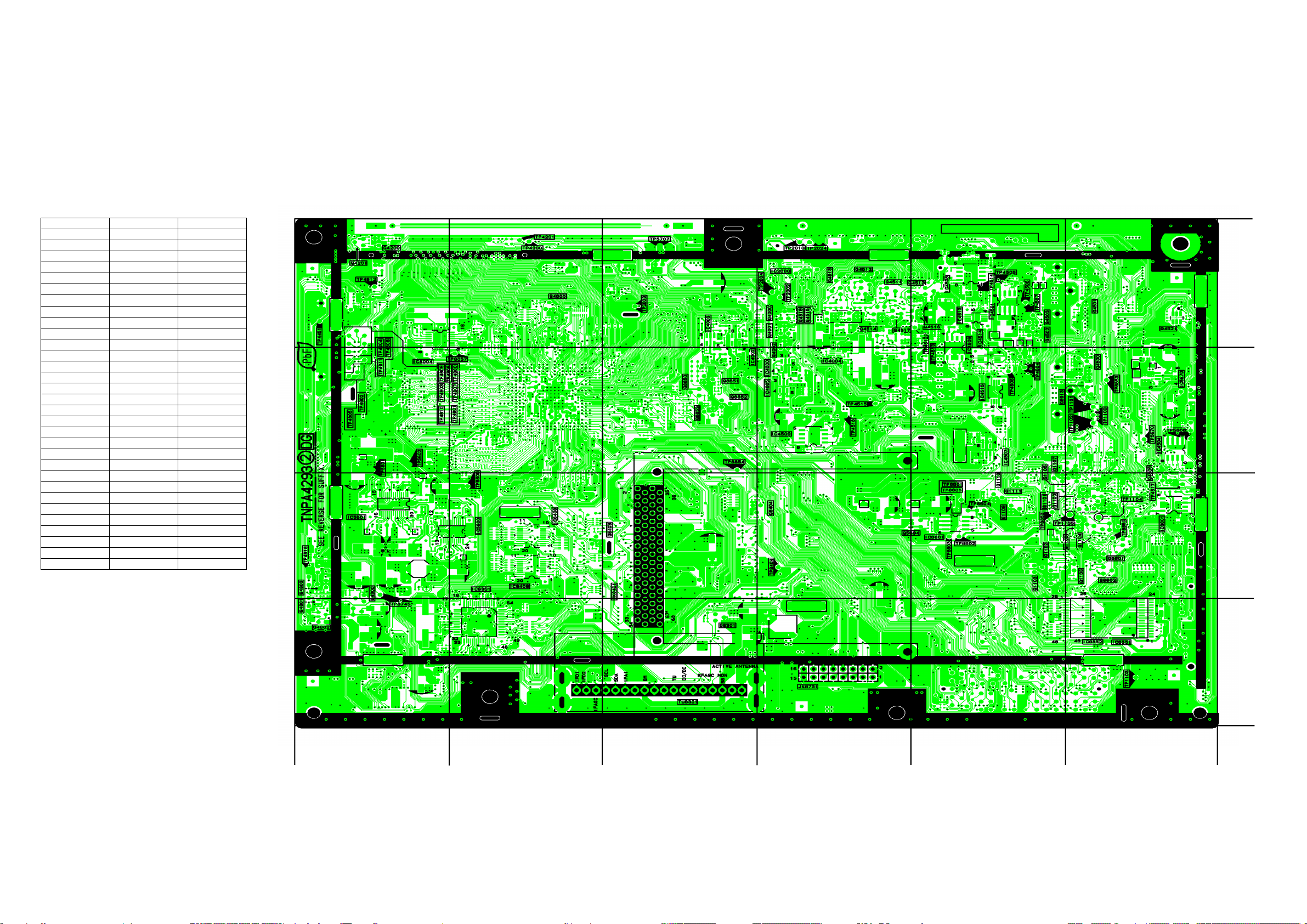

CONDUCTOR VIEWS............................................................................. 63

3

Safety Precautions

A

Ω

Ω

Ω

Ω

General Guide Lines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated
or damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

3. After servicing, make the following touch current checks to prevent the customer from being exposed to shock hazards.

4. Always ensure panel TKP0E16001 is correctly replaced before returning to customer (see Fig.1).

Fig. 1

Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth
ground such as a water pipe, as shown in Fig. 2.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUCH CURRENT) expressed as voltage U1 and U2, does not exceed the following values:
For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);
For d. c.: U1 = 1.0 V,

Note:

The limit value of U2 = 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and

2.0 mA d. c.
The limit value U1 = 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100
kHz.

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should
be repaired and rechecked before it is returned to the customer.

Measuring network for TOUCH CURRENTS

COLD
WATER PIPE
(EARTH GROUND)

Fig. 2

CS=0.22µF

10k

U

1

0.022µF

V

U2 (V)

RS=1500

TO

PPLIANCES
EXPOSED
METAL PARTS

Resistance values in ohms (Ω)
V: Voltmetr or oscilloscope

(r.m.s. or peak reading)

NOTE – Appropriate measures should be taken to obtain the correct value in case of non-sinusoidal waveforms

Input resistance: ≥ 1M
Input capacitance: ≤ 200pF
Frequency range: 15Hz to 1MHz and d.c.respectively

R0=500

4

Prevention of Electrostatic Discharge (ESD) to Electrostatically
Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect
transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of
component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on
your body by touching a known earth ground. Alternatively, obtain and wear a commerciall y available discharging ESD
wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge build up or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD
protected)" can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity
(ESD) sufficient to damage an ES device).

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety.
These parts are marked by in schematic diagrams, exploded views and replacement parts list. It is essential that
these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire, or other hazards. Do
not modify the original design without permission of manufacturer.

5

About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work,
we’d suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol

stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C)

higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before
applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the compon ent side for excess solder which may

flow onto the opposite side. (see Fig.3)

Fig.3

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.
However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. (see Fig.4)

Fig.4

6

Applicable signals

Component (Y, Pb, Pr), HDMI

Signal name COMPONENT HDMI

525 (480) / 60i * *
525 (480) / 60p * *
625 (576) / 50i * *
625 (576) / 50p * *
750 (720) / 60p * *
750 (720) / 50p * *
1,125 (1,080) / 60i * *
1,125 (1,080) / 50i * *
1,125 (1,080) / 60p *
1,125 (1,080) / 50p *

Note:

• Signals other than above may not be displayed properly.

• The above signals are reformatted for optimal viewing on your display.

7

Service Hints

How to remove the backcover

Remove the 18[16] fixing screws. (see Fig.5)

SCREWS

How to remove the Pedestal assembly

Lay the main unit face down. (see Fig.6)

SCREWS

Fig.5

Fig.6

Remove the 4 fixing screws and the pedestal assembly. (see Fig.7)

Fig.7

8

SCREWS

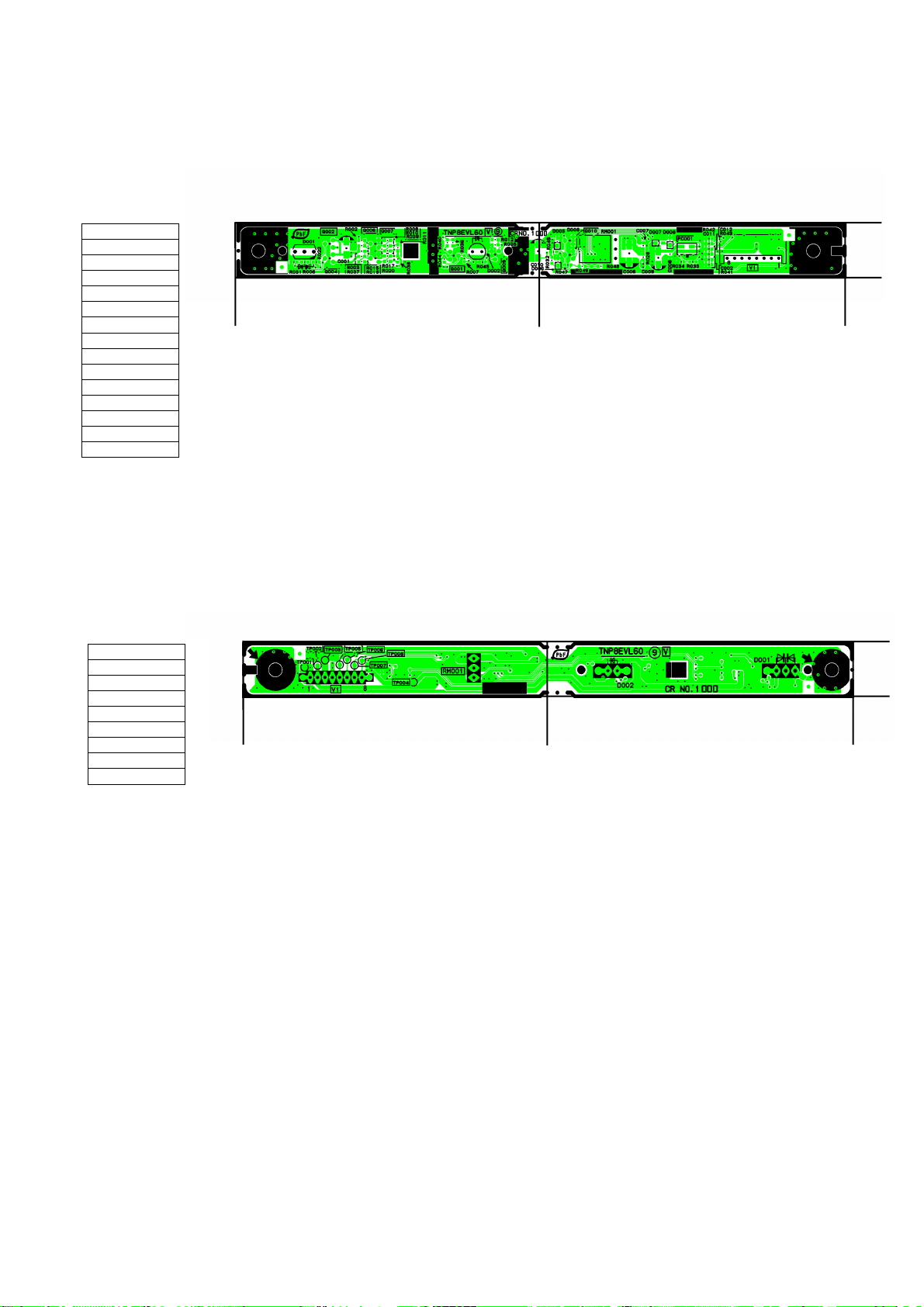

Chassis Board Layout

AP-BOARD

H-BOARD

G-BOARD

Board Name Function

AP-Board Power Supply Regulator

DG-Board Global Core, HDMI, IDTV Processor, D/A Converter

G-Board Side AV Connector
H-Board AV Conn ector, TV tuner, AV Switch
P-Board Main Input, Power Supply, Main Switch
V-Board Remote Receiver, LED IR, Cats

Setting Inspection

Voltage Confirmation

P-BOARD

DG-BOARD

V-BOARD

Confirm the following voltages:

AP board

Description Test point Position Normal mode Stand by mode Active stand by mode

Sub_5V TP3805 AP3, pin 2,3 5,04V +/- 0,25V Max 2V 5,04V +/- 0,25V
Panel 5/12V TP3802 AP4, pin 12,13 12,13V +/- 0,45V Max 2V Max 2V
Sound_Vcc TP3804 AP3, pin 21,22 15,10V +/- 0,45V Max 2V Max 2V
9V TP3808 Q3814, pin 5,6,7,8 8,93V +/- 0,25V 8,93V +/- 0,25V 8,93V +/- 0,25V

STBY_5V TP3810 AP4, pin 21 5,0V +/- 0,25V 5,0 +/- 0,25V 5,0V +/- 0,25V

P board

24V TP852 P4, pin 5,6,7,8 24,5V +/- 1V 24,5V +/- 1V

DG board

Sub1,2V TP5601 1,17V - 1,32V
Sub1,8V TP5602 1,7V - 1,9V
Sub3,3V TP5600 3,14V - 3,46V
MHQ1,2V TP4209 1,1V - 1,3V

9

Self Check

A

A

A

f

A

A

A

A

A

A

f

A

A

A

Self-check is used to automatically check the bus lines and hexadecimal code of the TV set. To enter Self-Check mode, keep
pressing the down (-/v) button on the TV set and press the STATUS button on the remote control. To exit Self Check,
switch off the TV set at the power button.

TX-26LXD7

TX-32LXD7

TX-26LED7F

26

DV O.K.

VSW O.K.

DAV O.K.

SW O.K.
GENX O.K.
MEM1 O.K.
MEM2 O.K.
TUN1 O.K.
D-TUN O.K.
OFDM O.K.

32

DV O.K.
VSW O.K.

DAV O.K.

SW O.K.
GENX O.K.
MEM1 O.K.
MEM2 O.K.
TUN1 O.K.
D-TUN O.K.
OFDM O.K.

26

DV O.K.
VSW O.K.

DAV O.K.

SW O.K.
GENX O.K.
MEM1 O.K.
MEM2 O.K.
TUN1 O.K.
D-TUN O.K.
OFDM O.K.

Panasonic 2007LCD

Self Check Complete

PEAKS-SOFT 1.050
PEAKS-EEP 01.05.0024
GenX-SOFT 1.00.00
GenX-EEP 1.02.00
GenX-ROMCORR 1.01.00

Panasonic 2007LCD

Self Check Complete

PEAKS-SOFT 1.050
PEAKS-EEP 01.05.0023
GenX-SOFT 1.00.00
GenX-EEP 1.02.00
GenX-ROMCORR 1.01.00

Panasonic 2007LCD

Self Check Complete

PEAKS-SOFT
PEAKS-EEP
GenX-SOFT
GenX-EEP
GenX-ROMCORR

2.050

02.05.0015

1.00.00

1.02.00

1.01.00

26led70.dat:000009

SUM
OPTION 1

OPTION 2
OPTION 3
CHECK

MODEL ID

32led70.dat:00000b

SUM
OPTION 1

OPTION 2
OPTION 3
CHECK

MODEL ID

26led70f.dat:000056

SUM
OPTION 1

OPTION 2
OPTION 3
CHECK

MODEL ID

75
04

189e

2c
ea

7f

95
04

03040000
00000002

189d

2c
ea

7

95
04

03040000
00000004

1863
0c

ea
7f

030a0000
00000002

Panasonic 2007LCD

Self Check Complete

2.050

02.05.0014

1.00.00

1.02.00

1.01.00

32led70f.dat:000067

SUM
OPTION 1

OPTION 2
OPTION 3

75

CHECK

04

MODEL ID

1872

0c
ea

7

030a000
0000004

TX-32LED7F

32

DV O.K.
VSW O.K.

DAV O.K.

SW O.K.
GENX O.K.
MEM1 O.K.
MEM2 O.K.
TUN1 O.K.
D-TUN O.K.
OFDM O.K.

PEAKS-SOFT
PEAKS-EEP
GenX-SOFT
GenX-EEP
GenX-ROMCORR

Display Ref. No. Description P.C.B.

ADV IC4510 A/D CONVERTER DG-Board

VSW IC3001 AV SWITCH H-Board

ADAV IC2106 AUDIO PROCESSOR H-Board

ASW IC3101 AV SWITCH H-Board
TUN1 TU3200 ANALOG TUNER H-Board
GENX IC1100 MICROPROCESSOR DG-Board

MEM1 IC1101 EEPROM DG-Board
MEM2 IC8601 EEPROM DG-Board

D-TUN TU8301 DIGITAL TUNER DG-Board

OFDM IC8301 COFDM DEMODULATOR DG-Board

If the CCU ports have been checked and found to be incorrect or not located then " - - " will appear in place of "O.K.".

10

Power LED blinking timing chart

1. Subject
Information of LED Flashing timing chart.

2. Contents
When abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the
defective block can be identified by number of blinking of the Power LED on the front panel of the unit.

Blinking

times

Once

1 INVERTER_SOS

3 SOS

4 DTV_9V

5 SUB_5V

6 MAIN_9V

7 MAIN_5V DG BOARD

8 MAIN_3.3V DG BOARD

Blinking timing Contents Check point

4 sec

Light
No Light

POWER UNIT

LCD PANEL

DG BOARD

AP BOARD, H BOARD

AP BOARD

DG BOARD, H BOARD

AP BOARD, H BOARD
DG BOARD, V BOARD

AP BOARD

H BOARD, DG BOARD

9 SOUND_SOS

DG BOARD

H BOARD

11

Service Mode Function

MPU controls the functions switching for each IICs through IIC bus in this chassis. The following setting and adjustment can be
adjusted by remote control in Service Menu

How to enter SERVICE

While pressing (-/v) button on TV unit, press on the remote
control for 3 times within 2 seconds.

Note:

To exit from Service mode, press the exit button on remote control.

0

12

SERVICE

Y

Y

A

A

A

A

A

Y

y

SERVICE
ADJUST
WB-ADJ
OPTION
SRV-TOOL

Peaks SOFT 2.020 OPTION 1 0c
Peaks EEP 02.00.0015 OPTION 2 ea
LSI DATA 0.00.55 OPTION 3 7f
GenX SOFT 1.00.00 Model ID 04
GenX EEP 1.02.00 030a0000
GenX ROMCOR 1.01.00 00000002
HQ1L EEP -- Time 00000:45
Count 0000002

1

ADJUST DYNAMIC
CONTRAST

MAX

1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT

ELLOW:AUTO ADJUST
VOL:ADJUST
OK :WRITE

1

000

2

ADJUST DYNAMIC

3

COLOR

1,2:MAIN SELECT

4

3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

2

Key Command

• Press the 3/4 button to change the adjustment values or function.

• Press the 1/2 button to step up/down through the functions and adjustments

• Press the numerical button VOLUME (+/-) to change option item.

• Press the OK button after each adjustment has been made to store the required values.

DJUST DYNAMIC

3

3C

TINT

1,2:MAIN SELECT

4

3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

00

ADJUST DYNAMIC

3

SUB-BRT

1,2:MAIN SELECT

4

3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

808

DJUST DYNAMIC

3

BACKLIGHT

1,2:MAIN SELECT

4

3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

285

DJUST DYNAMIC

H-POS

3

1,2:MAIN SELECT

4

3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

DJUST DYNAMIC

0

H-AMP

3

1,2:MAIN SELECT

4

3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

0

ADJUST DYNAMIC
V-POS

3

1,2:MAIN SELECT

4

3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

DJUST DYNAMIC

0

V-AMP

3

1,2:MAIN SELECT

4

3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

0

WB-ADJ DYNAMIC
R-GAIN

COLOR TEMP NORMAL

1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

1

OPTION DYNAMIC
Boot

1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST

ROM

1

WB-ADJ DYNAMIC

FC

G-GAIN

3

COLOR TEMP NORMAL

1,2:MAIN SELECT
3,4:SUB SELECT

4

7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

F0

WB-ADJ DYNAMIC
B-GAIN

3

COLOR TEMP NORMAL

1,2:MAIN SELECT
3,4:SUB SELECT

4

7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

WB-ADJ DYNAMIC

C8

R-CENT

3

COLOR TEMP NORMAL

1,2:MAIN SELECT
3,4:SUB SELECT

4

7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

6D

WB-ADJ DYNAMIC
G-CENT

3

COLOR TEMP NORMAL

1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

WB-ADJ DYNAMIC

80

B-CENT

3

COLOR TEMP NORMAL

1,2:MAIN SELECT
3,4:SUB SELECT

44

7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

7B

2

OPTION DYNAMIC
STBY-SET

3

1,2:MAIN SELECT

4

3,4:SUB SELECT
9 :PICTURE MENU SELECT
OK :POWER OFF

OPTION DYNAMIC

00

Emergency

3

1,2:MAIN SELECT

4

3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST

ON

OPTION DYNAMIC

/C Dela

3

1,2:MAIN SELECT

4

3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

OPTION DYNAMIC
OPT 1

3

1,2:MAIN SELECT

4

3,4:SUB SELECT
5,6:BIT SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

00001100

OPTION DYNAMIC
OPT 2

3

1,2:MAIN SELECT

4

3,4:SUB SELECT
5,6:BIT SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

11101010

OPTION DYNAMIC
OPT 3

3

1,2:MAIN SELECT

4

3,4:SUB SELECT
5,6:BIT SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE

01111111

2

SRV-TOOL DYNAMIC

1,2:MAIN SELECT
9 :PICTURE MENU SELECT
OK :ENTER

00

13

Option Bytes Description

OPTION1

0 ATP Speed Slow (1) / Fast (0)
1 TXT Ch On (1) / Off (0)
2 ID-1 On (1) / Off (0)
3 Macrovision Auto Evaluation On (1) / Off (0)
4 SRS Surround On (1) / Off (0)
5 Teletext Top Off (1) / On (0)
6 Not Use Not Use
7 Not Use Not Use

OPTION2

0 Not Use Not Use
1 A2 Stereo (5,5MHz) On (1) / Off (0)
2 A2 Stereo (6,0MHz) On (1) / Off (0)
3 A2 Stereo (6,5MHz) On (1) / Off (0)
4 Not Use Not Use
5 NICAM (5,5MHz) On (1) / Off (0)
6 NICAM (6,0MHz) On (1) / Off (0)
7 NICAM (6,5MHz) On (1) / Off (0)

OPTION3

0 NICAM priority (ASIA/M.E) On (1) / Off (0)
1 NICAM priority (K/UK) On (1) / Off (0)
2 NICAM priority (China) On (1) / Off (0)
3 NICAM priority (NZ/INDN) On (1) / Off (0)
4 NICAM priority (AUS) On (1) / Off (0)
5 NICAM priority (E.Europe) On (1) / Off (0)
6 NICAM priority (Special) On (1) / Off (0)
7 Not Use Not Use

14

Adjustment Method

Sub-Contrast/White Balance Adjustment

Instrument Name Connect to Remarks

1. Remote controller

2. LCD WB meter (Minolta CS-1000A equivalent)

3. Comunication jig

4. Computer for external control

Procedure Remarks

Subcontrast adjustment

1. Receive PAL colour bar (100% white) RF signal.

2. Enter “Contrast” adj. In SERVICE mode.

3. Start adjusting by using Yellow Key.

4. If the adjustment finished normally, the letter of Contrast will change from red
to black

Correlation can be also taken by
CA-210 or equivalent

Let the panel standfor more than 3
hours at more than 20 °C.
Basically perform adjustment in the
ambient environment of room
temperature more than 20 °C.
The aging time is more than20 min
at above room temperature.

Applied signal

100% full colour bar
0,7V p-p white peak

87.5% modulation

White Balance adjustment

1. Procedure basically performs checking using the production software and
make automatic adjustment using external computer.

2. It adjusts in the mode of : Colour balance Normal as follows.

Viewing Mode Dynamic

LXD7 LED7F

WHITE Normal WHITE Normal

x: 0,2890 ± 0,010 x: 0,2850 ± 0,010

y:0,3020 ± 0,010 y:0,2930 ± 0,010

GRAY Normal GRAY Normal

x: 0,2860 ± 0,010 x: 0,2850 ± 0,010
y:0,3050 ± 0,010 y:0,2930 ± 0,010

100% WHITE

50% GRAY

15

Wiring diagram

LCD PANEL

SERVICE

SD CARD

JK8702

CI SLOT

SERVICE

DG33

JK8801

DG5

JK8401

DG-BOARD

DG26

HDMI1

V-BOARD

KEY CONTROL

AP5

P2

P6

DG6

H6

DG2

H2

DG1

V1

AP4

JK2002

AUDIO OUT

JK3005

YUV, AUDIO IN

AP-BOARD

H3 H4

AP3

AP2

H-BOARD

H12

SP L / R

H51

G51

AV3

JK3700

P4

P-BOARD

P1

MAINS IN

G-BOARD

AV1

JK3003B

AV2

JK3002B

16

AV1_V 20

A

V

Y

V

AV1_VOUT 19

AV1_RED 15

AV1_GREEN 11

AV1_BLUE 7

JK3002B

AV1_LOUT 3

V1 21PIN SCART

AV1_ROUT 1

AV2_V 20

AV2_VOUT 19

AV2_C 15

AV2 GREEN 11

AV2 BLUE 7

JK3003B

AV2_LOUT 3

V2 21PIN SCART

AV2_ROUT 1

JK3005

YPBPR, AUDIO IN

Video & Stereo Audio Block Diagram

H-BOARD

1 AV1_V

33 AV1_VO
79 AV1_RED

AV1_L 6

AV1_R 2

AV2_L 6

AV2_R 2

Y

PB

PR

L

R

YPBPR_Y

YPBPR_PB

YPBPR_PR

PC_LIN

PC_RIN

PC_LIN 10

PC_RIN 11

IC3101

AUDIO SWITCH

6 AV4_L

7 AV4_R

AV2_RO 26

AV2_R 15

AV2_LO 25

DTV_SL 39

DTV_SR 40

AV2_L 14

AV1_R 17

AV1_RO 24

TV_L 41
TV_R 42

AV_R 33

AV_L 32

77 AV1_GREEN
81 AV1_BLUE
8,10 AV2_V
31 AV2_VO

12 AV2_C

53 AV3_RED /C
51 AV3_GREEN

55 AV3_BLUE

IC2002

AUDIO

DAC

10

11

AV1_L 16

AV1_LO 23

4

1
2
3

4

63 YPBPR_Y

IC2006

VIDEO SWITCH

65 YPBPR_PB

67 YPBPR_PR

2

IC3001

(

N15876A)

MAIN_Y_OUT

MAIN_PB_OUT 39
MAIN_PR_OUT

MAIN_RGB_CVBS_OUT 44

DVB_CVBS 20

MAIN_RF_CVBS

97 AV4_

95 AV4_

99 AV4_C

AMPLIF IER

40

38

91

5

3

IC2012

HP

7

HP_ROUT

HP_LOUT

Q3200

761

IC2011

AUDIO

AMPLIF IER

76 AINL2
77 AINR2
34 XOUT
35 BCLK
37 SDTI
36 LRCK

58 HPOUTR1
57 HPOUTL1
74 AUXOU TL2

75 AUXOUTR2
79 AV_R
78 AV_L

AUDIOOUT_L

AUDIOOUT_R

Q2015

Q2021

2

AUXOUTL1 72

AUXOUTR1 73

Q2017

Q2016

8

SIF_IN1

DTV_BCLK 19

43 SQ_L-

18

43

TU3200

21

TUNER

VIDEO_OUT

DTV_SDIN 24

IC2106

AUDIO

PROCESSOR

42 SQ_L+

16

IC2301

AUDIO

AMPLIF IER

36

10

11

AM

SIF_OUT

MAIN_Y_OUT
MAIN_PB_OUT

MAIN_PR_OUT

MAIN_RGB_CVBS_OUT

DTV_LRCK 18

DVB_CVBS

DTV_BCLK

DTV_SDIN
DTV_LRCK
DTV2_SDIN

HDMI_BCLK

HDMI_SDIN

HDMI_LRCK

SPDF_IN

SPDIF_IN 39

DTV2_SDIN 23

HDMI_SDIN 22

HDMI_BCLK 27

HDMI_LRCK 26

45 SQ_R-

44 SQ_R+

8

6

31

24

H6

L

R

3
5
7

10
26

58
60
62
64
66
68
70
72

DG6

3
5
7

10
26
58

60
62
64
66
68
70
72

JK2002

AUDIO OUT

TU8301

JK8401

JK4501

DG-BOARD
(EXCHANGE UNIT)

MAIN_Y/CVBS
MAIN_PB/C
MAIN_PR

RGB_CVBS

DVB_CVBS

DTV_BCKL

DTV_SDIN
DTV_LRCK
DTV2_SDIN
HDMI_BCLK

HDMI_SDIN
HDMI_LRCK
SPDIF_IN

TUNER

DIGITAL

DEMODULATOR

CI SLOT

HDMI 1

DVB_CVBS

DTV_BCKL

DTV_SDIN
DTV_LRCK

DTV2_SDIN

IC8301

COFDM

4

Q4516

Q4515

Q4514

Q4519

Q4517

IC2000

2

TS

SERIAL

BUS

DATA

99 Y_IN

78 PB/C

94 PR

80 RGB_CVBS

97 SOY

8 HDMI_BCLK
3 HDMI_SDIN
7 HDMI_LRCK
2 SPDIF

112,113,115,116,

118,119,121,122

RXA_CN,CP,0N,0P,1N,1P,2N,2P

16,17,18,24-33,
38-48,51-53,55,

58

IC4510

ADV7493BBSTZ

SPDIF_IN

D12
D13

A13

F14

D15

A10

IC8002

DDR2-0

IC8003

DDR2-1

VI1P2-VI1P9,VI1P12-VI1P19,VI1P22- VI1P29

CLK,CLKOA,VSYNC,HSYNC,ENB

A2-A9,B1,B3-B10,C1,C2,
C4-C10,D1,D2,E2,E3

IC8001-PeaksLite2

MN2WS0039A

VIDEO / AUDIO IF

B25,B26,C25,C26,D25,D
26,E25,E26,F25,F26,F25,
F26,G25,G26

TE1P,TE1N,TD1P,TD1N,TCLK1P,TCLK1N,

TC1P,TC1N,TB1P,TB1N,TA1P,TA1N

IC8601

EEPROM

IC8554

16 MB FLASH

9

R

L

JK3700

19

11

17

7

5

G-BOARD

3

1

10815

H51

15

13

AV4_R

AV4_L

AV4_V

AV4_Y

Y

AV4_C

C

L

HP_LOUT

HP_ROUT

G51

R

7

H12

SP_R

1

3

2

4

DG5

SP_L

1-15

TO LCD PANEL

17

Power Supply Block Diagram

8

−

A

AP3

Y

A

V

V

V

V

V

A

A

V

V

V

V

V

V

V

V

V

6

V

V

H-BOARD

IC3001

IDEO

SWITCH

6, 25, 45, 69

IC3101

AUDIO

SWITCH

IC2013

REG

5

5V

8

IC2012

HP AMPLIFIER

DTV9V

DTV9V

5

MAIN9V

4

IC2301

AUDIO

AMPLIFIER

26, 27, 32, 35, 40, 41

1, 21, 22, 23, 44

TU3200

5, 9, 16

IC2002

AUDIO DAC

18

14

SOUND15V
SOUND12V

SUB5

BT30

SUB5

12V_PANEL

LCD3,3

(DTV9V) 9V_SUB

5V_SUB

IC2106

AUDIO

PROCESSOR

4, 53, 59, 68, 71

14, 21, 31, 40, 51

IC2007

AMPLIFIER

IC2011

AMPLIFIER

SUB3,3V

MAIN9

12

29

8

8

AUD3,3V

SUB3,3V

DVDD1,8V

DTV9V

DTV9V

STB5

3,3V

3,3V

AUD3,3V

DVDD1,8V

SOUND12V

BT30V

IC2010

5Vout

IC2008

1Vout

IC2107

1Vout

IC2303

1Vout

Q2639

IC2610

REGULATOR

REG

REG

REG

REG

Vin1

Vin7

Vin7

Vin3

SUB5V

SUB5V

SUB3,3V

SOUND15V

DTV9V

MAIN_9V
SUB_5V
DTV9V

SOUND15V

12V_PANEL

STB+5V

H3

1

2-3
6-7

21-22

12-13

21

AP-BOARD

1
2-3
6-7

21-22

12-13

21

MAIN_9V

SUB_5V
SUB_9V

UDIO_16V

PANEL_5V/12V

5V_STB

5V_STBY

SUB_9V
MAIN_9V

SUB_5V

PANEL_5V/12V

1

UDIO_16V

IC3805

REG

Q3810
Q3811

11−14

IC3804

9V

Q3814

IC3803

2

IC3802

REG

IC3801

6

REG

REG

MAIN IN

41

P1

8

D3819

1

6

1

21

6−8

12

Q3813

5−8

F801

24V_HEADER

SW 801

D854
D851

Q851

PC801

LF804

LINE

FILTER

T801

13

8

LF802

LINE

FILTER

3
4

6
2

P-BOARD

D801

-

IC802

MAIN PS CONTROL

11

15

10

19

20

~

+

~

T802

2
4

7

23

7

D818

DG-BOARD

P16, H21, P3, E22, E23, F21, C12, E14,

AA8, AA9, A25, A26, B24, C23, D7, D8,

D16, D17, D22, E21, F11, F12, F15, F20,

G4, H4, J6, K6, N6, P6, R4, T4, U6,

M17, U15, T17, N17, R17, T15, U16,

AB15, AC15, AD 15, AE15, AF15, U14,

N10, P10, R10, R11, R12, R13, T10,

T11, T12, T13, U10, U11, U12, U13,

AA14, AB14, AC14, AD14, AE14, AF14

IC8001-PeaksLite

PROCESSOR

K23, K26, M21, M23, N24, P25, R21,

T25, U24, V22, W26, Y22, Y24, AA21,

AB19, AB22, AB 25, AC1 8, AC23 , AD17,

AD22, AD25, AE16, AE21, AF20, AF26

A1, E1, M9, J9, R1, J1, A9, C1, C3, C7,

A1, E1, M9, J9, R1, A9, C1, C3, C7, C9,

2, 13, 15, 16, 17, 18, 33, 45

IC8301

LVDS DRIVER

C9, E9, G1, G3, G7, G9

IC8002

MEMORY

E9, G1, G3, G7, G9, J1

IC8003

MEMORY

7, 19, 21, 28

AC10, AC11

1, 21, 22, 23, 44

IC8302

1,8V

1Vout

REG

SUB3,3V

SUB1,2

SUB1,8V

SOUND12V

1,8V_DDRI/F

1,8V_DDRI/F

SUB3,3V

SUB3,3V

Vin8

1-2

1-2

5-6 8-9

5-6 8-9

LCD3,3

12−14

12-14

12V_PANEL

DTV9V

IC8004

CLOCK

GENERATOR

IC8401

DATA BUFFER

IC8402

TS BUFFER

IC8404

TS BUFFER

IC8405

TS BUFFER

IC8406

TS BUFFER

IC8407

TS BUFFER

IC8408

TS BUFFER

IC8409

TS BUFFER

JK8401

CI SLOT

17, 18
51, 52

5V_SUB

5, 13, 15

17-18

17-18

1

24

20

20

20

20

20

20

20

SUB3,3

21 23

21 23

MAIN9

SUB3,3V

SUB3,3V

SUB5V

SUB5V

SUB5V

SUB5V

SUB5V

SUB5V

SUB3,3V

SUB3,3

SUB5V
SUB5V

H2

DG2

STB5

SUB5V

SUB1,8V
SUB1,2V

SUB3,3V

SUB5V
SUB3,3V

SUB5V

STB5V

TVDD3,3V
AVDD3,3V

DVDDIO3,3V

CVDD1,8

DVDD1,8V

IC8403

1Vin

Peaks-LITE2 POWER

3Vout

IC5601

REG

12Vout

IC5600

23Vout

REG

MAIN5V/

MAIN3,3V

Q5692
Q5693

GenX4 POWER
D5671
D5673

IC5670

1Vin

1Vout

5Vout

1Vout

1

Vout

IC4506

IC4507

IC4508

IC4509

REG

REG

REG

REG

REG

REG

Vout6

Vin

Vin

Vout5

Vin7

Vin1

Vin8

Vin8

23

17

5VCARD

DTV9V

DTV9V

MAIN5V

MAIN3,3V

STB3,3V

SUB5V

SUB5V

SUB3,3V

SUB3,3V

IC1100

MICROPROCESSOR

31, 50, 74, 78, 81, 85, 94, 108

IC8554

NOR FLASH

29, 43, 53

IC8621

DeMPX

IC8622

DeMPX

IC1101

EAROM

IC5671

RESET IC

IC5660

RESET IC

Q852

PC802

PC803

IC 851

REGULATOR

84, 88

STB3,3V

DV7493BBSTZ

SUB3,3V

SUB3,3V

20

SUB3,3V

20

STB3,3V

5

111, 123, 127,

IC4510

23, 57, 142

68, 71, 101, 104, 109,

15, 35, 50, 67

IC4504

EEPROM

IC4515

COMPARATOR

IC2000

BUS BUFFER

139

125, 141

8

8

5

VDD3,3V

TVDD3,3V

DVDD1,8V
CVDD1,8V

DVDDIO3,3V

MAIN3,3V

SUB5V

SUB3,3V

P12V

27, 29
30, 31

Q855

24V

1-4

P2

LCD PANEL

IC801

24V

1-4

P

V-BOARD

SUB5V

2

STB5

2

IC4501

EDID EPROM

IC4513

BUS REPEATER

IC4514

BUS REPEATER

IC8601

EEPROM

8

1

5, 8

1

5, 8

8

D4527

MAIN5

MAIN5V

MAIN3,3V

MAIN5V

MAIN3,3V

SUB3,3V

STB3.3

SUB5V

SUB5V

DG1

4

3, 11

SUB5V

4
212

STB3.3V

SUB5V

STB3,3V

STB3.3V
STB3.3V

Q1004
Q1002

PC1001

RM1001

REMOTE

D1001

18

Control Block Diagram

A

Y

V

JK3002B

JK3003B

H - BOARD

AV1_SLOW 8

AV1_QLINK 10

AV1_FB 16

V1 21PIN SCART

AV2_SLOW 8

AV2_QLINK 10

AV2_FB 16

V2 21PIN SCART

R

JK2002

L

AUDIO OUT

MONITOROUT_MUTE

Q2002

Q2003

AV2_SLOW

FB
AV3_FB
AV1_FB
AV1_SLOW
SDA0B_5V
SCL0B_5V
VIDEO_STATUS

DAC_PD
SCL0B_5V
SDA0B_5V

AUDIO_MUTE

Q2102

Q2101

SOUND_SOS

SDA0B
SCL0B

AUDIO_XRST

TV_SUB_ON_DELAY

SDA0B_5V

SDA0B

SCL0B_5V

SCL0B

MUTE

Q2641

Q2640

4
46,74
48

49

IC3001

80

VIDEO SWITCH

83
84
85

22

IC3101

35

AUDIO SWITCH

36

15

PROCESSOR

16
17
50

IC2106

AUDIO

Q2635

AUDIO_MUTE

DAC_PD

AMUTE

SOUND_SOS

AMUTE

SOS

MONITOROUT_MUTE

AUDIO_MUTE

SP_MUTE

HDMI_INT2

MONITOROUT_MUTE

AMUTE

SCL0B_5V

SDA0B_5V

AFC1

Q2301

6

5

2

IC2002

AUDIO DAC

7
17

5

IC2012

HP AMP

V1-2 OUT MUTE

Q2004

Q2006

D2028

Q2040

13
14

TUNER

20

IC2301

AUDIO AMP

D2637

Q2005

Q2007

MUTE SW

Q2034

D2031

D2032

Q2031

Q2039

FB

SCL0B

SDA0B

AUDIO_XRST

AUDIO_MUTE

TV_SUB_ON_DELAY

SP_MUTE

SOS

SOUND_SOS

AFC1

QLINK_AV2

QLINK_AV3

TUNER_MAIN_ON

TUNER_SUB_ON

FAN_CONT

KEY

PANEL_STBY_ON

24V_DET

HDMI_INT2

VIDEO_STATUS

H6

12
28
30
32
33
34
35
38

39

41
44

46

48

49
51

54

55
56
74

79

DG6

IC5660

RESET IC

MAIN5

MAIN3.3V

Q5691 Q5690

IC4510

ADV7493B

HDMI CEC

Q1107

Q1108

IC1100

MICROPROCESSOR

IC4504

EEPROM

IC4513

LEVEL

TRANSLATING

IC8002

DDR2

IC8003

DDR2

IC8554

FLASH

IC8004

CLK GEN

IC8601

EEPROM

IC8001

PeaksLite2

IC4501

EEPROM

SERIAL bus

LVDS bus

DG - BOARD

(EXCHANGE UNIT)

HDMI CEC

TU8301

DIG TUNER

IC8301

COFDM DEM

HDMI1

JK4501

JK8401

CI SLOT

DATA

JK8801

SD CARD

Q2003

AP - BOARD

TUNER_SUB_ON

SOS

PANEL_ON

TUNER_MAIN_ON

H4

AP4

KE

PANEL_ON

9

10

9

SOS

24V_DET

TUNER_SUB_ON

TUNER_MAIN_ON

23

18

16

23

18

10

16

FAN_CONT

H3

AP3

9

18

9

18

V - BOARD

RM1001

REMOTE

OUT

D1102D1100

REMOTE

DG1

QLINK

IC1101

EEPROM

DG33

SERVICE

LCD PANEL

V1

SOS

TUNER_MAIN_ON

TUNER_SUB_ON

PANEL_ON

KEY

Q3816

Q3807

Q3803

Q3801

Q3809

BACKLIGHT_PSU_ON

24V_DET

PC1001

CATS

Q1004

Q1002

Q1010

Q1006

Q1007

Q1009

4

REMOTE

G_LED_ON

R_LED_ON

TIMER_REC_LED

AI_SENSOR

5

8

7

6

1

P - BOARD

KEY CONTROL

KEY SW

AP5

1

KEYSCAN

24V_DET

TUNER_SUB_ON

BACKLIGHT_PSU_ON

AP2

13

14

15

P4

24V_DET

13

TUNER_SUB_ON

14

BACKLIGHT_PSU_ON

15

Q857

Q851

Q853

Q852

PC801

PC801

19

Parts Location

The numbers on the exploded view below refer to the exploded view section of the Replacement Parts List.

28

7

NOTE:

(UK)

26

(CONTINENTAL)

39
27

3

16

13

12

11
14

20

NOTE:

The numbers on the exploded view below refer to the exploded view section of the Rep lacement Parts List.

5

36

[33]

38
20
32

[35]

9

25

36

[42]

29
19
41

[35]

22

1

21

18

17

4

34

[31]

6

8

10

15
30

2

34

[40]

23

37

24

21

Replacement Parts List

Components Identified by mark have special characteristics important for safety.

In case of ordering these spare parts, please always add the complete Model-Type number to your order.

RTL (Retention Time Limited)

Note:

* When replacing any of these components, use only manufacturers specified parts.

The marking (RTL) indicates that the Retention Time is Limited for this item. After the
discontinuation of this assembly in production, the item will continue to be available for
a specific period of time. The retention period of availability is dependent on the type of
assembly, and in accordance with the laws governing part and product retention. After
the end of this period, the assembly will no longer be available.

Important Safety Notice

X

The marking (X) indicates that board should be exchanged for service.

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

COMMON PARTS

EXPLODED VIEW

TUNER 1 ENGF7701GF

TUNER DVB 2 ENV77M05D8F

REMOTE CONTROL 3 EUR7651110

SPEAKER 4 FB126N1-B1

KEY BUTTOM MODULE 5 K0RB00500008

80P CONNECTOR COVER 6 K1ZZ00001424

PANASONIC BADGE 7 TBM4G3017A

CONNECTOR COVER 8 TKP0E16001

AV3 BRACKET 9 TKP0E17101

HDMI COVER 10 TKP0E17201

PEDESTAL COVER 11 TKX0E1002

BLIND COVER 12 TKX0E1302

SUPPORT BRACKET 13 TKZ0E9362

BASE PLATE 14 TKZ0E9363

WALL MOUNT METAL 15 TKZ0E9367

MOUNTING PLATE 16 TKZ0E9374

TUNER BRACKET 17 TMW0E109

DG/H P.C.B. CHASSIS FR 18 TMX0E408

P P.C.B CHASSIS FRAME 19 TMX0E409

AP P.C.B. 20 TNP8EAP60AB

G P.C.B. 21 TNP8EGL60AA

P P.C.B. 22 TNP8EPL60AA

V P.C.B. 23 TNP8EVL60AA

H P.C.B. 24 TNPA4291DF

POWER BUTTON ASSY 25 TTP0E0016

MISCELLANEOUS COMPONENTS

BATTERY . R6RC/2P

RUBBER FOOT FRONT/REAR. TBLG3071

RUBBER FOOT L/R . TBLG3073

AV3 LABEL . TBM0E0771

REAR AV LABEL/HDMI. TBM0E0839

5 KEY SPACER . TKK0E9526

LED IR WINDOW . TKP0E17601

SCREW . XSS4+6FJK

SCREW . XTB4+15JFJK

SCREW . XTV3+8JFJK

SCREW . XTW3+12TFJ

SCREW .XYN3+J8FJ

SCREW . XYN4+F10FJ

FERRITE CORE FC1 J0KF00000018

57/
57/
57/
57/
57/

I.C.s

MAIN PS CONTROL IC801 FA5501AP

MAIN PS CONTROL IC802 F9222L-F219

REGULATOR IC851 TL431BIDBZR

MICRO_GENX4 IC1100 MNZSFD7GP42

EEPROM BR24L08F-WE2IC1101 C3EBFC000042

BUFFER IC2000 C0JBAZ002261

AUDIO DAC IC2002 C0FBBY000027

BUFFER IC2006 C0JBAZ002261

REGULATOR IC2008 C0CBCBE00001

REGULATOR IC2010 C0CBCBC00190

OPERATIONAL AMPLIFIERIC2011 C0ABBB000230

AUDIO AMPLIFIER IC2012 C1BB00000947

REGULATOR IC2013 C0DBGYY00281

AUDIO PROCESSOR IC2106 C1AB00002746

1.8V REGULATOR IC2107 C0DBFFD00003

AUDIO AMPLIFIER IC2301 C1AB00002730

REGULATOR IC2303 C0DBGYY00202

REGULATOR IC2610 C0DBAJB00004

VIDEO SWITCH IC3001 AN15876A-VT

AUDIO SWITCH IC3101 AN15862A-VT

REGULATOR IC3801 C0DBAZH00029

REGULATOR IC3802 C0DBAJG00006

REGULATOR IC3803 C0DBAZH00029

IC COMPARATOR IC3804 C0DBAHY00002

VOLTAGE REGULATORIC3805 AN78L05M-E1

RESET IC IC3806 C0EBM0000026

2KBIT EEPROM IC4501 C3EBDC000067

EEPROM M24C04-RMN6TPIC4504 C3EBEY000009

REGULATOR IC4506 C0DBGGF00001

REGULATOR IC4507 C0CBCBC00190

REGULATOR IC4508 C0CBCAD00082

REGULATOR IC4509 C0CBCAD00082

VIDEO DECODER IC4510 C1AB00002753

LEVEL SHIFTER IC4513 C0JBAU000034

LEVEL SHIFTER IC4514 C0JBAU000034

COMPARATOR IC4515 C0BBBA000024

DC/DC CONVERTER IC5600 C0DBAYY00273

DC/DC CONVERTER IC5601 C0DBAYY00274

RESET IC IC5660 C0EBM0000026

REGULATOR IC5670 C0CBCBC00190

RESET IC IC5671 C0EBF0000376

PEAKS LITE 2 IC8001 MN2WS0039A

DDR SDRAM IC8002 C3ABRG000080

DDR SDRAM IC8003 C3ABRG000080

CLK GEN IC8004 C0ZBZ0001030

COFDM DEMODULATORIC8301 C1AB00002710

REGULATOR IC8302 C0CBCAD00082

22

FUSES

DIODES

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

BUS BUFFER IC8401 C0JBAZ002800

BUS BUFFER IC8402 C0JBAZ002692

IC SWITCH IC8403 C0ZBZ0001333

BUS BUFFER IC8404 C0JBAZ002692

BUS BUFFER IC8405 C0JBAZ002692

BUS BUFFER IC8406 C0JBAZ002692

BUS BUFFER IC8407 C0JBAZ002692

BUFFER IC8408 C0JBAU000025

BUFFER IC8409 C0JBAU000025

LOGIC IC IC8621 C0JBAZ002845

LOGIC IC IC8622 C0JBAZ002845

PHOTO COUPLER PC801 B3PAA0000363

PHOTO COUPLER PC802 B3PAA0000363

PHOTO COUPLER PC803 B3PAA0000363

PHOTO COUPLER PC1001 B3JB00000026

LED RECEIVER RM1001 PNA4701M05TV

AC FUSE F801 K5D502BNA007

MICRO CHIP FUSE PA3801 ERBSE2R50U

MICRO CHIP FUSE PA3802 ERBSE0R50U

MICRO CHIP FUSE PA3803 ERBSE2R50U

FUSE R2856 K5H1622A0023

ESD SUPPRESSOR C8801 EZAEG2A50AX

ESD SUPPRESSOR C8802 EZAEG2A50AX

ESD SUPPRESSOR C8803 EZAEG2A50AX

ESD SUPPRESSOR C8804 EZAEG2A50AX

ESD SUPPRESSOR C8805 EZAEG2A50AX

ESD SUPPRESSOR C8806 EZAEG2A50AX

ESD SUPPRESSOR C8807 EZAEG2A50AX

ESD SUPPRESSOR C8808 EZAEG2A50AX

ESD SUPPRESSOR C8809 EZAEG2A50AX

DIODE D801 B0EBNT000016

VARISTOR D802 ERZV10V621T2

DIODE D803 MAZ81800ML

DIODE D804 B0AAMV000001

DIODE D805 MA2J11100L

DIODE D806 MA22F2000L

DIODE D807 B0AAMV000001

ZENER DIODE D808 B0BC022A0007

DIODE D809 MA22D3900L

DIODE D810 B0BA5R600016

DIODE D811 SD83304TE12R

ZENER DIODE D813 MAZ82000ML

DIODE D814 B0FABR000010

DIODE D816 1N4004-F

DIODE D817 SC9022TE12RA

DIODE D818 B0AAMV000001

DIODE D819 MAZ23300BH

DIODE D820 SD83304TE12R

ZENER DIODE D821 MAZY27000L

ZENER DIODE D822 MAZY27000L

DIODE D823 MA22F2000L

DIODE D824 MA22F2000L

DIODE D826 MA22F2000L

DIODE D827 B0ACCK000005

DIODE D828 B0BA5R600016

DIODE D829 BZX79B75A26A

DIODE D830 BZX79B75A26A

DIODE D831 MAZ80750ML

DIODE D851 YG868C10RF91

DIODE D852 MA2J11100L

DIODE D853 MA2J11100L

DIODE D854 YG868C10RF91

DIODE D856 MA2J11100L

DIODE D857 MAZ23300BH

ZENER DIODE D858 MAZ81600HL

ZENER DIODE D859 MAZ81600HL

DIODE D861 MA2J11100L

DIODE D1001 B3CKE0000007

DIODE D1002 B3ACA0000272

DIODE MA704ATX D1100 MA3X704A0L

DIODE MA704ATX D1102 MA3X704A0L

DIODE MA704ATX D1107 MA3X704A0L

DIODE D1112 MA2J72800L

DIODE D1113 MA2J72800L

DIODE D2026 MA2J11100L

DIODE D2028 MA2J11100L

DIODE D2029 MA2J11100L

DIODE D2031 MA2J11100L

DIODE D2032 MA2J11100L

DIODE D2033 MA2J11100L

DIODE D2034 MA2J11100L

ZENER DIODE D2119 B0BC01100001

DIODE D2189 MA2J11100L

DIODE D2200 MA22D3900L

DIODE D2301 MA2J11100L

DIODE D2302 MA2J11100L

ZENER DIODE D2303 MAZ30560HL

DIODE D2304 MA2J11100L

DIODE D2632 MA2J11100L

DIODE D2633 MA2J11100L

DIODE D2634 MA3X78900L

DIODE D2635 MA2J11100L

DIODE D2636 MAZ30470HL

DIODE D2637 MA2J11100L

ZENER DIODE D2638 B0BC03900015

DIODE D3003 MAZ81400ML

DIODE D3004 MAZ81400ML

DIODE D3005 MAZ81400ML

DIODE D3007 MAZ81400ML

DIODE D3008 MAZ81400ML

DIODE D3009 MAZ81400ML

DIODE D3010 MAZ81400ML

DIODE D3011 MAZ81400ML

DIODE D3012 MAZ81400ML

DIODE D3025 MAZ81400ML

DIODE D3027 MAZ81400ML

DIODE D3028 MAZ81400ML

DIODE D3030 MAZ81400ML

DIODE D3031 MAZ81400ML

DIODE D3032 MAZ81400ML

DIODE D3038 MAZ81400ML

DIODE D3039 MAZ81400ML

DIODE D3041 MAZ81400ML

DIODE D3042 MAZ81400ML

DIODE D3043 MAZ81400ML

ZENER DIODE D3044 B0BC01100001

DIODE D3100 MAZ81400ML

DIODE D3801 SD83304TE12R

DIODE D3802 MA22F2000L

DIODE D3803 MA22F2000L

DIODE D3804 MAZ81800ML

DIODE D3805 MA22F2000L

ZENER DIODE D3806 MAZ82000ML

DIODE D3807 MA2J11100L

DIODE D3809 MA2J11100L

DIODE D3810 MA2J11100L

DIODE D3811 USF5G49TE16Q

DIODE D3813 SD83304TE12R

ZENER DIODE D3814 MAZ82000ML

DIODE D3815 MAZ81800ML

DIODE D3816 MAZ81800ML

DIODE D3817 MA22F2000L

DIODE D3818 MAZ81800ML

23

TRANSISTORS

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

DIODE D3819 MA24D5000B

DIODE D3820 MAZ81800ML

DIODE D3821 MA22F2000L

DIODE D3822 SD83304TE12R

DIODE D3823 MAZ81800ML

DIODE D3824 MA2J11100L

DIODE D3825 MA2J11100L

DIODE D3826 MA2J11100L

DIODE D3827 MA24D5000B

DIODE D3828 MA2J11100L

DIODE D3829 MA2J11100L

ESD SUPPRESSOR D4501 EZAEG2A50AX

ESD SUPPRESSOR D4503 EZAEG2A50AX

ESD SUPPRESSOR D4505 EZAEG2A50AX

ESD SUPPRESSOR D4507 EZAEG2A50AX

ESD SUPPRESSOR D4509 EZAEG2A50AX

ESD SUPPRESSOR D4511 EZAEG2A50AX

DIODE D4515 MAZ30560ML

ESD SUPPRESSOR D4516 EZAEG2A50AX

ESD SUPPRESSOR D4517 EZAEG2A50AX

ESD SUPPRESSOR D4520 EZAEG2A50AX

ESD SUPPRESSOR D4521 EZAEG2A50AX

ESD SUPPRESSOR D4523 EZAEG2A50AX

DIODE D4526 B0HCMM000014

DIODE D4527 B0HCMM000014

ESD SUPPRESSOR D4528 EZAEG2A50AX

DIODE D4532 B0HCMM000014

DIODE D4800 MA3X152K0L

DIODE D5601 MA22D3900L

DIODE D5602 MA22D3900L

DIODE D5603 B0JCDD000002

DIODE D5604 B0JCDD000002

DIODE D5605 MA22D3900L

DIODE D5606 B0JCDD000002

DIODE D5607 MAZ802400L

DIODE D5608 MAZ802400L

ZENER DIODE D5609 MAZ80560LL

DIODE D5670 MA2J11100L

DIODE D5671 B0HCMM000014

DIODE D5673 B0HCMM000014

ZENER DIODE D5690 B0BC6R600005

ZENER DIODE D5691 B0BC6R600005

ZENER DIODE D5692 MAZ80390HL

TRANSISTOR Q802 B1CFNG000007

TRANSISTOR Q803 2SC584500L

TRANSISTOR Q804 2SC584500L

TRANSISTOR Q805 B1CFNG000007

TRANSISTOR Q807 B1CFND000009

TRANSISTOR Q808 2SK2009TE81L

TRANSISTOR Q809 2SB0710ARL

TRANSISTOR Q810 XN0140100L

TRANSISTOR Q811 2SD10300SL

TRANSISTOR Q812 B1CERR000022

TRANSISTOR Q851 2SC584500L

TRANSISTOR Q852 2SC584500L

TRANSISTOR Q853 2SC584500L

TRANSISTOR Q854 2SC584500L

TRANSISTOR Q855 B1CGRG000009

TRANSISTOR Q1002 2SB0709ASL

TRANSISTOR Q1004 2SB0709ASL

TRANSISTOR Q1006 2SD0601ASL

TRANSISTOR Q1007 2SD0601ASL

TRANSISTOR Q1009 2SD0601ASL

TRANSISTOR Q1010 2SD0601ASL

TRANSISTOR Q1107 2SD0601ASL

TRANSISTOR Q1108 2SD0601ASL

TRANSISTOR Q2002 2SC584500L

TRANSISTOR Q2003 2SC584500L

TRANSISTOR Q2004 2SC584500L

TRANSISTOR Q2005 2SC584500L

TRANSISTOR Q2006 2SC584500L

TRANSISTOR Q2007 2SC584500L

TRANSISTOR Q2015 2SA207700L

TRANSISTOR Q2016 2SC584500L

TRANSISTOR Q2017 2SC584500L

TRANSISTOR Q2021 2SA207700L

TRANSISTOR Q2031 2SA207700L

TRANSISTOR Q2033 2SA207700L

TRANSISTOR Q2034 2SC584500L

TRANSISTOR Q2035 2SC584500L

TRANSISTOR Q2039 2SC584500L

TRANSISTOR Q2040 2SC584500L

TRANSISTOR Q2041 2SC584500L

TRANSISTOR Q2101 2SC584500L

TRANSISTOR Q2102 2SC584500L

TRANSISTOR Q2301 2SA207700L

TRANSISTOR Q2635 2SC584500L

TRANSISTOR Q2636 2SA207700L

TRANSISTOR Q2637 2SA207700L

TRANSISTOR Q2638 2SC584500L

TRANSISTOR Q2639 B1CFNG000001

TRANSISTOR Q2640 B1CBHD000002

TRANSISTOR Q2641 B1CBHD000002

TRANSISTOR Q3027 2SA207700L

TRANSISTOR Q3028 2SA207700L

TRANSISTOR Q3200 2SA207700L

TRANSISTOR Q3801 2SC584500L

TRANSISTOR Q3802 2SC584500L

TRANSISTOR Q3803 2SC584500L

TRANSISTOR Q3805 2SC584500L

TRANSISTOR Q3806 2SA207700L

TRANSISTOR Q3807 2SA207700L

TRANSISTOR Q3808 2SC584500L

TRANSISTOR Q3809 2SC584500L

TRANSISTOR Q3810 B1DHDC000028

TRANSISTOR Q3811 B1DHDC000028

TRANSISTOR Q3812 2SC584500L

TRANSISTOR Q3813 B1DHED000013

TRANSISTOR Q3814 B1CHRE000003

TRANSISTOR Q3816 2SC584500L

TRANSISTOR Q3817 2SA207700L

TRANSISTOR Q4200 2SD0601ASL

TRANSISTOR Q4201 2SB0709ASL

TRANSISTOR Q4501 2SD0601ASL

TRANSISTOR Q4503 2SD0601ASL

TRANSISTOR Q4504 2SD0601ASL

TRANSISTOR Q4514 2SB0709ASL

TRANSISTOR Q4515 2SB0709ASL

TRANSISTOR Q4516 2SB0709ASL

TRANSISTOR Q4517 2SB0709ASL

TRANSISTOR Q4519 2SB0709ASL

TRANSISTOR Q4800 2SD0601ASL

TRANSISTOR Q4801 2SC39380QL

TRANSISTOR Q4802 2SC39380QL

TRANSISTOR Q4803 2SD0601ASL

TRANSISTOR Q5600 B1MBEDA00015

TRANSISTOR Q5601 B1MBEDA00015

TRANSISTOR Q5602 B1MBEDA00015

TRANSISTOR Q5603 2SD0601ASL

TRANSISTOR Q5604 2SD0601ASL

TRANSISTOR Q5690 B1ABCF000138

TRANSISTOR Q5691 B1ABCF000138

TRANSISTOR Q5692 B1DHDC000028

TRANSISTOR Q5693 B1DHDC000028

24

TRANSFORMERS

COILS

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

TRANSISTOR Q8401 2SD0601ASL

TRANSISTOR Q8402 2SD0601ASL

TRANSFORMER T801 ETS35LZ126AD

TRANSFORMER T802 ETS27BE1E9AD

CHOKE COIL L801 7025LYF-121K

COILL802 EXCELSA35T

COIL L803 EXCELSA35V

COILL804 EXCELDR35V

COILL805 EXCELDR35V

COILL806 EXCELDR35V

COIL L807 EXCELSA35V

COIL L1100 J0JHC0000078

INDUCTOR L2001 J0JCC0000364

INDUCTOR L2002 J0JCC0000364

INDUCTOR L2003 J0JCC0000100

INDUCTOR L2004 J0JCC0000100

INDUCTOR L2005 J0JCC0000100

INDUCTOR L2006 J0JCC0000100

INDUCTOR L2007 J0JCC0000100

INDUCTOR L2008 J0JCC0000100

INDUCTOR L2009 J0JCC0000100

INDUCTOR L2010 J0JCC0000100

INDUCTOR L2015 J0JCC0000100

INDUCTOR L2016 J0JCC0000100

COIL L2021 J0JHC0000078

COIL L2022 J0JHC0000078

COIL L2026 G1C6R8MA0061

COIL BLM18PG121SN1DL2027 J0JHC0000045

COIL L2029 J0JCC0000077

INDUCTOR L2034 J0JCC0000364

INDUCTOR L2035 J0JCC0000364

COIL BLM18PG121SN1DL2039 J0JHC0000045

COIL BLM18PG121SN1DL2040 J0JHC0000045

COIL L2300 G1C100MA0291

COIL L2302 G1C100MA0291

COIL L2304 G1C100MA0291

COIL L2306 G1C100MA0291

INDUCTOR L2308 J0JJC0000011

INDUCTOR L2310 J0JJC0000011

COIL L2648 G1C470MA0077

COIL L2649 G1C100MA0072

COIL L2650 G1C3R3ZA0083

INDUCTOR L3001 J0JCC0000100

INDUCTOR L3002 J0JCC0000100

INDUCTOR L3003 J0JCC0000100

COIL L3004 G1C101M00018

INDUCTOR L3206 J0JCC0000241

INDUCTOR L3207 J0JCC0000241

COIL L3209 J0JGC0000021

INDUCTOR L3210 J0JCC0000241

COIL L3211 J0JGC0000021

INDUCTOR L3700 J0JCC0000100

INDUCTOR L3701 J0JCC0000100

INDUCTOR L3702 J0JCC0000364

INDUCTOR L3703 J0JCC0000364

COIL L3801 G1C470ZA0037

COIL L3802 J0JHC0000096

COIL L3803 G1C680ZA0037

COIL L3804 J0JHC0000031

COIL L3805 G1C330ZA0037

COIL L3806 G1C101ZA0037

COIL L4501 J0JHC0000078

COIL L4503 J0JHC0000078

COIL L4506 J0JHC0000078

COIL L4507 J0JHC0000078

FILTERS

CRYSTALS

RESISTORS

COIL L4511 J0JHC0000078

COIL L4512 J0JCC0000077

COIL L4516 J0JHC0000078

COIL L4517 J0JHC0000078

COIL L4518 J0JHC0000078

COIL L4520 J0JHC0000078

COIL L4521 J0JHC0000078

COIL L4524 J0JHC0000078

COIL L4800 TLTAZ100K

COIL L4801 J0JHC0000078

INDUCTOR L4802 J0JJC0000011

COIL L5600 G1C2R2ZA0083

COIL L5601 G1C2R2ZA0083

COIL L5602 G1C3R3ZA0083

COIL L5604 G1C100MA0077

COIL BLM21PG600SN1DL5605 J0JHC0000075

COIL L5606 G1C100MA0077

COIL BLM21PG331SN1DL5610 J0JHC0000035

COIL BLM21PG331SN1DL5611 J0JHC0000035

COIL L5670 J0JHC0000078

COIL L5690 J0JHC0000078

COIL L5691 J0JHC0000078

COIL BLM21PG600SN1DL5692 J0JHC0000075

COIL L5735 J0JHC0000078

COIL BLM18PG121SN1DL8002 J0JHC0000045

COIL BLM18PG121SN1DL8003 J0JHC0000045

COIL BLM18PG121SN1DL8004 J0JHC0000045

COIL BLM18PG121SN1DL8005 J0JHC0000045

COIL BLM18PG121SN1DL8007 J0JHC0000045

COIL BLM18PG121SN1DL8008 J0JHC0000045

COIL BLM18PG121SN1DL8009 J0JHC0000045

COIL BLM18PG121SN1DL8010 J0JHC0000045

COIL BLM18PG121SN1DL8301 J0JHC0000045

COIL BLM18PG121SN1DL8302 J0JHC0000045

COIL BLM18PG121SN1DL8304 J0JHC0000045

COIL BLM21PG600SN1DL8551 J0JHC0000075

COIL BLM21PG600SN1DL8621 J0JHC0000075

FILTER FL2001 J0HABB000004

FILTER FL2002 J0HABB000004

FILTER FL4800 J0JAD0000028

FILTER FL4801 J0JAD0000028

FILTER FL4802 J0JAD0000028

FILTER FL4811 J0HABH000012

FILTER FL4812 J0HABH000012

FILTER FL4813 J0HABH000012

FILTER FL5731 J0HABH000013

FILTER FL5732 J0HABH000013

FILTER FL5733 J0HABH000013

FILTER FL5734 J0HABH000013

FILTER FL8801 J0HAAA000013

FILTER FL8802 J0HAAA000013

LINE FILTER LF802 G0B353GA0043

LINE FILTER LF804 G0B353GA0043

CRYSTAL X1100 H0J100500035

CRYSTAL X2010 H0J245500082

CRYSTAL X4500 H0J270500113

CRYSTAL X8001 H0J270500061

CRYSTAL X8301 H0J204500006

THERMISTCF801 D4CAY8R0A010 - - 8 Ω

SMDD5672 ERJ3GEY0R00 0.1W - 0 Ω

SMDFL3006A EXB28VR000X 0W - 0 Ω

SMDFL3007A EXB28VR000X 0W - 0 Ω

S.M.CARBJA1 ERJ6GEY0R00 0.1W - 0 Ω

SMDJS1105 ERJ2GE0R00X .063W - 0 Ω

25

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDJS2031 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2032 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2046 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2048 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2049 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2051 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2059 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2060 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2061 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2062 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2064 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2096 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2101 ERJ3GEY0R00 0.1W - 0 Ω

S.M.CARBJS3005 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3007 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3008 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3009 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3010 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3011 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3012 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3013 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3014 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3015 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3016 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3018 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3019 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3020 ERJ6GEY0R00 0.1W - 0 Ω

SMDJS3023 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS3032 ERJ3GEY0R00 0.1W - 0 Ω

S.M.CARBJS3040 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3041 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3042 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3043 ERJ6GEY0R00 0.1W - 0 Ω

SMDJS3049 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS3206 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS3208 ERJ3GEY0R00 0.1W - 0 Ω

S.M.CARBJS3213 ERJ6GEY0R00 0.1W - 0 Ω

SMDJS4002 ERJ2GE0R00X .063W - 0 Ω

SMDJS4501 ERJ2GE0R00X .063W - 0 Ω

SMDL8006 ERJ3GEY0R00 0.1W - 0 Ω

SOLIDR801 ERC12ZGK105C 0.5W 10% 1M Ω

METALR802 EROS2THF4703 0.25W 1% 470K Ω

METALR803 EROS2THF4703 0.25W 1% 470K Ω

METALR804 EROS2THF3303 0.25W 1% 330K Ω

SMDR805 ERJ6ENF1002 0.125 1% 10K Ω

S.M.CARBR806 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR807 ERJ6GEYJ680V 0.1W 5% 68 Ω

S.M.CARBR808 ERJ6GEYJ393 0.1W 5% 39K Ω

S.M.CARBR809 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR810 ERJ6GEYJ221 0.1W 5% 220 Ω

S.M.CARBR811 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR812 ERJ6GEYJ220 0.1W 5% 22 Ω

S.M.CARBR813 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR814 ERJ6GEYJ473 0.1W 5% 47K Ω

CARBON R815 ERD25TJ224 0.25W 5% 220K Ω

S.M.CARBR816 ERJ6GEYJ753 0.1W 5% 75K Ω

SMDR817 ERJ12YJ182U 0.5W 5% 1K8 Ω

S.M.CARBR818 ERJ6GEYJ104 0.1W 5% 100K Ω

CARBONR819 ERD25TJ274 0.25W 5% 270K Ω

RESISTORR820 D0D2R68KA003 2W 10% R68 Ω

RESISTORR821 D0D2R68KA003 2W 10% R68 Ω

SMDR822 ERJ6ENF2202 .125W 1% 22K Ω

SMDR823 EROS2THF8203 0.25W 1% 820K Ω

METALR824 EROS2THF7503 0.25W 1% 750K Ω

METALR825 EROS2THF7503 0.25W 1% 750K Ω

SMDR826 ERJ6ENF1502V .125W 1% 15K Ω

S.M.CARBR827 ERJ6GEYJ102 0.1W 5% 1K Ω

CARBONR828 ERD25TJ274 0.25W 5% 270K Ω

CARBON R829 ERD25TJ334 0.25W 5% 330K Ω

CARBONR830 ERDS2TJ105T 0.25W 5% 1M Ω

CARBONR831 ERDS2TJ105T 0.25W 5% 1M Ω

METALR832 ERX3FJ6R8H 3W 5% 6R8 Ω

METALR834 ERG1SJ330P 1W 5% 33 Ω

WOUNDR835 D0D2R33KA003 2W 10% R33 Ω

S.M.CARBR836 ERJ6GEYJ223 0.1W 5% 22K Ω

WOUNDR837 D0D2R33KA003 2W 10% R33 Ω

S.M.CARBR838 ERJ6GEYJ103 0.1W 5% 10K Ω

SOLIDR839 ERC12ZGK105C 0.5W 10% 1M Ω

S.M.CARBR840 ERJ6GEYJ272 0.1W 5% 2K7 Ω

METALR841 ERG1SJ271 1W 5% 270 Ω

SMDR842 ERJ8GEYJ472V 0.25W 5% 4K7 Ω

S.M.CARBR843 ERJ6GEYJ153 0.1W 5% 15K Ω

S.M.CARBR844 ERJ6GEYJ223 0.1W 5% 22K Ω

SMDR845 ERJ12YJ152U 0.5W 5% 1K5 Ω

S.M.CARBR846 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR847 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR848 ERJ6GEYJ221 0.1W 5% 220 Ω

RESISTORR849 D0XB106J0003 1W 5% 10M Ω

CARBONR850 ERDS2TJ824T 0.25W 5% 820K Ω

S.M.CARBR851 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR852 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR853 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR854 ERJ6GEYJ562 0.1W 5% 5K6 Ω

S.M.CARBR855 ERJ6GEYJ103 0.1W 5% 10K Ω

SMDR857 ERJ6RBD303 0.1W 0.5 30K Ω

SMDR858 ERJ6RBD752 0.1W 0.5 7K5 Ω

SMDR860 ERJ6RBD432 0.1W 0.5 4K3 Ω

S.M.CARBR861 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR862 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR863 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR864 ERJ6GEYJ154 0.1W 5% 150K Ω

S.M.CARBR865 ERJ6GEYJ154 0.1W 5% 150K Ω

S.M.CARBR866 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR867 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR868 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR869 ERJ6GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR882 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR883 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR884 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR885 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR1002 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR1003 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR1006 ERJ3GEYJ681V 0.1W 5% 680 Ω

SMDR1007 ERJ3GEYJ332 0.1W 5% 3K3 Ω

S.M.CARBR1008 ERJ3GEYJ473V 0.1W 5% 47K Ω

S.M.CARBR1010 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR1012 ERJ3GEYJ273 0.1W 5% 27K Ω

SMDR1015 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR1017 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR1019 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR1020 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR1022 ERJ3GEYJ152 0.1W 5% 1K5 Ω

SMDR1028 ERJ3GEYJ470 0.1W 5% 47 Ω

SMDR1033 ERJ3EKF2402V 0.1W 1% 24K Ω

SMDR1034 ERJ3EKF5102V 0.1W 1% 51K Ω

S.M.CARBR1035 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR1044 ERJ3GEY0R00 0.1W - 0 Ω

S.M.CARBR1046 ERJ3GEYJ223V 0.1W 5% 22K Ω

S.M.CARBR1048 ERJ3GEYJ224V 0.1W 5% 220K Ω

S.M.CARBR1049 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR1100 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1101 ERJ2GE0R00X .063W - 0 Ω

SMDR1102 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1103 ERJ2GEJ330X .063W 5% 33 Ω

SMDR1104 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1105 ERJ2GEJ101X .063W 5% 100 Ω

26

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR1106 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1107 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1108 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1109 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1110 ERJ2GEJ273X .063W 5% 27K Ω

SMDR1122 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1124 ERJ2GEJ220X .063W 5% 22 Ω

SMDR1125 ERJ2GEJ220X .063W 5% 22 Ω

SMDR1126 ERJ2GEJ273X .063W 5% 27K Ω

SMDR1134 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1144 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1146 ERJ2GEJ102X .063W 5% 1K Ω

SMDR1147 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1153 ERJ2GEJ821X .063W 5% 820 Ω

SMDR1162 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1163 ERJ2GEJ105X .063W 5% 1M Ω

SMDR1164 ERJ2GEJ103X .063W 5% 10K Ω

SMDR1165 ERJ2GEJ182X .063W 5% 1K8 Ω

SMDR1166 ERJ2GEJ104X .063W 5% 100K Ω

SMDR1169 ERJ2GEJ563X .063W 5% 56K Ω

SMDR1170 ERJ2GEJ273X .063W 5% 27K Ω

SMDR1171 ERJ2GEJ563X .063W 5% 56K Ω

SMDR1172 ERJ2GEJ273X .063W 5% 27K Ω

S.M.CARBR1173 ERJ6GEYJ201 0.1W 5% 200 Ω

SMDR1174 ERJ2GEJ220X .063W 5% 22 Ω

SMDR1175 ERJ2GEJ220X .063W 5% 22 Ω

SMDR1179 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1181 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1182 ERJ2GEJ273X .063W 5% 27K Ω

SMDR1183 ERJ2GEJ220X .063W 5% 22 Ω

SMDR1184 ERJ2GEJ220X .063W 5% 22 Ω

SMDR1185 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1186 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1194 ERJ2GEJ563X .063W 5% 56K Ω

SMDR1195 ERJ2GEJ104X .063W 5% 100K Ω

SMDR1196 ERJ2GEJ333X .063W 5% 33K Ω

SMDR1199 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1200 ERJ2GEJ562X .063W 5% 5K6 Ω

SMDR1201 ERJ2GEJ562X .063W 5% 5K6 Ω

SMDR1203 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1204 ERJ2GE0R00X .063W - 0 Ω

SMDR1205 ERJ2GEJ220X .063W 5% 22 Ω

SMDR1206 ERJ2GEJ220X .063W 5% 22 Ω

SMDR1209 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1216 ERJ2GEJ333X .063W 5% 33K Ω

SMDR1217 ERJ2GEJ563X .063W 5% 56K Ω

SMDR1218 ERJ2GEJ103X .063W 5% 10K Ω

SMDR1219 ERJ2GEJ103X .063W 5% 10K Ω

SMDR1220 ERJ2GEJ103X .063W 5% 10K Ω

SMDR1221 ERJ3EKF7151V 0.1W 1% 7K15 Ω

SMDR1222 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1223 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1225 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1226 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1227 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1228 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1229 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1231 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1232 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1233 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1234 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1235 ERJ2GEJ104X .063W 5% 100K Ω

SMDR1236 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1237 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1239 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1241 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1243 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1244 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1245 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1246 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1247 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1255 ERJ2GEJ102X .063W 5% 1K Ω

SMDR1263 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2003 ERJ2GE0R00X .063W - 0 Ω

SMDR2010 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2011 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2012 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2013 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2014 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2015 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2016 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2017 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2018 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2019 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2020 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2023 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2024 ERJ2GEJ330X .063W 5% 33 Ω

SMDR2025 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2026 ERJ2GE0R00X .063W - 0 Ω

SMDR2028 ERJ2GEJ473X .063W 5% 47K Ω

S.M.CARBR2029 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR2030 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR2031 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR2032 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR2035 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR2036 ERJ3GEYJ104V 0.1W 5% 100K Ω

SMDR2037 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2038 ERJ3GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR2039 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR2040 ERJ3GEYJ104V 0.1W 5% 100K Ω

SMDR2041 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2042 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2047 ERJ3GEYJ331 0.1W 5% 330 Ω

SMDR2048 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2049 ERJ3GEYJ331 0.1W 5% 330 Ω

SMDR2050 ERJ3GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR2051 ERJ6GEYJ184 0.1W 5% 180K Ω

S.M.CARBR2052 ERJ6GEYJ184 0.1W 5% 180K Ω

S.M.CARBR2053 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR2054 ERJ3GEYJ104V 0.1W 5% 100K Ω

SMDR2056 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR2057 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR2058 ERJ3GEYJ301V 0.1W 5% 300 Ω

SMDR2059 ERJ3GEYJ105 0.1W 5% 1M Ω

SMDR2066 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2067 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2070 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2071 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2072 ERJ3GEYJ101 0.1W 5% 100 Ω

SMDR2073 ERJ3GEYJ330 0.1W 5% 33 Ω

S.M.CARBR2074 ERJ3GEYJ223V 0.1W 5% 22K Ω

S.M.CARBR2075 ERJ3GEYJ223V 0.1W 5% 22K Ω

SMDR2084 ERJ3GEYJ472 0.1W 5% 4K7 Ω

SMDR2085 ERJ3GEYJ561 0.1W 5% 560 Ω

SMDR2086 ERJ3GEYJ471 0.1W 5% 470 Ω

SMDR2088 ERJ3GEYJ101 0.1W 5% 100 Ω

SMDR2089 ERJ3GEYJ561 0.1W 5% 560 Ω

SMDR2092 ERJ3GEYJ471 0.1W 5% 470 Ω

SMDR2093 ERJ3GEYJ332 0.1W 5% 3K3 Ω

SMDR2094 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2096 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2097 ERJ3GEYJ332 0.1W 5% 3K3 Ω

SMDR2098 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2099 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2100 ERJ3EKF2002V 0.1W 1% 20 Ω

SMDR2101 ERJ3GEYJ331 0.1W 5% 330 Ω

27

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR2102 ERJ3GEYJ331 0.1W 5% 330 Ω

SMDR2104 ERJ3EKF2001V 0.1W 1% 2K Ω

SMDR2110 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2111 ERJ3GEYJ101 0.1W 5% 100 Ω

SMDR2112 ERJ3GEYJ105 0.1W 5% 1M Ω

SMDR2113 ERJ3EKF1203V 0.1W 1% 120K Ω

SMDR2114 ERJ3EKF7502V 0.1W 1% 75K Ω

SMDR2116 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2117 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2118 ERJ3GEYJ105 0.1W 5% 1M Ω

SMDR2119 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2122 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR2123 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR2124 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2125 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2127 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2128 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR2129 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2131 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR2132 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR2133 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2134 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2137 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2138 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2144 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2145 ERJ3EKF2002V 0.1W 1% 20 Ω

SMDR2146 ERJ3EKF2002V 0.1W 1% 20 Ω

SMDR2149 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2150 ERJ3EKF2002V 0.1W 1% 20 Ω

SMDR2151 ERJ3EKF2002V 0.1W 1% 20 Ω

SMDR2152 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR2154 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR2156 ERJ3GEYJ680 0.1W 5% 68 Ω

SMDR2157 ERJ3GEYJ331 0.1W 5% 330 Ω

SMDR2159 ERJ3GEYJ331 0.1W 5% 330 Ω

SMDR2160 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2162 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2164 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2165 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2166 ERJ3EKF1602V 0.1W 1% 16K Ω

SMDR2167 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2168 ERJ3EKF1602V 0.1W 1% 16K Ω

SMDR2169 ERJ3EKF2202V 0.1W 1% 22K Ω

SMDR2170 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2171 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2172 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2173 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2178 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR2179 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2180 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR2181 ERJ3EKF2202V 0.1W 1% 22K Ω

SMDR2182 ERJ3EKF3602V 0.1W 1% 36K Ω

SMDR2183 ERJ3EKF3602V 0.1W 1% 36K Ω

S.M.CARBR2184 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR2185 ERJ6GEYJ101 0.1W 5% 100 Ω

SMDR2186 ERJ3GEYJ823 0.1W 5% 82K Ω

S.M.CARBR2187 ERJ6GEY0R00 0.1W - 0 Ω

SMDR2189 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR2192 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR2193 ERJ3GEYJ104V 0.1W 5% 100K Ω

SMDR2194 ERJ3GEYJ102 0.1W 5% 1K Ω

S.M.CARBR2195 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR2196 ERJ3GEYJ104V 0.1W 5% 100K Ω

SMDR2197 ERJ3EKF6802V 0.1W 1% 68K Ω

SMDR2198 ERJ3EKF1583V 0.1W 1% 158K Ω

SMDR2204 ERJ3GEYJ333V 0.1W 5% 33K Ω

SMDR2205 ERJ3GEYJ203V 0.1W 5% 20K Ω

SMDR2206 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2208 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2209 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2210 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2216 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR2217 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR2223 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2224 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2225 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2227 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2228 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2229 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2230 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2231 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2232 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2233 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2234 ERJ3GEYJ330 0.1W 5% 33 Ω

S.M.CARBR2235 ERJ3GEYJ473V 0.1W 5% 47K Ω

S.M.CARBR2236 ERJ3GEYJ153V 0.1W 5% 15K Ω

S.M.CARBR2237 ERJ3GEYJ153V 0.1W 5% 15K Ω

S.M.CARBR2238 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR2244 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR2252 ERJ3GEYJ330 0.1W 5% 33 Ω

SMDR2253 ERJ3GEYJ330 0.1W 5% 33 Ω

SMDR2254 ERJ3GEYJ330 0.1W 5% 33 Ω

SMDR2257 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2263 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2265 ERJ3GEYJ472 0.1W 5% 4K7 Ω

SMDR2266 ERJ3GEYJ561 0.1W 5% 560 Ω

SMDR2271 EXB28V220JX .031W 5% 22 Ω

SMDR2276 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2290 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2291 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2294 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2295 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2296 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2297 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2301 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2302 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2303 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2304 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2305 ERJ3GEYJ471 0.1W 5% 470 Ω

SMDR2306 ERJ3GEYJ683 0.1W 5% 68K Ω

SMDR2308 ERJ8GEYJ3R3V 0.25W 5% 3R3 Ω

SMDR2310 ERJ8GEYJ470V 0.25W 5% 47 Ω

SMDR2311 ERJ8GEYJ3R3V 0.25W 5% 3R3 Ω

SMDR2313 ERJ8GEYJ3R3V 0.25W 5% 3R3 Ω

SMDR2315 ERJ8GEYJ3R3V 0.25W 5% 3R3 Ω

S.M.CARBR2317 ERJ6GEYJ100 0.1W 5% 10 Ω

S.M.CARBR2319 ERJ6GEYJ100 0.1W 5% 10 Ω

S.M.CARBR2321 ERJ6GEYJ100 0.1W 5% 10 Ω

S.M.CARBR2323 ERJ6GEYJ100 0.1W 5% 10 Ω

S.M.CARBR2325 ERJ6GEYJ100 0.1W 5% 10 Ω

SMDR2330 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR2331 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2624 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR2625 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR2628 ERJ3GEYJ512V 0.1W 5% 5K1 Ω

SMDR2629 ERJ3GEYJ512V 0.1W 5% 5K1 Ω

SMDR2853 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2854 ERJ3GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR2855 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR2857 ERJ3GEYJ472 0.1W 5% 4K7 Ω

SMDR2858 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2859 ERJ3GEYJ472 0.1W 5% 4K7 Ω

SMDR2860 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2861 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR2863 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR2864 ERJ3GEYJ682 0.1W 5% 6K8 Ω

28

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR2865 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2866 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2867 ERJ6ENF8202V .125W 1% 82K Ω

SMDR2868 ERJ6ENF1602V .125W 1% 16K Ω

SMDR2869 ERJ3GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR2890 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR2891 ERJ6GEY0R00 0.1W - 0 Ω

SMDR3001 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3002 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3003 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3004 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3005 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3006 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3008 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3009 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3010 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3011 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3013 ERJ6ENF75R0 .125W 1% 75 Ω

SMDR3014 ERJ6ENF75R0 .125W 1% 75 Ω

SMDR3015 ERJ6ENF75R0 .125W 1% 75 Ω

S.M.CARBR3018 ERJ6GEYJ680 0.1W 5% 68 Ω

SMDR3020 ERJ6ENF2152V .125W 1% 21K5 Ω

SMDR3021 ERJ6ENF2152V .125W 1% 21K5 Ω

S.M.CARBR3023 ERJ6ENF1302 0.1W 1% 13K Ω

SMDR3027 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3028 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3031 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3032 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3033 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3036 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3037 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3038 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3039 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3040 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3041 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3044 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3045 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3059 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3060 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3061 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3062 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3063 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3064 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3068 ERJ6ENF75R0 .125W 1% 75 Ω

SMDR3072 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3073 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3087 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3088 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3089 ERJ3GEYJ331 0.1W 5% 330 Ω

SMDR3090 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR3092 ERJ3GEYJ680 0.1W 5% 68 Ω

SMDR3094 ERJ3GEYJ680 0.1W 5% 68 Ω

SMDR3095 ERJ3GEYJ680 0.1W 5% 68 Ω

SMDR3096 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3097 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3098 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3099 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3100 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3101 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3103 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3106 ERJ3GEYJ274V 0.1W 5% 270K Ω

SMDR3109 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3110 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3111 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3112 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3113 ERJ3GEY0R00 0.1W - 0 Ω

S.M.CARBR3114 ERJ6GEYJ680 0.1W 5% 68 Ω

SMDR3121 ERJ3GEYJ470 0.1W 5% 47 Ω

SMDR3123 ERJ3GEYJ470 0.1W 5% 47 Ω

SMDR3130 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3131 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3133 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3134 ERJ3GEYJ274V 0.1W 5% 270K Ω

SMDR3137 ERJ3EKF1000V 0.1W 1% 100 Ω

SMDR3140 ERJ3GEYJ470 0.1W 5% 47 Ω

SMDR3143 ERJ6ENF68R0V .125W 1% 68 Ω

SMDR3144 ERJ3GEYJ221 0.1W 5% 220 Ω

S.M.CARBR3145 ERJ3GEYJ104V 0.1W 5% 100K Ω

SMDR3146 ERJ3GEYJ361V 0.1W 5% 360 Ω

SMDR3149 ERJ3GEYJ361V 0.1W 5% 360 Ω

SMDR3150 ERJ6ENF68R0V .125W 1% 68 Ω

SMDR3151 ERJ3GEYJ221 0.1W 5% 220 Ω

S.M.CARBR3152 ERJ3GEYJ104V 0.1W 5% 100K Ω

SMDR3153 ERJ3GEYJ361V 0.1W 5% 360 Ω

SMDR3154 ERJ3GEYJ361V 0.1W 5% 360 Ω

S.M.CARBR3163 ERJ6ENF1302 0.1W 1% 13K Ω

SMDR3171 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3172 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3173 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3178 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3186 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3187 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3191 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR3192 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3193 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3194 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3202 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3205 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3213 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3214 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3222 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3227 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3228 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3229 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3233 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3234 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3239 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3240 ERJ3EKF5600V 0.1W 1% 560 Ω

S.M.CARBR3243 ERJ6GEYJ271 0.1W 5% 270 Ω

SMDR3244 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR3246 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR3247 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3271 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3273 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3274 ERJ3GEY0R00 0.1W - 0 Ω

S.M.CARBR3275 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR3312 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR3350 ERJ3GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3700 ERJ6GEYJ393 0.1W 5% 39K Ω

S.M.CARBR3701 ERJ6GEYJ393 0.1W 5% 39K Ω

S.M.CARBR3702 ERJ6GEYJ184 0.1W 5% 180K Ω

S.M.CARBR3703 ERJ6GEYJ184 0.1W 5% 180K Ω

S.M.CARBR3801 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3802 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR3804 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3805 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR3806 ERJ6GEYJ334 0.1W 5% 330K Ω

SMDR3807 ERJ6RBD152V 0.1W 0.5 1K5 Ω

SMDR3808 ERJ6RBD123V 0.1W 0.5 12K Ω

S.M.CARBR3809 ERJ6GEYJ220 0.1W 5% 22 Ω

S.M.CARBR3810 ERJ6GEYJ683 0.1W 5% 68K Ω

S.M.CARBR3811 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR3812 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR3813 ERJ6GEYJ223 0.1W 5% 22K Ω

SMDR3814 ERJ6RBD242V 0.1W 0.5 2K4 Ω

SMDR3815 ERJ6RBD102V 0.1W 0.5 1K Ω

29

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR3816 ERJ12RQJR56U 0.5W 5% R56 Ω

SMDR3817 ERJ12RQJR56U 0.5W 5% R56 Ω

S.M.CARBR3818 ERJ3GEYJ223V 0.1W 5% 22K Ω

S.M.CARBR3820 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR3821 ERJ6RBD242V 0.1W 0.5 2K4 Ω

SMDR3822 ERJ6RBD102V 0.1W 0.5 1K Ω

SMDR3823 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR3824 ERJ3GEYJ472 0.1W 5% 4K7 Ω

SMDR3825 ERJ6RBD471V 0.1W 0.5 470 Ω

SMDR3826 ERJ6RBD472V 0.1W 0.5 4K7 Ω

SMDR3827 ERJ6RBD102V 0.1W 0.5 1K Ω

SMDR3828 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR3829 ERJ3GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR3830 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3831 ERJ3GEYJ563V 0.1W 5% 56K Ω

S.M.CARBR3832 ERJ3GEYJ563V 0.1W 5% 56K Ω

S.M.CARBR3834 ERJ3GEYJ563V 0.1W 5% 56K Ω

S.M.CARBR3835 ERJ3GEYJ563V 0.1W 5% 56K Ω

S.M.CARBR3837 ERJ6GEYJ331 0.1W 5% 330 Ω

S.M.CARBR3838 ERJ6GEYJ220 0.1W 5% 22 Ω

SMDR3839 ERJ6RBD202V 0.1W 0.5 2K Ω

S.M.CARBR3840 ERJ6GEYJ220 0.1W 5% 22 Ω

SMDR3841 ERJ6RBD622V 0.1W 0.5 6K2 Ω

S.M.CARBR3842 ERJ6GEYJ220 0.1W 5% 22 Ω

S.M.CARBR3843 ERJ6GEYJ220 0.1W 5% 22 Ω

SMDR3844 ERJ6RED204V 0.1W 0.5 200K Ω

SMDR3845 ERJ6RBD8451V 0.1W 0.5 8K45 Ω

SMDR3846 ERJM1WSF15MU 1W 1% .015 Ω

SMDR3847 ERJM1WSF15MU 1W 1% .015 Ω

SMDR3848 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR3849 ERJ6RBD104V 0.1W 0.5 100K Ω

S.M.CARBR3850 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3851 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3852 ERJ3GEYJ223V 0.1W 5% 22K Ω

S.M.CARBR3853 ERJ3GEYJ223V 0.1W 5% 22K Ω

S.M.CARBR3854 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3855 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3856 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3857 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3858 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR3859 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR3860 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR3861 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR3862 ERJ6RBD132V 0.1W 0.5 1K3 Ω

SMDR3863 ERJ3GEYJ102 0.1W 5% 1K Ω

S.M.CARBR3864 ERJ6GEY0R00 0.1W - 0 Ω

SMDR3865 ERJ6ENF6802V .125W 1% 68K Ω

SMDR3869 ERJ3GEYJ472 0.1W 5% 4K7 Ω

SMDR3870 ERJ3GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR3871 ERJ3GEYJ223V 0.1W 5% 22K Ω

SMDR3872 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR3874 ERJ12RQJR56U 0.5W 5% R56 Ω

SMDR3875 ERJ12RQJR56U 0.5W 5% R56 Ω

S.M.CARBR3876 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBR3877 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBR3878 ERJ6GEY0R00 0.1W - 0 Ω

SMDR3880 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR3881 ERJ6RBD223V 0.1W 0.5 22K Ω

SMDR3882 ERJ6RBD103V 0.1W 0.5 10K Ω

SMDR4001 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4026 ERJ3GEY0R00 0.1W - 0 Ω

SMDR4200 ERJ2GEJ330X .063W 5% 33 Ω

SMDR4201 ERJ2GEJ330X .063W 5% 33 Ω

SMDR4202 ERJ2GEJ330X .063W 5% 33 Ω

SMDR4242 ERJ3GEY0R00 0.1W - 0 Ω

SMDR4274 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4279 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4281 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4283 ERJ2GEJ302X .063W 5% 3K Ω

SMDR4284 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4286 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4287 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4288 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4302 ERJ2GEJ330X .063W 5% 33 Ω

SMDR4303 ERJ2GEJ330X .063W 5% 33 Ω

SMDR4304 ERJ2GEJ330X .063W 5% 33 Ω

SMDR4305 ERJ2GEJ330X .063W 5% 33 Ω

SMDR4315 ERJ2GE0R00X .063W - 0 Ω

SMDR4316 ERJ2GE0R00X .063W - 0 Ω

SMDR4317 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4318 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4319 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4320 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4322 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4323 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4324 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4326 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4327 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4328 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4330 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4501 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4503 ERJ2GEJ330X .063W 5% 33 Ω

SMDR4507 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4516 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4517 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4518 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4519 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4520 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4521 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4522 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4523 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4525 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4527 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4530 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4531 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4533 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4536 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4540 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4541 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4543 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4544 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4546 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4552 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4561 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4562 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4563 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4564 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4565 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4578 ERJ2GEJ151X .063W 5% 150 Ω

SMDR4579 ERJ2GEJ151X .063W 5% 150 Ω

SMDR4585 ERJ2GEJ101X .063W 5% 100 Ω

SMDR4587 ERJ3EKF8200V 0.1W 1% 820 Ω

SMDR4593 ERJ3EKF1101V 0.1W 1% 1K1 Ω

S.M.CARBR4596 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR4597 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR4598 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR4601 ERJ6GEYJ102 0.1W 5% 1K Ω

SMDR4604 ERJ3EKF7501V 0.1W 1% 7K5 Ω

SMDR4605 ERJ3EKF1201V 0.1W 1% 1K2 Ω

SMDR4606 ERJ3EKF4701V 0.1W 1% 4K7 Ω

S.M.CARBR4608 ERJ6GEYJ102 0.1W 5% 1K Ω

SMDR4609 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4610 ERJ2GE0R00X .063W - 0 Ω

SMDR4611 ERJ3EKF1371V 0.1W 1% 1K37 Ω

SMDR4612 ERJ3EKF1501V 0.1W 1% 1K5 Ω

SMDR4613 ERJ2GEJ220X .063W 5% 22 Ω

30

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR4614 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4615 ERJ3EKF1600V 0.1W 1% 160 Ω

SMDR4622 ERJ2GEJ101X .063W 5% 100 Ω

SMDR4624 ERJ3EKF1691V 0.1W 1% 1K69 Ω

SMDR4626 ERJ2GEJ105X .063W 5% 1M Ω

SMDR4627 ERJ2GE0R00X .063W - 0 Ω

SMDR4630 ERJ2GE0R00X .063W - 0 Ω

SMDR4631 ERJ3EKF4990V 0.1W 1% 499 Ω

SMDR4632 ERJ2GE0R00X .063W - 0 Ω

SMDR4635 EXB28V680JX .031W 5% 68 Ω

SMDR4636 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4637 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4638 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4639 EXB28V680JX .031W 5% 68 Ω

SMDR4640 EXB28V680JX .031W 5% 68 Ω

SMDR4641 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4642 EXB28V680JX .031W 5% 68 Ω

SMDR4643 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4644 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4645 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4646 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4647 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4648 EXB28V330JX .031W 5% 33 Ω

SMDR4649 EXB28V680JX .031W 5% 68 Ω

SMDR4650 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4651 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4652 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4653 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4654 ERJ3EKF4701V 0.1W 1% 4K7 Ω

SMDR4655 ERJ2GEJ101X .063W 5% 100 Ω

SMDR4656 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR4657 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4658 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4661 ERJ2GEJ101X .063W 5% 100 Ω

SMDR4664 ERJ3EKF6980V 0.1W 1% 698 Ω

SMDR4665 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4666 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4667 ERJ2GEJ151X .063W 5% 150 Ω

SMDR4670 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4676 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4677 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4678 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4679 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4680 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4681 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4682 ERJ3EKF1002V 0.1W 1% 10K Ω

SMDR4683 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4685 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4686 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4687 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4688 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4689 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4690 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4691 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4692 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4698 ERJ2GE0R00X .063W - 0 Ω

SMDR4699 ERJ2GE0R00X .063W - 0 Ω

SMDR4702 ERJ2GE0R00X .063W - 0 Ω

SMDR4703 ERJ2GE0R00X .063W - 0 Ω

SMDR4706 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4707 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4708 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4710 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4711 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4804 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4805 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4806 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4807 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4808 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4809 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4810 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4811 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4812 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4813 ERJ6ENF6041 .125W 1% 6K04 Ω

SMDR4814 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4815 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4816 ERJ6ENF5111V .125W 1% 5K11 Ω

SMDR4817 D1BA3901A026 .063W 1% 3K9 Ω

SMDR4818 D1BA3001A026 .063W 1% 3K Ω

SMDR4838 ERJ2GEJ101X .063W 5% 100 Ω

SMDR4852 ERJ3GEY0R00 0.1W - 0 Ω

SMDR4853 ERJ3GEY0R00 0.1W - 0 Ω

SMDR4854 ERJ3GEY0R00 0.1W - 0 Ω

SMDR4855 ERJ3GEY0R00 0.1W - 0 Ω

SMDR4867 ERJ2GE0R00X .063W - 0 Ω

SMDR4868 ERJ2GE0R00X .063W - 0 Ω

SMDR4869 ERJ2GE0R00X .063W - 0 Ω

SMDR4870 ERJ2GE0R00X .063W - 0 Ω

SMDR4871 ERJ2GE0R00X .063W - 0 Ω

SMDR4873 ERJ2GEJ821X .063W 5% 820 Ω

SMDR4874 ERJ2GE0R00X .063W - 0 Ω

SMDR4875 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR5600 ERJ2GEJ680X .063W 5% 68 Ω

SMDR5604 ERJ3EKF4702V 0.1W 1% 47K Ω

SMDR5605 ERJ3EKF1272V 0.1W 1% 12K7 Ω

SMDR5606 ERJ2GE0R00X .063W - 0 Ω

SMDR5607 ERJ2GE0R00X .063W - 0 Ω

SMDR5608 ERJ2GE0R00X .063W - 0 Ω

SMDR5609 ERJ2GE0R00X .063W - 0 Ω

SMDR5610 ERJ2GEJ104X .063W 5% 100K Ω

SMDR5611 ERJ3EKF3602V 0.1W 1% 36K Ω

SMDR5612 ERJ3EKF2322V 0.1W 1% 23K2 Ω

SMDR5620 ERJ2GEJ680X .063W 5% 68 Ω

SMDR5621 ERJ3EKF4702V 0.1W 1% 47K Ω

SMDR5622 ERJ2GEJ104X .063W 5% 100K Ω

SMDR5623 ERJ3EKF4702V 0.1W 1% 47K Ω

SMDR5625 ERJ2GE0R00X .063W - 0 Ω

SMDR5626 ERJ2GE0R00X .063W - 0 Ω

SMDR5627 ERJ2GE0R00X .063W - 0 Ω

SMDR5628 ERJ2GE0R00X .063W - 0 Ω

SMDR5629 ERJ3EKF3012V 0.1W 1% 30K1 Ω

SMDR5630 ERJ3EKF4752V 0.1W 1% 47K5 Ω

SMDR5631 ERJ3EKF3602V 0.1W 1% 36K Ω

SMDR5632 ERJ3EKF3002V 0.1W 1% 30K Ω

SMDR5633 ERJ3EKF1602V 0.1W 1% 16K Ω

SMDR5634 ERJ3EKF1602V 0.1W 1% 16K Ω

SMDR5635 ERJ2GEJ223X .063W 5% 22K Ω

SMDR5636 ERJ2GEJ683X .063W 5% 68K Ω

SMDR5637 ERJ2GE0R00X .063W - 0 Ω

SMDR5638 ERJ2GEJ103X .063W 5% 10K Ω

SMDR5641 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5644 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR5646 ERJ2GEJ103X .063W 5% 10K Ω

SMDR5647 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5660 ERJ2GEJ562X .063W 5% 5K6 Ω

SMDR5661 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5662 ERJ2GEJ103X .063W 5% 10K Ω

SMDR5670 ERJ2GE0R00X .063W - 0 Ω

SMDR5671 ERJ2GEJ183X .063W 5% 18K Ω

SMDR5672 ERJ2GE0R00X .063W - 0 Ω

SMDR5674 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR5690 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR5691 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5692 ERJ3GEYJ473V 0.1W 5% 47K Ω

S.M.CARBR5693 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR5694 ERJ3GEYJ102 0.1W 5% 1K Ω

31

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR5695 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR5696 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR5697 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR5730 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5731 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5732 ERJ2GEJ682X .063W 5% 6K8 Ω

SMDR8001 ERJ2GEJ181X .063W 5% 180 Ω

SMDR8002 ERJ2GEJ820X .063W 5% 82 Ω

SMDR8003 ERJ3GEY0R00 0.1W - 0 Ω

SMDR8004 ERJ3EKF2402V 0.1W 1% 24K Ω

SMDR8005 ERJ3EKF1002V 0.1W 1% 10K Ω

SMDR8006 ERJ3EKF6801V 0.1W 1% 6K8 Ω

SMDR8023 ERJ2GE0R00X .063W - 0 Ω

SMDR8024 ERJ2GE0R00X .063W - 0 Ω

SMDR8025 ERJ2GE0R00X .063W - 0 Ω

SMDR8026 ERJ2GE0R00X .063W - 0 Ω

SMDR8027 ERJ2GE0R00X .063W - 0 Ω

SMDR8028 ERJ2GE0R00X .063W - 0 Ω

SMDR8029 ERJ2GE0R00X .063W - 0 Ω

SMDR8030 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8031 ERJ3EKF2700V 0.1W 1% 270 Ω

SMDR8032 ERJ3EKF2700V 0.1W 1% 270 Ω

SMDR8035 ERJ2GE0R00X .063W - 0 Ω

SMDR8039 ERJ2GE0R00X .063W - 0 Ω

SMDR8056 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8057 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8058 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8059 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8060 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8061 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8062 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8063 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8064 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8065 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8066 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8067 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8068 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8069 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8070 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8071 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8072 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8073 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8074 ERJ2GEJ221X .063W 5% 220 Ω

SMDR8075 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8076 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8077 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8078 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8079 ERJ2GE0R00X .063W - 0 Ω

SMDR8080 ERJ2GE0R00X .063W - 0 Ω

SMDR8081 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8082 D1BA75R0A026 .063W 1% 75 Ω

SMDR8083 ERJ2GEJ301X .063W 5% 300 Ω

SMDR8084 ERJ2GE0R00X .063W - 0 Ω

SMDR8086 ERJ2GEJ104X .063W 5% 100K Ω

SMDR8087 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8090 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8091 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8093 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8095 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8097 ERJ2GEJ221X .063W 5% 220 Ω

SMDR8098 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8099 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8100 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8101 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8106 ERJ2GEJ202X .063W 5% 2K Ω

SMDR8107 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8111 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8301 EXB2HV680JV .063W 5% 68 Ω

SMDR8303 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8304 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8305 ERJ2GEJ223X .063W 5% 22K Ω

SMDR8306 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR8307 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR8308 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8309 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8310 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8311 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8312 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8314 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8315 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8318 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR8321 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8322 ERJ2GEJ102X .063W 5% 1K Ω

SMDR8323 ERJ2GEJ473X .063W 5% 47K Ω

SMDR8324 ERJ2GEJ473X .063W 5% 47K Ω

SMDR8325 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8326 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8327 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8329 ERJ2GEJ473X .063W 5% 47K Ω

S.M.CARBR8401 ERJ8GEY0R00 .125W - 0 Ω

S.M.CARBR8402 ERJ6GEY0R00 0.1W - 0 Ω

SMDR8404 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8405 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8406 ERJ8RSJR10V 0.25W 5% 0.1 Ω

SMDR8407 ERJ2GEJ473X .063W 5% 47K Ω

SMDR8410 ERJ2GEJ223X .063W 5% 22K Ω

SMDR8411 ERJ2GEJ223X .063W 5% 22K Ω

CHIP RESR8412 EXB2HV473JV .063W 5% 47K Ω

SMDR8414 EXB2HV101JV .063W 5% 100 Ω

SMDR8416 ERJ2GEJ223X .063W 5% 22K Ω

SMDR8417 ERJ2GEJ104X .063W 5% 100K Ω

SMDR8418 ERJ2GEJ681X .063W 5% 680 Ω

SMDR8419 EXB2HV101JV .063W 5% 100 Ω

SMDR8421 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8422 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8423 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8424 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8425 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8426 ERJ2GE0R00X .063W - 0 Ω

SMDR8427 EXB2HV680JV .063W 5% 68 Ω

SMDR8428 EXB2HV680JV .063W 5% 68 Ω

SMDR8430 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8431 ERJ2GEJ151X .063W 5% 150 Ω

SMDR8432 ERJ2GEJ151X .063W 5% 150 Ω

SMDR8433 ERJ2GEJ223X .063W 5% 22K Ω

SMDR8434 ERJ2GEJ473X .063W 5% 47K Ω

SMDR8435 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8436 ERJ2GEJ103X .063W 5% 10K Ω

CHIP RESR8437 EXB2HV104JV .063W 5% 100K Ω

SMDR8438 ERJ2GEJ104X .063W 5% 100K Ω

SMDR8440 ERJ2GEJ104X .063W 5% 100K Ω

SMDR8441 EXB2HV680JV .063W 5% 68 Ω

SMDR8443 EXB2HV680JV .063W 5% 68 Ω

SMDR8445 ERJ2GEJ104X .063W 5% 100K Ω

SMDR8446 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8449 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8450 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8451 EXB28V680JX .031W 5% 68 Ω

SMDR8452 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8453 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8454 EXB28V151JX .031W 5% 150 Ω

SMDR8456 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8457 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8458 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8459 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8460 ERJ2GEJ680X .063W 5% 68 Ω

32

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR8461 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8463 EXB28V151JX .031W 5% 150 Ω

SMDR8465 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8466 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8468 ERJ2GE0R00X .063W - 0 Ω

SMDR8469 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8470 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8471 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8477 ERJ2GE0R00X .063W - 0 Ω

SMDR8484 ERJ2GE0R00X .063W - 0 Ω

SMDR8501 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8502 ERJ2GEJ331X .063W 5% 330 Ω

SMDR8503 ERJ2GEJ331X .063W 5% 330 Ω

SMDR8504 ERJ2GEJ331X .063W 5% 330 Ω

SMDR8506 ERJ2GEJ331X .063W 5% 330 Ω

SMDR8507 ERJ3EKF91R0V 0.1W 1% 91 Ω

SMDR8508 ERJ3EKF91R0V 0.1W 1% 91 Ω

SMDR8509 ERJ3EKF91R0V 0.1W 1% 91 Ω

SMDR8510 ERJ3EKF91R0V 0.1W 1% 91 Ω

SMDR8512 ERJ3EKF1800V 0.1W 1% 180 Ω

SMDR8513 ERJ2GE0R00X .063W - 0 Ω

SMDR8517 ERJ2GE0R00X .063W - 0 Ω

SMDR8518 ERJ2GE0R00X .063W - 0 Ω

SMDR8519 ERJ2GE0R00X .063W - 0 Ω

SMDR8551 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8555 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8556 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8557 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8558 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8559 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8560 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8561 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8564 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8601 ERJ2GEJ220X .063W 5% 22 Ω

SMDR8602 ERJ2GEJ220X .063W 5% 22 Ω

SMDR8603 ERJ2GEJ473X .063W 5% 47K Ω

S.M.CARBR8604 ERJ6GEY0R00 0.1W - 0 Ω

SMDR8605 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8621 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8622 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8623 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8624 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8625 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8626 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8627 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8628 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8629 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8630 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8631 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8632 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8633 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8634 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8635 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8636 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8653 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8655 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8702 ERJ2GE0R00X .063W - 0 Ω

SMDR8703 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8707 ERJ2GE0R00X .063W - 0 Ω

SMDR8708 ERJ2GE0R00X .063W - 0 Ω

SMDR8709 ERJ2GE0R00X .063W - 0 Ω

SMDR8710 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8711 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8712 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8732 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8735 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8736 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8737 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8738 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8739 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8742 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8745 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8746 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8749 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8802 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8803 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8804 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8805 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8806 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8807 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8808 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8809 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8812 ERJ2GE0R00X .063W - 0 Ω

SMDR8813 EXB28V680JX .031W 5% 68 Ω

SMDR8814 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8815 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8816 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8817 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8818 ERJ2GE0R00X .063W - 0 Ω

SMDR8823 ERJ2GEJ473X .063W 5% 47K Ω

S.M.CARBR8825 ERJ6GEY0R00 0.1W - 0 Ω

SMDR8826 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8828 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8832 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8833 ERJ3GEY0R00 0.1W - 0 Ω

SMDR8851 ERJ2GE0R00X .063W - 0 Ω

SMDR8852 ERJ2GE0R00X .063W - 0 Ω

SMDR8853 ERJ2GE0R00X .063W - 0 Ω

SMDR8854 ERJ2GE0R00X .063W - 0 Ω

SMDR8855 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8856 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8857 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8858 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8859 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8860 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8862 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8863 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8864 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8865 EXB2HV680JV .063W 5% 68 Ω

SMDR8866 EXB2HV680JV .063W 5% 68 Ω

SMDR8867 EXB2HV680JV .063W 5% 68 Ω

SMDR8868 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8869 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8870 ERJ2GE0R00X .063W - 0 Ω

SMDR8871 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8874 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8875 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8876 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8877 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8878 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8879 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8880 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8881 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8882 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8883 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8884 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8885 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8886 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8887 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8888 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8889 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8891 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8892 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8893 ERJ2GE0R00X .063W - 0 Ω

SMDR8894 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8895 ERJ2GE0R00X .063W - 0 Ω

33

CAPACITORS

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR8896 ERJ2GE0R00X .063W - 0 Ω

SMDR8897 ERJ2GE0R00X .063W - 0 Ω

SMDR8898 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8899 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8900 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8901 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8904 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8905 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8906 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8907 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8908 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8909 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8910 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8911 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8912 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8913 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8914 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8915 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8916 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8917 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8918 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8919 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR8920 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR8921 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR8922 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR8923 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8924 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8925 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR8926 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR8927 ERJ2GE0R00X .063W - 0 Ω

SMDR8929 EXB2HVR000V 0W - 0 Ω

SMDR8935 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8947 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8948 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8952 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8963 ERJ2GEJ103X .063W 5% 10K Ω

CERAMICC801 ECKCNA101MB7 250V 100pF

CERAMICC802 ECKCNA101MB7 250V 100pF

FILMC803 ECQU2A224MLA 275V 220nF

FILMC805 ECQU2A224MLA 275V 220nF

FILMC806 ECQU2A224MLA 275V 220nF

CERAMICC807 ECKWBE472ZER 250V 4.7nF

CERAMICC808 ECKWBE472ZER 250V 4.7nF

CERAMICC809 ECKWBE472ZER 250V 4.7nF

CERAMICC810 ECKWBE472ZER 250V 4.7nF

ELECTC811 ECA1HHG010B 50V 1µF

S.M. CAPC812 ECUV1H182KBX 50V 1.8nF

ELECTC813 ECA1HHGR22B 50V 0.22µF

S.M.CAPC814 ECJ2VB1H223K 50V 22nF

FILMC815 ECQE6474JFB 630V 470nF

S.M. CAPC816 ECUV1H104KBX 50V 100nF

ELECTC817 ECA1HHG100B 50V 10µF

ELECT C818 ECA1HHG101B 50V 100µF

S.M.CAPC820 ECUV1H103JCN 50V 10nF

SMDC821 ECKW3D151KBP 2KV 150pF

ELECT C822 ECA1HHG101B 50V 100µF

ELECTC823 EETEE2W750HJ 450V 75µF

S.M.CAPC824 ECJ3YB1E106M 25V 10µF

ELECT C825 ECA1HHG101B 50V 100µF

S.M.CAPC826 ECUV1H223JCN 50V 22nF

S.M.CAPC827 ECJ2FB1E224K 25V 220nF

FILMC829 ECQV1H824JL3 50V 820nF

S.M.CAPC830 ECJ2VC1H271J 50V 270pF

S.M.CAPC831 ECJ2VF1H224Z 50V 220nF

S.M.CAPC832 ECJ2VF1C104Z 16V 100nF

FILMC833 ECWF6203HLB 630V 20nF

FILMC834 ECWF6223HLB 630V 22nF

S.M.CAPC835 ECUV1H331KBN 50V 330pF

CERAMIC C836 ECKC3D271JB 2KV 270pF

ELECTC837 ECEA1CKN4R7B 16V 4.7µF

S.M.CAPC838 ECJ2VF1C104Z 16V 100nF

S.M.CAPC839 ECJ2VB1H272K 50V 2.7nF

CERAMIC C840 ECKCNA152ME7 400V 1.5nF

FILMC841 ECQU2A224MLA 275V 220nF

FILMC845 ECQV1J105JM3 63V 1µF

S.M.CAPC851 ECJ2FB1H104 50V 100nF

FILMC854 ECQV1H474JZ 50V 470nF

S.M.CAPC858 ECJ3YB1E106M 25V 10µF

ELECTC859 EEUFM1V102B 35V 1000µF

ELECTC860 EEUFM1V102B 35V 1000µF

S.M.CAPC861 ECJ2FB1C105K 16V 1000nF

ELECTC862 EEUFM1V102B 35V 1000µF

S.M.CAPC865 ECJ3YB1E106M 25V 10µF

ELECTC1006 F2G0J470A019 6.3V 47µF

S.M.CAPC1007 ECJ1VB1H103 50V 10nF

S.M.CAPC1008 ECJ1VF1C104Z 16V 100nF

ELECTC1010 F2G0J220A019 6.3V 22µF

CERAMICC1102 F1J1A106A043 10V 10µF

S.M.CAPC1103 F1G1C104A081 16V 100nF

S.M.CAPC1104 F1G1C104A081 16V 100nF

S.M.CAPC1106 F1H1H2700008 50V 27pF

S.M.CAPC1107 F1H1H2200008 50V 22pF

S.M.CAPC1108 F1G1C104A081 16V 100nF

CERAMICC1109 F1H1A1050028 10V 1µF

CERAMICC1111 F1H1A1050028 10V 1µF

S.M.CAPC1112 F1G1C104A081 16V 100nF

S.M.CAPC1114 F1G1C104A081 16V 100nF

S.M.CAPC1117 F1G1C104A081 16V 100nF

S.M.CAPC1122 F1G1E1030005 25V 10nF

CERAMICC1123 F1H1A1050028 10V 1µF

S.M.CAPC2000 F1G1C104A081 16V 100nF

S.M.CAPC2005 F1H1H5610007 50V 560pF

S.M.CAPC2006 F1H1H5610007 50V 560pF

S.M.CAPC2007 F1H1H5610007 50V 560pF

S.M.CAPC2008 F1H1H5610007 50V 560pF

S.M.CAPC2010 F1H1H5610007 50V 560pF

S.M.CAPC2011 F1H1H5610007 50V 560pF

S.M.CAPC2012 F1H1H5610007 50V 560pF

S.M.CAPC2013 F1H1H5610007 50V 560pF

S.M.CAPC2014 F1H1H5610007 50V 560pF

S.M.CAPC2015 F1H1H5610007 50V 560pF

S.M.CAPC2021 F1H1H5610007 50V 560pF

S.M.CAPC2022 F1H1H5610007 50V 560pF

S.M.CAPC2023 ECJ1VB1H104 50V 100nF

S.M.CAPC2048 ECJ1VB1H104 50V 100nF

S.M.CAPC2049 ECJ1VB1H104 50V 100nF

S.M.CAPC2050 ECJ1VB1H104 50V 100nF

S.M.CAPC2052 ECJ1VB1H104 50V 100nF

S.M.CAPC2053 ECJ1VB1H104 50V 100nF

CERAMICC2054 F1J1A106A043 10V 10µF

S.M.CAPC2055 F1H1H1200004 50V 12pF

S.M.CAPC2056 ECJ1VC1H080 50V 8pF

S.M.CAPC2057 ECJ1VB1H104 50V 100nF

S.M.CAPC2058 ECJ1VB1H104 50V 100nF

ELECTC2059 F2G0J470A019 6.3V 47µF

ELECTC2060 F2G0J470A019 6.3V 47µF

S.M.CAPC2061 ECJ1VB1H104 50V 100nF

S.M.CAPC2062 F1J0J106A021 6.3V 10µF

S.M.CAPC2063 F1J0J106A021 6.3V 10µF

S.M.CAPC2064 F1J0J106A021 6.3V 10µF

S.M.CAPC2065 ECJ1VB1H104 50V 100nF

CERAMICC2068 F1H1H102A219 50V 1nF

CERAMICC2069 F1H1H102A219 50V 1nF

SMDC2088 ECJ2FB1A475K 10V 4.7µF

34

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CAPC2089 F1H1H5610007 50V 560pF

S.M.CAPC2091 ECJ1VC1H100D 50V 10pF

S.M.CAPC2092 F1H1H2200008 50V 22pF

S.M.CAPC2096 ECJ1VB1H104 50V 100nF

S.M.CAPC2097 ECJ1VB1H104 50V 100nF

ELECTC2098 EEEHB0J221UP 6.3V 220µF

ELECTC2099 EEEHB0J221UP 6.3V 220µF

S.M.CAPC2100 ECJ1VB1H104 50V 100nF

CERAMICC2101 F1J1A106A043 10V 10µF

S.M.CAPC2102 ECJ1VB1H104 50V 100nF

CERAMICC2103 F1J1A106A043 10V 10µF

CERAMICC2104 F1J1A106A043 10V 10µF

S.M.CAPC2105 ECJ1VB1H104 50V 100nF

S.M.CAPC2106 ECJ1VB1H104 50V 100nF

ELECTC2107 F2G0J470A019 6.3V 47µF

ELECTC2108 F2G0J470A019 6.3V 47µF

S.M.CAPC2109 ECJ1VB1H104 50V 100nF

S.M.CAPC2110 ECJ1VB1H104 50V 100nF

CERAMICC2111 F1H0J2250008 6.3V 2200nF

ELECTC2112 F2G0J470A019 6.3V 47µF

ELECTC2113 F2G0J470A019 6.3V 47µF

S.M.CAPC2114 ECJ1VB1H104 50V 100nF

S.M.CAPC2115 ECJ1VB1H104 50V 100nF

S.M.CAPC2116 F1H1H471A792 50V 470pF

S.M.CAPC2117 ECJ1VB1H104 50V 100nF

CERAMICC2118 F1H1A1050028 10V 1µF

ELECTC2119 EEEHB1A221P 10V 220µF

S.M.CAPC2120 F1H1H5600007 50V 56pF

S.M.CAPC2121 F1H1H5600007 50V 56pF

CERAMICC2122 F1J1A106A043 10V 10µF

CERAMICC2123 F1J1A106A043 10V 10µF

S.M.CAPC2124 ECJ1VB1H104 50V 100nF

CERAMICC2126 F1J1A106A043 10V 10µF

SMDC2127 ECJ1VB1C105K 16V 1000nF

SMDC2129 ECJ1VB1C105K 16V 1000nF

S.M.CAPC2130 F1J0J106A021 6.3V 10µF

S.M.CAPC2131 ECJ1VB1H104 50V 100nF

ELECTC2133 F2G1H4R7A031 50V 4.7µF

CERAMICC2134 F1H1H103A219 50V 10nF

SMDC2135 ECJ1VB1C105K 16V 1000nF

SMDC2136 ECJ1VB1C105K 16V 1000nF

ELECTC2137 F2G0J470A019 6.3V 47µF

S.M.CAPC2138 ECJ1VB1H104 50V 100nF

CERAMICC2139 F1J1A106A043 10V 10µF

CERAMICC2140 F1J1A106A043 10V 10µF

CERAMICC2141 F1J1A106A043 10V 10µF

CERAMICC2142 F1J1A106A043 10V 10µF

S.M.CAPC2143 F1H1H181A792 50V 180pF

S.M.CAPC2146 F1H1H181A792 50V 180pF

ELECTC2147 F2G1C220A022 16V 22µF

ELECTC2151 F2G0J470A019 6.3V 47µF

S.M.CAPC2153 F1H1H3300005 50V 33pF

S.M.CAPC2154 ECJ1VB1H104 50V 100nF

SMDC2155 ECJ1VB1C105K 16V 1000nF

SMDC2157 ECJ1VB1C105K 16V 1000nF

SMDC2159 ECJ1VB1C105K 16V 1000nF

SMDC2160 ECJ1VB1C105K 16V 1000nF

ELECTC2161 EEEHB1C101UP 16V 100µF

SMDC2162 ECJ1VB1C105K 16V 1000nF

SMDC2163 ECJ1VB1C105K 16V 1000nF

SMDC2164 ECJ1VB1C105K 16V 1000nF

SMDC2165 ECJ1VB1C105K 16V 1000nF

S.M.CAPC2170 F1H1H3300005 50V 33pF

CERAMICC2171 F1H1H103A219 50V 10nF

S.M.CAPC2173 ECJ2FF1C475Z 16V 4.7µF

CERAMICC2174 F1H1A1050028 10V 1µF

ELECTC2175 F2G1C470A022 16V 47µF

CERAMICC2176 F1H1H103A219 50V 10nF

ELECTC2179 F2G1C470A022 16V 47µF

CERAMICC2180 F1H1A1050028 10V 1µF

CERAMICC2183 F1J1A106A043 10V 10µF

CERAMICC2184 F1H1H102A219 50V 1nF

CERAMICC2185 F1J1A106A043 10V 10µF

S.M.CAPC2186 ECJ1VB1H104 50V 100nF

CERAMICC2187 F1H0J2250008 6.3V 2200nF

S.M.CAPC2188 F1H1H471A792 50V 470pF

CERAMICC2189 F1H1A1050028 10V 1µF

CERAMICC2190 F1J1A106A043 10V 10µF

CERAMICC2191 F1J1A106A043 10V 10µF

ELECTC2192 F2G0J470A019 6.3V 47µF

CERAMICC2195 F1H1H102A219 50V 1nF

S.M.CAPC2197 F1H1E333A029 25V 33nF

S.M.CAPC2198 F1H1E333A029 25V 33nF

CERAMICC2202 F1H0J2250008 6.3V 2200nF

CERAMICC2203 F1H1A1050028 10V 1µF

SMDC2204 ECJ1VB1C105K 16V 1000nF

CERAMICC2213 F1H1H102A219 50V 1nF

S.M.CAPC2216 ECJ1VB1H104 50V 100nF

S.M.CAPC2244 ECJ1VB1H104 50V 100nF

CERAMICC2245 F1H1H102A219 50V 1nF

CERAMICC2246 F1J1A106A043 10V 10µF

CERAMICC2251 F1J1A106A043 10V 10µF

CERAMICC2261 F1J1A106A043 10V 10µF

CERAMICC2262 F1J1A106A043 10V 10µF

CERAMICC2263 F1J1A106A043 10V 10µF

CERAMICC2264 F1J1A106A043 10V 10µF

S.M.CAPC2265 F1H1H1010005 50V 100pF

S.M.CAPC2266 F1H1H1010005 50V 100pF

S.M.CAPC2267 F1H1H1010005 50V 100pF

S.M.CAPC2268 F1H1H1010005 50V 100pF

S.M.CAPC2270 F1H1H471A792 50V 470pF

S.M.CAPC2271 F1H1H471A792 50V 470pF

S.M.CAPC2272 ECJ2FF1C475Z 16V 4.7µF

S.M.CAPC2274 ECJ1VB1H104 50V 100nF

SMDC2280 ECJ2FB1A475K 10V 4.7µF

S.M.CAPC2281 F1H1H5610007 50V 560pF

CERAMICC2288 F1J1A106A043 10V 10µF

CERAMICC2289 F1J1A106A043 10V 10µF

ELECTC2299 F2G1C470A022 16V 47µF

CERAMICC2301 F1H1C104A041 16V 100nF

CERAMICC2302 F1H1C104A041 16V 100nF

S.M.CAPC2303 F1J1E105A171 25V 1µF

S.M.CAPC2305 F1J1E105A171 25V 1µF

S.M.CAPC2307 F1J1E105A171 25V 1µF

S.M.CAPC2309 F1J1E105A171 25V 1µF

S.M.CAPC2311 ECJ1VB1C104K 16V 100nF

S.M.CAPC2313 ECJ1VB1H104 50V 100nF

S.M.CAPC2315 ECJ1VB1C104K 16V 100nF

S.M.CAPC2317 F1H1E333A029 25V 33nF

S.M.CAPC2319 F1H1E333A029 25V 33nF

S.M.CAPC2321 F1H1E333A029 25V 33nF

S.M.CAPC2323 F1H1E333A029 25V 33nF

S.M.CAPC2325 F1J1H474A757 50V 470nF

S.M.CAPC2327 ECJ1VB1C104K 16V 100nF

S.M.CAPC2329 ECJ1VB1C104K 16V 100nF

S.M.CAPC2331 F1J1H474A757 50V 470nF

S.M.CAPC2333 ECJ1VB1H104 50V 100nF

S.M.CAPC2335 ECJ1VB1H104 50V 100nF

S.M.CAPC2337 F1H1H223A219 50V 22nF

S.M.CAPC2339 F1H1H223A219 50V 22nF

S.M.CAPC2341 ECJ1VB1H104 50V 100nF

S.M.CAPC2343 ECJ1VB1H104 50V 100nF

S.M.CAPC2345 F1H1H223A219 50V 22nF

S.M.CAPC2347 F1H1H223A219 50V 22nF

S.M.CAPC2349 ECJ1VB1H104 50V 100nF

SMDC2352 ECJ1VB1C105K 16V 1000nF

35

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CAPC2353 ECJ1VB1H104 50V 100nF

S.M.CAPC2355 ECJ1VB1H104 50V 100nF

S.M.CAPC2357 ECJ1VB1H104 50V 100nF

S.M.CAPC2359 ECJ1VB1H104 50V 100nF

ELECTC2361 EEEFG1E471P 25V 470µF

S.M.CAPC2363 ECJ1VB1C104K 16V 100nF

S.M.CAPC2375 F1H1H223A219 50V 22nF

S.M.CAPC2377 F1H1H223A219 50V 22nF

S.M.CAPC2379 F1H1H223A219 50V 22nF

S.M.CAPC2381 F1H1H223A219 50V 22nF

CERAMICC2383 F1H1H102A219 50V 1nF

CERAMICC2385 F1H1H102A219 50V 1nF

CERAMICC2387 F1H1H102A219 50V 1nF

CERAMICC2389 F1H1H102A219 50V 1nF

S.M.CAPC2391 ECJ1VB1H104 50V 100nF

S.M.CAPC2392 ECJ1VB1H104 50V 100nF

ELECTC2812 F2G1C100A022 16V 10µF

S.M.CAPC2813 ECJ1VB1H104 50V 100nF

S.M.CAPC2815 ECJ1VB1H104 50V 100nF

ELECC2816 F2G1H100A031 50V 10µF

CERAMICC2817 F1H1H102A219 50V 1nF

ELECTC2819 EEEHB1E470P 25V 47µF

S.M.CAPC2820 ECJ1VB1H104 50V 100nF

CERAMICC3001 F1H1H102A219 50V 1nF

CERAMICC3002 F1H1H102A219 50V 1nF

CERAMICC3021 F1H1A1050028 10V 1µF

CERAMICC3024 F1H1A1050028 10V 1µF

CERAMICC3025 F1H1A1050028 10V 1µF

S.M.CAPC3026 ECJ1VB1H104 50V 100nF

CERAMICC3027 F1H1A1050028 10V 1µF

CERAMICC3028 F1H1A1050028 10V 1µF

SMDC3029 ECJ1VB1C105K 16V 1000nF

S.M.CAPC3031 ECJ1VB1H104 50V 100nF

S.M.CAPC3040 ECJ1VB1H104 50V 100nF

CERAMICC3043 F1H1A1050028 10V 1µF

CERAMICC3047 F1H1A1050028 10V 1µF

CERAMICC3049 F1H1A1050028 10V 1µF

CERAMICC3050 F1H1A1050028 10V 1µF

CERAMICC3051 F1H1A1050028 10V 1µF

CERAMICC3052 F1H1A1050028 10V 1µF

CERAMICC3053 F1H1A1050028 10V 1µF

CERAMICC3054 F1H1A1050028 10V 1µF

CERAMICC3055 F1H1A1050028 10V 1µF

CERAMICC3056 F1H1A1050028 10V 1µF

CERAMICC3066 F1H1A1050028 10V 1µF

S.M.CAPC3068 ECJ1VB1H104 50V 100nF

ELECTC3070 EEEHB1C471UP 16V 470µF

S.M.CAPC3071 ECJ1VB1H104 50V 100nF

ELECTC3072 EEEHB1C471UP 16V 470µF

ELECTC3075 EEEHB1C221UP 16V 220µF

ELECTC3076 EEEHB1C221UP 16V 220µF

ELECTC3081 F2H0J1010009 6.3V 100µF

CERAMICC3100 F1H1A1050028 10V 1µF

CERAMICC3101 F1H1A1050028 10V 1µF

CERAMICC3102 F1H1A1050028 10V 1µF

ELECTC3103 F2G1C100A022 16V 10µF

S.M.CAPC3115 ECJ1VB1H104 50V 100nF

S.M.CAPC3116 ECJ1VB1H104 50V 100nF

S.M.CAPC3117 ECJ1VB1H104 50V 100nF

ELECTC3118 F2G1C470A022 16V 47µF

ELECTC3119 F2G1C100A022 16V 10µF

S.M.CAPC3120 ECJ1VB1H104 50V 100nF

S.M.CAPC3201 ECJ1VB1H104 50V 100nF

S.M.CAPC3214 ECJ1VB1H104 50V 100nF

S.M.CAPC3216 ECJ1VB1H104 50V 100nF

S.M.CAPC3226 ECJ1VB1H104 50V 100nF

S.M.CAPC3227 ECJ1VB1H104 50V 100nF

S.M.CAPC3228 ECJ1VB1H104 50V 100nF

S.M.CAPC3230 ECJ1VB1H104 50V 100nF

S.M.CAPC3263 ECJ1VB1H104 50V 100nF

S.M.CAPC3265 ECJ1VB1H104 50V 100nF

S.M.CAPC3266 ECJ1VB1H104 50V 100nF

S.M.CAPC3267 ECJ1VB1H104 50V 100nF

S.M.CAPC3268 ECJ1VB1H104 50V 100nF

ELECTC3270 EEEHB0J102UP 6.3V 1000µF

ELECTC3271 F2G1C100A022 16V 10µF

S.M.CAPC3272 ECJ1VB1H104 50V 100nF

ELECC3273 F2G1H100A031 50V 10µF

CERAMICC3275 F1H1C104A041 16V 100nF

CERAMICC3276 F1H1C104A041 16V 100nF

S.M.CAPC3277 F1H1H3300005 50V 33pF

S.M.CAPC3278 F1H1H3300005 50V 33pF

CERAMICC3279 F1H1H103A219 50V 10nF

S.M.CAPC3280 F1H1H1010005 50V 100pF

CERAMICC3281 F1H1C104A041 16V 100nF

ELECTC3282 EEEHB0J102UP 6.3V 1000µF

S.M. CAPC3700 ECUV1H561KBX 50V 560pF

S.M. CAPC3702 ECUV1H561KBX 50V 560pF

S.M.CAPC3705 ECJ1VF1H104Z 50V 100nF

S.M.CAPC3707 ECJ1VF1H104Z 50V 100nF

S.M.CAPC3801 ECJ2FB1H104 50V 100nF

S.M.CAPC3802 ECJ2FB1H104 50V 100nF

S.M.CAPC3803 ECJ2FB1H104 50V 100nF

S.M.CAPC3804 ECJ2FB1H104 50V 100nF

S.M.CAPC3805 ECJ2FB1H104 50V 100nF

S.M.CAPC3806 ECJ2FB1H104 50V 100nF

S.M.CAPC3807 ECJ2FB1H104 50V 100nF

S.M.CAPC3808 ECJ2FB1H104 50V 100nF

S.M.CAPC3809 ECJ2FB1H104 50V 100nF

S.M.CAPC3810 ECJ2FB1H104 50V 100nF

S.M.CAPC3811 ECJ2FB1H104 50V 100nF

S.M.CAPC3812 ECUV1H103JCN 50V 10nF

SMDC3813 F1L1V1060003 35V 10µF

ELECTC3814 MZA1VS331MJ4 35V 330µF

S.M.CAPC3815 ECJ2FB1H473K 50V 47nF

S.M.CAPC3816 ECJ2VB1H102K 50V 1nF

S.M.CAPC3818 ECJ1VB1H103 50V 10nF

S.M.CAPC3819 ECJ2FB1H104 50V 100nF

S.M.CAPC3820 ECJ2FB1C474K 16V 470nF

S.M.CAPC3821 ECJ1VC1H102J 50V 1nF

S.M.CAPC3822 ECJ1VB1H222K 50V 2.2nF

ELECTC3823 F2H1C1210001 16V 120µF

S.M.CAPC3824 ECJ1VB1H104 50V 100nF

S.M.CAPC3825 ECJ1VB1H221K 50V 220pF

SMDC3826 ECJ3YB1E105K 25V 1000nF

SMDC3827 ECJ3YB1E105K 25V 1000nF

SMDC3828 ECJ3YB1E105K 25V 1000nF

ELECTC3829 MZA1VS331MJ4 35V 330µF

SMDC3830 F1L1V1060003 35V 10µF

S.M.CAPC3831 ECJ1VB1E223 25V 22nF

ELECTC3832 F2G1C100A022 16V 10µF

ELECTC3833 PXA1DS820MJA 20V 82µF

SMDC3834 ECJ3YB1E105K 25V 1000nF

SMDC3835 F1L1V1060003 35V 10µF

ELECTC3836 MZA1VS331MJ4 35V 330µF

S.M.CAPC3837 ECJ2FB1H473K 50V 47nF

S.M.CAPC3839 ECJ2FB1C105K 16V 1000nF

S.M.CAPC3840 ECJ1VB1H222K 50V 2.2nF

ELECTC3841 F2H0J391A017 6.3V 390µF

SMDC3843 ECJ3YB1E105K 25V 1000nF

SMDC3844 ECJ3YB1E105K 25V 1000nF

SMDC3845 ECJ3YB1E105K 25V 1000nF

ELECTC3846 MZA1VS331MJ4 35V 330µF

SMDC3847 F1K1V105A003 35V 1000nF

SMDC3848 ECJ1VB1H182K 50V 1.8nF

ELECTC3849 F2H1C1210001 16V 120µF

36

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

ELECTC3850 F2G1C470A022 16V 47µF

ELECTC3851 F2G1C470A022 16V 47µF

ELECTC3852 F2G1C100A022 16V 10µF

S.M.CAPC3853 ECUV1E104ZFX 25V 100nF

ELECTC3854 F2G1C470A022 16V 47µF

ELECTC3855 F2G1C100A022 16V 10µF

S.M.CAPC3856 ECJ1VB1C393K 16V 39nF

S.M.CAPC3857 ECJ1VB1H222K 50V 2.2nF

S.M.CAPC3858 ECJ1VC1H560J 50V 56pF

SMDC3859 ECJ0EB1H391K 50V 390pF

S.M.CAPC3860 ECJ2FB1C474K 16V 470nF

SMDC3861 F1L1V1060003 35V 10µF

S.M.CAPC3862 ECJ2FB1H104 50V 100nF

S.M.CAPC3863 ECJ2FB1H104 50V 100nF

S.M.CAPC3866 ECUV1H103JCN 50V 10nF

S.M.CAPC3867 ECUV1H103JCN 50V 10nF

S.M.CAPC3868 ECJ2FB1C474K 16V 470nF

S.M.CAPC4203 F1G1C104A081 16V 100nF

S.M.CAPC4500 F1G1C104A081 16V 100nF

S.M.CAPC4501 F1G1C104A081 16V 100nF

S.M.CAPC4503 F1G1C104A081 16V 100nF

S.M.CAPC4507 F1G1C104A081 16V 100nF

ELECTC4509 F2G0J330A019 6.3V 33µF

S.M.CAPC4511 F1G1C104A081 16V 100nF

S.M.CAPC4515 F1G1C104A081 16V 100nF

CERAMICC4527 F1H1A1050028 10V 1µF

S.M.CAPC4528 F1G1C104A081 16V 100nF

S.M.CAPC4531 F1G1C104A081 16V 100nF

S.M.CAPC4533 F1G1H680A565 50V 68pF

S.M.CAPC4534 ECJ1VB1H104 50V 100nF

S.M.CAPC4535 ECJ1VB1H104 50V 100nF

S.M.CAPC4537 ECJ1VB1H104 50V 100nF

ELECTC4538 F2G0J470A019 6.3V 47µF

CERAMICC4539 F1J1A106A043 10V 10µF

S.M.CAPC4541 F1H1H471A219 50V 470pF

S.M.CAPC4543 F1G1C104A081 16V 100nF

S.M.CAPC4544 F1G1C104A081 16V 100nF

S.M.CAPC4545 F1G1C104A081 16V 100nF

CERAMICC4546 F1H0J2250008 6.3V 2200nF

S.M.CAPC4547 F1G1C104A081 16V 100nF

S.M.CAPC4548 ECJ1VB1H104 50V 100nF

S.M.CAPC4549 ECJ1VB1H104 50V 100nF

S.M.CAPC4550 F1G1C104A081 16V 100nF

S.M.CAPC4551 ECJ1VB1H104 50V 100nF

S.M.CAPC4552 ECJ1VB1H104 50V 100nF

S.M.CAPC4553 F1G1H1020008 50V 1nF

CERAMICC4555 F1J1A106A043 10V 10µF

CERAMICC4556 F1J1A106A043 10V 10µF

S.M.CAPC4557 F1G1C104A081 16V 100nF

S.M.CAPC4559 F1G1C104A081 16V 100nF

S.M.CAPC4560 F1G1C104A081 16V 100nF

S.M.CAPC4562 F1H1H822A219 50V 8.2nF

S.M.CAPC4563 ECJ1VB1C823K 16V 82nF

S.M.CAPC4564 F1G1E1030005 25V 10nF

S.M.CAPC4565 F1G1E1030005 25V 10nF

S.M.CAPC4566 ECJ1VB1C393K 16V 39nF

S.M.CAPC4567 ECJ1VB1H104 50V 100nF

S.M.CAPC4568 F1G1C104A081 16V 100nF

S.M.CAPC4569 F1J1C684A097 16V 680nF

ELECTC4570 F2G0J470A019 6.3V 47µF

S.M.CAPC4572 F1G1C104A081 16V 100nF

S.M.CAPC4573 F1G1C104A081 16V 100nF

S.M.CAPC4574 F1G1E1030005 25V 10nF

CERAMICC4575 F1H1A1050028 10V 1µF

ELECTC4576 F2G0J470A019 6.3V 47µF

S.M.CAPC4577 F1G1C104A081 16V 100nF

S.M.CAPC4578 F1G1C104A081 16V 100nF

S.M.CAPC4580 F1G1E1030005 25V 10nF

CERAMICC4581 F1H1A1050028 10V 1µF

S.M.CAPC4582 F1G1C104A081 16V 100nF

S.M.CAPC4583 F1G1C104A081 16V 100nF

CERAMICC4584 F1H1A1050028 10V 1µF

CERAMICC4585 F1H1A1050028 10V 1µF

S.M.CAPC4586 F1G1E1030005 25V 10nF

S.M.CAPC4587 F1G1C104A081 16V 100nF

S.M.CAPC4588 ECJ1VB1C823K 16V 82nF

S.M.CAPC4589 F1G1H150A565 50V 15pF

S.M.CAPC4590 ECJ0EC1H180J 50V 18pF

CERAMICC4591 F1H1A1050028 10V 1µF

CERAMICC4592 F1H1A1050028 10V 1µF

S.M.CAPC4593 F1G1E1030005 25V 10nF

S.M.CAPC4595 F1G1E1030005 25V 10nF

S.M.CAPC4596 F1G1C104A081 16V 100nF

CERAMICC4598 F1H1A1050028 10V 1µF

S.M.CAPC4600 F1G1E1030005 25V 10nF

S.M.CAPC4601 F1G1E1030005 25V 10nF

S.M.CAPC4602 F1G1C104A081 16V 100nF

CERAMICC4604 F1H0J2250008 6.3V 2200nF

S.M.CAPC4605 F1G1C104A081 16V 100nF

ELECTC4607 F2G0J470A019 6.3V 47µF

CERAMICC4609 F1H1A1050028 10V 1µF

CERAMICC4611 F1H1A1050028 10V 1µF

S.M.CAPC4612 F1G1E1030005 25V 10nF

CERAMICC4613 F1H1A1050028 10V 1µF

S.M.CAPC4614 F1G1C104A081 16V 100nF

S.M.CAPC4615 F1G1E1030005 25V 10nF

S.M.CAPC4616 F1G1C104A081 16V 100nF

S.M.CAPC4617 F1G1C104A081 16V 100nF

S.M.CAPC4618 F1G1E1030005 25V 10nF

S.M.CAPC4619 F1G1C104A081 16V 100nF

CERAMICC4620 F1H1A1050028 10V 1µF

CERAMICC4621 F1H1C104A041 16V 100nF

CERAMICC4622 F1H1C104A041 16V 100nF

S.M.CAPC4623 F1G1C104A081 16V 100nF

S.M.CAPC4624 ECJ1VB1H104 50V 100nF

S.M.CAPC4625 ECJ1VB1H104 50V 100nF

S.M.CAPC4626 F1G1C104A081 16V 100nF

S.M.CAPC4627 F1G1C104A081 16V 100nF

S.M.CAPC4628 F1G1C104A081 16V 100nF

CERAMICC4629 F1J1A106A043 10V 10µF

ELECTC4800 F2G1C470A022 16V 47µF

S.M.CAPC4801 F1G1C104A081 16V 100nF

ELECTC4802 F2G0J220A019 6.3V 22µF

S.M.CAPC4803 F1G1E103A059 25V 10nF

ELECTC4804 F2G1C470A022 16V 47µF

S.M.CAPC4805 F1G1C104A081 16V 100nF

S.M.CAPC4806 F1G1E103A059 25V 10nF

SMDC5600 ECJ1VB1C105K 16V 1000nF

S.M.CAPC5601 F1G1C104A081 16V 100nF

ELECTC5602 ECGRL0G680ER 4V 68µF

S.M.CAPC5603 F1G1E1030005 25V 10nF

S.M.CAPC5604 F1G1E1030005 25V 10nF

S.M.CAPC5605 F1J1A475A039 10V 4.7µF

S.M.CAPC5606 F1H1H471A219 50V 470pF

S.M.CAPC5607 F1G1H221A459 50V 220pF

S.M.CAPC5608 F1G1C104A081 16V 100nF

ELECTC5609 F2G1C470A022 16V 47µF

ELECTC5610 F2G1C470A022 16V 47µF

CERAMICC5615 F1J1A106A043 10V 10µF

S.M.CAPC5616 ECJ0EB1A473K 10V 47nF

SMDC5617 ECJ1VB1C105K 16V 1000nF

CERAMICC5618 F1J1A106A043 10V 10µF

CERAMICC5619 F1J1A106A043 10V 10µF

S.M.CAPC5620 ECJ1VB1H104 50V 100nF

S.M.CAPC5621 F1G1E1030005 25V 10nF

S.M.CAPC5622 F1J1A475A039 10V 4.7µF

37

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CAPC5623 F1G1H471A459 50V 470pF

S.M.CAPC5624 F1G1H221A459 50V 220pF

S.M.CAPC5625 F1G1E1030005 25V 10nF

S.M.CAPC5626 F1G1C104A081 16V 100nF

S.M.CAPC5627 F1G1C104A081 16V 100nF

ELECTC5628 ECGRL0G680ER 4V 68µF

ELECTC5629 ECGRL0G680ER 4V 68µF

ELECTC5630 F2G1C470A022 16V 47µF

ELECTC5631 F2G1C470A022 16V 47µF

SMDC5632 ECJ1VB1C105K 16V 1000nF

S.M.CAPC5636 F1G1C104A081 16V 100nF

S.M.CAPC5637 F1G1C104A081 16V 100nF

S.M.CAPC5638 F1G1C104A081 16V 100nF

S.M.CAPC5639 F1G1C104A081 16V 100nF

S.M.CAPC5640 F1G1C104A081 16V 100nF

S.M.CAPC5641 F1G1C104A081 16V 100nF

S.M.CAPC5643 ECJ1VB1H104 50V 100nF

S.M.CAPC5644 F1G1E1030005 25V 10nF

S.M.CAPC5645 F1H1A225A051 10V 2200nF

S.M.CAPC5661 F1G1E1030005 25V 10nF

S.M.CAPC5662 ECJ0EB1A473K 10V 47nF

S.M.CAPC5663 F1G1E1030005 25V 10nF

CERAMICC5670 F1H1A1050028 10V 1µF

CERAMICC5673 F1H1A1050028 10V 1µF

CERAMICC5674 F1H1A1050028 10V 1µF

S.M.CAPC5676 F1G1C104A081 16V 100nF

ELECTC5690 F2G0J470A019 6.3V 47µF

ELECTC5691 F2G0J470A019 6.3V 47µF

S.M.CAPC5692 ECJ1VB1H104 50V 100nF

S.M.CAPC5693 ECJ1VB1H104 50V 100nF

ELECTC5694 F2G0J470A019 6.3V 47µF

ELECTC5695 F2G0J470A019 6.3V 47µF

S.M.CAPC5710 F1J1H104A578 50V 100nF

S.M.CAPC5711 F1J1H104A578 50V 100nF

S.M.CAPC5712 F1J1H104A578 50V 100nF

S.M.CAPC5713 F1J1H104A578 50V 100nF

S.M.CAPC5714 F1J1H104A578 50V 100nF

S.M.CAPC5715 F1J1H104A578 50V 100nF

S.M.CAPC5716 F1J1H104A578 50V 100nF

S.M.CAPC5730 F1G1E1030005 25V 10nF

S.M.CAPC5733 F1G1C104A081 16V 100nF

S.M.CAPC8001 F1G1C104A081 16V 100nF

S.M.CAPC8002 F1H0J1050012 6.3V 1000nF

S.M.CAPC8003 F1H0J1050012 6.3V 1000nF

S.M.CAPC8004 F1H0J1050012 6.3V 1000nF

S.M.CAPC8005 F1H0J1050012 6.3V 1000nF

S.M.CAPC8006 F1G1C104A081 16V 100nF

S.M.CAPC8007 F1G1C104A081 16V 100nF

S.M.CAPC8008 F1G1C104A081 16V 100nF

CERAMICC8009 F1J1A106A043 10V 10µF

CERAMICC8010 F1J1A106A043 10V 10µF

S.M.CAPC8011 F1G1C104A081 16V 100nF

S.M.CAPC8012 F1G1C104A081 16V 100nF

S.M.CAPC8013 F1G1C104A081 16V 100nF

S.M.CAPC8014 F1G1C104A081 16V 100nF

S.M.CAPC8015 F1H0J1050012 6.3V 1000nF

S.M.CAPC8016 F1H0J1050012 6.3V 1000nF

CERAMICC8017 F1J1A106A043 10V 10µF

S.M.CAPC8018 F1G1C104A081 16V 100nF

S.M.CAPC8019 F1G1C104A081 16V 100nF

S.M.CAPC8020 F1G1C104A081 16V 100nF

S.M.CAPC8021 F1G1C104A081 16V 100nF

S.M.CAPC8022 F1H0J1050012 6.3V 1000nF

CERAMICC8023 F1J1A106A043 10V 10µF

CERAMICC8024 F1J1A106A043 10V 10µF

S.M.CAPC8025 F1G1C104A081 16V 100nF

S.M.CAPC8026 F1G1C104A081 16V 100nF

S.M.CAPC8027 F1G1C104A081 16V 100nF

S.M.CAPC8028 F1G1C104A081 16V 100nF

S.M.CAPC8029 F1G1C104A081 16V 100nF

S.M.CAPC8030 F1H0J1050012 6.3V 1000nF

S.M.CAPC8031 F1H0J1050012 6.3V 1000nF

CERAMICC8032 F1J1A106A043 10V 10µF

S.M.CAPC8033 F1G1C104A081 16V 100nF

S.M.CAPC8034 F1G1C104A081 16V 100nF

CERAMICC8035 F1J1A106A043 10V 10µF

CERAMICC8036 F1J1A106A043 10V 10µF

S.M.CAPC8037 F1G1C104A081 16V 100nF

S.M.CAPC8038 F1G1C104A081 16V 100nF

S.M.CAPC8039 F1G1C104A081 16V 100nF

S.M.CAPC8040 F1G1C104A081 16V 100nF

S.M.CAPC8041 F1G1C104A081 16V 100nF

ELECTC8042 ECGRL0G680ER 4V 68µF

S.M.CAPC8043 F1G1C104A081 16V 100nF

S.M.CAPC8044 F1G1C104A081 16V 100nF

S.M.CAPC8045 F1G1C104A081 16V 100nF

S.M.CAPC8046 F1G1C104A081 16V 100nF

S.M.CAPC8047 F1G1C104A081 16V 100nF

S.M.CAPC8048 F1G1C104A081 16V 100nF

S.M.CAPC8049 F1G1C104A081 16V 100nF

S.M.CAPC8050 F1G1C104A081 16V 100nF

S.M.CAPC8051 F1G1C104A081 16V 100nF

S.M.CAPC8052 F1H0J1050012 6.3V 1000nF

S.M.CAPC8053 F1G1E1030005 25V 10nF

S.M.CAPC8056 F1G1C104A081 16V 100nF

S.M.CAPC8057 F1G1C104A081 16V 100nF

CERAMICC8058 F1J1A106A043 10V 10µF

S.M.CAPC8067 F1G1E1030005 25V 10nF

S.M.CAPC8068 F1G1C104A081 16V 100nF

S.M.CAPC8069 F1G1H820A565 50V 82pF

S.M.CAPC8070 F1G1C104A081 16V 100nF

S.M.CAPC8071 F1G1C104A081 16V 100nF

S.M.CAPC8072 F1G1C104A081 16V 100nF

S.M.CAPC8073 F1G1C104A081 16V 100nF

S.M.CAPC8074 F1G1C104A081 16V 100nF

S.M.CAPC8075 F1J0G2260001 4V 22µF

S.M.CAPC8076 F1G1C104A081 16V 100nF

S.M.CAPC8077 F1G1C104A081 16V 100nF

S.M.CAPC8078 F1G1C104A081 16V 100nF

S.M.CAPC8079 F1G1C104A081 16V 100nF

S.M.CAPC8080 F1G1C104A081 16V 100nF

S.M.CAPC8301 F1G1E1030005 25V 10nF

S.M.CAPC8304 F1G1C104A081 16V 100nF

S.M.CAPC8306 F1G1H1020008 50V 1nF

S.M.CAPC8307 F1G1C104A081 16V 100nF

S.M.CAPC8309 F1G1C104A081 16V 100nF

ELECTC8310 F2G0G101A007 4V 100µF

S.M.CAPC8311 F1G1H100A565 50V 10pF

S.M.CAPC8312 F1G1H100A565 50V 10pF

S.M.CAPC8313 F1G1E1030005 25V 10nF

S.M.CAPC8314 F1G1E1030005 25V 10nF

ELECTC8316 F2H0J1010009 6.3V 100µF

S.M.CAPC8319 F1G1E1030005 25V 10nF

S.M.CAPC8320 F1G1E1030005 25V 10nF

S.M.CAPC8321 F1G1E1030005 25V 10nF

S.M.CAPC8322 F1G1C104A081 16V 100nF

S.M.CAPC8323 F1G1H220A565 50V 22pF

S.M.CAPC8324 F1G1H220A565 50V 22pF

S.M.CAPC8325 F1G1E1030005 25V 10nF

CERAMICC8327 F1H1A1050028 10V 1µF

CERAMICC8328 F1H1A1050028 10V 1µF

S.M.CAPC8329 F1G1E1030005 25V 10nF

S.M.CAPC8330 F1G1E1030005 25V 10nF

S.M.CAPC8331 F1G1E1030005 25V 10nF

S.M.CAPC8332 F1G1E1030005 25V 10nF

S.M.CAPC8333 F1G1E1030005 25V 10nF

38

TERMINALS AND LINKS

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CAPC8334 F1G1E1030005 25V 10nF

S.M.CAPC8335 F1G1E1030005 25V 10nF

S.M.CAPC8336 F1G1E1030005 25V 10nF

S.M.CAPC8338 F1G1H220A565 50V 22pF

S.M.CAPC8339 F1G1H220A565 50V 22pF

S.M.CAPC8340 F1G1E1030005 25V 10nF

ELECTC8341 F2H0J1010009 6.3V 100µF

S.M.CAPC8402 F1G1C104A081 16V 100nF

S.M.CAPC8403 F1G1C104A081 16V 100nF

S.M.CAPC8404 F1G1C104A081 16V 100nF

S.M.CAPC8405 F1G1C104A081 16V 100nF

S.M.CAPC8406 F1G1C104A081 16V 100nF

S.M.CAPC8407 F1G1C104A081 16V 100nF

S.M.CAPC8408 F1G1C104A081 16V 100nF

S.M.CAPC8409 F1G1C104A081 16V 100nF

S.M.CAPC8410 F1G1C104A081 16V 100nF

ELECTC8411 F2G1A101A019 10V 100µF

S.M.CAPC8412 F1G1C104A081 16V 100nF

S.M.CAPC8413 F1G1C104A081 16V 100nF

S.M.CAPC8414 F1G1C104A081 16V 100nF

S.M.CAPC8416 F1G1E1030005 25V 10nF

S.M.CAPC8417 F1G1E1030005 25V 10nF

S.M.CAPC8551 F1G1C104A081 16V 100nF

S.M.CAPC8552 F1G1C104A081 16V 100nF

S.M.CAPC8555 F1G1C104A081 16V 100nF

S.M.CAPC8601 F1G1C104A081 16V 100nF

S.M.CAPC8621 F1G1C104A081 16V 100nF

S.M.CAPC8622 F1G1C104A081 16V 100nF

S.M.CAPC8731 F1G1E1030005 25V 10nF

ELECTC8815 F2H0J1010009 6.3V 100µF

SWITCHES

DIFFERENCES FOR MODEL TX--26LED7F

EXPLODED VIEW

MISCELLANEOUS COMPONENTS

INSTRUCTION BOOKS

EARTH LUG . K4AZ01D00004

EARTH LUG . K4CD01000013

EARTH LUG . K4CD08000002

EARTH LUG . K9ZZ00000424

15P CONNECTOR AP2 K1KA15A00118

23P CONNECTOR AP3 K1KB23A00003

23P CONNECTOR AP4 K1KB23A00003

2P CONNECTOR AP5 K1KA02AA0150

12P CONNECTOR DG1 K1KA12A00317

DG1-V1 WIRE DG1-V1 TXJV1AGTE

23P CONNECTOR DG2 K1KB23A00003

31P CONNECTOR DG5 K1KB31AA0140

DG5-INV WIRE DG5-PA TXJTDG5AGTE

80P CONNECTOR DG6 K1KB80AA0218

6P CONNECTOR DG26 K1KA06AA0104

WIRE DG26-INV TXJP2AGTE

11P CONNECTOR DG33 K1KA11AA0153

15P CONNECTOR G51 K1KA15AA0194

23P CONNECTOR H2 K1KA23A00003

23P CONNECTOR H3 K1KA23A00003

23P CONNECTOR H4 K1KA23A00003

80P CONNECTOR H6 K1KB80AA0218

4P CONNECTOR H12 K1KA04AA0190

20P CONNECTOR H51 K1KA20AA0178

AUDIO TERMINAL JK2002 K2HA204A0041

SCART SOCKET JK3002B K1FB121A0012

SCART SOCKET JK3003B K1FB121A0012

YUV TERMINAL JK3005 K2HA511A0001

AV3 TERMINAL JK3700 K4AK18B00004

HDMI TERMINAL JK4501 K1FY119D0002

CI SLOT JK8401 K1NA68B00044

4P CONNECTOR JK8702 K1KA04AA0104

SD SLOT JK8801 K1NA09D00004

3P CONNECTOR P1 K1KA03A00537

8P CONNECTOR P2 K1KA08AA0192

15P CONNECTOR P4 K1KB15AA0032

I.C.s

TERMINALS AND LINKS

DIFFERENCES FOR MODEL TX--26LXD7

EXPLODED VIEW

MISCELLANEOUS COMPONENTS

15P CONNECTOR P5 K1KB15AA0032

8P CONNECTOR P6 K1KA08AA0192

P6-INV WIRE P6-INV TXJP6AGTE1

TUNER TO TUNER TNR-TNR TXJTNR0AGXE

8P CONNECTOR V1 K1KA08BA0061

SWITCH SW801 ESB92DA1B

AC CORD 26 TXASX01AGWE1

BACK COVER 27 TKU0E0176

CABINET 28 TTY0E0190

CHASSIS FRAME 29 TUA0E0600

DG P.C.B. 30 DG-26LED7F

L LCD BOTTOM MTG 31 TKZ0E9354

L LCD TOP MTG 33 TKZ0E9350

L/R LCD MTG 35 TKZ0E9352

LCD BOTTOM MTG 37 TKZ0E9413

LCD PANEL 38 L5EDD6Q00023

MODEL LABEL 39 TBM0E0819

R LCD BOTTOM MTG 40 TKZ0E9355

R LCD TOP MTG 42 TKZ0E9351

REAR AV LABEL . TBM0E0945

BOTTOM CUSHION BOTCUS TPD0E0139

CARTON CARTON TPC0E71601

TOP CUSHION TOPCUS TPD0E0138

GERMAN . TQB0E0363A

ITALIAN . TQB0E0363C

FRENCH . TQB0E0363D

SPANISH . TQB0E0363E

SWEDISH . TQB0E0363F

FINNISH . TQB0E0363H

DANISH . TQB0E0363K

CZECH . TQB0E0363R

ENGLISH . TQB0E0363U

16MB FLASH IC8554 TVRP526-2

EEPROM IC8601 X24C26LED7F

WIRE H12-SPK TXJH7AGUE

WIRE H51-G51 TXJH51AGUE

AC CORD 26 TXASX01AGUE1

BACK COVER 27 TKU0E0176

CABINET 28 TTY0E0134

CHASSIS FRAME 29 TUA0E0600

DG P.C.B. 30 DG-26LXD7

L LCD BOTTOM MTG 31 TKZ0E9354

L LCD TOP MTG 33 TKZ0E9350

L/R LCD MTG 35 TKZ0E9352

LCD BOTTOM MTG 37 TKZ0E9413

LCD PANEL 38 L5EDD6Q00023

MODEL LABEL 39 TBM0E0764

R LCD BOTTOM MTG 40 TKZ0E9355

R LCD TOP MTG 42 TKZ0E9351

REAR AV LABEL . TBM0E0917

BOTTOM CUSHION BOTCUS TPD0E0139

;57/

;57/

39

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

CARTON CARTON TPC0E71601

TOP CUSHION TOPCUS TPD0E0138

INSTRUCTION BOOKS

ENGLISH . TQB0E0361

I.C.s

16MB FLASH IC8554 TVRP375-2

EEPROM IC8601 X24C26LXD7

TERMINALS AND LINKS

WIRE H12-SPK TXJH7AGUE

WIRE H51-G51 TXJH51AGUE

DIFFERENCES FOR MODEL TX--32LED7F

EXPLODED VIEW

AC CORD 26 TXASX01AGVE1

BACK COVER 27 TKU0E0179

CABINET 28 TTY0E0191

CHASSIS FRAME 29 TUA0E0800

DG P.C.B. 30 DG-32LED7F

L LCD MTG 32 TKZ0E9370

L/R LCD BOTTOM MTG 34 TKZ0E9372

L/R LCD TOP MTG 36 TKZ0E9368

LCD BOTTOM MTG 37 TKZ0E9414

LCD PANEL 38 L5EDD8Q00029

MODEL LABEL 39 TBM0E0820

R LCD MTG 41 TKZ0E9371

MISCELLANEOUS COMPONENTS

REAR AV LABEL . TBM0E0945

BOTTOM CUSHION BOTCUS TPD0E0147

CARTON CARTON TPC0E72001

TOP CUSHION TOPCUS TPD0E0146

INSTRUCTION BOOKS

GERMAN . TQB0E0363A

ITALIAN . TQB0E0363C

FRENCH . TQB0E0363D

SPANISH . TQB0E0363E

SWEDISH . TQB0E0363F

FINNISH . TQB0E0363H

DANISH . TQB0E0363K

CZECH . TQB0E0363R

ENGLISH . TQB0E0363U

I.C.s

16MB FLASH IC8554 TVRP526-2

EEPROM IC8601 X24C32LED7F

TERMINALS AND LINKS

H12-SP WIRE H12-SPK TXJH7AGTE

H51-G51 WIRE H51-G51 TXJH51AGTE

;57/

BOTTOM CUSHION BOTCUS TPD0E0147

CARTON CARTON TPC0E72001

TOP CUSHION TOPCUS TPD0E0146

INSTRUCTION BOOKS

ENGLISH . TQB0E0361

I.C.s

16MB FLASH IC8554 TVRP375-2

EEPROM IC8601 X24C32LXD7

TERMINALS AND LINKS

H12-SP WIRE H12-SPK TXJH7AGTE

H51-G51 WIRE H51-G51 TXJH51AGTE

DIFFERENCES FOR MODEL TX--32LXD7

EXPLODED VIEW

AC CORD 26 TXASX01AGTE1

BACK COVER 27 TKU0E0179

CABINET 28 TTY0E0138

CHASSIS FRAME 29 TUA0E0800

DG P.C.B. 30 DG-32LXD7

L LCD MTG 32 TKZ0E9370

L/R LCD BOTTOM MTG 34 TKZ0E9372

L/R LCD TOP MTG 36 TKZ0E9368

LCD BOTTOM MTG 37 TKZ0E9414

LCD PANEL 38 L5EDD8Q00029

MODEL LABEL 39 TBM0E0768

R LCD MTG 41 TKZ0E9371

MISCELLANEOUS COMPONENTS

REAR AV LABEL . TBM0E0917

;57/

40

Schematic Diagrams

IMPORTANT SAFETY NOTICE

Components identified by mark have special characteristics
important for safety. When replacing any of these components, use
only manufacturers' specified parts.

NOTE

1. RESISTOR
All resistors are carbon ¼W resistor, unless marked otherwise.
Unit of resistance is OHM (Ω) (k=1,000, M=1,000,000)

2. CAPACITORS
All capacitors are ceramic 50V unless marked otherwise.
Unit of capacitance is µF unless otherwise stated.

3. COIL
Unit of inductance is µH, unless otherwise stated.

4. TEST POINT

Test Point Position

5. EARTH SYMBOL

Chassis Earth (Cold)
Line Earth (Hot)

6. VOLTAGE MEASUREMENT
Voltage is measured by a D.C. voltmeter.
Measurement conditions are as follows:
Power source 220V-24 0V AC, 50Hz
Receiving Signal Colour Bar signal (RF)
All customer controlsMaximum position

7.

Indicates the Video signal path
Indicates the Audio signal path

These schematic diagrams are the latest at time of printing and are subject to change without notice.

REMARKS

a. Do not touch the hot part, or the hot and cold parts at the same time, as you are liable to a shock hazard.
b. Do not short circuit the hot and cold circuits as electrical components may be damaged.

c. Do not connect an instrument, such as an oscilloscope, to the hot and cold circuits simultaneously as this may cause

fuse failure. Connect the earth of the instruments to the earth connection of the circuit being measured.

d. Make sure to disconnect the power plug before rem oving the chassis.

NOTE

1.The Power Supply Circuit contains a circuit are a, which uses a separate power supply to isolate the earth connection.

The circuit is defined by HOT and COLD indications in the schematic diagram. All circuits, except the Power Circuit, are
COLD.

41

1

2

3

4

5

6

7

8

10

11

A B C D E F G H I J K L M N O P Q R S T U

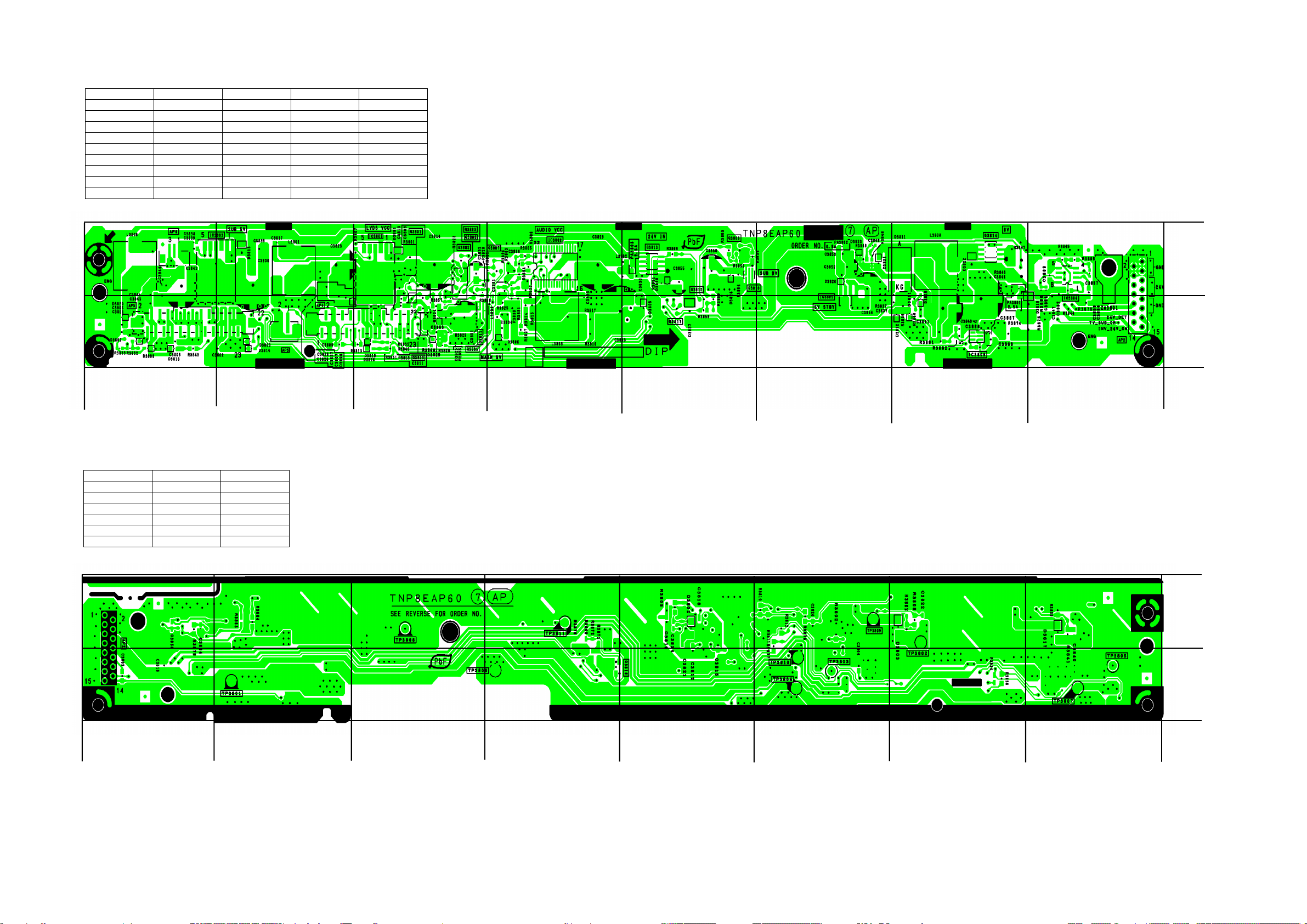

AP-BOARD TNP8EAP60

C3816

BACKLIGHT_PSU_ON

0V

PANEL_VCC_ON

K1KB23A00003

AP3

K1KB23A00003

127303123K3

N.C.

+15V_S

+15V_S

S_GND

S_GND

24V_DET

N.C.

N.C.

N.C.

GND

GND

GND

GND

D_GND

D_GND

DTV_9V

DTV_9V

NC(FANS0S)

GND

SUB_5V

SUB_5V

MAIN_9V

AP5

K1KA02AA0150

B2B-PH-SM4-TBT(LF)(SN)

KEYSCAN

TV_SOS

GND

STBY_5V

GND

N.C

TV_MAIN_ON

ALL_OFF

TV_SUB_ON

GND

GND

PANEL_VCC

PANEL_VCC

N.C

KEYSCAN

N.C.

N.C.

N.C.

GND

GND

GND

N.C.

N.C.

AP4

127303123K3

1000p

TO H3

AUDIO_16V

23

16.00V

22

C3802

21

0.1u
50V

20

24V_DET

19

18

17

16

15

14

13

12

11

10

9

C3805

SUB9V

0.1u

8

50V

7

9.00V

6

5

4

3

2

1

1

2

0V

23

0V

22

21

0V

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

SUB5V

5.00V

C3806

MAIN9V

0.1u
50V

9.00V

C3801

0.1u
50V

LPG

24V_GND

5V_STBY

C3811
50V

5.00V

LPG

0.1u

LPG_1

C3808

50V

0.1u
TUNER_MAIN_ON

C3804

50V

TUNER_SUB_ON

0.1u

C3807

PANEL_5V/12V

50V

0.1u

5.00V

C3809
50V

0.1u

R3801

10k

R3802

Q3801

2SC584500L

22k

TUNER_MAIN_ON

ZA3801

K4CD01000013

SOS

R3804

10k

R3877

0

C3812

50V

0.01u

24V_IN

24.00V

C3813

35V
10u

C3814

MZA1VS331MJ4

R3805

100k

32

AMP-

1 S/S

C3815

0.047u
50V

VIN2SWOUT3GND4VOS5SS

1

+

D3801

SD83304TE12R

50V

R3806

330k

31

2 OCL-

PANEL_VCC_ON

30

N/C

3 OCL+

R3807

1.5k

G1C470ZA0037

5.00V

29

AMPOUT

4 GND

6
(FIN)

GND

L3801

TO H4

D3802

C3824

0.1u

MA22F2000L

25VB26

8 VBOOT

IC3801
LA5744MPDLE

C3820

5.00V

C3823

16V
120u

50V

R3809

22

23VG24

N/C

IC3802

C0DBAJG00006

9 N/C

10 N/C

11 VOUT

12 VOUT

13 VOUT

14 VOUT

C3825

220p
50V

C3821
1000p

50V

R3876
0

Q3802

2SC584500L

16V

1u

C3822

D3803

50V

MA22F2000L

2200p

+

C3826

25V

1u

C3818

0.01u
50V

28

GND27VTS

N/C

VREF

5 R/C

6 VCC

7 N/C

C3819
50V

0.1u

R3808

12k

R3862

1.3k

L3802

J0JHC0000096

24.00V

+

C3829

N/C18VDD19VDD20VDD21VDD22N/C

MZA1VS331MJ4

15 N/C

16 P.GND 17

5V_STBY

5.00V
R3810

68k

Q3803

2SC584500L

R3811

47k

PANEL_5V/12V

TP3802

C3827

D3804

C3828

25V

MAZ81800ML

25V

1u

1u

24V_IN

PA3803

ERBSE2R50U

24.00V

2.5A

S

C3830

35V
10u

D3805

MA22F2000L

24V_IN

R3816

0.56

1/2W

R3817

0.56

L3803

1/2W

2.4k

TP3803

R3822

MA2J11100L

5.00V

R3825
470

16.00V

R3821

2.4k
R3826

4.7k

1k

R3827

1k

D3829

C3863

0.1u

50V

Q3806

2SA207700L

R3823

2.2k

R3824

4.7k

Q3805

2SC584500L

G1C680ZA0037

R3814

R3815

1k

SOS

R3813

22k

R3812

47k

5V_STBY

PANEL_VCC_ON

R3818

22k

R3820

47k

L3804

J0JHC0000063
R3830
10k

+

C3831

0.022u
25V

Q3807

2SA207700L

R3828

1k

R3829

2.2k

C3833

+

TP3804

PXA1DS820MJA

C3832

10u
16V

AUDIO_16V

16.00V

D3806

C3834

25V

MAZ82000ML

1u

R3831
56k

MAIN9V

AUDIO_16V

PANEL_5V/12V

9.00V

R3832

56k

D3807

MA2J11100L

C3858

5.00V

16.00V

D3809

D3810

MA2J11100L

MA2J11100L

R3834

R3835

KA

D3811

56k

56k

USF5G49TE16Q

C3857
2200p

50V

56p

50V

R3865

1%

68k

R3845

ERJ6RBD8451V

24.00V

C3835

35V
10u

G

C3837

50V

0.047u

R3844

200k

C3859

50V

390p

C3860

0.47u
16V

MZA1VS331MJ4

AUDIO_16V

R3837

C3836

16.00V

R3838

330

R3878
0

MAIN9V

PANEL_5V/12V

9.00V

D3814

D3815

MAZ82000ML

R3840

22

22

IC3804

1

RC

2

SS

3

COMP

4

FB

+

5.00V

MAZ81800ML

C0DBAHY00002

24V_GND

C3848
1800p

50V

D3816

R3842

22

IC3803

LA5744MPDLE

6
(FIN)

GND

VIN2SWOUT3GND4VOS5SS

1

R3839

2k

L3805

G1C330ZA0037

D3813

SD83304TE12R

24V_HEADER

R3874

SUB5V

1/2W

0.56

R3875

1/2W

0.56

5.00V
D3819

MA24D5000B

D3818

MAZ81800ML

MAZ81800ML

R3843

R3882

22

8

VDD

7

ISNS

6

GDRV

5

GND

C3862

0.1u

R3848
1k

R3849
100k

C3839

16V

1u

TP3805

R3841

D3817

MA22F2000L

6.2k

5.00V

C3840

50V

2200p

+

25V

C3843

1u

C3841

6.3V
390u

S

PA3801

ERBSE2R50U

2.5A
R3881

22k

IC3806

C0EBM0000026

2

3

OUT

GND

Vdd

C3866

0.01u

10k

50V

NC

R3846

C3847

0.015

1%

1W

R3880

C3856

10k

0.039u
16V

R3847

0.015

1W
1%

R3863
1k

R3864
0

50V

SD83304TE12R

35V

C3844

1

5Cd4

1u

1234

25V

1u

C3868

0.047u
50V

Q3814

TPC8116-H

D3822

SUB5V

D3820

MAZ81800ML

25V

C3845

1u

C3867
50V

0.01u

9.00V

5 6 7 8

9V

TUNER_MAIN_ON

D3821

+

C3861

10u
35V

R3855

10k

2SC584500L

Q3809

R3853

22k

9.00V

R3857

D3823

MAZ81800ML

R3850

10k

5V_STBY

R3872

10k

R3871

TUNER_SUB_ON

9.00V

10k

9V

D3824

5.00V

R3870

2.2k

22k

D3825

MA2J11100L

R3851

10k

MA22F2000L

+

C3846

MZA1VS331MJ4

C3849

16V

L3806

120u

G1C101ZA0037

C3851

F2G1C470A022

+

47u
16V

B1DHDC000028

24V_DET

MA2J11100L

2SC584500L

R3852

22k

R3854

Q3811

10k

Q3808

4 5 6

R3856

10k

2SA207700L

4.7k

2SC584500L

MAIN9V

TP3807

9.00V

123

0V

C3803

BACKLIGHT_PSU_ON

50V

15

TUNER_SUB_ON

PA3802

ERBSE0R50U

S

500mA

C3852

2SC584500L

Q3812

9.00V

TP3808

C3853

+

0.1u

10u

25V

16V

IC3805

AN78L05M-E1

TP3811

MA24D5000B

R3861

47k

R3860

100k

C3855
10u

SUB9V

TP3806

9.00V

4 5 6

+

C3850

16V

123

Q3810

B1DHDC000028

24V_IN

TP3809

24.00V

Q3813

B1DHED000013

Q3817

R3858

10k

R3869

Q3816

R3859

22k

16V

MA2J11100L

D3826

IN

3

24V_HEADER

D3827

+

5V_STBY

TP3810

5.00V

1

OUT

+

COMMON

2

C3854

47u

16V

24.00V

D3828

MA2J11100L

LPG

0.1u
TV_SUB_ON

14

24V_DET

13

0V

LPG_1

12

LPG_1

11

LPG_1

LPG

24V_HEADER

TP3801

C3810

50V

0.1u

10

0V

9

8

7

24.00V
6

5

4

3

2

1

AP2

K1KA15A00118

TWG-P15P-A1 BLK ST

LPG

LPG

24V HEADER

24V HEADER

24V HEADER

24V HEADER

GND

GND

GND

GND

TO P4

42

R

R-GLL-GVV-G

<

R-SW

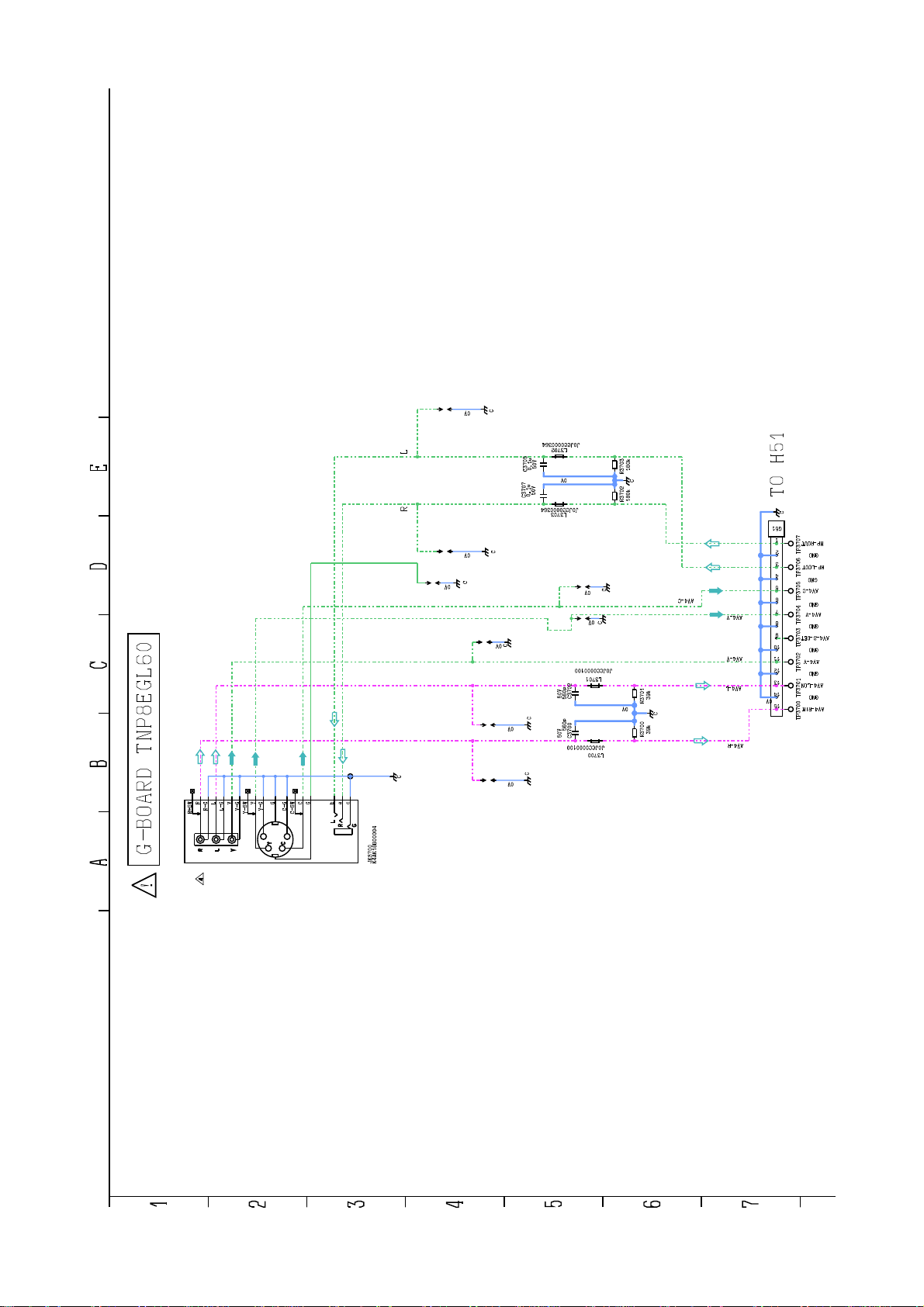

G-BOARD TNP8EGL60

A B C D E

4

LLV

Y-SW

Y

Y-GGC-G

Y

CGbac

C-SW

C

0V

C

J0JCC0000364

L

R

C

0V

C

0V

0V

C

0V

C

GRR

JK3700

K4AK18B00004

0V

L3702

50V

0.1u

C3705

0V

50V

0.1u

C3707

C

J0JCC0000364

L3703

50V

C3702

560p

C

560p

50V

C3700

0V

0V

C

C

J0JCC0000100

L3701

J0JCC0000100

L3700

180k

R3703

C

180k

R3702

AV4_C

39k

R3701

0V

C

39k

R3700

TO H51

C

G51

1

HP_ROUT

2

GND

TP3707

3

HP_LOUT

4

TP3706

GND

5

AV4_C

6

TP3705

GND

7

AV4_Y

AV4_V

AV4_L

0V

AV4_R

AV4_Y

8

TP3704

GND

9

10

11

12

13

14

15

TP3703

TP3702

TP3701

TP3700

AV4_S_DET

GND

AV4_V

GND

AV4_LIN

GND

AV4_RIN

1

2

3

4

5

6

7

43

A B C D E F G H I J K L M N O P Q R

SUB9V_VIDEO

R3130

1

2

3

*JK3003B

K1FB121A0012

4

5

<

6

7

K1FB121A0012

*JK3002B

AV2

<

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

AV1

D3003
MAZ81400ML

C

R3002

R3003

R3173

R3178

JS2031

C

R3008

R3009
R3192

R3010
R3193

150

J0JCC0000100

J0JCC0000100

J0JCC0000100

JS2032

J0JCC0000100

L2009

J0JCC0000100

150

R3194
R3011

R3001

150

R3027

150

R3028

150

1%

150

150

1%

150

150

1%

R3187

150

L2003

L2004

L2005

L2006

R3006

150

R3033

150

J0JCC0000100

L2008

L2010

R3036

150

1%

150

150

1%

150

150

1%

150

1%

1%

1%

1%

R3004

1%

1%

J0JCC0000100

1%

1%

L2007

J0JCC0000100

1%

1%

1%

150

1%

R3005

C2013

1%

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

FB IN

RED IN

GREEN IN

BLUE IN

*JS3043

0

*JS3040

0

*JS3041

0

*JS3042

0

GND(PLUG)

VIDEO IN

TV VIDEO OUT

GND(BLK)

GND(VIDEO)

GND(RED)

GREEN IN

Q-link AV1

GND(GREEN)

AV1 SLOW

BLUE IN

GND(BLUE)

GND(AUDIO)

TV L OUT

TV R OUT

GND(PLUG)

VIDEO IN
VIDEO OUT
GND(BLK)

GND(VIDEO)

Chroma in

AV2 SLOW

GND(AUDIO)

TV L OUT

TV R OUT

BLK IN

GND(RED)

GREEN IN

GND(GREEN)

AV1 SLOW

RED IN

Q-LINK

Q-LINK

BLUE IN

RED IN

FB IN

GND

L IN

R IN

GND
GND

GND

L IN

GND

R IN

GND

L3001

J0JCC0000100

ERJ6GEY0R00V

D3004

JS3010

0

C

JS3011

JS3012

JS3013
JS3014

1%

*R3020

C3001

21.5k

150

50V

1%

1000p

C2010

R2029

560p

22k

50V

C2011

R2030

560p

22k

50V

C2012

C2007

560p

560p

50V

50V

J0JCC0000100

ERJ6GEY0R00V

C

ERJ6GEY0R00V

R3018

68

1%

*R3021

C3002

21.5k

1000p

50V

R2031

560p

22k

50V

R2032

C2014

560p

22k

50V

C2015

C2008

560p

560p

50V

50V

C

JS3018

JS3005

JS3019

0

JS3020

D3027

0

MAZ81400ML

D3028

MAZ81400ML

0

D3030

MAZ81400ML

0
0

R3023

13k

1%

C

JS3015

JS3016

R3163
13k

1%

C

J0JCC0000100

0
0
0

C

L3002

C

*L3003

D3031
MAZ81400ML
D3032
MAZ81400ML

D3100

MAZ81400ML

0

0

D3025

MAZ81400ML

MAZ81400ML

C

D3005

MAZ81400ML

*D3007
MAZ81400ML

D3008
MAZ81400ML

C

MAZ81400ML

D3009

H-BOARD TNPA4291 1/4

220

SUB9V_PRCT

R3131

220

+

C3120

C3119

0.1u

10u

50V

16V

AV1_RED

AV1_GREEN

AV1_BLUE

AV1_SLOW

AV2_VOUT

AV2_SLOW

AV3_RED/C

AV3_GREEN

AV3_BLUE

AV1_V

AV1_FB

AV2_V

AV2_C

AV3_V

AV3_FB

C

C

MOUT_9V

VIDEO/3

AV1_VOUT

*R3114

QLINK_AV3

68

AV1_L

AV1_R

AV1_LOUT

AV1_ROUT

QLINK_AV2

AV2_L

AV2_R

AV2_LOUT AV2_LOUT

AV2_ROUT

VIDEO/4

R3145

100k

R3152

100k

*R3143

*R3150

+

C3070

68

1%

16V
470u

C3068

50V

0.1u

+

C3072

68

1%

16V
470u

C3071

50V

0.1u

D3038

D3039

R3146

360

MAZ81400ML

R3153

360

MAZ81400ML

Q3027

2SA207700L

C

Q3028

2SA207700L

C

R3032
ERJ3GEY0R00V

0

R3149
360

R3031
ERJ3GEY0R00V

0

R3154
360

R3144

220

9V

R3151

220

9V

SOUND_MUTE/1

Q2004

2SC584500L

R2035

100k

C

R2036

100k

C

Q2005

2SC584500L

SOUND_MUTE/2

Q2006

2SC584500L

R2039

100k

C

R2040

100k

C

Q2007

2SC584500L

AVSW/2

Audio SW

SDA0B_5V

SCL0B_5V

AV_L

AV_R

22

22

R2154

R2152

AV1_VO

AV1_FEED_B

33

SCL

SDA

ROUT1

O2

ADR

BIAS

AN15862A-VT

L11

R11

<SLV 96H>

L12

R13

R12

L13

1L12R13L24R25

DTV9V

C

29

30

GND

LOUT231ROUT232LOUT1

IC3101

VCC6L37R38L49R410L5

C2154

0.1u

50V

C

+

100u

16V

C2161

C

LOUT5

D2119

R5

B0BC01100001

O1

L6

R2196

R2195

100k

DTV9V

DTV_SL

DTV_SR

TV_L

TV_R

R2235

R2132

C

47k

*R2133

220

*R2134

220

R2137

220

R2138

220

R2037

C

R2038

C

R2041

C

R2042

C

AV1_LOUT

2.2k

AV1_ROUT

MONITOROUT_MUTE

2.2k

AV2_VO

AV2_FEED_B

2.2k

AV2_ROUT

MONITOROUT_MUTE

2.2k

100k

C

C

34

47k

*C2127

*C2129

C

35

36

37

C2147

22u

38

+

C

16V

1u

1u

C2135

1u

C2136

1u

39

16V

40

16V

41

16V

42

16V

43

44

AV2_ROUT

10u

C2139

*C2155

*R2160

AV4_L

DAC_PD

AV2_LOUT

330

330

R2157

R2159

10V

10V

10u

10u

10V

10V

10u

C2141

C2140

C2142

23

24

22

21

R10

ROUT525LOUT426ROUT427LOUT328ROUT3

20

L10

19

R9

18

L9

17

R8

16

L8

15

R7

14

L7

13

R6

12

11

220

220

*C2157

1u

1u

16V

16V

*R2162

AV4_R

C2104

R2102

AV1_ROUT

10V

10u

330

10V

10u

C2123

C2103

R2101

AV1_LOUT

10V

10u

330

10V

10u

C2122

C2162

1u

16V

C2163

1u

16V

C2164

1u

16V

C2165

1u

16V

C2160

1u

16V

C2159

1u

16V

AV1_R

R2170

220

AV1_L

R2171
220

AV2_R

R2172
220

AV2_L

R2173
220

R2167

PC_RIN

220

PC_LIN

R2164
220

8

9

10

11

12

YPBPR

AUDIO IN

*JK3005

K2HA511A0001

Y

PB

PR

L

R

AUDIO OUT

Y-G

Y-SW
PB-G

PR-G

L-G

R-G

Y

PB

PR

L

R

K2HA204A0041

C2021

560p

C2022

JK2002

L-G

R-G

NET0011348

D3010
MAZ81400ML

D3011
MAZ81400ML

D3012
MAZ81400ML

FL2001

J0HABB000004

FL2002

J0HABB000004

R2047
330

R2048

R2049

330

R2050

YPBPR_Y

YPBPR_PB

YPBPR_PR

PC_LIN

PC_RIN

AUDIOOUT_L

2.2k

AUDIOOUT_R

2.2k

MONITOROUT_MUTE

ERJ6GEY0R00V

R3013

JS3007

ERJ6GEY0R00V

100k

ERJ6GEY0R00V

JS3008

JS3009

123

123

Q2003

2SC584500L

Q2002

2SC584500L

0

0

0

4

C

4

C

C

C

75

1%

R3014

75

1%

R3015

75

1%

C

C

L2001

R2051

J0JCC0000364

180k

50V

C

R2052

560p

180k

50V

L

R

L2002

J0JCC0000364

C

C

L2015

J0JCC0000100

L2016

J0JCC0000100

C2006
560p
50V

R2054

R2053

C2005

100k

C

560p
50V

44

S T U V W X Y Z AA AB AC AD AE AF AG AH AI

1

2

3

4

5

6

7

8

9

10

*C3101

*C3100

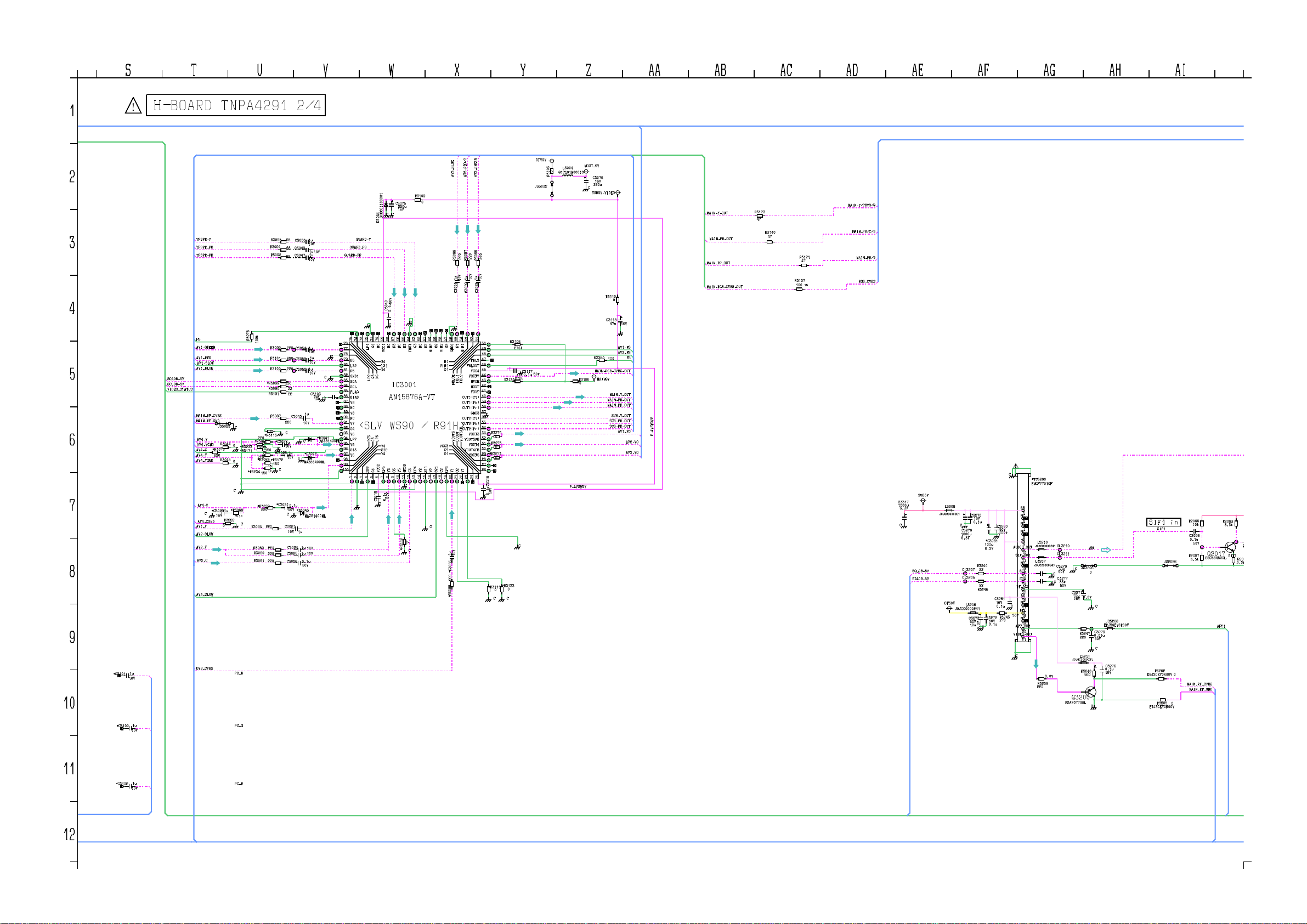

H-BOARD TNPA4291 2/4

YPBPR_Y

YPBPR_PB

YPBPR_PR

FB

AV1_GREEN

AV1_RED
AV1_SLOW
AV1_BLUE

SDA0B_5V
SCL0B_5V
VIDEO_STATUS

MAIN_RF_CVBS
MAIN_RF_GND

JS3023

AV4_V

R3044

AV4_VGND

*R3073

AV4_S
AV4_Y

220

R3045

AV4_YGND

AV4_C

*C3029

C

16V

AV4_CGND

AV1_V

AV2_SLOW

AV2_V

AV2_C

AV3_SLOW

1u

10V

1u

10V

DVB_CVBS

DTV9V

AV3_BLUE

AV3_RED/C

AV3_GREEN

R3109

+

0

C3075

220u

16V

C

C

B0BC01100001

D3044

R3095

68

1u

C3050

*C3031

10V

68

C3049

1u

10V

1u

C3047

68

10V

220

1u

C3054

10V

1u

220

C3056

10V

220

1u

C3055

10V

330

22
22

C3103

16V
10u

1u

C3043

220

10V

C

*D3041

MAZ81400ML

C

1u
10V

C

1u

*D3042

10V

C

MAZ81400ML

C

0.1u

50V

*D3043

C

MAZ81400ML

C3021

10V

1u

C3024

1u

10V
10V

C3025

1u

C3026

0.1u
50V

R3094

R3092

R3275

100k

R3099

R3101

R3100

*R3089

R3090
R3191

R3087

C

0

C

0

C

C

*R3068

1u

75

R3222

0

PC_B

PC_G

0

*R3113

220

*R3062

*C3027

1%

*R3233

150

150

*R3171

1%

*C3028

220

*R3063

*R3172

150

1%

1%

*R3234

150

*R3072

220

1%

C

220

R3064

220

R3059
R3060

220

R3061

220

GUARD_Y

GUARD_PB

GUARD_PR

50V

C3040

0.1u

C

C

C

59B260

61R262NC63G364

65B366NC67R368NC69

70NC71G472

73B474

75

76

LP1

78

C

79

B5

80

L32

81

R5

82

GND1

C

83

SDA

84

SCL

85

FLAG

86

BIAS

C

+

87

V9

88

NC

89

V8

90

NC

91

V7

92

O4

93

V6

94

LP7

95

V5

96

S13

97

Y5

98

100

1V42

VCC1

L31
R4

NC77G5

LP2

IC3001

AN15876A-VT

<SLV WS90 / R91H>

S2399C5

LP6

S12

S225C46VCC27LP58V39O310Y311GND212C313LP414V215S1116Y217S2118C219LP320V121O222Y1

3Y44

50V

0.1u

C3115

C

C

*R3112

HIN2

TEST

C

C

0

C

220

220

220

R3097

R3096

R3098

10V

10V

1u

1u

1u

10V

C3052

C3053

C3051

C

51G152

53B154

55R156

57G258

HIN1

GND4

VIN2

FBL3

FBLOUT

VIN1

VCC4

VOUT7

FBL249FBL1

HVOE

FBLOE

HOUT

VOUT
OUT1(CY)
OUT1(Pb)
OUT1(Pr)

GND3
OUT2(CY)
OUT2(Pb)
OUT2(Pr)

VOUT3

VOUT3FB

VOUT627DCOUT28VOUT5FB

VOUT4

VCC3

VOUT4FB

VOUT5

23O124C125

1u

10V

*C3066

220

*R3088

R3106

50

270k

48
47
46
45
44

270k

R3134

43
42
41
40
39
38
37

C

36
35
34

R3274

33

0

32

R3273

31

0

30

*R3271

29

0

26

C3116

50V

0.1u

C

*R3133

*R3111

0

0

C

C

R3103

JS3032

C3117

C

50V

0.1u

C

0

L3004

G1C101M00018

P_AVSW9V

R3186
0

MOUT_9V

+

C

C3076

16V

220u

SUB9V_VIDEO

R3110

C3118

R3350

MAIN_RGB_CVBS_OUT

MAIN9V

MAIN_PB_OUT
MAIN_PR_OUT

0

47u

100

MAIN_Y_OUT

SUB_Y_OUT
SUB_PB_OUT
SUB_PR_OUT

AV1_FB
AV3_FB

AV1_VO

MAIN_Y_OUT

MAIN_PB_OUT

MAIN_PR_OUT

MAIN_RGB_CVBS_OUT

+

16V

C

FB

P_AVSW9V2

AV2_VO

AV3_VO

R3123

47

R3140

47

R3121

47

R3137

1%

100

MAIN_Y/CBVS/G

MAIN_PB/C/B

MAIN_PR/R

RGB_CVBS

S

C

*TU3200
ENGF7701GF

SUB5V

C3317
1500u

6.3V

+

C

SCL0B_5V

SDA0B_5V

L3209

J0JGC0000021

BT30V

+

C

C3270

1000u

6.3V

CL3207

CL3205

J0JCC0000241

BB

C3275

16V

0.1u

+

*C3081
100u

6.3V

R3244

22

22

R3246

L3206

+

C3272

C3273

50V

50V

0.1u

10u

C

0.0V

5

NC

6

NC

C3280

7

50V

NC

100p

C

8

+B

L3210

9

J0JCC0000241

L3207

J0JCC0000241

R3239

220

CL3210

AM

CL3211

C3278

JS3206

C

33p
50V

C

C

0.0V

0

C3277

33p

50V

+

C3271

10u

0.0V

16V

C

JS3208

ERJ3GEY0R00V

C3279

R3247

0.01u

220

50V

C

L3211

J0JGC0000021

Q3200

2SA207700L

C3276

1%

0.1u

R3240

16V

560

C

AUDIO_OUT

10

SIF_OUT

11

NC

12

SCL

13

SDA

14

RF_AGC

15

VB

C3281

16

NC

16V

C

0.1u
17

BTL

30V

18

R3243

NC

270

19

AFT_OUT

20

VIDEO_OUT

21

C

SIF1 in

R3202

ERJ3GEY0R00V

R2096

SIF1

C2096

0.1u

R2097

JS2096

0ERJ3GEY0R00V

MAIN_RF_CVBS

MAIN_RF_GND

R3205

0

R2093

10k

3.3k

50V

Q2017

2SC584500L

3.3k

R2092

SIF1

R2094

2.2k

AFC1

11

12

*C3102

1u

10V

PC_R

45

AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ BA

1

2

3

4

5

6

7

8

9

10

11

H-BOARD TNPA4291 3/4

*R2291

0

100

100

Audio
DAC

*R2290

0

R2168

1%

C2146

R2149

10k

C2134

*C2133

0.01u

4.7u
+

50V

50V

R2165

10k

C2143

180p

R2166

1%

16k

HP AMP

+

*C2175

47u
16V

C

15k

*R2237

20mA

16

DZF

15

DEM

14

VDD

13

VSS

12

VCOM

11

AOUTL

10

AOUTR

DIF1

DTV9V

L2040

J0JHC0000045

SUB5V

IC2010
C0CBCBC00190

3.3V

C2130

10u

6.3V

CSIF

L2039

J0JHC0000045

AM

AV_L
AV_R

G1C6R8MA0061

L2026

C2092

22p

SUB5V

R2086

470

C2091

10p

50V

50V

R2257

0

MUTE(ES2-)

C

MUTE from D-AMP <<

C

R2112

1M

SUB3.3V

Q2101

2SC584500L

Q2102

2SC584500L

C2120

SOUND_SOS

*R2209

10k

AUDIO_MUTE

*R2210

10k

56p
50V

L2027

J0JHC0000045

SUB5V

C2097

0.1u

50V

Q2016

2SC584500L

R2092

470

R2094

2.2k

R2088

100

R2089

560

SIF3.3V

SDA0B
SCL0B

11/15 R2190<->L2021

C2114

0.1u
50V

C2115

0.1u

C2117

0.1u
50V

C2121

CSIF

DTV_LRCK
DTV_BCLK

DTV_SDIN
DTV2_SDIN

HDMI_LRCK
HDMI_BCLK

C2265 100p

C2266 100p

C2267 100p

C2268 100p

50V

56p
50V

R2111

100

C2113

5

4

50V

C2112

47u

6.3V

50V

50V

50V

47u

6.3V

+

VOUT

NC

C2261

C2262 10u

C2263 10u

C2264 10u

C_AUD

C2109

0.1u

50V

+

C2110

0.1u
50V

R2056

R2057
DTV_LRCLK >>
DTV_BCLK >>

DTV_SDIN >>
DTV2_SDIN >>

L2021

J0JHC0000078

HDMI_SDIN >>

HDMI_LRCLK >>

HDMI_BCLK >>

GND

22
22

VDD

CE

DVDD3.3V

C2131

1

50V

0.1u

2

3

*R2114

75k

CSIF

*R2180

1k

10u

R2145

1%

20k

10V

R2146

1%

20k

10V

R2150

1%

20k

10V

R2151

1%

20k

10V

R2100

1%

20k

0.1u

50V

C2106

47u

6.3V

C2108

+

0.1u

50V

C2105

47u

6.3V

C2107

+

0.1u

50V

C2100

10V

10u

C2101

0.1u

50V

C2124

47u

6.3V

C2137

C2138
C2151

C

0.1u

47u

C2050 0.1u

R2110

10k

*R2178

10

+
50V

11

6.3V
12

+

13
14

50V

15
16
17
18

C2023

0.1u
50V

1k

IC2008

AUD3.3V

C0CBCBE00001

VOUT

1

1%

*R2113
120k

1
2

4
5
6
7
8
9

C2111

2.2u

1%

AVDD
SIF_REEP
SIF_REFCM
SIF_REFN
SIF_IN1
SIF_PGA_REF
SIF_IN2
AGND
AVDD
DGND
DVDD
MUTE
SDA
SCL

R2198

VIN

2

NC

6.3V
SUB

3

GND

50V

4CN5

CONT

C2116
470p

76

78

79

80

AINL277AINR2

AINL1
AINR1
ISET

VREF3AGND

FILTA

ADAV4xyz

LRCLK219BCLK220DGND

DVDD
SDIN0
SDIN1

SDIN225SDIN326LRCLK027BCLK028ODGND29ODVDD30VDRIVE31DVDD32DGND33MCLKI/XIN34XOUT35BCLK136LRCLK137SDO0

21

22

23

24

C2054

10u
10V

C2187

2.2u

158k

1%

6.3V

1%

R2197

68k

50V
C2188

470p

7

6

C2102

0.1u

50V
C2191
10u
10V

72

AUXOUTL173AUXOUTR174AUXOUTL275AUXOUTR2

IC2106
C1AB00002746

SLV: 34h

C2052

0.1u
50V

*R2059

DVDD1.8V

IC2107

C0DBFFD00003

1

2

3

4 5

C2118

10V
1u

C

C2190
10u
10V

SPDIF_IN

SPDIF_OUT

C2053

0.1u

50V

DVDD1.8V

*R2179

10k

R2223

*R2244

*R2238

0

10V

R2263
0

10V

R2296

0

10V

R2297

10V

0

*C2099

50V
50V

10V

C_AUD

WO_R­WO_R+
WO_L­WO_L+
SQ_R­SQ_R+
SQ_L­SQ_L+

47k

C

1k

22

SQ_R­SQ_R+
SQ_L­SQ_L+

*R2271
EXB28V220JX

DVDD3.3V

*C22740.1u

*IC2006

50V

1

2

3

C

C0JBAZ002261

5

G

VCC

VCC

IN A

*R2072

4

GND

GND

OUT Y

*R2254

*R2234

*R2253

*C2098

*R2233

100

33

33

33

C2288 10u

C2289 10u

C2185 10u

>> Monitor R

>> Monitor L

C2183 10u

C2186

0.1u
50V

C2058

0.1u
50V

C2059
47u

+

6.3V

67

68

AVDD69AGND70AGND71AVDD

FILTD

VOUT_SW

NC

AVDD

HPOUTR1

DGND42PWM1A43PWM1B

DVDD

*R2058

*C2056

300

8p

C2055

1M

X2010
H0J245500082

SUB3.3V

7

C2189

10V
1u

6

C

50V

50V

HPOUTL1

12p

PLL_LF

R2276
10k

C2192
47u

+

6.3V

C2246

61NC62NC63NC64NC65NC66

10u 10V

60

C2057

59
58
57

R2104

56

AGND

2k

55

AGND

C2245

54

1000p

53

AVDD

52

DGND

C2049 0.1u

51

DVDD

50

RESET

49

PWM4B

48

PWM4A

47

PWM3B

46

PWM3A

45

PWM2B

44

PWM2A

41

38

39

40

C2126
10u
10V

C2048

0.1u
50V

*C2125

1u
10V

L2029

0.1u

50V

C2244

1%

C2213

0.1u

*R2073

R2125

2.2k

AUDIO_XRST

C

SPDIF_OUT

33

C2216 0.1u

C2251 10u

SPDIF_IN

1000p

<< SPDIF_IN, OUT>>

50V

50V

50V

C

220u

6.3V
220u

6.3V

+
+

PWM_SQ_R­PWM_SQ_R+
PWM_SQ_L­PWM_SQ_L+

10k

DAC_PD

*R2252

*R2116

*R2117

33

HIGH:MUTE
VIH > 2.2V
VIL < 0.8V

0

C2173

4.7u
16V

C

*R2184

*R2185

0

to D-AMP. >>

*IC2002

C0FBBY000027

1 MCLK

2 BICK

3 SDTI

4 LRCK

5 RSTN

6 SMUTE

7 ACKS

C

8 DIF0 9

16k

180p

50V

*R2236

*C2061

*C2065

50V

*C2176

C

15k

C

0.1u
50V

0.1u

50V

0.01u

C

50V

*C2063 10u

*C2064 10u

*R2295

*R2294

0

1%

R2181

45

22k

C0ABBB000230

+

-

R

R2169

22k

1%

R2182

36k

1%

8

VCC

1 OUT1

*C2202

6.3V

2.2u

*R2186

*L2022

+

*C2060

47u

6.3V

*C2062

10u

6.3V

C

6.3V

6.3V

0

R2183

3

6

C2153

33p

*C2179

47u
16V

*IC2012

C1BB00000947

2 MUTE

C

82k

SUB5V

1%

L

36k

­+

50V

+

2

7

C

6

BIAS7OUT2

3 IN1

GUARD_SR

D2189
MA2J11100L

R2189

10k

*R2066

2.2k

*R2074

*C2195

0.01u

1000p

C2171

GUARD_SL

4 GND 5
C

50V

*R2067

C

22k

C2170

33p
50V

1

8

50V

IN2

*C2184

1000p

10V

C

2.2k

*C2068

IC2011

*C2180
10V

1u

GUARD_SL

*R2192

100k

C

C

50V

*C2174

1u

*R2193

100k

C

*R2075

22k

50V

1000p

NET0012570

Lin

GUARD_SR

Rin

*C2198

25V

0.033u

C

R2266
560

R2085
560

C

*C2069

TV_L

TV_R

DTV9V

R2265

4.7k

2SA207700L

Q2021

C2281
560p
50V

2SA207700L

Q2015

C2089
560p
50V

C

*C2197

25V

0.033u

*L2034

*R2099

J0JCC0000364

10k

*L2035

*R2098

J0JCC0000364

10k

*R2071

0

50V

1000p

*R2070

0

C2280

4.7u
10V

R2084

4.7k
C2088

4.7u
10V

*IC2013

C0DBGYY00281

5V

5

VOUT4VIN

*C2203

1u

10V

1NC2

*C2270
470p
50V

*C2271
470p
50V

AUDIOOUT_R

C2272

4.7u
16V

AUDIOOUT_L

C

MAIN9V

*D2200

MA22D3900L

*R2310

47

*C2299

16V

47u

VSS

CE

C

+

*C2204

1u
16V

3

*R2187

0

HP_ROUT

HP_LOUT

AMUTE

DTV_SLHDMI_SDIN
DTV_SR

SOUND_SOS

C2301

16V

0.1u

AMUTE

MONITOROUT_MUTE

MUTE

TP2301

Q2301

R2331

2SA207700L

2.2k

R2302
R2330
1k

C

C

2.2k

MA2J11100L

R2301

2.2k

C2302

C

16V

0.1u

TP2302

MUTE SW

MAIN9V

D2301

D2303
MAZ30560HL

D2304

MA2J11100L

SOUND15V

R2305

470

C

STB+5V

D2034

MA2J11100L

*R2156

C2119

+

10V

220u

C

C2401
50V

0.1u

68

15V

L2310
J0JJC0000011

DTV9V

D2033

MA2J11100L

Q2031

2SA207700L

C0DBGYY00202

C2349

R2194

1k

R2118

1M

C

2SC584500L

IC2303

MA2J11100L

D2302

VIN

3

VOUT

VSS

C

2

50V

C

0.1u

PWM_SQ_R+

PWM_SQ_R-

PWM_SQ_L+

PWM_SQ_L-

R2119

10k

R2122

10k

Q2034

2SC584500L

C

Q2035

C

C2352

1

1u

16V

C

0

*R2304

AUDIO_MUTE

D2028

MA2J11100L

R2124

10k

*R2123

47k

R2131

10k

12

46

BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS

10

MA2J11100L

11

12

1

SOUND12V

2

C2352

1u

16V

R2317

OPERATE

SOS

3

C2313

50V

0.1u

4

R2325

R2319

*C2363

16V

5

6

0.1u

0

*R2303

7

8

9

AUDIO_MUTE

R2127

10k

Q2033

2SA207700L

R2129
10k

D2029
MA2J11100L

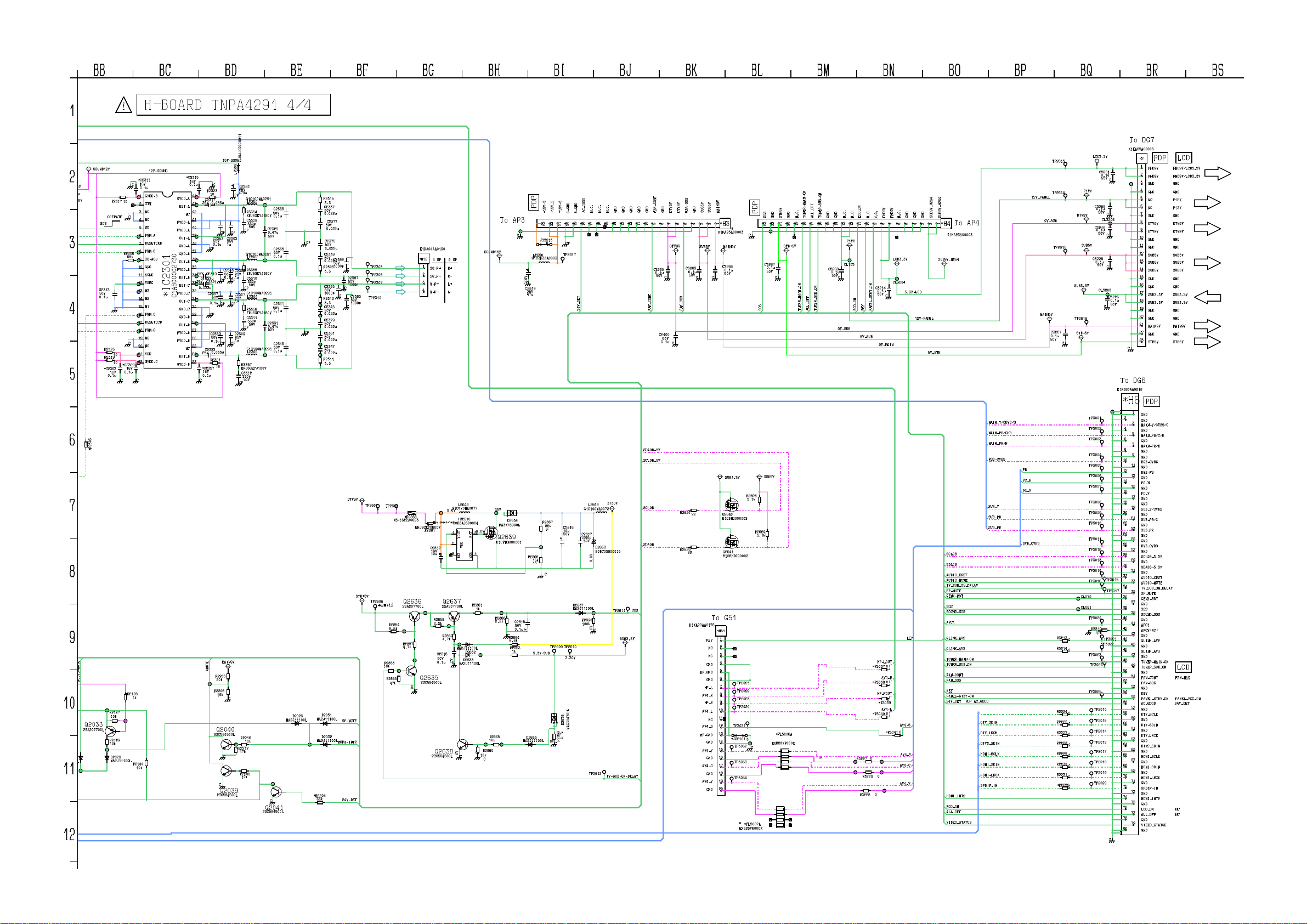

H-BOARD TNPA4291 4/4

C

10

C

R2306

68k

C

C

10

10

*C2329

16V

0.1u

C

*R2128

1k

R2144

12V_SOUND

*C2311

16V

0.1u

1 GVDD_B 44

2 OTW

3 NC

4 NC

5 SD

6 PWM_A

7 RESET_AB

8 PWM_B

9 OC_ACJ

10 GND

11 AGND

12 VREG

13 M3

14 M2

15 M1

16 PWM_C

17 RESET_CD

18 PWM_D

19 NC

20 NC

21 VDD

22 GVDD_C 23

C

10k

*C2315

16V

0.1u

GVDD_A

43

BST_A

42

NC

41

PVDD_A

40

PVDD_A

39

OUT_A

38

GND_A

37

GND_B

36

OUT_B

35

PVDD_B

34

BST_B

33

BST_C

32

PVDD_C

C1AB00002730

*IC2301

31

OUT_C

30

GND_C

29

GND_D

28

OUT_D

27

PVDD_D

26

PVDD_D

25

NC

24

BST_D

GVDD_D

25V

25V

0.033u

0.033u

C

*C2327

To DG7

J0JJC0000011

15V_SOUND

L2308

+

C

C2361
25V

R2323

470u

10

CP

C2353
50V

0.1u

10

R2205
20k

R2206

10k

Q2040

2SC584500L

2SC584500L

CP

CP

CP

CP

MAIN9V

C

Q2039

G1C100MA0291

L2300

C2333

R3354

50V

ERJ6GEYJ180V

0.1u

C3309

330p

50V

C2325

CP

R3357
ERJ6GEYJ180V

CP

R2216

*R2217

47k

R2208

G1C100MA0291

L2302

R3355
ERJ6GEYJ180V

C3310

330p

CP

G1C100MA0291

L2304

R3356
ERJ6GEYJ180V

C3311

330p

CP

G1C100MA0291

L2306

C3312
330p

50V

10k

10k

0.47u
50V

C2335

50V

0.1u

50V

C2341
50V

0.1u

C2331

50V

0.47u
50V

C2343

50V

0.1u

MA2J11100L

C

Q2041

2SC584500L

CP

C2303
25V
1u

C2355

C2305
25V

50V

1u

0.1u
CP

C2307
25V
1u

CP

C2309
25V
1u

CP

C

C

C2317

25V

0.033u

CP

C2319

C2321

C2357

50V

0.1u

CP

C2359
50V

0.1u

C2323

0.033u

25V

R2321

16V

0.1u

AMUTE

R2315

3.3

C2337

50V

0.022u

C2377

50V

0.022u

C2375

CP

50V

0.022u

C2339

50V

C2389

0.022u
50V
1000p

R2308

3.3

C2385

50V
1000p

R2313

3.3

C2345

50V

0.022u

C2379

50V

0.022u

CP

C2381

50V

0.022u

C2347

50V

0.022u

R2311

3.3

D2031

D2026

MA2J11100L

D2032

MA2J11100L

*R2204

33k

C

SP_MUTE

HDMI_INT2

24V_DET

TP2303

C

TP2305
C2387
50V

TP2307
1000p

C

C2383

TP2310

50V

1000p

C

DTV9V

TP2607

TP2608

STB+5V

TP2606

R2853
10k

R2855

K5H1622A0023

1.2

R2854

2.2k

47k

*R2856

Q2636

2SA207700L

R2857

4.7k

K1KA04AA0190

*H12

ERJ6GEY0R00V

Q2635

2SC584500L

0V

C

1

2

3

4

R2891

4 SP 2 SP

SQ_R+

SQ_R-

W_R+

W_R-

Not specified

0

C2812
16V
10u

R2858

2.2k

Q2638

2SC584500L

+

C2813
50V

0.1u

R+

R-

L+

L-

9.0V

Q2637

2SA207700L

R2859

4.7k

L2648

G1C470MA0077

IC2610

C0DBAJB00004

1

VOUT

2

VDD

3

NC

MA2J11100L

0V
C

MA2J11100L

0V

C

D2632

D2633

To AP3

SOUND15V

35V

MA3X78900L

9.0V

5

EXT

Q2639

B1CFNG000001

4

VSS

R2861

1k

R2866

2.2k

R2865
10k

R2860

0V

10k

C

PDP

+15V_S

S_GND

S_GND

+15V_S

+15V_S

23

C

JS3213

0

CP

TP2617

L2650

G1C3R3ZA0083

+

0V

CP

C2819

25V
47u

24V_DET

D2634

C

R2864

R2867

82k

C2816

1%

10u
50V

C2817

+

1000p

50V

R2868

16k

1%

C

D2637
MA2J11100L

TP2609

0V

R2890
100k

TP2610

3.30V

D2636

MAZ30470HL

4.7k

R2869

C

C2815
50V

0.1u
0V

6.8k

R2863

1k

3.3V_SUB

D2635

MA2J11100L

N.C.

AC_GOOD

L2649

G1C100MA0072

0.0V

0V

C

TP2612

N.C.

D2638
B0BC03900015

GND

N.C.

BT30V

TP2611

SUB3.3V

TV_SUB_ON_DELAY

GND

GND

GND

GND

FAN_CONT

10111213141516171819202122

C3230

0.1u
50V

FAN_CONT

C2400

50V

0.1u

SDA0B_5V

SCL0B_5V

SCL0B

SDA0B

SOS

GND

FAN_SOS

SUB5V

SUB5V

0.1u
50V

C

22

22

K1KA20AA0178

MAIN9V

123456789

*H3

K1KA23A00003

MAIN9V

SUB5V

C3266

0.1u
50V

C

Q2640

B1CBHD000002

Q2641
B1CBHD000002

To G51

*H51

1

KEY

2

NC

3

NC

4

GND

5

HP_GND

6

GND

7

HP_L

8

AV4_R

9

HP_R

10

AV4_L

11

NC

12

AV4_S

13

HP_GND

14

GND

15

AV4_Y

16

GND

17

AV4_C

18

GND

19

AV4_V

20

GND

SUB3.3V

<

TP3031

*JS2101

TP3032

TP3033

TP3034

TP2021

TP2022

TP2023

TP2024

<

*FL3007A

EXB28VR000X

PDP

GND

GND

SOS

STB5V

23

C

STB+5V

C3267

0.1u
50V

C

SOS

SUB5V

R2628

5.1k

R2629

5.1k

*FL3006A

0

EXB28VR000X

C

TUNER_MAIN_ON

N.C.

TUNER_MAIN_ON

ALL_OFF

ALL_OFF

TUNER_SUB_ON

TUNER_SUB_ON

<

GND

GND

ECO_ON

N.C.

N.C.

N.C.

10111213141516171819202122

P12V

CL103

C3268

0.1u
50V

C

ECO_ON

KEY

PANEL_STBY_ON

9V_SUB

5V_SUB

*R3037

*R3038

*R3040

0

R3227

R3229

R3228

C3214

0

N.C.

0.1u
50V

HP_LOUT

HP_ROUT

0

9V_MAIN

*R3039

GND

GND

GND

N.C.

FHD9V

FHD9V

LCD3.3V

CL3204

C

0

AV4_R

0

0

AV4_L

0

*R3041

SUB9V_H264

SUB9V_H264

123456789

To AP4

*H4

<

K1KA23A00003

SUB9V_H264

3.3V_LCD

12V_PANEL

5V_STB

MAIN_Y/CBVS/G

MAIN_PB/C/B

MAIN_PR/R

RGB_CVBS

SUB_Y

SUB_PB

SUB_PR

SCL0B

SDA0B

AUDIO_XRST
AUDIO_MUTE
TV_SUB_ON_DELAY
SP_MUTE
GENX_RST

SOS
SOUND_SOS

AFC1

KEY

AV4_S

0

AV4_Y

AV4_C

AV4_V

QLINK_AV2

QLINK_AV3

TUNER_MAIN_ON
TUNER_SUB_ON

FAN_CONT
FAN_SOS

KEY
PANEL_STBY_ON
24V_DET

HDMI_INT2

ECO_ON
ALL_OFF

VIDEO_STATUS

PDP AC_GOOD

DTV_SDIN

DTV_LRCK

DTV2_SDIN

HDMI_BCLK

HDMI_SDIN

HDMI_LRCK

SPDIF_IN

DTV9V

DTV9V

GND

DTV9V

C3263

C

FAN_SOS

C

R2624

R2625

FB

PC_H

PC_V

DVB_CVBS

12V_PANEL

MAIN9V

9V_SUB

TP2613

TP2614

TP2615

C3227

0.1u

50V

R3213

R3214

R2224

R2225

R2227

R2228

R2229

R2230

R2231

*R2232

LCD3.3V

P12V

C3265

DTV9V

C3216

SUB5V

C3228

0.1u

SUB3.3V

TP2616

STB+5V

C

TP3001

TP3002

TP3003

TP3004

TP3005

TP3006

TP3007

TP3008

TP3009

TP3010

TP3011

TP3012

TP3013

TP3014

TP3016

CL070

CL061

TP3020

R3312

C

47k

0

0

TP3023

TP3024

TP3025

TP2015

0

TP2016

0

TP2014

0

TP2012

0

TP2017

0

TP2018

0

TP2019

0

TP2020

0

K1KA23A00003

H2

PDP LCD

1

FHD9V/LCD3.3V

To DG6

K1KB80AA0218

*H6

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

46

48

50

52

54

56

58

60

62

64

66

68

70

72

74

76

78

80

C

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

41

43

45

47

49

51

53

55

57

59

61

63

65

67

69

71

73

75

77

79

FHD9V

2

FHD9V

3

GND

4

GND

5

NC

6

NC

7

GND

8

DTV9V

9

DTV9V

10

GND

11

GND

12

SUB5V

13

SUB5V

14

SUB5V

15

GND

16

GND

17

SUB3.3V

18

SUB3.3V

19

GND

20

GND

21

MAIN9V

22

GND

23

STB5V

PDP

GND

GND
MAIN_Y/CVBS/G
GND
MAIN_PB/C/B
GND
MAIN_PR/R
GND

GND
RGB_CVBS
GND
RGB_FB
GND
PC_H
GND
PC_V
GND
GND
SUB_Y/CVBS
GND
SUB_PB/C
GND
SUB_PR
GND
GND
DVB_CVBS
GND
SCL0B_3.3V
GND
SDA0B_3.3V
GND
AUDIO_XRST
AUDIO_MUTE
TV_SUB_ON_DELAY
SP_MUTE
GENX_RST
GND
SOS
SOUND_SOS
GND
AFC1
AFC2(NC)
GND
QLINK_AV2
GND
QLINK_AV3
GND
TUNER_MAIN_ON
TUNER_SUB_ON
GND
FAN_CONT
FAN_SOS
GND
KEY
PANEL_STBY_ON
AC_GOOD

GND
DTV_BCLK
GND
DTV_SDIN
GND
DTV_LRCK
GND
DTV2_SDIN
GND
HDMI_BCLK
GND
HDMI_SDIN
GND
HDMI_LRCK
GND
SPDIF_IN
GND
HDMI_INT2
GND
ECO_ON
ALL_OFF
GND
VIDEO_STATUS
GND

FHD9V/LCD3.3V

GND

GND

P12V

P12V

GND

DTV9V

DTV9V

GND

GND

SUB5V

SUB5V

SUB5V

GND

GND

SUB3.3V

SUB3.3V

GND

GND

MAIN9V

GND

STB5V

LCD

FAN_MAX

PANEL_VCC_ON

24V_DET

NC
NC

C3201

0.1u
50V

C

0.1u
50V

C

CL3206

0.1u
50V

C

50V

C

CL3208

C3226

0.1u
50V

C

TP3015

TP3017

TP3021

TP3022

C

47

A B C D E F G H I J K L M N O P Q R

TO PANEL

P6

1234567

TRAFFO

ZA801

0V

K9ZZ00000424

TRAFFO

TP851

Q855

2

*

1

*

3

*

R865

C858
10u

150k

25V
R864
150k

Q853

2SC584500L

R866

22k

0V

+

C859

D861
MA2J11100L

Q854

C861

1u
16V

EEUFM1V102B

TRAFFO

R867

2SC584500L

+

10k

C860

C865

10u

25V

D856

MA2J11100L

R868

1k

+

EEUFM1V102B

R869

2.2k

C862

MAZ81600HL

EEUFM1V102B

D858

MAZ81600HL

D857

MAZ23300BH

D859

TP852

24V_INV

24V_INV

P2

1234567

TP853

0V

LPG_1

TP854

TRAFFO

24V_INV

LPG_1

TRAFFO

COLD

JSP829
0

TRAFFO

JSP830
0

LPG_1

TRAFFO

ZA804

0V

1

2

3

4

5

6

7

8

K1KA03A00537

B3P4-VH-B-L(LF)

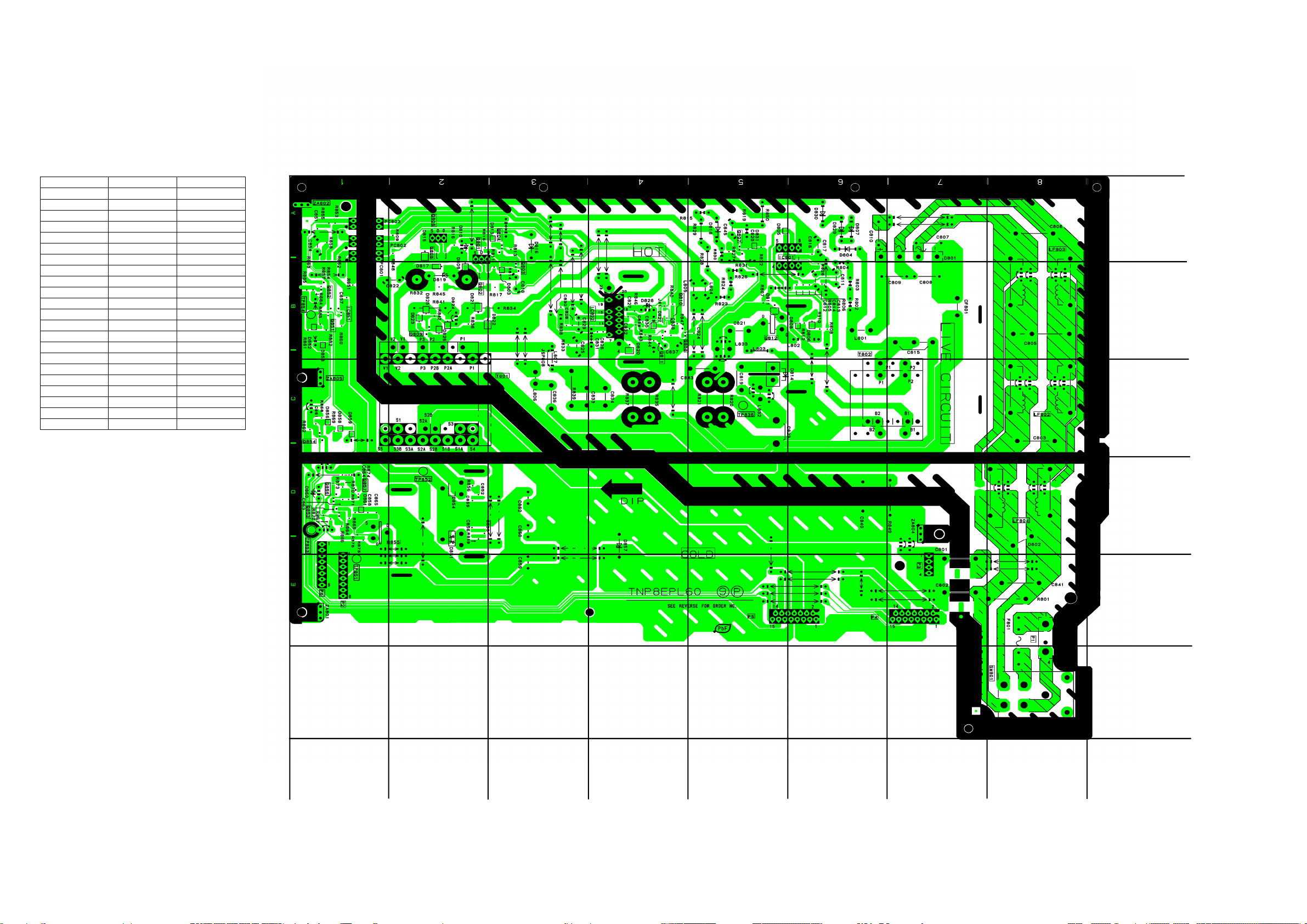

P-BOARD TNP8EPL60

C810

C809

4700p

4700p

M

M

1

JSP804

T3A205016

T3A205016

C803

0.22u

HOT

S

ESB92DA1B

SW801

S

1

*

**

*

3

C807

4700p

M

S

<

HF28263531R0

1

*

2*3

S

LF804

HF28263531R0
1

2*3

S

C841

0.22u

1/2W

S

1

5

6

1

4

*

-+

*

4

0.22u

C805

0.22u

* *

LF802

L.F

1

* *

L.F

1

* *

R801

**

4

**

*

2

C808
4700p

M

C806

**

S

4

*

S

*

S

4

*

*

**

$

1M

**

**

3

1

2

**

0V

LPG_1

S

F801

K5D502BNA005

1**3

P1

D801

B0EBNT000016

JSP803

D802

ERZV10V621T2

JSP801

**

**

T3A205016

S

C802

100p

S

C801
100p

LPG_1

JSP802

T3A205016

0V

**

CF801

D4CAY8R0A010

R805

10k

R802
470k

R803
470k

R804
330k

L801

7025LYF-121K

+

+

+

C811

1u

50V

R806

100k

+

MAIN

1%

0V

MAIN

HOT

COLD

**

C815

630V

0.47u

+

C813

0.22u
50V

0V

C814
2200p

50V

C812

50V

1800p

0V

MAIN

=

m

* *

0V

MAIN

IC801

FA5501AP

1 FB

2 COMP

3 MUL

4 IS 5

R807
680

VCC

OUT

GND

ZCD

C816

0.1u
50V

MAIN

D804

B0AAMV000001

S

T802

ETS27BE1E9AD

8

7

0V

6

2SK3944-TD-E

0V

B0AAMV000001

MAIN

D807

0V

MAIN

+

0V

Q802

0V

2SC584500L

1NC

11 NC*10 B2

MA2J11100L

D805

D806

R808

39k

C817

10u

50V

MAIN

D803

Q803

D829

BZX79B75A26A

*

0V

MA22F2000L

MAZ81800ML

R809

2P1*3NC

MAIN

MAIN

R810

220

R812

22

R811

100k

MAIN

47k

BZX79B75A26A

C834

Q809

2SB0710ARL

10k

SD83304TE12R

1W

D823

MA22F2000L

2.7k

HOT

ECWF6223HLB

S

* *

ECWF6203HLB

R840

* *

R839

1M

$

1/2W

* *

C833

R841

270

*

EXCELDR35V

R842

4.7k

C836

D826

270p

2kV

MA22F2000L

C835
50V
330p

0V

R844

R843
15k

MAIN

L807

EXCELSA35V

R845

1.5k

1/2W

R817

L806

1.8k

1/2W

* *

**

R846
100k

0V

MAIN

MAIN

NP

22k

0V

D827

B0ACCK000005

Q810
XN0140100L

Q811

2SD10300SL

C837
16V

4.7u

R848

220

R847

10k

C838

0.1u
16V

MAIN

D828

B0BA5R600016

0V

MAIN

C839

50V

2700p

0V

D814

FMD-G26S

* *

4P2*5NC

+

D830

0V

8 NC

MAIN

TUC8E6925

L802

EXCELSA35T

D809

MA22D3900L

C818
100u
50V

75k

R814

47k

R813

47k

7 B1*6 NC

H/S

R816

MAIN

D808

0V

B0BC022A0007

R850
820k

0V

C845

<

*

D810

B0BA5R600016

Q804

2SC584500L

ECQV1J105JM3

MAIN

9 NC

D811

R818

100k

0V

L803

EXCELSA35V

*

SD83304TE12R

D813

0V

MAZ82000ML

MAIN

R819
270k

R822
22k

*

*

R820

0.68

Q805

2SK3944-TD-E

1%

MAIN

JSP825

JSP826

Q812

2SK3502-RF91

2W

* *

MAIN

D831

MAZ80750ML

0V

0V

R824
750k

R825
750k

2W

R821

0.68

* *

D816
1N4004-F

Q807

B1CFND000009

C820

50V

0.01u

820k

+

R826

1%

15k

0V

MAIN

C821
150p

* *

2kV

SC9022TE12RA

C822

+

100u
50V

0V

MAIN

R823

JSP827

+

****

C823

0V

EETEE2W750HJ

MAIN

JSP828

D817

R828

270k

R829

330k

R815

220k

D818

B0AAMV000001

R827

1k

C824

25V

10u

MAIN

R832

*

6.8

3W

D819

MAZ23300BH

IC802

S

D2_/_Q2_Drain

D1_S2_/_Q1_drain_Q2_source

VW_/_Q1_on_/_off_detection

STB_/_Stand-by_signal

CON_/_Q1_on_reference

CB_/_Burst_osc

CS_/_Soft_start_and_end

COMP_/_Feedback_signal

VREF_/_Reference_voltage

VCC_/_Power_supply

S1_/_mosfet_Q1_source

+

C825

R830

100u

1M

50V

Q808

2SK2009TE81L

0V

R831

1M

F9222L-F219

G2_/_Q2_Gate

GND_/_Ground

C826

0.022u
50V

MAIN

HOT

D824

MA22F2000L

L805

L804

EXCELDR35V

EXCELDR35V

*

23

20

19

16

15

14

13

12

11

10

8

7

*

4

D821

*

MAZY27000L

R834
33

R836
22k

D822

MAZY27000L

C830

270p

R838

50V

0V

MAIN

C829

ECQV1H824JL3

C827
25V

0.22u

C832
16V

0.1u

C831

0.22u
50V

D820

0V

2W

2W

* *

* *

R835

MAIN

R837

0.33

0.33

0V

MAIN

PC801

B3PAA0000363

PC802

B3PAA0000363

PC803

B3PAA0000363

T801

ETS35LZ126AD

MAIN

C840

1500p

R849

10M

S

0V

1 V2

*

2 V1

*

3 P3

*

4 P2

*

5 NC

6 P1

*

S

S

S

0V

MAIN

S

S

K9ZZ00000424

TRAFFO

B1CGRG000009

<

14NC

13S1

12NC

11S2A
10S2B

9NC

8S3

7NC

1W

0V

TRAFFO

COLD

D854

YG868C10RF91

*

*

0V

*

TRAFFO

*

Q851

R851

2SC584500L

22k

2SC584500L

R854

10k

KA

IC851

TL431BIDBZR

R882

Q852

5.6k

R855
10k

C851

50V

0.1u

REF

R852

22k

R853

***

H/S
TUC8E6927

***

D851

YG868C10RF91

H/S

TUC8E6927

D852

R883

10k

MA2J11100L

22k

R885

22k

R861

100k

0V

TRAFFO

D853

R884

MA2J11100L

10k

R862

0V

R857
30k

R858

7.5k

100k

TRAFFO

R863

1k

C854

M

0.47u
50V

R860

4.3k

24V_INV

GND

K1KA08AA0192

B8B-EH-F1-TV4(LF)(SN)

8

GND

GND

GND

8

K1KA08AA0192

B8B-EH-F1-TV4(LF)(SN)

TO AP2

BACKLIGHT_PSU_ON

15

TV_SUB_ON

14

24V_DET

13

LPG_1

12

0V

LPG_1

11

LPG

10

LPG

9

24V HEADER

8

24V HEADER

7

24V HEADER

6

24V HEADER

5

GND

4

GND

3

GND

2

GND

1

P4

K1KB15AA0032

127301115K2

BACKLIGHT_PSU_ON

15

TV_SUB_ON

14

24V_DET

13

LPG_1

12

0V

LPG_1

11

LPG

10

0V

LPG

9

24V HEADER

8

24V HEADER

7

24V HEADER

6

24V HEADER

5

GND

4

GND

3

GND

2

0V

GND

1

P5

K1KB15AA0032

127301115K2

S

9

AC CORD

10

48

G_LED_ON

8

R_LED_ON

7

TIMER_REC_LED

6

REMOTE

5

STB3.3V

4

GND

3

SUB5V

2

AI_SENSOR

1

V1

K1KA08BA0061

S8B-PH-K-S(LF)(SN)

TP1008

TP1007

TP1006

TP1005

TP1004

TP1003

TP1002

TP1001

TO DG1

C1

1

PC1001

B3JB00000026

23

4

24k

R1033

6.3V

C1010

22u

C1

+

C1

C1

1%

1%

51k

R1034

SUB5V

RM

RM1001

PNA4701M05TV

C1008

R1028

C1

16V

0.1u

47k

R1049

220k

VOUT

1

OUT

C1

2

GND

GND

3VCC

VCC

47

22k

R1046

50V

C1

C1007

0.01u

C1

+

C1006

6.3V

Q1010

47u

2SD0601ASL

R1048

C1

REMOTE

C1

Q1009

2SD0601ASL

R1012

C1

47k

R1035

27k

10k

Q1007

R1019

2SD0601ASL

C1

47k

R1008

R1010

47k

R_LED_ON

C1

10k

R1017

Q1006

10k

2SD0601ASL

R1020

10k

R1015

4

D1002

R1022

R1006

R1007

B3ACA0000272

3.3k

47k

R1002

1.5k

R

D1001

C1

B3CKE0000007

G

680

1.6 x 0.8

1k

R1003

3

0

R1044

2SB0709ASL

Q1002

V-BOARD TNP8EVL60

Q1004

2SB0709ASL

A B C D E F G H I J

1

2

49

A B C D E F G H I J K L M N O P Q R

1

2

3

4

5

6

7

8

9

10

11

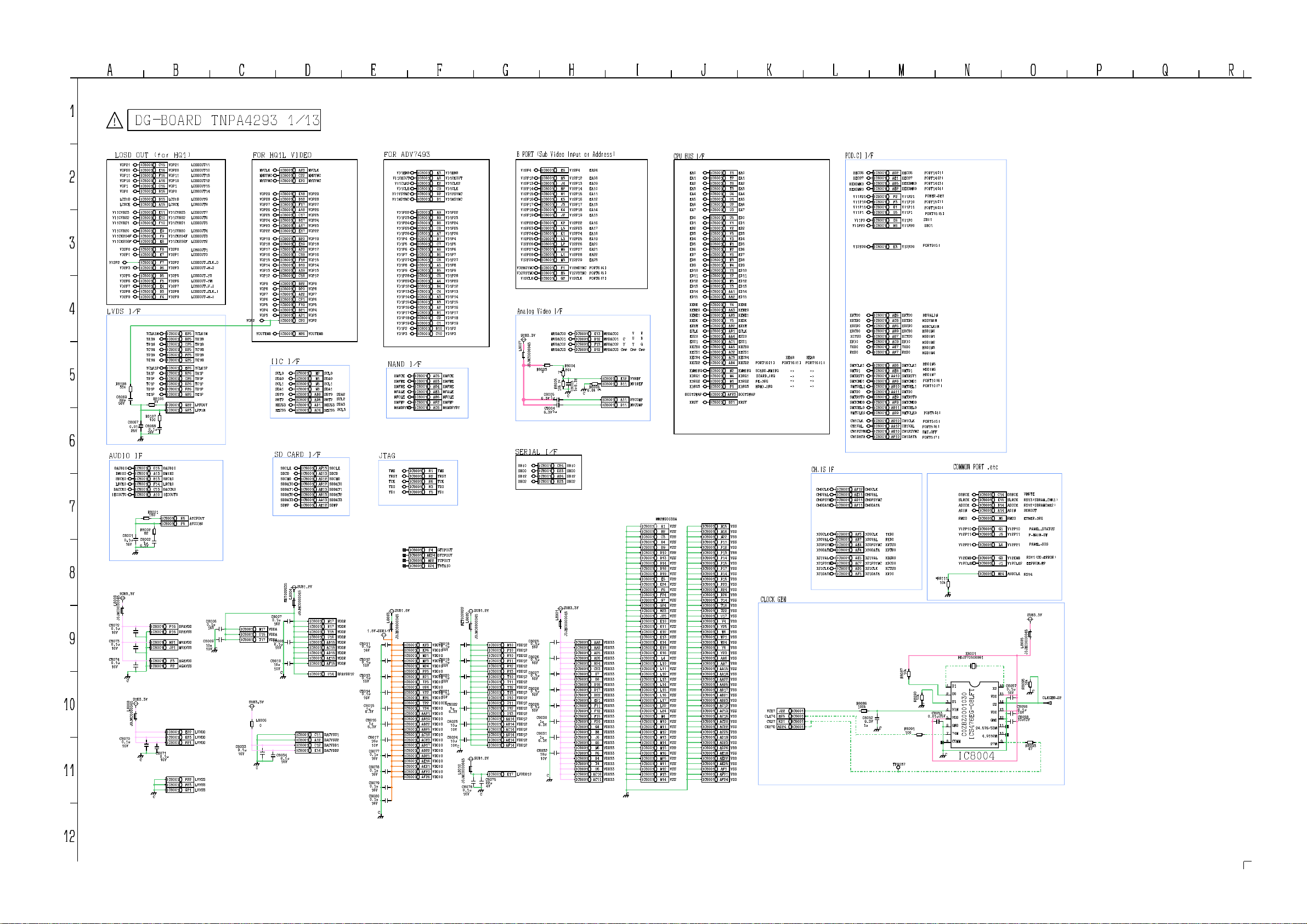

DG-BOARD TNPA4293 1/13

B PORT (Sub Video Input or Address)

VI2P4

IC8001 E6 VI2P4

IC8001 H3 VI2P12

VI2P12
VI2P13

IC8001 J4 VI2P13

VI2P14

IC8001 H2 VI2P14
IC8001 H1 VI2P15

VI2P15
VI2P16

IC8001 K5 VI2P16
IC8001 J3 VI2P17

VI2P17

IC8001 K4 VI2P18

VI2P18

IC8001 J2 VI2P19

VI2P19

IC8001 K2 VI2P22

VI2P22
VI2P23

IC8001 L5 VI2P23

VI2P24

IC8001 K1 VI2P24
IC8001 L3 VI2P25

VI2P25
VI2P26

IC8001 L2 VI2P26
IC8001 M6 VI2P27

VI2P27

IC8001 L1 VI2P28

VI2P28

IC8001 M3 VI2P29

VI2P29

VI2HSYNC

IC8001 F1 VI2HSYNC

VI2VSYNC

IC8001 H5 VI2VSYNC
IC8001 G2 VI2CLK

VI2CLK

Analog Video I/F

MVDACO0

SUB3.3V

MVDACO1
MVDACO2
MVDACO3

L8007

J0JHC0000045

R8003

0

1%

1%

R8005

10k

C8005

1u

6.3V

C8004

1u

6.3V

SERIAL I/F

SBI0

IC8001 C24 SBI0
IC8001 D23 SBO0

SBO0
SBI2

IC8001 A24 SBI2

SBO2

IC8001 B23 SBO2

SUB3.3V

L8001

C8025

IC8001 N10 VDD12
IC8001 P10 VDD12
IC8001 R10 VDD12
IC8001 R11 VDD12
IC8001 R12 VDD12
IC8001 R13 VDD12
IC8001 T10 VDD12
IC8001 T11 VDD12
IC8001 T12 VDD12
IC8001 T13 VDD12
IC8001 U10 VDD12
IC8001 U11 VDD12
IC8001 U12 VDD12
IC8001 U13 VDD12
IC8001 AA14 VDD12
IC8001 AB14 VDD12
IC8001 AC14 VDD12
IC8001 AD14 VDD12
IC8001 AE14 VDD12
IC8001 AF14 VDD12

IC8001 K17 LVVDD12

C8075
22u
4V

0.1u
16V

C8026

0.1u
16V

C8027

0.1u
16V

C8028

0.1u
16V

C8029

0.1u
16V

C8030

1u

6.3V

C8031

1u

6.3V

C8032

10u
10V

C

IC8001 E13 MVDACO0
IC8001 B12 MVDACO1
IC8001 F13 MVDACO2
IC8001 D12 MVDACO3

R8004
24k

6.3V

C8003

1u

C

C

J0JHC0000045

IC8001 AA8 VDD33
IC8001 AA9 VDD33
IC8001 A25 VDD33
IC8001 A26 VDD33
IC8001 B24 VDD33
IC8001 C23 VDD33
IC8001 D7 VDD33
IC8001 D8 VDD33
IC8001 D16 VDD33
IC8001 D17 VDD33
IC8001 D22 VDD33
IC8001 E21 VDD33
IC8001 F11 VDD33
IC8001 F12 VDD33
IC8001 F15 VDD33
IC8001 F20 VDD33
IC8001 G4 VDD33
IC8001 H4 VDD33
IC8001 J6 VDD33

IC8001 N6 VDD33
IC8001 P6 VDD33
IC8001 R4 VDD33
IC8001 T4 VDD33
IC8001 U6 VDD33
IC8001 AC10 VDD33
IC8001 AC11 VDD33

EA24

EA08
EA09
EA10
EA11
EA12
EA13
EA14
EA15

EA16
EA17
EA18
EA19
EA20
EA21
EA22
EA23

PORT6[4]
PORT6[5]
PORT6[7]

R8006

6.8k

1%

C
Y

Cmp

Cmp

IC8001 E12 VVREF
IC8001 B11 MVIREF

IC8001 A11 SVCOMP
IC8001 D11 MVCOMP

C

CPU BUS I/F

EA0
EA1
EA2
EA3
EA4
EA5
EA6
EA7 IC8001 U3 EA7

ED0
ED1
ED2
ED3
ED4
ED5
ED6
ED7
ED8
ED9
ED10
ED11
ED12
ED13
ED14IC8001 D3 VI2P8
ED15

XERE
XEWE0
XEWE1
XEDK
ERXW

A1 VSS

BOOTSWAP

ECLK
ESZ0
ESZ1
XECS0
XECS1
XECS4
XECS2

XNMIRQ
XIRQ1
XIRQ2
XIRQ3

XRST

IC8001 N15 VSS
IC8001 N16 VSS
IC8001 N22 VSS
IC8001 P11 VSS
IC8001 P12 VSS
IC8001 P13 VSS
IC8001 P14 VSS
IC8001 P15 VSS
IC8001 P17 VSS
IC8001 R14 VSS
IC8001 R15 VSS
IC8001 P23 VSS
IC8001 R24 VSS
IC8001 R26 VSS
IC8001 T14 VSS

IC8001 T22 VSS
IC8001 U17 VSS
IC8001 V4 VSS
IC8001 V25 VSS
IC8001 W6 VSS
IC8001 W21 VSS
IC8001 W24 VSS
IC8001 Y6 VSS
IC8001 Y23 VSS
IC8001 AA6 VSS
IC8001 AA7 VSS
IC8001 AA15 VSS
IC8001 AA18 VSS
IC8001 AA22 VSS
IC8001 AA25 VSS
IC8001 AB17 VSS
IC8001 AB21 VSS
IC8001 AB23 VSS
IC8001 AC12 VSS
IC8001 AC13 VSS
IC8001 AC16 VSS
IC8001 AC20 VSS
IC8001 AC22 VSS
IC8001 AC25 VSS
IC8001 AD19 VSS
IC8001 AD23 VSS
IC8001 AD26 VSS
IC8001 AE18 VSS
IC8001 AE22 VSS
IC8001 AE25 VSS
IC8001 AF1 VSS
IC8001 AF21 VSS

V

R

U

B

Y

G

Cmp

MN2WS0039A

IC8001
IC8001 B2 VSS
IC8001 C3 VSS
IC8001 D4 VSS
IC8001 D9 VSS
IC8001 D10 VSS
IC8001 D13 VSS
IC8001 D14 VSS
IC8001 D18 VSS
IC8001 D19 VSS
IC8001 E5 VSS
IC8001 E24 VSS
IC8001 F6 VSS
IC8001 F24 VSS
IC8001 G7 VSS
IC8001 G24 VSS IC8001 T16 VSS
IC8001 H23 VSS
IC8001 J25 VSS
IC8001 K10 VSS
IC8001 K11 VSS
IC8001 K12 VSS
IC8001 K13 VSS
IC8001 K14 VSS
IC8001 K15 VSS
IC8001 K16 VSS
IC8001 L4 VSS
IC8001 L10 VSS
IC8001 L11 VSS
IC8001 L12 VSS
IC8001 L13 VSS
IC8001 L14 VSS
IC8001 L15 VSS
IC8001 L16 VSS
IC8001 L17 VSS
IC8001 L22 VSS
IC8001 L24 VSS
IC8001 M4 VSS
IC8001 M10 VSS
IC8001 M11 VSS
IC8001 M12 VSS
IC8001 M13 VSS
IC8001 M14 VSSIC8001 K6 VDD33
IC8001 M15 VSS
IC8001 M16 VSS
IC8001 M25 VSS
IC8001 N11 VSS
IC8001 N12 VSS
IC8001 N13 VSS
IC8001 N14 VSS

IC8001 T1 EA0
IC8001 T2 EA1
IC8001 T6 EA2
IC8001 T3 EA3
IC8001 U4 EA4
IC8001 U1 EA5
IC8001 U2 EA6

IC8001 U5 ED0

IC8001 V2 ED2
IC8001 V5 ED3
IC8001 V3 ED4
IC8001 W1 ED5
IC8001 W2 ED6
IC8001 V6 ED7
IC8001 W3 ED8
IC8001 W4 ED9
IC8001 Y1 ED10
IC8001 Y2 ED11
IC8001 W5 ED12
IC8001 Y3 ED13
IC8001 AA1 ED14
IC8001 AA2 ED15

IC8001 Y4 XERE
IC8001 AA3 XEWE0
IC8001 AB3 XEWE1
IC8001 Y5 XEDK
IC8001 AB2 ERXW
IC8001 AB1 ECLK
IC8001 AA4 ESZ0
IC8001 AC1 ESZ1
IC8001 AA5 XECS0
IC8001 AC2 XECS1
IC8001 AC3 XECS4
IC8001 AB4 XECS2

IC8001 N2 XNMIRQ
IC8001 N4 XIRQ1
IC8001 N1 XIRQ2
IC8001 P1 XIRQ3

IC8001 AF23 BOOTSWAP

IC8001 D21 XRST

C8011

C8012

C8013

C8014

0.1u
16V

0.1u

16V

0.1u

16V

0.1u
16V

C8015

1.8V_DDRI/F

1u

6.3V

C8016

1u

6.3V

C8017

10u
10V

C8077

0.1u
16V

C8078

0.1u
16V

C8079

0.1u
16V

C8080

0.1u
16V

FOR ADV7493

VI1CKOUT

VI1CLK2

VI1VSYNC
VI1HSYNC

NAND I/F

XNFCE
XNFWE
XNFRE
NFALE
NFCLE
XNFWP
NANDRYBY

JTAG

TMS
TRST
TCK
TDO
TDI

SUB1.8V

L8003

C

VI1ENB

IC8001 E3 VI1ENB
IC8001 A8 VI1CKOUT
IC8001 E2 VI1CLK2

VI1CLK

IC8001 C9 VI1CLK
IC8001 D2 VI1VSYNC
IC8001 D1 VI1HSYNC

VI1P22

IC8001 A9 VI1P22
IC8001 B9 VI1P23

VI1P23

IC8001 B8 VI1P24

VI1P24
VI1P25

IC8001 C8 VI1P25

VI1P26

IC8001 A7 VI1P26

VI1P4

IC8001 B7 VI1P4

VI1P5

IC8001 C7 VI1P5
IC8001 A6 VI1P6

VI1P6
VI1P7

IC8001 B6 VI1P7
IC8001 C6 VI1P27

VI1P27
VI1P8

IC8001 A5 VI1P8
IC8001 B5 VI1P9

VI1P9

IC8001 C5 VI1P28

VI1P28
VI1P29

IC8001 A4 VI1P29

VI1P12

IC8001 B4 VI1P12
IC8001 C4 VI1P13

VI1P13

IC8001 A3 VI1P14

VI1P14
VI1P15

IC8001 B3 VI1P15
IC8001 A2 VI1P16

VI1P16

IC8001 B1 VI1P17

VI1P17
VI1P18

IC8001 C2 VI1P18
IC8001 C1 VI1P19

VI1P19
VI1P2

IC8001 B10 VI1P2

VI1P3

IC8001 C10 VI1P3

IC8001 AC5 XNFCE
IC8001 AD3 XNFWE
IC8001 AD4 XNFRE
IC8001 AE3 NFALE
IC8001 AB6 NFCLE
IC8001 AF2 XNFWP
IC8001 AC6 NANDRYBY

IC8001 R1 TMS
IC8001 R2 TRST
IC8001 R6 TCK
IC8001 R3 TDO
IC8001 T5 TDI

IC8001 P4 GTCPOUT
IC8001 AE24 DTCPOUT
IC8001 H22 TCPOUT
IC8001 D24 TSTAIO

J0JHC0000045

IC8001 K23 VDDIO
IC8001 K26 VDDIO
IC8001 M21 VDDIO
IC8001 M23 VDDIO
IC8001 N24 VDDIO
IC8001 P25 VDDIO
IC8001 R21 VDDIO
IC8001 T25 VDDIO
IC8001 U24 VDDIO
IC8001 V22 VDDIO
IC8001 W26 VDDIO
IC8001 Y22 VDDIOCK
IC8001 Y24 VDDIO
IC8001 AA21 VDDIO
IC8001 AB19 VDDIO
IC8001 AB22 VDDIO
IC8001 AB25 VDDIO
IC8001 AC18 VDDIO
IC8001 AC23 VDDIO
IC8001 AD17 VDDIO
IC8001 AD22 VDDIO
IC8001 AD25 VDDIO
IC8001 AE16 VDDIO
IC8001 AE21 VDDIO
IC8001 AF20 VDDIO
IC8001 AF26 VDDIO

SUB1.2V

L8002

NET002822

C8018

0.1u
16V

C8019

0.1u
16V

C8020

0.1u
16V

C8021

0.1u

16V

J0JHC0000045

C8022

1u

6.3V

C8023

10u
10V

C8024

10u
10V

C

SUB1.2V

L8010

J0JHC0000045

C8076

0.1u
16V

C

LOSD OUT (for HQ1)

VOP21

IC8001 C15 VOP21

VOP20

IC8001 E16 VOP20

VOP11

IC8001 F16 VOP11
IC8001 A16 VOP10

VOP10

IC8001 C16 VOP1

VOP1

IC8001 B16 VOP0

VOP0

IC8001 B15 LCSID

LCSID
LCSCK

IC8001 A15 LCSCK

VI1CVBS3

IC8001 E11 VI1CVBS3

VI1CVBS2

IC8001 E10 VI1CVBS2
IC8001 F10 VI1CVBS1

VI1CVBS1 IC8001 V1 ED1

VI1CVBS0

IC8001 E9 VI1CVBS0

VI1CK204F

IC8001 F9 VI1CK204F

VI1CK208F

IC8001 E8 VI1CK208F

VI2P0

IC8001 F8 VI2P0

VI2P1

IC8001 E7 VI2P1

IC8001 F7 VI2P2

VI2P2

VI2P3

IC8001 D6 VI2P3

VI2P5

IC8001 D5 VI2P5
IC8001 F5 VI2P6

VI2P6

IC8001 E4 VI2P7

VI2P7
VI2P8

IC8001 F4 VI2P9

VI2P9

LOSDOUT11
LOSDOUT10
LOSDOUT13
LOSDOUT12
LOSDOUT15
LOSDOUT14

LOSDOUT9
LOSDOUT8

LOSDOUT7
LOSDOUT6
LOSDOUT5

LOSDOUT4
LOSDOUT3
LOSDOUT2

LOSDOUT1
LOSDOUT0

LOSDOUT_CLK_O
LOSDOUT_H_O

LOSDOUT_YS
LOSDOUT_YM
LOSDOUT_V_I
LOSDOUT_CLK_I
LOSDOUT_H_I

LVDS I/F

TCLK1N

IC8001 E25 TCLK1N
IC8001 B25 TA1N

TA1N

IC8001 C25 TB1N

TB1N

IC8001 D25 TC1N

TC1N

IC8001 F25 TD1N

TD1N
TE1N

IC8001 G25 TE1N

IC8001 E26 TCLK1P

TCLK1P

IC8001 B26 TA1P

TA1P

IC8001 C26 TB1P

TB1P

R8108

33k

C8069

82p

50V

C8067

0.01u
25V

C

TC1P
TD1P
TE1P

R8107

100

C8068

0.1u

16V

IC8001 D26 TC1P
IC8001 F26 TD1P
IC8001 G26 TE1P

R8106

2k

IC8001 G22 LPFOUT
IC8001 G23 LPFIN

AUDIO IF

IC8001 D15 DAUDIO

DAUDIO

DMIX0

IC8001 A13 DMIX0
IC8001 B13 SRCK0

SRCK0

IC8001 F14 LRCK0

LRCK0

DACCK0

IC8001 C13 DACCK0
IC8001 A10 IECOUT0

IECOUT0

R8001

180

IC8001 R5 ATCPOUT
IC8001 P5 AVCOIN

R8002

82

C8001

C8002

0.1u
1u

16V

6.3V

C

SUB3.3V

L8009

J0JHC0000045

C8072

0.1u
16V

C8073

0.1u
16V

C8074

0.1u
16V

IC8001 P16 DPAVDD
IC8001 R16 DPAVSS

IC8001 H21 MVAVDD
IC8001 J21 MVAVSS

IC8001 P3 AGAVDD
IC8001 P2 AGAVSS

C

SUB3.3V

L8008

J0JHC0000045

C8070

0.1u
16V

IC8001 E22 LVVDD
IC8001 E23 LVVDD
IC8001 F21 LVVDD

C8071

0.1u
16V

C

IC8001 F22 LVVSS IC8001 AF24 VSS
IC8001 F23 LVVSS
IC8001 G21 LVVSS

C

C8006

0.1u
16V

C8009

10u

C

10V

FOR HQ1L VIDEO

VOP2

IC8001 M17 VDDA
IC8001 U15 VDDA
IC8001 T17 VDDA

SUB3.3V

C8033

0.1u
16V

VOUTENB

L8006

C

MVCLK
MHSYNC
MVSYNC

VOP29
VOP28
VOP27
VOP26
VOP25
VOP24
VOP23
VOP22

VOP19
VOP18
VOP17
VOP16
VOP15
VOP14
VOP13
VOP12

VOP9
VOP8
VOP7
VOP6
VOP5
VOP4
VOP3

0

IC8001 A23 MVCLK
IC8001 C22 MHSYNC
IC8001 E20 MVSYNC

IC8001 E18 VOP29
IC8001 B18 VOP28
IC8001 F17 VOP27
IC8001 A18 VOP26
IC8001 C17 VOP25
IC8001 B17 VOP24
IC8001 A17 VOP23
IC8001 E17 VOP22

IC8001 B20 VOP19
IC8001 E19 VOP18
IC8001 A20 VOP17
IC8001 C19 VOP16
IC8001 F18 VOP15
IC8001 B19 VOP14
IC8001 A19 VOP13
IC8001 C18 VOP12

IC8001 B22 VOP9
IC8001 D20 VOP8
IC8001 A22 VOP7
IC8001 C21 VOP6
IC8001 F19 VOP5
IC8001 B21 VOP4
IC8001 A21 VOP3
IC8001 C20 VOP2

IC8001 H26 VOUTENB

IIC I/F

SCL0
SDA0
SCL1
SDA1
SBT0
SBT2
XECS3
XECS5

SD CARD I/F

SDCLK
SDCD
SDCMD
SDDAT0
SDDAT1
SDDAT2
SDDAT3
SDWP

L8004

NET002635

C8007

0.1u
16V

C8008

0.1u

16V

C8010

10u
10V

C

C8034

0.1u
16V

IC8001 M2 SCL0
IC8001 M1 SDA0
IC8001 N5 SCL1
IC8001 N3 SDA1
IC8001 AB8 SBT0
IC8001 AD6 SBT2
IC8001 AD1 XECS3
IC8001 AC4 XECS5

IC8001 AF13 SDCLK
IC8001 AD13 SDCD
IC8001 AD12 SDCMD
IC8001 AB12 SDDAT0
IC8001 AE13 SDDAT1
IC8001 AB13 SDDAT2
IC8001 AA13 SDDAT3
IC8001 AE12 SDWP

SUB1.2V

J0JHC0000045

IC8001 N17 VDDR
IC8001 R17 VDDR
IC8001 T15 VDDR
IC8001 U16 VDDR
IC8001 AB15 VDDR
IC8001 AC15 VDDR
IC8001 AD15 VDDR
IC8001 AE15 VDDR
IC8001 AF15 VDDR

IC8001 U14 DPAVDD12

IC8001 C11 DACVSS1
IC8001 A12 DACVSS2
IC8001 C12 DACVDD1
IC8001 E14 DACVDD2

SDA2
SCL2
SDA3

SCL3

PORT16[1]

SCARD_NMIRQ

SCARD_IRQ
FE_IRQ
HDMI_IRQ

CLOCK GEN

XEAS XEAS

PORT16[1] PORT16[1]

->

->

->

->

->

->

-> ->

IC8001J22VC27
IC8001H25CLK74
IC8001K21CK27
IC8001AD24CK27D

CH,IS IF

CH0CLK
CH0VAL
CH0PSYNC
CH0DATA

IS0CLK
IS0VAL
IS0PSYNC
IS0DATA

IS1VAL
IS1PSYNC
IS1CLK
IS1DATA

POD,CI I/F

XECS6
XECS7

XEXDMK0
XEXDMR0

VI1P21
VI1P10
VI1P11
VI1P1

VI1P0

VI1P20

VI2P20

XRTS0
XDTR0
XDSR0
XDCD0

XCTS0
XRI0
TXD0
RXD0

SMTCLK1
SMTD1
SMTRST1
SMTCMD1

SMTSEL1
SMTD0
SMTRST0
SMTCMD0
SMTSEL0

SMTCLK0

CH1CLK

CH1VAL

CH1PSYNC

CH1DATA

IC8001 AF12 CH0CLK
IC8001 AE11 CH0VAL
IC8001 AD11 CH0PSYNC
IC8001 AF11 CH0DATA

IC8001 AF3 IS0CLK
IC8001 AB7 IS0VAL
IC8001 AE4 IS0PSYNC
IC8001 AF4 IS0DATA

IC8001 AE5 IS1VAL
IC8001 AC7 IS1PSYNC
IC8001 AD5 IS1CLK
IC8001 AF5 IS1DATA

R8086

100k

C8052

6.3V

1u

IC8001 AD2 XECS6
IC8001 AE1 XECS7
IC8001 AB5 XEXDMK0
IC8001 AE2 XEXDMR0

IC8001 F2 VI1P21
IC8001 F3 VI1P10
IC8001 E1 VI1P11
IC8001 G5 VI1P1

IC8001 G6 VI1P0
IC8001 H6 VI1P20

IC8001 K3 VI2P20

IC8001 AE6 XRTS0
IC8001 AC8 XDTR0
IC8001 AF6 XDSR0
IC8001 AB9 XDCD0
IC8001 AD7 XCTS0
IC8001 AC9 XRI0
IC8001 AE7 TXD0
IC8001 AF7 RXD0

IC8001 AD8 SMTCLK1
IC8001 AE8 SMTD1
IC8001 AA10 SMTRST1
IC8001 AF8 SMTCMD1
IC8001 AB10 SMTSEL1
IC8001 AA11 SMTD0
IC8001 AE9 SMTRST0
IC8001 AF9 SMTCMD0
IC8001 AB11 SMTSEL0
IC8001 AD9 SMTCLK0

IC8001 AD10 CH1CLK
IC8001 AA12 CH1VAL
IC8001 AE10 CH1PSYNC
IC8001 AF10 CH1DATA

TXD0
RXD0
XRTS0
XDTR0

XDSR0
XDCD0
XCTS0
XRI0

10k

R8087

C

R8091

100

TP8037

PORT14[1]
PORT14[2]
PORT14[3]
PORT14[4]

POWER_DET

PORT15[7]

PORT16[0]

PORT15[5]

SBI1

SBO1

PORT9[5]

HSVALIN
HSSYNIN

HSBCLKIN
HSDIN0
HSDIN1

HSDIN2
HSDIN3
HSDIN4

HSDIN5

HSDIN6

HSDIN7

PORT10[6]

PORT10[7]

PORT5[4]

PORT5[5]
PORT5[6]
SMT_OFF
PORT5[7]

10k

R8090

C

C8053

0.01u

COMMON PORT .etc

DSRCK
SLRCK
ADCCK
ADIN

RMCO

VI2P10
VI2P11

VI2P21

VI2ENB
VI2CLK2

*R8111

10k

C

X8001

H0J270500061

1 X1

2 S0

3 S1

4 VIN

25V

5 VDD

6 GND

7 74M

C0ZBZ0001030

8 COMM 9

C

IC8004

IC8001 C14 DSRCK
IC8001 E15 SLRCK
IC8001 B14 ADCCK
IC8001 A14 ADIN

IC8001 M5 RMCO

IC8001 G1 VI2P10
IC8001 J5 VI2P11

IC8001 L6 VI2P21

IC8001 G3 VI2ENB
IC8001 J1 VI2CLK2

IC8001 H24 AUDCLK

16

X2

15

VDD

14

S2

13

VDD

12

GND

11

24.576/33M
10

4.9152M

ICS476EG-08LFT

27M

VMUTE

RSV3(SDRAM_CHK1)
RSV2(SDRAMCHK2)
SDBOOT

ETHER_IRQ

PANEL_STATUS

P_MAIN_SW

PANEL_SOS

RSV1(SD_ERROR)

EEPROM_WP

RSV4

SUB3.3V

L8005

J0JHC0000045

10k

C8057

R8095

0.1u
C

16V

CLKGEN_S2

C8056

0.1u
16V

C8058
10u

10V

R8093

47

12

50

S T U V W X Y Z AA AB AC AD

1

2

3

4

5

6

7

8

9

10

11

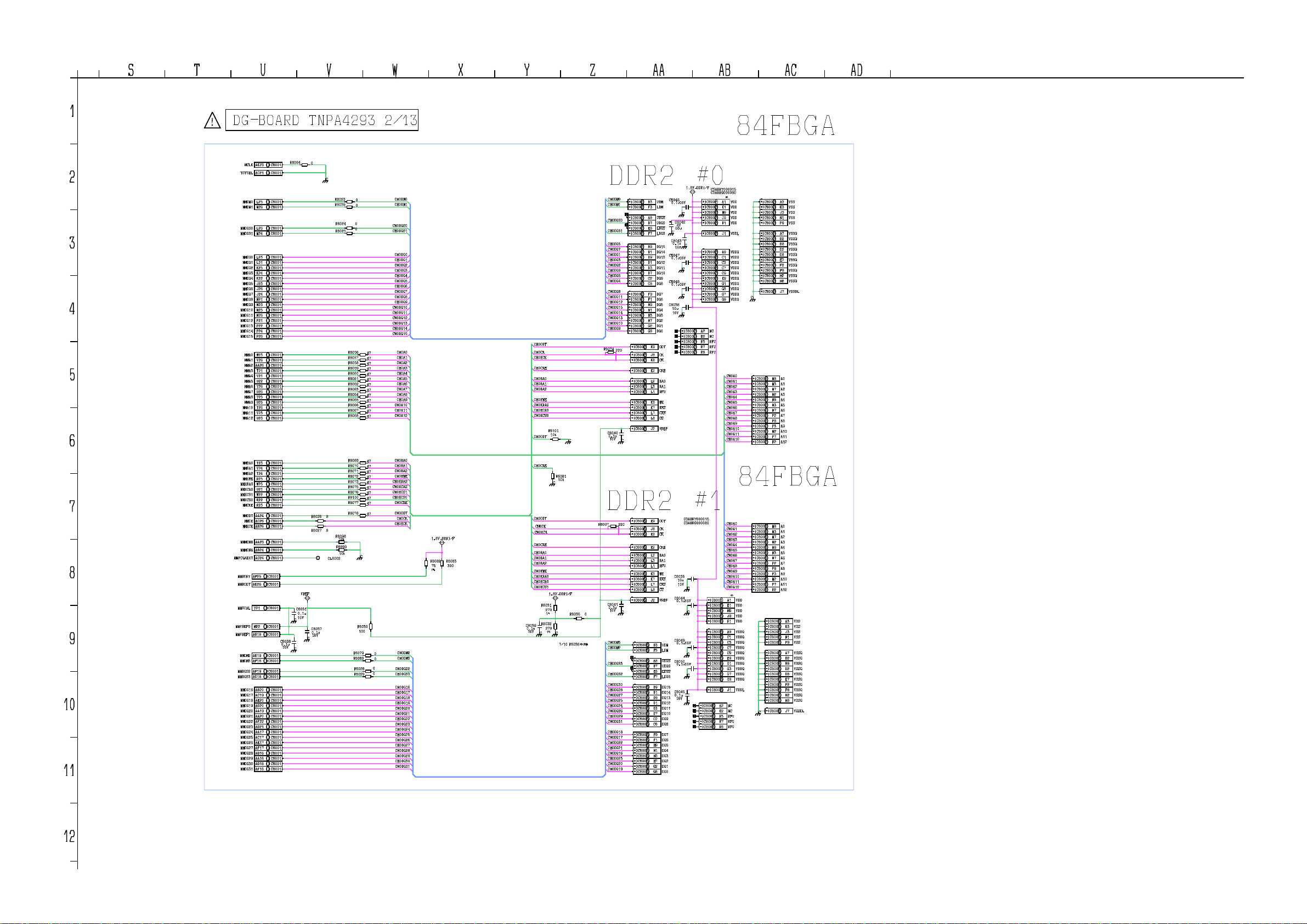

DG-BOARD TNPA4293 2/13

R8084

IC8001AE23MCLK

IC8001AC21TSTSEL

IC8001L25MMDM0
IC8001M26MMDM1

IC8001L26MMDQS0
IC8001M24MMDQS1

IC8001L23MMDQ0
IC8001L21MMDQ1
IC8001K25MMDQ2
IC8001K24MMDQ3
IC8001K22MMDQ4
IC8001J23MMDQ5
IC8001J26MMDQ6
IC8001J24MMDQ7
IC8001N21MMDQ8
IC8001N23MMDQ9
IC8001N25MMDQ10
IC8001N26MMDQ11
IC8001P21MMDQ12
IC8001P22MMDQ13
IC8001P24MMDQ14
IC8001P26MMDQ15

IC8001W23MMA0
IC8001V26MMA1
IC8001AA26MMA2
IC8001T21MMA3
IC8001V21MMA4
IC8001U22MMA5
IC8001Y26MMA6
IC8001U26MMA7
IC8001Y25MMA8
IC8001U25MMA9
IC8001T26MMA10
IC8001V23MMA11
IC8001U23MMA12

IC8001T23MMBA0
IC8001V24MMBA1
IC8001T24MMBA2
IC8001R25MMXWE
IC8001W25MMXRAS
IC8001U21MMXCAS
IC8001W22MMXCS1
IC8001R22MMXCS0
IC8001R23MMCKE

IC8001AA24MMODT
IC8001AC26MMCK
IC8001AB26MMXCK

IC8001AA23MMMONB

IC8001AB24MMMONA

IC8001AC24MMPCLKEXT

IC8001AF25MMRDRV

IC8001AE26MMRODT

IC8001Y21MMVCAL

IC8001M22MMVREF0

IC8001AB18MMVREF1

IC8001AE19MMDM2
IC8001AF18MMDM3

IC8001AF19MMDQS2
IC8001AD18MMDQS3

IC8001AB20MMDQ16
IC8001AC19MMDQ17
IC8001AE20MMDQ18
IC8001AD20MMDQ19
IC8001AA19MMDQ20
IC8001AA20MMDQ21
IC8001AF22MMDQ22
IC8001AD21MMDQ23
IC8001AA17MMDQ24
IC8001AC17MMDQ25
IC8001AE17MMDQ26
IC8001AF17MMDQ27
IC8001AB16MMDQ28
IC8001AA16MMDQ29
IC8001AD16MMDQ30
IC8001AF16MMDQ31

0

C

R8023

0

R8039

0

R8024

0
0

R8025

R8056
R8057
R8058
R8059
R8060
R8061
R8062
R8063
R8064
R8065
R8066
R8067
R8068

R8069
R8070
R8071
R8072
R8073
R8075
R8076
R8100
R8077

R8026

R8027

VREF

C8051

0.1u
16V

C

C8037

0.1u
16V

C

C8038

0.1u
16V

C

R8078

0

0

R8098

10k

R8099

10k

C

CL8002

R8030

100

R8079
R8080

R8028
R8029

84FBGA

DDR2 #0

CH0DM0
CH0DM1

CH0DQS0
CH0DQS1

CH0DQ0
CH0DQ1
CH0DQ2
CH0DQ3
CH0DQ4
CH0DQ5
CH0DQ6
CH0DQ7
CH0DQ8

CH0DQ9
CH0DQ10
CH0DQ11
CH0DQ12
CH0DQ13
CH0DQ14
CH0DQ15

CH0A0

47

CH0A1

47

CH0A2

47

CH0A3

47

CH0A4

47

CH0A5

47

CH0A6

47

CH0A7

47

CH0A8

47

CH0A9

47

CH0A10

47

CH0A11

47

CH0A12

47

CH0BA0

47

CH0BA1

47

CH0BA2

47

CH0XWE

47

CH0XRAS

47

CH0XCAS

47

CH0XCS1

47

CH0XCS0

47

CH0CKE

47

CH0ODT

47

CH0CK

CH0XCK

1.8V_DDRI/F

R8082

R8083

75

300

1%

CH0DM2

0

CH0DM3

0

0

CH0DQS2

0

CH0DQS3

CH0DQ16

CH0DQ17

CH0DQ18

CH0DQ19

CH0DQ20

CH0DQ21

CH0DQ22

CH0DQ23

CH0DQ24

CH0DQ25

CH0DQ26

CH0DQ27

CH0DQ28

CH0DQ29

CH0DQ30

CH0DQ31

CH0ODT

CH0CK
CH0XCK

CH0CKE

CH0BA0
CH0BA1
CH0BA2

CH0XWE
CH0XRAS
CH0XCAS
CH0XCS0

R8101

10k

CH0ODT

CH0CKE

CH0ODT

CH0CK

CH0XCK

CH0CKE

CH0BA0
CH0BA1
CH0BA2

CH0XWE
CH0XRAS
CH0XCAS
CH0XCS1

C8039

0.1u
16V

C

R8081

10k

C

1.8V_DDRI/F

R8031

270

1%

R8035

R8032

270

1%

C

C

R80367/10

CH0DM0

*IC8002=B3 UDM

CH0DM1

*IC8002=F3 LDM

*IC8002=A8 UDQS

CH0DQS0

*IC8002=B7 UDQS
*IC8002=E8 LDQS

CH0DQS1

*IC8002=F7 LDQS

CH0DQ5

*IC8002=B9 DQ15

CH0DQ7

*IC8002=B1 DQ14

CH0DQ1

*IC8002=D9 DQ13

CH0DQ3

*IC8002=D1 DQ12

CH0DQ2

*IC8002=D3 DQ11

CH0DQ0

*IC8002=D7 DQ10

CH0DQ6

*IC8002=C2 DQ9

CH0DQ4

*IC8002=C8 DQ8

CH0DQ8

*IC8002=F9 DQ7

CH0DQ11

*IC8002=F1 DQ6

CH0DQ12

*IC8002=H9 DQ5

CH0DQ15

*IC8002=H1 DQ4

CH0DQ14

*IC8002=H3 DQ3

CH0DQ13

*IC8002=H7 DQ2

CH0DQ10

*IC8002=G2 DQ1

CH0DQ9

*IC8002=G8 DQ0

*IC8002=K9 ODT

R8074

220

*IC8002=J8 CK
*IC8002=K8 CK

*IC8002=K2 CKE

*IC8002=L2 BA0
*IC8002=L3 BA1
*IC8002=L1 RFU

*IC8002=K3 WE
*IC8002=K7 RAS
*IC8002=L7 CAS
*IC8002=L8 CS

*IC8002=J2 VREF

C8040

0.1u
16V

C

DDR2 #1

*IC8003=K9 ODT

R8097

220

*IC8003=J8 CK
*IC8003=K8 CK

*IC8003=K2 CKE

*IC8003=L2 BA0
*IC8003=L3 BA1
*IC8003=L1 RFU

*IC8003=K3 WE
*IC8003=K7 RAS
*IC8003=L7 CAS
*IC8003=L8 CS

*IC8003=J2 VREF

C8041

0.1u
16V

CH0DM3
CH0DM2

CH0DQS3

CH0DQS2

CH0DQ30
CH0DQ28
CH0DQ27
CH0DQ25
CH0DQ24
CH0DQ26
CH0DQ29
CH0DQ31

CH0DQ18
CH0DQ17
CH0DQ22
CH0DQ21
CH0DQ16
CH0DQ23
CH0DQ20
CH0DQ19

C

*IC8003=B3 UDM
*IC8003=F3 LDM

*IC8003=A8 UDQS
*IC8003=B7 UDQS
*IC8003=E8 LDQS
*IC8003=F7 LDQS

*IC8003=B9 DQ15
*IC8003=B1 DQ14
*IC8003=D9 DQ13
*IC8003=D1 DQ12
*IC8003=D3 DQ11
*IC8003=D7 DQ10
*IC8003=C2 DQ9
*IC8003=C8 DQ8

*IC8003=F9 DQ7
*IC8003=F1 DQ6
*IC8003=H9 DQ5
*IC8003=H1 DQ4
*IC8003=H3 DQ3
*IC8003=H7 DQ2
*IC8003=G2 DQ1
*IC8003=G8 DQ0

0

C8046

0.1u

+

C8042

4V

68u

C

C8043

0.1u
16V

C8047

0.1u

C8048

0.1u

C8036

10u

10V

C8035

10u
10V

C8044

0.1u

C8049

0.1u

C8050

0.1u

C8045

0.1u
16V

1.8V_DDRI/F

16V

C

C

16V

C

16V

C

C

*IC8002=A2 NC
*IC8002=E2 NC
*IC8002=R3 RFU
*IC8002=R7 RFU
*IC8002=R8 RFU

C3ABRY000015
C3ABRG000080

C

16V

C

16V

C

16V

C

C

*IC8003=A2 NC
*IC8003=E2 NC
*IC8003=R3 RFU
*IC8003=R7 RFU
*IC8003=R8 RFU

C3ABRY000015
C3ABRG000080

=

*IC8002

A1 VDD
*IC8002=E1 VDD
*IC8002=M9 VDD
*IC8002=J9 VDD
*IC8002=R1 VDD

*IC8002=J1 VDDL

*IC8002=A9 VDDQ
*IC8002=C1 VDDQ
*IC8002=C3 VDDQ
*IC8002=C7 VDDQ
*IC8002=C9 VDDQ
*IC8002=E9 VDDQ
*IC8002=G1 VDDQ
*IC8002=G3 VDDQ
*IC8002=G7 VDDQ
*IC8002=G9 VDDQ

CH0A0
CH0A1
CH0A2
CH0A3
CH0A4
CH0A5
CH0A6
CH0A7
CH0A8
CH0A9
CH0A10
CH0A11
CH0A12

CH0A0
CH0A1
CH0A2
CH0A3
CH0A4
CH0A5
CH0A6
CH0A7
CH0A8
CH0A9
CH0A10
CH0A11
CH0A12

*IC8003

A1 VDD
*IC8003=E1 VDD
*IC8003=M9 VDD
*IC8003=J9 VDD
*IC8003=R1 VDD

*IC8003=A9 VDDQ
*IC8003=C1 VDDQ
*IC8003=C3 VDDQ
*IC8003=C7 VDDQ
*IC8003=C9 VDDQ
*IC8003=E9 VDDQ
*IC8003=G1 VDDQ
*IC8003=G3 VDDQ
*IC8003=G7 VDDQ
*IC8003=G9 VDDQ

*IC8003=J1 VDDL

*IC8002=A3 VSS
*IC8002=E3 VSS
*IC8002=J3 VSS
*IC8002=N1 VSS
*IC8002=P9 VSS

*IC8002=A7 VSSQ
*IC8002=B2 VSSQ
*IC8002=B8 VSSQ
*IC8002=D2 VSSQ
*IC8002=D8 VSSQ
*IC8002=E7 VSSQ
*IC8002=F2 VSSQ
*IC8002=F8 VSSQ
*IC8002=H2 VSSQ
*IC8002=H8 VSSQ

*IC8002=J7 VSSDL

C

*IC8002=M8 A0
*IC8002=M3 A1
*IC8002=M7 A2
*IC8002=N2 A3
*IC8002=N8 A4
*IC8002=N3 A5
*IC8002=N7 A6
*IC8002=P2 A7
*IC8002=P8 A8
*IC8002=P3 A9
*IC8002=M2 A10
*IC8002=P7 A11
*IC8002=R2 A12

84FBGA

*IC8003=M8 A0
*IC8003=M3 A1
*IC8003=M7 A2
*IC8003=N2 A3
*IC8003=N8 A4
*IC8003=N3 A5
*IC8003=N7 A6
*IC8003=P2 A7
*IC8003=P8 A8
*IC8003=P3 A9
*IC8003=M2 A10
*IC8003=P7 A11
*IC8003=R2 A12

=

*IC8003=A3 VSS
*IC8003=E3 VSS
*IC8003=J3 VSS
*IC8003=N1 VSS
*IC8003=P9 VSS

*IC8003=A7 VSSQ
*IC8003=B2 VSSQ
*IC8003=B8 VSSQ
*IC8003=D2 VSSQ
*IC8003=D8 VSSQ
*IC8003=E7 VSSQ
*IC8003=F2 VSSQ
*IC8003=F8 VSSQ
*IC8003=H2 VSSQ
*IC8003=H8 VSSQ

*IC8003=J7 VSSDL

C

12

51

A B C D E F G H I J K L M N O P Q R S

1

2

3

4

5

6

7

8

9

10

11

*C8323

DG-BOARD TNPA4293 3/13

CPU_BUS after D-Latch

LiteII CI CTRL.

SUB3.3V

*R8402

0

AS3.3V

SUB5V

C

*C8328

10V
1u

Vin

*IC8302

GUARD AD_SDA2

*R8321

10k

C

*TU8301

ENV77M05D8F

0.0V
C

18

IFD1

17

IFD2

16

*C8324

IF-AGC

50V

22p

15

SCL

50V

14

22p

SDA

C

13

21

IFA1

20
12

19

NC

11

*C8301

BM

0.01u
25V

10

C

NC

9
NC

8

[TU]

7

[DC/DC]

6
NC

5
NC

4

[RF-AGC_Mon.]

3
BB

2
NC

1

Active_Antenna

C

C

C

*C8341

6.3V
100u

+

*C8316

*L8302

6.3V
J0JHC0000045

100u

+

SUB5V

0.0V
C

*R8309

100

*R8312

100

*R8329

47k

C

*R8303

100

*R8304

100

*C8322
16V

0.1u

C

0.0V

*C8304

16V

C

0.1u

0.0V

S

*C8307

16V

3.3V

*C8309

*X8301

H0J204500006

*C8312

10p

50V

C

GUARD_CLK

0.1u

16V

0.1u

*C8306

*C8310
4V

0.0V

100u

1.0V

*C8311

10p

50V

*C8332

C

C

GUARD_CLK

C

C

50V

1000p

25V

0.01u
*C8331

C

25V

0.01u

*R8318

4.7k
C

*C8338

C

50V22p

*C8336

GUARD
GUARD

*C8339

50V22p

*R8305

22k

C

0.0V

3.3V

0.0V

*C8330

*C8334

25V

25V

0.01u

0.01u

+

C

25V0.01u

*C8335

C

*R8322

1k

16

17

19

Vss

20

PLLVdd

21

PLLGND

22

XTI

23

XTO

24

Vss

25

PLLTEST

26

OSCMODE

27

AVdd

28

AGnd

29
30

33

25V0.01u

100

*R8314

*R8308

10k

C

12

13

14

15

Vdd

SADD4

STATUS
Vss
SADD3
SADD2

C1AB00002710

CVdd

SADD118SADD0

INTEL(Zarlink)

WJCE6353

I2C Addr = 0x1E

VIN31VIN32AGnd

Vdd
RFLEV
CLK2

DATA237CVdd38Vss39CVdd40Vss41AGC2/GPP242AGC143GPP344SMTEST45Vdd

34

35

36

GUARD

GUARD

25V

0.01u

*R8315

100

GUARD

GUARD

*R8307

4.7k

*R8306

4.7k

GUARD AD_SCL2

*R8311

100

*C8333

25V

0.01u

GUARD

GUARD

5

6

7

8

9

11

IRQ

Vss

CVdd

DATA1

RESET10SLEEP

Vss
Vdd
Vss

*IC8301

CVdd

MDO050MDO151MDO2

MOVAL

MOSTRT

Vss

*R8323

*C8329

47k

*C8313

*R8324

25V

47k

0.01u

C0CBCAD00082

*R8310

1 Vout

100

1.8V/170mA

*C8340

*C8327

25V

10V

0.01u
1u

*L8304

J0JHC0000045

1

2

3

4

64

CLK1

62

GUARD_CLK

MOCLK

61

*C8320

Vss

25V

60

CVdd

59

MDO7

58

BKERR63MICLK

MDO6

57

MDO5

56

*C8321

Vss

55

Vdd

54

MDO4

53

MDO3

52

GUARD

49

46

47

48

GUARD
GUARD

*C8314

25V0.01u

SUB3.3V

AA_FE_XRST

AA_XIRQ2

*L8301

J0JHC0000045

6NC7NC8

Cont

AC_XPDCE1

2 NC

3 Cn

4 GND 5

*C8325

C

25V

0.01u

*C8319

25V

0.01u
C

*R8325

68

EXB2HV680JV

*R8301

*R8327

*R8326

GUARD_CLK

MDO7
MDO6
MDO5

MDO4

MDO3
MDO2
MDO1

GUARD

CH0DATA

GUARD

68

CH0VAL

GUARD

68

CH0PSYNC

0.01u
C

25V

0.01u
C

AC_XEAB

AC_REG
AC_XPDWE
AC_IOWR
AC_IORD
AC_XPDOE
AC_XPDCE1

AC_CI_XRST

VI1P20
CI_OCP

IS0PSYNC

TP8404

*R8471

SUB3.3V

10k

10k

*R8470

100

*C8408
16V

0.1u

C

*IC8403

C0ZBZ0001333

*C8404
16V

0.1u

*R8469

1 Vin

Vout

2 GND

3 Enable 4

Fault/

MIC2005M-0.5YM6 TR

C

6

5

N/C

XCIEDB

XCICD2

*R8406

EXB2HV101JV

AA_ERXW
AA_ED2
AA_ED1
AA_ED0
AA_ED7
AA_ED6

AA_ED5
AA_ED4
AA_ED3

0.0V

0.1

C

*R8404

10k

*R8419

C

LVX

OUTPUT

INPUT

5.0V

3.3V

2.0V

H:

*IC8401

C0JBAZ002800

GND

B8

14

B7

15

B6

16

B5

17

SN74LVC4245ADBR

B4

18

B3

DATA BUFFER

19

B2

20

B1

21

OE

22

VccB(3.3V)

23

VccB(3.3V)

24

*R8426

0

TC74VHCT541AFT(EKJ (TSSOP)

1 G1

REG#

2 A1

WE#

3 A2

IOWR#

4 A3

IORD#

5 A4

OE#

6 A5

CE1#

7 A6
8 A7
9 A8

10 GND 11

C

*C8410

16V

0.1u

*R8405

10k

*Q8401

C

2SD0601ASL

2.4V

0.8V

0.4VL:

TOP

*R8484

0

*IC8402

C0JBAZ002692

TOP

*TP8403

*R8407

47k

*R8416

C

22k

*R8417

4.4V

0.44V

12GND13

11GND

C

10A8

EXB2HV101JV
*R8414

9A7

8A6

7A5

6A4

5A3

4A2

3A1

2DIR

1VccA(5V)

*C8402
16V

0.1u

*C8403

16V

0.1u

20

Vcc

19

G2

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

12

Y7
Y8

*TP8401

100k

C

*Q8402

2SD0601ASL

XCIEAB

C

*R8412

EXB2HV473JV

AU_DA2

AU_DA2
AU_DA1

AU_DA1

AU_DA0

AU_DA0

AU_DA7

AU_DA7
AU_DA6

AU_DA6
AU_DA5

AU_DA5

AU_DA4

AU_DA4
AU_DA3

AU_DA3

C

C

3.3V

*R8477

0

0.0V
C

*R8452

68
AS_REG-

AS_WE­AS_IOWR­AS_IORD-

AS_OE-

AS_CE1-

*R8453

68

*R8451

EXB28V680JX

*R8418

680

AA_EA11
AA_EA12
AA_EA10
AA_EA9
AA_EA14
AA_EA15
AA_EA13

AA_EA8
AA_EA7
AA_EA6
AA_EA5
AA_EA4
AA_EA3
AA_EA2
AA_EA1

CH0PSYNC
CH0DATA
MDO1
MDO2

MDO4
MDO5
CH0VAL
MDO6
MDO7

CH0CLK

GUARD_CLK

TC74VHCT541AFT(EKJ (TSSOP)

1 G1

0.0V
2 A1

3 A2
4 A3
5 A4
6 A5
7 A6
8 A7
9 A8

10 GND 11

C

TC74VHCT541AFT(EKJ (TSSOP)

1 G1
2 A1
3 A2
4 A3
5 A4
6 A5
7 A6
8 A7
9 A8

0.0V

10 GND 11

C

TC74VHCT541AFT(EKJ (TSSOP)

1 G1
2 A1
3 A2
4 A3
5 A4
6 A5
7 A6
8 A7

CIRESET

9 A8

0.0V

H:RESET

10 GND 11

L:NORMAL

C

TC74VHCT541AFT(EKJ (TSSOP)

1 G1
2 A1
3 A2
4 A3
5 A4
6 A5
7 A6
8 A7
9 A8

0.0V

10 GND 11

C

*IC8404

C0JBAZ002692

*IC8405

C0JBAZ002692

TS BUFFER

*IC8406

C0JBAZ002692

*IC8407

C0JBAZ002692

SUB5V

*R8401

0

XCIETS

*C8409
16V

0.1u

0.0V

20

Vcc

G2
Y1
Y2
Y3
Y4
Y5
Y6
Y7

TOP

Y8

Vcc

G2
Y1
Y2
Y3
Y4
Y5
Y6
Y7

TOP

Y8

XCIEAB

Vcc

G2
Y1
Y2
Y3
Y4
Y5
Y6
Y7

TOP

Y8

Vcc

G2
Y1
Y2
Y3
Y4
Y5
Y6
Y7

TOP

Y8

C

19

*R8454

18

EXB28V151JX

17
16
15
14
13
12

20
19
18
17
16
15
14
13
12

20
19
18
17
16
15
14
13
12

20
19
18
17
16
15
14
13
12

GUARD_CLK

SUB5V

*C8405

*C8406

16V

*C8407

EXB2HV680JV

16V

0.1u

0.0V

*R8463
EXB28V151JX

0.1u

*R8428

EXB2HV680JV

16V

0.1u

0.0V
C

*R8427

AR_PKTSTINA
AR_DATAINA0

AR_DATAINA1
AR_DATAINA2MDO3

AR_DATAINA3

*R8432

150

C

AR_DATAINA4
AR_DATAINA5

AR_ENINA
AR_DATAINA6
AR_DATAINA7

*R8431

150

GUARD_CLK
AR_CLKINA

*R8430

100

C

AY_EAA11
AY_EAA12
AY_EAA10

AY_EAA9
AY_EAA14
AY_EAA15
AY_EAA13

AY_EAA8

AY_EAA7

AY_EAA6

AY_EAA5

AY_EAA4

AY_EAA3

AY_EAA2

AY_EAA1

11/15
Guard
Addition

*R8450

10k

AS_CE1-

AS_OE-

AS_WE-

AS_IREQ-

*R8433

22k

AR_ENINA

AR_CLKINA

*R8434

47k

11/15
Guard

5.0V
Addition

C

GND

AU_DA3 GUARD

AU_DA4

AU_DA5 GUARD

AU_DA6 GUARD

AU_DA7

CE1#

A10

AY_EAA11

OE#

A11

AY_EAA12

A9

AY_EAA10

A8

AY_EAA9

A13

AY_EAA14

A14

AY_EAA15

WE#

IREQ#

VCC

VPP1

MIVAL

MCLKI

A12

AY_EAA13

A7

AY_EAA8

A6

AY_EAA7

A5

AY_EAA6

A4

AY_EAA5

A3

AY_EAA4

A2

AY_EAA3

A1

AY_EAA2

A0

AY_EAA1

AU_DA0

GUARD

AU_DA1

GUARD

AU_DA2

GUARD

PC CARD

L:

CI SLOT

P/N 1857164-1

0.0V

GUARD

GUARD

IOIS16#

CI SLOT A

INPUT

2.4V

0.8V

*JK8401

K1NA68B00044

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

OUTPUT

2.8V

0.5V

PC-CARD

*R8410

22k

3.8V

GND

35

36

*R8461

AQ_DATAOUTA3

37

68

*R8421

AQ_DATAOUTA4

38

68

*R8422

AQ_DATAOUTA5

39

68

*R8423

AQ_DATAOUTA6

40

68

*R8424

AQ_DATAOUTA7

41

68

42

CE2#

43

VS1#

44

45

AR_PKTSTINA

46

AR_DATAINA0

47

AR_DATAINA1

48

AR_DATAINA2

49

AR_DATAINA3

50

51

52

53

AR_DATAINA4

54

AR_DATAINA5

55

AR_DATAINA6

56

AR_DATAINA7

*R8460

57

68

58

*TP8402

59

60

61

*R8459

AQ_ENOUTA

62

68

*R8458

AQ_PKTSTOUTA

63

68

*R8425

AQ_DATAOUTA0

64

68

*R8457

AQ_DATAOUTA1

65

68

*R8456

AQ_DATAOUTA2

66

68

CD2#

67

68

C

TS

MCLKI

MCLKO

2.8V

2.4VH:

H:

0.5VL:

0.5V

*R8465
10k

AQ_CLKOUTA

GUARD_CLK

*R8466
10k

*R8411

*C8417

C

25V

0.0V

0.01u

AS_CD1-

3.3V

3.3V

3.3V

3.3V

5.0V

3.3V

3.3V

5.0V

5.0V

5.0V

5.0V

5.0V

5.0V

5.0V

5.0V

5.0V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

22k

AS_IORD-

AS_IOWR-5.0V

AS_REG-

AS_CD2-

*R8435

10k

*R8436

AS_WAIT-

C

10k

5.0V

*C8416

25V

0.01u

C

12

52

T U V W X Y Z AA AB AC AD AE AF AG AH AI AJ AK

1

DG-BOARD TNPA4293 4/13

GENX4 PIO

IIC

2

3

4

5

6

7

8

9

10

11

C8551

AF_NAND_RY/BY

AA_ED0

AA_ED1

AA_ED8

20 A7

21 A6

16V

0.1u

C

C8552

16V

0.1u

AG_SRQ-GENX

R8702

0

R8709

0

R8711

10k

CL8700

AA_ESZ0

AA_SBO0

AD_TO_BA01

TP8757

TP8767

R8732

100

K1KA04AA0104

JK8702

1

+5V

2

SBI0

3

AA_EA1

AA_XERE

AA_XECS0

C8555

16V

0.1u

C

30

31A032CE33

34OE35

DQ036DQ837DQ138DQ939DQ2

22 A5

23 A4

C

Vio

Vss

N.C.

(VIO)

24 A3

25 A2

26 A1

27 N.C.

28 N.C. 29

SBO0

4

C

CL8701

AA_XEAS

AA_ESZ1

AA_SBI0

SUB3.3V

SUB5V

C8731
25V

0.01u

C

R8712

10k

GUARD_CLK

XPDCD1
XPDCD2

XCI_IREQ

AC_XETS

AC_CHDI0
AC_CHDI1
AC_CHDI2
AC_CHDI3
AC_CHDI4
AC_CHDI5
AC_CHDI6
AC_CHDI7

AC_CHCLK
AC_CHVAL

AC_CHSYNC

SMTCMD0
SMTSEL0

AC_XPDWT

SUB3.3V

L8551

10k

R8551

J0JHC0000075

AA_ED6

AA_ED4

AA_ED5

AA_ED7

AA_ED13

AA_ED14

AA_ED15

AA_EA17

52

53

54

R8564

10k

55

A16

BYTE

N.C.56N.C.

128/256Mbit NOR FLASH

(A23)

1 N.C.

2 A22

3 A15

4 A14

5 A13

AA_ED12

45

46

47

48

49

50

51

DQ5

DQ6

DQ7

Vss

DQ13

DQ14

DQ15/A-1

<

6 A12

7 A11

8 A10

9 A9

10 A8

11 A19

12 A20

AA_ED3

AA_ED11

41

42

43

DQ3

Vcc44DQ4

DQ11

DQ12

*IC8554

TVRP526-4

13 WE

14 RESET

15 A21

16 WP/ACC

AA_ED10

40

17 RY/BY

AA_ED9

AA_ED2

DQ10

18 A18

19 A17

3.3V

*R8445
100k

*R8437
EXB2HV104JV

0.0V

F2G1A101A019

+

0.0V

*C8411

10V
100u

AS_CD1-

AS_CD2-

AS_IREQ-

AS_WAIT-

3.3V

3.3V3.3V

GUARD_CLK

0.0V

C

0.0V

LVC

INPUT

H:

2.0V

L:

0.8V

*IC8408

C0JBAU000025

TC74VHC541FT(EL,K)

G11

2 A1

3 A2

4 A3

5 A4

6 A5

7 A6

8 A7

9 A8

10 GND 11

G11

2 A1

3 A2

4 A3

5 A4

6 A5

7 A6

8 A7

9 A8

10 GND 11

*IC8409

C0JBAU000025

TC74VHC541FT(EL,K)

Vcc

G2

Y1

Y2

Y3

Y4

Y5

Y6

Y7

Y8

Vcc

G2

Y1

Y2

Y3

Y4

Y5

Y6

Y7

Y8

OUTPUT

2.2V

0.55V

*C8413

16V

20

0.1u

19

EXB2HV680JV

18

17

16

15

14

13

12

20

19

18

17

16

15

14

13

12

*C8414

C

16V

0.1u

GUARD_CLK

XCI_IREQ

XPDCD1

XPDCD2

*R8441

*R8443

EXB2HV680JV

*R8468

0

C

0.0V

AQ_DATAOUTA0

AQ_DATAOUTA1

AQ_DATAOUTA2

AQ_DATAOUTA3

AQ_DATAOUTA3

AQ_PKTSTOUTA

AQ_DATAOUTA4

AQ_DATAOUTA0

AQ_DATAOUTA5

AQ_DATAOUTA1
AQ_DATAOUTA2

AQ_DATAOUTA6

AQ_DATAOUTA4

AQ_DATAOUTA7

AQ_DATAOUTA5

AQ_DATAOUTA7

*R8438

100k

AQ_CLKOUTA

AQ_CLKOUTA

AQ_ENOUTA

AQ_ENOUTA

100k

*R8440

C

AQ_PKTSTOUTA

3.3V

3.3V

3.3V

3.3V

0.0V

C

*C8412

16V

0.1u

*R8446
68

*R8449
68

3.3V

DeMPX ED[15-0] --> EA[23-8]

IC8621

C0JBAZ002845

TC74LCX373FT (TSSOP)

AA_EA8

R8621

AA_ED0

AA_ED1

AA_EA9 AA_EA14

R8622

AA_EA10

R8623

AA_ED2

AA_ED3

AA_EA11

R8624

AA_EA16AQ_DATAOUTA6

R8625

AA_ED8

AA_ED9

AA_EA17

R8626

AA_EA18

R8627

AA_ED10

AA_ED11

AA_EA19

R8628

R8950

STB_RST

0

OE1

68

2 Q0

3 D0

4 D1

68

5 Q1

68

6 Q2

7 D2

8 D3

68

9 Q3

10 GND 11

C0JBAZ002845

OE1

68

2 Q0

3 D0

4 D1

68

5 Q1

68

6 Q2

7 D2

8 D3

68

9 Q3

10 GND 11

C

R8944

22k

0

R8946

IC8622

TC74LCX373FT (TSSOP)

STB3.3V

R8942

5.6k

R8943

100k

Q8851

2SD0601ASL

C

R8941

47k

C

R8940

Q8852

2SD0601ASL

2SD0601ASL

47k

Vcc

Q7

D7

D6

Q6

Q5

D5

D4

Q4

LE

Vcc

Q7

D7

D6

Q6

Q5

D5

D4

Q4

LE

Q8853

SUB3.3V

L8621

J0JHC0000075

20

19

18

17

16

15

14

13

12

20

19

18

17

16

15

14

13

12

C

C8854

6.3V

C8852

6.3V

2.2u

C8853

6.3V

2.2u

C8622

16V

0.1u

AA_EA15

R8629

68

R8630

68

R8631

68

R8632

68

R8633

68

R8634

68

R8635

68

R8636

68

SUB5V

R8938

4.7k

R8939

180k

C

AG_DTV_XRST

AA_ED6

AA_EA13

AA_ED4

AA_EA12

AA_XEAS

AA_ED15

AA_ED13

AA_ED12

AA_EA20

AA_ED7

AA_ED5

AA_EA23

AA_ED14

AA_EA22

AA_EA21

C

C8621

16V

0.1u

C

SUB3.3V

10k

10k

10k

R8876

R8875

R8948

R8874

10k

AG_DTV_VOUTENB
AG_SD_BOOT_STS

C

Factory Mode

TP8851

TP8854

R8868

68

AA_XRST

AG_SW_OFF_DET

R8870

0

12

AA_EA14

AA_EA12

AA_EA15

AA_EA16

AA_EA13

AA_EA11

AA_EA23

XNFWP is used as PIO for NOR FWP. (reserved)

FOR LXD7 - TVRP375
FOR LED7F - TVRP526

AA_EA10

AA_EA9

AA_EA20

AA_EA21

AA_XEWE0

AA_XRST

AA_EA22

AA_EA19

AA_EA18

AA_EA8

AA_EA7

AA_EA6

AA_EA5

AA_EA4

AA_EA3

AA_EA2

53

AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ BA BB BC BD

1

2

3

4

5

6

7

8

9

10

11

12

Factory Mode

DG-BOARD TNPA4293 5/13

*R8501

R8605

0

*R8823

R8813

EXB28V680JX

R8826

C

AH_IECOUT0

100

AH_SRCK0

330

R8502

AH_LRCK0

330

R8503

AH_DMIX0

330

R8504

AH_DAUDIO

330

R8506

91

91

91

91

1%

1%

1%

R8507

R8508

R8509

R8510

1%

0V

0V

0V

0V

C

C

C

C

68

SUB3.3V

10k

R8832

C

47k

TP8808

AE_SDDAT0

GUARD

AE_SDDAT1

GUARD

AE_SDDAT2

GUARD

AE_SDDAT3
68
68
68
68

GUARD

68

10k

R8655

GUARD

GUARD

AE_SDWP
AE_SDCD

AE_SDCMD

GUARD

AE_SDCLK

GUARD

R8828

10k

SUB3.3V

R8653

10k

R8963

10k

C

R8952

68

W.P.

12

SDWP

11

C

TP8605

C8601

0.1u
16V

1 A0

*IC8601

2 A1

C3EBGC000066

24LC16BT-I/SNG

3 A2

4 VSS 5

C

VCC

WP

SCL

SDA

R8601

I2C

R8825

0

TP8802

TP8803

TP8804

TP8805

TP8806

TP8807

D.SW

10W.P.

D.SW

11

NO

12

10

6

7

8

GND

SDCLK

SDDAT0

SDDAT1

SDDTC

K1NA09D00004

TP8801

JK8801

12345

9

GND

3.3V
SDCMD

SDDAT3

SDDAT2

8

7

6

TP8602

22

TP8601

R8603

AD_SDA3

TP8604

47k

TP8603

AD_SCL3

SUB3.3V

R8604

0

0

R8833

R8602

22

AE_SDDAT1

AE_SDDAT0

AE_SDCD

AE_SDCMD

AE_SDCLK

0

R8812

R8804

10k

R8803

10k
10k

R8802

10k

R8809

10k

R8808

10k

R8807

10k

R8806
R8805

10k

AE_SDWP

AE_SDDAT3

AE_SDDAT2

SDA0
SCL0
SDA1
SCL1
SBT0
SBT2
XECS3
XECS5

CLKGEN_S2

PORT15[4]
VI1P20

IS0PSYNC

XDCD0
XCTS0
XRI0
TXD0
RXD0
SMTCLK1
SMTD1
SMTRST1

XRTS0
XDTR0
XDSR0

SMTCMD0
SMTSEL0
SMTCLK0
SMTD0

CH1CLK

XEXDMK0
XEXDMR0

SMTCMD1
SMTSEL1

XECS7

SMTRST0
CH1PSYNC
CH1DATA

VI2P20

CH0CLK
CH0PSYNC
CH0VAL
CH0DATA

(ea_pullup_sel)

H:Int.PU on EA

Hi-Z

CI_#CE1

PORT9[5] CI_XRST

Hi-Z
INT.PD
INT.PD
INT.PD

LiteII

CI PARALLEL TS
Hi-Z

Hi-Z
Hi-Z
Hi-Z
Hi-Z

Hi-Z

INT.PU
Hi-Z

Hi-Z
Hi-Z

Hi-Z

Hi-Z
INT.PU
INT.PU

INT.PD

OUTPUT

Output Port need no Ext.PD.

INT.PD

YC YUV RGB

- V R
C U B
Y Y G
Comp. Comp. Comp.

PORT9[4] EEPROM_WP

PORT5[4] SD_COIN_DET

AG_SD_LED_ON

Hi-Z

SD_CARD

Hi-Z
FOR H.264 BOARD

RESERVED

SMART CARD I/F is removed

PORT15[4] used for CI_OCP on DT2

SMTSEL0

SMTCMD0

Hi-Z RXD0

Int.PU

MVDACO0
MVDACO1
MVDACO2
MVDACO3

VI2CLK2

IS0DATA

IECOUT0

SDDAT0
SDDAT1
SDDAT2
SDDAT3

DAUDIO

SDCMD
SDCLK

SRCK0

LRCK0

DMIX0

GUARD_Y MVDACO3

VI1P0

*R8818

GUARD
GUARD
GUARD
GUARD

CH1VAL

VI1P11

IS0VAL

R8814
R8815

SDCD

R8816

GUARD

R8817

GUARD

GUARD

GUARD

VI1P1

SDWP
SDCD

LiteII

AF_XNFCE
AF_NAND_RY/BY
AF_NFCLE1
AF_XNFWE1
AF_XNFRE1
AF_NFALE1
AF_XNFWP1

AA_ED0
AA_ED1
AA_ED2
AA_ED3
AA_ED4
AA_ED5
AA_ED6

AA_ED7

AA_ED8

AA_ED9
AA_ED10

AA_ED11
AA_ED12
AA_ED13
AA_ED14
AA_ED15

AA_EA0
AA_EA1
AA_EA2
AA_EA3
AA_EA4
AA_EA5
AA_EA6
AA_EA7
AA_EA24
AA_EA25

R8871

10k

AA_FE_XRST

AA_XECS0
AA_XECS1
AA_XECS2

AA_XEAS

AA_XNMIRQ
AA_XIRQ1
AA_XIRQ2

AA_ERXW
AA_XERE
AA_XEWE0
AA_XEWE1
AA_XEDK

AA_ESZ0
AA_ESZ1

AA_XRST
AA_BOOTSWAP

AA_SBI0
AA_SBO0

R8555

68

R8556

68

R8557

68

R8558

68

R8559

68

R8560

68

R8561

68

R8867

EXB2HV680JV

R8866

EXB2HV680JV

R8865

EXB2HV680JV

R8710

68

R8703

68

SUB3.3V

SUB3.3V

10k

R8935

10k

R8869
C

R8947

R8877
R8878
R8879
R8880
R8881

R8882

R8883
R8884

R8885
R8886
R8887
R8888
R8889

R8891

R8892

R8893

R8894

R8895

R8896
R8897

R8900
R8901

R8742

10k

SUB3.3V

10k

10k

10k

10k

10k

R8908

R8907

R8904

R8906

R8905

TP8852

TP8853

68

68
68
68
68
68

68
68

NET0031303

68

68
68
68
68
68

68
68

0

68

0

0
0

10k

0V

R8898

C

10k

R8899

68
68

Reserved for NAND I/F

ADDRESS MPXed, if D-Latch

10k

10k

R8909

R8910

ExBUS

XECS3,5,7: USED FOR OTHER PORPOSE PINS

NET0032084

0V

C

XNFCE
NANDRYBY
NFCLE
XNFWE
XNFRE
NFALE
XNFWP

ED0

/EA8

ED1

/EA9

ED2

/EA10

ED3

/EA11

ED4

/EA12

ED5

/EA13

ED6

/EA14

ED7

/EA15

ED8

/EA16

ED9

/EA17

ED10

/EA18

ED11

/EA19

ED12

/EA20

ED13

/EA21

ED14

/EA22

ED15

/EA23

ED/EA with Int.PU at start
(XECS2,3 setting)

EA0
EA1
EA2
EA3
EA4
EA5
EA6
EA7
VI2P4

CL8702

RMCO

VI2ENB

VI2P11

ADCCK

SLRCK

XECS6

XECS0
XECS1
XECS2
XECS4

IS1DATA

XNMIRQ
XIRQ1
XIRQ2
XIRQ3 for HDMI_INT in ADV sheet

ERXW
XERE
XEWE0
XEWE1
XEDK

ESZ0
ESZ1

XRST
BOOTSWAP

DSRCK

VOUTENB
ADIN

VI1CLK2

SBI0
SBO0

AA_SBI0
AA_SBO0

NAND I/F

INT.PU
non

non
INT.PU
INT.PU
non
INT.PU

EA24

INT.PD

PORT16[5]

PORT6[6]:PSV1

P_MAIN_SW

PORT5[2]

RSV2

Hi-Z

PORT5[1]

RSV3

Hi-Z

INT.PU
see also SDA2 for ea_pullup_sel

OUTPUT
OUTPUT
Reserved/(ed_pullup_sel)
OUTPUT/(BOOTBT)

Hi-ZPORT16[4]

INT.PU
NEED EXT.PU
NEED EXT.PU

INT.PU
INT.PU
INT.PU
INT.PU
INT.PU
OUTPUT
OUTPUT
OUTPUT

INT.PU

PORT16[7], SD_BOOT

DUBUG/JIG

INT.PU

ExBUS

ExBUS

B_PORT

INT.PD

Hi-Z

VI1P20
IS0PSYNC

AC_CHDI0
AC_CHDI1
AC_CHDI2
AC_CHDI3
AC_CHDI4
AC_CHDI5
AC_CHDI6
AC_CHDI7

AC_CHVAL
AC_CHSYNC
AC_CHCLK

SMTCMD0
SMTSEL0
SMTCLK0
AC_XPDWT

AC_REG

AC_XPDOE
AC_XPDWE

AC_IORD
AC_IOWR

AC_XPDCE1

AC_XETS
AC_XEAB

AC_CI_XRST

AD_SDA0
AD_SCL0
AD_SDA1
AD_SCL1
AD_SDA2
AD_SCL2
AD_SDA3
AD_SCL3

AG_MODEM_LED2/CLK74SEL

CI_OCP
CI_POWER_ON

GUARD_CLK

XPDCD1
XPDCD2
XCI_IREQ

CH0CLK
CH0PSYNC
CH0VAL
CH0DATA

MAIN3.3V

R8851
R8852
R8853

R8854
ERJ2GE0R00X

R8855

R8856
R8857

R8858
R8859

R8860

R8862

R8863

R8864

GUARD
GUARD
GUARD
GUARD
GUARD
GUARD
GUARD
GUARD

R8919 4.7k

R8929

EXB2HVR000V

SUB3.3V

10k

10k

4.7k

4.7k

4.7k

R8924

R8923

R8921

R8926 4.7k

R8925

R8922 4.7k

R8920

R8911
R8912
R8913
R8914
R8915
R8916
R8917
R8918

R8927

0

I2C

68
68
68
68
68
68
68
68

RESERVED

N.C. for CLKGEN port

25M

4.9152M

24.576M

CI I/F

0
0
0

0

68

68
68

68
68

68

68
68

68

TUNER SERIAL TS

JTAG

AD_TMS
AD_TRST
AD_TO_BA01
AD_TO_GC3FS_NEXT

AD_TCK

R8745

10k

R8746

R8735

68
R8736
R8737
R8738
R8739

R8749

10k

10k

C

GUARD_CLK

NET0031576

68

68

NET0031226
68
68

TMS
TRST
TDI
TDO
TCK

54

BE BF BG BH BI BJ BK BL BM

1

DG-BOARD TNPA4293 6/13

AG_MODEM_LED2/CLK74SEL

GENX4

AG_MODEM_LED2/CLK74SEL

2

AG_TV_MAIN_ON
AG_SD_LED_ON

AD_SDA0
AD_SCL0
AD_SDA1
AD_SCL1
AD_SDA2
AD_SCL2
AD_SDA3
AD_SCL3

AA_XRST

AG_DTV_XRST
AG_SD_BOOT_STS

AG_DTV_VOUTENB
AG_SRQ-GENX
AG_SW_OFF_DET

STB_RST

SD_COIN_DET

SUB3.3V

3

SUB3.3V_SD

4

5

SUB5V

+

C8815

6.3V
47u

C

6

AG_TV_MAIN_ON
AG_SD_LED_ON
AG_DTV_XRST
AG_SD_BOOT_STS
AG_DTV_VOUTENB
AG_SRQ-GENX
AG_SW_OFF_DET

STB_RST

to other devices

AA_XRST

GUARD

AD_SDA0

GUARD

AD_SCL0

GUARD

AD_SDA1

GUARD

AD_SCL1

GUARD

AD_SDA2

GUARD

AD_SCL2

GUARD

AD_SDA3

GUARD

AD_SCL3

7

8

9

10

11

12

MVDACO3

HQ1L/FHD

VMUTE

R8519

0

R8513

GUARD_V

1%

Comp.

R8512

180

GUARD_V

0

R8518

1.0 x 0.5

0

GUARD_V

TP8501

DVB_CVBS

GUARD

R8517

0

AH_DAUDIO

GUARD

AH_DMIX0

GUARD

AH_SRCK0

GUARD

AH_LRCK0

GUARD

AH_IECOUT0

GUARD

to H-PCB

CONNECTOR

DVB_CVBS

DIGITAL AUDIO

with AUDIO DESCRIPTION DATA

AH_DAUDIO

MAIN AUDIO DATA

AH_DMIX0

COMMON LR/SR CLK

AH_SRCK0
AH_LRCK0

for PHOTO OUT

AH_IECOUT0

JTAG

AD_TO_SC
AD_TO_GC3FS_NEXT

PULL UP to MAIN3.3V on Sheet 004

AD_TMS
AD_TRST
AD_TCK

SC --> LiteII --> GC3FS --> HQ1L --> SC

AD_TO_SC
AD_TO_GC3FS_NEXT

AD_TMS

COMMON for EACH DEVICES

AD_TRST
AD_TCK

FROM HQ1L
TO GC3FS

55

A B C D E F G H I J K L M N O P Q

1

DG-BOARD TNPA4293 7/13

2

3

4

5

6

7

8

9

10

11

12

13

GenX4 POWER/RST

STB5V

R5670

D5673

B0HCMM000014

SUB5V

5.00V

0

D5671

D5670

MA2J11100L

B0HCMM000014

C5670
10V

1u

L5670

J0JHC0000078

C5673

1u
10V

STB3.3V

3.30V

IC5670

5

VOUT4NC
C0CBCBC00190

MM3143DNRE(R59-1828)

GND

VDD

1

2

C

R5671
18k

C

CE

IC5671

3

C0EBF0000376

STB5V

R5672

C5674

2

3

10V
1u

GND

VDD

NC

C5676

16V

0.1u

C

Peaks-LITE2 POWER

*R5644

*C5645

2.2u
10V

CC2

C5616

0.047u

25V

25V

C5601

R5600
68

R5611

R5612

1%

1 RT

2 CS1

10V

3 VO1

4 FB1

5 REFIN1

6 ILIM1

7 -INC1

8 -INC2

9 ILIM2

10 FSW

11 FB2

12 VO2

13 CS2

14 GND

15 VREF 16

CC3

0.1u
16V

CL5600

CTL

1%

36k

23.2k

CC3

C5624

1%

220p

47.5k

50V

R5630

30k

1%

R5632

CC2

R5623

1%

47k

R5634

16k

1%

CC2

16k

R5633

1%

1%

R5621

1%

47k

CC2

R5631

1%

36k

R5629

*D5609
MAZ80560LL

*R5638
10k

Q5603

Q5604

2SD0601ASL

*R5641

47k

2SD0601ASL

*R5646
10k

*R5647
47k

2.2k

*C5621

470p

C5623

30.1k
50V

0.01u

*C5625

0.01u

CC2

DTV9V

*R5635
22k

*C5644

*R5636

0.01u

68k

25V

C

C

C

*C5603

16V

IC5601

25V

0.01u

25V

*C5604

0.01u
C5606

470p

50V

1u

C5600

100k

R5610

CC2

PGOOD

OUT1-1

OUT1-2

MB39A128APFT-G-BND-ERE1

C0DBAYY00274

OUT2-2

OUT2-1

R5620

10 ILIM

11 +INC

12 -INC 13

0

RST

R5637

0

OVP

CUVP

CB1

LX1

VCC

PGND

VB

LX2

CB2

CTL

68

1 GND

2 REFIN

3 VREF

4 CS

5 COVP

6 CUVP

7 PGOOD

8 CTL

9 LSAT

STB3.3V

3.30V

TP5670

1

5Cd4

30

29

28

27

26

25

24

23

22

21

20

19

18

17

C5617

0

0

GenX4

R5674

to sheet008

1.2k

R5622

100k

CL5601

C5626

16V

16V

0.1u

1u
CC2

R5625

R5626

CC2

IC5600

*C5620

0.1u
50V

CC2

R5627

0

R5628

0

C5627

0.1u

C5622

10V

4.7u

24

FB

23

VO

22

RT

21

CB

20

R5606

OUT-1

0

19

LX

18

VBIN

17

VCC

C0DBAYY00273

MB39A130APFT-G-BND-ERE1

*C5643

0.1u

16

VB

50V

15

OUT-2

R5607

14

0

PGND

CC3

FSW

D5603

D5604

16V

B0JCDD000002

B0JCDD000002

CC3

CC3

STB_RST

RB520S-30TE61

RB520S-30TE61

S1G1S2G2

B1MBEDA00015

MA22D3900L

Q5600

SP8K2TB

Peaks-LITE2 RST

DTV9V

SUB3.3V

RESET

to Sheet003

10k

R5662

*C5663

25V

0.01u

0.0V

C

AA_XRST

R5660

R5661

0.0V

5.6k

8.04V

47k

C

GND

NC

RESET IC

*C5661

25V

0.01u

3

2

Vdd

RESET IC

IC5660

C0EBM0000026

1

OUT

5Cd4

C5662

10V

0.047u

C

MAIN5V/MAIN3.3V

MAIN5V

*C5692

*C5693

Q5692

B1DHDC000028

+

C5694
47u

R5696

10k

50V

0.1u

6.3V

C

MAIN3.3V

Q5693

B1DHDC000028

R5697

10k

50V

0.1u

MAIN3.3V

+

C5695
47u

6.3V

C

SUB5V

R5690
10k

SUB3.3V

R5691

10k

L5690

J0JHC0000078

D5690

B0BC6R600005

CL5690

R5692
47k

L5691

J0JHC0000078

R5693
47k

CL5692

C

C

D5691

B0BC6R600005

C

C

R5694

1k

Q5690

B1ABCF000138
MSD601-RT1G

R5695

1k

Q5691

B1ABCF000138
MSD601-RT1G

+

C5690

47u

6.3V

+

C5691

47u

6.3V

MAIN5V

From GenX4

AG_TV_MAIN_ON

DG-H Connecter

TO H2

L5604
G1C100MA0077

C5619

10u 10V

S1G1S2G2

D2 D2 D1 D1

Q5601

B1MBEDA00015

SP8K2TB

CC2

S1G1S2G2

D2 D2 D1 D1

Q5602

B1MBEDA00015

SP8K2TB

C5618

10u

10V

D2 D2 D1 D1

D5605

D5606
B0JCDD000002

C5608

0.1u

MA22D3900L

16V

L5602

G1C3R3ZA0083

D5601

MA22D3900L

D5602

10V
10u

C5615

C5605

4.7u

10V

CC3

G1C2R2ZA0083
R-12U539DE

G1C2R2ZA0083
R-12U539DE

TP5602

L5601

C5629

+

4V

68u

C5628 68u

TP5601

+

4V

L5600

D5608

MAZ802400L

G1C100MA0077

L5606

+
16V
47u
C5609

CC3

+

C5607

R5604

50V

47k

220p

1%

R5605

1%

12.7k

CC3

R5609

R5608

0

0

SUB1.8V

D5607
MAZ802400L

C

SUB1.2V

C5641

16V

0.1u
C

C

TP5600

4V
68u
C5602

C5640

CC3

16V

0.1u

+

47u

16V

CC2

C5630

+

47u

16V

CC2

C5610

SUB3.3V

C

C5637

C5639

16V

16V

C5636

C5638

0.1u

0.1u

16V

16V

0.1u

0.1u

+

C5631

C

DTV9V

L5605

C5632

47u
16V

1u
16V

C

From H

SUB9V(FHD)/LCD3.3V

SUB9V(FHD)/LCD3.3V

From H

From H

From H

From H

to DG

From H

DG-K Connecter

to K-PCB

DG1

*D5692

TP5603

MAZ80390HL

ACTIVE_STBY_LED_ON

1

RMIN

2

G_LED_ON

3

R_LED_ON

4

STB3.3V

5

GND

6

KEY1

7

8

GND

9

AI_SENSOR

10

GND

11

GND

12

SUB5V

K1KA12A00317

BM12B-GHS-TBT(LF)(SN)

TP5608

C

TP5604

TP5605

TP5606

TP5607

L5735

J0JHC0000078

FL5734

G

J0HABH000013

G

FL5733

G

J0HABH000013

G

L5610

J0JHC0000035

*FL5732

G

J0HABH000013

G

*FL5731

G

J0HABH000013

G

L5611

J0JHC0000035

C5733

C

16V

SUB5V

0.1u

TP5707

DG2

1

2

3

GND

4

GND

5

P12V

6

P12V

7

GND

8

DTV9V

9

DTV9V

10

GND

11

GND

12

SUB5V

13

SUB5V

14

SUB5V

15

GND

16

GND

17

SUB3.3V

18

SUB3.3V

19

GND

20

GND

21

MAIN9V

22

GND

23

STB5V

C

AG_RMIN

NET005936

NET005937

STB3.3V

AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON

*R5732

*C5730

0

0.01u

C

TP5704

TP5700

TP5701

TP5702

TP5703

TP5705

C5715

TP5706

SUB9V(FHD)

L5692

CL5715

C5716

0.1u
50V

C

P12V

CL5710

C5710

0.1u
50V

C

DTV9V

CL5711

C5711

0.1u
50V

C

SUB5V

CL5712

C5712

0.1u
50V

C

SUB3.3V

CL5713

C5713

0.1u
50V

C

MAIN9V

CL5714

C5714

0.1u
50V

STB5V

C

0.1u
50V

C

GenX4

to sheet008

AG_RMIN

AG_G_LED_ON

AG_R_LED_ON

AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON

AG_AI_SENSOR

25V

AG_KEY2

47k

47k

R5731

R5730

C

AG_KEY3

EURO/ASIA

PIN

1

RMIN

2

G_LED_ON
R_LED_ON

3

STB3.3V

4

GND

5

KEY1

6

ACTIVE_STBY_LED_ON

7

GND

8
9 AI_SENSOR

GND

10

GND

11

SUB5V

12

56

A B C D E F G H I J K L M N O

1

2

3

4

5

6

7

8

9

10

11

AG_HDMI_OPT_ENB

DG-BOARD TNPA4293 8/13

SUB3.3V

1

5

G

VCC

HDMI_SPDIF

2

0.1u

47k

3

*C2000

*R2028

16V

C

*IC2000

C0JBAZ002261

GND

*R2024

IN A

33

4

OUT Y

GC3FS next

to Sheet 004

AH_FS_Y

AH_FS_U
AH_FS_V

ADV7493

to Sheet 010

HDMI_LRCK
HDMI_BCLK
HDMI_SDIN

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

RGB_CVBS

RGB_FB

PC_HS
PC_VS

HDMI_INT2

HDMI_SPDIF

IRD

to Sheet 003

AH_IECOUT0

DVB_CVBS

AH_SRCK0

AH_DMIX0

AH_DAUDIO

AH_LRCK0

IIC2

to Sheet 003

AD_SCL2

AD_SDA2

<< Connection Device >>

3.3V:V-AVSW/ADV4422/FE/DVB-TNR
5V :A-AVSW/A-TNR

GUARD_Y

GUARD_CLK

GUARD_Y

GUARD_PB
GUARD_PR

GUARD_V

GUARD
GUARD

GUARD

GUARD

GUARD_V

GUARD_CLK

GUARD

GUARD

GUARD

AH_FS_Y

AH_FS_UGUARD_PB
AH_FS_VGUARD_PR

HDMI_LRCKGUARD
HDMI_BCLK

HDMI_SDINGUARD

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

RGB_CVBS

HDMI_INT2

AH_IECOUT0

DVB_CVBS

AH_SRCK0

AH_DMIX0

AH_DAUDIO

AH_LRCK0

AD_SCL2
AD_SDA2

RGB_FB

GenX4

AG_SOS

AG_TV_MAIN_ON

AG_TV_SUB_ON

AG_A_MON_MUTE/SP_MUTE

AG_SOUND_SOS

AG_AUDIO_MUTE

AG_AUDIO_XRST

STB_RST

AG_VIDEO_STATUS

AG_TV_SUB_ON_DELAY

PANEL_STBY/VCC_ON

*R2003

0

to Sheet 008

AG_SOS

AG_TV_MAIN_ON

AG_TV_SUB_ON

AG_A_MON_MUTE/SP_MUTE

AG_SOUND_SOS

AG_AUDIO_MUTE

AG_AUDIO_XRST

STB_RST

AG_VIDEO_STATUS

AG_TV_SUB_ON_DELAY

AG_PANEL_STBY_ON/PANEL_VCC_ON

to sheet011

PANEL_STBY/VCC_ON

AG_RF_AFT1

AG_RF_AFT2

TP2024

AG_VIDEO_STATUS

AG_ALL_OFF
AG_ECO_ON

HDMI_INT2

TP2000

AH_IECOUT0

HDMI_LRCK

HDMI_SDIN

HDMI_BCLK

AH_DAUDIO

AH_LRCK0

AH_DMIX0

AH_SRCK0

PC_HS
PC_VS

AD_SDA2

AD_SCL2

DVB_CVBS

AH_FS_V

AH_FS_U

AH_FS_Y

PC_VS

PC_HS

RGB_FB

RGB_CVBS

MAIN_PR

MAIN_PB/C

MAIN_Y/CVBS

TP2007

TP2008

TP2009

TP2001

TP2002

TP2003

TP2004

TP2005

TP2006

TP2020

TP2021

TP2022

TP2023

GUARD

GUARD

GUARD

GUARD_CLK

GUARD

GUARD

GUARD

GUARD_CLK

GUARD_V

GUARD_PR

GUARD_PB

GUARD_Y

GUARD_V

GUARD_PR

GUARD_PB

GUARD_Y

GUARD

GUARD

AG_AC_GOOD/24V_DET
PANEL_STBY/VCC_ON
AG_KEY1(CON-PANE)

AG_FAN_SOS
AG_FAN_MAX/INV_PSU_ON

AG_TV_SUB_ON
AG_TV_MAIN_ON

AG_QLINK2

AG_QLINK1

AG_RF_AFT2
AG_RF_AFT1

AG_SOUND_SOS
AG_SOS

STB_RST
AG_A_MON_MUTE/SP_MUTE
AG_TV_SUB_ON_DELAY
AG_AUDIO_MUTE
AG_AUDIO_XRST

TP2010

TP2012

TP2014

TP2016

TP2018

TP2011

TP2013

TP2015

TP2017

TP2019

80

VIDEO_STATUS

79

78

ALL_OFF

77

ECO_ON

76

75

HDMI_INT2

74

73

SPDIF_IN(OPT)

72

71

HDMI_LRCK

70

69

HDMI_SDIN

68

67

HDMI_BCLK

66

65

DTV2_SDIN

64

63

DTV_LRCK

62

61

DTV_SDIN

60

59

DTV_BCKL

58

57

AC_GOOD/24V_DET

56

Panel_STBY_ON/Pannel_VCC_ON

55

KEY1

54

53

FAN_SOS

52

FAN_MAX/INV_PSU_ON

51

50

TV_SUB_ON

49

TV_MAIN_ON

48

47

QLINK_AV3

46

45

QLINK_AV2

44

43

AFC2

42

AFC1

41

40

SOUND_SOS

39

SOS

38

37

GENX_RST

36

SP_MUTE

35

34

AUDIO_MUTE

33

AUDIO_XRST

32

31

SDA0B

30

29

SCL0B

28

27

DVB_CVBS

26

25

24

SUB_PR

23

22

SUB_PB/C

21

20

SUB_Y/CVBS

19

18

17

PC_V

16

15

PC_H

14

13

RGB_FB

12

11

RGB_CVBS

10

9

8

MAIN_PR/R

7

6

MAIN_PB/C/B

5

4

MAIN_Y/CVBS/G

3

2

1

DG6

C

K1KB80AA0218

AG_KEY1(CON-PANE)

AG_AC_GOOD/24V_DET

AG_FAN_MAX/INV_PSU_ON

AG_FAN_SOS

AG_QLINK2

AG_QLINK1

MA3X704A0L

AG_ECO_ON

AG_ALL_OFF

*R1110

27k

*D1100

0

*R2026

47k

47k

47k

47k

47k

R2018

*R2019

*R2017

R2020

*R2016

C

C

47k

R2023

AG_QLINK2

AG_QLINK1

STB5V

MA3X704A0L

47k

R2010

*D1102

*R1126

STB5V

27k

47k

47k

47k

47k

47k

47k

R2012

R2011

R2013

R2025

R2014

C

R2015

AG_RF_AFT1

AG_RF_AFT2

AG_KEY1(CON-PANE)

AG_AC_GOOD/24V_DET

AG_INV_PSU_ON

AG_FAN_MAX

AG_FAN_SOS

AG_ECO_ON

AG_ALL_OFF

EURO QLINK CONTROL

AG_QLINK2

AG_QLINK1

AG_QLINK_PU_ON

GenX4

AG_RF_AGC1

AU_SBI(HOTEL)

AU_SBO(HOTEL)

AG_AVSW_OFF

AG_ODU_ON/GEMSTER_STBY_EN

AG_BUS_CONNECT2

AG_ODU_DET

(Used PDP)

(EURO)

to H6

57

1

2

3

4

5

6

7

8

9

10

11

12

A B C D E F G H I J K L M N O P Q

Power Supply

DG-BOARD TNPA4293 9/13

ADV7493

to Sheet 010

AG_HPD3

AG_HPD1

AG_HDMI_5V_DET3

AG_HDMI_5V_DET1

AG_HDMI_CEC

AG_HDCP_WP

AG_EDID_WP

AG_TV_MAIN_ON_DELAY

HQ1L/CN to HFD

to Sheet 009

to Sheet 004/005/007/009/010

LVDS Out

to Sheet 011

sheet011/009

sheet011/009

CN to H

to Sheet 007

Power Supply

to Sheet 005

AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON

AG_INVERTER_SOS

sheet009/011

sheet009/011

AG_INVERTER_ON

sheet009/004

AG_HQ1_VOUTENB

AG_CONFIG_DONE

AG_TV_MAIN_ON

AG_PWM_POW_ON

AG_INV_PSU_ON

AG_PANEL_STBY_ON/PANEL_VCC_ON

AG_VIDEO_STATUS

AG_A_MON_MUTE/SP_MUTE

AG_AUDIO_MUTE

AG_AUDIO_XRST

AG_BUS_CONNECT2

AG_QLINK_PU_ON

AG_HDMI_OPT_ENB

AG_TV_SUB_ON_DELAY

AG_DTV_1.5V_ON

AG_ODU_ON/GEMSTER_STBY_EN

AG_KEY1(CON-PANE)

AG_AI_SENSOR

AG_HQ1_XRST

AG_FPGA_XRST

AG_LVDS_EN

AG_TV_SUB_ON

AG_RF_AFT1

AG_RF_AFT2

AG_SOUND_SOS

AG_FAN_MAX
AG_FAN_SOS

AG_ECO_ON

AG_ALL_OFF

AG_QLINK2
AG_QLINK1

AG_AVSW_OFF

AG_RF_AGC1

AG_ODU_DET

AG_KEY3

AG_R_LED_ON

AG_G_LED_ON

AG_RMIN

AG_KEY2

AG_SOS

AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON

AG_HDMI_MUX_SEL

AG_HDMI_MUX_EN
AG_HDMI_REP_EN

AG_HDMI_5V_DET3

AG_HDMI_5V_DET1

AG_7493_XRST

AG_TV_MAIN_ON_DELAY

R1245

R1246

R1244

R1247

47k

47k

47k

47k

C

AG_INVERTER_SOS

AG_INVERTER_ON

AG_FPGA_XRST

AG_HQ1_VOUTENB

AG_CONFIG_DONE

AG_TV_MAIN_ON

AG_TV_SUB_ON

AG_PWM_POW_ON

AG_PANEL_STBY_ON/PANEL_VCC_ON

AG_INV_PSU_ON

AG_VIDEO_STATUS

AG_SOUND_SOS

AG_A_MON_MUTE/SP_MUTE

AG_AUDIO_MUTE
AG_AUDIO_XRST

AG_BUS_CONNECT2

AG_QLINK_PU_ON

AG_HDMI_OPT_ENB

AG_TV_SUB_ON_DELAY

AG_DTV_1.5V_ON

AG_ODU_ON/GEMSTER_STBY_EN

AG_KEY1(CON-PANE)

AG_AI_SENSOR

AG_HPD3
AG_HPD2
AG_HPD1

AG_HDMI_CEC

AG_HDCP_WP

AG_EDID_WP

AG_HQ1_XRST

AG_LVDS_EN

AG_RF_AFT1
AG_RF_AFT2

AG_FAN_MAX
AG_FAN_SOS

AG_ECO_ON

AG_ALL_OFF

AG_QLINK2
AG_QLINK1

AG_AVSW_OFF

AG_RF_AGC1

AG_ODU_DET

AG_KEY3

AG_R_LED_ON

AG_G_LED_ON

AG_RMIN

AG_KEY2

AG_SOS

STB3.3V

R1104

47k

R1101

0

AG_PANEL_STBY_ON/PANEL_VCC_ON
AG_EDID_WP
AG_HDCP_WP

AG_RF_AFT1

AG_RF_AFT2
AG_AI_SENSOR
AG_SOS
AG_KEY1(CON-PANE)

AG_KEY2
AG_FAN_SOS
AG_SOUND_SOS
AG_QLINK2
AG_QLINK1

AG_FPGA_XRST
AG_INVERTER_SOS
AG_DTV_XRST
AG_SD_BOOT_STS
AG_A_MON_MUTE/SP_MUTE
AG_AUDIO_MUTE

R1221

7.15k

1%

SLRCK

R1255
1k

AUDCLK

RSV4(LITE2)

MA2J72800L

C1102

10V

10u

PANEL_STBY_ON

EDID_WP

HDCP_WP

RF_AFT1

RF_AFT2

AI_SENSOR

SOS

KEY1

KEY2(US)

FAN_SOS

SOUND_SOS

RSV4(LITE2)

*D1112

200

AU_SBO(HOTEL)

AU_SBI(HOTEL)

AG_SRQ-GENX

R1146

1k

R1100

100

R1102
100

C1103

16V

0.1u

C

C

R1144

47k

TRCST

C1104

0.1u
16V

R1147

47k

*R1263

47k

GUARD_CLK

R1222
47k

C

100

R1229

92

93

94

95

96

97

NRST

NBOOT

100

TRCST

101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128

NTEST
SCLOCK

TRCD0

SDATA

TRCD1
TRCD2
TRCD3

EXTRG098EXTRG199TRCCLK

P90
P91
VSS
IVDD
P92
P93
P80/ADIN0
P81/ADIN1
P82/ADIN2
P83/ADIN3
P84/ADIN4
P85/ADIN5
P86/ADIN6
P87/ADIN7
P74/SDA2/CECAVL1B
P75/SCL2/CECAVL1A
P36
P37

PC0

PC1

P40/TMIO0/SYSCLK

P47

P41/TMIO1
P42/TMIO2

PB0

P43/TMIO3

PB1

P44/TMIO45P00/TMIO56P017P028P03/SBT0B9P04/SBO0B10P51/IRQ211P52/IRQ312PB213PB314PB415PB516PB617PB718P53/IRQ419P54/IRQ520PA721PA622PA523VSS24PA425PA326PA227PA1/IRQ128PA029P45

1

2

3

4

HQ1_VOUTENB

DTV_1.5V_ON

RF_AGC1

HDMI_MUX_SEL

HDMI_MUX_EN

TV_SUB_ON

ECO_ON

AG_RF_AGC1

AG_ECO_ON

AG_DTV_1.5V_ON

AG_HQ1_VOUTENB

AG_HDMI_MUX_SEL

AG_HDMI_MUX_EN

AG_TV_SUB_ON

*R1173

STB3.3V

L1100

J0JHC0000078

R1134

100

R1103

33

100

R1109
R1105

100
100

R1106

100

R1107

100

R1108

25V

*C1122

0.01u
C

R1124

22

R1125

22

FPGA_RST

INVERTER_SOS

DTV_XRST

SD_BOOT_STS

A_MON_MUTE/SP_MUTE

AUDIO_MUTE

SYSCLK_OUT

to Sheet 005

GenX4 RST

AG_FAN_MAX

AG_G_LED_ON

AG_MODEM_LED2/CLK74SEL

C1106
27p

50V

C

AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON

C1108

1M

83

85

86

90

P2487P2588P2689P27

IVDD

P64/SBI191P63/SBO1

OSCXO84OSCXI

IC1100
MNZSFD7GP42

R1237

R1236

47k

47k

HDMI_REP_EN

SW_OFF_DET

INVERTER_ON

PWM_POWER_ON

TP1105

TP1104

INV_PSU_ON

AG_SW_OFF_DET

AG_HDMI_REP_EN

AG_INV_PSU_ON

AG_INVERTER_ON

AG_PWM_POW_ON

TP1103

1

*IC1101

2

C3EBFC000042

BR24L08F-WE2

3

C3EBFC000051

4 5
C

22p

R1153
820

16V

0.1u

R1163

82

VSS

LVDS_EN

AG_LVDS_EN

C1117

0.1u

C1107

50V

X1100
H0J100500035

STB_RST

C1109
10V

1u

79

80

VDD

N.C.81RONA

DTV_VOUTENB

(SD_LED_ON)

KEY3(TV_POWER)

AG_KEY3

AG_DTV_VOUTENB

AG_SD_LED_ON

16V

C1123
10V
1u

ODU_DET

(BUS_CONNECT2)

AG_BUS_CONNECT2

AG_ODU_DET

STB3.3V

75

N.C.76N.C.77N.C.78IVDD

(QLINK_PU_ON)

(HDMI_CEC_PU_ON)

AG_QLINK_PU_ON

8

TP1102

7

6

TP1101

AG_HDMI_OPT_ENB

AG_TV_SUB_ON_DELAY

AG_TV_MAIN_ON_DELAY

MODEM_XRST

FE_XRST

ETHER/1394_XRST

R1225

R1223

47k

47k

74

VPPEX

P66/SBI2
P65/SBO2
P76/CEC0

VDD

IVDD

P46

RSV2(LITE2)

ALL_OFF

SRQ_GenX

R1162

47k

R1203

ADCCK

RSV2(LITE2)

AG_SRQ-GENX

AG_ALL_OFF

R1209

47k

TP1100

R1205

R1206

AG_HQ1_XRST

AG_7493_XRST

HQ1_XRET

7493_XRST

R1227

R1226

47k

47k

P72/SDA164P73/SCL1

P50/RMIN/IRQ0

P60/SBO0A34P61/SBT0A35P62/SBI0A

GenX-EEP_WP

MAIN5V_SENSE

100

R1165

22

22

AG_AUDIO_XRST

MAIN9V_SENSE

AUDIO_XRST

MAIN3.3V_SENSE

R1228

47k

67

68

P3069P3170P3271P3372P3473P35

N.C.
N.C.

N.C.

IVDD

N.C.
N.C.
N.C.

N.C.
P71/SCL0
P70/SDA0
P07/IRQ8
P06/IRQ7
P05/IRQ6

30

DTV9V_SENSE

STB5V_SENSE

1.8k

R1201

5.6k

AG_HDMI_CEC

65

66

P17
P16
P15
P14
P13
P12
P11
P10
VSS

P23
P22
P21
P20

31

32

R1122

63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36

33

C1111
1u
10V

C1112

0.1u
16V

47k

MAIN3.3V

R1164

10k

R1166
100k

C

MAIN9V_SENSE

R1234

R1235

R1200

5.6k

SCL

SDA

CONFIG_DONE

VIDEO_STATUS

47k
100k

HDMI_5V_Det3

HDMI_5V_Det2

HDMI_5V_Det1

C1114

0.1u

R1170
27k

C

16V

HDMI_CEC_PU_ON

MAIN5V_SENSE

R1169
56k

MA3X704A0L

MAIN9V

R1183
R1184

SD_COIN_DET

R1185

R1186

R1218

R1174
R1175

R1179

R1181

27k

D1107

10k

STB3.3V

R1182

C

22
22

100
100

10k

R1220

R1219

22
22

100

100

MAIN5V

R1216

33k

R1217

56k

C

Q1107

10k

SUB5V_SENSE

R1195

100k

2SD0601ASL

R1239

R1241

R_LED_ON

AVSW_OFF(US)

ODU_ON/GEMSTER_STBY_EN

TV_MAIN_ON

NET008530

(HDMI_CEC_PU_ON)

Q1108

2SD0601ASL

100

100

HPD2

HPD1

SBO

R1196

33k

R1194
56k

C

Lite2

to Sheet 002

UART(LITE2-GenX4)

SBI2

SBO2

to Sheet 007

47k

47k

R1232

R1233

C

C

UART (HOTEL)

AU_SBI(HOTEL)
AU_SBO(HOTEL)

LITE2

to Sheet 002

Hand Sheke Reserve

VI2ENB

ADCCKAG_7493_XRST

SLRCK

PORT6[6]RSV1

PORT0[0]

RSV4

PORT5[2]

RSV2

RSV3

PORT5[1]

AU_SBI(HOTEL)
AU_SBO(HOTEL)

R1199

47k

VI2ENB

AUDCLK

ADCCK

SLRCK

7/3

PORT

RST

47k

R1231

C

IIC

AD_SCL3

AD_SDA3

SCL
SDA

VI2ENB

AD_SCL3
AD_SDA3

SBI

SD_PWR_CTRL

AG_CONFIG_DONE

AG_VIDEO_STATUS

AG_HDMI_5V_DET3

AG_HDMI_5V_DET1

AG_R_LED_ON
AG_AVSW_OFF

AG_ODU_ON/GEMSTER_STBY_EN

AG_TV_MAIN_ON

AG_HPD3
AG_HPD2
AG_HPD1

REMOTE

AG_RMIN

R1204

0

SUB5V

D1113
MA2J72800L

SCL

SDA

AG_MODEM_LED2/CLK74SEL

AG_DTV_VOUTENB

SBO2

AG_SD_BOOT_STS

SBI2

AG_DTV_XRST

AG_SRQ-GENX

AG_SD_LED_ON

AG_SD_COIN_DET

SD_PWR_CTRL

AG_SW_OFF_DET

DTV9V

R1171

DTV9V_SENSE

56k

R1172
27k

C

Lite2 E2PROM LINE

AD_SCL3

shee003/011

AD_SDA3

GenX4 E2PROM LINE

SCL

shee011

SDA

Lite2 ExBUS/Etc.

to Sheet 003

AG_MODEM_LED2/CLK74SEL

AG_DTV_VOUTENB

AG_SD_BOOT_STS

AG_DTV_XRST

AG_SRQ-GENX

AG_SD_LED_ON

AG_SD_COIN_DET

SD_PWR_CTRL

AG_SW_OFF_DET

sheet003

(JPN/EURO)

sheet003/011

sheet003

sheet003

sheet003/011

sheet003

sheet003

58

A B C D E F G H I

1

2

3

DG-BOARD TNPA4293 10/13

GenX4

to Sheet 008

AG_PANEL_STBY_ON/PANEL_VCC_ON

(Common)

(Used LCD)

(Used PDP)

LVDS OUT

to Sheet 011

AG_TV_MAIN_ON

AG_HQ1_XRST

AG_LVDS_EN

AG_INVERTER_ON

AG_PWM_POW_ON

AG_INVERTER_SOS

AG_HQ1_VOUTENB

AG_CONFIG_DONE

AG_FPGA_XRST

PANEL_MUTE

(VMUTE/DISPNE)

47k

*R4322

(VMUTE/DISPNE)

PANEL_MUTE

C

AG_PANEL_STBY_ON/PANEL_VCC_ON

47k

47k

47k

R4328

R4327

*R4326

AG_TV_MAIN_ON

AG_HQ1_XRST

AG_LVDS_EN

AG_INVERTER_ON

AG_PWM_POW_ON

AG_INVERTER_SOS

AG_HQ1_VOUTENB

AG_CONFIG_DONE

AG_FPGA_XRST

LOSD14
LOSD15
LOSD12
LOSD13
LOSD10
LOSD11
LOSD9
LOSD8
LOSD7
LOSD6
LOSD5
LOSD4
LOSD3
LOSD2
LOSD1
LOSD0

PEAKS-YS
PEACK_YM

LOSDVIN

LOSDCLKIN

LOSDHIN

PEAKS_YS
PEAKS_YM

VOP0
VOP1
VOP10
VOP11
VOP20
VOP21
LCSID
LCSCK
VI1CVBS3
VI1CVBS2
VI1CVBS1
VI1CVBS0
VI1CK204F
VI1CK208F
VI2P0
VI2P1
PEAKS_OSDCKOUT

PEAKS_OSHIN

VI2P7

VI2P9

*R4303

*R4304
*R4305

LOSD14
LOSD15
LOSD12
LOSD13
LOSD10
LOSD11
LOSD9
LOSD8
LOSD7
LOSD6
LOSD5
LOSD4
LOSD3
LOSD2
LOSD1
LOSD0

33

Lite2

to Sheet 002

VOP0

LOSD14

VOP1

LOSD15

VOP10

LOSD12

VOP11

LOSD13

VOP20

LOSD10

VOP21

LOSD11

LCSID

LOSD9

LCSCK

LOSD8

VI1CVBS3

LOSD7

VI1CVBS2

LOSD6

VI1CVBS1

LOSD5

VI1CVBS0

LOSD4

VI1CK204F

LOSD3

VI1CK208F

LOSD2

VI2P0

LOSD1

VI2P1

*R4302

33

R4284

10k

C

33
33

GUARD_CLKVI2P8

VI2P2
VI2P3

VI2P5
VI2P6
VI2P7
VI2P8
VI2P9

VI2P7
VI2P8
VI2P9

LOSD0

LOSDCLKOUT
LOSDHOUT

LOSDYS
LOSDYM
LOSDVIN
LOSDCLKIN
LOSDHIN

4

Lite2

to Sheet 002

IS1CLK

PORT16[3]Hi-Z

OSD_FLAG

Hi-Z after reset

MVCLK

MHSYNC

PWMSS
PWMANA
PWMA
PWM6
PWM5
PWM4

MVSYNC

VOP12
VOP13
VOP14
VOP15
VOP16
VOP17
VOP18
VOP19
VOP22
VOP23
VOP24
VOP25
VOP26
VOP27
VOP28
VOP29

VOP2
VOP3
VOP4
VOP5
VOP6
VOP7
VOP8
VOP9

5

intPU after reset

BOE2
BOE3
BOE4
BOE5

6

7

BOE6
BOE7
BOE8
BOE9
GOE2
GOE3
GOE4
GOE5
GOE6
GOE7
GOE8
GOE9
ROE2
ROE3
ROE4
ROE5
ROE6
ROE7
ROE8
ROE9

R4330
47k

C

CLKOF

GUARD_CLK

R4200

33

R4201

33

R4202

33

R4288

*R4316

0

*R4315

0

*R4230

0

GUARD
GUARD

47k

R4287

C

GUARD
GUARD
GUARD
GUARD
GUARD VOP9

GUARD
GUARD
GUARD

GUARD
GUARD
GUARD
GUARD
GUARD
GUARD
GUARD

GUARD
GUARD
GUARD
GUARD
GUARD
GUARD

HSOE
VSOE

R4286

47k

47k

BOE2

BOE2
BOE3
BOE4
BOE5

VOP5

BOE6

VOP6
VOP7

BOE7
BOE8

VOP8

BOE9

VOP12

GOE2

VOP13

GOE3

VOP14

GOE4

VOP15

GOE5

VOP16

GOE6

VOP17

GOE7

VOP18

GOE8

VOP19

GOE9

VOP22

ROE2

VOP23

ROE3

VOP24

ROE4

VOP25

ROE5

VOP26

ROE6

VOP27

ROE7

VOP28

ROE8

VOP29

ROE9

LCD_PWM_D
LCD_PWM_K

IS1CLK

OSD_FLAG

LVDS OUT

to Sheet 011

GUARD
GUARD

LCD_PWM_D
LCD_PWM_K

8

9

10

IIC0

JTAG

AD_TO_HQ1L

to Sheet011

AD_TCK

AD_TMS

AD_TO_SC

AD_TRST

CFG_TDI
CFG_TDO
CFG_TMS
CFG_TCK

CFG_TRST

AD_SCL0

AD_SDA0

AD_SCL1

AD_SDA1

AD_SCL0

AD_SDA0

AD_SCL1

AD_SDA1

AD_TCK
AD_TMS

AD_TO_HQ1L

AD_TO_SC

AD_TRST

CFG_TDI
CFG_TDO
CFG_TMS
CFG_TCK

CFG_TRST

47k

47k

47k

47k

47k

*R4318

*R4317

*R4319

*R4324

*R4320

C

JTAG

0

AD_TO_HQ1L

*R4242

AD_TO_SC

59

A B C D E F G H I J K L M N O P Q R

1

DG-BOARD TNPA4293 11/13

AG_HPD1

2

C

D4527
B0HCMM000014

VCC

M24C02-WMN6TP

Q4503

2SD0601ASL

7WC8

2 E1

AG_HDMI_5V_DET1

MAIN5V

1 VCCA

C4626

*C4627

0.1u

DDC_SCL0

DDC_SDA0

0.1u

16V

C

16V

C

R4689

22

2 SCLA

R4690

22

3 SDAA

C0JBAU000034

4 GND 5

C

1 VCCA

*R4678

22

2 SCLA

*R4679

22

3 SDAA

C0JBAU000034

4 GND 5

C

IC4513

*IC4514

TP4508

47k

R4540

68

68

R4541

R4543

SDA6SCL

3 E2

4 VSS 5

TP4507

8

VCCB

C4622

16V

0.1u

R4676

7

SCLB

22

6

SDAB

R4677

22

EN

8

VCCB

*C4621

16V

0.1u
C

7

SCLB

*R4680

22

6

SDAB

EN

MAIN3.3V

R4687

R4688

4.7k

C

*R4681

22

4.7k

GUARD

*R4686

*R4685

4.7k

4.7k

DDCA_SCL

DDCA_SDA

DDCB_SCL

DDCB_SDA

RXA_CN
RXA_CP
RXA_0N
RXA_0P
RXA_1N
RXA_1P
RXA_2N
RXA_2P

R4530

10k

R4527

R4533

B0HCMM000014

C

EZAEG2A50AX

16V

0.1u

D4523

EZAEG2A50AX

L4506
J0JHC0000078

J0JHC0000078

TP4505

+

33u

C4509

EZAEG2A50AX

C

10k

D4526

L4507

R4536

4.7k

*IC4501

4.7k

0.1u

6.3V

C3EBDC000067

16V

C4511

R4531

1 E0

C

1k

3

Q4501

R4501

2SD0601ASL

R4503

33

10k

JK4501

HPDT

+5V

DDCG

SDA
SCL
N.C.
CEC
CLK­CLKG
CLK+

D0­D0G

D0+
D1­D1G
D1+
D2­D2G
D2+

EZAEG2A50AX

K1FY119D0002

D4501

C

C

C4501

0.1u

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

C

4

5

6

C

16V

J0JHC0000078

R4525

10k

C

C

C

C4503

16V

R4507

0.1u
10k

TP4501

TP4503

L4501

L4503

J0JHC0000078

R4516

2.2

R4517

2.2

R4518

2.2

R4519

2.2

R4520

2.2

2.2

R4521
R4522

2.2

R4523

2.2

D4503

D4505

EZAEG2A50AX

D4507

EZAEG2A50AX

EZAEG2A50AX

D4509

EZAEG2A50AX

D4511

EZAEG2A50AX

D4517

EZAEG2A50AX

C

D4516

EZAEG2A50AX

D4520

C4507

D4515

MAZ30560ML

D4521

7

8

9

10

11

12

Q4504

2SD0601ASL

*C4500

16V

0.1u

C

22

R4552

D4528

EZAEG2A50AX

R4546

C

10k

R4544

10k

C

C

B0HCMM000014

C4515

0.1u
16V

TP4516

D4532

C

MAIN3.3V

R4561

47k

VCC

IC4504

C3EBEY000009

M24C04-RMN6TP

1 NC

C

0

SCL

TP4510

R4562

4.7k

SDA

R4563

TP4511

4.7k

TP4509

22

22

R4565

R4564

7WC8

SDA6SCL

2 E1

3 E2

4 VSS 5

R4703

R4702

0

MCL

MDA

AG_EDID_WP

AG_HDMI_CEC

AG_HDMI_5V_DET1

60

S T U V W X Y Z AA AB AC AD AE AF AG AH AI AJ

1

2

3

4

5

6

7

8

9

DG-BOARD TNPA4293 12/13

RGB_CVBS

RGB_FB

MAIN5V

C4629

GUARD_V

MAIN_PR
GUARD_PR

MAIN_PB/C

GUARD_PB

MAIN_Y/CVBS

GUARD_Y

C4628

0.1u
16V

IC4515

C0BBBA000024

C

8

1%

10k

TP4519

VCC

R4683

7

B_OUTPUT

6

B_-INPUT

R4682

10k

1%

B_+INPUT

C

SUB5V

C4527

1u

10V

R4585

R4578

150

R4579

150

Y

R4667

150

4.7k

R4654

10k

R4653

10u
10V

C

SUB5V

1A_OUTPUT

2A_-INPUT

3A_+INPUT

4GND5

C

C4528

0.1u
16V

C

C_ANA

100

C4531

0.1u
16V

C

R4596

Q4514

2SB0709ASL

R4597

Q4515

2SB0709ASL

R4598

R4587
820

*R4593

1.1k

1%

IC4506

C0DBGGF00001

7

Vin

6

Sub

5

Cont

C4534

0.1u
50V

1k

C_ANA

C_ANA

1k

C_ANA

C_ANA

1k

C_ANA

C_ANA

R4601

1%

C4533
68p
50V

C_ANA

C_ANA

GND

Vo

NC

Cn

50V

C4624

0.1u
50V

Q4516

1k

C4535

0.1u

2SB0709ASL

SUB3.3V

L4518

C4607
47u

J0JHC0000078

6.3V

IC4508

C0CBCAD00082

L4516

R4626

1M

R4627

0

X4500

H0J270500113

C4590

C4589

18p

15p

50V

50V

C

C4546

C4545

2.2u

0.1u

6.3V

*R4664

PR

R4706

698

TP4512

1%

C_ANA

1k

C4538

47u

6.3V

C4539

10u

10V

C_ANA

Q4517

2SB0709ASL

16V

C_ANA

C4541

R4604

50V

7.5k
470p

1%

*R4608

1k

2SB0709ASL

C_ANA

*Q4519

*R4605

1.2k

1%

C_ANA

+

C4543

0.1u
16V

C_ANA
C4544

0.1u
C4547

16V

0.1u
16V

C_ANA

C_ANA

C4548

50V

0.1u

C4549

0.1u
50V

YIN

C4625

0.1u
50V

1

2

3

4

PB/C

TP4513

R4606

4.7k

1%

J0JHC0000078

L4511

J0JHC0000078

C4551

0.1u
50V

*C4537

C_ANA

0.1u
50V

*R4609

10k

*R4610

0

R4611

1.37k

C_ANA

C4555

C4559

10u

0.1u

10V

16V

C4550

C4560

C4556

0.1u

0.1u

10u

16V

16V

10V

C_ANA

C4557

0.1u
16V

C_ANA

C4552

0.1u

50V

C4563

0.082u

C4553

1000p

50V

L4512

J0JCC0000077

L4524

+

C4576

6.3V
C

47u

MAIN9V

C4566

0.039u
16V

50V

*C4567

0.1u

1%

C4564

0.01u
25V

C4565

0.01u
25V

C4568

0.1u

R4612

1%

1.5k

16V

C4562

R4613

8200p

R4614

50V

22

R4691

J0JHC0000078

C4581
1u
10V

+

C4570

6.3V
C4573

C

47u

0.1u
16V

C4577

0.1u

TVDD

C4569

0.68u
16V

R4615

160

1%

C4572

0.1u
16V

16V

C4574

0.01u
25V

22
22

22

R4692

C4586

16V

0.01u
25V

C4582

0.1u
16V

C4578

0.1u

C

16V

72

73
74
75

AIN7

76

AIN1

77

AIN8

78

AIN2

79

AIN9

80

AIN3

81

AGND

82

AGND

83

AVDD

84

REFOUT

85

CML

86

AGND

87

AVDD

88

BIAS

89

CAPY1

90

CAPC1

91

CAPC2

92

AIN10

93

AIN4

94

AIN11

95

AIN5

96

SOY

97

AIN12

98

C_ANA

AIN6

99

PGND

100

PVDD

101

ELPF3

102

CGND

103

CVDD

104

DDCA_SCL

105

C4575

1u

106

10V

107
108

109

C4579

0.01u

25V

C4580

0.01u

25V

MM1681JFBE(R59-1615)

8

Vin

C4583

0.1u

16V

7

NC

C

6

NC

100

R4622

Cont

C4587

0.1u
16V

C

L4517

J0JHC0000078

C4588

0.082u
16V

R4624

1.69k

1%

IN

OUT

65

66

67

68

70

71

XTAL

PVDD69PGND

DVDDIO

ELPF
PVDD
PGND

FB

SOG

ELPF2

5

C4591

VOUT4NC

10V

1u

C

VDD

1

SUB5V

C4592
10V
1u

PC_HS

PC_VS

R4630

0

62

64

P20

DGND

VS_IN63HS_IN

XTAL1

IC4510

C1AB00002753

DDCA_SDA

MDA

MCL

CVDD
CGND
TVDD

RXA_CN

RXA_CP

TGND

RXA_0N

RXA_0P

TGND

RXA_1N

RXA_1P

TGND

RXA_2N

112

113

114

115

110

111

10V

C4584

1u

10V

C4585

1u

RXA_0N

RXA_0P

RXA_CN

RXA_CP

RXA_2P

116

117

118

119

120

121

122

C4593

0.01u

25V

RXA_1P

RXA_1N

RXA_2N

RXA_2P

C4604

C4602

2.2u

0.1u

6.3V

16V

1Vout

2NC

C

3Cn

*C4600

0.01u
25V

4GND5

C0CBCBC00190

IC4507

GND

CE

2

3

MAIN5V

C

R4707

10k

R4632

0

VI1P2

VI1P3

VI1P22

VI1P23

VI1CLK

16V

0.1u

C4596

R4636

68

R4635

EXB28V680JX

52

54

55P356

58P259P160P061

P21

DGND57DVDD

SRLUP/P2353TRGIN/P22

ADV7493BBSTZ-150

TVDD

RTERM

CVDD

CGND

TVDD

RXB_CN

RXB_CP

123

124

125

126

127

128

129

1%

499

R4631

25V

10V

10V

C4601

1u

C4594

1u

0.01u

C4597

10V

C4598

1u

25V

RXB_CN

RXB_CP

C4595

0.01u

R4661

R4708
1k

C

C

VI1P26

CLKOA

VI1P25

VI1P24

16V

0.1u

68

C4605

68

68

47k

R4638

R4637

R4666

R466547k

46

47

48

49

50

51

P26

LLC

DGND

DCLKIN

DVDDIO

SRLIN/P24

R_ACTIVE/P25

DDCB_SCL

TGND

RXB_0N

RXB_0P

TGND

RXB_1N

RXB_1P

TGND

130

131

132

133

134

135

136

RXB_0N

RXB_0P

RXB_1N

RXB_1P

+

C4609

1u
10V

C

100

TP4514

J0JHC0000078

J0JHC0000078

VI1P6

VI1P4

VI1P5

P10

P11

SFL/SYNC_OUT/INT2

DDCB_SDA2SPDIF3I2S0

DGND
DVDD

RXB_2N

RXB_2P

TVDD

137

138

139

C4612

RXB_2N

RXB_2P

C

L4520

L4521

C4611

0.01u

C4623

VI1P7

0.1u

41P742P643P544P445

DVDDIO

CGND

140

25V

16V

VI1P27

DGND

VS/FIELD

141

C4610

10V

1u

1.8V

P27

MCLKOUT

CVDD

0.01u

VI1P8

DVDDIO

MCLKIN

142

VI1P9

DVDD
DGND

RESET

INT1

DGND
ALSB

SCLK

LRCLK

I2S3
I2S2
I2S1

25V

C4614

C4613

8

7

6

R4639
EXB28V680JX
68

R4640
EXB28V680JX
68

37

38P939P840

P28
P29
P12
P13
P14
P15
P16
P17
P18
P19

HS
DE

SCL
SDA

143

144

0.1u

10V

1u

*R4641

Vin

NC

NC

Cont

IC4509

C0CBCAD00082

MM1681JFBE(R59-1615)

9/21

36

R4642

35

EXB28V680JX

34

68
33
32
31
30

R4649
29

EXB28V680JX
28

68
27
26
25

R4651
24

68
23
22
21
20
19

R4645

18

68

17

R4647

16

68

15

C4617

14

0.1u

4.7k

13

R4710

12

R4711

11

4.7k
10
9
8
7
6
5
4

1

C

16V

22

22

*R4643

C4616

0.1u
16V

R4650

C4619

0.1u
16V

R4646

16V

R4648

EXB28V330JX

68

68

DVDD_1.8V

1Vout

2NC

3Cn

4GND5

DVDDIO_3.3V

CVDD_1.8V

TP4515

C4620

1u

C4618

0.01u

10V

25V

C

*C4615

0.01u
25V

C

VI1P28
VI1P29
VI1P12
VI1P13
VI1P14
VI1P15

VI1P16
VI1P17
VI1P18
VI1P19

VI1VSYNC

VI1HSYNC

VI1ENB

R4657

22

R4658

22

TP4518

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

RGB_CVBS

JS4501

C

C_ANA

RGB_FB

PC_HS

PC_VS

GUARD_Y

GUARD_PB

GUARD_PR

GUARD_V

CN_to_H Sheet007

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

RGB_CVBS

RGB_FB

PC_HS

PC_VS

VI1CLK

CLKOA

VI1VSYNC

VI1HSYNC

VI1ENB

FS_FRCLKIN

VI1P27

VI1P26

VI1P19

VI1P18

VI1P17

VI1P16

VI1P15

VI1P14

VI1P13

VI1P12

VI1P29

VI1P28

VI1P25

VI1P24

VI1P23

VI1P22

VI1P9

VI1P8

VI1P7

VI1P6

VI1P5

VI1P4

VI1P3

VI1P2

R4670

68

Peaks Lite II

VI1P9

VI1P8

VI1P7

VI1P6

VI1P5

VI1P4

VI1P3

VI1P2

VI1P27

VI1P26

VI1P19

VI1P18

VI1P17

VI1P16

VI1P15

VI1P14

VI1P13

VI1P12

VI1P29

VI1P28

VI1P25

VI1P24

VI1P23

VI1P22

VI1CLK

VI1CKOUT

VI1VSYNC

VI1HSYNC

VI1ENB

FS_FRCLKIN

UVIN9

UVIN8

UVIN7

UVIN6

UVIN5

UVIN4

UVIN3

UVIN2

UVIN1

UVIN0

YIN9

YIN8

YIN7

YIN6

YIN5

YIN4

YIN3

YIN2

YIN1

YIN0

RIN3

RIN2

RIN1

RIN0

CLKIA

CLKOA

VSIA

HSIA

Sheet 002

GC3FS-n Sheet004

CN_to_H Sheet007

HDMI_INT2

R4698

0

R4656

2.2k

R4655

100

0

R4699

RX_SCK
RX_SD0#
RX_WS

HDMI_SPDIF

HDMI_SDIN
HDMI_LRCK

R4652

47k

HDMI_BCLK

R4644

22

AG_7493_XRST

C

XIRQ3

DTV Sheet003
GC3FS-n Sheet004
DTV Sheet011

AD_SCL1
AD_SDA1

HDMI_BCLK
HDMI_SDIN
HDMI_LRCK
HDMI_SPDIF

to DSP Audio 1

CN_to_H Sheet007

XIRQ3

AG_HPD1

AG_HPD3

AG_7493_XRST

AG_EDID_WP

AG_HDCP_WP

AG_HDMI_5V_DET1

AG_HDMI_5V_DET3

AG_HDMI_CEC

Peaks Lite II

XIRQ3

GenX4 Sheet008

AG_HPD1

AG_HPD3

AG_7493_XRST

AG_EDID_WP

AG_HDCP_WP

AG_HDMI_5V_DET1

AG_HDMI_5V_DET3

AG_HDMI_CEC

Sheet 002

10

11

12

61

A B C D E F G H I J K L M N O P

1

2

3

4

DG-BOARD TNPA4293 13/13

GenX4

to Sheet 008

AG_TV_SUB_ON

AG_ALL_OFF

AG_DTV_VOUTENB

(Common)

(Used PDP)

(Used LCD)

AG_SRQ-GENX

PANEL_STBY/VCC_ON

AG_ECO_ON

AG_FAN_SOS

AG_FAN_MAX

AG_INVERTER_ON

AG_INVERTER_SOS

AG_PWM_POW_ON

AG_TV_SUB_ON

AG_ALL_OFF

AG_DTV_VOUTENB

PANEL_STBY/VCC_ON

AG_ECO_ON

AG_FAN_SOS

AG_FAN_MAX

AG_INVERTER_ON

AG_INVERTER_SOS

AG_PWM_POW_ON

SCL

SDA

AD_SCL3

AD_SDA3

AD_SCL1

AD_SDA1

AD_SCL2

AD_SDA2

B11B-PH-SM4-TBT(D)(LF)(SN)

STB5V

K1KA11AA0715

C

AD_SCL0
AD_SDA0

AD_SCL1
AD_SDA1

AD_SCL2
AD_SDA2

AD_SCL3
AD_SDA3

DG33

1

STB5V

2

SRQ

3

GND

4

GenX4_SCL

5

GenX4_SDA

6

LITE2_SCL3

7

LITE2_SDA3

8

LITE2_SCL1

9

LITE2_SDA1

10

LITE2_SCL2

11

LITE2_SDA2

(GenX4 Loarder/E2PROM)

(GenX4 Loarder/E2PROM)

(Lite2 E2PROM)

(Lite2 E2PROM)

(Device Control)

(Device Control)

(Device Control)

(Device Control)

IIC

to Sheet 003

AD_SCL0
AD_SDA0

AD_SCL1

AD_SDA1

AD_SCL2
AD_SDA2

AD_SCL3
AD_SDA3

5

LITE2 ExBUS/Etc.

to Sheet 003

HQ1L/FHD

to Sheet 009

6

(VMUTE/DISPEN)

VMUTE

PANEL_MUTE

*R4838

100

VMUTE

PANEL_MUTE

SCL
SDA

GenX4

to Sheet 008

SCL
SDA

7

8

9

10

11

Lite2

to Sheet 002

PANEL_STATUS

PANEL_SOS

Lite2

to Sheet 002

LVDS OUT

HQ1L/FHD

to Sheet 009

RxCLK­RxCLK+

P12V

0

0

0

0

VI2P10

VI2P21

Rx0-

TA1N
TA1P

Rx0+

TB1N

Rx1-

TB1P

Rx1+

TC1N

Rx2-

TC1P

Rx2+

TCLK1N
TCLK1P

Rx3-

TD1N

Rx3+

TD1P
TE1N

Rx4-

TE1P

Rx4+

LCD_PWM_D

LCD_PWM_K

PANEL_STATUS

PANEL_SOS

VI2P10

VI2P21

*R4855

*R4853

*R4852

*R4854

31

30

29

28

27

26

25

TP4812

24

TP4813

23

22

21

20

19

18

C

0

*R4874

FX15-31S-0.5SV
K1KB31AA0140

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

C

DG5

0

0

0

0

0

0

*R4871

*R4868

*R4870

*R4869

*R4867

TP4806

TP4809

TP4800

TP4803

TP4807

TP4810

TP4801

TP4804

TP4808

TP4811

TP4802

TP4805

GUARD

LCD_PWM_D

LCD_PWM_KGUARD

FL4801

J0JAD0000028

FL4802

J0JAD0000028

4
3
2
1

4
3
2
1

4
3
2
1

FL4800

J0JAD0000028

*R4873

PDP LCD

IIC_CONT

RXD

TXD

GND

IIC_SCL2

IIC_SDA2

GND

PANEL_SCL

PANEL_SDA

GND

PANEL_STATUS

(READY)

PANEL_STBY_ON

PANEL_SOS

(ALARM)

PANEL_MUTE

(DISPEN)

(GND)

INEXCH

GND

Rx0-

Rx0+

GND

Rx1-

Rx1+

Rx2-

Rx2+

GND

RxCLK-

RxCLK+

GND

Rx3-

Rx3+

Rx4-

Rx4+

LG

VCC_12V

VCC_12V

VCC_12V

GND

VCC_12V

GND

GND

GND

GND

GND

FORMAT

GND

GND

GND GND

GND

GND

RxA-

RxA+

GND

RxB-

RxB+

RxC-

RxC+

GND

RxCLK-

RxCLK+

GND

RxD-

RxD+

NCNCNC

VCC_12V

VCC_12V

VCC_12V

GND

VCC_12V

VCC_12V

GND

GND

GND

GND

FORMAT

GND

GND

GND

GND

Rx0-

Rx0+

GND

Rx1-

Rx1+

Rx2-

Rx2+

GND

RxCLK-

RxCLK+

GND

Rx3-

Rx3+

NC

AUO

AG_PWM_POW_ON

C

+

3k

+

*C4802

C

*Q4200

2SD0601ASL

*L4801

J0JHC0000078

*C4804

47u

16V

C

22u

6.3V

*C4805

0.1u
16V

*C4806

25V
C

ICTRL9V

0.01u

INVERTER_PWM

J0JJC0000011

CURRENT

*FL4811
J0HABH000012

P12V

L4802

TP4817

G

G

C

K1KA06AA0104

B6B-ZR-SM4-TFT(LF)(SN)

TP4818

TP4815

C

*DG26

*FL4812

TP4814

1

J0HABH000012

G

TP4816

G

G

*FL4813
J0HABH000012

C

G

C

AG_INVERTER_ON

AG_INVERTER_SOS

TP4451

2

3

4

5

6

DTV9V

*R4279

*R4274

10k

*C4203

0.1u
16V

MAIN3.3V

*R4808

10k

*Q4800

*R4807

*R4804

*R4805

*R4806

10k

2SD0601ASL

10k

C

10k

MAIN3.3V

*R4813

*R4809

1k

*R4810

10k

*R4811

10k

C

C

10k

*Q4801

2SC39380QL

GUARD

PWM_K

*R4814

6.04k

C

1k

C

0V

*R4812

10k

10k

1%

*Q4802

2SC39380QL

*R4281

C

10k

*R4816

5.11k

*C4800

47u
16V

MA3X152K0L

*R4815

*D4800

*R4283

+

1k

*Q4201

2SB0709ASL

3k

C

*C4803

0.01u
25V

1%

*Q4803

2SD0601ASL

C

G1C100KA0008

*C4801

0.1u
16V

C

1%

*R4817

3.9k

*L4800

C

*R4818

1%

12

62

Conductor Views

5

H-BOARD TNPA4291 - top

TRAN’S

Q2015 D3 D2029 E6
Q2016 D2 D2031 E6
Q2017 D2 D2032 E6 IC2002 C1
Q2021 E2 D2033 E6 IC200 6 C1
Q2031 E6 D2034 E6 IC200 8 C2
Q2033 E6 D2119 A5 IC201 0 D1
Q2034 E6 D2200 B3 IC201 1 E3
Q2035 E6 D2301 B4 IC201 2 B3
Q2039 E5 D2302 A4 IC201 3 B3
Q2040 E6 D2303 B4 IC210 6 C2
Q2041 E6 D23 04 B4 IC2107 B1
Q2101 D2 D2632 C1 IC2301 B5
Q2102 D2 D2633 C1 IC2303 A4
Q2301 B4 D2634 B1 IC2610 B1
Q2635 C1 D2635 C1 IC3001 D3
Q2636 D1 D2636 C1 IC3101 B6
Q2637 D1 D2637 D1
Q2638 C1 D2638 B1
Q2639 B1 D3010 D5 TP301 B4
Q2640 D2 D3011 D5 TP607 B1
Q2641 D2 D3012 D5

DIODE’S

D2026 E6 D3030 B6

D2028 E6 D3044 C3

IC’S

TP’S

D3027 B5
D3028 B5

E

D

B

63

H-BOARD TNPA4291 - bottom

TRAN’S TP’S

Q2002 C4 TP012 E4 TP616 E3
Q2003 D4 TP014 E4 TP617 B1
Q2004 C6 TP015 E4 TP3001 E5
Q2005 C6 TP016 E4 TP3002 E5
Q2006 C6 TP017 E4 TP3003 E5
Q2007 C6 TP018 E4 TP3004 E5
Q3027 C4 TP019 E4 TP3005 E5
Q3028 D4 TP020 E4 TP3006 E5
Q3200 A2 TP021 A6 TP3007 E5

DIODE’S

D2189 B3 TP024 A6 TP3010 E5
D3003 C5 TP302 B5 TP3011 E5
D3004 C5 TP303 A5 TP3012 E5
D3005 C5 TP304 A5 TP3013 E5
D3007 D5 TP305 A5 TP3014 E4
D3008 C5 TP306 A4 TP3015 E4
D3009 D5 TP307 A5 TP3016 E5
D3025 C5 TP308 A4 TP3017 E4
D3031 D5 TP309 A4 TP3020 E4
D3032 D5 TP310 A5 TP3021 E5
D3038 C4 TP606 D1 TP3022 E4
D3039 D4 TP608 B1 TP3023 E4
D3041 C3 TP609 B1 TP3024 E4
D3042 C3 TP610 B1 TP3025 E4
D3043 C3 TP611 D1 TP3031 A6
D3100 C5 TP612 D1 TP3032 A6

TP022 A6 TP3008 E5
TP023 A6 TP3009 E5

TP613 E3 TP3033 A6
TP614 E3 TP3034 A6

TP615 E3

E

D

64

B

2

DG-BOARD TNPA4293 - top

TRAN’S

Q4504 D1 IC5660 B6
Q5600 B5 IC5671 C1
Q5601 B6 IC8001 C5
Q5602 B6 IC8002 C6
Q5603 B6 IC8003 C5
Q5604 B6 IC8302 A6
Q5690 B2 IC8401 B3
Q5691 B3 IC8402 B5
Q5692 B3 IC8403 B3
Q5693 B3 IC8404 B5
Q8401 B3 IC8405 B5
Q8402 B4 IC8406 B3

IC’S

IC1100 B1 IC8621 B2
IC1101 C1 IC8622 A2

IC4510 C3

IC8407 B3
IC8554 A2

B

65

4321

5

6

DG-BOARD TNPA4293 - bottom

TRAN’S

Q1107 B2 IC8408 B5 TP4802 C1
Q1108 B1 IC8409 B5 TP4803 D1
Q4200 D6 IC8601 B5 TP4804 C1
Q4201 D6 TP4805 C1
Q4501 D1
Q4503 D2 TP1100 C6 TP4807 D1
Q4514 D3 TP1101 C6 TP4808 C1
Q4515 D3 TP1102 C6 TP4809 D1
Q4516 D2 TP1103 A6 TP4810 D1
Q4517 D3 TP1104 B6 TP4811 C1
Q4519 D3 TP1105 B6 TP4812 D1
Q4800 B6 TP2002 D4 TP4818 B1
Q4801 A6 TP2003 D3 TP5600 B2
Q4802 A6 TP2004 D4 TP5601 C1
Q4803 B6 TP2010 D4 TP5602 C1

IC’S

IC2000 D3 TP4201 D2 TP5707 D3
IC4501 D2 TP4451 D1 TP8037 C2
IC4504 C1 TP4504 C5 TP8404 B4
IC4506 C2 TP4505 D5 TP8601 B5
IC4507 C2 TP4506 C5 TP8602 B5
IC4508 D2 TP4507 D5 TP8603 B5
IC4509 C3 TP4508 D5 TP8604 B5
IC4513 D2 TP4512 D5 TP8605 B5
IC4514 C2 TP4513 C5 TP8745 B1
IC4515 C2 TP4514 D5 TP8851 B6
IC5600 B5 TP4515 C4 TP8852 C5
IC5601 B6 TP4517 B6 TP8853 C6
IC5670 D1 TP4518 C4 TP8854 C3
IC8004 D6 TP4800 D1

IC8301 A5 TP4801 D1

TP’S

TP2024 D4 TP5608 C6
TP4200 D2 TP5670 C6

TP4806 D1

B

66

4321

5

6

P-BOARD TNP8EPL60

TRAN’S

Q802 B2 D807 A6 D852 B1
Q803 B3 D808 B6 D853 B1
Q804 A3 D809 A2 D854 D2
Q805 A2 D810 A2 D856 C1
Q807 A5 D811 B5 D857 D4
Q808 B4 D813 A3 D858 C1
Q809 B2 D814 C5 D859 C1
Q810 B4 D816 A3 D861 D1
Q811 B4 D817 A2
Q812 B5 D818 A5
Q851 B1 D819 B2 IC801 A5
Q852 B1 D820 B4 IC802 B4
Q853 D1 D821 B2 IC851 B1
Q854 C1 D822 B2
Q855 D2 D823 B2

DIODE’S

D801 A7 D827 B4 TP852 D2
D802 B7 D828 B4 TP853 E1
D803 B3 D829 A6 TP854 B1
D804 A6 D830 A6
D805 A5 D831 A5

D806 B6 D851 D2

IC’S

TP’S

D824 B2 TP836 C5
D826 B2 TP851 E1

A

B

C

D

E

F

1

2

3

4

5

6

7

8

67

AP-BOARD TNP8EAP60 - top

TRAN’S

Q3801 A3 Q3812 A5 IC3805 B6 D3810 B3 D3822 A7
Q3802 A3 Q3813 A5 IC3806 B7 D3811 A7 D3823 A6
Q3803 A3 Q3814 A7 D3813 A2 D3824 A5
Q3805 B3 Q3817 B5
Q3806 A3 D3801 A3 D3815 B7 D3826 A6
Q3807 A4
Q3808 A5 IC3801 A3 D3805 B5 D3818 B1 D3828 A5
Q3809 B3 IC3802 A4 D3806 B4 D3819 B8 D3829 B3
Q3810 B6 IC3803 A2 D3807 B1 D3820 B1

Q3811 B4 IC3804 B8 D3809 B2 D3821 A7

DIODE’S

IC’S

D3804 B3 D3816 B3 D3827 B5

1

D3814 B2 D3825 B3

2

A

B

3

4

5

6

7

8

AP-BOARD TNP8EAP60 - bottom

TRAN’S TP’S

Q3816 B5 TP3801 B2 TP3808 A3

DIODE’S

D3802 A5 TP3804 B6 TP3811 A4
D3803 A7 TP3805 B8
D3817 A8 TP3806 B4

TP3802 A7 TP3809 A6
TP3803 B6 TP3810 B6

TP3807 B8

1

A

B

2

3

4

5

6

7

8

68

V-BOARD TNP8EVL60 - top

A

A

TRAN’S

Q1002 A1
Q1004 A1
Q1006 A1
Q1007 A1
Q1009 A1
Q1010 A2

DIODE’S

D1001 A1
D1002 A1

IC’S

RM1001 A2
PC1001 A2

V-BOARD TNP8EVL60 - bottom

1

2

TP’S

TP1001 A2
TP1002 A2
TP1003 A2
TP1004 A2
TP1005 A2
TP1006 A2
TP1007 A2
TP1008 A2

2

1

69
