Panasonic TX-32LX70, TX-26LX70 Schematic

ORDER No. PCZ0702011CE

ISSUE 2

Service Manual

Colour LCD Television

TX-32LX70F TX-32LX70L

TX-32LX70P

TX-26LX70F TX-26LX70L

TX-26LX70P

LH64 Chassis

Specifications

(Informations in brackets [ ] refers to model 26”)

Power Source: 220-240V AC, 50/60Hz

Power Consumption 134W [100W]

Stand-by Power Consumption: 0.4W Aerial Impedance: 75Ω unbalanced, Coaxial Type

Receiving System: LX70L LX70F, LX70P PAL-I, PAL-I/H, B/G, D/K,

PAL-525/60 (AV only) SECAM B/G, D/K, L/L’ M.NTSC (AV only) PAL-525/60 (A V only) NTSC (AV only) M.NTSC (AV only) NTSC (AV only)

Receiving Channels: LX70L LX70F, LX70P UHF E21-E68 VHF E2-E12 VHF H1-H2 (ITALY)

VHF A-H (ITALY) VHF R1-R2 VHF R3-R5 VHF R6-R12 UHF E21-E69 CATV (S01-S05) CATV S1-S10 (M1-M10) CATV S11-S20 (U1-U10) CATV S21-S41 (Hyperband)

Operating Conditions: Temperature: 0°C ÷ 35°C Humidity: 20% ÷ 80% RH (non condensing)

Scanning format: 480i(60Hz), 480p(60Hz), 576i(50Hz), 576p(50Hz), 720p(60Hz), 720p(50Hz), 1.080i(60Hz),

1.080i(50Hz), 1.080p(60Hz), 1.080p(50Hz) PC signals: VGA, SVGA, XGA, SXGA(compressed)

Horizontal scanning frequency 31 – 69 kHz Vertical scanning frequency 59 – 86 Hz

Intermediate Frequency:

Video/Audio LX70L LX70F, LX70P

Video 38,9MHz 38,9MHz, 33,9MHz

Audio 32.90MHz 33,4MHz (B/G), 33,16MHz (A2)

32.35MHz(NICAM) 33,05MHz (NICAM B/G, D/K, L)

32,4MHz (D/K), 32,66MHz (CZ STEREO) 40,4MHz (L

Colour 34,47MHz 34,47MHz (PAL)

’), 39,75MHz (L’NICAM)

34,5MHz, 34,65MHz (SECAM) 38,3MHz, 38,15MHz (SECAM L

Terminals:

’)

AV1 IN Video (21 pin) 1V p-p 75Ω Audio (21 pin) 500mV rms 10kΩ RGB (21 pin) 0,7V p-p 75Ω

AV1 OUT Video (21 pin) 1V p-p 75Ω Audio (21 pin) 500mV rms 1kΩ

AV2 IN Video (21 pin) 1V p-p 75Ω Audio (21 pin) 500mV rms 10kΩ RGB (21 pin) 0,7V p-p 75Ω S-video IN (21-pin) Y: 1V p-p 75Ω C:0,3V p-p 75Ω

AV2 OUT Video (21 pin) 1V p-p 75Ω Audio (21 pin) 500mV rms 1kΩ

AV3 IN S-Video IN (4-pin) Y: 1V p-p 75Ω C:0,3V p-p 75Ω

Audio (RCAx2) 500mV rms 10kΩ

Video (RCAx1) 1V p-p 75Ω HDMI1, HDMI2 Type A Connector COMPONENT Video (RCAx3) Y:1V p-p 75Ω (including synchronization)

Pb, Pr: ±0,35V p-p 75Ω AUDIO IN Audio (RCAx2) 500mV rms 10kΩ (for YUV, HDMI1)

AUDIO OUT Audio (RCAx2) 500mV rms 1kΩ (high impedance) PC HIGH-DENSITY D_SUB 15PIN R,G,B: 700mV p-p 75Ω

HD,VD/TTL Level 2-5V p-p (high impedance)

LCD screen: L5EDD8Q00030 [L5EDD6Q00024] 1366 x 768 XGA, 16:9 Visible Diagonal 800mm [660mm]

Audio Output: 20W (2x10W) Headphones: 3,5mm, 8Ω Impedance Accessories supplied : Remote Control 2 x R6 (UM3) Batteries Dimensions:

Height: Width: Depth: Including TV stand 615mm 791mm 248mm [525mm] [657mm] [216mm]

TV set only 563mm 791mm 117mm [473mm] [657mm] [117mm]

Net weight: 17,5kg [14kg] Specifications are subject to change without notice.

Weights and dimensions shown are approximate.

Warning

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potencial dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products deal within this service information by anyone else could result in serious injury or death.

2

Safety Precautions

Ω

General Guide Lines

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

2. After servicing, see to it that all the protective devices such a s insulation barriers, insulation papers shields are properly installed.

3. After servicing, make the following touch current checks to prevent the customer from being exposed to s hock hazards.

4. Always ensure panel TKP0E16001 is correctly replaced before returning to customer (see Fig.1).

Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Fig. 2.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and re peat each of the above measure.

6. The potential at any point (TOUCH CURRENT) expressed as voltage U1 and U2, does not exceed the following values: For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak); For d. c.: U1 = 1.0 V,

Note:

The limit value of U2 = 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and

2.0 mA d. c. The limit value U1 = 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer.

COLD WATER PIPE (EARTH GROUND)

TO APPLIANCES EXPOSED

METAL PARTS Resistance values in ohms (Ω) V: Voltmetr or oscilloscope

(r.m.s. or peak reading)

NOTE – Appropriate measures should be taken to obtain the correct value in case of non-sinusoidal waveforms

Measuring network for TOUCH CURRENTS

Input resistance: ≥ 1MΩ Input capacitance: ≤ 200pF Frequency range: 15Hz to 1MHz and d.c.respectively

R

=1500Ω

S

Fig. 1

R0=500Ω

Fig. 2

=0.22µF

C

S

U

10k

1

0.022µF

V

U2 (V)

4

Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integr ated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge build up or exposure of the assembly.

3. Use only a grounded-tip s oldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by cond uctive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

There are special components used in this equipment which are important for safety. These parts are marked by in schematic diagrams, exploded views and replacement parts list. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire, or other hazards. Do not modify the original design without permission of manufacturer.

IMPORTANT SAFETY NOTICE

5

About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d suggest the use of Pb free solder as well, although Pb solder may be used. PCBs manufactured using lead free solder will have the PbF within a leaf Symbol

stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C)

higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to doub le layered boards, please check the component side for excess solder which may

flow onto the opposite side. (see Fig.3)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. (see Fig.4)

Fig.3

Fig.4

6

Applicable signals

Component (Y, Pb, Pr), HDMI

Signal name COMPONENT HDMI

525 (480) / 60i * * 525 (480) / 60p * *

625 (576) / 50i * * 625 (576) / 50p * * 750 (720) / 60p * * 750 (720) / 50p * * 1,125 (1,080) / 60i * * 1,125 (1,080) / 50i * * 1,125 (1,080) / 60p * 1,125 (1,080) / 50p *

PC (D-sub 15P)

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 × 400 @70 Hz 640 × 480 @60 Hz 640 × 480 @75 Hz 800 × 600 @60 Hz 800 × 600 @75 Hz 800 × 600 @85 Hz 852 × 480 @60Hz 1,024 × 768 @60Hz 1,024 × 768 @70Hz 1,024 × 768 @75Hz 1,024 × 768 @85Hz 1,280 × 1,024 @60Hz 1,366 × 768 @60Hz Macintosh 13“ (640 × 480) Macintosh 16“ (832 × 624) Macintosh 21“ (1,152 × 870)

Note:

• Signals other than above may not be displayed properly.

• The above signals are reform atted for optimal viewing on your display.

• Applicable input signal for PC is basically compatible to VESA standard timing.

• PC signal is magnified or compresse d for display, so that it may not be possible to show fine detail

with sufficient clarity.

31.47 70.07

31.47 59.94

37.50 75.00

37.88 60.32

46.88 75.00

53.67 85.06

31.44 59.89

48.36 60.00

56.48 70.07

60.02 75.03

68.68 85.00

63.98 60.02

48.39 60.04

35.00 66.67

49.73 74.55

68.68 75.06

7

Service Hints

How to remove the backcover

Remove the 18 [16] fixing screws. (see Fig.5)

SCREWS

How to remove the Pedestal assembly

Lay the main unit face down. (see Fig.6)

Remove the 4 fixing screws and the pedestal assembly. (see Fig.7)

Fig.5

Fig.6

Fig.7

SCREWS

8

Chassis Board Layout

AP-BOARD

DG-BOARD

H-BOARD

G-BOARD

Board Name Function

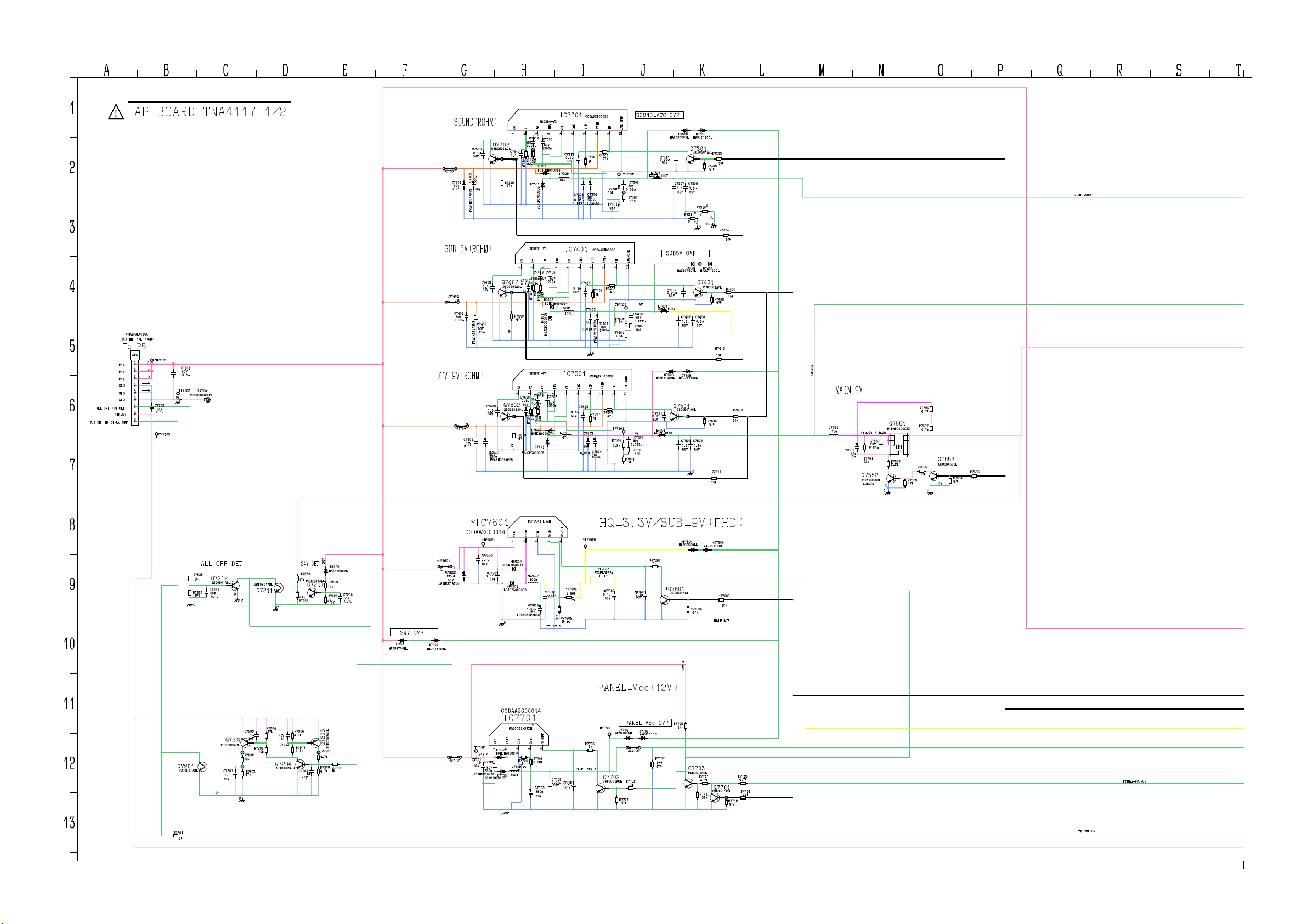

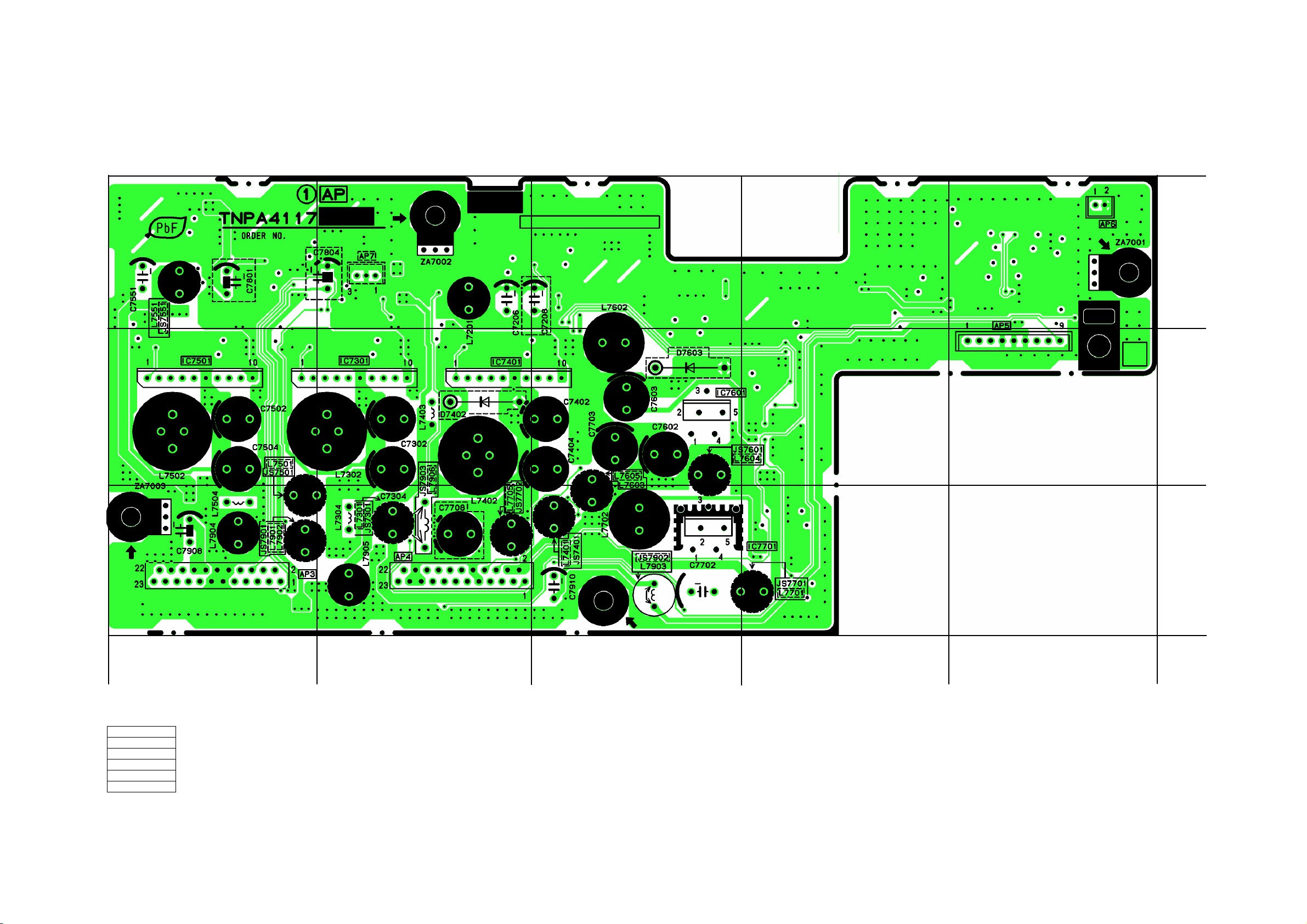

AP-Board Power Supply Regulator

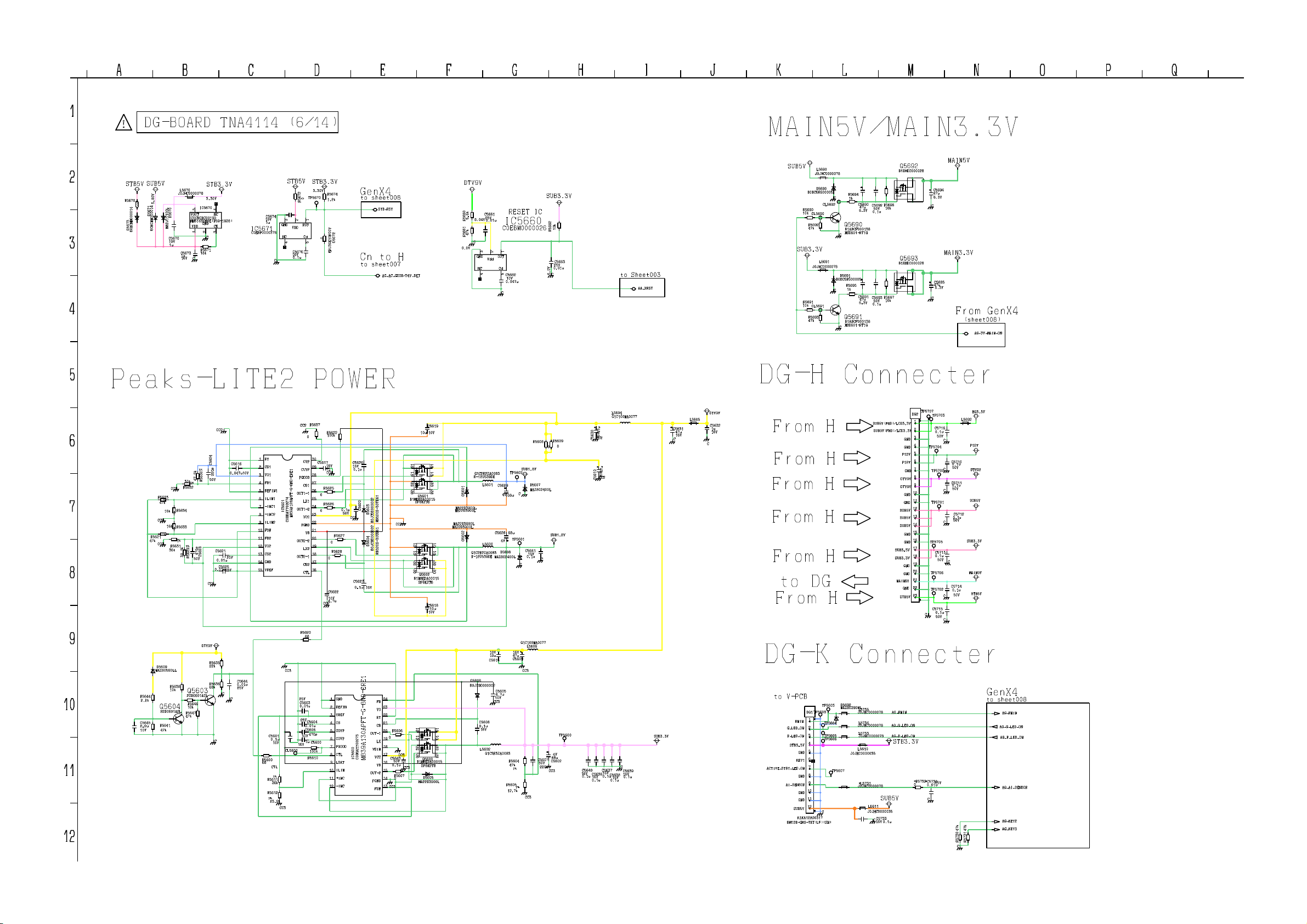

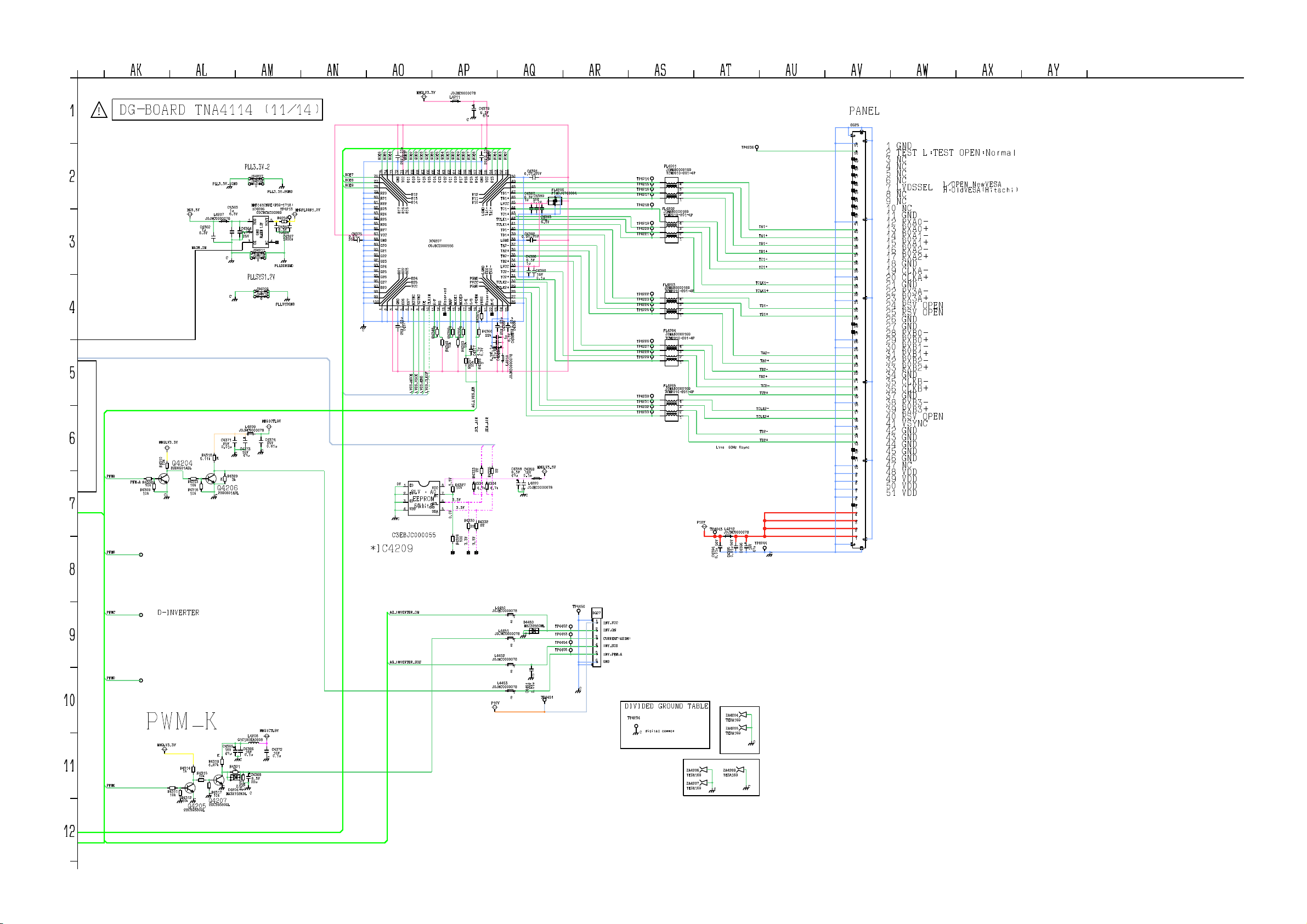

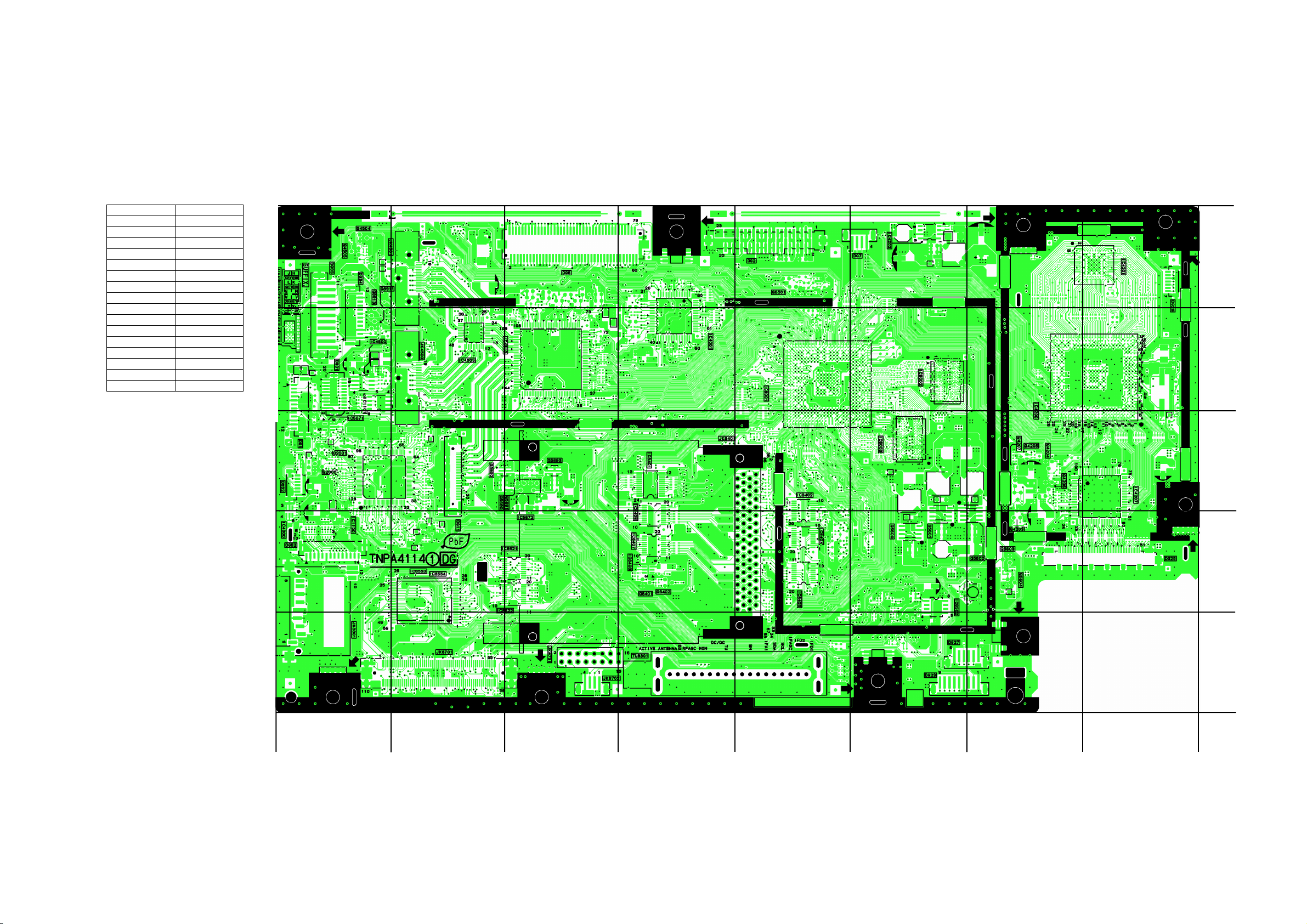

DG-Board Global Core, HDMI, IDTV Processor, D/A Converter

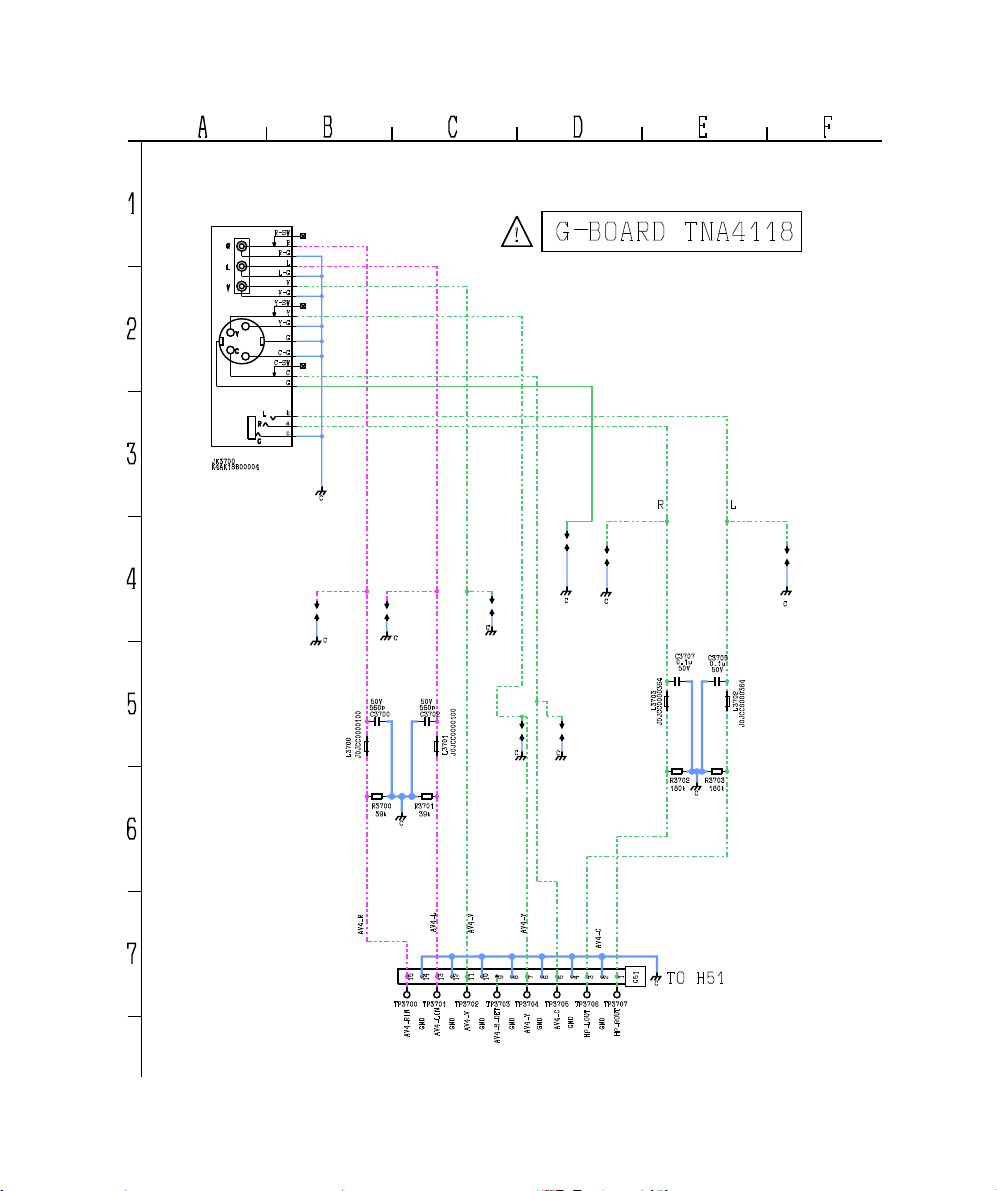

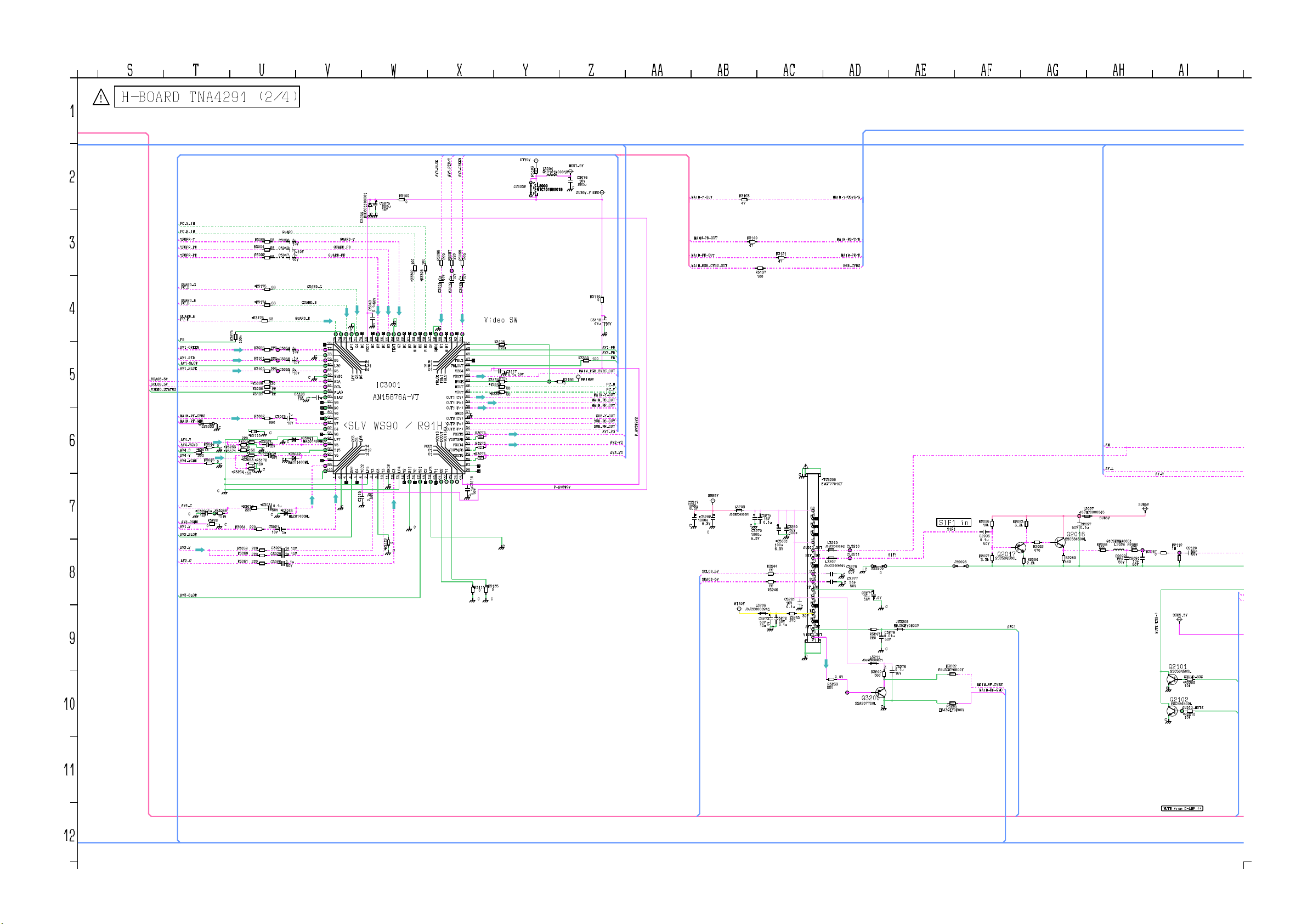

G-Board Side AV Connector H-Board AV Connector, TV tuner, AV Switch K-Board Main Switch P-Board Main Input, Power Supply V-Board Remote Receiver, LED IR, Cats

Setting Inspection

Voltage Confirmation

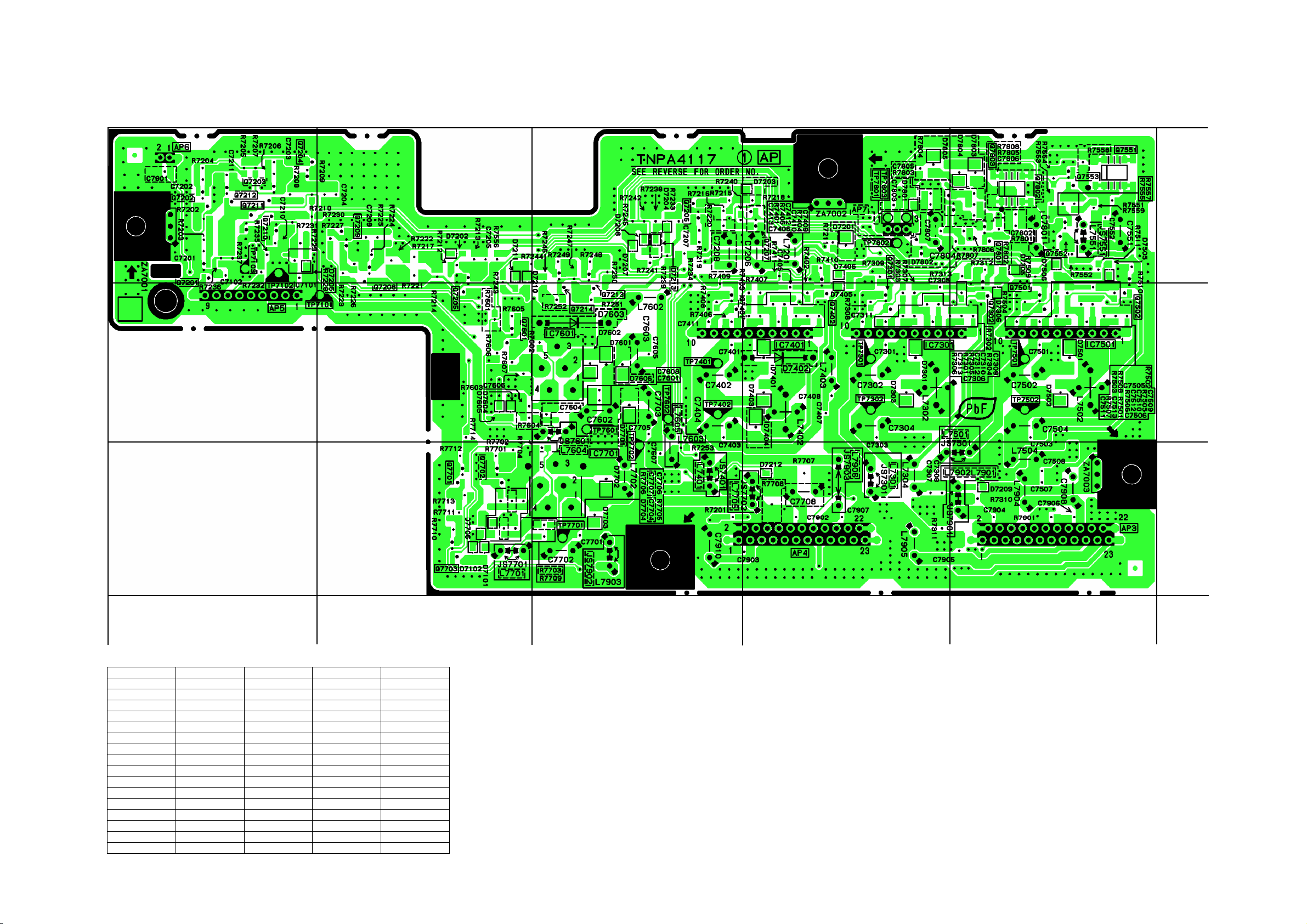

AP board

Description Test point Position Normal mode Stand by mode

Sound_Vcc T P7302 AP3, pin 2,3 15V +/- 0,8V Max 5V DTV_9V TP7502 AP3, pin 17,18 9,1V +/- 0,45V Max 3V Sub_5V TP7402 AP3, pin 21,22 5,1V +/- 0,25V Max 2V Main_9V AP3, pin 23 9,1V +/- 0,45V Max 3V LCD_3.3V TP7602 AP4, pin 16,17 3,3V +/- 0,16V Max 2V STB_5V TP7103 AP4, pin 3 5,1V +/- 0,25V 5,1V +/- 0,25V Panel 12V TP7702 AP4, pin 11,12 12,2V +/- 0,6V Max 4V

P board

5Vs TP823 P8, pin 1 5,1V +/- 0,25V 5,1V +/- 0,25V 24V TP825 P5, pin 1-3 24V +/- 2V Max 4V

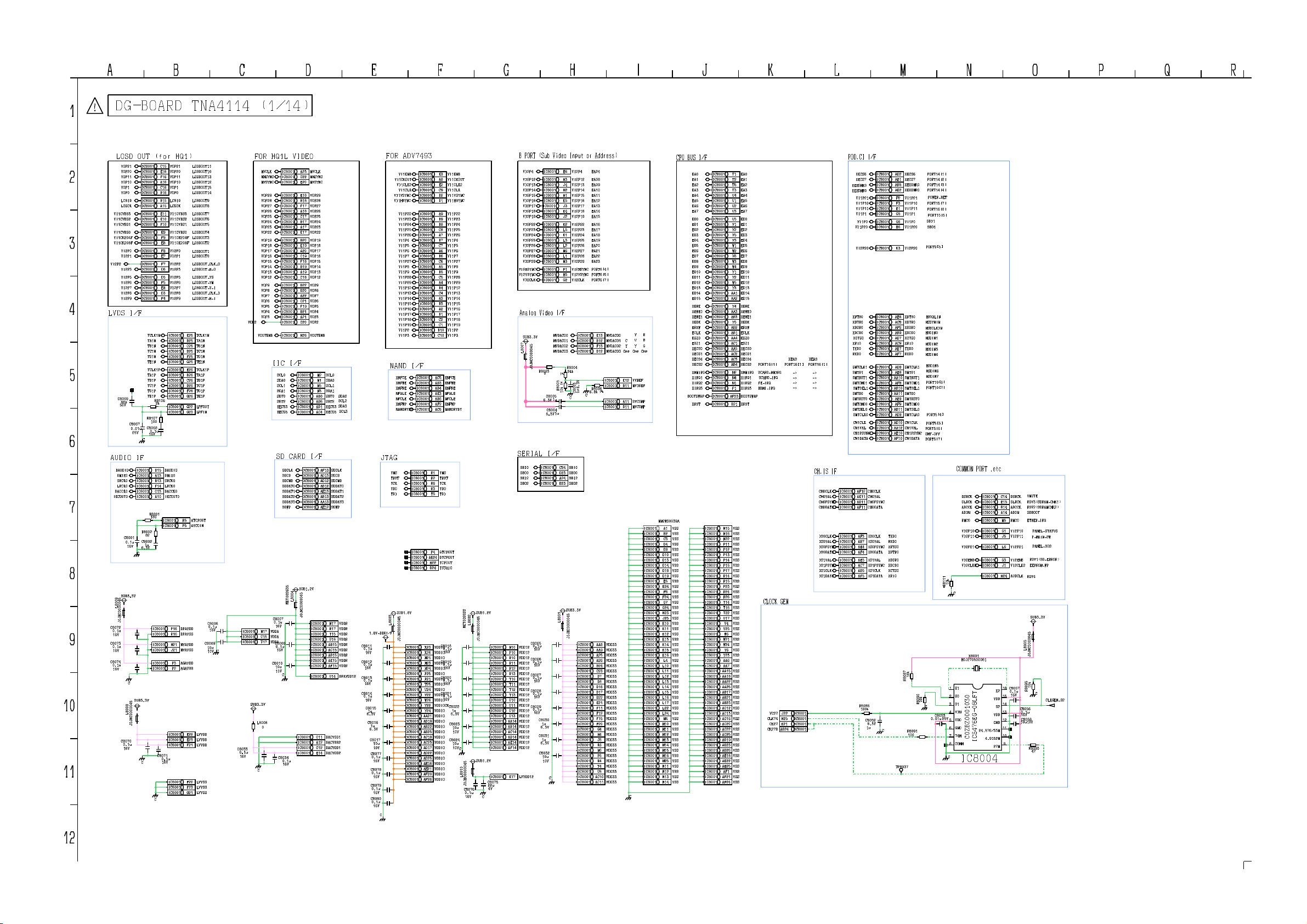

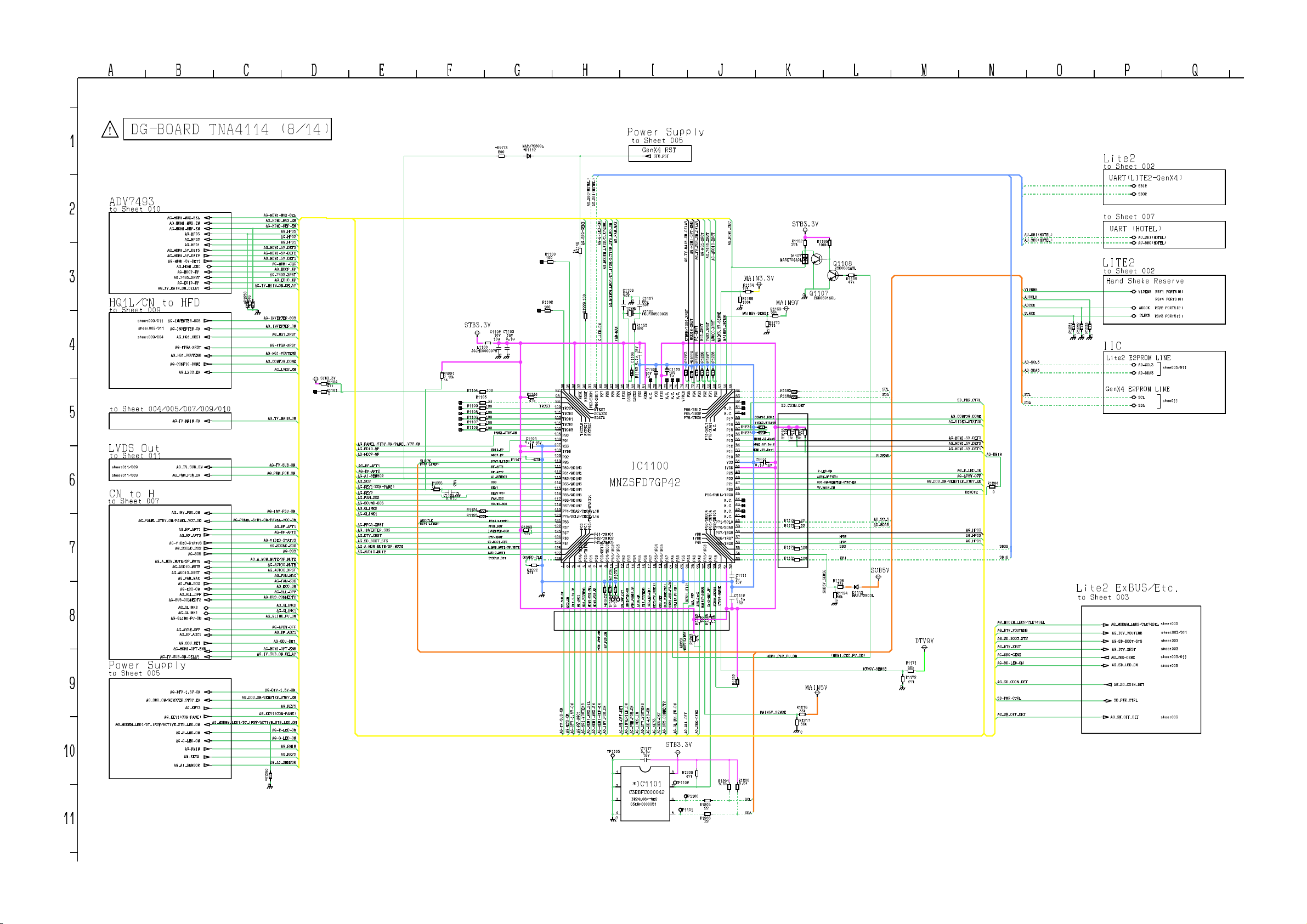

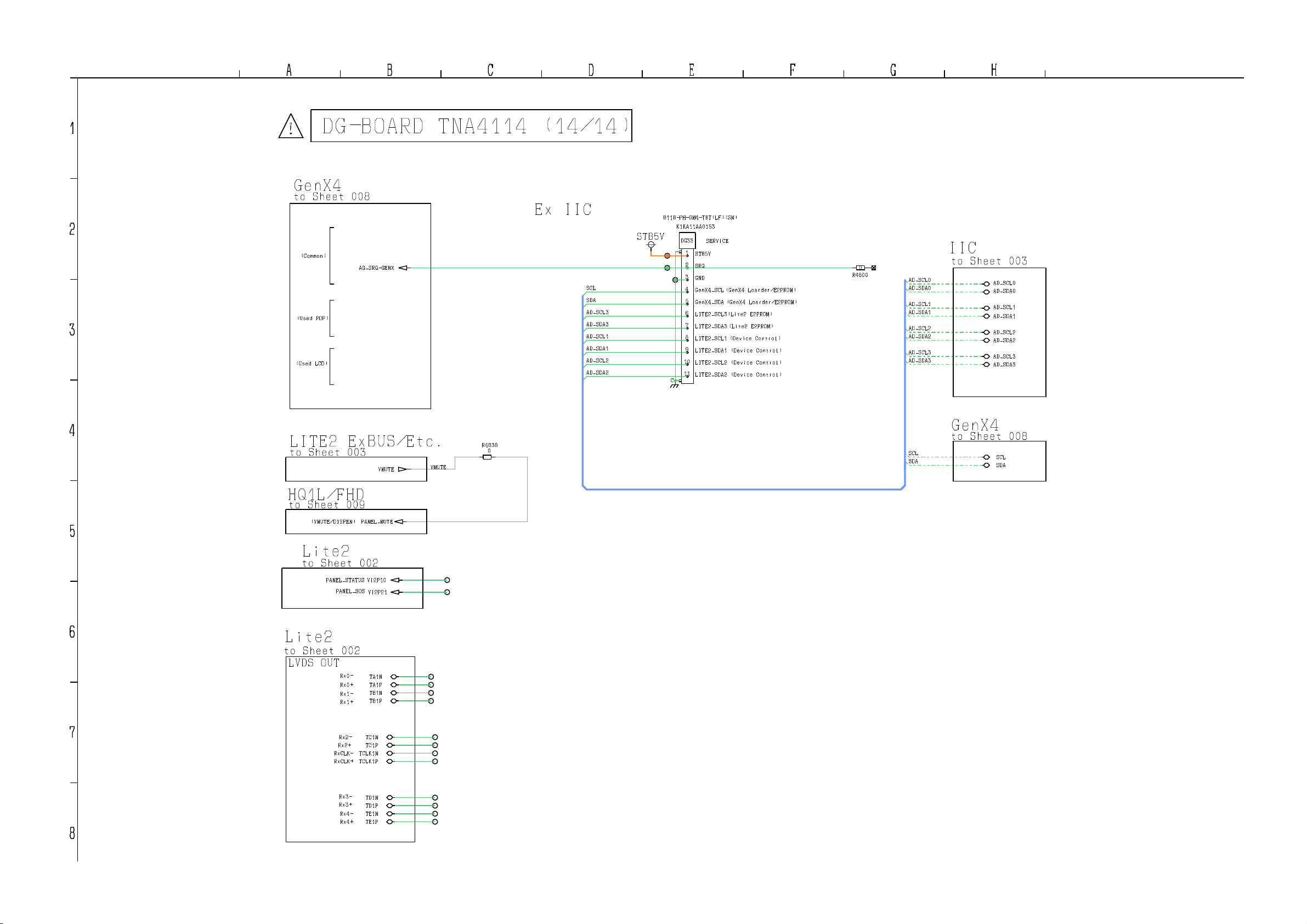

DG board

Sub1,2V TP5601 1,17V - 1,32V Sub1,8V TP5602 1,7V - 1,9V Sub3,3V TP5600 3,14V - 3,46V MHQ1,2V TP4209 1,1V - 1,3V

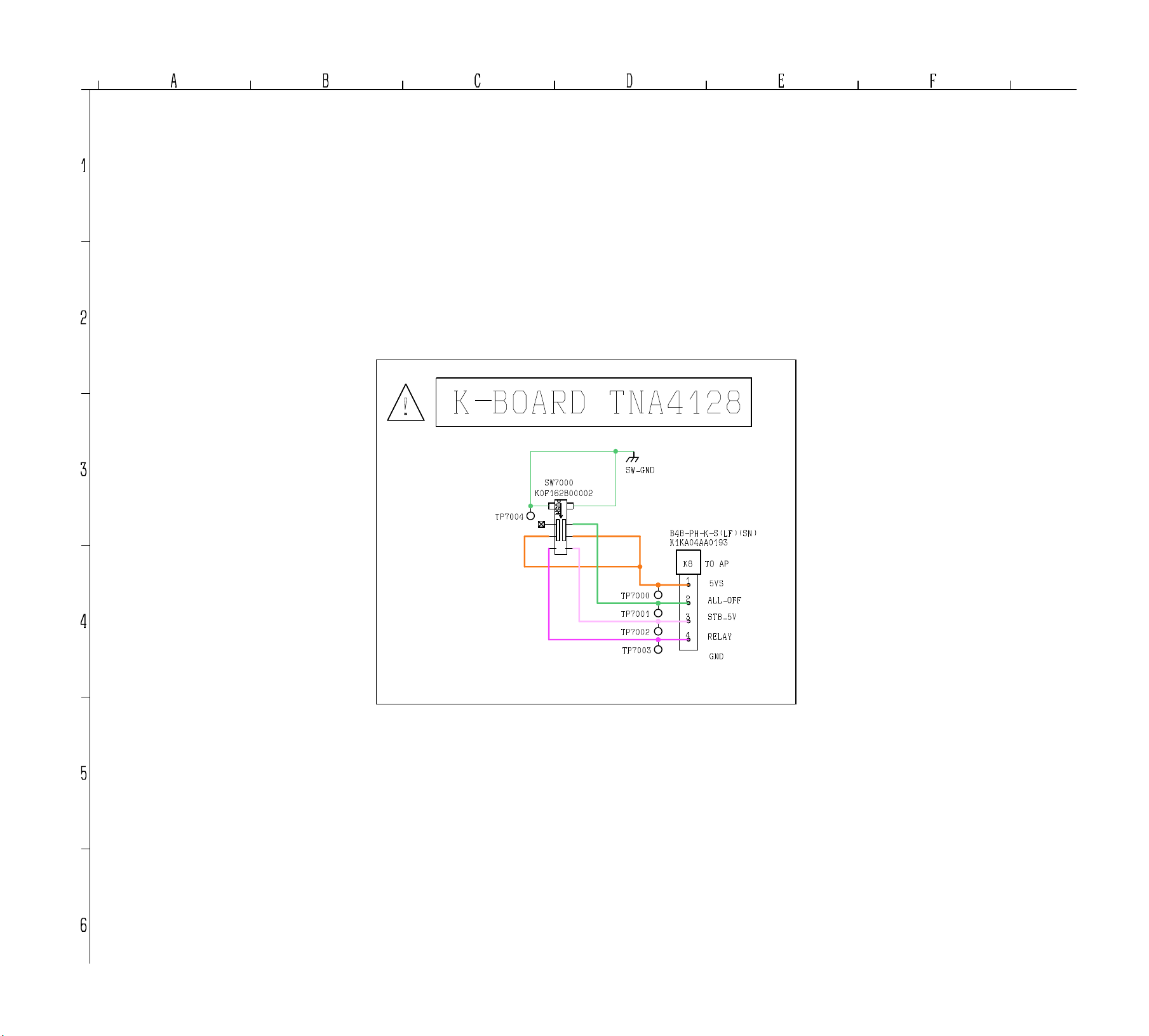

K-BOARD

P-BOARD

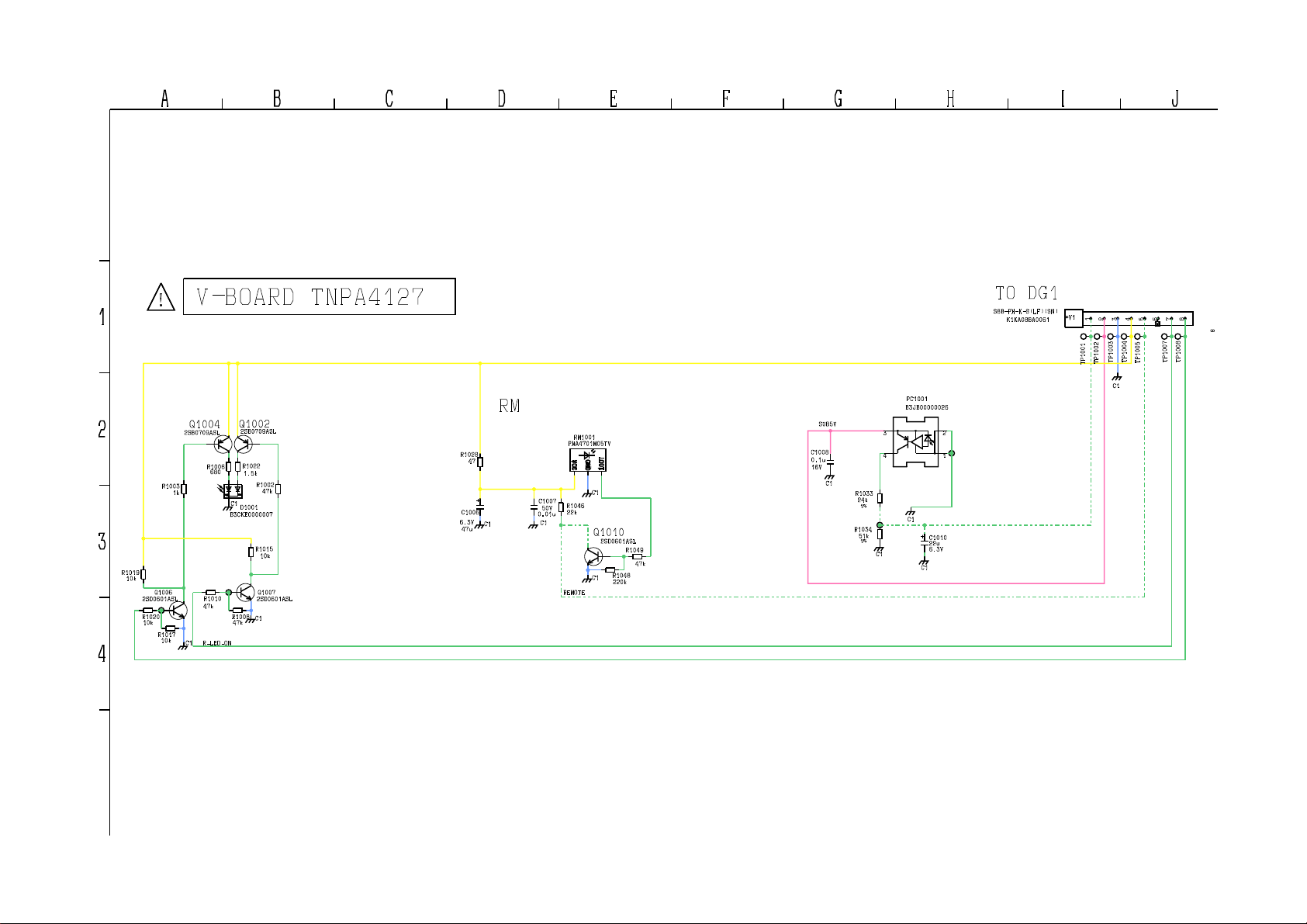

V-BOARD

Confirm the following voltages:

9

Self Check

p

Self-check is used to automatically check the bus lines and hexadecimal code of the TV set. To enter Self-Check mode, keep pressing the down (-/v) button on the TV set and press the STATUS button on the remote control. To exit Self Check, switch off the TV set at the power button.

TX-26LX70F

TX-26LX70L

TX-26LX70P

TX-32LX70F

26 Panasonic 2007LCD 26lxd70.dat:00004f

Self Check Com

ADV O.K. VSW O.K. ADAV O.K. ASW O.K. GENX O.K. MEM1 O.K. MEM2 O.K. TUN1 O.K. HQ1L O.K.

26 Panasonic 2007LCD 26lxd70.dat:00004f

Self Check Com

ADV O.K. VSW O.K. ADAV O.K. ASW O.K. GENX O.K. MEM1 O.K. MEM2 O.K. TUN1 O.K. HQ1L O.K.

26 Panasonic 2007LCD 26lxd70.dat:00004f

Self Check Com

ADV O.K. VSW O.K. ADAV O.K. ASW O.K. GENX O.K. MEM1 O.K. MEM2 O.K. TUN1 O.K. HQ1L O.K.

32 Panasonic 2007LCD 32lxd70.dat:000054

Self Check Com

ADV O.K. VSW O.K. ADAV O.K. ASW O.K. GENX O.K. MEM1 O.K. MEM2 O.K. TUN1 O.K. HQ1L O.K.

PEAKS-SOFT 2.020 PEAKS-EEP 02.00.0010 GenX-SOFT 1.00.00 GenX-EEP 1.02.00 GenX-ROMCORR 1.01.00 HQ1L-EEP 20

PEAKS-SOFT 2.020 PEAKS-EEP 02.00.0017 GenX-SOFT 1.00.00 GenX-EEP 1.02.00 GenX-ROMCORR 1.01.00 HQ1L-EEP 20

PEAKS-SOFT 2.020 PEAKS-EEP 02.00.0011 GenX-SOFT 1.00.00 GenX-EEP 1.02.00 GenX-ROMCORR 1.01.00 HQ1L-EEP 20

PEAKS-SOFT 2.020 PEAKS-EEP 02.00.0006 GenX-SOFT 1.00.00 GenX-EEP 1.02.00 GenX-ROMCORR 1.01.00 HQ1L-EEP 20

lete

SUM 186d OPTION 1 0c

OPTION 2 ea OPTION 3 7f CHECK 75

MODEL ID 04 030e0000 00000002

lete

SUM 1891 OPTION 1 2c

OPTION 2 ea OPTION 3 7f CHECK 95

MODEL ID 04 030e0000 00000002

lete

SUM 188e OPTION 1 2c

OPTION 2 ea OPTION 3 7f CHECK 95

MODEL ID 04 030e0000 00000002

lete

SUM 1863 OPTION 1 0c

OPTION 2 ea OPTION 3 7f CHECK 75

MODEL ID 04 030e0000 00000004

TX-32LX70L

32 Panasonic 2007LCD 32lxd70.dat:000054

Self Check Com

ADV O.K. VSW O.K. ADAV O.K. ASW O.K. GENX O.K. MEM1 O.K. MEM2 O.K. TUN1 O.K. HQ1L O.K.

PEAKS-SOFT 2.020 PEAKS-EEP 02.00.0016 GenX-SOFT 1.00.00 GenX-EEP 1.02.00 GenX-ROMCORR 1.01.00 HQ1L-EEP 20

lete

SUM 1891 OPTION 1 2c

OPTION 2 ea OPTION 3 7f CHECK 95

MODEL ID 04 030e0000 00000004

10

p

TX-32LX70P

32 Panasonic 2007LCD 32lxd70.dat:000054

Self Check Com

ADV O.K. VSW O.K. ADAV O.K. ASW O.K. GENX O.K. MEM1 O.K. MEM2 O.K. TUN1 O.K. HQ1L O.K.

PEAKS-SOFT 2.020 PEAKS-EEP 02.00.0007 GenX-SOFT 1.00.00 GenX-EEP 1.02.00 GenX-ROMCORR 1.01.00 HQ1L-EEP 20

lete

SUM 1884 OPTION 1 2c

OPTION 2 ea OPTION 3 7f CHECK 75

MODEL ID 04 030e0000 00000004

Display Ref. No. Description P.C.B.

ADV IC4510 A/D CONVERTER DG-Board

VSW IC3001 VIDEO SWITCH H-Board

ADAV IC2106 AUDIO PROCESSOR H-Board

ASW IC3101 AUDIO SWITCH H-Board

GENX IC1100 MICROPROCESSOR DG-Board MEM1 IC1101 EEPROM DG-Board MEM2 IC8601 EEPROM DG-Board

TUN1 TU3200 ANALOG TUNER H-Board

HQ1L IC4200 HQ1L DG-Board

If the CCU ports have been checked and found to be incorrect or not located then " - - " will appear in place of "O.K.".

11

Power LED blinking timing chart

1. Subject Information of LED Flashing timing chart.

2. Contents When abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by number of blinking of the Power LED on the front panel of the unit.

Blinking

times

Once

1 INVERTER_SOS

Blinking timing Contents Check point

4 sec

Light No Light

DG BOARD

LCD PANEL

2 FAN_SOS

3

4 DTV_9V

5 MAIN_9V

6 SUB_5V

7 MAIN_5V DG BOARD

8 MAIN_3.3V DG BOARD

9 SOUND_SOS

BT_30V,SOUND 15V

PANEL 12V, HQ_ 3.3V

H BOARD

DG BOARD

H BOARD

AP BOARD,DG BOARD

AP BOARD

H BOARD, DG BOARD

AP BOARD

H BOARD, DG BOARD

AP BOARD

H BOARD, DG BOARD

H BOARD

DG BOARD

10 HQ1L_SOS DG BOARD

12

Service Mode Function

MPU controls the functions switching for each IICs through IIC bus in this chassis. The following setting and adjustment can be adjusted by remote control in Service Menu

How to enter SERVICE

While pressing (-/v) button on the TV unit, press on the remote control for 3 times within 2 seconds. Note:

To exit from Service mode, press the exit button on remote control.

0

13

SERVICE

A

SERVICE ADJUST WB-ADJ OPTION SRV-TOOL

Peaks SOFT 2.020 OPTION 1 0c Peaks EEP 02.00.0006 OPTION 2 ea

S e r v i c e 1

LSI DATA 0.00.54 OPTION 3 7f GenX SOFT 1.00.00 Model ID 04 GenX SOFT 1.02.00 030e0000 GenX ROMCOR 0.01.00 00000004 HQ1L EEP 20 Time 00016:00

Count 0000045

1

ADJUST DYNAMIC CONTRAST YMAX

1,2:MAIN SELECT 3,4:SUB SELECT 9 :PICTURE MENU SELECT YELLOW:AUTO ADJUST VOL:ADJUST OK :WRITE

1

WB-ADJ DYNAMIC R-GAIN

COLOR TEMP COOL

1,2:MAIN SELECT 3,4:SUB SELECT 7 :COLOR TEMP SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

1

OPTION DYNAMIC Boot

1,2:MAIN SELECT 3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST

1

SRV-TOOL DYNAMIC

1,2:MAIN SELECT 9 :PICTURE MENU SELECT OK :ENTER

22C

FA

ROM

00

2

3

4

2

3

4

2

3

4

2

ADJUST DYNAMIC COLOR

1,2:MAIN SELECT 3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

WB-ADJ DYNAMIC G-GAIN

COLOR TEMP COOL

1,2:MAIN SELECT 3,4:SUB SELECT 7 :COLOR TEMP SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

OPTION DYNAMIC STBY-SET

1,2:MAIN SELECT 3,4:SUB SELECT 9 :PICTURE MENU SELECT OK :POWER OFF

3C

FF

00

216

DJUST DYNAMIC

3

TINT

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

WB-ADJ DYNAMIC B-GAIN

3

COLOR TEMP COOL

1,2:MAIN SELECT 3,4:SUB SELECT

4

7 :COLOR TEMP SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

OPTION DYNAMIC Emergency

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST

Key Command

• Press the 3/4 button to change the adjustment values or function.

• Press the 1/2 button to step up/down through the functions and adjustments

• Press the numerical button VOLUME (+/-) to change of e ach option item.

• Press the OK button after each adjustment has been made to store the required values.

ON

00

F1

ADJUST DYNAMIC

3

SUB-BRT

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

WB-ADJ DYNAMIC R-CENT

3

COLOR TEMP COOL

1,2:MAIN SELECT 3,4:SUB SELECT

4

7 :COLOR TEMP SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

OPTION DYNAMIC Y/C Delay

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

808

CD

DJUST DYNAMIC

3

BACKLIGHT

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

WB-ADJ DYNAMIC G-CENT

3

COLOR TEMP COOL

1,2:MAIN SELECT 3,4:SUB SELECT 7 :COLOR TEMP SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

OPTION DYNAMIC OPT 1

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 5,6:BIT SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

276

80

00001100

DJUST DYNAMIC

H-POS

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

WB-ADJ DYNAMIC B-CENT

3

COLOR TEMP COOL

1,2:MAIN SELECT 3,4:SUB SELECT

4 4

7 :COLOR TEMP SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

OPTION DYNAMIC OPT 2

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 5,6:BIT SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

11101010

6A

DJUST DYNAMIC

0

H-AMP

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

OPTION DYNAMIC OPT 3

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 5,6:BIT SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

0

01111111

ADJUST DYNAMIC V-POS

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

DJUST DYNAMIC

0

V-AMP

3

1,2:MAIN SELECT

4

3,4:SUB SELECT 9 :PICTURE MENU SELECT VOL:ADJUST OK :WRITE

0

14

Option Bytes Description

OPTION1

0 Speed ATP Slow (1) / Fast (0) 1 TXT Ch ON (1) / OFF (0) 2 ID-1 ON (1) / OFF (0) 3 Macrovision Auto evaluate ON (1) / OFF (0) 4 SRS Surround ON (1) / OFF (0) 5 Teletext Top OFF (1) / ON (0) 6 Not use 7 Not use

OPTION2

0 Not use 1 A2 Stereo (5,5MHz) ON (1) / OFF (0) 2 A2 Stereo (6,0MHz) ON (1) / OFF (0) 3 A2 Stereo (6,5MHz) ON (1) / OFF (0) 4 Not use 5 NICAM (5,5MHz) ON (1) / OFF (0) 6 NICAM (6,0MHz) ON (1) / OFF (0) 7 NICAM (6,5MHz) ON (1) / OFF (0)

OPTION3

0 NICAM priority (ASIA/M.E) ON (1) / OFF (0) 1 NICAM priority (K/UK) ON (1) / OFF (0) 2 NICAM priority (China) ON (1) / OFF (0) 3 NICAM priority (NZ/INDN) ON (1) / OFF (0) 4 NICAM priority (AUS) ON (1) / OFF (0) 5 NICAM priority (E.Evropa) ON (1) / OFF (0) 6 NICAM priority (Special) ON (1) / OFF (0) 7 Not use

15

Adjustment Method

Sub-Contrast/White Balance Adjustment

Instrument Name Connect to Remarks

1. Remote controller

2. LCD WB meter (Minolta CA-210 or eq uivalent)

3. Comunication jig

4. Computer for external control

Procedure Remarks

Subcontrast adjustment

1. Receive PAL colour bar (100% white) RF signal.

2. Enter “Contrast” adj. In SERVICE mode.

3. Start adjusting by using Yellow Key.

4. If the adjustment finished normally, the letter of Contrast will change from red to black.

White Balance adjustment

1. Procedure basically performs checking using the production software and make automatic adjustment using external computer.

2. It adjusts in the mode of: Colour balance Normal

Viewing Mode Dynamic LX70L LX70F, LX70P WHITE Normal WHITE Normal

x: 0,2850 ± 0,010 x: 0,2850 ± 0,010 y: 0,3020 ± 0,010 y: 0,2930 ± 0,010

GRAY Normal GRAY Normal x: 0,2890 ± 0,010 x: 0,2850 ± 0,010 y: 0,3150 ± 0,010 y: 0,2930 ± 0,010

Correlation can be also taken by CS-1000A or equivalent

Let the panel standfor more than 3 hours at more than 20 °C. Basically perform adjustment in the ambient environment of room temperature more than 20 °C. The aging time is more than20 min at above room temperature.

Applied signal 100% full colour bar

0,7V p-p white peak

87.5% modulation

100% WHITE

50% GRAY

16

Wiring diagram

S

O

MAINS IN

P11

K-BOARD

K8

P8

P-BOARD

P5

P10

P9

LCD PANEL

HDMI2

HDMI1

DG27

T L

D

JK8801

SERVICE

DG25

JK4500

JK4501

DG-BOARD

DG33

SERVICE

DG1

V1

V-BOARD

DG6

DG2

H6

H2

AP5

AP7

AP4

H4A

H-BOARD

AP-BOARD

AP6

KEY

AP3

H3A

AV1

AV2

H12

SP

JK2002

UDIO OUT

JK3001

PC AUDIO IN

H51

G51

G-BOARD

V3

JK3005

YPBPR, AUDIO IN

JK3700

17

Video & Stereo Audio Block Diagram

V

Y

V

A

36

A

K

THIS IS EXCHANGE UNIT

JK3002B

JK3003B

H-BOARD

AV1_V 20

AV1_VOUT 19

AV1_RED 15

AV1_GREEN 11

AV1_BLUE 7

AV1_L 6

AV1_LOUT

AV1_R 2

AV1 21PIN SCART

AV1_ROUT 1

AV2_V 20

AV2_VOUT 19

AV2_C 15

AV2 GREEN 11

AV2 BLUE 7

AV2_L 6

AV2_LOUT

AV2_R 2

AV2 21PIN SCART

AV2_ROUT 1

PC

JK3001

2 3 1

1 AV1_V

33 AV1_VO 79 AV1_RED 77 AV1_GREEN 81 AV1_BLUE 8,10 AV2_V

3

31 AV2_VO

12 AV2_C

53 AV3_RED/C 51 AV3_GREEN 55 AV3_BLUE

VIDEO SWITCH

MAIN_RGB_CVBS_OUT 44

IC3001

PC_R 75 PC_G 71 PC_B

PC_H_IN 60 PC_V_IN 58

MAIN_Y_OUT 40

MAIN_PB_OUT 39 MAIN_PR_OUT

PC_H 42

PC_V 41

MAIN_RF_CVBS 91

73

38

13

14

Q3200

TUNER

TU3200

21

10

11

AM

SIF_OUT

VIDEO_OUT

MAIN_RGB_CVBS_OUT

MAIN_Y_OUT MAIN_PB_OUT

MAIN_PR_OUT

DTV_BCLK

DTV_SDIN DTV_LRCK DTV2_SDIN

HDMI_BCLK

HDMI_SDIN

HDMI_LRCK

SPDF_IN

H6

3 5 7

10

PC_H

14

PC_V PC_V

16

58 60 62

64 66

68

70 72

DG6

3 5 7

10 14 16

58 60

62 64 66 68 70

72

DG-BOARD

MAIN_Y/CVBS MAIN_PB/C MAIN_PR

RGB_CVBS PC_H

DTV_BCKL

DTV_SDIN DTV_LRCK DTV2_SDIN HDMI_BCLK HDMI_SDIN HDMI_LRCK SPDIF_IN

Q4516

Q4515

Q4514

Q4519

Q4517

99 Y_IN

78 PB/C

94 PR

80 RGB_CVBS

97 SOY

63 PC_HS 62 PC_VS

8 HDMI_BCLK 3 HDMI_SDIN 7 HDMI_LRCK

16,17,18,24-33, 38-48,51-53,55,58

IC4510

ADV7493BBSTZ

IC8554

NOR FLASH

3

63 YPBPR_Y

65 YPBPR_PB

67 YPBPR_PR

95 AV4_

97 AV4_

99 AV4_C

AUDIOOUT_L

AUDIOOUT_R

Q2015

Q2021

7 6 1

IC2011

AUDIO

AMPLIF IER

112,113,115,116,

118,119,121,122

L

DTV_BCKL

DTV_SDIN

JK2002

R

AUDIO OUT

Q2017

DTV_LRCK

DTV2_SDIN

SPDIF_IN

Q2016

D13

A13

F14

D15

A10

A15,A16,B15,B16,C15,C16, D3,D5,D6,E4,E7-E11,E16, F4,F5,F7-F10,F16

CLK,CLKOA,VSYNC,HSYNC,ENB

VI1P2-VI1P9,VI1P12-VI1P19,VI1P22-VI1 P29

A2-A9,B1,B3-B10,C1,C2, C4-C10,D1,D2,E2,E3

IC8001-PeaksLite2

MN2WS0039A

17-A23,C17-C22 E17-E20,B17-B22 F17-F19,D20

2

Y

PB

PR

JK3005

L

R

YPBPR, AUDIO IN

R

L

JK3700

AV4_R

AV4_L

AV4_V

AV4_Y

Y

AV4_C

C

YPBPR_Y

YPBPR_PB

YPBPR_PR

PC_LIN

PC_RIN

PC_LIN 10

PC_RIN 11

H51

G51

7 AV4_R

15

AV2_RO 26

IC3101

AUDIO SWITCH

6 AV4_L

10 8 15

19

7

13

11

AV2_R 15

AV2_L 14

AV2_LO 25

AV_R 33

17

5

AV1_R 17

AV1_LO 23

AV1_RO 24

TV_L 41

TV_R 42

AV_L 32

9

7

3

1

AUXOUTL1 72

76 AINL2 77 AINR2

AV1_L 16

5

3

IC2012

HP

AMPLIF IER

7

HP_ROUT

HP_LOUT

58 HPOUTR1

57 HPOUTL1 74 AUXOU TL2 75 AUXOUTR2

79 AV_R 78 AV_L

8

SIF_IN1

DTV_SDIN 24

DTV_LRCK 18

43

H12

DTV_BCLK 19

IC2106

AUDIO

PROCESSOR

43 SQ_L-

42 SQ_L+

IC2301

AUDIO

AMPLIF IER

36

1

2

DTV2_SDIN 23

AUXOUTR1 73

SPDIF_IN 39

HDMI_SDIN 22

HDMI_BCLK 27

HDMI_LRCK 26

45 SQ_R-

44 SQ_R+

81618

6

31

24

3

4

HDMI 1

JK4501

HDMI 2

JK4500

27,28,30,31 33,34,39,40

IC4503

C1AB00002641

HDMI SWITCH

3,4,6,7,9,10, 45,46

13,14,16,17

RXA_CN,CP,0N,0P,1N,1P,2N,2P

20,21,23,24

SP_R SP_L

IC8002

DDR2-0 SDRAM

IC8003

DDR2-1 SDRAM

IC4201

DDR

SDRAM

LOSD0-LOSD15

LOSD_HP,YS,YM,CLK,

C25,C26,D24-D26,E24-E26, F24-F26,G24-G26,H25,H26, J26,K25,K26,L24-L26,M26

A3-A6,A8-A11,B2-B6,B8-B10,C1-C9

7,8,9,10,51,52,53,54,57,58, 59,60,61,62,63,64,65,66,67, 68,69,70,73,74,75,76,77,78,

LVDS TRANSMITTER

28 4927

29 30

34

32

31

IC4200

MB87Q1431PB

HQ1L

RGB

LVDS_HS,VS,ENB,CLK

IC4207

37 39

35

RIN0-RIN7,GIN0-GIN7,BIN0-BIN7

16-A24,B17-B21,

B23-B25,C16-C24

40 414243

44

VS,HS,CL

4847

46

L

R

HP_LOUT

HP_ROUT

G-BOARD

18

TD2+

13

DG25

TD1+

TD2-

TCLK2-

TCLK2+

14

16

TB2-

TA2+

TC2-

TB2+

TC2+

20

17

19

23

22

21

TCLK1-

TA2-

TD1-

TC1+

TCLK1+

29

24

32

33

30

35

TB1-

36

TA1-

TA1+

TB1+

37

38

40

39

TC1-

TO LCD PANEL

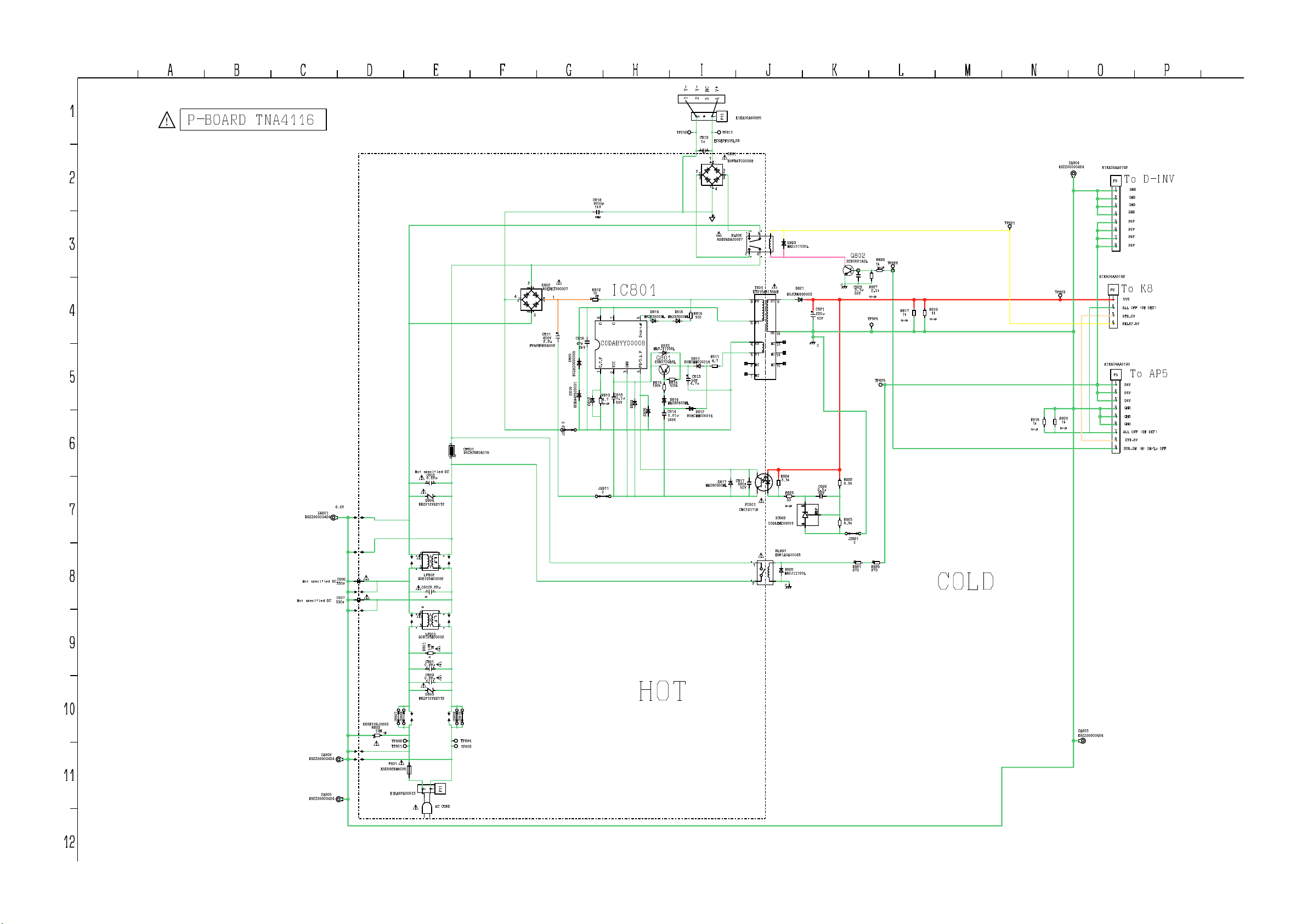

Power Supply Block Diagram

V

A

_

V

8

V

8

V

8

V

A

5

P11

1

MAINS IN

2

D801

P - BOARD

+

F801

LF801

Line

Filter

LF802

2

Line

Filter

3

RL802

D802

1

4

-

4

+

3

2

-

1

8,7

4

5

RL801

Q801

4

6

8

3

RELAY_5V

STB_5V

9

12

T801

24V

1

IC801

3

2

24V

STB_5

2

3

2

IC7301

IC7401

Q7212

24V_DET

Q7203

8

STB_5

5

2

SOUND_Vcc

Q7551

MAIN_9V

Q7214

Q7206

SUB5V

AUD3.3 V

SUB5V

SIF3.3V

MAIN9V

5V

SUB3.3V

DVDD1.8

SOUND15V

SOUND12V

DTV9V

BT30V

SOS

1

P5

1

AP5

24V

8

REGULATOR

8

REGULATOR

IC7501

8

REGULATOR

IC7601

1

REGULATOR

IC7701

1

REGULATOR

Q7205 Q7208

DC-DC ON/OFF

CONTROL

ALL_OFF_DET

Q7211

Q7202

SUB_ON

AP - BOARD

Q7213

7 Vin

IC2008

REGULATOR

1 Vout

1 Vin

IC2010

REGULATOR

5 Vout

4 Vin

IC2013

3

REGULATOR

5 Vout

7,5 Vin

IC2107

REGULATOR

1 Vout

3 Vin

IC2303

REGULATOR

1 Vout

BT30V_SUPPLY

IC2610

PC801

SUB_5V

Q2639

+15V_S

DTV_9V

MAIN_9V

STB_5V

LCD_3.3V

PANEL_12V

PANEL

12V

DTV9V

STB5V

MAIN9V

IC802

P3

2

3 17 18 21 22 23

P4

3

17 16

12

11

8

MUTE SW

Q2033

Q2041

H3A

1,2

3

17

18

21

22

23

H4A

3 17 16

12 11

IC2011

AUD AMP

+15V_S +15V_S

DTV9V

SUB5V

MAIN9V

STB5V

LCD3.3V

LCD3.3V P12V

P12V

5VS

V+

V-

P10

1

3

P8

4

3

1

P9

5 6

7 8

+15V_S

SOUND15V

SOUND12V

SUB5V

BT30V

5V

DTV9V

DVDD1.8V

SIF3.3V

SUB3.3V

UD3.3V

TO INVERTER

K8

4

3

1

TO INVERTER

LCF

26,27,32,35,40,41

1,21,22,23,44

6,25, 45,69

14,21,31,40,51

12

29

4,53,59,68,71

K - BOARD

RELAY_5

STB_5V

5VS

IC2301

AUD AMP

5,9,16

TU3200

18

IC2012

8

HP AMP

IC3101

5

AUD SWITCH

IC3001

VIDEO SWITCH

IC2106

AUDIO PROCESSOR

SW7000

H - BOARD

PHOTO COUPLER

Q1002

Q1004

REMOTE CONTROL

LED RECEIVER

LCD3.3V

LCD3.3V P12V

P12V DTV9V

DTV9V SUB5V

SUB5V

SUB5V SUB3.3V SUB3.3V

MAIN9V

STB5V

CATS-AI

PC1001

R&G LED

RM1001

H2

1 2 5 6 8

9

12

13

14 17 18 21 23

V - BOARD

SUB5V

DG2

1 2 5 6 8

9 12 13

14 17 18 21 23

V1

2

4

MAIN5V

MHQLV3.3V

MAIN5V

MAIN3.3V

MAIN5V

MAIN3.3

MAIN5V

MAIN3.3

DTV9V

SUB3.3V

SUB5V

MAIN5 V

SUB5V

DVDDIO3.3V

HQ3.3V

MHQDDR2.5V

SUB5V

MHQPL3.3V

HQ3.3

MHQPL1.2

HQ3.3V

MHQDDR1.2V

LCD3.3V

HQ3.3V

DG1

12

4

8

1

17

DC/DC CONVER

23

3,8

COMPARATOR

1 Vin

5 Vout

2 Vin

4 Vout

1 Vin

5 Vout

1 Vin

5 Vout

1 Vin

5 Vout

LCF

SUB5V

STB3.3V

IC4500

EEPROM

IC4209

EEPROM

IC4501

EEPROM

IC4504

EEPROM

IC4513

BUS REP

IC4514

BUS REP

IC5600

IC4515

IC4507

REGULATOR

IC4203

REGULATOR

IC4204

REGULATOR

IC4205

REGULATOR

IC4206

REGULATOR

SUB3.3V

3.3V

1.8V

MHQ1.2V

MHQDDR2.5V

MHQLV3.3V

MHQPL1.2V MHQPL3.3V MHQDDR1.2V

1.8V_DDRI/F

SUB3.3V

SUB1.2V

SUB1.8V

DTV9V SUB1.8V

SUB1.2V

DTV9V

SUB3.3V

SUB3.3

STB3.3

MAIN3.3

SUB5V

MHQLV3.3

SUB5V

3.3V

SUB3.3V

1.8V STB5 SUB5V

STB3.3V

SUB3.3V

DVDD1.8V

DTV9V

MHQ1.2V

DVDDIO_3.3V

AVDD_3.3V

TVDD_3.3V

CVDD_1.8V PVDD_1.8V DVDD_1.8V

IC8001-PeksLite2

23

IC5601

3

DC/DC CONVER

12

2

IC5660

RESET IC

1

IC8004

5,13,15

IC8601

8

EEPROM

IC1101

IC4503

HDMI RECEIVER

2,11,18,19,26,35, 37,38,42,43,47,48

4 Vin

IC4208

REGULATOR

5 Vout

7 Vin

IC4506

REGULATOR

1 Vout

8 Vin

IC4508

REGULATOR

1 Vout

1 Vin

IC5670

REGULATOR

5 Vout

8 Vin

IC4509

REGULATOR

1 Vout

1,8 Vin

IC4202

REGULATOR

2 Vout

15,35,50,67

84,88

111,123,127,139 104,109,125,141

68,71,101 23,57,142

VDD/1.2V

DDE25/2.5V

VDDE33/3.3V

PLL_SYS ,PLL_OUT

PLL_OUT

PLL_DDR

MN2WS0039A

CLK GEN

EEPROM

IC4510

ADV7493BBSTZ

IC4200

MB87Q1431PB

HQ1L

STB3.3

SUB3.3V

MAIN3.3V

SUB5V

MAIN5V

SUB1.8V

1.8V_DDRI/F

STB5V

SUB3.3V

31,50,74,78 81,85,94,108,

Q5693

Q5692

L8003

2

20

53,43,29

SERVICE

JK8801

4

SUB3.3V

IC4201

DDR

D7,D8,E4,E11,L4,L7,L8, L11,C3-C5,C7,C8,C10-C12, E3,E12,F4,F11,G4,G11,J4, J11,K4,K11,H4,H11

IC8003

DDR2-1

A1,E1,M9,J9,R1,J1,J2,A9,C1, C3,C7,C9,E9,G1,G3,G7,G9

IC8002

DDR2-0

A1,E1,M9,J9,R1,J1,J2A9,C1, C3,C7,C9,E9,G1,G3,G7,G9

3,24,55,71,87

IC5671

IC RESET

IC8621

LVO

IC8622

LVO

IC8554

FLASH

IC4207

IC1100

GENX4

LVDS

DG - BOARD

THIS IS EXCHANGE

MHQDDR2.5

1.8V_DDRI/F

MHQLV_3.3

UNIT

+5V

STB5V

P12V

JK4501

18

JK4500

18

DG33

1

DG25

1

2 3 4

DG27

1

HDMI 1

HDMI 2

SERVICE

TO LCD PANEL

19

Control Block Diagram

A

AV1_SLOW 8

AV1_QLINK 10

JK3002B

AV1 21PIN SCART

AV2_SLOW 8

AV2_QLINK 10

JK3003B

AV2 21PIN SCART

JK3001

PC AUDIO IN

AUDIO OUT

H - BOARD

AV1_FB 16

AV2_FB 16

13

14

MONITOROUT_MUTE

R

JK2002

L

Q2002

Q2003

PC_H_IN

PC_V_IN

AV2_SLOW

PC_V

PC_H FB AV3_FB AV1_FB PC_V_IN PC_H_IN AV1_SLOW SDA0B_5V SCL0B_5V VIDEO_STATUS

SCL0B_5V SDA0B_5V

AUDIO_MUTE

Q2102

Q2101

SOUND_SOS

SDA0B SCL0B

AUDIO_XRST

TV_SUB_ON_DELAY

SDA0B_5V

SDA0B

SCL0B_5V

SCL0B

MUTE

Q2641

Q2640

4 41 42

46,74 48 49

IC3001

58

VIDEO SWITCH

60 80

83 84 85

IC3101

35

AUDIO SWITCH

36

15

IC2106

PROCESSOR

16 17 50

Q2635

AUDIO

DG - BOARD

FB

H6

PC_H

AMUTE

SOUND_SOS

AMUTE

SOS

MONITOROUT_MUTE

AUDIO_MUTE

SP_MUTE

HDMI_INT2

MONITOROUT_MUTE

AMUTE

SCL0B_5V

SDA0B_5V

AFC1

Q2301

7 17

5

2

D2637

V1-2 OUT MUTE

Q2004

Q2006

13 14 20

IC2301

AUDIO AMP

IC2012

HP AMP

Q2005

Q2007

MUTE SW

D2028

D2031

D2032

Q2031

Q2040

TUNER

Q2034

Q2039

PC_V

SCL0B

SDA0B

AUDIO_XRST

AUDIO_MUTE

TV_SUB_ON_DELAY

SP_MUTE

SOS

SOUND_SOS

AFC1

QLINK_AV2

QLINK_AV3

TUNER_MAIN_ON

TUNER_SUB_ON

KEY

PANEL_STBY_ON

24V_DET

HDMI_INT2

VIDEO_STATUS

16

54

12 14

28 30 32 33 34 35 38

39

41 44

46

48

49

55

56

74

79

DG6

12 14 16 28

30

32 33 34 35 38

39 41

44

46

48

49 54

55

56

74

79

IC4510

ADV7493B

IC5671

RESET IC

IC8554

NOR FLASH

IC8002

DDR2-0 SDRAM

IC8003

DDR2-1 SDRAM

IC8601

EEPROM

IC4504

EEPROM

IC4513

LEVEL

TRAN SLATING

IC4514

LEVEL

TRAN SLATING

IC8001

PeaksLite2

IC4503

HDMI SW

IC4501

EEPROM

IC4500

EEPROM

JK4501

HDMI1

JK4500

HDMI2

JK8801

SD CARD

SERVICE

Q2003

AP - BOARD

TV_SOS

TV_MAIN_ON

TV_SUB_ON

PAN_VCC_ON

24V_DET

D7206

ALL_OFF

SOS

TUNER_MAIN_ON

1

H4A

1 6 8

AP4

TV_SOS

TV_MAIN_ON

SOS

Q7206

Q7208

Q7209

DC-DC ON/OFF

CONTROL

SUB_ON

Q7201

PANEL VCC

Q7703

24V_DET

Q7211

ALL_OFF_DET

Q7212

6

TUNER_SUB_ON

8

TV_SUB_ON

KEY

14

KEYSCAN

PAN_VCC_ON

PANEL_STBY_ON

15

KEY

ALL_OFF

TV_SUB_ON

24V_DET

H3A

AP3

IC8004

CLK GENERATOR

6

V - BOARD

DG1

24V_DET

RM1001

Q1004

Q1002

PC1001

REMOTE

CATS

OUT

Q1006

Q1007

4

REMOTE

G_LED_ON

R_LED_ON

AI_SENSOR

V1

5

8

7

1

QLINK

D1100

D1102

IC1101

EEPROM

IC5660

RESET IC

IC1100

MICROPROCESOR

IC4200

C1AB00002727

HQ1L

IC4207

LVDS

TRANSMITTER

IC4201

DDR SDRAM

IC4209

EEPROM

DG33

SCL

SD

SCL3

SDA3

SCL1

SDA1

SCL2

SDA2

6

10 11

4 5

7 8

SERVICE

9

THIS IS EXCHANGE UNIT

AP6

1

LCD PANEL

AP5

7

9

P - BOARD

P5

7

9

Q802

RL802

P8

2

K - BOARD

K8

2

SW7000

20

Parts Location

The numbers on the exploded view below refer to the exploded view section of the Replacement Parts List.

28 21

NOTE:

(UK)

(CONTINENTAL)

20

22

6

4

19 14

18

2

12

3

29 17

23

26

11 27 24

9

15

5

7

25

13

1

16

10

8

21

Replacement Parts List

Components Identified by mark have special characteristics important for safety.

In case of ordering these spare parts, please always add the complete Model-Type number to your order.

RTL (Retention Time Limited)

Note:

* When replacing any of these components, use only manufacturers specified parts.

The marking (RTL) indicates that the Retention Time is Limited for this item. After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time. The retention period of availability is dependent on the type of assembly, and in accordance with the laws governing part and product retention. After the end of this period, the assembly will no longer be available.

Important Safety Notice

X

The marking (X) indicates that board should be exchanged for service.

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

COMMON PARTS

EXPLODED VIEW

SPEAKER 1 EAS12S11F

TUNER 2 ENGF7701GF

REMOTE CONTROL 3 EUR7651120

CONTROL PANEL ASSY 4 K0RB00500006

80P CONNECTOR COVER 5 K1ZZ00001424

PANASONIC BADGE 6 TBMA216

CLAMPER BRACKET 7 TKK0E9522

CONNECTOR COVER 8 TKP0E16001

AV3 BRACKET 9 TKP0E17101

HDMI COVER 10 TKP0E21601

VESA METAL 11 TKZ0E9420

TUNER BRACKET 12 TMW0E109

P P.C.B. RTL 13 TNPA4116AA

AP P.C.B. RTL 14 TNPA4117AA

G P.C.B. RTL 15 TNPA4118AA

V P.C.B. RTL 16 TNPA4127AD

K P.C.B. RTL 17 TNPA4128AA

H P.C.B. RTL 18 TNPA4291DD

POWER BUTTON ASSY 19 TTP0E0015

MISCELLANEOUS COMPONENTS

BATTERY . R6RC/2P

AV3 LABEL . TBM0E0771

REAR AV LABEL . TBM0E0821

REAR AV LABEL/HDMI. TBM0E0834

IR WINDOW . TKP0E17904

HDMI COVER BARRIER. TMK0E940

SCREW . XSN3+6FJ

SCREW . XTB4+18JFJK

SCREW . XTV3+10JFJK

SCREW . XTV3+12JFJK

SCREW . XTW3+12TFJ

SCREW . XTWT4+Z15DFJ

SCREW . XYN4+F6FJ

SCREW PEDESTAL . XYN4+J10FJK

FERRITE CORE FC01 J0KG00000011

I.C.s

MAIN PS CONTROL IC801 C0DABYY00008

REGULATOR IC802 C0DAAMA00003

MICRO_GENX4 IC1100 MNZSFD7GP42

EEPROM BR24L08F-WE2IC1101 C3EBFC000042

REGULATOR IC2008 C0CBCBE00001

REGULATOR IC2010 C0CBCBC00190

OPERATIONAL AMPLIFIERIC2011 C0ABBB000230

AUDIO AMPLIFIER IC2012 C1BB00000947

REGULATOR IC2013 C0DBGYY00281

AUDIO PROCESSOR IC2106 C1AB00002746

1.8V REGULATOR IC2107 C0DBFFD00003

AUDIO AMPLIFIER IC2301 C1AB00002730

REGULATOR IC2303 C0DBGYY00202

REGULATOR IC2610 C0DBAJB00004

VIDEO SWITCH IC3001 AN15876A-VT

AUDIO SWITCH IC3101 AN15862A-VT

HQ1L_IC IC4200 C1AB00002727

DDR SDRAM IC4201 C3ABQJ000055

REGULATOR IC4202 C0DBAMH00018

2.5V REGULATOR IC4203 C0DBEHG00006

REGULATOR IC4204 C0CBCBC00190

REGULATOR IC4205 C0CBCAC00269

REGULATOR IC4206 C0CBCAC00269

DUAL LVDS DRIVER IC4207 C0JBCZ000556

REGULATOR IC4208 C0CBCBD00043

EEPROM M24C64-WMN6TPIC4209 C3EBJC000055

2KBIT EEPROM IC4500 C3EBDC000067

2KBIT EEPROM IC4501 C3EBDC000067

HDMI SWITCH IC4503 C1AB00002641

EEPROM M24C04-RMN6TPIC4504 C3EBEY000009

REGULATOR IC4506 C0DBGGF00001

REGULATOR IC4507 C0CBCBC00190

REGULATOR IC4508 C0CBCAD00082

REGULATOR IC4509 C0CBCAD00082

VIDEO DECODER IC4510 C1AB00002753

LEVEL SHIFTER IC4513 C0JBAU000034

LEVEL SHIFTER IC4514 C0JBAU000034

COMPARATOR IC4515 C0BBBA000024

DC/DC CONVERTER IC5600 C0DBAYY00273

DC/DC CONVERTER IC5601 C0DBAYY00274

RESET IC IC5660 C0EBM0000026

REGULATOR IC5670 C0CBCBC00190

RESET IC IC5671 C0EBF0000376

REGULATOR IC7301 C0DAAZH00025

REGULATOR IC7401 C0DAAZH00026

REGULATOR IC7501 C0DAAZH00026

REGULATOR IC7601 C0DAAZG00014

REGULATOR IC7701 C0DAAZG00014

PEAKS LITE 2 IC8001 MN2WS0039A

DDR SDRAM IC8002 C3ABRG000080

DDR SDRAM IC8003 C3ABRG000080

CLK GEN IC8004 C0ZBZ0001030

16MB FLASH IC8554 TVRP526-1

LOGIC IC IC8621 C0JBAZ002845

22

FUSES

DIODES

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

LOGIC IC IC8622 C0JBAZ002845

PHOTO COUPLER PC801 CNC1S171R

PHOTO COUPLER PC1001 B3JB00000026

LED RECEIVER RM1001 PNA4701M05TV

FUSE HOLDER F801-1 K3GE1ZA00010

FUSE HOLDER F801-2 K3GE1ZA00010

AC FUSE F801 K5D502BNA007

FUSE R2856 K5H1622A0023

BRIDGE DIODE D801 B0FBAT000008

BRIDGE DIODE D802 B0EBKT000007

VARISTOR D803 ERZV10V621T2

VARISTOR D804 ERZV10V621T2

DIODE D811 B0HCMM000014

DIODE D812 B0HCMM000014

DIODE D813 MA2J11100L

ZENER DIODE D814 MAZ82400ML

ZENER DIODE D815 MAZ83600ML

ZENER DIODE D816 MAZ83600ML

DIODE D817 MAZ80560ML

ZENER DIODE D818 MAZ41000MF

ZENER DIODE D819 B0BA42500001

DIODE D820 B0ZAZ0000045

DIODE D821 B0JCNG000003

DIODE D822 MA2J11100L

DIODE D823 MA2J11100L

DIODE D824 B0BA03600021

DIODE D825 B0BA03600021

DIODE D1001 B3CKE0000007

DIODE MA704ATX D1100 MA3X704A0L

DIODE MA704ATX D1102 MA3X704A0L

DIODE MA704ATX D1107 MA3X704A0L

DIODE D1112 MA2J72800L

DIODE D1113 MA2J72800L

DIODE D2026 MA2J11100L

DIODE D2028 MA2J11100L

DIODE D2029 MA2J11100L

DIODE D2031 MA2J11100L

DIODE D2032 MA2J11100L

DIODE D2033 MA2J11100L

DIODE D2034 MA2J11100L

ZENER DIODE D2119 B0BC01100001

DIODE D2189 MA2J11100L

DIODE D2301 MA2J11100L

DIODE D2302 MA2J11100L

ZENER DIODE D2303 MAZ30560HL

DIODE D2304 MA2J11100L

DIODE D2632 MA2J11100L

DIODE D2633 MA2J11100L

DIODE D2634 MA3X78900L

DIODE D2635 MA2J11100L

DIODE D2636 MAZ30470HL

DIODE D2637 MA2J11100L

ZENER DIODE D2638 B0BC03900015

DIODE D3003 MAZ81400ML

DIODE D3004 MAZ81400ML

DIODE D3005 MAZ81400ML

DIODE D3007 MAZ81400ML

DIODE D3008 MAZ81400ML

DIODE D3009 MAZ81400ML

DIODE D3010 MAZ81400ML

DIODE D3011 MAZ81400ML

DIODE D3012 MAZ81400ML

DIODE D3025 MAZ81400ML

DIODE D3027 MAZ81400ML

DIODE D3028 MAZ81400ML

DIODE D3030 MAZ81400ML

DIODE D3031 MAZ81400ML

DIODE D3032 MAZ81400ML

DIODE D3038 MAZ81400ML

DIODE D3039 MAZ81400ML

DIODE D3041 MAZ81400ML

DIODE D3042 MAZ81400ML

DIODE D3043 MAZ81400ML

ZENER DIODE D3044 B0BC01100001

DIODE D3100 MAZ81400ML

DIODE D3102 MA2J11100L

DIODE D3334 MA2J11100L

DIODE D3335 MA2J11100L

DIODE D3336 MA2J11100L

DIODE D3337 MA2J11100L

DIODE D3338 MA2J11100L

DIODE D4201 B0JCPD000026

DIODE D4202 MAZ80390LL

DIODE D4204 MA3X152K0L

DIODE D4208 MA2J11100L

DIODE D4450 MAZ30560ML

ESD SUPPRESSOR D4500 EZAEG2A50AX

ESD SUPPRESSOR D4501 EZAEG2A50AX

ESD SUPPRESSOR D4502 EZAEG2A50AX

ESD SUPPRESSOR D4503 EZAEG2A50AX

ESD SUPPRESSOR D4504 EZAEG2A50AX

ESD SUPPRESSOR D4505 EZAEG2A50AX

ESD SUPPRESSOR D4506 EZAEG2A50AX

ESD SUPPRESSOR D4507 EZAEG2A50AX

ESD SUPPRESSOR D4508 EZAEG2A50AX

ESD SUPPRESSOR D4509 EZAEG2A50AX

ESD SUPPRESSOR D4510 EZAEG2A50AX

ESD SUPPRESSOR D4511 EZAEG2A50AX

ESD SUPPRESSOR D4512 EZAEG2A50AX

DIODE D4513 MAZ30560ML

ESD SUPPRESSOR D4514 EZAEG2A50AX

DIODE D4515 MAZ30560ML

ESD SUPPRESSOR D4516 EZAEG2A50AX

ESD SUPPRESSOR D4517 EZAEG2A50AX

ESD SUPPRESSOR D4518 EZAEG2A50AX

ESD SUPPRESSOR D4519 EZAEG2A50AX

ESD SUPPRESSOR D4520 EZAEG2A50AX

ESD SUPPRESSOR D4521 EZAEG2A50AX

ESD SUPPRESSOR D4522 EZAEG2A50AX

ESD SUPPRESSOR D4523 EZAEG2A50AX

DIODE D4524 B0HCMM000014

DIODE D4525 B0HCMM000014

DIODE D4526 B0HCMM000014

DIODE D4527 B0HCMM000014

ESD SUPPRESSOR D4528 EZAEG2A50AX

DIODE D4532 B0HCMM000014

DIODE D5601 MA22D3900L

DIODE D5602 MA22D3900L

DIODE D5603 B0JCDD000002

DIODE D5604 B0JCDD000002

DIODE D5605 MA22D3900L

DIODE D5606 B0JCDD000002

DIODE D5607 MAZ802400L

DIODE D5608 MAZ802400L

ZENER DIODE D5609 MAZ80560LL

DIODE D5670 MA2J11100L

DIODE D5671 B0HCMM000014

DIODE D5673 B0HCMM000014

ZENER DIODE D5690 B0BC6R600005

ZENER DIODE D5691 B0BC6R600005

ZENER DIODE D5692 MAZ80390HL

DIODE D7101 MAZ82700ML

DIODE D7102 MA2J11100L

23

TRANSISTORS

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

DIODE D7202 MAZ81500ML

DIODE D7204 MA2J11100L

DIODE D7205 MAZ81800ML

DIODE D7207 MA2J11100L

DIODE D7208 MA2J11100L

DIODE D7209 MA2J11100L

DIODE D7210 MA2J11100L

DIODE D7211 MA2J11100L

DIODE D7212 MA2J11100L

DIODE D7301 B0JCPG000005

DIODE D7303 B0HCMM000014

DIODE D7305 MA2J11100L

ZENER DIODE D7306 MAZ82000ML

DIODE D7401 B0JCPG000005

DIODE D7403 B0HCMM000014

DIODE D7405 MAZ80750ML

DIODE D7406 MA2J11100L

DIODE D7501 B0JCPG000005

DIODE D7503 B0HCMM000014

ZENER DIODE D7505 MAZ81100ML

DIODE D7506 MA2J11100L

DIODE D7601 B0JCPG000005

DIODE D7602 B0HCMM000014

ZENER DIODE D7604 MAZ80560LL

DIODE D7605 MA2J11100L

DIODE D7702 B0JCPG000005

DIODE D7703 B0HCMM000014

DIODE D7704 MAZ81800ML

DIODE D7705 MA2J11100L

TRANSISTOR Q801 2SB0709ASL

TRANSISTOR Q802 2SD0601ASL

TRANSISTOR Q1002 2SB0709ASL

TRANSISTOR Q1004 2SB0709ASL

TRANSISTOR Q1006 2SD0601ASL

TRANSISTOR Q1007 2SD0601ASL

TRANSISTOR Q1010 2SD0601ASL

TRANSISTOR Q1107 2SD0601ASL

TRANSISTOR Q1108 2SD0601ASL

TRANSISTOR Q2002 2SC584500L

TRANSISTOR Q2003 2SC584500L

TRANSISTOR Q2004 2SC584500L

TRANSISTOR Q2005 2SC584500L

TRANSISTOR Q2006 2SC584500L

TRANSISTOR Q2007 2SC584500L

TRANSISTOR Q2015 2SA207700L

TRANSISTOR Q2016 2SC584500L

TRANSISTOR Q2017 2SC584500L

TRANSISTOR Q2021 2SA207700L

TRANSISTOR Q2031 2SA207700L

TRANSISTOR Q2033 2SA207700L

TRANSISTOR Q2034 2SC584500L

TRANSISTOR Q2035 2SC584500L

TRANSISTOR Q2039 2SC584500L

TRANSISTOR Q2040 2SC584500L

TRANSISTOR Q2041 2SC584500L

TRANSISTOR Q2101 2SC584500L

TRANSISTOR Q2102 2SC584500L

TRANSISTOR Q2301 2SA207700L

TRANSISTOR Q2635 2SC584500L

TRANSISTOR Q2636 2SA207700L

TRANSISTOR Q2637 2SA207700L

TRANSISTOR Q2638 2SC584500L

TRANSISTOR Q2639 B1CFNG000001

TRANSISTOR Q2640 B1CBHD000002

TRANSISTOR Q2641 B1CBHD000002

TRANSISTOR Q3027 2SA207700L

TRANSFORMERS

COILS

TRANSISTOR Q3028 2SA207700L

TRANSISTOR Q3200 2SA207700L

TRANSISTOR Q4200 2SD0601ASL

TRANSISTOR Q4201 2SD0601ASL

TRANSISTOR Q4202 2SD0601ASL

TRANSISTOR Q4203 2SB0709ASL

TRANSISTOR Q4204 2SD0601ASL

TRANSISTOR Q4205 2SC39380QL

TRANSISTOR Q4206 2SD0601ASL

TRANSISTOR Q4207 2SC39380QL

TRANSISTOR Q4500 2SD0601ASL

TRANSISTOR Q4501 2SD0601ASL

TRANSISTOR Q4502 2SD0601ASL

TRANSISTOR Q4503 2SD0601ASL

TRANSISTOR Q4504 2SD0601ASL

TRANSISTOR Q4505 2SD0601ASL

TRANSISTOR Q4514 2SB0709ASL

TRANSISTOR Q4515 2SB0709ASL

TRANSISTOR Q4516 2SB0709ASL

TRANSISTOR Q4517 2SB0709ASL

TRANSISTOR Q4519 2SB0709ASL

TRANSISTOR Q4520 2SD0601ASL

TRANSISTOR Q5600 B1MBEDA00015

TRANSISTOR Q5601 B1MBEDA00015

TRANSISTOR Q5602 B1MBEDA00015

TRANSISTOR Q5603 2SD0601ASL

TRANSISTOR Q5604 2SD0601ASL

TRANSISTOR Q5690 B1ABCF000138

TRANSISTOR Q5691 B1ABCF000138

TRANSISTOR Q5692 B1DHDC000028

TRANSISTOR Q5693 B1DHDC000028

TRANSISTOR Q7201 2SD0601ASL

TRANSISTOR Q7202 2SB0709ASL

TRANSISTOR Q7203 2SB0709ASL

TRANSISTOR Q7204 2SD0601ASL

TRANSISTOR Q7205 2SD0601ASL

TRANSISTOR Q7206 2SB0709ASL

TRANSISTOR Q7208 2SD0601ASL

TRANSISTOR Q7209 2SD0601ASL

TRANSISTOR Q7210 2SD0601ASL

TRANSISTOR Q7211 2SD0601ASL

TRANSISTOR Q7212 2SD0601ASL

TRANSISTOR Q7213 2SD0601ASL

TRANSISTOR Q7214 2SD0601ASL

TRANSISTOR Q7301 2SD601ATX

TRANSISTOR Q7302 2SD601ATX

TRANSISTOR Q7401 2SD601ATX

TRANSISTOR Q7402 2SD601ATX

TRANSISTOR Q7501 2SD601ATX

TRANSISTOR Q7502 2SD601ATX

TRANSISTOR FSS140-TL-EQ7551 B1DHDD000033

TRANSISTOR Q7552 2SC584500L

TRANSISTOR Q7553 2SC584500L

TRANSISTOR Q7601 2SD0601ASL

TRANSISTOR Q7701 2SD0601ASL

TRANSISTOR Q7702 2SD0601ASL

TRANSISTOR Q7703 2SD0601ASL

TRANSISTOR Q8851 2SD0601ASL

TRANSISTOR Q8852 2SD0601ASL

TRANSISTOR Q8853 2SD0601ASL

TRANSFORMER T801 ETS15AB136AH

COIL L1100 J0JHC0000078

INDUCTOR L2001 J0JCC0000364

INDUCTOR L2002 J0JCC0000364

INDUCTOR L2003 J0JCC0000100

24

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

INDUCTOR L2004 J0JCC0000100

INDUCTOR L2005 J0JCC0000100

INDUCTOR L2006 J0JCC0000100

INDUCTOR L2007 J0JCC0000100

INDUCTOR L2008 J0JCC0000100

INDUCTOR L2009 J0JCC0000100

INDUCTOR L2010 J0JCC0000100

INDUCTOR L2015 J0JCC0000100

INDUCTOR L2016 J0JCC0000100

COIL L2021 J0JHC0000078

COIL L2026 G1C6R8MA0061

COIL BLM18PG121SN1DL2027 J0JHC0000045

COIL L2029 J0JCC0000077

INDUCTOR L2034 J0JCC0000364

INDUCTOR L2035 J0JCC0000364

COIL BLM18PG121SN1DL2039 J0JHC0000045

COIL BLM18PG121SN1DL2040 J0JHC0000045

COIL L2300 G1C100MA0291

COIL L2302 G1C100MA0291

COIL L2304 G1C100MA0291

COIL L2306 G1C100MA0291

INDUCTOR L2308 J0JJC0000011

INDUCTOR L2310 J0JJC0000011

COIL L2648 G1C470MA0077

COIL L2649 G1C100MA0072

COIL L2650 G1C3R3ZA0083

INDUCTOR L3001 J0JCC0000100

INDUCTOR L3002 J0JCC0000100

INDUCTOR L3003 J0JCC0000100

COIL L3004 G1C101M00018

INDUCTOR L3206 J0JCC0000241

INDUCTOR L3207 J0JCC0000241

COIL L3209 J0JGC0000021

INDUCTOR L3210 J0JCC0000241

COIL L3211 J0JGC0000021

INDUCTOR L3700 J0JCC0000100

INDUCTOR L3701 J0JCC0000100

INDUCTOR L3702 J0JCC0000364

INDUCTOR L3703 J0JCC0000364

COIL L4201 J0JHC0000078

COIL L4202 G1C220MA0077

COIL L4203 G1C330MA0167

COIL L4204 J0JHC0000078

COIL L4205 J0JHC0000078

COIL L4206 J0JHC0000078

COIL L4207 J0JHC0000078

COIL L4208 TLTAZ100K

COIL L4209 J0JHC0000078

COIL L4210 J0JHC0000078

COIL L4211 J0JHC0000078

COIL L4212 J0JHC0000078

COIL L4213 J0JHC0000078

COIL L4214 J0JHC0000078

COIL L4215 J0JHC0000078

COIL L4216 J0JHC0000078

COIL L4217 J0JHC0000078

COIL L4220 J0JHC0000078

COIL L4450 J0JHC0000078

COIL L4451 J0JHC0000078

COIL L4452 J0JHC0000078

COIL L4453 J0JHC0000078

COIL L4500 J0JHC0000078

COIL L4501 J0JHC0000078

COIL L4502 J0JHC0000078

COIL L4503 J0JHC0000078

COIL L4504 J0JHC0000078

COIL L4505 J0JHC0000078

COIL L4506 J0JHC0000078

FILTERS

COIL L4507 J0JHC0000078

COIL L4508 J0JHC0000078

COIL L4511 J0JHC0000078

COIL L4512 J0JCC0000077

COIL L4516 J0JHC0000078

COIL L4517 J0JHC0000078

COIL L4518 J0JHC0000078

COIL L4520 J0JHC0000078

COIL L4521 J0JHC0000078

COIL L4524 J0JHC0000078

COIL L5600 G1C2R2ZA0083

COIL L5601 G1C2R2ZA0083

COIL L5602 G1C3R3ZA0083

COIL L5604 G1C100MA0077

COIL BLM21PG600SN1DL5605 J0JHC0000075

COIL L5606 G1C100MA0077

COIL BLM21PG331SN1DL5610 J0JHC0000035

COIL BLM21PG331SN1DL5611 J0JHC0000035

COIL L5670 J0JHC0000078

COIL L5690 J0JHC0000078

COIL L5691 J0JHC0000078

COIL BLM21PG600SN1DL5692 J0JHC0000075

COIL L5731 J0JHC0000078

COIL L5733 J0JHC0000078

COIL L5734 J0JHC0000078

COIL L5735 J0JHC0000078

COIL L7201 G0A680GA0002

COIL L7302 G0A680ZA0037

COILL7304 EXCELDR25V

COIL L7402 G0A101ZA0038

COILL7403 EXCELDR25V

COIL L7502 G0A470ZA0037

COILL7504 EXCELDR25V

COIL TALL08T100KAL7551 G0A100GA0013

COIL L7602 G0A101ZA0038

COILL7603 EXCELDR25V

COIL L7702 G0A101ZA0038

COIL TALL08T100KAL7903 G0A100GA0013

COIL TALL08T100KAL7904 G0A100GA0013

COIL TALL08T100KAL7905 G0A100GA0013

COIL BLM18PG121SN1DL8001 J0JHC0000045

COIL BLM18PG121SN1DL8002 J0JHC0000045

COIL BLM18PG121SN1DL8003 J0JHC0000045

COIL BLM18PG121SN1DL8004 J0JHC0000045

COIL BLM18PG121SN1DL8005 J0JHC0000045

COIL BLM18PG121SN1DL8007 J0JHC0000045

COIL BLM18PG121SN1DL8008 J0JHC0000045

COIL BLM18PG121SN1DL8009 J0JHC0000045

COIL BLM18PG121SN1DL8010 J0JHC0000045

COIL BLM21PG600SN1DL8551 J0JHC0000075

COIL BLM21PG600SN1DL8621 J0JHC0000075

FILTER FL2001 J0HABB000004

FILTER FL2002 J0HABB000004

FILTER FL3001 J0HABB000003

FILTER FL3002 J0HABB000003

FILTER FL3003 J0HABB000004

FILTER FL3004 J0HABB000004

FILTER FL3005 J0HABB000004

FILTER FL4201 J0MAB0000169

FILTER FL4202 J0MAB0000169

FILTER FL4203 J0MAB0000169

FILTER FL4204 J0MAB0000169

FILTER FL4205 J0MAB0000169

LINE FILTER LF801 G0B103H00002

LINE FILTER LF802 G0B103H00002

25

CRYSTALS

RESISTORS

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

CRYSTAL X1100 H0J100500035

CRYSTAL X2010 H0J245500082

CRYSTAL X4200 H0J270500113

CRYSTAL X4201 H0J480500026

CRYSTAL X4500 H0J270500113

CRYSTAL X8001 H0J270500061

THERMISTCF801 D4CAY8R0A019 - - 8 Ω

SMDD5672 ERJ3GEY0R00 0.1W - 0 Ω

SMDFL3006A EXB28VR000X 0W - 0 Ω

SMDFL3007A EXB28VR000X 0W - 0 Ω

S.M.CARBJS811 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS821 ERJ6GEY0R00 0.1W - 0 Ω

SMDJS1004 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS1103 ERJ2GE0R00X .063W - 0 Ω

SMDJS2031 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2032 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2046 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2048 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2049 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2051 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2059 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2060 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2061 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2062 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2064 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2096 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS2101 ERJ3GEY0R00 0.1W - 0 Ω

S.M.CARBJS3005 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3007 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3008 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3009 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3010 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3011 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3012 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3013 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3014 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3015 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3016 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3018 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3019 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3020 ERJ6GEY0R00 0.1W - 0 Ω

SMDJS3023 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS3032 ERJ3GEY0R00 0.1W - 0 Ω

S.M.CARBJS3040 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3041 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3042 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBJS3043 ERJ6GEY0R00 0.1W - 0 Ω

SMDJS3047 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS3206 ERJ3GEY0R00 0.1W - 0 Ω

SMDJS3208 ERJ3GEY0R00 0.1W - 0 Ω

S.M.CARBJS3213 ERJ6GEY0R00 0.1W - 0 Ω

SMDJS4002 ERJ2GE0R00X .063W - 0 Ω

SMDJS4200 ERJ2GE0R00X .063W - 0 Ω

SMDJS4201 ERJ2GE0R00X .063W - 0 Ω

SMDJS4202 ERJ2GE0R00X .063W - 0 Ω

SMDJS4203 ERJ2GE0R00X .063W - 0 Ω

SMDJS4204 ERJ2GE0R00X .063W - 0 Ω

SMDJS4205 ERJ2GE0R00X .063W - 0 Ω

SMDJS4206 ERJ2GE0R00X .063W - 0 Ω

SMDJS4207 ERJ2GE0R00X .063W - 0 Ω

SMDJS4208 ERJ2GE0R00X .063W - 0 Ω

SMDJS4209 ERJ2GE0R00X .063W - 0 Ω

SMDJS4210 ERJ2GE0R00X .063W - 0 Ω

SMDJS4211 ERJ2GE0R00X .063W - 0 Ω

SMDJS4212 ERJ2GE0R00X .063W - 0 Ω

SMDJS4501 ERJ2GE0R00X .063W - 0 Ω

SMDL2022 ERJ3GEY0R00 0.1W - 0 Ω

SMDL4200 ERJ3GEY0R00 0.1W - 0 Ω

SMDL8006 ERJ3GEY0R00 0.1W - 0 Ω

CARBONR801 ERC12ZGK105V 0.5W 10% 1M Ω

RESISTORR802 D0XB106J0003 1W 5% 10M Ω

S.M.CARBR811 ERJ6GEYJ4R7V .125W 5% 4.7 Ω

FIXEDR812 ERF2AJ100P 2W 5% 10 Ω

S.M.CARBR813 ERJ6GEYJ4R7V .125W 5% 4.7 Ω

S.M.CARBR814 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR815 ERJ6GEYJ104 0.1W 5% 100K Ω

S.M.CARBR816 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR817 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR818 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR819 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR820 ERJ6GEYJ102 0.1W 5% 1K Ω

METALR821 ERG1SJ271 1W 5% 270 Ω

S.M.CARBR822 ERJ6ENF6801 0.1W 1% 6K8 Ω

S.M.CARBR823 ERJ6ENF6801 0.1W 1% 6K8 Ω

S.M.CARBR824 ERJ6GEYJ332 0.1W 5% 3K3 Ω

S.M.CARBR825 ERJ6GEYJ330 0.1W 5% 33 Ω

S.M.CARBR826 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR827 ERJ6GEYJ222 0.1W 5% 2K2 Ω

METALR828 ERG1SJ271 1W 5% 270 Ω

S.M.CARBR1002 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR1003 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR1006 ERJ3GEYJ681V 0.1W 5% 680 Ω

S.M.CARBR1008 ERJ3GEYJ473V 0.1W 5% 47K Ω

S.M.CARBR1010 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR1015 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR1017 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR1019 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR1020 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR1022 ERJ3GEYJ152 0.1W 5% 1K5 Ω

SMDR1028 ERJ3GEYJ470 0.1W 5% 47 Ω

SMDR1033 ERJ3EKF2402V 0.1W 1% 24K Ω

SMDR1034 ERJ3EKF5102V 0.1W 1% 51K Ω

S.M.CARBR1046 ERJ3GEYJ223V 0.1W 5% 22K Ω

S.M.CARBR1048 ERJ3GEYJ224V 0.1W 5% 220K Ω

S.M.CARBR1049 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR1100 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1101 ERJ2GE0R00X .063W - 0 Ω

SMDR1102 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1103 ERJ2GEJ330X .063W 5% 33 Ω

SMDR1104 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1105 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1106 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1107 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1108 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1109 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1110 ERJ2GEJ273X .063W 5% 27K Ω

SMDR1122 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1124 ERJ2GEJ220X .063W 5% 22 Ω

SMDR1125 ERJ2GEJ220X .063W 5% 22 Ω

SMDR1126 ERJ2GEJ273X .063W 5% 27K Ω

SMDR1134 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1144 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1146 ERJ2GEJ102X .063W 5% 1K Ω

SMDR1147 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1153 ERJ2GEJ821X .063W 5% 820 Ω

SMDR1162 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1163 ERJ2GEJ105X .063W 5% 1M Ω

SMDR1164 ERJ2GEJ103X .063W 5% 10K Ω

SMDR1165 ERJ2GEJ182X .063W 5% 1K8 Ω

SMDR1166 ERJ2GEJ104X .063W 5% 100K Ω

SMDR1169 ERJ2GEJ563X .063W 5% 56K Ω

SMDR1170 ERJ2GEJ273X .063W 5% 27K Ω

SMDR1171 ERJ2GEJ563X .063W 5% 56K Ω

26

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR1172 ERJ2GEJ273X .063W 5% 27K Ω

S.M.CARBR1173 ERJ6GEYJ201 0.1W 5% 200 Ω

SMDR1174 ERJ2GEJ220X .063W 5% 22 Ω

SMDR1175 ERJ2GEJ220X .063W 5% 22 Ω

SMDR1179 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1181 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1182 ERJ2GEJ273X .063W 5% 27K Ω

SMDR1183 ERJ2GEJ220X .063W 5% 22 Ω

SMDR1184 ERJ2GEJ220X .063W 5% 22 Ω

SMDR1194 ERJ2GEJ563X .063W 5% 56K Ω

SMDR1195 ERJ2GEJ104X .063W 5% 100K Ω

SMDR1196 ERJ2GEJ333X .063W 5% 33K Ω

SMDR1199 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1200 ERJ2GEJ562X .063W 5% 5K6 Ω

SMDR1201 ERJ2GEJ562X .063W 5% 5K6 Ω

SMDR1203 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1204 ERJ2GE0R00X .063W - 0 Ω

SMDR1205 ERJ2GEJ220X .063W 5% 22 Ω

SMDR1206 ERJ2GEJ220X .063W 5% 22 Ω

SMDR1209 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1216 ERJ2GEJ333X .063W 5% 33K Ω

SMDR1217 ERJ2GEJ563X .063W 5% 56K Ω

SMDR1218 ERJ2GEJ103X .063W 5% 10K Ω

SMDR1219 ERJ2GEJ103X .063W 5% 10K Ω

SMDR1220 ERJ2GEJ103X .063W 5% 10K Ω

SMDR1221 ERJ3EKF7151V 0.1W 1% 7K15 Ω

SMDR1222 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1223 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1224 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1225 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1226 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1227 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1228 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1229 ERJ2GEJ101X .063W 5% 100 Ω

SMDR1230 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1231 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1232 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1233 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1234 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1235 ERJ2GEJ104X .063W 5% 100K Ω

SMDR1236 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1237 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1243 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1246 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1250 ERJ2GEJ473X .063W 5% 47K Ω

SMDR1255 ERJ2GEJ102X .063W 5% 1K Ω

SMDR1263 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2003 ERJ2GE0R00X .063W - 0 Ω

SMDR2010 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2011 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2012 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2013 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2014 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2015 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2016 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2018 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2019 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2020 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2023 ERJ2GEJ473X .063W 5% 47K Ω

SMDR2025 ERJ2GEJ473X .063W 5% 47K Ω

S.M.CARBR2029 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR2030 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR2031 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR2032 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR2035 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR2036 ERJ3GEYJ104V 0.1W 5% 100K Ω

SMDR2037 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2038 ERJ3GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR2039 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR2040 ERJ3GEYJ104V 0.1W 5% 100K Ω

SMDR2041 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2042 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2047 ERJ3GEYJ331 0.1W 5% 330 Ω

SMDR2048 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2049 ERJ3GEYJ331 0.1W 5% 330 Ω

SMDR2050 ERJ3GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR2051 ERJ6GEYJ184 0.1W 5% 180K Ω

S.M.CARBR2052 ERJ6GEYJ184 0.1W 5% 180K Ω

S.M.CARBR2053 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR2054 ERJ3GEYJ104V 0.1W 5% 100K Ω

SMDR2056 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR2057 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR2058 ERJ3GEYJ301V 0.1W 5% 300 Ω

SMDR2059 ERJ3GEYJ105 0.1W 5% 1M Ω

SMDR2084 ERJ3GEYJ472 0.1W 5% 4K7 Ω

SMDR2085 ERJ3GEYJ561 0.1W 5% 560 Ω

SMDR2086 ERJ3GEYJ471 0.1W 5% 470 Ω

SMDR2088 ERJ3GEYJ101 0.1W 5% 100 Ω

SMDR2089 ERJ3GEYJ561 0.1W 5% 560 Ω

SMDR2092 ERJ3GEYJ471 0.1W 5% 470 Ω

SMDR2093 ERJ3GEYJ332 0.1W 5% 3K3 Ω

SMDR2094 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2096 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2097 ERJ3GEYJ332 0.1W 5% 3K3 Ω

SMDR2098 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2099 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2100 ERJ3EKF2002V 0.1W 1% 20 Ω

SMDR2101 ERJ3GEYJ331 0.1W 5% 330 Ω

SMDR2102 ERJ3GEYJ331 0.1W 5% 330 Ω

SMDR2104 ERJ3EKF2001V 0.1W 1% 2K Ω

SMDR2110 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2111 ERJ3GEYJ101 0.1W 5% 100 Ω

SMDR2112 ERJ3GEYJ105 0.1W 5% 1M Ω

SMDR2113 ERJ3EKF1203V 0.1W 1% 120K Ω

SMDR2114 ERJ3EKF7502V 0.1W 1% 75K Ω

SMDR2116 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2117 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2118 ERJ3GEYJ105 0.1W 5% 1M Ω

SMDR2119 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2122 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR2123 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR2124 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2125 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2127 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2128 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR2129 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2131 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR2132 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR2137 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2138 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2144 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2145 ERJ3EKF2002V 0.1W 1% 20 Ω

SMDR2146 ERJ3EKF2002V 0.1W 1% 20 Ω

SMDR2149 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2150 ERJ3EKF2002V 0.1W 1% 20 Ω

SMDR2151 ERJ3EKF2002V 0.1W 1% 20 Ω

SMDR2152 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR2154 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR2156 ERJ3GEYJ680 0.1W 5% 68 Ω

SMDR2157 ERJ3GEYJ331 0.1W 5% 330 Ω

SMDR2159 ERJ3GEYJ331 0.1W 5% 330 Ω

SMDR2160 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2162 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2164 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2165 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2166 ERJ3EKF1602V 0.1W 1% 16K Ω

27

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR2167 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2168 ERJ3EKF1602V 0.1W 1% 16K Ω

SMDR2169 ERJ3EKF2202V 0.1W 1% 22K Ω

SMDR2170 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2171 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2172 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2173 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR2178 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR2179 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2180 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR2181 ERJ3EKF2202V 0.1W 1% 22K Ω

SMDR2182 ERJ3EKF3602V 0.1W 1% 36K Ω

SMDR2183 ERJ3EKF3602V 0.1W 1% 36K Ω

S.M.CARBR2184 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR2185 ERJ6GEYJ101 0.1W 5% 100 Ω

SMDR2186 ERJ3GEYJ823 0.1W 5% 82K Ω

S.M.CARBR2187 ERJ6GEY0R00 0.1W - 0 Ω

SMDR2189 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR2192 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR2193 ERJ3GEYJ104V 0.1W 5% 100K Ω

SMDR2194 ERJ3GEYJ102 0.1W 5% 1K Ω

S.M.CARBR2195 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR2196 ERJ3GEYJ104V 0.1W 5% 100K Ω

SMDR2197 ERJ3EKF6802V 0.1W 1% 68K Ω

SMDR2198 ERJ3EKF1583V 0.1W 1% 158K Ω

SMDR2204 ERJ3GEYJ333V 0.1W 5% 33K Ω

SMDR2205 ERJ3GEYJ203V 0.1W 5% 20K Ω

SMDR2206 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2208 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2209 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2210 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2216 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR2217 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR2223 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2224 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2225 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2227 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2228 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2229 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2230 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2231 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2232 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2233 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR2235 ERJ3GEYJ473V 0.1W 5% 47K Ω

S.M.CARBR2236 ERJ3GEYJ153V 0.1W 5% 15K Ω

S.M.CARBR2237 ERJ3GEYJ153V 0.1W 5% 15K Ω

S.M.CARBR2238 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR2244 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR2257 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2263 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2265 ERJ3GEYJ472 0.1W 5% 4K7 Ω

SMDR2266 ERJ3GEYJ561 0.1W 5% 560 Ω

SMDR2271 EXB28V220JX .031W 5% 22 Ω

SMDR2276 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2290 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2291 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2294 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2295 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2296 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2297 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2300 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2301 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2302 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2303 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2304 ERJ3GEY0R00 0.1W - 0 Ω

SMDR2305 ERJ3GEYJ471 0.1W 5% 470 Ω

SMDR2306 ERJ3GEYJ683 0.1W 5% 68K Ω

SMDR2308 ERJ8GEYJ3R3V 0.25W 5% 3R3 Ω

SMDR2311 ERJ8GEYJ3R3V 0.25W 5% 3R3 Ω

SMDR2313 ERJ8GEYJ3R3V 0.25W 5% 3R3 Ω

SMDR2315 ERJ8GEYJ3R3V 0.25W 5% 3R3 Ω

S.M.CARBR2317 ERJ6GEYJ100 0.1W 5% 10 Ω

S.M.CARBR2319 ERJ6GEYJ100 0.1W 5% 10 Ω

S.M.CARBR2321 ERJ6GEYJ100 0.1W 5% 10 Ω

S.M.CARBR2323 ERJ6GEYJ100 0.1W 5% 10 Ω

S.M.CARBR2325 ERJ6GEYJ100 0.1W 5% 10 Ω

SMDR2330 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR2331 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2624 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR2625 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR2628 ERJ3GEYJ512V 0.1W 5% 5K1 Ω

SMDR2629 ERJ3GEYJ512V 0.1W 5% 5K1 Ω

SMDR2853 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2854 ERJ3GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR2855 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR2857 ERJ3GEYJ472 0.1W 5% 4K7 Ω

SMDR2858 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2859 ERJ3GEYJ472 0.1W 5% 4K7 Ω

SMDR2860 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2861 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR2863 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR2864 ERJ3GEYJ682 0.1W 5% 6K8 Ω

SMDR2865 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR2866 ERJ3GEYJ222 0.1W 5% 2K2 Ω

SMDR2867 ERJ6ENF8202V .125W 1% 82K Ω

SMDR2868 ERJ6ENF1602V .125W 1% 16K Ω

SMDR2869 ERJ3GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR2890 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR2891 ERJ6GEY0R00 0.1W - 0 Ω

SMDR3001 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3002 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3003 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3004 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3005 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3006 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3008 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3009 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3010 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3011 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3013 ERJ6ENF75R0 .125W 1% 75 Ω

SMDR3014 ERJ6ENF75R0 .125W 1% 75 Ω

SMDR3015 ERJ6ENF75R0 .125W 1% 75 Ω

S.M.CARBR3018 ERJ6GEYJ680 0.1W 5% 68 Ω

SMDR3020 ERJ6ENF2152V .125W 1% 21K5 Ω

SMDR3021 ERJ6ENF2152V .125W 1% 21K5 Ω

S.M.CARBR3023 ERJ6ENF1302 0.1W 1% 13K Ω

SMDR3027 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3028 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3031 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3032 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3033 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3036 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3037 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3038 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3039 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3040 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3041 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3044 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3045 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3059 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3060 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3061 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3062 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3063 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3064 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3068 ERJ6ENF75R0 .125W 1% 75 Ω

28

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR3072 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3073 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3087 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3089 ERJ3GEYJ331 0.1W 5% 330 Ω

SMDR3090 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR3092 ERJ3GEYJ680 0.1W 5% 68 Ω

SMDR3094 ERJ3GEYJ680 0.1W 5% 68 Ω

SMDR3095 ERJ3GEYJ680 0.1W 5% 68 Ω

SMDR3096 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3097 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3098 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3099 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3100 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3101 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3103 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3106 ERJ3GEYJ274V 0.1W 5% 270K Ω

SMDR3109 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3110 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3111 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3112 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3113 ERJ3GEY0R00 0.1W - 0 Ω

S.M.CARBR3114 ERJ6GEYJ680 0.1W 5% 68 Ω

SMDR3121 ERJ3GEYJ470 0.1W 5% 47 Ω

SMDR3123 ERJ3GEYJ470 0.1W 5% 47 Ω

SMDR3130 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3131 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3133 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3134 ERJ3GEYJ274V 0.1W 5% 270K Ω

SMDR3137 ERJ3EKF1000V 0.1W 1% 100 Ω

SMDR3140 ERJ3GEYJ470 0.1W 5% 47 Ω

SMDR3143 ERJ6ENF68R0V .125W 1% 68 Ω

SMDR3144 ERJ3GEYJ221 0.1W 5% 220 Ω

S.M.CARBR3145 ERJ3GEYJ104V 0.1W 5% 100K Ω

SMDR3146 ERJ3GEYJ361V 0.1W 5% 360 Ω

SMDR3149 ERJ3GEYJ361V 0.1W 5% 360 Ω

SMDR3150 ERJ6ENF68R0V .125W 1% 68 Ω

SMDR3151 ERJ3GEYJ221 0.1W 5% 220 Ω

S.M.CARBR3152 ERJ3GEYJ104V 0.1W 5% 100K Ω

SMDR3153 ERJ3GEYJ361V 0.1W 5% 360 Ω

SMDR3154 ERJ3GEYJ361V 0.1W 5% 360 Ω

S.M.CARBR3163 ERJ6ENF1302 0.1W 1% 13K Ω

SMDR3171 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3172 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3173 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3174 ERJ3GEYJ680 0.1W 5% 68 Ω

SMDR3175 ERJ3GEYJ680 0.1W 5% 68 Ω

SMDR3176 ERJ3GEYJ680 0.1W 5% 68 Ω

SMDR3178 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3186 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3187 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3191 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR3192 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3193 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3194 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3202 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3205 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3213 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3214 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3222 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3227 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3228 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3229 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3233 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3234 ERJ6ENF1500 .125W 1% 150 Ω

SMDR3239 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3240 ERJ3EKF5600V 0.1W 1% 560 Ω

S.M.CARBR3243 ERJ6GEYJ271 0.1W 5% 270 Ω

SMDR3244 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR3246 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR3247 ERJ3GEYJ221 0.1W 5% 220 Ω

SMDR3271 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3273 ERJ3GEY0R00 0.1W - 0 Ω

SMDR3274 ERJ3GEY0R00 0.1W - 0 Ω

S.M.CARBR3275 ERJ3GEYJ104V 0.1W 5% 100K Ω

S.M.CARBR3302 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3305 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3306 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR3307 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR3308 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBR3309 ERJ6GEY0R00 0.1W - 0 Ω

SMDR3310 ERJ6ENF75R0 .125W 1% 75 Ω

S.M.CARBR3312 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR3313 ERJ6ENF75R0 .125W 1% 75 Ω

SMDR3318 ERJ6ENF75R0 .125W 1% 75 Ω

SMDR3348 ERJ3GEYJ680 0.1W 5% 68 Ω

SMDR3349 ERJ3GEYJ680 0.1W 5% 68 Ω

SMDR3350 ERJ3GEYJ101 0.1W 5% 100 Ω

S.M.CARBR3700 ERJ6GEYJ393 0.1W 5% 39K Ω

S.M.CARBR3701 ERJ6GEYJ393 0.1W 5% 39K Ω

S.M.CARBR3702 ERJ6GEYJ184 0.1W 5% 180K Ω

S.M.CARBR3703 ERJ6GEYJ184 0.1W 5% 180K Ω

SMDR4001 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4026 ERJ3GEY0R00 0.1W - 0 Ω

SMDR4209 EXB28V680JX .031W 5% 68 Ω

SMDR4213 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4214 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4215 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4216 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4217 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4218 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4219 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4221 ERJ2GE0R00X .063W - 0 Ω

SMDR4223 ERJ2GE0R00X .063W - 0 Ω

SMDR4224 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4225 ERJ2GE0R00X .063W - 0 Ω

SMDR4226 ERJ2GE0R00X .063W - 0 Ω

SMDR4227 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4228 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4229 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4230 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4234 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4238 ERJ2GE0R00X .063W - 0 Ω

SMDR4239 D1BA4701A026 .063W 1% 4K7 Ω

SMDR4240 D1BA68R0A026 .068W 1% 68 Ω

SMDR4241 ERJ2GE0R00X .063W - 0 Ω

SMDR4242 D1BA2202A026 .063W 1% 22K Ω

SMDR4243 EXB2HV470JV .063W 5% 47 Ω

SMDR4244 EXB2HV470JV .063W 5% 47 Ω

SMDR4245 EXB2HV470JV .063W 5% 47 Ω

SMDR4246 ERJ2GEJ101X .063W 5% 100 Ω

SMDR4247 ERJ2GEJ334X .063W 5% 330K Ω

SMDR4248 ERJ2GEJ470X .063W 5% 47 Ω

SMDR4249 ERJ2GEJ470X .063W 5% 47 Ω

SMDR4250 ERJ2GEJ470X .063W 5% 47 Ω

SMDR4251 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4252 ERJ2GEJ391X .063W 5% 390 Ω

SMDR4254 ERJ3GEY0R00 0.1W - 0 Ω

SMDR4257 EXB28V220JX .031W 5% 22 Ω

SMDR4258 EXB28V220JX .031W 5% 22 Ω

SMDR4259 EXB28V220JX .031W 5% 22 Ω

SMDR4260 EXB28V220JX .031W 5% 22 Ω

SMDR4261 EXB28V220JX .031W 5% 22 Ω

SMDR4262 EXB28V220JX .031W 5% 22 Ω

SMDR4263 EXB28V220JX .031W 5% 22 Ω

SMDR4264 EXB28V220JX .031W 5% 22 Ω

SMDR4265 ERJ3GEYJ220 0.1W 5% 22 Ω

29

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR4266 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR4267 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR4268 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR4269 EXB28V220JX .031W 5% 22 Ω

SMDR4270 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4271 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4272 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR4273 ERJ3GEYJ220 0.1W 5% 22 Ω

SMDR4274 EXB28V220JX .031W 5% 22 Ω

SMDR4275 EXB28V220JX .031W 5% 22 Ω

SMDR4276 EXB28V220JX .031W 5% 22 Ω

SMDR4277 ERJ3GEYJ151 0.1W 5% 150 Ω

SMDR4278 ERJ2GEJ363X .063W 5% 36K Ω

SMDR4279 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4280 ERJ2GEJ101X .063W 5% 100 Ω

SMDR4281 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4282 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4283 ERJ2GEJ223X .063W 5% 22K Ω

SMDR4284 ERJ2GEJ164X .063W 5% 160K Ω

SMDR4285 ERJ2GE0R00X .063W - 0 Ω

SMDR4286 ERJ3EKF1502V 0.1W 1% 15K Ω

SMDR4287 ERJ3EKF5762V 0.1W 1% 57K6 Ω

S.M.CARBR4288 ERJ6GEY0R00 0.1W - 0 Ω

SMDR4289 D1BA1001A026 .063W 1% 1K Ω

SMDR4290 D1BA1001A026 .063W 1% 1K Ω

SMDR4291 ERJ3EKF6802V 0.1W 1% 68K Ω

SMDR4292 ERJ3EKF3002V 0.1W 1% 30K Ω

SMDR4294 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4295 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4296 ERJ2GE0R00X .063W - 0 Ω

SMDR4297 ERJ2GE0R00X .063W - 0 Ω

SMDR4298 ERJ2GE0R00X .063W - 0 Ω

SMDR4299 ERJ2GE0R00X .063W - 0 Ω

SMDR4300 ERJ2GE0R00X .063W - 0 Ω

SMDR4301 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4302 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4303 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4304 ERJ2GEJ302X .063W 5% 3K Ω

SMDR4308 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4309 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4310 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4311 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4312 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4313 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4314 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4315 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4316 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4317 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4318 ERJ6ENF5111V .125W 1% 5K11 Ω

SMDR4319 ERJ6ENF4871V .125W 1% 4K87 Ω

SMDR4320 D1BA3001A026 .063W 1% 3K Ω

SMDR4321 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4322 D1BA3901A026 .063W 1% 3K9 Ω

SMDR4323 ERJ2GEJ104X .063W 5% 100K Ω

SMDR4324 ERJ2GEJ682X .063W 5% 6K8 Ω

SMDR4326 ERJ2GEJ100X .063W 5% 10 Ω

SMDR4327 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4328 ERJ2GEJ101X .063W 5% 100 Ω

SMDR4330 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4331 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4332 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4333 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4334 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4335 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4336 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4337 EXB2HV680JV .063W 5% 68 Ω

SMDR4338 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4339 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4340 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4341 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4342 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4343 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4348 ERJ2GE0R00X .063W - 0 Ω

SMDR4349 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4352 ERJ2GE0R00X .063W - 0 Ω

SMDR4353 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4356 ERJ2GE0R00X .063W - 0 Ω

SMDR4357 ERJ2GEJ223X .063W 5% 22K Ω

SMDR4360 ERJ2GEJ223X .063W 5% 22K Ω

SMDR4361 ERJ2GE0R00X .063W - 0 Ω

SMDR4375 ERJ2GE0R00X .063W - 0 Ω

SMDR4376 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR4385 ERJ2GE0R00X .063W - 0 Ω

SMDR4399 ERJ3EKF2001V 0.1W 1% 2K Ω

SMDR4400 ERJ2GE0R00X .063W - 0 Ω

SMDR4405 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4406 EXB2HV680JV .063W 5% 68 Ω

SMDR4408 EXB2HV680JV .063W 5% 68 Ω

SMDR4410 EXB2HV680JV .063W 5% 68 Ω

SMDR4412 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4413 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4456 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4457 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4458 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4500 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4501 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4502 ERJ2GEJ330X .063W 5% 33 Ω

SMDR4503 ERJ2GEJ330X .063W 5% 33 Ω

SMDR4506 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4507 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4508 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4509 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4510 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4511 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4512 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4513 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4514 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4515 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4516 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4517 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4518 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4519 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4520 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4521 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4522 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4523 ERJ2GEJ2R2X .063W 5% 2.2 Ω

SMDR4524 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4525 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4526 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4527 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4528 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4529 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4530 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4531 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4532 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4533 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4535 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4536 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4538 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4539 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4540 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4541 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4542 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4543 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4544 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4545 ERJ2GEJ103X .063W 5% 10K Ω

30

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR4546 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4547 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4552 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4561 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4562 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4563 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4564 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4565 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4567 ERJ3EKF4701V 0.1W 1% 4K7 Ω

SMDR4578 ERJ2GEJ151X .063W 5% 150 Ω

SMDR4579 ERJ2GEJ151X .063W 5% 150 Ω

SMDR4585 ERJ2GEJ101X .063W 5% 100 Ω

SMDR4587 ERJ3EKF8200V 0.1W 1% 820 Ω

SMDR4593 ERJ3EKF1101V 0.1W 1% 1K1 Ω

S.M.CARBR4596 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR4597 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR4598 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR4601 ERJ6GEYJ102 0.1W 5% 1K Ω

SMDR4604 ERJ3EKF7501V 0.1W 1% 7K5 Ω

SMDR4605 ERJ3EKF1201V 0.1W 1% 1K2 Ω

SMDR4606 ERJ3EKF4701V 0.1W 1% 4K7 Ω

S.M.CARBR4608 ERJ6GEYJ102 0.1W 5% 1K Ω

SMDR4609 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4610 ERJ2GE0R00X .063W - 0 Ω

SMDR4611 ERJ3EKF1371V 0.1W 1% 1K37 Ω

SMDR4612 ERJ3EKF1501V 0.1W 1% 1K5 Ω

SMDR4613 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4614 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4615 ERJ3EKF1600V 0.1W 1% 160 Ω

SMDR4622 ERJ2GEJ101X .063W 5% 100 Ω

SMDR4624 ERJ3EKF1691V 0.1W 1% 1K69 Ω

SMDR4626 ERJ2GEJ105X .063W 5% 1M Ω

SMDR4627 ERJ2GE0R00X .063W - 0 Ω

SMDR4628 ERJ2GEJ101X .063W 5% 100 Ω

SMDR4629 ERJ2GEJ101X .063W 5% 100 Ω

SMDR4631 ERJ3EKF4990V 0.1W 1% 499 Ω

SMDR4634 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4635 EXB28V680JX .031W 5% 68 Ω

SMDR4636 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4637 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4638 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4639 EXB28V680JX .031W 5% 68 Ω

SMDR4640 EXB28V680JX .031W 5% 68 Ω

SMDR4642 EXB28V680JX .031W 5% 68 Ω

SMDR4644 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4645 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4646 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4647 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4648 EXB28V330JX .031W 5% 33 Ω

SMDR4649 EXB28V680JX .031W 5% 68 Ω

SMDR4650 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4651 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4652 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4653 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4654 ERJ3EKF4701V 0.1W 1% 4K7 Ω

SMDR4655 ERJ2GEJ101X .063W 5% 100 Ω

SMDR4656 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR4657 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4658 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4661 ERJ2GEJ101X .063W 5% 100 Ω

SMDR4663 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4664 ERJ3EKF6980V 0.1W 1% 698 Ω

SMDR4665 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4666 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4667 ERJ2GEJ151X .063W 5% 150 Ω

SMDR4670 ERJ2GEJ680X .063W 5% 68 Ω

SMDR4676 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4677 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4678 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4679 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4680 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4681 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4682 ERJ3EKF1002V 0.1W 1% 10K Ω

SMDR4683 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4686 ERJ2GEJ473X .063W 5% 47K Ω

SMDR4687 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4688 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4689 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4690 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4691 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4692 ERJ2GEJ220X .063W 5% 22 Ω

SMDR4698 ERJ2GE0R00X .063W - 0 Ω

SMDR4699 ERJ2GE0R00X .063W - 0 Ω

SMDR4702 ERJ2GE0R00X .063W - 0 Ω

SMDR4703 ERJ2GE0R00X .063W - 0 Ω

SMDR4706 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4707 ERJ2GEJ103X .063W 5% 10K Ω

SMDR4708 ERJ2GEJ102X .063W 5% 1K Ω

SMDR4710 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4711 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR4800 ERJ3GEY0R00 0.1W - 0 Ω

SMDR4838 ERJ2GE0R00X .063W - 0 Ω

SMDR5600 ERJ2GEJ680X .063W 5% 68 Ω

SMDR5604 ERJ3EKF4702V 0.1W 1% 47K Ω

SMDR5605 ERJ3EKF1272V 0.1W 1% 12K7 Ω

SMDR5606 ERJ2GE0R00X .063W - 0 Ω

SMDR5607 ERJ2GE0R00X .063W - 0 Ω

SMDR5608 ERJ2GE0R00X .063W - 0 Ω

SMDR5609 ERJ2GE0R00X .063W - 0 Ω

SMDR5610 ERJ2GEJ104X .063W 5% 100K Ω

SMDR5611 ERJ3EKF3602V 0.1W 1% 36K Ω

SMDR5612 ERJ3EKF2322V 0.1W 1% 23K2 Ω

SMDR5620 ERJ2GEJ680X .063W 5% 68 Ω

SMDR5621 ERJ3EKF4702V 0.1W 1% 47K Ω

SMDR5622 ERJ2GEJ104X .063W 5% 100K Ω

SMDR5623 ERJ3EKF4702V 0.1W 1% 47K Ω

SMDR5625 ERJ2GE0R00X .063W - 0 Ω

SMDR5626 ERJ2GE0R00X .063W - 0 Ω

SMDR5627 ERJ2GE0R00X .063W - 0 Ω

SMDR5628 ERJ2GE0R00X .063W - 0 Ω

SMDR5629 ERJ3EKF3012V 0.1W 1% 30K1 Ω

SMDR5630 ERJ3EKF4752V 0.1W 1% 47K5 Ω

SMDR5631 ERJ3EKF3602V 0.1W 1% 36K Ω

SMDR5632 ERJ3EKF3002V 0.1W 1% 30K Ω

SMDR5633 ERJ3EKF1602V 0.1W 1% 16K Ω

SMDR5634 ERJ3EKF1602V 0.1W 1% 16K Ω

SMDR5635 ERJ2GEJ223X .063W 5% 22K Ω

SMDR5636 ERJ2GEJ683X .063W 5% 68K Ω

SMDR5637 ERJ2GE0R00X .063W - 0 Ω

SMDR5638 ERJ2GEJ103X .063W 5% 10K Ω

SMDR5641 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5644 ERJ2GEJ222X .063W 5% 2K2 Ω

SMDR5646 ERJ2GEJ103X .063W 5% 10K Ω

SMDR5647 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5660 ERJ2GEJ562X .063W 5% 5K6 Ω

SMDR5661 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5662 ERJ2GEJ103X .063W 5% 10K Ω

SMDR5670 ERJ2GE0R00X .063W - 0 Ω

SMDR5671 ERJ2GEJ183X .063W 5% 18K Ω

SMDR5672 ERJ2GE0R00X .063W - 0 Ω

SMDR5674 ERJ2GEJ122X .063W 5% 1K2 Ω

SMDR5690 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR5691 ERJ3GEYJ103 0.1W 5% 10K Ω

S.M.CARBR5692 ERJ3GEYJ473V 0.1W 5% 47K Ω

S.M.CARBR5693 ERJ3GEYJ473V 0.1W 5% 47K Ω

SMDR5694 ERJ3GEYJ102 0.1W 5% 1K Ω

31

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR5695 ERJ3GEYJ102 0.1W 5% 1K Ω

SMDR5696 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR5697 ERJ3GEYJ103 0.1W 5% 10K Ω

SMDR5730 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5731 ERJ2GEJ473X .063W 5% 47K Ω

SMDR5732 ERJ2GE0R00X .063W - 0 Ω

S.M.CARBR7201 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR7202 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7203 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7204 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7205 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7206 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR7207 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR7208 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR7209 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR7210 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR7211 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBR7212 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7213 ERJ6GEYJ473 0.1W 5% 47K Ω

SMDR7214 ERJ14YJ152U 0.25W 5% 1K5 Ω

S.M.CARBR7215 ERJ6GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR7216 ERJ6GEYJ332 0.1W 5% 3K3 Ω

SMDR7217 ERJ14YJ122U 0.25W 5% 1K2 Ω

S.M.CARBR7218 ERJ6GEYJ221 0.1W 5% 220 Ω

S.M.CARBR7219 ERJ6GEYJ473 0.1W 5% 47K Ω

SMDR7221 ERJ14YJ152U 0.25W 5% 1K5 Ω

SMDR7222 ERJ14YJ152U 0.25W 5% 1K5 Ω

S.M.CARBR7223 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR7224 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR7225 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR7226 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7227 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR7228 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7229 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7230 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7231 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7232 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7233 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBR7234 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR7235 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7238 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7239 ERJ6GEYJ332 0.1W 5% 3K3 Ω

S.M.CARBR7240 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBR7241 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBR7242 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7243 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBR7244 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR7245 ERJ6GEYJ123 0.1W 5% 12K Ω

S.M.CARBR7246 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBR7247 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7248 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7249 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7250 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7251 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR7253 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBR7301 ERJ6ENF9100 0.1W 1% 910 Ω

S.M.CARBR7302 ERJ6ENF1302 0.1W 1% 13K Ω

S.M.CARBR7303 ERJ6GEYJ473 0.1W 5% 47K Ω

SMDR7304 ERJ6ENF1603V .125W 1% 160K Ω

S.M.CARBR7305 ERJ6GEYJ363 0.5W 5% 36K Ω

S.M.CARBR7306 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR7307 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR7308 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7309 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7310 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBR7311 ERJ6GEY0R00 0.1W - 0 Ω

S.M.CARBR7312 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7313 ERJ6GEYJ103 0.1W 5% 10K Ω

SMDR7401 ERJ6ENF1501 .125W 1% 1K5 Ω

SMDR7402 ERJ6ENF6201V .125W 1% 6K2 Ω

S.M.CARBR7403 ERJ6GEYJ473 0.1W 5% 47K Ω

SMDR7404 ERJ6ENF5602 .125W 1% 56K Ω

S.M.CARBR7405 ERJ6GEYJ823 0.1W 5% 82K Ω

S.M.CARBR7406 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR7407 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR7408 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7409 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7410 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7411 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7501 ERJ6ENF1001 0.1W 1% 1K Ω

S.M.CARBR7502 ERJ6ENF8201 0.1W 1% 8K2 Ω

S.M.CARBR7503 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7504 ERJ6GEYJ473 0.1W 5% 47K Ω

SMDR7505 ERJ6ENF9102V .125W 1% 91K Ω

S.M.CARBR7506 ERJ6GEYJ363 0.5W 5% 36K Ω

S.M.CARBR7507 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR7508 ERJ6GEYJ101 0.1W 5% 100 Ω

S.M.CARBR7509 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7510 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7511 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7551 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR7552 ERJ6GEYJ222 0.1W 5% 2K2 Ω

S.M.CARBR7553 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7554 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7555 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7556 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7557 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR7559 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR7602 ERJ6ENF1001 0.1W 1% 1K Ω

SMDR7603 ERJ6ENF1691V .125W 1% 1K69 Ω

S.M.CARBR7605 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7606 ERJ6GEYJ103 0.1W 5% 10K Ω

S.M.CARBR7607 ERJ6GEYJ102 0.1W 5% 1K Ω

S.M.CARBR7701 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7702 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR7704 ERJ6ENF1001 0.1W 1% 1K Ω

SMDR7705 ERJ6ENF8661V .125W 1% 8K66 Ω

S.M.CARBR7706 ERJ6GEYJ102 0.1W 5% 1K Ω

SMDR7707 ERJ12YJ471U 0.5W 5% 470 Ω

S.M.CARBR7709 ERJ6GEYJ123 0.1W 5% 12K Ω

S.M.CARBR7710 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR7711 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR7712 ERJ6GEYJ473 0.1W 5% 47K Ω

S.M.CARBR7713 ERJ6GEYJ472 0.1W 5% 4K7 Ω

S.M.CARBR7714 ERJ6GEYJ223 0.1W 5% 22K Ω

S.M.CARBR7901 ERJ6GEY0R00 0.1W - 0 Ω

SMDR8001 ERJ2GEJ181X .063W 5% 180 Ω

SMDR8002 ERJ2GEJ820X .063W 5% 82 Ω

SMDR8003 ERJ3GEY0R00 0.1W - 0 Ω

SMDR8004 ERJ3EKF2402V 0.1W 1% 24K Ω

SMDR8005 ERJ3EKF1002V 0.1W 1% 10K Ω

SMDR8006 ERJ3EKF6801V 0.1W 1% 6K8 Ω

SMDR8023 ERJ2GE0R00X .063W - 0 Ω

SMDR8024 ERJ2GE0R00X .063W - 0 Ω

SMDR8025 ERJ2GE0R00X .063W - 0 Ω

SMDR8026 ERJ2GE0R00X .063W - 0 Ω

SMDR8027 ERJ2GE0R00X .063W - 0 Ω

SMDR8028 ERJ2GE0R00X .063W - 0 Ω

SMDR8029 ERJ2GE0R00X .063W - 0 Ω

SMDR8030 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8031 ERJ3EKF2700V 0.1W 1% 270 Ω

SMDR8032 ERJ3EKF2700V 0.1W 1% 270 Ω

SMDR8035 ERJ2GE0R00X .063W - 0 Ω

SMDR8039 ERJ2GE0R00X .063W - 0 Ω

SMDR8056 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8057 ERJ2GEJ470X .063W 5% 47 Ω

32

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR8058 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8059 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8060 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8061 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8062 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8063 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8064 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8065 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8066 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8067 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8068 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8069 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8070 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8071 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8072 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8073 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8074 ERJ2GEJ221X .063W 5% 220 Ω

SMDR8075 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8076 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8077 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8078 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8079 ERJ2GE0R00X .063W - 0 Ω

SMDR8080 ERJ2GE0R00X .063W - 0 Ω

SMDR8081 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8082 D1BA75R0A026 .063W 1% 75 Ω

SMDR8083 ERJ2GEJ301X .063W 5% 300 Ω

SMDR8084 ERJ2GE0R00X .063W - 0 Ω

SMDR8086 ERJ2GEJ104X .063W 5% 100K Ω

SMDR8087 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8090 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8091 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8093 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8095 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8097 ERJ2GEJ221X .063W 5% 220 Ω

SMDR8098 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8099 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8100 ERJ2GEJ470X .063W 5% 47 Ω

SMDR8101 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8106 ERJ2GEJ202X .063W 5% 2K Ω

SMDR8107 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8111 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8328 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8471 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8472 EXB2HV103JV .063W 5% 10K Ω

SMDR8474 EXB28V103JX .031W 5% 10K Ω

SMDR8475 EXB28V103JX .031W 5% 10K Ω

SMDR8502 ERJ2GEJ331X .063W 5% 330 Ω

SMDR8503 ERJ2GEJ331X .063W 5% 330 Ω

SMDR8504 ERJ2GEJ331X .063W 5% 330 Ω

SMDR8506 ERJ2GEJ331X .063W 5% 330 Ω

SMDR8507 ERJ3EKF91R0V 0.1W 1% 91 Ω

SMDR8508 ERJ3EKF91R0V 0.1W 1% 91 Ω

SMDR8509 ERJ3EKF91R0V 0.1W 1% 91 Ω

SMDR8510 ERJ3EKF91R0V 0.1W 1% 91 Ω

SMDR8512 ERJ3EKF1800V 0.1W 1% 180 Ω

SMDR8513 ERJ2GE0R00X .063W - 0 Ω

SMDR8517 ERJ2GE0R00X .063W - 0 Ω

SMDR8518 ERJ2GE0R00X .063W - 0 Ω

SMDR8519 ERJ2GE0R00X .063W - 0 Ω

SMDR8551 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8555 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8556 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8557 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8558 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8559 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8560 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8561 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8564 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8601 ERJ2GEJ220X .063W 5% 22 Ω

SMDR8602 ERJ2GEJ220X .063W 5% 22 Ω

SMDR8603 ERJ2GEJ473X .063W 5% 47K Ω

S.M.CARBR8604 ERJ6GEY0R00 0.1W - 0 Ω

SMDR8605 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8621 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8622 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8623 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8624 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8625 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8626 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8627 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8628 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8629 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8630 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8631 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8632 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8633 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8634 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8635 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8636 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8653 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8655 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8702 ERJ2GE0R00X .063W - 0 Ω

SMDR8703 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8707 ERJ2GE0R00X .063W - 0 Ω

SMDR8708 ERJ2GE0R00X .063W - 0 Ω

SMDR8709 ERJ2GE0R00X .063W - 0 Ω

SMDR8710 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8711 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8712 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8732 ERJ2GEJ101X .063W 5% 100 Ω

SMDR8735 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8736 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8737 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8738 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8739 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8742 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8745 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8746 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8749 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8802 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8803 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8804 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8805 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8806 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8807 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8808 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8809 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8812 ERJ2GE0R00X .063W - 0 Ω

SMDR8813 EXB28V680JX .031W 5% 68 Ω

SMDR8814 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8815 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8816 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8817 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8818 ERJ2GE0R00X .063W - 0 Ω

SMDR8823 ERJ2GEJ473X .063W 5% 47K Ω

S.M.CARBR8825 ERJ6GEY0R00 0.1W - 0 Ω

SMDR8826 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8828 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8832 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8833 ERJ3GEY0R00 0.1W - 0 Ω

SMDR8851 ERJ2GE0R00X .063W - 0 Ω

SMDR8852 ERJ2GE0R00X .063W - 0 Ω

SMDR8853 ERJ2GE0R00X .063W - 0 Ω

SMDR8854 ERJ2GE0R00X .063W - 0 Ω

SMDR8855 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8856 ERJ2GEJ680X .063W 5% 68 Ω

33

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

SMDR8857 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8858 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8859 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8860 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8862 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8863 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8864 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8865 EXB2HV680JV .063W 5% 68 Ω

SMDR8866 EXB2HV680JV .063W 5% 68 Ω

SMDR8867 EXB2HV680JV .063W 5% 68 Ω

SMDR8868 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8869 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8870 ERJ2GE0R00X .063W - 0 Ω

SMDR8871 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8874 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8875 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8876 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8877 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8878 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8879 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8880 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8881 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8882 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8883 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8884 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8885 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8886 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8887 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8888 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8889 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8891 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8892 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8893 ERJ2GE0R00X .063W - 0 Ω

SMDR8894 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8895 ERJ2GE0R00X .063W - 0 Ω

SMDR8896 ERJ2GE0R00X .063W - 0 Ω

SMDR8897 ERJ2GE0R00X .063W - 0 Ω

SMDR8898 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8899 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8900 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8901 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8904 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8905 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8906 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8907 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8908 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8909 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8910 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8911 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8912 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8913 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8914 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8915 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8916 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8917 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8918 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8919 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR8920 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR8921 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR8922 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR8923 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8924 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8925 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR8926 ERJ2GEJ472X .063W 5% 4K7 Ω

SMDR8927 ERJ2GE0R00X .063W - 0 Ω

SMDR8929 EXB2HVR000V 0W - 0 Ω

SMDR8935 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8938 ERJ8GEYJ472V 0.25W 5% 4K7 Ω

CAPACITORS

SMDR8939 ERJ2GEJ184X .063W 5% 180K Ω

SMDR8940 ERJ2GEJ473X .063W 5% 47K Ω

SMDR8941 ERJ2GEJ473X .063W 5% 47K Ω

SMDR8942 ERJ2GEJ562X .063W 5% 5K6 Ω

SMDR8943 ERJ2GEJ104X .063W 5% 100K Ω

SMDR8944 ERJ2GEJ223X .063W 5% 22K Ω

SMDR8946 ERJ2GE0R00X .063W - 0 Ω

SMDR8947 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8948 ERJ2GEJ103X .063W 5% 10K Ω

SMDR8950 ERJ2GE0R00X .063W - 0 Ω

SMDR8952 ERJ2GEJ680X .063W 5% 68 Ω

SMDR8963 ERJ2GEJ103X .063W 5% 10K Ω

FILMC801 ECQU2A224BN9 250V 220nF

FILMC802 ECQU2A224BN9 250V 220nF

FILMC803 ECQU2A224BN9 250V 220nF

CERAMICC806 ECKCNA331MB7 250V 330pF

CERAMICC807 ECKCNA331MB7 250V 330pF

FILMC809 ECQU2A224BN9 250V 220nF

ELECTC811 F2A2W2R2A002 450V 2.2µF

ELECTC813 F2A1H4R7A118 50V 4.7µF

SMDC814 ECJ2VB2A103K 100V 10nF

S.M.CAPC815 ECJ2FB1H104 50V 100nF

CERAMICC816 ECCW3D470KGE 2KV 47pF

S.M. CAPC817 ECUV1H681JCX 50V 680pF

SMDC818 ECKC3A222J 1KV 2.2nF

FILMC819 ECQE2W105L28 450V 1µF

ELECTC821 F2A1A221A106 10V 220µF

S.M.CAPC822 ECJ2FB1H104 50V 100nF

S.M.CAPC823 ECJ2FB1H104 50V 100nF

ELECTC1006 F2G0J470A019 6.3V 47µF

S.M.CAPC1007 ECJ1VB1H103 50V 10nF

S.M.CAPC1008 ECJ1VF1C104Z 16V 100nF

ELECTC1010 F2G0J220A019 6.3V 22µF

CERAMICC1102 F1J1A106A043 10V 10µF

S.M.CAPC1103 F1G1C104A081 16V 100nF

S.M.CAPC1104 F1G1C104A081 16V 100nF

S.M.CAPC1106 F1H1H2700008 50V 27pF

S.M.CAPC1107 F1H1H2200008 50V 22pF

S.M.CAPC1108 F1G1C104A081 16V 100nF

CERAMICC1109 F1H1A1050028 10V 1µF

CERAMICC1111 F1H1A1050028 10V 1µF

S.M.CAPC1112 F1G1C104A081 16V 100nF

S.M.CAPC1114 F1G1C104A081 16V 100nF

S.M.CAPC1117 F1G1C104A081 16V 100nF

S.M.CAPC1122 F1G1E103A059 25V 10nF

CERAMICC1123 F1H1A1050028 10V 1µF

S.M.CAPC2005 F1H1H5610007 50V 560pF

S.M.CAPC2006 F1H1H5610007 50V 560pF

S.M.CAPC2007 F1H1H5610007 50V 560pF

S.M.CAPC2008 F1H1H5610007 50V 560pF

S.M.CAPC2010 F1H1H5610007 50V 560pF

S.M.CAPC2011 F1H1H5610007 50V 560pF

S.M.CAPC2012 F1H1H5610007 50V 560pF

S.M.CAPC2013 F1H1H5610007 50V 560pF

S.M.CAPC2014 F1H1H5610007 50V 560pF

S.M.CAPC2015 F1H1H5610007 50V 560pF

S.M.CAPC2021 F1H1H5610007 50V 560pF

S.M.CAPC2022 F1H1H5610007 50V 560pF

S.M.CAPC2023 ECJ1VB1H104 50V 100nF

S.M.CAPC2048 ECJ1VB1H104 50V 100nF

S.M.CAPC2049 ECJ1VB1H104 50V 100nF

S.M.CAPC2050 ECJ1VB1H104 50V 100nF

S.M.CAPC2052 ECJ1VB1H104 50V 100nF

S.M.CAPC2053 ECJ1VB1H104 50V 100nF

CERAMICC2054 F1J1A106A043 10V 10µF

S.M.CAPC2055 F1H1H1200004 50V 12pF

34

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CAPC2056 F1H1H1200004 50V 12pF

S.M.CAPC2057 ECJ1VB1H104 50V 100nF

S.M.CAPC2058 ECJ1VB1H104 50V 100nF

ELECTC2059 F2G0J470A019 6.3V 47µF

SMDC2088 ECJ2FB1A475K 10V 4.7µF

S.M.CAPC2089 F1H1H5610007 50V 560pF

S.M.CAPC2091 ECJ1VC1H100D 50V 10pF

S.M.CAPC2092 F1H1H2200008 50V 22pF

S.M.CAPC2096 ECJ1VB1H104 50V 100nF

S.M.CAPC2097 ECJ1VB1H104 50V 100nF

ELECTC2098 EEEHB0J221UP 6.3V 220µF

ELECTC2099 EEEHB0J221UP 6.3V 220µF

S.M.CAPC2100 ECJ1VB1H104 50V 100nF

CERAMICC2101 F1J1A106A043 10V 10µF

S.M.CAPC2102 ECJ1VB1H104 50V 100nF

CERAMICC2103 F1J1A106A043 10V 10µF

CERAMICC2104 F1J1A106A043 10V 10µF

S.M.CAPC2105 ECJ1VB1H104 50V 100nF

S.M.CAPC2106 ECJ1VB1H104 50V 100nF

ELECTC2107 F2G0J470A019 6.3V 47µF

ELECTC2108 F2G0J470A019 6.3V 47µF

S.M.CAPC2109 ECJ1VB1H104 50V 100nF

S.M.CAPC2110 ECJ1VB1H104 50V 100nF

CERAMICC2111 F1H0J2250008 6.3V 2200nF

ELECTC2112 F2G0J470A019 6.3V 47µF

ELECTC2113 F2G0J470A019 6.3V 47µF

S.M.CAPC2114 ECJ1VB1H104 50V 100nF

S.M.CAPC2115 ECJ1VB1H104 50V 100nF

S.M.CAPC2116 F1H1H471A792 50V 470pF

S.M.CAPC2117 ECJ1VB1H104 50V 100nF

CERAMICC2118 F1H1A1050028 10V 1µF

ELECTC2119 EEEHB1A221P 10V 220µF

S.M.CAPC2120 F1H1H5600007 50V 56pF

S.M.CAPC2121 F1H1H5600007 50V 56pF

CERAMICC2122 F1J1A106A043 10V 10µF

CERAMICC2123 F1J1A106A043 10V 10µF

S.M.CAPC2124 ECJ1VB1H104 50V 100nF

S.M.CAPC2125 ECJ1VB1A105K 10V 1000nF

CERAMICC2126 F1J1A106A043 10V 10µF

S.M.CAPC2130 F1J0J106A021 6.3V 10µF

S.M.CAPC2131 ECJ1VB1H104 50V 100nF

ELECTC2133 F2G1H4R7A031 50V 4.7µF

CERAMICC2134 F1H1H103A219 50V 10nF

SMDC2135 ECJ1VB1C105K 16V 1000nF

SMDC2136 ECJ1VB1C105K 16V 1000nF

ELECTC2137 F2G0J470A019 6.3V 47µF

S.M.CAPC2138 ECJ1VB1H104 50V 100nF

CERAMICC2139 F1J1A106A043 10V 10µF

CERAMICC2140 F1J1A106A043 10V 10µF

CERAMICC2141 F1J1A106A043 10V 10µF

CERAMICC2142 F1J1A106A043 10V 10µF

S.M.CAPC2143 F1H1H181A792 50V 180pF

S.M.CAPC2146 F1H1H181A792 50V 180pF

ELECTC2147 F2G1C220A022 16V 22µF

ELECTC2151 F2G0J470A019 6.3V 47µF

S.M.CAPC2153 F1H1H3300005 50V 33pF

S.M.CAPC2154 ECJ1VB1H104 50V 100nF

SMDC2155 ECJ1VB1C105K 16V 1000nF

SMDC2157 ECJ1VB1C105K 16V 1000nF

SMDC2159 ECJ1VB1C105K 16V 1000nF

SMDC2160 ECJ1VB1C105K 16V 1000nF

ELECTC2161 EEEHB1C101UP 16V 100µF

SMDC2162 ECJ1VB1C105K 16V 1000nF

SMDC2163 ECJ1VB1C105K 16V 1000nF

SMDC2164 ECJ1VB1C105K 16V 1000nF

SMDC2165 ECJ1VB1C105K 16V 1000nF

S.M.CAPC2170 F1H1H3300005 50V 33pF

CERAMICC2171 F1H1H103A219 50V 10nF

S.M.CAPC2173 ECJ2FF1C475Z 16V 4.7µF

CERAMICC2174 F1H1A1050028 10V 1µF

ELECTC2175 F2G1C470A022 16V 47µF

CERAMICC2176 F1H1H103A219 50V 10nF

ELECTC2179 F2G1C470A022 16V 47µF

CERAMICC2180 F1H1A1050028 10V 1µF

CERAMICC2183 F1J1A106A043 10V 10µF

CERAMICC2184 F1H1H102A219 50V 1nF

CERAMICC2185 F1J1A106A043 10V 10µF

S.M.CAPC2186 ECJ1VB1H104 50V 100nF

CERAMICC2187 F1H0J2250008 6.3V 2200nF

S.M.CAPC2188 F1H1H471A792 50V 470pF

CERAMICC2189 F1H1A1050028 10V 1µF

CERAMICC2190 F1J1A106A043 10V 10µF

CERAMICC2191 F1J1A106A043 10V 10µF

ELECTC2192 F2G0J470A019 6.3V 47µF

CERAMICC2195 F1H1H102A219 50V 1nF

S.M.CAPC2197 F1H1E333A029 25V 33nF

S.M.CAPC2198 F1H1E333A029 25V 33nF

CERAMICC2202 F1H0J2250008 6.3V 2200nF

CERAMICC2203 F1H1A1050028 10V 1µF

SMDC2204 ECJ1VB1C105K 16V 1000nF

CERAMICC2213 F1H1H102A219 50V 1nF

S.M.CAPC2216 ECJ1VB1H104 50V 100nF

S.M.CAPC2244 ECJ1VB1H104 50V 100nF

CERAMICC2245 F1H1H102A219 50V 1nF

CERAMICC2246 F1J1A106A043 10V 10µF

CERAMICC2251 F1J1A106A043 10V 10µF

CERAMICC2261 F1J1A106A043 10V 10µF

CERAMICC2262 F1J1A106A043 10V 10µF

CERAMICC2263 F1J1A106A043 10V 10µF

CERAMICC2264 F1J1A106A043 10V 10µF

S.M.CAPC2265 F1H1H1010005 50V 100pF

S.M.CAPC2266 F1H1H1010005 50V 100pF

S.M.CAPC2267 F1H1H1010005 50V 100pF

S.M.CAPC2268 F1H1H1010005 50V 100pF

S.M.CAPC2270 F1H1H471A792 50V 470pF

S.M.CAPC2271 F1H1H471A792 50V 470pF

S.M.CAPC2272 ECJ2FF1C475Z 16V 4.7µF

SMDC2280 ECJ2FB1A475K 10V 4.7µF

S.M.CAPC2281 F1H1H5610007 50V 560pF

CERAMICC2288 F1J1A106A043 10V 10µF

CERAMICC2289 F1J1A106A043 10V 10µF

CERAMICC2301 F1H1C104A041 16V 100nF

CERAMICC2302 F1H1C104A041 16V 100nF

S.M.CAPC2303 F1J1E105A171 25V 1µF

S.M.CAPC2305 F1J1E105A171 25V 1µF

S.M.CAPC2307 F1J1E105A171 25V 1µF

S.M.CAPC2309 F1J1E105A171 25V 1µF

S.M.CAPC2311 ECJ1VB1C104K 16V 100nF

S.M.CAPC2313 ECJ1VB1H104 50V 100nF

S.M.CAPC2315 ECJ1VB1C104K 16V 100nF

S.M.CAPC2317 F1H1E333A029 25V 33nF

S.M.CAPC2319 F1H1E333A029 25V 33nF

S.M.CAPC2321 F1H1E333A029 25V 33nF

S.M.CAPC2323 F1H1E333A029 25V 33nF

S.M.CAPC2325 F1J1H474A757 50V 470nF

S.M.CAPC2327 ECJ1VB1C104K 16V 100nF

S.M.CAPC2329 ECJ1VB1C104K 16V 100nF

S.M.CAPC2331 F1J1H474A757 50V 470nF

S.M.CAPC2333 ECJ1VB1H104 50V 100nF

S.M.CAPC2335 ECJ1VB1H104 50V 100nF

S.M.CAPC2337 F1H1H223A219 50V 22nF

S.M.CAPC2339 F1H1H223A219 50V 22nF

S.M.CAPC2341 ECJ1VB1H104 50V 100nF

S.M.CAPC2343 ECJ1VB1H104 50V 100nF

S.M.CAPC2345 F1H1H223A219 50V 22nF

S.M.CAPC2347 F1H1H223A219 50V 22nF

35

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CAPC2349 ECJ1VB1H104 50V 100nF

SMDC2352 ECJ1VB1C105K 16V 1000nF

S.M.CAPC2353 ECJ1VB1H104 50V 100nF

S.M.CAPC2355 ECJ1VB1H104 50V 100nF

S.M.CAPC2357 ECJ1VB1H104 50V 100nF

S.M.CAPC2359 ECJ1VB1H104 50V 100nF

ELECTC2361 EEEFG1E471P 25V 470µF

S.M.CAPC2363 ECJ1VB1C104K 16V 100nF

S.M.CAPC2375 F1H1H223A219 50V 22nF

S.M.CAPC2377 F1H1H223A219 50V 22nF

S.M.CAPC2379 F1H1H223A219 50V 22nF

S.M.CAPC2381 F1H1H223A219 50V 22nF

CERAMICC2383 F1H1H102A219 50V 1nF

CERAMICC2385 F1H1H102A219 50V 1nF

CERAMICC2387 F1H1H102A219 50V 1nF

CERAMICC2389 F1H1H102A219 50V 1nF

ELECTC2812 F2G1C100A022 16V 10µF

S.M.CAPC2813 ECJ1VB1H104 50V 100nF

S.M.CAPC2815 ECJ1VB1H104 50V 100nF

ELECC2816 F2G1H100A031 50V 10µF

CERAMICC2817 F1H1H102A219 50V 1nF

ELECTC2819 EEEHB1E470P 25V 47µF

CERAMICC3001 F1H1H102A219 50V 1nF

CERAMICC3002 F1H1H102A219 50V 1nF

CERAMICC3021 F1H1A1050028 10V 1µF

CERAMICC3024 F1H1A1050028 10V 1µF

CERAMICC3025 F1H1A1050028 10V 1µF

S.M.CAPC3026 ECJ1VB1H104 50V 100nF

CERAMICC3027 F1H1A1050028 10V 1µF

CERAMICC3028 F1H1A1050028 10V 1µF

SMDC3029 ECJ1VB1C105K 16V 1000nF

S.M.CAPC3031 ECJ1VB1H104 50V 100nF

S.M.CAPC3040 ECJ1VB1H104 50V 100nF

CERAMICC3043 F1H1A1050028 10V 1µF

CERAMICC3047 F1H1A1050028 10V 1µF

CERAMICC3049 F1H1A1050028 10V 1µF

CERAMICC3050 F1H1A1050028 10V 1µF

CERAMICC3051 F1H1A1050028 10V 1µF

CERAMICC3052 F1H1A1050028 10V 1µF

CERAMICC3053 F1H1A1050028 10V 1µF

CERAMICC3054 F1H1A1050028 10V 1µF

CERAMICC3055 F1H1A1050028 10V 1µF

CERAMICC3056 F1H1A1050028 10V 1µF

S.M.CAPC3068 ECJ1VB1H104 50V 100nF

ELECTC3070 EEEHB1C471UP 16V 470µF

S.M.CAPC3071 ECJ1VB1H104 50V 100nF

ELECTC3072 EEEHB1C471UP 16V 470µF

ELECTC3075 EEEHB1C221UP 16V 220µF

ELECTC3076 EEEHB1C221UP 16V 220µF

ELECTC3081 F2H0J1010009 6.3V 100µF

CERAMICC3100 F1H1A1050028 10V 1µF

CERAMICC3101 F1H1A1050028 10V 1µF

CERAMICC3102 F1H1A1050028 10V 1µF

ELECTC3103 F2G1C100A022 16V 10µF

S.M.CAPC3115 ECJ1VB1H104 50V 100nF

S.M.CAPC3116 ECJ1VB1H104 50V 100nF

S.M.CAPC3117 ECJ1VB1H104 50V 100nF

ELECTC3118 F2G1C470A022 16V 47µF

ELECTC3119 F2G1C100A022 16V 10µF

S.M.CAPC3120 ECJ1VB1H104 50V 100nF

S.M.CAPC3201 ECJ1VB1H104 50V 100nF

S.M.CAPC3214 ECJ1VB1H104 50V 100nF

S.M.CAPC3216 ECJ1VB1H104 50V 100nF

S.M.CAPC3226 ECJ1VB1H104 50V 100nF

S.M.CAPC3227 ECJ1VB1H104 50V 100nF

S.M.CAPC3228 ECJ1VB1H104 50V 100nF

S.M.CAPC3230 ECJ1VB1H104 50V 100nF

S.M.CAPC3263 ECJ1VB1H104 50V 100nF

S.M.CAPC3265 ECJ1VB1H104 50V 100nF

S.M.CAPC3266 ECJ1VB1H104 50V 100nF

S.M.CAPC3267 ECJ1VB1H104 50V 100nF

S.M.CAPC3268 ECJ1VB1H104 50V 100nF

ELECTC3270 EEEHB0J102UP 6.3V 1000µF

ELECTC3271 F2G1C100A022 16V 10µF

S.M.CAPC3272 ECJ1VB1H104 50V 100nF

ELECC3273 F2G1H100A031 50V 10µF

CERAMICC3275 F1H1C104A041 16V 100nF

CERAMICC3276 F1H1C104A041 16V 100nF

S.M.CAPC3277 F1H1H3300005 50V 33pF

S.M.CAPC3278 F1H1H3300005 50V 33pF

CERAMICC3279 F1H1H103A219 50V 10nF

S.M.CAPC3280 F1H1H1010005 50V 100pF

CERAMICC3281 F1H1C104A041 16V 100nF

ELECTC3282 EEEHB0J102UP 6.3V 1000µF

S.M. CAPC3700 ECUV1H561KBX 50V 560pF

S.M. CAPC3702 ECUV1H561KBX 50V 560pF

S.M.CAPC3705 ECJ1VF1H104Z 50V 100nF

S.M.CAPC3707 ECJ1VF1H104Z 50V 100nF

S.M.CAPC4200 ECJ1VB1C104K 16V 100nF

S.M.CAPC4201 F1G1H3310003 50V 330pF

S.M.CAPC4202 F1G1E103A059 25V 10nF

S.M.CAPC4203 F1H0J1050012 6.3V 1000nF

ELECTC4205 F2G0J470A019 6.3V 47µF

S.M.CAPC4206 F1G1C104A081 16V 100nF

S.M.CAPC4207 F1G1C104A081 16V 100nF

S.M.CAPC4209 F1G1H1020008 50V 1nF

S.M.CAPC4211 F1G1H220A565 50V 22pF

S.M.CAPC4212 F1G1H180A565 50V 18pF

S.M.CAPC4213 F1G1C104A081 16V 100nF

S.M.CAPC4214 F1G1H1020008 50V 1nF

S.M.CAPC4215 F1G1H1020008 50V 1nF

S.M.CAPC4216 F1G1C104A081 16V 100nF

S.M.CAPC4218 F1G1C104A081 16V 100nF

S.M.CAPC4219 F1G1H1020008 50V 1nF

S.M.CAPC4220 F1G1C104A081 16V 100nF

S.M.CAPC4222 F1G1H1020008 50V 1nF

S.M.CAPC4223 F1G1C104A081 16V 100nF

S.M.CAPC4224 F1G1H1020008 50V 1nF

S.M.CAPC4225 F1G1C104A081 16V 100nF

S.M.CAPC4227 F1G1H1020008 50V 1nF

S.M.CAPC4228 F1G1H100A565 50V 10pF

S.M.CAPC4229 F1G1H150A565 50V 15pF

S.M.CAPC4232 F1G1H1020008 50V 1nF

S.M.CAPC4233 F1G1C104A081 16V 100nF

S.M.CAPC4235 F1G1H1020008 50V 1nF

CERAMICC4236 F1H0J1050013 6.3V 1µF

S.M.CAPC4238 F1G1H1020008 50V 1nF

S.M.CAPC4239 F1G1C104A081 16V 100nF

CERAMICC4240 F1H0J1050013 6.3V 1µF

S.M.CAPC4241 F1H0J1050012 6.3V 1000nF

S.M.CAPC4242 F1H0J1050012 6.3V 1000nF

ELECTC4243 F2G0J470A019 6.3V 47µF

ELECTC4244 F2G0J470A019 6.3V 47µF

S.M.CAPC4245 F1G1C104A081 16V 100nF

S.M.CAPC4246 F1G1C104A081 16V 100nF

S.M.CAPC4249 F1G1C104A081 16V 100nF

S.M.CAPC4250 F1G1H1020008 50V 1nF

CERAMICC4251 F1J0J1060004 6.3V 10µF

S.M.CAPC4252 F1G1H1020008 50V 1nF

S.M.CAPC4253 F1G1H1020008 50V 1nF

S.M.CAPC4254 F1G1C104A081 16V 100nF

S.M.CAPC4255 F1G1C104A081 16V 100nF

S.M.CAPC4256 F1G1C104A081 16V 100nF

S.M.CAPC4257 F1G1H1020008 50V 1nF

S.M.CAPC4260 F1G1H1020008 50V 1nF

S.M.CAPC4261 F1G1H1020008 50V 1nF

36

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

CERAMICC4262 F1J0J1060004 6.3V 10µF

S.M.CAPC4263 F1G1C104A081 16V 100nF

S.M.CAPC4264 F1H0J1050012 6.3V 1000nF

S.M.CAPC4265 F1H0J1050012 6.3V 1000nF

S.M.CAPC4266 F1H0J1050012 6.3V 1000nF

S.M.CAPC4267 F1G1H1020008 50V 1nF

S.M.CAPC4269 F1G1C104A081 16V 100nF

S.M.CAPC4273 F1G1C104A081 16V 100nF

S.M.CAPC4274 F1G1H1020008 50V 1nF

S.M.CAPC4275 F1G1H1020008 50V 1nF

S.M.CAPC4276 F1G1C104A081 16V 100nF

S.M.CAPC4277 F1H0J1050012 6.3V 1000nF

S.M.CAPC4278 F1H0J1050012 6.3V 1000nF

S.M.CAPC4279 F1G1H1020008 50V 1nF

S.M.CAPC4280 F1G1H1020008 50V 1nF

S.M.CAPC4283 F1G1C104A081 16V 100nF

S.M.CAPC4284 F1G1C104A081 16V 100nF

S.M.CAPC4285 F1G1C104A081 16V 100nF

S.M.CAPC4286 F1G1H1020008 50V 1nF

ELECTC4287 EEEHB1A101P 10V 100µF

S.M.CAPC4288 ECJ2FB1E475M 25V 4700nF

S.M.CAPC4289 ECJ2FB1E475M 25V 4700nF

S.M.CAPC4290 F1G1E103A059 25V 10nF

S.M.CAPC4291 F1G1C223A081 16V 22nF

S.M.CAPC4292 F1G1H101A565 50V 100pF

S.M.CAPC4293 F1G1C104A081 16V 100nF

S.M.CAPC4294 F1G1H1020008 50V 1nF

ELECTC4295 EEEHB0G471P 4V 470µF

ELECTC4296 ECGRL0G680ER 4V 68µF

ELECTC4297 ECGRL0G680ER 4V 68µF

CERAMICC4298 F1J0J1060004 6.3V 10µF

S.M.CAPC4299 F1G1E103A059 25V 10nF

S.M.CAPC4300 F1G1H1020008 50V 1nF

S.M.CAPC4301 F1G1C104A081 16V 100nF

S.M.CAPC4302 F1G1E103A059 25V 10nF

S.M.CAPC4303 F1G1E103A059 25V 10nF

S.M.CAPC4304 F1G1H1020008 50V 1nF

S.M.CAPC4305 F1G1E103A059 25V 10nF

CERAMICC4306 F1J0J475A035 6.3V 4.7µF

S.M.CAPC4307 F1G1C104A081 16V 100nF

S.M.CAPC4308 F1G1C104A081 16V 100nF

S.M.CAPC4310 F1G1C104A081 16V 100nF

CERAMICC4311 F1J1A106A043 10V 10µF

S.M.CAPC4312 F1G1C104A081 16V 100nF

CERAMICC4313 F1J0J1060004 6.3V 10µF

S.M.CAPC4314 F1G1C104A081 16V 100nF

S.M.CAPC4315 F1G1C104A081 16V 100nF

S.M.CAPC4316 F1G1E103A059 25V 10nF

S.M.CAPC4317 F1H0J4750004 6.3V 4700nF

S.M.CAPC4319 F1G1C104A081 16V 100nF

S.M.CAPC4320 F1G1C104A081 16V 100nF

CERAMICC4321 F1J1A106A043 10V 10µF

ELECTC4322 F2G0G101A007 4V 100µF

S.M.CAPC4323 F1G1C104A081 16V 100nF

S.M.CAPC4324 F1G1E103A059 25V 10nF

CERAMICC4325 F1J0J1060004 6.3V 10µF

S.M.CAPC4326 F1G1E103A059 25V 10nF

S.M.CAPC4327 F1G1C104A081 16V 100nF

CERAMICC4328 F1J0J1060004 6.3V 10µF

S.M.CAPC4329 F1G1H1020008 50V 1nF

S.M.CAPC4330 F1G1E103A059 25V 10nF

S.M.CAPC4331 F1G1C104A081 16V 100nF

CERAMICC4334 F1H0J1050013 6.3V 1µF

CERAMICC4335 F1H0J1050013 6.3V 1µF

CERAMICC4336 F1H0J1050013 6.3V 1µF

CERAMICC4337 F1H0J1050013 6.3V 1µF

S.M.CAPC4338 F1G1E103A059 25V 10nF

S.M.CAPC4339 F1G1E103A059 25V 10nF

S.M.CAPC4340 F1G1E103A059 25V 10nF

S.M.CAPC4341 F1G1E103A059 25V 10nF

CERAMICC4342 F1H0J1050013 6.3V 1µF

CERAMICC4343 F1H0J1050013 6.3V 1µF

S.M.CAPC4344 F1G1H1020008 50V 1nF

S.M.CAPC4345 F1G1C104A081 16V 100nF

S.M.CAPC4347 F1G1H1020008 50V 1nF

S.M.CAPC4348 F1G1H1020008 50V 1nF

S.M.CAPC4349 F1G1C104A081 16V 100nF

S.M.CAPC4350 F1G1C104A081 16V 100nF

S.M.CAPC4351 F1G1C104A081 16V 100nF

S.M.CAPC4352 F1G1H1020008 50V 1nF

CERAMICC4353 F1H0J1050013 6.3V 1µF

CERAMICC4354 F1H0J1050013 6.3V 1µF

CERAMICC4355 F1H0J2250008 6.3V 2200nF

CERAMICC4356 F1H0J2250008 6.3V 2200nF

ELECTC4358 F2G0J470A019 6.3V 47µF

S.M.CAPC4359 F1G1C104A081 16V 100nF

CERAMICC4362 F1H0J1050013 6.3V 1µF

CERAMICC4363 F1H0J1050013 6.3V 1µF

S.M.CAPC4364 F1G1E103A059 25V 10nF

ELECTC4365 F2G1C470A022 16V 47µF

S.M.CAPC4366 F1G1C104A081 16V 100nF

S.M.CAPC4367 F1G1H1020008 50V 1nF

ELECTC4368 F2G0J220A019 6.3V 22µF

CERAMICC4369 F1H0J1050013 6.3V 1µF

S.M.CAPC4371 F1G1E103A059 25V 10nF

S.M.CAPC4372 F1G1C104A081 16V 100nF

ELECTC4373 F2G1C470A022 16V 47µF

S.M.CAPC4374 F1G1E103A059 25V 10nF

S.M.CAPC4375 F1G1E103A059 25V 10nF

S.M.CAPC4376 F1G1E103A059 25V 10nF

S.M.CAPC4377 F1G1E103A059 25V 10nF

ELECTC4379 F2G0J470A019 6.3V 47µF

S.M.CAPC4380 F1G1E103A059 25V 10nF

S.M.CAPC4381 ECJ1VB1A105K 10V 1000nF

S.M.CAPC4382 F1G1E103A059 25V 10nF

CERAMICC4383 F1H0J1050013 6.3V 1µF

S.M.CAPC4384 F1G1C104A081 16V 100nF

ELECTC4385 F2G0J470A019 6.3V 47µF

S.M.CAPC4386 F1G1E103A059 25V 10nF

S.M.CAPC4387 F1H0J1050012 6.3V 1000nF

S.M.CAPC4388 F1H0J1050012 6.3V 1000nF

S.M.CAPC4389 F1G1C104A081 16V 100nF

S.M.CAPC4390 F1G1C104A081 16V 100nF

S.M.CAPC4391 F1G1E103A059 25V 10nF

S.M.CAPC4392 F1G1E103A059 25V 10nF

CERAMICC4393 F1J0J1060004 6.3V 10µF

S.M.CAPC4394 ECJ1VB1H103 50V 10nF

S.M.CAPC4395 ECJ1VB1H103 50V 10nF

ELECTC4396 F2G1C470A022 16V 47µF

S.M.CAPC4399 F1G1C104A081 16V 100nF

CERAMICC4400 F1J0J1060004 6.3V 10µF

CERAMICC4401 F1J0J1060004 6.3V 10µF

CERAMICC4402 F1J0J1060004 6.3V 10µF

CERAMICC4403 F1J0J1060004 6.3V 10µF

CERAMICC4404 F1J0J1060004 6.3V 10µF

CERAMICC4405 F1J0J1060004 6.3V 10µF

CERAMICC4406 F1J0J1060004 6.3V 10µF

CERAMICC4407 F1J0J1060004 6.3V 10µF

CERAMICC4408 F1J0J1060004 6.3V 10µF

ELECTC4409 F2G0G101A007 4V 100µF

S.M.CAPC4410 ECJ1VB1H103 50V 10nF

S.M.CAPC4411 ECJ1VB1A105K 10V 1000nF

S.M.CAPC4412 F1G1H1020008 50V 1nF

S.M.CAPC4415 F1G1C104A081 16V 100nF

S.M.CAPC4451 F1G1E103A059 25V 10nF

S.M.CAPC4500 F1G1C104A081 16V 100nF

37

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CAPC4501 F1G1C104A081 16V 100nF

S.M.CAPC4502 F1G1C104A081 16V 100nF

S.M.CAPC4503 F1G1C104A081 16V 100nF

S.M.CAPC4506 F1G1C104A081 16V 100nF

S.M.CAPC4507 F1G1C104A081 16V 100nF

ELECTC4508 F2G0J330A019 6.3V 33µF

ELECTC4509 F2G0J330A019 6.3V 33µF

S.M.CAPC4510 F1G1C104A081 16V 100nF

S.M.CAPC4511 F1G1C104A081 16V 100nF

S.M.CAPC4513 F1G1C104A081 16V 100nF

S.M.CAPC4514 F1G1C104A081 16V 100nF

S.M.CAPC4515 F1G1C104A081 16V 100nF

S.M.CAPC4517 F1G1C104A081 16V 100nF

CERAMICC4520 F1J1A106A043 10V 10µF

S.M.CAPC4521 F1G1C104A081 16V 100nF

CERAMICC4527 F1H1A1050028 10V 1µF

S.M.CAPC4528 F1G1C104A081 16V 100nF

S.M.CAPC4531 F1G1C104A081 16V 100nF

S.M.CAPC4533 F1G1H680A565 50V 68pF

S.M.CAPC4534 ECJ1VB1H104 50V 100nF

S.M.CAPC4535 ECJ1VB1H104 50V 100nF

S.M.CAPC4537 ECJ1VB1H104 50V 100nF

ELECTC4538 F2G0J470A019 6.3V 47µF

CERAMICC4539 F1J1A106A043 10V 10µF

S.M.CAPC4541 F1H1H471A219 50V 470pF

S.M.CAPC4543 F1G1C104A081 16V 100nF

S.M.CAPC4544 F1G1C104A081 16V 100nF

S.M.CAPC4545 F1G1C104A081 16V 100nF

CERAMICC4546 F1H0J2250008 6.3V 2200nF

S.M.CAPC4547 F1G1C104A081 16V 100nF

S.M.CAPC4548 ECJ1VB1H104 50V 100nF

S.M.CAPC4549 ECJ1VB1H104 50V 100nF

S.M.CAPC4550 F1G1C104A081 16V 100nF

S.M.CAPC4551 ECJ1VB1H104 50V 100nF

S.M.CAPC4552 ECJ1VB1H104 50V 100nF

S.M.CAPC4553 F1G1H1020008 50V 1nF

CERAMICC4555 F1J1A106A043 10V 10µF

CERAMICC4556 F1J1A106A043 10V 10µF

S.M.CAPC4557 F1G1C104A081 16V 100nF

S.M.CAPC4559 F1G1C104A081 16V 100nF

S.M.CAPC4560 F1G1C104A081 16V 100nF

S.M.CAPC4562 F1H1H822A219 50V 8.2nF

S.M.CAPC4563 ECJ1VB1C823K 16V 82nF

S.M.CAPC4564 F1G1E1030005 25V 10nF

S.M.CAPC4565 F1G1E1030005 25V 10nF

S.M.CAPC4566 ECJ1VB1C393K 16V 39nF

S.M.CAPC4567 ECJ1VB1H104 50V 100nF

S.M.CAPC4568 F1G1C104A081 16V 100nF

S.M.CAPC4569 F1J1C684A097 16V 680nF

ELECTC4570 F2G0J470A019 6.3V 47µF

S.M.CAPC4572 F1G1C104A081 16V 100nF

S.M.CAPC4573 F1G1C104A081 16V 100nF

S.M.CAPC4574 F1G1E1030005 25V 10nF

CERAMICC4575 F1H1A1050028 10V 1µF

ELECTC4576 F2G0J470A019 6.3V 47µF

S.M.CAPC4577 F1G1C104A081 16V 100nF

S.M.CAPC4578 F1G1C104A081 16V 100nF

S.M.CAPC4580 F1G1E1030005 25V 10nF

CERAMICC4581 F1H1A1050028 10V 1µF

S.M.CAPC4582 F1G1C104A081 16V 100nF

S.M.CAPC4583 F1G1C104A081 16V 100nF

CERAMICC4584 F1H1A1050028 10V 1µF

CERAMICC4585 F1H1A1050028 10V 1µF

S.M.CAPC4586 F1G1E1030005 25V 10nF

S.M.CAPC4587 F1G1C104A081 16V 100nF

S.M.CAPC4588 ECJ1VB1C823K 16V 82nF

S.M.CAPC4589 F1G1H150A565 50V 15pF

S.M.CAPC4590 ECJ0EC1H180J 50V 18pF

S.M.CAPC4591 ECJ1VB1A105K 10V 1000nF

S.M.CAPC4592 ECJ1VB1A105K 10V 1000nF

S.M.CAPC4593 F1G1E1030005 25V 10nF

S.M.CAPC4595 F1G1E1030005 25V 10nF

S.M.CAPC4596 F1G1C104A081 16V 100nF

CERAMICC4598 F1H1A1050028 10V 1µF

S.M.CAPC4600 F1G1E1030005 25V 10nF

S.M.CAPC4601 F1G1E1030005 25V 10nF

S.M.CAPC4602 F1G1C104A081 16V 100nF

CERAMICC4604 F1H0J2250008 6.3V 2200nF

S.M.CAPC4605 F1G1C104A081 16V 100nF

ELECTC4607 F2G0J470A019 6.3V 47µF

CERAMICC4609 F1H1A1050028 10V 1µF

CERAMICC4611 F1H1A1050028 10V 1µF

S.M.CAPC4612 F1G1E1030005 25V 10nF

CERAMICC4613 F1H1A1050028 10V 1µF

S.M.CAPC4614 F1G1C104A081 16V 100nF

S.M.CAPC4615 F1G1E1030005 25V 10nF

S.M.CAPC4616 F1G1C104A081 16V 100nF

S.M.CAPC4617 F1G1C104A081 16V 100nF

S.M.CAPC4618 F1G1E1030005 25V 10nF

S.M.CAPC4619 F1G1C104A081 16V 100nF

CERAMICC4620 F1H1A1050028 10V 1µF

S.M.CAPC4621 F1G1C104A081 16V 100nF

S.M.CAPC4622 F1G1C104A081 16V 100nF

S.M.CAPC4623 F1G1C104A081 16V 100nF

S.M.CAPC4624 ECJ1VB1H104 50V 100nF

S.M.CAPC4625 ECJ1VB1H104 50V 100nF

S.M.CAPC4626 F1G1C104A081 16V 100nF

S.M.CAPC4627 F1G1C104A081 16V 100nF

CERAMICC4628 F1G1A1040006 10V 100nF

CERAMICC4629 F1J1A106A043 10V 10µF

SMDC5600 ECJ1VB1C105K 16V 1000nF

S.M.CAPC5601 F1G1C104A081 16V 100nF

ELECTC5602 ECGRL0G680ER 4V 68µF

S.M.CAPC5603 F1G1E103A059 25V 10nF

S.M.CAPC5604 F1G1E103A059 25V 10nF

S.M.CAPC5605 F1J1A475A039 10V 4.7µF

S.M.CAPC5606 F1H1H471A219 50V 470pF

S.M.CAPC5607 F1G1H221A459 50V 220pF

S.M.CAPC5608 F1G1C104A081 16V 100nF

ELECTC5609 F2G1C470A022 16V 47µF

ELECTC5610 F2G1C470A022 16V 47µF

CERAMICC5615 F1J1A106A043 10V 10µF

S.M.CAPC5616 ECJ0EB1A473K 10V 47nF

SMDC5617 ECJ1VB1C105K 16V 1000nF

CERAMICC5618 F1J1A106A043 10V 10µF

CERAMICC5619 F1J1A106A043 10V 10µF

S.M.CAPC5620 ECJ1VB1C104K 16V 100nF

S.M.CAPC5621 F1G1E103A059 25V 10nF

S.M.CAPC5622 F1J1A475A039 10V 4.7µF

S.M.CAPC5623 F1G1H471A459 50V 470pF

S.M.CAPC5624 F1G1H221A459 50V 220pF

S.M.CAPC5625 F1G1E103A059 25V 10nF

S.M.CAPC5626 F1G1C104A081 16V 100nF

S.M.CAPC5627 F1G1C104A081 16V 100nF

ELECTC5628 ECGRL0G680ER 4V 68µF

ELECTC5629 ECGRL0G680ER 4V 68µF

ELECTC5630 F2G1C470A022 16V 47µF

ELECTC5631 F2G1C470A022 16V 47µF

SMDC5632 ECJ1VB1C105K 16V 1000nF

CERAMICC5636 F1G1A1040006 10V 100nF

CERAMICC5637 F1G1A1040006 10V 100nF

CERAMICC5638 F1G1A1040006 10V 100nF

CERAMICC5639 F1G1A1040006 10V 100nF

CERAMICC5640 F1G1A1040006 10V 100nF

CERAMICC5641 F1G1A1040006 10V 100nF

S.M.CAPC5643 ECJ1VB1C104K 16V 100nF

38

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CAPC5644 F1G1E103A059 25V 10nF

S.M.CAPC5645 F1H1A225A051 10V 2200nF

S.M.CAPC5661 F1G1E103A059 25V 10nF

S.M.CAPC5662 ECJ0EB1A473K 10V 47nF

S.M.CAPC5663 F1G1E103A059 25V 10nF

CERAMICC5670 F1H1A1050028 10V 1µF

SMDC5673 ECJ1VB1C105K 16V 1000nF

CERAMICC5674 F1H1A1050028 10V 1µF

S.M.CAPC5676 F1G1C104A081 16V 100nF

ELECTC5690 F2G0J470A019 6.3V 47µF

ELECTC5691 F2G0J470A019 6.3V 47µF

S.M.CAPC5692 ECJ1VB1H104 50V 100nF

S.M.CAPC5693 ECJ1VB1H104 50V 100nF

ELECTC5694 F2G0J470A019 6.3V 47µF

ELECTC5695 F2G0J470A019 6.3V 47µF

S.M.CAPC5710 F1J1H104A578 50V 100nF

S.M.CAPC5711 F1J1H104A578 50V 100nF

S.M.CAPC5712 F1J1H104A578 50V 100nF

S.M.CAPC5713 F1J1H104A578 50V 100nF

S.M.CAPC5714 F1J1H104A578 50V 100nF

S.M.CAPC5715 F1J1H104A578 50V 100nF

S.M.CAPC5716 F1J1H104A578 50V 100nF

S.M.CAPC5730 F1G1E103A059 25V 10nF

CERAMICC5733 F1G1A1040006 10V 100nF

S.M.CAPC7101 F1J1H104A717 50V 100nF

S.M.CAPC7102 F1J1H104A717 50V 100nF

S.M.CAPC7201 F1J1A1050016 10V 1µF

S.M.CAPC7202 F1J1A1050016 10V 1µF

S.M.CAPC7203 F1J1A1050016 10V 1µF

S.M.CAPC7204 F1J1A1050016 10V 1µF

CERAMICC7205 F1J0J2250003 6.3V 2.2µF

ELECTC7206 F2A1C101A121 16V 100µF

S.M. CAPC7207 ECUV1C224KBX 16V 220nF

S.M.CAPC7209 F1J1H1030007 50V 10nF

S.M.CAPC7210 F1J1H104A717 50V 100nF

S.M.CAPC7211 F1J1H104A717 50V 100nF

S.M.CAPC7301 F1J1H1030007 50V 10nF

ELECTC7302 F2A1H221A253 50V 220µF

S.M.CAPC7303 F1J1H1030007 50V 10nF

ELECTC7304 F2A1C102A530 16V 1000µF

S.M.CAPC7305 F1J1H1030007 50V 10nF

S.M.CAPC7306 ECJ2VB1H223K 50V 22nF

S.M.CAPC7307 F1J1H104A717 50V 100nF

S.M.CAPC7308 F1J1H104A717 50V 100nF

S.M.CAPC7309 F1J1H104A717 50V 100nF

S.M.CAPC7310 F1J1H104A717 50V 100nF

S.M.CAPC7311 F1J1H1030007 50V 10nF

S.M.CAPC7312 F1J1H1030007 50V 10nF

S.M.CAPC7313 F1J1H104A717 50V 100nF

S.M.CAPC7401 F1J1H1030007 50V 10nF

ELECTC7402 F2A1H221A253 50V 220µF

S.M.CAPC7403 F1J1H1030007 50V 10nF

ELECTC7404 F2A1C102A530 16V 1000µF

S.M.CAPC7405 F1J1H223A457 50V 22nF

S.M.CAPC7406 ECJ2VB1H102K 50V 1nF

S.M.CAPC7407 F1J1H104A717 50V 100nF

S.M.CAPC7408 F1J1H104A717 50V 100nF

S.M.CAPC7409 F1J1H104A717 50V 100nF

S.M.CAPC7410 F1J1H104A717 50V 100nF

S.M.CAPC7411 F1J1H1030007 50V 10nF

S.M. CAPC7412 ECUV1H472KBX 50V 4.7nF

S.M.CAPC7413 F1J1H104A717 50V 100nF

S.M.CAPC7501 F1J1H1030007 50V 10nF

ELECTC7502 F2A1H221A253 50V 220µF

S.M.CAPC7503 F1J1H1030007 50V 10nF

ELECTC7504 F2A1C102A530 16V 1000µF

S.M.CAPC7505 F1J1H223A457 50V 22nF

S.M.CAPC7506 ECJ2VB1H223K 50V 22nF

S.M.CAPC7507 F1J1H104A717 50V 100nF

S.M.CAPC7508 F1J1H104A717 50V 100nF

S.M.CAPC7509 F1J1H104A717 50V 100nF

S.M.CAPC7510 F1J1H104A717 50V 100nF

S.M.CAPC7511 F1J1H1030007 50V 10nF

S.M.CAPC7512 F1J1H1030007 50V 10nF

S.M.CAPC7513 F1J1H104A717 50V 100nF

ELECTC7551 F2A1H100A165 50V 10µF

S.M.CAPC7552 F1J1H1030007 50V 10nF

S.M.CAPC7601 F1J1H1030007 50V 10nF

ELECTC7602 F2A1H221A253 50V 220µF

ELECTC7603 F2A1C102A530 16V 1000µF

S.M.CAPC7605 F1J1H1030007 50V 10nF

S.M.CAPC7606 F1J1H104A717 50V 100nF

S.M.CAPC7607 F1J1H104A717 50V 100nF

S.M.CAPC7608 F1J1H104A717 50V 100nF

S.M.CAPC7701 F1J1H1030007 50V 10nF

ELECTC7702 F2A1H221A253 50V 220µF

ELECTC7703 F2A1C681A127 16V 680µF

S.M.CAPC7705 F1J1H1030007 50V 10nF

S.M.CAPC7706 F1J1H104A717 50V 100nF

S.M.CAPC7901 F1J1H102A721 50V 1nF

S.M.CAPC7902 F1J1H104A717 50V 100nF

S.M.CAPC7903 F1J1H104A717 50V 100nF

S.M.CAPC7904 F1J1H104A717 50V 100nF

S.M.CAPC7905 F1J1H104A717 50V 100nF

S.M.CAPC7906 F1J1H104A717 50V 100nF

S.M.CAPC7907 F1J1H104A717 50V 100nF

ELECTC7908 F2A1C101A121 16V 100µF

ELECTC7910 F2A1A221A106 10V 220µF

S.M.CAPC8001 F1G1C104A081 16V 100nF

CERAMICC8002 F1H0J1050013 6.3V 1µF

CERAMICC8003 F1H0J1050013 6.3V 1µF

CERAMICC8004 F1H0J1050013 6.3V 1µF

CERAMICC8005 F1H0J1050013 6.3V 1µF

S.M.CAPC8006 F1G1C104A081 16V 100nF

S.M.CAPC8007 F1G1C104A081 16V 100nF

S.M.CAPC8008 F1G1C104A081 16V 100nF

CERAMICC8009 F1J1A106A043 10V 10µF

CERAMICC8010 F1J1A106A043 10V 10µF

S.M.CAPC8011 F1G1C104A081 16V 100nF

S.M.CAPC8012 F1G1C104A081 16V 100nF

S.M.CAPC8013 F1G1C104A081 16V 100nF

S.M.CAPC8014 F1G1C104A081 16V 100nF

CERAMICC8015 F1H0J1050013 6.3V 1µF

CERAMICC8016 F1H0J1050013 6.3V 1µF

CERAMICC8017 F1J1A106A043 10V 10µF

S.M.CAPC8018 F1G1C104A081 16V 100nF

S.M.CAPC8019 F1G1C104A081 16V 100nF

S.M.CAPC8020 F1G1C104A081 16V 100nF

S.M.CAPC8021 F1G1C104A081 16V 100nF

CERAMICC8022 F1H0J1050013 6.3V 1µF

CERAMICC8023 F1J1A106A043 10V 10µF

CERAMICC8024 F1J1A106A043 10V 10µF

S.M.CAPC8025 F1G1C104A081 16V 100nF

S.M.CAPC8026 F1G1C104A081 16V 100nF

S.M.CAPC8027 F1G1C104A081 16V 100nF

S.M.CAPC8028 F1G1C104A081 16V 100nF

S.M.CAPC8029 F1G1C104A081 16V 100nF

CERAMICC8030 F1H0J1050013 6.3V 1µF

CERAMICC8031 F1H0J1050013 6.3V 1µF

CERAMICC8032 F1J1A106A043 10V 10µF

S.M.CAPC8033 F1G1C104A081 16V 100nF

S.M.CAPC8034 F1G1C104A081 16V 100nF

CERAMICC8035 F1J1A106A043 10V 10µF

CERAMICC8036 F1J1A106A043 10V 10µF

S.M.CAPC8037 F1G1C104A081 16V 100nF

S.M.CAPC8038 F1G1C104A081 16V 100nF

39

TERMINALS AND LINKS

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

S.M.CAPC8039 F1G1C104A081 16V 100nF

S.M.CAPC8040 F1G1C104A081 16V 100nF

S.M.CAPC8041 F1G1C104A081 16V 100nF

ELECTC8042 ECGRL0G680ER 4V 68µF

S.M.CAPC8043 F1G1C104A081 16V 100nF

S.M.CAPC8044 F1G1C104A081 16V 100nF

S.M.CAPC8045 F1G1C104A081 16V 100nF

S.M.CAPC8046 F1G1C104A081 16V 100nF

S.M.CAPC8047 F1G1C104A081 16V 100nF

S.M.CAPC8048 F1G1C104A081 16V 100nF

S.M.CAPC8049 F1G1C104A081 16V 100nF

S.M.CAPC8050 F1G1C104A081 16V 100nF

S.M.CAPC8051 F1G1C104A081 16V 100nF

CERAMICC8052 F1H0J1050013 6.3V 1µF

S.M.CAPC8053 F1G1E1030005 25V 10nF

S.M.CAPC8056 F1G1C104A081 16V 100nF

S.M.CAPC8057 F1G1C104A081 16V 100nF

CERAMICC8058 F1J1A106A043 10V 10µF

S.M.CAPC8067 F1G1E1030005 25V 10nF

S.M.CAPC8068 F1G1C104A081 16V 100nF

S.M.CAPC8069 F1G1H820A565 50V 82pF

S.M.CAPC8070 F1G1C104A081 16V 100nF

S.M.CAPC8071 F1G1C104A081 16V 100nF

S.M.CAPC8072 F1G1C104A081 16V 100nF

S.M.CAPC8073 F1G1C104A081 16V 100nF

S.M.CAPC8074 F1G1C104A081 16V 100nF

S.M.CAPC8075 F1J0G2260001 4V 22µF

S.M.CAPC8076 F1G1C104A081 16V 100nF

S.M.CAPC8077 F1G1C104A081 16V 100nF

S.M.CAPC8078 F1G1C104A081 16V 100nF

S.M.CAPC8079 F1G1C104A081 16V 100nF

S.M.CAPC8080 F1G1C104A081 16V 100nF

S.M.CAPC8551 F1G1C104A081 16V 100nF

S.M.CAPC8552 F1G1C104A081 16V 100nF

S.M.CAPC8555 F1G1C104A081 16V 100nF

S.M.CAPC8601 F1G1C104A081 16V 100nF

S.M.CAPC8621 F1G1C104A081 16V 100nF

S.M.CAPC8622 F1G1C104A081 16V 100nF

S.M.CAPC8731 F1G1E1030005 25V 10nF

CERAMICC8852 F1H0J2250008 6.3V 2200nF

CERAMICC8853 F1H0J2250008 6.3V 2200nF

CERAMICC8854 F1H0J2250008 6.3V 2200nF

CHIP CAPFL4206 F1H0J4740004 6.3V 470nF

EARTH LUG . K4AZ01D00004

EARTH LUG . K4CD08000002

EARTH LUG . K9ZZ00000424

23P CONNECTOR AP3 K1KA23A00003

23P CONNECTOR AP4 K1KA23A00003

9P CONNECTOR AP5 K1KA09AA0190

AP5-P5 WIRE AP5-P5 TXJAP50MDQ

2P CONNECTOR AP6 K1KA02AA0193

3P CONNECTOR AP7 K1KA03AA0193

12P CONNECTOR DG1 K1KA12A00317

23P CONNECTOR DG2 K1KB23A00003

80P CONNECTOR DG6 K1KB80AA0218

51P CONNECTOR DG25 K1KB51B00001

6P CONNECTOR DG27 K1KA06AA0104

11P CONNECTOR DG33 K1KA11AA0153

15P CONNECTOR G51 K1KA15AA0194

23P CONNECTOR H2 K1KA23A00003

23P CONNECTOR H3A K1KB23A00004

23P CONNECTOR H4A K1KB23A00004

80P CONNECTOR H6 K1KB80AA0218

4P CONNECTOR H12 K1KA04AA0190

20P CONNECTOR H51 K1KA20AA0178

AUDIO TERMINAL JK2002 K2HA204A0041

SWITCHES

RELAYS

DIFFERENCES FOR MODEL TX--26LX70F

EXPLODED VIEW

MISCELLANEOUS COMPONENTS

INSTRUCTION BOOKS

I.C.s

RESISTORS

TERMINALS AND LINKS

DIFFERENCES FOR MODEL TX--26LX70L

EXPLODED VIEW

PC TERMINAL JK3001 K1FB315A0006

SCART SOCKET JK3002B K1FB121A0012

SCART SOCKET JK3003B K1FB121A0012

YUV TERMINAL JK3005 K2HA511A0001

AV3 TERMINAL JK3700 K4AK18B00004

HDMI TERMINAL JK4500 K1FY119D0002

HDMI TERMINAL JK4501 K1FY119D0002

SD SLOT JK8801 K1NA09D00004

4P CONNECTOR K8 K1KA04AA0193

9P CONNECTOR P5 K1KA09AA0190

4P CONNECTOR P8 K1KA04AA0192

8P CONNECTOR P9 K1KA08AA0192

2P CONNECTOR P10 K1KA02A00626

2P CONNECTOR P11 K1KA02A00613

8P CONNECTOR V1 K1KA08BA0061

SWITCH SW7000 K0F162B00002

RELAY RL801 K6B1AGA00043

RELAY RL802 K6B2ADA00007

AC CORD 20 K2CQ2YY00007

BACK COVER 21 TKU0E0178

CABINET 22 TTY0E0165

CHASSIS FRAME 23 TUA0E1100

DG P.C.B. X RTL 24 DG-26LX70F

LCD BOTTOM MTG 25 TKZ0E9415

LCD PANEL 26 L5EDD6Q00024

LCD SIDE MTG 27 TKZ0E9416

MODEL LABEL 28 TBM0E0803

PEDESTAL ASSY 29 TBLA0242

CARTON . TPC0E71801

TOP CUSHION . TPD0E0142

BOTTOM CUSHION . TPD0E0143

GERMAN . TQB0E0401A

DUTCH . TQB0E0401B

ITALIAN . TQB0E0401C

FRENCH . TQB0E0401D

SPANISH . TQB0E0401E

SWEDISH . TQB0E0401F

DANISH . TQB0E0401K

ENGLISH . TQB0E0401U

EEPROM IC8601 X24C26LX70F

SMDJS1124 ERJ2GE0R00X .063W - 0 Ω

INV-P10 WIRE INV-P10 TXJP100MFQ

DG1-V1 WIRE DG1-V1 TXJ/V10MFQ

H12-SP WIRE H12-SP TXJH120MFQ

H51-G51 WIRE H51-G51 TXJH510MFQ

INV-DG25 WIRE INV-DG25 TSXL611

P9/DG27-INV WIRE INV-P/DG TXJ/P90MFQ

K8-P8 WIRE K8-P8 TXJ/K80MFQ

AC CORD 20 K2CT2YY00006

BACK COVER 21 TKU0E0178

40

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

CABINET 22 TTY0E0165

CHASSIS FRAME 23 TUA0E1100

DG P.C.B. X RTL 24 DG-26LX70L

LCD BOTTOM MTG 25 TKZ0E9415

LCD PANEL 26 L5EDD6Q00024

LCD SIDE MTG 27 TKZ0E9416

MODEL LABEL 28 TBM0E0863

PEDESTAL ASSY 29 TBLA0242

MISCELLANEOUS COMPONENTS

CARTON . TPC0E71801

TOP CUSHION . TPD0E0142

BOTTOM CUSHION . TPD0E0143

INSTRUCTION BOOKS

ENGLISH . TQB0E0437

I.C.s

EEPROM IC8601 X24C26LX70L

RESISTORS

SMDJS1127 ERJ2GE0R00X .063W - 0 Ω

TERMINALS AND LINKS

INV-P10 WIRE INV-P10 TXJP100MFQ

DG1-V1 WIRE DG1-V1 TXJ/V10MFQ

H12-SP WIRE H12-SP TXJH120MFQ

H51-G51 WIRE H51-G51 TXJH510MFQ

INV-DG25 WIRE INV-DG25 TSXL611

P9/DG27-INV WIRE INV-P/DG TXJ/P90MFQ

K8-P8 WIRE K8-P8 TXJ/K80MFQ

DIFFERENCES FOR MODEL TX--26LX70P

EXPLODED VIEW

AC CORD 20 K2CQ2YY00007

BACK COVER 21 TKU0E0178

CABINET 22 TTY0E0165

CHASSIS FRAME 23 TUA0E1100

DG P.C.B. X RTL 24 DG-26LX70P

LCD BOTTOM MTG 25 TKZ0E9415

LCD PANEL 26 L5EDD6Q00024

LCD SIDE MTG 27 TKZ0E9416

MODEL LABEL 28 TBM0E0831

PEDESTAL ASSY 29 TBLA0242

MISCELLANEOUS COMPONENTS

CARTON . TPC0E71801

TOP CUSHION . TPD0E0142

BOTTOM CUSHION . TPD0E0143

INSTRUCTION BOOKS

BULGARIAN . TQB0E0402M

ROMANIAN . TQB0E0402N

POLISH . TQB0E0402P

HUNGARIAN . TQB0E0402Q

CZECH . TQB0E0402R

ENGLISH . TQB0E0402U

I.C.s

EEPROM IC8601 X24C26LX70P

RESISTORS

SMDJS1125 ERJ2GE0R00X .063W - 0 Ω

TERMINALS AND LINKS

INV-P10 WIRE INV-P10 TXJP100MFQ

DG1-V1 WIRE DG1-V1 TXJ/V10MFQ

H12-SP WIRE H12-SP TXJH120MFQ

H51-G51 WIRE H51-G51 TXJH510MFQ

INV-DG25 WIRE INV-DG25 TSXL611

P9/DG27-INV WIRE INV-P/DG TXJ/P90MFQ

K8-P8 WIRE K8-P8 TXJ/K80MFQ

DIFFERENCES FOR MODEL TX--32LX70F

EXPLODED VIEW

AC CORD 20 K2CQ2YY00007

BACK COVER 21 TKU0E0181-1

CABINET 22 TTY0E0168

CHASSIS FRAME 23 TUA0E1200

DG P.C.B. X RTL 24 DG-32LX70F

LCD BOTTOM MTG 25 TKZ0E9417

LCD PANEL 26 L5EDD8Q00030

LCD SIDE MTG 27 TKZ0E9418

MODEL LABEL 28 TBM0E0806

PEDESTAL ASSY 29 TBLA0241

MISCELLANEOUS COMPONENTS

CARTON . TPC0E72201

TOP CUSHION . TPD0E0150

BOTTOM CUSHION . TPD0E0151

INSTRUCTION BOOKS

GERMAN . TQB0E0401A

DUTCH . TQB0E0401B

ITALIAN . TQB0E0401C

FRENCH . TQB0E0401D

SPANISH . TQB0E0401E

SWEDISH . TQB0E0401F

DANISH . TQB0E0401K

ENGLISH . TQB0E0401U

I.C.s

EEPROM IC8601 X24C32LX70F

RESISTORS

SMDJS1119 ERJ2GE0R00X .063W - 0 Ω

TERMINALS AND LINKS

INV-P10 WIRE INV-P10 TXJP100MDQ

DG1-V1 WIRE DG1-V1 TXJ/V10MEQ

H12-SP WIRE H12-SP TXJH120MEQ

H51-G51 WIRE H51-G51 TXJH510MDQ

INV-DG25 WIRE INV-DG25 TSXL610

P9/DG27-INV WIRE INV-P/DG TXJ/P90MDQ

K8-P8 WIRE K8-P8 TXJ/K80MDQ

DIFFERENCES FOR MODEL TX--32LX70L

EXPLODED VIEW

AC CORD 20 K2CT2YY00006

BACK COVER 21 TKU0E0181-1

CABINET 22 TTY0E0168

CHASSIS FRAME 23 TUA0E1200

DG P.C.B. X RTL 24 DG-32LX70L

LCD BOTTOM MTG 25 TKZ0E9417

LCD PANEL 26 L5EDD8Q00030

LCD SIDE MTG 27 TKZ0E9418

MODEL LABEL 28 TBM0E0862

PEDESTAL ASSY 29 TBLA0241

MISCELLANEOUS COMPONENTS

CARTON . TPC0E72201

TOP CUSHION . TPD0E0150

BOTTOM CUSHION . TPD0E0151

INSTRUCTION BOOKS

ENGLISH . TQB0E0437

I.C.s

EEPROM IC8601 X24C32LX70L

RESISTORS

SMDJS1126 ERJ2GE0R00X .063W - 0 Ω

41

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number

TERMINALS AND LINKS

INV-P10 WIRE INV-P10 TXJP100MDQ

DG1-V1 WIRE DG1-V1 TXJ/V10MEQ

H12-SP WIRE H12-SP TXJH120MEQ

H51-G51 WIRE H51-G51 TXJH510MDQ

INV-DG25 WIRE INV-DG25 TSXL610

P9/DG27-INV WIRE INV-P/DG TXJ/P90MDQ

K8-P8 WIRE K8-P8 TXJ/K80MDQ

DIFFERENCES FOR MODEL TX--32LX70P

EXPLODED VIEW

AC CORD 20 K2CQ2YY00007

BACK COVER 21 TKU0E0181-1

CABINET 22 TTY0E0168

CHASSIS FRAME 23 TUA0E1200

DG P.C.B. X RTL 24 DG-32LX70P

LCD BOTTOM MTG 25 TKZ0E9417

LCD PANEL 26 L5EDD8Q00030

LCD SIDE MTG 27 TKZ0E9418

MODEL LABEL 28 TBM0E0832

PEDESTAL ASSY 29 TBLA0241

MISCELLANEOUS COMPONENTS

CARTON . TPC0E72201

TOP CUSHION . TPD0E0150

BOTTOM CUSHION . TPD0E0151

INSTRUCTION BOOKS

BULGARIAN . TQB0E0402M

ROMANIAN . TQB0E0402N

POLISH . TQB0E0402P

HUNGARIAN . TQB0E0402Q

CZECH . TQB0E0402R

ENGLISH . TQB0E0402U

I.C.s

EEPROM IC8601 X24C32LX70P

RESISTORS

SMDJS1120 ERJ2GE0R00X .063W - 0 Ω

TERMINALS AND LINKS

INV-P10 WIRE INV-P10 TXJP100MDQ

DG1-V1 WIRE DG1-V1 TXJ/V10MEQ

H12-SP WIRE H12-SP TXJH120MEQ

H51-G51 WIRE H51-G51 TXJH510MDQ

INV-DG25 WIRE INV-DG25 TSXL610

P9/DG27-INV WIRE INV-P/DG TXJ/P90MDQ

K8-P8 WIRE K8-P8 TXJ/K80MDQ

42

Schematic Diagrams

NOTE

1. RESISTOR All resistors are carbon ¼W resistor, unless marked otherwise. Unit of resistance is OHM (Ω) (k=1,000, M=1,000,000)

2. CAPACITORS All capacitors are ceramic 50V unless marked otherwise. Unit of capacitance is µF unless otherwise stated.

3. COIL Unit of inductance is µH, unless otherwise stated.

4. TEST POINT Test Point Position

5. EARTH SYMBOL Chassis Earth (Cold) Line Earth (Hot)

6. VOLTAGE MEASUREMENT Voltage is measured by a D.C. voltmeter. Measurement conditions are as follows: Power source 220V-240V AC, 50/60Hz Receiving Signal Colour Bar signal (RF) All customer controls Maximum position

7. Indicates the Video signal path Indicates the Audio signal path

These schematic diagrams are the latest at time of printing and are subject to change without notice.

REMARKS

a. Do not touch the hot part, or the hot and cold parts at the same time, as you are liable to a shock hazard. b. Do not short circuit the hot and cold circuits as electrical compon ents may be damaged.

c. Do not connect an instrument, such as an oscilloscope, to the hot and cold circuits simultaneously as this may cause

fuse failure. Connect the earth of the instruments to the earth connection of the circuit being measured.

d. Make sure to disconnect the power plug before removing the chassis.

NOTE

1. The Po wer Supply Circ uit contains a circuit area, which uses a separate power supply to isolate the earth connection.

The circuit is defined by HOT and COLD indications i n the schematic diagr am. All circuits, except the Power Circuit, are COLD.

Components identified by mark have special characteristics important for safety. When replacing any of these components, use only manufacturers' specified parts.

IMPORTANT SAFETY NOTICE

43

A B C D E F G H I J K L M N O P Q R S T

1

2

3

4

5

ALL OFF (SW DET)

6

SUB_ON Hi ON/Lo OFF

7

AP-BOARD TNA4117 1/2

K1KA09AA0190

B9B-EH-F1(LF)(SN)

To P5

AP5

TP7101

1

24V

2

24V

3

24V

4

GND

5

GND

6

GND

7

8

STB_5V

9

C7101

50V

0.1u

TP7102

ZA7001

K9ZZ00000424

0V

C

C7102

50V

0.1u

TP7103

SOUND(ROHM)

C7309

0.1u 50V

JS7301

+

C7302

220u

C7301

50V

0.01u

50V

F2A1H221A253

SUB_5V(ROHM)

C7409

JS7401

<

+

C7401

50V

0.01u C7402

50V

220u

F2A1H221A253

DTV_9V(ROHM)

<

JS7501

C7501

50V

0.01u

0.1u 50V

+

C7509

0.1u 50V

C7502 50V 220u

F2A1H221A253

Q7302

2SD0601A0L

1SS2RT3FB4

C7310

0.1u 50V

R7312

47k

Q7402

2SD0601A0L

R7410

47k

0V

Q7502

2SD0601A0L

R7510

0V

BD9280-V3

INV5SW6GND7VIN8PVIN9EN10SUB-GND

C7312

C7306

50V

0.01u 2200p

160k

36k

1%

R7304

R7305

D7303

B0HCMM000014

D7301

B0JCPG000005

BD9281-V3

1SS2RT3FB4

C7410

0.1u

50V

1SS2RT3FB4

C7510

0.1u 50V

47k

B0JCPG000005

INV5SW6GND7VIN8PVIN9EN10SUB-GND

C7412

C7406

50V

4700p

1000p

1%

56k

82k

R7404

R7405

D7403

B0HCMM000014

D7401

B0JCPG000005

BD9281-V3

INV5SW6GND7VIN8PVIN9EN10SUB-GND

C7512

C7506

50V

0.01u 2200p

1%

91k

36k

R7505

R7506

D7503 B0HCMM000014

D7501

IC7301

C7313

0.1u 50V

L7302

68u

IC7401

L7402

100u

IC7501

L7502

47u

C7303

0.01u

0.1u 50V

C0DAAZH00025

50V

F2A1C102A530

C7413

50V

0.01u

C7513

C7503

50V

0.01u

R7306

1k

+

C7304 16V

1000u

C7403

C0DAAZH00026

R7406

1k

+

F2A1C102A530

C

C0DAAZH00026

R7507

1k

+

C7504 16V

1000u

SOUND_VCC OVP

D7306

D7305

MAZ82000ML

MA2J11100L

Q7301

2SD0601A0L

R7303

47k

TP7302

1%

R7302

0.01u

13k

R7301

1%

910

C7311

0.01u 50V

L7304

EXCELDR25V

C7305

50V

R7307

100

C7307

0.1u 50V

R7309

10k

R7308

47k

C7308

0.1u 50V

0

R7310

0

2

R7311

0V

2

0V

SOUND

C

R7313

10k

SOUND_VCC

SUB5V OVP

D7405

D7406

MAZ80750ML

MA2J11100L

Q7401

C7407

0.1u 50V

D7506

MA2J11100L

2SD0601A0L

R7409

10k

R7408

47k

C7408

0.1u 50V

R7411

10k

SUB_9V

R7403

47k

TP7402

C7405

R7402

1%

6.2k

C7404

16V

1000u

R7401

1.5k

C7411

0.01u 50V

5V

L7403

EXCELDR25V

50V

0.022u

R7407 100

D7505

MAZ81100ML

MAIN_9V

Q7501

R7503

47k

TP7502

9V C7505

R7502

50V

0.022u

8.2k R7508

100

R7501

1k

C7511

0.01u 50V

L7504

EXCELDR25V

2SD0601A0L

C7507

0.1u 50V

C7508

0.1u 50V

C

R7509

10k

R7504

47k

R7511

10k

L7551

10u

VIN_9V VIN_9V

C7552

+

50V

0.01u

C7551

50V 10u

R7551 22k

Q7552

2SC584500L

SUB_9V

C

Q7551

B1DHDD000033

R7552

2.2k

0V

R7559

4.7k

R7557

4.7k

Q7553

2SC584500L

R7555

10k

R7553 47k

C

R7556

R7554

10k

47k

0V

8

9

10

11

12

13

R7201

Q7201

2SD0601ASL

1k

ALL_OFF_DET

R7232

10k

R7235

0V

47k

C

Q7212

2SD0601ASL

C7211 50V

0.1u

*IC7601

C0DAAZG00014

*TP7601

*C7608

24V

24V_DET

D7205

MAZ81800ML

R7230

47k

2SD0601ASL

Q7211

0V

C

R7229

Q7210

10k

C7210

R7228

47k R7231

50V

47k

0.1u

0V

*JS7601

5

<

*C7602

F2A1H221A253

220u

50V

0.1u 50V

+

*C7601

0.01u 50V

24V OVP

MAZ82700ML

D7101

D7102

MA2J11100L

PQ1CG41H2RZH

Vin2Vout3COM4Oadj5ON/OFF

1

*D7602

B0HCMM000014

*L7602

100u

*D7601

B0JCPG000005

*C7603 1000u

16V

F2A1C102A530

C

HQ_3.3V/SUB_9V(FHD)

*TP7602

*L7603

EXCELDR25V

<

*R7603

*C7605

1.69k

0.01u 50V

+

0V

*R7602

1k

1%

STB_5V_1

*C7607

*C7606

0.1u

0.1u 50V

1%

50V

*D7604

MAZ80560LL

*R7607

1k

*Q7601

2SD0601ASL

*D7605

MA2J11100L

*R7606

10k

*R7605

47k

MAIN ACT

24V_4

PANEL_Vcc(12V)

C0DAAZG00014

IC7701

C

PQ1CG41H2RZH

L7702

100u

<

R7706

1k

R7705

R7704

8.66k

1k

1%

<

+

C7703 680u

16V

PANEL_12V_1

C7705

0.01u

C7706

0.1u

50V

R7204

C7202

1u

10V

Q7202

2SB0709ASL

0V

R7205

10k R7202 10k

C7201

R7203

47k

1u 10V

C

R7206

47k

4.7k

10V

Q7204

2SD0601ASL

1u

C7203

Q7203

2SB0709ASL

R7207

4.7k

R7208

4.7k

R7209

R7210 1k

C7204

4.7k

1u

10V

5 JS7701

TP7701

24V_4

C7701

0.01u 50V

F2A1H221A253

+

C7702

50V

220u

B0JCPG000005

Vin2Vout3COM4Oadj5ON/OFF

1

D7703 B0HCMM000014

D7702

TP7702

Q7702

2SD0601ASL

PANEL_Vcc OVP

D7704

MAZ81800ML

R7702

R7701

47k

D7705 MA2J11100L

JS7702

22k

R7709

12k

R7707

1/2W

470

Q7703

2SD0601ASL

R7711

4.7k

R7710

22k

Q7701

2SD0601ASL

R7713

4.7k

R7714

22k

R7712 47k

TV_SUB_ON

PANEL_VCC_ON

44

U V W X Y Z AA AB AC AD AE AF AG AH AI

1

2

3

4

5

6

7

8

9

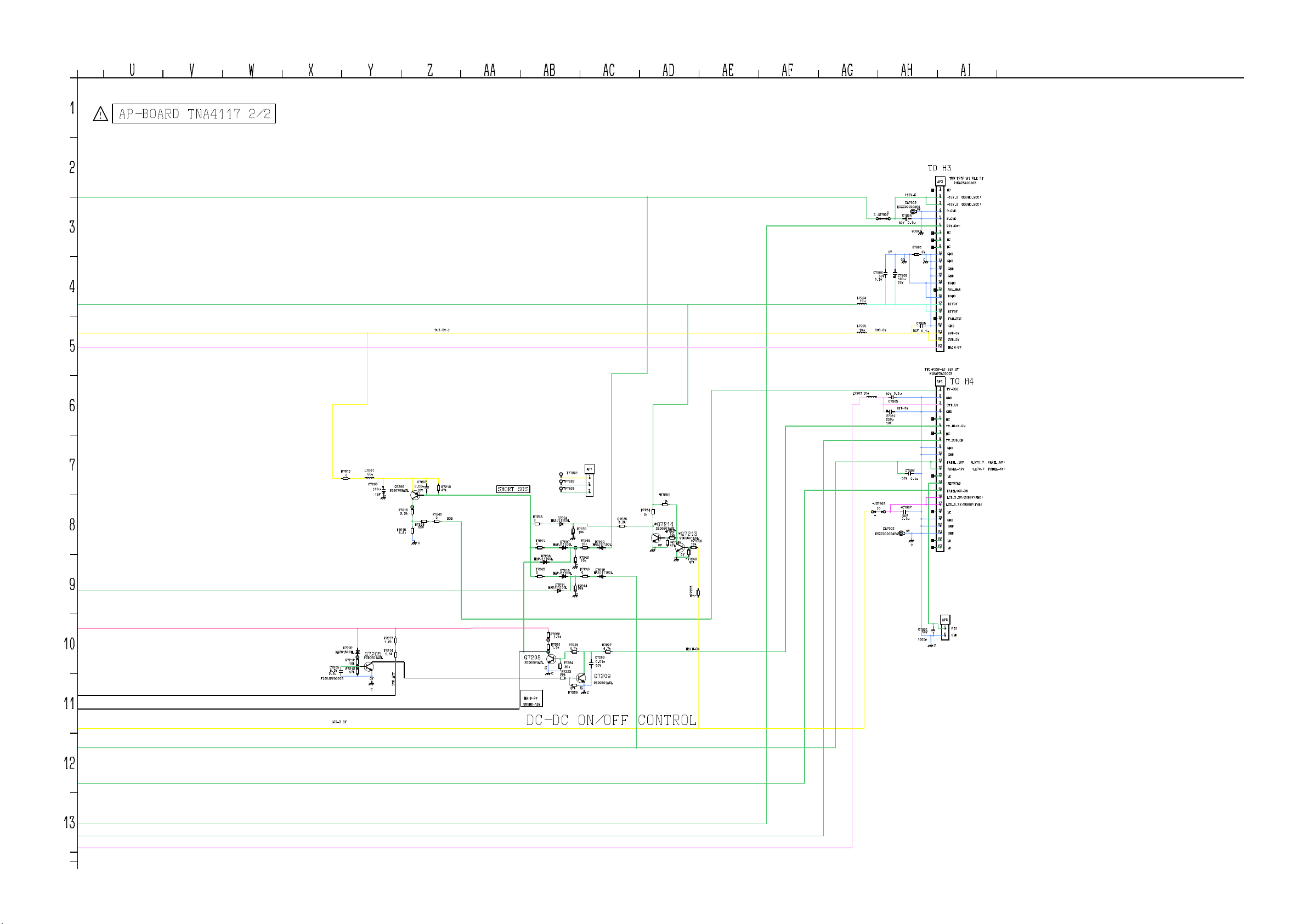

AP-BOARD TNA4117 2/2

TO H3

TWG-P23P-A1 BLK ST

AP3

K1KA23A00003

1

0V

0

C7905

50V

0V0V

C

0.1u

TWG-P23P-A1 BLK ST

K1KA23A00003

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

AP4

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

NC

+15V_S (SOUND_VCC)

S_GND

24V_DET

NC

GND

DGND

FAN_MAX

DGND

DTV9V

FAN_SOS

GND

SUB_5V

MAIN_9V

TO H4

TV_SOS

GND

STB_5V

GND

NC

TV_MAIN_ON

NC

TV_SUB_ON

GND

PANEL_12V

NC

KEYSCAN

PANELVCC_ON

LCD_3.3V/SUB9V(FHD)

NC

GND

NC

(LX70,7 PANEL_5V)

+15V_S

ZA7003

K9ZZ00000424

JS790105

C7904

0.1u

50V

SOUND

R7901

CD

C7906

+

C7908

50V

100u

0.1u 16V

L7904

10u

L7905

SUB_5V_1

L7201

R7211

68u

0

C7206

+

100u

0V

16V

C

Q7206

2SB0709ASL

C7207

0.22u

R7219 47k

16V

R7215

2.2k R7240

0

SOS

R7218

220

R7216

3.3k

C

SHORT SOS

R7233 0

R7241

0

MA2J11100L

R7243

0

MA2J11100L

D7208

MA2J11100L

AP7

TP7801

1

TP7802

2

TP7803

3

D7204

R7238

10k

0V

C

R7245

D7207

12k

R7242

10k

0V

C

R7246

D7210

0

D7211

R7244 22k

0V

C

D7209

MA2J11100L

D7212

MA2J11100L

R7239

3.3k

*R7251

1k

R7234

1k

*Q7214

2SD0601ASL

*R7247

*Q7213

10k

2SD0601ASL

*R7250

*R7249

10k

0V

47k

C

0V

C

*R7248

47k

0

*R7253

10u

L7903 10u

SUB_5V

<

*JS7903

10

<

K9ZZ00000424

0.1u

50V

C7903

+

STB_5V

C7910 220u 10V

C7902

50V

0.1u

*C7907

50V

0.1u

ZA7002

0V

C

10

11

12

13

2.2u

F1J0J2250003

C7205

6.3V

LCD_3.3V

MAZ81500ML

AP6

1

R7222

Q7208

2SD0601ASL

MAIN_9V

SOUND_16V

1.5k

R7221

R7225

1.5k

R7224

22k

0V

R7223

C

22k

R7226

R7227

4.7k

47k

4.7k

C7209

0.01u 50V

Q7209

2SD0601ASL

0V

C

MAIN_ON

R7217

Q7205

2SD0601ASL

0V

1.2k

R7214

1.5k

SUB_ACT

C

D7202

R7212

10k

R7213

47k

C7901

1000p

KEY

50V

2

GND

C

DC-DC ON/OFF CONTROL

45

A B C D E F

1

R-SW

R

L

V

2

3

JK3700 K4AK18B00004

R

R-G

L

L-G

V

V-G

Y-SW

Y

Y-G

Y

G

C

C-G

C-SW

C G

b

L

a

R

c

G

C

G-BOARD TNA4118

R

L

4

C

L3701

J0JCC0000100

AV4_L

AV4_V

1011121314

TP3703 TP3707

TP3702

GND

AV4_V

AV4_LIN

AV4_S_DET

L3700

J0JCC0000100

C

50V

560p

C3702

C3700

R3701

R3700

39k

C

AV4_R

15

TP3700

TP3701

GND

AV4_RIN

C

5

6

7

C

C3707

C3705

0.1u

50V

L3703

J0JCC0000364

C

R3702

R3703

180k

C

AV4_Y

TP3704

GND

AV4_Y

AV4_C

123456789

G51

TO H51

C

TP3706

TP3705

GND

AV4_C

GND

HP_LOUT

GND

HP_ROUT

C

L3702

J0JCC0000364

46

A B C D E F

1

2

K-BOARD TNA4128

3

TP7004

SW7000

K0F162B00002

PUSH

4

SW_GND

TP7000

TP7001

TP7002

TP7003

B4B-PH-K-S(LF)(SN) K1KA04AA0193

K8

TO AP

1

5VS

2

ALL_OFF

3

STB_5V

4

RELAY

GND

5

6

47

1

2

3

4

5

6

7

8

9

10

A B C D E F G H I J K L M N O P Q R

SUB9V_VIDEO

R3130

220

SUB9V_PRCT

R3131

220

+

C3120

C3119

0.1u

10u

50V

16V

AV1_GREEN

AV1_BLUE

AV2_SLOW

AV3_RED/C

AV3_GREEN

AV3_BLUE

NET0011348

YPBPR_PB

YPBPR_PR

AV1_FB

AV1_RED

AV1_SLOW

AV2_VOUT

AV3_FB

YPBPR_Y

AV1_V

AV2_V

AV2_C

AV3_V

C

MOUT_9V

D3038

MAZ81400ML

D3039

MAZ81400ML

R3032

ERJ3GEY0R00V

0

R3149

R3146

360

R3144

Q3027

2SA207700L

C

R3031 ERJ3GEY0R00V

0

R3154

R3153

360

R3151

Q3028

2SA207700L C

9V

220

SOUND_MUTE/1

Q2004

2SC584500L

R2035

100k

R2036

9V

220

100k

SOUND_MUTE/2

R2039

100k

R2040

100k

Q2005

2SC584500L

Q2006

2SC584500L

Q2007

2SC584500L

VIDEO/3

AV1_VOUT

*R3114

QLINK_AV3

68

AV1_L

AV1_R

AV1_LOUT

AV1_ROUT

QLINK_AV2

AV2_L

AV2_R

AV2_LOUT AV2_LOUT

AV2_ROUT

PC_LIN

PC_RIN

VIDEO/4

R3145

100k

R3152

100k

*R3143

*R3150

+

C3070

68

1%

16V 470u

C3068

50V

0.1u

+

C3072

68

1%

16V 470u

C3071

50V

0.1u

Audio SW

AV1_VO

AV1_FEED_B

AV1_LOUT

R2037

2.2k

C

AV1_ROUT

R2038

MONITOROUT_MUTE

2.2k

AV2_VO

AV2_FEED_B

R2041

2.2k

AV2_ROUT

R2042

MONITOROUT_MUTE

2.2k

3

4

2

1

C

*FL3001 J0HABB000003

GUARD

TV_L

TV_R

*R3306

4.7k

R2132

C

*R3307

4.7k

*FL3002 J0HABB000003

VD HD

DTV9V

R2235

47k

R2137

220

R2138

220

DTV9V

*JK3001

*R3308

0

*R3309

0

3

4

2

1

C

R2152

47k

SDA0B_5V

C2135

C2136

SCL0B_5V

AV_L

AV_R

22

R2154

33

SCL

SDA

ROUT1

O2

ADR

BIAS

AN15862A-VT

L11

R11

L12

R13

R12

L13

1L12R13L24R25

*R3310

75

C

29

30

GND

LOUT231ROUT232LOUT1

IC3101

VCC6L37R38L49R410L5

C2154

0.1u

50V

C

+

100u

16V

C2161

C

1%

*FL3003

J0HABB000004

R

123

D2119

*R3313

4

LOUT5

R5

B0BC01100001

G

75

O1

L6

1%

*R3318

123

*FL3004

J0HABB000004

R2196

R2195

100k

C

34

C

35

36

37

C2147

22u

38

+

C

16V

39

40

1u

11

12

13

14

15

C

41

16V

42

16V

43

44

K1FB315A0006

6

1

7

2

8

3

9

4

10

5

AV2_ROUT

R2157

10V

10u

C2139

24

ROUT525LOUT426ROUT427LOUT328ROUT3

*C2155

*R2160

AV4_L

C

B

75

J0HABB000004

330

10V

10u

C2140

23

22

21

R10

20

L10

19

R9

18

L9

17

R8

16

L8

15

R7

14

L7

13

R6

12

11

220

*C2157

1u

16V

*R2162

AV4_R

123

*FL3005

4

AV2_LOUT

10u

C2141

DAC_PD

330

R2159

10V

10u

10V

C2142

4

*C3101

C2104

R2102

AV1_ROUT

10V

10u

330

10V

10u

C2123

C2103

R2101

AV1_LOUT

10V

10u

330

10V

10u

C2122

C2162

1u

16V

C2163

1u

16V

C2164

1u

16V

C2165

1u

16V

C2160

1u

16V

C2159

1u

16V

1u 10V

1u

*C3100

10V

*C3102

1u

10V

R2170

220 R2171 220 R2172 220 R2173 220

R2167 220 R2164

220

*D3334

MA2J11100L

*D3335

MA2J11100L

C

*D3336

C

*D3338

*D3102

C

MA2J11100L

*D3337 MA2J11100L

MA2J11100L

PC_RIN

PC_LIN

AV1_R

AV1_L

AV2_R

AV2_L

SUB9V_PRCT

*JK3003B

<

K1FB121A0012

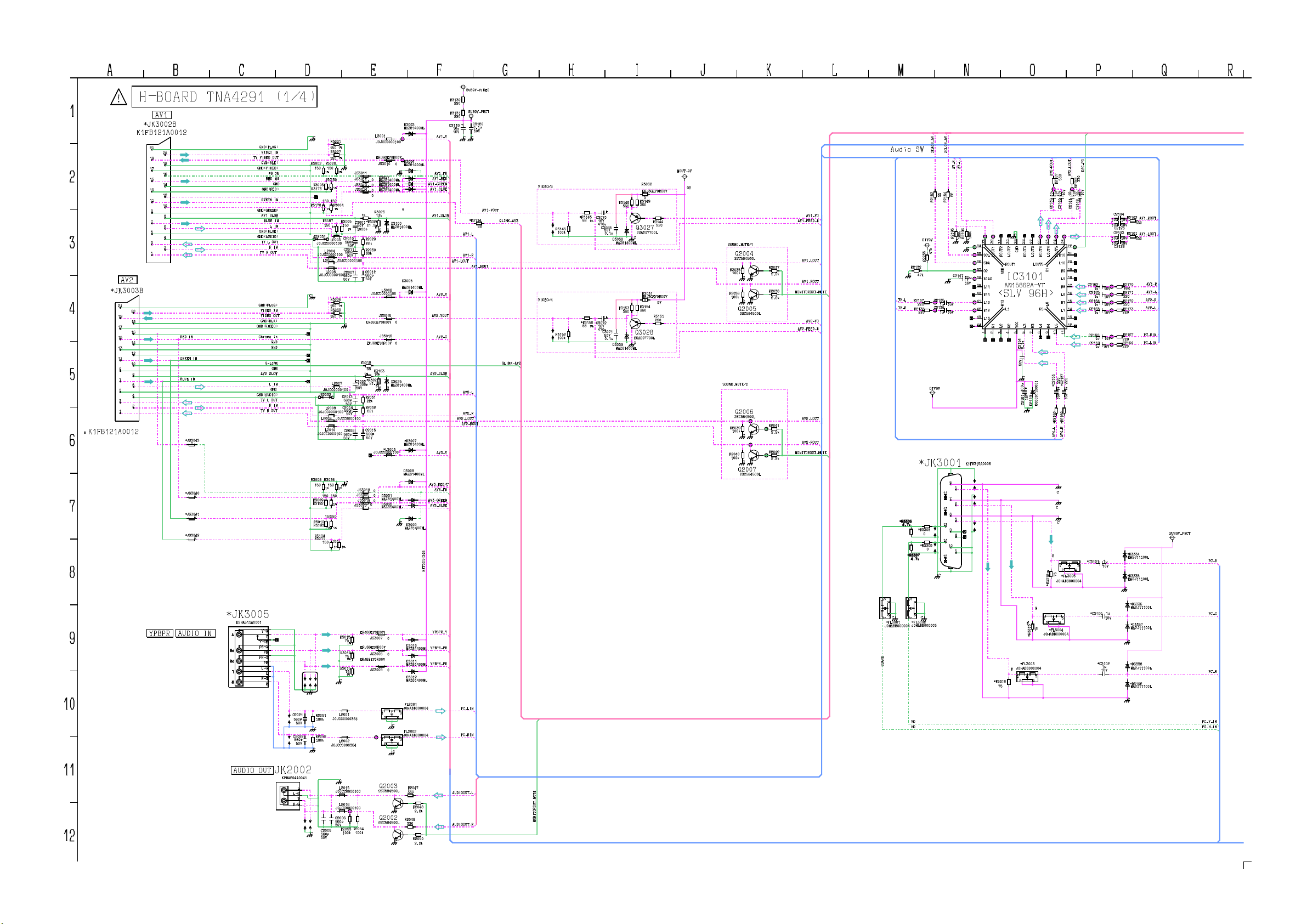

H-BOARD TNA4291 (1/4)

AV1

*JK3002B

K1FB121A0012

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

AV2

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

YPBPR

RED IN

GREEN IN

BLUE IN

*JS3043

0

*JS3040

*JS3041

*JS3042

AUDIO IN

0

*JK3005

K2HA511A0001

Y

PB

PR

L

R

GND(PLUG)

VIDEO IN

TV VIDEO OUT

GND(BLK)

GND(VIDEO)

GND(RED)

GREEN IN

GND(GREEN)

AV1 SLOW

BLUE IN

GND(BLUE)

GND(AUDIO)

TV L OUT

TV R OUT

GND(PLUG)

VIDEO IN VIDEO OUT GND(BLK)

GND(VIDEO)

Chroma in

AV2 SLOW

GND(AUDIO)

TV L OUT

TV R OUT

Y-G

Y-SW PB-G

PB

PR-G

PR

L-G

R-G

RED IN

Q-LINK

Y

L

R

D3003

MAZ81400ML

C

R3001

1%

150

R3027

1%

150

R3002

R3028

150

1%

C

R3003

R3173

R3178

JS2031

R3008

150

R3009 R3192

R3010 R3193

R3194 R3011

R2051 180k

C

R2052 180k

C

150

1%

R3187

150

J0JCC0000100

L2004

J0JCC0000100

L2005

L2006

J0JCC0000100

JS2032

L2008

J0JCC0000100

L2009

L2010

J0JCC0000100

R3036

150

1%

150

1%

150

1%

150

R3004

1%

L2003

R3006

150

R3033

150

L2007

J0JCC0000100

150

1%

150

1%

150

1%

J0JCC0000364

1%

R3005

J0JCC0000100

1%

C2013

1%

R3013

R3014

R3015

C

L2001

L2002

FB IN

GND

L IN

R IN

GND GND

GND

L IN

GND

R IN

C2021

560p

50V

C2022

560p

50V

L3001

J0JCC0000100

ERJ6GEY0R00V

D3004

JS3010

0

C

JS3011

JS3012

JS3013 JS3014

1%

*R3020

C3001

21.5k

150

50V

1%

1000p

C2010

R2029

560p

22k

50V

C2011

R2030

560p

22k

50V

C2012

C2007

560p

50V

J0JCC0000100

ERJ6GEY0R00V

C

ERJ6GEY0R00V

R3018

68

1%

*R3021

C3002

21.5k

1000p

50V

R2031

560p

22k

50V

R2032

C2014

560p

22k

50V

C2015

C2008

560p

50V

C

JS3018

JS3005

JS3019

0

JS3020

ERJ6GEY0R00V

JS3007

75

1%

ERJ6GEY0R00V

JS3008

75

1%

ERJ6GEY0R00V

JS3009

75

1%

D3027

0

MAZ81400ML D3028 MAZ81400ML

0

D3030 MAZ81400ML

0 0

R3023

13k

1%

C

JS3015

JS3016

R3163 13k

1%

C

J0JCC0000100

0 0 0

D3100

MAZ81400ML

C

L3002

D3025 MAZ81400ML

C

*L3003

D3031 MAZ81400ML

D3032 MAZ81400ML

0

123

C

123

C

0

4

MAZ81400ML

C

<

D3005

MAZ81400ML

*D3007

MAZ81400ML

D3008 MAZ81400ML

C

D3009

MAZ81400ML

D3010 MAZ81400ML

D3011 MAZ81400ML

D3012 MAZ81400ML

FL2001

J0HABB000004

FL2002 J0HABB000004

PC_V_IN PC_H_IN

PC_B

PC_G

PC_R

11

12

AUDIO OUT

JK2002

K2HA204A0041

L-G

R-G

C

L

R

L2015

J0JCC0000100

L2016

J0JCC0000100

C2006 560p 50V

R2053

C2005

100k

C

560p 50V

Q2003

R2047

2SC584500L

330

R2048

C

Q2002

2SC584500L

R2054

100k

2.2k

R2049

330

R2050

C

2.2k

AUDIOOUT_L

AUDIOOUT_R

MONITOROUT_MUTE

48

S T U V W X Y Z AA AB AC AD AE AF AG AH AI

H-BOARD TNA4291 (2/4)

1

2

3

4

5

6

7

8

9

10

SDA0B_5V SCL0B_5V VIDEO_STATUS

PC_V_IN

PC_H_IN

YPBPR_Y

YPBPR_PB

YPBPR_PR

GUARD_G PC_G

GUARD_B PC_B

GUARD_R PC_R

FB

AV1_GREEN

AV1_RED

AV1_SLOW

AV1_BLUE

MAIN_RF_CVBS MAIN_RF_GND

AV4_V

AV4_VGND AV4_S AV4_Y AV4_YGND

AV4_C

C

AV4_CGND

AV1_V

AV2_SLOW

AV2_V

AV2_C

AV3_SLOW

*C3029

*R3073

DTV9V

AV3_BLUE

AV3_RED/C

AV3_GREEN

R3109

+

0

C3075

220u 16V

C

B0BC01100001

D3044

GUARD

R3095

68

1u

C3050

*C3031

10V

68

C3049

1u

10V

1u

C3047

68

10V

68

GUARD_B

68

GUARD_R

68

220

1u

C3054

10V

1u

220

C3056

10V

220

1u

C3055

10V

330

22 22

C3103

16V 10u

1u

C3043

220

10V

C

*D3041

MAZ81400ML

C

1u 10V

C

1u

*D3042

10V

C

MAZ81400ML

C

0.1u

50V

*D3043

C

MAZ81400ML

C3021

10V

1u

C3024

1u

10V 10V

C3025

1u

C3026

0.1u 50V

R3094

R3092

*R3175

*R3174

*R3176

R3275

100k

R3099

R3101

R3100

*R3089

R3090 R3191

*R3233 *R3171

1%

R3087

0

*R3113

220

*R3062

*C3027

1%

150

1%

*C3028

220 *R3063

*R3172

150

1%

*R3234

150

*R3072

220

C

220

R3064

220

R3059 R3060

220

R3061

220

JS3023

C

R3044

0

C

220

R3045

0

C

*R3068

1u

16V

75

R3222

0

GUARD_G

C

GUARD_Y

GUARD_PB

GUARD_PR

C

73B474

75

76

LP1

78

C

79

B5

80

L32

81

R5

82

GND1

LP2

83

SDA

84

SCL

85

FLAG

86

BIAS

+

87

V9

88

NC

89

V8

90

NC

91

V7

92

O4

93

V6

94

LP7

S2399C5

95

V5

96

S13

97

Y5

98

100

S225C46VCC27LP58V39O310Y311GND212C313LP414V215S1116Y217S2118C219LP320V121O222Y1

1V42

3Y44

C

C3040

C

70NC71G472

VCC1

L31 R4

NC77G5

AN15876A-VT

LP6

S12

50V

0.1u

C3115

C

50V

0.1u

IC3001

*R3112

220

R3097

R3096

57G258

1u

10V

C3051

C

55R156

GND4

FBL249FBL1

FBLOE

VOUT627DCOUT28VOUT5FB

1u

C3052

HIN1

FBLOUT

OUT1(CY) OUT1(Pb) OUT1(Pr)

OUT2(CY) OUT2(Pb) OUT2(Pr)

VOUT3FB

VOUT4FB

10V

53B154

FBL3

VCC4

VOUT7

HVOE HOUT VOUT

GND3

VOUT3

VOUT4

VOUT5

23O124C125

R3098

10V

1u

C3053

Video SW

51G152

R3106

50

270k

48 47 46 45 44

270k

R3134

43

*R3349

42 41

*R3348

40 39 38 37

C

36 35 34

R3274

33

0

32

R3273

31

0

30

*R3271

29

0

26

C3116

50V

0.1u

C

*R3133

*R3111

0

C

100

*R3305

*R3302

C

59B260

61R262NC63G364

65B366NC67R368NC69

C

0

C

VIN2

HIN2

TEST

VIN1

VCC3

C

R3103

JS3032

C3117

C

50V

0.1u

68

C

L3004

0

G1C101M00018

L3000 G1C101M00018

P_AVSW9V

R3186 0

MOUT_9V

+

C

C3076

16V

220u

SUB9V_VIDEO

R3350

MAIN_RGB_CVBS_OUT

MAIN9V

R3110

C3118

47u

100

MAIN_Y_OUT MAIN_PB_OUT MAIN_PR_OUT

SUB_Y_OUT SUB_PB_OUT SUB_PR_OUT

MAIN_Y_OUT MAIN_Y/CBVS/G

MAIN_PB_OUT

0

+

16V

C

AV1_FB AV3_FB

FB

PC_H PC_V

AV1_VO

AV2_VO

AV3_VO

P_AVSW9V2

C3317 1500u

6.3V

+

*C3282 1000u

6.3V

C

SCL0B_5V

SDA0B_5V

R3123

47

R3140

47

R3121

47

R3137

100

S

C

SUB5V

L3209

+

J0JGC0000021

+

C

BT30V

C

C3270

1000u

6.3V

J0JCC0000241

C3275

16V

0.1u

+

C3280

50V 100p

C

*C3081 100u

AUDIO_OUT

6.3V

R3244

22

R3246

C3281

16V

L3206

C3273

50V 10u

C

0.1u

+

30V

R3243

C3272

270

50V

0.1u

C

0.0V

VIDEO_OUT

SIF_OUT

RF_AGC

AFT_OUT

C

MAIN_PB/C/B

MAIN_PR/RMAIN_PR_OUT

RGB_CVBSMAIN_RGB_CVBS_OUT

AM

AV_L

*TU3200 ENGF7701GF

BB

5

NC

6

NC

7

NC

8

+B

L3210

9

J0JCC0000241

L3207

J0JCC0000241

R3239 220

CL3210

CL3211

C3278

33p 50V

C

C3277

33p

C

50V

0.0V

C3271

J0JGC0000021

Q3200

2SA207700L

SIF1

JS3206

C

0

+

10u

0.0V

16V

C

JS3208

ERJ3GEY0R00V

C3279

R3247

0.01u

220

50V

C

L3211

C3276

1%

0.1u

R3240

16V

560

C

10

11

NC

12

SCL

13

SDA

14

15

VB

16

NC

17

BTL

18

NC

19

20

21

SIF1 in

ERJ3GEY0R00V

R2096

SIF1

C2096

R2097

JS2096

R3202

0

MAIN_RF_CVBS

MAIN_RF_GND

0

R3205

R2093

10k

3.3k

0.1u 50V

AM

R2092

Q2017

2SC584500L

3.3k

470

R2094

2.2k

AFC1

Q2016

2SC584500L

R2089

560

50V

L2027

J0JHC0000045

C2097

0.1u

R2088

SUB5V

100

G1C6R8MA0061

L2026

C2092

22p

50V

AV_R

SUB5V

R2086

470

C2091

10p 50V

R2112

C2120

1M

C

SUB3.3V

Q2101

2SC584500L

Q2102

2SC584500L

SOUND_SOS

*R2209

10k

AUDIO_MUTE

*R2210

10k

56p 50V

R2257

0

MUTE(ES2-)

11

12

MUTE from D-AMP <<

49

AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ BA

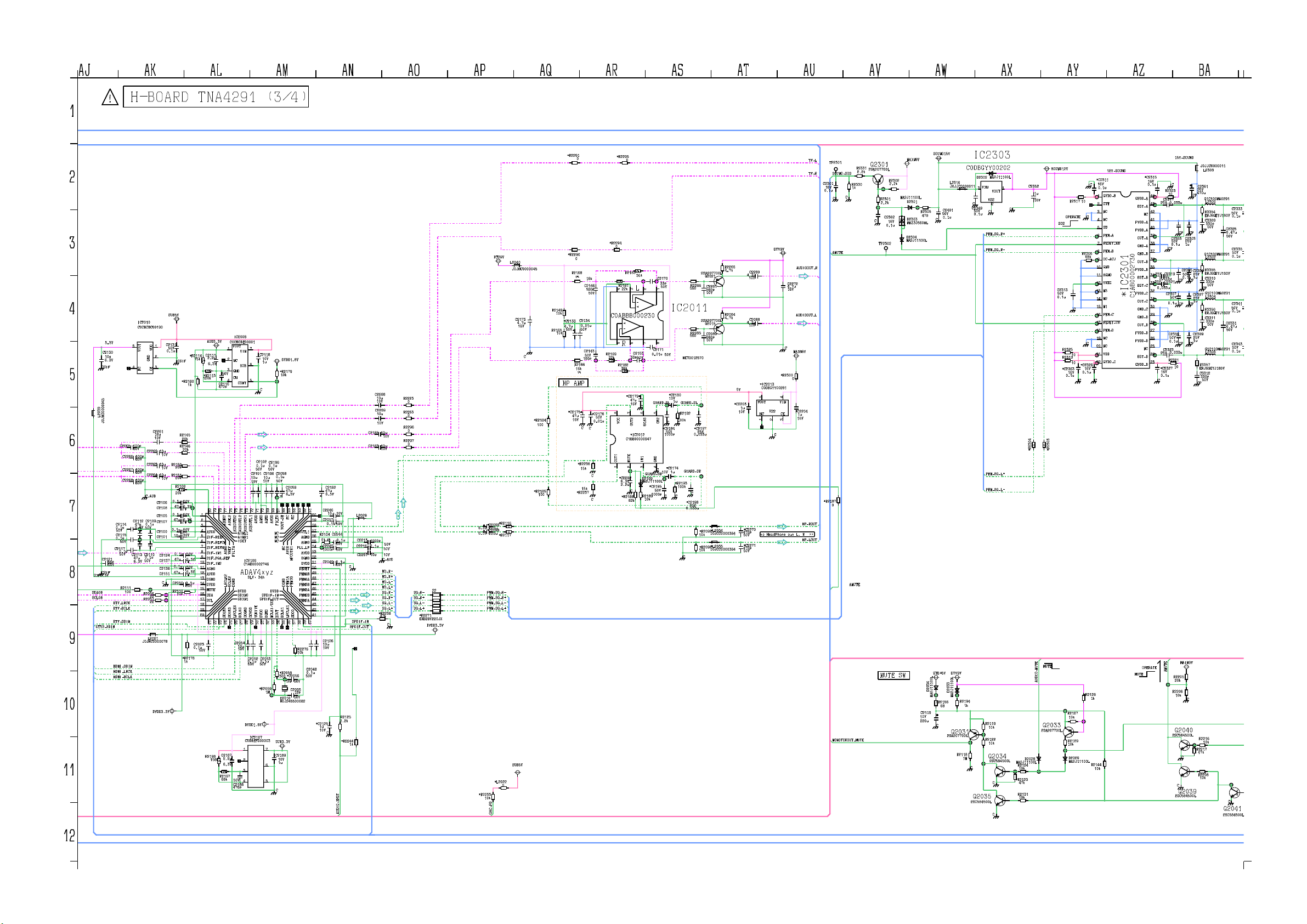

H-BOARD TNA4291 (3/4)

1

2

3

4

5

6

7

8

9

10

11

SDA0B SCL0B

SIF3.3V

CSIF

L2039

CSIF

DTV2_SDIN

3.3V

C2130

10u

6.3V

J0JHC0000045

C2121

56p 50V

C2114

0.1u 50V

C2115

0.1u

C2117

DTV_LRCK DTV_BCLK

DTV_SDIN

HDMI_SDIN HDMI_LRCK HDMI_BCLK

C2265 100p

C2266 100p

C2267 100p

C2268 100p

50V

0.1u 50V

R2111

100

5

4

50V

C2112

47u

6.3V

C2113

47u

6.3V

IC2010 C0CBCBC00190

VOUT

NC

50V

+

C2110

0.1u 50V

R2056 R2057

J0JHC0000078

VDD

GND

CE

C2261

C2262 10u

C2263 10u

C2264 10u

C_AUD

C2109

0.1u

22 22

L2021

DVDD3.3V

*R2291

0

DTV9V

L2040

J0JHC0000045

SUB5V

IC2008

AUD3.3V

C2131

1

50V

0.1u

2

3

10u

10V

*R2114

75k

CSIF

*R2180

1k

R2145

20k

R2146

20k

10V

R2150

20k

10V

R2151

20k

10V

R2100

1%

20k

0.1u

50V

C2106

47u

6.3V

C2108

+

0.1u

50V

C2105

47u

6.3V

C2107

+

0.1u

50V

C2100

10V

10u

C2101

0.1u

50V

C2124

47u

6.3V

C2137

+

0.1u 50V

C2138

6.3V

47u

C2151

+

C

C2050 0.1u

50V

R2110

10k

C2023

0.1u

*R2178

1k

C0CBCBE00001

VOUT

1

C2111

2.2u 2

1%

NC

6.3V

3

1%

GND

50V *R2113 120k

4CN5

CONT

C2116 470p

76

78

79

80

1 2

AINL277AINR2

4

AVDD

5 6 7 8

9 10 11 12 13 14 15 16 17 18

50V

R2198

AINL1

SIF_REEP

AINR1 ISET

SIF_REFCM SIF_REFN

VREF3AGND

SIF_IN1

FILTA

SIF_PGA_REF SIF_IN2 AGND AVDD DGND DVDD

LRCLK219BCLK220DGND

MUTE

DVDD

SDA

SDIN0 SDIN1

SCL

SDIN225SDIN326LRCLK027BCLK028ODGND29ODVDD30VDRIVE31DVDD32DGND33MCLKI/XIN34XOUT35BCLK136LRCLK137SDO0

21

22

23

24

C2054

10u 10V

C2187

2.2u

158k

1%

6.3V

1%

R2197

68k

50V

C2188 470p

7

VIN

6

SUB

C2102

0.1u

50V C2191 10u 10V

72

AUXOUTL173AUXOUTR174AUXOUTL275AUXOUTR2

IC2106 C1AB00002746

ADAV4xyz

SLV: 34h

C2052

0.1u 50V

DVDD1.8V

IC2107

C0DBFFD00003

1

2

3

4 5

C2118

10V 1u

C

C2190 10u 10V

SPDIF_IN

SPDIF_OUT

C2053

0.1u 50V

*R2059

DVDD1.8V

*R2179

10k

C2288

10u

R2223

10V

C2289

C2185 10u

C2183 10u

C2186

0.1u 50V

C2058

0.1u 50V

C2059 47u

+

6.3V

67

68

AVDD69AGND70AGND71AVDD

FILTD

VOUT_SW

NC

AVDD

HPOUTR1

DGND42PWM1A43PWM1B

DVDD

*R2058

*C2056

300

12p

C2055

1M

X2010 H0J245500082

SUB3.3V

7

C2189

10V 1u

6

C

HPOUTL1

50V

12p

50V

PLL_LF

10k

C2192 47u

+

6.3V

C2246

61NC62NC63NC64NC65NC66

10u 10V

60

C2057

59 58 57

R2104

56

AGND

2k

55

AGND

C2245

54

1000p

53

AVDD

52

DGND

C2049 0.1u

51

DVDD

50

RESET

49

PWM4B

48

PWM4A

47

PWM3B

46

PWM3A

45

PWM2B

44

PWM2A

41

38

39

40

C2126 10u 10V

R2276

C2048

0.1u

50V

*C2125

1u 10V

L2029

0.1u

50V

C2244

1%

C2213

0.1u 50V

50V

C

R2125

2.2k

*R2244

AUDIO_XRST

C

SPDIF_IN

SPDIF_OUT

1k

C2216 0.1u

C2251 10u

1000p

0

R2263

10u

0

10V

R2296

0

10V

R2297

0

10V

6.3V

50V 50V

10V

C_AUD

WO_RWO_R+ WO_L-

*R2238

WO_L+ SQ_RSQ_R+ SQ_LSQ_L+

47k

C

SQ_RSQ_R+ SQ_LSQ_L+

*R2271 EXB28V220JX

DVDD3.3V

22

*R2233

+

*C2099

+

*C2098

PWM_SQ_RPWM_SQ_R+ PWM_SQ_LPWM_SQ_L+

10k

C2173

4.7u 16V

C

*R2184

*R2185

*R2116

0

220u

0

220u

*R2117

SUB5V

*L2022

0

DAC_PD

*R2290

0

R2168

1%

R2149

10k

C2134

*C2133

0.01u

4.7u +

50V

R2165

10k

C2143

180p

R2166

16k

1%

HP AMP

+

*C2175

47u

100

16V

C

*R2236

15k

*R2237

*R2295

0

*R2294

0

R2265

*C2197

0.033u

2SA207700L

C

25V

*R2099 10k

*R2098 10k

Q2021

C2281 560p

50V

Q2015

C2089 560p

50V

*L2034 J0JCC0000364

*L2035 J0JCC0000364

4.7k

R2084

4.7k

5V

*C2203

1u

10V

1%

R2183

36k

16k

1%

C2146

R2181

45

180p

50V

22k

C0ABBB000230

+

-

R

R2169

50V

22k

1%

R2182

36k

1%

8

*C2176

50V

0.01u VCC

C

1 OUT1

C

*C2202

6.3V

2.2u

*R2186

C

3

6

C2153

33p

*C2179

47u 16V

*IC2012

C1BB00000947

2 MUTE

C

82k

L

+

-

50V

+

2

7

C

6

BIAS7OUT2

3 IN1

GUARD_SR

D2189 MA2J11100L

R2189

10k

*C2195

0.01u

1000p

C2170

C2171

GUARD_SL

4 GND 5

C

50V

33p

50V

1

8

50V

IN2

*C2184

50V

1000p

*C2174

10V

C

IC2011

NET0012570

*C2180 10V

1u

GUARD_SL

*R2192

100k

C

1u

*R2193

100k

C

GUARD_SR

*C2198

0.033u

R2266 560

R2085

560

C

25V

*C2270 470p 50V

*C2271 470p 50V

C2280

4.7u 10V

C2088

4.7u 10V

DTV9V

*IC2013

C0DBGYY00281

5

VOUT4VIN

VSS

1NC2

C

to HeadPhone out L, R >>

*R2300

CE

TV_L

TP2301

TV_R

SOUND_SOS

C2301

16V

0.1u

C

AMUTE

AUDIOOUT_R

C2272

4.7u 16V

AUDIOOUT_L

C

MAIN9V

0

*C2204

1u

16V

3

*R2187

0

HP_ROUT

HP_LOUT

Q2301

R2331

2SA207700L

2.2k

R2302 R2330 1k

C

AMUTE

2.2k

MA2J11100L

R2301

2.2k

C2302

C

16V

0.1u

TP2302

MUTE SW

MONITOROUT_MUTE

MAIN9V

D2301

D2303

MAZ30560HL

D2304 MA2J11100L

SOUND15V

R2305

470

C

STB+5V

D2034

MA2J11100L

*R2156

C2119

+

10V 220u

C

68

C2401

50V

0.1u

L2310

J0JJC0000011

DTV9V

D2033

MA2J11100L

Q2031

2SA207700L

C0DBGYY00202

R2194

1k

R2118

1M

IC2303

D2302

VIN

3

C C2349

50V

0.1u

PWM_SQ_R+

PWM_SQ_R-

PWM_SQ_L+

PWM_SQ_L-

R2119

R2122

C

Q2035

2SC584500L

MA2J11100L

VOUT

VSS

2

C

10k

Q2034

2SC584500L

C

15V_SOUND

10

0.033u

C2353 50V

0.1u

CP

50V

0.1u

CP

C2359 50V

0.1u

0.033u

R2321

C

10

R2205 20k

R2206

10k

Q2040

2SC584500L

C

2SC584500L

CP

C2355 50V

0.1u

CP

MAIN9V

C

Q2039

J0JJC0000011

L2308

+

C2361 25V 470u

CP

G1C100MA0291

L2300

C2333

R3354

50V

ERJ6GEYJ180V

0.1u C3309 330p

50V

C2325

CP

R3357 ERJ6GEYJ180V

C3312

CP

R2216

*R2217

47k

R2208

10k

G1C100MA0291

L2302

R3355

ERJ6GEYJ180V

C3310 330p

CP

G1C100MA0291 L2304

R3356

ERJ6GEYJ180V

C3311 330p

CP

G1C100MA0291 L2306

330p

50V

10k

0.47u 50V

C2335

50V

0.1u

50V

C2341 50V

0.1u

C2331

50V

0.47u 50V

C2343

50V

0.1u

C

Q2041

2SC584500L

CP

C2303 25V 1u

C2305 25V 1u

CP

C2307 25V 1u

CP

C2309 25V 1u

CP

C

SOUND12V

C2352

1

1u

C

MA2J11100L

R2124

10k

*R2123

47k

R2131

10k

16V

0

*R2304

AUDIO_MUTE

D2028

0

*R2303

MUTE

Q2033

2SA207700L

R2317

OPERATE

SOS

C2313 50V

0.1u

C

R2325

10

R2319

10

*C2363

16V

0.1u

R2127

10k

R2129 10k

D2029 MA2J11100L

12V_SOUND

*C2311

16V

C

0.1u

1 GVDD_B 44

10

2 OTW

3 NC

C

4 NC

5 SD

6 PWM_A

7 RESET_AB

8 PWM_B

R2306

68k

9 OC_ACJ

10 GND

11 AGND

12 VREG

13 M3

14 M2

15 M1

16 PWM_C

17 RESET_CD

18 PWM_D

19 NC

C

20 NC

21 VDD

22 GVDD_C 23

*C2329

16V

0.1u

C

*R2128

1k

R2144

10k

*C2315

16V

0.1u

GVDD_A

43

BST_A

42

NC

41

PVDD_A

40

PVDD_A

39

OUT_A

38

GND_A

37

GND_B

36

OUT_B

35

PVDD_B

34

BST_B

33

BST_C

32

PVDD_C

C1AB00002730

*IC2301

31

OUT_C

30

GND_C

29

GND_D

28

OUT_D

27

PVDD_D

26

PVDD_D

25

NC

24

BST_D

GVDD_D

OPERATE

MUTE

R2323

C2317

25V

C2319

0.033u

25V

C2321

0.033u

C2357

C2323

25V

*C2327

16V

0.1u

C

AMUTE

12

50

2SC584500L

1

2

3

4

5

6

7

8

9

10

11

12

BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ

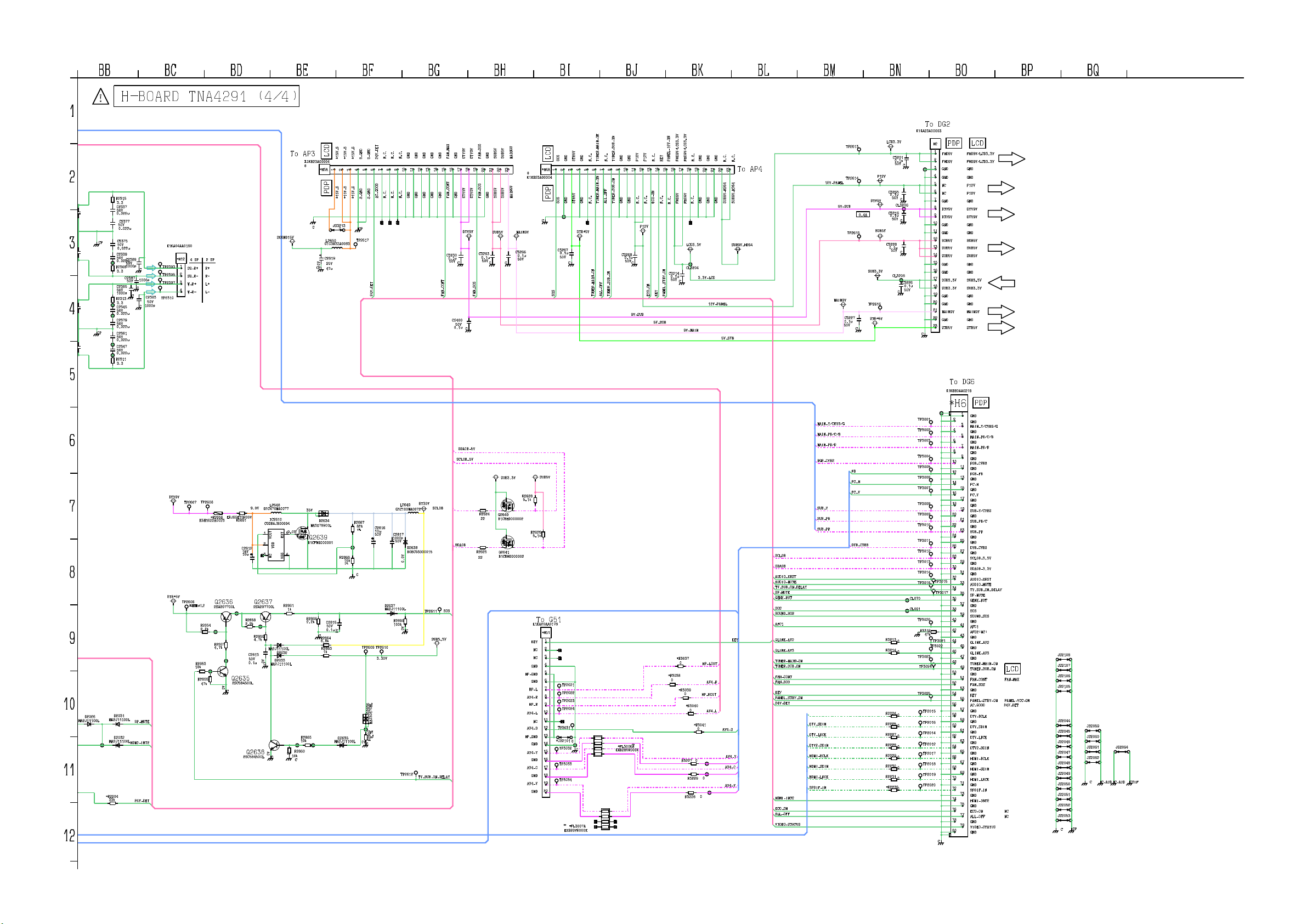

H-BOARD TNA4291 (4/4)

To DG2

K1KA23A00003

D2026

MA2J11100L

LCD3.3V

C3201

0.1u 50V

P12V

C3265

0.1u 50V

C

DTV9V

CL3206

C3216

0.4A

0.1u 50V

C

SUB5V

C3228

0.1u 50V

C

SUB3.3V

CL3208

C

TP2616

STB+5V

C

R3213

0

R3214

0

R2224

0

R2225

0

R2227

0

R2228

0

R2229

0

R2230

0

R2231

0

*R2232

0

12V_PANEL

MAIN_Y/CBVS/G

MAIN_PB/C/B

MAIN_PR/R

RGB_CVBS

SUB_Y

SUB_PB

SUB_PR

MAIN9V

9V_SUB

TP2613

TP2614

TP2615

C3227

0.1u

50V

FB

PC_H

PC_V

DVB_CVBS

To AP3

K1KB23A00004

<

R2315

3.3

C2337

50V

0.022u

C2377

50V

0.022u

C2375

CP

50V

0.022u

C2339

50V

C2389

0.022u 50V 1000p

R2308

3.3

C2387

50V

C2385

50V 1000p

C

R2313

3.3

C2345

50V

0.022u

C2379

50V

0.022u

CP

C2381

50V

0.022u

C2347

50V

0.022u

R2311

3.3

D2031

MA2J11100L

D2032

MA2J11100L

HDMI_INT2

*R2204

33k

SP_MUTE

24V_DET

K1KA04AA0190

*H12

4 SP 2 SP

1

TP2303

SQ_R+

C

TP2305

1000p

TP2307

C

C2383

TP2310

50V

1000p

C

DTV9V

STB+5V

R+

2

SQ_R-

R-

3

W_R+

L+

4

W_R-

L-

TP2608

TP2607

0

ERJ6GEY0R00V

*R2856

TP2606

K5H1622A0023

1.2

R2854

2.2k

R2853

10k

R2855

47k

Q2636

2SA207700L

R2857

4.7k

R2891

C2812

16V 10u

Q2635

2SC584500L

0V

C

2SC584500L

R2858

2.2k

C2813 50V

0.1u

Q2638

9.0V

+

2SA207700L

Q2637

R2859

4.7k

L2648

G1C470MA0077

IC2610

C0DBAJB00004

1

VOUT

2

3

NC

MA2J11100L

0V

C

MA2J11100L

0V

C

VDD

D2633

SOUND15V

D2632

9.0V

5

EXT

4

VSS

R2861

1k

R2865 10k

R2860

0V

10k

C

123456789

*H3A

PDP LCD

JS3213

C

L2650

G1C3R3ZA0083

+

C2819

25V

0V

CP

47u

35V

D2634

MA3X78900L

Q2639

B1CFNG000001

R2866

2.2k

C2815 50V

0.1u

C

R2864

6.8k

R2863

1k

MA2J11100L

+15V_S

0V

D2635

+15V_S

0

CP

TP2617

R2867

82k

1%

R2868

16k

1%

C

S_GND

TP2609

0V

C

S_GND

24V_DET

+

D2636

MAZ30470HL

4.7k

R2869

N.C.

GND

N.C.

24V_DET

10111213141516171819202122

GND

N.C.

AC_GOOD

BT30V

L2649

G1C100MA0072

C2816 10u 50V

C2817

1000p

50V

D2638 B0BC03900015

0.0V

D2637 MA2J11100L

TP2610

3.30V

TP2611

R2890 100k

0V

C

TP2612

TV_SUB_ON_DELAY

GND

FAN_MAX

GND

FAN_CONT

GND

DTV9V

C3230

0.1u 50V

C

FAN_CONT

C2400

50V

0.1u

SDA0B_5V

SCL0B_5V

SCL0B

SDA0B

SOS

SUB3.3V

SUB5V

GND

SUB5V

FAN_SOS

R2624

FAN_SOS

0.1u 50V

22

GND

C

SUB5V

23

SUB5V

C

SUB3.3V

Q2640 B1CBHD000002

Q2641 B1CBHD000002

MAIN9V

C3266

0.1u 50V

K1KB23A00004

R2628

5.1k

HP_GND

AV4_R

AV4_L

AV4_S

HP_GND

AV4_Y

AV4_C

AV4_V

<

R2629

5.1k

To G51

K1KA20AA0178

KEY

NC

GND

HP_L

HP_R

NC

GND

*H4A

C

SUB5V

*H51

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

GND

STB5V

GND

C

0

*FL3007A

TUNER_MAIN_ON

GND

STB5V

TUNER_MAIN_ON

N.C. N.C.

STB+5V

TUNER_MAIN_ON

C

SOS

123456789

PDP LCD

SOS

C3267

0.1u 50V

SOS

TP2021

TP2022

TP2023

TP2024

TP3031

*JS2101

TP3032

TP3033

TP3034

<

EXB28VR000X

P12V

C

9V_SUB

KEY

N.C.

ECO_ON

N.C.

P12V

ECO_ON

KEY

PANEL_STBY_ON

5V_SUB

*R3038

<

TUNER_SUB_ON

GND

N.C.

10111213141516171819202122

GND

ALL_OFF

TUNER_SUB_ON

C3268

0.1u 50V

ALL_OFF

TUNER_SUB_ON

*FL3006A

EXB28VR000X

PANEL_12V_ON

FHD9V/LCD3.3V

FHD9V

N.C.

C3214

0.1u 50V

*R3037

0

*R3039

C

0

R3227

FHD9V/LCD3.3V

N.C.

FHD9V

LCD3.3V

CL3204

9V_MAIN

0

*R3040

0

*R3041

R3229

R3228

0

3.3V_LCD

0

GND

HP_ROUT

0

HP_LOUT

0

GND

12V_PANEL

AV4_R

AV4_L

GND

N.C.

To AP4

23

GND

SUB9V_H264

5V_STB

SCL0B

SDA0B

AUDIO_XRST AUDIO_MUTE TV_SUB_ON_DELAY SP_MUTE GENX_RST

SOS SOUND_SOS

AFC1

KEY

AV4_S

AV4_Y

AV4_C

AV4_V

QLINK_AV2

QLINK_AV3

TUNER_MAIN_ON TUNER_SUB_ON

FAN_CONT FAN_SOS

KEY PANEL_STBY_ON 24V_DET

HDMI_INT2

ECO_ON ALL_OFF

VIDEO_STATUS

DTV_SDIN

DTV_LRCK

DTV2_SDIN

HDMI_BCLK

HDMI_SDIN

HDMI_LRCK

SPDIF_IN

DTV9V

C3263

FAN_SOS

C

R2625

22

H2

PDP LCD

1

FHD9V/LCD3.3V

FHD9V

2

FHD9V/LCD3.3V

C

C3226

0.1u 50V

FHD9V

3

GND

4

GND

5

NC

P12V

6

P12V

NC

7

GND

8

DTV9V

9

DTV9V

TP3015

TP3017

C

GND

SUB5V

GND

SUB3.3V

GND

MAIN9V

GND

STB5V

K1KB80AA0218

*H6

To DG6

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

46

48

50

52

54

56

58

60

62

64

66

68

70

72

74

76

78

80

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

41

43

45

47

49

51

53

55

57

59

61

63

65

67

69

71

73

75

77

79

DTV9V

GND

SUB5V

GND

SUB3.3V

GND

MAIN9V

GND

STB5V

PDP

GND

GND MAIN_Y/CVBS/G GND MAIN_PB/C/B GND MAIN_PR/R GND

GND RGB_CVBS GND RGB_FB GND PC_H GND PC_V GND GND SUB_Y/CVBS GND SUB_PB/C GND SUB_PR GND GND DVB_CVBS GND SCL0B_3.3V GND SDA0B_3.3V GND AUDIO_XRST AUDIO_MUTE TV_SUB_ON_DELAY SP_MUTE GENX_RST GND SOS SOUND_SOS GND AFC1 AFC2(NC) GND QLINK_AV2 GND QLINK_AV3 GND TUNER_MAIN_ON TUNER_SUB_ON GND FAN_CONT FAN_SOS GND KEY PANEL_STBY_ON AC_GOOD

GND DTV_BCLK GND DTV_SDIN GND DTV_LRCK GND DTV2_SDIN GND HDMI_BCLK GND HDMI_SDIN GND HDMI_LRCK GND SPDIF_IN GND HDMI_INT2 GND ECO_ON ALL_OFF GND VIDEO_STATUS GND

LCD

FAN_MAX

PANEL_VCC_ON

24V_DET

NC NC

10

11

12

13

14

15

16

17

18

19

20

21

22

23

C

TP3001

TP3002

TP3003

TP3004

TP3005

TP3006

TP3007

TP3008

TP3009

TP3010

TP3011

TP3012

TP3013

TP3014

TP3016

CL070

CL061

TP3020

R3312

C

47k

TP3021

TP3022

TP3023

TP3024

TP3025

TP2015

TP2016

TP2014

TP2012

TP2017

TP2018

TP2019

TP2020

JS2108

JS2107

JS2106

JS2105

JS2044

JS2045

JS2046

JS2047

JS2048

JS2049

JS2050

JS2051

JS2052

JS2053

JS2059

JS2060

JS2064

JS2061

JS2062

C

CP

C

CSIF

C_AUD

51

1

2

3

4

5

6

7

8

9

10

11

A B C D E F G H I J K L M N O P

1 V-

2 V-

3 NC

4 V+

1

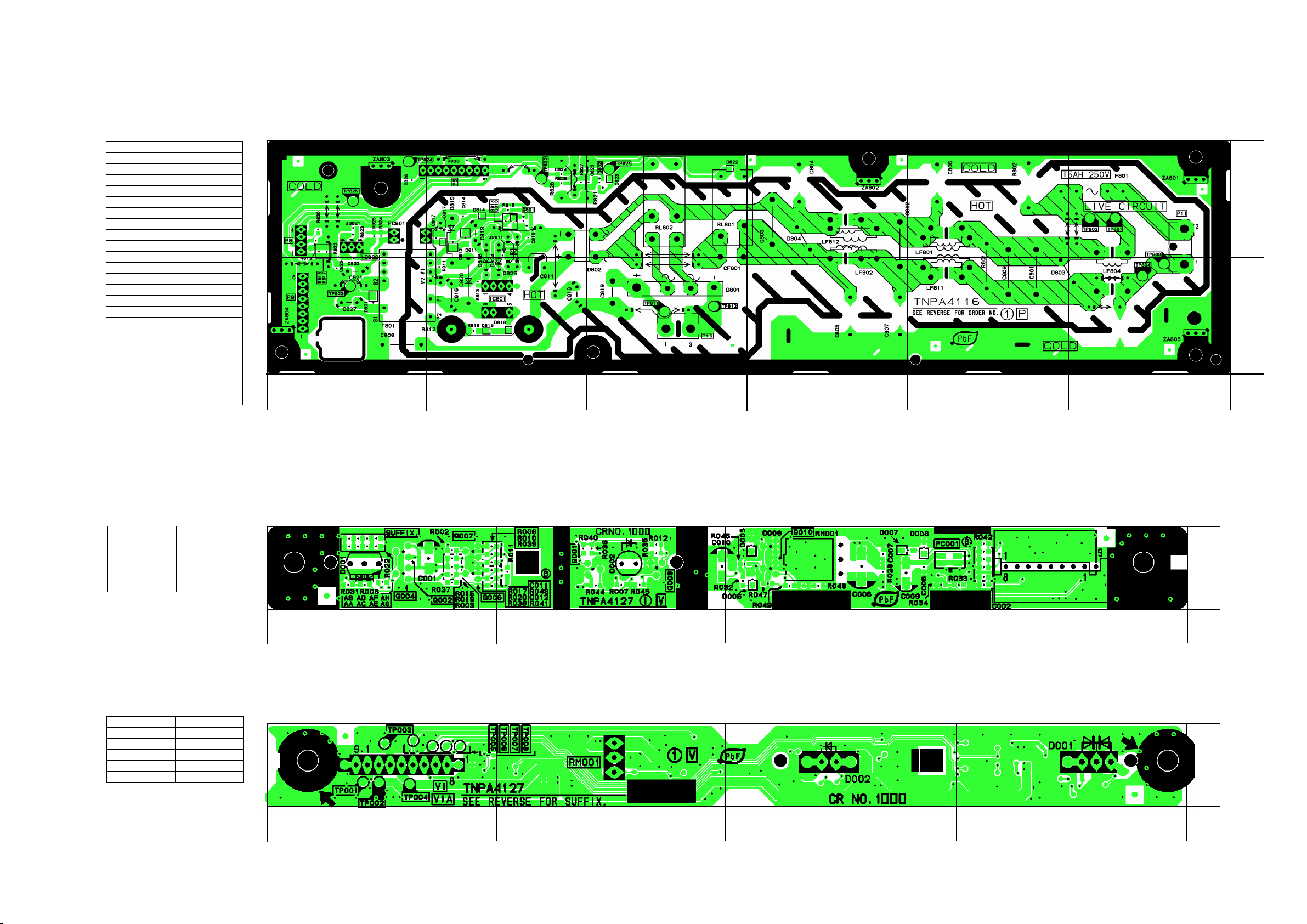

P-BOARD TNA4116

K9ZZ00000424

Not specified DC

K9ZZ00000424

3

TP812 TP811

C819 1u

2

*

C818

2200p

1kV

12.0X4.5

2

D802

*

B0EBKT000007

4

- +

*

CF801 D4CAY8R0A019

8

* *

Not specified DC

C803

0.22u

S

**

S

D804

JS807

TP802

TP801

F801

K1KA02A00613

ERZV10V621T2

1

4

*

L.F

S

2*3

*

LF802

G0B103H00002

0.22u

C802

S

**

=

<

1

4

*

L.F

S

2*3

*

LF801

G0B103H00002

1M

1/2W

R801

S

$

C801

0.22u

S

**

C809

0.22u

S

**

S

D803

ERZV10V621T2

JS808

JS809

JS810

TP804

TP803

S

1

2

P11

AC CORD

S

0.0V

ZA801

S

C806 330p

C807

S

330p

D0XB106J0003

R802

10M

1W

<

ZA802

ZA805

S

K5D502BNA005

*

3

F2A2W2R2A002

1

*

+ C811 450V

2.2u

R812 10

IC801

2W

&

D815

D816

MAZ83600ML

5

7D8

D

C816

47p

C0DABYY00008

2kV

D820

O.C.P2VCC3GND4FB/O.L.P

1

B0ZAZ0000045

D819

R813

4.7

2.0 x 1.25

D818

B0BA42500001

0

JS812

JS811

0

Startup

MA2J11100L

Q801

2SB0709ASL

R815

C815

0.1u 50V

100k

D824

D825

R816

MAZ83600ML

100

D813

D811

B0HCMM000014

+

C813 50V

R814

4.7u

100k

D814

MAZ82400ML

C814

D812

0.01u

B0HCMM000014

100V

HOT

**

1

- +

H

R811

4.7

MAZ80560ML

P10

ECQE2W105L28

S

**

3

*

4

S

K6B2ADA00007

D817

D801

B0FBAT000008

*

RL802

K1KA02A00626

C817

680p

50V

PC801

CNC1S171R

123

**

4

T801

ETS15AB136AH

P2

8

P1

6

V2

4

V1

3

NC

2

NC

1

S

**

1

2

**

S

S1

9

S2

12

NC

13

NC

14

NC

15

IC802

C0DAEMZ00001

RL801 K6B1AGA00043

R824

3.3k

D823 MA2J11100L

B0JCNG000003

R825

33

2.0 x 1.25

D822

MA2J11100L

C

ZA804

K9ZZ00000424

TP821

Q802

R826

2SD0601ASL

D821

KA

C

C821

+

220u

10V

C

R822

6.8k

C822

0.1u 50V

REF

R823

6.8k

JS821

R821 270

TP822

1k

2.0 x 1.25

R827

C823

0.1u

2.2k

50V

2.0 x 1.25

R818

R817

1k

2.0 x 1.25

TP824

TP825

0

*S*

R828 270

TP823

R820

R819

1k

2.0 x 1.25

K1KA08AA0192

K1KA04AA0192

K1KA09AA0190

P9

To D-INV

1

2

3

4

5

6

7

8

P8

To K8

1

5VS

2

ALL OFF (SW DET)

3

STB_5V

4

RELAY_5V

P5

1

24V

2

24V

3

24V

4

GND

5

GND

6

GND

7

ALL OFF (SW DET)

8

STB_5V

9

SUB_ON Hi ON/Lo OFF

GND

24V

To AP5

COLD

ZA803 K9ZZ00000424

12

52

A B C D E F G H I J

V-BOARD TNPA4127

1

PC1001

RM

R1006

680

R1010 47k

R_LED_ON

Q1002

2SB0709ASL

R1022

1.5k

G

R

C1

D1001

B3CKE0000007

R1008

47k

R1002

47k

R1015

10k

Q1007

2SD0601ASL

C1

R1028

6.3V

C1006

47u

RM1001

PNA4701M05TV

VCC

GND

R1046 22k

REMOTE

OUT

3VCC

1

VOUT2GND

C1

Q1010

2SD0601ASL

R1049

47k

R1048

C1

220k

47

+

C1

C1007

0.01u

50V

C1

Q1004

R1003

2SB0709ASL

1k

2

3

R1019

10k

Q1006

2SD0601ASL

R1020

10k

R1017

10k

C1

C1008

0.1u 16V

SUB5V

C1

R1033

24k

R1034

51k

B3JB00000026

23

4

1%

C1

1

C1

+

C1010 22u

6.3V

C1

TO DG1

S8B-PH-K-S(LF)(SN)

K1KA08BA0061

*V1

1234567

TP1002

TP1001

TP1003

C1

TP1004

TP1005

TP1007

TP1008

8

<

4

53

A B C D E F G H I J K L M N O P Q R

1

2

3

4

5

6

7

8

9

10

11

DG-BOARD TNA4114 (1/14)

LOSD OUT (for HQ1)

VOP21

IC8001 C15 VOP21

VOP20

IC8001 E16 VOP20 IC8001 F16 VOP11

VOP11 VOP10

IC8001 A16 VOP10 IC8001 C16 VOP1

VOP1 VOP0

IC8001 B16 VOP0

IC8001 B15 LCSID

LCSID

IC8001 A15 LCSCK

LCSCK

VI1CVBS3

IC8001 E11 VI1CVBS3 IC8001 E10 VI1CVBS2

VI1CVBS2 VI1CVBS1

IC8001 F10 VI1CVBS1

VI1CVBS0

IC8001 E9 VI1CVBS0

VI1CK204F

IC8001 F9 VI1CK204F IC8001 E8 VI1CK208F

VI1CK208F

IC8001 F8 VI2P0

VI2P0 VI2P1

IC8001 E7 VI2P1

VI2P2

IC8001 F7 VI2P2

VI2P3

IC8001 D6 VI2P3

IC8001 D5 VI2P5

VI2P5

IC8001 F5 VI2P6

VI2P6 VI2P7

IC8001 E4 VI2P7 IC8001 D3 VI2P8

VI2P8

IC8001 F4 VI2P9

VI2P9

LVDS I/F

C8069

82p

50V

R8107

C8067

C8068

0.01u 25V

C

AUDIO IF

DAUDIO

IC8001 D15 DAUDIO DMIX0 IC8001 A13 DMIX0 SRCK0

IC8001 B13 SRCK0

IC8001 F14 LRCK0

LRCK0

DACCK0

IC8001 C13 DACCK0

IC8001 A10 IECOUT0

IECOUT0

R8002

82

C8001

C8002

0.1u 1u

16V

6.3V

C

SUB3.3V

L8009

J0JHC0000045

C8072

0.1u 16V

C8073

0.1u 16V

C8074

0.1u 16V

C

SUB3.3V

L8008

J0JHC0000045

C8070

0.1u 16V

C

TCLK1N TA1N TB1N TC1N TD1N TE1N

TCLK1P TA1P TB1P TC1P TD1P TE1P

R8106

2k

100

0.1u

16V

R8001

180

IC8001 P16 DPAVDD IC8001 R16 DPAVSS

IC8001 H21 MVAVDD IC8001 J21 MVAVSS

IC8001 P3 AGAVDD IC8001 P2 AGAVSS

C8071

C

IC8001 E25 TCLK1N IC8001 B25 TA1N IC8001 C25 TB1N IC8001 D25 TC1N IC8001 F25 TD1N IC8001 G25 TE1N

IC8001 E26 TCLK1P IC8001 B26 TA1P IC8001 C26 TB1P IC8001 D26 TC1P IC8001 F26 TD1P IC8001 G26 TE1P

IC8001 G22 LPFOUT IC8001 G23 LPFIN

IC8001 R5 ATCPOUT IC8001 P5 AVCOIN

IC8001 E22 LVVDD IC8001 E23 LVVDD IC8001 F21 LVVDD

0.1u 16V

IC8001 F22 LVVSS IC8001 F23 LVVSS IC8001 G21 LVVSS

LOSDOUT11 LOSDOUT10 LOSDOUT13 LOSDOUT12 LOSDOUT15 LOSDOUT14

LOSDOUT9 LOSDOUT8

LOSDOUT7 LOSDOUT6 LOSDOUT5

LOSDOUT4 LOSDOUT3 LOSDOUT2

LOSDOUT1 LOSDOUT0

LOSDOUT_CLK_O LOSDOUT_H_O

LOSDOUT_YS LOSDOUT_YM LOSDOUT_V_I LOSDOUT_CLK_I LOSDOUT_H_I

C8006

0.1u 16V

C8009

10u

C

10V

C8033

FOR HQ1L VIDEO

MVCLK MHSYNC MVSYNC

VOP29 VOP28 VOP27 VOP26 VOP25 VOP24 VOP23 VOP22

VOP19 VOP18 VOP17 VOP16 VOP15 VOP14 VOP13 VOP12

VOP9 VOP8 VOP7 VOP6 VOP5 VOP4 VOP3

VOP2

VOUTENB

IC8001 M17 VDDA IC8001 U15 VDDA IC8001 T17 VDDA

SUB3.3V

L8006

0

0.1u 16V

C

FOR ADV7493

IC8001 A23 MVCLK IC8001 C22 MHSYNC IC8001 E20 MVSYNC

IC8001 E18 VOP29 IC8001 B18 VOP28 IC8001 F17 VOP27 IC8001 A18 VOP26 IC8001 C17 VOP25 IC8001 B17 VOP24 IC8001 A17 VOP23 IC8001 E17 VOP22

IC8001 B20 VOP19 IC8001 E19 VOP18 IC8001 A20 VOP17 IC8001 C19 VOP16 IC8001 F18 VOP15 IC8001 B19 VOP14 IC8001 A19 VOP13 IC8001 C18 VOP12 IC8001 Y2 ED11

IC8001 B22 VOP9 IC8001 D20 VOP8 IC8001 A22 VOP7 IC8001 C21 VOP6 IC8001 F19 VOP5 IC8001 B21 VOP4 IC8001 A21 VOP3 IC8001 C20 VOP2

IC8001 H26 VOUTENB

IIC I/F

SCL0

IC8001 M2 SCL0

SDA0

IC8001 M1 SDA0 IC8001 N5 SCL1

SCL1

IC8001 N3 SDA1

SDA1 SBT0 SBT2 XECS3 XECS5

SD CARD I/F

SDCLK SDCD SDCMD SDDAT0 SDDAT1 SDDAT2 SDDAT3 SDWP

L8004

NET002635

C8007

0.1u 16V

C8008

0.1u

16V

C8010

10u 10V

C

C8034

0.1u 16V

IC8001 AB8 SBT0 IC8001 AD6 SBT2 IC8001 AD1 XECS3 IC8001 AC4 XECS5

IC8001 AF13 SDCLK IC8001 AD13 SDCD IC8001 AD12 SDCMD IC8001 AB12 SDDAT0 IC8001 AE13 SDDAT1 IC8001 AB13 SDDAT2 IC8001 AA13 SDDAT3 IC8001 AE12 SDWP

SUB1.2V

J0JHC0000045

IC8001 C11 DACVSS1 IC8001 A12 DACVSS2 IC8001 C12 DACVDD1 IC8001 E14 DACVDD2

SDA2 SCL2 SDA3

SCL3

IC8001 N17 VDDR IC8001 R17 VDDR IC8001 T15 VDDR IC8001 U16 VDDR IC8001 AB15 VDDR IC8001 AC15 VDDR IC8001 AD15 VDDR IC8001 AE15 VDDR IC8001 AF15 VDDR

IC8001 U14 DPAVDD12

C8011

C8012

C8013

C8014

0.1u 16V

C8015

6.3V

C8016

1.8V_DDRI/F

1u

6.3V

C8017

10u 10V

C8077

0.1u 16V

C8078

0.1u 16V

C8079

0.1u 16V

C8080

0.1u 16V

JTAG

C

VI1ENB

VI1CKOUT

VI1CLK2

VI1CLK VI1VSYNC VI1HSYNC

VI1P22

VI1P23

VI1P24

VI1P25

VI1P26

VI1P4

VI1P5

VI1P6

VI1P7

VI1P27

VI1P8

VI1P9

VI1P28

VI1P29

VI1P12

VI1P13

VI1P14

VI1P15

VI1P16

VI1P17

VI1P18

VI1P19

VI1P2

VI1P3

NAND I/F

XNFCE XNFWE XNFRE NFALE NFCLE XNFWP NANDRYBY

TMS TRST TCK TDO TDI

SUB1.8V

L8003

J0JHC0000045

IC8001 K23 VDDIO IC8001 K26 VDDIO IC8001 M21 VDDIO IC8001 M23 VDDIO IC8001 N24 VDDIO IC8001 P25 VDDIO IC8001 R21 VDDIO IC8001 T25 VDDIO IC8001 U24 VDDIO IC8001 V22 VDDIO IC8001 W26 VDDIO IC8001 Y22 VDDIOCK IC8001 Y24 VDDIO IC8001 AA21 VDDIO IC8001 AB19 VDDIO IC8001 AB22 VDDIO IC8001 AB25 VDDIO IC8001 AC18 VDDIO IC8001 AC23 VDDIO IC8001 AD17 VDDIO IC8001 AD22 VDDIO IC8001 AD25 VDDIO IC8001 AE16 VDDIO IC8001 AE21 VDDIO IC8001 AF20 VDDIO IC8001 AF26 VDDIO

IC8001 E3 VI1ENB IC8001 A8 VI1CKOUT IC8001 E2 VI1CLK2 IC8001 C9 VI1CLK IC8001 D2 VI1VSYNC IC8001 D1 VI1HSYNC

IC8001 A9 VI1P22 IC8001 B9 VI1P23 IC8001 B8 VI1P24 IC8001 C8 VI1P25 IC8001 A7 VI1P26 IC8001 B7 VI1P4 IC8001 C7 VI1P5 IC8001 A6 VI1P6 IC8001 B6 VI1P7 IC8001 C6 VI1P27 IC8001 A5 VI1P8 IC8001 B5 VI1P9 IC8001 C5 VI1P28 IC8001 A4 VI1P29 IC8001 B4 VI1P12 IC8001 C4 VI1P13 IC8001 A3 VI1P14 IC8001 B3 VI1P15 IC8001 A2 VI1P16 IC8001 B1 VI1P17 IC8001 C2 VI1P18 IC8001 C1 VI1P19 IC8001 B10 VI1P2 IC8001 C10 VI1P3

IC8001 AC5 XNFCE IC8001 AD3 XNFWE IC8001 AD4 XNFRE IC8001 AE3 NFALE IC8001 AB6 NFCLE IC8001 AF2 XNFWP IC8001 AC6 NANDRYBY

IC8001 R1 TMS IC8001 R2 TRST IC8001 R6 TCK IC8001 R3 TDO IC8001 T5 TDI

IC8001 P4 GTCPOUT IC8001 AE24 DTCPOUT IC8001 H22 TCPOUT IC8001 D24 TSTAIO

C8018

C8019

C8020

C8021

SUB1.2V

L8002

NET002822

0.1u 16V

0.1u

16V

0.1u

16V

0.1u 16V

J0JHC0000045

C8022

1u

6.3V

C8023

10u 10V

C8024

10u 10V

C

SUB1.2V

L8010

J0JHC0000045

C8076

0.1u 16V

C

B PORT (Sub Video Input or Address)

VI2P4

IC8001 E6 VI2P4

IC8001 H3 VI2P12

VI2P12

IC8001 J4 VI2P13

VI2P13 VI2P14

IC8001 H2 VI2P14

VI2P15

IC8001 H1 VI2P15

VI2P16

IC8001 K5 VI2P16

VI2P17

IC8001 J3 VI2P17

IC8001 K4 VI2P18

VI2P18

IC8001 J2 VI2P19

VI2P19

VI2P22

IC8001 K2 VI2P22 IC8001 L5 VI2P23

VI2P23 VI2P24

IC8001 K1 VI2P24 IC8001 L3 VI2P25

VI2P25

IC8001 L2 VI2P26

VI2P26

IC8001 M6 VI2P27

VI2P27

IC8001 L1 VI2P28

VI2P28

IC8001 M3 VI2P29

VI2P29

VI2HSYNC

IC8001 F1 VI2HSYNC IC8001 H5 VI2VSYNC

VI2VSYNC

IC8001 G2 VI2CLK

VI2CLK

Analog Video I/F

MVDACO0

SUB3.3V

MVDACO1 MVDACO2 MVDACO3

L8007

J0JHC0000045

R8003

0

1%

R8005

10k

C8005

1u

6.3V

C8004

1u

6.3V

SERIAL I/F

IC8001 C24 SBI0

SBI0

IC8001 D23 SBO0

SBO0 SBI2

IC8001 A24 SBI2 IC8001 B23 SBO2

SBO2

SUB3.3V

L8001

C8025

IC8001 N10 VDD12 IC8001 P10 VDD12 IC8001 R10 VDD12 IC8001 R11 VDD12 IC8001 R12 VDD12 IC8001 R13 VDD12 IC8001 T10 VDD12 IC8001 T11 VDD12 IC8001 T12 VDD12 IC8001 T13 VDD12 IC8001 U10 VDD12 IC8001 U11 VDD12 IC8001 U12 VDD12 IC8001 U13 VDD12 IC8001 AA14 VDD12 IC8001 AB14 VDD12 IC8001 AC14 VDD12 IC8001 AD14 VDD12 IC8001 AE14 VDD12 IC8001 AF14 VDD12

IC8001 K17 LVVDD12

C8075 22u 4V

0.1u 16V

C8026

0.1u 16V

C8027

0.1u 16V

C8028

0.1u 16V

C8029

0.1u 16V

C8030

1u

6.3V

C8031

1u

6.3V

C8032

10u 10V

C

IC8001 E13 MVDACO0 IC8001 B12 MVDACO1 IC8001 F13 MVDACO2 IC8001 D12 MVDACO3

R8004

24k

6.3V

C8003

1u

C

J0JHC0000045

IC8001 AA8 VDD33 IC8001 AA9 VDD33 IC8001 A25 VDD33 IC8001 A26 VDD33 IC8001 B24 VDD33 IC8001 C23 VDD33 IC8001 D7 VDD33 IC8001 D8 VDD33 IC8001 D16 VDD33 IC8001 D17 VDD33 IC8001 D22 VDD33 IC8001 E21 VDD33 IC8001 F11 VDD33 IC8001 F12 VDD33 IC8001 F15 VDD33 IC8001 F20 VDD33 IC8001 G4 VDD33 IC8001 H4 VDD33 IC8001 J6 VDD33 IC8001 K6 VDD33 IC8001 N6 VDD33 IC8001 P6 VDD33 IC8001 R4 VDD33 IC8001 T4 VDD33 IC8001 U6 VDD33 IC8001 AC10 VDD33 IC8001 AC11 VDD33

EA24

EA08 EA09 EA10 EA11 EA12 EA13 EA14 EA15

EA16 EA17 EA18 EA19 EA20 EA21 EA22 EA23

PORT6[4] PORT6[5] PORT6[7]

IC8001 E12 VVREF IC8001 B11 MVIREF

R8006

1%

6.8k

IC8001 A11 SVCOMP IC8001 D11 MVCOMP

C Y

Cmp

V U

Y

Cmp

C

R B

G

Cmp

MN2WS0039A

IC8001 IC8001 B2 VSS IC8001 C3 VSS IC8001 D4 VSS IC8001 D9 VSS IC8001 D10 VSS IC8001 D13 VSS IC8001 D14 VSS IC8001 D18 VSS IC8001 D19 VSS IC8001 E5 VSS IC8001 E24 VSS IC8001 F6 VSS IC8001 F24 VSS IC8001 G7 VSS IC8001 G24 VSS IC8001 H23 VSS IC8001 J25 VSS IC8001 K10 VSS IC8001 K11 VSS IC8001 K12 VSS IC8001 K13 VSS IC8001 K14 VSS IC8001 K15 VSS IC8001 K16 VSS IC8001 L4 VSS IC8001 L10 VSS IC8001 L11 VSS IC8001 L12 VSS IC8001 L13 VSS IC8001 L14 VSS IC8001 L15 VSS IC8001 L16 VSS IC8001 L17 VSS IC8001 L22 VSS IC8001 L24 VSS IC8001 M4 VSS IC8001 M10 VSS IC8001 M11 VSS IC8001 M12 VSS IC8001 M13 VSS IC8001 M14 VSS IC8001 M15 VSS IC8001 M16 VSS IC8001 M25 VSS IC8001 N11 VSS IC8001 N12 VSS IC8001 N13 VSS IC8001 N14 VSS

CPU BUS I/F

A1 VSS

BOOTSWAP

EA0 EA1 EA2 EA3 EA4 EA5 EA6 EA7

ED0 ED1 ED2 ED3 ED4 ED5 ED6 ED7 ED8 ED9 ED10 ED11 ED12 ED13 ED14 ED15

XERE XEWE0 XEWE1 XEDK ERXW ECLK ESZ0 ESZ1 XECS0 XECS1 XECS4 XECS2

XNMIRQ XIRQ1 XIRQ2 XIRQ3

XRST

IC8001 T1 EA0 IC8001 T2 EA1 IC8001 T6 EA2 IC8001 T3 EA3 IC8001 U4 EA4 IC8001 U1 EA5 IC8001 U2 EA6 IC8001 U3 EA7

IC8001 U5 ED0 IC8001 V1 ED1 IC8001 V2 ED2 IC8001 V5 ED3 IC8001 V3 ED4 IC8001 W1 ED5 IC8001 W2 ED6 IC8001 V6 ED7 IC8001 W3 ED8 IC8001 W4 ED9 IC8001 Y1 ED10

IC8001 W5 ED12 IC8001 Y3 ED13 IC8001 AA1 ED14 IC8001 AA2 ED15

IC8001 Y4 XERE IC8001 AA3 XEWE0 IC8001 AB3 XEWE1 IC8001 Y5 XEDK IC8001 AB2 ERXW IC8001 AB1 ECLK IC8001 AA4 ESZ0 IC8001 AC1 ESZ1 IC8001 AA5 XECS0 IC8001 AC2 XECS1 IC8001 AC3 XECS4 IC8001 AB4 XECS2

IC8001 N2 XNMIRQ IC8001 N4 XIRQ1 IC8001 N1 XIRQ2 IC8001 P1 XIRQ3

IC8001 AF23 BOOTSWAP

IC8001 D21 XRST

IC8001 N15 VSS IC8001 N16 VSS IC8001 N22 VSS IC8001 P11 VSS IC8001 P12 VSS IC8001 P13 VSS IC8001 P14 VSS IC8001 P15 VSS IC8001 P17 VSS IC8001 R14 VSS IC8001 R15 VSS IC8001 P23 VSS IC8001 R24 VSS IC8001 R26 VSS IC8001 T14 VSS IC8001 T16 VSS IC8001 T22 VSS IC8001 U17 VSS IC8001 V4 VSS IC8001 V25 VSS IC8001 W6 VSS IC8001 W21 VSS IC8001 W24 VSS IC8001 Y6 VSS IC8001 Y23 VSS IC8001 AA6 VSS IC8001 AA7 VSS IC8001 AA15 VSS IC8001 AA18 VSS IC8001 AA22 VSS IC8001 AA25 VSS IC8001 AB17 VSS IC8001 AB21 VSS IC8001 AB23 VSS IC8001 AC12 VSS IC8001 AC13 VSS IC8001 AC16 VSS IC8001 AC20 VSS IC8001 AC22 VSS IC8001 AC25 VSS IC8001 AD19 VSS IC8001 AD23 VSS IC8001 AD26 VSS IC8001 AE18 VSS IC8001 AE22 VSS IC8001 AE25 VSS IC8001 AF1 VSS IC8001 AF21 VSS IC8001 AF24 VSS

PORT16[1]

SCARD_NMIRQ

SCARD_IRQ FE_IRQ HDMI_IRQ

CLOCK GEN

XEAS XEAS

PORT16[1] PORT16[1]

->

-> ->

IC8001J22VC27 IC8001H25CLK74 IC8001K21CK27 IC8001AD24CK27D

CH,IS IF

CH0CLK CH0VAL CH0PSYNC CH0DATA

IS0CLK IS0VAL IS0PSYNC IS0DATA

IS1VAL IS1PSYNC IS1CLK IS1DATA

POD,CI I/F

XECS6 XECS7

XEXDMK0 XEXDMR0

VI1P21 VI1P10 VI1P11 VI1P1

VI1P0

VI1P20

VI2P20

XRTS0 XDTR0 XDSR0 XDCD0 XCTS0 XRI0 TXD0 RXD0

SMTCLK1 SMTD1 SMTRST1 SMTCMD1 SMTSEL1 SMTD0 SMTRST0 SMTCMD0 SMTSEL0 SMTCLK0

CH1CLK CH1VAL CH1PSYNC CH1DATA

IC8001 AF12 CH0CLK IC8001 AE11 CH0VAL IC8001 AD11 CH0PSYNC IC8001 AF11 CH0DATA

IC8001 AF3 IS0CLK IC8001 AB7 IS0VAL IC8001 AE4 IS0PSYNC IC8001 AF4 IS0DATA

IC8001 AE5 IS1VAL IC8001 AC7 IS1PSYNC IC8001 AD5 IS1CLK IC8001 AF5 IS1DATA

R8086

100k

C8052

6.3V

1u

IC8001 AD2 XECS6 IC8001 AE1 XECS7 IC8001 AB5 XEXDMK0 IC8001 AE2 XEXDMR0

IC8001 F2 VI1P21 IC8001 F3 VI1P10 IC8001 E1 VI1P11 IC8001 G5 VI1P1

IC8001 G6 VI1P0 IC8001 H6 VI1P20

IC8001 K3 VI2P20

IC8001 AE6 XRTS0 IC8001 AC8 XDTR0 IC8001 AF6 XDSR0 IC8001 AB9 XDCD0 IC8001 AD7 XCTS0 IC8001 AC9 XRI0 IC8001 AE7 TXD0 IC8001 AF7 RXD0

IC8001 AD8 SMTCLK1 IC8001 AE8 SMTD1 IC8001 AA10 SMTRST1 IC8001 AF8 SMTCMD1 IC8001 AB10 SMTSEL1 IC8001 AA11 SMTD0 IC8001 AE9 SMTRST0 IC8001 AF9 SMTCMD0 IC8001 AB11 SMTSEL0 IC8001 AD9 SMTCLK0

IC8001 AD10 CH1CLK IC8001 AA12 CH1VAL IC8001 AE10 CH1PSYNC IC8001 AF10 CH1DATA

TXD0 RXD0 XRTS0 XDTR0

XDSR0 XDCD0 XCTS0 XRI0

R8087

C

R8091 100

TP8037

PORT14[1] PORT14[2] PORT14[3] PORT14[4]

POWER_DET

PORT15[7]

PORT16[0]

PORT15[5]

SBI1

SBO1

PORT9[5]

HSVALIN HSSYNIN

HSBCLKIN HSDIN0 HSDIN1

HSDIN2 HSDIN3 HSDIN4

HSDIN5

HSDIN6

HSDIN7

PORT10[6]

PORT10[7]

PORT5[4]

PORT5[5] PORT5[6] SMT_OFF PORT5[7]

COMMON PORT .etc

DSRCK

IC8001 C14 DSRCK IC8001 E15 SLRCK

SLRCK ADCCK

IC8001 B14 ADCCK

ADIN

IC8001 A14 ADIN

IC8001 M5 RMCO

RMCO

VI2P10

IC8001 G1 VI2P10 IC8001 J5 VI2P11

VI2P11

VI2P21

IC8001 L6 VI2P21

IC8001 G3 VI2ENB

VI2ENB

IC8001 J1 VI2CLK2

VI2CLK2

10k

*R8111

10k

R8090

C

C8053

25V

0.01u

C

IC8001 H24 AUDCLK

C

X8001

H0J270500061

1 X1

2 S0

3 S1

4 VIN

5 VDD

6 GND

7 74M

8 COMM 9

24.576/33M

C0ZBZ0001030

4.9152M

ICS476EG-08LFT

VDD

GND

27M

IC8004

VMUTE

RSV3(SDRAM_CHK1) RSV2(SDRAMCHK2) SDBOOT

ETHER_IRQ

PANEL_STATUS

P_MAIN_SW

PANEL_SOS

RSV1(SD_ERROR)

EEPROM_WP

RSV4

SUB3.3V

L8005

J0JHC0000045

10k

16

C8057

R8095

X2

0.1u C

16V

15

14

S2

13

12

11

10

CLKGEN_S2

C8056

0.1u 16V

C8058

10u

10V

R8093

47

12

54

S T U V W X Y Z AA AB AC AD

1

2

3

4

5

6

7

8

9

10

11

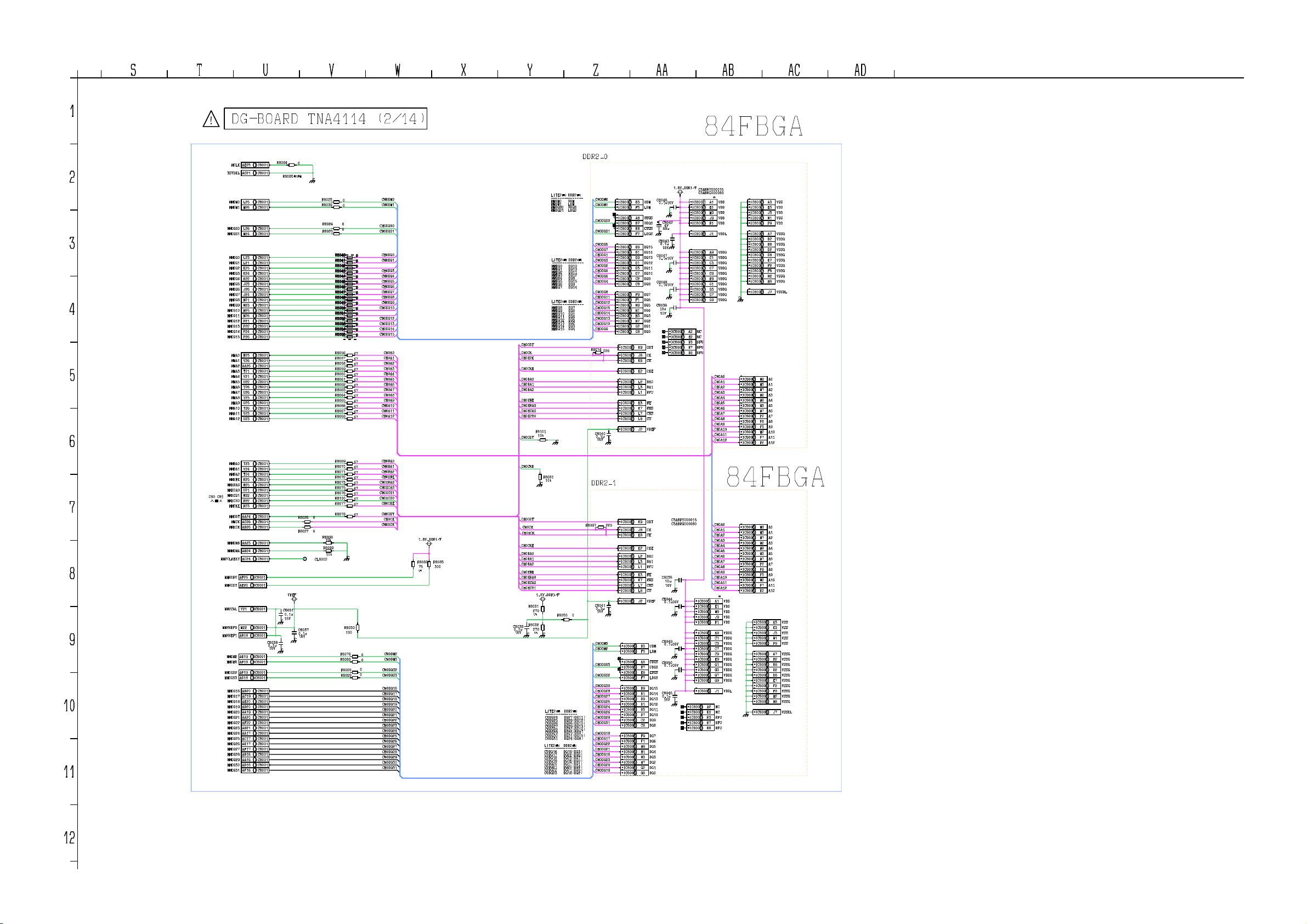

DG-BOARD TNA4114 (2/14)

R8084

0

R8085

C

R8023 R8039

R8024

R8025

R8026

0

R8027

0

R8098

CL8002

VREF

C8051

0.1u 16V

C

C8037

0.1u 16V

C

C8038

0.1u 16V

C

CS0 CS1

IC8001AE23MCLK

IC8001AC21TSTSEL

IC8001L25MMDM0 IC8001M26MMDM1

IC8001L26MMDQS0 IC8001M24MMDQS1

IC8001L23MMDQ0 IC8001L21MMDQ1 IC8001K25MMDQ2 IC8001K24MMDQ3 IC8001K22MMDQ4 IC8001J23MMDQ5 IC8001J26MMDQ6 IC8001J24MMDQ7 IC8001N21MMDQ8 IC8001N23MMDQ9 IC8001N25MMDQ10 IC8001N26MMDQ11 IC8001P21MMDQ12 IC8001P22MMDQ13 IC8001P24MMDQ14 IC8001P26MMDQ15

IC8001W23MMA0 IC8001V26MMA1 IC8001AA26MMA2 IC8001T21MMA3 IC8001V21MMA4 IC8001U22MMA5 IC8001Y26MMA6 IC8001U26MMA7 IC8001Y25MMA8 IC8001U25MMA9 IC8001T26MMA10 IC8001V23MMA11 IC8001U23MMA12

IC8001T23MMBA0 IC8001V24MMBA1 IC8001T24MMBA2 IC8001R25MMXWE IC8001W25MMXRAS IC8001U21MMXCAS IC8001W22MMXCS1 IC8001R22MMXCS0 IC8001R23MMCKE

IC8001AA24MMODT IC8001AC26MMCK IC8001AB26MMXCK

IC8001AA23MMMONB

IC8001AB24MMMONA

IC8001AC24MMPCLKEXT

IC8001AF25MMRDRV

IC8001AE26MMRODT

IC8001Y21MMVCAL

IC8001M22MMVREF0

IC8001AB18MMVREF1

IC8001AE19MMDM2 IC8001AF18MMDM3

IC8001AF19MMDQS2 IC8001AD18MMDQS3

IC8001AB20MMDQ16 IC8001AC19MMDQ17 IC8001AE20MMDQ18 IC8001AD20MMDQ19 IC8001AA19MMDQ20 IC8001AA20MMDQ21 IC8001AF22MMDQ22 IC8001AD21MMDQ23 IC8001AA17MMDQ24 IC8001AC17MMDQ25 IC8001AE17MMDQ26 IC8001AF17MMDQ27 IC8001AB16MMDQ28 IC8001AA16MMDQ29 IC8001AD16MMDQ30 IC8001AF16MMDQ31

84FBGA

DDR2_0

1.8V_DDRI/F C3ABRY000015

LITE2 DDR2

CH0ODT

CH0CK CH0XCK

CH0CKE

CH0BA0 CH0BA1 CH0BA2

CH0XWE CH0XRAS CH0XCAS CH0XCS0

CH0ODT

CH0CKE

CH0ODT

CH0CK

CH0XCK

CH0CKE

CH0BA0 CH0BA1 CH0BA2

CH0XWE CH0XRAS CH0XCAS CH0XCS1

R8031

R8032

C

R8101

10k

1.8V_DDRI/F

270

1%

270

1%

C

--------------MMDM0 UDM MMDM1 LDM MMDQS0 UDQS MMDQS1 LDQS

LITE2 DDR2

--------------MMDQ0 DQ10 MMDQ1 DQ13 MMDQ2 DQ11 MMDQ3 DQ12 MMQD4 DQ8 MMDQ5 DQ15 MMDQ6 DQ9 MMDQ7 DQ14

LITE2 DDR2

--------------MMDQ8 DQ7 MMDQ9 DQ0 MMDQ10 DQ1 MMDQ11 DQ6 MMDQ12 DQ5 MMDQ13 DQ2 MMDQ14 DQ3 MMDQ15 DQ4

C

R8081

10k

R8035

C

LITE2 DDR2

--------------C0DQ24 DQ27(DQ11) C0DQ25 DQ28(DQ12) C0DQ26 DQ26(DQ10) C0DQ27 DQ29(DQ13) C0DQ28 DQ30(DQ14) C0DQ29 DQ25(DQ9) C0DQ30 DQ31(DQ15) C0DQ31 DQ24(DQ8)

LITE2 DDR2

--------------C0DQ16 DQ19(DQ3) C0DQ17 DQ22(DQ6) C0DQ18 DQ23(DQ7) C0DQ19 DQ16(DQ0) C0DQ20 DQ17(DQ1) C0DQ21 DQ20(DQ4) C0DQ22 DQ21(DQ5) C0DQ23 DQ18(DQ2)

0 0

R8040 R8041 R8042 R8043 R8044 R8045 R8046 R8047 R8048 R8049 R8050 R8051 R8052 R8053 R8054 R8055

R8056 R8057 R8058 R8059 R8060 R8061 R8062 R8063 R8064 R8065 R8066 R8067 R8068

R8069 R8070 R8071 R8072 R8073 R8075 R8076 R8100 R8077

R8078

10k

R8099

10k

C

R8030

100

R8079 R8080

R8028 R8029

CH0DM0 CH0DM1

CH0DQS0 CH0DQS1

CH0DQ0

0

CH0DQ1

0 0

CH0DQ3

0

CH0DQ4

0

CH0DQ5

0

CH0DQ6

0

CH0DQ7

0

CH0DQ8

0

CH0DQ9

0

CH0DQ10

0 0

CH0DQ12

0

CH0DQ13

0

CH0DQ14

0

CH0DQ15

0

CH0A0

47

CH0A1

47

CH0A2

47

CH0A3

47

CH0A4

47

CH0A5

47

CH0A6

47

CH0A7

47

CH0A8

47

CH0A9

47

CH0A10

47

CH0A11

47

CH0A12

47

CH0BA0

47

CH0BA1

47

CH0BA2

47

CH0XWE

47

CH0XRAS

47

CH0XCAS

47

CH0XCS1

47

CH0XCS0

47

CH0CKE

47

CH0ODT

47

CH0CK

CH0XCK

1.8V_DDRI/F

R8082

R8083

75

300

1%

C8039

0.1u 16V

CH0DM2

0

CH0DM3

0

CH0DQS2

0

CH0DQS3

CH0DQ16 CH0DQ17 CH0DQ18 CH0DQ19 CH0DQ20 CH0DQ21 CH0DQ22 CH0DQ23 CH0DQ24 CH0DQ25 CH0DQ26 CH0DQ27 CH0DQ28 CH0DQ29 CH0DQ30 CH0DQ31

R8074

CH0DM0 CH0DM1

CH0DQS0

CH0DQS1

CH0DQ5 CH0DQ7 CH0DQ1 CH0DQ3 CH0DQ2 CH0DQ0 CH0DQ6 CH0DQ4

CH0DQ8 CH0DQ11 CH0DQ12 CH0DQ15 CH0DQ14 CH0DQ13 CH0DQ10 CH0DQ9

C8040

0.1u 16V

*IC8002=B3 UDM *IC8002=F3 LDM

*IC8002=A8 UDQS *IC8002=B7 UDQS *IC8002=E8 LDQS *IC8002=F7 LDQS

*IC8002=B9 DQ15 *IC8002=B1 DQ14 *IC8002=D9 DQ13 *IC8002=D1 DQ12 *IC8002=D3 DQ11 *IC8002=D7 DQ10 *IC8002=C2 DQ9 *IC8002=C8 DQ8

*IC8002=F9 DQ7 *IC8002=F1 DQ6 *IC8002=H9 DQ5 *IC8002=H1 DQ4 *IC8002=H3 DQ3 *IC8002=H7 DQ2 *IC8002=G2 DQ1 *IC8002=G8 DQ0

220

C

*IC8002=K9 ODT

*IC8002=J8 CK *IC8002=K8 CK

*IC8002=K2 CKE

*IC8002=L2 BA0 *IC8002=L3 BA1 *IC8002=L1 RFU

*IC8002=K3 WE *IC8002=K7 RAS *IC8002=L7 CAS *IC8002=L8 CS

*IC8002=J2 VREF

C8046

0.1u

+

C8042

4V

68u

C

C8043

0.1u 16V

C8047

0.1u

C8048

0.1u

C8036

10u 10V

DDR2_1

*IC8003=K9 ODT

R8097

220

*IC8003=J8 CK *IC8003=K8 CK

*IC8003=K2 CKE

*IC8003=L2 BA0 *IC8003=L3 BA1 *IC8003=L1 RFU

*IC8003=K3 WE *IC8003=K7 RAS *IC8003=L7 CAS *IC8003=L8 CS

*IC8003=J2 VREF

C8041

0.1u 16V

CH0DM3 CH0DM2

CH0DQS3

CH0DQS2

CH0DQ30 CH0DQ28 CH0DQ27 CH0DQ25 CH0DQ24 CH0DQ26 CH0DQ29 CH0DQ31

CH0DQ18 CH0DQ17 CH0DQ22 CH0DQ21 CH0DQ16 CH0DQ23 CH0DQ20 CH0DQ19

C

*IC8003=B3 UDM *IC8003=F3 LDM

*IC8003=A8 UDQS *IC8003=B7 UDQS *IC8003=E8 LDQS *IC8003=F7 LDQS

*IC8003=B9 DQ15 *IC8003=B1 DQ14 *IC8003=D9 DQ13 *IC8003=D1 DQ12 *IC8003=D3 DQ11 *IC8003=D7 DQ10 *IC8003=C2 DQ9 *IC8003=C8 DQ8

*IC8003=F9 DQ7 *IC8003=F1 DQ6 *IC8003=H9 DQ5 *IC8003=H1 DQ4 *IC8003=H3 DQ3 *IC8003=H7 DQ2 *IC8003=G2 DQ1 *IC8003=G8 DQ0

0

C8035

C8044

0.1u

C8049

0.1u

C8050

0.1u

C8045

0.1u 16V

16V

C

16V

C

16V

C

*IC8002=A2 NC *IC8002=E2 NC *IC8002=R3 RFU *IC8002=R7 RFU *IC8002=R8 RFU

C3ABRY000015 C3ABRG000080

10u 10V

C

16V

C

16V

C

16V

C

C3ABRG000080

*IC8002

A1 VDD *IC8002=E1 VDD *IC8002=M9 VDD *IC8002=J9 VDD *IC8002=R1 VDD

*IC8002=J1 VDDL

*IC8002=A9 VDDQ *IC8002=C1 VDDQ *IC8002=C3 VDDQ *IC8002=C7 VDDQ *IC8002=C9 VDDQ *IC8002=E9 VDDQ *IC8002=G1 VDDQ *IC8002=G3 VDDQ *IC8002=G7 VDDQ *IC8002=G9 VDDQ

*IC8003 *IC8003=E1 VDD *IC8003=M9 VDD *IC8003=J9 VDD *IC8003=R1 VDD

*IC8003=A9 VDDQ *IC8003=C1 VDDQ *IC8003=C3 VDDQ *IC8003=C7 VDDQ *IC8003=C9 VDDQ *IC8003=E9 VDDQ *IC8003=G1 VDDQ *IC8003=G3 VDDQ *IC8003=G7 VDDQ *IC8003=G9 VDDQ

*IC8003=J1 VDDL

*IC8003=A2 NC *IC8003=E2 NC *IC8003=R3 RFU *IC8003=R7 RFU *IC8003=R8 RFU

=

CH0A0 CH0A1 CH0A2 CH0A3 CH0A4 CH0A5 CH0A6 CH0A7 CH0A8 CH0A9 CH0A10 CH0A11 CH0A12

*IC8002=A3 VSS *IC8002=E3 VSS *IC8002=J3 VSS *IC8002=N1 VSS *IC8002=P9 VSS

*IC8002=A7 VSSQ *IC8002=B2 VSSQ *IC8002=B8 VSSQ *IC8002=D2 VSSQ *IC8002=D8 VSSQ *IC8002=E7 VSSQ *IC8002=F2 VSSQ *IC8002=F8 VSSQ *IC8002=H2 VSSQ *IC8002=H8 VSSQ

*IC8002=J7 VSSDL

C

*IC8002=M8 A0 *IC8002=M3 A1 *IC8002=M7 A2 *IC8002=N2 A3 *IC8002=N8 A4 *IC8002=N3 A5 *IC8002=N7 A6 *IC8002=P2 A7 *IC8002=P8 A8 *IC8002=P3 A9 *IC8002=M2 A10 *IC8002=P7 A11 *IC8002=R2 A12

84FBGA

CH0A0

*IC8003=M8 A0

CH0A1

*IC8003=M3 A1

CH0A2

*IC8003=M7 A2

CH0A3

*IC8003=N2 A3

CH0A4

*IC8003=N8 A4

CH0A5

*IC8003=N3 A5

CH0A6

*IC8003=N7 A6

CH0A7

*IC8003=P2 A7

CH0A8

*IC8003=P8 A8

CH0A9

*IC8003=P3 A9

CH0A10

*IC8003=M2 A10

CH0A11

*IC8003=P7 A11

CH0A12

*IC8003=R2 A12

=

A1 VDD

*IC8003=A3 VSS *IC8003=E3 VSS *IC8003=J3 VSS *IC8003=N1 VSS *IC8003=P9 VSS

*IC8003=A7 VSSQ *IC8003=B2 VSSQ *IC8003=B8 VSSQ *IC8003=D2 VSSQ *IC8003=D8 VSSQ *IC8003=E7 VSSQ *IC8003=F2 VSSQ *IC8003=F8 VSSQ *IC8003=H2 VSSQ *IC8003=H8 VSSQ

*IC8003=J7 VSSDL

C

12

55

A B C D E F G H I J K L M N O P Q R

1

2

3

4

5

6

7

8

9

10

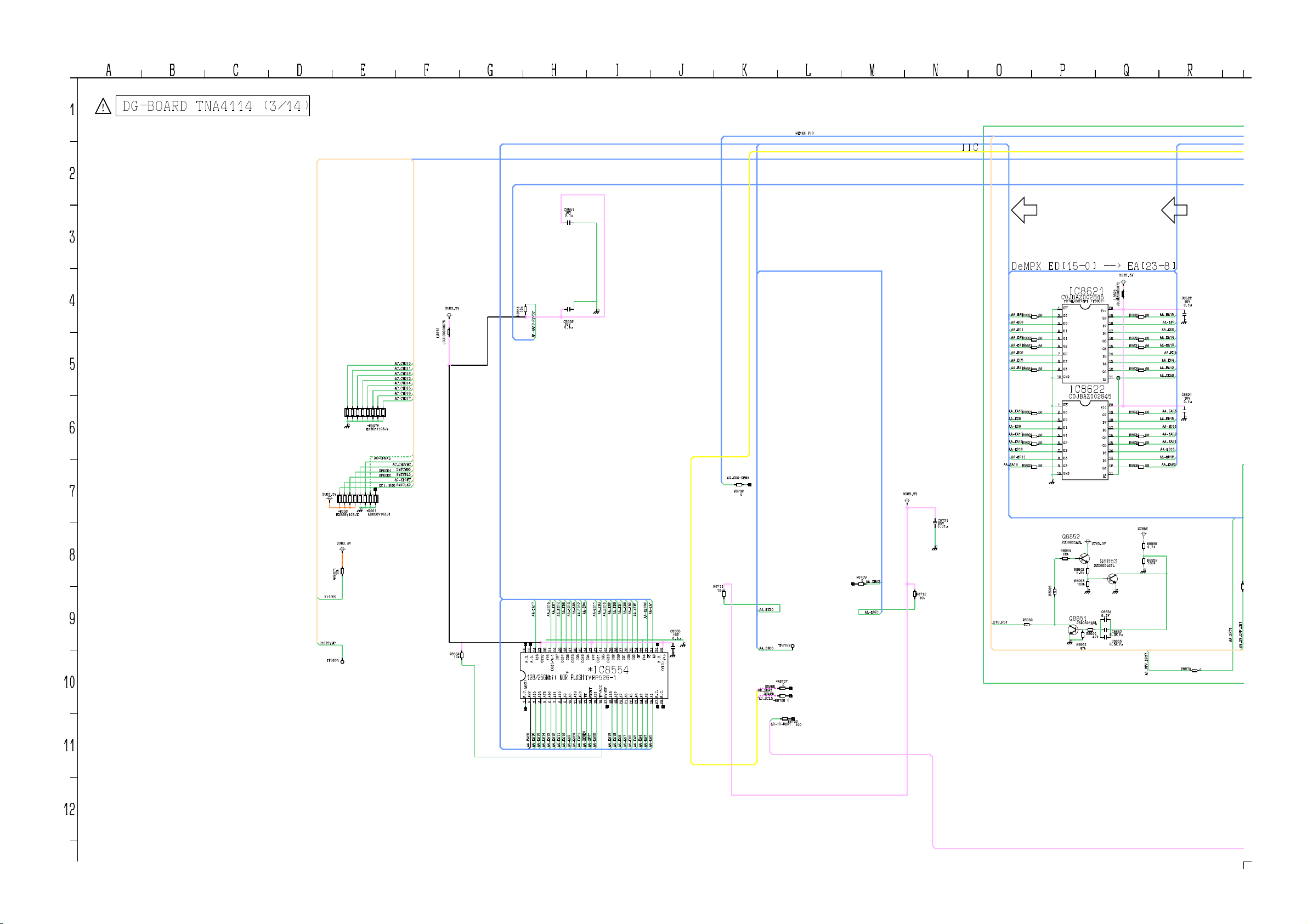

DG-BOARD TNA4114 (3/14)

SUB3.3V

IS0PSYNC

VI1P20

TP8404

*R002

EXB28V103JX

SUB3.3V

10k

*R8471

GENX4 PIO

IIC

C8551

16V

0.1u

DeMPX ED[15-0] --> EA[23-8]

IC8621

C0JBAZ002845

TC74LCX373FT (TSSOP)

SUB3.3V

L8551

J0JHC0000075

AC_CHDI0 AC_CHDI1 AC_CHDI2 AC_CHDI3 AC_CHDI4 AC_CHDI5 AC_CHDI6 AC_CHDI7

C

*R8472 EXB2HV103JV

AC_CHVAL

AC_CHSYNC

SMTCMD0

XPDCD1

SMTSEL0

XPDCD2

AC_XPDWT

SMTCLK0

XCI_IREQ

C

*R001

EXB28V103JX

R8564

10k

R8551

AF_NAND_RY/BY

AA_EA17

54

55

A16

N.C.56N.C.

C8552

16V

0.1u

AA_ED7

AA_ED14

AA_ED15

49

50

51

52

53

DQ7

Vss

DQ14

BYTE

DQ15/A-1

128/256Mbit NOR FLASH

(A23)

1 N.C.

2 A22

3 A15

4 A14

5 A13

6 A12

7 A11

8 A10

AA_ED6

48

<

9 A9

DQ6

AA_ED13

47

DQ13

10 A8

AA_ED5

AA_ED12

46

DQ5

11 A19

AA_ED4

45

DQ12

TVRP526-1

12 A20

C

AA_ED3

AA_ED10

AA_ED11

40

41

42

43

DQ3

Vcc44DQ4

DQ11

*IC8554

13 WE

14 RESET

15 A21

16 WP/ACC

17 RY/BY

AA_EA8

R8621

AA_ED0

AA_ED1

AA_EA9 AA_EA14

R8622

AA_EA10

R8623

AA_ED2

AA_ED3

AA_EA11

R8624

AA_EA16

R8625

AA_ED8

AA_ED9

AA_EA17

R8626

AA_EA18

R8627

AA_ED10

AA_ED11

AA_EA19

R8628

AG_SRQ-GENX

R8702

0

R8709

0

R8711

10k

AA_ED0

AA_ED1

AA_ED8

AA_ED9

AA_ED2

DQ10

18 A18

19 A17

AA_EA1

AA_XERE

AA_XECS0

C8555

16V

0.1u

C

30

31A032CE33

34OE35

DQ036DQ837DQ138DQ939DQ2

20 A7

21 A6

22 A5

23 A4

C

Vio

Vss

N.C.

(VIO)

24 A3

25 A2

26 A1

27 N.C.

28 N.C. 29

AA_ESZ0

AA_SBO0

AD_SDA3

AD_SCL3

TP8757

*R8707

0

GUARD

0

*R8708

AA_XEAS

AA_ESZ1

SUB3.3V

C8731 25V

0.01u

C

R8712

10k

R8950

STB_RST

0

OE1

68

2 Q0

3 D0

4 D1

68

5 Q1

68

6 Q2

7 D2

8 D3

68

9 Q3

10 GND 11

OE1

68

2 Q0

3 D0

4 D1

68

5 Q1

68

6 Q2

7 D2

8 D3

68

9 Q3

10 GND 11

C

Q8852

2SD0601ASL

R8944

22k

0

R8946

IC8622

C0JBAZ002845

R8942

5.6k

R8943

100k

Q8851

2SD0601ASL

R8940

C

R8941

47k

C

STB3.3V

2SD0601ASL

47k

Vcc

Q7

D7

D6

Q6

Q5

D5

D4

Q4

LE

Vcc

Q7

D7

D6

Q6

Q5

D5

D4

Q4

LE

Q8853

C8854

6.3V

SUB3.3V

L8621

J0JHC0000075

20

R8629

19

18

17

16

15

14

13

12

20

19

18

17

16

15

14

13

12

C8852

6.3V

C8853

6.3V

68

R8630

68

R8631

68

R8632

68

R8633

68

R8634

68

R8635

68

R8636

68

SUB5V

R8938

4.7k

R8939 180k

C

2.2u

AG_DTV_XRST

AA_EA15

AA_EA13

AA_EA12

AA_XEAS

AA_ED15

AA_ED13

AA_ED12

AA_ED7

AA_ED6

AA_ED4

AA_EA23

AA_ED14

AA_EA22

AA_EA21

AA_EA20

AA_ED5

C8622

16V

0.1u

C

C8621

16V

0.1u

C

AA_XRST

AG_SW_OFF_DET

R8870

0

11

12

AA_EA23

AA_EA16

AA_EA15

AA_EA14

AA_EA13

AA_EA12

AA_EA11

AA_EA10

AA_EA9

AA_EA20

AA_EA21

AA_XEWE0

AA_XRST

AA_EA22

AA_EA19

AA_EA18

AA_EA8

AA_EA7

AA_EA6

AA_EA5

AA_EA4

AA_EA3

AA_EA2

56

AD_TO_BA01

R8732

100

S T U V W X Y Z AA AB AC AD AE AF AG AH AI AJ AK

1

2

3

4

5

6

7

8

9

10

11

12

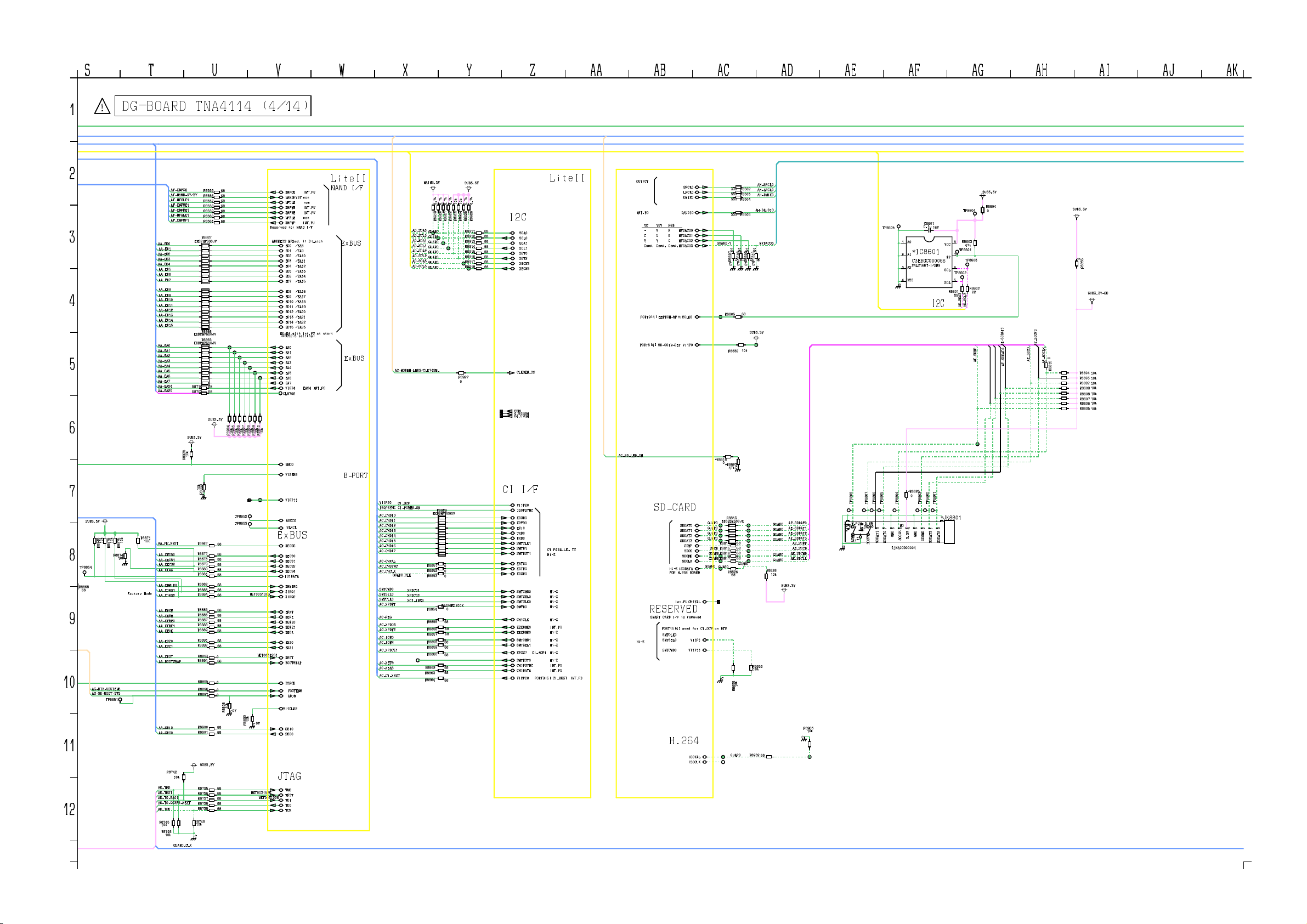

DG-BOARD TNA4114 (4/14)

SDA0 SCL0 SDA1 SCL1 SBT0 SBT2 XECS3 XECS5

CI_#CE1

PORT9[5] CI_XRST

LiteII

CI PARALLEL TS Hi-Z

Hi-Z Hi-Z Hi-Z Hi-Z

Hi-Z

INT.PU Hi-Z

Hi-Z Hi-Z

Hi-Z

Hi-Z INT.PU INT.PU

INT.PD

AG_SD_LED_ON

OUTPUT

INT.PD

YC YUV RGB

- V R C U B Y Y G Comp. Comp. Comp.

PORT9[4] EEPROM_WP

PORT5[4] SD_COIN_DET

RESERVED

SMART CARD I/F is removed

Hi-Z

SRCK0 LRCK0 DMIX0

DAUDIO

MVDACO0 MVDACO1 MVDACO2 MVDACO3

VI2CLK2

VI1P0

SD_CARD

SDDAT0 SDDAT1 SDDAT2 SDDAT3

SDWP

SDCD SDCMD SDCLK

IS0DATA

Hi-Z FOR H.264 BOARD

Int.PU

PORT15[4] used for CI_OCP on DT2

SMTCLK0 SMTSEL0

SMTCMD0

H.264

CH1VAL

VI1P11

IS0VAL IS0CLK

VI1P1

330 330 330

330

GUARD_Y MVDACO3

91

1%

R8507

0V

C

R8605

R8832

*R8818

0

*R8823

C

47k

R8813

EXB28V680JX

GUARD GUARD GUARD GUARD

68

R8814

68

R8815

SDCD

68

R8816

GUARD

68

R8817

GUARD

R8826

68

C

10k

R8655

GUARD

AH_SRCK0

R8502

AH_LRCK0

R8503

AH_DMIX0

R8504

AH_DAUDIO

R8506

TP8605

91

1%

R8508

R8509

R8510

1%

0V

C

68

SUB3.3V

10k

TP8808

TP8805

TP8806

TP8807

D.SW

AE_SDDAT0

GUARD

AE_SDDAT1

GUARD

AE_SDDAT2

GUARD

AE_SDDAT3

GUARD

AE_SDWP AE_SDCD

AE_SDCMD

GUARD

AE_SDCLK

GUARD

R8828

10k

SUB3.3V

R8653

10k

R8963

10k

C

R8952

68

W.P.

10W.P.

D.SW

12

10

12

11

C

7

8

11

SDWP

SDDAT0

SDDAT1

SDDTC

K1NA09D00004

C8601

0.1u

1 A0

*IC8601

2 A1

C3EBGC000066

24LC16BT-I/SNG

3 A2

4 VSS 5

C

*R8825

0

TP8802

TP8803

TP8804

NO

6

GND

3.3V

SDCLK

SDCMD

16V

I2C

TP8801

12345

SDDAT3

VCC

WP

SCL

SDA

R8601

*JK8801

9

SDDAT2

8

7

6

TP8602

22

TP8601

R8603

AD_SDA3

TP8604

47k

TP8603

AD_SCL3

SUB3.3V

R8604 0

R8602

22

AE_SDDAT1

AE_SDCMD

AE_SDDAT0

AE_SDCD

AE_SDWP

AE_SDCLK

SUB3.3V

0

R8833

SUB3.3V_SD

0

R8812

R8804

10k

R8803

10k

R8802

10k 10k

R8809

10k

R8808

10k

R8807

10k

R8806 R8805

10k

LiteII

AF_XNFCE AF_NAND_RY/BY AF_NFCLE1 AF_XNFWE1 AF_XNFRE1 AF_NFALE1 AF_XNFWP1

AA_ED0 AA_ED1 AA_ED2 AA_ED3 AA_ED4 AA_ED5 AA_ED6

AA_ED7

AA_ED8

AA_ED9 AA_ED10

AA_ED11 AA_ED12 AA_ED13 AA_ED14 AA_ED15

AA_EA0 AA_EA1 AA_EA2 AA_EA3 AA_EA4 AA_EA5 AA_EA6 AA_EA7 AA_EA24 AA_EA25

SUB3.3V

R8871

10k

R8948

R8876

TP8854

R8868

68

AG_DTV_VOUTENB AG_SD_BOOT_STS

TP8851

10k

R8875

R8874

10k

C

Factory Mode

AA_FE_XRST

AA_XECS0 AA_XECS1 AA_XECS2

AA_XEAS

AA_XNMIRQ AA_XIRQ1 AA_XIRQ2

AA_ERXW AA_XERE AA_XEWE0 AA_XEWE1 AA_XEDK

AA_ESZ0 AA_ESZ1

AA_XRST AA_BOOTSWAP

AA_SBI0 AA_SBO0

R8742

AD_TMS AD_TRST AD_TO_BA01 AD_TO_GC3FS_NEXT

AD_TCK

R8745

10k

R8746

10k

GUARD_CLK

R8555

68

R8556

68

R8557

68

R8558

68

R8559

68

R8560

68

R8561

68

R8867

EXB2HV680JV

R8866

EXB2HV680JV

R8865

EXB2HV680JV

R8710

68

R8703

68

SUB3.3V

10k

R8904

R8906

R8905

R8908

SUB3.3V

10k

R8935

10k

R8869

C

R8947

R8877 R8878 R8879 R8880 R8881

R8882

R8883 R8884

R8885 R8886 R8887 R8888 R8889

R8891 R8892

R8893 R8894

R8895

R8896 R8897

R8900 R8901

SUB3.3V

R8907

TP8852

TP8853

68

68 68 68 68 68

68 68

NET0031303

68

68 68 68 68 68

68 68

0

68

0

0 0

10k

0V

R8898

C

10k

R8899

68 68

R8909

0V

C

10k

R8910

NET0031261

XNFCE NANDRYBY NFCLE XNFWE XNFRE NFALE XNFWP

Reserved for NAND I/F

ADDRESS MPXed, if D-Latch

ED0

/EA8

ED1

/EA9

ED2

/EA10

ED3

/EA11

ED4

/EA12

ED5

/EA13

ED6

/EA14

ED7

/EA15

ED8

/EA16

ED9

/EA17

ED10

/EA18

ED11

/EA19

ED12

/EA20

ED13

/EA21

ED14

/EA22

ED15

/EA23

ED/EA with Int.PU at start (XECS2,3 setting)

EA0 EA1 EA2 EA3 EA4 EA5 EA6 EA7 VI2P4

CL8702

RMCO

VI2ENB

VI2P11

ADCCK

SLRCK

ExBUS

XECS6

XECS0 XECS1 XECS2 XECS4

IS1DATA

XNMIRQ XIRQ1 XIRQ2

ERXW XERE XEWE0 XEWE1 XEDK

ESZ0 ESZ1

XRST BOOTSWAP

DSRCK

VOUTENB ADIN

VI1CLK2

SBI0 SBO0

JTAG

R8735

68

R8736

68

R8737

68

R8738

68

R8739

68

R8749

10k

C

NET0031576

NET0031226

TMS TRST TDI TDO TCK

INT.PU non non INT.PU INT.PU non INT.PU

EA24

INT.PD

NAND I/F

ExBUS

B_PORT

VI1P20 IS0PSYNC

AC_CHDI0 AC_CHDI1 AC_CHDI2 AC_CHDI3 AC_CHDI4 AC_CHDI5 AC_CHDI6 AC_CHDI7

AC_CHVAL AC_CHSYNC AC_CHCLK

SMTCMD0 SMTSEL0 SMTCLK0 AC_XPDWT

AC_REG

AC_XPDOE AC_XPDWE

AC_IORD AC_IOWR

AC_XPDCE1

AC_XETS AC_XEAB

AC_CI_XRST

AD_SDA0 AD_SCL0 AD_SDA1 AD_SCL1 AD_SDA2 AD_SCL2 AD_SDA3 AD_SCL3

AG_MODEM_LED2/CLK74SEL

CI_OCP CI_POWER_ON

GUARD_CLK

XPDCD1 XPDCD2 XCI_IREQ

MAIN3.3V

R8851 R8852 R8853

R8854

R8855

R8856 R8857

R8858 R8859

R8860

R8862

R8863

R8864

GUARD GUARD GUARD GUARD GUARD GUARD GUARD GUARD

EXB2HVR000V

R8919 4.7k

R8929

4.7k

R8921

R8920

0 0 0

ERJ2GE0R00X

0

68

68 68

68

68 68

68

SUB3.3V

10k

4.7k

R8923

R8924

R8926 4.7k

R8925

R8922 4.7k

R8911 R8912 R8913 R8914 R8915 R8916 R8917 R8918

R8927

0

I2C

68 68 68 68 68 68 68 68

CLKGEN_S2

25M

4.9152M

24.576M

CI I/F

VI1P20 IS0PSYNC

XDCD0 XCTS0 XRI0 TXD0 RXD0 SMTCLK1 SMTD1 SMTRST1

XRTS0 XDTR0 XDSR0

SMTCMD0 SMTSEL0 SMTCLK0 SMTD0

CH1CLK

XEXDMK0 XEXDMR0

SMTCMD1 SMTSEL1

XECS7

SMTRST0 CH1PSYNC CH1DATA

VI2P20

57

AL AM AN AO AP AQ AR AS AT

1

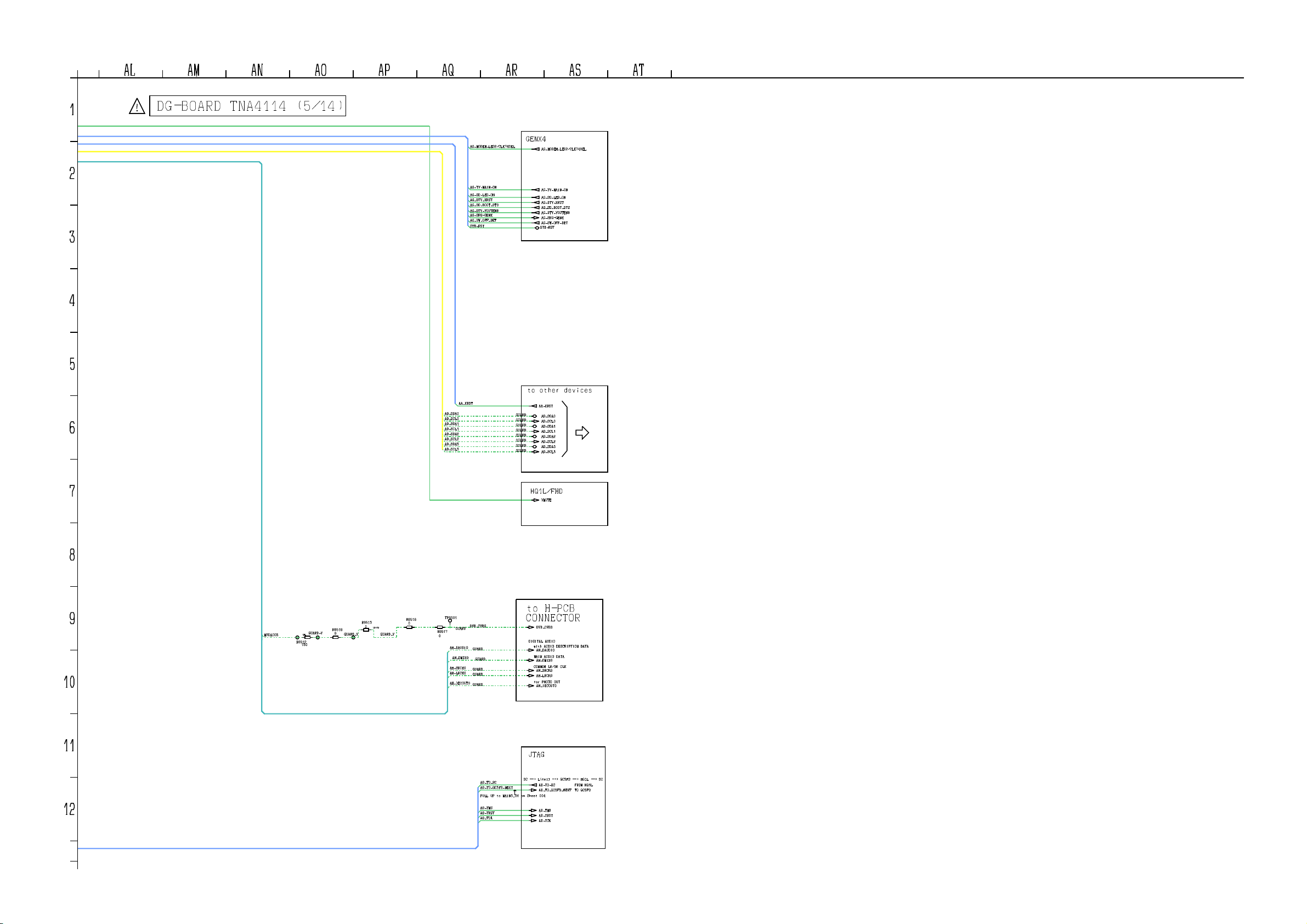

DG-BOARD TNA4114 (5/14)

AG_MODEM_LED2/CLK74SEL

GENX4

AG_MODEM_LED2/CLK74SEL

2

AG_TV_MAIN_ON

AG_SD_LED_ON AG_DTV_XRST AG_SD_BOOT_STS

AG_DTV_VOUTENB AG_SRQ-GENX AG_SW_OFF_DET

STB_RST

AG_TV_MAIN_ON

AG_SD_LED_ON AG_DTV_XRST AG_SD_BOOT_STS AG_DTV_VOUTENB AG_SRQ-GENX AG_SW_OFF_DET

STB_RST

3

4

5

to other devices

AA_XRST

AD_SDA0 AD_SCL0 AD_SDA1

6

AD_SCL1 AD_SDA2 AD_SCL2 AD_SDA3 AD_SCL3

AA_XRST

GUARD

AD_SDA0

GUARD

AD_SCL0

GUARD

AD_SDA1

GUARD

AD_SCL1

GUARD

AD_SDA2

GUARD

AD_SCL2

GUARD

AD_SDA3

GUARD

AD_SCL3

7

8

9

10

11

12

MVDACO3

HQ1L/FHD

VMUTE

R8513

0

R8519

GUARD_V

0

1%

R8512

180

GUARD_V

R8518

1.0 x 0.5

0

GUARD_V

TP8501

DVB_CVBS

GUARD

R8517

0

AH_DAUDIO

GUARD

AH_DMIX0

GUARD

AH_SRCK0

GUARD

AH_LRCK0

GUARD

AH_IECOUT0

GUARD

to H-PCB

CONNECTOR

DVB_CVBS

DIGITAL AUDIO

with AUDIO DESCRIPTION DATA

AH_DAUDIO

MAIN AUDIO DATA

AH_DMIX0

COMMON LR/SR CLK

AH_SRCK0 AH_LRCK0

for PHOTO OUT

AH_IECOUT0

JTAG

AD_TO_SC AD_TO_GC3FS_NEXT

PULL UP to MAIN3.3V on Sheet 004

AD_TMS AD_TRST AD_TCK

SC --> LiteII --> GC3FS --> HQ1L --> SC

AD_TO_SC AD_TO_GC3FS_NEXT

AD_TMS AD_TRST AD_TCK

FROM HQ1L TO GC3FS

58

A B C D E F G H I J K L M N O P Q

1

2

3

4

5

6

7

8

9

10

11

12

DG-BOARD TNA4114 (6/14)

STB5V

R5670

D5673

0

B0HCMM000014

SUB5V

D5671

5.00V

B0HCMM000014

D5670

MA2J11100L

C5670 10V 1u

L5670

J0JHC0000078

C5673 1u 16V

STB3.3V

3.30V

IC5670

5

VOUT4NC C0CBCBC00190

MM3143DNRE(R59-1828)

GND

VDD

1

2

C

R5671

18k

C

C5674 10V

CE

3

IC5671

C0EBF0000376

1u

C

STB3.3V

3.30V

TP5670

0

R5672

1

2

3

RST

GND

VDD

Cd

NC

5

4

C5676 16V

0.1u

Peaks-LITE2 POWER

R5637

C5601

R5611

R5612

1%

0.1u 16V

CTL

1%

36k

23.2k

IC5601

MB39A128APFT-G-BND-ERE1

C0DBAYY00274

CC3

CL5600

CC3

OUT1-1

OUT1-2

OUT2-2

OUT2-1

CC2

0

30

OVP

C5617

29

CUVP

28

PGOOD

27

CB1

26

25

LX1

24

23

VCC

22

PGND

21

VB

20

19

LX2

18

17

CB2

CTL

R5620

68

25V

C5603

0.01u

25V

C5604

0.01u C5606

470p

50V

1u

C5600

16V

100k

R5610

CC2

C5616

10V

0.047u

25V

C5644

0.01u 25V

C

1 RT

2 CS1

3 VO1

4 FB1

5 REFIN1

6 ILIM1

7 -INC1

8 -INC2

9 ILIM2

10 FSW

11 FB2

12 VO2

13 CS2

14 GND

15 VREF 16

R5600 68

C5624

1%

220p

47.5k

50V

R5630

30k

1%

R5632

CC2

R5623

1%

47k

R5634

16k

1%

CC2

16k

R5633

1%

R5621

1%

47k

CC2

1%

R5631

36k

D5609

MAZ80560LL

R5638 10k

R5644

2.2k

Q5604

2SD0601ASL

C5645

R5641

2.2u 47k

10V

30.1k

2SD0601ASL

R5647 47k

R5629

50V

Q5603

R5646 10k

C5621

470p

C5623

0.01u

C5625

0.01u

25V

CC2

DTV9V

R5635 22k

R5636 68k

C

R5674

1.2k

0

D5672

ERJ3GEY0R00V

R5622

100k

C5626

16V

0.1u

1u CC2

R5625

0

R5626

0.1u

0

50V

CC2

R5627

0

R5628

0

C5627

0.1u

C5622

10V

4.7u

CC2

1 GND

2 REFIN

3 VREF

4 CS

5 COVP

6 CUVP

7 PGOOD

8 CTL

C0DBAYY00273

IC5600

9 LSAT

10 ILIM

11 +INC

12 -INC 13

GenX4

to sheet008

STB_RST

Cn to H

to sheet007

AG_AC_GOOD/24V_DET

RB520S-30TE61

24

FB

23

VO

22

RT

21

CB

20

19

LX

18

17

16

VB

15

14

B1MBEDA00015

CC2

R5606

0

CC3

C5643

50V

0.1u CC3

R5607 0

CC3

C5620

D5603

B0JCDD000002

D5604

B0JCDD000002

16V

OUT-1

VBIN

VCC

MB39A130APFT-G-BND-ERE1

OUT-2

PGND

FSW

10u 10V

S1G1S2G2

Q5601

SP8K2TB

S1G1S2G2

Q5602

B1MBEDA00015

SP8K2TB

S1G1S2G2

B1MBEDA00015

SP8K2TB

MA22D3900L

MAIN5V/MAIN3.3V

DTV9V

0.0V

SUB5V

L5690

J0JHC0000078

C

D5691

B0BC6R600005

C

R5694

1k

Q5690

B1ABCF000138 MSD601-RT1G

R5695 1k

Q5691

B1ABCF000138 MSD601-RT1G

+ +

C5690

47u

6.3V

C5691

47u

6.3V

D5690

SUB3.3V

RESET IC

C5661

25V

5.6k

R5660

8.04V

0.01u

IC5660

47k

R5661

C0EBM0000026

C

1

2

3

OUT

GND

Vdd

Cd

NC

5

4

C5662

10V

0.047u

C

10k

R5662

C5663

25V

0.01u

0.0V C

to Sheet003

AA_XRST

B0BC6R600005

R5690

10k

SUB3.3V

R5691

10k

CL5690

R5692 47k

J0JHC0000078

CL5691

R5693 47k

CL5692

L5691

Q5692

B1DHDC000028

R5696

C5692

10k

50V

0.1u

Q5693

B1DHDC000028

R5697

C5693

10k

50V

0.1u

+

C5694 47u

6.3V

C

+

C5695 47u

6.3V

C

MAIN5V

MAIN3.3V

From GenX4

(sheet008)

AG_TV_MAIN_ON

DG-H Connecter

SUB3.3V

MAIN9V

AG_RMIN

AG_G_LED_ON

AG_R_LED_ON

STB3.3V

TP5707

DG2

TP5703

1

C5716

2

0.1u 50V

3

GND

4

TP5704

GND

5

P12V

6

P12V

7

TP5700

GND

8

DTV9V

9

DTV9V

10

GND

11

TP5701

GND

12

SUB5V

13

SUB5V

14

SUB5V

15

GND

16

TP5705

GND

17

C5713

0.1u

18

50V

19

GND

20

TP5706

GND

21

22

GND

TP5702

23

STB5V

C5715

0.1u

C

50V

*R5732

*C5730

25V

0

0.01u

C

L5604 G1C100MA0077

C5619

R5609

R5608

0

SUB1.8V

G1C2R2ZA0083

R-12U539DE

D2 D2 D1 D1

D5601

MA22D3900L

D5602

G1C2R2ZA0083 R-12U539DE

D2 D2 D1 D1

TP5602

L5601

C5628 68u

L5600

MAZ802400L

D5607

C5629

+

MAZ802400L

C

4V

68u

TP5601

+

4V

D5608

SUB1.2V

C5641

16V

0.1u C

C

+

47u

16V

CC2

C5630

+

47u

16V

CC2

C5610

+

C5631

47u

C

DTV9V

L5605

C5632

1u

16V

C

From H

SUB9V(FHD)/LCD3.3V

From H

to DG

C5618

10u

10V

G1C100MA0077

L5606

+

10V

16V

10u

47u C5609

C5615

D5606 B0JCDD000002

C5608

0.1u 16V

L5602

D2 D2 D1 D1

Q5600

D5605

G1C3R3ZA0083

CC3

C5605

4.7u 10V CC3

TP5600

+

4V

68u

C5607

R5604 47k

1%

R5605

1%

12.7k

C5602

50V

220p

CC3

C5640 16V

0.1u

C C5637 16V

C5636

C5638

0.1u

16V

0.1u

SUB3.3V

C5639 16V

0.1u

From H

DG-K Connecter

to V-PCB

ACTIVE_STBY_LED_ON

AI_SENSOR

DG1

RMIN

G_LED_ON

R_LED_ON

STB3.3V

GND

KEY1

GND

10

GND

11

GND

12

SUB5V

K1KA12A00317

BM12B-GHS-TBT(LF)(SN)

D5692

TP5603

MAZ80390HL

TP5607

L5735 J0JHC0000078

L5734 J0JHC0000078

L5733 J0JHC0000078

L5610

J0JHC0000035

*L5731 J0JHC0000078

L5611 J0JHC0000035

C5733

C

16V

SUB5V

0.1u

TP5608

1

TP5604

2

3

TP5605 TP5606

4

5

6

7

8

9

C

HQ3.3V

L5692

C

P12V

C5710

0.1u 50V

C

DTV9V

C5711

0.1u 50V

C

SUB5V

C5712

0.1u 50V

C

SUB3.3V

C

MAIN9V

C5714

0.1u STB5V

50V

C

GenX4

to sheet008

AG_RMIN

AG_G_LED_ON

AG_R_LED_ON

AG_AI_SENSOR

AG_KEY2

47k

R5731

R5730

C

AG_KEY3

59

A B C D E F G H I J K L M N O P Q

1

2

3

4

5

6

7

8

9

10

DG-BOARD TNA4114 (7/14)

GC3FS next

to Sheet 004

AH_FS_Y

AH_FS_U AH_FS_V

ADV7493

to Sheet 010

HDMI_LRCK HDMI_BCLK HDMI_SDIN

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

RGB_CVBS

RGB_FB

PC_HS PC_VS

HDMI_INT2

IRD

to Sheet 003

AH_IECOUT0

DVB_CVBS

AH_SRCK0

AH_DMIX0

AH_DAUDIO

AH_LRCK0

IIC2

to Sheet 003

AD_SCL2

AD_SDA2

<< Connection Device >>

3.3V:V-AVSW/ADV4422/FE/DVB-TNR 5V :A-AVSW/A-TNR

GUARD_Y

GUARD_CLK

GUARD_Y

GUARD_PB GUARD_PR

GUARD_V

GUARD GUARD

GUARD

GUARD_V

GUARD_CLK

GUARD

AH_FS_Y

AH_FS_UGUARD_PB AH_FS_VGUARD_PR

HDMI_LRCKGUARD HDMI_BCLK

HDMI_SDINGUARD

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

RGB_CVBS

HDMI_INT2

DVB_CVBS

AH_SRCK0

AH_DMIX0

AH_DAUDIO

AH_LRCK0

AD_SCL2 AD_SDA2

RGB_FB

GenX4

AG_QLINK2

AG_QLINK1

to Sheet 008

AG_SOS

AG_TV_MAIN_ON

AG_TV_SUB_ON

AG_A_MON_MUTE/SP_MUTE

AG_SOUND_SOS

AG_AUDIO_MUTE

AG_AUDIO_XRST

STB_RST

AG_VIDEO_STATUS

AG_TV_SUB_ON_DELAY

AG_PANEL_STBY_ON/PANEL_VCC_ON

AG_RF_AFT1

AG_RF_AFT2

AG_KEY1(CON-PANE)

AG_AC_GOOD/24V_DET

AG_FAN_MAX

AG_FAN_SOS

AG_ECO_ON

AG_ALL_OFF

EURO QLINK CONTROL

AG_QLINK2

AG_QLINK1

AG_QLINK_PU_ON

GenX4

AG_RF_AGC1

AU_SBI(HOTEL)

AU_SBO(HOTEL)

AG_AVSW_OFF

AG_ODU_ON/GEMSTER_STBY_EN

AG_BUS_CONNECT2

AG_ODU_DET

AG_SOS

AG_TV_MAIN_ON

AG_TV_SUB_ON

AG_A_MON_MUTE/SP_MUTE

AG_SOUND_SOS

AG_AUDIO_MUTE

TP2024

TP2011

TP2013

TP2015

TP2017

TP2019

C

80

78

76

74

72

70

68

66

64

62

60

58

56

54

52

50

48

46

44

42

40

38

36

34

32

30

28

26

24

22

20

18

16

14

12

10

8

6

4

2

DG6

79

77

75

73

71

69

67

65

63

61

59

57

55

53

51

49

47

45

43

41

39

37

AC_GOOD/24V_DET

35

33

31

29

27

25

23

21

19

17

15

13

11

9

7

5

3

1

ALL_OFF

ECO_ON

HDMI_INT2

SPDIF_IN(OPT)

HDMI_LRCK

HDMI_SDIN

HDMI_BCLK

DTV2_SDIN

DTV_LRCK

DTV_SDIN

VIDEO_STATUS

DTV_BCKL

KEY1

FAN_SOS

TV_SUB_ON TV_MAIN_ON

QLINK_AV3

QLINK_AV2

AFC2 AFC1

SOUND_SOS SOS

GENX_RST SP_MUTE

AUDIO_MUTE AUDIO_XRST

FAN_MAX/INV_PSU_ON

SDA0B

SCL0B

DVB_CVBS Panel_STBY_ON/Pannel_VCC_ON

SUB_PR

SUB_PB/C

SUB_Y/CVBS

PC_V

PC_H

RGB_FB

RGB_CVBS

MAIN_PR/R

MAIN_PB/C/B

MAIN_Y/CVBS/G

AG_VIDEO_STATUS

AG_ALL_OFF AG_ECO_ON

HDMI_INT2

TP2000

AH_IECOUT0

HDMI_LRCK

HDMI_SDIN

HDMI_BCLK

AH_DAUDIO

AH_LRCK0

AH_DMIX0

AH_SRCK0

PC_HS PC_VS

AD_SDA2

AD_SCL2

DVB_CVBS

AH_FS_V

AH_FS_U

AH_FS_Y

PC_VS

PC_HS

RGB_FB

RGB_CVBS

MAIN_PR

MAIN_PB/C

MAIN_Y/CVBS

TP2007

TP2008

TP2009

TP2001

TP2002

TP2003

TP2004

TP2005

TP2006

TP2020

TP2021

TP2022

TP2023

GUARD

GUARD_CLK

GUARD

GUARD_CLK

GUARD_V

GUARD_PR

GUARD_PB

GUARD_Y

GUARD_V

GUARD_PR

GUARD_PB

GUARD_Y

GUARD

AG_AC_GOOD/24V_DET PANEL_STBY/VCC_ON AG_KEY1(CON-PANE)

AG_FAN_SOS

AG_FAN_MAX/INV_PSU_ON

AG_TV_SUB_ON AG_TV_MAIN_ON

AG_QLINK2

AG_QLINK1

AG_RF_AFT2 AG_RF_AFT1

AG_SOUND_SOS AG_SOS

STB_RST AG_A_MON_MUTE/SP_MUTE AG_TV_SUB_ON_DELAY AG_AUDIO_MUTE AG_AUDIO_XRST

TP2010

TP2012

TP2014

TP2016

TP2018

AG_AUDIO_XRST

STB_RST

AG_VIDEO_STATUS

AG_TV_SUB_ON_DELAY

PANEL_STBY/VCC_ON

AG_RF_AFT1

AG_RF_AFT2

AG_KEY1(CON-PANE)

AG_AC_GOOD/24V_DET

AG_FAN_SOS

AG_QLINK2

AG_QLINK1

MA3X704A0L

AG_ECO_ON

AG_ALL_OFF

*R1110

27k

*D1100

*R2003

0

47k

R2018

*R2019

R2020

*R2016

C

47k

R2023

STB5V

*R1126

27k

*D1102

MA3X704A0L

to H-PCB

K1KB80AA0218

47k

R2010

R2012

R2011

C

47k

R2025

R2014

R2013

R2015

60

A B C D E F G H I J K L M N O P Q

1

2

3

4

5

6

7

8

9

10

11

DG-BOARD TNA4114 (8/14)

ADV7493

to Sheet 010

HQ1L/CN to HFD

to Sheet 009

to Sheet 004/005/007/009/010

LVDS Out

to Sheet 011

sheet011/009

CN to H

to Sheet 007

Power Supply

to Sheet 005

AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON

AG_HDMI_MUX_SEL

AG_HDMI_MUX_EN AG_HDMI_REP_EN

AG_HDMI_5V_DET3 AG_HDMI_5V_DET2 AG_HDMI_5V_DET1

AG_7493_XRST

AG_TV_MAIN_ON_DELAY

AG_INVERTER_SOS

sheet009/011

AG_INVERTER_ON

sheet009/004

AG_HQ1_VOUTENB

AG_CONFIG_DONE

AG_TV_MAIN_ON

AG_PWM_POW_ON

AG_PANEL_STBY_ON/PANEL_VCC_ON

AG_INV_PSU_ON

AG_VIDEO_STATUS

AG_A_MON_MUTE/SP_MUTE

AG_AUDIO_MUTE

AG_AUDIO_XRST

AG_BUS_CONNECT2

AG_QLINK_PU_ON

AG_HDMI_OPT_ENB

AG_TV_SUB_ON_DELAY

AG_DTV_1.5V_ON

AG_ODU_ON/GEMSTER_STBY_EN

AG_KEY1(CON-PANE)

AG_AI_SENSOR

AG_HPD3 AG_HPD2 AG_HPD1

AG_HDMI_CEC

AG_HDCP_WP

AG_EDID_WP

AG_HQ1_XRST

AG_FPGA_XRST

AG_LVDS_EN

AG_TV_SUB_ON

AG_RF_AFT1

AG_RF_AFT2

AG_SOUND_SOS

AG_FAN_MAX AG_FAN_SOS

AG_ECO_ON AG_ALL_OFF

AG_QLINK2 AG_QLINK1

AG_AVSW_OFF

AG_RF_AGC1

AG_ODU_DET

AG_KEY3

AG_R_LED_ON

AG_G_LED_ON

AG_RMIN

AG_KEY2

AG_SOS

AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON

AG_HDMI_MUX_SEL

AG_HDMI_MUX_EN AG_HDMI_REP_EN

AG_HDMI_5V_DET3 AG_HDMI_5V_DET2 AG_HDMI_5V_DET1

AG_7493_XRST

AG_TV_MAIN_ON_DELAY

*R1230

47k

*R1246

C

AG_INVERTER_SOS

AG_INVERTER_ON

AG_FPGA_XRST

AG_HQ1_VOUTENB

AG_CONFIG_DONE

AG_TV_MAIN_ON

AG_TV_SUB_ON

AG_PWM_POW_ON

AG_PANEL_STBY_ON/PANEL_VCC_ON

AG_INV_PSU_ON

AG_VIDEO_STATUS

AG_SOUND_SOS

AG_A_MON_MUTE/SP_MUTE

AG_AUDIO_MUTE AG_AUDIO_XRST

AG_BUS_CONNECT2

AG_QLINK_PU_ON

AG_HDMI_OPT_ENB

AG_TV_SUB_ON_DELAY

AG_DTV_1.5V_ON

AG_ODU_ON/GEMSTER_STBY_EN

AG_KEY1(CON-PANE)

AG_AI_SENSOR

*R1250 C

AG_HDMI_CEC

AG_HDCP_WP

AG_EDID_WP

AG_HQ1_XRST

AG_LVDS_EN

AG_RF_AFT1 AG_RF_AFT2

AG_FAN_MAX AG_FAN_SOS

AG_ECO_ON

AG_ALL_OFF

AG_QLINK2 AG_QLINK1

AG_AVSW_OFF

AG_RF_AGC1

AG_ODU_DET

AG_R_LED_ON

AG_G_LED_ON

47k

AG_HPD3 AG_HPD2 AG_HPD1

AG_SOS

AG_KEY3

AG_RMIN

AG_KEY2

STB3.3V

R1104

47k

R1101

0

AG_PANEL_STBY_ON/PANEL_VCC_ON AG_EDID_WP AG_HDCP_WP

AG_RF_AFT1

AG_RF_AFT2 AG_AI_SENSOR AG_SOS AG_KEY1(CON-PANE)

AG_KEY2 AG_FAN_SOS AG_SOUND_SOS AG_QLINK2 AG_QLINK1

AG_FPGA_XRST AG_INVERTER_SOS AG_DTV_XRST AG_SD_BOOT_STS AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE

SLRCK

RSV3(LITE2)

AUDCLK

RSV4(LITE2)

Power Supply

MA2J72800L

*R1173

*D1112

200

AU_SBI(HOTEL)

AU_SBO(HOTEL)

AG_SRQ-GENX

R1146

1k

R1100

100

R1102

100

STB3.3V

R1221

7.15k

1%

R1134

R1109

R1105 R1106 R1107 R1108

R1255

25V

1k

C

C1122

0.01u

R1124 R1125

L1100

J0JHC0000078

R1103

22 22

C1102

10V 10u

100

33 100

100 100 100 100

PANEL_STBY_ON

EDID_WP

HDCP_WP

RSV3(LITE2)

RF_AFT1

RF_AFT2

AI_SENSOR

SOS

KEY1

KEY2(US)

FAN_SOS

SOUND_SOS

RSV4(LITE2)

FPGA_RST

INVERTER_SOS

DTV_XRST

SD_BOOT_STS

A_MON_MUTE/SP_MUTE

AUDIO_MUTE

SYSCLK_OUT

C1103

16V

0.1u

C

R1144

47k

TRCST

C1104

0.1u 16V

R1147

47k

R1263

47k

GUARD_CLK

R1222 47k

C

100

R1229

90

92

93

94

95

96

97

NRST

NBOOT

100

TRCST

101

TRCD0

102

TRCD1

103

TRCD2

104

TRCD3

105

P90

106

P91

107

VSS

108

IVDD

109

P92

110

P93

111

P80/ADIN0

112

P81/ADIN1

113

P82/ADIN2

114

P83/ADIN3

115

P84/ADIN4

116

P85/ADIN5

117

P86/ADIN6

118

P87/ADIN7

119

P74/SDA2/CECAVL1B

120

P75/SCL2/CECAVL1A

121

P36

122

P37

123

P47

124

PB0

125

PB1

126 127 128

1

TV_SUB_ON

AG_TV_SUB_ON

P64/SBI191P63/SBO1 NTEST SCLOCK SDATA

EXTRG098EXTRG199TRCCLK

PC0

PC1

P40/TMIO0/SYSCLK

P41/TMIO1 P42/TMIO2 P43/TMIO3

P44/TMIO45P00/TMIO56P017P028P03/SBT0B9P04/SBO0B10P51/IRQ211P52/IRQ312PB213PB314PB415PB516PB617PB718P53/IRQ419P54/IRQ520PA721PA622PA523VSS24PA425PA326PA227PA1/IRQ128PA029P45

2

3

4

HQ1_VOUTENB

DTV_1.5V_ON

RF_AGC1

HDMI_MUX_SEL

HDMI_MUX_EN

ECO_ON

AG_RF_AGC1

AG_ECO_ON

AG_HDMI_MUX_EN

AG_HDMI_MUX_SEL

AG_HQ1_VOUTENB

AG_DTV_1.5V_ON

to Sheet 005

GenX4 RST

AG_FAN_MAX

AG_G_LED_ON

AG_MODEM_LED2/CLK74SEL

C1106 27p 50V

C1107

C

22p 50V

AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON

10MHz

X1100 H0J100500035

R1153

FAN_MAX

86

P2487P2588P2689P27

820

16V

C1108

0.1u

1M

R1163

82

83

85

VSS

IVDD

OSCXO84OSCXI

G_LED_ON

IC1100

MNZSFD7GP42

R1237

R1236

47k

LVDS_EN

*R1243

SW_OFF_DET

INVERTER_ON

PWM_POWER_ON

TP1105

TP1104

INV_PSU_ON

HDMI_REP_EN

AG_SW_OFF_DET

AG_HDMI_REP_EN

AG_INV_PSU_ON

AG_INVERTER_ON

AG_PWM_POW_ON

AG_LVDS_EN

TP1103

C1117

0.1u

1

*IC1101

2

C3EBFC000042

BR24L08F-WE2

3

C3EBFC000051

4 5 C

STB_RST

C1109 10V

1u

79

80

N.C.81RONA

DTV_VOUTENB

(SD_LED_ON)

KEY3(TV_POWER)

AG_KEY3

AG_DTV_VOUTENB

AG_SD_LED_ON

16V

VDD

ODU_DET

AG_ODU_DET

C1123

10V

1u

75

N.C.76N.C.77N.C.78IVDD

(QLINK_PU_ON)

(HDMI_CEC_PU_ON)

(BUS_CONNECT2)

AG_BUS_CONNECT2

AG_QLINK_PU_ON

STB3.3V

8

TP1102

7

6

TP1101

AG_HDMI_OPT_ENB

AG_TV_SUB_ON_DELAY

AG_TV_MAIN_ON_DELAY

MODEM_XRST

FE_XRST

ETHER/1394_XRST

R1225

R1223

*R1224

47k

74

VPPEX

P66/SBI2 P65/SBO2 P76/CEC0

VDD

IVDD

P46

RSV2(LITE2)

ALL_OFF

SRQ_GenX

R1162

47k

R1203

ADCCK

RSV2(LITE2)

AG_SRQ-GENX

AG_ALL_OFF

R1209

47k

TP1100

AG_HQ1_XRST

HQ1_XRET

R1226

47k

P50/RMIN/IRQ0

P60/SBO0A34P61/SBT0A35P62/SBI0A

MAIN5V_SENSE

100

R1165

R1205

22

R1206

22

AG_7493_XRST

AG_AUDIO_XRST

7493_XRST

AUDIO_XRST

R1228

R1227

47k

68

P3069P3170P3271P3372P3473P35

N.C.

P72/SDA164P73/SCL1

P71/SCL0 P70/SDA0 P07/IRQ8 P06/IRQ7 P05/IRQ6

STB5V_SENSE

GenX-EEP_WP

1.8k

R1201

5.6k

AG_HDMI_CEC

MAIN9V_SENSE

MAIN3.3V_SENSE

65

66

67

N.C. N.C.

P17 P16 P15 P14 P13 P12 P11 P10 VSS

IVDD

P23 P22 P21 P20

N.C. N.C. N.C. N.C.

30

31

32

DTV9V_SENSE

63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36

33

C1111

1u

10V

C1112

0.1u 16V

R1122

R1200

MAIN3.3V

R1164

10k

R1166

100k

C

MAIN9V_SENSE

R1234

R1235

47k

5.6k

SCL

SDA

CONFIG_DONE

VIDEO_STATUS

47k

100k

HDMI_5V_Det3

HDMI_5V_Det2

HDMI_5V_Det1

C1114

0.1u

MAIN5V_SENSE

MAIN9V

R1169 56k

R1170 27k

C

16V

HDMI_CEC_PU_ON

MA3X704A0L

R1183 R1184

SD_COIN_DET

10k

R1218

R1174 R1175

R1179

R1181

STB3.3V

R1182

27k

D1107

22 22

10k

R1219

R1216

C

R1220

22 22

100

33k

R1217

56k

C

Q1107

10k

MAIN5V

R1195

100k

2SD0601ASL

R_LED_ON

AVSW_OFF(US)

ODU_ON/GEMSTER_STBY_EN

TV_MAIN_ON

SUB5V_SENSE

(HDMI_CEC_PU_ON)

Q1108

2SD0601ASL

R1196

33k

R1194 56k

C

Lite2

to Sheet 002

UART(LITE2-GenX4)

SBI2

SBO2

to Sheet 007

47k

R1233

R1232

C

UART (HOTEL)

AU_SBI(HOTEL) AU_SBO(HOTEL)

LITE2

to Sheet 002

Hand Sheke Reserve

VI2ENB

ADCCK

SLRCK

PORT6[6]RSV1

PORT0[0]

RSV4

PORT5[2]

RSV2

RSV3

PORT5[1]

AU_SBI(HOTEL) AU_SBO(HOTEL)

R1199

47k

VI2ENB

AUDCLK

ADCCK

SLRCK

47k

R1231

C

IIC

AD_SCL3

AD_SDA3

SCL SDA

VI2ENB

AD_SCL3 AD_SDA3

HPD2

HPD1

SBO

SBI

SD_PWR_CTRL

AG_CONFIG_DONE

AG_VIDEO_STATUS

AG_HDMI_5V_DET3 AG_HDMI_5V_DET2 AG_HDMI_5V_DET1

AG_R_LED_ON AG_AVSW_OFF

AG_ODU_ON/GEMSTER_STBY_EN

REMOTE

AG_HPD3 AG_HPD2 AG_HPD1

AG_RMIN

R1204

SCL

SDA

0

SBO2

SBI2

SUB5V

D1113 MA2J72800L

AG_MODEM_LED2/CLK74SEL

AG_DTV_VOUTENB

AG_SD_BOOT_STS

AG_DTV_XRST

AG_SRQ-GENX

AG_SD_LED_ON

AG_SD_COIN_DET

SD_PWR_CTRL

AG_SW_OFF_DET

DTV9V_SENSE

DTV9V

R1171

56k

R1172

27k

C

Lite2 E2PROM LINE

AD_SCL3

AD_SDA3

GenX4 E2PROM LINE

SCL

SDA

Lite2 ExBUS/Etc.

to Sheet 003

AG_MODEM_LED2/CLK74SEL

AG_DTV_VOUTENB

AG_SD_BOOT_STS

AG_DTV_XRST

AG_SRQ-GENX

AG_SD_LED_ON

AG_SD_COIN_DET

SD_PWR_CTRL

AG_SW_OFF_DET

shee003/011

shee011

sheet003

sheet003/011

sheet003

sheet003/011

sheet003

61

A B C D E F G H I J K L M N O P Q R

1

2

3

4

5

6

7

8

9

10

11

DG-BOARD TNA4114 (9/14)

GenX4

to Sheet 008

AG_CONFIG_DONE

AG_FPGA_XRST

Peaks Lite II

to Sheet 002

IS1CLK

R4339

LOSD15 LOSD14 LOSD13 LOSD12

LOSD11 LOSD10 LOSD9 LOSD8

LOSD7 LOSD6 LOSD5 LOSD4

LOSD3 LOSD2 LOSD1 LOSD0

10k

VI2P7

VI2P9

VI2P8

AG_LVDS_EN

AG_PWM_POW_ON

AG_INVERTER_ON

AG_INVERTER_SOS

AG_TV_MAIN_ON

C

LOSD_YM_IN

R4338

10k

LOSD_CLK_IN

LOSD_HP_IN

LOSD_YS_IN

EXB28V680JX

R4336

EXB2HV680JV

R4213 68

R4214 68

R4215 68

R4340

10k

R4209

68

R4337

OSD_FLAG

R4216

68

C

008 GenX

AG_LVDS_EN

AG_PWM_POW_ON

AG_INVERTER_ON

AG_INVERTER_SOS

AG_TV_MAIN_ON

R4341

C

47k

002 Lite2

R4342

R4343

47k

C

LVDS OUT

to Sheet 011

C

R4458 47k

VOP1 VOP0 VOP11 VOP10

VOP21

VOP20

LCSID

LCSCK

VI1CVBS3 VI1CVBS2

VI1CVBS1 VI1CVBS0

VI1CK204F VI1CK208F

VI2P0

VI2P1

VI2P2

VI2P3

VI2P5

VI2P6

VI2P7

VI2P9

VI2P8

MHQLV3.3V

AG_HQ1_VOUTENB

002 Lite2

MVCLK

MVSYNC

MHSYNC

VOP9 VOP8 VOP7 VOP6 VOP5 VOP4 VOP3 VOP2

VOP19 VOP18 VOP17 VOP16 VOP15 VOP14 VOP13 VOP12

VOP29 VOP28 VOP27 VOP26

VOP25

VOP24 VOP23 VOP22

AD_TMS

AD_TRST

AD_TCK

AD_TO_SC

10k

R4412

AD_TO_HQ1L

PANEL_MUTE

(VMUTE/DISPNE)

AG_HQ1_XRST

AG_HQ1_VOUTENB AG_HQ1_VOUTENB

008 GenX

AD_SCL0

AD_SDA0

002 Lite2

C

R4217 68

R4218 68

R4219 68

R4406

EXB2HV680JV

BIN7 BIN6 BIN5 BIN4

R4408

EXB2HV680JV

GIN7 GIN6 GIN5 GIN4

R4410

EXB2HV680JV

RIN7 RIN6 RIN5 RIN4

AD_TMS

AD_TRST

AD_TCK

AD_TO_SC

AD_TO_HQ1L AD_TO_HQ1L

Lite2

R4375 0

TP4400

R4376

2.2k

AD_SCL0

AD_SDA0

VDDI/1.2V

MHQ1.2V

C4203

6.3V 1u

R4240

1%

68

0

R4242 22k

1%

C4201

50V

330p

C4202

25V

0.01u

C

R4241

C

PLL_OUT

OUTPUT

ROE9

ROE8

ROE7

ROE6 ROE5 ROE4 ROE3 ROE2

GOE9

GOE8

GOE7 GOE6 GOE5 GOE4 GOE3 GOE2

BOE9

BOE8

BOE7

BOE6 BOE5 BOE4 BOE3 BOE2

ETC

47k

R4457

R4456

CLKOF

VSOE

HSOE

BIN3 BIN2 BIN1 BIN0

GIN3 GIN2 GIN1 GIN0

RIN3 RIN2 RIN1 RIN0

OEBLK

NRST

R4413

47k

C

R4405

47k

C

0

R4223

R4221

LOSD15

IC4200 C25 OSDI15

LOSD14

IC4200 C26 OSDI14

LOSD13

IC4200 D24 OSDI13

LOSD12

IC4200 D25 OSDI12

LOSD11

IC4200 D26 OSDI11

LOSD10

IC4200 E24 OSDI10

LOSD9

IC4200 E25 OSDI9

LOSD8 RIN7

IC4200 E26 OSDI8

LOSD7

IC4200 F24 OSDI7

LOSD6

IC4200 F25 OSDI6

LOSD5

IC4200 F26 OSDI5

LOSD4

IC4200 G24 OSDI4

LOSD3

IC4200 G25 OSDI3

LOSD2

IC4200 G26 OSDI2

LOSD1

IC4200 H25 OSDI1

LOSD0

IC4200 H26 OSDI0

LOSD_HP_IN

IC4200 K25 OSDHPI

LOSD_YS_IN

IC4200 K26 OSDYSI

LOSD_YM_IN

IC4200 L24 OSDYMI

LOSD_CLK_IN

IC4200 J26 OSDCLKI

R4295

47k

C

OEBLK

AG_HQ1_VOUTENB

LCD

TP4246

10k

R4224

R4225

R4226

C

AD_SDA0

AD_SCL0

SDA_AIR

SCL_AIR

IC4200 P3 MODE3

0

IC4200 R3 MODE2

0

IC4200 T3 MODE1

IC4200 K3 OUTSEL1

IC4200 J3 OUTSEL0

IC4200 U26 SDA

IC4200 U25 SCL

IC4200 Y25 SDA_AIR

IC4200 Y26 SCL_AIR

forIIC

forEEPROM

R4238

C

NRST

AD_TO_HQ1L

AD_TMS

AD_TRST

AD_TCK

AD_TO_SC

0

INPUT OUTPUT

IC4200 R26 OSD2GI

IC4200 T25 OSD2BI

IC4200 T26 OSD2RI

IC4200 N25 OSD2YS

IC4200 N26 OSD2VPO

IC4200 R25 OSD2HPO

IC4200 P26 OSD2CLKO

OSD2

OUTPUTINPUT

VI2P7

IC4200 L25 OSDVPO

R4227

68

VI2P9

IC4200 L26 OSDHPO

R4228

68

VI2P8

IC4200 M26 OSDCLKO

R4229

68

LOSD_VP_OUT

LOSD_HP_OUT

LOSD_CLK_OUT

OSD1

OUTPUTINPUT

R4230

PWMA

IC4200 V25 OEBLK IC4200 C14 PWMA

IC4200 U24 OEMUTE

68

PWMB

PWMC

PWMD

PWMK

R4234

68

IC4200 B14 PWMB

IC4200 A14 PWMC

IC4200 C15 PWMD

IC4200 B15 PWMK

IC4200 H3 VPD

IC4200 V26 NRST

IC4200 V24 TDI

IC4200 W24 TMS

IC4200 W25 TRST

IC4200 W26 TCK

IC4200 V23 TDO

MHQPL1.2V

MHQPL3.3V

L4214

J0JHC0000078

C4344 50V

1000p

PLL3.3V_2GND

L4215

J0JHC0000078

C4347 50V

1000p

PLL3.3V_1GND

L4216

J0JHC0000078

C4348 50V

1000p

INPUT

RIN6

RIN5

RIN4

RIN3

RIN2

RIN1

RIN0

GIN7

GIN6

GIN5

GIN4

GIN3

GIN2

GIN1

GIN0

BIN7

BIN6

BIN5

BIN4

BIN3

BIN2

BIN1

BIN0

VSOE

HSOE

CLKOF

R4294

47k

C

C4345 16V

0.1u

C4349

16V

0.1u

C4350

16V

0.1u

PLL1.2VGND

forVCO

IC4200 C22 RIN7

IC4200 A23 RIN6

IC4200 B23 RIN5

IC4200 C23 RIN4

IC4200 A24 RIN3

IC4200 B24 RIN2

IC4200 C24 RIN1

IC4200 B25 RIN0

IC4200 A20 GIN7

IC4200 B20 GIN6

IC4200 C20 GIN5

IC4200 A21 GIN4

IC4200 B21 GIN3

IC4200 C21 GIN2

IC4200 A22 GIN1

IC4200 B22 GIN0

IC4200 B17 BIN7

IC4200 C17 BIN6

IC4200 A18 BIN5

IC4200 B18 BIN4

IC4200 C18 BIN3

IC4200 A19 BIN2

IC4200 B19 BIN1

IC4200 C19 BIN0

IC4200 C16 VPI

IC4200 A17 HPI

IC4200 A16 CLKI

IC4200 G1 OUT_AVDE2

IC4200 F1 OUT_AVSE2

forPD/CP

IC4200 J1 OUT_AVDE1

IC4200 H1 OUT_AVSE1

forLGC

IC4200 L1 OUT_AVD1

IC4200 K1 OUT_AVS1

IC4200 G2 OUT_CPO

R4239

1%

4.7k

C4200

0.1u 50V

C_OUT

L4200 0

6.3V 47u

IC4200 E3 OUT_IN

OPEN

IC4200 E2 OUT_FBO

IC4200 D1 SSOUT

IC4200 F2 OUT_VCI

JS4200

0

JS4201

0

JS4202

0

C

EXB2HV470JV

R4243

EXB2HV470JV

R4244

EXB2HV470JV

R4245

C4206

16V

0.1u

+

C

C4205

C_OUT

IC4200 B3 ROUT9

IC4200 A3 ROUT8

IC4200 B2 ROUT7

IC4200 C3 ROUT6

IC4200 C2 ROUT5

IC4200 C1 ROUT4

IC4200 D3 ROUT3

IC4200 D2 ROUT2

IC4200 B12 ROUT1

IC4200 A12 ROUT0

IC4200 B6 GOUT9

IC4200 A6 GOUT8

IC4200 C5 GOUT7

IC4200 B5 GOUT6

IC4200 A5 GOUT5

IC4200 C4 GOUT4

IC4200 B4 GOUT3

IC4200 A4 GOUT2

IC4200 C13 GOUT1

IC4200 B13 GOUT0

IC4200 B9 BOUT9

IC4200 A9 BOUT8

IC4200 C8 BOUT7

IC4200 B8 BOUT6

IC4200 A8 BOUT5

IC4200 C7 BOUT4

IC4200 B7 BOUT3

IC4200 C6 BOUT2

IC4200 A13 BOUT1

IC4200 C12 BOUT0

C4207

C4209

MHQPL1.2V

0.1u 16V

1000p

50V

H0J270500113

X4200

C4211

J0JHC0000078

MHQVD1.2V

IC4200 D12 VDDI

IC4200 D13 VDDI

IC4200 D14 VDDI

IC4200 D17 VDDI

IC4200 D18 VDDI

IC4200 F4 VDDI

IC4200 G4 VDDI

IC4200 H4 VDDI

IC4200 J4 VDDI

R4247

330k

R4246

100

C4212 50V 22p

18p

C

L4217

C4352

C4351

50V

16V

1000p

0.1u

PLLSYSGND

PLL_SYS

LVDS_VSOE

LVDS_HSOE

LVDS_ENB

LVDS_CLKOF

C4403

6.3V 10u

C

IC4200 N1 XTAL_FR

IC4200 R1 XTAL_FRIN

50V

IC4200 P2 SYS_PLLVD

IC4200 N3 SYS_PLLVS

R4248

47

IC4200 A10 VPO

R4249

47

IC4200 C9 HPO

R4250 47

IC4200 B10 ENO

R4251 68

IC4200 A11 CLKO

C4213

0.1u 16V

C4214

1000p

50V

C4215

1000p

50V

C4216

0.1u 16V

C4218

0.1u 16V

VCO/PD/CP/LGC COMMON

IC4200 K10 VDDI

IC4200 K11 VDDI

IC4200 K16 VDDI

IC4200 K17 VDDI

IC4200 K23 VDDI

IC4200 L10 VDDI

IC4200 L11 VDDI

IC4200 L16 VDDI

IC4200 L17 VDDI

IC4200 L23 VDDI

IC4200 M16 VDDI

IC4200 M17 VDDI

OPEN

IC4200 M2 SYS_L

OPEN

IC4200 M3 SYS_FB

C1AB00002727

IC4200

IC4200 A2 VSS

IC4200 A7 VSS

IC4200 A15 VSS

IC4200 A25 VSS

IC4200 A26 VSS

IC4200 C11 VSS

IC4200 E1 VSS

IC4200 E4 VSS

IC4200 E23 VSS

IC4200 F3 VSS

IC4200 F23 VSS

IC4200 G3 VSS

IC4200 B1 VSS

IC4200 B11 VSS

IC4200 B16 VSS

IC4200 B26 VSS

IC4200 D4 VSS

IC4200 D5 VSS

IC4200 D6 VSS

IC4200 D15 VSS

IC4200 D16 VSS

IC4200 D22 VSS

IC4200 D23 VSS

IC4200 H2 VSS

IC4200 J2 VSS

IC4200 J25 VSS

C4400

6.3V 10u

A1 VSS

C4401

6.3V 10u

IC4200 N16 VDDI

IC4200 N17 VDDI

C4219

1000p

IC4200 P10 VDDI

50V

C4220

0.1u IC4200 P16 VDDI

16V

IC4200 P17 VDDI

C4222

1000p

IC4200 P23 VDDI

50V

C4223

0.1u IC4200 P24 VDDI

16V

C4224

1000p

IC4200 R10 VDDI

50V

C4225

0.1u IC4200 R11 VDDI

16V

IC4200 R23 VDDI

IC4200 R24 VDDI

IC4200 T4 VDDI

IC4200 T10 VDDI

IC4200 U4 VDDI

C4227

1000p

IC4200 V4 VDDI

50V

IC4200 W3 VDDI

IC4200 W4 VDDI

IC4200 U1 XTAL_DDR

IC4200 W1 XTAL_DDRIN

R4252

390

X4201

H0J480500026

C4228

C4229

50V

10p

15p

C

MHQPLDDR1.2V

IC4200 U3 DDR_PLLVD

C4399

IC4200 T2 DDR_PLLVS

16V

0.1u

PLLDDRGND

PLL_DDR

IC4200 K2 VSS

IC4200 K4 VSS

IC4200 K24 VSS

IC4200 L2 VSS

IC4200 L3 VSS

IC4200 M1 VSS

IC4200 M13 VSS

IC4200 M14 VSS

IC4200 M15 VSS

IC4200 M23 VSS

IC4200 M24 VSS

IC4200 M25 VSS

IC4200 N2 VSS

IC4200 N12 VSS

IC4200 N13 VSS

IC4200 N14 VSS

IC4200 N15 VSS

IC4200 N23 VSS IC4200 Y23 VSS

IC4200 N24 VSS

IC4200 P1 VSS

IC4200 P12 VSS

IC4200 P13 VSS

IC4200 P14 VSS

IC4200 P15 VSS

IC4200 P25 VSS

IC4200 R2 VSS

IC4200 R4 VSS

IC4200 R12 VSS

IC4200 R13 VSS

IC4200 R14 VSS

IC4200 R15 VSS

C4402

6.3V 10u

IC4200 T1 VSS

IC4200 T11 VSS

IC4200 T12 VSS

IC4200 T13 VSS

IC4200 T14 VSS

IC4200 T15 VSS

IC4200 T16 VSS

IC4200 U2 VSS

IC4200 U10 VSS

IC4200 U11 VSS

IC4200 U16 VSS

IC4200 U17 VSS

IC4200 V1 VSS

IC4200 W2 VSS

IC4200 W23 VSS

IC4200 Y1 VSS

IC4200 Y4 VSS

IC4200 Y24 VSS

IC4200 AC2 VSS

IC4200 AC3 VSS

IC4200 AC24 VSS

IC4200 AC25 VSS

IC4200 AD1 VSS

IC4200 AD5 VSS

IC4200 AD26 VSS

IC4200 AE1 VSS

IC4200 AE26 VSS

IC4200 AF1 VSS

IC4200 AF2 VSS

IC4200 AF25 VSS

IC4200 AF26 VSS

C

C4404

6.3V 10u

C4232

1000p

50V

C4233

0.1u 16V

C4235

1000p

50V

C4236

1u

6.3V

C4238

1000p

50V

C4239

0.1u 16V

C4240

1u

6.3V

VCO/PD/CP/LGC

COMMON

GND/VSS

IC4200 AC4 VDDI

IC4200 AC5 VDDI

IC4200 AC10 VDDI

IC4200 AC16 VDDI

IC4200 AC22 VDDI

IC4200 AC23 VDDI

IC4200 AD4 VDDI

IC4200 AD10 VDDI

IC4200 AD16 VDDI

IC4200 AD17 VDDI

IC4200 AD23 VDDI

IC4200 AE10 VDDI

OPEN

IC4200 V2 DDR_L

OPEN

IC4200 V3 DDR_FB

IC4200 AD9 VSS

IC4200 AC12 VSS

IC4200 AC13 VSS

IC4200 AC8 VSS

IC4200 AC9 VSS

IC4200 AC17 VSS

IC4200 AC18 VSS

IC4200 AC19 VSS

IC4200 AD3 VSS

IC4200 AD6 VSS

IC4200 AE6 VSS

IC4200 AD22 VSS

IC4200 AD24 VSS

IC4200 AF18 VSS

IC4200 AE13 VSS

IC4200 AD21 VSS

IC4200 AE21 VSS

IC4200 AE12 VSS

VDDE25/2.5V

MHQDDR2.5V

C4242

+ +

6.3V 1u

C

C4245

C4243

C

16V

6.3V

0.1u

47u

C4249

16V

0.1u

C4250

C4251

1000p

50V

6.3V 10u

C

MHQLV3.3V

L4201 J0JHC0000078

C4241

6.3V 1u

C4244

C

6.3V C4246

47u

C4412

16V

0.1u C4415

C4252

C4253

C4254

C4255

C4256

C4257

C4258

C4259

VDDE33/3.3V

DDR PORT

C_DDR_DQ31

C_DDR_BA1

IC4200 AE16 BA1

C_DDR_BA0

IC4200 AF17 BA0

C_DDR_A11

IC4200 AE14 A11

C_DDR_A10

IC4200 AD15 A10

C_DDR_A9

IC4200 AD13 A9

C_DDR_A8

IC4200 AE11 A8

C_DDR_A7

IC4200 AF11 A7

C_DDR_A6 C_DDR_DQ23

IC4200 AF12 A6

C_DDR_A5

IC4200 AD12 A5

C_DDR_A4

IC4200 AF13 A4

C_DDR_A3

IC4200 AF14 A3

C_DDR_A2

IC4200 AE15 A2

C_DDR_A1

IC4200 AF15 A1

C_DDR_A0

IC4200 AF16 A0

C_DDR_DQ30

C

C_DDR_DQ29

C_DDR_DQ28

C_DDR_DQ27

C_DDR_DQ26

C_DDR_DQ25

C_DDR_DQ24

C_DDR_DQ22

C

C_DDR_DQ21

C_DDR_DQ20

C_DDR_DQ19

C_DDR_DQ18

C_DDR_DQ17

C_DDR_DQ16

C

DDR I/F

IC4200

MHQVD3.3V

IC4200

1000p

50V

IC4200

0.1u 16V

IC4200

1000p

IC4200

50V

1000p

IC4200

50V

0.1u

IC4200

16V

0.1u

IC4200

16V

0.1u

IC4200

16V

1000p

IC4200

50V

0.01u

IC4200

25V

0.01u

IC4200

25V

IC4200

12

62

1

2

IC4200 AA3 VDDE25

IC4200 AA4 VDDE25

IC4200 AA23 VDDE25

IC4200 AA24 VDDE25

IC4200 AD11 VDDE25

IC4200 AD14 VDDE25

3

4

S T U V W X Y Z AA AB AC AD AE AF AG AH AI AJ

MHQLV3.3V

DG-BOARD TNA4114 (10/14)

C4260

50V

IC4200 AB3 VDDE25

1000p

C4261

1000p

IC4200 AB24 VDDE25

C4262

50V

6.3V IC4200 AC11 VDDE25

10u

IC4200 AD8 VDDE25

IC4200 AD19 VDDE25

IC4200 AD7 VDDE25

C4263

16V

IC4200 AD20 VDDE25

0.1u IC4200 AC7 VDDE25

IC4200 AC20 VDDE25

IC4200 AB4 VREF3

C4265

6.3V IC4200 AC6 VREF1

C4266

1u

6.3V

1u

C

C4273

0.1u

C4274

1000p

C4276

0.1u

C4279

1000p

IC4200 AC14 VDDE25

IC4200 AC15 VDDE25

16V

IC4200 U12 VDDE25

IC4200 U13 VDDE25

C4275

50V

IC4200 U14 VDDE25

1000p

IC4200 U15 VDDE25

16V

IC4200 AC21 VREF2

C4278

6.3V IC4200 AB23 VREF0

1u

50V

C

VREF/0.5VDDE

DTV9V

MAIN_1.2V

R4324

6.8k

D4208

MA2J11100L

100k

R4323

L4202

G1C220MA0077

C4331

0.1u

16V

TP4208

C4287

2.2u6.3V

C4356

TP4235

C4288

25V

4.7u

10V 100u

+

C4355

2.2u

6.3V

C

C4289

4.7u

C4291

0.022u

25V

16V

Q4200

2SD0601ASL

C4290

0.01u 25V

1 VIN

2 SW

3 FB

4 INV 5

R4278

C

IC4202

C0DBAMH00018

BD9003F-E2

36k

C4292

R4279

47k

PVIN

GND

RT

SS

R4284

160k

50V 100p

R4281 47k

Q4201

2SD0601ASL

R4280 100

R4282

47k

8

7

6

L4203

C4297

G1C330MA0167

D4201

50V

C4294

B0JCPD000026

R4285

C4293

16V

0.1u

C

R4283 22k

C4306

4V

6.3V

68u

4.7u

+

R4286

15k

C4295

1000p

1%

4V

470u

1%

0

R4287

57.6k

TP4209

MHQ1.2V

R4288

0

D4202

C4307

MAZ80390LL

16V

0.1u

HQ3.3V

Main3.3V(HQ1L/LVDS)

+

5Vo4

C4310

16V

0.1u

C4409

4V

100u

C4410

0.01u

L4204

J0JHC0000078

50V

IC4208

C0CBCBD00043

1Nr2

C4381

10V 1u

L4213

J0JHC0000078

Vin

1u

GND

C4411

ON/OFF

3

10V

C

IC4203

C0DBEHG00006

BD7820FP-E2

CTL2Vcc3GND(FIN)4OUT5ADJ

1

C4311

10V

10u

MAIN_ON

C4320

16V

0.1u

C

SUB5V

MHQPL3.3V

5

VOUT

25V C4340

0.01u

4

NC

PLL3.3V_1GND

VOUT

NC

TP4211

TP4212

5

25V C4341

0.01u

4

PLL1.2VGND

C4342

6.3V 1u

MHQPL1.2V

MHQVD3.3V

6.3V

1u

C4353

C

MHQVD1.2V

6.3V

1u

C4354

C

C4343

6.3V 1u

C4308

16V

0.1u

R4291

R4399

68k

2k

1%

+

C4322

C4321

4V

10V

100u

10u

MHQDDR2.5V

R4292

30k

1%

TP4210

PLL3.3V_1

SUB5V

J0JHC0000078

C4334

1u

6.3V

MAIN_ON

PLL 1.2V

HQ3.3V

C4335

1u

6.3V

MAIN_ON

L4205

L4206

J0JHC0000078

C4336

1u

6.3V

C

C4337

1u

6.3V

C

MM3143DNRE(R59-1828)

C0CBCBC00190

IC4204

1

VDD

C4338

2

0.01u GND

25V

3

CE

JS4203

0

JS4204

0

MM3141CNRE(R59-1718) IC4205

C0CBCAC00269

1

VDD

C4339

2

0.01u 25V

3

CE

JS4205

0

JS4206

0

GND

5

MHQVD3.3V

IC4200 C10 VDDE33

IC4200 D7 VDDE33

IC4200 D8 VDDE33

IC4200 D9 VDDE33

IC4200 D10 VDDE33

6

IC4200 D11 VDDE33

IC4200 D19 VDDE33

IC4200 D20 VDDE33

IC4200 D21 VDDE33

IC4200 G23 VDDE33

IC4200 H23 VDDE33

IC4200 H24 VDDE33

IC4200 J23 VDDE33

7

IC4200 J24 VDDE33

8

IC4200 AA1 DQ31

9

IC4200 AB1 DQ30

IC4200 AA2 DQ29

IC4200 AB2 DQ28

IC4200 AD2 DQ27

IC4200 AE3 DQ26

IC4200 AE2 DQ25

IC4200 AF3 DQ24

IC4200 AF19 DQ23

10

IC4200 AE19 DQ22

IC4200 AE20 DQ21

IC4200 AF20 DQ20

IC4200 AF22 DQ19

IC4200 AE22 DQ18

IC4200 AE23 DQ17

IC4200 AF23 DQ16

11

DDR I/F

C4406

C4405

6.3V

6.3V 10u

10u

IC4200 K12 VDDE33

IC4200 K13 VDDE33

IC4200 K14 VDDE33

IC4200 K15 VDDE33

IC4200 L4 VDDE33

IC4200 L12 VDDE33

IC4200 L13 VDDE33

C4267

1000p

IC4200 L14 VDDE33

50V

IC4200 L15 VDDE33

C4269

0.1u IC4200 M4 VDDE33

16V

IC4200 M10 VDDE33

IC4200 M11 VDDE33

IC4200 M12 VDDE33

C

C_DDR_DQ15

IC4200 AF4 DQ15

C_DDR_DQ14

C

IC4200 AE4 DQ14

C_DDR_DQ13

IC4200 AE5 DQ13

C_DDR_DQ12

IC4200 AF5 DQ12

C_DDR_DQ11

IC4200 AF7 DQ11

C_DDR_DQ10 D_DDR_DQ31

IC4200 AE7 DQ10

C_DDR_DQ9

IC4200 AF8 DQ9

C_DDR_DQ8

IC4200 AE8 DQ8

C_DDR_DQ7

IC4200 AF24 DQ7

C_DDR_DQ6

IC4200 AE25 DQ6

C_DDR_DQ5

IC4200 AE24 DQ5

C_DDR_DQ4

IC4200 AD25 DQ4

C_DDR_DQ3

IC4200 AB25 DQ3

C_DDR_DQ2

IC4200 AA25 DQ2

C_DDR_DQ1

IC4200 AB26 DQ1

C_DDR_DQ0

IC4200 AA26 DQ0

C4407

C4408

6.3V 10u

C4280

C4283

C4284

C4285

C4286

C_DDR_WE

C_DDR_RAS

C_DDR_CAS

C_DDR_CKE

C_DDR_CLK

C_DDR_NCLK

C_DDR_DQS3

C_DDR_DQS2

C_DDR_DQS1

C_DDR_DQS0

1000p

IC4200 N4 VDDE33

50V

IC4200 N10 VDDE33

IC4200 N11 VDDE33

IC4200 P4 VDDE33

0.1u IC4200 P11 VDDE33

16V

0.1u IC4200 R16 VDDE33

16V

IC4200 R17 VDDE33

IC4200 T17 VDDE33

0.1u IC4200 T23 VDDE33

16V

IC4200 T24 VDDE33

1000p

IC4200 U23 VDDE33

50V

forDLL

TP4206

IC4200 Y2 ODLLARM

TP4207

IC4200 Y3 ODLLLOCK

IC4200 AE17 WE

IC4200 AE18 RAS

IC4200 AD18 CAS

IC4200 AF10 CKE

IC4200 AF9 SDCLKO

IC4200 AE9 NSDCLKO

IC4200 AC1 DQS3

IC4200 AF21 DQS2

IC4200 AF6 DQS1

IC4200 AC26 DQS0

C

C_DDR_DQ23 C_DDR_DQ22 C_DDR_DQ20 C_DDR_DQ21

C_DDR_DQ18 C_DDR_DQ19 C_DDR_DQ16 C_DDR_DQ17

C_DDR_DQS2

C_DDR_DQ3 C_DDR_DQ1 C_DDR_DQ2 C_DDR_DQ0

C_DDR_DQS0

C_DDR_DQ31 C_DDR_DQ29 C_DDR_DQ30 C_DDR_DQ28

C_DDR_DQ27 C_DDR_DQ25 C_DDR_DQ26 C_DDR_DQ24

C_DDR_DQS3

C_DDR_DQ14 C_DDR_DQ15 C_DDR_DQ12 C_DDR_DQ13

C_DDR_DQ10 C_DDR_DQ11 C_DDR_DQ8 C_DDR_DQ9

C_DDR_DQS1

C_DDR_DQ7 C_DDR_DQ5 C_DDR_DQ6 C_DDR_DQ4

EXB28V220JX

R4265

22

EXB28V220JX

R4257

D_DDR_DQ23 D_DDR_DQ22

D_DDR_DQ20

D_DDR_DQ21

R4258

D_DDR_DQ18 D_DDR_DQ19

D_DDR_DQ16 D_DDR_DQ17

D_DDR_DQS2

R4266

22

R4259

D_DDR_DQ7 D_DDR_DQ5 D_DDR_DQ6 D_DDR_DQ4

R4260

D_DDR_DQ3

D_DDR_DQ1 D_DDR_DQ2 D_DDR_DQ0

D_DDR_DQS0

R4261

D_DDR_DQ31

D_DDR_DQ29 D_DDR_DQ30 D_DDR_DQ28

R4262

D_DDR_DQ27 D_DDR_DQ25 D_DDR_DQ26

D_DDR_DQ24

D_DDR_DQS3

R4267

22

R4263

D_DDR_DQ14 D_DDR_DQ15

D_DDR_DQ12

D_DDR_DQ13

R4264

D_DDR_DQ10 D_DDR_DQ11

D_DDR_DQ8 D_DDR_DQ9 D_DDR_DQS1

R4268

22

C_DDR_RAS

C_DDR_WE C_DDR_BA0 C_DDR_BA1

C_DDR_A0 C_DDR_A2 C_DDR_A1 C_DDR_A10

C_DDR_A3

C_DDR_A11

C_DDR_A4

C_DDR_A9

C_DDR_A8

C_DDR_A7

C_DDR_A5

C_DDR_A6

C_DDR_CAS

C_DDR_CKE

C_DDR_SDCKE

C_DDR_CLK C_DDR_NCLK

C4277

6.3V 1u

EXB28V220JX

R4270

R4271

R4272

R4273

C

MHQDDR2.5V

C4296

68u 4V

D_DDR_BA1

D_DDR_BA0

D_DDR_A11

D_DDR_A10

D_DDR_A9

D_DDR_A8

D_DDR_A7

D_DDR_A6

D_DDR_A5

D_DDR_A4

D_DDR_A3

D_DDR_A2

D_DDR_A0

+

C

C4298

10u

6.3V

0.01u C4299

25V

C4300

1000p

50V

0.1u C4301

16V

C4302

0.01u 25V

0.01u

C4303

25V

C4304

1000p

50V

*IC4201 M5 BA1

*IC4201 N4 BA0

*IC4201 M7 A11

*IC4201 L6 A10

*IC4201 M8 A9

*IC4201 N11 A8/AP

*IC4201 N10 A7

*IC4201 N9 A6

*IC4201 M9 A5

*IC4201 N8 A4

*IC4201 N7 A3

*IC4201 M6 A2

*IC4201 N6 A1

*IC4201 N5 A0

R4274

D_DDR_RAS

D_DDR_WE D_DDR_BA0 D_DDR_BA1

D_DDR_A0 D_DDR_A2 D_DDR_A1

D_DDR_A10

R4275

R4276

D_DDR_A3

D_DDR_A11

D_DDR_A4

D_DDR_A9

R4269

D_DDR_A8

D_DDR_A7

D_DDR_A5

D_DDR_A6

22

D_DDR_CAS

22

D_DDR_SDCKE

R4277

150

D_DDR_CLK

22

D_DDR_NCLK

22

C

25V

C4305

0.01u

*IC4201 D7 VDD

*IC4201 D8 VDD

*IC4201 E4 VDD

*IC4201 E11 VDD

*IC4201 L4 VDD

*IC4201 L7 VDD

*IC4201 L8 VDD

*IC4201 L11 VDD

DTV9V

R4301

10k

AG_PWM_POW_ON

*IC4201 F6 VSS_Thermal

*IC4201 C4 NC

C4312

0.1u 16V

C4313

10u

6.3V

C4314

0.1u 16V

C4315

0.1u 16V

C4316

0.01u 25V

R4289

1%

1k

R4290

1%

1k

C

*IC4201 F12 DQ15

*IC4201 F13 DQ14

*IC4201 G12 DQ13

*IC4201 G13 DQ12

*IC4201 J12 DQ11

*IC4201 J13 DQ10

*IC4201 K12 DQ9

*IC4201 K13 DQ8

*IC4201 E2 DQ7

*IC4201 D2 DQ6

*IC4201 D3 DQ5

*IC4201 C2 DQ4

*IC4201 B5 DQ3

*IC4201 B6 DQ2

*IC4201 C6 DQ1

*IC4201 B7 DQ0

*IC4201 C3 VDDQ

*IC4201 C5 VDDQ

*IC4201 C7 VDDQ

*IC4201 C8 VDDQ

*IC4201 C10 VDDQ

*IC4201 C11 NC

*IC4201 C12 VDDQ

*IC4201 E3 VDDQ

*IC4201 E12 VDDQ

*IC4201 N13 VREF

C4319

0.1u

16V

*IC4201 E5 VSS

*IC4201 E7 VSS

*IC4201 E8 VSS

*IC4201 E10 VSS

*IC4201 K6 VSS

*IC4201 K7 VSS

*IC4201 K8 VSS

*IC4201 K9 VSS

*IC4201 L5 VSS

*IC4201 L10 VSS

R4400 0

*IC4201 M13 NC

C

*IC4201 B8 DQ31

D_DDR_DQ30

C

D_DDR_DQ29

D_DDR_DQ28

D_DDR_DQ27

D_DDR_DQ26

D_DDR_DQ25

D_DDR_DQ24

D_DDR_DQ23

D_DDR_DQ22

D_DDR_DQ21

D_DDR_DQ20

D_DDR_DQ19

D_DDR_DQ18

D_DDR_DQ17D_DDR_A1

D_DDR_DQ16

*IC4201 C9 DQ30

*IC4201 B9 DQ29

*IC4201 B10 DQ28

*IC4201 C13 DQ27

*IC4201 D12 DQ26

*IC4201 D13 DQ25

*IC4201 E13 DQ24

*IC4201 K3 DQ23

*IC4201 K2 DQ22

*IC4201 J2 DQ21

*IC4201 J3 DQ20

*IC4201 G2 DQ19

*IC4201 G3 DQ18

*IC4201 F2 DQ17

*IC4201 F3 DQ16

C4264

6.3V 1u

D_DDR_DQ15

D_DDR_DQ14

C

D_DDR_DQ13

D_DDR_DQ12

D_DDR_DQ11

D_DDR_DQ10

D_DDR_DQ9

D_DDR_DQ8

C

D_DDR_DQ7

D_DDR_DQ6

D_DDR_DQ5

D_DDR_DQ4

D_DDR_DQ3

D_DDR_DQ2

D_DDR_DQ1

D_DDR_DQ0

C

0.01u

1000p

0.01u

DDR

HY5DU283222BFP-4

D_DDR_SDCKE

D_DDR_RAS

D_DDR_CAS

D_DDR_WE

D_DDR_CLK

D_DDR_NCLK

D_DDR_DQS3

D_DDR_DQS2

D_DDR_DQS1

D_DDR_DQS0

C

C4323

0.1u 16V

C4324

25V

C4325

10u

6.3V

C4326

25V

C4327

0.1u 16V

10u

C4328

6.3V

C4329

50V

C4330

25V

C3ABQJ000051

*IC4201

*IC4201 M2 RAS

*IC4201 L2 CAS

*IC4201 L3 WE

*IC4201 M11 CK

*IC4201 M12 CK

*IC4201 B13 DQS3

*IC4201 H2 DQS2

*IC4201 H13 DQS1

*IC4201

*IC4201 F4 VDDQ

*IC4201 F11 VDDQ

*IC4201 G4 VDDQ

*IC4201 G11 VDDQ

*IC4201 J4 VDDQ

*IC4201 J11 VDDQ

*IC4201 K4 VDDQ

*IC4201 K11 VDDQ

*IC4201 H4 NC

*IC4201 H11 NC

N12 CKE

B2 DQS0

C3ABQJ000055

*IC4201 F7 VSS_Thermal

*IC4201 F8 VSS_Thermal

*IC4201 F9 VSS_Thermal

*IC4201 G6 VSS_Thermal

*IC4201 G7 VSS_Thermal

*IC4201 G8 VSS_Thermal

*IC4201 G9 VSS_Thermal

C

*IC4201 B12 DM3

*IC4201 H3 DM2

*IC4201 H12 DM1

0

R4298

R4300

R4296

R4297

0

R4299

C

*IC4201 B4 VSSQ

*IC4201 B11 VSSQ

*IC4201 D4 VSSQ

*IC4201 D5 VSSQ

*IC4201 D6 VSSQ

*IC4201 D9 VSSQ

*IC4201 D10 VSSQ

*IC4201 D11 VSSQ

*IC4201 E6 VSSQ

*IC4201 E9 VSSQ

*IC4201 B3 DM0

C

*IC4201 N2 CS

Q4203

2SB0709ASL

R4326

10

R4302

1k

R4304

3k

C

R4303

10k

C

MHQICTL9V

Q4202

2SD0601ASL

*IC4201 J6 VSS_Thermal

*IC4201 J7 VSS_Thermal

*IC4201 J8 VSS_Thermal

*IC4201 J9 VSS_Thermal

*IC4201 H6 VSS_Thermal

*IC4201 H7 VSS_Thermal

*IC4201 H8 VSS_Thermal

*IC4201 H9 VSS_Thermal

*IC4201 F5 VSSQ

*IC4201 F10 VSSQ

*IC4201 G5 VSSQ

*IC4201 G10 VSSQ

*IC4201 H5 VSSQ

*IC4201 H10 VSSQ

*IC4201 J5 VSSQ

*IC4201 J10 VSSQ

*IC4201 K5 VSSQ

*IC4201 K10 VSSQ

*IC4201 L12 NC

*IC4201 L13 NC

*IC4201 M3 NC

*IC4201 M4 NC

*IC4201 N3 NC

*IC4201 L9 NC

*IC4201 M10 NC

12

63

AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY

MHQLV3.3V

1

2

3

4

DG-BOARD TNA4114 (11/14)

PLL3.3V_2

JS4207

0

HQ3.3V

MAIN_ON

C4362

1u

6.3V

PLL3.3V_1GND

L4207

J0JHC0000078

C4363

C

1u

6.3V

C

JS4208

0

MM3141CNRE(R59-1718)

IC4206

C0CBCAC00269

1

VDD

C4364

2

0.01u GND

25V

3

CE

JS4211

0

JS4212

0

PLLSYS1.2V

JS4209

0

JS4210

0

PLL3.3V_2GND

5

VOUT

PLLDDR 1.2V

4

NC

R4254

C4369

6.3V

1u

PLLDDRGND

PLLSYSGND

TP4213

0.01u GOE9

BOE2

BOE3

BOE5

BOE4

BOE6

C4376

25V

73

74

BOE7 BOE8 BOE9

MHQPLDDR1.2V

0

50V C4367 1000p

0.01u 25V

75

76

79

R20

80 81 82 83 84 85 86 87

C4375

88 89 90 91 92 93 94 95 96 97 98

100

C

B12 B13

R21

B14

R22 R23

B1577B1678B17

R24 R25 R26 R27 VCC GND G20 G21 G22 G23 G24 G25

B2199B22

B23

G26

B24 B25

G27

VCC

B20

GND5B266B277HSYNC8VSYNC9DE10CLKIN11R/F12RS13Reserved14MAP15MODE116MODE017O/E186/819/PDWN20PRBS21Reserved22N/C

1

2

3

4

0.01u

C4377

25V

5

LVDS_HSOE

LVDS_VSOE

MHQICTL9V

L4209

J0JHC0000078

+

6

PWMA

MHQLV3.3V

10k

Q4204

R4310

2SD0601ASL

PWM_A

R4308

10k

R4309

10k

R4313

R4316

C

C4371

25V

0.01u

R4318

1%

5.11k

R4320

1%

Q4206

2SD0601ASL

C

3k

10k

7

PWMB

C4374

25V

0.01u

C4373

C

16V

C

47u

0V

1 E0

SLV : A0

2 E1

EEPROM

3 E2

64kbit

4 VSS 5

C

C3EBJC000055

*IC4209

GOE8

GOE7

C0JBCZ000556

LVDS_ENB

LVDS_CLKOF

IC4207

J0JHC0000078

L4211

+

C4379

6.3V 47u

C

Lite 60Hz Vsync

TP4243

50V

C4394

0.01u

L4212 J0JHC0000078

50V

0.01u

C4395

TP4236

TA1-

TA1+

TB1-

TB1+

TC1-

TC1+

TCLK1-

TCLK1+

TD1-

TD1+

TA2-

TA2+

TB2-

TB2+

TC2-

TC2+

TCLK2-

TCLK2+

TD2-

TD2+

+

TP4244

16V

47u

C4396

C

0.01u ROE2

ROE4

GOE6

GOE3

GOE2

GOE5

GOE4

0

R4352

R4348

10k

R4349

3.3V

R4327

8

10k

VCC

7

WC

3.3V

6

SCL

3.3V

SDA

0.0V

ROE5

ROE7

ROE6

PGND PVCC PGND

R4357

22

R12 R11 R10

C4317

22k

AG_LVDS_EN

R4333

R4331

3.3V

0

R4361

4.7u

SCL_AIR

22

4.7k

R4332

R4360

R4385

22

25V

LGND27TD2+28TD2-

22k

6.3V

0

R4334

C4380

SDA_AIR

ROE3

C4391

51

52

53

54

R1355VCC56GND57R1458R1559R1660R1761G1062G1163G1264G1365G1466G1567G1668G1769B1070B1171VCC72GND

TB1TB1+ LVCC TC1-

TA1+49TA1-50LGND

TC1+ TCLK1TCLK1+

TD1-

TD1+

LGND

TA2-

TA2+

TB2-

TB2+

LVCC

TC2-

TC2+ TCLK2TCLK2+

23

0.01u

+

16V

0.1u C4384

47u

C4385

6.3V

22

R4335

4.7k

24

25V

C4382

1u

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29

26

25

0.01u

25V

6.3V

L4210

J0JHC0000078

C4358

6.3V 47u

25V

0.01u

FL4206 F1H0J4740004

C4387

C4389

6.3V

G

16V

1u

0.1u

G

C4393 10u

6.3V

C4392

25V

0.01u

C4388

6.3V 1u

C4390

16V

0.1u

C4386

C4383

MHQLV3.3V

C4359

16V

0.1u

+

L4220

J0JHC0000078

0V

C

TP4214 TP4215 TP4216 TP4217

TP4218

TP4219 TP4220 TP4221

TP4222 TP4223 TP4224 TP4225

TP4226 TP4227 TP4228 TP4229

TP4230 TP4231 TP4232 TP4233

FL4201

J0MAB0000169 TCM2010-201-4P

FL4202

J0MAB0000169 TCM2010-201-4P

FL4203

J0MAB0000169

TCM2010-201-4P

FL4204

J0MAB0000169 TCM2010-201-4P

FL4205

J0MAB0000169 TCM2010-201-4P

4 3 2 1

P12V

ROE9

ROE8

0

R4356

10k

R4353

R4330

100

R4328

3.3V

PANEL

DG25

G

GG

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

G

GGGGGG

1GND 2TEST L:TEST OPEN:Normal 3NC 4NC 5NC 6NC 7LVDSSEL 8NC 9NC 10NC 11GND 12RXA013RXA0+ 14RXA115RXA1+ 16RXA217RXA2+ 18GND 19CLKA20CLKA+ 21GND 22RX3A23RX3A+ 24RSV OPEN 25RSV OPEN 26GND 27GND 28RXB029RXB0+ 30RXB131RXB1+ 32RXB233RXB2+ 34GND 35CLKB36CLKB+ 37GND 38RXB339RXB3+ 40RSV OPEN 41VSYNC 42GND 43GND 44GND 45GND 46GND 47NC 48VDD 49VDD 50VDD 51VDD

L/OPEN NewVESA H:OldVESA(Hitachi)

8

9

10

11

12

TP4451

TP4452

TP4453

TP4454

TP4455

TP4450

DG27

1

INV_VCC

2

INV_ON

3

CURRENT(ADIM)

4

INV_SOS

5

INV_PWM_A

6

GND

C

DIVIDED GROUND TABLE

TP4234

digital common

C

ZA4206 TESA169

ZA4207 TESA169

ZA4204 TESA169

ZA4205 TESA169

C

ZA4209 TESA169

C

L4450

PWMC

PWMD

PWMK

D-INVERTER

PWM_K

MHQLV3.3V

R4314

1k

R4311

10k

R4312

C

10k

Q4205

2SC39380QL

MHQICTL9V

L4208

G1C100KA0008

+

C4365

C4366

16V

47u

1%

R4319

4.87k R4321

R4317

C

10k

Q4207

2SC39380QL

C

1k

D4204

MA3X152K0L

1%

R4315

10k

C

C4372

16V

0.1u

C

+ C4368

6.3V 22u

R4322

3.9k C

AG_INVERTER_ON

AG_INVERTER_SOS

J0JHC0000078

L4451

J0JHC0000078

L4452

J0JHC0000078

L4453

J0JHC0000078

P12V

1

2

D4450 MAZ30560ML

C

1

2

1

2

C

25V

0.01u

C4451

1

2

64

A B C D E F G H I J K L M N O P Q

DG-BOARD TNA4114 (12/14)

1

2

3

4

5

6

7

8

9

10

11

K1FY119D0002

JK4501

HPDT

+5V

DDCG

SDA SCL N.C. CEC CLKCLKG CLK+

D0D0G

D0+ D1D1G D1+ D2D2G D2+

JK4500

K1FY119D0002

HPDT

+5V

DDCG

SDA SCL N.C. CEC CLKCLKG CLK+

D0D0G

D0+ D1D1G D1+ D2D2G D2+

EZAEG2A50AX

RGB_CVBS

RGB_FB

MAIN_PR GUARD_PR

MAIN_PB/C

GUARD_PB

MAIN_Y/CVBS

GUARD_Y

MAIN5V

C4629

10u 10V

C

TP4519

C4628

0.1u 16V

IC4515

C0BBBA000024

C

8

1%

10k

4.7k

R4654

10k

R4653

VCC

R4683

7

B_OUTPUT

6

B_-INPUT

R4682

10k

1%

B_+INPUT

C

SUB5V

C4527 1u 10V

R4585

100

GUARD_V

R4578

150

R4579

150

R4667

150

Y

AG_HPD1

R4530

10k

R4527

R4533

B0HCMM000014

L4506

16V

D4523

EZAEG2A50AX

R4528

R4532

10k

D4524

J0JHC0000078

TP4504

+

C4508

D4522

EZAEG2A50AX

J0JHC0000078

TP4505

+

C4509

10k

6.3V

33u

10k

D4526

L4507

6.3V

33u

4.7k

R4529

C

R4536

4.7k

0.1u

C4511

R4531

C

R4535

4.7k

0.1u

16V

C4510

C

IC4501

C3EBDC000067

16V

1 E0

2SD0601ASL

C

D4525 B0HCMM000014

VCC

IC4500

C3EBDC000067

1 E0

1k

J0JHC0000078

C

10k

C

C4501 16V

0.1u

R4502

C4500 16V

0.1u

J0JHC0000078

R4503

33

C

C4503

0.1u

L4501

J0JHC0000078

33

CC

C4502

16V

0.1u

L4500

R4508

R4509

R4510

R4511 R4512

R4514

C

16V

R4513

R4516

R4517

R4518

R4519 R4520

R4521 R4522

2SD0601ASL

C

R4523

Q4500

2SD0601ASL

C

R4506

R4515

2.2

Q4501

R4507

10k

2.2

C

10k

2.2

R4525

10k

C

J0JHC0000078

2.2

R4524

10k

TP4500

L4502

J0JHC0000078

TP4501

D4520

D4517

EZAEG2A50AX

0.1u

C4507

TP4503

D4515 MAZ30560ML

D4507

EZAEG2A50AX

D4506

EZAEG2A50AX

D4509

D4508

EZAEG2A50AX

D4511

EZAEG2A50AX

R4526

D4512

D4513

MAZ30560ML

D4510

EZAEG2A50AX

C

D4516

EZAEG2A50AX

1k

L4504

L4505

D4518

EZAEG2A50AX

C4506

C

D4519

D4514

EZAEG2A50AX

D4521

EZAEG2A50AX

B0HCMM000014

C

16V

0.1u

EZAEG2A50AX

L4503

D4505

D4503

EZAEG2A50AX

TP4502

D4502

D4504

EZAEG2A50AX

R4501

D4501

C

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

C

R4500

10k

D4500

C

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

C

Q4503

2SD0601ASL

C

D4527

B0HCMM000014

VCC

M24C02-WMN6TP

Q4502

7WC8

M24C02-WMN6TP

2 E1

AG_HDMI_5V_DET1

R4540

47k

68

R4541

3 E2

R4538

47k

68

R4539

Q4504

2SD0601ASL

TP4506

R4543

SDA6SCL

4 VSS 5

TP4507

68

R4542

SDA6SCL

4 VSS 5

7WC8

2 E1

AG_HPD2

AG_HDMI_MUX_SEL

MAIN5V

0.1u 16V

R4689

C

22

R4690

22

0.1u 16V

R4678

C

22

R4679

22

1 VCCA

2 SCLA

IC4513

3 SDAA

C0JBAU000034

4 GND 5

PCA9517DP

C

1 VCCA

2 SCLA

IC4514

3 SDAA

C0JBAU000034

4 GND 5

PCA9517DP

C

TP4508

68

Q4505

2SD0601ASL

R4547

10k

22

C

R4544

10k

C

R4552

R4545 10k

D4528

EZAEG2A50AX

R4546

C

10k

AG_HDMI_5V_DET2

AG_EDID_WP

AG_HDMI_CEC

C4626

DDC_SCL0

DDC_SDA0

C4627

DDC_SCL1

DDC_SDA1

AG_HDMI_5V_DET1

C4622

0.1u 16V

8

VCCB

R4676

7

SCLB

SDAB

VCCB

SCLB

SDAB

C

22

6

R4677

22

EN

8

C4621

0.1u 16V

C

7

R4681

R4680

22

6

EN

MAIN3.3V

R4688

R4687

4.7k

DDCA_SDA

DDCA_SCL

R4686

47k

C

Q4520

2SD0601ASL

R4634

47k

32

33

35

36

C4513

16V

C4514

16V

B0HCMM000014

C4515

0.1u 16V

37 38 39 40 41 42 43

0.1u 44

45 46 47 48

0.1u

D4532

TP4516

C

GND

VCC

ADT1N34ADT1P

VCC ADT2N

SEL VCC

ADT2P GND

IC4503

VCC

C1AB00002641

VCC GND

TEST

VCC

BCKN BCKP VCC

VCC3BDT0N4BDT0P5GND6BDT1N7BDT1P8GND9BDT2N10BDT2P11VCC

1

2

MAIN3.3V

R4562

4.7k

R4563

4.7k

R4561

47k

TP4509

R4564

7WC8

VCC

IC4504

C3EBEY000009

M24C04-RMN6TP

1 NC

2 E1

C

22

AG_HDMI_MUX_EN

MAIN3.3V

L4508

J0JHC0000078

0.1u

4.7k

R4663

C4517

16V

25CE26

27

29

30

YDT2P

TP4510

3 E2

24

VCC

GND

ACKN28ACKP

23

YCKP

ADT0N31ADT0P

22

GND

21

YDT0N

20

YDT0P

YCKN

19

VCC

18

VCC

17

YDT1N

16

YDT1P

REXT

15

GND

14

YDT2N

13

12

R4567

4.7k

1%

TP4511

22

R4565

SDA6SCL

4 VSS 5

C

C4520

10V

10u

C

C4521

16V

RXA_CP

RXA_0P

0.1u

RXA_0N

RXA_CN

RXA_1N RXA_1P

RXA_2N RXA_2P

R4702

0

R4703

*R4664

SUB5V

1A_OUTPUT

2A_-INPUT

3A_+INPUT

4GND5

C

IC4506

C0DBGGF00001

Vo

1

7

C4531

0.1u 16V

C

*R4605

Q4514

2SB0709ASL

Q4515

2SB0709ASL

C_ANA

2SB0709ASL

1.2k

1%

R4596

R4597

R4598

R4587 820

*R4593

1.1k

1%

Vin

R4706

1k

2

NC

6

Sub

3

GND

Cn

4

5

Cont

J0JHC0000078

C4551

*R4608

0.1u

1k

*C4537

0.1u 50V

C_ANA

*Q4519

FB

C_ANA

C4534

0.1u 50V

1k

C_ANA

PR

C_ANA

C4535

0.1u

1k

50V

C_ANA

PB/C

TP4512

C_ANA

C4624

1k

0.1u 50V

C_ANA

Q4516

2SB0709ASL

C_ANA

R4601

1k

1%

C4533 68p 50V

C_ANA

50V

L4511

C_ANA

C4538

47u

6.3V

C4539

10u

10V

C_ANA

Q4517

2SB0709ASL

C_ANA

C4541

R4604

50V

7.5k 470p

1%

MAIN9V

+

C4543

0.1u 16V

C_ANA

C4544

0.1u C4547

16V

0.1u 16V

C_ANA

YIN

C4625

0.1u 50V

C4550

C_ANA

0.1u 16V

C_ANA

C4548

50V

0.1u

C4549

0.1u 50V

C4528

0.1u 16V

C

698

1%

65

R S T U V W X Y Z AA AB AC AD

DG-BOARD TNA4114 (13/14)

1

SUB3.3V

L4518

C4607

2.2u

6.3V

VI1CLK

R4636

0.01u

47u

6.3V

R4661

100

C

R4708 1k

VI1P4

VI1P26

CLKOA

VI1P25

VI1P24

16V

0.1u

68

C4605

68

47k

R4665

R4666

47k

R4638

R4637

46

47

48

49

50

51

LLC

TGND

130

131

DVDDIO

RXB_0N

132

DGND

RXB_0P

P26

DCLKIN

SRLIN/P24

R_ACTIVE/P25

P10

DDCB_SCL

DGND DVDD

TGND

RXB_1N

RXB_1P

TGND

RXB_2N

133

134

135

136

137

J0JHC0000078

IC4508

C4583

0.1u 16V

1u

R4622

L4517

70

111

10V

RXA_CN

100

C4587

0.1u 16V

C

J0JHC0000078

C4588

0.082u

16V

R4624

1.69k

68

PVDD69PGND

FB

SOG

DDCA_SDA

MDA

RXA_CN

RXA_CP

112

113

RXA_CP

C0CBCAD00082

MM1681JFBE(R59-1615)

8

Vin

7

NC

6

NC

Cont

1%

IN

OUT

64

65

66

67

XTAL

XTAL1

DVDDIO

ELPF PVDD PGND

ELPF2

MCL

CVDD CGND TVDD

TGND

RXA_0N

RXA_0P

114

115

116

117

RXA_0N

RXA_0P

C4591

R4628

DGND

TGND

1Vout

2NC

3Cn

4GND5

C0CBCBC00190

5

VOUT4NC

10V

IC4507

1u

C

GND

VDD

1

2

SUB5V

C4592 10V 1u

PC_VS

PC_HS

R4629

100

R4635

58P259P160P061

62

P20

VS_IN63HS_IN

IC4510

C1AB00002753

ADV7493BBSTZ-150

RXA_1N

RXA_1P

TGND

RXA_2N

RXA_2P

TVDD

RXA_1P

RTERM

119

120

121

122

123

124

1%

499

R4631

C4593

0.01u

25V

RXA_2P

RXA_2N

C4595

0.01u

118

RXA_1N

CE

C

VI1P2

C4596

68

EXB28V680JX

55P356

DGND57DVDD

CVDD

CGND

125

126

C4598

C4604

C4602

0.1u 16V

C

C4600

0.01u 25V

3

MAIN5V

R4707

10k

VI1P3

VI1P22

VI1P23

16V

0.1u

52

54

P21

SRLUP/P2353TRGIN/P22

TVDD

RXB_CN

RXB_CP

127

128

129

25V

C4601

10V

1u

2

3

4

5

6

C4550

0.1u

7

16V

C_ANA

8

9

R4626

1M

R4627

0

X4500

H0J270500113

C4590

C4545

0.1u 16V

C_ANA

C4555

10u

10V

C4556

10u

10V C4557

0.1u 16V

C4552

0.1u 50V

C4553 1000p 50V

C4589

18p

15p

50V

C

C4546

TP4513

2.2u

6.3V

*R4609

10k

*R4610

C4559

0.1u 16V

C4560

0.1u 16V

C_ANA

R4606

4.7k

J0JHC0000078

0

R4611

1.37k

1%

C4563

0.082u

L4512

J0JCC0000077

C4577

0.1u

C4566

0.039u

1%

16V

+

C4576

6.3V C

47u

C4569

0.68u

R4615

16V

50V

0.1u

C4572

0.1u

C4568

0.1u

R4613 R4614

22

R4691

1%

L4524

*C4567

C4564

0.01u 25V

C4565

0.01u 25V

R4612

1.5k

16V

C4562

8200p

50V

L4516

J0JHC0000078

C4581 1u 10V

C

+

C4573 16V

C4570

0.1u

6.3V C

47u

C4586

0.01u

TVDD

16V

160

1%

16V

C4574

0.01u 25V

22 22

22

R4692

25V

PVDD

C4582

0.1u 16V

C4578

0.1u

C

16V

71

72

73 74 75

AIN7

76

AIN1

77

AIN8

78

AIN2

79

AIN9

80

AIN3

81

AGND

82

AGND

83

AVDD

84

REFOUT

85

CML

86

AGND

87

AVDD

88

BIAS

89

CAPY1

90

CAPC1

91

CAPC2

92

AIN10

93

AIN4

94

AIN11

95

AIN5

96

SOY

97

AIN12

98

C_ANA

AIN6

99

PGND

100

PVDD

101

ELPF3

102

CGND

103

CVDD

104

DDCA_SCL

105

C4575

1u

106

10V

107 108

109

110

C4584

C4580

C4585

0.01u

25V

+

C4609

1u 10V

C

C4623

0.1u 16V

C

TP4514

L4520

J0JHC0000078

L4521

J0JHC0000078

VI1P7

VI1P6

VI1P5

41P742P643P544P445

P11

DVDDIO

SFL/SYNC_OUT/INT2

DDCB_SDA2SPDIF3I2S0

RXB_2P

TVDD

CGND

138

139

140

C4611

1u

25V

0.01u

C4612

VI1P27

P27

DGND

VS/FIELD

MCLKOUT

CVDD

141

10V

1.8V

VI1P8

RESET

DVDDIO

MCLKIN

LRCLK

142

C4613

8

Vin

7

NC

6

NC

Cont

IC4509

C0CBCAD00082

MM1681JFBE(R59-1615)

VI1P9

R4639 EXB28V680JX 68

R4640

EXB28V680JX 68

37

38P939P840

36 35 34

P28

33

P29

32

P12

31

P13

30

P14

29

P15

28

P16

27

P17

26

P18

25

P19

24

DVDD

23

DGND

22 21 20

INT1

19 18

HS

17

DE

16 15

DGND

14

4.7k

ALSB

13

SCL

12

SDA

11 10

9

SCLK

8 7

I2S3

6

I2S2

5

I2S1

4

1

143

144

C

16V

0.1u

C4614

10V

1u

R4642 EXB28V680JX

C4617

0.1u

R4710

R4711

4.7k

C4616

0.1u 16V

68

R4649 EXB28V680JX

68

R4650

R4651

68

C4619

0.1u

R4645

68

R4646

R4647

68

16V

R4648

EXB28V330JX

DVDD_1.8V

68

16V

68

1Vout

2NC

3Cn

4GND5

DVDDIO_3.3V

CVDD_1.8V

TP4515

C4620

1u

C4618

0.01u

10V

25V

C

C4615

0.01u 25V

C

VI1P28 VI1P29 VI1P12 VI1P13 VI1P14 VI1P15

VI1P16 VI1P17 VI1P18 VI1P19

R4656

2.2k

VI1VSYNC

VI1HSYNC

VI1ENB

R4657

22

R4658

22

TP4518

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

RGB_CVBS

JS4501

C

C_ANA

RGB_FB

PC_HS

PC_VS

GUARD_Y

GUARD_PB

GUARD_PR

GUARD_V

MAIN_Y/CVBS

MAIN_PB/C

MAIN_PR

RGB_CVBS

RGB_FB

PC_HS

PC_VS

CN_to_H Sheet007

VI1CLK

CLKOA

VI1VSYNC

VI1HSYNC

VI1ENB

FS_FRCLKIN

VI1P27

VI1P26

VI1P19

VI1P18

VI1P17

VI1P16

VI1P15

VI1P14

VI1P13

VI1P12

VI1P29

VI1P28

VI1P25

VI1P24

VI1P23

VI1P22

VI1P9

VI1P8

VI1P7

VI1P6

VI1P5

VI1P4

VI1P3

VI1P2

Peaks Lite II

R4670

68

VI1P9

VI1P8

VI1P7

VI1P6

VI1P5

VI1P4

VI1P3

VI1P2

VI1P27

VI1P26

VI1P19

VI1P18

VI1P17

VI1P16

VI1P15

VI1P14

VI1P13

VI1P12

VI1P29

VI1P28

VI1P25

VI1P24

VI1P23

VI1P22

VI1CLK

VI1CKOUT

VI1VSYNC

VI1HSYNC

VI1ENB

FS_FRCLKIN

UVIN9

UVIN8

UVIN7

UVIN6

UVIN5

UVIN4

UVIN3

UVIN2

UVIN1

UVIN0

YIN9

YIN8

YIN7

YIN6

YIN5

YIN4

YIN3

YIN2

YIN1

YIN0

RIN3

RIN2

RIN1

RIN0

CLKIA

CLKOA

VSIA

HSIA

Sheet 002

GC3FS-n Sheet004

CN_to_H Sheet007

HDMI_INT2

AG_7493_XRST

R4699

0 0

R4698

RX_SCK RX_SD0# RX_WS

XIRQ3

R4644

22

C

R4652

47k

HDMI_BCLK HDMI_SDIN HDMI_LRCK

HDMI_SPDIF

HDMI_INT2

DTV Sheet003 GC3FS-n Sheet004 DTV Sheet011

AD_SCL1 AD_SDA1

HDMI_BCLK HDMI_SDIN HDMI_LRCK HDMI_SPDIF

CN_to_H Sheet007

XIRQ3

AG_HPD1

AG_HPD2

AG_HDMI_MUX_SEL

AG_HDMI_MUX_EN

AG_7493_XRST

AG_EDID_WP

AG_HDMI_5V_DET3

AG_HPD3

AG_HDMI_REP_EN

AG_HDCP_WP

AG_HDMI_5V_DET1

AG_HDMI_5V_DET2

AG_HDMI_CEC

Peaks Lite II

XIRQ3

Sheet 002

GenX4 Sheet008

AG_HPD1

AG_HPD2

AG_HDMI_MUX_SEL

AG_HDMI_MUX_EN

AG_7493_XRST

AG_EDID_WP

AG_HDMI_5V_DET3

AG_HPD3

AG_HDMI_REP_EN

AG_HDCP_WP

AG_HDMI_5V_DET1

AG_HDMI_5V_DET2

AG_HDMI_CEC

10

11

66

A B C D E F G H

1

DG-BOARD TNA4114 (14/14)

GenX4

to Sheet 008

Ex IIC

2

(Common)

AG_SRQ-GENX

SCL

SDA

(Used PDP)

3

(Used LCD)

AD_SCL3

AD_SDA3

AD_SCL1

AD_SDA1

AD_SCL2

AD_SDA2

4

LITE2 ExBUS/Etc.

to Sheet 003

VMUTE

R4838

0

STB5V

B11B-PH-SM4-TBT(LF)(SN)

K1KA11AA0153

DG33

SERVICE

1

STB5V

2

SRQ

3

GND

4

GenX4_SCL

5

GenX4_SDA

6

LITE2_SCL3

7

LITE2_SDA3

8

LITE2_SCL1

9

LITE2_SDA1

10

LITE2_SCL2

11

LITE2_SDA2

C

(GenX4 Loarder/E2PROM)

(Lite2 E2PROM)

(Device Control)

R4800

IIC

0

AD_SCL0 AD_SDA0

AD_SCL1 AD_SDA1

AD_SCL2 AD_SDA2

AD_SCL3 AD_SDA3

to Sheet 003

AD_SCL0 AD_SDA0

AD_SCL1

AD_SDA1

AD_SCL2 AD_SDA2

AD_SCL3 AD_SDA3

GenX4

to Sheet 008

SCL SDA

HQ1L/FHD

to Sheet 009

(VMUTE/DISPEN)

PANEL_MUTE

5

Lite2

to Sheet 002

PANEL_SOS

VI2P10

VI2P21

PANEL_STATUS

6

Lite2

to Sheet 002

LVDS OUT

Rx0-

TA1N TA1P

Rx0+

TB1N

Rx1-

TB1P

Rx1+

7

Rx2-

Rx2+ RxCLKRxCLK+

Rx3Rx3+

Rx4Rx4+

TCLK1N TCLK1P

TC1N TC1P

TD1N TD1P TE1N TE1P

8

67

Conductor Views

5

C

H-BOARD TNPA4291 - top

TRAN’S

Q2015 D3 D2031 E6 D3336 C4 Q2016 D2 D2032 E6 D3337 C4 Q2017 D2 D2033 E6 D3338 C4 Q2021 E2 D2034 E6 Q2031 E6 D2119 A5 Q2033 E6 D2301 B4 IC2008 C2 Q2034 E6 D2302 A4 IC2010 D1 Q2035 E6 D2303 B4 IC2011 E3 Q2039 E5 D2304 B4 IC2012 B3 Q2040 E6 D2632 C1 IC2013 B3 Q2041 E6 D2633 C1 IC2106 C2 Q2101 D2 D2634 B1 IC2107 B1 Q2102 D2 D2635 C1 IC2301 B5 Q2301 B4 D2636 C1 IC2303 A4 Q2635 C1 D2637 D1 IC2610 B1 Q2636 D1 D2638 B1 IC3001 D3 Q2637 D1 D3010 D5 IC3101 B6 Q2638 C1 D3011 D5 Q2639 B1 D3012 D5 Q2640 D2 D3027 B5 TP301 B4 Q2641 D2 D3028 B5 TP607 B1 D3030 B6

DIODE’S

D2026 E6 D3102 C4 D2028 E6 D3334 C4

D2029 E6 D3335 C4

D3044 C3

IC’S

TP’S

E

D

B

68

C

H-BOARD TNPA4291 - bottom

TRAN’S TP’S

Q2002 C4 TP012 E4 TP616 E3 Q2003 D4 TP014 E4 TP617 B1 Q2004 C6 TP015 E4 TP3001 E5 Q2005 C6 TP016 E4 TP3002 E5 Q2006 C6 TP017 E4 TP3003 E5 Q2007 C6 TP018 E4 TP3004 E5 Q3027 C4 TP019 E4 TP3005 E5 Q3028 D4 TP020 E4 TP3006 E5 Q3200 A2 TP021 A6 TP3007 E5

DIODE’S

D2189 B3 TP024 A6 TP3010 E5 D3003 C5 TP302 B5 TP3011 E5 D3004 C5 TP303 A5 TP3012 E5 D3005 C5 TP304 A5 TP3013 E5 D3007 D5 TP305 A5 TP3014 E4 D3008 C5 TP306 A4 TP3015 E4 D3009 D5 TP307 A5 TP3016 E5 D3025 C5 TP308 A4 TP3017 E4 D3031 D5 TP309 A4 TP3020 E4 D3032 D5 TP310 A5 TP3021 E5 D3038 C4 TP606 D1 TP3022 E4 D3039 D4 TP608 B1 TP3023 E4 D3041 C3 TP609 B1 TP3024 E4 D3042 C3 TP610 B1 TP3025 E4 D3043 C3 TP611 D1 TP3031 A6 D3100 C5 TP612 D1 TP3032 A6

TP614 E3 TP3034 A6

TP022 A6 TP3008 E5 TP023 A6 TP3009 E5

TP613 E3 TP3033 A6

TP615 E3

E

D

B

2

69

ABC

DG-BOARD TNPA4114 - top

TRAN’S IC’S

Q4203 B7 IC1100 C1 Q4204 C7 IC1101 D1 Q4205 C7 IC4200 D8 Q4206 C7 IC4201 E8 Q4207 C8 IC4202 E6 Q4504 E1 IC4207 C8 Q4505 E1 IC4500 D1 Q5600 B6 IC4503 D2 Q5601 B6 IC4510 D3 Q5602 B7 IC5671 C1 Q5603 B7 IC8001 D5 Q5604 B7 IC8002 D6 Q5690 C3 IC8003 C6 Q5691 C3 IC8554 B2 Q5692 B3 IC8621 B3 Q5693 C3 IC8622 B3

E

4 3 2 1

5

6

7 8

70

ABC

DG-BOARD TNPA4114 - bottom

TRAN’S

Q1107 C2 IC4205 D8 Q1108 C2 IC4206 D8 Q4200 E6 IC4208 C8 Q4201 E6 IC4209 E8 Q4202 B7 IC4501 E1 Q4500 D2 IC4504 C1 Q4501 E2 IC4506 E2 Q4502 C2 IC4507 D2 Q4503 C2 IC4508 E2 Q4514 E3 IC4509 C4 Q4515 E3 IC4513 E1 Q4516 E3 IC4514 D1 Q4517 E3 IC4515 D2 Q4519 E3 IC5600 B6 Q4520 E1 IC5601 B6 Q8851 D4 IC5660 B6 Q8852 D4 IC5670 D1 Q8853 D4 IC8004 D6 IC8601 B2

IC’S

IC4203 E7

IC4204 C8

E

5 6 7 8

4

3

2 1

71

A

P-BOARD TNPA4116

V-BOARD TNPA4127-top

V-BOARD TNPA4127-bottom

TRAN’S IC’S

Q801 B5 IC801 A5 Q802 B4 IC802 B6

DIODE’S TP’S

D801 A4 TP801 B1 D802 B5 TP802 B1 D803 A2 TP803 A1 D804 B3 TP804 A1 D811 B5 TP811 A4 D812 B5 TP812 A4 D813 B5 TP821 B4 D814 B5 TP822 B5 D815 A5 TP823 A6 D816 A5 TP824 B6 D817 B5 TP825 B6 D818 A5 D819 B5 D820 A5 D821 A6 D822 B4 D823 B4 D824 A5 D825 B5

TRAN’S DIODE’S

Q1002 A4 D1001 A4 Q1004 A4 Q1006 A4 Q1007 A4 RM1001 A2 Q1010 A2 PC1001 A2

TP’S

TP001 A1 TP007 A2 TP002 A1 TP008 A2 TP003 A1 TP004 A1 TP005 A1

IC’S

TP006 A2

4

1

B

5 6

4

3

2 1

2 3

3 2

1

4

72

AP-BOARD TNPA4117 - top

IC’S

IC7301 B4 IC7401 B4 IC7501 B5 IC7601 B3 IC7701 A3

5

4

3

2

B

1

73

C

AP-BOARD TNPA4117 - bottom

TRAN’S

Q7201 C1 Q7501 B5 D7208 C3 D7601 B3 TP7501 B5 Q7202 C1 Q7502 B5 D7209 A5 D7602 B3 TP7502 B5 Q7203 C1 Q7551 C5 D7210 C2 D7604 B2 TP7601 B3 Q7204 C1 Q7552 C5 D7211 C2 D7605 B2 TP7602 B3 Q7205 B2 Q7553 C5 D7212 A4 D7702 A3 TP7701 A3 Q7206 C3 Q7601 B2 D7301 B4 D7703 A3 TP7702 A3 Q7208 C2 Q7701 A2 D7303 B4 D7704 A2 TP7801 C4 Q7209 C2 Q7702 A2 D7305 C5 D7705 A2 TP7802 C4 Q7210 C1 Q7703 A2 D7306 B5 TP7803 C4 Q7211 C1 D7401 B4 Q7212 C1 Q7213 B3 D7101 A2 D7405 B4 TP7102 C1 Q7214 B3 D7102 A2 D7406 C4 TP7103 B1 Q7301 C4 D7202 C2 D7501 B5 TP7301 B4 Q7302 B5 D7204 C3 D7503 B5 TP7302 B4 Q7401 B3 D7205 C1 D7505 C5 TP7401 B3

Q7402 B4 D7207 C3 D7506 C5 TP7402 B3

1

DIODE’S

D7403 B4 TP7101 B2

TP’S

2

3

74

4

B

5

Panasonic TX-32LX70, TX-26LX70 Schematic

Specifications

CONTENTS

Safety Precautions

Applicable signals

Service Hints

Chassis Board Layout

Setting Inspection

Self Check

Adjustment Method

Wiring diagram

Parts Location

Replacement Parts List

Schematic Diagrams

Conductor Views
