Panasonic TX-24D302B Operating Instructions

OPERATING INSTRUCTIONS

TX-24D302B

COLOUR TELEVISION WITH REMOTE CONTROL

Contents

Safety Information ..................................................2

Markings on the Product.........................................2

Maintenance

...........................................................4

Display panel, Cabinet, Pedestal............................4

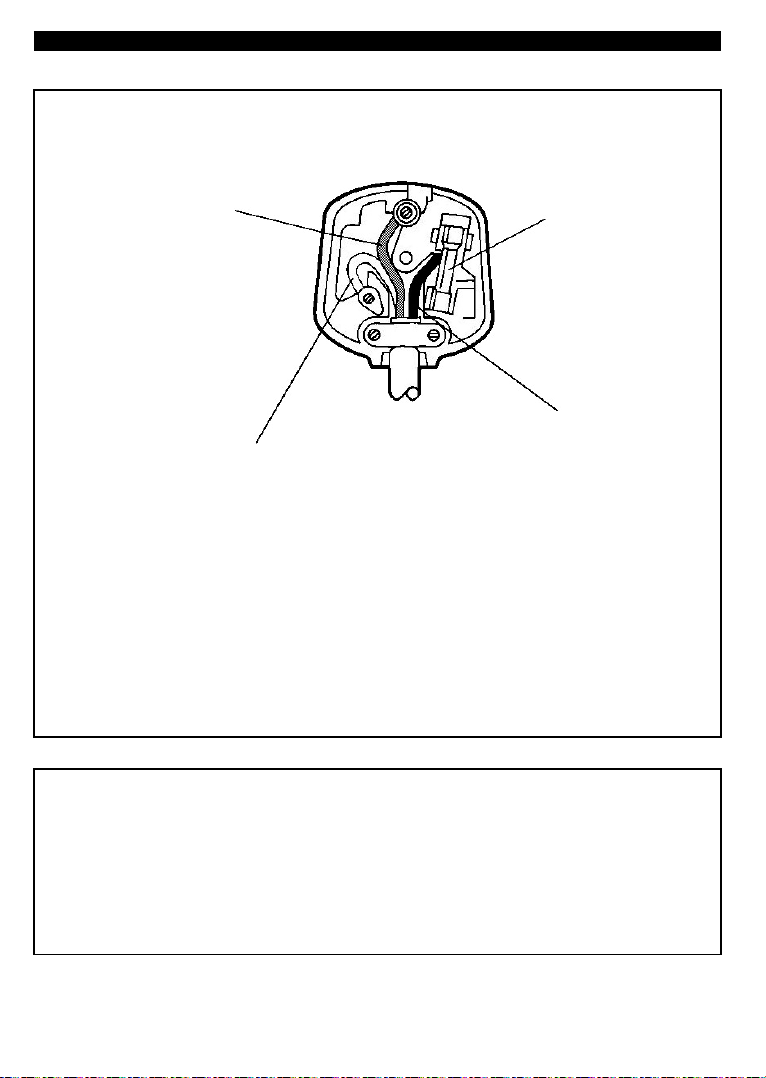

Mains plug

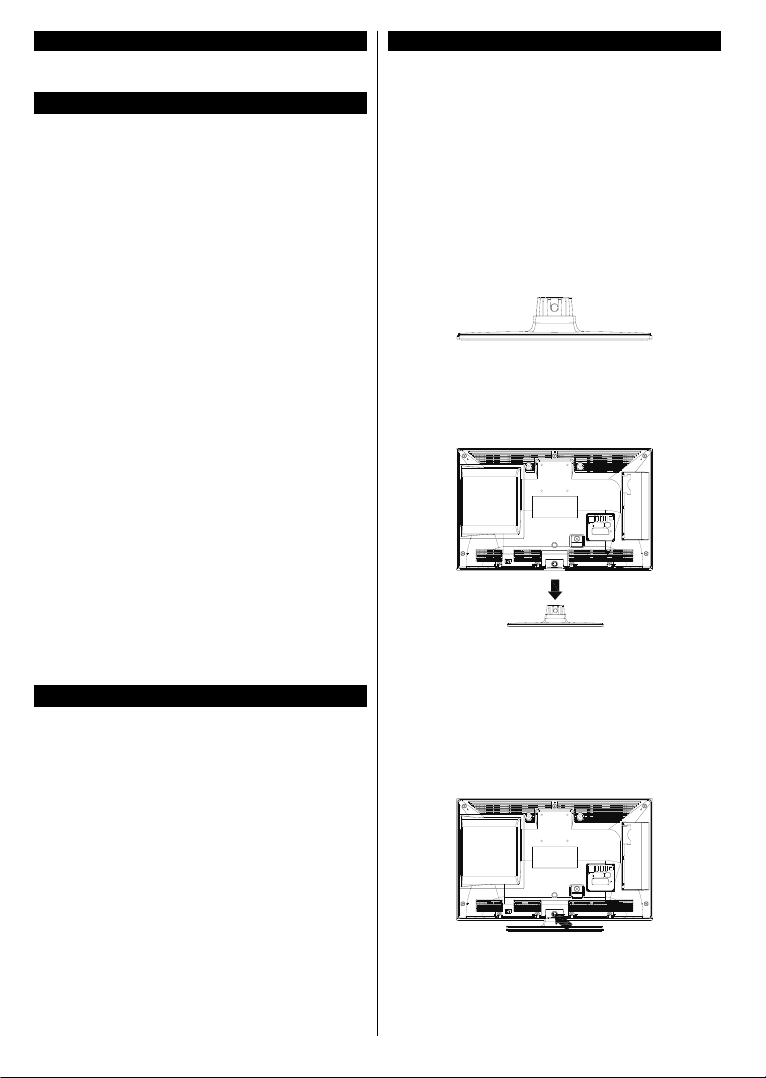

Assembling / Removing the pedestal

..............................................................4

.....................4

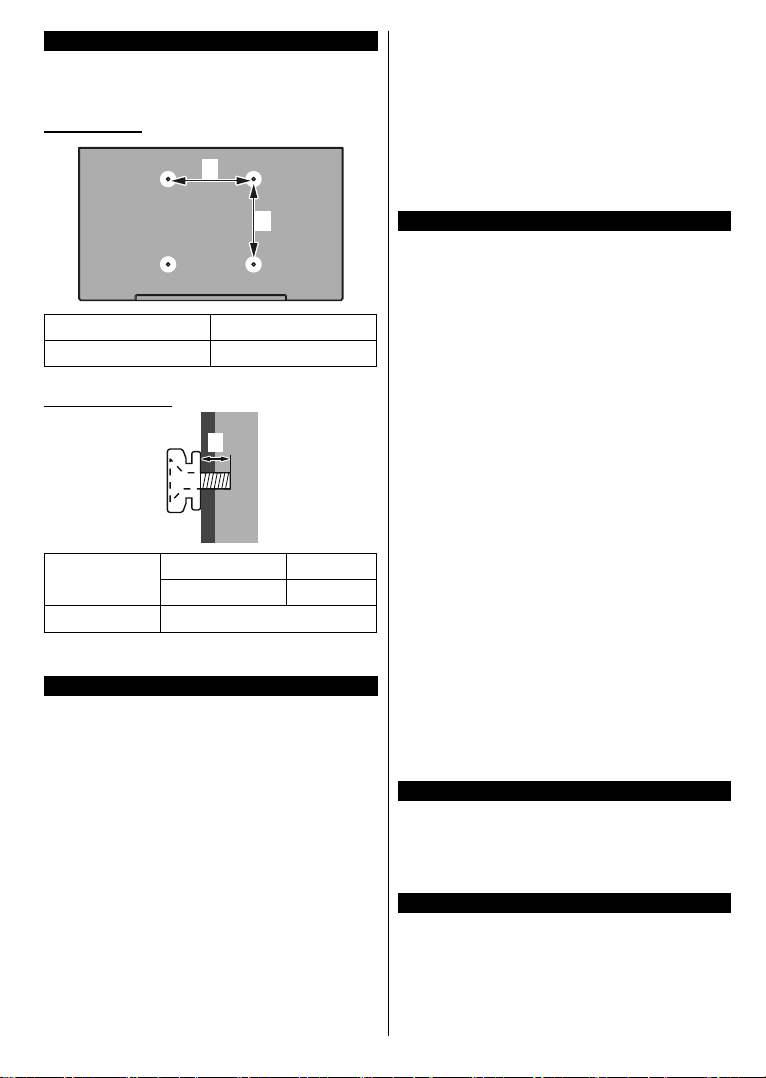

When using the wall-hanging bracket.....................5

Environmental Information......................................5

Features .................................................................5

Accessories Included..............................................5

Standby Notications

..............................................5

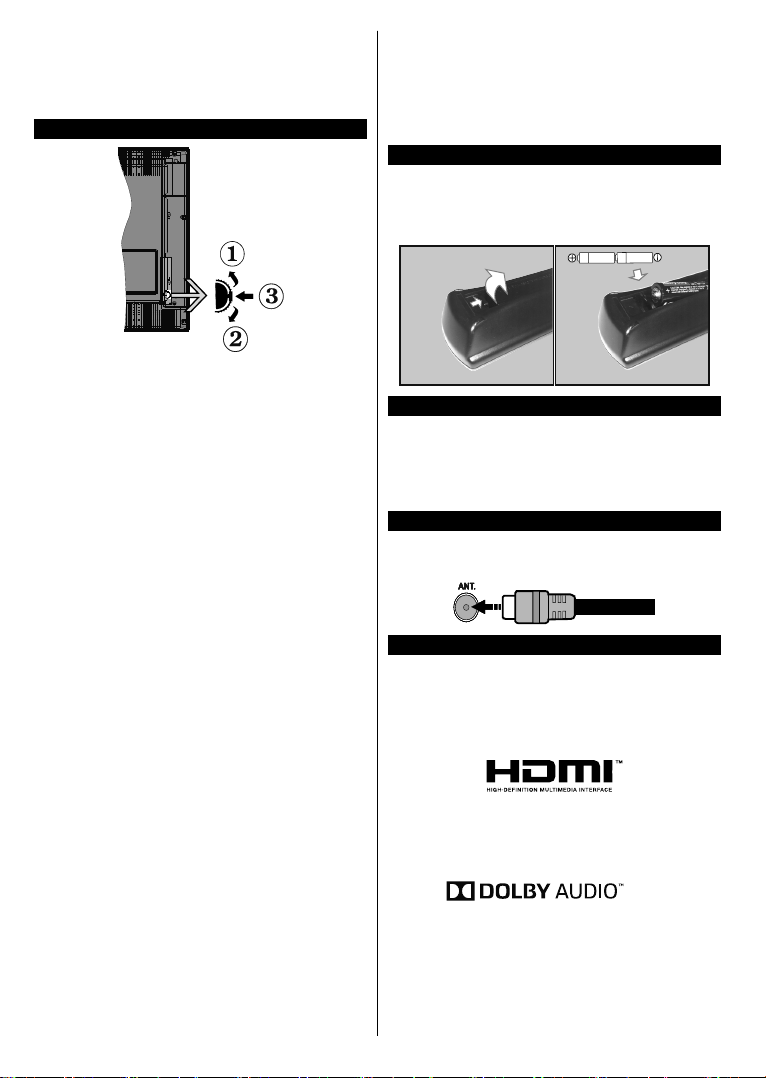

TV Control Switch & Operation...............................6

Inserting the Batteries into the Remote
Connect Power
Antenna Connection

Notication
Specication

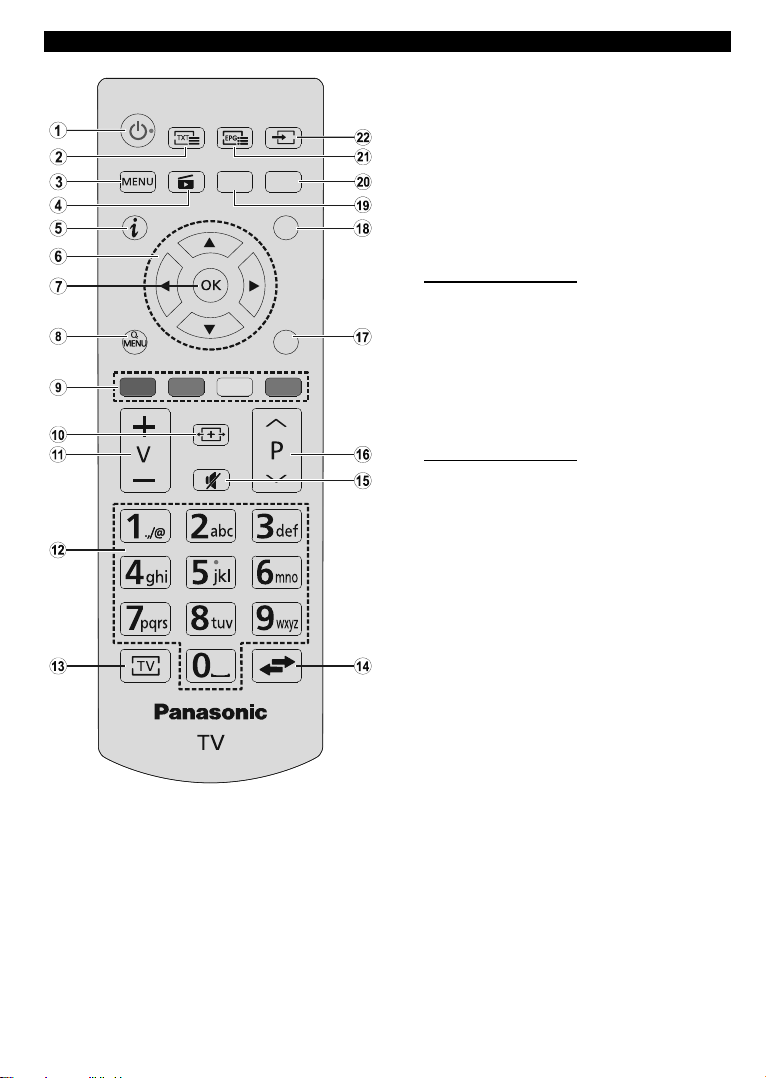

Remote Control

......................................................6

...............................................6

..............................................................6

...........................................................8

......................................................9

..................6

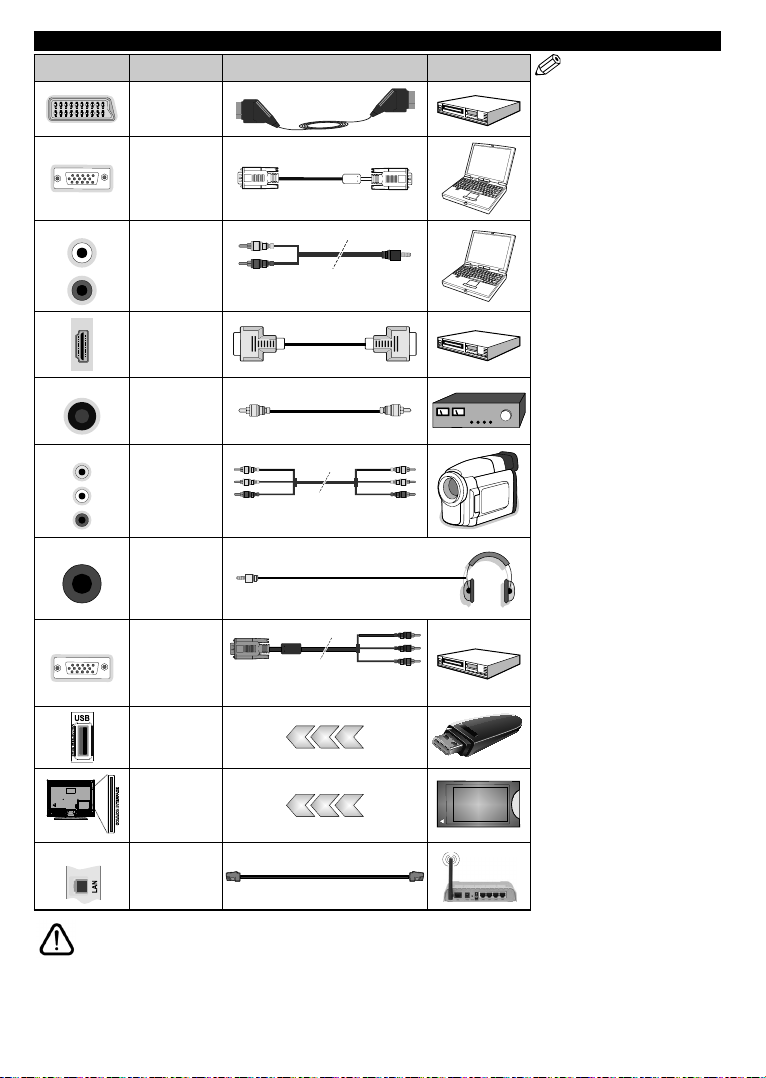

Connections..........................................................10

Switching On/Off ................................................... 11

First Time Installation............................................ 11

Media Playback via USB Input

............................. 11

Media Player Menu...............................................12

CEC and CEC RC Passthrough ...........................12

TV Menu Contents................................................13

General TV Operation ..........................................17

Using the Channel List .........................................17

Conguring Parental Settings ...............................17

Electronic Programme Guide (EPG)
Teletext Services

..................................................18

....................17

Software Upgrade.................................................18

Troubleshooting & Tips .........................................18

PC Input Typical Display Modes

V and HDMI Signal Compatibility .......................19

A

...........................19

Supported Video File Formats for USB Mode ......20

Supported Picture File Formats for USB Mode ....20

Supported Audio File Formats for USB Mode ......21

Supported Subtitle File Formats for USB Mode ...22

Supported DVI Resolutions ..................................23

Important Instruction .............................................24

English - 1 -

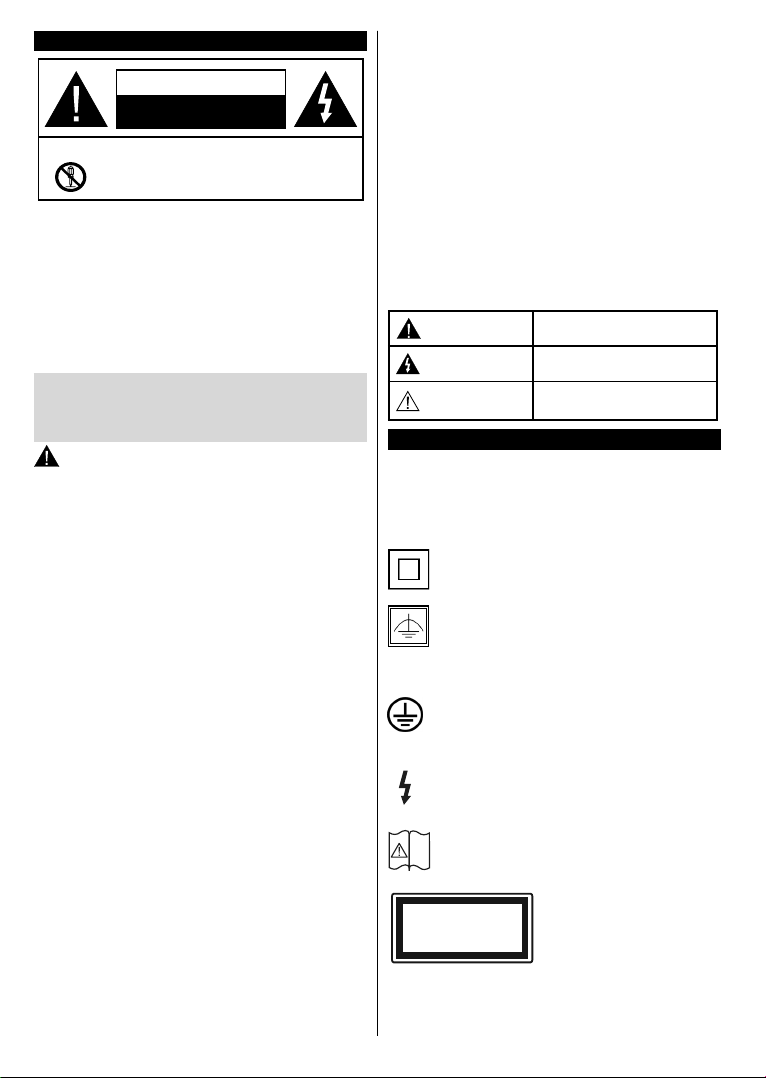

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO

NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SER

VICING TO QUALIFIED SERVICE PERSONNEL.

In extreme weather (storms, lightning) and long inactivity
periods (going on holiday) disconnect the TV set from the
mains.

The mains plug is used to disconnect TV set from the mains
and therefore it must remain readily operable. If the TV set is
not disconnected electrically from the mains, the device will
still draw power for all situations even if the TV is in standby
mode or switched off.

Note: Follow the on screen instructions for operating the
related features.

IMPORTANT - Please read these
instructions fully before installing or
operating

WARNING: Never let people (including

children) with reduced physical, sensory or
mental capabilities or lack of experience and / or
knowledge use electrical devices unsupervised.

• Use this TV set at an altitude of less than 2000
meters above the sea level, in dry locations and in
regions with moderate or tropical climates.

TV set is intended for household and similar

•

The
general use but may also be used in public places.

• For ventilation purposes, leave at least 5cm of free
space around the TV.

• The ventilation should not be impeded by covering
or blocking the ventilation openings with items, such
as newspapers, table-cloths, curtains, etc.

he power cord plug should be easily accessible. Do

•

T
not place the TV, furniture, etc. on the power cord.

A damaged power cord/plug can cause re or give

you an electric shock. Handle the power cord by the
plug, do not unplug the TV by pulling the power cord.
Never touch the power cord/plug with wet hands
as this could cause a short circuit or electric shock.
Never make a knot in the power cord or tie it with
other cords. When damaged it must be replaced,

this should only be done by qualied personnel.

•

Do not expose

liquids and do not place objects lled with liquids,

such as vases, cups, etc. on or over the TV (e.g.,
on shelves above the unit).

•

Do not expose the TV to direct sunlight or do not

place open ames such as lit candles on the top of

or near the TV.

the TV to dripping or splashing of

• Do not place any heat sources such as electric
heaters, radiators, etc. near the TV set.

Do not

•

place the TV on the floor and inclined

surfaces.

• To avoid danger of suffocation, keep plastic bags
out of the reach of the babies, children and domestic
animals.

Carefully

•

attach the stand to the TV. If the stand is

provided with screws, tighten the screws rmly to

prevent the TV from tilting. Do not over-tighten the
screws and mount the stand rubbers properly.

Do not dispose of the batteries in fire or with

•
hazardous or ammable materials.

Warning: Batteries must not be exposed to excessive

heat such as sunshine, re or the like.

Caution

Risk of electric shock

Maintenance

Serious injury or death risk

Dangerous voltage risk

Important maintenance
component

Markings on the Product

The following symbols are used on the product as
a marker for restrictions and precautions and safety
instructions. Each explanation shall be considered
where the product bears related marking only. Note
such information for security reasons.

Class II Equipment: This appliance is
designed in such a way that it does not require
a safety connection to electrical earth.

Class II Equipment With Functional
Earthing: This appliance is designed in such

a way that it does not require a safety
connection to electrical earth, the earth connection is
used for functional purposes.

Protective Earth Connection: The marked
terminal is intended for connection of the
protective earthing conductor associated with

the supply wiring.

Hazardous Live Terminal: The marked
terminal(s) is/are hazardous live under normal
operating conditions.

Caution, See Operating Instructions: The
marked area(s) contain(s) user replaceable

i

coin or button cell batteries.

Class 1 Laser Product:

CLASS 1
LASER PRODUCT

This product contains Class
1 laser source that is safe
under reasonably foreseeable
conditions of operation.

English - 2 -

WARNING

Do not ingest the battery, Chemical Burn Hazard
This product or the accessories supplied with the
product may contain a coin/button cell battery. If
the coin/button cell battery is swallowed, it can
cause severe internal burns in just 2 hours and
can lead to death.
Keep new and used batteries away from children.
If the battery compartment does not close secure­ly, stop using the product and keep it away from
children.
If you think batteries might have been swallowed
or placed inside any part of the body, seek imme­diate medical attention.

WALL MOUNTING WARNINGS

• Read the instructions before mounting your TV
on the wall.

The

wall mount kit is optional. You can obtain from

•

your local dealer, if not supplied with your TV.

• Do not install the TV on a ceiling or on an inclined
wall.

Use

•

the specied wall mounting screws and other

accessories.

• Tighten the wall mounting screws rmly to prevent

the TV from fall. Do not over-tighten the screws.

WARNING

Never place a television set in unstable or inclined
locations. A television set may fall, causing serious
personal injury or death. Many injuries, particularly
to children, can be avoided by taking simple pre­cautions such as;

•

Using cabinets or stands recommended
manufacturer of the television set.

• Only using furniture that can safely support the
television set.

• Ensuring the television set is not overhanging the
edge of the supporting furniture.

• Not placing the television set on tall furniture
(for example, cupboards or bookcases) without
anchoring both the furniture and the television set
to a suitable support.

• Not standing the television set on cloth or other
materials placed between the television and
supporting furniture.

• Educating children about the dangers of climbing
on furniture to reach the television set or its
controls. If your existing television set is being
retained and relocated, the same considerations
as above should be applied.

by the

WARNING

Apparatus connected to the protective earthing
of the building installation through the MAINS
connection or through other apparatus with a
connection to protective earthing – and to a
television distribution system using coaxial cable,

may in some circumstances create a re hazard.

Connection to a television distribution system has
therefore to be provided through a device providing
electrical isolation below a certain frequency range
(galvanic isolator, see EN 60728-11)

WARNING

• Using other wall-hanging brackets, or installing
a wall-hanging bracket by yourself have the risk
of personal injury and product damage. In order
to maintain the unit’s performance and safety, be
absolutely sure to ask your dealer or a licensed
contractor to secure the wall-hanging brackets.
Any damage caused by installing without a

qualied installer will void your warranty.

• Carefully read the instructions accompanying

optional accessories, and be absolutely sure to
take steps to prevent the TV from falling off.

• Handle the TV carefully during installation since
subjecting it to impact or other forces may cause
product damage.

• Take care when xing wall brackets to the wall.

Always ensure that there are no electrical cables
or pipes in the wall before hanging bracket.

• To prevent fall and injury, remove the TV from
its xed wall position when it is no longer in use.

English - 3 -

Maintenance

First, remove the mains plug from the mains
socket.

Display panel, Cabinet, Pedestal

Regular care:

Gently wipe the surface of the display panel, cabinet,
or pedestal by using a soft cloth to remove dirt or

ngerprints.

For stubborn dirt:

1.

First clean the dust from the surface.

Dampen a soft cloth with clean water or diluted

2.

neutral detergent (1 part detergent to 100 parts
water).

Wring out the cloth rmly. (Please note, do not

3.

let liquid enter the TV inside as it may lead to
product failure.)

4.

Carefully wipe moisten and wipe away the
stubborn dirt.

5.

, wipe away all the moisture.

Finally

Caution

Do not use a hard cloth or rub the surface too hard,
otherwise this may cause scratches on the surface.

•

Take care not to subject the surfaces to insect

repellent, solvent, thinner or other volatile
substances. This may degrade surface quality or
cause peeling of the paint.

surface of the display panel is specially treated

•

The
and may be easily damaged. Take care not to tap

or scratch the surface with your ngernail or other

hard objects.

•

Do not allow the cabinet and pedestal to make

contact with a rubber or PVC substance for a long
time. This may degrade surface quality.

Mains plug

Wipe the mains plug with a dry cloth at regular
intervals.

Moisture and dust may cause re or electrical shock.

Assembling / Removing the pedestal

Preparations

Take out the pedestal and the TV from the packing
case and put the stand onto a work table or any other
even surface.

a at and rm table or similar even surface that

•

Use

can support the weight of the TV.

•

Do not hold the screen panel part.

•

Make sure not to scratch or break the

TV.

Assembling the pedestal

1. Place the stand on the table or similar even

surface.

2. Hold the TV over the stand so that it coincides
with the stand mouinting point and then lower it
to be mounted with its own weight. If the stand

is not tted properly, gently press down until the

latch/es snap/s into place.

Removing the pedestal from the TV

Be sure to remove the pedestal in the following way
when using the wall-hanging bracket or repacking
the TV.

• Put the TV onto a work table with the screen panel

down on the clean and soft cloth. Leave the stand
protruding over the edge of the surface.

• Press the button/s to release the latch/es.

• Remove the stand by pulling it away from the TV.

English - 4 -

When using the wall-hanging bracket

Please contact your local Panasonic dealer to
purchase the recommended wall-hanging bracket.

Holes for wall-hanging bracket installation;

Rear of the TV

a

b

a (mm) 75

b (mm) 75

View from the side

a

Depth of
screw (a)

min. (mm) 5

max. (mm) 8

Diameter M4

Note: The screws for xing the TV onto the wall-hanging
bracket are not supplied with the TV.

Environmental Information

This television is designed to be environment friendly.
To reduce energy consumption, you can follow these
steps:

If you set the Energy Saving to Minimum, Medium,
Maximum or Auto the TV will reduce the energy
consumption accordingly. If you like to set the
Backlight to a xed value set as Custom and adjust
the Backlight (located under the Energy Saving
setting) manually using Left or Right buttons on the
remote. Set as Off to turn this setting off.

Note: Available Energy Saving options may differ depending
on the selected Mode in the Picture menu.

The Energy Saving settings can be found in the
Picture menu. Note that some picture settings will

be unavailable to be changed.

If pressed Right button while Auto option is selected or
Left button while Custom option is selected, “Screen

will be off in 15 seconds.” message will be displayed

English - 5 -

on the screen. Select Proceed and press OK to turn
the screen off immediately. If you don’t press any
button, the screen will be off in 15 seconds. Press
any button on the remote or on the TV to turn the
screen on again.

Note: Screen Off option is not available if the Mode is set

to Game.

When the TV is not in use, please switch off or
disconnect the TV from the mains plug. This will also
reduce energy consumption.

Features

•

Remote controlled colour

• Fully integrated digital terrestrial/cable (DVB-T-T2/C)

• HDMI inputs to connect other devices with HDMI

sockets

•

USB input

OSD menu system

•

• Scart socket for external devices (such as DVD

Players, PVR, video games, etc.)

•

Stereo sound system

Teletext

•

• Headphone connection

•

Automatic programming system

•

Manual tuning

•

Automatic power down after up to eight hours.

Sleep timer

•

• Child lock

•

Automatic sound mute when no transmission.

•

NTSC playback

AVL (Automatic Volume Limiting)

•

•

(Frequency Search)

PLL

• PC input

•

Game Mode (Optional)

Ethernet (LAN) for interactive services available

•

digital channels

•

Picture of

Accessories Included

•

Remote Control

Batteries: 2 x

•

• Instruction Book

• Detachable stand

Standby Notications

the TV does not receive any input signal (e.g. from

If
an aerial or HDMI source) for 5 minutes, it will go
into standby. When you next switch-on, the following
message will be displayed: “TV switched to stand-by

mode automatically because there was no signal
for a long time.” Press OK to continue.

f function

AA

TV

on

If the TV is on and it isn’t being operated for a while
it will go into standby. When you next switch-on, the
following message will be displayed. “TV switched to

stand-by mode automatically because no operation
was made for a long time.” Press OK to continue.

TV Control Switch & Operation

1. Up direction

2. Down direction

olume / Info / Sources List selection and

3.

V
Standby-On switch

The Control button allows you to control the Volume
/ Programme / Source and Standby-On functions of
the TV.

To change volume: Increase the volume by pushing
the button up. Decrease the volume by pushing the
button down.

To change channel: Press the middle of the button,
the information banner will appear on the screen.
Scroll through the stored channels by pushing the
button up or down.

To change source: Press the middle of the button
twice(for the second time in total), the source list will
appear on the screen. Scroll through the available
sources by pushing the button up or down.

To turn the TV off: Press the middle of the button
down and hold it down for a few seconds, the TV will
turn into standby mode.

Notes:

•

If you turn the

TV off, this circle starts again

beginning with the volume setting.

• Main menu OSD cannot be displayed via control
button.

Operation with the Remote Control

Press the Menu button on your remote control to
display main menu screen. Use the directional buttons
to select a menu tab and press OK to enter. Use the
directional buttons again to select or set an item. Press

Return/Back or Menu button to quit a menu screen.

Input Selection

Once you have connected external systems to your
TV, you can switch to different input sources. Press the

Source button on your remote control consecutively
to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume
by using the Volume +/- and Programme +/- buttons
on the remote.

Inserting the Batteries into the Remote

Lift the cover on the back of the remote gently. Insert
two AA batteries. Make sure the (+) and (-) signs
match (observe correct polarity). Place the cover
back on.

Connect Power

IMPORTANT: The TV set is designed to operate on
220-240V AC, 50 Hz socket. After unpacking, allow

the TV set to reach the ambient room temperature
before you connect the set to the mains. Plug the
power cable to the mains socket outlet.

Antenna Connection

Connect the aerial or cable TV plug to the AERIAL
INPUT (ANT) socket located on the back of the TV.

Notication

TRADEMARK ACKNOWLEDGMENT

The terms HDMI and High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing LLC in the
United States and other countries.

Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio and the double-D symbol are
trademarks of Dolby Laboratories.

English - 6 -

Disposal of Old Equipment and Batteries

Only for European Union
and countries with recycling
systems

These symbols on the products,
packaging, and/or accompanying
documents mean that used electrical and
electronic products and batteries must
not be mixed with general household
waste.

For proper treatment, recovery and
recycling of old products and batteries,
please take them to applicable collection
points in accordance with your national
legislation.

By disposing of them correctly, you will
help to save valuable resouces and
prevent any potential negative effects
on human health and the environment.

For more information about collection
and recycling, please contact your local
municipality.

Penalties may be applicable for incorrect
disposal of this waste, in accordance with
national legislation.

Note for the battery symbol
(bottom symbol):

This symbol might be used in
combination with a chemical symbol.
In this case it complies with the
requirement set by the Directive for the
chemical involved.

Declaration of Conformity (DoC)

“Hereby, Panasonic Marketing Europe GmbH
declares that this TV is in compliance with the
essential requirements and other relevant provisions
of the Directive 2014/53/EU.”

If you want to get a copy of the original DoC of this
TV, please visit the following website:

http://www.ptc.panasonic.eu/doc

Authorized Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Web Site: http://www.panasonic.com

Sales and Support Information

Customer Communication Centre

For customers within the UK:

•

For customers within Ireland: 01289 8333

•

•

Monday - Friday 9:00am - 5:00pm, (Excluding public

holidays).

For

further support on your product, please visit our

•

website: www.panasonic.co.uk

Direct Sales at Panasonic UK

• Order accessory and consumable items for your

product with ease and condence by phoning our

Customer Comminications Centre Monday - Friday
9:00am - 5:00pm, (Excluding public holidays).

• Or go on line through our Internet Accessory
ordering application at www.pas-europe.com.

Most major credit and debit cards accepted.

•

• All enquiries transactions and distribution facilities

are provided directly by Panasonic UK.

• It couldn’t be simpler!

Also available through our Internet is direct shopping

•
for a wide range of nished products. Take a browse

on our website for further details.

0344 844 3899

English - 7 -

Specication

TV Broadcasting

PAL BG/DK/II’

SECAM BG/DK

VHF (BAND I/III)

Receiving Channels

- UHF (BAND U) ­HYPERBAND

Fully integrated digital

Digital Reception

terrestrial-cable TV
(DVB-T-C)
(DVB-T2 compliant)

Number of Preset
Channels

1 000

Channel Indicator On Screen Display

RF Aerial Input 75 Ohm (unbalanced)

Operating Voltage 220-240V AC, 50Hz.

Audio A2 Stereo+Nicam Stereo

Headphone 3.5mm mini stereo jack

Audio Output Power
(WRMS.) (10% THD)

Power Consumption
(W)

2 x 2,5 W

40 W

Weight (Kg) 3,5 Kg

TV Dimensions
DxLxH (with foot)

134 x 554 x 372

(mm)

TV Dimensions
DxLxH (without

35/61 x 554 x 339

foot) (mm)

Display 16/9 24”

Operation
temperature and
operation humidity

0ºC up to 40ºC, 85%
humidity max

Notice for DVB / Data broadcasting

This

TV is designed to meet the standards (as of

•

August, 2013) of DVB-T / T2 (MPEG2 and MPEG4­AVC(H.264)) digital terrestrial services and DVB-C
(MPEG2 and MPEG4-AVC(H.264)) digital cable
services.

Consult your local dealer for

availability of DVB-T /

T2 services in your area.

Consult

your cable service provider for availability

of DVB-C services with this TV.

• This TV may not work correctly with the signal
which does not meet the standards of DVB-T / T2
or DVB-C.

Not all the

•

features are available depending on the
country, area, broadcaster, service provider and
network environment.

Not

all CI modules work properly with this TV.

•

Consult your service provider about the available
CI module.

This

•

TV may not work correctly with CI module that

is not approved by the service provider.

Additional

•

fees may be charged depending on the
service provider.

Th

e compatibility with future services is not

•

guaranteed.

English - 8 -

Remote Control

B

ACK

EXIT

LANG SUBT

1. Standby: Switches On / Off the TV

2. Text: Displays teletext (where available), press

again to superimpose the teletext over a normal
broadcast picture (mix)

Menu:

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

Displays TV menu

Media

player: Opens the media player screen

Info: Displays information about on-screen

content, shows hidden information (reveal - in
TXT

mode)

Directional buttons: Helps navigate menus,
content etc. and displays the subpages in
mode when pressed Right or Left

In media player mode;
Left: Rapid reverse
Right: Rapid advance

OK:

Conrms user selections, holds the page

(in TXT mode), views channel list (DTV mode),
Pause (in media player mode)

Quick Menu: Displays a list of menus for quick
access

Coloured Buttons: Follow the on-screen
instructions for accurate functions of the
coloured button

In media player
Red: Stop / Play
Green: Play / Jump
Yellow: Pause / Subtitle time correction
Blue: Stop

Screen:
V

olume +/-

Numeric buttons:

enters a number or a letter in the text box on
the screen, switches the TV on when in standby

mode.

TV: Displays channel list / Switches to TV

Source

Swap:

Quickly cycles between previous and

current channels or sources

Mute:

Completely turns off the volume of the

TV

Programme +/-

up-down (in TXT mode), switches the TV on
when in standby mode

Back/Return: Returns to previous screen,
opens index page (in

Exit:

Closes and exits from displayed menus or

returns to previous screen

Language:

(analogue TV), displays and changes audio/
subtitle language (digital TV, where available)

Subtitles:

available)
EPG (Electronic programme guide): Displays

the electronic programme guide

Source:

content sources

mode;

Changes the aspect ratio of the screen

Switches the channel,

: Programme up-down, Page

TXT mode)

Switches between sound modes

Turns subtitles on and off (where

Shows all available broadcast and

TXT

English - 9 -

Connections

Connector Type Cables Device

Scart

Connection

(back)

VGA

Connection

(back)

SIDE AV

SPDIF

SIDE AV

HEADPHONE

YPBPR

PC/YPbPr

Audio

Connection

(side)

HDMI

Connection

(back)

SPDIF

(Coaxial Out)

Connection

(back)

Side AV

(Audio/Video)

Connection

(side)

Headphone
Connection

(side)

YPbPr Video

Connection

(back)

YPbPr/PC Audio Cable

AV Cable

PC to YPbPr Connection Cable

NOTE: When connecting
a device via the YPbPr or Side
AV input, you must use the
connection cables to enable
connection. See the illustrations

on the left side. | You can use

YPbPr to VGA cable to enable
YPbPr signal via VGA input. |
You cannot use VGA and YPbPr

at the same time. | To enable
PC/YPbPr audio, you will need
to use the side audio inputs
with a YPbPr/PC audio cable
for audio connection. | If an

external device is connected via
the SCART socket, the TV will
automatically switch to AV mode.|
When receiving DTV channels

(Mpeg4 H.264) or while in Media
Player mode, output will not be
available via the scart socket. |
When using the wall mounting
kit (available from third party
in the market, if not supplied),
we recommend that you plug all
your cables into the back of the

TV before mounting on the wall.

| Insert or remove the CI module

only when the TV is SWITCHED

OFF. You should refer to the
module instruction manual for

details of the settings. | The/Each
USB input of your TV supports

devices up to 500mA. Connecting
devices that have current value
above 500mA may damage your

TV. | By connecting an HDMI cable
to your TV, you have to use only a

shielded HDMI cable to guarantee
a sufficient immunity against
parasitic frequency radiation.

USB

Connection

(side)

CI

Connection

(side)

LAN

If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making
any connection. After the connection is done, you can turn on the units and use them.

Ethernet

Connection

(back)

LAN / Ethernet Cable

CAM

module

English - 10 -

Switching On/Off

To Switch the TV On

Connect the power cord to a power source such as a
wall socket (220-240V AC, 50 Hz).

To switch on the TV from standby mode either:

Press the

•

Standby button, Programme +/- or a

numeric button on the remote control.

Press t

he side function switch on the TV until the TV

•

comes on from standby.

To Switch the TV Off

Press the Standby button on the remote control or
press the side function switch on the TV until the TV
switches into standby mode.

To power down the TV completely, unplug the
power cord from the mains socket.

Note: When the TV is switched into standby mode, the
standby LED can blink to indicate that features such as

Standby Search, Over Air Download or Timer is active. The

LED can also blink when you switch on the TV from standby

mode.

First Time Installation

When turned on for the first time, the language
selection screen is displayed. Select the desired
language and press OK.

On the next screen, set your preferences using the
directional buttons.

Note: Depending on the Country selection you may be asked

to set and conrm a PIN at this point. The selected PIN cannot
be 0000. You have to enter it if you are asked to enter a PIN

for any menu operation later.

About Selecting Broadcast Type

Digital Aerial: If Digital Aerial broadcast search

option is turned on, the TV will search for digital
terrestrial broadcasts after other initial settings are
completed.

Digital Cable: If Digital Cable broadcast search
option is turned on, the TV will search for digital cable
broadcasts after other initial settings are completed.

According to your other preferences a conrmation

message may be displayed before starting to search.
Select YES and press OK to proceed. To cancel
operation, select NO and press OK. You can select

Network or set values such as Frequency, Network
ID and Search Step. When nished, press OK button.

Note: Searching duration will change depending on the
selected Search Step.

Analogue: If Analogue broadcast search option is
turned on, the TV will search for analogue broadcasts
after other initial settings are completed.

Additionally you can set a broadcast type as your
favourite one. Priority will be given to the selected
broadcast type during the search process and the

channels of it will be listed on the top of the Channel
List. When nished, press OK to continue.

You can activate Store Mode option at this point.

This option will congure your TV’s settings for store

environment and depending on the TV model being

used, the supported features of it may be displayed
on the top of the screen as an info banner. This option

is intended only for store use. It is recommended to
select Home Mode for home use. This option will be
available in Setup>More menu and can be turned
off/on later.

Press OK button on the remote control to continue.
After the initial settings are completed TV will start
to search for available broadcasts of the selected
broadcast types.

After all the available stations are stored, scan results
will be displayed. Press OK to continue. The Edit
Channel List menu will be displayed next. You can
edit the channel list according to your preferences or
press the Menu button to quit and watch TV.

While the search continues a message may appear,
asking whether you want to sort channels according
to the LCN(*). Select Yes and press OK to conrm.

(*) LCN is the Logical Channel Number system that organizes
available broadcasts in accordance with a recognizable

channel number sequence (if available).

Note: Do not turn off the TV while initializing first time
installation. Note that, some options may not be available

depending on the country selection.

Media Playback via USB Input

You can connect 2.5” and 3.5” inch (hdd with external power
supply) external hard disk drives or USB memory stick to your
TV by using the USB inputs of the TV.

IMPORTANT! Back up the les on your storage devices

before connecting them to the TV. Manufacturer will

not be responsible for any le damage or data loss.

Certain types of USB devices (e.g. MP3 Players)
or USB hard disk drives/memory sticks may not be
compatible with this TV. The TV supports FAT32 and
NTFS disk formatting.

Wait a little while before each plugging and unplugging

as the player may still be reading les. Failure to do

so may cause physical damage to the USB player
and the USB device itself. Do not pull out your drive

while playing a le.

You can use USB hubs with your TV’s USB inputs.
External power supplied USB hubs are recommended
in such a case.

It is recommended to use the TV’s USB input(s)
directly, if you are going to connect a USB hard disk.

Note: When viewing image les the Media Player menu
can only display 1000 image les stored on the connected

USB device.

English - 11 -

Media Player Menu

You can play photo, music and movie les stored

on a USB disk by connecting it to your TV. Connect
a USB disk to one of the USB inputs located on the
side of the TV. Pressing the Menu button while in the
Media Player mode will access the Picture, Sound
and Setup menu options. Pressing the Menu button

again will exit from this screen.

You can set your

Media Player preferences by using the Setup menu.

Loop/Shufe Mode Operation

Start playback with the Green

button and activate

Start playback with the OK

button and activate

Start playback with the Green

button and activate

Start playback with the Green

button and activate

All les in the list will be

continuously played in original
order

The same le will be played

continuously (repeat)

All les in the list will be

played once in random order

All les in the list will be

continuously played in the

,

same random order.

CEC and CEC RC Passthrough

This function allows to control the CEC-enabled
devices, that are connected through HDMI ports by
using the remote control of the TV.

The CEC option in the Setup>More menu should be
set as Enabled at rst. Press the Source button and
select the HDMI input of the connected CEC device
from the Sources List menu. When new CEC source
device is connected, it will be listed in source menu
with its own name instead of the connected HDMI
ports name(such as DVD Player, Recorder 1 etc.).

The TV remote is automatically able to perform the
main functions after the connected HDMI source has
been selected.

To terminate this operation and control the TV via
the remote again, press Quick Menu button on the
remote, highlight the CEC RC Passthrough and
set as Off by pressing Left or Right button. This
feature can also be enabled or disabled under the
Setup>More menu.

The TV supports also ARC(Audio Return Channel)
feature. This feature is an audio link meant to replace
other cables between the TV and the audio system
(A/V receiver or speaker system).

When ARC is active, TV does not mute its other audio
outputs automatically. So you need to decrease TV
volume to zero manually, if you want to hear audio
from connected audio device only (same as other
optical or co-axial digital audio outputs). If you want
to change connected device’s volume level, you
should select that device from the source list. In that
case volume control keys are directed to connected
audio device.

Note: ARC is supported only via the HDMI1 input.

System Audio Control

Allows an Audio Amplier/Receiver to be used with

the TV. The volume can be controlled using the
remote control of the TV. To activate this feature set
the Speakers option in the Setup>More menu as
Amplier. The TV speakers will be muted and the
sound of the watched source will be provided from
the connected sound system.

Note: The audio device should support System Audio Control
feature and CEC option should be set as Enabled.

English - 12 -

TV Menu Contents

Colour

Picture Zoom

Skin Tone

Colour Shift

Picture Menu Contents

Mode

Contrast

Brightness

Sharpness

Energy Saving

Backlight

Advanced Settings

Dynamic Contrast

Noise Reduction

Colour Temp

White Point

Film Mode

HDMI Full Range

PC Position

Autoposition

H Position

V Position

Dot Clock

Phase

Reset

While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture
Settings while in PC mode.

You can change the picture mode to suit your preference or requirements. Picture mode can
be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural.

Adjusts the light and dark values on the screen.

Adjusts the brightness values on the screen.

Sets the sharpness value for the objects displayed on the screen.

Sets the colour value, adjusting the colours.

For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto,

Screen Off or Off.

Note: Available options may differ depending on the selected Mode.

This setting controls the backlight level. The backlight function will be inactive if the
Energy Saving is set to an option other then Custom.

You can change the dynamic contrast ratio to desired value.

If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce
the amount of noise.

Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are
available.

If the Colour Temp option is set as Custom, this setting will be available. Increase the
‘warmth’ or ‘coolness’ of the picture by pressing Left or Right buttons.

Sets the desired image size format.

Films are recorded at a different number of frames per second to normal television programmes.

Turn this feature on when you are watching lms to see the fast motion scenes clearly.

Skin tone can be changed between -5 and 5.

Adjust the desired colour tone.

While watching from a HDMI source, this feature will be visible. You can use this feature to
enhance blackness in the picture.

Appears only when the input source is set to VGA/PC.

Automatically optimizes the display. Press OK to optimize.

This item shifts the image horizontally to the right hand side or left hand side of the screen.

This item shifts the image vertically towards the top or bottom of the screen.

Dot Clock adjustments correct the interference that appear as vertical banding in dot
intensive presentations like spreadsheets or paragraphs or text in smaller fonts.

Depending on the input source(computer etc.) you may see a hazy or noisy picture on the
screen. You can use phase to get a clearer picture by trial and error.

Resets the picture settings to factory default settings (except Game mode).

English - 13 -

Sound Menu Contents

Volume

Equalizer

Balance

Headphone

Sound Mode

AVL (Automatic
Volume Limiting)

Headphone/Lineout

Dynamic Bass

Surround sound

Digital Out

Adjusts the volume level.

Selects the equalizer mode. Custom settings can be made only when in User mode.

Adjusts whether the sound comes from the left or right speaker.

Sets headphone volume.
Please ensure before using headphones that the headphone volume is set to a low

level, to prevent damage to your hearing.

You can select a sound mode (If the viewed channel supports).

Sets the sound to obtain xed output level between programmes.

When you connect an external amplier to your TV using the headphone jack, you

can select this option as Lineout. If you have connected headphones to the TV, set
this option as Headphone.

Please ensure before using headphones that this menu item is set to Headphone.
If it is set to Lineout, the output from the headphone socket will be set to maximum
which could damage your hearing.

Enables or disables the Dynamic Bass.

Surround sound mode can be changed as On or Off.

Sets digital out audio type.

English - 14 -

Setup Menu Contents

Conditional Access

Accessibility

More

Language

Parental

Timers

Date/Time

Sources

Network/Internet
Settings

Hard of Hearing

Audio
Description

Menu Timeout

Software
Upgrade

Application
Version

Subtitle Mode

Auto TV OFF

Store Mode

Power Up Mode

CEC

CEC Auto Power
On

Speakers

OSS

Controls conditional access modules when available.

You may set a different language depending on the broadcaster and the country.

Enter correct password to change parental settings. You can easily adjust Menu
Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a
new PIN or change the Default CICAM PIN using the related options.

Note: Some menu options may not be available depending on the country selection in the First Time
Installation. Default PIN can be set to 0000 or 1234. If you have dened the PIN(is requested depending on

the country selection) during the First Time Installation use the PIN that you have dened

Sets sleep timer to turn off the TV after a certain time. Sets timers for selected
programmes.

Sets date and time.

Enables or disables selected source options.

Displays network/internet settings.

Displays accessibility options of the TV.

Enables any special feature sent from the broadcaster.

A narration track will be played for the blind or visually impaired audience. Press OK
to see all available Audio Description menu options. This feature is available only if
the broadcaster supports it.

Displays other setting options of the TV.

Changes timeout duration for menu screens.

Ensures that your TV has the latest rmware. Press OK to see the menu options.

Displays current software version.

This option is used to select which subtitle mode will be on the screen (DVB subtitle /
Teletext subtitle) if both is available. Default value is DVB subtitle. This feature is available
only for the country option of Norway.

Sets the desired time for the TV to automatically go into standby mode when not
being operated.

Select this mode for store display purposes. Whilst Store Mode is enabled, some
items in the TV menu may not be available.

This setting congures the power up mode preference. Last State and Standby
options are available.

With this setting you can enable and disable CEC functionality completely. Press Left
or Right button to enable or disable the feature.

This function allows the connected HDMI-CEC compatible device to turn on the TV
and switch to its input source automatically. Press Left or Right button to enable or
disable the feature.

To hear the TV audio from the connected compatible audio device set as Amplier.
You can use the remote control of the TV to control the volume of the audio device.

Displays Open Source Software license information.

.

English - 15 -

Installation Menu Contents

Automatic

channel scan

channel scan
(Retune)

Manual

Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations.
Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores

analogue stations.

This feature can be used for direct broadcast entry.

Network
channel scan

Analogue ne

tune

Installation
Settings

Clear Service
List

Select Active
Network

First time
installation

Searches for the linked channels in the broadcast system. Digital Aerial: Searches for aerial
network channels. Digital Cable: Searches for cable network channels.

You can use this setting for ne tuning analogue channels. This feature is not available if no

analogue channels are stored.

Displays installation settings menu. Standby Search (Optional): Your TV will search for new
or missing channels while in standby. Any new found broadcasts will be shown.

Use this setting to clear channels stored. This setting is visible only when the Country option
is set to Denmark, Sweden, Norway or Finland.

This setting allows you to select only the broadcasts within the selected network to be listed
in the channel list. This feature is available only for the country option of Norway.

Deletes all stored channels and settings, resets TV to factory settings.

English - 16 -

General TV Operation

Using the Channel List

The TV sorts all stored stations in the Channel List.
You can edit this channel list, set favourites or set
active stations to be listed by using the Channel List
options. Press the OK/TV button to open the Channel

List. You can lter the listed channels by pressing the
Blue button or open the Edit Channel List menu by

pressing the Green button in order to make advanced
changes in the current list.

Managing the Favourite Lists

You can create four different lists of your favourite
channels. Enter the Channel List in the main menu
or press the Green button while the Channel List
is displayed on the screen in order to open the Edit
Channel List menu. Select the desired channel on
the list. You can make multiple choices by pressing
the Yellow button. Then press the OK button to open
the Channel Edit Options menu and select Add/
Remove Favourites option. Press the OK button
again. Set the desired list option to On. The selected
channel/s will be added to the list. In order to remove
a channel or channels from a favourite list follow the
same steps and set the desired list option to Off.

You can use the Filter function in the Edit Channel

List menu to lter the channels in the Channel list

permanently according to your preferences. Using this
Filter option, you can set one of your four favourite
lists to be displayed everytime the Channel list is

opened. The ltering function in the Channel list
menu will only lter the currently displayed Channel
list in order to nd a channel and tune in to it. This

changes will not remain the next time the Channel
list is opened.

Conguring Parental Settings

The Parental Settings menu options can be used to
prohibit users from viewing of certain programmes,
channels and using of menus. These settings are
located in the Setup>Parental menu.

To display parental lock menu options, a PIN number
should be entered. After coding the correct PIN
number, Parental Settings menu will be displayed.

Menu Lock: This setting enables or disables access
to all menus or installation menus of the TV.

Guidance: This setting enables or disables access

some of the MHEG applications. Disabled applications
can be released by entering the right PIN.

Set PIN: Denes a new PIN number.

Default CICAM PIN: This option will appear as greyed

out if no CI module is inserted into the CI slot of the
TV. You can change the default PIN of the CI CAM
using this option.

Note: Default PIN can be set to 0000 or 1234. If you have
defined the PIN(is requested depending on the country

English - 17 -

selection) during the First Time Installation use the PIN that
you have dened.

Some options may not be available depending on the country
selection in the First Time Installation.

Electronic Programme Guide (EPG)

Some channels send information about their
broadcast schedules. Press the EPG button to view
the Programme Guide menu.

There are 3 different types of schedule layouts
available, Timeline Schedule, List Schedule and
Now/Next Schedule. To switch between them follow
the instructions on the bottom of the screen.

Timeline Schedule

Zoom (Yellow button): Press the Yellow button to

see events in a wider time interval.

Filter (Blue button): Views ltering options.

Select Genre (Subtitles button): Displays Select

Genre menu. Using this feature, you can search the

programme guide database in accordance with the
genre. Info available in the programme guide will be
searched and results matching your criteria will be
highlighted.

Options (OK button): Displays event options.
Event Details (Info button): Displays detailed

information about selected events.
Next/Prev Day (Programme +/- buttons): Displays
the events of previous or next day.

Search (Text button): Displays Guide Search menu.
Now (Swap button): Displays current event of the

highlighted channel.

List Schedule(*)

(*) In this layout option, only the events of the highlighted
channel will be listed.

Prev. Time Slice (Red button): Displays the events
of previous time slice.
Next/Prev Day (Programme +/- buttons): Displays
the events of previous or next day.
Event Details (Info button): Displays detailed
information about selected events.

Filter (Text button): Views ltering options.
Next Time Slice (Green button): Displays the events

of next time slice.

Options (OK button): Displays event options.

Now/Next Schedule

Navigate (Directional buttons): Press the

Directional buttons to navigate through the channels

and events.

Options (OK button): Displays event options.
Event Details (Info button): Displays detailed

information about selected events.

Filter (Blue button): Views ltering options.

Event Options

Use the directional buttons to highlight an event and
press OK button to display Event Options menu. The
following options are available.

Select Channel: Using this option, you can switch to
the selected channel.
Set Timer on Event / Delete Timer on Event: After
you have selected an event in the EPG menu, press the
OK button. Select Set Timer on Event option and press
the OK button. You can set a timer for future events.
To cancel an already set timer, highlight that event and
press the OK button. Then select Delete Timer on
Event option. The timer will be cancelled.

Notes: You cannot switch to any other channel or source while
there is an active timer on the current channel.

It is not possible to set timer for two or more individual events
at the same time interval.

Teletext Services

Press the Text button to enter. Press again to activate
mix mode, which allows you to see the teletext page
and the TV broadcast at the same time. Press once
more to exit. If available, sections in the teletext pages
will become colour-coded and can be selected by
pressing the coloured buttons. Follow the instructions
displayed on the screen.

Digital Teletext

Press the Text button to view digital teletext
information. Operate it with the coloured buttons,
cursor buttons and the OK button. The operation
method may differ depending on the contents of the
digital teletext. Follow the instructions displayed on
the digital teletext screen. When the Text button is
pressed again, the TV returns to television broadcast.

Software Upgrade

Your TV is capable of nding and updating the rmware

automatically via the broadcast signal.

Software upgrade search via user interface

On the main menu select Setup and press the OK
button. Setup Menu will be displayed. Then select

More and press the OK button. Navigate to Software
upgrade and press the OK button. In Upgrade
options menu select Scan for upgrade and press
OK button to check for a new software upgrade.

If a new upgrade is found, it starts to download
the upgrade. After the download is completed
confirm the question asking about rebooting the
TV by pressing the OK to continue with the reboot
operation.

3 AM search and upgrade mode

Your TV will search for new upgrades at 3:00 o’clock if
Automatic scanning option in the Upgrade options
menu is set to Enabled and if the TV is connected
to an aerial signal. If a new software is found and
downloaded successfully, it will be installed at the
next power on.

Note: Do not unplug the power cord while led is blinking

during the reboot process. If the TV fails to come on after the

upgrade, unplug, wait for two minutes then plug it back in.

Troubleshooting & Tips

Tv will not turn on

Make sure the power cord is plugged in securely to
wall outlet. Check if batteries are exhausted. Press
the Power button on the TV.

Poor picture

• Check if you have selected the correct TV system.

• Low signal level can cause picture distortion. Please

check antenna access.

Check if you have entered

•

frequency if you have done manual tuning.

• The picture quality may degrade when two devices
are connected to the TV at the same time. In such
a case, disconnect one of the devices.

the correct channel

No picture

• This means your TV is not receiving any transmission.
Make sure the correct source has been selected.

•

Is the antenna connected properly?

Is the antenna cable damaged?

•

•

Are suitable plugs used to connect the antenna?

• If you are in doubt, consult your dealer.

No sound

• Check if the TV is muted. Press the Mute button or
increase the volume to check.

•

Sound may be coming f
the balance settings from Sound menu.

rom only one speaker. Check

Remote control - no operation

• The batteries may be exhausted. Replace the
batteries.

Input sources - can not be selected

• If you cannot select an input source, it is possible
that no device is connected. If not;

• Check the AV cables and connections if you are
trying to switch to the input source dedicated to the
connected device.

English - 18 -

PC Input Typical Display Modes

The following table is an illustration of some of the
typical video display modes. Your TV may not support
all resolutions.

Index Resolution Frequency

1 640x350 85Hz

2 640x400 70Hz

3 640x480 60Hz

4 640x480 66Hz

5 640x480 72Hz

6 640x480 75Hz

7 640x480 85Hz

8 800x600 56Hz

9 800x600 60Hz

10 800x600 70Hz

11 800x600 72Hz

12 800x600 75Hz

13 800x600 85Hz

14 832x624 75Hz

15 1024x768 60Hz

16 1024x768 66Hz

17 1024x768 70Hz

18 1024x768 72Hz

19 1024x768 75Hz

20 1024x768 85Hz

21 1152x864 60Hz

22 1152x864 70Hz

23 1152x864 75Hz

24 1152x864 85Hz

25 1152x870 75Hz

26 1280x768 60Hz

27 1360x768 60Hz

28 1280x768 75Hz

29 1280x768 85Hz

30 1280x960 60Hz

31 1280x960 75Hz

32 1280x960 85Hz

33 1280x1024 60Hz

34 1280x1024 75Hz

35 1280x1024 85Hz

36 1400x1050 60Hz

37 1400x1050 75Hz

38 1400x1050 85Hz

39 1440x900 60Hz

40 1440x900 75Hz

41 1600x1200 60Hz

42 1680x1050 60Hz

43 1920x1080 60Hz

44 1920x1200 60Hz

AV and HDMI Signal Compatibility

Source Supported Signals Available

PAL O

EXT

(SCART)

SECAM O

NTSC4.43 O

NTSC3.58 O

RGB 50/60 O

PAL O

Side AV

SECAM O

NTSC4.43 O

NTSC3.58 O

480i, 480p 60Hz O

YPbPr

576i, 576p 50Hz O

720p 50Hz,60Hz O

1080i 50Hz,60Hz O

480i, 480p 60Hz O

576i, 576p 50Hz O

720p 50Hz,60Hz O

HDMI

1080i 50Hz,60Hz O

24Hz,
25Hz,

1080p

30Hz,

O
50Hz,
60Hz

(X: Not Available, O: Available)

In some cases a signal on the TV may not be displayed
properly. The problem may be an inconsistency with
standards from the source equipment (DVD, Set-top
box, etc. ). If you do experience such a problem please
contact your dealer and also the manufacturer of the
source equipment.

English - 19 -

Supported Video File Formats for USB Mode

Extension Video Codec SPEC (Resolution) & Bit Rate

.dat, vob MPEG1/2

.mpg, .mpeg

.ts, .trp, .tp

.mp4, .mov,
.3gpp, .3gp

.avi MPEG1/2,

.mkv MPEG1/2,

.asf Sorenson H.263,

.v WMV3 1080P@30fps - 40 Mbps
.swf RV30/RV40 1080P@30fps - 40 Mbps
.wmv

MPEG1/2,
MPEG4

MPEG1/2, H.264,
AVS, MVC

MPEG1/2,
MPEG4, H.263,
H.264, Motion
JPEG

MPEG4,
Sorenson H.263,
H.263, H.264,
WMV3, Motion
JPEG

MPEG4, H.263,
H.264, WMV3,
Motion JPEG

H.264, WMV3,
Motion JPEG

H.264, WMV3,
VC1

1080P@30fps - 40 Mbps

H.264: 1080Px2@30fps - 62.5 Mbps, 1080P@60fps - 62.5 Mbps MVC:
1080P@30fps - 62.5 Mbps Other: 1080P@30fps - 40Mbps

H.264: 1080Px2@30fps - 62.5 Mbps, 1080P@60fps - 62.5 Mbps Motion JPEG:
640x480@30fps - 10 Mbps Other: 1080P@30fps - 40 Mbps

H.264: 1080Px2@30fps - 62.5 Mbps, 1080P@60fps - 62.5 Mbps Other:
1080P@30fps - 40 Mbps

Supported Picture File Formats for USB Mode

Image Photo Resolution (width x height)

JPEG

PNG

BMP 9600x6400

Base-line 15360x8640

Progressive 1024x768

non-interlace 9600x6400

interlace 1200x800

English - 20 -

Supported Audio File Formats for USB Mode

Extension

.mp3,

.avi

.asf

.mkv, .mka

.ts, .trp, .tp,
.dat, .vob,
.mpg, .mpeg

Audio Codec Bit Rate Sample rate

MPEG1/2 Layer1 32Kbps ~ 448Kbps

MPEG1/2 Layer3 8Kbps ~ 320Kbps
MPEG1/2 Layer1 32Kbps ~ 448Kbps

MPEG1/2 Layer3 8Kbps ~ 320Kbps
AC3 32Kbps ~ 640Kbps 32KHz, 44.1KHz, 48KHz
AAC, HEAAC 8KHz ~ 48KHz
WMA 128bps ~ 320Kbps 8KHz ~ 48KHz
WMA 10 Pro M0 < 192kbps 48KHz
WMA 10 Pro M1 < 384kbps 48KHz
WMA 10 Pro M2 < 768kbps 96KHz
LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz
IMA-ADPCM, MS-

ADPCM
G711 A/mu-law 64Kbps ~ 128Kbps 8KHz
MPEG1/2 Layer1 32Kbps ~ 448Kbps

MPEG1/2 Layer3 8Kbps ~ 320Kbps
WMA 128bps ~ 320Kbps 8KHz ~ 48KHz
WMA 10 Pro M0 < 192kbps 48KHz
WMA 10 Pro M1 < 384kbps 48KHz
WMA 10 Pro M2 < 768kbps 96KHz
MPEG1/2 Layer1 32Kbps ~ 448Kbps

MPEG1/2 Layer3 8Kbps ~ 320Kbps
AC3 32Kbps ~ 640Kbps 32KHz, 44.1KHz, 48KHz
AAC, HEAAC 8KHz ~ 48KHz
WMA 128bps ~ 320Kbps 8KHz ~ 48KHz
WMA 10 Pro M0 < 192kbps 48KHz
WMA 10 Pro M1 < 384kbps 48KHz
WMA 10 Pro M2 < 768kbps 96KHz
VORBIS Up to 48KHz
LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz
IMA-ADPCM,

MS-ADPCM
G711 A/mu-law 64Kbps ~ 128Kbps 8KHz
FLAC < 1.6Mbps 8KHz ~ 96KHz
MPEG1/2 Layer1 32Kbps ~ 448Kbps

MPEG1/2 Layer3 8Kbps ~ 320Kbps
AC3 32Kbps ~ 640Kbps 32KHz, 44.1KHz, 48KHz
EAC3 32Kbps ~ 6Mbps 32KHz, 44.1KHz, 48KHz
AAC, HEAAC 8KHz ~ 48KHz
LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz

16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384Kbps

16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384Kbps

384Kbps 8KHz ~ 48KHz

16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384Kbps

16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384Kbps

384Kbps 8KHz ~ 48KHz

16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384Kbps

English - 21 -

Extension

.wav

.3gpp, .3gp,
.mp4, .mov,
.m4a

.v

.ac3

.swf MPEG1/2 Layer3 8Kbps ~ 320Kbps 16KHz ~ 48KHz
.ec3 EAC3 32Kbps ~ 6Mbps 32KHz, 44.1KHz, 48KHz

.rm, .rmvb, .ra

.wma, .wmv

.webm VORBIS Up to 48KHz

Audio Codec Bit Rate Sample rate

MPEG1/2 Layer1 32Kbps ~ 448Kbps

MPEG1/2 Layer3 8Kbps ~ 320Kbps
LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz
IMA-ADPCM,

MS-ADPCM
G711 A/mu-law 64Kbps ~ 128Kbps 8KHz
MPEG1/2 Layer3 8Kbps ~ 320Kbps 16KHz ~ 48KHz
AC3 32Kbps ~ 640Kbps 32KHz, 44.1KHz, 48KHz
EAC3 32Kbps ~ 6Mbps 32KHz, 44.1KHz, 48KHz
AAC, HEAAC 8KHz ~ 48KHz
VORBIS Up to 48KHz
LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz
IMA-ADPCM,

MS-ADPCM
G711 A/mu-law 64Kbps ~ 128Kbps 8KHz
MPEG1/2 Layer3 8Kbps ~ 320Kbps 16KHz ~ 48KHz
AAC, HEAAC 8KHz ~ 48KHz
AC3 32Kbps ~ 640Kbps 32KHz, 44.1KHz, 48KHz
AAC, HEAAC 8KHz ~ 48KHz

AAC, HEAAC 8KHz ~ 48KHz

LBR (cook) 6Kbps ~ 128Kbps

WMA 128bps ~ 320Kbps 8KHz ~ 48KHz
WMA 10 Pro M0 < 192kbps 48KHz
WMA 10 Pro M1 < 384kbps 48KHz
WMA 10 Pro M2 < 768kbps 96KHz

384Kbps 8KHz ~ 48KHz

384Kbps 8KHz ~ 48KHz

Supported Subtitle File Formats for USB Mode

Internal Subtitles

Extension Container Subtitle Code

dat, mpg, mpeg, vob MPG, MPEG DVD Subtitle
ts, trp, tp TS DVB Subtitle

mp4 MP4

mkv MKV

External Subtitles

Extension Subtitle Parser Remark

.srt Subrip
.ssa/ .ass SubStation Alpha
.smi SAMI

.sub

.txt TMPlayer

SubViewer
MicroDVD
DVDSusbtitleSystem
SubIdx (VobSub)

16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384Kbps

8KHz, 11.025KHz,

22.05KHz, 44.1KHz

DVD Subtitle
UTF-8 Plain Text

ASS
SSA
UTF-8 Plain Text
VobSub
DVD Subtitle

SubViewer 1.0 & 2.0 Only

English - 22 -

Supported DVI Resolutions

When connecting devices to your TV’s connectors by using DVI converter cable(DVI to HDMI cable - not
supplied), you can refer to the following resolution information.

56Hz 60Hz 66Hz 70Hz 72Hz 75Hz

640x400

640x480

800x600

832x624

1024x768

1152x864

1152x870

1280x768

1360x768

1280x960

1280x1024

1400x1050

1440x900

1600x1200

1680x1050

1920x1080

þ þ þ þ

þ þ þ þ þ

þ þ þ þ þ

þ þ þ

þ þ

þ

þ þ

þ þ

þ þ

þ þ

þ

þ

þ

þ

þ

þ

English - 23 -

Important Instruction

For your own safety read following instruction carefully before attempting to connect this unit to the mains supply.

MAINS (AC) OPERATION

The wires in the mains lead are coloured in accordance with the following code :

GREEN

&

YELLOW

(Earth)

(if there is earth cable)

BLUE

(Neutral)

FUSE

BROWN

(Live)

IMPORTANT

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the terminal which is marked with
the letter E, or by the earth symbol, or coloured green or green and yellow.

The wire which is coloured blue or black must be connected to the terminal which is marked with the
letter N or coloured Black.

The wire which is coloured brown or red must be connected to the terminal which is marked with the
letter L or coloured Red.

For continued protection against risk of re, replace only with same type and rating of fuse (ASTA

approved 5A 250VAC fuse).

CAUTION

TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE REMOVING
COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

SAFETY PRECAUTION

THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN USE. DO NOT
ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.

English - 24 -

Product che

Supplier Panasonic Corporation

Model ID

Energy eciency class

Visible screen size (diagonal)

On mode average power consumption

Annual energy consumption *1

Standby power consumption *2

O mode power consumption

Screen resolution

*1: Energy consumption XYZ kWh per year, based on the power consumption of the television

operating 4 hours per day for 365 days.

The actual energy consumption will depend on how the television is used.

*2: when the TV is turned o with the remote control and no function is active.

For the information of rated power consumption, refer to the label on the TV back cover.

TX-24D302B

A+

60 cm / 24 inches

19 W

27 kWh

0,5 W

NA

1366 x 768

English - 25 -
