Page 1
22˝ Diagonal LCD TV
Operating Instructions
TX-22LT2Model No.
TQBC 0356
F.P. INDEX HOLD
SOUND
SET UP
TV/TEXT
ASPECT
TV/AV
1
2 3
4
5 6
7
C
8 9
0
VCR
DIRECT
TV REC
TX-22LT2
T
X
-
2
2
L
T
2
Please read these instruction before operating your set and retain them for future reference.
Page 2
2
Dear Panasonic Customer
Welcome to the Panasonic family of customers. We hope that you will have many
years of enjoyment from your new 22
″
Diagonal LCD TV.
To obtain maximum benefit from your set, please read these Instructions before
making any adjustments, and retain them for future reference.
Retain your purchase receipt also, and note down the model number and serial
number of your set in the space provided on the rear cover of these instructions.
Table of Contents
Warnings and Precautions...............................3
Before Operating This Set................................4
Supplied Accessories............................................. 4
Fitting remote control batteries .............................. 4
Receiver Location .................................................. 5
Optional External Equipment ................................. 5
For optimum quality picture ................................... 5
How to use the LCD stand..................................... 5
Quick start Guide ..............................................6
1. Choose Your Connection Type .......................... 6

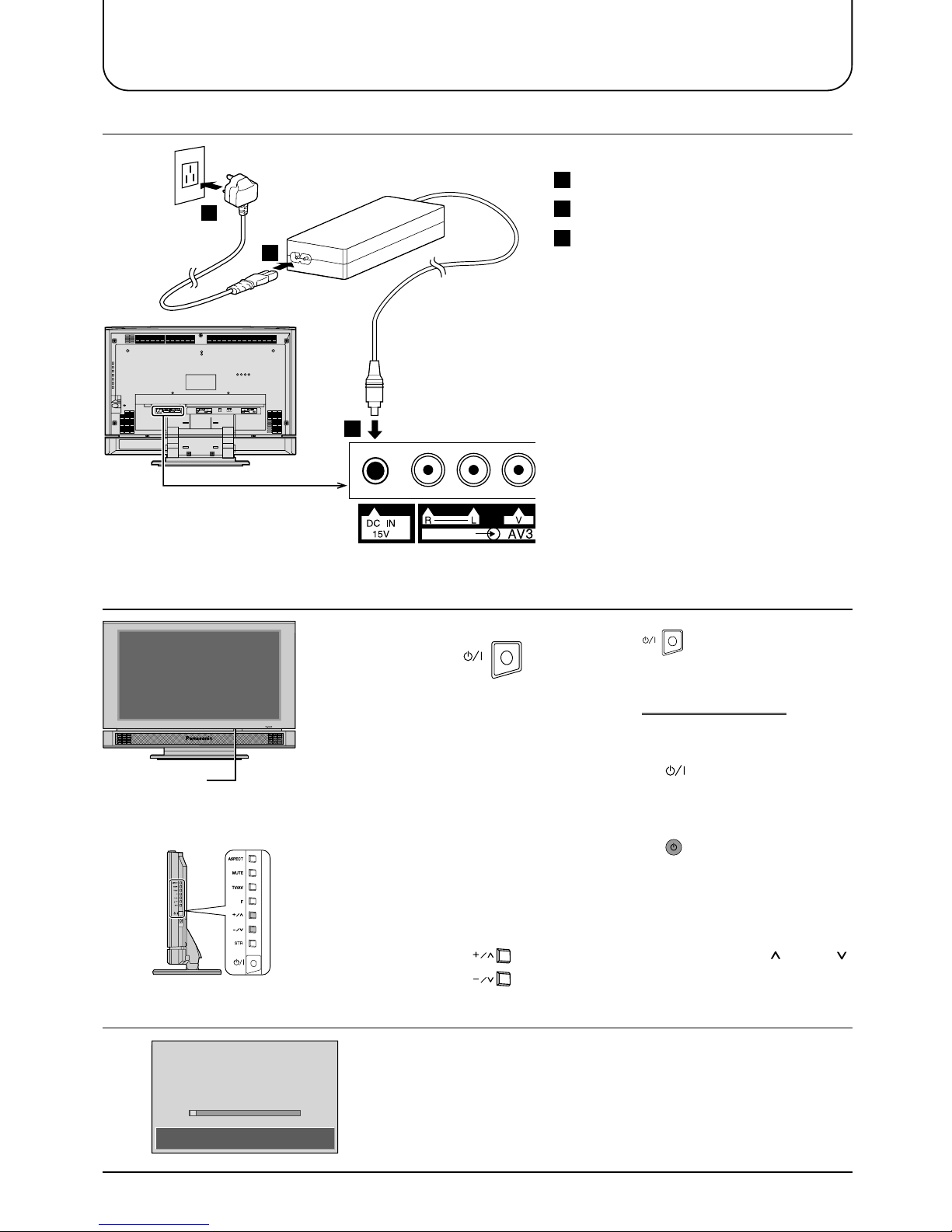

2. Connecting the AC Adaptor ............................... 9
3. Switch TV ON .................................................... 9
4. Auto set up......................................................... 9
5. TV to VCR download ....................................... 10
6. Owner ID.......................................................... 11
7. The two basic functions ................................... 11
Basic controls ................................................. 12

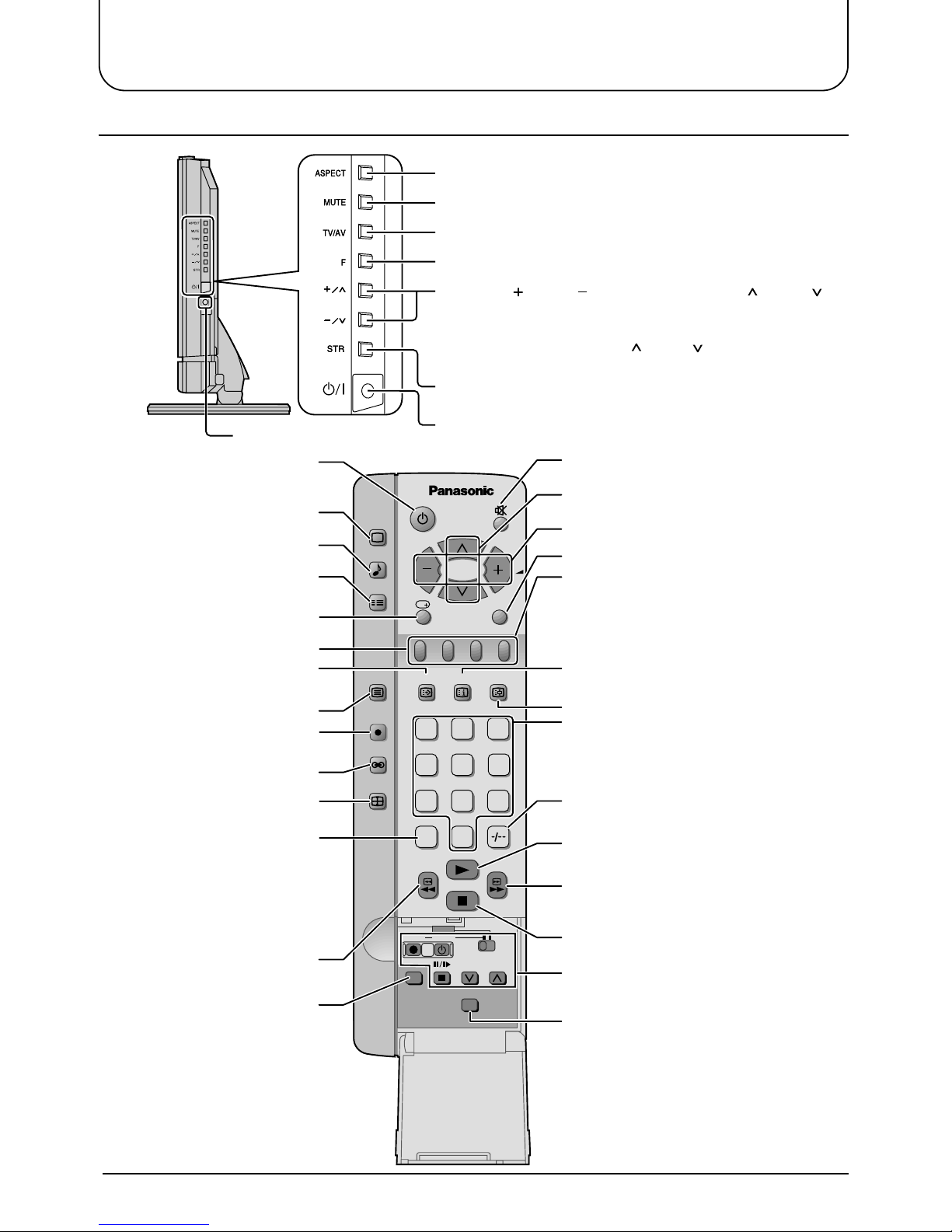

Side panel controls and Remote control.............. 12

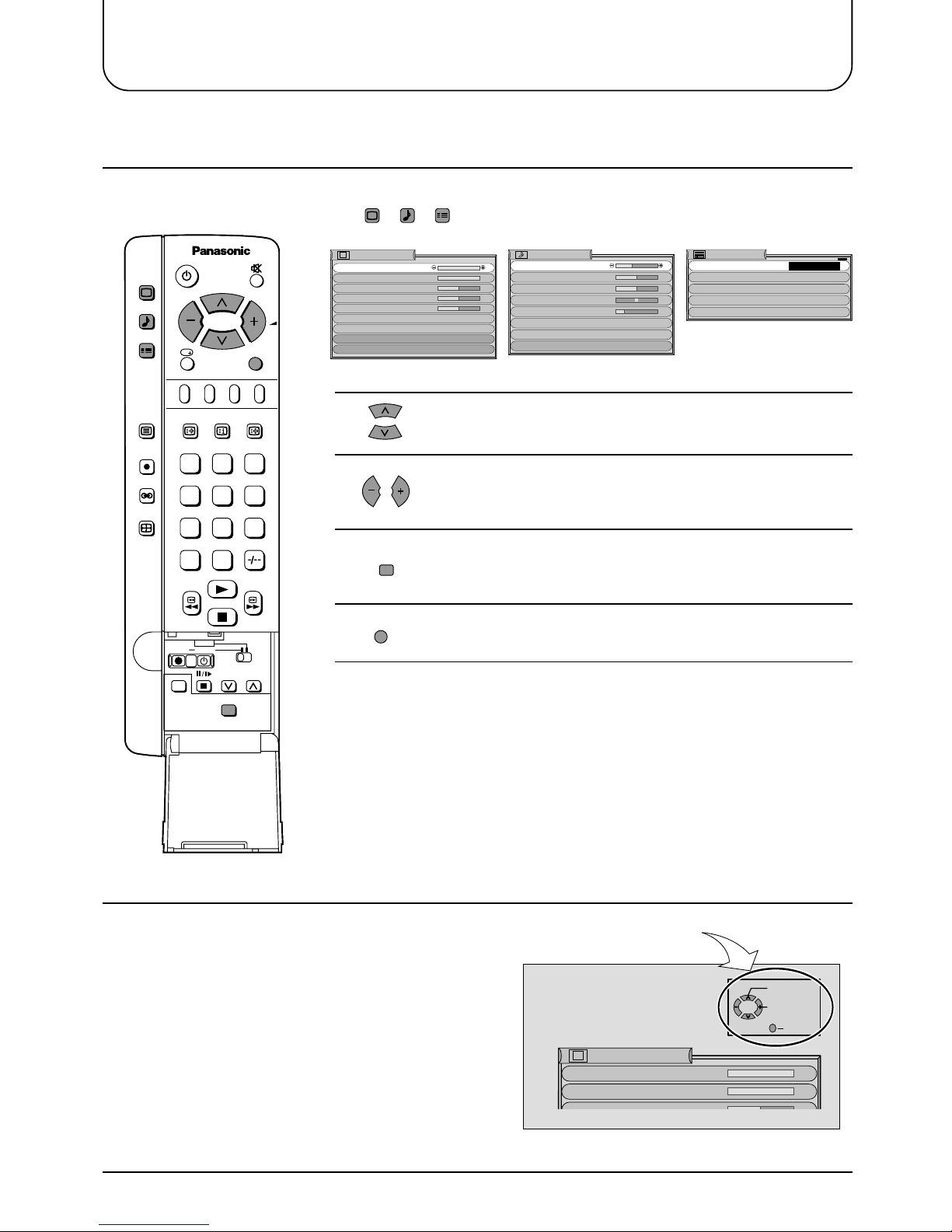

Using the On Screen Displays .......................15
Picture menu ................................................... 16

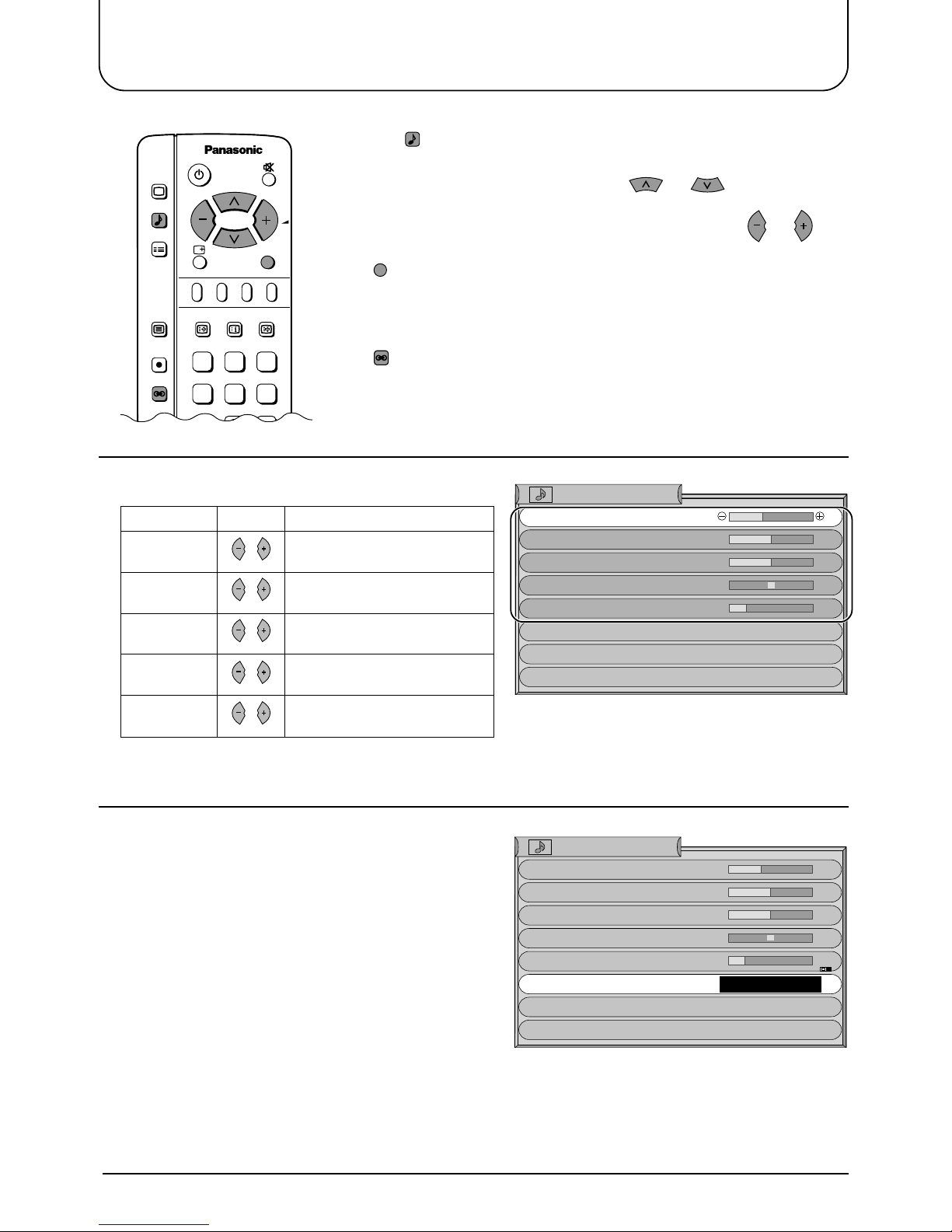

Sound menu .................................................... 18
Setup menu .....................................................20
Tuning menu-overview ................................... 21
Programme edit ................................................... 22
Auto setup............................................................ 24
Manual tuning ...................................................... 25
Shipping condition .............................................. 26
Owner ID.............................................................. 27

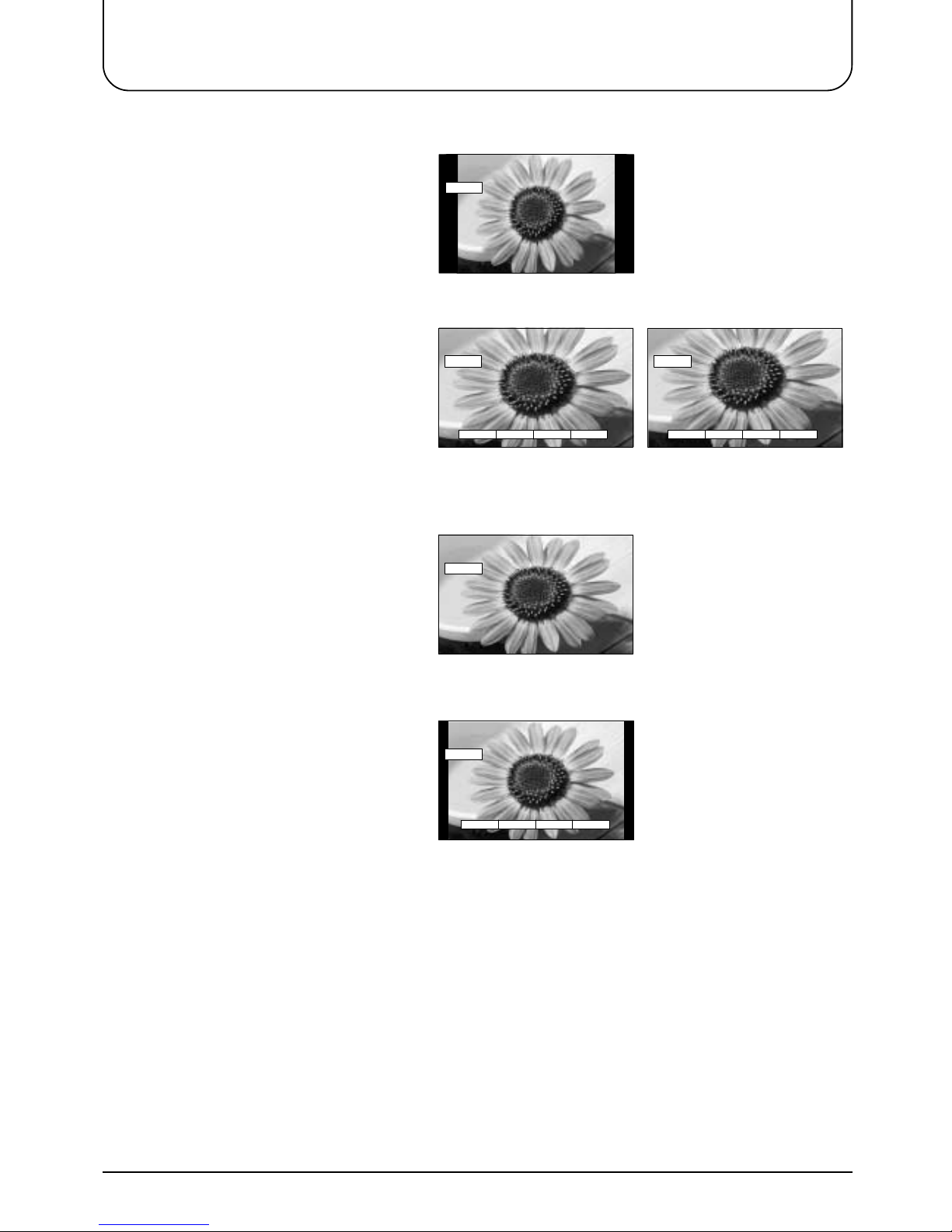

Aspect Controls .............................................. 28
Q-Link............................................................... 30
Tuning your VCR and satellite reciver ..........31
Advanced Remote Control Operation........... 32

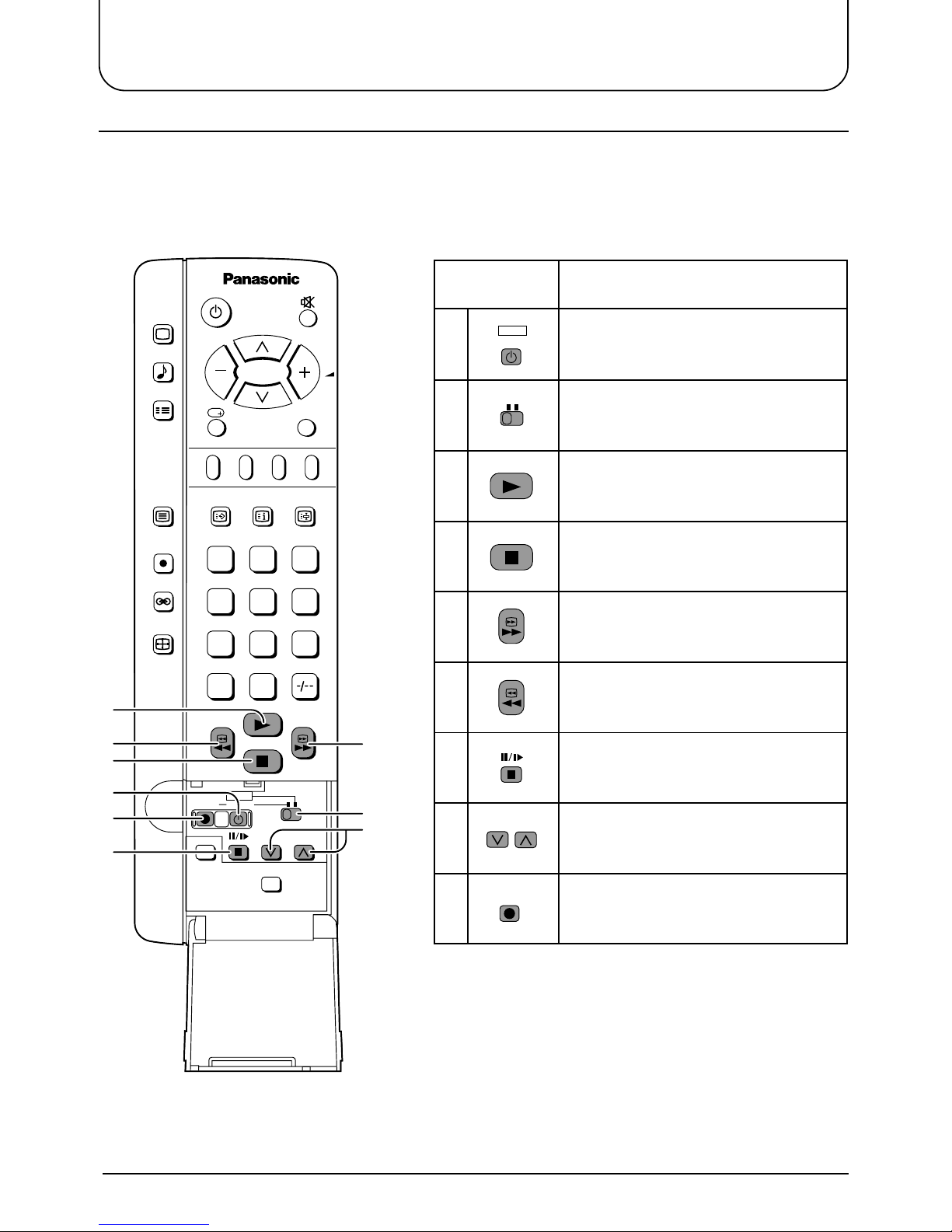

VCR / DVD Operation.......................................... 32
TELE TEXT.......................................................... 33
Connections .................................................... 36
How to connect the input terminals...................... 36
How to connect the AUDIO OUT terminals.......... 37

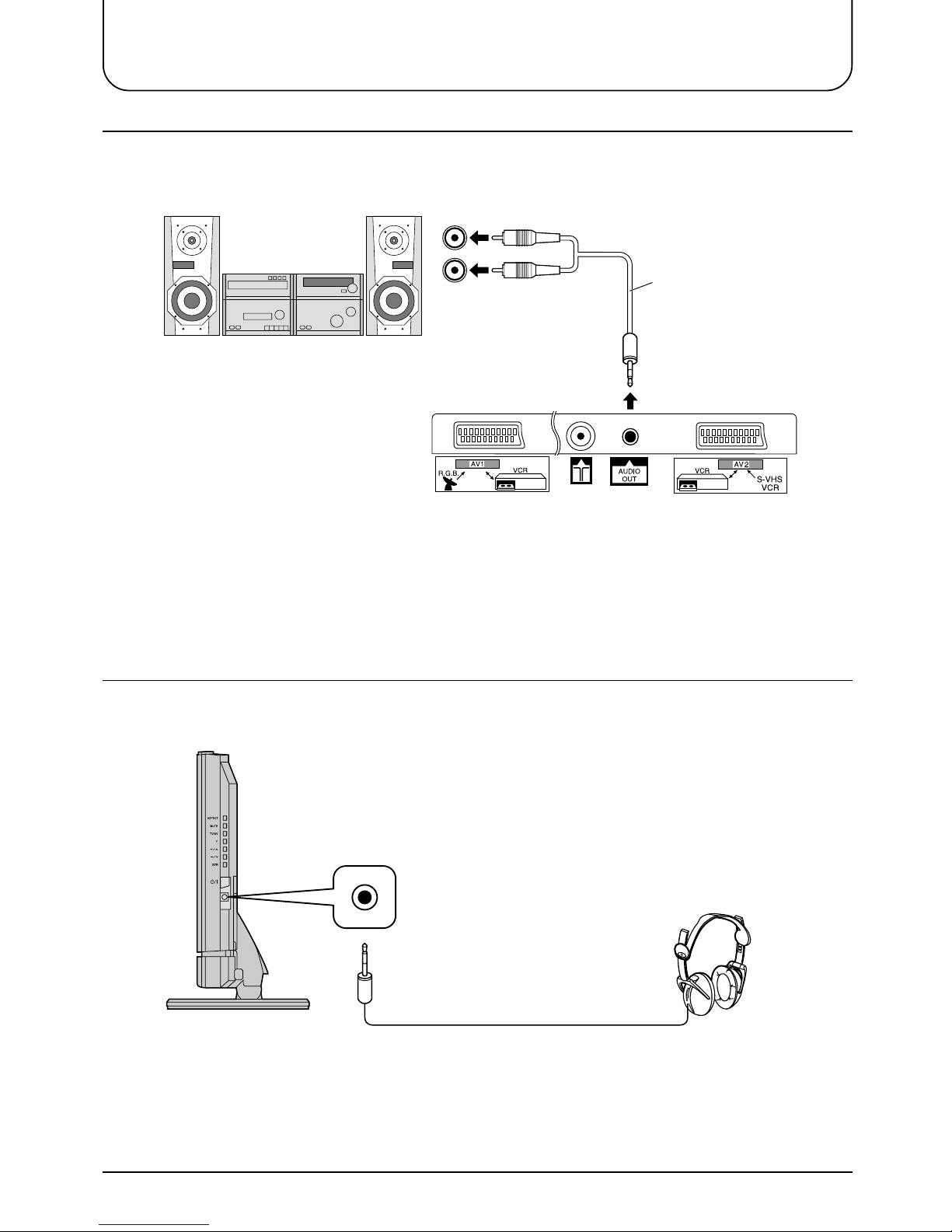

Connecting Headphones / Earphones................. 37

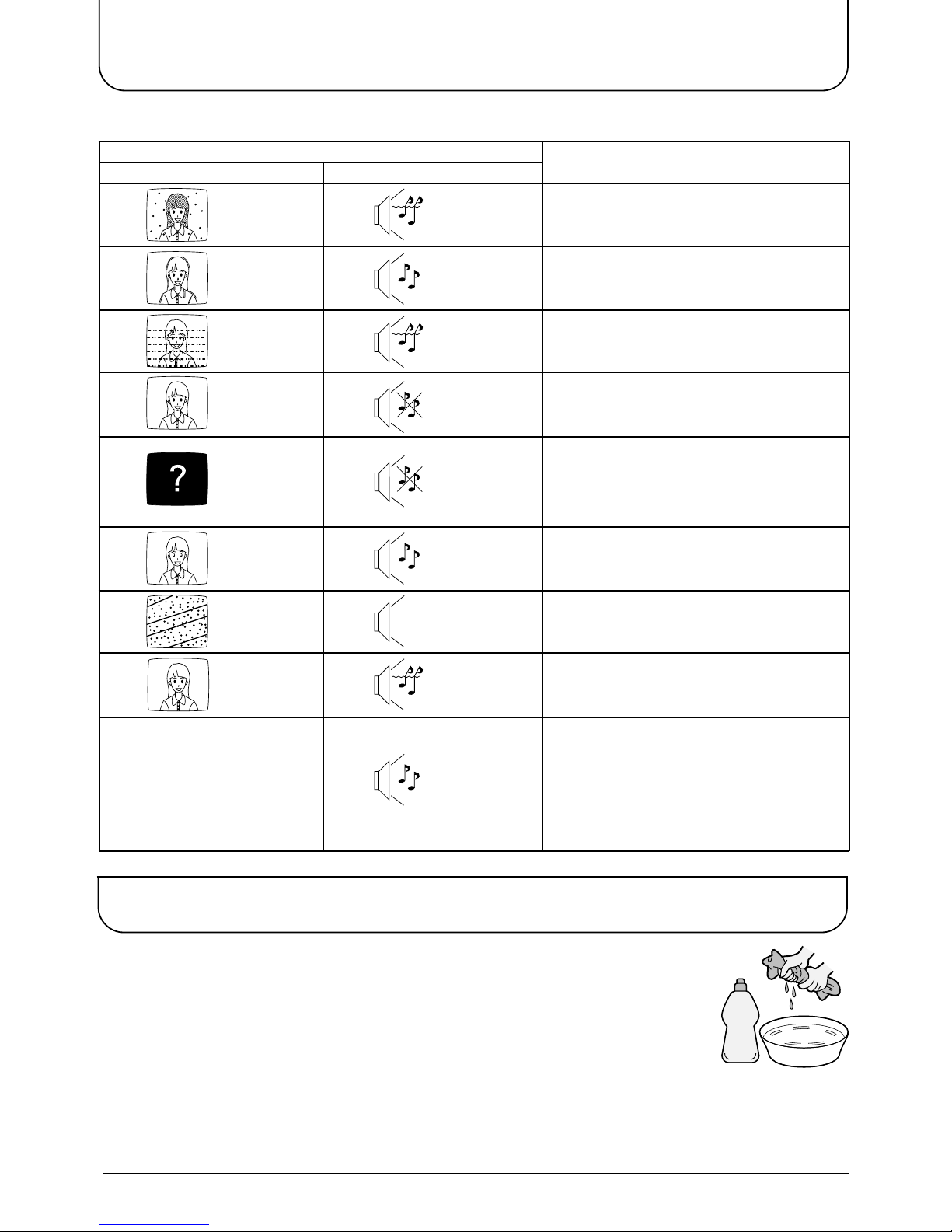

Troubleshooting.............................................. 38
Maintenance .................................................... 38
Specifications.................................................. 39
Page 3
3
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY
This appliance is supplied with a fitted three pin mains plug for your safety and convenience. A 5 amp fuse is
fitted in this plug. If the fuse is replaced then the replacement fuse must be 5 amp rated and should be approved
by ASTA or BSI to BS1362.
Check for the ASTA mark or the BSI mark on the body of the fuse.
If the fitted plug has a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you
lose the fuse cover the plug must not be used until a replacement cover is obtained. Replacement fuse covers
can be purchased through your local Panasonic dealer.
If the fitted moulded plug is replaced, the fuse should be taken out and the cut-off
plug disposed of safely. There is danger of severe electrical shock if the cut off
plug is inserted into any 13 amp socket.
If a new plug is to be fitted please observe the wiring code as shown below.
If in any doubt please consult a qualified electrician.

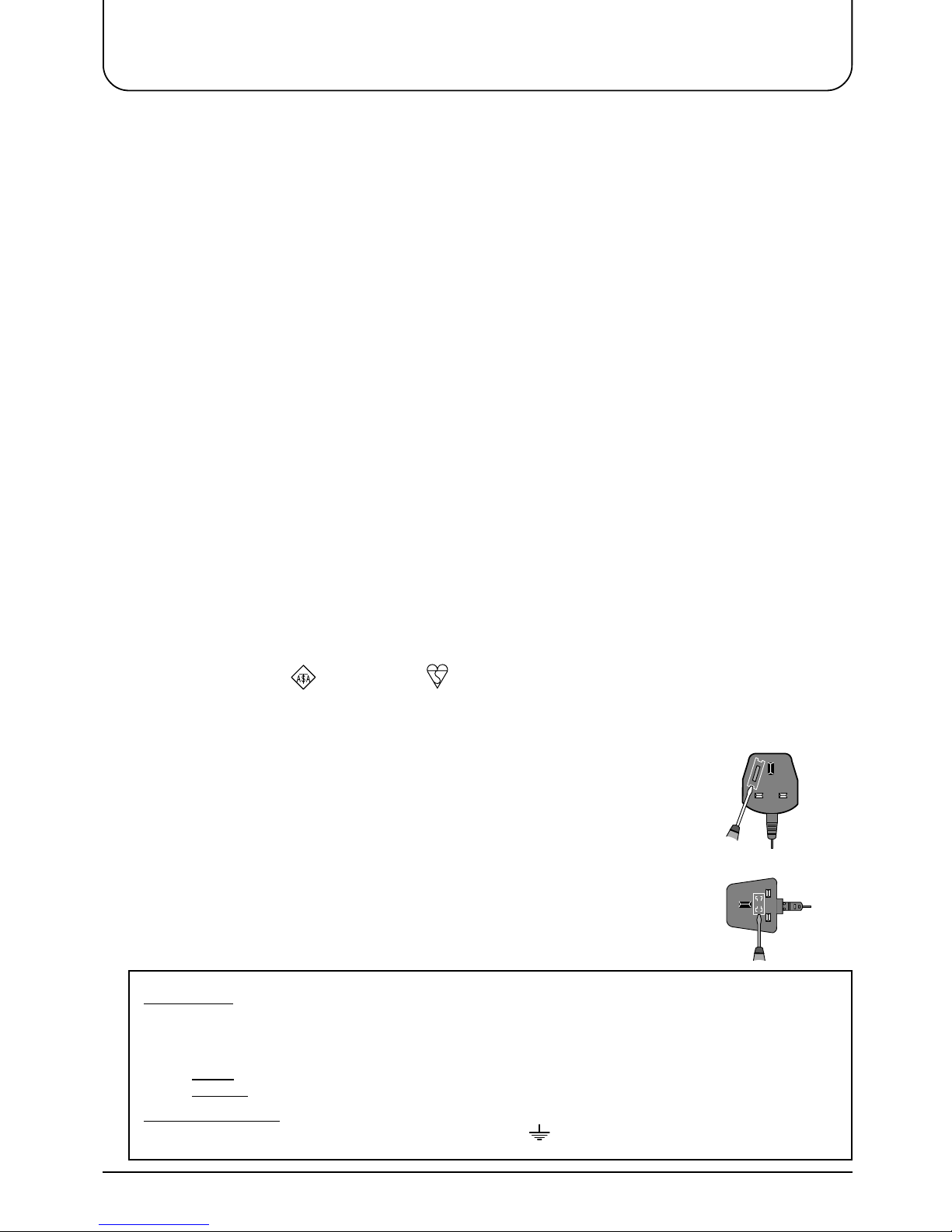

How to replace the fuse (for plug type shown in example 1):
Lift out the removable fuse compartment with a screwdriver and replace the fuse, then
refit securely into the mains plug (see example 1).
How to replace the fuse (for plug type shown in example 2):
Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the
fuse, then press the fuse cover down securely (see example 2).
IMPORTANT: -
The wires in the mains lead of this appliance are coloured in accordance with the following code :-
BLUE : NEUTRAL BROWN : LIVE
As the colours of the wires in the mains lead of this appliance may not correspond to the markings
identifying the terminals in your plug, proceed as follows :-
1. The BLUE wire must be connected to the terminal marked ‘N’ or coloured black.
2. The BROWN wire must be connected to the terminal marked ‘L’ or coloured red.
IMPORTANT NOTE:
Under no circumstances should either of these wires be connected to the Earth terminal of
the three pin plug, marked with the letter ‘E’ or the earth symbol.
• This TV set is designed to operate on DC 15V.
•
To prevent damage which might result in electric shock
or fire, do not expose this TV set to rain or excessive
moisture. This TV must not be exposed to dripping or
splashing water and objects filled with liquid, such as
vases, must not be placed on top of or above the TV.
• WARNING : HIGH VOLTAGE!!!
Do not remove the rear cover as live parts are
accessible when it is removed. There are no user
serviceable parts inside.
• TV Games / Home Computers
Extended use of TV games or home computers with any
television set can cause a permanent ‘shadow’ on the
screen. This type of irreversible LCD panel damage, can
be limited by observing the following points:
• Reduce the brightness and contrast levels to a
minimum viewing level.
• Do not allow a still picture to be displayed for an
extended period, as this can cause a
permanent after-image to remain on the LCD
TV screen.
• Examples of still
pictures include logos, video
games, computer images, teletext and images
displayed in 4:3 mode.
• This type of LCD panel damage, is not an
operating defect, and as such is not covered by
the Panasonic warranty.
•The On/Off switch on this model does not fully
disconnect the TV from the mains supply. Remove the
mains plug from the wall socket when the TV set is not
used for a prolonged period of time.
Note:
• If the set is not switched off when the TV station
stops transmitting, it will automatically go to stand-by
mode after 30 minutes. This function will not operate
when the TV is in AV mode.
• Cabinet and LCD panel care
Remove the mains plug from the wall socket. The
cabinet and LCD panel can be cleaned with a soft
cloth moistened with mild detergent and water. Do not
use solutions containing benzol or petroleum.
•
When ambient temperature is cool, the picture may take a
short time to reach normal brightness, but this is not a
malfunction. (After brief moment, the picture will have normal
brightness.)
•
Adequate ventilation is essential to prevent failure of
electrical components, we recommend that a gap of at least
10cm is left all around this television receiver even when it is
placed inside a cabinet or between shelves.
• Avoid exposing the TV set to direct sunlight and other
sources of heat.
Example 1
Example 2
Warnings and Precautions
Page 4
4
Before Operating This Set

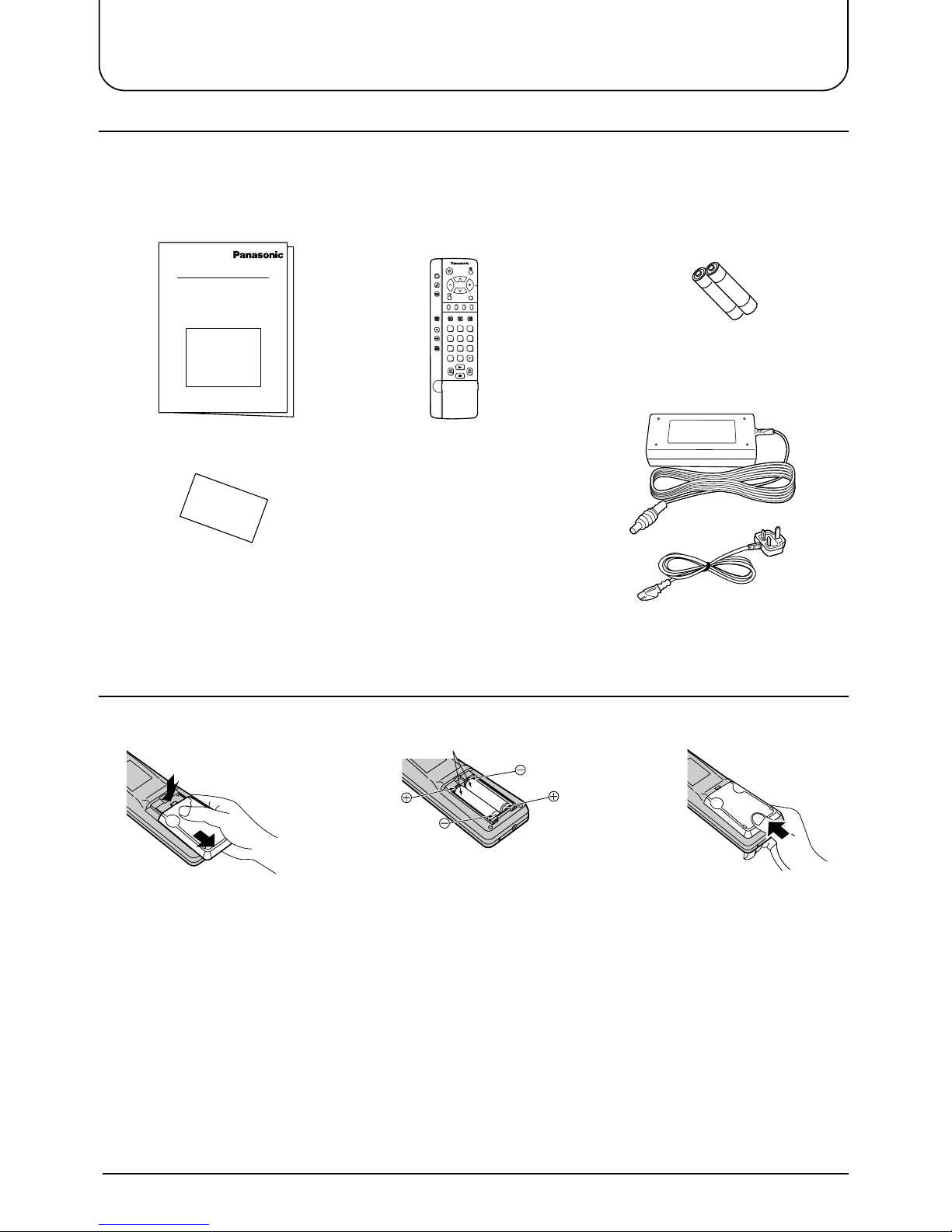

Supplied Accessories
Check the accessories before installations.
•
Operating Instruction book
(TQBC0356)
•
Remote Control Transmitter
(EUR511252)
•
AC Adaptor & Main Lead
AC Adaptor: (N0JZHK000004)
Main Lead: (K2CT3AA00001)
•
Batteries for the Remote Control
Transmitter
(2 × R6 (UM3) size)
F.P. INDEX HOLD
SOUND
SET UP
TV/TEXT
DIRECT
TV REC
ASPECT
1
2 3
4
5 6
7
C
8 9
VCR
0
TV/AV
•
Warranty Card
Slide off the battery cover
Insert batteries - note
correct polarity (+ and -)
Replace the cover
• Make sure that the batteries are fitted the correct way round.
• Do not mix old batteries with new batteries. Remove old, exhausted batteries immediately.
• Do not mix different battery types, i.e. Alkaline and Manganese or use rechargeable (Ni - Cad) batteries.
Fitting remote control batteries
1
23
Two “R6 (UM3)” size
Page 5
5
Before Operating This Set
Receiver Location
Locate for comfortable viewing. Avoid placing where sunlight or other bright light (including reflections) will fall on
the screen.
Use of some types of fluorescent lighting can reduce remote control transmitter range.
Adequate ventilation is essential to prevent internal component failure. Keep away from areas of excessive heat
or moisture.
To insure optimum picture do not position magnetic equipment (motors, fans, other speakers, etc.) nearby.
Optional External Equipment
The Video/Audio connection between components can be made with shielded video and audio cables. For best
performance, we recommend 75 ohm coaxial aerial cable is used. Cables are available from your dealer or
electronic supply store.
Before you purchase any cables, be sure you know what type of output and input connectors your various
components require. Also determine the length of cable you’ll need.
For optimum quality picture
When the LCD is exposed to light from outdoors or lighting fixtures, high-contrast pictures may not be displayed
clearly. Turn off florescent lamps near the LCD and place in a location not exposed to outdoor light.

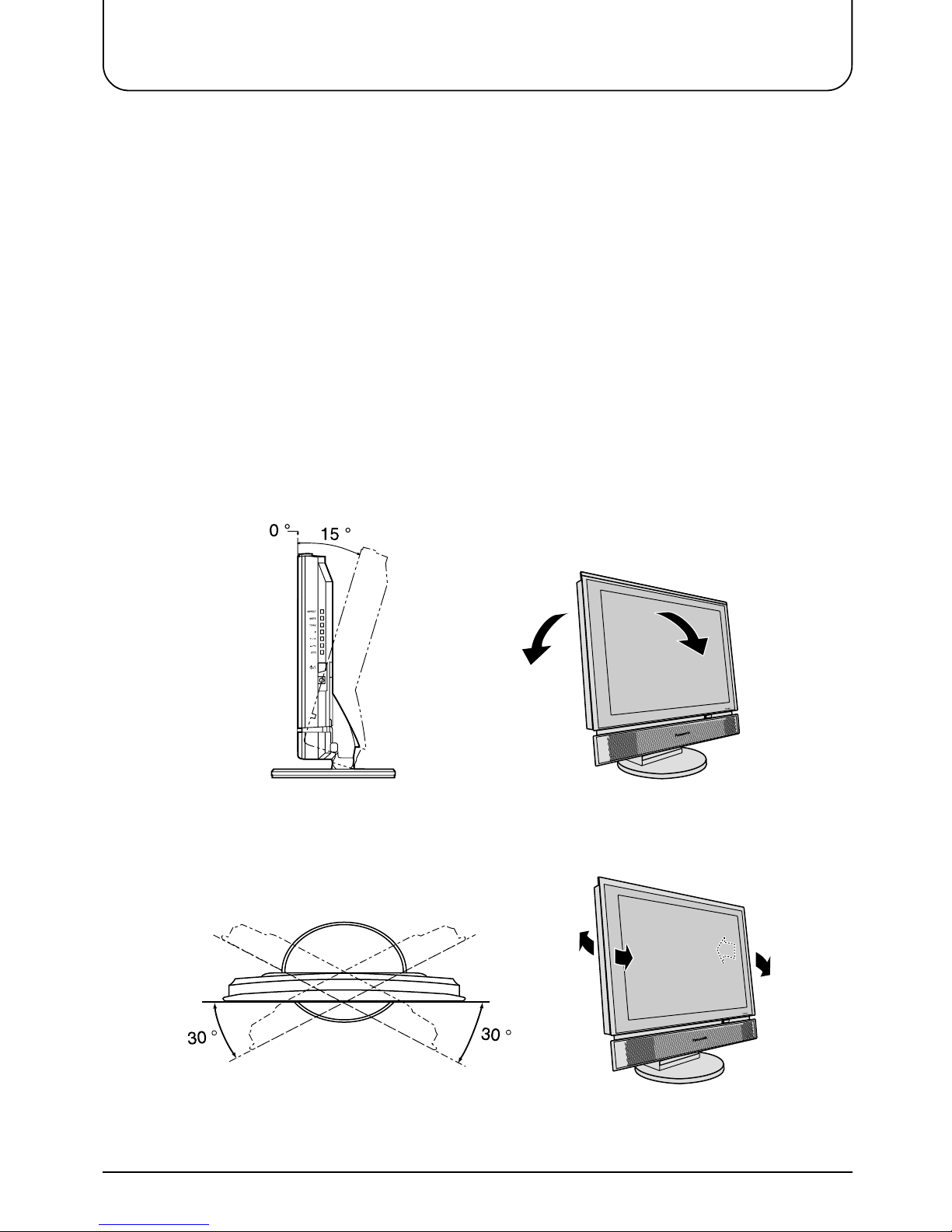

How to use the LCD stand
Adjust the stand to your desired angle. The stand angle can be adjusted between 0 ° to 15 ° back, 30 ° left and
30 ° right.
Page 6
6
Quick start Guide
1. Choose Your Connection Type
Connection and setting up options
• If connecting the TV using an RF cable only, see below.
• If connecting the TV using Scart and RF cables, see page 7.

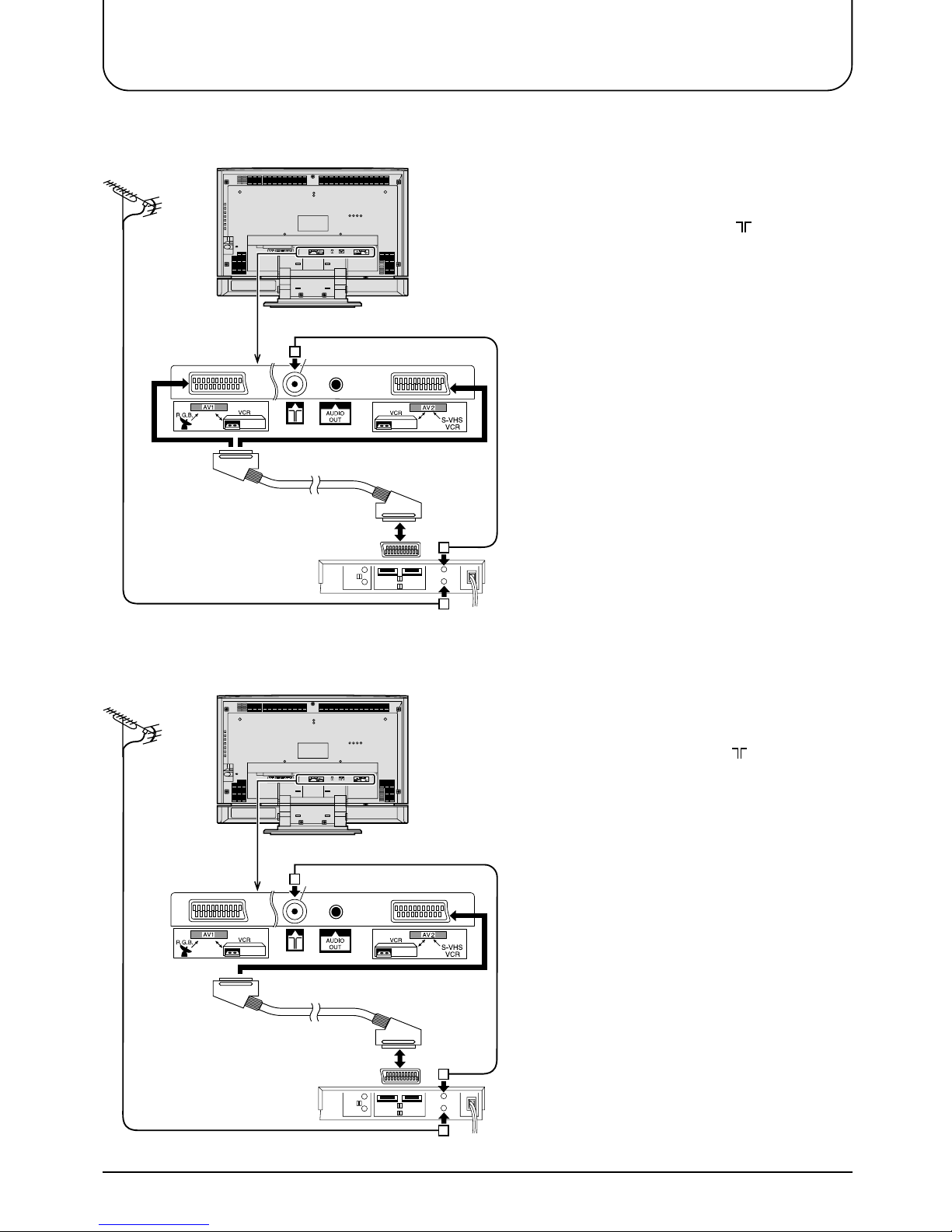

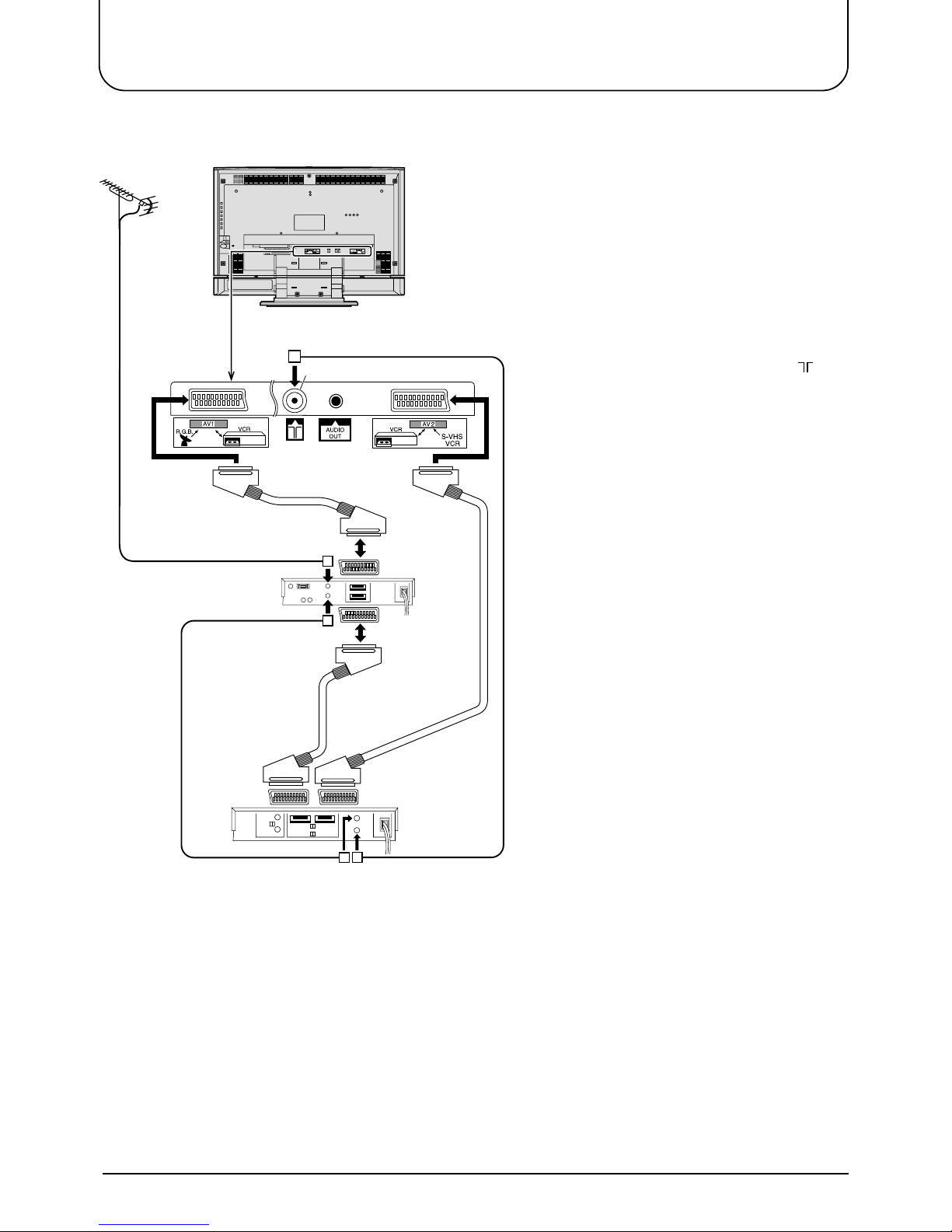

• If connecting the TV to a Q-Link (or Q-Link compatible) VCR, see page 7.
• If connecting the TV to a Q-Link (or Q-Link compatible) VCR and a satellite receiver, see page 8.
What is Q-Link?
Q-Link allows direct communication between the TV and a Q-Link (or Q-Link compatible) VCR, this will enable
features such as downloading of tuning information from the TV to the VCR.
When using a “NEXTVIEWLINK” VCR the main features possible are the following:
• Preset Download Downloading of tuning information from the TV to the VCR.
• Direct TV Record
For immediate recording of the current program (What You See Is What You Record).
When using a “Q-Link” VCR the main features possible are the following:
• Preset Download Downloading of tuning information from the TV to the VCR.
• Direct TV Record For immediate recording of the current program (What You See Is What You
Record).
• TV/VCR Auto Power On When the VCR plays a tape the TV will automatically switch On (From Stand-
by) and select the AV2 input.
• VCR Auto Power Stand-by When the TV is switched into Stand-by, the VCR will also switch into Stand-by.
• VCR Image view On If the TV is in Stand-by mode and the VCR sends a menu to be displayed on
the TV screen (e.g. Main menu), the TV will automatically switch On and the
menu will be displayed.
This TV will also communicate with other VCRs that bear the following logos:
• “DATA LOGIC” (a trademark of Metz Corporation).
• “Easy Link” (a trademark of Philips Corporation).
• “Megalogic” (a trademark of Grundig Corporation).
• “SMARTLINK” (a trademark of Sony Corporation).
These VCRs may support some or all of the above funcitons. Refer to the VCR operating instruction book.
Further information on Q-Link can be found on page 30.
In order for Q-Link to function correctly, the Scart cables must be connected in a certain way, dependent on
whether the TV is being connected to a VCR or to a VCR and Satellite Receiver.

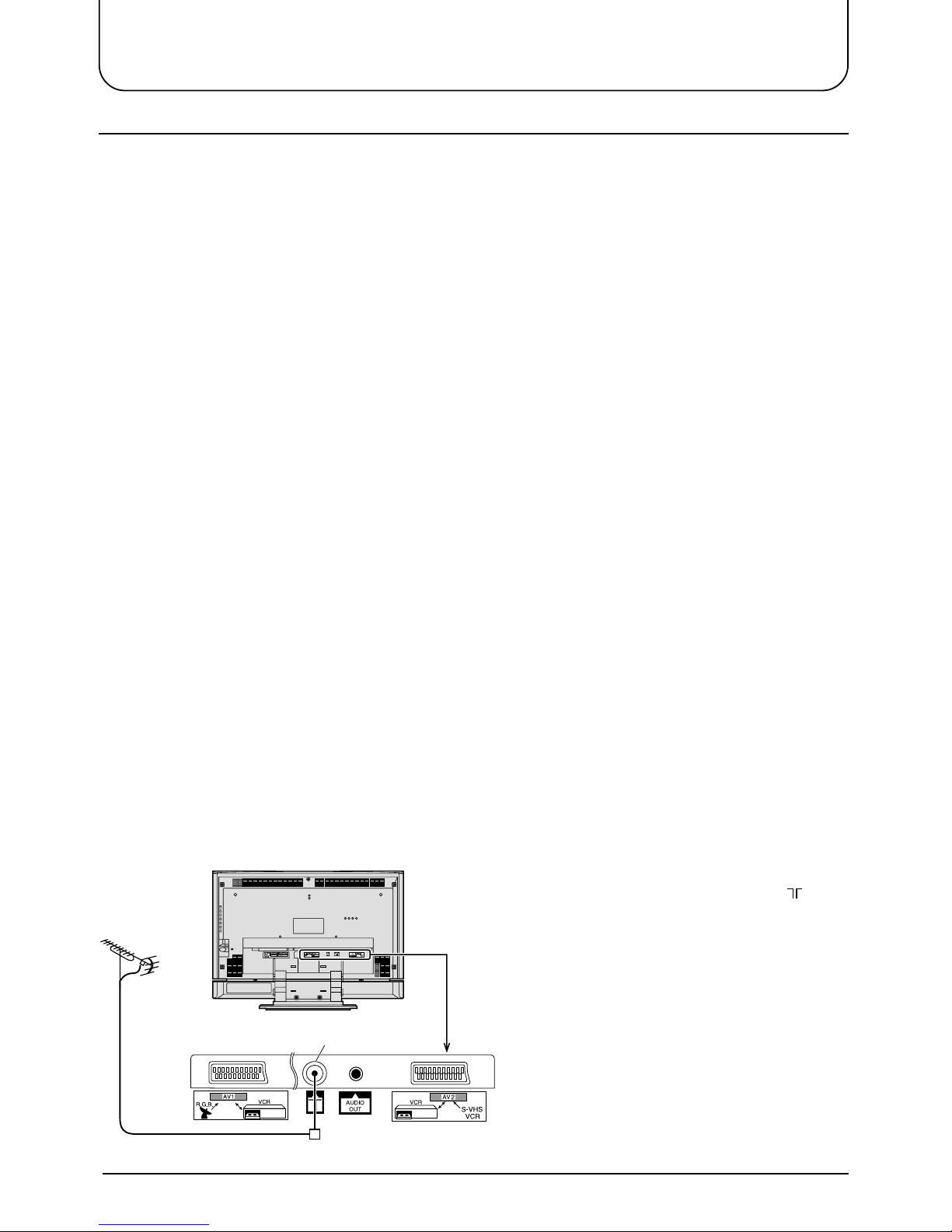

1. Connecting the TV directly to an aerial only
RF connection
Connect the Aerial lead into the TV Aerial socket ( ).
Aerial Input socket
Aerial
(Not Supplied)
LCD TV
Aerial Lead
Page 7
7
Quick start Guide
3. Q-Link connection of TV and VCR using Scart and RF cables
RF connection
Connect the AERIAL to the Aerial in socket of the
VCR and on RF cable from the VCR Aerial Out
socket to the TV Aerial socket ( ).
Scart connection
The VCR must be connected to the AV2 Scart
socket of this TV using a ‘fully wired’ Scart cable.
Note:
If using a “Q-Link” VCR then the AV1 Scart of the
VCR must be connected to the AV2 socket of the
TV. If your VCR is not a “Q-Link” VCR, please
consult your VCR operating instruction book.
Notes:
• Additional equipment and cables are not
supplied.
• Further details of audio/ video connections can
be found on page 36 and 37.
• Further information for VCR and Satellite
Receiver installation with this TV can be found
on page 31.
Aerial Input socket
Aerial
(Not Supplied)
LCD TV
Aerial Lead
Aerial
Output
socket
Aerial
Input
socket
AV1
Scart socket
AV2
Scart socket
VCR
RF connection
Connect the AERIAL to the Aerial in socket of the
VCR and an RF cable from the VCR Aerial Out
socket to the TV Aerial socket ( ).
Scart Connections
The VCR can also be connected to the TV using
a Scart cable if you are using a Scart equipped
VCR.
• Use the TV’s AV1 Scart socket for a VCR.
• Use the TV’s AV2S Scart socket for an S-Video
VCR.
Notes:
• Additional equipment and cables are not
supplied.
• Further details of audio / video connections can
be found on pages 36 and 37.
2. Connection of TV and VCR using Scart and RF cables
VCR
Aerial Input socket
Aerial
(Not Supplied)
LCD TV
Aerial Lead
Aerial
Output
socket
Aerial
Input
socket
AV1
Scart socket
AV1,AV2
Scart sockets
Page 8
8
Quick start Guide
4. Q-Link connection of TV, VCR and Satellite using Scart and RF cables
For Q-Link to function correctly the TV, VCR
and Satellite Receiver must be connected as
shown in the diagram below.
RF connections
• Connect an RF cable to the Aerial In socket
of the Satellite Receiver.
• Connect an RF cable from the RF Out
socket of the Satellite Receiver to the RF In
socket of the VCR.
• Connect an RF cable from the RF Out socket
to the VCR of the TV Aerial In socket ( ).
Scart connections
‘Fully wired’ Scart Cables should be used for
all of the Scart connections.
• The AV2 Scart of the VCR must be
connected to the VCR socket of the Satellite
Receiver.
• The TV Scart socket of the Satellite
Receiver must be connected to the AV1
Scart socket of the TV.
Note:
If using a “Q-Link” VCR then the AV1 Scart
of the VCR must be connected to the AV2
socket of the TV. If your VCR is not a “Q-
Link” VCR, please consult your VCR
operating instruction book.
Notes:
• Additional equipment and cables are not
supplied.
• Further details of audio/ video connections
can be found on pages 36 and 37.
• Further information for VCR and Satellite
Receiver installation with this TV can be
found on page 31.
Aerial
(Not Supplied)
LCD TV
Aerial
Output
socket
Aerial
Input
socket
Aerial Input
socket
VCR
Satellite
Receiver
TV
Scart
socket
VCR
Scart
socket
AV2
Scart
socket
AV1
Scart
socket
Aerial
Output
socket
Aerial Input socket
AV1
Scart socket
AV2
Scart socket
Page 9
9
Quick start Guide
2
1
3
3. Switch TV ON
Programmes will appear immediately if your dealer has
programmed the TV for you.
If the TV has not been programmed for you then Auto setup
will begin, your stations will be located, sorted into order and
stored ready for use.
4. Auto set up
SETUP : Return to tuning menu
TV/AV : To exit
AUTO SETUP IN PROGRESS
SEARCHING:PLEASE WAIT
21 68
First, ensure that the VCR is in Stand-by mode.
1
Connect the mains lead to the AC Adaptor.
2
Connect the AC Adaptor DC plug to the DC IN socket.
3 Plug into household mains socket.
• Be sure to use the power cord and AC
adaptor included in the accessories.
• Do not use the AC adaptor for other than
the specified equipment.
• Unplug the AC adaptor if it is not used for
long time.
• Do not place any objects on the AC adaptor.
• Do not use the AC adaptor outdoors.
• Do not attempt to repair the AC adaptor if it
is broken or malfunctioning. Refer the
servicing to the service representative.
• Do not try to open the AC adaptor.
• Do not use water or wet cloth for cleaning
the AC adaptor.
Press the switch on the LCD TV to
turn the set on.
IMPORTANT NOTES
There are two ways to switch the TV set to
stand-by mode.
(A) Press the switch on the LCD TV
and check RED LED is lit.
OR
(B) Press the Stand-by button on the
remote control.
The TV set cannot be switched on by the remote
controller if it was switched to stand-by using
method (A) or vice versa if method (B) was used.
When programme number up ( )/down ( )
buttons on the side panel of the main part
are pressed in stand-by mode, TV turns on.
2. Connecting the AC Adaptor
Power-Indicator
The RED LED when lit indicates that not
only the TV set is in stand-by mode but
also the external AC adaptor is still on.
Page 10
10
Quick start Guide
Prog. Position All channels No CH5
No CH5 / S4C
No CH4 / CH5 No S4C
No CH4 / S4C
No CH4 / S4C / CH5
1 BBC1 BBC1 BBC1 BBC1 BBC1 BBC1 BBC1
2 BBC2 BBC2 BBC2 BBC2 BBC2 BBC2 BBC2
3 ITV ITV ITV ITV ITV ITV ITV
4 CH4 CH4 CH4 S4C CH4 CH5 SAT
5 S4C S4C SAT SAT CH5 SAT
°
6 CH5 SAT
°°
SAT
°°
7SAT
°°°°°°
Note:
°
The next available channel will appear, if no other stations are available then the Programme position will
remain unused.
5. TV to VCR download
If a Q-Link, NEXTVIEWLINK or compatible VCR has been connected to the
AV2 socket before starting Step 1, programme information will be downloaded
to the VCR.
Downloaded tuning data will match the television’s.
Not all VCRs support this download of programme information, some may
require to be started manually. Refer to the VCR operating instruction book.
If a VCR other than those described above has been connected, then there will
be no download operation.
Notes:
If the VCR has not accepted download data from the TV, you may need to select the Download option from the
VCR’s menu system.
Refer to the VCR operating instruction book.
If Q-Link is not operating correctly, check the following:
• The Scart cable is connected to the TV’s AV2 Scart socket.
• The Scart cable is connected to the VCR’s compatible (Q-Link, NEXTVIEWLINK or similar technology) Scart
socket.
• The Scart cable is a “fully wired” type.
For further information on Q-Link and connecting equipment, see pages 13, 30 and 36.
• The sorted programme order depends upon the TV signal, the broadcasting system, and reception conditions.
If the order is not to your preference it can be rearranged. Refer to the Programme edit menu - see page 22 for
details.
• If you have an analogue satellite receiver, select ‘SKY ONE’ or ‘SKY NEWS’ on the receiver before starting
Auto Setup.
After Auto Setup is complete, the satellite position will be shown as ‘SAT’ in the channel listing to denote
programmes from the satellite receiver.
• If you have a digital satellite receiver, you can start Auto setup with the receiver set to any channel. You will
then have to manually name the ‘SAT’ position after Auto setup is complete. Refer to the Programme edit menu
- see page 23 for details.
TV −> VCR DOWNLOAD IN PROGRESS
PLEASE WAIT
Programme : 63
Remote control unavailable
Page 11
11
Quick start Guide

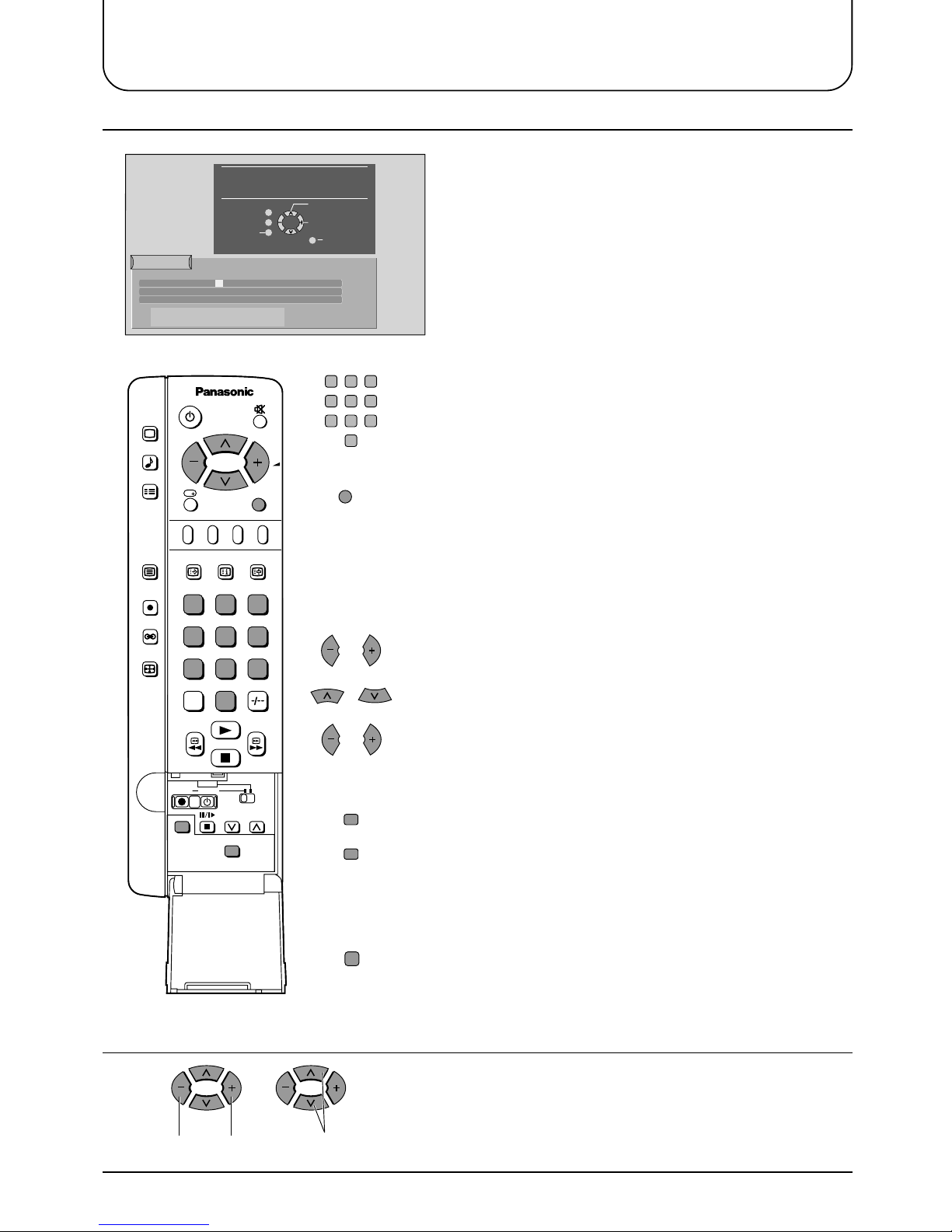

6. Owner ID
TV/AV
'STR' Button - Store Owner ID
Exit
Change
Character
You now have the opportunity
to enter your details and
help the police crack crime
see instruction book
Select
character
Return
Owner ID
PIN NUMBER :
∗∗∗∗
NAME :
∗∗∗∗∗∗∗∗∗∗∗∗∗∗
HOUSE NO :
∗∗∗∗∗∗∗∗∗∗∗
POST CODE :
∗∗∗∗∗∗∗∗∗∗∗
ABCDEFGHIJKLMNOPQRST
UVWXYZ
+− .
0123456789
REC VCR
DVD
PROGRAMME
N
STR
F.P. INDEX HOLD
SOUND
SET UP
TV/TEXT
ASPECT
TV/AV
1
2 3
4
5 6
7
8 9
C
0
VCR
DIRECT
TV REC
1
23
4
56
7
89
0
TV/AV
STR
N
7. The two basic functions.
Adjust Volume
Change
Programme
As an added feature, this TV has the option of
entering a security code (Owner ID) and personal
details into its memory, so that in the unfortunate
event of theft it will help the police to trace the owner.
Enter required 4 digit Owner ID PIN NUMBER (using 0 to 9 on the
remote control)
Press the TV/AV button at any time to exit the Owner ID feature
without saving any information you may have entered.
Enter NAME, HOUSE NUMBER and POSTCODE
If a 4 digit PIN NUMBER was entered above, you will be taken
automatically to the NAME line.
If not, move to the NAME line.
Change character.
Select character position.
Repeat above until NAME, HOUSE NUMBER and POSTCODE are entered.
Press STR to store the details.
Press STR again, when you are asked “Are you sure?”
For further information on Owner ID, including how to view the
details you have stored, see page 27.
A space is provided on page 27 to write down your PIN NUMBER for future reference.
We recommend that as soon as you have stored Owner ID details (or have
exited the feature), the picture controls are reset to normal viewing levels. To
do this, press the “N” button, found under the remote control’s pull down flap.
You are now ready to begin viewing programmes
The cursor controls provide the two basic functions:
STR
Page 12
12

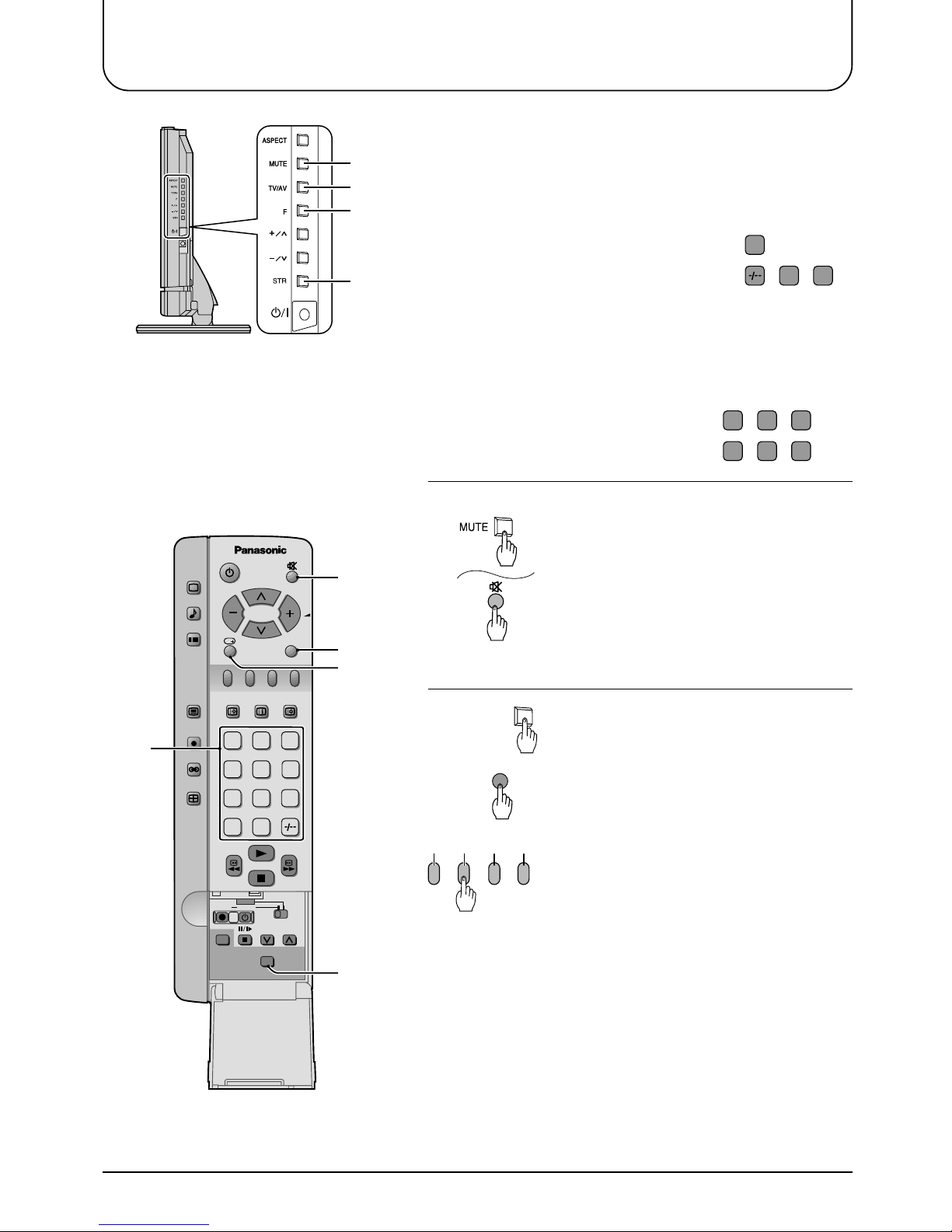

Aspect (see page 28, 29)
Sound mute (see page 13)
TV/AVmode Selection (see page 13)
Volume Up ( ), Down ( )/ Programme Number Up ( ), Down ( )
Volume adjustment which uses these buttons is performed
after pressing Function button. (see page 14)
Function button (see page 14)
Store (see page 14)
TV ON / Stand-by (see page 9)
Headphone Jack (M3 jack)
When programme number up ( )/down ( ) buttons on the side
panel of the main part are pressed in stand-by mode, TV turns on.
F.P. INDEX HOLD
SOUND
SET UP
TV/TEXT
ASPECT
TV/AV
1
2 3
4
5 6
7
8 9
C
0
VCR
REC VCR
DVD
PROGRAMME
STR
N
DIRECT
TV REC
Programme / Channel change buttons
(0-9) and Teletext page buttons
(see page 13, 33)
When in Stand-by mode, switche TV On.
Two Digit- programme Number
selection (see page 13)
Sound mute (see page 13)
TV ON / Stand-by (see page 9)
Picture menu (see page 16)
Sound menu (see page 18)
Set up menu (see page 20)
Recall(see page 14)
TELE TEXT (see page 33)
TV/TEXT selection (see page 33)
Ambience (see page 19)
Aspect (see page 28, 29)
Direct channel access
During normal TV viewing or when
in the Tuning, programme edit or
Manual tuning menus, press and
then enter channel number using
the numeric buttons
VCR/DVD Rewind/Review
(see page 32)
Normalization
Resets all settings to their
default levels
Programme Number Up and Down
(see page 11)
Volume Up and Down (see page 11)
TV/AV mode selection (see page 13)
VCR/DVD Play (see page 32)
VCR/DVD Fast Forward/cue
(see page 32)
VCR/DVD Stop (see page 32)
VCR/DVD Control (see page 32)
Store (see page 14)
Coloured buttons used for
Aspect functions (see page 28)
Programme edit functions (see page 22)
Teletext functions (see page 33)
AV selection (see page 13)
Direct TV Record button
(see page 30)
TEXT Favourite page selection
(see page 34)
TEXT hold (see page 34)
TEXT Index (see page 34)
Basic controls
Side panel controls and Remote control
Page 13
13
Basic controls
Direct Programme Number Selection (CH
SELECT = POSITION)
You can select the numbers directly by
pressing “Number 0-9” button and the two digit
Numbers by pressing “Two Digit” and
“Programme Number” buttons.
Programme Number 8 .......
8
Programme Number 12...... , 1 ,
2
Direct Programme Number Selection (CH
SELECT = DIRECT)
You can select the number directly by
pressing the “C” button and the
corresponding programme number button.
Channel Number 21...... C , 2 ,
1
Channel Number 68...... C , 6 ,
8
(LCD TV Set)
2
3
6
5
F.P. INDEX HOLD
SOUND
SET UP
TV/TEXT
ASPECT
TV/AV
1
2 3
4
5 6
7
8 9
C
0
VCR
REC VCR
DVD
PROGRAMME
STR
N
DIRECT
TV REC
2
1
4
5
3
1
2
Mute button
Press this button to mute the sound
completely.
The “Mute” symbol will appear.
Press the button once again to restore the
previous sound level, and cancel the mute.
Sound is also reactivated when power is
turned off or volume level is changed.
3
TV/AV Mode Selection
Press the “TV/AV” button to select TV, A V1, AV2,
AV2S, AV3, AV3S input signal modes sequentially.
Remote control :
Press the “TV/AV” menu button
Press the relevant on screen selector key to
select the AV source you wish to view. To select
the S-VHS input on AV2 and AV3 (AV2/S and
AV3/S), press the relevant coloured button to
select either AV2 or AV3, then press again to
select the S-VHS input (for example: press the
green button to select AV2 if you have
connected a VCR to the AV2 Scart socket; if you
have a S-VHS VCR, you should press the green
button again to select AV2/S.
Pressing the green button again switches back to AV2.)
The on screen selector keys that appear clear
after a few seconds. If you want to select an input
when the keys are not shown, press the TV/AV
key once more and the keys will reappear.
Note:
During AV mode selection, the picture from
certain source signals may momentarily distort
or change colour, but this is normal operation.
TV/AV
Red Green Yellow Blue
TV/AV
Page 14
14
Basic controls
STR
STR
Volume
Backlight
Contrast
Brightness
Colour
Tuning mode
Balance
Treble
Bass
Tint
Sharpness
4
Recall button
Press to display programme position, programme name, channel number, time, NICAM
mode, ASPECT mode and programme table.
5 STR
Used to store tuning and other function settings.
Remote control :
Stores some settings in TUNING menus.
6
Function selection
Displays the on screen display functions, press repeatedly to select from the available
functions.
The following adjustments can be accessed directly.
Notes:
• Tint : Displayed when receiving NTSC signals.
• Tuning mode : Not displayed during AV mode.
Page 15
15
REC VCR
DVD
PROGRAMME
N
STR
F.P. INDEX HOLD
SOUND
SET UP
TV/TEXT
ASPECT
TV/AV
1
2 3
4
5 6
7
8 9
C
0
VCR
DIRECT
TV REC
Using the On Screen Displays
Many features available on this TV can be accessed via the On Screen Display menu system. Use the remote
control as shown below to access and adjust features as desired.
The PICTURE, SOUND and SET UP buttons are
used to open the main menus.
The UP and DOWN cursor buttons are used to move the
cursor up and down the menus.
The LEFT and RIGHT cursor buttons are used to access
menus, adjust levels or to select from a range of options.
The STR button is used with a number of features to store
settings after adjustments have been made or options have
been set.
The TV/AV button is used to exit the menu system and
return to the normal viewing screen.
An On Screen Help box is displayed whenever a menu is
displayed on the TV. This Help box indicates which keys on
the remote control are used to navigate the menu shown,
see above for descriptions of button functions.
Note:
If the On Screen Menu is opened in Zoom mode, the screen
will be switched into 16:9 aspect ratio.
The screen will return to Zoom mode after exiting the On
Screen Menu.
Picture menu
Contrast
Brightness
Colour
Sharpness
Comb filter Off
Colour balance Normal
AI
Backlight
Mode
Dynamic
On
Sound menu
Bass
Treble
Headphone volume
NICAM No service
Mode Music
Surround Off
Volume
Balance
Off
Setup menu
AV2 out
Teletext FASTEXT
Off timer Off
Q-Link
Tuning menu
On
TV
STR
TV/AV
TV/AV
Exit
Picture menu
Contrast
Backlight
Select
Change
ON SCREEN HELP
‘Instruction’ box
SET UP
SOUND
Page 16
16
Contrast
Brightness
Colour
Sharpness
Comb filter Off
Colour balance Normal
AI
Backlight
Mode
Dynamic
On
Picture menu
F.P. INDEX HOLD
SOUND
SET UP
TV/TEXT
TV/AV
Picture menu
1 Press
.
2 Move to chosen menu option by using or .
3 Adjust chosen option or access chosen menu by using or .
Press
TV/AV
at any time to go back to watching TV.
Backlight, Contrast, Brightness, Colour, Sharpness, T int
Increase or decrease the levels of Backlight, Contrast,
Brightness, Colour and Sharpness options according to
your personal preference.
With an NTSC signal source connected to the TV, the
picture hue can be adjusted to suit your taste.
Note:
• When the TV is receiving NTSC Signals, Tint is
displayed and level adjustment is possible.
• Only Contrast and Backlight will be displayed
during TEXT mode.
Colour balance
AIlows you to set the overall
colour tone of the picture.
Press or to switch
between modes
Item FunctionEffect
Colour
Less More
Backlight
Darker Brighter
Contrast
Darker Brighter
Sharpness
Tint
Less More
Less More
Brightness
Less More
Adjusts slightly to a lighter
Displays a sharp image.
Adjust the picture hue.
Adjusts for easier viewing of dark pictures
such as night scenes and hair.
Brightness of the back light is
adjusted.
Adjust for contrast.
WarmNormalCool
Contrast
Brightness
Colour
Sharpness
Comb filter Off
Colour balance
AI
Backlight
Mode
Dynamic
Picture menu
On
Normal
Page 17
17

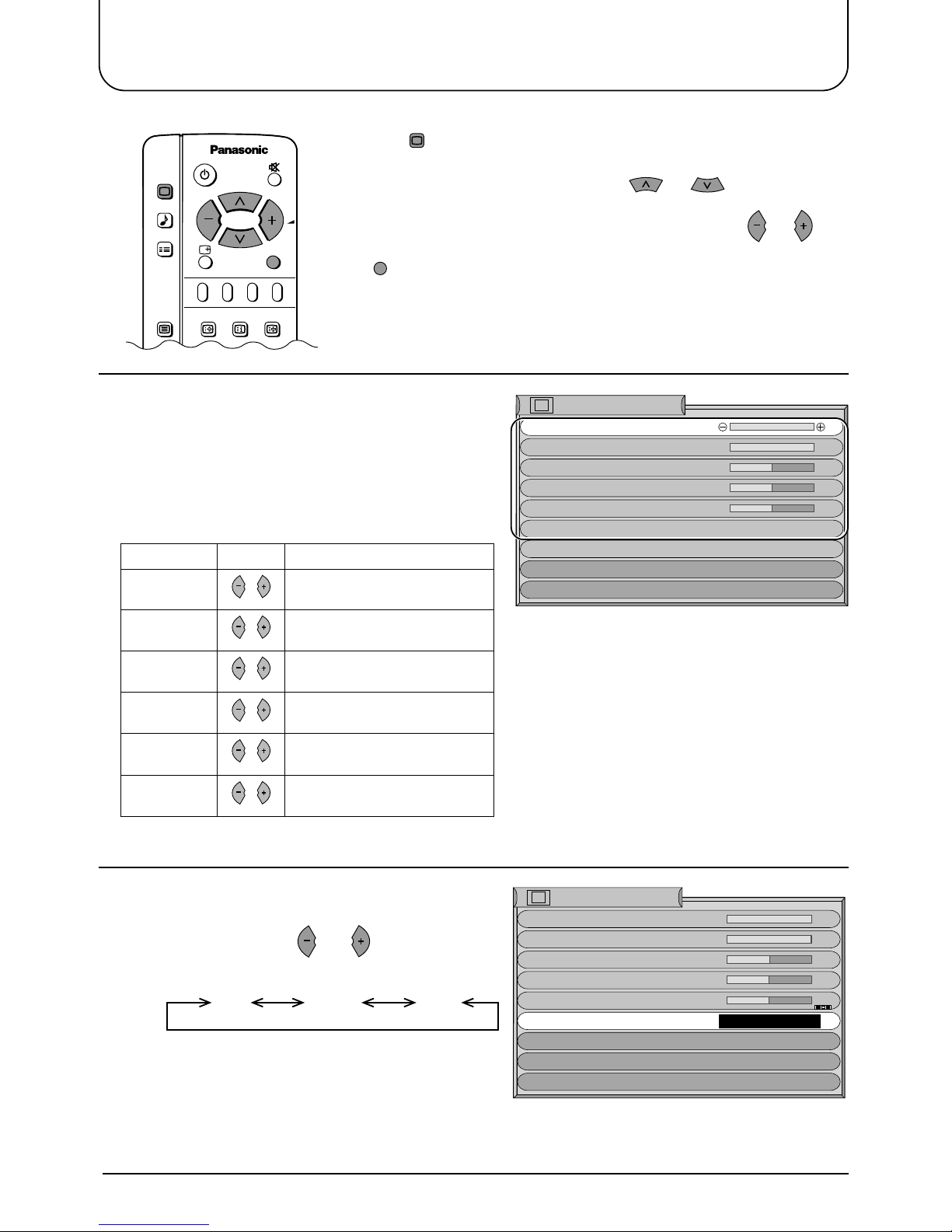

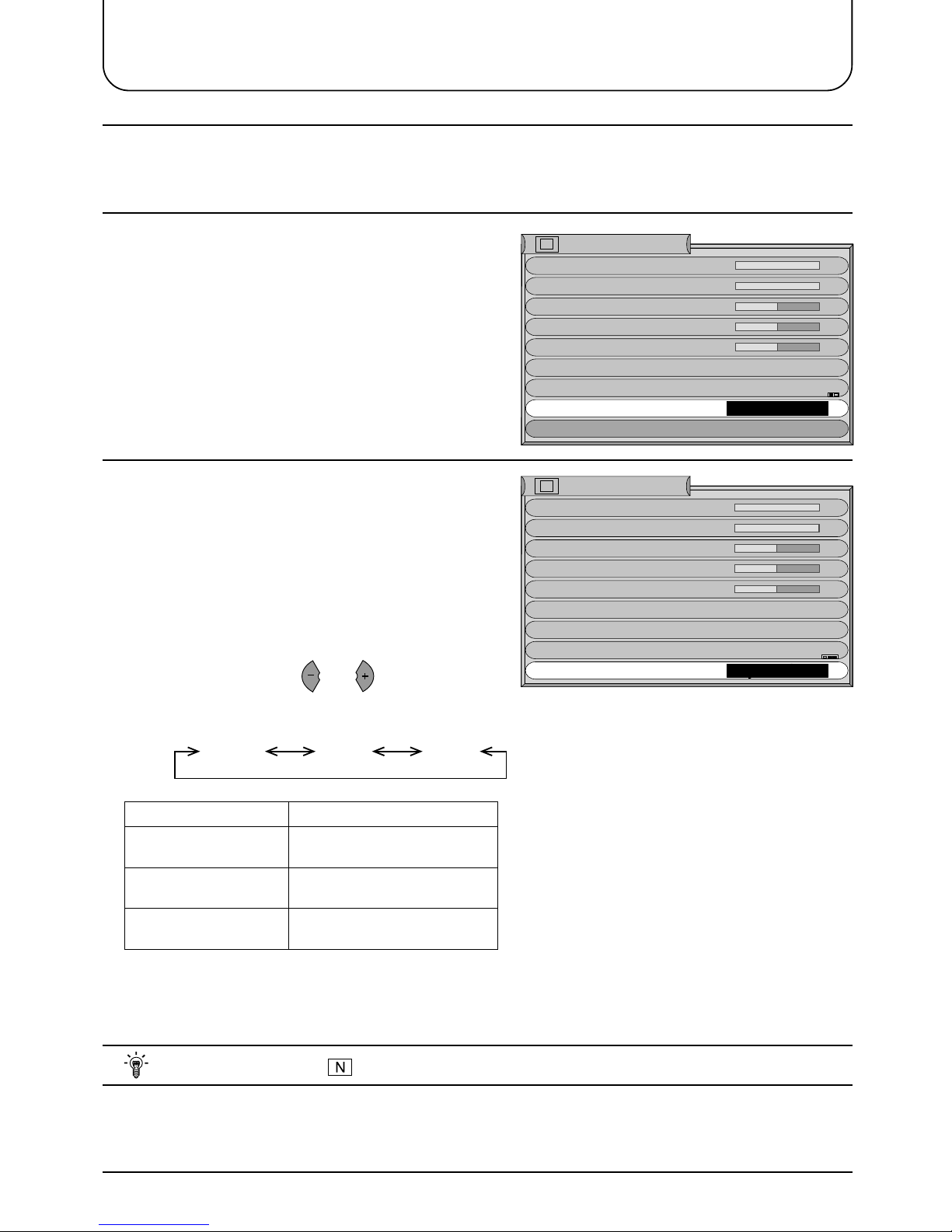

Picture menu
Comb filter
AI
Mode
Automatically analyses the
incoming picture and
processes it to give improved
contrast and optimum depth
of field.
You can change the level of
each Function (Backlight,
Contrast, Brightness, colour,
Sharpness, colour balance,
comb filter, AI, Tint) for each
picture menu.
Picture menu mode will be
memorized for each
TV,AV1,AV2 and AV3 mode.
Press or to switch
between modes
Helpful Hint ( Normalization)
The ‘N’ key has no effect if it is pressed when menu is displayed on the screen.
If the ‘N’ key is pressed when no menu is displayed on the screen, the user-preset original settings will be restored (this is not the
factory default settings).
CinemaDynamic Normal
Picture menu
Contrast
Brightness
Colour
Sharpness
Comb filter Off
Colour balance Normal
AI On
Mode DynamicDynamic
Backlight
Mode Function
Dynamic
Normal
Cinema
Displays a bright screen with
maximum contrast.
Displays standard image.
Ideal for movies in the dark
room.
Contrast
Brightness
Colour
Sharpness
Comb filter Off
Colour balance Normal
AI
Backlight
Picture menu
Mode
Dynamic
On
Reduces colour noise.
Not displayed during RGB Video input and S-Video input mode.
Note:
TINT appears only for NTSC input signals.
Page 18
18
F.P. INDEX HOLD
SOUND
SET UP
TV/TEXT
ASPECT
TV/AV
1
2 3
4
5 6
DIRECT
TV REC
1 Press
SOUND
.
2 Move to chosen menu option by using or .
3 Adjust chosen option or access chosen menu by using or .
Press
TV/AV
at any time to go back to watching TV.
Some features are only available with the Ambience feature switched off.
Press to switch between On and Off.
Volume, Bass, Treble, Balance, Headphone Volume
Sound menu
Item FunctionEffect
Balance
Left SP Right SP
Volume
Less More
Bass
Less More
Headphone
volume
Less More
Treble
Less More
Adjusts the sound level difference
between left and right speakers.
Adjust Headphone volume.
Adjusts lower deeper sounds.
Adjusts higher sharper sounds.
Adjusts output volume.
Sound menu
Bass
Treble
Headphone volume
NICAM No service
Mode Music
Ambience Off
Volume
Balance
NICAM
Usually set to stereo to
provide the best reproduction,
but if reception deteriorates or
if the service is not available
then switch to Mono.
Mono (M1) and (M2) can also
be selected if a mono signal
is being transmitted.
Not displayed during AV
mode.
Sound menu
Bass
Treble
Headphone volume
NICAM No service
Mode Music
Ambience Off
Volume
Balance
No service
Page 19
19

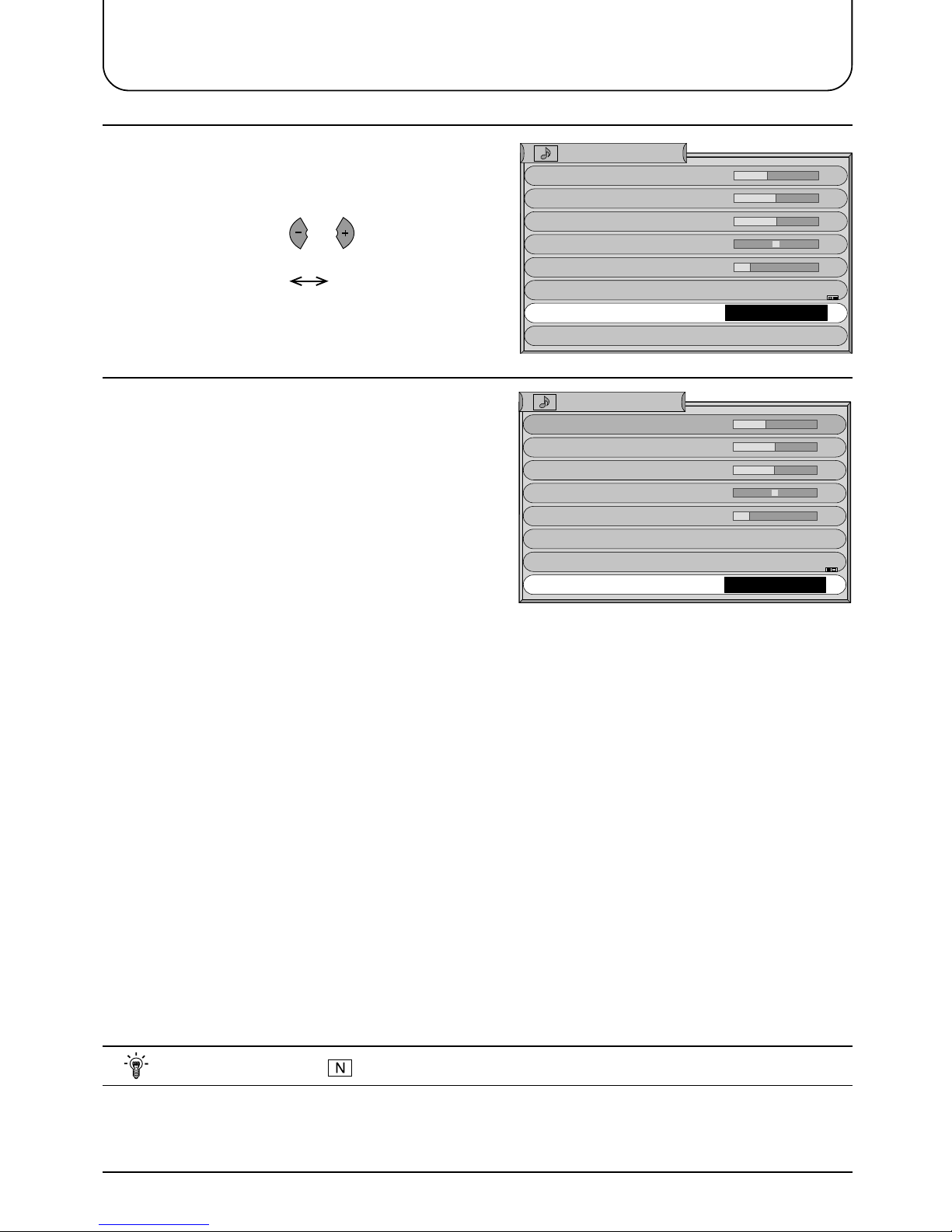

Sound menu
Helpful Hint ( Normalization)
The ‘N’ key has no effect if it is pressed when menu is displayed on the screen.
If the ‘N’ key is pressed when no menu is displayed on the screen, the user-preset original settings will be restored (this is not the
factory default settings).
Sound menu
Bass
Treble
Headphone volume
NICAM No service
Mode Music
Ambience Off
Volume
Balance
Music
Sound menu
Bass
Treble
Headphone volume
NICAM No service
Mode Music
Ambience Off
Volume
Balance
On
Sound quality can be improved
when watching music or speech
by selecting the appropriate mode
Music or Speech.
Press or to select Mode.
Music
Speech
To enjoy a concert hall effect, turn
Ambience to on.
Mode
Ambience
Page 20
20

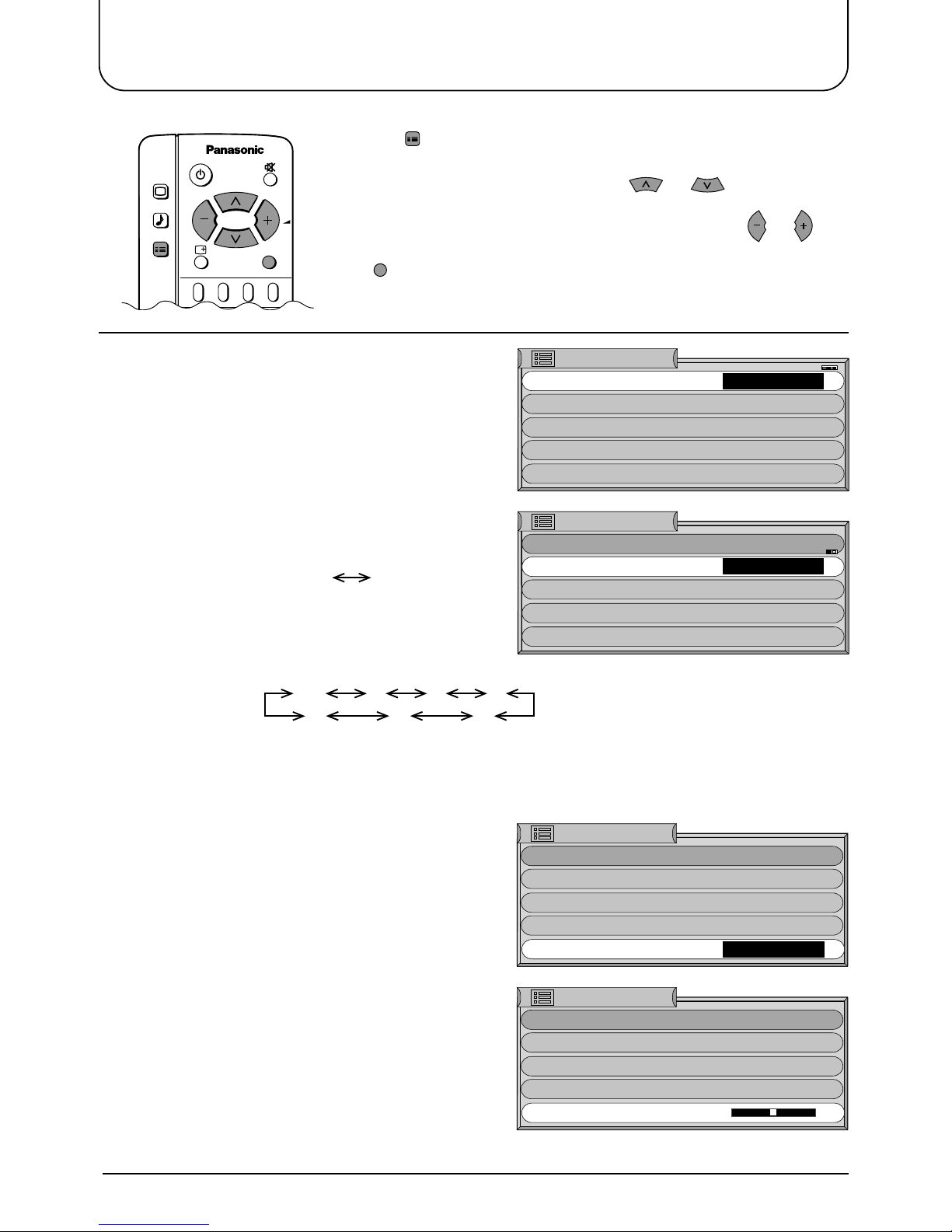

1 Press
SET UP
.
2 Move to chosen menu option by using or .
3 Adjust chosen option or access chosen menu by using or .
Press
TV/AV
at any time to go back to watching TV.
Offers a choice of signals to send
to the AV2 Scart socket. You can
choose from the current TV
programme position, the signal
entering AV1or Moniter - the
picture displayed on screen.
Allows you to choose 2 modes.
(See page 33)
Switches the TV off within a preset
time which you can choose from
OFF and between 15 to 90
minutes in 15 minute intervals.
Allows you to enable or disable data
communication between this TV and
a compatible VCR. (see page 30)
Provides access to many other
features including programme edit
and Auto setup. (See page 21)
Not displayed during AV mode.
Lets you adjust the volume level
of individual station. Use this
feature if the volume level varies
significantly between stations.
Adjusting one station’s volume to
bring it into line with the other
stations means you can avoid
having to adjust the volume each
time you change channels.
During AV mode, Volume
correction is displayed.
Setup menu
SOUND
SET UP
TV/AV
AV2 out
T eletext
Off timer
Q-Link
Tunning
menu
Volume correction
FASTEXT List
OFF
607590
3015 45
Setup menu
AV2 out
Teletext List
Off timer Off
Q-Link
Tuning menu
On
TV
Setup menu
AV2 out
Teletext
Q-Link
Tuning menu
On
Off timer
Off
TV
List
Setup menu
AV2 out
Teletext List
Off timer Off
Q-Link
On
TV
Tuning menu
Acceess
Setup menu
AV2 out
Teletext List
Off timer Off
Q-Link
On
TV
Volume correction

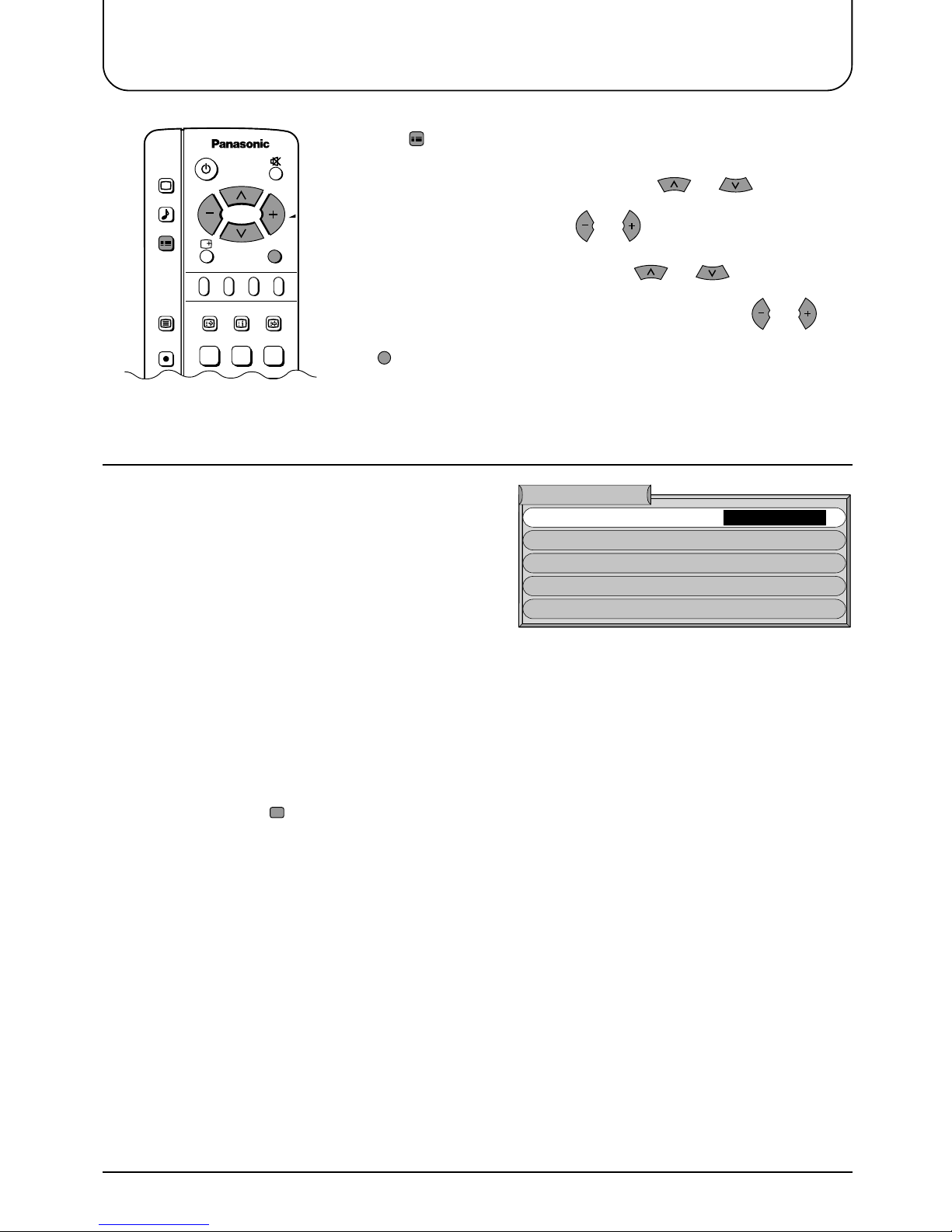

Page 21
21
Tuning menu-overview
F.P. INDEX HOLD
SOUND
SET UP
TV/TEXT
TV/AV
1
2 3
DIRECT
TV REC
1 Press
SET UP
.
2 Move to the Tuning menu option by using or .
3 Access Tuning menu by using or .
4 Move to chosen menu option by using or .
5 Adjust chosen option or access chosen menu by using or .
Press
TV/AV
at any time to go back to watching TV.
Access in order to customise your programme
settings (eg: adding or deleting a programme
position) see page 22.
Allows you to automatically retune the TV.
Useful if you move house and wish to retune
your TV to the local stations. see page 24.
Allows individual programme positions to be
tuned manually. see page 25.
Allows you to clear all tuning information and
reset all control levels back to factory setting.
see page 26.
Allows you to enter a security code and address
information. see page 27.
Programme
edit
Auto setup
Manual tuning
Shipping
condition
Owner ID
Tuning menu
Auto setup
Manual tuning
Owner ID
Programme edit
Shipping condition
Access
Access
Pressing
STR
after having adjusted some feature will store the setting as the default (replacing
the factory setting).

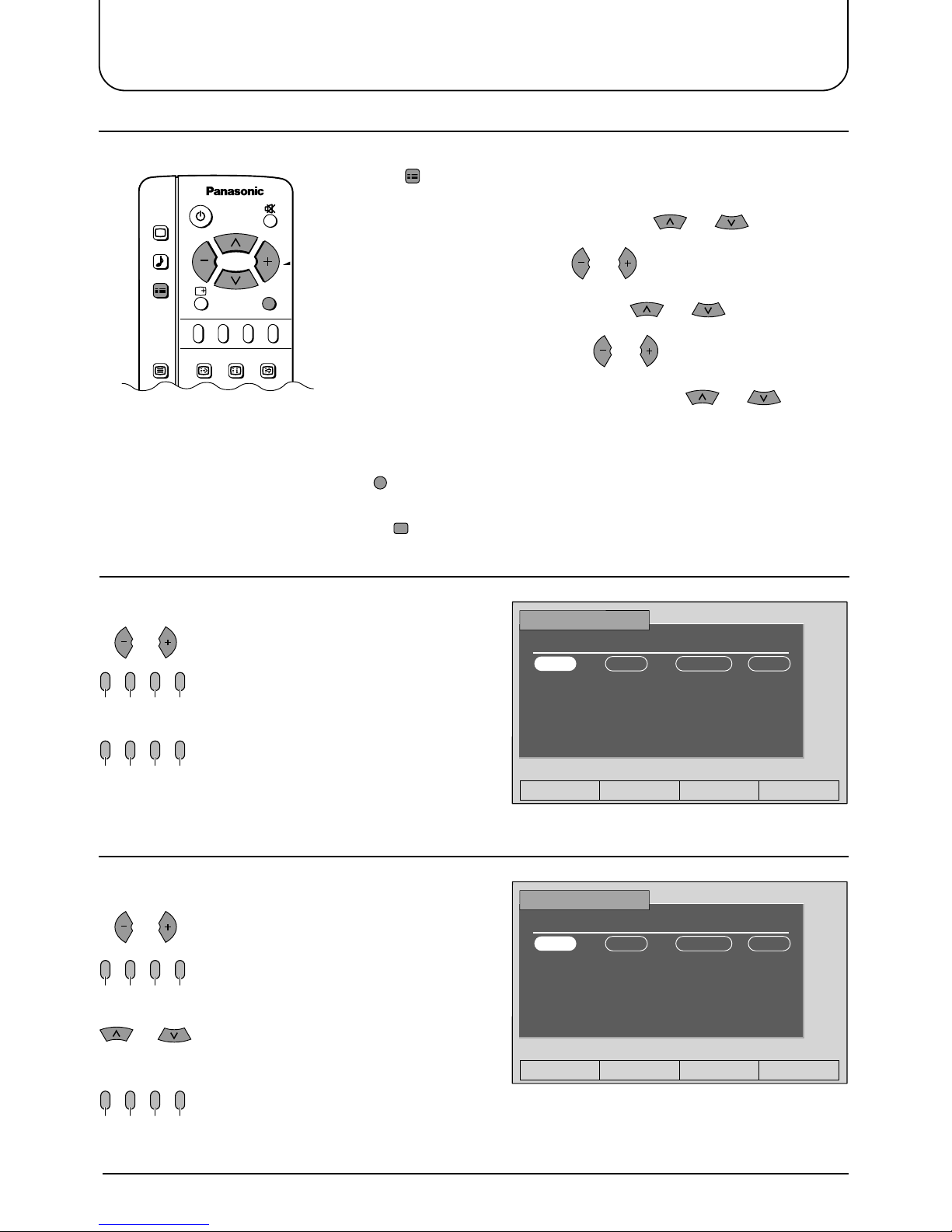

Page 22
22
Tuning menu
Programme edit
F.P. INDEX HOLD
SOUND
SET UP
TV/TEXT
TV/AV
1 Press
SET UP
.
2 Move to the Tuning menu option by using or .
3 Access Tuning menu by using or .
4 Move to chosen menu option by using or .
5 Access Programme edit by using or .
6 Move to chosen Programme position by using or .
Make required change, eg: renaming a programme channel (see next page).
Press
TV/AV
at any time to go back to watching TV.
Pressing
STR
after having adjusted some feature will store the change mode.
or
Red Green Yellow Blue
or
Programme edit
Prog. Chan. Name Lock
1 : CH44 ABCDE Off
2 : CH51 VWXYZ Off
3 : CH41 FTPES Off
4 : CH47 12345 Off
5 : CH37 45678 Off
Delete Add Move TV->VCR
Programme edit
Prog. Chan. Name Lock
1 : CH44 ABCDE Off
2 : CH51 VWXYZ Off
3 : CH41 FTPES Off
4 : CH47 12345 Off
5 : CH37 45678 Off
Delete Add Move TV->VCR
or
Red Green Yellow Blue
Red Green Yellow Blue
Red Green Yellow Blue
Adding / deleting a programme channel
Make sure the cursor is in the Prog. column.
Press the green button to add a programme
channel to the programme position, or the red
button to delete one.
Press the same button again to confirm your
decision.
Moving a programme channel
Make sure the cursor is in the Prog. column.
Press the yellow button.
Choose the new position for the programme
channel.
Press the yellow on screen selector key again
to confirm your decision.
Page 23
23

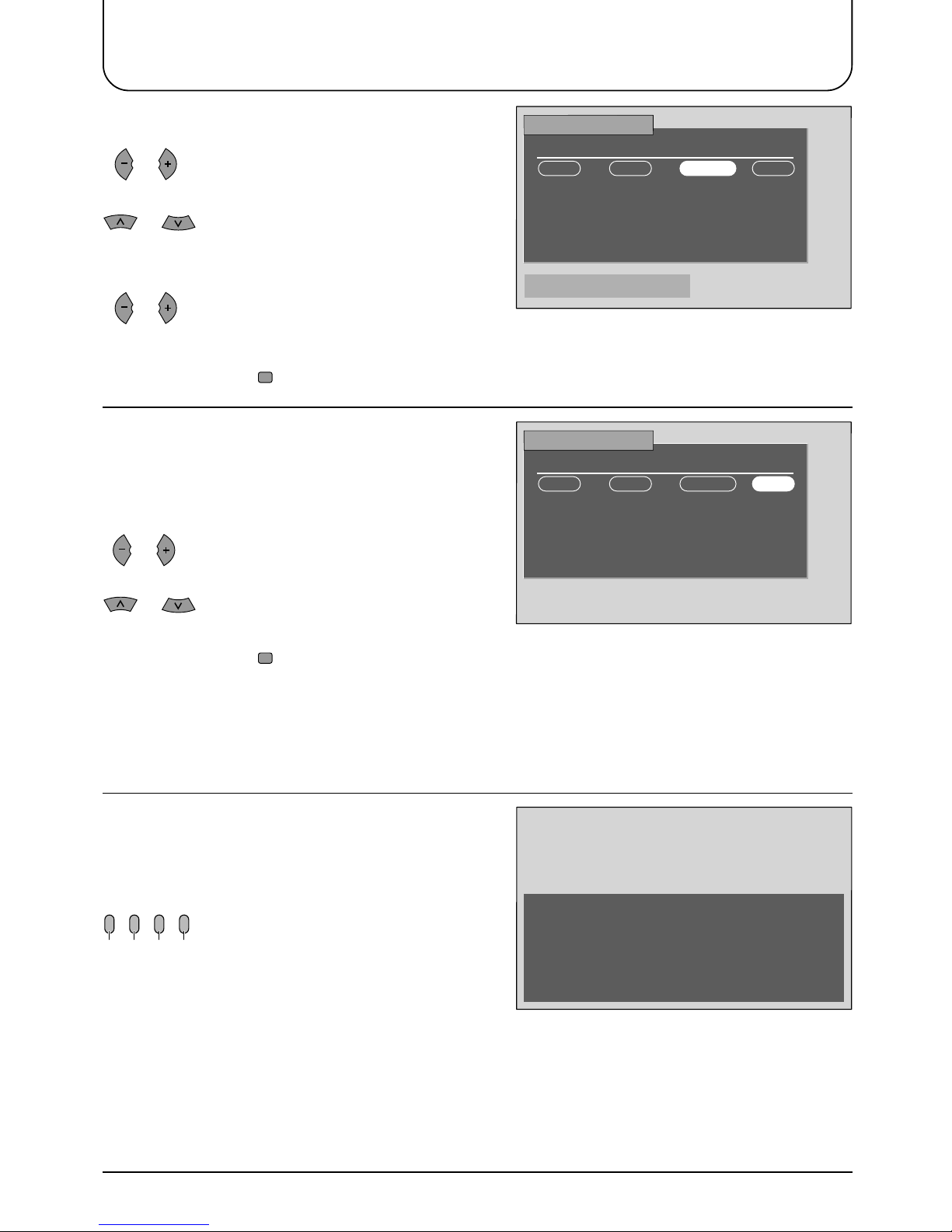

Tuning menu
Renaming a programme channel
Move to the Name colum.
Choose the new character. The box at the
bottom of the screen shows the character
currently selected.
Move to the next character position.
Continue until renaming is done.
Press
STR
to store the new name.
Locking a programme channel
You may wish to lock a programme channel
to prevent access to it.
Move to the Lock column.
Choose between Lock On or Lock Off.
Press
STR
to store the new setting
Note:
•
When a programme position is locked, Direct
Channel Access using the C and numeric
buttons on the remote control is not available.
Copying programme information to a VCR
You can copy programme information to a
compatible VCR connected to AV2 (see page
36 for connection information)
Press the blue button.
Programme data will now be sent to the VCR.
This might take a few seconds, depending on
the number of stations stored. If the message
“Unable to download, check your VCR” appears
on the screen, the television is unable to send
the programme information to the VCR. See
the VCR instruction book for further information.
Note:
•
If you have a Q-Link VCR, ensure that it is in
Stand-by mode. If your VCR is not a Q-Link
VCR, please refer to the VCR instruction book.
or
or
or
or
or
Programme edit
Prog. Chan. Name Lock
1 : CH44 ABCDE Off
2 : CH51 VWXYZ Off
3 : CH41 FTPES Off
4 : CH47 12345 Off
5 : CH37 45678 Off
ABCDEFGHIJKLMNOPQRST
UVWXYZ
+− .
0123456789
Programme edit
Prog. Chan. Name Lock
1 : CH44 ABCDE Off
2 : CH51 VWXYZ Off
3 : CH41 FTPES Off
4 : CH47 12345 Off
5 : CH37 45678 Off
TV −> VCR DOWNLOAD IN PROGRESS
PLEASE WAIT
Programme : 63
Remote control unavailable
Red Green Yellow Blue
Page 24
24

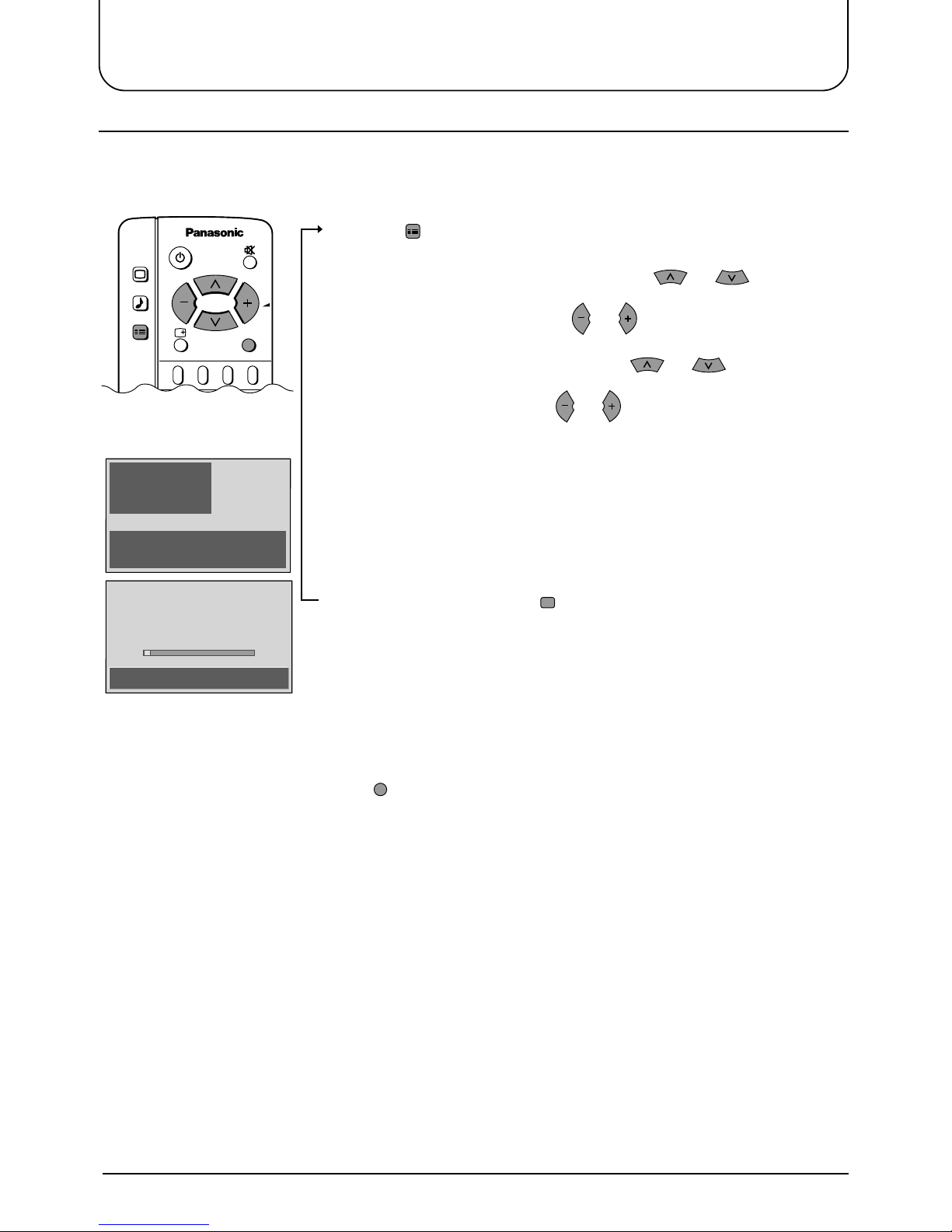

Tuning menu
SOUND
SET UP
TV/AV
1 Press
SET UP
.
2 Move to the Tuning menu option by using or .
3 Access Tuning menu by using or .
4 Move to chosen menu option by using or .
5 Access Auto setup by using or .
Note:
• If you proceed with the next step all tuning data will be erased (all stations
and their programme positions stored in your TV’s memory will be wiped out
so the new settings can be stored).
• If an auto setup process is aborted midway, all channels that have been set
up to that point will be saved to memory.
6 Start Auto setup by using
STR
.
The TV will search for, locate, store and then sort into order your local stations.
If a compatible VCR is connected via the AV2 socket,programme data will
be sent to the VCR via Q-Link (see page 30).
Once this operation is completed the TV will display the programme now
stored on programme position 1.
Press
TV/AV
at any time to go back to watching TV (please read the Note in
the above procedure).
Auto setup
Auto setup automatically retunes your TV. This feature is useful if, for example, you move house and wish to
retune your TV to recevie the local stations.
STR : Start Auto Setup
TV/AV : To exit
SETUP : Return to tuning menu
All current tuning
data will be erased
WARNING
SETUP : Return to tuning menu
TV/AV : To exit
AUTO SETUP IN PROGRESS
SEARCHING:PLEASE WAIT
21 68

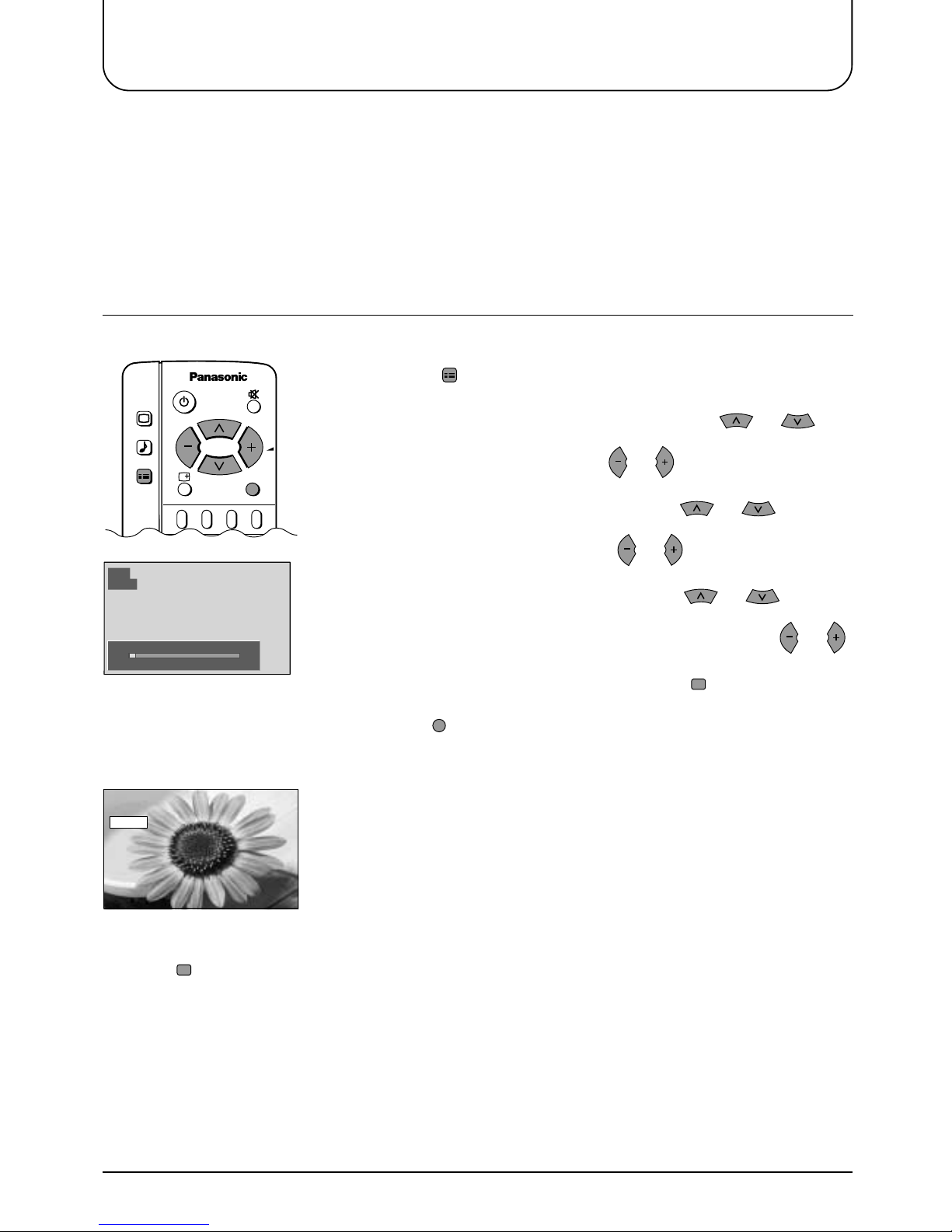

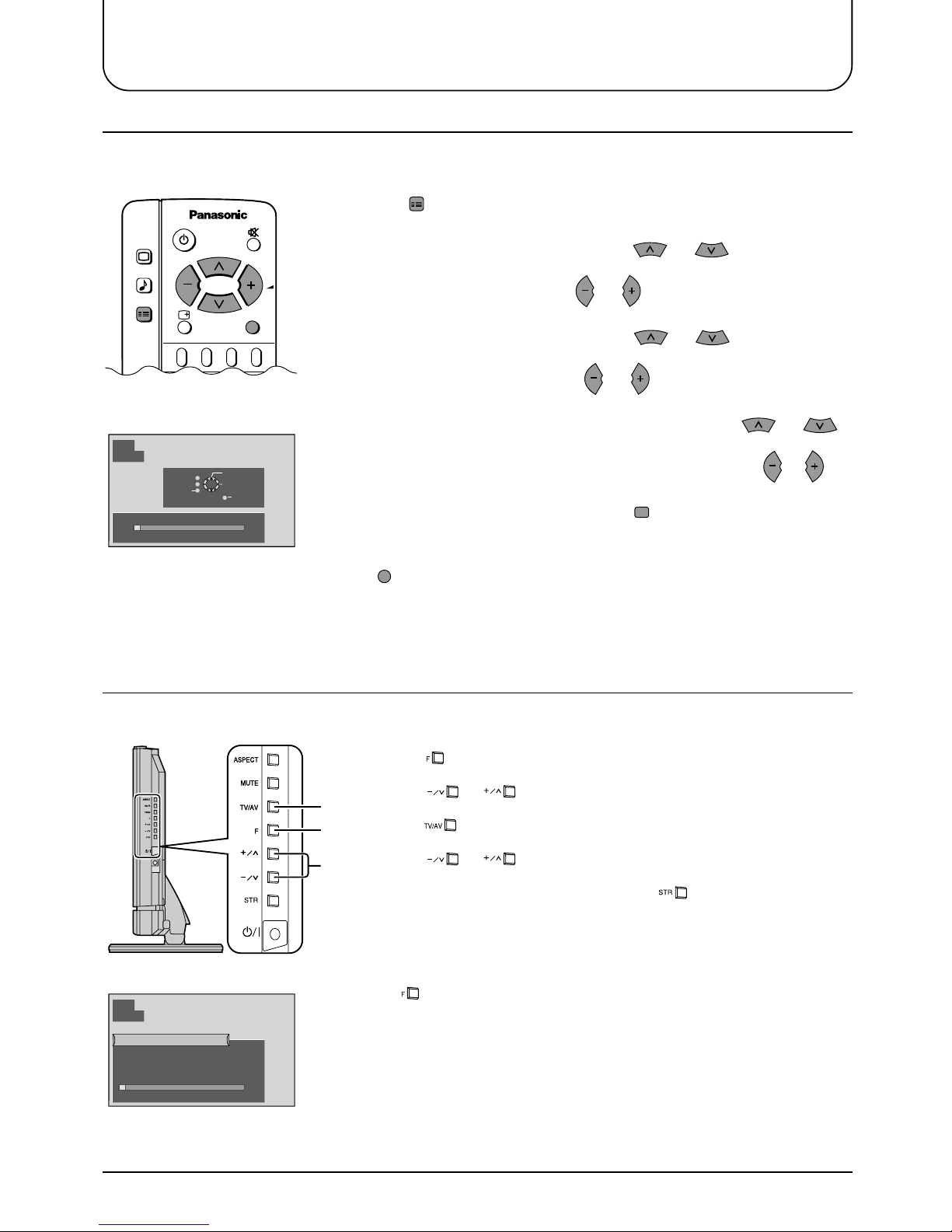

Page 25
25
Tuning menu

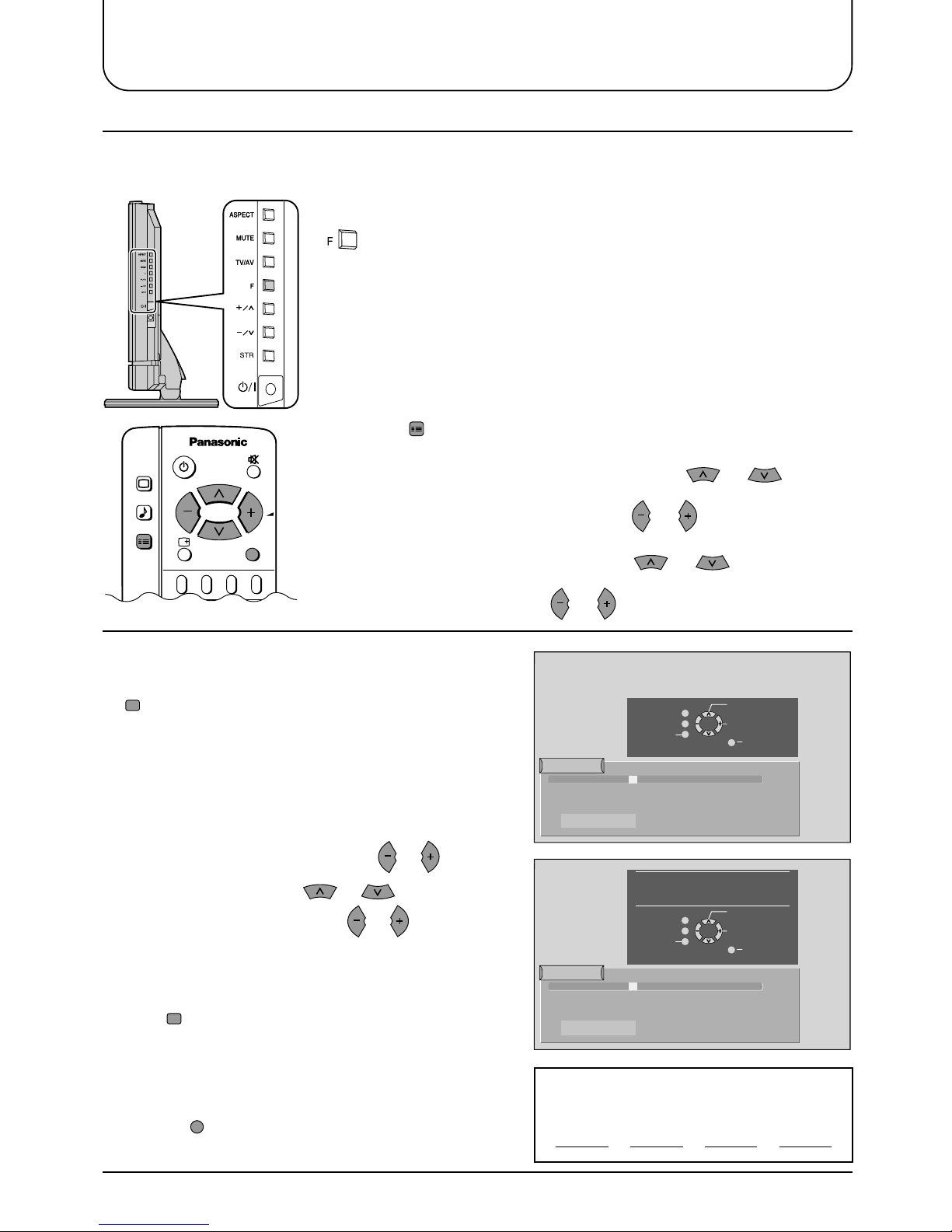

Manual tuning
It is possible to retune an individual programme position:
SOUND
SET UP
TV/AV
1 Press
SET UP
.
2 Move to chosen menu option by using or .
3 Access Tuning menu by using or .
4 Move to chosen menu option by using or .
5 Access Manual tuning by using or .
6 Select the programme position to be tunned by using or .
7 Press repeatedly until required station is found by using or .
When the desired station is found, press
STR
to store.
The program position will flash.
Press
TV/AV
at any time to go back to watching TV.
1 Press (Side panel) until Tuning mode is reached.
2 Press or to access Tuning mode.
3 Press to move between Change programme and search.
4 Press or to change programme position or start search.
When the desired station is found, press to store.
The programme position will flash.
Repeat above procedure to tune additional programme positions.
Press at any time to exit the Tuning menu.
(LCD TV Set)
3
1
2
4
Manual tuning
21 68
CH44
1
TV/AV
'STR' Button - Store
Exit
Programme
down/up
Search
down/up
Return
CH44
1
−, + : Search
TV/AV : Move cursor
STR
: To store
F
: To exit
21 68
Manual tuning (Side panel)
Manual tuning (via side panel)
It is also possible to use the control panel buttons on the side of your TV to tune individual programme positions:
Page 26
26
Tuning menu

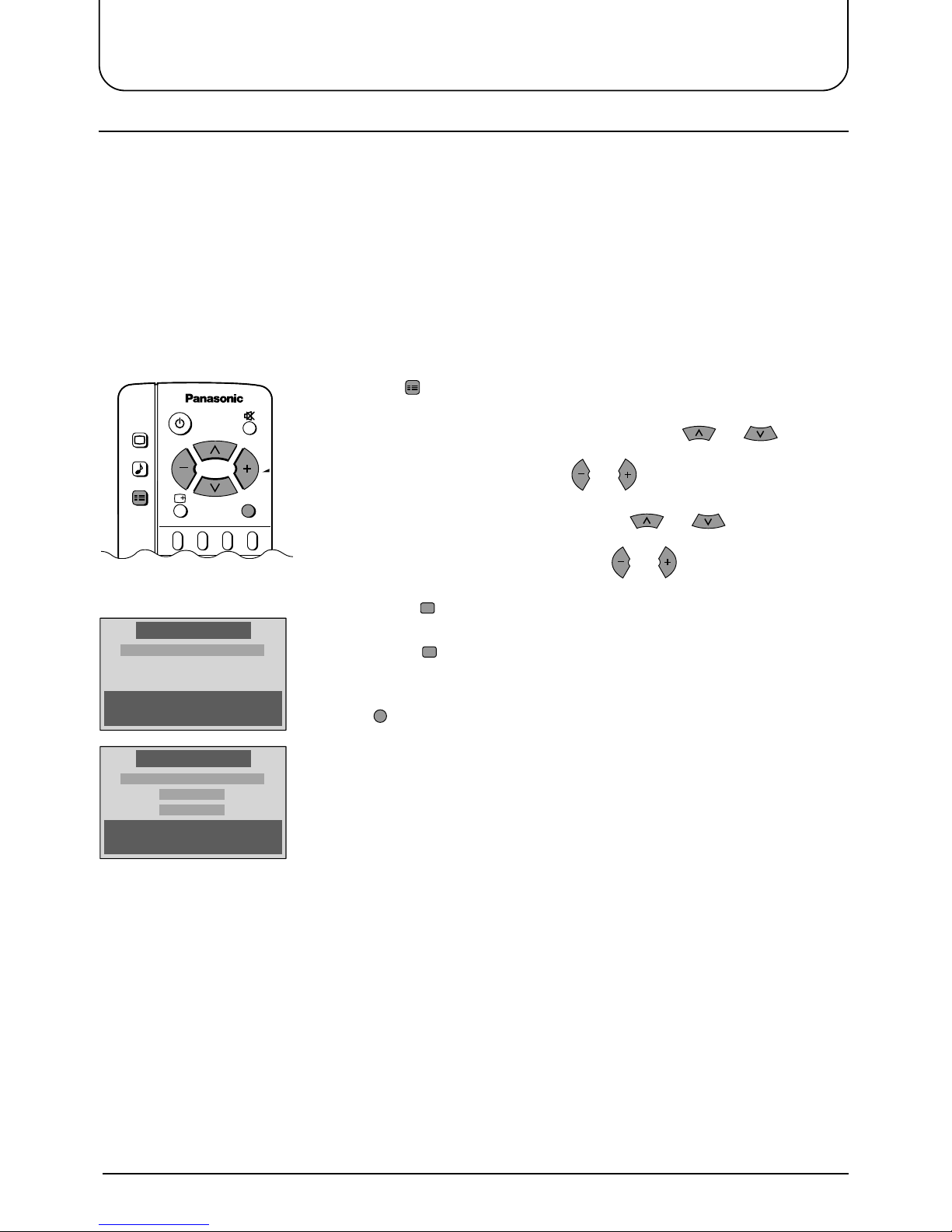

Shipping condition
Shipping condition allows you to reset the TV to its original condition, i. e. no channels tuned in.
This is useful, for example, if you move to a different area when you will probably want the TV to tune itself to
your new local stations.
This can be done either through the Shipping condition menu or through the Auto setup menu.
The Shipping condition menu will reset all data, Clearing all tuning information and resetting all control levels
back to factory setting.
You may need to adjust your VCR or programme position ‘0’ VCR after operating the Shipping condition menu
- refer to page 31.
1 Press
SET UP
.
2 Move to chosen Tuning menu option by using or .
3 Access Tuning menu by using or .
4 Move to chosen menu option by using or .
5 Access Shipping condition by using or .
6 Press the
STR
key twice.
A confirmation message is displayed twice.
Press the
STR
key a third time, and all the tuning data will be cleared into the
default setting.
Press
TV/AV
at any time to go back to watching TV.
SOUND
SET UP
TV/AV
STR : Start
TV/AV : To exit
SETUP : Return to tuning menu
All tuning data will be erased
Shipping condition
STR : Start
TV/AV : To exit
SETUP : Return to tuning menu
All tuning data will be erased
Are you sure?
Are you sure?
Shipping condition
Page 27
27
Tuning menu
1 Press
SET UP
.
2 Move to chosen Tuning menu option by using or .
3 Access chosen Tuning menu by using or .
4 Move to chosen menu option by using or .
5 Access Owner ID by using or .
If the Owner ID has previously been set, enter the PIN
NUMBER (using 0 to 9 on the remote control) followed by
STR
to proceed, this will take you to the NAME option.
If no Owner ID has previously been set, enter the
required 4 digit Owner ID PIN NUMBER (using 0 to 9 on
the remote control)
If a 4 digit PIN NUMBER was entered above, you will be
taken automatically to the NAME line.
If not, move to the NAME line by using or .
Change character by using or .
Select character position by using or .
Repeat above until NAME, HOUSE NUMBER and
POSTCODE are entered.
Press
STR
to store the details.
Press again when you are asked, “Are you sure?”
The Tuning menu will be displayed.
Press the
TV/AV
to exit.
TV/AV
'STR' Button - Store Owner ID
Exit
Change
Character
You now have the opportunity
to enter your details and
help the police crack crime
see instruction book
Select
character
Return
Owner ID
PIN NUMBER :
∗∗∗∗
NAME :
∗∗∗∗∗∗∗∗∗∗∗∗∗∗
HOUSE NO :
∗∗∗∗∗∗∗∗∗∗∗
POST CODE :
∗∗∗∗∗∗∗∗∗∗∗
0123456789
TV/AV
'STR' Button - Enter PIN Number
Exit
Change
Character
Select
character
Return
Owner ID
PIN NUMBER :
∗∗∗∗
0123456789
Owner ID
Owner ID allows you to enter a security code (Owner ID) and personal details into its memory, so that in the
unfortunate event of theft it will help the police to trace the owner.
If you wish to check the personal details already entered into the TV, press the
(Side panel) and hold for 5 seconds. The details already entered are
displayed on screen.
If Owner ID information was not entered when you switched on your TV for the
first time or it is necessary to alter some of the information, Owner ID can be reaccessed via the Tuning menu.
For future reference,
write your PIN NUMBER here :
SOUND
SET UP
TV/AV
Page 28
28
Press the ASPECT
ASPECT
to move through the five aspect options: Panasonic Auto, 4:3, Zoom, 16:9 and 14:9.
Notes:
• If you leave Aspect set to Panasonic Auto, the TV software determines the best ratio for each programme
viewed.In order not to disrupt your viewing, no mode information is displayed while this is happening.Simply
press the ASPECT button to display mode information in the top left of the screen.
• The screen modes (4:3/Zoom/16:9/14:9) are selectable manually (wide-aspect modes are not automatically
selected if a wide-screen signal is applied).
• During Aspect change, the displayed picture will momentarily disappear. This is not a malfunction.
The on screen selector keys (corresponding to the two coloured buttons on the remote control) that appear for
some Aspect functions clear after a few seconds, if you want to select an operation when the keys are not
shown, press the ASPECT
ASPECT
button once more and the keys will reappear.

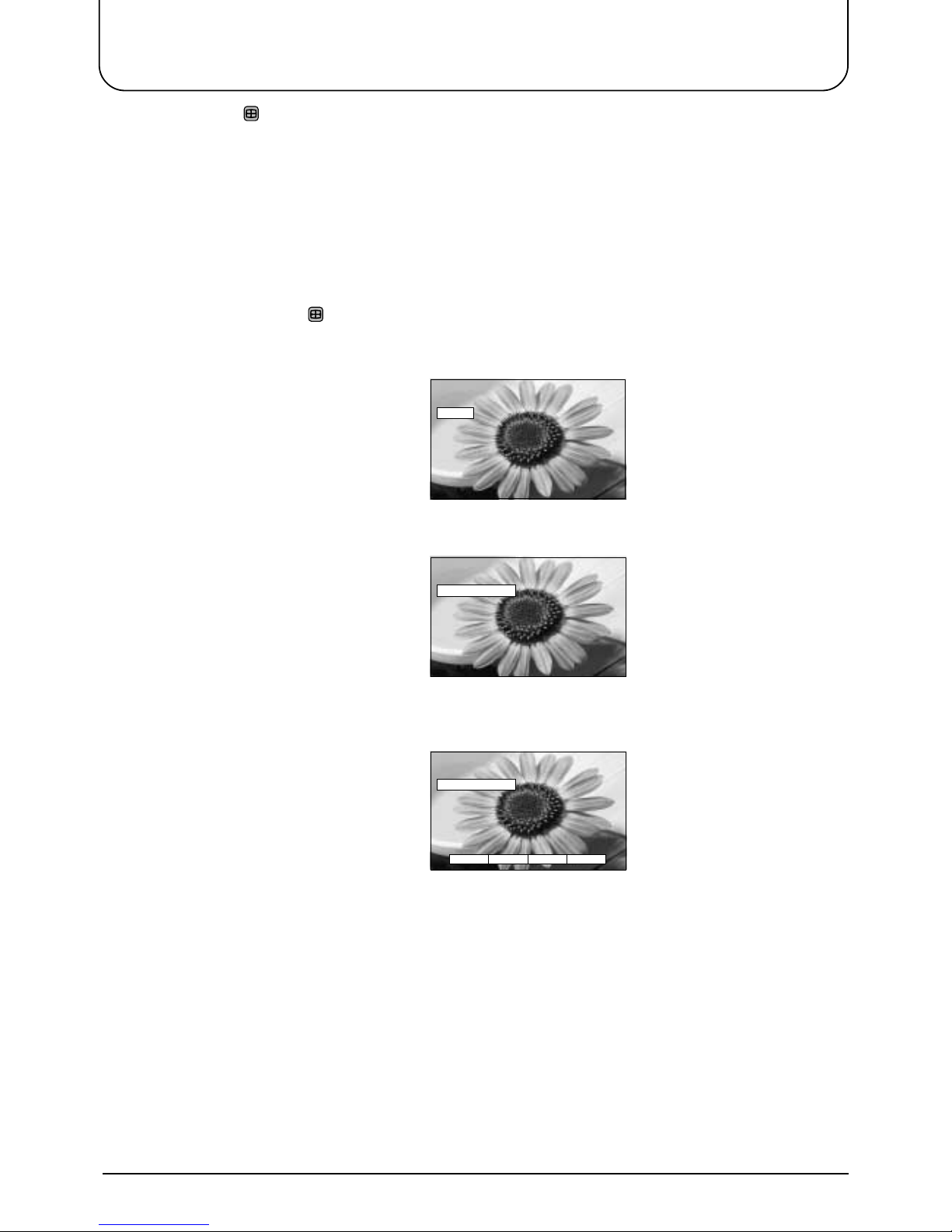

Aspect Controls
WIDE
Panasonic Auto
Panasonic Auto
Panasonic Auto
Panasonic Auto
V-POS− V-POS+
Panasonic Auto
Panasonic Auto
Panasonic Auto determines the best
aspect ratio to use to display the picture
you are viewing. It does this using a four
step process to determine if the picture
being viewed is a widescreen picture.
If Panasonic Auto detects a widescreen
signal it switches into the appropriate 16:9 or
letterbox 14:9 mode.The Panorama (Just)
mode is selected if a signal with wide aspect
ratio is not present (the screen cannot be
switched from Panorama mode into 4:3
mode).
The text shown on the screen indicates
how Panasonic Auto determined which
ratio to use:
‘WIDE’ appears in the top left of the screen
if a widescreen identification signal (WSS)
is found or a signal is found through a Scart
socket. Panasonic Auto switches to the
appropriate 16:9 or 14:9 widescreen ratio.
‘Panasonic Auto’ appears in the top left of
the screen if black stripes above and below
the picture are detected. Panasonic Auto
chooses the best ratio and expands the
picture to fill the screen. This process can
take several minutes, depending how dark
the picture is.
When in Panasonic Auto mode, if a Letter
box signal is input and there is no Aspect
information, the picture is automatically
adjusted to 14:9 or Zoom.
When “Panasonic Auto” is indicated in the
top left of the picture and the subtitle is
indicated in the lower part, the position of
the picture can be adjusted vertically using
the Yellow (V-POS-: Downwards) or Blue
(V-POS+: Upwards) Buttons.
‘WIDE’ appears in the top left
of the screen, Panasonic Auto
switches to the appropriate
16:9 or 14:9 widescreen ratio.
‘Panasonic Auto’ appears in
the top left of the screen. The
best ratio is chosen and the
picture expanded to fill the
screen.
Notes:
• If, in Panasonic Auto mode, you experience problems with the screen display size when playing back
widescreen format recordings from your VCR then it is possible that the tracking control your VCR requires
adjustment (your VCR instruction book will contain adjustment details).
• The widescreen aspect ratios of different films and programmes can vary. If these are wider than a standard
16:9 aspect picture then a black band may be visible at the top bottom of the screen.
Page 29
29
Aspect Controls
Blue button has been pressed
to move picture upwards
Zoom
Zoom
V-POS− V-POS+
Zoom
V-POS− V-POS+
16 : 9
16 : 9
4:3
4:3 will display a 4:3 picture at its standard
4:3 size without any stretching. Black
stripes will be visible down the left and right
sides of the picture.
Zoom
Zoom mode magnifies the central section
of the picture.
Press the yellow or blue buttons to move
the picture vertically (useful when there are
sub-titles positioned below the picture).
16:9
16:9 will display the picture at its maximum
size but with slight stretching.
14:9 Letterbox
14:9 will display a 14:9 picture at its
standard 14:9, size without any stretching.
Black stripes will be visible down the left
and right sides of the picture.
Press the yellow or blue buttons to move
the picture vertically.
4 : 3
4 : 3
14 : 9
14 : 9
V-POS− V-POS+
Page 30
30

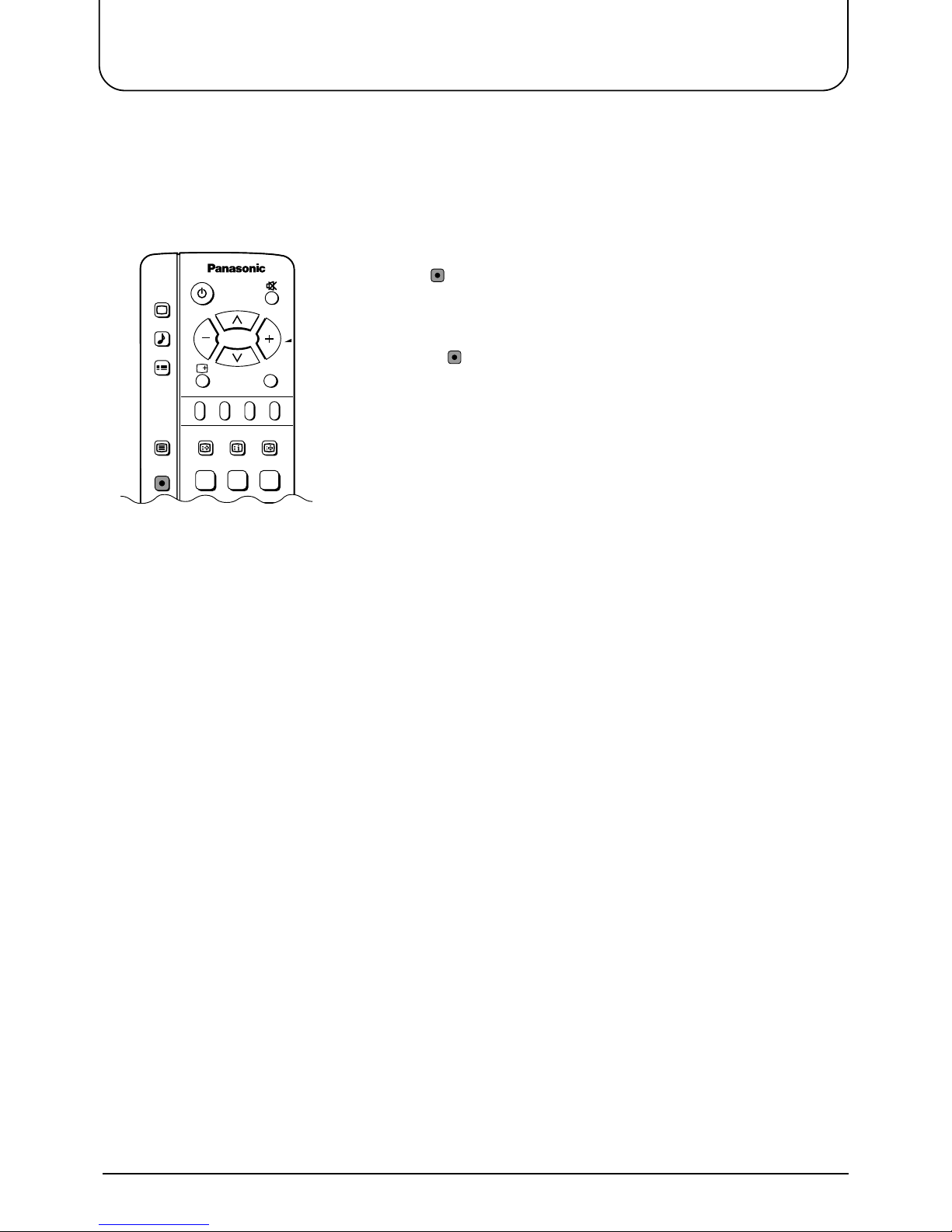

Q-Link
This is a Q-Link TV. Q-Link, NEXTVIEWLINK and similar technology provide a way for a TV and VCR to communicate,
making it easier to record programmes. In order to be able to exchange information both the TV and the VCR must be
fitted with this technology , and must be connected with a SCAR Tlead (full function type) between the AV2 socket of the
TV and the appropriate socket on the VCR (see the VCR instruction book for details).
Q-Link lets your TV instruct a compatible VCR to record the programme currently shown on screen, no matter what
programme position is set on the VCR, In order to make use of Q-Link, ensure that the Q-Link option is set to On in
the SET UP menu (see page 20).
Press the
DIRECT
TV REC
button.
Notes:
• If the VCR is in Stand-by mode, it will automatically switch on when you
press the
DIRECT
TV REC
button.
• To ensure correct recordings are made, the television and VCR should
share tuning information (see page 23).
• Whenever the Auto setup function is used, tuning data will be
downloaded to the VCR (see page 24).
A message, sent from the VCR, will appear on screen showing what is being recorded, or if it is not possible to
record. Some “Q-Link” compatible VCRs only display the message when on the VCR programme position (0) or
in AV mode. See the VCR instruction book.
VCR is recording the programme signal from its own tuner. If you wish you can
switch off the TV and leave the VCR recording in the normal way.
VCR is recording the programme signal from the television. You must not
change programme position or switch off the TV: if you do, the VCR will
automatically stop recording and switch off.
The write protection tab on the back of the cassette has been removed.
Examples of other messages that might be displayed.
Preset Download
This allows the programme order from the TV to be downloaded to the VCR, this helps to ensure that correct
recordings are made, there are several ways to perform this operation:
• During installation as explained in the ‘Quick Start Guide’ beginning on page 6.
• When Auto setup is started from within the Tuning menu, see page 24.
• When TV to VCR manual download is started from within ‘Programme edit’, see page 23.
• Preset download started from the VCR, refer to the VCR operating instruction book.
Notes:
• With Panasonic Q-Link VCRs these additional features are available:
• If you insert a tape in the VCR and press the Play button whilst the TV is in ‘Stand-by’ mode, the TV will
automatically switch On and select the AV2 input so that you can view the tape.
• When the TV is switched into ‘Stand-by’ mode, the VCR will also switch into ‘Stand-by’ mode if there is no
tape in the VCR, or if there is a tape in and the VCR is in ‘Rewind’ or ‘Stop’ mode (if the VCR is rewinding
a tape, it will not switch into ‘Stand-by’ mode until rewinding has finished).
• If the TV is in Stand-by mode and the VCR sends a menu to be displayed on the TV screen (e.g. Main
menu), the TV will automatically switch On and the menu will be displayed.
• Not all VCRs support this technology. This TV will communicate with VCRs bearing the following logos:
• “DATA LOGIC” (a trademark of Metz Corporation) • “Megalogic” (a trademark of Grundig Corporation)
• “Easy Link” (a trademark of Philips Corporation) • “SMARTLINK” (a trademark of Sony Corporation)
Some may support certain features, but not others. Refer to the VCR operating instruction book.
• If Q-Link is inoperative, first confirm that your Scart lead is a full function type. Ask your dealer for further details.
F.P. INDEX HOLD
SOUND
SET UP
TV/TEXT
TV/AV
1
2 3
DIRECT
TV REC
VCR recording preset prog
VCR recording TV source
No recording - TAPE IS
PROTECTED
No recording - NO TAPE
No recording TAPE MAY BE
DAMAGED
Page 31
31
Tuning your VCR and satellite receiver
Your new TV is supplied with programme position ‘0’ set to receive an RF signal from your VCR, although a
Scart connection is preferable if the VCR is so equipped (see page 6 or 36 for suitable inputs to the Scart socket
on this TV.)
However, if for some reason your VCR is tuned to a different RF channel then you will not receive any picture or
sound from your VCR on programme position ‘0’ of the TV. Either adjust the tuning of the TV’s programme
position ‘0’ (follow the instructions below) or adjust the RF channel of your VCR (some VCRs allow adjustment of
their RF channel via their remote control unit) or both until the TV receives the RF output channel of your VCR.
It is intended that this advice is used in conjunction with the instruction books for your additional equipment.
Tuning your TV to the VCR.
Switch on the VCR, insert and play a pre-recorded tape with known content
SOUND
SET UP
TV/AV
1 Press
SET UP
.
2 Move to chosen Tuning menu option by using or .
3 Access Tuning menu by using or .
4 Move to chosen Manual tuning by using or .
5 Access Manual tuning by using or .
6 Select programme position ‘0’ VCR by using or .
7
Start searching for the VCR playback of the known content tape by using
or .
When the VCR playback is found, pressing
STR
to store.
Pressing
TV/AV
to exit.
Notes:
• If picture patterning occurs on programme position ‘0’ it may be
necessary to adjust the RF output channel of the VCR, refer to the
VCR instruction book.
• If a Satellite Receiver and a VCR are going to be used with RF cable
connections it is important to avoid both units being set on the same
channel.
Refer to the Satellite Receiver and VCR instruction books for precise
tuning information.
Manual tuning
21 68
CH44
VCR
The tape with known content is
found and displayed.
Pressing
STR
will store the
setting.
VCR
Page 32
32
Advanced Remote Control Operation
VCR / DVD Operation
The Remote Control is capable of operating some functions of selected Panasonic VCRs and DVD (Digital
Versatile Disc) equipment. Some VCR and DVD equipment have different functions, so to ensure compatibility
please refer to the equipment's instruction book or consult your dealer for details.
REC VCR
DVD
PROGRAMME
N
STR
F.P. INDEX HOLD
SOUND
SET UP
TV/TEXT
ASPECT
TV/AV
1
2 3
4
5 6
7
8 9
C
0
VCR
DIRECT
TV REC
5
6
4
1
9
7
3
2
8
Function
REC
VCR
DVD
Standby
Press to switch the VCR or DVD to standby mode.
Press again to switch back on.
Pause / Still
Press in playback mode, the picture will pause.
Press again to restart play.
Programme Up / Down
Press to increase or decrease the VCR programme
position by one.
VCR / DVD switch
Use this switch to select whether controls operate
DVD equipment or your VCR.
Play
Press to playback the tape or DVD.
Stop
Press to stop the tape or DVD.
Record
Press this button to start recording.
Skip / Fast Forward / Cue
VCR:Press to fast forward the tape. In Play mode,
press to view the picture rapidly forward (Cue).
DVD:Press once to skip to the next track.
Skip / Rewind / Review
VCR:Press to rewind the tape. In Play mode, press
to view the picture rapidly in reverse (Review).
DVD:Press once to skip to the previous track.
PROGRAMME
Button
1
2
3
4
5
6
7
8
9
Page 33
33
Advanced Remote Control Operation

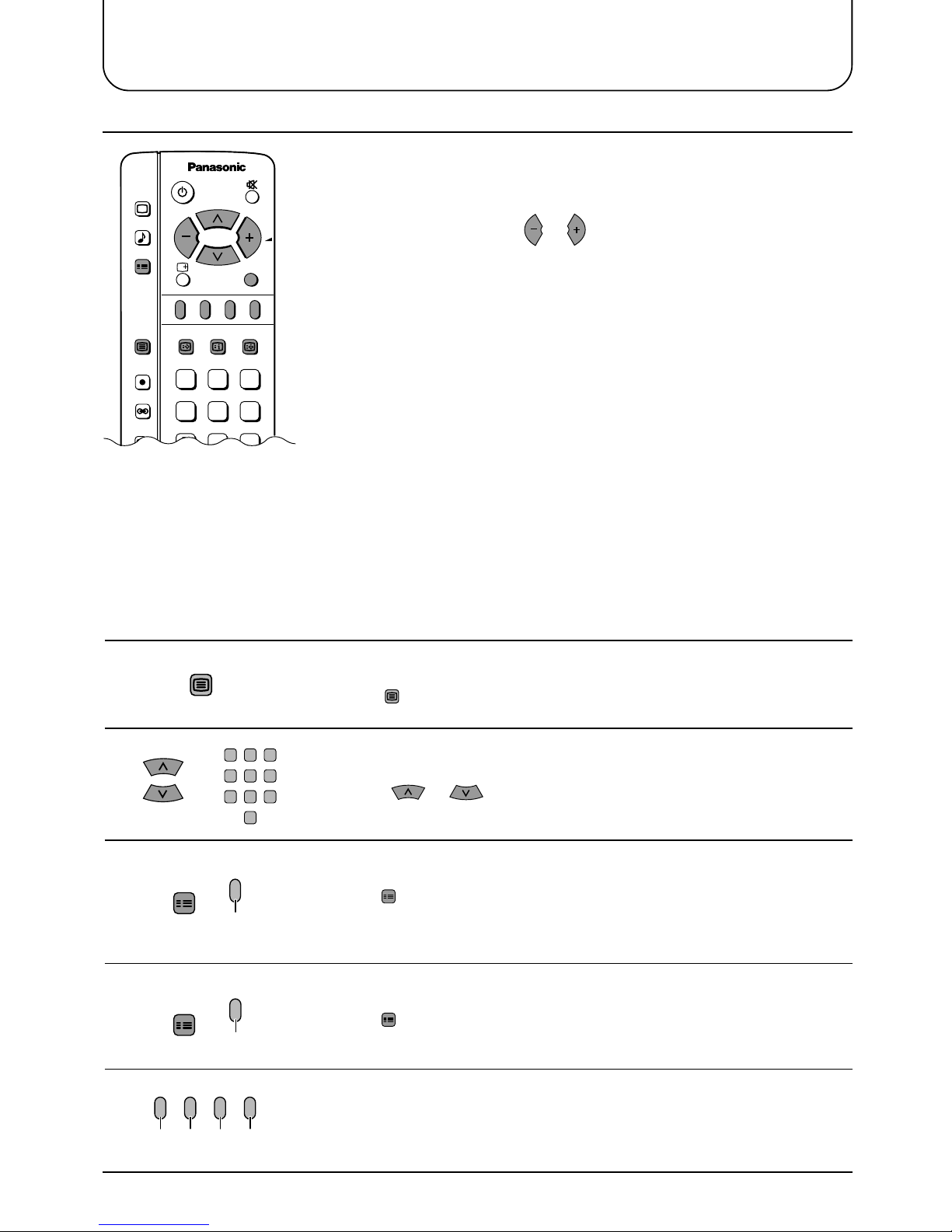

TELETEXT
· Teletext features may vary depending on the Broadcasting Companies and is only
available if the channel selected is transmitting Teletext.
· Pressing the Picture button whilst in Teletext operation will display the contrast
function with a cyan bar, press or to alter the setting as required.
Pressing the Setup button whilst in Teletext operation will display special function
options at the bottom of the screen.
· When in Teletext mode, the volume may still be altered to the desired listening
level, after pressing SOUND or MUTE button first.
What is List mode?
In List mode, four different coloured page numbers are situated at the bottom of the
screen. Each of these numbers can be altered and stored in the LCD TV’s memory.
What is Fastext?
In Fastext mode, four differently coloured subjects are situated at the bottom of the
display. To access more information about one of these subjects, press the
appropriately coloured button. This facility enables fast access to information on the
subjects shown.
Note:
• When watching TV in 4:3, 14:9 or zoom mode, pressing TV/TEXT button will
display teletext page momentarily in that aspect before switching to normal
teletext picture size.
F.P. INDEX HOLD
SOUND
SET UP
TV/TEXT
ASPECT
TV/AV
1
2 3
4
5 6
DIRECT
TV REC
TV / Teletext mode
Press
TV/TEXT
to switch between the current programme and teletext mode.
Page Selection
Pages can be selected in two ways:
a. Press or to increase or decrease the page number by one.
b. By entering the page number, using 0 -9 on the remote control.
FulI / Top / Bottom
Press
SET UP
to display special functions, followed by the Green button.
Press the Green button again to expand the BOTTOM half.
Press again to return to normal (FULL) size.
Reveal
Press
SET UP
to display special functions, followed by the Red button to reveal
hidden words e.g. quiz page answers. Press again to hide.
Red / Green / Yellow / Blue buttons
In Fastext mode these correspond to the differently coloured subjects.
In List mode they correspond to the differently coloured page numbers.
TV/TEXT
1
23
4
56
7
89
0
Red
Green Yellow
Blue
SET UP
Green
SET UP
Red
Page 34
34
Advanced Remote Control Operation
It is not possible to change the programme position when in News flash, Update or Sub Coded Page Access operation.
List Store
In List mode the four page numbers can be altered (programme positions 1 - 25 only).
To do this, press one of the four coloured buttons and enter the new page number.
Press and hold
STR
, the page numbers will change to white indicating that the
page is stored.
Hold
To hold the Teletext page when viewing multi-page information
Press again to return to automatic page update.
Favourite Page (F.P.)
Stores a favourite page in memory for instant recall. To store such a page, the
TV must be in List mode, and the programme position must be from 1 - 25.
Press the Blue button, select the page number, then press and hold
STR
.
The page number is now stored.
Press
F.P.
to recall this page.
Note:
If Teletext subtitling is in use, the aspect ratio is set to 16:9.
Update Display
Press
SET UP
to display special functions, followed by the Yellow button to view
the TV picture whilst searching for a Teletext page.
When found, the screen will display the page number at the top left.
Press the Yellow button to view the page.
Press
TV/TEXT
again to return to normal TV operation.
News Flash
When a news flash page has been selected, press
SET UP
, Yellow, to view the TV
picture. When an update is received, the page number will be displayed on
screen.
Press the Yellow button to display the News Flash.
Press
TV/TEXT
to return to normal TV operation.
Update
Press
SET UP
, Yellow to see the update of information on certain pages.
When an update is received, the page number will be displayed at the top left
of the screen.
Press the Yellow button to view the page.
Press
TV/TEXT
to return to normal TV operation.
Index
When in Fastext operation
Press
INDEX
to return to the main index page.
Depending on the way information is transmitted, this may have to be pressed
more than once to return to the main index page.
Red
Green Yellow
Blue
STR
1
23
4
56
7
89
0
STR
1
23
4
56
7
89
0
F.P.
Blue
HOLD
SET UP
Yellow
INDEX
Page 35
35
Advanced Remote Control Operation
1
23
4
56
7
89
0
SET UP
Blue
Yellow
Sub Coded Page Access
When Teletext information exceeds more than one page, it may take some time
for the automatic changing of the sub pages to reach the sub page you require.
It is possible to enter your required sub page and continue watching the normal
programme until the correct sub page is found.
Select the required page number using buttons 0 - 9.
If the top of the page indicates that sub pages are being transmitted yet the
page does not change, then the number at the top of the page is there to
indicate that the broadcaster has updated the page's contents, there are no sub
pages.
Press
SET UP
followed by the Blue button; T**** will be displayed at the top right of
the screen.
Enter desired sub page number before the T**** disappears. To select page 6
enter 0, 0, 0 and 6. (If in List mode, a ‘T’ will appear in the current box at the
bottom).
(Press
SET UP
, Yellow in List mode).
When the page is available, press the Yellow button to view the page.
To clear the page perform one of the following:
• Press
SET UP
.
• Select a new page number.
• Press
TV/TEXT
to return to normal TV operation.
Note:
When using subtitles, the picture brightness may vary to a preset level.
Page 36
36
S-VIDEO
cable
VIDEO
AUDIO
Audio
OUT
RL
S-Video
OUT
Video
OUT
Connect the S-VIDEO or
VIDEO T erminal.
Input/Output from
A V1 Scart Socket
Scart cable
Connection example:
AV3 connection
Connection example:
AV1,2 connection
Input/Output from
A V2 Scart Socket
Q-Link data
VCR
SET TOP BOX
DVD PLAYER
CAMCORDER
GAMES CONSOLE
VCR/S-VHS VCR
Q-LINK COMPATIBLE VCR
DVD PLAYER
Scart cable
VCR/S-VIDEO VCR
SET TOP BOX
DVD PLAYER
CAMCORDER
S-VIDEO CAMCORDER

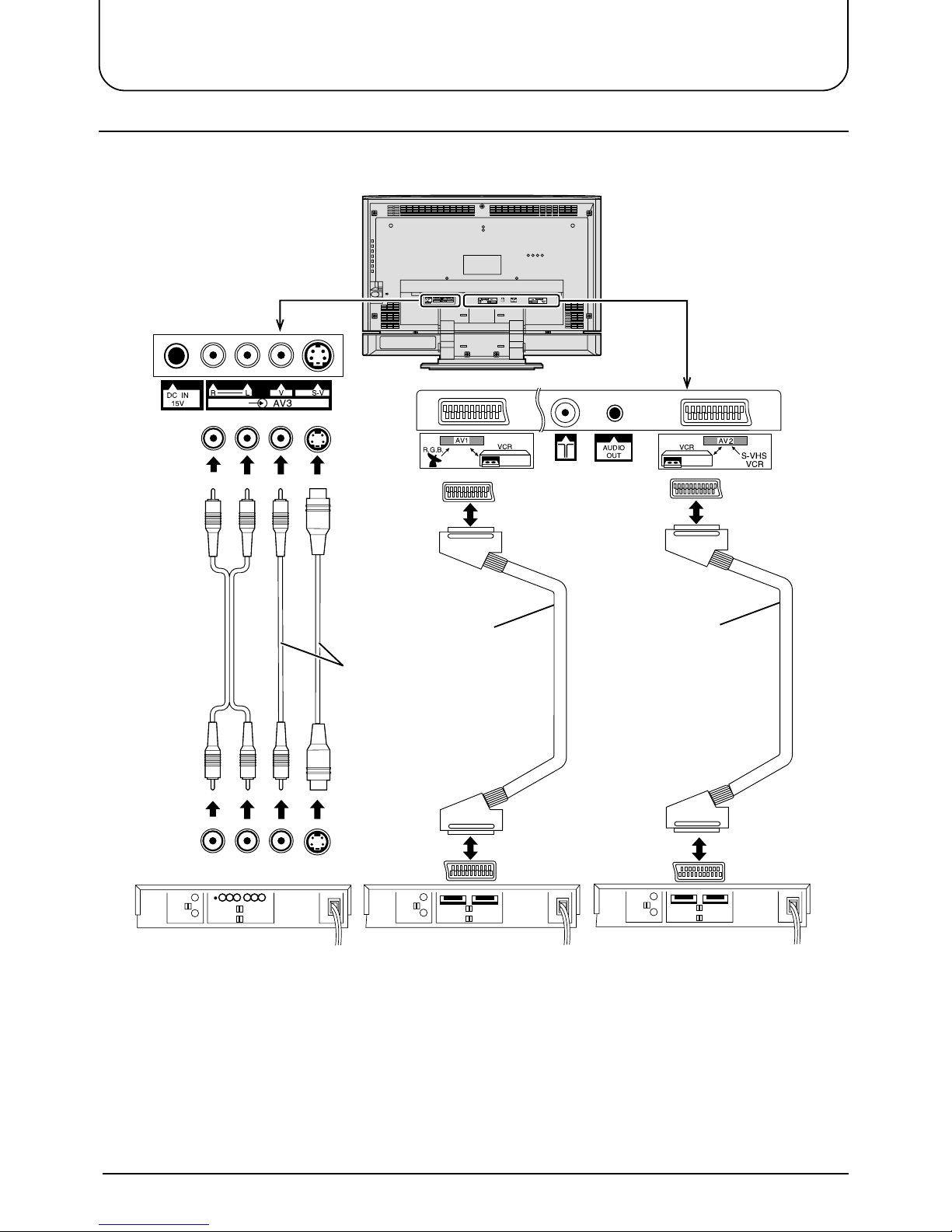

Connections
How to connect the input terminals
Connects VCRs and other peripheral equipment
Notes:
• Additional equipment and cables shown are not supplied with this TV set.
• When a monaural VCR is used, connect the monaural audio cable to the AUDIO-L (Left) terminal.
• Do not connect a computer with TTL output (5V) to this set.
• The AV2 21 pin soket can also be used as an output to Audio/Video equipment. (see page 20)
• Select the desired VIDEO input position by pushing the TV/AV button. (see page 20)
• For Scart socket wiring information see page 39.
Page 37
37
AUDIO IN
L
R
3.5 mm stereo plug
to stereo phono lead.
Connections
How to connect the AUDIO OUT Terminals
Note:
The AUDIO OUT terminal provides a fixed level output only.
(The menu settings and remote control volume controls have no effect.)
Additional equipment and cables shown are not supplied with this TV set.
Connecting Headphones / Earphones
Connect headphones / earphones as follows.
(Optional)
(Not supplied)
(3.5 mm stereo plug)
Note:
The volume level of the headphones can be adjusted by selecting “Headphone Volume” from the Sound menu.
Additional equipment and cables shown are not supplied with this TV set.
Amplifier to speaker system
Page 38
38
Maintenance
Troubleshooting
If there is a problem with your LCD TV please refer to the table below to determine the symptoms, then carry out the suggested check. If this does not
solve the problem, please contact your local Panasonic dealer, quoting the model number and serial number (both found on the rear of the TV).
To clean this unit, wipe with a soft, dry cloth.
If the surfaces are extremely dirty, use a soft cloth dipped in soap-and-water solution or a weak detergent solution.
• Use eyeglass cleaner to remove stubborn dirt from the LCD.
• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, read the instructions that came with the cloth carefully.
• Do not wipe the LCD with water.
Wipe the cabinet with a soft cloth
If the cabinet is heavily soiled, wipe with a well-wrung soft cloth dipped in kitchen cleanser
(neutral) diluted with water.
CAUTION :
If water or similar substances get inside the monitor via the liquid crystal panel surface, a
malfunction may result.
Neutral
detergent
Symptoms
Snowy Picture
Multiple Image
Interference
Normal Picture
No Picture
No Colour
Poor or Distorted
Noisy Sound
Normal Sound
No Sound
Noisy Sound
No Sound
Normal Sound
Sound
Checks
Weak or
distorted sound
Aerial location, direction or connection
Aerial location, direction or connection
Electrical appliances
Cars/Motorcycles
Fluorescent lights
Volume level
Sound mute switched on
TV set to AV mode
Not plugged into A.C. outlet
Not switched on
Picture / Sound controls set at minimum levels
Check if in stand-by mode
Colour Controls set at minimum levels
Retune Channel (s)
Sound reception may have deteriorated.
Switch NICAM setting (Sound menu) to Off
until reception improves.
This is a characteristic of liquid crystal panels and is not a problem.
The liquid crystal panel is built with very high precision
technology giving you fine picture details. Occasionally,
a few non-active pixels may appear on the screen as a
fixed point of blue, green, or red.
Please note the this does not affect the
performance of your LCD.
There may be red spots, blue
spots and green spots on the
screen
Weak or
No Sound
Normal Sound
Normal Picture
Page 39
39

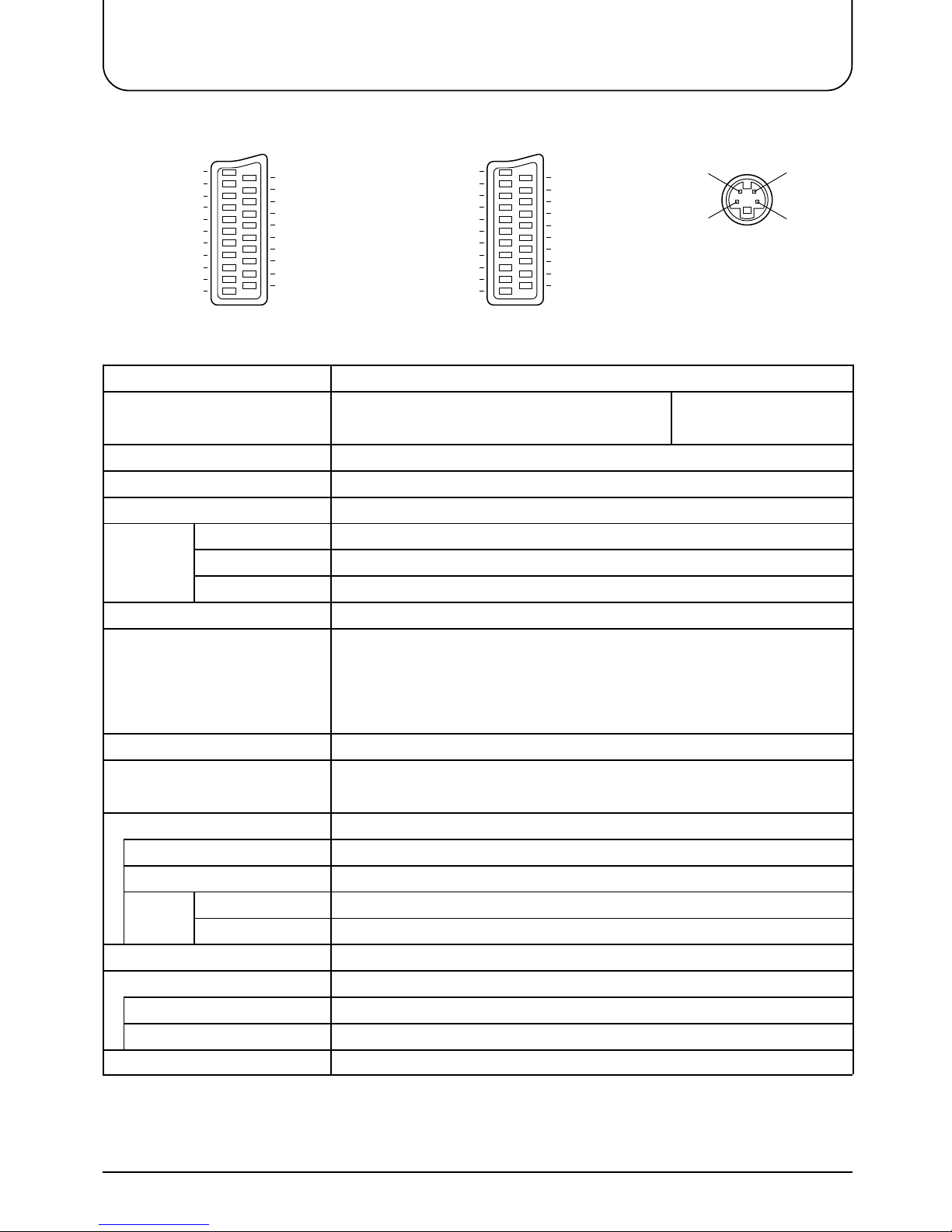

Specifications
21
19
17
15
13
11
9
7
5
3
1
20
18
16
14
12
10
8
6
4
2
Socket Earth
CVBS out (video)
CVBS earth
Red in
Red earth
Green in
Green earth
Blue in
Blue earth
Audio out (L)
Audio out (R)
CVBS in (video)
RGB status earth
Status RGB
Earth
- -
- Status CVBS
Audio in (L)
Audio earth
Audio in (R)
21
19
17
15
13
11
9
7
5
3
1
20
18
16
14
12
10
8
6
4
2
Socket Earth
CVBS out (video)
CVBS earth
S.C. - in
Earth
- Earth
- Earth
Audio out (L)
Audio out (R)
CVBS in (video)
Earth
- Earth
- Q-Link data
Status CVBS
Audio in (L)
Audio earth
Audio in (R)
AV1 Scart socket
AV2 Scart socket (S-Video, Q-Link)
AV3 S-Video 4 pin socket
Luminance earth
Luminance in
Chrominance in
Chrominance earth
Suitable inputs for A V1 include
RGB (Red / Green / Blue).
AV2 : Pins 15 and 20 are dependent
on A V2 S-VHS / VIDEO switching.
Note:
Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.
Power Source
Power Consumption
LCD
Screen Size
Channel Capability-100
Speaker
Sound
Audio Output
Headphones
FEATURES
Receiving
Systems/
Band name
Aerial - Rear
Operating Conditions
Connection Terminals
AV1
AV2
AV3
VIDEO
S-VIDEO
AUDIO OUT
Dimensions ( W × D × H )
Including TV Stand
TV Set Only
Weight (Mass)
AC 100 ~ 240 V, 50 / 60 Hz
Average use : 67 W TV set
Stand-by condition : 5 W DC 15 V, 3.8 A max.
22-inch (558 mm) 16 : 9 aspect ratio LCD panel
19.17 ″ (486.8 mm) (W) × 10.77 ″ (273.6 mm) (H)
UHF : 21-68
Tweeter (4 × 7 cm 2pcs, 8 Ω), Woofer (
φ
5 cm 2pcs, 4 Ω)
9W (2.5 W + 2.5 W + 4.0 W (Woofer), 10 % THD
M3 (3.5 mm) Jack × 1 8 Ω impedance
Aero - Hammer® Double Woofer System (2 Way 4 Speaker System)
PAL UHF E21 - 68
PAL 525/60 Playback of NTSC tape from some PAL video recorders (VCR)
M.NTSC Playback from M.NTSC Videorecorders (VCR)
NTSC Playback from NTSC Videorecorders (VCR)
UHF
Temperature : 41 °F - 95 °F (5 ° – 35 °C)
Humidity : 5 % - 90 % RH (non-condensing)
21 Pin socket (Audio / Video in , Audio / Video out , RGB in)
21 Pin socket (Audio / Video in , Audio / Video out , S-Video, Q-Link)
RCA PIN Type × 1
Mini DIN 4-pin
3.5 mm, Stereo Jack 0.5 Vrms
23.07 ″ (586 mm) × 9.45 ″ (240 mm) × 16.69 ″ (424 mm)
23.07 ″ (586 mm) × 2.64 ″ (67 mm) × 15.27 ″ (388 mm)
25.35 lb. (11.5 kg) Net
Page 40
Customer’ Record
The model number and serial number of this product can be found on its rear panel. You should note this
serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent
record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.
Model Number TX-22LT2 Serial Number
Panasonic (U. K.) Ltd.
Willoughby Road, Bracknell, Berks RG12 8FP
Web Site http://www.panasonic.co.uk
Printed in Japan
MBS1001Y0 (MS)
Loading...
