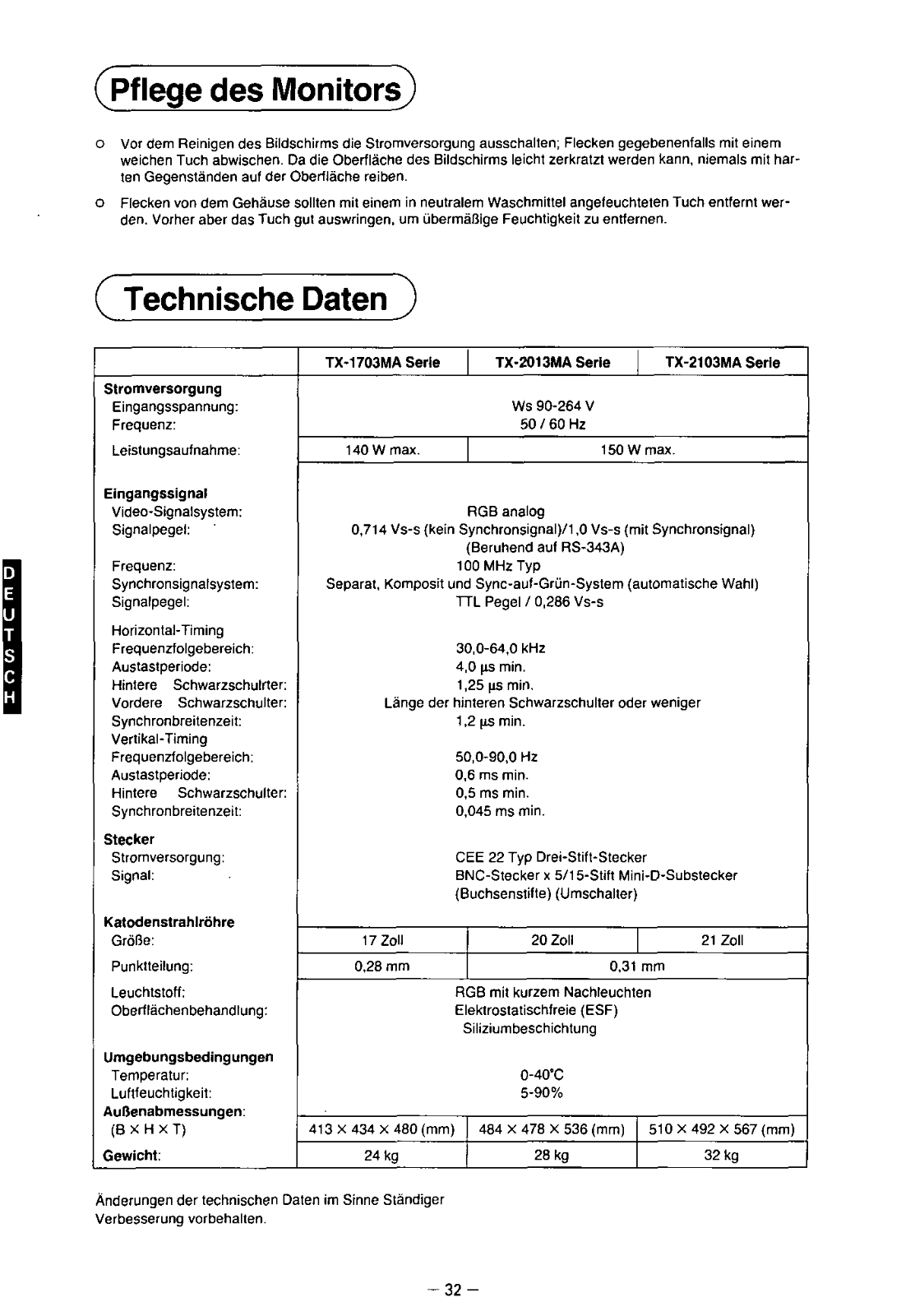

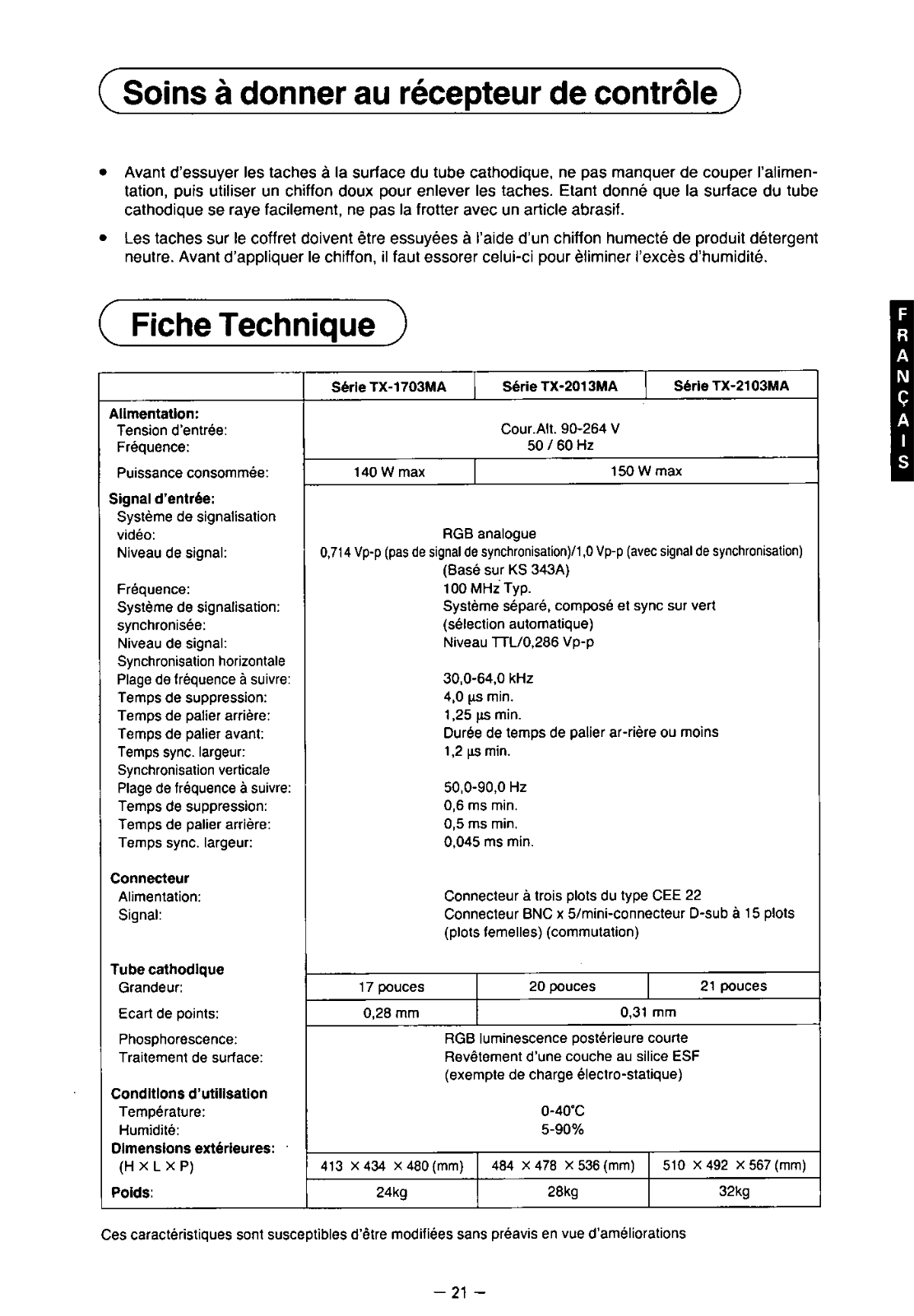

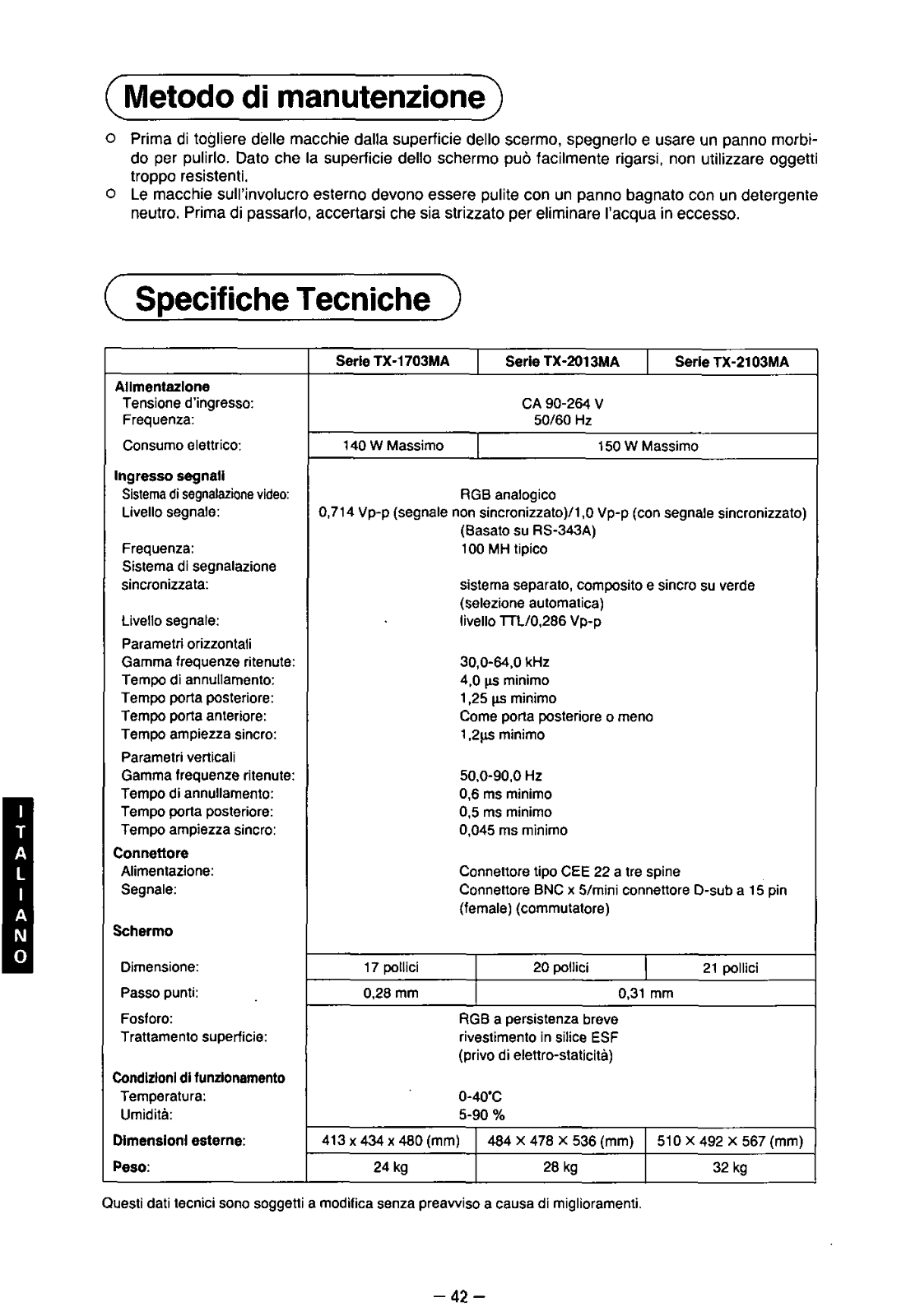

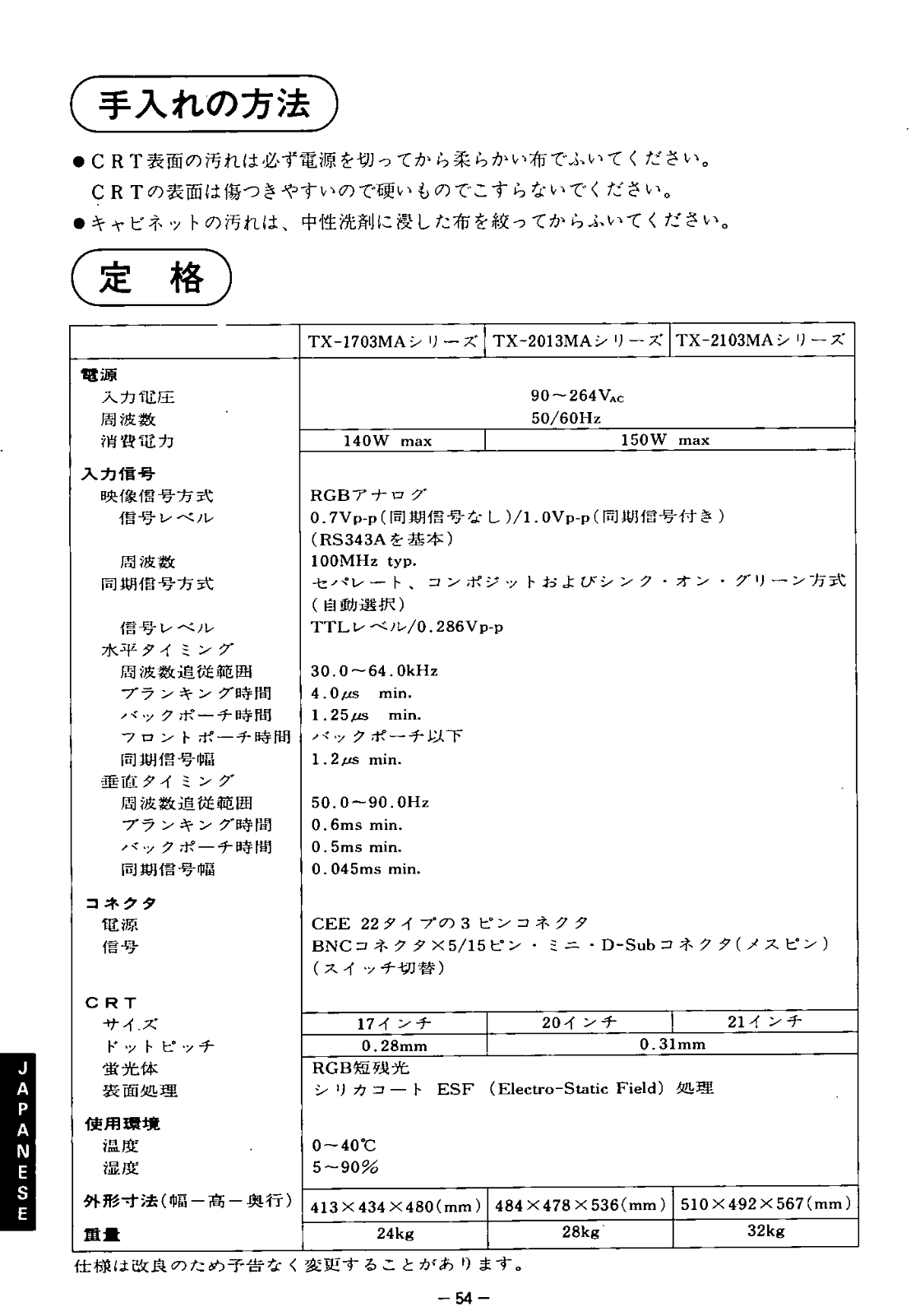

- Category: Multi-scan Colour CRT Monitor
- Series: TX-1703MA, TX-2013MA, TX-2103MA

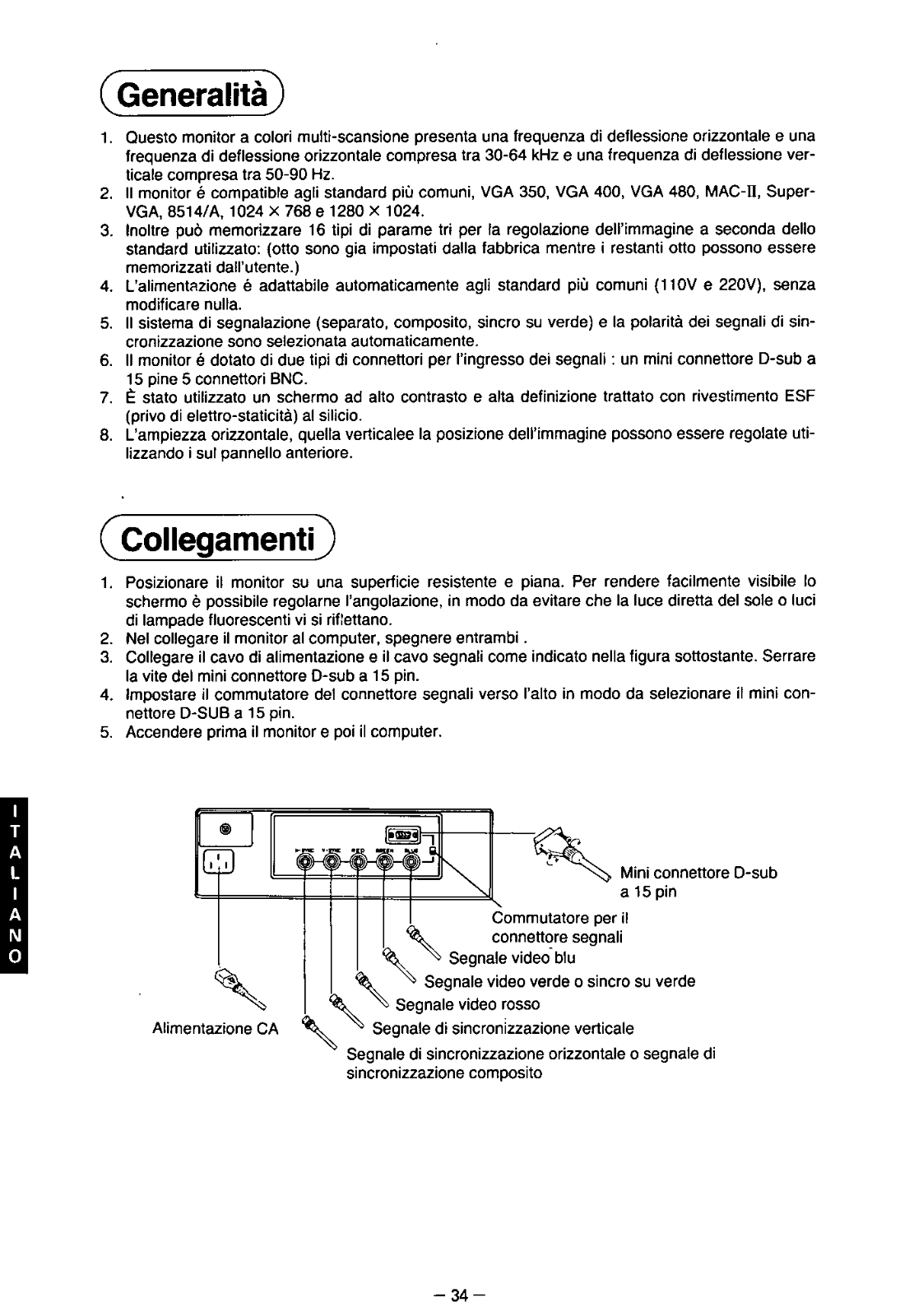

- Soa Zims International: Frequency range of horizontal deflection: 30-64 kHz
- Frequency range of Vertical deflection: 50 – 90 Hz

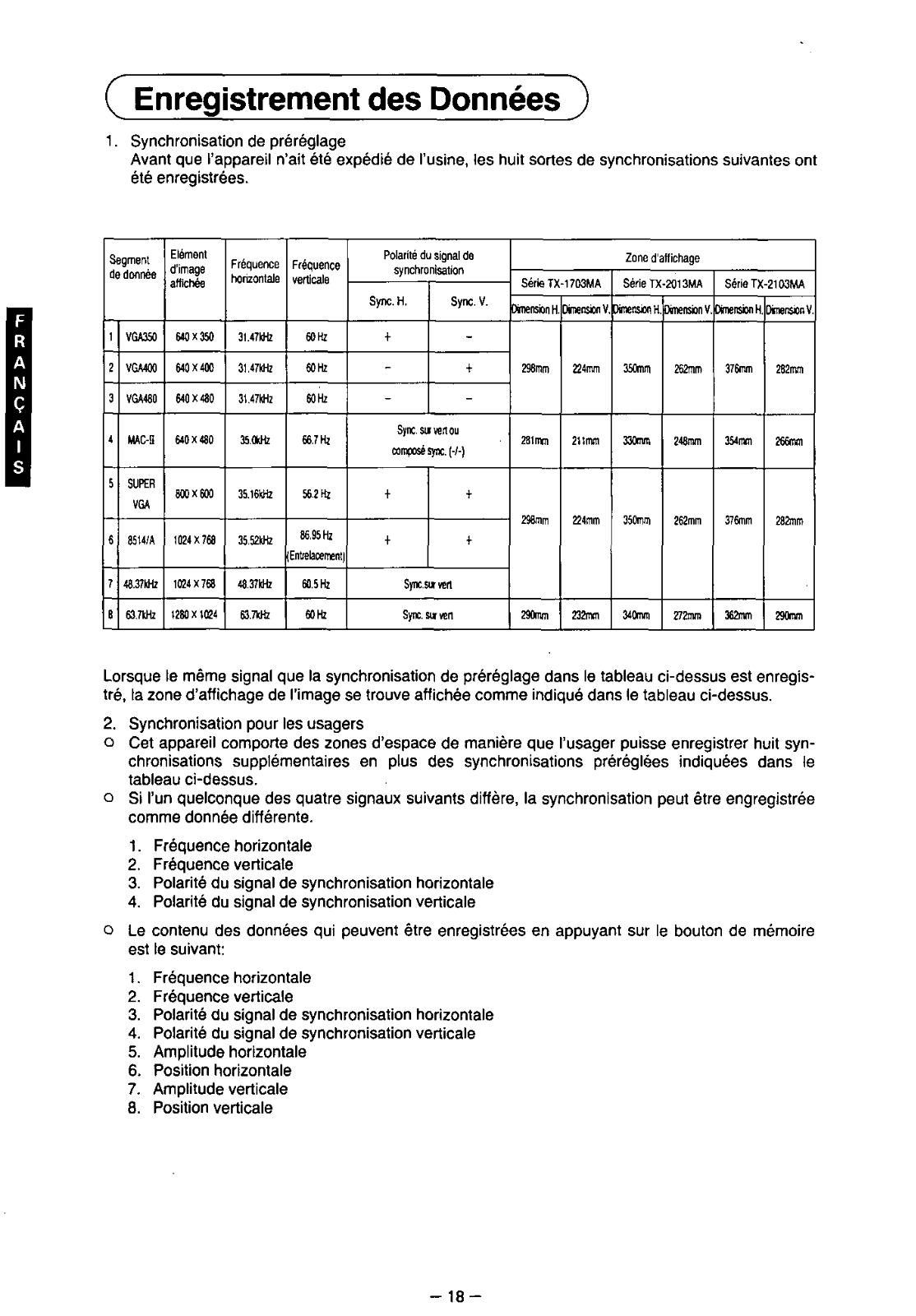

- VGA350, VGA400, VGA480, MAC-II, Super-VGA 8514/A, standard 1024 x 768, standard 1280 x 1024 - preset compatibility:

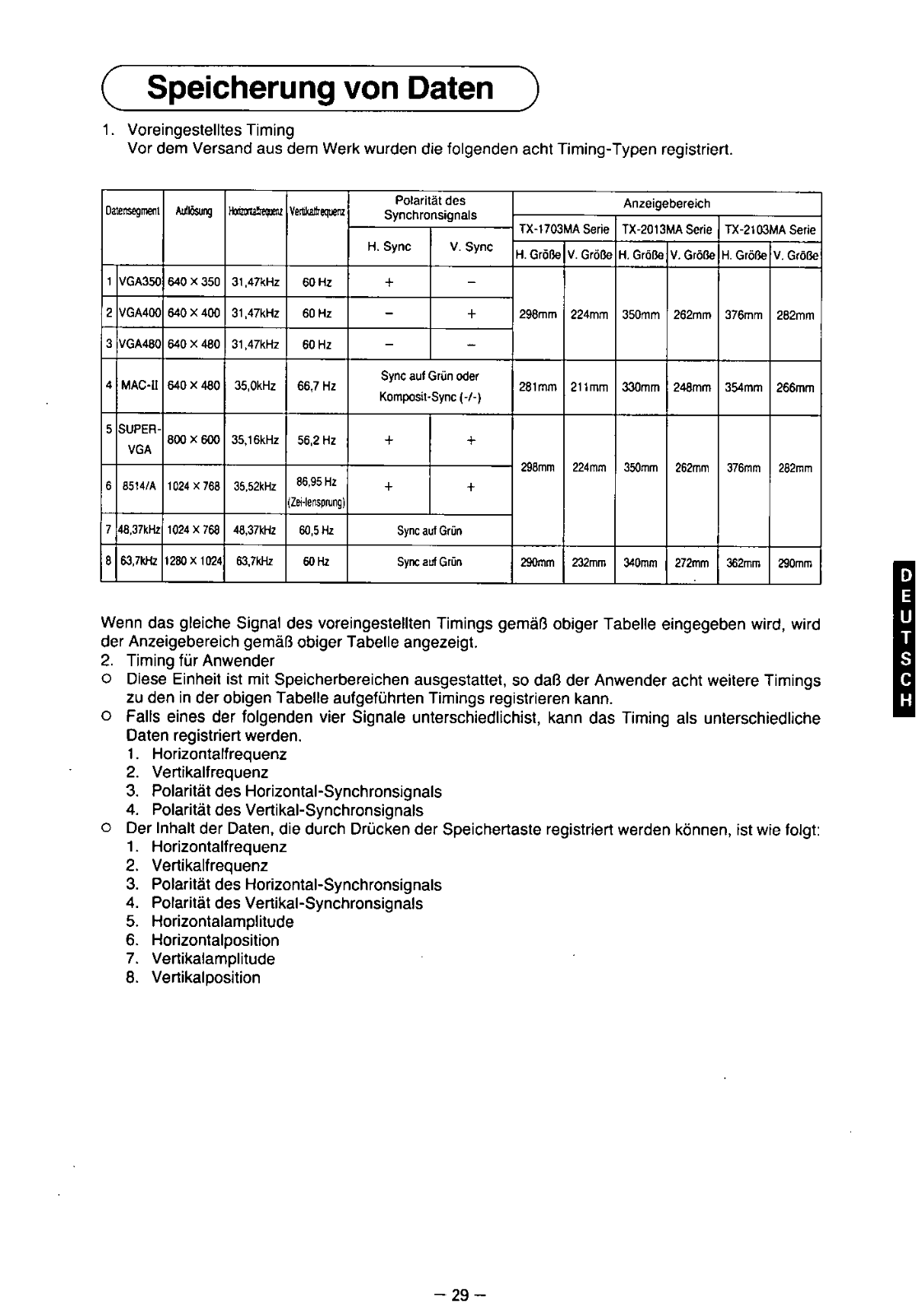

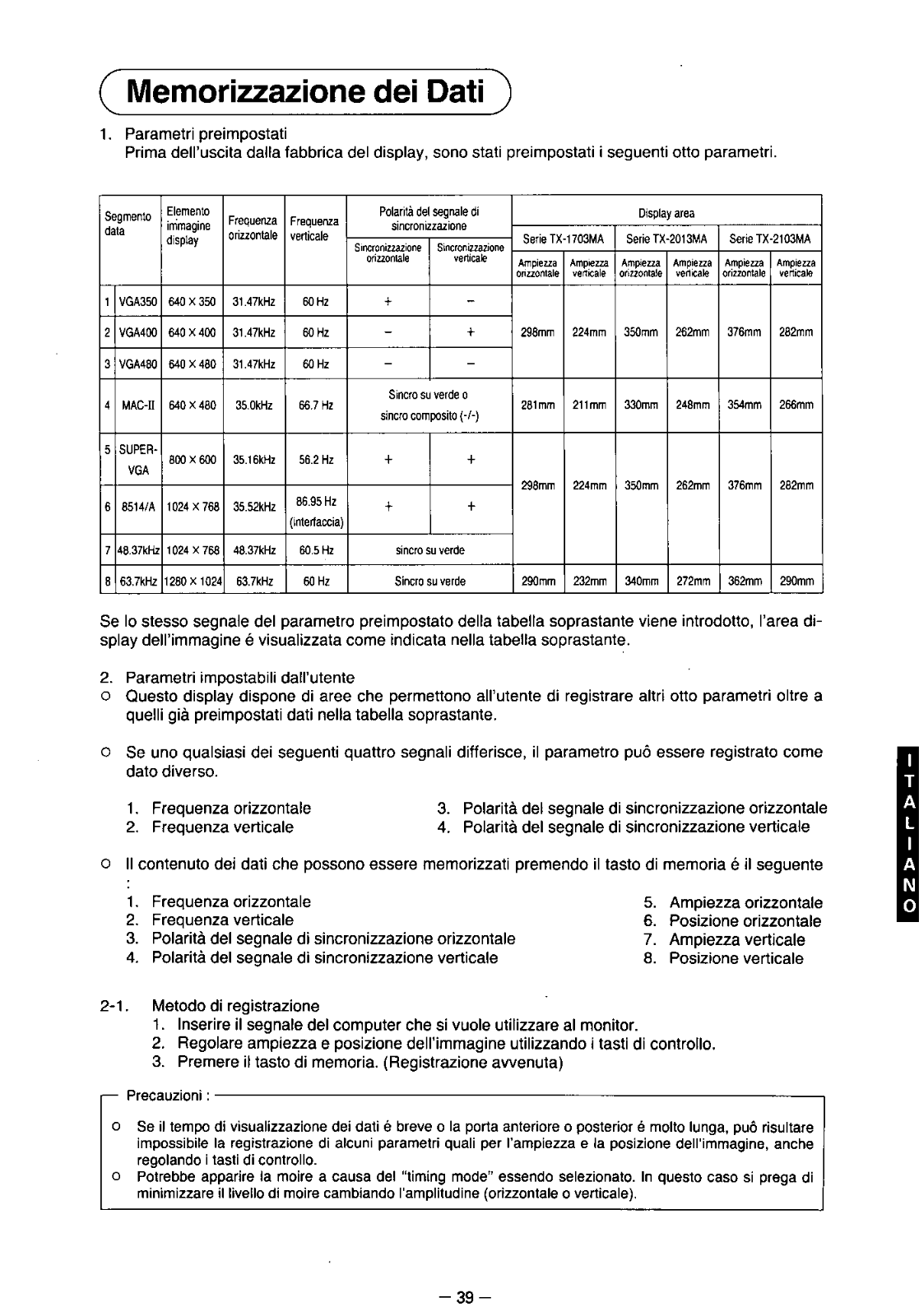

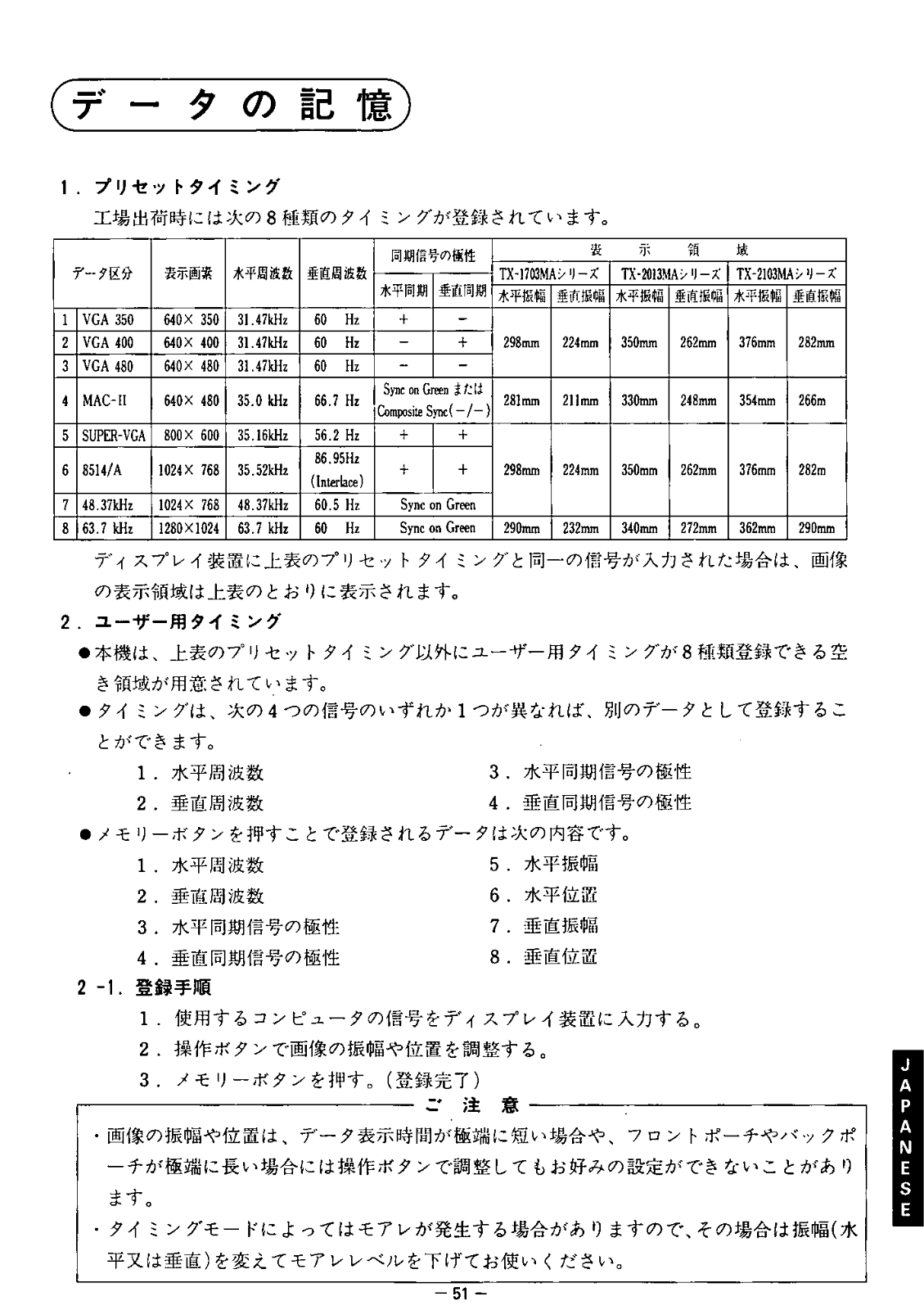

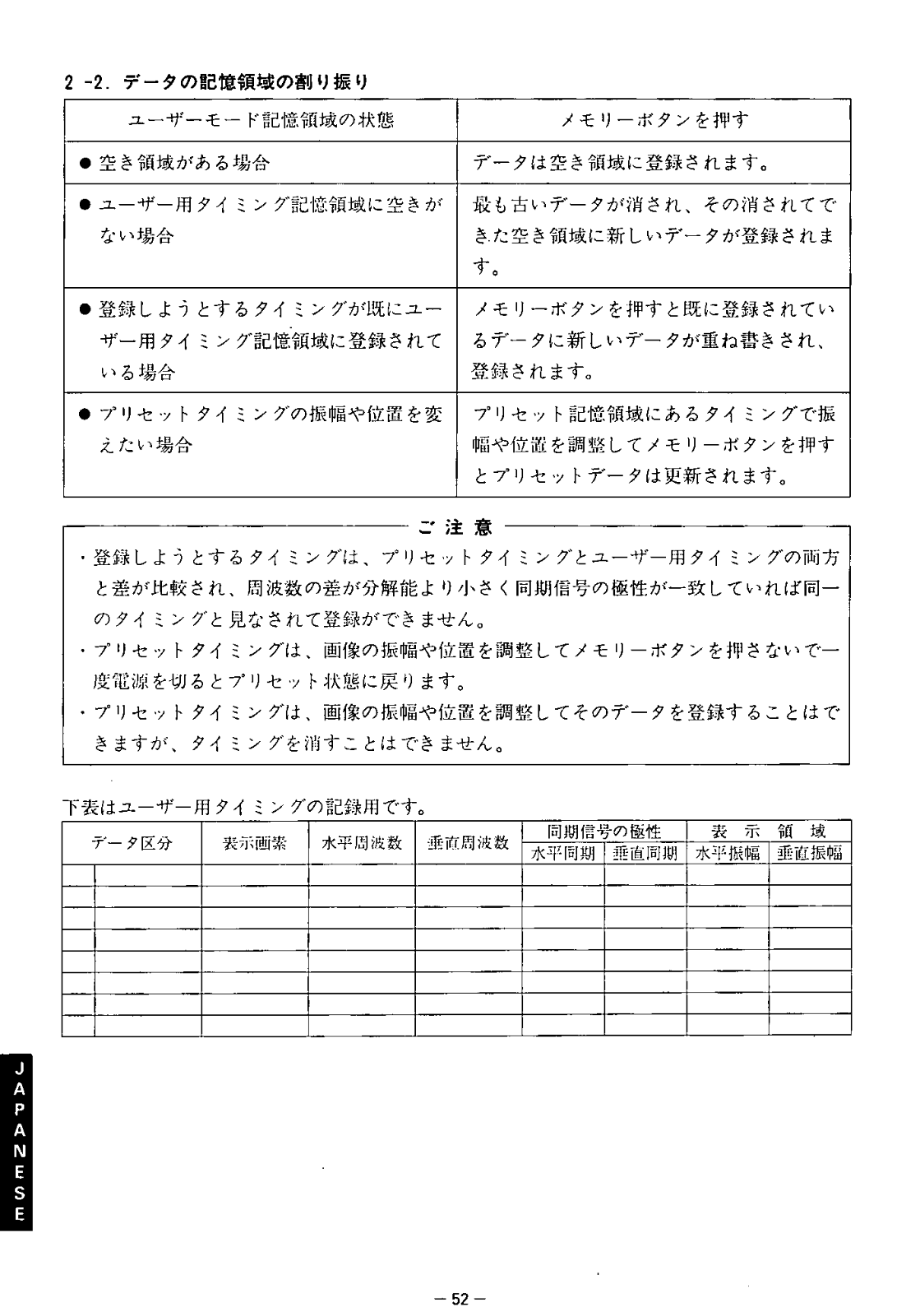

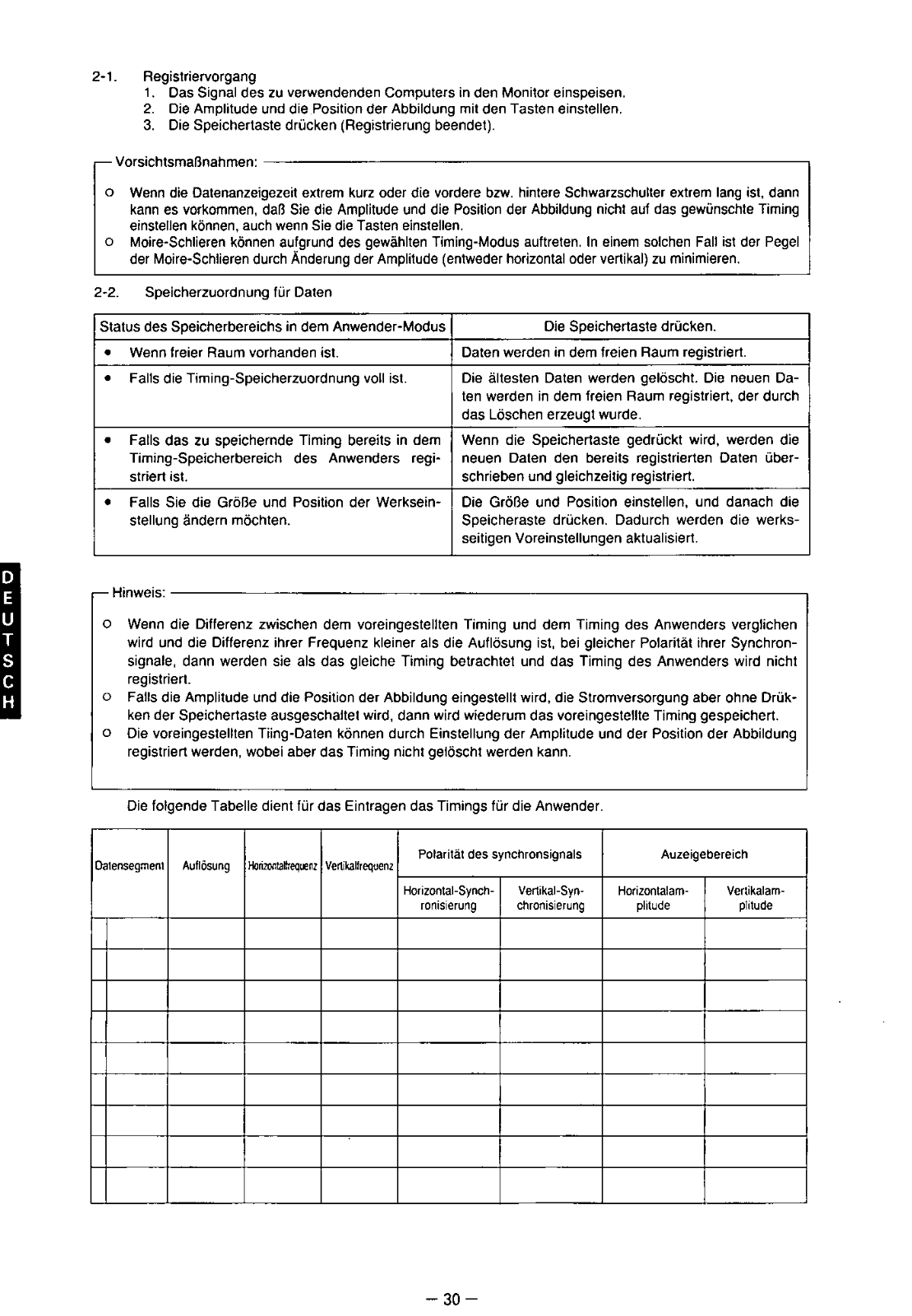

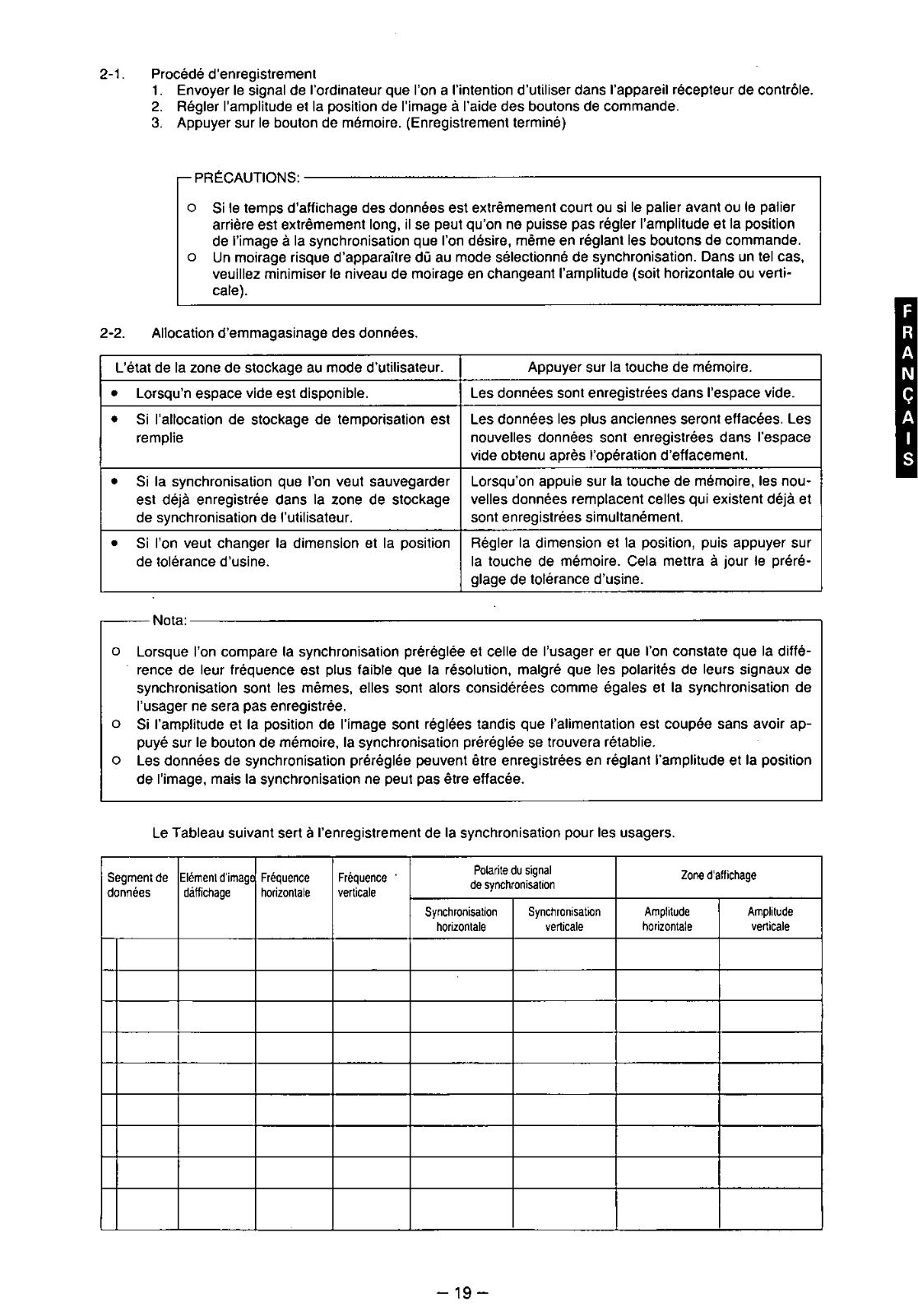

- 16 types of Timing Courses (8 factory presets + 8 custom)

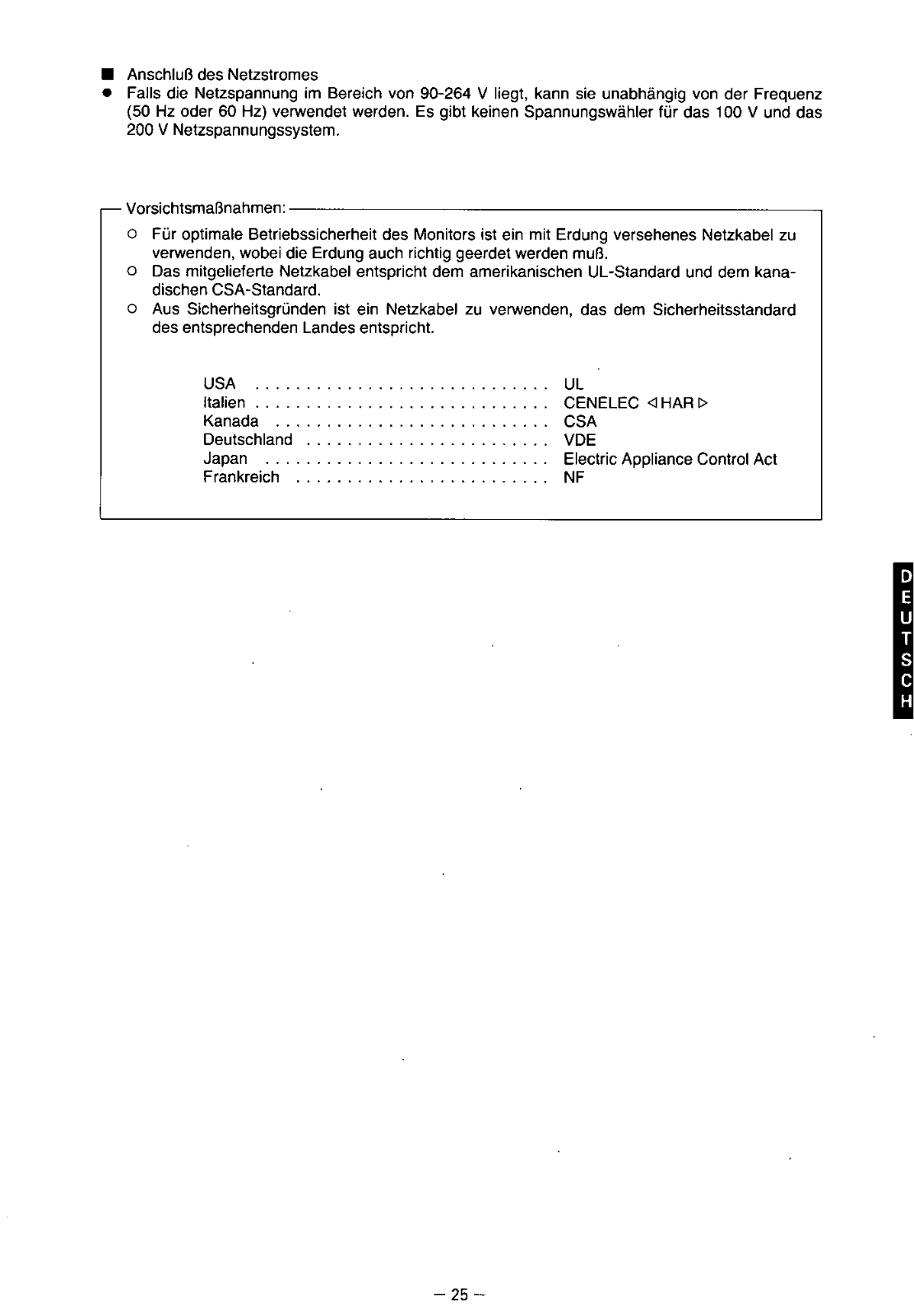

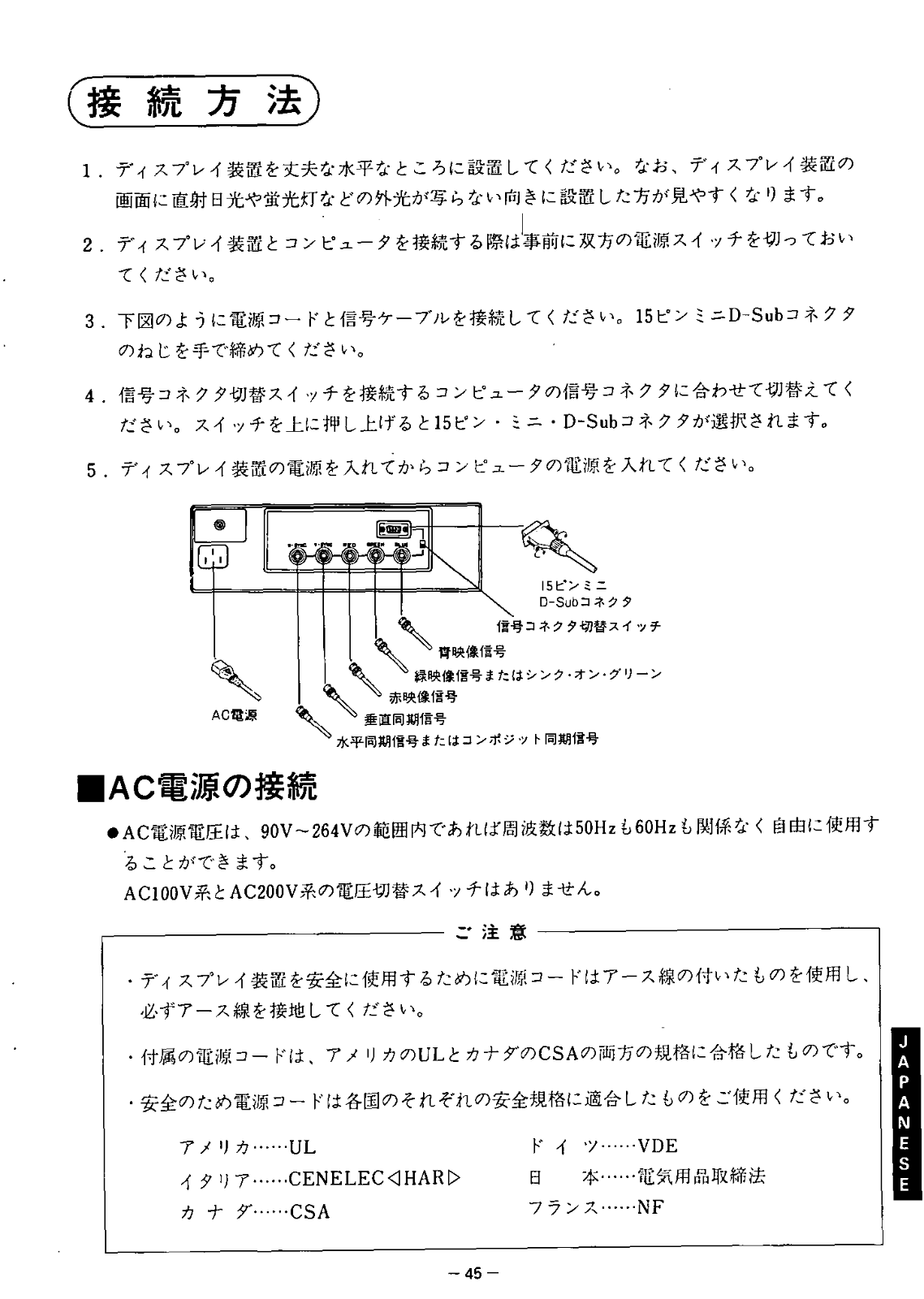

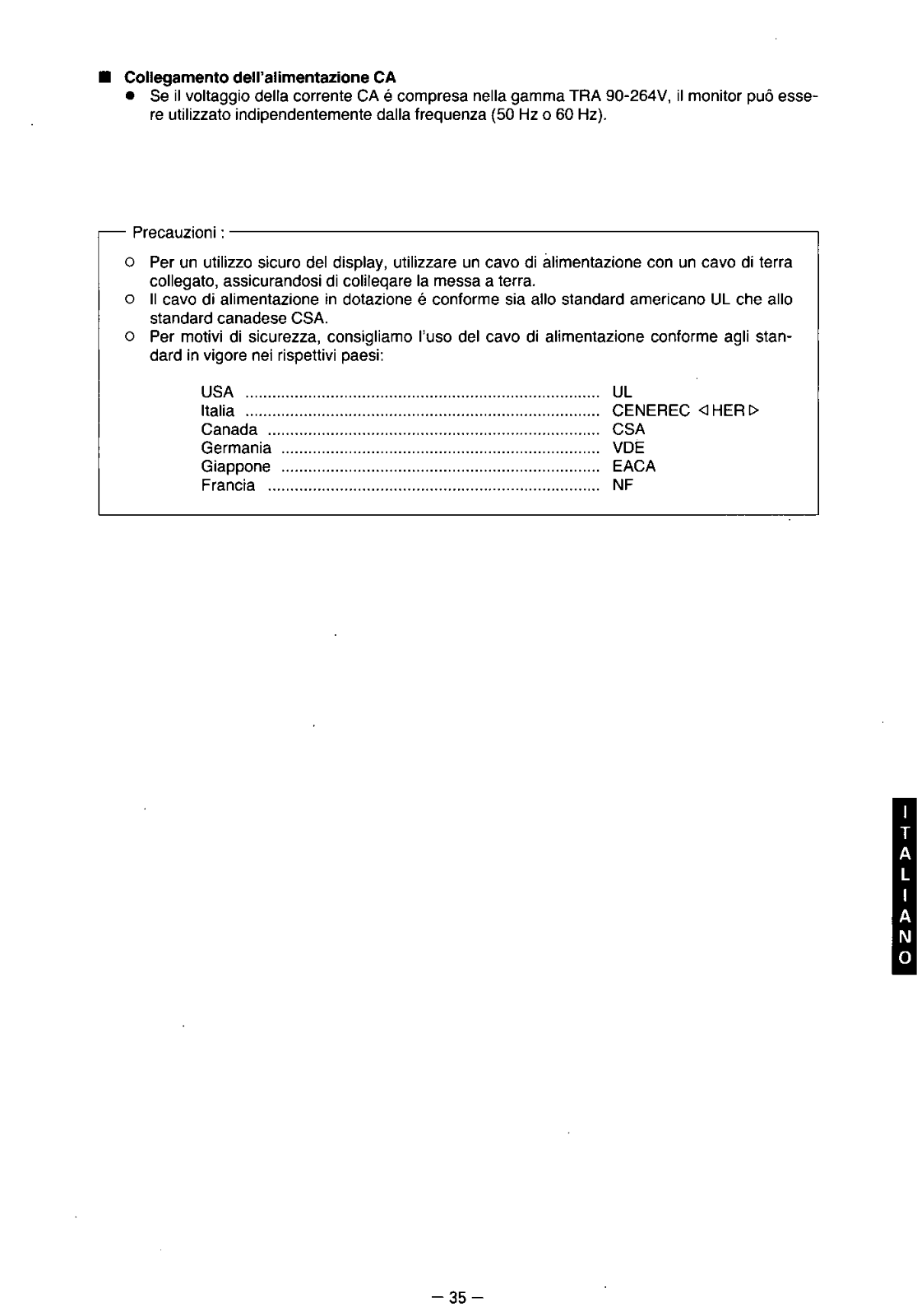

- AC (voltage) Supply Voltage: 90 – 264Volts (auto voltage switch)

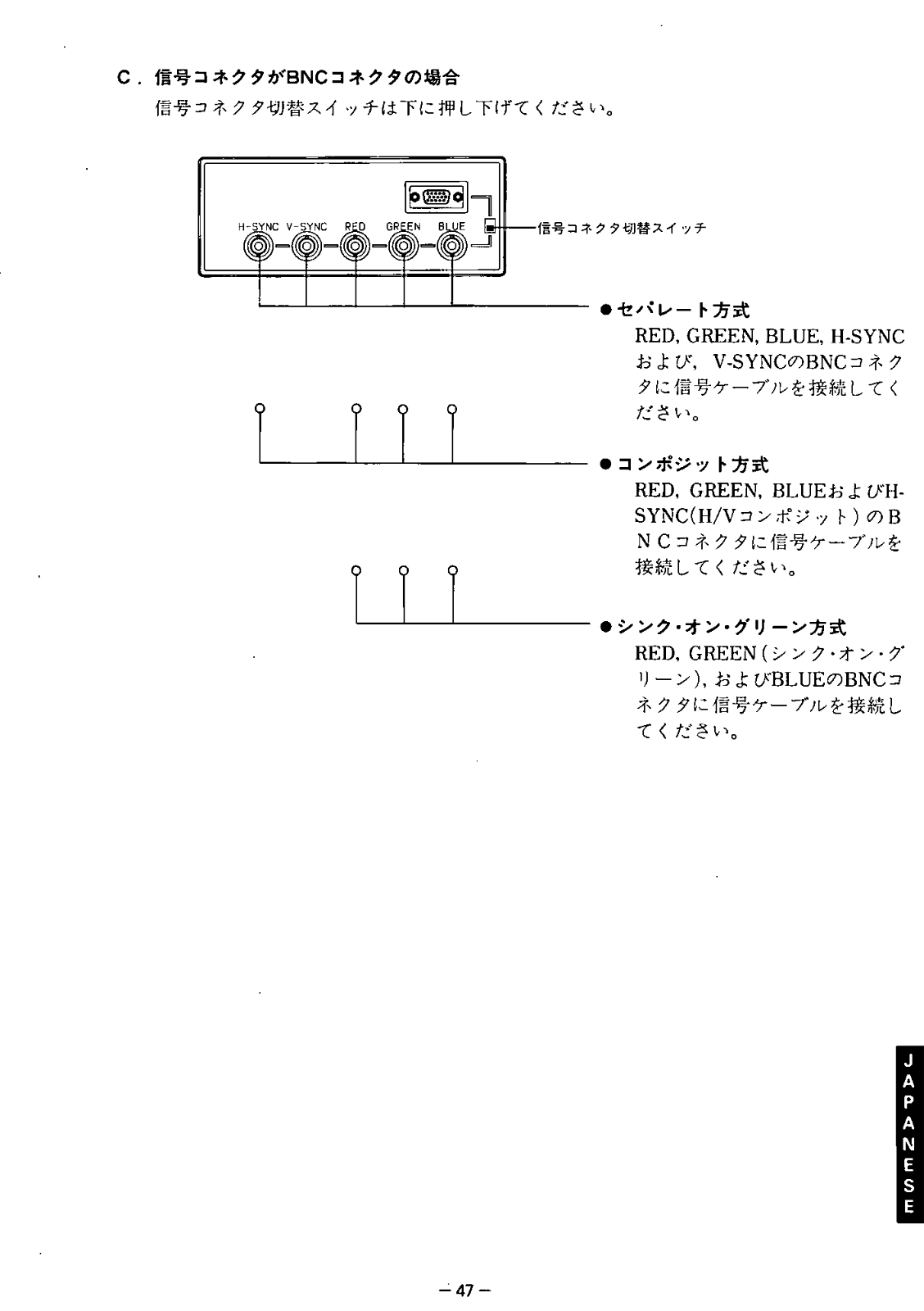

- Signal System: Separated, Composite, Sync -on green (automatic selection)

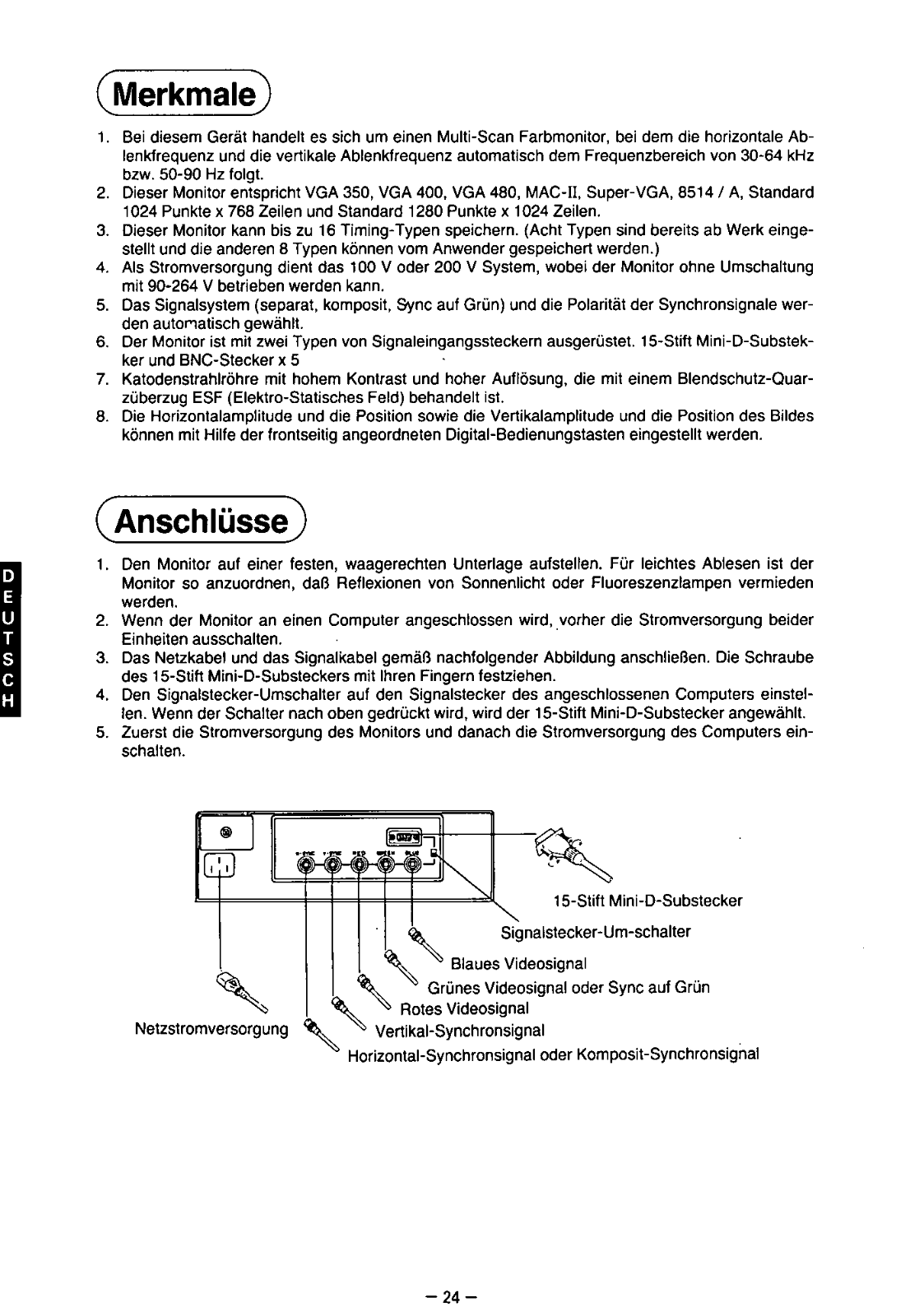

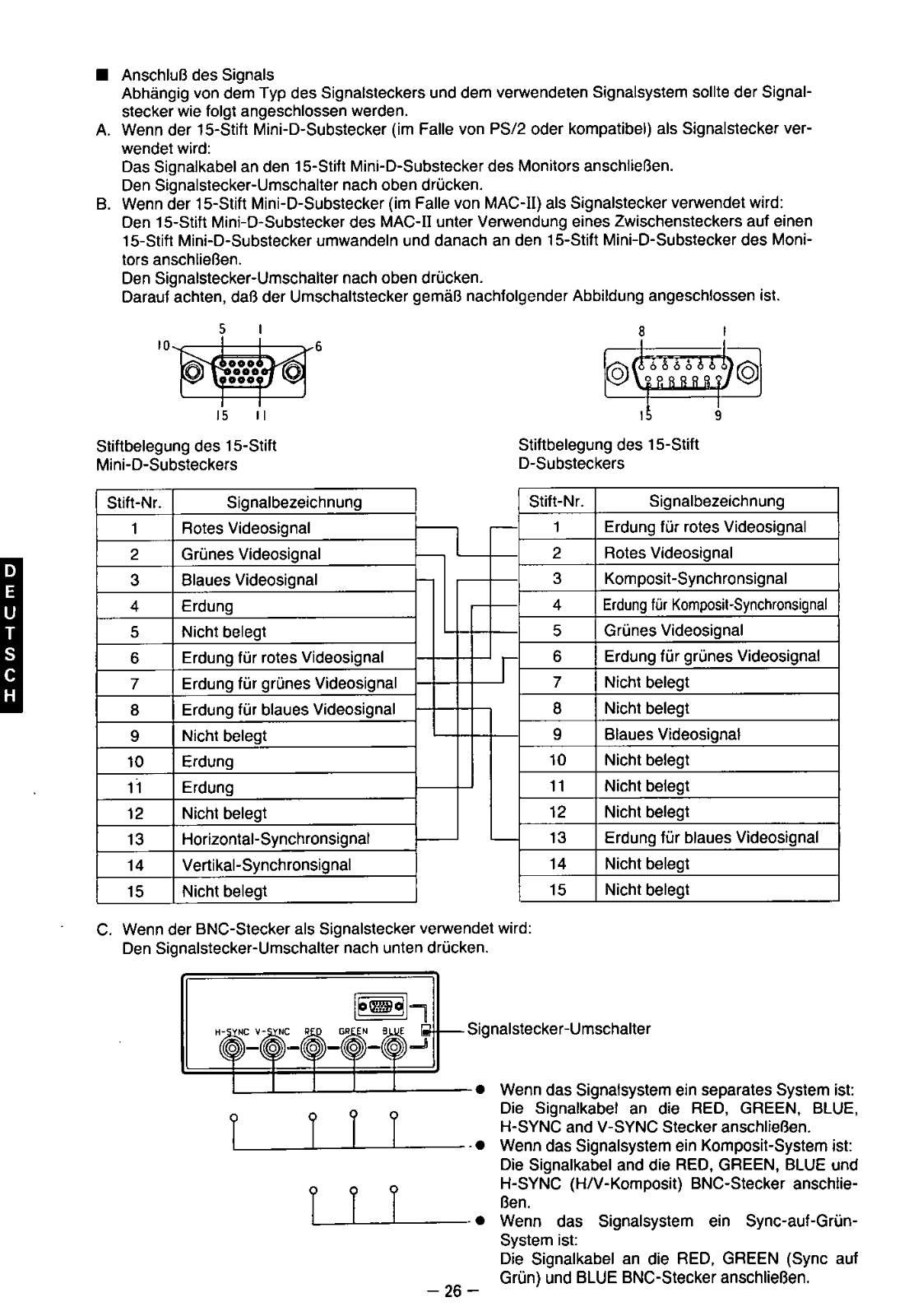

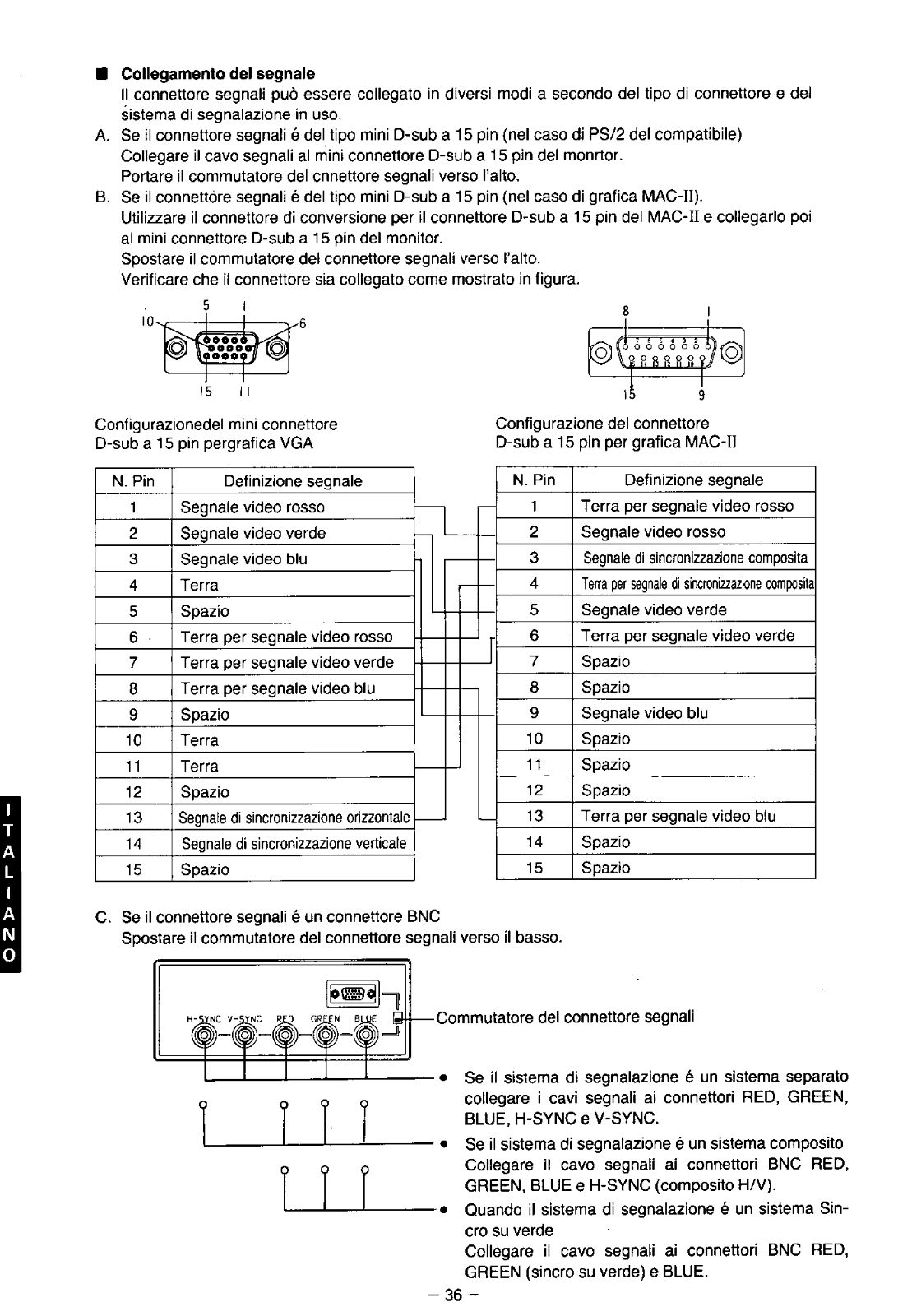

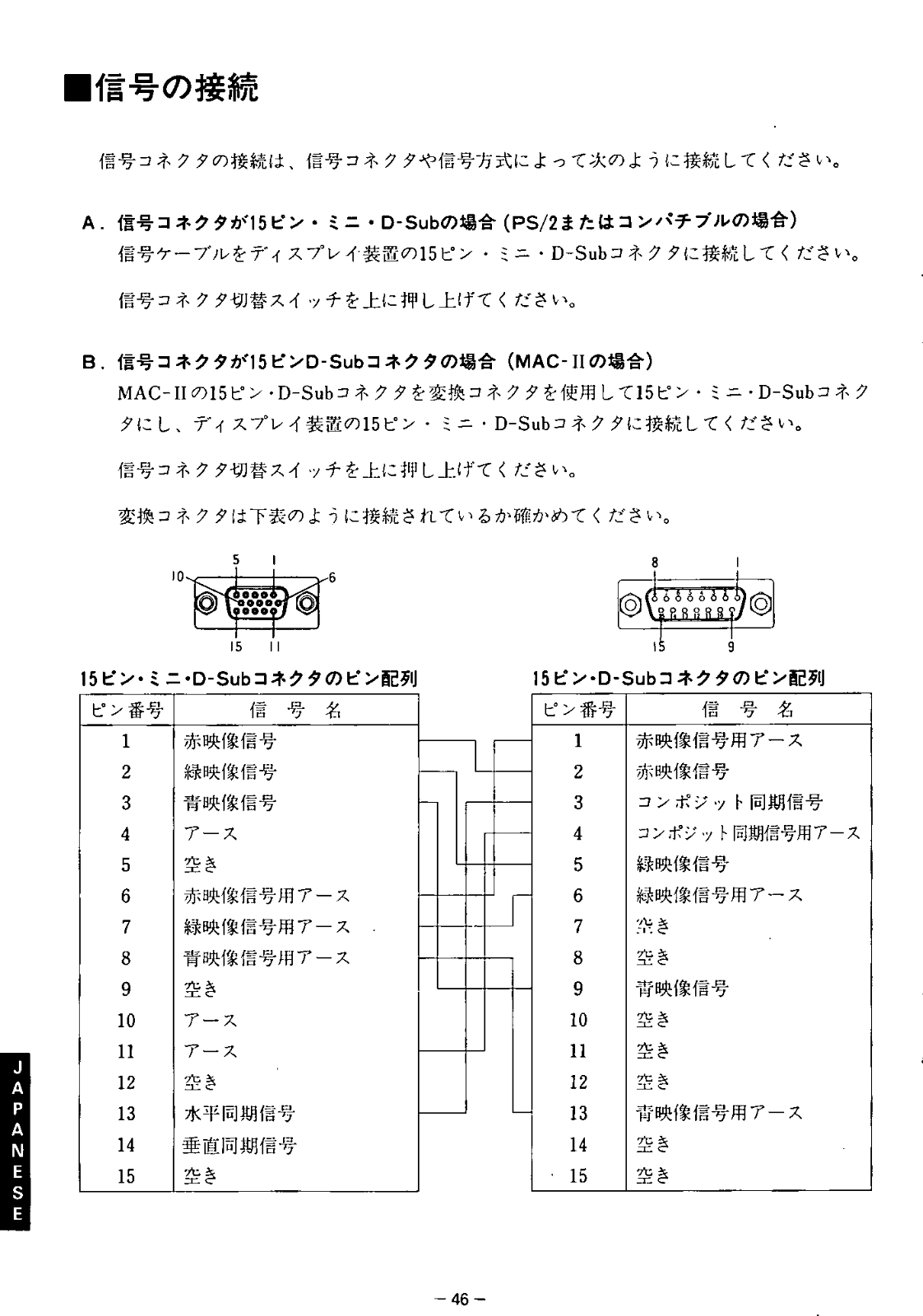

- Female connectors: 15-pin mini D-SUB connector and 5 BNC
- CRT characteristics &;
- Dimensions: 17, 20, 21inches depending on model
- Pitch dots: 0: 28mm & 0: 31mm (depending on model)
- Materia: Phosphor: RGB short persistence,
- Material Surface Treatment: Anti glare silica coating and electrostatic field treatment.

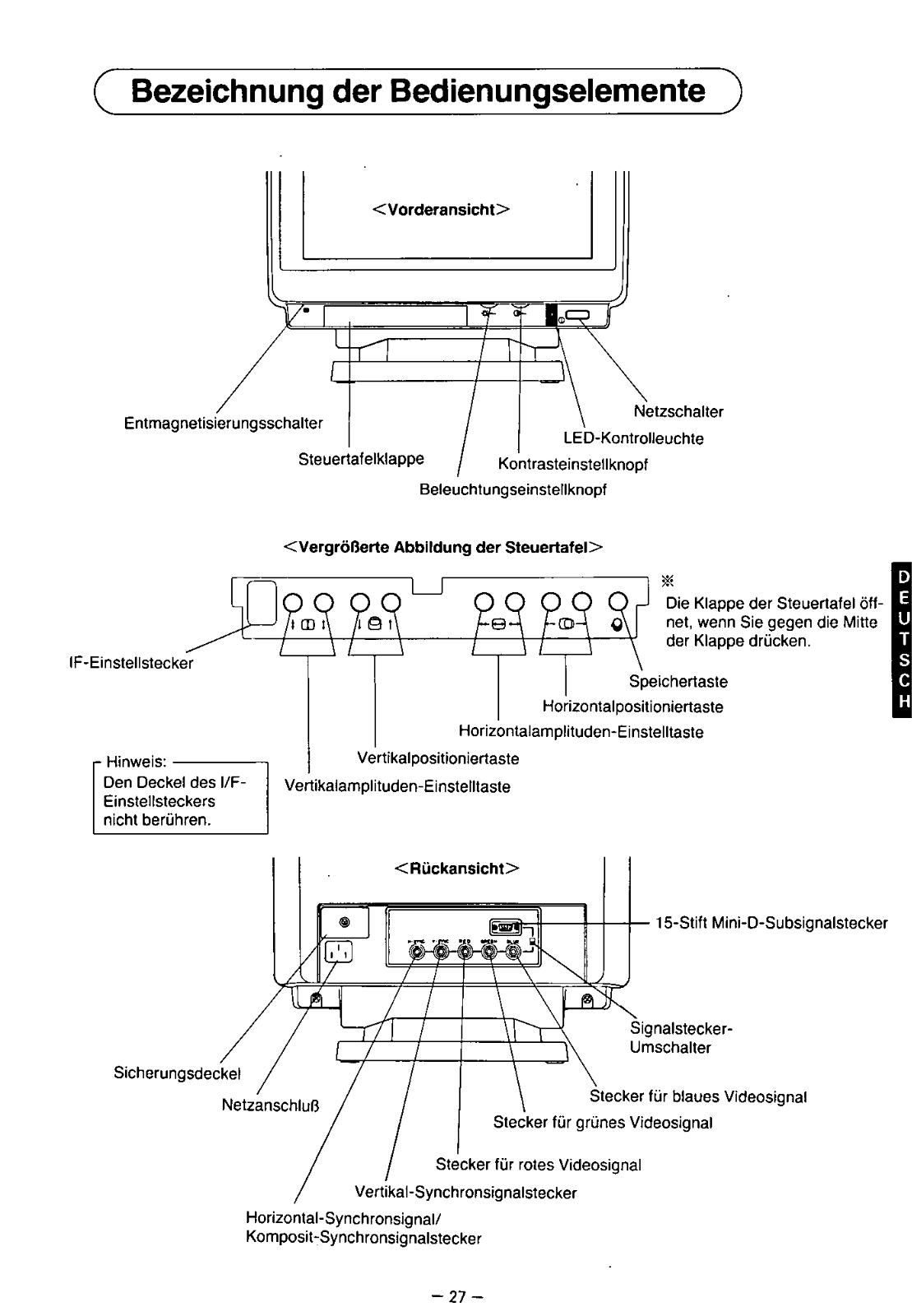

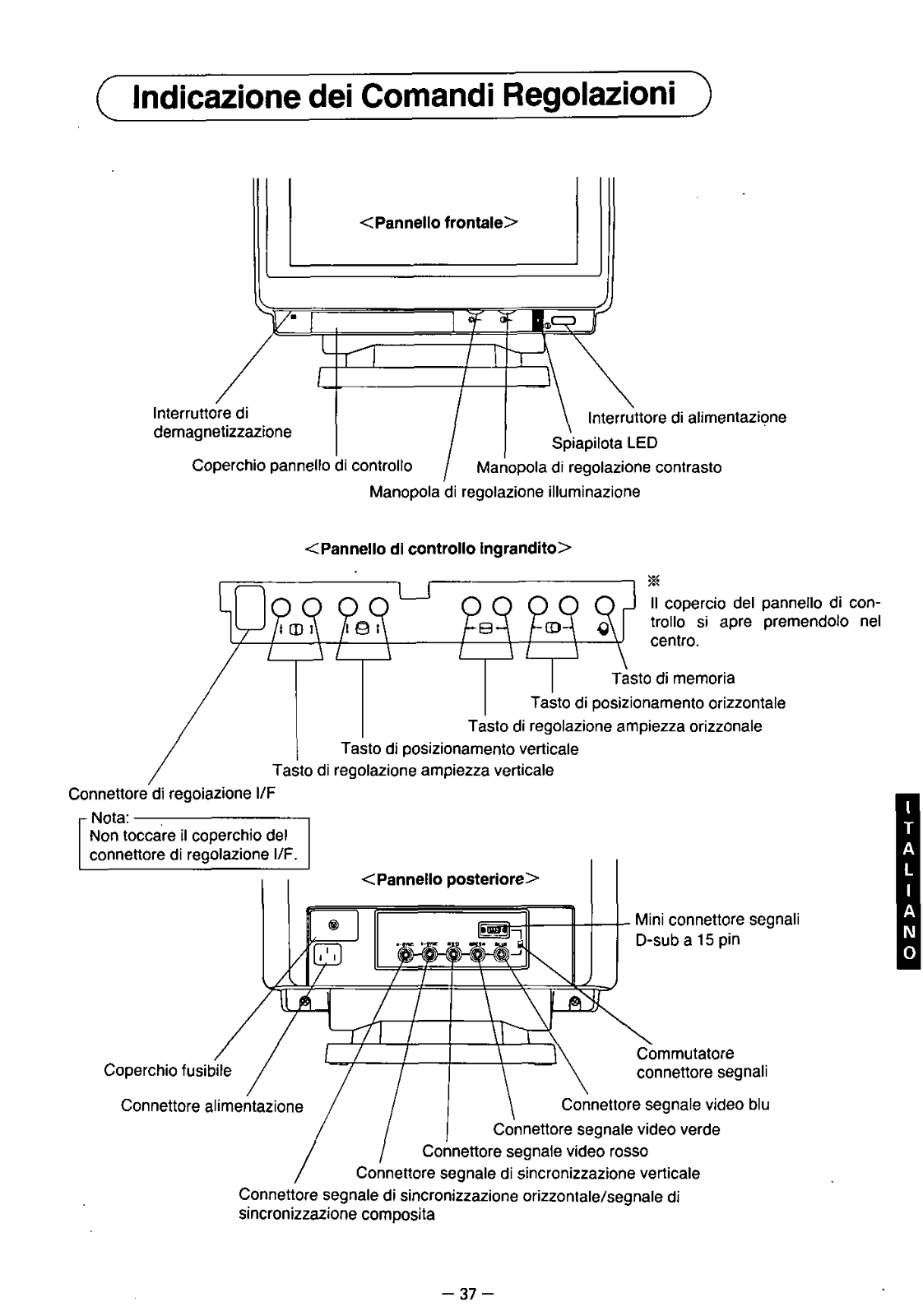

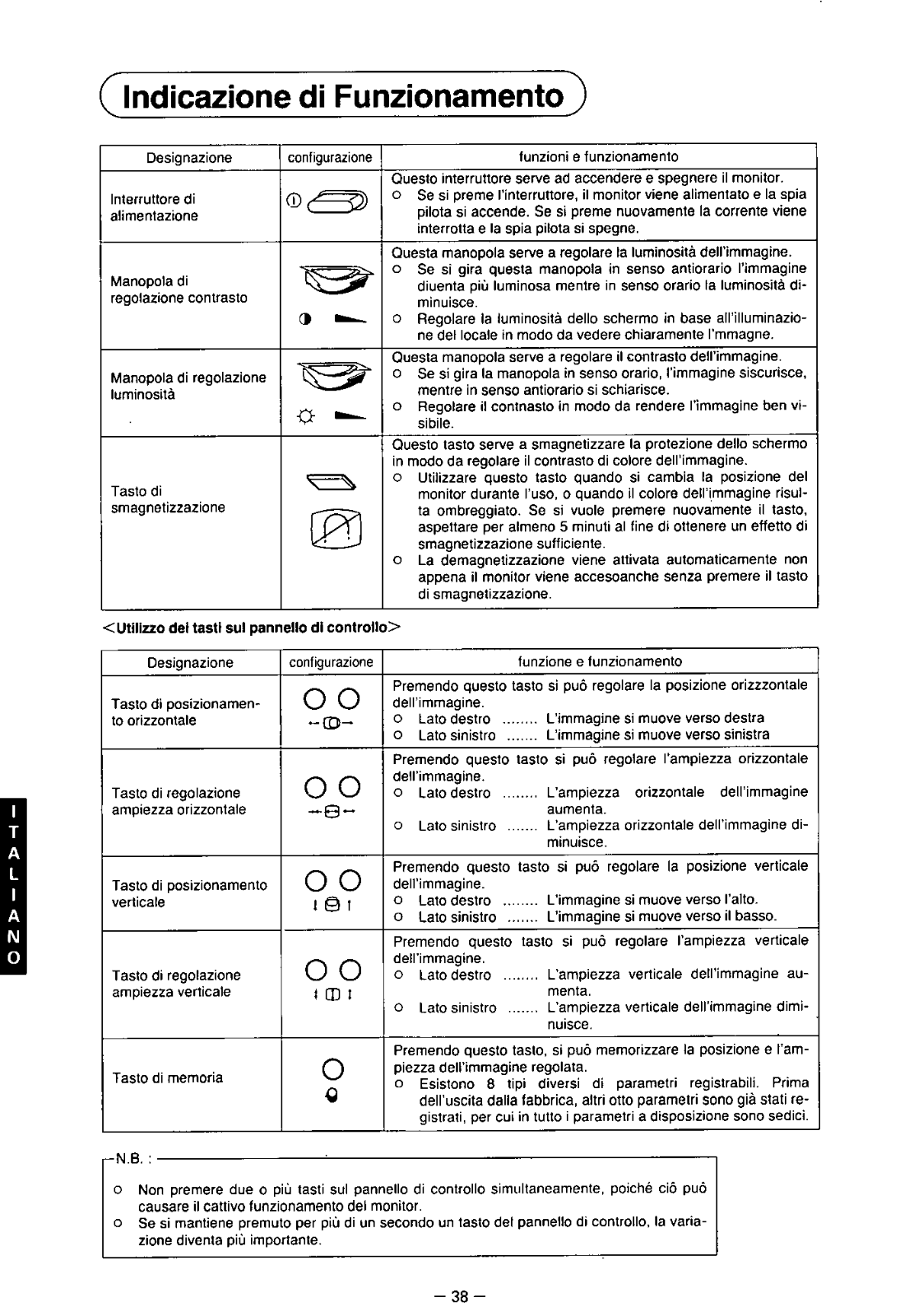

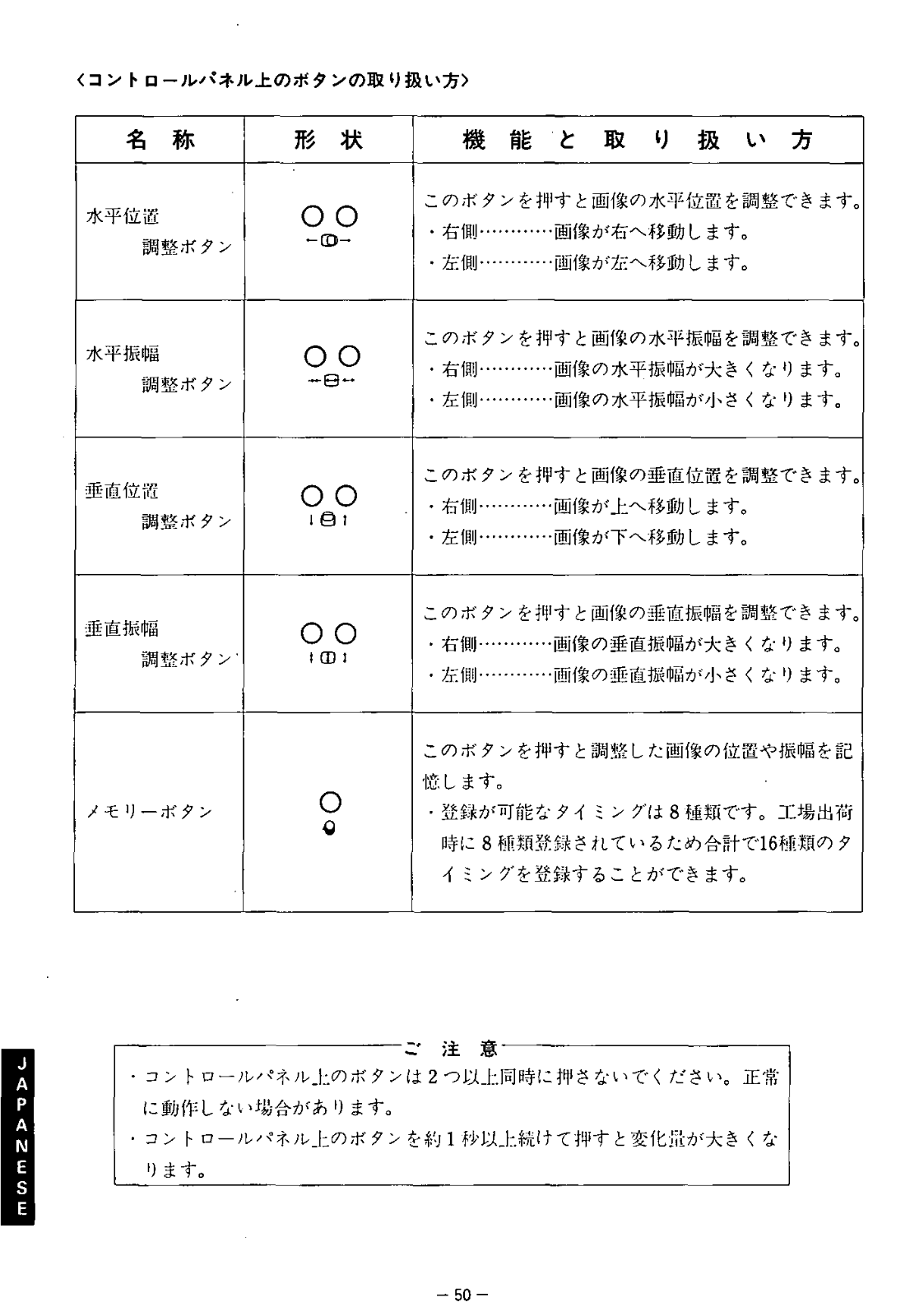

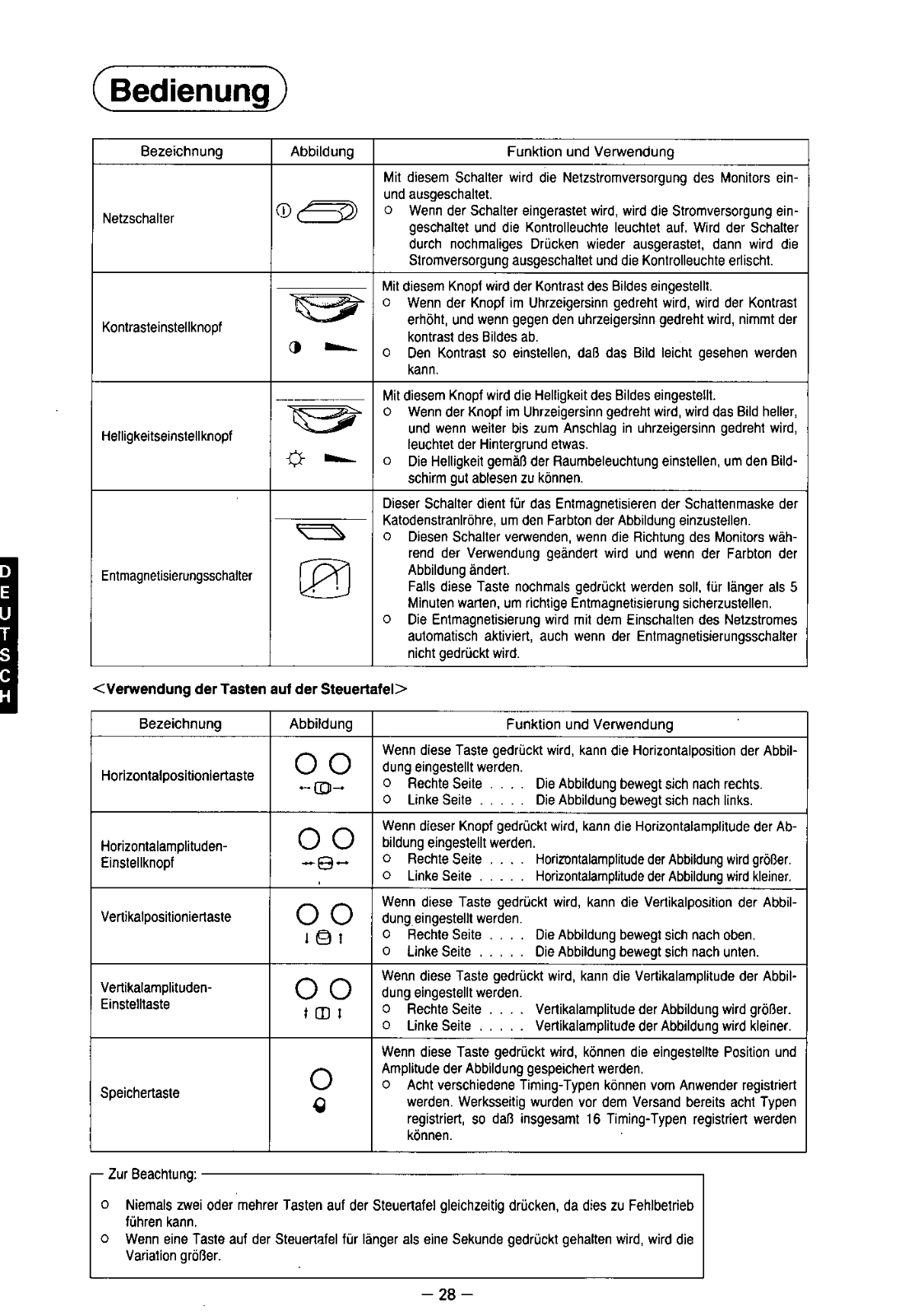

- Function for Adjustments Ottoman
- Horizontal size and position function adjustment.
- Vertical size and position function adjustment optimal tarms.
- Operational Temperature of 0 to 40 Degree Celsius, Humidity of between 5-90%
- There is a variance in model hence the dimensions and weight differ each;
- TX-1703MA: 413 x 434 x 480 mm; weight 24 kg
- TX-2013MA: 484 x 478 x 536 mm; weight 28 kg
- TX-2103MA: 510 x 492 x 567 mm, 32 kg.
Q: What is the operating power of this device?
A: The operating power of this device is AC 90 ~ 264 V.

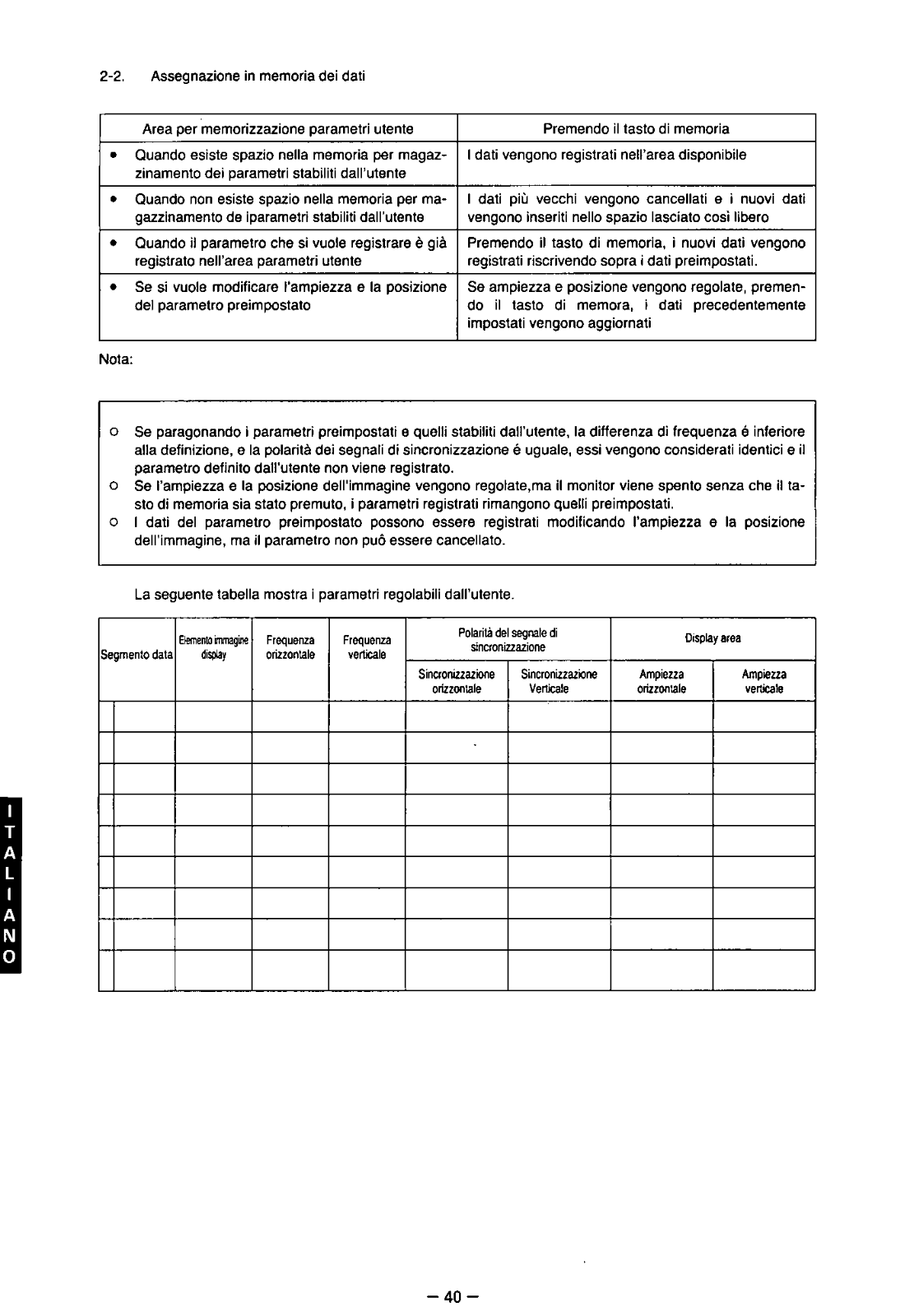

Q: How many active time settings can this monitor hold?
A: This monitor can hold a total of 16 active time settings, 8 less the usual and 8 more than USUsal.
Q: What is the type of input connectors this device is configured with?
A: This device is configured with five BNC connectors and a fifteen pin mini D-sub connector.
Q: What is the range of frequencies the monitor supports for horizontal and vertical?
A: When it comes to ranges the horizontal frequency is between 30 to 64 kHz and for vertical it is between 50 to 90 Hz.

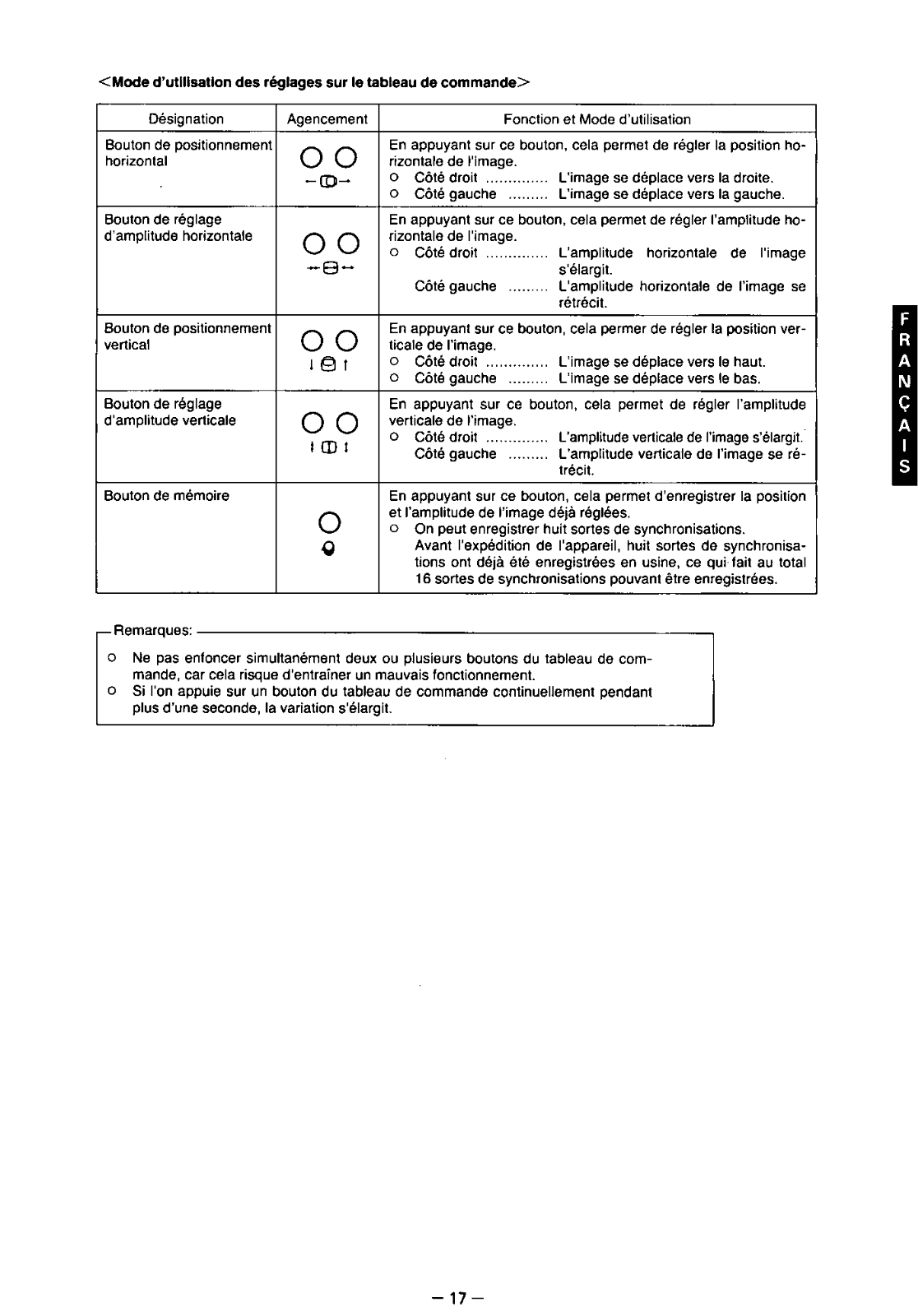

Q: Is it possible to change the position of the imagery and its size on the screen?
A: It is indeed possible as both the horizontal and vertical adjustments are easily achievable.
Q: What is the total power consumption according to the TX-2103MA model?
A: When considering the TX-2103MA model the total consumption reaches about 150 W.
