Panasonic TX-15LT2Z, TX-15LT2Q, TX-15LT2X, TX-15LT2M User Manual


SOUND

SET UP

TV/AV

F.P. INDEX HOLD

TV/TEXT

2 3

SURROUND

5 6

ASPECT

8 9 0

Operating Instructions

15.2˝ Diagonal LCD TV

Model No.

TX-15LT2M TX-15LT2Q TX-15LT2Z TX-15LT2X

Please read these instructions before operating your set and retain them for future reference.

English

TQBC0537

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new 15.2

″

Diagonal LCD TV. To obtain maximum benefit from your set, please read these instructions before making any adjustments, and retain them for future reference. Retain your purchase receipt also, and note down the model number and serial number of your set in the space provided on the rear cover of these instructions.

Table of Contents

Warnings and Precautions................................. 3

TV Games / Home Computers................................... 3

Cabinet and LCD panel care...................................... 3

Preparation................................................................. 3

Receiver Location ...................................................... 3

Optional External Equipment ..................................... 3

For optimum quality picture........................................ 3

How to use the LCD stand ......................................... 3

Before Operating This Set.................................. 4

Supplied Accessories ................................................. 4

Fitting remote control batteries................................... 4

Quick start Guide ................................................ 5

1. Choose Your Connection Type............................... 5

2. Connecting the AC Adaptor.................................... 6

3. Switch TV ON......................................................... 6

Connections ........................................................ 7

How to connect the input terminals ............................ 7

How to connect the AUDIO OUT terminals................ 8

Connecting Headphones / Earphones ....................... 8

Using the On Screen Displays...........................9

Basic controls ................................................... 10

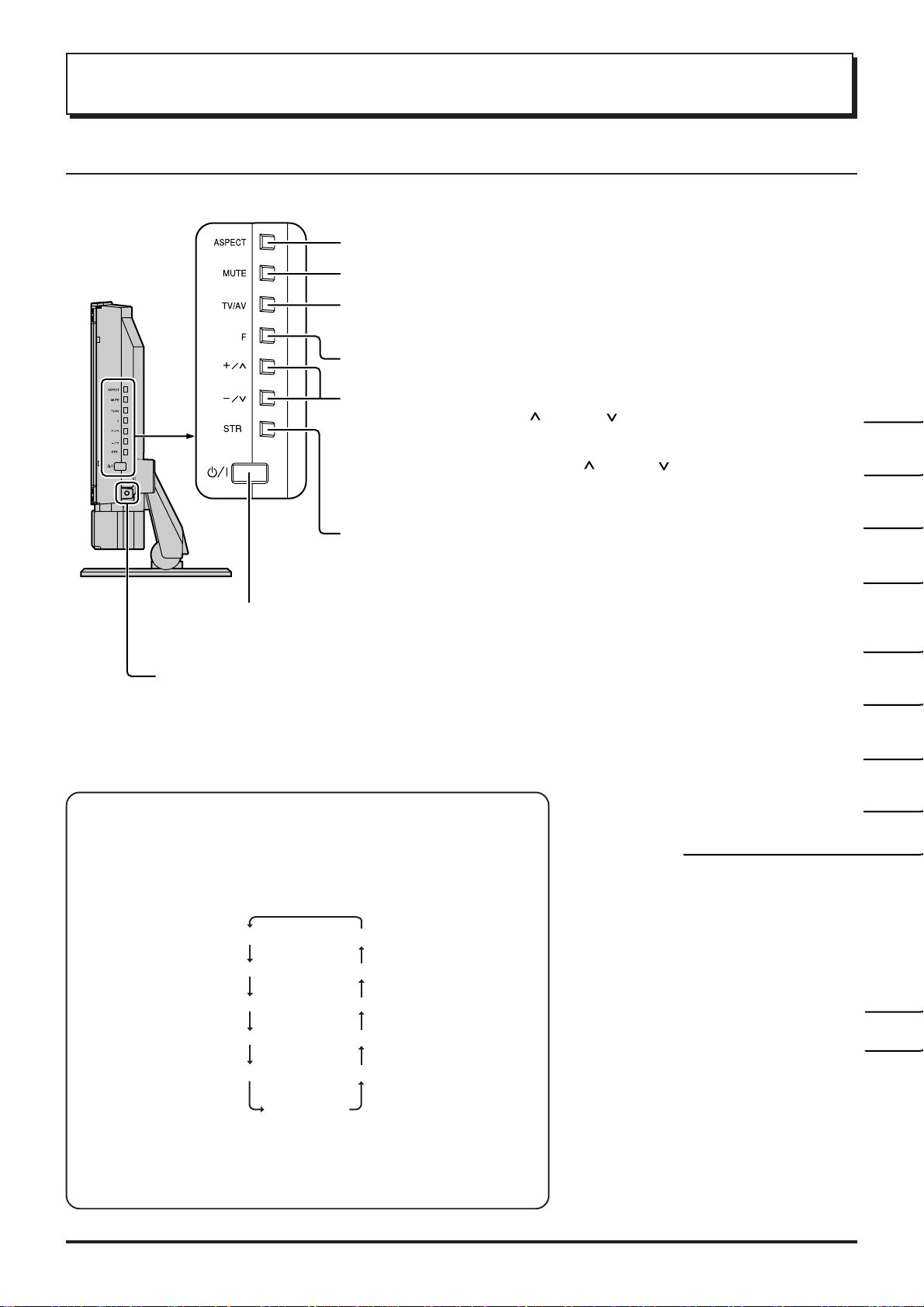

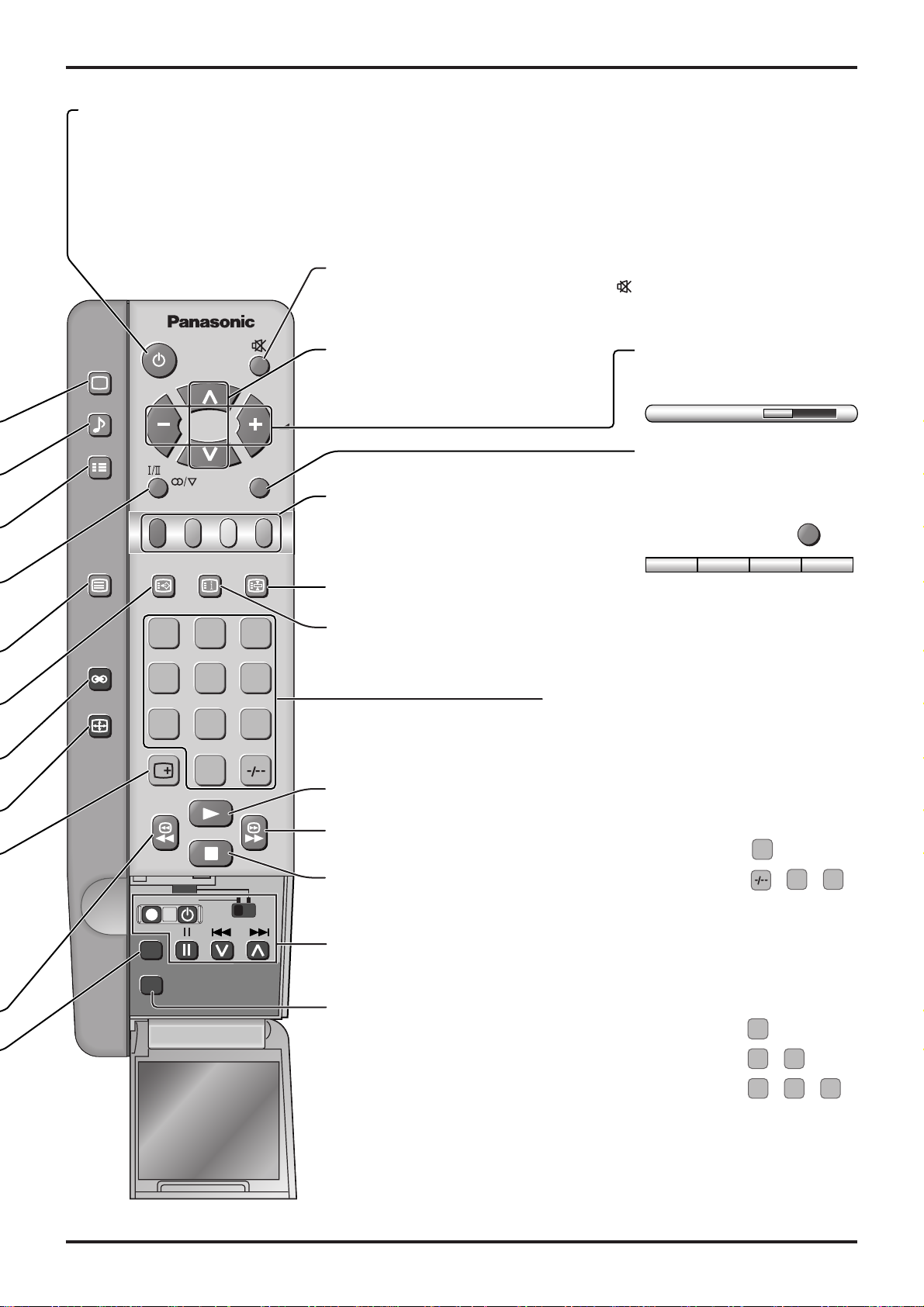

Side panel controls and Remote control .................. 10

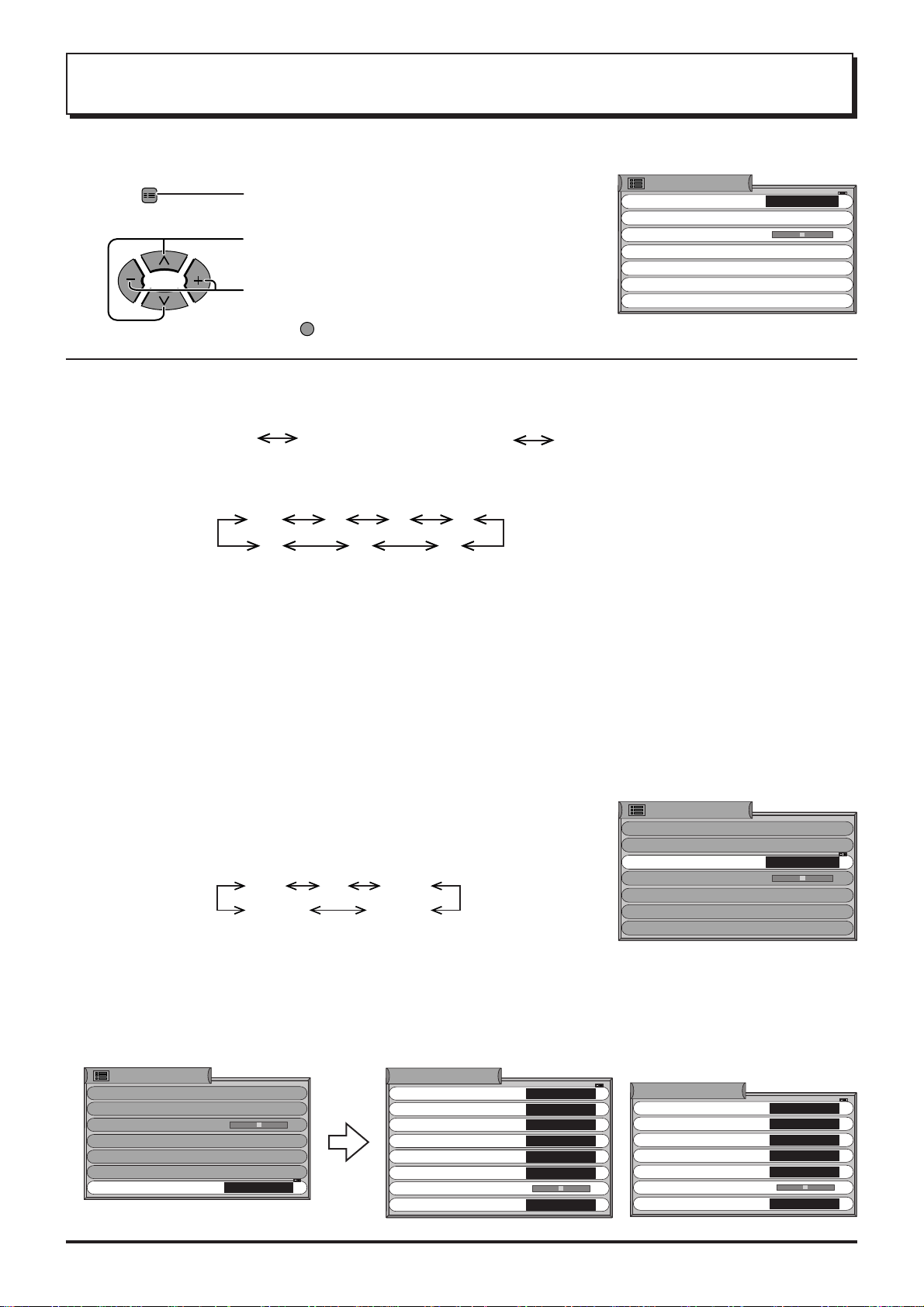

SETUP MENU..................................................... 12

TUNING MENU...................................................13

Channel Selection .................................................... 13

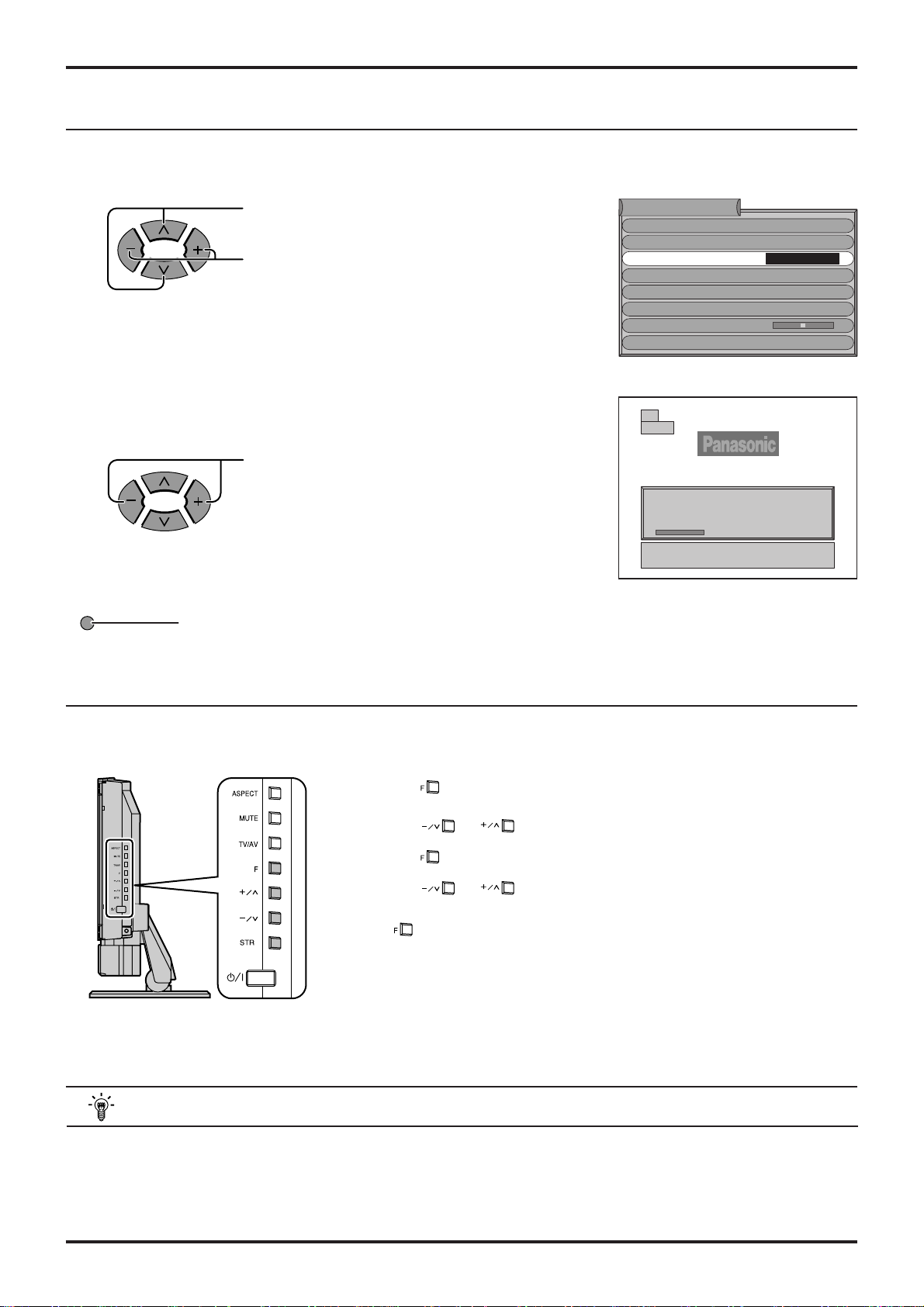

AUTO TUNE ............................................................ 15

AUTO TUNE (via side panel) ................................... 15

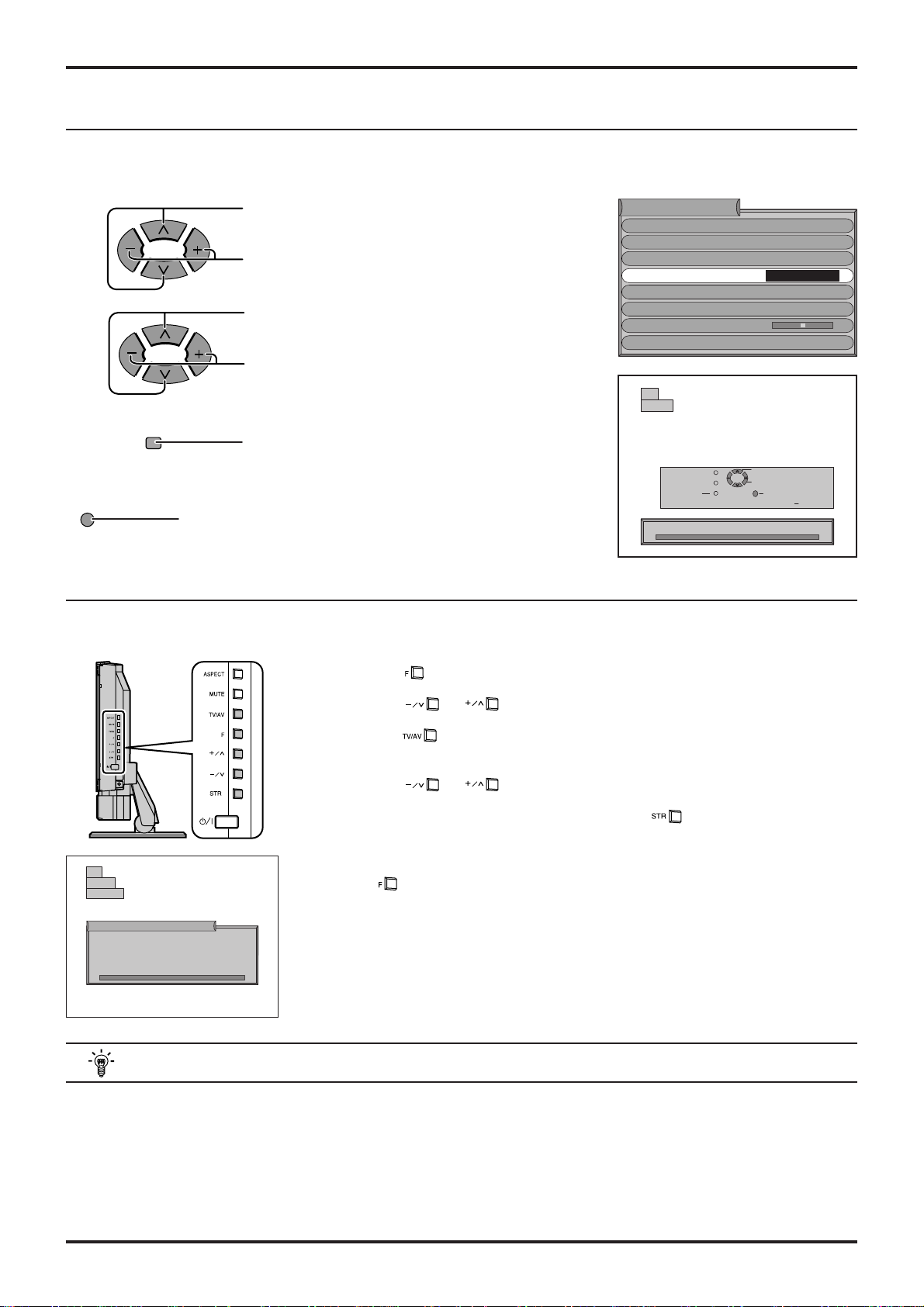

MANUAL TUNE........................................................ 16

MANUAL TUNE (via side panel) .............................. 16

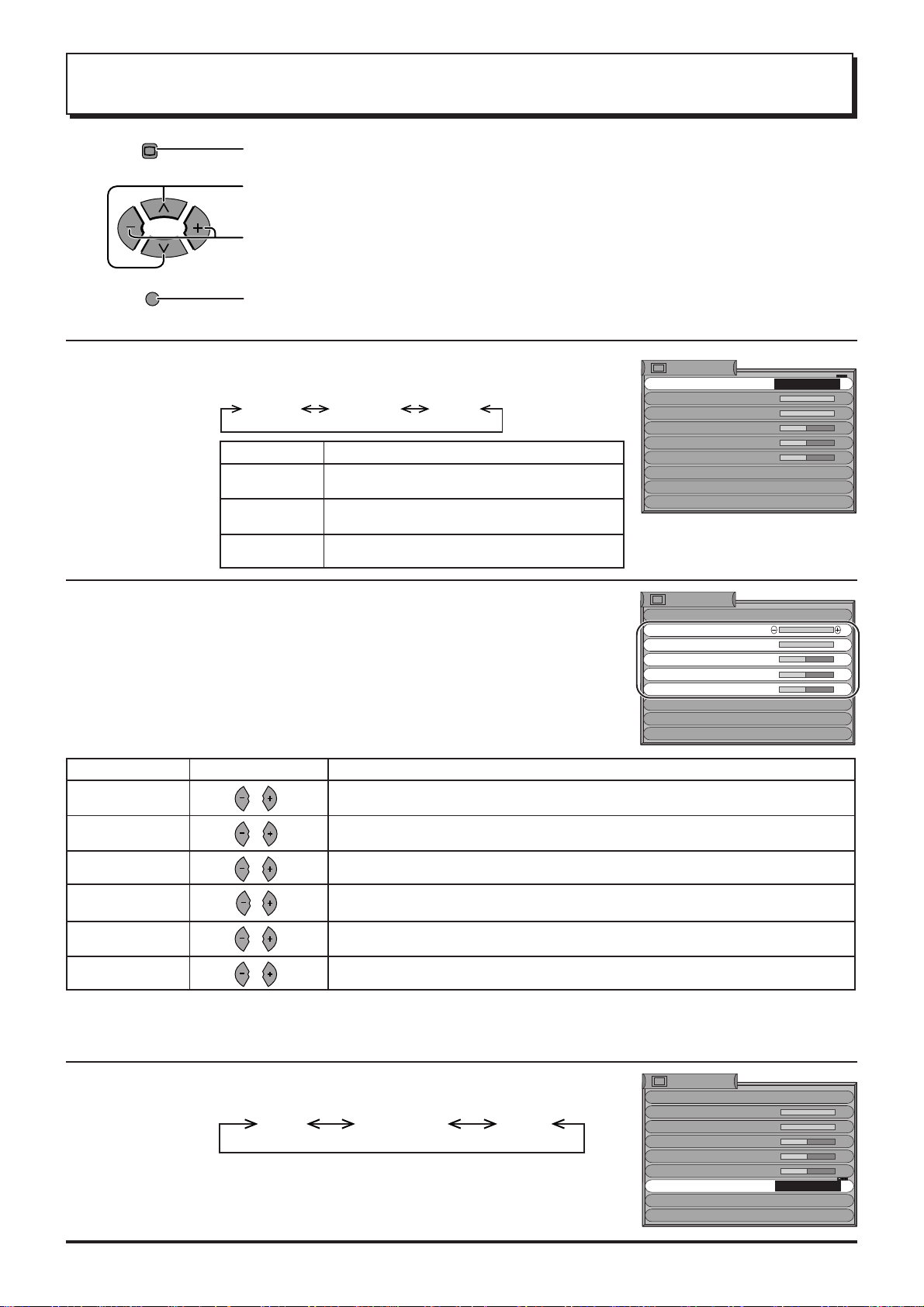

PICTURE ............................................................ 17

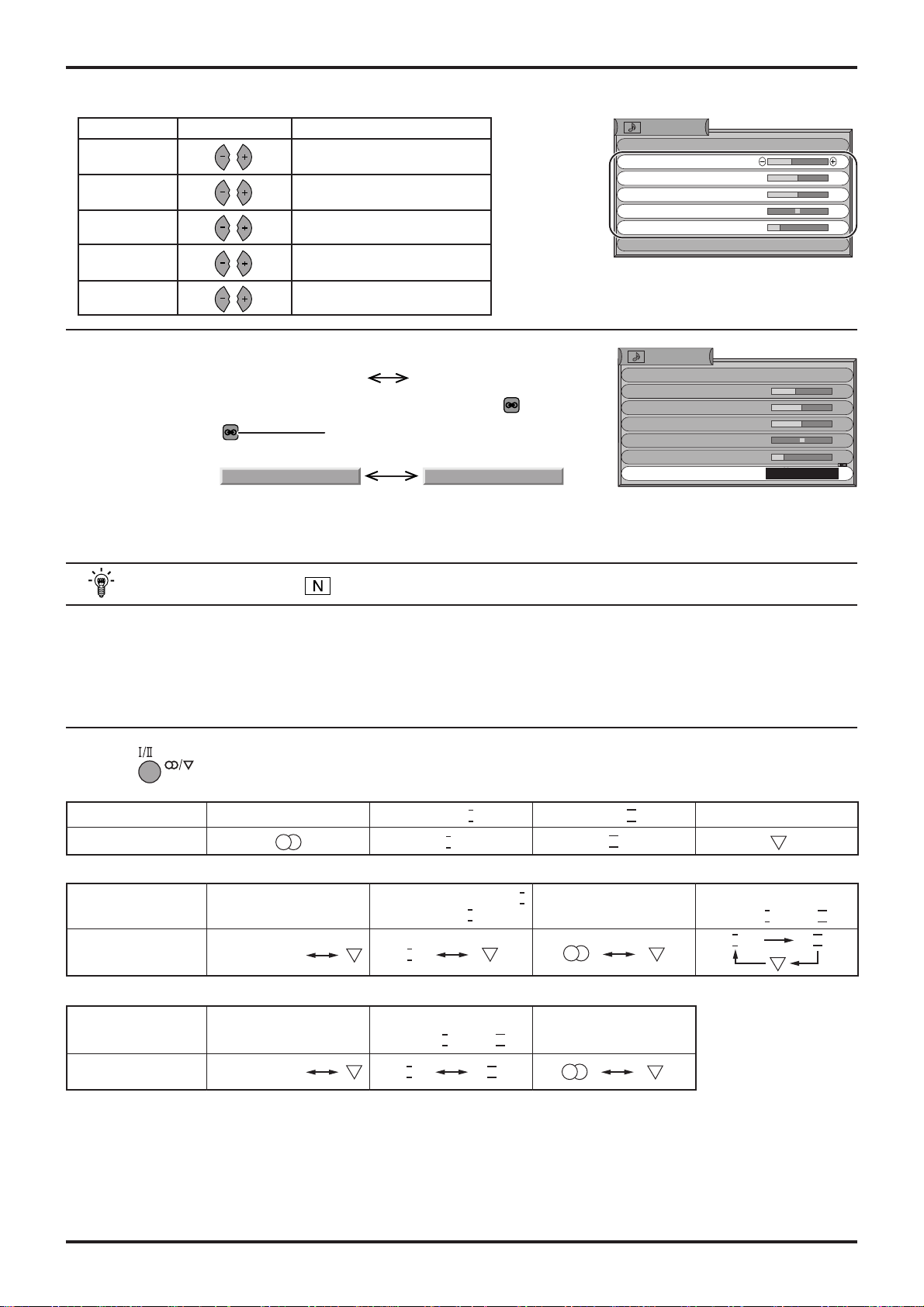

SOUND ...............................................................18

Stereo Bilingual Sound Selection..................... 19

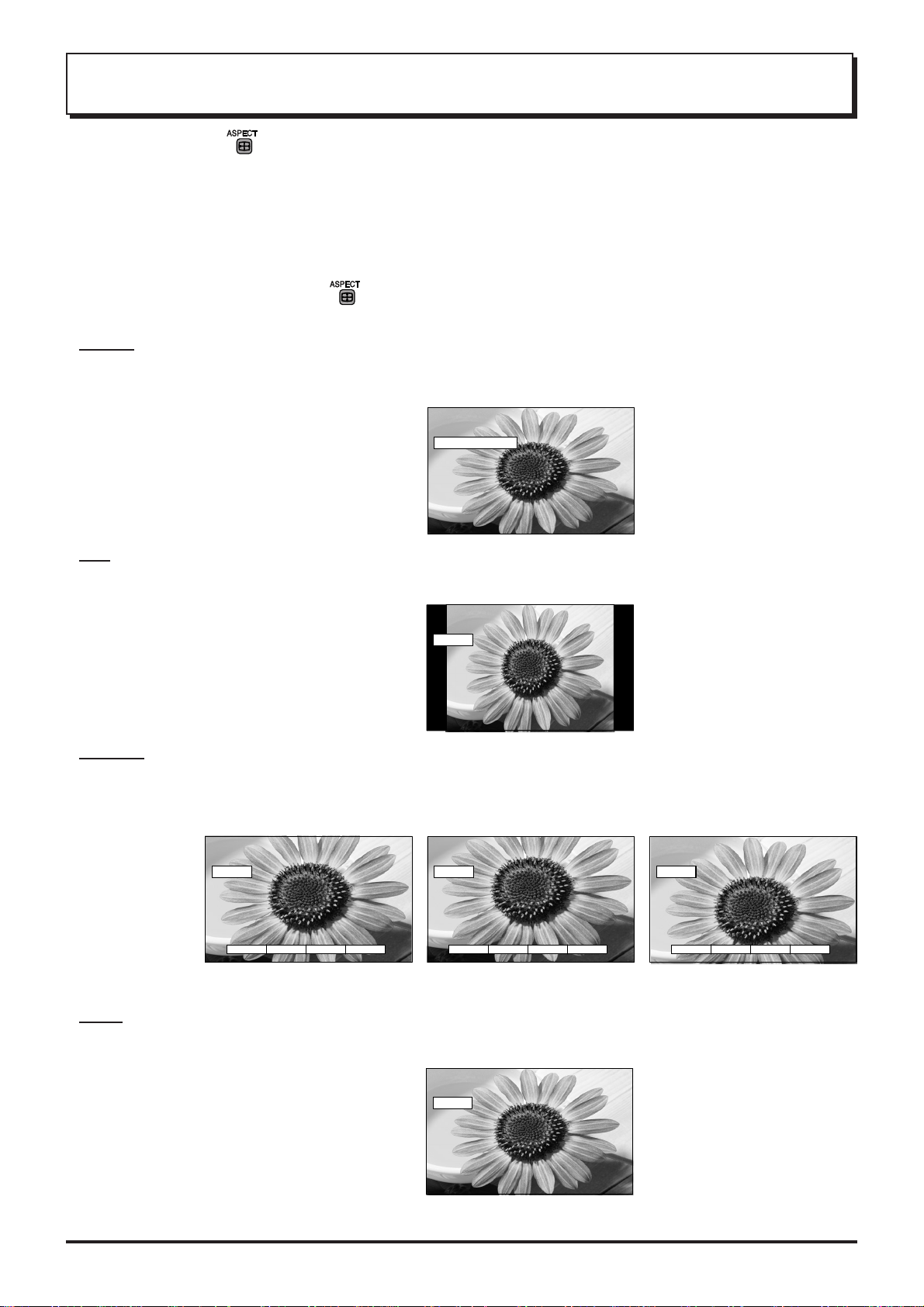

ASPECT Controls.............................................. 20

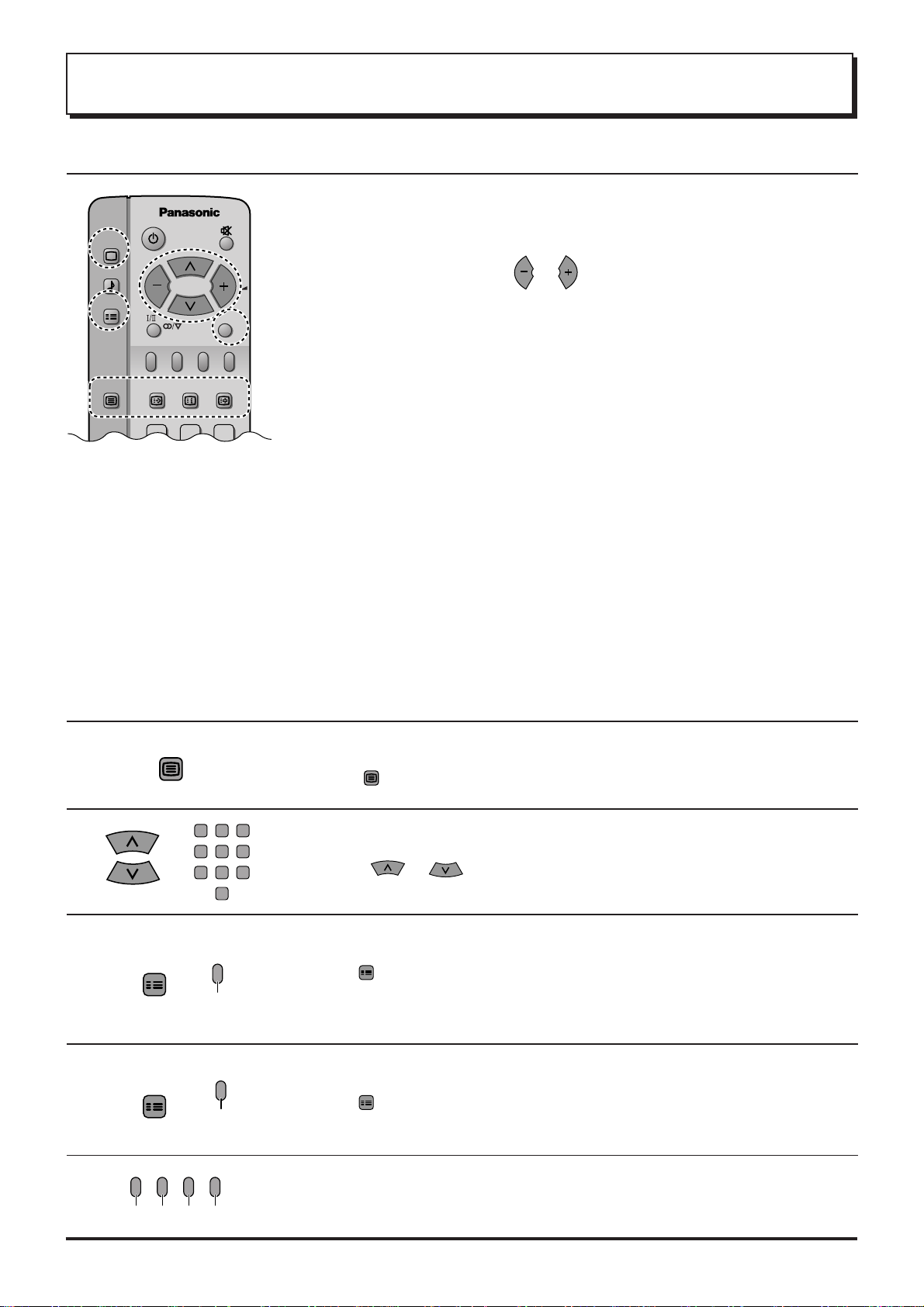

Advanced Remote Control Operation ............. 21

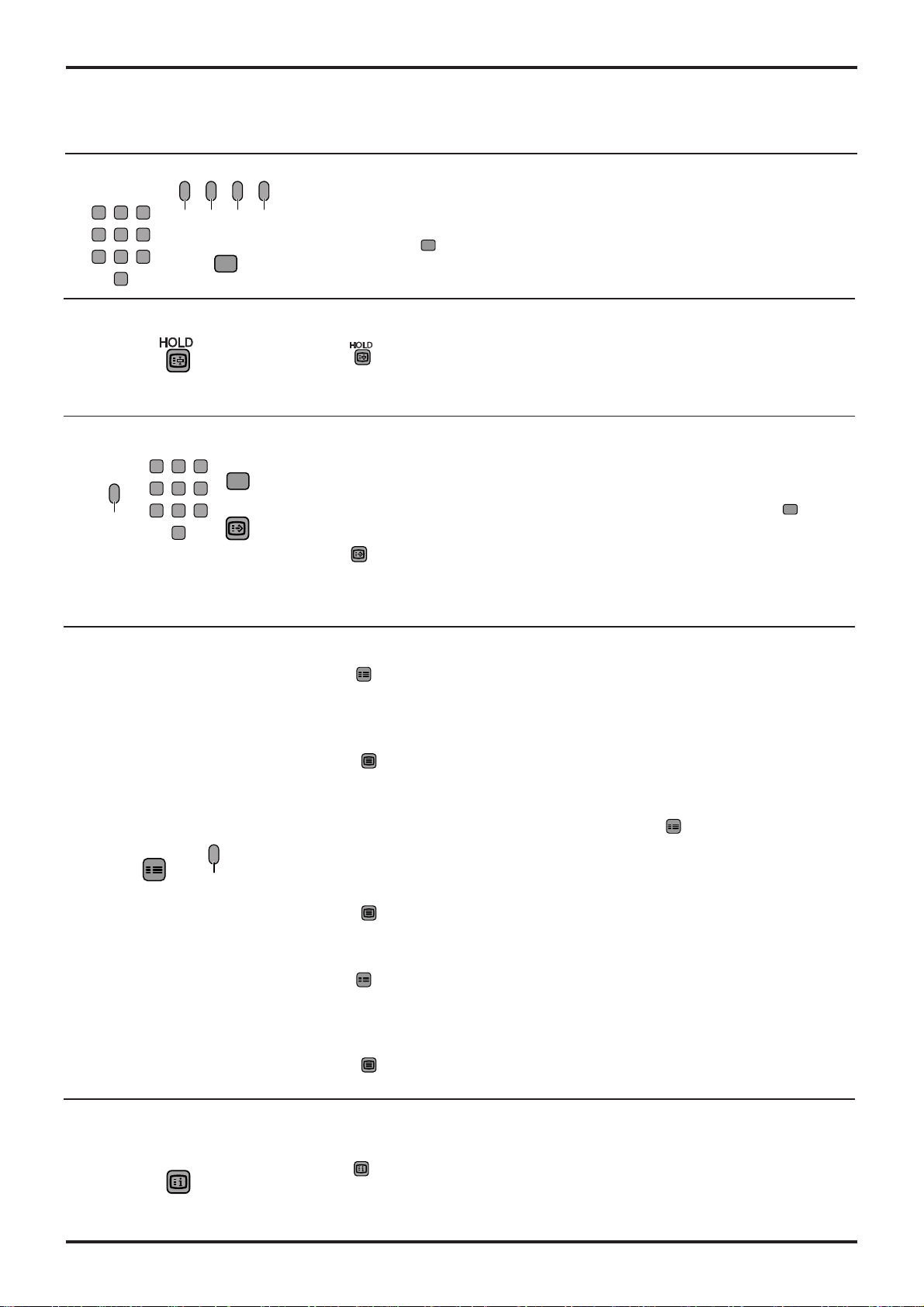

TELE TEXT .............................................................. 21

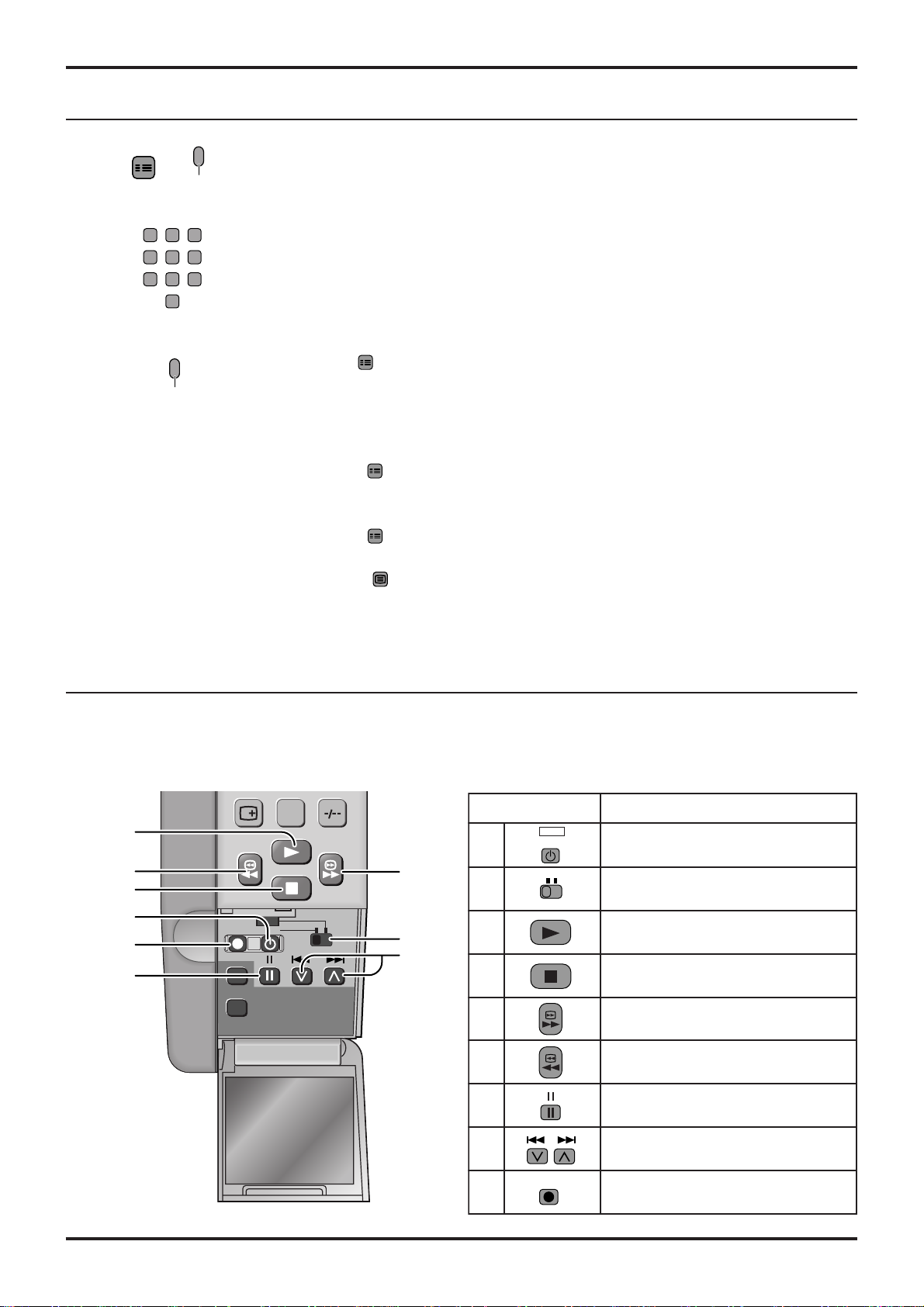

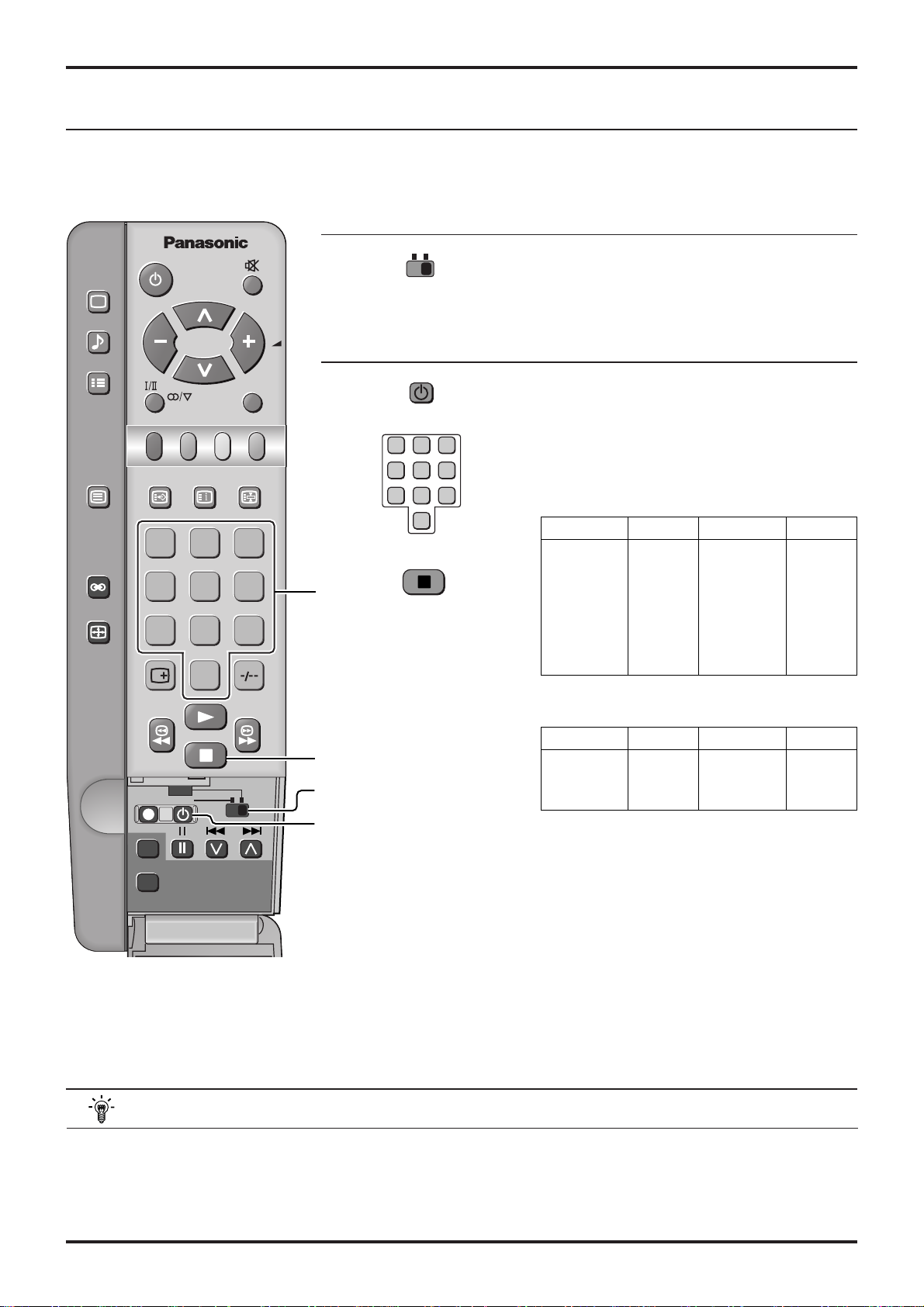

VCR / DVD Operation .............................................. 23

Manufacturer setting ................................................ 24

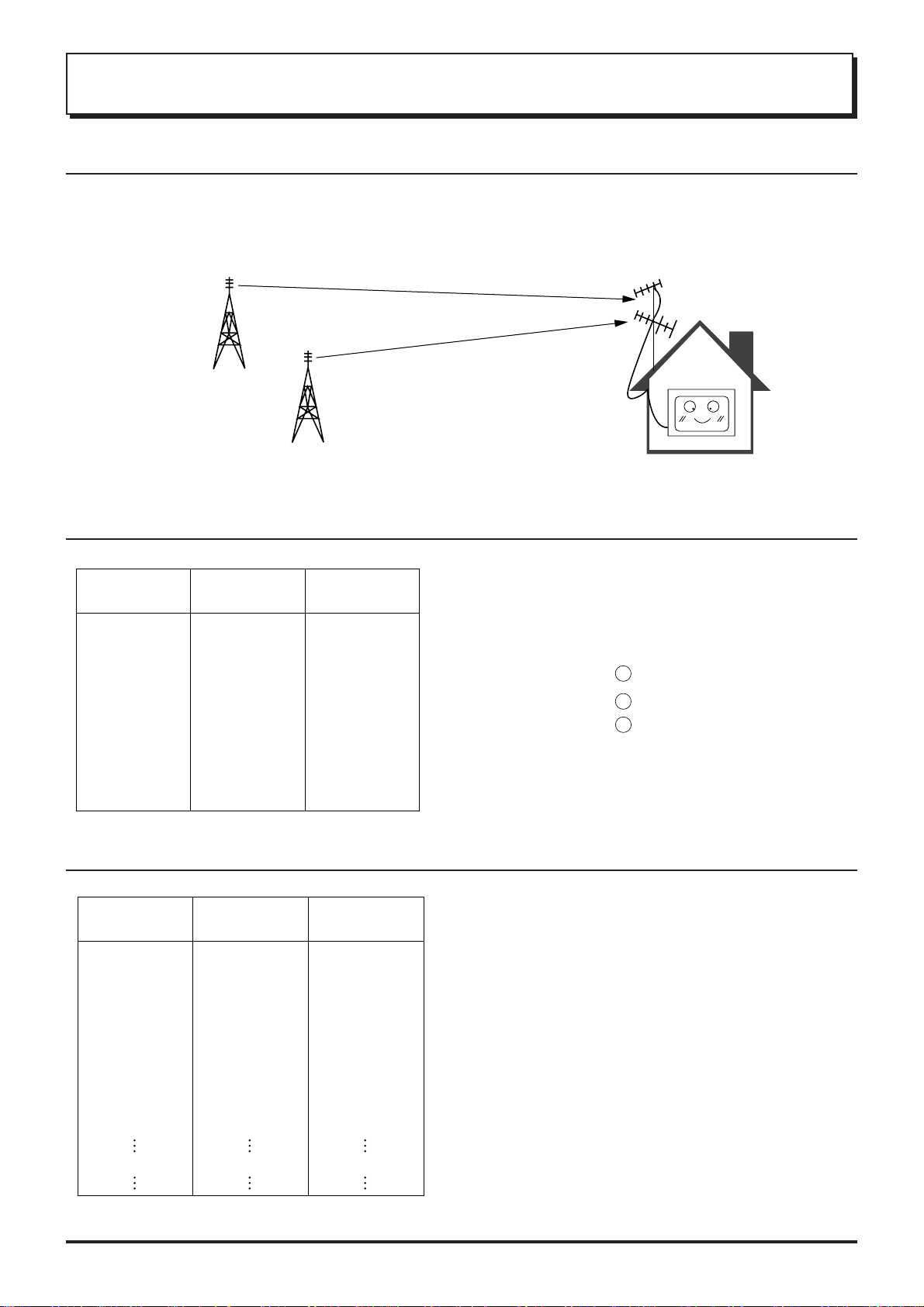

Channel Allocation............................................ 25

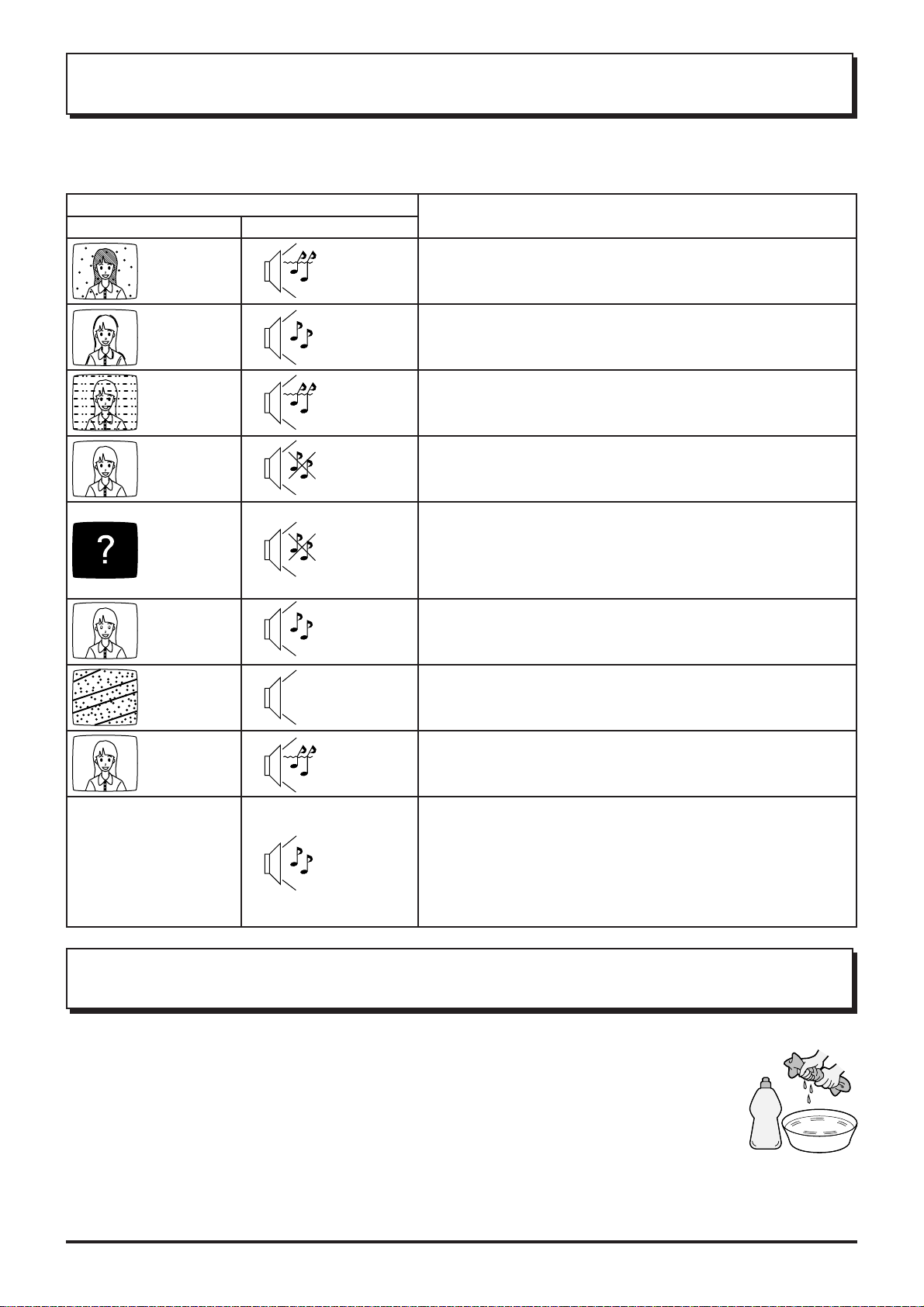

Troubleshooting................................................ 26

Maintenance ...................................................... 26

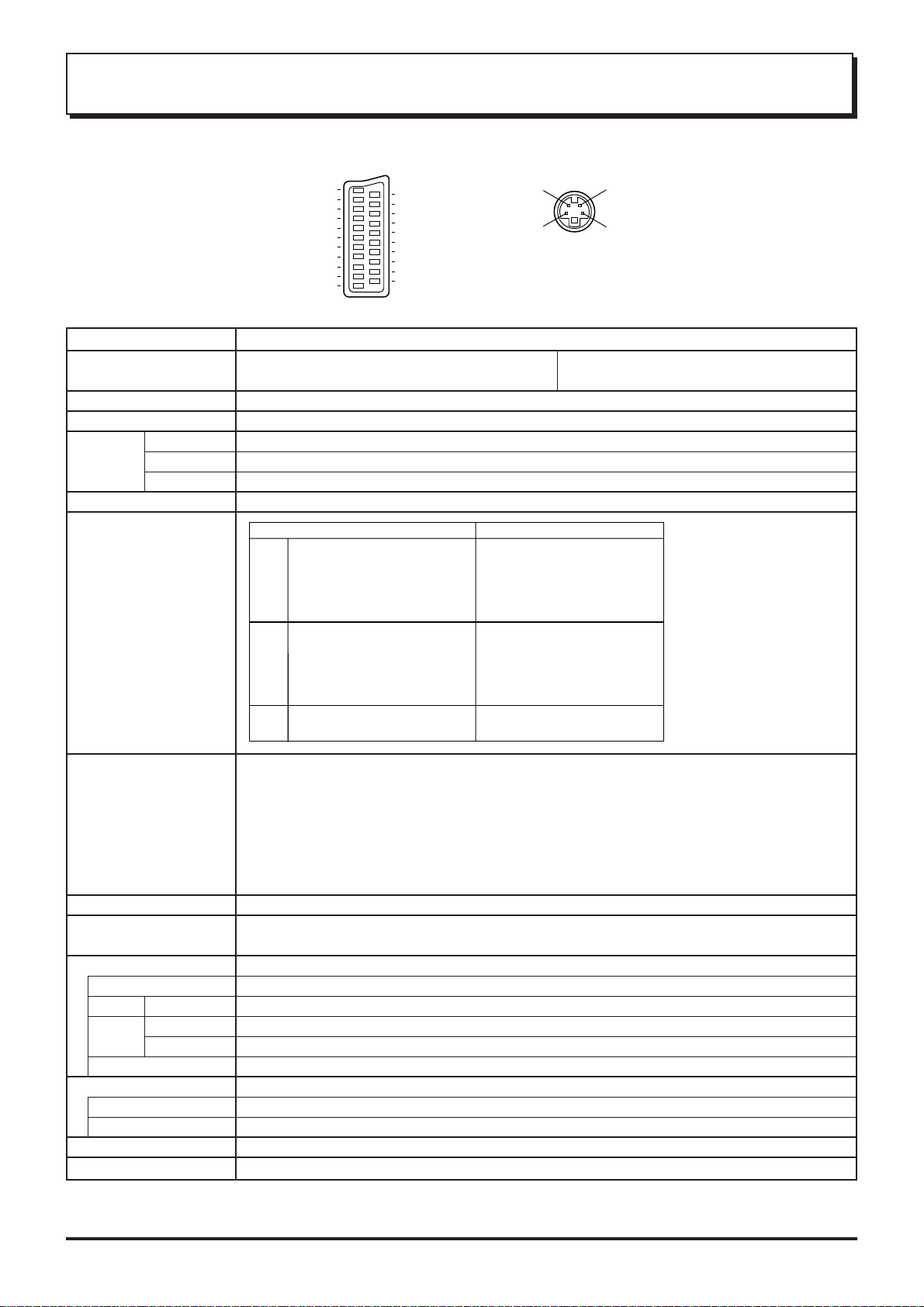

Specifications.................................................... 27

Warnings and Precautions

• This TV set is designed to operate on DC 15V.

• To prevent damage which might result in electric shock

or fire, do not expose this TV set to rain or excessive moisture. This TV must not be exposed to dripping or splashing water, and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

• WARNING : HIGH VOLTAGE!!! Do not remove the rear cover as live parts are

accessible when it is removed. There are no user serviceable parts inside.

• TV Games / Home Computers Extended use of TV games or home computers with

any television set can cause a permanent ‘shadow’ on the screen. This type of irreversible LCD panel damage, can be limited by observing the following points:

•

Reduce the brightness and contrast levels to a

minimum viewing level.

•

Do not allow a still picture to be displayed for an

extended period, as this can cause a permanent afterimage to remain on the LCD TV screen.

•

Examples of still pictures include logos, video games,

computer images, teletext and images displayed in 4:3 mode.

•

This type of LCD panel damage, is not an operating

defect, and as such is not covered by the Panasonic warranty.

• The On/Off switch on this model does not fully

disconnect the TV from the mains supply . Remove the mains plug from the wall socket when the TV set is not used for a prolonged period of time.

Note:

•

If the set is not switched off when the TV station stops

transmitting, it will automatically go to stand-by mode after 30 minutes. This function will not operate when the TV is in AV mode.

• Cabinet and LCD panel care

Remove the mains plug from the wall socket. The cabinet and LCD panel can be cleaned with a soft, dry cloth. Do not use water or solutions containing benzol or petroleum.

• When ambient temperature is cool, the picture may

take a short time to reach normal brightness, but this is not a malfunction. (After brief moment, the picture will have normal brightness.)

• Adequate ventilation is essential to prevent failure of

electrical components, we recommend that a gap of at least 10cm is left all around this television receiver even when it is placed inside a cabinet or between shelves.

• Avoid exposing the TV set to direct sunlight and other

sources of heat.

Preparation

• Receiver Location Locate for comfortable viewing. Avoid placing where sunlight or other bright light (including reflections) will fall on the screen. Use of some types of fluorescent lighting can reduce remote control transmitter range. Adequate ventilation is essential to prevent internal component failure. Keep away from areas of excessive heat or moisture. To insure optimum picture do not position magnetic equipment (motors, fans, other speakers, etc.) nearby .

• Optional External Equipment The Video/Audio connection between components can be made with shielded video and audio cables. For best performance, we recommend 75 ohm coaxial aerial cable is used. Cables are available from your dealer or electronic supply store. Before you purchase any cables, be sure you know what type of output and input connectors your various components require. Also determine the length of cable you’ll need.

• For optimum quality picture When the LCD is exposed to light from outdoors or lighting fixtures, high-contrast pictures may not be displayed clearly. Turn off florescent lamps near the LCD and place in a location not exposed to outdoor light.

• How to use the LCD stand Adjust the stand to your desired angle. The stand angle can be adjusted between 0 ° forward to 28 ° back.

Before Operating This Set

Supplied Accessories

Check the accessories before installations.

Operating Instruction book

•

Mains Lead

•

TX-15LT2M

Remote Control Transmitter

•


SOUND

SET UP

TV/AV

F.P. INDEX HOLD

TV/TEXT

2 3

SURROUND

5 6

ASPECT

8 9

VCR

TX-15LT2Q/Z TX-15LT2X

AC Adaptor

•

AC Plug Adaptor

•

TX-15LT2X only

Batteries for the Remote

•

Control Transmitter

(2 × R6 (AA) size)

Battery Installation

Open the cover.

Apply slight downward pressure while pulling towards the bottom.

Do not use rechargeable (Ni-Cd) batteries. They are different in shape and performance and may fail to ensure correct operation.

Batteries: Use two “R6 (AA)” size

batteries.

Insert the batteries ensuring the correct polarities. This is identifiable by the “+” and “−” symbols on the batteries and inside the battery compartment.

Two “R6 (AA)” size

3 Replace the cover.

Battery cautions

The incorrect use of batteries can cause electrolyte leakage which will corrode the Remote Control or cause the batteries to burst.

Old Batteries New Batteries

Replace both batteries at the same time. Don't mix diffrent battery types.

(alkaline with carbon zinc, etc.)

Don't Recharge.

Quick start Guide

1. Choose Your Connection Type

Connecting the TV directly to an aerial only

Connect the Aerial lead into the TV Aerial Input socket (

Aerial (Not Supplied)

LCD TV

Aerial Input socket

Aerial (Not Supplied)

AV1 Scart socket

Aerial Lead

Aerial socket

LCD TV

Aerial Input socket

2. Connection of TV and VCR using Scart and RF cables

RF connection

Connect the AERIAL lead to the Aerial input socket of the VCR and connect the RF cable from the VCR Aerial Output socket to the TV Aerial Input socket ( ).

Scart Connections

The VCR can also be connected to the TV using a Scart cable if you are using a Scart equipped VCR. Connect Scart socket of the VCR to AV1 Scart socket of this set.

Aerial Lead

Scart socket

VCR

Aerial Input socket

RF cableScart cable

Aerial Output socket

Notes:

• Additional equipment and cables are not supplied.

• Further details of audio / video connections can be

found on pages 7 and 8.

2. Connecting the AC Adaptor

Quick start Guide

1 Connect the mains lead to the AC Adaptor. 2

Connect the AC Adaptor DC plug to the DC IN socket.

3 Plug into household mains socket.

• Be sure to use the power cord and AC adaptor included in the accessories.

• Do not use the AC adaptor for other than the specified equipment.

• Unplug the AC adaptor if it is not used for long time.

• Do not place any objects on the AC adaptor.

• Do not use the AC adaptor outdoors.

• Do not attempt to repair the AC adaptor if it is

broken or malfunctioning. Refer the servicing to the service representative.

• Do not try to open the AC adaptor.

• Do not use water or wet cloth for cleaning the

AC adaptor.

3. Switch TV ON

Power-Indicator The RED LED when

lit indicates that not only the TV set is in stand-by mode but also the external AC adaptor is still on.

Press to turn the set on.

IMPORTANT NOTES

There are two ways to switch the TV set to stand-by mode.

(A) Press the switch on the LCD TV and

check RED LED is lit.

(B) Press the Stand-by button on the remote

control.

The TV set can be switched on by the remote controller if it was switched to stand-by using method (A) or method (B).

When programme number up ( )/down ( ) buttons on the side panel of the main part or on the remote control are pressed in standby mode, TV turns on.

Connections

How to connect the input terminals

Connects VCRs and other peripheral equipment

Connection example: AV2 connection

S VIDEO cable

Connect the S VIDEO or VIDEO T erminal.

VIDEO cable

Connection example: AV1 connection

AV1 Scart socket

Scart cable

AUDIO cable

Input / Output from A V1 Scart socket.

S Video

OUT

Video

OUT

(Super-VHS VCR)

Audio

OUT

When connecting 21 pin Scart cables.

(VCR/DVD/Satellite Receiver)

Notes:

• Additional equipment and cables shown are not supplied with this TV set.

• Do not connect a computer with TTL output (5V) to this set.

• Select the desired VIDEO input position by pushing the TV/AV button. (see page 10, 11)

• For Scart socket wiring information see page 27.

Scart socket.

Connections

How to connect the AUDIO OUT terminals

AUDIO IN

Amplifier to speaker system

Notes:

• The AUDIO OUT terminal provides a fixed level output only. (The menu settings and remote control volume controls have no effect.)

• Additional equipment and cables shown are not supplied with this set.

Connecting Headphones / Earphones

3.5 mm stereo plug to stereo phono lead

Connect headphones / earphones as follows.

(3.5 mm stereo plug)

(Optional)

(Not supplied)

Notes:

• The volume level of the headphones can be adjusted by selecting “HEADPHONE VOL.” from the SOUND.

• Additional equipment and cables shown are not supplied with this TV set.

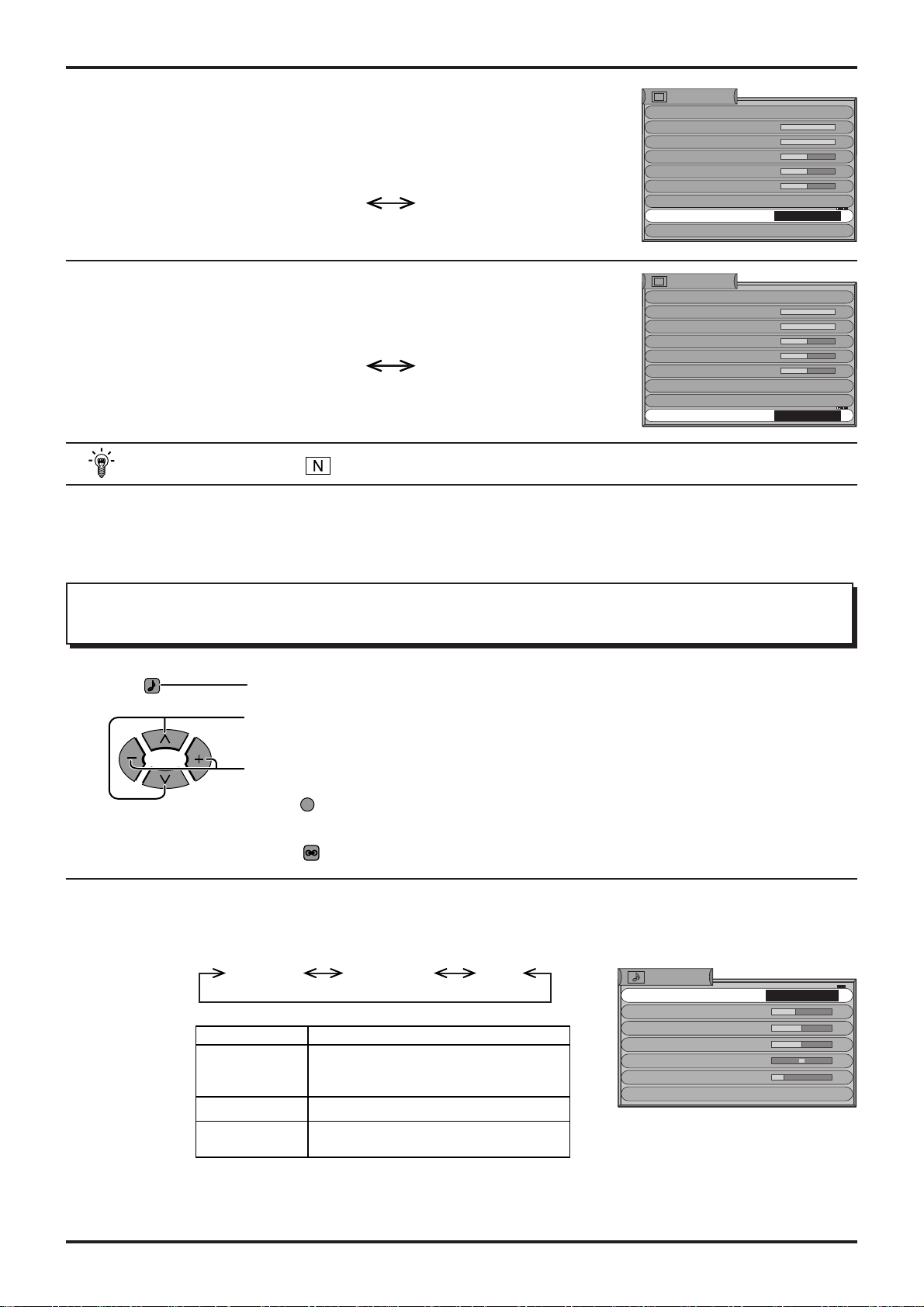

Using the On Screen Displays

Many features available on this TV can be accessed via the On Screen Display menu system. Use the remote control as shown below to access and adjust features as desired.

Press to move the cursor up and down on the menu.

Press to access menus, adjust levels or to select from a range of options.

STR

Press to store settings after adjustments have been made or options have been set.

TV/AV

Press to exit the menu system and return to the normal viewing screen.

Press to display “PICTURE” screen.


MENU BACKLIGHT CONTRAST BRIGHTNESS COLOUR SHARPNESS C.TEMP COMB FILTER AI

DYNAMIC

STANDARD ON ON

Press to display “SOUND” screen.

SOUND

MENU VOLUME BASS TREBLE BALANCE HEADPHONE VOL. SURROUND

STANDARD

OFF


SOUND

SET UP

TV/TEXT

SURROUND

ASPECT

INDEX HOLD

F.P.

1 2 3 456 789

DVD

REC-VCR

STR

TV/AV

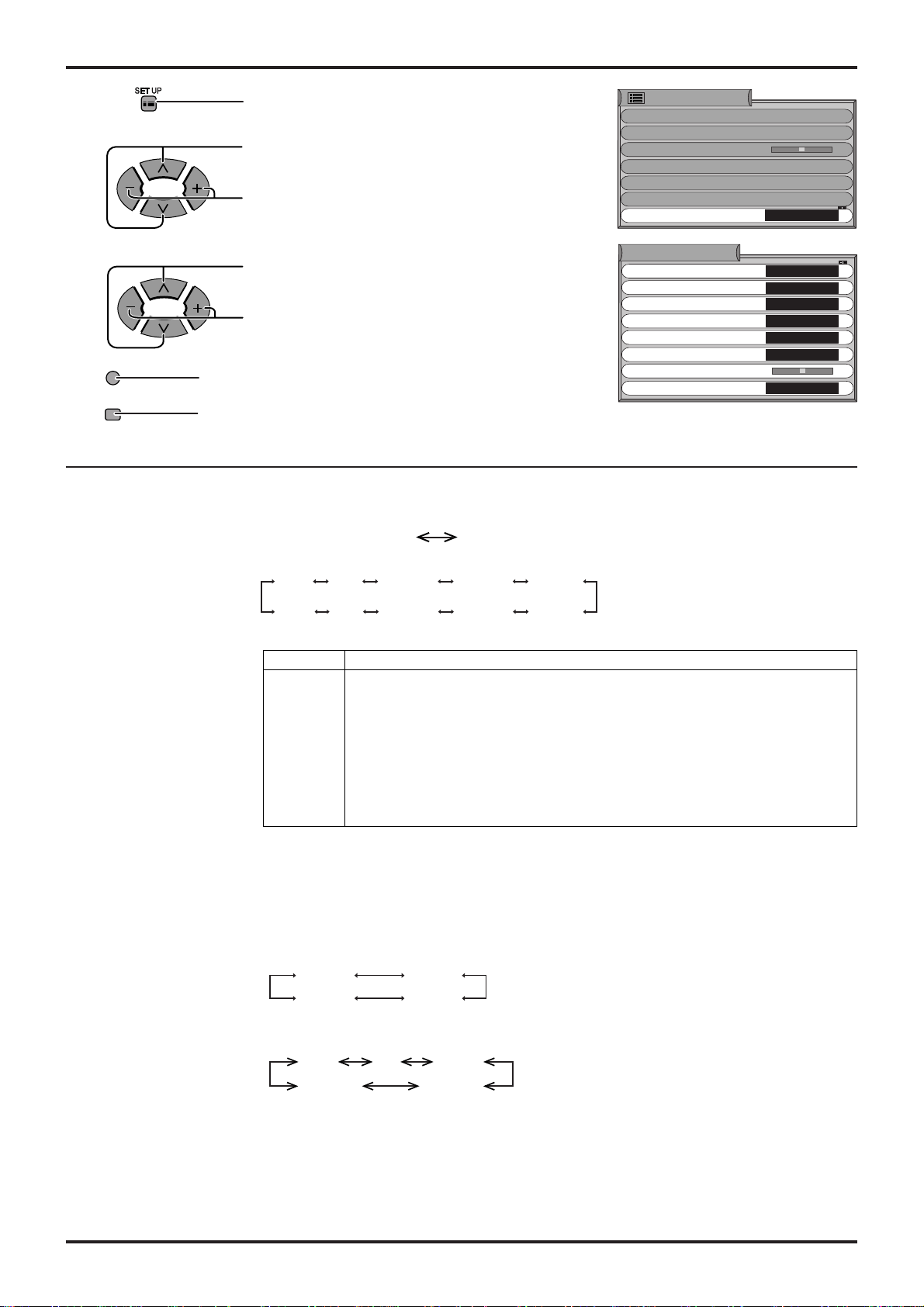

Press to display “SETUP MENU” screen.

SETUP MENU

TELETEXT OFF TIMER CH COLOUR SET VCR/GAME TEXT SELECT CHILD LOCK TUNING MENU

FASTEXT OFF

OFF ENGLISH OFF ACCESS

TUNING MENU

CH SELECT DIRECT SYS SELECT AUTO TUNE MANUAL TUNE SOUND SYS COLOUR SYS FINE TUNE SKIP

ASIA/M. EAST ACCESS ACCESS

5.5MHz AUTO

OFF

For Australia (TX-15LT2Q) only

TUNING MENU

SYS SELECT AUTO TUNE MANUAL TUNE SOUND SYS COLOUR SYS FINE TUNE SKIP

ASIA/M. EAST ACCESS ACCESS

5.5MHz AUTO

OFF

Note:

• Models intended for markets other than Australia (TX-15LT2Q) have the CH SELECT function (see page 14). Examples in this manual show a model that has the CH SELECT function.

Please refer to the On Screen Help

ON SCREEN HELP

2 CH 2

‘Instruction’ box

An On Screen Help box is displayed whenever a menu is displayed on the TV. This Help box indicates which keys on the remote control are used to navigate the menu shown, see above for descriptions of button functions.

RETURN

MANUAL TUNE

PROGRAMME —/+ SEARCH —/+

TV/AV

EXIT

STR

BUTTON

STORE

Note:

• If the On Screen Menu is opened in ZOOM mode, the screen will be switched into 16:9 aspect ratio. The screen will return to ZOOM mode after exiting the On Screen Menu.
