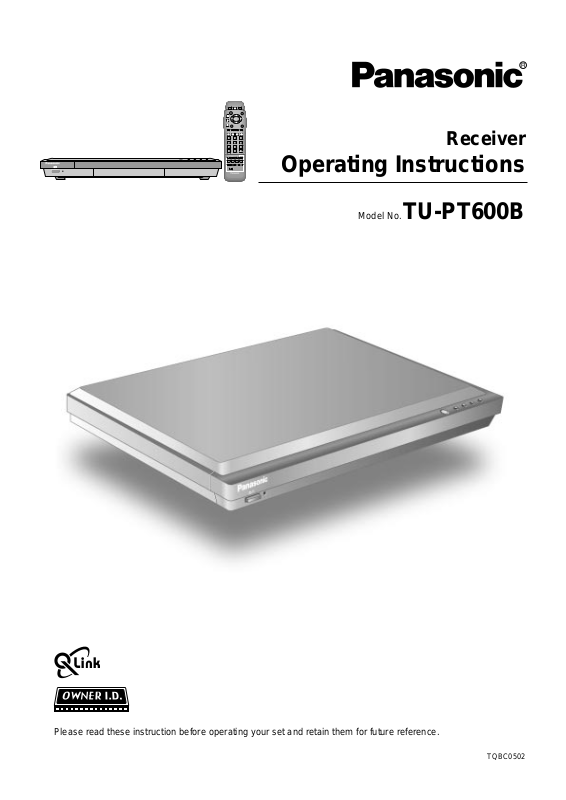

Page 1

123 456 7C89

Receiver

Operating Instructions

TU-PT600BModel No.

Please read these instruction before operating your set and retain them for future reference.

TQBC0502

Page 2

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new Receiver. To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference. Retain your purchase receipt also, and note down the model number and serial number of your set in the space provided on the rear cover of these instructions.

For United Kingdom and Republic of lreland

www.panasonic.co.uk

• Order accessory and consumable items for your product with ease and confidence by telephoning our Customer Care Centre Mon–Friday 9:00am–5:30pm. (Excluding public holidays.)

• Or go on line through our Internet Accessory ordering application.

• Most major credit and debit cards accepted.

• All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.

• It couldn’t be simpler!

Customer Care Centre For UK customers: 08705 357357

For Republic of Ireland customers: 01 289 8333

Technical Support For UK customers: 0870 1 505610

This Technical Support Hot Line number is for Panasonic PC software related products only.

(for UK customers only)

For Republic of Ireland, please use the Customer Care Centre number listed above for all enquiries.

For all other product related enquiries, please use the Customer Care Centre numbers listed above.

Page 3

Table of Contents

Warnings and precautions .................................4

Before Operating This Set..................................5

Supplied Accessories ................................................. 5

Fitting remote control batteries................................... 5

Basic controls .....................................................6

Top panel controls and Remote control...................... 6

Remote control........................................................... 7

Quick start Guide ................................................ 8

Connection of Receiver to TUNER Terminal Board..

2. Choose Your Connection Type............................... 9

1.Connecting this set directly to an ANTENNA only 9

2.Connection of Receiver and

VCR using Scart and RF cables ..................... 10

3.Q-Link connection of Receiver and

VCR using Scart and RF cables ..................... 10

4.Q-Link connection of Receiver, VCR and Satellite using Scart and RF cables .11

3. Preparing the Plasma Display.............................. 12

4. Power On/Off ....................................................... 12

5. Auto setup ............................................................ 13

6. This set to VCR download.................................... 13

7. Owner ID .............................................................. 14

8. The two basic function ......................................... 15

Using the On Screen Displays .........................16

Aspect Controls ................................................ 18

Picture menu ..................................................... 20

Sound menu ...................................................... 22

Setup menu ....................................................... 24

AV2 out..................................................................... 24

Teletext..................................................................... 24

Off Timer .................................................................. 24

3:2 Pulldown............................................................. 25

Tuning menu ............................................................ 25

Volume correction .................................................... 25

Tuning menu ......................................................26

Tuning menu overview ............................................. 26

Programme edit........................................................ 27

Auto setup ................................................................ 31

Manual Tuning.......................................................... 32

Decoder (AV2).......................................................... 33

Shipping condition.................................................... 34

Owner ID .................................................................. 35

6. Q-Link................................................................... 36

Tuning your VCR and satellite receiver .......... 37

Tuning your Receiver to the VCR ............................ 37

Advanced Remote Control Operation .............38

VCR / DVD Operation .............................................. 38

TELETEXT ............................................................... 39

Connections ......................................................42

How to connect the Input / Output terminals ............ 42

How to connect the AUDIO OUT terminals.............. 43

How to Connect the Headphones / Earphones /AV3 terminals

... 43

Troubleshooting................................................ 44

For your Guidance ............................................ 45

Pin Assignment ................................................. 45

Specifications....................................................46

Page 4

Warnings and Precautions

• This set is designed to operate on A.C. 220 - 240 V, 50 Hz.

• This set is capable of receiving the following transmission standard, PAL I.

• The On/Off switch on this model does not fully disconnect the TV from the mains supply. Remove the mains plug from the wall socket when the TV set is not used for a prolonged period of time.

WARNING

• Place this set on a flat, level surface.

• Do not place anything heavy on it.

• Avoid location subject to excessive vibration.

• Adequate ventilation is essential to prevent failure of electrical components, we recommend that a gap of at least 10 cm is left all around this unit even when it is placed inside a cabinet or between shelves.

• Do not remove the cover as live parts are accessible when it is removed. There are no user serviceable parts inside.

• Do not insert foreign objects into the Ventilation Holes.

• Avoid exposing the Receiver to direct sunlight and other sources of heat.

•

To prevent damage which might result in electric shock or fire, do not expose this set to rain or excessive moisture.

• Do not damage the Mains lead. (If damage occurs, replace immediately to avoid fire or shock hazards.)

• Never bring a magnet or magnetized object near the receiver because it will adversely affect the performance of the Receiver .

• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Do not place containers with water (flower vase, sups, cosmetics, etc.) above the set. (Including on shelves

above, etc.)

• Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image to remain on the Plasma Display.

Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a fitted three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. If the fuse is replaced then the replacement fuse must be 5 amp rated and should be approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse. If the fitted plug has a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose

the fuse cover the plug must not be used until a replacement cover is obtained. Replacement fuse covers can be purchased through your local Panasonic dealer.

If the fitted moulded plug is replaced, the fuse should be taken out and the cut-off plug disposed of safely. There is danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted please observe the wiring code as shown below. If in any doubt please consult a qualified electrician.

How to replace the fuse (for plug type shown in example 1):

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (see example 1).

How to replace the fuse (for plug type shown in example 2):

Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely (see example 2).

IMPORTANT: -

The wires in the mains lead of this appliance are coloured in accordance with the following code :-

BLUE : NEUTRAL BROWN : LIVE

Example 1

Example 2

As the colours of the wires in the mains lead of this appliance may not correspond to the markings identifying the terminals in your plug, proceed as follows :-

1. The BLUE wire must be connected to the terminal marked ‘N’ or coloured black.

2. The BROWN wire must be connected to the terminal marked ‘L’ or coloured red. IMPORT ANT NOTE:

three pin plug, marked with the letter ‘E’ or the earth symbol.

Under no circumstances should either of these wires be connected to the Earth terminal of the

Page 5

Before Operating This Set

Supplied Accessories

Check the accessories before installations.

Operating Instruction book

•

(TQBC0502)

Remote Control Transmitter

•

(TNQE286)

123 456 7C89

Warranty Card

•

Batteries for the

•

Remote Control Transmitter

(2 × R6 (UM3) size)

Display Cable

•

(K1HA26FA0002)

Polishing Cloth

•

(TPEX013)

Note:

If the cabinet is heavily soiled, wipe with a supplied polishing cloth.

Fitting remote control batteries

123

Two

R6 (UM3) size

Open the battery cover Insert batteries - note

correct polarity (+ and -)

• Make sure that the batteries are fitted the correct way round.

• Do not mix old batteries with new batteries. Remove old, exhausted batteries immediately.

• Do not mix different battery types, i.e. Alkaline and Manganese or use rechargeable (Ni - Cad) batteries.

Replace the cover

Page 6

STR

TV AV

Basic controls

Top panel controls and Remote control

Receiver ON / Stand-by

Store

(see page 26 - 37, 40)

Function selection

(see on this page below)

Volume Up (+), Down (-)/

Programme Number Up ( ), Down ( )

Volume adjustment which uses these buttons is performed after pressing Function button.

When programme number up ( )/down ( ) buttons on the top panel of the main part are pressed in stand-by mode, this set turns on.

TV/AVmode Selection

Press to select TV, AV input signal modes sequentially.

Press to display programme position, programme name, channel number, time, NICAM mode, Aspect mode and programme table.

TV/TEXT Selection (see page 39, 40, 41)

Picture Menu (see page 20, 21)

Sound Menu (see page 22, 23)

Setup Menu (see page 24, 25)

Status button

Function selection

Displays the on screen display functions, press repeatedly to select from the available functions. The following adjustments can be accessed directly.

Volume

Contrast

Brightness

Colour

Sharpness

Notes:

• Tint : Displayed when receiving NTSC signals.

• Tuning mode : Not displayed during AV mode.

Tuning mode

Balance

Treble

Bass

Tint

TEXT Favourite Page Selection

(see page 40)

On Screen Help button (see page 19)

Store (see page 26 - 37, 40)

Stores some settings in TUNING menus and TELETEXT.

Normalization (see page 21, 23) The N button will recall settings stored with STR.

Page 7

Remote control

Power (Stand-by)

This set must first be plugged into the wall outlet and turned on at the power switch. Press this button to turn this set On from Standby mode, Press it again to turn this set OFF to Standby mode.

Direct TV Record button (see page 36)

Aspect Control (see page 16, 17)

Channel return

DIRECT TV REC


SOUND

SET UP

TV/TEXT

F.P.

ASPECT

INDEX

CH RETURN

TV/AV

HOLD

Switches to previously view to channel.

Sound Mute

Press to mute the sound completely the “Mute” character will appear. Press again to restore the previous sound level, and cancel the mute.

Programme Number Selection

Press to select the next higher or lower Programme number.

V olume Adjustment

Press to increase or decrease the sound volume level.

Volume

TV/AV Mode Selection

Press to select TV, AV input signal modes sequentially.

Coloured buttons used for Programme edit (see page 28, 29, 30) Teletext functions (see page 39, 40, 41) AV Selection

TEXT hold (see page 40)

Basic controls

Note:

• It is also possible to turn this set On from STANDBY mode by pressing the “Direct Programme Number Selection” Buttons (0-9) on the Remote Control.

123 456

DVD VCR

VCR

STR HELP

PROGRAMMEREC

TEXT Index (see page 40)

Direct Programme Number

• Direct Programme Number Selection

You can select the number directly by pressing the “C” button and corresponding programme number buttons.

Channel Number 8.......

Channel Number 36.....

• Direct Programme Number Selection

You can select the number directly by pressing “Number 0-9” buttons or by pressing “Two Digit” and “Number 0-9” buttons.

Programme Number 8 .....

Programme Number 12....

VCR/LD/DVD Control

(see page 38)

, ,

Page 8

Quick start Guide

1. Connection of Receiver to TUNER Terminal Board

(1) This Receiver is only for Panasonic Plasma Display with a TUNER Terminal Board.

(TY-42TM5H, TY -37TM5H)

(2) And the TUNER Terminal Board (TY-42TM5H, TY-37TM5H) is compatible only with the products given below

and those that will be sold hereafter. (TH-50PHW5B, TH-42PHW5B, TH-42PW5B, TH-37PW5B)

(3) When DISPLA Y OUT of this set and TUNER IN of a plasma Display are connected, an input select can not be

performed in a Plasma Display. Please perform an input select by this set. The PC IN terminal and SERIAL terminal on the back of a Plasma Display cannot be used. The INPUT select, Volume Up ‘+’ and Down ‘-’ of the front of a Plasma Display do not operate.

Power-Indicator

Antenna Input terminal (see page 9, 10, 11)

AV1 Scart socket (In/Out)

RGB VIDEO

TUNER Terminal Board

(TY-42TM5H / TY-37TM5H)

S-V

VLR

AV3 input terminals Video Camera Cable terminal

AV2 Scart socket (In/Out)

AV4 Scart socket (In/Out)

AV1 AV2 AV4

VIDEO S-VIDEO

RGB VIDEO

S-VIDEO

AV3

AV4C COMPONENT Input

Audio Output

PRPBYL

AUDIO

VIDEO

AV4C

DISPLAY OUT

AUDIO OUT

AUDIO

Display out terminal

TUNER IN

L O V

—

T U P N I

B D N A

R E

P G

SERIALPC IN

Back view of Wide Plasma Display

Note:

Install the Receiver at least 15.7 inch (40 cm) away from the Wide Plasma Display to avoid interference. Be sure the power to the Wide Plasma Display and Receiver is OFF before connecting cables.

Page 9

Quick start Guide

2. Choose Your Connection Type

Connection and setting up options

• If connecting this set using an RF cable only, see below.

• If connecting this set using Scart and RF cables, see page 10.

• If connecting this set to a Q-Link (or Q-Link compatible) VCR, see page 10.

• If connecting this set to a Q-Link (or Q-Link compatible) VCR and a satellite receiver, see page 11.

What is Q-Link?

Q-Link allows direct communication between the set and a Q-Link (or Q-Link compatible) VCR, this will enable features such as downloading of tuning information from the set to the VCR.

When using a “NEXTVIEWLINK” VCR the main features possible are the following:

• Preset Download Downloading of tuning information from the set to the VCR.

• Direct TV Record When using a “Q-Link” VCR the main features possible are the following:

• Preset Download Downloading of tuning information from the set to the VCR.

• Direct TV Record For immediate recording of the current program (What You See Is What You

• TV/VCR Auto Power On When the VCR plays a tape the set will automatically switch On (From Stand-

• VCR Auto Power Stand-by When the set is switched into Stand-by, the VCR will also switch into Stand-by.

• VCR Image view On If the set is in Stand-by mode and the VCR sends a menu to be displayed on

For immediate recording of the current program (What You See Is What You Record).

Record). by) and select the AV2 input.

the TV screen (e.g. Main menu), the set will automatically switch On and the menu will be displayed.

This set will also communicate with other VCRs that bear the following logos:

• “DATA LOGIC” (a trademark of Metz Corporation).

• “Easy Link” (a trademark of Philips Corporation).

• “Megalogic” (a trademark of Grundig Corporation).

• “SMARTLINK” (a trademark of Sony Corporation).

These VCRs may support some or all of the above funcitons. Refer to the VCR operating instruction book. Further information on Q-Link can be found on page 36.

In order for Q-Link to function correctly, the Scart cables must be connected in a certain way, dependent on whether the set is being connected to a VCR or to a VCR and Satellite Receiver.

1. Connecting this set directly to an ANTENNA only

RF connection

Connect the Antenna lead into this set Antenna Input terminal ( ).

ANTENNA (Not Supplied)

AV1 AV2 AV4

RGB VIDEO

VIDEO

S-VIDEO

RGB VIDEO

PRPBYL

AUDIO

S-VIDEO

AV1 AV2

DISPLAY OUT

VIDEO

AV4C

AUDIO OUT

Antenna Lead

RGB VIDEO

VIDEO S-VIDEO

Page 10

Quick start Guide

2. Connection of Receiver and VCR using Scart and RF cables

RF connection

Connect the ANTENNA to the Antenna Input

ANTENNA (Not Supplied)

Antenna Input terminal

Receiver

AV1 AV2 AV4

RGB VIDEO

VIDEO S-VIDEO

RGB VIDEO

Antenna Output terminal

PRPBYL

AUDIO

S-VIDEO

AV1,AV2,AV4

Scart sockets

To Display

VIDEO

AV4C

AUDIO OUT

DISPLAY OUT

AV1

Scart socket

terminal of the VCR and an RF cable from the VCR Antenna Output terminal to this set Antenna Input terminal ( ).

Scart Connections

The VCR can also be connected to this set using a Scart cable if you are using a Scart equipped VCR.

• Use this set’s AV1 Scart socket for a VCR.

• Use this set’s AV2 Scart socket for an S-Video

VCR.

• Use this set’s AV4 Scart socket for an S-Video VCR.

Antenna Lead

Antenna Input terminal

Notes:

• Additional equipment and cables are not supplied.

• Further details of audio / video connections can

be found on pages 42 and 43.

3. Q-Link connection of Receiver and VCR using Scart and RF cables

RF connection

Connect the ANTENNA to the Antenna Input

VCR

ANTENNA (Not Supplied)

Antenna Input terminal

Receiver

AV1 AV2 AV4

RGB VIDEO

VIDEO S-VIDEO

RGB VIDEO

Antenna Output terminal

PR PB YL

AUDIO

S-VIDEO

AV2

Scart sockets

To Display

VIDEO

AV4C

AUDIO OUT

DISPLAY OUT

AV1

Scart socket

terminal of the VCR and an RF cable from the VCR Antenna Output terminal to this set Antenna Input terminal ( ).

Scart connection

The VCR must be connected to the AV2 Scart socket of this set using a ‘fully wired’ Scart cable.

Note:

If using a ‘Q-Link’ VCR then the A V1 Scart socket of the VCR must be connected to the AV2 Scart socket of this set. If your VCR is not a ‘Q-Link’ VCR, please consult your VCR operating instruction book.

Antenna Lead

VCR

Antenna Input terminal

Notes:

• Additional equipment and cables are not supplied.

• Further details of audio/ video connections can

be found on page 42 and 43.

• Further information for VCR and Satellite Receiver installation with this set can be found on page 9.

Page 11

Quick start Guide

4. Q-Link connection of Receiver, VCR and Satellite using Scart and RF cables

ANTENNA (Not Supplied)

Antenna Input terminal

AV1 AV2 AV4

RGB VIDEO

AV1 Scart socket

Antenna Lead

Receiver

VIDEO S-VIDEO

Antenna Input terminal

Satellite Receiver

Antenna Output terminal

RGB VIDEO

S-VIDEO

Scart socket

PRPBYL

VIDEO

AV4C

AUDIO

AV2

To Display

DISPLAY OUT

AUDIO OUT

TV Scart socket

VCR Scart socket

For Q-Link to function correctly this set, VCR and Satellite Receiver must be connected as shown in the diagram below.

RF connections

• Connect an RF cable to the Antenna Input terminal of the Satellite Receiver.

• Connect an RF cable from the Antenna Output terminal of the Satellite Receiver to the Antenna Input terminal of the VCR.

• Connect an RF cable from the Antenna Output terminal of the VCR to this set Antenna Input terminal ( ).

Scart connections

‘Fully wired’ Scart Cables should be used for all of the Scart connections.

• The AV2 Scart socket of the VCR must be connected to the VCR Scart socket of the Satellite Receiver.

• The TV Scart socket of the Satellite Receiver must be connected to the AV1 Scart socket of this set.

AV2 Scart socket

Antenna Input terminal

Antenna Output terminal

AV1 Scart socket

Note:

If using a ‘Q-Link’ VCR then the AV1 Scart socket of the VCR must be connected to the AV2 Scart socket of this set. If your VCR is not a ‘Q-Link’ VCR, please consult your VCR operating instruction book.

VCR

Notes:

• Additional equipment and cables are not supplied.

• Further details of audio/ video connections can

be found on pages 42 and 43.

Page 12

Quick start Guide

Preparing the Plasma Display (Refer to Operating Instructions of the Plasma Display)

Connecting the plug to the Wall Outlet

Push the Power switch on the Plasma Display to turn the set on Power-On.

Power Indicator: Green

INPUT

—

VOL

R - STANDBY G POWER ON

R - STANDBY G - POWER ON

Power Indicator

Remote Control Sensor

4. Power On/Off

Power-Indicator

DIRECT TV REC

ASPECT

CH RETURN


SOUND

SET UP

TV/AV

Connecting the plug to the Wall Outlet

Push the Power switch on this set to turn the set on Power-On.

Power Indicator: Green

Example: The screen below is displayed for a while

after this set is turned on. (setting condition is an example.)

For VIDEO / COMPONENT / TV INPUT:

TV/TEXT

F.P.

INDEX HOLD

123

Press the POWER button on the remote control to turn this set off.

Power Indicator: Red (standby)

Press the POWER button on the remote control to turn this set on.

Power Indicator: Green

Turn the power to this set off by pressing this power switch on this set, when this set is on or in standby mode.

Note:

The Receiver will still consume power as long as the power cord is inserted into the wall outlet.

Page 13

5. Auto setup

If this set has not been programmed for you then Auto setup will begin, your stations will be located, sorted into order and stored ready for use (refer to page

AUTO SETUP IN PROGRESS SEARCHING:PLEASE WAIT

21 68

SETUP : Return to tuning menu TV/AV : To exit

31).

6. This set to VCR download

If a Q-Link, NEXTVIEWLINK or compatible VCR has been connected to the AV2 socket before starting Step 1, programme information will be downloaded to the

TV −> VCR DOWNLOAD IN PROGRESS

PLEASE WAIT

Programme : 63

Remote control unavailable

VCR. Downloaded tuning data will match the television’s. Not all VCRs support this download of programme information, some may require

to be started manually. Refer to the VCR operating instruction book. If a VCR other than those described above has been connected, then there will be no download operation.

Quick start Guide

Notes:

If the VCR has not accepted download data from this set, you may need to select the Download option from the VCR’s menu system. Refer to the VCR operating instruction book. If Q-Link is not operating correctly, check the following:

• The Scart cable is connected to this set’s AV2 Scart socket.

• The Scart cable is connected to the VCR’s compatible (Q-Link, NEXTVIEWLINK or similar technology) Scart

socket.

• The Scart cable is a ‘fully wired’ type. For further information on Q-Link and connecting equipment, see pages 9, 10, 11, 36 and 42.

• The sorted programme order depends upon the TV signal, the broadcasting system, and reception conditions. If the order is not to your preference it can be rearranged. Refer to the Programme edit menu - see page 27 for details.

Page 14

Quick start Guide

7. Owner ID

You now have the opportunity to enter your details and help the police crack crime see instruction book

Return

Owner ID

PIN NUMBER:

HOUSE NO:

POST CODE:

ABCDEFGHIJKLMNOPQRST

UVWXYZ

DIRECT TV REC


SOUND

SET UP

∗∗∗∗

NAME:

∗∗∗∗∗∗∗∗∗∗∗∗∗∗

∗∗∗∗∗∗∗∗∗∗∗

+− .

0123456789

ASPECT

CH RETURN

Change Character

Select character

’STR’ Button - Store Owner ID

TV/AV

Exit

123 456 789

VCR

TV/AV

As an added feature, this TV has the option of entering a security code (Owner ID) and personal details into its memory , so that in the unfortunate event of theft it will help the police to trace the owner.

Enter required 4 digit Owner ID PIN NUMBER (using 0 to 9 on the remote control)

Press the TV/A V button at any time to exit the Owner ID feature without saving any information you may have entered.

TV/TEXT

F.P.

INDEX

HOLD

123 456 7

VCR

HELP

STR

DVD VCR

PROGRAMMEREC

STR

Enter NAME, HOUSE NUMBER and POSTCODE

If a 4 digit PIN NUMBER was entered above, you will be taken automatically to the NAME line.

If not, move to the NAME line.

Change character.

Select character position. Repeat above until NAME, HOUSE NUMBER and POSTCODE are entered.

Press STR to store the details Press STR again, when you are asked "Are you sure?" For further information on Owner ID, including how to view the details you have stored, see page 35. A space is provided on page 35 to write down your PIN NUMBER for future reference.

We recommend that as soon as you have stored Owner ID details (or have exited the feature), the picture controls are reset to normal viewing levels. To do this, press the “N” button, found under the remote control’s pull down flap.

Page 15

8. The two basic functions

You are now ready to begin viewing programmes. The cursor controls provide the two basic functions:

Quick start Guide

Adjust Volume

Change

Programme

Page 16

Using the On Screen Displays

Many features available on this set can be accessed via the On Screen Display menu system. Use the remote control as shown below to access and adjust features as desired.

Press to display “Picture menu” screen.

Picture menu

Contrast Brightness Colour Sharpness Colour balance P-NR Mode

Normal Off Dynamic

DIRECT TV REC


SOUND

ASPECT

CH RETURN

Press to display “Setup menu” screen.

Press to display “Sound menu” screen.

Sound menu

Volume Bass Treble Balance Headphone volume NICAM Mode Ambience

No service Music Off

SET UP

TV/TEXT

F.P.

INDEX

123 456

VCR

STR HELP

PROGRAMMEREC

TV/AV

HOLD

Setup menu

AV2 out TV Teletext FASTEXT Off timer 3:2 Pulldown Tuning menu

Off Off Access

DVD VCR

Page 17

SETUP : Return to tuning menu TV/AV : To exit

21 68

AUTO SETUP IN PROGRESS SEARCHING:PLEASE WAIT

123 456 7C89

STR

Using the On Screen Displays

Press to move the cursor up and down on the menu.

Press to access menus, adjust levels or to select from a range of options.

The STR button is used with a number of features to store settings after adjustments have been made or options have been set.

Tuning menu

Programme edit Auto setup Manual tuning Decoder (AV2) Shipping Condition Owner ID

Access Access Access

Off Access Access

TV/AV

The TV/AV button is used to exit the menu system and return to the normal viewing screen.

Programme edit Auto setup Manual turning

Change Programme

Return

Programme edit

Prog. Chan. Name Lock

1 :

2 : Off 3 : Off 4 : Off 5 : Off

Delete Add Move

Select Option

TV/AV

Exit

’STR’ Button Store

Off

TV->VCR

WARNING

All current tuning data will be erased

STR : Start Auto setup TV/AV : To exit SETUP : Return to tuning menu

Return

TV/AV

Manual tuning

21 68

’STR’ Button Store

Programme down / up

Serch down / up

Exit

Please refer to the On Screen Help

An On Screen Help box is displayed whenever a menu is displayed on the TV. This Help box indicates which buttons on the remote control are used to navigate the menu shown, see above for descriptions of button functions.

Note:

• If the On Screen Menu is opened in Zoom mode, the screen will be switched into 16:9 aspect ratio. The screen will return to Zoom mode after exiting the On Screen Menu.

ON SCREEN HELP ‘Instruction’ box

Programme edit

Prog. Chan. Name Lock

1 :

2 : Off 3 : Off 4 : Off 5 : Off

Delete Add Move

Return

Change Programme

Select Option

TV/AV

Exit

’STR’ Button Store

Off

->VCR

Page 18

Aspect Controls

Press the ASPECT Zoom2 and Zoom3

Notes:

• If you leave Aspect set to Panasonic Auto, this set software determines the best ratio for each programme viewed.In order not to disrupt your viewing, no mode information is displayed while this is happening. Simply press the ASPECT button to display mode information in the top left of the screen.

• The screen modes (16:9/14:9/4:3/Zoom1/Zoom2/Zoom3) are selectable manually.

• During Aspect change, the displayed picture will momentarily disappear. This is not a malfunction.

The on screen selector buttons (corresponding to the two coloured buttons on the remote control) will appear for some Aspect functions and disappear after a few seconds, if you’d like to select an operation when the buttons are not shown, press the ASPECT

‘WIDE’ appears in the top left of the screen if a widescreen identification signal (WSS) is found or a signal is found through a Scart socket. Panasonic Auto switches to the appropriate 16:9 or 14:9 widescreen ratio. ‘Panasonic Auto’ appears in the top left of the screen if black stripes above and below the picture are detected. Panasonic Auto chooses the best ratio and expands the picture to fill the screen. This process can take several minutes, depending how dark the picture is.

ASPECT

to move through the seven aspect options: Panasonic Auto,

ASPECT

button once more and the buttons will reappear.

16:9, 14:9, 4:3, Zoom1,

Panasonic Auto

Panasonic Auto determines the best aspect ratio to use to display the

picture you are viewing. It does this using a four step process to determine if the picture being viewed is a widescreen picture.

WIDE

If Panasonic Auto detects a widescreen signal it switches into the appropriate 16:9 or letterbox 14:9 mode. The Panorama (Just) mode is selected if a signal with wide aspect ratio is not present (the screen cannot be switched from Panorama mode into 4:3 mode).

The text shown on the screen indicates how Panasonic Auto determined which ratio to use:

When in Panasonic Auto mode, if a Letter box signal is input and there is no Aspect information, the picture is automatically adjusted to Just, Zoom1, or Zoom3.

Panasonic Auto

‘WIDE’ appears in the top left of the screen, Panasonic Auto switches to the appropriate 16:9 or 14:9 widescreen ratio.

Panasonic Auto

‘Panasonic Auto’ appears in the top left of the screen. The best ratio is chosen and the picture expanded to fill the screen.

Notes:

• If, in Panasonic Auto mode, you experience problems with the screen display size when playing back widescreen format recordings from your VCR then it is possible that the tracking control your VCR requires adjustment (your VCR instruction book will contain adjustment details).

• The widescreen aspect ratios of different films and programmes can vary. If these are wider than a standard 16:9 aspect picture then a black band may be visible at the top and bottom of the screen.

Page 19

Aspect Controls

16:9

16:9 will display the picture at its maximum size but with slight stretching.

16 : 9

<< >>

16 : 9

14:9 Letterbox

14:9 will display a 14:9 picture at its standard 14:9, size without any stretching. Gray stripes will be visible down the left and right sides of the picture.

14 : 9

<< >>

14 : 9

4:3

4:3 will display a 4:3 picture at its standard 4:3 size without any stretching. Gray stripes will be visible down the left and right sides of the picture.

4 : 3

<< >>

4 : 3

Zoom1, Zoom2, Zoom3

Zoom mode magnifies the central section of the picture.

Zoom1 Zoom2 Zoom3

<< >> << >> << >>

Zoom1

Zoom2

Zoom3

Page 20

Contrast Brightness Colour Sharpness

P-NR Mode

Colour balance

Picture menu

Dynamic

Normal Off

Picture menu

1 Press to display the picture menu screen.


2 Press to select the menu to adjust.

123 456 7C89

TV/AV

Adjust the desired level by looking at the picture behind the menu.

3 Press to exit from the Picture menu.

This returns the set to the normal viewing condition.

Contrast, Brightness, Colour, Sharpness, Tint

Y ou can change the level of each Function (Contrast, Brightness, colour, Sharpness, Tint) for each picture menu according to your personal preference.

With an NTSC signal source connected to this set, the picture hue can be adjusted to suit your taste.

Colour balance

Item Effect Function

Contrast Adjust for contrast.

Brightness

Colour Adjusts slightly to a lighter.

Sharpness Displays a sharp image.

Tint Adjusts the picture hue.

Darker

Less

Reddish

Brighter

Greenish

Adjusts for easier viewing of dark pictures such as night scenes and hair.

Notes:

• When this set is receiving NTSC Signals, Tint is displayed and level adjustment is possible.

• Only Contrast will be displayed during TEXT mode.

If this Receiver is connected aIlows you to set the overall colour tone of the picture.

Press or to switch between modes.

WarmNormalCool

Picture menu

Contrast Brightness Colour Sharpness Colour balance P-NR Mode

Normal

Off Dynamic

Page 21

Picture menu

P-NR

Mode

This Picture Noise Reduction System (P-NR) is designed to reduce picture noise during poor quality reception conditions. The P-NR mode will change as below.

Off

Picture menu mode will be memorized for each TV, AV mode.

Press or to switch between modes

Dynamic Normal

CinemaAuto

Mode Function

Picture menu

Contrast Brightness Colour Sharpness Colour balance P-NR Mode

Picture menu

Contrast Brightness Colour Sharpness Colour balance P-NR Mode

Normal

Off

Dynamic

Normal Off

Dynamic

Dynamic Displays a bright screen with maximum contrast.

Normal Displays standard image.

Cinema Ideal for movies in the dark room.

Auto

Automatically selects the mode that best suits the brightness of the environment.

Notes:

• Auto is available only for SD (Standard Definition) type Plasma Displays (TH-42PW5B, TH-37PW5B and those that will be sold hereafter).

• Auto is not available only for HD (High Definition) type Plasma Displays (TH-50PHW5B, TH-42PHW5B and those that will be sold hereafter).

Helpful Hint (

The ‘N’ button has no effect if it is pressed when menu is displayed on the screen. If the ‘N’ button is pressed when no menu is displayed on the screen, the user-preset original settings will be restored (this is not the factory default settings).

Normalization)

Page 22

Sound menu

1 Press to display the sound menu screen.

SOUND

2 Press to select the menu to adjust.

123 456 7C89

TV/AV

Press Some features are only available with the Ambience feature switched off.

Volume, Bass, Treble, Balance, Headphone Volume

Adjust the desired level by listening to the sound.

at any time to go back to watching TV.

Sound menu

Volume Bass Treble Balance Headphone volume NICAM No service Mode Music Ambience Off

Item Effect Function

Volume Adjusts output volume.

Bass Adjusts lower deeper sounds.

Treble Adjusts higher sharper sounds.

Balance

Headphone volume

NICAM

Less

Left SP

Less

Right SP

Adjusts the sound level difference between left and right speakers.

Adjusts Headphone volume.

Usually set to stereo to provide the best reproduction, but if reception deteriorates or if the service is not available then switch to Mono. Mono (M1) and (M2) can also be selected if a mono signal is being transmitted.

Not displayed during AV mode.

Sound menu

Volume Bass Treble Balance Headphone volume NICAM No service Mode Music Ambience Off

No service

Audio Signal Receiving Mode Indications

DUAL M1 / M2 M1, M2

STEREO STEREO / MONO Stereo, Mono

MONO MONO No service

Page 23

Sound menu

Mode

Ambience

Sound quality can be improved when watching music or speech by selecting the appropriate mode Music or Speech.

Press or to select Mode.

Music Speech

To enjoy a concert hall effect, turn Ambience to on. Press or to swich between ON and OFF.

Sound menu

Volume Bass Treble Balance Headphone volume NICAM No service Mode Ambience Off

Sound menu

Volume Bass Treble Balance Headphone volume NICAM No service Mode Music Ambience Off

No service

Music

The benefits of Ambience sound are enormous. You can be completely enveloped in sound; just as if you were at a concert hall or cinema. The Ambience effect can be obtained without the use of external Ambience speakers.

Helpful Hint (

Normalization)

Page 24

Setup menu

The setup menu provides access to various advanced features and also to the Tuning menu.

123 456 7C89

AV2 out

1 Press to display the setup menu screen.

SET UP

2 Press to select the menu to adjust.

Press to adjust the desired setting.

Press

TV/AV

at any time to go back to watching TV.

AV2 out Teletext FASTEXT Off timer 3:2 Pulldown

AV3

Tuning menu

AV4

Setup menu

Off Off

Offers a choice of signals to send to the AV2 Scart socket. You can choose from the current TV programme position, the signal entering AV1, AV3, AV4 or Moniter - the picture displayed on screen.

AV1

Monitor

Teletext

Off timer

Allows you to choose 2 modes. (See page 38)

FASTEXT List

Switches this set off within a preset time which you can choose from OFF and between 15 to 90 minutes in 15 minute intervals.

OFF

3015 45

607590

Setup menu

AV2 out TV Teletext FASTEXT Off timer 3:2 Pulldown Tuning menu

Off Off

Setup menu

AV2 out TV Teletext FASTEXT Off timer 3:2 Pulldown Tuning menu

Off

Page 25

Setup menu

3:2 Pulldown

Tuning menu

Volume correction

When on, the display attempts to reproduce a more natural interpretation of sources such as movie pictures, which are recorded at 24 frames per second. If the picture is not stable, turn the setting to off.

Off On

Provides access to many other features including programme edit and Auto setup. (See page 26) Not displayed during AV mode.

During AV mode, Volume correction is displayed. Lets you adjust the volume level of individual station.

Use this feature if the volume level varies significantly between stations. Adjusting one station’s volume to bring it into line with the other stations means you can avoid having to adjust the volume each time you change channels.

Setup menu

AV2 out TV Teletext FASTEXT Off timer 3:2 Pulldown Tuning menu

Setup menu

AV2 out TV Teletext FASTEXT Off timer 3:2 Pulldown Tuning menu

Setup menu

AV2 out TV Teletext FASTEXT Off timer Volume correc. 3:2 Pulldown

Off

Off Off

Access

Off

Page 26

Tuning menu

Tuning menu overview

DIRECT TV REC

ASPECT

CH RETURN


SOUND

SET UP

TV/TEXT

F.P.

INDEX

123 456 7

VCR

TV/AV

HOLD

SET UP

1 Press

2 Move to the Tuning menu option by

using or .

3 Access Tuning menu by using

or .

4 Move to chosen menu option by

using or .

5 Adjust chosen option or access

chosen menu by using or .

TV/AV

Press

at any time to go back to watching TV.

Setup menu

AV2 out TV Teletext FASTEXT Off timer 3:2 Pulldown Tuning menu

Tuning menu

Programme edit Auto setup Manual tuning Decoder (AV2) Shipping Condition Owner ID

Off Off

Access

Off

Tuning menu

Programme edit Auto setup Manual tuning Decoder (AV2) Shipping Condition Owner ID

Pressing

STR

setting).

Access in order to customise your programme settings (see page 27). (eg: adding or deleting a programme position.)

Access Access Access

Off Access Access

Allows you to automatically retune this set. Useful if you move house and wish to retune your set to the local stations (see page 31).

Allows individual programme positions to be tuned manually (see page

32). Lets you change the recording source on DIRECT TV REC (see page

36). Allows you to clear all tuning information and reset all control levels

back to factory setting (see page 34). Allows you to enter a security code and address information (see page

35).

after having adjusted some feature will store the setting as the default (replacing the factory

Page 27

Tuning menu

Programme edit

Use this setting when changing setting of receiving channels or changing the channel display.

Turn this set and select the broadcast channel. Follow the steps below to display the Programme edit screen.

Selecting the Programme edit on the Tuning menu.

Access to the Programme edit screen

SET UP

1 Press to display the Setup menu

screen.

2 Press to select the Tuning menu.

123 456 7C89

3 Press to select the Programme

Press to access the Tuning menu screen.

edit.

Press to access the Programme edit screen.

Programme edit

1 Press to select the Programme position.

Press to select the Prog., Name, Lock.

Note:

• When the cursor enters the Name field, it will move character-by-character up to five before moving to the next field.

Tuning menu

Programme edit Auto setup Manual tuning Decoder (AV2) Shipping Condition Owner ID

Return

Programme edit

Prog. Chan. Name Lock

1 :

2 : Off 3 : Off 4 : Off 5 : Off

Delete Add Move

Return

Programme edit

Prog. Chan. Name Lock

1 :

2 : Off 3 : Off 4 : Off 5 : Off

Delete Add Move

Access

Off

Change Programme

Select Option

TV/AV

Exit

’STR’ Button Store

Off

TV->VCR

Change Programme

Select Option

TV/AV

Exit

’STR’ Button Store

Off

TV->VCR

2 The buttons function in accordance with the

position of the cursor: Prog., Name or Lock.

Cursor position

Prog.

Chan. Name

Lock

Moves the Programme position.

Red, Green, Yellow, and Blue Bars are displayed at the bottom of the screen. These have the same functions as the Red, Green, Yellow, and Blue buttons on the

remote control. (see next page) Sets the number of channels to be displayed. The characters that can be input are displayed at the bottom of the screen.

Select the characters required and input. Turns the channel Lock On and Off.

(When receiving a channel while Lock On is selected, the volume will be muted and the screen be black and display ”Programme is locked”.

Function of buttons

Page 28

Tuning menu

Deleting, Adding and Moving a programme channel

Make sure the cursor is in the Prog. column. Red, Green, Yellow, and Blue Bars are displayed at the bottom of the screen. These have the same functions as the Red, Green, Yellow, and Blue buttons on the remote control.

DIRECT TV REC

ASPECT

CH RETURN


SOUND

SET UP

TV/TEXT

F.P.

TV/AV

INDEX HOLD

123

To delete an unwanted programme position

Delete Add Move

Red Green Yellow Blue

->VCR

Return

Programme edit

Prog. Chan. Name Lock

1 :

2 : Off 3 : Off 4 : Off 5 : Off

Delete Add Move

Off

Change Programme

Select Option

TV/AV

Exit

’STR’ Button Store

->VCR

Ensure that the cursor is in the Prog. Column.

1 2

Red

TV/AV

Choose the programme position.

Press the Red button on remote control.

Press the Red button again to confirm.

If you have finished in the Programme edit menu, press the TV/AV button to exit.

To add a programme position 1

Green

Choose the programme position where the new programme is to be inserted.

Press the Green button.

Return

Programme edit

Prog. Chan. Name Lock

1 : CH41 XYZ Off

2 : Off

3 : Off

4 : Off

5 : Off Delete Add Move

Return

Programme edit

Prog. Chan. Name Lock

1 : CH41 XYZ Off

2 : Off

CH44 ZXY

3 : Off

4 : Off

5 : Off Delete Add Move

Change Programme

Select Option

TV/AV

Exit

’STR’ Button Store

TV->VCR

Change Programme

Select Option

TV/AV

Exit

’STR’ Button Store

TV->VCR

3 Press the Green button again to confirm.

Green

4 Press STR to store.

STR

TV/AV

If you have finished in the Programme edit menu, press the TV/AV button to exit.

Page 29

To move a programme to another position

Tuning menu

Yellow

Choose the programme position to be moved.

Press the Yellow button on remote control. Choose new positon.

4 Press the Yellow button again to confirm.

Yellow

TV/AV

If you have finished in the Programme edit menu, press the TV/AV button to exit.

To rename a programme position 1

Choose the programme position.

Move to the Name column.

Choose the new character.

Move to the next character position.

Return

Programme edit

Prog. Chan. Name Lock

1 : CH41 XYZ Off

2 : Off

CH44 ZXY

3 : Off

4 : Off

5 : Off Delete Add Move

Return

Programme edit

Prog. Chan. Name Lock

1 : CH41 XYZ Off

2 : Off

3 : Off

4 : Off

CH44 ZXY

5 : Off

Delete Add Move

Return

Programme edit

Prog. Chan. Name Lock

1 : CH41 XYZ Off

2 : Off

CH44 ZXY

3 : Off

4 : Off

5 : Off

ABCDEFGHIJKLMNOPQRST

UVXWYZ+

0123456789

Change programme

Select Option

TV/AV

Exit

’STR’ Button Store

TV->VCR

Change programme

Select Option

TV/AV

Exit

’STR’ Button Store

TV->VCR

Change character

Select Option

TV/AV

Exit

’STR’ Button Store

Continue until renaming is done.

STR

4 5 If you have finished in the Programme edit menu,

TV/AV

Press STR to store.

press the TV/AV button to exit.

Page 30

Tuning menu

To lock a programme position to prevent access

123 456 7C89

Choose the programme position

to be moved.

Move to the lock column.

Choose between lock On or lock

Return

Programme edit

Prog. Chan. Name Lock

1 : CH41 XYZ Off

2 : Off

CH44 ZXY

3 : Off

4 : Off

5 : Off

Off.

STR

TV/AV

Press STR to store.

Lock off / on

Select Option

TV/AV

Exit

’STR’ Button Store

4 If you have finished in the Programme edit menu,

press the TV/AV button to exit.

Note:

• When a programme position is locked, Direct Channel Access using the ‘C’ and numeric buttons on the remote control is not available.

To copy programme information to a VCR

You can copy programme information to a compatible VCR connected to AV2 (see page 42 for connection information)

Blue

Press the blue button. Programme data will now be sent to the VCR. This might take a few seconds, depending on the number of stations stored. If the message “Unable to download, check your VCR” appears on the

TV −> VCR DOWNLOAD IN PROGRESS

PLEASE WAIT

Programme : 63

Remote control unavailable

screen, the television is unable to send the programme information to the VCR. See the VCR instruction book for further information.

Note:

• If you have a Q-Link VCR, ensure that it is in Stand-by mode. If your VCR is not a Q-Link VCR, please refer to the VCR instruction book.

Page 31

Tuning menu

Auto setup

Automatically scans all TV channels and stores them in memory.

Auto setup automatically retunes your set. This feature is useful, if for example, you move house and wish to retune your set to receive the local stations.

Display the Tuning menu screen

Setup menu

AV2 out TV Teletext FASTEXT Off timer 3:2 Pulldown Tuning menu

Off Off

Access

123 456 7C89

SET UP

1 Open the setup menu.

Move to Tuning menu.

Access Tuning menu.

Auto setup tuning

1 Move to Auto setup.

Access Auto setup.

2 Press to start Auto setup tuning, then the

Searching screen will be displayed.

When Searching is complete the screen will return to the Turning menu screen. The best tuning position is automatically memorized.

Tuning menu

Programme edit Auto setup Manual tuning Decoder (AV2) Shipping Condition Owner ID

WARNING

All current tuning data will be erased

STR : Start Auto setup TV/AV : To exit SETUP : Return to tuning menu

AUTO SETUP IN PROGRESS SEARCHING:PLEASE WAIT

21 68

SETUP : Return to tuning menu TV/AV : To exit

Access

Once this operation is completed the TV will display programme position 1.

Notes:

• If you proceed with the next step all tuning data will be erased (all stations and their programme positions stored in your set’s memory will be wiped out so the new settings can be stored).

• If an auto setup process is aborted midway, all channels that have been set up to that point will be saved to memory.

TV/AV

3 Press to exit from the Tuning Menu.

This returns the set to the normal viewing condition.

Page 32

Tuning menu

STR

TV AV

Manual Tuning

Manual tuning of the programme position is available either from the On Screen Display menu or from the front panel controls. Turn this set on and select the broadcast channel. Follow the step on the previous page to display the Tuning menu screen.

(From the On screen Display menu)

It is possible on individual programme position.

Tuning menu

Programme edit Auto setup Manual tuning Decoder (AV2) Shipping Condition Owner ID

Return

Manual tuning

21 68

TV/AV ’STR’ Button Store

Search Start.

Access

Off

Programme down / up

Serch down / up

Exit

123 456 7C89

Press to select the Manual tuning.

Press to access the Manual tuning screen.

Press to select the desired Programme Number.

Press to search the higher or lower channel.

3 When the desired station is found,

STR

press to store. The programme position will flash.

TV/AV

4 Press to exit from the Tuning Menu.

This returns the set to the normal viewing condition.

(Via Top panel)

Manual tuning

, + : Search TV/AV : Move cursor STR : Store F : To exit

21 68

Helpful Hint

1 2, 4 3

1 Press

(Top panel) until Tuning mode is reached.

2 Press or to access Tuning mode. 3 Press

and TV system.

to move between Change programme, search

TV AV

4 Press or to change programme position or

start search. When the desired station is found, press The programme position will flash. Repeat above procedure to tune additional programme positions.

Press F at any time to exit the Tuning menu.

to store.

STR

When using a VCR without video and audio input/output terminals, it is convenient to connect the aerial cable as indicated in the instruction manual of VCR and to set the designated channel to programme No. ‘0’. Further, in multi-system VCR, it is more convenient to set the designated channel to several programme Numbers.

Page 33

Tuning menu

Decoder (AV2)

If a Q-link compatible VCR is connected to AV2 and is ready to record, the recording source for DIRECT TV REC will change on selecting the Decoder (AV2) ‘On’ or ‘Off’ using the remote control.

1 Press to select the Decoder (A V2) on tuning menu

screen.

2 Press to select On or Off.

On Off

Decoder (AV2) On : VCR records the External Input signal.

Decoder (AV2) Off : VCR records the Programme signal from its own tuner.

Tuning menu

Programme edit Auto setup Manual tuning Decoder (AV2) Shipping Condition Owner ID

Off

Page 34

Tuning menu

Shipping condition

Shipping condition allows you to reset the set to its original condition, i.e. no channels tuned in. This is useful, for example, if you move to a different area when you will probably want the TV to tune itself to your new local stations. This can be done either through the Shipping condition menu or through the Auto setup menu. The Shipping condition menu will reset all data, clearing all tuning information and resetting all control levels back to factry settings. You may need to adjust your VCR or programme position ‘0’ VCR after operating the Shipping condition menu. (refer to page 37)

1 Press to select the Tuning menu.

Press to access to tuning menu.

123 456 7C89

2 Press to select the Shipping

condition. Press to access to shipping

condition.

STR

3 Press to start.

4 Press again to comfirm each time that you are asked

STR

“Are you sure ?”

STR

5 Swich TV off and wait for a few seconds.

Swich TV on again. Auto setup will begin stations will be located, sorted and stored ready for use (see page 31).

TV/AV

6 Press to at any time to go back to watching TV.

Tuning menu

Programme edit Auto setup Manual tuning Decoder (AV2) Shipping Condition Owner ID

Shipping condition

All tuning data will be erased

STR : Start TV/AV : To exit SETUP : Return to tuning menu

Shipping condition

All tuning data will be erased

Are you sure? Are you sure?

STR : Start TV/AV : To exit SETUP : Return to tuning menu

Off

Access

Page 35

Tuning menu

Owner ID

Owner ID allows you to enter a security code and adress information so that in the unfortunate event of theft it will help the Police to determine the owner. If the Owner ID information was not entered after Auto setup or it is necessary to alter some of the ID information it can be re-accessed via the Tuning menu.

123 456 7C89

123

456

789

VCR

123 456 789

VCR

1 Press to select the Tuning menu.

Press to access to tuning menu.

2 Press to select the Owner ID.

Press to access to Owner ID.

If Owner ID has previously been set, enter the PIN NUMBER (using 0 to 9 on the remote control) followed by

STR

STR to proceed, this will take you to the NAME option.

If no Owner ID has previously been set, enter the required 4 digit Owner ID PIN NUMBER (using 0 to 9 on the remote control). If a 4 digit PIN NUMBER was entered above, you will be taken automatically to the NAME line.

Tuning menu

Programme edit Auto setup Manual tuning Decoder (AV2) Shipping Condition Owner ID

Off

Access

5 If not, move to the NAME line.

Owner ID

PIN NUMBER:

6 Press to the change character.

0123456789

Press to select the character position. Repeat above until NAME, HOUSE NUMBER and

POSTCODE are entered.

STR

7 Press STR to store the details.

STR

Owner ID

PIN NUMBER:

HOUSE NO:

POST CODE: 0123456789

NAME:

8 Press again, to confirm, when asked, “Are you sure?”

The Tuning menu will be displayed.

TV/AV

For future reference,

write your PIN NUMBER here

9 Press the TV/AV button to exit.

We recommend that as soon as you have stored Owner ID

Note:

• If you lose or forget your PIN number, contact your nearest Panasonic Dealer for advice.

details (or have exited the feature), the picture controls are reset to normal viewing levels. To do this, press the “N” button, found under the remote control’s pull down flap.

Change Character Select

TV/AV

character

Exit

Change Character Select character

Exit

Return

’STR’ Button - Enter PIN Number

∗∗∗

You now have the opportunity to enter your details and help the police crack crime see instruction book

Return

’STR’ Button - Store Owner ID

∗∗∗

∗∗∗∗∗∗∗∗∗∗∗∗∗∗

∗∗∗∗∗∗∗∗∗∗∗

Page 36

Q-Link

This is a Q-Link TV. Q-Link, NEXTVIEWLINK and similar technology provide a way for the set and VCR to communicate, making it easier to record programmes. In order to be able to exchange information both the set and the VCR must be fitted with this technology, and must be connected with a SCART lead (full function type) between the AV2 socket of this set and the appropriate socket on the VCR (see the VCR instruction book for details).

Q-Link lets your set instruct a compatible VCR to record the programme currently shown on screen, no matter what programme position is set on the VCR.

DIRECT TV REC

button.

DIRECT TV REC

button.

DIRECT TV REC


SOUND

ASPECT

CH RETURN

Press the

Notes:

• If the VCR is in Stand-by mode, it will automatically switch on when you press the

• To ensure correct recordings are made, the set and VCR should share tuning information (see page 30).

• Whenever the Auto setup function is used, tuning data will be downloaded to the VCR (see page 31).

SET UP

TV/AV

A message, sent from the VCR, will appear on screen showing what is being recorded, or if it is not possible to record. Some “Q-Link” compatible VCR’s only display the message when on the VCR programme position (0) or in AV mode. See the VCR instruction book.

VCR is recording the programme signal from its own tuner. If you wish you can

VCR recording preset prog

switch off this set and leave the VCR recording in the normal way. VCR is recording the programme signal from this set. You must not change

VCR recording TV source

programme position or switch off this set: if you do, the VCR will automatically stop recording and switch off.

The write protection tab on the back of the cassette has been removed.

No recording - TAPE IS PROTECTED

Examples of other messages that might be displayed.

No recording - NO TAPE No recording TAPE MAY BE DAMAGED

Preset Download

This allows the programme order from this set to be downloaded to the VCR, this helps to ensure that correct recordings are made, there are several ways to perform this operation:

• During installation as explained in the ‘Quick Start Guide’ beginning on page 9.

• When Auto setup is started from within the Tuning menu, see page 31.

• When this set to VCR manual download is started from within ‘Programme edit’, see page 30.

• Preset download started from the VCR, refer to the VCR operating instruction book.

Notes:

• With Panasonic Q-Link VCR’s these additional features are available:

• If you insert a tape in the VCR and press the Play button whilst this set is in ‘Stand-by’ mode, this set will

automatically switch On and select the AV2 input so that you can view the tape.

• When this set is switched into ‘Stand-by’ mode, the VCR will also switch into ‘Stand-by’ mode if there is no tape in the VCR, or if there is a tape in and the VCR is in ‘Rewind’ or ‘Stop’ mode (if the VCR is rewinding a tape, it will not switch into ‘Stand-by’ mode until rewinding has finished).

• If this set is in Stand-by mode and the VCR sends a menu to be displayed on this set screen (e.g. Main menu), this set will automatically switch On and the menu will be displayed.

• Not all VCR’s support this technology. This set will communicate with VCR’s bearing the following logos:

• “DATA LOGIC” (a trademark of Metz Corporation)

• “Easy Link” (a trademark of Philips Corporation)

• “Megalogic” (a trademark of Grundig Corporation)

• “SMARTLINK” (a trademark of Sony Corporation)

Some may support certain features, but not others. Refer to the VCR operating instruction book.

• If Q-Link is inoperative, first confirm that your Scart lead is a full function type. Ask your dealer for further details.

Page 37

Tuning your VCR and satellite receiver

Your new set is supplied with programme position ‘0’ set to receive an RF signal from your VCR, although a Scart connection is preferable if the VCR is so equipped (see page 10, 11 or 42 for suitable inputs to the Scart socket on this set.) However, if for some reason your VCR is tuned to a different RF channel then you will not receive any picture or sound from your VCR on programme position ‘0’ of this set. Either adjust the tuning of this set’s programme position ‘0’ (follow the instructions below) or adjust the RF channel of your VCR (some VCR’s allow adjustment of their RF channel via their remote control unit) or both until the Television receives the RF output channel of your VCR. It is intended that this advice is used in conjunction with the instruction books for your additional equipment.

Tuning your Receiver to the VCR.

Switch on the VCR, insert and play a pre-recorded tape with known content.

SET UP

DIRECT TV REC


ASPECT

CH RETURN

1 Press

2 Move to chosen Tuning menu option by using or .

SOUND

SET UP

VCR CH44

Return

Manual tuning

21 68

VCR

TV/AV

Programme down / up

Serch down / up

TV/AV

Exit

’STR’ Button Store

3 Access Tuning menu by using or .

4 Move to chosen Manual tuning by using or .

5 Access Manual tuning by using or .

6 Select programme position ‘0’ VCR by using or .

7 Start searching for the VCR playback of the known content tape by using

or .

When the VCR playback is found, press

TV/AV

Pressing

to exit.

STR

to store.

The tape with known content is found and displayed. Pressing

STR

will store the

setting.

Notes:

• If picture patterning occurs on programme position ‘0’ it may be necessary to adjust the RF output channel of the VCR, refer to the VCR instruction book.

• If a Satellite Receiver and a VCR are going to be used with RF cable connections it is important to avoid both units being set on the same channel. Refer to the Satellite Receiver and VCR instruction books for precise tuning information.

Page 38

Advanced Remote Control Operation

VCR / DVD Operation

The Remote Control is capable of operating some functions of selected Panasonic VCR’s and DVD (Digital V ersatile Disc) equipment. Some VCR and DVD equipment have different functions, so to ensure compatibility please refer to the equipment's instruction book or consult your dealer for details.

DIRECT TV REC


SOUND

SET UP

TV/TEXT

ASPECT

F.P.

CH RETURN

INDEX

123

TV/AV

HOLD

Button

Standby

Press to switch the VCR or DVD to standby mode. Press again to switch back on.

VCR / DVD switch

Use this switch to select whether controls operate DVD equipment or your VCR.

Play

Press to playback the tape or DVD.

Stop

Press to stop the tape or DVD.

Skip / Fast Forward / Cue

VCR: Press to fast forward the tape. In Play mode,

press to view the picture rapidly forward (Cue).

DVD: Press once to skip to the next track.

Function

456

Skip / Rewind / Review

VCR

STR HELP

4 1

DVD VCR

PROGRAMMEREC

7 5

PROGRAMME

REC

VCR: Press to rewind the tape. In Play mode, press

to view the picture rapidly in reverse (Review).

DVD: Press once to skip to the previous track.

Pause / Still

Press in playback mode, the picture will pause. Press again to restart play.

Programme Up / Down

Press to increase or decrease the VCR programme position by one.

Record

Press this button to start recording.

Page 39

TELETEXT

DIRECT TV REC

ASPECT

CH RETURN


SOUND

Advanced Remote Control Operation

· Teletext features may vary depending on the Broadcasting Companies and is only available if the channel selected is transmitting Teletext.

· Pressing the Picture button whilst in Teletext operation will display the contrast function with a cyan bar, press or to alter the setting as required.

· Pressing the Setup button whilst in Teletext operation will display special function options at the bottom of the screen.

SET UP

TV/TEXT

F.P.

INDEX

123 456 7

VCR

STR HELP

TV/TEXT

TV/AV

HOLD

· When in Teletext mode, the volume may still be altered to the desired listening level after pressing SOUND or MUTE button.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in this set’s memory.

What is FASTEXT?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the display. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

Note:

• When watching TV in 4:3 or zoom mode, pressing TV/TEXT button will display teletext page momentarily in that aspect before switching to normal teletext picture size.

TV / Teletext mode

TV/TEXT

Press

to switch between the current programme and teletext mode.

SET UP

Red

Green Yellow

123 456 789

VCR

Green

Red

Blue

Page Selection

Pages can be selected in two ways: a. Press or to increase or decrease the page number by one. b. By entering the page number, using 0 -9 on the remote control.

FulI / Top / Bottom

SET UP

Press

to display special functions, followed by the Green button.

Press the Green button again to expand the BOTTOM half. Press again to return to normal (FULL) size.

Reveal

SET UP

Press

to display special functions, followed by the Red button to reveal

hidden words e.g. quiz page answers. Press again to hide.

Red / Green / Yellow / Blue buttons

In Top mode they correspond to the differently coloured subjects. In List mode they correspond to the differently coloured page numbers.

Page 40

Advanced Remote Control Operation

It is not possible to change the programme position when in News flash, Update or Sub Coded Page Access operation.

List Store

123 456 789

VCR

123 456 789

Blue

Red

HOLD

VCR

Green Yellow

STR

F.P.

In List mode the four page numbers can be altered (programme positions 1 - 25 only).

Blue

To do this, press one of the four coloured buttons and enter the new page number. Press and hold

STR

, the page number will change to white indicating that the

page is stored.

Hold

HOLD

Press

to hold the Teletext page when viewing multi-page information.

Press again to return to automatic page update.

Favourite Page (F.P.)

Stores a favourite page in memory for instant recall. To store such a page, this set must be in List mode, and the programme position must be from 1 - 25. Press the Blue button, select the page number, then press and hold

STR

. The page number is now stored. Press

F.P.

to recall this page.

SET UP

Yellow

Update Display

SET UP

Press

to display special functions, followed by the Yellow button to view the TV picture whilst searching for a Teletext page. When found, the screen will display the page number at the top left. Press the Yellow button to view the page.

TV/TEXT

Press

News Flash

When a news flash page has been selected, press

to return to normal TV operation.

SET UP

, Yellow, to view the TV picture. When an update is received, the page number will be displayed on screen. Press the Yellow button to display the News Flash.

TV/TEXT

Press

to return to normal TV operation.

Update

SET UP

Press

, Yellow to see the update of information on certain pages. When an update is received, the page number will be displayed at the top left of the screen. Press the Yellow button to view the page.

TV/TEXT

Press

to return to normal TV operation.

INDEX

Index When in FASTEXT operation

INDEX

Press

to return to the main index page. Depending on the way information is transmitted, this may have to be pressed more than once to return to the main index page.

Page 41

Advanced Remote Control Operation

SET UP

123 456 789

VCR

Yellow

Blue

Sub Coded Page Access

When Teletext information exceeds more than one page, it may take some time for the automatic changing of the sub pages to reach the sub page you require. It is possible to enter your required sub page and continue watching the normal programme until the correct sub page is found. Select the required page number using buttons 0 - 9. If the top of the page indicates that sub pages are being transmitted yet the page does not change, then the number at the top of the page is there to indicate that the broadcaster has updated the page's contents, there are no sub pages.

SET UP

Press

followed by the Blue button; T∗∗∗∗ will be displayed at the top right

of the screen. Enter desired sub page number before the T∗∗∗∗ disappears. To select page 6 enter 0, 0, 0 and 6. (If in List mode, a ‘T’ will appear in the current box at the bottom).

Press the Yellow button to view a normal TV programme. (Press

SET UP

, Yellow in List mode).

When the page is available, press the Yellow button to view the page. To clear the page perform one of the following:

• Press

SET UP

• Select a new page number.

• Press

TV/TEXT

to return to normal TV operation.

Page 42

Connections

How to connect the Input/Output terminals

Connects VCRs and other peripheral equipment

AV1 AV2 AV4

RGB VIDEO

Input/Output from AV1 Scart Socket

Scart cable

VIDEO S-VIDEO

Input/Output from A V2 Scart Socket Q-Link data

Scart cable

RGB VIDEO

S-VIDEO

Input/Output from A V4 Scart Socket

Scart cable

PRPBYL

AUDIO

VIDEO

AV4C

AUDIO OUT

Input A V4 Component signal pin type

DISPLAY OUT

PRP

AUDIO

VIDEO

AV4C

Audio cable

VCR DVD PLAYER

VCR/S-VHS VCR Q-LINK COMPATIBLE VCR DVD PLAYER

VCR/S-VHS VCR

DVD PLAYER

PRP

YRL

DVD PLAYER Satellite Receiver

Notes:

• Additional equipment and cables shown are not supplied with this set.

• When a monaural VCR is used, connect the monaural audio cable to the AUDIO-L (Left) terminal.

• Do not connect a computer with TTL output (5V) to this set.

• The AV2 21 pin socket can also be used as an output to Audio/Video equipment. (see page 10)

• Select the desired VIDEO input position by pushing the TV/AV button. (see page 6, 7)

• For Scart socket wiring information see page 45.

• When cables are connected to the Component input terminals, the AV4 Scart terminal is automatically switched to Component signal input. If it is required to use AV4 as a Scart terminal, remove the cables from the Component terminals.

Page 43

How to connect the AUDIO OUT terminals

AUDIO IN

Connections

Amplifier to speaker system

AV4

RGB VIDEO

S-VIDEO

PR PB YL

AUDIO

VIDEO

AV4C

DISPLAY OUT

AUDIO OUT

Notes:

• The AUDIO OUT terminal provides a fixed level output only. (The menu settings and remote control volume controls have no effect.)

• Additional equipment and cables shown are not supplied with this set.

How to connect the Headphones / Earphones /AV3 terminals

Connect headphones / earphones, and AV3 terminals as follows.

S-V

VLR

AV3

S-V V L R

3.5 mm stereo plug

(Optional)

(Not supplied)

S-VIDEO Cable

AUDIO

VIDEO

A video camera uses the AV3 terminal on the front of this set.

Video Camera

Connect the S-VIDEO or VIDEO terminal

Notes:

• The volume level of the headphones can be adjusted by selecting “Headphone Volume” from the Sound menu.

• Additional equipment and cables shown are not supplied with this set.

Page 44

Troubleshooting

If there is a problem with your set please refer to the table below to determine the symptoms, then carry out the suggested check. If this does not solve the problem, please contact your local Panasonic dealer, quoting the model number and serial number (both found on the rear of this set).

Symptoms

Picture Sound

Snowy Picture

Multiple Image

Interference

Normal Picture

No Picture

No Colour

Noisy Sound

Normal Sound

Noisy Sound

No Sound

Normal Sound

Checks

Aerial location, direction or connection

Electrical appliances Cars/Motorcycles Fluorescent lights

Volume level Sound mute switched on

This set to AV mode Not plugged into A.C. outlet Not switched on Picture / Sound controls set at minimum levels Check if in stand-by mode

Colour Controls set at minimum levels

Poor or Distorted Picture

Normal Picture

Weak or No Sound

Weak or distorted sound

Retune Channel (s)

Sound reception may have deteriorated. Switch NICAM setting (Sound menu) to Off until reception improves.

Page 45

For your Guidance

Service

Before requesting service, please refer to the troubleshooting guide on previous page to determine the symptoms. To obtain service please contact your local Panasonic dealer quoting the model number and serial number (both are located at the rear of this set).

Sleep Feature

If the set is not switched off when the TV station stops transmitting, it will automatically go to standby mode after 30 minutes, This function wil not operate when this set is in A V mode.

Pin Assignment

Last position Memory

Certain functions have a last position memory, i.e. the setting at the time of switch - off will be the setting used when this set is switched on again: Programme Headphone volume AV position Volume NICAM Bass Treble Status Teletext mode 3:2 Pulldown Tint (M.NTSC/NTSC only)

Contrast Aspect Picture Standby Brightness Colour Colour balance P-NR Volume correction (in AV mode only) Mode of Sound Mode of Picture

Scart and S-VIDEO socket information

AV1 Scart socket (RGB, VIDEO)

Socket Earth CVBS out (video) CVBS earth Red in Red earth Green in Green earth Blue in Blue earth Audio out (L) Audio out (R)

Chrominance earth

21 19 17 15 13 11

9 7 5 3 1

Suitable inputs for AV1 include RGB (Red / Green / Blue).

CVBS in (video)

RGB status earth

Status RGB

Earth

- -

Status CVBS

Audio in (L)

Audio earth

Audio in (R)

AV3 S-VIDEO 4 pin socket

Chrominance in

Luminance in

Luminance earth

AV2 Scart socket (S-VIDEO, Q-Link)

Socket Earth CVBS out (video) CVBS earth S.C. - in Earth

- Earth

- Earth Audio out (L) Audio out (R)

21 19 17 15 13 11

9 7 5 3 1

AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO switching.

CVBS in (video)

Earth

- -

Earth

- -

Q-Link data

Status CVBS

Audio in (L)

Audio earth

Audio in (R)

AV4 Scart socket (RGB, S-VIDEO)

Socket Earth CVBS out (video) CVBS earth S-C/Red in Earth (video) Green in Earth (video) Blue in Blue earth Audio out (L) Audio out (R)

21 19 17 15 13

9 7 5 3 1

Suitable inputs for AV4 include RGB (Red / Green / Blue). AV4 - Pins 15 and 20 are dependent on AV4 S-VHS / VIDEO switching.

Y/Video in

Earth (video)

Status RGB

Earth (video)

- -

Status CVBS

Audio in (L)

Audio earth

Audio in (R)

Page 46

Specifications

Power Source Power Consumption

Average Stand-by Power-OFF

Receiving Systems/ Band name

OUTPUT

DISPLAY OUT AUDIO OUT

INPUT

AV3-Front

AV4C-Rear

220 V - 240 V 50 Hz A.C.

24 W 3 W 0 W

PAL I PAL 525/60 Playback of NTSC tape from some PAL video recorders (VCR) M.NTSC Playback from M.NTSC Videorecorders (VCR) NTSC Playback from NTSC Videorecorders (VCR)

(AV INPUT ONLY)

D-SUB 26-pin AUDIO L-R (Pin Jack Type × 2) 0.5 Vrms

VIDEO (Pin Jack Type) 1.0 Vp-p (75 Ω) S-VIDEO (MINI DIN 4-pin) AUDIO L-R (Pin Jack Type × 2) 0.5 Vrms Y 1.0 Vp-p (including synchronization) PB/PR ±0.35 Vp-p AUDIO L-R (Pin Jack Type × 2) 0.5 Vrms

Y:1.0 Vp-p (75 Ω) C:0.286 Vp-p (75 Ω)

INPUT/OUTPUT

AV1-Rear AV2-Rear AV4-Rear

ANT-Rear Operating Conditions

××

Dimensions ( W

× H

××

× D )

××

Mass (Weight)

21 Pin socket (Audio/Video in, TV out, RGB in) 21 Pin socket (Audio/Video in, Audio/Video out, S-Video in, Q-Link) 21 Pin socket (Audio/Video in, TV out, S-Video in, RGB in)

UHF Temperature : 34 °F - 104 °F (0 ° – 40 °C)

Humidity : 20 % - 80 % RH (non-condensing) 430 mm × 52 mm × 307 mm

3.5

Note:

Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.

Page 47

MEMO

Page 48

Customer’s Record

The model number and serial number of this product can be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number TU-PT600B Serial Number

Matsushita Electric Industrial Co., Ltd.

Web Site : http://www.panasonic.co.jp/global/

Printed in Japan SS0502S0 (MS)

(Recycled paper)
