Page 1
ORDER NO.ITD1107087CE
Plasma Television
Model No. TH-P65VT30D
TH-P65VT30G
TH-P65VT30K
TH-P65VT30M
TH-P65VT30P
TH-P65VT30S
GPF14D-A Chassis
© Panasonic Corporation 2011.
Unauthorized copying and distribution is a violation
of law.
Page 2
TABLE OF CONTENTS
1 Safety Precautions -----------------------------------------------3
1.1. General Guidelines ----------------------------------------3
1.2. Touch-Current Check--------------------------------------3
2Warning--------------------------------------------------------------4
2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatically Sensitive (ES) Devices ----------4
2.2. About lead free solder (PbF) ----------------------------5
3 Service Navigation------------------------------------------------6
3.1. PCB Layout --------------------------------------------------6
3.2. Applicable signals ------------------------------------------7
4 Specifications ------------------------------------------------------8
5 Technical Descriptions---------------------------------------- 10
5.1. Specification of KEY for CI Plus, DTCP-IP,
WIDEVINE and One-to-One -------------------------- 10
6 Service Mode ----------------------------------------------------- 11
6.1. How to enter into Service Mode ---------------------- 11
6.2. Option - Mirror--------------------------------------------- 13
6.3. Service tool mode ---------------------------------------- 13
6.4. Hotel mode------------------------------------------------- 14
6.5. Data Copy by SD Card --------------------------------- 15
7 Troubleshooting Guide---------------------------------------- 18
7.1. Check of the IIC bus lines------------------------------ 18
7.2. Power LED Blinking timing chart --------------------- 19
7.3. No Power--------------------------------------------------- 20
7.4. No Picture -------------------------------------------------- 21
7.5. Local screen failure -------------------------------------- 22
8 Service Fixture & Tools --------------------------------------- 23
8.1. SC jig -------------------------------------------------------- 23
9 Disassembly and Assembly Instructions --------------- 24
9.1. Remove the Rear cover -------------------------------- 24
9.2. Remove the AC inlet ------------------------------------ 26
9.3. Remove the P(MAIN)-Board -------------------------- 26
9.4. Remove the P(SUS)-Board---------------------------- 26
9.5. Remove the P(SUB)-Board---------------------------- 26
9.6. Remove the Terminal covers and the shield
metals ------------------------------------------------------- 27
9.7. Remove the A-Board ------------------------------------ 27
9.8. Remove the Side unit assy ---------------------------- 27
9.9. Remove the SU-Board---------------------------------- 28
9.10. Remove the SD-Board---------------------------------- 28
9.11. Remove the SC-Board---------------------------------- 28
9.12. Remove the SS-Board ---------------------------------- 28
9.13. Remove the SS2-Board -------------------------------- 29
9.14. Remove the Fan------------------------------------------ 29
9.15. Remove the Speakers ---------------------------------- 29
9.16. Remove the Woofer -------------------------------------29
9.17. Remove the Stand bracket----------------------------- 30
9.18. Remove the K-Board ------------------------------------ 30
9.19. Remove the S-Board ------------------------------------ 30
9.20. Remove the V-Board ------------------------------------ 30
9.21. Remove the Handles ------------------------------------ 30
9.22. Remove the Bottom cabinet assy -------------------- 30
9.23. Remove the Plasma panel section from the
Cabinet assy----------------------------------------------- 31

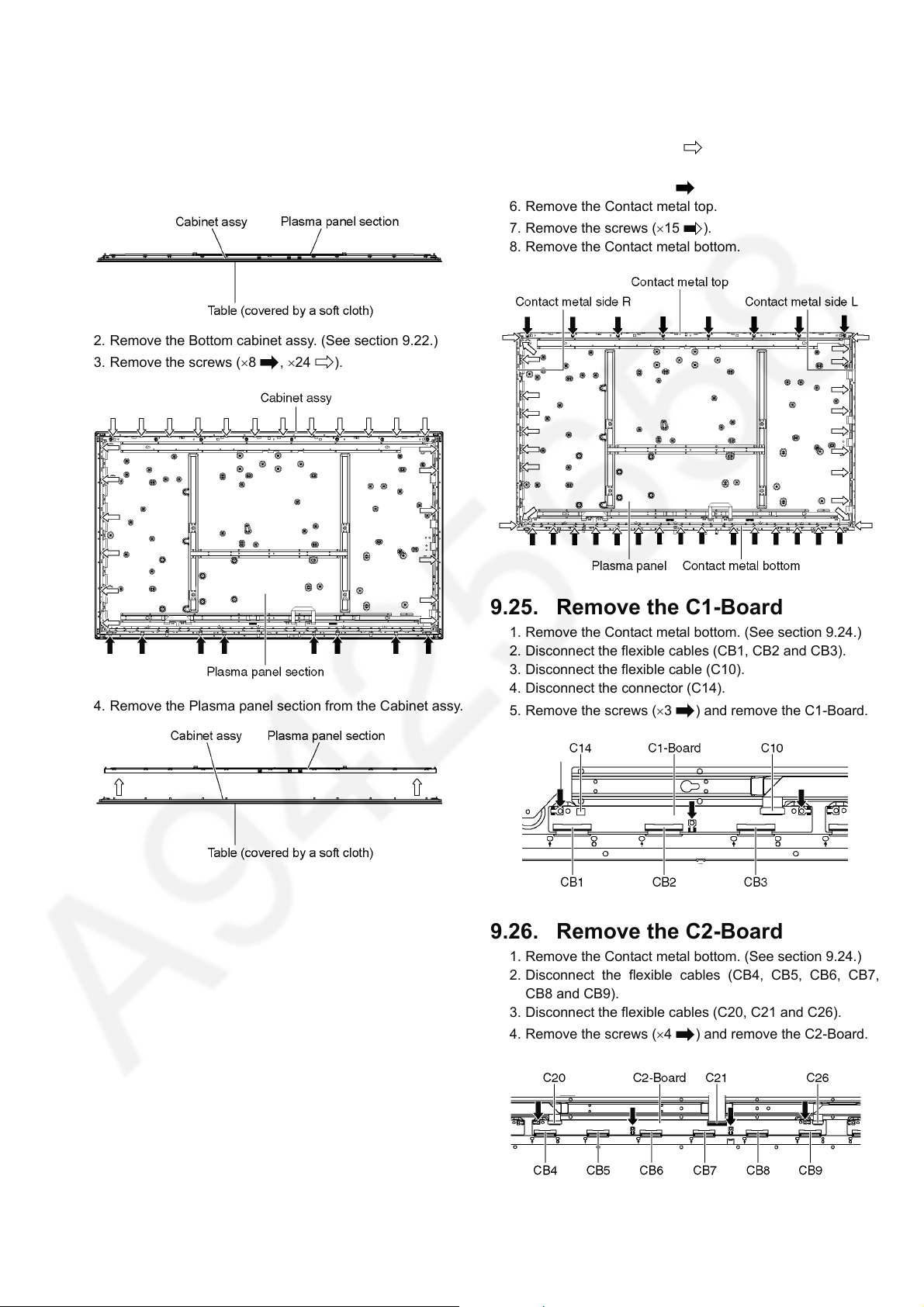

9.24. Remove the Contact metals --------------------------- 31
9.25. Remove the C1-Board ---------------------------------- 31
9.26. Remove the C2-Board ---------------------------------- 31
9.27. Remove the C3-Board ---------------------------------- 32
PAG E PAG E

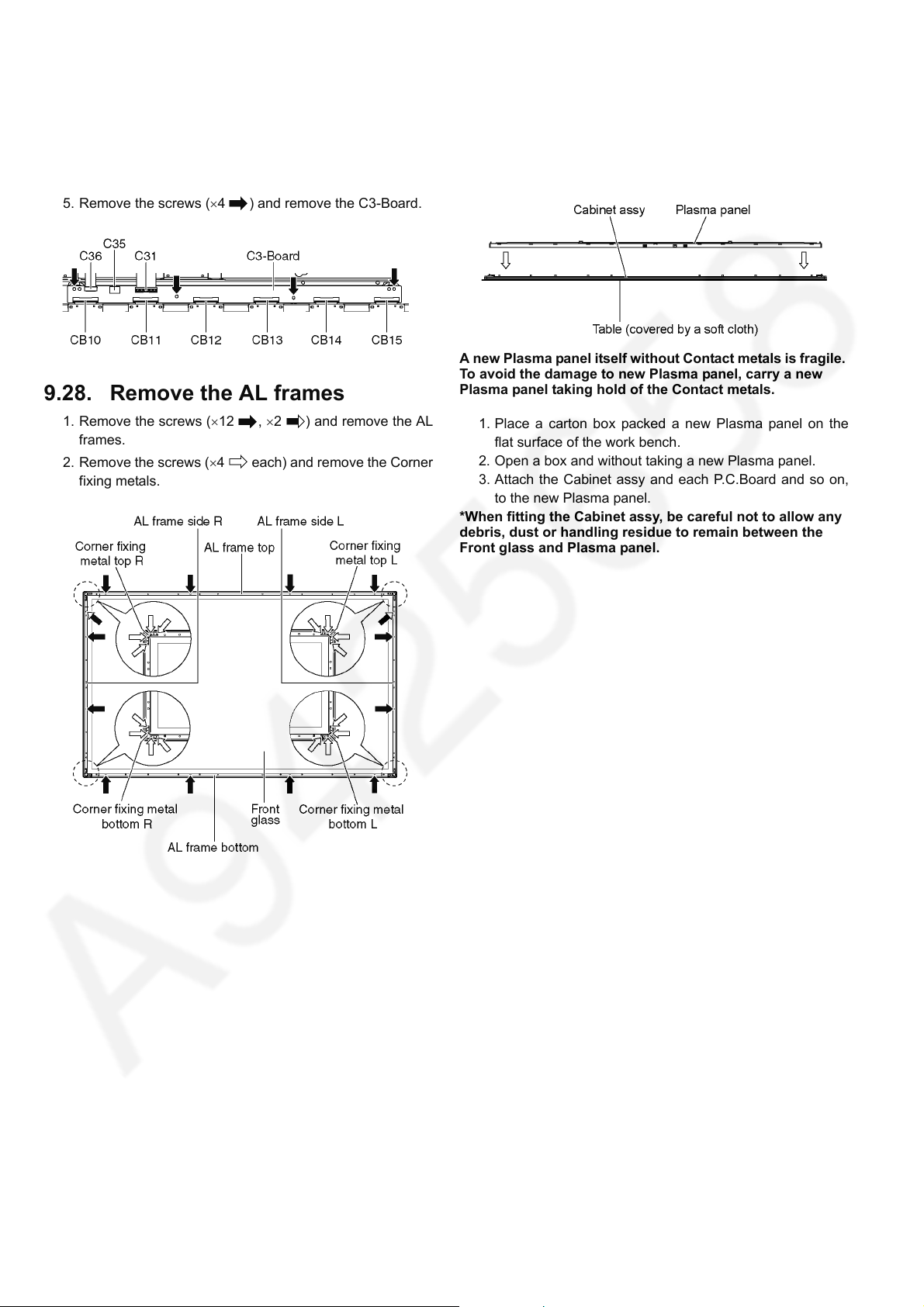

9.28. Remove the AL frames--------------------------------- 32
9.29. Replace the Plasma panel ---------------------------- 32
10 Measurements and Adjustments -------------------------- 33

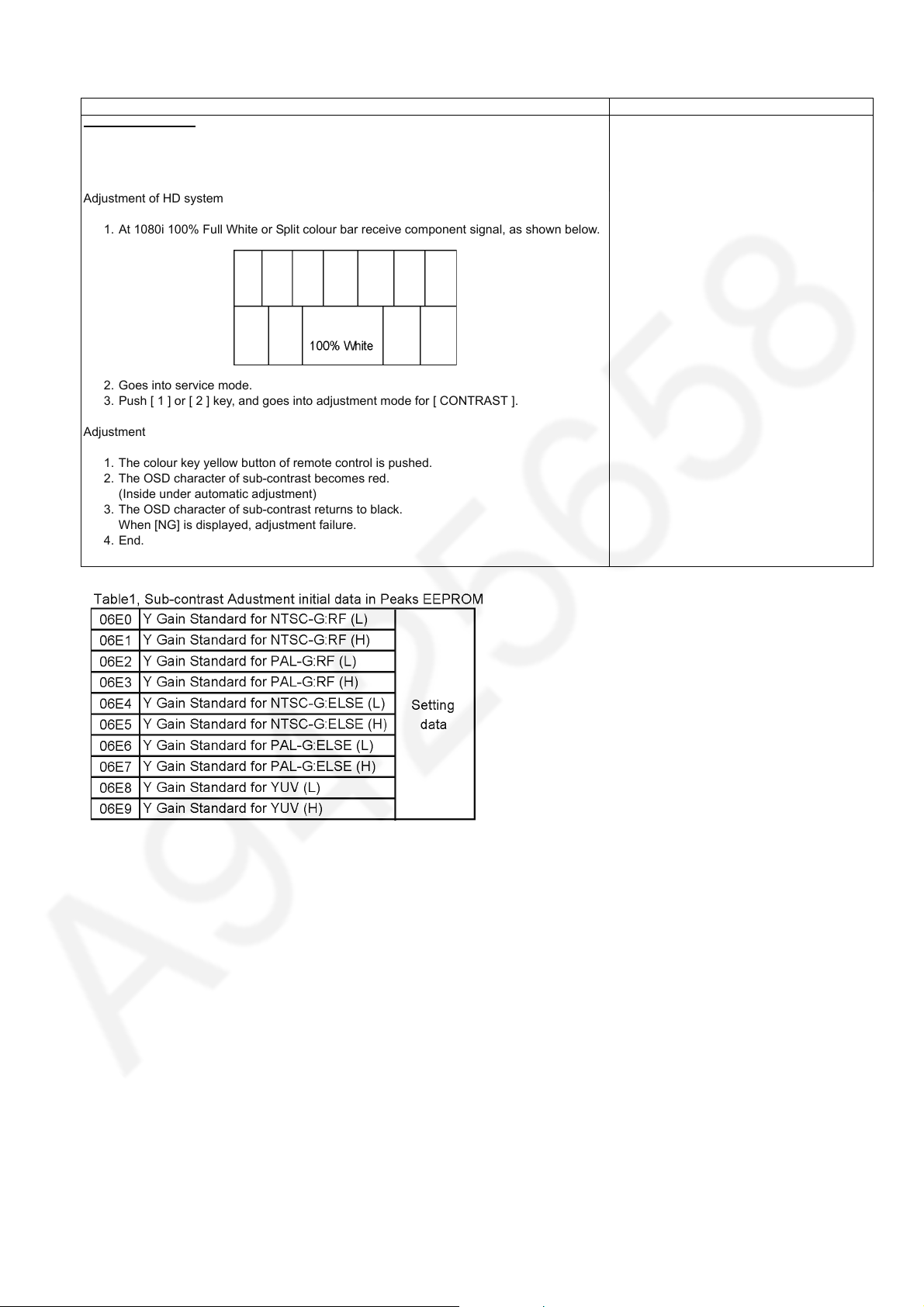

10.1. Adjustment ------------------------------------------------ 33
11 Block Diagram--------------------------------------------------- 41

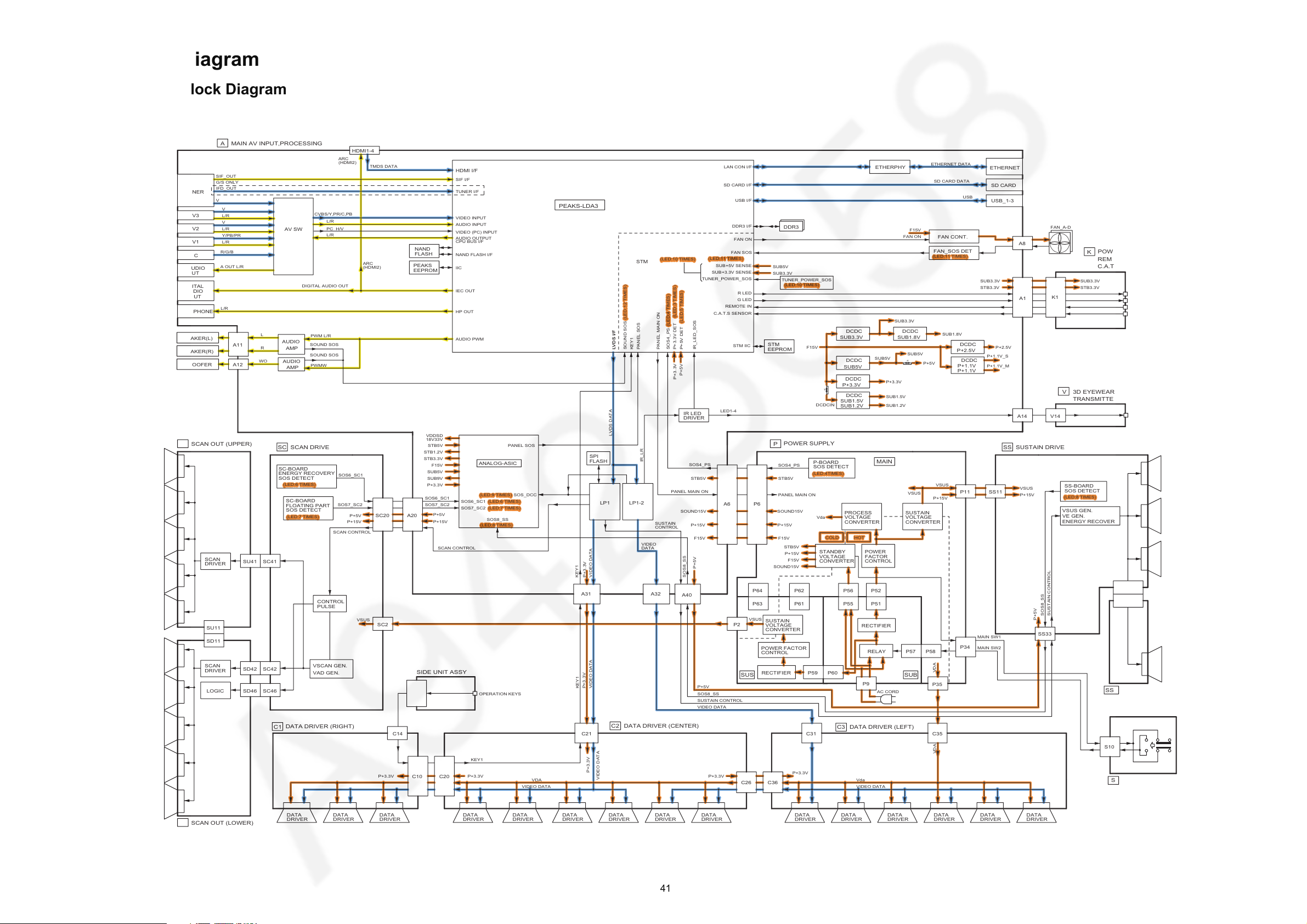

11.1. Main Block Diagram------------------------------------- 41

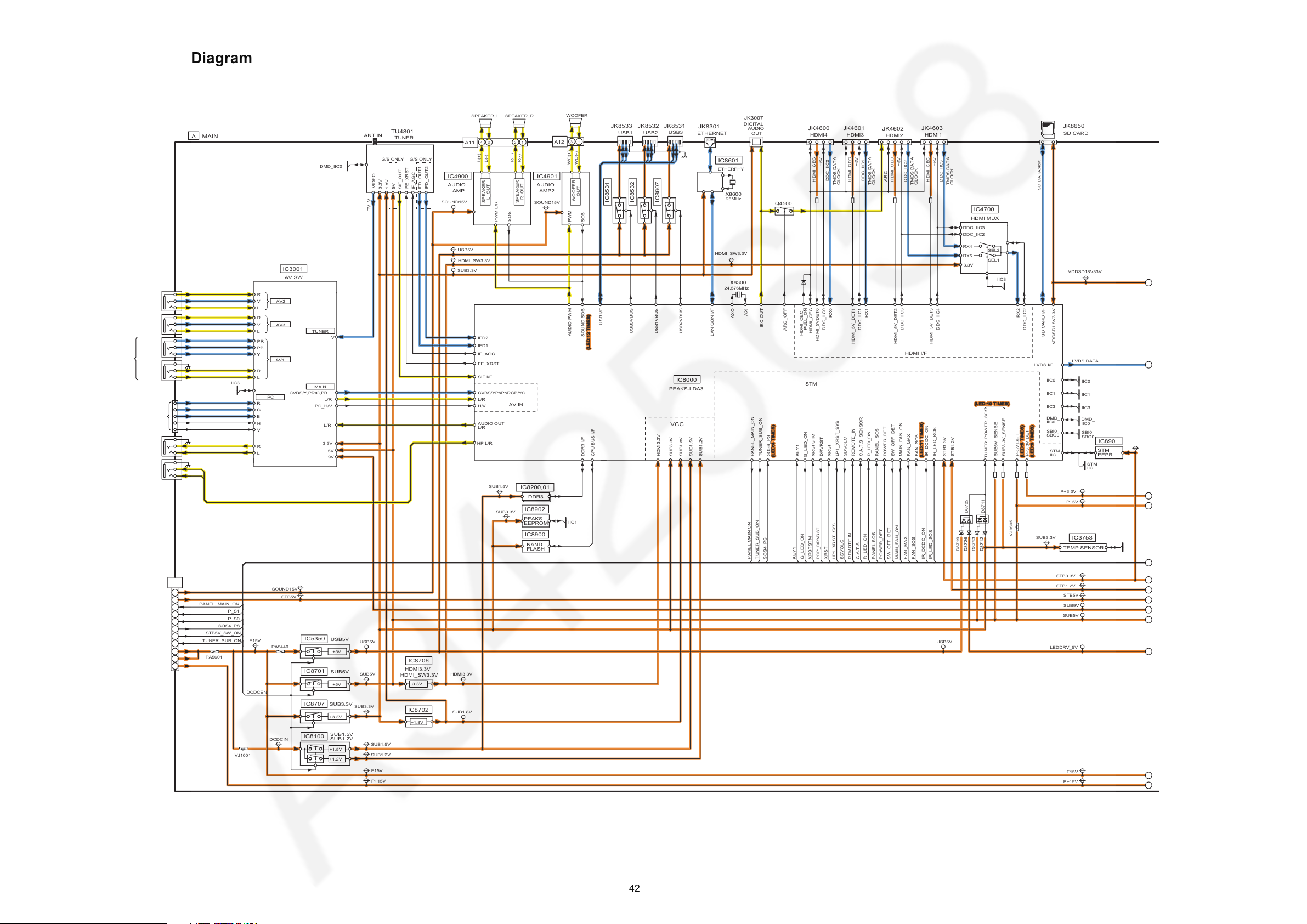

11.2. Block (1/4) Diagram ------------------------------------- 42

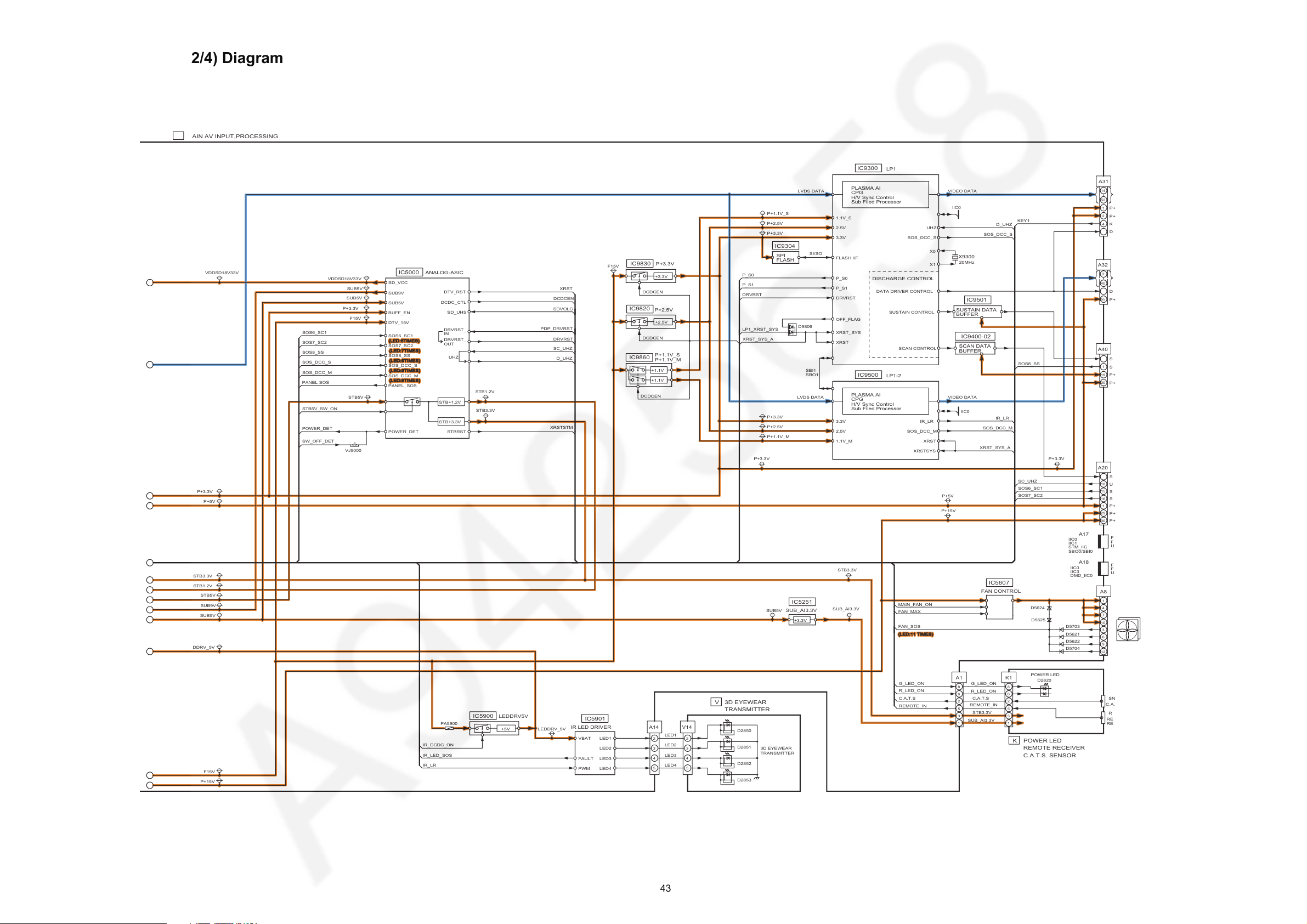

11.3. Block (2/4) Diagram ------------------------------------- 43

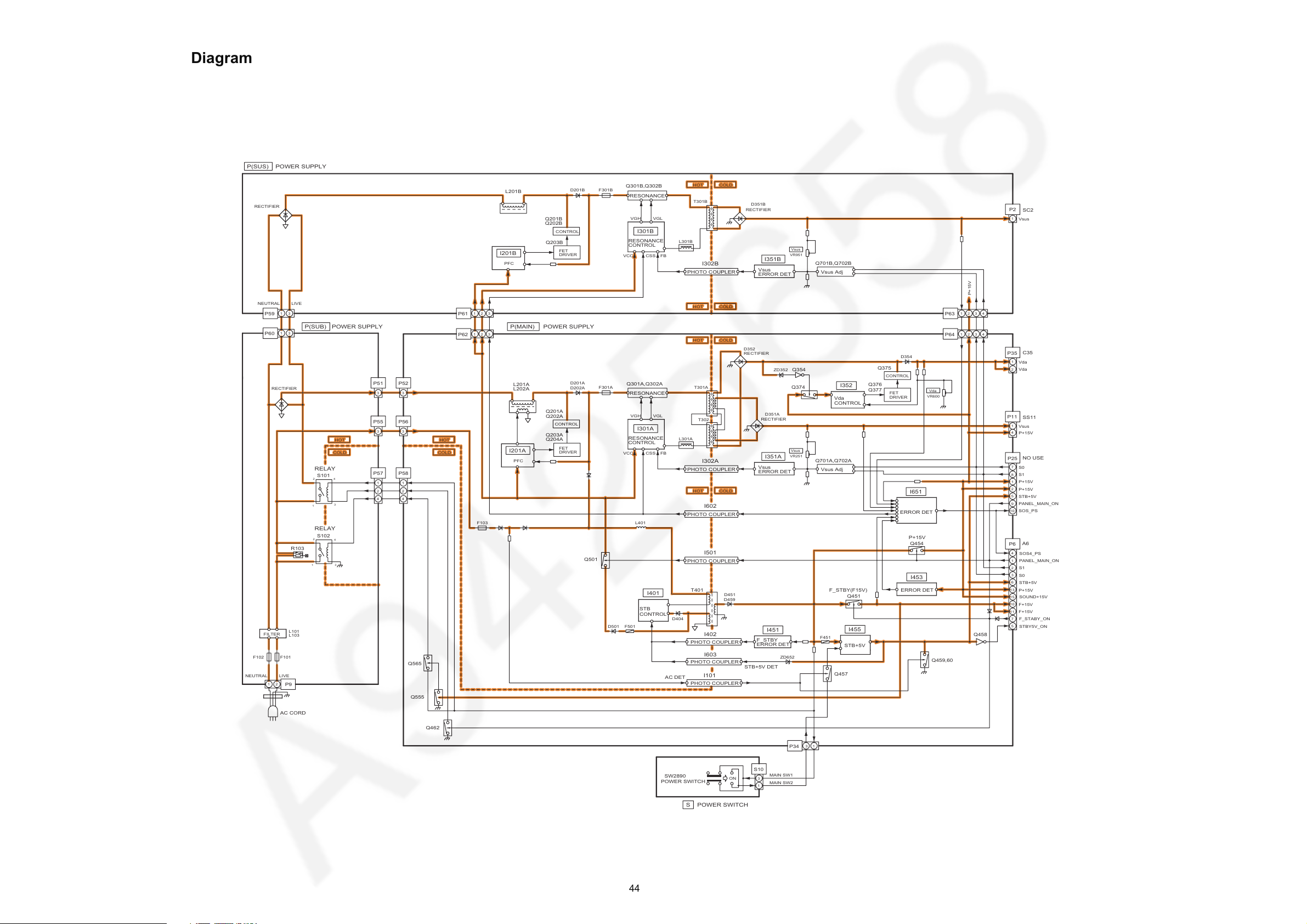

11.4. Block (3/4) Diagram ------------------------------------- 44

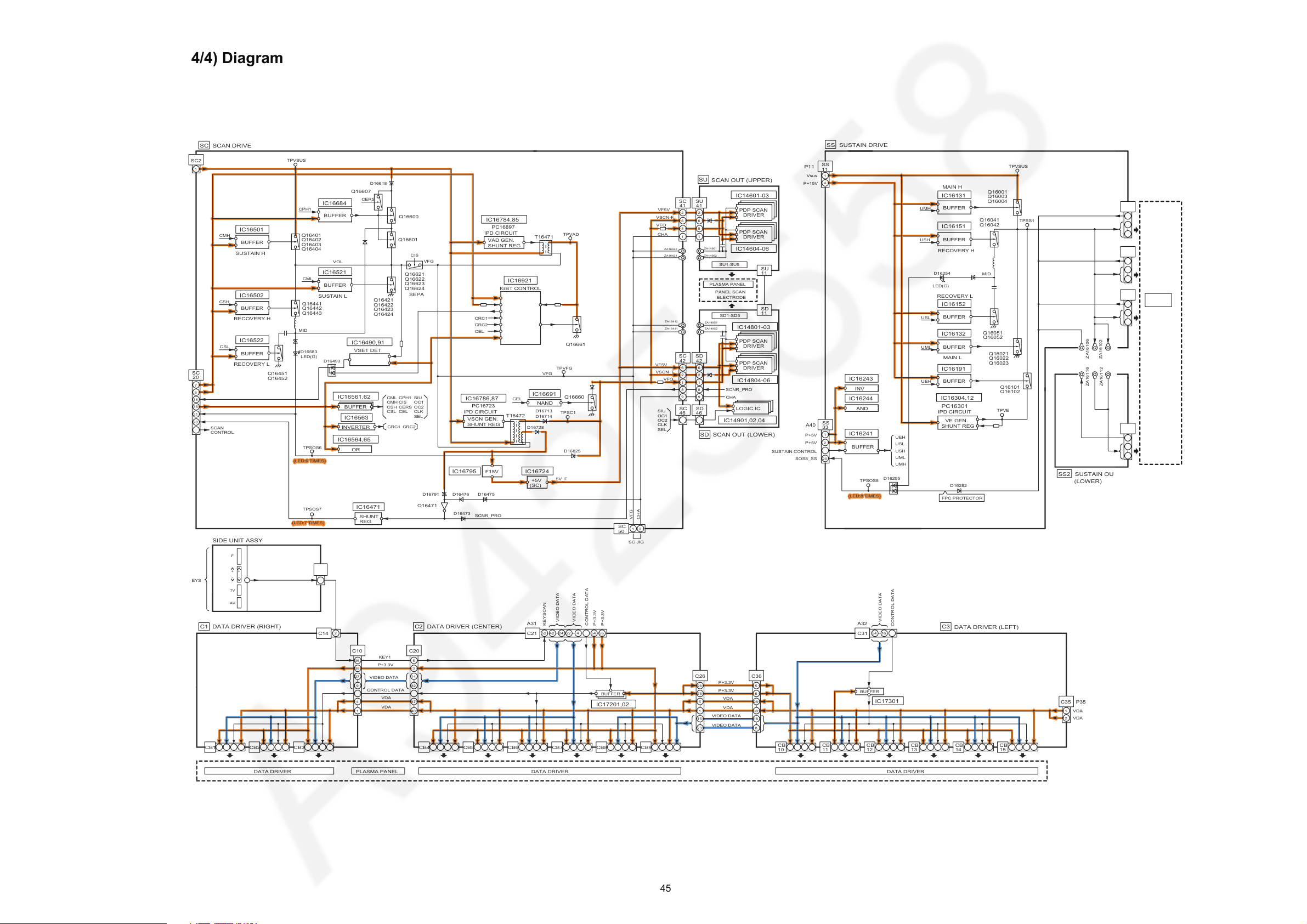

11.5. Block (4/4) Diagram ------------------------------------- 45

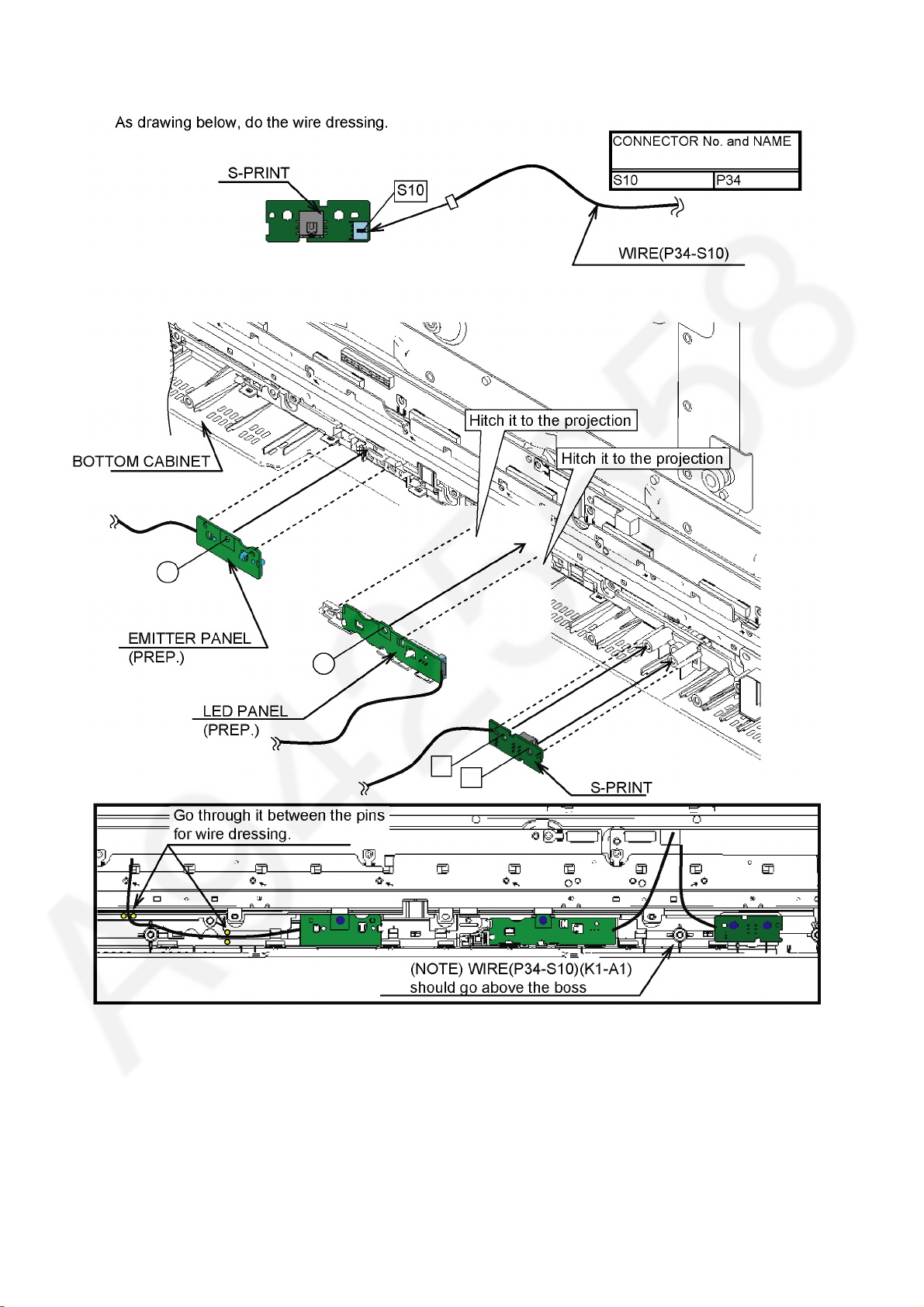

12 Wiring Connection Diagram -------------------------------- 47
12.1. Caution statement --------------------------------------- 47

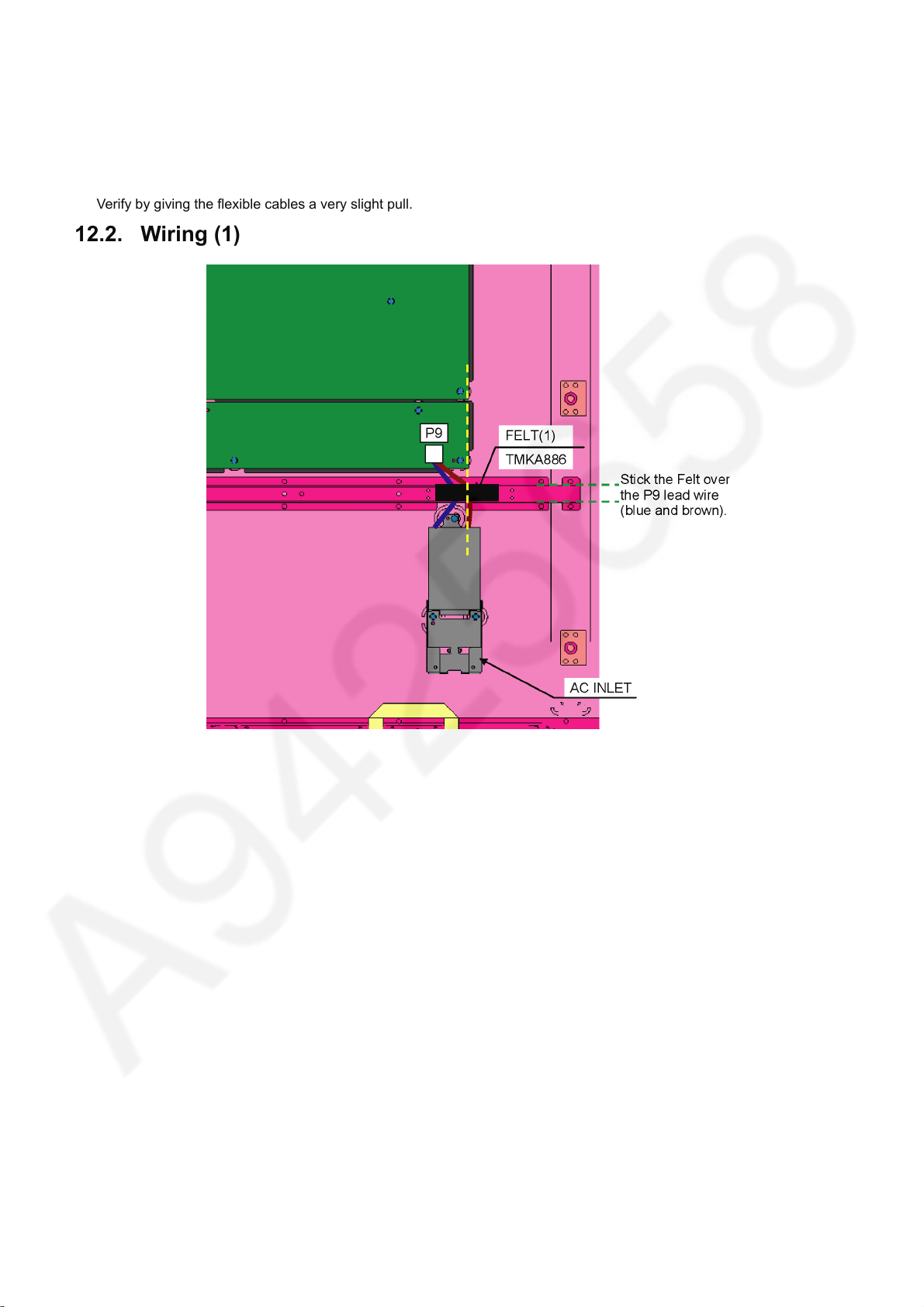

12.2. Wiring (1) -------------------------------------------------- 47
12.3. Wiring (2) -------------------------------------------------- 48
12.4. Wiring (3) -------------------------------------------------- 49

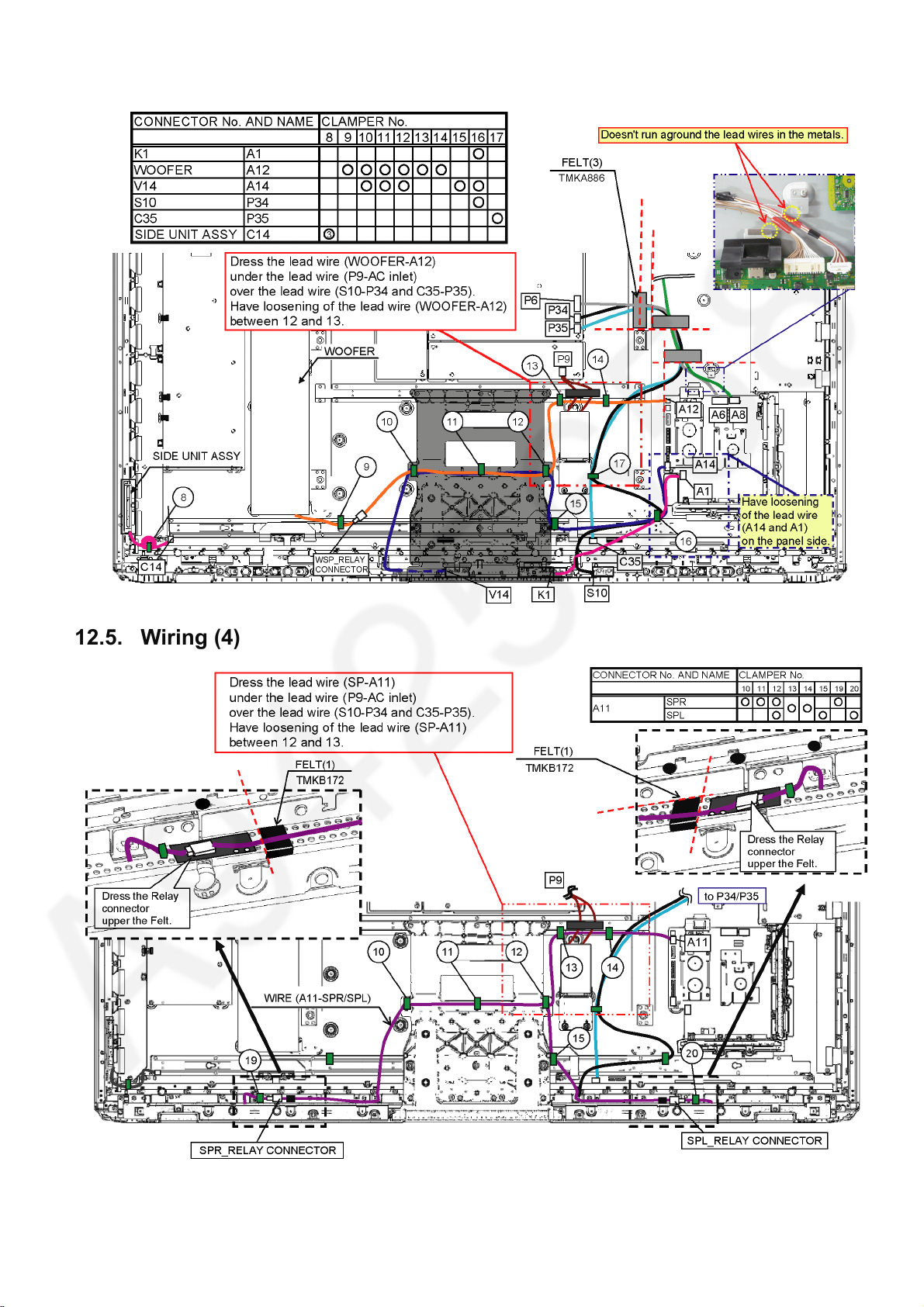

12.5. Wiring (4) -------------------------------------------------- 49
12.6. Wiring (5) -------------------------------------------------- 50
12.7. Wiring (6) -------------------------------------------------- 51

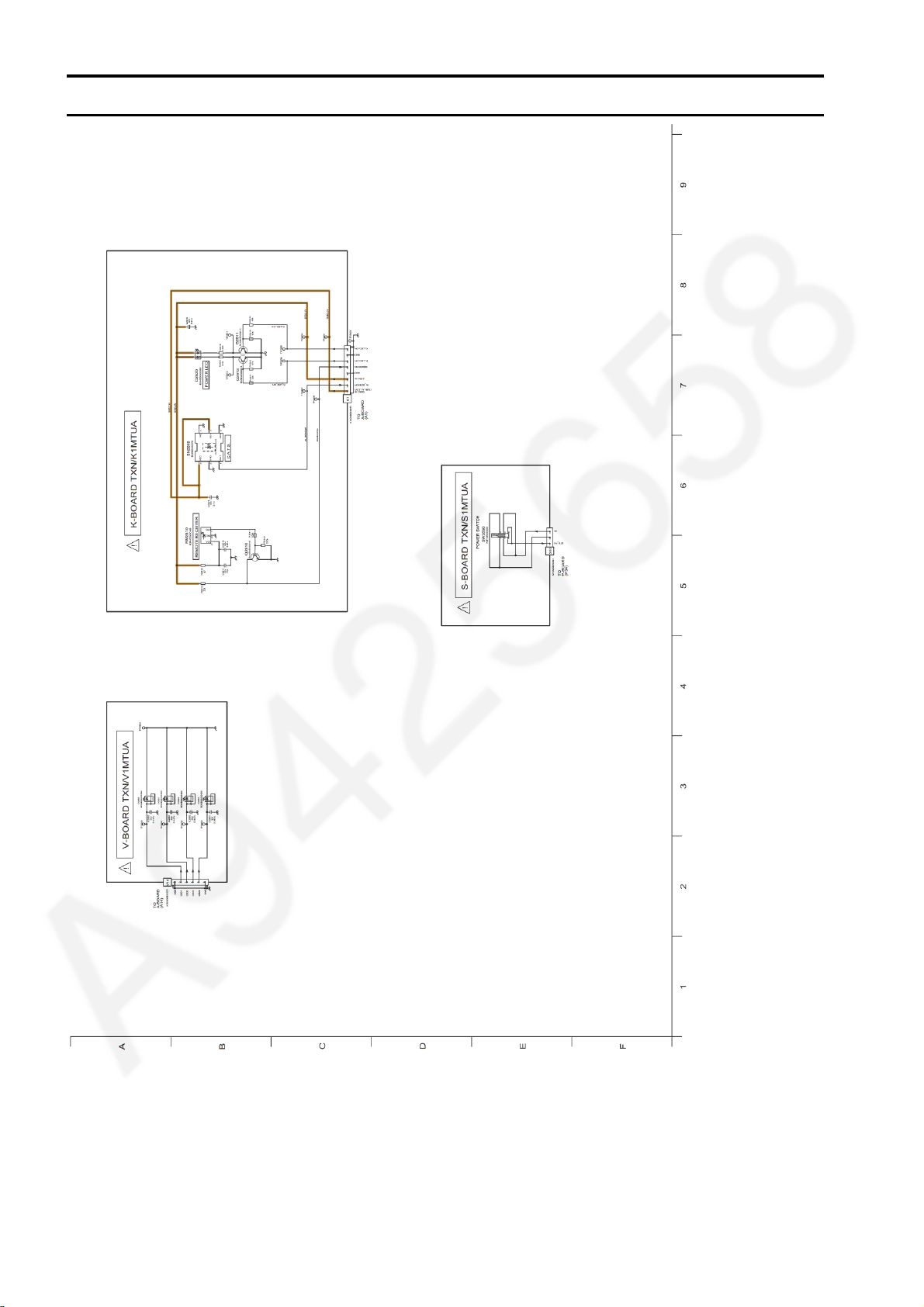

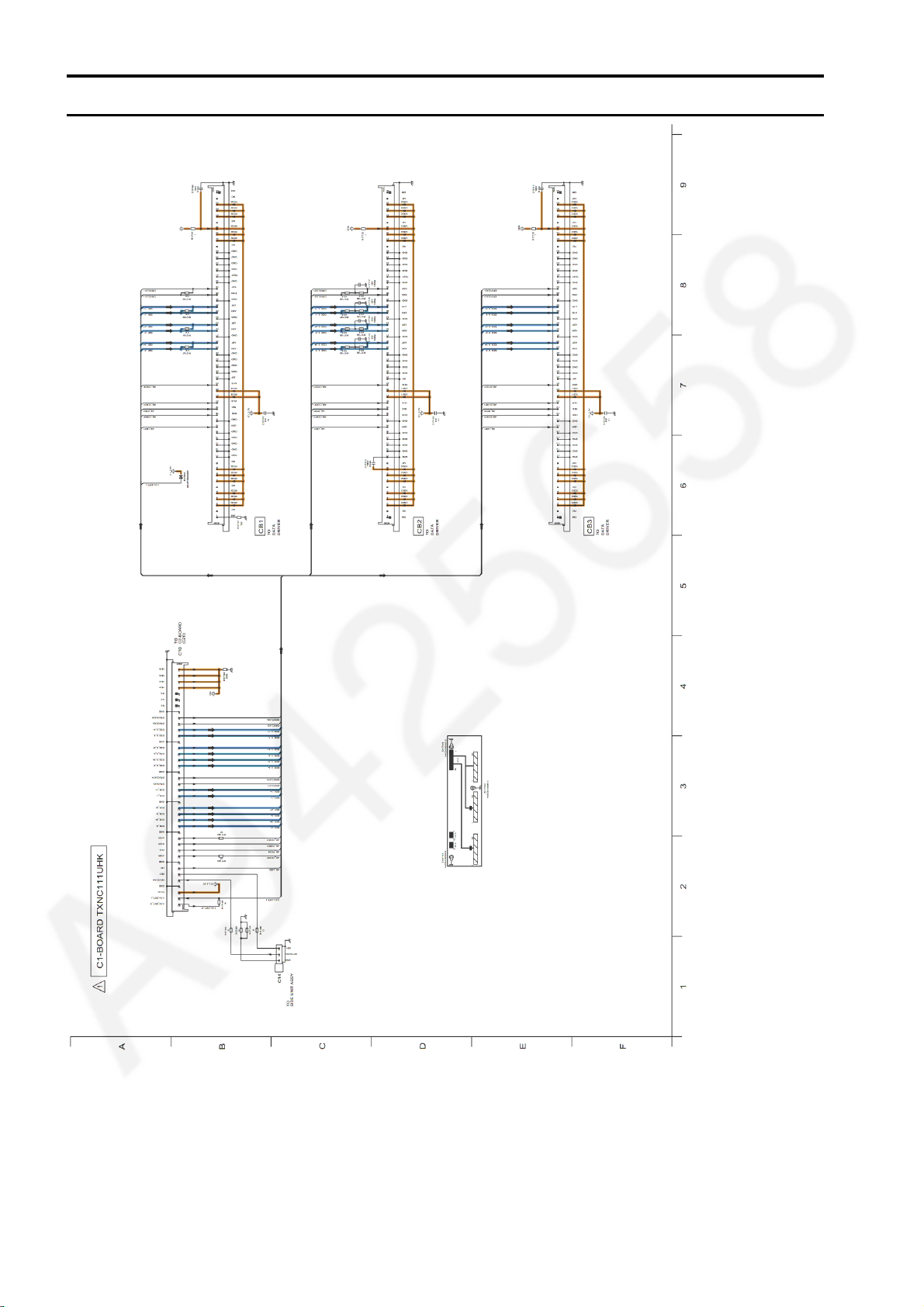

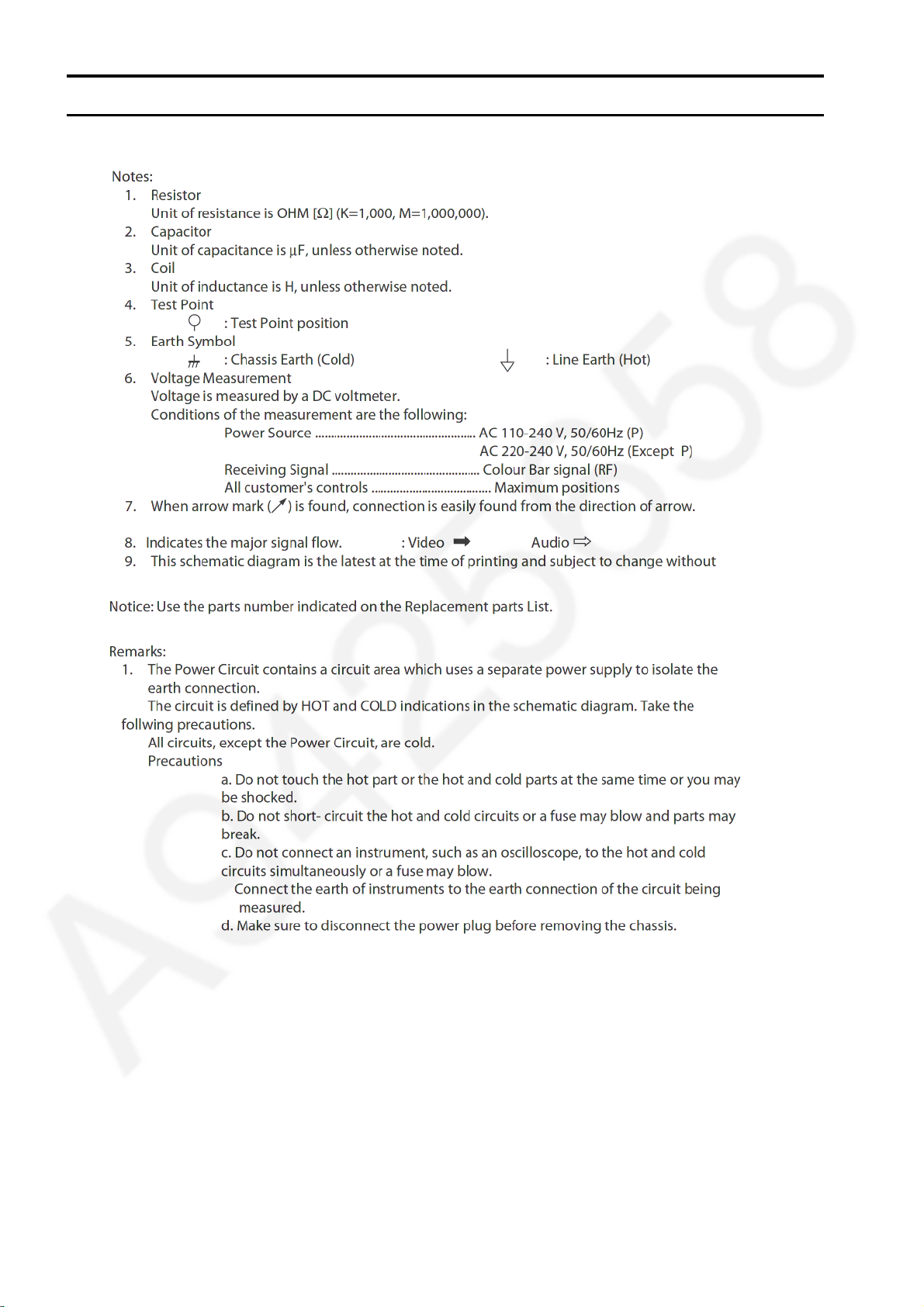

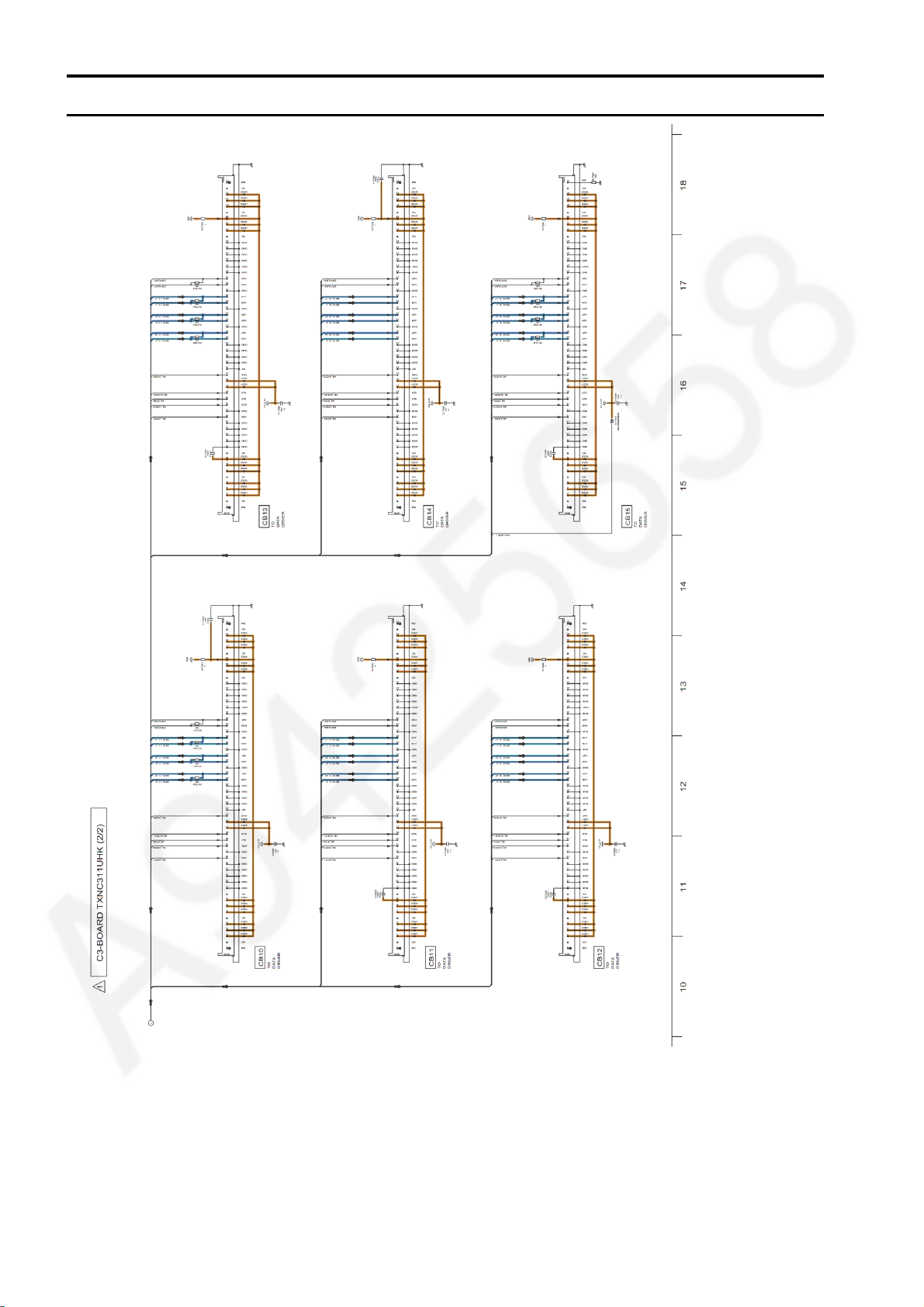

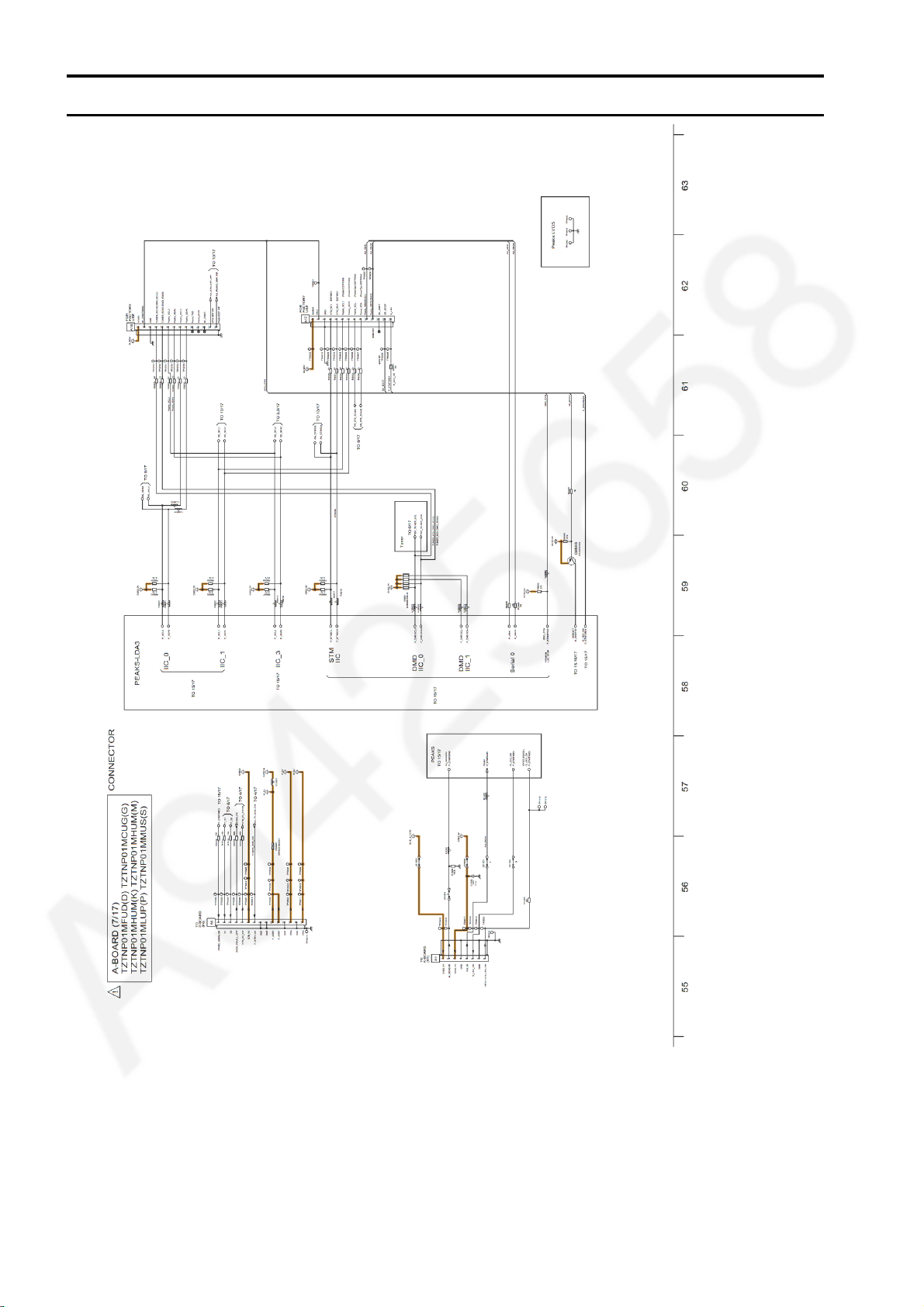

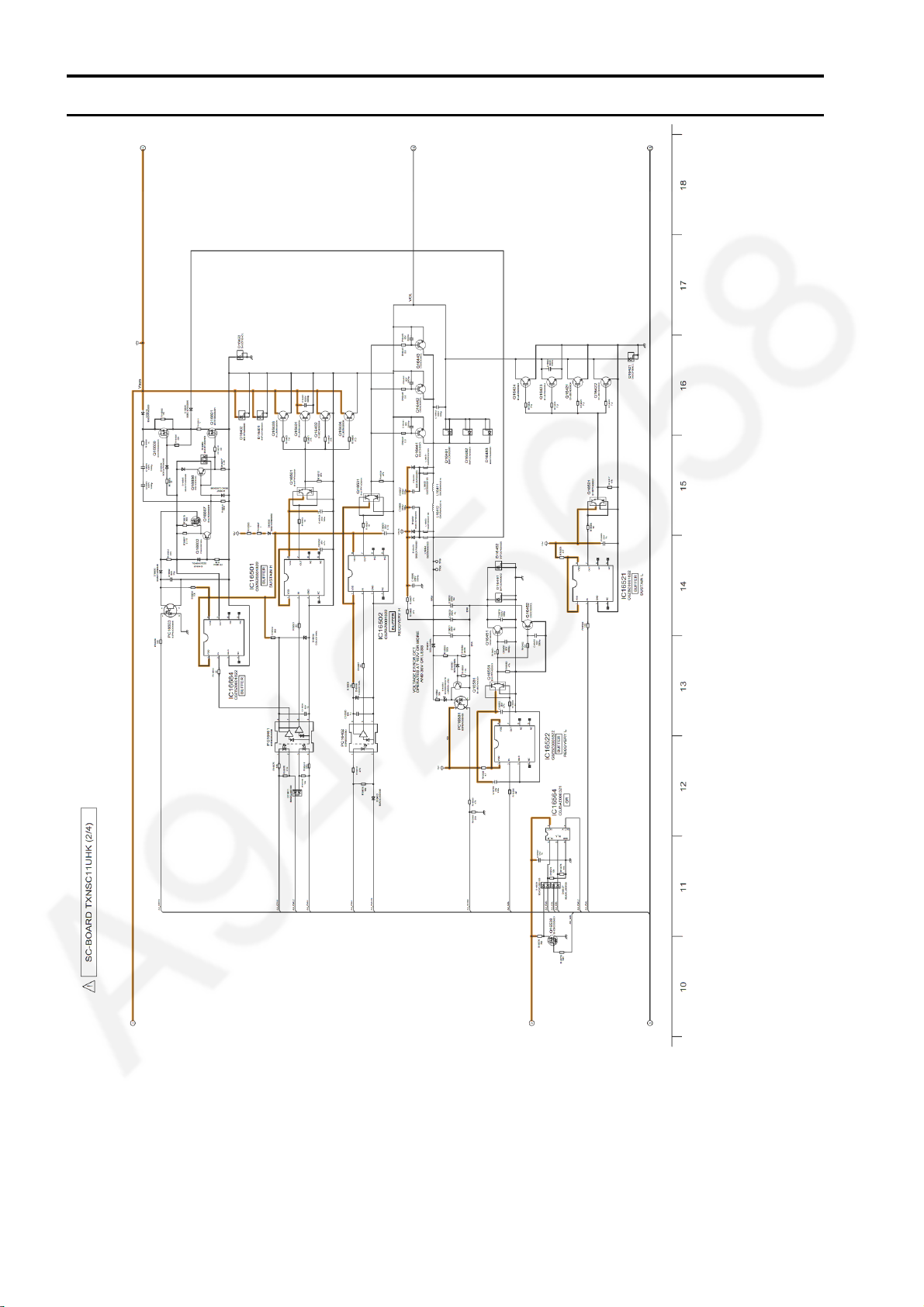

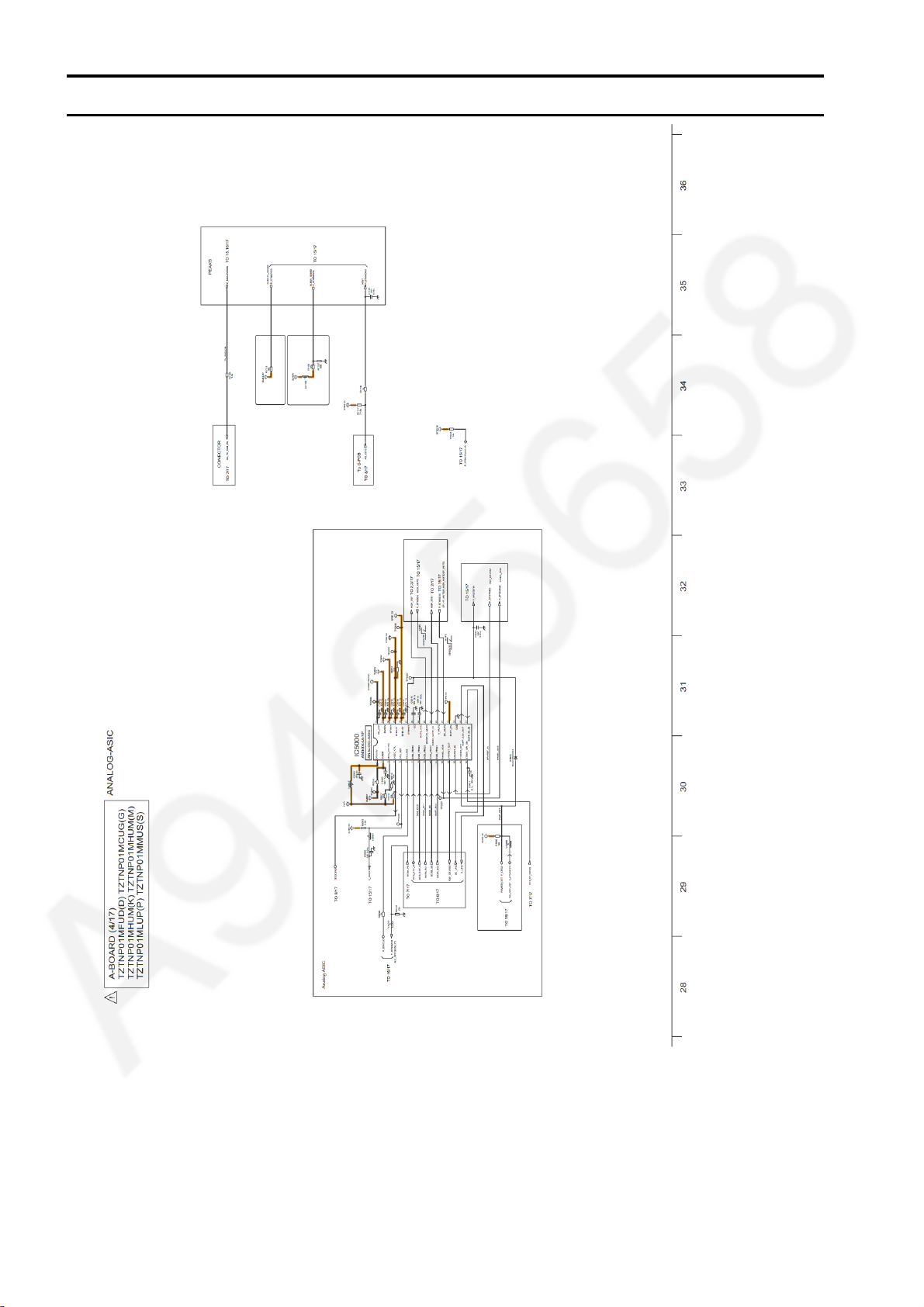

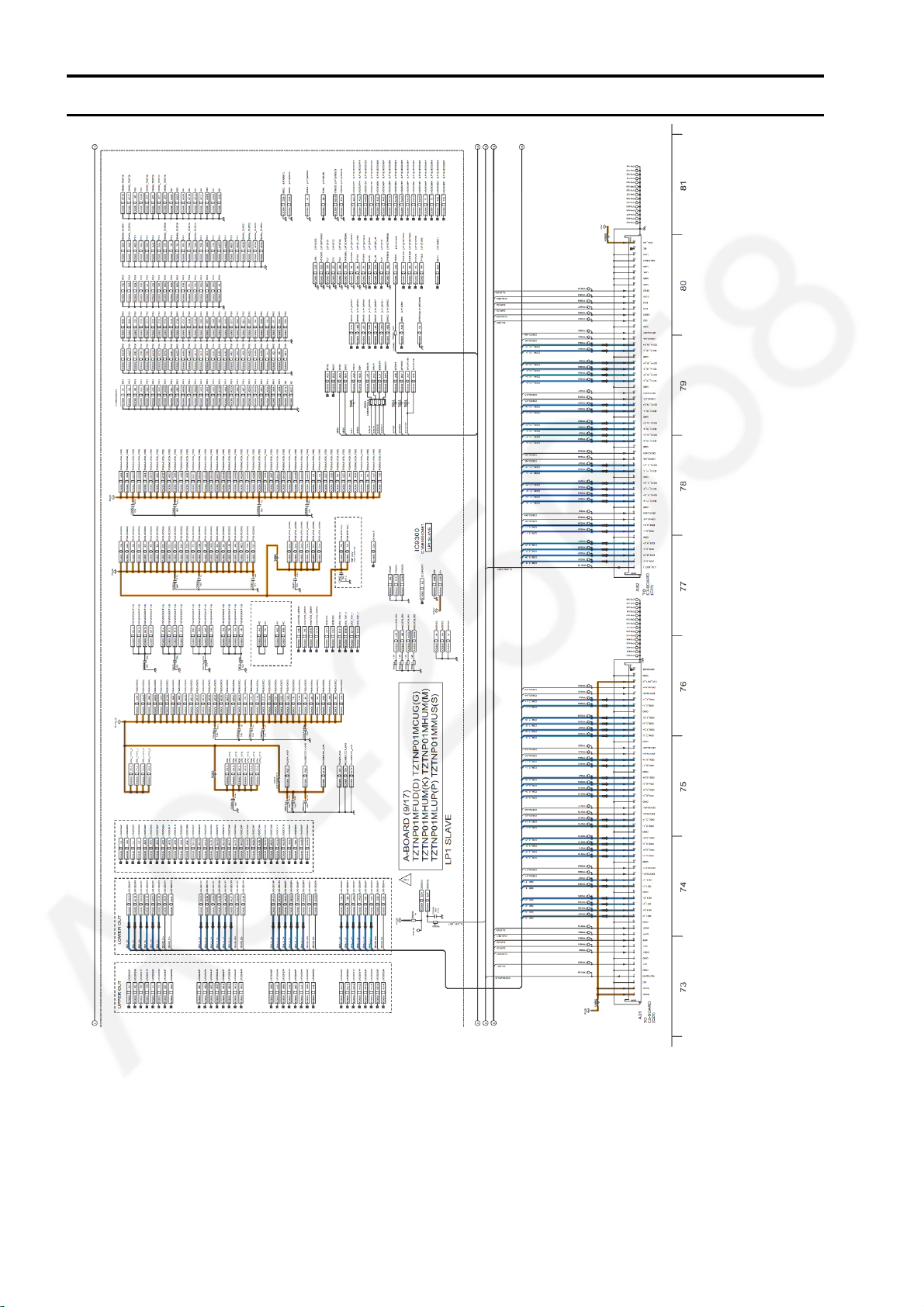

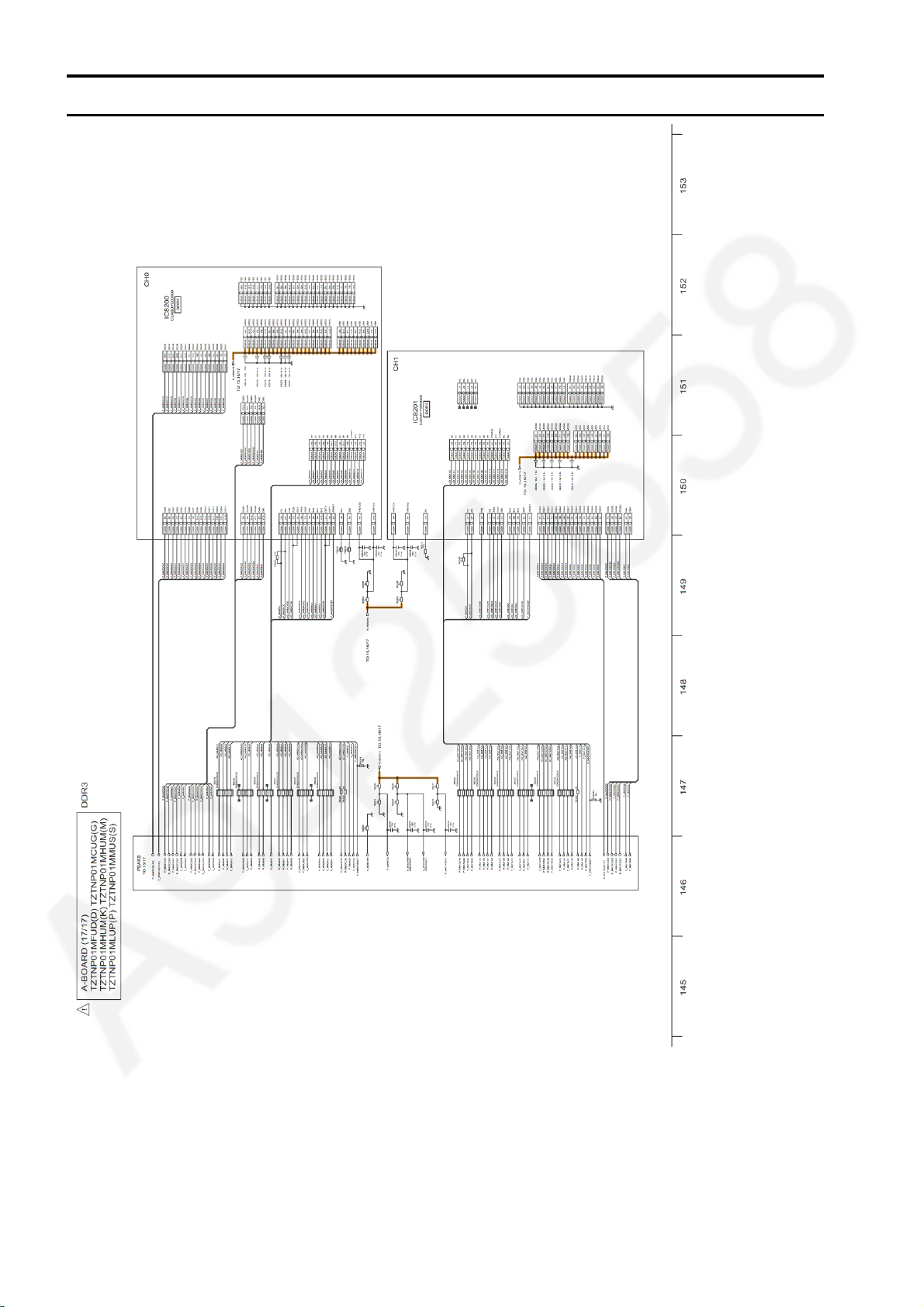

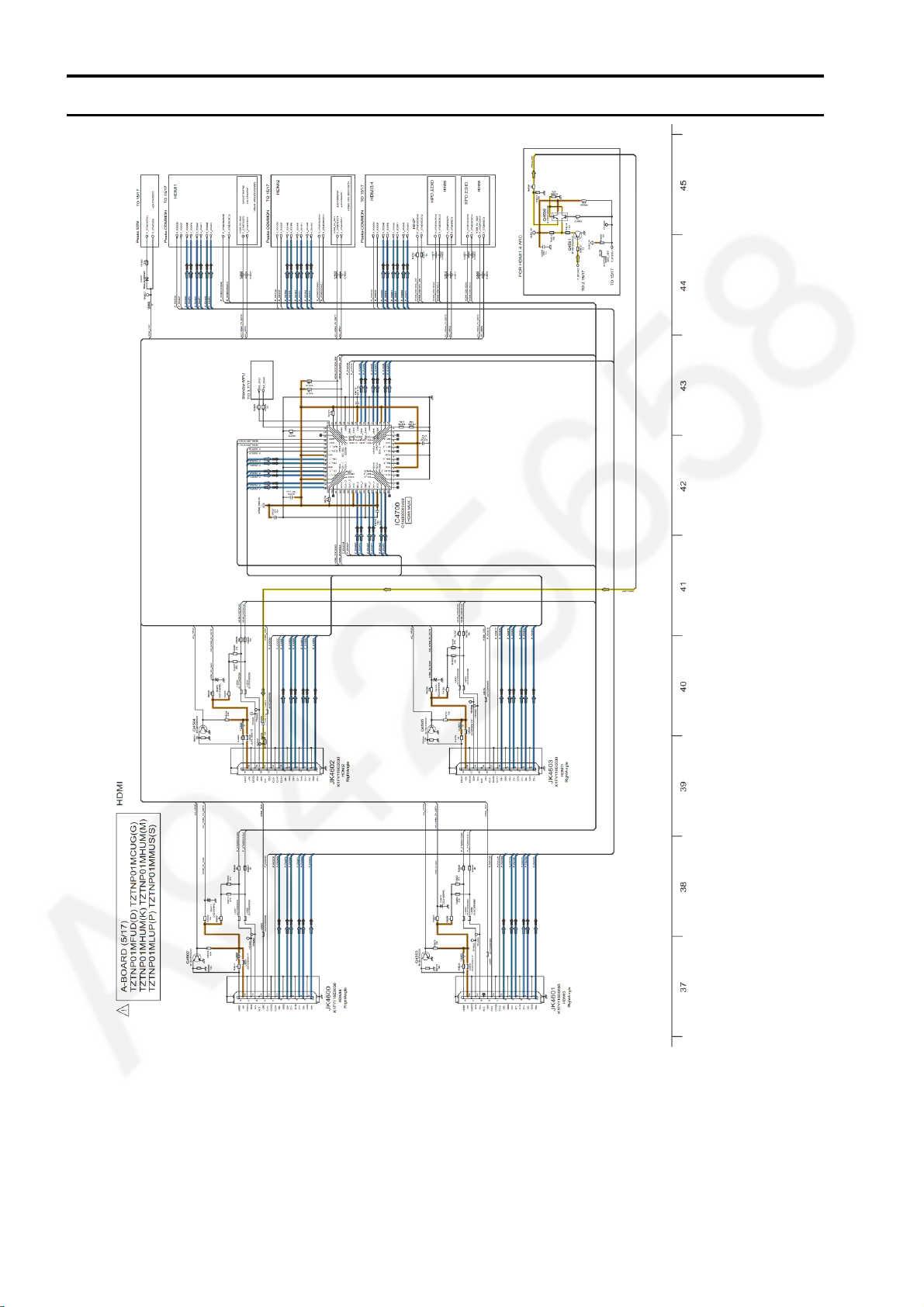

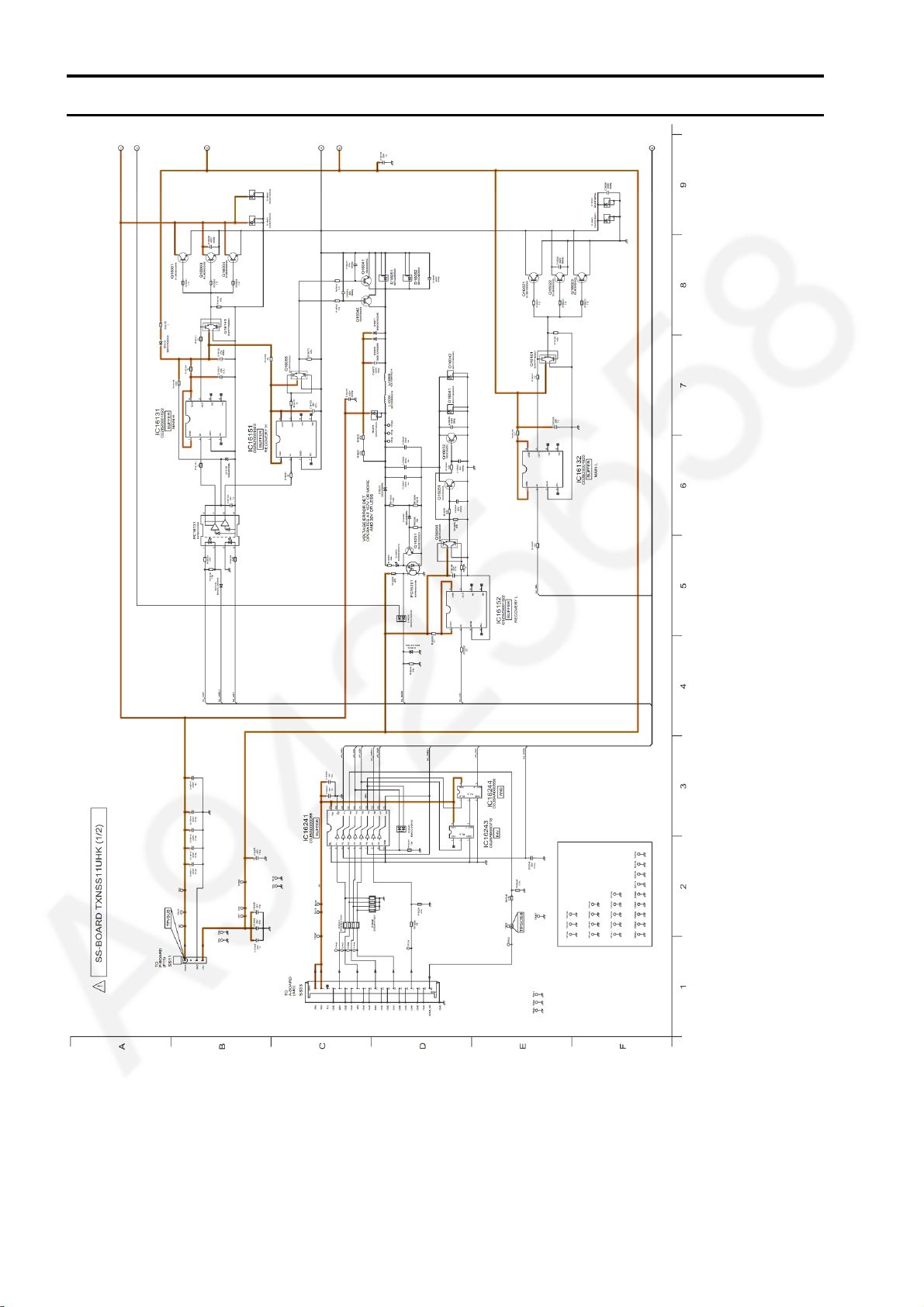

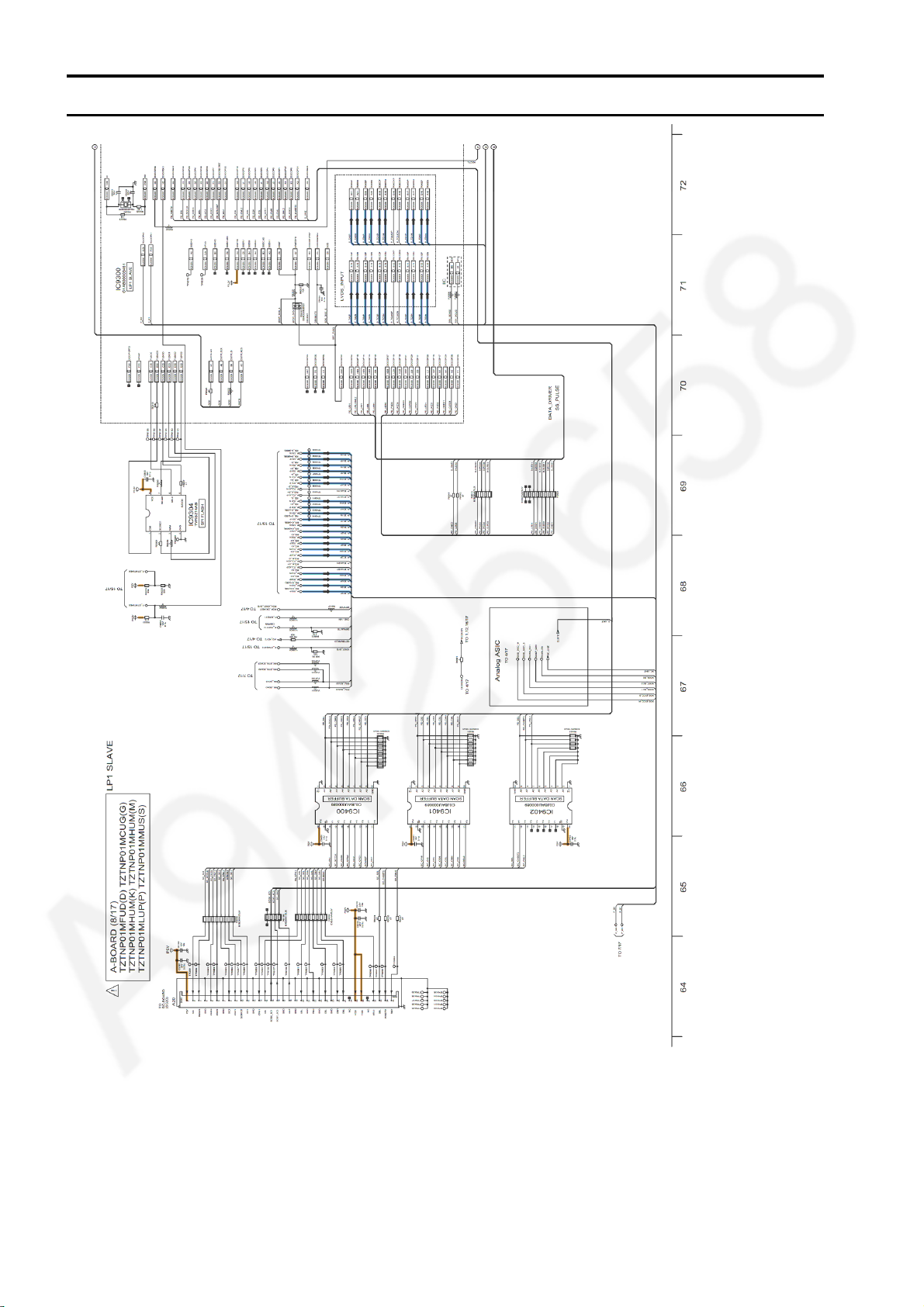

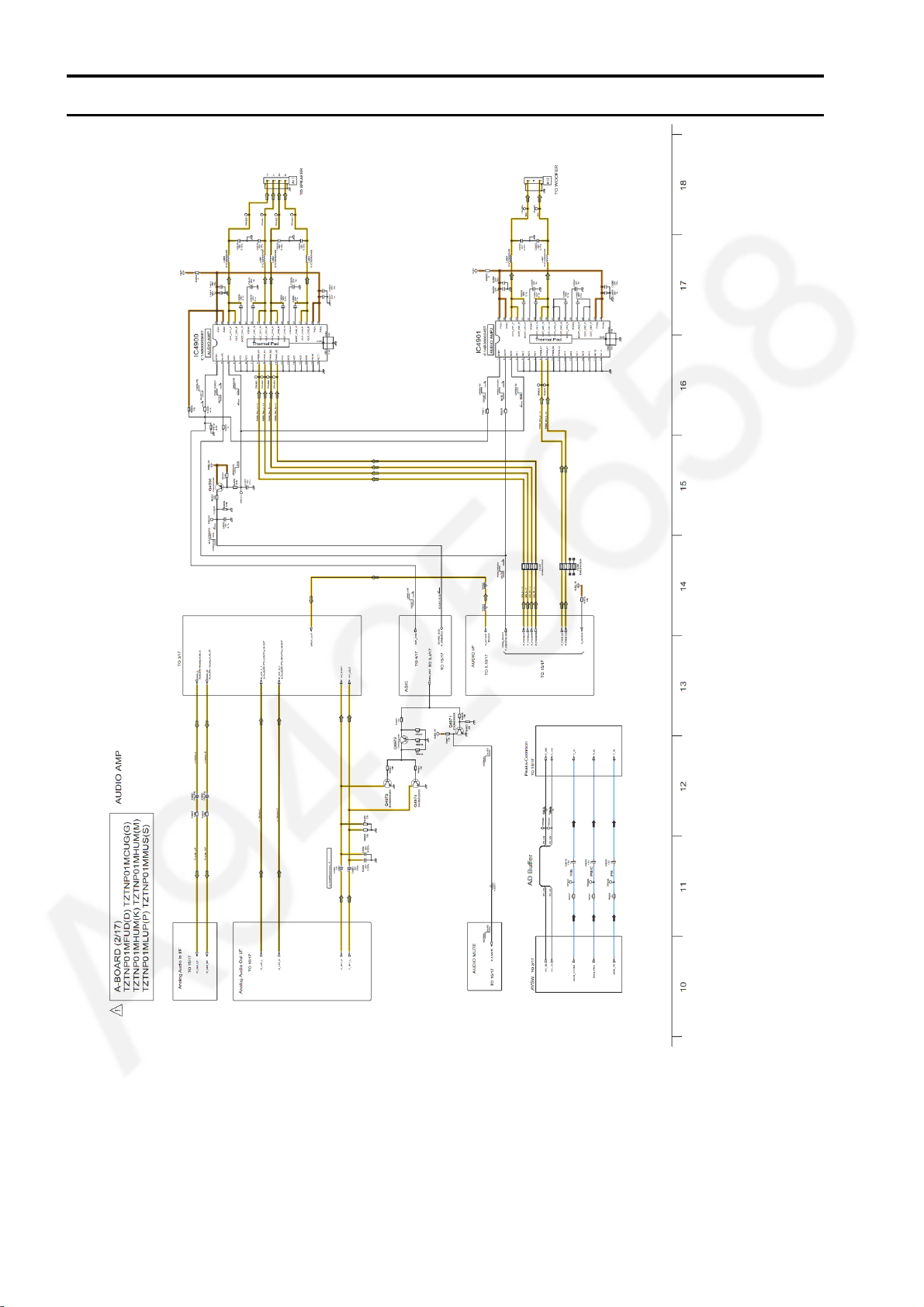

13 Schematic Diagram

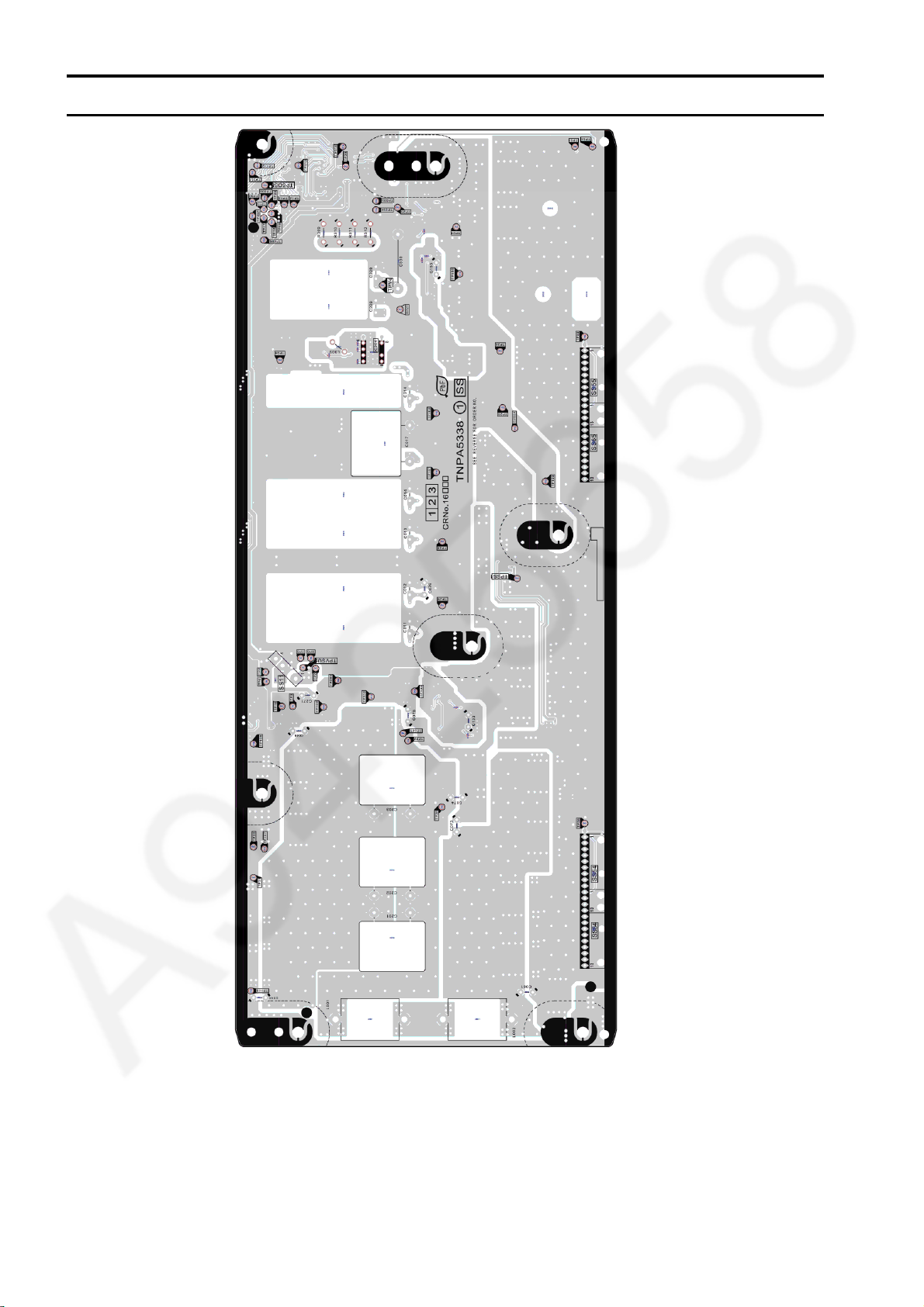

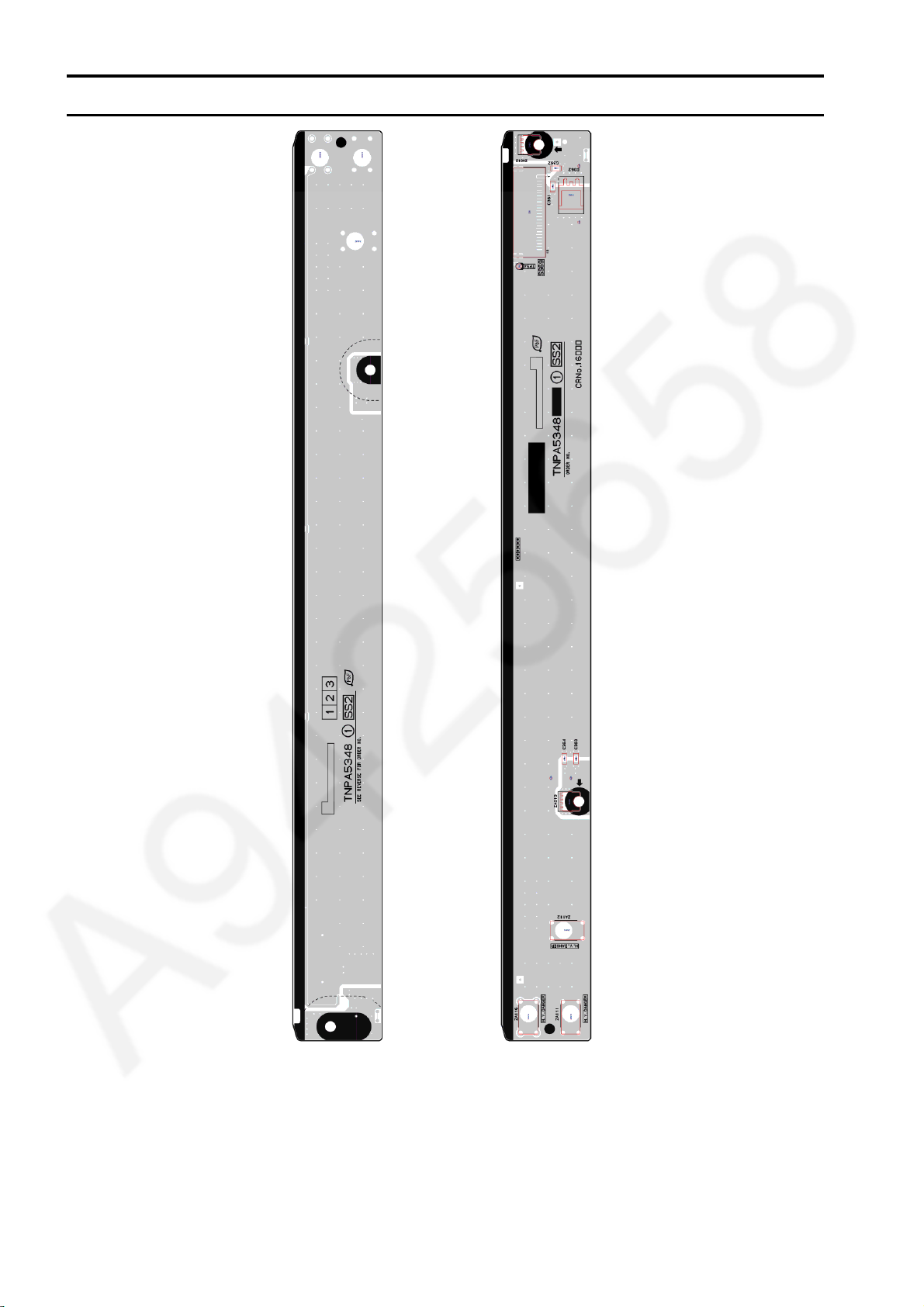

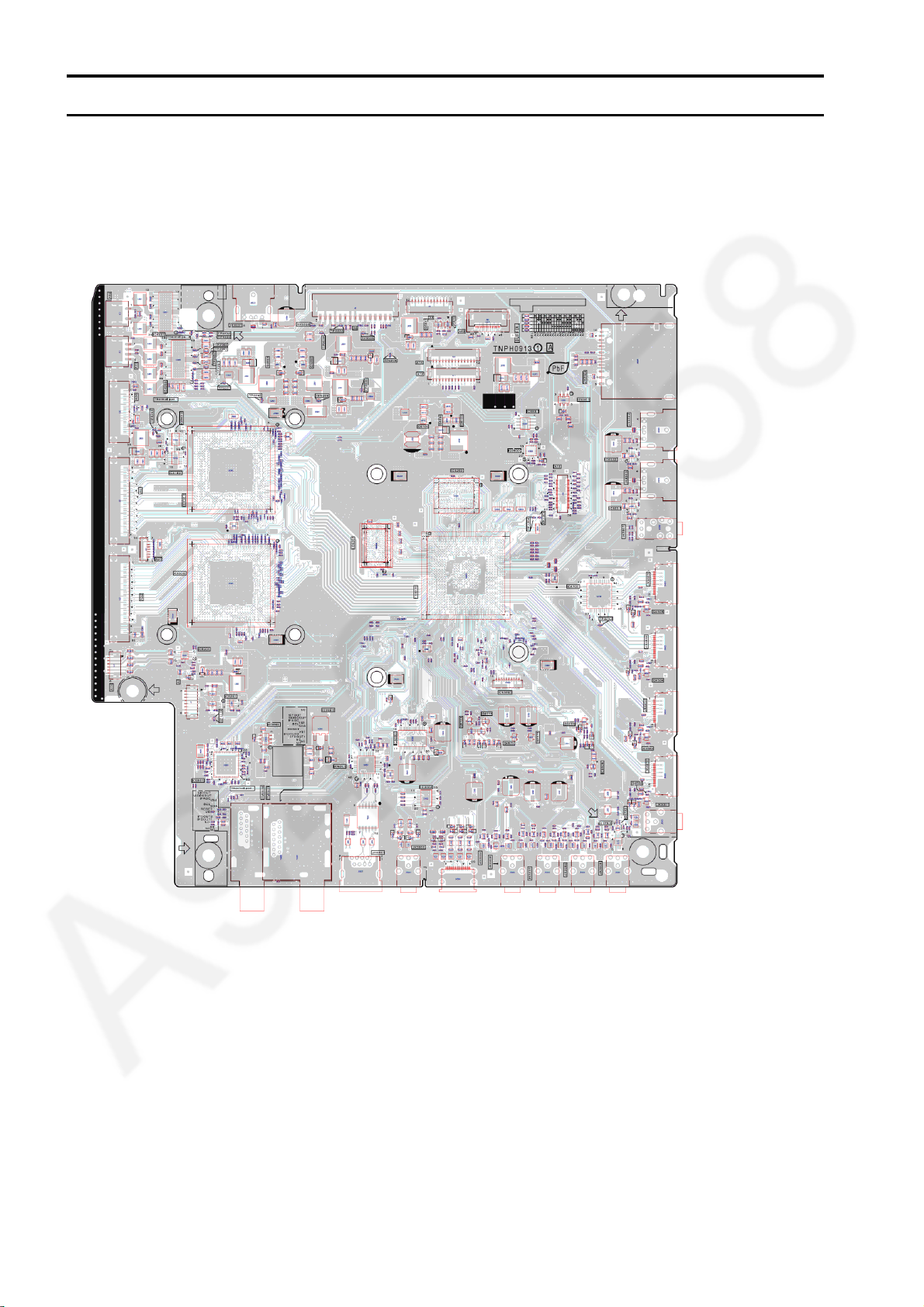

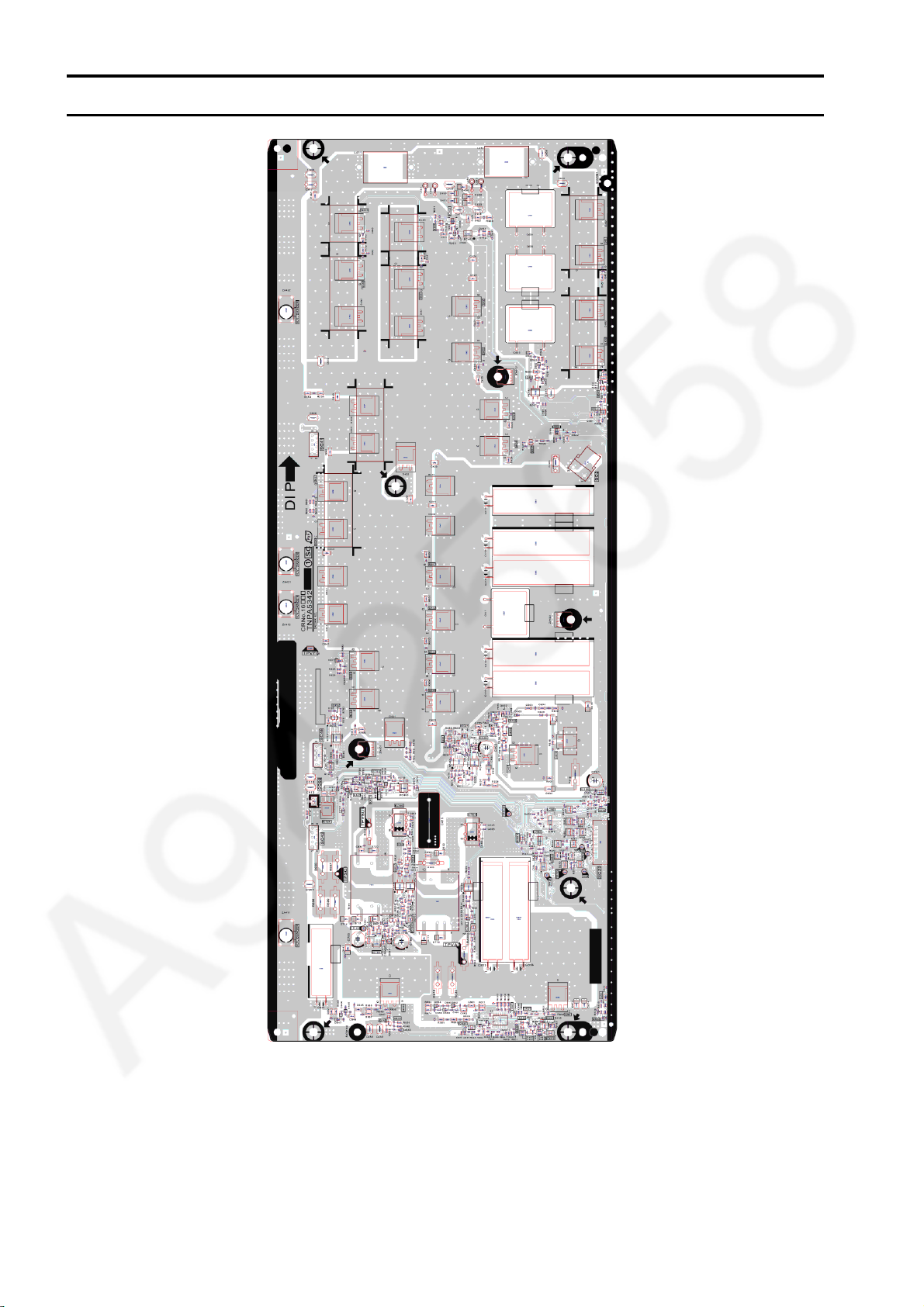

14 Printed Circuit Board
15 Exploded View
2
Page 3
1 Safety Precautions
1.1. General Guidelines
1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.
2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the
wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.
3. When conducting repairs and servicing, do not twist the Fasten connectors but plug them straight in or unplug them straight
out.
4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
1.2. Touch-Current Check
1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground
such as a water pipe, as shown in Figure 1.
3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.
4. Check each exposed metallic part, and measure the voltage at each point.
5. Reserve the AC plug in the AC outlet and repeat each of the above measure.
6. The potential at any point (TOUCH CURRENT) expressed as voltage U
For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);
For d. c.: U
Note:
The limit value of U
mA d. c.
The limit value U
7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be
repaired and rechecked before it is returned to the customer.
= 1.0 V,
1
= 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0
2
= 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.
1
and U2, does not exceed the following values:
1
Figure 1
3
Page 4
2Warning
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called ElecÂtrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alumi-
num foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can
generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or compara-
ble conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brush-
ing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient
to damage an ES device).
4
Page 5
2.2. About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it's manufacture due to environmental conservation issues. For service and repair work, we'd
suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.
Caution
• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please
use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb sol-
der. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the
opposite side. (see figure below)
Suggested Pb free solder
There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. How-
ever, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.
5
Page 6
3 Service Navigation
3.1. PCB Layout
Board Name Function Board Name Function
P(MAIN) Power Supply
Non serviceable.
P(MAIN)-Board should be exchange for service.
P(SUS) Power Supply
Non serviceable.
P(SUS)-Board should be exchange for service.
P(SUB) Power Supply
Non serviceable
P(SUB)-Board should be exchange for service.
A Main AV input, processing SD Scan out (Lower)
K Remote receiver, Power LED, C.A.T.S sensor
S Power Switch
V 3D Eyewear transmitter
C1 Data Driver (Lower Right)
C2 Data Driver (Lower Center)
C3 Data Driver (Lower Left)
SC Scan Drive
SS Sustain Drive
SS2 Sustain out (Lower)
SU Scan out (Upper)
Non serviceable.
SU-Board should be exchanged for service.
Non serviceable.
SD-Board should be exchanged for service.
6
Page 7
3.2. Applicable signals
COMPONENT (Y, PB/CB, PR/CR), HDMI
* Mark: Applicable input signal
Signal name COMPONENT HDMI
525 (480) / 60i * *
525 (480) / 60p * *
625 (576) / 50i * *
625 (576) / 50p * *
750 (720) / 60p * *
750 (720) / 50p * *
1,125 (1,080) / 60i * *
1,125 (1,080) / 50i * *
1,125 (1,080) / 60p *
1,125 (1,080) / 50p *
1,125 (1,080) / 24p *
PC (from D-sub 15P)
Applicable input signal for PC is basically compatible to VESA standard timing.
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 400 @70 Hz 31.47 70.07
640 × 480 @60 Hz 31.47 59.94
640 × 480 @75 Hz 37.50 75.00
800 × 600 @60 Hz 37.88 60.32
800 × 600 @75 Hz 46.88 75.00
800 × 600 @85 Hz 53.67 85.06
852 × 480 @60 Hz 31.44 59.89
1,024 × 768 @60 Hz 48.36 60.00
1,024 × 768 @70 Hz 56.48 70.07
1,024 × 768 @75 Hz 60.02 75.03
1,024 × 768 @85 Hz 68.68 85.00
1,280 × 1,024 @60 Hz 63.98 60.02
1,280 × 768 @60 Hz 47.70 60.00
1,366 × 768 @60 Hz 48.39 60.04
Macintosh13" (640 × 480) 35.00 66.67
Macintosh16" (832 × 624) 49.73 74.55
Macintosh21" (1,152 × 870) 68.68 75.06
PC (from HDMI terminal)
Applicable input signal for PC is basically compatible to HDMI standard timing.
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 480 @60 Hz 31.47 60.00
1,280 × 720 @60 Hz 45.00 60.00
1,920 × 1,080 @60 Hz 67.50 60.00
Note
• Signals other than above may not be displayed properly.
• The above signals are reformatted for optimal viewing on your display.
• PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.
7
Page 8
4 Specifications
Power Source AC 220 - 240 V, 50 / 60 Hz (Except P)
AC 110 - 240 V, 50 / 60 Hz (P)
Power
Power Rating 500 W (Except P) 515 W (P)
Standby condition 0.4 W
Display panel
Aspect Ratio 16:9
Visible screen size 165 cm (diagonal)
1,434 mm (W) × 806 mm (H)
Number of pixels 2,073,600 (1,920 (W) × 1,080 (H)), [5,760 × 1,080 dots]
Sound
Speaker
Audio Output 22 W (6 W + 6 W + 10 W)
Headphones M3 (3.5 mm) stereo mini Jack × 1
PC signals VGA, SVGA, WVGA, XGA
Receiving Systems / Band name
Front speaker (180 mm × 25 mm) × 2, Woofer ( 80 mm) × 1
SXGA, WXGA ...... (compressed)
Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz
Receiving Channels (Analogue TV)
VHF BAND
2-12 (PAL/SECAM B, K1) 0-12 (PAL B AUST.)
1-9 (PAL B N.Z.) 1-12 (PAL/SECAM D)
1-12 (NTSC M Japan) 2-13 (NTSC M USA)
UHF BAND
21-69 (PAL G, H, I/SECAM G, K, K1)
28-69 (PAL B AUST.) 13-57 (PAL D, K)
13-62 (NTSC M Japan) 14-69 (NTSC M USA)
CATV
S1-S20 (OSCAR) 1-125 (USA CATV)
C13-C49 (JAPAN) S21-S41 (HYPER)
Z1-Z37 (CHINA) 5A, 9A (AUST.)
Aerial - Rear VHF/UHF
Operating Conditions
Temperature: 0 °C - 40 °C
Humidity: 20 % - 80 % RH (non-condensing)
Connection Terminals
AV1 Input
AUDIO L - R RCA PIN Type × 2 0.5 V [rms]
COMPONENT Y 1.0 V [p-p] (including synchronisation)
, PR/C
P
B/CB
AV2 Input
AUDIO L - R RCA PIN Type × 2 0.5 V [rms]
VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)
AV3 Input
AUDIO L - R RCA PIN Type × 2 0.5 V [rms]
VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)
Audio Output
AUDIO L - R RCA PIN Type × 2 0.5 V [rms] (high impedance)
Others
HDMI1 - 4 Input TYPE A Connectors • This TV supports "HDAVI control 5" function.
PC Input HIGH-DENSITY D-SUB 15PIN R / G / B: 0.7 V [p-p] (75 Ω)
DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fiber optic
Card slot SD Card slot × 1
USB 1/2/3 USB 2.0 TYPE A Connectors DC 5 V, Max. 500 mA
ETHERNET 10BASE-T / 100BASE-TX
R
± 0.35 V [p-p]
HD / VD: TTL Level 2.0 - 5.0 V [p-p] (high impedance)
8
Page 9
Dimensions (W × H × D) 1,570 mm × 994 mm × 400 mm (With Pedestal)
1,570 mm × 956 mm × 60 mm (TV only)
Mass 63.0 kg Net (With Pedestal)
Q 3D Eyewear
Lens type Liquid Crystal Shutter
Usage temperature range 0 °C - 40 °C
Charging power supply DC 5 V (supplied by USB terminal of a Panasonic TV)
Battery Lithium-ion polymer rechargeable battery
Viewing range*2 Transmitter for 3D Eyewear
Materials Main body: Resin
Dimensions (W × H × D) 170.1 mm × 41.2 mm × 169.8 mm
Mass Approx. 38 g Net
*1 Operation time/charging time
• The battery deteriorates after repeated use, and the operation time eventually becomes short. The figures above are at shipping from the
factory, and are not a guarantee of performance.
*2 Viewing range
• The location of the 3D Eyewear transmitter differs depending on the model of television.
• There are differences in the viewing range of the 3D Eyewear among individuals.
• The 3D Eyewear may not operate correctly at the outside of the viewing range.
Q Wireless LAN Adaptor (TH-P65VT30D/G/K/S)
Power supply DC 5 V (USB powered) 500 mA
Antenna Tx 1, Rx 2
Interface USB 2.0
Standard Compliance IEEE802.11n / IEEE802.11a / IEEE802.11g / IEEE802.11b
Transmission system MISO-OFDM system, OFDM system, DSSS system
Frequency Range*1*2 IEEE802.11n / IEEE802.11a:
Transfer rate (standard)*3 IEEE802.11n: Tx Max. 150 Mbps, Rx Max. 300 Mbps
Access Mode Infrastructure mode
Security WPA2-PSK (TKIP/AES)
Dimensions (W × H × D) 30.00 mm × 10.72 mm ×
Mass 25 g Net
56.0 kg Net (TV only)
DC 3.7 V, 70 mAh
Operation time*1: Approx. 30 hours
Charging time*1: Approx. 2 hours
Within 3.2 m from front surface
(Within ± 35° horizontal, ± 20° vertical)
Lens section: Liquid crystal glass
5.150 GHz - 5.850 GHz
IEEE802.11g / IEEE802.11b / IEEE802.11n:
2.400 GHz - 2.4835 GHz
IEEE802.11g / IEEE802.11a: Max. 54 Mbps
IEEE802.11b: Max. 11 Mbps
WPA-PSK (TKIP/AES)
WEP (64 bit / 128 bit)
94.85 mm
*1 The frequency and channel differ depending on the country.
*2 802.11b/g/n CH1-CH11 only use for North America, Canada and Taiwan.
*3 Transfer rates are theoretical values; however, actual communication rate will vary according to communication environment or connected
equipment.
Note
• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
9
Page 10
5 Technical Descriptions
5.1. Specification of KEY for CI Plus, DTCP-IP, WIDEVINE and One-to-One
5.1.1. General information:
1. EEPROM (IC8902) for spare parts has the seed of KEY for each.
2. The final KEY data will be generated by Peaks IC (IC8000) when SELF CHECK was done and are stored in both Peaks IC
(IC8000) and EEPROM (IC8902).
Three KEY are not generated for all models.
The necessary KEY are only generated and stored depend on the feature of models.
5.1.2. Replacement of ICs:
When Peaks IC (IC8000) is replaced, EEPROM (IC8902) should be also replaced with new one the same time.
When EEPROM (IC8902) is replaced, Peaks IC (IC8000) is not necessary to be replaced the same time.
After the replacement of IC, SELF CHECK should be done to generate the final KEY data.
How to SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more
than 3 seconds.
TV will be forced to the factory shipment setting after this SELF CHECK.
5.1.3. Model and Keys:
Model No. Keys
One-to-one WIDEVINE
TH-P65VT30D/G/K/M/P/S -
10
Page 11
6 Service Mode
6.1. How to enter into Service Mode
6.1.1. Purpose
After exchange parts, check and adjust the contents of adjustment mode.
While pressing [VOLUME ( - )] button of the main unit, press [i] button of the remote control three times within 2 seconds.
Note:
Service Mode can not be entered when 3D signal input.
Input 2D signal to enter Service Mode.
6.1.2. Key command
[1] button...Main items Selection in forward direction
[2] button...Main items Selection in reverse direction
[3] button...Sub items Selection in forward direction
[4] button...Sub items Selection in reverse direction
[RED] button...All Sub items Selection in reverse direction
[GREEN] button...All Sub items Selection in forward direction
[VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )
6.1.3. How to exit
Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
11
Page 12
6.1.4. Contents of adjustment mode
• Value is shown as a hexadecimal number.
• Preset value differs depending on models.
• After entering the adjustment mode, take note of the value in each item before starting adjustment.
Main item Sub item Sample Data Remark
ADJUST CONTRAST 213
COLOR 36
TINT 00
SUB-BRT 800
H-POS 0
H-AMP 0
V-POS 0
V-AMP 0
WB-ADJ R-CUT 80
G-CUT 80
B-CUT 80
R-DRV F6
G-DRV FF
B-DRV 9E
ALL-CUT 80
ALL-DRV FF
OPTION Panel-Type 65FHD Factory Preset
Boot ROM
STBY-SET 00
EMERGENCY ON
Y/C Delay 0
OPT 1 10110000
OPT 2 11100110
OPT 3 00001001
OPT 4 00000000
EDID-CLK MID
MIRROR 00 (See Option-Mirror)
AMR-SELECT OFF

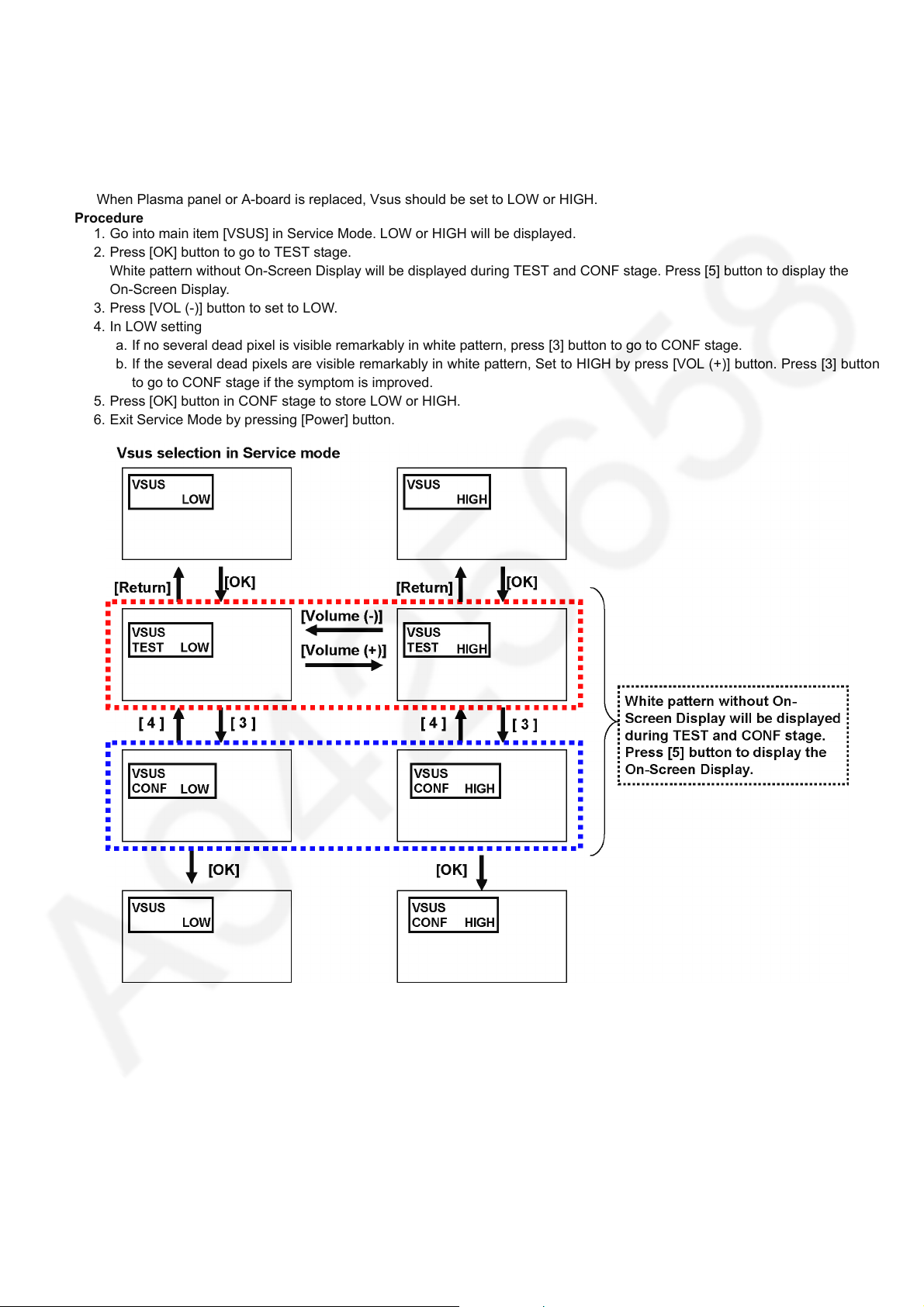

VSUS LOW See Vsus selection
AGING ALL WHITE Built-in test patterns can be
ALL BLUE WITH WHITE OUTSIDE FRAME
ALL GREEN
ALL RED
LOW STEP WHITE
LOW STEP BLUE
LOW STEP GREEN
LOW STEP RED
WHITE DIAGONAL STRIPE
RED DIAGONAL STRIPE
GREEN DIAGONAL STRIPE
BLUE DIAGONAL STRIPE
A-ZONE & B-ZONE
1% WINDOW
COLOR BAR
9 POINTS BRIGHT MEASURE
2 DOT OUTSIDE FRAME
ALL BLUE
DOUBLE FIXED 1% WINDOW
VERTICAL LINE SCROLL
ON/OFF OR WHITE
R/G/B/W ROTATION
HALF FIXED ALL WHITE
ALL WHITE WITH COUNT DISPLAY
SRV-TOOL 00 See Service tool mode
displayed.
12
Page 13
6.2. Option - Mirror
Picture can be reversed left and right or up and down.
00 : Default (Normal picture is displayed)
01 : Picture is reversed left and right.
02 : Picture is reversed up and down.
Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in
A-board.
6.3. Service tool mode
6.3.1. How to access
1. Select [SRV-TOOL] in Service Mode.
2. Press [OK] button on the remote control.
6.3.2. Display of SOS History
SOS History (Number of LED blinking) indication.
From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.
This indication will be cleared by [Self-check indication and forced to factory shipment setting].
6.3.3. POWER ON Time, Count
Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3 sec.
Time : Cumulative power on time, indicated hour : minute by decimal
Count : Number of ON times by decimal
Note : This indication will not be cleared by either of the self-checks or any other command.
6.3.4. Exit
1. Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.
13
Page 14
6.4. Hotel mode
1. Purpose
Restrict a function for hotels.
2. Access command to the Hotel mode setup menu
In order to display the Hotel mode setup menu:
While pressing [VOLUME (-)] button of the main unit,
press [AV] button of the remote control three times within
2 seconds.
Then, the Hotel mode setup menu is displayed.
3. To exit the Hotel mode setup menu
Disconnect AC power cord from wall outlet.
4. Explain the Hotel mode setup menu
Item Function
Hotel Mode Select hotel mode On/Off
Initial INPUT Select input signal modes.
Set the input, when each time power is switched
on.
Selection :
Off/TV/AV1/AV2/AV3/PC/HDMI1/HDMI2/HDMI3/
HDMI4
• Off: give priority to a last memory.
Initial POS Select programme number.
Selection :
Off/0 to 99
• Off: give priority to a last memory
Initial VOL Level Adjust the volume when each time power is
switched on.
Selection/Range :
Off/0 to 100
• Off: give priority to a last memory
Maximum VOL
Level
Button Lock Select local key conditions.
Remote Lock Select remote control key conditions.
Private Information Select private information for VIERA Cast is Keep
Adjust maximum volume.
Range :
0 to 100
Selection :
Off/SETUP/MENU/ALL
• Off: altogether valid
• SETUP: only F-key is invalid
(Tuning guide (menu) can not be selected.)
• MENU: only F-key is invalid
(only Volume/Mute can be selected.)
• ALL: altogether invalid.
Selection :
Off/SETUP/MENU
• Off: altogether valid
• SETUP: only Setup menu is invalid
• MENU: Picture/Sound/Setup menu are invalid
or Reset if Hotel mode is set to [On] when TV
power on.
Selection :
Keep/Reset
• Keep: private information for VIERA Cast is
keep
• Reset: private information for VIERA Cast is
reset
14
Page 15
6.5. Data Copy by SD Card
6.5.1. Purpose
(a) Board replacement (Copy the data when exchanging A-board):
When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board.
(b) Hotel (Copy the data when installing a number of units in hotel or any facility):
When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other
TVs.
6.5.2. Preparation
Make pwd file as startup file for (a) or (b) in a empty SD card.
1. Insert a empty SD card to your PC.
2. Right-click a blank area in a SD card window, point to New, and then click text document. A new file is created by default
(New Text Document.txt).
3. Right-click the new text document that you just created and select rename, and then change the name and extension of the
file to the following file name for (a) or (b) and press ENTER.
File name:
(a) For Board replacement : boardreplace.pwd
(b) For Hotel : hotel.pwd
Note:
Please make only one file to prevent the operation error.
No any other file should not be in SD card.
15
Page 16
6.5.3. Data copy from TV set to SD Card
1. Turn on the TV set.
2. Insert SD card with a startup file (pwd file) to SD slot.
On-screen Display will be appeared according to the startup file automatically.
3. Input a following password for (a) or (b) by using remote control.
(a) For Board replacement : 2770
(b) For Hotel : 4850
Data will be copied from TV set to SD card.
It takes around 2 to 6 minutes maximum for copying.
4. After the completion of copying to SD card, remove SD card from TV set.
5. Turn off the TV set.
Note:
Following new folder will be created in SD card for data from TV set.
(a) For Board replacement : user_setup
(b) For Hotel : hotel
16
Page 17
6.5.4. Data copy from SD Card to TV set
1. Turn on the TV set.
2. Insert SD card with Data to SD slot.
On-screen Display will be appeared according to the Data folder automatically.
3. Input a following password for (a) or (b) by using remote control.
(a) For Board replacement : 2771
(b) For Hotel : 4851
Data will be copied from SD card to TV set.
4. After the completion of copying to SD card, remove SD card from TV set.
(a) For Board replacement : Data will be deleted after copying (Limited one copy).
(b) For Hotel : Data will not be deleted and can be used for other TVs.
5. Turn off the TV set.
Note:
1. Depending on the failure of boards, function of Data copy for board replacement does not work.
2. This function can be effective among the same model numbers.
17
Page 18
7 Troubleshooting Guide
Use the self-check function to test the unit.
1. Checking the IIC bus lines
2. Power LED Blinking timing
7.1. Check of the IIC bus lines
7.1.1. How to access
7.1.1.1. Self-check indication only:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control
for more than 3 seconds.
7.1.1.2. Self-check indication and forced to factory shipment setting:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote con-
trol for more than 3 seconds.
7.1.2. Screen display
7.1.3. Check Point
Confirm the following parts if NG was displayed.
DISPLAY Check Ref. No. Description Check P.C.B.
TUN TU4801 TUNER A-BOARD
STBY IC8000 PEAKS-LDA3 (STM) A-BOARD
MEM1 IC8902 PEAKS EEPROM A-BOARD
MEM2 IC8901 STM EEPROM A-BOARD
AVSW IC3001 AUDIO/VIDEO SW A-BOARD
TEMP IC3753 TEMP SENSOR A-BOARD
LAN IC8601 ETHERPHY A-BOARD
ID2 A-BOARD
LP1 IC9300 LP1 A-BOARD
LP1 2ND IC9500 LP1 2ND A-BOARD
HDMI-SW IC4700 HDMI SW A-BOARD
IRDRV IC5901 IR LED DRIVER A-BOARD
7.1.4. Exit
Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.
18
Page 19
7.2. Power LED Blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the
defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.
Blinking Times Contents Check point
1 Panel information SOS
LP1 Start SOS
3 P+ 3.3V SOS A-Board
4 Power SOS P(MAIN)-Board
5 P+ 5V SOS A-Board
6 Driver SOS1
(SC Energy recovery circuit)
(A-SC FPC DET)
7 Driver SOS2
(SU/SD Connector DET)
(SU/SD Scan and Logic IC)
8 Driver SOS3
(SS FPC DET)
(SS Energy recovery circuit)
9 Discharge Control SOS A-Board
10 Sub 5V SOS
Sub 3.3V SOS
Tuner power SOS
11 FAN SOS A-Board
12 Sound SOS A-Board
13 Emergency SOS A-Board
14 IROM SOS (ROM in Peaks IC) A-Board
-
P(SUS)-Board
P(SUB)-Board
SC-Board
A-SC FPC
SU-Board
SD-Board
*
SS-Board
SS2-Board
SS FPC
SS2 FPC
A-Board
SC-Board
SS-Board
P(MAIN)-Board
P(SUS)-Board
P(SUB)-Board
FAN
Speaker
Woofer
P(MAIN)-Board
P(SUS)-Board
P(SUB)-Board
*Use SC jig to isolate the board.
19
Page 20
7.3. No Power
First check point
There are following 3 states of No Power indication by power LED.
1. No lit.
2. Green is lit then turns red blinking a few seconds later. (See 7.2.)
3. Only red is lit.
20
Page 21
7.4. No Picture
21
Page 22
7.5. Local screen failure
Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area.
Fig-1
22
Page 23
8 Service Fixture & Tools
8.1. SC jig
Purpose:
To find the failure board (SC or SU/SD) when the power LED is blinking 7 times.
SC jig:
Jumper connector to connect to SC50 connector on SC board
Part number:
TZSC09187
How to use:
Caution: Remove SC jig from SC board after inspection.
1. Remove all connector between SC board and SU/SD board to isolate SC board from both SU and SD board electrically.
Note: The board will be damaged if all connector is not removed (for example; remove connector only for SU board and stay
connecting with SD board. The board will be damaged.)
2. Connect SC jig to connector SC50 at left bottom side of SC board
3. Turn on the TV/Display Unit and confirm the power LED blinking.
LED blinking: Possible cause of failure is in SC board
No LED blinking (Lighting or no lighting): Possible cause of failure is in SU or SD board
4. After inspection, turn off the TV/Display Unit and wait a few minutes to discharge.
5. Remove SC jig from SC board.
Remark: This SC jig can be used for all 2011 Plasma TV and Plasma Display.
23
Page 24
9 Disassembly and Assembly Instructions
9.1. Remove the Rear cover
1. See PCB Layout (Section 3)
9.1.1. Rib of the pedestal
Cannot exclude at the Rear cover because interfere with rib of the pedestal.
9.1.2. Exclude the Rear cover from the Set & the Pedestal
1. Lifting of the Set. (Work in two people)
MEN:1 Left hand (in Handle point)
MEN:2 Right hand (in Handle point)
2. Surpass the Rib (Pedestal)
3. Pull the Rear cover bottom (From the Set)
MEN:1 Right hand (Pull the Rear cover)
MEN:2 Left hand (Pull the Rear cover)
24
Page 25
4. Take down the Set
Caution:
At that time, attention not to sandwich the finger.
5. Exclude the Rear cover (From the Set)
Take it off hook in spite of being lifting.
9.1.3. Attach the Rear cover to the Set & the Pedestal
1. The work that is reverse to exclude. [5]→[4]→[3]→[2]→[1]
25
Page 26
9.2. Remove the AC inlet
Caution:
To remove P.C.B. wait 1 minute after power was off for disÂcharge from electrolysis capacitors.
1. Disconnect the connector (P9).
2. Remove the screws (×2 ) and remove the Inlet metal.
3. Remove the screw (×1 ) and remove the AC inlet.
9.4. Remove the P(SUS)-Board
Caution:
To remove P.C.B. wait 1 minute after power was off for disÂcharge from electrolysis capacitors.
1. Unlock the cable clampers to free the cable.
2. Disconnect the connectors (P59, P61 and P63).
3. Disconnect the connector (P2).
4. Remove the screws (×4 ) and remove the P(SUS)-
Board.
9.3. Remove the P(MAIN)-Board
Caution:
To remove P.C.B. wait 1 minute after power was off for dis-
charge from electrolysis capacitors.
1. Unlock the cable clampers to free the cable.
2. Disconnect the connectors (P52, P56, P58, P62 and
P64).
3. Disconnect the connectors (P6, P11, P34 and P35).
4. Remove the screws (×5 ) and remove the P(MAIN)-
Board.
9.5. Remove the P(SUB)-Board
Caution:
To remove P.C.B. wait 1 minute after power was off for dis-
charge from electrolysis capacitors.
1. Disconnect the connectors (P51, P55, P57 and P60).
2. Disconnect the connector (P9).
3. Remove the screws (×4 ) and remove the P(SUB)-
Board.
26
Page 27
9.6. Remove the Terminal covers and the shield metals
1. Remove the claw (×1 ).
2. Remove the Side terminal cover.
3. Remove the claw (×1 ).
4. Remove the Bottom terminal cover.
5. Remove the screw (×1 ).
6. Remove the USB terminal cover and USB shield metal.
9.7. Remove the A-Board
1. Remove the Terminal covers and the Shield metals. (See
section 9.6.)
2. Unlock the cable clampers to free the cable.
3. Disconnect the connectors (A1, A6, A8, A11, A12 and
A14).
4. Disconnect the flexible cables (A20, A31, A32 and A40).
5. Remove the screw (×1 ) and remove the A-Board.
7. Remove the screws (×2 ).
8. Remove the Bottom shield metal.
9. Remove the screw (×1 ).
10. Remove the Side shield metal.
9.8. Remove the Side unit assy
1. Disconnect the connector (C14).
2. Remove the claws (×2 , ×1 ) and remove the Side
unit assy.
3. Remove the screw (×1 ).
4. Remove the Side unit mount metal.
27
Page 28
9.9. Remove the SU-Board
1. Disconnect the flexible cables (SU1, SU2, SU3, SU4 and
SU5) connected to the SU-Board.
2. Disconnect the flexible cable (SU11-SD11) and the bridge
connector (SC41-SU41).
3. Remove the screws (×3 , ×2 ) and remove the SU-
Board.
9.11. Remove the SC-Board
1. Remove the SU-Board and SD-Board. (See section 9.9.
and 9.10.)
2. Disconnect the connector (SC2).
3. Disconnect the flexible cable (SC20).
4. Remove the screws (×9 ) and remove the SC-Board.
Caution:
THERMAL CONDUCTIVE SHEET between Plasma Dis-
play Panel and SC-board should not be removed when
replacing SC-board.
9.10. Remove the SD-Board
1. Disconnect the flexible cables (SD1, SD2, SD3, SD4 and
SD5) connected to the SD-Board.
2. Disconnect the flexible cable (SU11-SD11) and the bridge
connectors (SC42-SD42 and SC46-SD46).
3. Remove the screws (×3 , ×2 ) and remove the SD-
Board.
9.12. Remove the SS-Board
1. Disconnect the connector (SS11).
2. Disconnect the flexible cable (SS33).
3. Disconnect the flexible cables (SS64, SS65 and SS66).
4. Remove the screws (×7 , ×3 ) and remove the SS-
Board.
28
Page 29
9.13. Remove the SS2-Board
1. Remove the SS-Board. (See section 9.12.)
2. Disconnect the flexible cable (SS69).
3. Remove the screws (×2 ) and remove the SS2-Board.
9.14. Remove the Fan
1. Unlock the cable clampers to free the cable.
2. Remove the screws (×3 ).
3. Remove the Relay connector and remove the Fan.
9.15. Remove the Speakers
1. Unlock the cable clampers to free the cable.
2. Remove the screws (×4 , ×6 ) and remove the SP
shield metal L.
3. Remove the screws (×4 , ×6 ) and remove the SP
shield metal R.
4. Disconnect the Relay connector.
5. Remove the screws (×2 each) and remove the Speak-
ers (L, R).
9.16. Remove the Woofer
1. Unlock the cable clampers to free the cable.
2. Disconnect the Relay connector.
3. Remove the screws (×4 ) and remove the Woofer.
29
Page 30
9.17. Remove the Stand bracket
1. Remove the Plasma panel section from the servicing
stand and lay on a flat surface such as a table (covered
by a soft cloth) with the Plasma panel surface facing
downward.
2. Unlock the cable clampers to free cable.
3. Remove the Stand bracket fastening screws (×6 , ×4
) and the Stand bracket.
9.19. Remove the S-Board
1. Remove the SP shield metal L. (See section 9.15.)
2. Remove the screws (×2 ).
3. Disconnect the connector (S10) and remove the S-Board.
9.20. Remove the V-Board
1. Remove the SP shield metal R. (See section 9.15.)
2. Remove the Stand bracket. (See section 9.17.)
3. Remove the screw (×1 ) and remove the claws (×3
).
4. Disconnect the connector (V14) and remove the V-Board
from the 3D emitter panel.
9.18. Remove the K-Board
1. Remove the SP shield metal L. (See section 9.15.)
2. Remove the Stand bracket. (See section 9.17.)
3. Remove the screw (×1 ).
4. Remove the claws (×3 ).
5. Disconnect the connector (K1) and remove the K-Board
from the LED panel.
9.21. Remove the Handles
1. Remove the SP shield metal (L, R). (See section 9.15.)
2. Remove the screws (×2 each) and remove the Han-
dles (L, R).
9.22. Remove the Bottom cabinet assy
1. Remove the Speakers. (See section 9.15.)
2. Remove the Stand bracket. (See section 9.17.)
3. Remove the K, S and V-Board. (See section 9.18 - 20.)
4. Remove the Handles. (See section 9.21.)
5. Remove the screws (×4 ) and remove the Bottom cab-
inet assy.
30
Page 31
9.23. Remove the Plasma panel secÂtion from the Cabinet assy
1. Remove the Plasma panel section from the servicing
stand and lay on a flat surface such as a table (covered
by a soft cloth) with the Plasma panel surface facing
downward.
2. Remove the Bottom cabinet assy. (See section 9.22.)
3. Remove the screws (×8 , ×24 ).
9.24. Remove the Contact metals
1. Remove the Cabinet assy. (See section 9.23.)
2. Remove the Tape from the Contact metals.
3. Remove the screws (×21 ).
4. Remove the Contact metal side (L, R).
5. Remove the screws (×8 ).
6. Remove the Contact metal top.
7. Remove the screws (×15 ).
8. Remove the Contact metal bottom.
4. Remove the Plasma panel section from the Cabinet assy.
9.25. Remove the C1-Board
1. Remove the Contact metal bottom. (See section 9.24.)
2. Disconnect the flexible cables (CB1, CB2 and CB3).
3. Disconnect the flexible cable (C10).
4. Disconnect the connector (C14).
5. Remove the screws (×3 ) and remove the C1-Board.
9.26. Remove the C2-Board
1. Remove the Contact metal bottom. (See section 9.24.)
2. Disconnect the flexible cables (CB4, CB5, CB6, CB7,
CB8 and CB9).
3. Disconnect the flexible cables (C20, C21 and C26).
4. Remove the screws (×4 ) and remove the C2-Board.
31
Page 32
9.27. Remove the C3-Board
1. Remove the Contact metal bottom. (See section 9.24.)
2. Disconnect the flexible cables (CB10, CB11, CB12,
CB13, CB14 and CB15).
3. Disconnect the flexible cables (C31 and C36).
4. Disconnect the connector (C35).
5. Remove the screws (×4 ) and remove the C3-Board.
9.28. Remove the AL frames
1. Remove the screws (×12 , ×2 ) and remove the AL
frames.
2. Remove the screws (×4 each) and remove the Corner
fixing metals.
9.29. Replace the Plasma panel
Caution:
Remove the Plasma panel section from the servicing
stand and lay on a flat surface such as a table (covered
by a soft cloth) with the Plasma panel surface facing
downward.
A new Plasma panel itself without Contact metals is fragile.
To avoid the damage to new Plasma panel, carry a new
Plasma panel taking hold of the Contact metals.
1. Place a carton box packed a new Plasma panel on the
flat surface of the work bench.
2. Open a box and without taking a new Plasma panel.
3. Attach the Cabinet assy and each P.C.Board and so on,
to the new Plasma panel.
*When fitting the Cabinet assy, be careful not to allow any
debris, dust or handling residue to remain between the
Front glass and Plasma panel.
32
Page 33
10 Measurements and Adjustments
10.1. Adjustment
10.1.1. Vsus selection
Caution:
When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH.
Procedure
1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed.
2. Press [OK] button to go to TEST stage.
White pattern without On-Screen Display will be displayed during TEST and CONF stage. Press [5] button to display the
On-Screen Display.
3. Press [VOL (-)] button to set to LOW.
4. In LOW setting
a. If no several dead pixel is visible remarkably in white pattern, press [3] button to go to CONF stage.
b. If the several dead pixels are visible remarkably in white pattern, Set to HIGH by press [VOL (+)] button. Press [3] button
to go to CONF stage if the symptom is improved.
5. Press [OK] button in CONF stage to store LOW or HIGH.
6. Exit Service Mode by pressing [Power] button.
33
Page 34

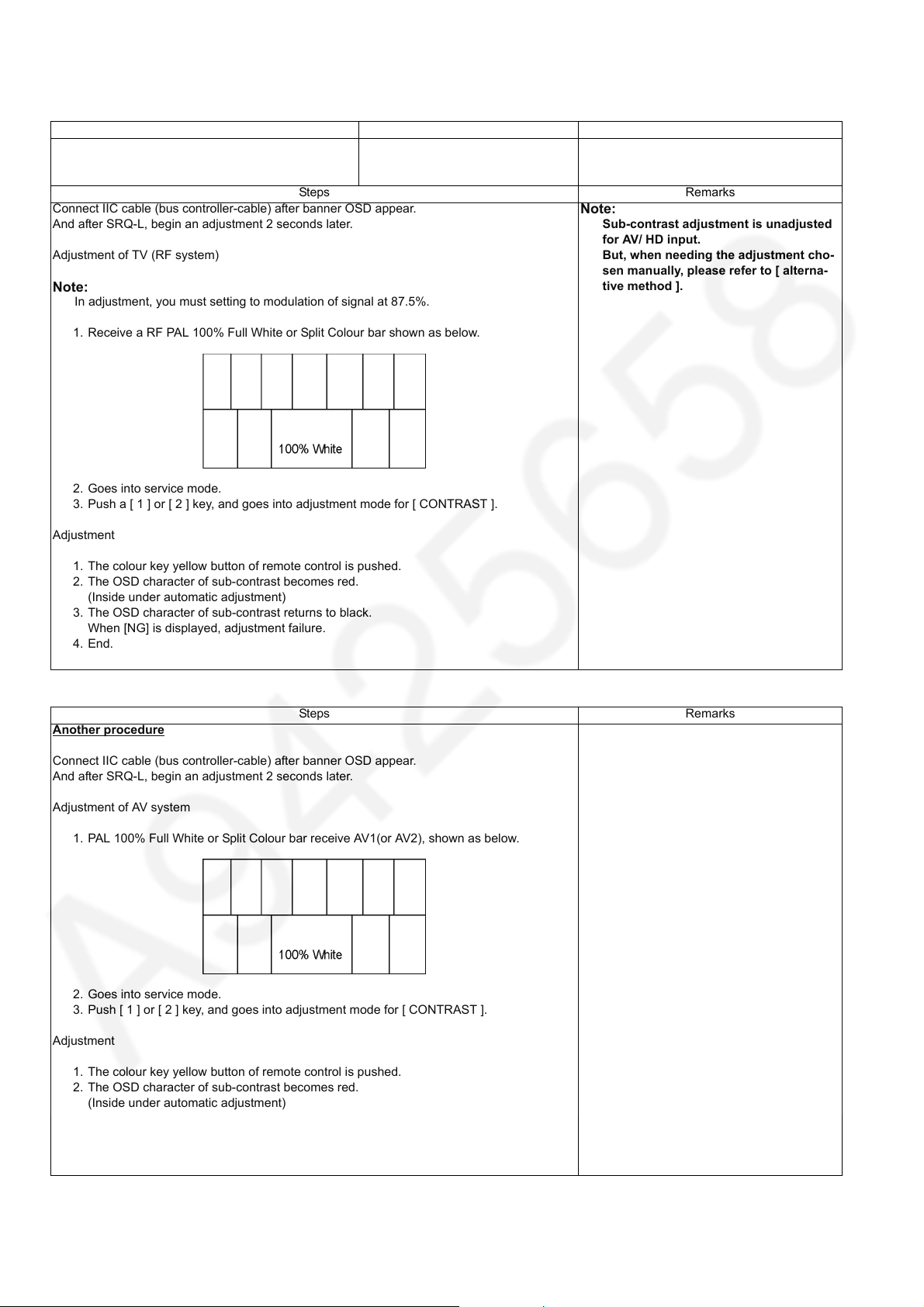

10.1.2. Sub-Contrast adjustment
Name of measuring instrument Connection Remarks
RF generator
Base Band signal generator
HD signal generator
Steps Remarks
Connect IIC cable (bus controller-cable) after banner OSD appear.
And after SRQ-L, begin an adjustment 2 seconds later.
Adjustment of TV (RF system)
Note:
In adjustment, you must setting to modulation of signal at 87.5%.
1. Receive a RF PAL 100% Full White or Split Colour bar shown as below.
2. Goes into service mode.
3. Push a [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ CONTRAST ].
Note:
Sub-contrast adjustment is unadjusted
for AV/ HD input.
But, when needing the adjustment cho-
sen manually, please refer to [ alterna-
tive method ].
Adjustment
1. The colour key yellow button of remote control is pushed.
2. The OSD character of sub-contrast becomes red.
(Inside under automatic adjustment)
3. The OSD character of sub-contrast returns to black.
When [NG] is displayed, adjustment failure.
4. End.
Steps Remarks
Another procedure
Connect IIC cable (bus controller-cable) after banner OSD appear.
And after SRQ-L, begin an adjustment 2 seconds later.
Adjustment of AV system
1. PAL 100% Full White or Split Colour bar receive AV1(or AV2), shown as below.
2. Goes into service mode.
3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ CONTRAST ].
Adjustment
1. The colour key yellow button of remote control is pushed.
2. The OSD character of sub-contrast becomes red.
(Inside under automatic adjustment)
3. The OSD character of sub-contrast returns to black.
When [NG] is displayed, adjustment failure.
4. End.
34
Page 35
Steps Remarks
Another procedure
Connect IIC cable (bus controller-cable) after banner OSD appear.
And after SRQ-L, begin an adjustment 2 seconds later.
Adjustment of HD system
1. At 1080i 100% Full White or Split colour bar receive component signal, as shown below.
2. Goes into service mode.
3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ CONTRAST ].
Adjustment
1. The colour key yellow button of remote control is pushed.
2. The OSD character of sub-contrast becomes red.
(Inside under automatic adjustment)
3. The OSD character of sub-contrast returns to black.
When [NG] is displayed, adjustment failure.
4. End.
35
Page 36

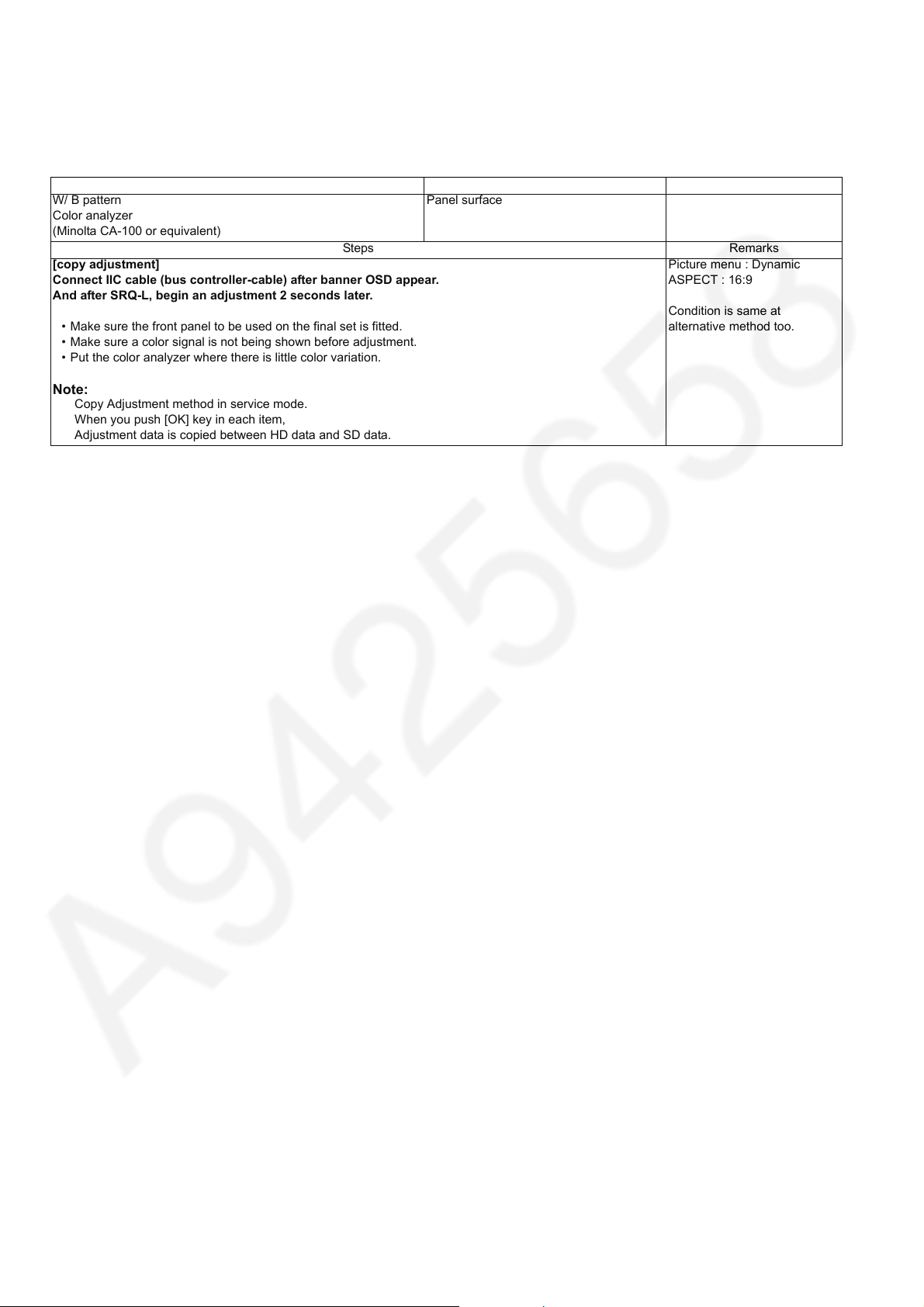

10.1.3. THX white balance adjustment
The adjusting method is different according to the PEAKS EEPROM version.
[copy adjustment] : Peaks EEPROM ver.1.00Â[Differential (Normal) + copy + WARM adjustment] : Peaks EEPROM ver.1.**-
Name of measuring instrument Connection Remarks
W/ B pattern
Color analyzer
(Minolta CA-100 or equivalent)
Steps Remarks
[copy adjustment]
Connect IIC cable (bus controller-cable) after banner OSD appear.
And after SRQ-L, begin an adjustment 2 seconds later.
• Make sure the front panel to be used on the final set is fitted.
• Make sure a color signal is not being shown before adjustment.
• Put the color analyzer where there is little color variation.
Note:
Copy Adjustment method in service mode.
When you push [OK] key in each item,
Adjustment data is copied between HD data and SD data.
Panel surface
Picture menu : Dynamic
ASPECT : 16:9
Condition is same at
alternative method too.
36
Page 37
Steps Remarks

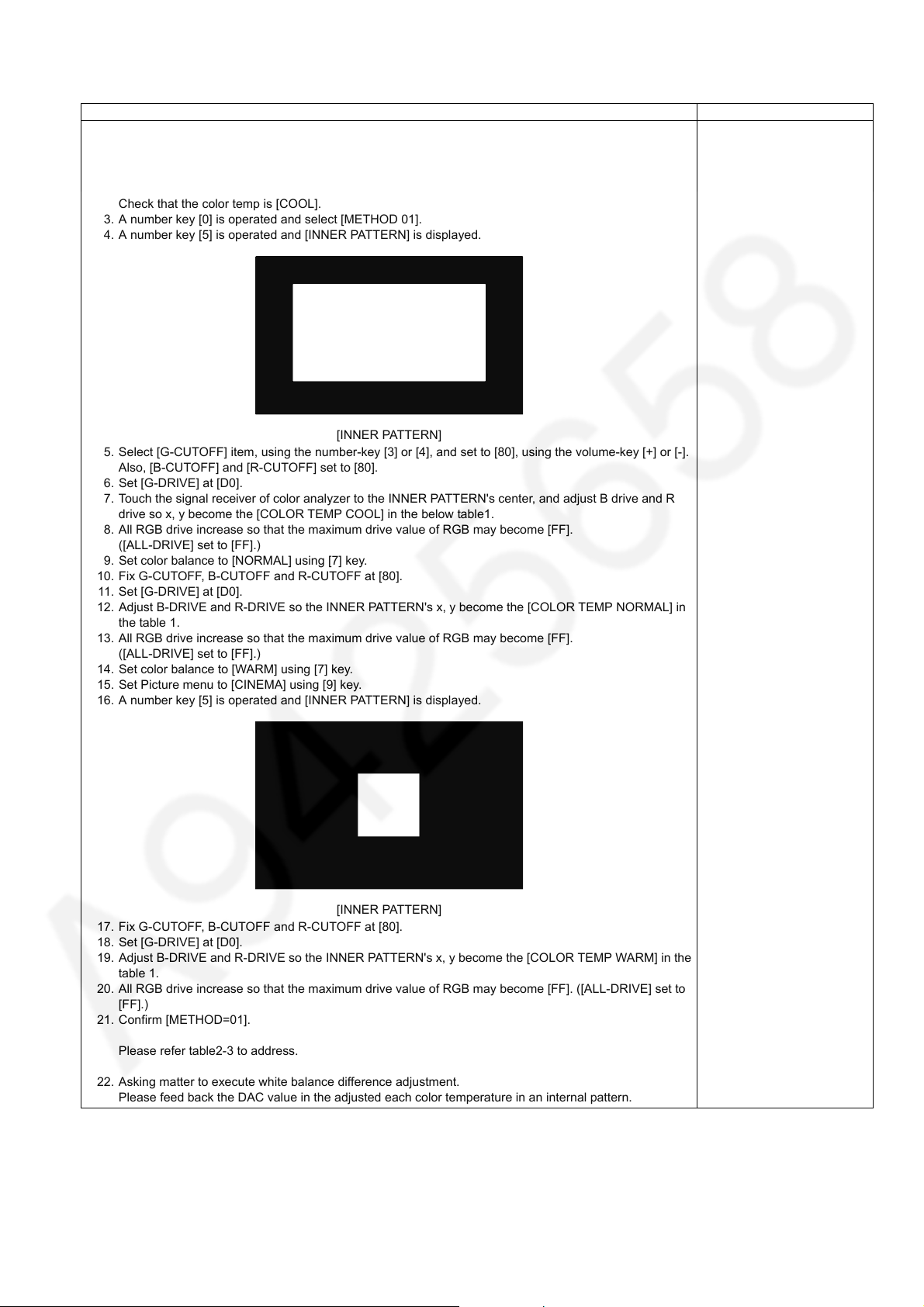

1. Enter the Service mode.
Please receive the Analog-RF.
Or, please select CVBS/YUV/HDMI. (No inputting is possible.).
(Forbid Analog-RF with no signal.)
2. A number key [1] or [2] are operated and [WB-ADJ] is displayed.
Check that the color temp is [COOL].
3. A number key [0] is operated and select [METHOD 01].
4. A number key [5] is operated and [INNER PATTERN] is displayed.
[INNER PATTERN]
5. Select [G-CUTOFF] item, using the number-key [3] or [4], and set to [80], using the volume-key [+] or [-].
Also, [B-CUTOFF] and [R-CUTOFF] set to [80].
6. Set [G-DRIVE] at [D0].
7. Touch the signal receiver of color analyzer to the INNER PATTERN's center, and adjust B drive and R
drive so x, y become the [COLOR TEMP COOL] in the below table1.
8. All RGB drive increase so that the maximum drive value of RGB may become [FF].
([ALL-DRIVE] set to [FF].)
9. Set color balance to [NORMAL] using [7] key.
10. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [80].
11. Set [G-DRIVE] at [D0].
12. Adjust B-DRIVE and R-DRIVE so the INNER PATTERN's x, y become the [COLOR TEMP NORMAL] in
the table 1.
13. All RGB drive increase so that the maximum drive value of RGB may become [FF].
([ALL-DRIVE] set to [FF].)
14. Set color balance to [WARM] using [7] key.
15. Set Picture menu to [CINEMA] using [9] key.
16. A number key [5] is operated and [INNER PATTERN] is displayed.
METHOD=01
copy adjustments
[INNER PATTERN]
17. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [80].
18. Set [G-DRIVE] at [D0].
19. Adjust B-DRIVE and R-DRIVE so the INNER PATTERN's x, y become the [COLOR TEMP WARM] in the
table 1.
20. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to
[FF].)
21. Confirm [METHOD=01].

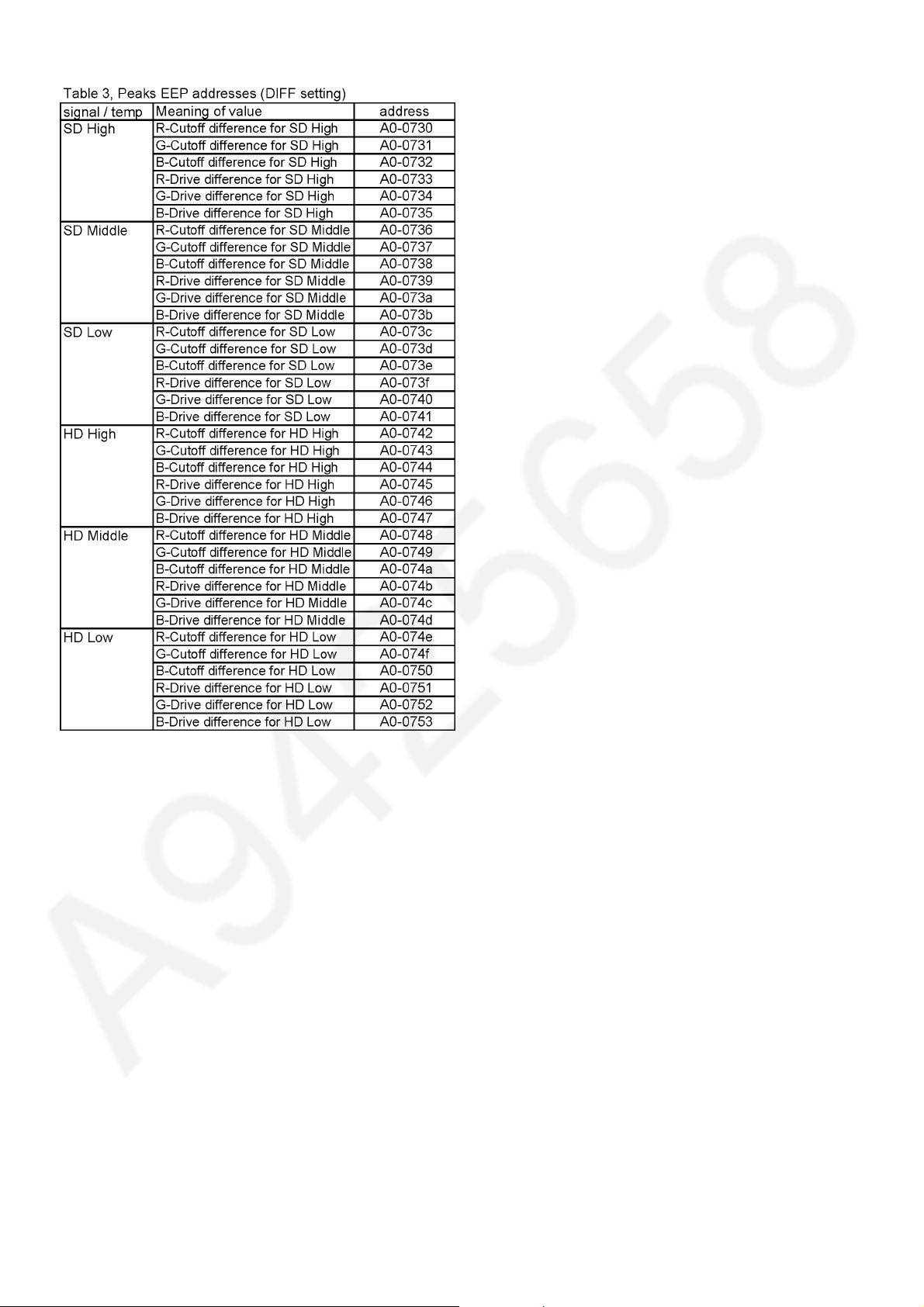

Please refer table2-3 to address.
22. Asking matter to execute white balance difference adjustment.
Please feed back the DAC value in the adjusted each color temperature in an internal pattern.
37
Page 38
Steps Remarks

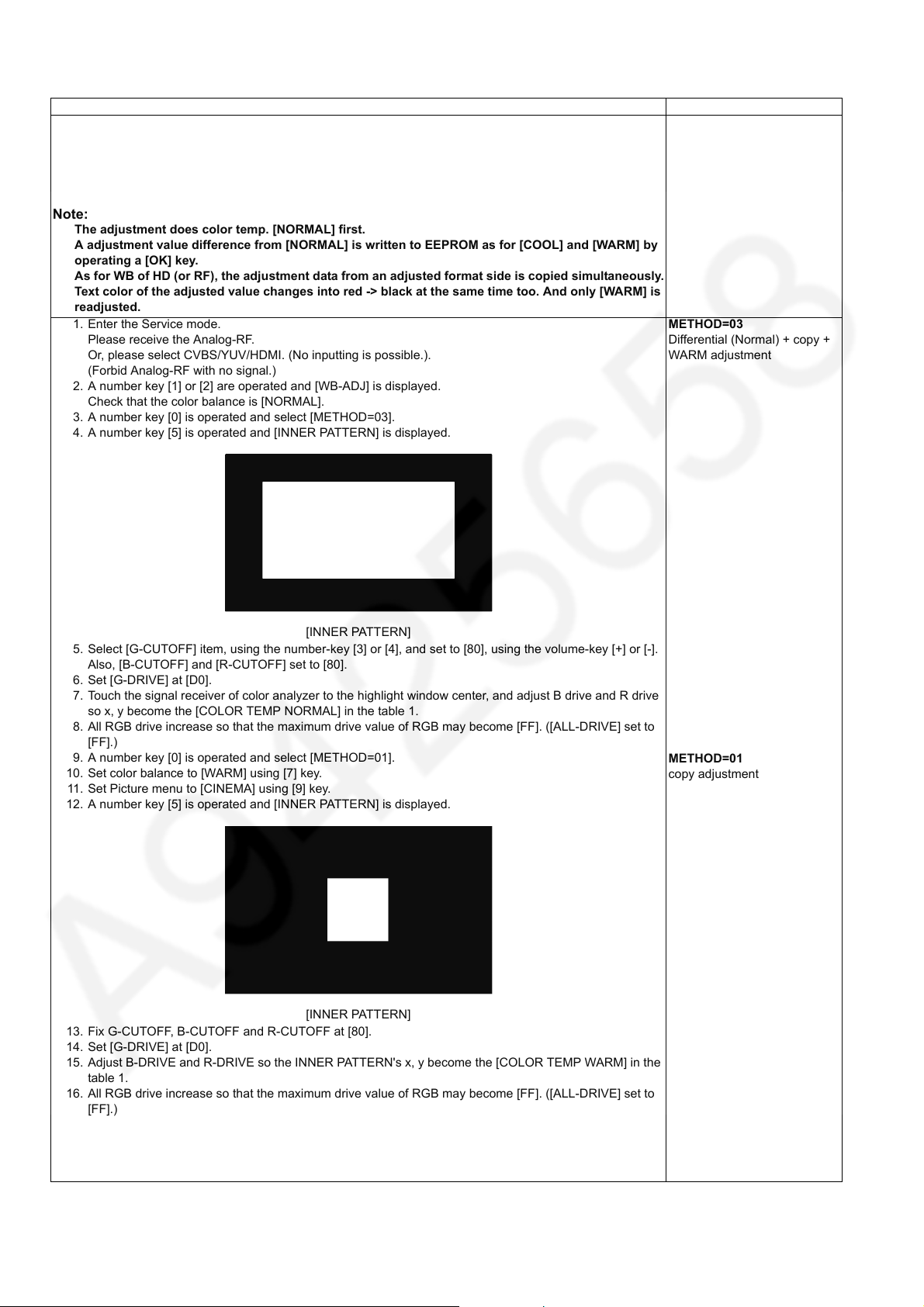

[Differential (Normal) + copy + WARM adjustment]
Adjustment of [COOL], [WARM] by data shift from [NORMAL] adjust.
And only [WARM] is readjusted.
Execute adjustment for color temp. [NORMAL], and set data for color temp. [COOL], [WARM] by data shift WB
of HD (or PAL) copies the adjustment data from an adjusted format side.
Note:
The adjustment does color temp. [NORMAL] first.
A adjustment value difference from [NORMAL] is written to EEPROM as for [COOL] and [WARM] by
operating a [OK] key.
As for WB of HD (or RF), the adjustment data from an adjusted format side is copied simultaneously.
Text color of the adjusted value changes into red -> black at the same time too. And only [WARM] is
readjusted.
1. Enter the Service mode.
Please receive the Analog-RF.
Or, please select CVBS/YUV/HDMI. (No inputting is possible.).
(Forbid Analog-RF with no signal.)
2. A number key [1] or [2] are operated and [WB-ADJ] is displayed.
Check that the color balance is [NORMAL].
3. A number key [0] is operated and select [METHOD=03].
4. A number key [5] is operated and [INNER PATTERN] is displayed.
METHOD=03
Differential (Normal) + copy +
WARM adjustment
[INNER PATTERN]
5. Select [G-CUTOFF] item, using the number-key [3] or [4], and set to [80], using the volume-key [+] or [-].
Also, [B-CUTOFF] and [R-CUTOFF] set to [80].
6. Set [G-DRIVE] at [D0].
7. Touch the signal receiver of color analyzer to the highlight window center, and adjust B drive and R drive
so x, y become the [COLOR TEMP NORMAL] in the table 1.
8. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to
[FF].)
9. A number key [0] is operated and select [METHOD=01].
10. Set color balance to [WARM] using [7] key.
11. Set Picture menu to [CINEMA] using [9] key.
12. A number key [5] is operated and [INNER PATTERN] is displayed.
[INNER PATTERN]
13. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [80].
14. Set [G-DRIVE] at [D0].
15. Adjust B-DRIVE and R-DRIVE so the INNER PATTERN's x, y become the [COLOR TEMP WARM] in the
table 1.
16. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to
[FF].)
17. Confirm [METHOD=01].
METHOD=01
copy adjustment

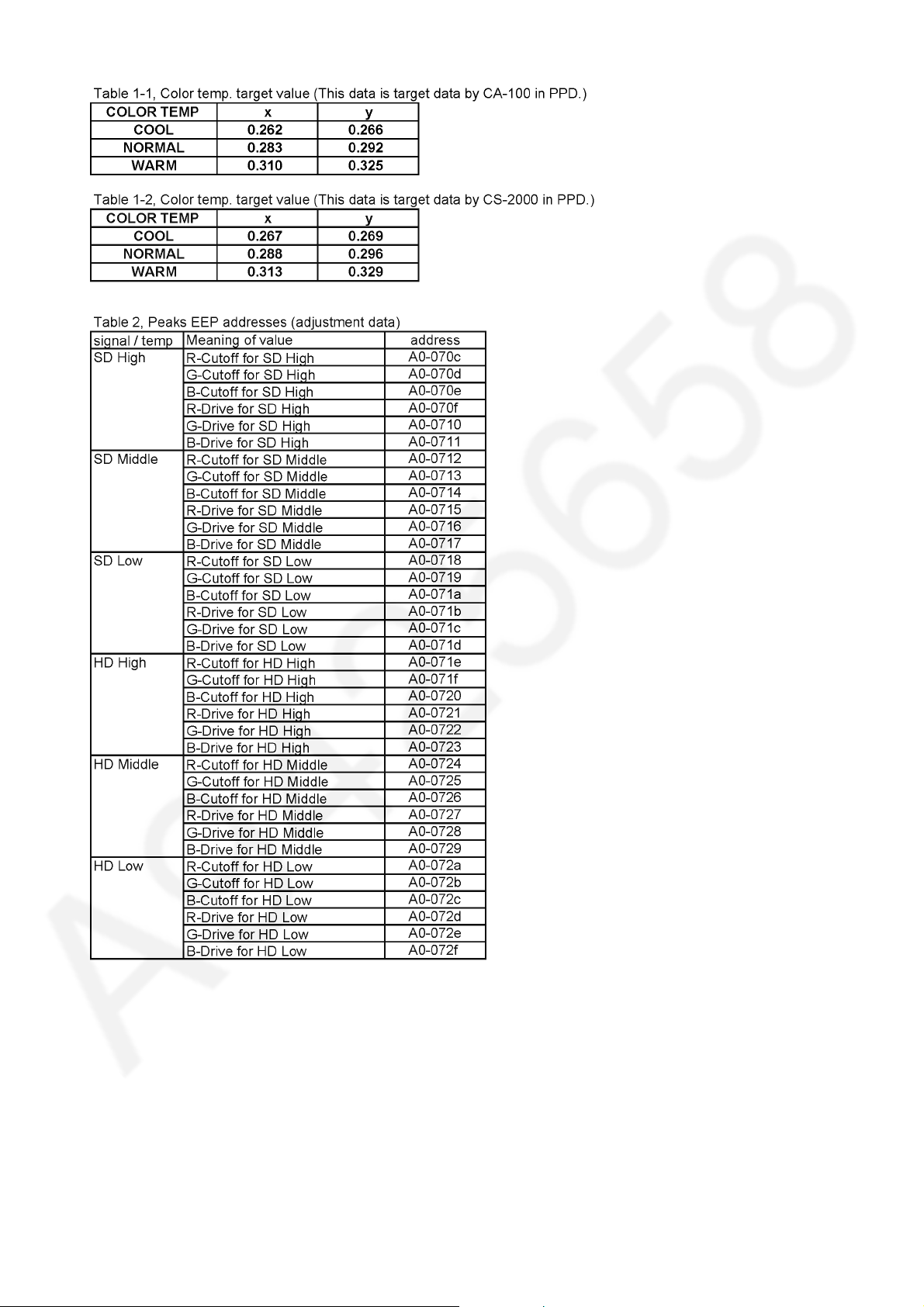

Please refer table2-3 to address.
38
Page 39
39
Page 40
40
Page 41
11 Block Diagram
11.1. Main Block Diagram
MAIN AV INPUT,PROCESSING
A
SIF_OUT
G/S ONLY
IFD_OUT
TUNER
V
V
AV3
AV2
AV1
AUDIO
OUT
DIGITAL
AUDIO
HEADPHONE
SPEAKER(L)
SPEAKER(R)
WOOFER
SU
L/R
V
L/R
Y/PB/PR
L/R
R/G/B
PC
A OUT L/R
OUT
L/R
SCAN OUT (UPPER)
SCAN
DRIVER
SU11
SD11
SCAN
DRIVER
LOGIC
L
A11
R
WO
A12
SC41
SU41
SD42
SC42
SC46
SD46
C1
CVBS/Y,PR/C,PB
AV SW
DIGITAL AUDIO OUT
PWM L/R
AUDIO
SOUND SOS
AMP
SOUND SOS
AUDIO
PWMW
AMP
SC
SCAN DRIVE
SC-BOARD
ENERGY RECOVERY
SOS DETECT
(LED:6 TIMES)
SC-BOARD
FLOATING PART
SOS DETECT
(LED:7 TIMES)
CONTROL
PULSE
VSCAN GEN.
VAD GEN.
DATA DRIVER (RIGHT)
ARC
(HDMI2)
L/R
PC_H/V
L/R
SOS6_SC1
SOS7_SC2
SCAN CONTROL
P+5V
P+15V
HDMI1-4
VSUS
TMDS DATA
ARC
(HDMI2)
SC20
SC2
P+3.3V
C14
NAND
FLASH
PEAKS
EEPROM
VDDSD
18V33V
STB5V
STB1.2V
STB3.3V
SUB5V
SUB9V
P+3.3V
SOS6_SC1
SOS7_SC2
A20
SIDE UNIT ASSY
C10
F15V
P+5V
P+15V
SCAN CONTROL
C20
HDMI I/F
SIF I/F
TUNER I/F
VIDEO INPUT
AUDIO INPUT
VIDEO (PC) INPUT
AUDIO OUTPUT
CPU BUS I/F
NAND FLASH I/F
IIC
IEC OUT
HP OUT
AUDIO PWM
ANALOG-ASIC
(LED:9 TIMES)
SOS6_SC1
SOS7_SC2
(LED:8 TIMES)
OPERATION KEYS
KEY1
P+3.3V
(LED:6 TIMES)
(LED:7 TIMES)
SOS8_SS
PANEL SOS
SOS_DCC
VDA
VIDEO DATA
PEAKS-LDA3
KEY1
A31
KEY1
C21
SPI
FLASH
VIDEO DATA
P+3.3V
VIDEO DATA
P+3.3V
P+3.3V
(LED:12 TIMES)
LVDS I/F
SOUND SOS
LVDS I/F
LVDS DATA
DATA DRIVER (CENTER)
C2
VIDEO DATA
LP1-2LP1
STM
PANEL SOS
KEY1
IR_LR
VIDEO
DATA
(LED:10 TIMES)
PANEL MAIN ON
SUSTAIN
CONTROL
A32
(LED:3 TIMES)
(LED:5 TIMES)
(LED:4 TIMES)
P+5V DET
SOS4_PS
P+3.3V DET
P+5V
P+3.3V
IR LED
DRIVER
SOS4_PS
PANEL MAIN ON
SOUND15V
SOS8_SS
A40
(LED:11 TIMES)
SUB+3.3V SENSE
TUNER_POWER_SOS
IR_LED_SOS
STB5V
P+15V
F15V
P+5V
P+5V
SOS8_SS
SUSTAIN CONTROL
VIDEO DATA
P+3.3V
LAN CON I/F
SD CARD I/F
USB I/F
DDR3 I/F
FAN ON
FAN SOS
SUB+5V SENSE
REMOTE IN
C.A.T.S SENSOR
STM IIC
LED1-4
A6
P2
R LED
G LED
SUS
C26
P6
P64
P63
VSUS
POWER FACTOR
CONTROL
RECTIFIER
DDR3
SUB5V
SUB3.3V
TUNER_POWER_SOS
(LED:10 TIMES)
STM
EEPROM
POWER SUPPLY
P
SOS4_PS
STB5V
PANEL MAIN ON
SOUND15V
P+15V
F15V
STB5V
P+15V
SOUND15V
SUSTAIN
VOLTAGE
CONVERTER
C36
F15V
P62
P61
P+3.3V
F15V
DCDCIN
P-BOARD
SOS DETECT
(LED:4TIMES)
Vda
STANDBY
VOLTAGE
CONVERTER
P59
C31
SUB3.3V
P+3.3V
P
SUB1.5V
SUB1.2V
P60
C3
ETHERPHY
DCDC
SUB5V
DCDC
SUB5V
DCDC
DCDC
MAIN
PROCESS
VOLTAGE
CONVERTER
HOTCOLD
POWER
FACTOR
CONTROL
P56
P52
P55
P51
RECTIFIER
RELAY
P9
AC CORD
DATA DRIVER (LEFT)
Vda
VIDEO DATA
P+3.3V
SUB1.5V
SUB1.2V
SUB3.3V
SUB1.8V
FAN ON
DCDC
F15V
SUB5V
P
P+5V
VSUS
SUSTAIN
VOLTAGE
CONVERTER
P57
SUB
ETHERNET DATA
SD CARD DATA
FAN CONT.
FAN_SOS DET
(LED:11 TIMES)
SUB1.8V
VSUS
P+15V
P58
VDA
P35
C35
VDA
USB
DCDC
P+2.5V
DCDC
P+1.1V
P+1.1V
P11
P34
SUB3.3V
STB3.3V
P+1.1V_S
P+1.1V_M
MAIN SW1
MAIN SW2
ETHERNET
SD CARD
USB_1-3
P+2.5V
SS
SS11
A8
A1
A14
SUSTAIN DRIVE
VSUS
P+15V
SOS8_SS
P+5V
SS33
FAN_A-D
K1
3D EYEWEAR
V
TRANSMITTER
V14
SS-BOARD
SOS DETECT
(LED:8 TIMES)
VSUS GEN.
VE GEN.
ENERGY RECOVERY
SUSTAIN CONTROL
POWER LED
K
REMOTE RECEIVER
C.A.T.S. SENSOR
SUB3.3V
STB3.3V
SS2
S10
LED R
LED G
REMOTE RECEIVER
C.A.T.S SENSOR
3D EYEWEAR
TRANSMITTER
ZA16101
ZA16102
ZA16111
ZA16112
SUSTAIN
OUT
(LOWER)
POWER SW
S
POWER SWITCH
ON
SCAN OUT (LOWER)
SD
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
41
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
Page 42
11.2. Block (1/4) Diagram
AV1
(COMP)
JK3000
AV2
JK3002
AV3
JK3006
JK3003
JK3004
JK3005
AUDIO OUT
JK3001
HEADPHONE
SOUND15V
PANEL_MAIN_ON
SOS4_PS
STB5V_SW_ON
TUNER_SUB_ON
PC
STB5V
P_S1
P_S0
F15V
F15V
P+15V
IC4901
AUDIO
AMP2
SOUND15V
WOOFER
JK8532
USB2
IC8532
USB0VBUS
JK8531
USB3
IC8607
USB1VBUS
PEAKS-LDA3
USB2VBUS
IC8000
JK8301
ETHERNET
JK8533
1
3
A12
WO(+)
WO(-)
OUT
WOOFER
PWM
SOS
AUDIO PWM
SOUND SOS
USB1
IC8531
USB I/F
(LED:12 TIMES)
VCC
HDMI3.3V
SUB3.3V
DDR3 I/F
CPU BUS I/F
IIC1
SUB1.8V
SUB1.5V
SUB1.2V
IC8601
ETHERPHY
X8600
25MHz
HDMI_SW3.3V
X8300
24.576MHz
LAN CON I/F
AXO
JK3007
DIGITAL
AUDIO
OUT
AXI
PANEL_MAIN_ON
TUNER_SUB_ON
PANEL MAIN ON
Q4500
IEC OUT
SOS4_PS
TUNER_SUB_ON
(LED:4 TIMES)
SOS4_PS
ARC_OFF
KEY1
JK4600
PULL_ON
HDMI_CEC_
STM
KEY1
G_LED_ON
G_LED_ON
HDMI4
HDMI_CEC
HDMI_CEC
HDMI_5VDET0
XRSTSTM
XRSTSTM
PDP_DRVRST
+5V
DDC_IIC0
DDC_IIC0
DRVRST
XRST
JK4601
HDMI3
TMDS DATA
CLOCK
RX0
XRST
SDVOLC
LP1_XRST_SYS
LP1_XRST_SYS
SDVOLC
+5V
DDC_IIC1
HDMI_CEC
RX1
DDC_IIC1
HDMI_5V_DET1
REMOTE_IN
C.A.T.S_SENSOR
R_LED_ON
C.A.T.S
REMOTE IN
JK4602
TMDS DATA
CLOCK
PANEL_SOS
R_LED_ON
POWER_DET
PANEL SOS
HDMI2
+5V
ARC
HDMI_CEC
HDMI_5V_DET2
MAIN_FAN_ON
SW_OFF_DET
POWER_DET
MAIN_FAN_ON
SW_OFF_DET
DDC_IIC2
DDC_IIC3
HDMI I/F
FAN_MAX
FAN_MAX
JK4603
HDMI1
TMDS DATA
CLOCK
FAN_SOS
(LED:11 TIMES)
IR_DCDC_ON
FAN_SOS
+5V
DDC_IIC3
HDMI_CEC
DDC_IIC4
HDMI_5V_DET3
IR_LED_SOS
IR_DCDC_ON
IR_LED_SOS
USB5V
TMDS DATA
CLOCK
STB3.3V
STB1.2V
DDC_IIC3
DDC_IIC2
RX4
RX5
3.3V
D8719
IC4700
HDMI MUX
(LED:10 TIMES)
D8725
D8726
D8713
SEL2
SEL1
IIC3
SUB3.3V_SENSE
SUB5V_SENSE
TUNER_POWER_SOS
D8711
D8712
RX2
P+5V DET
P
VJ9805
SD DATA:4bit
DDC_IIC2
LVDS I/F
P+3.3V DET
(LED:5 TIMES)
(LED:3 TIMES)
SUB3.3V
SD CARD I/F
VDDSD1.8V3.3V
IIC0
IIC1
IIC3
DMD_
IIC0
SBI0
SBO0
STM
IIC
STB3.3V
STB1.2V
LEDDRV_5V
JK8650
SD CARD
VDDSD18V33V
LVDS DATA
IIC0
IIC1
IIC3
DMD_
IIC0
SBI0
SBO0
P+3.3V
P+5V
IC3753
TEMP SENSOR
STB5V
SUB9V
SUB5V
F15V
P+15V
STM
IIC
IC8901
STM
EEPROM
1
2
STB3.3V
3
4
IIC3
5
6
7
8
9
10
11
12
13
SPEAKER_L
TU4801
MAIN
A
DMD_IIC0
IC3001
AV SW
R
V
AV2
L
R
AV3
V
L
PR
PB
Y
AV1
R
L
IIC3
PC
R
G
B
H
V
R
L
CVBS/Y,PR/C,PB
TUNER
MAIN
PC_H/V
L/R
L/R
3.3V
5V
9V
ANT IN
TUNER
G/S ONLYG/S ONLY
VIDEO
FE_XRST
5V
SIF_OUT
IF_AGC
IFD_OUT1
IFD_OUT2
1.8V
3.3V
TV_V
V
IC4900
AUDIO
AMP
SOUND15V
A11
USB5V
HDMI_SW3.3V
SUB3.3V
SPEAKER_R
4
3
L(+)
L(-)
L_OUT
SPEAKER
PWM L/R
IFD2
IFD1
IF_AGC
FE_XRST
SIF I/F
CVBS/YPbPr/RGB/YC
L/R
H/V
AUDIO OUT
L/R
HP L/R
SUB1.5V
SOS
AV IN
1
2
R(-)
R(+)
SPEAKER
IC8200,01
R_OUT
DDR3
IC8902
SUB3.3V
PEAKS
EEPROM
IC8900
NAND
FLASH
A6
P6
15
6
PANEL_MAIN_ON
1
2
3
4
5
7
10
11
13
SOS4_PS
STB5V_SW_ON
TUNER_SUB_ON
PA5601
P_S1
P_S0
VJ1001
P
F15V
DCDCEN
SOUND15V
PA5440
DCDCIN
STB5V
IC5350
IC8701
IC8707
IC8100
USB5V
+5V
SUB5V
+5V
SUB3.3V
+3.3V
SUB1.5V
SUB1.2V
+1.5V
+1.2V
USB5V
SUB5V
SUB3.3V
SUB1.5V
SUB1.2V
F15V
P+15V
IC8706
HDMI3.3V
HDMI_SW3.3V
3.3V
IC8702
+1.8V
HDMI3.3V
SUB1.8V
42
Page 43
11.3. Block (2/4) Diagram
MAIN AV INPUT,PROCESSING
A
1
LVDS DATA
2
3
4
5
6
7
8
9
10
11
VDDSD18V33V
P+3.3V
P+5V
STB3.3V
STB1.2V
STB5V
SUB9V
SUB5V
LEDDRV_5V
SOS6_SC1
SOS7_SC2
SOS8_SS
SOS_DCC_S
SOS_DCC_M
PANEL SOS
STB5V_SW_ON
POWER_DET
SW_OFF_DET
VDDSD18V33V
P+3.3V
VJ5000
SUB9V
SUB5V
F15V
STB5V
IC9300
LP1
A31
C21
14
VIDEO DATA
52
1
P+3.3V
2
P+3.3V
4
KEYSCAN
DATA DRIVER CONTROL
A32
C31
2
VIDEO DATA
40
DATA DRIVER CONTROL
55
P+5V
SS33
A40
SUSTAIN CONTROL
1
SOS8_SS
19
P+5V
20
P+5V
A20
SC20
SCAN CONTROL
18
UHZ
15
SOS6_SC1
16
SOS7_SC2
1
P+5V
29
P+15V
30
P+15V
FOR
FACTORY
USE
FOR
FACTORY
USE
A8
1
4
FAN A-D
7
10
3
6
9
12
1.1V_S
2.5V
3.3V
FLASH I/F
P_S0
P_S1
DRVRST
OFF_FLAG
XRST_SYS
XRST
3.3V
2.5V
1.1V_M
STB3.3V
SUB_AI3.3V
PLASMA AI
CPG
H/V Sync Control
Sub Filed Processor
DISCHARGE CONTROL
DATA DRIVER CONTROL
IC9500
PLASMA AI
CPG
H/V Sync Control
Sub Filed Processor
SOS_DCC_S
SUSTAIN CONTROL
SCAN CONTROL
LP1-2
SOS_DCC_M
MAIN_FAN_ON
FAN_MAX
FAN_SOS
(LED:11 TIMES)
XRSTSYS
LVDS DATA
P+1.1V_S
P+2.5V
P+3.3V
IC9304
SPI
IC9830
IC9820
IC9860
DCDCEN
DCDCEN
DCDCEN
P+3.3V
+3.3V
P+2.5V
+2.5V
P+1.1V_S
P+1.1V_M
+1.1V
+1.1V
P_S0
P_S1
DRVRST
LP1_XRST_SYS
XRST_SYS_A
IC5000
SD_VCC
SUB9V
SUB5V
BUFF_EN
DTV_15V
SOS6_SC1
(LED:6TIMES)
SOS7_SC2
(LED:7TIMES)
SOS8_SS
(LED:8TIMES)
SOS_DCC_S
(LED:9TIMES)
SOS_DCC_M
(LED:9TIMES)
PANEL_SOS
POWER_DET
S
ANALOG-ASIC
DTV_RST
DCDC_CTL
SD_UHS
DRVRST_
IN
DRVRST_
OUT
UHZ
STB+1.2V
STB+3.3V
STBRST
XRST
DCDCEN
SDVOLC
PDP_DRVRST
DRVRST
SC_UHZ
D_UHZ
STB1.2V
STB3.3V
XRSTSTM
F15V
FLASH
P+3.3V
P+2.5V
P+1.1V_M
P+3.3V
SUB5V
D9806
LVDS DATA
IC5251
SUB_AI3.3V
+3.3V
SBI1
SBO1
SI/SO
IR_LR
XRST
VIDEO DATA
IIC0
KEY1
UHZ
X0
X9300
20MHz
X1
D_UHZ
SOS_DCC_S
IC9501
SUSTAIN DATA
BUFFER
IC9400-02
SCAN DATA
BUFFER
SOS8_SS
VIDEO DATA
IIC0
P+5V
P+15V
IR_LR
SOS_DCC_M
XRST_SYS_A
IC5607
FAN CONTROL
SC_UHZ
SOS6_SC1
SOS7_SC2
D5624
D5625
P+3.3V
IIC0
IIC1
STM_IIC
SBO0/SBI0
IIC0
IIC3
DMD_IIC0
D5703
D5621
D5622
D5704
A17
A18
G_LED_ON
R_LED_ON
3D EYEWEAR
V
IC5900
PA5900
IR_DCDC_ON
IR_LED_SOS
12
13
F15V
P+15V
IR_LR
LEDDRV5V
+5V
LEDDRV_5V
IC5901
IR LED DRIVER
VBAT
FAULT
PWM
LED1
LED2
LED3
LED4
A14
V14
LED1
2
2
LED2
3
3
LED3
4
4
LED4
5
5
TRANSMITTER
D2850
D2851
D2852
D2853
3D EYEWEAR
TRANSMITTER
C.A.T.S
REMOTE_IN
A1
8
6
2
5
3
1
G_LED_ON
R_LED_ON
C.A.T.S
REMOTE_IN
STB3.3V
SUB_AI3.3V
K1
8
6
2
5
3
1
POWER LED
K
REMOTE RECEIVER
C.A.T.S. SENSOR
POWER LED
D2820
G
R
SN2810
C.A.T.S SENSOR
RM2810
REMOTE
RECEIVER
43
Page 44
11.4. Block (3/4) Diagram
P(SUS)
RECTIFIER
POWER SUPPLY
I201B
PFC
L201B
Q201B
Q202B
Q203B
CONTROL
FET
DRIVER
D201B
F301B
Q301B,Q302B
RESONANCE
VGH
I301B
RESONANCE
CONTROL
VCC
COLDHOT
T301B
VGL
L301B
CSS
FB
I302B
PHOTO COUPLER
D351B
RECTIFIER
I351B
Vsus
ERROR DET
Vsus
VR951
Q701B,Q702B
Vsus Adj
P2
SC2
1
Vsus
F102
NEUTRAL
NEUTRAL
P59
P60
FILTER
RECTIFIER
1
1
F101
LIVE
2
AC CORD
LIVE
3
P(SUB)
RELAY
S101
234
1
RELAY
S102
POWER SUPPLY
HOT
COLD
4
P52
P51
3
P56
P55
3
3
P57
P58
1
1
2
2
4
4
HOT
COLD
331
2
3
1
P61
P(MAIN)
L201A
L202A
PFC
POWER SUPPLY
D201A
D202A
Q201A
Q202A
CONTROL
Q203A
Q204A
FET
DRIVER
F301A
Q301A,Q302A
RESONANCE
VGH
I301A
RESONANCE
CONTROL
VCC
L401
VGL
L301A
FB
CSS
23
1
P62
I201A
F103
R103
123
Q501
T301A
T302
I302A
PHOTO COUPLER
HOT
I602
PHOTO COUPLER
I501
PHOTO COUPLER
COLDHOT
COLDHOT
COLD
D352
RECTIFIER
ZD352
D351A
RECTIFIER
I351A
Vsus
ERROR DET
Q374
Vsus
VR251
Q354
Vda
CONTROL
Q701A,Q702A
Vsus Adj
I352
Q376
Q377
Q375
CONTROL
FET
DRIVER
D354
I651
ERROR DET
P+15V
Q454
VR600
Vda
I453
D404
AC DET
T401
I402
PHOTO COUPLER
I603
PHOTO COUPLER
I101
PHOTO COUPLER
D451
D459
F_STBY
ERROR DET
STB+5V DET
I451
ZD652
I401
STB
CONTROL
F501
L101
L103
D501
Q565
P9
F_STBY(F15V)
F451
Q451
I455
STB+5V
Q457
ERROR DET
Q459,60
P+15V
3
2
P63
443
211
P64
C35
P35
1
Vda
2
Vda
P11
SS11
1
Vsus
4
P+15V
NO USE
P25
7
S0
8
S1
1
P+15V
2
P+15V
5
STB+5V
9
PANEL_MAIN_ON
10
SOS_PS
A6
P6
4
SOS4_PS
1
PANEL_MAIN_ON
2
S1
3
S0
6
STB+5V
13
P+15V
15
SOUND+15V
10
F+15V
11
F+15V
7
F_STABY_ON
5
Q458
STBY5V_ON
Q555
Q462
3
1
P34
44
SW2890
POWER SWITCH
S
ON
POWER SWITCH
S10
MAIN SW1
3
MAIN SW2
1
Page 45
11.5. Block (4/4) Diagram
SC
SCAN DRIVE
P2
SC2
1
Vsus
IC16501
CMH
BUFFER
SUSTAIN H
IC16502
CSH
BUFFER
RECOVERY H
IC16522
CSL
BUFFER
RECOVERY L
SCAN
CONTROL
SIDE UNIT ASSY
F
+
-
TV
AV
DATA DRIVER (RIGHT)
C1
CB1
Q16451
Q16452
+
-
CB2
SCAN CONTROL
OPERATION KEYS
A20
P+15V
P+15V
SOS6
SOS7
P+5V
SC
20
7
6
18
UHZ
35
21
20
TPVSUS
CPH1
MID
(LED:6 TIMES)
(LED:7 TIMES)
CB3
Q16401
Q16402
Q16403
Q16404
CML
Q16441
Q16442
Q16443
D16583
LED(G)
TPSOS6
TPSOS7
IC16684
BUFFER
VOL
IC16521
BUFFER
SUSTAIN L
D16493
C14
IC16561,62
BUFFER
IC16563
INVERTER
IC16564,65
2
Q16607
CERS
IC16490,91
VSET DET
OR
IC16471
SHUNT
REG
C10
36
38
27
VIDEO DATA
9
CONTROL DATA
4
1
D16618
Q16421
Q16422
Q16423
Q16424
KEY1
P+3.3V
SS
SUSTAIN DRIVE
CML
CMH
CSH
CSL
CRC1
Q16600
Q16601
Q16621
Q16622
Q16623
Q16624
CPH1
CIS
CERS
CEL
CRC2
CIS
SEPA
SIU
OC1
OC2
CLK
SEL
C2
D16791
Q16471
VFG
CRC1
CRC2
CEL
IC16786,87
PC16723
IPD CIRCUIT
VSCN GEN.
SHUNT REG
IC16795
D16476
D16473
SCNR_PRO
DATA DRIVER (CENTER)
IC16784,85
IPD CIRCUIT
VAD GEN.
SHUNT REG
F15V
D16475
PC16897
IC16921
IGBT CONTROL
T16472
SS
P11
11
1
SU
SCAN OUT (UPPER)
SC
SU
41
ZA16422
ZA16421
ZA16412
ZA16411
41
2
2
6
6
8
8
1
1
T16471
TPVAD
VF5V
VSCN-F
VFO
CHA
Q16661
SD
SC
42
42
1
SC JIG
VF5V
VSCN_F
VFO
SIU
OC1
OC2
CLK
SEL
CHA
VFG
2
TPVFG
VFG
IC16691
+5V
NAND
D16713
D16714
KEYSCAN
52
5V_F
42
Q16660
TPSC1
D16825
VIDEO DATA
24
22
VIDEO DATA
CONTROL DATA
4
SC
50
P+3.3V
P+3.3V
55
54
CEL
D16728
IC16724
(SC)
A31
C21
6
6
2
2
1
1
8
8
9
9
SD
SC
46
46
SD
IC14601-03
ZA14901
IC14604-06
ZA14902
SU1-SU5
PLASMA PANEL
PANEL SCAN
ELECTRODE
SD1-SD5
ZA14951
ZA14952
IC14801-03
IC14804-06
SCNR_PRO
CHA
LOGIC IC
IC14901,02,04
SCAN OUT (LOWER)
PDP SCAN
DRIVER
PDP SCAN
DRIVER
PDP SCAN
DRIVER
PDP SCAN
DRIVER
SU
11
SD
11
SUSTAIN CONTROL
P+15V
SOS8_SS
Vsus
A40
P+5V
P+5V
4
UMH
MAIN H
IC16131
BUFFER
IC16151
BUFFER
USH
RECOVERY H
D16254
LED(G)
RECOVERY L
IC16152
BUFFER
USL
IC16132
BUFFER
UML
MAIN L
IC16191
IC16243
INV
IC16244
AND
SS
33
IC16241
1
2
BUFFER
20
D16255
TPSOS8
(LED:8 TIMES)
VIDEO DATA
A32
16
54
C31
UEH
USL
USH
UML
UMH
CONTROL DATA
UEH
BUFFER
IC16304,12
PC16301
IPD CIRCUIT
VE GEN.
SHUNT REG
D16282
FPC PROTECTOR
C3
DATA DRIVER (LEFT)
Q16041
Q16042
MID
Q16051
Q16052
Q16001
Q16003
Q16004
Q16021
Q16022
Q16023
Q16101
Q16102
TPVE
TPVSUS
TPSS1
SS2
ZA16106
ZA16116
SUSTAIN OUT
(LOWER)
ZA16102
ZA16112
ZA16101ZA16111
SS
64
1
2
13
SS
65
1
2
13
SS
66
PLASMA
PANEL
1
PANEL
2
SUSTAIN
ELECTRODE
13
SS
69
1
2
13
C20
5
3
14
32
VDA
37
VDA
40
CB4
CB5
CB6
CB7
BUFFER
IC17201,02
CB8
CB9
C26
P+3.3V
26
P+3.3V
25
5
1
VIDEO DATA
15
VIDEO DATA
23
C36
5
6
VDA
26
VDA
30
16
8
CB
10
CB
11
BUFFER
CB
12
IC17301
P35
C35
1
VDA
2
VDA
CB
13
CB
14
CB
15
DATA DRIVER
PLASMA PANEL
DATA DRIVER
DATA DRIVER
45
Page 46
46
Page 47
12 Wiring Connection Diagram
12.1. Caution statement
Caution:
Please confirm that all flexible cables are assembled correctly.
Also make sure that they are locked in the connectors.
Verify by giving the flexible cables a very slight pull.
12.2. Wiring (1)
47
Page 48

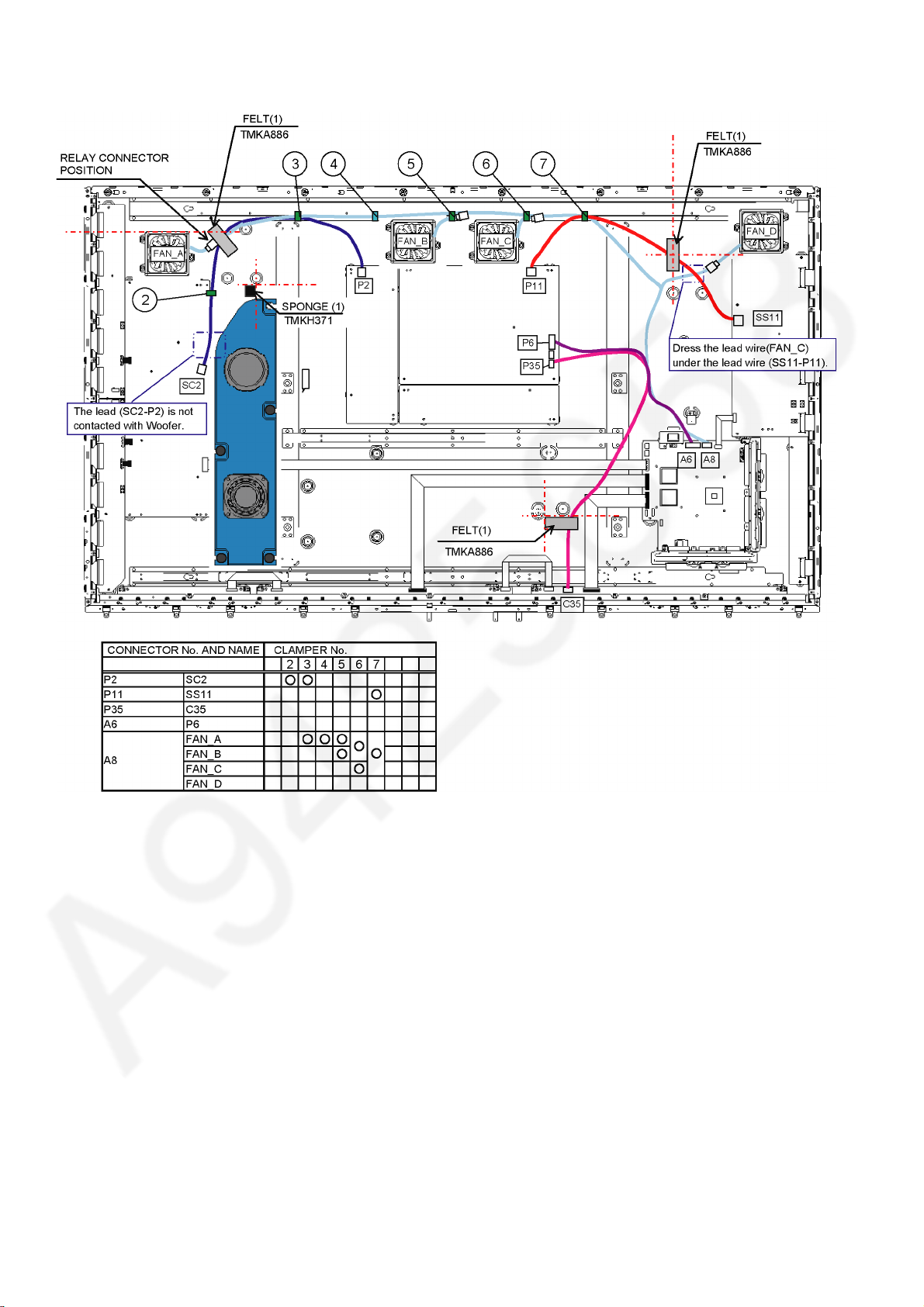

12.3. Wiring (2)
48
Page 49
12.4. Wiring (3)
12.5. Wiring (4)
49
Page 50
12.6. Wiring (5)
50
Page 51

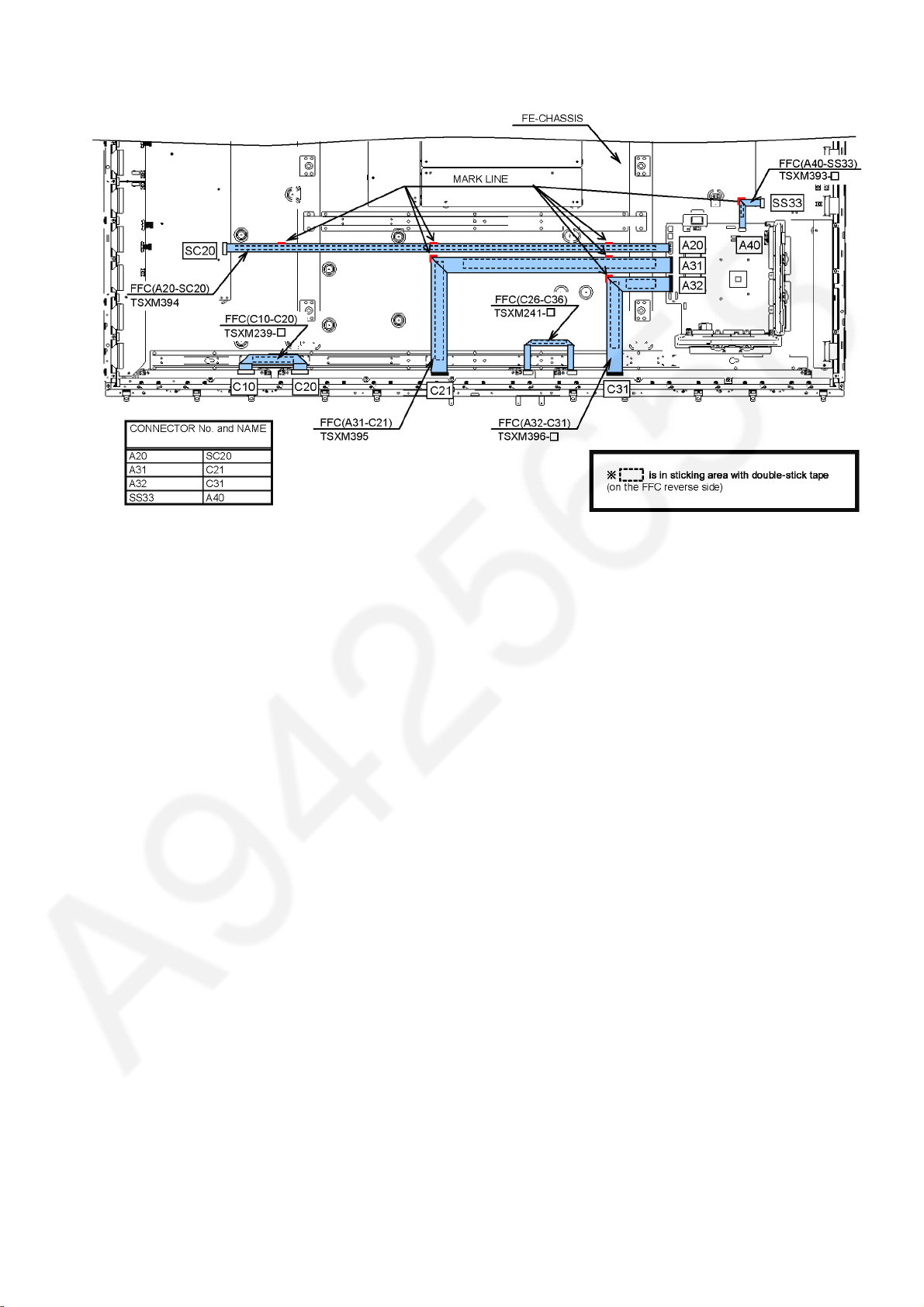

12.7. Wiring (6)
51
Page 52
Model No. : TH-P65VT30D/G/K/M/P/S Schematic Diagram Note
S-1
Page 53

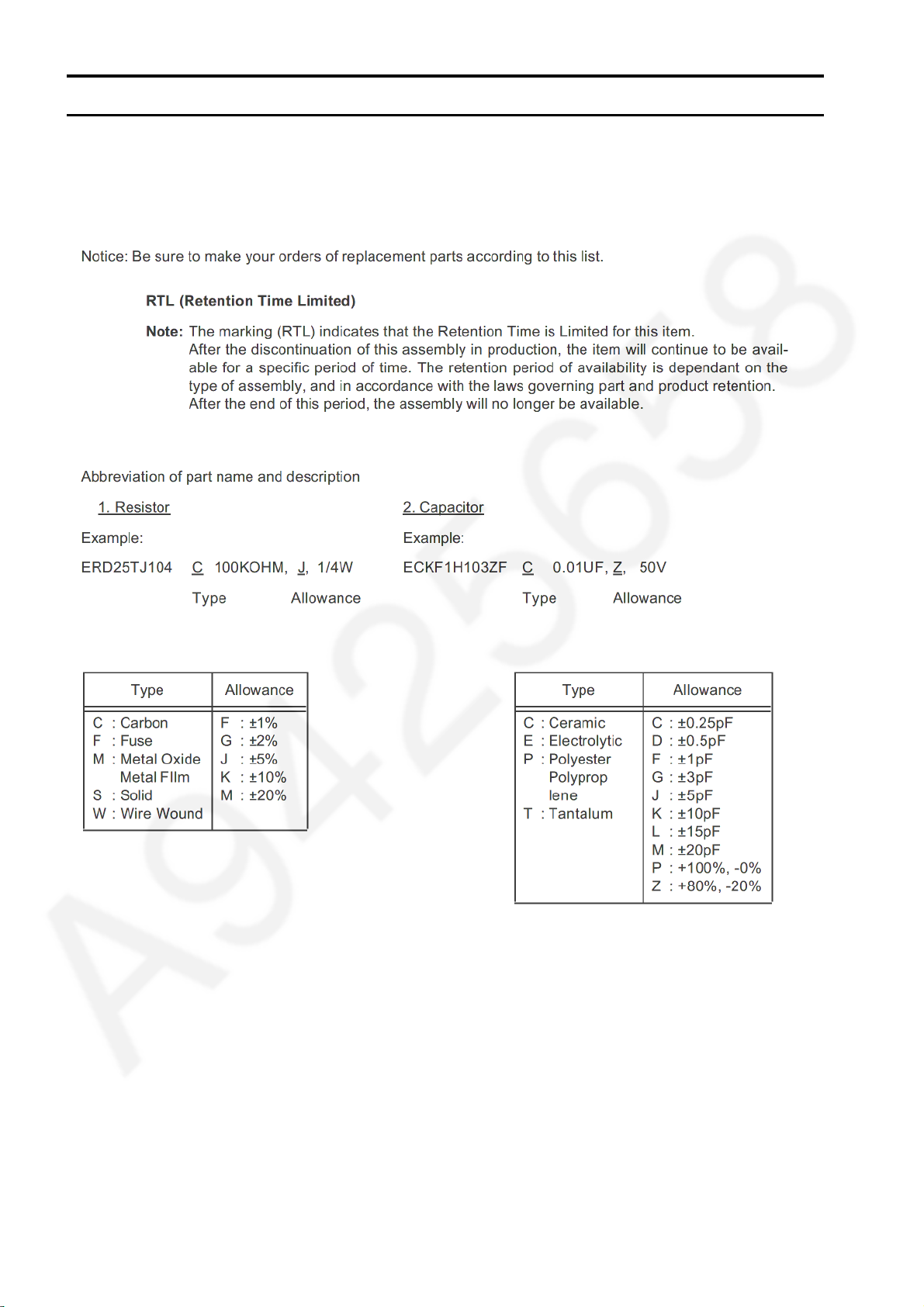

Model No. : TH-P65VT30D/G/K/M/P/S Replacement Parts List Note
S-2
Page 54

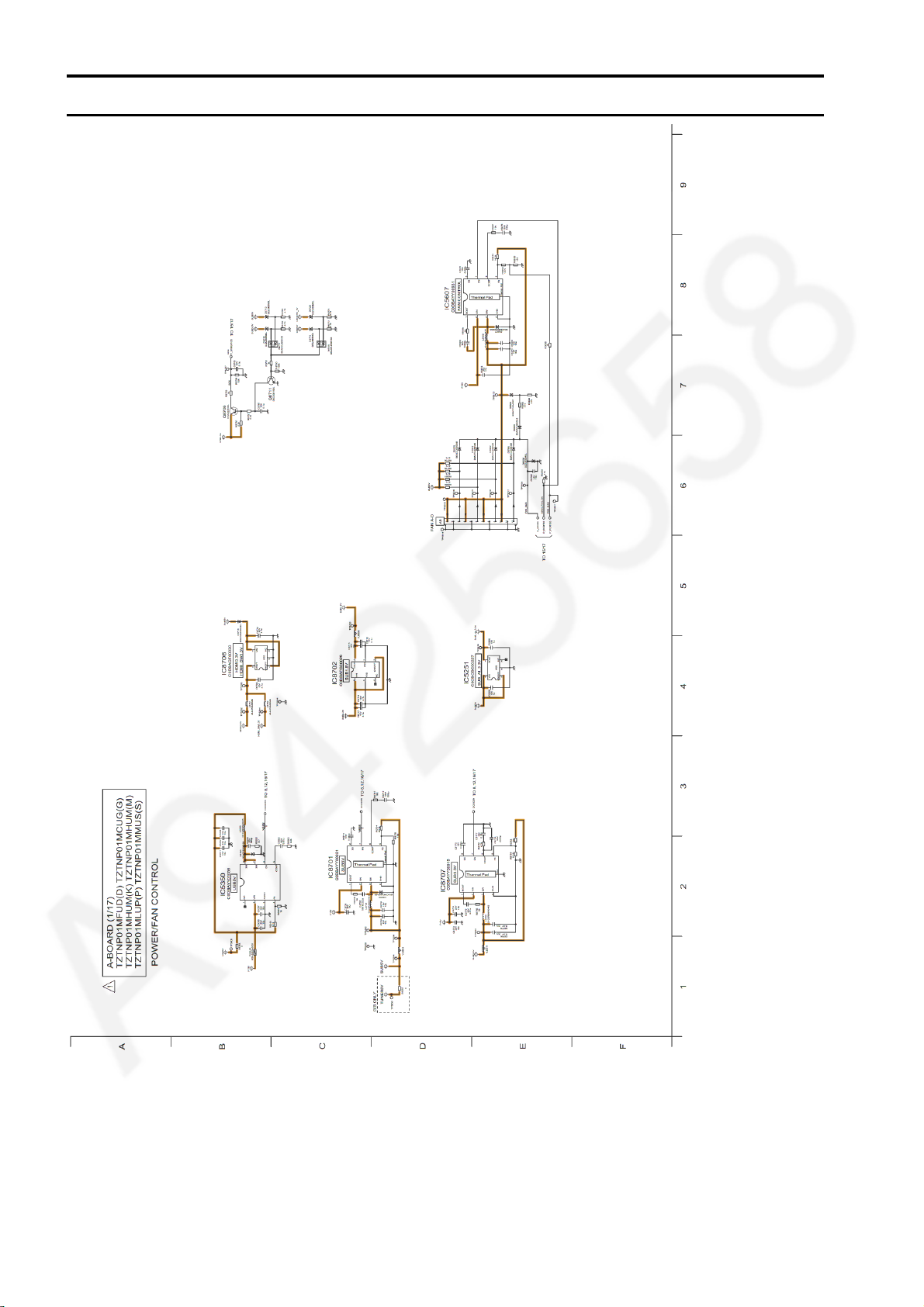

Model No. : TH-P65VT30D/G/K/M/P/S A-Board (1/17)
S-3
Page 55
Model No. : TH-P65VT30D/G/K/M/P/S A-Board (2/17)
S-4
Page 56

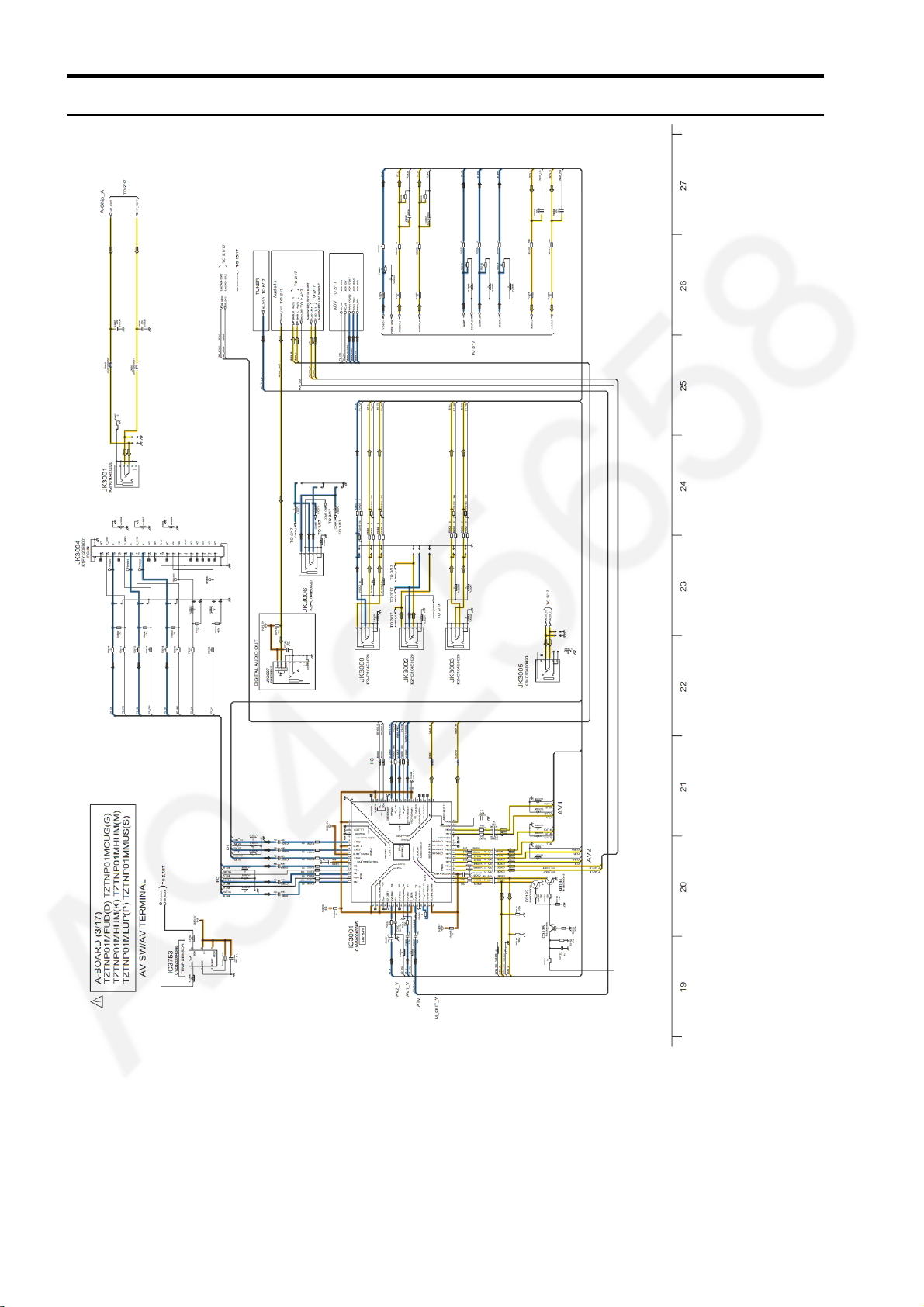

Model No. : TH-P65VT30D/G/K/M/P/S A-Board (3/17)
S-5
Page 57
Model No. : TH-P65VT30D/G/K/M/P/S A-Board (4/17)
S-6
Page 58
Model No. : TH-P65VT30D/G/K/M/P/S A-Board (5/17)
S-7
Page 59

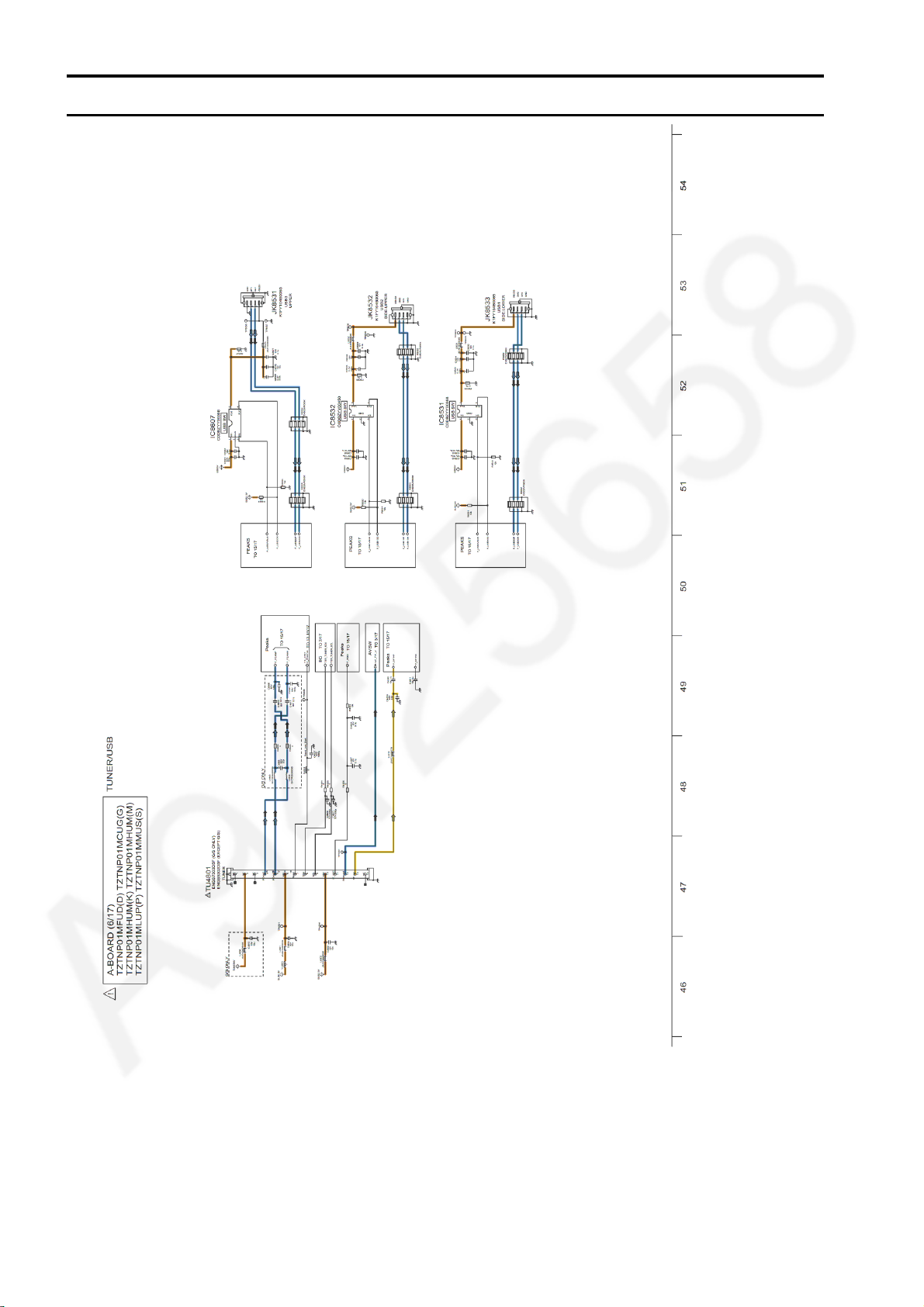

Model No. : TH-P65VT30D/G/K/M/P/S A-Board (6/17)
S-8
Page 60
Model No. : TH-P65VT30D/G/K/M/P/S A-Board (7/17)
S-9
Page 61
Model No. : TH-P65VT30D/G/K/M/P/S A-Board (8/17)
S-10
Page 62
Model No. : TH-P65VT30D/G/K/M/P/S A-Board (9/17)
S-11
Page 63

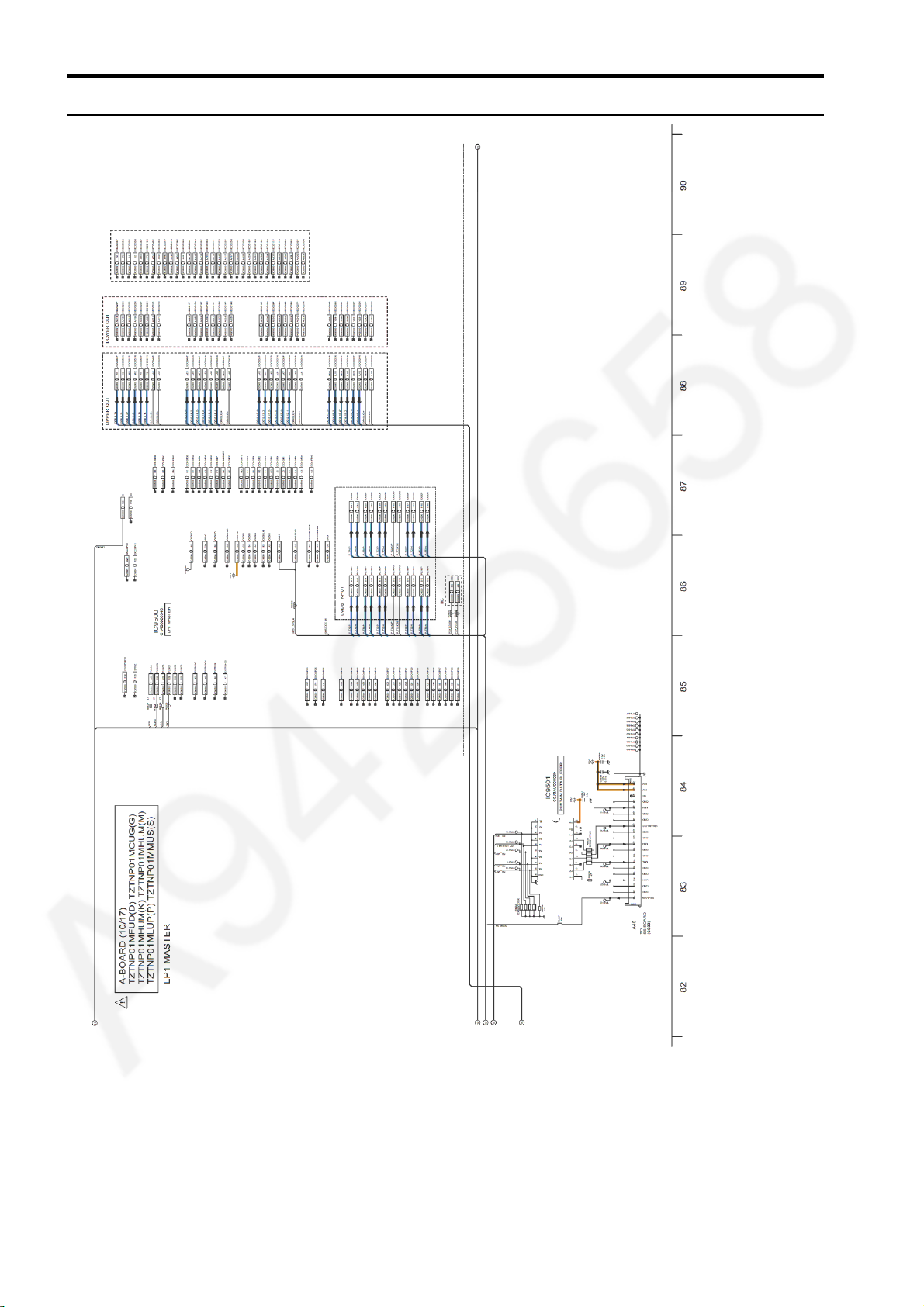

Model No. : TH-P65VT30D/G/K/M/P/S A-Board (10/17)
S-12
Page 64

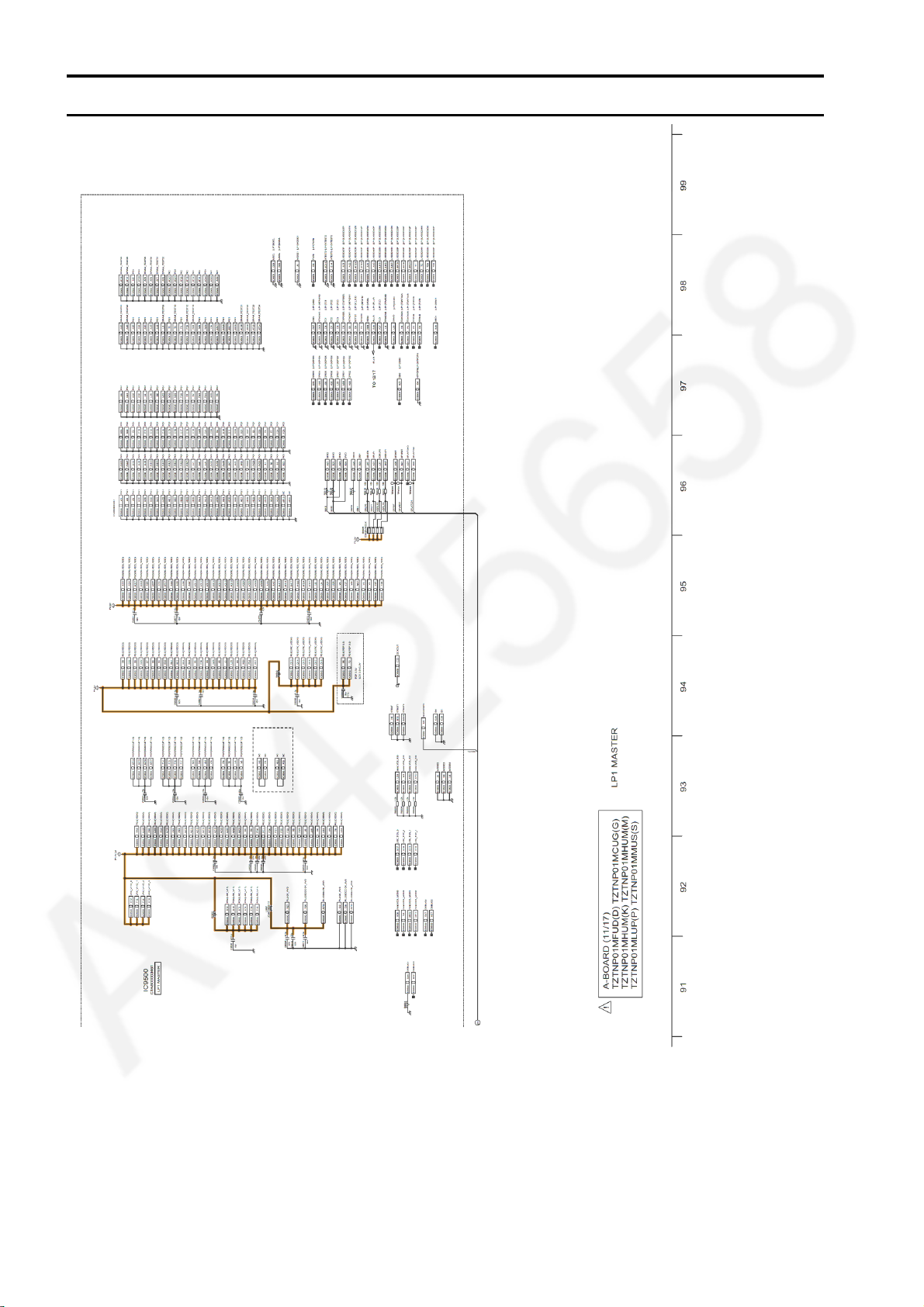

Model No. : TH-P65VT30D/G/K/M/P/S A-Board (11/17)
S-13
Page 65

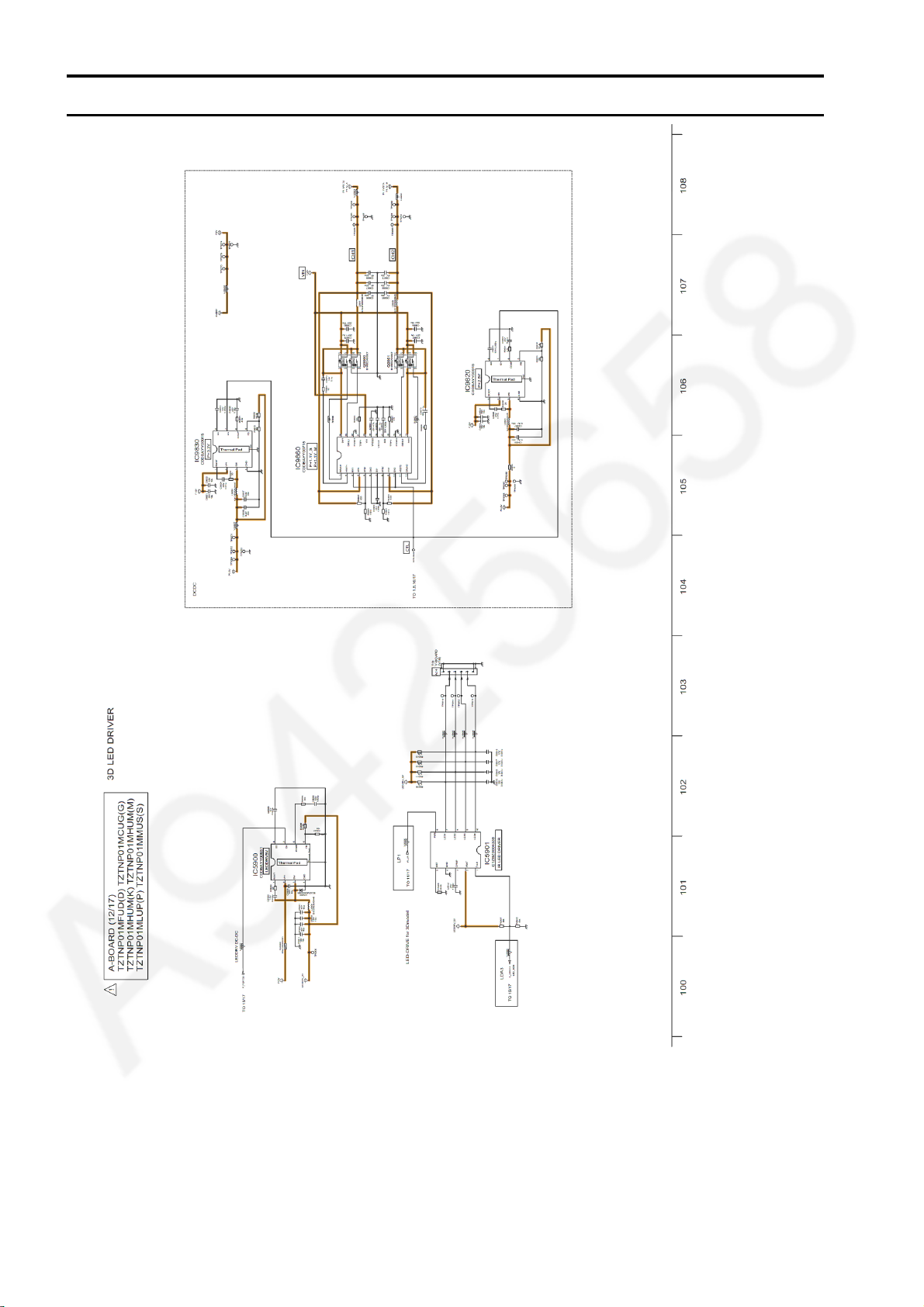

Model No. : TH-P65VT30D/G/K/M/P/S A-Board (12/17)
S-14
Page 66

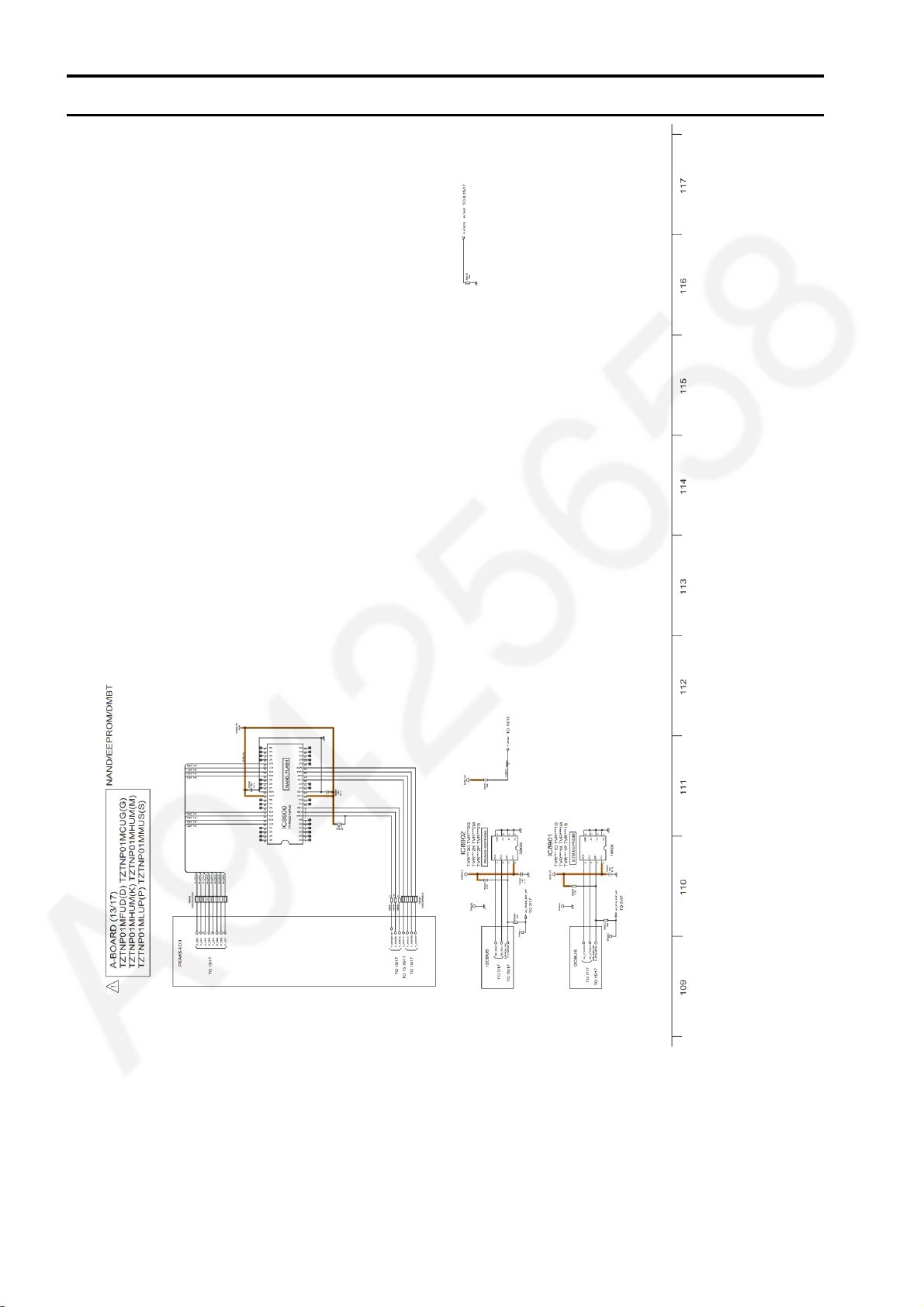

Model No. : TH-P65VT30D/G/K/M/P/S A-Board (13/17)
S-15

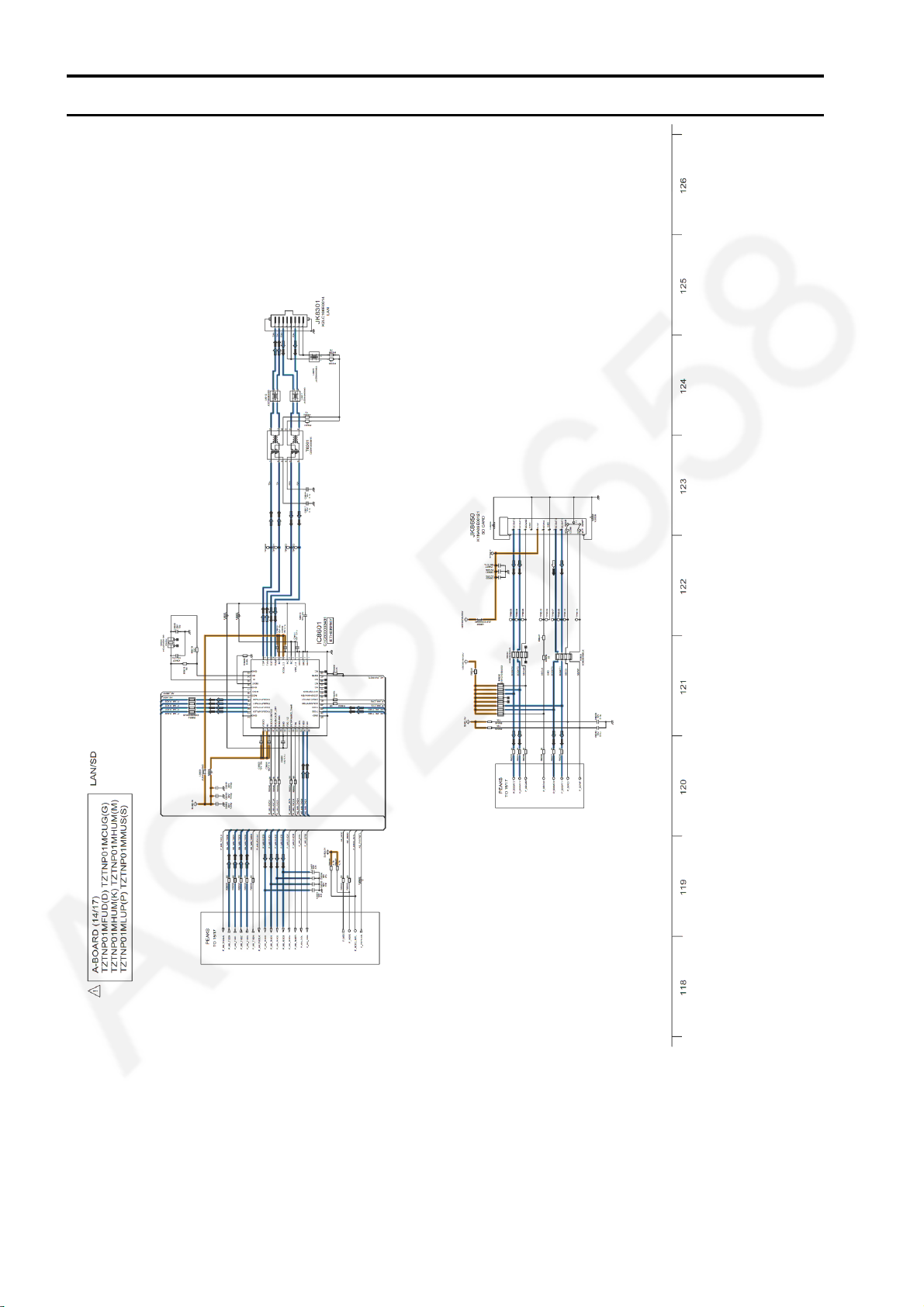

Page 67
Model No. : TH-P65VT30D/G/K/M/P/S A-Board (14/17)
S-16
Page 68

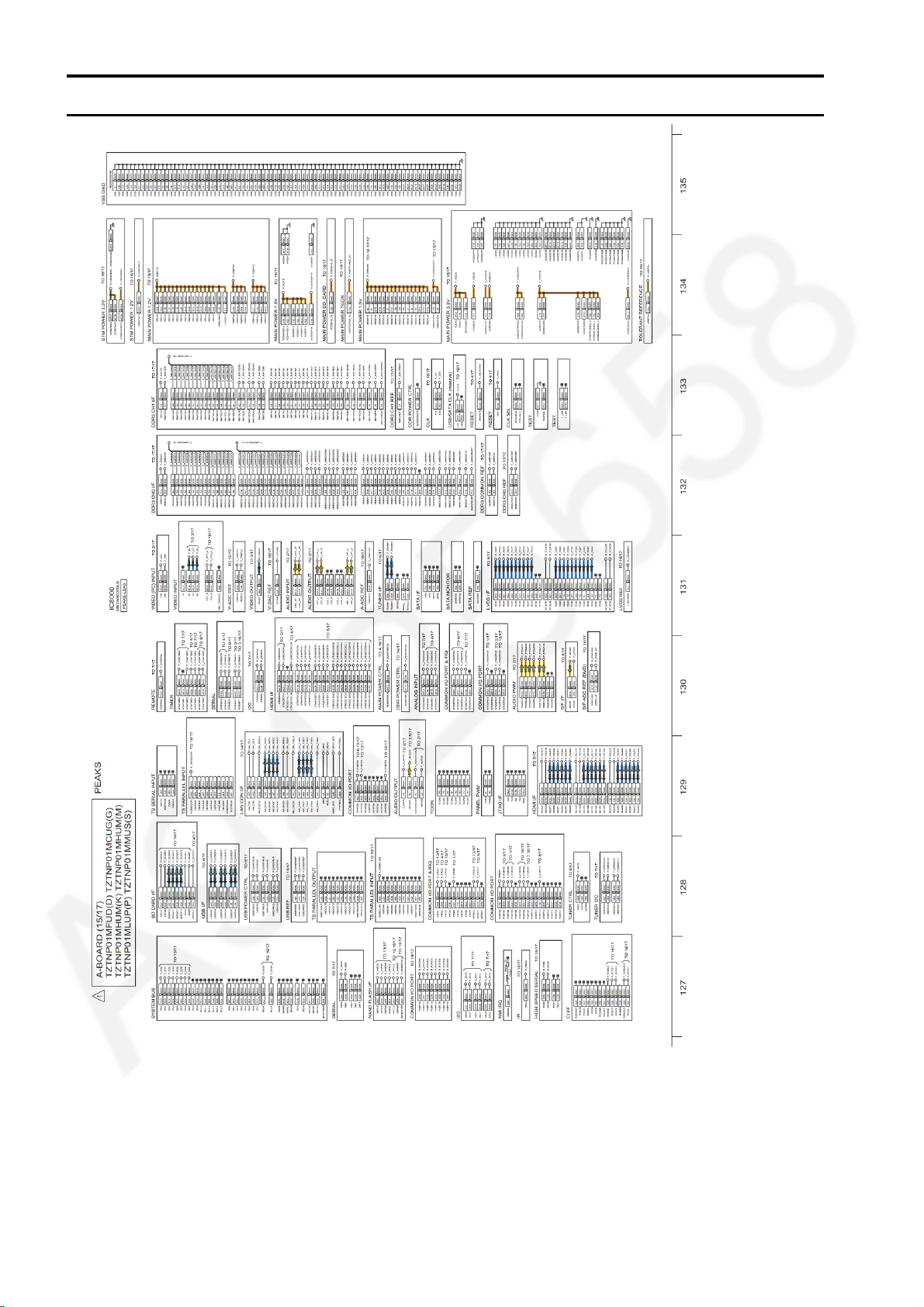

Model No. : TH-P65VT30D/G/K/M/P/S A-Board (15/17)
S-17
Page 69

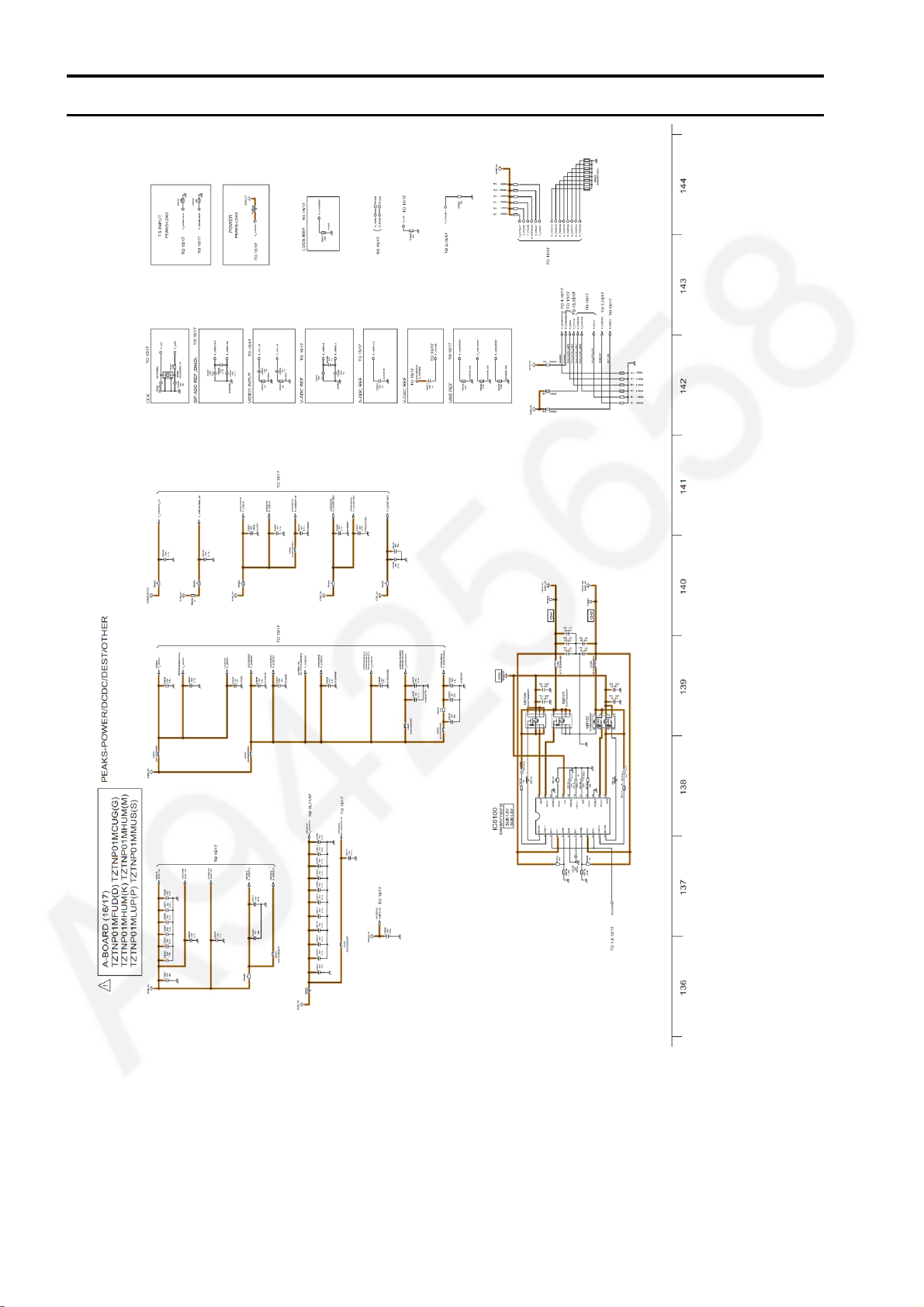

Model No. : TH-P65VT30D/G/K/M/P/S A-Board (16/17)
S-18
Page 70
Model No. : TH-P65VT30D/G/K/M/P/S A-Board (17/17)
S-19
Page 71
Model No. : TH-P65VT30D/G/K/M/P/S K, S and V-Board
S-20
Page 72
Model No. : TH-P65VT30D/G/K/M/P/S C1-Board
S-21

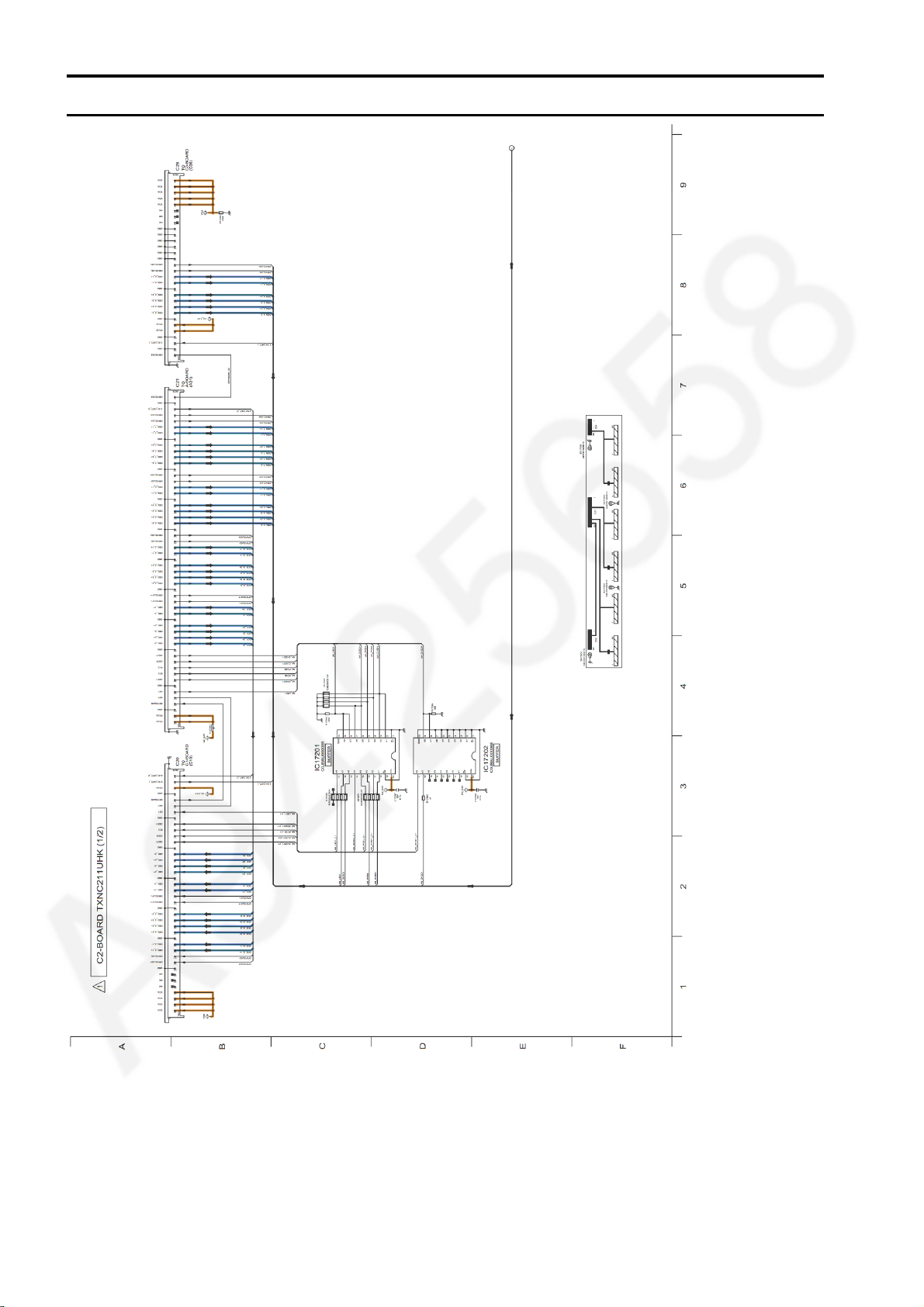

Page 73
Model No. : TH-P65VT30D/G/K/M/P/S C2-Board (1/2)
S-22
Page 74

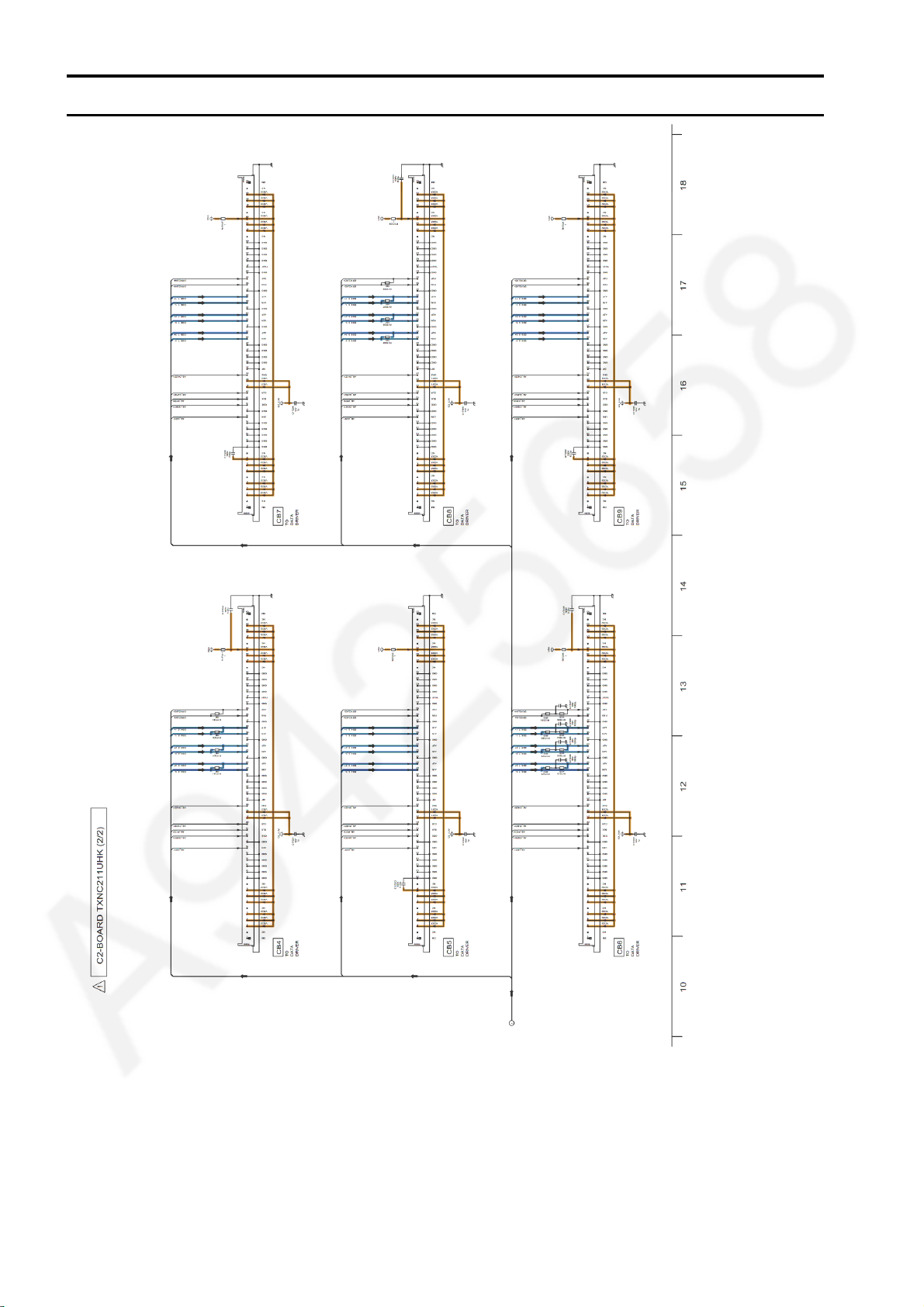

Model No. : TH-P65VT30D/G/K/M/P/S C2-Board (2/2)
S-23
Page 75

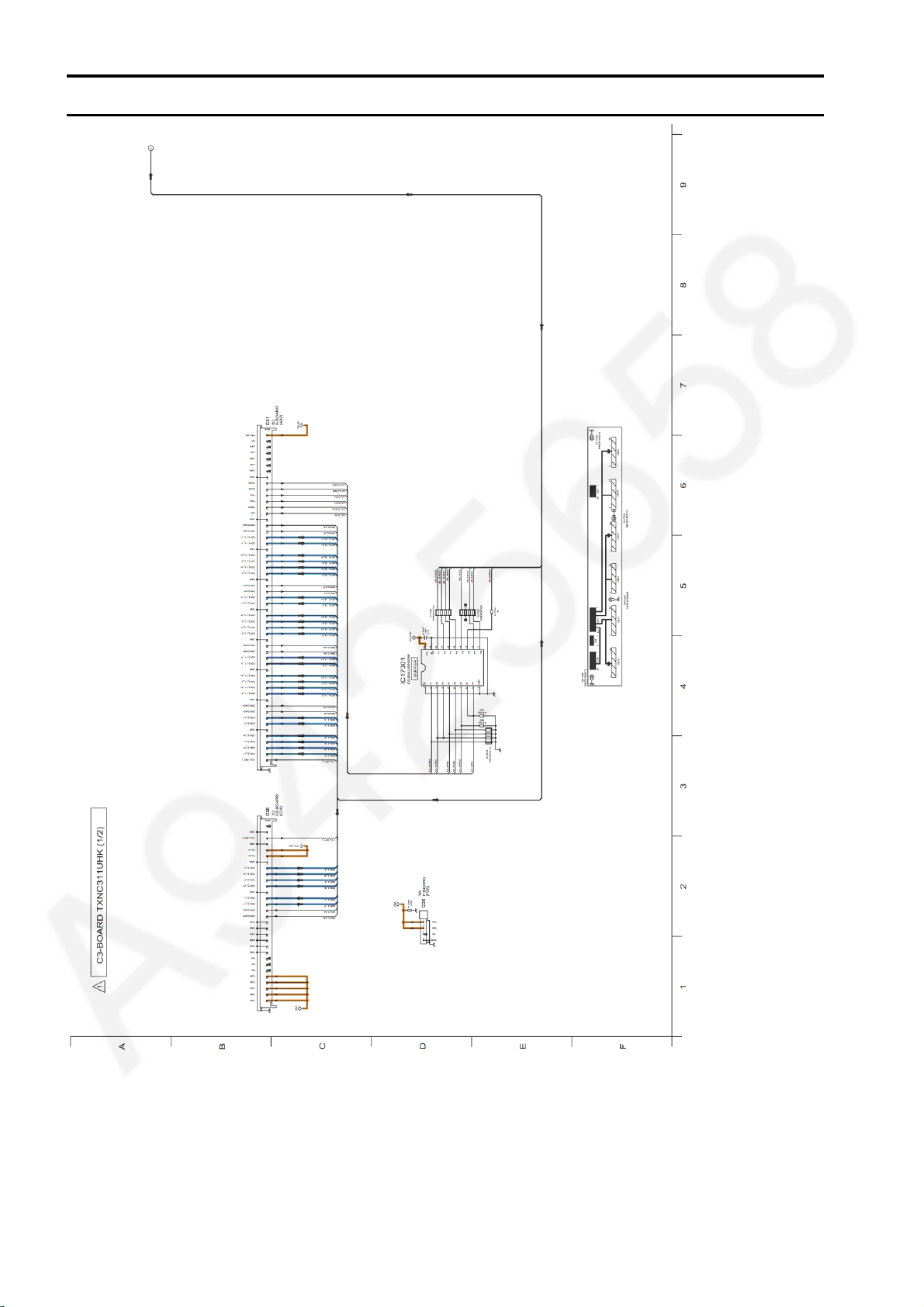

Model No. : TH-P65VT30D/G/K/M/P/S C3-Board (1/2)
S-24
Page 76
Model No. : TH-P65VT30D/G/K/M/P/S C3-Board (2/2)
S-25
Page 77

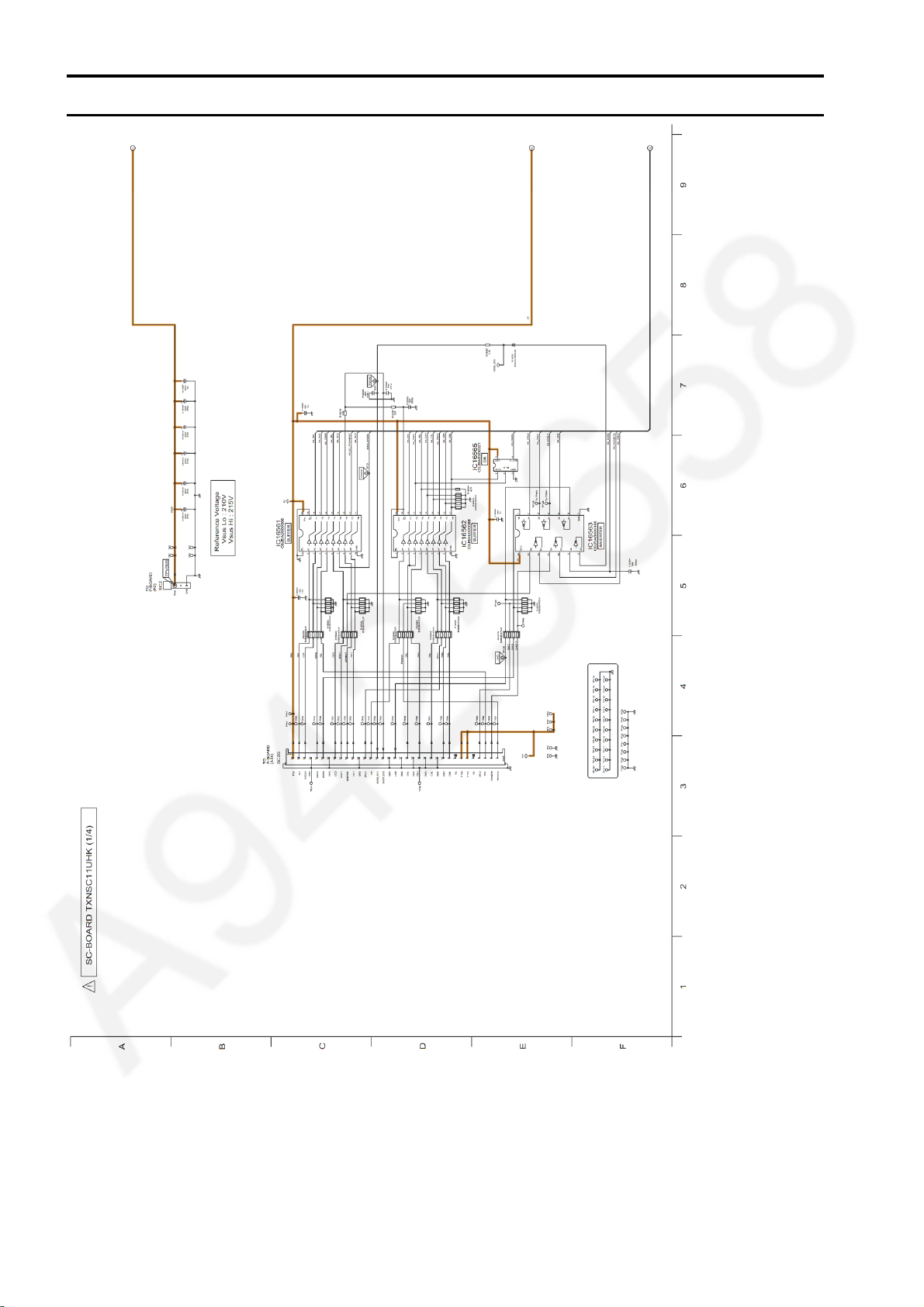

Model No. : TH-P65VT30D/G/K/M/P/S SC-Board (1/4)
S-26
Page 78
Model No. : TH-P65VT30D/G/K/M/P/S SC-Board (2/4)
S-27

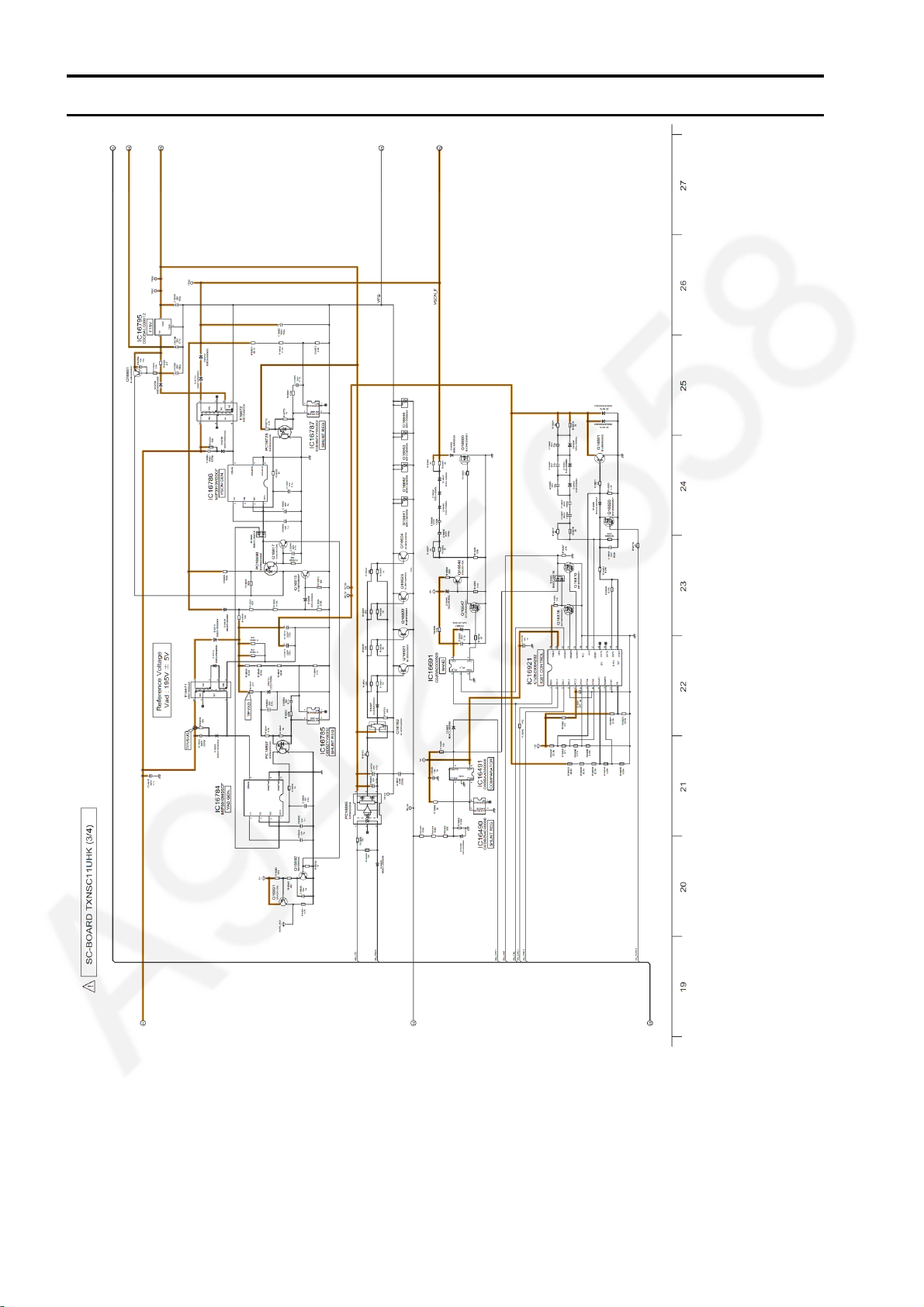

Page 79
Model No. : TH-P65VT30D/G/K/M/P/S SC-Board (3/4)
S-28
Page 80

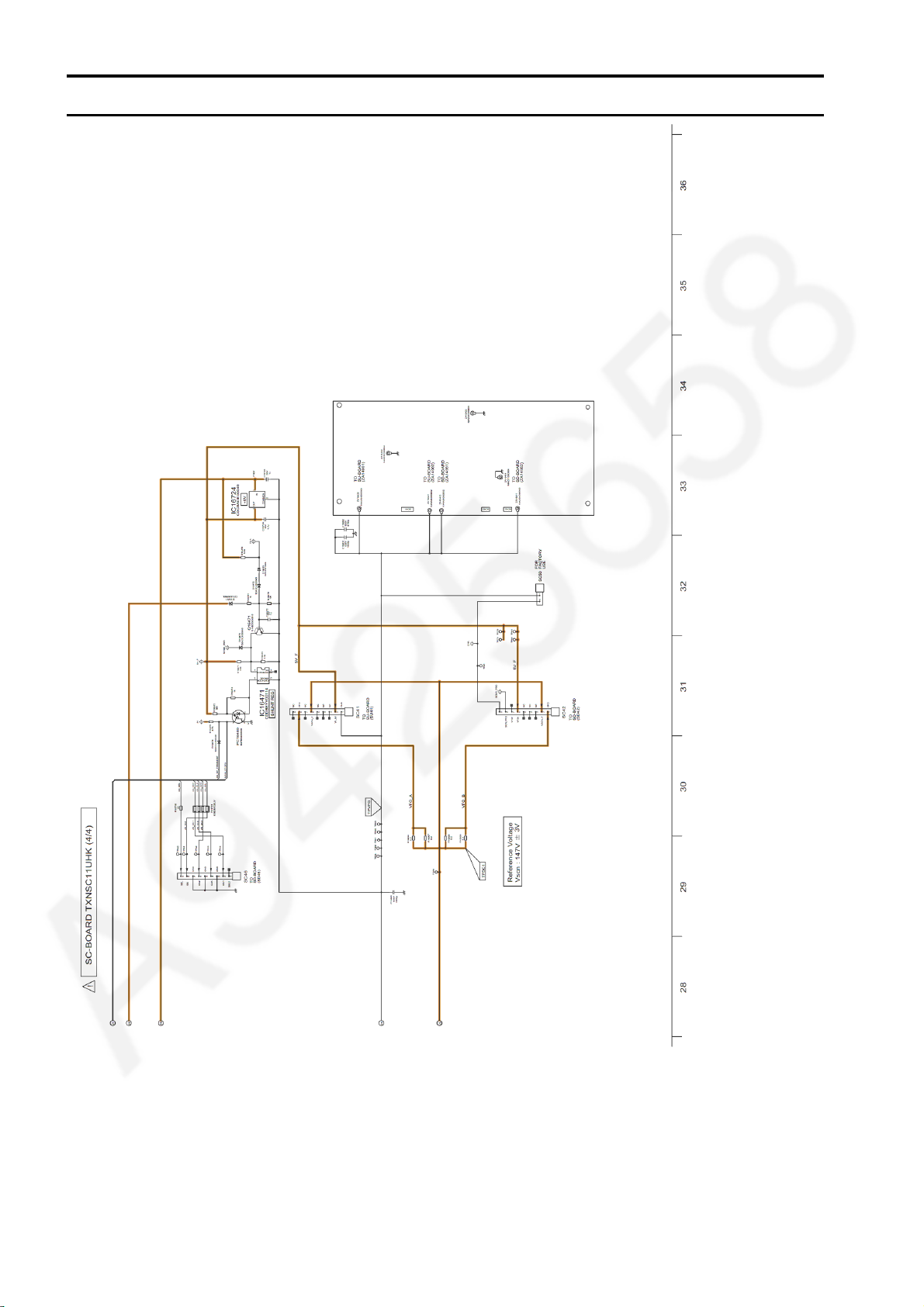

Model No. : TH-P65VT30D/G/K/M/P/S SC-Board (4/4)
S-29
Page 81
Model No. : TH-P65VT30D/G/K/M/P/S SS-Board (1/2)
S-30

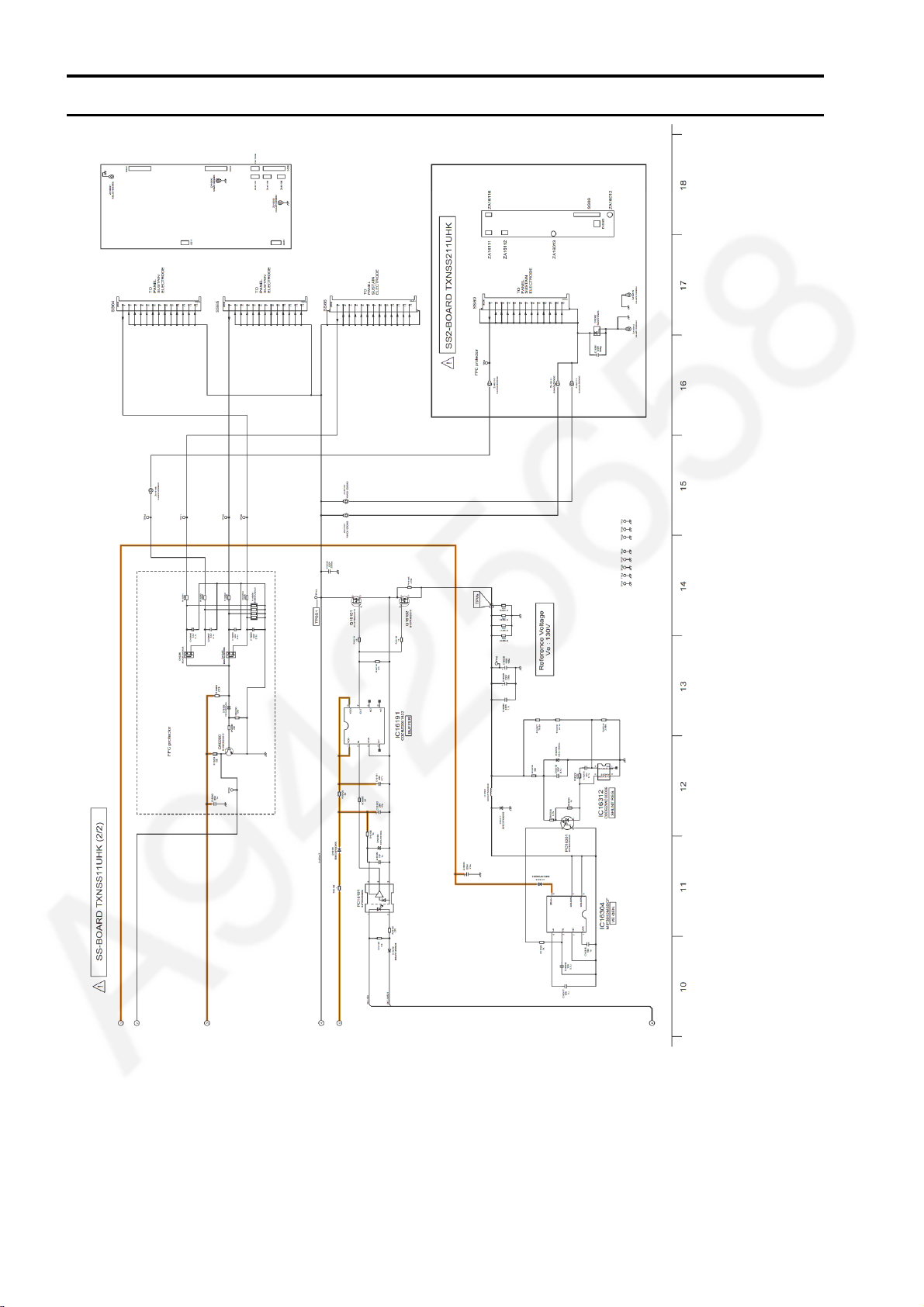

Page 82
Model No. : TH-P65VT30D/G/K/M/P/S SS-Board (2/2) and SS2-Board
S-31
Page 83

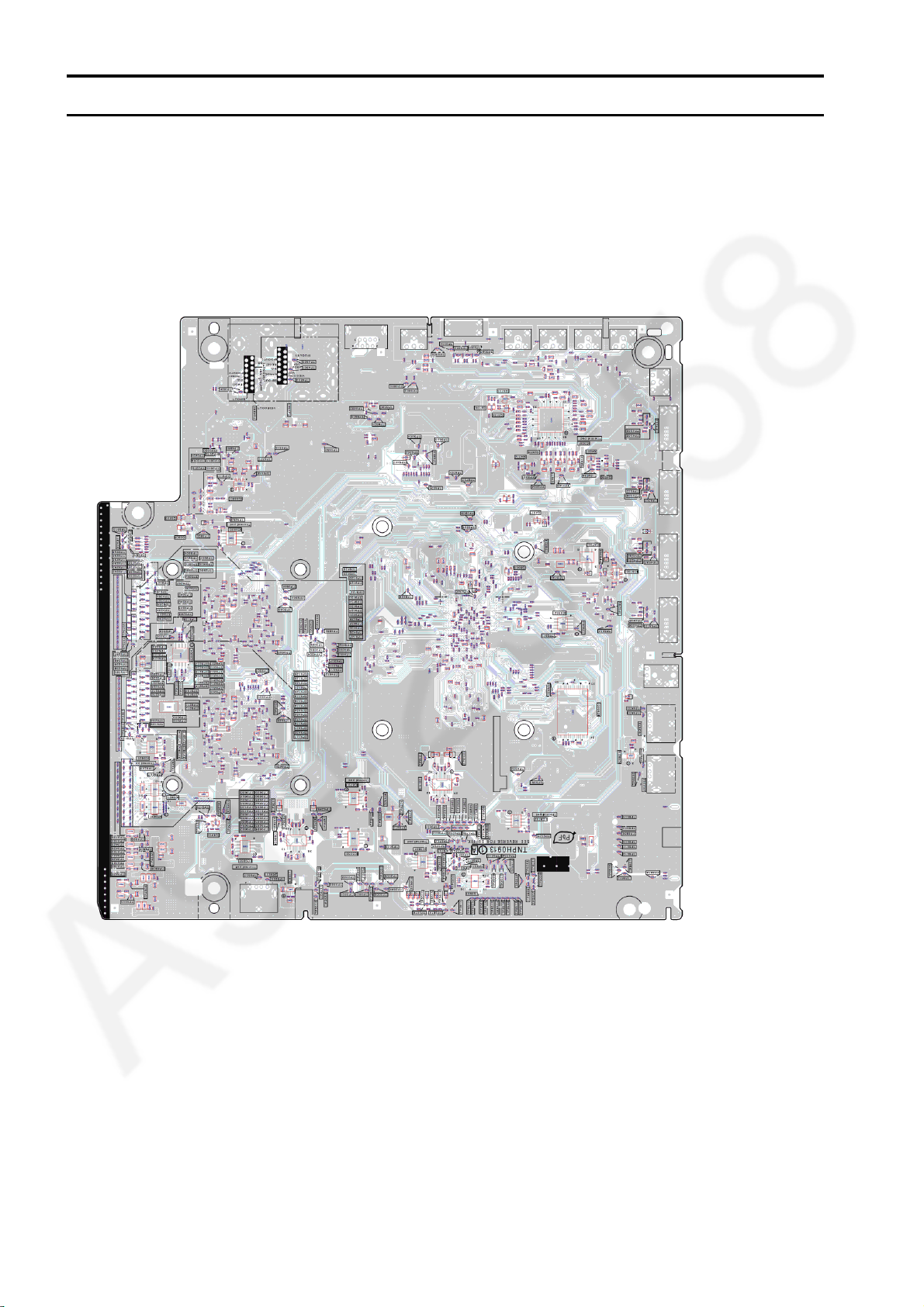

Model No. : TH-P65VT30D/G/K/M/P/S A-Board (Foil side)
S-32
Page 84
Model No. : TH-P65VT30D/G/K/M/P/S A-Board (Component side)
S-33
Page 85

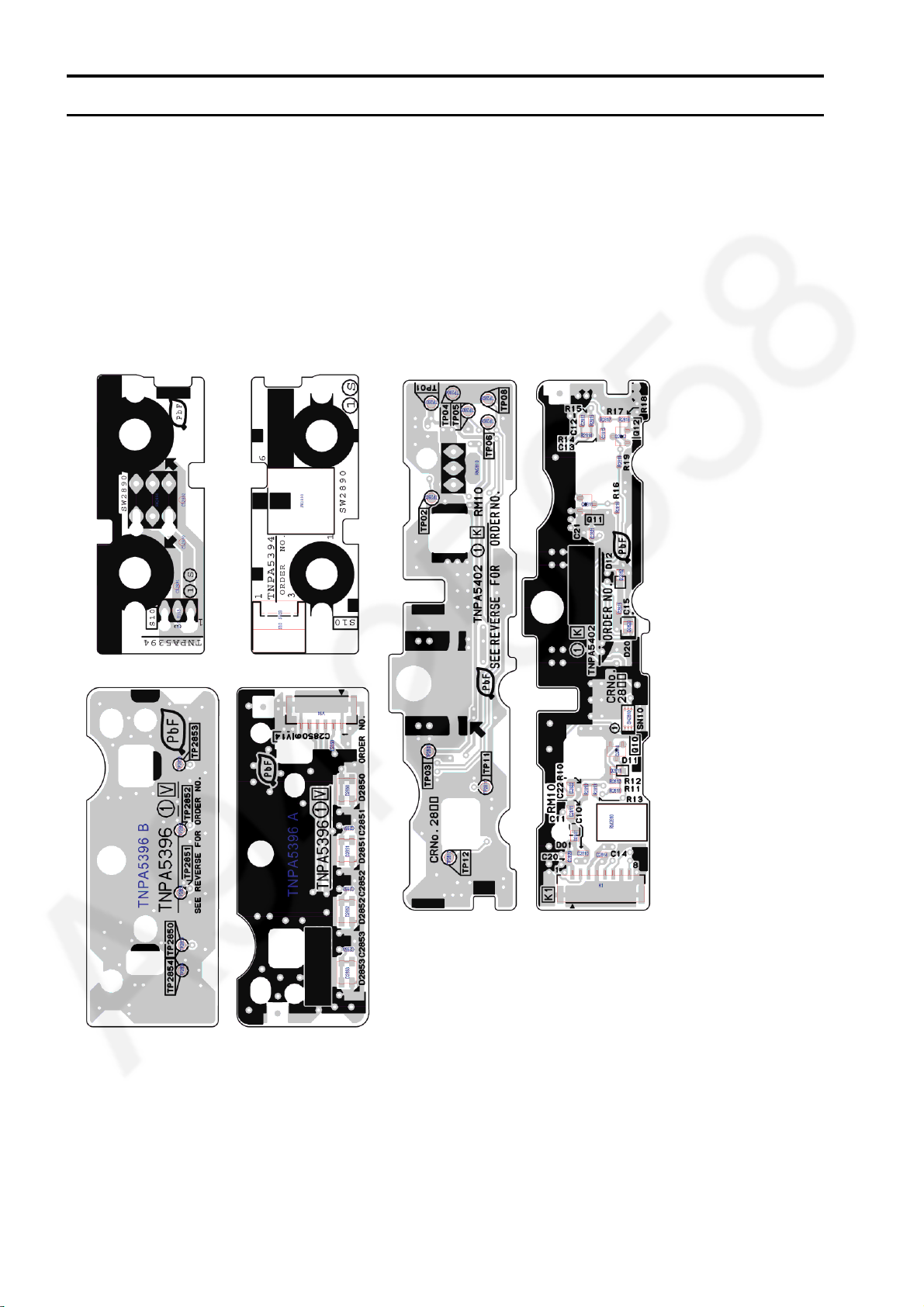

Model No. : TH-P65VT30D/G/K/M/P/S K, S and V-Board
S-34

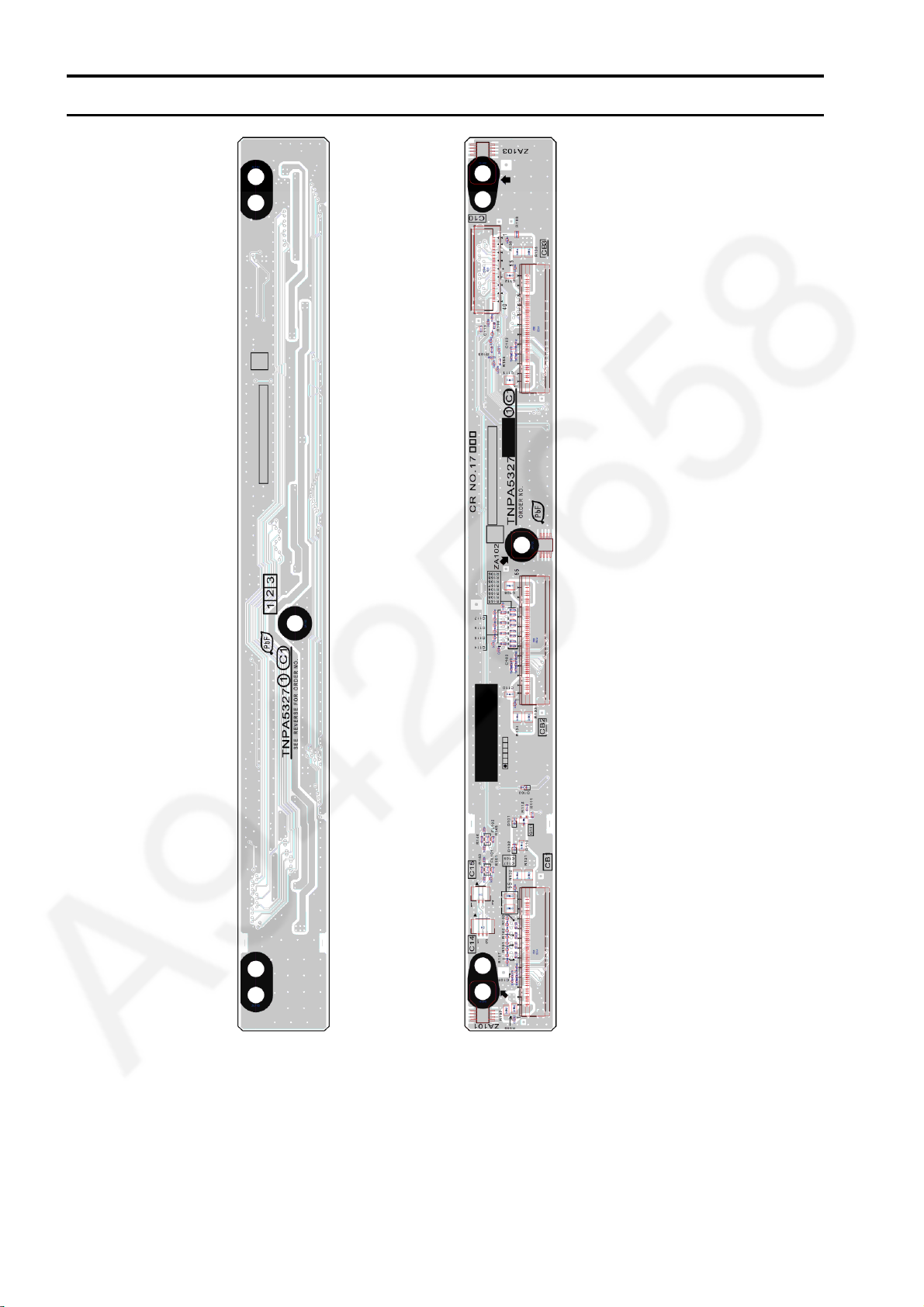

Page 86
Model No. : TH-P65VT30D/G/K/M/P/S C1-Board
S-35

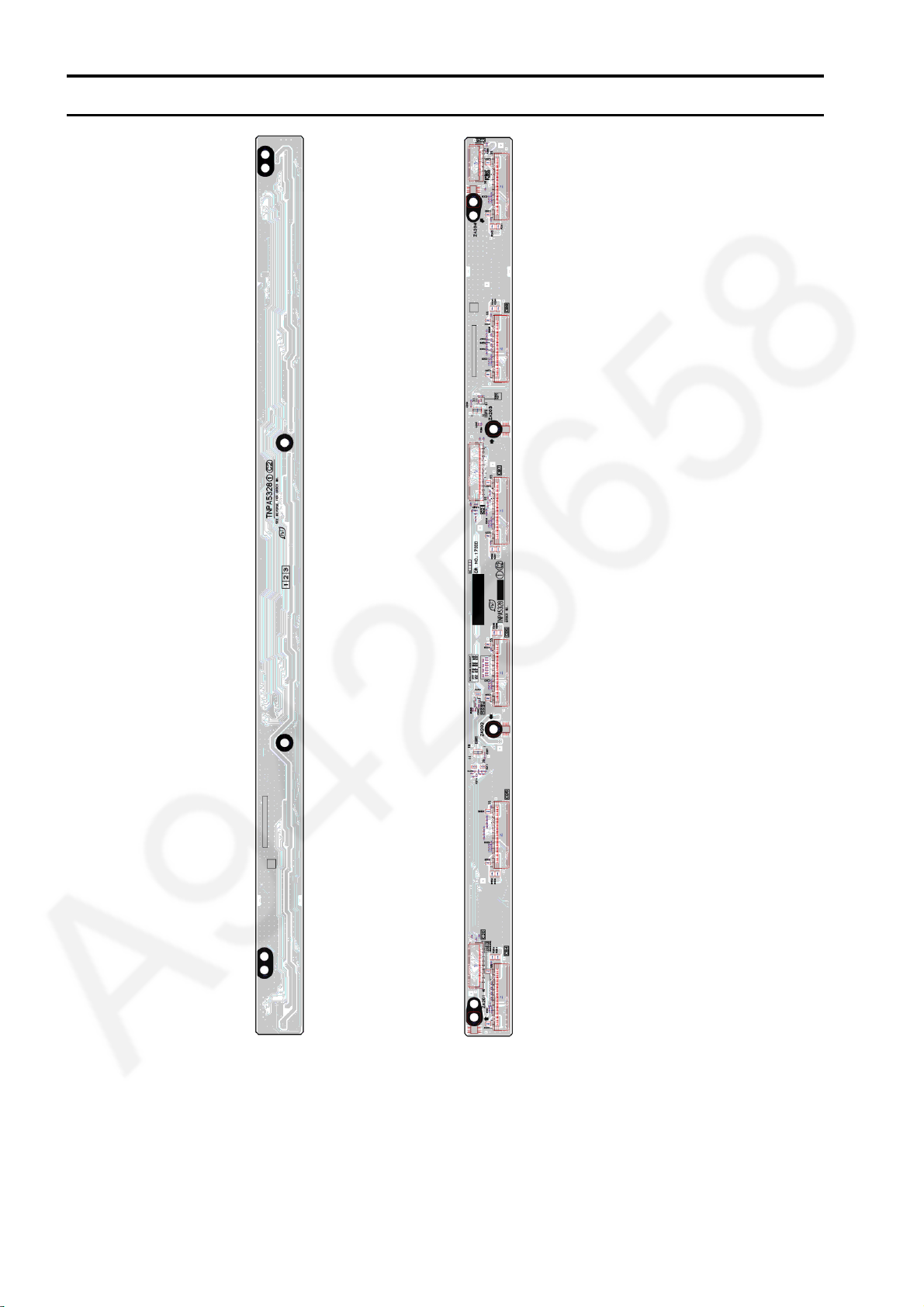

Page 87
Model No. : TH-P65VT30D/G/K/M/P/S C2-Board
S-36
Page 88

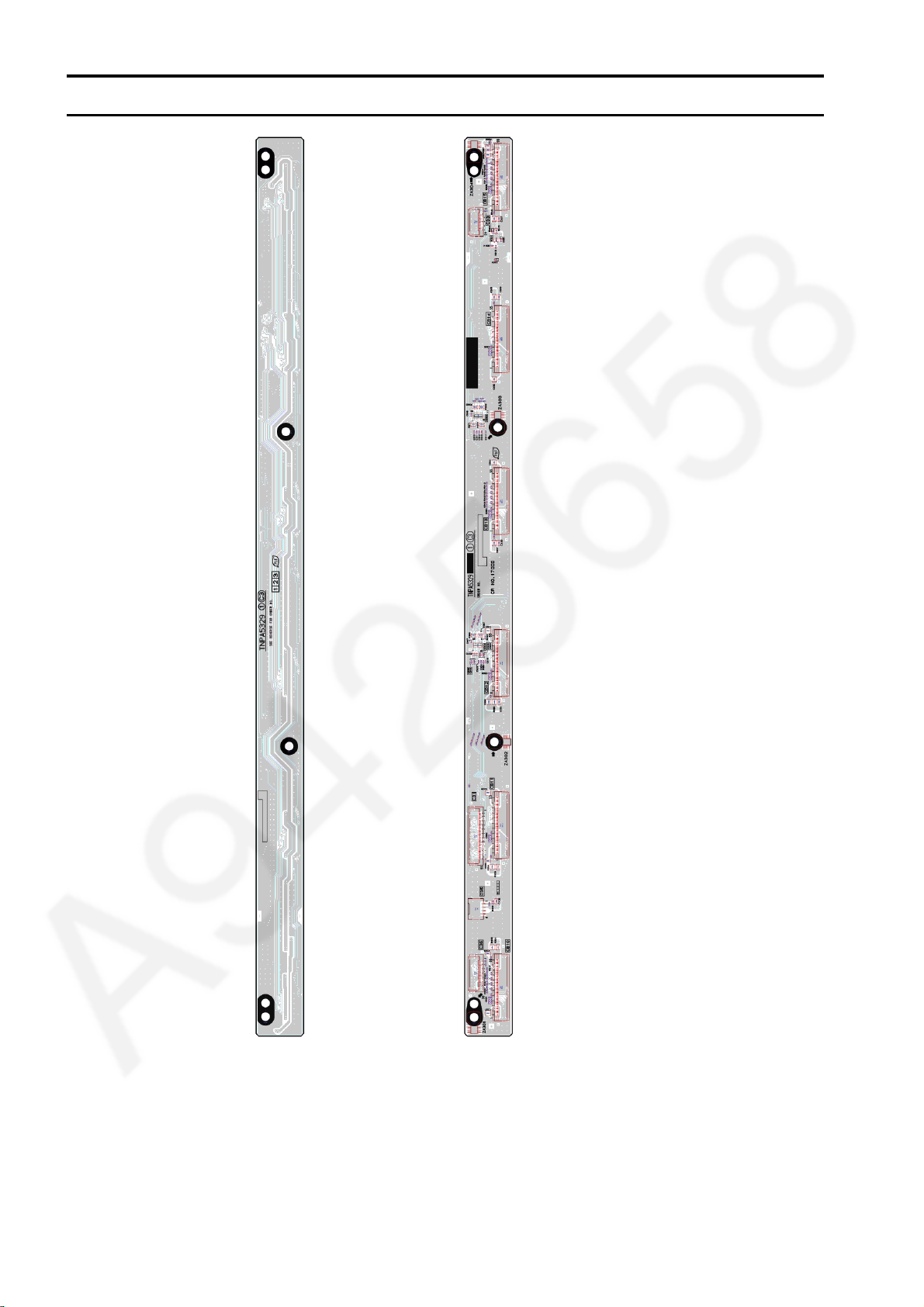

Model No. : TH-P65VT30D/G/K/M/P/S C3-Board
S-37

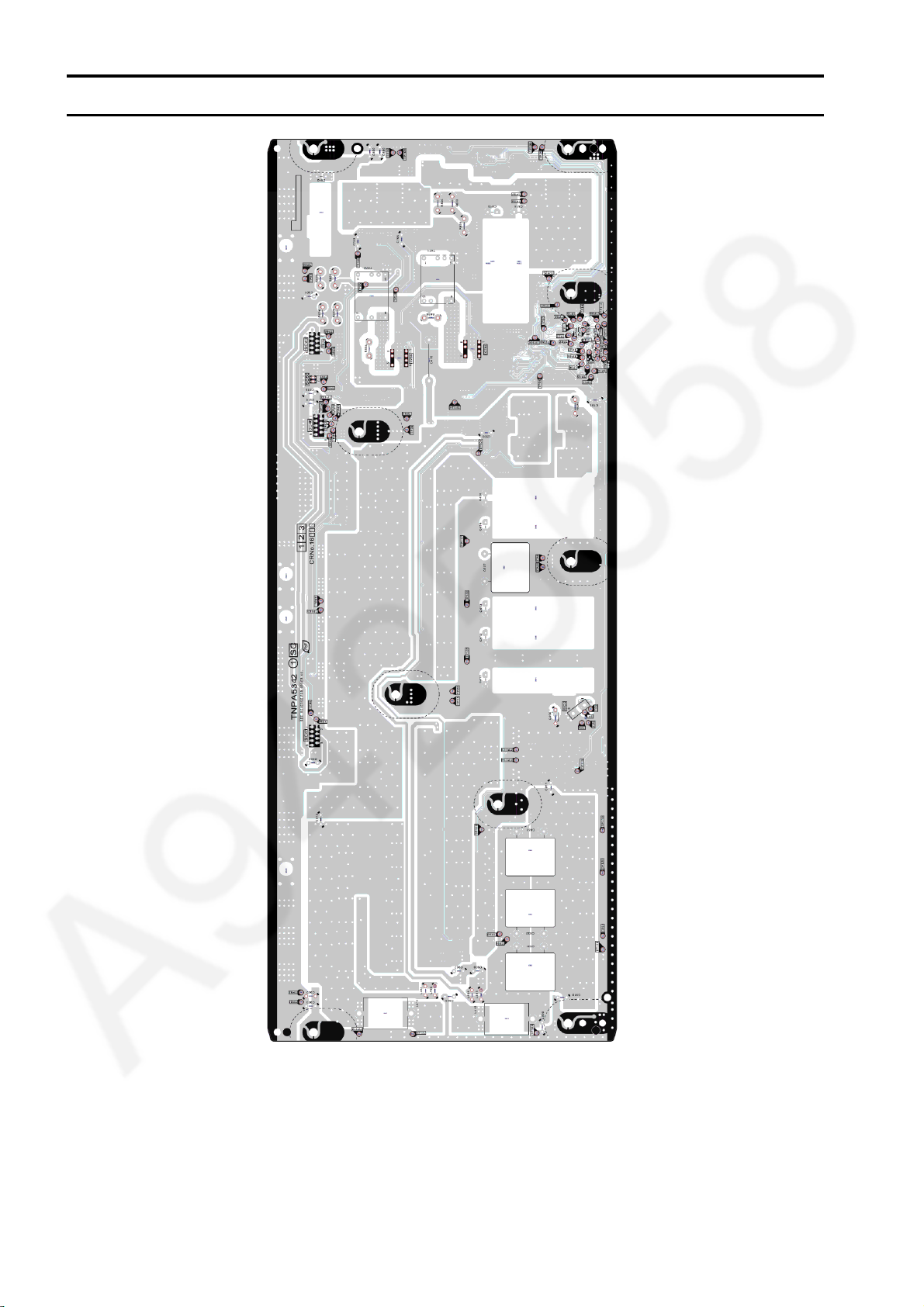

Page 89
Model No. : TH-P65VT30D/G/K/M/P/S SC-Board (Foil side)
S-38
Page 90
Model No. : TH-P65VT30D/G/K/M/P/S SC-Board (Component side)
S-39
Page 91
Model No. : TH-P65VT30D/G/K/M/P/S SS-Board (Foil side)
S-40
Page 92

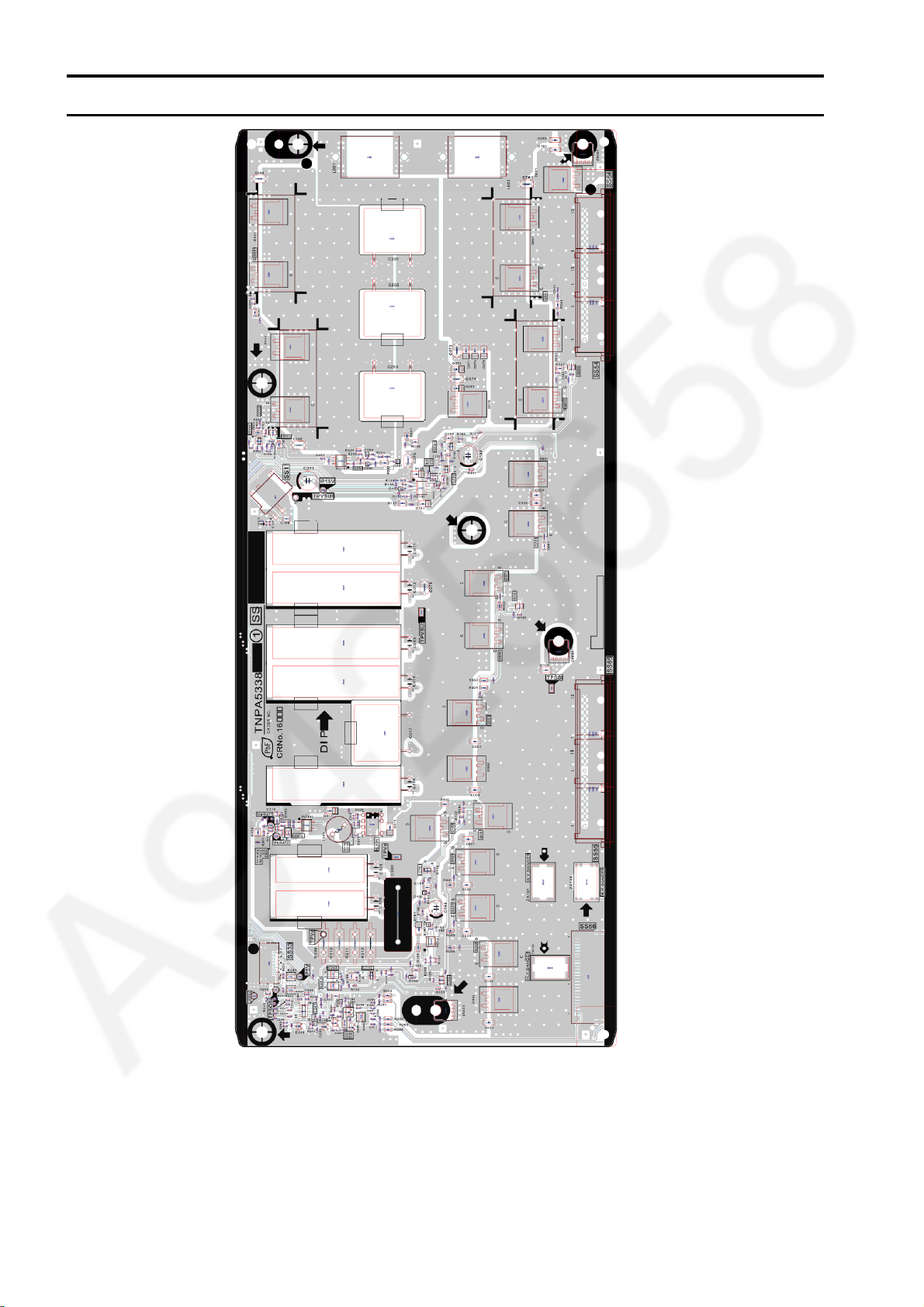

Model No. : TH-P65VT30D/G/K/M/P/S SS-Board (Component side)
S-41
Page 93
Model No. : TH-P65VT30D/G/K/M/P/S SS2-Board
S-42
Page 94

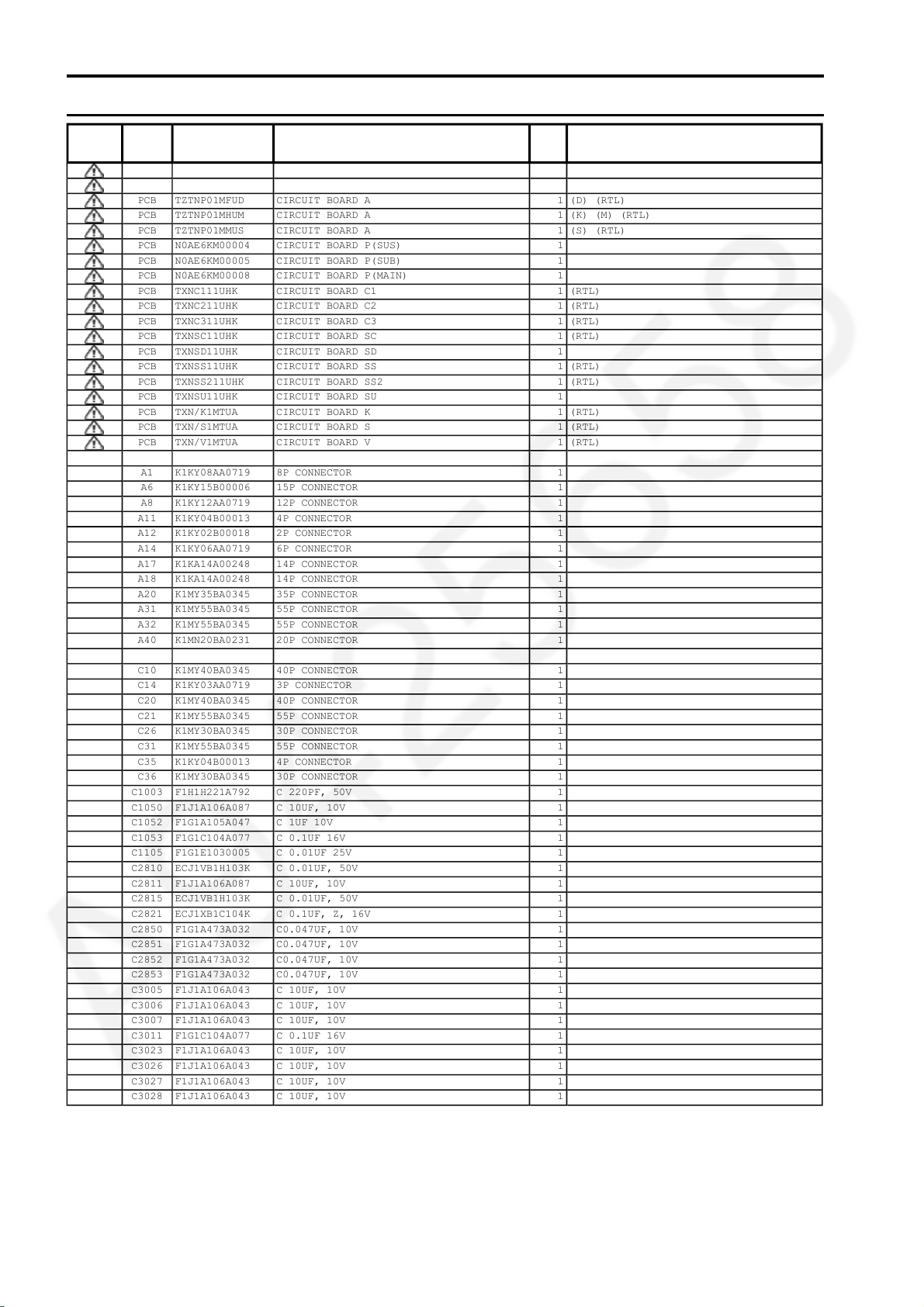

Model No. : TH-P65VT30D/G/K/M/P/S Parts List
S-43
Safety
Ref.
No.
PCB TZTNP01MLUP CIRCUIT BOARD A 1 (P) (RTL)
PCB TZTNP01MCUG CIRCUIT BOARD A 1 (G) (RTL)
PCB TZTNP01MFUD CIRCUIT BOARD A 1 (D) (RTL)
PCB TZTNP01MHUM CIRCUIT BOARD A 1 (K) (M) (RTL)
PCB TZTNP01MMUS CIRCUIT BOARD A 1 (S) (RTL)
PCB N0AE6KM00004 CIRCUIT BOARD P(SUS) 1
PCB N0AE6KM00005 CIRCUIT BOARD P(SUB) 1
PCB N0AE6KM00008 CIRCUIT BOARD P(MAIN) 1
PCB TXNC111UHK CIRCUIT BOARD C1 1 (RTL)
PCB TXNC211UHK CIRCUIT BOARD C2 1 (RTL)
PCB TXNC311UHK CIRCUIT BOARD C3 1 (RTL)
PCB TXNSC11UHK CIRCUIT BOARD SC 1 (RTL)
PCB TXNSD11UHK CIRCUIT BOARD SD 1
PCB TXNSS11UHK CIRCUIT BOARD SS 1 (RTL)
PCB TXNSS211UHK CIRCUIT BOARD SS2 1 (RTL)
PCB TXNSU11UHK CIRCUIT BOARD SU 1
PCB TXN/K1MTUA CIRCUIT BOARD K 1 (RTL)
PCB TXN/S1MTUA CIRCUIT BOARD S 1 (RTL)
PCB TXN/V1MTUA CIRCUIT BOARD V 1 (RTL)
A1 K1KY08AA0719 8P CONNECTOR 1
A6 K1KY15B00006 15P CONNECTOR 1
A8 K1KY12AA0719 12P CONNECTOR 1
A11 K1KY04B00013 4P CONNECTOR 1
A12 K1KY02B00018 2P CONNECTOR 1
A14 K1KY06AA0719 6P CONNECTOR 1
A17 K1KA14A00248 14P CONNECTOR 1
A18 K1KA14A00248 14P CONNECTOR 1
A20 K1MY35BA0345 35P CONNECTOR 1
A31 K1MY55BA0345 55P CONNECTOR 1
A32 K1MY55BA0345 55P CONNECTOR 1
A40 K1MN20BA0231 20P CONNECTOR 1
C10 K1MY40BA0345 40P CONNECTOR 1
C14 K1KY03AA0719 3P CONNECTOR 1
C20 K1MY40BA0345 40P CONNECTOR 1
C21 K1MY55BA0345 55P CONNECTOR 1
C26 K1MY30BA0345 30P CONNECTOR 1
C31 K1MY55BA0345 55P CONNECTOR 1
C35 K1KY04B00013 4P CONNECTOR 1
C36 K1MY30BA0345 30P CONNECTOR 1
C1003 F1H1H221A792 C 220PF, 50V 1
C1050 F1J1A106A087 C 10UF, 10V 1
C1052 F1G1A105A047 C 1UF 10V 1
C1053 F1G1C104A077 C 0.1UF 16V 1
C1105 F1G1E1030005 C 0.01UF 25V 1
C2810 ECJ1VB1H103K C 0.01UF, 50V 1
C2811 F1J1A106A087 C 10UF, 10V 1
C2815 ECJ1VB1H103K C 0.01UF, 50V 1
C2821 ECJ1XB1C104K C 0.1UF, Z, 16V 1
C2850 F1G1A473A032 C0.047UF, 10V 1
C2851 F1G1A473A032 C0.047UF, 10V 1
C2852 F1G1A473A032 C0.047UF, 10V 1
C2853 F1G1A473A032 C0.047UF, 10V 1
C3005 F1J1A106A043 C 10UF, 10V 1
C3006 F1J1A106A043 C 10UF, 10V 1
C3007 F1J1A106A043 C 10UF, 10V 1
C3011 F1G1C104A077 C 0.1UF 16V 1
C3023 F1J1A106A043 C 10UF, 10V 1
C3026 F1J1A106A043 C 10UF, 10V 1
C3027 F1J1A106A043 C 10UF, 10V 1
C3028 F1J1A106A043 C 10UF, 10V 1
Part No. Part Name & Description Q'ty Remarks
Page 95

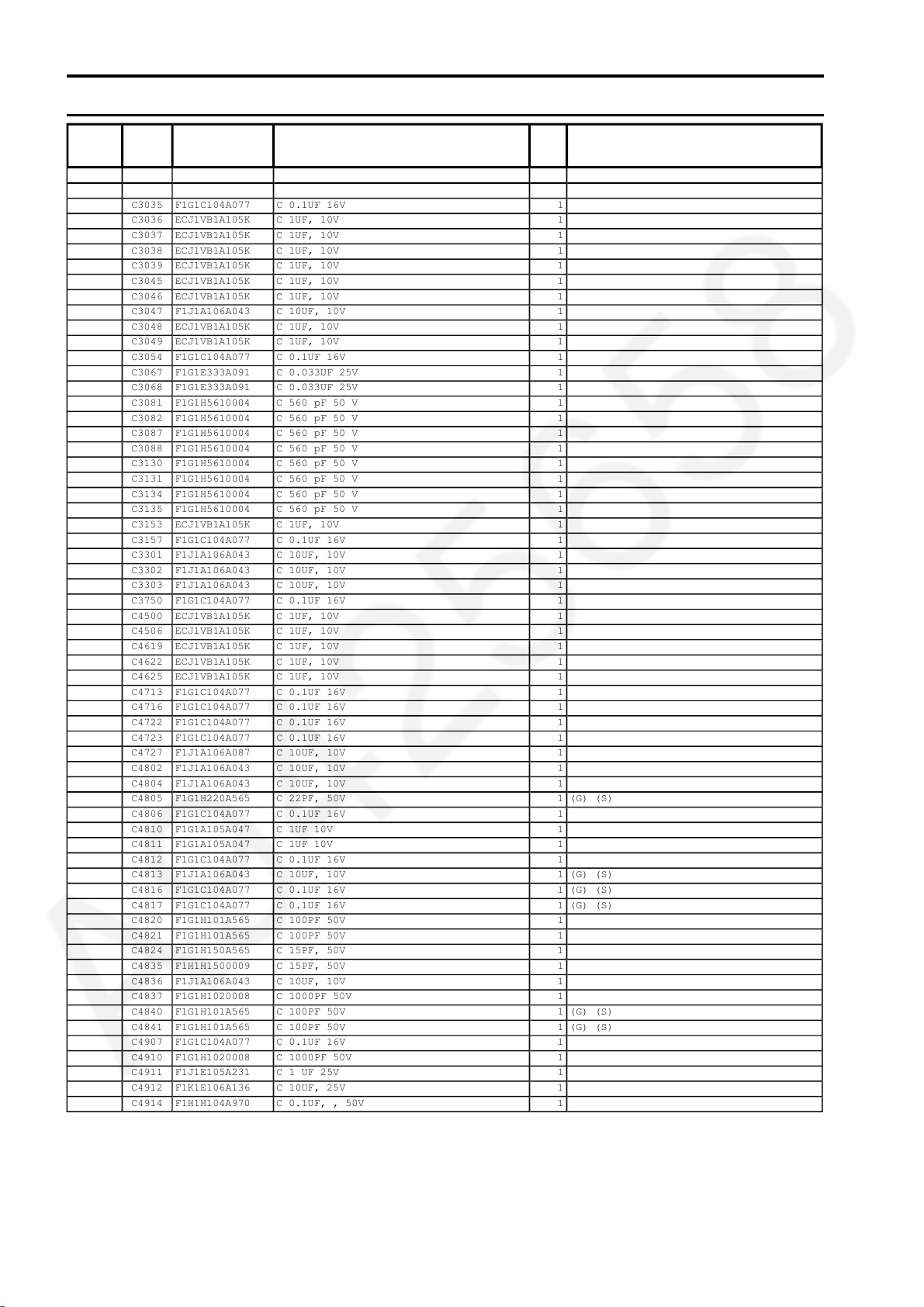

Model No. : TH-P65VT30D/G/K/M/P/S Parts List
S-44
Safety
Ref.
No.
C3033 F1J1A106A043 C 10UF, 10V 1
C3034 F1J1A106A043 C 10UF, 10V 1
C3035 F1G1C104A077 C 0.1UF 16V 1
C3036 ECJ1VB1A105K C 1UF, 10V 1
C3037 ECJ1VB1A105K C 1UF, 10V 1
C3038 ECJ1VB1A105K C 1UF, 10V 1
C3039 ECJ1VB1A105K C 1UF, 10V 1
C3045 ECJ1VB1A105K C 1UF, 10V 1
C3046 ECJ1VB1A105K C 1UF, 10V 1
C3047 F1J1A106A043 C 10UF, 10V 1
C3048 ECJ1VB1A105K C 1UF, 10V 1
C3049 ECJ1VB1A105K C 1UF, 10V 1
C3054 F1G1C104A077 C 0.1UF 16V 1
C3067 F1G1E333A091 C 0.033UF 25V 1
C3068 F1G1E333A091 C 0.033UF 25V 1
C3081 F1G1H5610004 C 560 pF 50 V 1
C3082 F1G1H5610004 C 560 pF 50 V 1
C3087 F1G1H5610004 C 560 pF 50 V 1
C3088 F1G1H5610004 C 560 pF 50 V 1
C3130 F1G1H5610004 C 560 pF 50 V 1
C3131 F1G1H5610004 C 560 pF 50 V 1
C3134 F1G1H5610004 C 560 pF 50 V 1
C3135 F1G1H5610004 C 560 pF 50 V 1
C3153 ECJ1VB1A105K C 1UF, 10V 1
C3157 F1G1C104A077 C 0.1UF 16V 1
C3301 F1J1A106A043 C 10UF, 10V 1
C3302 F1J1A106A043 C 10UF, 10V 1
C3303 F1J1A106A043 C 10UF, 10V 1
C3750 F1G1C104A077 C 0.1UF 16V 1
C4500 ECJ1VB1A105K C 1UF, 10V 1
C4506 ECJ1VB1A105K C 1UF, 10V 1
C4619 ECJ1VB1A105K C 1UF, 10V 1
C4622 ECJ1VB1A105K C 1UF, 10V 1
C4625 ECJ1VB1A105K C 1UF, 10V 1
C4713 F1G1C104A077 C 0.1UF 16V 1
C4716 F1G1C104A077 C 0.1UF 16V 1
C4722 F1G1C104A077 C 0.1UF 16V 1
C4723 F1G1C104A077 C 0.1UF 16V 1
C4727 F1J1A106A087 C 10UF, 10V 1
C4802 F1J1A106A043 C 10UF, 10V 1
C4804 F1J1A106A043 C 10UF, 10V 1
C4805 F1G1H220A565 C 22PF, 50V 1 (G) (S)
C4806 F1G1C104A077 C 0.1UF 16V 1
C4810 F1G1A105A047 C 1UF 10V 1
C4811 F1G1A105A047 C 1UF 10V 1
C4812 F1G1C104A077 C 0.1UF 16V 1
C4813 F1J1A106A043 C 10UF, 10V 1 (G) (S)
C4816 F1G1C104A077 C 0.1UF 16V 1 (G) (S)
C4817 F1G1C104A077 C 0.1UF 16V 1 (G) (S)
C4820 F1G1H101A565 C 100PF 50V 1
C4821 F1G1H101A565 C 100PF 50V 1
C4824 F1G1H150A565 C 15PF, 50V 1
C4835 F1H1H1500009 C 15PF, 50V 1
C4836 F1J1A106A043 C 10UF, 10V 1
C4837 F1G1H1020008 C 1000PF 50V 1
C4840 F1G1H101A565 C 100PF 50V 1 (G) (S)
C4841 F1G1H101A565 C 100PF 50V 1 (G) (S)
C4907 F1G1C104A077 C 0.1UF 16V 1
C4910 F1G1H1020008 C 1000PF 50V 1
C4911 F1J1E105A231 C 1 UF 25V 1
C4912 F1K1E106A136 C 10UF, 25V 1
C4914 F1H1H104A970 C 0.1UF, , 50V 1
Part No. Part Name & Description Q'ty Remarks
Page 96
Model No. : TH-P65VT30D/G/K/M/P/S Parts List
S-45
Safety
Ref.
No.
C4915 F1J1E105A231 C 1 UF 25V 1
C4916 F1H1H104A970 C 0.1UF, , 50V 1
C4918 F1J1E4740001 C 0.47UF, 25V 1
C4919 F1J1E4740001 C 0.47UF, 25V 1
C4920 F1G1H1020008 C 1000PF 50V 1
C4921 F1J1E105A231 C 1 UF 25V 1
C4922 F1K1E106A136 C 10UF, 25V 1
C4924 F1H1H104A970 C 0.1UF, , 50V 1
C4925 F1J1E105A231 C 1 UF 25V 1
C4926 F1H1H104A970 C 0.1UF, , 50V 1
C4928 F1J1E4740001 C 0.47UF, 25V 1
C4929 F1J1E4740001 C 0.47UF, 25V 1
C4930 F1G1C104A077 C 0.1UF 16V 1
C4931 F1G1C104A077 C 0.1UF 16V 1
C4941 F1J1A106A043 C 10UF, 10V 1
C4942 F1J1A106A043 C 10UF, 10V 1
C4952 F2H1A101A040 C 100UF, 10V 1
C4953 F2H1A101A040 C 100UF, 10V 1
C4954 F1G1E333A091 C 0.033UF 25V 1
C4955 F1G1E333A091 C 0.033UF 25V 1
C4956 F1K1E106A136 C 10UF, 25V 1
C4958 F1H1H104A970 C 0.1UF, , 50V 1
C4959 F1J1E105A231 C 1 UF 25V 1
C4960 F1H1H104A970 C 0.1UF, , 50V 1
C4962 F1J1E4740001 C 0.47UF, 25V 1
C4963 F1J1E4740001 C 0.47UF, 25V 1
C4968 F1H1H104A970 C 0.1UF, , 50V 1
C4969 F1J1E105A231 C 1 UF 25V 1
C4977 F1G1H1020008 C 1000PF 50V 1
C4978 F1J1E105A231 C 1 UF 25V 1
C4979 F1J1E105A231 C 1 UF 25V 1
C4980 F1K1E106A136 C 10UF, 25V 1
C4982 F1H1H104A970 C 0.1UF, , 50V 1
C4985 F1G1H1020008 C 1000PF 50V 1
C5000 F1G1E1030005 C 0.01UF 25V 1
C5002 F1J1E105A231 C 1 UF 25V 1
C5003 F1H1C105A145 C 1 uF 16 V 1
C5011 F1G1C104A077 C 0.1UF 16V 1
C5012 EEEHB1C101UP C 100PF, J, 16V 1
C5013 ECJ1VB1A105K C 1UF, 10V 1
C5014 ECJ1VB1A105K C 1UF, 10V 1
C5015 ECJ1VB1A105K C 1UF, 10V 1
C5016 ECJ1VB1A105K C 1UF, 10V 1
C5017 ECJ1VB1A105K C 1UF, 10V 1
C5018 F1G1C104A077 C 0.1UF 16V 1
C5020 F1G1E1030005 C 0.01UF 25V 1
C5255 ECJ1VB1A105K C 1UF, 10V 1
C5256 ECJ1VB1A105K C 1UF, 10V 1
C5352 F1J1A106A043 C 10UF, 10V 1
C5353 F1G1H103A509 C 0.01PF, 50V 1
C5356 F1K1E106A136 C 10UF, 25V 1
C5357 F1K1E106A136 C 10UF, 25V 1
C5358 F1J1A106A043 C 10UF, 10V 1
C5359 F1G1H821A459 C 820 pF 50 V 1
C5371 F1J1A106A043 C 10UF, 10V 1
C5668 F1G1C223A081 C 0.022UF, 16V 1
C5669 F1J1A106A043 C 10UF, 10V 1
C5670 F1J1A106A043 C 10UF, 10V 1
C5672 F1G1A333A032 C0.033UF, 10V 1
C5673 F1G1H5610004 C 560 pF 50 V 1
C5676 F1K1E106A136 C 10UF, 25V 1
C5762 F1K1E105A029 C 1UF, 25V 1
Part No. Part Name & Description Q'ty Remarks
Page 97

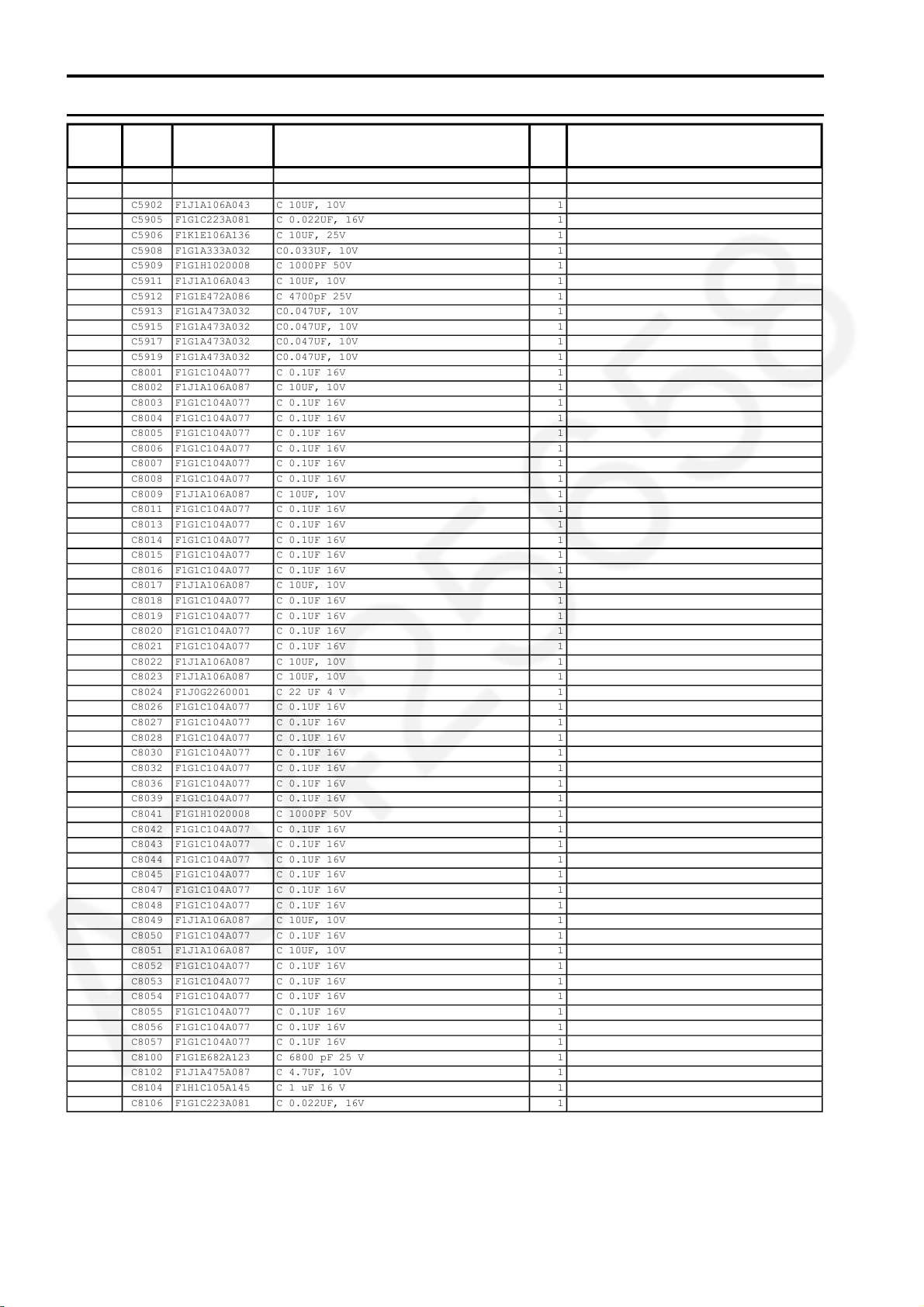

Model No. : TH-P65VT30D/G/K/M/P/S Parts List
S-46
Safety
Ref.
No.
C5900 F1J1A106A043 C 10UF, 10V 1
C5901 F1J1A106A043 C 10UF, 10V 1
C5902 F1J1A106A043 C 10UF, 10V 1
C5905 F1G1C223A081 C 0.022UF, 16V 1
C5906 F1K1E106A136 C 10UF, 25V 1
C5908 F1G1A333A032 C0.033UF, 10V 1
C5909 F1G1H1020008 C 1000PF 50V 1
C5911 F1J1A106A043 C 10UF, 10V 1
C5912 F1G1E472A086 C 4700pF 25V 1
C5913 F1G1A473A032 C0.047UF, 10V 1
C5915 F1G1A473A032 C0.047UF, 10V 1
C5917 F1G1A473A032 C0.047UF, 10V 1
C5919 F1G1A473A032 C0.047UF, 10V 1
C8001 F1G1C104A077 C 0.1UF 16V 1
C8002 F1J1A106A087 C 10UF, 10V 1
C8003 F1G1C104A077 C 0.1UF 16V 1
C8004 F1G1C104A077 C 0.1UF 16V 1
C8005 F1G1C104A077 C 0.1UF 16V 1
C8006 F1G1C104A077 C 0.1UF 16V 1
C8007 F1G1C104A077 C 0.1UF 16V 1
C8008 F1G1C104A077 C 0.1UF 16V 1
C8009 F1J1A106A087 C 10UF, 10V 1
C8011 F1G1C104A077 C 0.1UF 16V 1
C8013 F1G1C104A077 C 0.1UF 16V 1
C8014 F1G1C104A077 C 0.1UF 16V 1
C8015 F1G1C104A077 C 0.1UF 16V 1
C8016 F1G1C104A077 C 0.1UF 16V 1
C8017 F1J1A106A087 C 10UF, 10V 1
C8018 F1G1C104A077 C 0.1UF 16V 1
C8019 F1G1C104A077 C 0.1UF 16V 1
C8020 F1G1C104A077 C 0.1UF 16V 1
C8021 F1G1C104A077 C 0.1UF 16V 1
C8022 F1J1A106A087 C 10UF, 10V 1
C8023 F1J1A106A087 C 10UF, 10V 1
C8024 F1J0G2260001 C 22 UF 4 V 1
C8026 F1G1C104A077 C 0.1UF 16V 1
C8027 F1G1C104A077 C 0.1UF 16V 1
C8028 F1G1C104A077 C 0.1UF 16V 1
C8030 F1G1C104A077 C 0.1UF 16V 1
C8032 F1G1C104A077 C 0.1UF 16V 1
C8036 F1G1C104A077 C 0.1UF 16V 1
C8039 F1G1C104A077 C 0.1UF 16V 1
C8041 F1G1H1020008 C 1000PF 50V 1
C8042 F1G1C104A077 C 0.1UF 16V 1
C8043 F1G1C104A077 C 0.1UF 16V 1
C8044 F1G1C104A077 C 0.1UF 16V 1
C8045 F1G1C104A077 C 0.1UF 16V 1
C8047 F1G1C104A077 C 0.1UF 16V 1
C8048 F1G1C104A077 C 0.1UF 16V 1
C8049 F1J1A106A087 C 10UF, 10V 1
C8050 F1G1C104A077 C 0.1UF 16V 1
C8051 F1J1A106A087 C 10UF, 10V 1
C8052 F1G1C104A077 C 0.1UF 16V 1
C8053 F1G1C104A077 C 0.1UF 16V 1
C8054 F1G1C104A077 C 0.1UF 16V 1
C8055 F1G1C104A077 C 0.1UF 16V 1
C8056 F1G1C104A077 C 0.1UF 16V 1
C8057 F1G1C104A077 C 0.1UF 16V 1
C8100 F1G1E682A123 C 6800 pF 25 V 1
C8102 F1J1A475A087 C 4.7UF, 10V 1
C8104 F1H1C105A145 C 1 uF 16 V 1
C8106 F1G1C223A081 C 0.022UF, 16V 1
Part No. Part Name & Description Q'ty Remarks

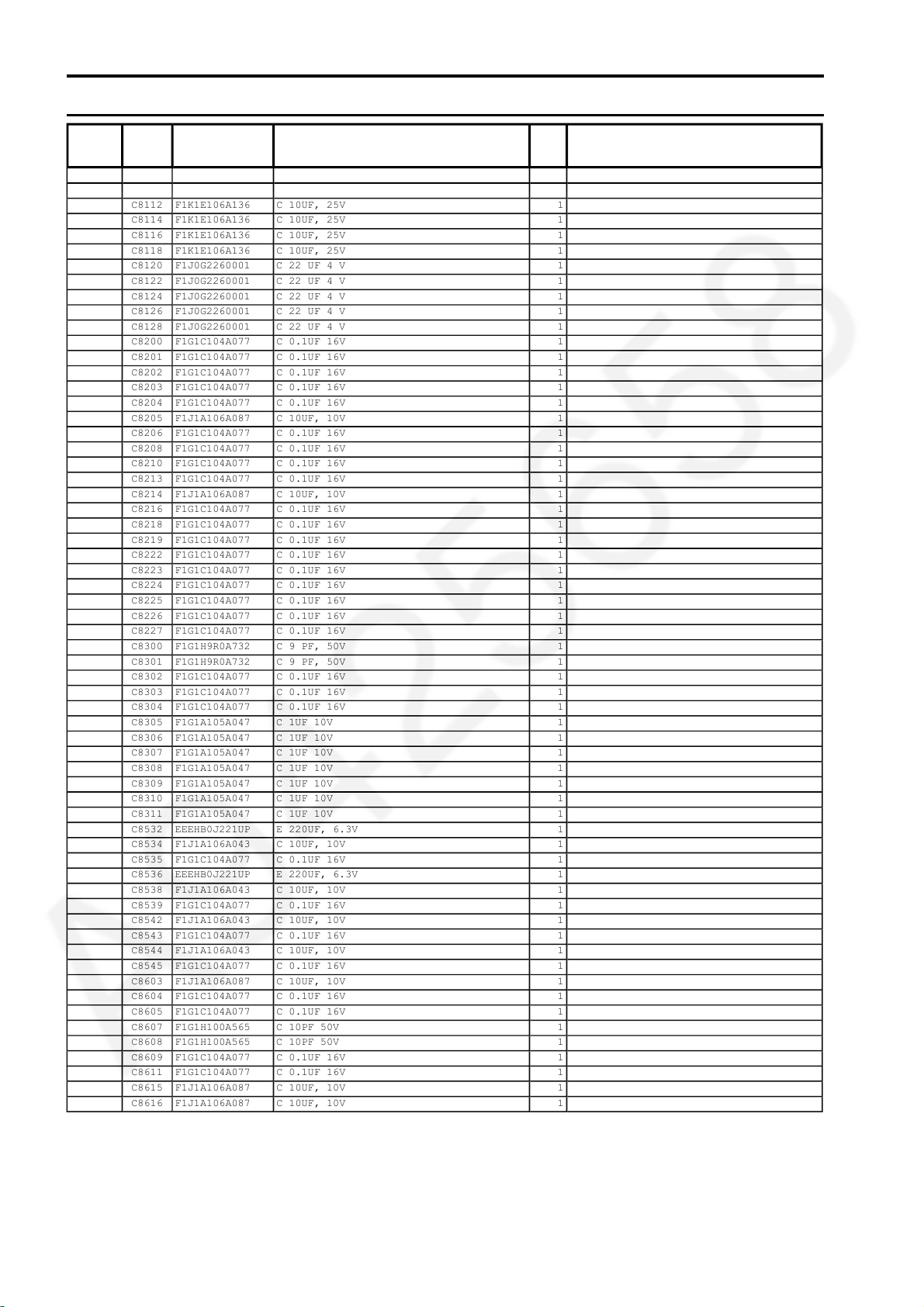

Page 98
Model No. : TH-P65VT30D/G/K/M/P/S Parts List
S-47
Safety
Ref.
No.
C8108 F1G1C104A077 C 0.1UF 16V 1
C8110 F1G1C104A077 C 0.1UF 16V 1
C8112 F1K1E106A136 C 10UF, 25V 1
C8114 F1K1E106A136 C 10UF, 25V 1
C8116 F1K1E106A136 C 10UF, 25V 1
C8118 F1K1E106A136 C 10UF, 25V 1
C8120 F1J0G2260001 C 22 UF 4 V 1
C8122 F1J0G2260001 C 22 UF 4 V 1
C8124 F1J0G2260001 C 22 UF 4 V 1
C8126 F1J0G2260001 C 22 UF 4 V 1
C8128 F1J0G2260001 C 22 UF 4 V 1
C8200 F1G1C104A077 C 0.1UF 16V 1
C8201 F1G1C104A077 C 0.1UF 16V 1
C8202 F1G1C104A077 C 0.1UF 16V 1
C8203 F1G1C104A077 C 0.1UF 16V 1
C8204 F1G1C104A077 C 0.1UF 16V 1
C8205 F1J1A106A087 C 10UF, 10V 1
C8206 F1G1C104A077 C 0.1UF 16V 1
C8208 F1G1C104A077 C 0.1UF 16V 1
C8210 F1G1C104A077 C 0.1UF 16V 1
C8213 F1G1C104A077 C 0.1UF 16V 1
C8214 F1J1A106A087 C 10UF, 10V 1
C8216 F1G1C104A077 C 0.1UF 16V 1
C8218 F1G1C104A077 C 0.1UF 16V 1
C8219 F1G1C104A077 C 0.1UF 16V 1
C8222 F1G1C104A077 C 0.1UF 16V 1
C8223 F1G1C104A077 C 0.1UF 16V 1
C8224 F1G1C104A077 C 0.1UF 16V 1
C8225 F1G1C104A077 C 0.1UF 16V 1
C8226 F1G1C104A077 C 0.1UF 16V 1
C8227 F1G1C104A077 C 0.1UF 16V 1
C8300 F1G1H9R0A732 C 9 PF, 50V 1
C8301 F1G1H9R0A732 C 9 PF, 50V 1
C8302 F1G1C104A077 C 0.1UF 16V 1
C8303 F1G1C104A077 C 0.1UF 16V 1
C8304 F1G1C104A077 C 0.1UF 16V 1
C8305 F1G1A105A047 C 1UF 10V 1
C8306 F1G1A105A047 C 1UF 10V 1
C8307 F1G1A105A047 C 1UF 10V 1
C8308 F1G1A105A047 C 1UF 10V 1
C8309 F1G1A105A047 C 1UF 10V 1
C8310 F1G1A105A047 C 1UF 10V 1
C8311 F1G1A105A047 C 1UF 10V 1
C8532 EEEHB0J221UP E 220UF, 6.3V 1
C8534 F1J1A106A043 C 10UF, 10V 1
C8535 F1G1C104A077 C 0.1UF 16V 1
C8536 EEEHB0J221UP E 220UF, 6.3V 1
C8538 F1J1A106A043 C 10UF, 10V 1
C8539 F1G1C104A077 C 0.1UF 16V 1
C8542 F1J1A106A043 C 10UF, 10V 1
C8543 F1G1C104A077 C 0.1UF 16V 1
C8544 F1J1A106A043 C 10UF, 10V 1
C8545 F1G1C104A077 C 0.1UF 16V 1
C8603 F1J1A106A087 C 10UF, 10V 1
C8604 F1G1C104A077 C 0.1UF 16V 1
C8605 F1G1C104A077 C 0.1UF 16V 1
C8607 F1G1H100A565 C 10PF 50V 1
C8608 F1G1H100A565 C 10PF 50V 1
C8609 F1G1C104A077 C 0.1UF 16V 1
C8611 F1G1C104A077 C 0.1UF 16V 1
C8615 F1J1A106A087 C 10UF, 10V 1
C8616 F1J1A106A087 C 10UF, 10V 1
Part No. Part Name & Description Q'ty Remarks
Page 99

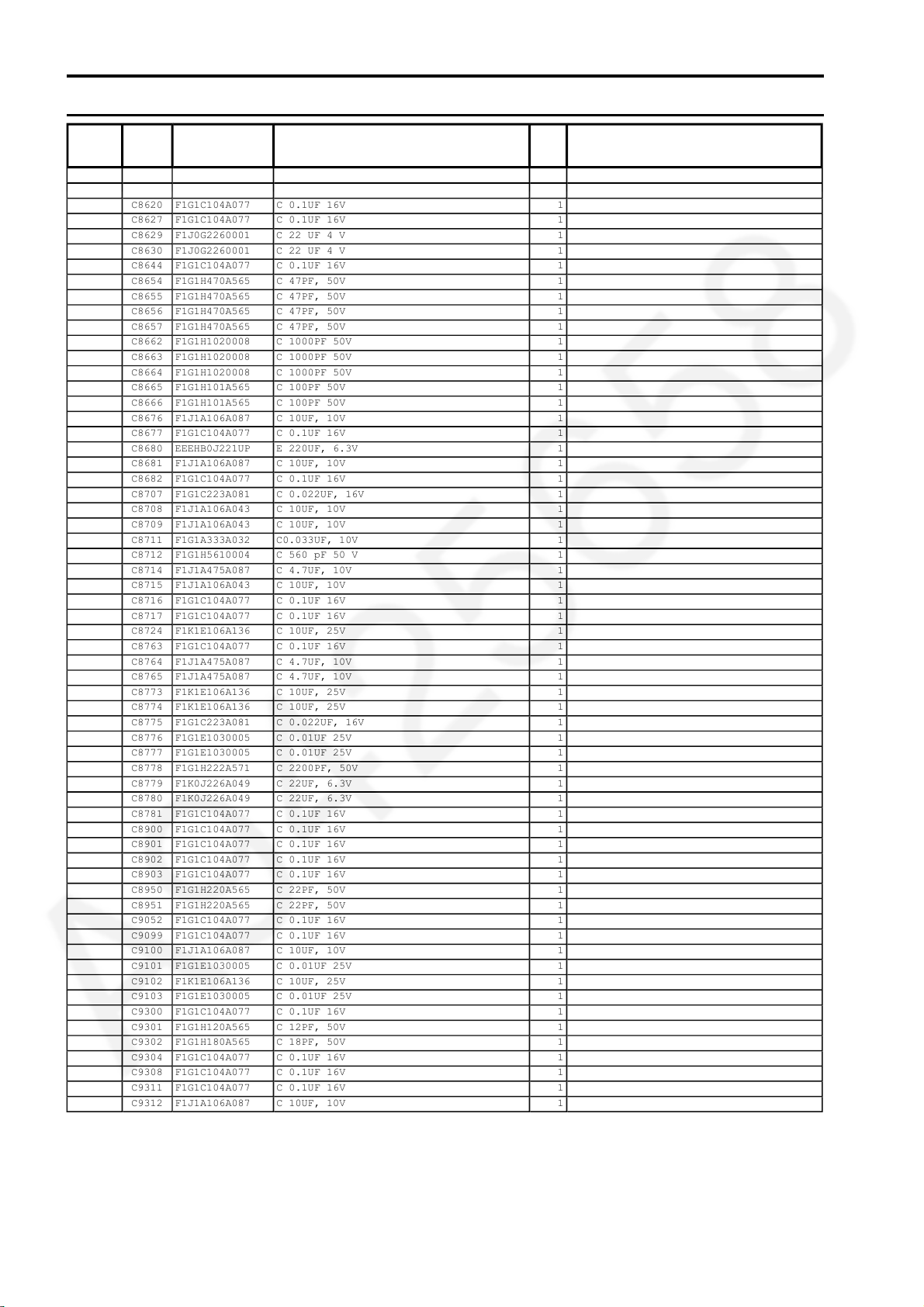

Model No. : TH-P65VT30D/G/K/M/P/S Parts List
S-48
Safety
Ref.
No.
C8617 F1G1C104A077 C 0.1UF 16V 1
C8619 F1G1C104A077 C 0.1UF 16V 1
C8620 F1G1C104A077 C 0.1UF 16V 1
C8627 F1G1C104A077 C 0.1UF 16V 1
C8629 F1J0G2260001 C 22 UF 4 V 1
C8630 F1J0G2260001 C 22 UF 4 V 1
C8644 F1G1C104A077 C 0.1UF 16V 1
C8654 F1G1H470A565 C 47PF, 50V 1
C8655 F1G1H470A565 C 47PF, 50V 1
C8656 F1G1H470A565 C 47PF, 50V 1
C8657 F1G1H470A565 C 47PF, 50V 1
C8662 F1G1H1020008 C 1000PF 50V 1
C8663 F1G1H1020008 C 1000PF 50V 1
C8664 F1G1H1020008 C 1000PF 50V 1
C8665 F1G1H101A565 C 100PF 50V 1
C8666 F1G1H101A565 C 100PF 50V 1
C8676 F1J1A106A087 C 10UF, 10V 1
C8677 F1G1C104A077 C 0.1UF 16V 1
C8680 EEEHB0J221UP E 220UF, 6.3V 1
C8681 F1J1A106A087 C 10UF, 10V 1
C8682 F1G1C104A077 C 0.1UF 16V 1
C8707 F1G1C223A081 C 0.022UF, 16V 1
C8708 F1J1A106A043 C 10UF, 10V 1
C8709 F1J1A106A043 C 10UF, 10V 1
C8711 F1G1A333A032 C0.033UF, 10V 1
C8712 F1G1H5610004 C 560 pF 50 V 1
C8714 F1J1A475A087 C 4.7UF, 10V 1
C8715 F1J1A106A043 C 10UF, 10V 1
C8716 F1G1C104A077 C 0.1UF 16V 1
C8717 F1G1C104A077 C 0.1UF 16V 1
C8724 F1K1E106A136 C 10UF, 25V 1
C8763 F1G1C104A077 C 0.1UF 16V 1
C8764 F1J1A475A087 C 4.7UF, 10V 1
C8765 F1J1A475A087 C 4.7UF, 10V 1
C8773 F1K1E106A136 C 10UF, 25V 1
C8774 F1K1E106A136 C 10UF, 25V 1
C8775 F1G1C223A081 C 0.022UF, 16V 1
C8776 F1G1E1030005 C 0.01UF 25V 1
C8777 F1G1E1030005 C 0.01UF 25V 1
C8778 F1G1H222A571 C 2200PF, 50V 1
C8779 F1K0J226A049 C 22UF, 6.3V 1
C8780 F1K0J226A049 C 22UF, 6.3V 1
C8781 F1G1C104A077 C 0.1UF 16V 1
C8900 F1G1C104A077 C 0.1UF 16V 1
C8901 F1G1C104A077 C 0.1UF 16V 1
C8902 F1G1C104A077 C 0.1UF 16V 1
C8903 F1G1C104A077 C 0.1UF 16V 1
C8950 F1G1H220A565 C 22PF, 50V 1
C8951 F1G1H220A565 C 22PF, 50V 1
C9052 F1G1C104A077 C 0.1UF 16V 1
C9099 F1G1C104A077 C 0.1UF 16V 1
C9100 F1J1A106A087 C 10UF, 10V 1
C9101 F1G1E1030005 C 0.01UF 25V 1
C9102 F1K1E106A136 C 10UF, 25V 1
C9103 F1G1E1030005 C 0.01UF 25V 1
C9300 F1G1C104A077 C 0.1UF 16V 1
C9301 F1G1H120A565 C 12PF, 50V 1
C9302 F1G1H180A565 C 18PF, 50V 1
C9304 F1G1C104A077 C 0.1UF 16V 1
C9308 F1G1C104A077 C 0.1UF 16V 1
C9311 F1G1C104A077 C 0.1UF 16V 1
C9312 F1J1A106A087 C 10UF, 10V 1
Part No. Part Name & Description Q'ty Remarks
Page 100
Model No. : TH-P65VT30D/G/K/M/P/S Parts List
S-49
Safety
Ref.
No.
C9313 F1G1C104A077 C 0.1UF 16V 1
C9328 F1G1C104A077 C 0.1UF 16V 1
C9330 F1G1A105A047 C 1UF 10V 1
C9331 F1G1A105A047 C 1UF 10V 1
C9332 F1G1A105A047 C 1UF 10V 1
C9337 F1J1A106A087 C 10UF, 10V 1
C9362 F1G1C104A077 C 0.1UF 16V 1
C9366 F1G1A105A047 C 1UF 10V 1
C9371 F1J1A106A087 C 10UF, 10V 1
C9375 F1G1C104A077 C 0.1UF 16V 1
C9380 F1G1C104A077 C 0.1UF 16V 1
C9389 F1G1A105A047 C 1UF 10V 1
C9392 F1J1A106A087 C 10UF, 10V 1
C9400 F1G1C104A077 C 0.1UF 16V 1
C9401 F1G1C104A077 C 0.1UF 16V 1
C9402 F1G1C104A077 C 0.1UF 16V 1
C9404 F1G1C104A077 C 0.1UF 16V 1
C9407 F1G1C104A077 C 0.1UF 16V 1
C9409 F1J1A106A087 C 10UF, 10V 1
C9411 F1J1A106A087 C 10UF, 10V 1
C9413 F1J1A106A087 C 10UF, 10V 1
C9415 F1J1A106A087 C 10UF, 10V 1
C9506 F1G1C104A077 C 0.1UF 16V 1
C9509 F1G1C104A077 C 0.1UF 16V 1
C9510 F1J1A106A087 C 10UF, 10V 1
C9511 F1G1C104A077 C 0.1UF 16V 1
C9526 F1G1C104A077 C 0.1UF 16V 1
C9528 F1G1A105A047 C 1UF 10V 1
C9529 F1G1A105A047 C 1UF 10V 1
C9530 F1G1A105A047 C 1UF 10V 1
C9535 F1J1A106A087 C 10UF, 10V 1
C9550 F1G1C104A077 C 0.1UF 16V 1
C9551 F1G1A105A047 C 1UF 10V 1
C9554 F1J1A106A087 C 10UF, 10V 1
C9556 F1G1C104A077 C 0.1UF 16V 1
C9561 F1G1C104A077 C 0.1UF 16V 1
C9570 F1G1A105A047 C 1UF 10V 1
C9573 F1J1A106A087 C 10UF, 10V 1
C9577 F1G1C104A077 C 0.1UF 16V 1
C9580 F1G1C104A077 C 0.1UF 16V 1
C9582 F1J1A106A087 C 10UF, 10V 1
C9584 F1J1A106A087 C 10UF, 10V 1
C9586 F1J1A106A087 C 10UF, 10V 1
C9588 F1J1A106A087 C 10UF, 10V 1
C9589 F1J1A106A087 C 10UF, 10V 1
C9590 F1G1E1030005 C 0.01UF 25V 1
C9591 F1G1C104A077 C 0.1UF 16V 1
C9594 F1G1H470A565 C 47PF, 50V 1
C9821 F1K1E106A136 C 10UF, 25V 1
C9822 F1K1E106A136 C 10UF, 25V 1
C9823 F1G1C223A081 C 0.022UF, 16V 1
C9824 F1G1E1030005 C 0.01UF 25V 1
C9825 F1G1E1030005 C 0.01UF 25V 1
C9827 F1K0J226A049 C 22UF, 6.3V 1
C9828 F1K0J226A049 C 22UF, 6.3V 1
C9831 F1K1E106A136 C 10UF, 25V 1
C9832 F1K1E106A136 C 10UF, 25V 1
C9833 F1G1C223A081 C 0.022UF, 16V 1
C9834 F1G1E1030005 C 0.01UF 25V 1
C9835 F1G1E1030005 C 0.01UF 25V 1
C9837 F1K0J226A049 C 22UF, 6.3V 1
C9838 F1K0J226A049 C 22UF, 6.3V 1
Part No. Part Name & Description Q'ty Remarks
Loading...
