Page 1

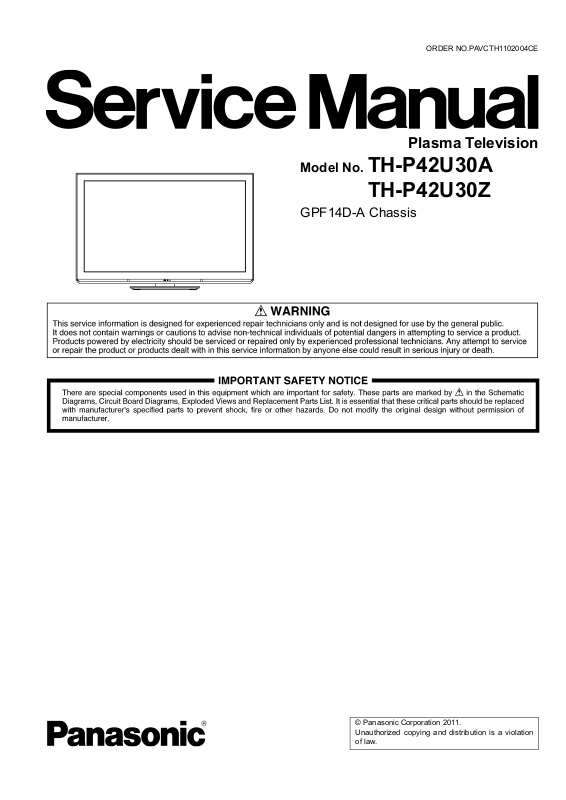

ORDER NO.PAVCTH1102004CE

Plasma Television

Model No. TH-P42U30A

TH-P42U30Z

GPF14D-A Chassis

Page 2

TABLE OF CONTENTS

PAG E PAG E

1 Safety Precautions -----------------------------------------------3

1.1. General Guidelines ----------------------------------------3

1.2. Touch-Current Check--------------------------------------3

2Warning--------------------------------------------------------------4

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------4

2.2. About lead free solder (PbF) ----------------------------5

3 Service Navigation------------------------------------------------6

3.1. PCB Layout --------------------------------------------------6

3.2. Applicable signals ------------------------------------------7

4 Specifications ------------------------------------------------------8 5 Technical Descriptions------------------------------------------9

5.1. Specification of KEY for CI Plus, DTCP-IP and One-to-One --------------------------------------------------9

6 Service Mode ----------------------------------------------------- 10

6.1. How to enter into Service Mode ---------------------- 10

6.2. Option - Mirror--------------------------------------------- 12

6.3. Service tool mode ---------------------------------------- 12

6.4. Hotel mode------------------------------------------------- 13

6.5. Data Copy by SD Card --------------------------------- 14

7 Troubleshooting Guide---------------------------------------- 17

7.1. Check of the IIC bus lines------------------------------ 17

7.2. Power LED Blinking timing chart --------------------- 18

7.3. No Power--------------------------------------------------- 18

7.4. No Picture -------------------------------------------------- 19

7.5. Local screen failure -------------------------------------- 20

8 Disassembly and Assembly Instructions --------------- 21

8.1. Remove the Rear cover -------------------------------- 21

8.2. Remove the AC inlet ------------------------------------ 21

8.3. Remove the P-Board ------------------------------------ 21

8.4. Remove the Side terminal cover --------------------- 21

8.5. Remove the Tuner unit --------------------------------- 21

8.6. Remove the A-Board ------------------------------------ 22

8.7. Remove the Speakers ---------------------------------- 22

8.8. Remove the SN-Board---------------------------------- 22

8.9. Remove the SS-Board ---------------------------------- 22

8.10. Remove the Stand bracket and the Hanger metals ------------------------------------------------------- 23

8.11. Remove the Radiator plate ----------------------------23

8.12. Remove the C1-Board ---------------------------------- 23

8.13. Remove the C2-Board ---------------------------------- 23

8.14. Remove the Plasma panel section from the Cabinet assy----------------------------------------------- 24

8.15. Remove the Attachment metal bottom-------------- 24

8.16. Remove the Attachment metal top------------------- 24

8.17. Remove the Glass holders ---------------------------- 25

8.18. Remove the K-Board ------------------------------------ 25

8.19. Replace the Plasma panel ----------------------------- 25

9 Measurements and Adjustments -------------------------- 26

9.1. Adjustment ------------------------------------------------- 26

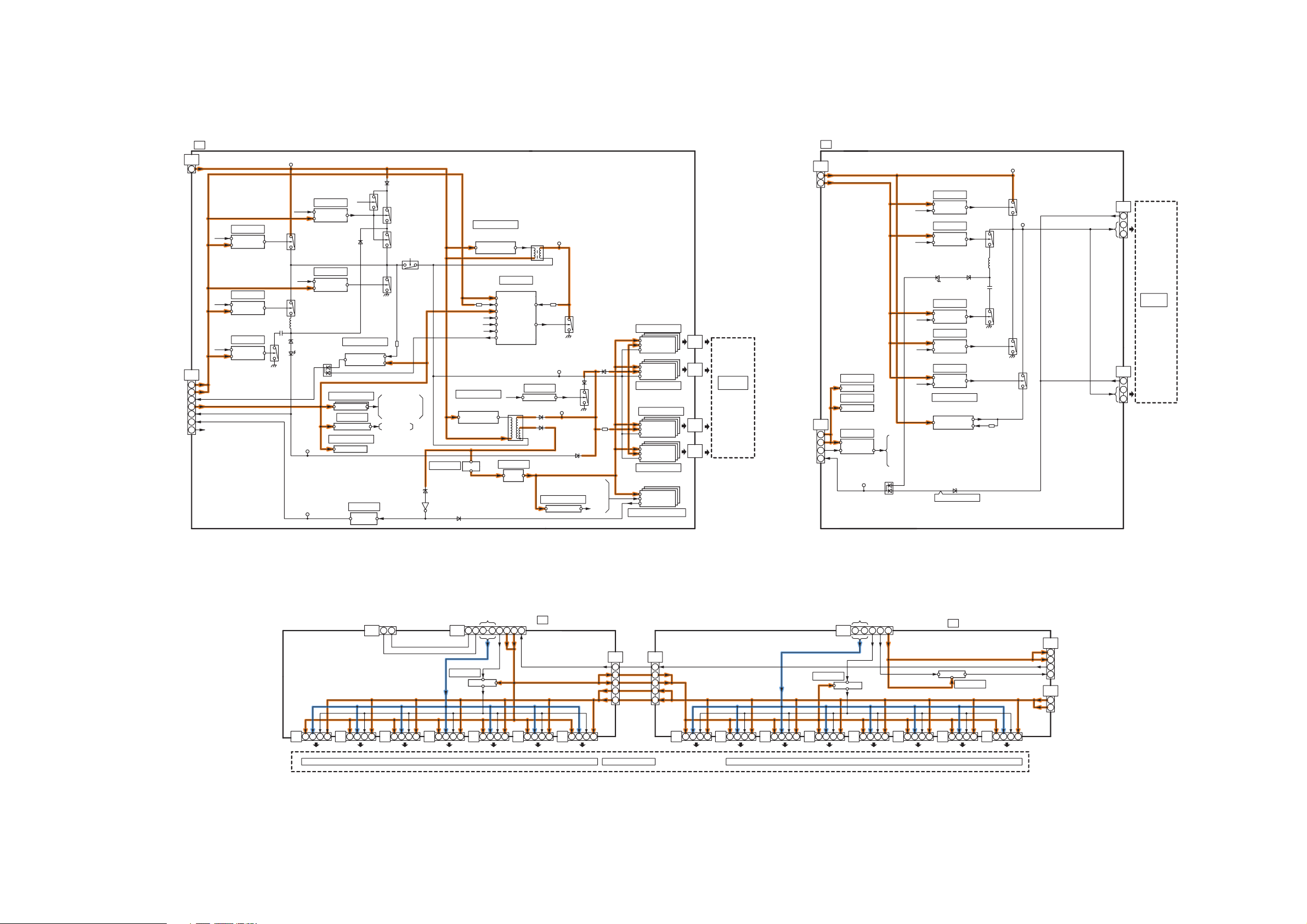

10 Block Diagram --------------------------------------------------- 33

10.1. Main Block Diagram ------------------------------------- 33

10.2. Block (1/4) Diagram ------------------------------------- 34

10.3. Block (2/4) Diagram ------------------------------------- 35

10.4. Block (3/4) Diagram ------------------------------------- 36

10.5. Block (4/4) Diagram ------------------------------------- 37

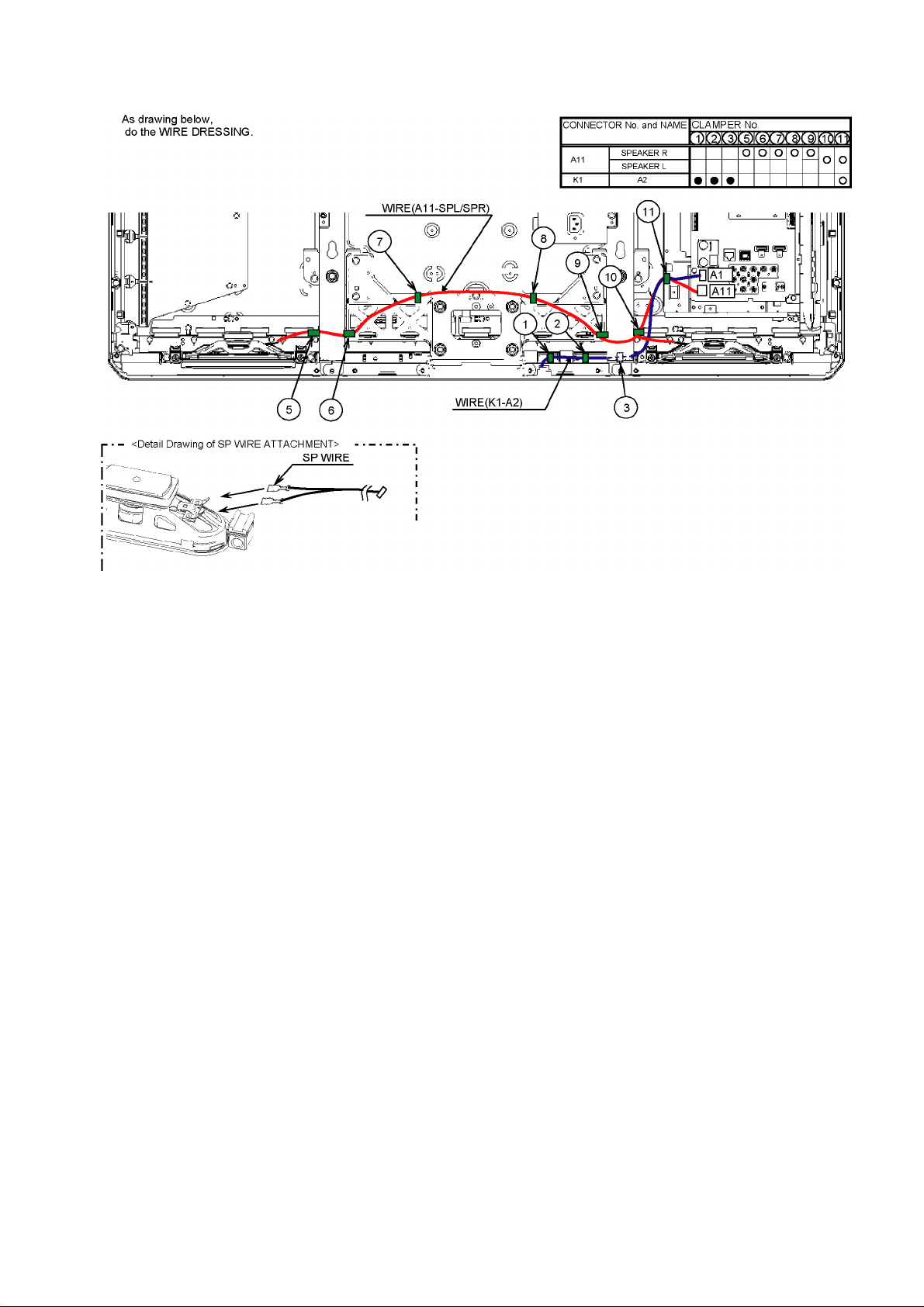

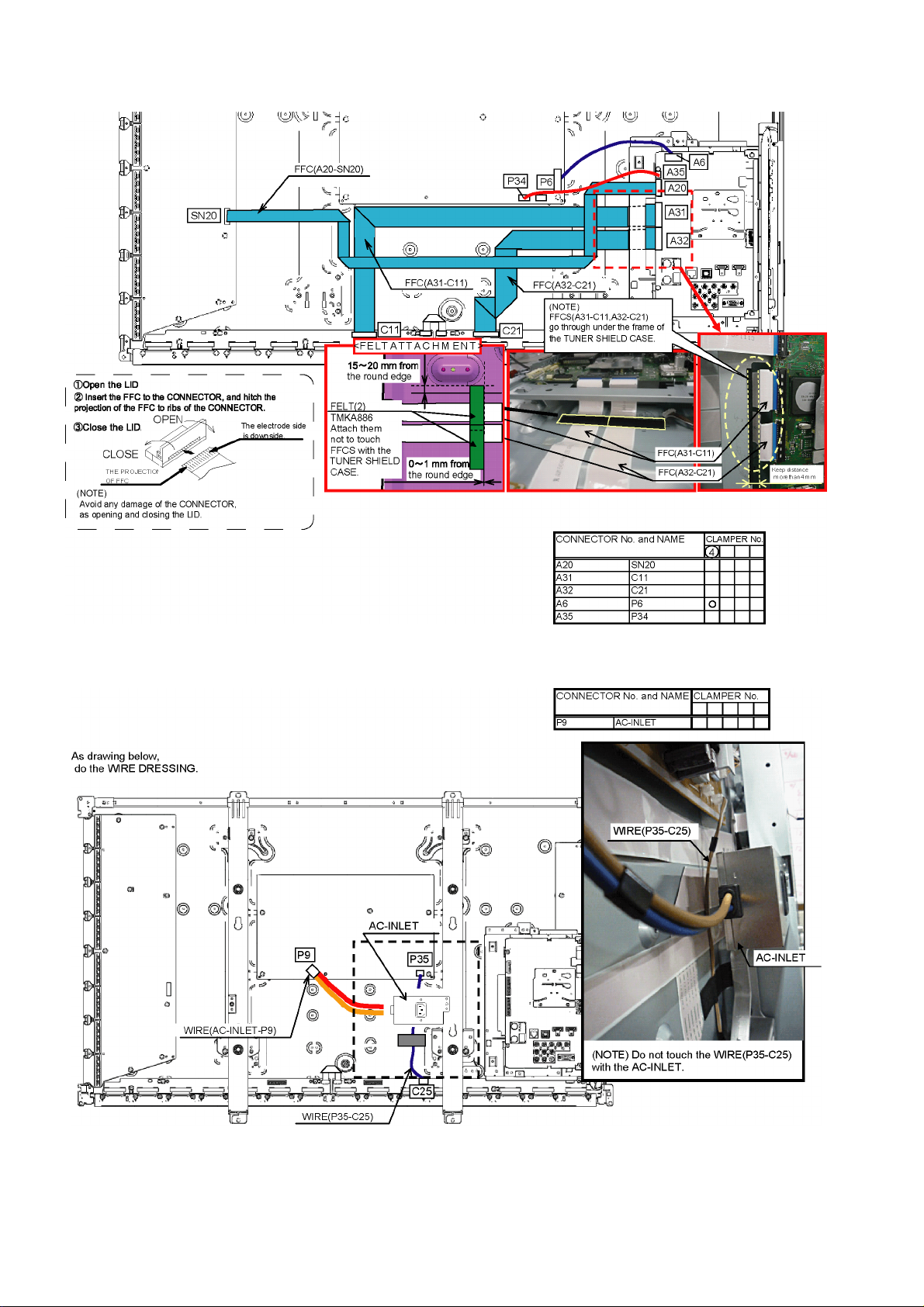

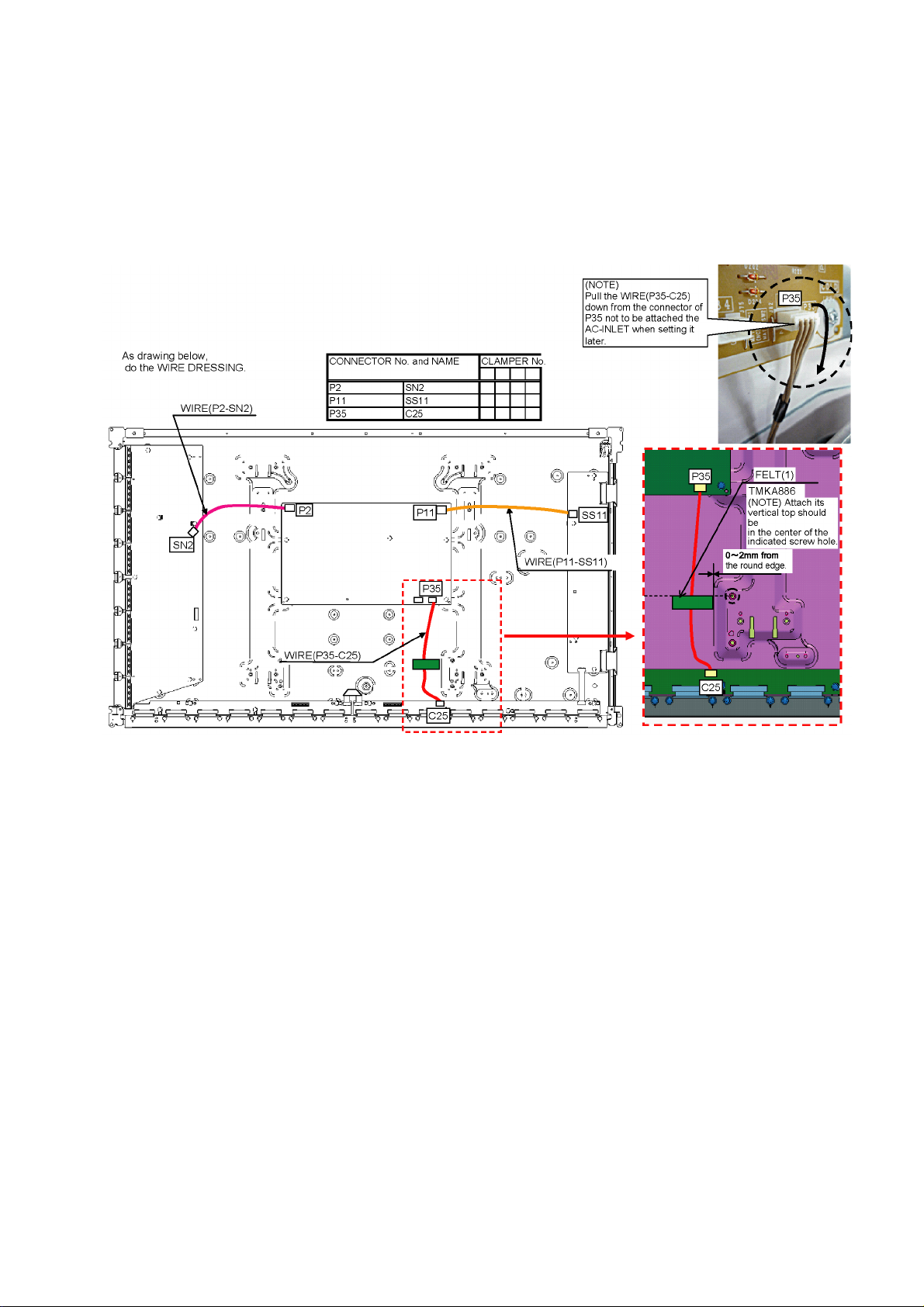

11 Wiring Connection Diagram --------------------------------- 39

11.1. Caution statement.--------------------------------------- 39

11.2. Wiring (1) -------------------------------------------------- 39

11.3. Wiring (2) -------------------------------------------------- 40

11.4. Wiring (3) -------------------------------------------------- 40

11.5. Wiring (4) -------------------------------------------------- 41

12 Schematic Diagram 13 Printed Circuit Board 14 Exploded View and Replacement Parts List

Page 3

1 Safety Precautions

1.1. General Guidelines

1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.

2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.

3. When conducting repairs and servicing, do not twist the Fasten connectors but plug them straight in or unplug them straight out.

4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.2. Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUCH CURRENT) expressed as voltage U

For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);

For d. c.: U

Note:

The limit value of U

mA d. c. The limit value U

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer.

= 1.0 V,

= 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0

= 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.

and U2, does not exceed the following values:

Figure 1

Page 4

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

Page 5

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it's manufacture due to environmental conservation issues. For service and repair work, we'd suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C). If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

Page 6

3 Service Navigation

3.1. PCB Layout

Board Name Function Board Name Function

P Power Supply

Non serviceable P-Board should be exchange for service

A Main AV input, processing SS Sustain Drive K Remote receiver, Power LED, C.A.T.S. sensor

C1 Data Driver (Lower Right) C2 Data Driver (Lower Left) SN Scan Drive

Page 7

3.2. Applicable signals

COMPONENT (Y, PB/CB, PR/CR), HDMI

* Mark: Applicable input signal

Signal name COMPONENT HDMI 525 (480) / 60i * * 525 (480) / 60p * * 625 (576) / 50i * * 625 (576) / 50p * * 750 (720) / 60p * * 750 (720) / 50p * * 1,125 (1,080) / 60i * * 1,125 (1,080) / 50i * * 1,125 (1,080) / 60p * 1,125 (1,080) / 50p * 1,125 (1,080) / 24p *

PC (from D-sub 15P)

Applicable input signal for PC is basically compatible to VESA standard timing.

Signal name Horizontal frequency (kHz) Vertical frequency (Hz) 640 × 400 @70 Hz 31.47 70.07 640 × 480 @60 Hz 31.47 59.94 640 × 480 @75 Hz 37.50 75.00 800 × 600 @60 Hz 37.88 60.32 800 × 600 @75 Hz 46.88 75.00 800 × 600 @85 Hz 53.67 85.06 852 × 480 @60 Hz 31.44 59.89 1,024 × 768 @60 Hz 48.36 60.00 1,024 × 768 @70 Hz 56.48 70.07 1,024 × 768 @75 Hz 60.02 75.03 1,024 × 768 @85 Hz 68.68 85.00 1,280 × 1,024 @60 Hz 63.98 60.02 1,280 × 768 @60 Hz 47.70 60.00 1,366 × 768 @60 Hz 48.39 60.04 Macintosh13" (640 × 480) 35.00 66.67 Macintosh16" (832 × 624) 49.73 74.55 Macintosh21" (1,152 × 870) 68.68 75.06

PC (from HDMI terminal)

Applicable input signal for PC is basically compatible to HDMI standard timing.

Signal name Horizontal frequency (kHz) Vertical frequency (Hz) 640 × 480 @60 Hz 31.47 60.00 750 (720) / 60p 45.00 60.00 1,125 (1,080) / 60p 67.50 60.00

Note

• Signals other than above may not be displayed properly.

• The above signals are reformatted for optimal viewing on your display.

• PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.

Page 8

4 Specifications

Power

Power rating AC 220-240 V, 50 / 60 Hz 1.4 A Normal (Home) mode 110 W Standby condition 0.4 W

Display panel

Aspect Ratio 16:9 Visible screen size 106 cm (diagonal)

921 mm (W) × 518 mm (H)

Number of pixels 2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots]

Sound

Speaker 160 mm × 40 mm × 2, 6 Ω Audio Output 20 W ( 10 W + 10 W ) Headphones M3 (3.5 mm) stereo mini Jack × 1

PC signals VGA, SVGA, WVGA, XGA

SXGA, WXGA ...... (compressed)

Horizontal scanning frequency 31 - 69 kHz Vertical scanning frequency 59 - 86 Hz

Receiving Systems / Band name

PAL B / G Reception of Off air broadcasts Digital TV 7 MHz VHF/UHF (Australia) free-to-air TV broadcast reception

8 MHz UHF (New Zealand) free-to-air TV broadcast reception

PAL 60 Hz Playback of NTSC tape from some PAL Video recorders (VCR) M. NTSC Playback from M. NTSC Video recorders (VCR) NTSC Playback from NTSC Video recorders (VCR)

Aerial - Rear Standard Belling & Lee connector (A), VHF/UHF (Z) Operating Conditions

Temperature: 0 °C - 35 °C Humidity: 20 % - 80 % RH (non-condensing)

Connection Terminals

AV1 Input

AUDIO L - R RCA PIN Type × 2 0.5 V [rms]

COMPONENT Y 1.0 V [p-p] (including synchronisation)

, PR/C

B/CB

AV2 Input

AUDIO L - R RCA PIN Type × 2 0.5 V [rms] VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

AV3 Input

AUDIO L - R RCA PIN Type × 2 0.5 V [rms] VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

Audio Output

AUDIO L - R RCA PIN Type × 2 0.5 V [rms] (high impedance)

Others

HDMI1 - 3 Input TYPE A Connectors • This TV supports "HDAVI control 5" function. PC Input HIGH-DENSITY D-SUB 15PIN R / G / B: 0.7 V [p-p] (75 Ω)

DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber optic Card slot SD Card slot × 1 USB 1/2 USB 2.0 TYPE A Connectors DC 5 V, Max. 500 mA ETHERNET 10BASE-T / 100BASE-TX

Dimensions (W × H × D) 1,023 mm × 671 mm × 288 mm (With Pedestal)

1,023 mm × 637 mm × 93 mm (TV only)

Mass 26.0 kg Net (With Pedestal)

23.0 kg Net (TV only)

± 0.35 V [p-p]

HD / VD: TTL Level 2.0 - 5.0 V [p-p] (high impedance)

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

Page 9

5 Technical Descriptions

5.1. Specification of KEY for CI Plus, DTCP-IP and One-to-One

5.1.1. General information:

1. EEPROM (IC8902) for spare parts has the seed of KEY for each.

2. The final KEY data will be generated by Peaks IC (IC8000) when SELF CHECK was done and are stored in both Peaks IC (IC8000) and EEPROM (IC8902). Three KEY are not generated for all models. The necessary KEY are only generated and stored depend on the feature of models.

5.1.2. Replacement of ICs:

When Peaks IC (IC8000) is replaced, EEPROM (IC8902) should be also replaced with new one the same time. When EEPROM (IC8902) is replaced, Peaks IC (IC8000) is not necessary to be replaced the same time. After the replacement of IC, SELF CHECK should be done to generate the final KEY data. How to SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds. TV will be forced to the factory shipment setting after this SELF CHECK.

5.1.3. Model and Keys:

Model No. Keys

MAC One-to-One WIDEVINE

TH-P42U30A/Z - -

Page 10

6 Service Mode

6.1. How to enter into Service Mode

6.1.1. Purpose

After exchange parts, check and adjust the contents of adjustment mode.

While pressing [VOLUME ( - )] button of the main unit, press [i] button of the remote control three times within 2 seconds.

6.1.2. Key command

[1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction [RED] button...All Sub items Selection in reverse direction [GREEN] button...All Sub items Selection in forward direction [VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )

6.1.3. How to exit

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

Page 11

6.1.4. Contents of adjustment mode

• Value is shown as a hexadecimal number.

• Preset value differs depending on models.

• After entering the adjustment mode, take note of the value in each item before starting adjustment.

Main item Sub item Sample Data Remark

ADJUST CONTRAST 000

COLOR 3D TINT 00 SUB-BRT 800 H-POS 0 H-AMP 0 V-POS 0 V-AMP 0

WB-ADJ R-CUT 80

G-CUT 80 B-CUT 80 R-DRV E5 G-DRV FF B-DRV BE ALL-CUT 80 ALL-DRV FF

OPTION Panel-Type 42FHD Factory Preset

Boot ROM STBY-SET 00 EMERGENCY ON Y/C Delay OPT 1 10010000 OPT 2 00100010 OPT 3 00000001 OPT 4 00010000 EDID-CLK MID MIRROR 00 (See Option-Mirror)

AMR-SELECT OFF VSUS LOW See Vsus selection AGING ALL WHITE Built-in test patterns can be

ALL BLUE WITH WHITE OUTSIDE FRAME

ALL GREEN

ALL RED

LOW STEP WHITE

LOW STEP BLUE

LOW STEP GREEN

LOW STEP RED

WHITE DIAGONAL STRIPE

RED DIAGONAL STRIPE

GREEN DIAGONAL STRIPE

BLUE DIAGONAL STRIPE

A-ZONE & B-ZONE

1% WINDOW

COLOR BAR

9 POINTS BRIGHT MEASURE

2 DOT OUTSIDE FRAME

ALL BLUE

DOUBLE FIXED 1% WINDOW

VERTICAL LINE SCROLL

ON/OFF OR WHITE

R/G/B/W ROTATION

HALF FIXED ALL WHITE

ALL WHITE WITH COUNT DISPLAY SRV-TOOL 00 See Service tool mode

displayed.

Page 12

6.2. Option - Mirror

Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down.

Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

6.3. Service tool mode

6.3.1. How to access

1. Select [SRV-TOOL] in Service Mode.

2. Press [OK] button on the remote control.

6.3.2. Display of SOS History

SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication will be cleared by [Self-check indication and forced to factory shipment setting].

6.3.3. POWER ON Time, COUNT

Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3 sec. Time : Cumulative power on time, indicated hour : minute by decimal On/Off : Number of ON times by decimal Note : This indication will not be cleared by either of the self-checks or any other command.

6.3.4. Exit

1. Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.

Page 13

6.4. Hotel mode

1. Purpose Restrict a function for hotels.

2. Access command to the Hotel mode setup menu In order to display the Hotel mode setup menu: While pressing [VOLUME (-)] button of the main unit, press [AV] button of the remote control three times within 2 seconds.

Then, the Hotel mode setup menu is displayed.

3. To exit the Hotel mode setup menu Disconnect AC power cord from wall outlet.

4. Explain the Hotel mode setup menu

Item Function Hotel Mode Select hotel mode On/Off Initial INPUT Select input signal modes.

Set the input, when each time power is switched on. Selection : Off/DigitalTV/AV1/AV2/AV3/PC/HDMI1/HDMI2/ HDMI3

• Off: give priority to a last memory. However, Euro model is compulsorily set to TV.

• AVnS/AVnC: only Euro model selectable

Initial POS Select programme number.

Selection : Off/0 to 99

• Off: give priority to a last memory

Initial VOL Level Adjust the volume when each time power is

switched on. Selection/Range : Off/0 to 100

• Off: give priority to a last memory

Maximum VOL Level

Button Lock Select local key conditions.

Remote Lock Select remote control key conditions.

Private Information Select private information for VIERA Cast is Keep

Adjust maximum volume. Range : 0 to 100

Selection : Off/SETUP/MENU/ALL

• Off: altogether valid

• SETUP: only F-key is invalid (Tuning guide (menu) can not be selected.)

• MENU: only F-key is invalid (only Volume/Mute can be selected.)

• ALL: altogether invalid.

Selection : Off/SETUP/MENU

• Off: altogether valid

• SETUP: only Setup menu is invalid

• MENU: Picture/Sound/Setup menu are invalid

or Reset if Hotel mode is set to [On] when TV power on. Selection : Keep/Reset

• Keep: private information for VIERA Cast is keep

• Reset: private information for VIERA Cast is reset

Page 14

6.5. Data Copy by SD Card

6.5.1. Purpose

(a) Board replacement (Copy the data when exchanging A-board):

When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board.

(b) Hotel (Copy the data when installing a number of units in hotel or any facility):

When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.

6.5.2. Preparation

Make pwd file as startup file for (a) or (b) in a empty SD card.

1. Insert a empty SD card to your PC.

2. Right-click a blank area in a SD card window, point to New, and then click text document. A new file is created by default (New Text Document.txt).

3. Right-click the new text document that you just created and select rename, and then change the name and extension of the file to the following file name for (a) or (b) and press ENTER.

File name:

(a) For Board replacement : boardreplace.pwd (b) For Hotel : hotel.pwd

Note:

Please make only one file to prevent the operation error.

No any other file should not be in SD card.

Page 15

6.5.3. Data copy from TV set to SD Card

1. Turn on the TV set.

2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically.

3. Input a following password for (a) or (b) by using remote control.

(a) For Board replacement : 2770

(b) For Hotel : 4850 Data will be copied from TV set to SD card. It takes around 2 to 6 minutes maximum for copying.

4. After the completion of copying to SD card, remove SD card from TV set.

5. Turn off the TV set.

Note:

Following new folder will be created in SD card for data from TV set.

(a) For Board replacement : user_setup (b) For Hotel : hotel

Page 16

6.5.4. Data copy from SD Card to TV set

1. Turn on the TV set.

2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically.

3. Input a following password for (a) or (b) by using remote control.

(a) For Board replacement : 2771 (b) For Hotel : 4851

Data will be copied from SD card to TV set.

4. After the completion of copying to SD card, remove SD card from TV set.

(a) For Board replacement : Data will be deleted after copying (Limited one copy). (b) For Hotel : Data will not be deleted and can be used for other TVs.

5. Turn off the TV set.

Note:

1. Depending on the failure of boards, function of Data copy for board replacement does not work.

2. This function can be effective among the same model numbers.

Page 17

7 Troubleshooting Guide

Use the self-check function to test the unit.

1. Checking the IIC bus lines

2. Power LED Blinking timing

7.1. Check of the IIC bus lines

7.1.1. How to access

7.1.1.1. Self-check indication only:

Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

7.1.1.2. Self-check indication and forced to factory shipment setting:

Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds.

7.1.2. Screen display

7.1.3. Check Point

Confirm the following parts if NG was displayed.

DISPLAY Check Ref. No. Description Check P.C.B. TUN TU4801 TUNER A-Board STBY IC8000 PEAKS-sLD2 (STM) A-Board MEM1 IC8902 PEAKS EEPROM A-Board MEM2 IC8901 STM EEPROM A-Board AVSW IC3001 AUDIO/VIDEO SW A-Board PD5 IC9300 PD5L A-Board TEMP IC3753 TEMP SENSOR A-Board LAN IC8601 ETHERPHY A-Board

7.1.4. Exit

Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.

Page 18

7.2. Power LED Blinking timing chart

1. Subject Information of LED Flashing timing chart.

2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

Blinking Times Contents Check point

1 Panel information SOS

PD5 Start SOS 3 P+ 3.3V SOS A-Board 4 Power SOS P-Board 5 P+ 5V SOS A-Board 6Driver SOS1

(SN Energy recovery circuit)

(A-SN FPC DET) 7Driver SOS2

(SN Connector DET)

(SN Scan and Logic IC) 8Driver SOS3

(SS FPC DET)

(SS Energy recovery circuit) 9 Discharge Control SOS A-Board

10 Sub 5V SOS

Sub 3.3V SOS

BE (sLD) SOS

Tuner power SOS

12 Sound SOS A-Board

13 Emergency SOS A-Board 14 IROM SOS (ROM in Peaks IC) A-Board

SN-Board

A-SN FPC

SN-Board

SS-Board

SS FPC

A-Board SN-Board SS-Board

P-Board

Speaker

P-Board

7.3. No Power

First check point There are following 3 states of No Power indication by power LED.

1. No lit.

2. Green is lit then turns red blinking a few seconds later. (See 7.2.)

3. Only red is lit.

Page 19

7.4. No Picture

Page 20

7.5. Local screen failure

Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area.

Fig-1

Page 21

8 Disassembly and Assembly Instructions

8.1. Remove the Rear cover

1. See PCB Layout (Section 3)

8.2. Remove the AC inlet

Caution:

To remove P.C.B. wait 1 minute after power was off for discharge from electrolysis capacitors.

1. Disconnect the connector (P9).

2. Remove the screw (×1 ) and remove the AC inlet.

8.3. Remove the P-Board

Caution:

To remove P.C.B. wait 1 minute after power was off for discharge from electrolysis capacitors.

1. Disconnect the connectors (P2, P6, P9, P11, P34 and P35).

2. Remove the screws (×5 ) and remove the P-Board.

8.4. Remove the Side terminal cover

1. Remove the screws (×2 ).

2. Remove the Side terminal cover.

8.5. Remove the Tuner unit

1. Remove the Side terminal cover. (See section 8.4.)

2. Unlock the cable clampers to free the cable.

3. Disconnect the connectors (A2, A6, A11 and A35).

4. Disconnect the flexible cables (A20, A31 and A32).

5. Remove the screws (×3 ) and remove the Tuner unit.

Page 22

8.6. Remove the A-Board

1. Remove the Tuner unit. (See section 8.5.)

2. Remove the screws (×2 ) and remove the A-Board.

8.8. Remove the SN-Board

1. Disconnect the flexible cables (SN21, SN22, SN23, SN24, SN25, SN26, SN27 and SN28) connected to the SN-Board.

2. Disconnect the connector (SN2).

3. Disconnect the flexible cable (SN20).

4. Remove the screws (×8 ) and remove the SN-Board.

8.7. Remove the Speakers

1. Unlock the cable clampers to free the cable.

2. Disconnect the Speaker terminal.

3. Remove the screws (×2 each) and remove the Speakers (L, R).

8.9. Remove the SS-Board

1. Remove the Tuner unit. (See section 8.5.)

2. Disconnect the connector (SS11).

3. Disconnect the flexible cable (SS33).

4. Disconnect the flexible cables (SS61 and SS66).

5. Remove the screws (×5 ) and remove the SS-Board.

Page 23

8.10. Remove the Stand bracket and the Hanger metals

1. Remove the Plasma panel section from the servicing stand and lay on a flat surface such as a table (covered by a soft cloth) with the Plasma panel surface facing downward.

2. Unlock the cable clampers to free the cable.

3. Remove the AC inlet. (See section 8.2.)

4. Remove the Stand bracket fastening screws (×5 ) and remove the Stand bracket.

5. Remove the Hanger metals (L, R) fastening screws (×2

each) and remove the Hanger metals (L, R).

8.12. Remove the C1-Board

1. Remove the Stand bracket and the Hanger metal R. (See section 8.10.)

2. Disconnect the flexible cables (CB1, CB2, CB3, CB4, CB5, CB6 and CB7).

3. Disconnect the flexible cables (C10 and C11).

4. Remove the screws (×4 ) and remove the C1-Board.

8.13. Remove the C2-Board

1. Remove the Stand bracket and the Hanger metal L. (See section 8.10.)

2. Disconnect the flexible cables (CB8, CB9, CB10, CB11, CB12, CB13, CB14 and CB15).

3. Disconnect the flexible cables (C20, C21 and C23).

4. Disconnect the connector (C25).

5. Remove the screws (×4 ) and remove the C2-Board.

8.11. Remove the Radiator plate

1. Remove the Stand bracket and the Hanger metals. (See section 8.10.)

2. Remove the screws (×15 ) and remove the Radiator plate.

Page 24

8.14. Remove the Plasma panel sec-

8.15. Remove the Attachment metal

tion from the Cabinet assy

1. Remove the Plasma panel fastening screws (×4 ) and remove the Cabinet assy.

2. For leaving the Cabinet assy from the Plasma panel, pull the bottom of the Cabinet assy forward, lift, and remove.

bottom

1. Remove the Radiator plate. (See section 8.14.)

2. Remove the screws (×1 each) and remove the Attachment metal bottom (L, R).

8.16. Remove the Attachment metal top

1. Remove the Cabinet assy. (See section 8.13.)

2. Remove the screws (×2 , ×2 ) and remove the Attachment metal top (L, R).

Page 25

8.17. Remove the Glass holders

1. Remove the Cabinet assy. (See section 8.13.)

2. Remove the screws (×5 ).

3. Remove the Glass holder top.

4. Remove the screws (×5 ).

5. Remove the Glass holder bottom.

6. Remove the screws (×4 ).

7. Remove the Glass holder side (L, R).

8.19. Replace the Plasma panel

Caution:

A new Plasma panel itself without Hanger metals is fragile. To avoid the damage to new Plasma panel, carry a new Plasma panel taking hold of the Hanger metals after assembling the Hanger metals and the Stand bracket.

1. Place a carton box packed a new Plasma panel on the flat surface of the work bench.

2. Open a box and without taking a new Plasma panel; Attach the C1-Board and the C2-Board, connect the flexible cables from the Plasma panel to the C1-Board and the C2-Board, and fit the Flexible cable holders.

3. Attach the Hanger metals and the Stand bracket to the new Plasma panel.

4. Place the Plasma panel on the servicing stand taking hold of the Hanger metals.

5. Attach the Cabinet assy and each P.C.Board and so on, to the new Plasma panel.

*When fitting the Cabinet assy, be careful not to allow any debris, dust or handling residue to remain between the Front glass and Plasma panel.

8.18. Remove the K-Board

1. Remove the Glass holder bottom. (See section 8.17.)

2. Remove the claw (×1 ).

3. Disconnect the connector (K1) and Remove the K-Board from LED Panel.

Page 26

9 Measurements and Adjustments

9.1. Adjustment

9.1.1. Vsus selection

Caution:

When Plasma panel or A-board is replaced, Vsus should be set to HIGH.

Procedure

1. Go into main item [VSUS] in Service Mode. HIGH will be displayed.

2. Press [OK] button to go to TEST stage. White pattern without On-Screen Display will be displayed during TEST and CONF stage. Press [5] button to display the On-Screen Display.

3. In HIGH setting If no several dead pixel is visible remarkably in white pattern, press [3] button to go to CONF stage.

4. Press [OK] button in CONF stage to store HIGH.

5. Exit Service Mode by pressing [Power] button.

Page 27

9.1.2. Sub-Contrast adjustment

Name of measuring instrument Connection Remarks RF generator Base Band signal generator HD signal generator

Steps Remarks Connect IIC cable (bus controller-cable) after banner OSD appear. And after SRQ-L, begin an adjustment 2 seconds later.

Adjustment of TV (RF system)

Note:

In adjustment, you must setting to modulation of signal at 80%.

1. Receive a RF PAL 100% Full White or Split Colour bar shown as below.

2. Goes into service mode.

3. Push a [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ CONTRAST ].

Note:

Sub-contrast adjustment is unadjusted for AV/ HD input. But, when needing the adjustment chosen manually, please refer to [ alternative method ].

Adjustment

1. The colour key yellow button of remote control is pushed.

2. The OSD character of sub-contrast becomes red. (Inside under automatic adjustment)

3. The OSD character of sub-contrast returns to black. When [NG] is displayed, adjustment failure.

4. End.

Steps Remarks

Another procedure

Connect IIC cable (bus controller-cable) after banner OSD appear. And after SRQ-L, begin an adjustment 2 seconds later.

Adjustment of AV system

1. PAL 100% Full White or Split Colour bar receive AV1(or AV2), shown as below.

2. Goes into service mode.

3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ Contrast ].

Adjustment

1. The colour key yellow button of remote control is pushed.

2. The OSD character of sub-contrast becomes red. (Inside under automatic adjustment)

3. The OSD character of sub-contrast returns to black. When [NG] is displayed, adjustment failure.

4. End.

Page 28

Steps Remarks

Another procedure

Connect IIC cable (bus controller-cable) after banner OSD appear. And after SRQ-L, begin an adjustment 2 seconds later.

Adjustment of HD system

1. At 1080i 100% Full White or Split colour bar receive component signal, as shown below.

2. Goes into service mode.

3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ Contrast ].

Adjustment

1. The colour key yellow button of remote control is pushed.

2. The OSD character of sub-contrast becomes red. (Inside under automatic adjustment)

3. The OSD character of sub-contrast returns to black. When [NG] is displayed, adjustment failure.

4. End.

Page 29

9.1.3. White balance adjustment

The adjusting method is different according to the PEAKS EEPROM version.

[copy adjustment] : Peaks EEPROM ver.1.00[Differential and copy adjustment] : Peaks EEPROM ver.1.01-

Name of measuring instrument Connection Remarks W/ B pattern Color analyzer (Minolta CA-100 or equivalent)

Steps Remarks

[copy adjustment] Connect IIC cable (bus controller-cable) after banner OSD appear. And after SRQ-L, begin an adjustment 2 seconds later.

• Make sure the front panel to be used on the final set is fitted.

• Make sure a color signal is not being shown before adjustment.

• Put the color analyzer where there is little colour variation.

Note:

Copy Adjustment method in service mode. When you push [OK] key in each item, Adjustment data is copied between HD data and SD data.

1. Enter the service mode. Please receive the Analog-RF. Or, please select CVBS/YUV/HDMI. (No inputting is possible.). (Forbid Analog-RF with no signal.)

2. A number key [1] or [2] are operated and [WB-ADJ] is displayed. Check that the color temp is [COOL].

3. A number key [0] is operated and select [METHOD 01].

4. A number key [5] is operated and [INNER PATTERN] is displayed.

Panel surface

Picture menu : Dynamic ASPECT : 16:9

Condition is same at alternative method too.

METHOD=01 copy adjustments

5. Select [G-CUTOFF] item, using the number-key [3] or [4], and set to [80], using the volume-key [+] or [-]. Also, [B-CUTOFF] and [R-CUTOFF] set to [80].

6. Set [G-DRIVE] at [D0].

7. Touch the signal receiver of color analyzer to the INNER PATTERN center, and adjust B drive and R drive so x, y become the [COLOR TEMP COOL] in the below table1.

8. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to [FF].)

9. Set color temp to [NORMAL] using [7] key.

10. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [80].

11. Set [G-DRIVE] at [D0].

12. Adjust B-DRIVE and R-DRIVE so the INNER PATTERN x, y become the [COLOR TEMP NORMAL] in the below table1.

13. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to [FF].)

14. Set color temp to [WARM] using [7] key.

15. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [80].

16. Set [G-DRIVE] at [D0].

17. Adjust B-DRIVE and R-DRIVE so the INNER PATTERN x, y become the [COLOR TEMP WARM] in the below table1.

18. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to [FF].)

19. Confirm [METHOD=01].

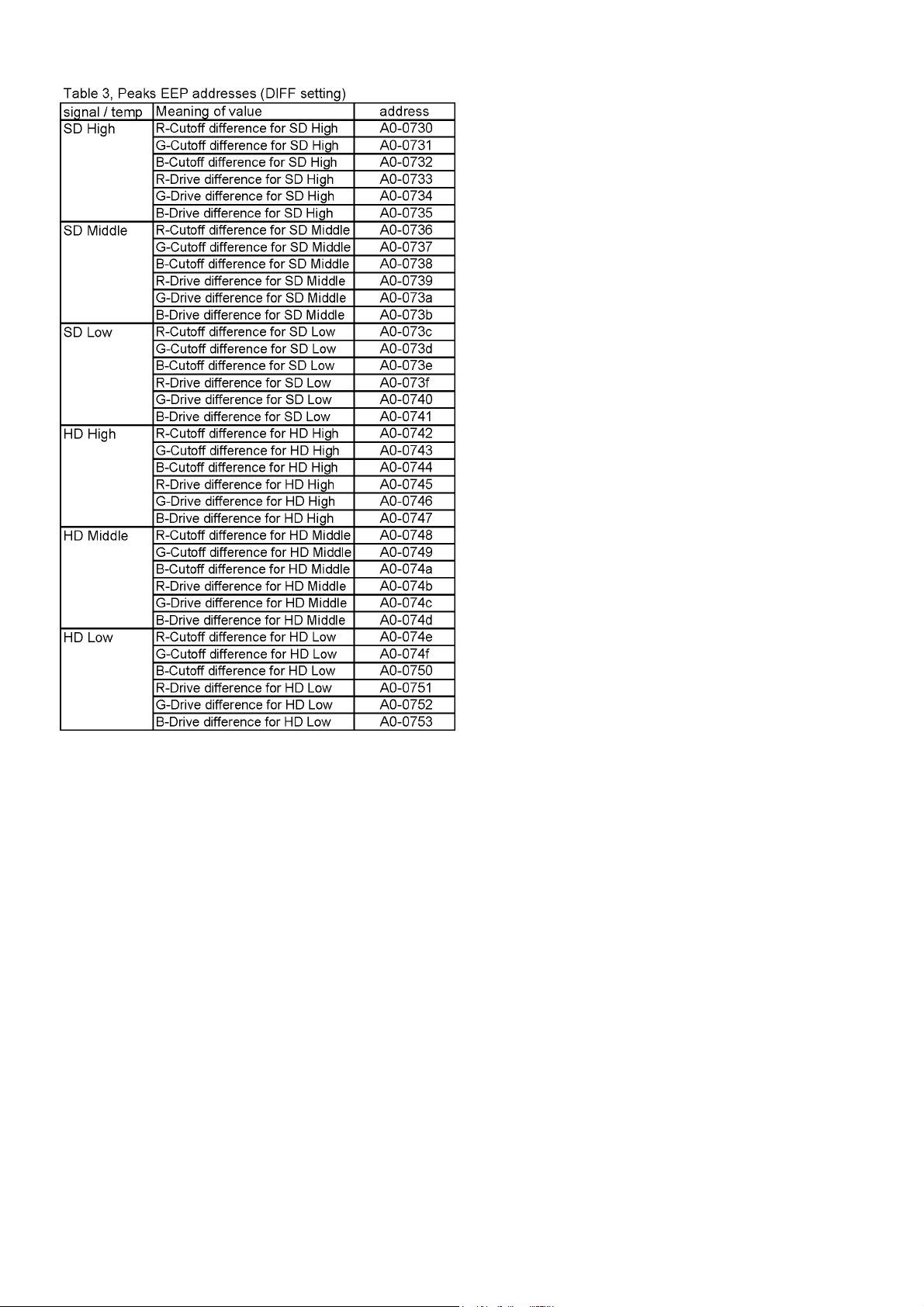

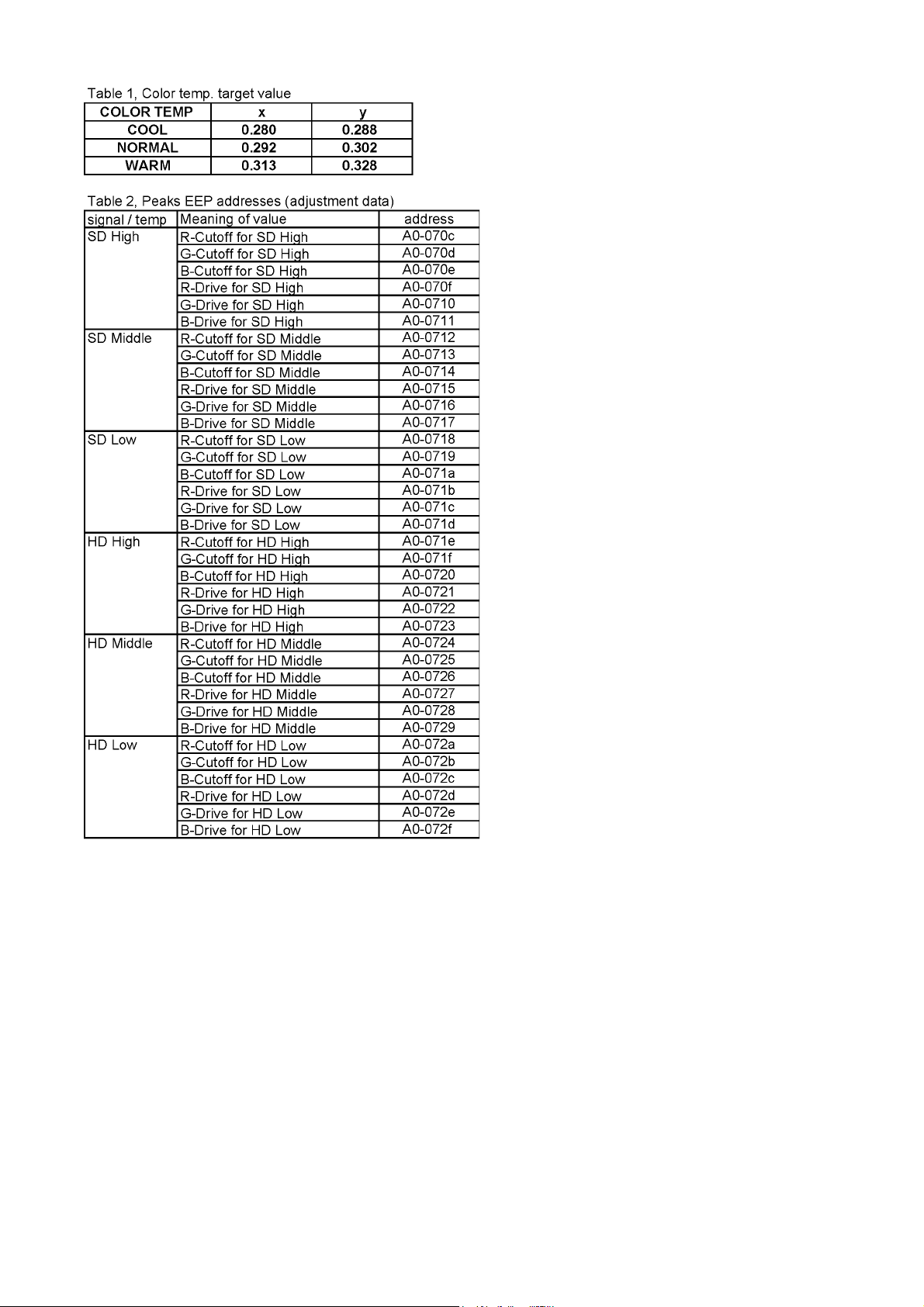

Please refer table2-3 to address.

Asking matter to execute white balance difference adjustment. Please feed back the DAC value in the adjusted each color temperature in an internal pattern.

Page 30

Steps Remarks

[Differential and copy adjustment]

Execute adjustment for color temp. [NORMAL], and set data for color temp. [COOL], [WARM] by data shift WB of HD (or PAL) copies the adjustment data from an adjusted format side.

Note:

The adjustment does only color temp. [NORMAL]. A adjustment value difference from [NORMAL] is written to EEPROM as for [COOL] and [WARM] by operating a [OK] key. As for WB of HD (or RF), the adjustment data from an adjusted format side is copied simultaneously. Text color of the adjusted value changes into red → black at the same time too.

1. Enter the service mode. Please receive the Analog-RF. Or, please select CVBS/YUV/HDMI. (No inputting is possible.). (Forbid Analog-RF with no signal.)

2. A number key [1] and [2] are operated and [WB-ADJ] is displayed. Check that the color temp is [NORMAL].

3. A number key [0] is operated and select [METHOD 03].

4. A number key [5] is operated and [INNER PATTERN] is displayed.

METHOD=03 Differential and copy adjustment

5. Select [G-CUTOFF] item, using the number-key [3] or [4], and set to [80], using the volume-key [+] or [-]. Also, [B-CUTOFF] and [R-CUTOFF] set to [80].

6. Set [G-DRIVE] at [D0].

7. Touch the signal receiver of color analyzer to the INNER PATTERN center, and adjust B drive and R drive so x, y become the [COLOR TEMP NORMAL] in the table 1.

8. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to [FF].)

9. A number key [0] is operated and select [METHOD=01].

Please refer table2-3 to address.

Page 31

Page 32

Page 33

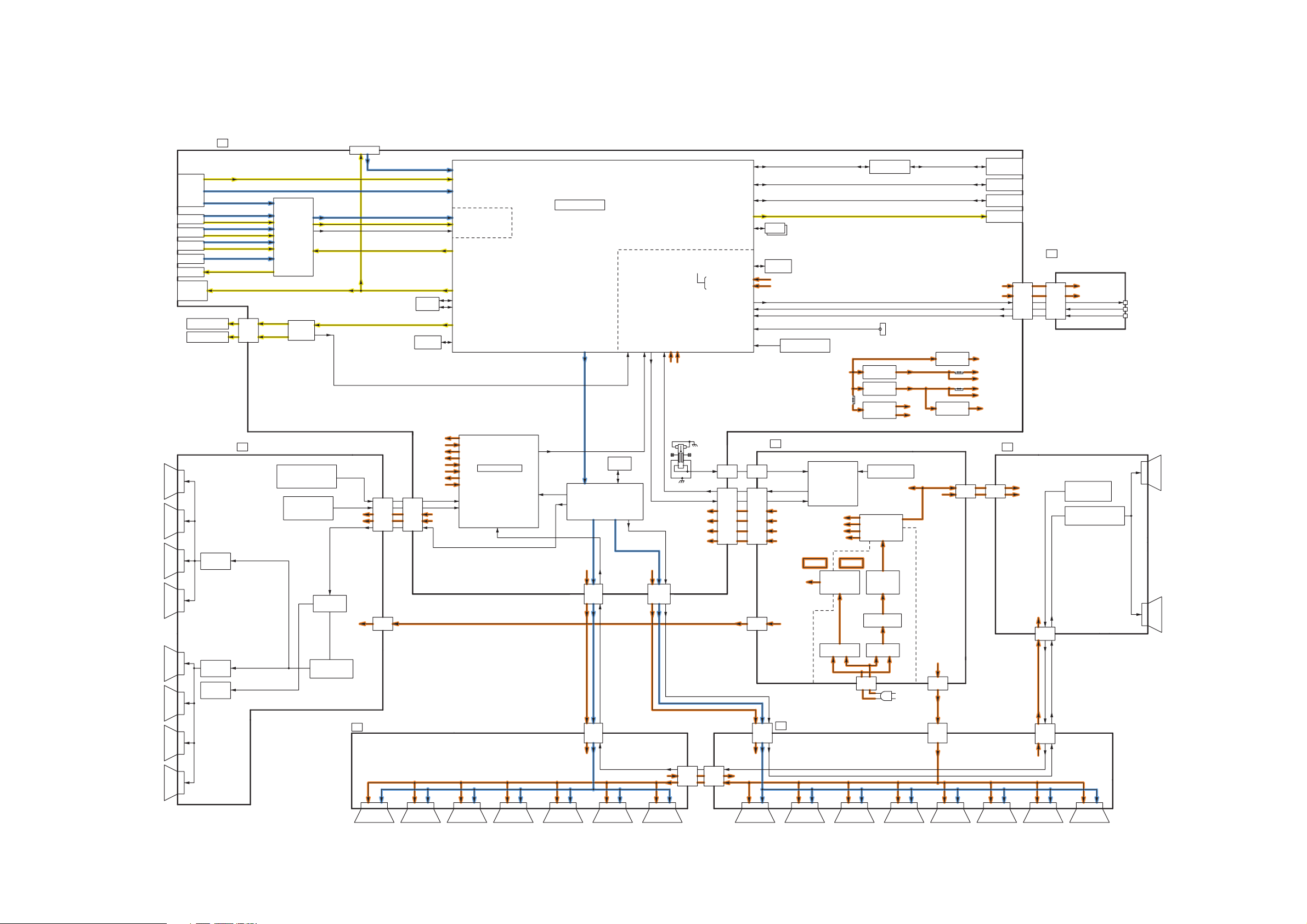

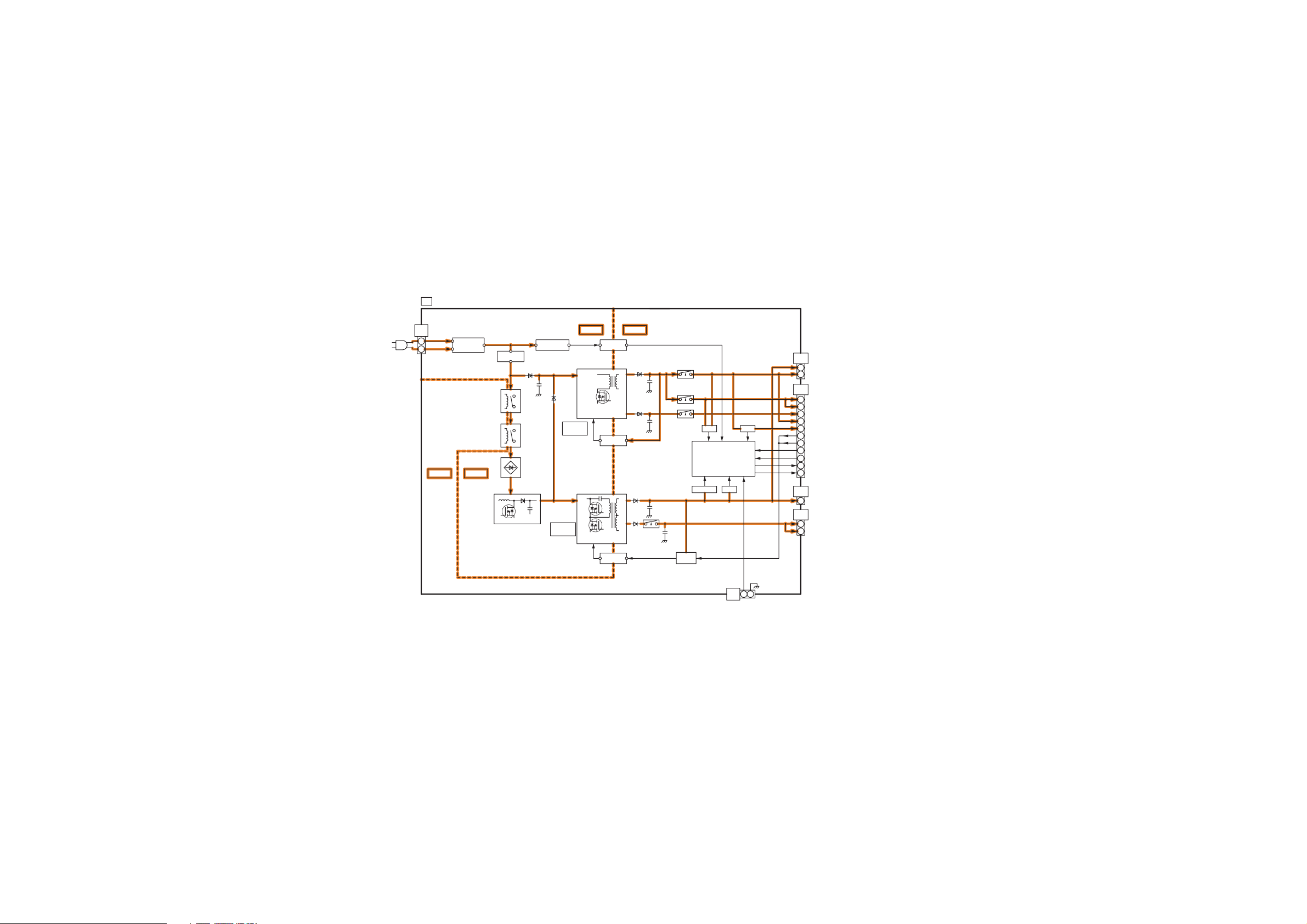

10 Block Diagram

10.1. Main Block Diagram

DIGITAL SIGNAL PROCESSOR

SIF_OUT

IFD_OUT

TUNER

L/R

AV2

Y/PB/PR

L/R

AV1

L/R

AV3

R/G/B

L/R

A_OUT

DIGITAL

AUDIO

OUT

SPEAKER(L)

SPEAKER(R)

A11

AV SW

AUDIO

CVBS/Y,PR/C,PB

DIGITAL AUDIO OUT

AMP

L/R

PC_H/V

PWM L/R

SOUND SOS

ARC (HDMI2)

HDMI1-3

TMDS DATA

ARC (HDMI2)

NAND FLASH

PEAKS EEPROM

HDMI I/F

SIF I/F

TUNER I/F

AV IN

CVBS/YPbPr/RGB/YC

L/R

PC_H/V

L/R

IECOUT

CPU BUS I/F

NAND FLASH I/F

AUDIO PWM

IIC

PEAKS-sLD2

LVDS DATA

STM

(LED:12 TIMES)

PANEL SOS

SOUND SOS

(LED:3 TIMES)

(LED:4 TIMES)

P+3.3V DET

SOS4_PS

PANEL MAIN ON

P+3.3V

(LED:10 TIMES)

(LED:5 TIMES)

P+5V DET

P+5V

LAN CON I/F

SD CARD I/F

USB I/F

HP L/R

DDR3 I/F

STM IIC

SUB+5V SENSE

SUB+3.3V SENSE

LED R/G

REMOTE IN

C.A.T.S SENSOR

VCC_SOS

(LED:10 TIMES)

KEY1

DDR3

STM EEPROM

SUB5V

SUB3.3V

VCC_SOS_DET

(LED:10 TIMES)

F15V

DCDCIN

ETHER PHY

ETHERNET DATA

SD CARD DATA

ETHERNET

SD CARD

SLOT

USB

USB 1,2

L/R

HEADPHONE

POWER LED

REMOTE RECEIVER C.A.T.S. SENSOR

SUB3.3V

STB3.3V

SUB3.3V

STB3.3V

LED R/G

REMOTE RECEIVER

C.A.T.S SENSOR

KEY SWITCH

F15V

DCDC

SUB5V

DCDC

SUB3.3V

SUB1.5V SUB1.2V

DCDC

SUB1.5V

SUB1.2V

DCDC

P+1.2V

DCDC

SUB1.8V

P+1.2V

P+5V

SUB5V

P+3.3V

SUB3.3V

SUB1.8V

SCAN DRIVER

BUFFER

SCAN DRIVE

SN-BOARD ENERGY RECOVERY SOS DETECT

(LED:6TIMES)

SN-BOARD FLOATING PART SOS DETECT

(LED:7TIMES)

CONTROL PULSE

VSCAN GEN.

VAD GEN.

SOS6_SC1

SOS7_SC2

P+5V

P+15V

SCAN CONTROL

SN20

VSUS

DATA DRIVER (RIGHT)

VDDSD 18V33V

STB5V

STB1.2V

STB3.3V

F15V

SUB5V

SUB9V

P+3.3V

SOS6_SC1

SOS7_SC2

P+5V

A20

P+15V

SCAN CONTROL

SOS6 SC1

SOS7 SC2

(LED:9 TIMES)

ANALOG-ASIC

(LED:6 TIMES)

(LED:7 TIMES)

SOS8 SS

(LED:8 TIMES)

PANEL SOS

SOS DCC

LVDS DATA

VIDEO DATA

P+3.3V

A31

PD5L

SOS8_SS

SPI FLASH

SUSTAIN CONTROL

VIDEO DATA

P+5V

A32

PUSH

MAIN_SW1

SOS4_PS

PANEL MAIN ON

STB5V

P+15V

SOUND15V

POWER SWITCH

F15V

A35

A6 P6

POWER SUPPLY

STB5V

POWER MICOM

PS SOS4 (LED:4TIMES)

ON/OFF CONTROL

Vda

P+15V

P+5V

F15V

COLD

STANDBY VOLTAGE CONVERTER

P34

STB5V

P+15V

F15V

SOUND15V

VSUS

P2SN2

HOT

P-BOARD SOS DETECT

MAIN CONVERTER

POWER FACTOR CONTROL

RECTIFIER

VSUS

P+15V

VSUS

P11

SS11

SUSTAIN DRIVE

VSUS

P+15V

P+5V

SOS8_SS

SS-BOARD SOS DETECT

(LED:8TIMES)

VSUS GEN. VE GEN. ENERGY RECOVERY

SUSTAIN CONTROL

SS33

RELAY

SOS8_SS

SUSTAIN CONTROL

VDA

VIDEO DATA

AC CORD

Vda

P35

C25

VDA

C23

P+5V

VDA

VIDEO DATA

P+3.3V

C11

P+3.3V

SOS8_SS

P+3.3V

SUSTAIN CONTROL

VIDEO DATA

P+5V

C20

C10

P+3.3V

C21

P+5V

DATA DRIVER (LEFT)

RECTIFIER

DATA DRIVER

Page 34

10.2. Block (1/4) Diagram

JK3000B

AV2

AV1

AUDIO OUT

JK3701

AV3

JK3300

DIGITAL SIGNAL PROCESSOR

V1_V

V1_L

V1_R

D1_Y

D1_PB

D1_PR

D1_L

D1_R

MON_L

MON_R

V2_V

V2_L

V2_R

PC_R

PC_G

PC_B

PC_H

PC_V

SPEAKER_L

TU4801

ANT IN

TUNER

DMD_ IIC0

VIDEO

TV_V

IC3001

AV SW

AV1

COMP1

M_OUT

AV2

IIC3

TUNER

MAIN

CVBS/Y,PR/C,PB

L/R

PC_H/V H/V

L/R

3.3V

FE_XRST

3.3V

1.8V

SIF_OUT

IF_AGC

IFD_OUT2

IFD_OUT1

SOUND15V

SUB3.3V

IC4900

AUDIO AMP

USB5V

A11

X8300

24.576MHz

AXO

IFD2

IFD1

IF AGC

FE XRST

SIF I/F

CVBS/YPbPr/RGB/YC

L/R

15V

L(+)

AXI

L(-)

L_OUT

SPEAKER

SOS

SOUND SOS

AV IN

SPEAKER_R

R(+)

SPEAKER

PWM L/R

AUDIO PWM

(LED:12 TIMES)

R(-)

R_OUT

JK3001

HEADPHONE

HP L/R

DDR3 I/F

HP_R

IC8531

CPU BUS

I/F

HP_L

SOS

USB I/F

(LED:10 TIMES)

JK8531

USB1

USB1VBUS

USB2

VCC

HDMI3.3V

IC8532

USB2VBUS

IC8000

PEAKS-sLD2

SUB1.8V

SUB3.3V

JK8702

ETHERNET

SUB1.2V

SUB1.5V

IC8601

ETHER PHY

X8600

25MHz

LAN I/F

D3050

DIGITAL

AUDIO

OUT

IEC OUT

STM

SOS4 PS

PANEL MAIN ON

TUNER SUB ON

Q4500

KEY1

(LED:4 TIMES)

ARC OFF

XRSTSTM

DRVRST

XRST

JK4601

HDMI2

+5V

ARC

DDC_IIC2

HDMI_CEC

HDMI CEC

DDC IIC2

HDMI 5VDET2

HDMI CEC PULL ON

REMOTE IN

SD UHS

C.A.T.S SENSOR

XRST SYS PD5

TMDS DATA

CLOCK

RX2

R LED ON

G LED ON

JK4600

HDMI1

HDMI_CEC

HDMI 5V DET1

HDMI I/F

POWER DET

PANEL SOS

+5V

TMDS DATA

DDC_IIC1

RX1

DDC IIC1

SW OFF DET

CLOCK

STB1.2V

(SIDE)

JK4602

STB3.3V

HDMI3

HDMI_CEC

HDMI 5V DET3

+5V

TMDS DATA

DDC_IIC3

RX3

DDC IIC3

(LED:10 TIMES)

CLOCK

SD DATA:4bit

SD CARD I/F

SUB3.3V SENSE

SUB5V SENSE

JK8650

SD CARD

LVDS I/F

VDDSD1.8V3.3V

P+3.3V DET

P+5V DET

(LED:3TIMES)

(LED:5TIMES)

IIC0

IIC1

IIC3

DMD_ IIC0

SBI0 SBO0

STM IIC

VDDSD18V33V

LVDS DATA

IIC0

IIC1

IIC3

DMD_ IIC0

SBI0 SBO0

STM IIC

IC8901

STM EEPROM

STB3.3V

SOUND15V

PANEL_MAIN_ON

SOS4_PS

STB5V_SW_ON

TUNER_SUB_ON

MAIN_SW_1

MAIN_SW_2

STB5V

P_S1

P_S0

F15V

P+15V

P34

SUB3.3V

D1102

D1105

IC8201

IC8200

DDR3

IC8902

PEAKS EEPROM

IC8900

NAND FLASH

IC8706

IIC1

HDMI3.3V

D1103

AVDDH

PANEL MAIN ON

SOS4_PS

TUNER_SUB_ON

KEY1

XRSTSTM

PDP_DRVRST

XRST_SYS_PD5

XRST

SD_UHS

C.A.T.S

REMOTE IN

KEY SWITCH

SW2054 SW2053 SW2052 SW2051 SW2050

R_LED_ON

G_LED_ON

F VOL.UP/CH.UP VOL.DN/CH.DN TV AV

PANEL SOS

POWER_DET

PPP

VJ9805

SW_OFF_DET

SUB1.5V

A35

PANEL_MAIN_ON

TUNER_SUB_ON

PA5601

PUSH

SW2057

POWER SWITCH

SOS4_PS

STB5V_SW_ON

P_S1

P_S0

DCDCEN

VJ1001

F15V

SOUND15V

PA5440

DCDCIN

STB5V

IC5350

IC8701

IC8707

IC8100

USB5V

+5V

SUB5V

+5V

SUB3.3V

+3.3V

SUB1.5V SUB1.2V

+1.5V

+1.2V

USB5V

SUB5V

SUB3.3V

F15V

SUB1.5V

SUB1.2V

P+15V

IC8702

SUB1.8V

+1.8V

SUB1.8V

VJ9803

SUB3.3V

P+3.3V

IC3753

TEMP SENSOR

STB3.3V

STB1.2V

SUB5V

P+5V

STB5V

SUB9V

F15V

P+15V

IIC3

Page 35

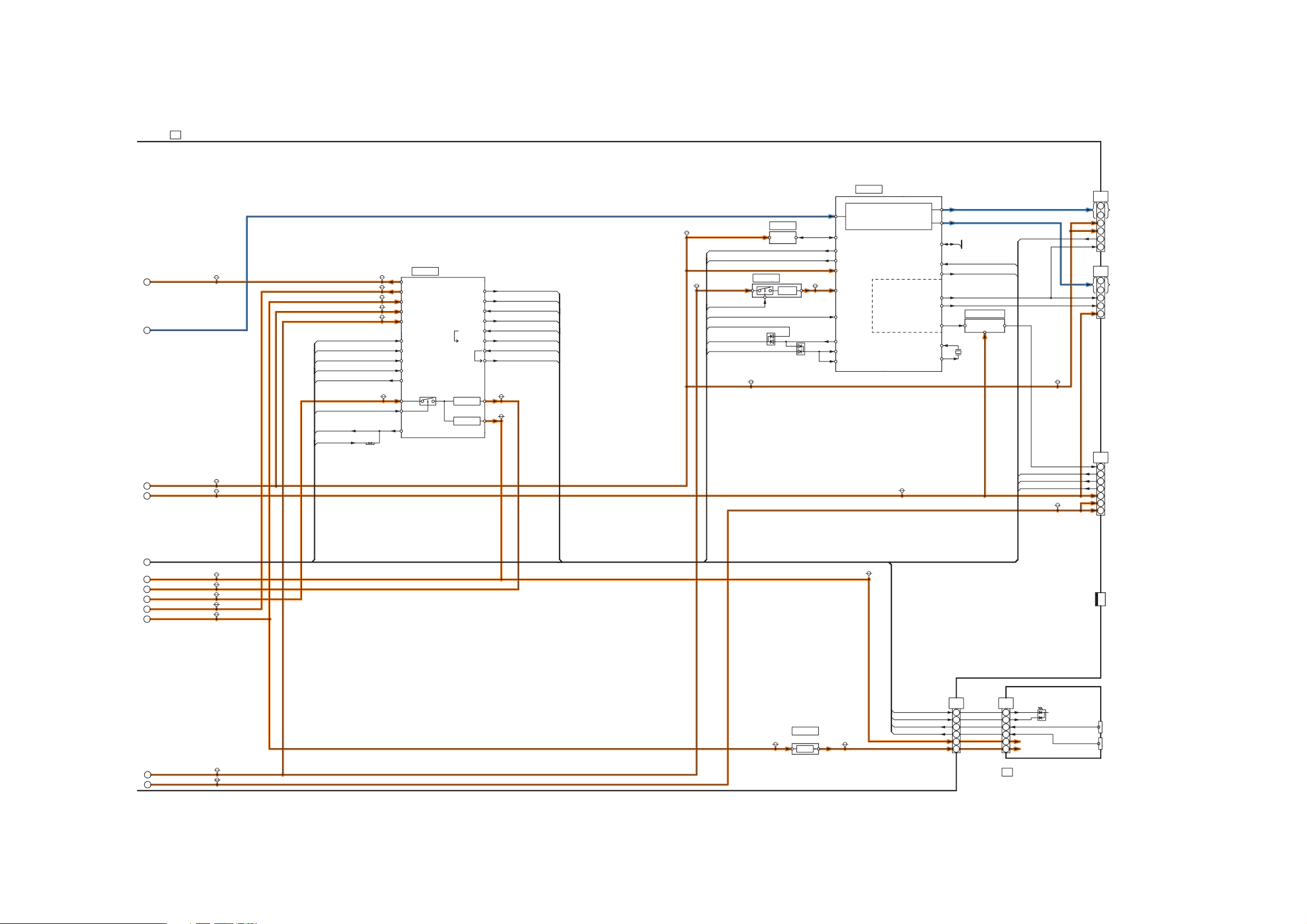

10.3. Block (2/4) Diagram

DIGITAL SIGNAL PROCESSOR

LVDS DATA

VDDSD18V33V

P+3.3V

P+5V

SOS6_SC1

SOS7_SC2

SOS8_SS

SOS_DCC

PANEL SOS

STB5V_SW_ON

POWER_DET

SW_OFF_DET

VDDSD18V33V

SUB9V

SUB5V

P+3.3V

F15V

STB5V

VJ5000

IC5000

SD_VCC

SUB9V

SUB5V

BUFF_EN

DTV_15V

SOS6_SC1

(LED:6TIMES)

SOS7_SC2

(LED:7TIMES)

SOS8_SS

(LED:8TIMES)

SOS_DCC

(LED:9TIMES)

PANEL SOS

POWER DET

ANALOG-ASIC

DTV_RST

DCDC_CTL

SD_UHS

STBRST

DRVRST_ IN

DRVRST_ OUT

STB+1.2V

STB+3.3V

IC9300

PD5L

VIDEO DATA

IIC0

UHZ

SOS8_SS

D_UHZ

SOS_DCC

IC9400-02

SCAN DATA BUFFER

X9300

20MHz

P+3.3V

SC_UHZ

SOS6_SC1

SOS7_SC2

P+15V

FLASH I/F

3.3V

1.2V

DRVRST

OFF FLAG

XRST SYS

XRST

PLASMA AI CPG H/V Sync Control Sub Filed Processor

DISCHARGE CONTROL

DATA DRIVER CONTROL

SOS DCC

(LED:9 TIMES)

SUSTAIN CONTROL

SCAN CONTROL

P+5V

LVDS DATA

P+3.3V

IC9810

D9808

IC9304

SPI FLASH

+1.2V

P+1.2V

SI/SO

P+1.2V

D9806

P+3.3V

P_S0

P_S1

XRST

DCDCEN2

SD_UHS

XRSTSTM

PDP_DRVRST

DRVRST

UHZ

STB1.2V

STB3.3V

SC_UHZ

D_UHZ

F15V

DCDCEN

DRVRST

DCDCEN2

DCDCEN

XRST_SYS_PD5

A31

C11

VIDEO DATA

P+3.3V

SOS8_SS

DATA DRIVER CONTROL

C21

A32

VIDEO DATA

DATA DRIVER CONTROL

SUSTAIN CONTROL

P+5V

A20

SN20

SCAN CONTROL

UHZ

SOS6_SC1

SOS7_SC2

P+5V

P+15V

STB3.3V

STB1.2V

STB5V

SUB9V

SUB5V

F15V

P+15V

SUB5V

IC5251

SUB_AI3.3V

+3.3V

SUB_AI3.3V

STB3.3V

G_LED_ON

R_LED_ON

C.A.T.S

REMOTE_IN

G_LED_ON

R_LED_ON

C.A.T.S

REMOTE_IN

STB3.3V

SUB_AI3.3V

POWER LED

REMOTE RECEIVER C.A.T.S. SENSOR

D2820

A17

IIC0 IIC1 STM_IIC SBO0/SBI0

FOR FACTORY USE

SN2810

C.A.T.S SENSOR

RM2810

REMOTE RECEIVER

Page 36

10.4. Block (3/4) Diagram

POWER SUPPLY

AC CORD

COLD HOT

Fuse (Live) (Neutral)

Relay for prevention of inrush current

Relay for AC input cutting

FILTER

POWER FACTOR CONTROL

COLDHOT

AC Vin Detection

OCP/OVP LATCH

STANDBY VOLTAGE CONVERTER

MAIN CONVERTER

PHOTO COUPLER

T501

T101

FEED BACK

SS11

FET SW

Drop IC

UVP

OCP

POWER MICOM

OVP/UVP/OCP Latch

SW ON/OFF

UVP

OVP/UVP

ERROR DET

P34

P11

Vsus

P+15V

F15V

STB5V

SOUND15V

P+15V

P_S1

P_S0

PANEL_MAIN_ON

TUNER_SUB_ON

SOS4_PS

Vsus

P35

Vda

STB5V_SW_ON

SN2

C25

A35

MAIN SW 1

Page 37

10.5. Block (4/4) Diagram

SCAN DRIVE

SN2

Vsus

IC16501

CMH

BUFFER

SUSTAIN H

IC16502

CSH

BUFFER

RECOVERY H

IC16522

CSL

BUFFER

SCAN CONTROL

A20

P+15V

P+5V

SOS6

SOS7

RECOVERY L

UHZ

SCAN CONTROL

Q16451

TPVSUS

CPH1

Q16401 Q16402

Q16441

MID

D16583 LED(G)

(LED:6 TIMES)

(LED:7 TIMES)

CML

TPSOS6

TPSOS7

IC16684

BUFFER

VOL

IC16521

BUFFER

SUSTAIN L

D16493

Q16607

CML

IC16490,91

VOL ERROR DET

IC16561,62

BUFFER

IC16563

INVERTER

IC16564,65

IC16471

CERS

CPH1

SHUNT REG

D16618

Q16421 Q16422

CML CMH CSH CSL

CRC1

Q16600

Q16601

Q16621 Q16622

CPH1 CIS CERS CEL

CRC2

Q16471

CIS

SEPA

SUSTAIN DRIVE

P11

Vsus

P+15V

IC16784,85

PC16897

IPD CIRCUIT

VAD GEN.

VFG

SHUNT REG

CRC1

CRC2

CEL

IC16921

IGBT CONTROL

T16471

TPVAD

Q16661

IC14601-03

PDP SCAN

DRIVER

SN21 SN22

UMH

USH

USL

UML

MAIN H

IC16131

BUFFER

IC16151

BUFFER

RECOVERY H

D16254

LED(G)

RECOVERY L

IC16152

BUFFER

IC16132

BUFFER

MAIN L

D16825

VSCN-F

SIU OC1 OC2 CLK SEL VHIZ

5V_F

PDP SCAN

DRIVER

IC14604-06

IC14801-03

Vfo

PDP SCAN

DRIVER

PDP SCAN

DRIVER

IC14804-06

LOGIC IC

IC14901,02,04

TPVFG

VFG

IC16691

NAND

D16713 D16714

D16728

Q16660

TPSN1

IC16792,93

VHIZ GEN.

IC16795

D16791

IPD CIRCUIT

D16473

IC16786,87

PC16723

VSCN GEN. SHUNT REG

F15V

SCNR_PRO

SIU OC1 OC2 CLK SEL

15V_F

CEL

T16472

IC16724

+5V

SN23 SN24

SN25 SN26

SN27 SN28

PLASMA PANEL

PANEL SCAN ELECTRODE

SUSTAIN CONTROL

SOS8_SS

IC16243

INV

IC16244

AND

C23

IC16241

P+5V

BUFFER

D16255

TPSOS8

(LED:8 TIMES)

UEH

USL

USH

UML

UMH

UEH

BUFFER

IC16304,12

PC16301

IPD CIRCUIT

VE GEN.

SHUNT REG

D16282

FPC PROTECTOR

IC16191

Q16001 Q16002

Q16041

Q16051

Q16021 Q16022

Q16101 Q16102

TPVSUS

TPSS1

SS 61

PLASMA PANEL

PANEL SUSTAIN ELECTRODE

SS 66

CB1

CB2

KEYSCAN

51 42

KEY

VIDEO DATA

CONTROL DATA

P+3.3V

C14

KEYSCAN

KEY

C11

A31NO USE

IC17102

BUFFER

CB3

CB4

CB5

CB6

DATA DRIVER

SOS8_SS

DATA DRIVER (RIGHT)

CB7

C10

SOS8_SS

P+3.3V

VDA

PLASMA PANEL

C20

CB8

CB9

CB 10

CB 11

IC17201

A32

C21

BUFFER

CB 12

VIDEO DATA

CONTROL DATA

54 1

DATA DRIVER

P+5V

SUSTAIN CONTROL

DATA DRIVER (LEFT)

BUFFER

IC17202

CB 14

C23

SS33

P+5V

SOS8_SS

SUSTAIN CONTROL

C25

P35

VDA

CB 15

Page 38

Page 39

11 Wiring Connection Diagram

11.1. Caution statement.

Caution:

Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull.

11.2. Wiring (1)

Page 40

11.3. Wiring (2)

11.4. Wiring (3)

Page 41

11.5. Wiring (4)

Page 42

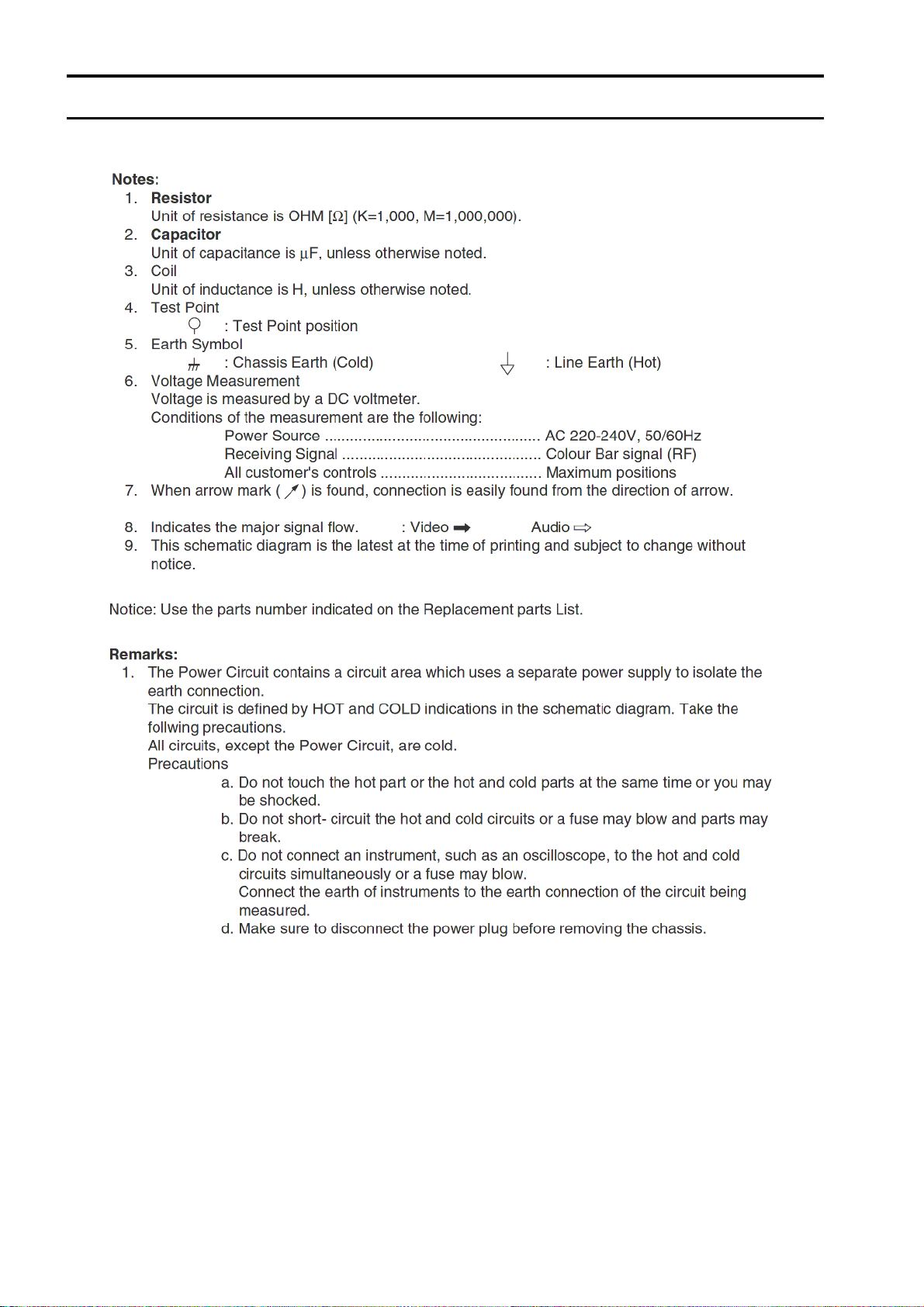

Model No. : TH-P42U30A/Z Schematic Diagram Note

S-1

Page 43

Model No. : TH-P42U30A/Z Replacement Parts List Note

S-2

Page 44

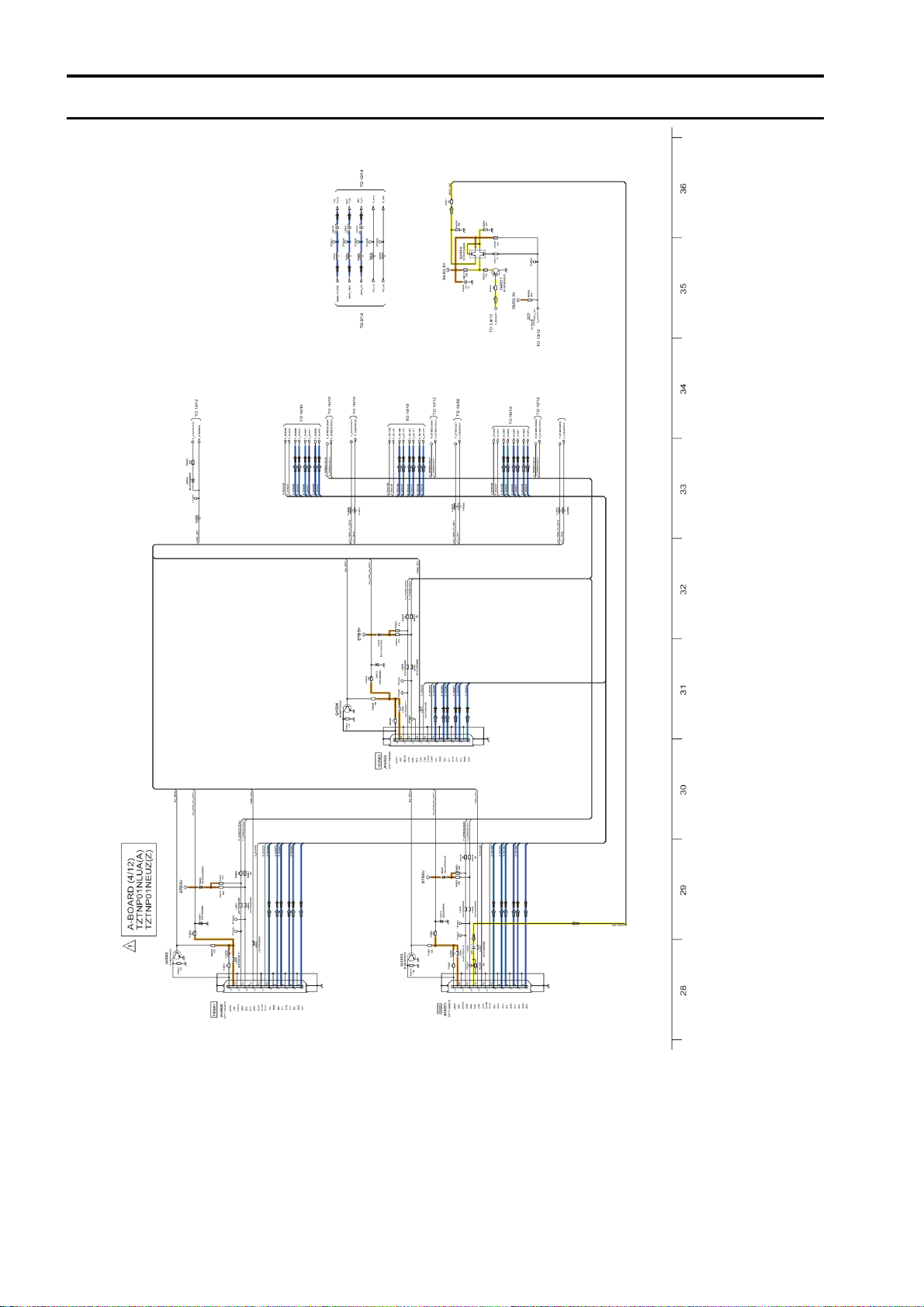

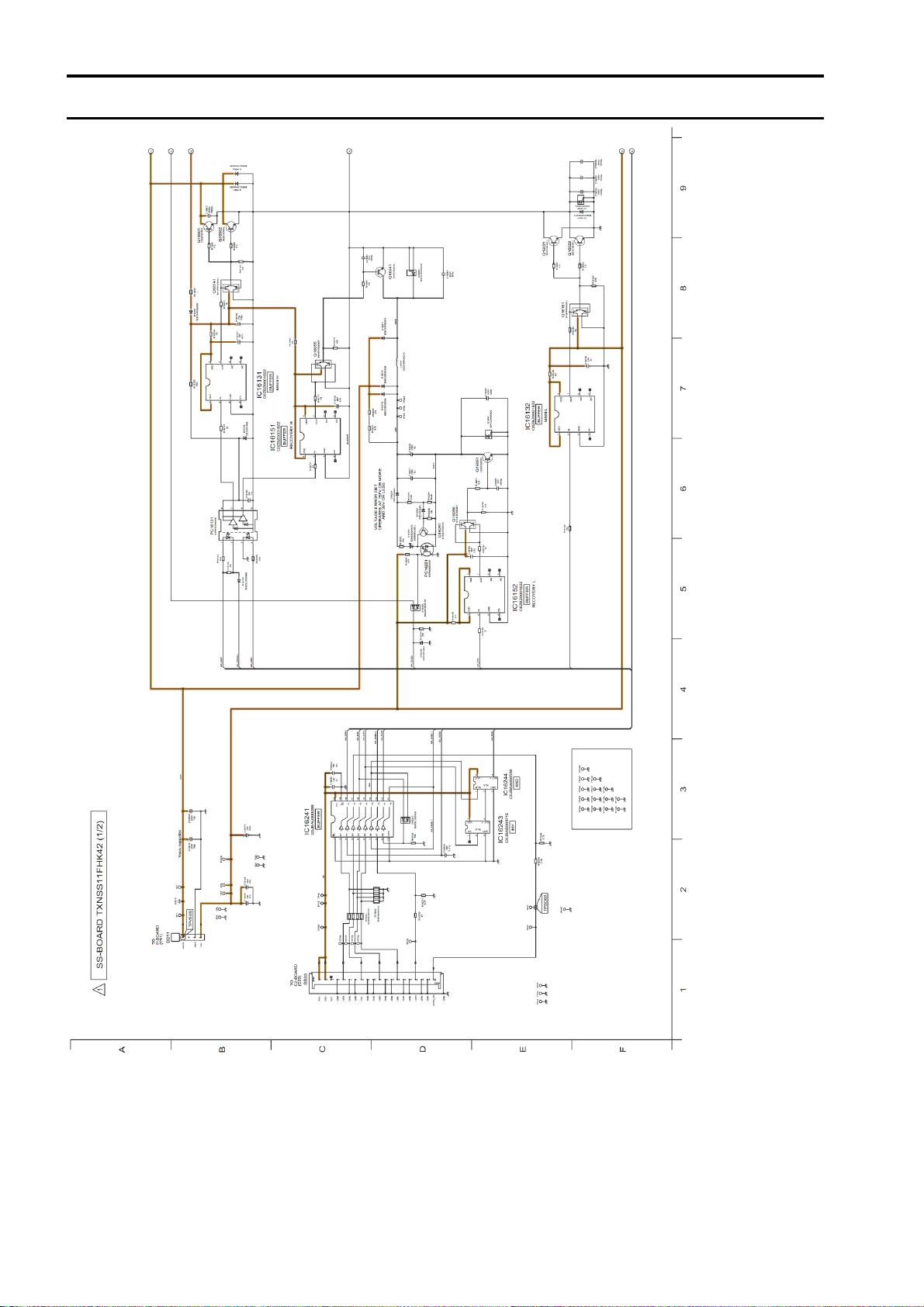

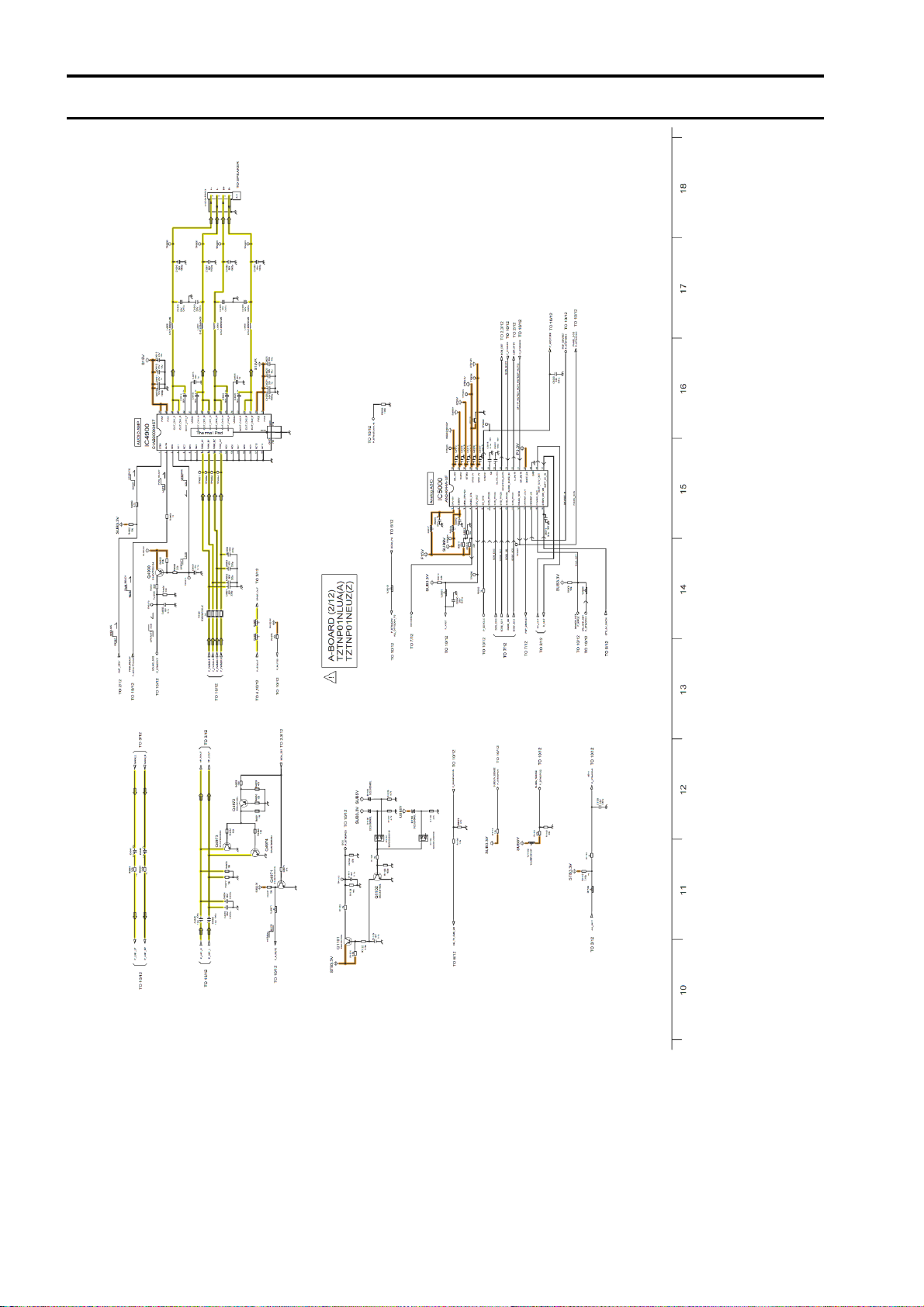

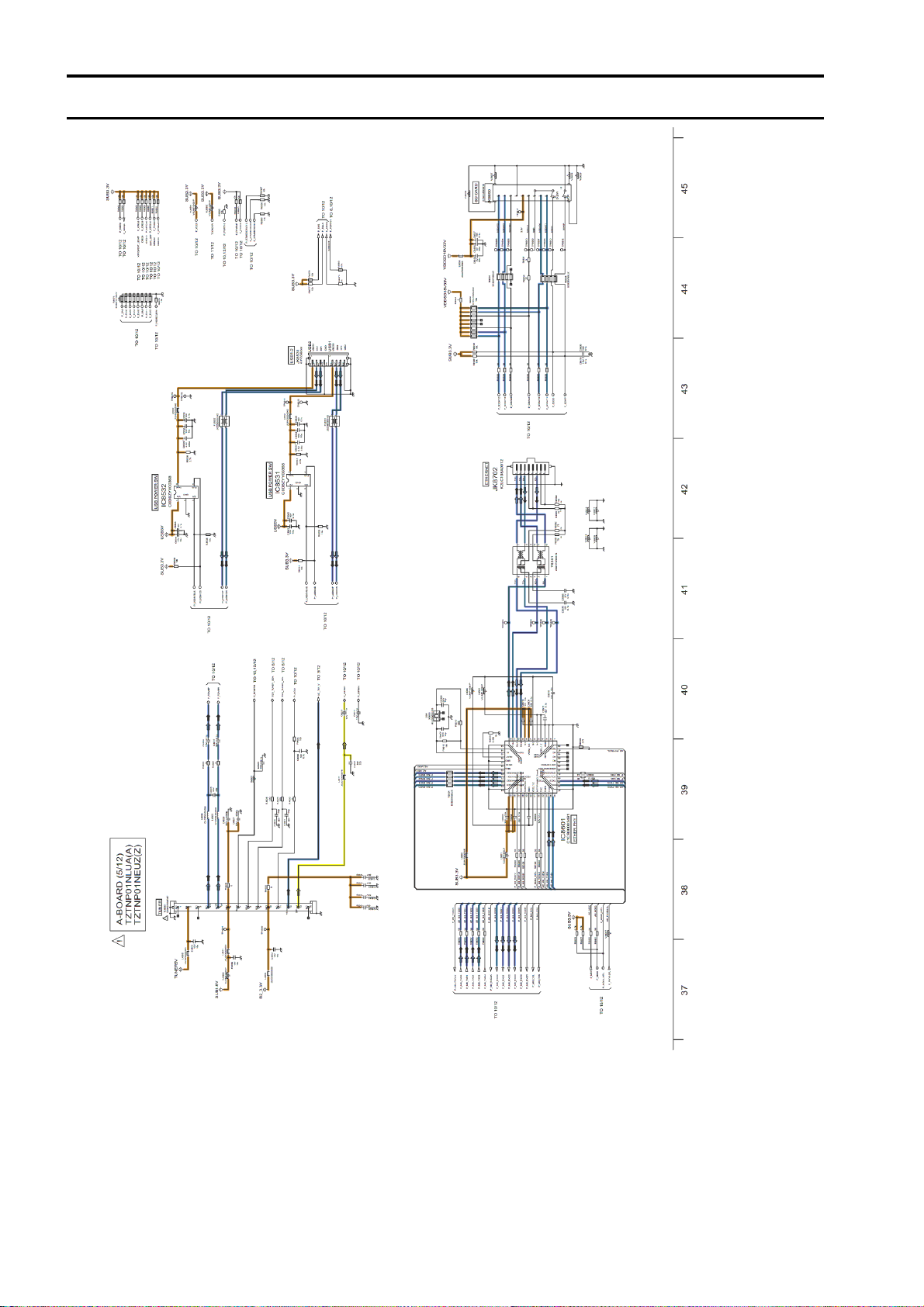

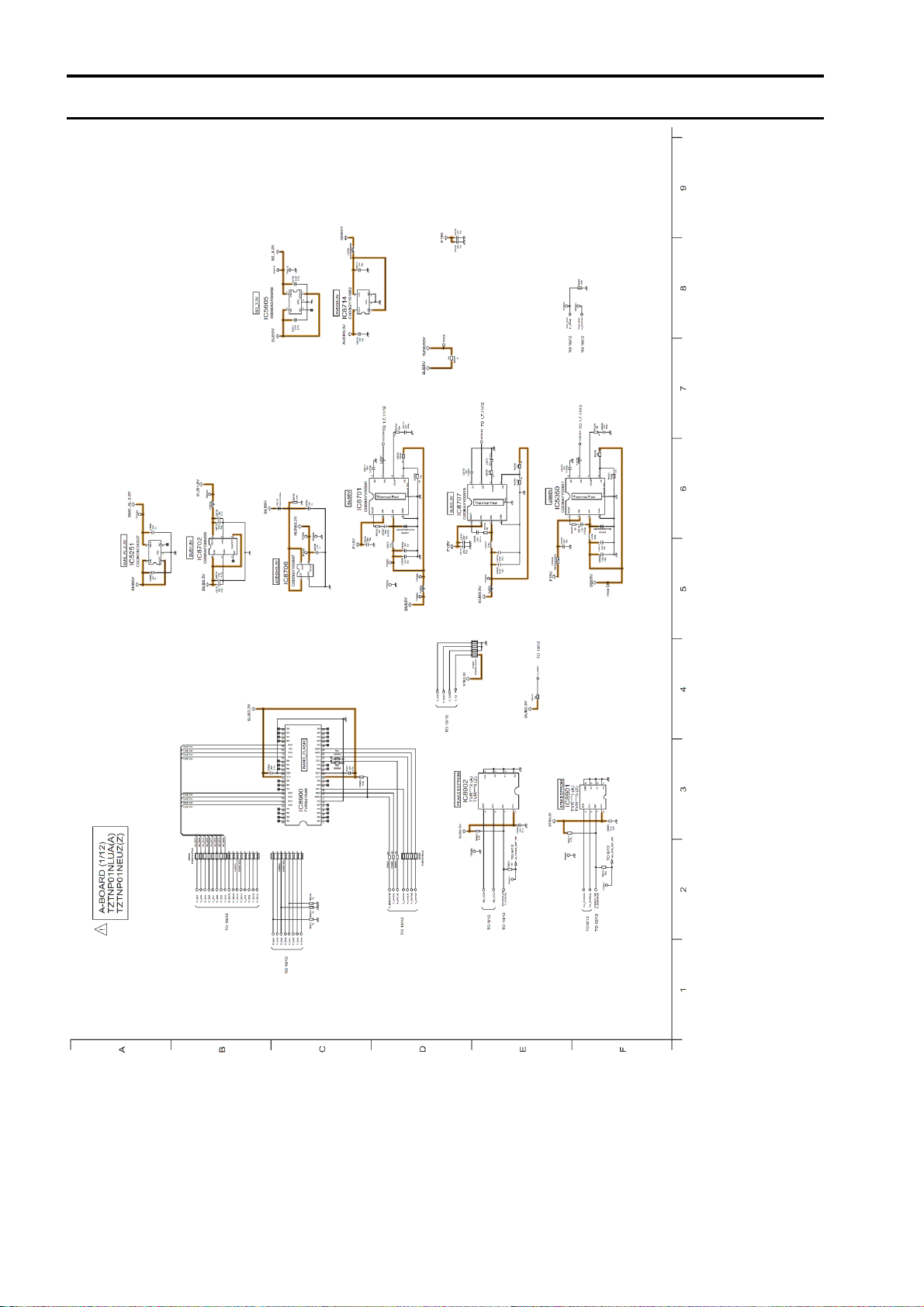

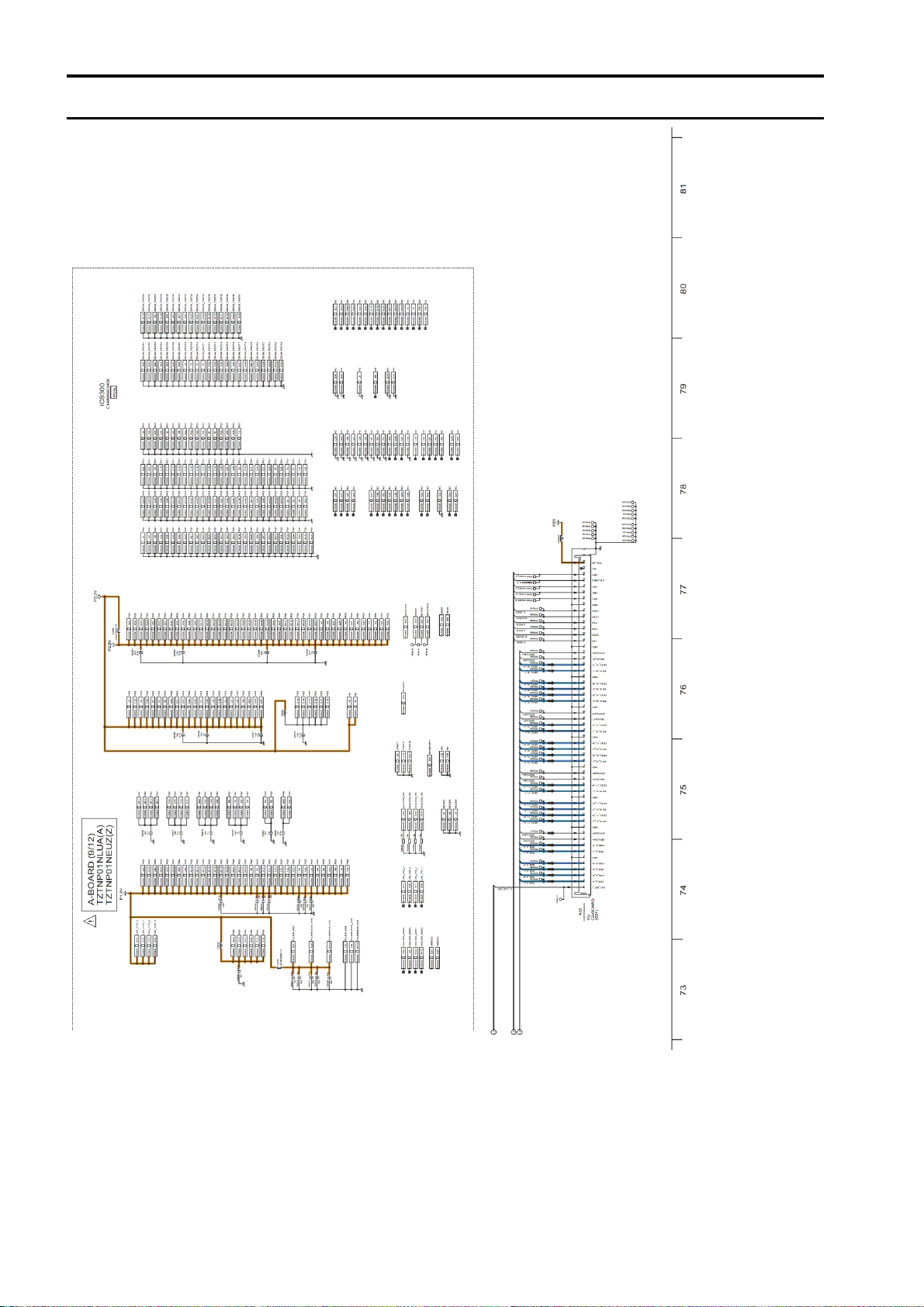

Model No. : TH-P42U30A/Z A-Board (1/12)

S-3

Page 45

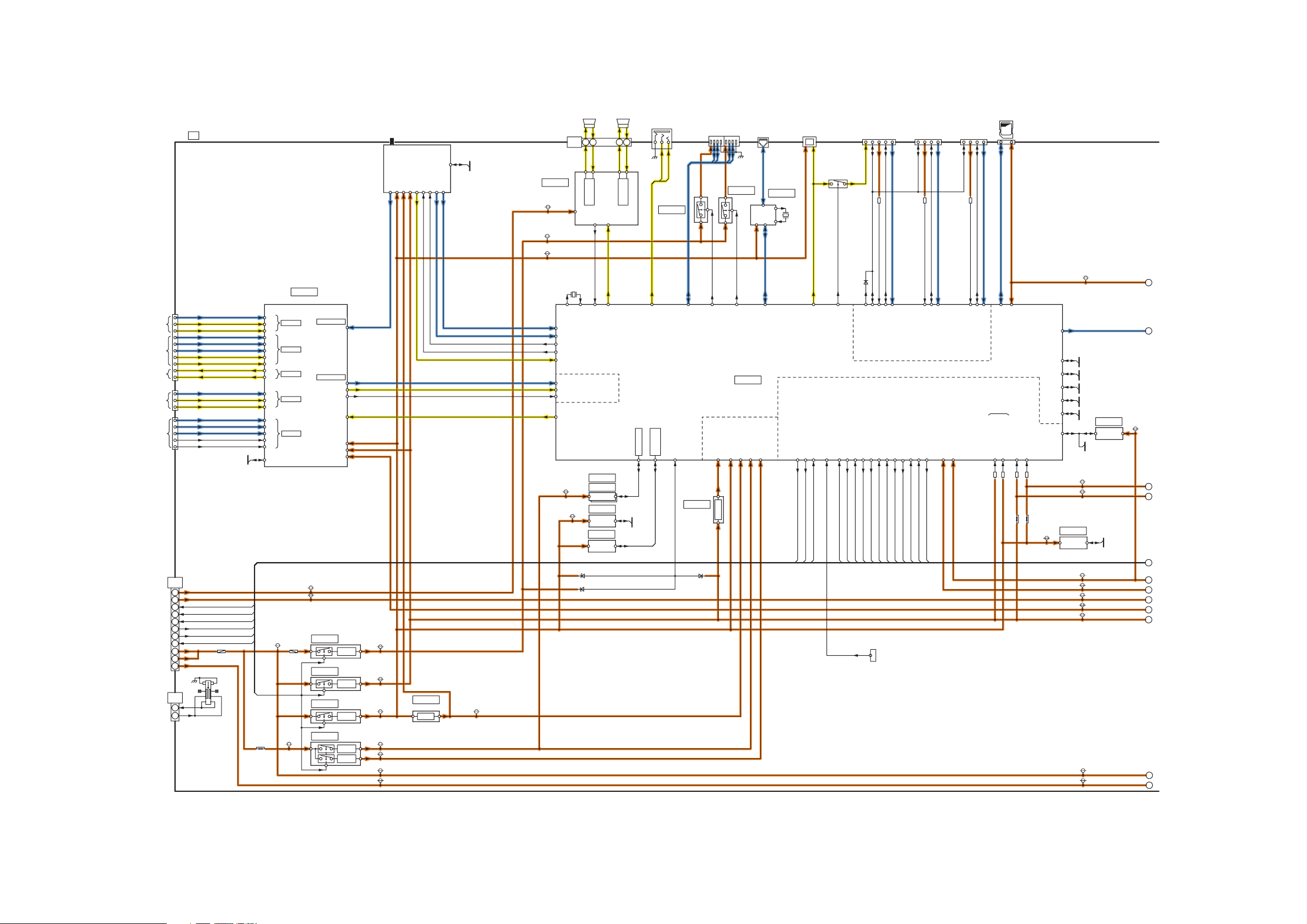

Model No. : TH-P42U30A/Z A-Board (2/12)

S-4

Page 46

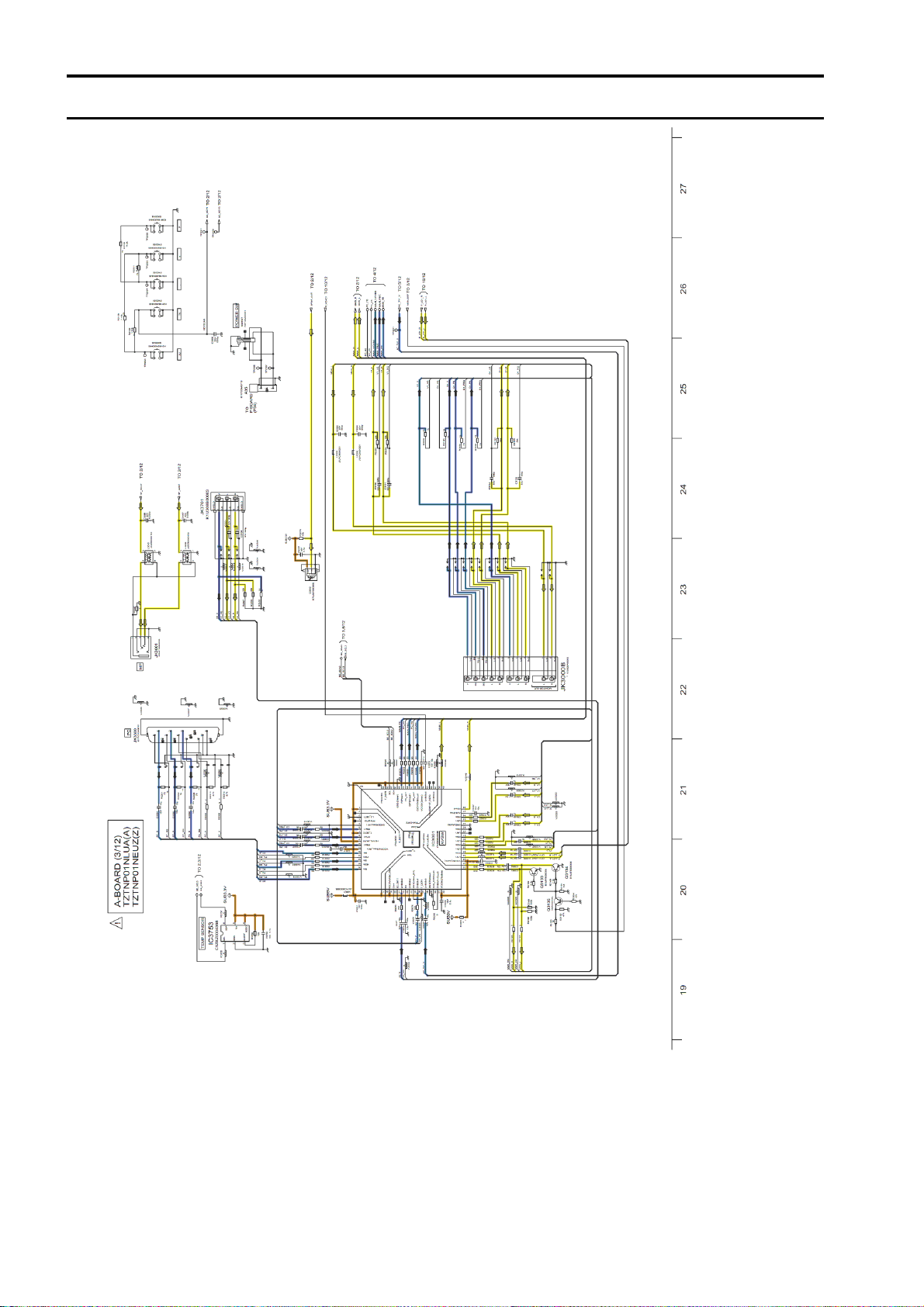

Model No. : TH-P42U30A/Z A-Board (3/12)

S-5

Page 47

Model No. : TH-P42U30A/Z A-Board (4/12)

S-6

Page 48

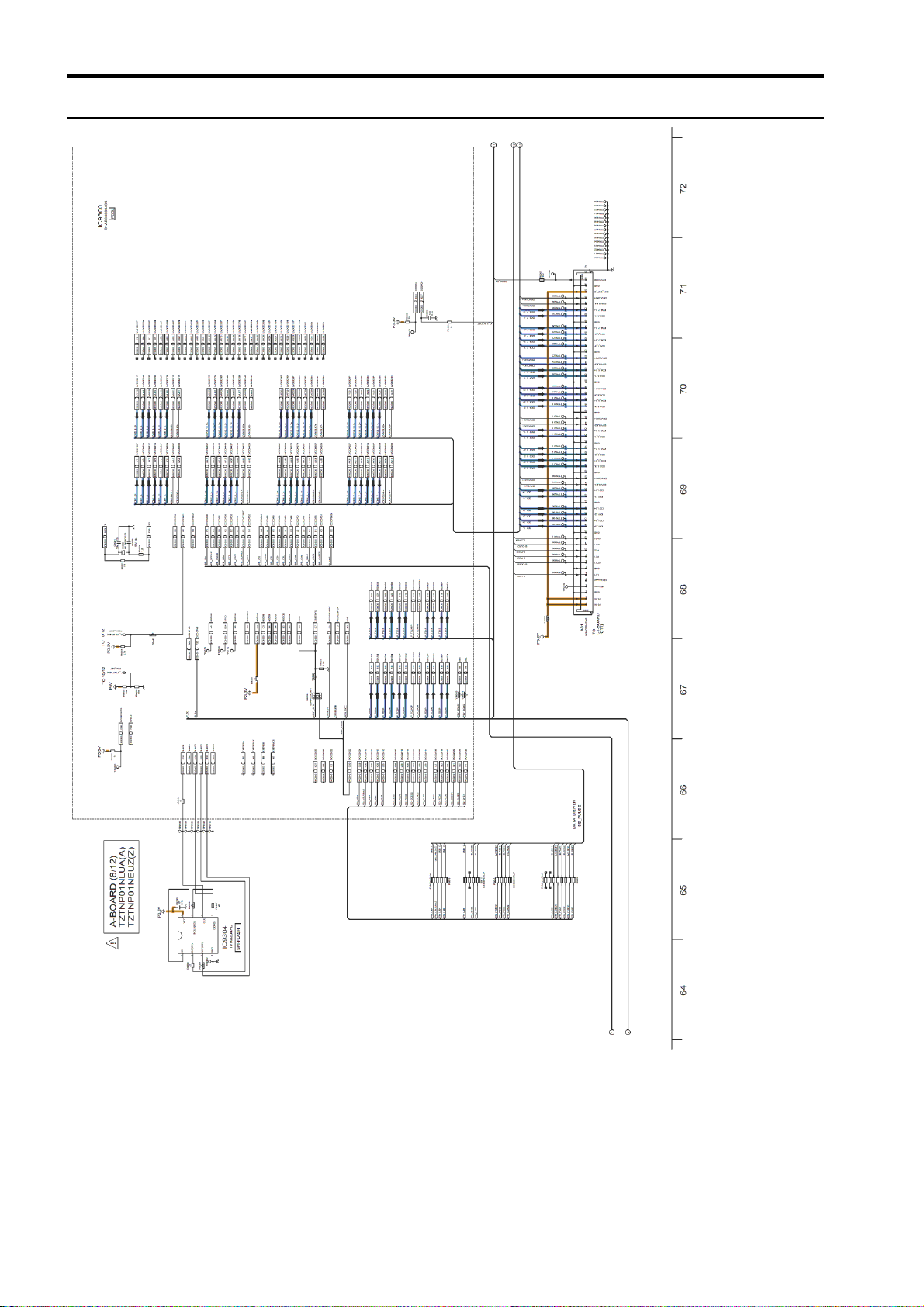

Model No. : TH-P42U30A/Z A-Board (5/12)

S-7

Page 49

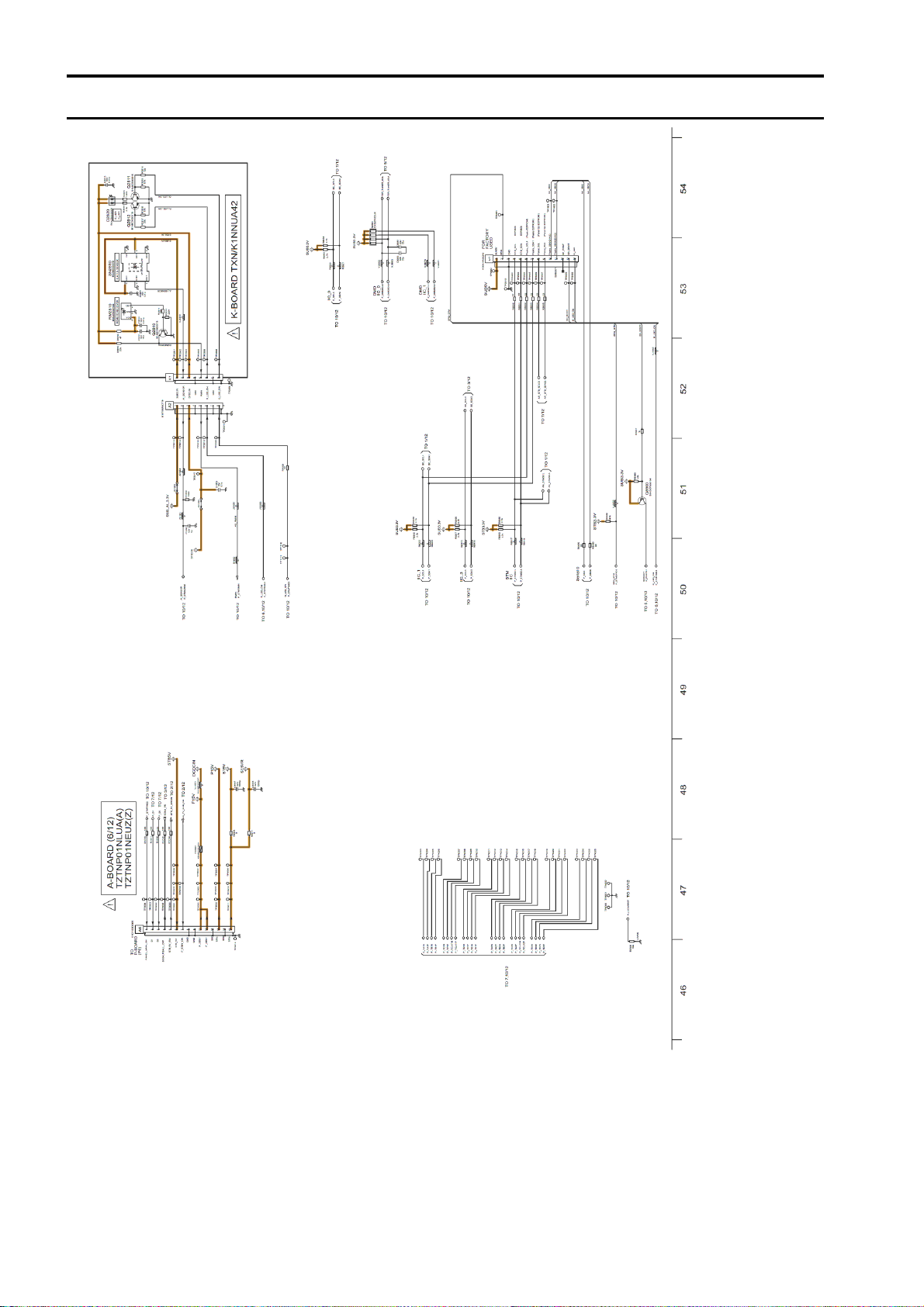

Model No. : TH-P42U30A/Z A-Board (6/12) and K-Board

S-8

Page 50

Model No. : TH-P42U30A/Z A-Board (7/12)

S-9

Page 51

Model No. : TH-P42U30A/Z A-Board (8/12)

S-10

Page 52

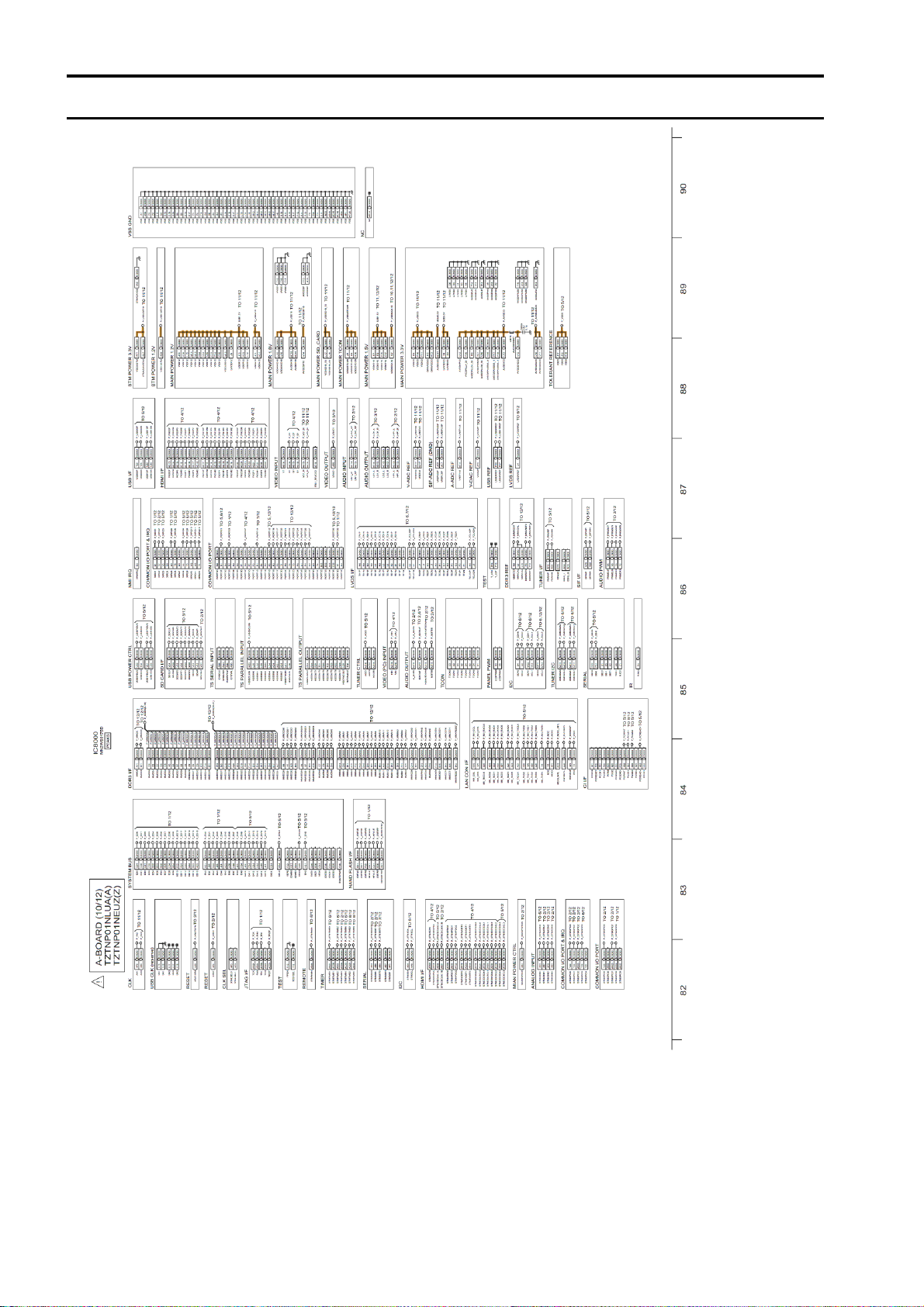

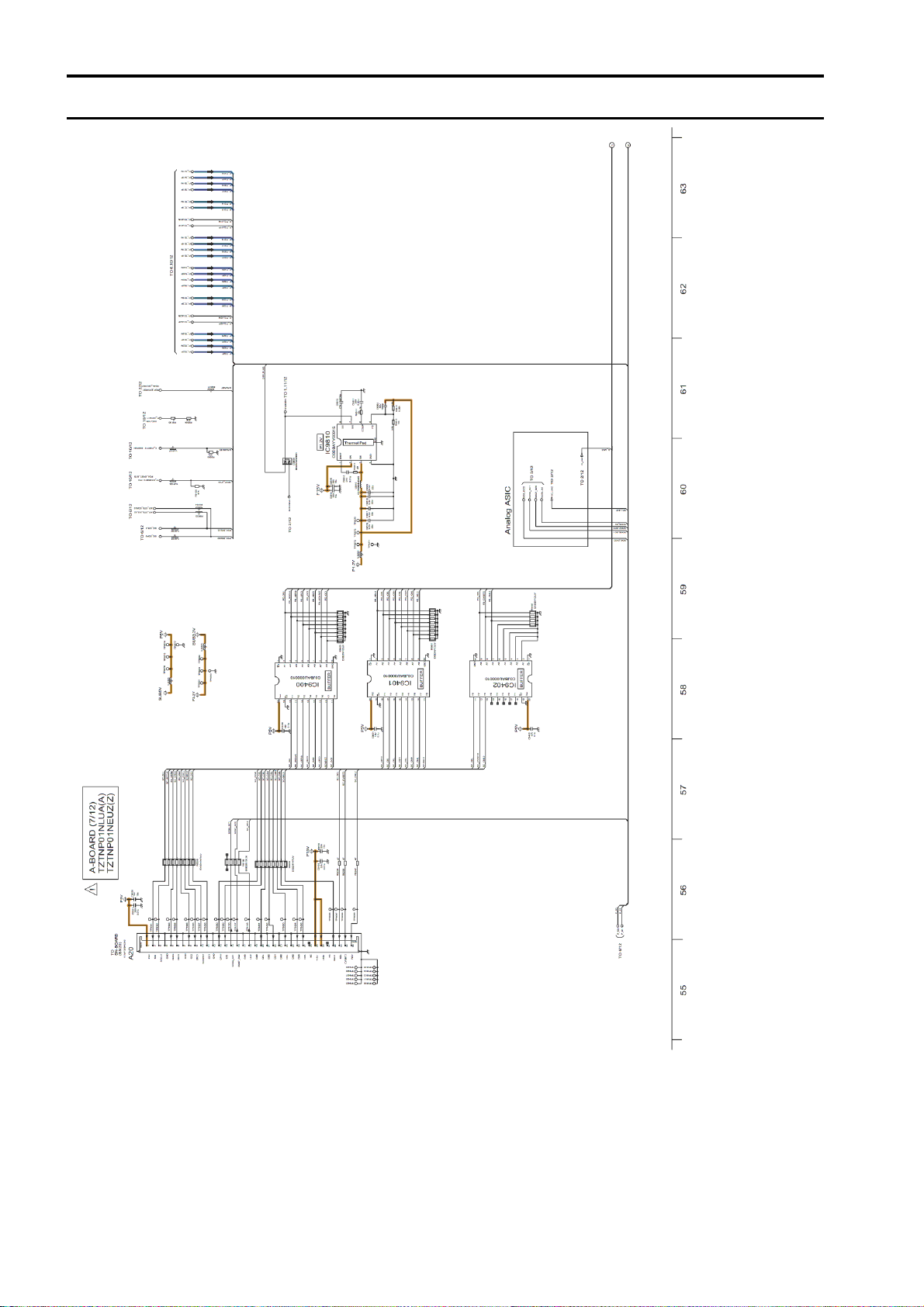

Model No. : TH-P42U30A/Z A-Board (9/12)

S-11

Page 53

Model No. : TH-P42U30A/Z A-Board (10/12)

S-12

Page 54

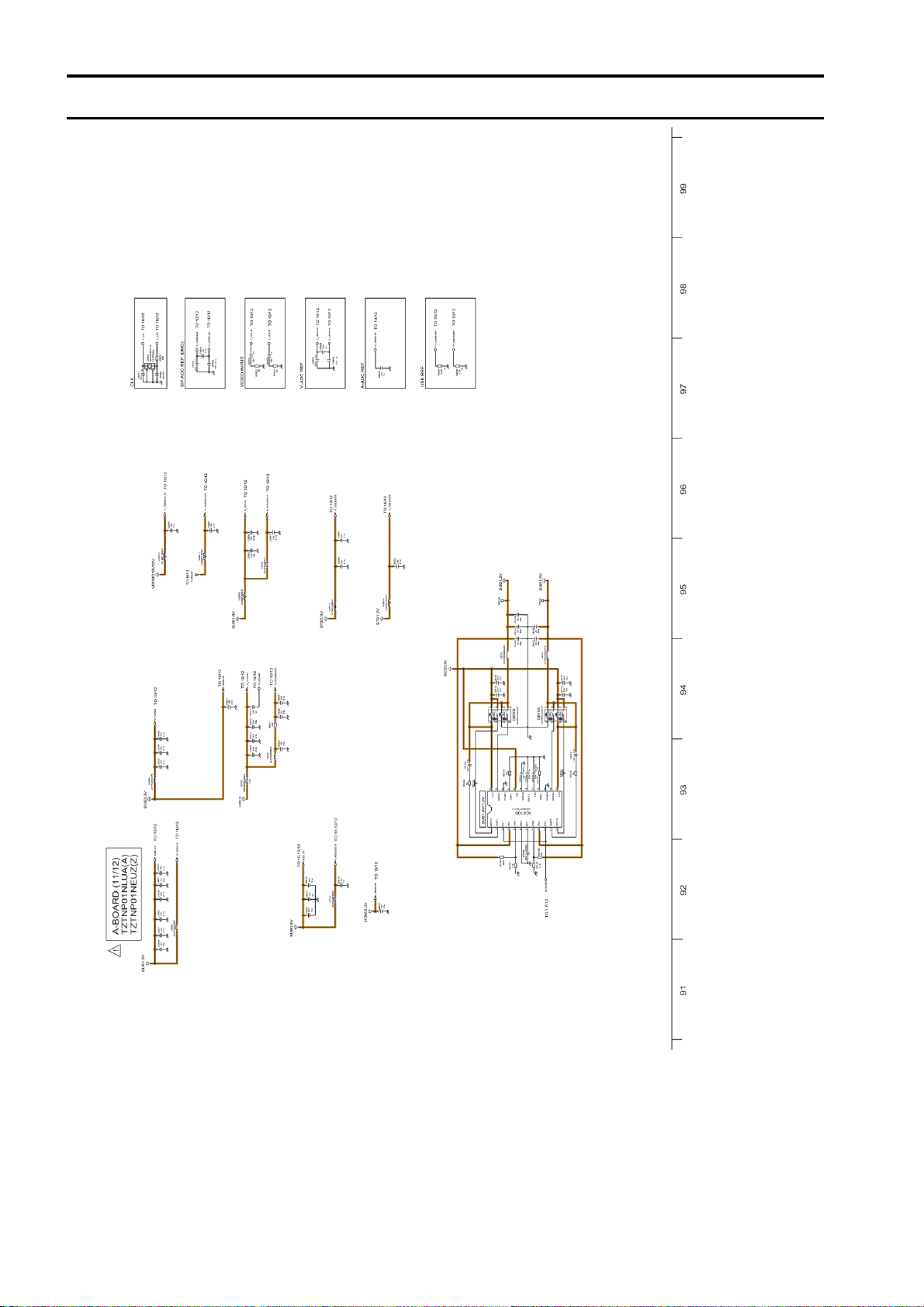

Model No. : TH-P42U30A/Z A-Board (11/12)

S-13

Page 55

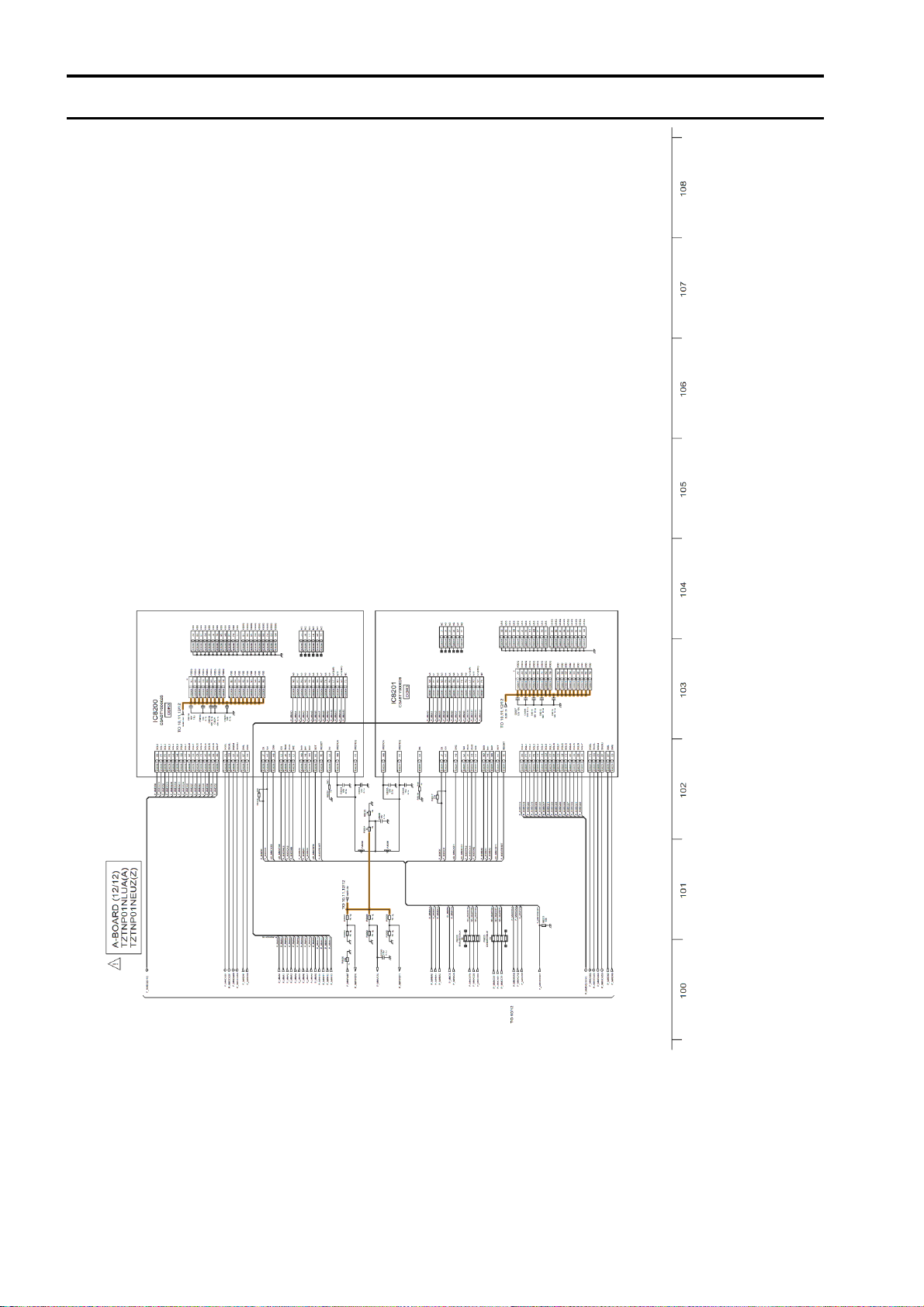

Model No. : TH-P42U30A/Z A-Board (12/12)

S-14

Page 56

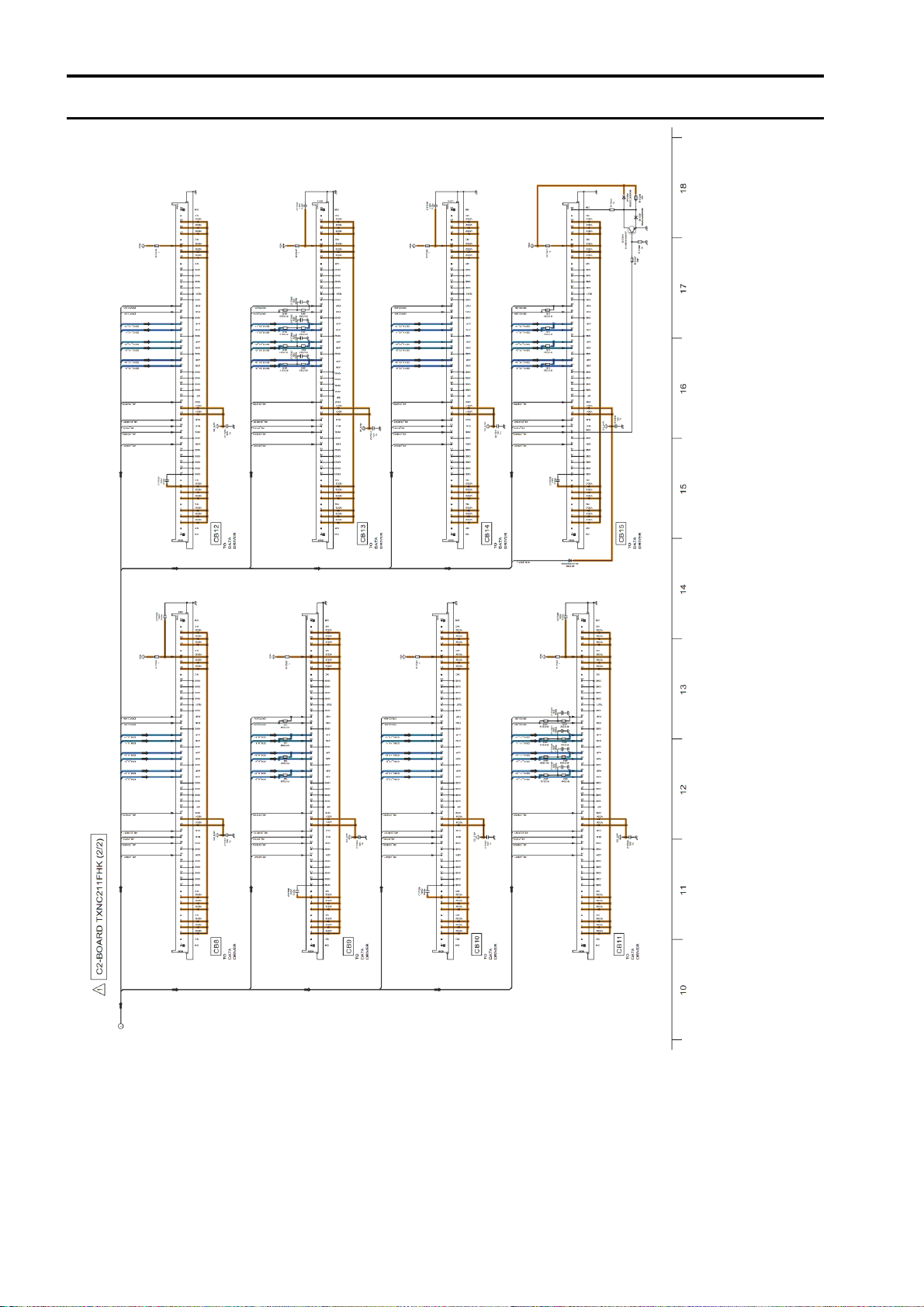

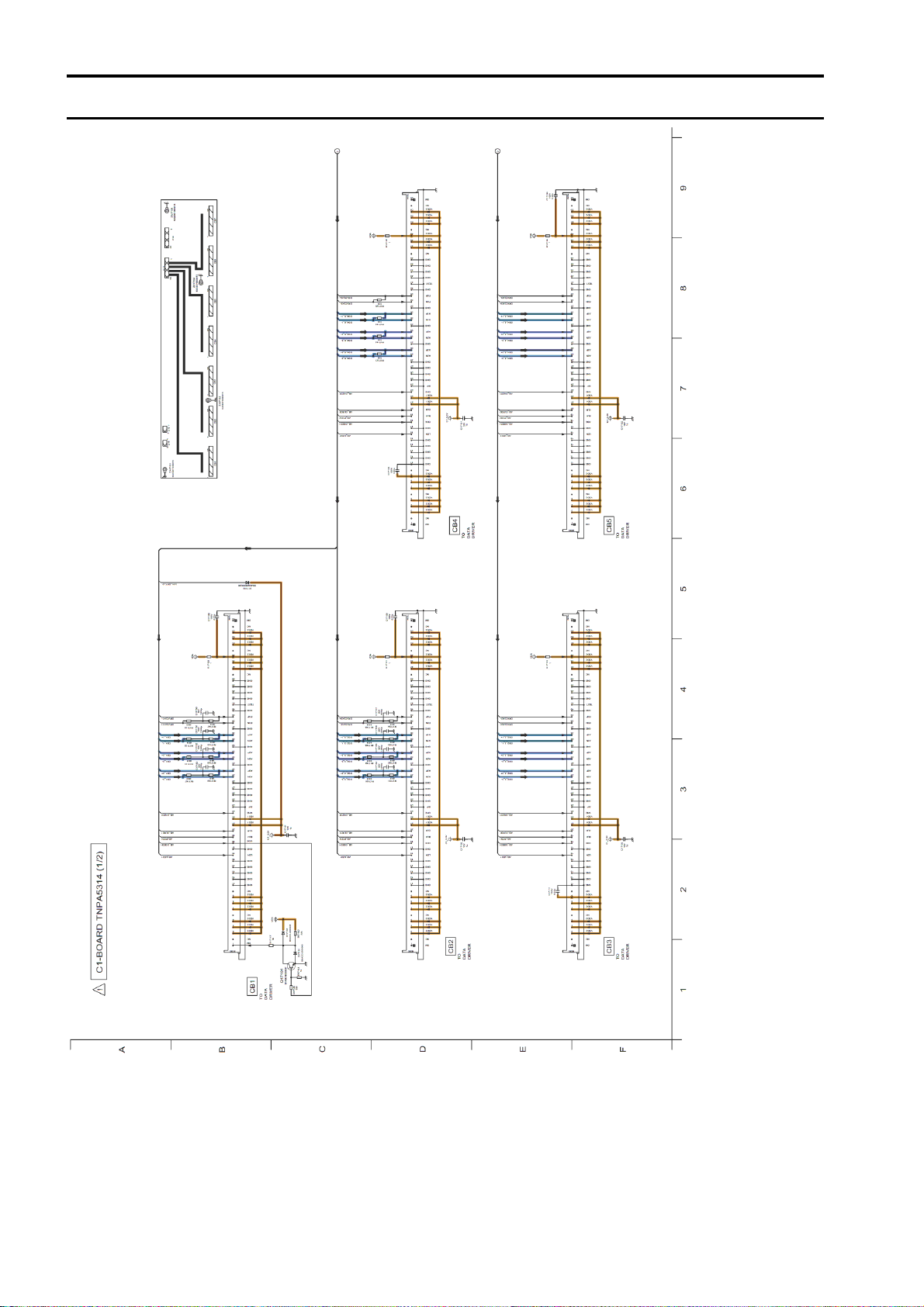

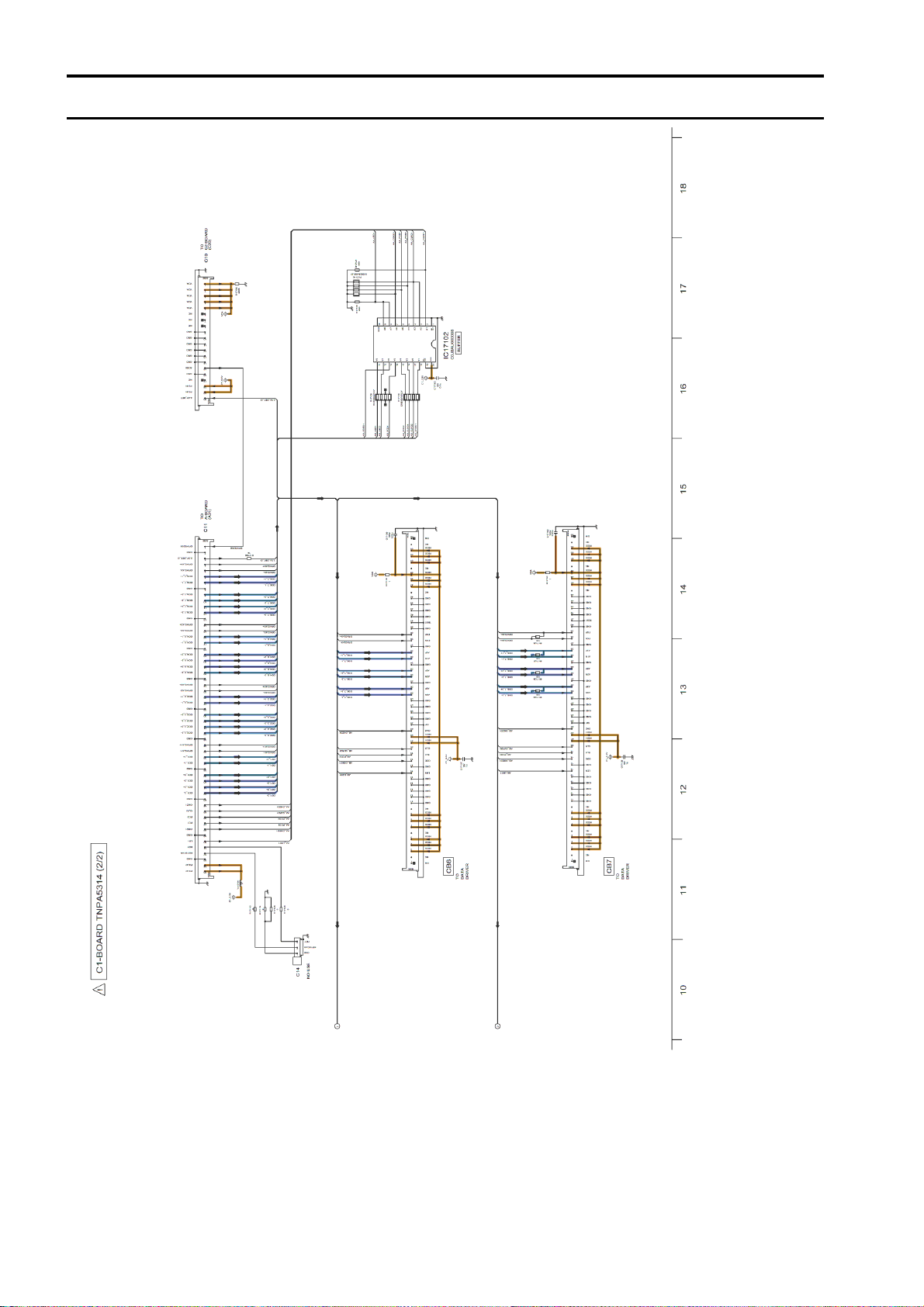

Model No. : TH-P42U30A/Z C1-Board (1/2)

S-15

Page 57

Model No. : TH-P42U30A/Z C1-Board (2/2)

S-16

Page 58

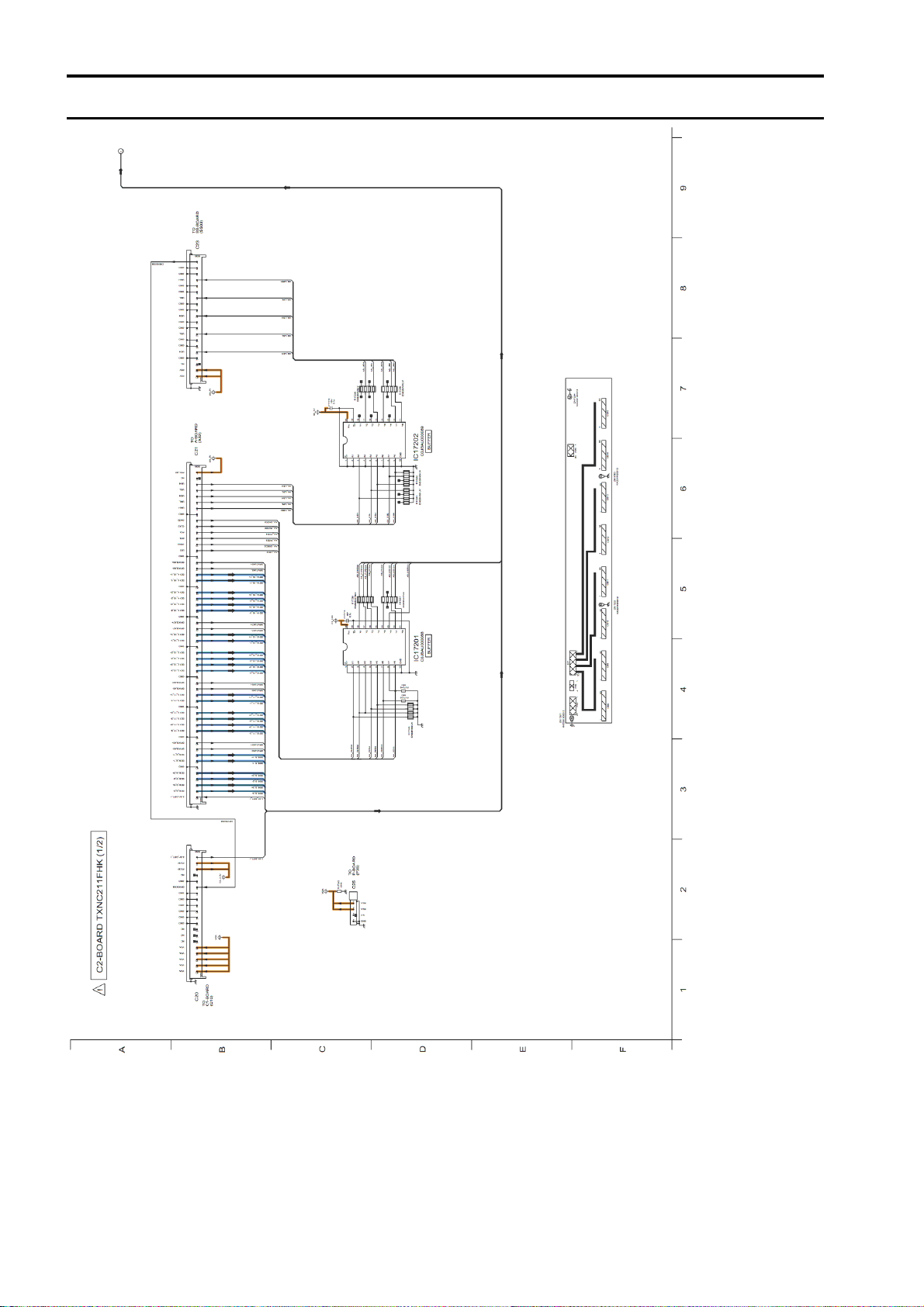

Model No. : TH-P42U30A/Z C2-Board (1/2)

S-17

Page 59

Model No. : TH-P42U30A/Z C2-Board (2/2)

S-18

Page 60

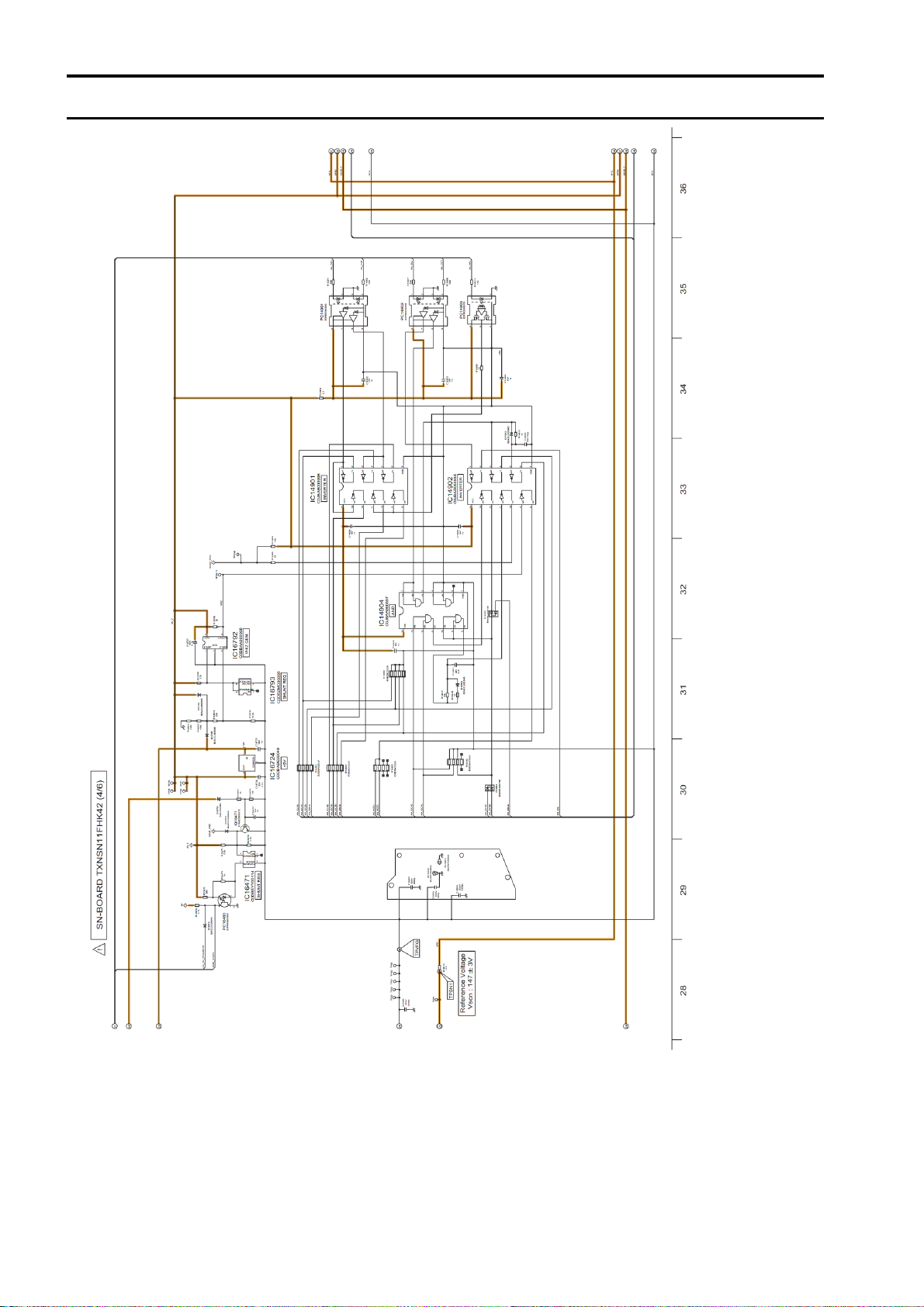

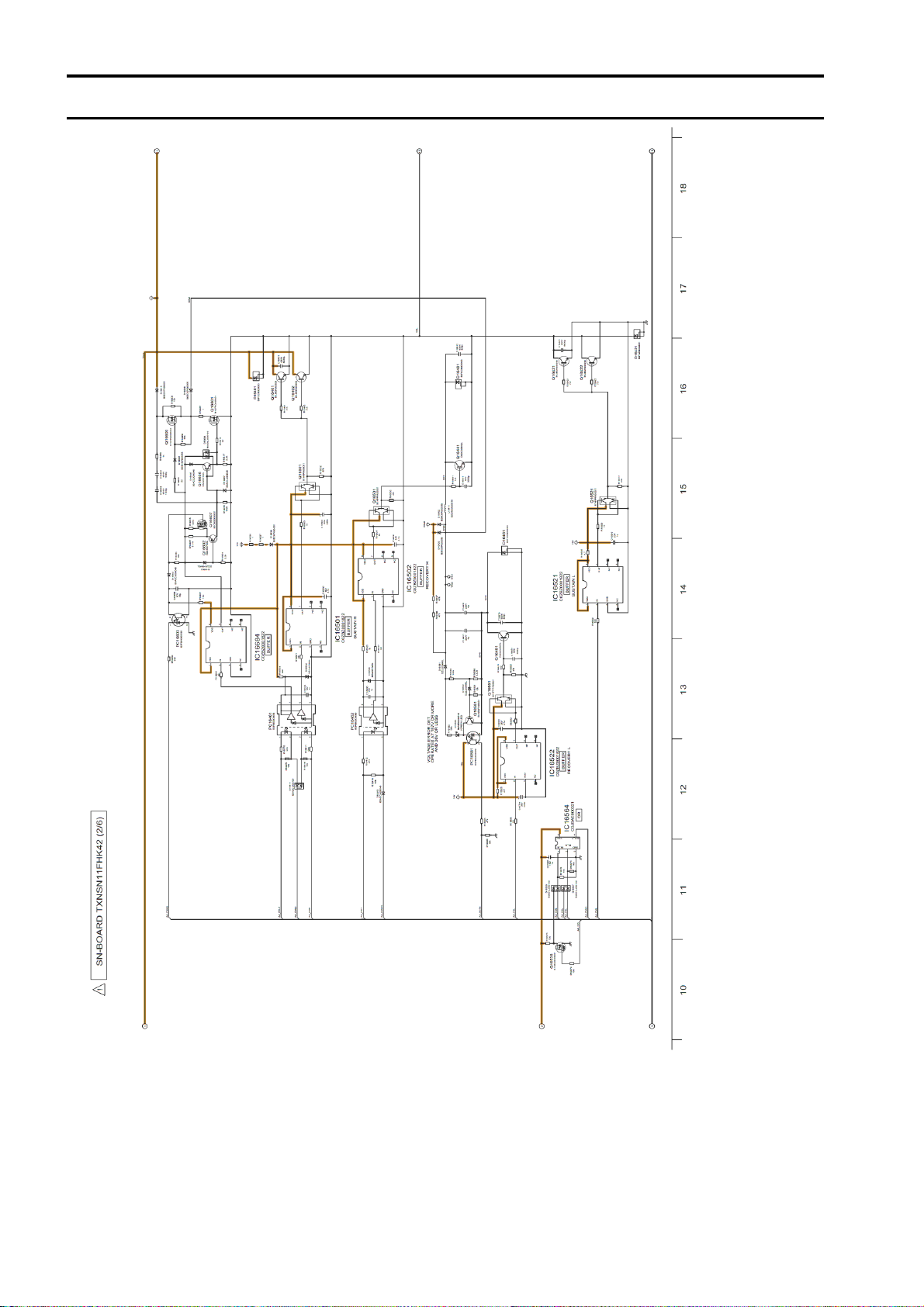

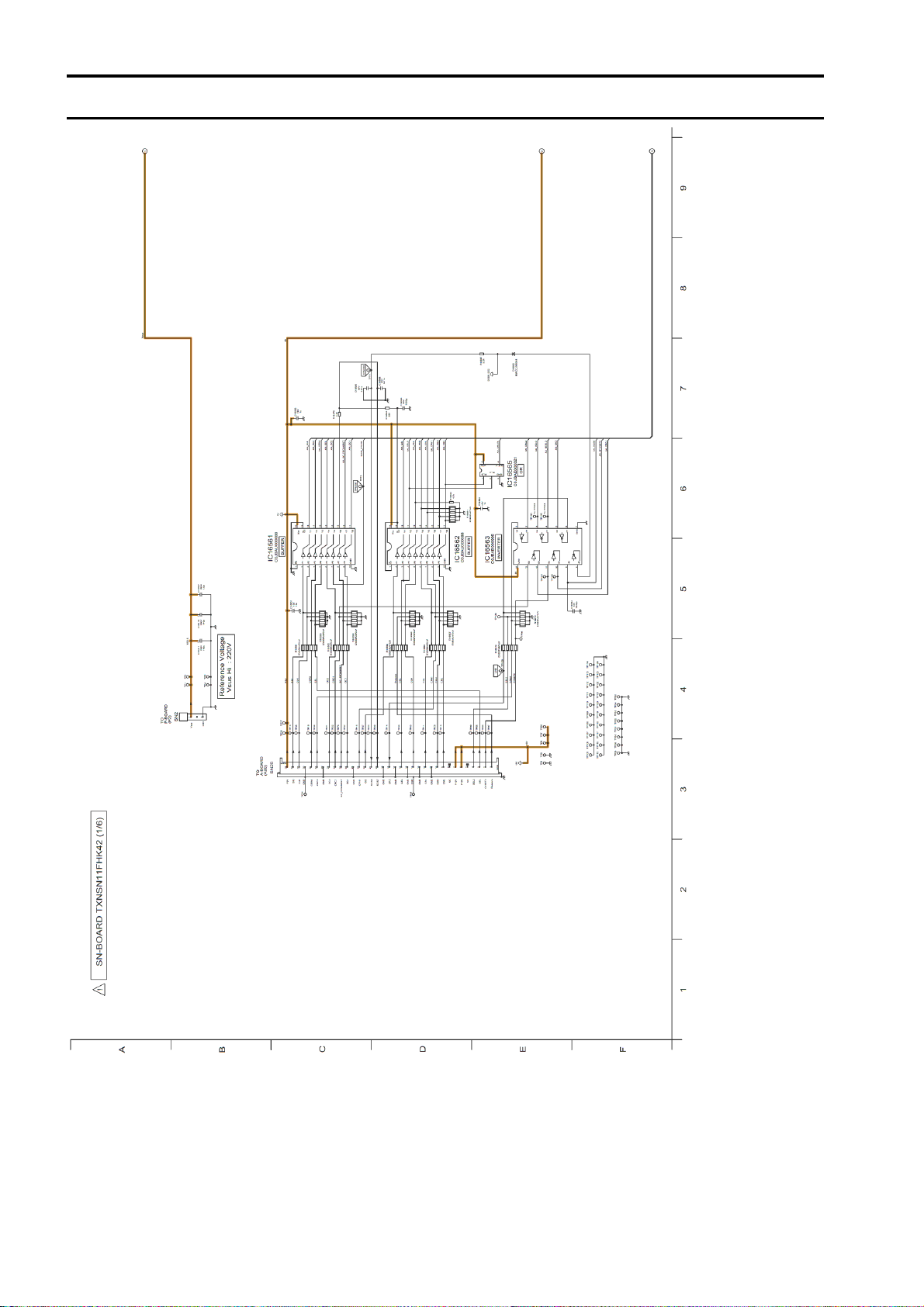

Model No. : TH-P42U30A/Z SN-Board (1/6)

S-19

Page 61

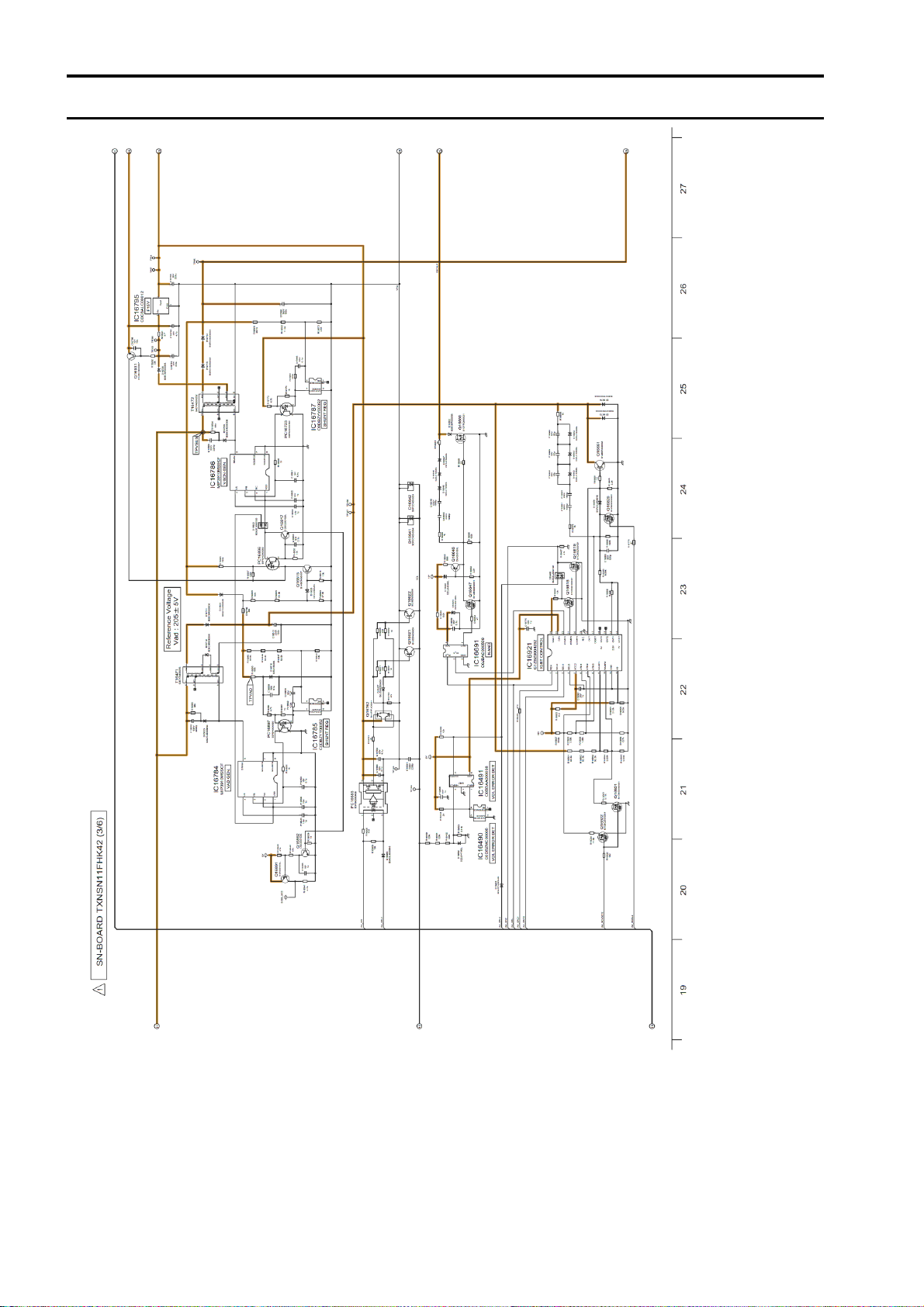

Model No. : TH-P42U30A/Z SN-Board (2/6)

S-20

Page 62

Model No. : TH-P42U30A/Z SN-Board (3/6)

S-21

Page 63

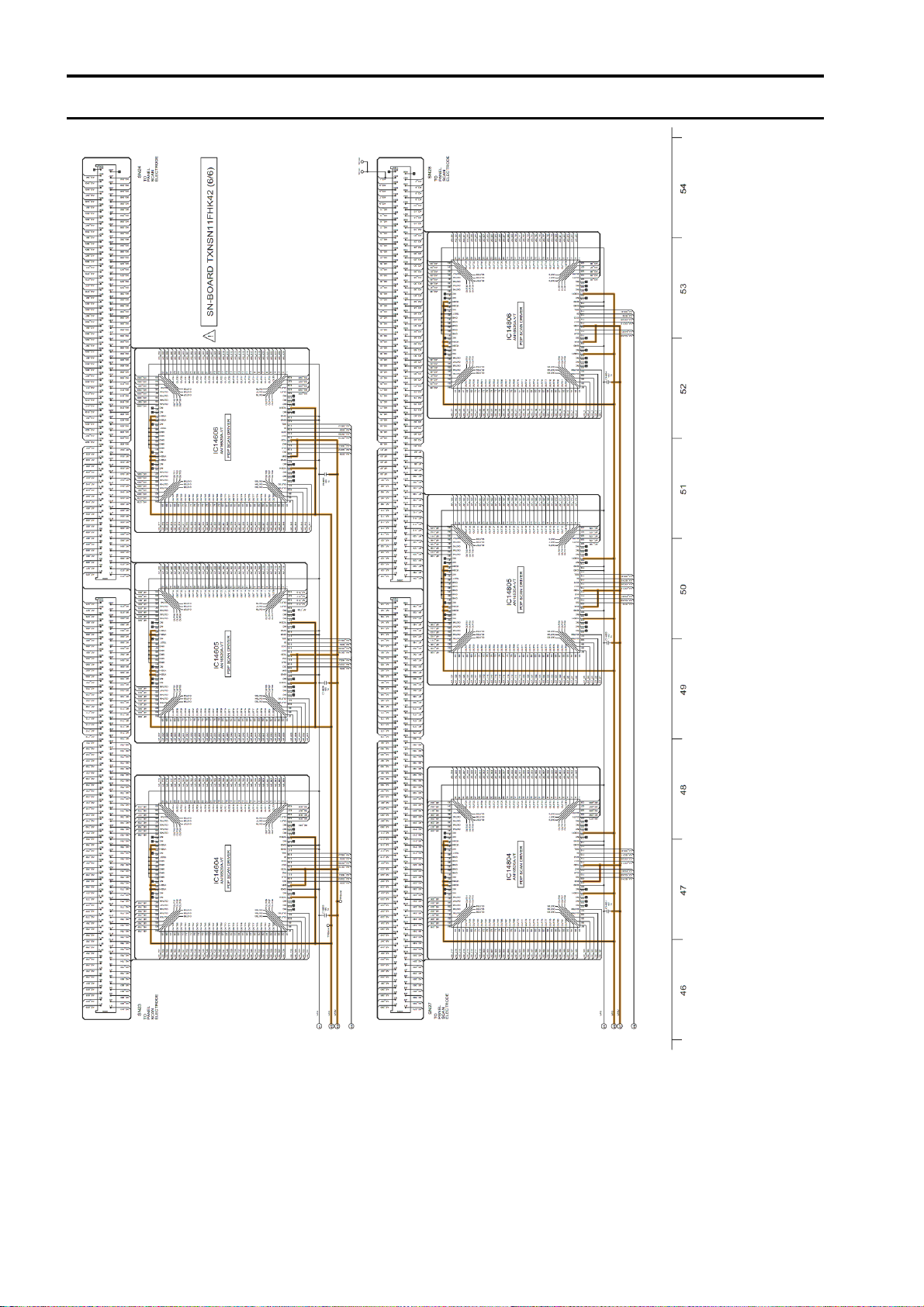

Model No. : TH-P42U30A/Z SN-Board (4/6)

S-22

Page 64

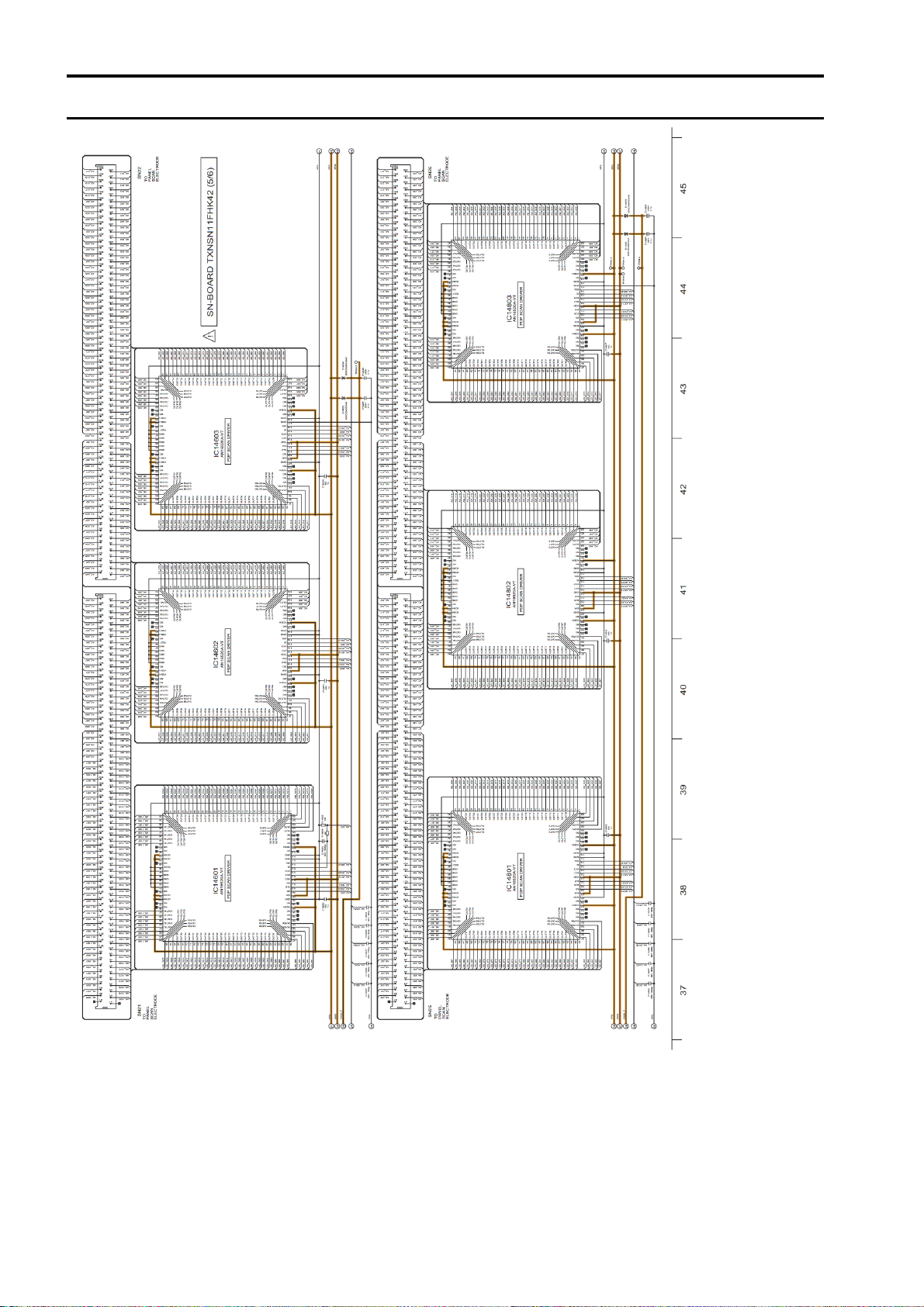

Model No. : TH-P42U30A/Z SN-Board (5/6)

S-23

Page 65

Model No. : TH-P42U30A/Z SN-Board (6/6)

S-24

Page 66

Model No. : TH-P42U30A/Z SS-Board (1/2)

S-25

Page 67

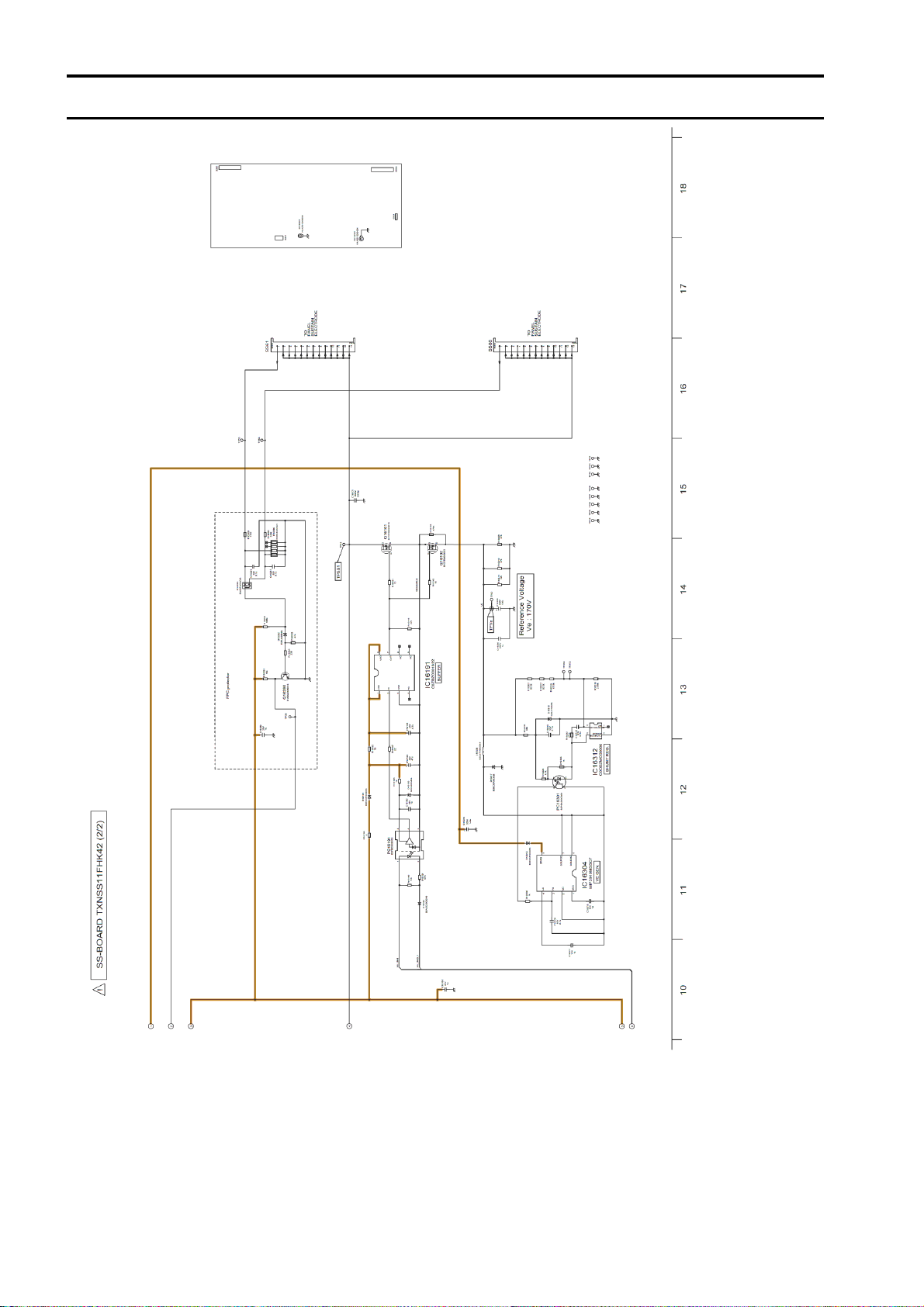

Model No. : TH-P42U30A/Z SS-Board (2/2)

S-26

Page 68

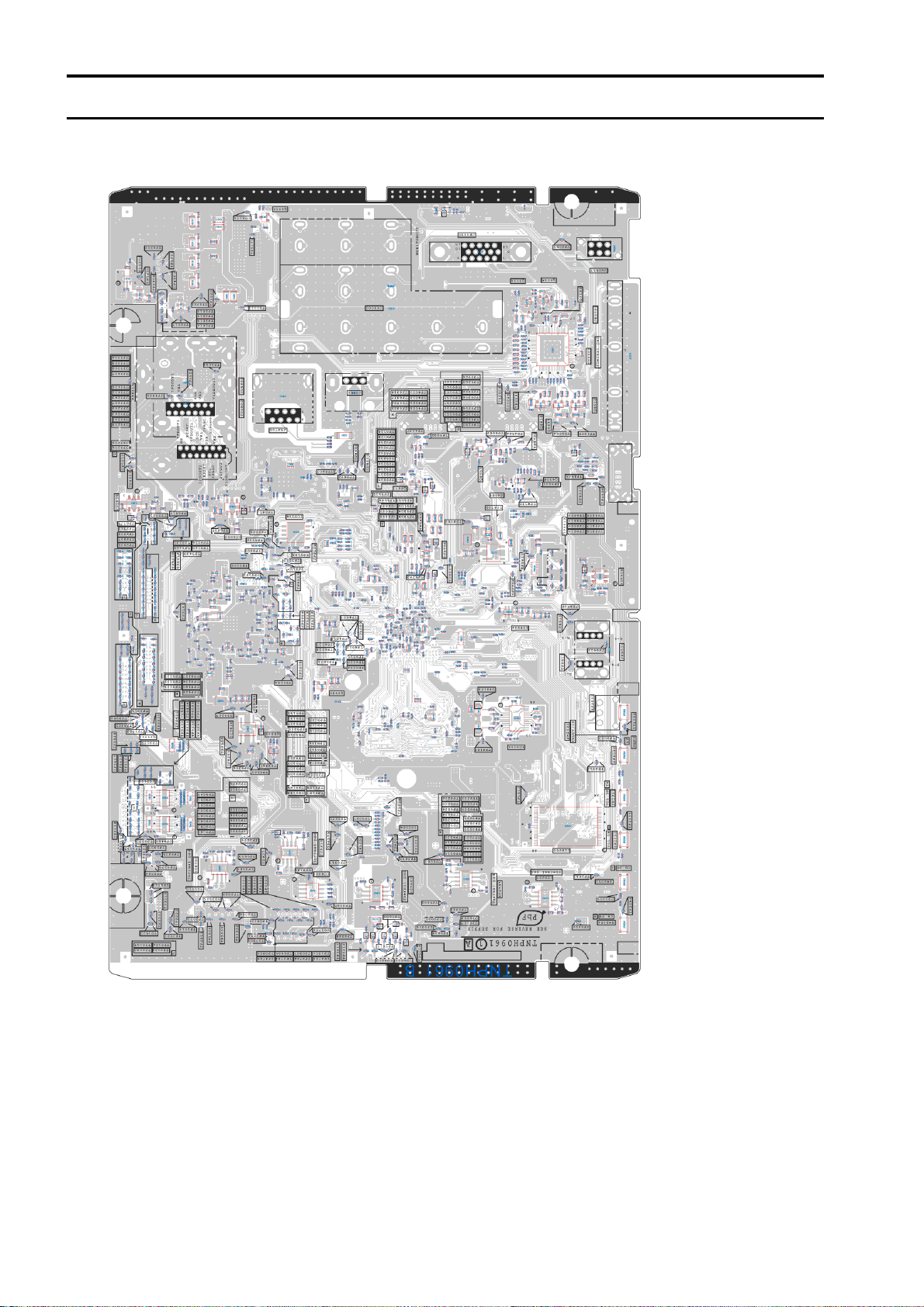

Model No. : TH-P42U30A/Z A-Board (Foil Side)

S-27

Page 69

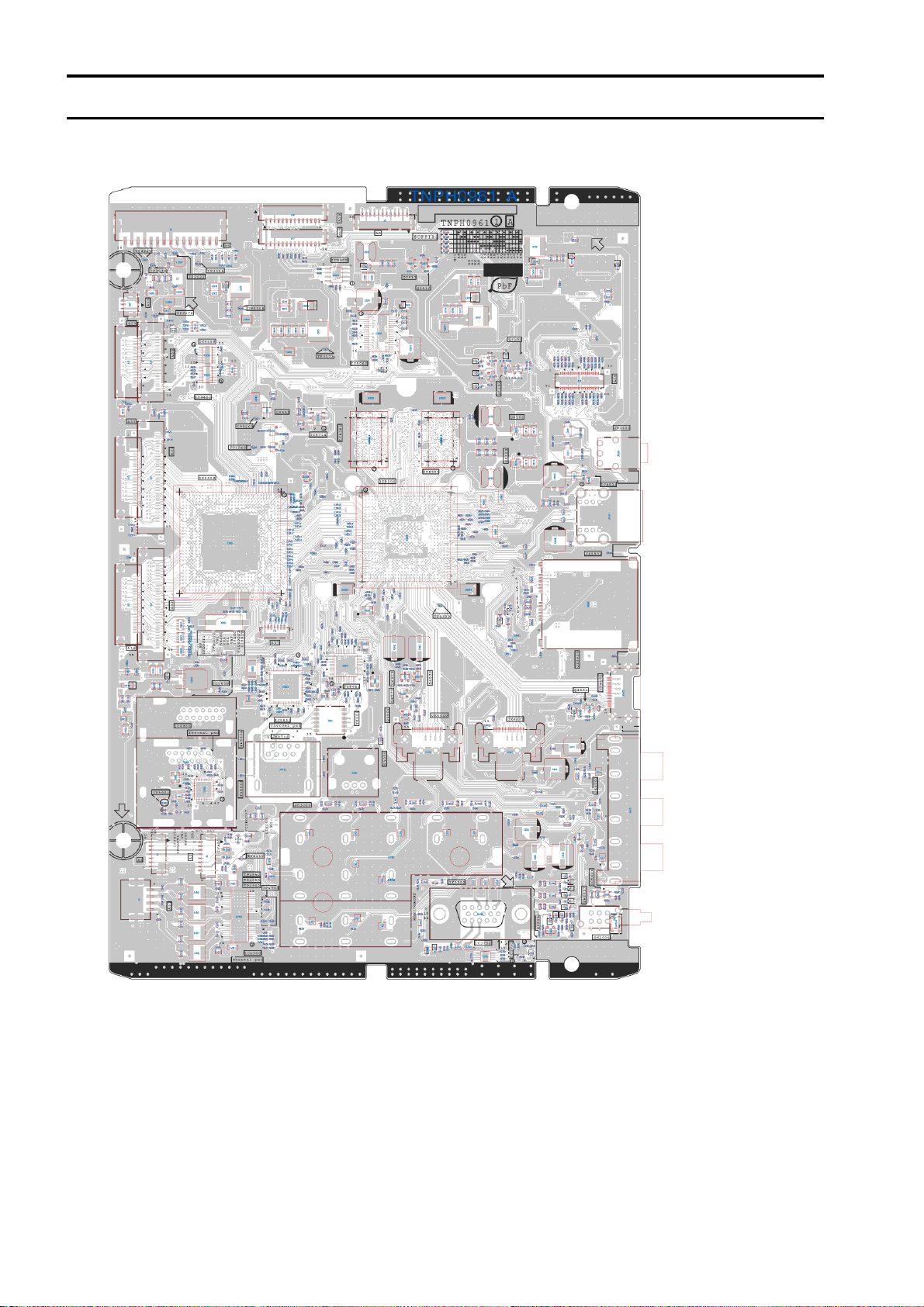

Model No. : TH-P42U30A/Z A-Board (Component Side)

S-28

Page 70

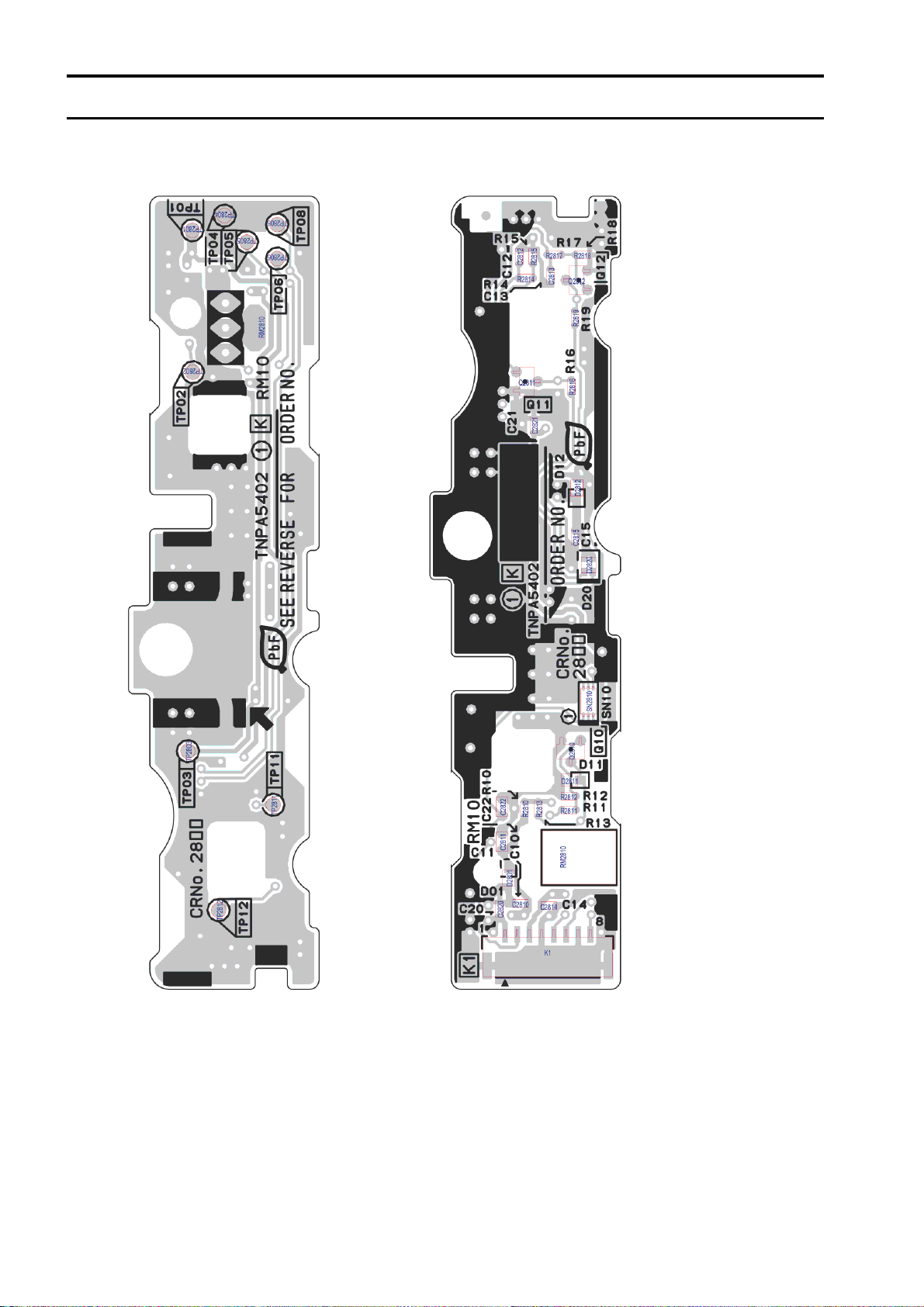

Model No. : TH-P42U30A/Z K-Board

S-29

Page 71

Model No. : TH-P42U30A/Z C1-Board

S-30

Page 72

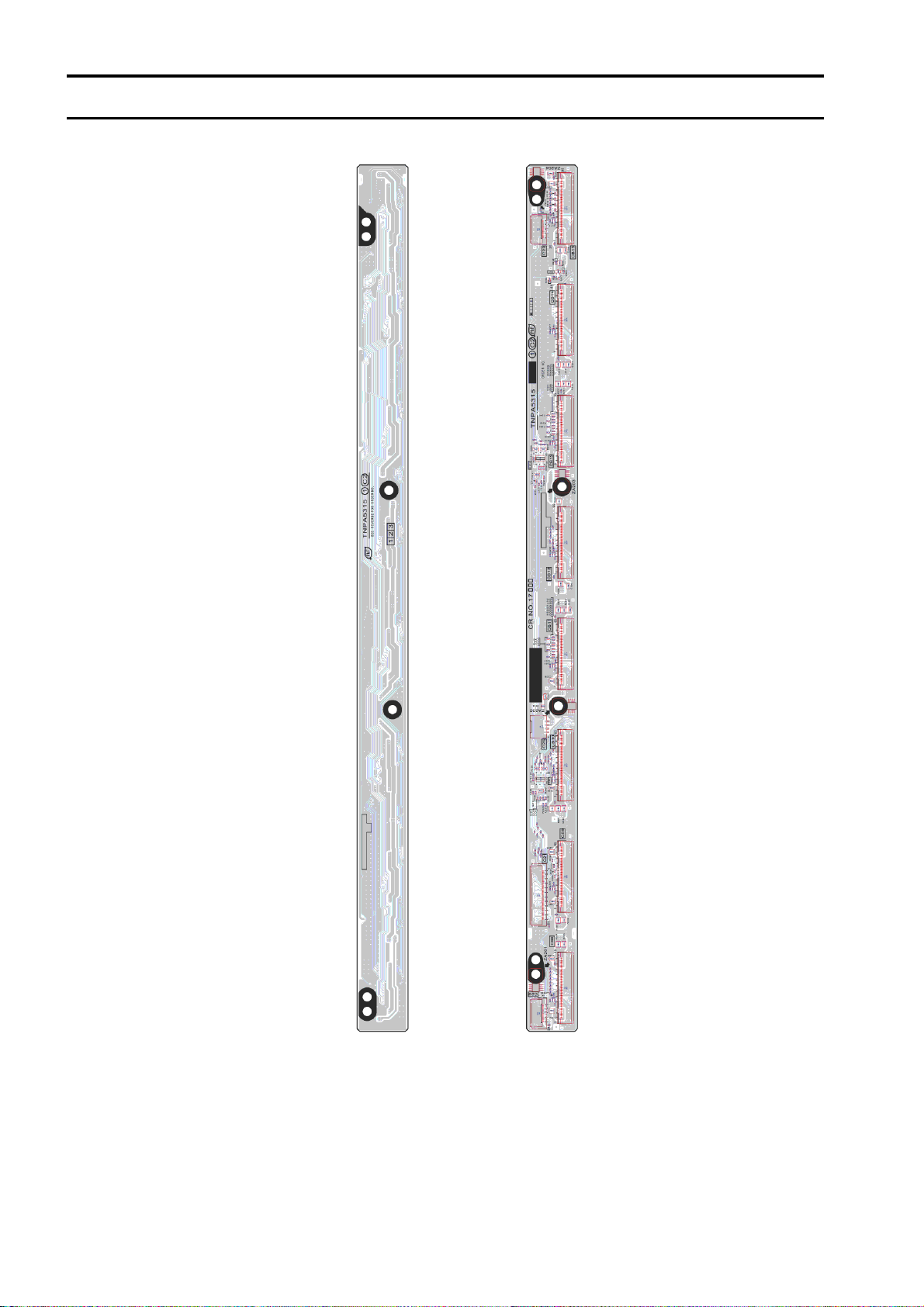

Model No. : TH-P42U30A/Z C2-Board

S-31

Page 73

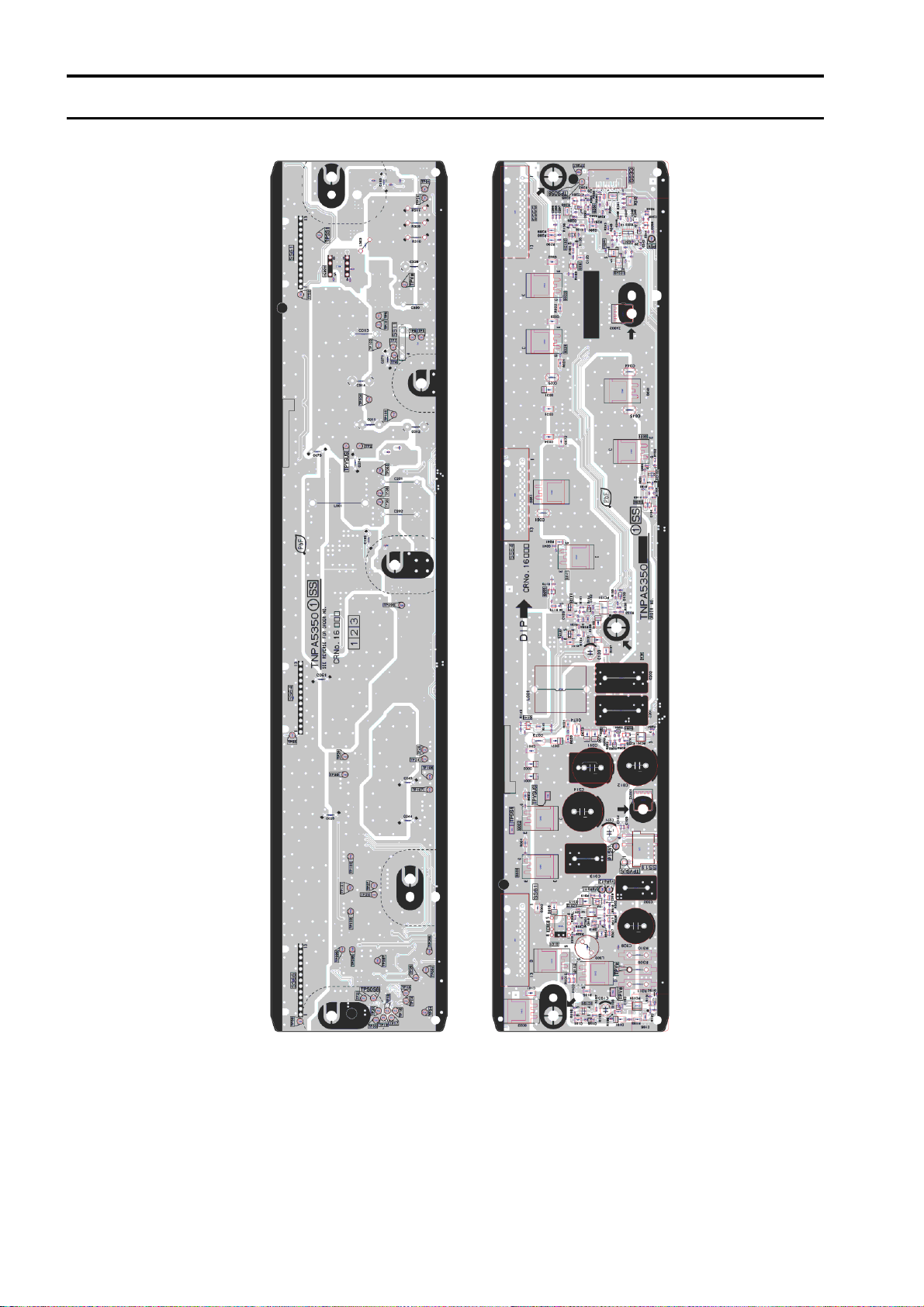

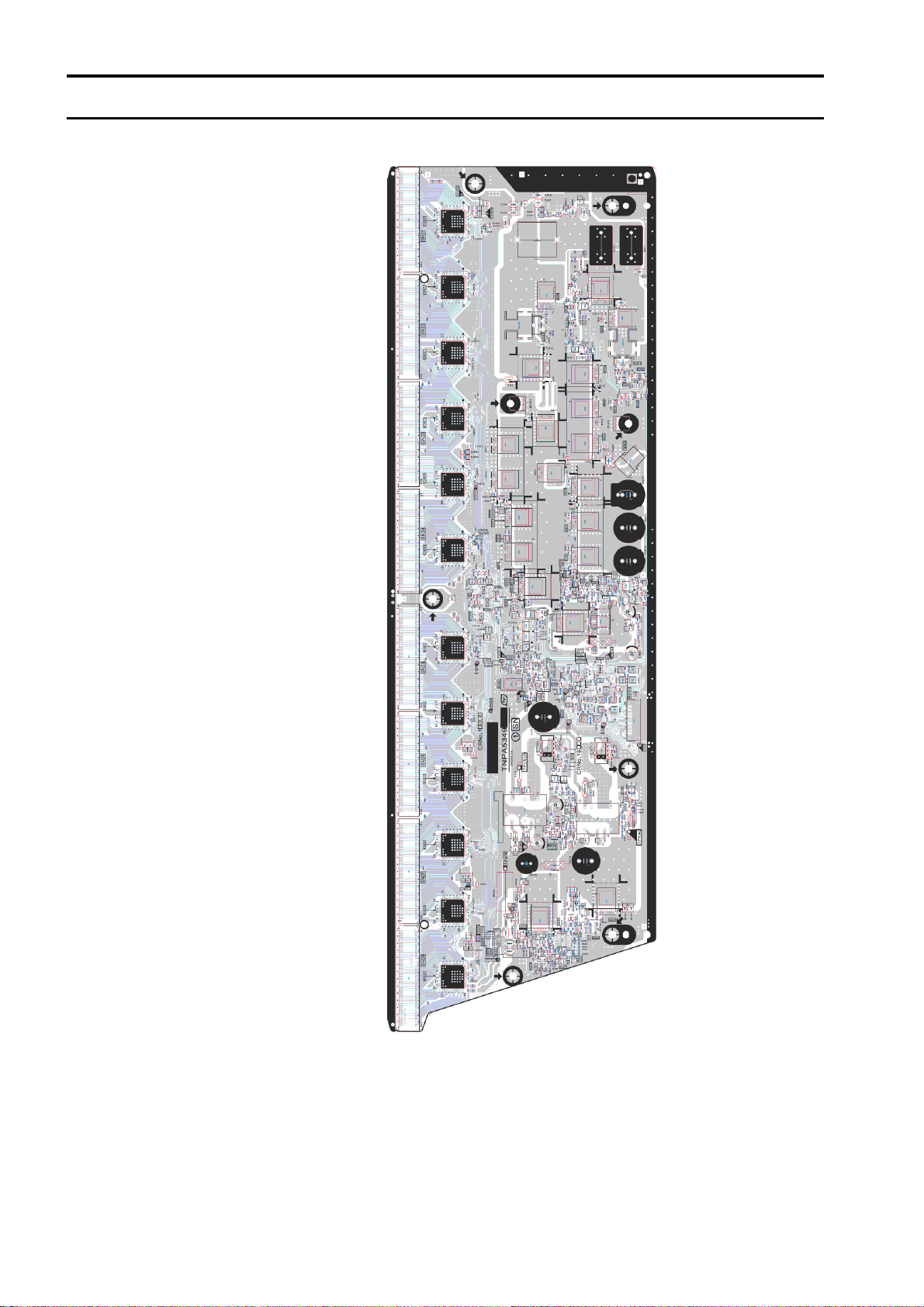

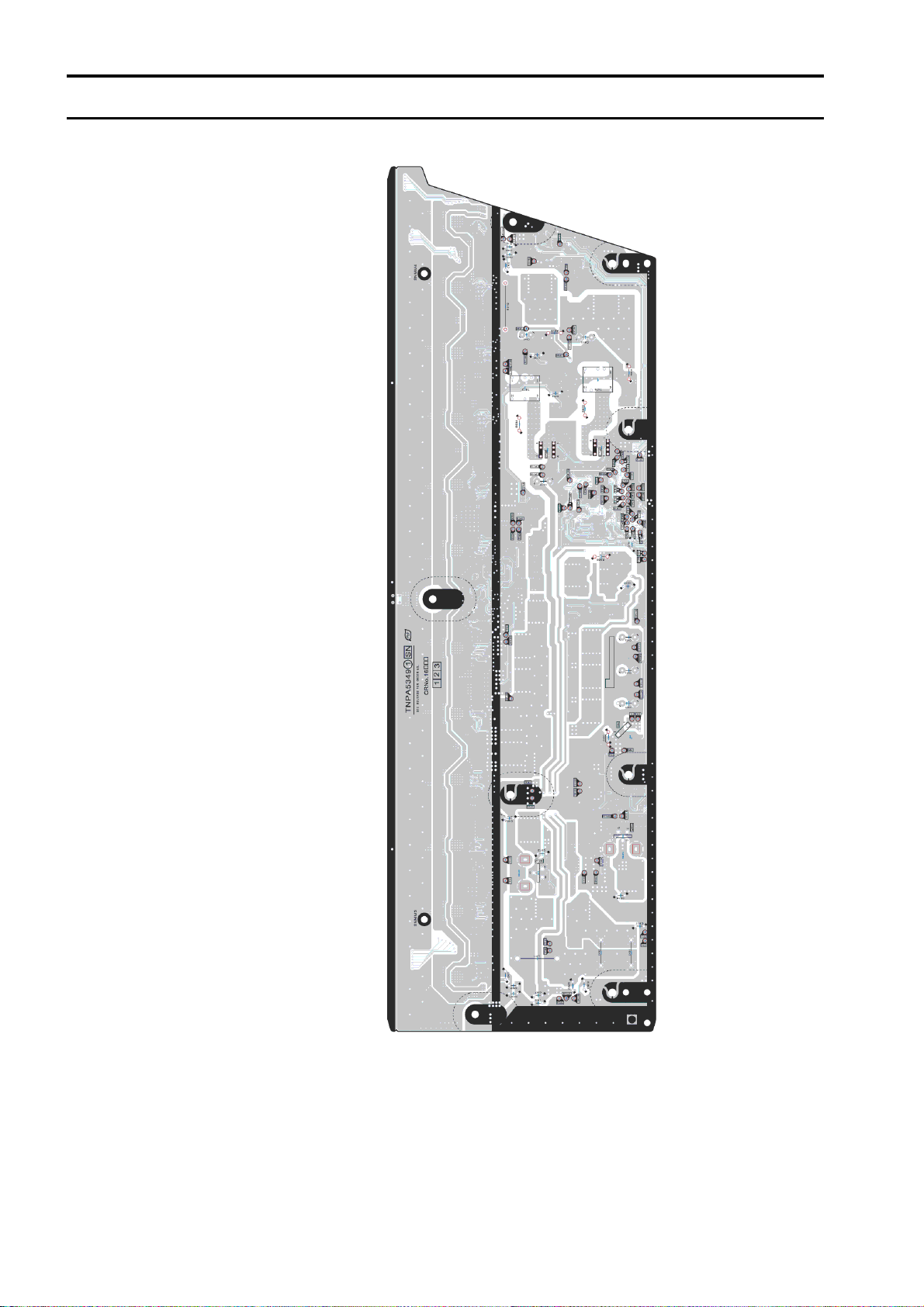

Model No. : TH-P42U30A/Z SN-Board (Foil Side)

S-32

Page 74

Model No. : TH-P42U30A/Z SN-Board (Component Side)

S-33

Page 75

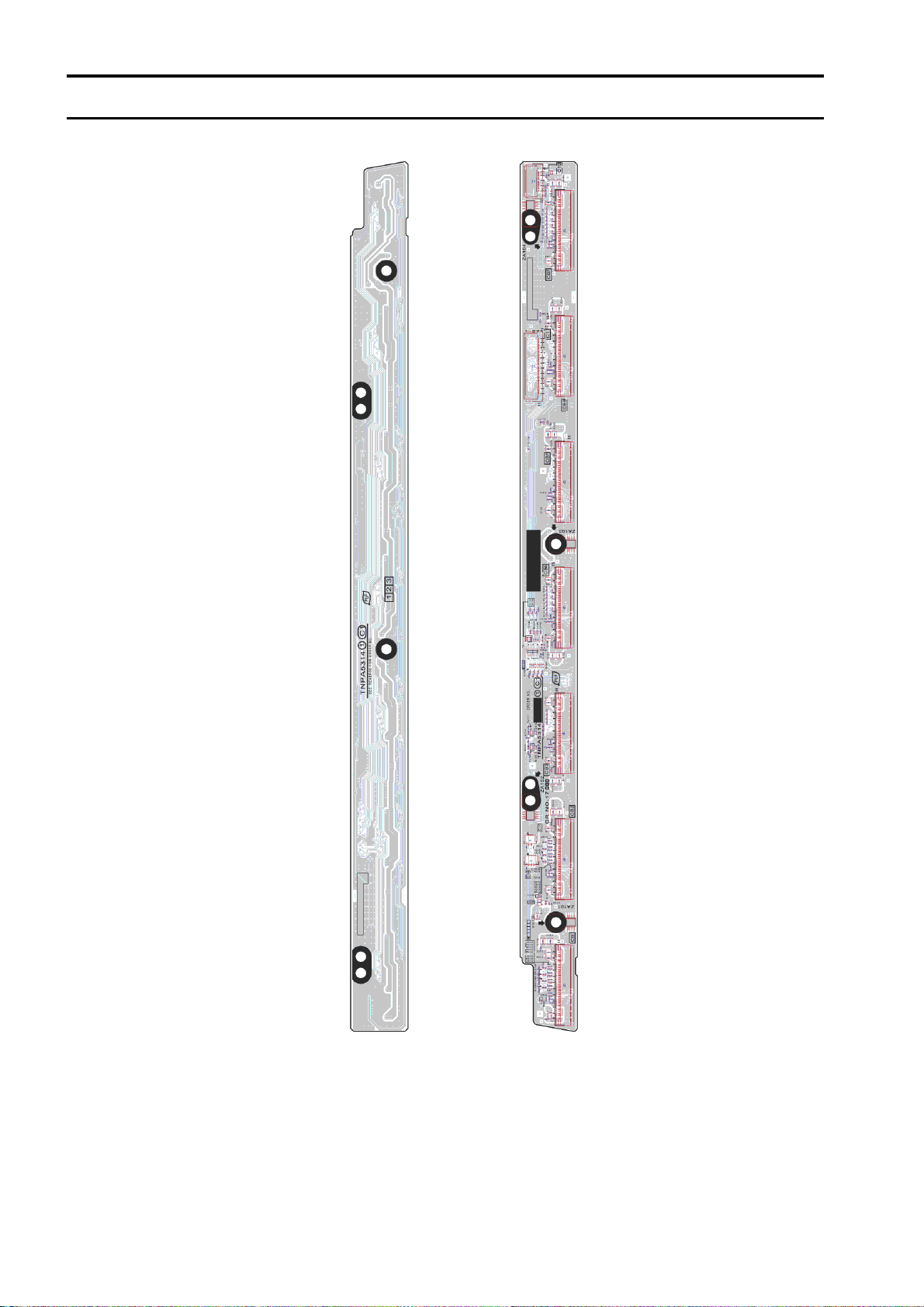

Model No. : TH-P42U30A/Z SS-Board

S-34

Page 76

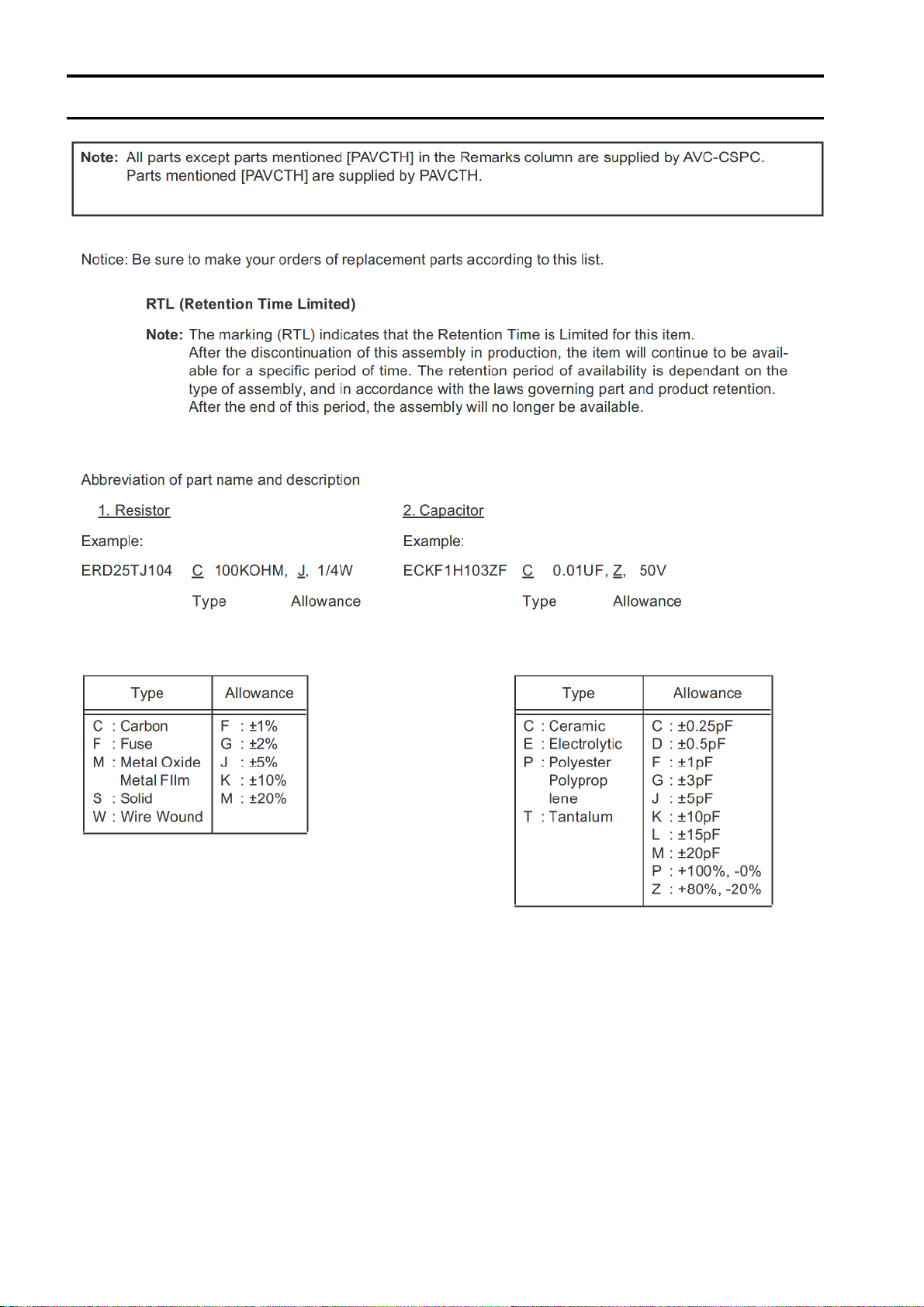

Model No. : TH-P42U30A/Z Parts List

S-35

Safety

Ref.

No.

PCB TZTNP01NEUZ A-PRINT COMPLETE 1 (Z) (RTL)PAVCTH

PCB TZTNP01NLUA A-PRINT COMPLETE 1 (A) (RTL)PAVCTH

PCB N0AE5JK00008 POWER SUPPLY UNIT 1 PAVCTH

PCB TNPA5314 C1-PRINT COMPLETE 1 (RTL)

PCB TXNC211FHK42 C2-PRINT COMPLETE 1 (RTL)PAVCTH

PCB TXNSN11FHK42 SN-PRINT COMPLETE 1 (RTL)PAVCTH

PCB TXNSS11FHK42 SS-PRINT COMPLETE 1 (RTL)PAVCTH

PCB TXN/K1NNUA42 K PRINT COMPLETE 1 (RTL)PAVCTH

A2 K1KY08AA0719 8P CONNECTOR 1

A6 K1KY15B00006 15P CONNECTOR 1 PAVCTH

A11 K1KY04B00013 4P CONNECTOR 1 PAVCTH

A17 K1KA14A00248 14P CONNECTOR 1

A20 K1MY35BA0345 35P CONNECTOR 1

A31 K1MY55BA0345 55P CONNECTOR 1

A32 K1MY55BA0345 55P CONNECTOR 1

A35 K1KY03AA0719 3P CONNECTOR 1

C10 K1MY20BA0345 20P CONNECTOR 1

C11 K1MY55BA0345 55P CONNECTOR 1

C14 K1KY03AA0719 3P CONNECTOR 1

C20 K1MY20BA0345 20P CONNECTOR 1

C21 K1MY55BA0345 55P CONNECTOR 1

C23 K1MY20BA0345 20P CONNECTOR 1

C25 K1KY04B00013 4P CONNECTOR 1 PAVCTH

C027 F1J1A106A043 C 10UF, 10V 1

C1052 F1G1A105A047 C 1UF 10V 1

C1053 F1G1C104A077 C 0.1UF 16V 1

C1090 F1G1H1020008 C 1000PF 50V 1

C1091 F1G1H1020008 C 1000PF 50V 1

C1092 F1G1H1020008 C 1000PF 50V 1

C1093 F1G1H1020008 C 1000PF 50V 1

C1101 F1G1C104A077 C 0.1UF 16V 1

C1105 F1G1E1030005 C 0.01UF 25V 1

C1110 F1G1C104A077 C 0.1UF 16V 1

C2050 F1J1H102A721 C 1000pF, 50V 1

C2810 ECJ1VB1H103K C 0.01UF, 50V 1

C2811 F1J1A106A087 C 10UF, 10V 1

C2815 ECJ1VB1H103K C 0.01UF, 50V 1

C2821 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C3001 F2H1A101A040 C 100UF, 10V 1 PAVCTH

C3005 F1J1A106A043 C 10UF, 10V 1

C3006 F1J1A106A043 C 10UF, 10V 1

C3007 F1J1A106A043 C 10UF, 10V 1

C3011 F1G1C104A077 C 0.1UF 16V 1

C3023 F1J1A106A043 C 10UF, 10V 1

C3026 F1J1A106A043 C 10UF, 10V 1

C3028 F1J1A106A043 C 10UF, 10V 1

C3032 F1G1C104A077 C 0.1UF 16V 1

C3033 F1J1A106A043 C 10UF, 10V 1

C3034 F1J1A106A043 C 10UF, 10V 1

C3035 F1G1C104A077 C 0.1UF 16V 1

C3036 ECJ1VB1A105K C 1UF, 10V 1

C3037 ECJ1VB1A105K C 1UF, 10V 1

C3038 ECJ1VB1A105K C 1UF, 10V 1

C3039 ECJ1VB1A105K C 1UF, 10V 1

C3045 ECJ1VB1A105K C 1UF, 10V 1

C3046 ECJ1VB1A105K C 1UF, 10V 1

C3047 F1J1A106A043 C 10UF, 10V 1

C3048 ECJ1VB1A105K C 1UF, 10V 1

C3049 ECJ1VB1A105K C 1UF, 10V 1

Part No. Part Name & Description Q'ty Remarks

Page 77

Model No. : TH-P42U30A/Z Parts List

S-36

Safety

Ref.

No.

C3053 F1J1A106A043 C 10UF, 10V 1

C3054 F1G1C104A077 C 0.1UF 16V 1

C3065 F1G1H5610004 C 560 pF 50 V 1 PAVCTH

C3066 F1G1H5610004 C 560 pF 50 V 1 PAVCTH

C3067 F1G1E333A091 C 0.033UF 25V 1

C3068 F1G1E333A091 C 0.033UF 25V 1

C3130 F1G1H5610004 C 560 pF 50 V 1 PAVCTH

C3131 F1G1H5610004 C 560 pF 50 V 1 PAVCTH

C3134 F1G1H5610004 C 560 pF 50 V 1 PAVCTH

C3135 F1G1H5610004 C 560 pF 50 V 1 PAVCTH

C3157 F1G1C104A077 C 0.1UF 16V 1

C3201 F1G1H5610004 C 560 pF 50 V 1 PAVCTH

C3301 F1J1A106A043 C 10UF, 10V 1

C3302 F1J1A106A043 C 10UF, 10V 1

C3303 F1J1A106A043 C 10UF, 10V 1

C3704 F1G1H5610004 C 560 pF 50 V 1 PAVCTH

C3753 F1G1C104A077 C 0.1UF 16V 1

C4500 ECJ1VB1A105K C 1UF, 10V 1

C4505 ECJ1VB1A105K C 1UF, 10V 1

C4619 ECJ1VB1A105K C 1UF, 10V 1

C4622 ECJ1VB1A105K C 1UF, 10V 1

C4625 ECJ1VB1A105K C 1UF, 10V 1

C4802 F1J1A106A043 C 10UF, 10V 1

C4805 F1G1H220A565 C 22PF, 50V 1

C4806 F1G1C104A077 C 0.1UF 16V 1

C4810 F1G1A105A047 C 1UF 10V 1

C4811 F1G1A105A047 C 1UF 10V 1

C4813 F1J1A106A043 C 10UF, 10V 1

C4816 F1G1C104A077 C 0.1UF 16V 1

C4817 F1G1C104A077 C 0.1UF 16V 1

C4819 F1G1H1020008 C 1000PF 50V 1

C4820 F1G1H330A565 C 33PF, 50V 1

C4821 F1G1H330A565 C 33PF, 50V 1

C4823 F1G1H1020008 C 1000PF 50V 1

C4827 F1G1H1020008 C 1000PF 50V 1

C4828 F1G1H1020008 C 1000PF 50V 1

C4829 F1G1H1020008 C 1000PF 50V 1

C4830 F1G1H1020008 C 1000PF 50V 1

C4834 F1G1C104A077 C 0.1UF 16V 1

C4836 F1J1A106A043 C 10UF, 10V 1

C4837 F1G1H220A565 C 22PF, 50V 1

C4901 F1G1H221A571 C 220PF, 50V 1

C4902 F1G1H221A571 C 220PF, 50V 1

C4903 F1G1H221A571 C 220PF, 50V 1

C4904 F1G1H221A571 C 220PF, 50V 1

C4907 F1G1H1020008 C 1000PF 50V 1

C4908 F1G1H1020008 C 1000PF 50V 1

C4910 F1G1H1020008 C 1000PF 50V 1

C4911 F1J1E105A231 C 1 UF 25V 1

C4912 F1K1E106A136 C 10UF, 25V 1

C4913 F1K1E106A136 C 10UF, 25V 1

C4914 F1H1H104A970 C 0.1UF, , 50V 1

C4915 F1J1E105A231 C 1 UF 25V 1

C4916 F1H1H104A970 C 0.1UF, , 50V 1

C4918 F1J1E4740001 C 0.47UF, 25V 1 PAVCTH

C4919 F1J1E4740001 C 0.47UF, 25V 1 PAVCTH

C4920 F1G1H1020008 C 1000PF 50V 1

C4921 F1J1E105A231 C 1 UF 25V 1

C4922 F1K1E106A136 C 10UF, 25V 1

C4923 F1K1E106A136 C 10UF, 25V 1

C4924 F1H1H104A970 C 0.1UF, , 50V 1

C4925 F1J1E105A231 C 1 UF 25V 1

Part No. Part Name & Description Q'ty Remarks

Page 78

Model No. : TH-P42U30A/Z Parts List

S-37

Safety

Ref.

No.

C4926 F1H1H104A970 C 0.1UF, , 50V 1

C4928 F1J1E4740001 C 0.47UF, 25V 1 PAVCTH

C4929 F1J1E4740001 C 0.47UF, 25V 1 PAVCTH

C4930 F1G1C104A077 C 0.1UF 16V 1

C4931 F1G1C104A077 C 0.1UF 16V 1

C4941 F1J1A106A043 C 10UF, 10V 1

C4942 F1J1A106A043 C 10UF, 10V 1

C4952 F2H1A101A040 C 100UF, 10V 1 PAVCTH

C4953 F2H1A101A040 C 100UF, 10V 1 PAVCTH

C4954 F1G1E333A091 C 0.033UF 25V 1

C4955 F1G1E333A091 C 0.033UF 25V 1

C5000 F1G1E1030005 C 0.01UF 25V 1

C5002 F1J1E105A231 C 1 UF 25V 1

C5003 F1H1C105A145 C 1 uF 16 V 1

C5011 F1G1C104A077 C 0.1UF 16V 1

C5012 EEEHB1C101UP C 100PF, J, 16V 1

C5013 ECJ1VB1A105K C 1UF, 10V 1

C5014 ECJ1VB1A105K C 1UF, 10V 1

C5015 ECJ1VB1A105K C 1UF, 10V 1

C5016 ECJ1VB1A105K C 1UF, 10V 1

C5017 ECJ1VB1A105K C 1UF, 10V 1

C5018 F1G1C104A077 C 0.1UF 16V 1

C5020 F1G1E1030005 C 0.01UF 25V 1

C5255 ECJ1VB1A105K C 1UF, 10V 1

C5256 ECJ1VB1A105K C 1UF, 10V 1

C5418 F1G1C223A081 C 0.022UF, 16V 1

C5419 F1J1A106A043 C 10UF, 10V 1

C5420 F1J1A106A043 C 10UF, 10V 1

C5422 F1G1A333A032 C0.033UF, 10V 1

C5423 F1G1H5610004 C 560 pF 50 V 1 PAVCTH

C5426 F1K1E106A136 C 10UF, 25V 1

C5700 F1H0J475A041 C 4.7UF, 16V 1

C5701 F1H0J475A041 C 4.7UF, 16V 1

C5702 F1K1E106A136 C 10UF, 25V 1

C5703 F1K1E106A136 C 10UF, 25V 1

C8001 F1J1A106A087 C 10UF, 10V 1

C8004 F1G1C104A077 C 0.1UF 16V 1

C8005 F1G1C104A077 C 0.1UF 16V 1

C8006 F1G1C104A077 C 0.1UF 16V 1

C8009 F1J1A106A087 C 10UF, 10V 1

C8011 F1G1C104A077 C 0.1UF 16V 1

C8014 F1G1A105A047 C 1UF 10V 1

C8015 F1G1A105A047 C 1UF 10V 1

C8016 F1G1C104A077 C 0.1UF 16V 1

C8019 F1J1A106A087 C 10UF, 10V 1

C8023 F1G1C104A077 C 0.1UF 16V 1

C8024 F1J1A106A087 C 10UF, 10V 1

C8025 F1J1A106A087 C 10UF, 10V 1

C8026 F1J0G2260001 C 22 UF 4 V 1

C8028 F1G1C104A077 C 0.1UF 16V 1

C8029 F1G1C104A077 C 0.1UF 16V 1

C8031 F1G1C104A077 C 0.1UF 16V 1

C8034 F1G1C104A077 C 0.1UF 16V 1

C8035 F1G1C104A077 C 0.1UF 16V 1

C8037 F1J1A106A087 C 10UF, 10V 1

C8041 F1G1C104A077 C 0.1UF 16V 1

C8042 F1J1A106A087 C 10UF, 10V 1

C8044 F1G1C104A077 C 0.1UF 16V 1

C8046 F1G1C104A077 C 0.1UF 16V 1

C8047 F1G1C104A077 C 0.1UF 16V 1

C8050 F1G1C104A077 C 0.1UF 16V 1

C8051 F1G1C104A077 C 0.1UF 16V 1

Part No. Part Name & Description Q'ty Remarks

Page 79

Model No. : TH-P42U30A/Z Parts List

S-38

Safety

Ref.

No.

C8053 F1G1C104A077 C 0.1UF 16V 1

C8054 F1G1C104A077 C 0.1UF 16V 1

C8055 F1G1H1020008 C 1000PF 50V 1

C8100 F1G1E682A123 C 6800 pF 25 V 1

C8102 F1J1A475A087 C 4.7UF, 10V 1

C8104 F1H1C105A145 C 1 uF 16 V 1

C8106 F1G1C223A081 C 0.022UF, 16V 1

C8108 F1G1C104A077 C 0.1UF 16V 1

C8110 F1G1C104A077 C 0.1UF 16V 1

C8112 F1K1E106A136 C 10UF, 25V 1

C8114 F1K1E106A136 C 10UF, 25V 1

C8116 F1K1E106A136 C 10UF, 25V 1

C8118 F1K1E106A136 C 10UF, 25V 1

C8120 F1J0G2260001 C 22 UF 4 V 1

C8122 F1J0G2260001 C 22 UF 4 V 1

C8124 F1J0G2260001 C 22 UF 4 V 1

C8126 F1J0G2260001 C 22 UF 4 V 1

C8128 F1J0G2260001 C 22 UF 4 V 1

C8200 F1G1C104A077 C 0.1UF 16V 1

C8203 F1G1C104A077 C 0.1UF 16V 1

C8204 F1G1C104A077 C 0.1UF 16V 1

C8205 F1G1C104A077 C 0.1UF 16V 1

C8206 F1G1C104A077 C 0.1UF 16V 1

C8207 F1J1A106A087 C 10UF, 10V 1

C8208 F1G1C104A077 C 0.1UF 16V 1

C8210 F1G1C104A077 C 0.1UF 16V 1

C8212 F1G1C104A077 C 0.1UF 16V 1

C8215 F1G1C104A077 C 0.1UF 16V 1

C8216 F1J1A106A087 C 10UF, 10V 1

C8218 F1G1C104A077 C 0.1UF 16V 1

C8220 F1G1C104A077 C 0.1UF 16V 1

C8221 F1G1C104A077 C 0.1UF 16V 1

C8224 F1G1C104A077 C 0.1UF 16V 1

C8225 F1G1C104A077 C 0.1UF 16V 1

C8300 F1G1H6R0A732 C 6.0PF, 50V 1

C8301 F1G1H7R0A732 C 7PF, 50V 1

C8302 F1G1C104A077 C 0.1UF 16V 1

C8303 F1G1C104A077 C 0.1UF 16V 1

C8304 F1G1C104A077 C 0.1UF 16V 1

C8305 F1G1A105A047 C 1UF 10V 1

C8306 F1G1A105A047 C 1UF 10V 1

C8307 F1G1A105A047 C 1UF 10V 1

C8308 F1G1A105A047 C 1UF 10V 1

C8309 F1G1A105A047 C 1UF 10V 1

C8310 F1G1A105A047 C 1UF 10V 1

C8311 F1G1A105A047 C 1UF 10V 1

C8532 EEEHB0J221UP E 220UF, 6.3V 1

C8534 F1J1A106A043 C 10UF, 10V 1

C8535 F1G1C104A077 C 0.1UF 16V 1

C8536 EEEHB0J221UP E 220UF, 6.3V 1

C8538 F1J1A106A043 C 10UF, 10V 1

C8539 F1G1C104A077 C 0.1UF 16V 1

C8542 F1J1A106A043 C 10UF, 10V 1

C8543 F1G1C104A077 C 0.1UF 16V 1

C8544 F1J1A106A043 C 10UF, 10V 1

C8545 F1G1C104A077 C 0.1UF 16V 1

C8565 F1G1C104A077 C 0.1UF 16V 1

C8570 F1G1C104A077 C 0.1UF 16V 1

C8603 F1J1A106A043 C 10UF, 10V 1

C8604 F1G1C104A077 C 0.1UF 16V 1

C8605 F1G1C104A077 C 0.1UF 16V 1

C8607 F1G1H100A565 C 10PF 50V 1

Part No. Part Name & Description Q'ty Remarks

Page 80

Model No. : TH-P42U30A/Z Parts List

S-39

Safety

Ref.

No.

C8608 F1G1H100A565 C 10PF 50V 1

C8609 F1G1C104A077 C 0.1UF 16V 1

C8611 F1G1C104A077 C 0.1UF 16V 1

C8615 F1J1A106A043 C 10UF, 10V 1

C8616 F1J1A106A043 C 10UF, 10V 1

C8619 F1G1C104A077 C 0.1UF 16V 1

C8620 F1G1C104A077 C 0.1UF 16V 1

C8627 F1G1C104A077 C 0.1UF 16V 1

C8629 F1J0G2260001 C 22 UF 4 V 1

C8630 F1J0G2260001 C 22 UF 4 V 1

C8707 F1G1C223A081 C 0.022UF, 16V 1

C8708 F1J1A106A043 C 10UF, 10V 1

C8709 F1J1A106A043 C 10UF, 10V 1

C8711 F1G1A333A032 C0.033UF, 10V 1

C8712 F1G1H5610004 C 560 pF 50 V 1 PAVCTH

C8714 F1J1A475A087 C 4.7UF, 10V 1

C8715 F1J1A106A043 C 10UF, 10V 1

C8716 F1G1C104A077 C 0.1UF 16V 1

C8717 F1G1C104A077 C 0.1UF 16V 1

C8724 F1K1E106A136 C 10UF, 25V 1

C8764 ECJ1VB1A105K C 1UF, 10V 1

C8765 ECJ1VB1A105K C 1UF, 10V 1

C8773 F1K1E106A136 C 10UF, 25V 1

C8774 F1K1E106A136 C 10UF, 25V 1

C8775 F1G1C223A081 C 0.022UF, 16V 1

C8776 F1G1E1030005 C 0.01UF 25V 1

C8777 F1G1E1030005 C 0.01UF 25V 1

C8779 F1K0J226A049 C 22UF, 6.3V 1 PAVCTH

C8780 F1K0J226A049 C 22UF, 6.3V 1 PAVCTH

C8810 F1J1A106A043 C 10UF, 10V 1

C8813 F1J1A106A043 C 10UF, 10V 1

C8900 F1G1C104A077 C 0.1UF 16V 1

C8901 F1G1C104A077 C 0.1UF 16V 1

C8902 F1G1C104A077 C 0.1UF 16V 1

C8903 F1G1C104A077 C 0.1UF 16V 1

C8950 F1G1H220A565 C 22PF, 50V 1

C8951 F1G1H220A565 C 22PF, 50V 1

C9099 F1G1C104A077 C 0.1UF 16V 1

C9100 F1J1A106A043 C 10UF, 10V 1

C9101 F1G1E1030005 C 0.01UF 25V 1

C9102 F1K1E106A136 C 10UF, 25V 1

C9103 F1G1E1030005 C 0.01UF 25V 1

C9300 F1G1C104A077 C 0.1UF 16V 1

C9301 F1G1H150A565 C 15PF, 50V 1

C9302 F1G1H180A565 C 18PF, 50V 1

C9308 F1G1C104A077 C 0.1UF 16V 1

C9311 F1G1C104A077 C 0.1UF 16V 1

C9312 F1J1A106A043 C 10UF, 10V 1

C9313 F1G1C104A077 C 0.1UF 16V 1

C9314 F1J1A106A043 C 10UF, 10V 1

C9316 F1J1A106A043 C 10UF, 10V 1

C9328 F1G1C104A077 C 0.1UF 16V 1

C9330 F1G1A105A047 C 1UF 10V 1

C9331 F1G1A105A047 C 1UF 10V 1

C9332 F1G1A105A047 C 1UF 10V 1

C9335 F1J1A106A043 C 10UF, 10V 1

C9336 F1J1A106A043 C 10UF, 10V 1

C9337 F1J1A106A043 C 10UF, 10V 1

C9347 F1G1A105A047 C 1UF 10V 1

C9351 F1G1C104A077 C 0.1UF 16V 1

C9352 F1G1A105A047 C 1UF 10V 1

C9362 F1G1C104A077 C 0.1UF 16V 1

Part No. Part Name & Description Q'ty Remarks

Page 81

Model No. : TH-P42U30A/Z Parts List

S-40

Safety

Ref.

No.

C9366 F1G1A105A047 C 1UF 10V 1

C9371 F1J1A106A043 C 10UF, 10V 1

C9375 F1G1C104A077 C 0.1UF 16V 1

C9380 F1G1C104A077 C 0.1UF 16V 1

C9389 F1G1A105A047 C 1UF 10V 1

C9392 F1J1A106A043 C 10UF, 10V 1

C9400 F1G1C104A077 C 0.1UF 16V 1

C9401 F1G1C104A077 C 0.1UF 16V 1

C9402 F1G1C104A077 C 0.1UF 16V 1

C9404 F1G1C104A077 C 0.1UF 16V 1

C9409 F1G1A105A047 C 1UF 10V 1

C9411 F1G1A105A047 C 1UF 10V 1

C9413 F1G1A105A047 C 1UF 10V 1

C9809 F1K0J226A049 C 22UF, 6.3V 1 PAVCTH

C9810 F1G1E1030005 C 0.01UF 25V 1

C9811 F1G1E1030005 C 0.01UF 25V 1

C9813 F1G1E472A086 C 4700pF 25V 1

C9814 F1K1E106A136 C 10UF, 25V 1

C9815 F1K1E106A136 C 10UF, 25V 1

C9817 F1K0J226A049 C 22UF, 6.3V 1 PAVCTH

C9818 F1K0J226A049 C 22UF, 6.3V 1 PAVCTH

C9819 F1K0J226A049 C 22UF, 6.3V 1 PAVCTH

C9854 F1G1H1020008 C 1000PF 50V 1

C14602 F1H1C105A145 C 1 uF 16 V 1

C14603 F1G1H1020008 C 1000PF 50V 1

C14605 F1G1H391A731 C 390PF, 50V 1

C14606 F1G1H391A731 C 390PF, 50V 1

C14607 F1G1H1020008 C 1000PF 50V 1

C14608 F1G1H391A731 C 390PF, 50V 1

C14609 F1G1H391A731 C 390PF, 50V 1

C14612 F1H1C105A145 C 1 uF 16 V 1

C14616 F1H1C105A145 C 1 uF 16 V 1

C14620 F1H1C105A145 C 1 uF 16 V 1

C14629 F1H1C105A145 C 1 uF 16 V 1

C14633 F1H1C105A145 C 1 uF 16 V 1

C14651 F1L2E104A028 C 0.10UF, 250V 1

C14652 F1L2E104A028 C 0.10UF, 250V 1

C14803 F1H1C105A145 C 1 uF 16 V 1

C14806 F1G1H1020008 C 1000PF 50V 1

C14807 F1G1H391A731 C 390PF, 50V 1

C14808 F1G1H391A731 C 390PF, 50V 1

C14809 F1G1H391A731 C 390PF, 50V 1

C14810 F1G1H391A731 C 390PF, 50V 1

C14813 F1H1C105A145 C 1 uF 16 V 1

C14817 F1H1C105A145 C 1 uF 16 V 1

C14821 F1H1C105A145 C 1 uF 16 V 1

C14825 F1H1C105A145 C 1 uF 16 V 1

C14834 F1H1C105A145 C 1 uF 16 V 1

C14851 F1L2E104A028 C 0.10UF, 250V 1

C14852 F1L2E104A028 C 0.10UF, 250V 1

C14902 F1H1C105A145 C 1 uF 16 V 1

C14903 F1H1C105A145 C 1 uF 16 V 1

C14904 F1H1C105A145 C 1 uF 16 V 1

C14905 F1G1H101A565 C 100PF 50V 1

C14906 F1H1C105A145 C 1 uF 16 V 1

C14907 F1H1C105A145 C 1 uF 16 V 1

C14910 F1H1C105A145 C 1 uF 16 V 1

C14911 F1K1E475A134 C 4.7UF 25V 1

C16001 F1L2J562A022 C 5600PF, 630V 1

C16012 F2A2E141A217 E 140UF, 250V 1

C16013 F0C2E155A286 C 1.5UF, 250V 1 PAVCTH

C16023 F1L2J1020001 C 1000PF, 630V 1

Part No. Part Name & Description Q'ty Remarks

Page 82

Model No. : TH-P42U30A/Z Parts List

S-41

Safety

Ref.

No.

C16024 F1L2J332A022 C 3300PF, 630V 1

C16025 F1E2J222A002 C 2200PF, 630V 1

C16041 ECJ1VB1H392K C 3900UF, 50V 1

C16044 F1E2J821A002 C 820PF, 630V 1

C16051 ECJ1VB1H392K C 3900UF, 50V 1

C16061 F1E2J821A002 C 820PF, 630V 1

C16101 F1L2J222A022 C 2200PF, 630V 1

C16104 F1H1E470A130 C 47PF, 25V 1

C16105 F1H1E470A130 C 47PF, 25V 1

C16131 F1K1E475A134 C 4.7UF 25V 1

C16132 F1H1C105A145 C 1 uF 16 V 1

C16133 F2A1E101A089 E 100UF 25V 1

C16135 F1K1E105A029 C 1UF, 25V 1

C16153 F1K1E475A134 C 4.7UF 25V 1

C16154 F1K1E475A134 C 4.7UF 25V 1

C16191 F1K1E475A134 C 4.7UF 25V 1

C16192 F1H1C105A145 C 1 uF 16 V 1

C16193 F2A1E470B725 E 47UF, 25V 1 PAVCTH

C16195 F1K1E105A029 C 1UF, 25V 1

C16201 F0C2E405A278 C 4UF, 250V 1 PAVCTH

C16202 F0C2E405A278 C 4UF, 250V 1 PAVCTH

C16242 F1H1C105A145 C 1 uF 16 V 1

C16243 ECJ1VB1H103K C 0.01UF, 50V 1

C16244 F1J1A106A087 C 10UF, 10V 1

C16271 F2A1E221B726 E 220UF, 25V 1 PAVCTH

C16280 F1K1E105A029 C 1UF, 25V 1

C16286 F1H1H104A970 C 0.1UF, , 50V 1

C16287 F1H1H104A970 C 0.1UF, , 50V 1

C16314 F2A2E141A217 E 140UF, 250V 1

C16315 ECJ1VB1A105K C 1UF, 10V 1

C16316 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C16317 ECJ1VB1A105K C 1UF, 10V 1

C16318 F1J1H104A717 C 0.1UF, 50V 1

C16319 F1J1H104A717 C 0.1UF, 50V 1

C16328 F2A2T1210001 E 120UF, 220V 1 PAVCTH

C16330 F0C2E105A286 C 1 UF 250 V 1 PAVCTH

C16401 F1L2J562A022 C 5600PF, 630V 1

C16411 F2A2E141A217 E 140UF, 250V 1

C16413 F2A2E141A217 E 140UF, 250V 1

C16421 F1L2J562A022 C 5600PF, 630V 1

C16441 ECJ1VB1H392K C 3900UF, 50V 1

C16451 ECJ1VB1H392K C 3900UF, 50V 1

C16453 F1E2J821A002 C 820PF, 630V 1

C16460 F1E2J222A002 C 2200PF, 630V 1

C16472 ECJ1VB1A105K C 1UF, 10V 1

C16490 F1H1C105A145 C 1 uF 16 V 1

C16502 F1K1E475A134 C 4.7UF 25V 1

C16503 F2A1E221B726 E 220UF, 25V 1 PAVCTH

C16505 F1K1E105A029 C 1UF, 25V 1

C16506 F1H1C105A145 C 1 uF 16 V 1

C16507 F0C2E155A286 C 1.5UF, 250V 1 PAVCTH

C16531 F1K1E475A134 C 4.7UF 25V 1

C16534 F1H1C105A145 C 1 uF 16 V 1

C16551 F1K1E475A134 C 4.7UF 25V 1

C16561 F1J1A106A087 C 10UF, 10V 1

C16562 F1H1C105A145 C 1 uF 16 V 1

C16564 F1H1C105A145 C 1 uF 16 V 1

C16565 ECJ1VB1H103K C 0.01UF, 50V 1

C16566 ECJ1VB1H103K C 0.01UF, 50V 1

C16567 F1H1C105A145 C 1 uF 16 V 1

C16584 ECJ1VB1H392K C 3900UF, 50V 1

C16593 ECJ1XC1H102J C 1000PF, J, 50V 1

Part No. Part Name & Description Q'ty Remarks

Page 83

Model No. : TH-P42U30A/Z Parts List

S-42

Safety

Ref.

No.

C16602 F1H1H2200008 C 22PF, 50V 1

C16603 F1K2J102A014 C 1000PF, 630V 1

C16604 F1K2J102A014 C 1000PF, 630V 1

C16631 F0C2E405A278 C 4UF, 250V 1 PAVCTH

C16632 F0C2E405A278 C 4UF, 250V 1 PAVCTH

C16641 F1K2J222A014 C 2200PF ,630V 1

C16645 F1K2J102A014 C 1000PF, 630V 1

C16646 F1K2J102A014 C 1000PF, 630V 1

C16661 F1K2J102A038 C 1000PF, 630V 1

C16662 F1K2J102A038 C 1000PF, 630V 1

C16664 ECJ1XC1H820J C 82PF, J, 50V 1

C16665 ECJ1XC1H820J C 82PF, J, 50V 1

C16666 ECJ1XC1H820J C 82PF, J, 50V 1

C16668 F1H1H821A831 C 820 PF, 50V 1 PAVCTH

C16685 F1H1H104A970 C 0.1UF, , 50V 1

C16692 F1H1H104A970 C 0.1UF, , 50V 1

C16723 F1K1E105A029 C 1UF, 25V 1

C16724 F1K1E475A134 C 4.7UF 25V 1

C16753 F1K1E475A134 C 4.7UF 25V 1

C16770 F1H1C105A145 C 1 uF 16 V 1

C16791 F2A1E221B726 E 220UF, 25V 1 PAVCTH

C16793 F2A1E221B726 E 220UF, 25V 1 PAVCTH

C16794 F1J1A106A087 C 10UF, 10V 1

C16795 F2A1E221B726 E 220UF, 25V 1 PAVCTH

C16796 F1K1E475A134 C 4.7UF 25V 1

C16797 F1H1H104A970 C 0.1UF, , 50V 1

C16813 F2A2T1210001 E 120UF, 220V 1 PAVCTH

C16833 F1K2J222A014 C 2200PF ,630V 1

C16834 F1K2J222A014 C 2200PF ,630V 1

C16842 F2A2C1010028 E 100UF, 160V 1 PAVCTH

C16843 ECJ1VB1A105K C 1UF, 10V 1

C16844 F1J1H104A717 C 0.1UF, 50V 1

C16854 F1J1H104A717 C 0.1UF, 50V 1

C16856 ECJ1VB1A105K C 1UF, 10V 1

C16858 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C16859 F1J1H104A717 C 0.1UF, 50V 1

C16860 ECJ1VB1A105K C 1UF, 10V 1

C16861 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C16862 ECJ1VB1A105K C 1UF, 10V 1

C16863 F1J1H104A717 C 0.1UF, 50V 1

C16865 F1H1C105A145 C 1 uF 16 V 1

C16891 F1K1E105A029 C 1UF, 25V 1

C16902 F1E2J332A002 C 3300PF, 630V 1

C16910 F1E2J821A002 C 820PF, 630V 1

C16912 F1E2J821A002 C 820PF, 630V 1

C16914 F1L2J332A022 C 3300PF, 630V 1

C17101 ECJ1VB1A105K C 1UF, 10V 1

C17102 ECJ1VB1A105K C 1UF, 10V 1

C17103 ECJ1VB1A105K C 1UF, 10V 1

C17108 F1K2A224A033 C 0.22UF, 100V 1 PAVCTH

C17109 F1K2A224A033 C 0.22UF, 100V 1 PAVCTH

C17111 F1K2A224A033 C 0.22UF, 100V 1 PAVCTH

C17131 ECJ1VB1A105K C 1UF, 10V 1

C17132 ECJ1VB1A105K C 1UF, 10V 1

C17134 F1K2A224A033 C 0.22UF, 100V 1 PAVCTH

C17136 F1K2A224A033 C 0.22UF, 100V 1 PAVCTH

C17137 ECJ1VB1A105K C 1UF, 10V 1

C17138 ECJ1VB1A105K C 1UF, 10V 1

C17139 F1K2A224A033 C 0.22UF, 100V 1 PAVCTH

C17142 F1K2A224A033 C 0.22UF, 100V 1 PAVCTH

C17143 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C17150 ECJ1XC1H102J C 1000PF, J, 50V 1

Part No. Part Name & Description Q'ty Remarks

Page 84

Model No. : TH-P42U30A/Z Parts List

S-43

Safety

Ref.

No.

C17151 ECJ1XC1H102J C 1000PF, J, 50V 1

C17152 ECJ1XC1H102J C 1000PF, J, 50V 1

C17153 ECJ1XC1H102J C 1000PF, J, 50V 1

C17154 ECJ1XC1H102J C 1000PF, J, 50V 1

C17155 ECJ1XC1H102J C 1000PF, J, 50V 1

C17156 ECJ1XC1H102J C 1000PF, J, 50V 1

C17157 ECJ1XC1H102J C 1000PF, J, 50V 1

C17201 ECJ1VB1A105K C 1UF, 10V 1

C17203 F1K2A224A033 C 0.22UF, 100V 1 PAVCTH

C17204 ECJ1VB1A105K C 1UF, 10V 1

C17205 F1K2A224A033 C 0.22UF, 100V 1 PAVCTH

C17207 ECJ1VB1A105K C 1UF, 10V 1

C17208 ECJ1VB1A105K C 1UF, 10V 1

C17209 ECJ1VB1A105K C 1UF, 10V 1

C17210 ECJ1VB1A105K C 1UF, 10V 1

C17211 ECJ1VB1A105K C 1UF, 10V 1

C17212 ECJ1VB1A105K C 1UF, 10V 1

C17213 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C17214 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C17226 F1K2A224A033 C 0.22UF, 100V 1 PAVCTH

C17229 F1K2A224A033 C 0.22UF, 100V 1 PAVCTH

C17230 F1K2A224A033 C 0.22UF, 100V 1 PAVCTH

C17233 F1K2A224A033 C 0.22UF, 100V 1 PAVCTH

C17235 F1K2A224A033 C 0.22UF, 100V 1 PAVCTH

C17236 F1K2A224A033 C 0.22UF, 100V 1 PAVCTH

C17239 ECJ1XC1H102J C 1000PF, J, 50V 1

C17240 ECJ1XC1H102J C 1000PF, J, 50V 1

C17241 ECJ1XC1H102J C 1000PF, J, 50V 1

C17242 ECJ1XC1H102J C 1000PF, J, 50V 1

C17243 ECJ1XC1H102J C 1000PF, J, 50V 1

C17244 ECJ1XC1H102J C 1000PF, J, 50V 1

C17245 ECJ1XC1H102J C 1000PF, J, 50V 1

C17246 ECJ1XC1H102J C 1000PF, J, 50V 1

CB1 K1MY55B00002 55P CONNECTOR 1

CB2 K1MY55B00002 55P CONNECTOR 1

CB3 K1MY55B00002 55P CONNECTOR 1

CB4 K1MY55B00002 55P CONNECTOR 1

CB5 K1MY55B00002 55P CONNECTOR 1

CB6 K1MY55B00002 55P CONNECTOR 1

CB7 K1MY55B00002 55P CONNECTOR 1

CB8 K1MY55B00002 55P CONNECTOR 1

CB9 K1MY55B00002 55P CONNECTOR 1

CB10 K1MY55B00002 55P CONNECTOR 1

CB11 K1MY55B00002 55P CONNECTOR 1

CB12 K1MY55B00002 55P CONNECTOR 1

CB13 K1MY55B00002 55P CONNECTOR 1

CB14 K1MY55B00002 55P CONNECTOR 1

CB15 K1MY55B00002 55P CONNECTOR 1

D1101 B0ADCJ000100 DIODE 1

D1102 DZ2J068M0L ZENER DIODE 1

D1103 DZ2J068M0L ZENER DIODE 1

D1104 B0ADCJ000100 DIODE 1

D1105 DZ2J068M0L ZENER DIODE 1

D2820 B3AGB0000065 LED 1 PAVCTH

D3050 K7AAAY000006 PHOTO LINK 1

D4500 B0JCCD000020 DIODE 1 PAVCTH

D4604 B0JCCE000008 DIODE 1

D4621 B0JCCE000008 DIODE 1

D4649 B0JCCE000008 DIODE 1

D4671 DZ2J056M0L ZENER DIODE 1

Part No. Part Name & Description Q'ty Remarks

Page 85

Model No. : TH-P42U30A/Z Parts List

S-44

Safety

Ref.

No.

D4672 DZ2J056M0L ZENER DIODE 1

D4673 DZ2J056M0L ZENER DIODE 1

D5350 B0JCMD000066 ZENER DIODE 1

D8716 DA2J10100L DIODE 1

D8720 B0JCMD000066 ZENER DIODE 1

D9806 B0ADCK000001 DIODE 1 PAVCTH

D9808 B0ADCK000001 DIODE 1 PAVCTH

D14652 B0ECKM000046 DIODE 1

D14654 B0ECKM000046 DIODE 1

D14703 B0ADCJ000100 DIODE 1

D14852 B0ECKM000046 DIODE 1

D14853 B0ECKM000046 DIODE 1

D14902 B0ACCJ000048 DIODE 1

D14903 B0ACCJ000048 DIODE 1

D14904 B0ADCJ000100 DIODE 1

D16001 B0ECLP000010 DIODE 1 PAVCTH

D16002 B0ECLP000010 DIODE 1 PAVCTH

D16021 B0ECLP000010 DIODE 1 PAVCTH

D16022 DA3CF30ACL ZENER DIODE 1 PAVCTH

D16041 B0FCCN000003 DIODE 1

D16051 B0FCCN000003 DIODE 1

D16071 B0ECLP000010 DIODE 1 PAVCTH

D16072 B0ECKP000055 DIODE 1

D16073 B0ECKP000055 DIODE 1

D16131 B0ECKP000055 DIODE 1

D16133 B0ACCJ000048 DIODE 1

D16134 DZ2J051M0L ZENER DIODE 1

D16191 B0ECKP000055 DIODE 1

D16192 B0ACCJ000048 DIODE 1

D16193 DZ2J051M0L ZENER DIODE 1

D16243 B0ADCJ000100 DIODE 1

D16251 DZ2J330M0L ZENER DIODE 1

D16252 DZ2J330M0L ZENER DIODE 1

D16253 DZ2J051M0L ZENER DIODE 1

D16254 B3ABB0000210 LED 1

D16255 B0ADCJ000100 DIODE 1

D16282 DZ2J068M0L ZENER DIODE 1

D16285 B0ADEJ000035 ZENER DIODE 1

D16315 DZ2J150M0L ZENER DIODE 1

D16316 B0ECKP000055 DIODE 1

D16317 B0ECKP000055 DIODE 1

D16401 B0FCCN000003 DIODE 1

D16407 B0JCME000093 DIODE 1

D16411 B0ADCJ000100 DIODE 1

D16413 B0ACCJ000048 DIODE 1

D16421 B0FCBN000001 DIODE 1 PAVCTH

D16432 B0ECKP000055 DIODE 1

D16433 B0ECKP000055 DIODE 1

D16461 B0FCCN000003 DIODE 1

D16473 B0ACCJ000048 DIODE 1

D16474 B0ACCJ000048 DIODE 1

D16481 B0FCCN000003 DIODE 1

D16491 B0ACCJ000048 DIODE 1

D16492 DZ2J047M0L ZENER DIODE 1

D16493 B0ADCJ000100 DIODE 1

D16506 DZ2J051M0L ZENER DIODE 1

D16534 DZ2J051M0L ZENER DIODE 1

D16536 B0ECKP000055 DIODE 1

D16537 B0ADCJ000100 DIODE 1

D16538 B0ADCJ000100 DIODE 1

D16581 DZ2J330M0L ZENER DIODE 1

D16582 DZ2J330M0L ZENER DIODE 1

Part No. Part Name & Description Q'ty Remarks

Page 86

Model No. : TH-P42U30A/Z Parts List

S-45

Safety

Ref.

No.

D16583 B3ABB0000210 LED 1

D16602 DZ2J043M0L ZENER DIODE 1

D16603 B0ACCJ000048 DIODE 1

D16604 B0ADCJ000100 DIODE 1

D16605 B0ACCJ000048 DIODE 1

D16607 B0ACCJ000048 DIODE 1

D16608 B0ECKP000055 DIODE 1

D16609 B0ECKP000055 DIODE 1

D16618 B0ECKP000055 DIODE 1

D16641 B0FCCN000004 DIODE 1 PAVCTH

D16642 B0FCCN000004 DIODE 1 PAVCTH

D16645 DZ2J150M0L ZENER DIODE 1

D16646 DZ2J150M0L ZENER DIODE 1

D16647 DZ2J150M0L ZENER DIODE 1

D16648 DZ2J043M0L ZENER DIODE 1

D16651 DZ2J051M0L ZENER DIODE 1

D16652 B0ECKP000055 DIODE 1

D16662 DZ2J150M0L ZENER DIODE 1

D16663 DZ2J150M0L ZENER DIODE 1

D16664 DZ2J150M0L ZENER DIODE 1

D16669 B0ACCJ000048 DIODE 1

D16673 B0ECHR000004 DIODE 1 PAVCTH

D16674 B0ECHR000004 DIODE 1 PAVCTH

D16685 B0ACCJ000048 DIODE 1

D16710 DZ2J15000L ZENER DIODE 1

D16711 B0ECHR000004 DIODE 1 PAVCTH

D16712 B0ECHR000004 DIODE 1 PAVCTH

D16713 B0ECHS000002 DIODE 1 PAVCTH

D16714 B0ECHS000002 DIODE 1 PAVCTH

D16720 B0ECHR000004 DIODE 1 PAVCTH

D16728 B0ECKP000055 DIODE 1

D16791 DZ2J240M0L ZENER DIODE 1

D16792 B0ACCJ000048 DIODE 1

D16795 B0ACCJ000048 DIODE 1

D16822 B0ACCJ000048 DIODE 1

D16823 B0ADCJ000100 DIODE 1

D16824 B0ACCJ000048 DIODE 1

D16825 DZ2J330M0L ZENER DIODE 1

D16833 B0ECHR000004 DIODE 1 PAVCTH

D17101 B0ACCJ000048 DIODE 1

D17102 B0ACCJ000048 DIODE 1

D17103 B0JCCD000020 DIODE 1 PAVCTH

D17201 B0ACCJ000048 DIODE 1

D17202 B0ACCJ000048 DIODE 1

D17203 B0JCCD000020 DIODE 1 PAVCTH

FL8531 J0ZZB0000142 FILTER 1

FL8532 J0ZZB0000142 FILTER 1

IC3001 C1AB00003385 IC 1 PAVCTH

IC3753 C1ZBZ0004368 IC 1 PAVCTH

IC4900 C1AB00003457 IC 1 PAVCTH

IC5000 AN34044A-VF IC 1 PAVCTH

IC5251 C0CBCBC00227 IC 1

IC5350 C0DBAYY00931 IC 1 PAVCTH

IC5605 C0DBAGF00030 IC 1

IC8000 MN2WS0175E IC 1 PAVCTH

IC8100 C0DBAYY00715 IC 1

IC8200 C3ABTY000025 IC 1

IC8201 C3ABTY000025 IC 1

IC8531 C0DBZYY00368 IC 1

IC8532 C0DBZYY00368 IC 1

Part No. Part Name & Description Q'ty Remarks

Page 87

Model No. : TH-P42U30A/Z Parts List

S-46

Safety

Ref.

No.

IC8601 C1CB00003491 IC 1

IC8701 C0DBAYY00931 IC 1 PAVCTH

IC8702 C0DBAFG00029 IC 1 PAVCTH

IC8706 C0DBGYY00887 IC 1

IC8707 C0DBAYY00915 IC 1 PAVCTH

IC8714 C0DBGYY01682 IC 1 PAVCTH

IC8900 TVRS215AB IC 1 PAVCTH

IC8901 TVR***1 IC 1 (A) PAVCTH

IC8901 TVR***3 IC 1 (Z) PAVCTH

IC8902 TVR***2 IC 1 (A) PAVCTH

IC8902 TVR***4 IC 1 (Z) PAVCTH

IC9300 C1AB00003409 IC 1 PAVCTH

IC9304 TVRS208AD IC 1 PAVCTH

IC9400 C0JBAU000010 IC 1

IC9401 C0JBAU000010 IC 1

IC9402 C0JBAU000010 IC 1

IC9810 C0DBAYY00915 IC 1 PAVCTH

IC14601 AN16520A-VT IC 1 PAVCTH

IC14602 AN16520A-VT IC 1 PAVCTH

IC14603 AN16520A-VT IC 1 PAVCTH

IC14604 AN16520A-VT IC 1 PAVCTH

IC14605 AN16520A-VT IC 1 PAVCTH

IC14606 AN16520A-VT IC 1 PAVCTH

IC14801 AN16520A-VT IC 1 PAVCTH

IC14802 AN16520A-VT IC 1 PAVCTH

IC14803 AN16520A-VT IC 1 PAVCTH

IC14804 AN16520A-VT IC 1 PAVCTH

IC14805 AN16520A-VT IC 1 PAVCTH

IC14806 AN16520A-VT IC 1 PAVCTH

IC14901 C0JBAB000996 IC 1 PAVCTH

IC14902 C0JBAB000996 IC 1 PAVCTH

IC14904 C0JBAA000557 IC 1 PAVCTH

IC16131 C0ZBZ0001822 IC 1 PAVCTH

IC16132 C0ZBZ0001822 IC 1 PAVCTH

IC16151 C0ZBZ0001822 IC 1 PAVCTH

IC16152 C0ZBZ0001822 IC 1 PAVCTH

IC16191 C0ZBZ0001822 IC 1 PAVCTH

IC16241 C0JBAU000088 IC 1

IC16243 C0JBAB000715 IC 1

IC16244 C0JBAA000558 IC 1 PAVCTH

IC16304 MIP3910MSSCF IC 1

IC16312 C0DBZMC00006 IC 1

IC16471 C0DBEYY00114 IC 1

IC16490 C0DBZMC00006 IC 1

IC16491 C0BBAA000008 LINEAR IC 1

IC16501 C0ZBZ0001822 IC 1 PAVCTH

IC16502 C0ZBZ0001822 IC 1 PAVCTH

IC16521 C0ZBZ0001822 IC 1 PAVCTH

IC16522 C0ZBZ0001822 IC 1 PAVCTH

IC16561 C0JBAU000088 IC 1

IC16562 C0JBAU000088 IC 1

IC16563 C0JBAB000996 IC 1 PAVCTH

IC16564 C0JBAE000321 IC 1

IC16565 C0JBAE000321 IC 1

IC16684 C0ZBZ0001822 IC 1 PAVCTH

IC16691 C0JBAC000509 IC 1 PAVCTH

IC16724 C0CBADE00049 IC 1

IC16784 MIP3910MSSCF IC 1

IC16785 C0DBZYY00352 IC 1

IC16786 MIP3910MSSCF IC 1

IC16787 C0DBZYY00352 IC 1

IC16792 C0BBAA000008 LINEAR IC 1

Part No. Part Name & Description Q'ty Remarks

Page 88

Model No. : TH-P42U30A/Z Parts List

S-47

Safety

Ref.

No.

IC16793 C0DBZMC00006 IC 1

IC16795 C0CBALC00012 IC 1

IC16921 C1ZBZ0004292 IC 1 PAVCTH

IC17102 C0JBAU000088 IC 1

IC17201 C0JBAU000088 IC 1

IC17202 C0JBAU000089 IC 1 PAVCTH

JK3000B K1U920A00003 CONNECTOR UNIT 1 PAVCTH

JK3001 K2HC103E0030 JACK 1 PAVCTH

JK3300 K1FY315A0010 CONNECTOR 1 PAVCTH

JK3701 K1U308B00003 CONNECTOR UNIT 1 PAVCTH

JK4600 K1FY119D0015 CONNECTOR 1 PAVCTH

JK4601 K1FY119D0015 CONNECTOR 1 PAVCTH

JK4602 K1FY119E0028 CONNECTOR 1 PAVCTH

JK8531 K1FY208B0008 CONNECTOR 1

JK8650 K1NA12E00016 12P CONNECTOR 1

JK8702 K2LC108A0012 JACK 1 PAVCTH

JS1050 D0GAR00J0005 M 0 OHM, 1/16W 1

JS1053 D0GDR00J0004 M 0 OHM, 1/8W 1

K1 K1KA08B00270 8P CONNECTOR 1

L3001 J0JYC0000068 CHIP INDUCTOR 1

L3005 J0JYC0000331 CHIP INDUCTOR 1

L3006 J0JYC0000331 CHIP INDUCTOR 1

L3009 J0ZZB0000150 FILTER 1 PAVCTH

L3010 J0ZZB0000150 FILTER 1 PAVCTH

L4500 J0JHC0000117 CHIP INDUCTOR 1

L4501 J0JYC0000068 CHIP INDUCTOR 1

L4502 J0JYC0000068 CHIP INDUCTOR 1

L4503 J0JYC0000068 CHIP INDUCTOR 1

L4504 J0JHC0000117 CHIP INDUCTOR 1

L4505 J0JYC0000068 CHIP INDUCTOR 1

L4506 J0JYC0000068 CHIP INDUCTOR 1

L4507 J0JYC0000068 CHIP INDUCTOR 1

L4508 J0JHC0000117 CHIP INDUCTOR 1

L4509 J0JYC0000068 CHIP INDUCTOR 1

L4510 J0JYC0000068 CHIP INDUCTOR 1

L4511 J0JYC0000068 CHIP INDUCTOR 1

L4801 J0JGC0000020 CHIP INDUCTOR 1

L4802 J0JGC0000020 CHIP INDUCTOR 1

L4803 G1CR39J00009 INDUCTION COIL 1

L4804 G1CR39J00009 INDUCTION COIL 1

L4805 J0JGC0000020 CHIP INDUCTOR 1

L4806 J0JGC0000020 CHIP INDUCTOR 1

L4811 J0JCC0000278 CHIP INDUCTOR 1

L4900 G1C150MA0426 INDUCTION COIL 1 PAVCTH

L4901 G1C150MA0426 INDUCTION COIL 1 PAVCTH

L4902 G1C150MA0426 INDUCTION COIL 1 PAVCTH

L4903 G1C150MA0426 INDUCTION COIL 1 PAVCTH

L5350 G1C6R8MA0445 INDUCTION COIL 1 PAVCTH

L8003 J0JCC0000287 CHIP INDUCTOR 1

L8005 J0JHC0000045 CHIP INDUCTOR 1

L8006 J0JHC0000045 CHIP INDUCTOR 1

L8009 J0JKC0000021 CHIP INDUCTOR 1

L8015 J0JCC0000287 CHIP INDUCTOR 1

L8016 J0JCC0000287 CHIP INDUCTOR 1

L8100 G1C4R7MA0416 INDUCTION COIL 1

L8102 G1C3R3MA0425 INDUCTION COIL 1

L8531 J0JHC0000045 CHIP INDUCTOR 1

L8532 J0JHC0000045 CHIP INDUCTOR 1

Part No. Part Name & Description Q'ty Remarks

Page 89

Model No. : TH-P42U30A/Z Parts List

S-48

Safety

Ref.

No.

L8600 J0JHC0000045 CHIP INDUCTOR 1

L8609 J0JHC0000045 CHIP INDUCTOR 1

L8701 G1C6R8MA0445 INDUCTION COIL 1 PAVCTH

L8702 G1C6R8MA0445 INDUCTION COIL 1 PAVCTH

L8704 J0JGC0000020 CHIP INDUCTOR 1

L8705 D0GBR00J0004 M 0 OHM J 1/10W 1

L9302 J0JHC0000117 CHIP INDUCTOR 1

L9303 J0JHC0000117 CHIP INDUCTOR 1

L9810 G1C6R8MA0445 INDUCTION COIL 1 PAVCTH

L16001 G0CR46KA0216 PEAKING COIL 1 PAVCTH

L16303 G0C471MA0049 PEAKING COIL 1

L16411 G0CR43KA0216 PEAKING COIL 1 PAVCTH

PA5440 K5H5022A0031 FUSE 1

PA5601 K5H5022A0031 FUSE 1

PC14901 B3PBE0000059 IC 1 PAVCTH

PC14902 B3PBE0000059 IC 1 PAVCTH

PC14903 B3PBE0000050 IC 1

PC16131 B3PBE0000058 IC 1 PAVCTH

PC16191 B3PBE0000060 IC 1 PAVCTH

PC16251 B3PBA0000580 IC 1 PAVCTH

PC16301 B3PBA0000580 IC 1 PAVCTH

PC16461 B3PBE0000058 IC 1 PAVCTH

PC16462 B3PBE0000060 IC 1 PAVCTH

PC16480 B3PBA0000580 IC 1 PAVCTH

PC16581 B3PBA0000580 IC 1 PAVCTH

PC16603 B3PBA0000580 IC 1 PAVCTH

PC16685 B3PBA0000496 IC 1

PC16723 B3PBA0000580 IC 1 PAVCTH

PC16896 B3PBA0000580 IC 1 PAVCTH

PC16897 B3PBA0000580 IC 1 PAVCTH

Q1101 DSA200100L TRANSISTOR 1

Q1102 DSC2001S0L TRANSISTOR 1

Q2810 B1ABCE000015 TRANSISTOR 1

Q2811 B1ABCE000015 TRANSISTOR 1

Q2812 B1ABCE000015 TRANSISTOR 1

Q3133 B1AAFB000004 TRANSISTOR 1 PAVCTH

Q3134 B1AAFB000004 TRANSISTOR 1 PAVCTH

Q3135 DSA200100L TRANSISTOR 1

Q4500 B1HFCFA00026 TRANSISTOR 1

Q4501 B1ADCE000022 TRANSISTOR 1

Q4502 B1ABCF000231 TRANSISTOR 1

Q4503 B1ABCF000231 TRANSISTOR 1

Q4504 B1ABCF000231 TRANSISTOR 1

Q4930 B1ADCF000194 TRANSISTOR 1 PAVCTH

Q4971 B1ABCE000015 TRANSISTOR 1

Q4972 DSA200100L TRANSISTOR 1

Q4973 B1AAFB000004 TRANSISTOR 1 PAVCTH

Q4974 B1AAFB000004 TRANSISTOR 1 PAVCTH

Q8100 B1MBEDA00027 FET 1

Q8102 B1MBEDA00027 FET 1

Q8900 B1ADCF000194 TRANSISTOR 1 PAVCTH

Q16001 DG3C3010CL TRANSISTOR 1 PAVCTH

Q16002 DG3C3010CL TRANSISTOR 1 PAVCTH

Q16021 DG3C3010CL TRANSISTOR 1 PAVCTH

Q16022 DG3C3010CL TRANSISTOR 1 PAVCTH

Q16041 DG3C3020CL TRANSISTOR 1 PAVCTH

Q16051 DG3C3020CL TRANSISTOR 1 PAVCTH

Q16055 B1HFPFA00001 TRANSISTOR 1

Q16056 B1HFPFA00001 TRANSISTOR 1

Part No. Part Name & Description Q'ty Remarks

Page 90

Model No. : TH-P42U30A/Z Parts List

S-49

Safety

Ref.

No.

Q16101 B1CFRM000015 FET 1

Q16102 B1CFRM000023 FET 1 PAVCTH

Q16141 B1HFPFA00001 TRANSISTOR 1

Q16161 B1HFPFA00001 TRANSISTOR 1

Q16251 B1ABCF000231 TRANSISTOR 1

Q16280 B1ABCE000015 TRANSISTOR 1

Q16401 B1JBDN000004 TRANSISTOR 1 PAVCTH

Q16402 B1JBDN000004 TRANSISTOR 1 PAVCTH

Q16421 B1JBDN000004 TRANSISTOR 1 PAVCTH

Q16422 B1JBDN000004 TRANSISTOR 1 PAVCTH

Q16441 DG3C3020CL TRANSISTOR 1 PAVCTH

Q16451 DG3C3020CL TRANSISTOR 1 PAVCTH

Q16471 B1ABCE000015 TRANSISTOR 1

Q16501 B1HFPFA00001 TRANSISTOR 1

Q16521 B1HFPFA00001 TRANSISTOR 1

Q16531 B1HFPFA00001 TRANSISTOR 1

Q16538 B1CBGD000001 FET 1

Q16551 B1HFPFA00001 TRANSISTOR 1

Q16581 B1ABCF000231 TRANSISTOR 1

Q16600 B1CFRM000020 FET 1 PAVCTH

Q16601 B1CFRQ000021 FET 1 PAVCTH

Q16602 DSA2001S0L TRANSISTOR 1

Q16606 DSC2001S0L TRANSISTOR 1

Q16607 B1CBGD000001 FET 1

Q16621 B1JBDN000004 TRANSISTOR 1 PAVCTH

Q16622 B1JBDN000004 TRANSISTOR 1 PAVCTH

Q16646 DSA2001S0L TRANSISTOR 1

Q16647 B1CBGD000001 FET 1

Q16660 B1CFRQ000021 FET 1 PAVCTH

Q16661 B1JBER000002 TRANSISTOR 1 PAVCTH

Q16762 B1HFPFA00001 TRANSISTOR 1

Q16815 B1ABCN000007 TRANSISTOR 1

Q16817 DSC2001Q0L TRANSISTOR 1

Q16818 B1CBGD000001 FET 1

Q16819 B1CBGD000001 FET 1

Q16820 B1CBGD000001 FET 1

Q16891 DSA2001S0L TRANSISTOR 1

Q16892 DSC2001Q0L TRANSISTOR 1

Q16921 B1CBGD000001 FET 1

Q16922 B1CBGD000001 FET 1

Q16931 B1ABCN000007 TRANSISTOR 1

Q17101 B1ABCN000007 TRANSISTOR 1

Q17201 B1ABCN000007 TRANSISTOR 1

R1010 D0GA101JA015 M 100 OHM, J,1/16W 1

R1011 D0GA101JA015 M 100 OHM, J,1/16W 1

R1013 D0GA101JA015 M 100 OHM, J,1/16W 1

R1014 D0GA101JA015 M 100 OHM, J,1/16W 1

R1015 D0GA101JA015 M 100 OHM, J,1/16W 1

R1050 D0GA154JA023 M 150KOHM J 1/16W 1

R1056 D0GA220JA023 M22 OHM, J.1/16 W 1

R1100 D0GA122JA023 M 1.2KOHM, J,1/16W 1

R1101 D0GA473JA015 M 47KOHM, J,1/16W 1

R1102 D0GA683JA023 M 68KOHM, J,1/16W 1

R1115 D0GA103JA015 M 10KOHM,J,1/16W 1

R1117 D1BA7151A014 M7.15KOHM,J.1/16 W 1

R1118 D0GA102JA023 M1KOHM, J.1/16 W 1

R1121 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R1122 D0GA332JA023 M 3.3KOHM, J,1/16W 1

R1123 D0GA102JA023 M1KOHM, J.1/16 W 1

R1124 D0GA103JA015 M 10KOHM,J,1/16W 1

R1125 D0GA104JA023 M100KOHM, J.1/16 W 1

Part No. Part Name & Description Q'ty Remarks

Page 91

Model No. : TH-P42U30A/Z Parts List

S-50

Safety

Ref.

No.

R1126 D0GA102JA023 M1KOHM, J.1/16 W 1

R1127 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R1128 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R1129 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R2051 D1BA6651A014 M6.65KOHM,J.1/16 W 1 PAVCTH

R2128 D1BA7151A014 M7.15KOHM,J.1/16 W 1

R2129 D1BA1432A014 M14.3KOHM,J.1/16 W 1 PAVCTH

R2130 D1BA1741A014 M1.74KOHM,J.1/16 W 1 PAVCTH

R2810 D0GB470JA065 M 47 OHM,J,1/10W 1

R2811 D0GB104JA065 M 100KOHM J 1/10W 1

R2812 D0GB224JA065 M 220KOHM,J,1/10W 1 PAVCTH

R2813 D0GB223JA065 M 22KOHM,J,1/10W 1 PAVCTH

R2814 D0GB103JA065 M 10K OHM J 1/10W 1

R2815 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R2816 D1BB1621A055 M1.62KOHM,J.1/10W 1

R2817 D0GB223JA065 M 22KOHM,J,1/10W 1 PAVCTH

R2818 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R2819 D1BB4301A055 M4.30KOHM,J.1/10W 1

R3005 D0GBR00J0004 M 0 OHM J 1/10W 1

R3012 D0GA680JA023 M 68 OHM, J,1/16W 1

R3013 D0GA101JA015 M 100 OHM, J,1/16W 1

R3014 D0GA680JA023 M 68 OHM, J,1/16W 1

R3015 D0GA101JA015 M 100 OHM, J,1/16W 1

R3016 D0GA680JA023 M 68 OHM, J,1/16W 1

R3020 D0GA820JA023 M 82 OHM, J,1/16W 1 PAVCTH

R3021 D0GA820JA023 M 82 OHM, J,1/16W 1 PAVCTH

R3022 D0GA820JA023 M 82 OHM, J,1/16W 1 PAVCTH

R3023 D0GA221JA023 M220 OHM, J.1/16 W 1

R3024 D0GA221JA023 M220 OHM, J.1/16 W 1

R3025 D0GA221JA023 M220 OHM, J.1/16 W 1

R3026 D0GA221JA023 M220 OHM, J.1/16 W 1

R3027 D0GA221JA023 M220 OHM, J.1/16 W 1

R3028 D0GA221JA023 M220 OHM, J.1/16 W 1

R3030 D0GAR00J0005 M 0 OHM, 1/16W 1

R3033 D0GA331JA023 M 330 OHM, J,1/16W 1

R3034 D0GA331JA023 M 330 OHM, J,1/16W 1

R3051 D0GA221JA023 M220 OHM, J.1/16 W 1

R3052 D0GA221JA023 M220 OHM, J.1/16 W 1

R3056 D0GA680JA023 M 68 OHM, J,1/16W 1

R3058 D0GA680JA023 M 68 OHM, J,1/16W 1

R3067 D0GAR00J0005 M 0 OHM, 1/16W 1

R3068 D0GA220JA023 M22 OHM, J.1/16 W 1

R3069 D0GA220JA023 M22 OHM, J.1/16 W 1

R3070 D0GA220JA023 M22 OHM, J.1/16 W 1

R3145 D0GAR00J0005 M 0 OHM, 1/16W 1

R3146 D0GA104JA023 M100KOHM, J.1/16 W 1

R3147 D0GAR00J0005 M 0 OHM, 1/16W 1

R3148 D0GA104JA023 M100KOHM, J.1/16 W 1

R3149 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R3150 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R3151 D0GA105JA023 M 1M OHM, J,1/16W 1

R3152 D0GA473JA015 M 47KOHM, J,1/16W 1

R3153 D0GA102JA023 M1KOHM, J.1/16 W 1

R3154 D0GA473JA015 M 47KOHM, J,1/16W 1

R3174 D0GA473JA015 M 47KOHM, J,1/16W 1

R3189 D1BB75R0A055 M 75 OHM,J.1/10W 1

R3192 D0GA393JA023 M 39KOHM,J,1/16W 1 PAVCTH

R3193 D0GA393JA023 M 39KOHM,J,1/16W 1 PAVCTH

R3194 D1BB75R0A055 M 75 OHM,J.1/10W 1

R3198 D1BB75R0A055 M 75 OHM,J.1/10W 1

R3202 D0GA393JA023 M 39KOHM,J,1/16W 1 PAVCTH

R3204 D0GA393JA023 M 39KOHM,J,1/16W 1 PAVCTH

Part No. Part Name & Description Q'ty Remarks

Page 92

Model No. : TH-P42U30A/Z Parts List

S-51

Safety

Ref.

No.

R3205 D1BB75R0A055 M 75 OHM,J.1/10W 1

R3206 D0GA393JA023 M 39KOHM,J,1/16W 1 PAVCTH

R3207 D0GA393JA023 M 39KOHM,J,1/16W 1 PAVCTH

R3209 D1BB75R0A055 M 75 OHM,J.1/10W 1

R3301 D1BB75R0A055 M 75 OHM,J.1/10W 1

R3302 D1BB75R0A055 M 75 OHM,J.1/10W 1

R3303 D1BB75R0A055 M 75 OHM,J.1/10W 1

R3304 D0GDR00J0004 M 0 OHM, 1/8W 1

R3305 D0GDR00J0004 M 0 OHM, 1/8W 1

R3313 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R3314 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R3756 D0GA103JA015 M 10KOHM,J,1/16W 1

R4512 D0GA220JA023 M22 OHM, J.1/16 W 1

R4513 D0GA151JA023 M 150 OHM, J,1/16W 1

R4514 D0GA151JA023 M 150 OHM, J,1/16W 1

R4515 D0GA151JA023 M 150 OHM, J,1/16W 1

R4517 D0GA102JA023 M1KOHM, J.1/16 W 1

R4521 D0GA560JA023 M 56 OHM, J,1/16W 1

R4525 D0GA103JA015 M 10KOHM,J,1/16W 1

R4555 D0GA473JA015 M 47KOHM, J,1/16W 1

R4556 D0GA473JA015 M 47KOHM, J,1/16W 1

R4558 D0GA473JA015 M 47KOHM, J,1/16W 1

R4560 D0GA273JA023 M 27K OHM J ,1/16W 1

R4602 D0GA103JA015 M 10KOHM,J,1/16W 1

R4608 D0GA103JA015 M 10KOHM,J,1/16W 1

R4609 D0GA103JA015 M 10KOHM,J,1/16W 1

R4611 D0GA102JA023 M1KOHM, J.1/16 W 1

R4612 D0GA473JA015 M 47KOHM, J,1/16W 1

R4615 D0GA103JA015 M 10KOHM,J,1/16W 1

R4621 D0GA103JA015 M 10KOHM,J,1/16W 1

R4622 D0GA103JA015 M 10KOHM,J,1/16W 1

R4624 D0GA473JA015 M 47KOHM, J,1/16W 1

R4625 D0GA102JA023 M1KOHM, J.1/16 W 1

R4631 D0GA103JA015 M 10KOHM,J,1/16W 1

R4635 D0GA103JA015 M 10KOHM,J,1/16W 1

R4637 D0GA473JA015 M 47KOHM, J,1/16W 1

R4638 D0GA103JA015 M 10KOHM,J,1/16W 1

R4639 D0GA102JA023 M1KOHM, J.1/16 W 1

R4646 D0GA680JA023 M 68 OHM, J,1/16W 1

R4647 D0GA680JA023 M 68 OHM, J,1/16W 1

R4648 D0GA680JA023 M 68 OHM, J,1/16W 1

R4649 D0GA680JA023 M 68 OHM, J,1/16W 1

R4650 D0GA680JA023 M 68 OHM, J,1/16W 1

R4651 D0GA680JA023 M 68 OHM, J,1/16W 1

R4691 D0GA473JA015 M 47KOHM, J,1/16W 1

R4692 D0GA473JA015 M 47KOHM, J,1/16W 1

R4693 D0GA473JA015 M 47KOHM, J,1/16W 1

R4802 D0GA103JA015 M 10KOHM,J,1/16W 1

R4805 D0GAR00J0005 M 0 OHM, 1/16W 1

R4806 D0GAR00J0005 M 0 OHM, 1/16W 1

R4819 D0GAR00J0005 M 0 OHM, 1/16W 1

R4820 D0GAR00J0005 M 0 OHM, 1/16W 1

R4824 D0GA101JA015 M 100 OHM, J,1/16W 1

R4825 D0GA101JA015 M 100 OHM, J,1/16W 1

R4826 D0GAR00J0005 M 0 OHM, 1/16W 1

R4901 EXB28V220J M 22 OHM 1/32 W 1

R4902 D0GA103JA015 M 10KOHM,J,1/16W 1

R4903 D0GA102JA023 M1KOHM, J.1/16 W 1

R4904 D0GDR00J0004 M 0 OHM, 1/8W 1

R4906 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R4911 D0GDR00J0004 M 0 OHM, 1/8W 1

R4930 D0GA392JA023 M 3.9KOHM, J,1/16W 1

Part No. Part Name & Description Q'ty Remarks

Page 93

Model No. : TH-P42U30A/Z Parts List

S-52

Safety

Ref.

No.

R4931 D0GA221JA023 M220 OHM, J.1/16 W 1

R4932 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R4933 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R4941 D1BB1403A055 M 140KOHM,J.1/10W 1

R4942 D1BB1403A055 M 140KOHM,J.1/10W 1

R4971 D0GA103JA015 M 10KOHM,J,1/16W 1

R4973 D0GA473JA015 M 47KOHM, J,1/16W 1

R4975 D0GA103JA015 M 10KOHM,J,1/16W 1

R4976 D0GA103JA015 M 10KOHM,J,1/16W 1

R4977 D0GA103JA015 M 10KOHM,J,1/16W 1

R4978 D0GA101JA015 M 100 OHM, J,1/16W 1

R4979 D0GA473JA015 M 47KOHM, J,1/16W 1

R4980 D0GA103JA015 M 10KOHM,J,1/16W 1

R4981 D0GA105JA023 M 1M OHM, J,1/16W 1

R4982 D0GA101JA015 M 100 OHM, J,1/16W 1

R4983 D0GA101JA015 M 100 OHM, J,1/16W 1

R5000 D0GA102JA023 M1KOHM, J.1/16 W 1

R5009 D0GA103JA015 M 10KOHM,J,1/16W 1

R5010 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R5011 D0GA104JA023 M100KOHM, J.1/16 W 1

R5012 D0GA223JA023 M 22K OHM J 1/16W 1

R5013 D0GA103JA015 M 10KOHM,J,1/16W 1

R5018 D0GA223JA023 M 22K OHM J 1/16W 1

R5350 D1BB4302A087 M43.0KOHM,J.1/10W 1 PAVCTH

R5351 D1BB8061A087 M8.06 KOHM,J.1/10W 1 PAVCTH

R5352 D0GB390JA065 M 39 OHM,J,1/10W 1 PAVCTH

R5353 D1BB1002A055 M 10KOHM,J.1/10W 1

R5602 D0GA104JA023 M100KOHM, J.1/16 W 1

R5663 D0GA104JA023 M100KOHM, J.1/16 W 1

R5707 D0GDR00J0004 M 0 OHM, 1/8W 1

R8001 D0GA331JA023 M 330 OHM, J,1/16W 1

R8100 D1BB1301A087 M 1.3KOHM,J.1/10W 1 PAVCTH

R8102 D1BB2101A087 M 2.1KOHM,J.1/10W 1

R8104 D1BB8200A087 M 820 OHM,J.1/10W 1

R8106 D1BB2001A087 M 2KOHM,J.1/10W 1

R8108 D0GB100JA065 M 10 OHM J 1/10W 1

R8110 D0GB100JA065 M 10 OHM J 1/10W 1

R8114 D0GA243JA023 M 24K OHM J 0.063W 1

R8118 D0GA183JA023 M 18K OHM J.1/16W 1

R8200 D1BA2400A014 M 240 OHM,J.1/16 W 1

R8203 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8204 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8205 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8206 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8207 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8208 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8217 D0GA221JA023 M220 OHM, J.1/16 W 1

R8218 D0GA221JA023 M220 OHM, J.1/16 W 1

R8219 D1BA2400A014 M 240 OHM,J.1/16 W 1

R8220 D1BA2400A014 M 240 OHM,J.1/16 W 1

R8221 D0GA103JA015 M 10KOHM,J,1/16W 1

R8222 EXB28V330J M 33 OHM 1/32 W 1

R8223 EXB28V330J M 33 OHM 1/32 W 1

R8224 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8225 D1BA1001A014 M 1KOHM,J. 1/16 W 1

R8301 D0GA681JA023 M680 OHM, J,1/16W 1

R8302 D0GA360JA023 M 36 OHM, J,1/16W 1 PAVCTH

R8303 D0GA360JA023 M 36 OHM, J,1/16W 1 PAVCTH

R8304 D1BA6201A014 M 6.2KOHM,J.1/16 W 1

R8305 D1BA6201A014 M 6.2KOHM,J.1/16 W 1

R8306 D0GA243JA023 M 24K OHM J 0.063W 1

R8381 D1BA75R0A014 M 75 OHM,J.1/16 W 1

Part No. Part Name & Description Q'ty Remarks

Page 94

Model No. : TH-P42U30A/Z Parts List

S-53

Safety

Ref.

No.

R8382 D1BA75R0A014 M 75 OHM,J.1/16 W 1

R8383 D1BA75R0A014 M 75 OHM,J.1/16 W 1

R8384 D1BA75R0A014 M 75 OHM,J.1/16 W 1

R8385 D0GA103JA015 M 10KOHM,J,1/16W 1

R8386 D0GA103JA015 M 10KOHM,J,1/16W 1

R8387 D0GA103JA015 M 10KOHM,J,1/16W 1

R8439 D0GA680JA023 M 68 OHM, J,1/16W 1

R8440 D0GA680JA023 M 68 OHM, J,1/16W 1

R8531 D0GA103JA015 M 10KOHM,J,1/16W 1

R8532 D0GA103JA015 M 10KOHM,J,1/16W 1

R8533 D0GA103JA015 M 10KOHM,J,1/16W 1

R8534 D0GA103JA015 M 10KOHM,J,1/16W 1

R8535 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R8536 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R8571 D0GA102JA023 M1KOHM, J.1/16 W 1

R8572 D0GA102JA023 M1KOHM, J.1/16 W 1

R8573 D0GA102JA023 M1KOHM, J.1/16 W 1

R8574 D0GA102JA023 M1KOHM, J.1/16 W 1

R8575 D0GA473JA015 M 47KOHM, J,1/16W 1

R8577 D0GA103JA015 M 10KOHM,J,1/16W 1

R8578 D0GA103JA015 M 10KOHM,J,1/16W 1

R8583 D0GA473JA015 M 47KOHM, J,1/16W 1

R8606 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8607 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8608 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R8609 D1BA6491A014 M6.49KOHM,J.1/16 W 1

R8610 D0GA221JA023 M220 OHM, J.1/16 W 1

R8615 D0GA105JA023 M 1M OHM, J,1/16W 1

R8624 D0GA560JA023 M 56 OHM, J,1/16W 1

R8625 D0GA560JA023 M 56 OHM, J,1/16W 1

R8626 D0GA560JA023 M 56 OHM, J,1/16W 1

R8627 D0GA560JA023 M 56 OHM, J,1/16W 1

R8628 D0GA560JA023 M 56 OHM, J,1/16W 1

R8629 D0GA560JA023 M 56 OHM, J,1/16W 1

R8630 D1HG1038A002 NETWORK RESISTER 1

R8632 EXB28V560JX M 56 OHM 1/32 W 1

R8634 EXB28V560JX M 56 OHM 1/32 W 1

R8636 D0GA220JA023 M22 OHM, J.1/16 W 1

R8639 D0GA103JA015 M 10KOHM,J,1/16W 1

R8640 D0GA103JA015 M 10KOHM,J,1/16W 1

R8641 D0GBR00J0004 M 0 OHM J 1/10W 1

R8644 D0GAR00J0005 M 0 OHM, 1/16W 1

R8648 D0GA560JA023 M 56 OHM, J,1/16W 1

R8649 D0GA560JA023 M 56 OHM, J,1/16W 1

R8652 D0GA560JA023 M 56 OHM, J,1/16W 1

R8653 D0GA560JA023 M 56 OHM, J,1/16W 1

R8654 EXB28V560JX M 56 OHM 1/32 W 1

R8655 D0GA560JA023 M 56 OHM, J,1/16W 1

R8656 D0GA560JA023 M 56 OHM, J,1/16W 1

R8657 D0GA560JA023 M 56 OHM, J,1/16W 1

R8658 D0GA560JA023 M 56 OHM, J,1/16W 1

R8659 D0GA560JA023 M 56 OHM, J,1/16W 1

R8660 D0GA560JA023 M 56 OHM, J,1/16W 1

R8661 D0GA560JA023 M 56 OHM, J,1/16W 1

R8669 F1G1H470A565 C 47PF, 50V 1

R8670 F1G1H470A565 C 47PF, 50V 1

R8704 D1BB5362A055 M53.6KOHM,J.1/10W 1 PAVCTH

R8705 D1BB1002A055 M 10KOHM,J.1/10W 1

R8706 D0GB390JA065 M 39 OHM,J,1/10W 1 PAVCTH

R8707 D1BB1002A055 M 10KOHM,J.1/10W 1

R8708 D0GA560JA023 M 56 OHM, J,1/16W 1

R8709 D0GA560JA023 M 56 OHM, J,1/16W 1

Part No. Part Name & Description Q'ty Remarks

Page 95

Model No. : TH-P42U30A/Z Parts List

S-54

Safety

Ref.

No.

R8710 D0GA560JA023 M 56 OHM, J,1/16W 1

R8755 D0GA104JA023 M100KOHM, J.1/16 W 1

R8756 D0GB390JA065 M 39 OHM,J,1/10W 1 PAVCTH

R8757 D1BB4301A055 M4.30KOHM,J.1/10W 1

R8758 D1BB2402A055 M 24KOHM,J.1/10W 1

R8759 D1BB6041A055 M 6.04KOHM,J.1/10W 1

R8760 D0GA473JA015 M 47KOHM, J,1/16W 1

R8830 D0GA103JA015 M 10KOHM,J,1/16W 1

R8831 D0GA103JA015 M 10KOHM,J,1/16W 1

R8832 D0GA103JA015 M 10KOHM,J,1/16W 1

R8833 D0GA103JA015 M 10KOHM,J,1/16W 1

R8834 D0GA103JA015 M 10KOHM,J,1/16W 1

R8835 D0GA103JA015 M 10KOHM,J,1/16W 1

R8836 D0GA103JA015 M 10KOHM,J,1/16W 1

R8837 D0GA103JA015 M 10KOHM,J,1/16W 1

R8838 D0GA103JA015 M 10KOHM,J,1/16W 1

R8839 D0GA103JA015 M 10KOHM,J,1/16W 1

R8840 D0GA103JA015 M 10KOHM,J,1/16W 1

R8873 EXB2HV103JV M 10 kOHM 1/16 W 1

R8874 D0GA103JA015 M 10KOHM,J,1/16W 1

R8909 D0GA222JA023 M 2.2KOHM, J,1/16W 1

R8910 D0GA103JA015 M 10KOHM,J,1/16W 1

R8911 D0GA101JA015 M 100 OHM, J,1/16W 1

R8914 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8919 D0GA101JA015 M 100 OHM, J,1/16W 1

R8924 D0GA472JA023 M 4.7KOHM, J,1/16W 1

R8931 D0GA220JA023 M22 OHM, J.1/16 W 1

R8932 D0GA220JA023 M22 OHM, J.1/16 W 1

R8933 D0GA220JA023 M22 OHM, J.1/16 W 1

R8934 D0GA220JA023 M22 OHM, J.1/16 W 1

R8935 D0GA220JA023 M22 OHM, J.1/16 W 1

R8936 D0GA220JA023 M22 OHM, J.1/16 W 1

R8937 D0GA560JA023 M 56 OHM, J,1/16W 1

R8938 EXB2HV470JV M 47 OHM 1/16 W 1

R8939 EXB28V560JX M 56 OHM 1/32 W 1

R8940 D0GA560JA023 M 56 OHM, J,1/16W 1

R8941 D0GA560JA023 M 56 OHM, J,1/16W 1

R8950 D0GA473JA015 M 47KOHM, J,1/16W 1

R8953 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R8954 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R8955 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R8956 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R8957 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R8958 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R8959 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R8960 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R8961 EXB28V332J M 3.3 KOHM 1/32 W 1

R8963 D0GA103JA015 M 10KOHM,J,1/16W 1

R8964 D0GA103JA015 M 10KOHM,J,1/16W 1

R8965 EXB28V103JX M 10KOHM 1/32 W 1

R8967 D0GA102JA023 M1KOHM, J.1/16 W 1

R8968 D0GA473JA015 M 47KOHM, J,1/16W 1

R9035 D0GA332JA023 M 3.3KOHM, J,1/16W 1

R9105 D0GA473JA015 M 47KOHM, J,1/16W 1

R9108 D0GAR00J0005 M 0 OHM, 1/16W 1

R9198 EXB38V101JV M 100 OHM 1/16 W 1

R9203 D0GA272JA023 M 2.7KOHM, J.1/16W 1

R9205 D0GA333JA023 M 33KOHM,J,1/16W 1

R9206 D0GA563JA023 M 56KOHM, J,0.063W 1 PAVCTH

R9208 EXB2HV470JV M 47 OHM 1/16 W 1

R9209 EXB2HV470JV M 47 OHM 1/16 W 1

R9224 D0GA470JA023 M 47 OHM, J,1/16W 1

Part No. Part Name & Description Q'ty Remarks

Page 96

Model No. : TH-P42U30A/Z Parts List

S-55

Safety

Ref.

No.

R9226 D0GA470JA023 M 47 OHM, J,1/16W 1

R9247 D0GA470JA023 M 47 OHM, J,1/16W 1

R9307 D0GA470JA023 M 47 OHM, J,1/16W 1

R9308 D0GA470JA023 M 47 OHM, J,1/16W 1

R9310 D0GAR00J0005 M 0 OHM, 1/16W 1

R9320 D0GA122JA023 M 1.2KOHM, J,1/16W 1

R9321 D0GA105JA023 M 1M OHM, J,1/16W 1

R9323 D0GA102JA023 M1KOHM, J.1/16 W 1

R9324 D0GB162JA065 M 1.6KOHM J 1/10W 1 PAVCTH

R9325 D0GB162JA065 M 1.6KOHM J 1/10W 1 PAVCTH

R9326 D0GB162JA065 M 1.6KOHM J 1/10W 1 PAVCTH

R9327 D0GB162JA065 M 1.6KOHM J 1/10W 1 PAVCTH

R9329 D0GA102JA023 M1KOHM, J.1/16 W 1

R9330 D0GA102JA023 M1KOHM, J.1/16 W 1

R9337 D0GAR00J0005 M 0 OHM, 1/16W 1

R9400 EXB2HV103JV M 10 kOHM 1/16 W 1

R9401 EXB2HV103JV M 10 kOHM 1/16 W 1

R9402 EXB38V103JV M 10 kOHM 1/16 W 1

R9503 D0GA473JA015 M 47KOHM, J,1/16W 1

R9504 D0GA473JA015 M 47KOHM, J,1/16W 1

R9608 EXB2HV470JV M 47 OHM 1/16 W 1

R9609 EXB38V470J M 47 OHM 1/16 W 1

R9610 EXB38V470J M 47 OHM 1/16 W 1

R9611 EXB38V470J M 47 OHM 1/16 W 1

R9810 D0GB390JA065 M 39 OHM,J,1/10W 1 PAVCTH

R9811 D1BB1502A055 M 15KOHM, J.1/10W 1

R9812 D1BB8061A087 M8.06 KOHM,J.1/10W 1 PAVCTH

R9813 D1BB1002A087 M 10KOHM,J.1/10W 1

R9907 D0GA101JA015 M 100 OHM, J,1/16W 1

R14604 D0GD220JA052 M 22 OHM,J,1/4W 1 PAVCTH

R14605 D0GB103JA065 M 10K OHM J 1/10W 1

R14901 D0GD331JA052 M 330 OHM,J,1/4W 1 PAVCTH

R14902 D0GD331JA052 M 330 OHM,J,1/4W 1 PAVCTH

R14904 D0GD3R3JA052 M 3.3 OHM,J,1/4W 1 PAVCTH

R14907 D0GD331JA052 M 330 OHM,J,1/4W 1 PAVCTH

R14908 D0GD331JA052 M 330 OHM,J,1/4W 1 PAVCTH

R14911 D0GD181JA052 M 180 OHM,J,1/4W 1 PAVCTH

R14913 D0GD102JA052 M 1.0KOHM,J,1/8W 1 PAVCTH

R14916 EXB38V473J M 47 kOHM 1/16 W 1

R14917 D0GD203JA052 M 20KOHM,J,1/4W 1 PAVCTH

R14918 D0GD100JA052 M 10 OHM,J,1/4W 1

R14919 D0GB103JA065 M 10K OHM J 1/10W 1

R14920 D0GD470JA052 M 47 OHM,J,1/8W 1 PAVCTH

R14921 EXB38V220JV M 22 OHM 1/16 W 1

R14922 EXB38V220JV M 22 OHM 1/16 W 1

R14923 EXB38V220JV M 22 OHM 1/16 W 1

R14930 D0GB220JA065 M 22 OHM J 1/10W 1 PAVCTH

R14966 EXB38V222J M 2.2 kOHM 1/16 W 1

R16001 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16002 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16021 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16022 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16031 D0GF473JA048 M 47KOHM,J,1/3W 1 PAVCTH

R16032 D0GF473JA048 M 47KOHM,J,1/3W 1 PAVCTH

R16041 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1

R16051 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1

R16101 D0GD150JA059 M 15 OHM,J,1/4W 1

R16102 D0GD150JA059 M 15 OHM,J,1/4W 1

R16105 D0GF474JA048 M 470KOHM,J,1/3W 1 PAVCTH

R16116 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R16130 D0GB103JA065 M 10K OHM J 1/10W 1

R16131 D0GB220JA065 M 22 OHM J 1/10W 1 PAVCTH

Part No. Part Name & Description Q'ty Remarks

Page 97

Model No. : TH-P42U30A/Z Parts List

S-56

Safety

Ref.

No.

R16132 D0GB101JA065 M 100 OHM,J,1/10W 1

R16133 D1BD2700A044 M 270 OHM,J.1/8 W 1

R16134 D0GD750JA059 M 75 OHM,J,1/4W 1

R16135 D0GB4R7JA065 M 4.7 OHM J 1/10W 1 PAVCTH

R16137 D0GZ1R0JA020 M 1 OHM, J,1/2W 1

R16138 D0GF561JA047 M 560 OHM,J, 1/3W 1 PAVCTH

R16141 D0GD100JA059 M 10 OHM,J,1/4W 1

R16143 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R16151 D0GB220JA065 M 22 OHM J 1/10W 1 PAVCTH

R16152 D0GB220JA065 M 22 OHM J 1/10W 1 PAVCTH

R16153 D0GB331JA065 M330 OHM J 1/10W 1 PAVCTH

R16154 D0GD750JA059 M 75 OHM,J,1/4W 1

R16155 D0GB4R7JA065 M 4.7 OHM J 1/10W 1 PAVCTH

R16161 D0GD100JA059 M 10 OHM,J,1/4W 1

R16163 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R16171 D0GD100JA059 M 10 OHM,J,1/4W 1

R16173 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R16181 D0GD100JA059 M 10 OHM,J,1/4W 1

R16183 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R16191 D1BD2700A044 M 270 OHM,J.1/8 W 1

R16192 D0GB103JA065 M 10K OHM J 1/10W 1

R16193 D0GD750JA052 M 75 OHM,J,1/8W 1 PAVCTH

R16195 D0GF1R0JA047 M 1 OHM,J,1/3W 1

R16196 D0GF102JA048 M 1.0 KOHM,J,1/3W 1 PAVCTH

R16197 D0GB220JA065 M 22 OHM J 1/10W 1 PAVCTH

R16230 D0GD470JA052 M 47 OHM,J,1/8W 1 PAVCTH

R16231 D0GB472JA065 M 4.7KOHM, J,1/10W 1

R16241 EXB38V470J M 47 OHM 1/16 W 1

R16242 EXB38V472JV M 4.7 kOHM 1/16 W 1

R16243 D0GB103JA065 M 10K OHM J 1/10W 1

R16244 D0GB273JA065 M 27K OHM J 1/10W 1 PAVCTH

R16245 D0GB472JA065 M 4.7KOHM, J,1/10W 1

R16246 D0GD222JA052 M 2.2KOHM,J,1/8W 1 PAVCTH

R16252 D0GF563JA048 M 56 KOHM,J,1/3W 1 PAVCTH

R16253 D1BD1003A044 M 100KOHM,J.1/8 W 1

R16254 D1BD4422A044 M44.2KOHM,F.1/8W 1 PAVCTH

R16255 D0GB103JA065 M 10K OHM J 1/10W 1

R16257 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R16281 D0GB103JA065 M 10K OHM J 1/10W 1

R16282 D0GD221JA052 M 220 OHM,J 1/4W 1 PAVCTH

R16283 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R16284 D0GB224JA065 M 220KOHM,J,1/10W 1 PAVCTH

R16285 EXB38V623J M 62 kOHM 1/16 W 1

R16289 D0GF334JA047 M 330KOHMJ,1/3W 1

R16290 D0GF334JA047 M 330KOHMJ,1/3W 1

R16307 D1BD5232A077 M52.3KOHM,D.1/10W 1 PAVCTH

R16309 ERG2FJS473D M 47KOHM, J, 2W 1

R16310 ERG2FJS473D M 47KOHM, J, 2W 1

R16311 ERG2FJS473D M 47KOHM, J, 2W 1

R16317 D1BD5232A077 M52.3KOHM,D.1/10W 1 PAVCTH

R16318 D1BD4752A077 M47.5KOHM,D.1/10W 1 PAVCTH

R16319 D1BD2491A077 M 2.49KOHM,D.1/10W 1 PAVCTH

R16320 ERJ14YJ683 M 68KOHM, J. 1/4W 1

R16330 D0GB102JA065 M 1KOHM,J,1/10W 1

R16332 D0GB474JA065 M 470KOHM,J,1/10W 1

R16334 D0GB472JA065 M 4.7KOHM, J,1/10W 1

R16335 D0GB102JA065 M 1KOHM,J,1/10W 1

R16401 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16402 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16411 D1BD2700A044 M 270 OHM,J.1/8 W 1

R16412 D1BD2700A044 M 270 OHM,J.1/8 W 1

R16414 D0GB103JA065 M 10K OHM J 1/10W 1

Part No. Part Name & Description Q'ty Remarks

Page 98

Model No. : TH-P42U30A/Z Parts List

S-57

Safety

Ref.

No.

R16416 D0GB103JA065 M 10K OHM J 1/10W 1

R16421 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16422 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1

R16441 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1

R16451 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1

R16466 D0GF473JA048 M 47KOHM,J,1/3W 1 PAVCTH

R16467 D0GF473JA048 M 47KOHM,J,1/3W 1 PAVCTH

R16471 D0GB392JA065 M 3.9KOHM,J,1/10W 1 PAVCTH

R16472 D0GB222JA065 M 2.2KOHM,J,1/10W 1

R16473 D0GD561JA052 M 560 OHM,J,1/4W 1 PAVCTH

R16474 D0GB102JA065 M 1KOHM,J,1/10W 1

R16475 D0GB472JA065 M 4.7KOHM, J,1/10W 1

R16476 D0GB222JA065 M 2.2KOHM,J,1/10W 1

R16479 D0GD103JA052 M 10KOHM,J,1/8W 1 PAVCTH

R16490 D1BD1203A077 M 120KOHM,D.1/10W 1 PAVCTH

R16491 D1BD1203A077 M 120KOHM,D.1/10W 1 PAVCTH

R16492 D1BD1203A077 M 120KOHM,D.1/10W 1 PAVCTH

R16493 D1BD5111A077 M5.11KOHM.J.1/8 W 1 PAVCTH

R16494 D1BB2001A055 M 2KOHM,J.1/10W 1

R16497 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R16498 D0GB103JA065 M 10K OHM J 1/10W 1

R16501 D0GB220JA065 M 22 OHM J 1/10W 1 PAVCTH

R16503 D0GD100JA059 M 10 OHM,J,1/4W 1

R16505 D0GF102JA048 M 1.0 KOHM,J,1/3W 1 PAVCTH

R16506 D0GD100JA059 M 10 OHM,J,1/4W 1

R16507 D0GB220JA065 M 22 OHM J 1/10W 1 PAVCTH

R16508 D0GB220JA065 M 22 OHM J 1/10W 1 PAVCTH

R16512 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R16515 D0D52R2KA005 M 2.2 OHM,J,5W 1 PAVCTH

R16517 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R16522 D0GB101JA065 M 100 OHM,J,1/10W 1

R16525 D0GB4R7JA065 M 4.7 OHM J 1/10W 1 PAVCTH

R16526 D0GB4R7JA065 M 4.7 OHM J 1/10W 1 PAVCTH

R16531 D0GD100JA059 M 10 OHM,J,1/4W 1

R16532 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R16534 D0GF561JA047 M 560 OHM,J, 1/3W 1 PAVCTH

R16536 D0GF1R0JA047 M 1 OHM,J,1/3W 1

R16537 D0GF1R0JA047 M 1 OHM,J,1/3W 1

R16551 D0GD100JA059 M 10 OHM,J,1/4W 1

R16552 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R16561 EXB38V470J M 47 OHM 1/16 W 1

R16562 EXB38V470J M 47 OHM 1/16 W 1

R16563 EXB38V470J M 47 OHM 1/16 W 1

R16564 EXB38V470J M 47 OHM 1/16 W 1

R16565 EXB38V472JV M 4.7 kOHM 1/16 W 1

R16566 EXB38V472JV M 4.7 kOHM 1/16 W 1

R16567 EXB38V472JV M 4.7 kOHM 1/16 W 1

R16568 EXB38V472JV M 4.7 kOHM 1/16 W 1

R16570 EXB38V472JV M 4.7 kOHM 1/16 W 1

R16573 D0GB103JA065 M 10K OHM J 1/10W 1

R16574 D0GB103JA065 M 10K OHM J 1/10W 1

R16575 D0GB751JA065 M750 OHM J 1/10W 1 PAVCTH

R16576 D0GB101JA065 M 100 OHM,J,1/10W 1

R16579 EXB38V470J M 47 OHM 1/16 W 1

R16581 D0GB103JA065 M 10K OHM J 1/10W 1

R16582 D0GF563JA048 M 56 KOHM,J,1/3W 1 PAVCTH

R16583 D1BD1003A044 M 100KOHM,J.1/8 W 1

R16584 D1BD4422A044 M44.2KOHM,F.1/8W 1 PAVCTH

R16585 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R16587 D0GB222JA065 M 2.2KOHM,J,1/10W 1

R16588 D0GB223JA065 M 22KOHM,J,1/10W 1 PAVCTH

R16590 D0GB221JA065 M 220 OHM J 1/10W 1

Part No. Part Name & Description Q'ty Remarks

Page 99

Model No. : TH-P42U30A/Z Parts List

S-58

Safety

Ref.

No.

R16591 EXB38V472JV M 4.7 kOHM 1/16 W 1

R16594 D0GB472JA065 M 4.7KOHM, J,1/10W 1

R16601 D0GF1R0JA047 M 1 OHM,J,1/3W 1

R16604 D0GD331JA052 M 330 OHM,J,1/4W 1 PAVCTH

R16605 D0GD220JA059 M 22 OHM,J,1/4W 1 PAVCTH

R16606 D0GD223JA052 M 22KOHM,J,1/4W 1 PAVCTH

R16607 D1BB5111A055 M5.11KOHM,J.1/10W 1

R16608 ERG2FJS153D M 15KOHM, J, 2W 1

R16609 D0GF102JA047 M 1.0 KOHM,J,1/3W 1

R16610 D0GB104JA065 M 100KOHM J 1/10W 1

R16612 D0GD220JA059 M 22 OHM,J,1/4W 1 PAVCTH

R16615 D1BB1871A055 M1.87KOHM, 1/10W 1 PAVCTH

R16617 D0GD222JA052 M 2.2KOHM,J,1/8W 1 PAVCTH

R16621 D0GD221JA052 M 220 OHM,J 1/4W 1 PAVCTH

R16622 D0GD221JA052 M 220 OHM,J 1/4W 1 PAVCTH

R16631 D0GB103JA065 M 10K OHM J 1/10W 1

R16633 D0GD223JA052 M 22KOHM,J,1/4W 1 PAVCTH

R16634 D0GD222JA052 M 2.2KOHM,J,1/8W 1 PAVCTH

R16645 D0GB562JA065 M 5.6KOHM,J,1/10W 1 PAVCTH

R16646 D1BD8660A044 M 866 OHM,F.1/8W 1 PAVCTH

R16648 D0GF102JA047 M 1.0 KOHM,J,1/3W 1

R16649 D0GD330JA059 M 33 OHM,F,1/4W 1

R16650 D0GB104JA065 M 100KOHM J 1/10W 1

R16653 D0GD222JA052 M 2.2KOHM,J,1/8W 1 PAVCTH

R16654 D0GD470JA052 M 47 OHM,J,1/8W 1 PAVCTH

R16658 D1BD6491A077 M6.49KOHM,D.1/10W 1 PAVCTH

R16661 D0GD100JA059 M 10 OHM,J,1/4W 1

R16662 D1BB1002A087 M 10KOHM,J.1/10W 1

R16663 D1BD9091A077 M 9.09KOHM,D.1/10W 1 PAVCTH

R16664 D0GF102JA047 M 1.0 KOHM,J,1/3W 1

R16665 D0GD222JA052 M 2.2KOHM,J,1/8W 1 PAVCTH

R16666 D1BB1003A087 M100KOHM,D 1/10W 1 PAVCTH

R16668 D0GF102JA047 M 1.0 KOHM,J,1/3W 1

R16675 D0GB103JA065 M 10K OHM J 1/10W 1

R16676 D1BD2700A044 M 270 OHM,J.1/8 W 1

R16678 D0GF102JA047 M 1.0 KOHM,J,1/3W 1

R16681 D0GD100JA059 M 10 OHM,J,1/4W 1

R16682 D0GD100JA059 M 10 OHM,J,1/4W 1

R16684 D0GB220JA065 M 22 OHM J 1/10W 1 PAVCTH

R16685 D1BD1500A044 M 150 OHM,J.1/8 W 1

R16686 D0GB103JA065 M 10K OHM J 1/10W 1

R16761 D0GD100JA059 M 10 OHM,J,1/4W 1

R16763 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R16772 D0GB472JA065 M 4.7KOHM, J,1/10W 1

R16773 D0GD102JA052 M 1.0KOHM,J,1/8W 1 PAVCTH

R16776 D0GD470JA052 M 47 OHM,J,1/8W 1 PAVCTH

R16786 D1BD5902A044 M 59KOHM,F.1/8W 1 PAVCTH

R16791 D0GB102JA065 M 1KOHM,J,1/10W 1

R16798 D0GB222JA065 M 2.2KOHM,J,1/10W 1

R16799 D0GB102JA065 M 1KOHM,J,1/10W 1

R16815 D0GB103JA065 M 10K OHM J 1/10W 1

R16818 D1BB3302A055 M 33KOHM,J.1/10W 1

R16819 D1BD1693A044 M 169KOHM,F.1/8W 1 PAVCTH

R16820 D1BD1693A044 M 169KOHM,F.1/8W 1 PAVCTH

R16822 D1BD8202A044 M 82KOHM,J.1/8 W 1

R16823 D1BD6192A044 M61.9KOHM,J.1/8 W 1

R16824 D1BD3742A044 M37.4KOHM,F.1/8W 1

R16825 D0GD154JA059 M 150KOHM,J,1/4W 1

R16826 D0GB103JA065 M 10K OHM J 1/10W 1

R16829 D0GB102JA065 M 1KOHM,J,1/10W 1

R16831 D1BD6812A077 M68.1KOHM,D.1/10W 1 PAVCTH

R16832 D1BD7152A077 M71.5K0OHM,D.1/10W 1 PAVCTH

Part No. Part Name & Description Q'ty Remarks

Page 100

Model No. : TH-P42U30A/Z Parts List

S-59

Safety

Ref.

No.

R16833 ERG1SJ683 M 68KOHM, J, 1W 1

R16834 ERG1SJ683 M 68KOHM, J, 1W 1

R16838 ERG2FJS104D M 100KOHM, J, 2W 1

R16841 D0GB472JA065 M 4.7KOHM, J,1/10W 1

R16842 D0GD102JA052 M 1.0KOHM,J,1/8W 1 PAVCTH

R16844 ERA6YEB242 M 2.4KOHM, B 1/10W 1

R16845 D1BD6982A077 M69.8KOHM,D.1/10W 1 PAVCTH

R16846 D1BD6042A077 M60.4KOHM,D.1/10W 1 PAVCTH

R16847 D1BD6492A077 M64.9KOHM,D.1/10W 1 PAVCTH

R16851 D0GB474JA065 M 470KOHM,J,1/10W 1

R16852 D0GB474JA065 M 470KOHM,J,1/10W 1

R16856 D0GB102JA065 M 1KOHM,J,1/10W 1

R16873 ERA6YEB242 M 2.4KOHM, B 1/10W 1

R16891 D1BF6982A058 M 69.8KOHM, 1/4W 1

R16892 D1BF8252A058 M82.50KOHM, 1/4W 1

R16893 D1BF8252A058 M82.50KOHM, 1/4W 1

R16894 D1BB3091A087 M3.09KOHM,D 1/16W 1 PAVCTH

R16895 D1BB9091A087 M9.09 KOHM,J.1/10W 1 PAVCTH

R16897 D1BB2262A055 M22.6KOHM F 1/10W 1 PAVCTH

R16898 D1BB1051A055 M1.05KOHM,J.1/10W 1

R16899 D1BB1372A055 M13.7KOHM, 1/10W 1 PAVCTH

R16900 D1BB3831A055 M3.83KOHM,D 1/16W 1 PAVCTH

R16902 D0GB6R2JA065 M 6.2 OHM J 1/10W 1 PAVCTH

R16919 D1BB1582A055 M15.8KOHM, 1/10W 1 PAVCTH

R16920 D0GB101JA065 M 100 OHM,J,1/10W 1

R16921 D1BB2152A055 M 21.5KOHM, 1/10W 1 PAVCTH

R16922 D1BB9531A055 M9.53KOHM,J.1/10W 1

R16923 D1BB5111A055 M5.11KOHM,J.1/10W 1

R16924 D1BB1152A055 M 11.5KOHM 1/10W 1 PAVCTH

R16931 D1BF2R70A021 M 2.7 OHM, 1/4W 1

R16932 D0GD223JA052 M 22KOHM,J,1/4W 1 PAVCTH

R16937 D0GB184JA065 M 180KOHM J 1/10W 1 PAVCTH

R16939 D0GD102JA052 M 1.0KOHM,J,1/8W 1 PAVCTH

R16940 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R16941 D0GB472JA065 M 4.7KOHM, J,1/10W 1

R16942 D0GB473JA065 M 47KOHM J. 1/10W 1 PAVCTH

R16945 D0GB471JA065 M 470 OHM,J,1/10W 1 PAVCTH

R17101 D1BB49R90002 M 49 OHM,J.1/10W 1

R17102 D1BB49R90002 M 49 OHM,J.1/10W 1

R17103 D1BB49R90002 M 49 OHM,J.1/10W 1

R17104 D1BB49R90002 M 49 OHM,J.1/10W 1

R17105 D1BB49R90002 M 49 OHM,J.1/10W 1

R17106 D1BB49R90002 M 49 OHM,J.1/10W 1

R17107 D1BB49R90002 M 49 OHM,J.1/10W 1

R17108 D1BB49R90002 M 49 OHM,J.1/10W 1

R17109 D0GZ1R0JA020 M 1 OHM, J,1/2W 1

R17111 D0GZ1R0JA020 M 1 OHM, J,1/2W 1

R17113 D0GZ1R0JA020 M 1 OHM, J,1/2W 1

R17115 D0GBR00J0004 M 0 OHM J 1/10W 1

R17116 D0GBR00J0004 M 0 OHM J 1/10W 1

R17117 D0GF102JA047 M 1.0 KOHM,J,1/3W 1

R17118 D0GB101JA065 M 100 OHM,J,1/10W 1

R17119 D0GB101JA065 M 100 OHM,J,1/10W 1

R17120 D0GB101JA065 M 100 OHM,J,1/10W 1

R17121 D0GB101JA065 M 100 OHM,J,1/10W 1

R17122 D0GZ1R0JA020 M 1 OHM, J,1/2W 1

R17124 D0GZ1R0JA020 M 1 OHM, J,1/2W 1

R17126 D0GB101JA065 M 100 OHM,J,1/10W 1

R17127 D0GB101JA065 M 100 OHM,J,1/10W 1

R17128 D0GB101JA065 M 100 OHM,J,1/10W 1

R17129 D0GB101JA065 M 100 OHM,J,1/10W 1

R17130 D0GZ1R0JA020 M 1 OHM, J,1/2W 1

Part No. Part Name & Description Q'ty Remarks
