ORDER NO.PAVCTH1203009CE

Plasma Television

Model No. TH-P42ST50H

GPF15D-A Chassis

Page 2

TABLE OF CONTENTS

PAG E

1 Safety Precautions -----------------------------------------------3

1.1. General Guidelines ----------------------------------------3

1.2. Touch-Current Check--------------------------------------3

2Warning--------------------------------------------------------------4

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices ----------4

2.2. About lead free solder (PbF) ----------------------------5

3 Service Navigation------------------------------------------------6

3.1. PCB Layout --------------------------------------------------6

3.2. Applicable signals ------------------------------------------7

4 Specifications ------------------------------------------------------8 5 Technical Descriptions---------------------------------------- 10

5.1. Specification of KEY for DTCP-IP, One-to- One, Widevine and Netflix ----------------------------- 10

5.2. USB HDD Recording ------------------------------------ 10

5.3. Panel-Type setting --------------------------------------- 10

6 Service Mode ----------------------------------------------------- 11

6.1. How to enter into Service Mode ---------------------- 11

6.2. Option - Mirror--------------------------------------------- 13

6.3. Service tool mode ---------------------------------------- 13

6.4. DRV Check - USB HDD Check----------------------- 14

6.5. Hotel mode------------------------------------------------- 14

6.6. Data Copy by SD Card --------------------------------- 15

7 Troubleshooting Guide---------------------------------------- 18

7.1. Check of the IIC bus lines------------------------------ 18

7.2. Power LED Blinking timing chart --------------------- 19

7.3. No Power--------------------------------------------------- 20

7.4. No Picture -------------------------------------------------- 21

7.5. Local screen failure -------------------------------------- 22

8 Disassembly and Assembly Instructions --------------- 23

8.1. Disassembly Flow Chart for the Unit ---------------- 23

8.2. Disassembly Procedure for the Unit----------------- 24

9 Measurements and Adjustments -------------------------- 30

9.1. Adjustment ------------------------------------------------- 30

10 Block Diagram --------------------------------------------------- 33

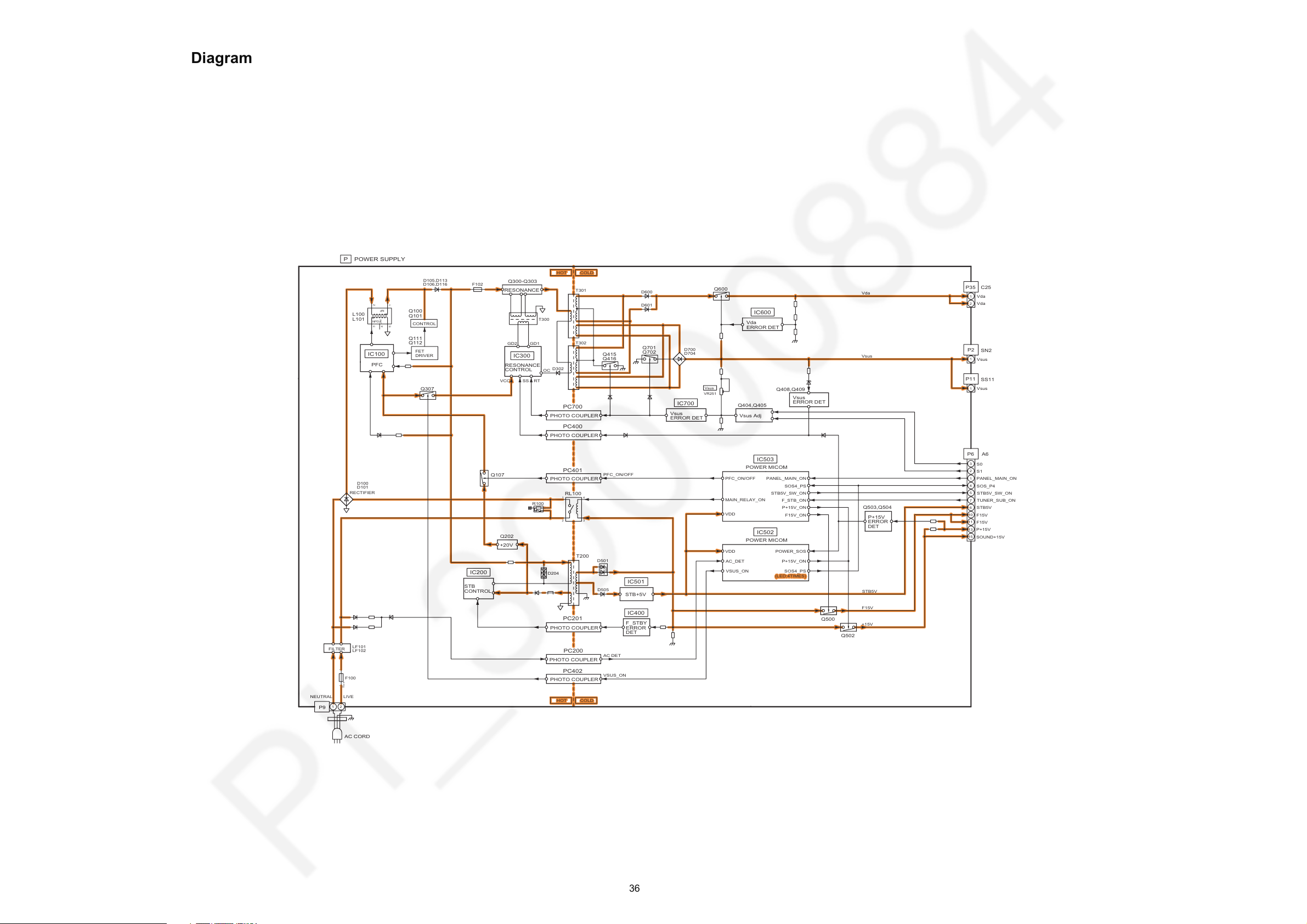

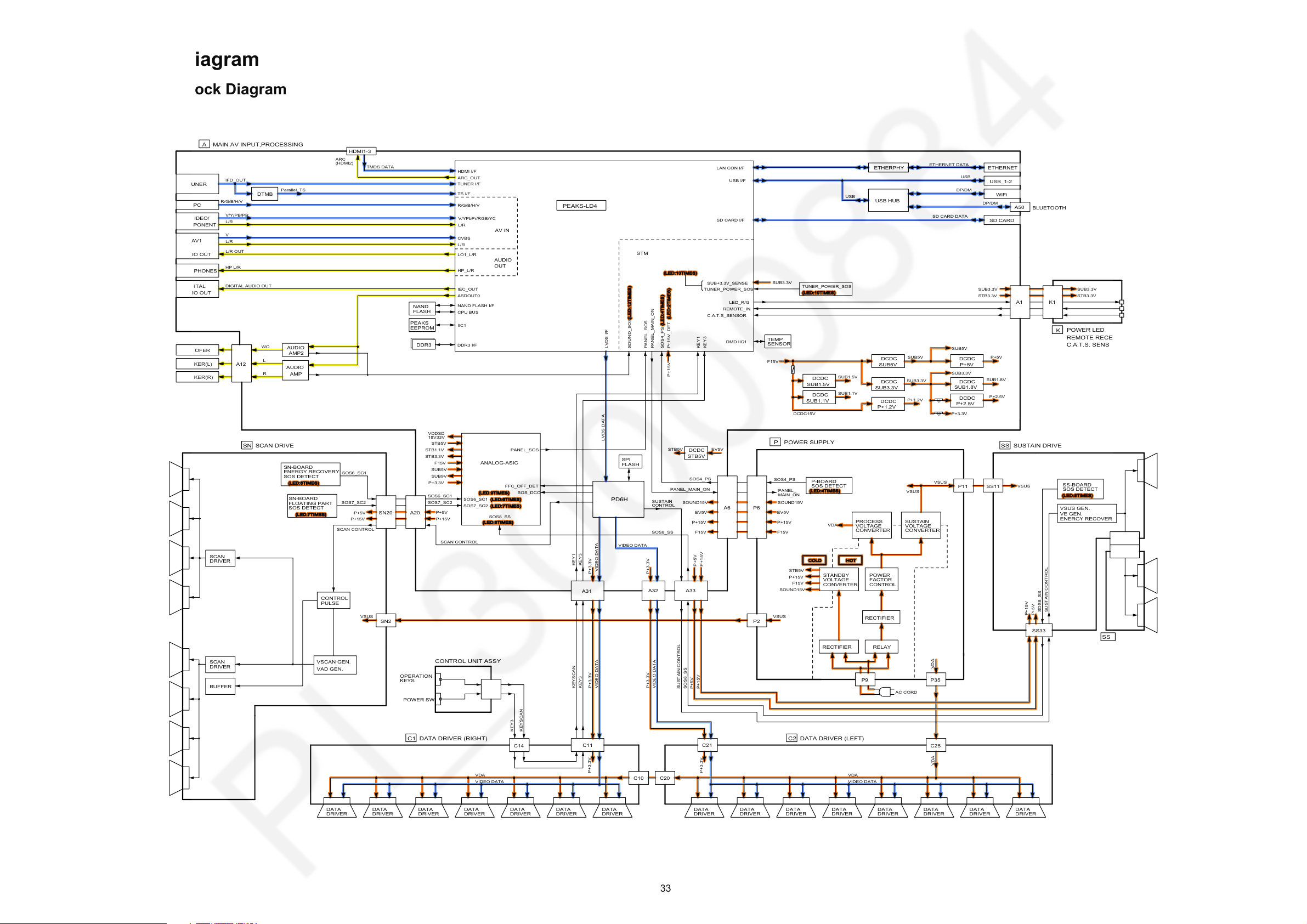

10.1. Main Block Diagram ------------------------------------- 33

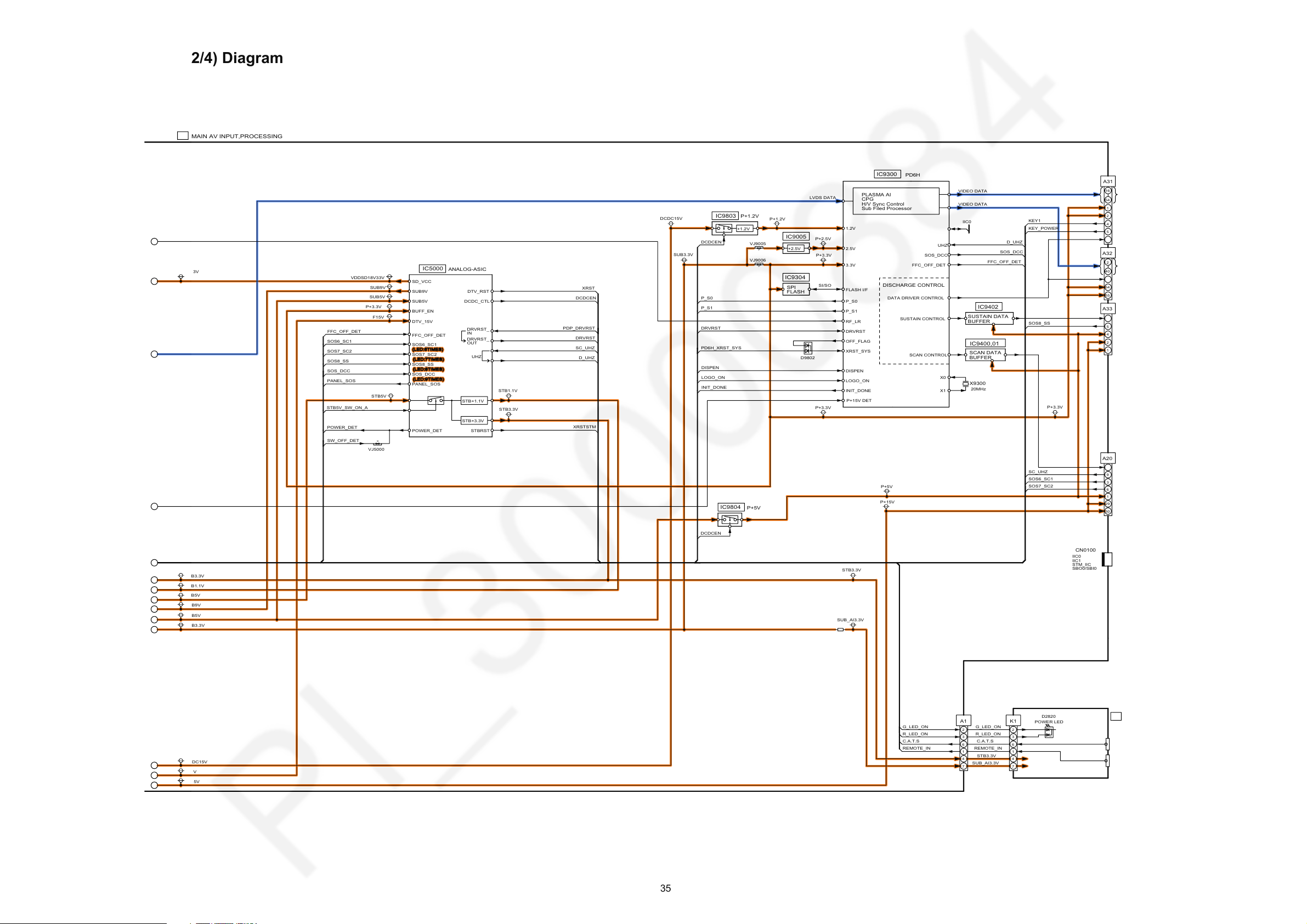

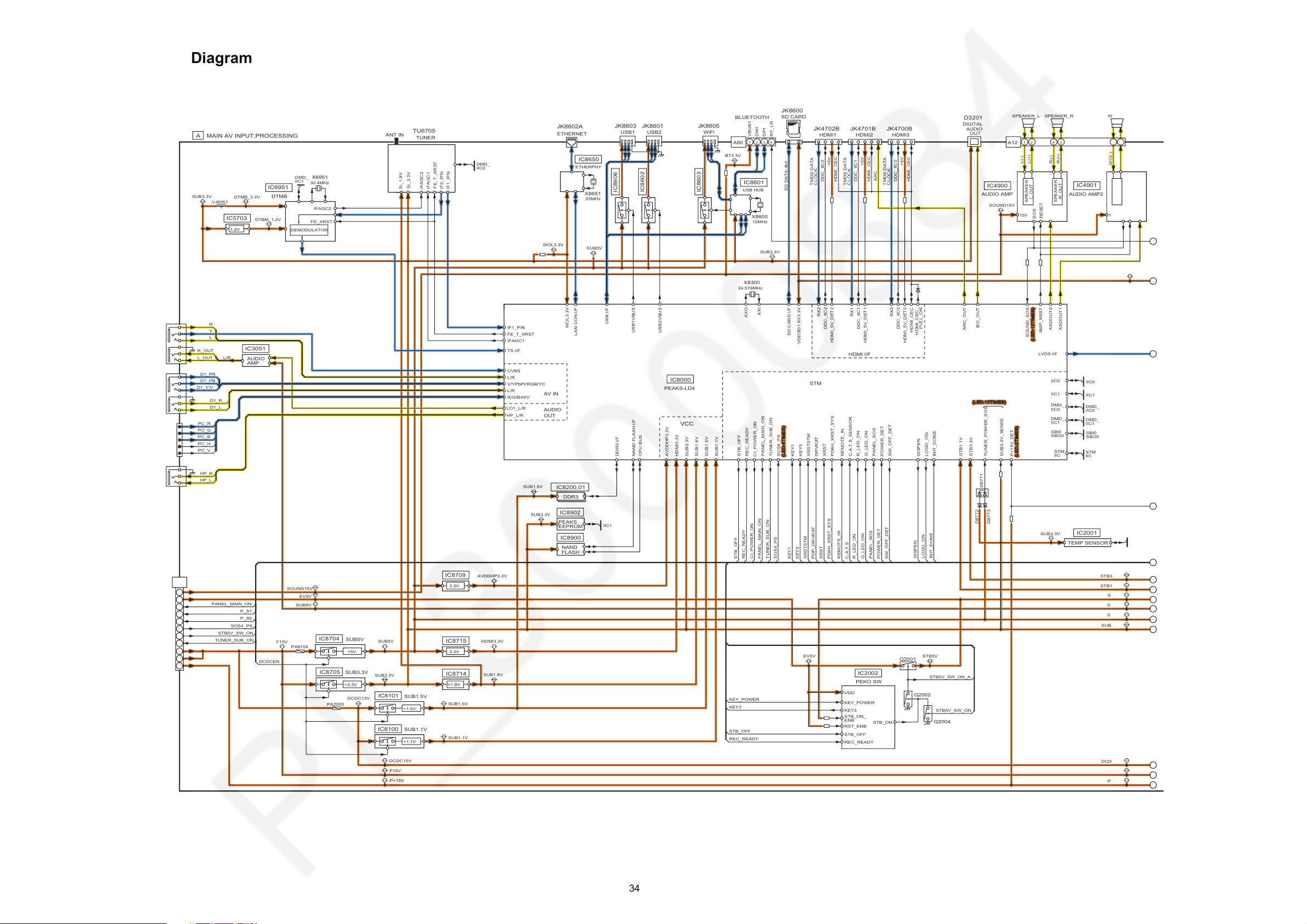

10.2. Block (1/4) Diagram ------------------------------------- 34

10.3. Block (2/4) Diagram ------------------------------------- 35

10.4. Block (3/4) Diagram ------------------------------------- 36

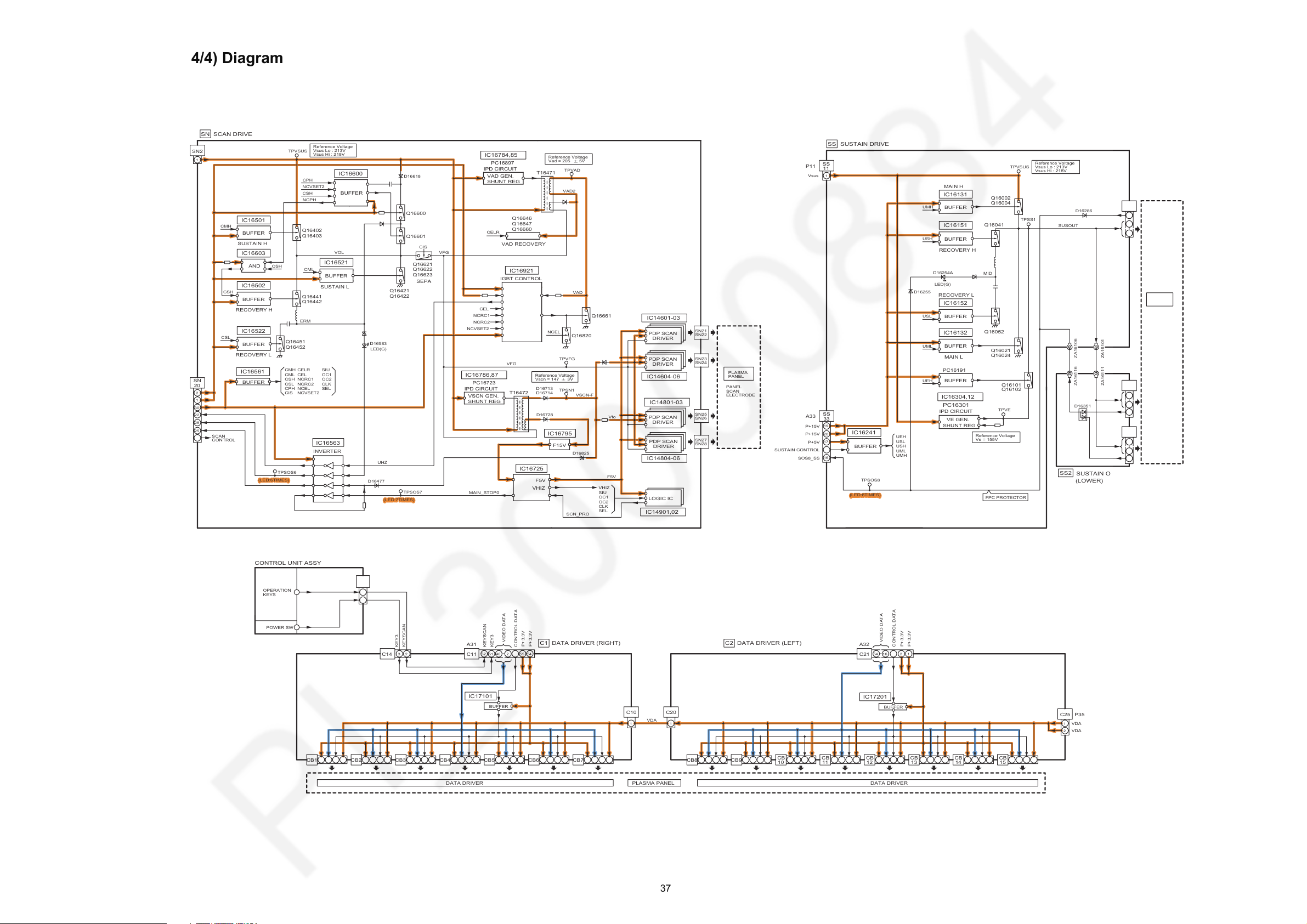

10.5. Block (4/4) Diagram ------------------------------------- 37

11 Wiring Connection Diagram --------------------------------- 39

11.1. Caution statement.--------------------------------------- 39

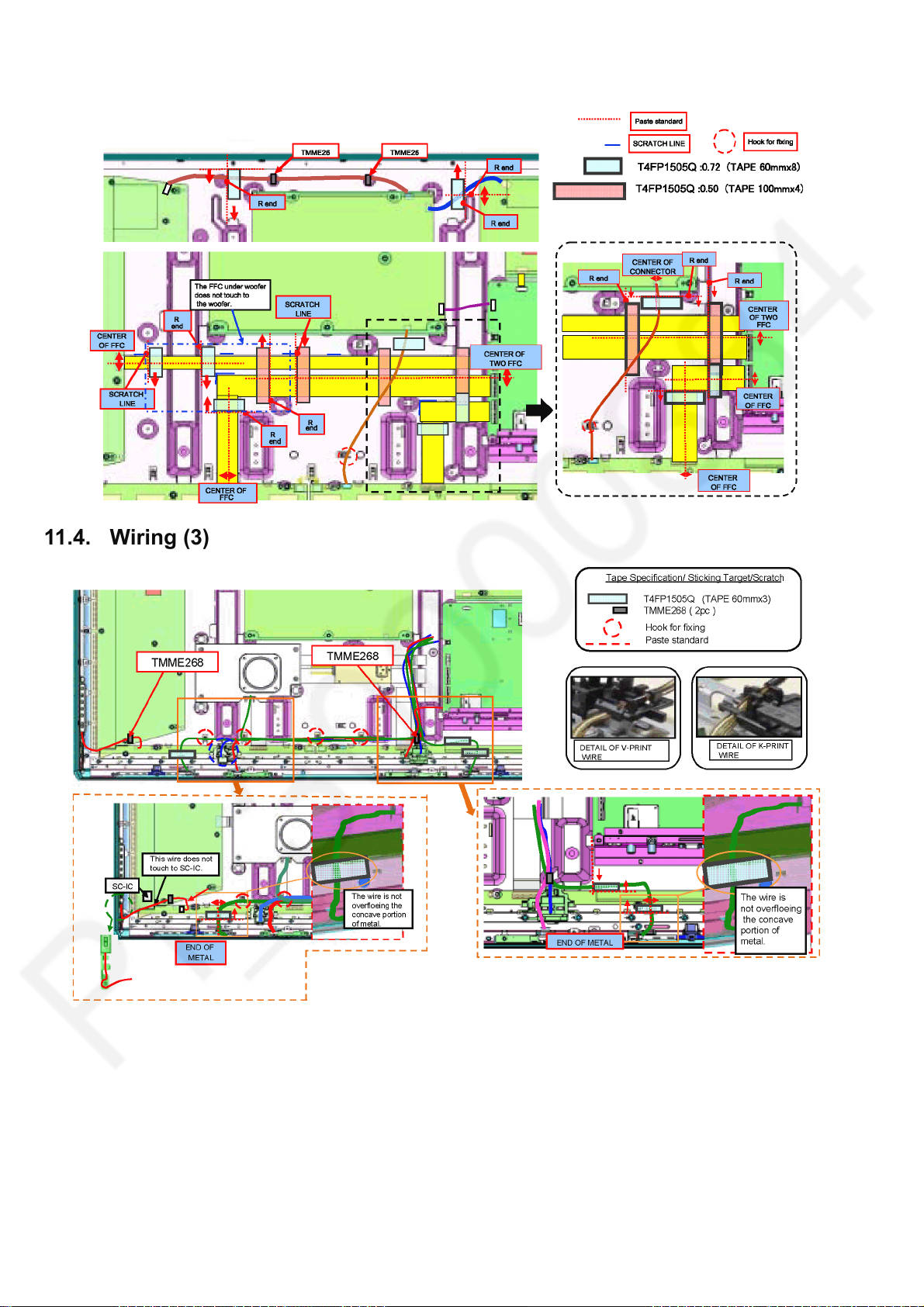

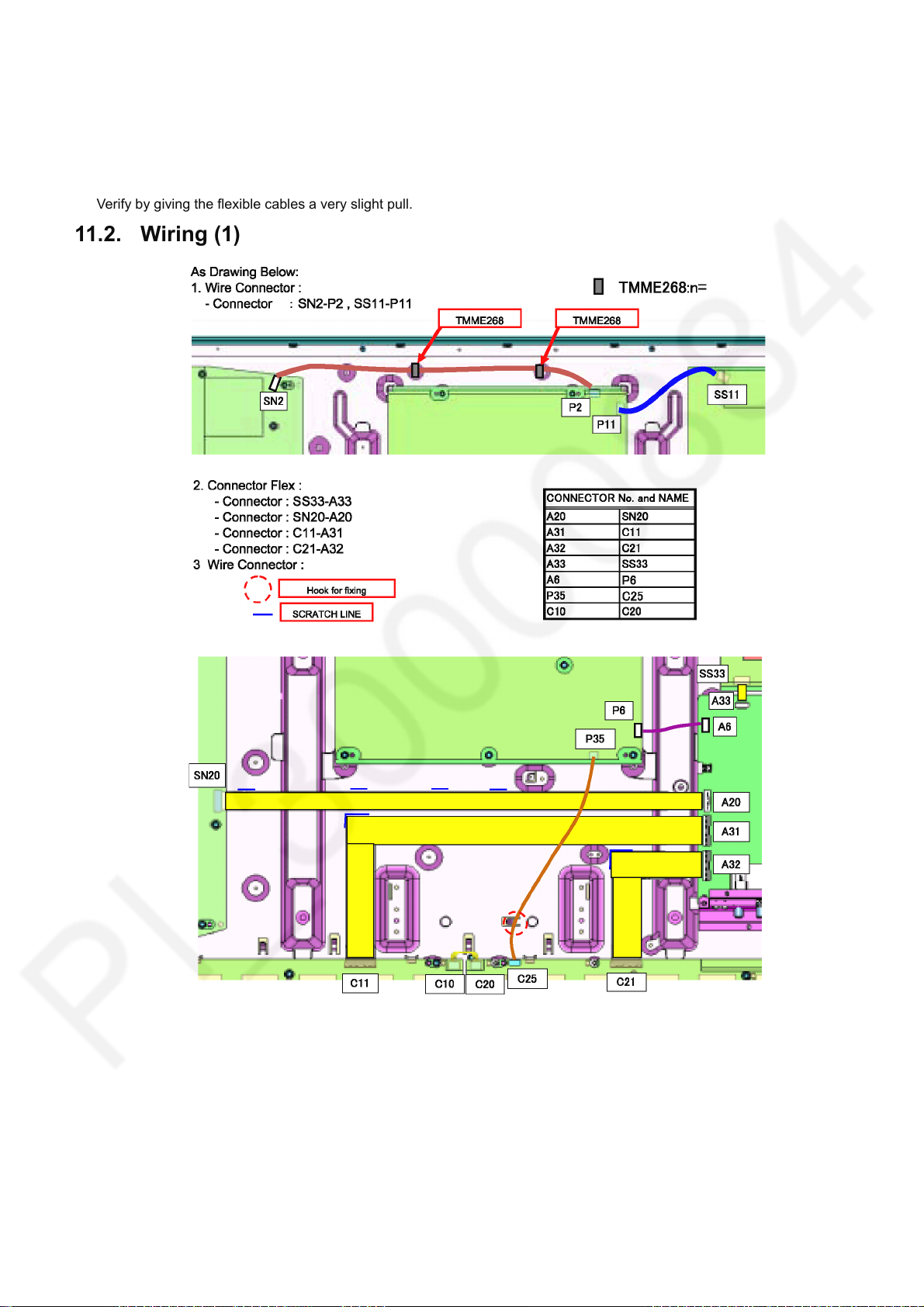

11.2. Wiring (1) --------------------------------------------------- 39

11.3. Wiring (2) --------------------------------------------------- 40

11.4. Wiring (3) --------------------------------------------------- 40

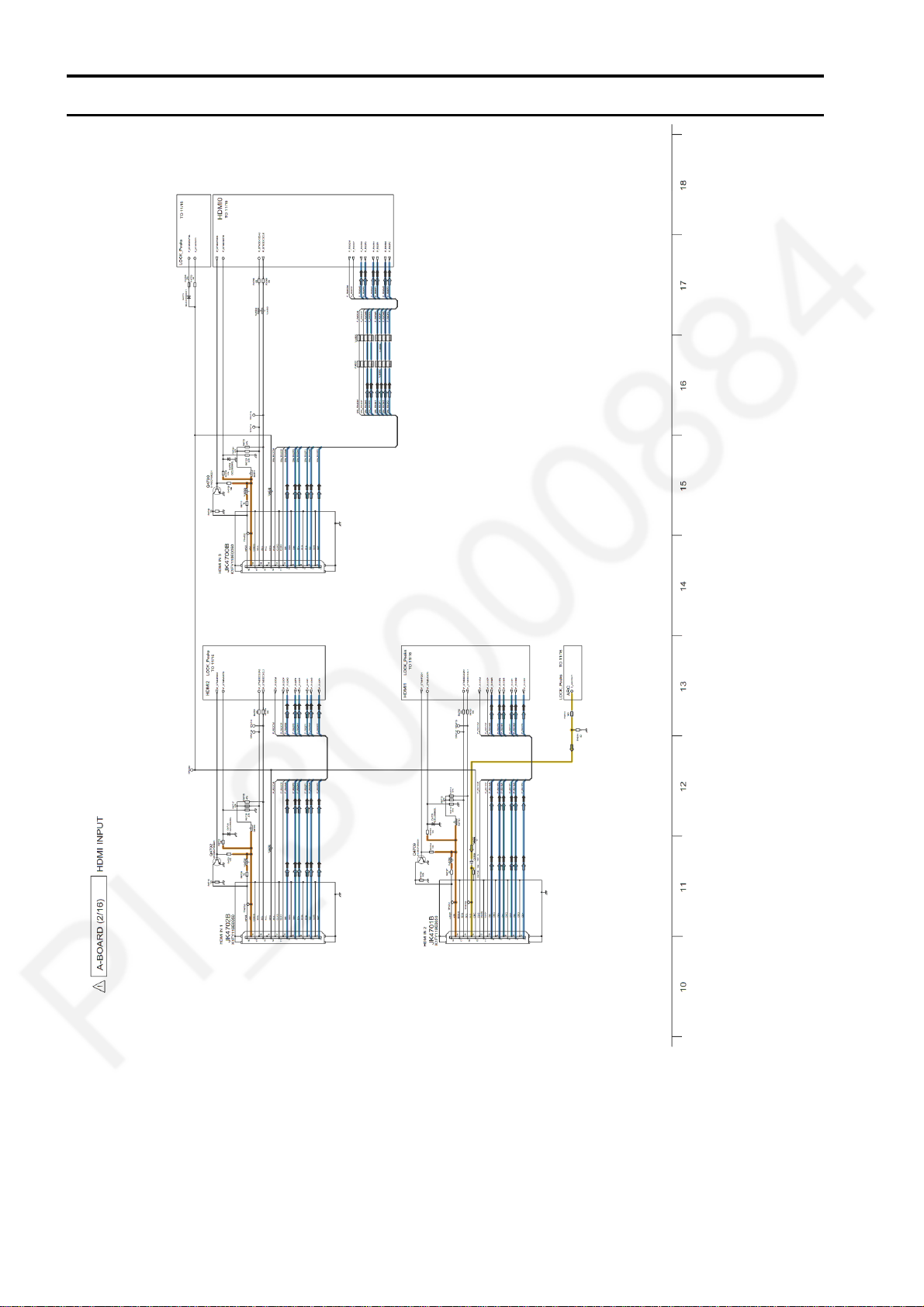

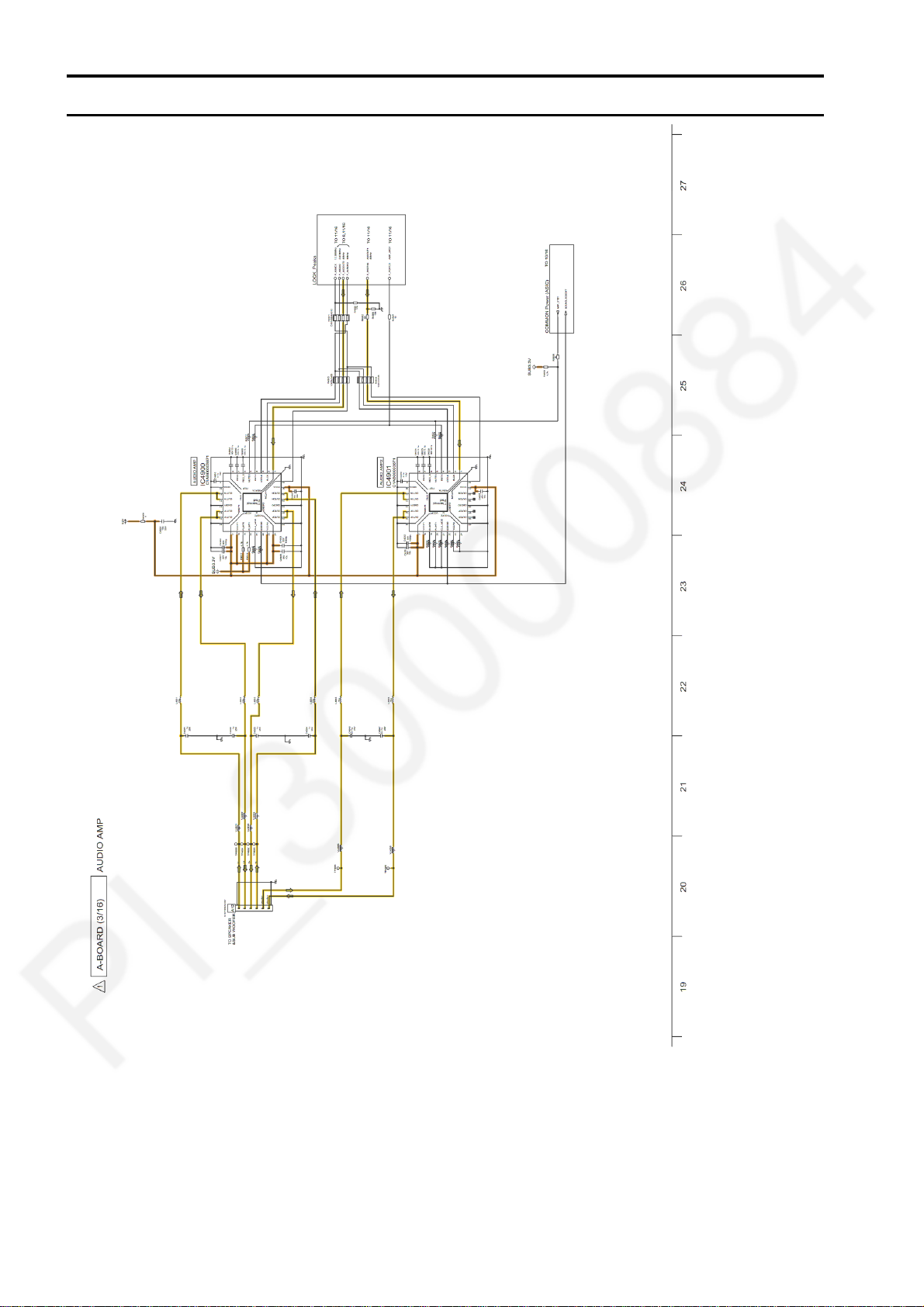

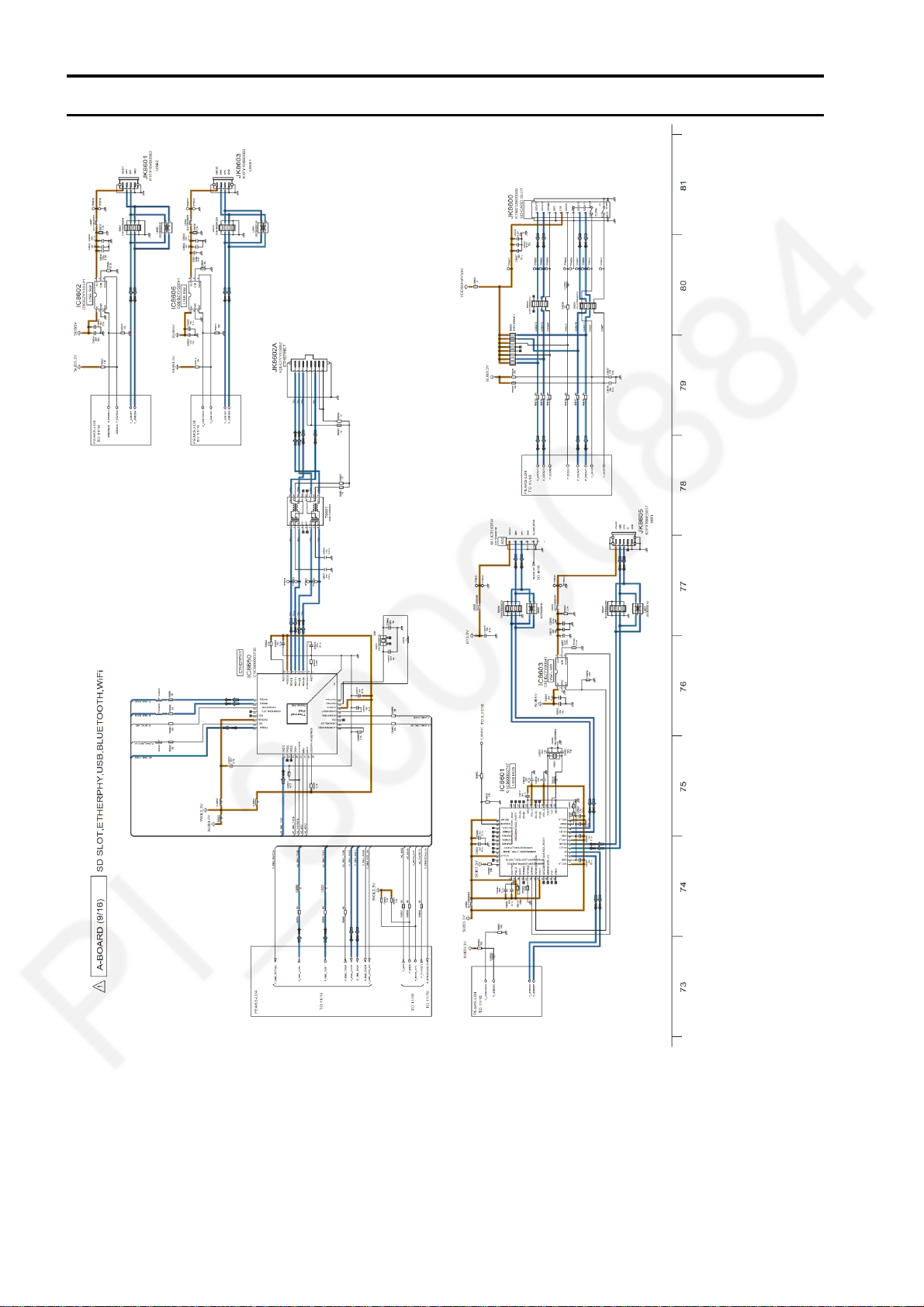

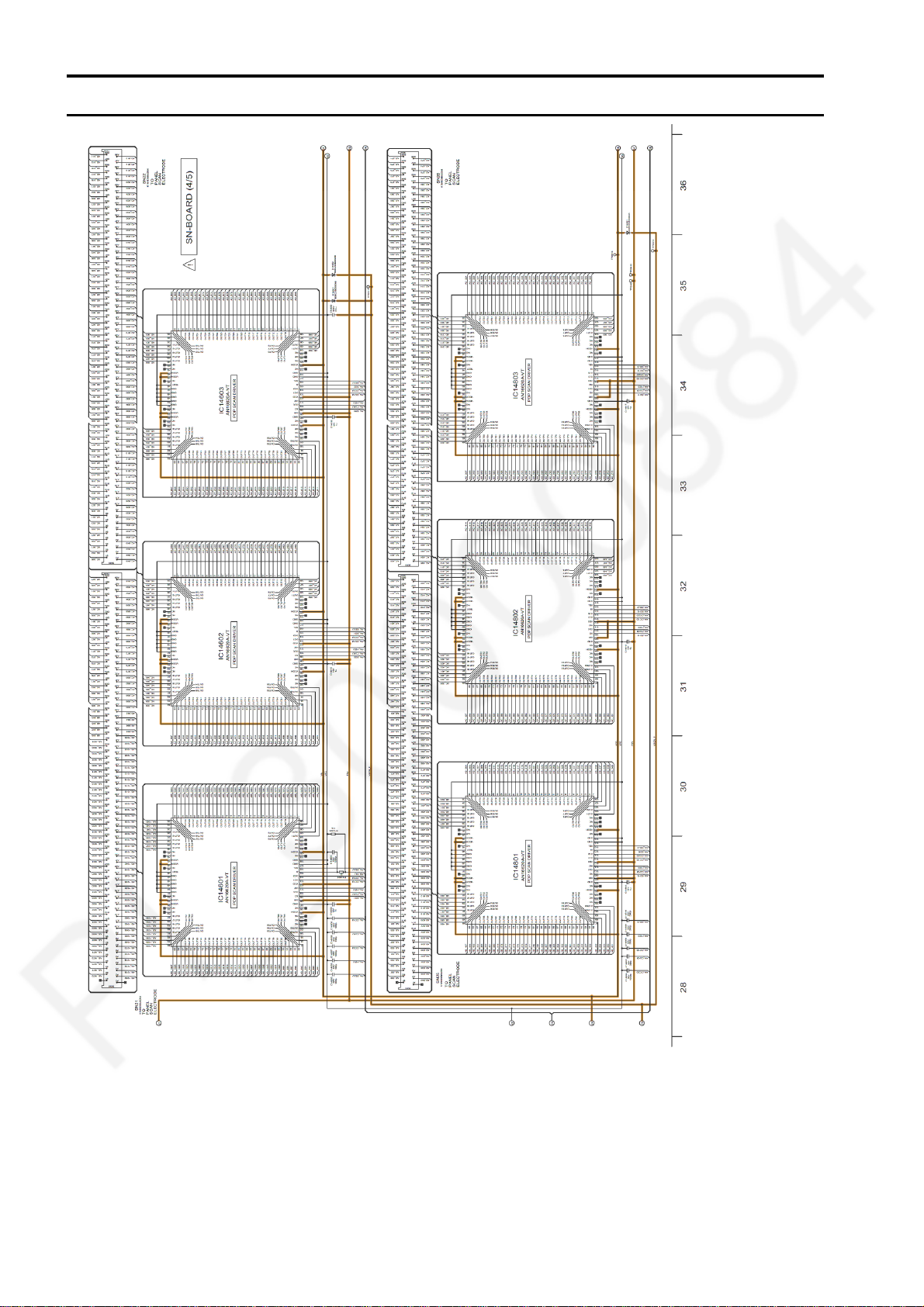

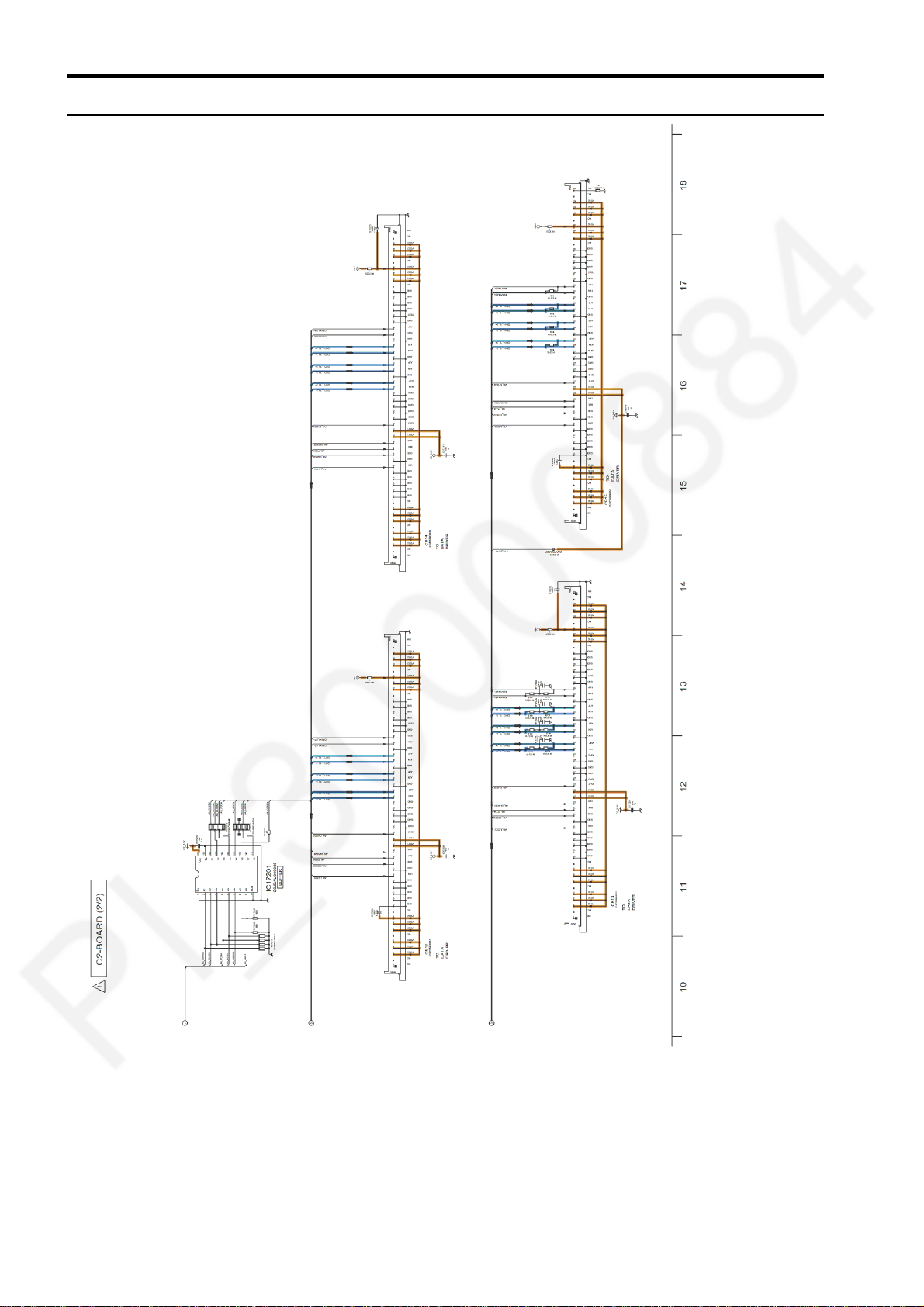

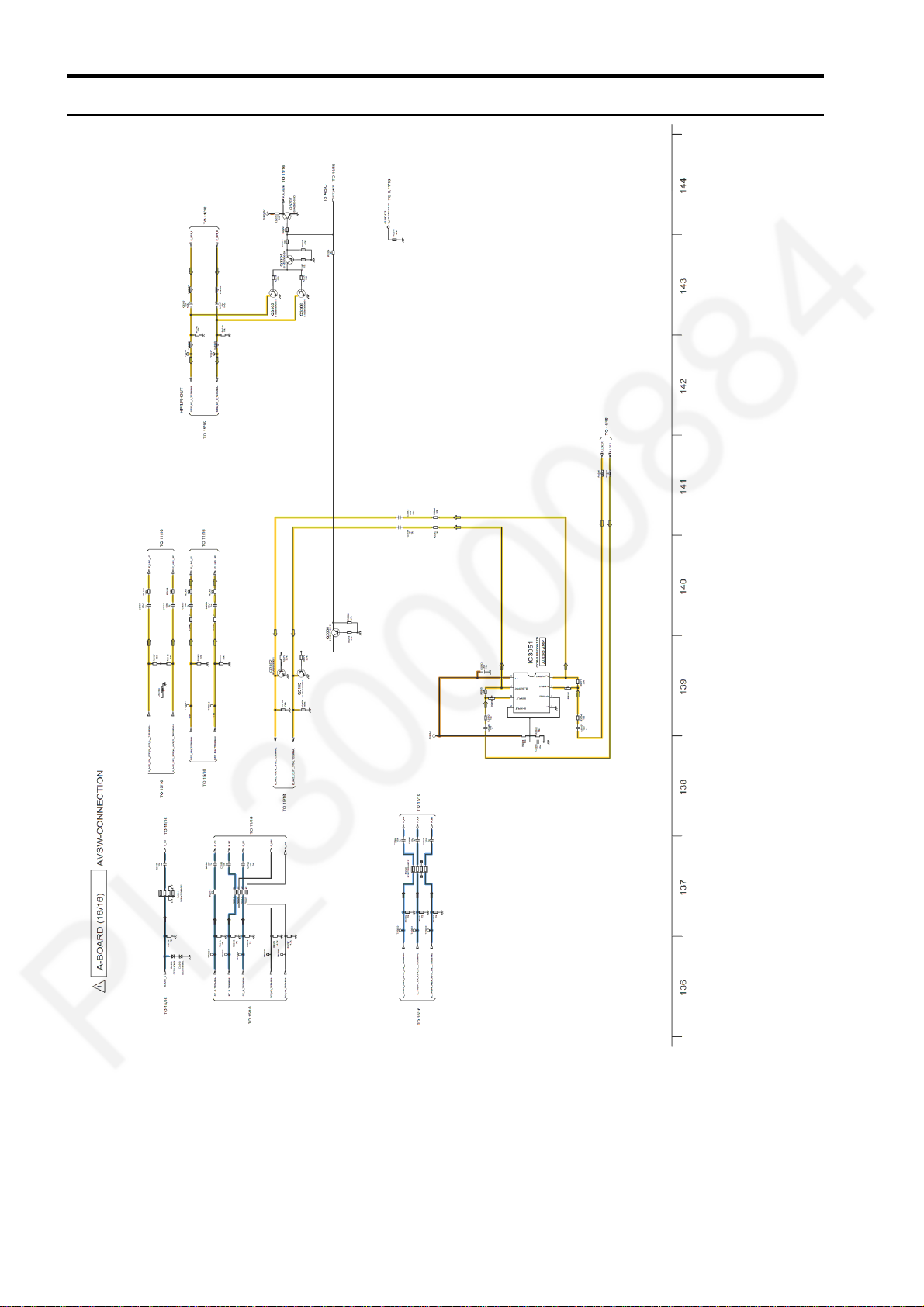

12 Schematic Diagram 13 Printed Circuit Board 14 Exploded View

Page 3

1 Safety Precautions

1.1. General Guidelines

1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.

2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.

3. When conducting repairs and servicing, do not twist the Fasten connectors but plug them straight in or unplug them straight out.

4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.2. Touch-Current Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1.

3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reserve the AC plug in the AC outlet and repeat each of the above measure.

6. The potential at any point (TOUCH CURRENT) expressed as voltage U

For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);

For d. c.: U

Note:

The limit value of U

mA d. c. The limit value U

7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer.

= 1.0 V,

= 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0

= 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.

and U2, does not exceed the following values:

Figure 1

Page 4

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

Page 5

2.2. About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it's manufacture due to environmental conservation issues. For service and repair work, we'd suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C). If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

Page 6

3 Service Navigation

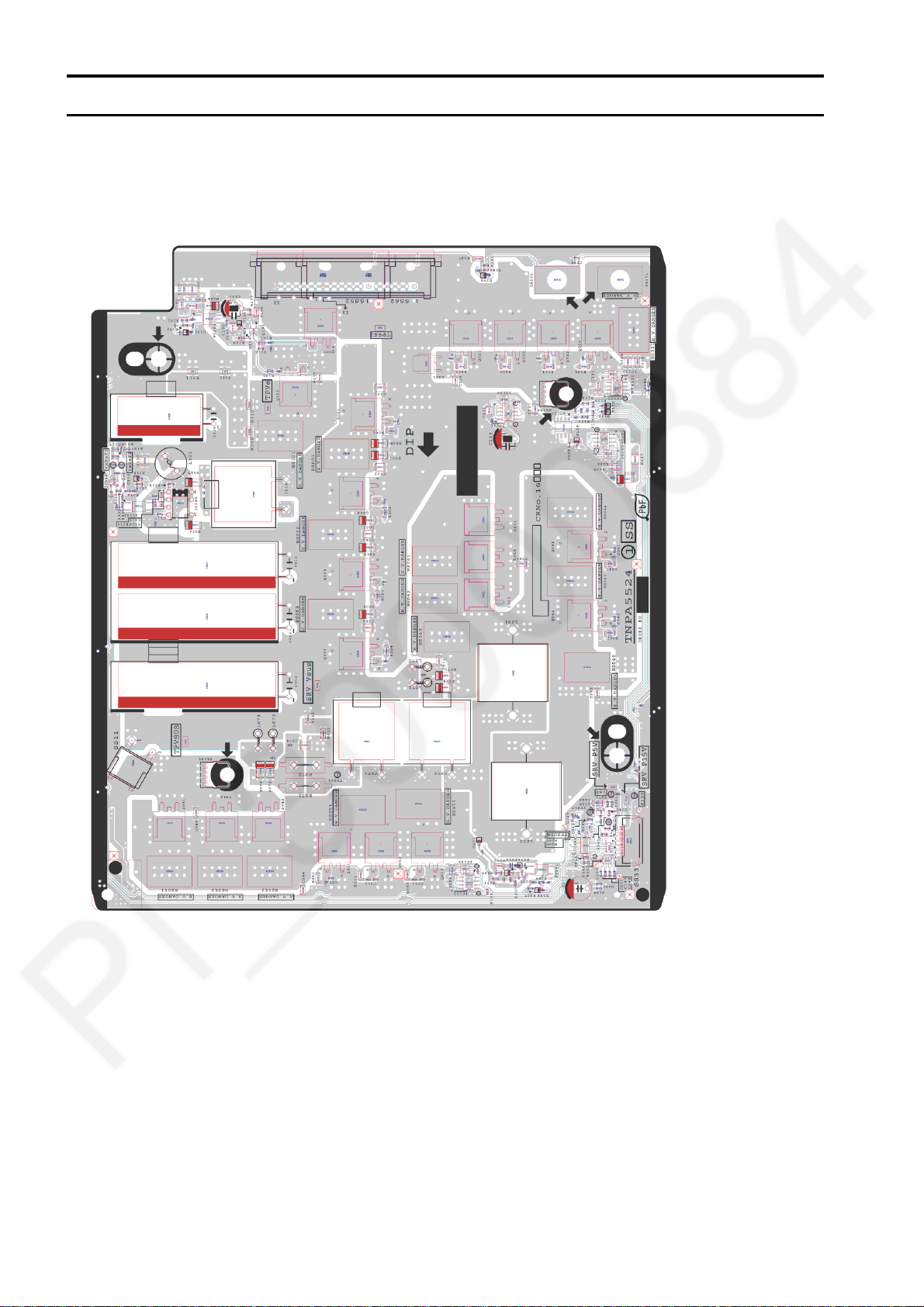

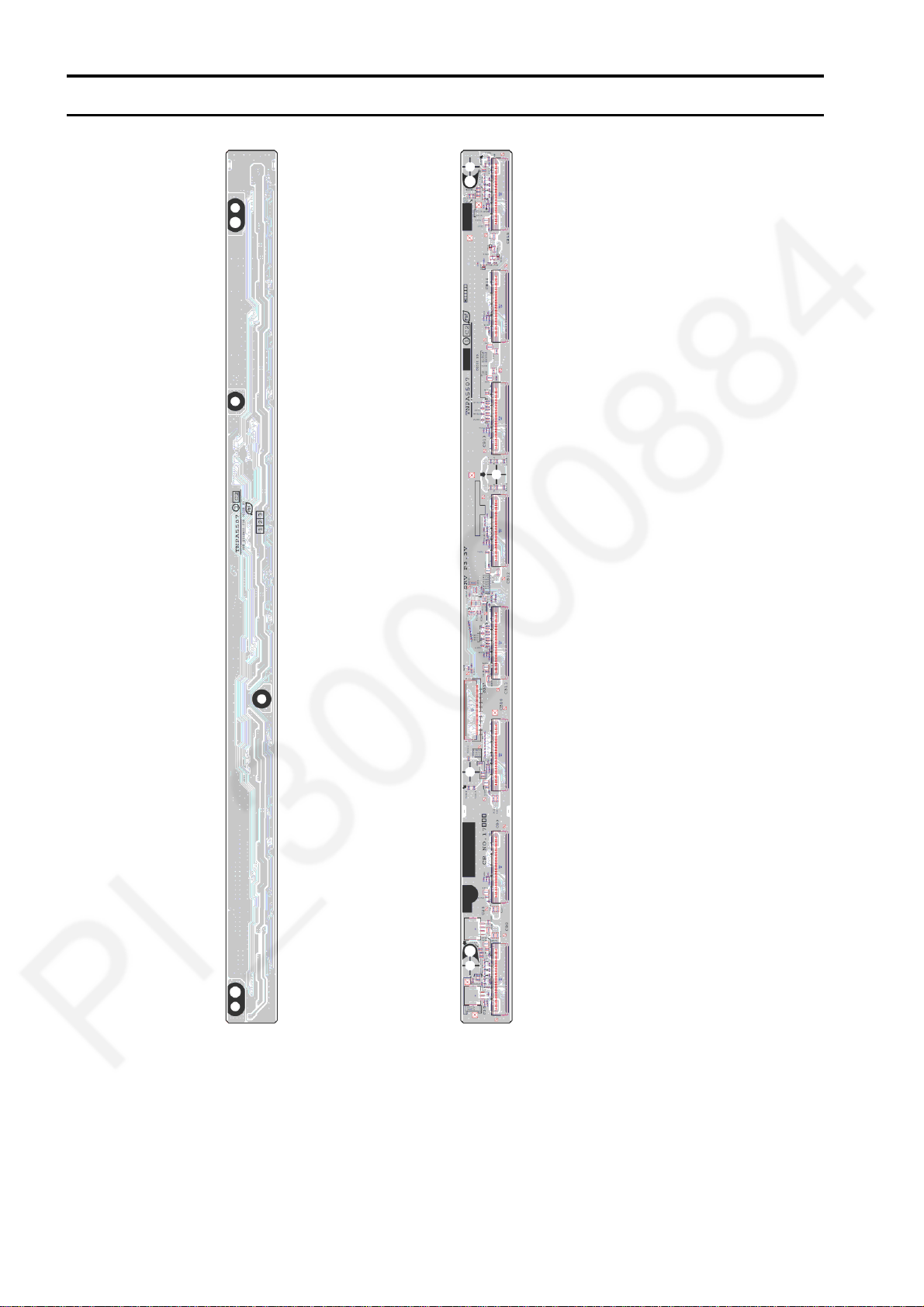

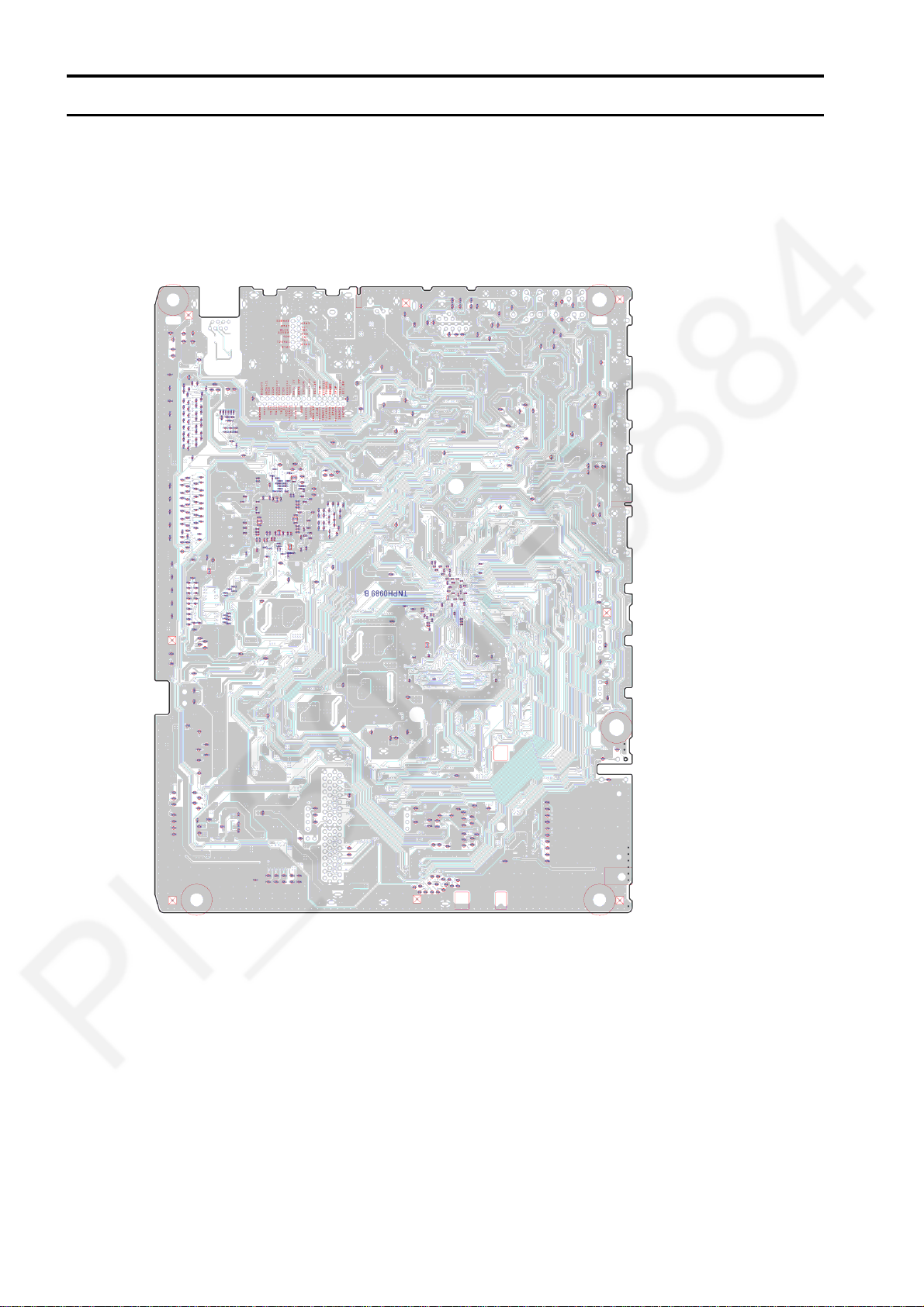

3.1. PCB Layout

Board Name Function

P Power Supply A Main AV input, processing

K Remote receiver, Power LED, C.A.T.S. sensor C1 Data Driver (Lower Right) C2 Data Driver (Lower Left) SN Scan Drive SS Sustain Drive

SS2 Sustain out (Lower)

Page 7

3.2. Applicable signals

Q COMPONENT (Y, PB, PR) (from AV2 terminal), HDMI

Signal name COMPONENT HDMI 525 (480) / 60i, 60p * * 625 (576) / 50i, 50p * * 750 (720) / 60p, 50p * * 1,125 (1,080) / 60i, 50i * * 1,125 (1,080) / 60p, 50p, 24p *

* Mark: Applicable input signal

Q PC (from D-sub 15P)

Signal name Horizontal frequency (kHz) Vertical frequency (Hz) 640 × 480 @60 Hz 31.47 59.94 800 × 600 @60 Hz 37.88 60.32 852 × 480 @60 Hz 31.44 59.89 1,024 × 768 @60 Hz 48.36 60.00 1,280 × 1,024 @60 Hz 63.98 60.02 1,280 × 768 @60 Hz 47.70 60.00 1,366 × 768 @60 Hz 48.39 60.04

Applicable input signal for PC is basically compatible to VESA standard timing.

Q PC (from HDMI terminal)

Signal name Horizontal frequency (kHz) Vertical frequency (Hz) 640 × 480 @60 Hz 31.47 60.00 1,280 × 720 @60 Hz 45.00 60.00 1,920 × 1,080 @60 Hz 67.50 60.00

Applicable input signal for PC is basically compatible to HDMI standard timing.

Note

• Signals other than above may not be displayed properly.

• The above signals are reformatted for optimal viewing on your display.

• PC signal is magnified or compressed for display, so that it may not show fine detail with sufficient clarity.

Page 8

4 Specifications

Power Source AC 220 - 240 V, 50 / 60 Hz Power Consumption

Power Rating 300 W Home Mode 107 W (based on IEC 62087 Ed.2 measurement method) Standby condition 0.4 W

Display panel

Panel system Plasma panel Visible screen size (diagonal) 107 cm / 42 inches Number of pixels 2,073,600 (1,920 (W) × 1,080 (H)), [5,760 × 1,080 dots]

Dimensions (W × H × D) 1,003 mm × 656 mm × 320 mm (With Pedestal)

1,003 mm × 609 mm × 50 mm (TV only)

Mass 20.5 kg Net (With Pedestal)

17.5 kg Net (TV only)

Sound

Speaker

Audio output 18 W (4 W + 4 W + 10 W) Headphones M3 (3.5 mm) stereo mini Jack × 1

Receiving systems / Band name (Analogue TV)

Front speaker (8 train speakers) × 2, Woofer ( 80 mm) × 1

Receiving Channels

VHF BAND

2-12 (PAL/SECAM B, K1) 0-12 (PAL B AUST.) 1-9 (PAL B N.Z.) 1-12 (PAL/SECAM D) 1-12 (NTSC M Japan) 2-13 (NTSC M USA)

UHF BAND

21-69 (PAL G, H, I/SECAM G, K, K1) 28-69 (PAL B AUST.) 13-57 (PAL D, K) 13-62 (NTSC M Japan) 14-69 (NTSC M USA)

CATV

S1-S20 (OSCAR) 1-125 (USA CATV) C13-C49 (JAPAN) S21-S41 (HYPER) Z1-Z37 (CHINA) 5A, 9A (AUST.)

Aerial - Rear VHF/UHF Operating Conditions

Temperature: 0 °C - 40 °C Humidity: 20 % - 80 % RH (non-condensing)

Connection terminals

AV1 I N

AUDIO L - R RCA PIN Type × 2 0.5 V [rms] VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

AUDIO OUT

AUDIO L - R RCA PIN Type × 2 0.5 V [rms] (high impedance)

AV2 I N

AUDIO L - R RCA PIN Type × 2 0.5 V [rms] COMPONENT Y 1.0 V [p-p] (including synchronization)

, PR/C

B/CB

VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)

HDMI 1 / 2 / 3 input TYPE A Connectors

• This TV supports "HDAVI control 5" function.

PC HIGH-DENSITY D-SUB 15PIN

R,G, B: 0.7 V [p-p] (75 Ω) HD, VD: TTL Level 2.0 - 5.0 V [p-p] (high impedance)

• Applicable input signals: VGA, SVGA, WVGA, XGA

Card slot SD Card slot × 1

± 0.35 V [p-p]

SXGA, WXGA ...... (compressed)

Horizontal scanning frequency 31 - 69 kHz Vertical scanning frequency 59 - 86 Hz

Page 9

ETHERNET 10BASE-T / 100BASE-TX USB 1 / 2 USB 2.0 TYPE A Connectors DC 5 V, Max. 500 mA DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fibre optic

Built-in wireless LAN

Standard compliance and

Frequency range*

IEEE 802.11a/n

5.15 GHz - 5.35 GHz, 5.47 GHz - 5.85 GHz

IEEE 802.11b/g/n

2.40 GHz - 2.4835 GHz

Security WPA2-PSK (TKIP/AES) WPA-PSK (TKIP/AES) WEP (64 bit/128 bit)

Bluetooth wireless technology*

Standard Compliance Bluetooth 3.0 Frequency Range 2.402 GHz - 2.480 GHz

: The frequency and channel differ depending on the country.

: Not all the Bluetooth compatible devices are available with this TV.

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

• TH-P42ST50H complies with China Terrestrial Television National Standard (GB20600-2006) Mode-C=3780

Page 10

5 Technical Descriptions

5.1. Specification of KEY for DTCP-IP, One-to-One, Widevine and Netflix

5.1.1. General information:

1. EEPROM (IC8902) for spare parts has the seed of KEY for each.

2. The final KEY data will be generated by Peaks IC (IC8000) when SELF CHECK was done and are stored in both Peaks IC (IC8000) and EEPROM (IC8902). Four KEY are not generated for all models. The necessary KEY are only generated and stored depend on the feature of models.

5.1.2. Replacement of ICs:

When Peaks IC (IC8000) is replaced, EEPROM (IC8902) should be also replaced with new one the same time. When EEPROM (IC8902) is replaced, Peaks IC (IC8000) is not necessary to be replaced the same time. After the replacement of IC, SELF CHECK should be done to generate the final KEY data. How to SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds. TV will be forced to the factory shipment setting after this SELF CHECK.

5.1.3. Model and Keys:

Model No. Keys

One-to-One

(For USB Rec.)

TH-P42ST50H Yes None Yes None

DTCP-IP Widevine Netflix

5.2. USB HDD Recording

5.2.1. General information:

Digital TV programmes can be recorded in USB HDD. A One-to-One key generated in A-board by SELF CHECK binds TV and USB-HDD for communication. That key is only one key for them. If the key is difference, TV can not access USB-HDD.

Caution:

New key will be generated by following SELF CHECK and previous TV programmes recorded in USB HDD will not be viewed. SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds.

5.3. Panel-Type setting

Panel-Type setting is required after exchange the A-board. A-board for spare parts is common use for different inch size in same series. Go into Service Mode and confirm/select Panel-Type in OPTION to correct inch size.

Page 11

6 Service Mode

6.1. How to enter into Service Mode

6.1.1. Purpose

After exchange parts, check and adjust the contents of adjustment mode.

While pressing [VOLUME ( - )] button of the main unit, press [i] button of the remote control three times within 2 seconds.

Note:

Service Mode can not be entered when 3D signal input. Input 2D signal to enter Service Mode.

6.1.2. Key command

[1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction [RED] button...All Sub items Selection in reverse direction [GREEN] button...All Sub items Selection in forward direction [VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )

6.1.3. How to exit

Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

Page 12

6.1.4. Contents of adjustment mode

• Value is shown as a hexadecimal number.

• Preset value differs depending on models.

• After entering the adjustment mode, take note of the value in each item before starting adjustment.

Main item Sub item Sample Data Remark

ADJUST CONTRAST 255

COLOR 36 TINT 00 SUB-BRT 800 H-POS 0 H-AMP 0 V-POS 0 V-AMP 0

WB-ADJ R-CUT 80

G-CUT 80 B-CUT 80 R-DRV E6 G-DRV FF B-DRV AA ALL-CUT 80 ALL-DRV FF

OPTION Panel-Type 42FHD Factory Preset

Boot ROM STBY-SET 00 EMERGENCY ON CLK MODE 00 CLOCK 000 Y/C Delay 0 OPT 1 10110000 OPT 2 11100110 OPT 3 00001001 OPT 4 00000100 EDID-CLK MID MIRROR 00 (See Option-Mirror)

AMR-SELECT OFF VSUS LOW See Vsus selection AGING ALL WHITE Built-in test patterns can be

MIDDLE BLUE WITH MAGENTA OUTSIDE FRAME

MIDDLE STEP GREEN

MIDDLE STEP RED

LOW STEP WHITE

ALL BLUE

ALL GREEN

ALL RED

WHITE DIAGONAL STRIPE

RED DIAGONAL STRIPE

GREEN DIAGONAL STRIPE

BLUE DIAGONAL STRIPE

A-ZONE & B-ZONE

1% WINDOW

COLOR BAR

9 POINTS BRIGHT MEASURE

2 DOT OUTSIDE FRAME

DOUBLE FIXED 1% WINDOW

VERTICAL LINE SCROLL

ON/OFF

R/G/B/W ROTATION WITH COUNT DISPLAY

HALF FIXED ALL WHITE

ALL WHITE WITH COUNT DISPLAY SRV-TOOL 00 See Service tool mode DRV CHECK USBHDD CHECK 00 See DRV Check-USBHDD Check

displayed.

Page 13

6.2. Option - Mirror

Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down.

Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

6.3. Service tool mode

6.3.1. How to access

1. Select [SRV-TOOL] in Service Mode.

2. Press [OK] button on the remote control.

6.3.2. Display of SOS History

SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication will be cleared by [Self-check indication and forced to factory shipment setting].

6.3.3. POWER ON TIME/COUNT

Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3 sec. Time : Cumulative power on time, indicated hour : minute by decimal Count : Number of ON times by decimal Note : This indication will not be cleared by either of the self-checks or any other command.

6.3.4. Exit

1. Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.

Page 14

6.4. DRV Check - USB HDD Check

1. Select [DRV Check - USBHDD Check] in Service Mode.

2. Press [OK] button on the remote control for more than 3 seconds.

6.5. Hotel mode

1. Purpose Restrict a function for hotels.

2. Access command to the Hotel mode setup menu In order to display the Hotel mode setup menu: While pressing [VOLUME (-)] button of the main unit, press [AV] button of the remote control three times within 2 seconds.

Then, the Hotel mode setup menu is displayed.

3. To exit the Hotel mode setup menu Disconnect AC power cord from wall outlet.

4. Explain the Hotel mode setup menu

Item Function Hotel Mode Select hotel mode On/Off Initial INPUT Select input signal modes.

Set the input, when each time power is switched on. Selection : Off,Analogue TV,Digital TV,AV1,AV2,PC,HDMI1, HDMI2,HDMI3

• Off: give priority to a last memory.

Initial POS Select programme number.

Initial VOL Level Adjust the volume when each time power is

Maximum VOL Level

Button Lock Select local key conditions.

Remote Lock Select remote control key conditions.

Private Information Select private information for VIERA Cast is Keep

Selection : Off/0 to 99

• Off: give priority to a last memory

switched on. Selection/Range : Off/0 to 100

• Off: give priority to a last memory Adjust maximum volume. Range : 0 to 100

Selection : Off/SETUP/MENU/ALL

• Off: altogether valid

• SETUP: only F-key is invalid

(Tuning guide (menu) can not be selected.)

• MENU: only F-key is invalid

(only Volume/Mute can be selected.)

• ALL: altogether invalid.

Selection : Off/SETUP/MENU

• Off: altogether valid

• SETUP: only Setup menu is invalid

• MENU: Picture/Sound/Setup menu are invalid

or Reset if Hotel mode is set to [On] when TV power on. Selection : Keep/Reset

• Keep: private information for VIERA Cast is

keep

• Reset: private information for VIERA Cast is

reset

Page 15

6.6. Data Copy by SD Card

6.6.1. Purpose

(a) Board replacement (Copy the data when exchanging A-board):

When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board.

(b) Hotel (Copy the data when installing a number of units in hotel or any facility):

When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.

6.6.2. Preparation

Make pwd file as startup file for (a) or (b) in a empty SD card.

1. Insert a empty SD card to your PC.

2. Right-click a blank area in a SD card window, point to New, and then click text document. A new file is created by default (New Text Document.txt).

3. Right-click the new text document that you just created and select rename, and then change the name and extension of the file to the following file name for (a) or (b) and press ENTER.

File name:

(a) For Board replacement : boardreplace.pwd (b) For Hotel : hotel.pwd

Note:

Please make only one file to prevent the operation error.

No any other file should not be in SD card.

Page 16

6.6.3. Data copy from TV set to SD Card

1. Turn on the TV set.

2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically.

3. Input a following password for (a) or (b) by using remote control.

(a) For Board replacement : 2770

(b) For Hotel : 4850 Data will be copied from TV set to SD card. It takes around 2 to 6 minutes maximum for copying.

4. After the completion of copying to SD card, remove SD card from TV set.

5. Turn off the TV set.

Note:

Following new folder will be created in SD card for data from TV set.

(a) For Board replacement : user_setup (b) For Hotel : hotel

Page 17

6.6.4. Data copy from SD Card to TV set

1. Turn on the TV set.

2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically.

3. Input a following password for (a) or (b) by using remote control.

(a) For Board replacement : 2771 (b) For Hotel : 4851

Data will be copied from SD card to TV set.

4. After the completion of copying to SD card, remove SD card from TV set.

(a) For Board replacement : Data will be deleted after copying (Limited one copy). (b) For Hotel : Data will not be deleted and can be used for other TVs.

5. Turn off the TV set.

Note:

1. Depending on the failure of boards, function of Data copy for board replacement does not work.

2. This function can be effective among the same model numbers.

Page 18

7 Troubleshooting Guide

Use the self-check function to test the unit.

1. Checking the IIC bus lines

2. Power LED Blinking timing

7.1. Check of the IIC bus lines

7.1.1. How to access

7.1.1.1. Self-check indication only:

Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

7.1.1.2. Self-check indication and forced to factory shipment setting:

Caution:

New key will be generated and previous TV programmes recorded in USB HDD will not be viewed. (See USB HDD Recording)

Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds.

7.1.2. Screen display

7.1.3. Check Point

Confirm the following parts if NG was displayed.

DISPLAY Check Ref. No. Description Check Point TUN TU6705 TUNER A-BOARD STBY IC8000 PEAKS-LD4(STM) A-BOARD MEM1 IC8902 PEAKS EEPROM A-BOARD MEM2 IC8900 NAND FLASH A-BOARD PANEL IC9300 PD6H A-BOARD TEMP IC2001 TEMP SENSOR A-BOARD LAN IC8650 ETHERPHY A-BOARD FE IC6951 FE A-BOARD ID A-BOARD ID2 A-BOARD BT IC8000, A50 BLUETOOTH A-BOARD/BLUETOOTH WiFi IC8000, JK8605 WiFi A-BOARD/WiFi

7.1.4. Exit

Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.

Page 19

7.2. Power LED Blinking timing chart

1. Subject Information of LED Flashing timing chart.

2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

Blinking Times Contents Check point

1 Panel information SOS

PD Start SOS

2 P+15V SOS A-Board

3 IROM BOOT PROGRAM SOS A-Board

4 Power SOS P-Board 6 Driver SOS1

(SN Energy recovery circuit) (A-SN FPC DET)

7 Driver SOS2

(SN Connector DET) (SN Scan and Logic IC)

8 Driver SOS3

(SS FPC DET) (SS Energy recovery circuit)

9 Discharge Control SOS A-Board

10 Sub 3.3V SOS

Tuner power SOS BE SOS

12 Sound SOS A-Board

13 Emergency SOS A-Board 20 2nd BOOT PROGRAM SOS

(Watchdog timer over flow)

21 2nd BOOT PROGRAM SOS

(System error)

22 2nd BOOT PROGRAM SOS

(Main system bus freeze)

23 2nd BOOT PROGRAM SOS

(Accidental interrupt signal)

24 2nd BOOT PROGRAM SOS

(NAND Flash memory data transfer error finish)

25 2nd BOOT PROGRAM SOS

(Unsupported NAND Flash memory)

P-Board

SN-Board

A-SN FPC

SN-Board

SS-Board

SS2-Board

SS FPC

SS2 FPC

A-Board SN-Board SS-Board

P-Board

Speaker

Woofer

A-Board

Page 20

7.3. No Power

First check point There are following 3 states of No Power indication by power LED.

1. No lit

2. Green is lit then turns red blinking a few seconds later. (See Power LED Blinking timing chart)

3. Only red is lit.

Page 21

7.4. No Picture

Page 22

7.5. Local screen failure

Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area.

Fig-1

Page 23

8 Disassembly and Assembly Instructions

8.1. Disassembly Flow Chart for the Unit

This is a disassembly chart. When assembling, perform this chart conversely.

Page 24

8.2. Disassembly Procedure for the Unit

8.2.1. Remove the Pedestal stand

1. Remove the Plasma panel section from the servicing stand and lay on a flat surface such as a table (covered by a soft cloth) with the Plasma panel surface facing downward.

2. Remove the screws (×4 ).

3. Slide the Pedestal stand to the downside and remove the Pedestal stand.

8.2.2. Remove the Stand bracket cover

1. Remove the screws (×4 ) and remove the Stand bracket cover.

8.2.4. Remove the Wi-LAN module

1. Remove the screw (×1 ) and remove the Wi-LAN module.

8.2.5. Remove the Bluetooth module

1. Remove the screw (×1 ) and remove the Bluetooth module.

8.2.3. Remove the AC cord clamper B

1. Remove the screws (×2 ) and remove the AC cord clamper B.

8.2.6. Remove the Rear cover

1. Remove the screws (×14 , ×4 , ×2 ).

2. Remove the M8 caps (×4 ).

3. Remove the Rear cover.

Page 25

8.2.7. Remove the AC inlet

Caution:

To remove AC inlet wait 1 minute after power was off for discharge from electrolysis capacitors.

1. Disconnect the connector (P9).

2. Remove the screw (×1 , ×1 ) and remove the AC inlet.

8.2.8. Remove the P-Board

Caution:

To remove P.C.B. wait 1 minute after power was off for discharge from electrolysis capacitors.

1. Unlock the cable clampers and the tapes to free the cables.

2. Disconnect the connectors (P2, P6, P9, P11 and P35).

3. Remove the screws (×6 ) and remove the P-Board.

8.2.9. Remove the A-Board

1. Unlock the cable clampers and the tapes to free the cables.

2. Disconnect the connectors (A1, A6, A12 and A50).

3. Disconnect the USB cable (JK8605).

4. Disconnect the flexible cables (A20, A31, A32 and A33).

5. Remove the screws (×3 ).

6. Remove the Side shield metal and the Bottom shield metal.

7. Remove the A-Board.

8.2.10. Remove the Control unit assy

1. Disconnect the connector (C14).

2. Remove the claws (×2 ) and remove the Control unit assy.

Page 26

8.2.11. Remove the Speakers

1. Unlock the cable clampers and the tapes to free the cables.

2. Disconnect the Relay connector.

3. Remove the Speaker clip (each) and remove the Speakers (L,R).

8.2.12. Remove the Woofer

1. Unlock the cable clampers and the tapes to free the cables.

2. Disconnect the Relay connector.

3. Remove the screws (×3 ) and remove the Woofer.

8.2.13. Remove the SN-Board

1. Disconnect the flexible cables (SN21, SN22, SN23, SN24, SN25, SN26, SN27 and SN28) connected to the SN-Board.

2. Disconnect the connector (SN2).

3. Disconnect the flexible cable (SN20).

4. Remove the screws (×8 ) and remove the SN-Board.

8.2.14. Remove the SS-Board

1. Disconnect the flexible cable (SS33).

2. Disconnect the flexible cable (SS62).

3. Remove the screws (×4 , ×2 ) and remove the SS- Board.

Page 27

8.2.15. Remove the SS2-Board

1. Disconnect the flexible cables (SS64 and SS67).

2. Remove the screws (×2 ) and remove the SS2-Board.

8.2.16. Remove the USB clamper

1. Remove the claws (×2 ) and remove the USB clamper.

2. Remove the USB cable from the USB clamper.

8.2.17. Remove the BT connector clamper

1. Unlock the cable clampers and the tapes to free the cables.

2. Remove the claws (×2 ) and remove the BT cable.

3. Disconnect the connector (K1) and remove the A1-K1 cable.

4. Remove the claws (×2 ) and remove the BT connector clamper.

8.2.18. Remove the Stand bracket plate

1. Remove the screws (×4 , ×2 ) and remove the Stand bracket plate.

8.2.19. Remove the Contact metal bottom B

1. Remove the screws (×6 ).

2. Remove the Contact metal bottom B.

Page 28

8.2.20. Remove the K-Board

1. Remove the screw (×1 ).

2. Disconnect the connector (K1) and remove the K-Board from the LED panel.

8.2.21. Remove the Cabinet assy from the Plasma panel section

1. Place the Cabinet assy on a flat surface of a table (covered by a soft cloth) and a cushion.

2. Remove the screws (×15 ).

8.2.22. Remove the Contact metals

1. Remove the Tape from the Contact metals.

2. Remove the screws (×6 ).

3. Remove the Contact metal side (L, R).

4. Remove the screws (×15 ).

5. Remove the Contact metal bottom A.

8.2.23. Remove the C1-Board

1. Disconnect the flexible cables (CB1, CB2, CB3, CB4, CB5, CB6 and CB7).

2. Disconnect the flexible cable (C11).

3. Disconnect the connectors (C10 and C14).

4. Remove the screws (×4 ) and remove the C1-Board.

3. Remove the Cabinet assy from the Plasma panel section.

8.2.24. Remove the C2-Board

1. Disconnect the flexible cables (CB8, CB9, CB10, CB11, CB12, CB13, CB14 and CB15).

2. Disconnect the flexible cable (C21).

3. Disconnect the connectors (C20 and C25).

4. Remove the screws (×4 ) and remove the C2-Board.

Page 29

8.2.25. Replace the Plasma panel

Caution:

Place the Plasma panel on a flat surface of a table (covered by a soft cloth) and a cushion.

A new Plasma panel itself without Contact metals is fragile. To avoid the damage to new Plasma panel, carry a new Plasma panel taking hold of the Contact metals.

1. Place a carton box packed a new Plasma panel on the flat surface of the work bench.

2. Open a box and without taking a new Plasma panel.

3. Attach the Cabinet assy and each P.C.Board and so on, to the new Plasma panel.

Page 30

9 Measurements and Adjustments

9.1. Adjustment

9.1.1. Vsus selection

Caution:

When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH.

Procedure

1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed.

2. Press [OK] button to go to TEST stage. White pattern without On-Screen Display will be displayed during TEST and CONF stage. Press [5] button to display the On-Screen Display.

3. Press [VOL (-)] button to set to LOW.

4. In LOW setting

a. If no several dead pixel is visible remarkably in white pattern, press [3] button to go to CONF stage. b. If the several dead pixels are visible remarkably in white pattern, Set to HIGH by press [VOL (+)] button. Press [3] button

to go to CONF stage if the symptom is improved.

5. Press [OK] button in CONF stage to store LOW or HIGH.

6. Exit Service Mode by pressing [Power] button.

Notes:

Do not overwrite because data is written in Peaks-EEPROM after executing adjustment of V-SUS Voltage.

Page 31

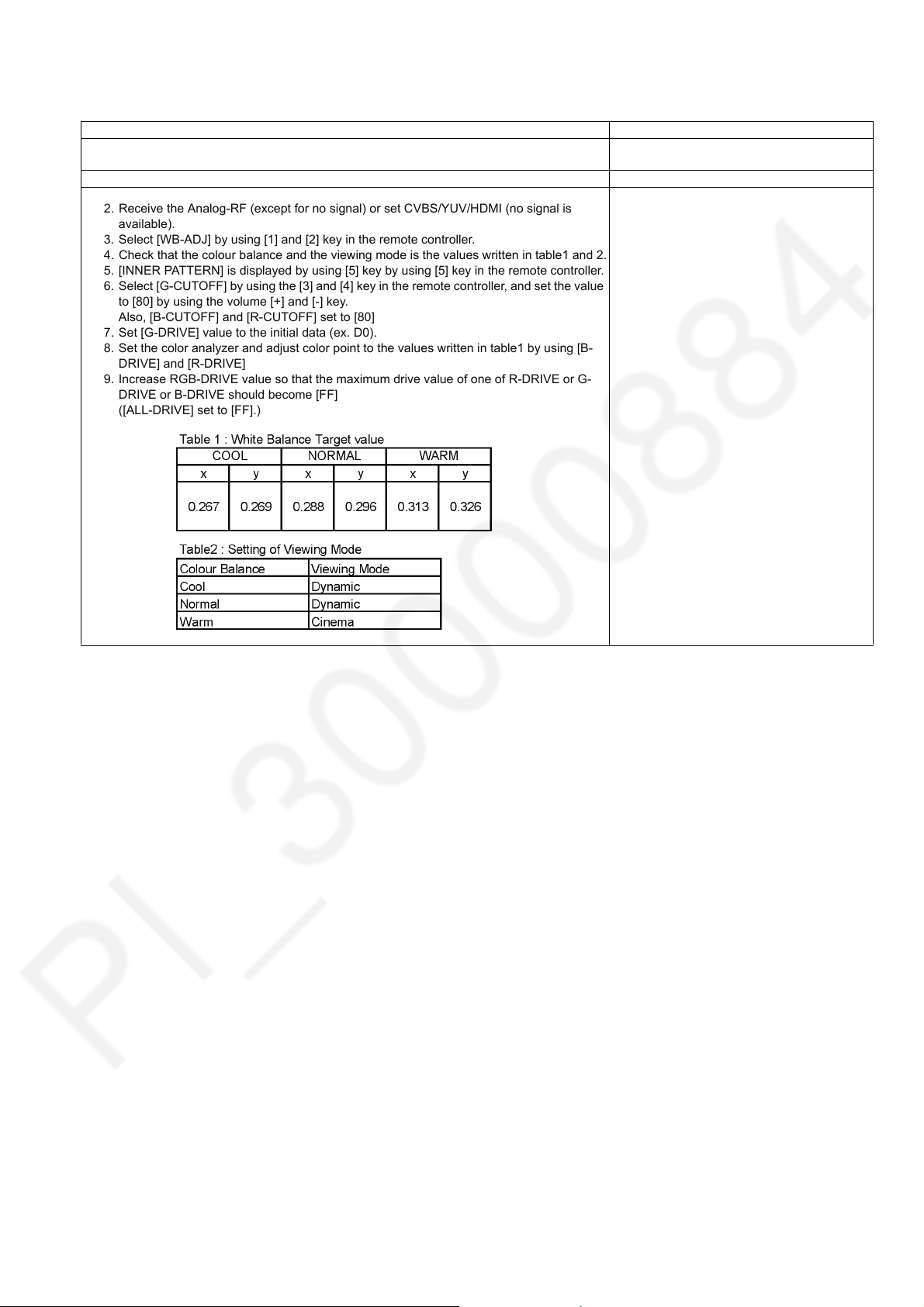

9.1.2. White balance adjustment

Name of measuring instrument Remarks

Color analyzer

(Minolta CS-2000 or equivalent)

Procedure Remarks

1. Enter the Service mode.

2. Receive the Analog-RF (except for no signal) or set CVBS/YUV/HDMI (no signal is available).

3. Select [WB-ADJ] by using [1] and [2] key in the remote controller.

4. Check that the colour balance and the viewing mode is the values written in table1 and 2.

5. [INNER PATTERN] is displayed by using [5] key by using [5] key in the remote controller.

6. Select [G-CUTOFF] by using the [3] and [4] key in the remote controller, and set the value to [80] by using the volume [+] and [-] key. Also, [B-CUTOFF] and [R-CUTOFF] set to [80]

7. Set [G-DRIVE] value to the initial data (ex. D0).

8. Set the color analyzer and adjust color point to the values written in table1 by using [B- DRIVE] and [R-DRIVE]

9. Increase RGB-DRIVE value so that the maximum drive value of one of R-DRIVE or G- DRIVE or B-DRIVE should become [FF] ([ALL-DRIVE] set to [FF].)

Page 32

Page 33

10 Block Diagram

10.1. Main Block Diagram

MAIN AV INPUT,PROCESSING

TUNER

AV2 VIDEO/

COMPONENT

AV1

AUDIO OUT

HEADPHONES

DIGITAL

AUDIO OUT

WOOFER

SPEAKER(L)

SPEAKER(R)

IFD_OUT

V/Y/PB/PR

L/R

L/R OUT

HP L/R

DIGITAL AUDIO OUT

A12

DTMB

R/G/B/H/V

Parallel_TS

AUDIO

AMP2

AUDIO

AMP

ARC (HDMI2)

HDMI1-3

TMDS DATA

NAND FLASH

PEAKS EEPROM

DDR3

HDMI I/F

ARC_OUT

TUNER I/F

TS I/F

R/G/B/H/V

V/YPbPr/RGB/YC

L/R

CVBS

L/R

LO1_L/R

HP_L/R

IEC_OUT

ASDOUT0

NAND FLASH I/F

CPU BUS

IIC1

DDR3 I/F

AV IN

AUDIO OUT

PEAKS-LD4

LVDS I/F

STM

(LED:12TIMES)

PANEL_SOS

SOUND_SOS

(LED:10TIMES)

(LED:2TIMES)

(LED:4TIMES)

PANEL_MAIN_ON

P+15V_DET

SOS4_PS

P+15V

LAN CON I/F

SD CARD I/F

SUB+3.3V_SENSE

TUNER_POWER_SOS

REMOTE_IN

C.A.T.S_SENSOR

DMD IIC1

KEY3

KEY1

USB I/F

LED_R/G

SUB3.3V

TEMP SENSOR

F15V

TUNER_POWER_SOS

(LED:10TIMES)

DCDC

SUB1.5V

DCDC

SUB1.1V

DCDC15V

USB

SUB1.5V

SUB1.1V

ETHERPHY

USB HUB

DCDC

SUB5V

DCDC

SUB3.3V

DCDC

P+1.2V

SUB5V

SUB3.3V

P+1.2V

ETHERNET DATA

SD CARD DATA

SUB5V

SUB3.3V

P+3.3V

USB

DP/DM

DCDC P+5V

DCDC

SUB1.8V

DCDC

P+2.5V

DP/DM

STB3.3V

ETHERNET

USB_1-2

WiFi

SD CARD

P+5V

SUB1.8V

P+2.5V

A50

BLUETOOTH

SUB3.3VSUB3.3V

STB3.3V

POWER LED

REMOTE RECEIVER C.A.T.S. SENSOR

LED_R/G

REMOTE_RECEIVER

C.A.T.S_SENSOR

SCAN DRIVER

BUFFER

SCAN DRIVE

SN-BOARD ENERGY RECOVERY SOS DETECT

(LED:6TIMES)

SN-BOARD FLOATING PART SOS DETECT

(LED:7TIMES)

CONTROL PULSE

VSCAN GEN.

VAD GEN.

SOS6_SC1

SOS7_SC2

P+5V

P+15V

SCAN CONTROL

VSUS

SN20

SN2

STB1.1V

STB3.3V

A20

OPERATION KEYS

POWER SW

DATA DRIVER (RIGHT)

VDDSD 18V33V

STB5V

F15V

SUB5V

SUB9V

P+3.3V

SOS6_SC1

SOS7_SC2

P+5V

P+15V

SCAN CONTROL

SOS6_SC1

SOS7_SC2

CONTROL UNIT ASSY

ANALOG-ASIC

(LED:9TIMES)

(LED:6TIMES)

(LED:7TIMES)

SOS8_SS

(LED:8TIMES)

VDA

PANEL_SOS

FFC_OFF_DET

SOS_DCC

KEYSCAN

KEY3

C14

KEY3

KEY1

A31

KEY3

KEYSCAN

C11

VIDEO DATA

P+3.3V

VIDEO DATA

P+3.3V

LVDS DATA

PD6H

SPI FLASH

VIDEO DATA

POWER SUPPLY

DCDC

STB5V

SOS4_PS

SOUND15V

EV5V

P+15V

F15V

P+5V

P+15V

A33

P+15V

SOS8_SS

SUSTAIN CONTROL

P+5V

EV5V

SUSTAIN CONTROL

SOS8_SS

P+3.3V

A32

P+3.3V

VIDEO DATA

STB5V

PANEL_MAIN_ON

C21

C10

C20

P+3.3V

SOS4_PS

PANEL_ MAIN_ON

SOUND15V

EV5V

P+15V

F15V

VSUS

STB5V

P+15V

F15V

SOUND15V

DATA DRIVER (LEFT)

P-BOARD SOS DETECT

(LED:4TIMES)

COLD

STANDBY VOLTAGE CONVERTER

RECTIFIER

VSUS

PROCESS

VDA

VOLTAGE CONVERTER

HOT

POWER FACTOR CONTROL

SUSTAIN VOLTAGE CONVERTER

P11

RECTIFIER

RELAY

VDA

AC CORD

P35

C25

VDA

VIDEO DATAVIDEO DATA

VDA

SS11

SUSTAIN DRIVE

VSUS

P+15V

P+5V

SS33

SS-BOARD SOS DETECT

(LED:8TIMES)

VSUS GEN. VE GEN. ENERGY RECOVERY

SUSTAIN CONTROL

SOS8_SS

SS2

ZA16101 ZA16106

ZA16111 ZA16116

SUSTAIN OUT (LOWER)

DATA DRIVER

Page 34

10.2. Block (1/4) Diagram

JK3101

AUDIO OUT

JK3100

AV2 VIDEO/

COMPONENT

JK3202

HEADPHONES

SOUND15V

PANEL_MAIN_ON

STB5V_SW_ON

TUNER_SUB_ON

JK3001

SOS4_PS

P+15V

EV5V

P_S1

P_S0

F15V

MAIN AV INPUT,PROCESSING

SUB3.3V

VJ6951

DTMB_3.3V

IC5703

1.2V

R_OUT

L/RL_OUT

D1_PR

D1_PB

D1_Y/V

D1_R

D1_L

PC_R

PC_G

PC_B

PC_H

PC_V

HP_R

HP_L

IC3051

AUDIO AMP

IC6951

DTBM_1.2V

DTMB

X6951

DMD_ IIC1

30.4MHz

FE_XRST

DEMODULATOR

IFAGC2

ANT IN

Si_1.8V

TU6705

TUNER

Si_3.3V

IFAGC2

FE_T_XRST

IFAGC1

IF2_P/N

IF1_P/N

DMD_ IIC0

IF1_P/N

FE_T_XRST

IFAGC1

TS I/F

CVBS

L/R

V/YPbPr/RGB/YC

L/R

R/G/B/H/V

LO1_L/R

HP_L/R

SUB1.5V

WOL3.3V

AV IN

AUDIO OUT

JK8602A

ETHERNET

WOL3.3V

IC8200,01

IC8650

ETHERPHY

X8651

25MHz

SUB5V

LAN CON I/F

USB I/F

JK8603

USB1

IC8606

DDR3 I/F

JK8601

USB2

IC8602

USB1VBUS

NAND FLASH I/F

CPU BUS

USB2VBUS

IC8000

PEAKS-LD4

AVDDHP3.3V

VCC

HDMI3.3V

SUB3.3V

JK8605

WiFi

IC8603

SUB1.8V

SUB1.5V

BT3.3V

SUB1.1V

BLUETOOTH

A50

IC8601

USB HUB

X8300

24.576MHz

AXO

REC_READY

STB_OFF

VBUS1

DP1

DM1

X8600

12MHz

SUB3.3V

AXI

PANEL_MAIN_ON

CI_POWER_ON

JK8600

SD CARD

RF_LR

SD DATA:4bit

SD CARD I/F

SOS4_PS

TUNER_SUB_ON

(LED:4TIMES)

VDDSD1.8V3.3V

STM

KEY3

XRSTSTM

KEY1

JK4702B

HDMI1

DDC_IIC2

TMDS DATA

CLOCK

RX2

DDC_IIC2

XRST

DRVRST

JK4701B

+5V

HDMI_CEC

TMDS DATA

CLOCK

HDMI_5V_DET2

HDMI I/F

PD6H_XRST_SYS

C.A.T.S_SENSOR

REMOTE_IN

HDMI2

DDC_IIC1

RX1

DDC_IIC1

R_LED_ON

+5V

ARC

HDMI_CEC

HDMI_5V_DET1

G_LED_ON

PANEL_SOS

JK4700B

HDMI3

DDC_IIC0

TMDS DATA

CLOCK

RX0

DDC_IIC0

POWER_DET

SW_OFF_DET

+5V

HDMI_CEC

HDMI_CEC_

HDMI_5V_DET0

DISPEN

PULL_ON

LOGO_ON

INIT_DONE

D3201

DIGITAL

AUDIO

OUT

ARC_OUT

(LED:10TIMES)

STB3.3V

STB1.1V

IC4900

AUDIO AMP

SOUND15V

IEC_OUT

SUB3.3V_SENSE

TUNER_POWER_SOS

D8771

SPEAKER_L

A12

P+15V_DET

(LED:2TIMES)

L(-)

15V

L(+)

L_OUT

SPEAKER

RESET

SOS

AMP_XRST

SOUND_SOS

(LED:12TIMES)

LVDS I/F

SPEAKER_R

R(-)

SPEAKER

ASDOUT0

IIC0

IIC1

DMD_ IIC0

DMD_ IIC1

SBI0 SBO0

STM IIC

R(+)

AUDIO AMP2

R_OUT

ASDOUT1

IC4901

IIC0

IIC1

DMD_ IIC0

DMD_ IIC1

SBI0 SBO0

STM IIC

WOOFER

WO(+)

WO(-)

WOOFER

15V

VDDSD18V33V

LVDS DATA

OUT

RESET

SOS

DDR3

DMD_ IIC1

IC8902

SUB3.3V

PEAKS EEPROM

IIC1

IC8900

NAND FLASH

IC8709

PANEL_MAIN_ON

SOS4_PS

STB5V_SW_ON

TUNER_SUB_ON

P_S1

P_S0

DCDCEN

F15V

SOUND15V

EV5V

SUB9V

PA8704

IC8704

IC8705

PA2000

SUB5V

+5V

SUB3.3V

+3.3V

DCDC15V

SUB5V

SUB3.3V

IC8101

IC8100

SUB1.5V

+1.5V

SUB1.1V

+1.1V

DCDC15V

F15V

P+15V

3.3V

IC8715

3.3V

IC8714

+1.8V

SUB1.5V

SUB1.1V

AVDDHP3.3V

HDMI3.3V

SUB1.8V

REC_READY

STB_OFF

KEY_POWER

KEY3

STB_OFF

REC_READY

CI_POWER_ON

TUNER_SUB_ON

PANEL_MAIN_ON

SOS4_PS

KEY1

KEY3

XRSTSTM

EV5V

PDP_DRVRST

PD6H_XRST_SYS

XRST

REMOTE_IN

C.A.T.S

VDD

KEY_POWER

KEY3

STB_ON_ ENB

RST_ENB

STB_OFF

REC_READY

G_LED_ON

R_LED_ON

IC2002

PEKO SW

POWER_DET

PANEL_SOS

STB_ON

SW_OFF_DET

Q2001

DISPEN

STB5V

Q2002

LOGO_ON

INIT_DONE

STB5V_SW_ON_A

STB5V_SW_ON

Q2004

D8772

D8773

SUB3.3V

IC2001

TEMP SENSOR

STB3.3V

STB1.1V

STB5V

SUB9V

SUB5V

SUB3.3V

DCDC15V

F15V

P+15V

Page 35

10.3. Block (2/4) Diagram

MAIN AV INPUT,PROCESSING

VDDSD18V33V

LVDS DATA

VDDSD18V33V

FFC_OFF_DET

SOS6_SC1

SOS7_SC2

SOS8_SS

SOS_DCC

PANEL_SOS

STB5V_SW_ON_A

POWER_DET

SW_OFF_DET

SUB9V

SUB5V

P+3.3V

VJ5000

F15V

STB5V

IC9300

PD6H

LVDS DATA

IC9803

IC9804

+1.2V

P+1.2V

VJ9005

VJ9006

P+5V

P+1.2V

IC9005

P+2.5V

+2.5V

IC9304

SPI FLASH

P+3.3V

SI/SO

D9802

P+3.3V

DCDC15V

DCDCEN

SUB3.3V

IC5000

ANALOG-ASIC

SD_VCC

SUB9V

SUB5V

BUFF_EN

DTV_15V

FFC_OFF_DET

SOS6_SC1 (LED:6TIMES) SOS7_SC2

(LED:7TIMES)

SOS8_SS

(LED:8TIMES)

SOS_DCC

(LED:9TIMES)

PANEL_SOS

POWER_DET

DTV_RST

DCDC_CTL

DRVRST_ IN

DRVRST_ OUT

UHZ

STB+1.1V

STB+3.3V

STBRST

STB1.1V

STB3.3V

DCDCEN

PDP_DRVRST

DRVRST

SC_UHZ

D_UHZ

XRSTSTM

XRST

P_S0

P_S1

DRVRST

PD6H_XRST_SYS

DISPEN

INIT_DONE

PLASMA AI CPG H/V Sync Control Sub Filed Processor

1.2V

2.5V

3.3V

FLASH I/F

P_S0

P_S1

RF_LR

DRVRST

OFF_FLAG

XRST_SYS

DISPEN

LOGO_ON

INIT_DONE

P+15V DET

SOS_DCC

FFC_OFF_DET

DISCHARGE CONTROL

DATA DRIVER CONTROL

SUSTAIN CONTROL

SCAN CONTROL

P+5V

P+15V

VIDEO DATA

D_UHZ

SOS_DCC

KEY1

KEY_POWER

IIC0

UHZ

FFC_OFF_DET

IC9402

SUSTAIN DATA BUFFER

SOS8_SS

IC9400,01

SCAN DATA BUFFER

X0LOGO_ON

X9300

20MHz

P+3.3V

SC_UHZ

SOS6_SC1

SOS7_SC2

C11

A31

VIDEO DATA

P+3.3V

KEYSCAN

KEY

DATA DRIVER CONTROL

C21

A32

VIDEO DATA

DATA DRIVER CONTROL

P+3.3V

SS33

A33

SUSTAIN CONTROL

SOS8_SS

P+5V

P+15V

SN20

A20

SCAN CONTROL

UHZ

SOS6_SC1

SOS7_SC2

P+5V

P+15V

DCDCEN

CN0100

IIC0

D2820

IIC1 STM_IIC SBO0/SBI0

STB3.3V

STB1.1V

STB5V

SUB9V

SUB5V

SUB3.3V

DCDC15V

F15V

P+15V

STB3.3V

SUB_AI3.3V

G_LED_ON

R_LED_ON

C.A.T.S

REMOTE_IN

G_LED_ON

R_LED_ON

C.A.T.S

REMOTE_IN

STB3.3V

SUB_AI3.3V

POWER LED

FOR FACTORY USE

POWER LED

REMOTE RECEIVER C.A.T.S. SENSOR

SN2810

C.A.T.S SENSOR

RM2810

REMOTE RECEIVER

Page 36

10.4. Block (3/4) Diagram

NEUTRAL

P POWER SUPPLY

L100 L101

D100 D101

RECTIFIER

LF101

FILTER

LF102

F100

HOLDER

LIVE

NPD

IC100

PFC

*2*

Q100 Q101

Q111 Q112

CONTROL

FET DRIVER

Q307

D105,D113 D106,D116

F102

IC200

STB CONTROL

Q107

Q300-Q303

RESONANCE

GD2

IC300

RESONANCE CONTROL

VCC

Q202

+20V

T300

GD1

R100

HOT COLD

D302

PC700

PHOTO COUPLER

PC400

PHOTO COUPLER

PC401

PHOTO COUPLER

RL100

D204

PC201

PHOTO COUPLER

PC200

PHOTO COUPLER

PC402

PHOTO COUPLER

T301

T302

T200

C25

P35

Vda

Vsus

P11

Vsus

PANEL_MAIN_ON

SOS_P4

STB5V_SW_ON

TUNER_SUB_ON

STB5V

F15V

P+15V

SOUND+15V

SN2

SS11

A6P6

D700 D704

Vsus

VR251

Q600

PFC_ON/OFF

MAIN_RELAY_ON

VDD

AC_DET

VSUS_ON

IC600

Vda ERROR DET

Q404,Q405

Vsus Adj

POWER MICOM

IC503

PANEL_MAIN_ON

STB5V_SW_ON

IC502

Q408,Q409

Vsus ERROR DET

SOS4_PS

F_STB_ON

P+15V_ON

F15V_ON

POWER_SOS

P+15V_ON

SOS4_PS

(LED:4TIMES)

Q500

Q502

Vda

Vsus

Q503,Q504

P+15V ERROR DET

STB5V

F15V

+15V

D600

D601

Q701

Q415 Q416

Q702

IC700

Vsus ERROR DET

PFC_ON/OFF

D501

IC501

D505

STB+5V

IC400

F_STBY ERROR DET

AC DET

VSUS_ON

COLDHOT

AC CORD

Page 37

10.5. Block (4/4) Diagram

SCAN DRIVE

SN2

Vsus

IC16501

CMH

BUFFER

SUSTAIN H

IC16603

CSH

AND

IC16502

CSH

BUFFER

RECOVERY H

IC16522

CSL

BUFFER

RECOVERY L

SCAN CONTROL

A20

P+15V

P+5V

SOS6

SOS7

SN 20

UHZ

SCAN CONTROL

IC16561

BUFFER

(LED:6TIMES)

TPSOS6

TPVSUS

Q16451 Q16452

CMH CML CSH CSL CPH CIS

CPH

NCVSET2

CSH

NCPH

Q16402 Q16403

CML

Q16441 Q16442

ERM

CELR CEL NCRC1 NCRC2 NCEL NCVSET2

Reference Voltage Vsus Lo : 213V Vsus Hi : 218V

VOL

IC16521

BUFFER

SUSTAIN L

SIU OC1 OC2 CLK SEL

IC16563

INVERTER

IC16600

BUFFER

D16583 LED(G)

D16477

Q16421 Q16422

UHZ

(LED:7TIMES)

D16618

Q16600

Q16601

TPSOS7

CIS

Q16621 Q16622 Q16623

SEPA

SUSTAIN DRIVE

IC16784,85

PC16897

IPD CIRCUIT

VAD GEN. SHUNT REG

Q16646 Q16647 Q16660

CELR

CEL

NCRC1

NCRC2

PC16723

MAIN_STOP0

VAD RECOVERY

IC16921

IGBT CONTROL

VFG

T16472

VFG

NCVSET2

IC16786,87

IPD CIRCUIT

VSCN GEN. SHUNT REG

IC16725

Reference Voltage Vad = 205

T16471

NCEL

Reference Voltage Vscn = 147

D16713

D16714

D16728

IC16795

F15V

F5V

VHIZ

VAD2

TPVFG

TPSN1

TPVAD

VAD

Q16820

D16825

SCN_PRO

VSCN-F

Q16661

VHIZ SIU OC1 OC2 CLK SEL

P11

Vsus

UMH

USH

MAIN H

IC16131

BUFFER

IC16151

BUFFER

Q16002 Q16004

Q16041

TPVSUS

TPSS1

Reference Voltage Vsus Lo : 213V Vsus Hi : 218V

SUSOUT

D16286

SS 62

RECOVERY H

D16254A

LED(G)

D16255

RECOVERY L

IC16152

USL

UML

UEH

BUFFER

IC16132

BUFFER

MAIN L

PC16191

BUFFER

IC16304,12

PC16301

IPD CIRCUIT

VE GEN.

SHUNT REG

IC14601-03

PDP SCAN

DRIVER

PDP SCAN

DRIVER

IC14604-06

IC14801-03

Vfo

PDP SCAN

DRIVER

PDP SCAN

DRIVER

IC14804-06

F5V

LOGIC IC

SN21 SN22

SN23 SN24

SN25 SN26

SN27 SN28

PLASMA PANEL

PANEL SCAN ELECTRODE

SUSTAIN CONTROL

SOS8_SS

A33

P+15V

P+5V

IC16241

BUFFER

TPSOS8

(LED:8TIMES)

UEH USL USH UML UMH

MID

Q16052

Q16021 Q16024

TPVE

Reference Voltage Ve = 155V

FPC PROTECTOR

Q16101 Q16102

SS2

ZA16106

ZA16116

D16351

SUSTAIN OUT

(LOWER)

ZA16101

ZA16111

PLASMA PANEL

PANEL SUSTAIN ELECTRODE

SS 64

SS 67

IC14901,02

CONTROL UNIT ASSY

OPERATION KEYS

POWER SW

CB1

KEYSCAN

VIDEO DATA

KEY3

CONTROL DATA

40 2

KEYSCAN

KEY3

C14

A31

C11

DATA DRIVER (RIGHT)

C1 C2

P+3.3V

5455

DATA DRIVER (LEFT)

IC17101

CB3

CB4

DATA DRIVER

BUFFER

CB6 CB8CB5

CB7CB2

C10

C20

VDA

PLASMA PANEL

CB9

CB 10

A32

C21

IC17201

CB 12

DATA DRIVER

VIDEO DATA

CONTROL DATA

1654

BUFFER

P+3.3V12P+3.3V

P35

C25

VDA

CB 15

Page 38

Page 39

11 Wiring Connection Diagram

11.1. Caution statement.

Caution:

Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull.

11.2. Wiring (1)

Page 40

11.3. Wiring (2)

11.4. Wiring (3)

Page 41

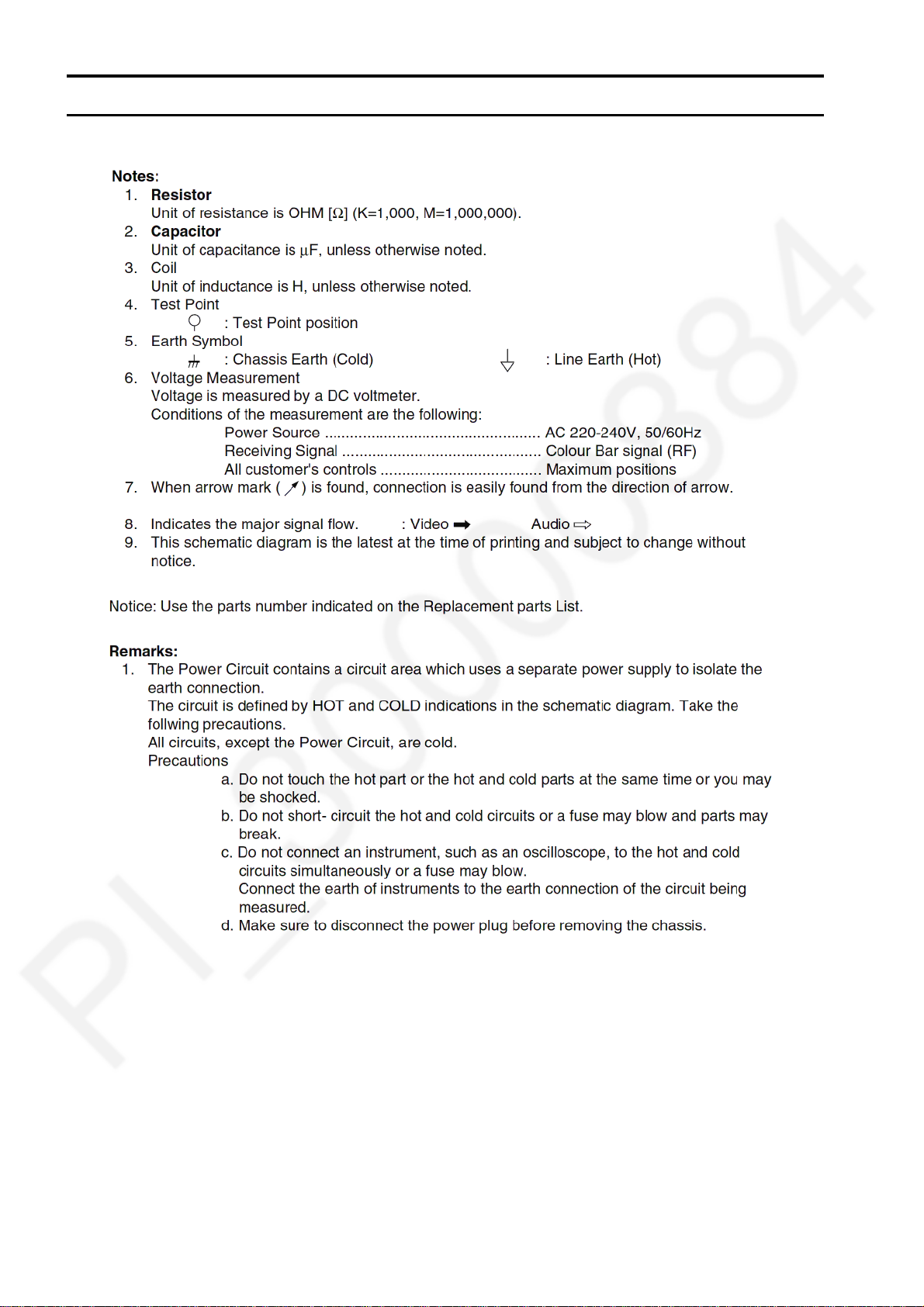

Model No. : TH-P42ST50H Schematic Diagram Note

S-1

Page 42

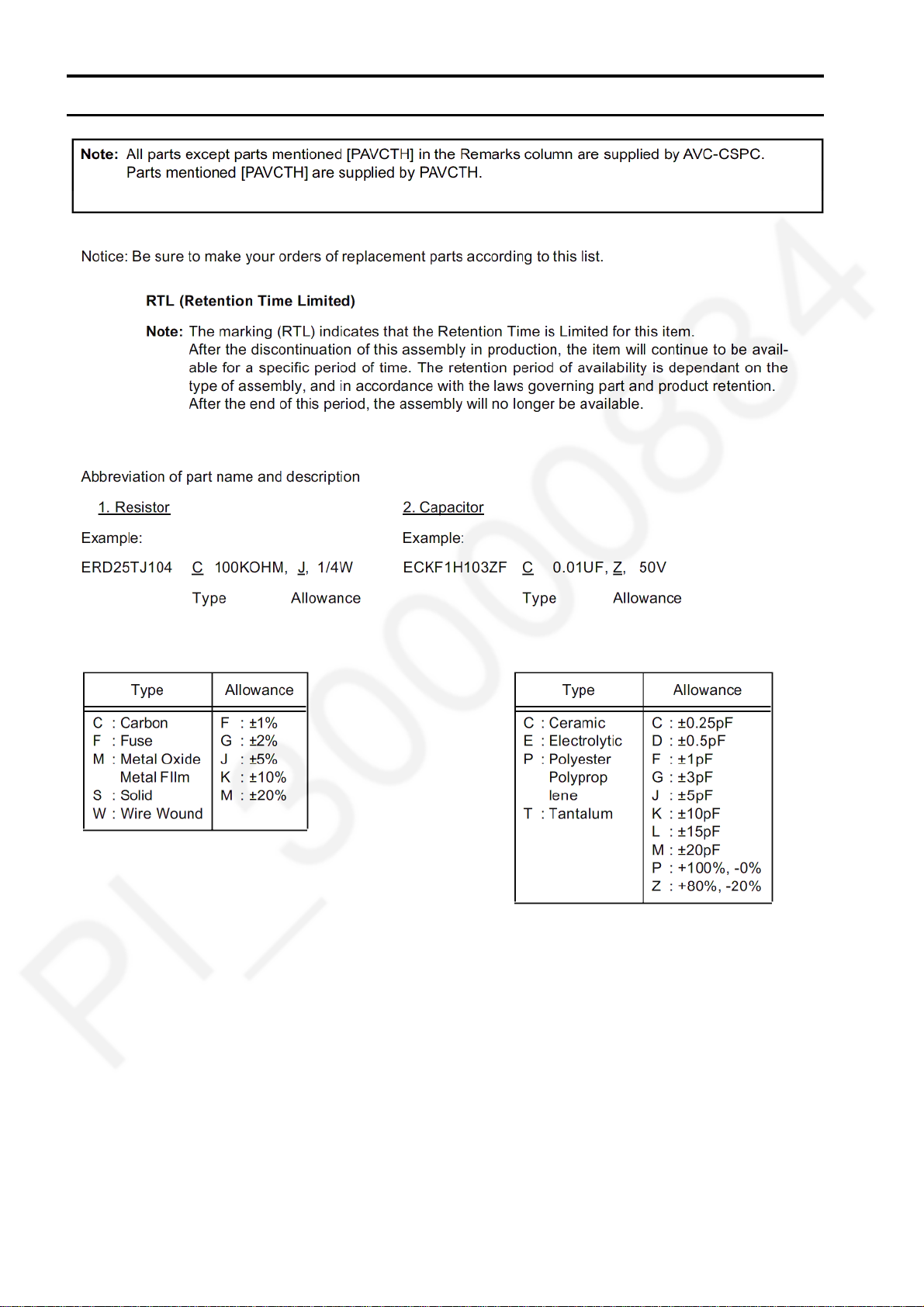

Model No. : TH-P42ST50H Replacement Parts List Note

S-2

Page 43

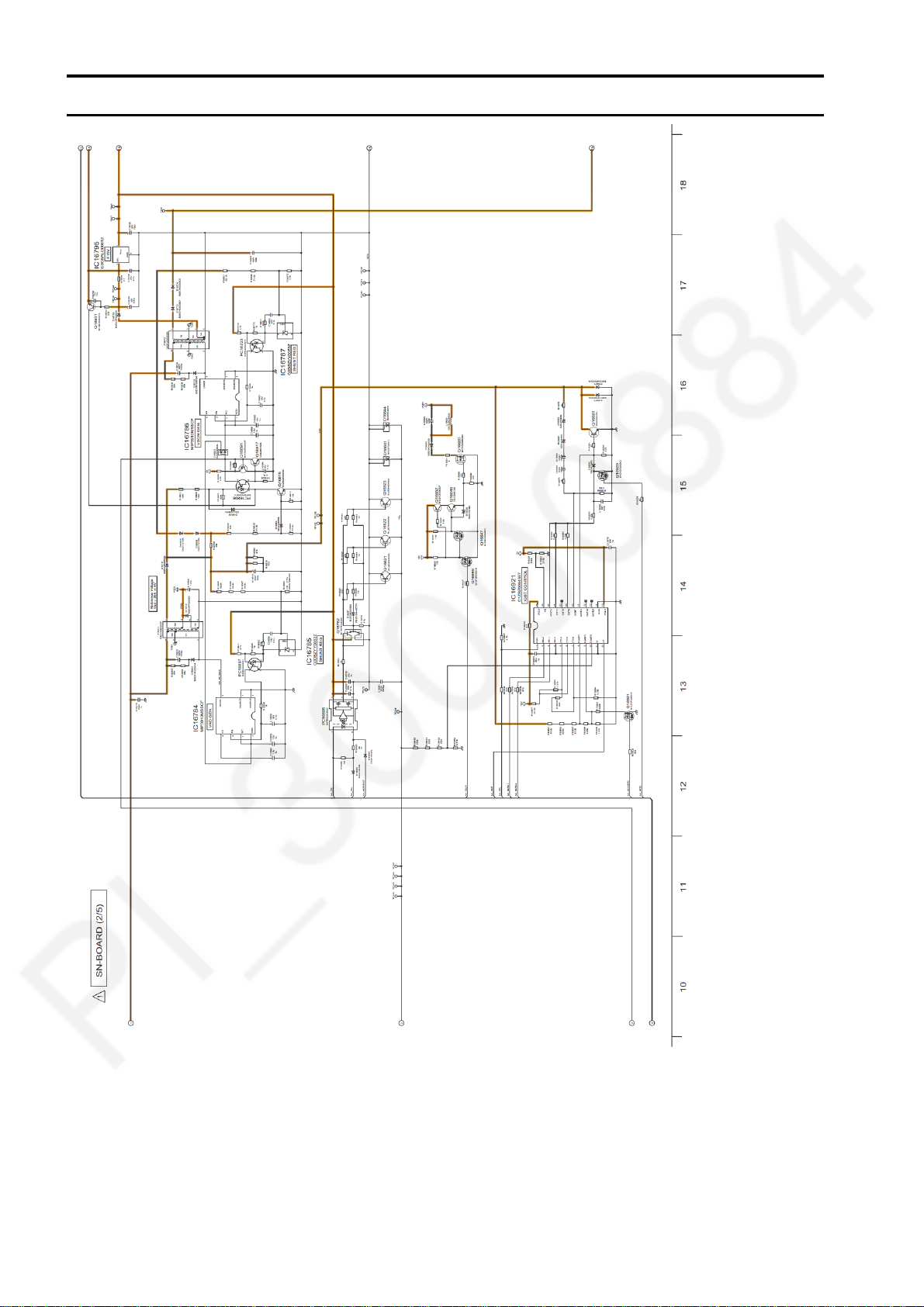

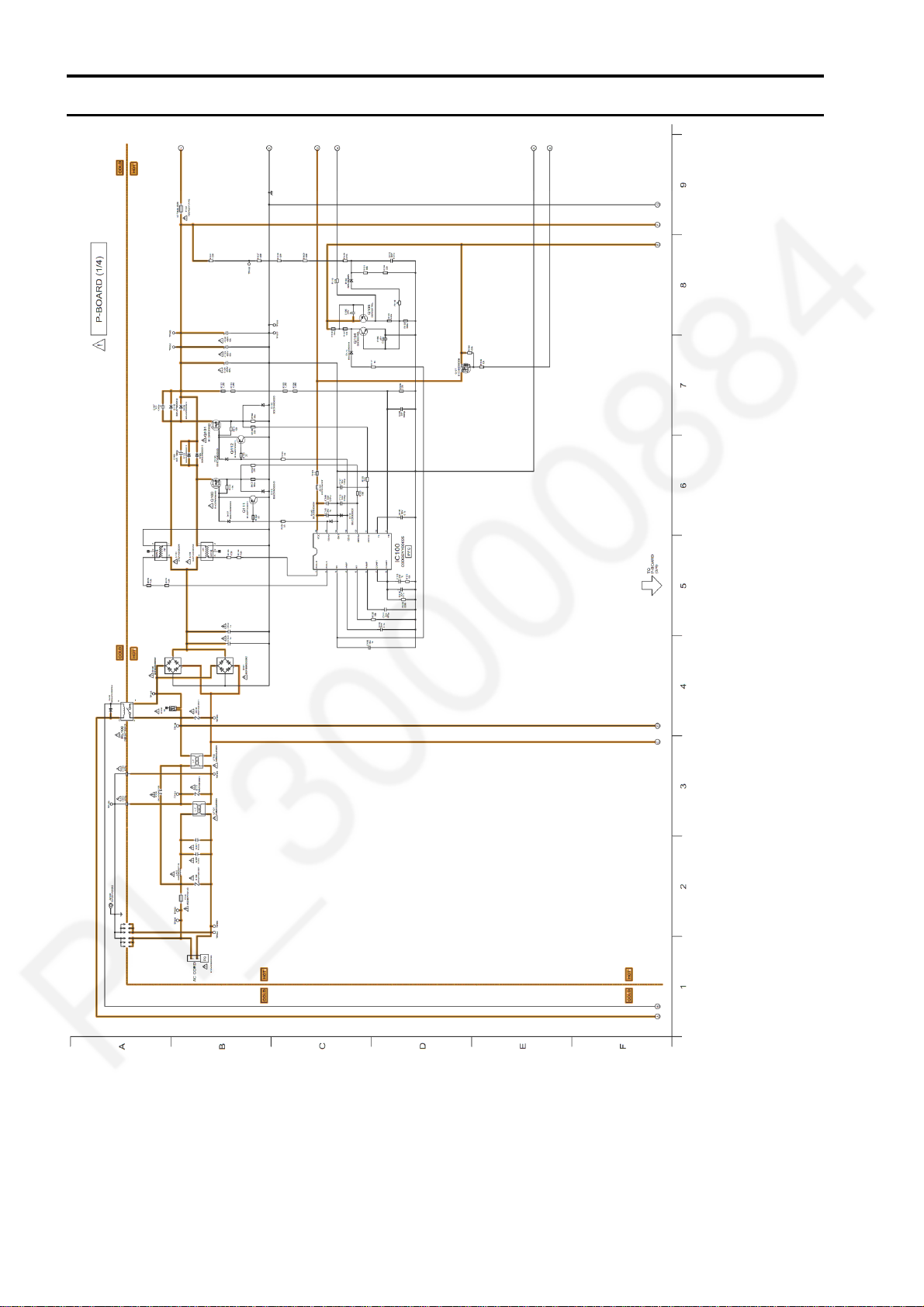

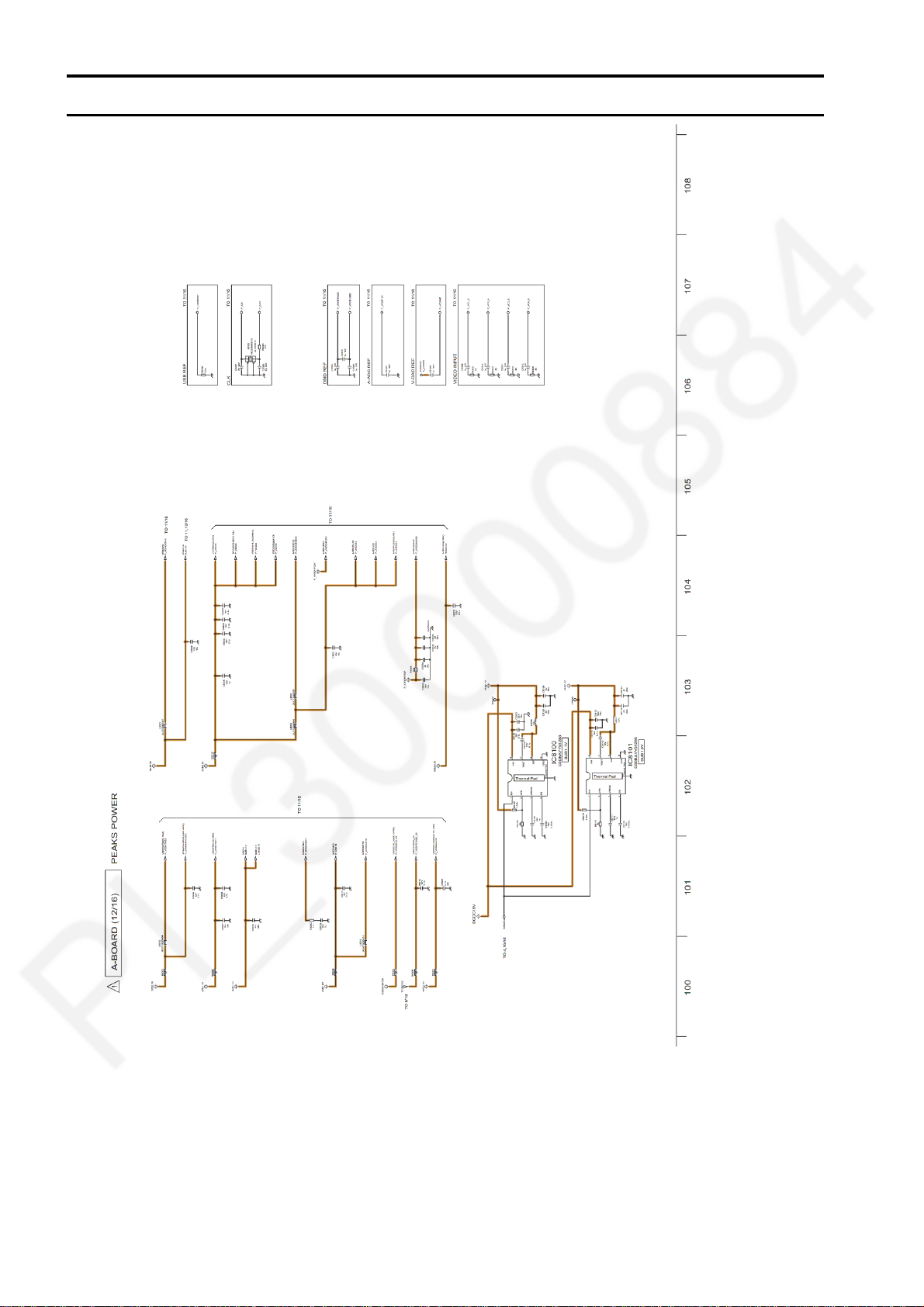

Model No. : TH-P42ST50H P-Board (1/4)

S-3

Page 44

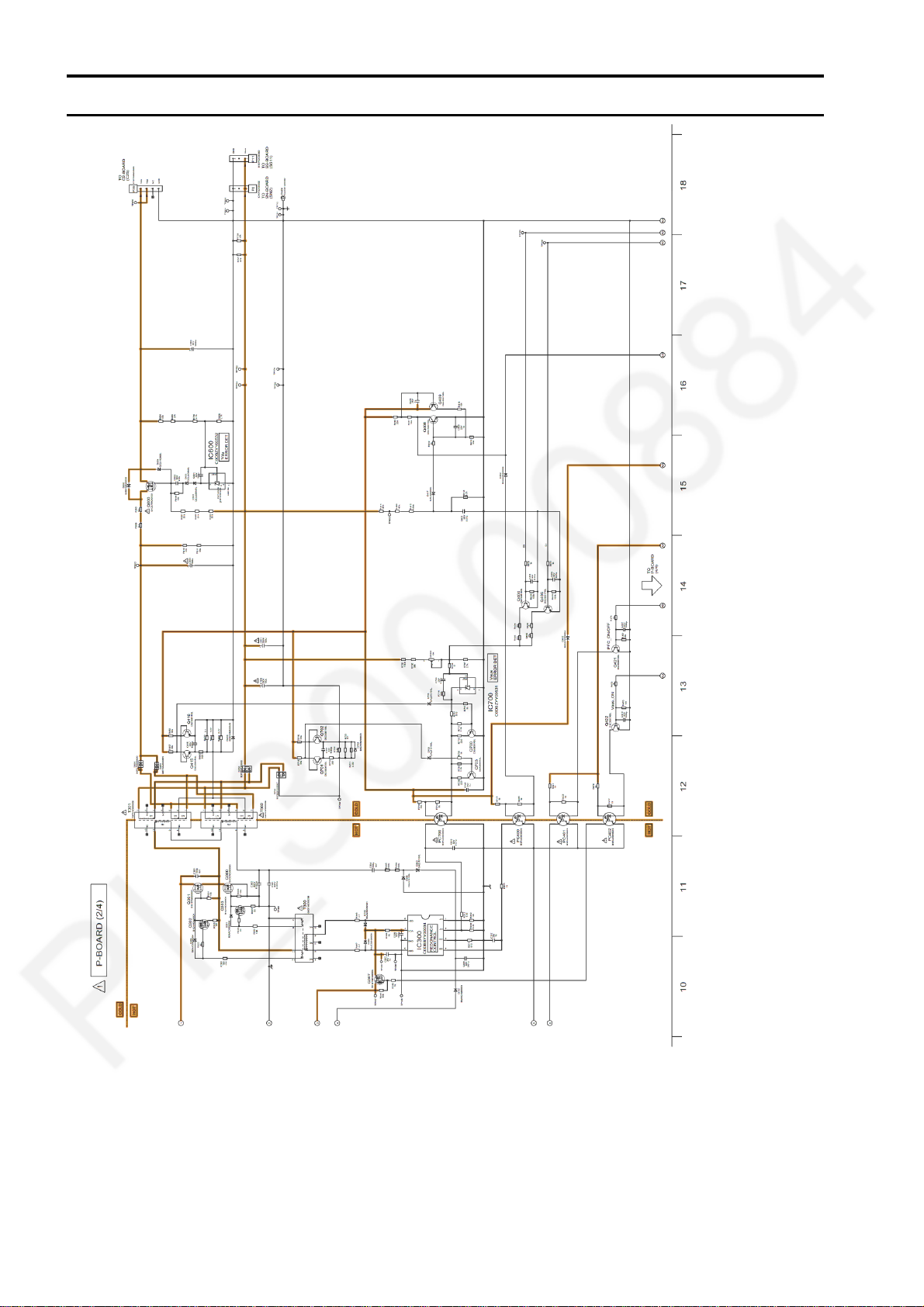

Model No. : TH-P42ST50H P-Board (2/4)

S-4

Page 45

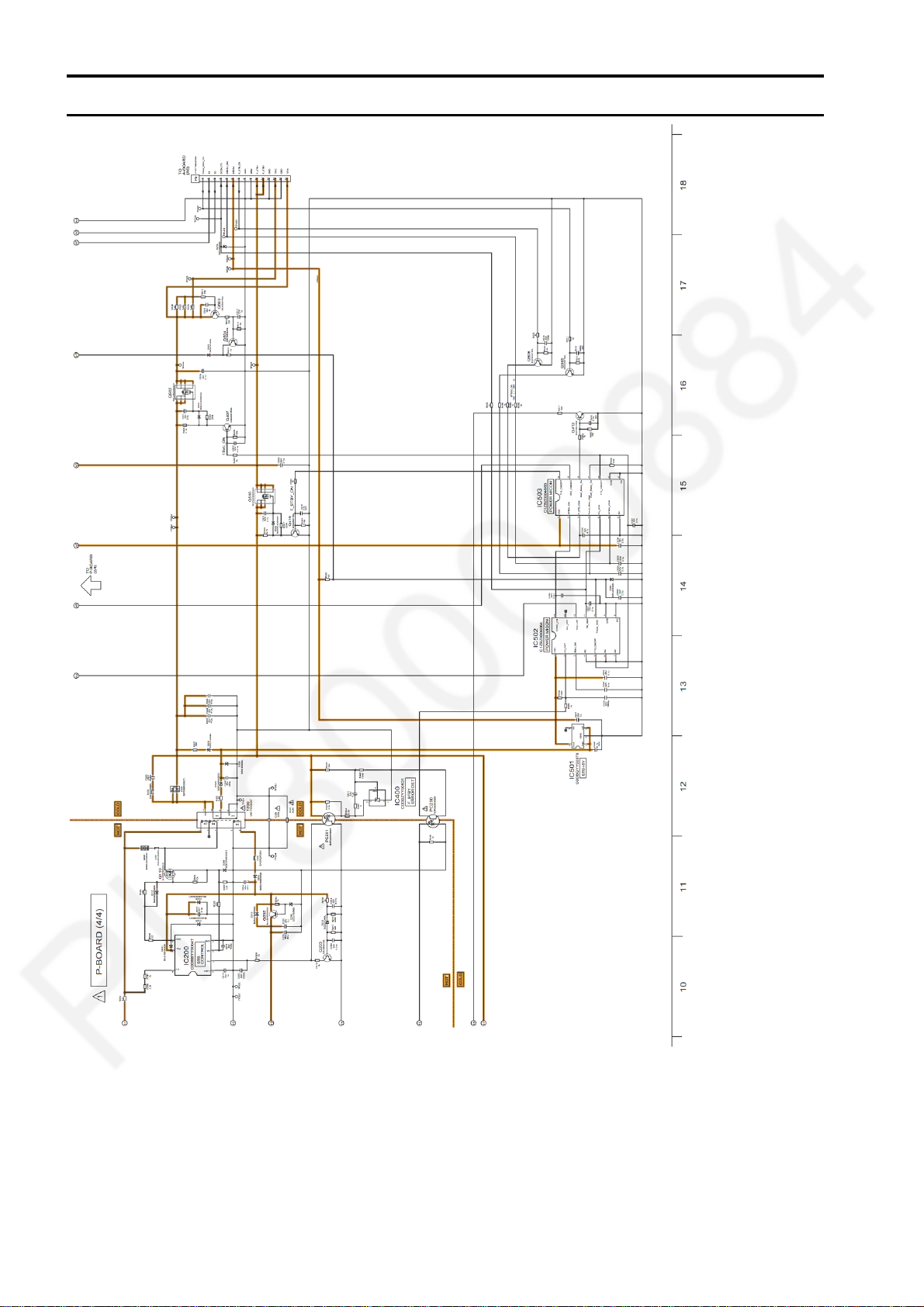

Model No. : TH-P42ST50H P-Board (3/4)

S-5

Page 46

Model No. : TH-P42ST50H P-Board (4/4)

S-6

Page 47

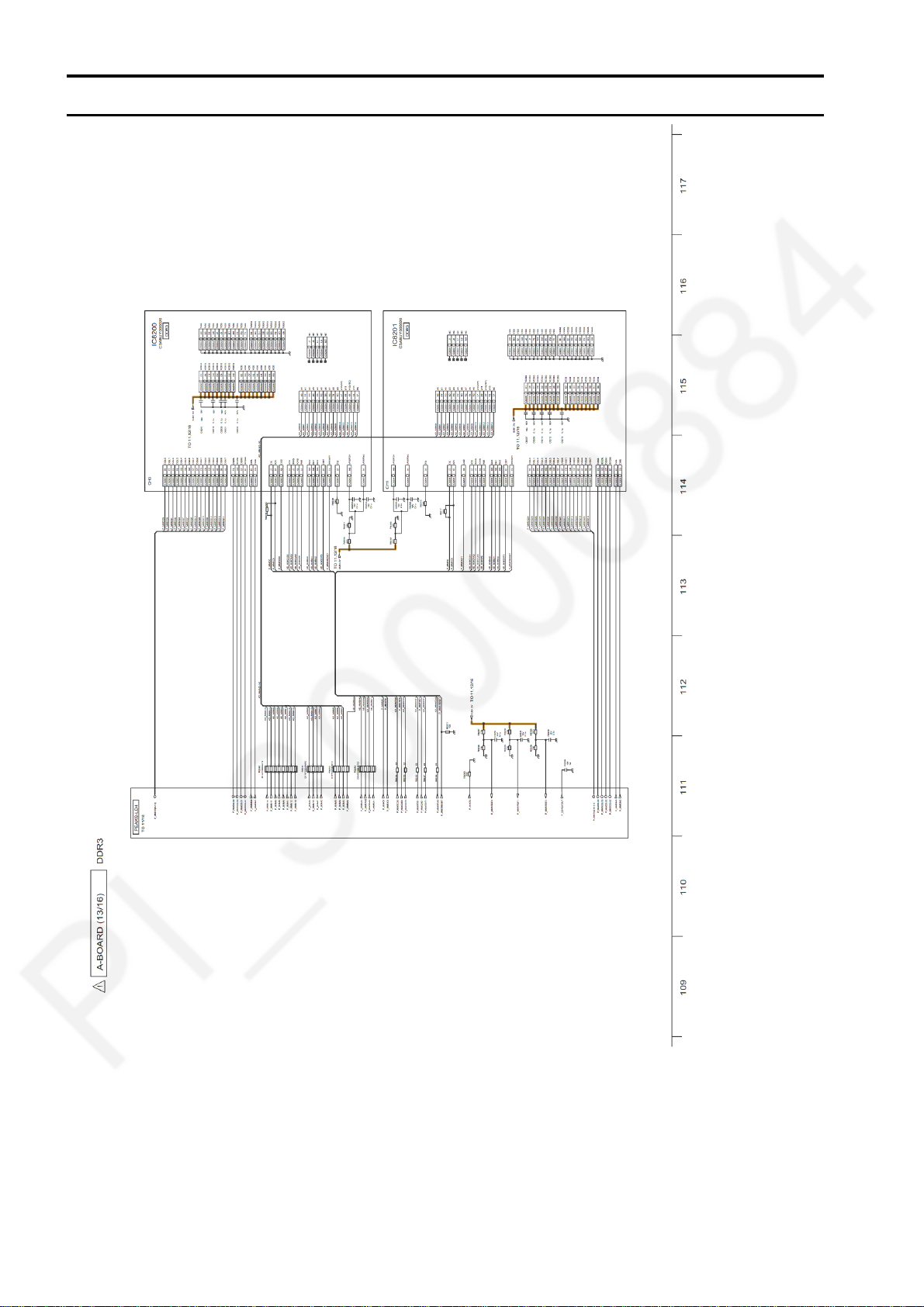

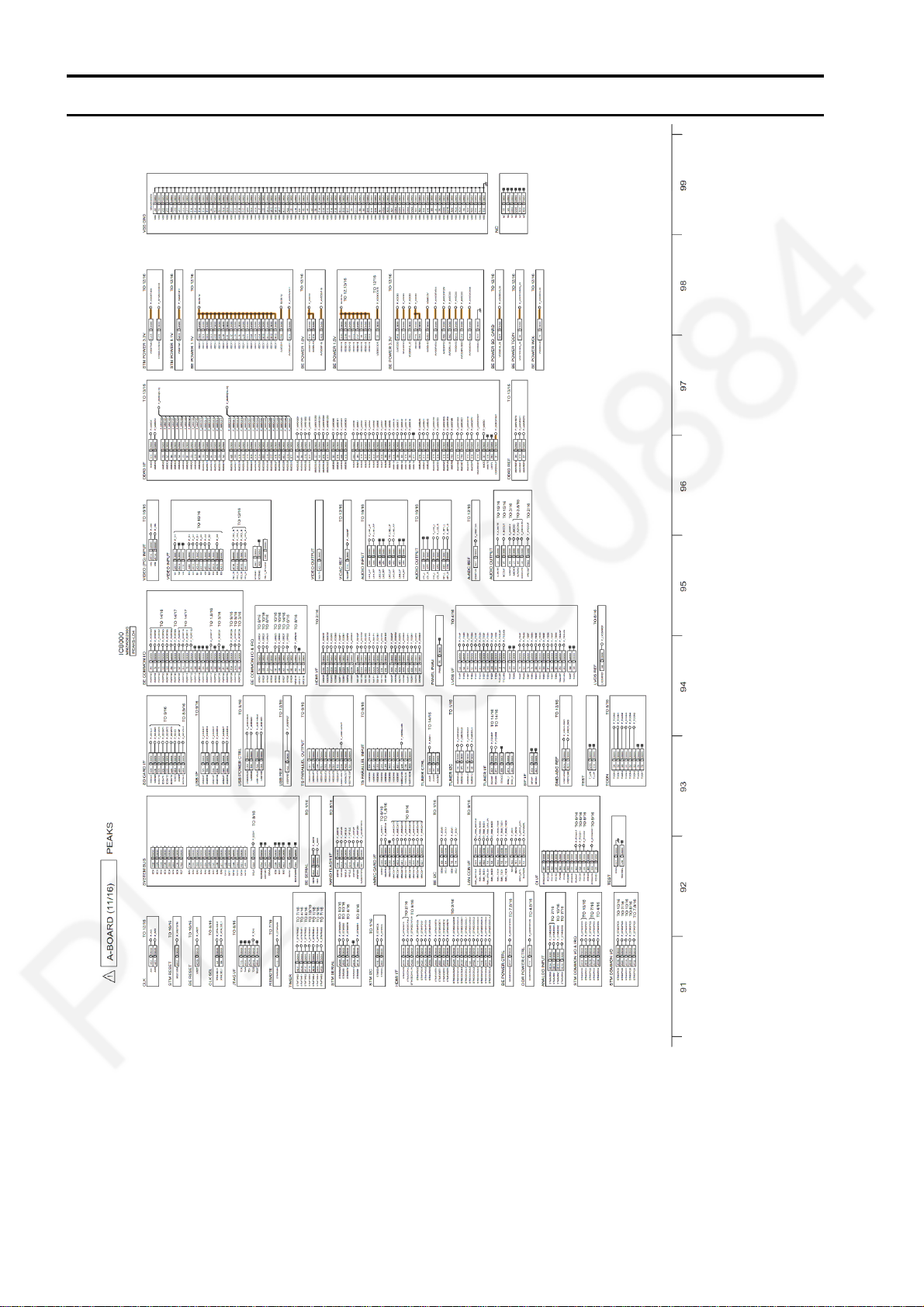

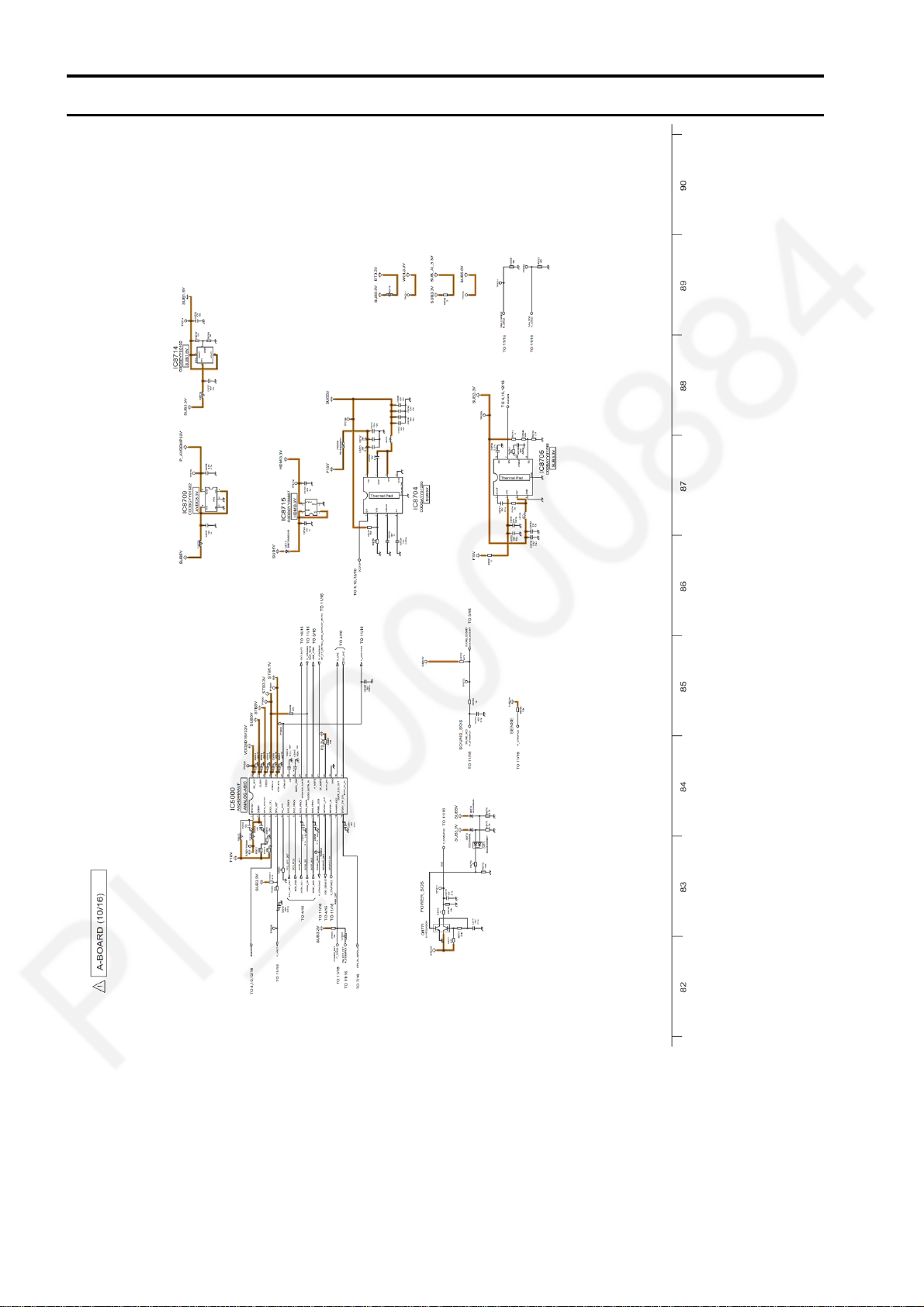

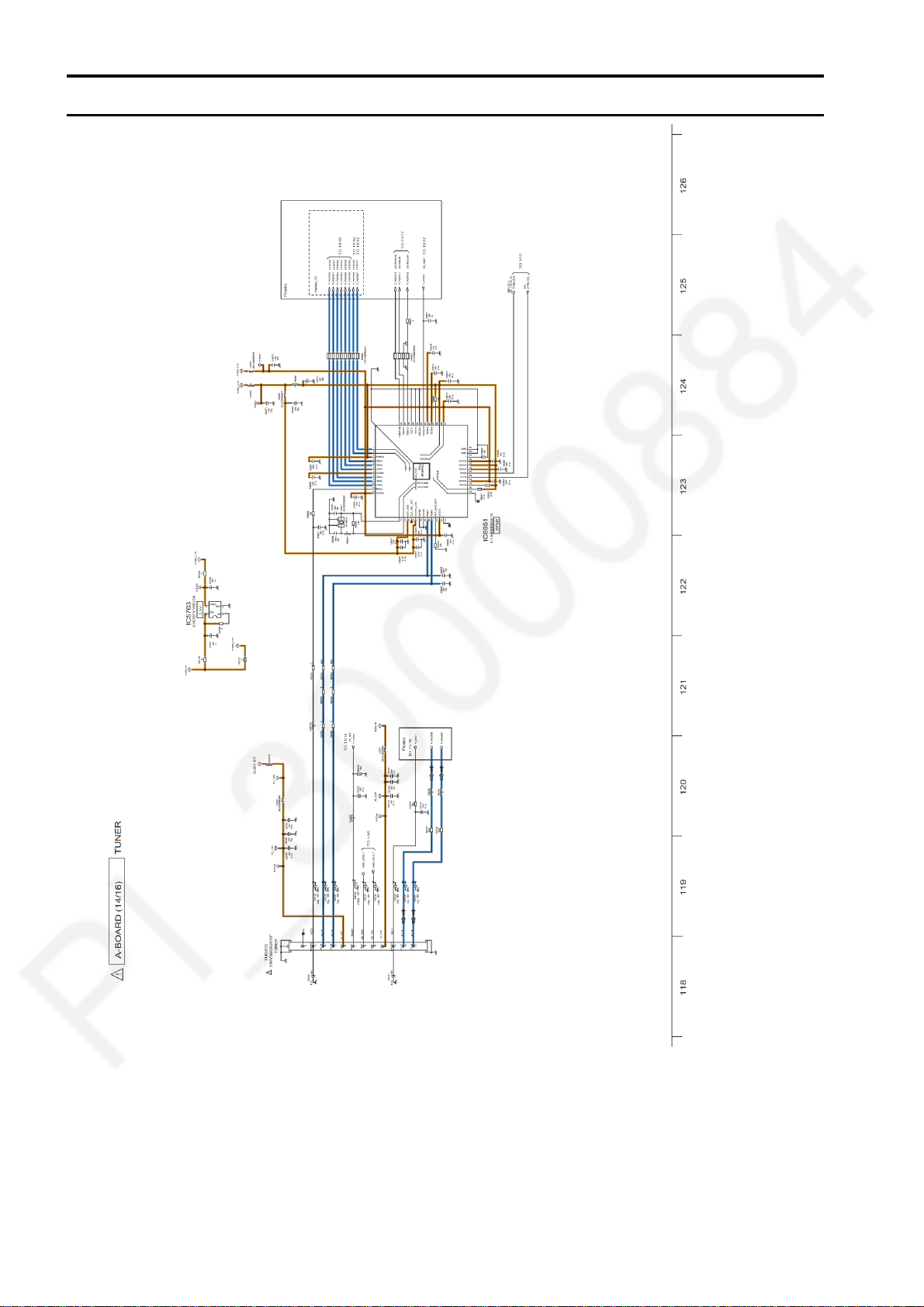

Model No. : TH-P42ST50H A-Board (1/16)

S-7

Page 48

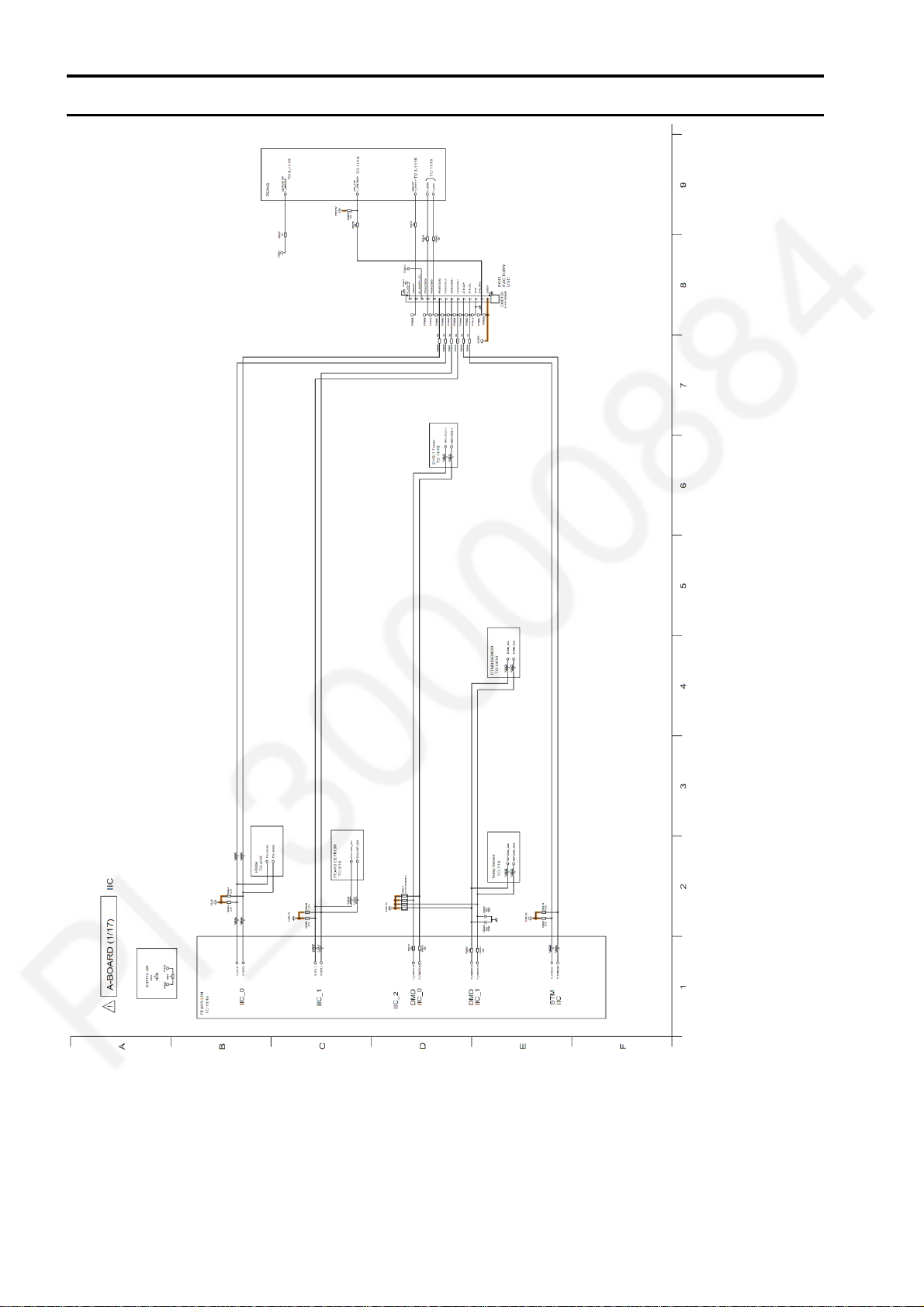

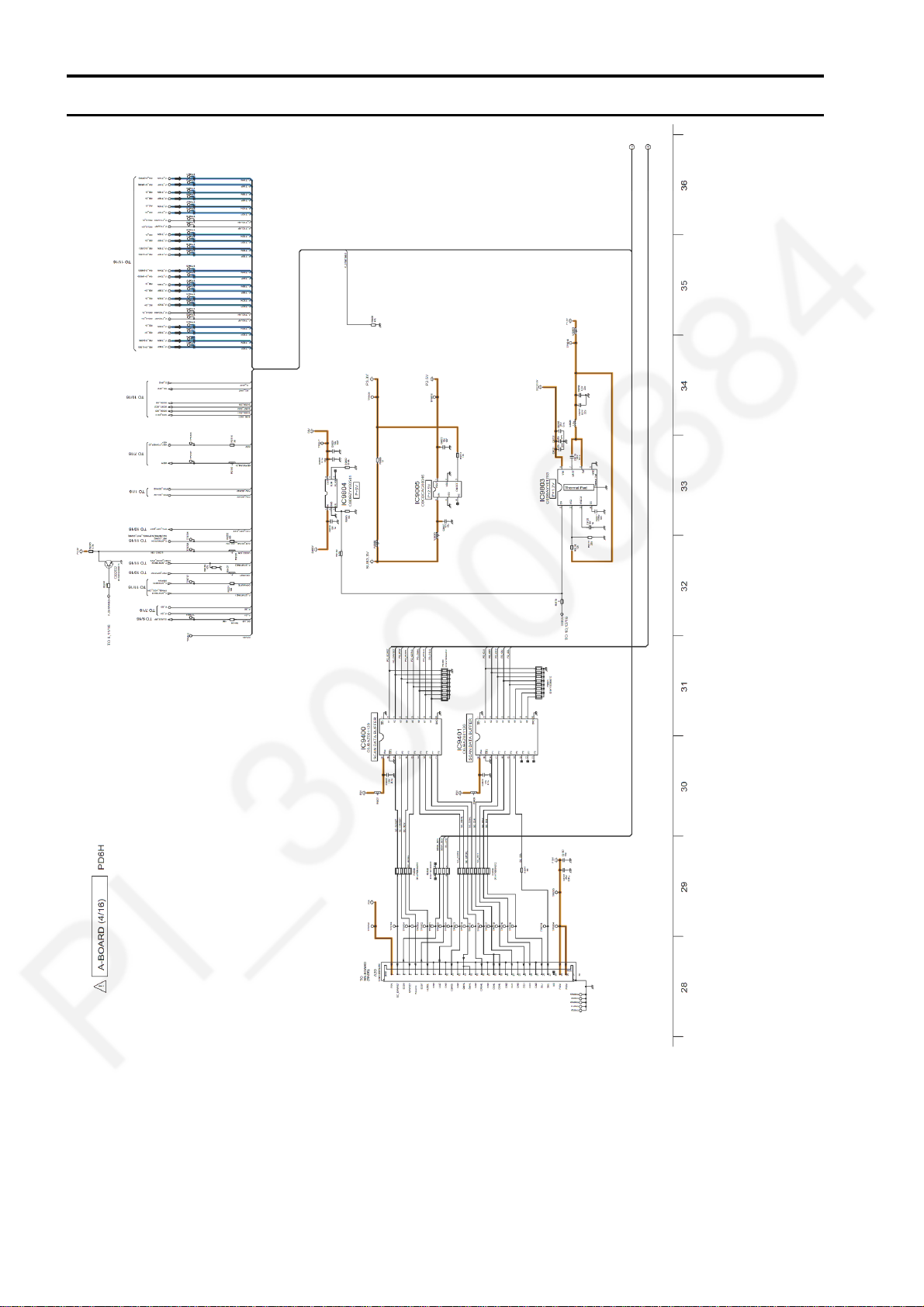

Model No. : TH-P42ST50H A-Board (2/16)

S-8

Page 49

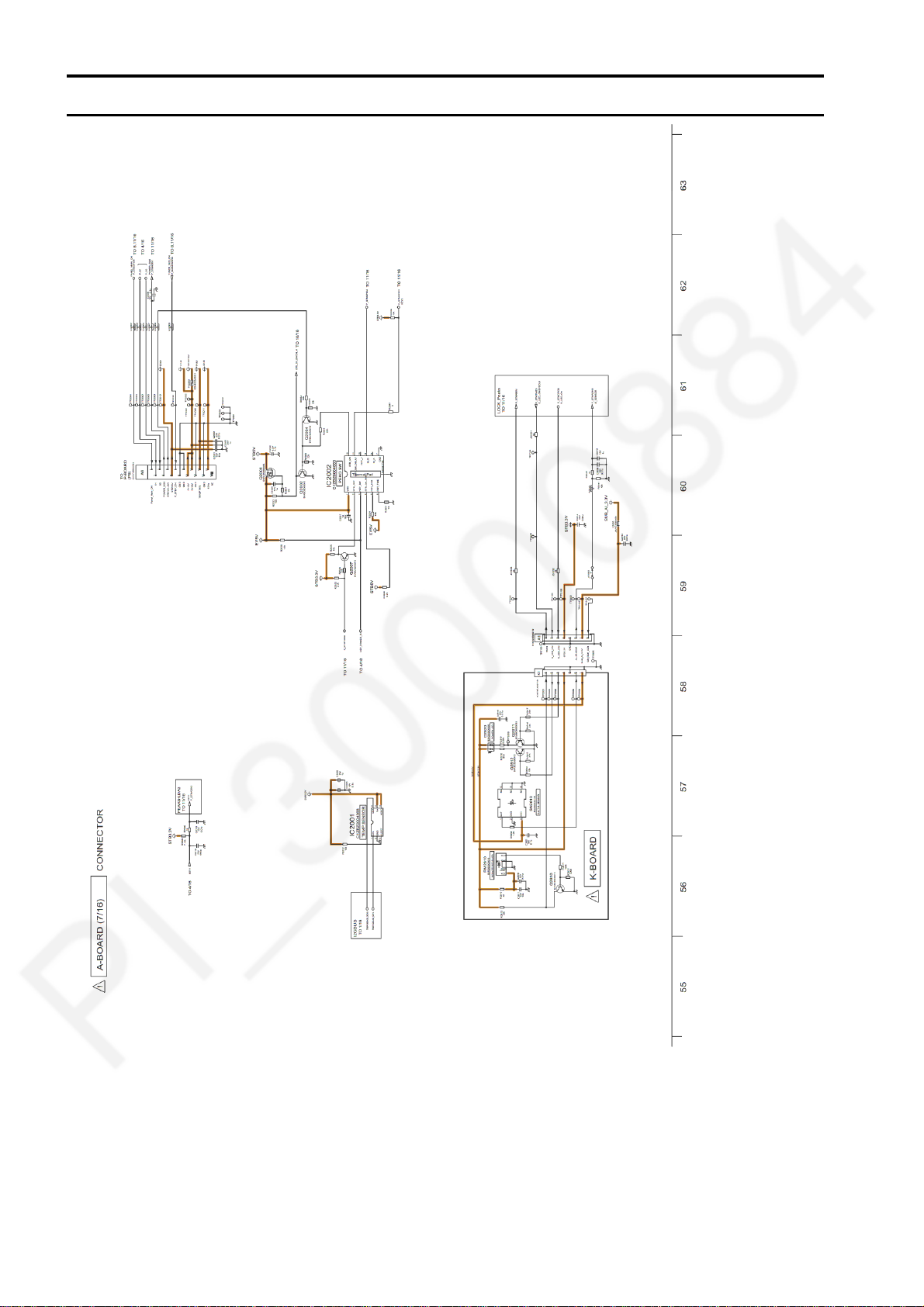

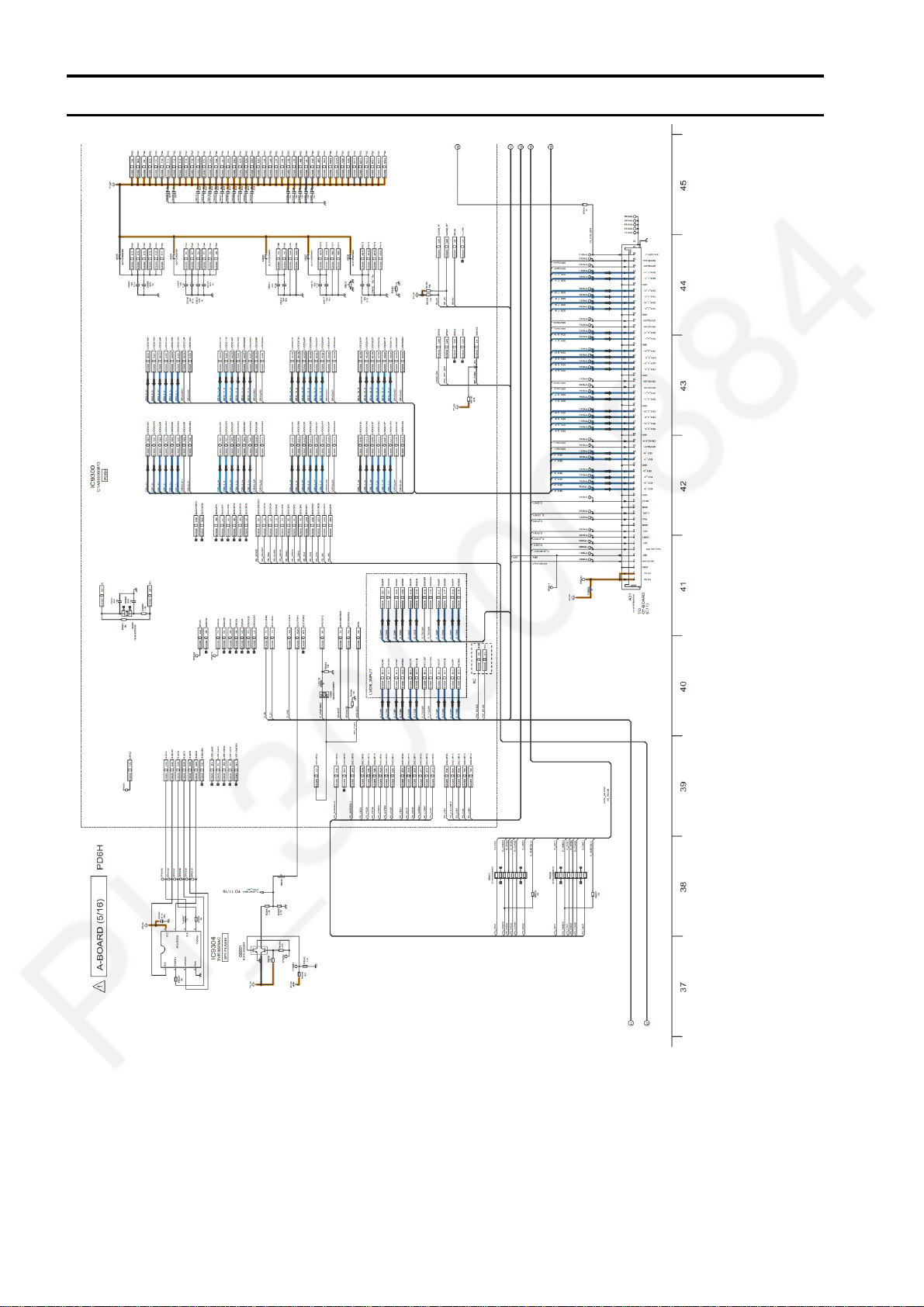

Model No. : TH-P42ST50H A-Board (3/16)

S-9

Page 50

Model No. : TH-P42ST50H A-Board (4/16)

S-10

Page 51

Model No. : TH-P42ST50H A-Board (5/16)

S-11

Page 52

Model No. : TH-P42ST50H A-Board (6/16)

S-12

Page 53

Model No. : TH-P42ST50H A-Board (7/16) and K-Board

S-13

Page 54

Model No. : TH-P42ST50H A-Board (8/16)

S-14

Page 55

Model No. : TH-P42ST50H A-Board (9/16)

S-15

Page 56

Model No. : TH-P42ST50H A-Board (10/16)

S-16

Page 57

Model No. : TH-P42ST50H A-Board (11/16)

S-17

Page 58

Model No. : TH-P42ST50H A-Board (12/16)

S-18

Page 59

Model No. : TH-P42ST50H A-Board (13/16)

S-19

Page 60

Model No. : TH-P42ST50H A-Board (14/16)

S-20

Page 61

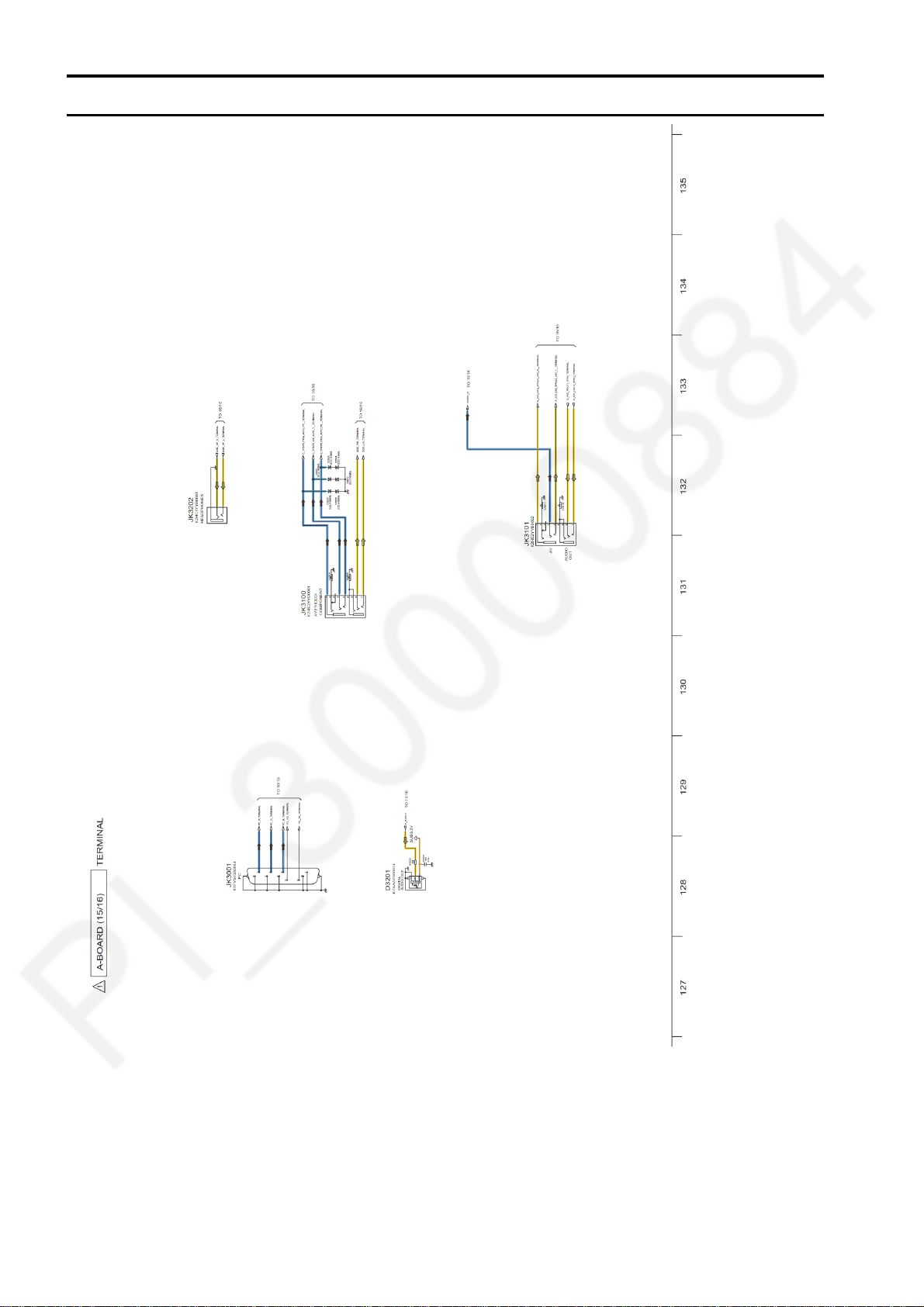

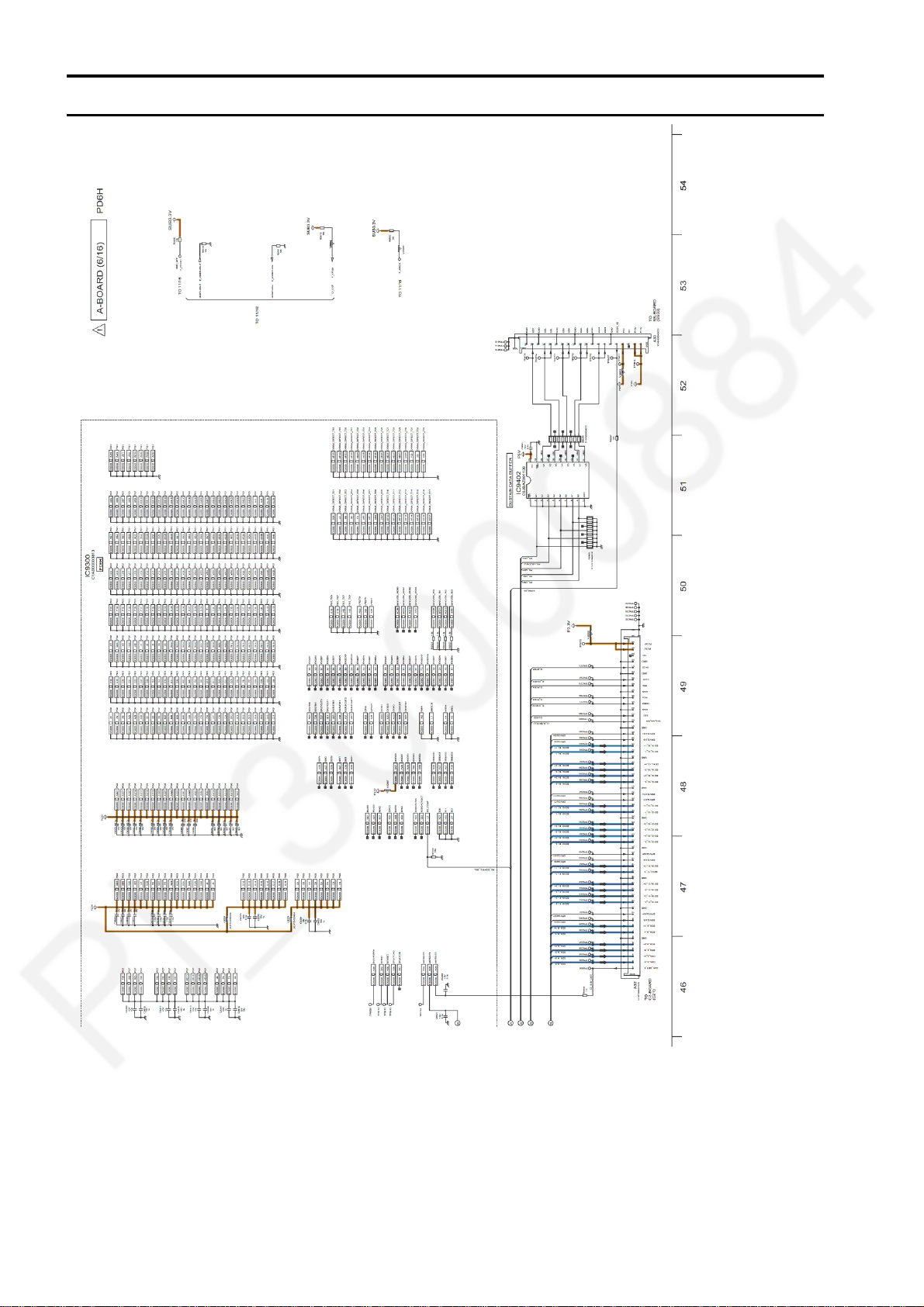

Model No. : TH-P42ST50H A-Board (15/16)

S-21

Page 62

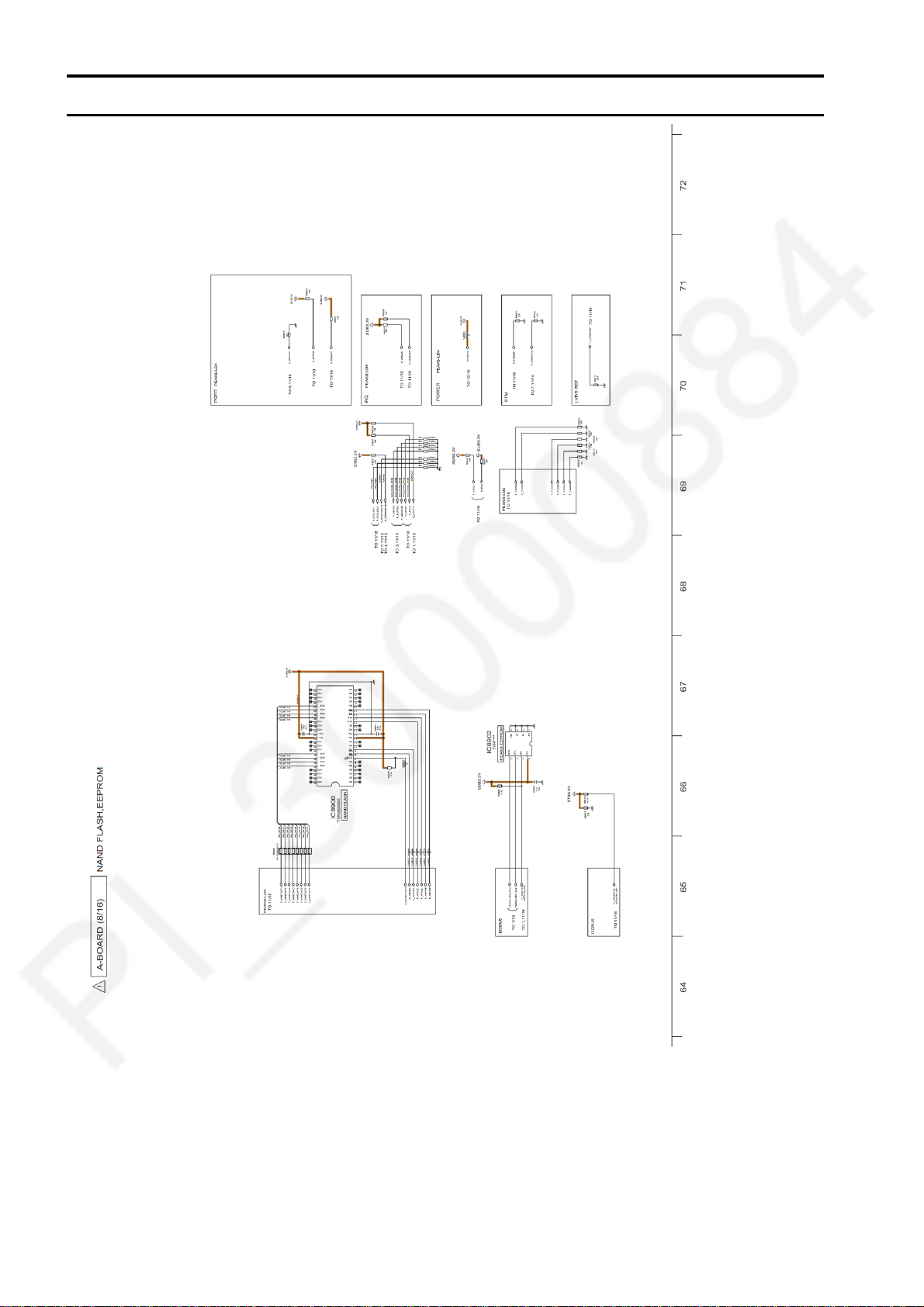

Model No. : TH-P42ST50H A-Board (16/16)

S-22

Page 63

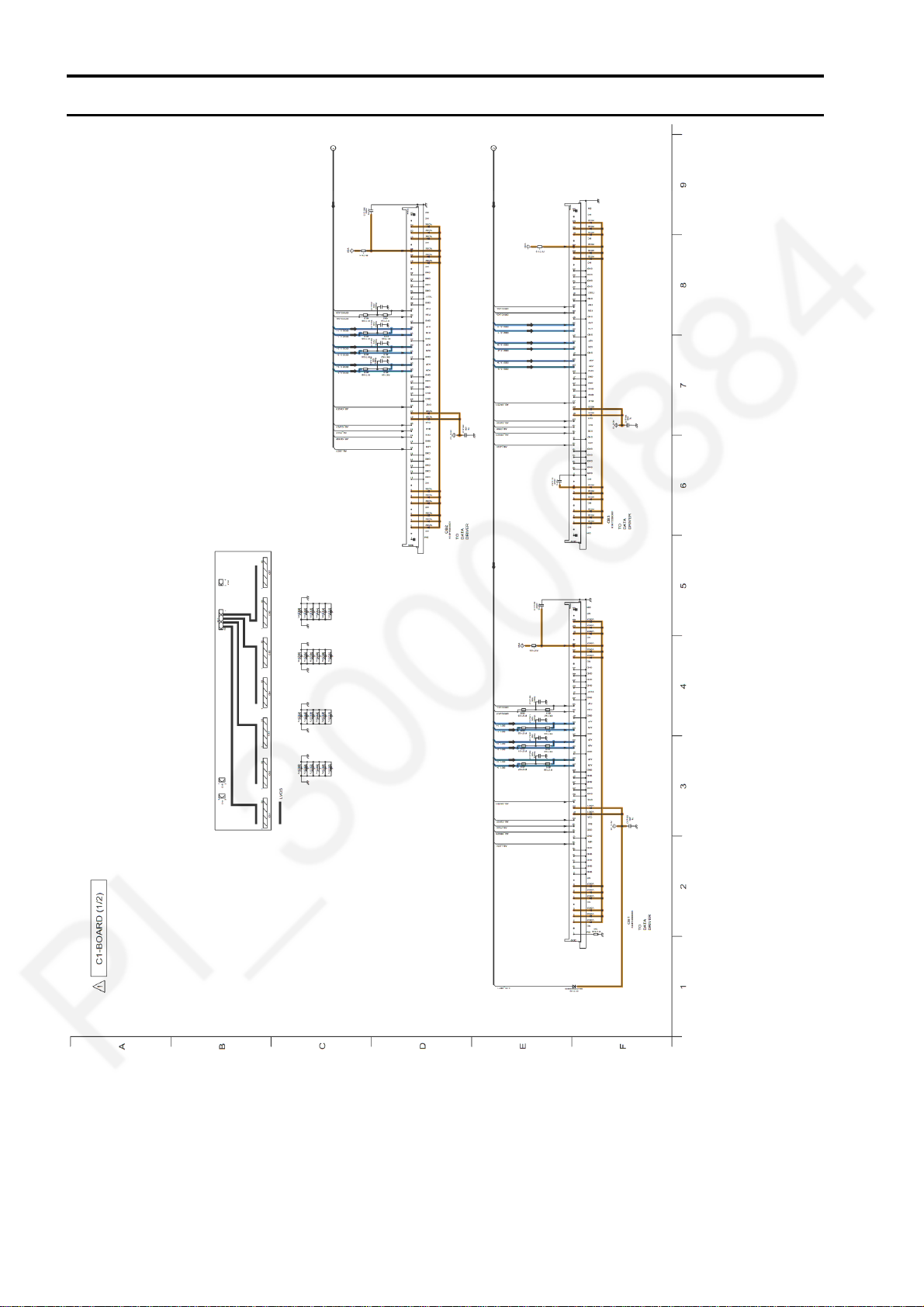

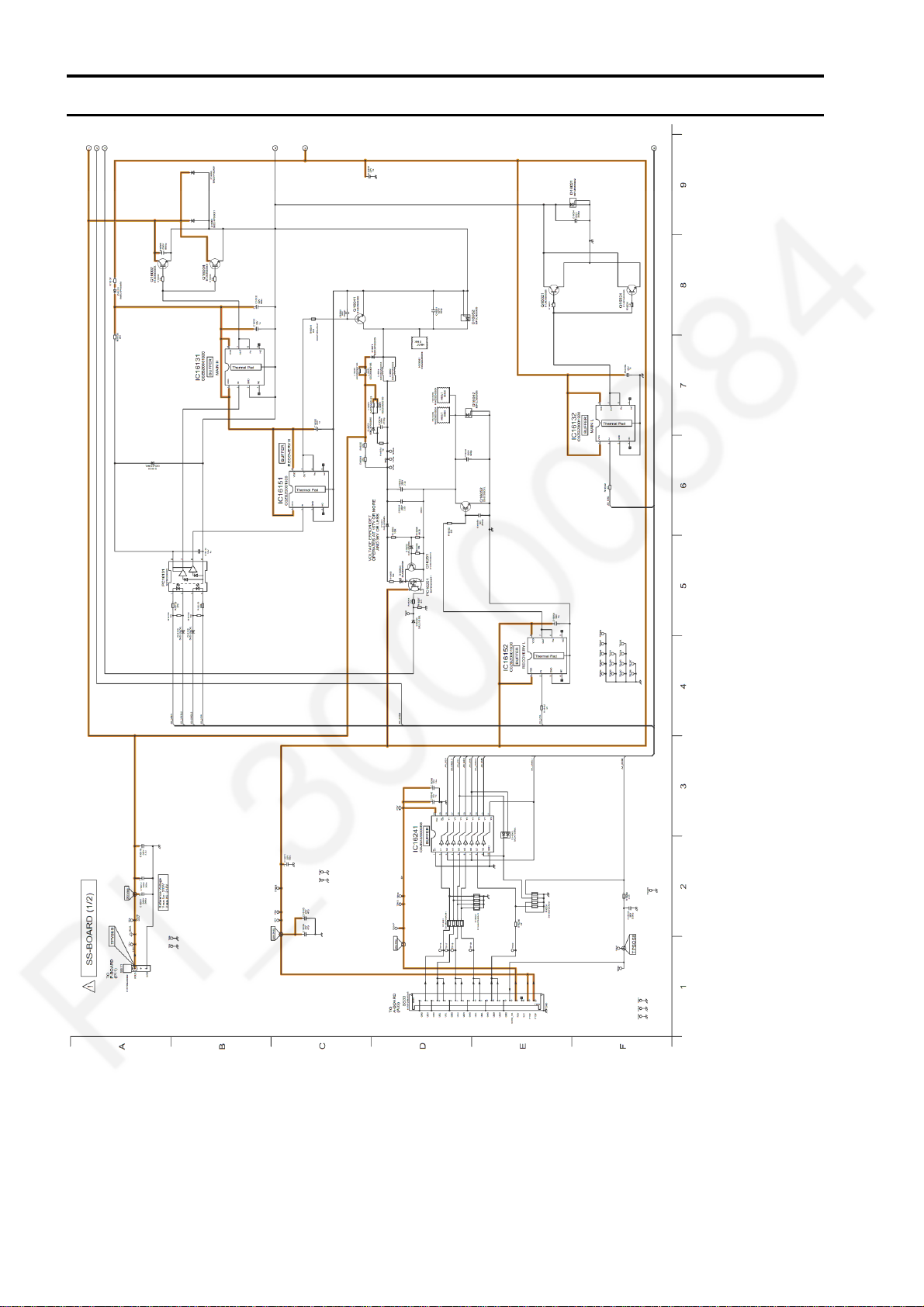

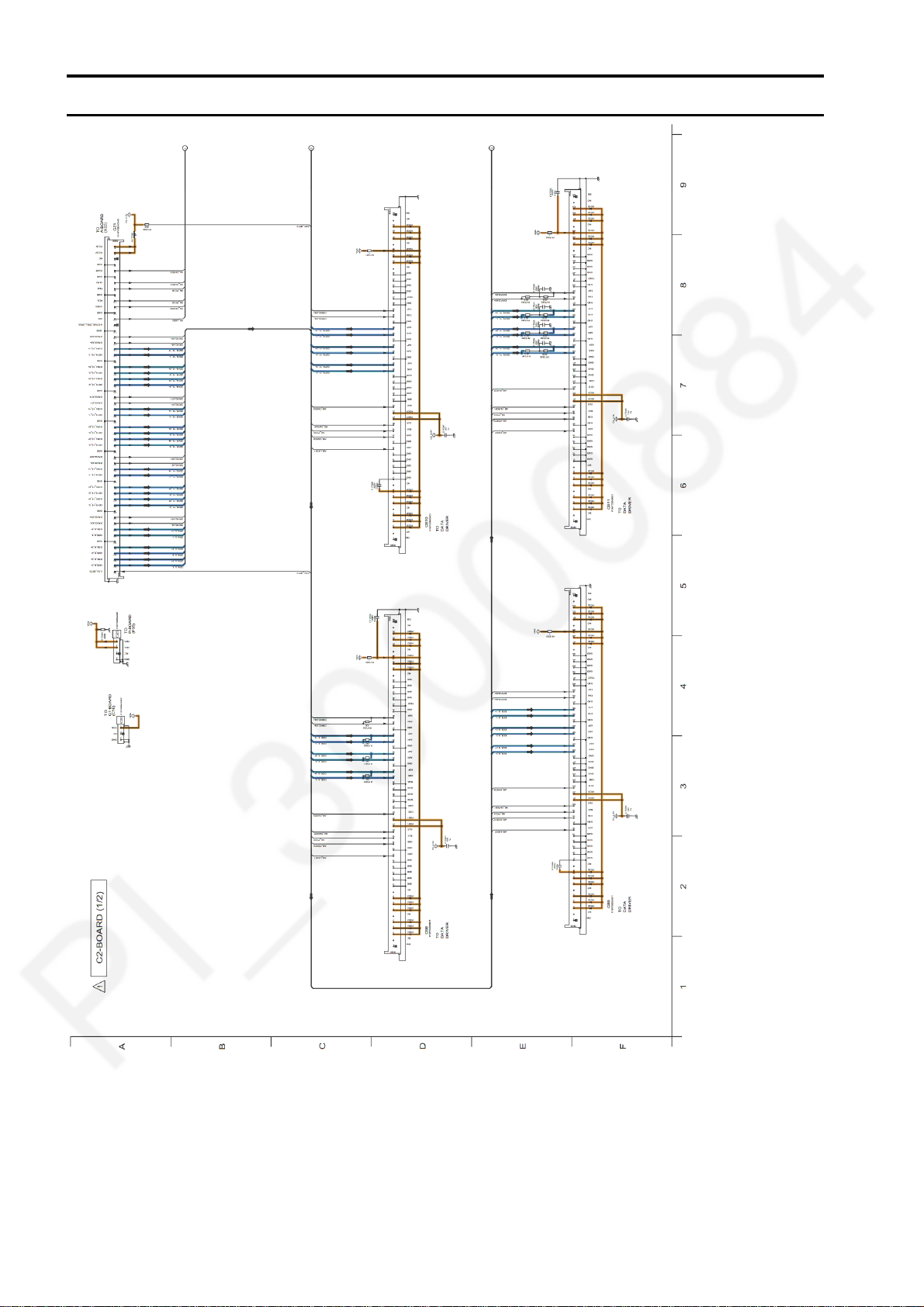

Model No. : TH-P42ST50H C1-Board (1/2)

S-23

Page 64

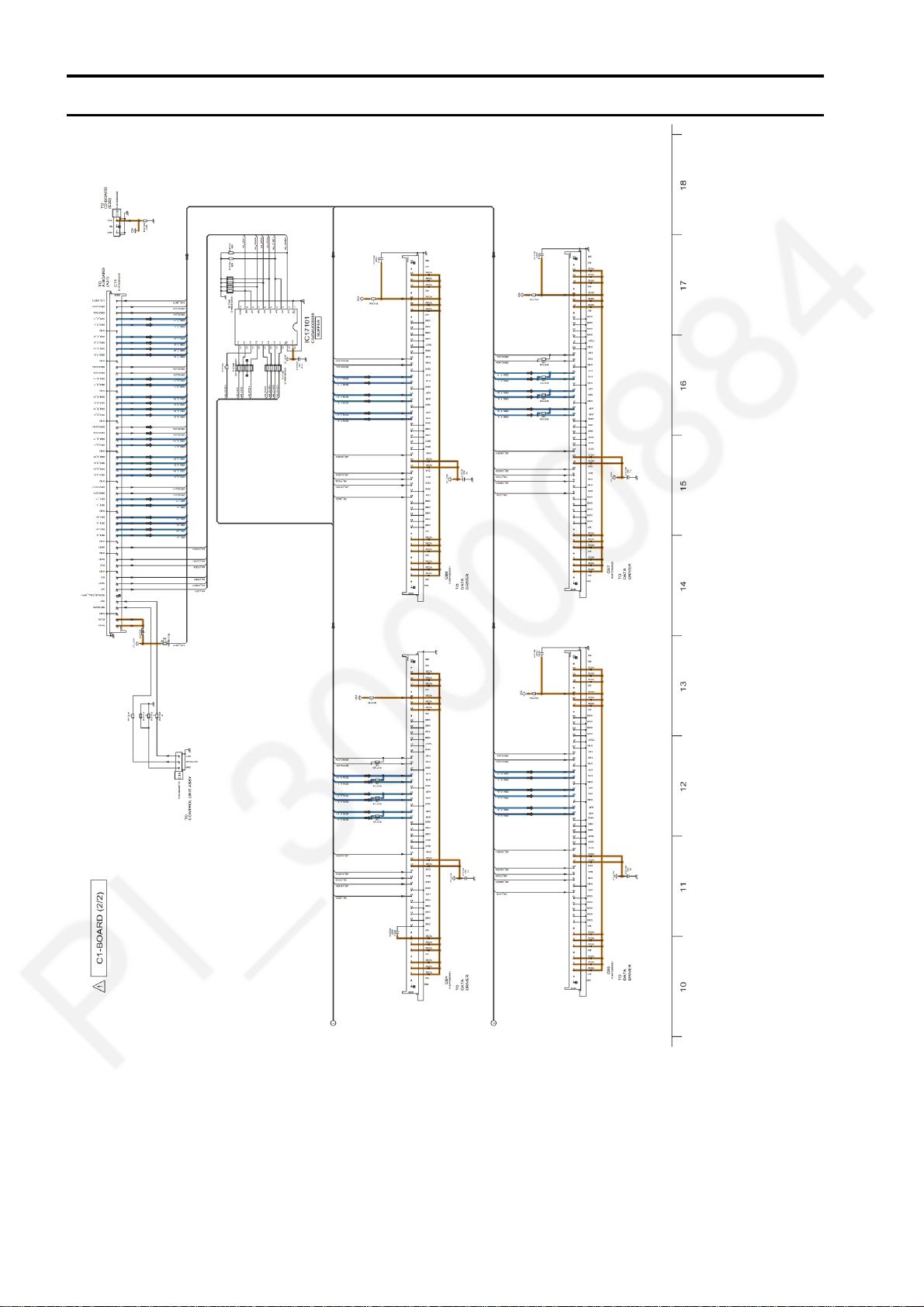

Model No. : TH-P42ST50H C1-Board (2/2)

S-24

Page 65

Model No. : TH-P42ST50H C2-Board (1/2)

S-25

Page 66

Model No. : TH-P42ST50H C2-Board (2/2)

S-26

Page 67

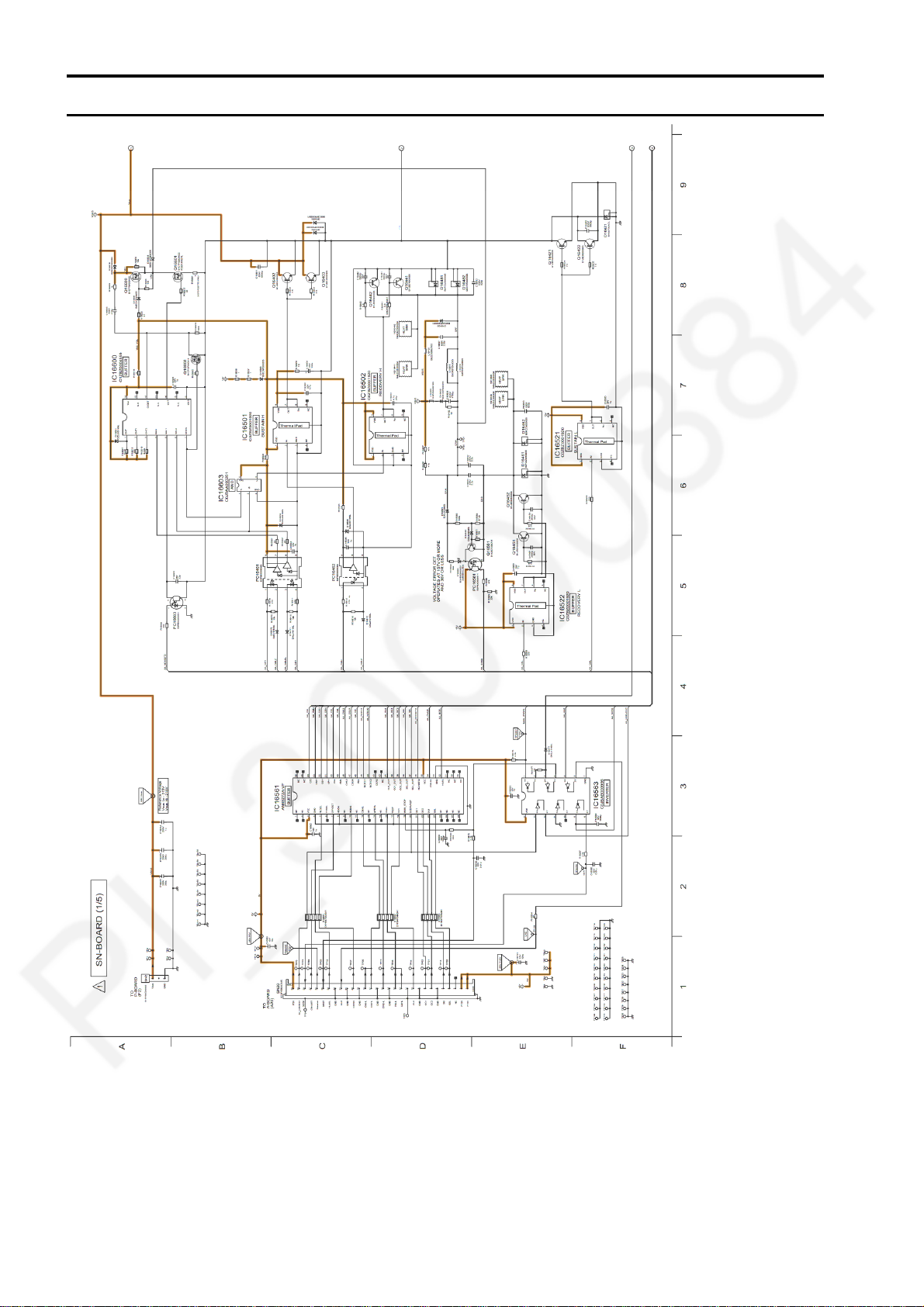

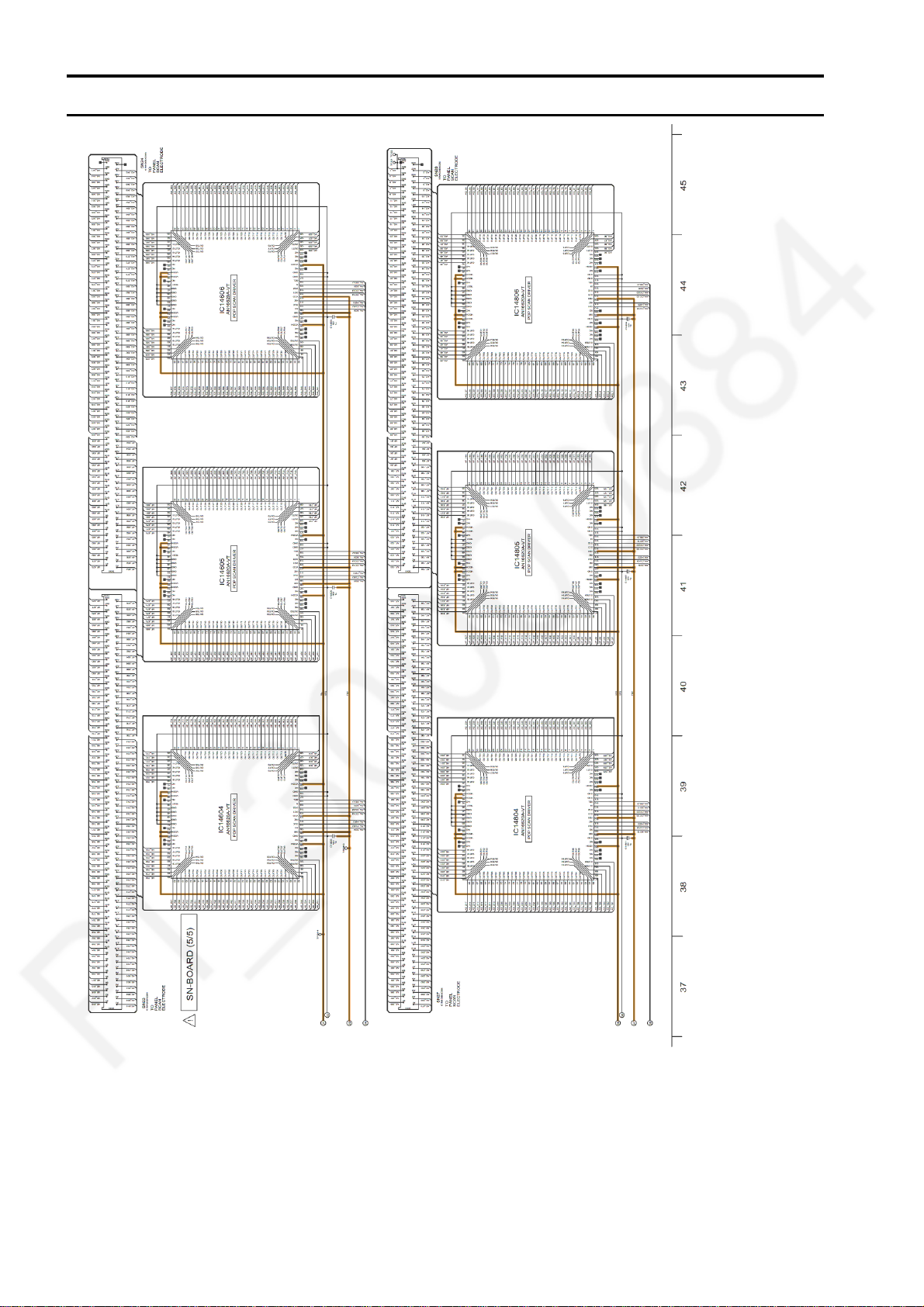

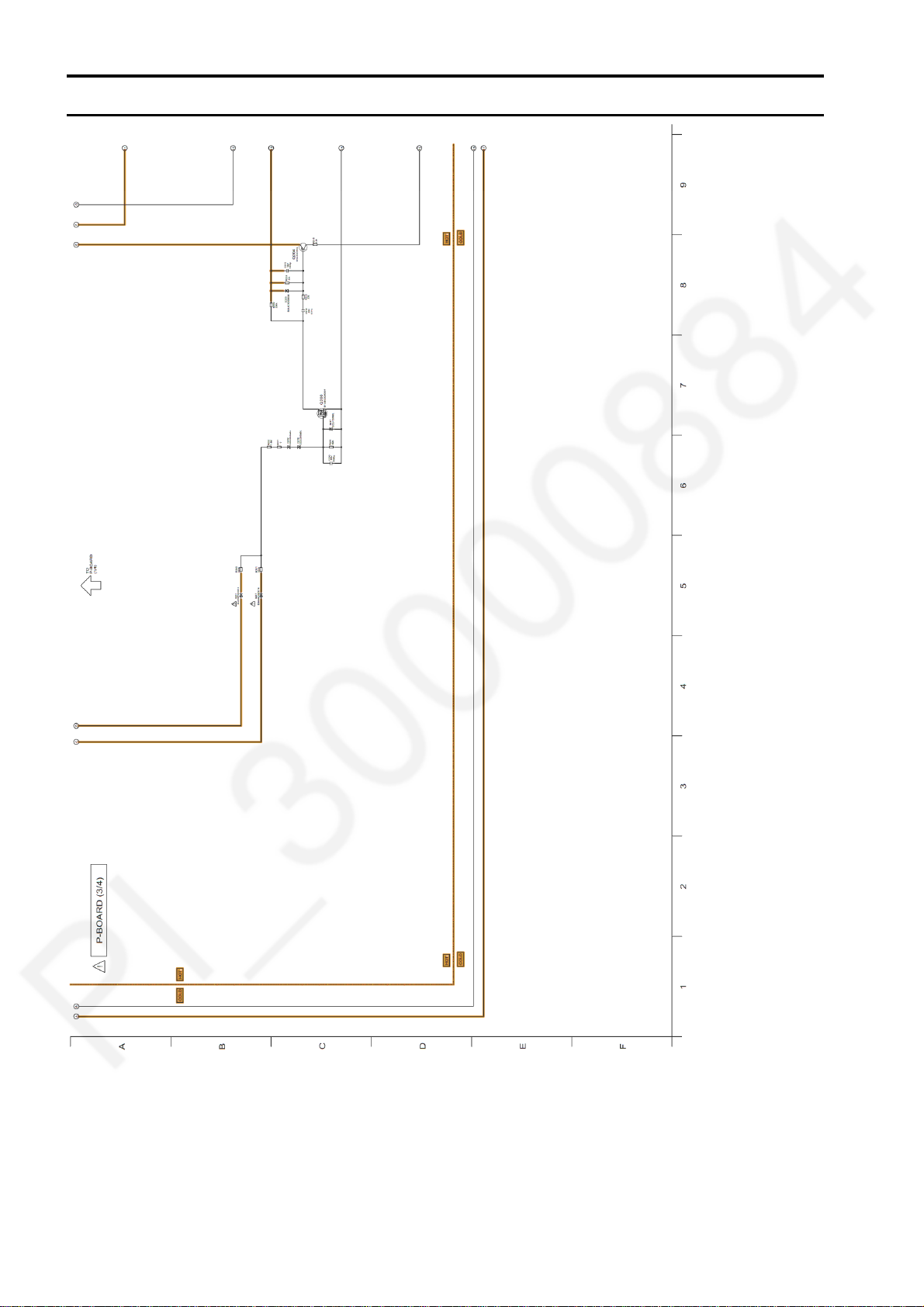

Model No. : TH-P42ST50H SN-Board (1/5)

S-27

Page 68

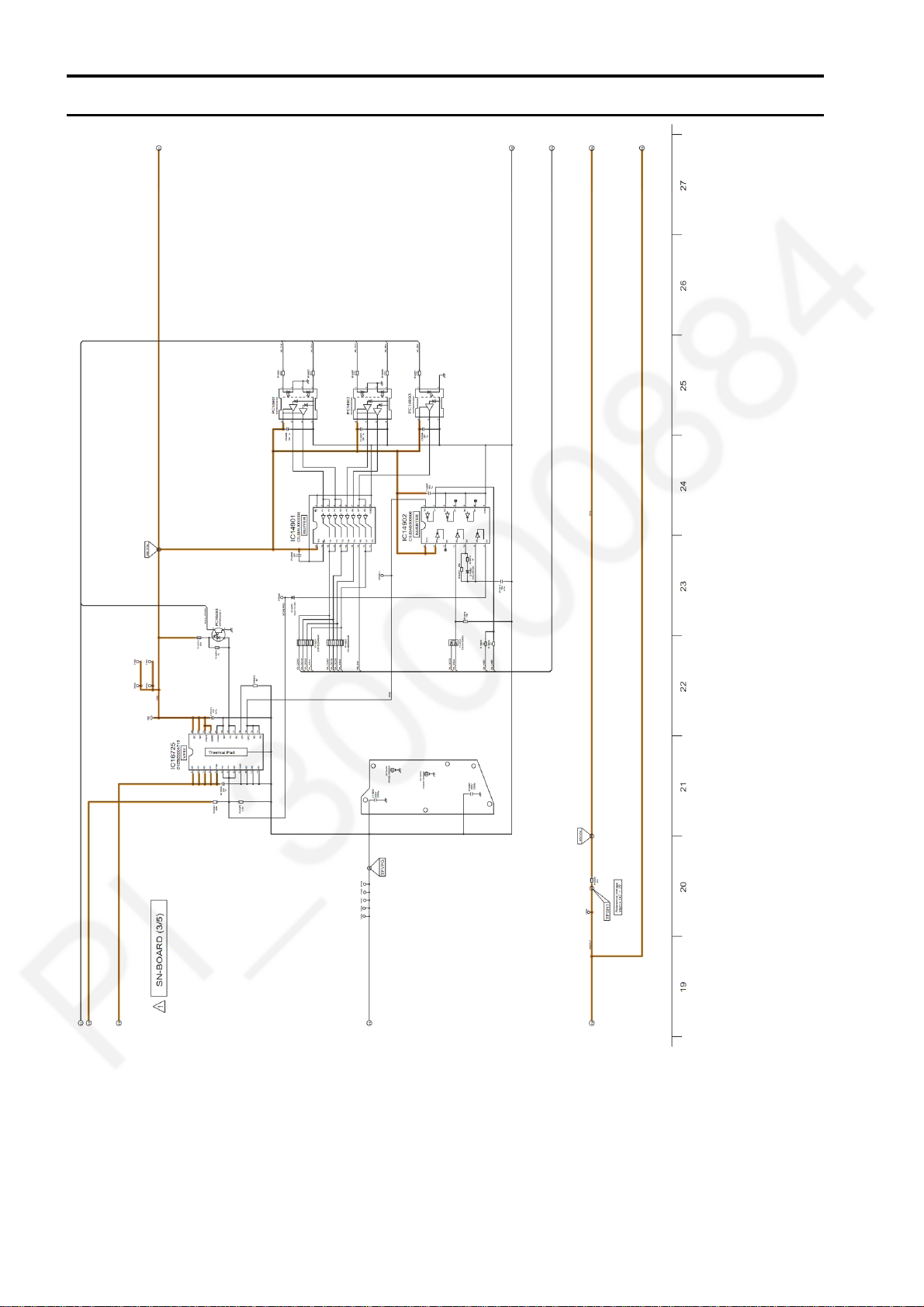

Model No. : TH-P42ST50H SN-Board (2/5)

S-28

Page 69

Model No. : TH-P42ST50H SN-Board (3/5)

S-29

Page 70

Model No. : TH-P42ST50H SN-Board (4/5)

S-30

Page 71

Model No. : TH-P42ST50H SN-Board (5/5)

S-31

Page 72

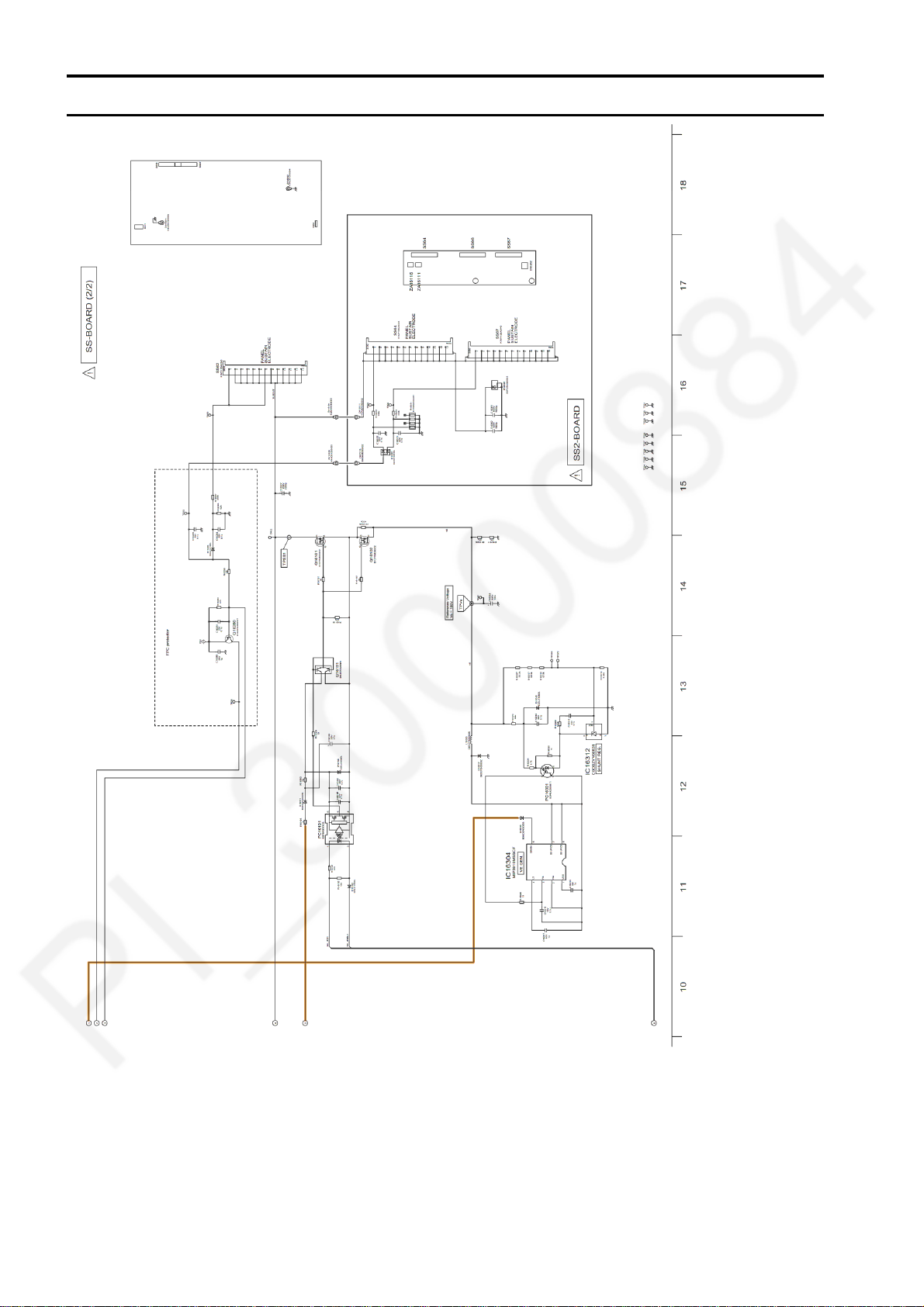

Model No. : TH-P42ST50H SS-Board (1/2)

S-32

Page 73

Model No. : TH-P42ST50H SS-Board (2/2) and SS2-Board

S-33

Page 74

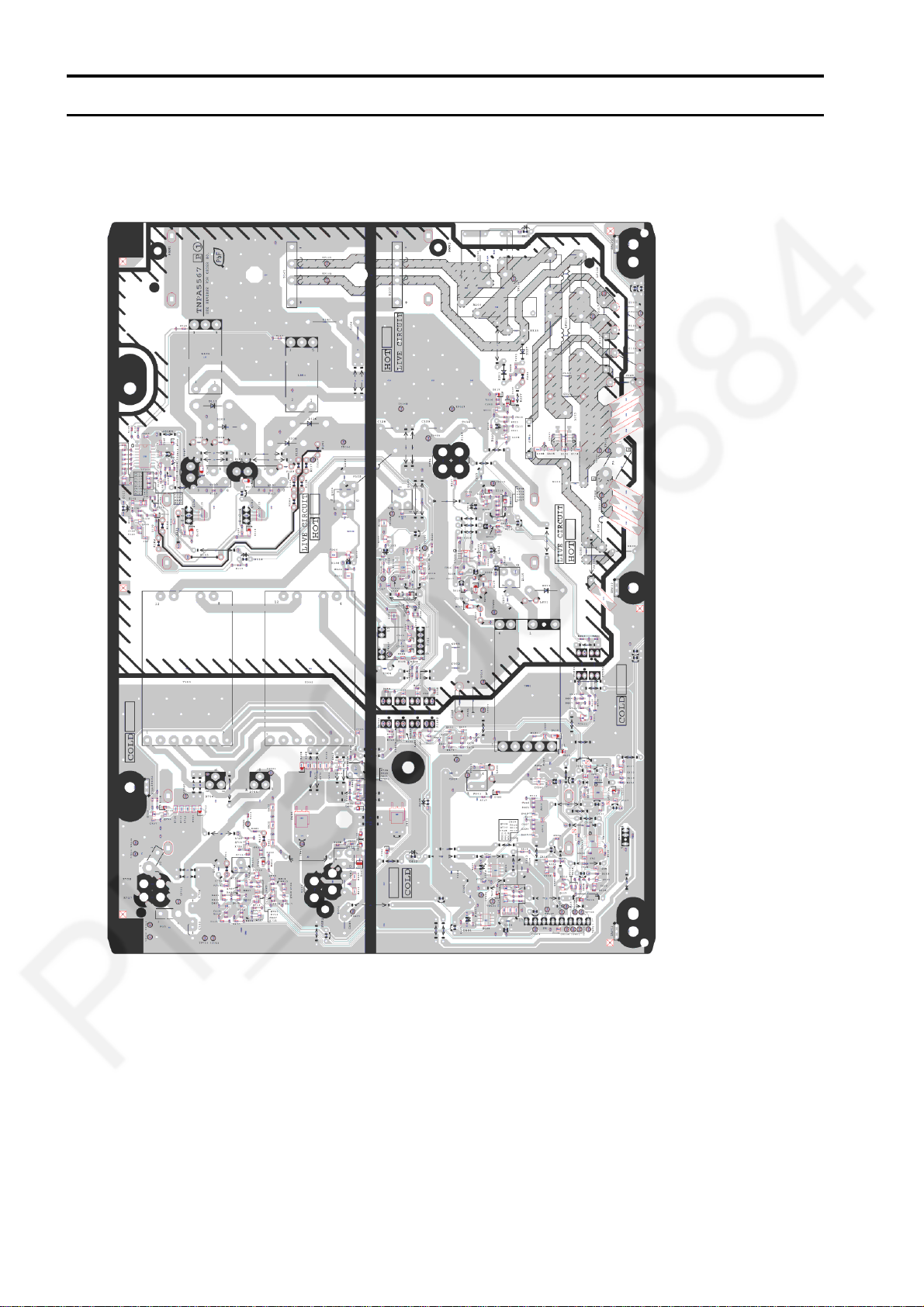

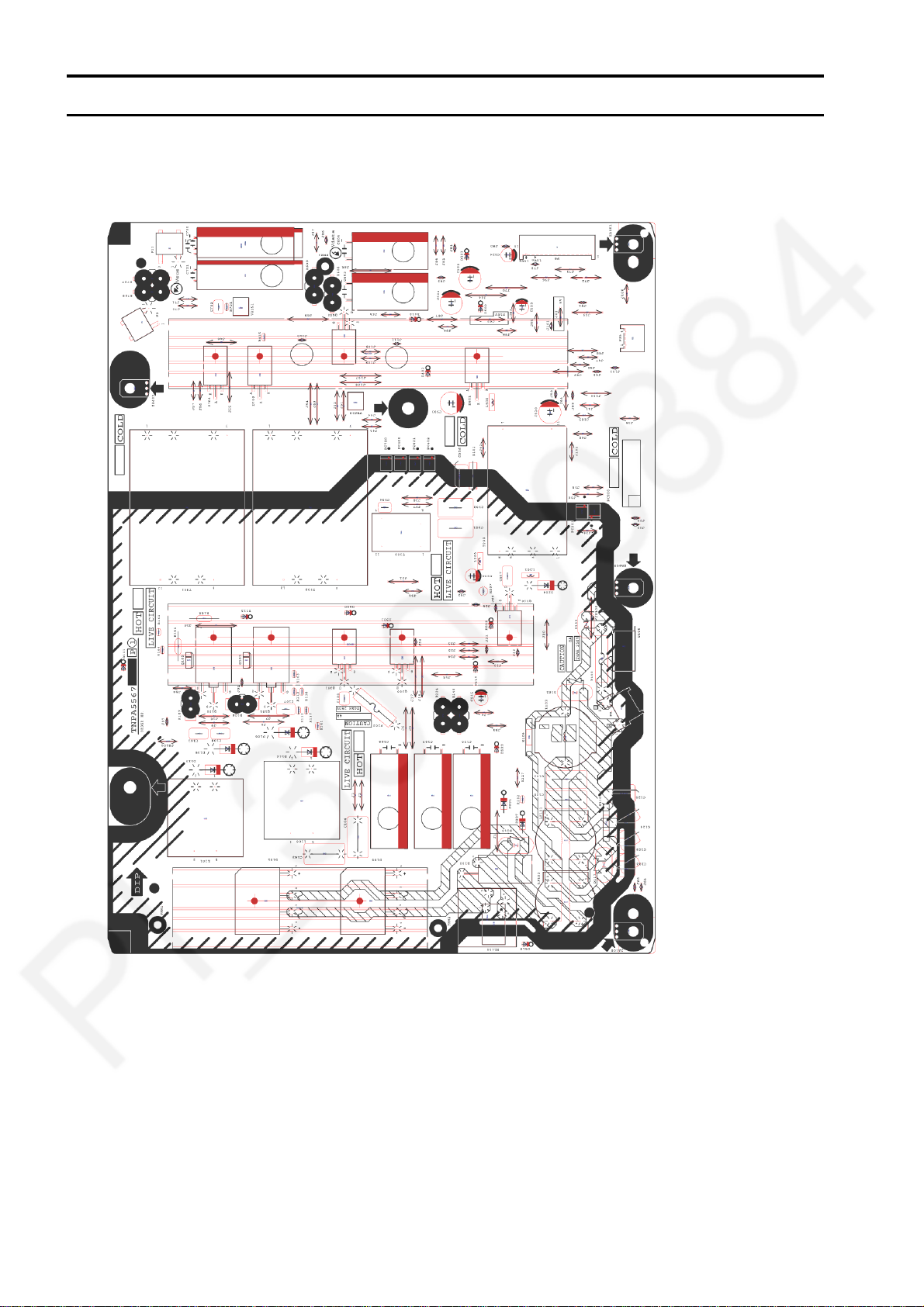

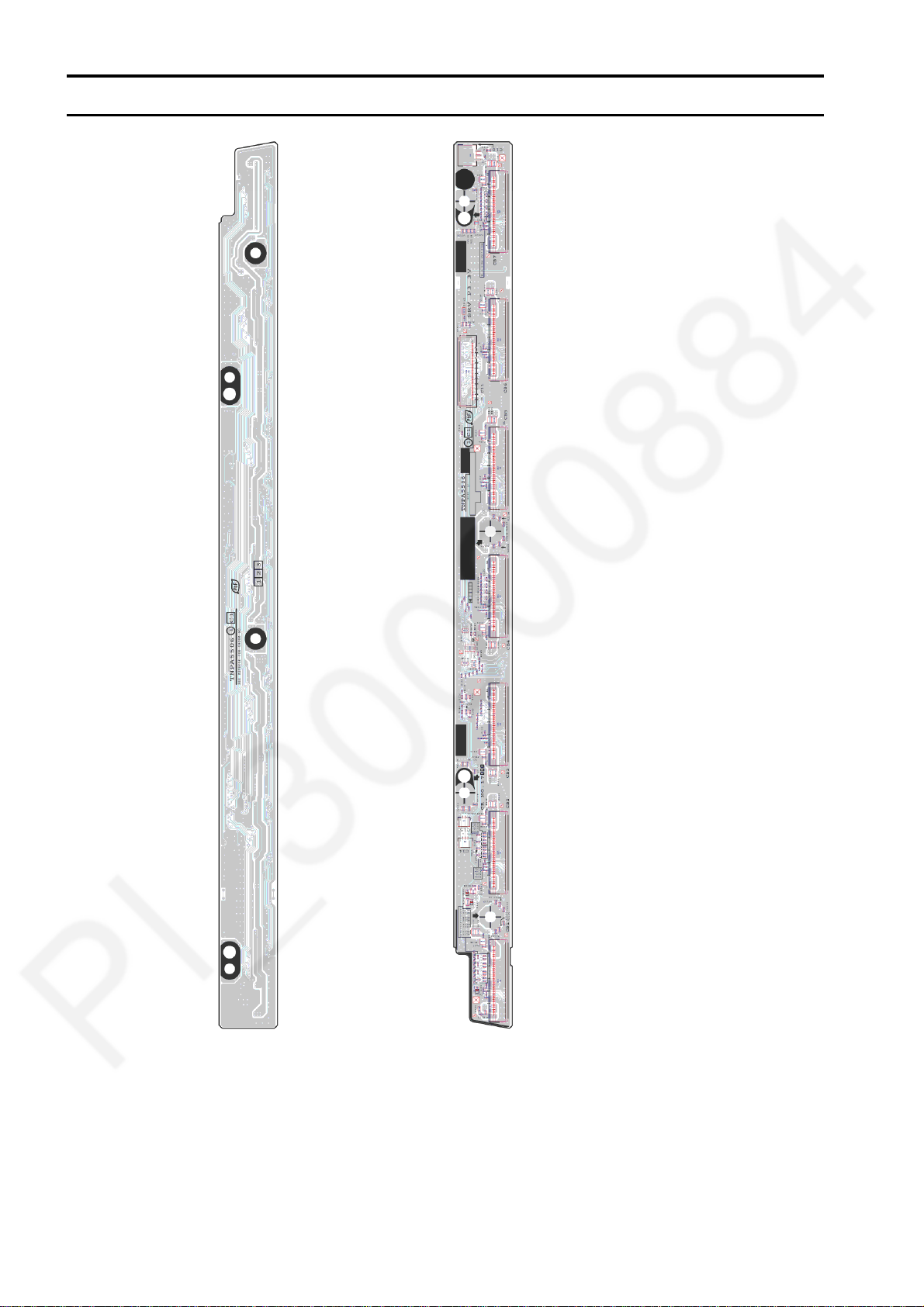

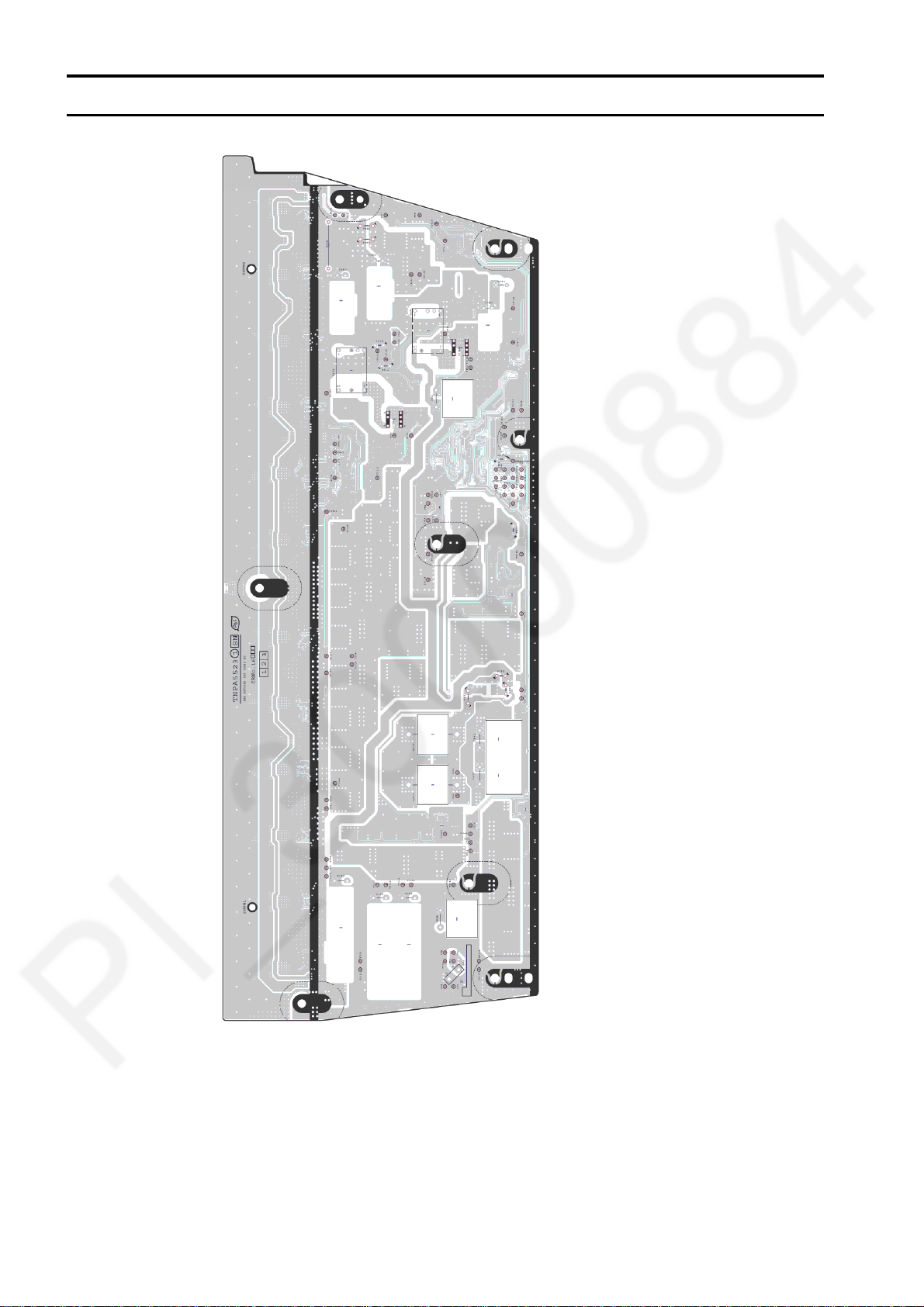

Model No. : TH-P42ST50H P-Board (Foil Side)

S-34

Page 75

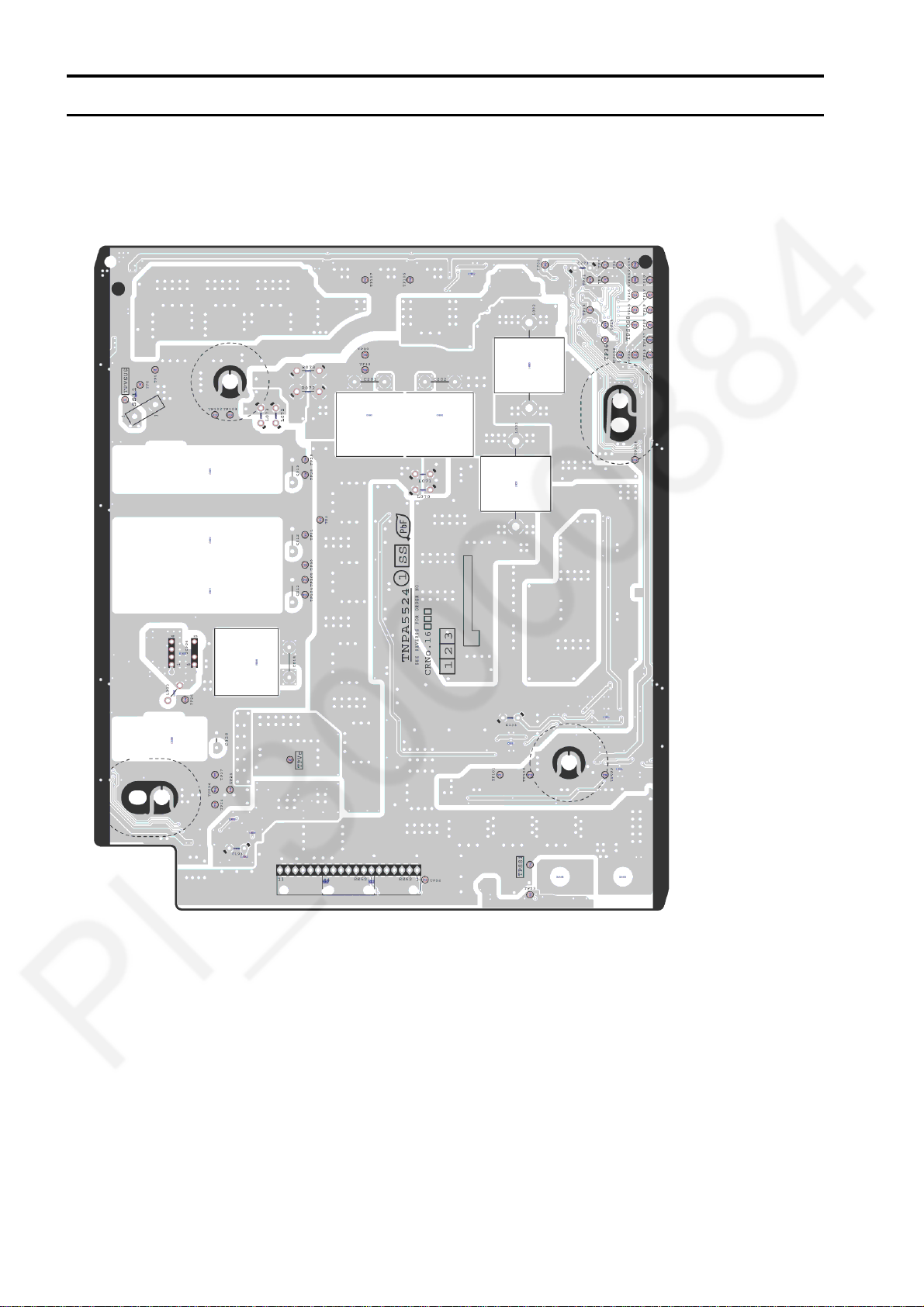

Model No. : TH-P42ST50H P-Board (Component Side)

S-35

Page 76

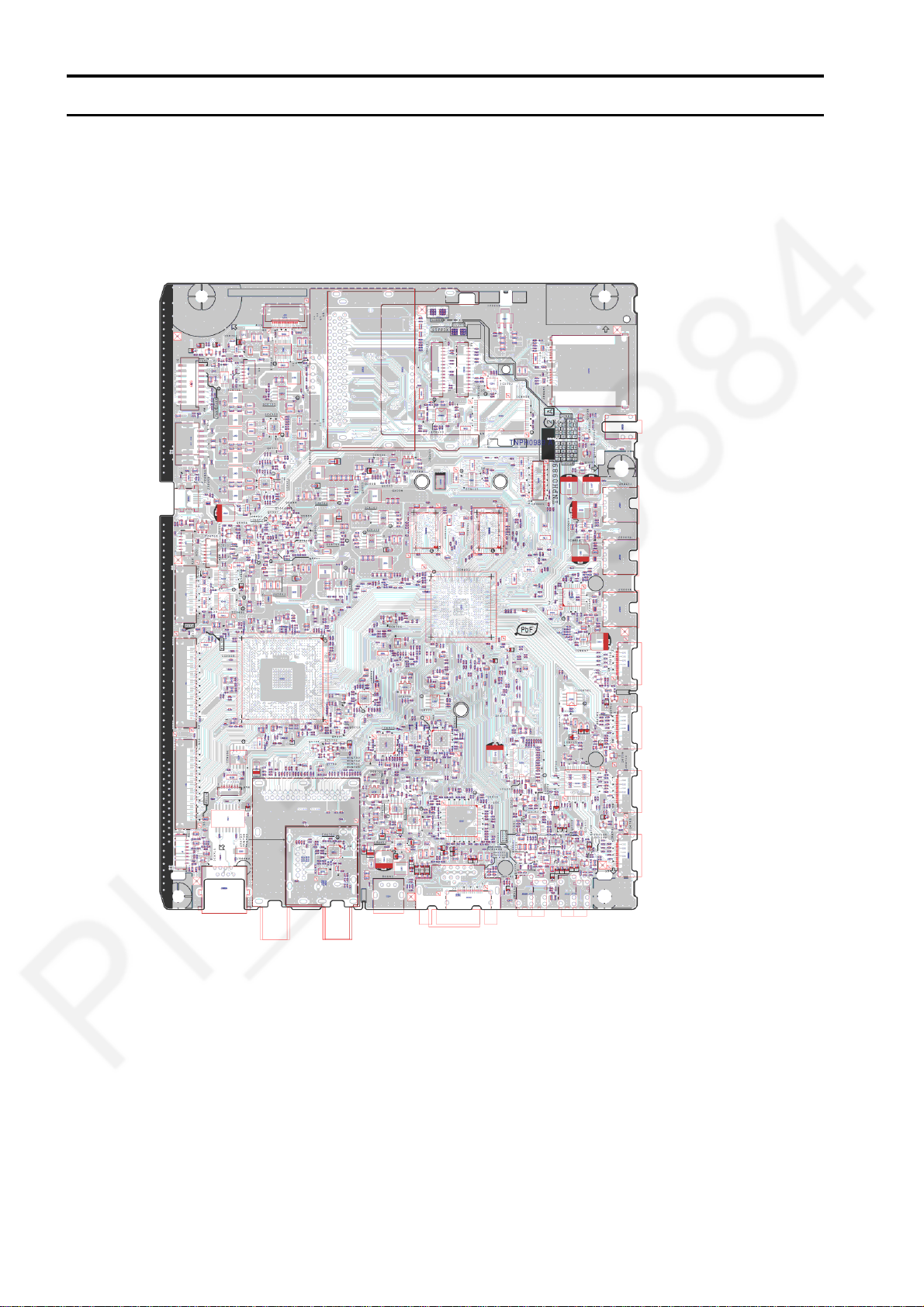

Model No. : TH-P42ST50H A-Board (Foil Side)

S-36

Page 77

Model No. : TH-P42ST50H A-Board (Component Side)

S-37

Page 78

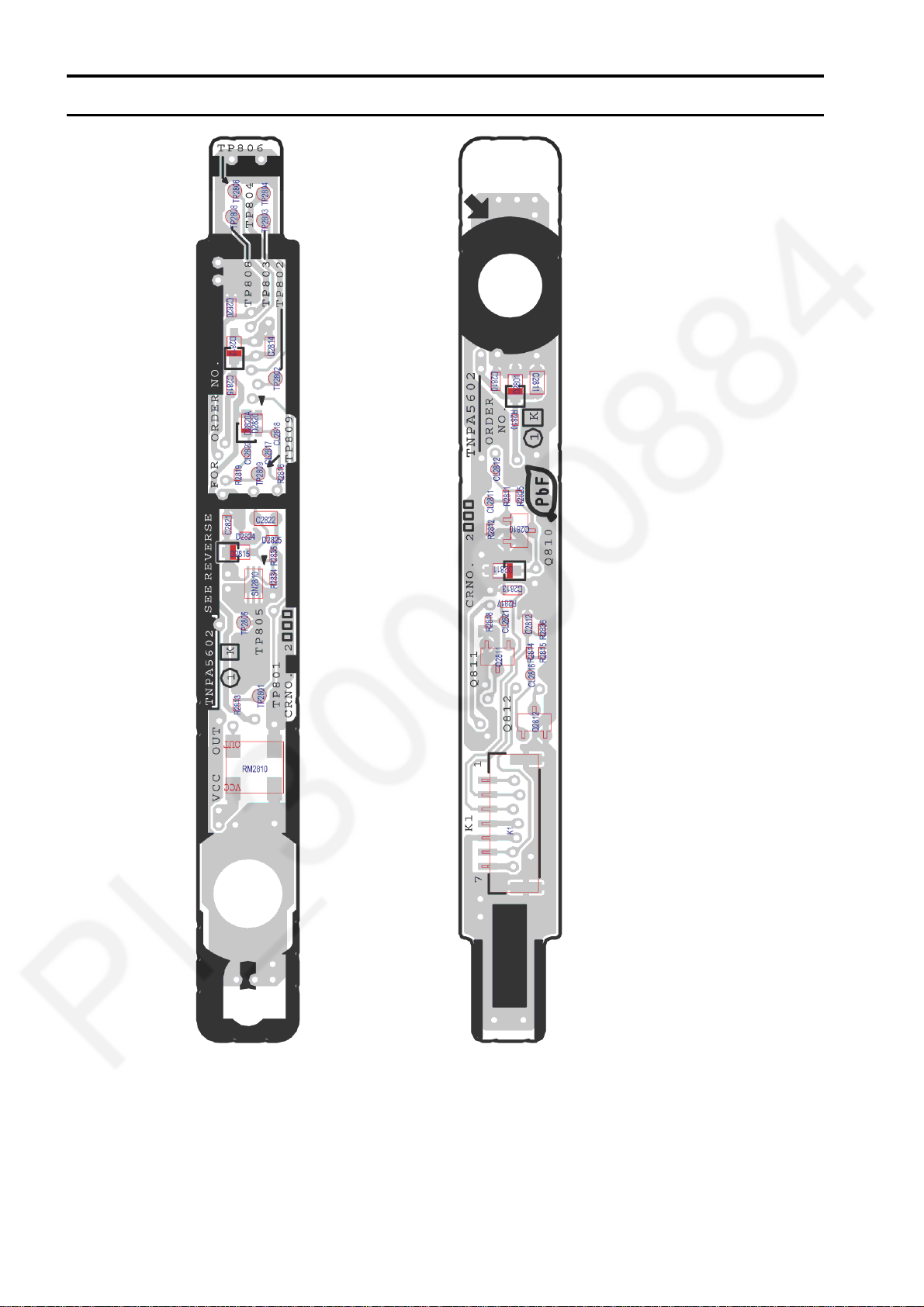

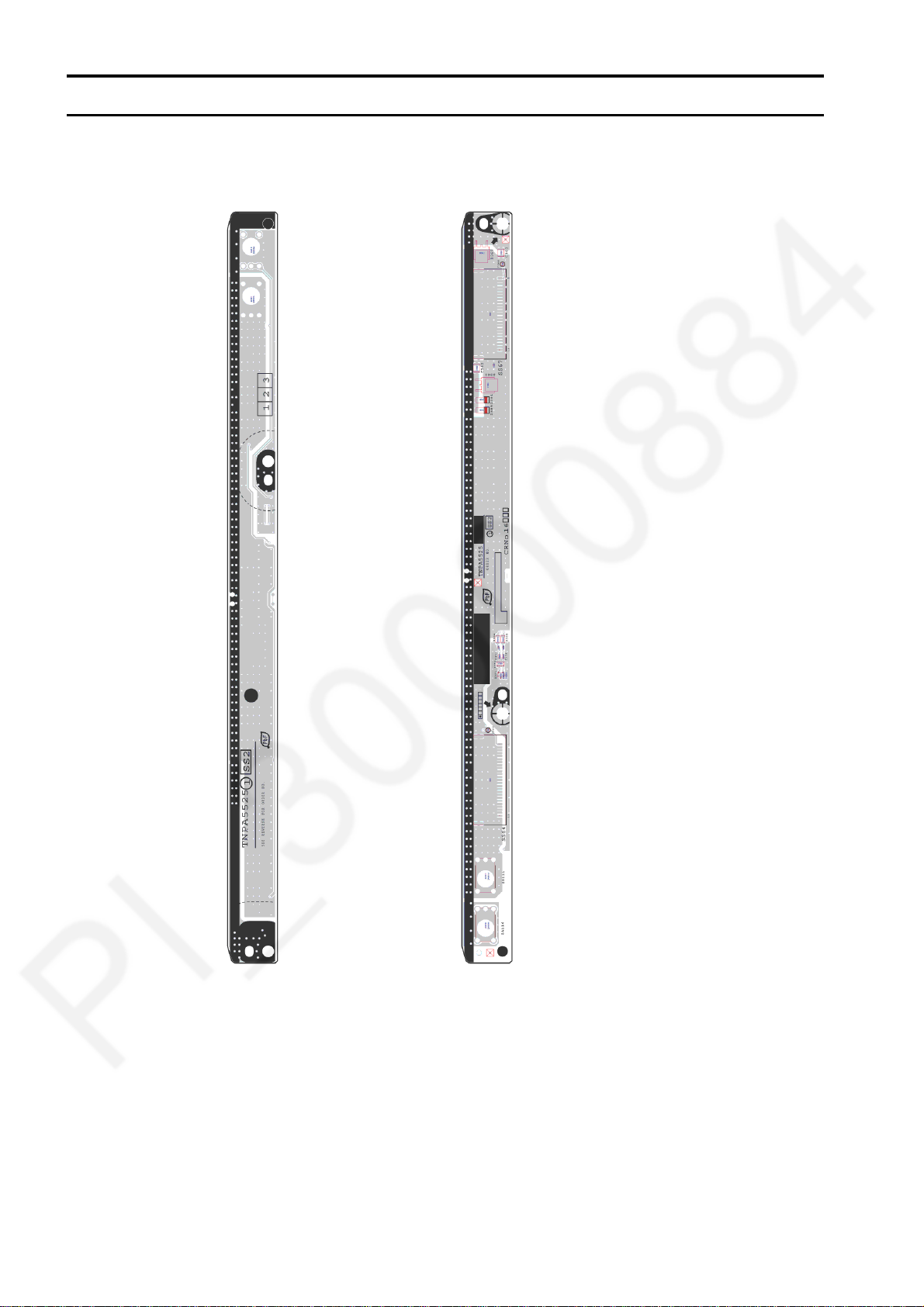

Model No. : TH-P42ST50H K-Board

S-38

Page 79

Model No. : TH-P42ST50H C1-Board

S-39

Page 80

Model No. : TH-P42ST50H C2-Board

S-40

Page 81

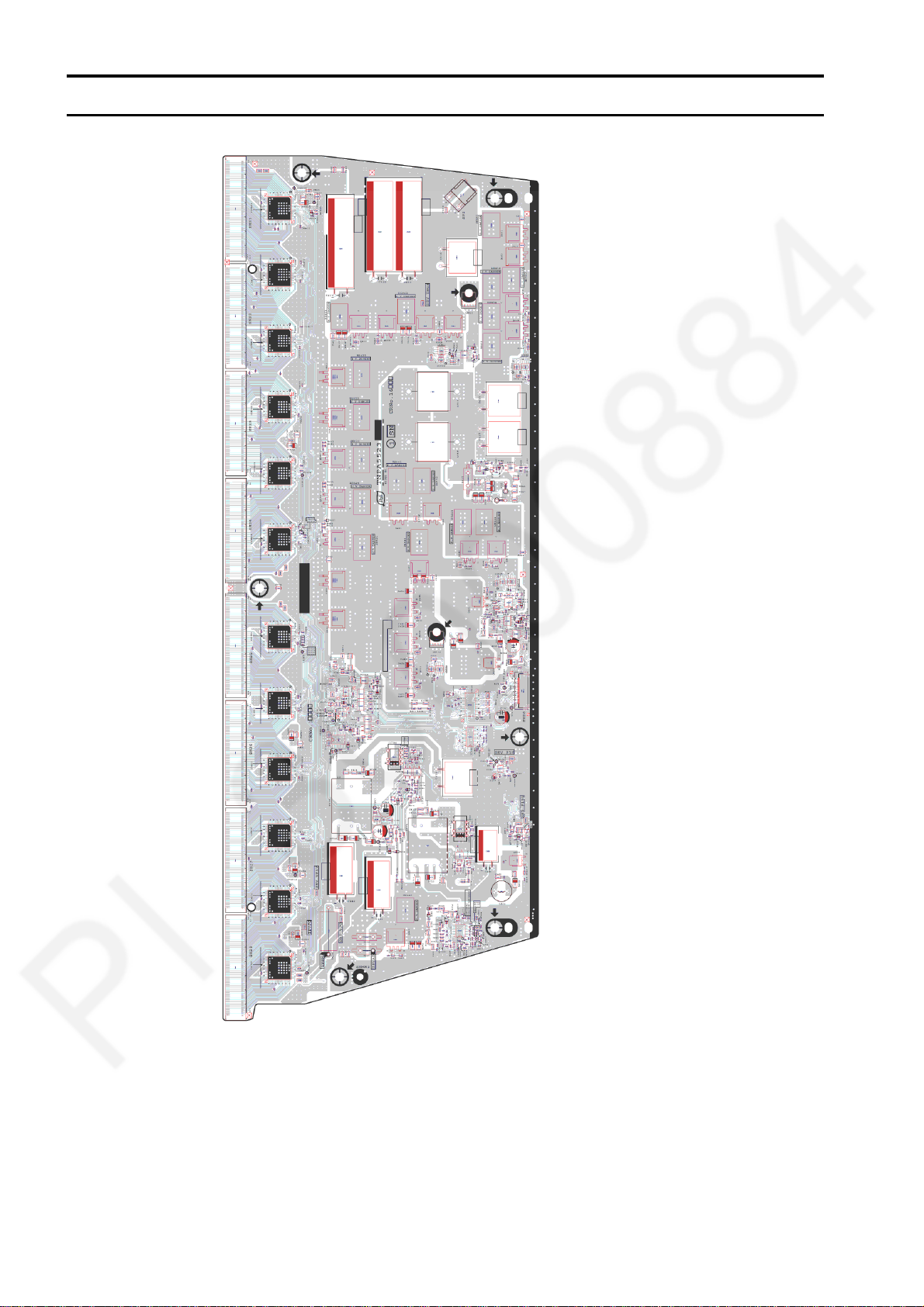

Model No. : TH-P42ST50H SN-Board (Foil Side)

S-41

Page 82

Model No. : TH-P42ST50H SN-Board (Component Side)

S-42

Page 83

Model No. : TH-P42ST50H SS-Board (Foil Side)

S-43

Page 84

Model No. : TH-P42ST50H SS-Board (Component Side)

S-44

Page 85

Model No. : TH-P42ST50H SS2-Board

S-45

Page 86

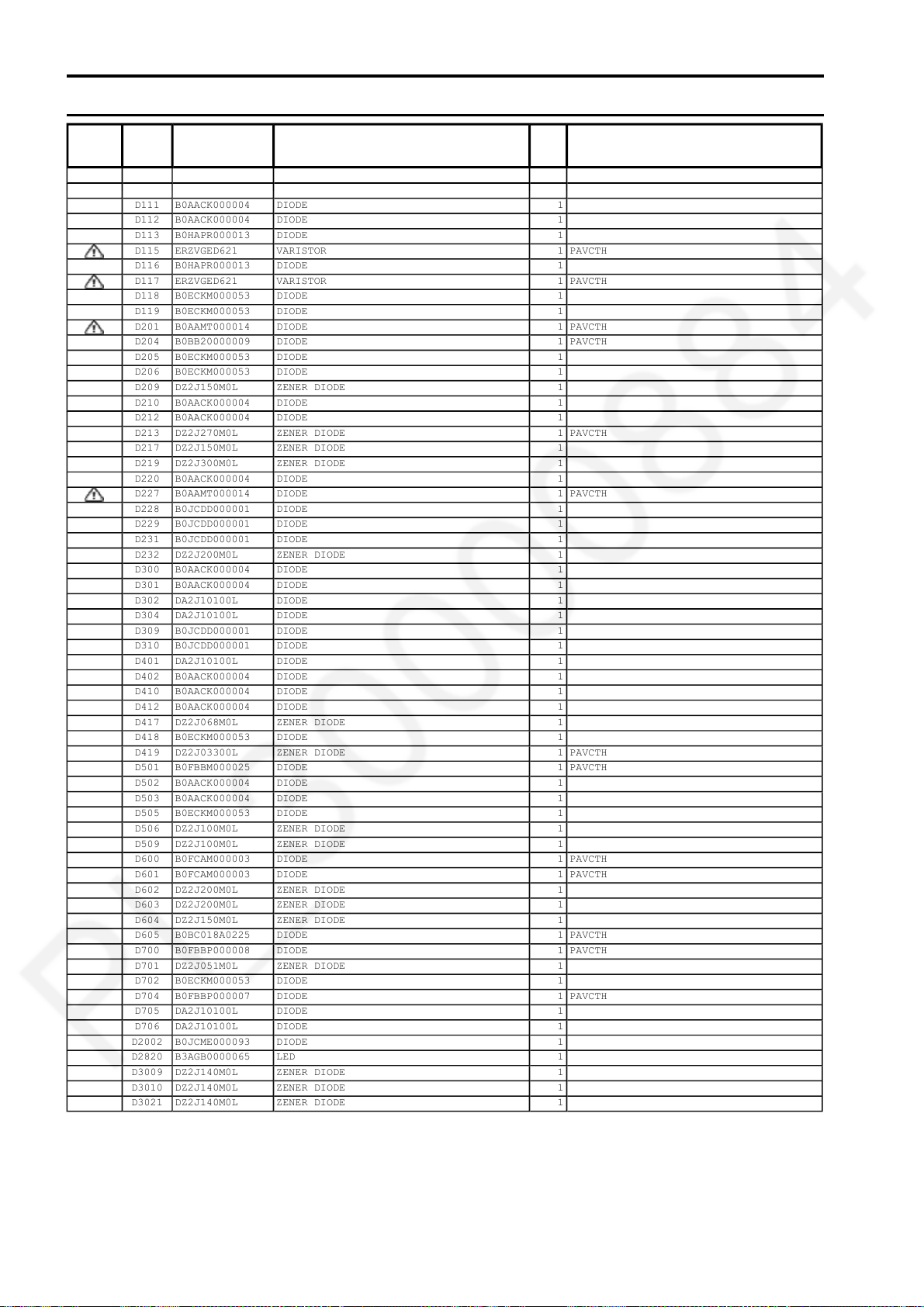

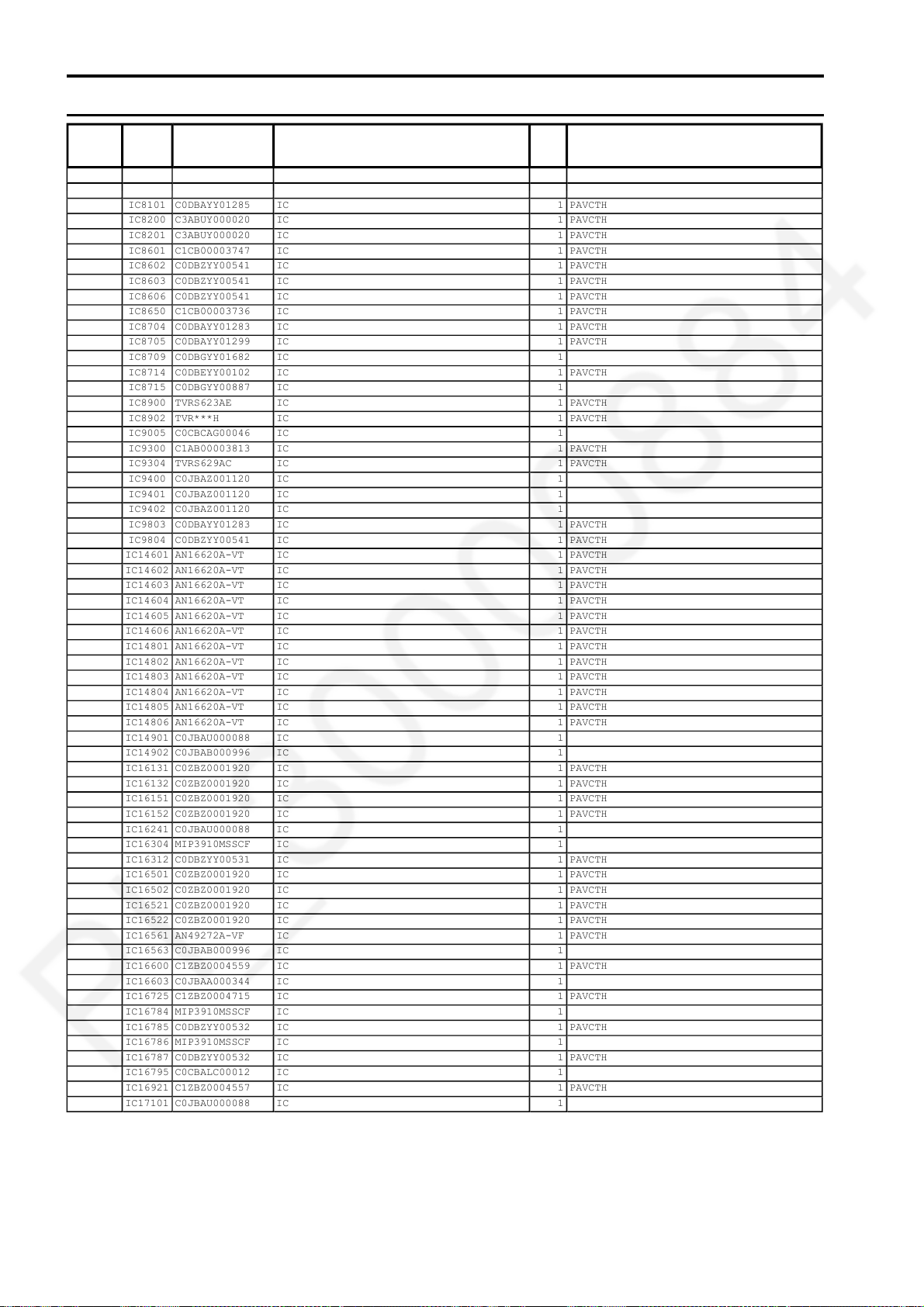

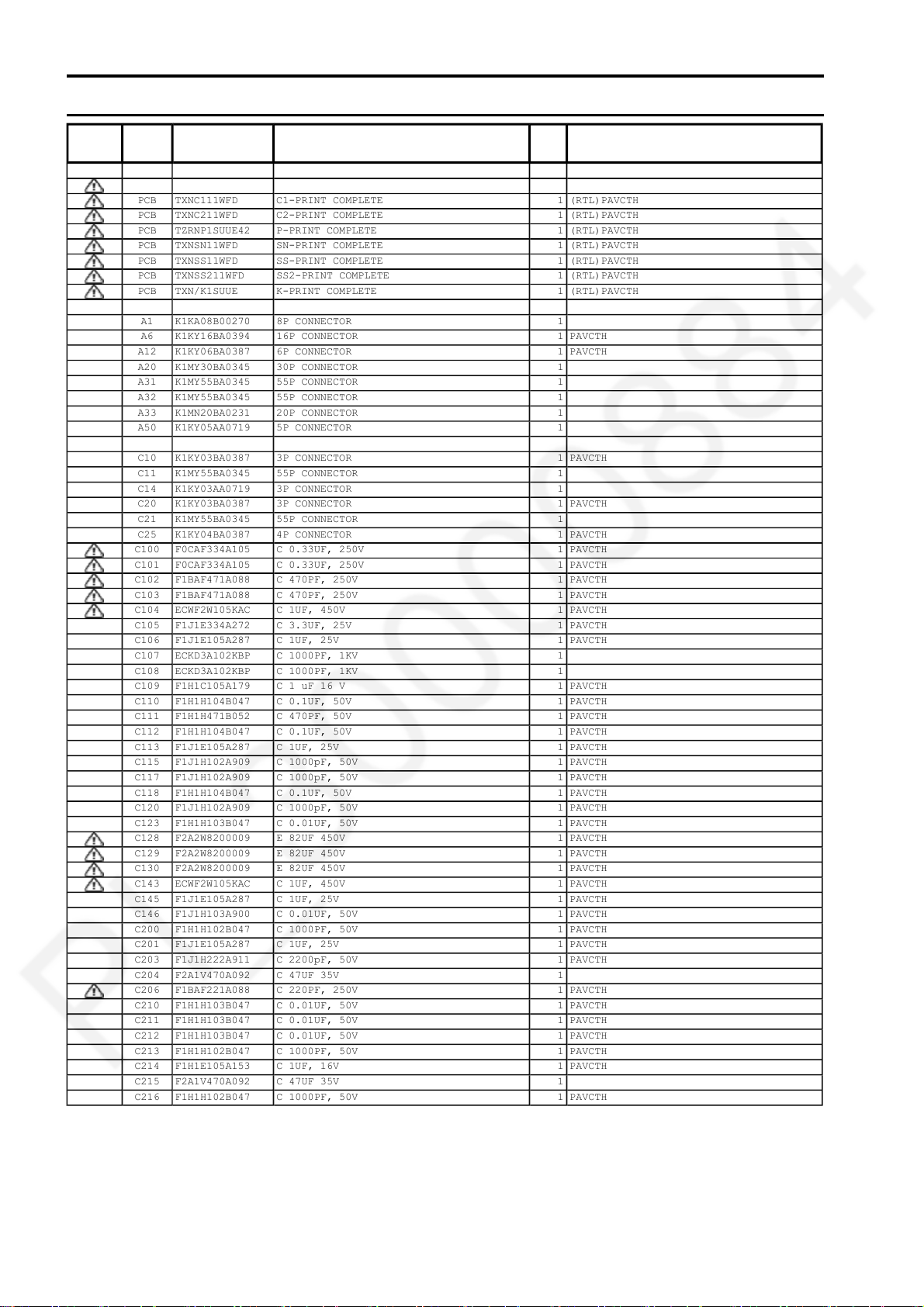

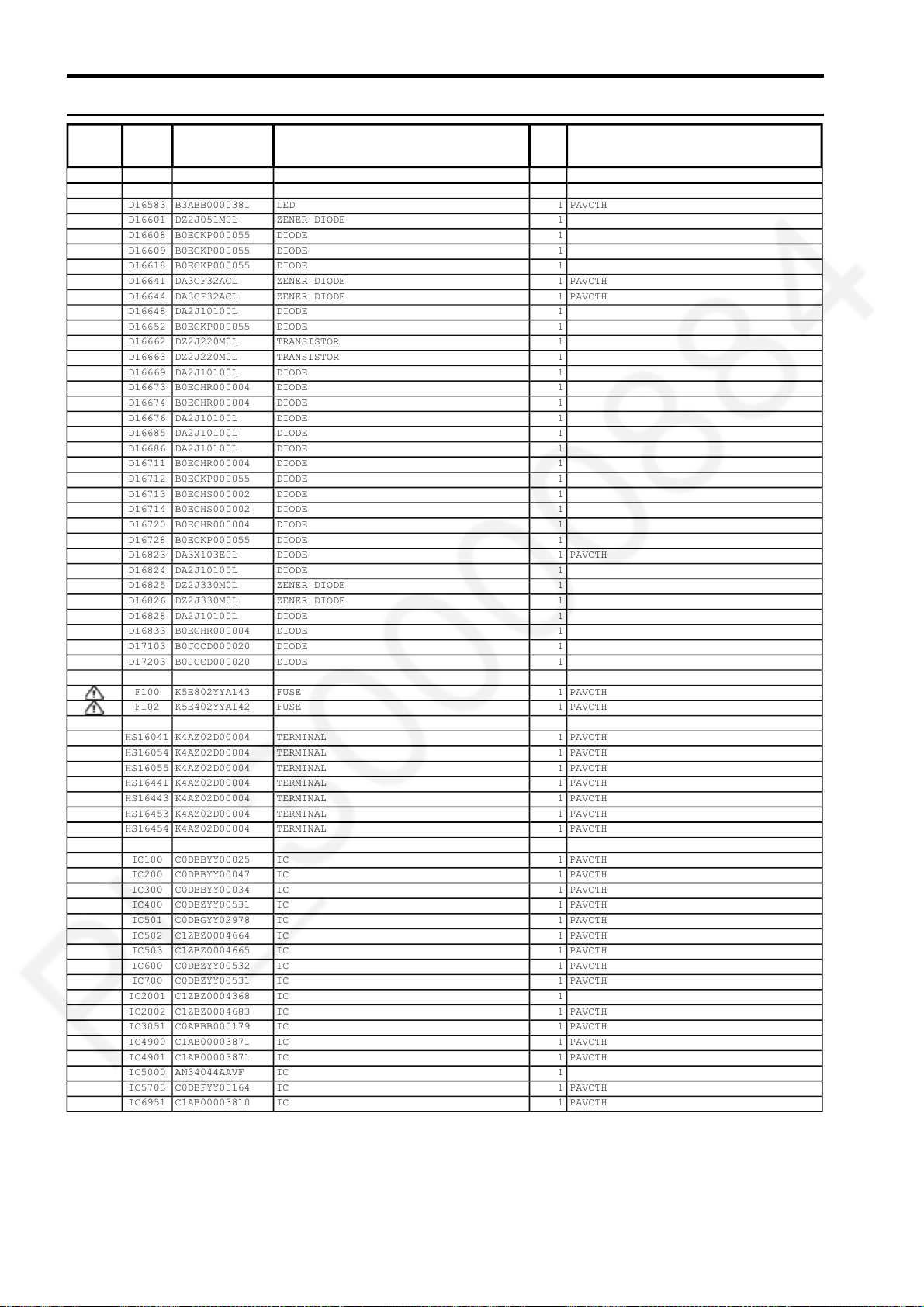

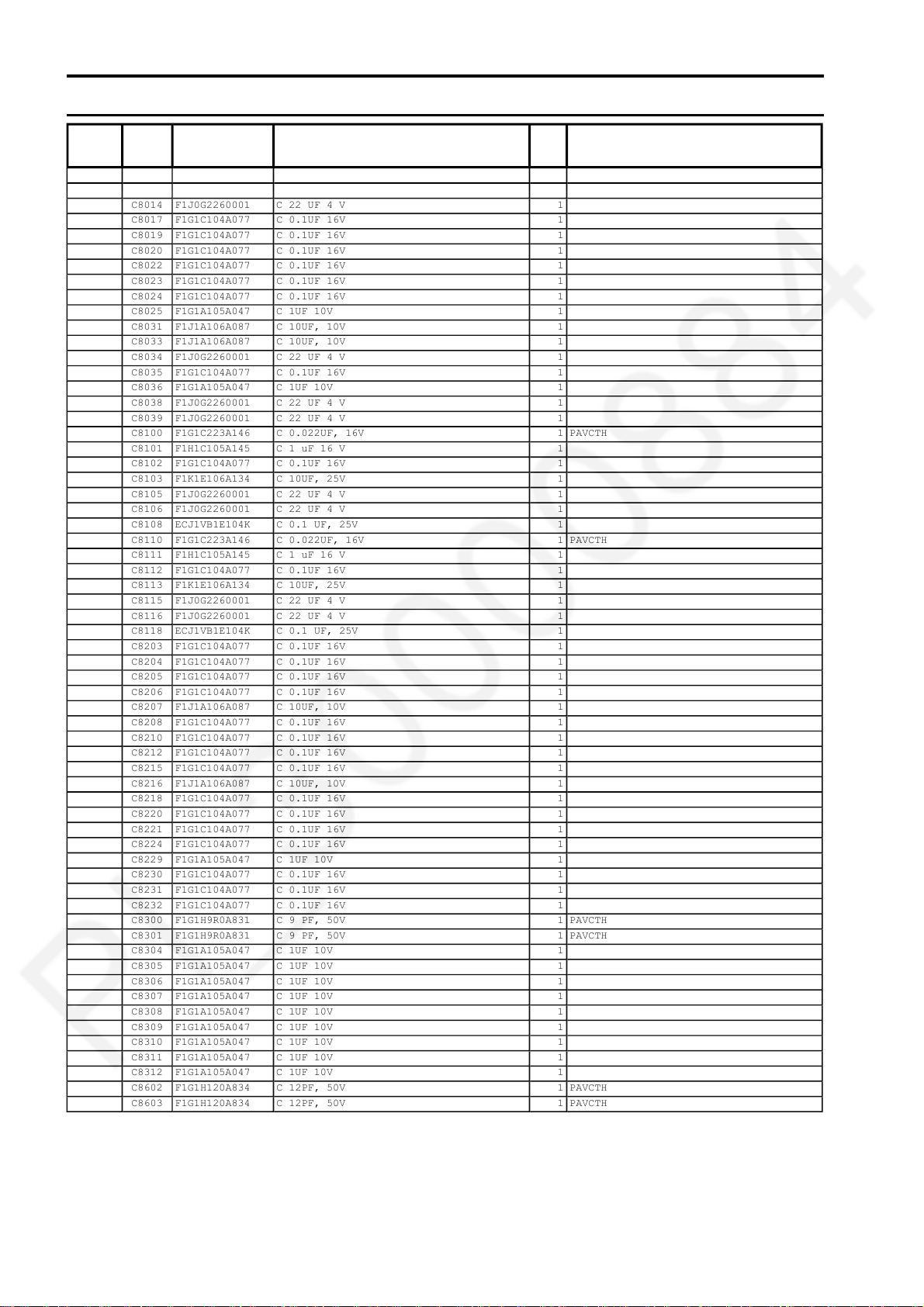

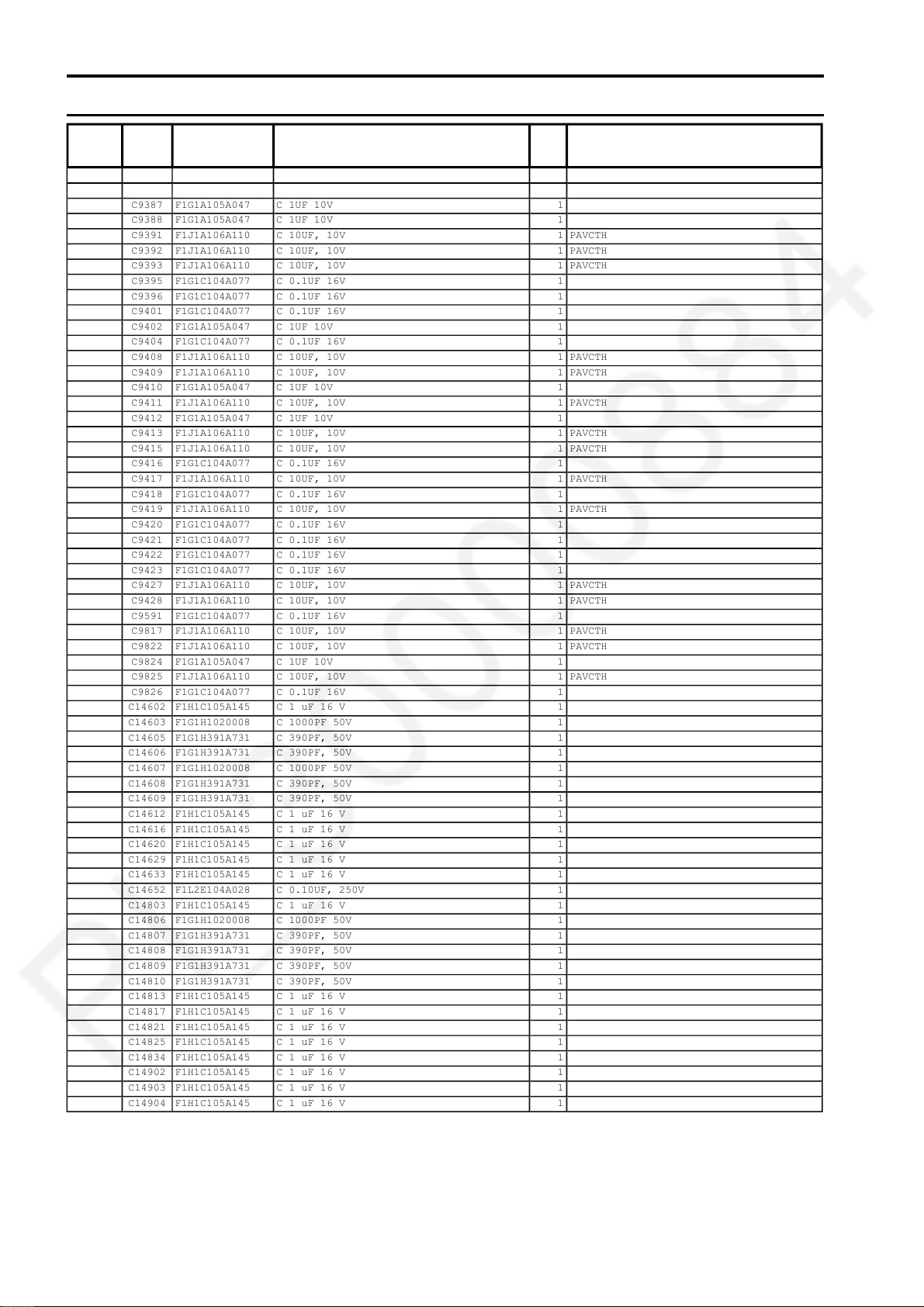

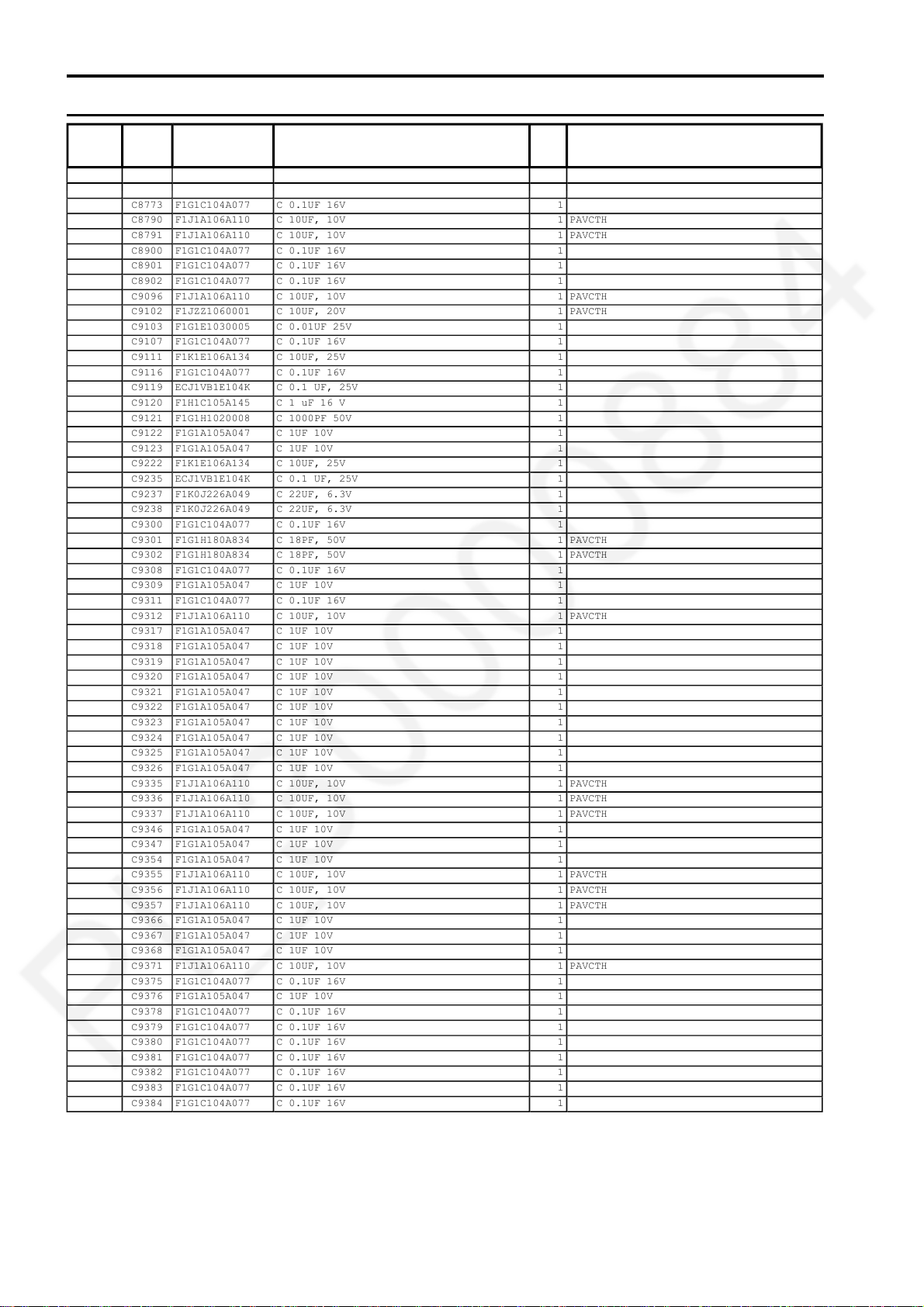

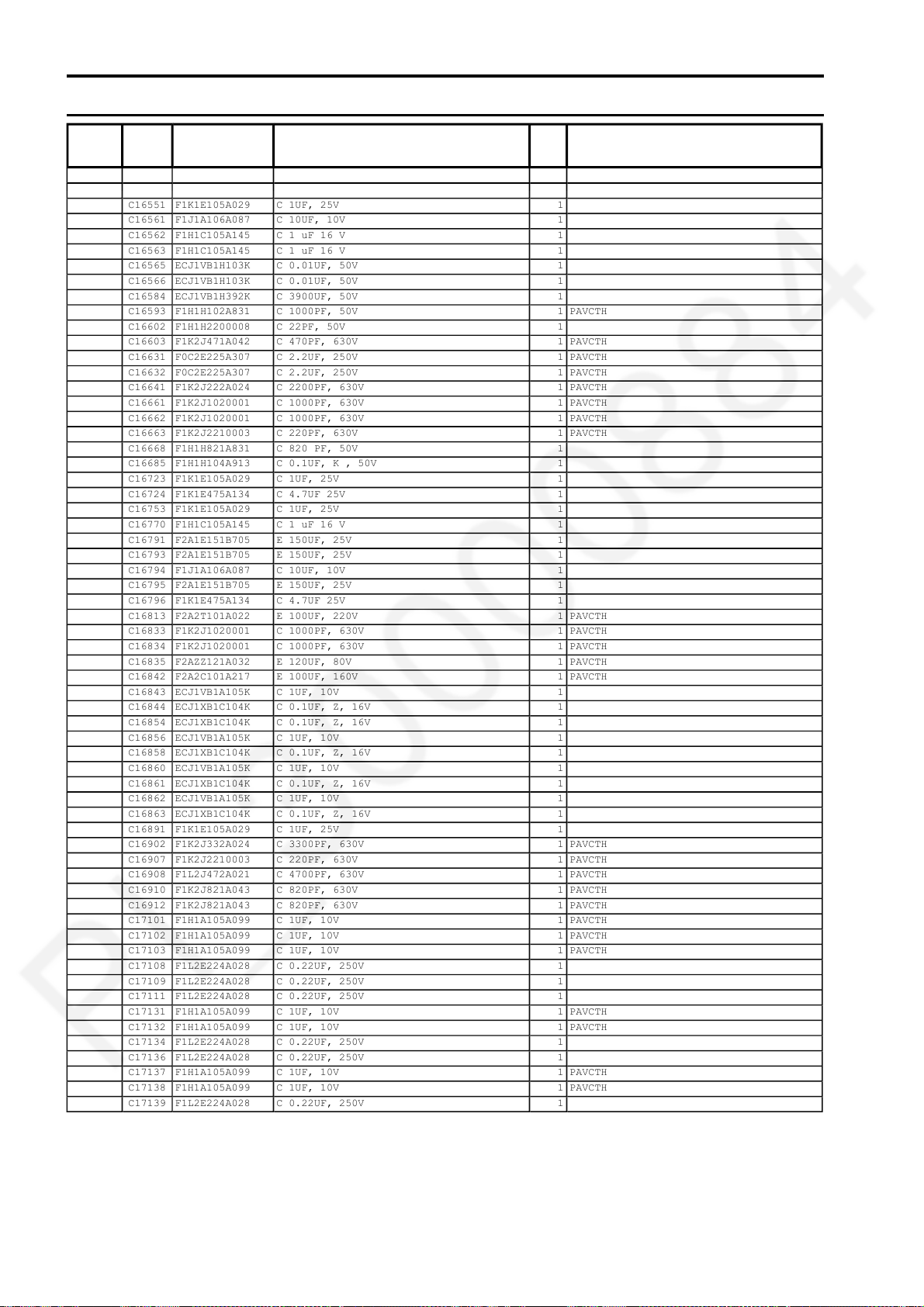

Model No. : TH-P42ST50H Parts List

S-46

Safety

Ref.

No.

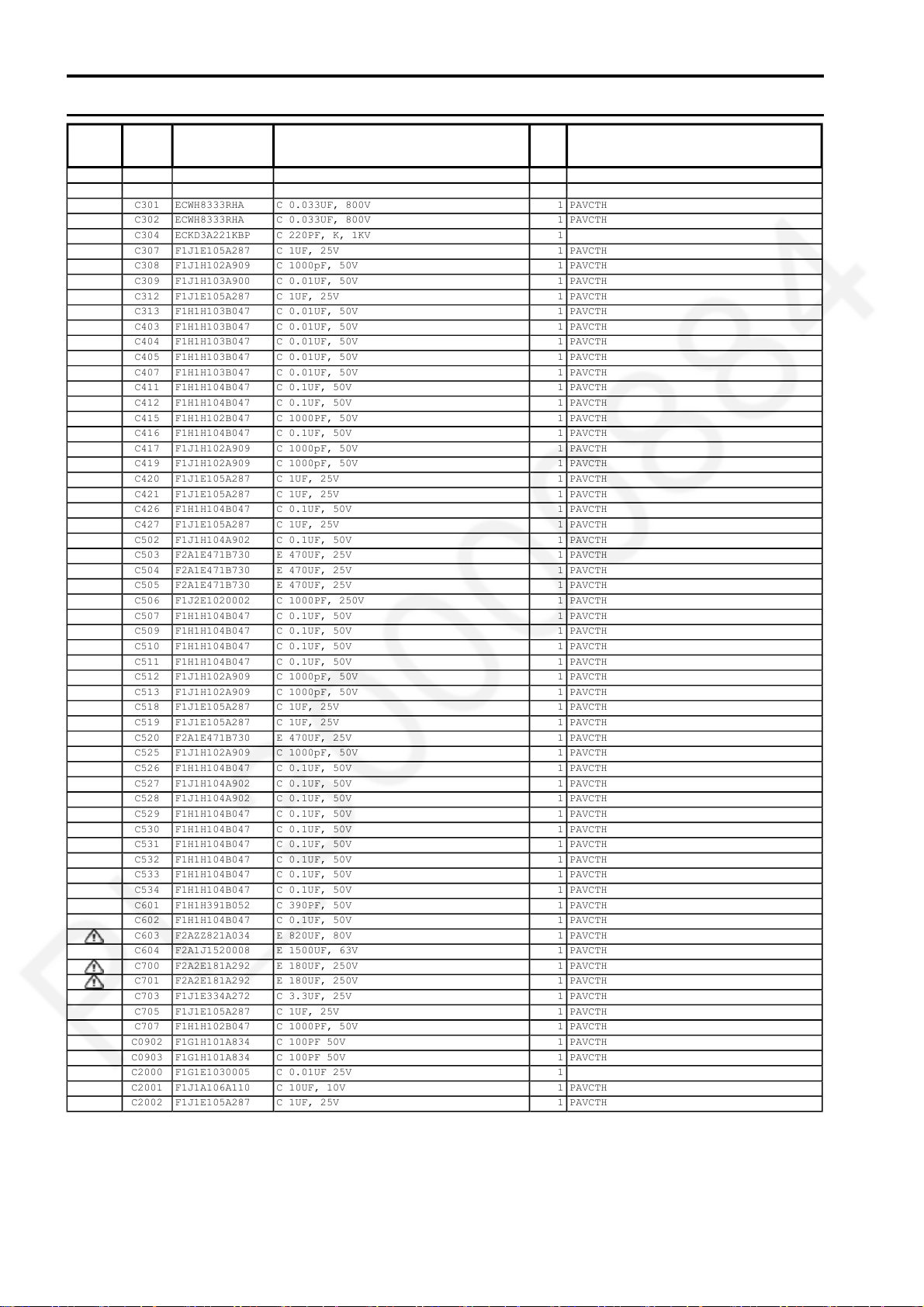

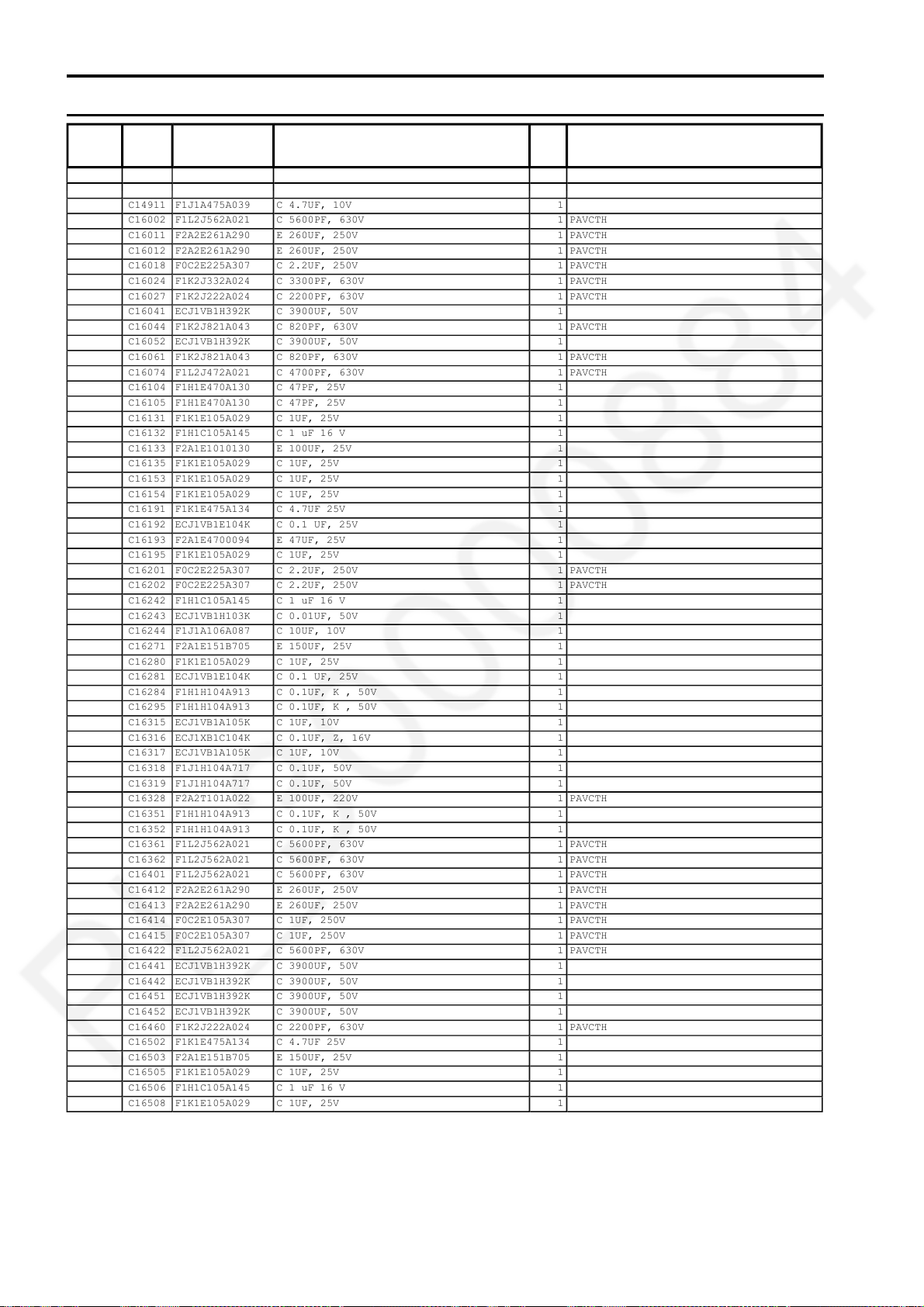

PCB TZTNP01PJUH A-PRINT COMPLETE 1 (RTL)PAVCTH

PCB TXNC111WFD C1-PRINT COMPLETE 1 (RTL)PAVCTH

PCB TXNC211WFD C2-PRINT COMPLETE 1 (RTL)PAVCTH

PCB TZRNP1SUUE42 P-PRINT COMPLETE 1 (RTL)PAVCTH

PCB TXNSN11WFD SN-PRINT COMPLETE 1 (RTL)PAVCTH

PCB TXNSS11WFD SS-PRINT COMPLETE 1 (RTL)PAVCTH

PCB TXNSS211WFD SS2-PRINT COMPLETE 1 (RTL)PAVCTH

PCB TXN/K1SUUE K-PRINT COMPLETE 1 (RTL)PAVCTH

A1 K1KA08B00270 8P CONNECTOR 1

A6 K1KY16BA0394 16P CONNECTOR 1 PAVCTH

A12 K1KY06BA0387 6P CONNECTOR 1 PAVCTH

A20 K1MY30BA0345 30P CONNECTOR 1

A31 K1MY55BA0345 55P CONNECTOR 1

A32 K1MY55BA0345 55P CONNECTOR 1

A33 K1MN20BA0231 20P CONNECTOR 1

A50 K1KY05AA0719 5P CONNECTOR 1

C10 K1KY03BA0387 3P CONNECTOR 1 PAVCTH

C11 K1MY55BA0345 55P CONNECTOR 1

C14 K1KY03AA0719 3P CONNECTOR 1

C20 K1KY03BA0387 3P CONNECTOR 1 PAVCTH

C21 K1MY55BA0345 55P CONNECTOR 1

C25 K1KY04BA0387 4P CONNECTOR 1 PAVCTH

C100 F0CAF334A105 C 0.33UF, 250V 1 PAVCTH

C101 F0CAF334A105 C 0.33UF, 250V 1 PAVCTH

C102 F1BAF471A088 C 470PF, 250V 1 PAVCTH

C103 F1BAF471A088 C 470PF, 250V 1 PAVCTH

C104 ECWF2W105KAC C 1UF, 450V 1 PAVCTH

C105 F1J1E334A272 C 3.3UF, 25V 1 PAVCTH

C106 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C107 ECKD3A102KBP C 1000PF, 1KV 1

C108 ECKD3A102KBP C 1000PF, 1KV 1

C109 F1H1C105A179 C 1 uF 16 V 1 PAVCTH

C110 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C111 F1H1H471B052 C 470PF, 50V 1 PAVCTH

C112 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C113 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C115 F1J1H102A909 C 1000pF, 50V 1 PAVCTH

C117 F1J1H102A909 C 1000pF, 50V 1 PAVCTH

C118 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C120 F1J1H102A909 C 1000pF, 50V 1 PAVCTH

C123 F1H1H103B047 C 0.01UF, 50V 1 PAVCTH

C128 F2A2W8200009 E 82UF 450V 1 PAVCTH

C129 F2A2W8200009 E 82UF 450V 1 PAVCTH

C130 F2A2W8200009 E 82UF 450V 1 PAVCTH

C143 ECWF2W105KAC C 1UF, 450V 1 PAVCTH

C145 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C146 F1J1H103A900 C 0.01UF, 50V 1 PAVCTH

C200 F1H1H102B047 C 1000PF, 50V 1 PAVCTH

C201 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C203 F1J1H222A911 C 2200pF, 50V 1 PAVCTH

C204 F2A1V470A092 C 47UF 35V 1

C206 F1BAF221A088 C 220PF, 250V 1 PAVCTH

C210 F1H1H103B047 C 0.01UF, 50V 1 PAVCTH

C211 F1H1H103B047 C 0.01UF, 50V 1 PAVCTH

C212 F1H1H103B047 C 0.01UF, 50V 1 PAVCTH

C213 F1H1H102B047 C 1000PF, 50V 1 PAVCTH

C214 F1H1E105A153 C 1UF, 16V 1 PAVCTH

C215 F2A1V470A092 C 47UF 35V 1

C216 F1H1H102B047 C 1000PF, 50V 1 PAVCTH

Part No. Part Name & Description Q'ty Remarks

Page 87

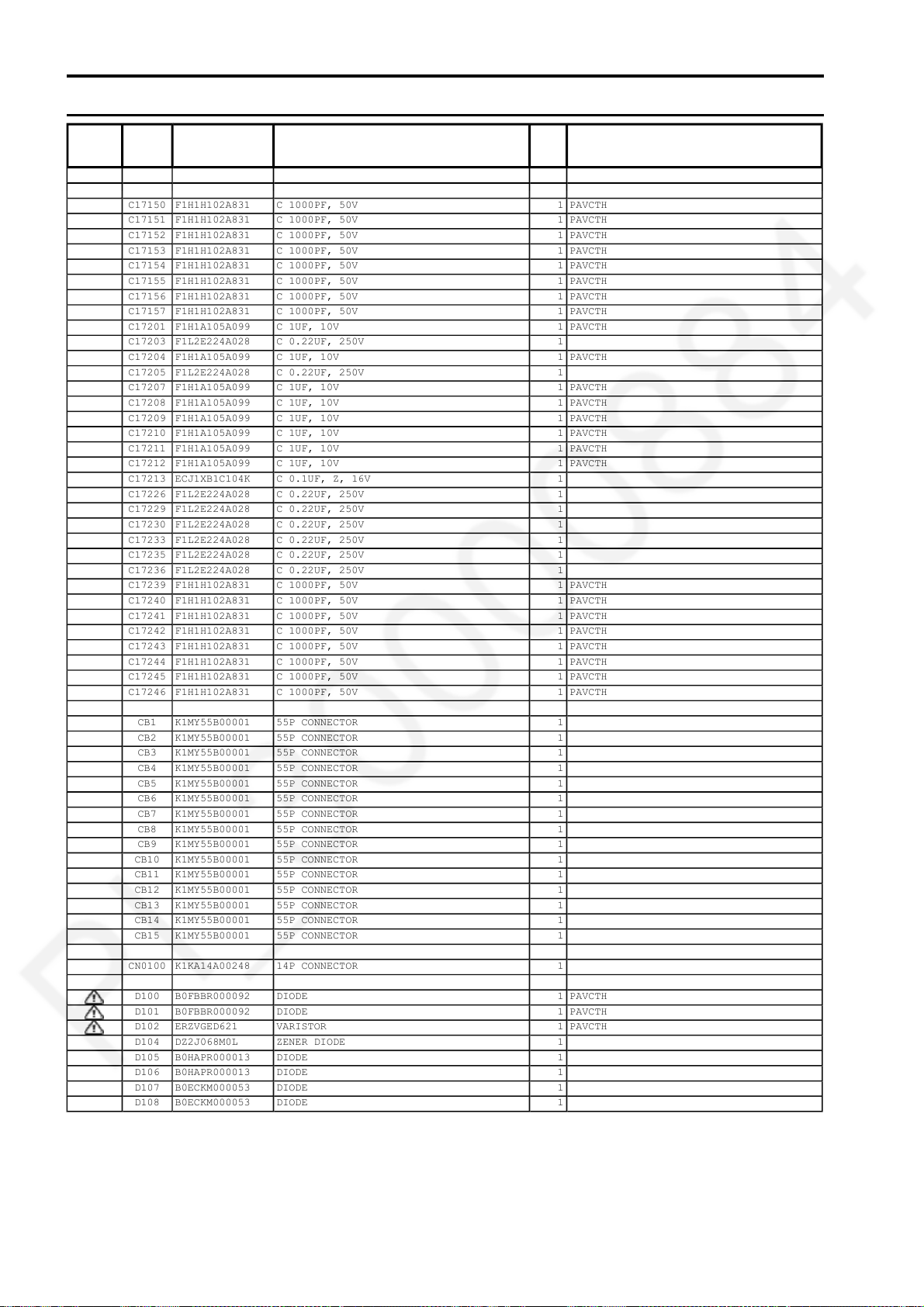

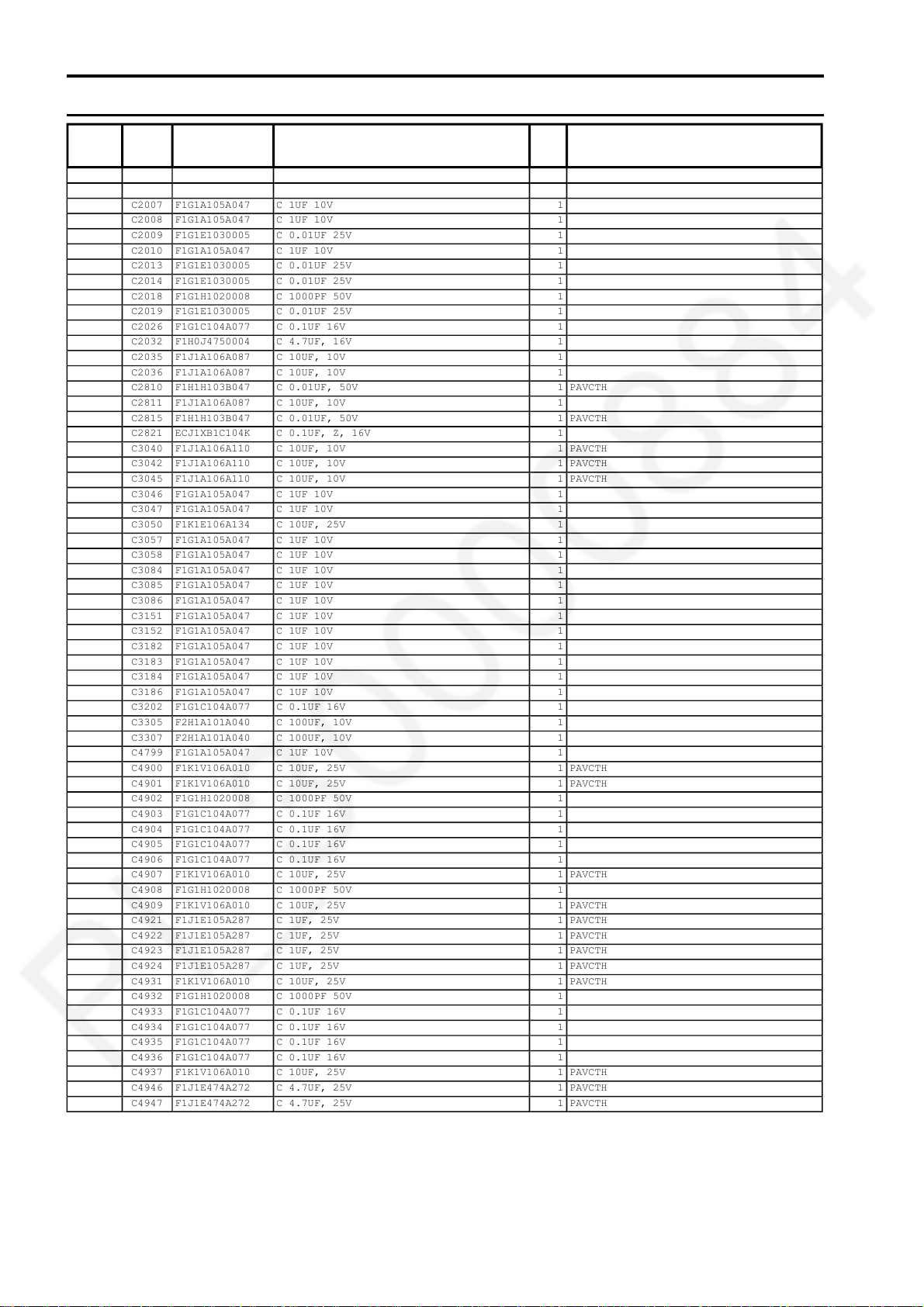

Model No. : TH-P42ST50H Parts List

S-47

Safety

Ref.

No.

C217 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C300 ECKD3A101KBP C 100PF, 1KV 1

C301 ECWH8333RHA C 0.033UF, 800V 1 PAVCTH

C302 ECWH8333RHA C 0.033UF, 800V 1 PAVCTH

C304 ECKD3A221KBP C 220PF, K, 1KV 1

C307 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C308 F1J1H102A909 C 1000pF, 50V 1 PAVCTH

C309 F1J1H103A900 C 0.01UF, 50V 1 PAVCTH

C312 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C313 F1H1H103B047 C 0.01UF, 50V 1 PAVCTH

C403 F1H1H103B047 C 0.01UF, 50V 1 PAVCTH

C404 F1H1H103B047 C 0.01UF, 50V 1 PAVCTH

C405 F1H1H103B047 C 0.01UF, 50V 1 PAVCTH

C407 F1H1H103B047 C 0.01UF, 50V 1 PAVCTH

C411 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C412 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C415 F1H1H102B047 C 1000PF, 50V 1 PAVCTH

C416 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C417 F1J1H102A909 C 1000pF, 50V 1 PAVCTH

C419 F1J1H102A909 C 1000pF, 50V 1 PAVCTH

C420 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C421 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C426 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C427 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C502 F1J1H104A902 C 0.1UF, 50V 1 PAVCTH

C503 F2A1E471B730 E 470UF, 25V 1 PAVCTH

C504 F2A1E471B730 E 470UF, 25V 1 PAVCTH

C505 F2A1E471B730 E 470UF, 25V 1 PAVCTH

C506 F1J2E1020002 C 1000PF, 250V 1 PAVCTH

C507 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C509 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C510 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C511 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C512 F1J1H102A909 C 1000pF, 50V 1 PAVCTH

C513 F1J1H102A909 C 1000pF, 50V 1 PAVCTH

C518 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C519 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C520 F2A1E471B730 E 470UF, 25V 1 PAVCTH

C525 F1J1H102A909 C 1000pF, 50V 1 PAVCTH

C526 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C527 F1J1H104A902 C 0.1UF, 50V 1 PAVCTH

C528 F1J1H104A902 C 0.1UF, 50V 1 PAVCTH

C529 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C530 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C531 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C532 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C533 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C534 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C601 F1H1H391B052 C 390PF, 50V 1 PAVCTH

C602 F1H1H104B047 C 0.1UF, 50V 1 PAVCTH

C603 F2AZZ821A034 E 820UF, 80V 1 PAVCTH

C604 F2A1J1520008 E 1500UF, 63V 1 PAVCTH

C700 F2A2E181A292 E 180UF, 250V 1 PAVCTH

C701 F2A2E181A292 E 180UF, 250V 1 PAVCTH

C703 F1J1E334A272 C 3.3UF, 25V 1 PAVCTH

C705 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C707 F1H1H102B047 C 1000PF, 50V 1 PAVCTH

C0902 F1G1H101A834 C 100PF 50V 1 PAVCTH

C0903 F1G1H101A834 C 100PF 50V 1 PAVCTH

C2000 F1G1E1030005 C 0.01UF 25V 1

C2001 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C2002 F1J1E105A287 C 1UF, 25V 1 PAVCTH

Part No. Part Name & Description Q'ty Remarks

Page 88

Model No. : TH-P42ST50H Parts List

S-48

Safety

Ref.

No.

C2003 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C2006 F1G1C104A077 C 0.1UF 16V 1

C2007 F1G1A105A047 C 1UF 10V 1

C2008 F1G1A105A047 C 1UF 10V 1

C2009 F1G1E1030005 C 0.01UF 25V 1

C2010 F1G1A105A047 C 1UF 10V 1

C2013 F1G1E1030005 C 0.01UF 25V 1

C2014 F1G1E1030005 C 0.01UF 25V 1

C2018 F1G1H1020008 C 1000PF 50V 1

C2019 F1G1E1030005 C 0.01UF 25V 1

C2026 F1G1C104A077 C 0.1UF 16V 1

C2032 F1H0J4750004 C 4.7UF, 16V 1

C2035 F1J1A106A087 C 10UF, 10V 1

C2036 F1J1A106A087 C 10UF, 10V 1

C2810 F1H1H103B047 C 0.01UF, 50V 1 PAVCTH

C2811 F1J1A106A087 C 10UF, 10V 1

C2815 F1H1H103B047 C 0.01UF, 50V 1 PAVCTH

C2821 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C3040 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C3042 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C3045 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C3046 F1G1A105A047 C 1UF 10V 1

C3047 F1G1A105A047 C 1UF 10V 1

C3050 F1K1E106A134 C 10UF, 25V 1

C3057 F1G1A105A047 C 1UF 10V 1

C3058 F1G1A105A047 C 1UF 10V 1

C3084 F1G1A105A047 C 1UF 10V 1

C3085 F1G1A105A047 C 1UF 10V 1

C3086 F1G1A105A047 C 1UF 10V 1

C3151 F1G1A105A047 C 1UF 10V 1

C3152 F1G1A105A047 C 1UF 10V 1

C3182 F1G1A105A047 C 1UF 10V 1

C3183 F1G1A105A047 C 1UF 10V 1

C3184 F1G1A105A047 C 1UF 10V 1

C3186 F1G1A105A047 C 1UF 10V 1

C3202 F1G1C104A077 C 0.1UF 16V 1

C3305 F2H1A101A040 C 100UF, 10V 1

C3307 F2H1A101A040 C 100UF, 10V 1

C4799 F1G1A105A047 C 1UF 10V 1

C4900 F1K1V106A010 C 10UF, 25V 1 PAVCTH

C4901 F1K1V106A010 C 10UF, 25V 1 PAVCTH

C4902 F1G1H1020008 C 1000PF 50V 1

C4903 F1G1C104A077 C 0.1UF 16V 1

C4904 F1G1C104A077 C 0.1UF 16V 1

C4905 F1G1C104A077 C 0.1UF 16V 1

C4906 F1G1C104A077 C 0.1UF 16V 1

C4907 F1K1V106A010 C 10UF, 25V 1 PAVCTH

C4908 F1G1H1020008 C 1000PF 50V 1

C4909 F1K1V106A010 C 10UF, 25V 1 PAVCTH

C4921 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C4922 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C4923 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C4924 F1J1E105A287 C 1UF, 25V 1 PAVCTH

C4931 F1K1V106A010 C 10UF, 25V 1 PAVCTH

C4932 F1G1H1020008 C 1000PF 50V 1

C4933 F1G1C104A077 C 0.1UF 16V 1

C4934 F1G1C104A077 C 0.1UF 16V 1

C4935 F1G1C104A077 C 0.1UF 16V 1

C4936 F1G1C104A077 C 0.1UF 16V 1

C4937 F1K1V106A010 C 10UF, 25V 1 PAVCTH

C4946 F1J1E474A272 C 4.7UF, 25V 1 PAVCTH

C4947 F1J1E474A272 C 4.7UF, 25V 1 PAVCTH

Part No. Part Name & Description Q'ty Remarks

Page 89

Model No. : TH-P42ST50H Parts List

S-49

Safety

Ref.

No.

C5000 F1G1E1030005 C 0.01UF 25V 1

C5002 F1JZZ1060001 C 10UF, 20V 1 PAVCTH

C5003 F1H1C105A145 C 1 uF 16 V 1

C5007 F1G1C104A077 C 0.1UF 16V 1

C5009 F1G1C104A077 C 0.1UF 16V 1

C5011 F1G1C104A077 C 0.1UF 16V 1

C5012 EEEHB1C101UP C 100PF, J, 16V 1

C5013 F1G1A105A047 C 1UF 10V 1

C5014 F1G1A105A047 C 1UF 10V 1

C5015 F1G1A105A047 C 1UF 10V 1

C5016 F1G1A105A047 C 1UF 10V 1

C5017 F1G1A105A047 C 1UF 10V 1

C5018 F1G1C104A077 C 0.1UF 16V 1

C5020 F1G1E1030005 C 0.01UF 25V 1

C5706 F1G1A105A047 C 1UF 10V 1

C5707 F1G1A105A047 C 1UF 10V 1

C6704 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C6707 F1G1C104A077 C 0.1UF 16V 1

C6708 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C6710 F1G1C104A077 C 0.1UF 16V 1

C6719 F1G1H220A834 C 22PF, 50V 1 PAVCTH

C6720 F1G1H220A834 C 22PF, 50V 1 PAVCTH

C6721 F1G1H220A834 C 22PF, 50V 1 PAVCTH

C6722 F1G1E472A144 C 4700pF 25V 1 PAVCTH

C6723 F1G1H101A834 C 100PF 50V 1 PAVCTH

C6724 F1G1H101A834 C 100PF 50V 1 PAVCTH

C6725 F1G1H220A834 C 22PF, 50V 1 PAVCTH

C6726 F1G1H470A834 C 47PF, 50V 1 PAVCTH

C6727 F1G1H470A834 C 47PF, 50V 1 PAVCTH

C6733 F1G1C104A077 C 0.1UF 16V 1

C6734 F1G1C104A077 C 0.1UF 16V 1

C6735 F1G1C104A077 C 0.1UF 16V 1

C6740 F1G1C104A077 C 0.1UF 16V 1

C6741 F1G1C104A077 C 0.1UF 16V 1

C6742 F1G1C104A077 C 0.1UF 16V 1

C6953 F1G1H100A834 C 10PF 50V 1 PAVCTH

C6954 F1G1H100A834 C 10PF 50V 1 PAVCTH

C6955 F1H0J4750004 C 4.7UF, 16V 1

C6956 F1H0J4750004 C 4.7UF, 16V 1

C6957 F1G1C104A077 C 0.1UF 16V 1

C6958 F1G1C104A077 C 0.1UF 16V 1

C6959 F1G1C104A077 C 0.1UF 16V 1

C6960 F1G1H6R00009 C 6.0PF, , 50V 1 PAVCTH

C6961 F1G1C104A077 C 0.1UF 16V 1

C6962 F1G1H6R00009 C 6.0PF, , 50V 1 PAVCTH

C6963 F1G1C104A077 C 0.1UF 16V 1

C6964 F1G1C104A077 C 0.1UF 16V 1

C6965 F1G1C104A077 C 0.1UF 16V 1

C6966 F1G1C104A077 C 0.1UF 16V 1

C6967 F1G1C104A077 C 0.1UF 16V 1

C6968 F1G1C104A077 C 0.1UF 16V 1

C6969 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C6970 F1G1C104A077 C 0.1UF 16V 1

C6971 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C6972 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C6973 F1G1C104A077 C 0.1UF 16V 1

C6974 F1G1C104A077 C 0.1UF 16V 1

C6975 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C6976 F1G1C104A077 C 0.1UF 16V 1

C6977 F1G1A105A047 C 1UF 10V 1

C8002 F1J1A106A087 C 10UF, 10V 1

C8004 F1G1C104A077 C 0.1UF 16V 1

Part No. Part Name & Description Q'ty Remarks

Page 90

Model No. : TH-P42ST50H Parts List

S-50

Safety

Ref.

No.

C8005 F1G1C104A077 C 0.1UF 16V 1

C8007 F1J1A106A087 C 10UF, 10V 1

C8014 F1J0G2260001 C 22 UF 4 V 1

C8017 F1G1C104A077 C 0.1UF 16V 1

C8019 F1G1C104A077 C 0.1UF 16V 1

C8020 F1G1C104A077 C 0.1UF 16V 1

C8022 F1G1C104A077 C 0.1UF 16V 1

C8023 F1G1C104A077 C 0.1UF 16V 1

C8024 F1G1C104A077 C 0.1UF 16V 1

C8025 F1G1A105A047 C 1UF 10V 1

C8031 F1J1A106A087 C 10UF, 10V 1

C8033 F1J1A106A087 C 10UF, 10V 1

C8034 F1J0G2260001 C 22 UF 4 V 1

C8035 F1G1C104A077 C 0.1UF 16V 1

C8036 F1G1A105A047 C 1UF 10V 1

C8038 F1J0G2260001 C 22 UF 4 V 1

C8039 F1J0G2260001 C 22 UF 4 V 1

C8100 F1G1C223A146 C 0.022UF, 16V 1 PAVCTH

C8101 F1H1C105A145 C 1 uF 16 V 1

C8102 F1G1C104A077 C 0.1UF 16V 1

C8103 F1K1E106A134 C 10UF, 25V 1

C8105 F1J0G2260001 C 22 UF 4 V 1

C8106 F1J0G2260001 C 22 UF 4 V 1

C8108 ECJ1VB1E104K C 0.1 UF, 25V 1

C8110 F1G1C223A146 C 0.022UF, 16V 1 PAVCTH

C8111 F1H1C105A145 C 1 uF 16 V 1

C8112 F1G1C104A077 C 0.1UF 16V 1

C8113 F1K1E106A134 C 10UF, 25V 1

C8115 F1J0G2260001 C 22 UF 4 V 1

C8116 F1J0G2260001 C 22 UF 4 V 1

C8118 ECJ1VB1E104K C 0.1 UF, 25V 1

C8203 F1G1C104A077 C 0.1UF 16V 1

C8204 F1G1C104A077 C 0.1UF 16V 1

C8205 F1G1C104A077 C 0.1UF 16V 1

C8206 F1G1C104A077 C 0.1UF 16V 1

C8207 F1J1A106A087 C 10UF, 10V 1

C8208 F1G1C104A077 C 0.1UF 16V 1

C8210 F1G1C104A077 C 0.1UF 16V 1

C8212 F1G1C104A077 C 0.1UF 16V 1

C8215 F1G1C104A077 C 0.1UF 16V 1

C8216 F1J1A106A087 C 10UF, 10V 1

C8218 F1G1C104A077 C 0.1UF 16V 1

C8220 F1G1C104A077 C 0.1UF 16V 1

C8221 F1G1C104A077 C 0.1UF 16V 1

C8224 F1G1C104A077 C 0.1UF 16V 1

C8229 F1G1A105A047 C 1UF 10V 1

C8230 F1G1C104A077 C 0.1UF 16V 1

C8231 F1G1C104A077 C 0.1UF 16V 1

C8232 F1G1C104A077 C 0.1UF 16V 1

C8300 F1G1H9R0A831 C 9 PF, 50V 1 PAVCTH

C8301 F1G1H9R0A831 C 9 PF, 50V 1 PAVCTH

C8304 F1G1A105A047 C 1UF 10V 1

C8305 F1G1A105A047 C 1UF 10V 1

C8306 F1G1A105A047 C 1UF 10V 1

C8307 F1G1A105A047 C 1UF 10V 1

C8308 F1G1A105A047 C 1UF 10V 1

C8309 F1G1A105A047 C 1UF 10V 1

C8310 F1G1A105A047 C 1UF 10V 1

C8311 F1G1A105A047 C 1UF 10V 1

C8312 F1G1A105A047 C 1UF 10V 1

C8602 F1G1H120A834 C 12PF, 50V 1 PAVCTH

C8603 F1G1H120A834 C 12PF, 50V 1 PAVCTH

Part No. Part Name & Description Q'ty Remarks

Page 91

Model No. : TH-P42ST50H Parts List

S-51

Safety

Ref.

No.

C8604 F1G1C104A077 C 0.1UF 16V 1

C8605 F1G1C104A077 C 0.1UF 16V 1

C8607 F1G1C104A077 C 0.1UF 16V 1

C8608 F1G1C104A077 C 0.1UF 16V 1

C8609 F1H1C105A145 C 1 uF 16 V 1

C8610 F1H1C105A145 C 1 uF 16 V 1

C8611 F1G1C104A077 C 0.1UF 16V 1

C8613 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C8615 F1G1C104A077 C 0.1UF 16V 1

C8616 F1G1C104A077 C 0.1UF 16V 1

C8617 F1G1C1030008 C 0.01UF 16V 1

C8619 F1G1C104A077 C 0.1UF 16V 1

C8620 F1G1C104A077 C 0.1UF 16V 1

C8627 F1G1C104A077 C 0.1UF 16V 1

C8628 F1K0J226A049 C 22UF, 6.3V 1

C8629 F1K0J226A049 C 22UF, 6.3V 1

C8630 EEEHB0J221UP E 220UF, 6.3V 1

C8631 EEEHB0J221UP E 220UF, 6.3V 1

C8632 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C8633 F1G1C104A077 C 0.1UF 16V 1

C8637 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C8638 F1G1C104A077 C 0.1UF 16V 1

C8639 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C8640 F1G1C104A077 C 0.1UF 16V 1

C8642 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C8643 F1G1C104A077 C 0.1UF 16V 1

C8644 F1G1C1030008 C 0.01UF 16V 1

C8645 F1G1C104A077 C 0.1UF 16V 1

C8646 F1G1C104A077 C 0.1UF 16V 1

C8647 EEEHB0J221UP E 220UF, 6.3V 1

C8648 F1G1C104A077 C 0.1UF 16V 1

C8649 F1G1C104A077 C 0.1UF 16V 1

C8652 F1G1C104A077 C 0.1UF 16V 1

C8653 F1G1H8R0A831 C 8 PF, 50V 1 PAVCTH

C8654 F1G1H8R0A831 C 8 PF, 50V 1 PAVCTH

C8655 F1G1C104A077 C 0.1UF 16V 1

C8658 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C8659 F1G1C104A077 C 0.1UF 16V 1

C8674 F1G1C104A077 C 0.1UF 16V 1

C8675 F1G1C104A077 C 0.1UF 16V 1

C8676 F1G1C104A077 C 0.1UF 16V 1

C8721 F1K1E106A134 C 10UF, 25V 1

C8722 F1K1E106A134 C 10UF, 25V 1

C8723 ECJ1VB1E104K C 0.1 UF, 25V 1

C8724 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C8725 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C8728 F1H1C105A145 C 1 uF 16 V 1

C8729 F1G1E472A086 C 4700pF 25V 1

C8730 F1G1C104A077 C 0.1UF 16V 1

C8731 F1G1E1030005 C 0.01UF 25V 1

C8732 F1K1V106A010 C 10UF, 25V 1 PAVCTH

C8733 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C8734 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C8737 F1G1C104A077 C 0.1UF 16V 1

C8738 F1G1H222A830 C 2200PF, 50V 1 PAVCTH

C8739 F1G1E1030005 C 0.01UF 25V 1

C8747 F1G1A105A047 C 1UF 10V 1

C8748 F1H0J4750004 C 4.7UF, 16V 1

C8749 F1G1A105A047 C 1UF 10V 1

C8750 F1G1A105A047 C 1UF 10V 1

C8757 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C8758 F1J1A106A110 C 10UF, 10V 1 PAVCTH

Part No. Part Name & Description Q'ty Remarks

Page 92

Model No. : TH-P42ST50H Parts List

S-52

Safety

Ref.

No.

C8771 F1G1C104A077 C 0.1UF 16V 1

C8772 F1G1C104A077 C 0.1UF 16V 1

C8773 F1G1C104A077 C 0.1UF 16V 1

C8790 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C8791 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C8900 F1G1C104A077 C 0.1UF 16V 1

C8901 F1G1C104A077 C 0.1UF 16V 1

C8902 F1G1C104A077 C 0.1UF 16V 1

C9096 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9102 F1JZZ1060001 C 10UF, 20V 1 PAVCTH

C9103 F1G1E1030005 C 0.01UF 25V 1

C9107 F1G1C104A077 C 0.1UF 16V 1

C9111 F1K1E106A134 C 10UF, 25V 1

C9116 F1G1C104A077 C 0.1UF 16V 1

C9119 ECJ1VB1E104K C 0.1 UF, 25V 1

C9120 F1H1C105A145 C 1 uF 16 V 1

C9121 F1G1H1020008 C 1000PF 50V 1

C9122 F1G1A105A047 C 1UF 10V 1

C9123 F1G1A105A047 C 1UF 10V 1

C9222 F1K1E106A134 C 10UF, 25V 1

C9235 ECJ1VB1E104K C 0.1 UF, 25V 1

C9237 F1K0J226A049 C 22UF, 6.3V 1

C9238 F1K0J226A049 C 22UF, 6.3V 1

C9300 F1G1C104A077 C 0.1UF 16V 1

C9301 F1G1H180A834 C 18PF, 50V 1 PAVCTH

C9302 F1G1H180A834 C 18PF, 50V 1 PAVCTH

C9308 F1G1C104A077 C 0.1UF 16V 1

C9309 F1G1A105A047 C 1UF 10V 1

C9311 F1G1C104A077 C 0.1UF 16V 1

C9312 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9317 F1G1A105A047 C 1UF 10V 1

C9318 F1G1A105A047 C 1UF 10V 1

C9319 F1G1A105A047 C 1UF 10V 1

C9320 F1G1A105A047 C 1UF 10V 1

C9321 F1G1A105A047 C 1UF 10V 1

C9322 F1G1A105A047 C 1UF 10V 1

C9323 F1G1A105A047 C 1UF 10V 1

C9324 F1G1A105A047 C 1UF 10V 1

C9325 F1G1A105A047 C 1UF 10V 1

C9326 F1G1A105A047 C 1UF 10V 1

C9335 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9336 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9337 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9346 F1G1A105A047 C 1UF 10V 1

C9347 F1G1A105A047 C 1UF 10V 1

C9354 F1G1A105A047 C 1UF 10V 1

C9355 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9356 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9357 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9366 F1G1A105A047 C 1UF 10V 1

C9367 F1G1A105A047 C 1UF 10V 1

C9368 F1G1A105A047 C 1UF 10V 1

C9371 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9375 F1G1C104A077 C 0.1UF 16V 1

C9376 F1G1A105A047 C 1UF 10V 1

C9378 F1G1C104A077 C 0.1UF 16V 1

C9379 F1G1C104A077 C 0.1UF 16V 1

C9380 F1G1C104A077 C 0.1UF 16V 1

C9381 F1G1C104A077 C 0.1UF 16V 1

C9382 F1G1C104A077 C 0.1UF 16V 1

C9383 F1G1C104A077 C 0.1UF 16V 1

C9384 F1G1C104A077 C 0.1UF 16V 1

Part No. Part Name & Description Q'ty Remarks

Page 93

Model No. : TH-P42ST50H Parts List

S-53

Safety

Ref.

No.

C9385 F1G1C104A077 C 0.1UF 16V 1

C9386 F1G1A105A047 C 1UF 10V 1

C9387 F1G1A105A047 C 1UF 10V 1

C9388 F1G1A105A047 C 1UF 10V 1

C9391 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9392 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9393 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9395 F1G1C104A077 C 0.1UF 16V 1

C9396 F1G1C104A077 C 0.1UF 16V 1

C9401 F1G1C104A077 C 0.1UF 16V 1

C9402 F1G1A105A047 C 1UF 10V 1

C9404 F1G1C104A077 C 0.1UF 16V 1

C9408 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9409 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9410 F1G1A105A047 C 1UF 10V 1

C9411 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9412 F1G1A105A047 C 1UF 10V 1

C9413 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9415 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9416 F1G1C104A077 C 0.1UF 16V 1

C9417 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9418 F1G1C104A077 C 0.1UF 16V 1

C9419 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9420 F1G1C104A077 C 0.1UF 16V 1

C9421 F1G1C104A077 C 0.1UF 16V 1

C9422 F1G1C104A077 C 0.1UF 16V 1

C9423 F1G1C104A077 C 0.1UF 16V 1

C9427 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9428 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9591 F1G1C104A077 C 0.1UF 16V 1

C9817 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9822 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9824 F1G1A105A047 C 1UF 10V 1

C9825 F1J1A106A110 C 10UF, 10V 1 PAVCTH

C9826 F1G1C104A077 C 0.1UF 16V 1

C14602 F1H1C105A145 C 1 uF 16 V 1

C14603 F1G1H1020008 C 1000PF 50V 1

C14605 F1G1H391A731 C 390PF, 50V 1

C14606 F1G1H391A731 C 390PF, 50V 1

C14607 F1G1H1020008 C 1000PF 50V 1

C14608 F1G1H391A731 C 390PF, 50V 1

C14609 F1G1H391A731 C 390PF, 50V 1

C14612 F1H1C105A145 C 1 uF 16 V 1

C14616 F1H1C105A145 C 1 uF 16 V 1

C14620 F1H1C105A145 C 1 uF 16 V 1

C14629 F1H1C105A145 C 1 uF 16 V 1

C14633 F1H1C105A145 C 1 uF 16 V 1

C14652 F1L2E104A028 C 0.10UF, 250V 1

C14803 F1H1C105A145 C 1 uF 16 V 1

C14806 F1G1H1020008 C 1000PF 50V 1

C14807 F1G1H391A731 C 390PF, 50V 1

C14808 F1G1H391A731 C 390PF, 50V 1

C14809 F1G1H391A731 C 390PF, 50V 1

C14810 F1G1H391A731 C 390PF, 50V 1

C14813 F1H1C105A145 C 1 uF 16 V 1

C14817 F1H1C105A145 C 1 uF 16 V 1

C14821 F1H1C105A145 C 1 uF 16 V 1

C14825 F1H1C105A145 C 1 uF 16 V 1

C14834 F1H1C105A145 C 1 uF 16 V 1

C14902 F1H1C105A145 C 1 uF 16 V 1

C14903 F1H1C105A145 C 1 uF 16 V 1

C14904 F1H1C105A145 C 1 uF 16 V 1

Part No. Part Name & Description Q'ty Remarks

Page 94

Model No. : TH-P42ST50H Parts List

S-54

Safety

Ref.

No.

C14906 F1H1C105A145 C 1 uF 16 V 1

C14907 F1H1C105A145 C 1 uF 16 V 1

C14911 F1J1A475A039 C 4.7UF, 10V 1

C16002 F1L2J562A021 C 5600PF, 630V 1 PAVCTH

C16011 F2A2E261A290 E 260UF, 250V 1 PAVCTH

C16012 F2A2E261A290 E 260UF, 250V 1 PAVCTH

C16018 F0C2E225A307 C 2.2UF, 250V 1 PAVCTH

C16024 F1K2J332A024 C 3300PF, 630V 1 PAVCTH

C16027 F1K2J222A024 C 2200PF, 630V 1 PAVCTH

C16041 ECJ1VB1H392K C 3900UF, 50V 1

C16044 F1K2J821A043 C 820PF, 630V 1 PAVCTH

C16052 ECJ1VB1H392K C 3900UF, 50V 1

C16061 F1K2J821A043 C 820PF, 630V 1 PAVCTH

C16074 F1L2J472A021 C 4700PF, 630V 1 PAVCTH

C16104 F1H1E470A130 C 47PF, 25V 1

C16105 F1H1E470A130 C 47PF, 25V 1

C16131 F1K1E105A029 C 1UF, 25V 1

C16132 F1H1C105A145 C 1 uF 16 V 1

C16133 F2A1E1010130 E 100UF, 25V 1

C16135 F1K1E105A029 C 1UF, 25V 1

C16153 F1K1E105A029 C 1UF, 25V 1

C16154 F1K1E105A029 C 1UF, 25V 1

C16191 F1K1E475A134 C 4.7UF 25V 1

C16192 ECJ1VB1E104K C 0.1 UF, 25V 1

C16193 F2A1E4700094 E 47UF, 25V 1

C16195 F1K1E105A029 C 1UF, 25V 1

C16201 F0C2E225A307 C 2.2UF, 250V 1 PAVCTH

C16202 F0C2E225A307 C 2.2UF, 250V 1 PAVCTH

C16242 F1H1C105A145 C 1 uF 16 V 1

C16243 ECJ1VB1H103K C 0.01UF, 50V 1

C16244 F1J1A106A087 C 10UF, 10V 1

C16271 F2A1E151B705 E 150UF, 25V 1

C16280 F1K1E105A029 C 1UF, 25V 1

C16281 ECJ1VB1E104K C 0.1 UF, 25V 1

C16284 F1H1H104A913 C 0.1UF, K , 50V 1

C16295 F1H1H104A913 C 0.1UF, K , 50V 1

C16315 ECJ1VB1A105K C 1UF, 10V 1

C16316 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C16317 ECJ1VB1A105K C 1UF, 10V 1

C16318 F1J1H104A717 C 0.1UF, 50V 1

C16319 F1J1H104A717 C 0.1UF, 50V 1

C16328 F2A2T101A022 E 100UF, 220V 1 PAVCTH

C16351 F1H1H104A913 C 0.1UF, K , 50V 1

C16352 F1H1H104A913 C 0.1UF, K , 50V 1

C16361 F1L2J562A021 C 5600PF, 630V 1 PAVCTH

C16362 F1L2J562A021 C 5600PF, 630V 1 PAVCTH

C16401 F1L2J562A021 C 5600PF, 630V 1 PAVCTH

C16412 F2A2E261A290 E 260UF, 250V 1 PAVCTH

C16413 F2A2E261A290 E 260UF, 250V 1 PAVCTH

C16414 F0C2E105A307 C 1UF, 250V 1 PAVCTH

C16415 F0C2E105A307 C 1UF, 250V 1 PAVCTH

C16422 F1L2J562A021 C 5600PF, 630V 1 PAVCTH

C16441 ECJ1VB1H392K C 3900UF, 50V 1

C16442 ECJ1VB1H392K C 3900UF, 50V 1

C16451 ECJ1VB1H392K C 3900UF, 50V 1

C16452 ECJ1VB1H392K C 3900UF, 50V 1

C16460 F1K2J222A024 C 2200PF, 630V 1 PAVCTH

C16502 F1K1E475A134 C 4.7UF 25V 1

C16503 F2A1E151B705 E 150UF, 25V 1

C16505 F1K1E105A029 C 1UF, 25V 1

C16506 F1H1C105A145 C 1 uF 16 V 1

C16508 F1K1E105A029 C 1UF, 25V 1

Part No. Part Name & Description Q'ty Remarks

Page 95

Model No. : TH-P42ST50H Parts List

S-55

Safety

Ref.

No.

C16531 F1K1E475A134 C 4.7UF 25V 1

C16534 F1H1C105A145 C 1 uF 16 V 1

C16551 F1K1E105A029 C 1UF, 25V 1

C16561 F1J1A106A087 C 10UF, 10V 1

C16562 F1H1C105A145 C 1 uF 16 V 1

C16563 F1H1C105A145 C 1 uF 16 V 1

C16565 ECJ1VB1H103K C 0.01UF, 50V 1

C16566 ECJ1VB1H103K C 0.01UF, 50V 1

C16584 ECJ1VB1H392K C 3900UF, 50V 1

C16593 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

C16602 F1H1H2200008 C 22PF, 50V 1

C16603 F1K2J471A042 C 470PF, 630V 1 PAVCTH

C16631 F0C2E225A307 C 2.2UF, 250V 1 PAVCTH

C16632 F0C2E225A307 C 2.2UF, 250V 1 PAVCTH

C16641 F1K2J222A024 C 2200PF, 630V 1 PAVCTH

C16661 F1K2J1020001 C 1000PF, 630V 1 PAVCTH

C16662 F1K2J1020001 C 1000PF, 630V 1 PAVCTH

C16663 F1K2J2210003 C 220PF, 630V 1 PAVCTH

C16668 F1H1H821A831 C 820 PF, 50V 1

C16685 F1H1H104A913 C 0.1UF, K , 50V 1

C16723 F1K1E105A029 C 1UF, 25V 1

C16724 F1K1E475A134 C 4.7UF 25V 1

C16753 F1K1E105A029 C 1UF, 25V 1

C16770 F1H1C105A145 C 1 uF 16 V 1

C16791 F2A1E151B705 E 150UF, 25V 1

C16793 F2A1E151B705 E 150UF, 25V 1

C16794 F1J1A106A087 C 10UF, 10V 1

C16795 F2A1E151B705 E 150UF, 25V 1

C16796 F1K1E475A134 C 4.7UF 25V 1

C16813 F2A2T101A022 E 100UF, 220V 1 PAVCTH

C16833 F1K2J1020001 C 1000PF, 630V 1 PAVCTH

C16834 F1K2J1020001 C 1000PF, 630V 1 PAVCTH

C16835 F2AZZ121A032 E 120UF, 80V 1 PAVCTH

C16842 F2A2C101A217 E 100UF, 160V 1 PAVCTH

C16843 ECJ1VB1A105K C 1UF, 10V 1

C16844 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C16854 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C16856 ECJ1VB1A105K C 1UF, 10V 1

C16858 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C16860 ECJ1VB1A105K C 1UF, 10V 1

C16861 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C16862 ECJ1VB1A105K C 1UF, 10V 1

C16863 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C16891 F1K1E105A029 C 1UF, 25V 1

C16902 F1K2J332A024 C 3300PF, 630V 1 PAVCTH

C16907 F1K2J2210003 C 220PF, 630V 1 PAVCTH

C16908 F1L2J472A021 C 4700PF, 630V 1 PAVCTH

C16910 F1K2J821A043 C 820PF, 630V 1 PAVCTH

C16912 F1K2J821A043 C 820PF, 630V 1 PAVCTH

C17101 F1H1A105A099 C 1UF, 10V 1 PAVCTH

C17102 F1H1A105A099 C 1UF, 10V 1 PAVCTH

C17103 F1H1A105A099 C 1UF, 10V 1 PAVCTH

C17108 F1L2E224A028 C 0.22UF, 250V 1

C17109 F1L2E224A028 C 0.22UF, 250V 1

C17111 F1L2E224A028 C 0.22UF, 250V 1

C17131 F1H1A105A099 C 1UF, 10V 1 PAVCTH

C17132 F1H1A105A099 C 1UF, 10V 1 PAVCTH

C17134 F1L2E224A028 C 0.22UF, 250V 1

C17136 F1L2E224A028 C 0.22UF, 250V 1

C17137 F1H1A105A099 C 1UF, 10V 1 PAVCTH

C17138 F1H1A105A099 C 1UF, 10V 1 PAVCTH

C17139 F1L2E224A028 C 0.22UF, 250V 1

Part No. Part Name & Description Q'ty Remarks

Page 96

Model No. : TH-P42ST50H Parts List

S-56

Safety

Ref.

No.

C17142 F1L2E224A028 C 0.22UF, 250V 1

C17143 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C17150 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

C17151 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

C17152 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

C17153 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

C17154 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

C17155 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

C17156 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

C17157 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

C17201 F1H1A105A099 C 1UF, 10V 1 PAVCTH

C17203 F1L2E224A028 C 0.22UF, 250V 1

C17204 F1H1A105A099 C 1UF, 10V 1 PAVCTH

C17205 F1L2E224A028 C 0.22UF, 250V 1

C17207 F1H1A105A099 C 1UF, 10V 1 PAVCTH

C17208 F1H1A105A099 C 1UF, 10V 1 PAVCTH

C17209 F1H1A105A099 C 1UF, 10V 1 PAVCTH

C17210 F1H1A105A099 C 1UF, 10V 1 PAVCTH

C17211 F1H1A105A099 C 1UF, 10V 1 PAVCTH

C17212 F1H1A105A099 C 1UF, 10V 1 PAVCTH

C17213 ECJ1XB1C104K C 0.1UF, Z, 16V 1

C17226 F1L2E224A028 C 0.22UF, 250V 1

C17229 F1L2E224A028 C 0.22UF, 250V 1

C17230 F1L2E224A028 C 0.22UF, 250V 1

C17233 F1L2E224A028 C 0.22UF, 250V 1

C17235 F1L2E224A028 C 0.22UF, 250V 1

C17236 F1L2E224A028 C 0.22UF, 250V 1

C17239 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

C17240 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

C17241 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

C17242 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

C17243 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

C17244 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

C17245 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

C17246 F1H1H102A831 C 1000PF, 50V 1 PAVCTH

CB1 K1MY55B00001 55P CONNECTOR 1

CB2 K1MY55B00001 55P CONNECTOR 1

CB3 K1MY55B00001 55P CONNECTOR 1

CB4 K1MY55B00001 55P CONNECTOR 1

CB5 K1MY55B00001 55P CONNECTOR 1

CB6 K1MY55B00001 55P CONNECTOR 1

CB7 K1MY55B00001 55P CONNECTOR 1

CB8 K1MY55B00001 55P CONNECTOR 1

CB9 K1MY55B00001 55P CONNECTOR 1

CB10 K1MY55B00001 55P CONNECTOR 1

CB11 K1MY55B00001 55P CONNECTOR 1

CB12 K1MY55B00001 55P CONNECTOR 1

CB13 K1MY55B00001 55P CONNECTOR 1

CB14 K1MY55B00001 55P CONNECTOR 1

CB15 K1MY55B00001 55P CONNECTOR 1

CN0100 K1KA14A00248 14P CONNECTOR 1

D100 B0FBBR000092 DIODE 1 PAVCTH

D101 B0FBBR000092 DIODE 1 PAVCTH

D102 ERZVGED621 VARISTOR 1 PAVCTH

D104 DZ2J068M0L ZENER DIODE 1

D105 B0HAPR000013 DIODE 1

D106 B0HAPR000013 DIODE 1

D107 B0ECKM000053 DIODE 1

D108 B0ECKM000053 DIODE 1

Part No. Part Name & Description Q'ty Remarks

Page 97

Model No. : TH-P42ST50H Parts List

S-57

Safety

Ref.

No.

D109 B0JCDD000001 DIODE 1

D110 B0JCDD000001 DIODE 1

D111 B0AACK000004 DIODE 1

D112 B0AACK000004 DIODE 1

D113 B0HAPR000013 DIODE 1

D115 ERZVGED621 VARISTOR 1 PAVCTH

D116 B0HAPR000013 DIODE 1

D117 ERZVGED621 VARISTOR 1 PAVCTH

D118 B0ECKM000053 DIODE 1

D119 B0ECKM000053 DIODE 1

D201 B0AAMT000014 DIODE 1 PAVCTH

D204 B0BB20000009 DIODE 1 PAVCTH

D205 B0ECKM000053 DIODE 1

D206 B0ECKM000053 DIODE 1

D209 DZ2J150M0L ZENER DIODE 1

D210 B0AACK000004 DIODE 1

D212 B0AACK000004 DIODE 1

D213 DZ2J270M0L ZENER DIODE 1 PAVCTH

D217 DZ2J150M0L ZENER DIODE 1

D219 DZ2J300M0L ZENER DIODE 1

D220 B0AACK000004 DIODE 1

D227 B0AAMT000014 DIODE 1 PAVCTH

D228 B0JCDD000001 DIODE 1

D229 B0JCDD000001 DIODE 1

D231 B0JCDD000001 DIODE 1

D232 DZ2J200M0L ZENER DIODE 1

D300 B0AACK000004 DIODE 1

D301 B0AACK000004 DIODE 1

D302 DA2J10100L DIODE 1

D304 DA2J10100L DIODE 1

D309 B0JCDD000001 DIODE 1

D310 B0JCDD000001 DIODE 1

D401 DA2J10100L DIODE 1

D402 B0AACK000004 DIODE 1

D410 B0AACK000004 DIODE 1

D412 B0AACK000004 DIODE 1

D417 DZ2J068M0L ZENER DIODE 1

D418 B0ECKM000053 DIODE 1

D419 DZ2J03300L ZENER DIODE 1 PAVCTH

D501 B0FBBM000025 DIODE 1 PAVCTH

D502 B0AACK000004 DIODE 1

D503 B0AACK000004 DIODE 1

D505 B0ECKM000053 DIODE 1

D506 DZ2J100M0L ZENER DIODE 1

D509 DZ2J100M0L ZENER DIODE 1

D600 B0FCAM000003 DIODE 1 PAVCTH

D601 B0FCAM000003 DIODE 1 PAVCTH

D602 DZ2J200M0L ZENER DIODE 1

D603 DZ2J200M0L ZENER DIODE 1

D604 DZ2J150M0L ZENER DIODE 1

D605 B0BC018A0225 DIODE 1 PAVCTH

D700 B0FBBP000008 DIODE 1 PAVCTH

D701 DZ2J051M0L ZENER DIODE 1

D702 B0ECKM000053 DIODE 1

D704 B0FBBP000007 DIODE 1 PAVCTH

D705 DA2J10100L DIODE 1

D706 DA2J10100L DIODE 1

D2002 B0JCME000093 DIODE 1

D2820 B3AGB0000065 LED 1

D3009 DZ2J140M0L ZENER DIODE 1

D3010 DZ2J140M0L ZENER DIODE 1

D3021 DZ2J140M0L ZENER DIODE 1

Part No. Part Name & Description Q'ty Remarks

Page 98

Model No. : TH-P42ST50H Parts List

S-58

Safety

Ref.

No.

D3022 DZ2J140M0L ZENER DIODE 1

D3023 DZ2J140M0L ZENER DIODE 1

D3024 DZ2J140M0L ZENER DIODE 1

D3025 DZ2J140M0L ZENER DIODE 1

D3026 DZ2J140M0L ZENER DIODE 1

D3201 K7AAAY000014 PHOTO LINK 1 PAVCTH

D4703 DZ2J056M0L ZENER DIODE 1

D4720 DZ2J056M0L ZENER DIODE 1

D4771 DZ2J056M0L ZENER DIODE 1

D4773 B0JCCE000021 DIODE 1

D8710 B0ECKM000053 DIODE 1

D8771 B0ADCK000001 DIODE 1

D8772 DZ2J068M0L ZENER DIODE 1

D8773 DZ2J068M0L ZENER DIODE 1

D9802 B0ADCK000001 DIODE 1

D14651 B0ECKM000046 DIODE 1

D14652 B0ECKM000046 DIODE 1

D14851 B0ECKM000046 DIODE 1

D14903 DA2J10100L DIODE 1

D14904 DA3X103E0L DIODE 1 PAVCTH

D16001 B0ECKP000061 DIODE 1 PAVCTH

D16005 B0ECKP000061 DIODE 1 PAVCTH

D16021 B0FCBN000002 DIODE 1 PAVCTH

D16042 B0FCCN000005 DIODE 1 PAVCTH

D16052 B0FCCN000005 DIODE 1 PAVCTH

D16071 B0ECKP000055 DIODE 1

D16072 B0ECKP000055 DIODE 1

D16131 B0ECKP000055 DIODE 1

D16133 DA2J10100L DIODE 1

D16134 DZ2J051M0L ZENER DIODE 1

D16135 DA2J10100L DIODE 1

D16191 B0ECKP000055 DIODE 1

D16192 DA2J10100L DIODE 1

D16196 DZ2J200M0L ZENER DIODE 1

D16243 DA3X103E0L DIODE 1 PAVCTH

D16251 DZ2J330M0L ZENER DIODE 1

D16252 DZ2J330M0L ZENER DIODE 1

D16254A B3ABB0000381 LED 1 PAVCTH

D16255 DA2J10100L DIODE 1

D16286 DA2J10100L DIODE 1

D16315 DZ2J150M0L ZENER DIODE 1

D16316 B0ECKP000055 DIODE 1

D16317 B0ECHS000002 DIODE 1

D16351 DA3X102D0L DIODE 1 PAVCTH

D16362 B0FCBN000002 DIODE 1 PAVCTH

D16402 B0ECKP000061 DIODE 1 PAVCTH

D16403 B0ECKP000061 DIODE 1 PAVCTH

D16407 B0JCDE000006 DIODE 1

D16411 DA2J10100L DIODE 1

D16413 DA2J10100L DIODE 1

D16421 DA3CF30ACL ZENER DIODE 1

D16430 B0ECKP000061 DIODE 1 PAVCTH

D16432 B0ECKP000055 DIODE 1

D16461 B0FCCN000005 DIODE 1 PAVCTH

D16462 B0FCCN000005 DIODE 1 PAVCTH

D16473 DA2J10100L DIODE 1

D16477 DA2J10100L DIODE 1

D16481 B0FCCN000005 DIODE 1 PAVCTH

D16482 B0FCCN000005 DIODE 1 PAVCTH

D16506 DZ2J051M0L ZENER DIODE 1

D16534 DZ2J051M0L ZENER DIODE 1

D16536 B0ECKP000055 DIODE 1

Part No. Part Name & Description Q'ty Remarks

Page 99

Model No. : TH-P42ST50H Parts List

S-59

Safety

Ref.

No.

D16581 DZ2J330M0L ZENER DIODE 1

D16582 DZ2J330M0L ZENER DIODE 1

D16583 B3ABB0000381 LED 1 PAVCTH

D16601 DZ2J051M0L ZENER DIODE 1

D16608 B0ECKP000055 DIODE 1

D16609 B0ECKP000055 DIODE 1

D16618 B0ECKP000055 DIODE 1

D16641 DA3CF32ACL ZENER DIODE 1 PAVCTH

D16644 DA3CF32ACL ZENER DIODE 1 PAVCTH

D16648 DA2J10100L DIODE 1

D16652 B0ECKP000055 DIODE 1

D16662 DZ2J220M0L TRANSISTOR 1

D16663 DZ2J220M0L TRANSISTOR 1

D16669 DA2J10100L DIODE 1

D16673 B0ECHR000004 DIODE 1

D16674 B0ECHR000004 DIODE 1

D16676 DA2J10100L DIODE 1

D16685 DA2J10100L DIODE 1

D16686 DA2J10100L DIODE 1

D16711 B0ECHR000004 DIODE 1

D16712 B0ECKP000055 DIODE 1

D16713 B0ECHS000002 DIODE 1

D16714 B0ECHS000002 DIODE 1

D16720 B0ECHR000004 DIODE 1

D16728 B0ECKP000055 DIODE 1

D16823 DA3X103E0L DIODE 1 PAVCTH

D16824 DA2J10100L DIODE 1

D16825 DZ2J330M0L ZENER DIODE 1

D16826 DZ2J330M0L ZENER DIODE 1

D16828 DA2J10100L DIODE 1

D16833 B0ECHR000004 DIODE 1

D17103 B0JCCD000020 DIODE 1

D17203 B0JCCD000020 DIODE 1

F100 K5E802YYA143 FUSE 1 PAVCTH

F102 K5E402YYA142 FUSE 1 PAVCTH

HS16041 K4AZ02D00004 TERMINAL 1 PAVCTH

HS16054 K4AZ02D00004 TERMINAL 1 PAVCTH

HS16055 K4AZ02D00004 TERMINAL 1 PAVCTH

HS16441 K4AZ02D00004 TERMINAL 1 PAVCTH

HS16443 K4AZ02D00004 TERMINAL 1 PAVCTH

HS16453 K4AZ02D00004 TERMINAL 1 PAVCTH

HS16454 K4AZ02D00004 TERMINAL 1 PAVCTH

IC100 C0DBBYY00025 IC 1 PAVCTH

IC200 C0DBBYY00047 IC 1 PAVCTH

IC300 C0DBBYY00034 IC 1 PAVCTH

IC400 C0DBZYY00531 IC 1 PAVCTH

IC501 C0DBGYY02978 IC 1 PAVCTH

IC502 C1ZBZ0004664 IC 1 PAVCTH

IC503 C1ZBZ0004665 IC 1 PAVCTH

IC600 C0DBZYY00532 IC 1 PAVCTH

IC700 C0DBZYY00531 IC 1 PAVCTH

IC2001 C1ZBZ0004368 IC 1

IC2002 C1ZBZ0004683 IC 1 PAVCTH

IC3051 C0ABBB000179 IC 1 PAVCTH

IC4900 C1AB00003871 IC 1 PAVCTH

IC4901 C1AB00003871 IC 1 PAVCTH

IC5000 AN34044AAVF IC 1

IC5703 C0DBFYY00164 IC 1 PAVCTH

IC6951 C1AB00003810 IC 1 PAVCTH

Part No. Part Name & Description Q'ty Remarks

Page 100

Model No. : TH-P42ST50H Parts List

S-60

Safety

Ref.

No.

IC8000 MN2WS0250G IC 1 PAVCTH

IC8100 C0DBAYY01283 IC 1 PAVCTH

IC8101 C0DBAYY01285 IC 1 PAVCTH

IC8200 C3ABUY000020 IC 1 PAVCTH

IC8201 C3ABUY000020 IC 1 PAVCTH

IC8601 C1CB00003747 IC 1 PAVCTH

IC8602 C0DBZYY00541 IC 1 PAVCTH

IC8603 C0DBZYY00541 IC 1 PAVCTH

IC8606 C0DBZYY00541 IC 1 PAVCTH

IC8650 C1CB00003736 IC 1 PAVCTH

IC8704 C0DBAYY01283 IC 1 PAVCTH

IC8705 C0DBAYY01299 IC 1 PAVCTH

IC8709 C0DBGYY01682 IC 1

IC8714 C0DBEYY00102 IC 1 PAVCTH

IC8715 C0DBGYY00887 IC 1

IC8900 TVRS623AE IC 1 PAVCTH

IC8902 TVR***H IC 1 PAVCTH

IC9005 C0CBCAG00046 IC 1

IC9300 C1AB00003813 IC 1 PAVCTH

IC9304 TVRS629AC IC 1 PAVCTH

IC9400 C0JBAZ001120 IC 1

IC9401 C0JBAZ001120 IC 1

IC9402 C0JBAZ001120 IC 1

IC9803 C0DBAYY01283 IC 1 PAVCTH

IC9804 C0DBZYY00541 IC 1 PAVCTH

IC14601 AN16620A-VT IC 1 PAVCTH

IC14602 AN16620A-VT IC 1 PAVCTH

IC14603 AN16620A-VT IC 1 PAVCTH

IC14604 AN16620A-VT IC 1 PAVCTH

IC14605 AN16620A-VT IC 1 PAVCTH

IC14606 AN16620A-VT IC 1 PAVCTH

IC14801 AN16620A-VT IC 1 PAVCTH

IC14802 AN16620A-VT IC 1 PAVCTH

IC14803 AN16620A-VT IC 1 PAVCTH

IC14804 AN16620A-VT IC 1 PAVCTH

IC14805 AN16620A-VT IC 1 PAVCTH

IC14806 AN16620A-VT IC 1 PAVCTH

IC14901 C0JBAU000088 IC 1

IC14902 C0JBAB000996 IC 1

IC16131 C0ZBZ0001920 IC 1 PAVCTH

IC16132 C0ZBZ0001920 IC 1 PAVCTH

IC16151 C0ZBZ0001920 IC 1 PAVCTH

IC16152 C0ZBZ0001920 IC 1 PAVCTH

IC16241 C0JBAU000088 IC 1

IC16304 MIP3910MSSCF IC 1

IC16312 C0DBZYY00531 IC 1 PAVCTH

IC16501 C0ZBZ0001920 IC 1 PAVCTH

IC16502 C0ZBZ0001920 IC 1 PAVCTH

IC16521 C0ZBZ0001920 IC 1 PAVCTH

IC16522 C0ZBZ0001920 IC 1 PAVCTH

IC16561 AN49272A-VF IC 1 PAVCTH

IC16563 C0JBAB000996 IC 1

IC16600 C1ZBZ0004559 IC 1 PAVCTH

IC16603 C0JBAA000344 IC 1

IC16725 C1ZBZ0004715 IC 1 PAVCTH

IC16784 MIP3910MSSCF IC 1

IC16785 C0DBZYY00532 IC 1 PAVCTH

IC16786 MIP3910MSSCF IC 1

IC16787 C0DBZYY00532 IC 1 PAVCTH

IC16795 C0CBALC00012 IC 1

IC16921 C1ZBZ0004557 IC 1 PAVCTH

IC17101 C0JBAU000088 IC 1

Part No. Part Name & Description Q'ty Remarks
