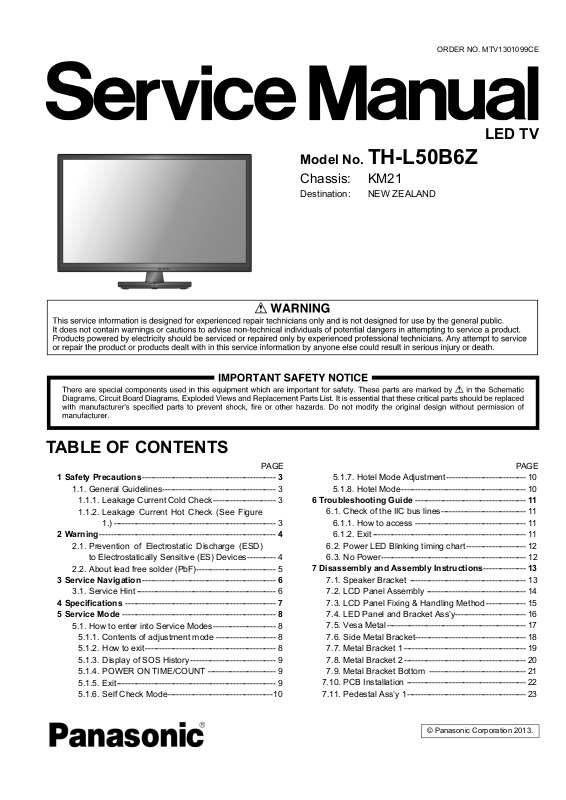

Page 1
ORDER NO. MTV1301099CE
Model No. TH-L50B6Z
Chassis: KM21
Destination: NEW ZEALAND
LED TV
TABLE OF CONTENTS
1 Safety Precautions ----------------------------------------------- 3
1.1. General Guidelines---------------------------------------- 3
1.1.1. Leakage Current Cold Check ---------------------- 3
1.1.2. Leakage Current Hot Check (See Figure
1.) --------------------------------------------------------- 3
2 Warning-------------------------------------------------------------- 4
2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatically Sensitive (ES) Devices---------- 4
2.2. About lead free solder (PbF)---------------------------- 5
3 Service Navigation ----------------------------------------------- 6
3.1. Service Hint ------------------------------------------------- 6
4 Specifications ----------------------------------------------------- 7
5 Service Mode ------------------------------------------------------ 8
5.1. How to enter into Service Modes ---------------------- 8
5.1.1. Contents of adjustment mode --------------------- 8
5.1.2. How to exit---------------------------------------------- 8
5.1.3. Display of SOS History ------------------------------ 9
5.1.4. POWER ON TIME/COUNT ------------------------ 9
5.1.5. Exit-------------------------------------------------------- 9
5.1.6. Self Check Mode-------------------------------------10
PAG E PAG E
5.1.7. Hotel Mode Adjustment ---------------------------- 10
5.1.8. Hotel Mode-------------------------------------------- 10
6 Troubleshooting Guide --------------------------------------- 11
6.1. Check of the IIC bus lines------------------------------ 11
6.1.1. How to access --------------------------------------- 11
6.1.2. Exit ------------------------------------------------------ 11
6.2. Power LED Blinking timing chart --------------------- 12
6.3. No Power--------------------------------------------------- 12

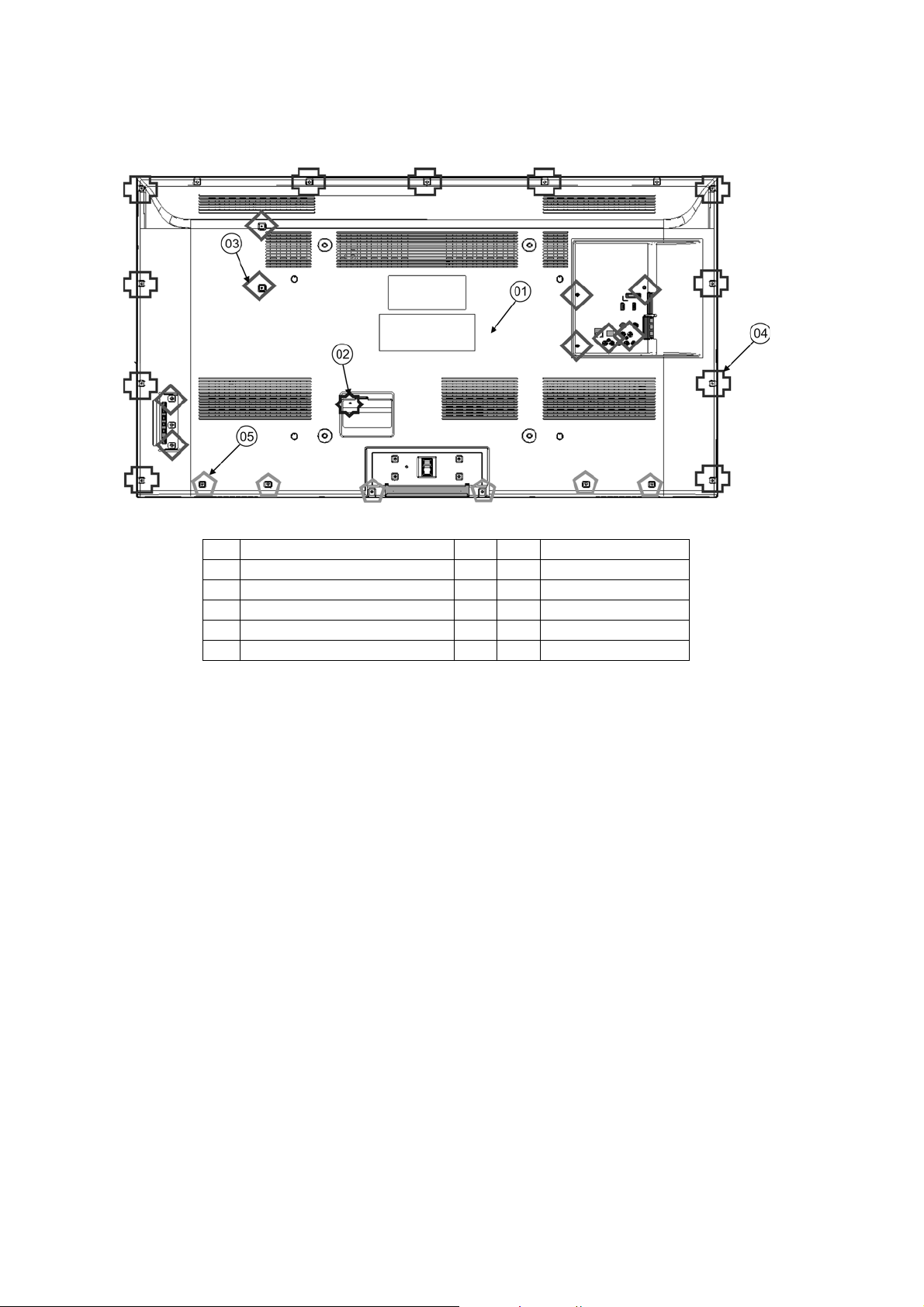

7 Disassembly and Assembly Instructions--------------- 13
7.1. Speaker Bracket ----------------------------------------- 13
7.2. LCD Panel Assembly ----------------------------------- 14
7.3. LCD Panel Fixing & Handling Method -------------- 15
7.4. LED Panel and Bracket Ass’y------------------------- 16
7.5. Vesa Metal------------------------------------------------- 17
7.6. Side Metal Bracket--------------------------------------- 18
7.7. Metal Bracket 1 ------------------------------------------- 19
7.8. Metal Bracket 2 ------------------------------------------- 20
7.9. Metal Bracket Bottom ---------------------------------- 21
7.10. PCB Installation ------------------------------------------ 22
7.11. Pedestal Ass’y 1------------------------------------------ 23
© Panasonic Corporation 2013.
Page 2
TH-L50B6Z
7.12. Pedestal Ass’y 2------------------------------------------ 24
7.13. Stand MTG Assy -----------------------------------------25
7.14. Back Cover Installation ---------------------------------26

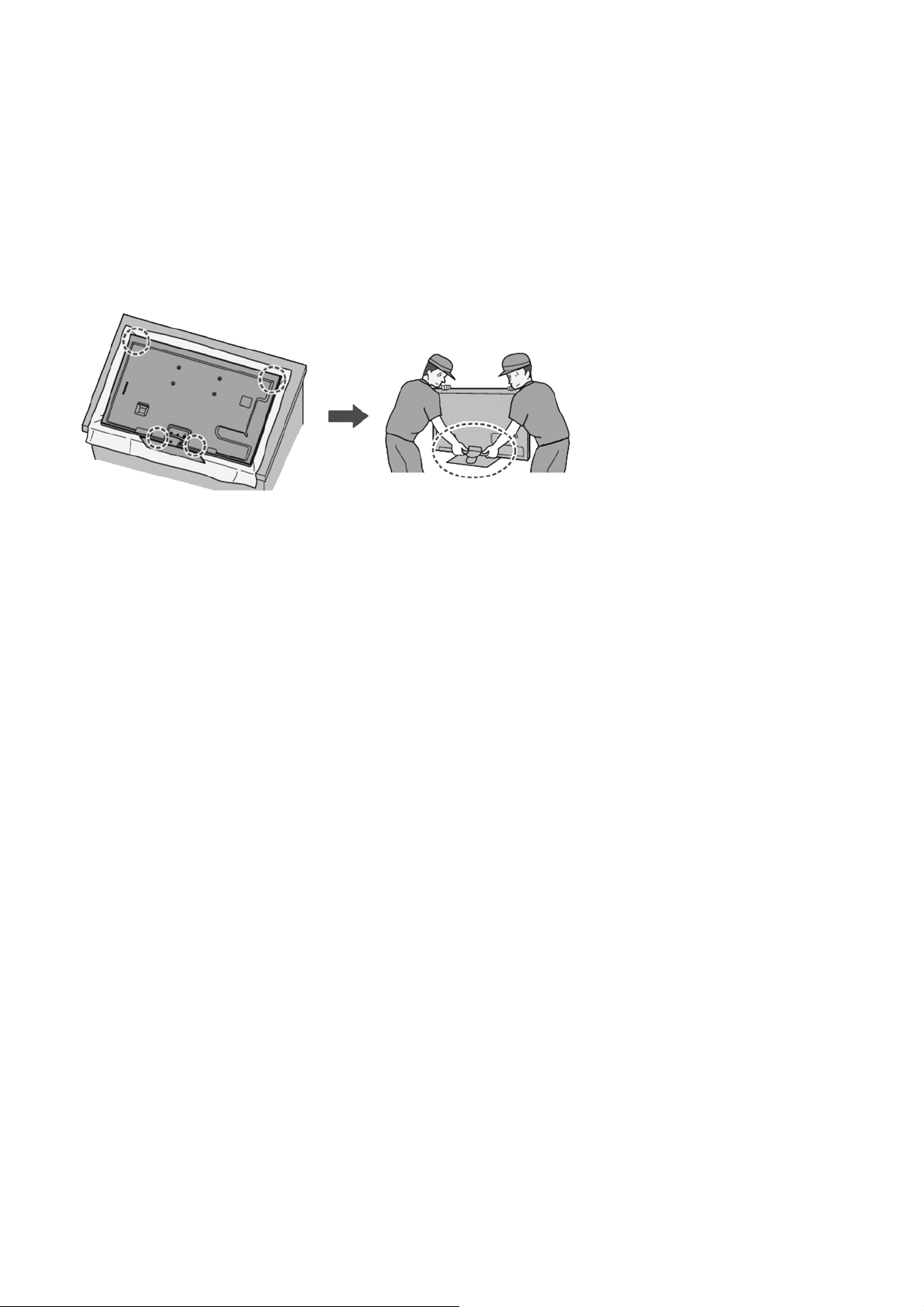

7.15. Handling SPEC ------------------------------------------- 27
8 Measurements and Adjustments -------------------------- 28
8.1. Voltage chart of A-board-------------------------------- 28
8.2. Voltage chart of P-board-------------------------------- 28
9 Block Diagram --------------------------------------------------- 29

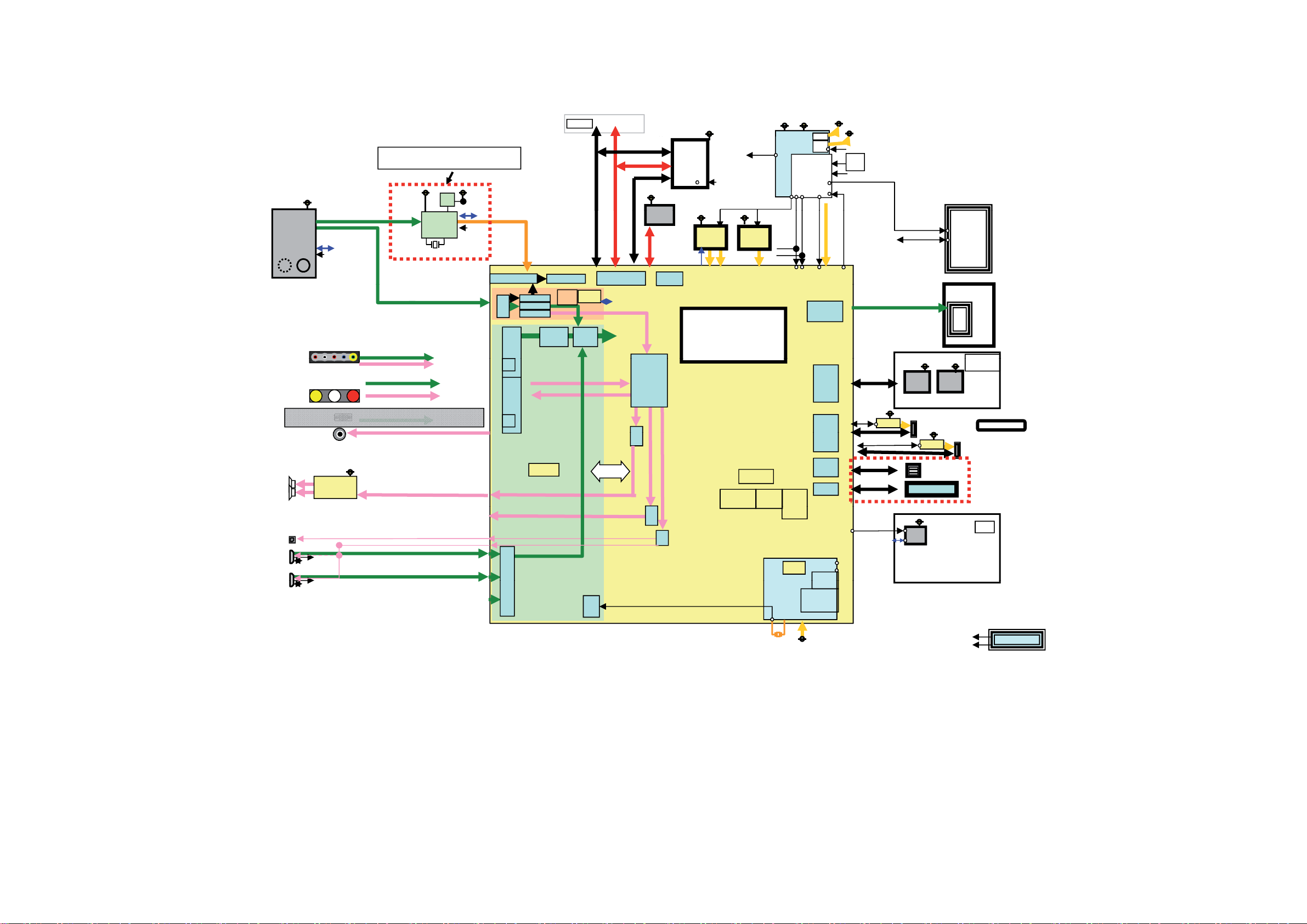

9.1. Main Block Diagram ------------------------------------- 29

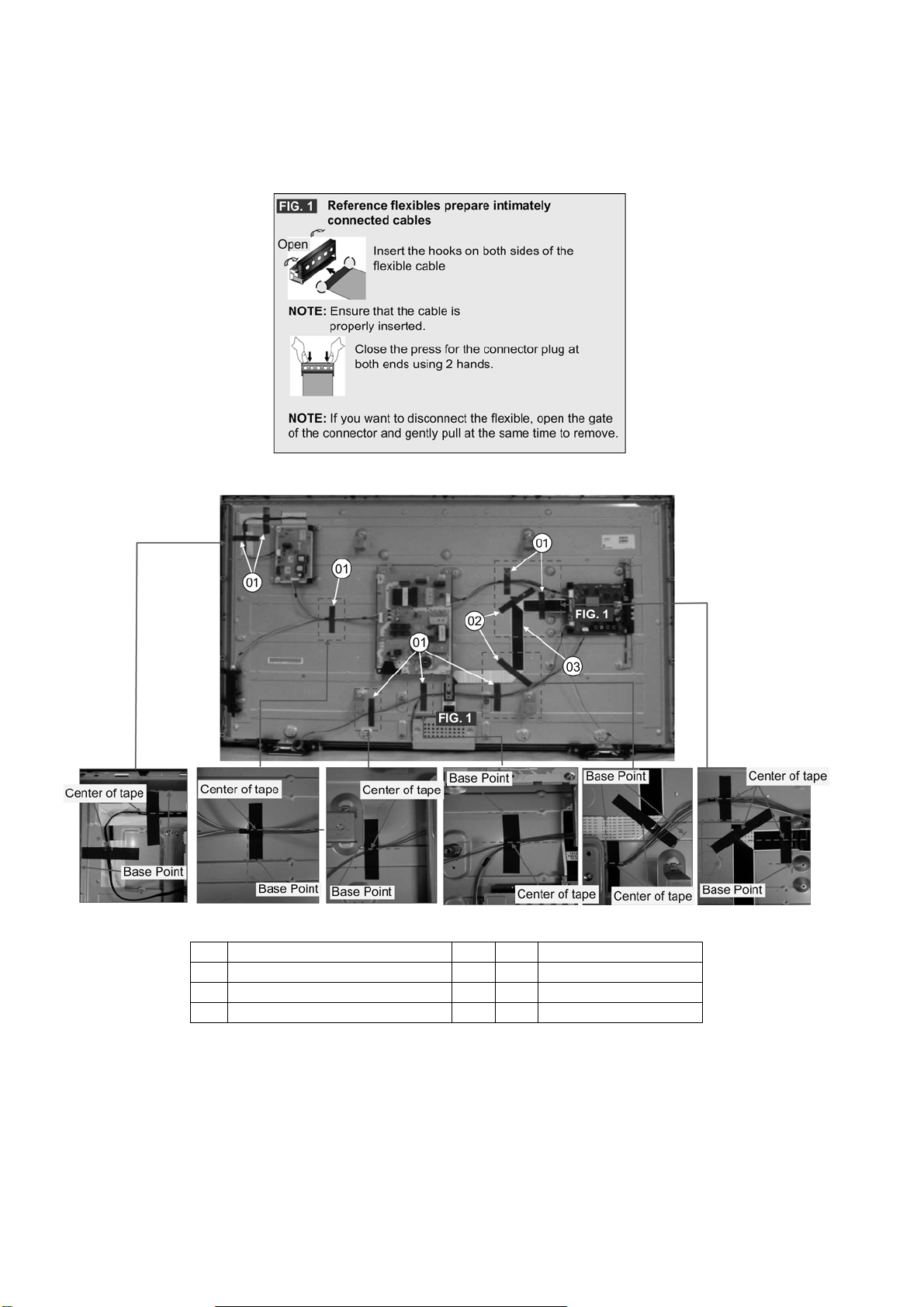

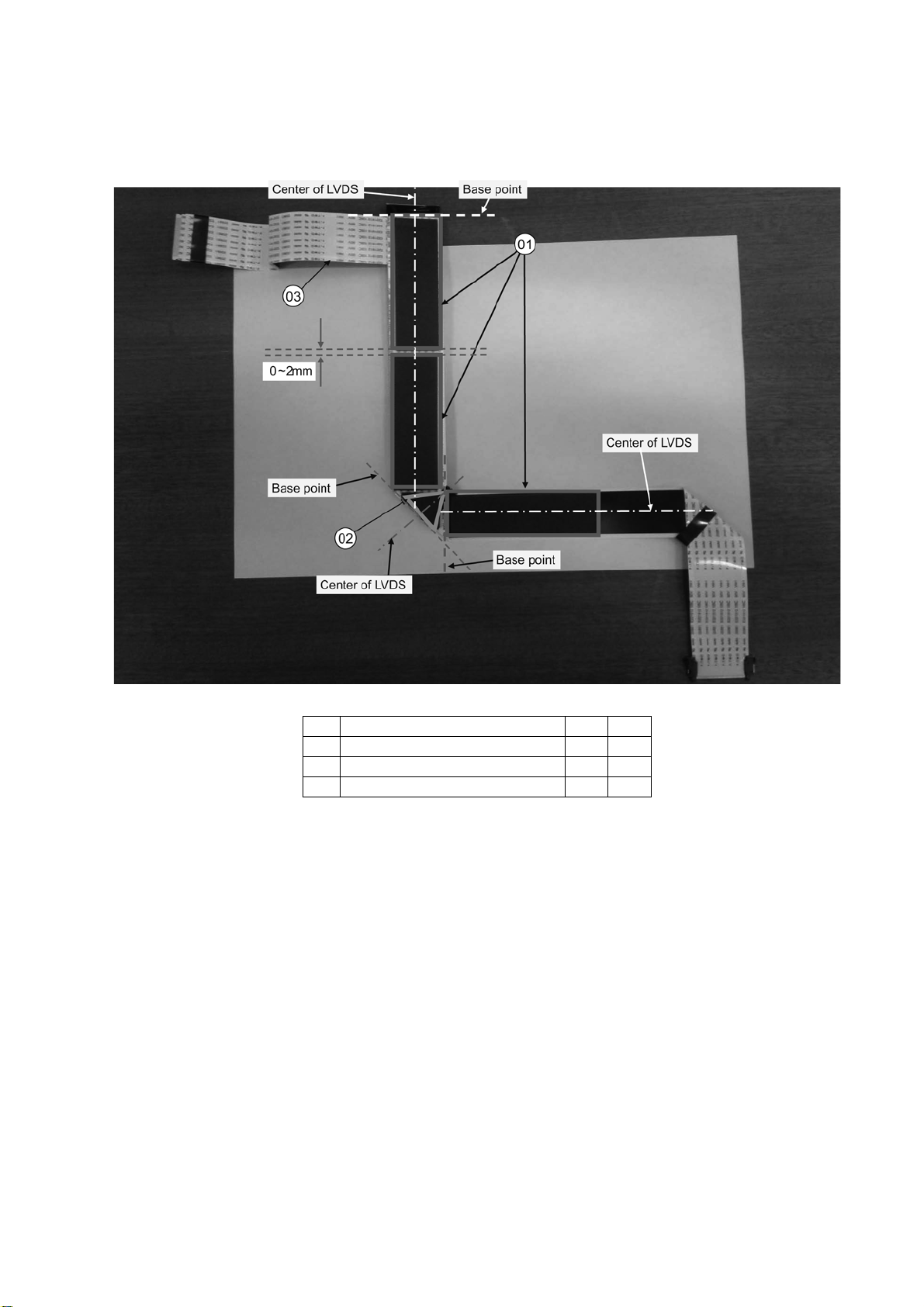

10 Wiring Connection Diagram --------------------------------- 30
10.1. Wire Dressing 1------------------------------------------- 30
10.2. Wire Dressing 2------------------------------------------- 31

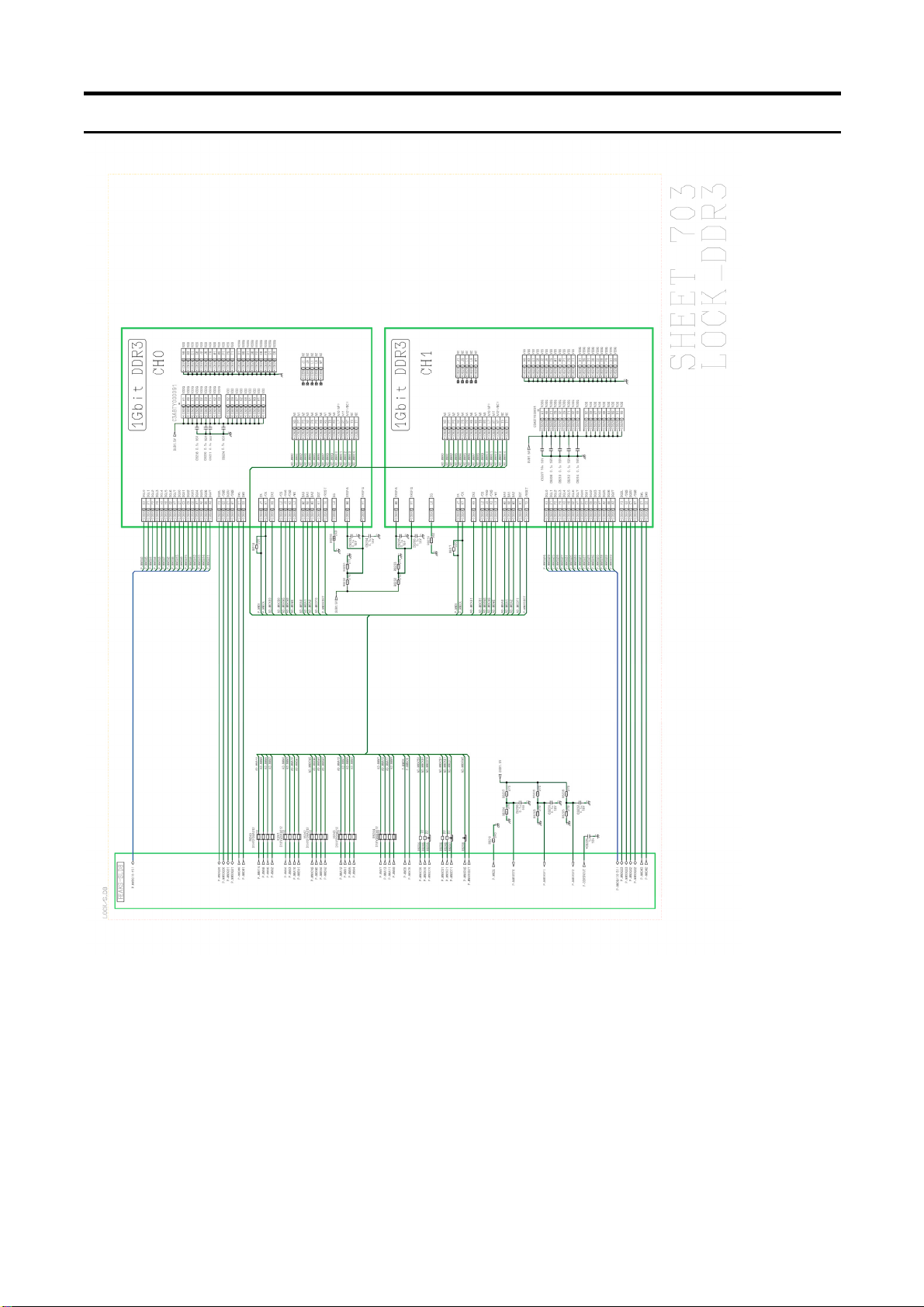

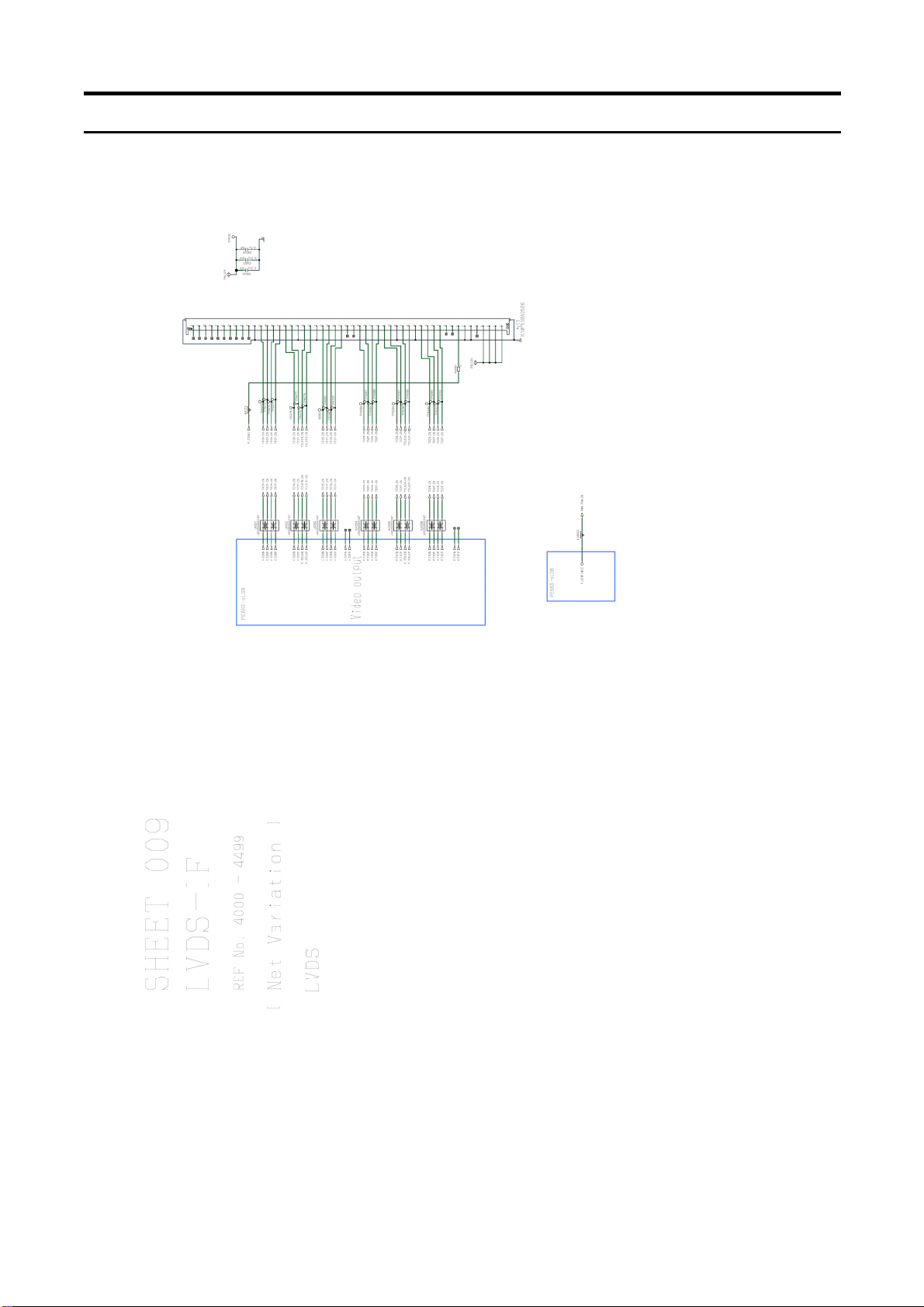

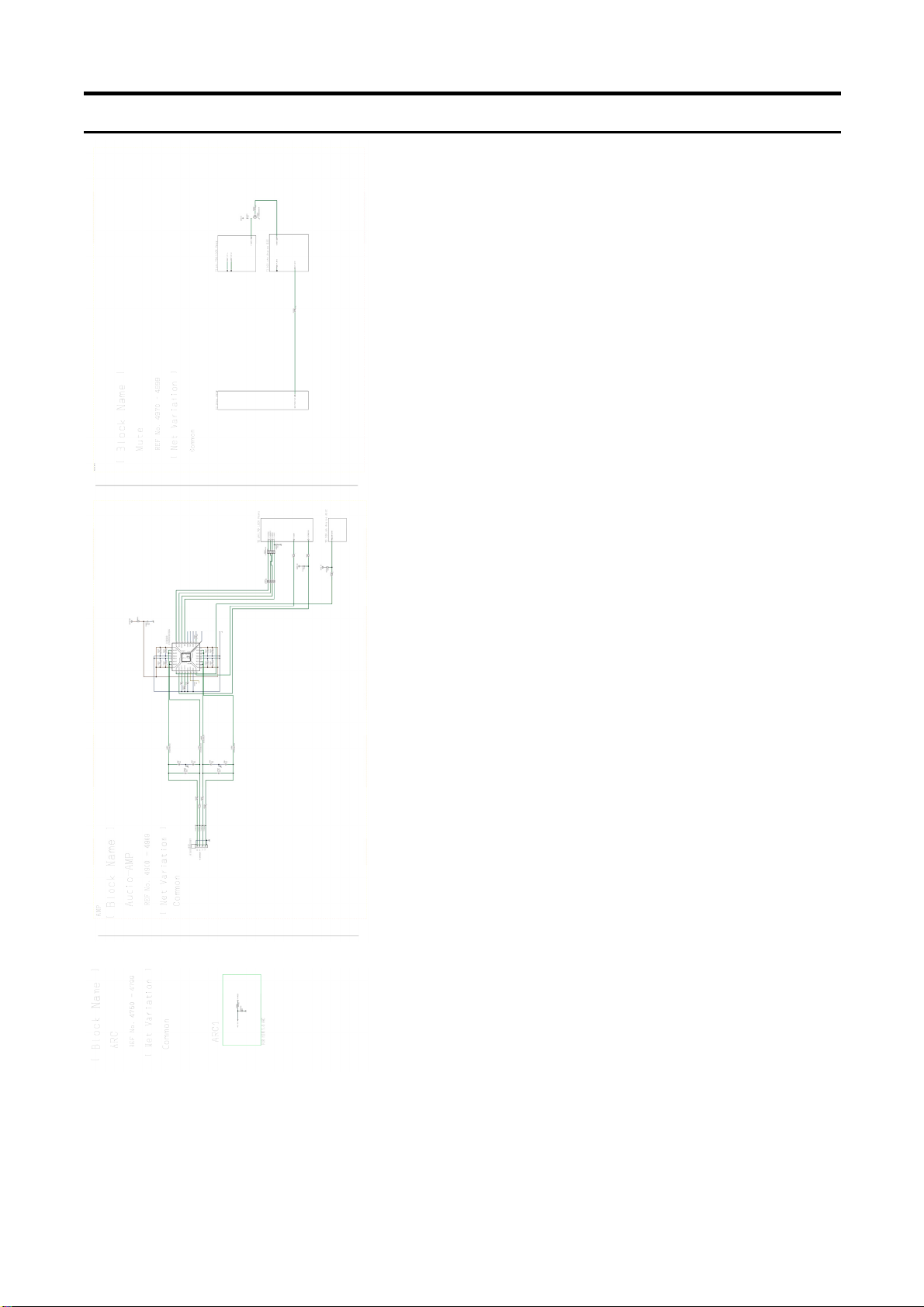

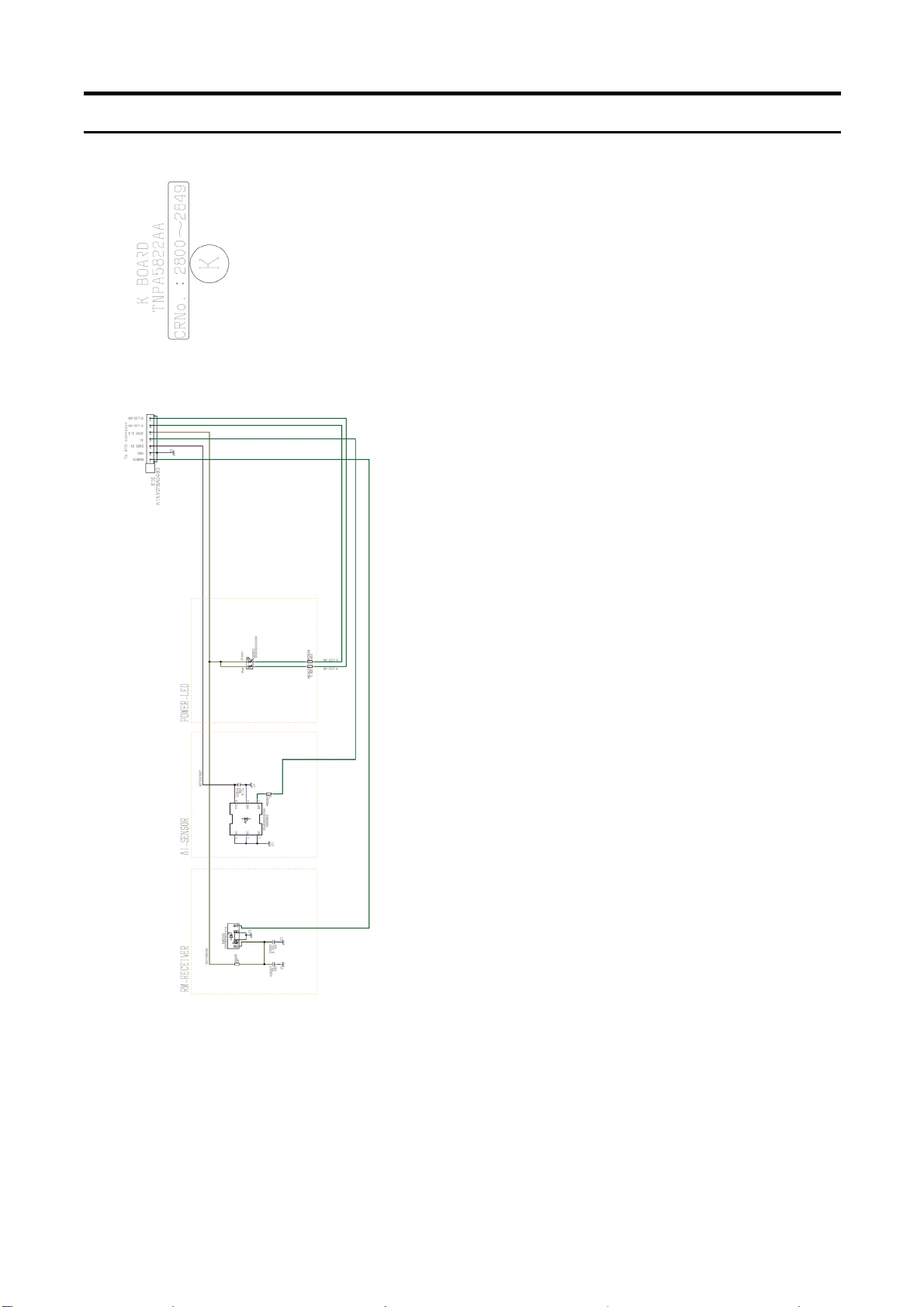

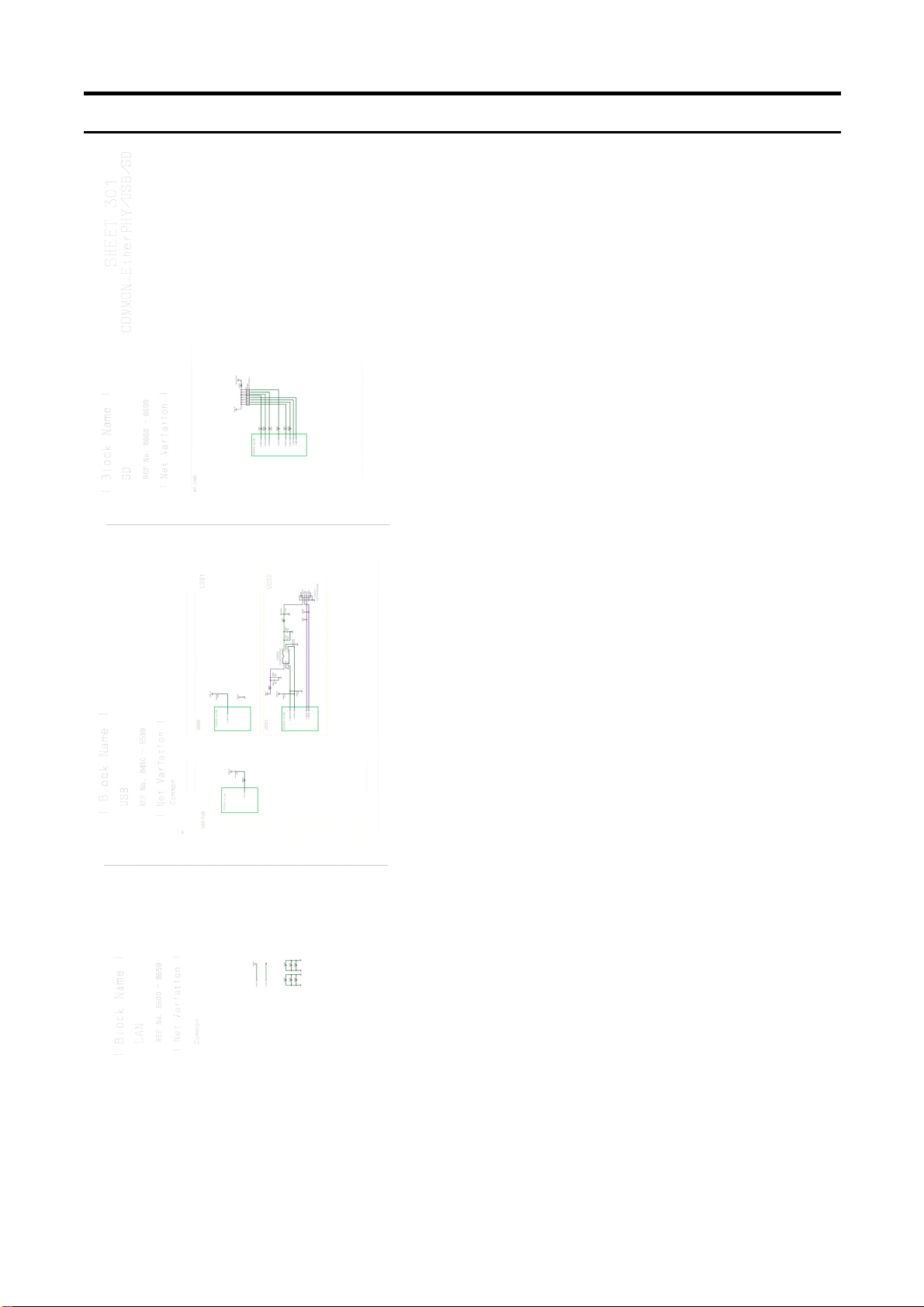

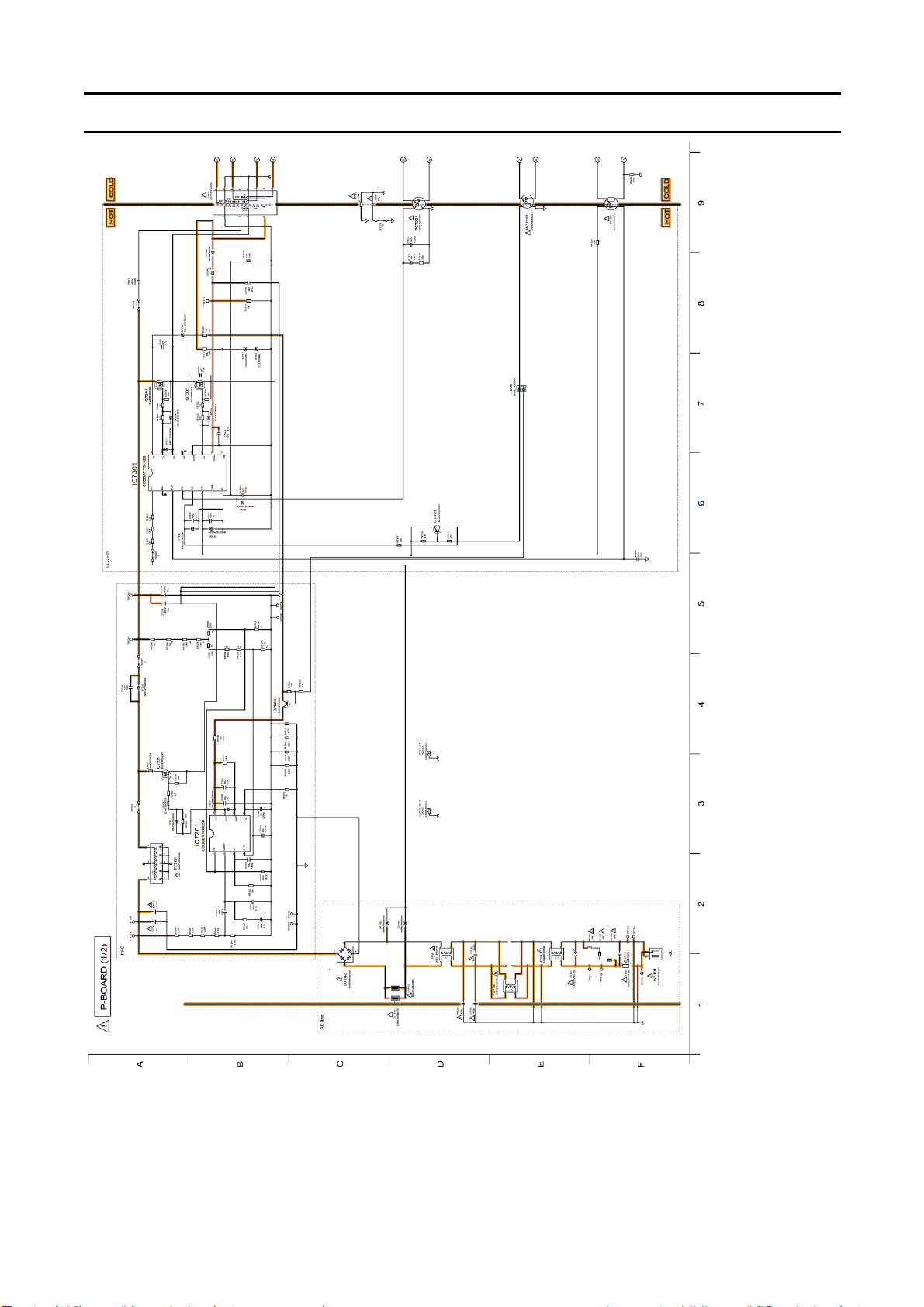

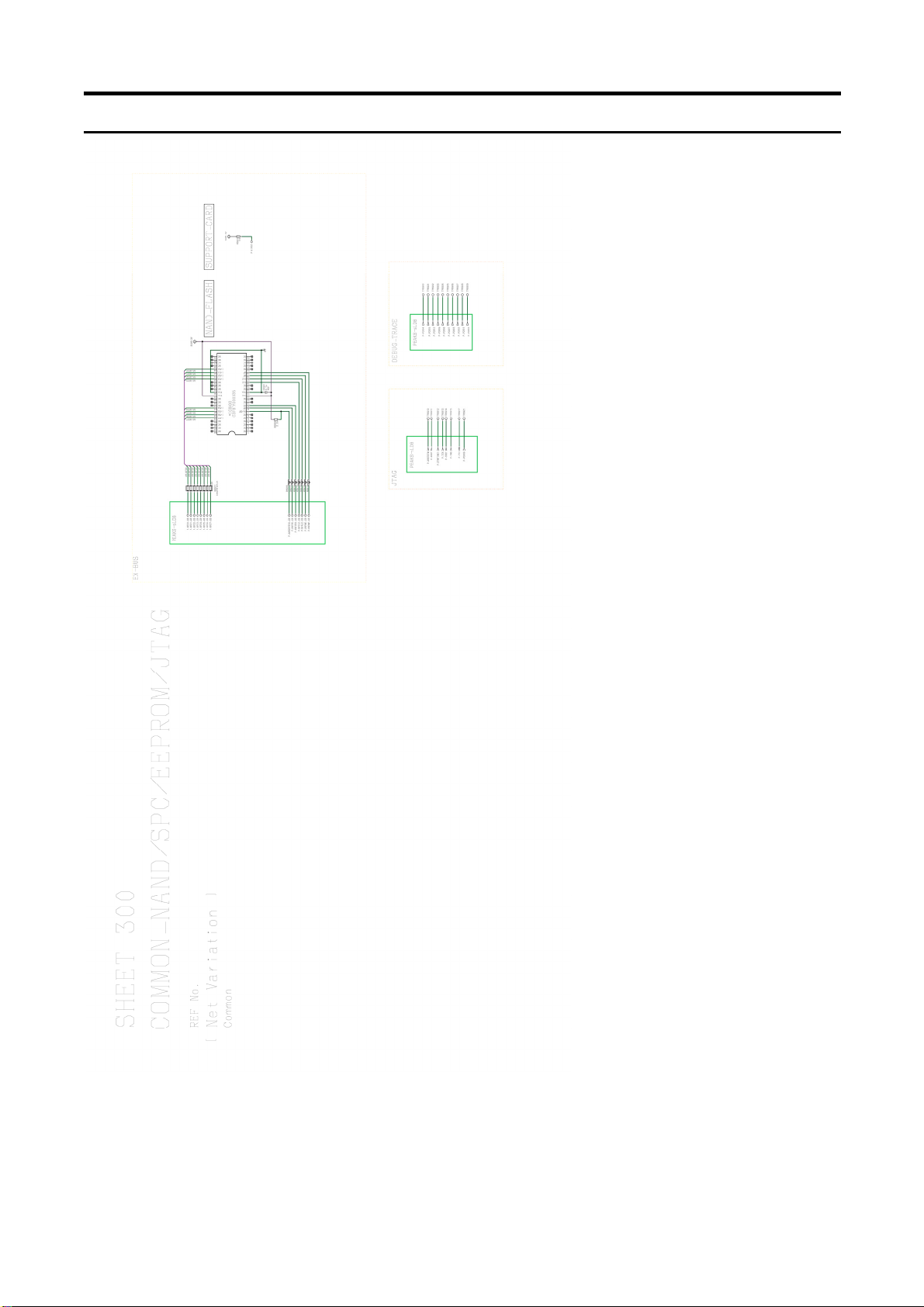

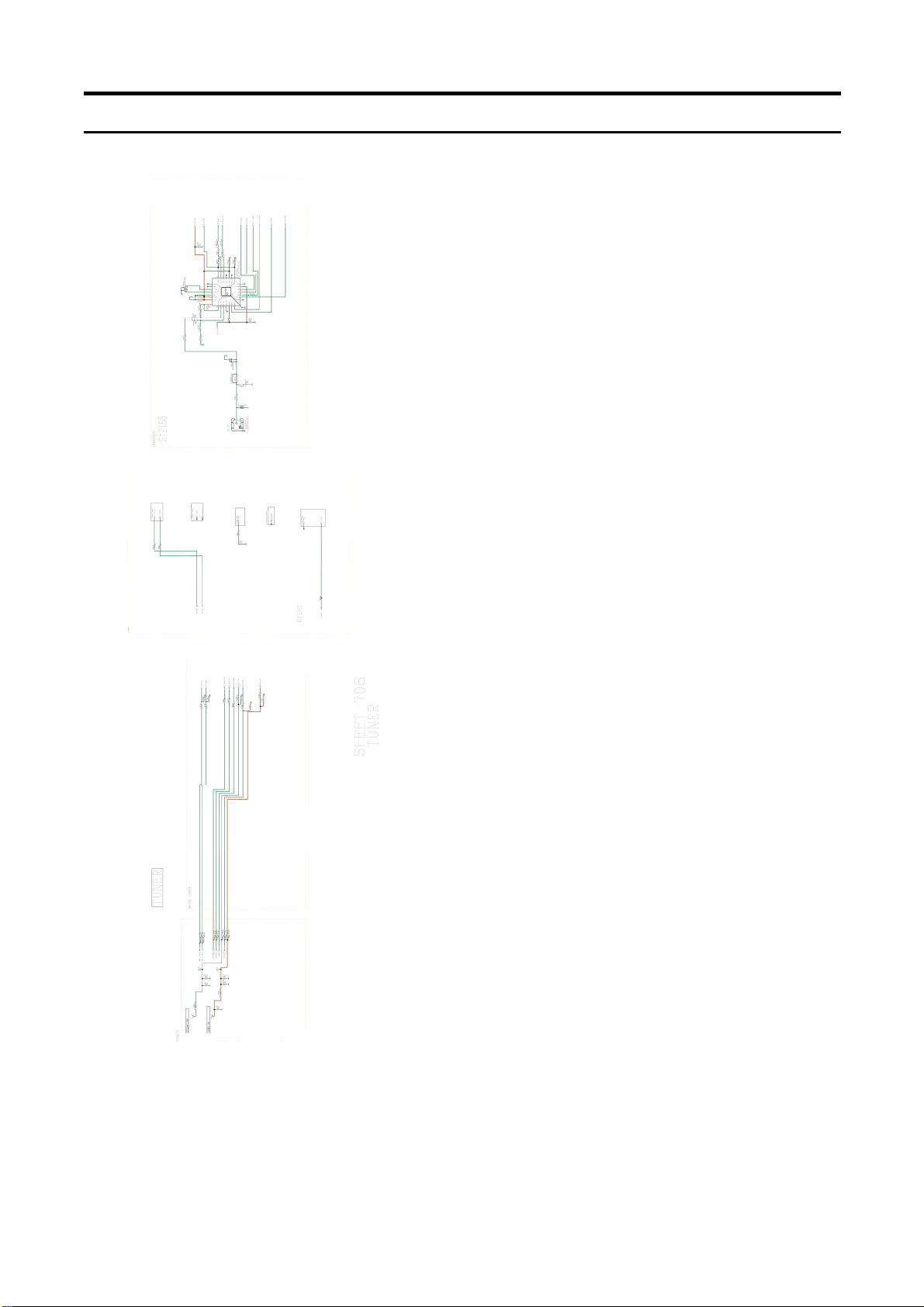

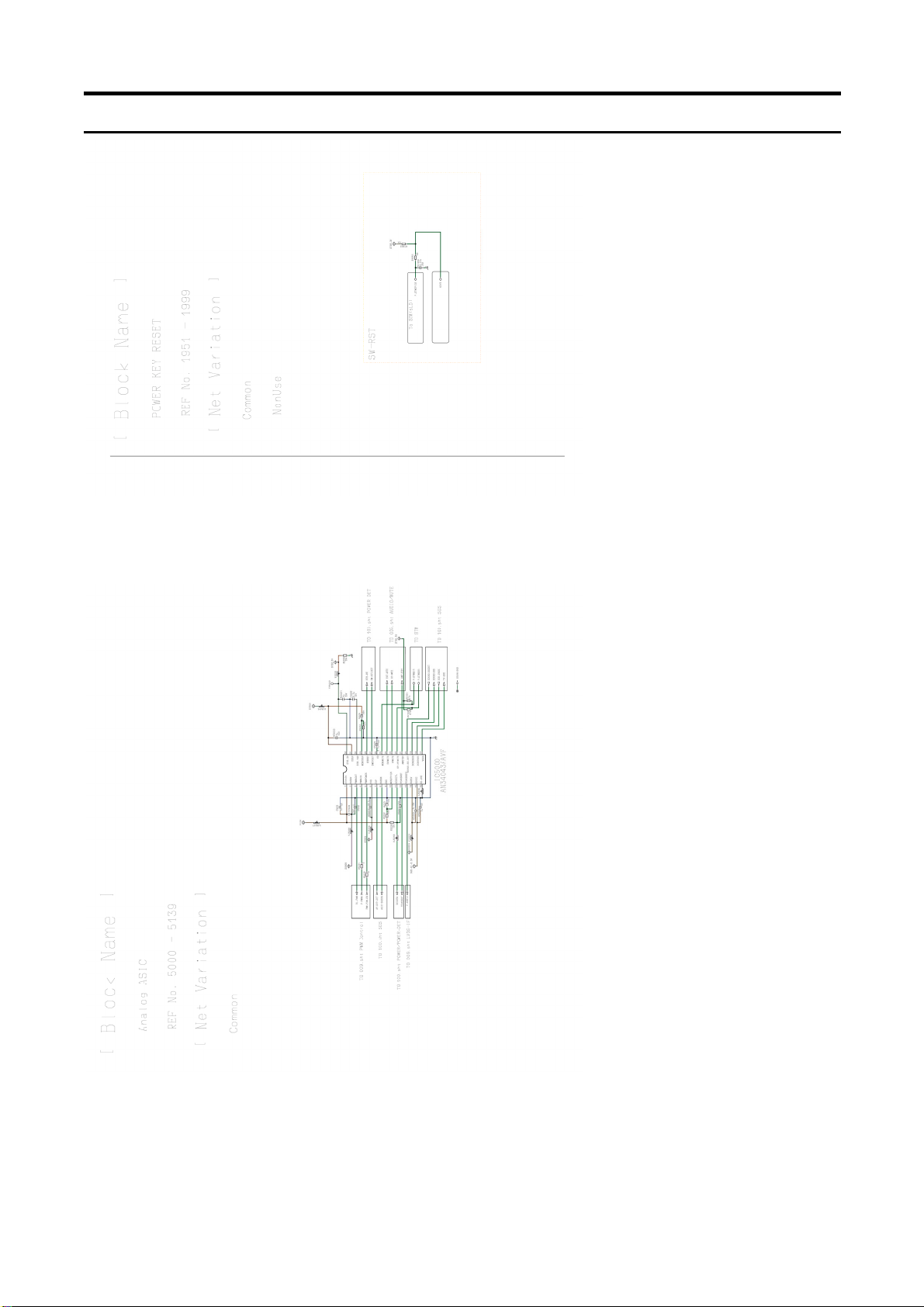

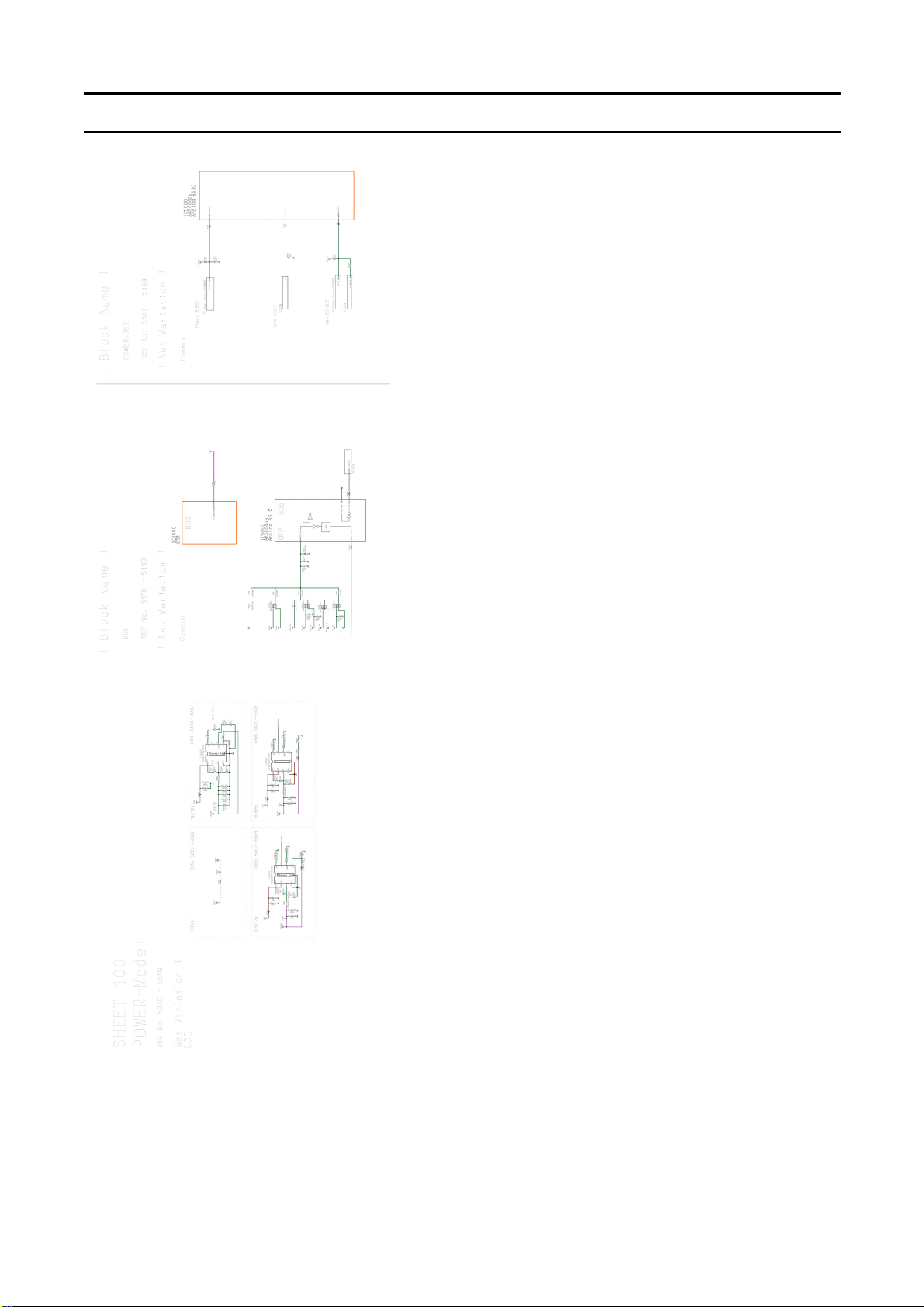

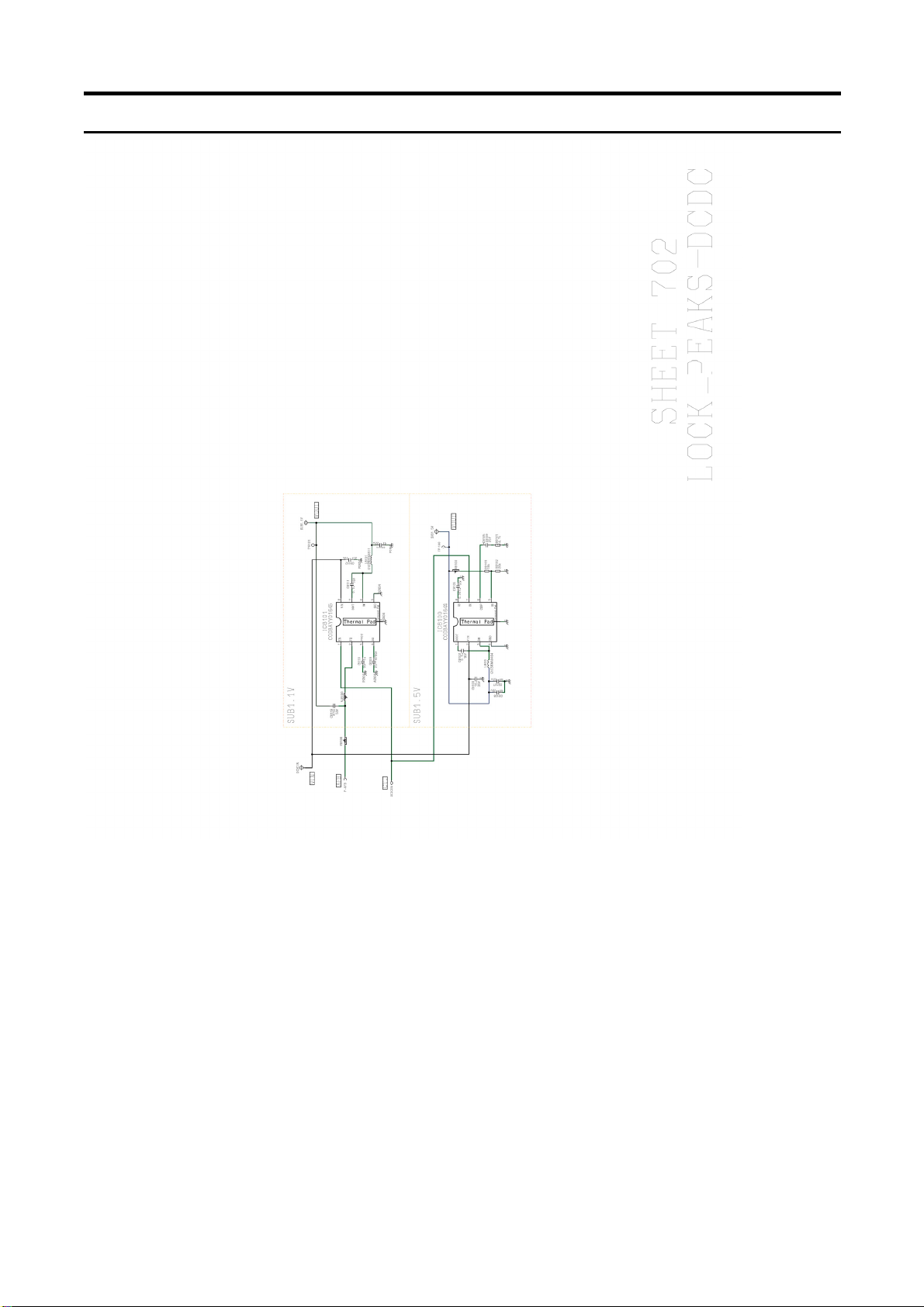

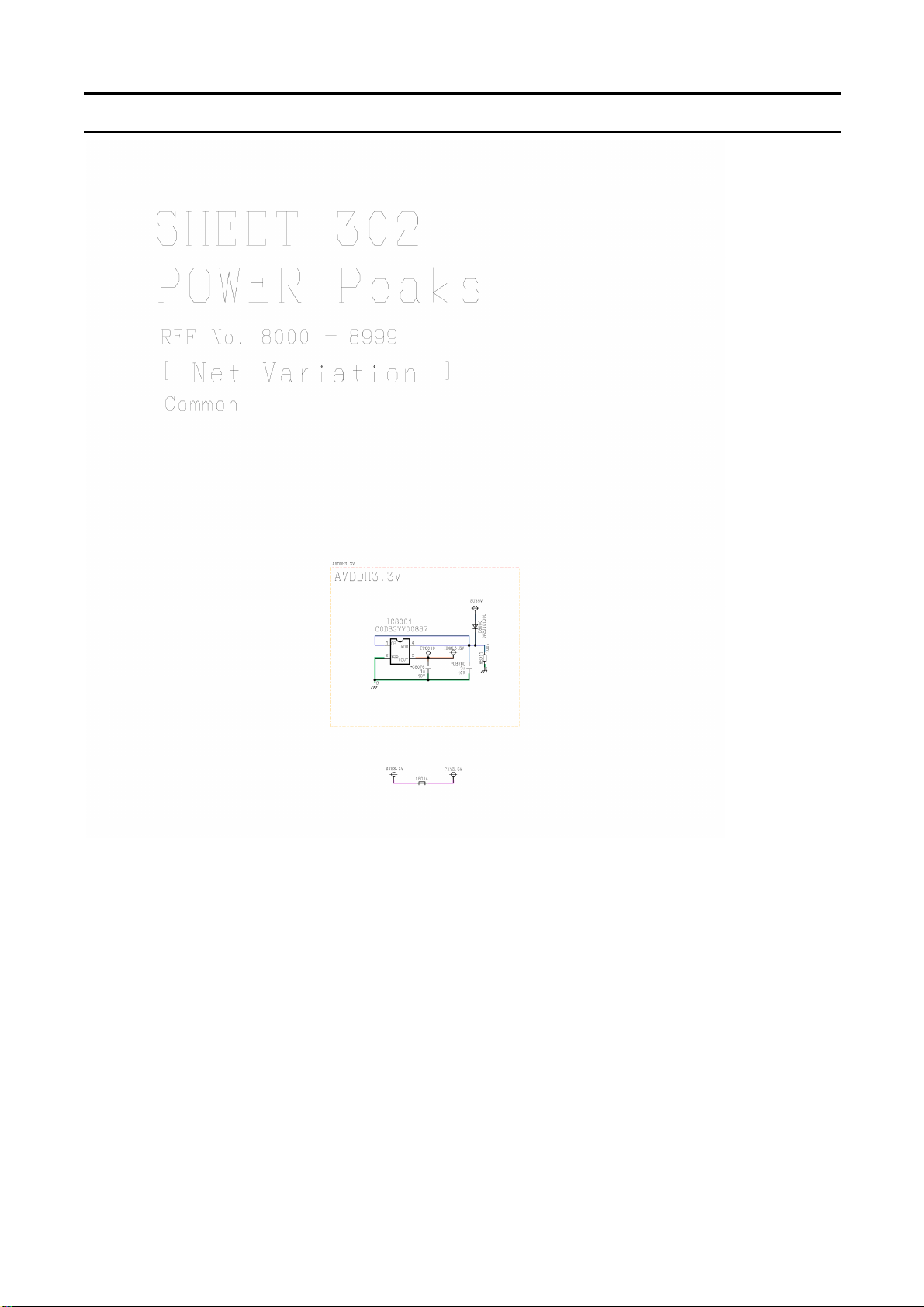

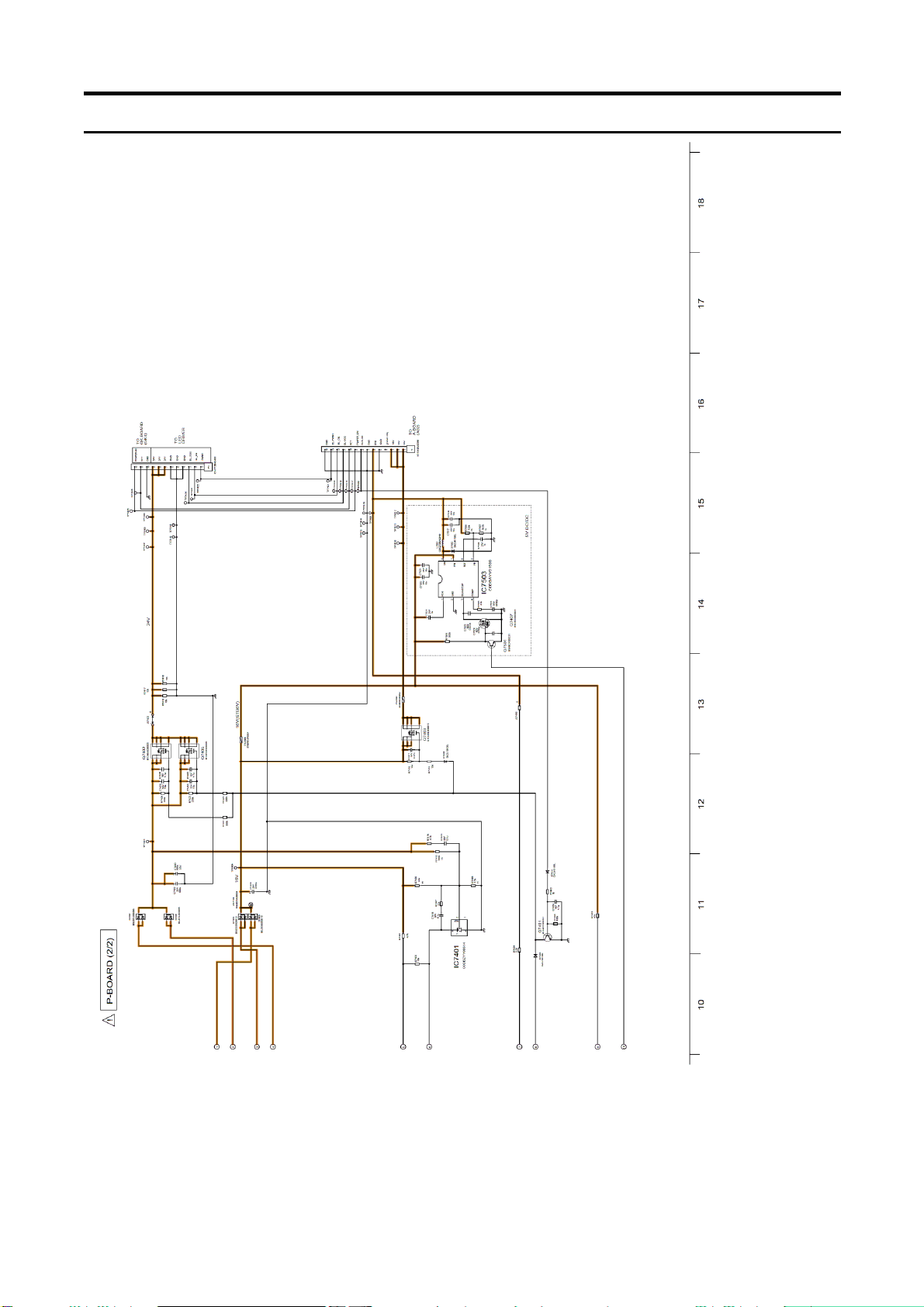

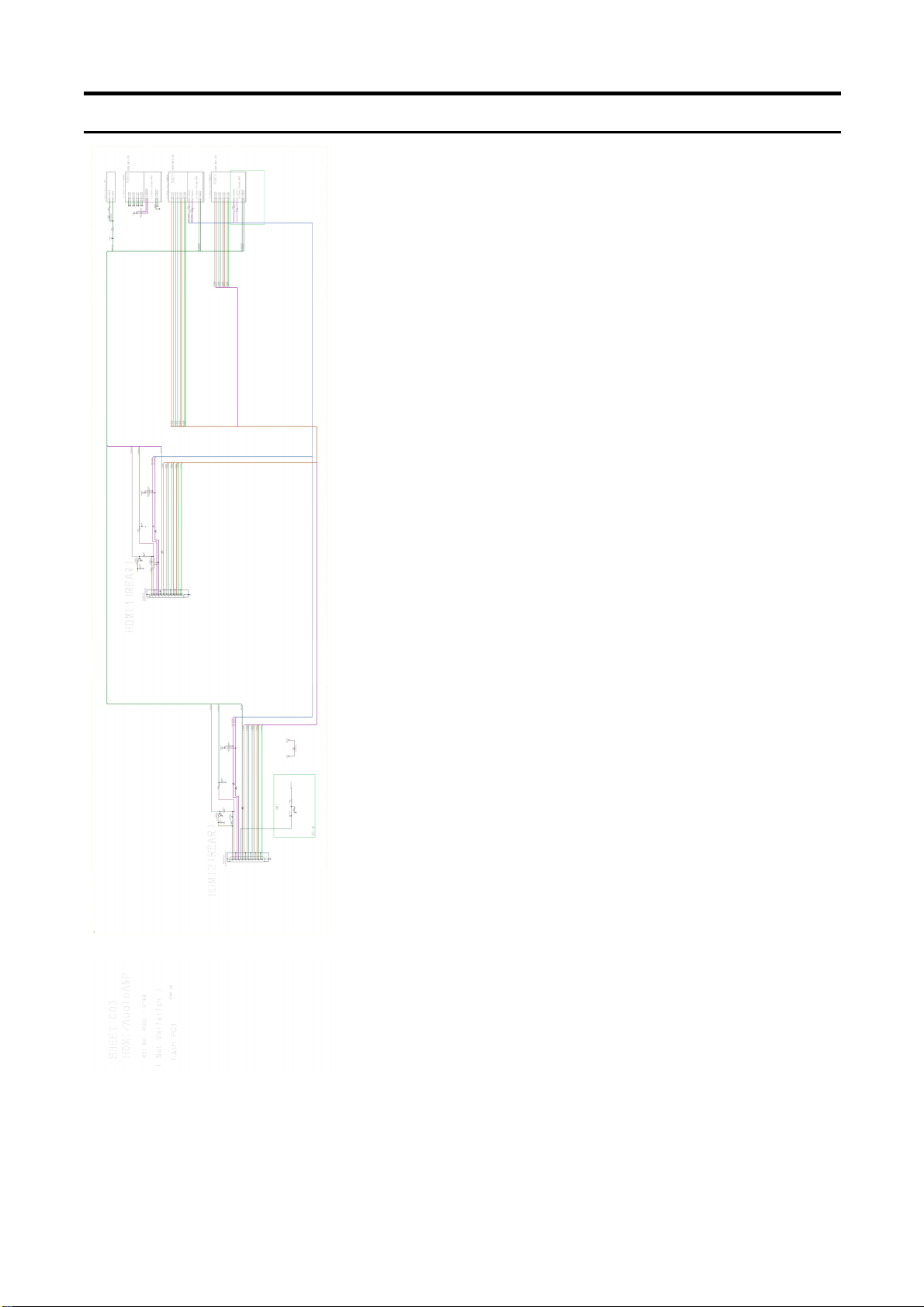

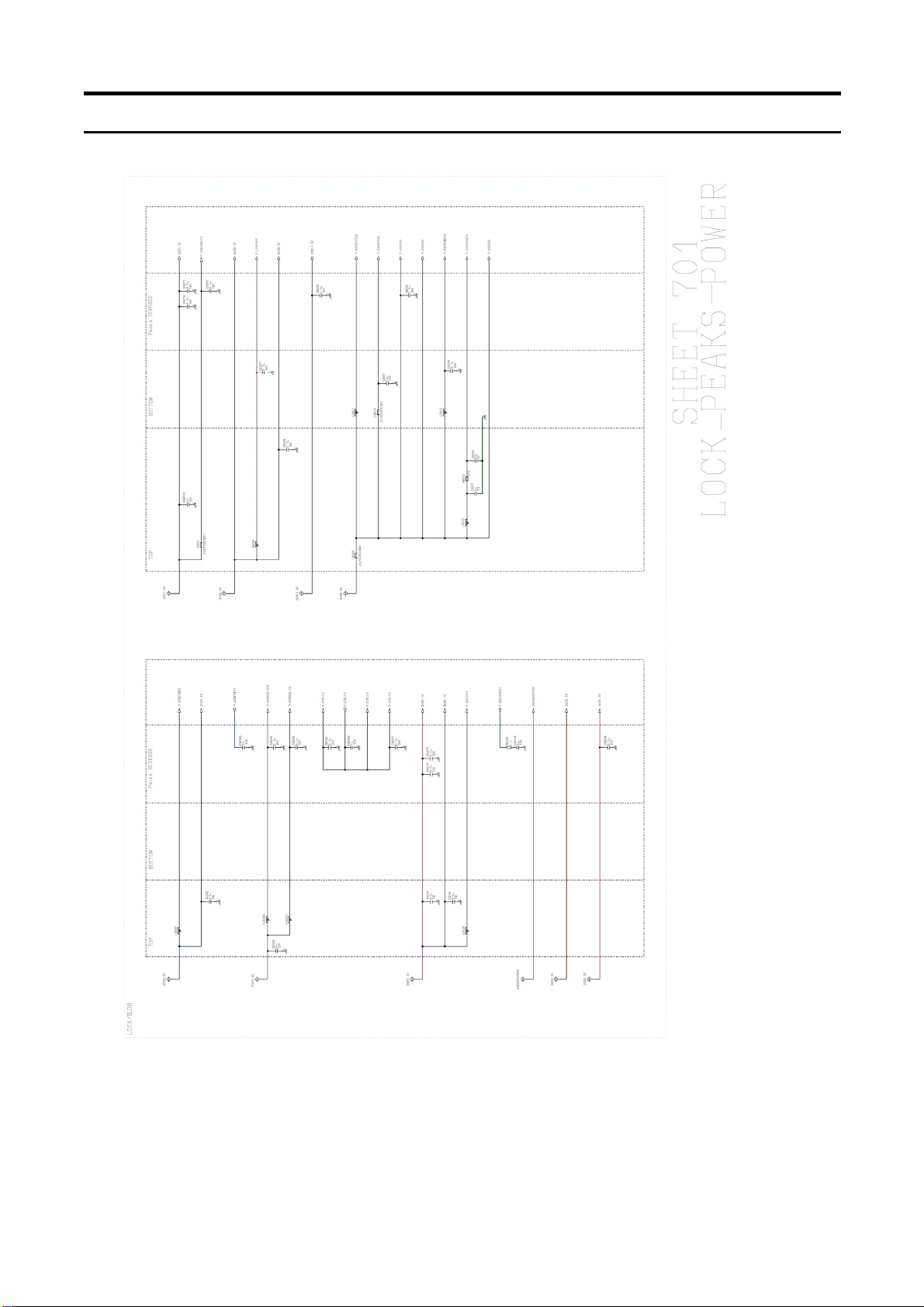

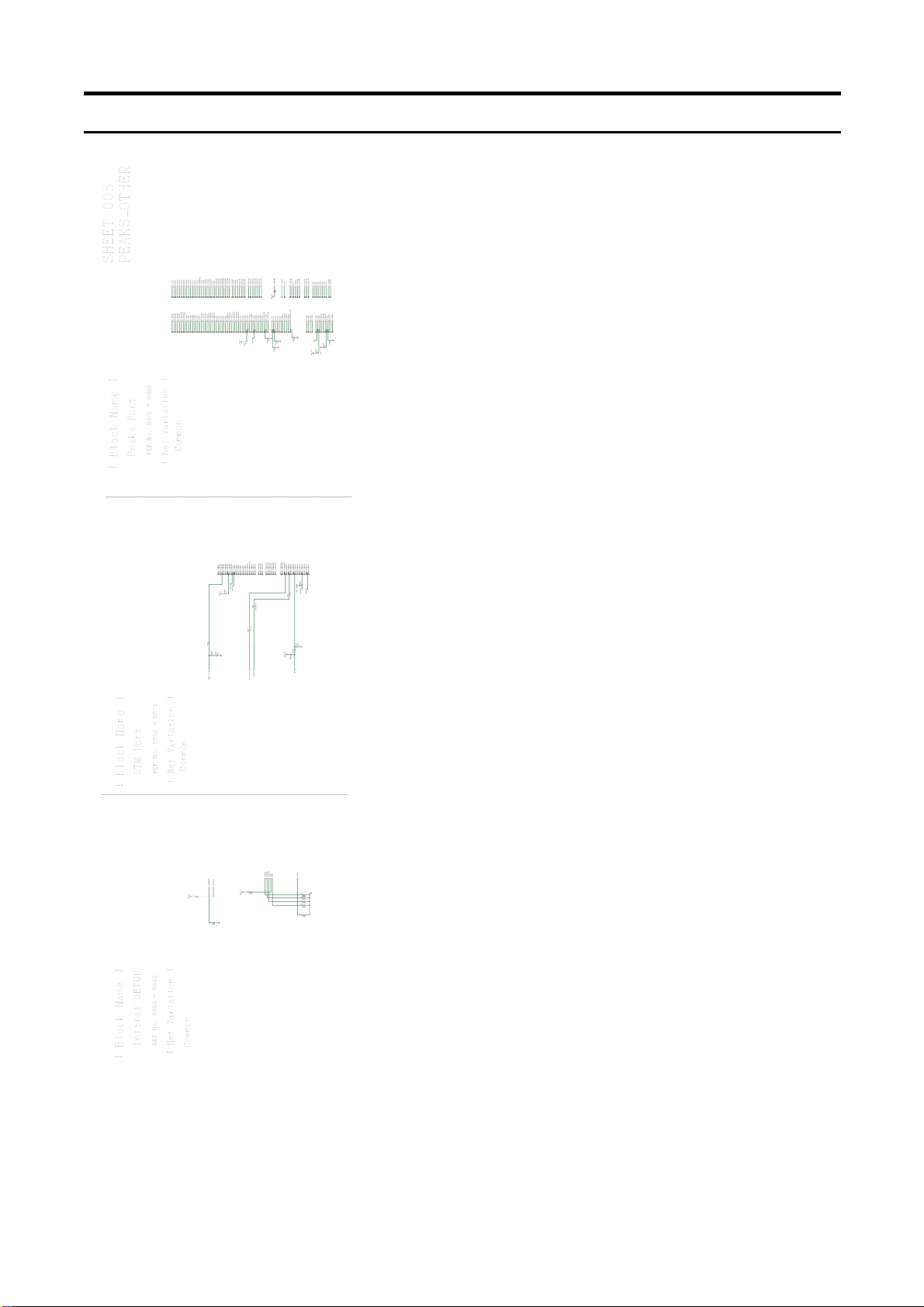

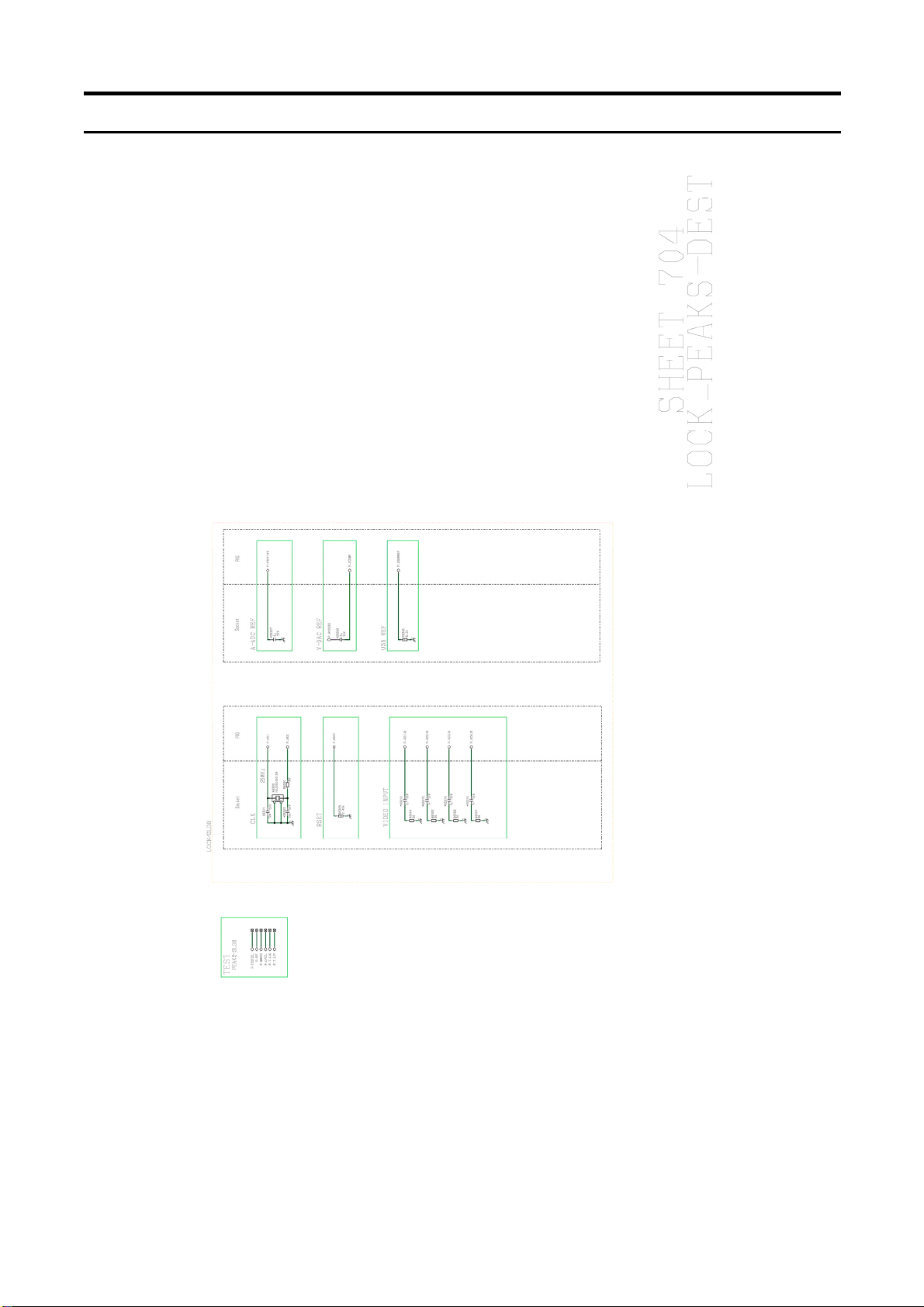

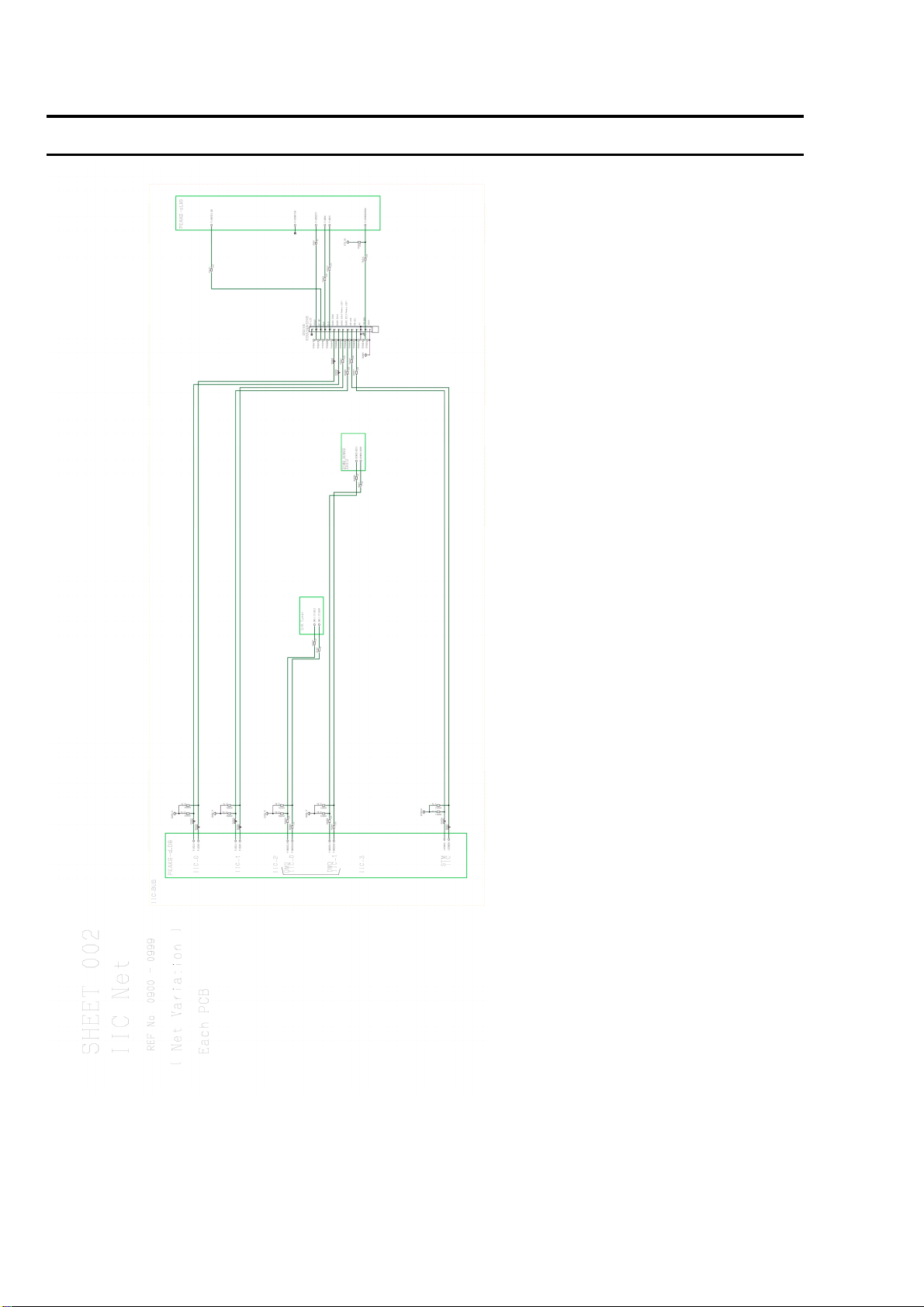

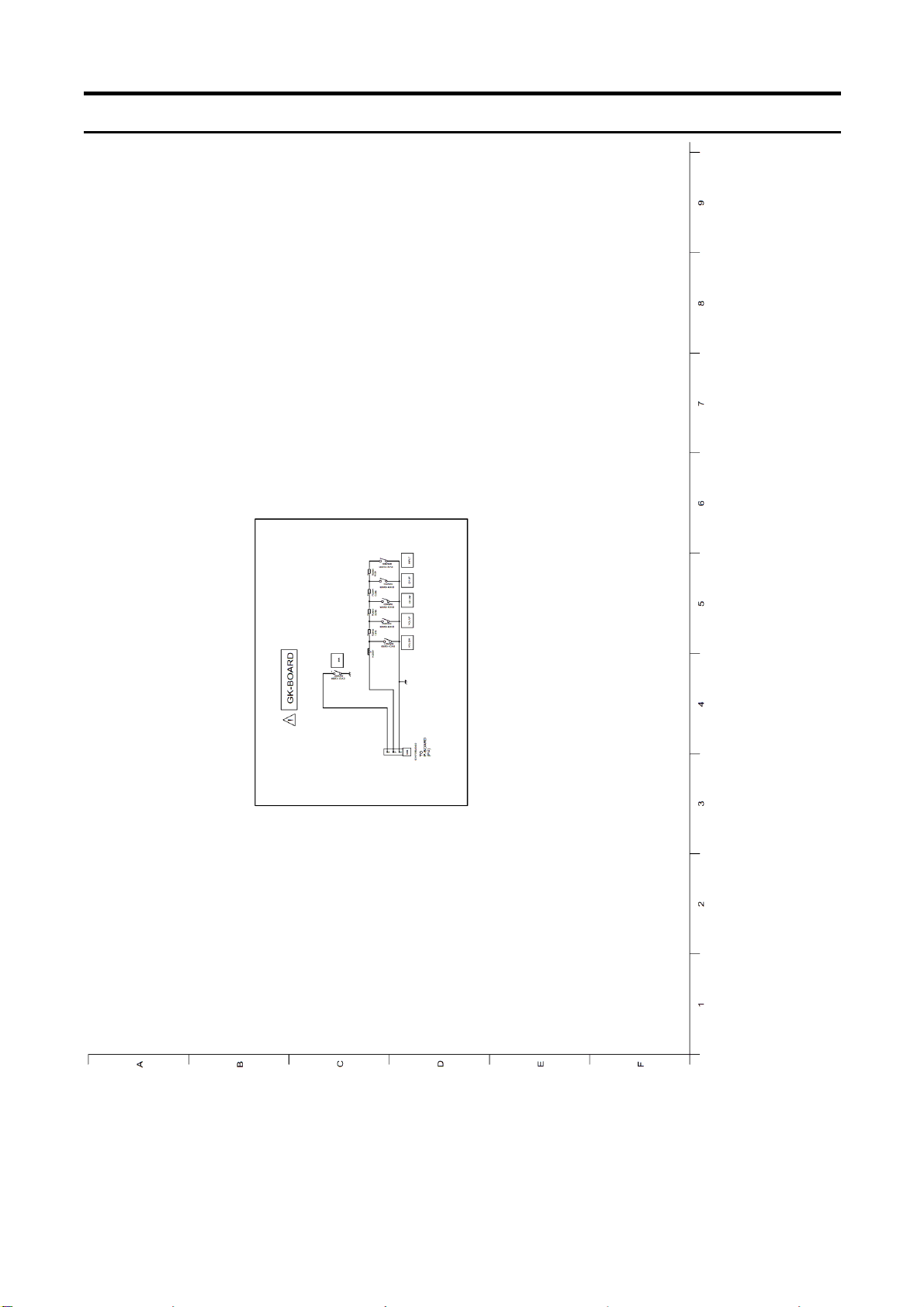

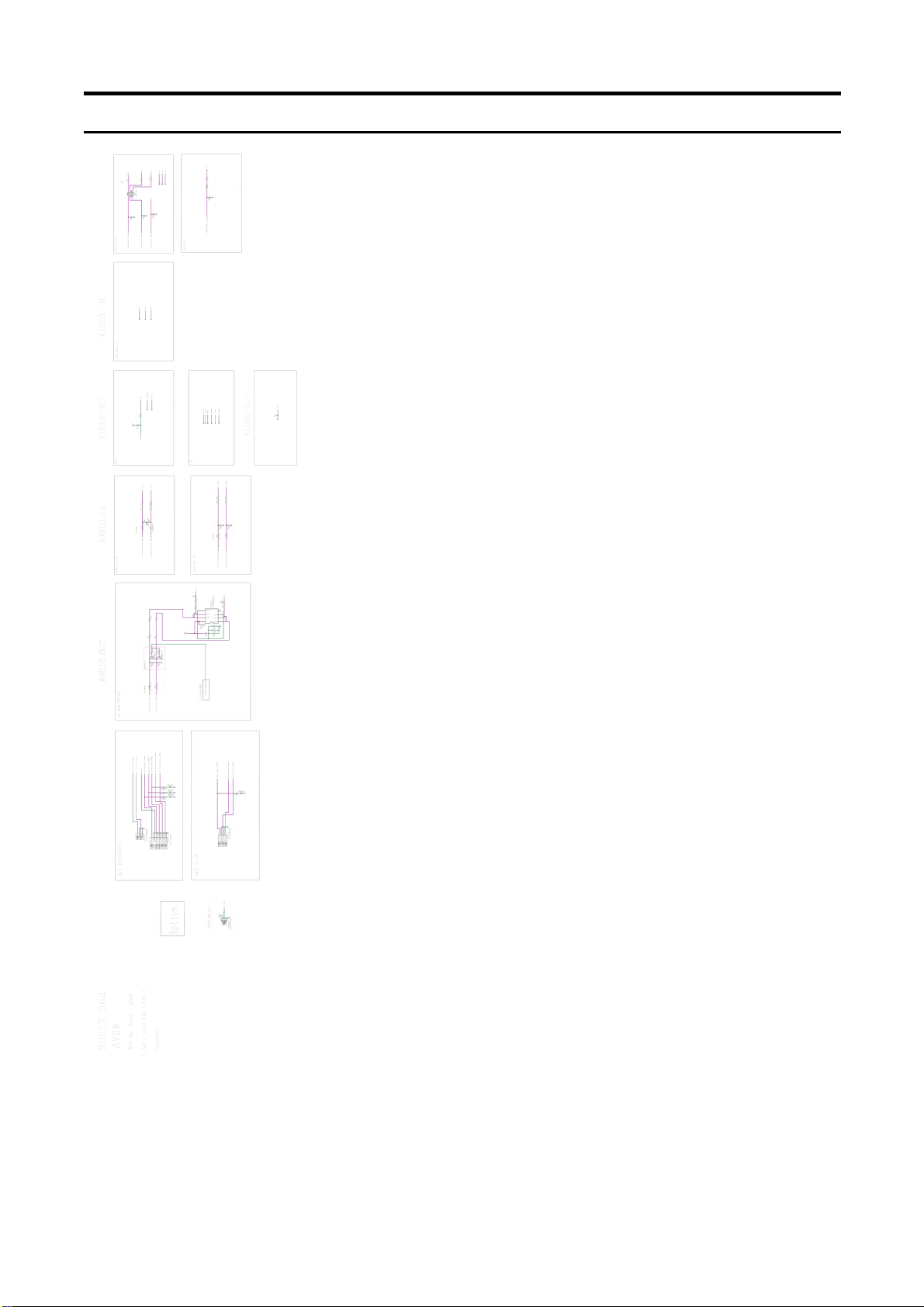

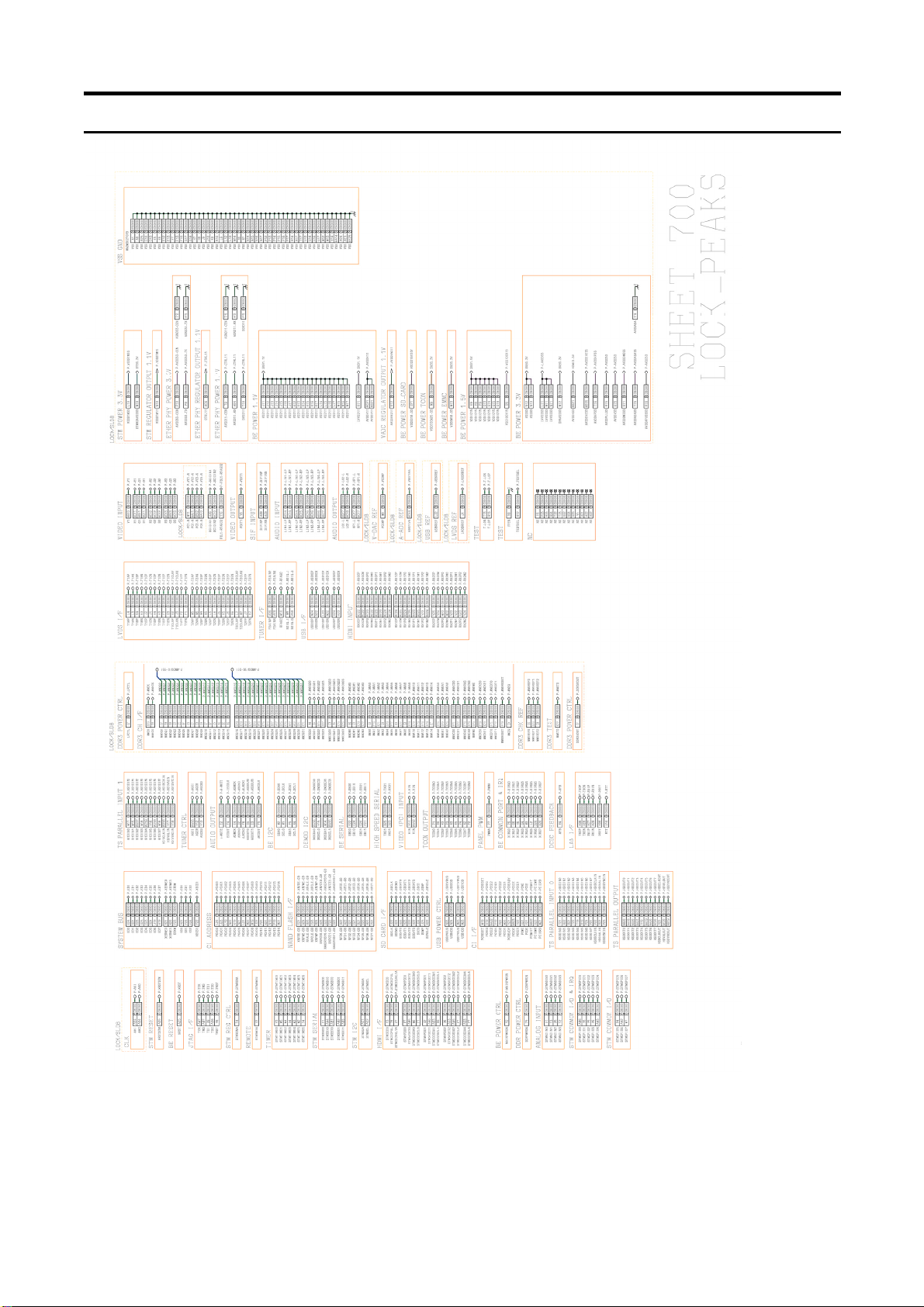

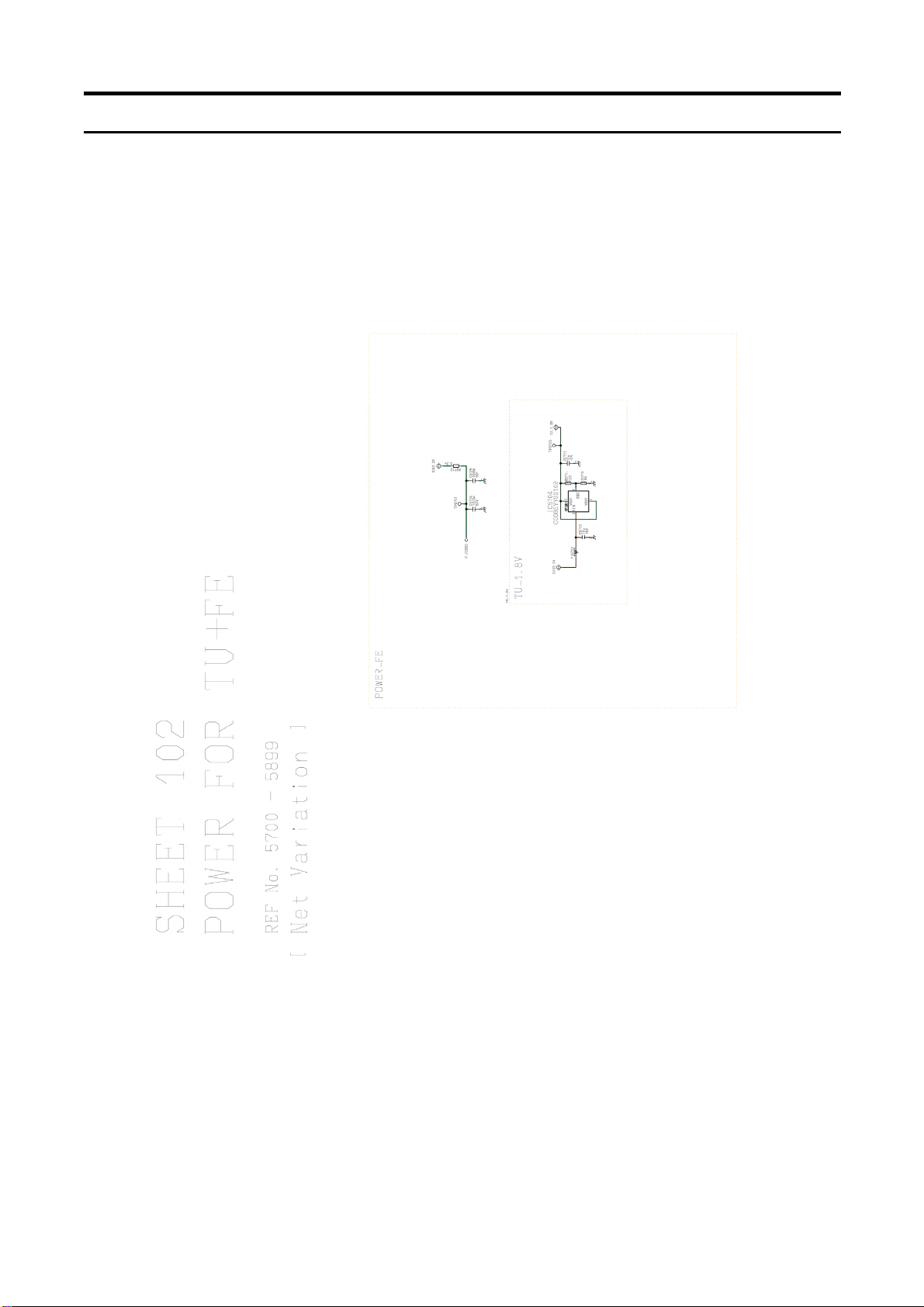

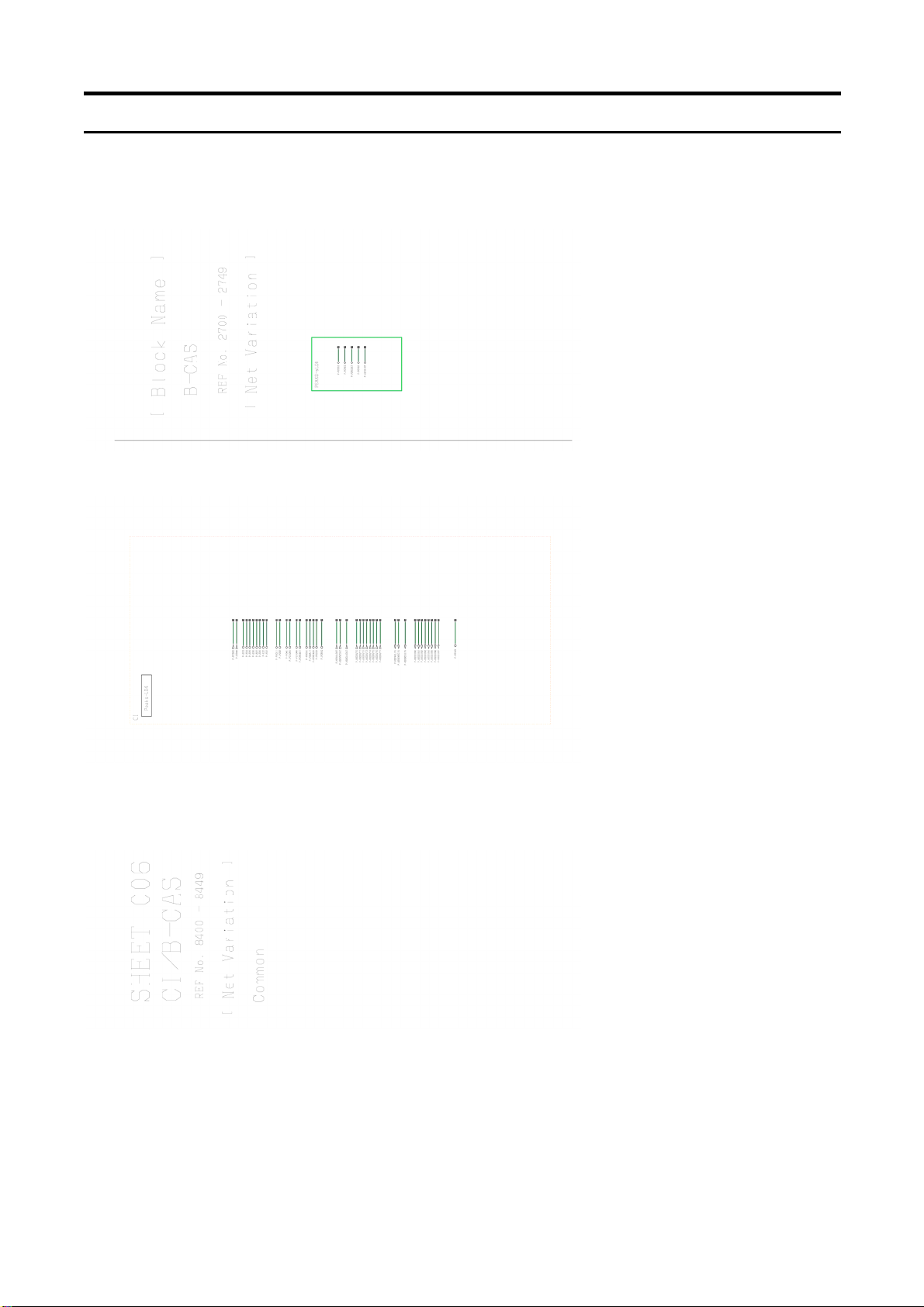

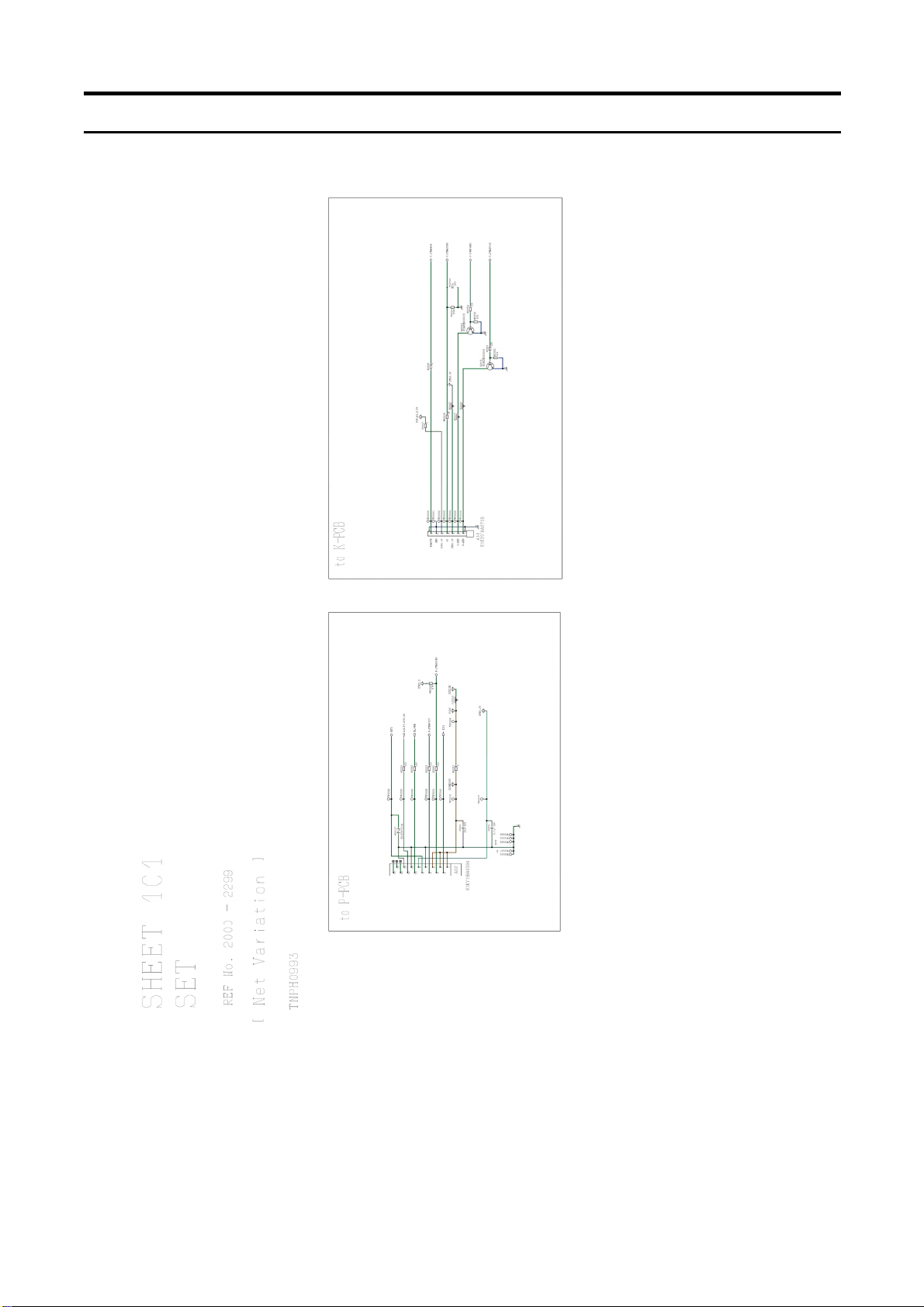

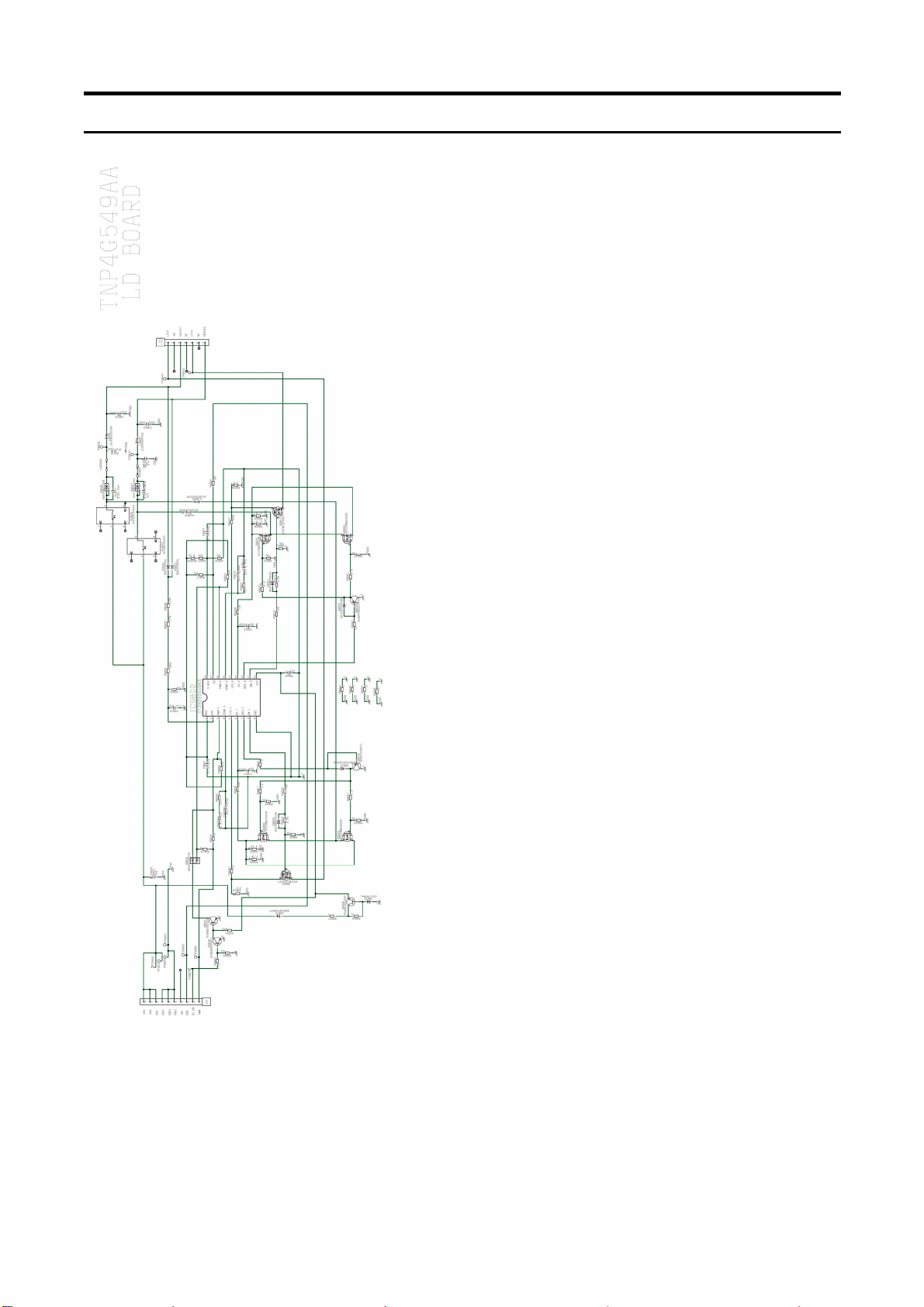

11 Schematic Diagram--------------------------------------------- 32

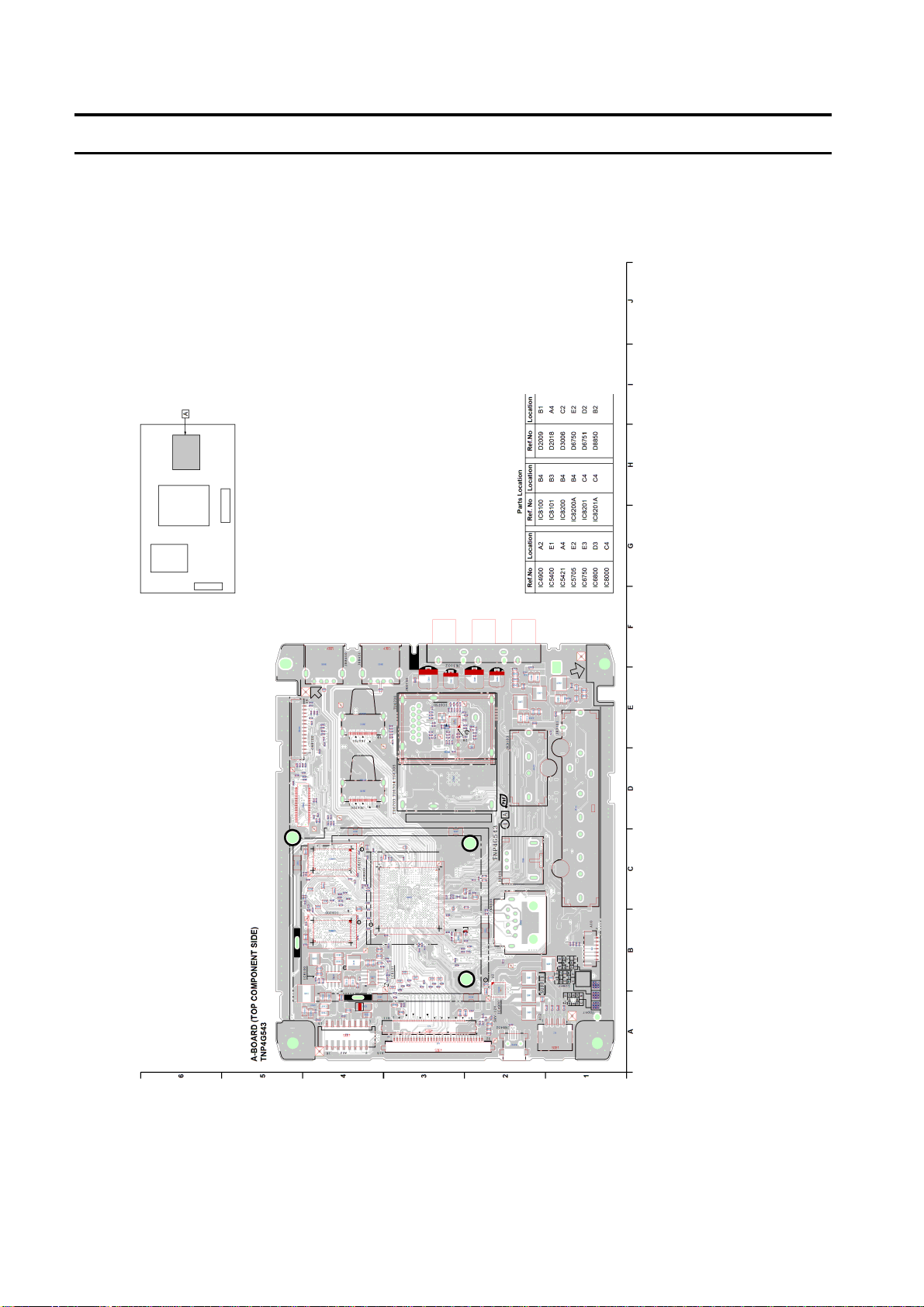

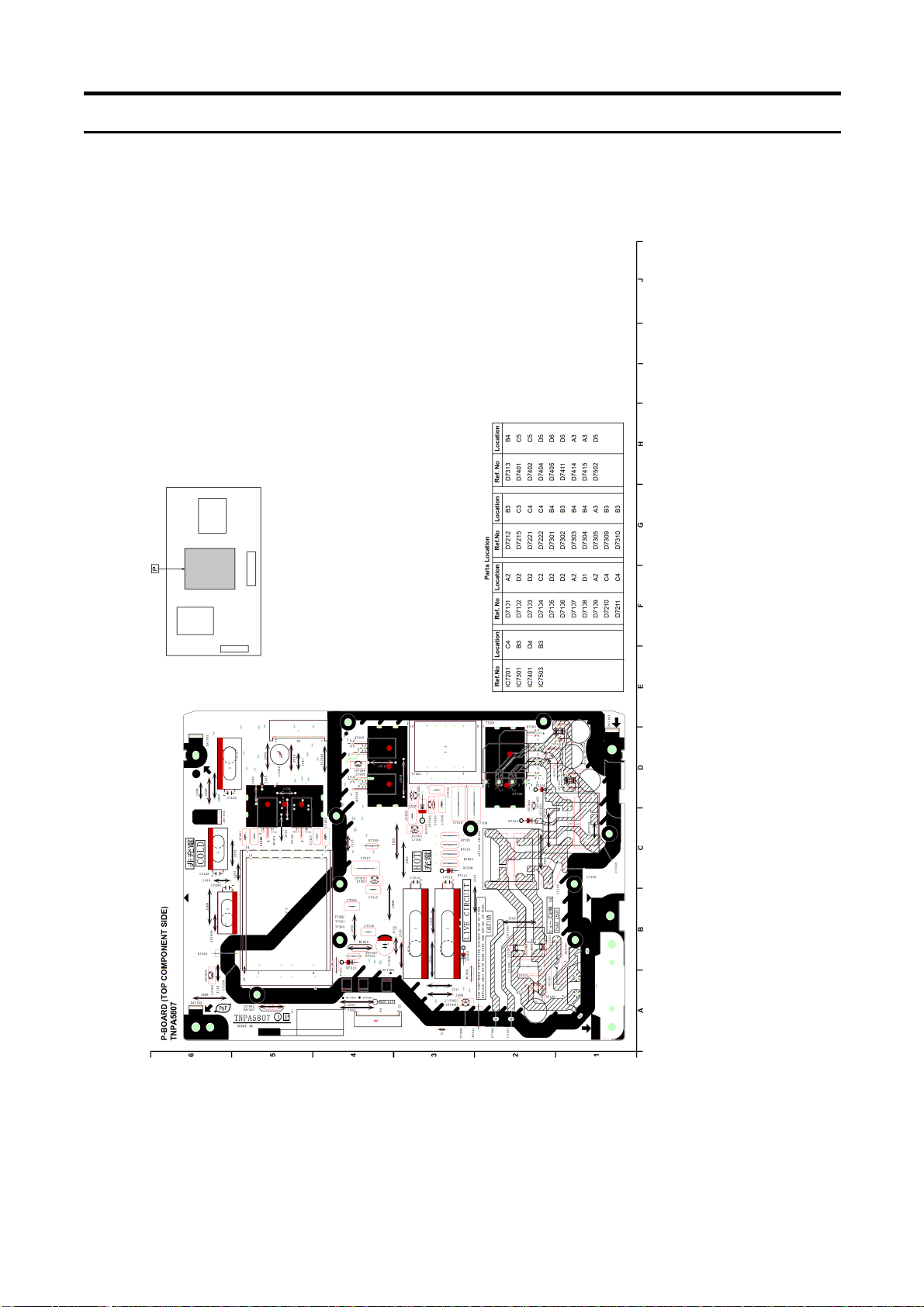

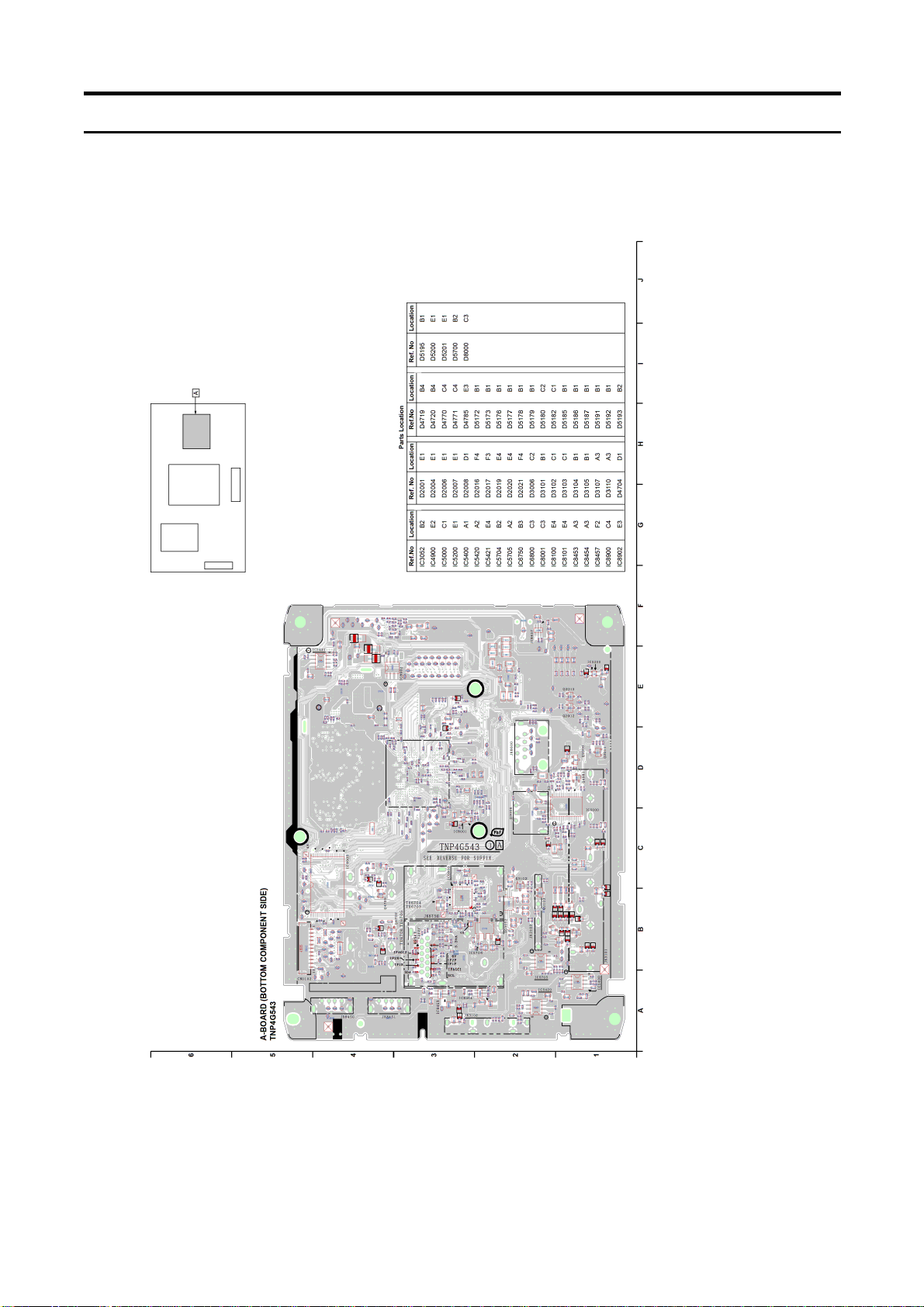

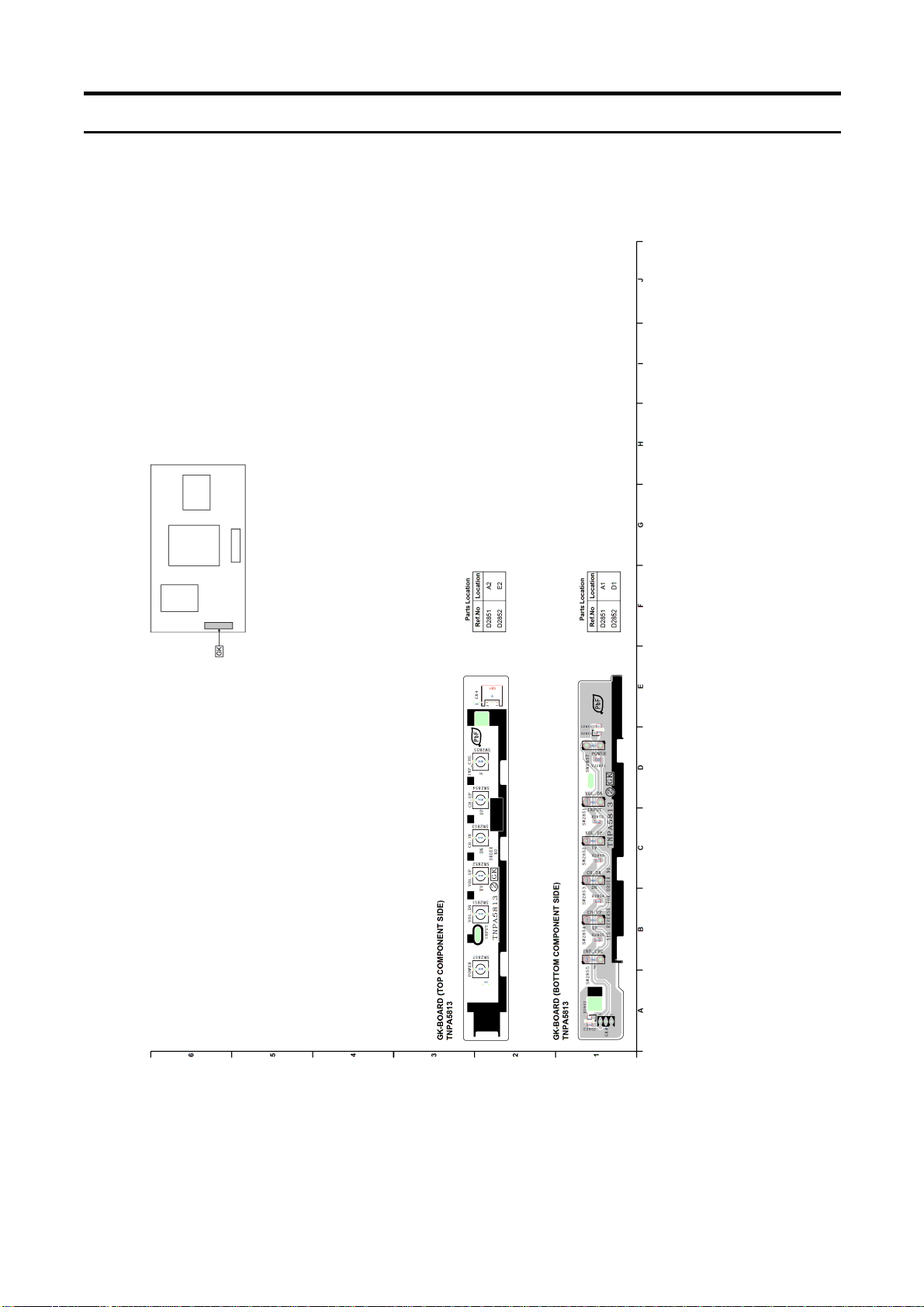

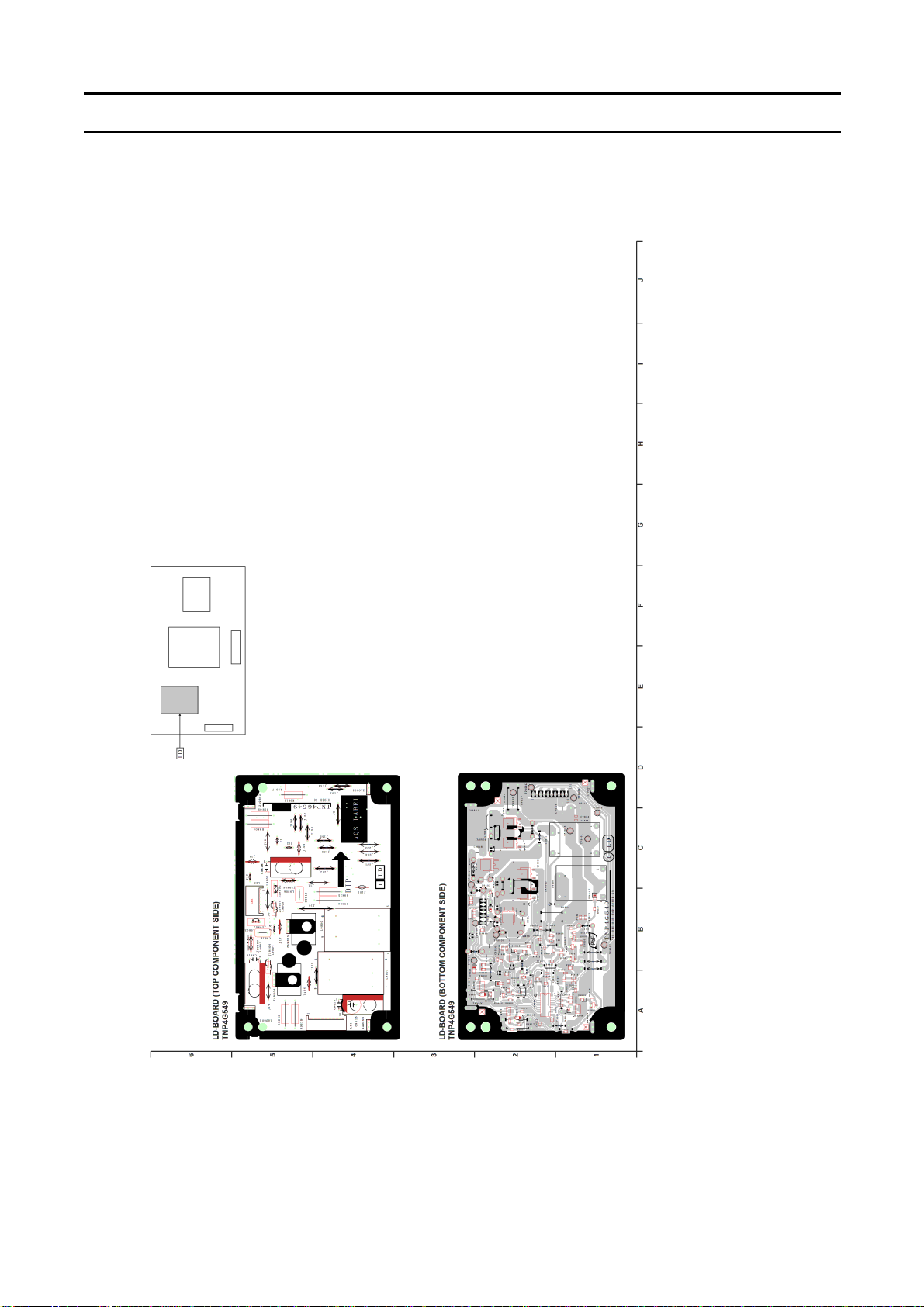

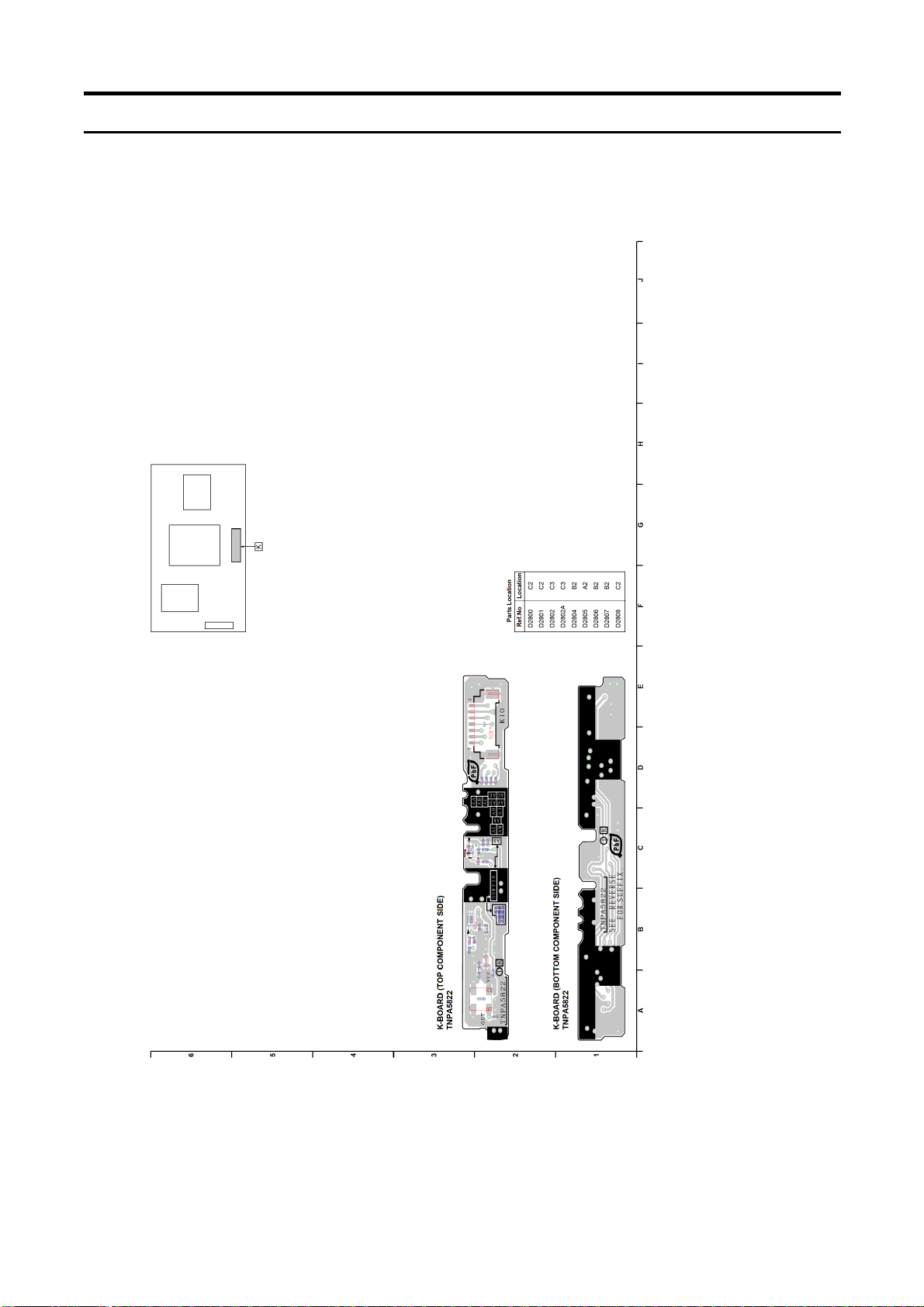

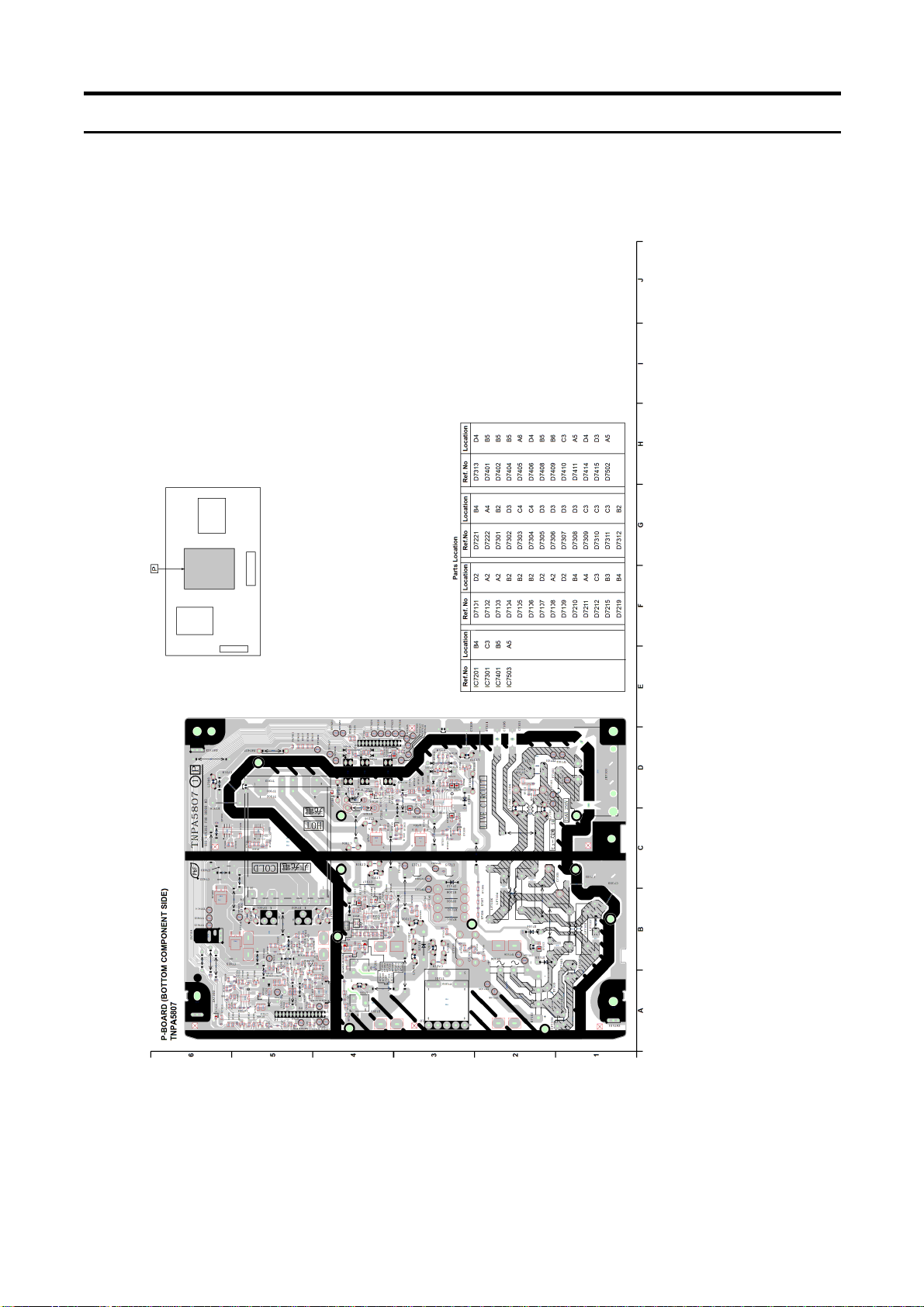

12 Printed Circuit Board ------------------------------------------ 57

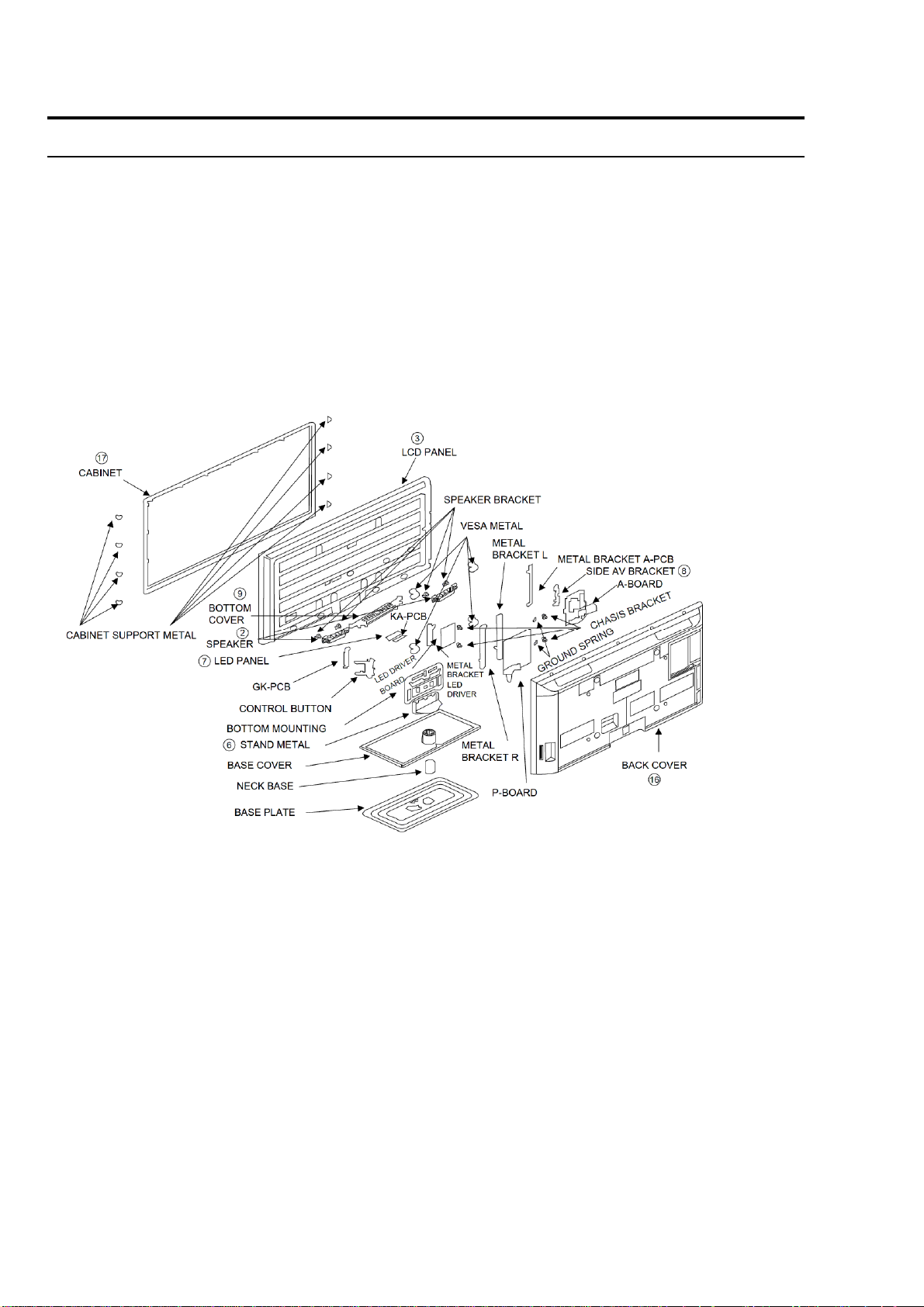

13 Exploded View and Replacement Parts List -----------64
13.1. Exploded View and Mechanical Replacement
Parts List --------------------------------------------------- 64
2
Page 3
TH-L50B6Z
1 Safety Precautions
1.1. General Guidelines
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
4. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.
5. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the
wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.
6. When conducting repairs and servicing, do not twist the Faston connectors but plug them straight in or unplug them straight
out.
1.1.1. Leakage Current Cold Check
1. Unplug the AC cord and connect a jumper between the
two prongs on the plug.
2. Measure the resistance value, with an ohmmeter,
between the jumpered AC plug and each exposed
metallic cabinet part on the equipment such as
screwheads, connectors, control shafts, etc. When the
exposed metallic part has a return path to the chassis, the
reading should be 100 Mohm and over.
When the exposed metal does not have a return path to
the chassis, the reading must be .
1.1.2. Leakage Current Hot Check (See Figure 1.)
1. Plug the AC cord directly into the AC outlet. Do not use
an isolation transformer for this check.
2. Connect a 1.5kohm, 10 watts resistor, in parallel with a
0.15F capacitors, between each exposed metallic part
on the set and a good earth ground such as a water pipe,
as shown in Figure 1.
3. Use an AC voltmeter, with 1000 ohms/volt or more
sensitivity, to measure the potential across the resistor.
4. Check each exposed metallic part, and measure the
voltage at each point.
5. Reverse the AC plug in the AC outlet and repeat each of
the above measurements.
6. The potential at any point should not exceed 0.75 volts
RMS. A leakage current tester (Simpson Model 229 or
equivalent) may be used to make the hot checks, leakage
current must not exceed 1/2 milliamp. In case a
measurement is outside of the limits specified, there is a
possibility of a shock hazard, and the equipment should
be repaired and rechecked before it is returned to the
customer.
Figure 1
3
Page 4
TH-L50B6Z
2Warning
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can
generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD)
sufficient to damage an ES device).
4
Page 5
TH-L50B6Z
2.2. About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d
suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.
Caution
• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 F (30~40 C) higher. Please
use a high temperature soldering iron and set it to 700 ± 20 F (370 ± 10 C).
• Pb free solder will tend to splash when heated too high (about 1100 F or 600 C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb
solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the
opposite side. (see figure below)
5
Page 6
TH-L50B6Z
3 Service Navigation
3.1. Service Hint
Board Name Main Device Remarks
A BOARD TUN, OFDM, ADV, LD4, STBY EEP Repairable
P BOARD Power Supply (For 32” include function SW) Repairable
GK BOARD Function SW Repairable
K BOARD LED/RM/CATS Repairable
LD BOARD LED DRIVER Repairable
6
Page 7
4 Specifications
Power
Rating AC 220 - 240 V, 50/60 Hz 0.76 A
Normal (Home) mode 74 W
Standby power consumption 0.2 W
Display panel
Panel TFT LCD Module with LED Backlight
Visible screen size (diagonal) 126 cm (50 inches)
Display Resolution 2,073,600 (1,920 (W) 1,080 (H))
Sound
Speaker (100 mm 30 mm) 2 pcs, 8
Audio Output 20 W (10 W + 10 W), 10% THD
Receiving systems / Band name
Digital TV 8 MHz UHF (New Zealand) free-to-air TV broadcast reception
PAL B / G Reception of Off air broadcasts
PAL 60 Hz Playback of NTSC tape from some PAL Video recorders (VCR)
M.NTSC Playback from M.NTSC Video recorders (VCR)
NTSC Playback from NTSC Video recorders (VCR)
Dimensions (W H D)
With Pedestal (mm) 1,139 739 275
TV only (mm) 1,139 674 89
Mass (Net)
With Pedestal (kg) 18
TV only (kg) 15
Aerial input VHF / UHF
Operating Conditions Temperature : 0C - 35C
Humidity : 20% - 80% RH (non-condensing)
Connection Terminals
AV1 IN AUDIO L - R RCA PIN Type 2 0.5 V[rms]
VIDEO RCA PIN Type 1 1.0 V[p-p] (75 )
COMPONENT Y 1.0 V[p-p] (including synchronization)
P
, PR/C
B/CB
AV2 IN AUDIO L - R RCA PIN Type 2 0.5 V[rms]
VIDEO RCA PIN Type 1 1.0 V[p-p] (75 )
AUDIO OUT AUDIO L - R RCA PIN Type 2 0.5 V[rms]
DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fibre optic
HDMI AV IN TYPE A Connectors 2
USB USB 2.0 TYPE A Connectors 1
DC 5 V, Max. 500 mA
R
Note
• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
±0.35 V[p-p]
TH-L50B6Z
7
Page 8
TH-L50B6Z
5 Service Mode
5.1. How to enter into Service Modes
While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds.
5.1.1. Contents of adjustment mode
• Value is shown as a hexadecimal number.
• Preset value differs depending on models.
• After entering the adjustment mode, take note of the value in each item before starting adjustment.
Main item Sub item Sample Data
ADJUST CONTRAST
COLOUR
TINT
SUB-BRT
BACKLGT
H POS
H AMP
V POS
V AMP
A COM
WB-ADJ R-GAIN 8D
G-GAIN AE
B-GAIN FF
R-CENT 6C
G-RENT 80
B-CENT A0
OPTION Boot ROM
STBY-SET 00
EMERGENCY ON
CLK MODE 00
CLOCK FC7
Y/C DELAY DYNAMIC
OPT 1 00000000
OPT 2 11100110
OPT 3 00001001
OPT 4 00000000
EDID-CLK HIGH
SRV-TOOL 00
DRV CHECK DYNAMIC
5.1.2. How to exit
Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
8
Page 9
TH-L50B6Z
5.1.3. Display of SOS History
SOS History (Number of LED blinking) indication.
From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.
This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory
shipment setting].
5.1.4. POWER ON TIME/COUNT
Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3sec.
Time : Cumulative power on time, indicated hour : minute by decimal
Count : Number of ON times by decimal
Note : This indication will not be cleared by either of the self-checks or any other command.
5.1.5. Exit
1. Disconnect the AC cord from wall outlet.
9
Page 10
TH-L50B6Z
5.1.6. Self Check Mode
1. Press the ‘MENU’ button (on the remote control) and the ‘VOL DOWN’ button on the LCD panel.
2. Press ON/OFF button on the panel to Exit.
NOTE: After self check, the following process need to follow.
5.1.7. Hotel Mode Adjustment
1. Press the ‘VOLUME DOWN’ button on the TV panel and simultaneously press the INPUT button on the remote control 3
times to enter Hotel Mode.
2. Set Hotel mode ‘on/off’, then press ‘EXIT’ to come out.
5.1.8. Hotel Mode
1. Purpose
Restrict a function for hotels.
2. Access command to the Hotel mode setup menu.
In order to display the Hotel mode setup menu, please
enter the following command (within 2 second).
[TV] : Vol [Down] + [REMOTE] : INPUT (3 times).
Then, the Hotel mode setup menu is displayed.
3. To exit the Hotel mode setup menu
Disconnect AC power cord from wall outlet.
4. Explain the Hotel mode setup menu
Item Function
Mode Select hotel mode off/on
Initial Input Select input signal modes.
Set the input, when each time power is switched
on.
Selection :
-/RF/HDMI1/HDMI2/HDMI3/Component/
Video/PC
• Off: give priority to a last memory.
Initial POS Select channel when input signal is RF.
Set the channel, each time power is switched
on.
Selection :
Any channel number or [-].
[-] means the channel when turns off.
Initial LEVEL Adjust the volume when each time power is
switched on.
Range :
0 to 100
Maximum Vol
LEVEL
Button Lock Restrict the OSD.
Remote Lock Select front key conditions.
Adjust maximum volume.
Range :
0 to 100
Selection :
OFF/PATTERN1
• OFF: No restriction
• PATTERN1: restriction
Selection :
OFF/PATTERN1/ALL
• OFF: altogether valid.
• PATTERN1: only input key is valid.
• ALL: altogether invalid.
10
Page 11
TH-L50B6Z
6 Troubleshooting Guide
Use the self-check function to test the unit.
1. Checking the IIC bus lines
2. Power LED Blinking timing
6.1. Check of the IIC bus lines
6.1.1. How to access
Self-check indication only:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control
for more than 3 seconds.
Self-check indication and forced to factory shipment setting:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote
control for more than 3 seconds.
6.1.2. Exit
Disconnect the AC cord from wall outlet.
11
Page 12
TH-L50B6Z
6.2. Power LED Blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When an abnormality occurs, the protection circuit will operate and reset the unit to stand by mode. During this time, the
defective block can be identified by the number of blinking times of the Power LED on the front panel of the unit as follow:
Priority SOS detection LED Blink
1 BL_SOS 1
2 SUB_3.3V 7
3SOUND_SOS 9
4 OVP SOS 8
5 GCX/FRC_SOS 10
6 BE(sLD8/PRO4) SOS 12
7 Emergency SOS 13
8IROM-SOS 3
6.3. No Power
First check point
There are following 2 states of No Power indication by power LED.
1. No lit
2. Red is lit then turns red blinking a few seconds later. (See 6.2.)
12
Page 13
7 Disassembly and Assembly Instructions
7.1. Speaker Bracket
1. Fix Speaker Left & Right.
2. Fix Key button.
3. Stick SPONGE at speaker (Left & Right).
TH-L50B6Z
No Description Qty UOM Remarks
01 SPEAKER UNIT 2 PC
02 KEY BUTTON BRACKET 1 PC
03 SPONGE 2 PC 10 100 10t
04 SPONGE 2 PC 10 100 8t
13
Page 14
TH-L50B6Z
7.2. LCD Panel Assembly
Install LCD panel to cabinet.
No Description Qty UOM
01 LCD PANEL 1 PC
14
Page 15
7.3. LCD Panel Fixing & Handling Method
1. Place down the cabinet as shown below.
2. Fix LCD panel into the cabinet by taking below precautions.
TH-L50B6Z
Other general precautions
1. Do not press panel surface to avoid blue spot on the panel display.
2. Do not use hard cloth or rub the surface too hard. This may cause scratches on the surface.
3. Take care not to subject the TV’s surface to water or detergent. Any liquid (including pets urine) if enters the product could
lead to TV failure.
4. Take care not to subject the surface to insect repellent, solvent, thiner or other voiltile substances. This may degrade surface
quality or cause peeling of the paint.
5. The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch with your
fingernail or other hard objects.
15
Page 16
TH-L50B6Z
7.4. LED Panel and Bracket Ass’y
1. Fixing wire A10 to K PCB.
2. Fixing K PCB to LED Panel.
3. Fixing LED Panel to cabinet.
No Description Qty UOM
01 LED PANEL 1 PC
16
Page 17
7.5. Vesa Metal
1. Fix Vesa Metal & screw.
2. Stick felt at all Vesa Metal - 4 pcs.
TH-L50B6Z
No Part No Description Qty UOM Remarks
01 TKZ5ZX50531 VESA METAL 4 PC
02 TMK4GA333 FELT 4 PC 23 23 0.55t (8mm hole)
03 TMK4GA094 FELT 1 PC 20 24 0.35t
17
Page 18
TH-L50B6Z
7.6. Side Metal Bracket
No Description Qty UOM
01 METAL_BRACKET-SIDE (L/R) 8 PC
18
Page 19
7.7. Metal Bracket 1
TH-L50B6Z
No Description Qty UOM
01 METAL LED DRIVER 1 PC
02 METAL VERTICAL L 1 PC
03 METAL VERTICAL R 1 PC
04 METAL MTG A BOARD 1 PC
19
Page 20
TH-L50B6Z
7.8. Metal Bracket 2
1. Fix screw all screw.
2. Stick felt at LCD Panel (Control Button & speaker area).
No Description Qty UOM Remarks
01 SCREW (P10/A4/DRIVER4/VESA4) 11 PC 6 ±1 kgf.cm
02 FELT 1 PC 8 110 0.35t
03 FELT 2 PC 15 160 0.9t
20
Page 21
7.9. Metal Bracket Bottom
1. Fix screw at bottom cover.
2. Fix screw at Metal Bracket Bottom.
TH-L50B6Z
No Description Qty UOM Remarks
01 METAL BRACKET BOTTOM 1 PC
02 BOTTOM COVER 1 PC
03 SCREW (P10/A4/DRIVER4/VESA4) 2 PC 6 ±1 kgf.cm
04 SCREW (BTM MTG4) 4 PC 7~8 kgf.cm
05 SCREW (SP4/BTM CVR2) 2 PC 8 ±1 kgf.cm
06 FELT 2 PC 10 140 0.55t
21
Page 22
TH-L50B6Z
7.10. PCB Installation
1. Install P & A-Board and fix it with screws.
2. Install Side AV Bracket and fix with screws.
No Description Qty UOM Remarks
01 SCREW (P10/A4/DRIVER4/VESA4) 8 PC 6 ±1 kgf.cm
02 SCREW (SP4) 4 PC 8 ±1 kgf.cm
03 CHASSIS BRACKET (A-BOARD) 2 PC
04 CHASSIS BRACKET (LED) 2 PC
05 GROUND SPRING 4 PC
06 SIDE AV BRACKET 1 PC
22
Page 23
7.11. Pedestal Ass’y 1
Fix Rubber foot 6 pc at base cover.
TH-L50B6Z
No Part No Description Qty UOM
01 TBL5ZA34581 PEDESTAL BASE 1 PC
02 TBL5ZB33341 BASE COVER 1 PC
03 TMK4GA027 FELT 3 PC
04 TBL5ZA34511 NECK BASE 1 PC
23
Page 24
TH-L50B6Z
7.12. Pedestal Ass’y 2
Fix Rubber foot 6 pc at base cover.
No Part No Description Qty UOM Remarks
01 TBL4GG3009 RUBBER FOOT 7 PC
02 XTS4 + 10GFJ SCREW 5 PC 11 ± 2 kgf.cm
03 XYN5 + F15FJ SCREW 4 PC 14 ± 2 kgf.cm
24
Page 25
7.13. Stand MTG Assy
1. Insert stand metal in plastic bag.
2. Insert screw in plastic bag (2 type).
3. Fold plactic bag and stick paper tape.
4. Stick barcode label at plastic bag.
TH-L50B6Z
No Part No Description Qty UOM
01 TQF4GA267 QR CODE LABEL 1 PC
02 TPE4GH091 BAG 1 PC
03 TBL5ZA34551 STAND_METAL 1 PC
04 XYN4 + F12FJK SCREW 4 PC
05 XSS5 + 16FJK SCREW 4 PC
06 T5E4G62400 YELLOW MASKING TAPE 0.13 MT
25
Page 26
TH-L50B6Z
7.14. Back Cover Installation
1. Install Back Cover.
2. Fix screws.
No Description Qty UOM Remarks
01 BACK COVER 1 PC
02 SCREW (B7) 1 PC 6 ± 1 kgf.cm
03 SCREW (TERMINAL5/L2/CTRL2) 9 PC 6 ± 1 kgf.cm
04 SCREW(BC17) 11 PC 11 ± 2 kgf.cm
05 SCREW (BC17) 6 PC 9 ± 1 kgf.cm
26
Page 27
7.15. Handling SPEC
■ Moving the LCD module
The module should be handle by two people and hold on that top and bottom long side by both hands without module
warping. Never handle the module with keeping horizontal position when moving the module in order to avoid internal
damage and deformation. Never drop or hit the module.
■ About the work table
When tightening a screw, retention structures are required not to deform the LCD module.
■ Moving the TV (Case with a stand)
Hold the specified parts as shown to stand the TV up and move it with two people.
TH-L50B6Z
27
Page 28
TH-L50B6Z
8 Measurements and Adjustments
8.1. Voltage chart of A-board
Set A-Board to a dummy set and check the satisfaction with the specified voltage as following table.
Power Supply Name Measurement Point Specification
PNL12V TP4097 12.1 ± 0.8V
SUB3.3V TP5400 3.32 ± 0.165V
SUB1.1V TP8101 1.14 ± 0.07V
SUB1.5V TP8100 1.52 ± 0.05V
SUB5V TP5420 5.0 ± 0.25V
HDMI3.3V TP8000 3.3 ± 0.16V
8.2. Voltage chart of P-board
Set P-Board to a dummy load and check the satisfaction with the specified voltage as following table.
Output Test Point
24V (PANEL) TP7407 or TP7408 24 ± 1.2V <1V
16V TP7410 or TP7412 15.7 ± 0.6V <1V
5VS TP7501 5.3 ± 0.2V 5.3 ± 0.2 V
PFC TP7201 390 ± 15V <340V *HOT
Operate STBY
Specification
28
Page 29
9 Block Diagram
S5/ S3.3
CPU BUS
XERWE0
XERWE0
XECS1
ERXW
ES0
AAR/DATA
CTRL
S12/S5
STB5/5VS
S9
(SD-Data-VCC)
S3.3
Support
Card
DTV_XRST
BOOTSWAP
XRST
XRSTSTM
ES0
ES1
ES2
ED[7:0]
2G - Function
VIErA-CAST Browser
EU MHP
UK BBC iPlayer
< TV_SOS
AMP/HP MUTE
MONITOROUT MUTE
Analog
ASIC
AN340 43A
OVP
SOS
Safety
Circuit
< MON_MUTE
< SP_HP_MUTE
STB3.3V/1.2V_REG
STB5V Reset IC (STM)
S9V_REG
S12V Reset IC (Peaks)
Audio MUTE
OCP/OVP/TV-SOS
HP_MUTE,EXT_MUTE
UHS-I_REG
TV_SOS
PWM
3.3/1.8
UHS-1
REG
S9-REG
< (SDVOLC)
PWM >
JTAG
HS1BCLKIN
HS1SYNCIN
HS1VALIN
HS1DIN0
HS1DIN1
HS1DIN2
HS1DIN3
HS1DIN4
HS1DIN5
TS-IN
S3.3 / TU1.8
DCDC
1.2V
S3.3
S3.3
Only DTMB models(HK)
Flash
1G
XNFCE,XNFW
P
NFCLE,NFALE
XNFWE,XNFR
E
NANDRYBY
NFD[7:0]
PCOE
PCWE
PCIORD
PCIOWR
PCRESET
PCCE1
PCWAIT
PCCD1
PCCD2
PCREADY
CI-IF
Trans Port Decoder
CPUBUS
NAND-IF
Cross Stream Switch
Latin GINGA MHP
Back Light
INVERTER
or
LED Driver
BL_ON >
BL_SOS <
S12
Peaks
DCDC
䠄䠄VM
䠅
S1.1
S1.5 S3.3
STB3.3
STB1.2
STB_XRST
DCDC_EN
DTV_XRST >
SW_OFF_DET >
XRST
POWER_DET
PWMA
PWM >
JTAG
AFB
S12
Peaks
DCDC
HS1DIN6
HS1DIN7
HS1DIN8
Terrestrial(1)
or
Terestllial/cable(2)
IF_AGC1
1stLow_IF
䚸
IFAGC
Terrestrial
DMD_IIC0
Low-IF2
< FE_XRST
䠚
DTMB
Demod.
cable
IF_AGC2
Low-IF1
2ndLow_IF,IFAGC
CXD2840
< FE_XRST
䠚
DMD
_
IIC1 (IIC2)
Panel
DMD
P-IIC2 (For DMD only)
ADC
DTV Decoder
SIF Decoder
IPR INS
Analog Video
Processor
Video
Format
Processor
VIF Decoder
IIC
DMD-IIC0
DMD-IIC1
Peaks
sLD8
/9'67[
PLQL/9'67[
Tcon
LVDS
HD : (DATA 4pairs / CLK 1pair) single8bit
FHD: (DATA 4pairs / CLK 1pair) dual8bit
VIO
Y1,Pb1,Pr1/V2
USB
S5
USB
Power SW
USB*VBUS >
< USB*OC
S5
USB Memory
86%,)
DSP
''5,)
S1.5
DDR3+(1333)
DDR3+(1333)
x16
1G
DDR3
AIO
V-SW
A-SW
DDR3+(1333)
DDR3+(1333)
x16
1G
S1.5
LIN1, RIN1
HP_DET
R2, G2, B2, H,V
V3
AV3(SIDE) INPUT
䠄
CVBS)
Lin3,Rin3
䖃
䖃䖃
S5
I2S
SW
A-Chip
A-D Chip
Internal BUS
S5
᧤SRUW᧥
D-Chip
IIC
P-IIC0
P-IIC1
Serial
P-Serial0
P-Serial1
DMD IIC
DMD_IIC0
DMD_IIC1
LAN
(7+(5
3+<
6',)
SOUND_VCC
AMP
Head
Phone
HP1_L/R
ALRCKO
ASDOUT0
ABCKO
ASMCK
USB
USB
Power SW
USB*VBUS >
< USB*OC
S5
S5
SD CARD
AMP
PWM
SPDIF
SW
IIC
STM
P-UART0
P-UART2
EEP
S3.3
EEP
EEPROM_WP
P-IIC
For Peaks
HDMI
Rx
Optical OUT
OPT
DDC* > STM, Peaks
HPD* < STM
HDMI_5V_DET* > STM
HDMI1
HDMI2
Rx*
Rx*
IECOUT
ARCOUT
CLK
GEN
STB3.3
STB1.2
STM-IIC
Serial
STM-Serial0
STM-Serial1
25MHz
< KEY1
POWER KEY
CONTROL PANEL KEY
MUX
x3
< KEY3
DDC* > STM, Peaks
HPD* < STM
HDMI_5V_DET* > STM
NAND
ED[7:0]
9.1. Main Block Diagram
TH-L50B6Z
29
Page 30
TH-L50B6Z
10 Wiring Connection Diagram
10.1. Wire Dressing 1
Do wire dressing follow below spec.
No Description Qty UOM Remarks
01 PET TAPE (GREY W=15mm) 0.55 MT 0.07 8
02 PET TAPE (GREY W=15mm) 0.2 MT 0.10 2
03 LVDS CABLE 1 PC
30
Page 31
10.2. Wire Dressing 2
Stick sponge at LVDS cable.
TH-L50B6Z
No Description Qty UOM
01 SPONGE 3 PC
02 SPONGE 1 PC
03 LVDS CABLE 1 PC
31
Page 32
TH-L50B6Z
11 Schematic Diagram
Model No. : TH-L50B6Z A-Board (1/18)
32
Page 33
Model No. : TH-L50B6Z A-Board (2/18-1)
Page 34
Model No. : TH-L50B6Z A-Board (2/18-2)
Page 35
Model No. : TH-L50B6Z A-Board (3/18)
Page 36
Model No. : TH-L50B6Z A-Board (4/18)
Page 37
Model No. : TH-L50B6Z A-Board (5/18)
Page 38
Model No. : TH-L50B6Z A-Board (6/18)
Page 39
Model No. : TH-L50B6Z A-Board (7/18-1)
Page 40
Model No. : TH-L50B6Z A-Board (7/18-2)
Page 41
Model No. : TH-L50B6Z A-Board (8/18)
Page 42
Model No. : TH-L50B6Z A-Board (9/18)
Page 43
Model No. : TH-L50B6Z A-Board (10/18)
Page 44
Model No. : TH-L50B6Z A-Board (11/18)
Page 45
Model No. : TH-L50B6Z A-Board (12/18)
Page 46
Model No. : TH-L50B6Z A-Board (13/18)
Page 47
Model No. : TH-L50B6Z A-Board (14/18)
Page 48
Model No. : TH-L50B6Z A-Board (15/18)
Page 49
Model No. : TH-L50B6Z A-Board (16/18)
Page 50
Model No. : TH-L50B6Z A-Board (17/18)
Page 51
Model No. : TH-L50B6Z A-Board (18/18)
Page 52
Model No. : TH-L50B6Z GK-Board
Page 53
Model No. : TH-L50B6Z K-Board
Page 54
Model No. : TH-L50B6Z LD-Board
Page 55
Model No. : TH-L50B6Z P-Board (1/2)
Page 56
Model No. : TH-L50B6Z P-Board (2/2)
Page 57
12 Printed Circuit Board
Model No. : TH-L50B6Z A-Board (Top Component Side)
TH-L50B6Z
Page 58
Model No. : TH-L50B6Z A-Board (Bottom Component Side)
Page 59
Model No. : TH-L50B6Z GK-Board
Page 60
Model No. : TH-L50B6Z K-Board
Page 61
Model No. : TH-L50B6Z LD-Board
Page 62
Model No. : TH-L50B6Z P-Board (Top Component Side)
Page 63
Model No. : TH-L50B6Z P-Board (Bottom Component Side)
Page 64
TH-L50B6Z
13 Exploded View and Replacement Parts List
Model No. : TH-L50B6Z Parts Location
4
Page 65

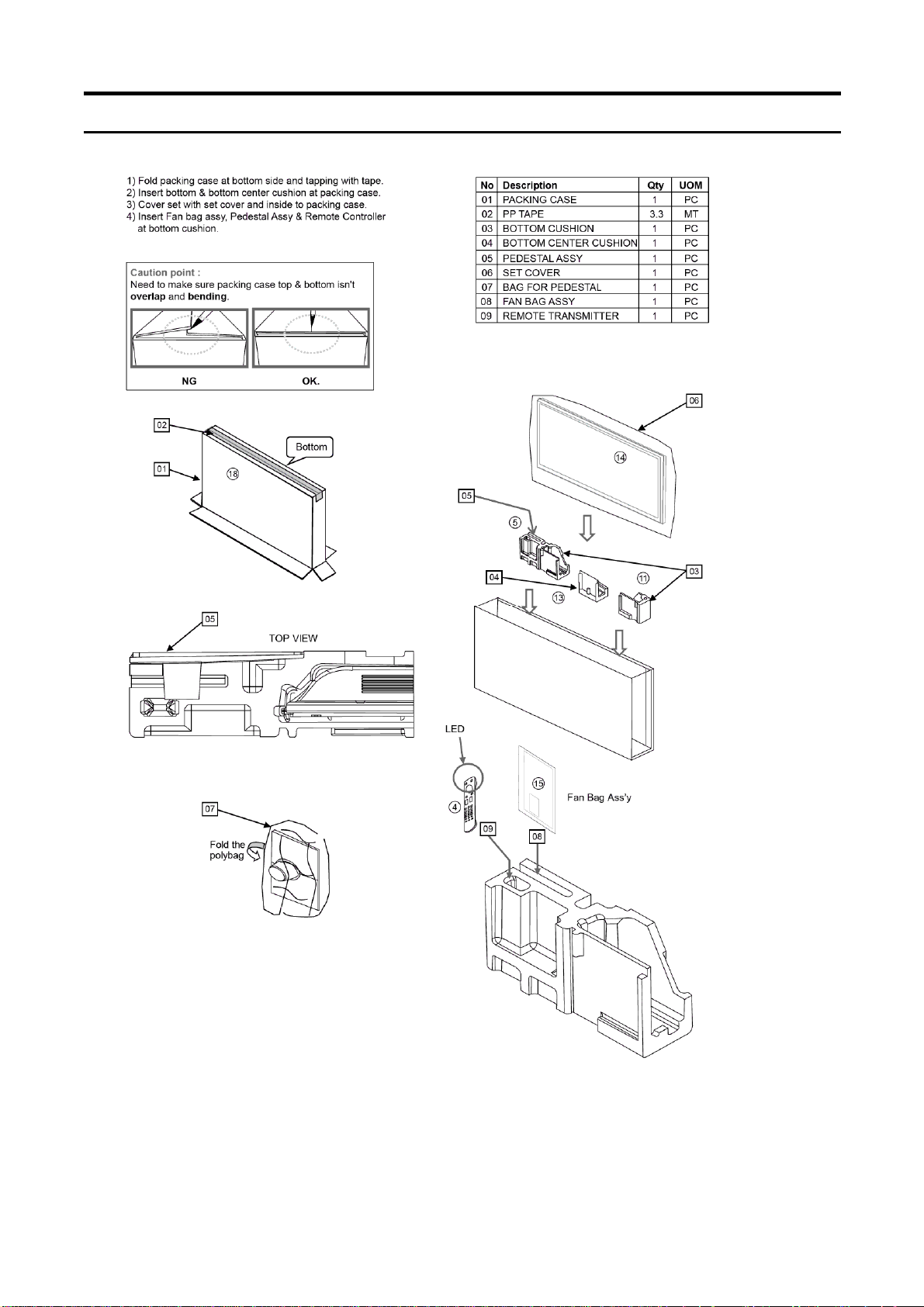

Model No. : TH-L50B6Z Packing Exploded View 1
Page 66

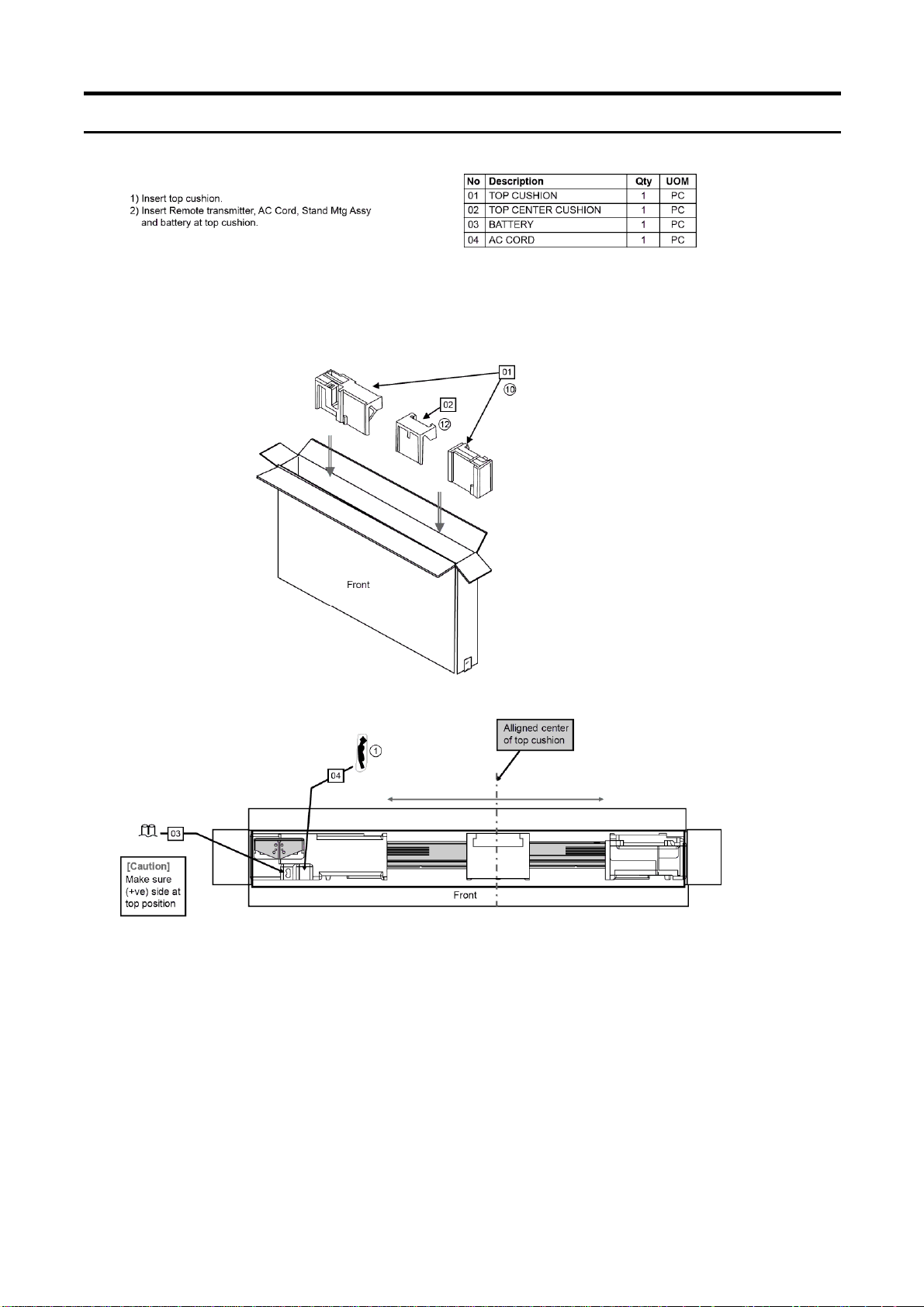

Model No. : TH-L50B6Z Packing Exploded View 2
Page 67
Model No. : TH-L50B6Z Parts List
Change Safety
CAPACITORS
Ref.
No.
C1958 F1G1E103A059 C 0.01UF 25V
C2000 F1G1A105A047 C 1UF 10V
C2014 F1K1E106A134 C 10UF, 25V
C2023 F1G1C104A077 C 0.1UF 16V
C2801 F1G1C1030008 C 0.01UF 16V
C2804 F1H1C104A178 C 0.1UF , 16V
C2807 F1J1A106A043 C 10UF, 10V
C2851 F1J1H104A902 C 0.1UF, 50V
C2852 F1J1H104A902 C 0.1UF, 50V
C3084 F1H0J105A051 C 1UF, 6.3V
C3085 F1H0J105A051 C 1UF, 6.3V
C3086 F1H0J105A051 C 1UF, 6.3V
C3130 F1H0J105A051 C 1UF, 6.3V
C3145 F1J1A106A087 C 10UF, 10V
C3147 F1J1A106A087 C 10UF, 10V
C3151 F1H1A105A099 C 1UF, 10V
C3152 F1H1A105A099 C 1UF, 10V
C3159 F1H1A105A099 C 1UF, 10V
C3160 F1H1A105A099 C 1UF, 10V
C3171 F1J1A106A087 C 10UF, 10V
C3172 F1J1A106A087 C 10UF, 10V
C3175 F1J1E105A287 C 1UF, 25V
C3176 F1J1A106A087 C 10UF, 10V
C3177 F1J1E105A287 C 1UF, 25V
C4000 F1H1H103B047 C 0.01UF, 50V
C4001 F1H1H103B047 C 0.01UF, 50V
C4002 F1J1C475A217 C 4.7UF, 16V
C4701 F1H0J105A051 C 1UF, 6.3V
C4900 F1K1V106A010 C 10UF, 25V
C4901 F1K1V106A010 C 10UF, 25V
C4902 F1J1E105A287 C 1UF, 25V
C4903 F1K1V106A010 C 10UF, 25V
C4904 F1J1E105A287 C 1UF, 25V
C4905 F1H1C105A167 C 1UF, 10V
C4906 F1K1V106A010 C 10UF, 25V
C4907 F1J1E105A287 C 1UF, 25V
C4908 F1K1V106A010 C 10UF, 25V
C4909 F1J1E105A287 C 1UF, 25V
C4919 F1J1E224A272 C 0.22UF, 25V
C4920 F1J1E224A272 C 0.22UF, 25V
C4921 F1H1E104A029 C 0.1UF , 25V
C4922 F1H1E104A029 C 0.1UF , 25V
C4923 F1H1E104A029 C 0.1UF , 25V
C4924 F1H1E104A029 C 0.1UF , 25V
C5000 F1G1A105A047 C 1UF 10V
C5002 F1G1A105A047 C 1UF 10V
C5004 F1G1A105A047 C 1UF 10V
C5006 F1J1E105A287 C 1UF, 25V
C5012 F1G1A105A047 C 1UF 10V
C5020 F1G1C104A077 C 0.1UF 16V
C5021 F1G1A105A047 C 1UF 10V
C5022 F1G1C104A077 C 0.1UF 16V
C5026 F1H1C105A145 C 1 uF 16 V
C5150 F1G1E103A059 C 0.01UF 25V
C5151 F1G1E103A059 C 0.01UF 25V
C5171 F1G1C1030008 C 0.01UF 16V
C5202 F1G1H1020008 C 1000PF 50V
C5203 F1G1H1020008 C 1000PF 50V
C5204 F1G1C1030008 C 0.01UF 16V
C5400 F1K1V106A010 C 10UF, 25V
C5401 F1K1V106A010 C 10UF, 25V
Part No. Part Name & Description Q'ty Remarks
Page 68
Model No. : TH-L50B6Z Parts List
Change Safety
Ref.
No.
C5402 F1G1C104A077 C 0.1UF 16V
C5403 F1J0J2260004 C 22 UF 6.3 V
C5404 F1J0J2260004 C 22 UF 6.3 V
C5407 F1G1E333A059 C 0.033UF, 25V
C5408 F1G1H222A830 C 2200PF, 50V
C5411 F1G1H1020008 C 1000PF 50V
C5420 F1K1V106A010 C 10UF, 25V
C5421 F1K1V106A010 C 10UF, 25V
C5422 F1G1C104A077 C 0.1UF 16V
C5423 F1J0J2260004 C 22 UF 6.3 V
C5424 F1J0J2260004 C 22 UF 6.3 V
C5427 F1G1E333A059 C 0.033UF, 25V
C5428 F1G1H222A830 C 2200PF, 50V
C5431 F1G1H1020008 C 1000PF 50V
C5433 F1G1H1020008 C 1000PF 50V
C5434 F1K1V106A010 C 10UF, 25V
C5435 F1K1V106A010 C 10UF, 25V
C5436 F1K1V106A010 C 10UF, 25V
C5437 F1K1V106A010 C 10UF, 25V
C5438 F1K1V106A010 C 10UF, 25V
C5439 F1K1V106A010 C 10UF, 25V
C5441 F1G1C183A146 C 0.018UF, 16V
C5443 F1G1H472A830 C 4700PF, 50V
C5444 F1G1C104A077 C 0.1UF 16V
C5710 F1J1A106A087 C 10UF, 10V
C5711 F1J1A106A087 C 10UF, 10V
C5724 F1G1H1020008 C 1000PF 50V
C5725 F1G1H1020008 C 1000PF 50V
C6704 F1J1A106A087 C 10UF, 10V
C6707 F1G1C104A077 C 0.1UF 16V
C6708 F1J1A106A087 C 10UF, 10V
C6710 F1G1C104A077 C 0.1UF 16V
C6720 F1G1H220A834 C 22PF, 50V
C6721 F1G1H220A834 C 22PF, 50V
C6722 F1G1C104A077 C 0.1UF 16V
C6723 F1G1H220A834 C 22PF, 50V
C6724 F1G1H220A834 C 22PF, 50V
C6736 F1G1H101A834 C 100PF 50V
C6737 F1G1H101A834 C 100PF 50V
C6746 F1G1C104A077 C 0.1UF 16V
C6750 F1G1H471A834 C 470PF, 50V
C6751 F1G1H471A834 C 470PF, 50V
C6752 F1G1H101A834 C 100PF 50V
C6753 F1G1H5R0A831 C 5PF , 50V
C6754 F1G1H5R0A831 C 5PF , 50V
C6757 F1G1H101A834 C 100PF 50V
C6758 F1G1H181A834 C 180PF, 50V
C6759 F1G1H181A834 C 180PF, 50V
C6760 F1G1H1020008 C 1000PF 50V
C6762 F1G1H1020008 C 1000PF 50V
C6764 F1G1C104A077 C 0.1UF 16V
C6766 F1G1H1020008 C 1000PF 50V
C6767 F1G1H1020008 C 1000PF 50V
C6768 F1G1H1020008 C 1000PF 50V
C6769 F1G1E103A059 C 0.01UF 25V
C6770 F1G1E103A059 C 0.01UF 25V
C6773 F1G1H1020008 C 1000PF 50V
C6774 F1G1C104A077 C 0.1UF 16V
C6775 F1G1C104A077 C 0.1UF 16V
C6777 F1G0J105A049 C 1UF , 6.3V
C6778 F1G1C104A077 C 0.1UF 16V
C6779 F1G1C104A077 C 0.1UF 16V
Part No. Part Name & Description Q'ty Remarks
Page 69
Model No. : TH-L50B6Z Parts List
Change Safety
Ref.
No.
C7102 F1AAF471A019 C 470PF , 240V
C7103 F1AAF471A019 C 470PF , 240V
C7104 F0CAF2240010 C 0.22UF, 240V
C7105 F0CAF2240010 C 0.22UF, 240V
C7201 F1H1H102B052 C 1000PF, 50V
C7202 F1J1H222A911 C 2200pF, 50V
C7203 F1H1H104B047 C 0.1UF, 50V
C7204 F1H1H104B047 C 0.1UF, 50V
C7205 F1J1H102A909 C 1000pF, 50V
C7206 F1J1E475A257 C 4.7UF, 25V
C7207 F1A3A221A060 C 220PF 1KV
C7208 F1J1H104A902 C 0.1UF, 50V
C7209 ECWFD2W824KC C 0.82UF , 240V
C7213 F2A2W7700001 C 77UF, 450V
C7214 F1J1H103A900 C 0.01UF, 50V
C7215 F2A2W7700001 C 77UF, 450V
C7216 ECWFD2W824KC C 0.82UF , 240V
C7220 F1J1H103A900 C 0.01UF, 50V
C7302 F1J1H473A900 C 0.047UF, 16V
C7303 F1J1H104A902 C 0.1UF, 50V
C7304 F1A3A221A060 C 220PF 1KV
C7305 F1J1H104A902 C 0.1UF, 50V
C7306 F1J1H104A902 C 0.1UF, 50V
C7307 F1J1H101A906 C 100PF, 50V
C7310 F2A1E4710124 C 470UF, 25V
C7311 F1J1E105A287 C 1UF, 25V
C7312 F1H1C474A178 C 0.47UF, 16V
C7313 F1J1H102A909 C 1000pF, 50V
C7316 F1A3A471A060 C 470PF 1KV
C7317 ECWH8223HAC C 0.022UF, Z, 800V
C7318 F1AAF471A019 C 470PF , 240V
C7416 F1J1C475A225 C 4.7UF, 10V
C7417 F1J1C474A238 C 0.47UF , 240V
C7418 F1H1H104B047 C 0.1UF, 50V
C7421 F1H1H104B047 C 0.1UF, 50V
C7422 F2A1V6810043 C 680UF, 35V
C7423 F2A1E222B927 C 2200UF, 25V
C7429 F1K1E106A134 C 10UF, 25V
C7430 F2A1V6810043 C 680UF, 35V
C7432 F1J1C475A225 C 4.7UF, 10V
C7433 F1K1E106A134 C 10UF, 25V
C7434 F1J1C475A225 C 4.7UF, 10V
C7517 F1K1V106A010 C 10UF, 25V
C7518 F1K1V106A010 C 10UF, 25V
C7519 F1J1H104A902 C 0.1UF, 50V
C7520 F1J1E105A287 C 1UF, 25V
C7521 F1J1E105A287 C 1UF, 25V
C7522 F1K1V106A010 C 10UF, 25V
C7523 F1K1V106A010 C 10UF, 25V
C7524 F1J1H472A900 C 4700PF, 50V
C7525 F1J1H223A900 C 0.022UF, 50V
C7529 F1J1H472A900 C 4700PF, 50V
C8001 F1G1C104A077 C 0.1UF 16V
C8006 F1G1C104A077 C 0.1UF 16V
C8010 F1G1C104A077 C 0.1UF 16V
C8012 F1G1C104A077 C 0.1UF 16V
C8013 F1G1C104A077 C 0.1UF 16V
C8016 F1G1C104A077 C 0.1UF 16V
C8018 F1G1A105A047 C 1UF 10V
C8027 F1G1C104A077 C 0.1UF 16V
C8028 F1G1C104A077 C 0.1UF 16V
C8031 F1J1A106A087 C 10UF, 10V
Part No. Part Name & Description Q'ty Remarks
Page 70
Model No. : TH-L50B6Z Parts List
Change Safety
Ref.
No.
C8032 F1G1C104A077 C 0.1UF 16V
C8034 F1J1A106A087 C 10UF, 10V
C8037 F1J1A106A087 C 10UF, 10V
C8039 F1G1C104A077 C 0.1UF 16V
C8042 F1G1C104A077 C 0.1UF 16V
C8044 F1G1C104A077 C 0.1UF 16V
C8045 F1G1A105A047 C 1UF 10V
C8052 F1J0G2260001 C 22 UF 4 V
C8054 F1G1C104A077 C 0.1UF 16V
C8055 F1G1A105A047 C 1UF 10V
C8057 F1G1C104A077 C 0.1UF 16V
C8059 F1G1C104A077 C 0.1UF 16V
C8068 F1G1C104A077 C 0.1UF 16V
C8071 F1G1C104A077 C 0.1UF 16V
C8072 F1G1C104A077 C 0.1UF 16V
C8074 F1G1A105A047 C 1UF 10V
C8076 F1H1A105A099 C 1UF, 10V
C8100 F1K1V106A010 C 10UF, 25V
C8102 F1G1C104A077 C 0.1UF 16V
C8103 F1G1C473A048 C 0.047UF, 16V
C8105 F1G1E332A144 C 3300PF , 25V
C8107 F1J0G2260001 C 22 UF 4 V
C8108 F1J0G2260001 C 22 UF 4 V
C8109 F1G1E472A144 C 4700pF 25V
C8110 F1H1C105A145 C 1 uF 16 V
C8111 F1G1C104A077 C 0.1UF 16V
C8112 F1K1V106A010 C 10UF, 25V
C8114 F1J0G2260001 C 22 UF 4 V
C8119 F1G1H471A830 C 470PF, 50V
C8203 F1G1C104A077 C 0.1UF 16V
C8204 F1G1C104A077 C 0.1UF 16V
C8205 F1G1C104A077 C 0.1UF 16V
C8206 F1G1C104A077 C 0.1UF 16V
C8207 F1J1A106A087 C 10UF, 10V
C8208 F1G1C104A077 C 0.1UF 16V
C8210 F1G1C104A077 C 0.1UF 16V
C8212 F1G1C104A077 C 0.1UF 16V
C8214 F1G1C104A077 C 0.1UF 16V
C8218 F1G1C104A077 C 0.1UF 16V
C8220 F1G1C104A077 C 0.1UF 16V
C8221 F1G1C104A077 C 0.1UF 16V
C8224 F1G1C104A077 C 0.1UF 16V
C8229 F1G1A105A047 C 1UF 10V
C8230 F1G1C104A077 C 0.1UF 16V
C8231 F1G1C104A077 C 0.1UF 16V
C8232 F1G1C104A077 C 0.1UF 16V
C8300 F1G1H100A834 C 10PF 50V
C8301 F1G1H120A834 C 12PF, 50V
C8307 F1G1A105A047 C 1UF 10V
C8308 F1G1A105A047 C 1UF 10V
C8312 F1G1A105A047 C 1UF 10V
C8313 F1G1A105A047 C 1UF 10V
C8314 F1G1A105A047 C 1UF 10V
C8315 F1G1A105A047 C 1UF 10V
C8461 F1J1A106A087 C 10UF, 10V
C8463 F1G1C104A077 C 0.1UF 16V
C8467 F1J1A106A087 C 10UF, 10V
C8470 F1G1C104A077 C 0.1UF 16V
C8700 F1H1A105A099 C 1UF, 10V
C8850 F1G1E103A059 C 0.01UF 25V
C8900 F1G1C104A077 C 0.1UF 16V
C8901 F1G1C104A077 C 0.1UF 16V
Part No. Part Name & Description Q'ty Remarks
Page 71
Model No. : TH-L50B6Z Parts List
Change Safety
DIODES
Ref.
No.
C8903 F1G1A105A047 C 1UF 10V
C9801 F1J1E104A271 C 0.47UF , 50V
C9804 F1J1E104A271 C 0.47UF , 50V
C9806 F1J1E105A287 C 1UF, 25V
C9807 F1J1H102A909 C 1000pF, 50V
C9808 F1J1H222A911 C 2200pF, 50V
C9809 F1J1H474A918 C 470PF, 500V
C9810 F1J1H222A911 C 2200pF, 50V
C9811 F1J1H474A918 C 470PF, 500V
C9812 F1J1H102A909 C 1000pF, 50V
C9813 F1J1H103A900 C 0.01UF, 50V
C9816 F2A2C470A222 C 100PF, 50V
C9817 F1A3A471A060 C 470PF 1KV
C9818 F2A2C470A222 C 100PF, 50V
C9819 F1A3A471A060 C 470PF 1KV
C9820 F1J2E1020002 C 1000PF, 250V
C9822 F1J2E1020002 C 1000PF, 250V
C9826 F2A1V6810043 C 680UF, 35V
D2017 EZJZ0V120JA VARISTOR
D2802 B3AGB0000060 LED
D3006 K7AAAY000016 DIODE
D3101 DZ2J140M0L DIODE
D3102 DZ2J140M0L DIODE
D3103 DZ2J140M0L DIODE
D3104 DZ2J140M0L DIODE
D3105 DZ2J140M0L DIODE
D3106 DZ2J140M0L DIODE
D3107 DZ2J140M0L DIODE
D3110 DZ2J140M0L DIODE
D4704 DB2J30900L DIODE
D4719 DA2J10100L DIODE
D4770 DA2J10100L DIODE
D4785 DB2J30900L DIODE
D5172 DZ2J220M0L DIODE
D5173 DA2J10100L DIODE
D5178 DZ2J068M0L DIODE
D5179 B0ADCK000001 DIODE
D5180 DZ2J033M0L DIODE
D5187 DZ2J047M0L DIODE
D5191 B0ADCK000001 DIODE
D5192 B0ADCK000001 DIODE
D5193 B0ADCK000001 DIODE
D5194 DA2J10100L DIODE
D5195 DZ2J027M0L DIODE
D6750 J0ZZB0000175 DIODE
D6751 B0ZBZ0000203 DIODE
D7101 ERZE08C621CD SURGE ABSORBER
D7102 B0EBNT000027 DIODE
D7104 B0EAKR000022 DIODE
D7105 B0EAKR000022 DIODE
D7211 B0JCME000093 DIODE
D7215 B0HAPR000013 DIODE
D7221 B0JCDE000006 DIODE
D7301 DZ2J039M0L DIODE
D7302 B0HAGQ000001 DIODE
D7303 DZ2J039M0L DIODE
D7304 DA2JF2300L DIODE
D7305 B0ADCK000001 DIODE
D7306 B0BC027A0336 DIODE
D7307 B0BC027A0336 DIODE
D7308 B0BC027A0336 DIODE
Part No. Part Name & Description Q'ty Remarks
Page 72
Model No. : TH-L50B6Z Parts List
Change Safety
INTEGRATED CIRCUITS
COILS
Ref.
No.
D7309 B0JCME000093 DIODE
D7310 B0JCME000093 DIODE
D7311 B0BC027A0336 DIODE
D7401 B0JBSL000065 DIODE
D7402 B0JBSL000065 DIODE
D7404 DA2J10100L DIODE
D7405 DA2J10100L DIODE
D7408 B0JDSG000010 DIODE
D7409 B0JDSG000010 DIODE
D7411 DA2J10100L DIODE
D7502 DB2J41100L DIODE
D8000 DA2J10100L DIODE
D8850 DB2J30900L DIODE
D9800 B0ECKM000038 DIODE
D9801 B0ECKM000038 DIODE
D9802 B0ADCK000001 DIODE
D9805 DA2JF2300L DIODE
D9806 B0FCAM000004 DIODE
D9807 B0FCAM000004 DIODE
D9812 DZ2J160M0L DIODE
D9813 B0JCDE000006 DIODE
D9814 B0JCDE000006 DIODE
D9815 B0BC4R7A0507 DIODE
D9816 DA2JF2300L DIODE
IC3052 C0ABBB000179 IC
IC4900 C1AB00003984 IC
IC5000 AN34043AAVF IC
IC5400 C0DBAYY01299 IC
IC5420 C0DBAYY01299 IC
IC5421 C0DBAYY01300 IC
IC5704 C0DBEYY00102 IC
IC6750 C1AB00004053 IC
IC7201 C0DBBYY00058 IC
IC7301 C0DBAYY01329 IC
IC7401 C0DBZYY00614 IC
IC7503 C0DBAYY01599 IC
IC8000 MN2WS0270PB IC
IC8001 C0DBGYY00887 IC
IC8100 C0DBAYY01644 IC
IC8101 C0DBAYY01645 IC
IC8200 C3ABTY000091 IC
IC8201 C3ABTY000091 IC
IC8454 C0DBZYY00541 IC
IC8900 TVR4G258-AD ROM IC (C3FBTY000035)
IC9800 C1ZBZ0004953 IC
L3111 J0JYC0000156 INDUCTOR
L3112 J0JYC0000156 INDUCTOR
L3113 J0JYC0000156 INDUCTOR
L3116 J0JYC0000156 INDUCTOR
L3119 J0JYC0000156 INDUCTOR
L3120 J0JYC0000156 INDUCTOR
L4051 J0ZZB0000147 COIL
L4052 J0ZZB0000147 COIL
L4053 J0ZZB0000147 COIL
L4054 J0ZZB0000147 COIL
L4055 J0ZZB0000147 COIL
L4056 J0ZZB0000147 COIL
L4901 G1C220MA0533 INDUCTOR
L4902 G1C220MA0533 INDUCTOR
L4903 G1C220MA0533 INDUCTOR
Part No. Part Name & Description Q'ty Remarks
Page 73
Model No. : TH-L50B6Z Parts List
Change Safety
TRANSISTORS
Ref.
No.
L4904 G1C220MA0533 INDUCTOR
L5400 G1C4R7ZA0311 INDUCTOR
L5420 G1C6R8MA0533 INDUCTOR
L5421 G1C220MA0445 INDUCTOR
L6704 J0JYC0000464 BEAD CORE
L6706 J0JYC0000464 BEAD CORE
L6761 J0JYC0000464 BEAD CORE
L6762 J0JYC0000464 BEAD CORE
L6763 G1CR27JA0097 COIL
L6765 G1C82NJ00010 COIL
L6772 G1CR27JA0097 COIL
L6773 G1CR27JA0097 COIL
L6774 G1CR27JA0097 COIL
L6776 G1CR27JA0097 COIL
L6777 G1CR22JA0097 COIL
L6778 G1CR22JA0097 COIL
L7201 J0JKB0000034 EMI FILTER
L7207 J0JHC0000075 BEAD COIL
L7303 EXCELDR35V CORE
L7502 G0C270MA0049 INDUCTOR
L8001 J0JCC0000287 COIL
L8009 J0JYC0000464 BEAD CORE
L8013 J0JYC0000464 BEAD CORE
L8014 J0JCC0000287 COIL
L8100 G1C3R3MA0464 INDUCTOR
L8101 G1C2R2ZA0311 INDUCTOR
L9800 G0C160J00001 INDUCTOR
L9801 G0C160J00001 INDUCTOR
L9802 J0JKB0000034 EMI FILTER
L9803 J0JKB0000034 EMI FILTER
L9804 J0JKA0000022 BEAD CORE
L9805 J0JKA0000022 BEAD CORE
Q2012 B1ABCE000015 TRANSISTOR
Q2013 B1ABCE000015 TRANSISTOR
Q3102 B1ABCE000015 TRANSISTOR
Q3103 B1ABCE000015 TRANSISTOR
Q4702 B1ABCF000231 TRANSISTOR
Q4709 B1ABCF000231 TRANSISTOR
Q4981 B1ABCE000015 TRANSISTOR
Q7201 B1CERR000085 TRANSISTOR
Q7202 B1ADCE000022 TRANSISTOR
Q7301 B1CFRR000023 TRANSISTOR
Q7302 B1CFRR000023 TRANSISTOR
Q7303 B1ADCE000022 TRANSISTOR
Q7401 B1ABCF000231 TRANSISTOR
Q7402 B1CHRE000015 TRANSISTOR
Q7403 B1CHRE000015 TRANSISTOR
Q7405 B1CHRE000015 TRANSISTOR
Q7407 B1CBGD000001 TRANSISTOR
Q7501 B1ABCF000231 TRANSISTOR
Q9800 B1CFML000007 TRANSISTOR
Q9801 B1CFML000007 TRANSISTOR
Q9802 B1CFRM000028 TRANSISTOR
Q9803 B1CFRM000028 TRANSISTOR
Q9804 B1CFRM000028 TRANSISTOR
Q9805 B1CFRM000028 TRANSISTOR
Q9806 B1ABGJ000007 TRANSISTOR
Q9807 B1ABBE000003 TRANSISTOR
Q9808 B1ABBE000003 TRANSISTOR
Q9809 B1ABPF000011 TRANSISTOR
Q9810 B1ABPF000011 TRANSISTOR
Part No. Part Name & Description Q'ty Remarks
Page 74
Model No. : TH-L50B6Z Parts List
Change Safety
RESISTORS
Ref.
No.
R0903 D0GA272JA023 M 2.7KOHM, J.1/16W
R0904 D0GA473JA039 M 47KOHM J. 1/10W
R0905 D0GA101JA039 M 100OHM,J.1/10W
R0906 D0GA101JA039 M 100OHM,J.1/10W
R0907 D0GA101JA039 M 100OHM,J.1/10W
R0910 D0GA332JA023 M 3.3KOHM, J,1/16W
R0911 D0GA272JA023 M 2.7KOHM, J.1/16W
R0912 D0GA272JA023 M 2.7KOHM, J.1/16W
R0913 D0GA332JA023 M 3.3KOHM, J,1/16W
R0914 D0GA101JA039 M 100OHM,J.1/10W
R0915 D0GA101JA039 M 100OHM,J.1/10W
R0916 D0GA101JA039 M 100OHM,J.1/10W
R0917 D0GA101JA039 M 100OHM,J.1/10W
R0932 D0GA220JA023 M22 OHM, J.1/16 W
R0933 D0GA220JA023 M22 OHM, J.1/16 W
R0936 D0GA220JA023 M22 OHM, J.1/16 W
R0937 D0GA220JA023 M22 OHM, J.1/16 W
R0938 D0GA101JA039 M 100OHM,J.1/10W
R0940 D0GA101JA039 M 100OHM,J.1/10W
R0946 D0GA101JA039 M 100OHM,J.1/10W
R0948 D0GA101JA039 M 100OHM,J.1/10W
R0951 D0GA101JA039 M 100OHM,J.1/10W
R0952 D0GA102JA039 M 1KOHM ,J, 1/10W
R0953 D0GA272JA023 M 2.7KOHM, J.1/16W
R0954 D0GA272JA023 M 2.7KOHM, J.1/16W
R0955 D0GA272JA023 M 2.7KOHM, J.1/16W
R0956 D0GA332JA023 M 3.3KOHM, J,1/16W
R0957 D0GA332JA023 M 3.3KOHM, J,1/16W
R1951 D0GA680JA023 M 68 OHM, J,1/16W
R1953 D0GA103JA039 M 10KOHM,F,1/16W
R2000 D0GA154JA023 M 150KOHM J 1/16W
R2003 D0GAR00J0005 M 0 OHM, 1/16W
R2008 D0GA473JA039 M 47KOHM J. 1/10W
R2010 D0GDR00J0004 M 0 OHM, 1/8W
R2013 D0GA101JA039 M 100OHM,J.1/10W
R2014 D0GA101JA039 M 100OHM,J.1/10W
R2016 D0GA302JA023 M 3K OHM J ,1/16W
R2051 D0GA101JA039 M 100OHM,J.1/10W
R2056 D0GAR00J0005 M 0 OHM, 1/16W
R2058 D0GA473JA039 M 47KOHM J. 1/10W
R2059 D0GA103JA039 M 10KOHM,F,1/16W
R2060 D0GA473JA039 M 47KOHM J. 1/10W
R2061 D0GA223JA023 M 22K OHM J 1/16W
R2062 D0GA101JA039 M 100OHM,J.1/10W
R2803 D0GAR00J0005 M 0 OHM, 1/16W
R2820 D0GA470JA023 M 47 OHM, J,1/16W
R2821 D0GAR00J0005 M 0 OHM, 1/16W
R2823 D1BA1821A023 M 1.82KOHM ,J, 1/16W
R2824 D1BA6800A023 M 680OHM ,J, 1/16W
R2852 D1BD1911A177 M 1.91KOHM ,J, 1/16W
R2853 D1BD3091A177 M 3.09KOHM ,J, 1/61W
R2854 D1BD6041A076 M 6.04KOHM ,J, 1/16W
R2855 D1BD1692A177 M 16.9KOHM ,J, 1/16W
R3117 D0GA102JA039 M 1KOHM ,J, 1/10W
R3118 D0GA473JA039 M 47KOHM J. 1/10W
R3121 D0GB104ZA041 M 100KOHM,J.1/10W
R3132 D0GB103JA065 M 10K OHM J 1/10W
R3142 D1BD75R00003 M 75OHM ,J, 1/16W
R3157 D1HY2204A012 NETWORK RESISTER
R3163 D0GA104JA039 M 100KOHM J 1/10W
R3164 D0GA104JA039 M 100KOHM J 1/10W
Part No. Part Name & Description Q'ty Remarks
Page 75
Model No. : TH-L50B6Z Parts List
Change Safety
Ref.
No.
R3167 D0GA333JA023 M 33KOHM,J,1/16W
R3168 D0GA333JA023 M 33KOHM,J,1/16W
R3171 D0GA101JA039 M 100OHM,J.1/10W
R3172 D0GA101JA039 M 100OHM,J.1/10W
R3173 D0GB104ZA041 M 100KOHM,J.1/10W
R3179 D0GA331JA023 M 330 OHM, J,1/16W
R3180 D0GA331JA023 M 330 OHM, J,1/16W
R3181 D1BD75R00003 M 75OHM ,J, 1/16W
R3182 D1BD75R00003 M 75OHM ,J, 1/16W
R3183 D1BD75R00003 M 75OHM ,J, 1/16W
R3184 D0GA333JA023 M 33KOHM,J,1/16W
R3185 D0GA333JA023 M 33KOHM,J,1/16W
R3188 D0GB104ZA041 M 100KOHM,J.1/10W
R3189 D0GB104ZA041 M 100KOHM,J.1/10W
R3194 D0GA220JA023 M22 OHM, J.1/16 W
R3201 D0GA101JA039 M 100OHM ,J, 1/10W
R3231 D0GB103JA065 M 10K OHM J 1/10W
R3233 D0GB203ZA038 M 20KOHM 1/10W
R3234 D0GB203ZA038 M 20KOHM 1/10W
R3237 D0GB473JA065 M 47KOHM J. 1/10W
R3238 D0GB473JA065 M 47KOHM J. 1/10W
R4086 D0GDR00J0004 M 0 OHM, 1/8W
R4715 D0GA103JA039 M 10KOHM,F,1/16W
R4721 D0GA103JA039 M 10KOHM,F,1/16W
R4722 D0GA103JA039 M 10KOHM,F,1/16W
R4723 D0GA473JA039 M 47KOHM J. 1/10W
R4724 D0GA102JA039 M 1KOHM ,J, 1/10W
R4725 D0GA473JA039 M 47KOHM J. 1/10W
R4731 D0GA103JA039 M 10KOHM,F,1/16W
R4739 D0GA220JA023 M22 OHM, J.1/16 W
R4748 D0GA680JA023 M 68 OHM, J,1/16W
R4749 D0GA680JA023 M 68 OHM, J,1/16W
R4750 D0GA680JA023 M 68 OHM, J,1/16W
R4751 D0GA680JA023 M 68 OHM, J,1/16W
R4752 D1BA1600A023 M 160 OHM,F.1/16 W
R4753 D1BA82R0A023 M 82KOHM , 1/8W
R4764 D0GA473JA039 M 47KOHM J. 1/10W
R4766 D0GA473JA039 M 47KOHM J. 1/10W
R4788 D0GA103JA039 M 10KOHM,F,1/16W
R4794 D0GA103JA039 M 10KOHM,F,1/16W
R4795 D0GA103JA039 M 10KOHM,F,1/16W
R4796 D0GA473JA039 M 47KOHM J. 1/10W
R4797 D0GA102JA039 M 1.0KOHM,J,1/8W
R4798 D0GA473JA039 M 47KOHM J. 1/10W
R4799 D0GA273JA023 M 27K OHM J ,1/16W
R4800 D0GA473JA039 M 47KOHM J. 1/10W
R4801 D0GA473JA039 M 47KOHM J. 1/10W
R4802 D0GBR00J0004 M 0 OHM J 1/10W
R4900 D0GFR00J0005 M 0 OHM,J,1/3W
R4901 D1HY6804A012 NETWORK RESISTER
R4906 D0GA103JA039 M 10KOHM,F,1/16W
R4907 D0GA102JA039 M 1.0KOHM,J,1/8W
R4908 D0GA102JA039 M 1.0KOHM,J,1/8W
R4917 D0GAR00J0005 M 0 OHM, 1/16W
R4918 D0GAR00J0005 M 0 OHM, 1/16W
R4919 D0GAR00J0005 M 0 OHM, 1/16W
R4955 D0GA103JA039 M 10KOHM,F,1/16W
R4956 D0GA102JA039 M 1.0KOHM,J,1/8W
R4958 D0GA103JA039 M 10KOHM,F,1/16W
R4980 D0GB332JA065 M 3.3KOHM,J,1/10W
R4981 D0GA103JA039 M 10KOHM,F,1/16W
R4982 D0GA473JA039 M 47KOHM J. 1/10W
Part No. Part Name & Description Q'ty Remarks
Page 76
Model No. : TH-L50B6Z Parts List
Change Safety
Ref.
No.
R4984 D0GDR00J0004 M 0 OHM, 1/8W
R4985 D0GDR00J0004 M 0 OHM, 1/8W
R4986 D0GDR00J0004 M 0 OHM, 1/8W
R4987 D0GDR00J0004 M 0 OHM, 1/8W
R5002 D0GA683JA023 M 68KOHM, J,1/16W
R5003 D0GA103JA039 M 10KOHM,F,1/16W
R5006 D0GA103JA039 M 10KOHM,F,1/16W
R5007 D0GA103JA039 M 10KOHM,F,1/16W
R5009 D1BA5602A023 M 56KOHM,F. 1/16 W
R5012 D1BA2202A023 M 22KOHM,F. 1/16 W
R5030 D0GA103JA039 M 10KOHM,F,1/16W
R5031 D0GAR00J0005 M 0 OHM, 1/16W
R5032 D0GAR00J0005 M 0 OHM, 1/16W
R5100 D0GA101JA039 M 100OHM ,J, 1/10W
R5101 D0GA473JA039 M 47KOHM J. 1/10W
R5102 D0GA473JA039 M 47KOHM J. 1/10W
R5104 D0GA103JA039 M 10KOHM,F,1/16W
R5152 D0GA222JA023 M 2.2KOHM, J,1/16W
R5175 D0GA680JA023 M 68 OHM, J,1/16W
R5181 D0GA103JA039 M 10KOHM,F,1/16W
R5200 D0GBR00J0004 M 0 OHM J 1/10W
R5400 D0GAR00J0005 M 0 OHM, 1/16W
R5401 D1BA2202A023 M 22KOHM,F. 1/16 W
R5402 D0GB911ZA037 M 910 OHM,1/10W
R5403 D1BB2871A106 M 2.87 KOHM,F.1/10 W
R5404 D0GD100JA059 M 10 OHM,J,1/4W
R5420 D0GAR00J0005 M 0 OHM, 1/16W
R5421 D1BA3302A023 M 33KOHM,F. 1/16 W
R5422 D0GB911ZA037 M 910 OHM,1/10W
R5423 D1BB4871A106 M 4.87 KOHM,F.1/10 W
R5424 D0GD100JA059 M 10 OHM,J,1/4W
R5426 D0GA220JA023 M22 OHM, J.1/16 W
R5427 D0GD100JA059 M 10 OHM,J,1/4W
R5428 D0GD272JA052 M 2.7KOHM,J,1/8W
R5429 D1BA1402A023 M 14KOHM,F. 1/16 W
R5430 D1BA1001A023 M 1 KOHM,F.1/16 W
R5431 D0GA473JA039 M 47KOHM J. 1/10W
R5432 D1BA2702A023 M 27KOHM,F,1/16W
R5712 D0GA332JA023 M 3.3KOHM, J,1/16W
R5715 D1BA1200A023 M 120 OHM,F.1/16 W
R5716 D1BA56R0A023 M 56 OHM,F.1/16 W
R6728 D0GA681JA023 M680 OHM, J,1/16W
R6729 D0GA681JA023 M680 OHM, J,1/16W
R6734 D1BA1002A023 M 10KOHM,F,1/16W
R6750 D0GA101JA039 M 100OHM, J, 1/16W
R6751 D0GA103JA039 M 10KOHM,F,1/16W
R6752 D0GAR00J0005 M 0 OHM, 1/16W
R6753 D0GA101JA039 M 100OHM, J, 1/16W
R6757 D0GA101JA039 M 100OHM, J, 1/16W
R6758 D0GA101JA039 M 100OHM, J, 1/16W
R6759 D0GA102JA039 M 1KOHM, J , 1/16W
R6760 D0GA332JA023 M 3.3KOHM, J,1/16W
R7101 D0GF105JA048 M 1M OHM. 1/4W
R7102 D0GF105JA048 M 1M OHM. 1/4W
R7103 D0GF105JA048 M 1M OHM. 1/4W
R7201 ERX1SJR22V M 0.22 OHM ,J, 1W
R7202 ERX1SJR22V M 0.22 OHM ,J, 1W
R7203 D0GD563JA052 M 56KOHM,J,1/8W
R7204 D0GF101JA047 M 100 OHM,J,1/3W
R7205 D0GD470JA052 M 47 OHM,J,1/8W
R7206 D0GD4R7JA059 M 4.7 OHM,J,1/4W
R7207 D0GB104JA065 M 100KOHM J 1/10W
Part No. Part Name & Description Q'ty Remarks
Page 77
Model No. : TH-L50B6Z Parts List
Change Safety
Ref.
No.
R7208 ERX1SJR22V M 0.22 OHM ,J, 1W
R7209 D0AF2R2JA112 C 2.2 OHM, J,1/2W
R7210 ERX1SJR22V M 0.22 OHM ,J, 1W
R7211 D0GD104JA052 M 100KOHM,J,1/8W
R7212 D0GB683JA065 M 68KOHM J 1/10W
R7219 D0GB513JA065 M 51KOHM ,J, 1/8W
R7220 D0GB223JA065 M 22KOHM,J,1/10W
R7224 D1BD8203A177 M 820KOHM , 1/8W
R7225 D1BF1504A073 M 1.5MOHM ,F, 1/16W
R7226 D1BF1504A073 M 1.5MOHM ,F, 1/16W
R7227 D1BF1504A073 M 1.5MOHM ,F, 1/16W
R7228 D1BF1504A073 M 1.5MOHM ,F, 1/16W
R7229 D1BD2003A076 M 200KOHM ,F, 1/8W
R7230 D1BD4422A177 M 44.2KOHM ,F, 1/8W
R7231 D1BD4303A177 M 360KOHM ,F, 1/8W
R7232 D1BD3603A177 M 360KOHM ,F, 1/8W
R7234 D1BD8203A177 M 820KOHM , 1/8W
R7240 D0GF225JA048 M 2.2MOHM ,J, 1/10W
R7241 D0GF225JA048 M 2.2MOHM ,J, 1/10W
R7242 D0GF225JA048 M 2.2MOHM ,J, 1/10W
R7243 D0GF225JA048 M 2.2MOHM ,J, 1/10W
R7244 D0GD124JA052 M 120KOHM,J,1/8W
R7302 D0GD101JA059 M 100 OHM,J,1/4W
R7303 D0GD101JA059 M 100 OHM,J,1/4W
R7304 D0AF2R2JA112 C 2.2 OHM, J,1/2W
R7305 D0AF161JA112 C 160 OHM ,J, 1/2W
R7306 D0GD222JA052 M 2.2KOHM,J,1/8W
R7307 D0GD561JA052 M 560 OHM,J,1/8W
R7308 D0GD561JA052 M 560 OHM,J,1/8W
R7312 D0AF153JA112 M 15KOHM ,F, 1/10W
R7314 D0GD103JA052 M 10KOHM,J,1/8W
R7315 D0GB222JA065 M 2.2KOHM,J,1/10W
R7317 D0GD223JA052 M 22KOHM,J,1/8W
R7318 D0GB473JA065 M 47KOHM J. 1/10W
R7319 D0GD473JA052 M 47KOHM,J,1/8W
R7320 D0GD333JA052 M 33 KOHM,J,1/8W
R7321 D0GD100JA059 M 10 OHM,J,1/4W
R7322 D0GD100JA059 M 10 OHM,J,1/4W
R7323 D0GD223JA052 M 22KOHM,J,1/8W
R7324 D0GD223JA052 M 22KOHM,J,1/8W
R7325 ERX1SJ1R0V M 1OHM ,J, 1W
R7326 D0B1106JA033 M 10MOHM J 1W
R7401 D0GD472JA052 M 4.7KOHM,J,1/8W
R7402 D0GD103JA052 M 10KOHM,J,1/8W
R7403 D0GD102JA052 M 1.0KOHM,J,1/8W
R7404 D0GD104JA052 M 100KOHM,J,1/8W
R7405 D0GD222JA052 M 2.2KOHM,J,1/8W
R7406 D1BD3301A180 M 3.3KOHM, J,1/16W
R7407 D0GB103JA065 M 10K OHM J 1/10W
R7408 D1BD4302A180 M 43KOHM ,F, 1/16W
R7409 D0GD224JA052 M 220KOHM,J,1/8W
R7410 D0GD153JA052 M 15KOHM,J,1/8W
R7411 D0GD334JA052 M 330KOHM,J,1/8W
R7412 D0GD153JA052 M 15KOHM,J,1/8W
R7413 D1BD5603A066 M 560KOHM ,J, 1/10W
R7415 D0GD472JA052 M 4.7KOHM,J,1/8W
R7416 D0GD103JA052 M 10KOHM,J,1/8W
R7417 D0GD103JA052 M 10KOHM,J,1/8W
R7418 D0GD103JA052 M 10KOHM,J,1/8W
R7419 D0GD103JA052 M 10KOHM,J,1/8W
R7420 D0GD473JA052 M 47KOHM,J,1/8W
R7421 D0GD124JA052 M 120KOHM,J,1/8W
Part No. Part Name & Description Q'ty Remarks
Page 78
Model No. : TH-L50B6Z Parts List
Change Safety
Ref.
No.
R7422 D0GD224JA052 M 220KOHM,J,1/8W
R7423 D0GD334JA052 M 330KOHM,J,1/8W
R7505 D0GD473JA052 M 47KOHM,J,1/8W
R7506 D1BD1203A076 M 120KOHM,J,1/8W
R7507 D1BD3652A177 M 36.5KOHM ,F, 1/16W
R7508 D0GD334JA052 M 330KOHM,J,1/8W
R8005 D0GA1R1JA023 M 1.1OHM, J,1/16W
R8010 D0GA511JA023 M510 OHM, J,1/16W
R8011 D0GA104JA039 M 100KOHM J 1/10W
R8101 D1BA4701A023 M 4.7KOHM,F 1/16 W
R8102 D1BB2002A195 M 20KOHM ,F, 1/16W
R8103 D1BB1802A195 M 18KHM ,F, 1/10W
R8200 D1BA2400A023 M 240 OHM,F.1/16 W
R8203 D1BA2700A023 M 270 OHM,F.1/16 W
R8204 D1BA2700A023 M 270 OHM,F.1/16 W
R8205 D1BA2700A023 M 270 OHM,F.1/16 W
R8206 D1BA2700A023 M 270 OHM,F.1/16 W
R8207 D1BA2700A023 M 270 OHM,F.1/16 W
R8208 D1BA2700A023 M 270 OHM,F.1/16 W
R8217 D0GA221JA023 M220 OHM, J.1/16 W
R8218 D0GA221JA023 M220 OHM, J.1/16 W
R8219 D1BA2400A023 M 240 OHM,F.1/16 W
R8220 D1BA2400A023 M 240 OHM,F.1/16 W
R8230 D1BA2700A023 M 270 OHM,F.1/16 W
R8231 D1BA2700A023 M 270 OHM,F.1/16 W
R8232 D1BA2700A023 M 270 OHM,F.1/16 W
R8233 D1BA2700A023 M 270 OHM,F.1/16 W
R8234 D0GA220JA023 M22 OHM, J.1/16 W
R8236 D0GA220JA023 M22 OHM, J.1/16 W
R8240 D1HY2204A012 NETWORK RESISTER
R8241 D1HY2204A012 NETWORK RESISTER
R8242 D1HY2204A012 NETWORK RESISTER
R8243 D1HY2204A012 NETWORK RESISTER
R8244 D1HY2204A012 NETWORK RESISTOR
R8245 D0GA220JA023 M22 OHM, J.1/16 W
R8246 D0GA220JA023 M22 OHM, J.1/16 W
R8300 D0GA331JA023 M 330 OHM, J,1/16W
R8301 D0GA360JA023 M 36 OHM, J,1/16W
R8302 D0GA360JA023 M 36 OHM, J,1/16W
R8303 D1BA6201A023 M 6.2 KOHM,F.1/16 W
R8305 D1BA2491A023 M 2.49KOHM,F,1/16W
R8306 D0GA360JA023 M 36 OHM, J,1/16W
R8307 D0GA360JA023 M 36 OHM, J,1/16W
R8450 D0GA103JA039 M 10KOHM,F,1/16W
R8451 D0GA103JA039 M 10KOHM,F,1/16W
R8455 D0GA103JA039 M 10KOHM,F,1/16W
R8458 D1BA3742A023 M 37.4 KOHM,F.1/16 W
R8469 D0GA103JA039 M 10KOHM,F,1/16W
R8666 D1HY1038A012 NETWORK RESISTER
R8800 D0GA103JA039 M 10KOHM,F,1/16W
R8803 D0GA103JA039 M 10KOHM,F,1/16W
R8807 D0GA102JA039 M 10KOHM,F,1/16W
R8816 D0GA103JA039 M 10KOHM,F,1/16W
R8818 D0GA103JA039 M 10KOHM,F,1/16W
R8819 D0GA103JA039 M 10KOHM,F,1/16W
R8820 D0GA103JA039 M 10KOHM,F,1/16W
R8830 D0GA103JA039 M 10KOHM,F,1/16W
R8850 D0GA331JA023 M 330 OHM, J,1/16W
R8851 D1BB7151A106 M 7.15 KOHM,F.1/10 W
R8852 D0GA102JA039 M 1KOHM ,J, 1/10W
R8853 D0GA182JA023 M 1.8KOHM, J,0.063W
R8858 D0GA103JA039 M 10KOHM,F,1/16W
Part No. Part Name & Description Q'ty Remarks
Page 79
Model No. : TH-L50B6Z Parts List
Change Safety
Ref.
No.
R8870 D0GA103JA039 M 10KOHM,F,1/16W
R8878 D0GA103JA039 M 10KOHM,F,1/16W
R8880 D0GA103JA039 M 10KOHM,F,1/16W
R8881 D0GA103JA039 M 10KOHM,F,1/16W
R8883 D0GA103JA039 M 10KOHM,F,1/16W
R8884 D0GA103JA039 M 10KOHM,F,1/16W
R8885 D0GA103JA039 M 10KOHM,F,1/16W
R8886 D0GA102JA039 M 1KOHM ,J, 1/10W
R8909 D0GA222JA023 M 2.2KOHM, J,1/16W
R8910 D0GA103JA039 M 10KOHM,F,1/16W
R8911 EXB2HV121JV M 120OHM ,J, 1/16W
R8924 D0GA102JA039 M 1KOHM ,J, 1/10W
R8926 D0GA332JA023 M 3.3KOHM, J,1/16W
R8967 D0GA473JA039 M 47KOHM J. 1/10W
R9800 D0GD101JA059 M 100 OHM,J,1/4W
R9801 D0GD222JA052 M 2.2KOHM,J,1/8W
R9802 D0GD103JA052 M 10KOHM,J,1/8W
R9803 D0GD221JA052 M 220 OHM,J 1/8W
R9804 D0C12R2JA104 M 47KOHM J. 1/10W
R9806 D0GD153JA052 M 15KOHM,J,1/8W
R9807 D0GD623JA052 M 0.22 OHM ,J, 1W
R9808 D0GD822JA052 M 8.2KOHM,J,1/8W
R9809 D0GD223JA052 M 22KOHM,J,1/8W
R9810 D0GD223JA052 M 22KOHM,J,1/8W
R9811 D0GD103JA052 M 10KOHM,J,1/8W
R9812 D0GD101JA059 M 100 OHM,J,1/4W
R9813 D0GD222JA052 M 2.2KOHM,J,1/8W
R9814 D0GD103JA052 M 10KOHM,J,1/8W
R9815 D0GD221JA052 M 220 OHM,J 1/8W
R9816 D0C12R2JA104 M 110KOHM ,J, 1/16W
R9818 D0GD102JA052 M 1.0KOHM,J,1/8W
R9819 D0GD102JA052 M 1.0KOHM,J,1/8W
R9820 D0GD100JA059 M 10 OHM,J,1/4W
R9821 D0GD2R2JA059 M 2.2 OHM,J.1/4W
R9822 D0GD103JA052 M 10KOHM,J,1/8W
R9823 D0GD101JA052 M 100 OHM,J,1/8W
R9824 D0C1R15JA104 M 16.5KOHM ,J, 1/16W
R9825 D0C1R15JA104 M 16.5KOHM ,J, 1/16W
R9826 D0GD223JA052 M 22KOHM,J,1/8W
R9827 D0GD223JA052 M 22KOHM,J,1/8W
R9828 D0GD101JA052 M 100 OHM,J,1/8W
R9829 D0C1R15JA104 M 0.15 OHM ,J, 1W
R9831 D0GD2R2JA059 M 2.2 OHM,J.1/4W
R9832 D0GD103JA052 M 10KOHM,J,1/8W
R9833 D0GD123JA052 M 12KOHM,J,1/8W
R9834 D0GD184JA052 M 180KOHM,J,1/8W
R9835 D0GD274JA052 M 270K OHM,F.1/16 W
R9836 D0GD274JA052 M 270K OHM,F.1/16 W
R9837 D0GD2R2JA059 M 2.2 OHM,J.1/4W
R9839 D0GD103JA052 M 10KOHM,J,1/8W
R9840 D0GD2R2JA059 M 2.2 OHM,J.1/4W
R9841 D0GD100JA059 M 10 OHM,J,1/4W
R9842 D0GD103JA052 M 10KOHM,J,1/8W
R9843 D0C1R15JA104 M 0.15 OHM ,J, 1W
R9844 D0GD101JA052 M 100 OHM,J,1/8W
R9845 D0GDR00J0004 M 0 OHM, 1/8W
R9847 D0GD1R0JA052 M 1 OHM,J,1/8W
R9848 D0GD102JA052 M 1.0KOHM,J,1/8W
R9849 D0GD103JA052 M 10KOHM,J,1/8W
R9850 D0GD472JA052 M 4.7KOHM,J,1/8W
R9851 D0GD473JA052 M 47KOHM,J,1/8W
R9852 D0GDR00J0004 M 0 OHM, 1/8W
Part No. Part Name & Description Q'ty Remarks
Page 80
Model No. : TH-L50B6Z Parts List
Change Safety
TRANSFORMER
OTHERS
Ref.
No.
R9853 D0GDR00J0004 M 0 OHM, 1/8W
R9854 D0GDR00J0004 M 0 OHM, 1/8W
T7201 G4DYA0000462 TRANSFORMER
T7302 G4DYA0000449 TRANSFORMER
A02 K1KY16BA0394 CONNECTOR
A10 K1KY07AA0719 CONNECTOR
A11 K1MY51BA0526 CONNECTOR
A12 K1KY04BA0387 CONNECTOR
CF7101 D4CAY4R7A096 THERMISTOR RESISTOR
CN0100 K1KA14A00248 CONNECTOR
F7101 K5E502YYA162 FUSE
GK4 K1KY03BA0402 CONNECTOR
JA1 D0GDR00J0004 CHIP RESISTOR
JA13 D0GDR00J0004 CHIP RESISTOR
JA2 D0GDR00J0004 CHIP RESISTOR
JA21 D0GDR00J0004 CHIP RESISTOR
JA56 D0GFR00J0005 CHIP RESISTOR
JA57 D0GFR00J0005 CHIP RESISTOR
JA6 D0GDR00J0004 CHIP RESISTOR
JA7 D0GDR00J0004 CHIP RESISTOR
JA9 D0GDR00J0004 CHIP RESISTOR
JK3101 K1U511D00002 AV TERMINAL
JK3102 K1U307E00002 AV TERMINAL
JK3103 K1U204D00004 AV TERMINAL
JK4700 K1FY119D0029 TERMINAL
JK4701 K1FY119D0029 TERMINAL
JK6750 K1ZZ00001551 TUNER SHIELD
JK7101 K2AAYB000010 AC INLET
JK8451 K1FY104B0092 TERMINAL
JS008 D0GAR00J0005 CHIP RESISTOR
JS027 D0GAR00J0005 CHIP RESISTOR
JS7406 D0GFR00J0005 CHIP RESISTOR
K10 K1KY07BA0483 CONNECTOR
LD1 K1KA10BA0062 CONNECTOR
LD3 K1KY07BA0502 CONNECTOR
LF7105 G0B350HA0036 LINE FILTER
LF7106 G0B153H00015 LINE FILTER
LF7107 G0B153H00015 LINE FILTER
P2 K1KY14BA0386 CONNECTOR
P4 K1KY12BA0400 CONNECTOR
PA7402 ERBRE5R00V FUSE RESISTOR
PA7406 ERBRE5R00V FUSE RESISTOR
PC7301 B3PAA0000674 PHOTO COUPLER
PC7302 B3PAA0000674 PHOTO COUPLER
PC7303 B3PAA0000674 PHOTO COUPLER
RM2800 B3RBB0000018 PHOTO DETECTOR
SN2800 B3JB00000208 IC
SW2851 EVQ11G05R SWITCH
SW2852 EVQ11G05R SWITCH
SW2853 EVQ11G05R SWITCH
SW2854 EVQ11G05R SWITCH
SW2855 EVQ11G05R SWITCH
SW2857 EVQ11G05R SWITCH
X6750 H0J240500067 CRYSTAL OSCILLATOR
X8300 H0J250500109 CRYSTAL RESONATOR
ZA7101 K4AD01A00004 RUG TERMINAL
ZA7103 K4AD01A00004 RUG TERMINAL
ZA7104 K4AD01A00004 RUG TERMINAL
ZA7105 K4AD01A00004 RUG TERMINAL
ZA9800 K4AD01A00004 RUG TERMINAL
Part No. Part Name & Description Q'ty Remarks
Page 81
Model No. : TH-L50B6Z Parts List
Change Safety
Exploded View
Electrical Replacement Part List
Ref.
No.
1 K2CJ2YY00087 AC CORD
2 L0EYAA000026 SPEAKER UNIT
3 L5EDDYY00474 LCD PANEL
4 N2QAYB000817 REMOTE TRANSMITTER
5 TBL5ZX06661 PEDESTAL ASSY
6 TBL5ZX06671 STAND MTG ASSY
7 TKK5ZC50311 LED PANEL
8 TKP5ZA32203 SIDE AV BRACKET
9 TKP5ZA38101 BOTTOM COVER
10 TPD4GA04591 TOP CUSHION
11 TPD4GA04601 BOTTOM CUSHION
12 TPD4GA04611 TOP CENTER CUSHION
13 TPD4GA04621 BOTTOM CENTER CUSHION
14 TPE4GH080 SET COVER
15 TQZ4GB699 FAN BAG ASSY
16 TTU4GA0961 BACK COVER ASSY
17 TTY4GA0305 CABINET
18 TXFPC01SVUZ PACKING CASE ASSY
RTL TXN/K1WQUJ K PRINT ASSY
RTL TXN/P10SRUA P BOARD
RTL TXNGK1SRUA GK BOARD
RTL TXNLD1RJUK LD BOARD
RTL TZT/A10SVUZ A PRINT ASSY
Part No. Part Name & Description Q'ty Remarks
TBM4GD1121 MODEL NAME PLATE
TBX5ZA02301 KEY BUTTON BRACKET
TSCKF0290001 LVDS CABLE
XSS5+16FJK PEDESTAL BRAC SCREW
XYN4+F12FJK STAND BRAC SCREW
Loading...
