Panasonic TH-L47WT60A, TH-L55WT60A Quick Manual

Download
Page 1
e
TH-L47WT60A
TH-L55WT60A
HELP
English
Page 2
Watching
my Home Screen
Basic
•Off Timer 21
External equipment
For best picture
For best audio
TV Guide
•Using TV Guide 38
- 2 -
Page 3
3D
Tuning and editing channels
Recording
USB HDD setup
Recording current programme
Timer Programming
Technical information
- 3 -
Page 4
Internet service
Internet content
Network connections
Network settings
•Network Connection 68
Home network
DLNA
Network connections
Network settings
•Network Connection 80
- 4 -
Page 5
Photos
Videos
Music
DIGA Recorder
Technical information
Media Player
Using Media Player
Photo mode
- 5 -
Page 6
Video mode
•Video Setup 116
Recorded TV mode
Music mode
USB Sharing
Technical information
Functions
APPS List
- 6 -
Page 7
VIERA Link “HDAVI Control™”
•Intelligent Auto Standby 138
Child Lock
•Using Child Lock 141
Shipping Condition
Updating the TV Software
Setting characters
Built-in Camera
Voice Control
Bluetooth devices
Keyboard / Gamepad
- 7 -
Page 8
Settings
Setting menu
•Resolution Remaster 155
•Intelligent Frame Creation 156
•Copy Adjustment 160
Sound
•Mode 161
•Audio Description 164
Network
•Network Connection 167
- 8 -
Page 9
Timer
Setup
Support
FAQs
- 9 -
Page 10
Maintenance
Information
Optional accessories
Licence
OK Letters enclosed in a box indicate remote control buttons.
Menu Letters in cyan indicate on-screen display items.
References in this eHELP
●
The images shown in this eHELP are for illustrative purposes only.
- 10 -
Page 11

Watching

my Home Screen

Information

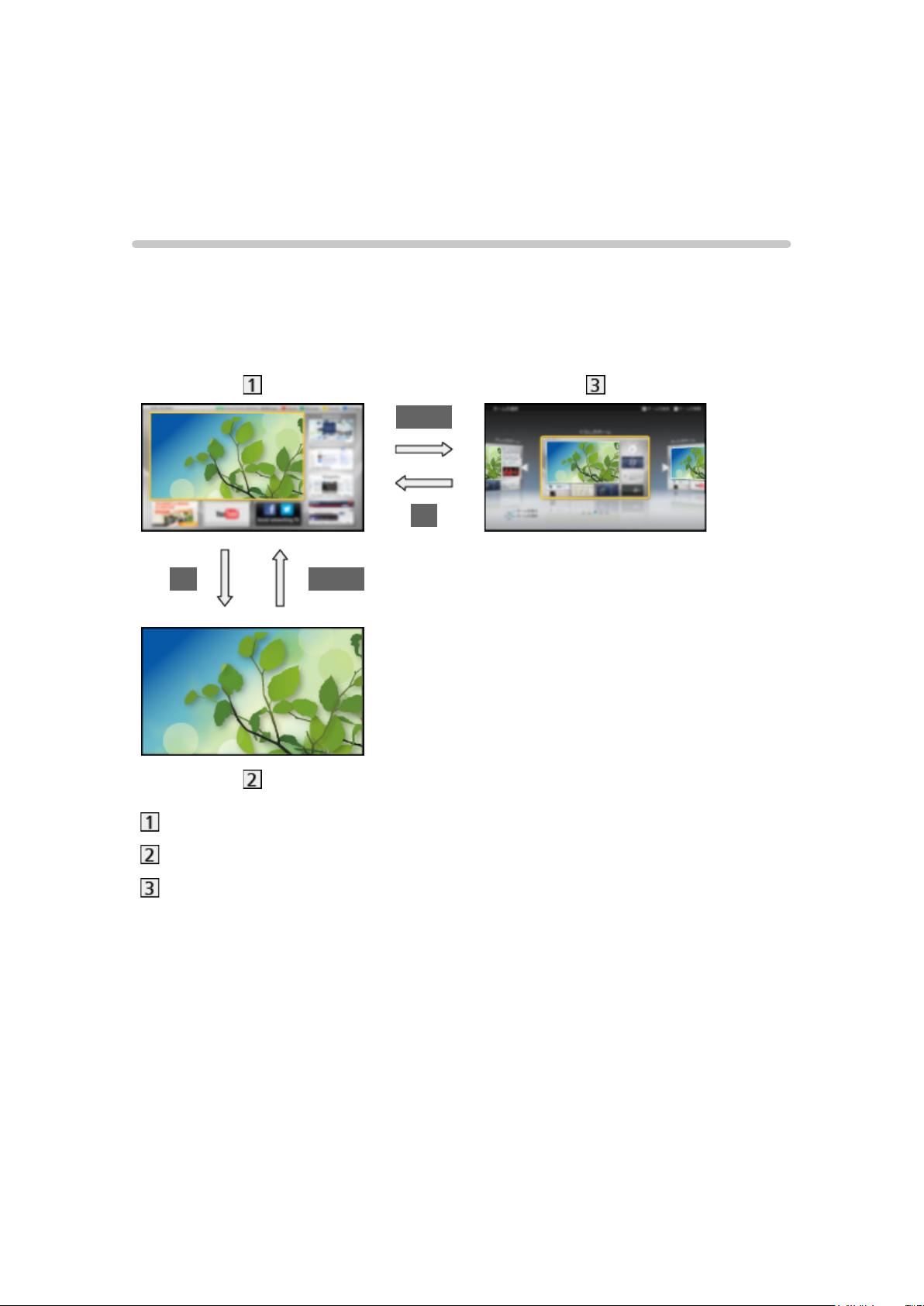

“my Home Screen” is a gateway to the TV, applications, and more.
It provides easy access to special features such as the Media Player, videos, games, communication tools, etc. as shown below (example).
HOME
OK
OK HOME
Home Screen
Selected content screen (TV, application, etc.)
Home Screen Selection
– Your preferred Home Screen can be selected or added.
- 11 -
Page 12

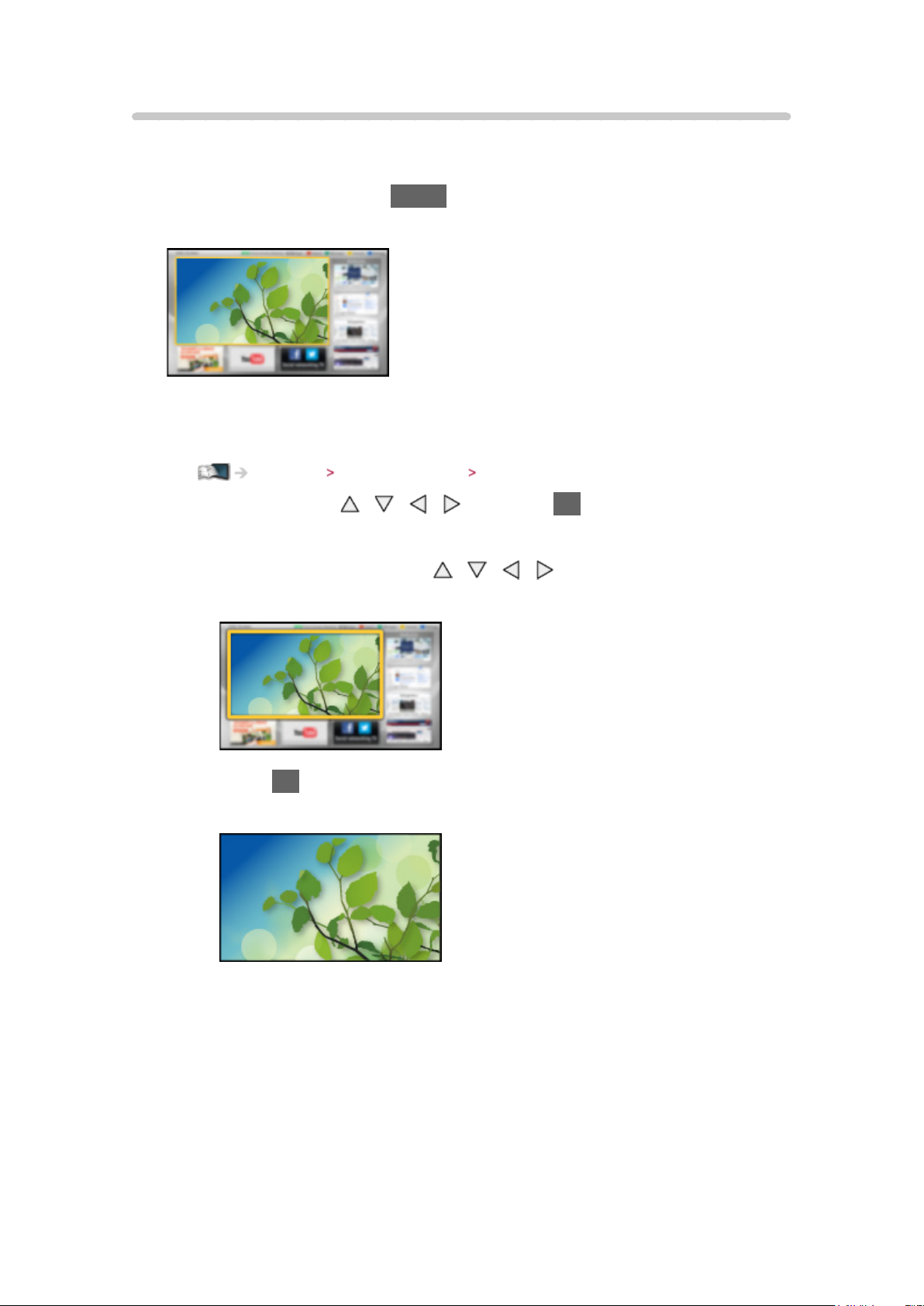

How to use

Home Screen provides access to special features such as the Media Player, TV, internet content, data services, communication tools, etc.
1. Display Home Screen with HOME
(Example)
●
The last viewed Home Screen is displayed when the TV is turned on.
●
Press again to select or add your preferred Home Screen layout.
Watching my Home Screen Settings
2. Select a feature with / / / and press OK to access
●
To watch full-screen TV
1) Select the TV viewer with
/ / /
(Example)
2) Press OK to watch
(Example)
●
Also refer to Tutorial from the tool guide.
- 12 -
Page 13

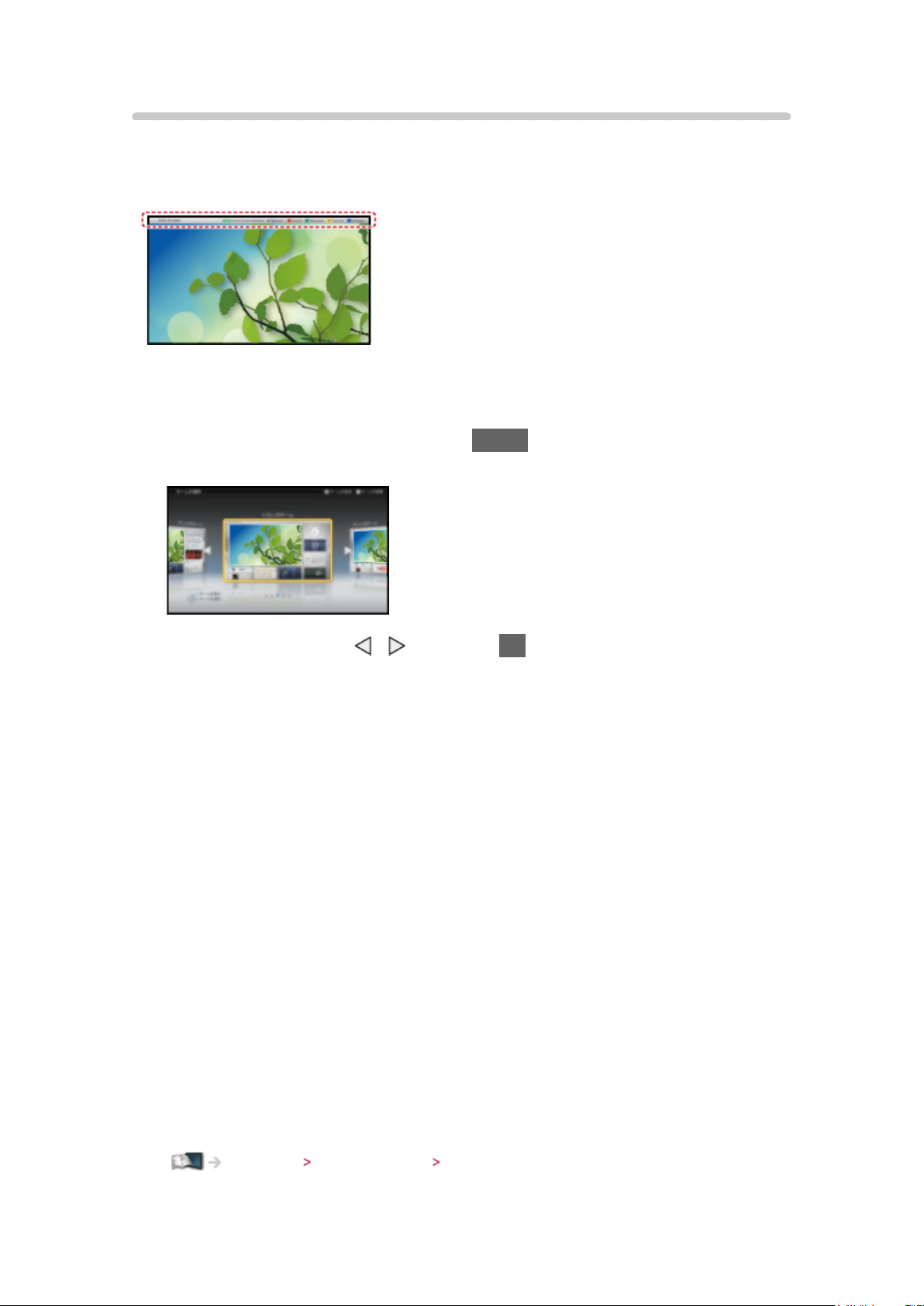

Settings

Select the setup menu from the tool guide on the top of the screen, or use coloured button to display the setup menu.
(Example)
■ Home Screen Selection
1. Display Home Screen Selection with HOME (Example)
2. Select the screen with
Full Screen TV:
Displays full-screen TV.
TV Home Screen:
To make your TV experience more convenient and comfortable.
Lifestyle Screen:
Displays the TV with useful information and services for everyday life.
Info Screen:
Enjoy internet content while watching TV.
Add New Screen:
You can add a new screen to personalise.
/ and press OK to set
■ Face Recognition
By using the built-in Camera, you can select the registered Home Screen with face recognition. Please refer to Tutorial from the tool guide.
●
For details of the built-in Camera
Functions Built-in Camera Using built-in Camera
- 13 -
Page 14
■ Settings
You can customise any Home Screen. (For example, changing the wallpaper, renaming freely, editing applications, setting the screen launched when the TV is turned on, etc.)
1. Select Settings from the tool guide
2. Follow the on-screen instructions
■ Search
You can search the content from various features.
1. Select Search from the tool guide
2. Follow the on-screen instructions
= Note =
●
To use this function fully, you need a broadband network environment. Ensure the network connections and network settings are completed.
Internet service Network connections
Internet service Network settings
●
Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated, you will not be able to use my Home Screen. You can update the software later manually.
Internet service Network settings Software Update
- 14 -
Page 15

Basic

Basic connection

Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables.

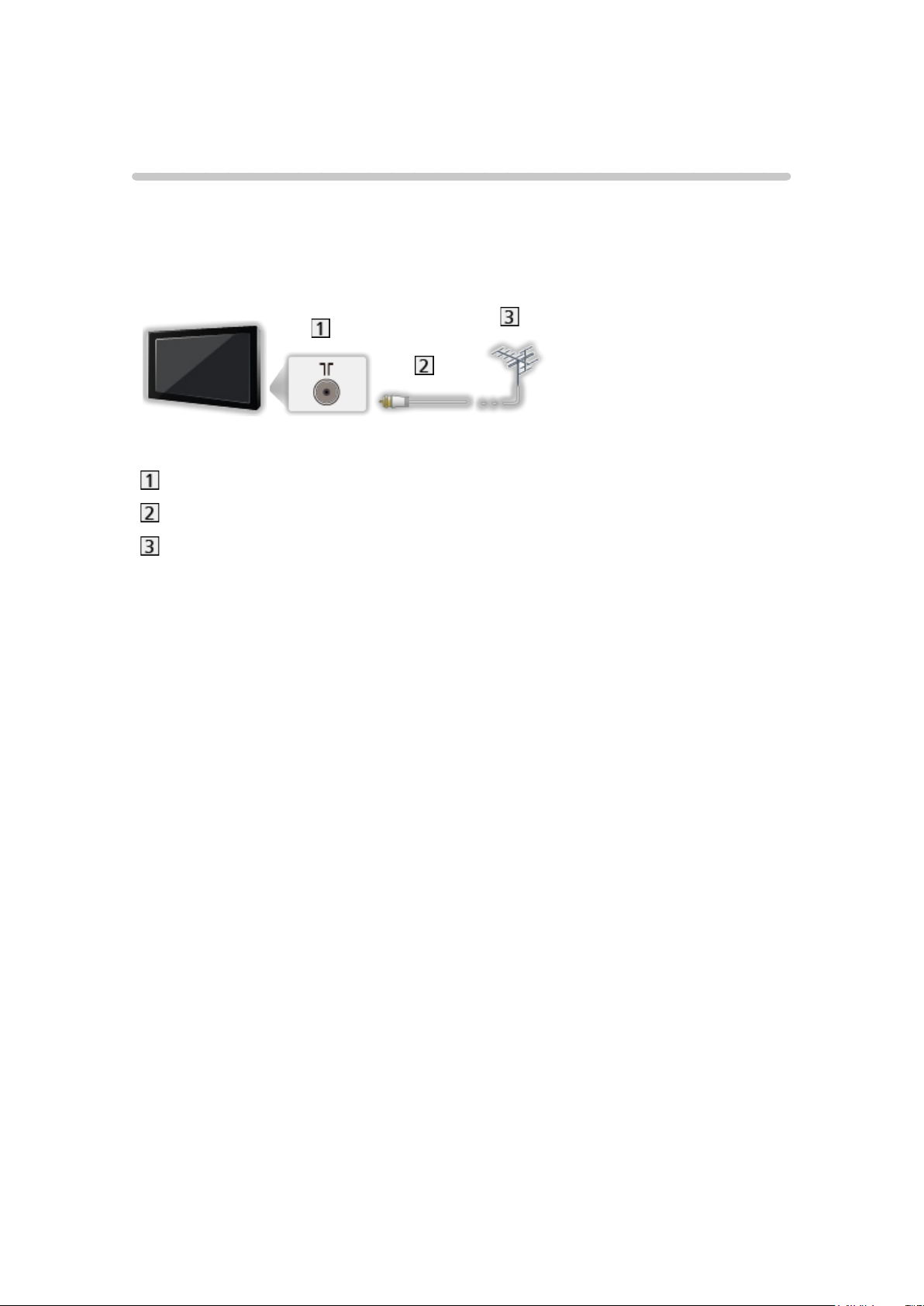

■ Aerial
Aerial terminal
RF cable
Aerial
●
Keep RF (antenna) cable away from the mains lead to avoid and minimise mains interference pickup.
●
Do not place the RF cable under the TV.
●
Anaerial,correctcable(75Ωcoaxial)andcorrectterminatingplugare
required to obtain optimum quality picture and sound.
●
If a communal aerial system is used, you may require the correct connection cable and plug between the wall aerial socket and the TV.
●
Your local Television Service Centre or dealer may be able to assist you in obtaining the correct aerial system for your particular area and the accessories required.
●
Any matters regarding aerial installation, upgrading of existing systems or accessories required, and the costs incurred, are the responsibility of you, the Customer.
- 15 -
Page 16

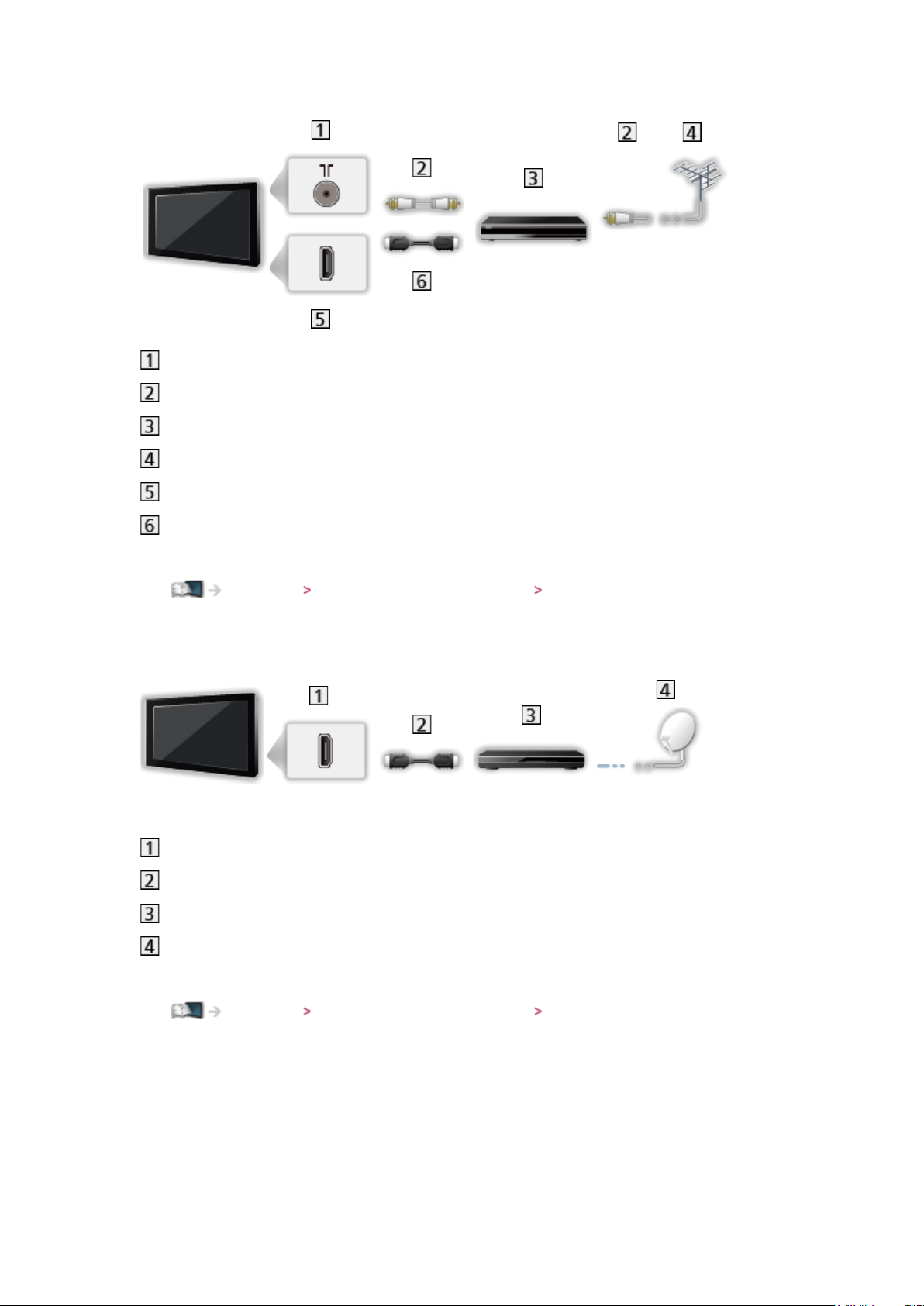

■ DVD Recorder / VCR
Aerial terminal
RF cable
DVD Recorder / VCR
Aerial
HDMI terminal
HDMI cable
●
For VIERA Link connections
Functions VIERA Link “HDAVI Control™” Summary of VIERA Link
■ Set top box
HDMI terminal
HDMI cable
Set top box
Satellite dish
●
For VIERA Link connections
Functions VIERA Link “HDAVI Control™” Summary of VIERA Link
= Note =
●
External equipment and cables shown are not supplied with this TV.
●
Please also read the manual of the equipment being connected.
●
Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor, otherwise distortion of image / sound may occur or operation of other equipment may be affected.
- 16 -
Page 17
●
When using an HDMI cable, it is recommended to use fully wired one.
●
Check the terminal type and cable plugs are correct when connecting.

Selecting channel

1. Select Digital TV or Analogue TV with TV
●
You can also select the mode pressing INPUT/OK/HOLD for MENU button repeatedly on the control panel of the TV.
●
The selected mode is displayed on the top left of the screen.
2. Select a channel with Channel Up / Down or numeric buttons
●
Press the numeric buttons to select a channel position with 2 or more­digit (e.g. 399, press ).
■ To select a channel from the channel list
1. Display the channel list with OK
2. Select a channel from the list with
/ and press OK to watch
■ To select a channel using information banner
1. Display information banner with INFO if it is not displayed
2. Select a channel with displayed
Watching Basic Information banner
/ and press OK to watch while the banner is
■ To select a channel using TV Guide
1. Display TV Guide with GUIDE
2. Select the current programme or channel with
OK to access
3. Select View with
Watching TV Guide
/ and press OK to watch (Digital TV)
/ / / and press
- 17 -
Page 18

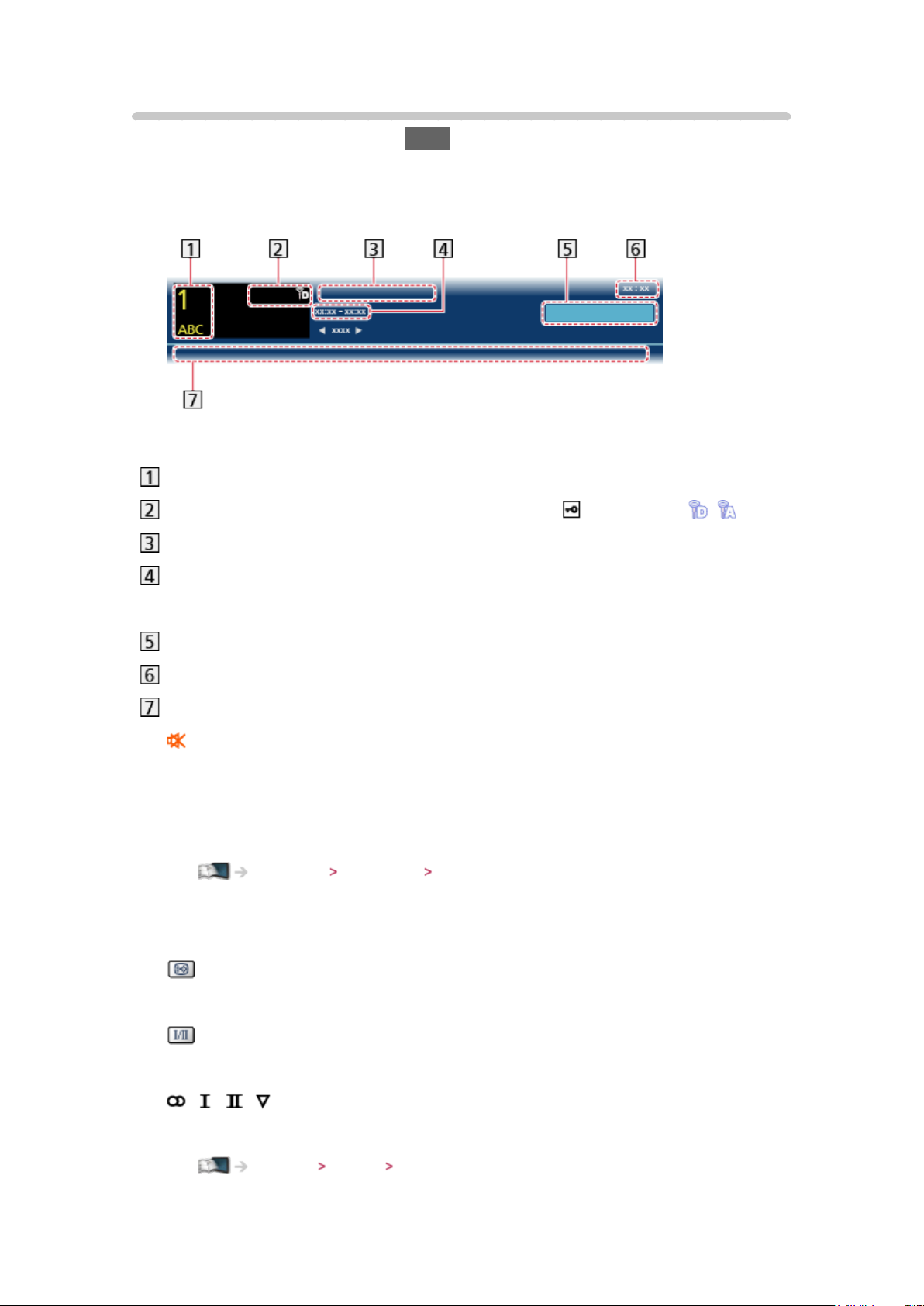

Information banner

Display information banner with INFO.
●
Also appears when changing a channel.
(Example)
Channel position and name
Channel type (Radio, etc.) / encrypted channel ( ) / TV mode ( , )
Programme
Programme start / finish time (Digital TV)
Channel position, etc. (Analogue TV)
Category
Current time
Features available / message meanings
:
Sound mute is on
Rating:
Rating information
Functions Child Lock Parental Rating
Bad signal:
Poor quality TV signal
:
Subtitle service available
:
Multiple image or audio available
, , , :
Audio mode
Settings Sound Advanced settings
- 18 -
Page 19
AD:
Audio Description service available
●
This function can aid visually-impaired viewers by adding an additional audio track to describe events on screen.
Settings Sound Audio Description
1 – 90:
Off Timer remaining time
Watching Basic Off Timer
●
To confirm another tuned channel
/
●
To watch the channel listed in the banner
OK
●
Information on the next programme (Digital TV)
●
Extra information (Digital TV)
INFO
– Press again to hide the banner.
●
To hide the banner
EXIT
●
To update the TV software (if available)
(red)
●
To select a favourite list (Digital TV)
(blue)
– If the favourite list is created in Favourites Edit.
Watching Tuning and editing channels Favourites Edit
●
To adjust banner timeout, set Banner Display Timeout.
Settings Setup Display Settings
- 19 -
Page 20

Option Menu

Confirm or change the current status.
1. Display Option Menu with OPTION
2. Select one of the following items with
/ and press OK to access
Voice Guidance Settings / Audio Description / Audio Selection / Dual Audio
/ MPX / Volume Correction
3. Set with
/ / / and press OK to store
Voice Guidance Settings
Guidance settings for visually impaired users
Settings Sound Voice Guidance Settings
Audio Description
Set to Auto if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen.
●
To adjust the volume for Audio Description
Settings Sound Audio Description
●
For Digital TV
Audio Selection
Selects between alternative languages for sound tracks (if available).
●
For Digital TV
Dual Audio
Selects stereo / monaural (if available).
●
For Digital TV
MPX
Selects multiplex sound mode (if available).
Settings Sound Advanced settings
●
For Analogue TV
Volume Correction
Adjusts the volume of each individual channel or input mode.
- 20 -
Page 21

Subtitle

Display / hide subtitles (if available) with STTL.
●
For Digital TV
= Note =
●
Subtitles may not be displayed properly in 3D images.

Off Timer

Turn the TV Standby mode automatically after a fixed period.
1. Display the menu with MENU
2. Select Timer
3. Select the time in 15-minute increments with
Off Timer with / and press OK to access
/ and press OK to set
90 / 75 / 60 / 45 / 30 / 15 / Off (minutes)
●
To cancel, set to Off or turn the TV off.
●
The remaining time displays on the information banner.
Watching Basic Information banner
●
When the remaining time is less than 3 minutes, the remaining time will flash on the screen.

Last view

Switch to a previously viewed channel or input mode easily with LAST VIEW.
●
Press again to return to the current view.
= Note =
●
Switching channel is not available while the recording of Timer
Programming or One Touch Recording is in progress.
●
Watching less than 10 seconds is not reflected in the previously viewed channel or input mode.
- 21 -
Page 22

Adjusting time

■ Adjust the standard time
Select the region where you live to adjust the standard time. (Base on GMT)
1. Display the menu with MENU
2. Select Timer to access
3. Select the region with
NSW / ACT / Victoria / Queensland / South Australia / Western Australia / Northern Territory / Tasmania
●
The time contained in the broadcast signal is UTC (Universal Time coordinated) formally known as GMT (Greenwich Mean Time).
NSW / ACT / Victoria / Queensland / Tasmania: +10:00
South Australia / Northern Territory: +9:30
Western Australia: +8:00
Clock Settings Region Select with / and press OK
/ and press OK to set
■ Adjust for Summer Time
Select time offset from the standard time for Summer Time. (Base on GMT)
1. Display the menu with MENU
2. Select Timer press OK to access
Clock Settings Daylight Saving Time with / and
3. Select Auto / Off / + 1/2 hour / + 1 hour with
●
If there is a gap between displayed time and actual time, set this function.
●
Normally select Auto to adjust as following for the region has been set in
Region Select.
NSW / ACT / Victoria / Tasmania: +11:00
South Australia: +10:30
Queensland: +10:00
Northern Territory: +9:30
Western Australia: +8:00
/ and press OK to set
- 22 -
Page 23

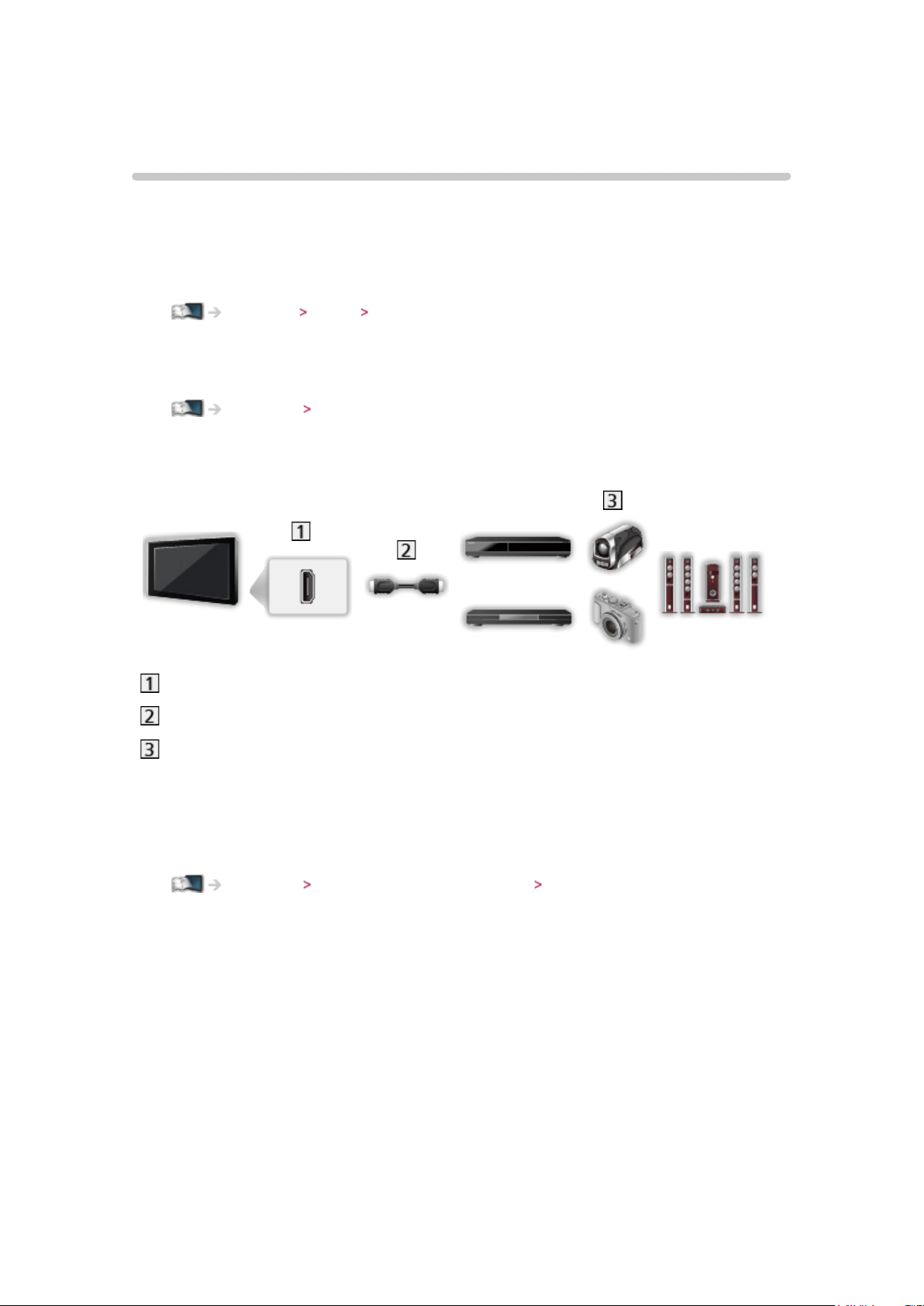

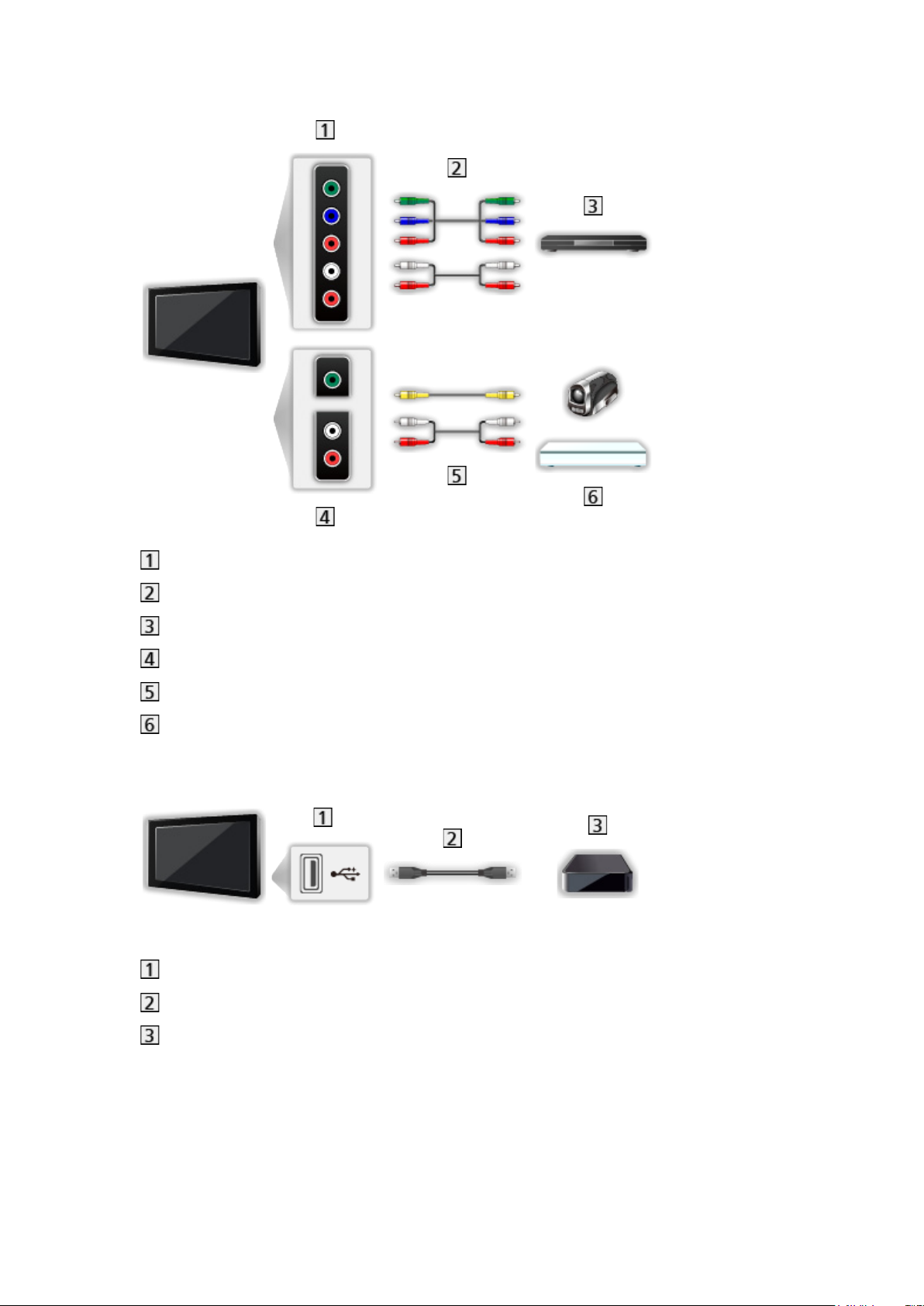

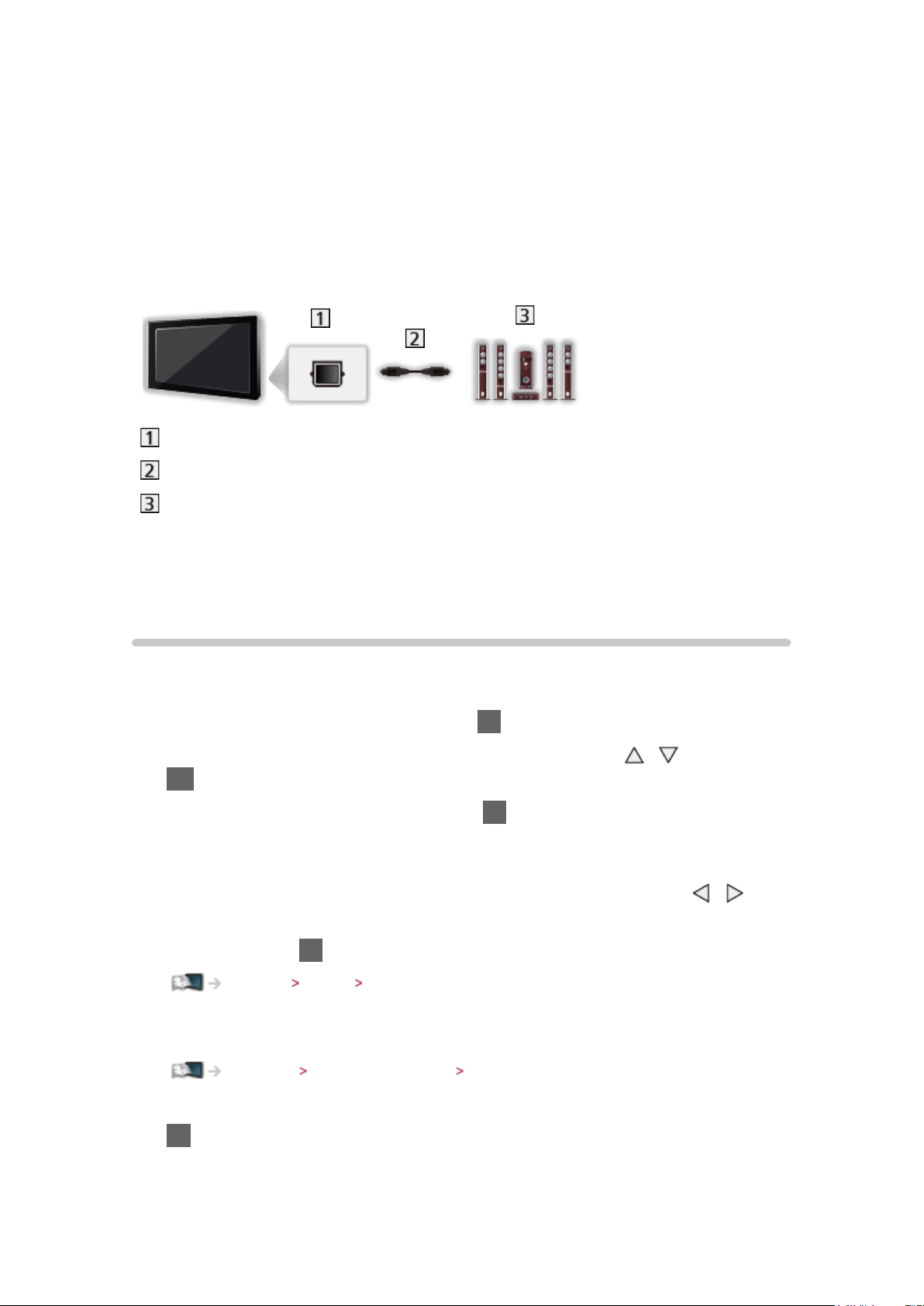

External equipment

External connection

These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment.
●
For basic connection
Watching Basic Basic connection
●
Check the terminal type and cable plugs are correct when connecting.
●
To use the specific devices supporting Bluetooth wireless technology
Functions Bluetooth devices
■ HDMI equipment
HDMI terminal
Fully wired HDMI compliant cable
Recorder / Player / 3D compatible player / Set top box / Camcorder /
Amplifier with speaker system
= Note =
●
For VIERA Link connections
Functions VIERA Link “HDAVI Control™” Summary of VIERA Link
●
Use HDMI2 for connecting an amplifier. This connection is applicable when using an amplifier that has ARC (Audio Return Channel) function.
- 23 -
Page 24
■ AV devices
AV IN (COMPONENT) terminal
Component cables
DVD player
AV IN (VIDEO) terminal
Composite cables
Camcorder / Game equipment

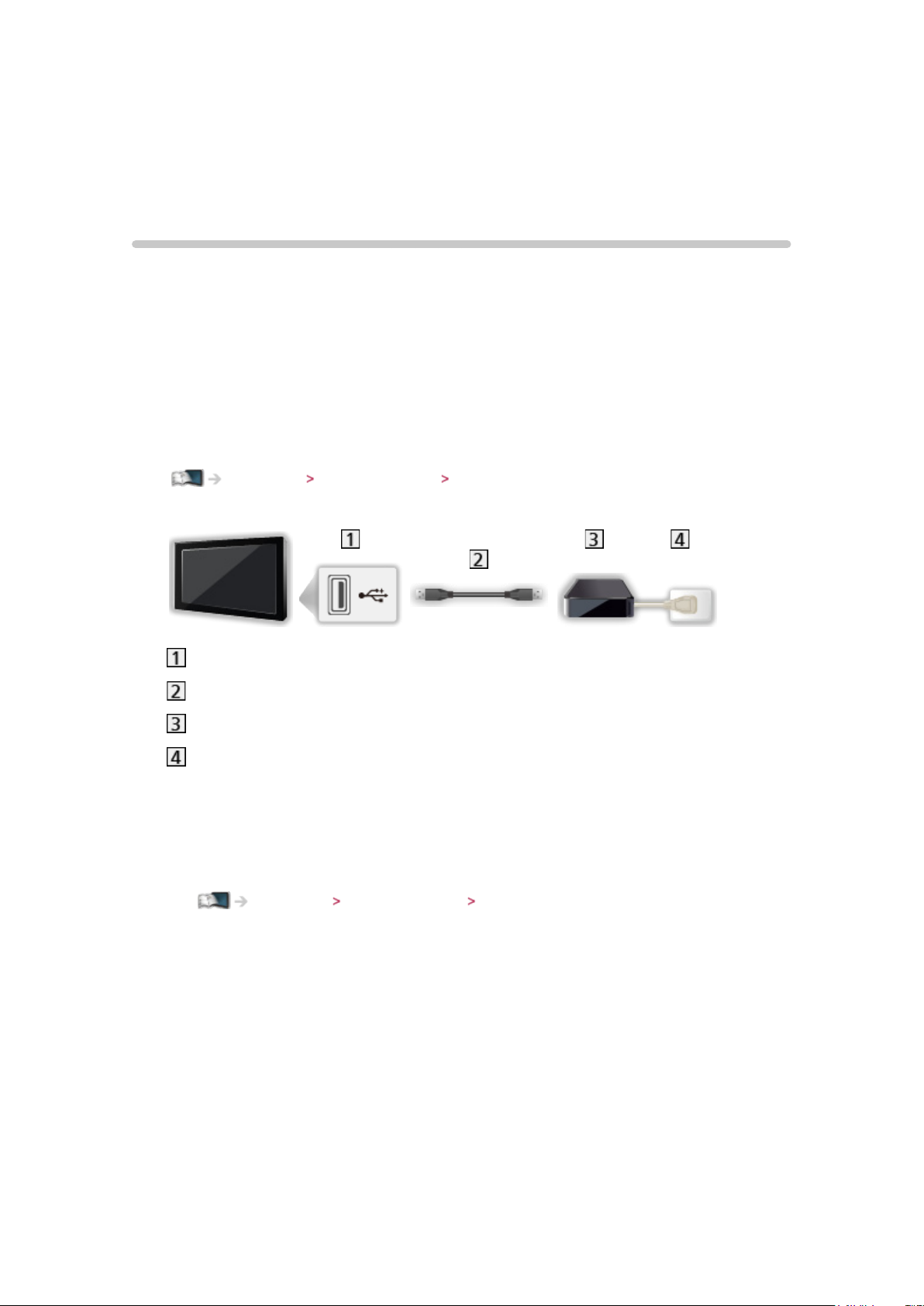

■ USB devices
USB port
USB cable
USB HDD
= Note =
●
It is recommended to connect the devices to the TV’s USB ports directly.
●
You cannot use two or more of the same kind of USB devices simultaneously except USB Flash Memory or USB HDD.
●
Use USB 3 port for connecting the USB HDD.
- 24 -
Page 25
●
Some USB devices or USB HUB may not be used with this TV.
●
You cannot connect any devices by using USB card reader.
●
Additional information for the devices may be on the following website. (English only)
http://panasonic.net/viera/support
■ To listen with speakers
DIGITAL AUDIO OUT
Optical digital audio cable
Amplifier with speaker system
●
To enjoy the sound from the external equipment in multi-channel sound (e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. For the connections, read the manuals of the equipment and amplifier.

Watching external input

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input.
1. Display the input selection menu with AV
2. Select the input mode connected to the equipment with
OK to watch (The selected mode is displayed on the top left of the screen)
●
You can also select the input pressing AV on the remote control or INPUT/OK/HOLD for MENU button on the control panel of the TV. Press repeatedly until the desired input is selected.
●
To switch between COMPONENT and VIDEO in AV, select with / .
●
You can label or skip each input mode. Skipped inputs will not be displayed when AV is pressed. (Input Labels)
Settings Setup Display Settings
●
The remote control is capable of operating the contents or external equipment.
Watching External equipment Operating with TV’s remote control
/ and press
●
To return to TV mode
TV
- 25 -
Page 26
= Note =
●
If the external equipment has an aspect adjustment function, set it to 16:9.
●
For details, read the manual of the equipment or ask your local dealer.

Operating with TV’s remote control

You can operate the contents in Media Player / media server, recording functions or the connected equipment with the below buttons of this TV’s remote control.
:
Playback videocassette / DVD / video content
:
Stop the operations
:
Rewind, view the picture rapidly in reverse (VCR)
Skip to the previous track, title or chapter (DVD / video content)
:
Rewind, view the picture rapidly in reverse (VCR)
Search backward (DVD / video content)
:
Fast-forward, view the picture rapidly forward (VCR)
Skip to the next track, title or chapter (DVD / video content)
:
Fast-forward, view the picture rapidly forward (VCR)
Search forward (DVD / video content)
:
Pause / Resume
Press and hold to play at slow speed (DVD)
:
One Touch Recording
Recording Recording current programme One Touch Recording
- 26 -
Page 27
■ How to change the code
Each Panasonic product has its own remote control code. Change the code according to the product for operation.
1. Press and hold Standby On / Off switch during the following operations
2. Enter the appropriate code as follows with numeric buttons
●
Codes for each product and features
70: DVD Recorder, DVD Player, Blu-ray Disc Player
71: Player theatre, Blu-ray Disc theatre
72: VCR
73 (default):
Using in USB HDD recording, Media Player, DLNA features, product using in VIERA Link
3. Press
to change
= Note =
●
Confirm if the remote control works correctly after changing the code.
●
The codes may be reset to defaults if batteries are replaced.
●
Some operations may not be available depending on the equipment.

HDMI features

HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying with a non-compression standard.
HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment.
HDMI-compatible equipment DVD player, a set top box or game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
Watching External equipment External connection
: The HDMI logo is displayed on HDMI-compliant equipment.
with an HDMI or DVI output terminal, such as a
- 27 -
Page 28
■ Applicable HDMI features
●
Input audio signal:
2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)
●
Input video signal:
Matches the output setting of the digital equipment.
Watching External equipment Valid input signals
●
VIERA Link (HDAVI Control 5)
Functions VIERA Link “HDAVI Control™” Summary of VIERA Link
●
Content Type
●
Deep Colour
●
Audio Return Channel
– Audio Return Channel (ARC) is a function to send digital sound signals
via an HDMI cable.
– For HDMI2 terminal
●
3D
■ DVI connection
If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adaptor cable. When using the DVI to HDMI adaptor cable, connect the audio cable to the audio input terminal (use AV IN audio terminals).
●
Enquire HDMI adaptor cable at your local digital equipment retailer shop.
= Note =
●
Audio settings can be made on HDMI1 / 2 / 3 Input in the Sound Menu.
Settings Sound Advanced settings
●
If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.
●
These HDMI connectors are “type A”.
●
These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.
●
Equipment having no digital output terminal may be connected to the input terminal of component or video to receive analogue signals.
●
This TV incorporates HDMI™ technology.
- 28 -
Page 29

Valid input signals

■ COMPONENT (Y, Pb/Cb, Pr/Cr), HDMI
Signal name COMPONENT HDMI
525 (480) / 60i, 60p ○ ○
625 (576) / 50i, 50p ○ ○
750 (720) / 60p, 50p ○ ○
1,125 (1,080) / 60i, 50i ○ ○
1,125 (1,080) / 60p, 50p, 24p ○
○:Applicableinputsignal
= Note =
●
Signals other than above may not be displayed properly.
●
The above signals are reformatted for optimal viewing on your display.

For best picture

Viewing Mode

1. Display the menu with MENU
2. Select Picture
3. Select the mode with
Viewing Mode
(Dynamic / Normal / Cinema / True Cinema / Custom / Professional1 /
Professional2)
Selects your favourite picture mode for each input.
Dynamic:
Improves contrast and sharpness for viewing in a bright room.
Normal:
Normal use for viewing in a normal lighting condition.
Viewing Mode with / and press OK to access
/ and press OK to set
Cinema:
Improves the performance of contrast, black and colour reproduction for watching movies in a darkened room.
True Cinema:
Reproduces the original image quality precisely without any revision.
- 29 -
Page 30
Custom:
Adjusts each menu item manually to suit your favourite picture quality.
Professional1 / 2:
Allows you to set and lock the professional picture settings.
Watching For best picture Advanced Settings
●
This mode is available only when Professional Mode (isfccc) in the Setup Menu is set to On.
●
If the certified professional dealer sets these modes, Professional1 and Professional2 may be displayed as isf Day and isf Night.
In each Viewing Mode, Backlight, Contrast, Brightness, Colour, Tint,
Sharpness, Colour Temperature, Vivid Colour, Adaptive Backlight Control, Ambient Sensor, Noise Reduction, MPEG Remaster, Resolution Remaster, Caption Smoother, Brilliance Enhancer, Intelligent Frame Creation and 24p Smooth Film can be adjusted and stored.
When in True Cinema, Custom or Professional1 / 2 mode, Advanced Settings can be adjusted additionally. The settings in True Cinema, Custom or
Professional1 / 2 mode can be stored for each input.
●
You can set Viewing Mode in 2D and 3D mode for each.

Ambient Sensor

1. Display the menu with MENU
2. Select Picture
3. Select On / Off with
Ambient Sensor
(On / Off)
●
Automatic Brightness Control function
Adjusts picture settings automatically depending on ambient lighting conditions.
Ambient Sensor with / and press OK to access
/ and press OK to set
- 30 -
Page 31

Auto power standby function

The TV will automatically go into Standby mode in the following conditions:
●
Off Timer is active.
Watching Basic Off Timer
●
No operation is performed for 4 hours while Auto Standby is set to On.
Settings Timer Auto Standby
●
No signal is received and no operation is performed for 10 minutes while
No signal Power off is set to On.
Settings Timer No signal Power off
= Note =
●
This function does not affect the recording of Timer Programming and One
Touch Recording.

Aspect

Change the aspect ratio (image size) with ASPECT.
●
Enjoy viewing the image at its optimum size and aspect.
■ To change the aspect ratio manually
1. Display Aspect Selection list with ASPECT
2. Select the mode with
●
You can also change the mode pressing ASPECT.
(Press repeatedly until you reach the desired mode.)
16:9:
Directly displays the image at 16:9 without distortion (anamorphic).
14:9:
Displays the image at the standard 14:9 without distortion.
Just:
Displays a 4:3 image full-screen. Stretching is only noticeable at the left and right edges.
/ and press OK to set
4:3:
Displays the image at the standard 4:3 without distortion.
Zoom:
Displays a 16:9 letterbox or 4:3 image without distortion.
- 31 -
Page 32
4:3 Full:
Displays a 4:3 image enlarged horizontally to fit the screen.
●
For HD (High definition) signals
Sidecut Just:
Displays a 16:9 letterbox (anamorphic) image full-screen. Stretching is only noticeable at the left and right edges.
●
For HD (High definition) signals
Sidecut Zoom:
Displays a 16:9 letterbox (anamorphic) image full-screen without distortion.
●
For HD (High definition) signals
= Note =
●
Display the image (TV, external input, etc.) full-screen to use this function completely.
●
Aspect mode can be memorised separately for SD (Standard definition) and HD (High definition) signals.
●
Aspect cannot be changed in 3D format signals.

Advanced Settings

You can adjust and set up the detailed picture settings for each input when
Viewing Mode is set to True Cinema, Custom or Professional1 / 2 mode.
Watching For best picture Viewing Mode
1. Select the input mode with AV or TV
2. Display the menu with MENU
3. Select Picture
4. Select the mode with
Viewing Mode with / and press OK to access
/ and press OK to set
True Cinema / Custom / Professional1 / Professional2
■ Adjust the detailed picture settings
1. Display the menu with MENU
2. Select Picture
Expander / Clear White Effect / White Balance / Colour Management / Gamma with / and press OK to access
Advanced Settings Adaptive Gamma Control / Black
3. Set with
/ / / and press OK to store
- 32 -
Page 33
■ Adaptive Gamma Control
Adaptive Gamma Control
Adjusts the gamma curve to make the image brighter.
■ Black Expander
Black Expander
Gradually adjusts the shades of black.
■ Clear White Effect
Clear White Effect
Makes the white area clearer.
■ White Balance
R-Gain / G-Gain / B-Gain
Adjusts the white balance of bright red / green / blue areas.
R-Cutoff / G-Cutoff / B-Cutoff
Adjusts the white balance of dark red / green / blue areas.
More Detailed Adjustment
Adjusts more detailed White Balance items.
Input Signal Level:
Adjusts the input signal level.
R-Gain / G-Gain / B-Gain:
Adjusts the detailed white balance of bright red / green / blue areas.
Reset White Balance:
Resets to the default detailed White Balance.
Reset White Balance
Resets to the default White Balance.
- 33 -
Page 34
■ Colour Management
R-Hue / R-Saturation / R-Luminance
Adjusts the picture hue / saturation / luminance of red areas.
G-Hue / G-Saturation / G-Luminance
Adjusts the picture hue / saturation / luminance of green areas.
B-Hue / B-Saturation / B-Luminance
Adjusts the picture hue / saturation / luminance of blue areas.
More Detailed Adjustment
Adjusts more detailed Colour Management items.
Y-Hue / C-Hue / M-Hue:
Adjusts the picture hue of yellow / cyan / magenta areas.
Y-Saturation / C-Saturation / M-Saturation:
Adjusts the saturation of yellow / cyan / magenta areas.
Y-Luminance / C-Luminance / M-Luminance:
Adjusts the luminance of yellow / cyan / magenta areas.
Reset Colour Management:
Resets to the default detailed Colour Management.
Reset Colour Management
Resets to the default Colour Management.
■ Gamma
Gamma
(2.6 / 2.4 / 2.2 / 2.0 / 1.8)
Switches the gamma curve.
●
Please note the numerical values are reference for the adjustment.
- 34 -
Page 35
More Detailed Adjustment
Adjusts more detailed Gamma items.
Input Signal Level:
Adjusts the input signal level.
Gain:
Adjusts the gain of gamma for selected signal level.
Reset Gamma:
Resets to the default detailed Gamma.
Reset Gamma
Resets to the default Gamma.
■ Reset Picture Defaults
Reset Picture Defaults
Resets Advanced Settings to the default settings.

Lock Settings

Locks the settings of Professional1 / 2 mode for each input.
1. Display the menu with MENU
2. Select Picture
3. Enter the PIN number (4 digits) with numeric buttons
●
Enter the PIN number twice at first setting.
●
Make a note of the PIN number in case you forget it.
4. Select Adjustment Lock with
5. Select On with
●
Backlight, Contrast, Brightness, Colour, Tint, Sharpness, Colour Temperature, Vivid Colour, Adaptive Backlight Control, Resolution Remaster, Caption Smoother, Brilliance Enhancer, Advanced Settings and Reset Picture Defaults can be locked.
Lock Settings with / and press OK to access
/ and press OK to access
/ and press OK to set
- 35 -
Page 36
■ To change the PIN number
1. Select Change PIN with / and press OK to access
2. Enter a new PIN number twice with numeric buttons

Copy Adjustment

Copies the picture settings of True Cinema, Custom, Professional1 or
Professional2 to those of another input.
1. Display the menu with MENU
2. Select Picture
Destination Input with / and press OK to access
3. Select the destination to copy to with
4. Select Copy Start with
5. When the confirmation screen is displayed, select Yes with press OK to set
= Note =
●
Option Settings, Screen Settings and 3D Settings will not be copied.
●
You cannot copy to the locked mode.
Copy Adjustment Destination Viewing Mode /
/ and press OK to set
/ and press OK to copy
/ and
- 36 -
Page 37

For best audio

Sound mode

1. Display the menu with MENU
2. Select Sound
3. Select the mode with
Mode
(Standard / Music / Ambience / User)
Selects your favourite sound mode for each input.
Standard:
Provides the suitable sound quality for all types of scenes.
Music:
Improves sound quality for watching music videos, etc.
Ambience:
Improves spatial effects and provides clear sounds.
User:
Adjusts the sounds manually using the equaliser to suit your favourite sound quality.
Mode with / and press OK to access
/ and press OK to set
●
In each mode, Bass, Treble, Surround, Bass Boost and Digital Remaster can be adjusted and stored.
●
For the User mode, Equaliser will be available in the Sound Menu instead of Bass and Treble. Select Equaliser and adjust the frequency.
Settings Sound Basic settings
●
This function is effective only for the sound from TV speakers.
- 37 -
Page 38

TV Guide

Using TV Guide

TV Guide - Electronic Programme Guide (EPG) provides an on-screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).
1. Select Digital TV or Analogue TV with TV
2. Press GUIDE to view TV Guide
●
Press again to change the layout (Landscape / Portrait).
– View Landscape to see several channels.
– View Portrait to see one channel by time.

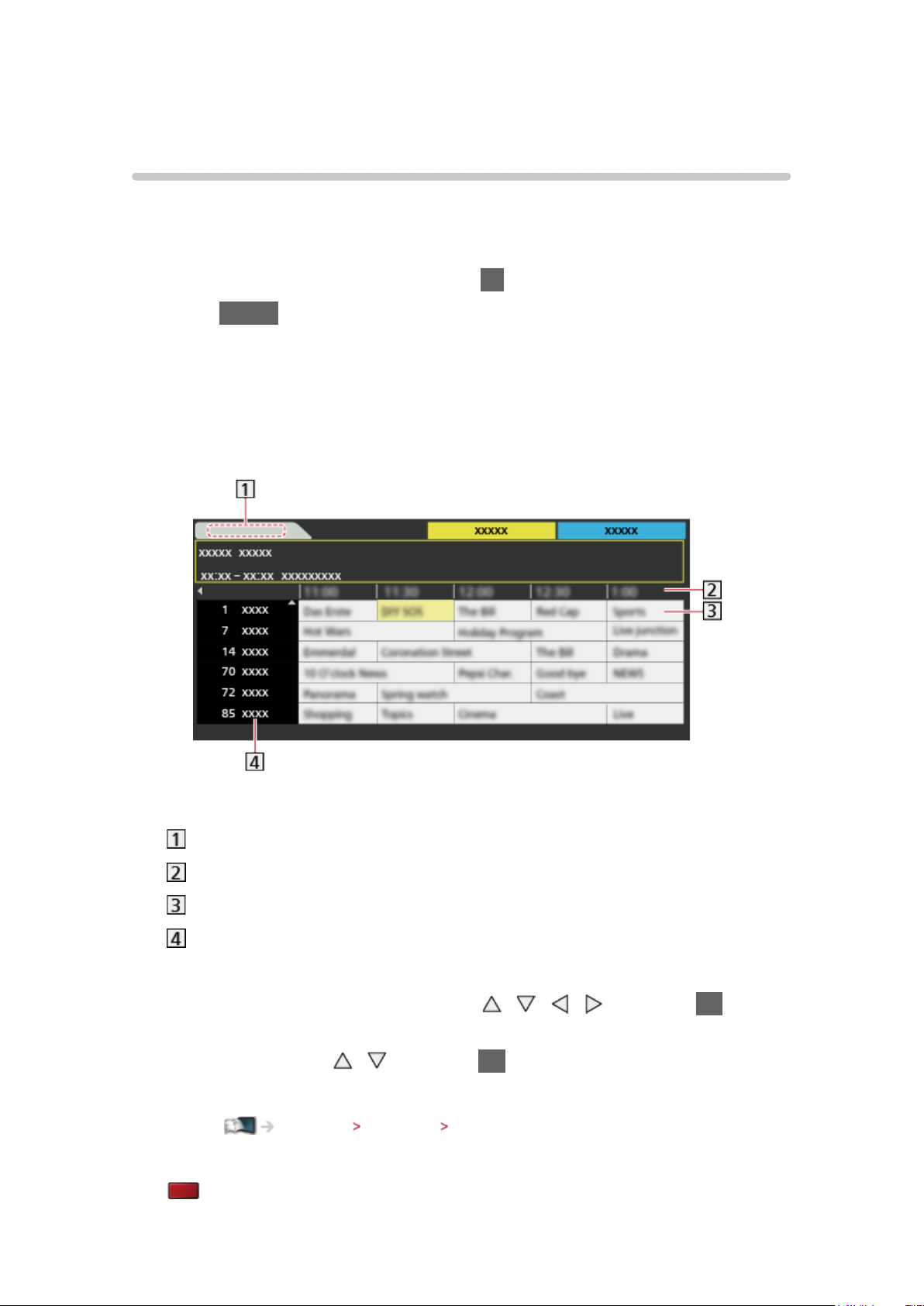

(Example)
TV Guide date
TV Guide time
Programme
Channel position and name
●
To watch the programme
1) Select the current programme with
access
2) Select View with
– To use timer programming, select Timer Programming.
Watching TV Guide Timer Programming
●
To the previous day (Digital TV)
(red)
/ and press OK to exit TV Guide (Digital TV)
- 38 -
/ / / and press OK to
Page 39
●
To the next day (Digital TV)
(green)
●
To view a channel list of the selected type (Digital TV)
1) Display the type list with
2) Select the type with
●
To view a channel list of the selected favourite list
/ and press OK to view
1) Display the favourite list with
2) Select the favourite with
(yellow)
(blue)
/ and press OK to view
– To list favourite channels, set Favourites Edit.
Watching Tuning and editing channels Favourites Edit
●
To view more details of the programme (Digital TV)
1) Select the programme with
/ / /
2) Press INFO to view
– Press again to return to TV Guide.
●
To exit TV Guide
EXIT
= Note =
●
When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV Guide is completely shown.
●
Digital TV and Analogue TV channels are displayed on the same TV Guide screen. D means Digital TV channel and A means Analogue TV channel. There will be no programme listings for Analogue channels.
- 39 -
Page 40

Timer Programming

The Timer Programming menu allows you to choose programmes that you want to remind watching or record to the USB HDD. At the correct time, the TV will tune to the correct channel even if the TV is in Standby mode.
1. Select the forthcoming programme or channel with
/ / / and
press OK to access
2. Select USB HDD Rec. / Reminder with
●
To check / change / cancel a timer programming event
Recording Timer Programming Editing timer programming
●
LED will turn to orange in Standby mode if Timer Programming is set.
●
To return to TV Guide
/ and press OK to set
RETURN
●
If you select the current programme, a confirmation screen asking whether you want to watch or record the programme appears. Select
Timer Programming with / and press OK to set USB HDD Rec. to
record from the time you finish the timer programming event setting.
= Note =
●
Not valid in Analogue TV
●
Timer Programming only works reliably if correct time information is
received via the signal from the broadcaster or service provider.
●
No other channels can be selected while the recording of Timer
Programming is in progress.
●
When recording programmes to the USB HDD, be sure to format the USB HDD and enable it to record in USB Device Setup.
Recording USB HDD setup
- 40 -
Page 41
3D

Note

●
Display the image (TV, external input, etc.) full-screen for viewing 3D.
●
Do not exert pressure on or scratch the lens of the 3D Eyewear.
●
3D content will not be correctly visible if the 3D Eyewear is worn upside down or back-to-front.
●
When viewing 3D images, make sure your eyes are at an approximately horizontal level and keep a position where you do not see double images.
●
Do not wear the 3D Eyewear when watching something other than 3D images. Liquid crystal displays (such as computer screens, digital clocks or calculators, etc.) may be difficult to see while wearing the 3D Eyewear.
●
Do not use the 3D Eyewear as sunglasses.
●
3D effects may be perceived differently depending on the person.

3D Eyewear - Maintenance

■ Storing and cleaning the 3D Eyewear
●
Store the 3D Eyewear in a cool, dry place.
●
Clean using a soft, dry cloth.
– Wiping the 3D Eyewear with a cloth that is covered in dust or dirt may
scratch the eyewear. Shake off any dust from the cloth before use.
– The lens of the 3D Eyewear is easily broken. Be careful when cleaning
the lens.
●
Do not use benzene, thinner or wax on the 3D Eyewear, otherwise this may cause peeling of the paint.
●
Do not dunk the 3D Eyewear in liquid such as water.
- 41 -
Page 42

Viewing 3D

You can enjoy viewing 3D images with contents or programmes corresponding to the 3D effect by wearing the 3D Eyewear.
●
This TV supports Frame Sequential, Side by Side and Top and Bottom 3D formats.
– Frame Sequential is the 3D format that the images for the left and right
eyes are recorded with the high definition quality and alternately played back.
1. Put the 3D Eyewear on
2. View the 3D images
●
Safety precautions will be displayed when you first watch the 3D image. Select Yes or No to continue to view 3D images.
If you select Yes, this message will be displayed again in the same condition after Mains power On / Off switch is next turned on. Select No if you do not want to display this message again.
■ Playing back 3D-compatible Blu-ray disc (Frame Sequential
format)
●
Connect the 3D-compatible player via a fully wired HDMI compliant cable. (If you use the non 3D-compatible player, the images will be displayed in 2D mode.)
●
If the input mode is not switched automatically, select the input mode connected to the player.
Watching External equipment Watching external input
■ 3D-supported broadcast
●
Please consult the suppliers of contents or programmes for availability of this service.
■ 3D photos and 3D videos taken by 3D-compatible Panasonic
products
●
Available in Media Player and Network services
Media Player
Home network
■ 2D images converted to 3D
●
Set to 2D 3D mode in 3D Mode Selection.
Watching 3D 3D Mode Selection
- 42 -
Page 43

3D Mode Selection

You can easily change the viewing mode between 2D and 3D with 3D.
1. Display the 3D Mode Selection screen with 3D
2. Select the mode with
●
Items of 3D Mode Selection vary depending on the condition.
/ and press OK to set
3D / 2D:
Displays the appropriate image as you desire without selecting 3D format.
●
This mode may not work properly depending on the source image format. In this case, select the appropriate 3D format manually.
■ To change 3D format manually
When the image is not changed properly using 3D / 2D mode, use this manual setting.
1. Display the 3D Mode Selection (Manual) screen with above operation
2. Select the mode with
/ and press OK to set
Original:
(red) during
Displays the source image as it is.
●
Use to identify the format type of the source image.
Watching 3D Source image format
Side by Side - 3D / Side by Side - 2D / Top and Bottom - 3D / Top and Bottom
- 2D:
Displays the mode you select.
●
Not valid in Analogue TV and AV mode
2D
3D:
Converts 2D images into 3D.
●
Please note the 3D images appear slightly different from the originals.
●
Using this function for profit-making purposes, or publically showing images converted from 2D to 3D in places such as shops or hotels etc. may infringe on the rights of the copyright holder protected under copyright law.
- 43 -
Page 44

3D Settings

1. Display the menu with MENU
2. Select Picture
3. Select one of the following items with
3D Detection / 3D Signal Message / 2D
3D Settings with / and press OK to access
/ and press OK to access
3D Depth / 3D Adjustment / L/R
Picture Swap / Edge Smoother / Safety Precautions
4. Set with
●
To exit the menu screen
/ / / and press OK to store
EXIT
3D Detection
(On (Advance) / On / Off)
Selects whether to switch to the 3D mode automatically.
On (Advance):
Detects all the 3D format signals and displays the 3D image automatically.
On:
Detects the particular 3D format signals (Frame Sequential, etc.) and displays the 3D image automatically.
●
To view 3D images without any notifications and operations, set to On
(Advance).
3D Signal Message
(On / Off)
Selects whether to give a notification message when a signal of 3D format is found.
●
Not valid when 3D Detection is set to On (Advance)
●
For Digital TV, Component and HDMI input
3D Depth
2D
(Max / Mid / Min)
Selects a level of 3D-image depth for viewing converted 2D images.
- 44 -
Page 45
3D Adjustment
(On / Off)
Adjustment of the 3D effect (except in 2D
3D mode).
Set to On to enable Effect setting.
●
When setting to On, a safety precaution message will appear. Read it carefully and press RETURN to go to Effect setting.
●
When adjusting, take into account that the vision of 3D images varies among different individuals.
Effect:
Adjusts the 3D depth according to the contents or to your preference. (This setting will not be memorised when changing the input mode or channel.)
L/R Picture Swap
(L/R (Normal) / R/L (Reversed))
Swaps pictures for left eye and right eye (except in 2D
3D mode).
Select R/L (Reversed) if you feel that the sense of depth is unusual.
●
This setting will not be memorised when changing the input mode or channel.
Edge Smoother
(On / Off)
Set to On if you feel the contoured parts of an image are not smooth enough (except in 2D
3D mode).
Safety Precautions
Displays the precautions for viewing 3D images.
= Note =
●
Display the image (TV, external input, etc.) full-screen to use this function completely.
- 45 -
Page 46

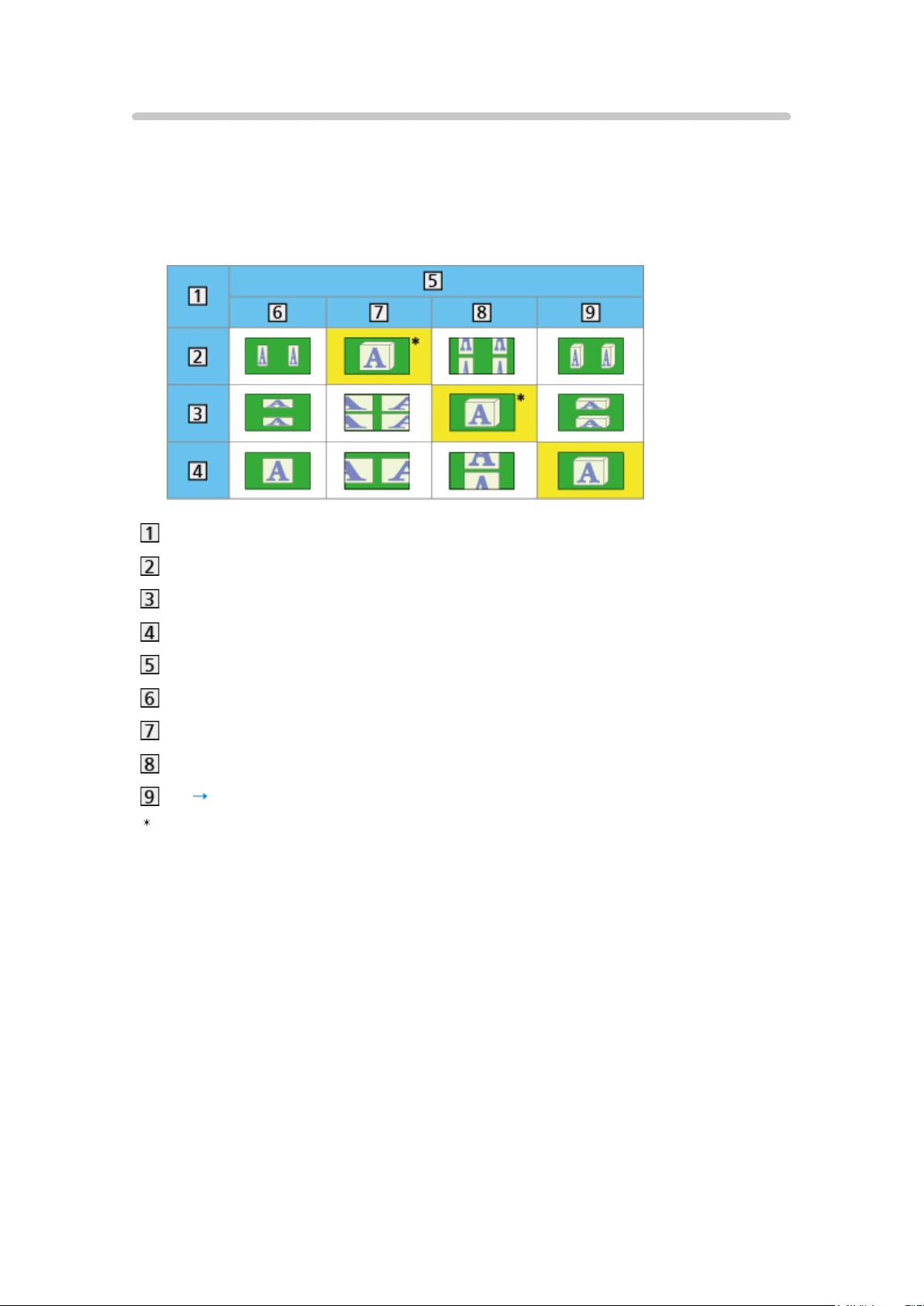

Source image format

If the picture appears to be abnormal, refer to the table of images that can be seen for each 3D Mode Selection (Manual) and the source image format, and select the correct 3D mode.
●
3D images are displayed correctly with appropriate 3D format as following yellow boxes.
Source image format
Side by Side
Top and Bottom
Normal format (2D)
3D Mode Selection
Original
Side by Side - 3D
Top and Bottom - 3D
2D 3D
: When selecting Side by Side - 2D or Top and Bottom - 2D, the images will
be displayed without 3D effect.
●
Depending on the player or broadcasts, the image may be different from the above illustrations.
- 46 -
Page 47

Tuning and editing channels

Setting menu

You can retune channels, create your favourite channel lists, skip unwanted channels, etc.
1. Select Digital TV or Analogue TV with TV
2. Display the menu with MENU
3. Select Setup
Digital TV Tuning Menu / Analogue TV Tuning Menu
●
The menu name varies depending on the TV mode.
4. Select one of the functions with
Favourites Edit / Channel List / Auto Tuning / Manual Tuning / Update Channel List / New Channel Message / Signal Condition
Tuning Menu with / and press OK to access
/ and press OK to access

Favourites Edit

■ List favourite Digital TV channels
Create your favourite channel lists from various broadcasters (up to 4:
Favourites 1 to 4).
The Digital TV Favourites lists are available from Favourites in the information banner and the TV Guide screen.
Watching Basic Information banner
Watching TV Guide Using TV Guide
1. Select Favourites Edit with / and press OK to access
2. Select a channel to list from all Digital TV channels with
●
appears when the channel is encrypted.
●
To display other Favourites
(green)
3. Press OK to add it to Favourite List
●
To add all channels to the list
(yellow)
4. Press RETURN and OK to store
- 47 -
/
Page 48
■ Edit Favourites list
You can edit the favourites list while the cursor is on the channel in the favourites list.
●
To move the channel
1) Select the channel with
/
2) Press (green)
3) Select the new position with
/ or numeric buttons
4) Press (green) to store
●
To delete the channel
1) Select the channel with
/
2) Press OK to delete
– Press
●
To name the Favourites
1) Press
(yellow) to delete all channels
(red)
2) Enter characters (maximum 10 characters) with
numeric buttons, and press OK to set
/ / / or
3) Press RETURN to store
= Note =
●
Channel numbers are defined by the broadcaster and cannot be changed.
●
Hidden channels can be selected but not viewed.
- 48 -
Page 49

Channel List

■ Skip unwanted Digital TV / Analogue TV channels
You can hide (skip) unwanted channels. The hidden channels cannot be displayed except in this function.
1. Select Channel List with
2. Select a channel with
3. Press OK to set Reveal / Hide (skip)
: Reveal
: Hide (skip)
●
To reveal all channels
(yellow)
/ and press OK to access
/
■ Edit Digital TV / Analogue TV Channels
●
To swap / move the channel position (if available)
1) Press
2) Set the new position with
(green) to store
(green) to edit
/ or numeric buttons, and press
●
To retune each channel (Manual Tuning)
(red)
Watching Tuning and editing channels Manual Tuning
●
To rename the channel name (Analogue TV)
1) Press
2) Enter characters (maximum 5 characters) with
numeric buttons, and press OK to set
3) Press RETURN to store
= Note =
●
If a VCR is connected only with the RF cable in Analogue TV, edit VCR.
(blue) to edit
/ / / or
- 49 -
Page 50

Auto Tuning

Automatically retunes the channels received in the area.
●
All the previous tuning settings are erased.
●
Search begins in the order from the lower channels to the higher channels.
●
If tuning has not been done completely, set Manual Tuning.
Watching Tuning and editing channels Manual Tuning
1. Select Auto Tuning with / and press OK to access
2. The confirmation screen is displayed and press OK to start Auto Tuning (Settings are made automatically)
●
When the operation is completed, the channel at the lowest position will be displayed.
●
This setting is applicable only for the selected TV mode.
■ Auto Tuning using the buttons on the TV
1. Press and hold INPUT/OK/HOLD for MENU button for 3 seconds to display the menu
2. Set Auto Tuning with following control panel buttons
●
Move the cursor / select from a range of options / select the menu item (up and down only)
●
Access the menu / store settings after adjustments have been made or options have been set with INPUT/OK/HOLD for MENU button.

Manual Tuning

■ Digital TV
Normally use Auto Tuning or Update Channel List to retune Digital TV channels.
If tuning has not been done completely or for adjusting the direction of the aerial, use this function.
●
All Digital channels found will be added to Channel List.
1. Select physical channel with
2. Press OK to search
/ and select offset with /
- 50 -
Page 51
■ Analogue TV
Set Analogue TV channel manually after Auto Tuning.
1. Select the channel position with numeric buttons
2. Select the channel with Channel Up / Down button
3. Search with /
4. Select Store with / and press OK to set
●
If a VCR is connected only with the RF cable, select channel position 0.

Update Channel List

By updating the Digital TV channel list, you can add new channels, delete removed channels or change channel names and positions automatically.
●
The channel list is updated while keeping your settings in Favourites Edit,
Channel List, Child Lock, etc.
●
Depending on the signal condition, the update may not work properly.

New Channel Message

Selects whether to give a notification message when a new Digital TV channel is found.
●
When a notification message appears, you can perform Update Channel
List pressing OK.
●
Sometimes, mainly during summer months at night, the TV may pick up distant TV stations outside your broadcast due to favourable short term ionosphere conditions. In such circumstances when you press OK, the TV does not add any new channels. This is normal.

Signal Condition

Selects a channel and checks the signal condition.
A good Signal Strength is not an indication of suitable signal for Digital TV reception.
●
Use the Signal Quality indicator as follows.
– Green bar: Good
– Yellow bar: Poor
– Red bar: Bad (Check the aerial)
●
Vertical lines show the maximum signal value of the selected channel.
- 51 -
Page 52
●
To change the channel
●
For Digital TV
- 52 -
Page 53

Recording

USB HDD setup

Preparations

You can record the digital TV programmes to the connected USB HDD and enjoy playing back in various ways.
●
Prepare the USB HDD for the exclusive use of recording with this TV.
●
Connect the USB HDD to the USB 3 port with the USB cable.
●
Be sure to connect the USB HDD to the socket outlet.
●
To remove the USB HDD safely from the TV, perform in Safely remove
USB in USB Device Setup.
Recording USB HDD setup Setting for USB HDD
●
Check the terminal type and cable plugs are correct when connecting.
USB port
USB cable
USB HDD
Socket outlet
= Caution =
●
All data in the USB HDD will be erased in the following cases:
– When formatting the USB HDD with this TV
Recording USB HDD setup Setting for USB HDD
– When formatting the USB HDD to use on PC, etc.
●
When the TV is repaired due to a malfunction, you may have to format the USB HDD again with this TV to use it. (All data will be erased after formatting.)
●
In order to use the USB HDD with your PC after recording with this TV, format it again on your PC. (Special operations or tools may be necessary to format on your PC. For details, read the manual of the USB HDD.)
●
The data recorded on the USB HDD with this TV can only be played back on this TV. You cannot play back its contents with another TV (including the TV of the same model number) or any equipment.
- 53 -
Page 54
●
Do not turn the TV off, pull out the mains plug or remove the USB HDD during operation (formatting, recording, etc.). Doing so may cause malfunction of the device or damage the recorded data. (An electric outage may also be a cause of malfunction.)
= Note =
●
Analogue TV programme cannot be recorded on the USB HDD.
●
The data broadcasting (MHEG, etc.), radio broadcasting will not be recorded, and also the recording function will not work during the period without any signal.
●
Not all the programmes can be recorded depending on the broadcaster and service provider.
●
You cannot copy the recorded contents of the USB HDD.
●
For more information of the USB HDD
Recording Technical information USB HDD

Setting for USB HDD

Format and set up the USB HDD with this TV in order to use it for recording.
All the USB devices recognised as a mass storage device will be listed.
●
Please note that USB HDD will be formatted and all data in it will be erased after this setup.
●
Before setting, connect the USB HDD and be sure to turn on the USB HDD.
Recording USB HDD setup Preparations
1. Display the menu with MENU
2. Select Setup
3. Select the USB HDD for recording with
●
Some USB HDD may not be displayed.
●
To display information of the highlighted device
USB Device Setup with / and press OK to access
/ and press OK to start setup
INFO
4. When the caution and confirmation screen for using USB HDD is displayed, select Yes with
/ and press OK to proceed
- 54 -
Page 55
5. When the confirmation screen of USB HDD name is displayed, select Yes with / and press OK to set
●
The name for the USB HDD is created automatically. If you want to edit the name, select Yes.
1) Enter characters with
/ / / or numeric buttons, and press
OK to set
2) Press RETURN to store
6. When the confirmation screen to enable USB HDD for recording is displayed, select Yes with
●
If another formatted USB HDD for recording already exists, this
/ and press OK to set
confirmation screen will be displayed to switch to enable this USB HDD for recording.
●
Mode of the USB HDD
: The USB HDD is available for recording / playing back. Only one
USB HDD on the list is available for recording.
: The USB HDD is available for playing back.
●
To change the mode
OK
●
To edit USB HDD name
(green)
●
To format
(red)
●
To remove the USB HDD safely from the TV
(yellow)
= Note =
●
You can only select one USB HDD for recording at a time.
●
You cannot change the settings for the USB HDD while recording is in progress.
- 55 -
Page 56

Recording current programme

One Touch Recording

Records the current programme to the USB HDD immediately.
●
Confirm the remote control code is “73”.
Watching External equipment Operating with TV’s remote control
1. Display the menu with MENU
2. Select Setup press OK to access
3. Select the maximum recording time 30 / 60 / 90 / 120 / 180 (minutes) with
/ and press OK to set
Recording Setup One Touch Recording with / and
■ To start One Touch Recording
Press to start.
●
Other channels cannot be selected while recording is in progress.
■ To stop recording in progress
Press to stop.
■ To play back or delete the recorded contents
TV programmes recorded by One Touch Recording can be played back in Media Player.
1. Display icons of the feature with APPS
2. Select Recorded TV with
Media Player Recorded TV mode
●
Even if One Touch Recording is in progress, you can play back all the contents. (Depending on the USB HDD, playback may not be possible or the recording may not work properly during playback.)
/ / / and press OK to access
- 56 -
Page 57

REW LIVE TV

Records the current programme to the USB HDD constantly within the maximum recordable time.
●
Confirm the remote control code is “73”.
Watching External equipment Operating with TV’s remote control
1. Display the menu with MENU
2. Select Setup
Recording Setup REW LIVE TV with / and press
OK to access
3. Select Auto with
●
When you select Auto, recording will start automatically.
●
This recording will not start if another recording is in progress, TV signal
/ to start REW LIVE TV
condition is bad or there are no images displayed.
■ To operate REW LIVE TV
●
To pause
●
To search backward (up to 90 minutes)
●
After pausing or searching backward, the following buttons are available for operation.
: Search backward
: Search forward
: Return to the current programme
OK : Playback / Pause
: Search backward / forward
: Pause / Resume
: Playback
: Return to the current programme
- 57 -
Page 58
■ To stop REW LIVE TV
1. Display the menu with MENU
2. Select Setup
OK to access
3. Select Off with
●
If you stop REW LIVE TV, the recorded content for REW LIVE TV will be deleted.
●
REW LIVE TV will be stopped and the recorded content will be deleted
automatically in the following conditions: (Even if REW LIVE TV stops for the following conditions, as long as the setting is Auto, a new recording will start automatically in a condition that makes the recording available.)
– Other channels selected
– Locked channel selected
– Invalid channel selected
– No TV signal
– When another recording starts
– When the TV enters Standby or is turned off
Recording Setup REW LIVE TV with / and press
/ to stop REW LIVE TV

Timer Programming

Setting timer programming

The Timer Programming menu allows you to select programmes that you want to be reminded to watch or record to the USB HDD. At the correct time, the TV will tune to the correct channel even if the TV is in Standby mode.
●
Not valid in Analogue TV
1. Select Digital TV with TV
2. Display the menu with MENU
3. Select Timer
■ Set timer programming event details
1. Press OK to start making the settings
2. Select USB HDD Rec. / Reminder with
USB HDD Rec.:
Timer Programming with / and press OK to access
/
Records the programme to the USB HDD.
When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2 minutes before the starting time, a reminder message appears if you are watching TV.
- 58 -
Page 59
Reminder:
Reminds you to watch the programme.
When you are watching TV, a reminder message appears 2 minutes before the starting time. Press OK to switch to the programmed channel.
3. Select the item (channel, date and starting / ending time) with set / / with /
●
and can also be entered with numeric buttons.

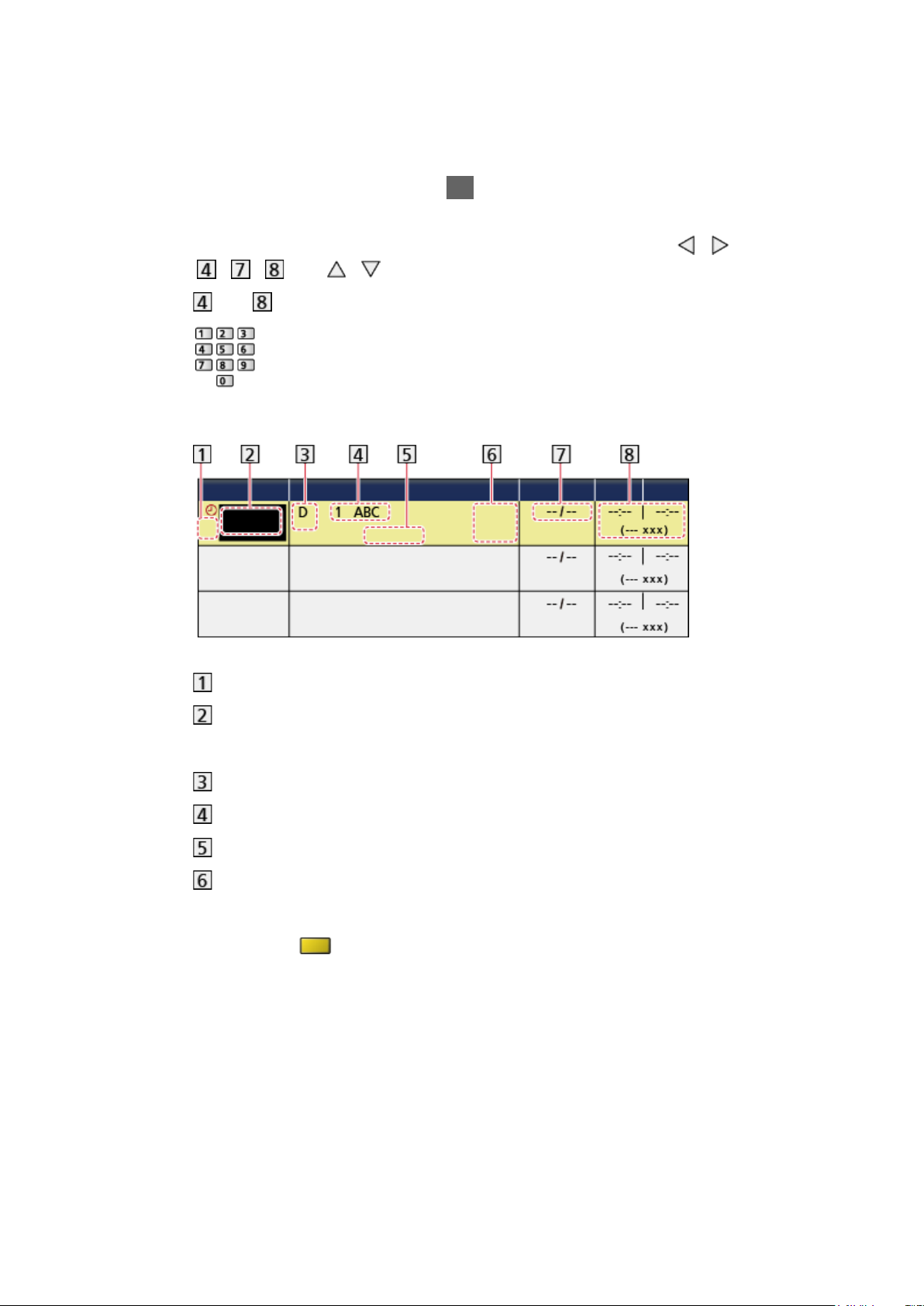

(Example)
!: Overlapped timer programming events
/ and
Function
(USB HDD Rec. / Reminder)
D: Digital TV
Channel position and name
<TIMER>: Timer Programming
Displays subtitles (if available)
(STTL)
– Press
(yellow) to indicate subtitles and press again to
remove them.
– Not valid when function is set to USB HDD Rec.
- 59 -
Page 60
Date (You can set one day ahead with , select daily or weekly with
)
– Daily Sun-Sat: Sunday to Saturday
– Daily Mon-Sat: Monday to Saturday
– Daily Mon-Fri: Monday to Friday
– Weekly Sat / Fri / Thu / Wed / Tue / Mon / Sun: Same time on the
same day every week
Starting time / Ending time / Duration (automatic display)
4. Store with OK

Editing timer programming

1. Display the menu with MENU
2. Select Timer
3. Select the event with
●
To change a timer programming event
Timer Programming with / and press OK to access
/
OK
– Correct as necessary.
Recording Timer Programming Setting timer programming
●
To delete a timer programming event
1) Press
(red)
2) Press OK to delete
●
To display subtitles (if available)
(yellow)
– Press again to remove subtitles.
– Not valid when function is set to USB HDD Rec.
●
To cancel a timer programming event temporarily
(blue)
– Press again to stop cancelling.
- 60 -
Page 61
■ To adjust the clock
If you cannot get the time information, set Clock Settings manually.
1. Display the menu with MENU
2. Select Timer
Clock Settings Mode with / and press OK to
access
3. Select Manual with
4. Set Date / Time with
●
Clock Settings are reset when the TV is turned off with Mains power On /
/ and press OK to set
/ / / or numeric buttons
Off switch.
Settings Timer Clock Settings
■ To play back or delete the recorded contents
TV programmes recorded on the USB HDD with this TV can be played back in Media Player.
1. Display icons of the feature with APPS
2. Select Recorded TV with
/ / / and press OK to access
Media Player Recorded TV mode

Note

●
TV Guide may also be used to set timer programming event.
Watching TV Guide Timer Programming
●
Timer Programming can store up to 15 events.
●
Timer Programming only works reliably if correct time information is
received via the signal from the broadcaster or service provider.
●
For recording using Timer Programming, the TV must be either on or in Standby. For reminders to be displayed, the TV must be on.
●
No other channels can be selected while the recording of Timer
Programming is in progress.
●
Recording an encrypted (copy-protected) programme may not be possible.
●
2 minutes before the starting time, a reminder message appears if you are watching TV.
– To remove the message and start the programming, press OK.
– To cancel the programming, press EXIT.
●
LED will turn to orange in Standby mode if Timer Programming is set.
- 61 -
Page 62
●
Timer Programming reminder messages will remain displayed until one of
the following occurs:
– You press OK to view the programme or EXIT to cancel the reminder.
– The timer programming event that the reminder is set for ends.
●
“!” identifies that two or more timer programming events are overlapped.
USB HDD Rec. is given priority over Reminder. As for the overlapped
recording events, the first event starts and finishes as programmed. The next event can then start.
●
The recording of Timer Programming will automatically change the channel to the programmed channel a few seconds before the starting time.
●
The recording of Timer Programming will be performed even if the TV is in REW LIVE TV recording. In this case, REW LIVE TV recording will be cancelled.
Recording Recording current programme REW LIVE TV
●
For more information of the USB HDD
Recording Technical information
- 62 -
Page 63

Technical information

USB HDD

■ USB HDD
(for recording the digital TV programmes with this TV)
●
The capacity of USB HDD that works with this TV is from 160 GB to 3 TB.
●
Connect the USB HDD to the socket outlet to record and play back properly with this TV.
●
Use the USB HDD formatted with this TV.
Recording USB HDD setup Setting for USB HDD
●
Regarding performance, not all USB HDDs are guaranteed. Check the USB HDDs that have been tested for compatibility with this TV at the following website. (English only)
http://panasonic.net/viera/support
= Note =
●
Data modified with a PC may not be displayed.
●
Do not remove the device while the TV is accessing data. Otherwise this can damage the device or TV.
●
Do not touch the pins on the device.
●
Do not subject the device to a high pressure or impact.
●
Insert the device in the correct direction. Otherwise this can damage the device or TV.
●
Electrical interference, static electricity, or erroneous operation may damage the data or device.
- 63 -
Page 64

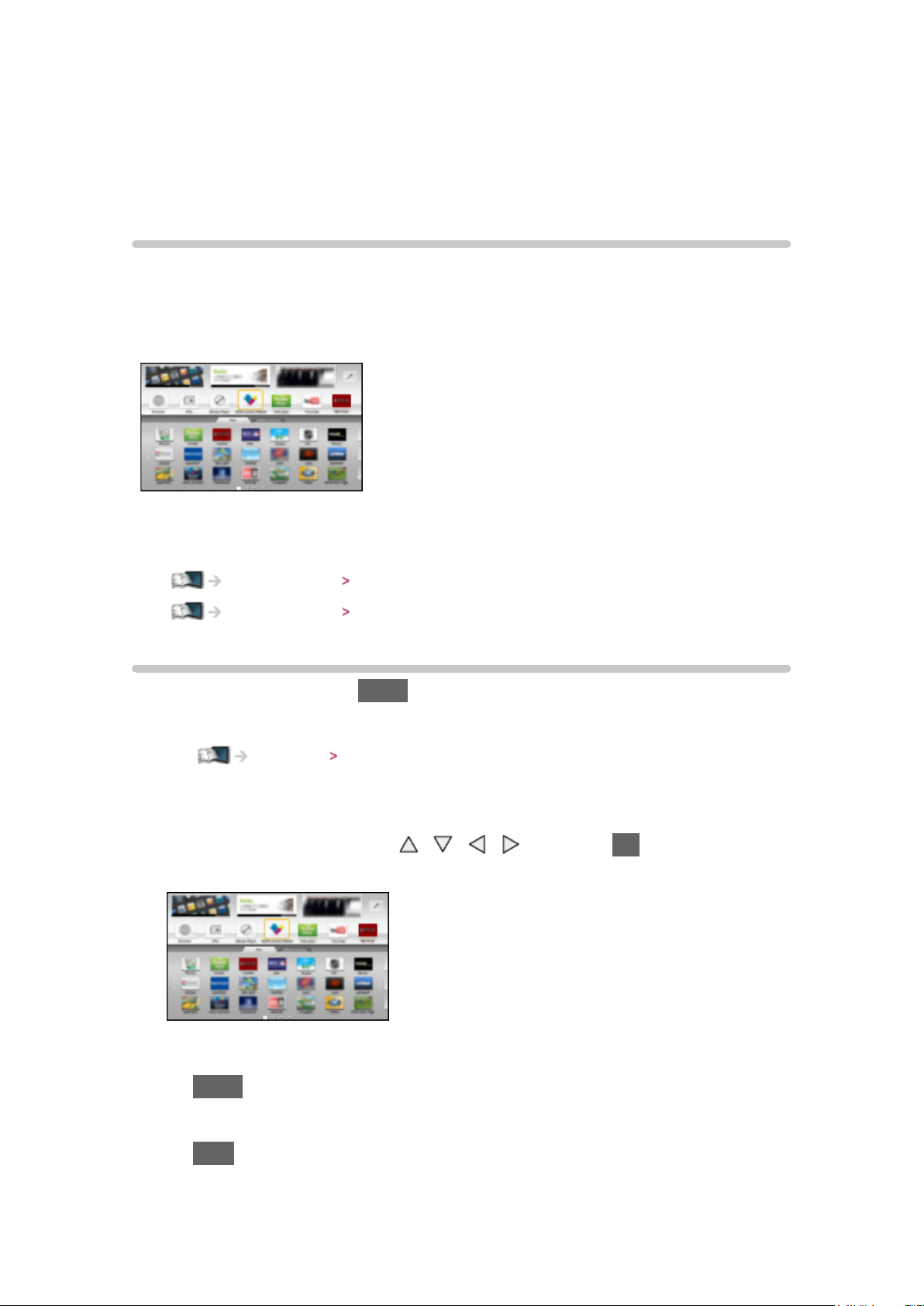

Internet service

Internet content

Information

You can access some specific websites supported by Panasonic, and enjoy internet contents such as videos, games, communication tools, etc. from APPS List.
(Example)
●
To enable this function, you need a broadband network environment. Ensure the network connections and network settings are completed.
Internet service Network connections
Internet service Network settings

Selecting internet content

1. Display APPS List with APPS
●
For details of APPS List
Functions APPS List
●
Depending on the usage conditions, it may take a while to read all the data.
2. Select the desired item with (Example)
/ / / and press OK to access
●
To return to APPS List
APPS
●
To exit APPS List
EXIT
●
You may operate the internet contents with the free cursor and Voice Control function of the VIERA Touch Pad Controller (supplied).
- 64 -
Page 65
●
You can connect a keyboard and a gamepad for character input and playing games in the applications. You can also use the keyboard or gamepad for TV operation as well as for APPS List.
Functions Bluetooth devices
Functions Keyboard / Gamepad

Note

●
If you cannot access the internet contents, check the network connections and settings.
Internet service Network connections
Internet service Network settings
●
APPS List is subject to change without notice.
●
Not all the features of the websites are available.
●
Be sure to update the software when a software update notice is displayed on the TV screen. If the software is not updated, you will not be able to use APPS List. You can update the software later manually.
Internet service Network settings Software Update
●
The services through APPS List are operated by their respective service providers and such service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the contents or the continuity of the services.
●
Some contents may be inappropriate for some viewers.
●
Some contents may only be available for specific countries and may be presented in specific languages.
●
Depending on the connection environment, the internet connection may be slow or may not be successful.
●
During the operation, audio signal is output from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals. But no video signals are output. To use HDMI2 with ARC function, connect an amplifier that has ARC function and set to use theatre speakers.
Functions VIERA Link “HDAVI Control™”
- 65 -
Page 66

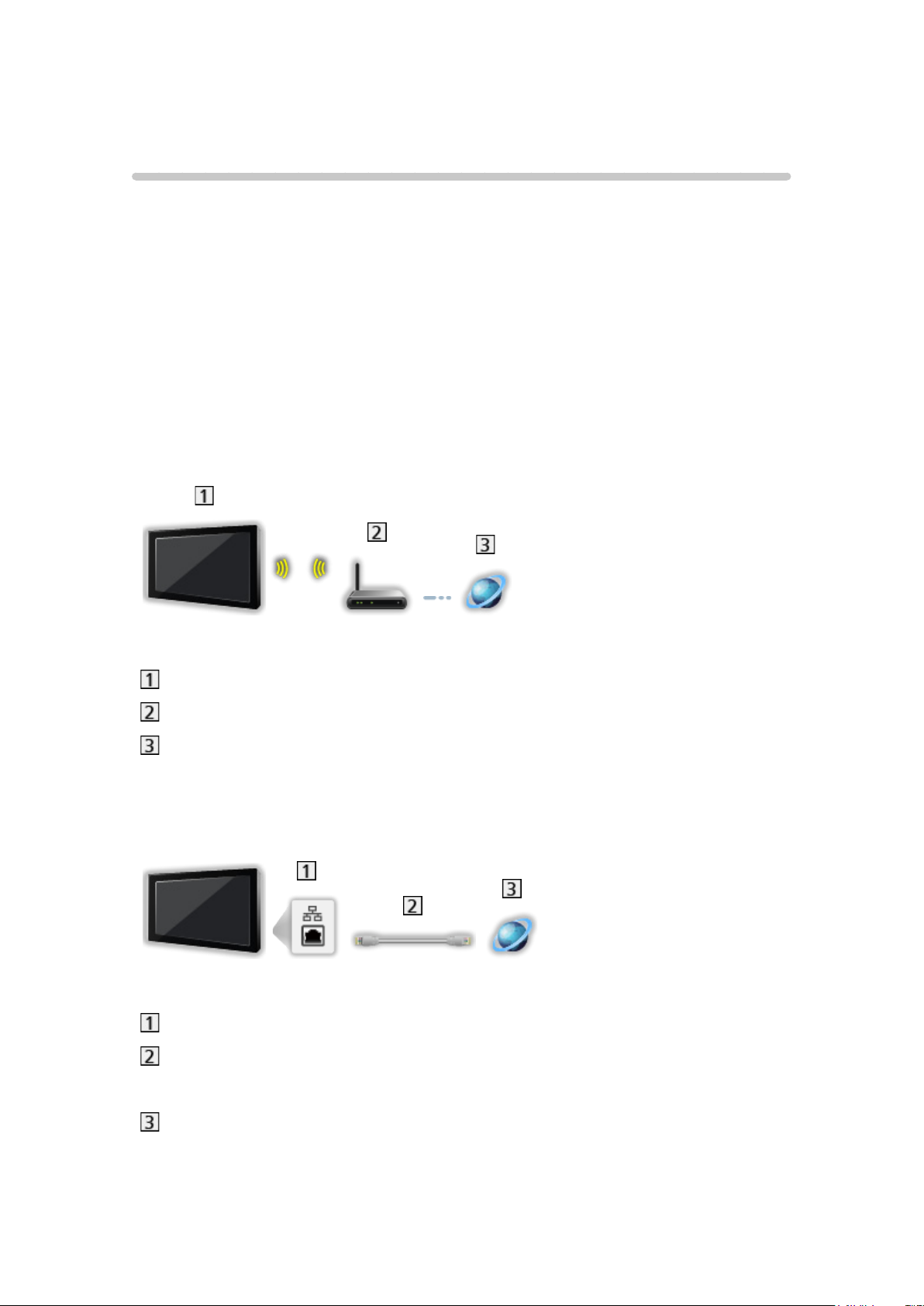

Network connections

Internet connection

To use internet service, you need a broadband network environment.
●
If you do not have any broadband network services, please consult your retailer for assistance.
●
Dial-up internet connections cannot be used.
●
Required speed (effective): at least 1.5 Mbps for SD (Standard Definition) and 6 Mbps for HD (High Definition) picture quality, respectively. If the transfer speed is not enough, contents may not be played back properly.
■ Wireless connection
Built-in wireless LAN (Rear of the TV)
Access point
Internet environment
■ Wired connection
ETHERNET terminal
LAN cable (Shielded)
●
Use the Shielded Twist Pair (STP) LAN cable.
Internet environment
- 66 -
Page 67

Note

●
Ensure to use a LAN straight cable.
●
Set up and connect equipment required for the network environment. You cannot make such settings on this TV. Read the manual of the equipment.
●
If your modem has no broadband router functions, use a broadband router.
●
If your modem has broadband router functions but there are no vacant ports, use a hub.
●
Ensure that the broadband routers and hubs are compatible with 10BASE-T / 100BASE-TX.
●
If you use the equipment compatible only with 100BASE-TX, category 5 or later LAN cables are required.
●
Contact your Internet Service Provider (ISP) or telecommunications company for further assistance regarding the network equipment.
●
Confirm the terms and conditions of the contracts with your Internet Service Provider (ISP) or telecommunications company. Depending on the contracts, additional fees may be charged or multiple connections to the internet may be impossible.
●
Turn the TV off, and then on again when changing or making the network connection again.
- 67 -
Page 68

Network settings

Network Connection

Ensure the connections are completed before starting network setup.
Internet service Network connections
■ Quick setup - Wireless
1. Display the menu with MENU
2. Select Network
●
Confirm the encryption key, settings and position of your access point
Network Connection with / and press OK to access
before starting setup. For details, read the manual of the access point.
3. Select Quick setup with
●
When the LAN cable is connected, wired setup will be done
/ and press OK to access
automatically.
4. Select your desired access point with
●
Available Wireless Networks are displayed automatically.
: Encrypted access point
●
For WPS(Push button)
1) Select Easy setup with Push button with access
2) Press the WPS button on the access point until the light flashes
3) Connect the TV with the access point with OK
– WPS: Wi-Fi Protected Setup™
/ and press OK to access
/ and press OK to
– If the connection has failed, check the settings and positions of your
access point. And then, follow the on-screen instructions.
●
It is recommended to select the encrypted access point.
5. Enter the encryption key of the access point with
/ / / and press
OK to set
●
You can set characters using numeric buttons.
●
Press RETURN to store
6. Automatically setup is done and the Network Status screen is displayed
Internet service Network settings Network Status
- 68 -
Page 69
7. Select Exit with / and press OK to set
●
To set manually
Internet service Network settings Custom - Wireless
■ Quick setup - Wired
1. Display the menu with MENU
2. Select Network
3. Select Quick setup with
Network Connection with / and press OK to access
/ and press OK to access
4. Automatically setup is done and the Network Status screen is displayed
Internet service Network settings Network Status
5. Select Exit with / and press OK to set
●
To set manually
Internet service Network settings Custom - Wired

Custom - Wireless

Ensure the connections are completed before starting network setup.
Internet service Network connections
1. Display the menu with MENU
2. Select Network / and press OK to access
●
Confirm the encryption key, settings and position of your access point before starting setup. For details, read the manual of the access point.
Network Connection Custom Wireless with / /
3. Select your desired access point with
●
Available Wireless Networks are displayed automatically.
: Encrypted access point
●
For WPS(Push button)
1) Press
(red)
2) Press the WPS button on the access point until the light flashes
3) Connect the TV with the access point with OK
– WPS: Wi-Fi Protected Setup™
– If the connection has failed, check the settings and positions of your
access point. And then, follow the on-screen instructions.
●
For WPS(PIN)
1) Press
(green)
2) Enter the PIN code to the access point
3) Connect the TV with the access point with OK
/ and press OK to access
- 69 -
Page 70
●
For Manual
1) Press
(yellow)
2) You can set up SSID, security type, encryption type, and encryption key manually
3) Follow the on-screen instructions and set manually
– When you use 11n (5 GHz) for the wireless system between the
built-in wireless LAN and access point, select AES for the encryption type.
●
To search access points again
(blue)
●
To display / hide information of the highlighted access point
INFO
●
It is recommended to select the encrypted access point.
4. Enter the encryption key of the access point with
OK to set
●
You can set characters using numeric buttons.
/ / / and press
●
Press RETURN to store
5. The VIERA Name/IP/DNS Settings screen is displayed
VIERA Name
●
You can set your favourite name for this TV.
●
This name will be used as the name of this TV on the screen of the other network equipment.
Acquire IP Address / Acquire DNS Address
●
Auto is recommended.
●
Available settings are displayed automatically.
●
To set manually, select and set IP Address / Subnet Mask / Default
Gateway / DNS Address.
Proxy Settings
●
It is not required for normal household use.
●
Some internet services may not be available depending on the proxy settings.
- 70 -
Page 71
Proxy:
This is the address of the relay server connected between the browser and the target server and sends data to the browser.
1) Select Proxy with
2) Enter the address with
/ and press OK to access
/ / / or numeric buttons, and press
OK to set
3) Press RETURN to store
Proxy Port:
This number is also specified by the provider with the Proxy address.
1) Select Proxy Port with
/
2) Enter the number with numeric buttons
3) Press RETURN to store
6. Select Network Status with
Internet service Network settings Network Status
/ and press OK to access
7. Select Exit with / and press OK to set

Custom - Wired

Ensure the connections are completed before starting network setup.
Internet service Network connections
1. Display the menu with MENU
2. Select Network /
and press OK to access
3. The VIERA Name/IP/DNS Settings screen is displayed
VIERA Name
●
You can set your favourite name for this TV.
●
This name will be used as the name of this TV on the screen of the other network equipment.
Network Connection Custom Wired with / /
Acquire IP Address / Acquire DNS Address
●
Auto is recommended.
- 71 -
Page 72
●
Available settings are displayed automatically.
●
To set manually, select and set IP Address / Subnet Mask / Default
Gateway / DNS Address.
Proxy Settings
●
It is not required for normal household use.
●
Some internet services may not be available depending on the proxy settings.
Proxy:
This is the address of the relay server connected between the browser and the target server and sends data to the browser.
1) Select Proxy with
2) Enter the address with
/ and press OK to access
/ / / or numeric buttons, and press
OK to set
3) Press RETURN to store
Proxy Port:
This number is also specified by the provider with the Proxy address.
1) Select Proxy Port with
/
2) Enter the number with numeric buttons
3) Press RETURN to store
4. Select Network Status with
Internet service Network settings Network Status
/ and press OK to access
5. Select Exit with / and press OK to set
- 72 -
Page 73

Network Status

Displays and checks the network status (MAC Address, current network settings, etc.).
1. Display the menu with MENU
2. Select Network
3. Automatically testing is done and the Network Status screen is displayed
Try Again:
Performs automatic testing of the network connection for the TV and displays the current status again.
Status Details:
Displays the detailed network status (SSID, security type, encryption type, etc.).
●
For more information of the network connection, select Help.
Network Status with / and press OK to access

VIERA remote Settings

Sets to control the TV with any VIERA remote connected to your network.
Home network Network settings VIERA remote Settings

Network Link Settings

Sets to control the TV with devices connected to the network.
Home network Network settings Network Link Settings

Software Update

Accesses the specific website to update the TV’s software if any updates are available.
1. Display the menu with MENU
2. Select Network
3. Follow the on-screen instructions
Software Update with / and press OK to access

New Software Message

Selects whether to give a notification message when new software is found via network.
1. Display the menu with MENU
2. Select Network access
3. Select On / Off with
New Software Message with / and press OK to
/ and press OK to set
- 73 -
Page 74

Home network

DLNA

Information

This TV is a DLNA Certified™ product.
DLNA Certified digital electronics easier and more convenient to use on a home network. To learn more, visit www.dlna.org.
®
(Digital Living Network Alliance) is a standard that makes DLNA
●
To enable this function, connect this TV to your home network.
Home network Network connections
Home network Network settings
■ Playback of sharing contents stored in the media server
Store photos, videos or music contents into the DLNA Certified media server (for example, PC with Windows 7 / Windows 8 installed, DIGA Recorder, etc.) connected to your home network. And then you can enjoy these contents on this TV.
(Example)
●
For watching and operating contents on this TV
Home network DLNA Using DLNA
●
For supported file formats
Home network Technical information
To use a PC as a media server
●
Prepare the PC with Windows 7 / Windows 8 or ensure the server software is installed on the PC. “Windows 7 / Windows 8” and “Twonky 7 (installed on the PC with Windows XP or Mac)” are the server software that has been tested for compatibility with this TV (as of November, 2012). Any other server software has not been tested with this TV, therefore compatibility and performance cannot be assured.
- 74 -
Page 75
●
Windows 7 / Windows 8
The setup for homegroup settings of Windows 7 / Windows 8 is required. For details, refer to the help functions of Windows 7 / Windows 8.
●
Twonky
“Twonky” is the product of PacketVideo Corporation.
To obtain the Installation Guides for installing and setting “Twonky”, visit the website of TwonkyMedia.
Additional fees may be charged to obtain server software.
= Note =
●
For more information about the server software, please consult each software company.
●
When server software for the media server is installed on the PC, the data on the PC may be at risk of being accessed by other people. Please take care of the settings and connections under the network circumstances in office, hotel or even at home when not using a router.
To use a DLNA compatible DIGA Recorder as a media server
●
By connecting a DLNA compatible DIGA Recorder to your home network, you can control it as one of the media servers.
●
Please read the manual of your DIGA Recorder to check if the recorder is compatible with DLNA.
■ Playback of sharing contents on this TV with the DMC (Digital
Media Controller) network equipment
You can enjoy contents stored in the media server by controlling with the DMC network equipment (smartphone, PC with Windows 7 / Windows 8 installed, etc.) connected to your home network.
●
To use this function with your smartphone or Windows 7 / Windows 8, set
VIERA remote of this TV to On.
Home network Network settings VIERA remote Settings
And you need to install the application for controlling VIERA on your smartphone. For information of the application (English only):
http://panasonic.net/viera/support
For the operations, refer to the support information of the application.
●
“Windows 7 / Windows 8” are the OS that have been tested for compatibility of this TV (as of November, 2012). For the operations, refer to the help functions of Windows 7 / Windows 8.
- 75 -
Page 76
■ Sharing the TV programme or contents of this TV with
another piece of network equipment
You can enjoy the current digital TV programme or the contents of this TV on the other DLNA Certified VIERA, your smartphone, etc. connected to your home network. You can also select the channel and watch TV on your smartphone .
For example, watching the TV programme on your smartphone in the other room, etc.
: Available contents:
●
Contents that can be played back in Media Player of this TV and another piece of network equipment
●
TV programmes recorded on USB HDDs with this TV
: To use this function with your smartphone, you need to install the
application for controlling VIERA in your smartphone. For information of the application (English only):
http://panasonic.net/viera/support
For the operations, refer to the support information of the application.
●
To use this function with another DLNA Certified VIERA, set Network Link
Settings of this TV.
Home network Network settings Network Link Settings
●
Sharing the current programme may not be available when selecting radio channels, encrypted (copy-protected) programmes or when the broadcast prohibits the output of video and audio.
= Note =
●
To use this function, turn this TV on.
●
This function is available only with 1 piece of other equipment.
●
You may be able to control this TV to turn off the TV display and mute the sound using your smartphone. For details, refer to the support information of the application.
●
This function may not be available in the following conditions of this TV:
– While recording is in progress
– When in internet service
– When accessing the media server
– When the data service is active
- 76 -
Page 77

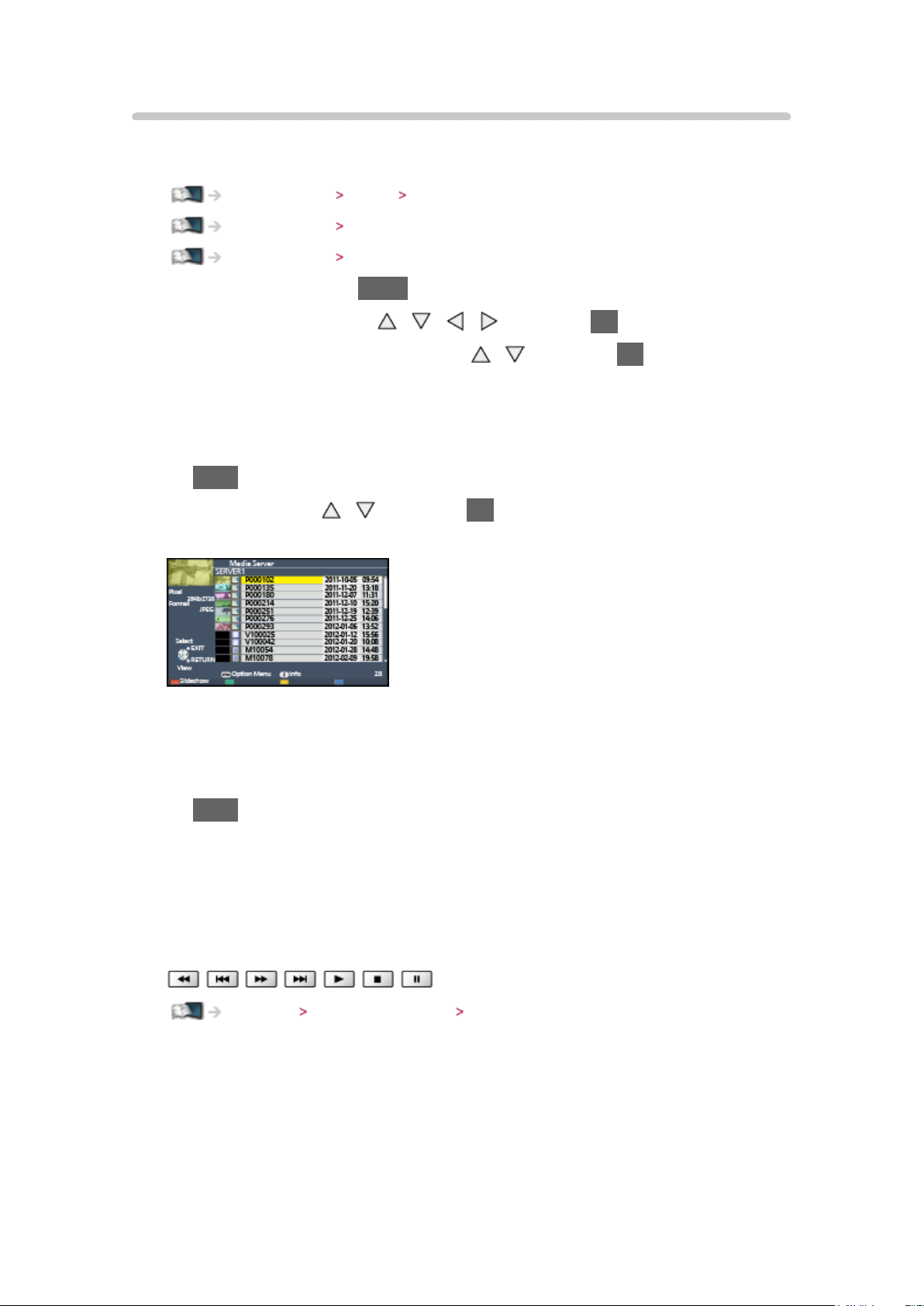

Using DLNA

To use DLNA® features, ensure the preparations of the media server, network connections and network settings are completed.
Home network DLNA Information
Home network Network connections
Home network Network settings
1. Display APPS List with APPS
2. Select Media Server with
/ / / and press OK to access
3. Select one of the media servers with
●
For the operations to access another TV, select the name of another TV from the displayed media server list.
●
To display / hide information of the highlighted media server
INFO
4. Select the file with
/ and press OK to access
(Example)
●
Depending on the condition of media server, you may need to select the folder before selecting the file.
/ and press OK to access
●
To display / hide information of the highlighted file
INFO
= Note =
●
Non-playable files are also listed but cannot be selected.
●
You can use the following buttons during playback. Confirm the remote control code is “73”.
Watching External equipment Operating with TV’s remote control
- 77 -
Page 78

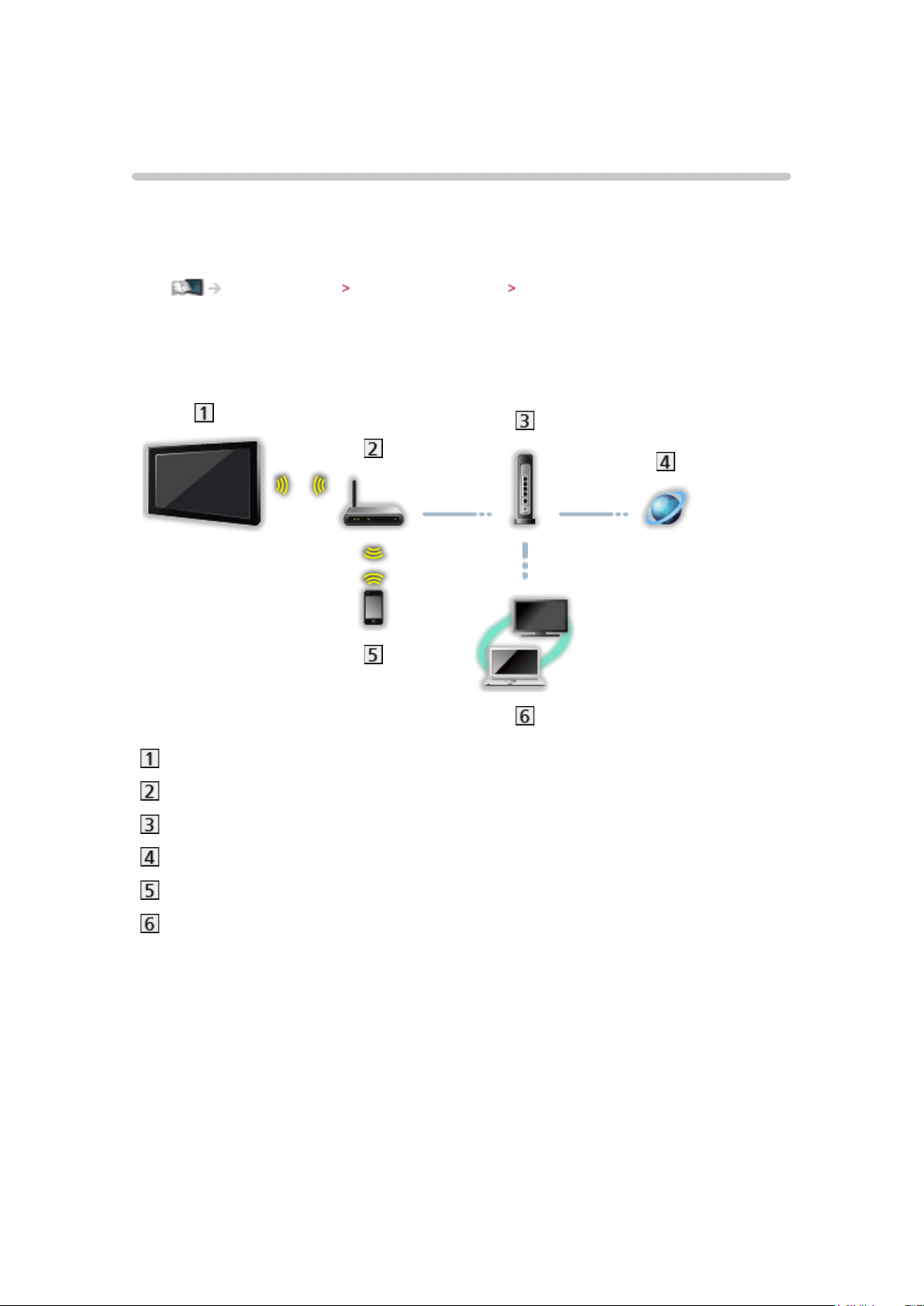

Network connections

DLNA connection

To use DLNA features, you need a home network environment and you can operate the features without a broadband network environment.
●
To use internet service, you need a broadband network environment.
Internet service Network connections Internet connection
■ Wireless connection (For DLNA and internet service)
Built-in wireless LAN (Rear of the TV)
Access point
Hub or Router
Internet environment
Smartphone
DLNA Certified media server
- 78 -
Page 79

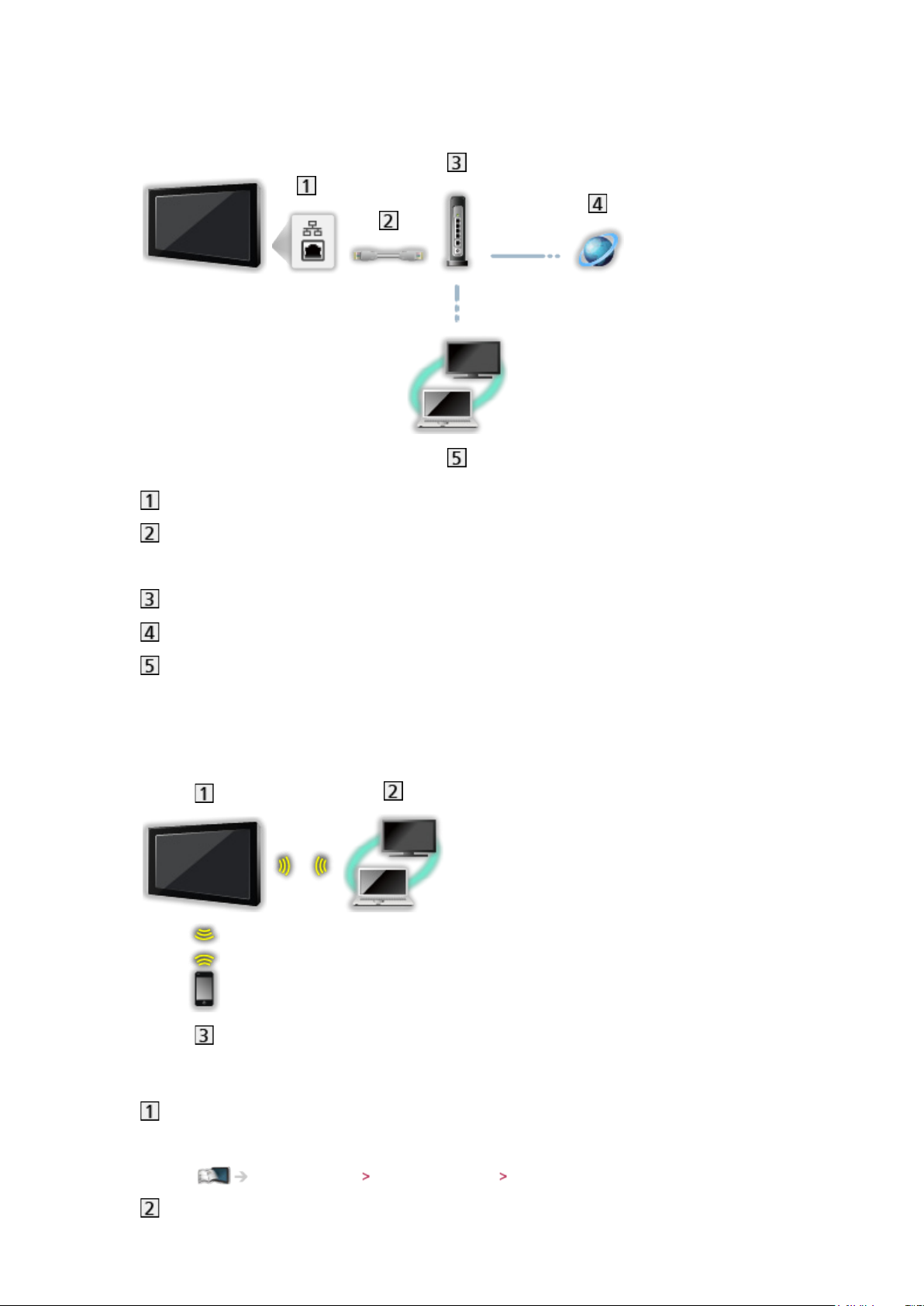

■ Wired connection (For DLNA and internet service)
ETHERNET terminal
LAN cable (Shielded)
●
Use the Shielded Twist Pair (STP) LAN cable.
Hub or Router
Internet environment
DLNA Certified media server
■ Wireless connection (For DLNA)
TV
●
To use the TV as a wireless access point
Home network Network settings Custom - Wireless Access Point
DLNA Certified media server
- 79 -
Page 80
Smartphone

Note

●
Ensure to use a LAN straight cable.
●
Set up and connect equipment required for the network environment. You cannot make such settings on this TV. Read the manual of the equipment.
●
If you use the equipment compatible only with 100BASE-TX, category 5 or later LAN cables are required.
●
Turn the TV off, and then on again when changing or making the network connection again.

Network settings

Network Connection

Ensure the connections are completed before starting network setup.
Home network Network connections
■ Quick setup - Wireless
1. Display the menu with MENU
2. Select Network
●
Confirm the encryption key, settings and position of your access point before starting setup. For details, read the manual of the access point.
3. Select Quick setup with
●
When the LAN cable is connected, wired setup will be done automatically.
4. Select your desired access point with
●
Available Wireless Networks are displayed automatically.
: Encrypted access point
●
For WPS(Push button)
1) Select Easy setup with Push button with access
2) Press the WPS button on the access point until the light flashes
Network Connection with / and press OK to access
/ and press OK to access
/ and press OK to access
/ and press OK to
3) Connect the TV with the access point with OK
– WPS: Wi-Fi Protected Setup™
– If the connection has failed, check the settings and positions of your
access point. And then, follow the on-screen instructions.
●
It is recommended to select the encrypted access point.
- 80 -
Page 81
5. Enter the encryption key of the access point with / / / and press
OK to set
●
You can set characters using numeric buttons.
●
Press RETURN to store
6. Automatically setup is done and the Network Status screen is displayed
Home network Network settings Network Status
7. Select Exit with / and press OK to set
●
To set manually
Home network Network settings Custom - Wireless
■ Quick setup - Wired
1. Display the menu with MENU
2. Select Network
3. Select Quick setup with
Network Connection with / and press OK to access
/ and press OK to access
4. Automatically setup is done and the Network Status screen is displayed
Home network Network settings Network Status
5. Select Exit with / and press OK to set
●
To set manually
Home network Network settings Custom - Wired

Custom - Wireless

Ensure the connections are completed before starting network setup.
Home network Network connections
1. Display the menu with MENU
2. Select Network
/ and press OK to access
●
Confirm the encryption key, settings and position of your access point before starting setup. For details, read the manual of the access point.
Network Connection Custom Wireless with / /
3. Select your desired access point with
●
Available Wireless Networks are displayed automatically.
: Encrypted access point
●
For WPS(Push button)
1) Press
(red)
2) Press the WPS button on the access point until the light flashes
- 81 -
/ and press OK to access
Page 82
3) Connect the TV with the access point with OK
– WPS: Wi-Fi Protected Setup™
– If the connection has failed, check the settings and positions of your
access point. And then, follow the on-screen instructions.
●
For WPS(PIN)
1) Press
(green)
2) Enter the PIN code to the access point
3) Connect the TV with the access point with OK
●
For Manual
1) Press
(yellow)
2) You can set up SSID, security type, encryption type, and encryption key manually
3) Follow the on-screen instructions and set manually
– When you use 11n (5 GHz) for the wireless system between the
built-in wireless LAN and access point, select AES for the encryption type.
●
To search access points again
(blue)
●
To display / hide information of the highlighted access point
INFO
●
It is recommended to select the encrypted access point.
4. Enter the encryption key of the access point with
/ / / and press
OK to set
●
You can set characters using numeric buttons.
●
Press RETURN to store
5. The VIERA Name/IP/DNS Settings screen is displayed
VIERA Name
●
You can set your favourite name for this TV.
●
This name will be used as the name of this TV on the screen of the other network equipment.
Acquire IP Address / Acquire DNS Address
●
Auto is recommended.
- 82 -
Page 83
●
Available settings are displayed automatically.
●
To set manually, select and set IP Address / Subnet Mask / Default
Gateway / DNS Address.
Proxy Settings
●
It is not required for normal household use.
●
Some internet services may not be available depending on the proxy settings.
Proxy:
This is the address of the relay server connected between the browser and the target server and sends data to the browser.
1) Select Proxy with
2) Enter the address with
/ and press OK to access
/ / / or numeric buttons, and press
OK to set
3) Press RETURN to store
Proxy Port:
This number is also specified by the provider with the Proxy address.
1) Select Proxy Port with
/
2) Enter the number with numeric buttons
3) Press RETURN to store
6. Select Network Status with
Home network Network settings Network Status
/ and press OK to access
7. Select Exit with / and press OK to set

Custom - Wired

Ensure the connections are completed before starting network setup.
Home network Network connections
1. Display the menu with MENU
2. Select Network / and press OK to access
3. The VIERA Name/IP/DNS Settings screen is displayed
Network Connection Custom Wired with / /
- 83 -
Page 84
VIERA Name
●
You can set your favourite name for this TV.
●
This name will be used as the name of this TV on the screen of the other network equipment.
Acquire IP Address / Acquire DNS Address
●
Auto is recommended.
●
Available settings are displayed automatically.
●
To set manually, select and set IP Address / Subnet Mask / Default
Gateway / DNS Address.
Proxy Settings
●
It is not required for normal household use.
●
Some internet services may not be available depending on the proxy settings.
Proxy:
This is the address of the relay server connected between the browser and the target server and sends data to the browser.
1) Select Proxy with
2) Enter the address with
/ and press OK to access
/ / / or numeric buttons, and press
OK to set
3) Press RETURN to store
Proxy Port:
This number is also specified by the provider with the Proxy address.
1) Select Proxy Port with
/
2) Enter the number with numeric buttons
3) Press RETURN to store
4. Select Network Status with
Home network Network settings Network Status
/ and press OK to access
5. Select Exit with / and press OK to set
- 84 -
Page 85

Custom - Wireless Access Point

You can use the TV as a wireless access point and connect the network equipment without an access point.
●
Confirm the PIN code, network settings of the equipment before starting setup. For details, read the manual of the equipment.
1. Display the menu with MENU
2. Select Network
Network Connection Custom Wireless Access Point
with / / / and press OK to access
3. Select Connect to device in WPS with
●
To set manually, select Change settings. (see below)
/ and press OK to access
4. Select and set WPS(Push button) / WPS(PIN) with access
WPS(Push button):
Set the equipment to WPS (Push button) mode. For details, read the manual of the equipment.
WPS(PIN):
Enter the PIN code of the equipment.
●
If the connection has failed, check the settings and positions of the equipment. And then, follow the on-screen instructions.
■ Change settings
/ and press OK to
You can set up Network name(SSID), Encryption key, Wireless type and
Channel setting method manually.
Follow the on-screen instructions and set manually.
●
Set Reset settings to reset the items of Change settings.
= Note =
●
You cannot connect the internet service while the TV is set to Wireless
Access Point.
●
You can connect up to 7 devices. But the transfer rate will vary according to communication environment or the numbers of connected equipment.
●
To confirm the current network settings
Home network Network settings Network Status
●
Ensure the equipment to connect supports WPS for this setup.
●
WPS: Wi-Fi Protected Setup™
- 85 -
Page 86

Network Status

Displays and checks the network status (MAC Address, current network settings, etc.).
1. Display the menu with MENU
2. Select Network
3. Automatically testing is done and the Network Status screen is displayed
Try Again:
Performs automatic testing of the network connection for the TV and displays the current status again.
Status Details:
Displays the detailed network status (SSID, security type, encryption type, etc.).
●
For more information of the network connection, select Help.
Network Status with / and press OK to access

VIERA remote Settings

Sets to control the TV with any VIERA remote connected to your network.
1. Display the menu with MENU
2. Select Network access
VIERA remote Settings with / and press OK to
3. Select one of the following items with
VIERA remote
(On / Off)
Enables to control the TV from the network equipment (smartphone, etc.).
●
You need to install the application for controlling VIERA on your smartphone. For information of the application (English only):
http://panasonic.net/viera/support
For the operations, refer to the support information of the application.
Device to upload contents
Selects device to upload contents from the network equipment (smartphone, etc.).
= Note =
/ and press OK to access
●
Depending on the area, this function may not be available. For details, consult your local Panasonic dealer.
- 86 -
Page 87

Network Link Settings

Sets to control the TV with devices connected to the network.
1. Display the menu with MENU
2. Select Network
Network Link Settings with / and press OK to
access
3. Select one of the following items with
/ and press OK to access
DLNA Server / Registration Type / Remote Device List
4. Set with
/ / / and press OK to store
DLNA Server
(On / Off)
Enables to share the TV programme or contents of this TV with the network equipment (DLNA Certified VIERA etc.).
●
To use this function with another VIERA, select the name of this TV from the DLNA server list of another VIERA, and then select the content to share. Also read the manual of another VIERA.
●
To use this function with your smartphone, you need to install the application for controlling VIERA on your smartphone. For information of the application (English only):
http://panasonic.net/viera/support
For the operations, refer to the support information of the application.
Registration Type
(Auto / Manual)
Selects the type to restrict the access to this TV for each piece of equipment on the home network.
Auto:
All available equipment on the home network is accessible. (maximum 16 pieces of equipment)
Manual:
Sets the restrictions for each piece of equipment in the Remote Device
List.
Remote Device List
Lists the equipment accessible to this TV on the home network.
- 87 -
Page 88
= Note =
●
Depending on the area, this function may not be available. For details, consult your local Panasonic dealer.

Software Update

Accesses the specific website to update the TV’s software if any updates are available.
1. Display the menu with MENU
2. Select Network
3. Follow the on-screen instructions
Software Update with / and press OK to access

New Software Message

Selects whether to give a notification message when new software is found via network.
1. Display the menu with MENU
2. Select Network access
3. Select On / Off with
New Software Message with / and press OK to
/ and press OK to set
- 88 -
Page 89

Photos

Selecting file

Ensure the preparations of the media server, network connections and network settings are completed.
Home network DLNA Information
Home network Network connections
Home network Network settings
1. Display APPS List with APPS
2. Select Media Server with
3. Select one of the media servers with
●
For the operations to access another TV, select the name of another TV
/ / / and press OK to access
/ and press OK to access
from the displayed media server list.
●
To display / hide information of the highlighted media server
INFO
4. Select the file with
●
Depending on the condition of media server, you may need to select
/ and press OK to access
the folder before selecting the file.
●
To display / hide information of the highlighted file
INFO
= Note =
●
Non-playable files are also listed but cannot be selected.
●
You can use the following buttons during playback. Confirm the remote control code is “73”.
Watching External equipment Operating with TV’s remote control

Viewing photo

■ Playback
Photos are displayed one at a time.
●
To operate Single view
: To the previous photo
: To the next photo
: Stop (return to list)
OK : Slideshow
- 89 -
Page 90
●
To display / hide the operation guide
INFO
●
To rotate 90°
(blue)
●
To return to list
RETURN

Using slideshow

Slideshow ends when all photos within the list are viewed.
1. Select the file from the thumbnail of photos for the first view with
/
2. Start Slideshow with (red) and OK
●
To display / hide the operation guide
INFO
●
To pause (return to Single view)
OK
●
To return to list
RETURN
■ Slideshow Settings
Set up the settings for photo file operations on this TV.
1. Display the option menu with OPTION
2. Select Slideshow Settings with
/ and press OK to access
/ /
3. Select one of the following items with
/ and press OK to access
Transition Effect / Auto Makeup / Interval / Repeat / Back Ground Music
4. Set with
/ / / and press OK to store
Transition Effect
(Off / Fade / Dissolve / Motion / Random)
Selects the transition effect for switching the photo during the slideshow.
Fade:
The next photo fades in gradually.
Dissolve:
Each photo is dissolved when switching to the next photo.
- 90 -
Page 91
Motion:
Each photo is displayed with an effect of enlarging, reducing, moving up or moving down.
Random:
The transition effect is selected at random.
Auto Makeup
(On / Off)
Automatically detects the face in the photo and improves luminance and contrast.
Interval
(Long / Normal / Short)
Selects slideshow interval.
●
Not valid when Transition Effect is set to Motion
Repeat
(On / Off)
Slideshow repeat
Back Ground Music
(Off / Type1 / Type2 / Type3 / Type4 / Type5)
Selects the background music during Photo mode.
- 91 -
Page 92

Videos

Selecting file

Ensure the preparations of the media server, network connections and network settings are completed.
Home network DLNA Information
Home network Network connections
Home network Network settings
1. Display APPS List with APPS
2. Select Media Server with
3. Select one of the media servers with
●
For the operations to access another TV, select the name of another TV
/ / / and press OK to access
/ and press OK to access
from the displayed media server list.
●
To display / hide information of the highlighted media server
INFO
4. Select the file with
●
Depending on the condition of media server, you may need to select
/ and press OK to access
the folder before selecting the file.
●
To display / hide information of the highlighted file
INFO
= Note =
●
Non-playable files are also listed but cannot be selected.
●
You can use the following buttons during playback. Confirm the remote control code is “73”.
Watching External equipment Operating with TV’s remote control
- 92 -
Page 93

Watching video

■ Playback
If you have stopped the last playback halfway, the confirmation screen is displayed to select whether to start from where you stopped last time or from the beginning.
●
To operate playback
: Manual skip
– Press to skip forward approx. 30 seconds.
: Rewind
: Fast forward
: Stop
OK : Pause (displays the time seek bar) / Playback
●
To display / hide the operation guide and information banner
INFO
●
To the previous content
(red)
●
To the next content
(green)
●
To change aspect
1) Display Aspect Selection list with ASPECT
2) Select the mode with
/ and press OK to set
Aspect1:
Displays the content enlarged without distortion.
Aspect2:
Displays the content full-screen.
Original:
Displays the content original size.
– You can also change the mode pressing ASPECT. (Press repeatedly
until you reach the desired mode.)
– Aspect cannot be changed depending on the content.
●
To return to list
RETURN
- 93 -
Page 94

Video Setup

Set up the settings for video file operations on this TV.
1. Display the option menu with OPTION
2. Select Video Setup with
3. Select one of the following items with
/ and press OK to access
/ and press OK to access
Video Preview / Audio Selection / Dual Audio / Dual Mono Audio / Subtitle / Subtitle Text / Repeat
●
Menu items and selectable options vary depending on the content.
4. Set with
/ / / and press OK to store
Video Preview
(On / Off)
Sets to start the preview of the title or scene in the thumbnail view.
●
Images may not be displayed for an instant in the thumbnail view. Set the preview Off to solve this.
Audio Selection, Dual Audio, Dual Mono Audio
Selects for selectable sound tracks (if available).
●
It may take several seconds to change the sound.
●
This function is available during playback.
Subtitle
Display / hide subtitles (if available).
●
This function is available during playback.
Subtitle Text
Selects the font type to display subtitles correctly (if available).
●
This function is available during playback.
Repeat
(On / Off)
Playback repeat within the selected file
- 94 -
Page 95

Audio output settings

You can enjoy the multi-channel sound via an amplifier connected to DIGITAL AUDIO OUT or HDMI2 (ARC function) terminal.
●
To confirm or change the current sound status
Home network Videos Video Setup
1. Display the menu with MENU
2. Select Sound
3. Select Auto / PCM with
SPDIF Selection with / and press OK to access
/ and press OK to set
SPDIF Selection
(Auto / PCM)
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and HDMI2 (ARC function) terminals.
●
SPDIF is a standard audio transfer file format.
Auto:
Dolby Digital Plus, Dolby Digital and HE-AAC multi-channel are output as Dolby Digital Bitstream. MPEG is output as PCM. DTS is output as DTS.
PCM:
Digital output signal is fixed to PCM.
●
ARC (Audio Return Channel) is a function of digital audio output using HDMI cable.
- 95 -
Page 96

Music

Selecting file

Ensure the preparations of the media server, network connections and network settings are completed.
Home network DLNA Information
Home network Network connections
Home network Network settings
1. Display APPS List with APPS
2. Select Media Server with
3. Select one of the media servers with
●
For the operations to access another TV, select the name of another TV
/ / / and press OK to access
/ and press OK to access
from the displayed media server list.
●
To display / hide information of the highlighted media server
INFO
4. Select the file with
●
Depending on the condition of media server, you may need to select
/ and press OK to access
the folder before selecting the file.
●
To display / hide information of the highlighted file
INFO
= Note =
●
Non-playable files are also listed but cannot be selected.
●
You can use the following buttons during playback. Confirm the remote control code is “73”.
Watching External equipment Operating with TV’s remote control
- 96 -
Page 97

Playing music

■ Playback
●
To operate playback
: Rewind
: Fast forward
: Stop
OK : Pause / Playback
●
To display / hide the operation guide
INFO
●
To the previous track
(red)
●
To the next track
(green)
●
To return to list
RETURN

Music Setup

Set up the settings for music file operations on this TV.
1. Display the option menu with OPTION
2. Select Music Setup
3. Select Folder / One / Off with
Folder:
Playback repeat within the selected folder
One:
Playback repeat of the selected one file
Repeat with OK
/ and press OK to set
- 97 -
Page 98

DIGA Recorder

Controlling DIGA Recorder

Ensure the preparations of the media server, network connections and network settings are completed.
Home network DLNA Information
Home network Network connections
Home network Network settings
1. Display APPS List with APPS
2. Select Media Server with
3. Select DIGA with
4. The screen of the DIGA Recorder will be displayed. You can control the functions of the DIGA Recorder with this TV’s remote control according to the operation guide.
(Example)
●
Before operating, register this TV on the DIGA Recorder.
●
For details, read the manual of the DIGA Recorder.
/ and press OK to access
/ / / and press OK to access
- 98 -
Page 99

Technical information

Photo format

■ Supported Photo formats
JPEG (.jpg, .jpeg, .mpo)
●
Image resolution (pixel):
8 × 8 to 30,719 × 17,279
Sub-sampling:
4:4:4, 4:2:2, 4:2:0
●
DCF and EXIF standards
●
Progressive JPEG is not supported.
= Note =
●
Some files may not be played back even if they fulfil these conditions.
●
Do not use two-byte characters or other special codes for file names.
●
Connected devices may become unusable with this TV if the file or folder names are changed.

Video format

■ Supported Video formats
AVCHD (.mts)
●
Video codec:
H.264 BP/MP/HP
Audio codec:
Dolby Digital
●
AVCHD Standard Ver. 2.0 (AVCHD 3D, AVCHD Progressive)
●
The data may not be available if a folder structure on the device is modified.
- 99 -
Page 100
SD-Video (.mod)
●
Video codec:
MPEG1, MPEG2
Audio codec:
Dolby Digital, MPEG Audio
●
SD-Video Standard Ver. 1.31 (Entertainment Video Profile)
●
The data may not be available if a folder structure on the device is modified.
AVI (.avi)
●
Video codec:
H.264 BP/MP/HP, MPEG1, MPEG2, MPEG4 SP/ASP, VC-1, Windows Media Video Ver. 9
Audio codec:
AAC, ADPCM, Dolby Digital, Dolby Digital Plus, DTS core, HE-AAC, LPCM, MPEG Audio, MP3, WMA
●
Some subtitles or chapter functions may not be available.
●
WMA Pro and WMA Lossless are not supported.
MKV (.mkv)
●
Video codec:
H.264 BP/MP/HP, MPEG1, MPEG2, MPEG4 SP/ASP
Audio codec:
AAC, Dolby Digital, Dolby Digital Plus, DTS core, HE-AAC, MPEG Audio, MP3
●
Some subtitles or chapter functions may not be available.
ASF (.asf, .wmv)
●
Video codec:
MPEG4 SP/ASP, VC-1, Windows Media Video Ver. 9
Audio codec:
AAC, Dolby Digital, Dolby Digital Plus, HE-AAC, LPCM, MP3, WMA
●
Copy-protected files cannot be played back.
●
WMA Pro and WMA Lossless are not supported.
- 100 -
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
