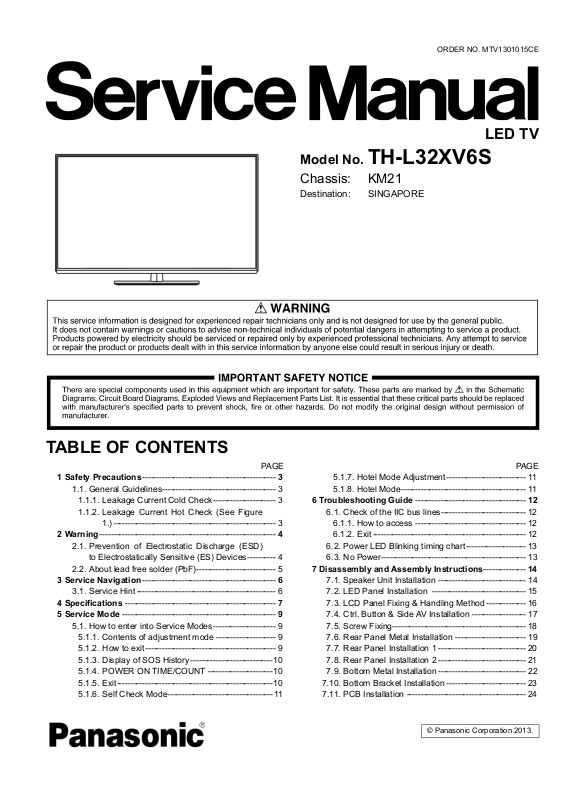

Page 1
ORDER NO. MTV1301015CE
Model No. TH-L32XV6S
Chassis: KM21
Destination: SINGAPORE
LED TV
TABLE OF CONTENTS
1 Safety Precautions ----------------------------------------------- 3
1.1. General Guidelines---------------------------------------- 3
1.1.1. Leakage Current Cold Check ---------------------- 3
1.1.2. Leakage Current Hot Check (See Figure
1.) --------------------------------------------------------- 3
2 Warning-------------------------------------------------------------- 4
2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatically Sensitive (ES) Devices---------- 4
2.2. About lead free solder (PbF)---------------------------- 5
3 Service Navigation ----------------------------------------------- 6
3.1. Service Hint ------------------------------------------------- 6
4 Specifications ----------------------------------------------------- 7
5 Service Mode ------------------------------------------------------ 9
5.1. How to enter into Service Modes ---------------------- 9
5.1.1. Contents of adjustment mode --------------------- 9
5.1.2. How to exit---------------------------------------------- 9
5.1.3. Display of SOS History -----------------------------10
5.1.4. POWER ON TIME/COUNT -----------------------10
5.1.5. Exit-------------------------------------------------------10
5.1.6. Self Check Mode-------------------------------------11
PAG E PAG E
5.1.7. Hotel Mode Adjustment ---------------------------- 11
5.1.8. Hotel Mode-------------------------------------------- 11
6 Troubleshooting Guide --------------------------------------- 12
6.1. Check of the IIC bus lines------------------------------ 12
6.1.1. How to access --------------------------------------- 12
6.1.2. Exit ------------------------------------------------------ 12
6.2. Power LED Blinking timing chart --------------------- 13
6.3. No Power--------------------------------------------------- 13
7 Disassembly and Assembly Instructions--------------- 14
7.1. Speaker Unit Installation ------------------------------- 14
7.2. LED Panel Installation --------------------------------- 15
7.3. LCD Panel Fixing & Handling Method -------------- 16
7.4. Ctrl. Button & Side AV Installation ------------------- 17
7.5. Screw Fixing----------------------------------------------- 18

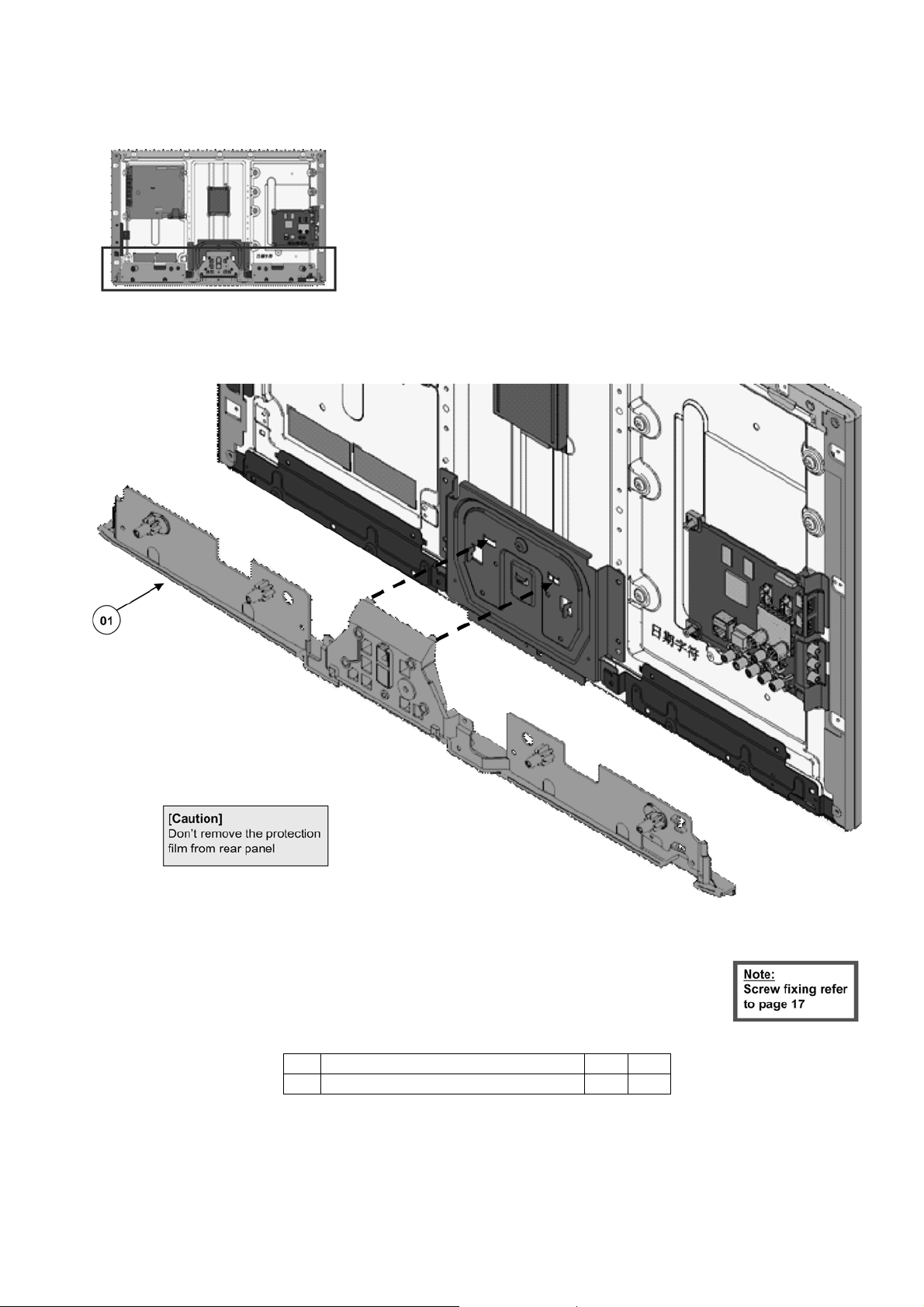

7.6. Rear Panel Metal Installation ------------------------- 19
7.7. Rear Panel Installation 1 ------------------------------- 20
7.8. Rear Panel Installation 2 ------------------------------- 21
7.9. Bottom Metal Installation ------------------------------- 22
7.10. Bottom Bracket Installation ---------------------------- 23

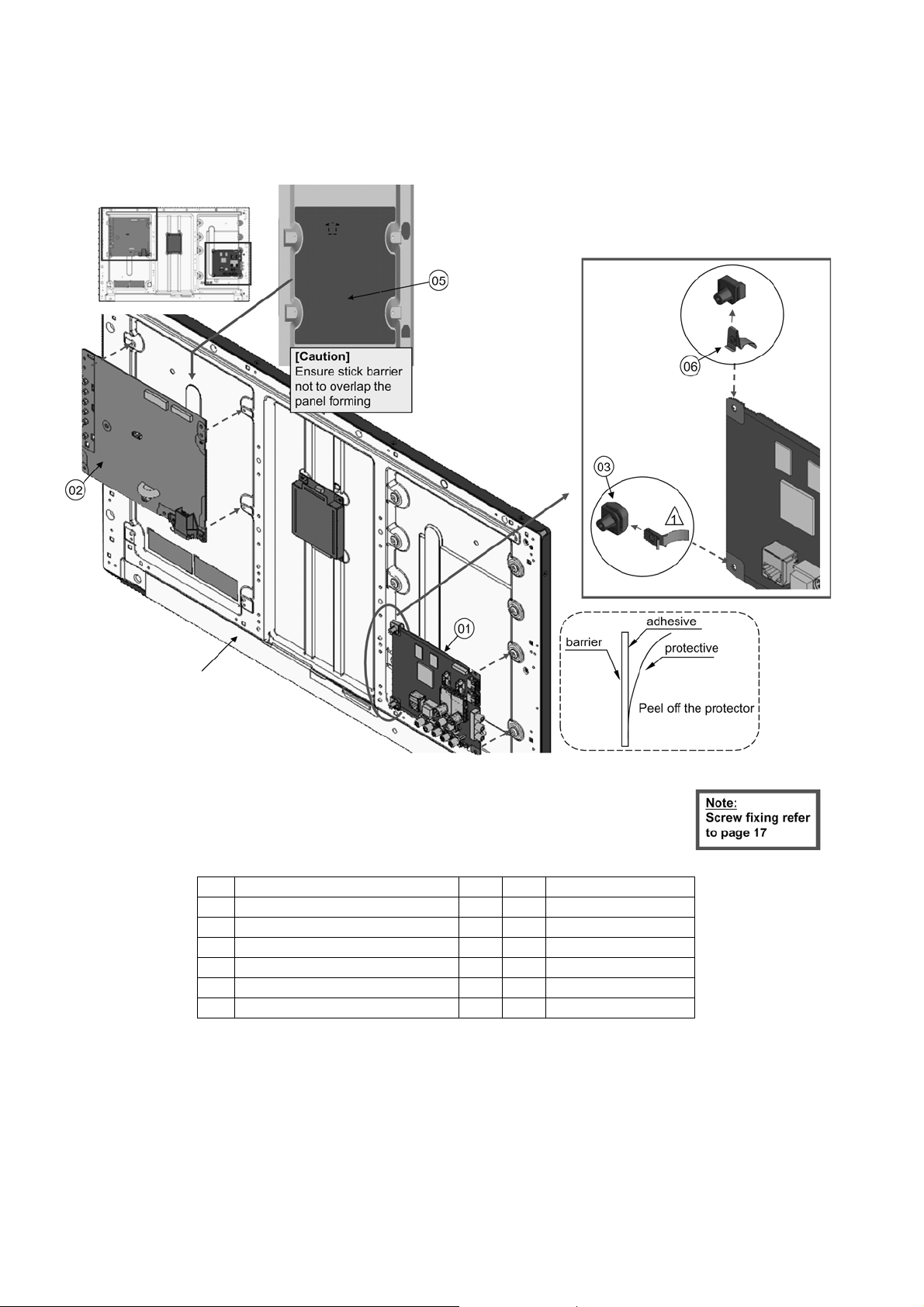

7.11. PCB Installation ------------------------------------------ 24
© Panasonic Corporation 2013.
Page 2
TH-L32XV6S
7.12. Stand MTG Assy -----------------------------------------25
7.13. Pedestal Assembly -------------------------------------- 26

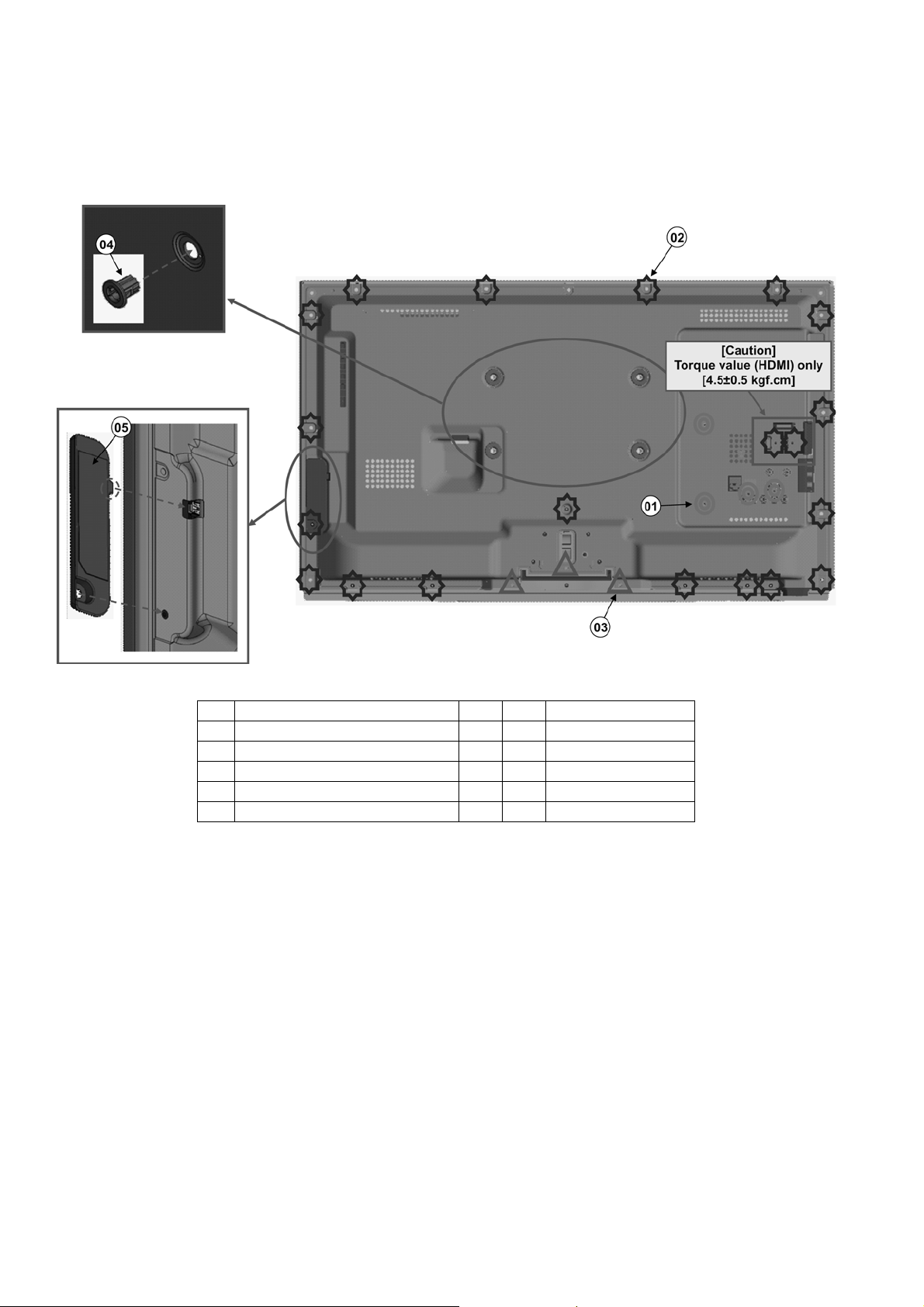

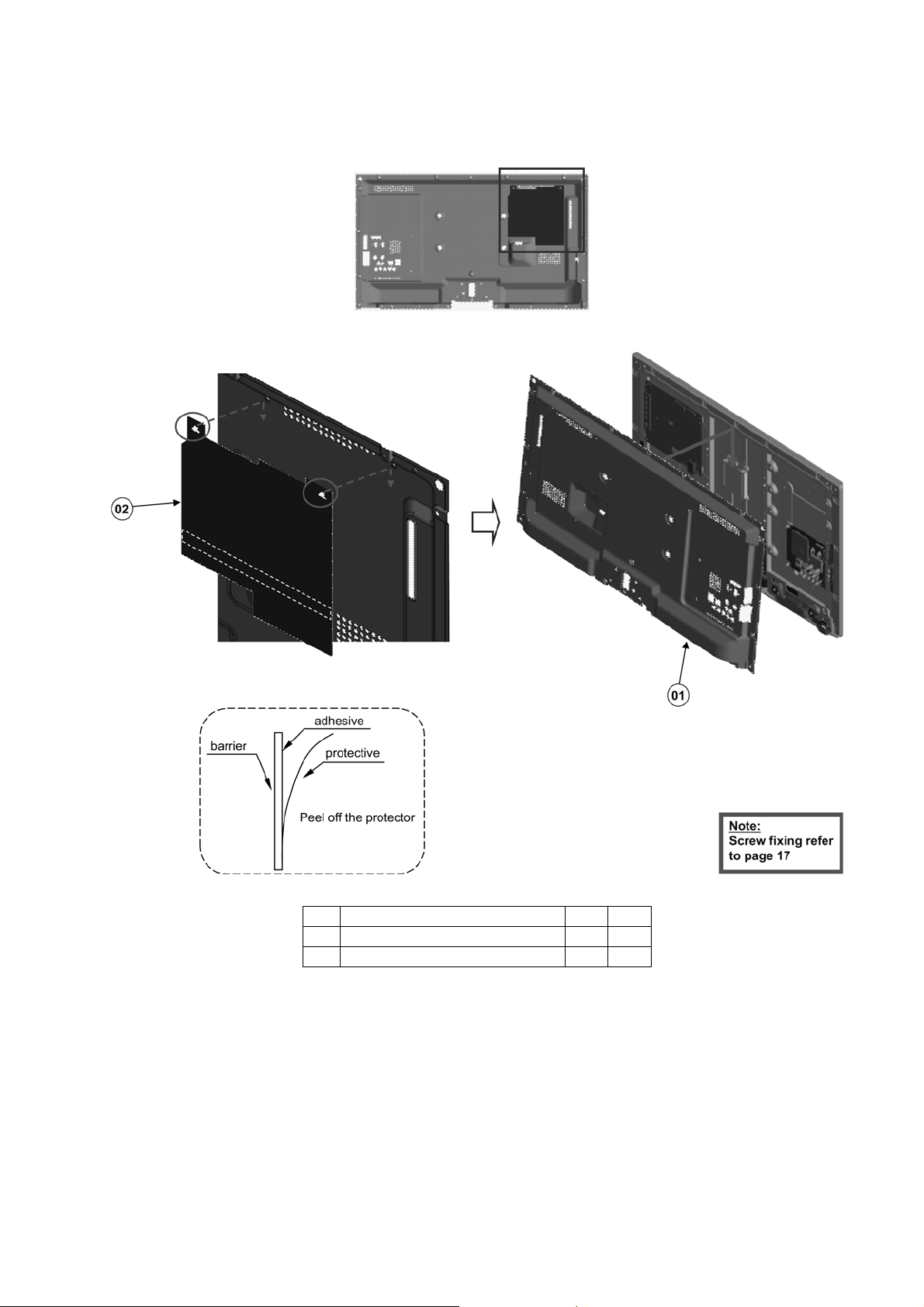

7.14. Back Cover Assembly----------------------------------- 27
7.15. Back Cover Installation ---------------------------------28
8 Measurements and Adjustments -------------------------- 29
8.1. Voltage chart of A-board-------------------------------- 29
8.2. Voltage chart of P-board-------------------------------- 29

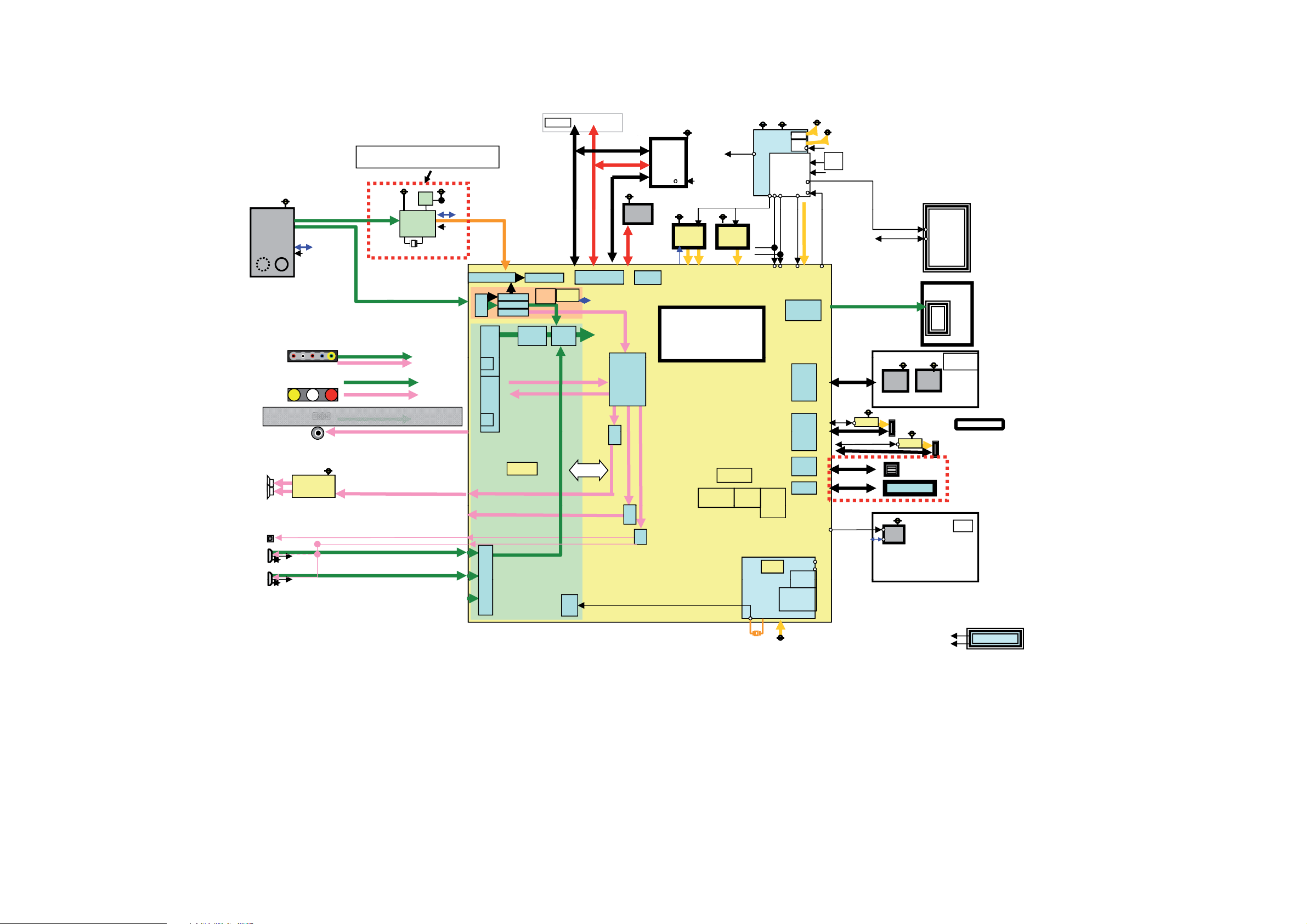

9 Block Diagram --------------------------------------------------- 30
9.1. Main Block Diagram ------------------------------------- 30
10 Wiring Connection Diagram --------------------------------- 31
10.1. Wire Dressing --------------------------------------------- 31

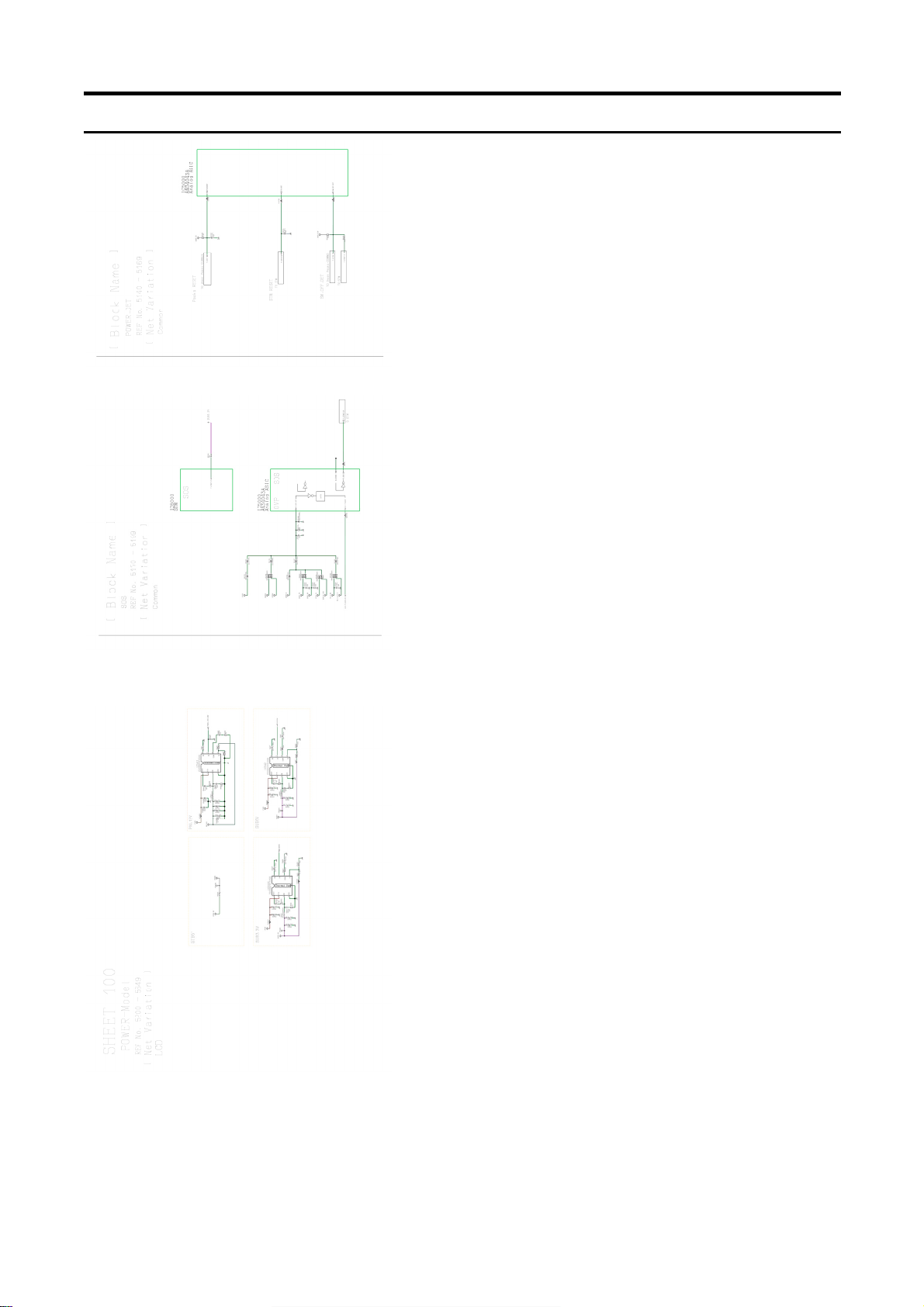

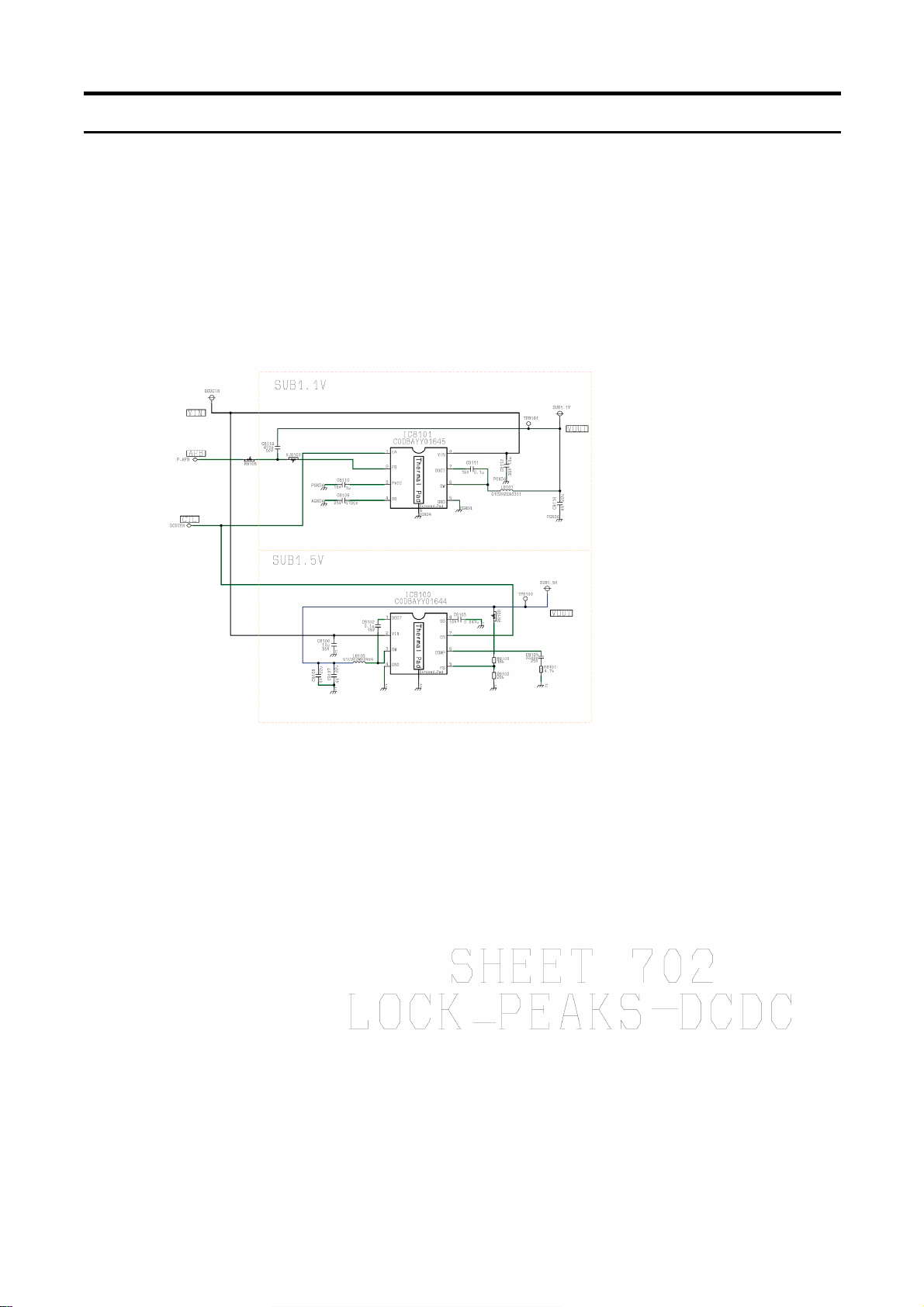

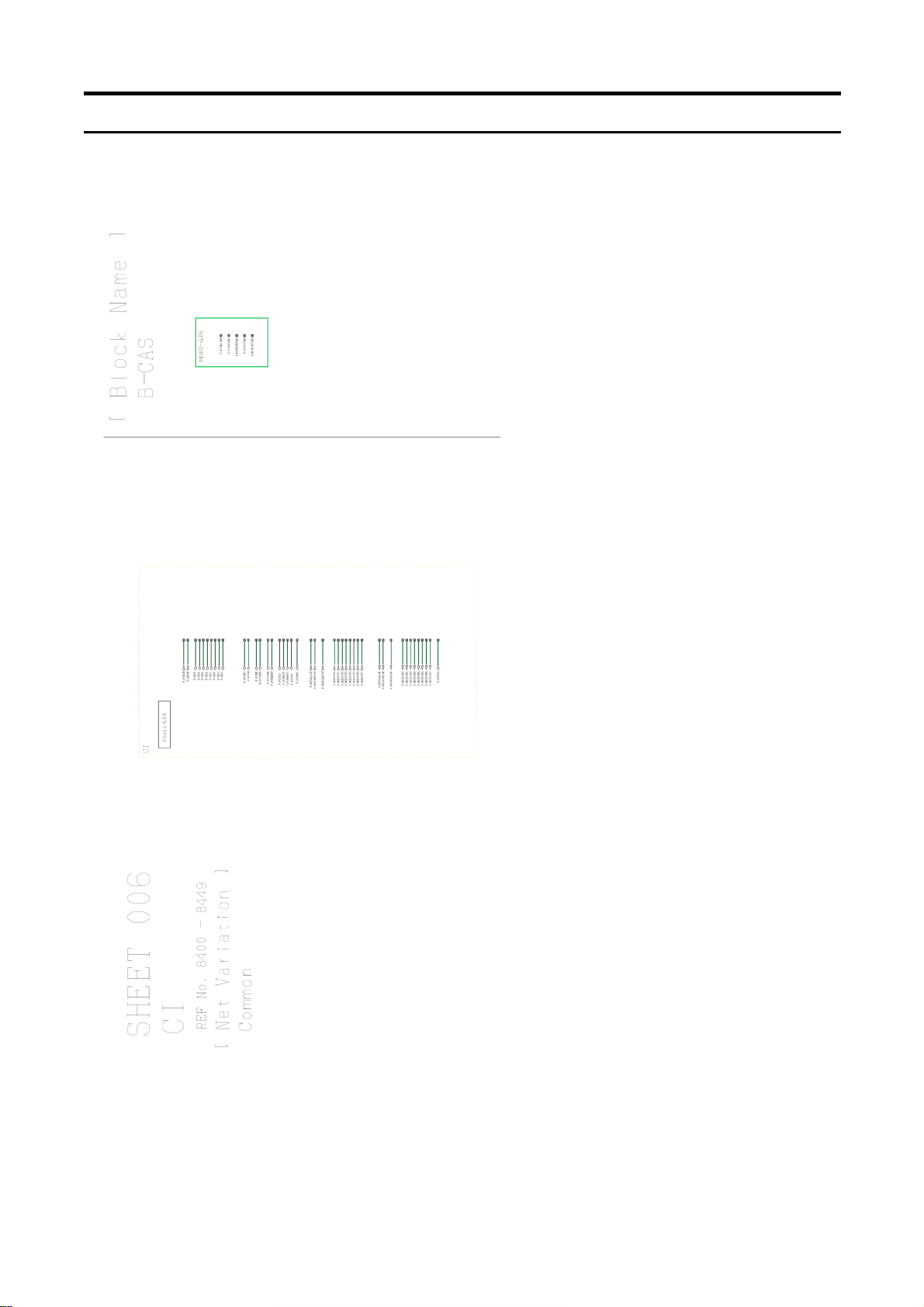

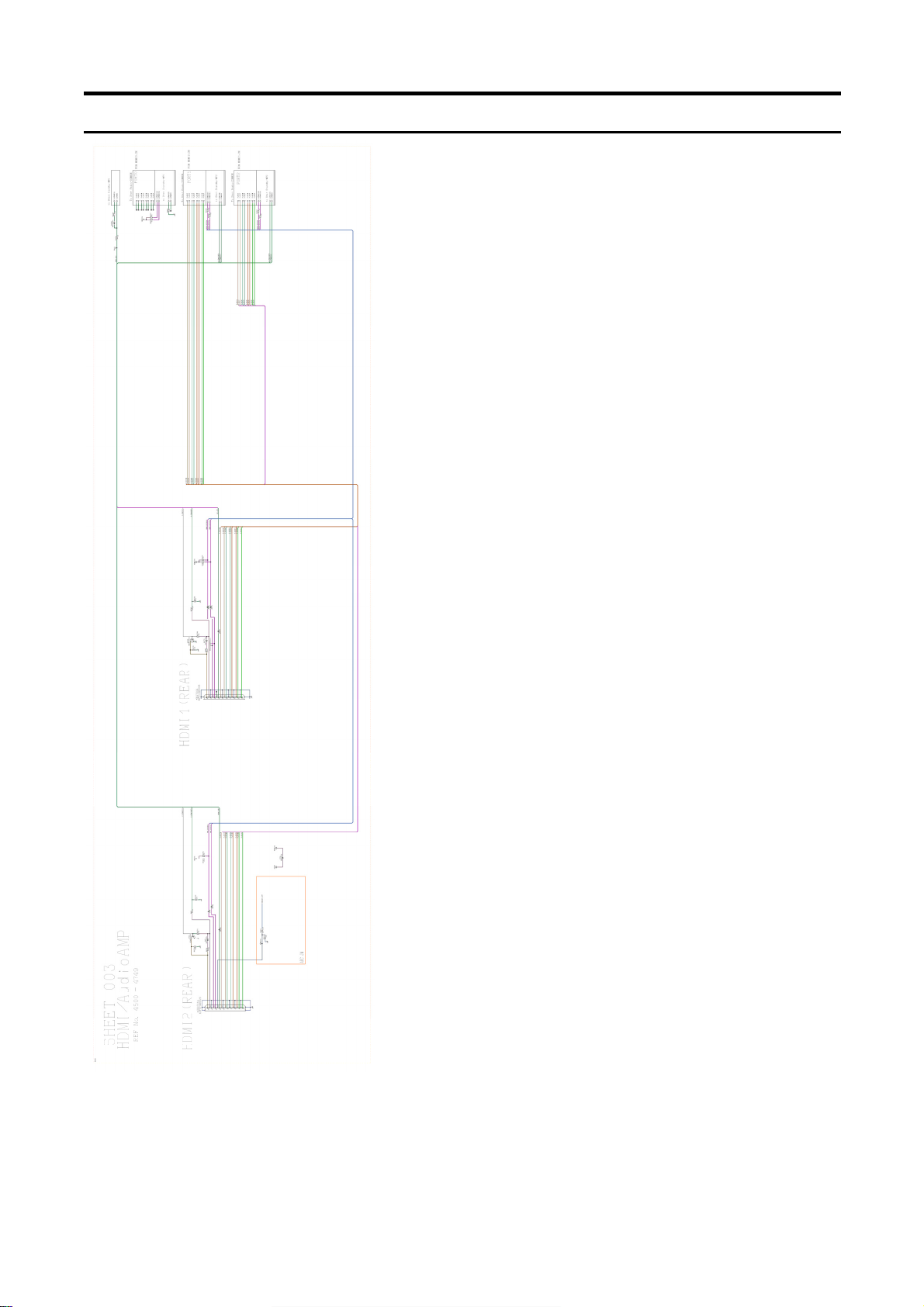

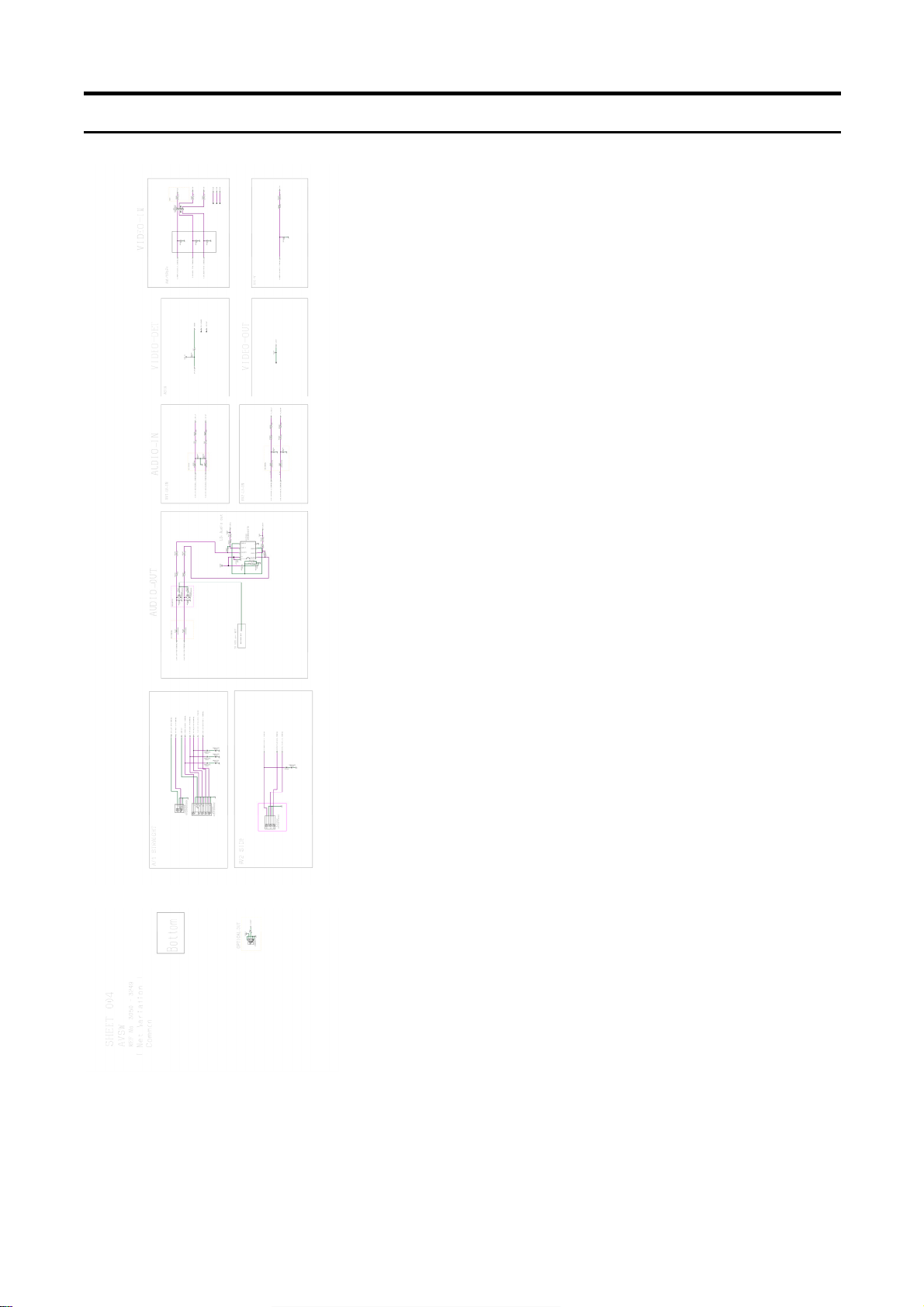

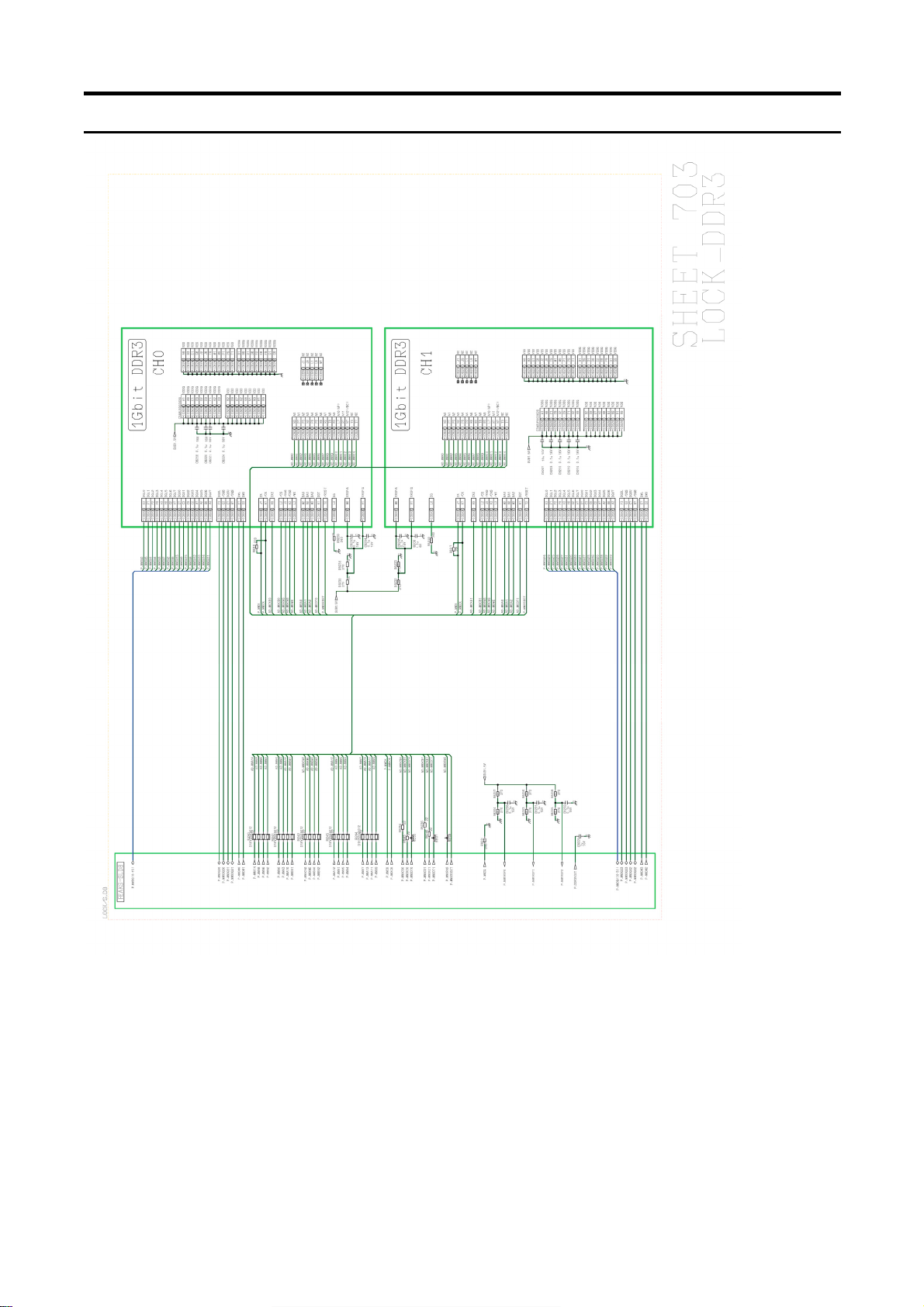

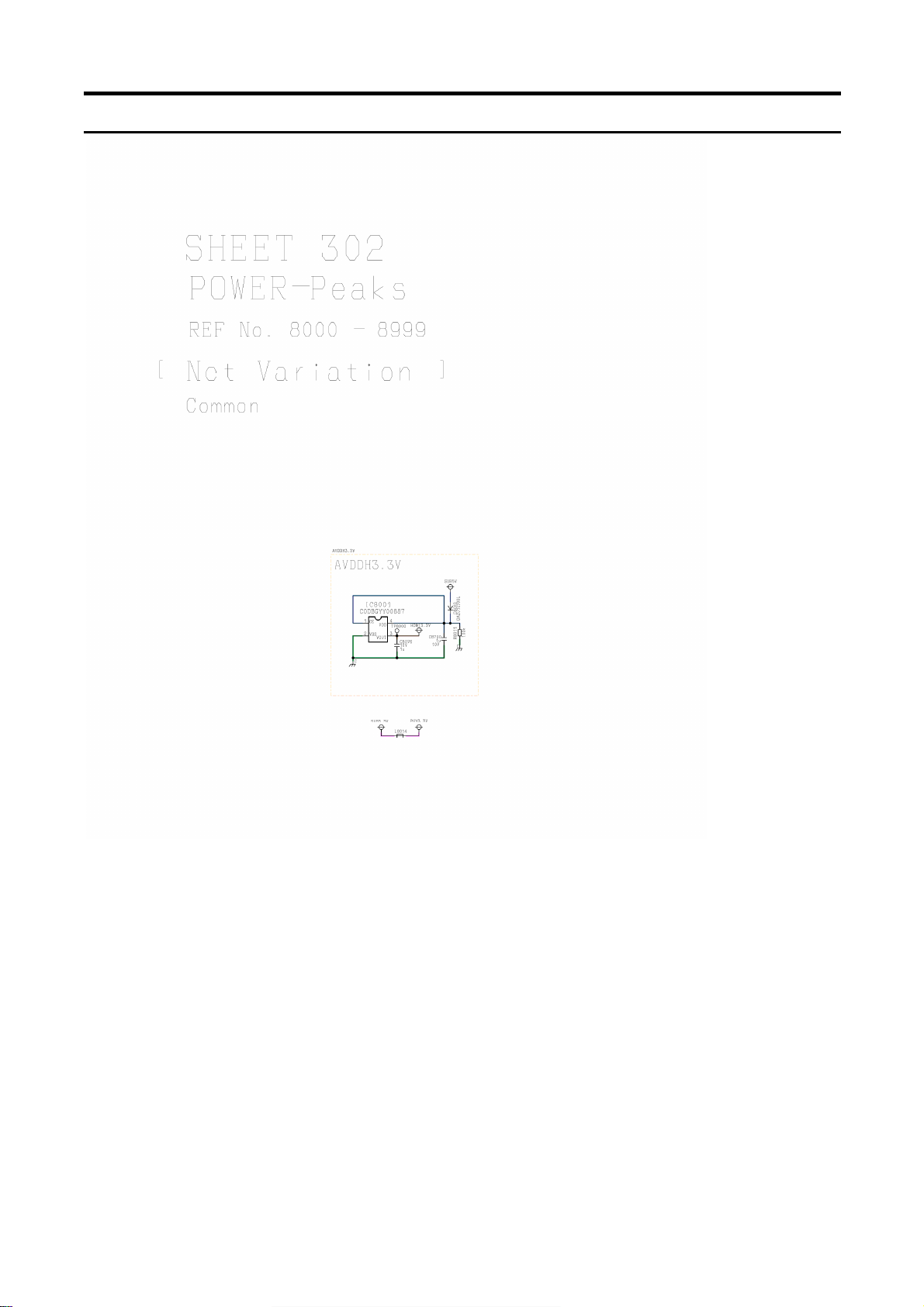

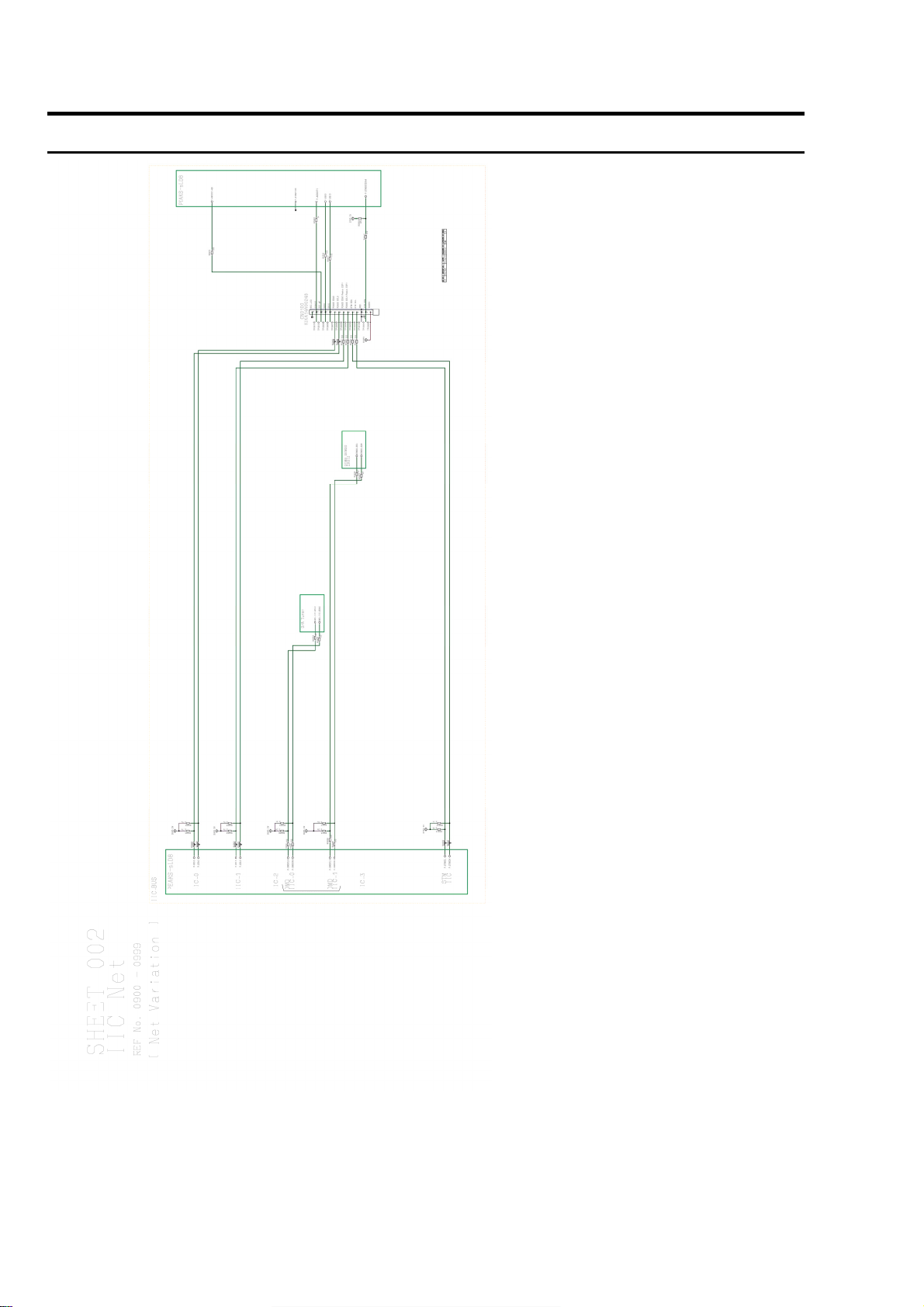

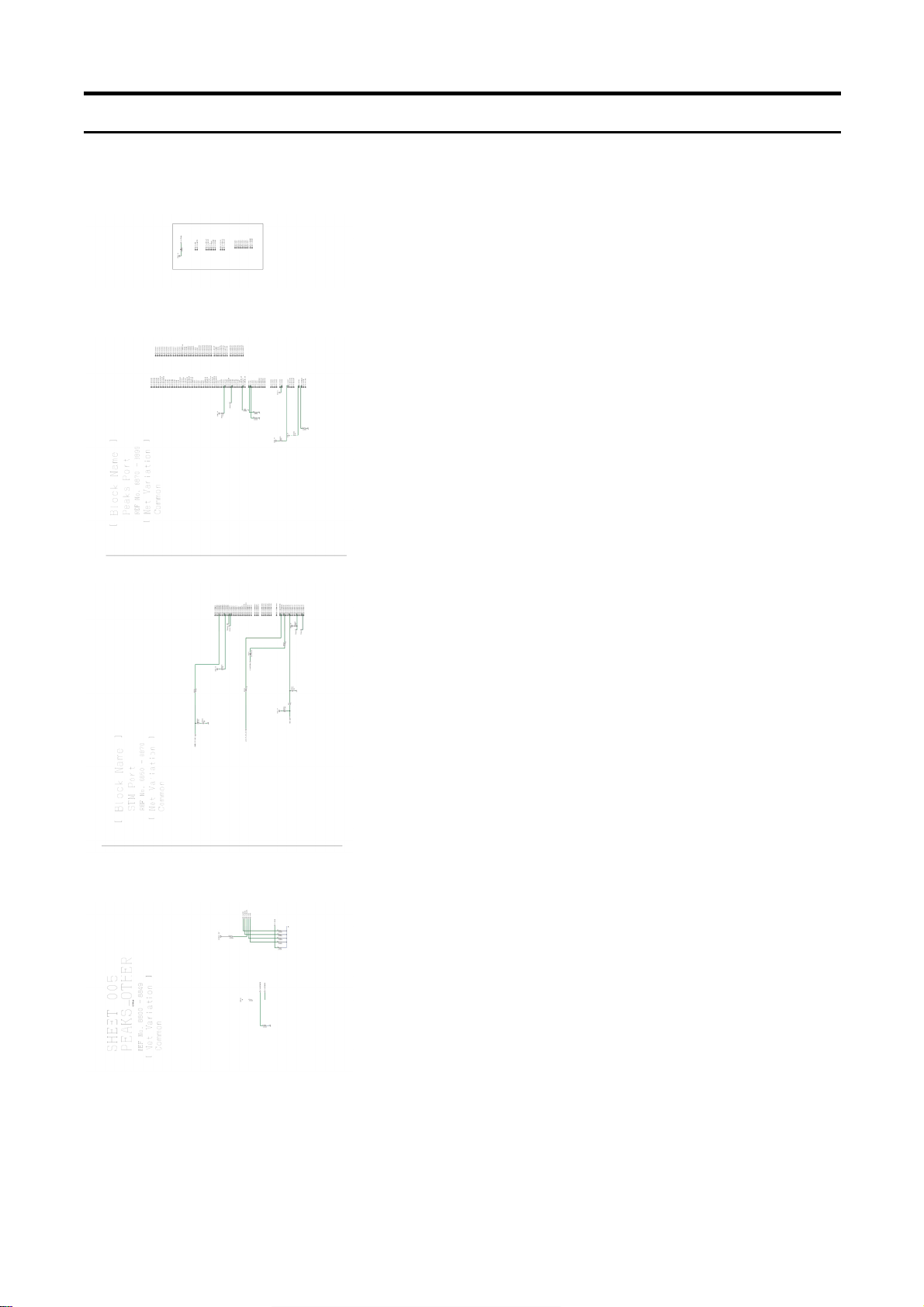

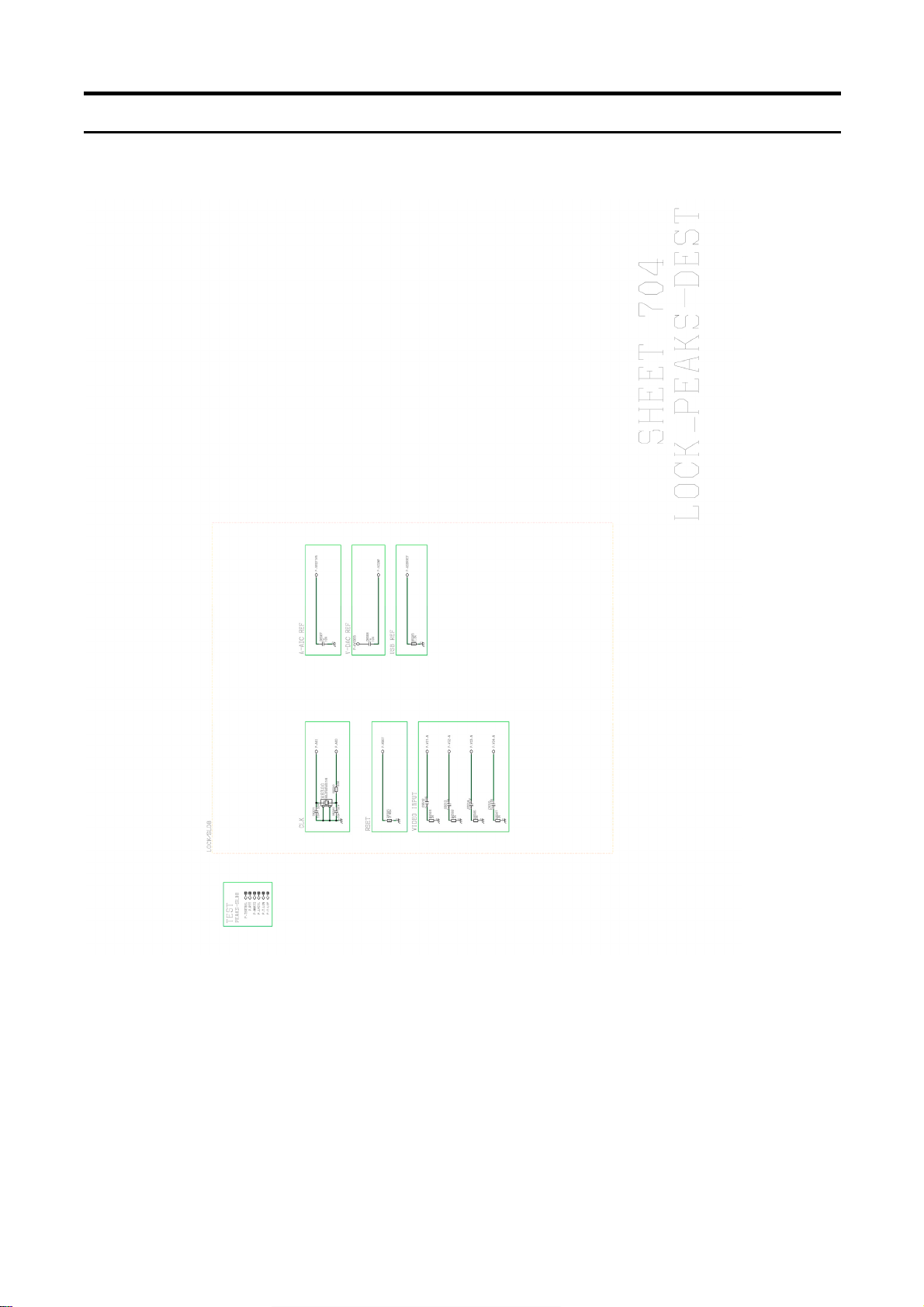

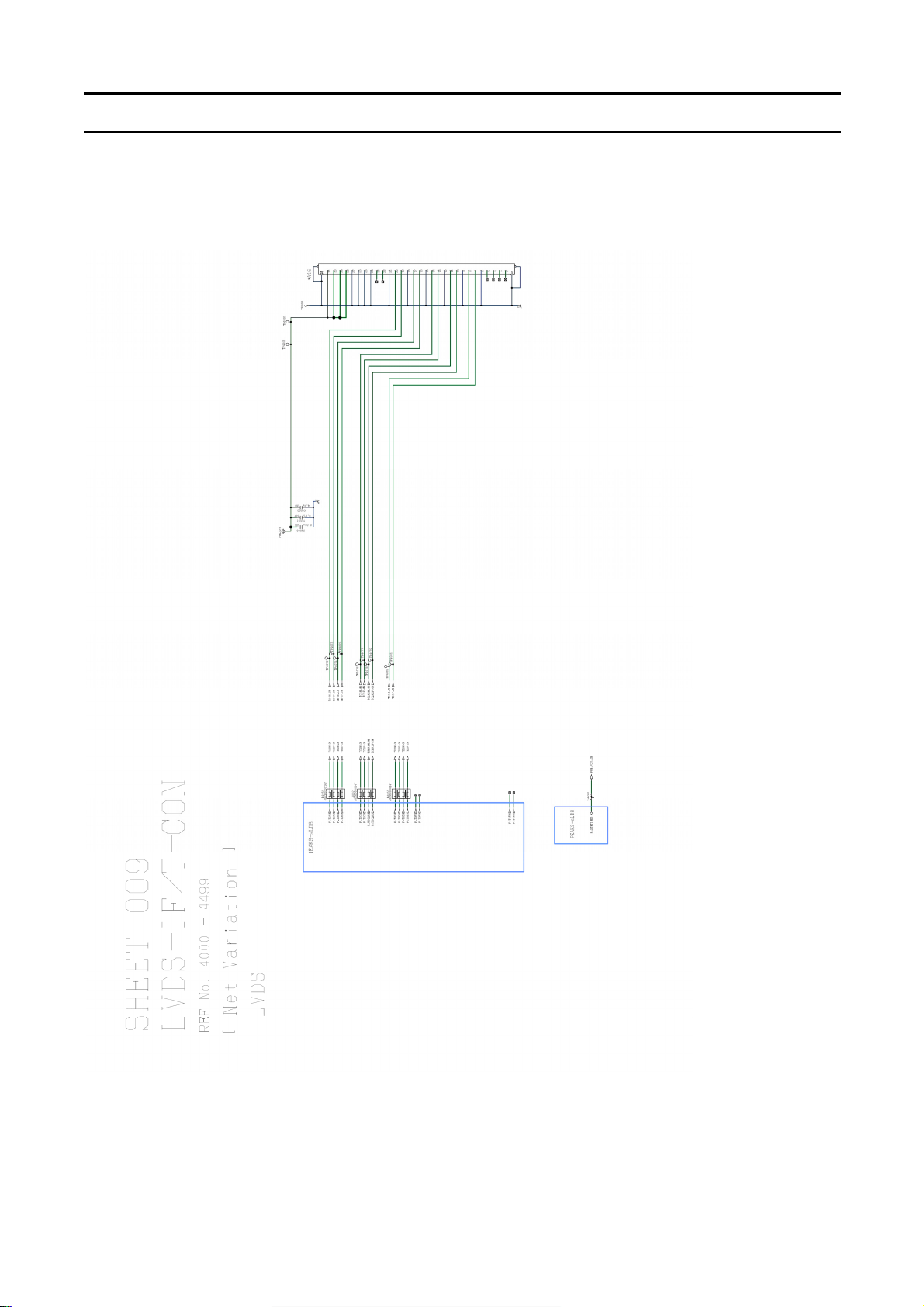

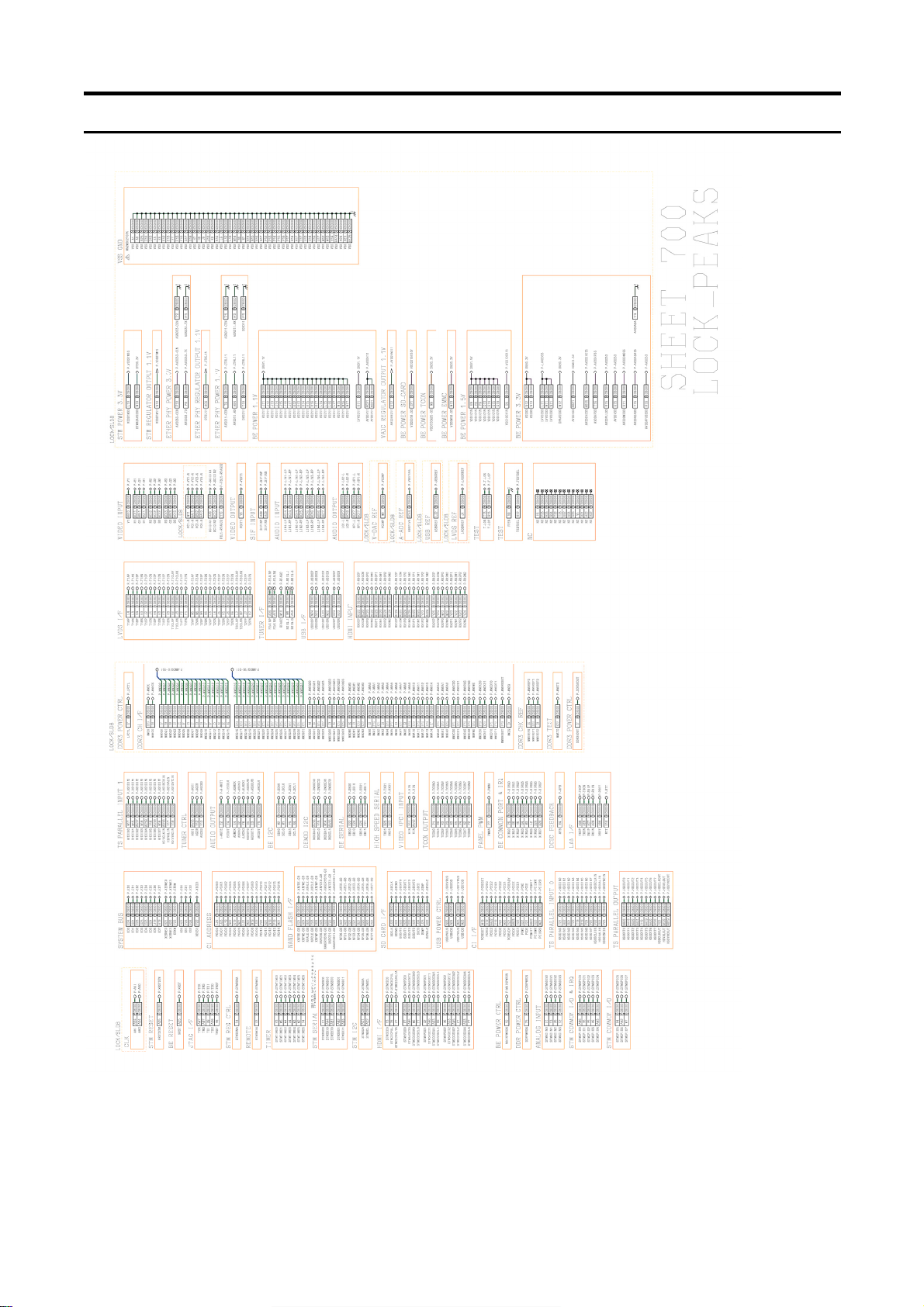

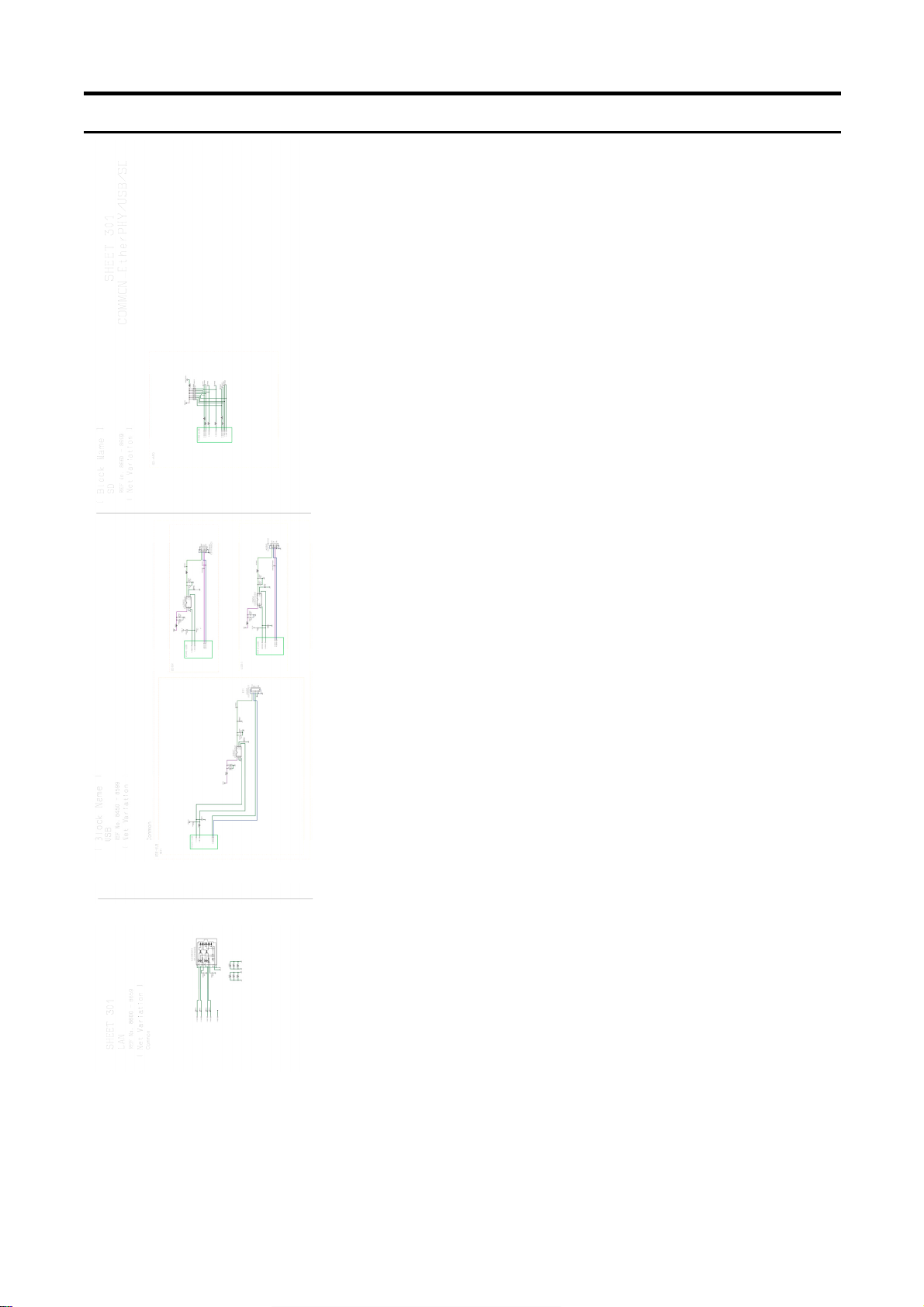

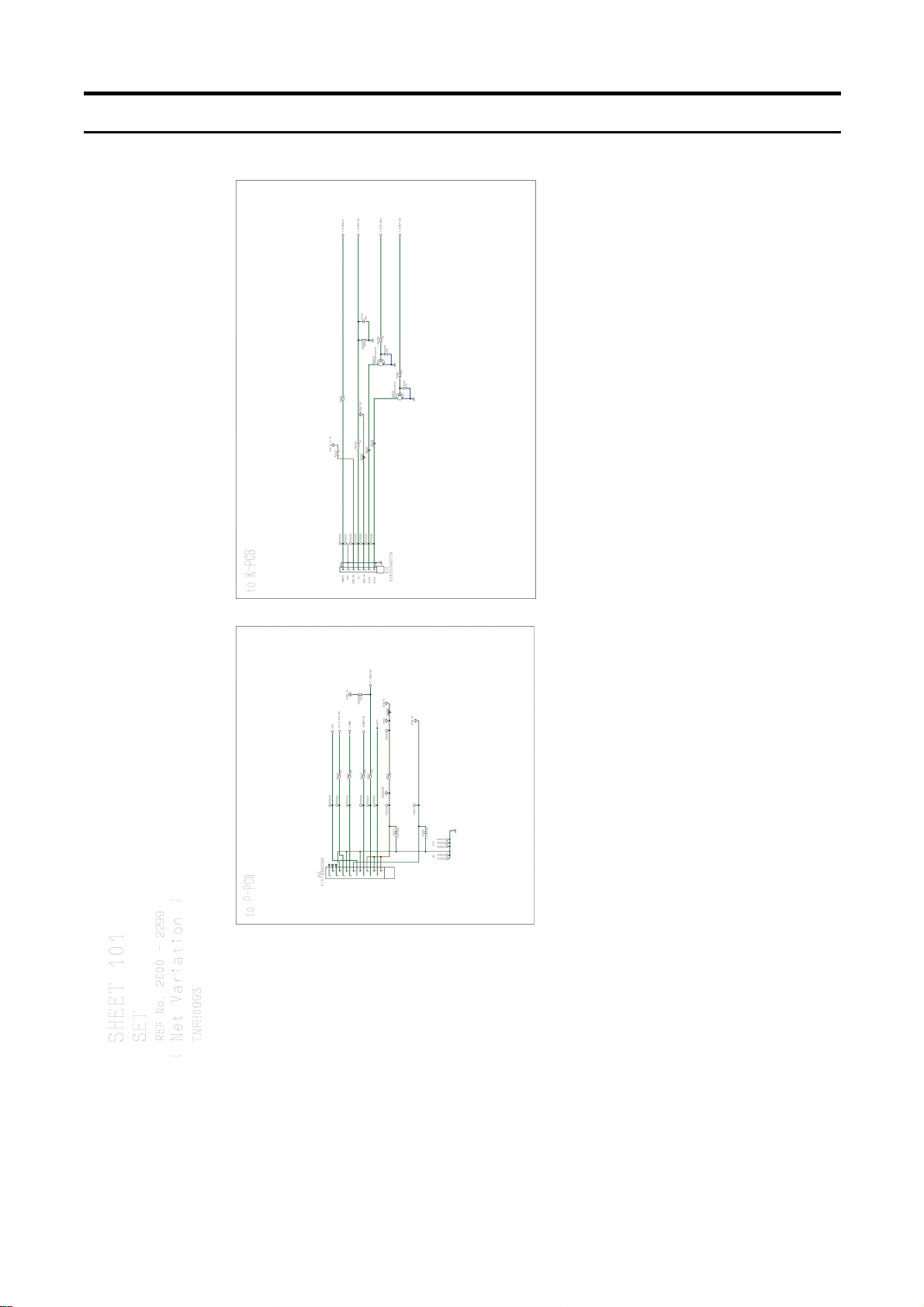

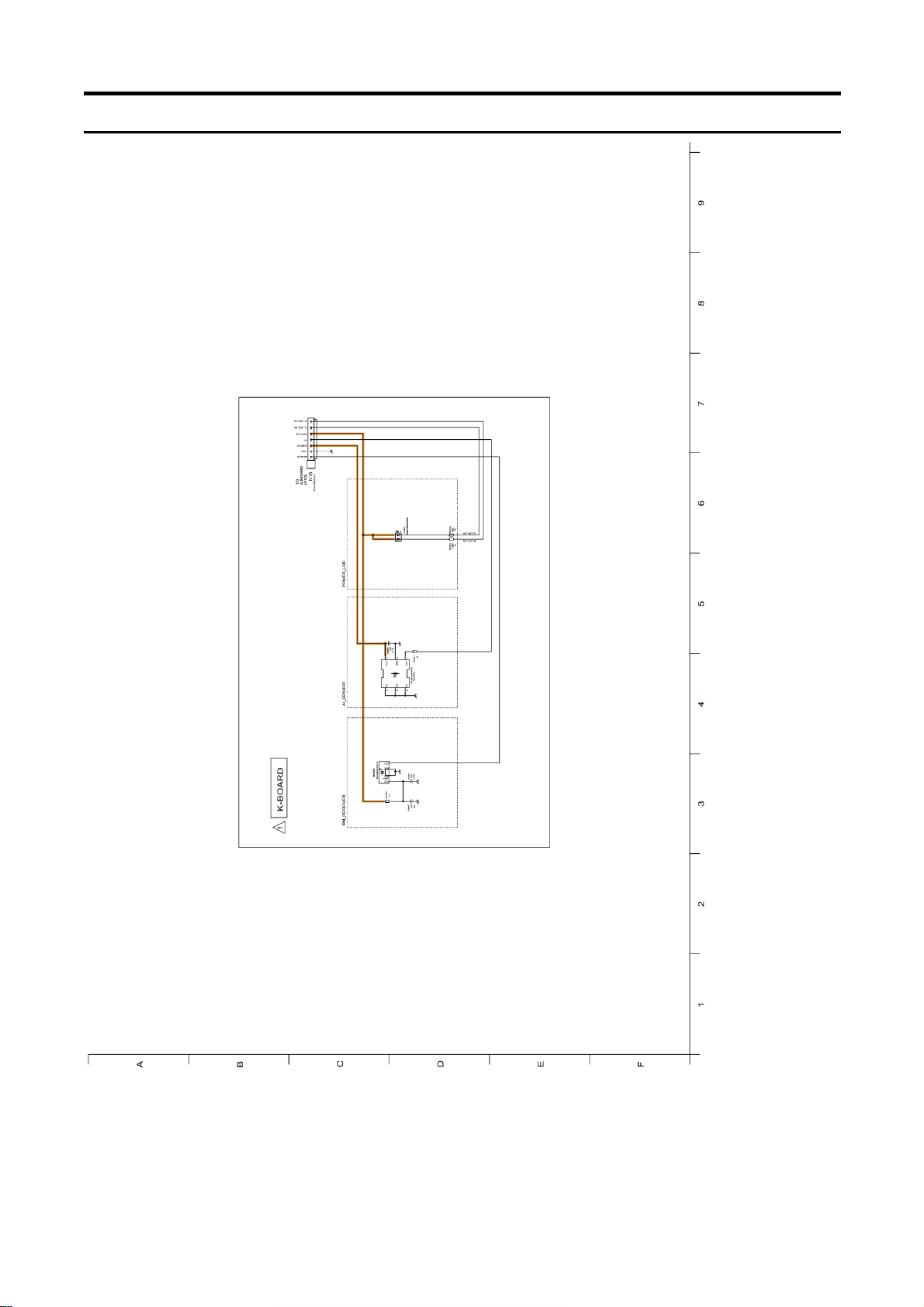

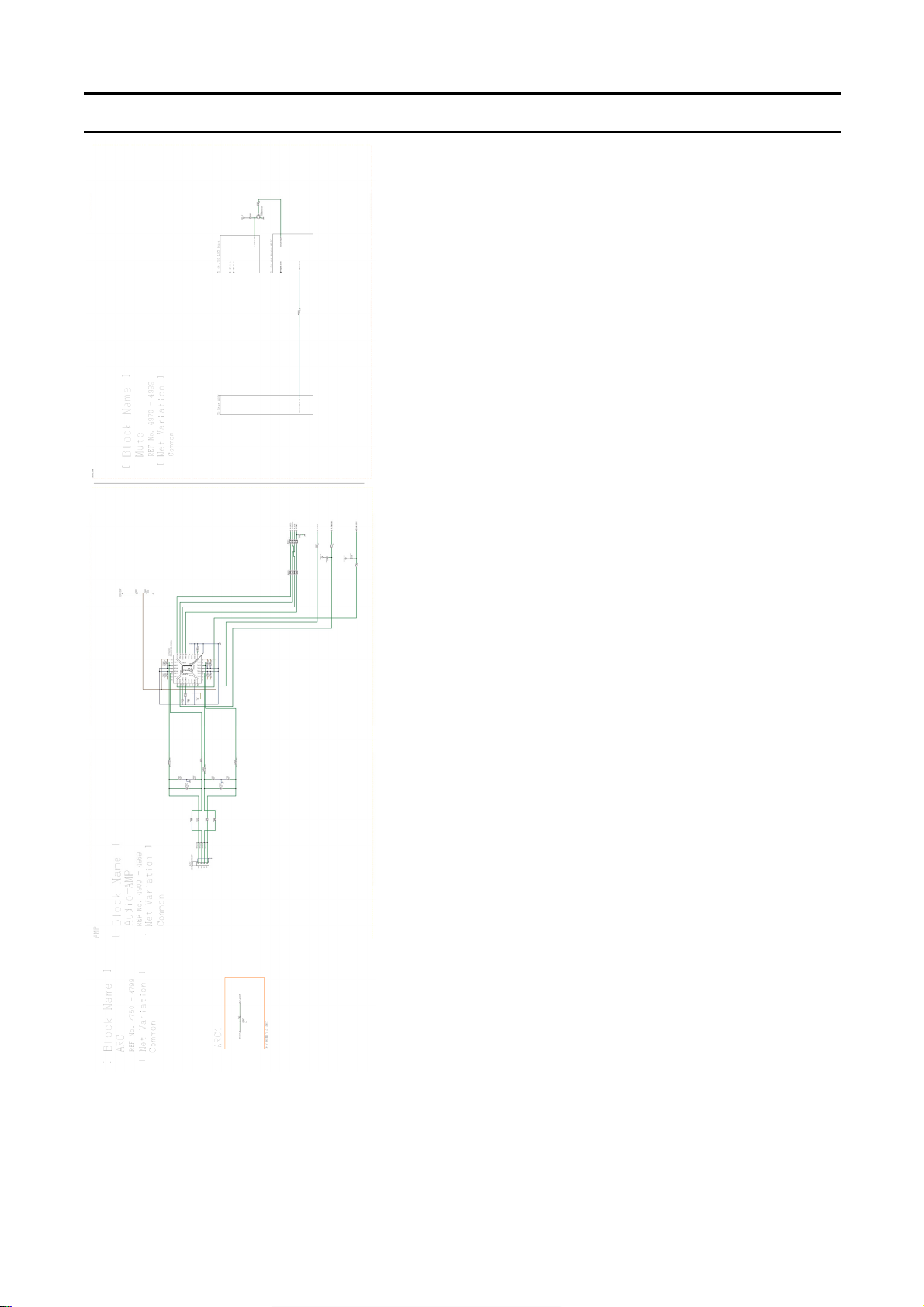

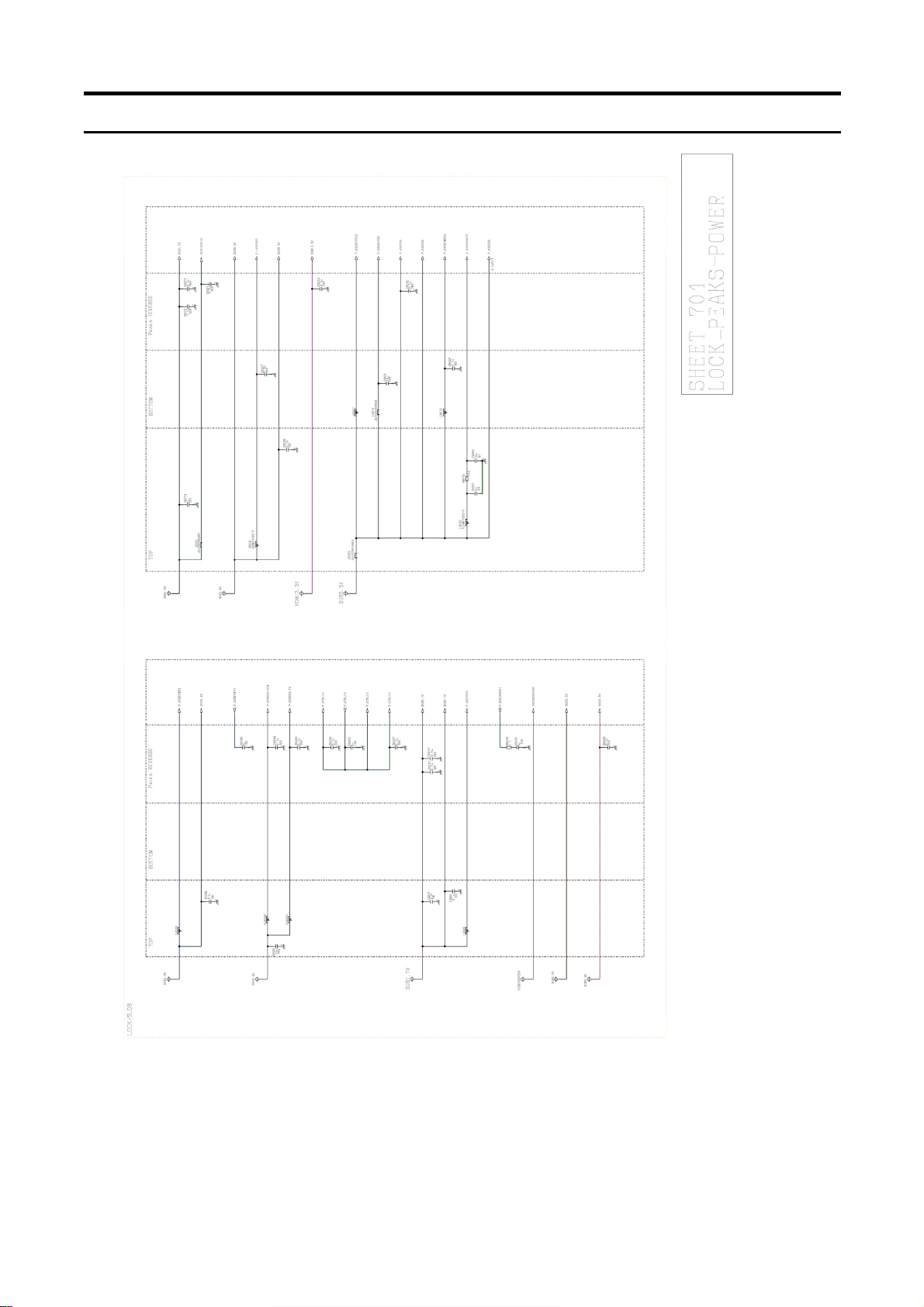

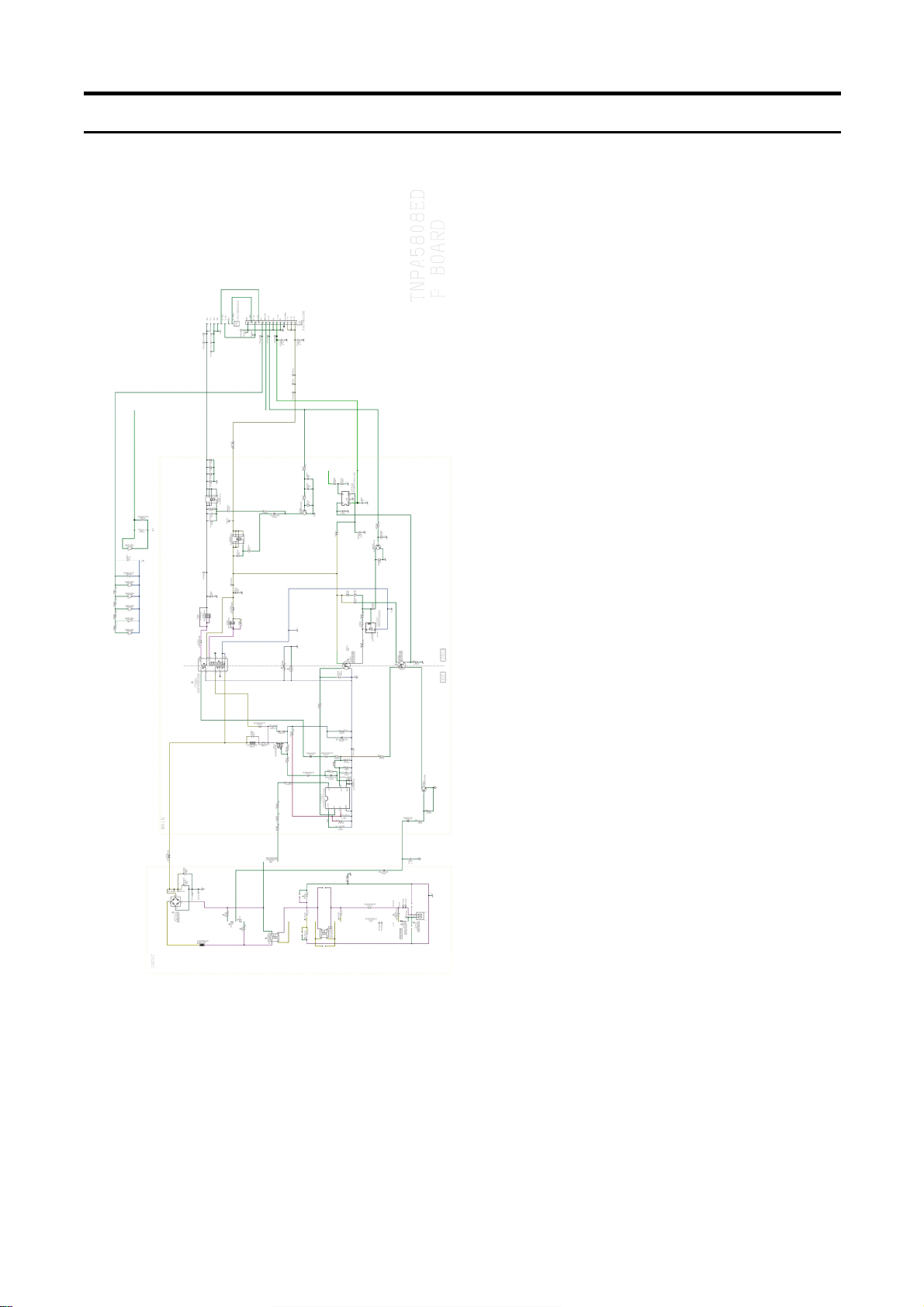

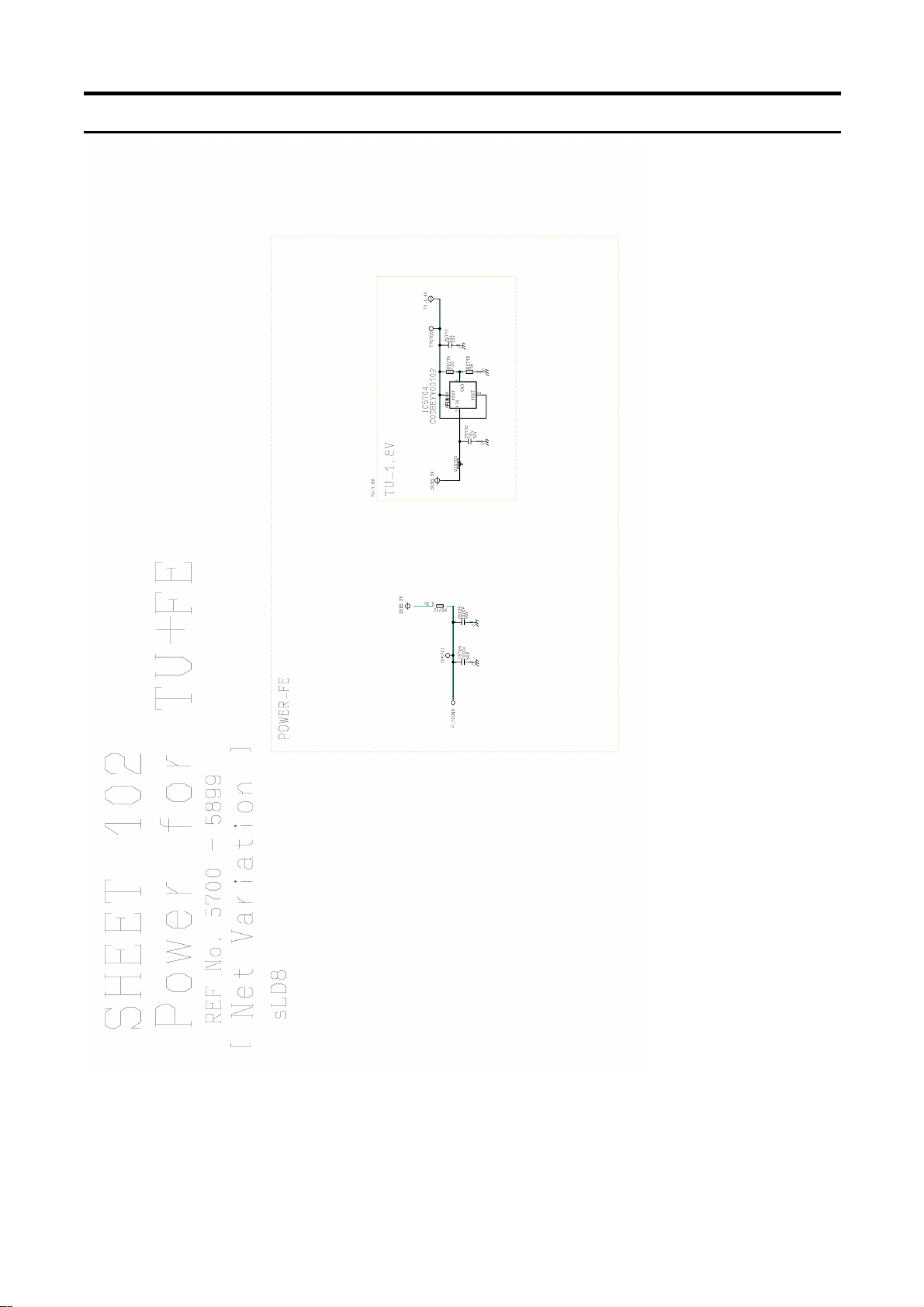

11 Schematic Diagram--------------------------------------------- 32

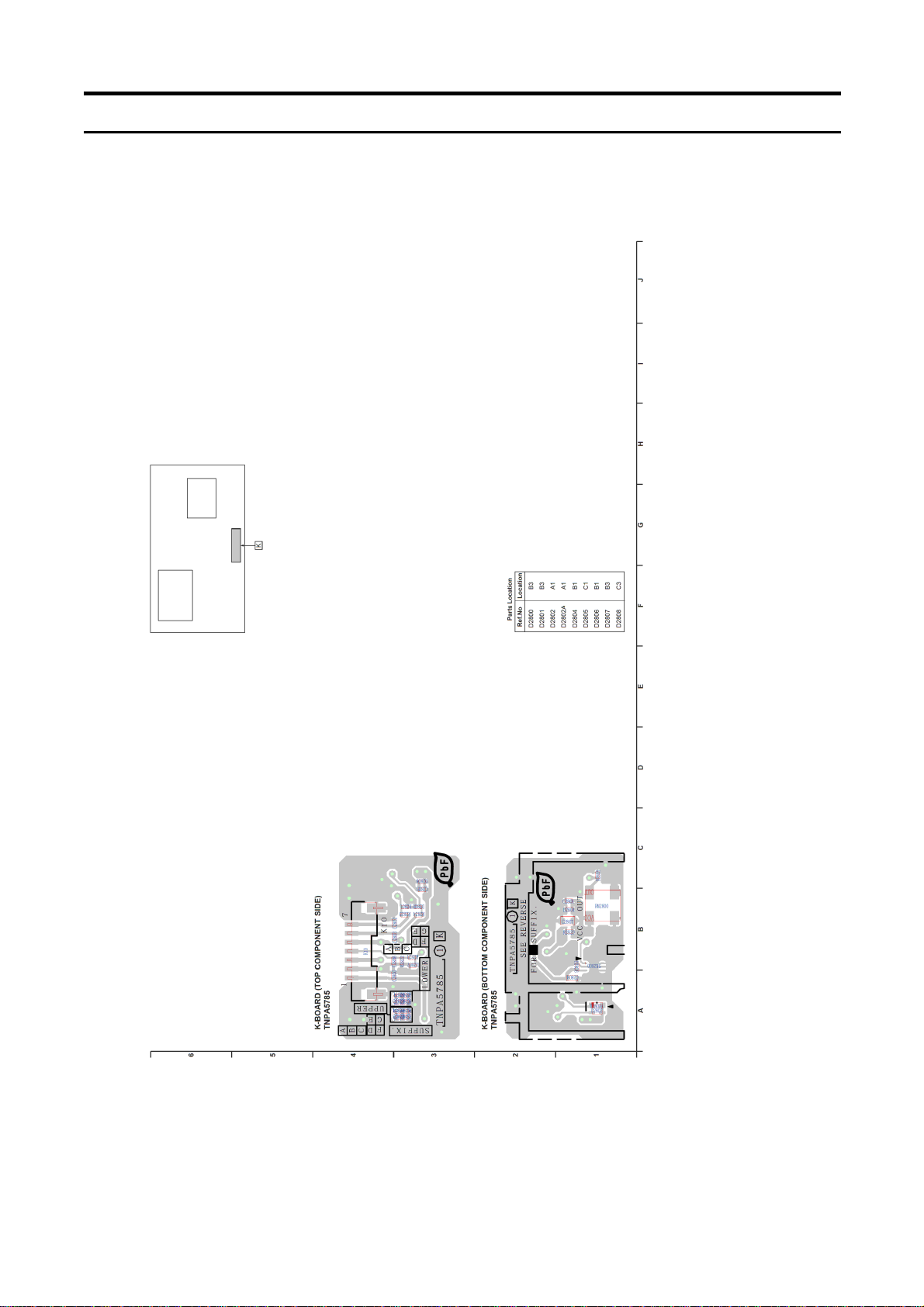

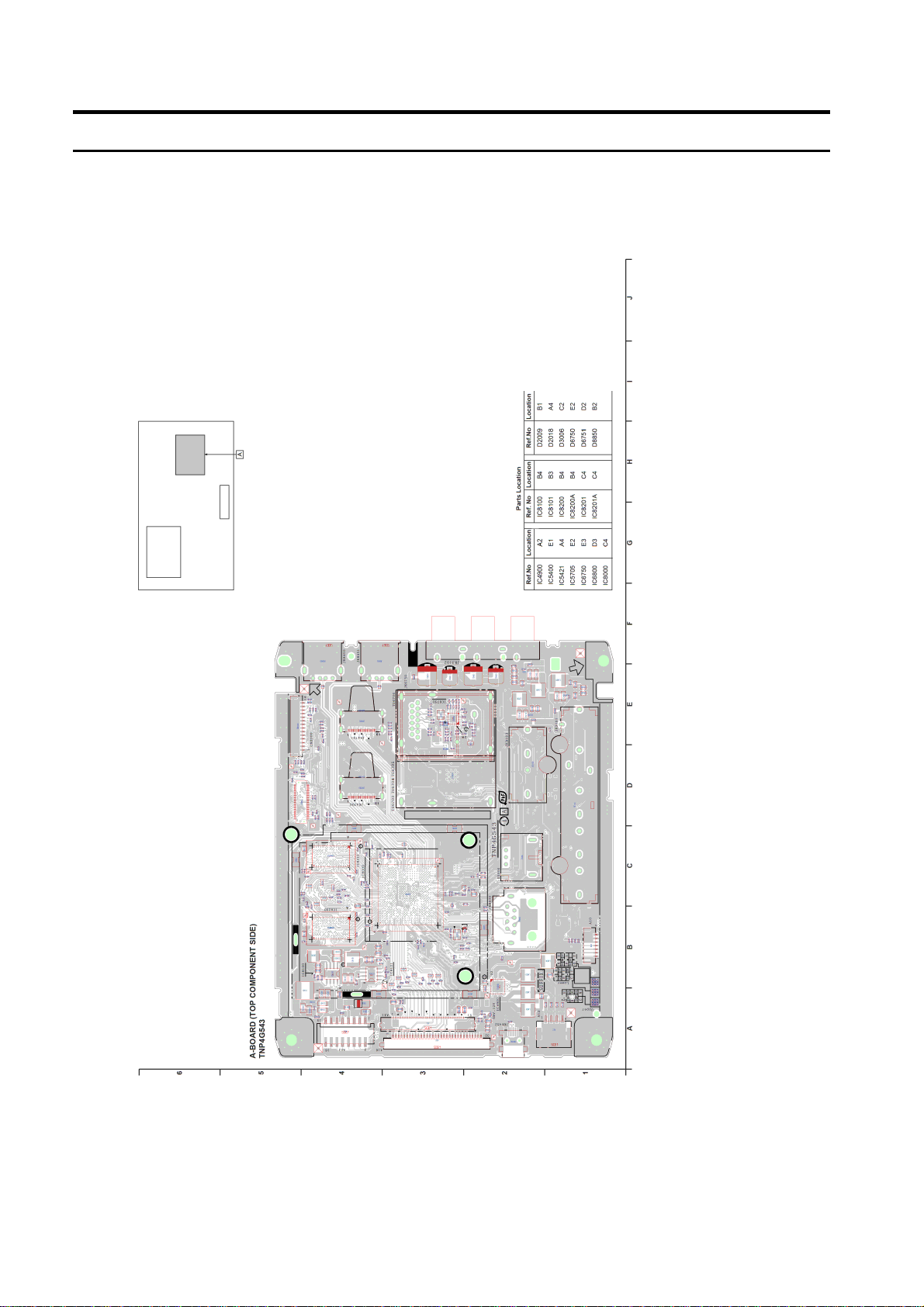

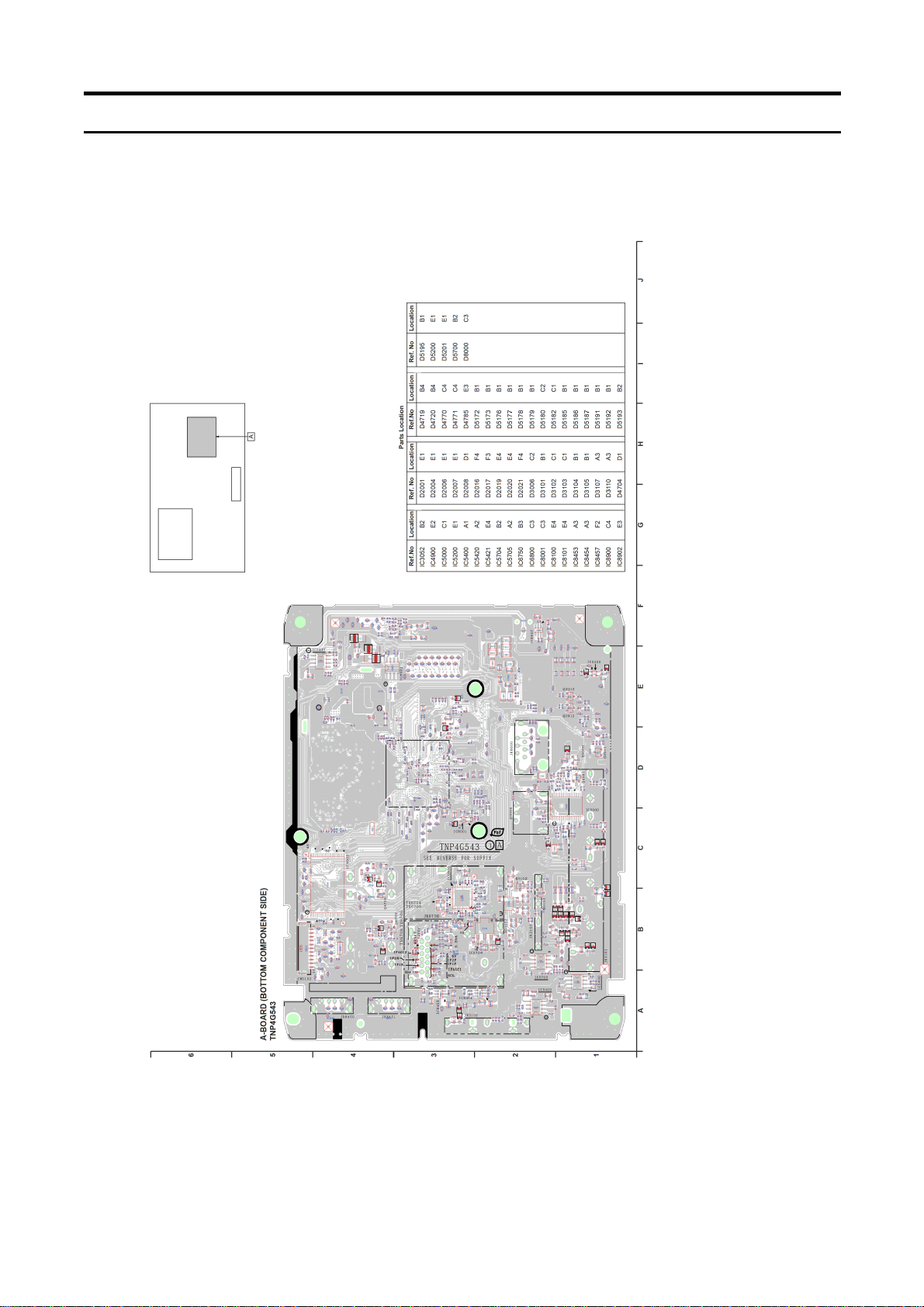

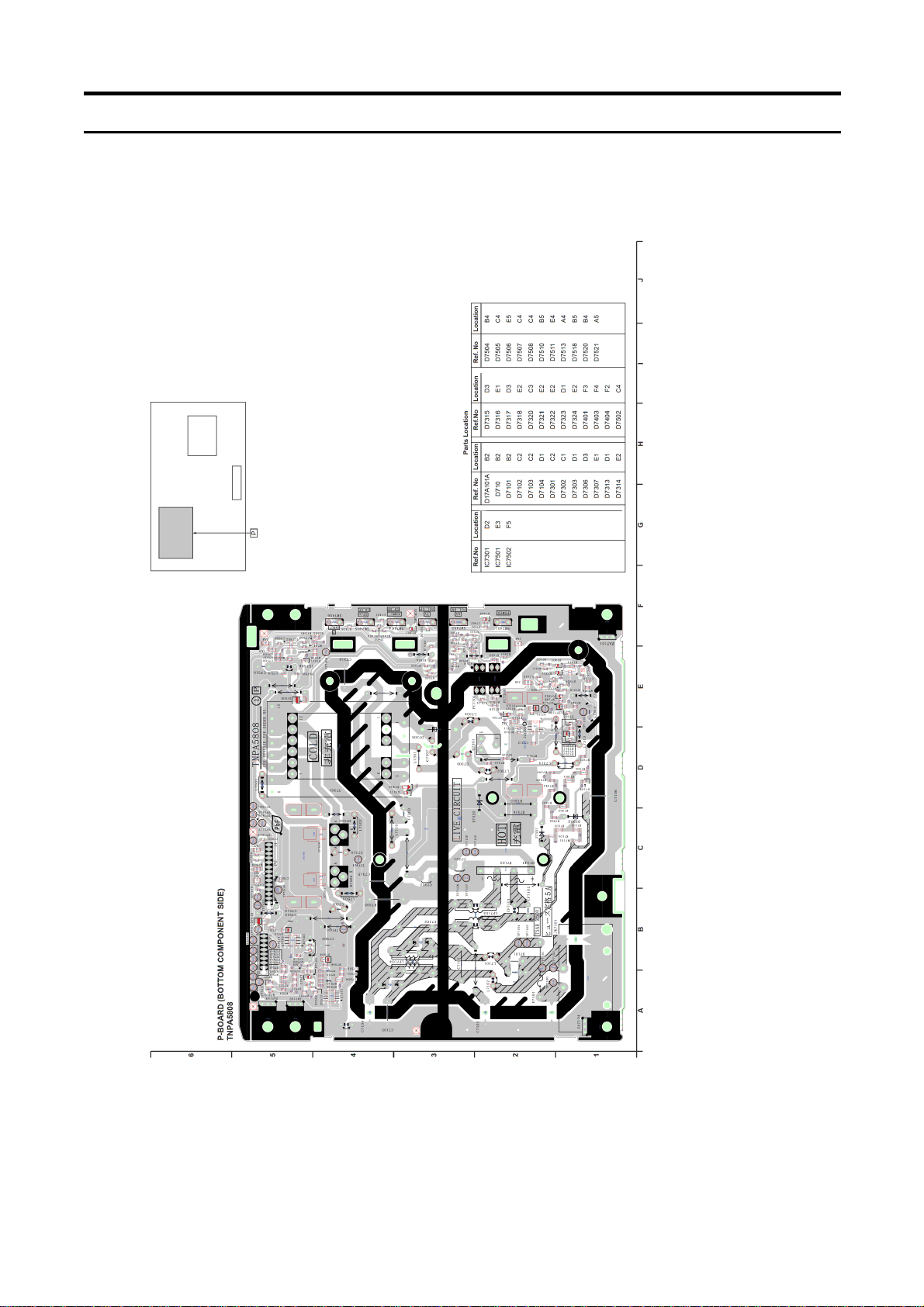

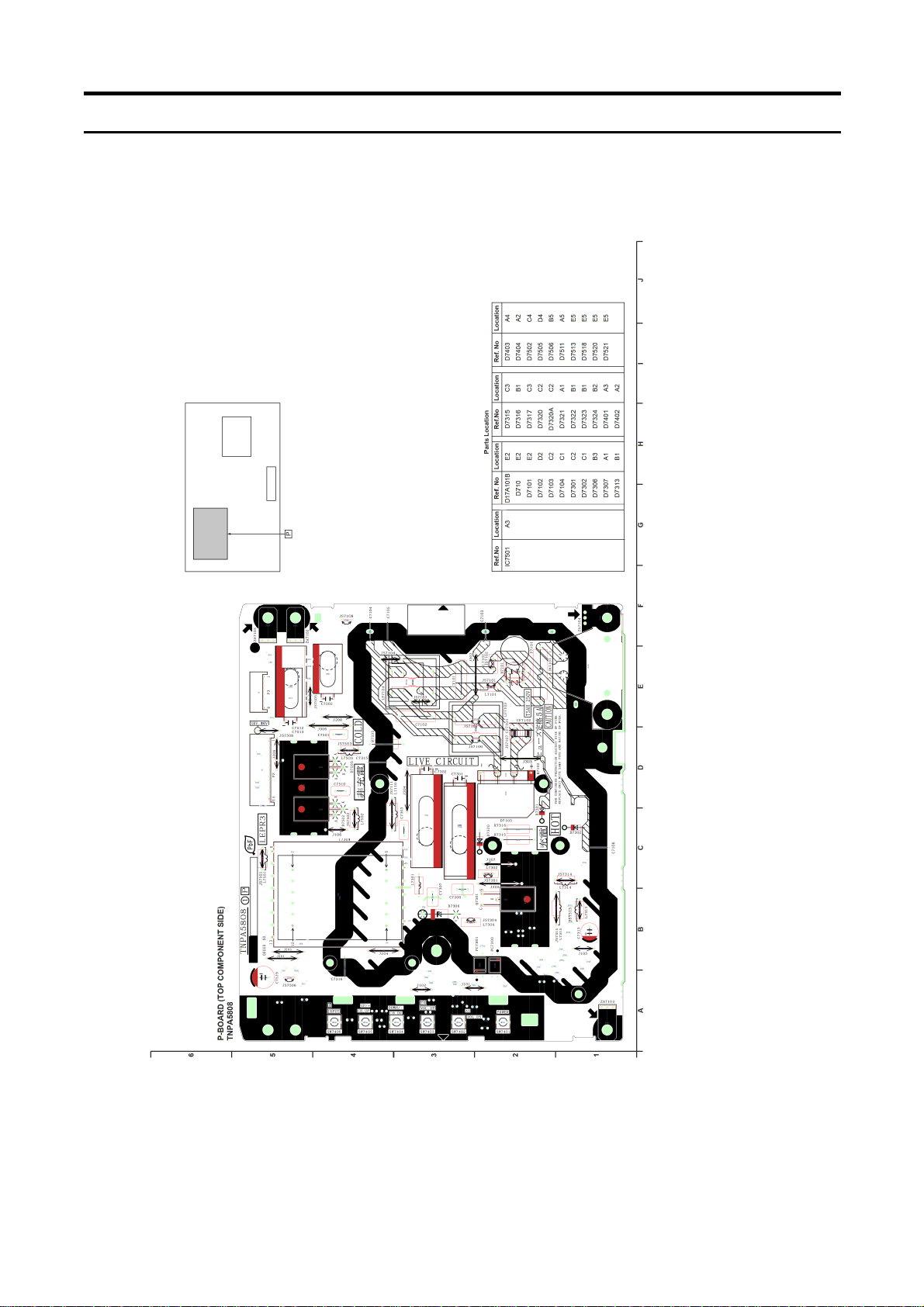

12 Printed Circuit Board ------------------------------------------
13 Exploded View and Replacement Parts List -----------

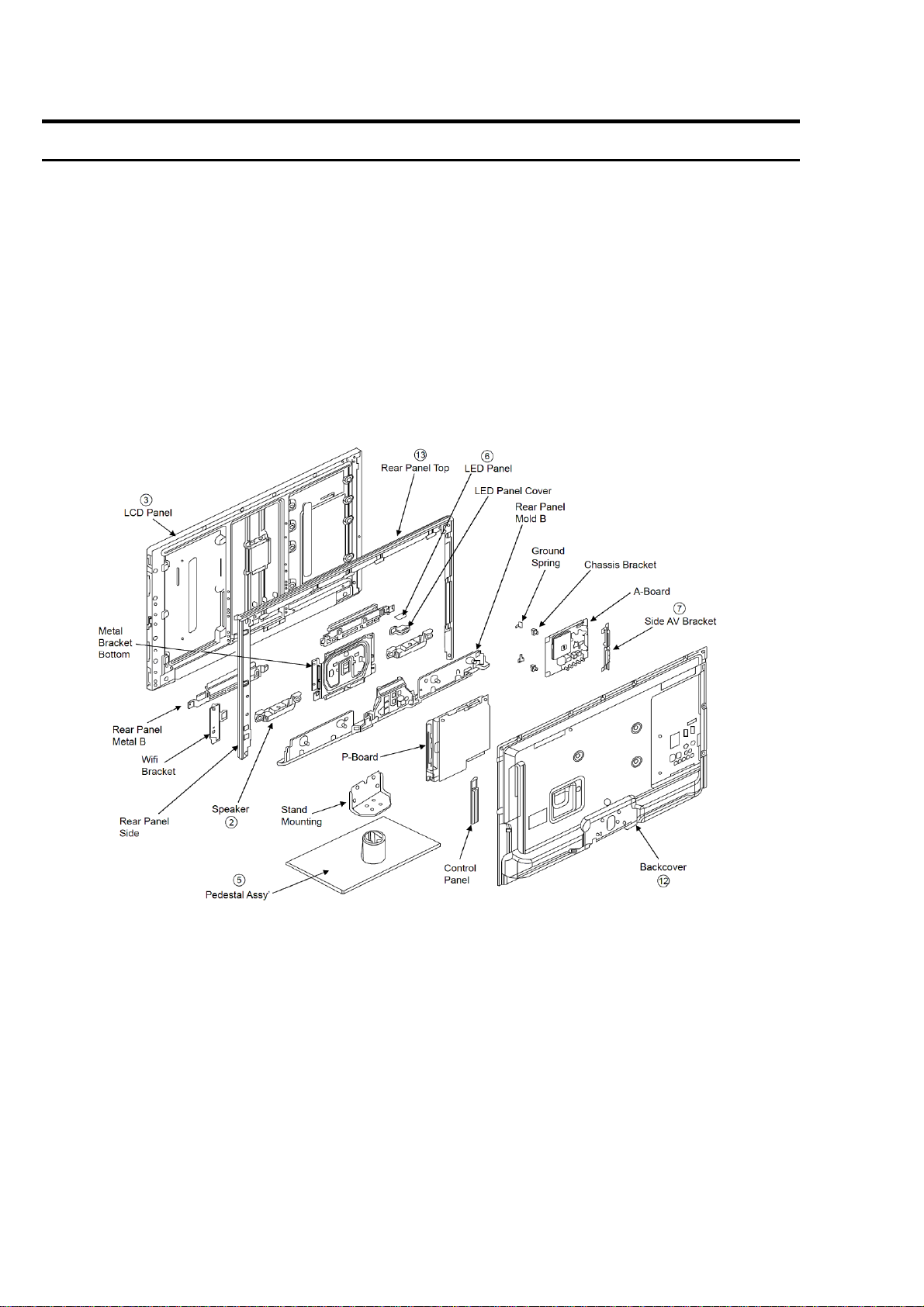

13.1. Exploded View and Mechanical Replacement
Parts List ---------------------------------------------------
2
Page 3
TH-L32XV6S
1 Safety Precautions
1.1. General Guidelines
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
4. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.
5. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the
wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.
6. When conducting repairs and servicing, do not twist the Faston connectors but plug them straight in or unplug them straight
out.
1.1.1. Leakage Current Cold Check
1. Unplug the AC cord and connect a jumper between the
two prongs on the plug.
2. Measure the resistance value, with an ohmmeter,
between the jumpered AC plug and each exposed
metallic cabinet part on the equipment such as
screwheads, connectors, control shafts, etc. When the
exposed metallic part has a return path to the chassis, the
reading should be 100 Mohm and over.
When the exposed metal does not have a return path to
the chassis, the reading must be .
1.1.2. Leakage Current Hot Check (See Figure 1.)
1. Plug the AC cord directly into the AC outlet. Do not use
an isolation transformer for this check.
2. Connect a 1.5kohm, 10 watts resistor, in parallel with a
0.15F capacitors, between each exposed metallic part
on the set and a good earth ground such as a water pipe,
as shown in Figure 1.
3. Use an AC voltmeter, with 1000 ohms/volt or more
sensitivity, to measure the potential across the resistor.
4. Check each exposed metallic part, and measure the
voltage at each point.
5. Reverse the AC plug in the AC outlet and repeat each of
the above measurements.
6. The potential at any point should not exceed 0.75 volts
RMS. A leakage current tester (Simpson Model 229 or
equivalent) may be used to make the hot checks, leakage
current must not exceed 1/2 milliamp. In case a
measurement is outside of the limits specified, there is a
possibility of a shock hazard, and the equipment should
be repaired and rechecked before it is returned to the
customer.
Figure 1
3
Page 4
TH-L32XV6S
2Warning
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can
generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD)
sufficient to damage an ES device).
4
Page 5
TH-L32XV6S
2.2. About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d
suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.
Caution
• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 F (30~40 C) higher. Please
use a high temperature soldering iron and set it to 700 ± 20 F (370 ± 10 C).
• Pb free solder will tend to splash when heated too high (about 1100 F or 600 C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb
solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the
opposite side. (see figure below)
5
Page 6
TH-L32XV6S
3 Service Navigation
3.1. Service Hint
Board Name Main Device Remarks
A BOARD TUN, OFDM, ADV, LD4, STBY EEP Repairable
P BOARD Power Supply (For 32" include function SW) Repairable
K BOARD LED/RM/CATS Repairable
6
Page 7
4 Specifications
Power Source AC 110 - 240 V, 50/60 Hz
Power
Rating 58.0 W
Standby power consumption 0.25 W
Visible screen size (diagonal) 80 cm
Display Resolution 1,366 (W) 768 (H)
Panel LED backlight Liquid Crystal Display
Dimensions (W H D) 731 mm 493 mm 207 mm (With Pedestal)
731 mm 439 mm 59 mm (TV only)
Mass 8.0 kg Net (With Pedestal)
7.0 kg Net (TV only)
Connection Terminals
AV1 IN
(COMPONENT / VIDEO)
AV2 IN VI DEO RCA PIN Type 1 1.0 V [p-p] (75 )
AUDIO OUT AUDIO L-R RCA PIN Type 2 0.5 V [rms]
HDMI 1 / 2 input TYPE A Connectors
ETHERNET 10BASE-T / 100BASE-TX
USB 1 / 2 USB 2.0 DC 5 V, Max. 500 mA
DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fibre optic
Sound
Speaker (90 mm 25 mm) 2 pcs, 8
Audio output 10 W (5 W + 5 W)
Receiving Systems / Band name 17 SYSTEMS FUNCTIONS
Receiving Channels (Analogue TV)
VHF BAND 2 - 12 (PAL / SECAM B, K1)
UHF BAND 21 - 69 (PAL G, H, I / SECAM G, K, K1)
CATV S1 - S20 (OSCAR)
VIDEO
AUDIO L-R
Y 1.0 V [p-p] (including synchronization)
, PR/CR±0.35 V [p-p]
P
B/CB
AUDIO L-R RCA PIN Type 2 0.5 V [rms]
RCA PIN Type 1
RCA PIN Type 2
HDMI 1: Content Type
HDMI 2: Content Type, Audio Return Channel
• This TV supports ‘HDAVI Control 5’ function.
1 PAL B, G, H
2PAL I
3PAL D, K
4 SECAM B, G
5 SECAM D, K
6 SECAM K1
NTSC M (NTSC 3.58 / 4.5 MHz)
7
8 NTSC 4.43 / 5.5 MHz
9 NTSC 4.43 / 6.0 MHz
10 NTSC 4.43 / 6.5 MHz
11 NTSC 3.58 / 5.5 MHz
12 NTSC 3.58 / 6.0 MHz
13 NTSC 3.58 / 6.5 MHz
14 SECAM I
15 PAL 60 Hz / 5.5 MHz
16 PAL 60 Hz / 6.0 MHz
17 PAL 60 Hz / 6.5 MHz
Digital TV: 7 MHz VHF / 8 MHz UHF free-to-air TV broadcast reception
0 - 12 (PAL B AUST.)
1 - 9 (PAL B N.Z.)
1 - 12 (PAL / SECAM D)
1 - 12 (NTSC M Japan)
2 - 13 (NTSC M USA)
28 - 69 (PAL B AUST.)
13 - 57 (PAL D, K)
13 - 62 (NTSC M Japan)
14 - 69 (NTSC M USA)
1 - 125 (USA CATV)
C13 - C49 (JAPAN)
S21 - S41 (HYPER)
Z1 - Z37 (CHINA)
5A, 9A (AUST.)
1.0 V [p-p] (75 )
0.5 V [rms]
Reception of broadcast transmissions and
Playback from Special Disc Players and
Playback from Video Cassette Tape
Recorders
Playback from Special VCR’s or DVD
Special VCR’s or DVD
TH-L32XV6S
7
Page 8
TH-L32XV6S
Aerial input Standard Belling & Lee connector VHF / UHF
Operating Conditions Temperature : 0C - 40C
Humidity : 20 % - 80 % RH (non-condensing)
Built-in wireless LAN Standard compliance and Frequency range*:
IEEE802.11a/n
5.15 GHz - 5.35 GHz, 5.47 GHz - 5.85 GHz
IEEE802.11b/g/n
2.40 GHz - 2.4835 GHz
Security: WPA2-PSK (TKIP/AES) WPA-PSK (TKIP/AES) WEP (64 bit/128 bit)
* The frequency and channel differ depending on the country.
Note
• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
• For the information of the open source software, refer to [eHELP] (Support > Licence).
8
Page 9
TH-L32XV6S
5 Service Mode
5.1. How to enter into Service Modes
While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds.
5.1.1. Contents of adjustment mode
• Value is shown as a hexadecimal number.
• Preset value differs depending on models.
• After entering the adjustment mode, take note of the value in each item before starting adjustment.
Main item Sub item Sample Data
ADJUST CONTRAST
COLOUR
TINT
SUB-BRT
BACKLGT
H POS
H AMP
V POS
V AMP
A COM
WB-ADJ R-GAIN 8D
G-GAIN AE
B-GAIN FF
R-CENT 6C
G-RENT 80
B-CENT A0
OPTION Boot ROM
STBY-SET 00
EMERGENCY ON
CLK MODE 00
CLOCK FC7
Y/C DELAY DYNAMIC
OPT 1 00000000
OPT 2 11100110
OPT 3 00001001
OPT 4 00000000
EDID-CLK HIGH
SRV-TOOL 00
DRV CHECK DYNAMIC
5.1.2. How to exit
Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
9
Page 10
TH-L32XV6S
5.1.3. Display of SOS History
SOS History (Number of LED blinking) indication.
From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.
This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory
shipment setting].
5.1.4. POWER ON TIME/COUNT
Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3sec.
Time : Cumulative power on time, indicated hour : minute by decimal
Count : Number of ON times by decimal
Note : This indication will not be cleared by either of the self-checks or any other command.
5.1.5. Exit
1. Disconnect the AC cord from wall outlet.
10
Page 11
TH-L32XV6S
5.1.6. Self Check Mode
1. Press the ‘MENU’ button (on the remote control) and the ‘VOL DOWN’ button on the LCD panel.
2. Press ON/OFF button on the panel to Exit.
NOTE: After self check, the following process need to follow.
5.1.7. Hotel Mode Adjustment
1. Press the ‘VOLUME DOWN’ button on the TV panel and simultaneously press the INPUT button on the remote control 3
times to enter Hotel Mode.
2. Set Hotel mode ‘on/off’, then press ‘EXIT’ to come out.
5.1.8. Hotel Mode
1. Purpose
Restrict a function for hotels.
2. Access command to the Hotel mode setup menu.
In order to display the Hotel mode setup menu, please
enter the following command (within 2 second).
[TV] : Vol [Down] + [REMOTE] : INPUT (3 times).
Then, the Hotel mode setup menu is displayed.
3. To exit the Hotel mode setup menu
Disconnect AC power cord from wall outlet.
4. Explain the Hotel mode setup menu
Item Function
Mode Select hotel mode off/on
Initial Input Select input signal modes.
Set the input, when each time power is switched
on.
Selection :
-/RF/HDMI1/HDMI2/HDMI3/Component/
Video/PC
• Off: give priority to a last memory.
Initial POS Select channel when input signal is RF.
Set the channel, each time power is switched
on.
Selection :
Any channel number or [-].
[-] means the channel when turns off.
Initial LEVEL Adjust the volume when each time power is
switched on.
Range :
0 to 100
Maximum Vol
LEVEL
Button Lock Restrict the OSD.
Remote Lock Select front key conditions.
Adjust maximum volume.
Range :
0 to 100
Selection :
OFF/PATTERN1
• OFF: No restriction
• PATTERN1: restriction
Selection :
OFF/PATTERN1/ALL
• OFF: altogether valid.
• PATTERN1: only input key is valid.
• ALL: altogether invalid.
11
Page 12
TH-L32XV6S
6 Troubleshooting Guide
Use the self-check function to test the unit.
1. Checking the IIC bus lines
2. Power LED Blinking timing
6.1. Check of the IIC bus lines
6.1.1. How to access
Self-check indication only:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control
for more than 3 seconds.
Self-check indication and forced to factory shipment setting:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote
control for more than 3 seconds.
6.1.2. Exit
Disconnect the AC cord from wall outlet.
12
Page 13
6.2. Power LED Blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When an abnormality occurs, the protection circuit will operate and reset the unit to stand by mode. During this time, the
defective block can be identified by the number of blinking times of the Power LED on the front panel of the unit as follow:
Priority SOS detection LED Blink
1 BL_SOS 1
2SUB_3.3V 7
3 SOUND_SOS 9
4 OVP SOS 8
5 GCX/FRC_SOS 10
6 BE(sLD8/PRO4) SOS 12
7 Emergency SOS 13
8 IROM-SOS 3
6.3. No Power
First check point
There are following 2 states of No Power indication by power LED.
1. No lit
2. Red is lit then turns red blinking a few seconds later. (See 6.2.)
TH-L32XV6S
13
Page 14
TH-L32XV6S
7 Disassembly and Assembly Instructions
7.1. Speaker Unit Installation
Install Speaker Unit (R & L).
No Description Qty UOM
01 SPEAKER UNIT 2 PC
14
Page 15
7.2. LED Panel Installation
1. Install LED Panel.
2. Install LED Panel Case.
3. Install K-PCB board.
4. Fix K-wire.
TH-L32XV6S
No Description Qty UOM Remarks
01 LED PANEL 1 PC
02 K-PCB 1 PC * Part list under chassis
03 LED PANEL CASE 1 PC
15
Page 16
TH-L32XV6S
7.3. LCD Panel Fixing & Handling Method
1. Place down the cabinet as shown below.
2. Fix LCD panel into the cabinet by taking below precautions.
Other general precautions
1. Do not press panel surface to avoid blue spot on the panel display.
2. Do not use hard cloth or rub the surface too hard. This may cause scratches on the surface.
3. Take care not to subject the TV’s surface to water or detergent. Any liquid (including pets urine) if enters the product could
lead to TV failure.
4. Take care not to subject the surface to insect repellent, solvent, thiner or other voiltile substances. This may degrade surface
quality or cause peeling of the paint.
5. The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch with your
fingernail or other hard objects.
16
Page 17
7.4. Ctrl. Button & Side AV Installation
1. Install Key Button Bracket.
2. Install Side AV Bracket and fix with screw.
TH-L32XV6S
No Description Qty UOM
01 KEY BUTTON BRACKET 1 PC
02 SIDE AV BRACKET 1 PC
17
Page 18
TH-L32XV6S
7.5. Screw Fixing
Fix screws accordingly.
No Description Qty UOM Remarks
01 SCREW (BTM4) 4 PC 10 ± 2 kgf.cm
02 SCREW (RPM8/WIFI_M2/A2/P4/USB1/RP2) 19 PC 6 ± 1 kgf.cm
03 SCREW (RP3) 3 PC 6 ± 1 kgf.cm
04 SCREW (SP4) 4 PC 6 ± 1 kgf.cm
18
Page 19
7.6. Rear Panel Metal Installation
1. Install Wifi Metal and fix with screw.
2. Install all Rear Panel metal bottom (L/R) and fix with screw.
TH-L32XV6S
No Description Qty UOM
01 WIFI_METAL 1 PC
02 REAR PANEL METAL BOTTOM (R) 1 PC
03 REAR PANEL METAL BOTTOM (L) 1 PC
19
Page 20
TH-L32XV6S
7.7. Rear Panel Installation 1
Install all Rear Panels Ass’y and fix with screw.
(Install starting with top panel)
No Description Qty UOM
01 REAR PANEL TOP ASSY 1 PC
02 REAR PANEL L ASSY 1 PC
03 REAR PANEL R ASSY 1 PC
20
Page 21
7.8. Rear Panel Installation 2
Install all Rear Panels Ass’y method.
TH-L32XV6S
21
Page 22
TH-L32XV6S
7.9. Bottom Metal Installation
Install Metal Bracket Bottom and fix with screw.
No Description Qty UOM
01 METAL BRACKET BOTTOM 1 PC
22
Page 23
7.10. Bottom Bracket Installation
Install Rear Panel Bottom Ass’y and fix with screw.
TH-L32XV6S
No Description Qty UOM
01 REAR PANEL BTM ASSY 1 PC
23
Page 24
TH-L32XV6S
7.11. PCB Installation
1. Stick barrier.
2. Fix Chassis Bracket Ass’y to A-PCB.
3. Install P & A-pcb Board and fix it with screws.
No Description Qty UOM Remarks
01 A - PCB 1 PC * Part list under chassis
02 P - PCB 1 PC * Part list under chassis
03 CH_MOUNT_BOSS 2 PC
04 LCD PANEL 1 PC
05 BARRIER P-PCB LCD 1 PC
06 GROUND SPRING 2 PC
24
Page 25

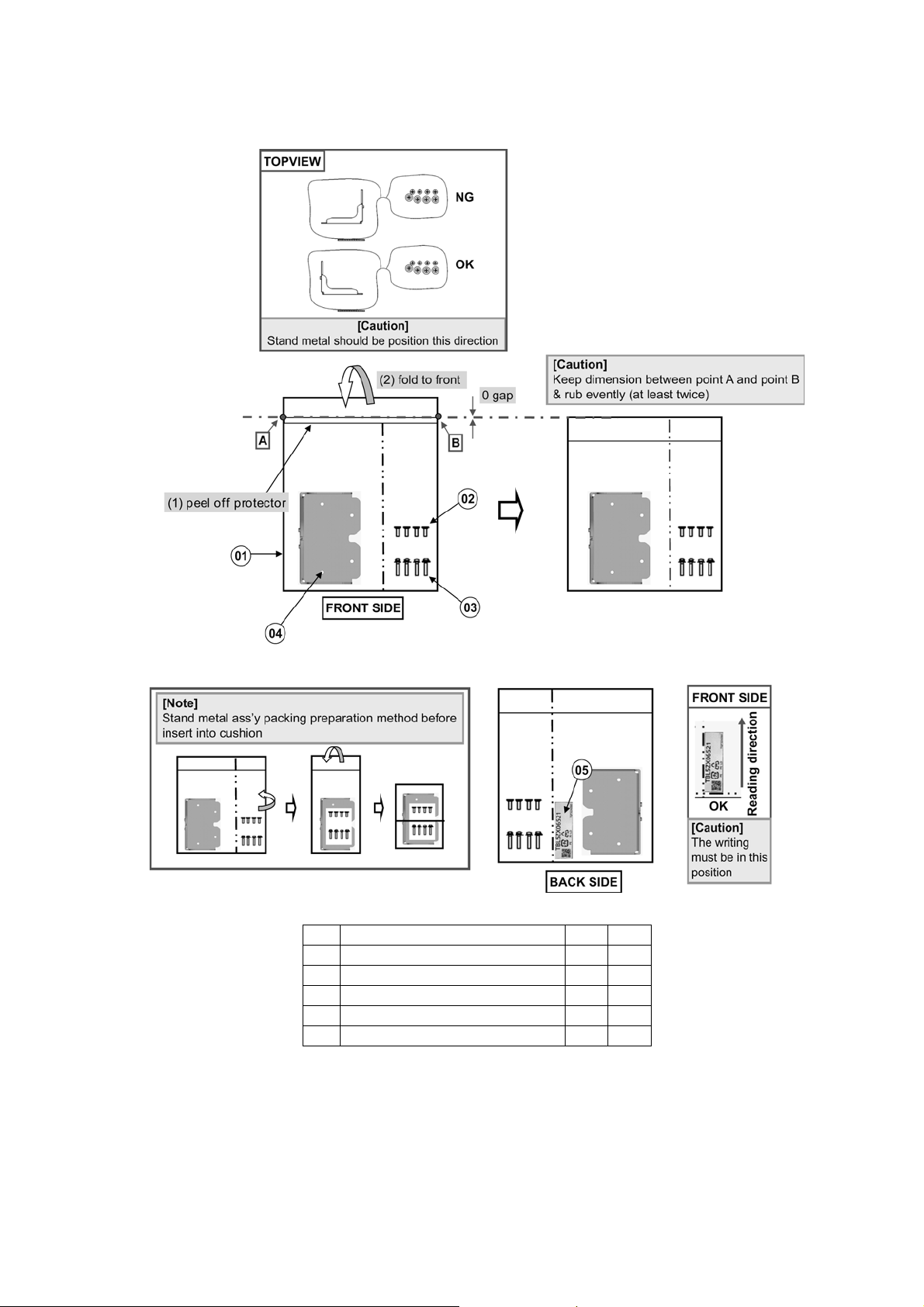

7.12. Stand MTG Assy
Preparation Stand Mounting Ass’y.
TH-L32XV6S
No Description Qty UOM
01 BAG 1 PC
02 SCREW 4 PC
03 SCREW 4 PC
04 STAND METAL 1 PC
05 BARCODE LABEL 1 PC
25
Page 26
TH-L32XV6S

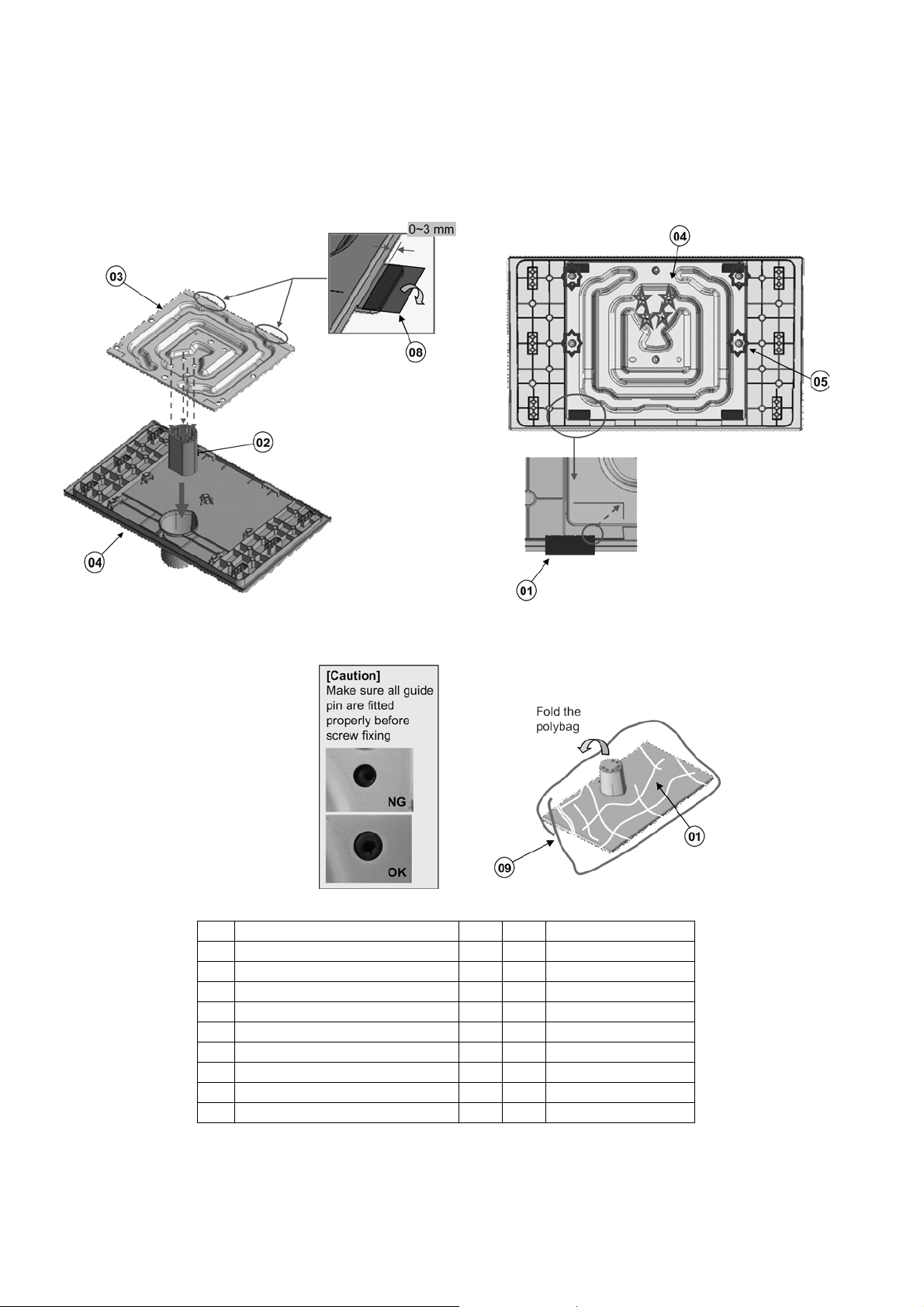

7.13. Pedestal Assembly
1. Install neck base into pedestal cover.
2. Stick felt to base plate.
3. Install base plate and fix it with screw.
4. Paste rubber foot at correct position.
5. Insert pedestal assembly into poly bag pedestal fold it properly.
No Description Qty UOM Remarks
01 PEDESTAL ASSY 1 PC
02 NECK BASE 1 PC
03 BASE PLATE 1 PC
04 PEDESTAL COVER 1 PC
05 SCREW(BASE) 4 PC 8 ± 2 kgf.cm
06 SCREW(PEDESTAL) 4 PC 15 ± 2 kgf.cm
07 FOOT RUBBER 4 PC
08 FELT 2 PC
09 BAG FOR PEDESTAL 1 PC
26
Page 27
7.14. Back Cover Assembly
1. Stick Barrier at back cover.
2. Install Back cover.
TH-L32XV6S
No Description Qty UOM
01 BACK COVER 1 PC
02 BARRIER P-PCB BC 1 PC
27
Page 28
TH-L32XV6S
7.15. Back Cover Installation
1. Fix M6 cap to Back Cover.
2. Fix Back Cover.
3. Fix back cover with screws.
4. Install Wifi Dongle and fix with screw.
No Description Qty UOM Remarks
01 SCREW (BC2/AV2) 4 PC 6 ± 1 kgf.cm
02 SCREW (BC17/WIFI1/HDMI3) 20 PC 4 ± 5 kgf.cm
03 SCREW (BC3) 3 PC 10 ± 2 kgf.cm
04 M6 CAP 4 PC
05 WIFI DONGLE 1 PC
28
Page 29
8 Measurements and Adjustments
8.1. Voltage chart of A-board
Set A-Board to a dummy set and check the satisfaction with the specified voltage as following table.
Power Supply Name Measurement Point Specification
PNL12V TP4097 12.1V ± 0.8V
SUB3.3V TP5400 3.32V ± 0.165V
SUB1.1V TP8101 1.14V ± 0.07V
SUB1.5V TP8100 1.52V ± 0.05V
SUB5V TP5420 5.0V ± 0.25V
HDMI3.3V TP8000 3.3V ± 0.16V
8.2. Voltage chart of P-board
Set P-Board to a dummy load and check the satisfaction with the specified voltage as following table.
TH-L32XV6S
Output Test Point
5.3V TP7501 5.3 ± 0.20V 5.3 ± 0.20V
16V TP7410/ TP7411/ TP7412 15.5 ± 0.8 V -
24V TP7511/ TP7512 24V ± 1.2 V -
Operate STBY
Specification
29
Page 30
TH-L32XV6S
S5/ S3.3
CPU BUS
XERWE0
XERWE0
XECS1
ERXW
ES0
AAR/DATA
CTRL
S12/S5
STB5/5VS
S9
(SD-Data-VCC)
S3.3
Support
Card
DTV_XRST
BOOTSWAP
XRST
XRSTSTM
ES0
ES1
ES2
ED[7:0]
2G - Function
VIErA-CAST Browser
EU MHP
UK BBC iPlayer
< TV_SOS
AMP/HP MUTE
MONITOROUT MUTE
A
nalog
ASIC
AN340 43A
OVP
SOS
Safety
Circuit
< MON_MUTE
< SP_HP_MUTE
STB3.3V/1.2V_REG
STB5V Reset IC (STM)
S9V_REG
S12V Reset IC (Peaks)
Audio MUTE
OCP/OVP/TV-SOS
HP_MUTE,EXT_MUTE
UHS-I_REG
TV_SOS
PWM
3.3/1.8
UHS-1
REG
S9-REG
< (SDVOLC)
PWM >
JTAG
HS1BCLKIN
HS1SYNCIN
HS1VALIN
HS1DIN0
HS1DIN1
HS1DIN2
HS1DIN3
HS1DIN4
HS1DIN5
TS-IN
S3.3 / TU1.8
DCDC
1.2V
S3.3
S3.3
Only DTMB models(HK)
Flash
1G
XNFCE,XNFW
P
NFCLE,NFALE
XNFWE,XNFR
E
NANDRYBY
NFD[7:0]
PCOE
PCWE
PCIORD
PCIOWR
PCRESET
PCCE1
PCWAIT
PCCD1
PCCD2
PCREADY
CI-IF
Trans Port Decoder
CPUBUS
NAND-IF
Cross Stream Switch
Latin
GINGA MHP
Back Light
INVERTER
or
LED Driver
BL_ON >
BL_SOS <
S12
Peaks
DCDC
䠄
VM
䠅
S1.1
S1.5 S3.3
STB3.3
STB1.2
STB_XRST
DCDC_EN
DTV_XRST >
SW_OFF_DET >
XRST
POWER_DET
PWMA
PWM >
JTAG
AFB
S12
Peaks
DCDC
HS1DIN6
HS1DIN7
HS1DIN8
Terrestrial(1)
or
Terestllial/cable(2)
IF_AGC1
1stLow_IF
䚸
IFAGC
Terrestrial
DMD_IIC0
Low-IF2
< FE_XRST
䠚
DTMB
Demod.
cable
IF_AGC2
Low-IF1
2ndLow_IF,IFAGC
CXD2840
< FE_XRST
䠚
DMD
_
IIC1 (IIC2)
Panel
DMD
P-IIC2 (For DMD only)
ADC
DTV Decoder
SIF Decoder
IPR INS
Analog Video
Processor
Video
Format
Processor
VIF Decoder
IIC
DMD-IIC0
DMD-IIC1
Peaks
sLD8
/
9'67
[
PLQ
L/9'67[
Tcon
LVDS
HD : (DATA 4pairs / CLK 1pair) single8bit
FHD: (DATA 4pairs / CLK 1pair) dual8bit
VIO
Y1,Pb1,Pr1/V2
USB
S5
USB
Power SW
USB*VBUS >
< USB*OC
S5
USB Memory
86%,
)
DSP
''5,)
S1.5
DDR3+(1333)
DDR3+(1333)
x16
1G
DDR3
AIO
V-SW
A-SW
DDR3+(1333)
DDR3+(1333)
x16
1G
S1.5
LIN1, RIN1
HP_DET
R2, G2, B2, H,V
V3
AV3(SIDE) INPUT
䠄
CVBS)
Lin3,Rin3
䖃
䖃䖃
S5
I2S
SW
A-Chip
A-D Chip
Internal BUS
S5
᧤SRUW᧥
D-Chip
IIC
P-IIC0
P-IIC1
Serial
P-Serial0
P-Serial1
DMD IIC
DMD_IIC0
DMD_IIC1
LAN
(
7+(5
3+<
6',)
SOUND_VCC
AMP
Head
Phone
HP1_L/R
ALRCKO
ASDOUT0
ABCKO
ASMCK
USB
USB
Power SW
USB*VBUS >
< USB*OC
S5
S5
SD CARD
AMP
PWM
SPDIF
SW
IIC
STM
P-UART0
P-UART2
EEP
S3.3
EEP
EEPROM_WP
P-IIC
For Peaks
HDMI
Rx
Optical OUT
OPT
DDC* > STM, Peaks
HPD* < STM
HDMI_5V_DET* > STM
HDMI1
HDMI2
Rx*
Rx*
IECOUT
ARCOUT
CLK
GEN
STB3.3
STB1.2
STM-IIC
Serial
STM-Serial0
STM-Serial1
25MHz
< KEY1
POWER KEY
CONTROL PANEL KEY
MUX
x3
<
KEY3
DDC* > STM, Peaks
HPD* < STM
HDMI_5V_DET* > STM
NAND
ED[7:0]
9 Block Diagram
9.1. Main Block Diagram
30
Page 31

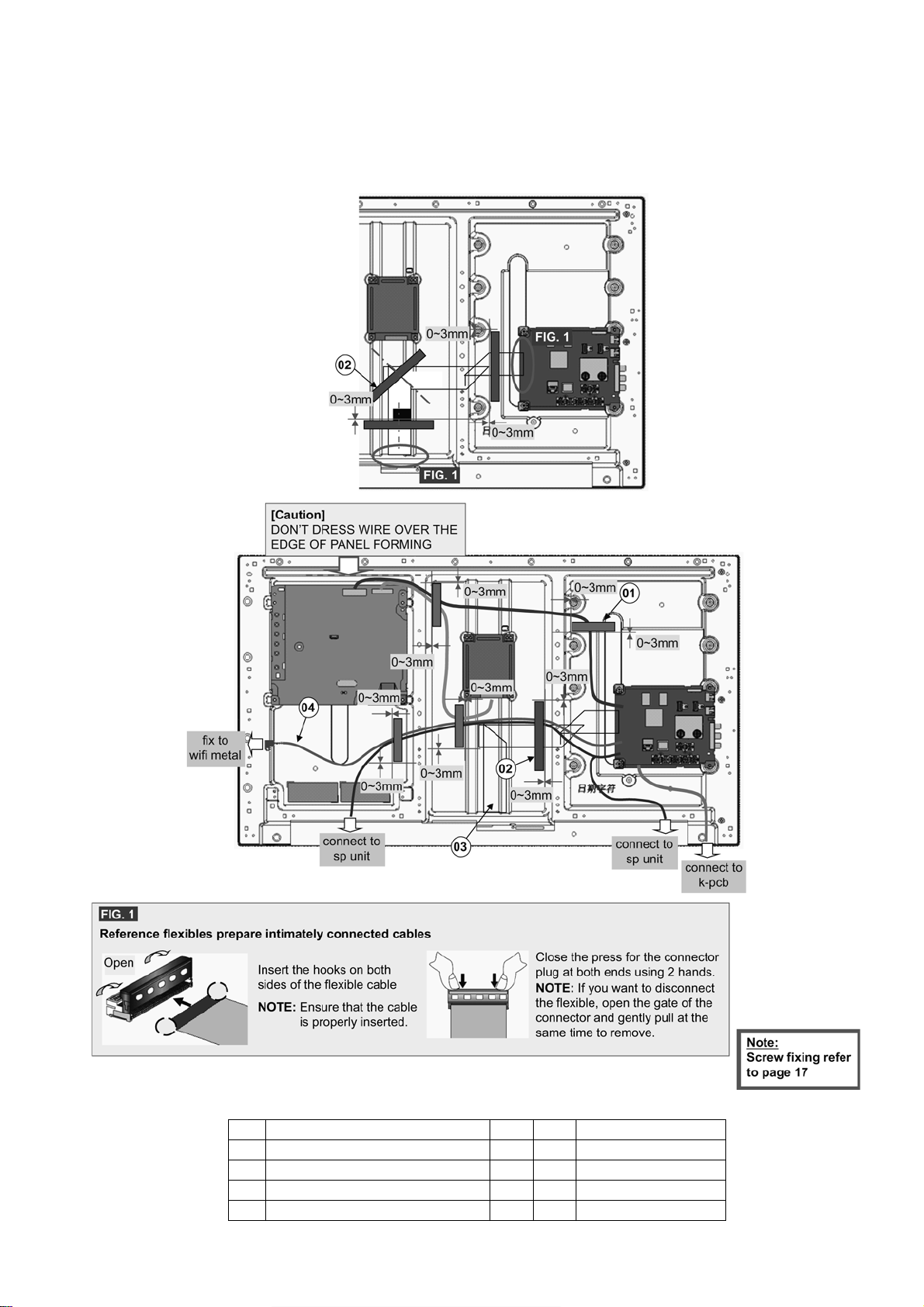

10 Wiring Connection Diagram
10.1. Wire Dressing
1. Dress wires, cables and LVDS follow picture accordingly.
2. Stick pet tape (rub evently at least twice).
TH-L32XV6S
No Description Qty UOM Remarks
01 PET TAPE (GREY W=15mm) 0.64 PC 70mm 4
02 PC 110mm 4
03 LVDS CABLE 1 PC
04 WIFI DONGLE WIRE 1 PC
31
Page 32
TH-L32XV6S
11 Schematic Diagram
Model No. : TH-L32XV6S A-Board (1/18)
32
Page 33
Model No. : TH-L32XV6S A-Board (2/18-1)
Page 34
Model No. : TH-L32XV6S A-Board (2/18-2)
Page 35
Model No. : TH-L32XV6S A-Board (3/18)
Page 36
Model No. : TH-L32XV6S A-Board (4/18)
Page 37
Model No. : TH-L32XV6S A-Board (5/18)
Page 38
Model No. : TH-L32XV6S A-Board (6/18)
Page 39
Model No. : TH-L32XV6S A-Board (7/18-1)
Page 40
Model No. : TH-L32XV6S A-Board (7/18-2)
Page 41
Model No. : TH-L32XV6S A-Board (8/18)
Page 42
Model No. : TH-L32XV6S A-Board (9/18)
Page 43
Model No. : TH-L32XV6S A-Board (10/18)
Page 44
Model No. : TH-L32XV6S A-Board (11/18)
Page 45
Model No. : TH-L32XV6S A-Board (12/18)
Page 46
Model No. : TH-L32XV6S A-Board (13/18)
Page 47
Model No. : TH-L32XV6S A-Board (14/18)
Page 48
Model No. : TH-L32XV6S A-Board (15/18)
Page 49
Model No. : TH-L32XV6S A-Board (16/18)
Page 50
Model No. : TH-L32XV6S A-Board (17/18)
Page 51
Model No. : TH-L32XV6S A-Board (18/18)
Page 52
Model No. : TH-L32XV6S K-Board
Page 53
Model No. : TH-L32XV6S P-Board
Page 54
TH-L32XV6S
12 Printed Circuit Board
Model No. : TH-L32XV6S A-Board (Top Component Side)
Page 55
Model No. : TH-L32XV6S A-Board (Bottom Component Side)
Page 56
Model No. : TH-L32XV6S K-Board
Page 57
Model No. : TH-L32XV6S P-Board (Top Component Side)
Page 58
Model No. : TH-L32XV6S P-Board (Bottom Component Side)
Page 59
13 Exploded View and Replacement Parts List
Model No. : TH-L32XV6S Parts Location
TH-L32XV6S
Page 60

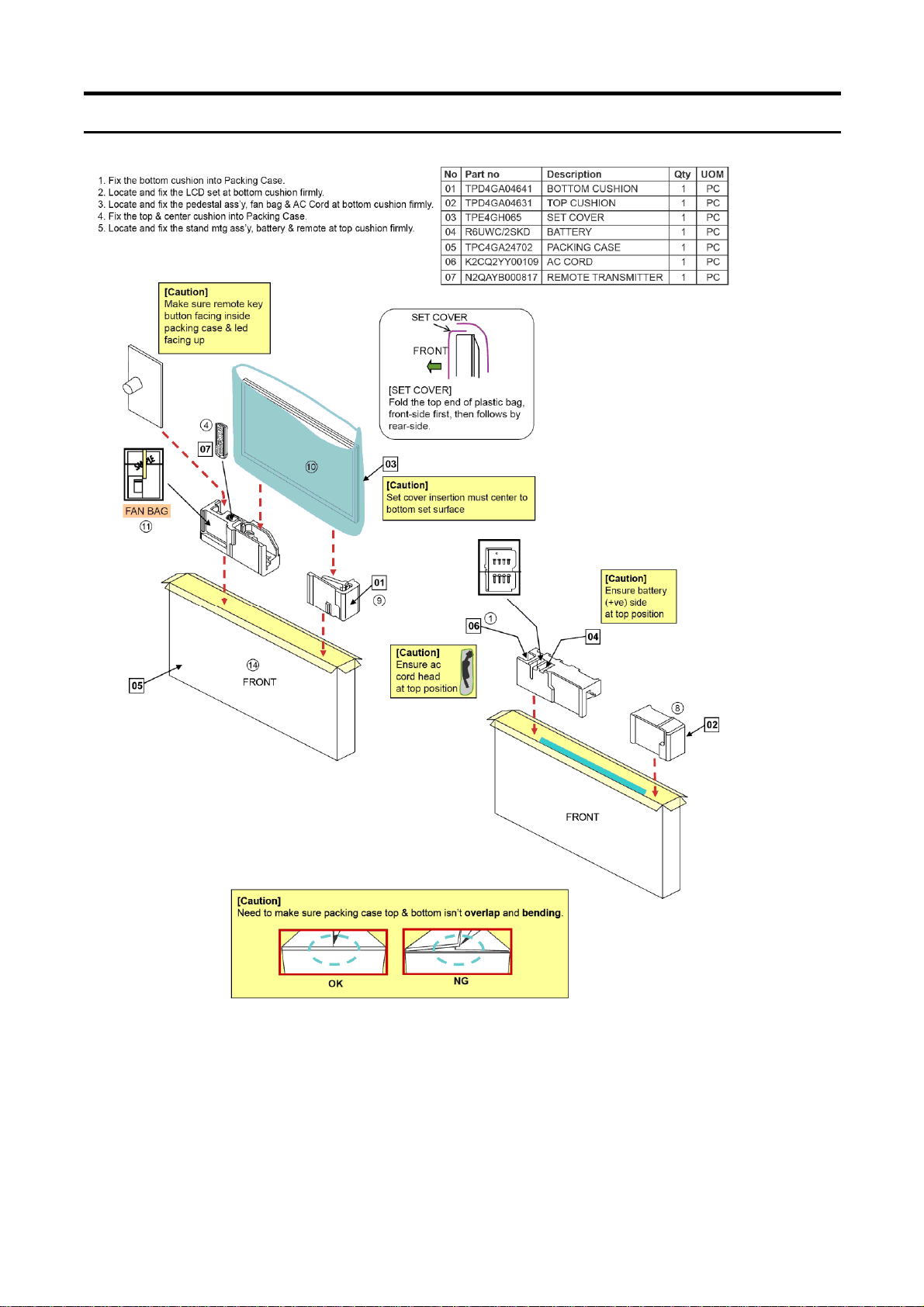

Model No. : TH-L32XV6S Packing Exploded View
Page 61
Model No. : TH-L32XV6S Parts List
Change Safety
CAPACITORS
Ref.
No.
C1958 F1G1E103A059 C 0.01UF 25V
C2000 F1G1A105A047 C 1UF 10V
C2014 F1K1E106A134 C 10UF, 25V
C2023 F1G1C104A077 C 0.1UF 16V
C2801 F1G1C1030008 C 0.01UF 16V
C2804 F1H1C104A178 C 0.1UF 16V
C2807 F1J1A106A043 C 10UF, 10V
C3084 F1H0J105A051 C 1UF, 6.3V
C3085 F1H0J105A051 C 1UF, 6.3V
C3086 F1H0J105A051 C 1UF, 6.3V
C3130 F1H0J105A051 C 1UF, 6.3V
C3145 F1J1A106A087 C 10UF, 10V
C3147 F1J1A106A087 C 10UF, 10V
C3151 F1H1A105A099 C 1UF, 10V
C3152 F1H1A105A099 C 1UF, 10V
C3159 F1H1A105A099 C 1UF, 10V
C3160 F1H1A105A099 C 1UF, 10V
C3171 F1J1A106A087 C 10UF, 10V
C3172 F1J1A106A087 C 10UF, 10V
C3175 F1J1E105A287 C 1UF, 25V
C3176 F1J1A106A087 C 10UF, 10V
C3177 F1J1E105A287 C 1UF, 25V
C4000 F1H1H103B047 C 0.01UF, 50V
C4001 F1H1H103B047 C 0.01UF, 50V
C4002 F1J1C475A217 C 4.7UF, 16V
C4701 F1H0J105A051 C 1UF, 6.3V
C4900 F1K1V106A010 C 10UF, 25V
C4901 F1K1V106A010 C 10UF, 25V
C4902 F1J1E105A287 C 1UF, 25V
C4903 F1K1V106A010 C 10UF, 25V
C4904 F1J1E105A287 C 1UF, 25V
C4905 F1H1C105A167 C 1UF, 10V
C4906 F1K1V106A010 C 10UF, 25V
C4907 F1J1E105A287 C 1UF, 25V
C4908 F1K1V106A010 C 10UF, 25V
C4909 F1J1E105A287 C 1UF, 25V
C4919 F1J1E224A272 C 0.22UF, 25V
C4920 F1J1E224A272 C 0.22UF, 25V
C4921 F1H1E104A029 C 0.1UF , 25V
C4922 F1H1E104A029 C 0.1UF , 25V
C4923 F1H1E104A029 C 0.1UF , 25V
C4924 F1H1E104A029 C 0.1UF , 25V
C5000 F1G1A105A047 C 1UF 10V
C5002 F1G1A105A047 C 1UF 10V
C5004 F1G1A105A047 C 1UF 10V
C5006 F1J1E105A287 C 1UF, 25V
C5012 F1G1A105A047 C 1UF 10V
C5020 F1G1C104A077 C 0.1UF 16V
C5021 F1G1A105A047 C 1UF 10V
C5022 F1G1C104A077 C 0.1UF 16V
C5026 F1H1C105A145 C 1 uF 16 V
C5150 F1G1E103A059 C 0.01UF 25V
C5151 F1G1E103A059 C 0.01UF 25V
C5171 F1G1C1030008 C 0.01UF 16V
C5202 F1G1H1020008 C 1000PF 50V
C5203 F1G1H1020008 C 1000PF 50V
C5204 F1G1C1030008 C 0.01UF 16V
C5400 F1K1V106A010 C 10UF, 25V
C5401 F1K1V106A010 C 10UF, 25V
C5402 F1G1C104A077 C 0.1UF 16V
C5403 F1J0J2260004 C 22 UF 6.3 V
Part No. Part Name & Description Q'ty Remarks
Page 62
Model No. : TH-L32XV6S Parts List
Change Safety
Ref.
No.
C5404 F1J0J2260004 C 22 UF 6.3 V
C5407 F1G1E333A059 C 0.033UF, 25V
C5408 F1G1H222A830 C 2200PF, 50V
C5411 F1G1H1020008 C 1000PF 50V
C5420 F1K1V106A010 C 10UF, 25V
C5421 F1K1V106A010 C 10UF, 25V
C5422 F1G1C104A077 C 0.1UF 16V
C5423 F1J0J2260004 C 22 UF 6.3 V
C5424 F1J0J2260004 C 22 UF 6.3 V
C5427 F1G1E333A059 C 0.033UF, 25V
C5428 F1G1H222A830 C 2200PF, 50V
C5431 F1G1H1020008 C 1000PF 50V
C5433 F1G1H1020008 C 1000PF 50V
C5434 F1K1V106A010 C 10UF, 25V
C5435 F1K1V106A010 C 10UF, 25V
C5436 F1K1V106A010 C 10UF, 25V
C5437 F1K1V106A010 C 10UF, 25V
C5438 F1K1V106A010 C 10UF, 25V
C5439 F1K1V106A010 C 10UF, 25V
C5441 F1G1C183A146 C 0.018UF, 16V
C5443 F1G1H472A830 C 4700PF, 50V
C5444 F1G1C104A077 C 0.1UF 16V
C5710 F1J1A106A087 C 10UF, 10V
C5711 F1J1A106A087 C 10UF, 10V
C5724 F1G1H1020008 C 1000PF 50V
C5725 F1G1H1020008 C 1000PF 50V
C6704 F1J1A106A087 C 10UF, 10V
C6707 F1G1C104A077 C 0.1UF 16V
C6708 F1J1A106A087 C 10UF, 10V
C6710 F1G1C104A077 C 0.1UF 16V
C6720 F1G1H220A834 C 22PF, 50V
C6721 F1G1H220A834 C 22PF, 50V
C6722 F1G1C104A077 C 0.1UF 16V
C6723 F1G1H220A834 C 22PF, 50V
C6724 F1G1H220A834 C 22PF, 50V
C6736 F1G1H101A834 C 100PF 50V
C6737 F1G1H101A834 C 100PF 50V
C6746 F1G1C104A077 C 0.1UF 16V
C6750 F1G1H471A834 C 470PF, 50V
C6751 F1G1H471A834 C 470PF, 50V
C6752 F1G1H101A834 C 100PF 50V
C6753 F1G1H5R0A831 C 5PF, 50V
C6754 F1G1H5R0A831 C 5PF, 50V
C6757 F1G1H101A834 C 100PF 50V
C6758 F1G1H181A834 C 5PF, 50V
C6759 F1G1H181A834 C 5PF, 50V
C6760 F1G1H1020008 C 1000PF 50V
C6762 F1G1H1020008 C 1000PF 50V
C6764 F1G1C104A077 C 0.1UF 16V
C6766 F1G1H1020008 C 1000PF 50V
C6767 F1G1H1020008 C 1000PF 50V
C6768 F1G1H1020008 C 1000PF 50V
C6769 F1G1E103A059 C 0.01UF 25V
C6770 F1G1E103A059 C 0.01UF 25V
C6773 F1G1H1020008 C 1000PF 50V
C6774 F1G1C104A077 C 0.1UF 16V
C6775 F1G1C104A077 C 0.1UF 16V
C6777 F1G0J105A049 C 1UF, 6.3V
C6778 F1G1C104A077 C 0.1UF 16V
C6779 F1G1C104A077 C 0.1UF 16V
C7101 F0CAF1040016 C 0.1UF , 240V
C7102 F0CAF1040016 C 0.1UF , 240V
Part No. Part Name & Description Q'ty Remarks
Page 63
Model No. : TH-L32XV6S Parts List
Change Safety
Ref.
No.
C7103 F1AAF471A019 C 470PF, 240V
C7104 F1AAF471A019 C 470PF, 240V
C7128 F1H1H103B047 C 0.01UF, 50V
C7301A F2A2W6800013 C 68UF 450V
C7302 F2A2W6800013 C 68UF 450V
C7306 F1B3D221A099 C 220P 2000V
C7310 F1H1H103B047 C 0.01UF, 50V
C7311 F1H1H102B052 C 1000PF, 240V
C7312 F1J1H105A945 C 1UF, 50V
C7313 F2A1V470B763 C 47UF, 35V
C7314 F1H1H102B052 C 1000PF, 50V
C7315 F1AAF102A020 C 1000PF, 240V
C7401 F1H1H104B047 C 0.1UF, 50V
C7402 F1H1H104B047 C 0.1UF, 50V
C7501 F1A3A471A060 C 470PF 1KV
C7502 EEUFR1V102PY C 1000UF , 25V
C7503 F1H1H104B047 C 0.1UF, 50V
C7505 F1H1E105A144 C 1 uF 25 V
C7506 F1JZZ1060001 C 10UF, 20V
C7508 F1K1E106A134 C 10UF, 25V
C7509 F1J1E225A178 C 2.2UF , 25V
C7510 F1A3A102A060 C 1000PF 1KV
C7513 EEUFR1E102PY C 1000UF , 25V
C7520 F1J1E105A287 C 1UF, 25V
C7521 F1J1E105A287 C 1UF, 25V
C7523 F1H1H104B047 C 0.1UF, 50V
C7531 F1H1H104B047 C 0.1UF, 50V
C7532 F1H1H104B047 C 0.1UF, 50V
C8001 F1G1C104A077 C 0.1UF 16V
C8006 F1G1C104A077 C 0.1UF 16V
C8010 F1G1C104A077 C 0.1UF 16V
C8012 F1G1C104A077 C 0.1UF 16V
C8013 F1G1C104A077 C 0.1UF 16V
C8016 F1G1C104A077 C 0.1UF 16V
C8018 F1G1A105A047 C 1UF 10V
C8027 F1G1C104A077 C 0.1UF 16V
C8028 F1G1C104A077 C 0.1UF 16V
C8031 F1J1A106A087 C 10UF, 10V
C8032 F1G1C104A077 C 0.1UF 16V
C8034 F1J1A106A087 C 10UF, 10V
C8037 F1J1A106A087 C 10UF, 10V
C8039 F1G1C104A077 C 0.1UF 16V
C8042 F1G1C104A077 C 0.1UF 16V
C8044 F1G1C104A077 C 0.1UF 16V
C8045 F1G1A105A047 C 1UF 10V
C8052 F1J0G2260001 C 22 UF 4 V
C8054 F1G1C104A077 C 0.1UF 16V
C8055 F1G1A105A047 C 1UF 10V
C8057 F1G1C104A077 C 0.1UF 16V
C8059 F1G1C104A077 C 0.1UF 16V
C8068 F1G1C104A077 C 0.1UF 16V
C8071 F1G1C104A077 C 0.1UF 16V
C8072 F1G1C104A077 C 0.1UF 16V
C8074 F1G1A105A047 C 1UF 10V
C8076 F1H1A105A099 C 1UF, 10V
C8100 F1K1V106A010 C 10UF, 25V
C8102 F1G1C104A077 C 0.1UF 16V
C8103 F1G1C473A048 C 0.047UF, 16V
C8105 F1G1E332A144 C 3300PF, 25V
C8107 F1J0G2260001 C 22 UF 4 V
C8108 F1J0G2260001 C 22 UF 4 V
C8109 F1G1E472A144 C 4700pF 25V
Part No. Part Name & Description Q'ty Remarks
Page 64
Model No. : TH-L32XV6S Parts List
Change Safety
DIODES
Ref.
No.
C8110 F1H1C105A145 C 1 uF 16 V
C8111 F1G1C104A077 C 0.1UF 16V
C8112 F1K1V106A010 C 10UF, 25V
C8114 F1J0G2260001 C 22 UF 4 V
C8119 F1G1H471A830 C 470PF, 50V
C8203 F1G1C104A077 C 0.1UF 16V
C8204 F1G1C104A077 C 0.1UF 16V
C8205 F1G1C104A077 C 0.1UF 16V
C8206 F1G1C104A077 C 0.1UF 16V
C8207 F1J1A106A087 C 10UF, 10V
C8208 F1G1C104A077 C 0.1UF 16V
C8210 F1G1C104A077 C 0.1UF 16V
C8212 F1G1C104A077 C 0.1UF 16V
C8214 F1G1C104A077 C 0.1UF 16V
C8218 F1G1C104A077 C 0.1UF 16V
C8220 F1G1C104A077 C 0.1UF 16V
C8221 F1G1C104A077 C 0.1UF 16V
C8224 F1G1C104A077 C 0.1UF 16V
C8229 F1G1A105A047 C 1UF 10V
C8230 F1G1C104A077 C 0.1UF 16V
C8231 F1G1C104A077 C 0.1UF 16V
C8232 F1G1C104A077 C 0.1UF 16V
C8300 F1G1H100A834 C 10PF 50V
C8301 F1G1H120A834 C 12PF, 50V
C8307 F1G1A105A047 C 1UF 10V
C8308 F1G1A105A047 C 1UF 10V
C8312 F1G1A105A047 C 1UF 10V
C8313 F1G1A105A047 C 1UF 10V
C8314 F1G1A105A047 C 1UF 10V
C8315 F1G1A105A047 C 1UF 10V
C8452 F1J1A106A087 C 10UF, 10V
C8453 F1G1C104A077 C 0.1UF 16V
C8455 F1J0J2260004 C 22 UF 6.3 V
C8457 F1G1C104A077 C 0.1UF 16V
C8461 F1J1A106A087 C 10UF, 10V
C8463 F1G1C104A077 C 0.1UF 16V
C8467 F1J1A106A087 C 10UF, 10V
C8470 F1G1C104A077 C 0.1UF 16V
C8474 F1J1A106A087 C 10UF, 10V
C8475 F1G1C104A077 C 0.1UF 16V
C8476 F1J1A106A087 C 10UF, 10V
C8478 F1G1C104A077 C 0.1UF 16V
C8601 F1G1C1030008 C 0.01UF 16V
C8602 F1G1C1030008 C 0.01UF 16V
C8700 F1H1A105A099 C 1UF, 10V
C8850 F1G1E103A059 C 0.01UF 25V
C8901 F1G1C104A077 C 0.1UF 16V
C8903 F1G1A105A047 C 1UF 10V
D2802 B3AGB0000060 LED
D3006 K7AAAY000016 DIODE
D3101 DZ2J140M0L DIODE
D3102 DZ2J140M0L DIODE
D3103 DZ2J140M0L DIODE
D3104 DZ2J140M0L DIODE
D3105 DZ2J140M0L DIODE
D3106 DZ2J140M0L DIODE
D3107 DZ2J140M0L DIODE
D3110 DZ2J140M0L DIODE
D4704 DB2J30900L DIODE
D4719 DA2J10100L DIODE
D4770 DA2J10100L DIODE
Part No. Part Name & Description Q'ty Remarks
Page 65
Model No. : TH-L32XV6S Parts List
Change Safety
INTEGRATED CIRCUITS
COILS
Ref.
No.
D4785 DB2J30900L DIODE
D5172 DZ2J220M0L DIODE
D5173 DA2J10100L DIODE
D5178 DZ2J068M0L DIODE
D5179 B0ADCK000001 DIODE
D5180 DZ2J033M0L DIODE
D5187 DZ2J047M0L DIODE
D5191 B0ADCK000001 DIODE
D5192 B0ADCK000001 DIODE
D5193 B0ADCK000001 DIODE
D5194 DA2J10100L DIODE
D5195 DZ2J027M0L DIODE
D6750 J0ZZB0000175 DIODE
D6751 B0ZBZ0000203 DIODE
D7101 D4EAY621A134 DIODE
D7102 B0EBNT000030 DIODE
D7104 DA2J10100L DIODE
D7301 B0HAGQ000001 DIODE
D7303 B0BC01500025 DIODE
D7306 B0BB140A0011 DIODE
D7307 DZ2J068M0L DIODE
D7313 B0JCDE000006 DIODE
D7316 B0JCDE000006 DIODE
D7317 DA2JF2300L DIODE
D7320 B0JAME000126 DIODE
D7323 B0JCDE000006 DIODE
D7403 EZJZ1V800AA VARISTOR
D7404 EZJZ1V800AA VARISTOR
D7502 B0FBCM000016 DIODE
D7507 B0JDSL000013 DIODE
D7520 DA2J10100L DIODE
D8000 DA2J10100L DIODE
D8850 DB2J30900L DIODE
IC3052 C0ABBB000179 IC
IC4900 C1AB00003984 IC
IC5000 AN34043AAVF IC
IC5400 C0DBAYY01299 IC
IC5420 C0DBAYY01299 IC
IC5421 C0DBAYY01300 IC
IC5704 C0DBEYY00102 IC
IC6750 C1AB00004053 IC
IC7301 C0DBBYY00065 IC
IC7501 C0DBZYY00545 IC
IC7502 C0DBEYY00146 IC
IC8000 MN2WS0270PK IC
IC8001 C0DBGYY00887 IC
IC8100 C0DBAYY01644 IC
IC8101 C0DBAYY01645 IC
IC8200 C3ABUY000020 IC
IC8201 C3ABUY000020 IC
IC8453 C0DBZYY00541 IC
IC8454 C0DBZYY00541 IC
IC8457 C0DBZYY00541 IC
IC8900 TVR4G259-AA ROM IC (C3FBVY000038)
L3111 J0JYC0000156 INDUCTOR
L3112 J0JYC0000156 INDUCTOR
L3113 J0JYC0000156 INDUCTOR
L3116 J0JYC0000156 INDUCTOR
L3119 J0JYC0000156 INDUCTOR
L3120 J0JYC0000156 INDUCTOR
Part No. Part Name & Description Q'ty Remarks
Page 66
Model No. : TH-L32XV6S Parts List
Change Safety
TRANSISTORS
RESISTORS
Ref.
No.
L4051 J0ZZB0000147 COIL
L4052 J0ZZB0000147 COIL
L4053 J0ZZB0000147 COIL
L4901 G1C220MA0533 INDUCTOR
L4902 G1C220MA0533 INDUCTOR
L4903 G1C220MA0533 INDUCTOR
L4904 G1C220MA0533 INDUCTOR
L5400 G1C4R7ZA0311 INDUCTOR
L5420 G1C6R8MA0533 INDUCTOR
L5421 G1C220MA0445 INDUCTOR
L6704 J0JYC0000464 BEAD CORE
L6706 J0JYC0000464 BEAD CORE
L6761 J0JYC0000464 BEAD CORE
L6762 J0JYC0000464 BEAD CORE
L6763 G1CR27JA0097 COIL
L6765 G1C82NJ00010 COIL
L6772 G1CR27JA0097 COIL
L6773 G1CR27JA0097 COIL
L6774 G1CR27JA0097 COIL
L6776 G1CR27JA0097 COIL
L6777 G1CR22JA0097 COIL
L6778 G1CR22JA0097 COIL
L7101 J0JKB0000034 EMI FILTER
L7102 J0JKB0000034 EMI FILTER
L7110 J0JKA0000024 EMI FILTER
L7301 J0JKA0000038 BEAD CORE
L7304 J0JKB0000034 EMI FILTER
L7313 J0JKA0000038 BEAD CORE
L7314 J0JKA0000038 BEAD CORE
L7501 J0JKA0000038 BEAD CORE
L8001 J0JCC0000287 COIL
L8009 J0JYC0000464 BEAD CORE
L8013 J0JYC0000464 BEAD CORE
L8014 J0JCC0000287 COIL
L8100 G1C3R3MA0464 INDUCTOR
L8101 G1C2R2ZA0311 INDUCTOR
Q2012 B1ABCE000015 TRANSISTOR
Q2013 B1ABCE000015 TRANSISTOR
Q3102 B1ABCE000015 TRANSISTOR
Q3103 B1ABCE000015 TRANSISTOR
Q4702 B1ABCF000231 TRANSISTOR
Q4709 B1ABCF000231 TRANSISTOR
Q4981 B1ABCE000015 TRANSISTOR
Q7301 B1CERR000067 TRANSISTOR
Q7302 B1ABBE000003 TRANSISTOR
Q7501 B1CHRE000015 TRANSISTOR
Q7502 B1CHRE000015 TRANSISTOR
Q7505 B1ABBE000003 TRANSISTOR
Q7510 B1ABBE000003 TRANSISTOR
R0903 D0GA272JA023 M 2.7KOHM, J.1/16W
R0904 D0GA473JA039 M 47KOHM J. 1/10W
R0905 D0GA101JA039 M 100OHM,J.1/10W
R0906 D0GA101JA039 M 100OHM,J.1/10W
R0907 D0GA101JA039 M 100OHM,J.1/10W
R0910 D0GA332JA023 M 3.3KOHM, J,1/16W
R0911 D0GA272JA023 M 2.7KOHM, J.1/16W
R0912 D0GA272JA023 M 2.7KOHM, J.1/16W
R0913 D0GA332JA023 M 3.3KOHM, J,1/16W
R0914 D0GA101JA039 M 100OHM,J.1/10W
R0915 D0GA101JA039 M 100OHM,J.1/10W
Part No. Part Name & Description Q'ty Remarks
Page 67
Model No. : TH-L32XV6S Parts List
Change Safety
Ref.
No.
R0916 D0GA101JA039 M 100OHM,J.1/10W
R0917 D0GA101JA039 M 100OHM,J.1/10W
R0932 D0GA220JA023 M22 OHM, J.1/16 W
R0933 D0GA220JA023 M22 OHM, J.1/16 W
R0936 D0GA220JA023 M22 OHM, J.1/16 W
R0937 D0GA220JA023 M22 OHM, J.1/16 W
R0938 D0GA101JA039 M 100OHM,J.1/10W
R0940 D0GA101JA039 M 100OHM,J.1/10W
R0946 D0GA101JA039 M 100OHM,J.1/10W
R0948 D0GA101JA039 M 100OHM,J.1/10W
R0951 D0GA101JA039 M 100OHM,J.1/10W
R0952 D0GA102JA039 M 1KOHM ,J, 1/10W
R0953 D0GA272JA023 M 2.7KOHM, J.1/16W
R0954 D0GA272JA023 M 2.7KOHM, J.1/16W
R0955 D0GA272JA023 M 2.7KOHM, J.1/16W
R0956 D0GA332JA023 M 3.3KOHM, J,1/16W
R0957 D0GA332JA023 M 3.3KOHM, J,1/16W
R1951 D0GA680JA023 M 68 OHM, J,1/16W
R1953 D0GA103JA039 M 10KOHM,F,1/16W
R2000 D0GA154JA023 M 150KOHM J 1/16W
R2003 D0GAR00J0005 M 0 OHM, 1/16W
R2008 D0GA473JA039 M 47KOHM J. 1/10W
R2010 D0GDR00J0004 M 0 OHM, 1/8W
R2013 D0GA101JA039 M 100OHM,J.1/10W
R2014 D0GA101JA039 M 100OHM,J.1/10W
R2016 D0GA302JA023 M 3K OHM J ,1/16W
R2051 D0GA101JA039 M 100OHM,J.1/10W
R2056 D0GAR00J0005 M 0 OHM, 1/16W
R2058 D0GA473JA039 M 47KOHM J. 1/10W
R2059 D0GA103JA039 M 10KOHM,F,1/16W
R2060 D0GA473JA039 M 47KOHM J. 1/10W
R2061 D0GA223JA023 M 22K OHM J 1/16W
R2062 D0GA101JA039 M 100OHM,J.1/10W
R2803 D0GAR00J0005 M 0 OHM, 1/16W
R2807 D0GAR00J0005 M 0 OHM, 1/16W
R2820 D0GA470JA023 M 47 OHM, J,1/16W
R2821 D0GAR00J0005 M 0 OHM, 1/16W
R2823 D1BA1821A023 M 1.82KOHM, 1/16W
R2824 D1BA6800A023 M 680OHM, 1/16W
R3117 D0GA102JA039 M 1KOHM ,J, 1/10W
R3118 D0GA473JA039 M 47KOHM J. 1/10W
R3121 D0GB104ZA041 M 100KOHM,J.1/10W
R3132 D0GB103JA065 M 10K OHM J 1/10W
R3142 D1BD75R00003 M 75OHM J 1/10W
R3157 D1HY2204A012 NETWORK RESISTER
R3163 D0GA104JA039 M 100KOHM,J.1/10W
R3164 D0GA104JA039 M 100KOHM,J.1/10W
R3167 D0GA333JA023 M 33KOHM,J,1/16W
R3168 D0GA333JA023 M 33KOHM,J,1/16W
R3171 D0GA101JA039 M 100OHM,J.1/10W
R3172 D0GA101JA039 M 100OHM,J.1/10W
R3173 D0GB104ZA041 M 100KOHM,J.1/10W
R3179 D0GA331JA023 M 330 OHM, J,1/16W
R3180 D0GA331JA023 M 330 OHM, J,1/16W
R3181 D1BD75R00003 M 75OHM J 1/10W
R3182 D1BD75R00003 M 75OHM J 1/10W
R3183 D1BD75R00003 M 75OHM J 1/10W
R3184 D0GA333JA023 M 33KOHM,J,1/16W
R3185 D0GA333JA023 M 33KOHM,J,1/16W
R3188 D0GB104ZA041 M 100KOHM,J.1/10W
R3189 D0GB104ZA041 M 100KOHM,J.1/10W
R3194 D0GA220JA023 M22 OHM, J.1/16 W
Part No. Part Name & Description Q'ty Remarks
Page 68
Model No. : TH-L32XV6S Parts List
Change Safety
Ref.
No.
R3201 D0GA101JA039 M 100OHM,J.1/10W
R3231 D0GB103JA065 M 10K OHM J 1/10W
R3233 D0GB203ZA038 M 20KOHM 1/10W
R3234 D0GB203ZA038 M 20KOHM 1/10W
R3237 D0GB473JA065 M 47KOHM J. 1/10W
R3238 D0GB473JA065 M 47KOHM J. 1/10W
R4084 D0GDR00J0004 M 0 OHM, 1/8W
R4715 D0GA103JA039 M 10KOHM,F,1/16W
R4721 D0GA103JA039 M 10KOHM,F,1/16W
R4722 D0GA103JA039 M 10KOHM,F,1/16W
R4723 D0GA473JA039 M 47KOHM J. 1/10W
R4724 D0GA102JA039 M 1KOHM ,J, 1/10W
R4725 D0GA473JA039 M 47KOHM J. 1/10W
R4731 D0GA103JA039 M 10KOHM,F,1/16W
R4739 D0GA220JA023 M22 OHM, J.1/16 W
R4748 D0GA680JA023 M 68 OHM, J,1/16W
R4749 D0GA680JA023 M 68 OHM, J,1/16W
R4750 D0GA680JA023 M 68 OHM, J,1/16W
R4751 D0GA680JA023 M 68 OHM, J,1/16W
R4752 D1BA1600A023 M 160 OHM,F.1/16 W
R4753 D1BA82R0A023 M 82OHM , 1/16W
R4764 D0GA473JA039 M 47KOHM J. 1/10W
R4766 D0GA473JA039 M 47KOHM J. 1/10W
R4788 D0GA103JA039 M 10KOHM,F,1/16W
R4794 D0GA103JA039 M 10KOHM,F,1/16W
R4795 D0GA103JA039 M 10KOHM,F,1/16W
R4796 D0GA473JA039 M 47KOHM J. 1/10W
R4797 D0GA102JA039 M 1KOHM ,J, 1/10W
R4798 D0GA473JA039 M 47KOHM J. 1/10W
R4799 D0GA273JA023 M 27K OHM J ,1/16W
R4800 D0GA473JA039 M 47KOHM J. 1/10W
R4801 D0GA473JA039 M 47KOHM J. 1/10W
R4802 D0GBR00J0004 M 0 OHM J 1/10W
R4900 D0GFR00J0005 M 0 OHM,J,1/3W
R4901 D1HY6804A012 NETWORK RESISTER
R4906 D0GA103JA039 M 10KOHM,F,1/16W
R4907 D0GA102JA039 M 1KOHM ,J, 1/10W
R4908 D0GA102JA039 M 1KOHM ,J, 1/10W
R4917 D0GAR00J0005 M 0 OHM, 1/16W
R4918 D0GAR00J0005 M 0 OHM, 1/16W
R4919 D0GAR00J0005 M 0 OHM, 1/16W
R4955 D0GA103JA039 M 10KOHM,F,1/16W
R4956 D0GA102JA039 M 1KOHM ,J, 1/10W
R4958 D0GA103JA039 M 10KOHM,F,1/16W
R4980 D0GB332JA065 M 3.3KOHM,J,1/10W
R4981 D0GA103JA039 M 10KOHM,F,1/16W
R4982 D0GA473JA039 M 47KOHM J. 1/10W
R4984 D0GDR00J0004 M 0 OHM, 1/8W
R4985 D0GDR00J0004 M 0 OHM, 1/8W
R4986 D0GDR00J0004 M 0 OHM, 1/8W
R4987 D0GDR00J0004 M 0 OHM, 1/8W
R5002 D0GA683JA023 M 68KOHM, J,1/16W
R5003 D0GA103JA039 M 10KOHM,F,1/16W
R5006 D0GA103JA039 M 10KOHM,F,1/16W
R5007 D0GA103JA039 M 10KOHM,F,1/16W
R5009 D1BA5602A023 M 56KOHM,F. 1/16 W
R5012 D1BA2202A023 M 22KOHM,F. 1/16 W
R5030 D0GA103JA039 M 10KOHM,F,1/16W
R5031 D0GAR00J0005 M 0 OHM, 1/16W
R5032 D0GAR00J0005 M 0 OHM, 1/16W
R5100 D0GA101JA039 M 100OHM,J.1/10W
R5101 D0GA473JA039 M 47KOHM J. 1/10W
Part No. Part Name & Description Q'ty Remarks
Page 69
Model No. : TH-L32XV6S Parts List
Change Safety
Ref.
No.
R5102 D0GA473JA039 M 47KOHM J. 1/10W
R5104 D0GA103JA039 M 10KOHM,F,1/16W
R5152 D0GA222JA023 M 2.2KOHM, J,1/16W
R5175 D0GA680JA023 M 68 OHM, J,1/16W
R5181 D0GA103JA039 M 10KOHM,F,1/16W
R5200 D0GBR00J0004 M 0 OHM J 1/10W
R5400 D0GAR00J0005 M 0 OHM, 1/16W
R5401 D1BA2202A023 M 22KOHM,F. 1/16 W
R5402 D0GB911ZA037 M 910 OHM,1/10W
R5403 D1BB2871A106 M 2.87 KOHM,F.1/10 W
R5404 D0GD100JA059 M 10 OHM,J,1/4W
R5420 D0GAR00J0005 M 0 OHM, 1/16W
R5421 D1BA3302A023 M 33KOHM,F. 1/16 W
R5422 D0GB911ZA037 M 910 OHM,1/10W
R5423 D1BB4871A106 M 4.87 KOHM,F.1/10 W
R5424 D0GD100JA059 M 10 OHM,J,1/4W
R5426 D0GA220JA023 M22 OHM, J.1/16 W
R5427 D0GD100JA059 M 10 OHM,J,1/4W
R5428 D0GD272JA052 M 2.7KOHM,J,1/8W
R5429 D1BA1402A023 M 14KOHM,F. 1/16 W
R5430 D1BA1001A023 M 1 KOHM,F.1/16 W
R5431 D0GA473JA039 M 47KOHM J. 1/10W
R5432 D1BA2702A023 M 27KOHM,F,1/16W
R5712 D0GA332JA023 M 3.3KOHM, J,1/16W
R5715 D1BA1200A023 M 120 OHM,F.1/16 W
R5716 D1BA56R0A023 M 56 OHM,F.1/16 W
R6728 D0GA681JA023 M680 OHM, J,1/16W
R6729 D0GA681JA023 M680 OHM, J,1/16W
R6734 D1BA1002A023 M 10KOHM,F,1/16W
R6750 D0GA101JA039 M 100OHM,J.1/10W
R6751 D0GA103JA039 M 10KOHM,F,1/16W
R6752 D0GAR00J0005 M 0 OHM, 1/16W
R6753 D0GA101JA039 M 100OHM,J.1/10W
R6757 D0GA101JA039 M 100OHM,J.1/10W
R6758 D0GA101JA039 M 100OHM,J.1/10W
R6759 D0GA102JA039 M 1KOHM ,J, 1/10W
R6760 D0GA332JA023 M 3.3KOHM, J,1/16W
R7101 D0GF105JA048 M 1M OHM. 1/4W
R7102 D0GF105JA048 M 1M OHM. 1/4W
R7103 D0GF105JA048 M 1M OHM. 1/4W
R7104 D0GF105JA048 M 1M OHM. 1/4W
R7311 D0GB183JA065 M 18KOHM,J,1/10W
R7313 D0GD220JA052 M 22 OHM,J,1/8W
R7314 D0GD681JA059 M 680OHM, 1/16W
R7315 D0C1R33JA104 M 0.33OH ,J, 1W
R7317 D0GD680JA052 M 68 OHM,J,1/8W
R7318 D0GD471JA052 M 470 OHM,J,1/8W
R7319 D0GB393JA065 M 39K OHM J 1/10W
R7320 D0GB152JA065 M 1.5KOHM ,J, 1/16W
R7322 D0GB752JA065 M 7.5KOHM J 1/10W
R7325 D0GD4R7JA059 M 4.7 OHM,J,1/4W
R7329 D0GDR00J0004 M 0 OHM, 1/8W
R7335 D0B1106JA033 M 10MOHM J 1W
R7342 D0GD182JA052 M 1.8KOHM, J, 1/8W
R7343 D0GD182JA052 M 1.8KOHM, J, 1/8W
R7344 D0GD182JA052 M 1.8KOHM, J, 1/8W
R7346 D0GDR00J0004 M 0 OHM, 1/8W
R7402 D1BB1911A073 M 1.91KOHM, 1/16W
R7403 D1BB3091A073 M 3.09KOHM, 1/16W
R7404 D1BB6041A073 M 6.04KOHM, 1/16W
R7405 D1BB1692A073 M 16.9 OHM,.1/16 W
R7501 D0GD473JA052 M 47KOHM,J,1/8W
Part No. Part Name & Description Q'ty Remarks
Page 70
Model No. : TH-L32XV6S Parts List
Change Safety
Ref.
No.
R7502 D0GD134JA052 M 130KOHM,J,1/8W
R7503 D0GB153JA065 M 15K OHM J 1/10W
R7504 D0GB153JA065 M 15K OHM J 1/10W
R7507 D0GB683JA065 M 68KOHM J 1/10W
R7508 D0GD752JA052 M 7.5KOHM J 1/10W
R7509 D0GD752JA052 M 7.5KOHM J 1/10W
R7511 D0GD103JA052 M 10KOHM,J,1/8W
R7512 D0GD472JA052 M 4.7KOHM,J,1/8W
R7513 D0GD752JA052 M 7.5KOHM J 1/10W
R7514 D0GD752JA052 M 7.5KOHM J 1/10W
R7515 D0GB183JA065 M 18KOHM,J,1/10W
R7516 D0GD472JA052 M 4.7KOHM,J,1/8W
R7517 D0GB222JA065 M 2.2KOHM,J,1/10W
R7519 D0GB562ZA038 M 5.6KOHM, 1/6W
R7520 D0GB332ZA038 M 3.3KOHM , 1/16W
R7521 D0GB123ZA038 M 12KOHM, 1/10W
R7523 D0GD473JA052 M 47KOHM,J,1/8W
R7524 D0GD103JA052 M 10KOHM,J,1/8W
R7525 D0GB472JA065 M 4.7KOHM, J,1/10W
R7526 D0GB103JA065 M 10K OHM J 1/10W
R7527 D0GDR00J0004 M 0 OHM, 1/8W
R7531 D0GDR00J0004 M 0 OHM, 1/8W
R7532 D0GB821ZA037 M 82OHM , 1/16W
R7540 D0GD184JA052 M 180KOHM,J,1/8W
R7541 D0GB164JA065 M 160KOHM,J.1/16 W
R8005 D0GA1R1JA023 M 1.1OHM, J,1/16W
R8010 D0GA511JA023 M510 OHM, J,1/16W
R8011 D0GA104JA039 M 100KOHM,J.1/10W
R8101 D1BA4701A023 M 4.7KOHM,F 1/16 W
R8102 D1BB2002A195 M 20KOHM,A , 1/16W
R8103 D1BB1802A195 M 180KOHM,A,1/8W
R8200 D1BA2400A023 M 240 OHM,F.1/16 W
R8203 D1BA2700A023 M 270 OHM,F.1/16 W
R8204 D1BA2700A023 M 270 OHM,F.1/16 W
R8205 D1BA2700A023 M 270 OHM,F.1/16 W
R8206 D1BA2700A023 M 270 OHM,F.1/16 W
R8207 D1BA2700A023 M 270 OHM,F.1/16 W
R8208 D1BA2700A023 M 270 OHM,F.1/16 W
R8217 D0GA221JA023 M220 OHM, J.1/16 W
R8218 D0GA221JA023 M220 OHM, J.1/16 W
R8219 D1BA2400A023 M 240 OHM,F.1/16 W
R8220 D1BA2400A023 M 240 OHM,F.1/16 W
R8230 D1BA2700A023 M 270 OHM,F.1/16 W
R8231 D1BA2700A023 M 270 OHM,F.1/16 W
R8232 D1BA2700A023 M 270 OHM,F.1/16 W
R8233 D1BA2700A023 M 270 OHM,F.1/16 W
R8234 D0GA220JA023 M22 OHM, J.1/16 W
R8236 D0GA220JA023 M22 OHM, J.1/16 W
R8240 D1HY2204A012 NETWORK RESISTER
R8241 D1HY2204A012 NETWORK RESISTER
R8242 D1HY2204A012 NETWORK RESISTER
R8243 D1HY2204A012 NETWORK RESISTER
R8244 D1HY2204A012 NETWORK RESISTER
R8245 D0GA220JA023 M22 OHM, J.1/16 W
R8246 D0GA220JA023 M22 OHM, J.1/16 W
R8300 D0GA331JA023 M 330 OHM, J,1/16W
R8301 D0GA360JA023 M 36 OHM, J,1/16W
R8302 D0GA360JA023 M 36 OHM, J,1/16W
R8303 D1BA6201A023 M 6.2 KOHM,F.1/16 W
R8305 D1BA2491A023 M 2.49KOHM,F,1/16W
R8306 D0GA360JA023 M 36 OHM, J,1/16W
R8307 D0GA360JA023 M 36 OHM, J,1/16W
Part No. Part Name & Description Q'ty Remarks
Page 71
Model No. : TH-L32XV6S Parts List
Change Safety
TRANSFORMERS
OTHERS
Ref.
No.
R8450 D0GA103JA039 M 10KOHM,F,1/16W
R8451 D0GA103JA039 M 10KOHM,F,1/16W
R8453 D1BA3742A023 M 37.4 KOHM,F.1/16 W
R8454 D0GA103JA039 M 10KOHM,F,1/16W
R8455 D0GA103JA039 M 10KOHM,F,1/16W
R8457 D1BA3742A023 M 37.4 KOHM,F.1/16 W
R8458 D1BA3742A023 M 37.4 KOHM,F.1/16 W
R8469 D0GA103JA039 M 10KOHM,F,1/16W
R8470 D0GA103JA039 M 10KOHM,F,1/16W
R8474 D0GA272JA023 M 2.7KOHM, J.1/16W
R8666 D1HY1038A012 NETWORK RESISTER
R8800 D0GA103JA039 M 10KOHM,F,1/16W
R8803 D0GA103JA039 M 10KOHM,F,1/16W
R8807 D0GA102JA039 M 1KOHM ,J, 1/10W
R8816 D0GA103JA039 M 10KOHM,F,1/16W
R8817 D0GA103JA039 M 10KOHM,F,1/16W
R8819 D0GA103JA039 M 10KOHM,F,1/16W
R8820 D0GA103JA039 M 10KOHM,F,1/16W
R8831 D0GA103JA039 M 10KOHM,F,1/16W
R8850 D0GA331JA023 M 330 OHM, J,1/16W
R8851 D1BB7151A106 M 7.15 KOHM,F.1/10 W
R8852 D0GA102JA039 M 1KOHM ,J, 1/10W
R8853 D0GA182JA023 M 1.8KOHM, J,0.063W
R8858 D0GA103JA039 M 10KOHM,F,1/16W
R8870 D0GA103JA039 M 10KOHM,F,1/16W
R8878 D0GA103JA039 M 10KOHM,F,1/16W
R8880 D0GA103JA039 M 10KOHM,F,1/16W
R8881 D0GA103JA039 M 10KOHM,F,1/16W
R8883 D0GA103JA039 M 10KOHM,F,1/16W
R8884 D0GA103JA039 M 10KOHM,F,1/16W
R8885 D0GA103JA039 M 10KOHM,F,1/16W
R8909 D0GA222JA023 M 2.2KOHM, J,1/16W
R8910 D0GA103JA039 M 10KOHM,F,1/16W
R8911 EXB2HV121JV M 120 OHM,F,1/16 W
R8924 D0GA102JA039 M 1KOHM ,J, 1/10W
R8926 D0GA332JA023 M 3.3KOHM, J,1/16W
R8967 D0GA473JA039 M 47KOHM J. 1/10W
T7301A G4DYA0000460 TRANSFORMER
A02 K1KY16BA0394 CONNECTOR
A10 K1KY07AA0719 CONNECTOR
A12 K1KY04BA0387 CONNECTOR
A16 K1KY30BA0275 CONNECTOR
CF7102 D4CA94R0A001 TERMISTOR S
CN0100 K1KA14A00248 CONNECTOR
F7101 K5E502YYA162 FUSE
JA1 D0GFR00J0005 CHIP RESISTOR
JA2 D0GFR00J0005 CHIP RESISTOR
JA3 D0GFR00J0005 CHIP RESISTOR
JA4 D0GFR00J0005 CHIP RESISTOR
JA5 D0GFR00J0005 CHIP RESISTOR
JA6 D0GFR00J0005 CHIP RESISTOR
JA7 D0GFR00J0005 CHIP RESISTOR
JA8 D0GFR00J0005 CHIP RESISTOR
JA9 D0GFR00J0005 CHIP RESISTOR
JK3101 K1U511D00002 AV TERMINAL
JK3102 K1U307E00002 AV TERMINAL
JK3103 K1U204D00004 AV TERMINAL
JK4700A K1FY119D0028 HDMI TERMINAL
JK4701A K1FY119D0028 HDMI TERMINAL
JK6750 K1ZZ00001551 TUNER SHIELD
Part No. Part Name & Description Q'ty Remarks
Page 72
Model No. : TH-L32XV6S Parts List
Change Safety
Ref.
No.
JK7101 K2AAYB000010 AC INLET
JK8450 K1FY104B0093 USB TERMINAL
JK8451 K1FY104B0093 USB TERMINAL
JK8452 K1FY105E0017 CONNECTOR
JK8600 K2LC1YYA0020 LAN TERMINAL
JS009 D0GAR00J0005 CHIP RESISTOR
JS015 D0GAR00J0005 CHIP RESISTOR
K10 K1KY07AA1311 CONNECTOR
LF7103A G0B153G00003 LINE FILTER
LF7104A G0B153G00003 LINE FILTER
P2 K1KY14BA0386 CONNECTOR
P3 K1KY08BA0402 CONNECTOR
PC7300 B3PAA0000629 PHOTO COUPLER
PC7301 B3PAA0000629 PHOTO COUPLER
RM2800 B3RBB0000018 PHOTO DETECTOR
SN2800 B3JB00000208 IC
SW7401 EVQ11G05R SWITCH
SW7402 EVQ11G05R SWITCH
SW7403 EVQ11G05R SWITCH
SW7404 EVQ11G05R SWITCH
SW7405 EVQ11G05R SWITCH
SW7406 EVQ11G05R SWITCH
X6750 H0J240500067 CRYSTAL OSCILLATOR
X8300 H0J250500109 CRYSTAL RESONATOR
ZA7101 K4AD01A00004 RUG TERMINAL
ZA7102 K4AD01A00004 RUG TERMINAL
Part No. Part Name & Description Q'ty Remarks
Page 73
Model No. : TH-L32XV6S Parts List
Change Safety
Exploded View
Electrical Replacement Part List
Ref.
No.
1 K2CQ2YY00109 AC CORD
2 L0EYAA000044 SPEAKER
3 L5EDDYY00503 LCD PANEL
4 N2QAYB000817 REMOTE TRANSMITTER
5 TBL5ZX06271 PEDESTAL ASSY
6 TKK5ZC50381 LED PANEL
7 TKP5ZA32201 SIDE AV BRACKET
8 TPD4GA04631 TOP CUSHION
9 TPD4GA04641 BOTTOM CUSHION
10 TPE4GH065 SET COVER
11 TQZ4GB712 FAN BAG ASSY
12 TTU4GA0971 BACK COVER ASSY
13 TXFKP5Z0161 REAR PANEL TOP ASSY
14 TXFPC01QWUS PACKING CASE ASSY
RTL TXN/K1TDUA K PRINT
RTL TXN/P1RDUK P PRINT
RTL TZT/A10QWUS A PRINT ASSY
Part No. Part Name & Description Q'ty Remarks
N5HBZ0000101 WI FI DONGLE
TBL5ZX06441 STAND ACC ASSY
TBM4GD1211A MODEL NAME PLATE
TBX5ZA02001 CONTROL BUTTON
TKK5ZL50181 M6 CAP
TSCKF0240001 LVDS FFC
TXFKP5Z0162 REAR PANEL TOP ASSY
TXFKP5Z0163 REAR PANEL L ASSY
TXFKP5Z0164 REAR PANEL L ASSY
XSS5+16FJK STAND BRAC SCREW
XYN4+F25FJK PEDESTAL BRAC SCREW
Loading...
