Panasonic TH-98SQ1 User guide

Download

Page 1

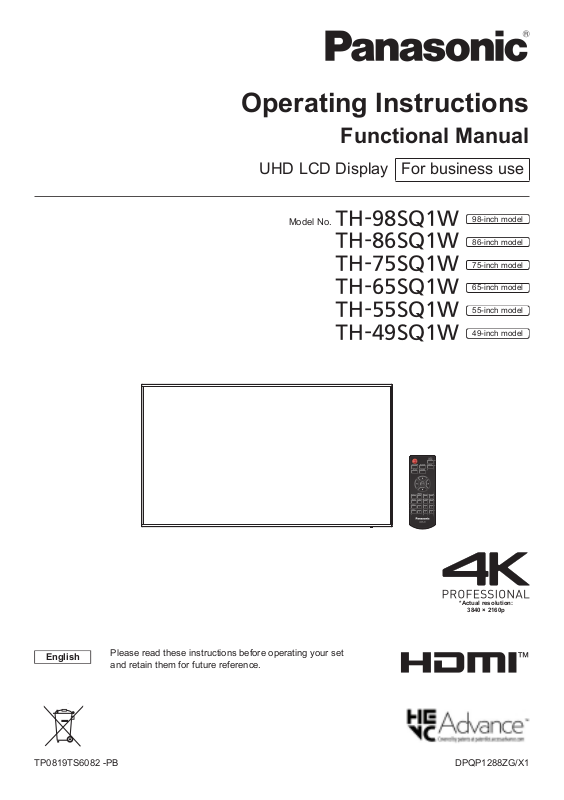

Operating Instructions

Functional Manual

UHD LCD Display For business use

Model No. TH-98SQ1W

TH-86SQ1W TH-75SQ1W TH-65SQ1W TH-55SQ1W TH-49SQ1W

98-inch model

86-inch model

75-inch model

65-inch model

55-inch model

49-inch model

*Actual resolution:

3840 × 2160p

English

Please read these instructions before operating your set and retain them for future reference.

DPQP1288ZG/X1TP0819TS6082 -PB

Page 2

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new LCD Display.

To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference.

Retain your purchase receipt also, and note down the model number and serial number of your set in the space provided on the rear cover of these instructions.

Visit our Panasonic Web Site

https://panasonic.net/cns/prodisplays/

Before use

●

Illustrations and screens in this Operating Instructions are images for illustration purposes, and may be different from the actual ones.

●

Descriptive illustrations in this Operating Instructions are created mainly based on the 98-inch model.

Important Safety Instructions ..........................4

FCC STATEMENT .............................................. 5

Important Safety Notice ................................... 6

Safety Precautions ........................................... 8

Precautions for use ........................................ 11

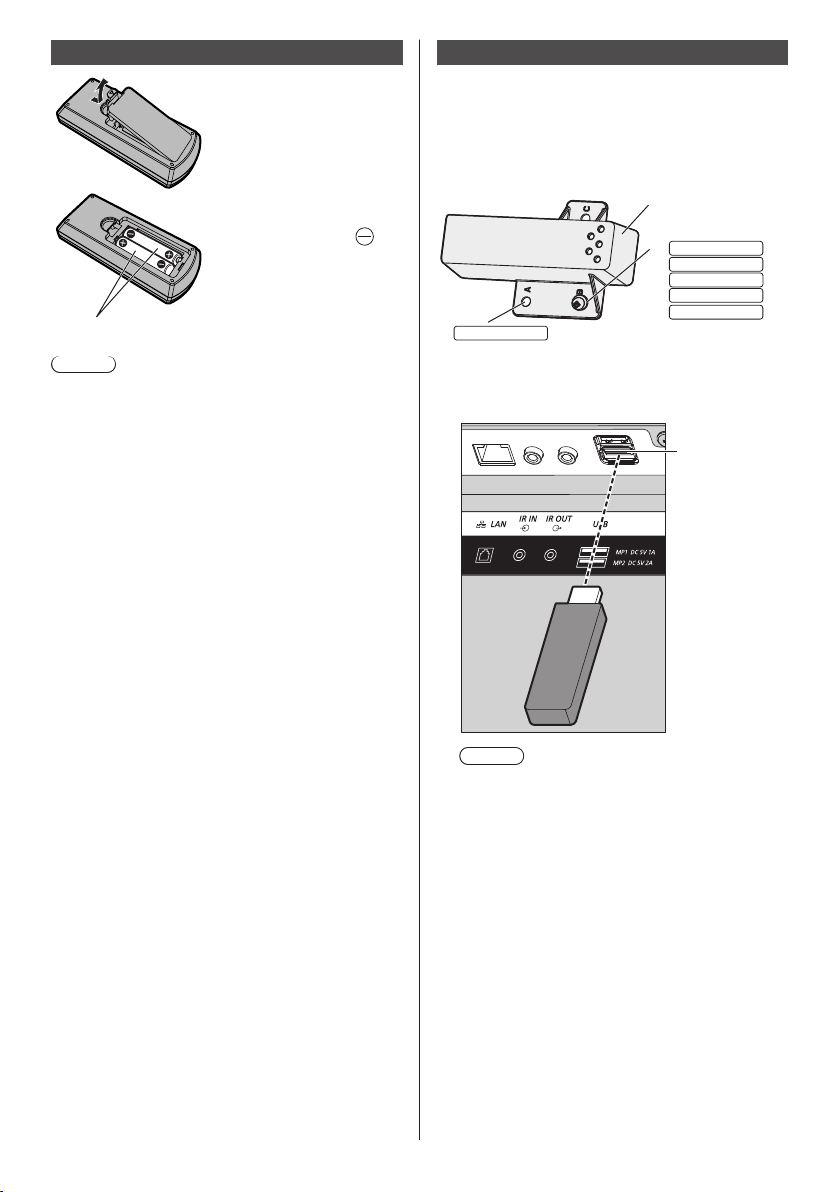

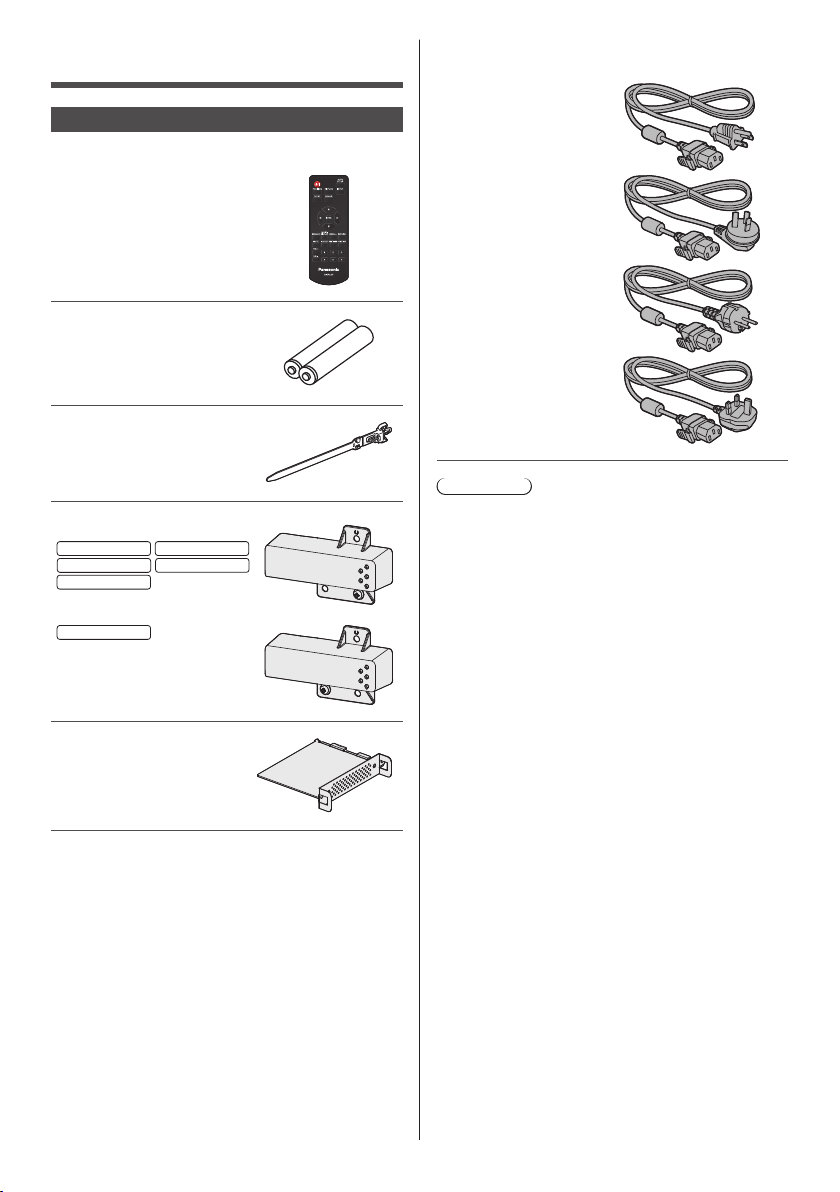

Accessories ....................................................13

Accessories Supply ·········································· 13 Remote Control Batteries ·································· 14 Attaching the USB Memory Cover ······················· 14 Attaching the Function Board ····························· 15

Cautions when moving .................................. 17

Eyebolt ............................................................18

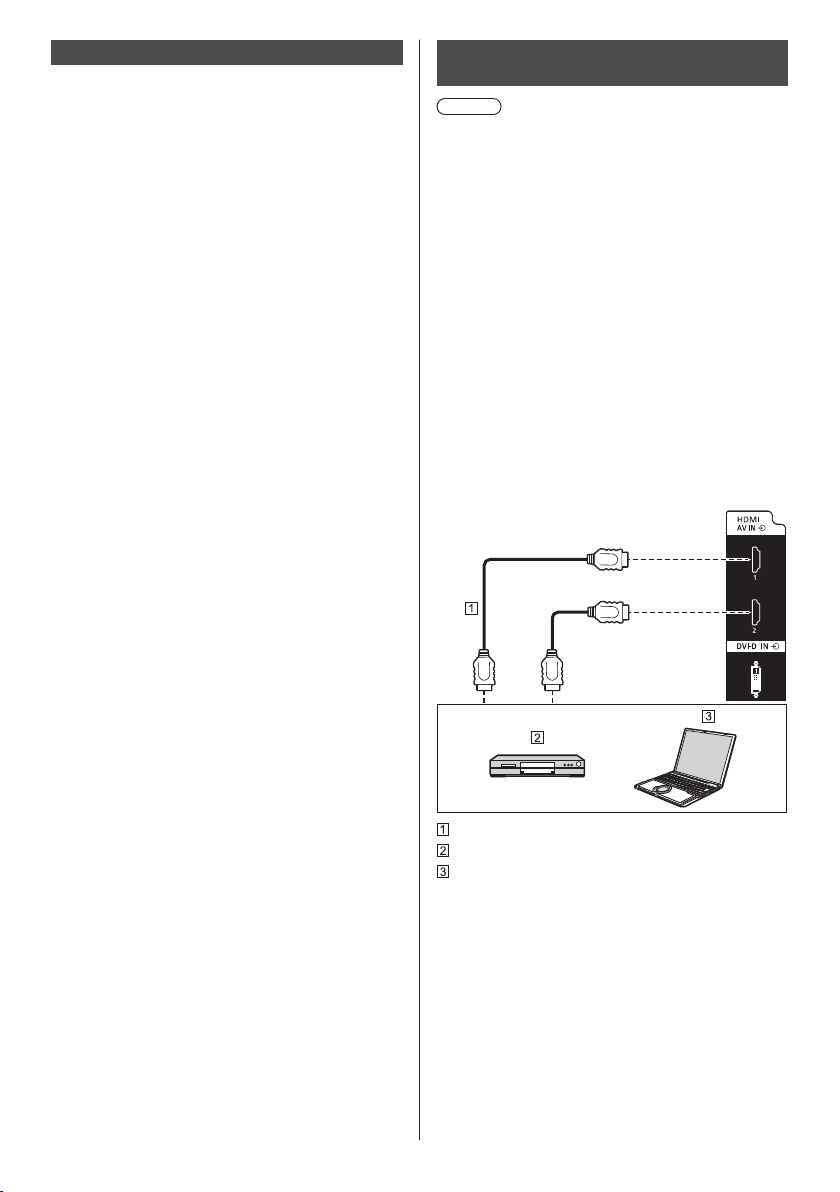

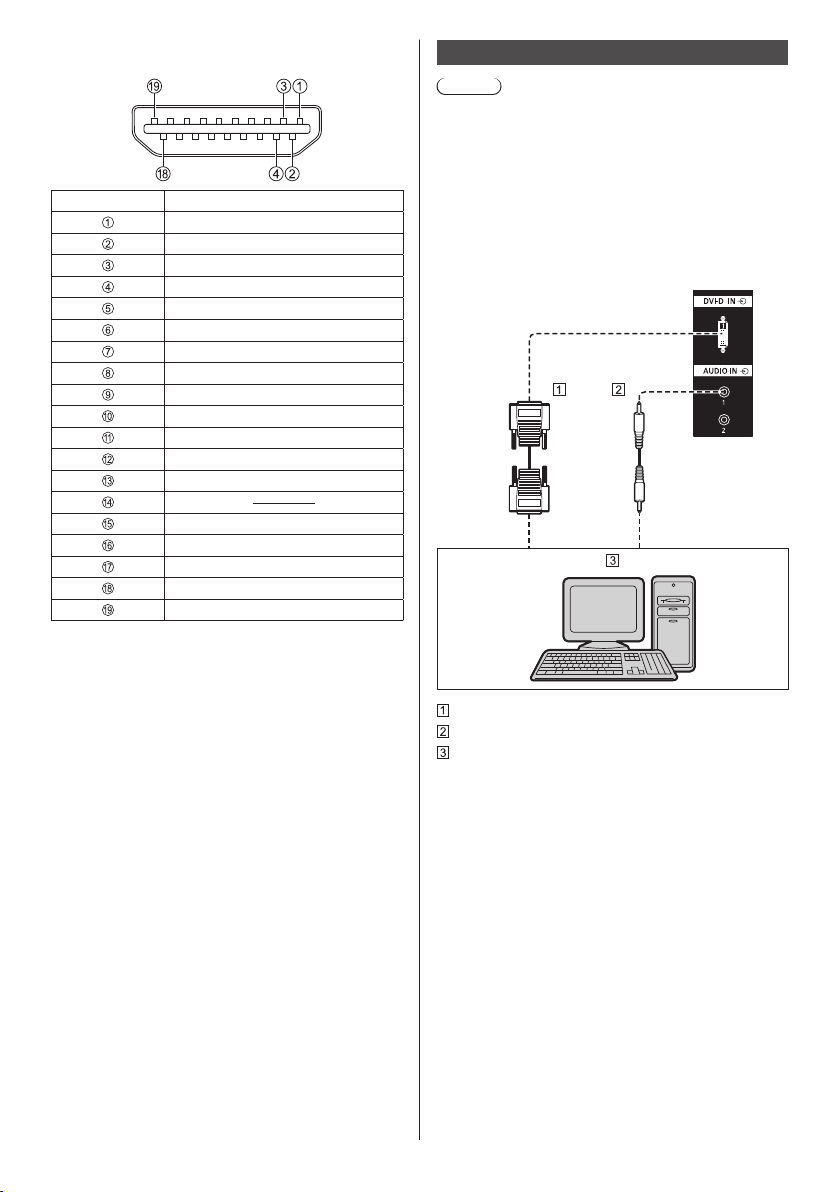

Connections .................................................... 19

AC cord connection and fixing / Cable fixing ·········· 19 Video equipment connection ······························ 21 Before connecting ············································ 22 HDMI 1 and HDMI 2 terminals connection ············· 22 DVI-D IN terminal connection ····························· 23 PC IN terminal connection ································· 24 DisplayPort IN / DisplayPort OUT terminal connection DIGITAL LINK terminal connection ······················ 27 SERIAL IN terminal connection ··························· 28 IR IN / IR OUT terminal connection ······················ 29 AUDIO OUT terminal connection ························· 30 USB terminal connection ··································· 30 Speaker terminal connection ······························ 31

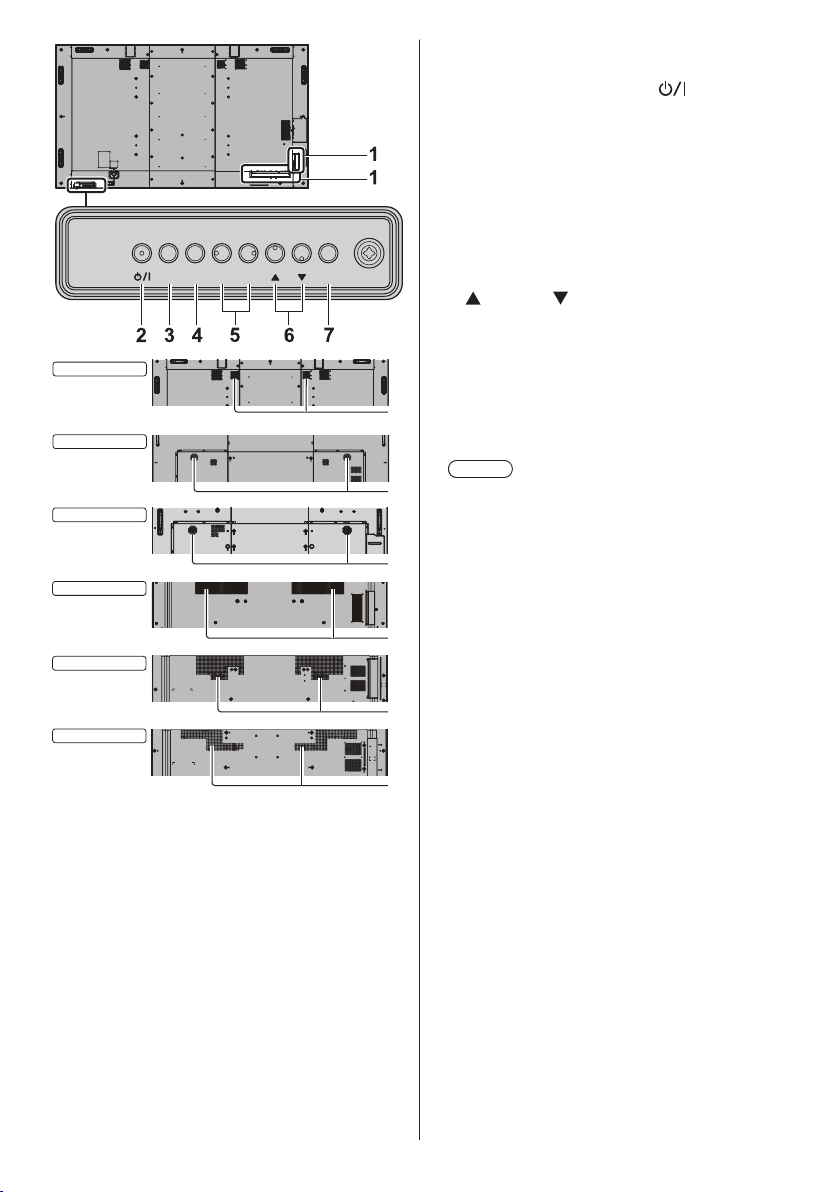

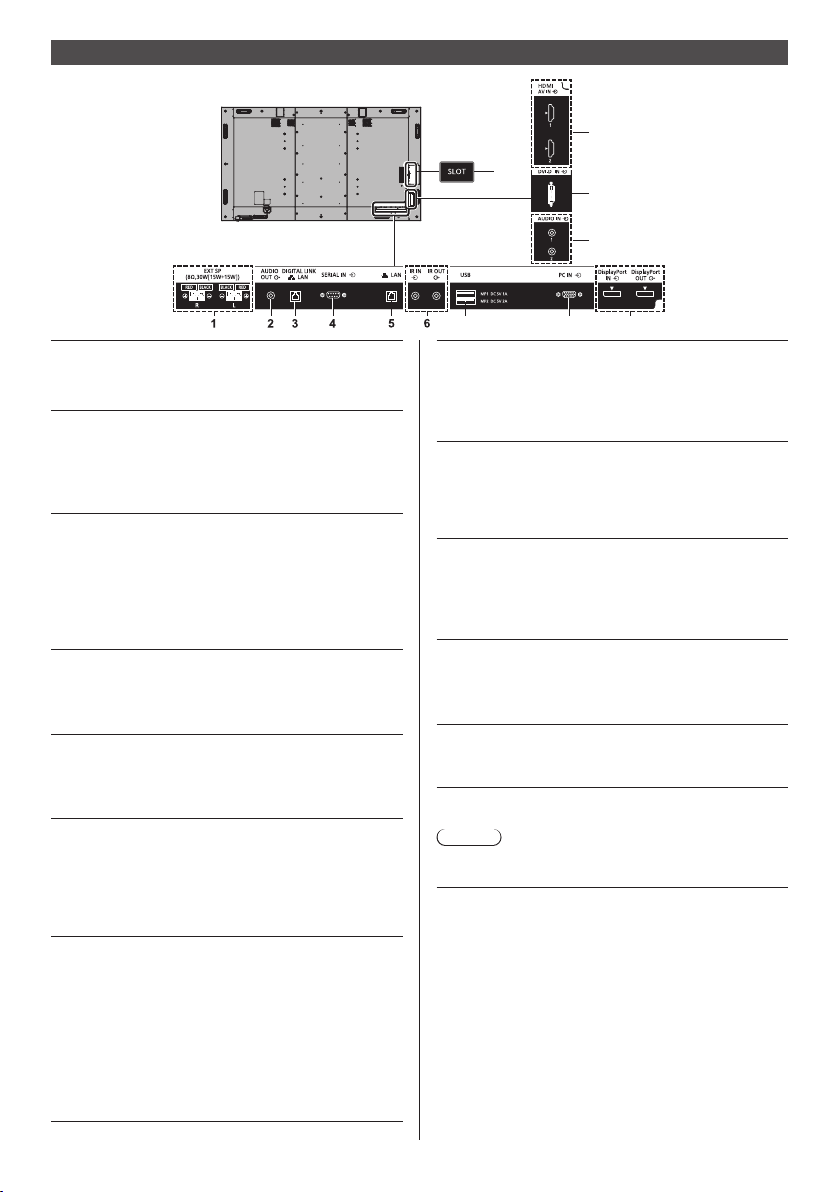

Identifying Controls ........................................32

Display ·························································· 32 Remote Control Transmitter ······························· 34

Basic Controls ................................................ 35

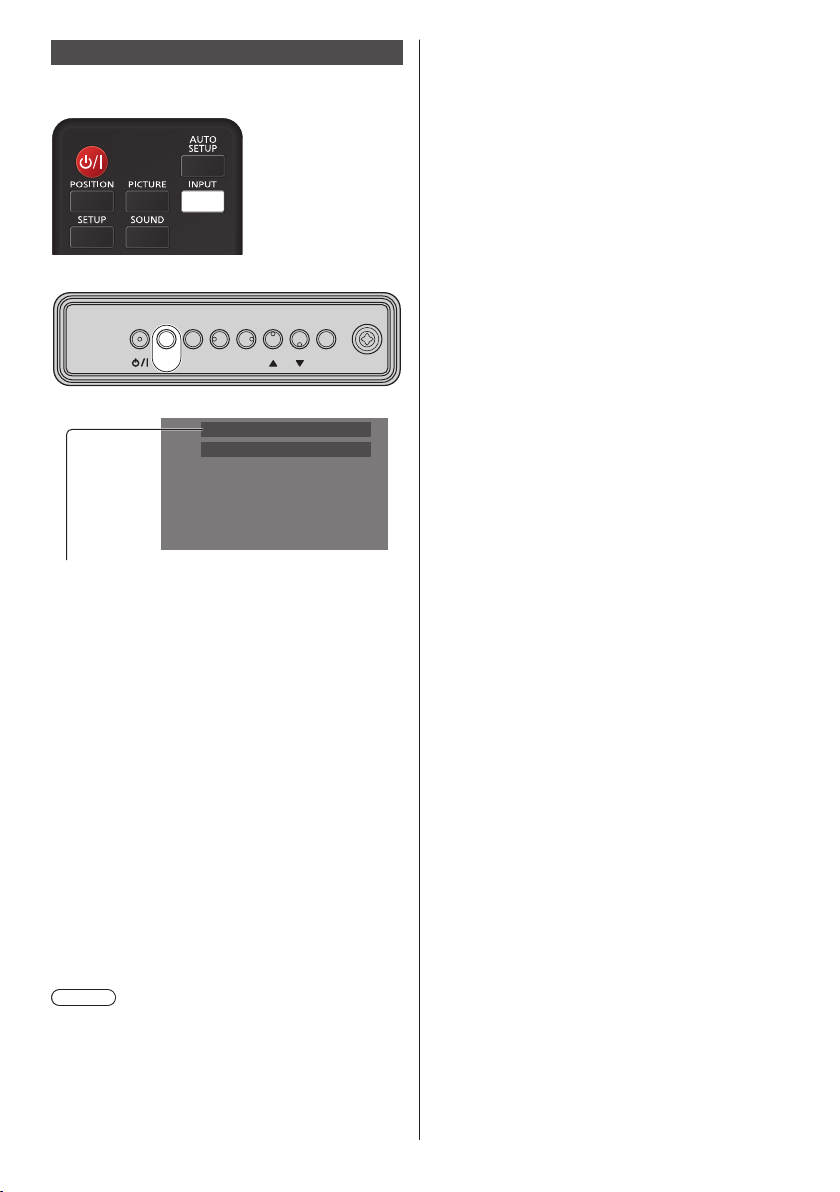

Selecting the input signal ··································· 37 RECALL·························································38 Volume Adjustment ··········································38 Sound mute On / Off ········································· 38 OFF TIMER ···················································· 39

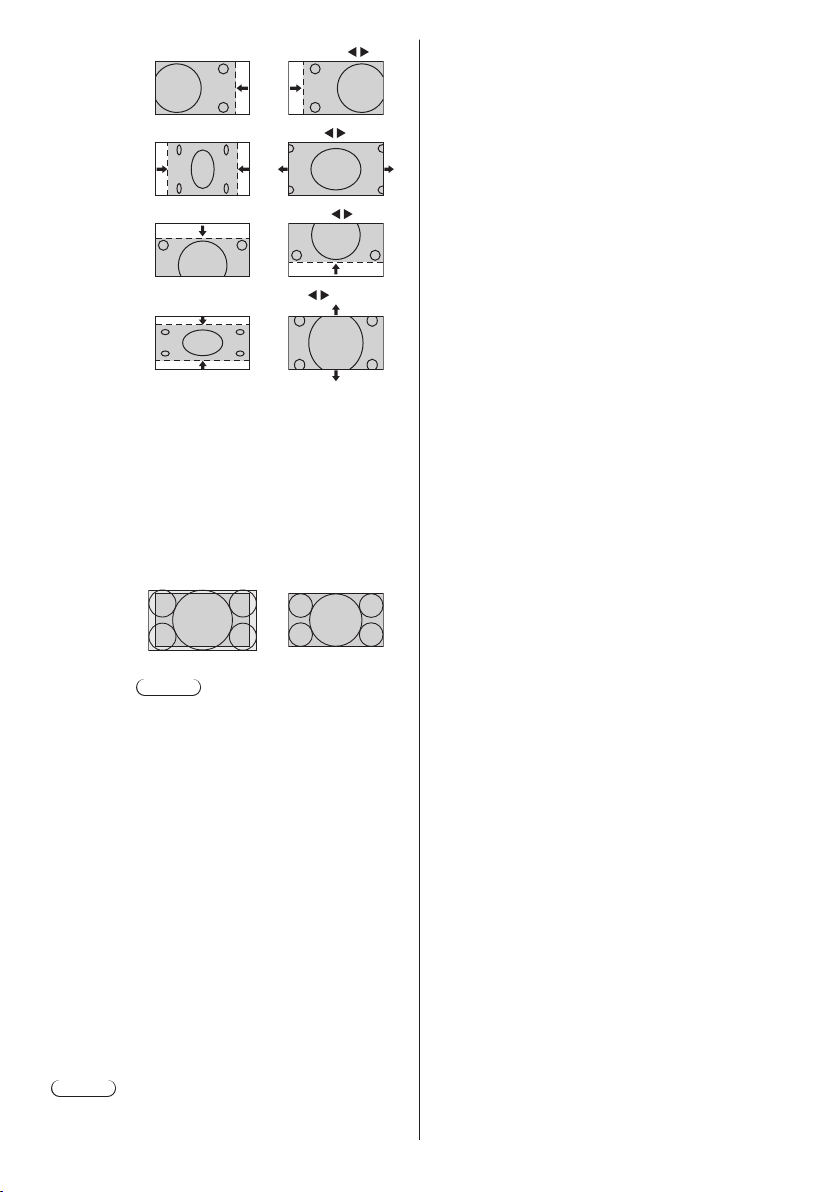

ASPECT Controls ........................................... 40

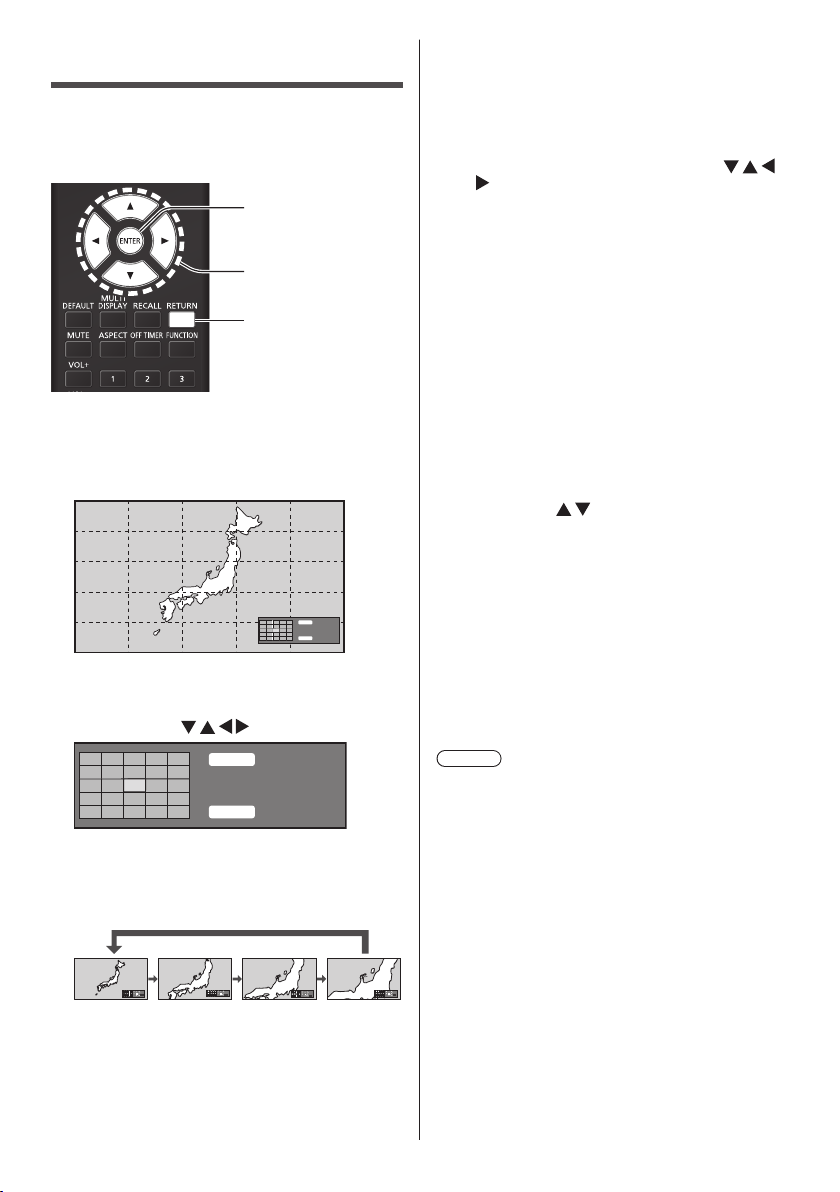

Digital ZOOM ................................................... 42

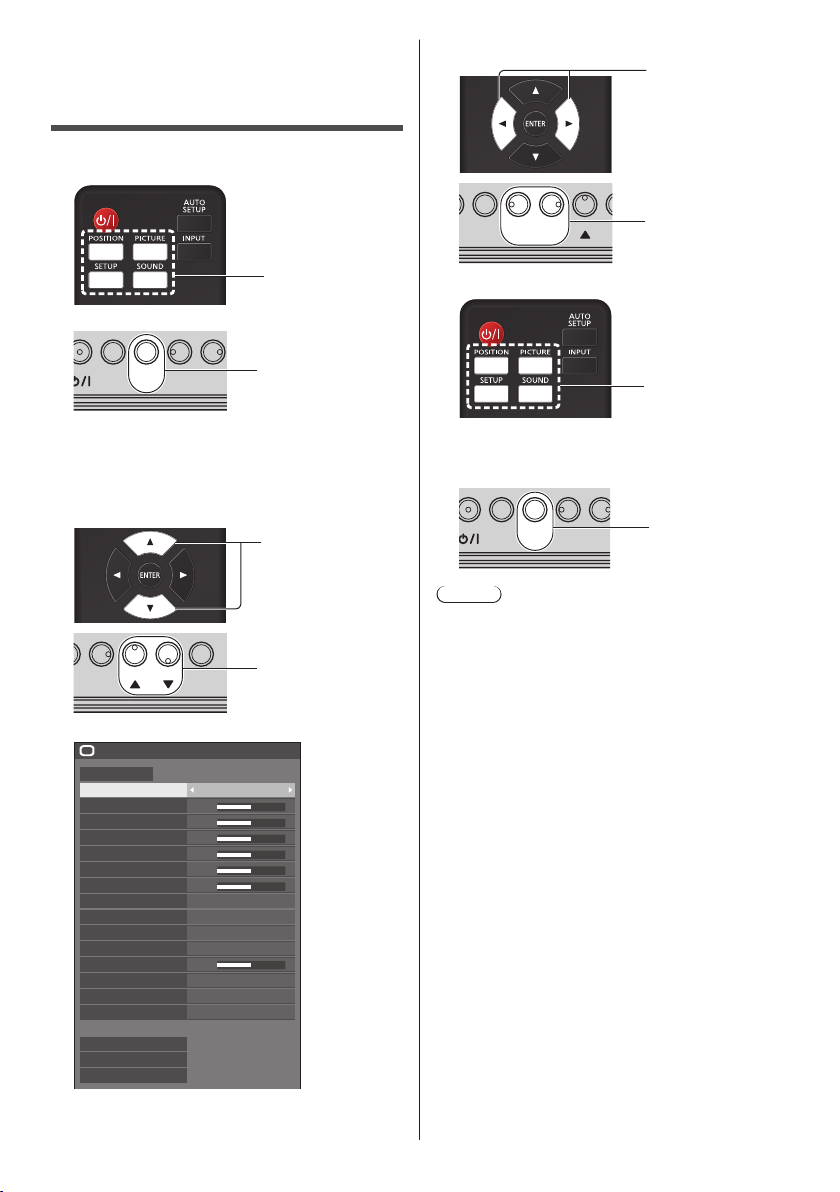

On-Screen Menu Displays ............................. 43

Adjusting Position .......................................... 45

Auto setup ······················································ 45

···· 25

English

Page 3

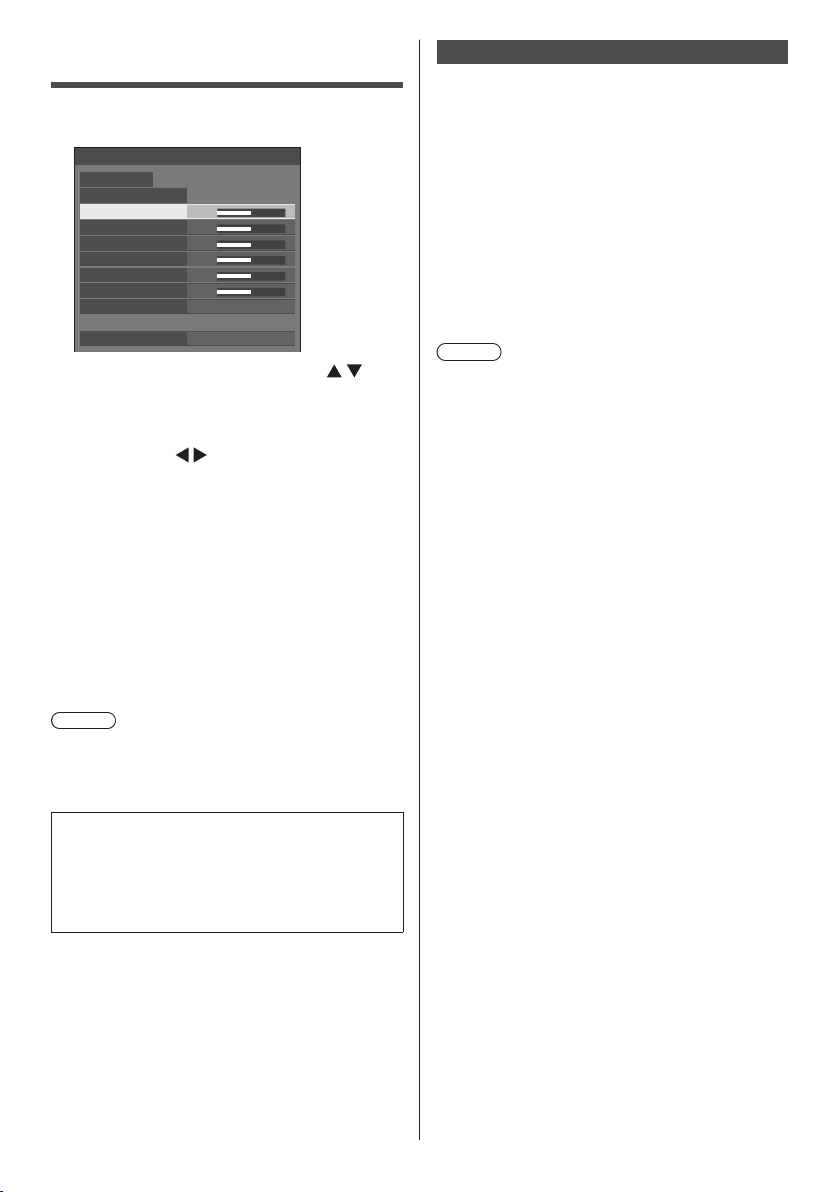

Sound Adjustment .......................................... 47

Picture Adjustments ....................................... 48

Picture Profiles ............................................... 51

Saving profiles ················································ 52 Loading profiles ··············································· 53 Editing profiles ················································ 53

Setup menu ..................................................... 55

Multi display settings ········································ 55 Portrait settings ··············································· 58 Signal ···························································· 59 Power on settings ············································ 62 Input search ···················································· 64 Failover/Failback ············································· 65 Screensaver ··················································· 68 Input label ······················································ 69 Power management settings ······························ 69 Audio input select ············································ 71 HDMI-CEC settings ·········································· 72 Image settings ················································· 73 Input lock ······················································· 74 Off-timer function ············································· 74 No activity power off ········································· 74 OSD language ················································ 74 Set up timer ···················································· 75 Date and time ················································· 76 Network settings ·············································· 77 USB media player settings ································· 81 Memory viewer settings ····································· 83 Screen Transfer settings ···································· 84 Function button settings ···································· 84 OSD settings ·················································· 86 Display orientation ··········································· 86 Image rotation ················································· 87 Options ·························································· 87 Control settings ··············································· 87 Information timing ············································ 88 SLOT settings ················································· 88 Maximum VOL function ····································· 89 Maximum VOL level ·········································89 Button lock ····················································· 89 POWER button lock ········································· 89 Controller user level ········································· 89 DVI-D/SLOT select ··········································· 90 USB select ····················································· 90 Quick input change mode ·································· 90

Using Network Function .....................................91

Necessary environment for computers to be connected Example of network connection ·························· 91 Command control ············································ 93 Control Command via LAN ································ 93 PJLink protocol ················································ 97 Multi Monitoring & Control Software ····················· 98 Video Wall Manager ·········································98 Content Management Software ··························· 99

·· 91

Screen Transfer ··············································· 99

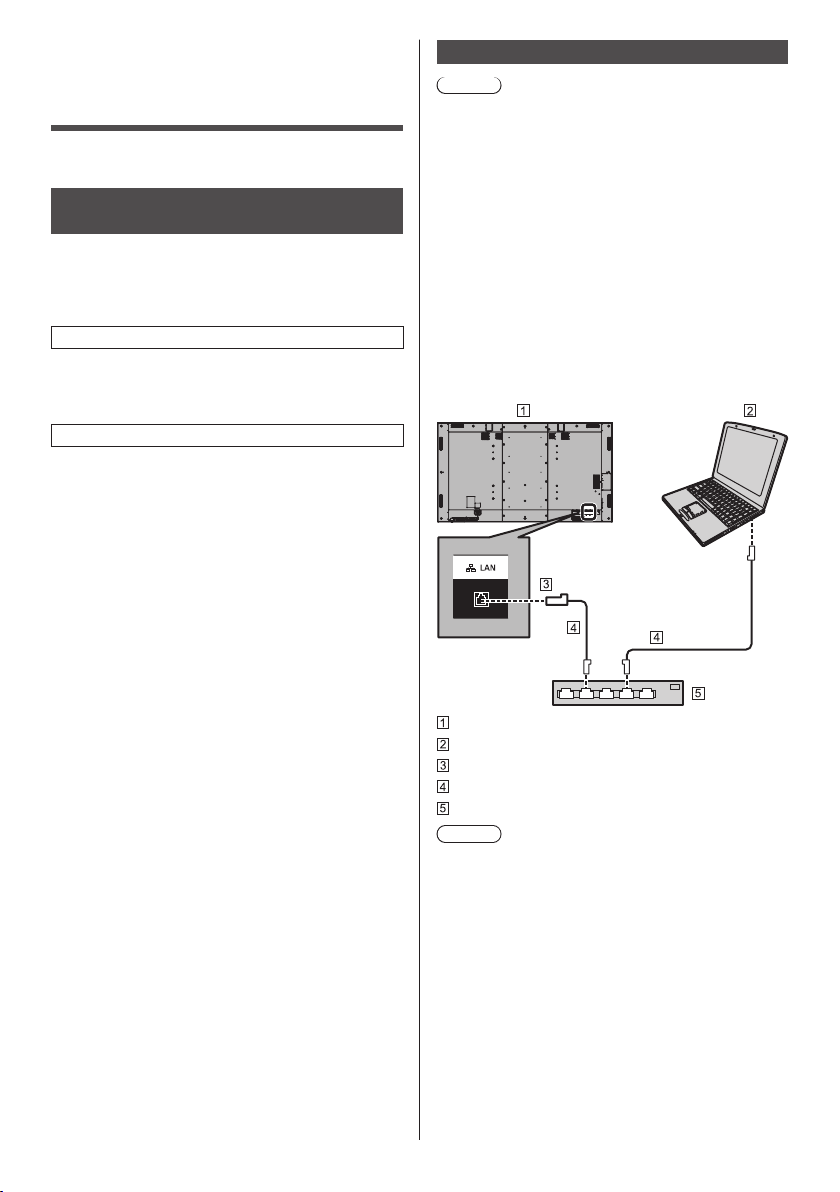

Connecting with LAN ................................... 100

Computer operation ········································ 100

Using Web Browser Control ........................ 100

Before Using Web Browser Control ··················· 100 Access from Web Browser ······························· 101 Operating with Web Browser ···························· 102

Using “USB media player” .......................... 111

Function description ········································111 Preparation ····················································112 Playing back the files ·······································114 Network environment (Multi Media Player only) ·····117 Starting / ending Media Player ···························117 Resume Play function ······································118 Playlist edit function ·········································118 Schedule playback function using “Content

Management Software” ··································· 120

Using “Memory viewer” ............................... 123

Preparation ··················································· 123 Displaying the “Memory viewer” screen ·············· 124 Playing the pictures ········································ 125 Playing the video / music ································· 126

Using HDMI-CEC function ...........................127

Connection ··················································· 127 Setting ························································· 127 Interlocking devices ········································ 127 Operating a device (using the remote control of this unit)

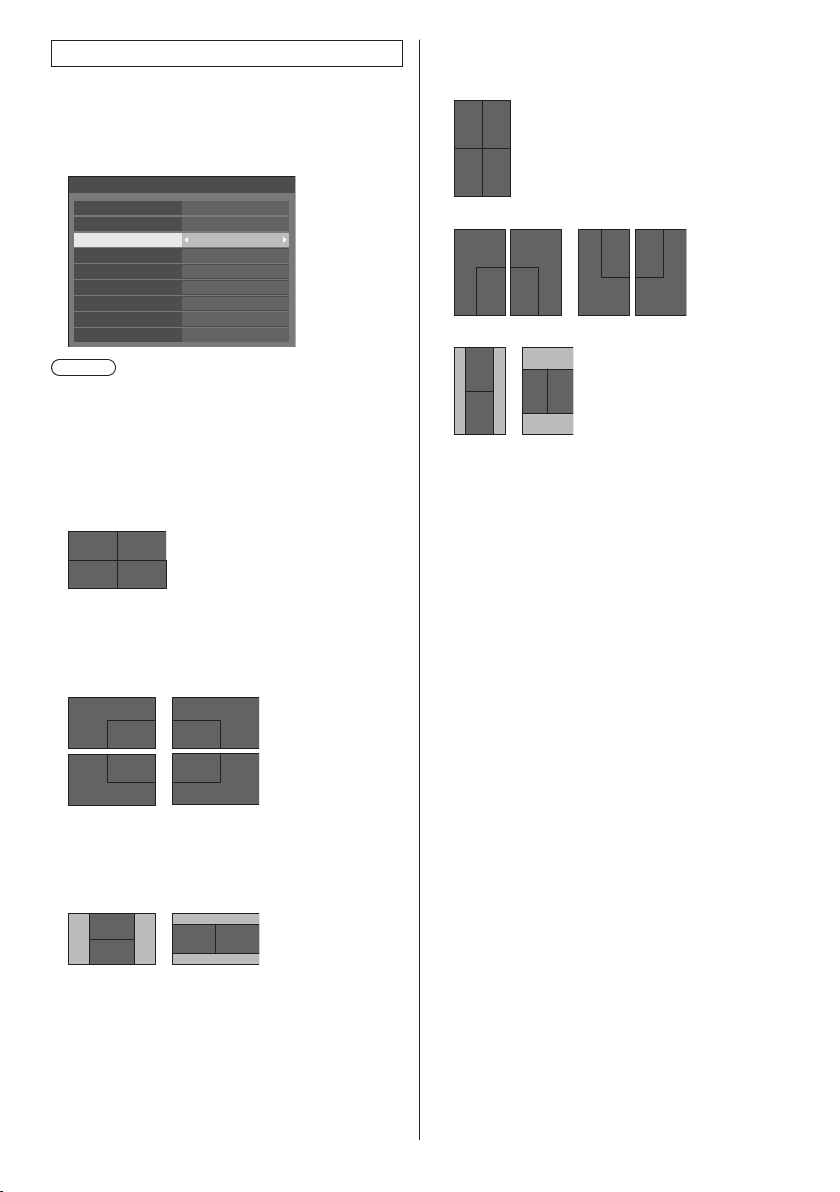

Using multi input display function of the multi display

............................................................129

Displaying 4 screens ······································ 129 Switching 4 screens to 1 screen ························ 129

··· 128

Using data cloning .......................................130

Copying the display data to the USB memory ······ 130 Copying (cloning) the USB memory data to the display Copying data to other display via LAN ················ 132 Changing the cloning password ························ 133

····· 131

USB memory network settings ...................134

Saving the LAN setting file to the USB memory device Copying the USB memory data to the display ······ 135

·· 134

ID Remote Control Function ........................ 136

Setting the remote control’s ID number ··············· 136 Cancelling the setting of remote control’s ID number

(ID “0”) ························································· 136

Entering characters ...................................... 137

Preset Signals ............................................... 138

Shipping condition ....................................... 141

Initialization ................................................... 142

Initializing the [Controller user level] .........142

Troubleshooting ...........................................143

Specifications ............................................... 146

Software License .......................................... 149

English

Page 4

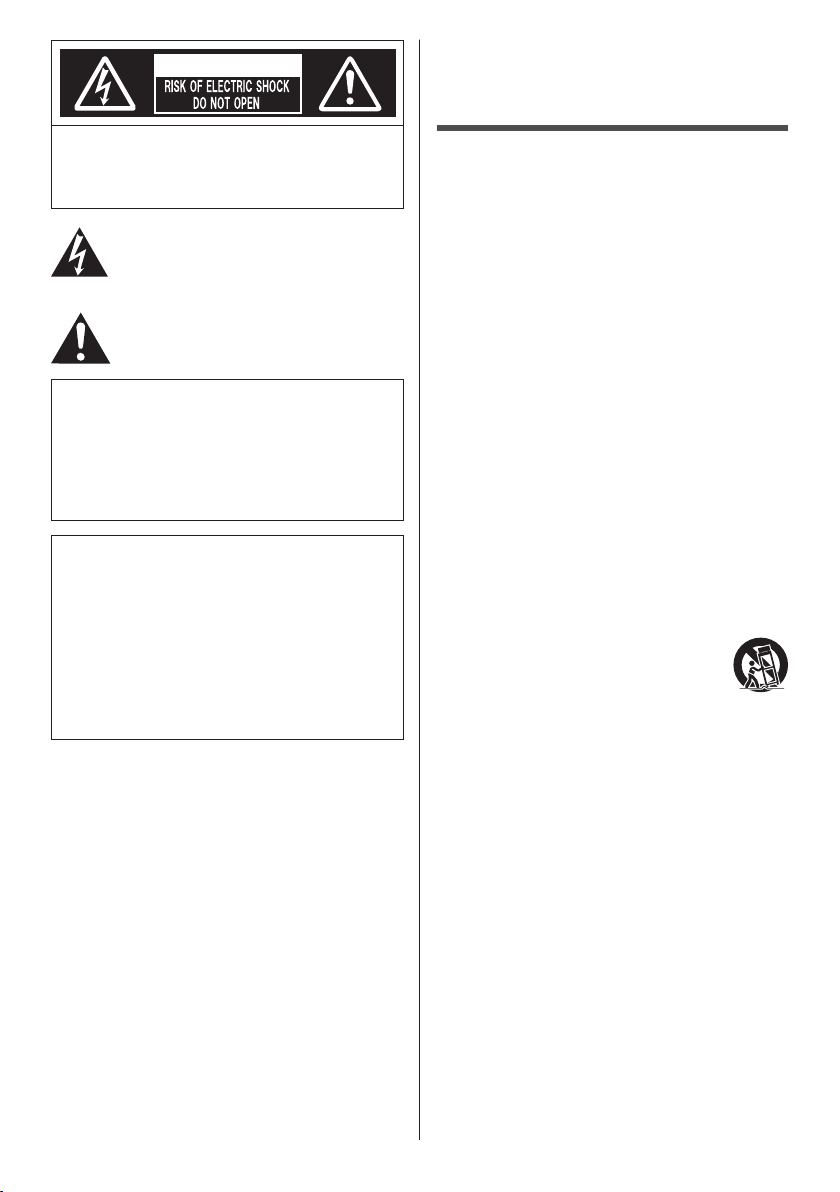

WARNING

WARNING: To reduce the risk of electric shock, do not remove cover or back.

No user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrow-head within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.

WARNING :

To prevent damage which may result in fire or shock hazard, do not expose this apparatus to rain or moisture.

Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set.

(including on shelves above, etc.)

WARNING :

1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

2) Do not remove the grounding pin on the power plug. This apparatus is equipped with a three pin grounding-type power plug. This plug will only fit a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the grounding plug.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments / accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

English

Page 5

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC CAUTION:

To assure continued compliance, follow the attached installation instructions and use only the provided power supply cord. Any changes or modifications not expressly approved by Panasonic Corp. of North America could void the user’s authority to operate this device.

Supplier’s Declaration of Conformity Model No.

TH-98SQ1W, TH-86SQ1W, TH-75SQ1W, TH-65SQ1W, TH-55SQ1W, TH-49SQ1W

Responsible Party:

Panasonic Corporation of North America Two Riverfront Plaza, Newark, New Jersey 07102-5490

Contact Source:

Panasonic Connect North America 1-877-655-2357

General Contact:

http://shop.panasonic.com/support

This device complies with Part 15 of the FCC Rules and all applicable IC RSS standards. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CANADIAN NOTICE:

This Class A digital apparatus complies with Canadian ICES-003.

WARNING:

Not for use in a computer room as defined in the

•

Standard for the Protection of Electronic Computer/ Data Processing Equipment, ANSI/NFPA 75.

For permanently connected equipment, a readily

•

accessible disconnect device shall be incorporated in the building installation wiring.

For pluggable equipment, the socket-outlet shall

•

be installed near the equipment and shall be easily accessible.

Note:

Image retention may occur. If you display a still picture for an extended period, the image might remain on the screen. However, it will disappear when a general moving picture is displayed for a while.

Trademark Credits

Microsoft, Windows, Internet Explorer and Microsoft

•

Edge are the registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Mac, macOS and Safari are the trademarks of

•

Apple Inc. registered in the United States and other countries.

PJLink is a registered or pending trademark in Japan,

•

the United States, and other countries and regions. HDMI, High-Definition Multimedia Interface and the

•

HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

JavaScript is a registered trademark or a trademark of

•

Oracle Corporation and its subsidiary and associated companies in the United States and/or other countries.

Crestron Connected, Crestron Connected logo,

•

Crestron Fusion, Crestron RoomView and RoomView are trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries.

Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.

English

Page 6

Important Safety Notice

WARNING

1) To prevent damage which may result in fire or shock hazard, do not expose this appliance to dripping or splashing.

Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set. (including on shelves above, etc.)

No naked flame sources, such as lighted candles, should be placed on / above the set.

2) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

3) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three pin earthing-type power plug. This plug will only fit an earthing-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician.

Do not defeat the purpose of the earthing plug.

4) To prevent electric shock, ensure the earthing pin on the AC cord power plug is securely connected.

CAUTION

This appliance is intended for use in environments which are relatively free of electromagnetic fields.

Using this appliance near sources of strong electromagnetic fields or where electrical noise may overlap with the input signals could cause the picture and sound to wobble or cause interference such as noise to appear.

To avoid the possibility of harm to this appliance, keep it away from sources of strong electromagnetic fields.

IMPORTANT INFORMATION: Stability Hazard

Never place a display in an unstable location. A display may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

Using cabinets or stands recommended by the

•

manufacturer of the display. Only using furniture that can safely support the

•

display. Ensuring the display is not overhanging the edge

•

of the supporting furniture. Not placing the display on tall furniture (for

•

example, cupboards or bookcases) without anchoring both the furniture and the display to a suitable support.

Not placing the display on cloth or other materials

•

that may be located between the display and supporting furniture.

Educating children about the dangers of climbing

•

on furniture to reach the display or its controls.

If the existing display is going to be retained and relocated, the same considerations as above should be applied.

WARNING:

This equipment is compliant with Class A of CISPR32. In a residential environment this equipment may

cause radio interference.

English

Page 7

IMPORTANT: THE MOULDED PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This display is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is fitted in this plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark the body of the fuse.

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic dealer.

Do not cut off the mains plug. Do not use any other type of mains lead except the

one supplied with this display. The supplied mains lead and moulded plug are

designed to be used with this display to avoid interference and for your safety.

If the socket outlet in your home is not suitable, get it changed by a qualified electrician.

If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.

WARNING : — THIS DISPLAY MUST BE EARTHED

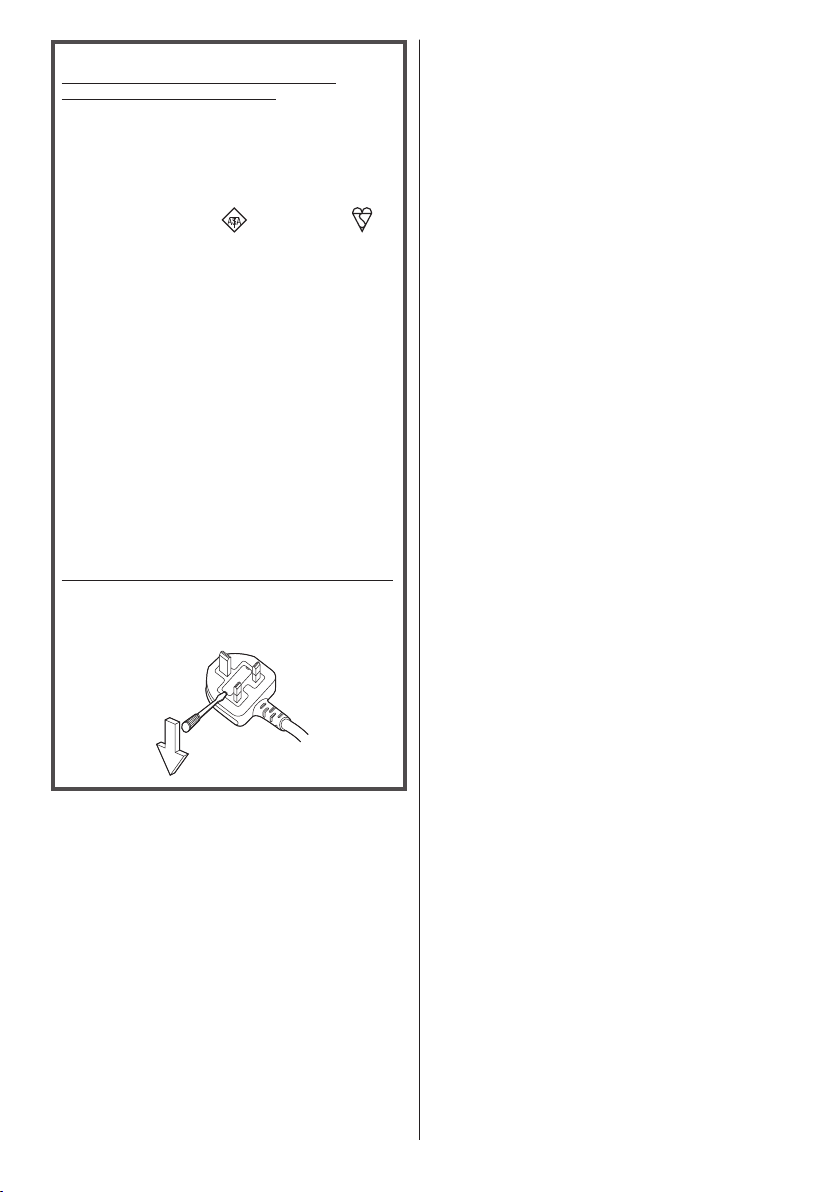

How to replace the fuse.

Open the fuse compartment with a screwdriver and replace the fuse.

or the BSI mark on

English

Page 8

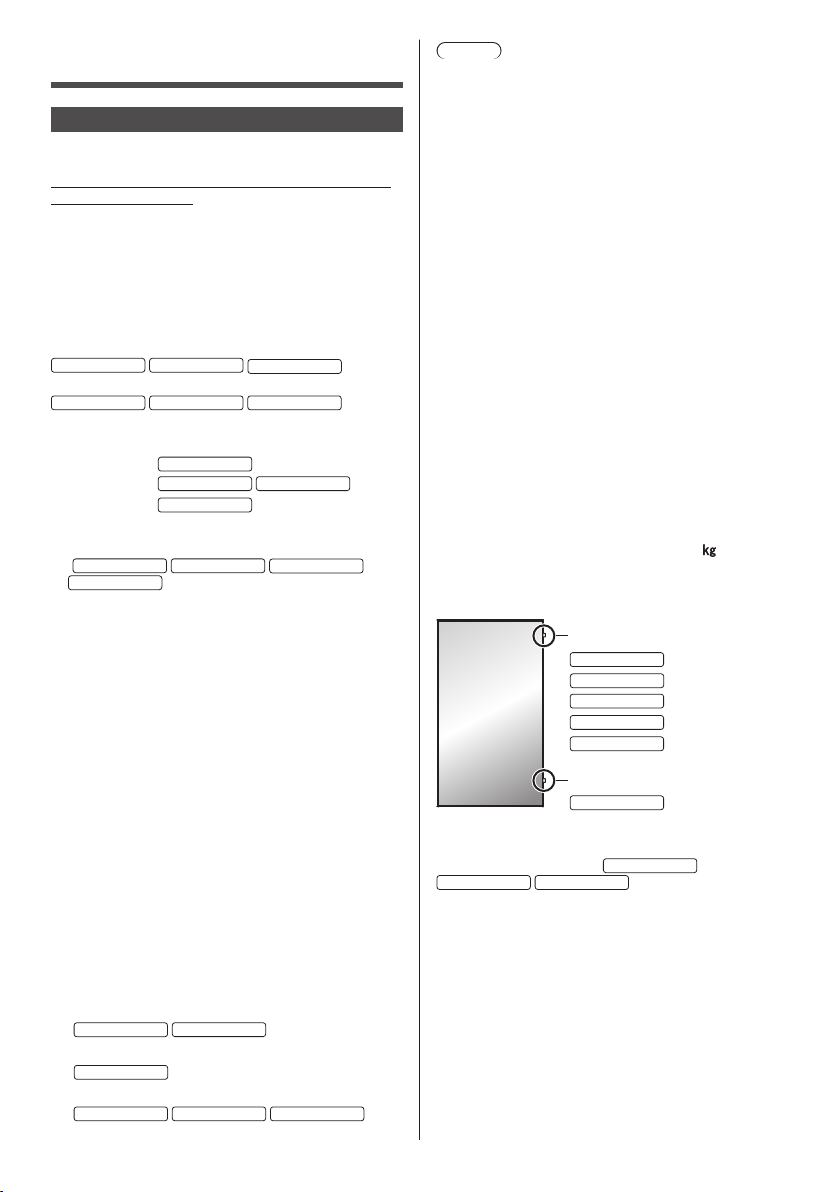

Safety Precautions

WARNING

■ Setup

This LCD Display is for use only with the following optional accessories.

Use with any other type of optional accessories may cause instability which could result in the possibility of injury.

Securely install the pedestal and wall hanging bracket of the optional accessories. Ask an authorized dealer for installation.

The following number of people are required for installation.

98-inch model 86-inch model

4 or more

65-inch model 55-inch model 49-inch model

2 or more

Pedestal

•

TY-ST75PE9 ( TY-ST55PE9 ( TY-ST43PE9 ( Wall hanging bracket*1

•

75-inch model

65-inch model 55-inch model

49-inch model

TY-WK98PV1 (

98-inch model

65-inch model

3G-SDI Terminal Board*2

•

86-inch model

)

TY-SB01SS Digital Interface Box

•

ET-YFB100G DIGITAL LINK Switcher

•

ET-YFB200G Early Warning Software

•

(Basic license/3-year license): ET-SWA100 series*3 Video Wall Manager

•

Auto Display Adjustment Upgrade Kit TY-VUK10*4

1: This product can be purchased in the U.S. and

Japan.

This terminal board is supported only when the main

software version of the display is 3.5000 or later and the sub software version of the display is 03.50 or later.

For update, please contact your Panasonic dealer.

Suffix of the part number may differ depending on

the license type.

98-inch model

86-inch model

Supports Ver.1.10 or later.

75-inch model

Supports Ver.1.12.1 or later.

65-inch model 55-inch model 49-inch model

Supports Ver.1.11 or later.

English

75-inch model

)

75-inch model

Note

●

The part number of the optional accessories are subject to change without notice.

When installing the pedestal or wall hanging bracket, read the operating instructions supplied with it carefully and install properly. Also, always use the overturn prevention accessories.

We are not responsible for any product damage, etc. caused by failures in the installation environment for the pedestal or wall hanging bracket even during the warranty period.

Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being played with by young children,

creating the potential risk of suffocation.

Do not place the Display on sloped or unstable surfaces, and ensure that the Display does not hang over the edge of the base.

The Display may fall off or tip over.

•

Install this unit at a location with minimal vibration

)

and which can support the weight of the unit.

Dropping or falling of the unit may cause injury or

•

malfunction.

Caution - For use only with UL Listed Wall Mount Bracket with minimum weight/load 90.0 (198.5 lbs).

When installing the display vertically, be sure that the power indicator comes to the right side.

Power indicator

98-inch model

75-inch model

65-inch model

55-inch model

49-inch model

Power indicator

86-inch model

If installed in different directions, heat is generated

•

and it may cause fire or damage to the Display.

When installing the unit (

55-inch model 49-inch model

65-inch model

) with its liquid crystal panel facing upright, ask your local Panasonic dealer.

For 98/86/75-inch models, do not position the unit with its liquid crystal panel facing upright.

There are conditions of mounting method,

•

environmental temperature, connections and settings. If installed in different conditions, heat is generated and it may cause fire or damage to the Display.

Cautions for Wall or Pedestal Installation

The installation should be performed by an installation

•

professional. Installing the Display incorrectly may lead to an accident that results in death or serious injury. Use the optional Pedestal. (see page 8)

Page 9

When installing on a wall, the specified wall hanging

•

bracket (optional accessory) or a wall hanging bracket that conforms to VESA standards must be used.

98-inch model

86-inch model

65-inch model 55-inch model 49-inch model

: VESA 800 × 500

75-inch model

: VESA 600 × 400

: VESA 400 × 400 (see page 11) Before installation, be sure to check if the mounting

•

location has enough strength to support the weight of the display and the wall hanging bracket for anti drop.

If you terminate the use of the product, ask a

•

professional to remove it promptly. When mounting the Display on the wall, prevent the

•

mounting screws and power cable from contacting metal objects inside the wall. An electric shock may occur if they contact metal objects inside the wall.

■ When using the LCD Display

The Display is designed to operate on 110 ‒ 240 V

AC, 50/60 Hz.

If problems or malfunction occur, stop using immediately.

If problems occur, unplug the power supply plug.

Smoke or an abnormal odour come out from the unit.

•

No picture appears or no sound is heard,

•

occasionally. Liquid such as water or foreign objects got inside the

•

unit. The unit has deformed or broken parts.

•

If you continue to use the unit in this condition, it could result in fire or electric shock.

Unplug the power supply plug from the wall outlet,

•

and then contact the dealer for repairs. To cut off the power supply to this Display completely,

•

you need to unplug the power supply plug from the wall outlet.

Repairing the unit yourself is dangerous, and shall

•

never be done. To enable to unplug the power supply plug

•

immediately, use the wall outlet which you can reach easily.

Do not touch the unit directly by hand when it is damaged.

Electric shock could occur.

•

Do not stick any foreign objects into the Display.

Do not insert any metal or flammable objects into the

•

ventilations holes or drop them onto the Display, as doing so can cause fire or electric shock.

Do not remove the cover (cabinet) or modify it.

High voltages which can cause fire or electric shocks

•

are present inside the Display. For any inspection, adjustment and repair work, please contact your local Panasonic dealer.

Ensure that the mains plug is easily accessible.

The mains plug shall be connected to a mains socket outlet with a protective earthing connection.

Do not use any power supply cord other than that provided with this unit.

Doing so may cause short-circuit, generates heat,

•

etc., which could cause electric shock or fire.

Do not use the supplied power supply cord with any other devices.

Doing so may cause short-circuit, generates heat,

•

etc., which could cause electric shock or fire.

Clean the power supply plug regularly to prevent it becoming dusty.

If there is a build up of dust on the plug, the resultant

•

humidity may cause short-circuit, which could cause electric shock or fire. Unplug the power supply plug from the wall outlet and wipe it with a dry cloth.

Do not handle the power supply plug with wet hands.

Doing so may cause electric shocks.

•

Securely insert the power supply plug (socket outlet side) and the power supply connector (main unit side) as far as it will go.

If the plug is not fully inserted, heat may be generated

•

which could cause fire. If the plug is damaged or the wall socket is loose, they shall not be used.

Do not do anything that may damage the power supply cord or the power supply plug.

Do not damage the cable, make any modifications

•

to it, place heavy objects on top of it, heat it, place it near any hot objects, twist it, bend it excessively or pull it. To do so may cause fire and electric shock. If the power cable is damaged, have it repaired at your local Panasonic dealer.

Do not touch the power supply cord or the plug directly by hand when they are damaged.

Doing so may cause electric shock or fire due to

•

short-circuit.

Keep the supplied AAA/R03/LR03 batteries, M4 screw and washer out of reach of children. If accidentally swallowed, it will be harmful to the body.

Please contact a doctor immediately in case you

•

doubt that the child may have swallowed it.

To prevent the spread of fire, keep candles or other open flames away from this product at all times.

English

Page 10

CAUTION

Do not place any objects on top of the Display.

Ventilation should not be impeded by covering

the ventilation openings with items such as newspapers, table cloths and curtains.

Doing so may cause the Display to overheat, which

•

can cause fire or damage to the Display.

For sufficient ventilation, see page 11.

Do not place the display where it may be affected by salt or corrosive gas.

Doing so may cause the display to fall due to

•

corrosion, and it may result in injury. Also, the unit may malfunction.

The following number of people are required to carry or unpack this unit.

98-inch model 86-inch model

4 or more

65-inch model

55-inch model

2 or more

If this is not observed, the unit may drop, resulting in

•

injury.

When disconnecting the power supply cord, always pull on the plug (socket outlet side) / the connector (main unit side).

Pulling the cord may damage the cord, and it may

•

cause electric shock or fire due to short-circuit.

Be sure to disconnect all cables and overturn prevention accessories before moving the Display.

If the Display is moved while some of the cables are

•

still connected, the cables may become damaged, and fire or electric shock could result.

Disconnect the power supply plug from the wall socket as a safety precaution before carrying out any cleaning.

Electric shocks can result if this is not done.

•

Do not step on, or hang from the display or the Pedestal.

They might tip over, or might be broken and it may

•

result in injury. Pay special attention to the children.

Do not reverse the polarity (+ and -) of the battery when inserting.

Mishandling the battery may cause its explosion

•

or leakage, resulting in fire, injury or damage to surrounding properties.

Insert the battery correctly as instructed. (see page

•

14)

Do not use batteries with the outer cover peeling away or removed.

Mishandling the batteries may cause the batteries

•

to short circuit, resulting in fire, injury or damage to surrounding properties.

Remove the batteries from the remote control transmitter when not using for a long period of time.

The battery may leak, heat, ignite or burst, resulting in

•

fire or damage to surrounding properties.

75-inch model

49-inch model

Remove exhausted batteries from the remote control immediately.

Leaving the batteries unattended in it may cause

•

battery leakage, heat or burst.

Do not burn or breakup batteries.

Batteries must not be exposed to excessive heat such

•

as sunshine, fire or the like.

Do not turn the Display upside down.

Do not position the unit with its liquid crystal panel facing upright. (

75-inch model

only)

98-inch model

86-inch model

English

Page 11

Precautions for use

Cautions when installing

Do not set up the Display outdoors.

The Display is designed for indoor use.

•

Install this unit at a location which can support the weight of the unit.

Dropping or falling of the unit may cause injury.

•

Environmental temperature to use this unit

When using the unit where it is below 1 400 m

•

(4 593 ft) above sea level: 0 °C to 40 °C (32 °F to 104 °F)

When using the unit at high altitudes (1 400 m

•

(4 593 ft) and higher and below 2 800 m (9 186 ft) above sea level): 0 °C to 35 °C (32 °F to 95 °F)

Do not install the unit where it is 2 800 m (9 186 ft) and higher above sea level.

Failure to do so may shorten the life of the internal

•

parts and result in malfunctions.

When installing the unit (

55-inch model 49-inch model

panel facing upright, ask your local Panasonic dealer.

For 98/86/75-inch models, do not position the unit with its liquid crystal panel facing upright.

There are conditions of mounting method,

•

environmental temperature, connections and settings.

We are not responsible for any product damage, etc. caused by failures in the installation environment even during the warranty period.

Transport only in upright position!

Transporting the unit with its liquid crystal panel

•

facing upright or downward may cause damage to the internal circuitry.

Do not grab the liquid crystal panel.

Do not forcibly press the liquid crystal panel, or push

•

it with a pointed object. Applying a strong force to the liquid crystal panel will cause unevenness of the screen display, resulting in malfunction.

Do not install the product to a place where the product is exposed to direct sunlight.

If the unit is exposed to direct sunlight even indoors,

•

the temperature rise of the liquid crystal panel may cause malfunction.

In the case of storage, store the unit in a dry room.

Required space for ventilation

Operation of this unit is guaranteed up to an ambient

•

temperature of 40 °C (104 °F). When installing the unit in a case or chassis, be sure to provide adequate ventilation with a cooling fan or ventilation hole so that the surrounding temperature (inside the case or chassis) including the temperature of the front surface of the liquid crystal panel can be kept at 40 °C (104 °F) or less.

65-inch model

) with its liquid crystal

About the screws used when using a wall hanging

bracket that conforms to VESA standards

Inch

model

Screw pitch for

installation

98 800 mm × 500 mm 13 mm M8 (4) 86 600 mm × 400 mm 13 mm M8 (4) 75 600 mm × 400 mm 10 mm M6 (4) 65 5549400 mm × 400 mm 11 mm M6 (4)

Depth of

screw hole

Screw

(quantity)

Note for connection

Removing and inserting the power cord and connection cables

When the unit has been installed on the wall, if the

•

power cord and connection cables are difficult to remove and insert, make connections first before installation. Be careful not to allow the cables to be entangled. After installation is completed, insert the power plug to the outlet.

When using

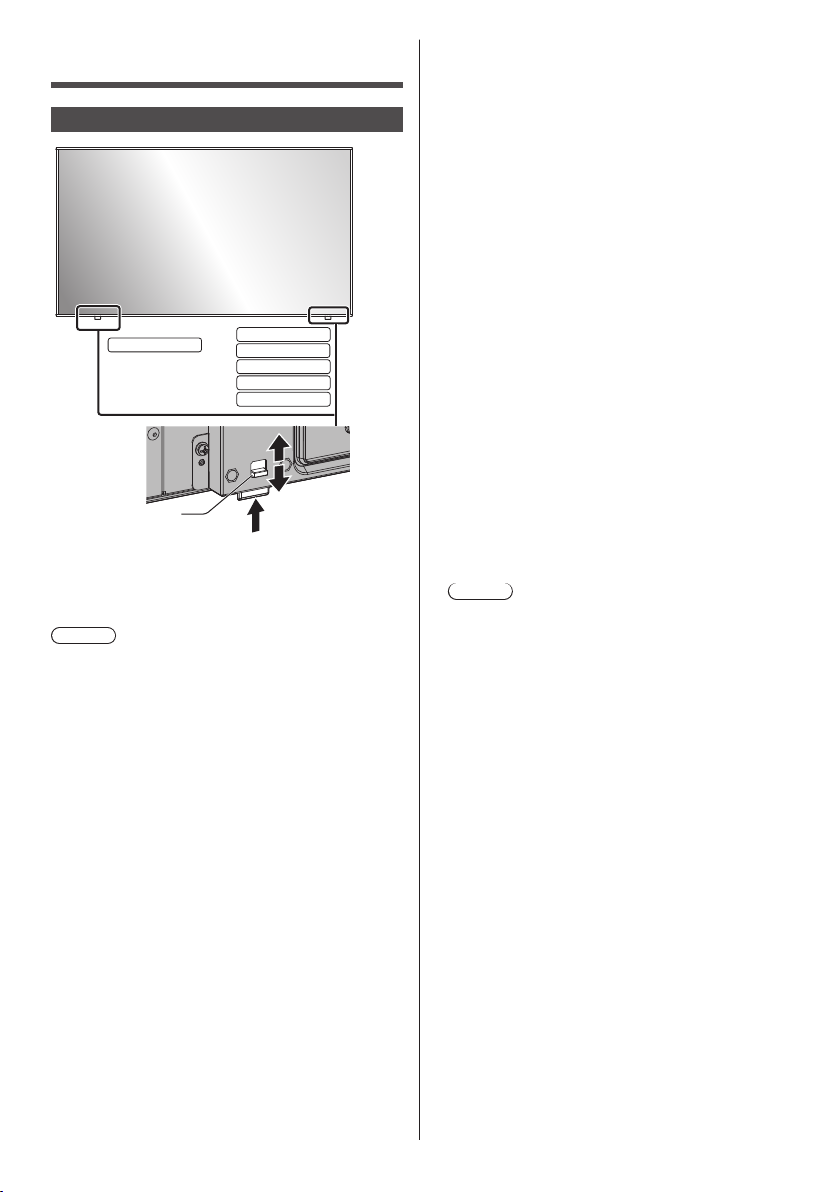

Be careful of the movable structure of the power indicator and remote control sensor.

As factory default, the power indicator and remote

•

control sensor are stored in the main unit. For normal use, pull out the remote control sensor from the edge side of the main unit by operating the lever on the rear panel. Depending on the setup condition such as when using multi screen display of the multi display, store the remote control sensor in the main unit. (see page 32)

Red, blue or green dots on the screen are a liquid crystal panel-specific phenomenon. This is not a malfunction.

Although the liquid crystal display is manufactured

•

with high-precision technology, always-lighting dots or non-lighting dots may appear on the screen. This is not a malfunction.

Inch

Dot omission ratio

model

98 0.00007% or less 86 0.00007% or less 75 0.00006% or less 65 0.00006% or less 55 0.00004% or less 49 0.00004% or less

Calculated in sub-pixel units according to the ISO9241-307 standard.

Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction.

This unevenness will disappear while applying current

•

continuously. If not, consult the distributor.

If the Display is not going to be used for any prolonged length of time, unplug the power supply plug from the wall outlet.

English

Page 12

If the power is instantaneously interrupted or stopped, or if the power voltage is instantaneously lowered, the Display may not operate normally.

In this case, turn off the power of the Display and the

•

connected devices once, and then turn on the power again.

Picture noise may occur if you connect / disconnect the cables connected to the input terminals you are currently not watching, or if you turn the power of the video equipment on / off, but it is not a malfunction.

Notes on Using Wired LAN

When setting up the Display at a place, where electric statistic occurs often, take a sufficient antistatic measure before start using.

When the Display is used at a location, where static

•

electricity occurs often, such as on a carpet, a wired LAN or DIGITAL LINK communication is disconnected more often. In that case, remove static electricity and the noise source that may cause problems with an antistatic mat, and re-connect the wired LAN or DIGITAL LINK.

In rare cases, the LAN connection is disabled due

•

to static electricity or noise. In that case, turn off the power of the Display and the connected devices once and then re-turn on the power.

The Display may not work properly due to strong radio wave from the broadcast station or the radio.

If there is any facility or equipment, which outputs

•

strong radio wave, near the installation location, set up the Display at a location sufficiently far from the source of the radio wave. Or, wrap the LAN cable connected to the DIGITAL LINK / LAN terminal by using a piece of metal foil or a metal pipe, of which is grounded at both ends.

Cleaning and maintenance

First, remove the mains plug from the mains socket.

Gently wipe the surface of the liquid crystal panel or cabinet by using a soft cloth to remove dirt.

To remove stubborn dirt or fingerprints on the surface

•

of the liquid crystal panel, dampen a cloth with diluted neutral detergent (1 part detergent to 100 parts water), wring out the cloth firmly, and then wipe away the dirt. Finally, wipe away all the moisture with a dry cloth.

If water droplets get inside the unit, operating

•

problems may result.

Note

●

The surface of the liquid crystal panel is specially treated. Do not use a hard cloth or rub the surface too hard, otherwise this may cause scratches on the surface.

Usage of a chemical cloth

Do not use a chemical cloth for the liquid crystal panel

•

surface. Follow the instructions for the chemical cloth to use it

•

for the cabinet.

Avoid contact with volatile substances such as insect sprays, solvents and thinner.

This may cause damage to the cabinet or cause

•

peeling of the paint. Furthermore, do not leave it in contact with a rubber or PVC substance for a long time.

Disposal

When disposing the product, ask your local authority or dealer about the correct methods of disposal.

Request Regarding Security

When using this unit, take safety measures against the following incidents.

Personal information being leaked via this unit

•

Unauthorized operation of this unit by a malicious

•

third party Interfering or stopping of this unit by a malicious third

•

party

Take sufficient security measures. (see page 101,

107)

Set a password for the LAN control and restrict the

•

users who can log in. Make your password difficult to guess as much as

•

possible. Change your password periodically.

•

Panasonic Connect Co., Ltd. or its affiliate companies

•

will never ask for your password directly. Do not divulge your password in case you receive such inquiries.

The connecting network must be secured by a

•

firewall, etc. When disposing the product, initialize the data before

•

disposing. ([Shipping] (see page 141))

English

Page 13

Accessories

Accessories Supply

Check that you have the accessories and items shown.

Remote Control Transmitter × 1

●

DPVF2713ZA/X1

Batteries for the Remote Control Transmitter × 2

(AAA/R03/LR03 type)

Clamper × 3

●

DPVF1056ZA

USB memory cover × 1

98-inch model 86-inch model

75-inch model

55-inch model

●

DPVF2281ZA/X1

49-inch model

●

DPVF2280ZA/X1

65-inch model

Power supply cord

(Approx. 2 m)

●

1JP155AF1U

●

1JP155AF1W

●

2JP155AF1W

●

3JP155AF1W

Attention

●

Store small parts in an appropriate manner, and keep them away from young children.

●

The part numbers of accessories are subject to change without notice. (The actual part number may differ from the ones shown above.)

●

In case you lost accessories, please purchase them from your dealer. (Available from the customer service)

●

Dispose the packaging materials appropriately after taking out the items.

SLOT adapter × 1

●

DPVF2722YA/X1

English

Page 14

Remote Control Batteries

Open the battery cover.

Insert batteries and close the battery cover.

(Insert starting from the side.)

AAA/R03/LR03 type

Note

●

Incorrect installation of the batteries can cause battery leakage and corrosion that will damage the remote control.

●

Disposal of batteries should be done in an environment-friendly manner.

Take the following precautions.

Batteries shall always be replaced as a pair.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example; manganese dioxide battery and alkaline battery etc.).

4. Do not attempt to charge, disassemble or burn used batteries.

5. Do not burn or breakup batteries. Moreover, batteries must not be exposed to excessive heat such as sunshine, fire or the like.

Attaching the USB Memory Cover

When using a USB memory device, the USB memory cover can be attached to protect the device.

Attach the USB memory cover using any of the following screw positions corresponding to the type of model.

USB memory cover

98-inch model

86-inch model

75-inch model

65-inch model

55-inch model

49-inch model

Insert the USB memory device to the

USB terminal on the bottom of the display.

USB terminal

USB

memory

English

Note

●

Select the USB terminal to be used with [USB select]. (see page 90)

●

Depending on the USB terminal, the amount of electricity supplied to an external device differs. (“USB terminal connection”, see page 30)

Attach the USB memory cover,

aligning the M4 screw with the screw hole of the display unit.

Page 15

Tighten the M4 screw to fix the USB

memory cover.

49-inch model

M4 screw

98-inch model 86-inch model

65-inch model 55-inch model

M4 screw

75-inch model

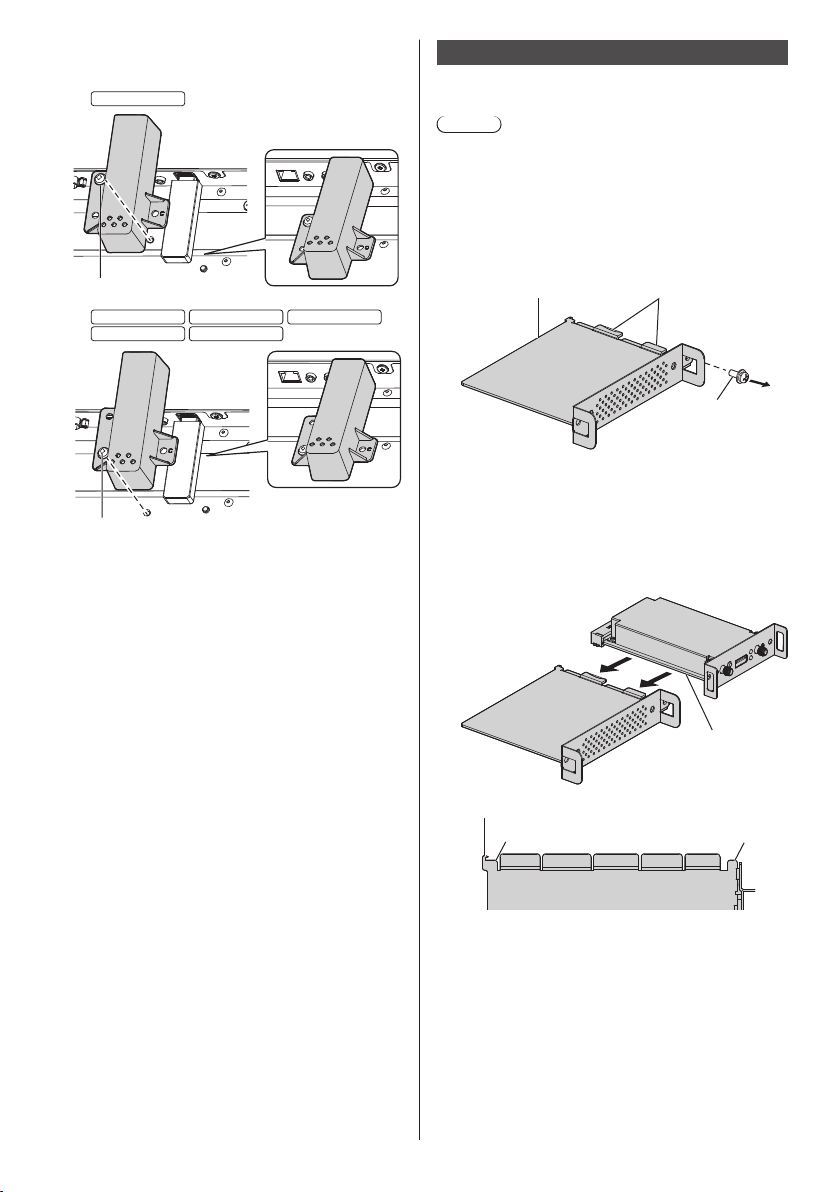

Attaching the Function Board

When using a narrow-width function board, attach the supplied SLOT adaptor, and insert it to the slot.

Note

●

Before attaching or removing the function board, be sure to turn off the power of the display and remove the power plug from the outlet.

When attaching a full-size function board, proceed to step 4.

Remove one screw from the side with

the guide on the SLOT adaptor.

SLOT adapter

Fit the circuit board of the function

board in the guides of the SLOT adaptor, and bring the circuit board into contact with the hook (one location) and the end faces (two locations) securely.

Guide

Screw

Hook

End face End face

Function board

English

Page 16

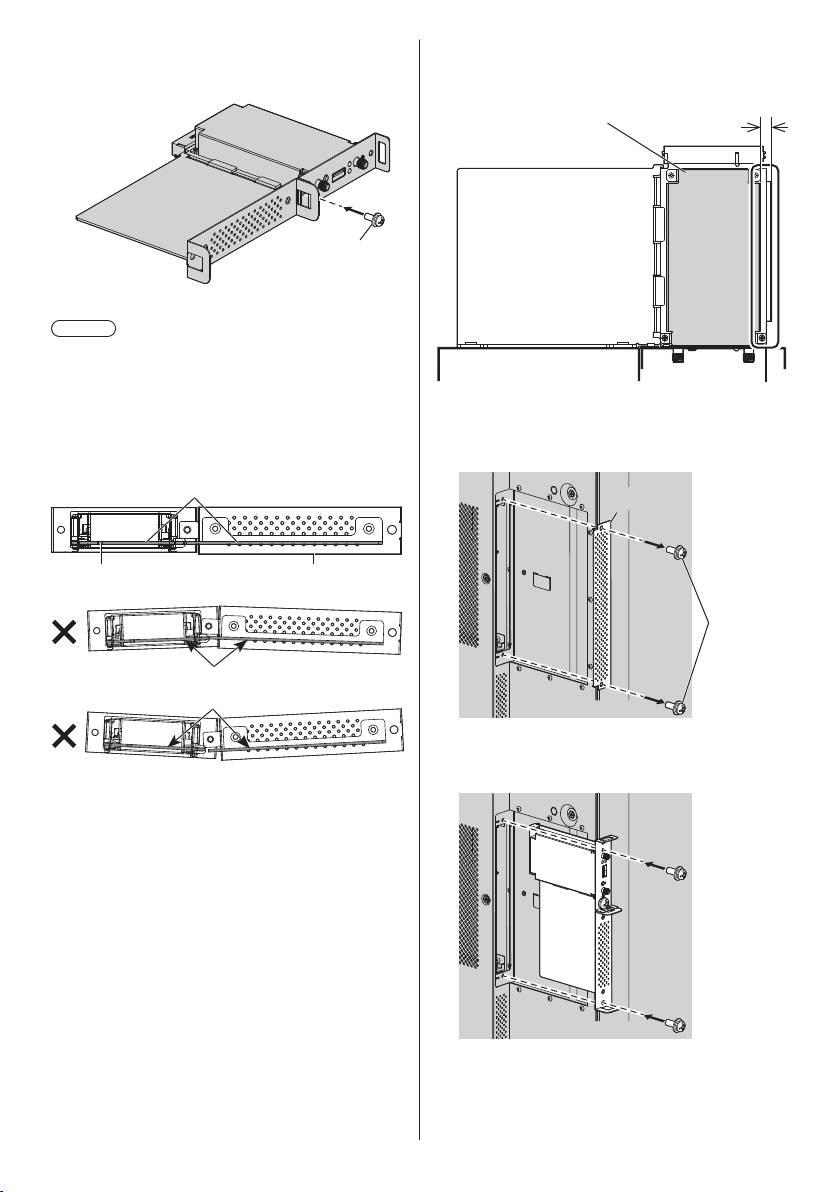

Using the screw removed in step 1,

fix the function board to the SLOT adaptor.

Screw

●

Tightening torque guideline: 0.5 N·m or less

Note

●

Firmly tighten the screw, and check that the hook of the SLOT adaptor fixes the circuit board.

●

Check that the surface of the SLOT adaptor and the surface of the circuit board match with each other when the function board with the SLOT adaptor attached is viewed from the opposite side of the cover.

Make sure that this side is aligned.

Circuit board SLOT adaptor

●

If there is a lead wire within approx. 3 mm from the end face of the circuit board, the function board cannot be attached due to interference with the guide rail. Ensure that there is no lead wire in this range.

Circuit board

Remove the two screws from the main

Approx. 3 mm

No lead wire in this range.

unit slot cover.

Cover

It cannot be attached unless this side is horizontally

aligned.

English

Screw

Insert the function board to the main

unit slot, and fix it with the two screws removed in step 4.

●

Tightening torque guideline: 0.5 N·m or less

Page 17

Cautions when moving

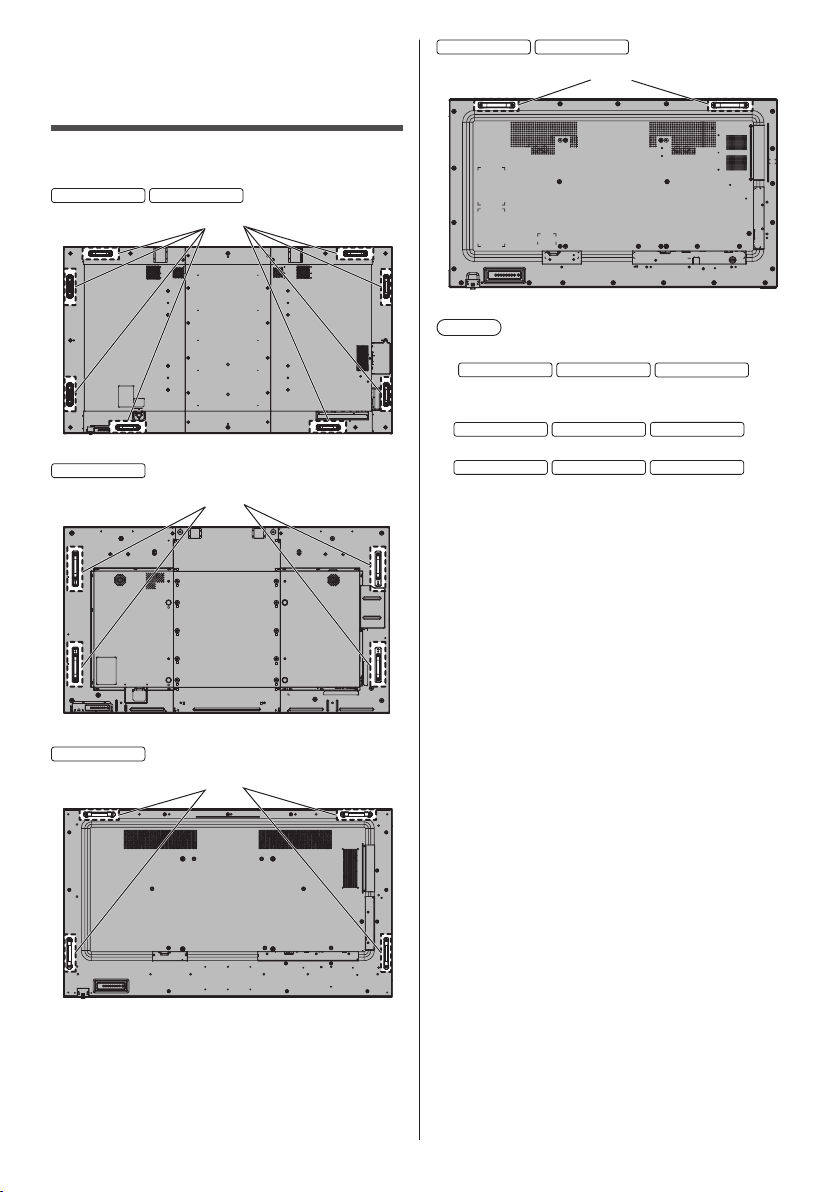

The display has handles for carrying. Hold them when moving.

98-inch model 86-inch model

Handle

75-inch model

Handle

55-inch model 49-inch model

Handle

Note

●

Do not hold parts other than the handles.

98-inch model 86-inch model

(

●

The following number of people are required to carry this unit.

98-inch model 86-inch model

4 or more

65-inch model 55-inch model 49-inch model

2 or more If this is not observed, the unit may drop, resulting in

injury.

●

When carrying the unit, keep the liquid crystal panel upright.

Carrying the unit with the surface of the liquid crystal panel facing up or down may cause deformation of the panel, or internal damage.

●

Do not hold the upper, lower, right and left frames or the corners of the unit. Do not hold the front surface of the liquid crystal panel. Also, do not hit such parts.

Doing so may damage the liquid crystal panel. Also, the panel may crack, resulting in injury.

75-inch model

)

65-inch model

Handle

English

Page 18

98-inch model 86-inch model

Eyebolt

The display has holes for attaching eyebolts (M10). When installing, use them to suspend the display.

Use the eyebolt only for temporary suspension or movement for installation. This cannot be used for permanent hanging installation.

Eyebolt (commercially available) mounting positions

When attaching the eyebolt, remove

75-inch model

the eyebolt cap from the eyebolt mounting position (two locations), and leave the flat washer (black) as it is.

After removing the eyebolt, tighten

the eyebolt cap with the flat washer (black) left as it is.

Eyebolt cap

Flat washer (black)

Note

●

Installation should be performed by an installation professional.

●

Do not suspend using only 1 eyebolt.

●

Use commercially sold M10 eyebolts with a shank length of 12 mm to 40 mm that satisfies the load condition of product quality.

●

Use ISO 3266 standard eyebolts. Also use ISO standard members (wire, etc.) for hanging.

●

The hanging angle should be 60° or more.

●

After installation, remove the eyebolts, and close the holes using the eyebolt caps removed when attaching the eyebolts.

φ41mm

or less

Eyebolt cap

Flat washer (black)

Attach the eyebolt with the flat washer

(black) left as it is.

Eyebolt

Flat washer (black)

English

12 mm to 40 mm

60° or more

Page 19

Connections

98-inch model

86-inch model

75-inch model

65-inch model

55-inch model

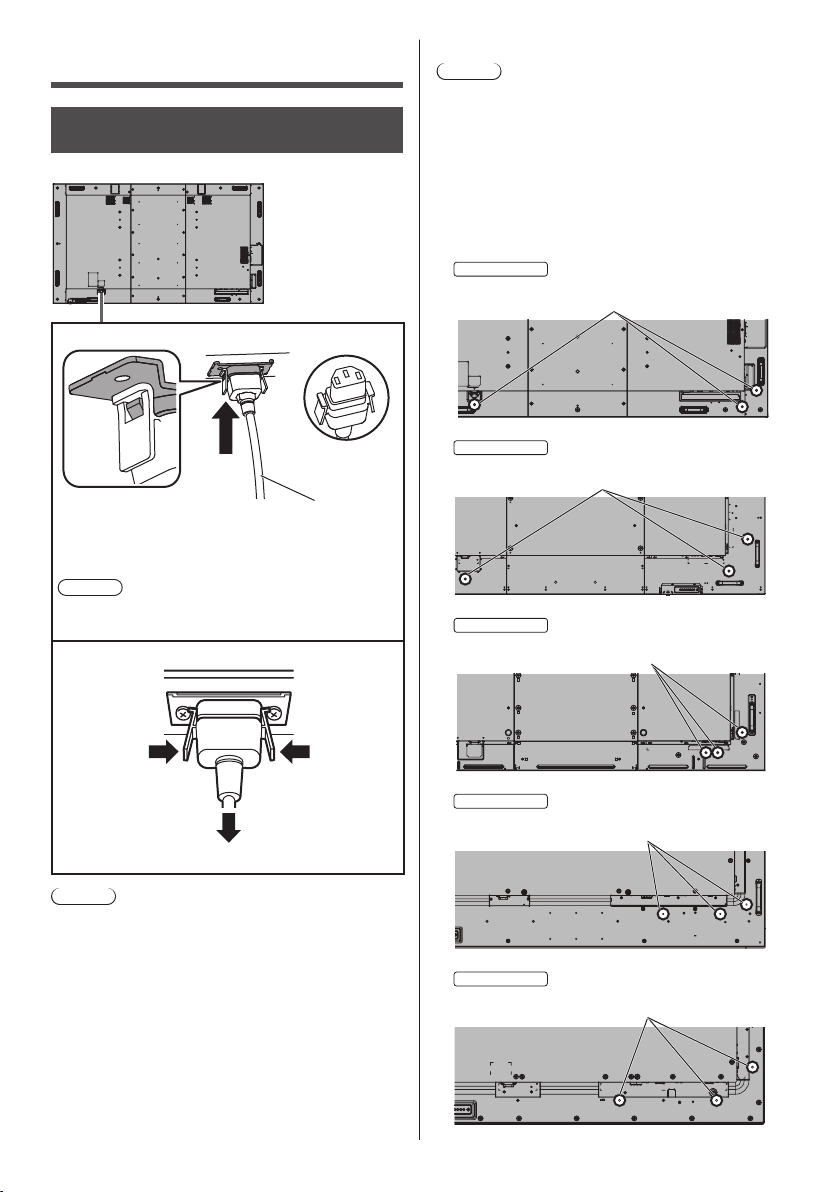

AC cord connection and fixing / Cable fixing

Back of the unit

AC cord fixing

AC cord (supplied)

Plug the connector into the display unit.

Plug the connector until it clicks.

Note

●

Make sure that the connector is locked on both the left and right sides.

Unplug the AC cord

Cable fixing

Note

●

3 clampers are supplied with this unit. Fix the cables at 3 locations using the holes for clampers as shown below.

●

Before turning the power on, stop the holes (3 locations) with the clampers.

Otherwise, foreign objects may enter the holes, resulting in a fire.

If you need more clampers, purchase them from

•

your dealer. (Available from the customer service)

Holes for attaching the clampers

Unplug the connector pressing the two knobs.

Note

●

Do not use an AC cord of which the knobs are damaged. If it is used with the knobs damaged, a bad connection may result between the AC cord connector and the AC IN terminal. For the repair of the AC cord, consult the dealer where you purchased the product.

●

When disconnecting the AC cord, be absolutely sure to disconnect the AC cord plug at the socket outlet first.

●

The supplied AC cord is for this unit exclusive use. Do not use this for other purposes.

Holes for attaching the clampers

English

Page 20

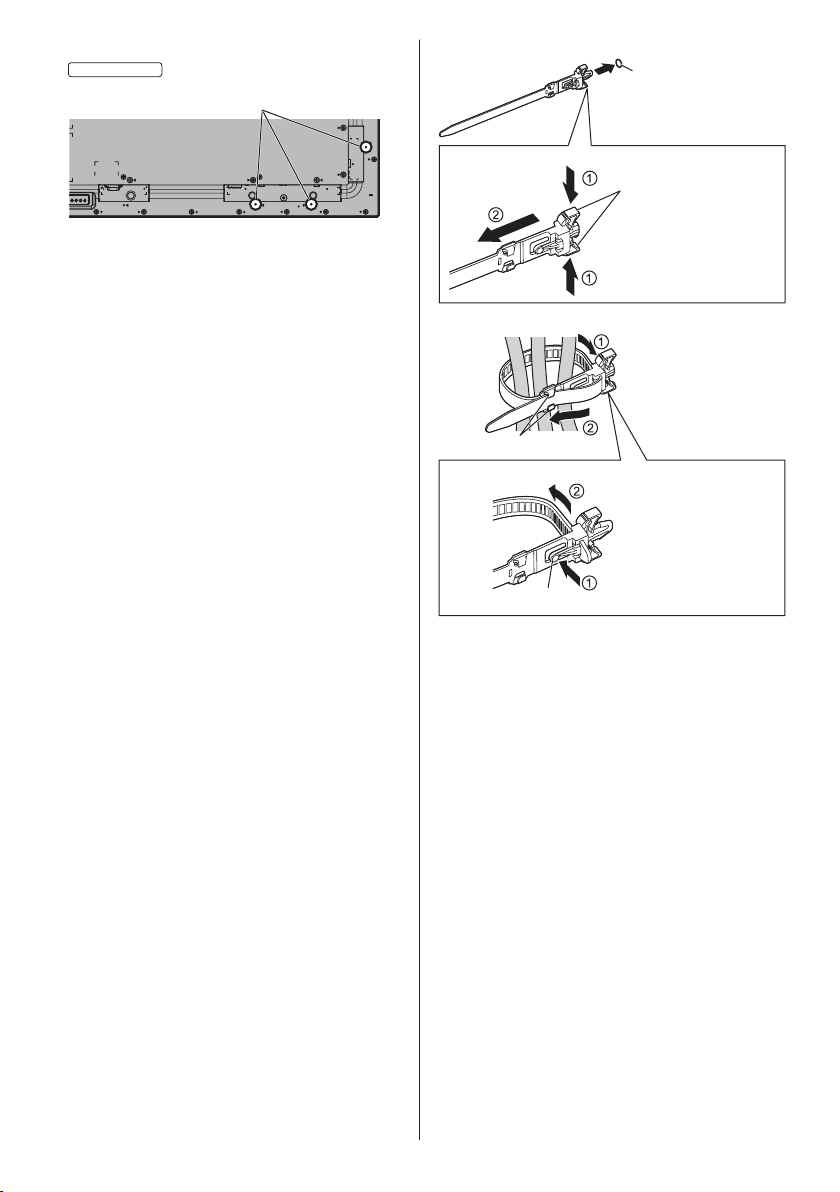

49-inch model

Holes for attaching the clampers

1. Attach the clamper

To remove from the unit:

2. Bundle the cables

hooks

To loosen:

knob

hole

Insert the clamper in a hole.

snaps

Keep pushing both side snaps and pull out the clamper.

Set the tip in the hooks and tighten.

Keep pushing the knob and pull out the tip.

English

Page 21

Video equipment connection

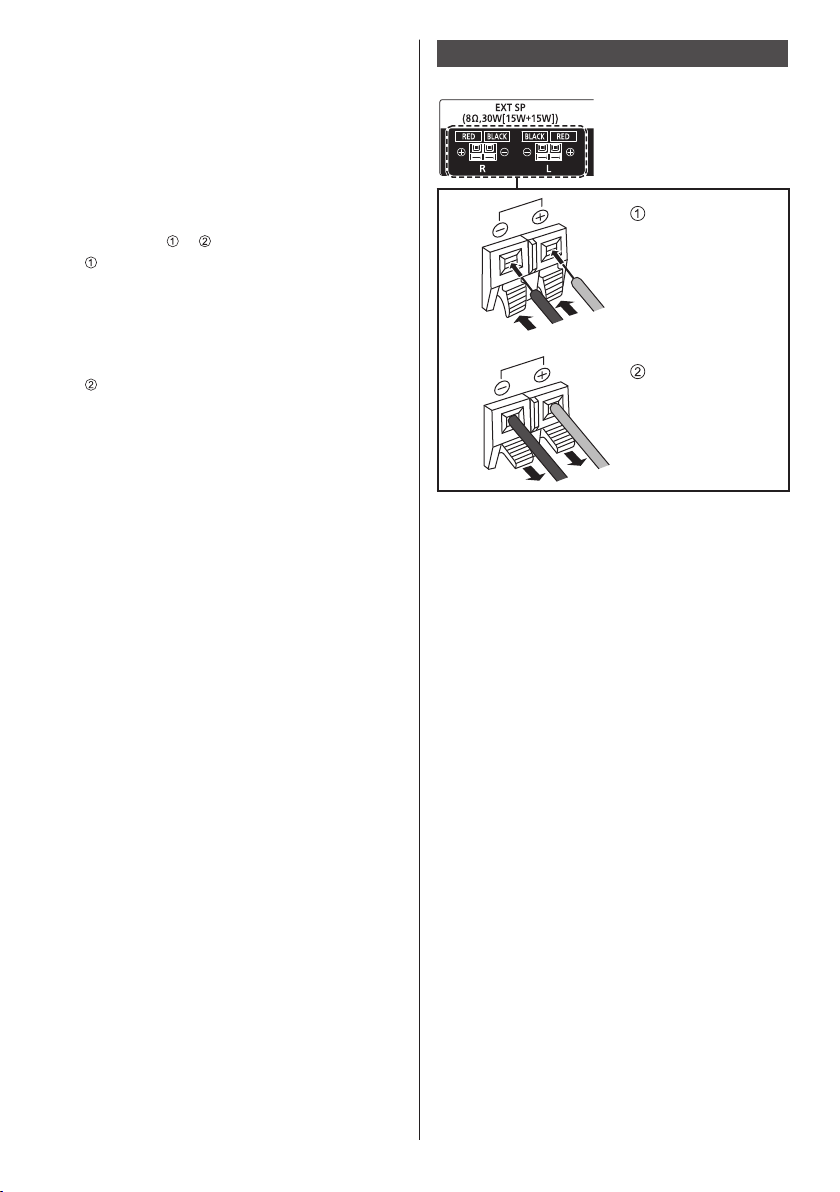

1 EXT SP: Speaker Terminal

Connect to external speaker. (see page 31)

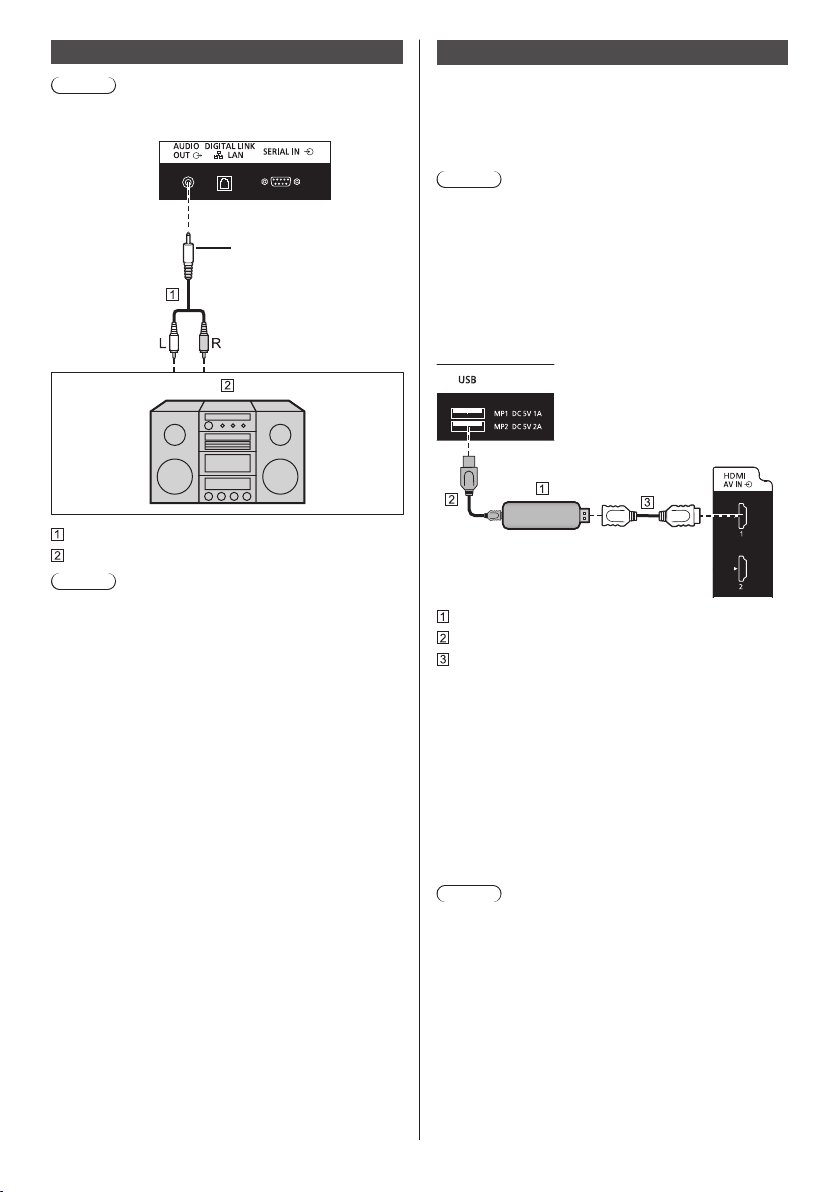

2 AUDIO OUT: Analogue Audio Output

3 DIGITAL LINK /

LAN:

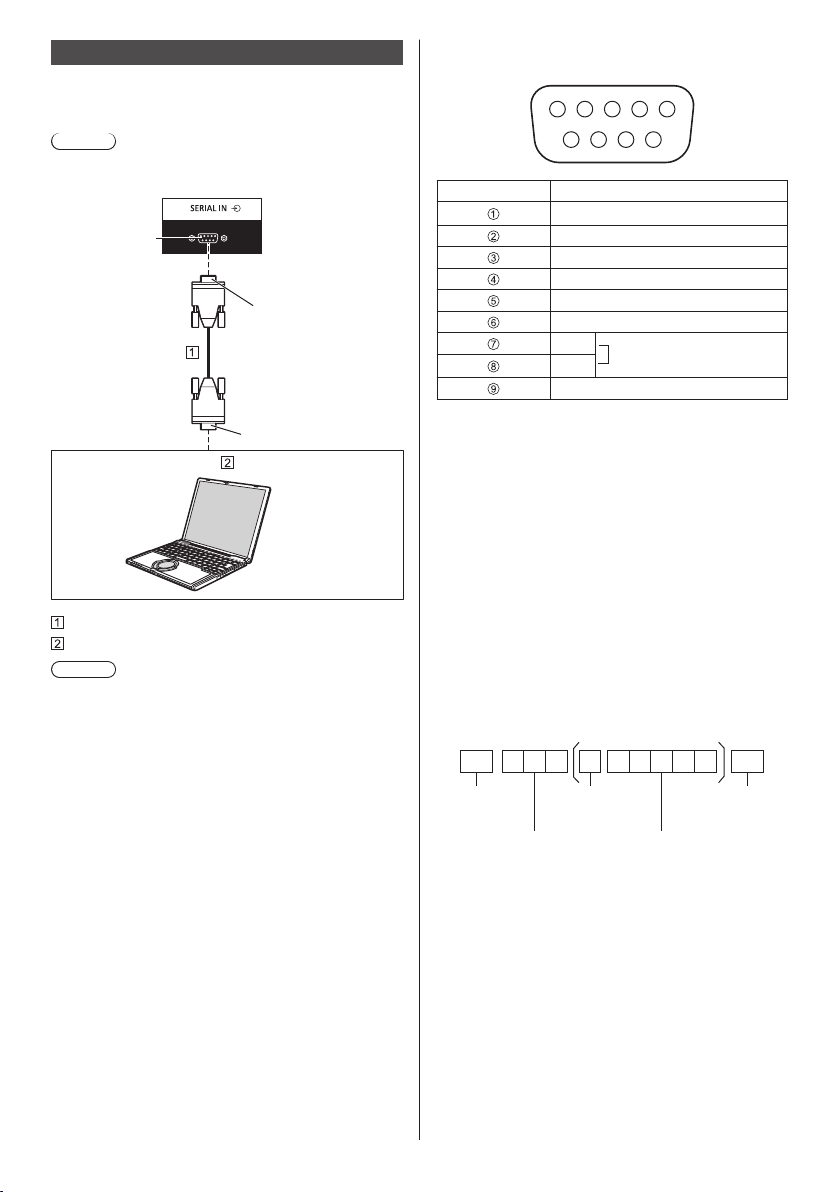

4 SERIAL IN: SERIAL Input Terminal

5 LAN: LAN Terminal

6 IR IN,

IR OUT:

7 USB: USB Terminal (2 systems)

Terminal

Connect to audio equipment with analogue audio input terminal.

(see page 30)

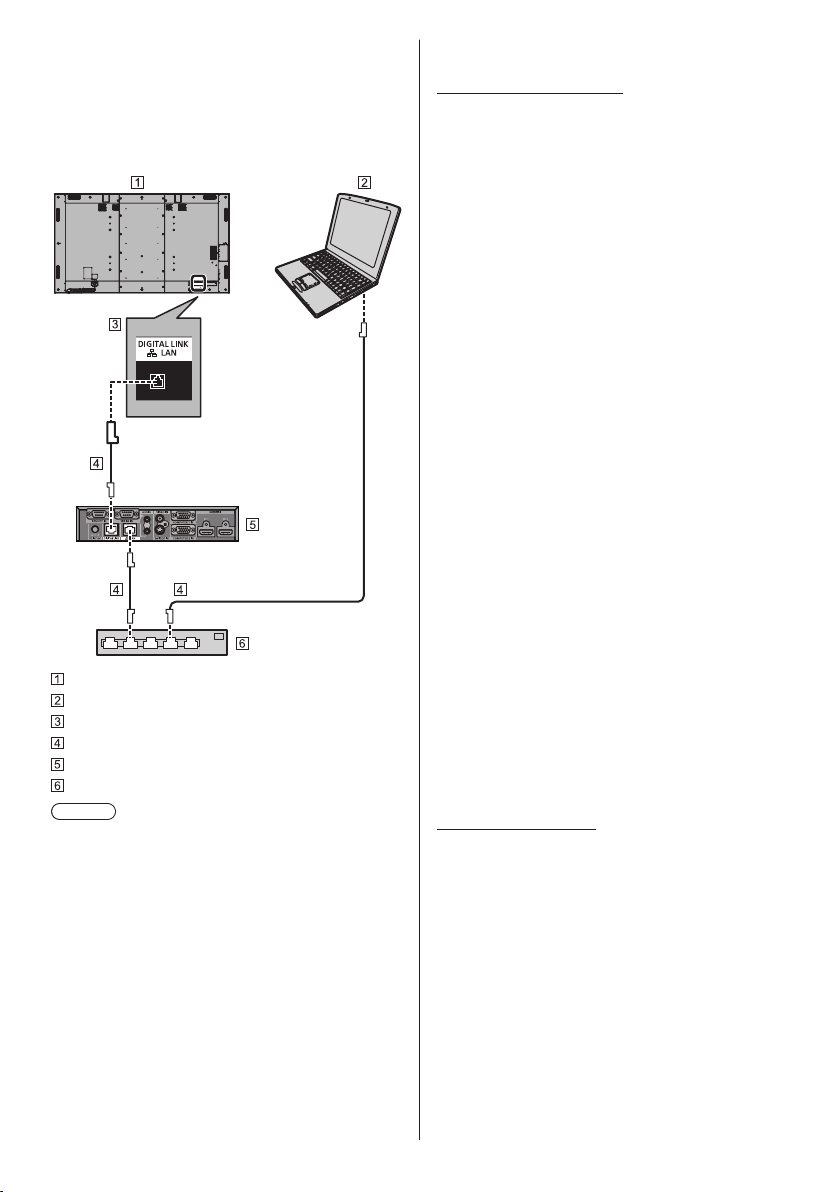

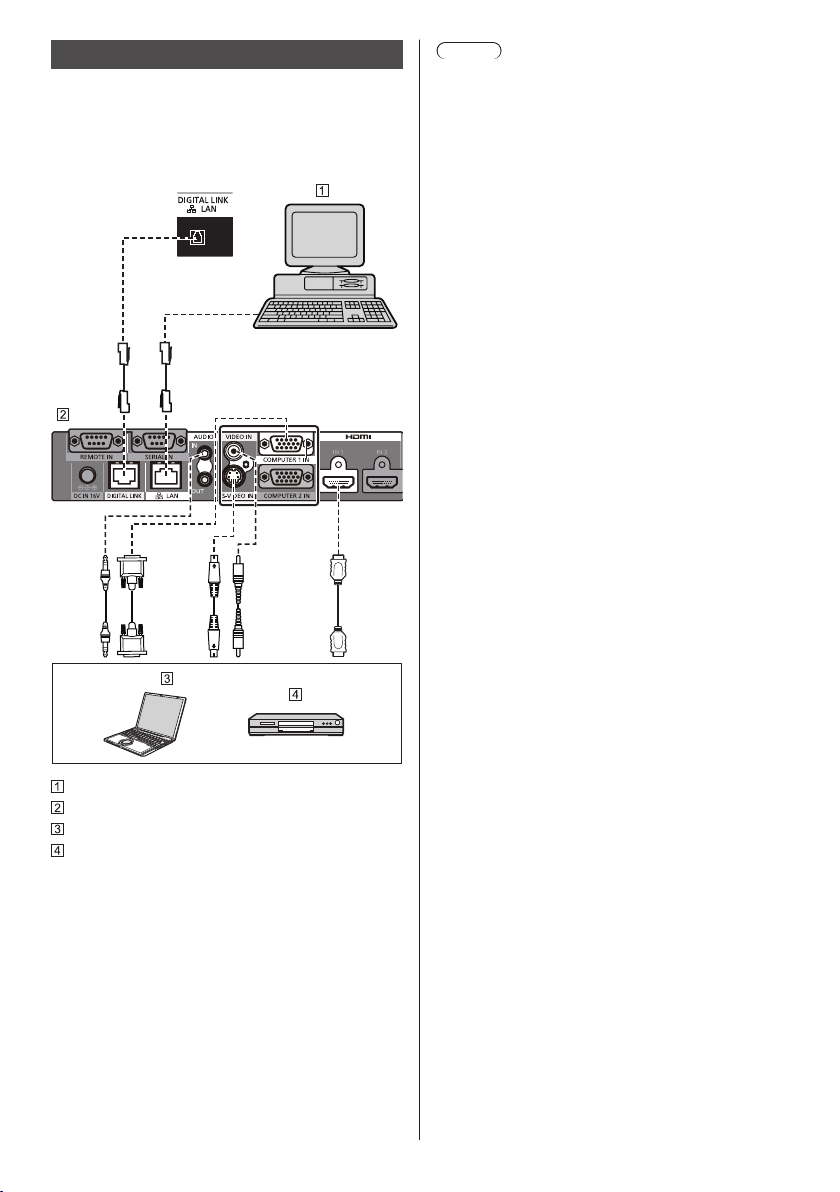

DIGITAL LINK / LAN Terminal

Control the Display by connecting to Network. Alternatively, connect to a device that sends video and audio signals via the DIGITAL LINK terminal.

(see page 27, 91)

Control the Display by connecting to PC.

(see page 28)

Control the Display by connecting to Network.

(see page 91)

Infrared Signal Input / Output Terminal

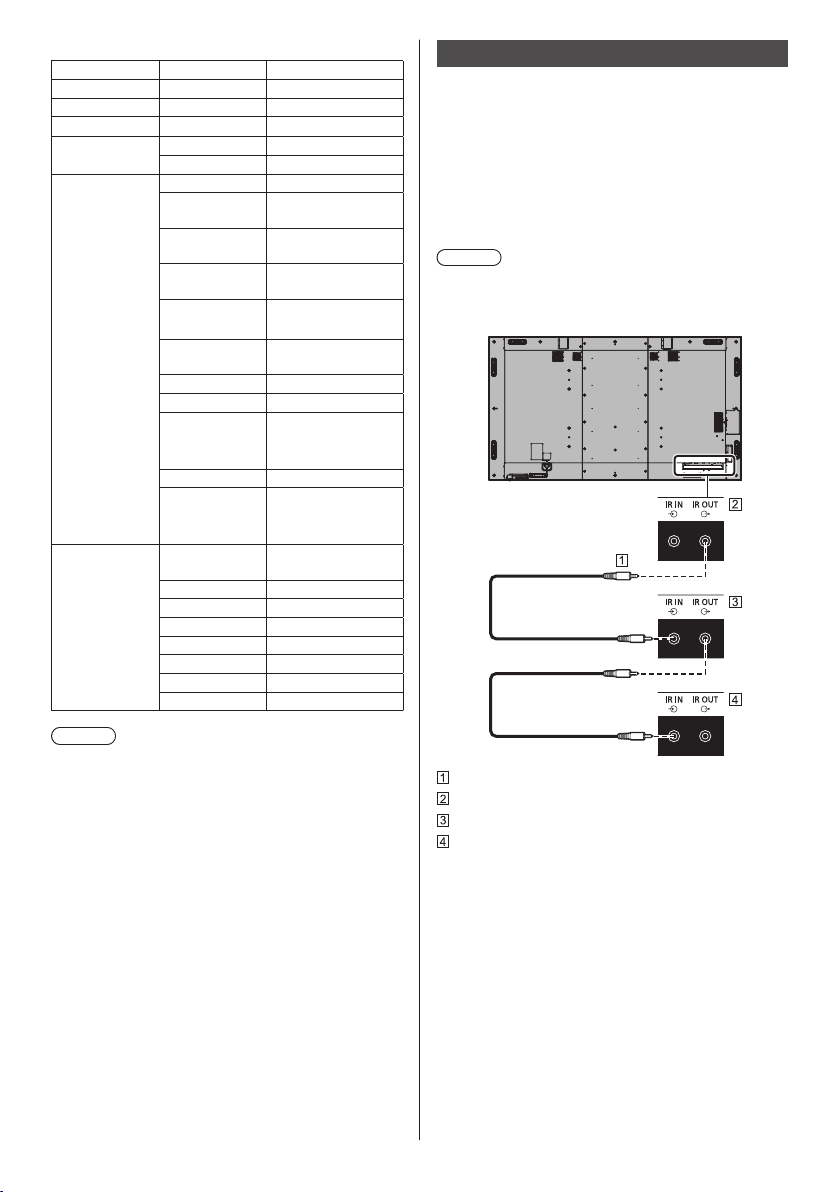

Use this when operating more than one display with one remote control.

(see page 29)

Connect the USB memory to use “USB media player” or “Memory viewer”. Also, this can be used to supply power of up to 5V/1A (front side terminal) or 5V/2A (far side terminal) to an external device when the picture is displayed.

(see page 30)

Q40G1000-037-79A

7 8 9

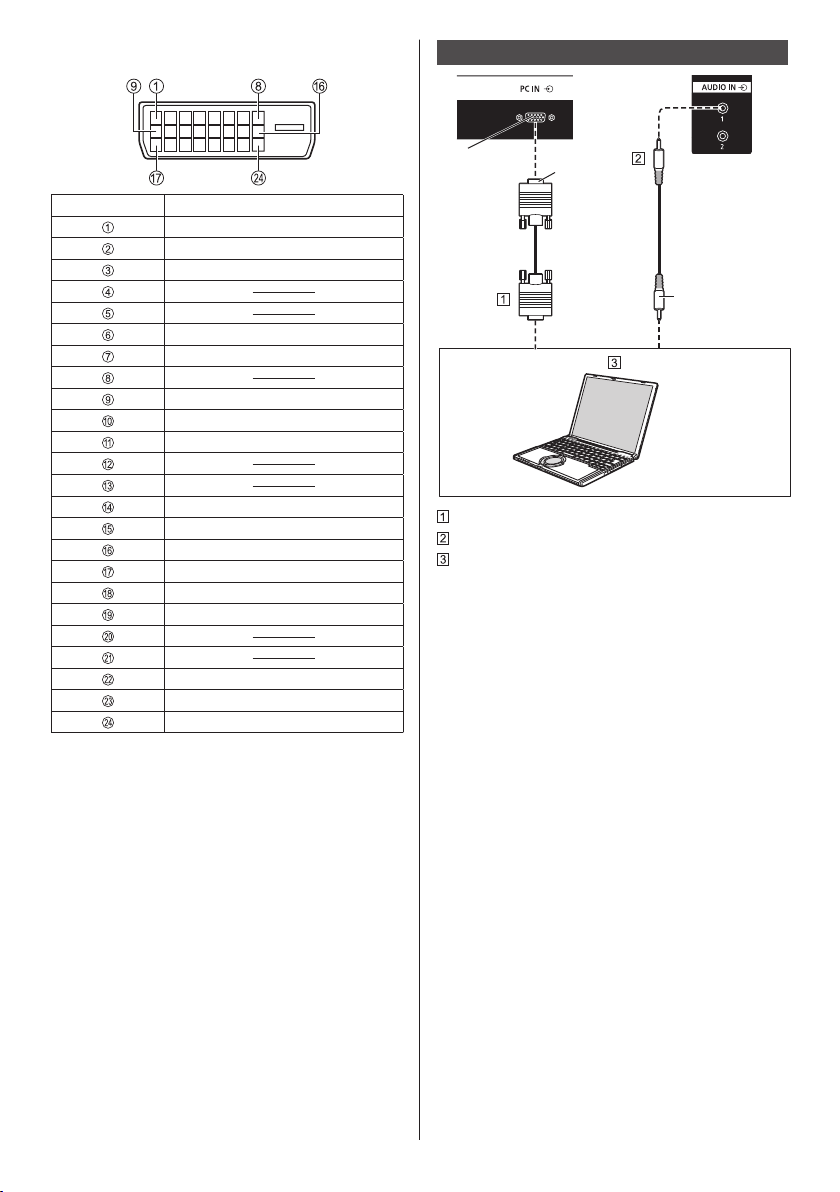

8 PC IN: PC Input Terminal

Connect to video terminal of PC, video equipment with “YPBPR / YCBCR” or “RGB” output.

(see page 24)

9 DisplayPort IN,

DisplayPort OUT:

DisplayPort Input / Output Terminal (Supports 4K picture)

Connect to PC or video equipment with DisplayPort terminal. (see page 25)

10 AV IN

(HDMI 1, HDMI 2):

HDMI Input Terminal (2 systems)

Connect to video equipment with HDMI output.

(see page 22)

11 DVI-D IN: DVI-D Input Terminal

Connect to video equipment with DVI-D output.

(see page 23)

12 AUDIO IN 1,

AUDIO IN 2:

Analogue Audio Input Terminal (2 systems)

(see page 23, 24)

13 SLOT: Expansion slot

Note

●

For the compatible function board, consult the dealer

(see page 15)

where you purchased the product.

English

Page 22

Before connecting

●

Before connecting cables, carefully read the operating instructions for the external device to be connected.

●

Turn off the power of all devices before connecting cables.

●

Take note of the following points before connecting the cables. Failure to do so may result in malfunctions.

When connecting a cable to the unit or a device

•

connected to the unit itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work.

Do not use unnecessarily long cables to connect

•

a device to the unit or to the unit body. The longer the cable, the more susceptible to noise it becomes. Since using a cable while it is wound makes it act like an antenna, it is more susceptible to noise.

When connecting cables, insert them straight into

•

the connecting terminal of the connecting device so that the ground is connected first.

●

Acquire any cable necessary to connect the external device to the system that is neither supplied with the device nor available as an option.

●

If the outer shape of the plug of a connection cable is large, it may come in contact with the periphery such as a back cover or the plug of an adjacent connection cable. Use a connection cable with the suitable plug size for the terminal alignment.

●

When connecting the LAN cable with plug cover, be aware that the cover may come in contact with the back cover and it may be difficult to disconnect.

●

If video signals from video equipment contain too much jitter, the images on the screen may wobble. In this case, a time base corrector (TBC) must be connected.

●

When the sync signals output from PC or video equipment are disturbed, for example, when changing settings of video output, the colour of the video may be disturbed temporarily.

●

The unit accepts YP analogue RGB signals (PC IN) and digital signals.

●

Some PC models are not compatible with the unit.

●

Use cable compensator when you connect devices to the unit using long cables. Otherwise the image may not be displayed properly.

●

Refer to “Preset Signals” (see page 138) for the types of video signals that can be displayed with the unit.

●

The DIGITAL LINK / LAN terminal and the LAN terminal are connected inside this unit. When using both the DIGITAL LINK / LAN terminal and the LAN terminal, configure the system in such a way that they are not connected to the same network directly or via peripheral devices such as hub and twist pair cable transmitter.

BPR/YCBCR signals (PC IN),

HDMI 1 and HDMI 2 terminals connection

Note

●

Video equipment and HDMI cable shown are not supplied with this unit.

●

Connect the equipment complying with the HDMI standard.

●

Some HDMI equipment may not be able to display picture.

●

This Display does not support VIERA LINK.

●

For audio, it is also possible to use the AUDIO IN 1 / AUDIO IN 2 terminal. (For [Audio input select] function, see page 71.)

●

Use an HDMI High Speed cable complying with the HDMI standards.

Note when inputting 4K video signals exceeding the transmission speed supported by an HDMI High Speed cable, use an HDMI cable supporting 18 Gbps high-speed transmission such as the one certified as a Premium HDMI cable.

When inputting video signals exceeding the transmission speed supported by the HDMI cable you are using, malfunction may occur such as interrupted pictures and no display on the screen.

HDMI cable (commercially available) DVD Player PC

English

Page 23

Pin assignments and signal names for HDMI Terminal

Pin No. Signal name

T.M.D.S Data2 + T.M.D.S Data2 Shield T.M.D.S Data2 T.M.D.S Data1 + T.M.D.S Data1 Shield T.M.D.S Data1 T.M.D.S Data0 + T.M.D.S Data0 Shield T.M.D.S Data0 T.M.D.S Clock + T.M.D.S Clock Shield T.M.D.S Clock CEC

SCL SDA DDC/CEC Ground +5V DC Hot Plug Detect

DVI-D IN terminal connection

Note

●

Video equipment and cables shown are not supplied with this unit.

●

DVI-D IN terminal is for Single Link only.

●

For audio, the AUDIO IN 1 / AUDIO IN 2 terminal can be used. (For [Audio input select] function, see page

71.)

●

Use the DVI-D cable complying with the DVI standard. (Depending on the cable length or its quality, noise may occur on images, or the image quality may deteriorate.)

DVI-D cable (within 5 m) (commercially available) Stereo mini plug (M3) cable (commercially available) PC with DVI-D out

English

Page 24

Pin assignments and signal names for DVI-D Input/

Output

PC IN terminal connection

Pin No. Signal Name

T.M.D.S. data 2 T.M.D.S. data 2 + T.M.D.S. data 2 shield

DDC clock DDC data

T.M.D.S. data 1 T.M.D.S. data 1 + T.M.D.S. data 1 shield

+5 V DC GND (Ground) Hot plug detect T.M.D.S. data 0 T.M.D.S. data 0 + T.M.D.S. data 0 shield

T.M.D.S. clock shield T.M.D.S. clock + T.M.D.S. clock -

(Female)

Mini D-sub 15p cable (commercially available) Stereo mini plug (M3) cable (commercially available) PC

The type of computer signal that can be connected

●

With regard to the typical PC input signals that are described in “Preset Signals” (see page 138), adjustment values such as for the standard picture positions and sizes have already been stored in this unit.

(Computer signals which can be input are those with a horizontal scanning frequency of 30 to 110 kHz and vertical scanning frequency of 48 to 120 Hz.)

●

The display resolution is a maximum of 1 440 x 1 080 dots when the aspect mode is set to [Normal], and 1 920 x 1 080 dots when the aspect mode is set to [Full]. If the display resolution exceeds these maximums, it may not be possible to show fine detail with sufficient clarity.

●

If signals outside the range of supported frequencies are input, normal images cannot be displayed. Note that some images may not be correctly displayed even if signals are within the range.

●

If the PC screen is not displayed, check if the image signal of the PC meets “Preset Signals” (see page

138), and then change the settings. For power-saving purpose, image output may be OFF on a notebook computer. In this case, it may be set to ON with function key operation etc. of the computer. (Refer to the manual of the computer.)

(Male)

Connect a cable which matches the audio output terminal on the computer.

(commercially available)

English

Page 25

Note

●

Component video signal is supported with this terminal (Mini D-sub 15P).

Change the [Component/RGB-in select] setting in the [Signal] menu to [Component] (when Component signal connection) or [RGB] (when RGB signal connection). (see page 60)

●

Additional computer, cables and conversion adapter shown are not supplied with this set.

●

If the computer being connected is not DDC2Bcompatible, you will need to make setting changes to the computer at the time of connection.

●

Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specified frequency range.

●

For audio, the AUDIO IN 1 / AUDIO IN 2 terminal can be used. (For [Audio input select] function, see page

71.)

Pin assignments and signal names for PC Input Terminal (Mini D-sub 15P)

15 14 13 12 11

67839

DisplayPort IN / DisplayPort OUT terminal connection

DisplayPort cable (commercially available) PC with DisplayPort output

Pin No. Signal Name

R (PR/CR) G (Y) B (PB/CB) NC (not connected) GND (Ground) GND (Ground) GND (Ground) GND (Ground) +5 V DC GND (Ground) NC (not connected) SDA HD VD SCL

Note

●

For audio, it is also possible to use the AUDIO IN 1 / AUDIO IN 2 terminal. (For [Audio input select] function, see page 71.)

●

Depending on the device to be connected, it may take time for images to be displayed.

●

Please use DisplayPort 1.4 compliant certified cable.

●

Depending on the types of cable or mini connector adaptor used, 4K picture may not be displayed.

●

In connecting with PC which uses early chipsets or graphic cards compatible with DisplayPort, if the DisplayPort output of the PC is connected to this unit, malfunction of this unit or the PC may occur. In that case, turn the power of the unit or the PC off, and then turn it on again.

When inputting DisplayPort output to this unit, it is recommended to use the PC which the newest Chipset and Graphics Cards are used.

English

Page 26

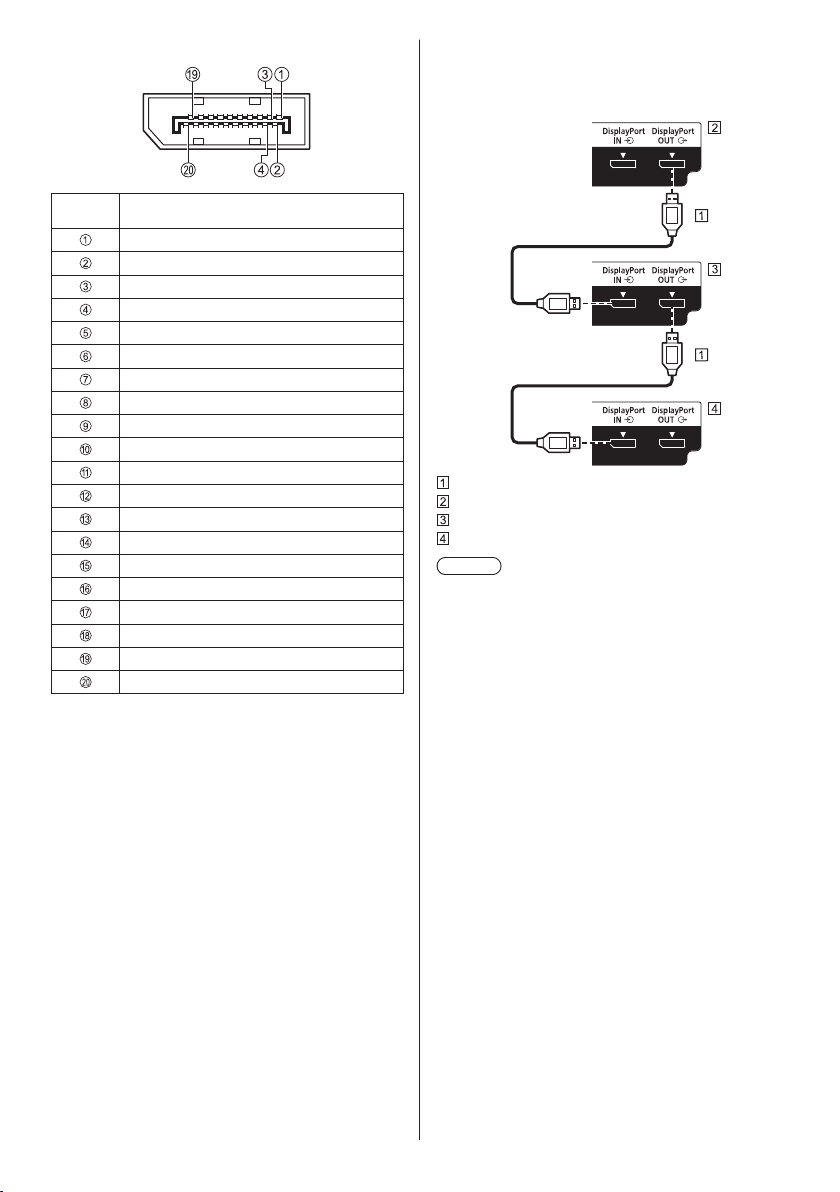

Pin assignments and signal names for DisplayPort

Pin No. Signal Name

ML_Lane 3 (n)

GND (Ground)

ML_Lane 3 (p)

ML_Lane 2 (n)

GND (Ground)

ML_Lane 2 (p)

ML_Lane 1 (n)

GND (Ground)

ML_Lane 1 (p)

ML_Lane 0 (n)

GND (Ground)

ML_Lane 0 (p)

CONFIG1

CONFIG2

AUX_CH (p)

GND (Ground)

AUX_CH (n)

Hot Plug Detect

GND (Ground)

+ 3.3 V DC output

Daisy chain connection

It is possible to daisy chain multiple displays when displaying the picture with multi screen display of the multi display, etc.

DisplayPort cable (commercially available) First display Second display Third display

Note

●

The output from the DisplayPort OUT terminal supports only signals input to the DisplayPort IN, HDMI1, HDMI2, DVI-D IN and SLOT terminals.

●

When images are not displayed on the subsequentstage displays, turn on the preceding-stage displays, wait for at least 7 seconds, then turn on the subsequent-stage displays.

e.g.) Set [Power ON screen delay] of the subsequentstage displays to [7] or more before using.

●

The DisplayPort OUT terminal does not support HDCP2.2.

English

Page 27

DIGITAL LINK terminal connection

Twisted pair cable transmitters such as the Panasonic Digital Interface Box (ET-YFB100G) or the DIGITAL LINK Switcher (ET-YFB200G) use twisted pair cables to transmit inputted video and audio signals, and these digital signals can be input to the Display via the DIGITAL LINK terminal.

Analogue signal is output as

Digital signal.

Note

●

Video equipment and connection cables are not supplied with this unit.

●

When connecting with DIGITAL LINK, be sure to configure each of the [Network settings] settings. (see page 77)

For the cautions for DIGITAL LINK setting and connection, refer to “DIGITAL LINK Terminal connection” and “Precautions for use while connecting with a twisted pair cable transmitter”. (see page 92)

●

Corresponding signal for DIGITAL LINK input is the same as that of HDMI input. (see page 138)

●

For audio, it is also possible to use the AUDIO IN 1 / AUDIO IN 2 terminal input. (For [Audio input select] function, see page 71.)

PC to control the unit Example: Panasonic ET-YFB100G PC DVD Player

English

Page 28

SERIAL IN terminal connection

The SERIAL terminal conforms to the RS-232C interface specification, so that the Display can be controlled by a computer which is connected to this terminal.

Note

●

Additional computer and cables shown are not supplied with this set.

(Male)

(Female)

D-sub 9p

RS-232C Straight cable (commercially available) PC

Note

●

Select the RS-232C straight cable for communication used for connecting SERIAL terminal and computer according to the computer you are using.

Pin assignments and signal names for SERIAL Terminal

1 3 4 52

6 7 8 9

Pin No. Signal Name

NC (not connected)

RXD TXD Non use GND (Ground) Non use RTS

CTS

NC (not connected)

These signal names are those of computer specifications.

Communication parameters

Signal level: RS-232C compliant Synchronization method: Asynchronous Baud rate: 9 600 bps Parity: None Character length: 8 bits Stop bit: 1 bit Flow control: None

Basic format for control data

The transmission of control data from the computer starts with a STX signal, followed by the command, the parameters, and lastly an ETX signal in that order. Add parameters as required according to control details.

STX C1 C2 C3 P1 P2 P3 P4: P5 ETX

Start

Shorted in this set

Colon

End

English

3-character command (3 bytes)

Parameter(s)

Page 29

Command

Command Parameter Control details

PON None Power ON POF None Power OFF

AVL

AMT

IMS

DAM

Note

●

If multiple commands are transmitted, be sure to wait for the response for the first command to come from this unit before sending the next command.

●

If an incorrect command is sent by mistake, this unit will send an “ER401” command back to the computer.

●

When sending a command which does not require parameter, a colon (:) is not needed.

●

Consult your local Panasonic dealer for detail instructions on command usage.

For more details, visit the following web site. https://panasonic.net/cns/prodisplays/

●

For 98 and 86 inch models, [Screen Transfer] is displayed only when the main software version is

4.0000 or later.

＊＊＊

None Input select (toggle)

HM1

HM2

DP1

DL1

DV1

SL1 SLOT input (SLOT)

PC1 PC IN input (PC)

NW1

UD1 USB input (USB)

MV1

None

FULL Full

NORM Normal

NATV Native

HFIT H fit

VFIT V fit ZOOM Zoom1 ZOM2 Zoom2

Volume000‒100

0 Audio MUTE OFF 1 Audio MUTE ON

HDMI 1 input (HDMI1) HDMI 2 input (HDMI2) DisplayPort IN input (DisplayPort) DIGITAL LINK input

(DIGITAL LINK) DVI-D IN input (DVI-D)

Screen Transfer input

(Screen Transfer)

“Memory viewer” input

(MEMORY VIEWER) Screen mode select (toggle)

IR IN / IR OUT terminal connection

Connect the stereo mini plug (M3) cable from the IR OUT terminal of the first display to the IR IN terminal of the second display.

The infrared signal of the first display is sent to the second display.

In this case, the IR (infrared ray reception on the remote control sensor) on the second display does not operate.

Repeating the above connections enables the daisy chain connection.

Note

●

Connection cables are not supplied with this unit.

●

Daisy chain connection is possible only between the displays of the same series.

Stereo mini plug (M3) cable (commercially available) First display Second display Third display

English

Page 30

AUDIO OUT terminal connection

Note

●

Audio equipment and the cable shown are not supplied with this set.

Stereo mini plug (M3)

line-in

Stereo audio cable (commercially available) Audio equipment

Note

●

To output sound from AUDIO OUT terminal of the unit, be sure to set [Output select] in the [Sound] menu to [AUDIO OUT]. (see page 47)

USB terminal connection

Connect the USB memory (commercially available) to use “USB media player” or “Memory viewer”. (see page 111, 123)

Also, power is supplied when a separately sold stick PC, etc. are connected.

Note

●

A stick PC and connection cables are not supplied with this unit.

●

If the power is turned off or the USB memory device is removed while accessing data in the USB memory device, the stored data may be destroyed. The access indicator of the USB memory device blinks during data access.

●

The USB memory device can be connected or disconnected whether or not the display is on.

Stick PC (commercially available) USB cable (commercially available) HDMI extension cable (commercially available)

When the picture is displayed, depending on the USB terminal, power of up to 5V/2A (far side terminal) or 5V/1A (front side terminal) can be supplied to an external device.

●

If the electric current exceeding the power supplying capability is applied, the output is blocked, and the following message is displayed.

[USB DC5V OUT overload. Please remove cable or equipment, then turn the display off/on.]

In this case, remove the equipment and then turn the power off/on using the remote control, etc.

Note

●

Select the USB terminal to be used with [USB select]. (see page 90)

●

If the direct connection to this unit is not possible due to the size of a stick PC, etc. use a commercially sold extension cable.

●

Depending on the type of a USB memory device, it may come in contact with the periphery such as a back cover, and cannot be attached. Use a USB memory device connectable to this unit.

●

When connecting the USB memory device, confirm the orientation of the plug to prevent damage to the terminal.

English

Page 31

●

When removing the USB memory device, note the following.

When the access indicator of the connected USB

•

memory device is blinking, it shows the display is loading the data. Do not remove the USB memory device while blinking.

Depending on the USB memory device, the access

•

indicator may remain blinking even when it is not being accessed, or the device is not equipped with an access indicator function, etc. In this case, remove the USB memory device after confirming the following or .

Switch the input to an input other than [USB]

and [MEMORY VIEWER], and confirm that the functions that access USB memory device are finished. The functions are, read user image function (see page 73), playlist edit function (see page 118 ), data cloning function (see page 130), etc.

Turn the unit off.

Do not frequently repeat connecting/disconnecting

•

the USB memory device. Wait at least 5 seconds after connection, and then remove the USB memory device. Before reconnection, wait at least 5 seconds. A certain length of time is required so that the display can recognise that the USB memory device is switched for connection or disconnection.

If the power of this unit is turned off or the USB

•

memory device is removed accidentally while accessing data, the data may not be accessed next time the USB memory device is used.

In such a case, turn the power of the main unit off and on.

●

When the power is supplied from MP2 (DC 5V 2A), use a cable supporting a current of 2A or more.

Speaker terminal connection

Use 8 Ω/15 W speaker.

While pressing the lever, insert the core

Red

Black

wire.

Return the lever.

English

Page 32

Identifying Controls

Display

86-inch model

●

Slide the lever on the rear panel to eject the power indicator and remote control sensor.

To store them, slide the same lever, or directly push in the bottom surface of the remote control sensor.

Note

●

For normal use, pull out the power indicator and remote control sensor from the edge side of the main unit by operating the lever on the rear panel. Depending on the setup condition such as when using multi screen display of the multi display, store them in the main unit.

98-inch model

75-inch model

65-inch model

55-inch model

49-inch model

1 Power Indicator / Remote control sensor

The Power Indicator will light.

When the power of the unit is ON (Main Power On / Off button: ON)

●

Picture is displayed: green

●

When the unit enters the standby mode using the following functions: orange (red / green)

Standby state with the “Quick start” function

•

About “Quick start” function, see page 63.

Standby state with the “Power management”

•

function

About “Power management” function, see page 69.

Standby state with [HDMI-CEC control] set to

•

[Enable] and at least one [Link function] set to other than [Disable]

About [HDMI-CEC control] setting and [Link function], see page 72.

Standby state with the “SLOT standby” function

•

About “SLOT standby” function, see page 88.

Standby state with [Network control] set to [On]

•

About “Network control” settings, see page 77.

Standby state during schedule play mode

•

About “Schedule play mode”, see page 120.

●

Standby state in conditions other than the above: red

When the power of the unit is OFF (Main Power On / Off button: OFF): No light

Note

●

Even if the unit is turned off with the power indicator off, some of the circuits are in power-on status.

●

When the power indicator is orange, power consumption during standby is generally larger than that of when the power indicator is red.

English

Page 33

98-inch model

65-inch model

75-inch model

86-inch model

55-inch model

49-inch model

1 External input / output terminal

Connects to video equipment, PC, etc. (see page 21)

2 <Main Power On / Off button> (

Turns the power On / Off.

3 <INPUT (Unit)>

Selects the connected device. (see page 37)

4 <MENU (Unit)>

Displays the menu screen. (see page 43)

5 <+ (Unit)> / <- (Unit)>

Adjusts the volume. (see page 38)

MENU ENTERINPUT

On the main screen, switches settings or adjusts settings level. (see page 43)

(Unit)> / < (Unit)>

6 <

Selects the setting item on menu screen. (see page

43)

7 <ENTER (Unit)>

Configures the item on menu screen. (see page 43) Switches aspect mode. (see page 40)

8 Built-in speakers

Sound is output backward.

Note

●

To output sound from the built-in speakers of the unit, be sure to set [Sound] - [Output select] to [INTERNAL SPEAKERS]. (see page 47)

)

English

Page 34

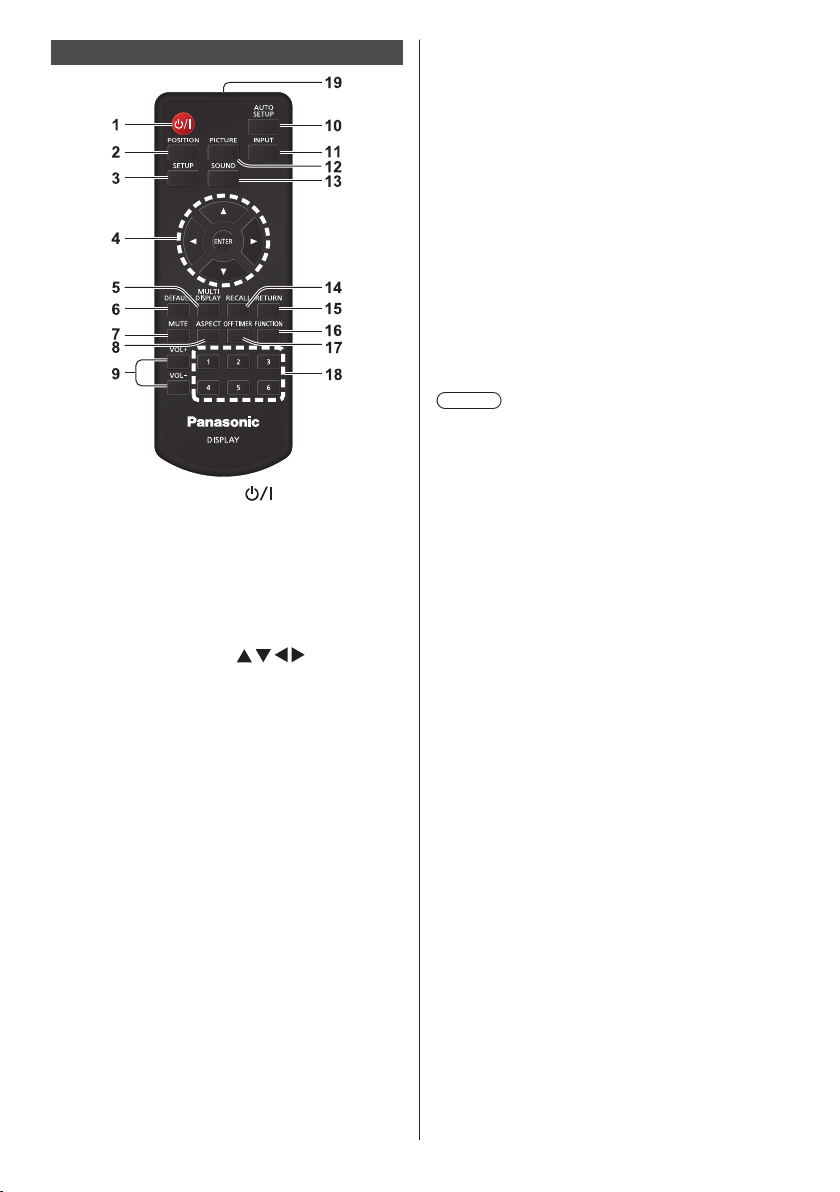

Remote Control Transmitter

1 Standby (ON/OFF) button ( )

●

Turns the power on or off when the unit is turned on at the <Main Power On / Off button>. (see page

36)

POSITION

(see page 45)

3 SETUP

(see page 55)

ENTER / Cursor buttons (

●

Used to operate the menu screens. (see page 43)

MULTI DISPLAY

●

Switches between on and off of the multi display mode (multi input display, multi screen display). (see page 55)

DEFAULT

●

Resets the settings of picture, sound, etc., to defaults. (see page 45, 47, 48)

MUTE

●

Sound mute on / off. (see page 38)

ASPECT

●

Adjusts the aspect. (see page 40)

VOL + / VOL -

●

Adjusts sound volume level. (see page 38)

AUTO SETUP

●

Automatically adjusts the position/size of the screen. (see page 45)

INPUT

●

Switches input to display on the screen. (see page

37)


(see page 48)

)

SOUND

(see page 47)

RECALL

●

Displays the current setting status of Input mode, Aspect mode, etc. (see page 38)

RETURN

●

Used to return to the previous menu. (see page 43)

FUNCTION

●

Displays [Function button guide]. (see page 85)

OFF TIMER

●

Switches to stand-by after a fixed period. (see page 39)

Numeric buttons (1 - 6)

●

Used as shortcut buttons by assigning frequently used operations. (see page 84)

Signal emission

Note

●

In this manual, buttons of the remote control and the unit are indicated as < >.

(Example: <INPUT>.) The operation is mainly explained indicating the

remote control buttons but you can also operate with the buttons on the unit when there are the same buttons.

●

In the case of the Model No. DPVF1615ZA remote control, the <MULTI DISPLAY> button for item 5 is replaced with the <ZOOM> button.

English

Page 35

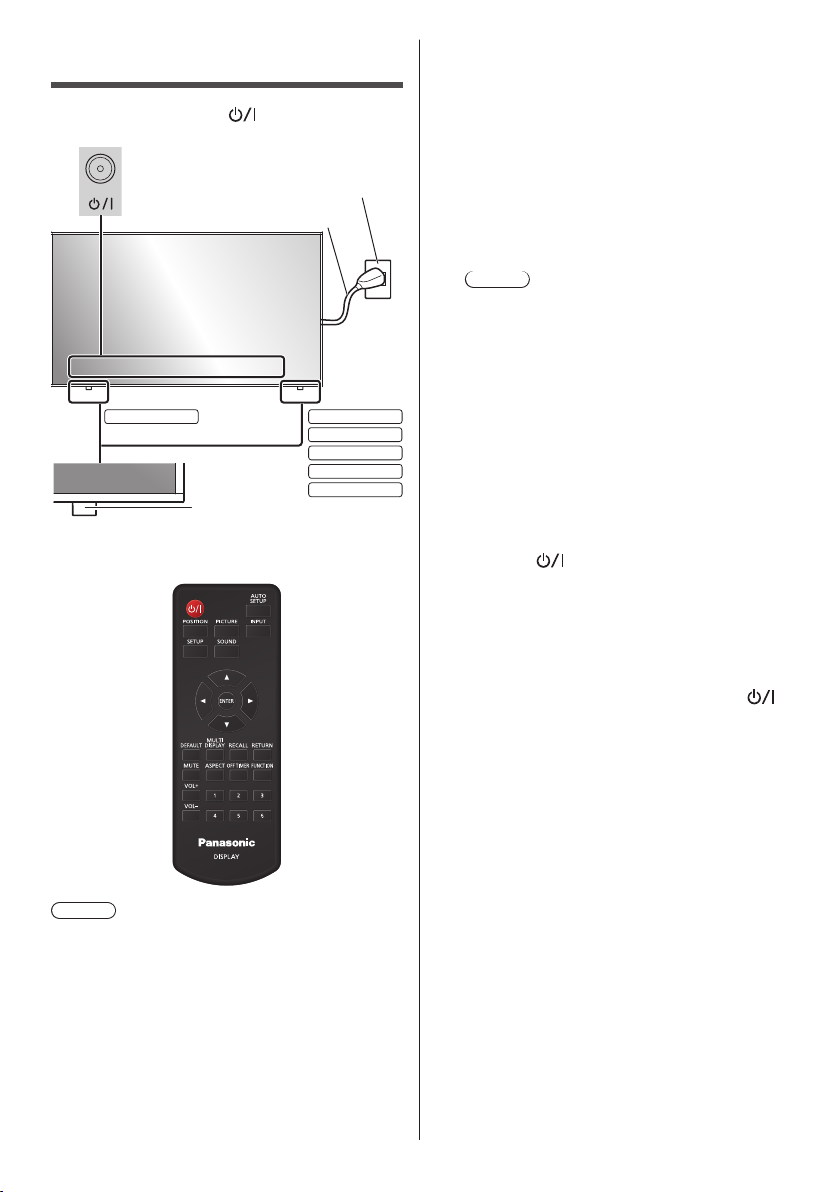

Basic Controls

MUTE

Main Power On / Off button ( (Back of the unit)

86-inch model 98-inch model

Operate pointing the remote control directly at the unit’s Remote Control Sensor.

)

AC socket outlet

AC cord (supplied)

75-inch model

65-inch model

55-inch model

49-inch model

Remote Control Sensor /

Power Indicator

●

When directly aiming the remote control at the remote control sensor of the main unit, the distance from the front of remote control sensor should be approx. 7 m or less. Depending on the angle, the operation distance may be shorter.

●

Do not subject the remote control sensor of the main unit to the direct sunlight or strong fluorescent light.

Connect the AC cord plug to the

Display.

(see page 19)

Connect the plug to the socket outlet.

Note

●

Main plug types vary between countries. The power plug shown at left may, therefore, not be the type fitted to your set.

●

When disconnecting the AC cord, be absolutely sure to disconnect the AC cord plug at the socket outlet first.

●

The settings may not be saved if the power plug is disconnected immediately after changing settings with on-screen menu. Disconnect the power plug after a enough period of time. Or, disconnect the power plug after turning the power off with the remote control, RS-232C control or LAN control.

Press the <Main Power On / Off

button> ( ) on the unit to turn the power of the unit on.

●

Power Indicator: Green (Picture is displayed.)

●

When the power of the unit is on, the power indicator lights up and remote control operation is possible.

●

When the power indicator is lit, it is not necessary to press the <Main Power On / Off button> ( on the unit. Operate the remote control so that the power indicator turns green (picture is displayed).

)

Note

●

For normal use, pull out the remote control sensor from the edge side of the main unit by operating the lever on the rear panel. (see page 32)

●

Do not put an obstacle between the remote control sensor of the main unit and the remote control.

●

Operate the remote control in front of the remote control sensor or from the area where the sensor can be seen.

English

Page 36

■ To turn the power ON/OFF with the remote

control

To turn the power on

●

When the power of the unit is on (Power Indicator red or orange), press the <Standby (ON/OFF) button> (

), then the picture will be displayed.

●

Power Indicator: Green (Picture is displayed.)

To turn the power off

●

When the power of the unit is on (Power Indicator green), press the <Standby (ON/OFF) button> ( then the power will be turned off.

●

Power Indicator: Red (standby)

Note

●

During operation of the “Power management” function (see page 69), the power indicator turns orange in the power off state.

●

After the power plug is disconnected, the power indicator may remain lit for a while. This is not a malfunction.

●

Press the <Main Power On / Off button> ( unit to turn the unit off, when the power of the unit is turned on or in standby mode.

) on the

■ When the Unit is turned on for the first time

Following screen will be displayed.

Select the language with and

press <ENTER>.

OSD language

English (UK)

Deutsch

Français

Italiano

Español

ENGLISH (US)

■ Power ON message

The following message may be displayed when turning the unit power ON:

No activity power off Precautions

’No activity power off’ is enabled.

When [No activity power off] in the [Setup] menu is set to [Enable], a warning message is displayed every time the power is turned ON. (see page 74)

“Power management” information

Last turn off due to ’Power management’.

When “Power management” is functioned, an information message is displayed every time the power is turned ON. (see page 69)

Display reverse installation information

The display is upside-down.

When it is judged that the display is reversely installed, an information message is displayed when the power is turned ON. (see page 63)

These message displays can be set with the following menu:

●

[Power on settings] menu Information(No activity power off)

(see page 63) Information(Power management)

(see page 63) Information(Display upside-down)

(see page 63)

Русский

For vertical installation, select

[Portrait] with and press <ENTER>.

Display orientation

Landscape

Portrait

Auto

Note

●

Once the items are set, the screens won’t be displayed when switching on the unit next time. Each item can be reset in the following menus.

[OSD language] (see page 74) [Display orientation] (see page 86)

English

Page 37

Selecting the input signal

Select the signals input to the unit.

Press <INPUT> or <INPUT (Unit)>.

Unit

●

Image retention may occur on the LCD liquid crystal panel when a still picture is kept on the panel for an extended period. To prevent such a problem, using the screensaver and the [Wobbling] function is recommended. (see page 68, 69)

●

Switching to another input while the unit is connected to Screen Transfer with Screen Transfer input will break the connection. Check the connection again after switching the input.

●

For 98 and 86 inch models, [Screen Transfer] is displayed only when the main software version is

4.0000 or later.

MENU ENTERINPUT

Switches input every time the buttons are pressed.

Full

[HDMI1] → [HDMI2] → [DisplayPort] → [DIGITAL LINK] → [DVI-D] (or [SLOT]) → [PC] → [Screen Transfer] → [USB] → [MEMORY VIEWER]

[HDMI1]: HDMI 1 terminal, HDMI input [HDMI2]: HDMI 2 terminal, HDMI input [DisplayPort]: DisplayPort IN terminal, DisplayPort

input

[DIGITAL LINK]: DIGITAL LINK terminal, DIGITAL LINK

input [DVI-D]*: DVI-D IN terminal, DVI-D input [SLOT]*: Input signal of the function board [PC]: PC IN terminal, PC input [Screen Transfer]: Input that displays images transmitted

via network using “Screen Transfer”, a

dedicated application by Panasonic [USB]: USB terminal, USB input [MEMORY VIEWER]:

USB terminal, “Memory viewer”

input

For [DVI-D] and [SLOT] input, either one selected for

the [DVI-D/SLOT select] setting is displayed. (see page 90)

Note

●

Displays the signal name as set in [Input label]. (see page 69)

●

Input will not be switched unless [Input lock] is set to [Off]. (see page 74)

English

Page 38

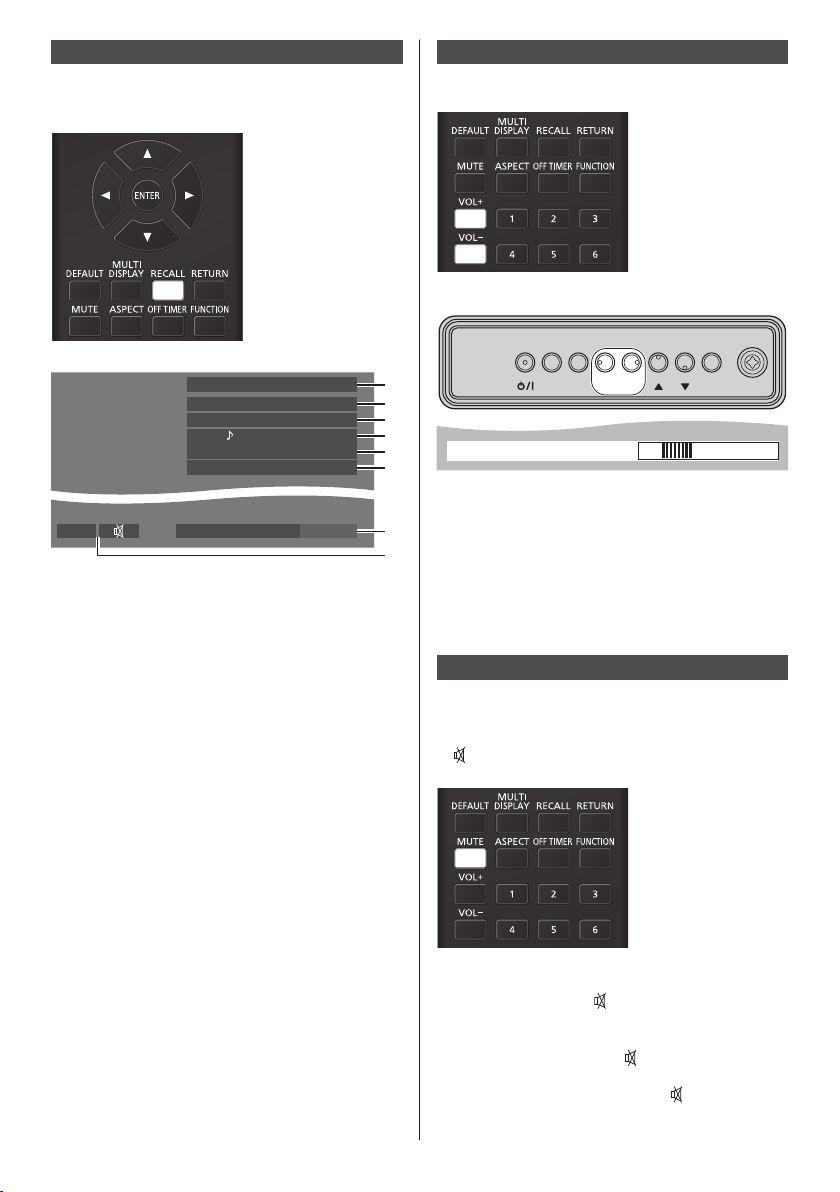

RECALL

It is possible to check the setting status of input label, picture mode, etc.

Press <RECALL>.

Current setting status will be displayed.

HDMI1

Full

Backup mode OK

AUDIO IN1

Memory name: MEMORY2

Schedule play mode

10:00

Off timer

1 Input label 2 Aspect mode (see page 40) 3 Backup input change (see page 66, 67) 4 Audio input (see page 71) 5 Profile name (see page 53) 6 [Schedule play mode] (see page 120) 7 Off timer remaining time (see page 39) 8 Clock / Mute (see page 38, 76)

●

When there is no video signal to the selected input, [No signal] is displayed for about 30 seconds at the end.

●

When a USB memory is not connected to the USB terminal at the time of switching to the USB input, [No external media] is displayed for about 30 seconds.

Even when a USB memory is connected, if it does not contain any playable file, [No play file] is displayed at all times.

●

When [No signal image settings] - [Display setting] is set to [On] (see page 73), the message [No signal] / [No external media] / [No play file] are not displayed. Instead, the image set in [No signal image settings] will be displayed.

●

To display the clock, set [Date and time] and then set [Clock display] to [On]. (see page 76)

90 min

Volume Adjustment

Press <VOL +> <VOL -> or <+ (Unit)> <- (Unit)> to adjust volume.

Unit

MENU ENTERINPUT

1 2

3 4 5

Volume (INTERNAL SPEAKERS)

●

The current sound volume level is memorised even if

the power is turned off.

●

When [Maximum VOL function] is set to [On], the volume can only be adjusted to the maximum point you set, and the displayed value turns red when it reached its maximum. (see page 89)

●

When [Initial VOL function] is set to [On], the volume will be at the set level when the display is turned on. (see page 62)

Sound mute On / Off

It is useful when you want to mute the sound temporarily, for example, when answering the phone or door.

Press <MUTE>.

●

appears on the screen and the sound is muted.

Press again to reactivate the sound.

●

It is also reactivated when the power is turned on / off or the volume level is changed.

●

While MUTE is active, after operation.

●

When the image set in [No signal image settings] (see page 73) is displayed, operation.

●

In [ENGLISH(US)] OSD language, [MUTE].

is displayed as a reminder

is not displayed after

is displayed as

English

Page 39

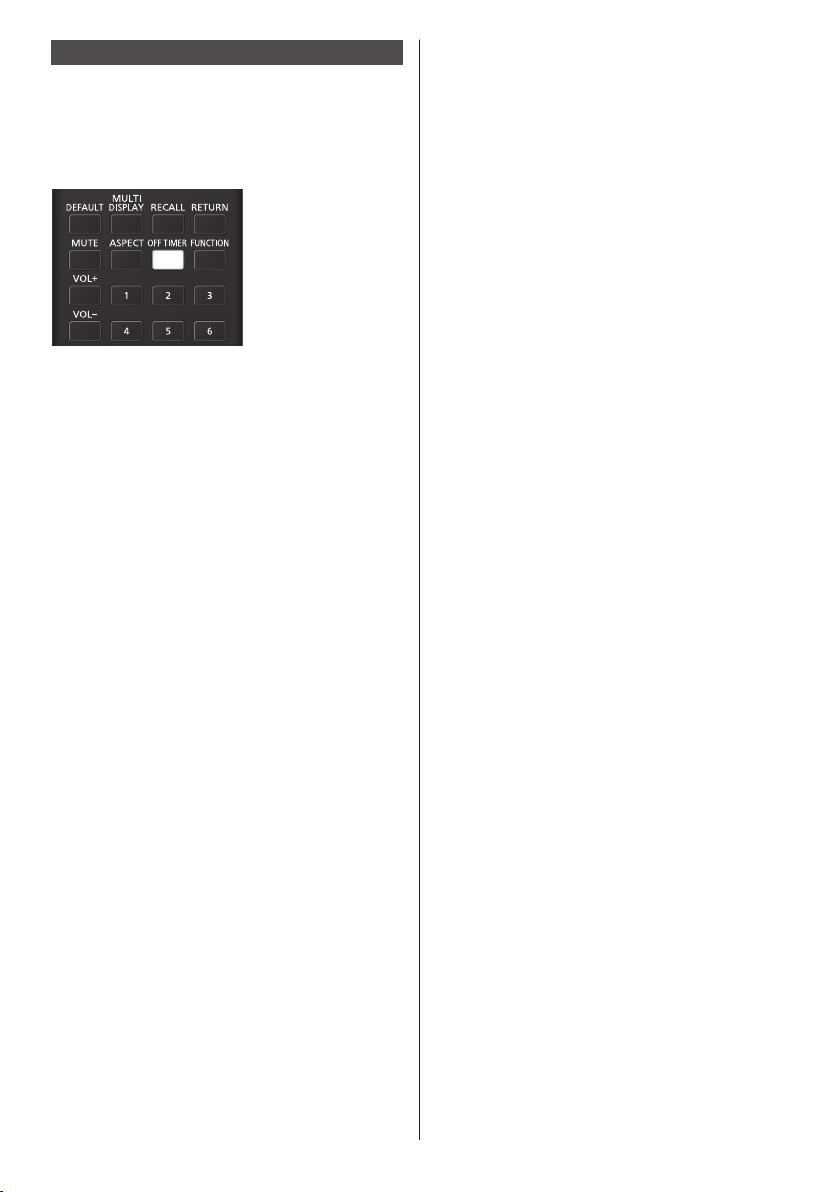

OFF TIMER

The Display can be preset to switch to stand-by after a fixed period. (30 min, 60 min, 90 min)

The setting switches each time <OFF TIMER> is pressed.

●

[0 min]

→[30 min]→[60 min]→[90 min]

→[0 min] (Cancel)

●

When three minutes remain, the remaining time will flash (Red). After that, it switches to stand-by.

●

To see the Off timer remaining time, press <RECALL>.

●

The Off timer is cancelled if a power interruption occurs. When the power is turned on later on, it will be in stand-by condition.

●

When the image set in [No signal image settings] (see page 73) is displayed, remaining time is not displayed even when the timer expires in 3 minutes. Instead, the image is displayed until the power is turned off.

Press <RECALL> to check the remaining time.

English

Page 40

ASPECT Controls

Press <ASPECT> or <ENTER (Unit)> repeatedly to move through the aspect options:

Unit

MENU ENTERINPUT

[Normal] → [Native] → [H fit] → [V fit] → [Zoom1] → [Zoom2] → [Full]

Note

●

When using Screen Transfer input, the aspect mode cannot be changed.

●

The aspect mode is memorised separately for each input terminal.

●

Aspect modes [H fit] and [V fit]: Even if the display is installed vertically, the

enlargement directions for the [H fit] and [V fit] aspect modes are the same as those in horizontal installation.

The enlargement directions do not change in the following cases as well.

When the unit is installed in the portrait setting by

•

setting [Display orientation] to [Portrait] or [Auto]. (see page 86)

When [USB media player settings] - [Still picture

•

rotation] is set to [Portrait]. (see page 82)

■ List of Aspect Modes

Aspect

mode


Full

Pictures are displayed filling the screen.

Normal

Pictures are displayed with the aspect ratio of input signals.

Native

Pictures are displayed with the resolution of input signals.

H fit

Pictures are enlarged to the maximum horizontal dimension of the screen.

Pictures of signals with the aspect ratio vertically longer than the aspect ratio of the screen are displayed with the top and bottom of the pictures cut.

V fit

Pictures are enlarged to the maximum vertical dimension of the screen.

Pictures of signals with the aspect ratio horizontally longer than the aspect ratio of the screen are displayed with the right and left of the pictures cut.

Description

Enlarged screen

English

Zoom1

Letterbox pictures with a 16:9 aspect ratio are enlarged vertically to fill the screen. The top and bottom edges of the pictures are cut off.

Letterbox pictures with a 16:9 aspect ratio are

Zoom2

enlarged vertically and horizontally to fill the screen. The top and bottom edges as well as the left and right edges of the pictures are cut off.

Page 41

Note

●

This display incorporates several types of aspect mode select functions. If a mode whose aspect ratio is different from that of TV program content is selected, the on-screen appearance will differ from that of the original images. Note this point when selecting an aspect mode.

●

Be aware that if you put the display in a public place for commercial purposes or a public showing and then use the aspect mode select function to shrink or expand the picture, you may be violating the copyright under copyright law. It is prohibited to show or alter the copyrighted materials of other people for commercial purposes without the prior permission of the copyright holder.

●

When viewing a non-wide picture with a 4:3 aspect ratio by displaying in full screen using a zoom mode or the 16:9 mode, the circumference image will be partially invisible or deformed. Original images can be viewed in the [Normal] mode with respect for creators’ intentions.

English

Page 42

Digital ZOOM

Select the screen areas (25 areas) to zoom in, and zoom in the selected image areas ×2, ×3 or ×4.

(Assign [Digital zoom] to a numeric button in [Setup] [Function button settings], and then operate.)

Enter

Select

Exit

Set the digital zoom mode.

When [Digital zoom] is assigned to a numeric button in [Function button settings], and then operated by the button, the digital zoom mode is set. (see page 84)

Exit

RETURN

×1

ENTER

The screen aspect is set to [Full], and the digital zoom operation guide is displayed.

Select the image areas to zoom in.

Select pressing .

RETURN

ENTER

Digital Zoom operation guide

Switch the zoom ratio for the screen

areas.

Switches every time <ENTER> is pressed.

Exit

×1

×1 ×2 ×3 ×4

Exit

×2

Exit

×1

Exit

×3

●

If no operation is performed for the period set for [Menu display duration] (see page 86)

(5‒180

seconds) when the zoom ratio for the screen is “×1”, the unit exits the zoom mode.

●

If no operation is performed for approx. 3 seconds

when the zoom ratio for the screen is “×2”, “×3” or “×4”, the digital zoom operation guide

display disappears. Pressing any of the

buttons displays the guide again.

Exit the digital zoom mode.

Press <RETURN> to exit the mode.

The screen returns to the previous state just before entering the digital zoom mode, and the digital zoom operation guide display disappears.

●

Press any of the following buttons to exit the mode. Then, the operation of the pressed button is performed.

Remote Control:

Unit:

●

When the screen saver timer starts up, the digital

zoom mode finishes.

●

When the power is turned OFF, a force-quit is performed.

When the power is turned OFF by pressing the

•

<Standby (ON/OFF) button>. When the display is turned OFF at the <Main

•

Power On / Off button> When the power is turned OFF by the off-timer

•

When the power is turned OFF by [No signal

•

power off] or “Power management”.

Note

●

Use the remote control for operation. Some of the operations cannot be performed with the buttons on the main unit.

●

In the following cases, the digital zoom mode is not available.

When [Multi display settings] - [Multi screen

•

display] is set to [On] When [Portrait settings] - [Portrait display] is set

•

to [On] When the screen saver is in operation

•

When Screen Transfer / USB / MEMORY VIEWER

•

Exit

×4

input is selected.

●

The zoomed image is rougher than the original image.

●

When using the remote control with model number DPVF1615ZA, the <ZOOM> button can be used for operation.

English

Page 43

On-Screen Menu

ENTER

ENTERINPUT

ENTER

Displays

Display the menu screen.

Remote Control

Set.

Press to set.

Press to select.

Unit

INPUT

Press for several times.

Each time the button is pressed, the menu screen will switch.

NormalViewing→[Picture]→[Setup]→[Position] →[Sound]

Select the item.

Press to select.

ENTER

Press to select.

(Example: [Picture] menu)


Default Default

Picture mode Standard

Backlight

Contrast

Brightness

Colour

Hue

Sharpness

Gamma

Colour management Dynamic contrast

Colour enhancement

Refine enhancer Gradation smoother

Memory save

Memory load

Memory edit

HighEnhance level

2.2

6500KColour temperature

Off

Off Off

To display the submenu, press <ENTER>.

Exit from the menu.

Press to set.

Press.

Press <RETURN> to return to the previous screen. Alternatively, press the button selected in step 1 to

exit from the menu.

INPUT

Press for several times.

Note

●

When changing the settings of the display, picture or sound disturbance may occur temporarily. This is not a malfunction.

English

Page 44

Menu display list

●

Menu that cannot be adjusted is greyed out. Adjustable menu changes depending on signal, input and menu setting.

[Position] menu

(see page 45

Position

H-position

H-size

V-position

V-size

Clock phase

Dot clock

Over scan

PC auto setting

‒46)

Default Default

Auto setup

Off

[Sound] menu

(see page 47)

Sound

Default Default

Output select

Balance

Sound mode

Bass

Treble

Surround

Auto volume

Installation

INTERNAL SPEAKERS

Normal

Off

Stand

[Picture] menu

(see page 48‒54)


Default Default

Picture mode Standard

Backlight

Contrast

Brightness

Colour

Hue

Sharpness

Enhance level High

Gamma 2.2

Colour temperature 6500K

Colour management Dynamic contrast

Colour enhancement

Refine enhancer Gradation smoother

Memory save

Memory load

Memory edit

Off

Off Off

[Setup] menu

(see page 55

Multi display settings

Power on settings

Failover/Failback

Power management settings

Audio input select

HDMI-CEC settings

Input lock

Off-timer function

No activity power off

OSD language

USB media player settings

Memory viewer settings

Function button settings

Display orientation

Image rotation

Information timing

Maximum VOL function

Maximum VOL level

Button lock

POWER button lock

Controller user level

DVI-D/SLOT select

USB select

Quick input change mode

Setup

Portrait settings

Signal

Input search

Screensaver

Input label

Image settings

Setup

Set up timer

Date and time

Network settings

OSD settings

Setup

Options

Control settings

SLOT settings

‒90)

English(UK)

Landscape

Off

Enable

Disable

Off

DVI-D

MP1

Off

1/3

2/3

3/3

Note

●

When [DVI-D/SLOT select] is set to [SLOT], [DVI-D] input is displayed as [SLOT]. (see page 90)

English

Page 45

Adjusting Position

Press <POSITION> to display the

[Position] menu.

Position

Default Default

Auto setup

H-position

H-size

V-position

V-size

Clock phase

Dot clock

Over scan

PC auto setting

Select the item to adjust with .

●

Unadjustable items are greyed out. Adjustable items differ depending on the signal,

input and the display mode.

Adjust with .

Press <POSITION> to exit from adjust

mode.

■ To return to the previous screen

Press <RETURN>.

■ To reset to defaults

When [Default] is selected, pressing <ENTER> resets the adjustment values of all the displayed menus to default.

When adjusting each item, pressing <DEFAULT> resets the adjustment value of the item to default.

Note

●

When using Screen Transfer input, [Position] cannot be set.

●

Settings for [Position] are memorised separately for each input signal.

Setting [Position] when [Image rotation] is set to [180 degrees]

When [Image rotation] is set to [180 degrees], the adjustment direction becomes opposite of that in [Off] state. (see page 87)

Note these points for adjustment.

Off

Auto setup

When inputting a PC signal, [H-position] / [V-position], [H-size] / [V-size], [Clock phase] and [Dot clock] are automatically corrected.

This setting is enabled under the following condition:

●

This setting is enabled when an analogue signal (PC) is input and the aspect mode is set to [Full]. (see page 90)

While displaying the picture of the corresponding signal, select [Auto setup] and press <ENTER>.

Using Remote Control

Press <AUTO SETUP>.

When Auto Setup does not work, [Invalid] is displayed.

Note

●

When the dot clock frequency of a PC signal is 162 MHz or higher, [Clock phase] and [Dot clock] cannot be automatically corrected.

●

Auto Setup may not work when a cropped or dark image is input. In such case, switch to a bright image with borders and other objects are clearly shown, and then try auto setup again.

●

Depending on the signal, out of alignment may occur after Auto Setup. Carry out fine tuning for the position/ size as required.

●

If the automatic position adjustment is not optimized depending on the signal, switching the [Input resolution] (see page 61) setting may be able to perform the automatic position adjustment properly.

●

Accurate auto setup is not possible when a signal such as additional information is superimposed out of valid image period or when intervals between synchronizing signal and image signal are short. Also, accurate auto setup is not possible when image signals with tri level synchronizing signal added are input.

●

When [PC auto setting] is set to [On], automatic position adjustment starts under the following conditions:

When the display power is turned ON.

•

When the input signal is switched.

•

●

If Auto Setup does not work well, select [Default], press <ENTER>, and then adjust the position/size manually.

English

Page 46

[H-position] Adjust the horizontal position with .

[H-size] Adjust the horizontal size with .

[V-position] Adjust the vertical position with .

[V-size] Adjust the vertical size with .

[Clock phase]

[Dot clock] (For PC IN input)

[Over scan] Turn image over scan On/Off.

[PC auto setting]

(For PC IN input) In some cases, frame of the screen

appears blurred or smudged, when PC signal is input.

Periodic striped pattern interference (noise) may occur when a striped pattern is displayed. If this happens, adjust so that any such noise is minimized.

[On] [Off]

Note

●

This is enabled when the screen mode is set to [Full], [Zoom1] or [Zoom2].

Note this setting is disabled when using USB / MEMORY VIEWER input, multi screen display of the multi display or digital zoom.

Sets the operational mode of the automatic position adjustment in the [Position] menu.

[Off]:

Automatic position adjustment starts when <AUTO SETUP> is pressed on the remote control or automatic position adjustment is executed from the [Position] menu.

[On]:

Other than remote control or menu operation, automatic position adjustment starts:

●

When the display power is turned ON.

●

When the input signal is switched.

Note

●

In some cases, noise appears outside the area picture is displayed, but it is not a malfunction.

English

Page 47

Sound Adjustment

Press <SOUND> to display the

[Sound] menu.

Sound

Default Default

Output select

Balance

Sound mode

Bass

Treble

Surround

Auto volume

Installation

Select the item to adjust with .

●

Menu that cannot be adjusted is greyed out.

Adjust with .

Press <SOUND> to exit from adjust

mode.

■ To return to the previous screen

Press <RETURN>.

■ To reset to defaults

Press <DEFAULT> while the menu is displayed, or press <ENTER> when [Default] is selected, then the adjustment values of all the displayed menus are reset to default.

[Output select] Select the audio output.

[Balance] Adjusts left and right volumes. [Sound mode] Select for best audio.

●

In [ENGLISH(US)] OSD language, [Sound mode] and [Normal] are displayed as [AUDIO MENU] and [STANDARD].

INTERNAL SPEAKERS

Normal

Off

Stand

[INTERNAL SPEAKERS]:

Internal speakers output

[EXTERNAL SPEAKERS]:

External speakers (EXT SP terminal) output

[AUDIO OUT]:

AUDIO OUT terminal output

●

When [AUDIO OUT] is selected, the other menus are greyed out and cannot be selected.

●

Audio volume setting is memorized separately for each output.

[Normal]:

Emits the original sound.

[Dynamic]:

Accentuates sharp sound.

[Clear]:

Attenuates human voice.

[Bass] Adjusts low pitch sounds. [Treble] Adjusts high pitch sounds.

[Surround] [Off]:

Normal sound

[On]:

Surround sound

Note

●

[Bass], [Treble] and [Surround] settings are memorised separately for [Normal], [Dynamic] and [Clear] in [Sound mode].

[Auto volume] Adjusts the volume level

Note

●

This menu is available when [Clear] is selected in [Sound mode].

●

When [Auto volume] is activated ([Max] / [Mid] / [Min]), [Surround] will be [Off].

●

Use this function when the sound level is variable during TV conference, etc.

●

When listening to music, the sound volume may become off-balance between vocals and instruments, which may create a feeling of strangeness or make it difficult to hear audio due to emphasized noise. In this case, lower the adjustment level (e.g., [Max]→[Min]), or set the function to [Off].

●

For 98/86 inch models, this menu is displayed only when the main software version is 4.0000 or later.

[Installation] Switch the audio to audio suitable to

Note

●

This menu is available when [INTERNAL SPEAKERS] is selected in [Output select].

●

For 98/86 inch models, this menu is displayed only when the main software version is 4.0000 or later.

automatically. Select from among [Min], [Mid] and [Max] according to the degree of imbalance of sound level.

[Off], [Min], [Mid], [Max] (Small effect - Large effect)

the installation environment.

[Stand]:

Audio suitable to pedestal installation

[Wall mounted]:

Audio with slightly reduced sound reflection suitable to wall-hanging installation

English

Page 48

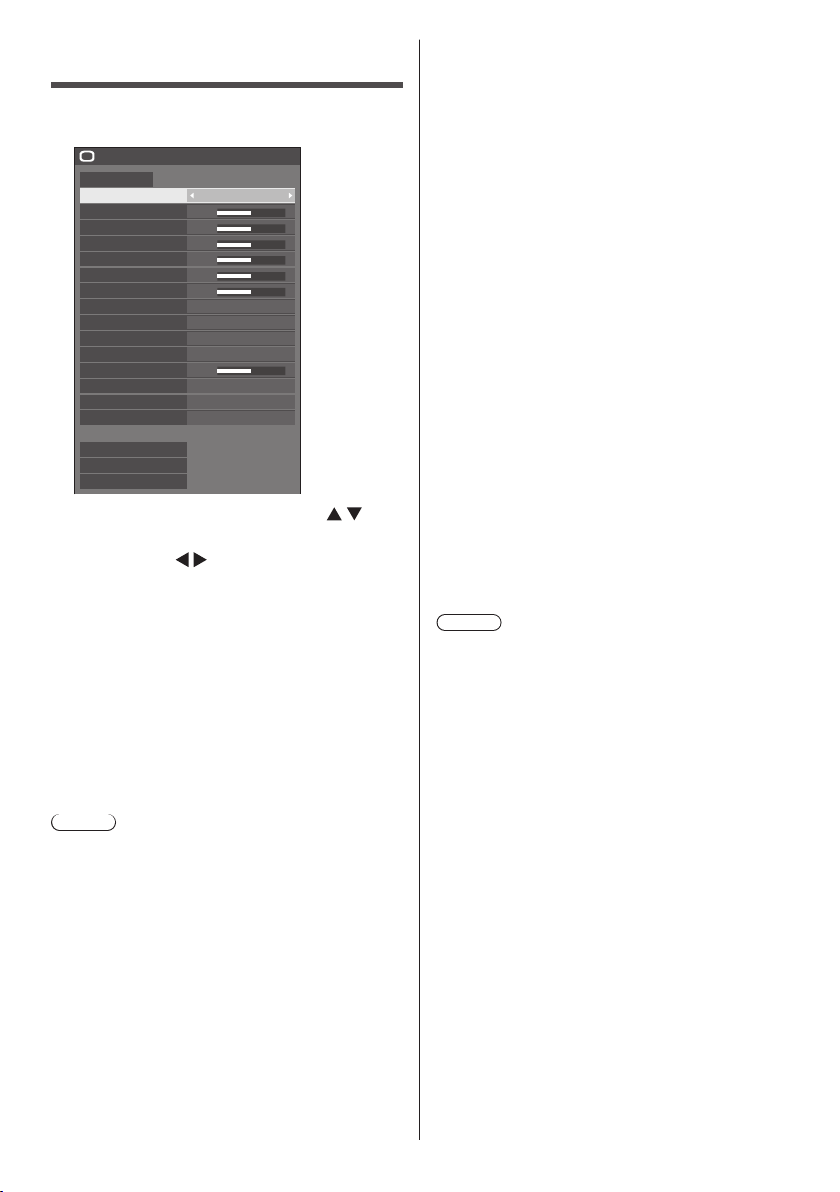

Picture Adjustments

Press <PICTURE> to display the

[Picture] menu.


Default Default

Picture mode Standard

Backlight

Contrast

Brightness

Colour

Hue

Sharpness

Gamma

Colour temperature

Colour management Dynamic contrast

Colour enhancement

Refine enhancer Gradation smoother

Memory save

Memory load

Memory edit

Select the item to adjust with .

●

Menu that cannot be adjusted is greyed out.

Adjust with .

Press <PICTURE> to exit from adjust

mode.

■ To return to the previous screen

Press <RETURN>.

■ To reset to defaults

When [Default] is selected, pressing <ENTER> resets the adjustment values of all the displayed menus to default.

When adjusting each item, pressing <DEFAULT> resets the adjustment value of the item to default.

Note

●

When displaying still pictures with the USB input (USB media player) or displaying the thumbnail screen or file list screen of the MEMORY VIEWER input (Memory viewer) (see page 124), only the following settings have an effect on the picture.

[Backlight], [Gamma], [Colour temperature]

HighEnhance level

2.2

6500K

Off

Off Off

[Picture mode] This menu switches to easy-to-

see pictures suitable to the picture source or environment where this unit is used.

[Vivid signage]:

Suitable for signage applications featuring more vivid and sharper images in bright environments such as a shop.

[Natural signage]:

Suitable for signage applications such as merchandise exhibition, featuring natural tone images with colour reproduction emphasized under light.

[Standard]:

Faithfully reproduces original picture.

[Surveillance]:

Tone-focused pictures with brightness reduced suitable for input from a monitoring camera.

[Graphic]:

Suitable for PC input.

[DICOM]:

Pictures close to the grayscale standard DICOM Part14.

●

The settings are memorised separately for each input terminal.

Note

●

DICOM is the abbreviation for “Digital Imaging and Communications in Medicine”, which is a standard for communications between medical imaging devices. Although “DICOM” is used as a picture mode name, this unit is not a medical device. Do not use displayed images for such purposes as diagnosis.

●

In [ENGLISH(US)] OSD language, [Picture mode] is displayed as [PICTURE MENU].

[Backlight] Adjusts luminance of the back light.

Darker ↔ Brighter

[Contrast] Selects the proper brightness and

density for the room.

Less ↔ More

●

In [ENGLISH(US)] OSD language, [Contrast] is displayed as [PICTURE].

[Brightness] Adjusts for easier viewing of dark

pictures.

Darker ↔ Brighter

[Colour] Adjusts colour saturation.

Less ↔ More

[Hue] Adjusts hue of skin colour.

Reddish ↔ Greenish

●

In [ENGLISH(US)] OSD language, [Hue] is displayed as [TINT].

English

Page 49

[Sharpness] Adjusts picture sharpness.

Less ↔ More

[Enhance level] Switches the effect range for

sharpness.

[High]: Large effect

[Low]: Small effect

[Gamma] Adjusts gamma.

[2.0], [2.2], [2.4], [2.6], [DICOM]:

Small tilt - Large tilt

Note

●

When [DICOM] is selected in [Picture mode], [Gamma] is fixed to [DICOM].

When the items other than [DICOM] are selected in [Picture mode], [DICOM] cannot be set for [Gamma].

[Colour temperature]

Adjusts colour tone.

[3200K], [4000K], [5000K], [6500K], [7500K], [9300K], [10700K], [Native], [User1], [User2]

Note

●

Emphasizes red when the numerical value of [Colour temperature] is small, and emphasizes blue when it is big.

●

[Native] is a colour tone of the panel element. When this is selected, [Gamma] is fixed to 2.2 or

equivalent and it cannot be adjusted.

●

When [DICOM] is selected in [Picture mode], only [6500K] and [9300K] can be selected.

User setting of [Colour temperature]

2 kinds of detailed [Colour temperature] settings ([User1] and [User2]) can be stored.

1 Press <ENTER> while setting

[Colour temperature].

Gamma

Colour temperature

2.2

6500K

Example: When [Colour temperature] is

[6500K], it is possible to reflect the set point, [6500K], to the set point of [User1] and [User2].

2 Select the user to memorise

settings with

and press

<ENTER>.

Adjust colour temperature

Change to 6500K

User1

User2

3 Select [Ye s] with and press

<ENTER>.

Adjust colour temperature

Overwrite colour temperature “User1”?

Yes No

4 Set each item on detail settings

screen.

Adjust colour temperature

User1

R gain

G gain

B gain

R bias

G bias

B bias

255

150

0 0 0

[R gain]

Adjusts the white balance for light red areas.

0 to 255

[G gain]

Adjusts the white balance for light green areas.

0 to 255

[B gain]

Adjusts the white balance for light blue areas.

0 to 255

[R bias]

Adjusts the white balance for dark red areas.

-127 to 128

[G bias]

Adjusts the white balance for dark green areas.

-127 to 128

[B bias]

Adjusts the white balance for dark blue areas.

-127 to 128

The settings are saved for the user. When you return to [Picture] menu,

the user you have set is selected for [Colour temperature].

Gamma

Colour temperature

2.2

User1

English

Page 50

[Colour management]

Adjusts the colour tone of R (red), G (green), B (blue), complementary colours (cyan, magenta and yellow) and the intermediate colours on the screen individually.

[Off]: Disables colour

management function.

[6-segment]: Enables 6-segment

colour management function.

[12-segment]: Enables 12-segment

colour management function.

1 Set [Colour management] to

[6-segment] or [12-segment], and then press <ENTER>.

12-segment

2.2

6500K

Gamma

Colour temperature

Colour management

Dynamic contrast

2 Set each item on detail settings

screen.

12-segment colour management

Select colour Red

Hue

Saturation

Value

Reset

[Select colour]

Select the colour to adjust with

[Hue]

Adjusts colour balance.

- 127 to + 127

[Saturation]

Adjusts gradations of colour.

- 127 to + 127

[Value]

Adjusts brightness of colour.

- 127 to + 127

[Reset]

Resets to defaults. Select [Yes ] with

and press <ENTER>.

●

In [ENGLISH(US)] OSD language, [Hue] is displayed as [TINT].

Note

●

When [6-segment] is selected, R (red), G (green), B (blue) and complementary colours (cyan, magenta and yellow) are adjusted respectively. When [12-segment] is selected, [6-segment] items and the intermediate colours can be adjusted.

[Dynamic contrast]

[Colour enhancement]

[Refine enhancer]

[Gradation smoother]

Automatically adjusts the contrast by determining the changes in the use of colours for images that constantly change, such as motion pictures.

No effect ↔ Large effect

Displays images by emphasising colours.

[Off], [Low], [Mid], [High]

(Small effect to Large effect)

Enhances the sense of resolution by correcting fuzzy outlines of pictures resulted from resizing, etc.

[Off], [Low], [Mid], [High]

(Small effect to Large effect)

Extracts and eliminates noise components from the input video signals, and then displays noiseless pictures.

[Off], [On]

English

Page 51

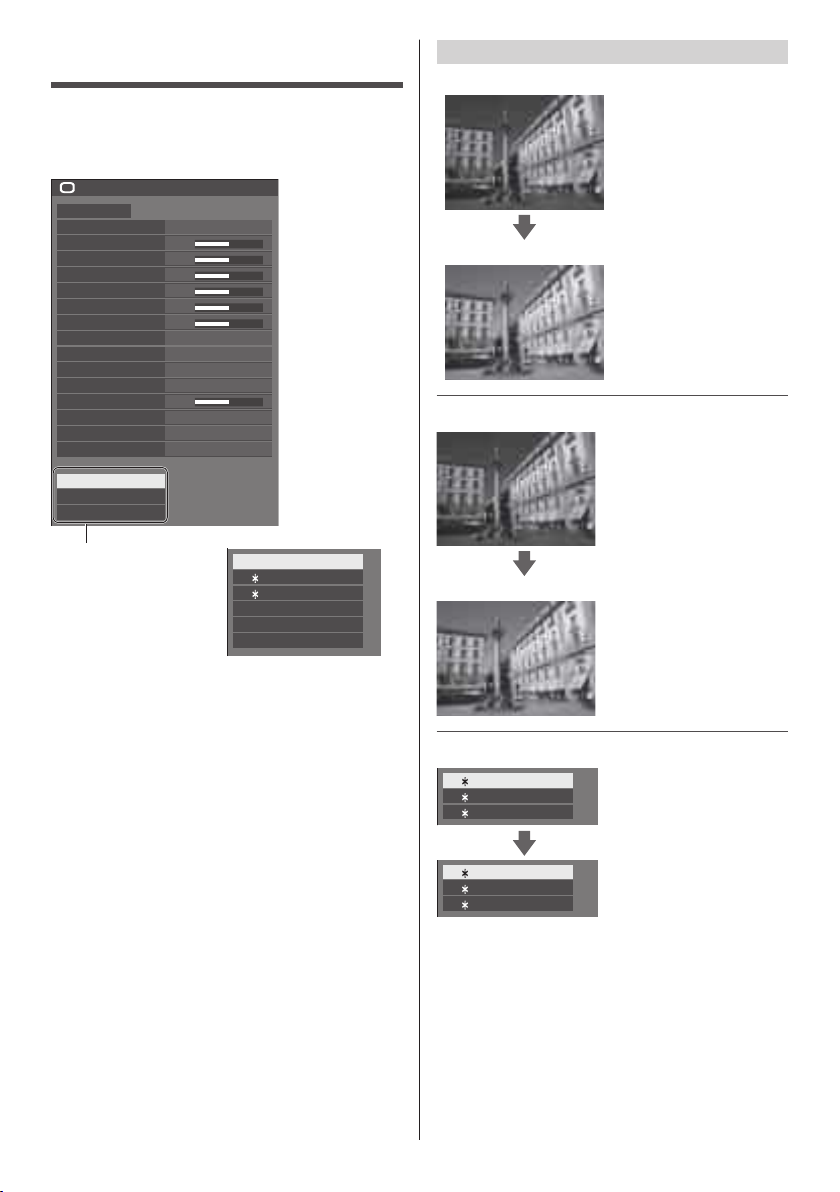

Picture Profiles

Up to 6 combinations of picture adjustment values (in the [Picture] menu) can be stored in the display memory as profiles and applied as needed, for a convenient way to enjoy your preferred picture settings.


Default Default

Picture mode Standard

Backlight

Contrast

Brightness

Colour

Hue

Sharpness

Enhance level

Gamma

Colour temperature

Colour management

Dynamic contrast

Colour enhancement

Refine enhancer

Gradation smoother

Memory save

Memory load

Memory edit

High

2.2

6500K

Off

Overview of Picture Profiles

Original picture

Adjust picture. (see page 48‒50)

Custom picture

Example: Save the picture adjustment

values in the [MEMORY1] profile.

[Memory save]

Original picture

Example: Load [MEMORY1].

[Memory load]

[Memory save]

(see page 52)

[Memory load]

(see page 53)

[Memory edit]

(see page 53)

MEMORY1

1. [ ]

MEMORY2

2. [ ]

MEMORY3

3. [ ]

4. [ ] MEMORY4

5. [ ] MEMORY5

6. [ ] MEMORY6

Custom picture

[Memory edit] screen

MEMORY1

1. [ ]

MEMORY2

2. [ ]

MEMORY3

3. [ ]

MY PICTURE

1. [ ]

MEMORY2

2. [ ]

MEMORY3

3. [ ]

Example: Change the memory name

to [MY PICTURE].

[Memory edit]

English

Page 52

Saving profiles

Follow these steps to save picture adjustment values as profiles.

Specify the picture quality in the

[Picture] menu.

(see page 48‒50)

In the [Picture] menu, select [Memory

save] with and press <ENTER>.

Memory save

Memory load

Memory edit

Select a profile name for saving the

picture adjustment values with and press <ENTER>.

Memory save

MEMORY1

1. [ ]

MEMORY2

2. [ ]

MEMORY3

3. [ ]

4. [ ] MEMORY4

5. [ ] MEMORY5

6. [ ] MEMORY6

●

] appears for a profile in which the picture

[

adjustments have already been saved.

Select [Ok] with and press

<ENTER>.

Memory save

When you finished entering the profile

name, select [Ok] with and press <ENTER>.

MY MEMORY1

●

To cancel saving the profile, select [Cancel].

█

1 2 3 4 5 6 7 8 9

a b c d e f g h i j

k l m

u v w x y z

n o p q r s t

–

a/A/@

OkCancelAll deleteDelete

Save the adjusted value in ”MEMORY1”

Ok Cancel

Enter a profile name with .

●

Entering characters (see page 137)

█

MEMORY1

1 2 3 4 5 6 7 8 9

b c d e f g h i j

n o p q r s t

a/A/@

k l m

u v w x y z

English

–

OkCancelAll deleteDelete

Page 53

Loading profiles

Load profiles and apply the picture adjustment values to the display as follows.

In the [Picture] menu, select [Memory

load] with and press <ENTER>.

Memory save

Memory load

Memory edit

Select the profile to load with and

press <ENTER>.

Memory load

MEMORY1

1. [ ]

MEMORY2

2. [ ]

MEMORY3

3. [ ]

Loading profiles using numeric buttons on the remote control.

Eachnumericbutton<1>‒<6>isallocatedfor

loading [MEMORY1] to [MEMORY6]. [Function button settings] (see page 84)

Press any of <1> ‒ <6>.

Select [Ok] with and press

<ENTER>.

Memory load

Load from “MEMORY2”

Ok Cancel

When profile is being loaded, profile name is displayed.

Full

Memory name: MEMORY2

Note

●

Loaded profiles are stored in memory according to the selected input terminal.

Editing profiles

Delete or rename profiles as follows.

■ Deleting profiles

In the [Picture] menu, select [Memory

edit] with and press <ENTER>.

Memory save

Memory load

Memory edit

Select [Memory delete] with and

press <ENTER>.

Memory edit

Memory delete

Memory name change

Select the profile to delete with

and press <ENTER>.

Memory delete

MEMORY1

1. [ ]

MEMORY2

2. [ ]

MEMORY3

3. [ ]

All delete

●

To delete all profiles, select [All delete].

Select [Ok] with and press

<ENTER>.

Memory delete

Delete the ”MEMORY1” data

Ok Cancel

■ Renaming profiles

In the [Picture] menu, select [Memory

edit] with and press <ENTER>.

Memory save

Memory load

Memory edit

Select [Memory name change] with

and press <ENTER>.

Memory edit

Memory delete

Memory name change

Select the profile to rename with

and press <ENTER>.

Memory name change

MEMORY1

1. [ ]

MEMORY2

2. [ ]

MEMORY3

3. [ ]

English

Page 54

Enter a name for the profile with

●

Entering characters (see page 137)

█

MEMORY1

1 2 3 4 5 6 7 8 9

a b c d e f g h i j

k l m

u v w x y z

When you finished entering the profile

n o p q r s t

–

a/A/@

OkCancelAll deleteDelete

name, select [Ok] with and press <ENTER>.

a/A/@

●

To cancel renaming the profile, select [Cancel].

OkCancelAll deleteDelete

English

Page 55

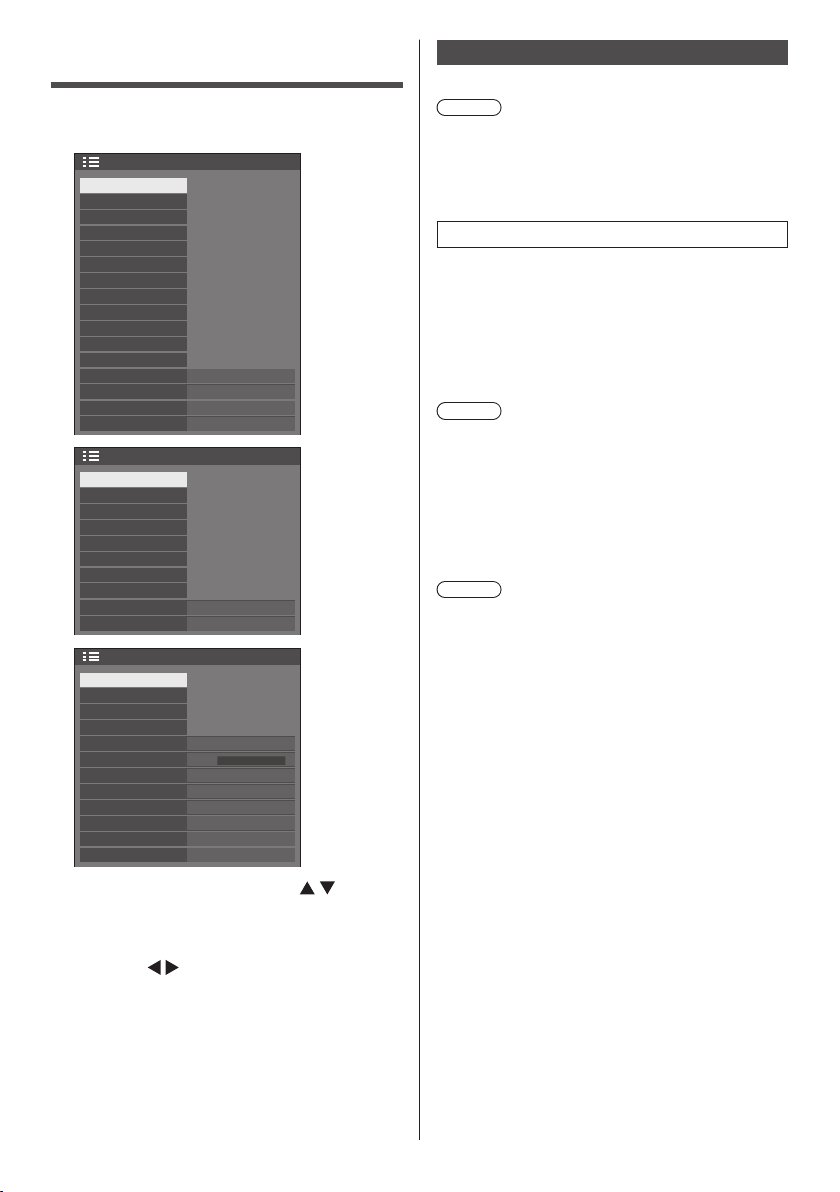

Setup menu

Press <SETUP> to display the [Setup]

menu.

Off

Enable

Disable

Off

DVI-D

MP1

Off

1/3

2/3

3/3

Setup

Multi display settings

Portrait settings

Signal

Power on settings

Input search

Failover/Failback

Screensaver

Input label

Power management settings

Audio input select

HDMI-CEC settings

Image settings Input lock

Off-timer function

No activity power off

OSD language

Setup

Set up timer

Date and time

Network settings

USB media player settings

Memory viewer settings

Screen Transfer settings

Function button settings

OSD settings

Display orientation

Image rotation

Setup

Options

Control settings

Information timing

SLOT settings

Maximum VOL function

Maximum VOL level

Button lock

POWER button lock

Controller user level

DVI-D/SLOT select

USB select

Quick input change mode

Select the item to set with .

●

Menu that cannot be adjusted is greyed out.

English(UK)

Landscape

Adjustable menu changes depending on signal input and menu setting.

Set with .

Press <SETUP> to exit from adjust

mode.

Multi display settings

Set the screen display mode.

Note

●

Set the input to something other than [Screen Transfer] / [MEMORY VIEWER], and then set [Multi display settings].

●

While this menu is displayed, aspect mode will be [16:9].

1. [Multi display settings]

■ [Multi screen display]

[Off]:

The display is not divided when enlarged.

[On]:

The display is divided when enlarged.

When [On] is set, the display aspect is [Full].

Note

●

When [Portrait display] is [On], this menu will be greyed out and cannot be set. (see page 58)

■ [Multi input display]

[Off]:

Disables the multi input display.

[On]:

Enables the multi input display.

Note

●

This menu will be greyed out and cannot be set under the following condition.

When [USB media player settings] - [Schedule play

•

function] is set to [Enable]. (see page 81)

■ [Screen type]

Displays the detailed settings for [Multi display settings].

Set the display format in each item.

[Multi input display]:

Displays the detailed settings to display images input from multiple terminals on the screen simultaneously.

For remote control operation for the multi input display, refer to “Using multi input display function of the multi display” (see page 129).

[Multi screen display]:

Displays the detailed settings to display the image enlarged as one group with multiple displays aligned in horizontal direction and vertical direction respectively.

■ To return to the previous screen

Press <RETURN>.

English

Page 56

2. [Screen type]: [Multi input display]

The screen is divided into several screens, and images input from multiple terminals are displayed simultaneously.

[Multi display settings] - submenu screen ([Multi input display]: [4 input display])

Multi display settings

Multi screen display Off

Multi input display Off

Screen type

Display format

Input (Upper/Left)

Input (Upper/Right)

Input (Lower/Left)

Input (Lower/Right) PC

Sound output Off

Multi input display

4 input display

HDMI1

HDMI2

DVI-D

Note

●

Displayed contents on the screen differ depending on the [Display format] setting.

■ [Display format]

Set the display mode of the multi input display.

[4 input display]:

The screen is divided into four screens, and four input images are displayed simultaneously.

1 2

3 4

In the portrait setting, the screen configurations are shown below.

[4 input display]:

1 2

3 4

[Picture in picture]:

2 211

2 112

[Picture by picture]:

1 2

[Picture in picture]:

With two-screen configuration of the main screen and sub screen, two input images are displayed simultaneously.

[Picture by picture]:

With two-screen configuration of top and bottom screens or right and left screens, two input images are displayed simultaneously.

1 2

English

Page 57

2-1 [4 input display] detailed settings

■ [Input (Upper/Left)] to [Input (Lower/Right)]

Set the input to display on the screen.

[HDMI1] / [HDMI2] / [DisplayPort] / [DVI-D] / [SLOT] / [PC]

■ [Sound output]

Set the terminal to output audio.

[Off] / [Upper/Left] / [Upper/Right] / [Lower/Left] / [Lower/Right] / [AUDIO IN1] / [AUIDIO IN2]

2-2 [Picture in picture] detailed settings

■ [Sub picture location]

Set the position of the sub screen.

[Upper/Left] / [Upper/Right] / [Lower/Left] / [Lower/ Right]

■ [Input(Main)] to [Input(Sub)]

Set the input to display on the screen.

[HDMI1] / [HDMI2] / [DisplayPort] / [DVI-D] / [SLOT] / [PC]

■ [Sound output]

Set the terminal to output audio.

[Off] / [Main] / [Sub] / [AUDIO IN1] / [AUIDIO IN2]

2-3 [Picture by picture] detailed settings

■ [Picture location]

Set the display position of the screen.

[Upper/Lower] / [Left/Right]

■ [Input(Upper)], [Input(Lower)] or

[Input(Left)], [Input(Right)]

Set the input to display on the screen.

[HDMI1] / [HDMI2] / [DisplayPort] / [DVI-D] / [SLOT] / [PC]

■ [Sound output]

Set the terminal to output audio.

[Off] / [Upper] / [Lower] (or [Left] / [Right]) / [AUDIO IN1] / [AUIDIO IN2]

3. [Screen type]: [Multi screen display]

1 to 10 displays can be aligned in horizontal direction and vertical direction respectively, and those displays are regarded as one group. The enlarged image is shown on the combined display.

[Multi display settings] - submenu screen ([Multi screen display])

Multi screen display

Multi input display Off

Screen type Multi screen display

Horizontal scale

Vertical scale

Bezel H adjustment

Bezel V adjustment

Location

Note

●

The settings are memorised separately for each input terminal.

●

When [Multi screen display] is set to [Off], adjust to the same angle of view for [Position] (see page

45). Then, set [Multi screen display] to [On]. Again, make fine adjustment of the angle of view for [Position].

●

The [Position] menu can be adjusted in the multi screen display status.

●

In multi screen setup, the aspect is set to [Full].

●

For USB input, [Horizontal scale] and [Vertical scale] can be set only with the following combinations.

1 × 2, 1 × 3, 1 × 4, 2 × 1, 2 × 2, 3 × 1, 4 × 1

Off

0 0

■ [Horizontal scale]

Set the horizontal scale in the multi screen display.

1 to 10

■ [Vertical scale]

Set the vertical scale in the multi screen display.

1 to 10

Example: [Horizontal scale] [5] and [Vertical scale] [5] is set in

the multi screen display

Note

●

The multi input display does not support interlace signal.

English

Page 58

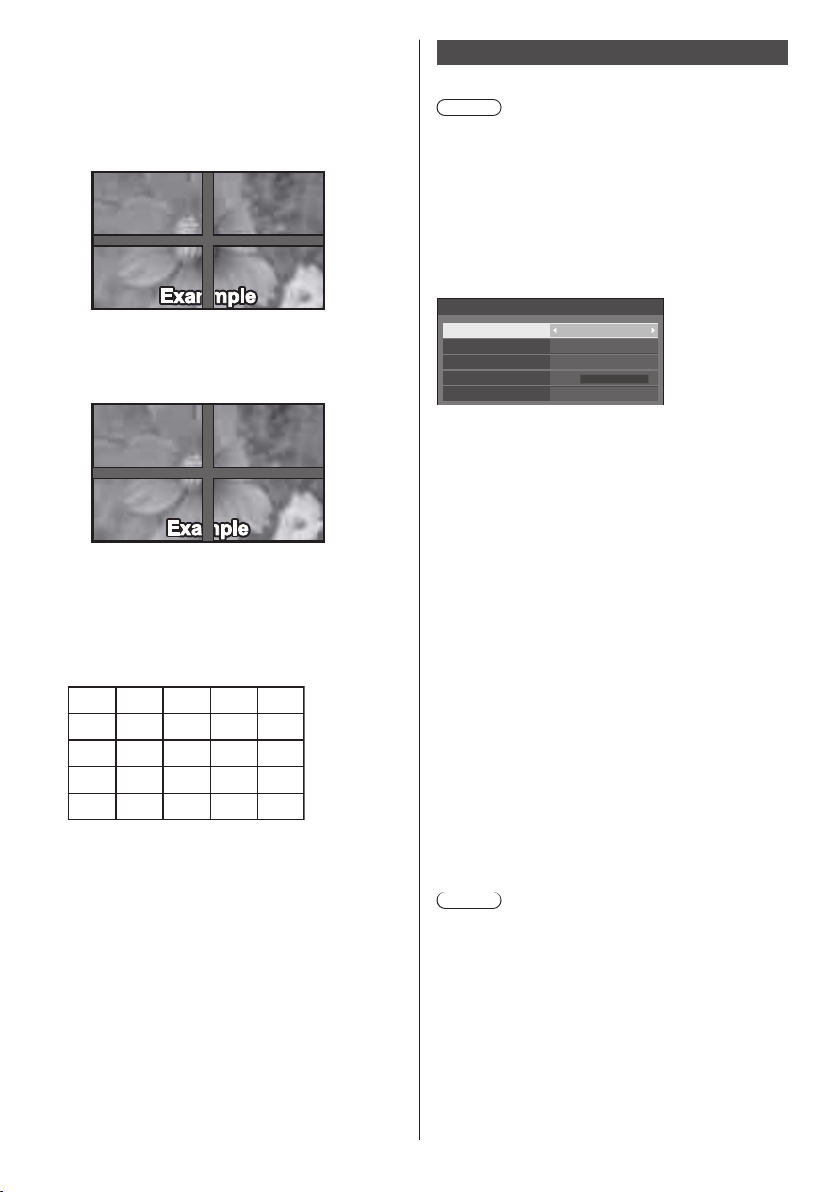

■ [Bezel H adjustment] / [Bezel V adjustment]

Adjust the area of image hidden in the joint horizontally and vertically respectively.

0 to 100

Display example:

Setting value: 0

Displays the entire image including the joint area. (Suitable when displaying character information on PC.)

Setting value: 100

Does not display the image of the joint area. (Suitable when displaying motion pictures.)

■ [Location]

Assign screen positions on the multi-screen. Example: [Horizontal scale] [10], [Vertical scale] [10]

....

A9 B9

....

A10 B10

....

I10

J10

A1 A2 B1 B2

.... ....

I1 I2 I9

J1 J2 J9

Select from A1 - J10.

●

The displayed content for setting changes according to the settings for the [Horizontal scale] and [Vertical scale].

●

By setting [Multi screen display] to [Off], it is possible to check the location on the screen while the setting menu is displayed.

●

If [Image rotation] is set to [180 degrees], the enlarged location also rotates. (see page 87)

Portrait settings

This function displays input images by rotating 90°.

Note

●

Set to the input other than [Screen Transfer] / [MEMORY VIEWER], and then set [Portrait settings].

●

For video or picture you want to display, use the ones with16:9 resolutions.

●

About playing back with USB input, refer to “Using “USB media player”” (see page 111).

●

While this menu is displayed, aspect mode will be [16:9].

[Portrait settings] - submenu screen

Portrait settings

Portrait display

No. of displays

Display format

Bezel adjustment

Location

Off

Mode 1

■ [Portrait display]

[Off]:

Disables portrait display.

[On]:

Enables portrait display.

When it is set to [On], aspect mode will be [16:9].

■ [No. of displays]

Set the number of displays comprising the portrait display.

1, 3

■ [Display format]

[Mode 1]:

Displays images without missing portion, however, some portion of the input images on the right and left is cut.

[Mode 2]:

Displays the entire input images, however, some portion of the images on top and bottom is not displayed.

[Mode 3]:

Displays the entire input images so that the image is displayed without missing portion.

Note

●

[Mode 1] and [Mode 2] keep the aspect ratio 16:9 but [Mode 3] doesn’t.

■ [Bezel adjustment]

Adjusts the area of image hidden in the joint area on the portrait screen.

0 to 100

English

Page 59

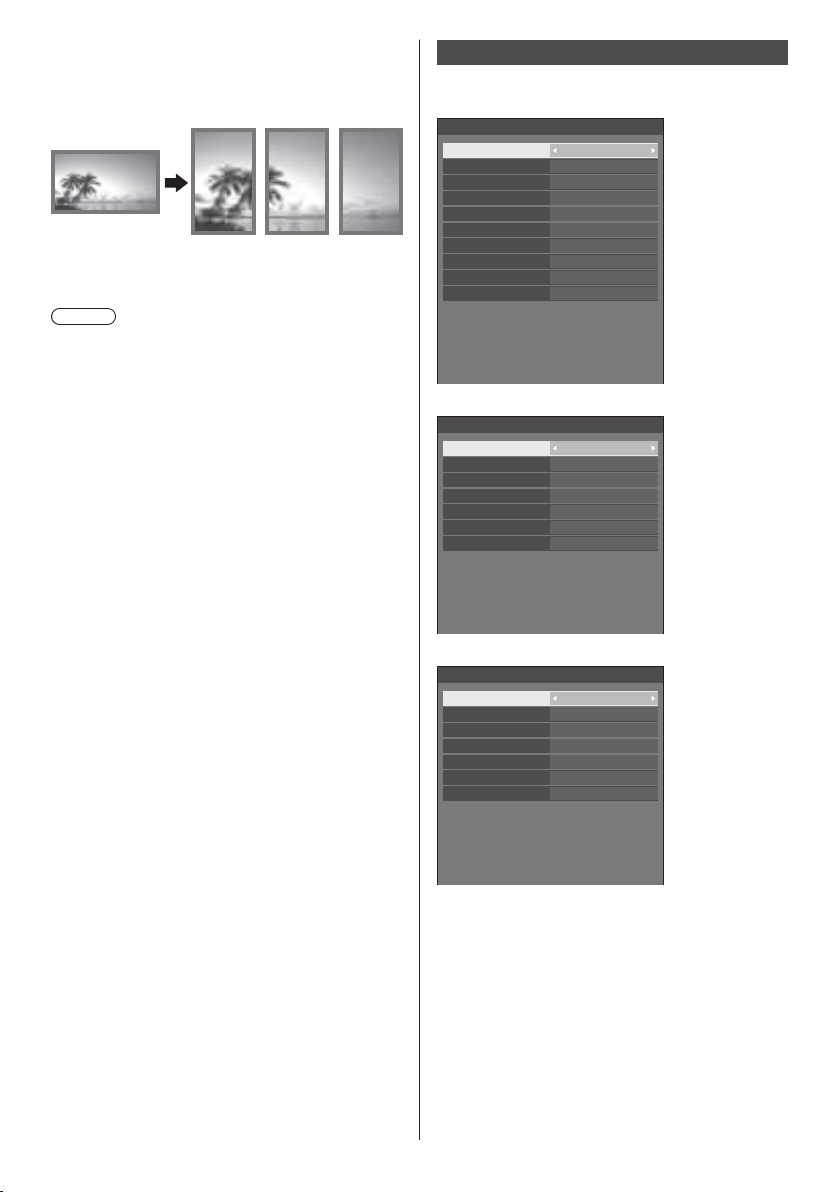

■ [Location]

Assign the positions of portrait screens.

1 to 3

Portrait screen display example

1 2 3

When [Portrait display] is set to [Off], the enlarged

•

position can be confirmed on the screen if [No. of displays] is set to [3].

Note

●

The settings are memorised separately for each input terminal.

●

It is possible to set [Display format], [Bezel adjustment] and [Location] when [No. of displays] is [3].

●

This menu will be greyed out and cannot be set under the following conditions.

When [Multi screen display] is [On] (see page 55)

•

When [USB media player settings] - [Schedule play

•

function] is [Enable] (see page 81)

●

When [Portrait display] is [On], the aspect mode cannot be changed. (see page 40)

●

For 98 and 86 inch models, this setting is displayed only when the main software version is 3.0000 or later.

Signal

Examples of [Signal] submenu screen When HDMI is selected

Signal

YUV/RGB-in select

Cinema reality

Noise reduction

MPEG noise reduction

Signal range

Frame creation Off

Dynamic backlight control

EDID select 4K/60p/HDR

Dynamic range

Colour gamut Auto

H-freq.

V-freq.

Dot clock freq.

Signal format

HDCP status None

When DisplayPort is selected

Signal

YUV/RGB-in select YUV

Cinema reality

Noise reduction

MPEG noise reduction

Signal range

Frame creation Off

Dynamic backlight control

H-freq.

V-freq.

Dot clock freq.

Signal format

HDCP status

When DVI-D / DIGITAL LINK / SLOT is selected

Signal

YUV/RGB-in select

Cinema reality

Noise reduction

MPEG noise reduction

Signal range

Frame creation

Dynamic backlight control

H-freq.

V-freq.

Dot clock freq.

Signal format

HDCP status None

YUV

Auto

Full(0-255)

Auto

33.72 kHz

60.00 Hz

74.18 MHz

1080/60i

Auto

Full(0-255)

33.72 kHz

60.00 Hz

74.18 MHz

1080/60i

None

YUV

Auto

Full(0-255)

33.72 kHz

60.00 Hz

74.18 MHz

1080/60i

Off

English

Page 60

When PC is selected

Signal

Component/RGB-in select

Sync Auto

Cinema reality Off

Noise reduction MPEG noise reduction

Input resolution

Input level

Frame creation

Dynamic backlight control

H-freq.

V-freq.

Dot clock freq.

Signal format

RGB

Auto

Off

Auto

Off

74.04 kHz

59.95 Hz

154.00 MHz

1920x1200/60

When Screen Transfer is selected

Signal

Noise reduction

MPEG noise reduction

Auto

Off

When USB / MEMORY VIEWER is selected

Signal

Noise reduction

MPEG noise reduction

Frame creation Off

Auto

Off

Note

●

[Signal] setup menu displays a different setting condition for each input signal.

●

Menu that cannot be adjusted is greyed out.

■ [Component/RGB-in select]

This menu is displayed at PC signal input. Select to match the signals from the source

connected to PC IN terminal.

[Component]:

BPR/YCBCR signals

[RGB]:

RGB signals

■ [YUV/RGB-in select]

This menu is displayed at HDMI 1, HDMI 2, DisplayPort, DIGITAL LINK, DVI-D IN and SLOT inputs.

Select to match the signals from the source connected to each terminal.

[Auto]:

YUV/RGB setting is automatically switched.

[YUV]:

YUV signals

[RGB]:

RGB signals

Note

●

Set for each input terminal (HDMI 1, HDMI 2, DisplayPort, DIGITAL LINK, DVI-D IN, SLOT).

●

With DIGITAL LINK input, it is possible to set to [YUV] and [RGB] only. It cannot be set to [Auto].

■ [Sync]

This menu is displayed at PC IN input.

Setting RGB/PC sync signal

[Auto]:

The H and V sync or synchronized signal is automatically selected.

[on G]:

Uses a synchronized signal on the Video G signal, which is input from the G connector.

[HV sync]:

Uses a synchronized signal on the Video HD/VD signal, which is input from the HD/VD connector.

Setting Component sync signal

[Auto]:

The H and V sync or synchronized signal is automatically selected.

[on Y]:

Uses a synchronized signal on the Video Y signal, which is input from the Y connector.

[HV sync]:

Uses a synchronized signal on the Video HD/VD signal, which is input from the HD/VD connector.

■ [Cinema reality]

Faithfully reproduces videos shot with cinema films. Set this to [Off] normally.

Note

●

In [ENGLISH(US)] OSD language, [Cinema reality] is displayed as [3:2 PULLDOWN].

●

If [Cinema reality] is set to [On], videos including movies shot at 24 frames per second are reproduced more naturally.

●

If the video is unnatural with [On] set, set it to [Off].

■ [Noise reduction]

Reduces picture noise.

[Off]:

Disables [Noise reduction].

[Min], [Mid], [Max]:

Sets strength of [Noise reduction].

[Auto]:

[Noise reduction] will be automatically selected from [Min], [Mid] or [Max].

■ [MPEG noise reduction]

Reduces block noise and mosquito noise on MPEG videos.

[Off]:

Disables [MPEG noise reduction].

[Min], [Mid], [Max]:

Sets strength of [MPEG noise reduction].

English

Page 61

■ [Input resolution]

98-inch model

86-inch model

75-inch model

This menu is displayed at PC IN input. Set the resolution of PC input. This setting is

necessary only when this unit cannot correctly detect the resolution of PC input.

The setting can be changed when the applicable signals are received. The setting combinations are as follows.

[Auto] / [1024x768] / [1280x768] / [1360x768] /

•

[1366x768] [Auto] / [1400x1050] / [1680x1050]

•

[Auto] / [1600x1200] / [1920x1200]

•

Note

●

Make each adjustment (such as [Auto setup]) on the [Position] menu as necessary. (see page 45)

■ [Signal range]

This menu is displayed at HDMI1, HDMI2, DisplayPort, DIGITAL LINK, DVI-D IN and SLOT inputs. Switches the dynamic range to match the signals from the source connected to each terminal.

[Video(16-235)]:

If the input signal is the video range

Example: HDMI terminal output for DVD player

[Full(0-255)]:

If the input signal is full range

Example: HDMI terminal output for personal computer

[Auto]:

Switches the dynamic range automatically between [Video(16-235)] and [Full(0-255)] according to the input signal.

Note

●

[Auto] can be selected at HDMI, DisplayPort, DIGITAL LINK and SLOT signal inputs.

■ [Input level]

This menu is displayed at PC IN input. Adjustment of parts which are extremely bright and

hard to see.

-16 to +16:

(Levellow)‒(Levelhigh)

■ [Frame creation]

( only)

Improves motion picture quality. Select [Off] when the motion picture looks unnatural.

[Off]:

Disables [Frame creation].

[On]:

Enables [Frame creation].

Note

●

[Frame creation] is a function for 98/86/75-inch models. This function is not available for 65/55/49inch models.

■ [Dynamic backlight control]

Improves picture contrast and alleviates whiteness by controlling the back light when signals with the low average brightness level (APL) are input.

[On]:

Enables [Dynamic backlight control].

[Off]:

Disables [Dynamic backlight control].

Note

●

The screen may become dark if menu operation or input signal switching is performed while the onscreen menu is being displayed with this function set to [On]. Hiding the on-screen menu will restore the screen to the appropriate brightness.

●

If the [Dynamic backlight control] setting is different for each input, the screen brightness may change by switching input.

●

Depending on the displayed image, the screen may flicker. If this annoys you, set [Dynamic backlight control] to [Off].

■ [EDID select]

This menu is displayed in HDMI 1 and HDMI 2 inputs. EDID data of each terminal is switched.

[4K/60p/SDR]:

Sets EDID compatible with 4K video signals (Max. 4 096 x 2 160 dots, Max. vertical operation frequency 60 Hz).

This EDID supports SDR (Standard Dynamic Range). HDR (High Dynamic Range) is not supported.

[4K/60p/HDR]:

Sets EDID compatible with 4K video signals (Max. 4 096 x 2 160 dots, Max. vertical operation frequency 60 Hz).

This EDID supports HDR (High Dynamic Range).

[4K/30p]:

Sets EDID compatible with 4K video signals (Max. 4 096 x 2 160 dots, Max. vertical operation frequency 30 Hz).

[2K]:

Sets EDID compatible with 2K video signals (Max. 1 920 x 1 200 dots).

Note

●

If [4K/60p/SDR] or [4K/60p/HDR] is selected and pictures are not displayed correctly during 4K video signal input, switch the setting to [4K/30p].

●

If [4K/60p/SDR], [4K/60p/HDR] or [4K/30p] is selected and pictures are not displayed correctly during 2K or lower video signal input, switch the setting to [2K].

●

For details of signals written in EDID of [4K/60p/ SDR], [4K/60p/HDR], [4K/30p] and [2K], see “Preset Signals” (see page 138).

English

Page 62

■ [Dynamic range]

This menu is displayed in HDMI 1 and HDMI 2 inputs. Switches the dynamic range.

[Auto]:

Sets automatically according to the AVIInfoFrame information.

[HDR(PQ)]

Sets the dynamic range in compatible with HDR (PQ (Perceptual Quantization)).

[HDR(HLG)]:

Sets the dynamic range in compatible with HDR (HLG (Hybrid Log Gamma)).

[SDR]:

Sets the dynamic range in compatible with SDR.

■ [Colour gamut]

This menu is displayed in HDMI 1 and HDMI 2 inputs. Switches the colour gamut.

[Auto]:

Sets the colour gamut automatically according to the ITU-2020 emu. information of AVIInfoFrame.

[Native]:

Displays with the colour space unique to this unit.

[ITU-2020 emu.]:

Displays with the colour space close to the ITU-R BT2020 standard.

■ Input signal display

Displays the frequency and the type of the current input signal.

33.72 kHz

H-freq.

60.00 Hz

V-freq.

Dot clock freq.

Signal format

HDCP status None

Display range:

Horizontal(15kHz‒135kHz)

Vertical(24Hz‒120Hz)

The dot clock frequency is displayed when Digital and PC signal are input.

The HDCP status information is displayed when digital signals are input.

74.18 MHz

1080/60i

Power on settings

Makes various settings at power-on. [Power on settings] - submenu screen

Power on settings

Initial input

Initial startup

Initial VOL function

Initial VOL level

Power ON screen delay

Information(No activity power off)

Information(Power management)

Information(Display upside-down)

Quick start Off

Off

Last memory

Off

■ [Initial input]

Sets the input at power-on.

[Off] / [HDMI1] / [HDMI2] / [DisplayPort] / [DIGITAL LINK] / [DVI-D] / [SLOT] / [PC] / [Screen Transfer] / [USB] / [MEMORY VIEWER] / [Multi input display]

Note

●

When [Input lock] is set to the item other than [Off], this menu will be greyed out and cannot be set. (see page 74)

■ [Initial startup]

Sets the power status of the main unit when the power plug is inserted/extracted, or when the power is restored from instantaneous interruption due to blackout, etc.

[Last memory]:

Restored to the state before the power is turned off.

[On]:

Restored to the power-on state. (power indicator: green)

[Standby]:

Restored to the standby state. (power indicator: red / orange)

Note

●

When multiple units are installed, it is recommended to select [Standby] to reduce the load when the power is restored.

■ [Initial VOL function]

Enables/Disables the volume setting function at power-on.

[Off]:

Volume before power-off

[On]:

Volume set for [Initial VOL level]

English

Page 63

■ [Initial VOL level]

Sets the sound volume when [Initial VOL function] is enabled.

Note

●

The sound is output with the set volume when [Initial VOL function] on the menu is in [On] state.

●

When [Maximum VOL function] is set to [On], the volume cannot be set to the level higher than the level set for [Maximum VOL level].

■ [Power ON screen delay]

When multiple displays are installed and are turned on simultaneously, this function distributes the load of power by delaying the power supply timing of each display. Setting is required for each display.

[Off]:

The powers are supplied at the same time as power-on.

[Auto]:

The delay time is automatically set according to the numbers set for display IDs.

The delay time is determined by multiplying a display ID by 0.3 seconds.

Example: If the display ID is 3, the delay time is 0.9 seconds.

1 - 30:

Sets the delay time (sec.). The powers are supplied to the display with the set time of delay after power-on.

Note

●

The power indicators blink green from start to end of the delay operation process.

●

This function also works when the power plug is inserted/extracted, or when the power is restored from instantaneous interruption due to blackout, etc.

■ [Information(No activity power off)]

Sets the display/non-display of the no-activity-autopower-off warning message when the power is turned on.

[On]:

The warning message is displayed when the power is turned on.

[Off]:

The warning message is not displayed when the power is turned on.

Note

●

This setting is enabled when [No activity power off] is [Enable]. (see page 74)

■ [Information(Power management)]

Sets the display/non-display of a message that tells the power has been turned off by the power management function when the power is turned on.

[On]:

The message is displayed when the power is turned on.

[Off]:

The message is not displayed when the power is turned on.

Note

●

This setting is enabled when “Power management” function is [On]. (see page 69)

■ [Information(Display upside-down)]

Sets the display/non-display of a message that tells the unit is not installed in the correct orientation when the power is turned on.

(About [Display orientation], see page 86)

[On]:

The message is displayed when the power is turned on.

[Off]:

The message is not displayed when the power is turned on.

Note

●

If a reverse installation message is displayed, other messages at power-on are not displayed.

●

For 98 and 86 inch models, this setting is displayed only when the main software version is 3.0000 or later.

■ [Quick start]

This function quickly turns the power on at power-on.

[On]:

Quickly turns the power on at power-on.

[Off]:

Turns the power on in a usual manner at power-on.

Note

●

When this function is set to [On], power consumption is increased in standby mode.

●

This setting is displayed only when the main software version is 4.2000 or later.

English

Page 64

Input search

When a signal is not detected, another input with a signal is automatically selected.

Note

●

MEMORY VIEWER / Screen Transfer input is excluded from this function.

Input search

1st search input

2nd search input

Custom

(None)

■ [Input search]

[Off]: When there is no signal, the input is

[All inputs]:

Note

●

The inputs set to [(Skip)] in [Input label] (see page 69) are skipped when searching.

[Custom]: Repeatedly searches [Current input],

[Input detection]:

[Searching...] is displayed during the input search.

not switched automatically.

Searches all inputs and switches to an input with a signal.

Input search is executed in the following order.

Example: When the current input is

HDMI1

[HDMI2] → [DisplayPort] → [DIGITAL LINK] → [DVI-D] (or [SLOT]) → [PC] → [USB] → [HDMI1] →

[1st search input] and [2nd search input] in order, and switches to an input with a signal.

Monitors the inputs set to [On], detect the status change from no signal to signal present, and switches to the input.

Searching...

■ [Input search]: [Custom]

[1st search input], [2nd search input]

Set the input to search when [Custom] is selected.

[HDMI1] / [HDMI2] / [DisplayPort] / [DIGITAL LINK] / [DVI-D] / [SLOT] / [PC] / [USB] / [(None)]

■ [Input search]: [Input detection]

Input search

HDMI1

HDMI2

DisplayPort Off

DIGITAL LINK Off

DVI-D

PC Off

Changing delay

Input detection

Off

Sets the input to monitor during [Input detection].

[HDMI1] / [HDMI2] / [DisplayPort] / [DIGITAL LINK] / [DVI-D] / [PC]

[Off]: The input is not monitored. [On]: The input is monitored.

■ [Changing delay]

Sets the delay time until the input is switched during [Input detection].

[Off]: Switches the input if a signal is interrupted

even for a very short period.

1 ‒ 10: Sets the delay time (sec.).

Switches the input when the set time has elapsed after detecting no signal is present.

However, if the detection period during which no signal is present is shorter than the set delay time, the input is not switched.

Note

●

[Input detection] is the function that automatically switches the input as below by monitoring the presence of signal for the set input.

If a video signal is input to the set input that is

•

not displayed (When the status has changed from signal absent to signal present.), the input is selected and switched.

If no signal is detected for the displayed input, the

•

setting switches to the set input to which a signal is input. Also, if no signal is present for the displayed input when the power is turned on or when the input is switched, the setting switches to the set input to which a signal is input. When signals are input to multiple set inputs, the priority order as default (immediately after power-on) is as follows: HDMI1, HDMI2, DisplayPort, DIGITAL LINK, DVI-D, PC.

In the other case (When the input is switched after power-on), the input displayed last takes priority.

●

[Changing delay] is the function to prevent the accidental input switch during a short period, such as when the signal is interrupted due to the frequency change for the input signal while [Input detection] is operating.

If a signal is detected again within the set period (sec.), the input is not switched.

●

[Input detection] may not operate correctly depending on the image playback device.

English

Page 65

Note

●

When set to the USB input, the unit determines no signal is present if the USB memory is not connected to the USB terminal.

In addition, even when a USB memory is connected, if there is no playable file, the unit determines no signal is present.

●

This menu will be greyed out and cannot be set under the following conditions.

[Failover/Failback] is set to the item other than

•

[Off]. (see page 65) [Power management mode] is set to [Input

•

detection]. (see page 69) [Input lock] is not set to [Off]. (see page 74)

•

When [Setup] - [Image settings] - [No signal image

•

settings] - [Display setting] is set to [On]. (see page

73) [SLOT power link] is set to [On]. (see page 88)

•

●

If the input is changed by this function, the last input is selected when the power is turned on next time.

If you wish to retain the original input when the power is turned on, set [Initial input] to the original input. (see page 62)

Failover/Failback

Automatically switches to the backup input if an interruption of video occurs.

Note

●

MEMORY VIEWER / Screen Transfer input is excluded from this function.

1. Setting the input change mode

■ [Input change mode]

[Off]:

Disables the Backup Input function.

Failover/Failback

Input change mode Off

[Quick]:

Promptly switches to the backup input if an interruption of video occurs.

The backup video signal needs to be in the same format as the (main) input in use for viewing.

Upon switching to the backup input, the video and audio adjustment values for the (main) input used for viewing will be inherited.

Failover/Failback

Input change mode

Primary backup input

Secondary backup input

Auto switch back mode

Changing mode High speed

Backup input change

Main input

Current input

Quick

HDMI1

HDMI2

Disable

Active

HDMI2

Main input

[Normal]:

Switches to the backup input if an interruption of video occurs.

The backup video signal does not need to be in the same format as the (main) input in use for viewing.

Upon switching to the backup input, the video and audio adjustment values for the backup input will be used.

English

Page 66

1-1 [Input change mode]: [Quick] detailed

settings

Promptly switches to the backup input if an interruption of video occurs, and enables switching between digital (HDMI1 / HDMI2) inputs.

Note

●

This function will start operating once a video signal is detected by both the input in use for viewing and the backup input and the [Backup input change] item is displayed as [Active].

●

This function may not operate correctly depending on the image playback device or video signal.

■ [Primary backup input]

Sets the first priority backup input.

(None) / [HDMI1] / [HDMI2] / DisplayPort] / [DVI-D] / [SLOT]

The input that is of the same type as the one in use for viewing will be greyed out.

■ [Secondary backup input]

Sets the second priority backup input.

(None) / [HDMI1] / [HDMI2] / DisplayPort] / [DVI-D] / [SLOT]

The input that is of the same type as the one in use for viewing will be greyed out.

■ [Auto switch back mode]

Sets whether or not to automatically return to the former (main) input when the former input video initially viewed is restored while viewing the video of the backup input enabled by the operation of the Backup Input function.

[Disable]:

Unreturned

[Enable]:

Returned

■ [Changing mode]

Select speed of input switching.

[High speed]:

If switching between the same signal formats, it is possible to switch within 1 second.

If switching between the different signal formats, picture noise is caused.

[Normal speed]:

If switching between the same signal formats, it is possible to switch within 2 seconds.

If switching between the different signal formats, it takes 3 to 4 seconds to switch but picture noise is not caused.

■ [Backup input change]

Displays whether or not operating conditions for the Backup Input function are met.

[Inactive]:

Indicates that the conditions are not met, and inactivates the Backup Input function.

English

[Active]:

Indicates that the conditions are met, and activates the Backup Input function.

■ [Main input]

Displays the (main) input set by switching input.

■ [Current input]

Displays whether the input currently in use for viewing is the (main) input set by switching input or the backup one.

Setting conditions

The following table describes restrictions (available combinations) on each setting item.

Main

HDMI1

HDMI2

DisplayPort

DVI-D

SLOT

HDMI1

HDMI2

DisplayPort

DVI-D

Backup

SLOT

DIGITAL LINK

PC × × × × USB × × × ×

○:SelectableforbothPrimaryandSecondary.

×: Not selectable for neither Primary nor Secondary.

Recall display

Pressing <RECALL> displays any of the followings.

●

When the main input is being used for viewing and the operating conditions for the Backup Input function are met.

HDMI1

Full

Main input

Backup OK

●

When the backup input, enabled by the operation of the Backup Input function, is being used for viewing.

HDMI1

Full

Backup Input

HDMI2

When the conditions for the Backup Input function are met, the following screen is displayed.

Main input

Backup OK

DIGITAL LINK

○ × × ×

× × × ×

USB

Page 67

1-2 [Input change mode]: [Normal] detailed

settings

Switches to the backup input if an interruption of video occurs.

Note

●

This function will start operating once a video signal is detected by both the input in use for viewing and the backup input and the [Backup input change] item is displayed as [Active].

■ [Primary backup input]

Sets the first priority backup input.

(None) / [HDMI1] / [HDMI2] / [DisplayPort] / [DIGITAL LINK] / [DVI-D] / [SLOT] / [PC] / [USB]

The input that is of the same type as the one in use for viewing will be greyed out.

■ [Secondary backup input]

Sets the second priority backup input.

(None) / [HDMI1] / [HDMI2] / [DisplayPort] / [DIGITAL LINK] / [DVI-D] / [SLOT] / [PC] / [USB]

The input that is of the same type as the one in use for viewing will be greyed out.

■ [Auto switch back mode]

[Disable]:

Unreturned

[Enable]:

Returned

■ [Backup input change]

Displays whether or not operating conditions for the Backup Input function are met.

[Inactive]:

Indicates that the conditions are not met, and inactivates the Backup Input function.

[Active]:

Indicates that the conditions are met, and activates the Backup Input function.

■ [Main input]

Displays the (main) input set by switching input.

■ [Current input]

Displays whether the input currently in use for viewing is the (main) input set by switching input or the backup one.

Setting conditions

The following table describes restrictions (available combinations) on each setting item.

Main

HDMI1

HDMI2

DisplayPort

DIGITAL LINK

DVI-D

SLOT

HDMI1

HDMI2

DisplayPort

Backup

○:SelectableforbothPrimaryandSecondary.

: Selectable for either Primary or Secondary.

×: Not selectable for neither Primary nor Secondary.

Recall display

Pressing <RECALL> displays any of the followings.

●

When the conditions for the Backup Input function are met, the following screen is displayed.

●

DIGITAL LINK

DVI-D

SLOT

PC USB ○ ○ ×

When the main input is being used for viewing and the operating conditions for the Backup Input function are met.

HDMI1

Full

Backup mode OK

When the backup input, enabled by the operation of the Backup Input function, is being used for viewing.

HDMI1

Full

Primary backup input

Backup mode OK

Note

This menu will be greyed out and cannot be set under the following conditions.

[Input search] is set to the item other than [Off].

•

(see page 64) [Setup] - [Image settings] - [No signal image

•

settings] - [Display setting] is set to [On]. (see page

73) [Power management mode] is set to [Input

•

detection]. (see page 69) [SLOT power link] is set to [On]. (see page 88)

•

PC USB

○ ○ ○

English

Page 68

●

When set to the USB input, the unit determines video signals are interrupted by judging the USB memory is not connected to the USB terminal.

●

This function may not operate correctly depending on the image playback device.

Screensaver

Alleviates the occurrence of afterimage when displaying still images or images with 4:3 aspect ratio for a long time.

[Screensaver] - submenu screen

Screensaver

10:00

TUESDAY

Start

Mode Off

Wobbling Off

2019/01/01

■ Screensaver settings

Screensaver operation

When the Screensaver is operating, the following 5 patterns are displayed full screen for 5 seconds each, and it will be repeated.

Black → Dark grey → Grey → Light grey → White → Light grey → Grey → Dark grey

To start Screensaver now

Select [On] in [Mode]. Select [Start] and press <ENTER>.

●

The Screensaver will be activated.

Screensaver

10:00

TUESDAY

Start

Mode On

Note

●

If the following buttons are pressed while the screen saver is operating, the screen saver is cancelled.

Remote control: <RETURN> Unit: <MENU (Unit)> <INPUT (Unit)>

●

When the display is turned off, the Screensaver will be deactivated.

To set interval of Screensaver

Select [Interval] in [Mode]. Set [Periodic time].

●

Press

●

In [ENGLISH(US)] OSD language, [Periodic time] is displayed as [SHOW DURATION].

Set [Operating time].

English

2019/01/01

<+ (Unit)> <- (Unit)> <ENTER (Unit)>

to change the time by 15 minutes.

●

once to change the time by 1 minute.

Press Keep pressing down to change the time by 15 minutes.

●

In [ENGLISH(US)] OSD language, [Operating time] is displayed as [SAVER DURATION].

Screensaver

Start

Mode Interval

Periodic time

Operating time

2019/01/01 10:00

TUESDAY

0:00

[Periodic time]

Deactivated. [Operating time]

Note

●

It is not possible to set the duration of [Operating time] longer than that of [Periodic time].

To set start and finish time of Screensaver

Select [Time designation] in [Mode]. Set [Start time] and [Finish time].

●

Press

once to change the time by 1 minute. Keep pressing down to change the time by 15 minutes.

●

In [ENGLISH(US)] OSD language, [Time designation] is displayed as [TIME OF DAY].

Screensaver

10:00

Start

Mode Time designation

Start time

Finish time

2019/01/01

TUESDAY

0:00

Note

●

When the current time is displayed as [- -], set [Date and time] before setting [Start time] and [Finish time]. (see page 76)

To turn the power off after Screensaver

Select [Standby after SCR saver] in [Mode]. Set [Screensaver duration].

●

once to change the time by 1 minute.

Press Keep pressing down to change the time by 15 minutes.

Select [Start] and press <ENTER>.

●

Screensaver will be activated and the power will be turned off (standby) at the time set.

Screensaver

10:00

Start

Mode

Screensaver duration 0:00

2019/01/01

TUESDAY

Standby after SCR saver

Note

●

[Screensaver duration] can be set from 0:00 to 23:59.

When this is set to [0:00], [Standby after SCR saver] will not be activated.

Page 69

■ [Wobbling]

Automatically shifts the display image to prevent image retention on the liquid crystal panel.

Setting this to [On] moves the screen position at certain intervals and displays the images.

Note

●

When [Multi display settings] - [Multi screen display] is set to [On], [Wobbling] will not be activated. (see page 55)

●

When [Portrait settings] - [Portrait display] is set to [On], [Wobbling] will not be activated. (see page 58)

●

When this function is operating, part of the screen may appear to be missing.

Input label

This function can change the label of the Input signal to be displayed.

[Input label] - submenu screen

Input label

HDMI1

HDMI2

DisplayPort DisplayPort

DIGITAL LINK DIGITAL LINK

DVI-D

SLOT SLOT

PC PC

[HDMI1] [HDMI1] / [DVD1] / [DVD2] /

[HDMI2] [HDMI2] / [DVD1] / [DVD2] /

[DisplayPort] [DisplayPort] / [DVD1] / [DVD2] /

[DIGITAL LINK] [DIGITAL LINK] / [DVD1] /

[DVI-D] [DVI-D] / [DVD1] / [DVD2] /

[SLOT] [SLOT] / (Skip)

[PC] [PC] / [DVD1] / [DVD2] /

(Skip): When <INPUT> is pressed, the input will be

skipped.

Note

●

[HDVC] and [PressIT] are displayed in the selectable list when the main software version is 4.40 or later.

HDMI1

HDMI2

DVI-D

[DVD3] / [Blu-ray1] / [Blu-ray2] / [Blu-ray3] / [CATV] / [VCR] / [STB] / (Skip)

[DVD2] / [DVD3] / [Blu-ray1] / [Blu-ray2] / [Blu-ray3] / [CATV] / [VCR] / [STB] / (Skip)

[DVD3] / [Blu-ray1] / [Blu-ray2] / [Blu-ray3] / [CATV] / [VCR] / [STB] / (Skip)

Power management settings

Set each item to reduce power consumption. This function works only for the input terminal that is

currently selected. [Power management settings] - submenu screen

Power management settings

Power management mode

No signal power off

HDMI1 power management

HDMI2 power management

DisplayPort power management

DIGITAL LINK power management

DVI-D power management

PC power management

Power save

Extended standby mode O ff

Input detection

Changing delay Off

1. Setting [Power management mode]

1-1 [Power management mode]: [On]

The following fixed values are set to the menu of power consumption reduction. Individual setting is not available.

[No signal power off]: [Enable] [HDMI1 power management]: [On] [HDMI2 power management]: [On] [DisplayPort power management]: [On] [DIGITAL LINK power management]: [On] [DVI-D power management]: [On] [PC power management]: [On] [Power save]: [On]

1-2 [Power management mode]: [Custom]

The menu of the power consumption reduction is individually set. This setting is enabled when [Power management mode] is set to [Custom].

1-3 [Power management mode]: [Input

detection]

Sets the power consumption reduction menu individually.

This is enabled when [Power management mode] is set to [Input detection]. This mode interlocks between the power management operation and the input detection function for operation. When this mode detects the change from without-signal state to with-signal state by monitoring input signals, the input signal detection function operates, and an input is automatically switched to the input. Also, if the current input signal disappears, it is automatically switched to another input. If all the input signals disappear, the power management function operates, and automatically turns the power off/on. This operation is performed between selected terminals.

Custom

Disable

Off

English

Page 70

Note

●

Set the “Power management” function to [On] for terminals to operate this function.

●

[Extended standby mode] is set to [On], and greyed out.

■ [No signal power off]

When this is set to [Enable], the power supply of the unit goes off automatically (standby) when there is no operation or sync signal for about 10 minutes.

Note

●

When set to the USB input, the unit determines no signal is present if the USB memory is not connected to the USB terminal, or the connected USB memory does not contain any playable file.

●

With Screen Transfer input, the unit determines no signal is present in standby status and when the PC is not connected to Screen Transfer.

●

This function operates regardless of the [On] / [Off] settings of [No signal image settings].

●

This function may not operate depending on the video output devices.

■ [HDMI1 power management]

When this function is set to [On], it operates under the following conditions to turn the power on or off automatically.

When no pictures (sync signal) are detected for 60 seconds or so at HDMI1 input:

Power is turned off (standby); the power indicator lights up orange.

When pictures (sync signal) are subsequently detected at HDMI1 input:

Power is turned on; the power indicator lights up green.

Note

●

This function may not operate depending on the video output devices.

■ [HDMI2 power management]

When this function is set to [On], it operates under the following conditions to turn the power on or off automatically.

When no pictures (sync signal) are detected for 60 seconds or so at HDMI2 input:

Power is turned off (standby); the power indicator lights up orange.

When pictures (sync signal) are subsequently detected at HDMI2 input:

Power is turned on; the power indicator lights up green.

Note

●

This function may not operate depending on the video output devices.

■ [DisplayPort power management]

When this function is set to [On], it operates under the following conditions to turn the power on or off automatically.

When no pictures (sync signal) are detected for 60 seconds or so at DisplayPort input:

Power is turned off (standby); the power indicator lights up orange.

When pictures (sync signal) are subsequently detected at DisplayPort input:

Power is turned on; the power indicator lights up green.

Note

●

This function may not operate depending on the video output devices.

■ [DIGITAL LINK power management]

When this function is set to [On], it operates under the following conditions to turn the power on or off automatically.

When no pictures (sync signal) are detected for 60 seconds or so at DIGITAL LINK input:

Power is turned off (standby); the power indicator lights up orange.

When pictures (sync signal) are subsequently detected at DIGITAL LINK input:

Power is turned on; the power indicator lights up green.

Note

●

This function may not operate depending on the video output devices.

●

When this function is set to [On], set [Quick start] to [On] to enable the operation.

●

When [Quick start] is set to [Off], if images are not detected, the unit enters the standby state even if it is set to [On]. However, the unit does not start up even if images are detected again. To operate the power management function, it is necessary to set both [Quick start] and [DIGITAL LINK power management] to [On] respectively.

■ [DVI-D power management]

When this function is set to [On], it operates under the following conditions to turn the power on or off automatically.

When no pictures (sync signal) are detected for

60 seconds or so at DVI-D input:

Power is turned off (standby); the power indicator lights up orange.

When pictures (sync signal) are subsequently

detected at DVI-D input:

Power is turned on; the power indicator lights up green.

Note

●

This function may not operate depending on the video output devices.

English

Page 71

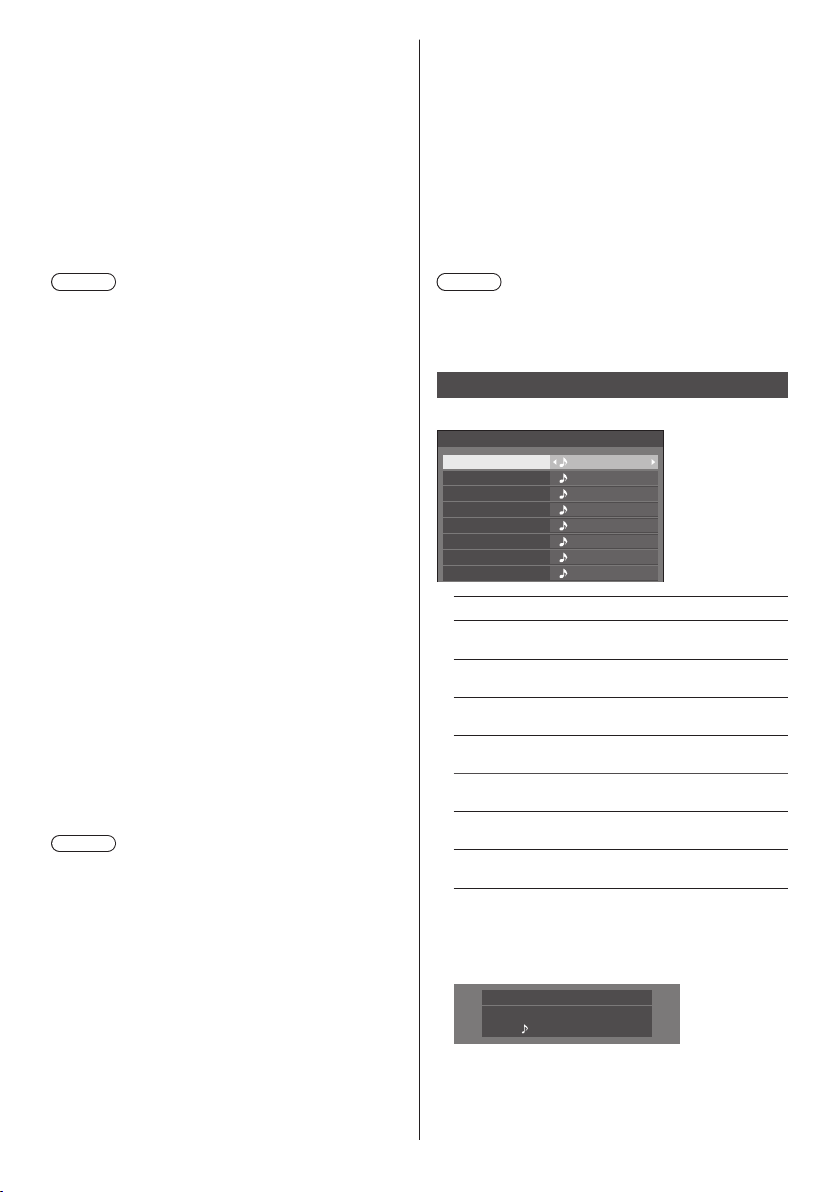

■ [PC power management] (DPMS function)

When this function is set to [On], it operates under the following conditions to turn the power on or off automatically.

When no pictures (HD/VD sync signals) are

detected for 60 seconds or so at PC input:

Power is turned off (standby); the power indicator lights up orange.

When pictures (HD/VD sync signals) are

subsequently detected at PC input:

Power is turned on; the power indicator lights up green.

Note

●

This function is effective when [Sync] in [Signal] is set to [Auto] or [HV sync] and [Component/RGB-in select] are set to [RGB]. (see page 60)

●

This function may not operate depending on the video output devices.

■ [Power save]

This function adjusts the brightness of the backlight to reduce power consumption.

[Off]:

The power save function does not operate.

[On]:

Backlight brightness is reduced.

■ [Extended standby mode]

Sets the operation in standby mode by the “Power management” function for the input terminal for which the “Power management” function is set to [On].

[Off]:

If a video signal (synchronized signal) is detected at the input terminal with which the standby mode is entered, the power is turned “ON” with the input.

[On]:

If a video signal (synchronized signal) is detected at any of the input terminals for which the “Power management” function is set to [On], the power is turned “ON”, and the input is switched to the detected input.

Note

●

When [Input search] is [All inputs] or [Custom], the [Input search] function is prioritised. (The “Power management” function does not operate for each terminal.) (For details of [Input search] function, see page 64.)

●

When [Failover/Failback] - [Input change mode] is set to items other than [Off], the [Failover/Failback] function is prioritised. (The “Power management” function does not operate for each terminal.) (For details of [Failover/Failback] function, see page 65.)

■ [Changing delay]

Sets the delay time until the input is switched when [Power management mode] is [Input detection].

[Off]:

Switches the input if a signal is interrupted even for a very short period.

1 to 10:

Sets the delay time (sec.). Switches the input when the set time has elapsed after detecting no signal is present. However, if the detection period during which no signal is present is shorter than the set delay time, the input is not switched.

Note

●

The operation when [Input detection] is selected is the same as the operation when [Input search] is set to [Input detection]. (see page 64)

Audio input select

[Audio input select] - submenu screen

Audio input select

HDMI1

HDMI2

DVI-D

Screen Transfer

Video input Audio input

HDMI1

HDMI2

DisplayPort

DIGITAL LINK

DVI-D / PC AUDIO IN1 / AUIDIO IN2 / No

SLOT

Screen Transfer

●

No audio: No audio input (Mute)

When the setting for the audio input has been changed from the factory settings, the audio input is displayed as below.

HDMI1

HDMI2

DisplayPortDisplayPort

DIGITAL LINKDIGITAL LINK

AUDIO IN1

SLOTSLOT

AUIDIO IN2

Screen Transfer

HDMI1 / AUDIO IN1 / AUIDIO IN2 / No audio

HDMI2 / AUDIO IN1 / AUIDIO IN2 / No audio

DisplayPort / AUDIO IN1 / AUIDIO IN2 / No audio

DIGITAL LINK / AUDIO IN1 / AUIDIO IN2 / No audio

audio SLOT / AUDIO IN1 / AUIDIO

IN2 / No audio Screen Transfer / AUDIO IN1 /

AUIDIO IN2 / No audio

HDMI1

Full

AUDIO IN1

English

Page 72

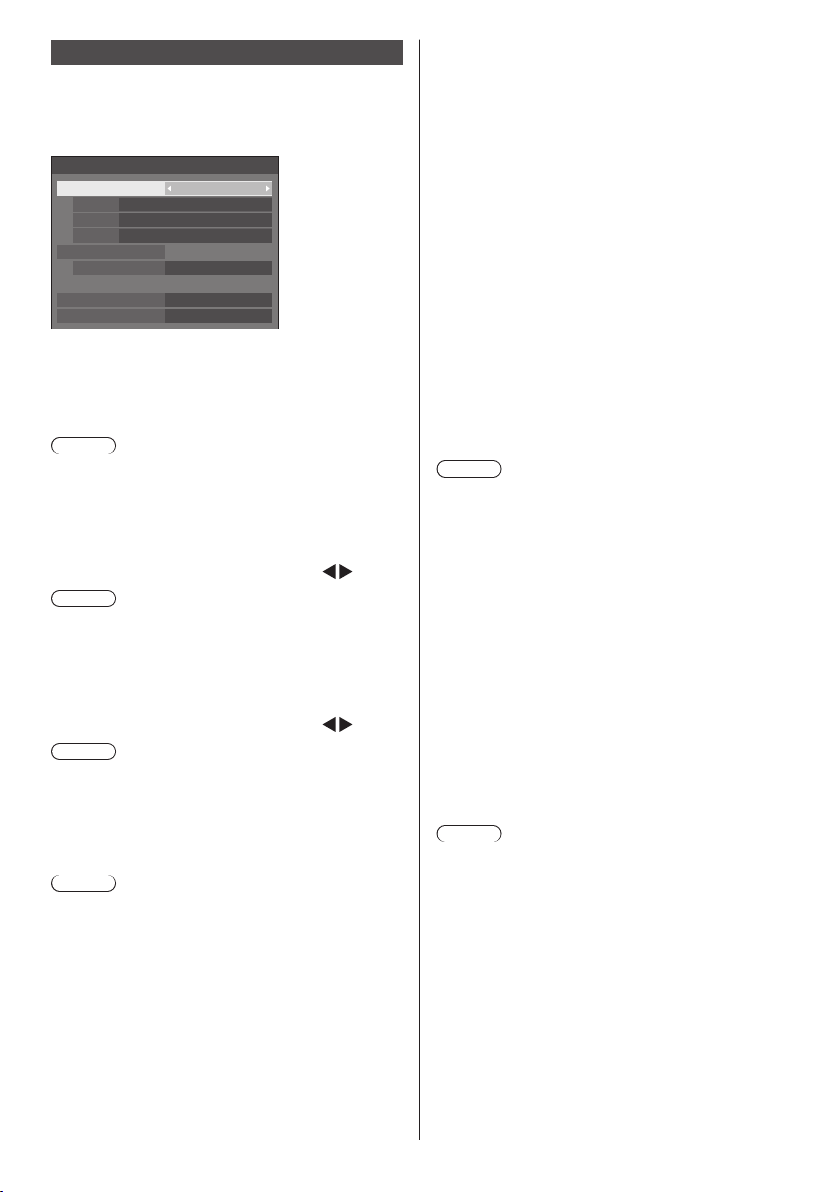

HDMI-CEC settings

Set for HDMI-CEC function. For details of HDMI-CEC function, refer to “Using HDMI-

CEC function”. (see page 127) [HDMI-CEC settings] - submenu screen

HDMI-CEC settings

HDMI-CEC control Enable

HDMI1 HDMI2 ----

SLOT ----

HDMI-CEC operation

MENU code

Link function

Display→Device

Device→Display

----

Disable

■ [HDMI-CEC control]

Enables/Disables the HDMI-CEC function.

[Disable]: Disables HDMI-CEC control. [Enable]: Enables HDMI-CEC control.

Note

●

Set to [Enable] to operate HDMI-CEC compatible device with remote control of the unit.

■ [HDMI1]

Displays the device to operate when HDMI-CEC compatible device is connected to HDMI 1 terminal.

The control subject can be changed with

Note

●

When there is no connected device, [----] will be displayed.

■ [HDMI2]

Displays the device to operate when HDMI-CEC compatible device is connected to HDMI 2 terminal.

The control subject can be changed with

Note

●

When there is no connected device, [----] will be displayed.

■ [SLOT]

Displays the device to operate when HDMI-CEC compatible device is connected to SLOT terminal.

Note

●

The setting item [SLOT] is displayed only when the function board is inserted into the SLOT. When the HDMI-CEC compatible SLOT is not connected, [----] will be displayed.

●

For 98 and 86 inch models, this setting is displayed only when the main software version is 3.0000 or later.

■ [HDMI-CEC operation]

Displays the operation screen of the HDMI-CEC compatible device.

Press <RETURN> to hide the operation screen.

■ [MENU code]

Changes the code to assign for the [MENU] operation on the HDMI-CEC operation screen.

Adjust the code to that of the connected HDMI-CEC compatible device.

■ [Display → Device]

Enables/Disables this unit to perform interlocking control of the HDMI-CEC compatible device.

[Disable]:

Disables this unit to perform interlocking control of the HDMI-CEC compatible device.

Even if the power status of this unit changes, the power status of the device will not be affected.

[Power off]:

Turning this unit off (standby) turns off (standby) all the devices connected to the HDMI 1, HDMI 2 or SLOT terminal. The power-on operation is not interlocked.

[Power off / on]:

The device turns off/on (standby) in conjunction with the power-off/on (standby) operation of this unit.

Note

●

For details of operation, refer to “Using HDMI-CEC function”. (see page 127)

■ [Device → Display]

Enables/Disables the HDMI-CEC compatible device to perform interlocking control of this unit.

[Disable]:

Disables the device to perform interlocking control of this unit.

Even if the power status of the device changes, the power status of this unit will not be affected.

[Power on]:

Turning on the device turns on this unit, and the input (HDMI1 / HDMI2 / SLOT) is switched to that of the device.

[Power off / on]:

The power status of this unit interlocks with the power-off/on operation of the device.

Note

●

For details of operation, refer to “Using HDMI-CEC function”. (see page 127)

●

Input will not be switched when [Setup] - [Input lock] is set.

●

When the function board is inserted to SLOT and [DVI-D/SLOT select] is set to [DVI-D], the input is not switched to SLOT input.

English

Page 73

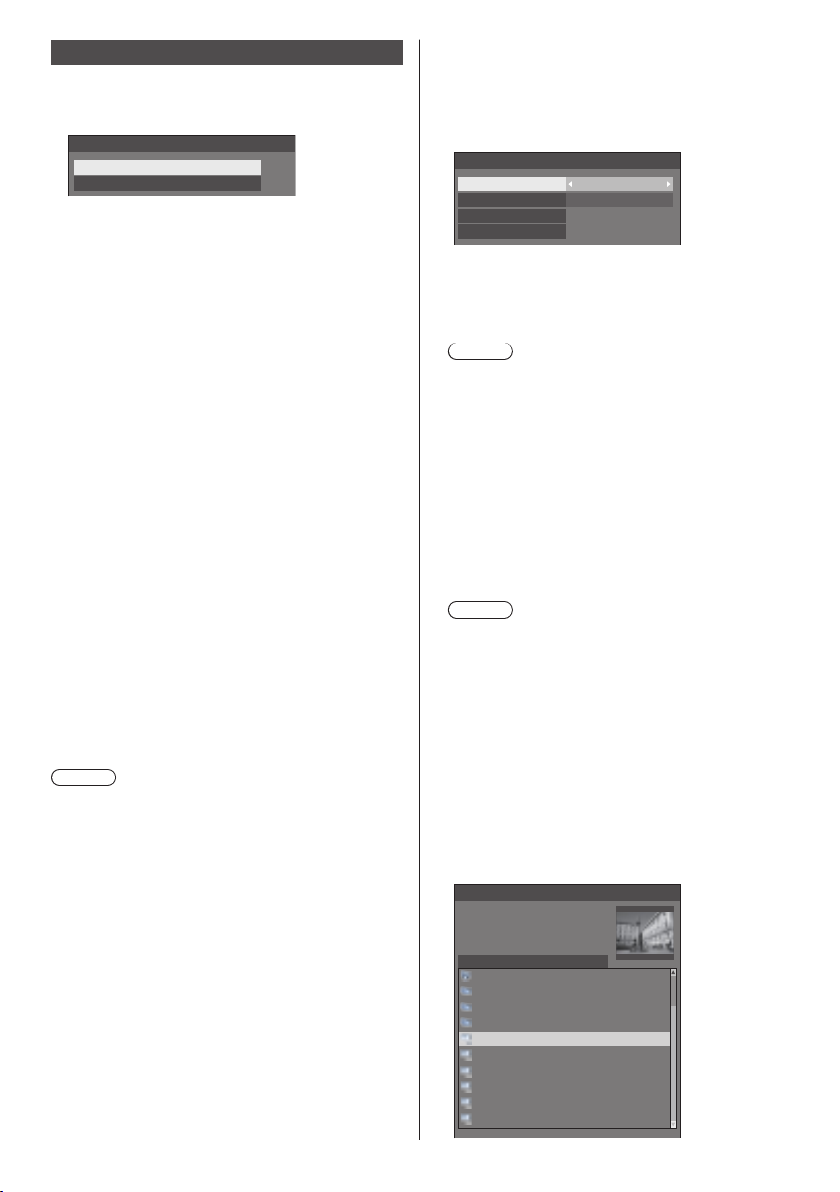

Image settings

Sets the image displayed on the screen when the power is turned on or no signal is input.

[Image settings] - submenu screen

Image settings

Startup image settings

No signal image settings

[Startup image settings]:

Sets the image displayed when the power is turned on.

[No signal image settings]:

Sets the image displayed when there is no signal at the selected input terminal.

Conditions of the image that can be set in [Read user image]

●

Image size: 3 840 x 2 160, 1 920 x 1 080 only

●

jpg files / bmp files (except for the ones that cannot be played back with USB media player (see page 112 ))

File and folder names are displayed on the file list with conditions as below.

‒Ifafileorfolderisplaceddirectlyundertheroot

directory of the USB device.

●

Up to 246 characters of file name (including the extension) are properly displayed.

Note that the file list may disappear due to the display time of the on-screen menu before the entire display of file names completely appears.

●

Up to 244 characters of folder name are properly displayed.

If the folder is placed hierarchically, the number

•

of characters displayed decreases by the number of characters for the file path (folder information).

‒OnlythefileswithfilenamesdescribedwithASCII

characters excluding control code are displayed.

Note

●

[Picture] cannot be adjusted when setting the startup image.

●

Only [Backlight], [Gamma] and [Colour temperature] can be adjusted when setting the no-signal image.

●

Images displayed for the startup image and no-signal image may slightly differ from images confirmed on the computer.

●

When [No signal image settings] is set to [On], [Input search] and [Failover/Failback] will be disabled, and the menu will be greyed out.

■ [Startup image settings] /

[No signal image settings]

Operate [No signal image settings] in the same way as [Startup image settings].

[Startup image settings] - submenu screen

Startup image settings

Display setting

Image select

Read user image

Clear user image

[Display setting]

Sets the image display when the power is turned on.

[Off]: Disables each image setting function. [On]: Enables each image setting function.

Note

●

When no-signal image is displayed, the screen position moves at certain intervals and images are displayed to alleviate image retention on the LCD panel.

●

Shifts the display position regardless of the setting of [Wobbling] (see page 69).

●

When this function is operating, part of the screen may appear to be missing.

[Image select]

Select the image to display.

[Default image]: Panasonic logo (blue background) [User image]: Image registered by the user

Note

●

Only when [Default image] is displayed, the logo automatically rotates according to the [Display orientation] (see page 86) setting or installation orientation.

●

When [User image] is selected, the image does not rotate according to the [Display orientation] setting or installation orientation. Prepare an image of 3 840 × 2 160 or 1 920 × 1 080 aspect ratio compatible with the installation orientation.

●

[Default image] of [No signal image settings] is the Panasonic logo (black background).

[Read user image]

Read user image

Select a no signal image.

usb/picture/

0_folder_sample g_sample

z_sample




a_sample.jpg j_sample.jpg v_sample.jpg

User image

English

Page 74

Note

●

Set the input to something other than [USB] or [MEMORY VIEWER], and read the image.

●

One user image can be registered for [Startup image settings] and [No signal image settings] respectively.

●

Do not turn the power off while reading the user image.

●

The selected image is previewed on the [Read user image] submenu screen.

●

When USB memory device is not connected to the USB terminal, [Read user image] is greyed out and cannot be selected.

●

If starting to read the image while creating the preview image, an access error will occur, and the image may not be recognized as a image file.

Confirm the preview image display, and then start reading process.

●

The displayed file names are restricted as follows.

Applicable extension: jpg, jpe, jpeg or bmp

•

The file name is not “.jpg”, “.jpe”, “.jpeg”, or

•

“.bmp” which start with dot (.).

●

Depending on the OS setting, folders or files in the USB memory invisible on your computer may be displayed on this unit.

●

If an image of 3 840 × 2 160 is registered for [Startup image settings], and [Image select] is set to [User image], the start-up time will be longer at power-on.

●

If an image of 3 840 × 2 160 is registered for [No signal image settings], the displayed image quality will be equivalent of 1 920 × 1 080.

[Clear user image]

Clears the image read in [Read user image]. [Startup image settings] - submenu screen

Startup image settings

Display setting

Image select

Read user image

Clear user image

User image

Note

●

When there is no [User image] that have been read, [Clear user image] is greyed out and cannot be selected.

●

When [Image select] is set to [User image], performing [Clear user image] will change the setting of [Image select] to [Default image].

Input lock

Disables [Input] operation by locking the input.

[Off] / [HDMI1] / [HDMI2] / [DisplayPort] / [DIGITAL LINK] / [DVI-D] / [SLOT] / [PC] / [Screen Transfer] / [USB] / [MEMORY VIEWER] / [Multi input display]

Note

●

Input switch can be used when this is set to [Off].

Off-timer function

Enables / disables [Off-timer function].

[Enable]:

Enables [Off-timer function].

[Disable]:

Disables [Off-timer function].

Note

●

When [Disable] is set, the Off-timer is cancelled.

No activity power off

When this function is set to [Enable], the power is turned off (standby) automatically when there is no operation of the Display for 4 hours.

Starting from 3 minutes before the turn off, the remaining time will be displayed.

Press any key to abort.

No activity power off

3 min

When the power is turned off due to this function, a message [Last turn off due to ’No activity power off’.] is displayed next time the power is turned on.

When the image set in [No signal image settings] (see page 73) is displayed, remaining time is not displayed even when the power is going to be turned off in 3 minutes. Instead, the image is displayed until the power is turned off.

Note

●

While the screensaver is running, this function is disabled.

OSD language

Select your preferred language. Selectable languages

English(UK) Deutsch Français Italiano Español ENGLISH(US)

中文日本語

Русский : Russian

: Chinese : Japanese

English

Page 75

Set up timer

Sets the program to turn the power on with the specified time and video input, or to turn the power off at the specified time. Up to 20 programmes can be set.

Note

●

When the current time is displayed as [- -], set [Date and time] before setting [Set up timer]. (see page 76)

●

When multiple programs are set at the same time, the program with the smallest program number is enabled.

●

If [Power mode] is set to [Power on], executing the program at power-on will switch to the input set for [Input].

[Set up timer] - submenu screen Setting Example: Program 1, Every Monday, 12:00, Power On, Input: HDMI1

Set up timer

10:00

TUESDAY

Program

Timer function

Day

MONDAY TUESDAY

THURSDAY FRIDAY SATURDAY

SUNDAY Time

Power mode

Input

1 Set the program number. 2 To execute the program, set to [On].

The program is disabled when [Off] is set.

3 Set the day.

[Everyday]:

Executes the program every day.

[Weekday]:

Executes the program from every Monday to Friday.

[Weekend]:

Executes the program on Saturdays and Sundays.

[Custom]:

Executes the program on selected days. (Refer to “Customized setting for days of the week”.)

4 Set the time.

Pressing Pressing continuously changes time by 15

minutes.

5 Set the power On/Off. 6 Set the input.

2019/01/01

Custom

WEDNESDAY

12:00

Power on

HDMI1

1 2 3

4 5 6

once changes time 1 minute.

■ Customized setting for days of the week

1 Set [Day] to [Custom]. 2 While [Day] is selected, press <ENTER>.

The [Day] screen appears.

Day

All

MONDAY

THURSDAY FRIDAY SATURDAY

SUNDAY

TUESDAY

Moves the focus.

<VOL +>

Selects days. (Put check marks on days

to select.)

<VOL -> Cancels the day selection. (Delete a

check mark if it has been put.)

<ENTER> Saves the current setting, and returns to

the timer setup screen.

<RETURN> Returns to the timer setup screen without

saving the current setting.

3 Change the setting, press <ENTER>, and return to

the timer setup screen.

With [All], all days are selected/cancelled.

•

Note

●

Use the remote control for the “Customized setting for days of the week” operation.

●

If the [Day] screen is deleted without pressing <ENTER>, the setting is not saved.

WEDNESDAY

English

Page 76

Date and time

Set date and time. ([- -] shows no programme is set.) [Date and time] - submenu screen

Date and time

2019/01/01

TUESDAY

Set

Year 2019

Month

Day

Hour

Minute

Clock display Off

Synchronize display setting

Synchronize display Off

Parent or child setting Child

NTP status

NTP synchronization Off

Time zone (GMT + 00:00)

10:00

■ Set date and time

Select [Year / Month / Day / Hour / Minute]. Set the selected item.

Date and time

2019/01/01

TUESDAY

WEDNESDAY

10:00

18:00

99:992015/01/01

Set

Year 2019

Month

Day

Hour

Minute

Select [Set] and press <ENTER>.

Date and time

2019/02/06

Set

Year 2019

Month

Day

Hour

Minute

Note

●

If the present date and time are not set, the time settings for [Set up timer], [Screensaver], etc. cannot be made.

●

The present date and time setting is reset in the following case.

When the main unit is left unattended for 7 days or longer after the main unit is turned off with the <Main Power On / Off button>, the power plug is removed, or power failure has occurred, etc.

If the unit is used for long periods or in a high

temperature environment, days to reset may be shorter than 7 days.

●

Date and time cannot be set when [Year / Month / Day / Hour / Minute] are set to [- -].

●

The upper limit of date and time that can be set is, Year 2035, Month 12, Day 31, Hour 23 and Minute

59.

■ [Clock display]

Sets to display / hide the clock.

[Off]:

Hides the clock.

[On]:

Displays the clock.

Note

●

The clock is displayed at the lower left of the screen when <RECALL> button is pressed.

Display duration is approx. 5 seconds.

●

When current date and time is not set, the clock is not displayed even when [Clock display] is [On].

■ [Synchronize display setting]

Synchronizes the time of all the displays connected on the network.

Note

●

This function does not operate if the displays to synchronize the time are not connected via a LAN.

●

This function operates only when the devices connected via a LAN are connected with different IP addresses.

●

The time synchronization operates only in power-on state or in schedule standby state.

●

Normal operation is achieved only when the display synchronization function is enabled among the units.

If other devices are connected on the same network, operation may not be normal.

[Synchronize display]:

Enables/Disables display synchronization function.

[Parent or child setting]:

Set this unit to [Parent] or [Child] for display synchronization.

Operates when [Synchronize display] is [On].

[Parent]:

Set the time as a source of synchronization.

[Child]:

Synchronizes with the time of the parent.

Note

●

When [Synchronize display] is [On], and [Parent or child setting] is [Child], date and time cannot be set.

●

When [Synchronize display] is [On], and [Parent or child setting] is [Child], [NTP synchronization] offoperation is performed.

●

If two or more displays with [Parent] set are present on one network, display synchronization does not operate properly.

●

Time is not synchronized if no displays with [Parent] set is present on one network.

●

Time is not synchronized if the time is not set for the display with [Parent] set on the network.

English

Page 77

●

Depending on the network environment, synchronization may be largely lost.

●

Synchronization is not possible if a router is placed between the displays with [Parent] and [Child] set.

●

Synchronization is not possible via a wireless LAN.

■ [NTP status]

Displays the current [NTP synchronization] and [Time zone] (see page 104) settings.

Note

●

When [NTP synchronization] is set to [On], and if [Synchronize display] and [Parent or child setting] are set to [On] and [Child] respectively, [NTP synchronization] shows [--], and the off-operation is performed.

●

When [NTP synchronization] is [On], date and time cannot be set.

●

The settings for [NTP synchronization] and [Time zone] cannot be changed with this menu. Change the settings with WEB browser. (see page 104)

●

[NTP synchronization] operates only in power-on state or in schedule standby state.

Network settings

Set when networking with a computer.

[Network settings] submenu will be displayed.

Network settings

Serial control

Network control Off

Display name

LAN setup

Network status

DIGITAL LINK mode Auto

DIGITAL LINK(Ethernet control)

DIGITAL LINK status

DIGITAL LINK menu

AMX D. D.

Crestron Connected

Extron XTP

USB memory network settings

Reset

SERIAL IN

OffAuto display name

SQ1-000

Enable

Protocol 2LAN control protocol

Off

Off Off

Permit

™

■ [Serial control]

Selects the RS232-C control terminal.

[SERIAL IN]:

Controls using the SERIAL IN terminal of the display.

[DIGITAL LINK]:

Controls via the optional device that supports DIGITAL LINK output (ET-YFB100G, ETYFB200G) and the DIGITAL LINK / LAN terminal.

[SLOT]:

Controls via the function board inserted to the SLOT of this unit.

Note

●

When this function is set to [DIGITAL LINK], set [Quick start] to [On] to enable the operation.

●

When [Quick start] is set to [Off], if this function is set to [DIGITAL LINK], the unit is controlled via DIGITAL LINK in power-on state while controlled with the SERIAL IN terminal in standby state. To enable the DIGITAL LINK control even in standby state, it is necessary to set [Quick start] to [On].

■ [Network control]

Set when controlling with the unit’s LAN terminal.

[On]:

Controls via LAN using the LAN terminal. The power indicator lights orange when the power is turned off with the remote control (standby).

[Off]:

Invalidates control with LAN terminal. (In this case, the power consumption of Standby

condition (when the power is turned off with the remote control) will be slightly reduced.)

Note

●

When using the LAN control function which is described in “Using Network Function” (see page 91‒109), set this function to [On].

English

Page 78

●

Even if the setting is set to [Off], the Web browser control screens that do not control this unit (display information [Status], detailed settings [Detailed set up] and password change [Change password]) operate.

●

To enable the operation, set [Quick start] to [On].

●

When [Quick start] is set to [Off], the power can be turned off via network control even if [Network control] is set to [On]. However, the power cannot be turned on from standby state. To control both, it is necessary to set both [Quick start] and [Network control] to [On] respectively.

■ [Auto display name]

Sets whether to change the display name automatically.

[On]:

Changes the display name automatically in accordance with the set point of the display ID.

[Off]:

The display name is not changed automatically.

■ [Display name]

The name of the Display that is shown on the network can be changed.

Note

●

The name can be changed only when [Auto display name] is set to [Off].

●

Display ID is not reset to default with [Network settings] - [Reset].

■ [LAN setup]

Detailed network settings for the LAN can be configured.

Select [LAN setup] with and press <ENTER>.

LAN setup

Save

DHCP Off

IP address

Subnet mask

Gateway

Command port

EAP None

User name

Password

MAC address

[DHCP], [IP address], [Subnet mask], [Gateway]

Press to set [On] / [Off] of [DHCP].

When [Off] is selected, IP address and other settings can be set manually.

[DHCP]:

(DHCP client function)

[On]:

Obtains an IP address automatically when a DHCP server exists in the network the Display is going to be connected.

[Off]:

When a DHCP server does not exist in the network the Display is going to be connected, set [IP address], [Subnet mask] and [Gateway] manually.

English

192.168. 0. 8

255.255.255. 0

192.168. 0. 1

1024

12:34:56:78:9A:BC

[IP address]:

(IP address display and setting)

Enter an IP address when DHCP server is not used.

[Subnet mask]:

(Subnet mask display and setting)

Enter a Subnet mask when DHCP server is not used.

[Gateway]:

(Gateway address display and setting)

Enter a gateway address when DHCP server is not used.

Note

●

When [DHCP] is set to [On], the IP address, etc. will be displayed in grey.

Entering numbers

IP address

192.168.000.008

1. Select the address and press <ENTER>.

2. Select digits with .

3. Change numbers with

4. Press <ENTER>. You can cancel the change by pressing

<RETURN>.

Select [Save] and press <ENTER>.

Save the current network Setup.

Note

●

To use a DHCP server, make sure the DHCP server is started.

●

Contact your network administrator for details on [IP address], [Subnet mask] and [Gateway].

●

Shipping condition [DHCP]: Off [IP address]: 192.168.0.8 [Subnet mask]: 255.255.255.0 [Gateway]: 192.168.0.1

[Command port]

Set the port number used for command control.

Select [Command port] and press <ENTER> to set the number.

●

The

availablesettingrangeis1024‒65535.

●

Entering numbers (see page 78)

Note

●

When the PJLink protocol is used, the port setting is not necessary.

[EAP]

Select the EAP that has been set for the RADIUS server. If the EAP has not been set, select [None].

The types of EAPs that can be set are as follows. [PEAP(MS-CHAPv2)], [PEAP(GTC)], [EAP-TTLS(MD5)],

[EAP-TTLS(MS-CHAPv2)], [EAP-FAST(MS-CHAPv2)], [EAP-FAST(GTC)], [EAP-TLS]

Page 79

[User name] Enter the user name for authentication with one-byte

alphanumeric characters (excluding space). (Up to 64 characters)

This can be set only when [EAP] is set to items other than [None] or [EAP-TLS].

[Password]

Enter the password for authentication with one-byte alphanumeric characters. (Up to 64 characters)

This can be set only when [EAP] is set to items other than [None] or [EAP-TLS].

Note

●

For 98 and 86 inch models, [EAP], [User name] and [Password] are displayed only when the main software version is 4.0000 or later.

●

When EAP is used, this unit needs to be configured according to the settings of the RADIUS server.

For the settings of the RADIUS server, consult with the network administrator.

●

When [EAP] is set to [EAP-TLS], set [Date and time] (see page 76) and register the certificate on the WEB browser control. (see page 103)

[MAC address]

Displays the MAC address of this unit.

■ [Network status]

Checks the current Network settings status.

Network status

DHCP

IP address

Subnet mask

Gateway

EAP

MAC address

Note

●

For 98 and 86 inch models, [EAP] is set only when the main software version is 4.0000 or later.

Off

192. 168. 0. 8

255. 255. 255. 0

192. 168. 0. 1

None

12:34:56:78:9A:BC

■ [DIGITAL LINK mode]

Switches communication method of DIGITAL LINK terminal.

[Auto]:

Communication method is selected automatically. HDMI, LAN, serial communication are possible. Ethernet connection is possible.

[DIGITAL LINK]:

HDMI, LAN, serial communication are possible via a twisted pair cable transmitter.

[Ethernet]:

LAN communication is possible via the LAN terminal of the display.

[Long reach]:

Communication method is fixed to Long reach.

Modes allowing communication

Valid

― : Invalid

Communication validity

Settings

For

DIGITAL

LINK

For Long

Auto

reach

For

Ethernet

DIGITAL LINK

Long reach ―

Ethernet ― ― ―

Note

●

When connected with the [Long reach] communication method, the maximum transmission distance is 150 m. In this case, this unit can receive the signals of up to 1080/60p (148.5 MHz).

●

If the communication method of the twisted pair cable transmitter is set to [Long reach], set [DIGITAL LINK mode] to [Auto]. Then, connection is enabled with the [Long reach] communication method.

When connecting with the separately sold DIGITAL LINK Switcher (ET-YFB200G) with the [Long reach] communication method, set [DIGITAL LINK mode] to [Long reach].

●

Even if [DIGITAL LINK mode] is set to [Long reach], when the twisted pair cable transmitter does not support the communication method of [Long reach], it will not be connected properly.


transmission

100 m 150 m

―

― ―

―

Ethernet

RS-

232C

―

English

Page 80

■ [DIGITAL LINK(Ethernet control)]

Enables or disables the Ethernet connection via the DIGITAL LINK terminal.

Note

●

When this setting is changed, the communication via the LAN terminal is temporarily disconnected due to setting switching. Do not change the setting during LAN communication.

●

Video and audio from the DIGITAL LINK terminal are not affected.

■ [DIGITAL LINK status]

Display the DIGITAL LINK connection environment. Select [DIGITAL LINK status] with and press

<ENTER>.

DIGITAL LINK status

LINK status

HDMI status

Signal quality

Min

Max

[LINK status]:

1 of the followings will be displayed.

[No link]:

No LAN connection, etc.

[DIGITAL LINK]:

Connected to the DIGITAL LINK device by LAN.

[Long reach]:

Communication method is set to [Long reach] and is connected to the DIGITAL LINK device by LAN.

[Ethernet]:

The PC is connected to the DIGITAL LINK / LAN terminal of this product and is LAN connected.

[HDMI status]:

Displays the connection status of the HDMI format. 1 of the followings will be displayed.

[No HDMI]:

DIGITAL LINK not connected

[HDMI on]:

DIGITAL LINK connected

[HDCP on]:

HDCP supported on DIGITAL LINK

[Signal quality]:

It is the quantified minimum and maximum numbers of errors that have occurred. The display colours are red, yellow, or green, depending on the number.

Signal quality

-12dB or below Green Good

-11 to -8dB Yellow Bad

-7dB or above Red Terrible

No link

No HDMI

-XX dB

-YY dB

Display Colours

Reception

Status

●

The number is represented by yellow or red if the LAN cable is disconnected or the cable is not shielded.

●

This signal quality shows figures between the twisted pair cable transmitter that is connected and the display.

■ [DIGITAL LINK menu]

Displays the setting menu of Digital Interface Box. Select [DIGITAL LINK menu] with and press

<ENTER>.

Note

●

This function can only be selected when the Panasonic device that supports DIGITAL LINK output (ET-YFB100G, ET-YFB200G) is connected to a DIGITAL LINK / LAN terminal and its power is on.

●

For details, refer to the manuals of the devices that support DIGITAL LINK output.

■ [AMX D. D.]

Set whether to allow the Display to be detected by AMX Device Discovery.

[Off]:

Disables detection by AMX Device Discovery.

[On]:

Enables detection by AMX Device Discovery.

●

For more details, visit the following web site. http://www.amx.com/

■ [Crestron Connected]

When this function is set to [On], the Display can be monitored or controlled via the network using equipment and application software of Crestron Electronics, Inc.

This Display supports the following application software from Crestron Electronics, Inc.

RoomView Express

•

Crestron Fusion

•

Crestron Connected is a function to connect to a system developed by Crestron Electronics, Inc. which manages and controls multiple system devices connected to the network.

●

For details of Crestron Connected, refer to the Crestron Electronics, Inc. web site (Provided only in English).

http://www.crestron.com/ For the download of “RoomView Express”, refer to

the Crestron Electronics, Inc. web site (Provided only in English).

(https://www.crestron.com/en-US/resources/getroomview)

English

Page 81

■ [Extron XTP]

Set to [On] when connecting XTP Transmitter made by Extron to DIGITAL LINK terminal.

●

For more details on Extron, visit the following web site.

http://www.extron.com

■ [USB memory network settings]

Sets whether to permit the network setting using the USB memory device. (see page 134)

[Permit]:

Permits USB memory network settings.

[Prohibit]:

Prohibits USB memory network settings.

Note

●

This function is set to [Permit] as factory default.

●

Once the network setting is done with USB memory device, this function is set to [Prohibit].

■ [LAN control protocol]

Select the LAN control protocol.

[Protocol 1]:

Control with the Panasonic Display sequence.

[Protocol 2]:

Control with the sequence that is compatible with Panasonic Projector.

Note

●

For PJLink and WEB browser control, the operation is possible regardless of the setting.

●

When operating the “Multi Monitoring & Control Software”, select [Protocol 2].

■ [Reset]

You can reset the network setting to the factory default of the Display.

Select [Yes ] with

Network settings

Note

●

The settings for [NTP synchronization], NTP server and [Time zone] will be reset to the factory default.

and press <ENTER>.

Reset

Yes No

USB media player settings

Set for “USB media player”. For details of the function, refer to “USB media player”

(see page 111).

[USB media player settings] - submenu screen

USB media player settings

USB media player

Schedule play function Enable

Video playback mode Standard

Resume play On

Still picture rotation Landscape

Playlist edit

Scenario file check

Codec information

No scenario file

Slide show duration

Schedule play function default setting

Play mode Individual play

Current setting Individual play

Enable

10 sec

■ [USB media player]

Set to enable or disable the USB media player function.

■ [Schedule play function]

Enables/Disables the schedule playback function using “Content Management Software”.

Note

●

When [Schedule play function] is set to [Enable], if both the scenario file of the existing “USB media player” and the schedule file of this function are present, the [Schedule play function] operation takes priority.

●

[USB media player] cannot be changed during the schedule playback mode.

●

When this function is set to [Enable], set [Quick start] to [On] to enable the operation.

●

When [Quick start] is set to [Off], the unit enters the standby state according to the schedule even if it is set to [Enable]. However, the unit does not start up. To operate the Schedule play function, it is necessary to set [Quick start] to [On] and [Schedule play function] to [Enable].

■ [Video playback mode]

Sets the video playback mode. If image disturbance occurs at the switching timing of

motion picture files during playback in [Standard] mode, switch to [Adjust] mode.

[Standard]: Plays without a black image at the joint

[Adjust]:

Note

●

When using the Multi Media Player, a black screen is displayed for a certain period of time at the switching timing of motion picture files regardless of the [Video playback mode] settings.

between video files.

Plays with a black image (approx.

2 seconds) inserted at the joint between video files.

English

Page 82

●

The display may be disturbed at the switching timing of files during playback in [Standard] mode.

●

When the schedule playback is proceeding using “Content Management Software”, [Video playback mode] can be switched both in single mode and multi mode.

■ [Resume play]

Set resume play off/on.

■ [Still picture rotation]

Sets the display method of still pictures by USB input.

[Landscape]:

Displays still pictures horizontally.

[Portrait]:

Displays still pictures vertically.

[Exif information]:

The display rotates according to the file information. When the unit is installed in the portrait setting by

setting [Display orientation] to [Portrait] or [Auto], the original screen is displayed being rotated clockwise by 90 degrees. (see page 86)

Note

●

[Exif information] performs the rotation operation only in the JPEG format to which Exif information is added.

If Exif information includes reverse display specification, or Exif information is not detected in a file, the screen is displayed without being rotated.

●

When [Portrait display] is [On], this menu will be greyed out and cannot be set. (see page 58)

■ [Playlist edit]

Creates / Edits the scenario file (scenario.dat). For details of [Playlist edit], refer to “Playlist edit

function” (see page 118 ).

Note

●

When [Portrait display] is [On], this menu will be greyed out and cannot be set. (see page 58)

■ [Scenario file check]

Execute the contents check of the USB memory which is connected to the USB terminal. If any error is detected, the error code and file name will be displayed.

For details of the error codes, refer to “USB memory contents check”. (see page 116 )

Select [Scenario file check] with and press <ENTER>.

Scenario file check

Available

■ [Codec information]

Displays the codec information of a motion picture/still picture file being played on the USB media player.

The file is analysed on execution, and the codec information is displayed after the completion of the analysis.

Note

●

The file analysis takes time in proportion to the number of files in the USB memory device.

●

A black screen appears during analysis because playback is stopped.

●

Incompatible with the schedule play mode.

■ [Slide show duration]

Select the displaying duration for still images.

[10 sec] to [600 sec]

Note

●

When the schedule playback is proceeding using “Content Management Software”, [Slide show duration] is disabled.

■ Play mode

Specifies the playback mode operating with [Schedule play function]. To apply this setting to the schedule playback operation, restart this unit.

Also, if the playback mode is specified for the schedule data of “Content Management Software” during the schedule playback, it takes priority.

[Individual play]:

Plays in the individual playback mode. Content is played only on one display.

[Synchronize play]:

Plays in the synchronized playback mode. Content is played on multiple displays in

synchronization. Note approx. 5 seconds of preparation time are

added in switching content to synchronize the playback timing.

Note

●

The synchronized playback operates properly only when [Date and time] - [Synchronize display] is set to [On] and the time is synchronized.

●

[Current setting] shows [Play mode] when the schedule playback is performed by this unit.

Note

●

When the schedule playback is proceeding using “Content Management Software”, [Scenario file check] is disabled.

English

Page 83

Memory viewer settings

Set for “Memory viewer”. For details of the function, refer to “Memory viewer” (see

page 123).

[Memory viewer settings] - submenu screen

Memory viewer settings

Memory viewer

Content select

Sort type

Sort order

Play method

Picture duration

Auto display content info

Auto display operation guide

Enable

ThumbnailView

Video

File name

Ascending

None

10 sec

■ [Memory viewer]

Enables/Disables “Memory viewer”.

■ [View]

Sets the display format of the content in the USB memory device to the thumbnail display or the list display.

■ [Content select]

Sets the type of content to display.

[All]:

Displays all the files including picture, video and music files.

[Picture / Video]:

Displays picture files and video files.

[Picture / Music]:

Displays picture files and music files.

[Video / Music]:

Displays video files and music files.

[Picture]:

Displays picture files only.

[Video]:

Displays video files only.

[Music]:

Displays music files only.

■ [Sort type]

Sets the order of content in combination with [Sort order].

■ [Sort order]

Sets the order of content in combination with [Sort type].

■ [Play method]

Sets the playback method of content.

[None]:

Automatically returns to the content display screen when the playback of the selected file has finished.

[Single]:

Plays the selected file repeatedly.

[All]:

Plays the content displayed on the content display screen repeatedly in displayed order.

[Random]:

Plays the content displayed on the content display screen at random.

[Select]:

Plays the selected files in the sorting order shown on the content display screen.

[Program]:

Plays the selected file in selected order.

■ [Picture duration]

Sets the display time of still picture files.

10 sec to 600 sec

■ [Auto display content info]

When this is set to [On], the content information is automatically displayed at the beginning of the content playback, and the information is automatically erased after a certain period of time.

■ [Auto display operation guide]

When this is set to [On], the operation guide is automatically displayed at the beginning of the content playback, and the information is automatically erased after a certain period of time.

The playback control (see page 125) is performed only while the operation guide is being displayed. If it is not displayed, the unit shows the operation guide without performing the playback control.

When this is set to [Off], the operation guide is not displayed at the beginning of the content playback. The playback control is performed regardless of Show/Hide of the operation guide.

Note

●

When [Play method] is set to [Single], playback information and operation guide are automatically displayed only at the beginning of the first playback of content.

●

When [Play method] is [Select] or [Program], up to 99 files can be selected.

●

This menu will be greyed out and cannot be set while content is being played.

English

Page 84

Screen Transfer settings

[Screen Transfer settings] - submenu screen

Screen Transfer settings

Screen Transfer function

Cut in

PIN code

Enable

Off

■ [Screen Transfer function]

Set the function to display images using Panasonic’s dedicated application “Screen Transfer” to enable or disable.

■ [Cut in]

Sets whether to allow video interruption by another user while displaying a video using “Screen Transfer”.

[Off]:

Disables video interruption.

[On]:

Enables video interruption.

■ [PIN code]

Sets whether to require the input of PIN code when connecting to this unit using “Screen Transfer”.

[Off]:

Does not require the input of PIN code.

[On]:

Requires the input of PIN code.

Note

●

For 98 and 86 inch models, [Screen Transfer settings] is displayed only when the main software version is

4.0000 or later.

Function button settings

Assigns specific functions to the numeric buttons (<1> to <6>). The buttons can be used as shortcut keys by assigning frequently used operations.

Switch [Function group] with .

[Function button settings] - submenu screen

Function button settings

Function group

Function button 1

Function button 2

Function button 3

Function button 4

Function button 5

Function button 6 MEMORY VIEWER Function button guide

Select the numeric button with

Input

HDMI1

DisplayPort

DIGITAL LINK

DVI-D

USB

Input

↓

Memory load

↓

Shortcut

and set the function to assign with

Functions assignable to the numeric buttons

[Input] (Direct input select)

Input can be selected with single-touch operation.

[HDMI1] / [HDMI2] / [DisplayPort] / [DIGITAL LINK] / [DVI-D] / [SLOT] / [PC] / [Screen Transfer] / [USB] / [MEMORY VIEWER]

Note

●

For 98 and 86 inch models, [Screen Transfer] is displayed only when the main software version is

4.0000 or later.

[Memory load]

Memory can be loaded with single-touch operation. Refer to “Memory load”. (see page 53)

[MEMORY1] to [MEMORY6]

●

[MEMORY1] to [MEMORY6] load functions are already assigned to <1> to <6> respectively. These settings cannot be changed.

[Shortcut]

[Signal], [Screensaver], [Set up timer], [Power management settings], [Network settings], [Multi display settings], [Portrait settings]

●

Pressing the numeric button displays the menu screen. Pressing the button again exits the menu screen.

[AV mute]

●

Pressing the numeric button mutes the audio and pictures.

To cancel, press any button on the remote control except the <Standby (ON/OFF) button>.

[Digital zoom]

●

Switches to [Digital zoom] mode by pressing numeric buttons. (see page 42)

English

Page 85

[Multi display switching]

●

Pressing the numeric button will enter the multi display mode (multi input display, multi screen display). (see page 55)

[Display ID / Display name]

●

Pressing the numeric button enlarges [Display ID] and [Display name].

[HDMI-CEC operation]

●

Press the numeric buttons to display the operation screen of the HDMI-CEC compatible device.

[Playlist edit]

●

Pressing the numeric button displays [Playlist edit] screen. (see page 118 )

Shipping condition

The following functions are assigned to the numeric buttons as factory default.

98-inch model 86-inch model

[Input]

[Memory

load]

[Shortcut]

1 HDMI1 MEMORY1 [Signal]

2 DisplayPort MEMORY2 [Set up timer]

3 DIGITAL LINK MEMORY3

4 DVI-D MEMORY4

[Network settings]

[Multi display switching]

5 USB MEMORY5 [AV mute]

MEMORY

VIEWER

75-inch model

49-inch model

[Input]

MEMORY6

65-inch model 55-inch model

[Memory

load]

[HDMI-CEC operation]

[Shortcut]

1 HDMI1 MEMORY1 [Signal]

2 DisplayPort MEMORY2 [Set up timer]

3 DIGITAL LINK MEMORY3

Screen

Transfer

MEMORY4 [Digital zoom]

[Network settings]

5 USB MEMORY5 [AV mute]

MEMORY

VIEWER

MEMORY6

[HDMI-CEC operation]

■ [Function button guide]

Sets the function display when numeric buttons are pressed. Set this for each function group.

[On]:

Displays the function list for the numeric buttons.

[Off]:

Does not display the function list. Operation starts when numeric buttons are pressed.

Note

●

When <FUNCTION> is pressed, [Function button guide] will be displayed regardless of the [On] / [Off] settings.

■ To use shortcut (numeric buttons)

Press <FUNCTION> or <1> ‒ <6>.

[Function button guide] will be displayed. [Function button guide]: When [Off] is set, pressing

the numeric button starts operation. Example: Input

Input

HDMI1

DisplayPort

DIGITAL LINK

DVI-D

USB

MEMORY VIEWER

Press <FUNCTION> to switch function

group.

Example: Memory load

Memory load

MEMORY1

MEMORY2

MEMORY3

MEMORY4

MEMORY5

MEMORY6

Press <1> ‒ <6>.

The function for the pressed button starts to operate. Example: When <2> is pressed.

Memory load

Load from “MEMORY2”

Ok Cancel

English

Page 86

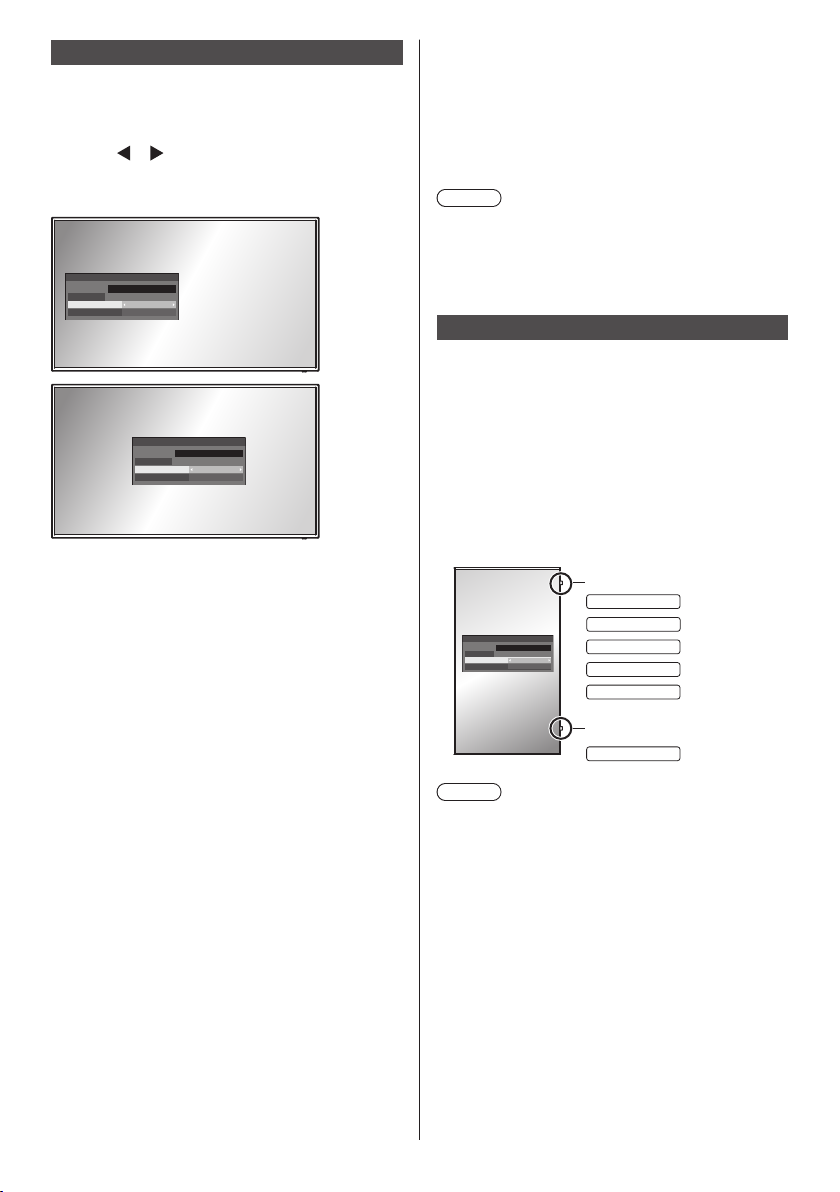

OSD settings

Makes various settings for the on-screen menus.

■ [Menu position]

Sets the display position of the on-screen menu. Each time or is pressed, the display position of the

on-screen menu changes.

Display example:

18:00

Left

18:00

Centre

■ [Menu display duration]

Sets the display duration time for the on-screen menu.

[5 sec] to [180 sec]

■ [Onscreen display]

Set to display / hide the following Onscreen display.

●

Power on display

●

Input signal switch display

●

No signal display

●

No external media display (at USB input)

●

MUTE display after displaying the menu screen

●

Off timer remaining time display when 3 minutes remaining

●

Display when responding to commands from external control

[On]:

Displays the Onscreen display.

[Off]:

Hides the Onscreen display.

■ [OSD memory]

Sets whether or not to hold the cursor position on the menu screen.

[Off]:

The cursor position is not held.

[On]:

The cursor position is held.

Note

●

Even if it is set to [On], if the power of the main unit is turned off, the cursor position is not held.

●

For 98/86/65/55/49 inch models, this setting is displayed only when the main software version is

4.0000 or later.

Display orientation

Sets the on-screen display orientation in the portrait setting.

[Landscape]:

On-screen display angle is for horizontal installation.

[Portrait]:

The on-screen display rotates clockwise by 90 degrees for easy view in the portrait setting.

[Auto]:

Detects the installation orientation of the display, and sets the display orientation automatically.

Power indicator

98-inch model

75-inch model

18:00

Note

●

In the portrait setting, the power indicator shall come to the right side.

●

Depending on the installation environment, [Auto] may not work normally. In this case, set the mode manually.

65-inch model

55-inch model

49-inch model

Power indicator

86-inch model

■ [OSD transparency]

Sets the transparency rate of the on-screen display background.

0 to 100

English

Page 87

Image rotation

Sets the picture rotation in the portrait setting.

[Off]:

Pictures are not rotated.

[180 degrees]:

Pictures are rotated 180 degrees.

Note

●

For the 98/86-inch model with the main software version of less than 3.0000, when the unit is installed in the landscape setting by setting [Display orientation] to [Landscape] or [Auto], picture rotation does not operate.

Setting [Position] when [Image rotation] is set to [180 degrees]

When [Image rotation] is set to [180 degrees], the adjustment direction becomes opposite of that in [Off] state. (see page 45)

Note these points for adjustment.

Options

This menu displays the information of this unit, and restores data to the factory default state.

[Options] - submenu screen

Display information

Software licenses

Cloning password

USB data cloning

LAN data cloning

Output log data

Shipping

■ [Display information]

Displays the serial number and software version of this unit.

■ [Software licenses]

Displays the software license.

■ [Cloning password]

Sets the password for the cloning function. For more detail of the settings, see “Changing the

cloning password”. (see page 133)

Note

●

The initial password in the factory default state is [AAAA].

●

Change the password periodically, and set one which is difficult to guess.

●

For initialization method for the cloning password, consult the dealer where you purchased the product.

■ [USB data cloning], [LAN data cloning]

Copies the data of a single display to multiple displays by using the USB memory device or via LAN. For more detail of the settings, see “Using data cloning”. (see page 130)

■ [Output log data]

Saves a log for servicing to the USB memory device.

■ [Shipping]

Restores the data of this unit to the factory default state. For more detail of the settings, see “Shipping condition”. (see page 141)

Control settings

Sets each item of the function which enables to control multiple displays at the same time, or individually.

[Control settings] - submenu screen

Control settings

Display ID

Controller ID function Off

Serial ID function Off

Serial response (Normal)

Serial response(ID all)

Off

■ [Display ID]

Set ID number when controlling the Display with [Controller ID function] and [Serial ID function].

0 to 100 (Standard value: 0)

■ [Controller ID function]

Enables/disables the [Controller ID function].

[Off]:

Disables the [Controller ID function]. (Can be operated as normal remote control.)

[On]:

Enables the [Controller ID function]. Effective on switching to [On].

Note

●

To use the [Controller ID function], setting ID numbers both for the remote control and for the display unit is required.

For ID number setting for the remote control, see page 136.

●

About how to reset the settings to defaults, refer to “Initialization”. (see page 142)

■ [Serial ID function]

Set to control external control with the PC connected to SERIAL terminal according to the Display’s ID number.

[Off]:

Disables external control by the ID.

[On]:

Enables the external control by the ID.

■ [Serial response (Normal)]

Sets whether to send the response command to normal commands without ID.

[Off]:

Does not respond. (Including the inquiry command)

[On]:

Responds.

English

Page 88

■ [Serial response(ID all)]

Set whether to respond to the command or not, when serial command of ID number “0” is received.

[Off]:

Does not respond.

[On]:

Responds.

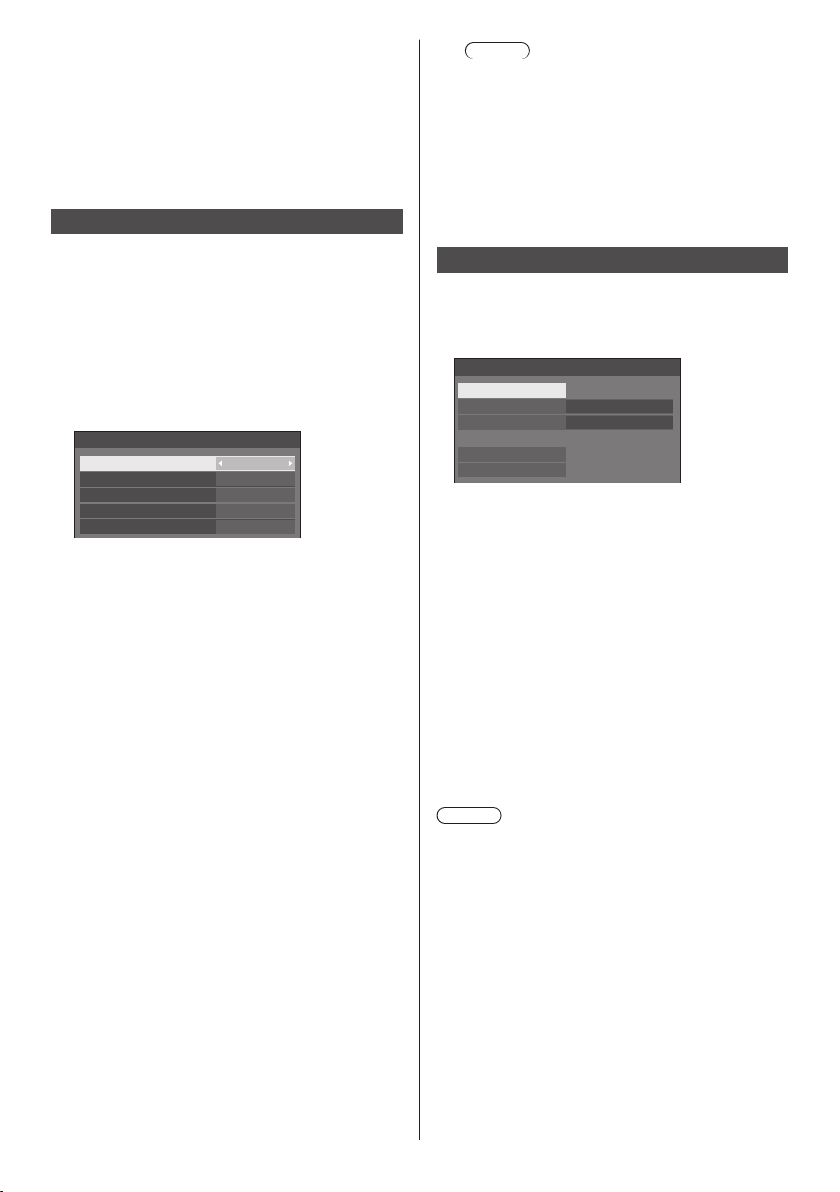

Information timing

Set up the informing manner for no signal or temperature rising.

RS-232C controls:

Warning or error message sent from the display automatically.

LAN controls:

Acquire the warning or error message from the display.

[Information timing] - submenu screen

Information timing

No signal warning

No signal warning timing

No signal error

No signal error timing

Temperature warning

5min

10min

■ [No signal warning]

When set to [On], the display sends out the no signal warning.

■ [No signal warning timing]

Set up the detecting time for no signal warning.

(Range:01‒60,Interval:1minute)

■ [No signal error]

When set to [On], the display sends out the no signal error.

■ [No signal error timing]

Set up the detecting time for no signal error.

(Range:01‒90,Interval:1minute)

●

The warning of [No signal warning] and the error of [No signal error] are not sent when the no signal state is detected through any of the following functions:

[No signal power off], [HDMI1 power management], [HDMI2 power management], [DisplayPort power management], [DIGITAL LINK power management], [DVI-D power management], [PC power management] (see page 69)

Setting Example:

●

If there is no signal when [PC IN] is input, [PC power management] is activated first and the Display enters the standby mode.

[No signal warning timing]: 5 minutes [No signal error timing]: 10 minutes [PC power management]: [On] (60 seconds)

Note

●

The [No signal error timing] cannot be set shorter than [No signal warning timing].

●

Even when a USB memory is connected, if there is no playable file, the unit determines no signal is present.

■ [Temperature warning]

When set to [On], the display sends out the warning message.

SLOT settings

Set for SLOT. This menu is displayed only when a function board is

inserted into the SLOT.

[SLOT settings] - submenu screen

SLOT settings

SLOT information

SLOT power link Off

SLOT standby On

SLOT power on

SLOT forced termination

■ [SLOT information]

Displays the information of the function board inserted to the SLOT.

■ [SLOT power link]

Links the power operation of the SLOT with the power operation of this unit.

[Off]:

Does not link.

[On]:

The power of the unit is turned off when the power of the inserted function board is turned off during SLOT input or enters the power save mode. After that, when the power of the function board is turned on or returns from the power save mode, the power of the unit is turned on.

Note

●

When [HDMI-CEC control] is set to [Enable], this menu will be greyed out and cannot be set. (see page

72)

■ [SLOT standby]

Sets the power supply status for the SLOT when the unit is in standby mode.

[Off]:

The power is not supplied to the SLOT when the power is turned off by the remote control, etc.

[On]:

The power is supplied to the SLOT when the power is turned off by the remote control, etc.

English

Page 89

Note

●

When [SLOT standby] is set to [On], the power indicator in standby mode lights orange (red/green).

●

When [HDMI-CEC control] is set to [Enable], this menu will be greyed out and cannot be set. (see page

72)

■ [SLOT power on]

Starts up the power of the SLOT.

■ [SLOT forced termination]

Forcibly turns off the power of the SLOT. Use this only when the power cannot be turned off manually due to the problem of the operating system, etc.

Maximum VOL function

Enables/Disables [Maximum VOL function].

[Off]:

The sound volume level can be set up to 100 (maximum).

[On]:

The volume cannot be set to the level higher than the level set for [Maximum VOL level].

■ To set [Button lock]

Set with the buttons on the unit.

[Off]:

Press <+ (Unit)> for 4 times. Press <INPUT (Unit)> for 4 times. Press <- (Unit)> for 4 times. Press <ENTER (Unit)>.

[On]:

Press <- (Unit)> for 4 times. Press <ENTER (Unit)> for 4 times. Press <+ (Unit)> for 4 times. Press <ENTER (Unit)>.

[MENU & ENTER]:

Press <ENTER (Unit)> for 4 times. Press <+ (Unit)> for 4 times. Press <INPUT (Unit)> for 4 times. Press <ENTER (Unit)>.

Note

●

About how to reset the settings to defaults, refer to “Initialization”. (see page 142)

Maximum VOL level

Sets the sound volume when [Maximum VOL function] is enabled.

Note

●

Outputs with the set volume when [Maximum VOL level] in [On] state is selected on the menu.

●

When the [Maximum VOL function] is switched from [Off] to [On], if the [Maximum VOL level] is set lower than the [Initial VOL level], the [Initial VOL level] automatically becomes the same as the [Maximum VOL level].

Button lock

Limits operation of the buttons on the unit.

[Off]:

All the buttons on main unit can be used.

[On]:

All button operations except for the <Main Power On / Off button> are disabled.

[MENU & ENTER]:

Locks <MENU (Unit)> and <ENTER (Unit)> buttons.

POWER button lock

Sets the lock setting for the display <Main Power On / Off button>.

[Off]:

<Main Power On / Off button> operation is enabled.

[On]:

<Main Power On / Off button> operation is disabled.

Controller user level

Limits operation of the buttons on the remote control.

[Off]:

You can use all of the buttons on the remote control.

[User1]:

You can only use <Standby (ON/OFF) button>, <INPUT>, <RECALL>, <MUTE>, <VOL +> and <VOL -> buttons on the remote control.

[User2]:

You can only use <Standby (ON/OFF) button> on the remote control.

[User3]:

Locks all the buttons on the remote control.

Note

●

About how to reset the settings to defaults, refer to “Initialization”. (see page 142)

English

Page 90

DVI-D/SLOT select

Selects a terminal to use.

[DVI-D]:

Uses DVI-D IN terminal.

[SLOT]:

Uses SLOT.

USB select

Selects a USB port to use for the USB function.

[MP1]:

Uses MP1 as a function operation terminal.

[MP2]:

Uses MP2 as a function operation terminal.

Note

●

Regardless of the setting, both terminals can be used for power supply. (see page 30)

Quick input change mode

Sets the mode to switch the input at high speed.

[Off]:

Switches the input in normal mode.

[On]:

Switches the input in high speed mode between the following inputs.

[HDMI1] / [HDMI2] / [DisplayPort] / [DVI-D] / [SLOT]

Note

●

Switching at high speed is possible only when the types of signals are the same between inputs.

●

When switching the input at high speed, as for the values of the position, size and image menu, images are once displayed with the setting values for the terminal before switching, and then images are displayed with the setting values for the terminal after switching.

English

Page 91

Using Network Function

This unit has a network function and you can control the Display connected to the network using your computer.

Necessary environment for computers to be connected

First of all, confirm your computer whether it has a wired LAN.

Before connecting the Display to the computer, be sure to check the following settings.

Check 1: About LAN cable

●

Connect the cable properly.

●

Use LAN cable that is compatible with category 5e or above.

Check 2: Wired LAN settings

Computer with a built-in wired LAN function

●

Switch on the wired LAN.

Computer without a built-in wired LAN function

●

Check that your wired LAN adapter is recognized properly and it is switched on.

●

Install the wired LAN adapter driver beforehand. For details on how to install the driver, refer to the

instructions accompanying the wired LAN adapter.

■ About Web Browser

Web Browser is necessary to use WEB control.

●

Compatible OS: Windows, Mac OS

●

Compatible Web Browser: Internet Explorer 11.0 (Windows) Safari 8.0 / 9.0 / 10.0 / 11.0 (Mac OS) Microsoft Edge

Example of network connection

Note

●

To use the network function, set each item in [Network settings] and make sure to set [Network control] to [On].

(see page 77) When it is set to [On], power indicator lights orange

under the condition of power “Off” with remote control (stand-by state).

●

■ LAN Terminal connection

Display (Back of the unit) PC LAN terminal LAN cable (commercially available) Hub or broadband router

Note

●

For LAN cable, use shielded cable, otherwise picture noise may be caused.

●

Make sure the broadband router or hub supports 10BASE-T / 100BASE-TX.

●

Touching the LAN Terminal with a statically charged hand (body) may cause damage to the device due to its discharge.

Do not touch the LAN Terminal or the metal part of the LAN cable.

●

For instructions on connection, consult your network administrator.

English

Page 92

■ DIGITAL LINK Terminal connection

A twisted pair cable transmitter, such as the Panasonic device that supports DIGITAL LINK output (ETYFB100G, ET-YFB200G) uses twisted pair cables to transmit inputted video and audio signals, and these digital signals can be input to the Display via the DIGITAL LINK terminal.

Display (Back of the unit) PC DIGITAL LINK/LAN terminal LAN cable (commercially available) Example: Panasonic ET-YFB100G Hub or broadband router

Note

●

When using a DIGITAL LINK connection, set each item in [Network settings]. (see page 77)

Precautions for use while connecting with a twisted pair cable transmitter

About installation / connection

●

Ask a professional or the dealer to carry out the cable wiring work for DIGITAL LINK connections. Insufficient wiring work may cause the inability to apply the cable transmission characteristics and cropped or fuzzy images and sounds.

●

The transmission distance between the twisted pair cable transmitter and the device is normally up to 100

meters. When the transmitter supports [Long reach] communication method, the transmittable distance is up to 150 m. Please note that if exceeding the limit, video or audio may be interrupted, or malfunction may be caused during LAN communication. Furthermore, when connecting using [Long reach] communication method, depending on the specification of the transmitters, transmittable video signals or the distance may be limited.

●

The transmission distance between the twisted pair cable transmitter and the device is up to 100 meters.

When transmitting 4K signal, the maximum is 50

meters.

Exceeding this distance can cause cropped images or sounds, as well as LAN communication errors.

●

Do not use a hub between the twisted pair cable transmitter and the device.

●

When connecting the Display using the twisted pair cable transmitter (receiver) of other manufacturer, do not use another twisted pair cable transmitter between the twisted pair cable transmitter of other manufacturer and this device. The images and sounds may be interrupted or become unstable.

●

If possible, lay the cable extended and not coiled in order to minimize both external and internal noise.

●

Lay out cables of the twist pair cable transmitter and this product away from other cables, especially from the power supply cable.

●

When laying multiple cables, keep them together as close as possible running parallelly and not bundled.

●

After laying the cable(s), check that the signal quality in [DIGITAL LINK status] is -12 dB or below.

About Twisted pair cables

●

Between the twisted pair cable transmitter and the device, use a LAN cable that conforms to the following conditions.

It meets or exceeds CAT5e standards

•

It is a straight cable

•

It is a shielded cable (with a connector)

•

It is a solid cable

•

●

When laying the cable(s), use an instrument such as a cable tester or cable analyser and check whether the cable characteristics are CAT5e or above. When using a relay connector along the path, also include this in the measurements.

●

Do not pull cables hard. Also, avoid bending or folding them forcefully.

English

Page 93

Other

●

This device is compatible with Panasonic devices that support DIGITAL LINK output (ET-YFB100G, ETYFB200G). For the twisted pair cable transmitter of other manufacturers, see the web site.

(https://panasonic.net/cns/prodisplays/solutions/ technology/digital_link/compatible_equipment/)

●

Panasonic has tested other manufacturers’ devices according to our check items. This will not guarantee all the operations. For operation and performance defects caused by other manufacturers’ devices, contact each manufacturer.

Command control

Network function of the unit can control the unit in the same way as serial control from a network.

Supported commands

Commands used in the serial control are supported. (see page 29)

Control Command via LAN

The communication differs whether [Setup] - [Network settings] - [LAN control protocol] is set to [Protocol 1] or [Protocol 2].

1. When [LAN control protocol] is set to [Protocol 1].

Communicates using the display-specific protocol.

■ When the WEB control administrator

privileges password has been set (Protect mode)

Connection method

Obtain the display’s IP address and the port number

(Default is 1024), and request connection to the display.

The IP address and the port number can be obtained from the following menus.

IP address:

•

[Setup]→[Network settings]→[LAN setup] or [Network status]

Port number:

•

[Setup]→[Network settings]→[LAN setup]

●

For more detail of the settings, see page 78.

The display responds.

Response data

[ ]

0x20

Random

number

[zzzzzzzz] (ASCII

code hex

number)

Data part Space Mode Space

[PDPCONTROL]

(ASCII

character

string)

10 bytes 1 byte 1 byte 1 byte 8 bytes 1 byte

Mode: 1 = Protect mode

[ ]

0x20

[1]

0x31

part

Last

terminal

symbol

(CR) 0x0d

English

Page 94

Hash the following data with the MD5 algorithm, and

generate a 32-byte hash value. [zzzzzzzzyyyyy] zzzzzzzz : 8-byte random number obtained in step 2 yyyyy : Password of the WEB control administrator

privileges user

●

Default user name and password are as follows: User name: dispadmin Password: @Panasonic

Command transmission method

Transmit in the following command format Transmitted data

(see

0x02

Control symbol

(STX)

0x02

Data part

Control

command

(ASCII

character

string)

Data part

Control

command

(ASCII

character

string)

Header

Hash value

“Connection

method”)

32 bytes 1 byte Undefined 1 byte 1 byte

Received data

Control symbol

(STX)

1 byte Undefined 1 byte 1 byte

Control symbol

(ETX)

Control symbol

(ETX)

0x03

terminal

0x03

terminal

symbol

Last

symbol

(CR) 0x0d

Last

(CR) 0x0d

Error response

Error message

“ERR1” : Undefined control

“ERR2” : Out of parameter range

“ERR3” : Busy status or reception

“ERR4” : Timeout or reception

“ERR5” : Wrong data length

“PDPCONTROL

ERRA”

4 bytes or 15 bytes 1 byte

command

invalid period

: Mismatching of

password

Last

terminal

symbol

(CR)

0x0d

■ When the WEB control administrator

privileges password has not been set (Nonprotect mode)

Connection method

Obtain the display’s IP address and the port number

(Default is 1024), and request connection to the display.

The IP address and the port number can be obtained from the following menus.

IP address:

•

[Setup]→[Network settings]→[LAN setup] or [Network status]

Port number:

•

[Setup]→[Network settings]→[LAN setup]

●

For more detail of the settings, see page 78.

The display responds.

Response data

Data part Space Mode

[PDPCONTROL]

(ASCII

character

string)

10 bytes 1 byte 1 byte 1 byte

Mode: 0 = Non-protect mode

[ ]

0x20

[0]

0x30

Last

terminal

symbol

(CR)

0x0d

English

Page 95

Command transmission method

Transmit in the following command format Transmitted data

Control symbol

(STX)

0x02

1 byte Undefined 1 byte 1 byte

Received data

Control symbol

(STX)

0x02

1 byte Undefined 1 byte 1 byte

Error response

Error message

Data part

Control

command

(ASCII

character

string)

Data part

Control

command

(ASCII

character

string)

“ERR1” : Undefined control

“ERR2” : Out of parameter

“ERR3” : Busy status or

“ERR4” : Timeout or reception

“ERR5” : Wrong data length

4 bytes 1 byte

Control symbol

(ETX)

0x03

Control symbol

(ETX)

0x03

command

range

reception invalid period

invalid period

Last

terminal

symbol

(CR) 0x0d

Last

terminal

symbol

(CR) 0x0d

Last

terminal

symbol

(CR) 0x0d

2. When [LAN control protocol] is set to [Protocol 2].

Communicates with the same protocol as that of a Panasonic projector

■ When the WEB control administrator

privileges password has been set (Protect mode)

Connection method

Obtain the display’s IP address and the port number

(Default is 1024), and request connection to the display.

The IP address and the port number can be obtained from the following menus.

IP address:

•

[Setup]→[Network settings]→[LAN setup] or [Network status]

Port number:

•

[Setup]→[Network settings]→[LAN setup]

●

For more detail of the settings, see page 78.

The display responds.

Response data

[ ]

0x20

Random

number

part

[zzzzzzzz]

(ASCII

code

hex

number)

terminal

symbol

Data part Space Mode Space

[NTCONTROL]

(ASCII

character

string)

9 bytes 1 byte 1 byte 1 byte 8 bytes 1 byte

Mode: 1 = Protect mode

Hash the following data with the MD5 algorithm, and

generate a 32-byte hash value. [xxxxxx:yyyyy:zzzzzzzz]

[ ]

[1]

0x20

0x31

xxxxxx : WEB control administrator privileges user name yyyyy : Above administrator privileges user password

●

Default user name and password are as follows:

User name: dispadmin

Password: @Panasonic zzzzzzzz : 8-byte random number obtained in step 2

Last

(CR) 0x0d

English

Page 96

Command transmission method

Transmit in the following command format Transmitted data

Header Data part

Hash value

(see

“Connection

method”)

32 bytes 1 byte 1 byte Undefined 1 byte

Received data

‘0’

0x30

1 byte 1 byte Undefined 1 byte

Error response

Error message

“ERR1” : Undefined control

“ERR2” : Out of parameter range

“ERR3” : Busy status or

“ERR4” : Timeout or reception

“ERR5” : Wrong data length

“ERRA” : Mismatching of

4 bytes 1 byte

‘0’

0x30

Header Data part

0x30

‘0’

0x30

command

reception invalid period

invalid period

password

‘0’

Control

command

(ASCII

character

string)

Control

command

(ASCII

character

string)

terminal

symbol

Last

symbol

(CR) 0x0d

Last

(CR) 0x0d

Last

terminal

symbol

(CR) 0x0d

■ When the WEB control administrator

privileges password has not been set (Nonprotect mode)

Connection method

Obtain the display’s IP address and the port number

(Default is 1024), and request connection to the display.

The IP address and the port number can be obtained from the following menus.

IP address:

•

[Setup]→[Network settings]→[LAN setup] or [Network status]

Port number:

•

[Setup]→[Network settings]→[LAN setup]

●

For more detail of the settings, see page 78.

The display responds.

Response data

Data part Space Mode

[NTCONTROL]

(ASCII

character

string)

9 bytes 1 byte 1 byte 1 byte

Mode: 0 = Non-protect mode

Command transmission method

Transmit in the following command format Transmitted data

Header Data part

‘0’

0x30

1 byte 1 byte Undefined 1 byte

0x20

‘0’

0x30

[ ]

[0]

0x30

Control

command

(ASCII

character

string)

Last

terminal

symbol

(CR)

0x0d

Last

terminal

symbol

(CR) 0x0d

English

Received data

Header Data part

Control

‘0’

0x30

1 byte 1 byte Undefined 1 byte

‘0’

0x30

command

(ASCII

character

string)

Last

terminal

symbol

(CR) 0x0d

Page 97

Error response

Error message

“ERR1” : Undefined control

command

“ERR2” : Out of parameter

range

“ERR3” : Busy status or

reception invalid period

“ERR4” : Timeout or reception

invalid period

“ERR5” : Wrong data length

4 bytes 1 byte

Note

●

With some of the commands, a part of character string of the transmitted data may not be included in the received data.

●

Consult your local Panasonic dealer for detail instructions on command usage.

For more details, visit the following web site. https://panasonic.net/cns/prodisplays/

Last

terminal

symbol

(CR) 0x0d

PJLink protocol

The unit’s Network function is compatible with PJLink Class 1. The following operations can be performed from a computer when PJLink protocol is used.

●

Setting the Display

●

Querying the Display status

Supported commands

The commands to control the unit with PJLink protocol are as follows.

Command Control

POWR Power control

0: Standby 1: Power On

POWR? Power status query

0: Standby 1: Power On

INPT Input switch

11: PC IN input 31: HDMI 1 input (HDMI1) 32: HDMI 2 input (HDMI2) 33: DisplayPort IN input (DisplayPort) 34: DIGITAL LINK input

(DIGITAL LINK) 35: DVI-D IN input (DVI-D) 36: SLOT input (SLOT) 41: USB input (USB) 42: MEMORY VIEWER input

(MEMORY VIEWER) 51: Screen Transfer input

(Screen Transfer)

INPT? Input switch query

11: PC IN input 31: HDMI 1 input (HDMI1) 32: HDMI 2 input (HDMI2) 33: DisplayPort IN input (DisplayPort) 34: DIGITAL LINK input

(DIGITAL LINK) 35: DVI-D IN input (DVI-D) 36: SLOT input (SLOT) 41: USB input (USB) 42: MEMORY VIEWER input

(MEMORY VIEWER) 51: Screen Transfer input

(Screen Transfer)

English

Page 98

Command Control

AVMT Shutter control

10: Picture On

(picture mute deactivated)

11: Picture Off

(picture on mute)

20: Audio On

(audio mute deactivated)

21: Audio Off

(audio on mute)

30: Shutter mode Off

(picture and audio mute deactivated)

31: Shutter mode On

(picture and audio on mute)

AVMT? Shutter control query

11: Picture Off (picture on mute) 21: Audio Off (audio on mute) 30: Shutter mode Off

(picture and audio mute deactivated)

31: Shutter mode On

(picture and audio on mute)

ERST? Error status query

First byte: 0 Second byte: 0 Third byte: 0 Fourth byte: 0 Fifth byte: 0 Sixth byte: Other error. 0 or 2.

●

Meaning of 0, 2. 0: Error is not detected, 2: Error

LAMP? Lamp status query

Not supported

INST? Input switch list query

11: PC IN input 31: HDMI 1 input (HDMI1) 32: HDMI 2 input (HDMI2) 33: DisplayPort IN input (DisplayPort) 34: DIGITAL LINK input

(DIGITAL LINK) 35: DVI-D IN input (DVI-D) 36: SLOT input (SLOT) 41: USB input (USB) 42: MEMORY VIEWER input

(MEMORY VIEWER) 51: Screen Transfer input

(Screen Transfer)

NAME? Display name query

The name selected in [Display name] is returned.

INF1? Manufacturer name query

Returns “Panasonic”.

Command Control

INF2? Model name query

Returns “98SQ1W”. (Example: 98-inch SQ1W model)

INFO? Other information query

Returns version number.

CLSS? Class information query

Returns “1”.

1: For 98 and 86 inch models, 51: Screen Transfer

input is available only when the main software version is 4.0000 or later.

PJLink security authentication

The password used for PJLink is the same as the password set for the WEB control. (see page 101)

When using PJLink without security authorization, set use without the password for administrator privileges and the password for user privileges of Web browser control.

●

Concerning the specification of PJLink, see the web site of Japan Business Machine and Information System Industries Association (JBMIA) below:

http://pjlink.jbmia.or.jp/english/index.html

Multi Monitoring & Control Software

This unit supports the early warning software “Multi Monitoring & Control Software” which monitors and controls devices (projectors or displays) connected to an intranet, and detects signs of abnormality of such devices that may arise in future.

As for the early warning function, the maximum number of devices that can be registered to monitor differs according to the type of license.

Up to 2 048 devices can be registered for free for a maximum of 90 days after the installation to the computer has completed.

●

For more details, visit the following web site. https://panasonic.net/cns/prodisplays/

●

About early warning function, visit the following web site.

https://panasonic.net/cns/prodisplays/pass/

Video Wall Manager

This unit supports the “Video Wall Manager” software which adjusts multiple displays simultaneously or separately on one computer without rearranging cables.

●

For more details, visit the following web site.

https://panasonic.net/cns/prodisplays/

English

Page 99

Content Management Software

This unit supports “Content Management Software” to create schedule data on a PC required to play back still pictures and motion pictures. (Supports Ver.3.0 or later. For the caption display function, supports Ver.3.1 or later.)

●

For more details, visit the following web site. https://panasonic.net/cns/prodisplays/

Screen Transfer

This unit supports the software [Screen Transfer] that sends the PC screen to the display via wired LAN.

[Screen Transfer] can be downloaded from [Download] for the Web browser control. (see page 109)

●

For more details, visit the following web site. https://panasonic.net/cns/prodisplays/

Note

●

For 98 and 86 inch models, [Screen Transfer] is available only when the main software version is

4.0000 or later.

English

Page 100

Connecting with

Using Web Browser

LAN

Note

●

To use the network function, set each item in [Network settings] and be sure to set [Network control] to [On]. (see page 77)

Computer operation

Turn on the computer.

Make the network setting according

to your system administrator.

When the Display settings are the default settings (see page 78), the computer can be used with the following network settings.

IP address 192.168.0.9

Subnet mask 255.255.255.0

Gateway 192.168.0.1

Control

You can use a Web browser to control the unit and set up a network and password.

Before Using Web Browser Control

To use the Web browser control, the unit and computer set ups are required.

■ About Web Browser

Set each item in [Network settings] and be sure to set [Network control] to [On]. (see page 77)

Note

●

■ Computer Setup

Disable the proxy server settings and enable JavaScript.

●

The setting procedure differs depending on the software version.

Please refer to description in HELP, etc. of the software.

(Windows)

Windows 10 is used as an example.

Disable proxy server settings

1 Display [Internet Properties] window.

Click[Start]→[Settings]→[Network&Internet] →[Ethernet]→[NetworkandSharingCenter]→

[Internet Options]. 2 Click the [Connections] tab and then [LAN Settings]. 3 Deselect the [Use automatic configuration script] and

[Use a proxy server for your LAN] boxes. 4 Click [OK].

Enable JavaScript

1 Display [Internet Properties] window.

Click[Start]→[Settings]→[Network&Internet]

→[Ethernet]→[NetworkandSharingCenter]→

[Internet Options]. 2 Set the security level on the [Security] tab to [Default

Level]. Alternatively enable [Active scripting] from the

[Custom Level] button.

100

English

Panasonic TH-98SQ1 User guide

Table of Contents

Important Safety Instructions

FCC STATEMENT

Important Safety Notice

Safety Precautions

WARNING

CAUTION

Precautions for use

Cautions when installing

Note for connection

When using

Notes on Using Wired LAN

Cleaning and maintenance

Disposal

Request Regarding Security

Accessories

Accessories Supply

Remote Control Batteries

Attaching the USB Memory Cover

Attaching the Function Board

Cautions when moving

Eyebolt

Connections

AC cord connection and fixing / Cable fixing

Video equipment connection

Before connecting

HDMI 1 and HDMI 2 terminals connection

DVI-D IN terminal connection

PC IN terminal connection

DisplayPort IN / DisplayPort OUT terminal connection

DIGITAL LINK terminal connection

SERIAL IN terminal connection

IR IN / IR OUT terminal connection

AUDIO OUT terminal connection

USB terminal connection

Speaker terminal connection

Identifying Controls

Display

Remote Control Transmitter

Basic Controls

Selecting the input signal

RECALL

Volume Adjustment

Sound mute On / Off

OFF TIMER

ASPECT Controls

Digital ZOOM

Adjusting Position

Auto setup

Sound Adjustment

Picture Adjustments

Picture Profiles

Saving profiles

Loading profiles

Editing profiles

Setup menu

Multi display settings

Portrait settings

Signal

Power on settings

Input search

Failover/Failback

Screensaver

Input label

Power management settings

Audio input select

HDMI-CEC settings

Image settings

Input lock

Off-timer function

No activity power off

OSD language

Set up timer

Date and time

Network settings

USB media player settings

Memory viewer settings

Screen Transfer settings

Function button settings
