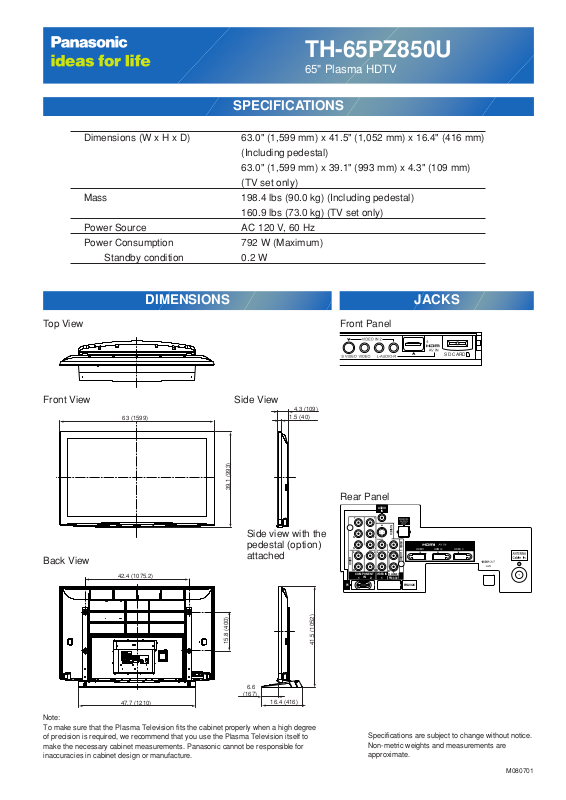

Panasonic th-65pz850 cut sheet

TH-65PZ850U

65" Plasma HDTV

Dimensions (W x H x D) 63.0" (1,599 mm) x 41.5" (1,052 mm) x 16.4" (416 mm)

(Including pedestal)

63.0" (1,599 mm) x 39.1" (993 mm) x 4.3" (109 mm)

(TV set only)

Mass 198.4 lbs (90.0 kg) (Including pedestal)

Power Source AC 120 V, 60 Hz

Power Consumption 792 W (Maximum)

Standby condition 0.2 W

SPECIFICATIONS

M080701

160.9 lbs (73.0 kg) (TV set only)

DIMENSIONS JACKS

Top View

Front View

Back View

63 (1599)

42.4 (1075.2)

Side View

39.1 (993)

Side view with the
pedestal (option)
attached

4.3 (109)

1.5 (40)

Front Panel

Rear Panel

AUDIO

IN

Y

Y

P

P

B

B

P

P

R

R

L

LRL

AUDIO

R

R

COMPONENT

VIDEO IN

IN

112

PC

S VIDEO

L

R

TO AUDIO AMP

PROG OUT

VIDEO

AUDIO

SD CARD

HDMI 1 HDMI 2 HDMI 3

RS232C

47.7 (1210)

15.8 (400)

6.6

(167)

16.4 (416)

41.5 (1052)

Note:
To make sure that the Plasma Television fits the cabinet properly when a high degree
of precision is required, we recommend that you use the Plasma Television itself to
make the necessary cabinet measurements. Panasonic cannot be responsible for
inaccuracies in cabinet design or manufacture.

Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.
