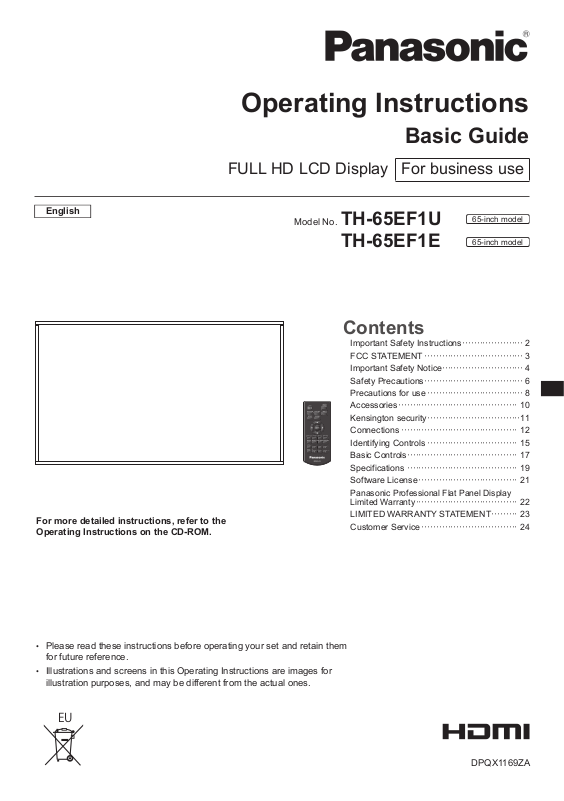

Panasonic TH-65EF1E, TH-65EF1U User Manual

Operating Instructions

65-inch model

65-inch model

EU

Basic Guide

FULL HD LCD Display For business use

English

For more detailed instructions, refer to the
Operating Instructions on the CD-ROM.

Model No. TH-65EF1U

TH-65EF1E

Contents

Important Safety Instructions ····················· 2
FCC STATEMENT ·································· 3
Important Safety Notice ···························· 4
Safety Precautions ·································· 6
Precautions for use ································· 8
Accessories ········································· 10
Kensington security ································11
Connections ········································ 12
Identifying Controls ······························· 15
Basic Controls ······································ 17
Specifications ······································ 19
Software License ·································· 21
Panasonic Professional Flat Panel Display

Limited Warranty
LIMITED WARRANTY STATEMENT ········· 23
Customer Service ································· 24

··································· 22

Please read these instructions before operating your set and retain them

•

for future reference.

Illustrations and screens in this Operating Instructions are images for

•

illustration purposes, and may be different from the actual ones.

DPQX1169ZA

Important Safety Instructions

WARNING: To reduce the risk of electric shock,
do not remove cover or back.

No user-serviceable parts inside. Refer servicing
to qualified service personnel.

The lightning flash with arrow-head within a
triangle is intended to tell the user that parts
inside the product are a risk of electric shock
to persons.

The exclamation point within a triangle
is intended to tell the user that important
operating and servicing instructions are in the
papers with the appliance.

WARNING :

To prevent damage which may result in fire or
shock hazard, do not expose this apparatus to
rain or moisture.

Do not place containers with water (flower vase,
cups, cosmetics, etc.) above the set.

(including on shelves above, etc.)

WARNING :

1) To prevent electric shock, do not remove cover. No
user serviceable parts inside. Refer servicing to
qualified service personnel.

2) Do not remove the grounding pin on the power
plug. This apparatus is equipped with a three pin
grounding-type power plug. This plug will only fit
a grounding-type power outlet. This is a safety
feature. If you are unable to insert the plug into the
outlet, contact an electrician.

Do not defeat the purpose of the grounding plug.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The
wide blade or the third prong are provided for your
safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the
obsolete outlet.

10) Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.

11) Only use attachments / accessories specified by the
manufacturer.

12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart / apparatus combination
to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or
when unused for long periods of time.

14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin
on the AC cord power plug is securely connected.

English

2

FCC STATEMENT

This equipment has been tested and found to comply
with the limits for a class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference
in which case the user will be required to correct the
interference at his own expense.

FCC CAUTION:

To assure continued compliance, follow the attached
installation instructions and use only the provided
power supply cord. Any changes or modifications
not expressly approved by Panasonic Corp. of North
America could void the user’s authority to operate
this device.

Declaration of Verification

Model No.

TH-65EF1U

Responsible Party:

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, New Jersey

07102-5490

Contact Source:

Panasonic System Communications Company of
North America

1-877-655-2357

General Contact:

http://shop.panasonic.com/support

This device complies with Part 15 of the FCC Rules and
all applicable IC RSS standards. Operation is subject
to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must
accept any interference received, including interference
that may cause undesired operation.

English

3

CANADIAN NOTICE:

This Class A digital apparatus complies with
Canadian ICES-003.

WARNING:

Not for use in a computer room as defined in the

•

Standard for the Protection of Electronic Computer/
Data Processing Equipment, ANSI/NFPA 75.

For permanently connected equipment, a readily

•

accessible disconnect device shall be incorporated
in the building installation wiring.

For pluggable equipment, the socket-outlet shall

•

be installed near the equipment and shall be easily
accessible.

Note:

Image retention may occur. If you display a still
picture for an extended period, the image might
remain on the screen. However, it will disappear when
a general moving picture is displayed for a while.

Trademark Credits

Microsoft, Windows and Internet Explorer are the

•

registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other
countries.

Macintosh, Mac, Mac OS, OS X and Safari are the

•

trademarks of Apple Inc. registered in the United
States and other countries.

PJLink is a registered or pending trademark in Japan,

•

the United States, and other countries and regions.

HDMI, the HDMI Logo, and High-Definition

•

Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC in the United
States and other countries.

JavaScript is a registered trademark or a trademark of

•

Oracle Corporation and its subsidiary and associated
companies in the United States and/or other
countries.

RoomView, Crestron RoomView and Fusion RV are

•

registered trademarks of Crestron Electronics, Inc.

Crestron Connected is the trademark of Crestron
Electronics, Inc.

Even if no special notation has been made of company
or product trademarks, these trademarks have been fully
respected.

Important Safety Notice

WARNING

1) To prevent damage which may result in fire or
shock hazard, do not expose this appliance to
dripping or splashing.

Do not place containers with water (flower vase,
cups, cosmetics, etc.) above the set. (including on
shelves above, etc.)

No naked flame sources, such as lighted candles,
should be placed on / above the set.

2) To prevent electric shock, do not remove cover. No
user serviceable parts inside. Refer servicing to
qualified service personnel.

3) Do not remove the earthing pin on the power
plug. This apparatus is equipped with a three pin
earthing-type power plug. This plug will only fit an
earthing-type power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet,
contact an electrician.

Do not defeat the purpose of the earthing plug.

4) To prevent electric shock, ensure the earthing pin
on the AC cord power plug is securely connected.

CAUTION

This appliance is intended for use in environments
which are relatively free of electromagnetic fields.

Using this appliance near sources of strong
electromagnetic fields or where electrical noise may
overlap with the input signals could cause the picture
and sound to wobble or cause interference such as
noise to appear.

To avoid the possibility of harm to this appliance, keep
it away from sources of strong electromagnetic fields.

WARNING:

This equipment is compliant with Class A of CISPR32.

In a residential environment this equipment may
cause radio interference.

English

4

IMPORTANT INFORMATION

If a display is not positioned in a sufficiently stable
location, it can be potentially hazardous due to falling.
Many injuries, particularly to children, can be avoided
by taking simple precautions such as:

Using cabinets or stands recommended by the

•

manufacturer of the display.

Only using furniture that can safely support the

•

display.

Ensuring the display is not overhanging the edge

•

of the supporting furniture.

Not placing the display on tall furniture (for

•

example, cupboards or bookcases) without
anchoring both the furniture and the display to a
suitable support.

Not standing the displays on cloth or other

•

materials placed between the display and
supporting furniture.

Educating children about the dangers of climbing

•

on furniture to reach the display or its controls.

IMPORTANT: THE MOULDED PLUG

FOR YOUR SAFETY, PLEASE READ THE
FOLLOWING TEXT CAREFULLY.

This display is supplied with a moulded three pin
mains plug for your safety and convenience. A 10
amp fuse is fitted in this plug. Shall the fuse need to
be replaced, please ensure that the replacement fuse
has a rating of 10 amps and that it is approved by
ASTA or BSI to BS1362.

Check for the ASTA mark

or the BSI mark on

the body of the fuse.

If the plug contains a removable fuse cover, you must
ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.

A replacement fuse cover can be purchased from
your local Panasonic dealer.
Do not cut off the mains plug.

Do not use any other type of mains lead except the
one supplied with this display.
The supplied mains lead and moulded plug are
designed to be used with this display to avoid
interference and for your safety.

If the socket outlet in your home is not suitable, get it
changed by a qualified electrician.

If the plug or mains lead becomes damaged,
purchase a replacement from an authorized dealer.

WARNING : — THIS DISPLAY MUST BE EARTHED.

How to replace the fuse.

Open the fuse compartment with a screwdriver and
replace the fuse.

English

5

Safety Precautions

WARNING

■ Setup

Optional accessory

Early Warning Software

•

ET-SWA100 series

: Suffix of the part number may differ depending on the

*

license type.

Note

●

The part number of the optional accessories are
subject to change without notice.

Small parts can present choking hazard if accidentally
swallowed. Keep small parts away from young children.
Discard unneeded small parts and other objects,
including packaging materials and plastic bags/sheets to
prevent them from being played with by young children,
creating the potential risk of suffocation.

Do not place the Display on sloped or unstable
surfaces, and ensure that the Display does not hang
over the edge of the base.

The Display may fall off or tip over.

•

Install this unit at a location with minimal vibration
and which can support the weight of the unit.

Dropping or falling of the unit may cause injury or

•

malfunction.

Do not place any objects on top of the Display.

If foreign objects or water get inside the Display, a

•

short-circuit may occur which could result in fire or
electric shock. If any foreign objects get inside the
Display, please consult your local Panasonic dealer.

Transport only in upright position!

Transporting the unit with its liquid crystal panel

•

facing upright or downward may cause damage to the
internal circuitry.

Ventilation should not be impeded by covering
the ventilation openings with items such as
newspapers, table cloths and curtains.

For sufficient ventilation, see page 8.

Caution - For use only with UL Listed Wall Mount
Bracket with minimum weight/load 24.0 (52.0 lbs).

*

When installing the Display vertically;

When installing the Display vertically, be sure that
the Power Indicator comes to the downside. Heat is
generated and it may cause fire or damage to the
Display.

Power indicator

Cautions for Wall Installation

The installation should be performed by an installation

•

professional. Installing the Display incorrectly may
lead to an accident that results in death or serious
injury.

When installing on a wall, a wall hanging bracket that

•

conforms to VESA standards must be used.

65-inch model

(see page 8)

Before installation, be sure to check if the mounting

•

location has enough strength to support the weight
of the LCD display and the wall hanging bracket for
anti drop.

If you terminate the use of the Display on the Wall,

•

ask a professional to remove the Display as soon as
possible.

When mounting the Display on the wall, prevent the

•

mounting screws and power cable from contacting
metal objects inside the wall. An electric shock may
occur if they contact metal objects inside the wall.

Do not place the display where it may be affected by
salt or corrosive gas.

Doing so may cause the display to fall due to

•

corrosion. Also, the unit may malfunction.

Do not install the product to a place where the
product is exposed to direct sunlight.

If the screen is exposed to direct sunlight, the liquid

•

crystal panel may have adverse effect.

: VESA 400 × 400

■ When using the LCD Display

The Display is designed to operate on 110 - 127 or
220 - 240 V AC, 50/60 Hz.

Do not cover the ventilation holes.

Doing so may cause the Display to overheat, which

•

can cause fire or damage to the Display.

Do not stick any foreign objects into the Display.

Do not insert any metal or flammable objects into the

•

ventilations holes or drop them onto the Display, as
doing so can cause fire or electric shock.

English

6

Do not remove the cover or modify it in any way.

High voltages which can cause severe electric shocks

•

are present inside the Display. For any inspection,
adjustment and repair work, please contact your local
Panasonic dealer.

Ensure that the mains plug is easily accessible.

The mains plug shall be connected to a mains
socket outlet with a protective earthing connection.

Do not use any power supply cord other than that
provided with this unit.

Doing so may cause short-circuit, generates heat,

•

etc., which could cause electric shock or fire.

Do not use the supplied power supply cord with any
other devices.

Doing so could cause electric shock or fire.

•

Securely insert the power supply plug as far as it
will go.

If the plug is not fully inserted, heat may be generated

•

which could cause fire. If the plug is damaged or the
wall socket is loose, they shall not be used.

Do not handle the power supply plug with wet
hands.

Doing so may cause electric shocks.

•

Do not do anything that may damage the power
cable. When disconnecting the power cable, pull on
the plug body, not the cable.

Do not damage the cable, make any modifications

•

to it, place heavy objects on top of it, heat it, place it
near any hot objects, twist it, bend it excessively or
pull it. To do so may cause fire and electric shock. If
the power cable is damaged, have it repaired at your
local Panasonic dealer.

Do not touch the power supply cord or the plug
directly by hand when they are damaged.

Electric shock could occur.

•

Do not remove covers and NEVER modify the
Display yourself

Do not remove the rear cover as live parts are

•

accessible when it is removed. There are no user
serviceable parts inside. (High-voltage components
may cause serious electrical shock.)

Have the Display checked, adjusted, or repaired at

•

your local Panasonic dealer.

Keep the AAA/R03/UM4 batteries (supplied) out of
reach of children. If accidentally swallowed, it will be
harmful to the body.

Please contact a doctor immediately in case you

•

doubt that the child may have swallowed it.

If the Display is not going to be used for any
prolonged length of time, unplug the power supply
plug from the wall outlet.

Picture noise may occur if you connect / disconnect
the cables connected to the input terminals you
are currently not watching, or if you turn the power
of the video equipment on / off, but it is not a
malfunction.

To prevent the spread of fire, keep
candles or other open flames away from
this product at all times.

CAUTION

If problems or malfunction occur, stop using
immediately.

■ If problems occur, unplug the power supply

plug.

Smoke or an abnormal odour come out from the unit.

•

No picture appears or no sound is heard,

•

occasionally.

Liquid such as water or foreign objects got inside the

•

unit.

The unit has deformed or broken parts.

•

If you continue to use the unit in this condition, it
could result in fire or electric shock.

Turn the power off immediately, unplug the power

•

supply plug from the wall outlet, and then contact the
dealer for repairs.

To cut off the power supply to this Display completely,

•

you need to unplug the power supply plug from the
wall outlet.

Repairing the unit yourself is dangerous, and shall

•

never be done.

To enable to unplug the power supply plug

•

immediately, use the wall outlet which you can reach
easily.

■ Do not touch the unit directly by hand when

it is damaged.

Electric shock could occur.

■ When using the LCD Display

Do not bring your hands, face or objects close to the
ventilation holes of the Display.

Heated air comes out from the ventilation holes at the

•

top of Display will be hot. Do not bring your hands or
face, or objects which cannot withstand heat, close to
this port, otherwise burns or deformation could result.

At least 2 people are required to carry or unpack
this unit.

If this is not observed, the unit may drop, resulting in

•

injury.

Be sure to disconnect all cables before moving the
Display.

If the Display is moved while some of the cables are

•

still connected, the cables may become damaged,
and fire or electric shock could result.

Disconnect the power supply plug from the wall
socket as a safety precaution before carrying out
any cleaning.

Electric shocks can result if this is not done.

•

Clean the power cable regularly to prevent it
becoming dusty.

If dust built up on the power cord plug, the resultant

•

humidity can damage the insulation, which could
result in fire. Pull the power cord plug out from the
wall outlet and wipe the mains lead with a dry cloth.

English

7

Do not step on, or hang from the display.

They might tip over, or might be broken and it may

•

result in injury. Pay special attention to the children.

Do not reverse the polarity (+ and -) of the battery
when inserting.

Mishandling the battery may cause its explosion

•

or leakage, resulting in fire, injury or damage to
surrounding properties.

Insert the battery correctly as instructed. (see page

•

11)

Do not use batteries with the outer cover peeling
away or removed.

(The outer cover is attached to the battery for safety.
It must not be removed. Doing so may cause short
circuits.)

Mishandling the batteries may cause the batteries

•

to short circuit, resulting in fire, injury or damage to
surrounding properties.

Remove the batteries from the remote control
transmitter when not using for a long period of time.

The battery may leak, heat, ignite or burst, resulting in

•

fire or damage to surrounding properties.

Do not burn or breakup batteries.

Batteries must not be exposed to excessive heat such

•

as sunshine, fire or the like.

Do not turn the Display upside down.

Do not position the unit with its liquid crystal panel
facing upright.

Precautions for use

Cautions when installing

Do not set up the Display outdoors.

The Display is designed for indoor use.

•

Install this unit at a location which can support the
weight of the unit.

Use the installation bracket that conforms to VESA

•

standards

Environmental temperature to use this unit

When using the unit where it is below 1 400 m (4 593

•

ft) above sea level: 0 °C to 40 °C (32 °F to 104 °F)

When using the unit at high altitudes (1 400 m (4 593

•

ft) and higher and below 2 800 m (9 186 ft) above sea
level): 0 °C to 35 °C (32 °F to 95 °F)

Do not install the unit where it is 2 800 m (9 186 ft)
and higher above sea level.

Failure to do so may shorten the life of the internal

•

parts and result in malfunctions.

We are not responsible for any product damage, etc.
caused by failures in the installation environment
even during the warranty period.

Do not place the display where it may be affected by
salt or corrosive gas.

Failure to do so may shorten the life of the internal

•

parts and result in malfunctions due to corrosion.

Required space for ventilation

For the outermost periphery of the display, leave a

•

space of 10 cm (3.94”) or more at the top, bottom, left
and right.

At the rear, leave a space of 5 cm (1.97”) or more.

About the screws used when using a wall hanging
bracket that conforms to VESA standards

Inch

model

Screw pitch for

installation

65 400 mm × 400 mm 14 mm M6 (4)

Depth of

screw

hole

Screw

(quantity)

Be careful of the movable structure of the power
indicator and remote control sensor.

As factory default, the power indicator and remote

•

control sensor are stored in the main unit. For normal
use, pull out the remote control sensor from the edge
side of the main unit by operating the lever on the
rear panel. Depending on the setup condition such as
when using the multi display, store the remote control
sensor in the main unit. (see page 15)

Do not grab the liquid crystal panel.

Do not forcibly press the liquid crystal panel, or push

•

it with a pointed object. Applying a strong force to
the liquid crystal panel will cause unevenness of the
screen display, resulting in malfunction.

English

8

Depending on the temperature or humidity
conditions, uneven brightness may be observed.
This is not a malfunction.

This unevenness will disappear while applying current

•

continuously. If not, consult the distributor.

Request Regarding Security

When using this product, take safety measures
against the following incidents.

Personal information being leaked via this product

•

Unauthorized operation of this product by a malicious

•

third party

Interfering or stopping of this product by a malicious

•

third party

Take sufficient security measures.

Set a password for the LAN control and restrict the

•

users who can log in.

Make your password difficult to guess as much as

•

possible.

Change your password periodically.

•

Panasonic Corporation or its affiliate companies will

•

never ask for your password directly. Do not divulge
your password in case you receive such inquiries.

The connecting network must be secured by a

•

firewall, etc.

When disposing the product, initialize the data before

•

disposing. [Shipping]

Notes on Using Wired LAN

When setting up the Display at a place, where
electric statistic occurs often, take a sufficient
antistatic measure before start using.

When the Display is used at a location, where static

•

electricity occurs often, such as on a carpet, a wired
LAN communication is disconnected more often.
In that case, remove static electricity and the noise
source that may cause problems with an antistatic
mat, and re-connect the wired LAN.

In rare cases, the LAN connection is disabled due

•

to static electricity or noise. In that case, turn off the
power of the Display and the connected devices once
and then re-turn on the power.

The Display may not work properly due to strong
radio wave from the broadcast station or the radio.

If there is any facility or equipment, which outputs

•

strong radio wave, near the installation location, set
up the Display at a location sufficiently far from the
source of the radio wave. Or, wrap the LAN cable
connected to the LAN terminal by using a piece of
metal foil or a metal pipe, of which is grounded at
both ends.

Cleaning and maintenance

The front of the liquid crystal panel has been
specially treated. Wipe the surface of the liquid
crystal panel gently using only a cleaning cloth or a
soft, lint-free cloth.

If the surface is particularly dirty, wipe with a soft,

•

lint-free cloth which has been soaked in pure water or
water in which neutral detergent has been diluted 100
times, and then wipe it evenly with a dry cloth of the
same type until the surface is dry.

Do not scratch or hit the surface of the panel with

•

fingernails or other hard objects, otherwise the
surface may become damaged. Furthermore, avoid
contact with volatile substances such as insect
sprays, solvents and thinner, otherwise the quality of
the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry
cloth.

If the cabinet is particularly dirty, soak the cloth in

•

water to which a small amount of neutral detergent
has been added and then wring the cloth dry. Use this
cloth to wipe the cabinet, and then wipe it dry with a
dry cloth.

Do not allow any detergent to come into direct contact

•

with the surface of the Display. If water droplets get
inside the unit, operating problems may result.

Avoid contact with volatile substances such as insect

•

sprays, solvents and thinner, otherwise the quality of
the cabinet surface may be adversely affected or the
coating may peel off. Furthermore, do not leave it for
long periods in contact with articles made from rubber
or PVC.

Usage of a chemical cloth

Do not use a chemical cloth for the panel surface.

•

Follow the instructions for the chemical cloth to use it

•

for the cabinet.

Disposal

When disposing the product, ask your local
authority or dealer about the correct methods of
disposal.

English

9

Accessories

Accessories Supply

Check that you have the accessories and items shown

Operating Instructions
(CD-ROM × 1)

Remote Control Transmitter
× 1

●

N2QAYA000099

Batteries for the Remote
Control Transmitter × 2

(AAA/R03/UM4 type)

Clamper × 3

●

DPVF1056ZA

Power supply cord

(Approx. 2 m)

TH-65EF1U

●

1JP155AF1U

TH-65EF1E

●

2JP155AF1W

●

3JP155AF1W

Attention

●

Store small parts in an appropriate manner, and keep
them away from young children.

●

The part numbers of accessories are subject to
change without notice. (The actual part number may
differ from the ones shown above.)

●

In case you lost accessories, please purchase them
from your dealer. (Available from the customer
service)

●

Dispose the packaging materials appropriately after
taking out the items.

10

English

Remote Control Batteries

1. Pull and hold the hook, then open the battery cover.

2. Insert batteries - note correct polarity (+ and -).

AAA/R03/UM4 type

3. Replace the cover.

Helpful Hint

●

For frequent remote control users, replace old
batteries with Alkaline batteries for longer life.

Precaution on battery use

Incorrect installation of the batteries can cause battery
leakage and corrosion that will damage the remote
control transmitter.

Disposal of batteries should be in an environment­friendly manner.

Observe the following precaution:

1. Batteries shall always be replaced as a pair. Always
use new batteries when replacing the old set.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example: “Zinc Carbon” with
“Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble,
heat or burn used batteries.

5. Battery replacement is necessary when remote
control acts sporadically or stops operating the
Display set.

6. Do not burn or breakup batteries.

7. Batteries must not be exposed to excessive heat such
as sunshine, fire or the like.

Kensington security

The security slot of this unit is compatible with the
Kensington security slot.

English

11

Connections

AC cord connection and fixing

Back of the unit

AC cord fixing

AC cord (supplied)

Cable fixing

Note

●

3 clampers are supplied with this unit. Fix the cables
at 3 locations using the holes for clampers as shown
below.

If you need more clampers, purchase them from your
dealer. (Available from the customer service)

1. Attach the clamper

hole

Insert the clamper in a
hole.

Plug the connector into the display unit.

Plug the connector until it clicks.

Note

●

Make sure that the connector is locked on both the
left and right sides.

Unplug the AC cord

Unplug the connector pressing the two knobs.

Note

●

When disconnecting the AC cord, be absolutely sure
to disconnect the AC cord plug at the socket outlet
first.

●

The supplied AC cord is for this unit exclusive use. Do
not use this for other purposes.

To remove from
the unit:

2. Bundle the cables

hooks

To loosen:

knob

snaps

Keep pushing both side
snaps and pull out the
clamper.

Set the tip in the hooks
and tighten.

Keep pushing the knob
and pull out the tip.

12

English

Video equipment connection

1 AV IN (VIDEO): Composite Video / Audio Input

2 PC IN: PC Input Terminal

3 AV IN

(HDMI 1,
HDMI 2):

4 DVI-D IN: DVI-D Input Terminal

5 SERIAL IN: SERIAL Input Terminal

6 LAN: LAN Terminal

Terminal

Connect to video equipment with
Composite signal output.

Connect to video terminal of PC,
video equipment with “YP
YCBCR” or “RGB” output.

HDMI Input Terminal

Connect to video equipment such
as VCR or DVD player, etc.

Connect to video equipment with
DVI-D output.

Control the Display by connecting
to PC.

Control the Display by connecting
to Network.

BPR /

7 USB: USB Terminal

Connect the USB memory to use
[USB media player]. Also, this
can be used to supply power of
up to 5V/1A to an external device
when the picture is displayed.

8 IR IN, IR OUT: Infrared Signal Input / Output

Terminal

Use this when operating more
than one display with one remote
control.

9 AUDIO IN: Audio input terminal shared

with DVI-D IN and PC IN

10 AUDIO OUT: Analogue Audio Output

Terminal

Connect to audio equipment with
analogue audio input terminal.

English

13

Before connecting

●

Before connecting cables, carefully read the operating
instructions for the external device to be connected.

●

Turn off the power of all devices before connecting
cables.

●

Take note of the following points before connecting
the cables. Failure to do so may result in
malfunctions.

When connecting a cable to the unit or a device

•

connected to the unit itself, touch any nearby
metallic objects to eliminate static electricity from
your body before performing work.

Do not use unnecessarily long cables to connect

•

a device to the unit or to the unit body. The
longer the cable, the more susceptible to noise it
becomes. Since using a cable while it is wound
makes it act like an antenna, it is more susceptible
to noise.

When connecting cables, connect GND first, then

•

insert the connecting terminal of the connecting
device in a straight manner.

●

Acquire any cable necessary to connect the external
device to the system that is neither supplied with the
device nor available as an option.

●

If the outer shape of the plug of a connection cable is
large, it may come in contact with the periphery such
as a back cover or the plug of an adjacent connection
cable. Use a connection cable with the suitable plug
size for the terminal alignment.

●

When connecting the LAN cable with plug cover, be
aware that the cover may come in contact with the
back cover and it may be difficult to disconnect.

●

If video signals from video equipment contain too
much jitter, the images on the screen may wobble.
In this case, a time base corrector (TBC) must be
connected.

●

When the sync signals output from PC or video
equipment are disturbed, for example, when changing
settings of video output, the colour of the video may
be disturbed temporarily.

●

The unit accepts Composite video signals, YC
YPBPR signals (PC IN), analogue RGB signals (PC
IN) and digital signals.

●

Some PC models are not compatible with the unit.

●

Use cable compensator when you connect devices to
the unit using long cables. Otherwise the image may
not display properly.

BCR/

14

English

Identifying Controls

Main unit

88

MENU ENTERINPUT

-

+

1

●

Slide the lever on the rear panel to eject the power
indicator and remote control sensor.

To store them, slide the same lever, or directly
push in the bottom surface of the remote control
sensor.

Note

●

For normal use, pull out the power indicator and
remote control sensor from the edge side of the
main unit by operating the lever on the rear panel.
Depending on the setup condition such as when
using the multi display, store them in the main unit.

1 Power Indicator / Remote control sensor

The Power Indicator will light.

When the power of the unit is ON (Main Power On
/ Off button: ON)

●

Picture is displayed: Green

●

Power OFF (standby) with remote control:

When [Network control] is set to [Off]: Red

•

When [Network control] is set to [On]: Orange

•

(Red/Green)

●

Power OFF with “Power management” function:
Orange (Red/Green)

When the power of the unit is OFF (Main Power
On / Off button: OFF): No light

Note

●

Even if the display unit is turned off with the power
indicator off, some of the circuits are in power-on
status.

●

When the power indicator is orange, power
consumption during standby is generally larger than
that of when the power indicator is red.

1 External Input Terminal

Connects to video equipment, PC, etc. (see page 13)

2 <Main Power On / Off button>

Turns the power On / Off.

3 <INPUT (Unit)>

Selects the connected device.

4 <MENU (Unit)>

Displays the menu screen.

5 <+ (Unit)> / <- (Unit)>

Adjusts the volume.

On the main screen, switches settings or adjusts
settings level.

(Unit)> / < (Unit)>

6 <

Selects the setting item on menu screen.

7 <ENTER (Unit)>

Configures the item on menu screen.

Switches aspect mode.

8 Built-in speakers

Sound is output backward and upward.

Note

●

To output sound from the built-in speakers of the
unit, be sure to set [Output select] in the [Sound]
menu to [SPEAKERS].

English

15

Remote Control Transmitter

1 Standby (ON/OFF) button ( / )

●

Turns the power on or off when the Display is
turned on at the <Main Power On / Off button>.
(see page 17)

2 POSITION

3 SETUP

4 ENTER / Cursor buttons (

●

Used to operate the menu screens.

5 ZOOM

Enters the digital zoom mode.

6 DEFAULT

●

Resets the settings of picture, sound, etc., to
defaults.

7 MUTE

●

Sound mute on / off.

8 ASPECT

●

Adjusts the aspect.

9 VOL + / VOL -

●

Adjusts sound volume level.

10 AUTO SETUP

●

Automatically adjusts the position/size of the
screen.

11 INPUT

●

Switches input to display on the screen.

12 PICTURE

13 SOUND

14 RECALL

●

Displays the current setting status of Input mode,
Aspect mode, etc.

15 RETURN

●

Used to return to the previous menu.

)

16 FUNCTION

●

Displays [Function button guide].

17 OFF TIMER

●

Switches to stand-by after a fixed period.

18 Numeric buttons (1 - 6)

●

Used as shortcut buttons by assigning frequently
used operations.

19 Signal emission

Note

●

In this manual, buttons of the remote control and the
unit are indicated as < >.

(Example: <INPUT>.)

The operation is mainly explained indicating the
remote control buttons but you can also operate with
the buttons on the unit when there are the same
buttons.

16

English

Basic Controls

MUTE

AC socket outlet

AC cord (supplied)

Main Power On / Off button

(Back of the unit)

Operate pointing the remote control directly at
the unit’s Remote Control Sensor.

Note

●

For normal use, pull out the remote control sensor
from the edge side of the main unit by operating the
lever on the rear panel. (see page 15)

●

Do not put an obstacle between the remote control
sensor of the main unit and the remote control.

●

Operate the remote control in front of the remote
control sensor or from the area where the sensor can
be seen.

●

When directly aiming the remote control at the remote
control sensor of the main unit, the distance from
the front of remote control sensor should be approx.
7 m or less. Depending on the angle, the operation
distance may be shorter.

●

Do not subject the remote control sensor of the main
unit to the direct sunlight or strong fluorescent light.

Remote Control Sensor /
Power Indicator

Connect the AC cord plug to the

1

Display.

(see page 12)

Connect the plug to the socket outlet.

2

Note

●

Main plug types vary between countries. The
power plug shown at left may, therefore, not be the
type fitted to your set.

●

When disconnecting the AC cord, be absolutely
sure to disconnect the AC cord plug at the socket
outlet first.

●

The settings may not be saved if the power plug is
disconnected immediately after changing settings
with on-screen menu. Disconnect the power plug
after a enough period of time. Or, disconnect the
power plug after turning the power off with the
remote control, RS-232C control or LAN control.

Press the <Main Power On / Off

3

button> on the unit to turn the set on:
Power-On.

●

Power Indicator: Green (Picture is displayed.)

●

When the power of the unit is ON, remote control
operation is possible.

■ To turn the power ON/OFF with the remote

control

Press the <Standby (ON/OFF) button> to turn the
Display on.

●

Power Indicator: Green (Picture is displayed.)

Press the <Standby (ON/OFF) button> to turn the
Display off.

●

Power Indicator: Red (standby)

Press the <Main Power On / Off button> on the unit to
turn the unit off, when the power of the unit is turned
on or in standby mode.

Note

●

During operation of the “Power management”
function, the power indicator turns orange in the
power off state.

●

After the power plug is disconnected, the power
indicator may remain lit for a while. This is not a
malfunction.

English

17

■ When the Unit is turned on for the first time

Following screen will be displayed.

Select the language with and

1

press <ENTER>.

OSD language

English (UK)

Deutsch

Français

Italiano

Español

ENGLISH (US)

Русский

For vertical installation, select

2

[Portrait] with and press
<ENTER>.

Display orientation

Landscape

Portrait

Note

●

Once the items are set, the screens won’t be
displayed when switching on the unit next time.

Each item can be reset in the following menus.

[OSD language]

[Display orientation]

■ Power ON message

The following message may be displayed when turning
the unit power ON:

No activity power off Precautions

‘No activity power off’ is enabled.

When [No activity power off] in the [Setup] menu is set to
[Enable], a warning message is displayed every time the
power is turned ON.

“Power management” Information

Last turn off due to ‘Power management’.

When “Power management” is functioned, an
information message is displayed every time the power
is turned ON.

These message displays can be set with the following
menu:

●

[Options] menu

Power on message(No activity power off)
Power on message(Power management)

18

English

Specifications

Model No.

TH-65EF1U

TH-65EF1E

Power Consumption

175 W

Power off condition

0.3 W

Stand-by condition

0.5 W

LCD Display panel

65-inch VA panel (Direct LED backlight), 16:9 aspect
ratio

Screen size

1 428 mm (W) × 803 mm (H) × 1 638 mm (diagonal) /

56.2” (W) × 31.6” (H) × 64.5” (diagonal)

Resolution

2 073 600

(1 920 (Horizontal) × 1 080 (Vertical))

Dimensions (W × H × D)

1 459 mm × 835 mm × 82 mm / 57.5” × 32.9” × 3.3”

Mass

approx. 24.0 / 52.0 lbs net

Power source

TH-65EF1U:

110‒127V~(110‒127Valternatingcurrent),
50/60 Hz

TH-65EF1E:

220‒240V~(220‒240Valternatingcurrent),

50/60 Hz

Operating condition

Temperature

0°C‒40°C(32°F‒104°F)

Humidity

20%‒80%(nocondensation)

Storing condition

Temperature

-20°C‒60°C(-4°F‒140°F)

Humidity

20%‒80%(nocondensation)

1

*

Connection terminals

HDMI 1

HDMI 2

TYPE A Connector

Audio signal:

Linear PCM (sampling frequencies - 48 kHz,

44.1 kHz, 32 kHz)

DVI-D IN

DVI-D 24 Pin × 1:

Compliance with DVI Revision 1.0

Content Protection:

Compatible with HDCP 1.1

VIDEO

Audio/Video 4-pole mini jack (M3) × 1

Video: 1.0 Vp-p (75 Ω)

Audio: 0.5 Vrms

PC IN

Mini D-sub 15 Pin (Compatible with DDC2B) × 1

Y/G:

1.0 Vp-p (75 Ω) (with sync signal)

0.7 Vp-p (75 Ω) (without sync signal)

B/CB/B:

P

0.7 Vp-p (75 Ω) (without sync signal)

R/CR/R:

P

0.7 Vp-p (75 Ω) (without sync signal)

HD/VD:

1.0‒5.0Vp-p(highimpedance)

AUDIO IN

Stereo mini jack (M3) × 1, 0.5 Vrms

Shared with DVI-D IN and PC IN

AUDIO OUT

Stereo mini jack (M3) × 1, 0.5 Vrms

Output:Variable(-∞‒0dB)
(1 kHz 0 dB input, 10 kΩ load)

SERIAL IN

External Control Terminal

D-sub 9 Pin × 1:

RS-232C compatible

LAN

RJ45 × 1:

For network connection, compatible with PJLink

Communication method:

RJ45 10BASE-T/100BASE-TX

2

*

× 2

English

19

IR IN

Stereo mini jack (M3) × 1

IR OUT

Stereo mini jack (M3) × 1

USB

TYPE A USB connector × 1

DC 5V / 1A (USB 3.0 is not supported.)

Sound

Speakers

80 mm × 30 mm × 2

Audio Output

20 W [10 W + 10 W] (10 % THD)

Remote Control Transmitter

Power source

DC 3 V (battery (AAA/R03/UM4 type) × 2)

Operating range

Approx. 7 m (22.9 ft)

(when operated directly in front of remote control
sensor)

Mass

Approx. 63

Dimensions (W × H × D)

44 mm × 105 mm × 20.5 mm /

1.74” × 4.14” × 0.81”

/ 2.22 oz (including batteries)

1: Environmental temperature to use this unit at high

*

altitudes (1 400 m (4 593 ft) and higher and below
2 800 m (9 186 ft) above sea level): 0 °C to 35 °C
(32 °F to 95 °F)

2: VIERA LINK is not supported.

*

Note

●

Design and specifications are subject to change
without notice. Mass and dimensions shown are
approximate.

English

20

Software License

This product incorporates the following software:

(1) the software developed independently by or for Panasonic Corporation,

(2) the software owned by third party and licensed to Panasonic Corporation,

(3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),

(4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or

(5) open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1.

The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY,
without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. For details,
see the license conditions displayed by selecting [Software licenses], following the specified operation from the
[Settings] menu of this product.

At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at
the contact information provided below, for a charge no more than our cost of physically performing source code
distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL
V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof.

Contact Information:

[email protected]

Notice about AVC/VC-1/MPEG-4

This product is licensed under the AVC Patent Portfolio License, VC-1 Patent Portfolio License and MPEG-4 Visual
Patent Portfolio License for the personal use of a consumer or other uses in which it does not receive remuneration
to (i) encode video in compliance with the AVC Standard, VC-1 Standard and MPEG-4 Visual Standard (“AVC/
VC-1/MPEG-4 Video”) and/or (ii) decode AVC/VC-1/MPEG-4 Video that was encoded by a consumer engaged in
a personal activity and/or was obtained from a video provider licensed to provide AVC/VC-1/MPEG-4 Video. No
license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA,
LLC. See http://www.mpegla.com.

English

21

Panasonic Solutions Company

Panasonic Professional Flat Panel Display Limited Warranty

(for the U.S.A and Puerto Rico)

Unit of Panasonic Corporation of
North America

Two Riverfront Plaza, Newark,
New Jersey 07102-5490

Panasonic Solutions Company. (referred to as “the
Warrantor”) will repair this product and all included
accessories with new or refurbished parts, free of
charge in the USA or Puerto Rico, of the original
purchase in the event of a defect in materials or work­manship as follows:

Models or Parts

Professional Flat
Panel Display

On-site or carry-in service in the USA and Puerto Rico
may be obtained during the warranty period by contacting
Panasonic Solutions Company Service toll free at
1-877-655-2357.

Panasonic Professional Flat Panel Display

Limited Warranty

antenna, inadequate signal pickup, maladjustment of
consumer controls, improper operation, power line surge,
improper voltage supply, lighting damage, or service by
anyone other than an authorized repair facility, or
damage that is attributable to acts of God.

Part

Warranty

2 Years 2 Years

Labor

Warranty

LIMITS AND EXCLUSIONS

There are no express warranties except as listed above.

THE WARRANTOR SHALL NOT BE LIABLE FOR
INCIDENTAL OR CONSEQUE NTIAL DAMAGES
(INCLUDING, WITHOUT LIMITION, DAMAGE
TO DISCS) RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF
THE WARRANTY. ALL EXPRESS AND IMPLIED
WARRANTIES, INCLUDING THE WARRANTIES
OF MERCHANTABIL IT Y AND FIT NESS FOR
PARTICULAR PURPOSE, ARE LIMITED TO THE
APPLICABLE WARRANTY PERIOD SET FORTH
ABOVE.

This warranty is extended only to the original purchaser
and is non transferable. A purchase receipt or other
proof of date of original purchase will be required before
warranty service is rendered.

This warranty only covers failures due to defects in
materials or workmanship, which occur during normal
use. The warranty does not cover damage which occur
in shipment, or failures which are caused by products
not supplied by the warrantor, or failures which result
from improper installation, set-up adjustments, improper

English

22

Some states do not allow the exclusion or limitation
of incidental or consequential damages, or limitations
on how long an implied warranty lasts, so the above
exclusions or limitations may nor apply to you. This
warranty gives you specific legal rights and you may
other rights, which vary from state to state.

If you have a problem with this product that is not
handled to your satisfaction, then
Affairs Department at the Company address indicated
above.

In the USA and Puerto Rico

FOR SERVICE

CALL TOLL FREE

1-877-655-2357

write the Consumer

LIMITED WARRANTY STATEMENT

(for Canada)

In certain instances, some jurisdictions do not allow the exclusion or limitation of

incidental or consequential damages, or the exclusion of implied warranties, so the

above limitations and exclusions may not be applicable.

ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.

this warranty.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR

exchange, any part that becomes defective. However, the product must be

purchased and serviced in Canada. The product or part that shows evidence of

defect must be delivered prepaid or carried in to an authorized Panasonic Broadcast

Service Center. This warranty does not cover shipping costs.

The warranty coverage period is one year for both parts and labour beginning with

the date of original end user purchase, subject to the exceptions as stated below.

Repaired or replacement parts supplied during the warranty coverage period carry

the unexpired portion of the original warranty coverage period. Proof of product

purchase is a condition of warranty service. The owner must produce the product

purchase receipt or other satisfactory evidence of date of original purchase.

This warranty does not apply to external appearance items, such as handles, knobs,

safety windows, etc. This warranty does not apply to any part, or parts, of the

product, installed, altered, repaired or misused in any way that, in the opinion of PCI,

affects the reliability of or detracts from the performance of the product.

For products requiring routine preventive maintenance, that maintenance must be

performed in order to maintain warranty coverage.

Serial numbers that have been altered, defaced or removed void this warranty. This

warranty does not cover replacements or repairs necessitated by loss or damage

resulting from any cause beyond the control of PCI.

Marking or retained images (sometimes called “burn-in”) resulting from the display of

fixed images on video display products are not defects and are not covered under

Panasonic Canada Inc. (also known as PCI) warrants this product to be free of

defects in material and workmanship under normal use during the applicable

warranty coverage period described below. PCI agrees to repair, or at its option,

LIMITED WARRANTY STATEMENT

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

Panasonic Canada Inc.

or damage to the product while in transit.

dramatically decreases the interval between performances of routine preventive

maintenance required to maintain this warranty coverage.

(Content not covered)

• Dust, smoke, rental/staging environment and twenty-four/seven operation,

Warranty Service

If the product needs to be shipped for service, carefully pack (preferably in the

original carton) and enclose a letter, detailing the complaint. Send prepaid and

adequately insured to the local authorized Panasonic Service Centre in your

area or to Panasonic Technical Support and Product Services Department, 5770

Ambler Drive, Mississauga, Ontario, L4W 2T3. Shipping to the latter location

requires a return authorization before shipment. No liability is assumed for loss

All Plasma displays 2 years (burn-in not covered) 2 years

Projector Lamps

103 inch Plasma displays

Hard Drive Disk Unit

1 year plus balance (if any) of

the original Manufacturer’s

Limited Warranty.

1 year

2,500 ANSI Lumens

50% of the rated lamp life or 1 year.

Whichever comes first

3 years (burn-in not covered)

Whichever comes first

50% of the rated lamp life or 1 year.

Whichever comes first.

3 years

Whichever comes first

Imaging Block

All LCD Monitors

* DLP™ Projectors

* LCD Projectors above

* LCD Projectors below

2,500 ANSI Lumens

2 years (burn-in not covered)

3 years or 17,000 hrs.

Whichever comes first

3 years or 2,500 hrs.

Whichever comes first

3 years or 1,500 hrs.

2 years

3 years or 17,000 hrs.

Whichever comes first

3 years or 2,500 hrs.

Whichever comes first.

3 years or 1,500 hrs.

Video Heads

D5 Video heads

Maintenance Items

Colour Camera CCD

1 year or 2,000 hrs. (prorated)

Whichever comes first

1 year or

Whichever comes first

90 days

2 years

1,0
00 hrs.

1 year or 2,000 hrs.

Whichever comes first

1 year or 1,000 hrs.

Whichever comes first

90 days

2 years

WARRANTY COVERAGE PERIOD EXCEPTIONS

Item

Video Tape

P2/SD Cards

Parts

30 days— Replacement only

(content not covered)

(Content not covered)

Labour

N/A

N/A

English

23

Customer Service

24

English

Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used
electrical and electronic products and batteries must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take
them to applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any
potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol)

EU

This symbol might be used in combination with a chemical symbol. In this case it complies with
the requirement set by the Directive for the chemical involved.

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union.
If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of
disposal.

Notice (U.S.A. only)

Disposal may be regulated in your community due to environmental considerations. For disposal or
recycling information, please visit Panasonic website:
http://www.panasonic.com/environmental
or call 1-888-769-0149.

Customer’s Record

The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of
your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

For TH-65EF1U

Panasonic System Communications Company of North America

Unit of Panasonic Corporation of North America

Executive Office :

Two Riverfront Plaza, Newark, New Jersey 07102-5490

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga, Ontario

L4W 2T3

For TH-65EF1E

Panasonic Testing Centre

Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany

English

TP0217TS0 -PB

Printed in China
