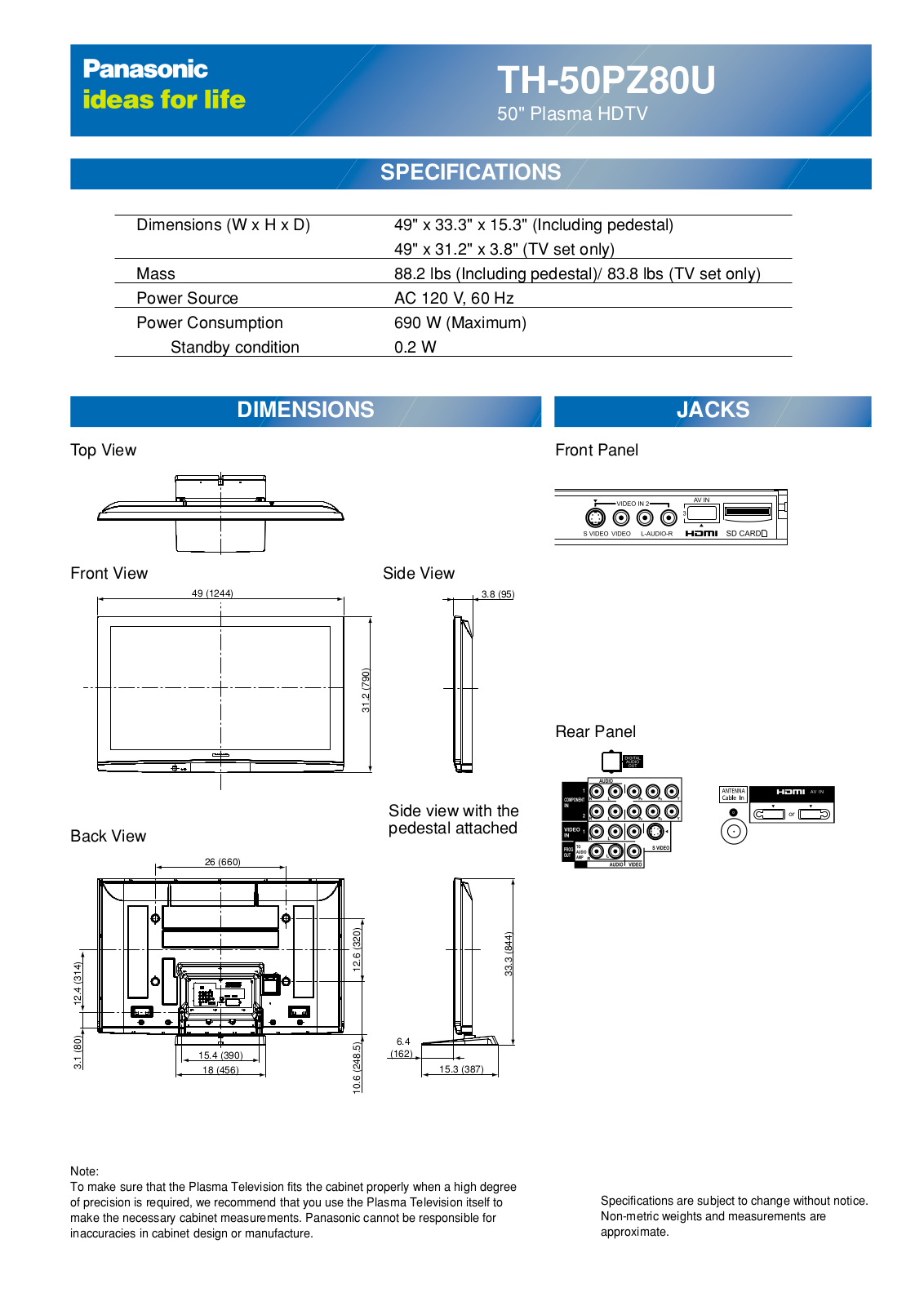

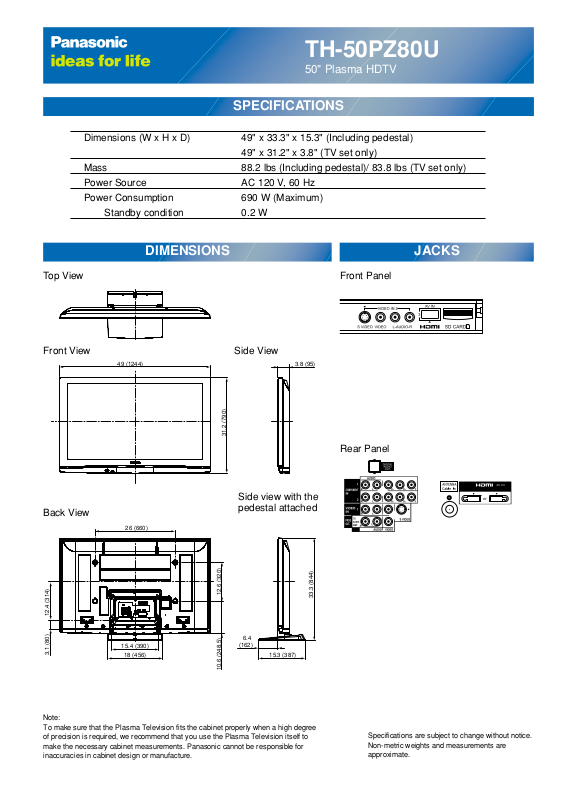

TH-50PZ80U

50" Plasma HDTV

Dimensions (W x H x D) 49" x 33.3" x 15.3" (Including pedestal)

49" x 31.2" x 3.8" (TV set only)

Mass 88.2 lbs (Including pedestal)/ 83.8 lbs (TV set only)

Power Source AC 120 V, 60 Hz

Power Consumption 690 W (Maximum)

Standby condition 0.2 W

SPECIFICATIONS

DIMENSIONS JACKS

Top View

26 (660)

49 (1244)

3.8 (95)

31.2 (790)

33.3 (844)

12.4 (314)3.1 (80)

10.6 (248.5) 12.6 (320)

18 (456)

6.4

(162)

15.3 (387)

15.4 (390)

Front View

Back View

Side view with the
pedestal attached

Note:
To make sure that the Plasma Television fits the cabinet properly when a high degree
of precision is required, we recommend that you use the Plasma Television itself to
make the necessary cabinet measurements. Panasonic cannot be responsible for
inaccuracies in cabinet design or manufacture.

Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.

Side View

Front Panel

Rear Panel
