Page 1

High Definition Plasma Display

PLASMA DISPLAY

L O V

—

U P N I

Y B D

N A

T S

R E

O P

Operating Instructions

TH-50PHW3

Model No.

TH-50PHD3

Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.

English

TQBC0252

Page 2

Dear Panasonic Customer

R - STANDBY G POWER ON

TH-50PHW3

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new High Definition Plasma Display. To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference. Retain your purchase receipt also, and note down the model number and serial number of your set in the space provided on the rear cover of these instructions.

Please confirm the model number of your High Definition Plasma Display

This manual is made for model number “TH50PHW3” or “TH-50PHD3”, therefore some contents may not be for your model type. Please refer to the sections intended for your model.

INPUT

–

VOL

R - STANDBY

model number

G POWER ON

Trademark Credits

VGA is a trademark of International Business Machines Corporation.

•

Macintosh is a registered trademark of Apple Computer, USA.

•

S-VGA is a registered trademark of the Video Electronics Standard Association.

•

Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image to remain on the High Definition Plasma Display. Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

Page 3

Table of Contents

Warnings and Precautions.........................................4

Accessories .................................................................7

Accessories Supply....................................................7

Optional Accessories .................................................7

Remote Control Batteries...........................................8

Basic Controls.............................................................9

Connections ..............................................................10

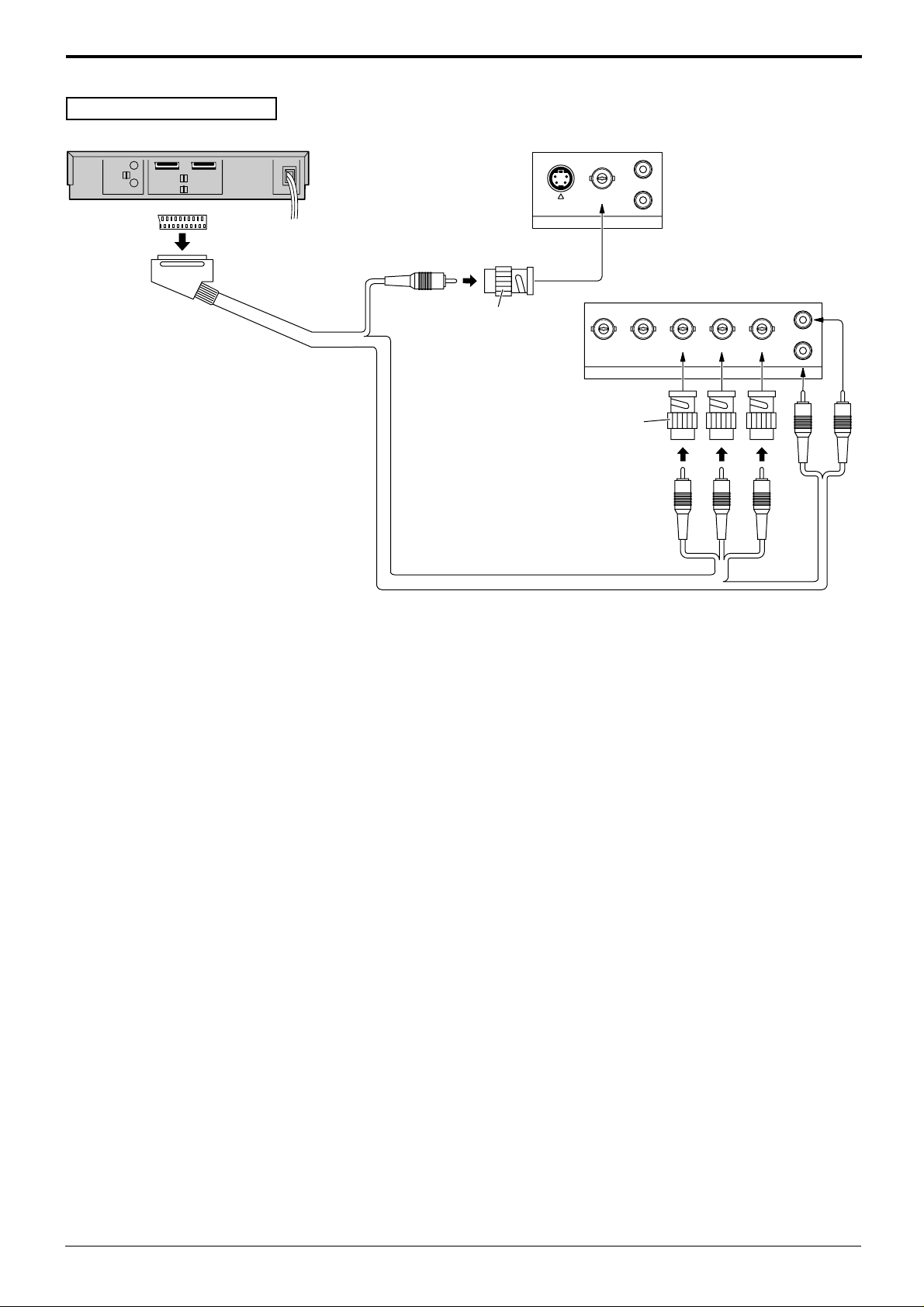

How to connect the AV Input Terminals.................... 11

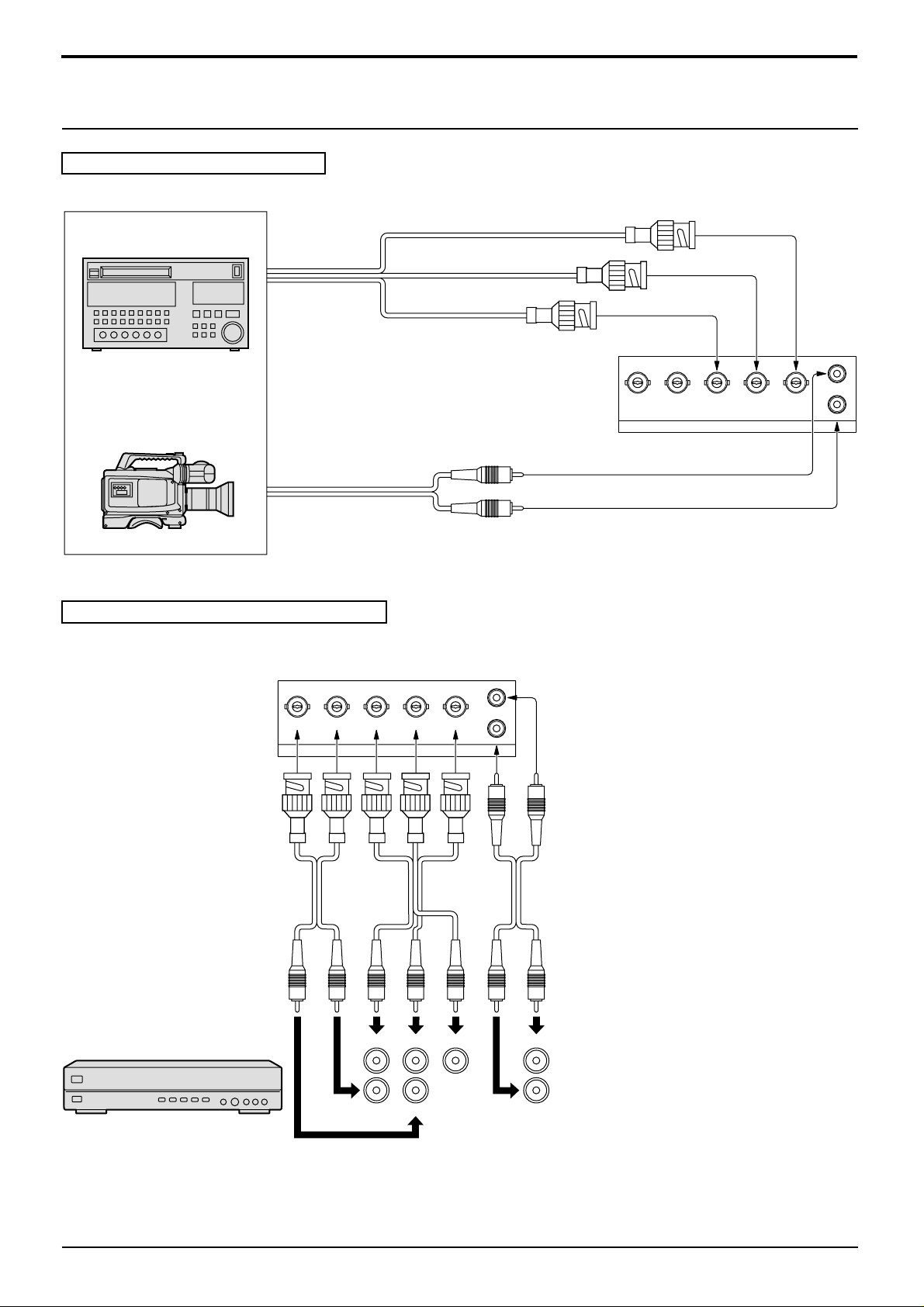

How to connect the COMPONENT/RGB Input Terminals......

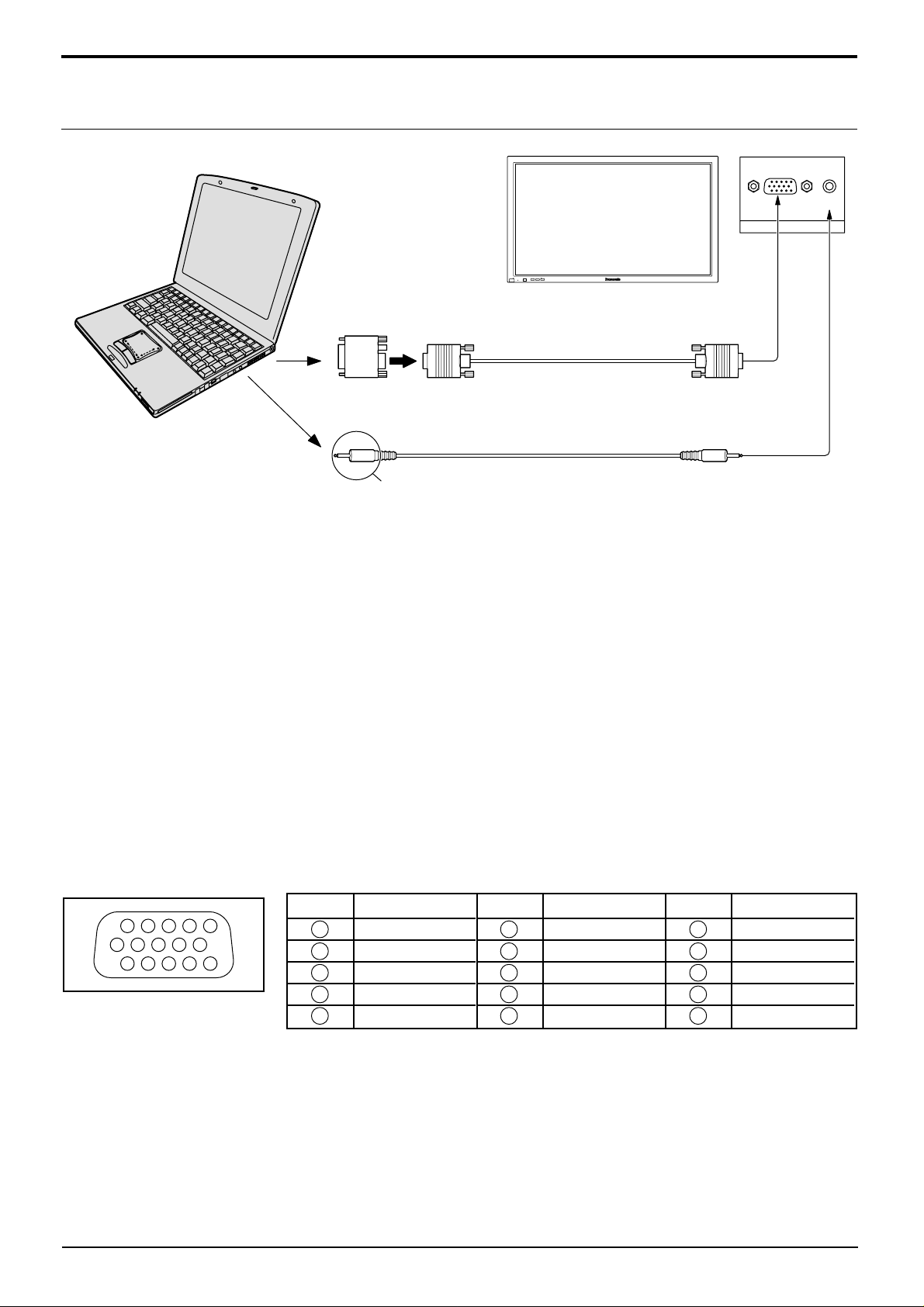

How to connect the PC Input Terminals...................14

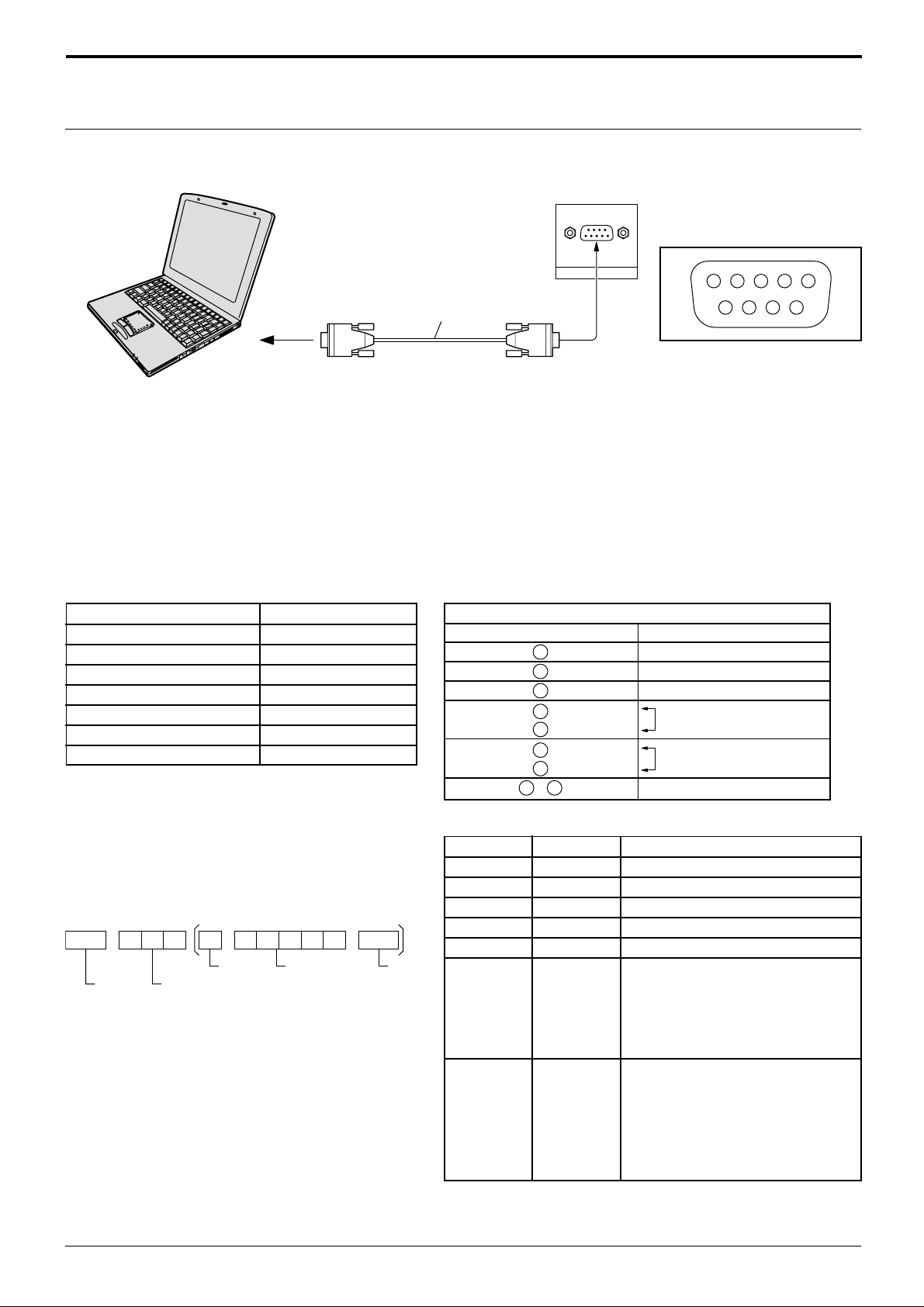

How to connect the SERIAL Terminals ....................15

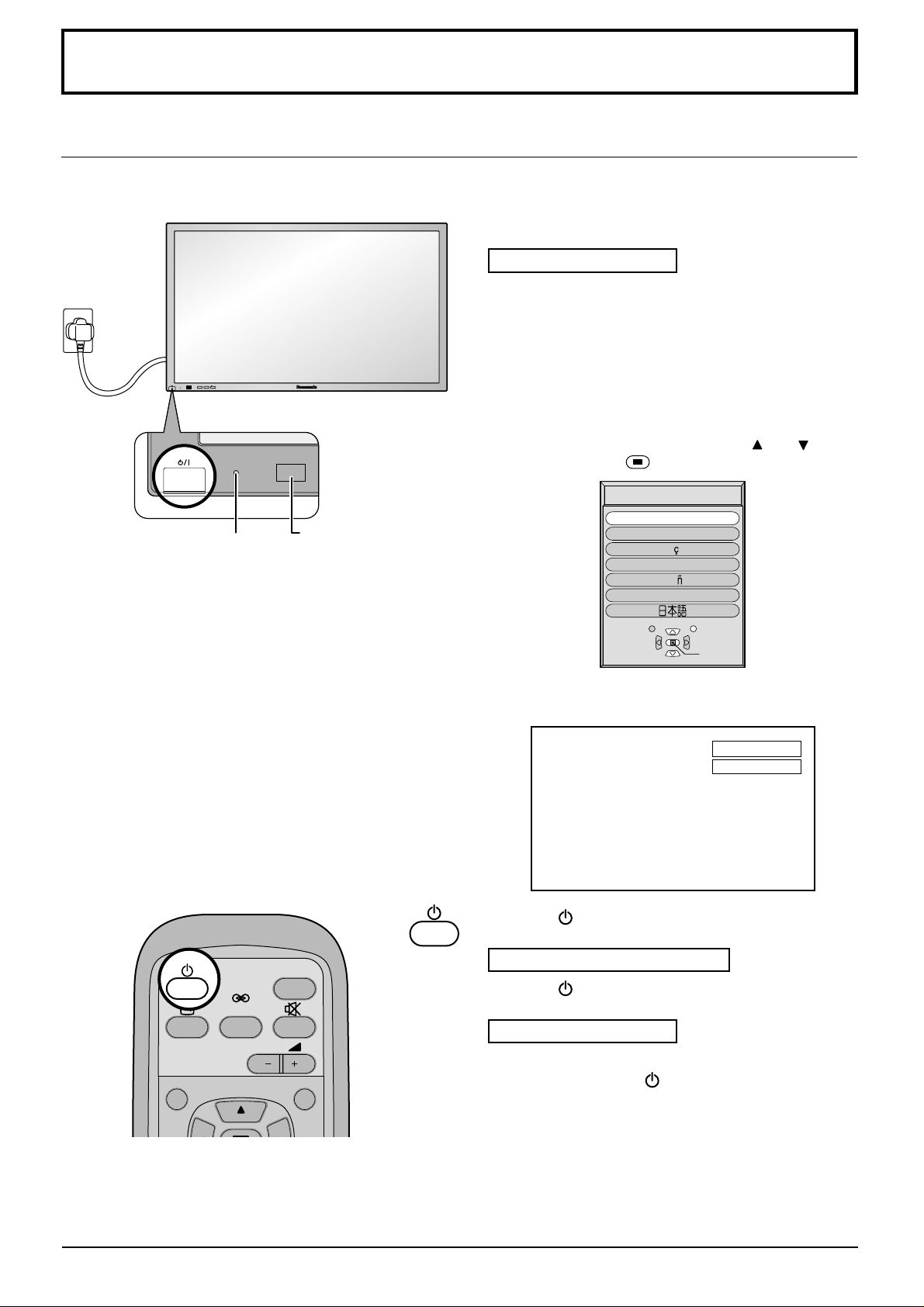

Power On/Off and input signal selection ................16

Power On/Off ...........................................................16

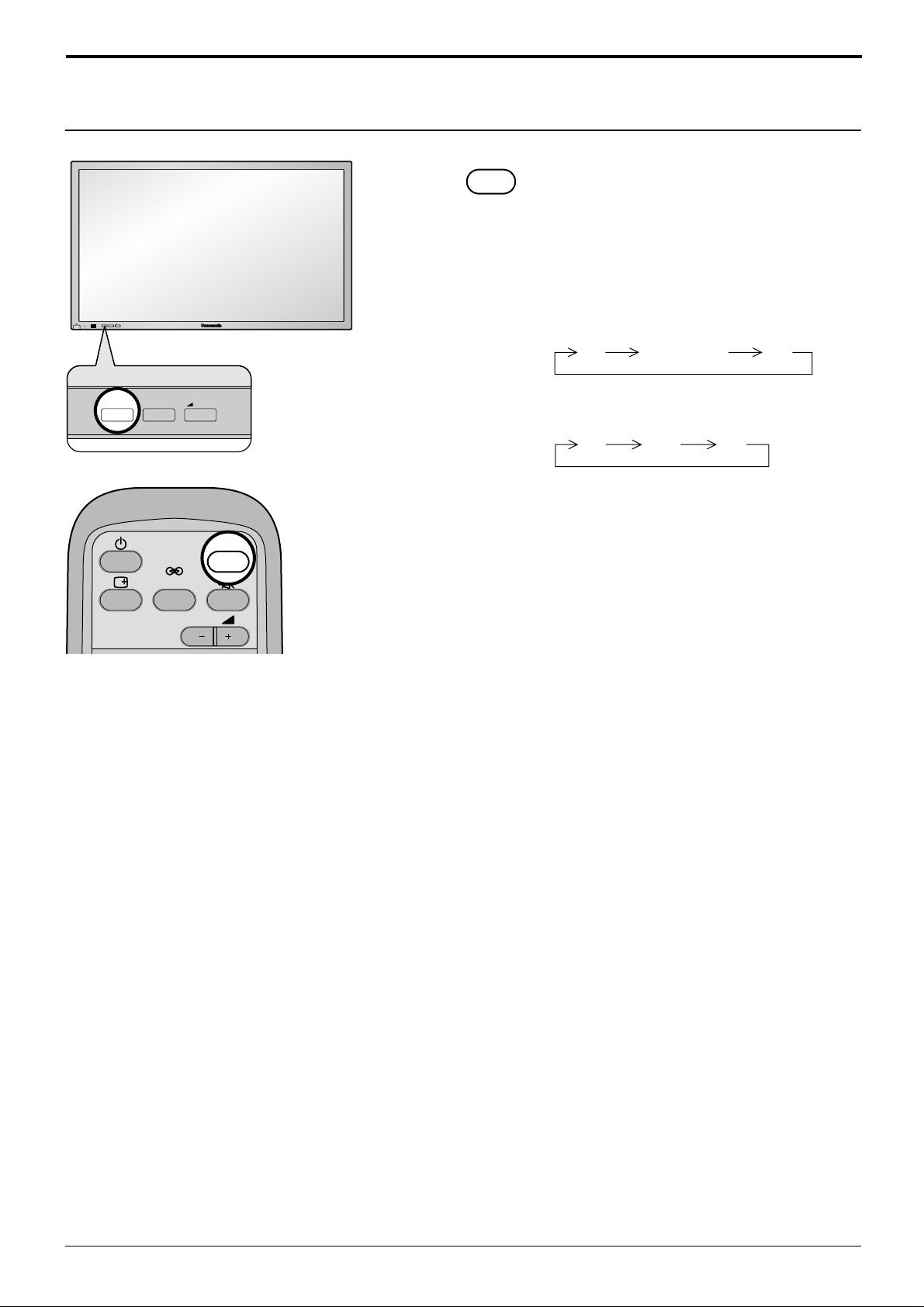

Select the input signal..............................................17

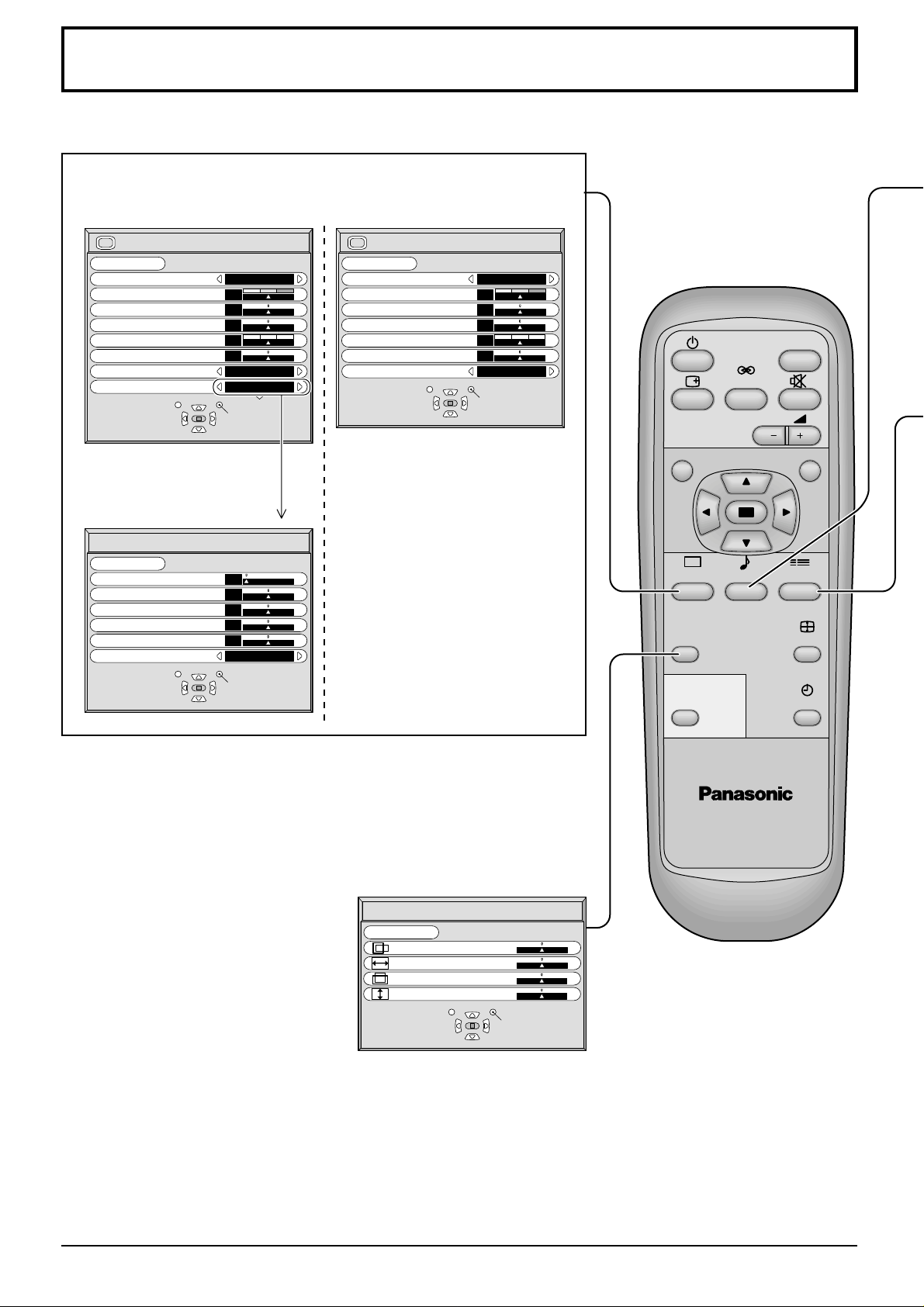

On screen Menu Display from Remote Control .....18

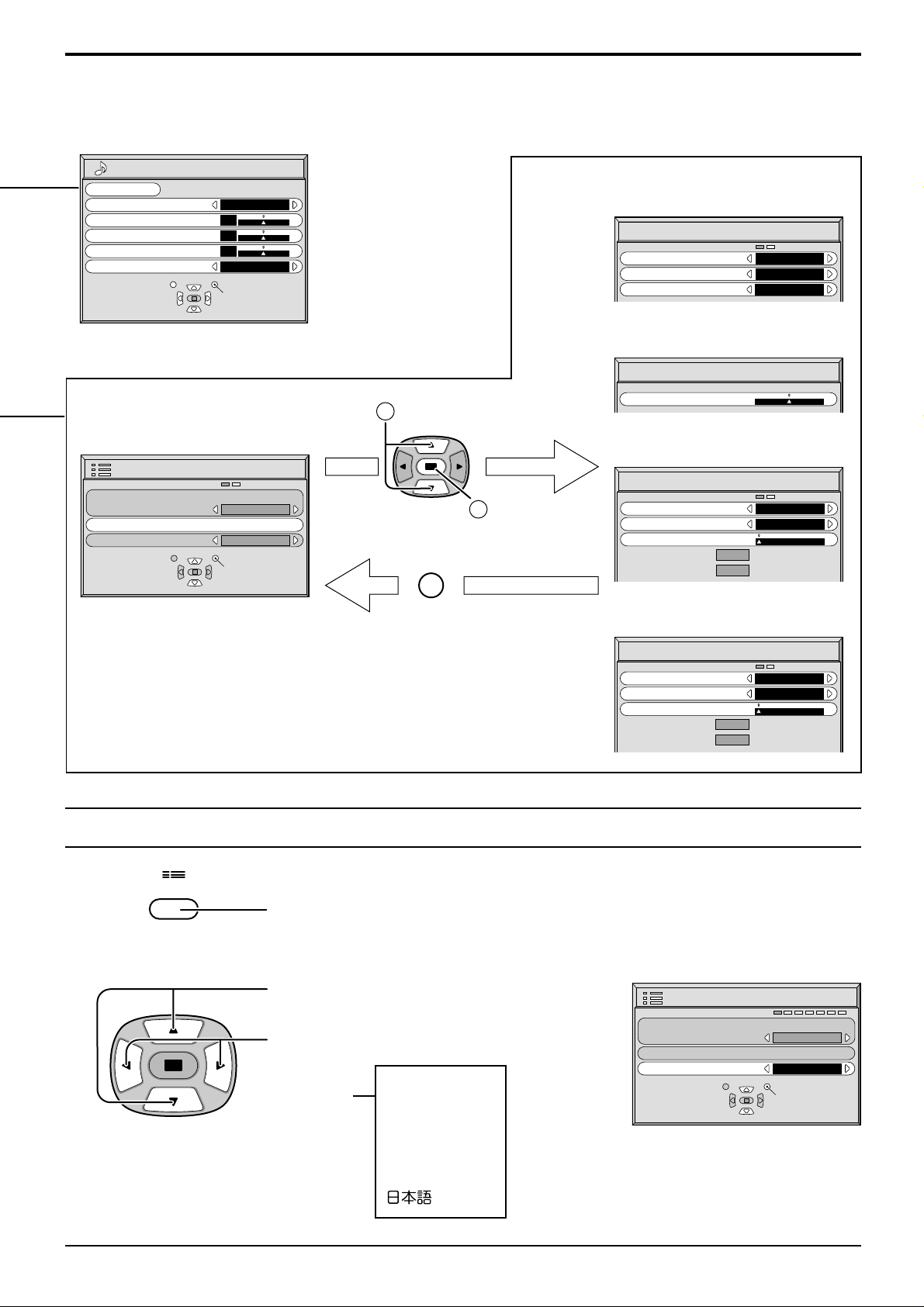

Selecting the On-Screen Menu Language...............19

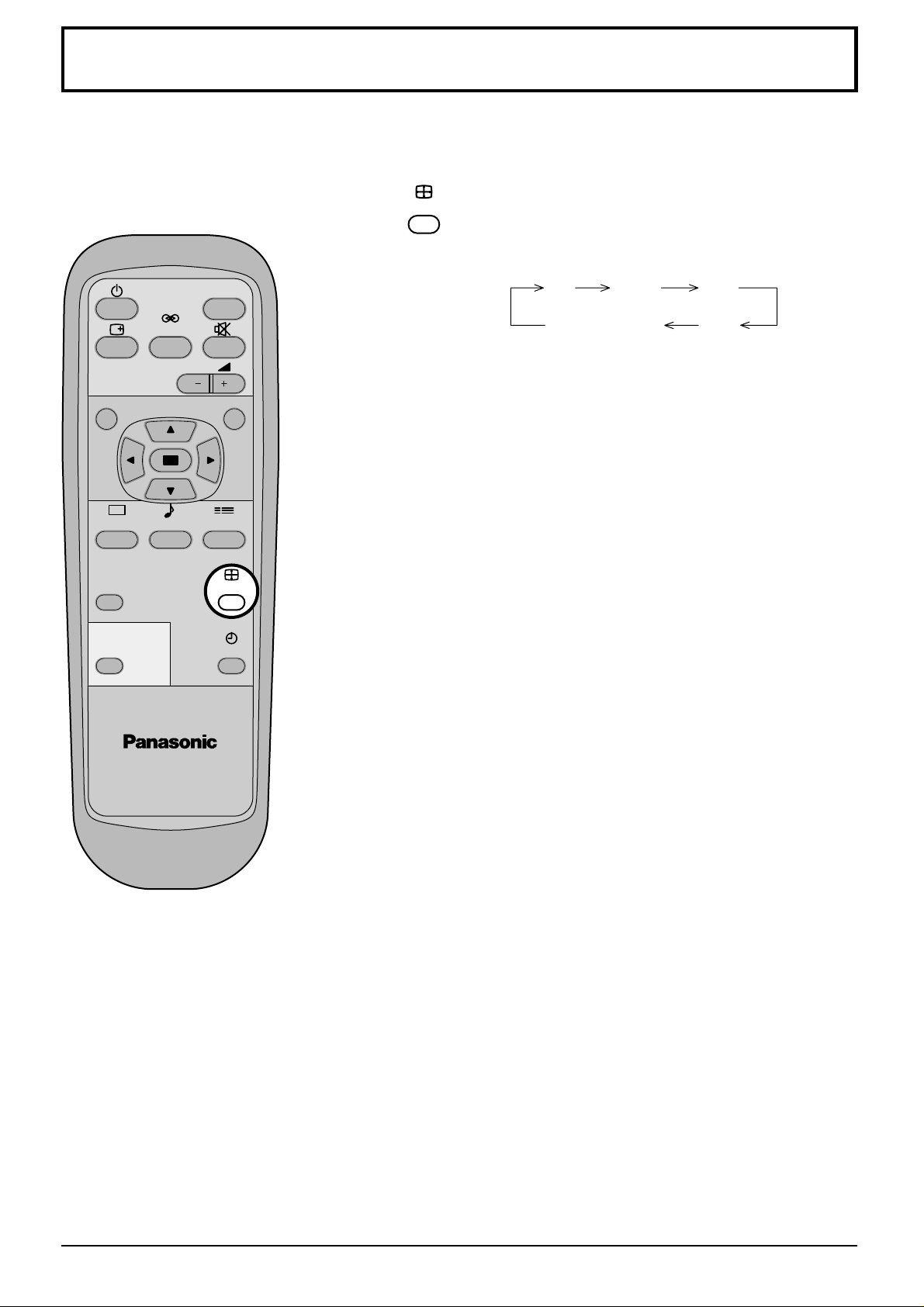

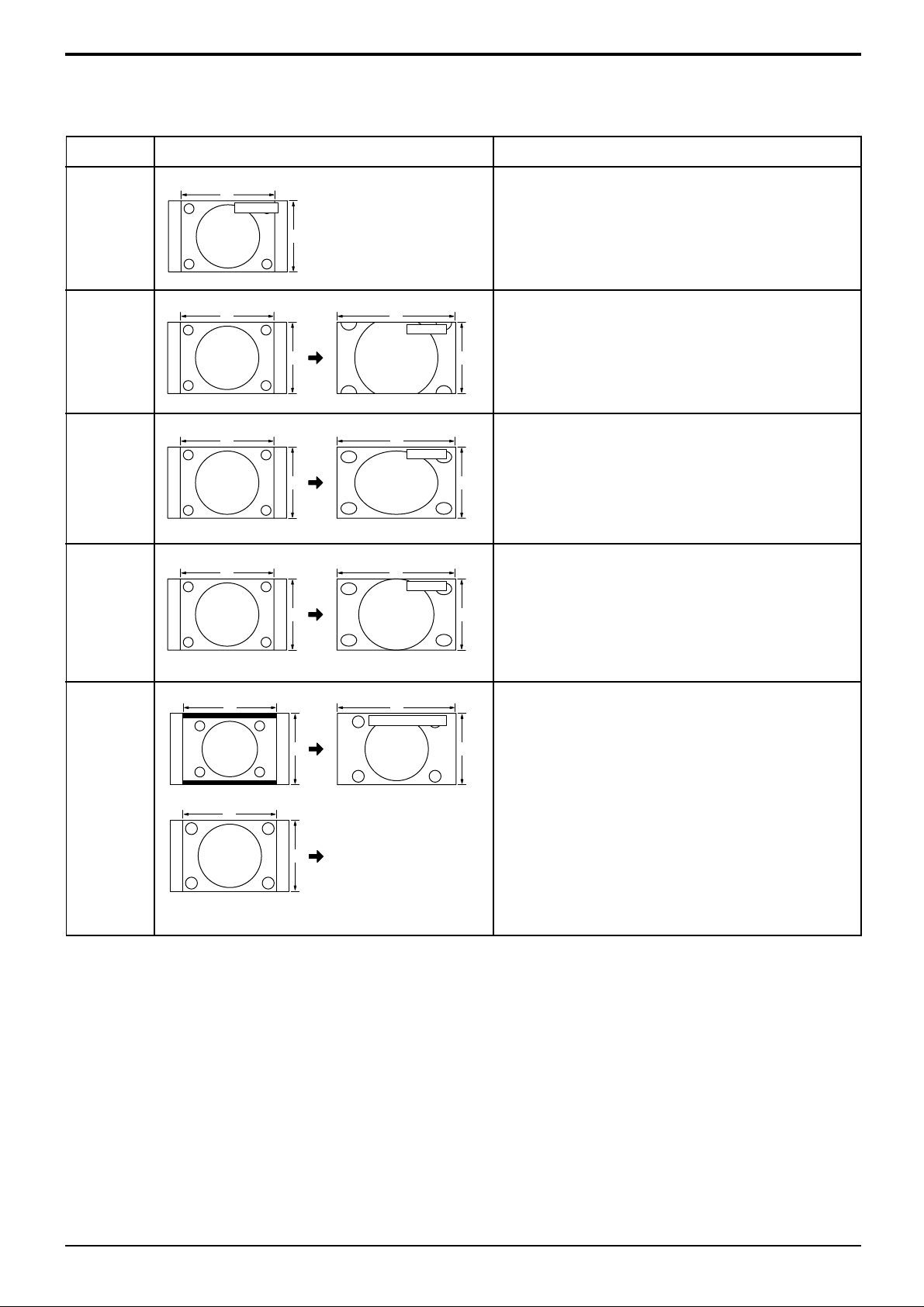

ASPECT Controls......................................................20

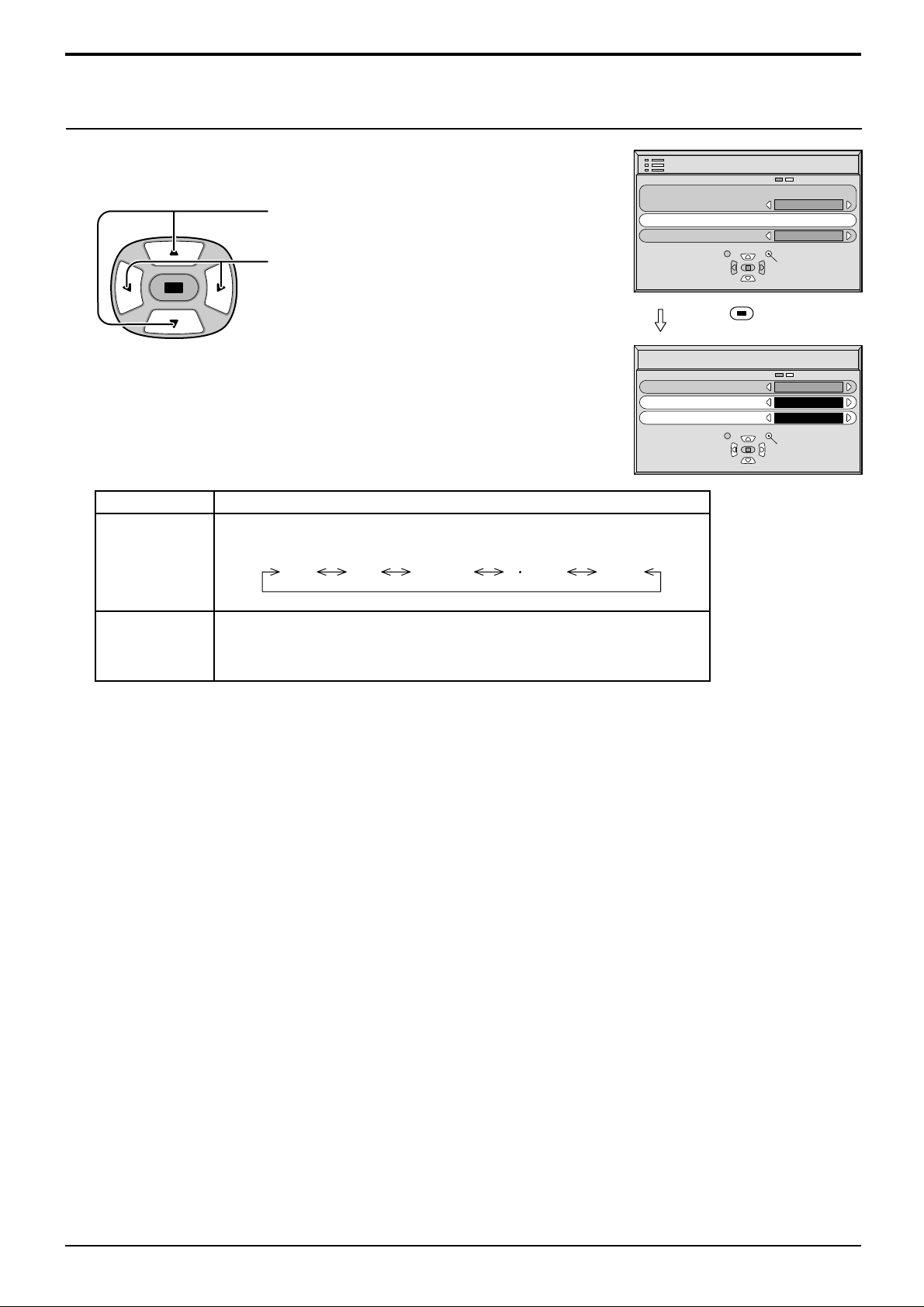

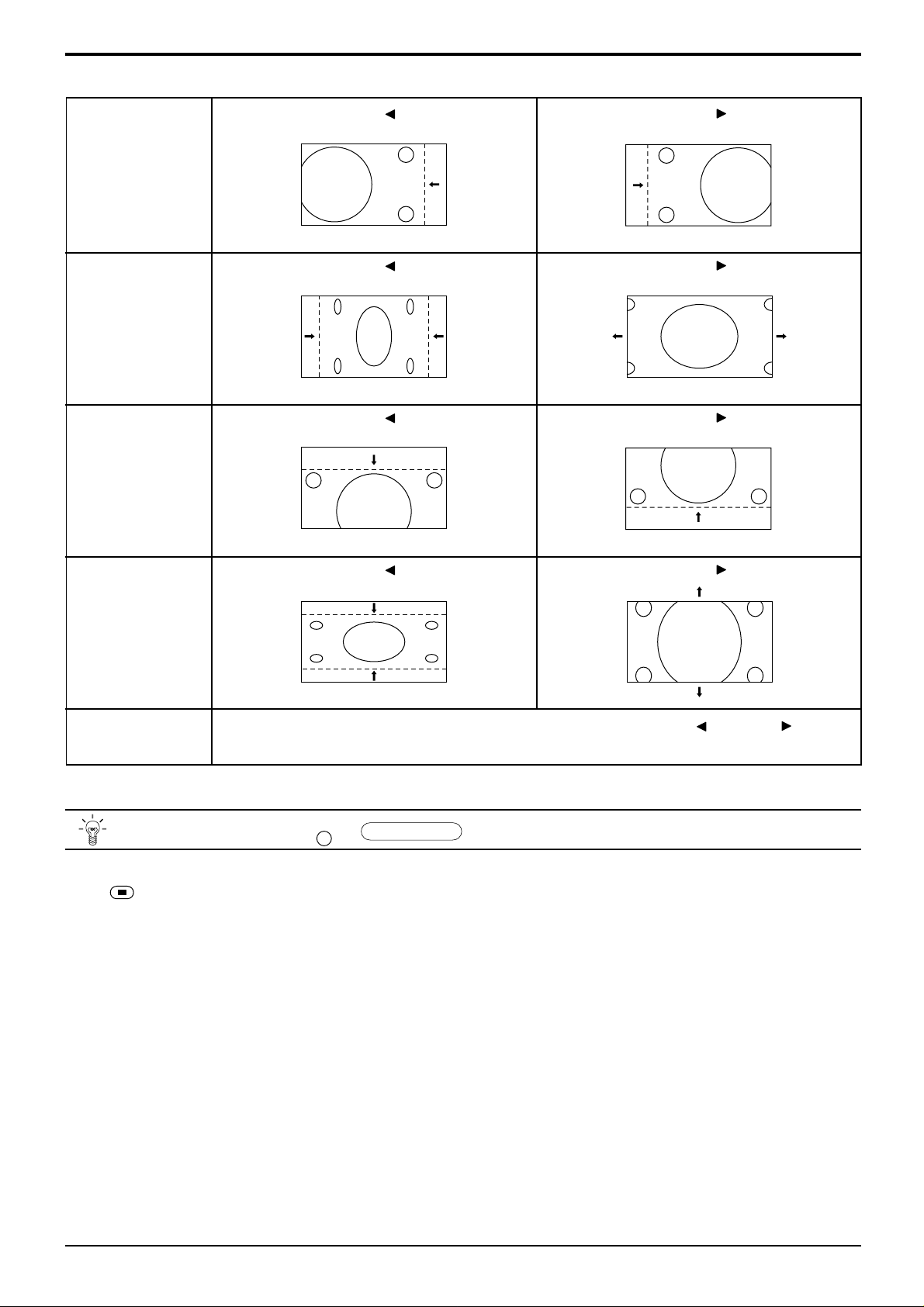

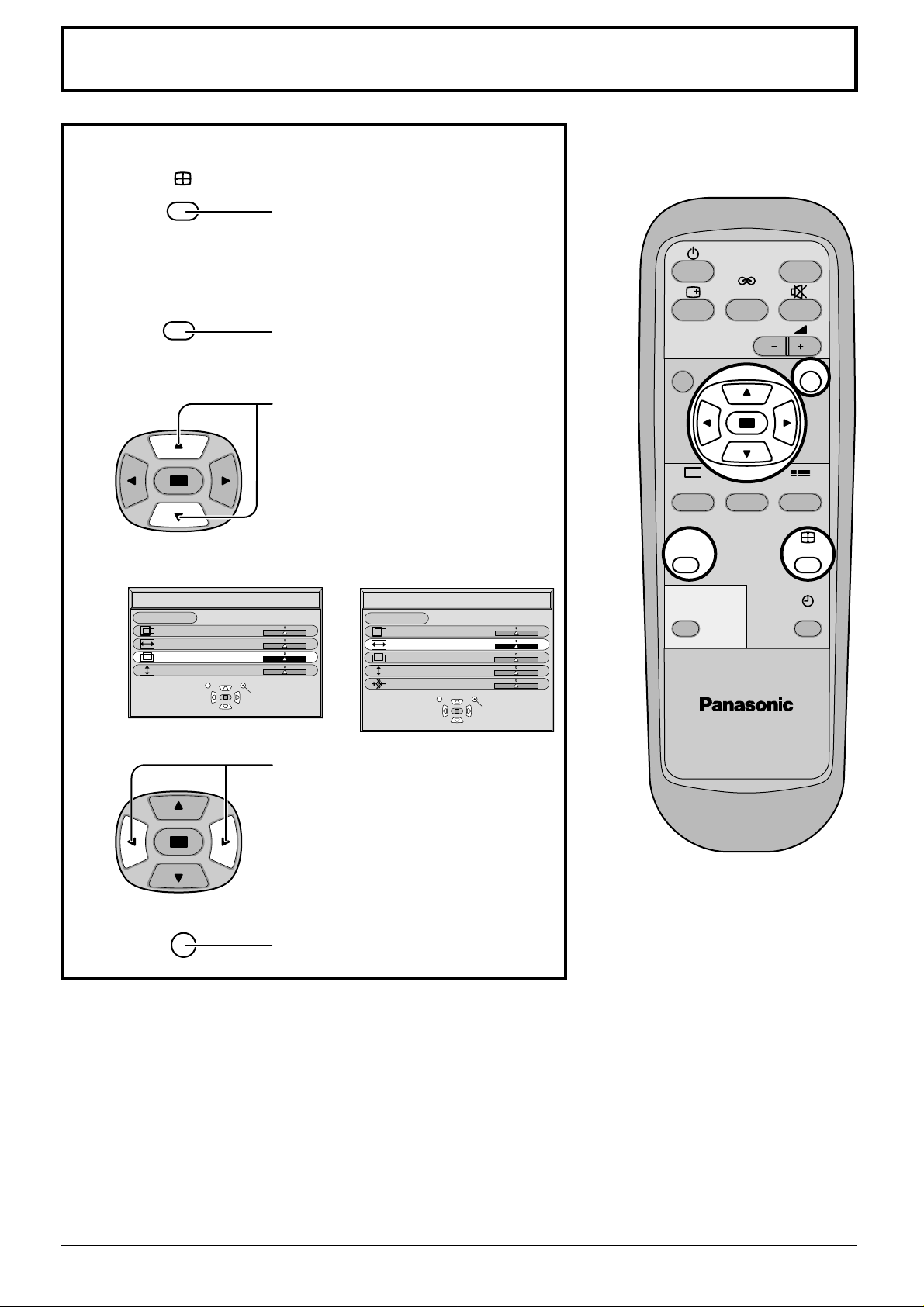

Adjusting Picture Pos./Size .....................................22

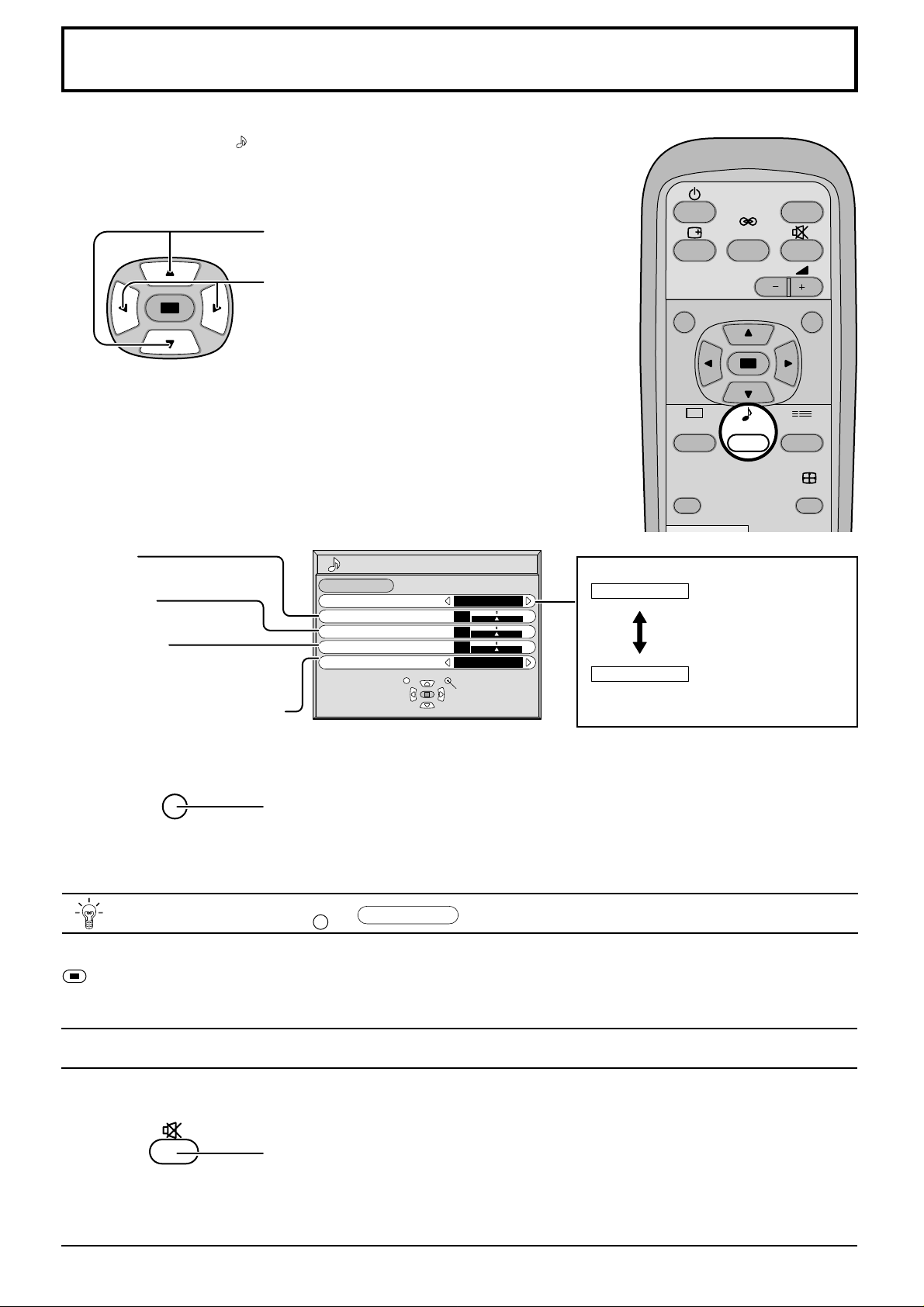

Sound Adjustment ....................................................24

Mute .........................................................................24

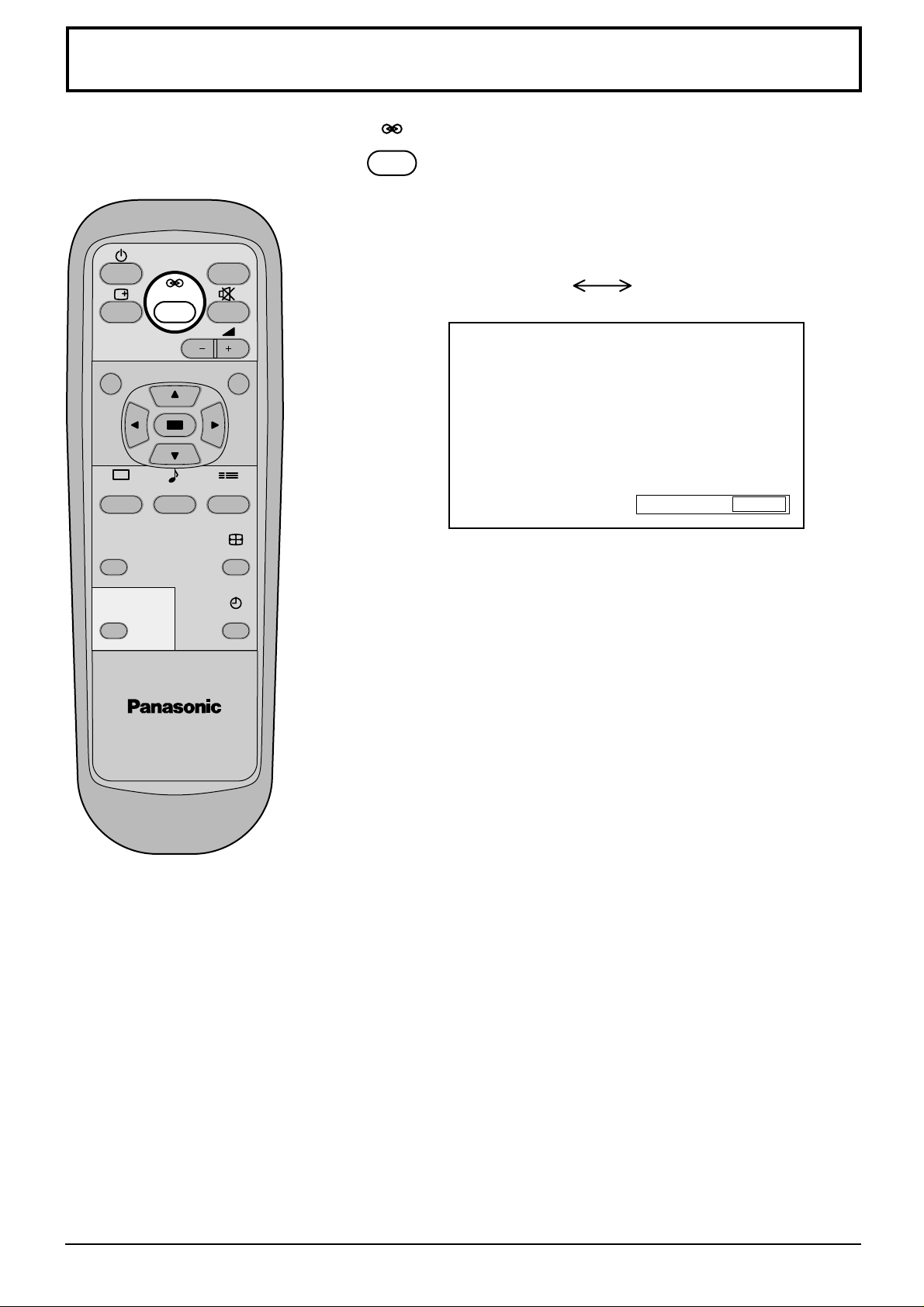

Surround Controls ....................................................25

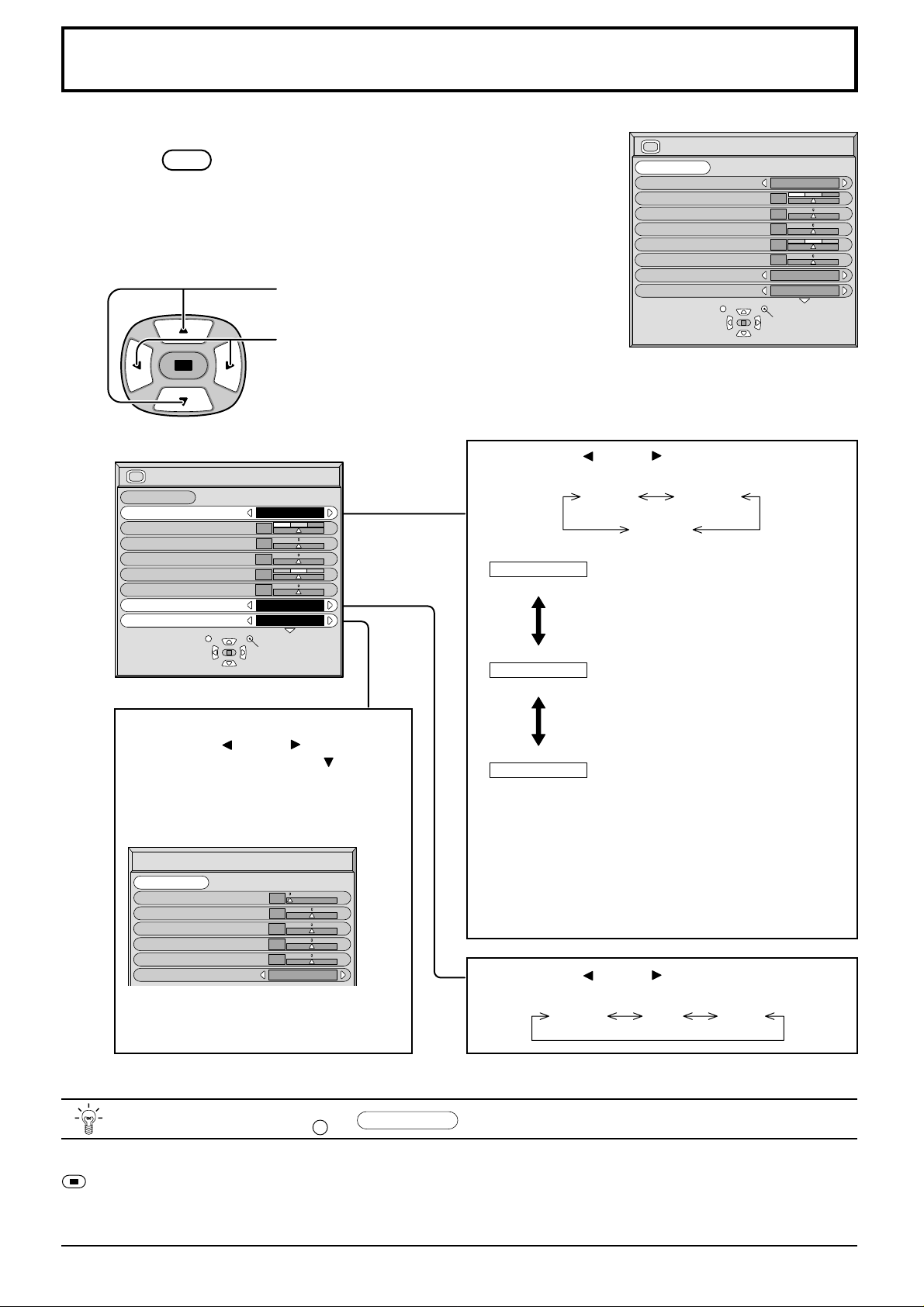

Picture Adjustments .................................................26

Advanced settings (Model “TH-50PHD3” only) ........27

Setup for input signals .............................................28

Component/RGB-in select .......................................28

Adjusting unnatural video images

(3D Y/C Filter) .................................................28

Colour system / Panasonic Auto..............................29

[Sync] .......................................................................30

[Pull-in range]...........................................................30

[Clamp position] .......................................................30

[H-Freq. (kHz)/V-Freq. (Hz)].....................................30

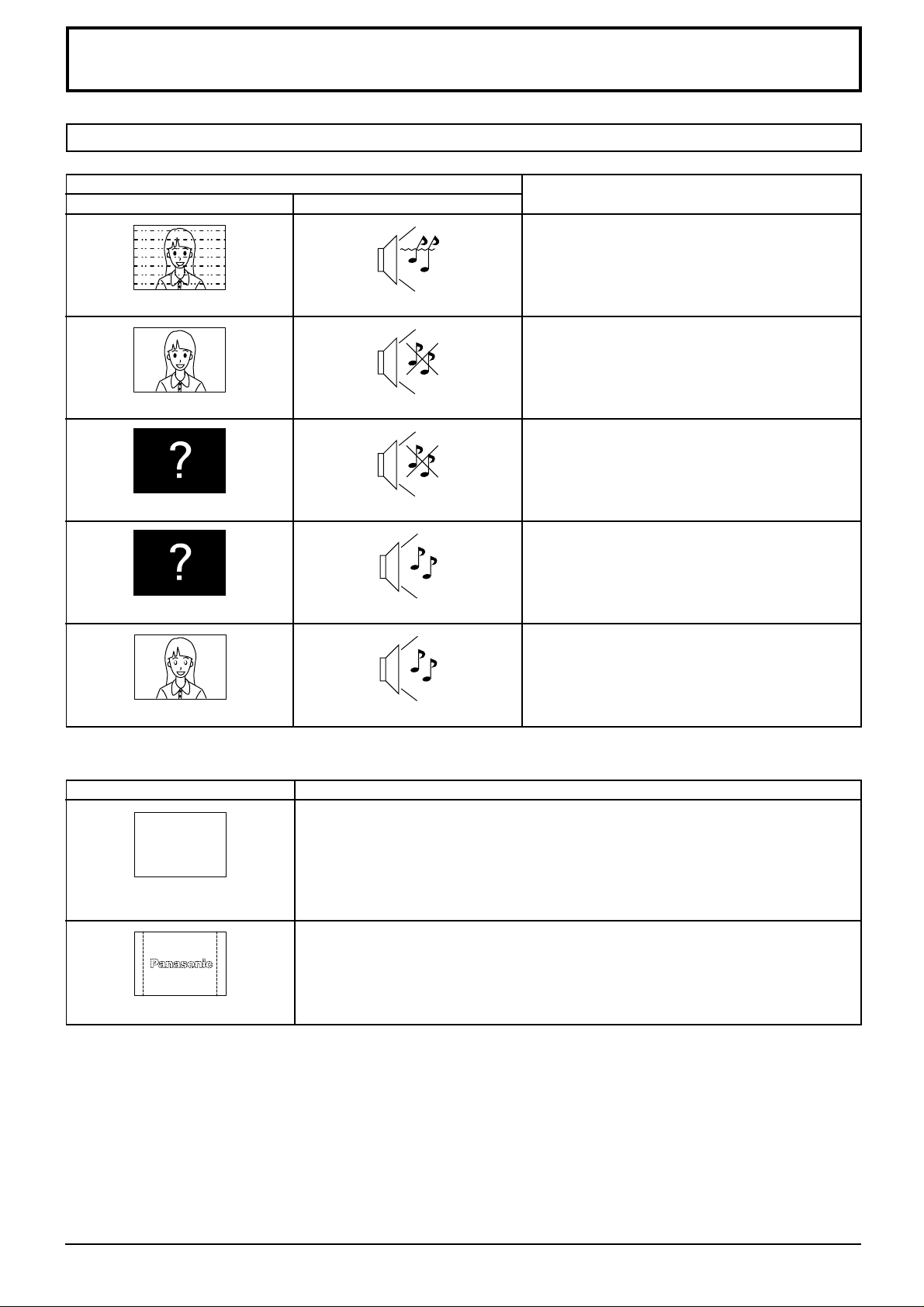

Troubleshooting ........................................................31

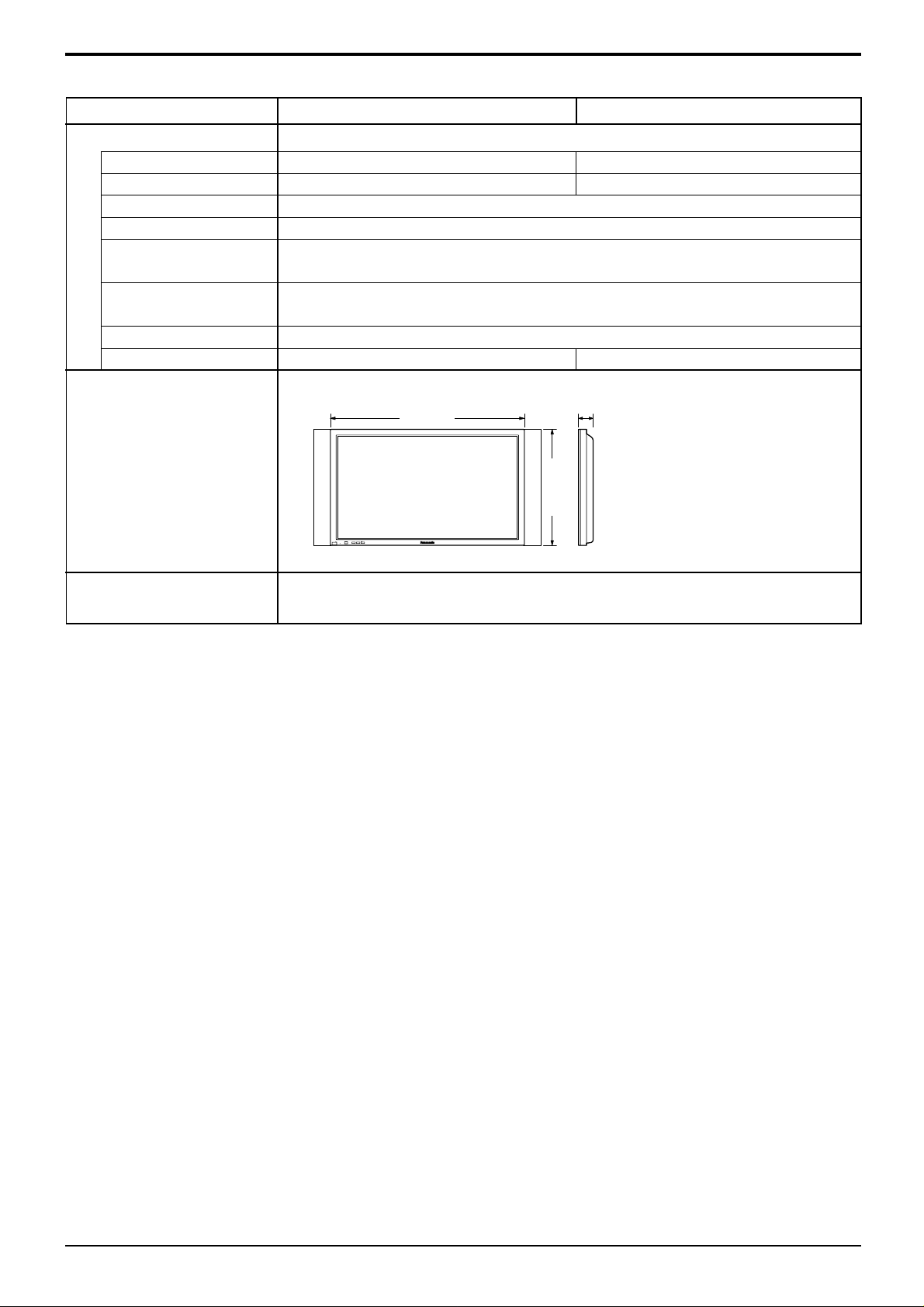

Specifications............................................................32

Page 4

Warnings and Precautions

WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance

to rain or moisture. Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set. (including on shelves above, etc.)

WARNING: 1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer

servicing to qualified service personnel.

2) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three pin earthing-type power plug. This plug will only fit an earthing-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the earthing plug.

Warning

This is a class A product. In a domestic environment this product may cause radio interference in which case you may be required to take adequate measures.

IMPORTANT: THE MOULDED PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is

fitted in this plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362..

Check for the ASTA mark If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained A replacement fuse cover can be purchased from your local Panasonic Dealer..

If the fitted moulded plug is unsuitable for the socket outlet in your home, then the fuse shall be removed and the plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

WARNING: THIS APPARATUS MUST BE EARTHED. IMPORTANT:

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wires in this mains lead are coloured in accordance with the following code:

Green-and-Yellow: Earth Blue: Neutral Brown: Live

ASA

or the BSI mark

on the body of the fuse.

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked with the letter E or by the Earth symbol GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

How to replace the fuse. Open the fuse compartment with a screwdriver and replace the fuse.

or coloured GREEN or

Page 5

Warnings and Precautions

WARNING

Setup

This High Definition Plasma Display is for use only with the following optional accessories. Use with any other type of optional accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.)

Speakers

•

Pedestal

•

Wall stand

•

Mobile stand

•

Wall-hanging bracket (vertical)

•

Wall-hanging bracket (angled)

•

Ceiling unit

•

Always be sure to ask a qualified technician to carry out set-up.

...................................................

....................................................

.................................................

..............................................

.................

..................

................................................

TY-SP50PH3W (for TH-50PHW3) TY-SP50PHD3W (for TH-50PHD3) TY-ST42PT3-S (for TH-50PHW3) TY-ST42PT3-K (for TH-50PHD3) TY-ST42PW1 TY-ST42PF3 TY-WK42PV1 TY-WK42PR1 TY-CE42PS1

Do not place the High Definition Plasma Display on sloped or unstable surfaces.

The High Definition Plasma Display may fall off or tip over.

•

Do not place any objects on top of the High Definition Plasma Display.

If water is spills onto the High Definition Plasma Display or foreign objects get inside it, a short-circuit may occur

•

which could result in fire or electric shock. If any foreign objects get inside the High Definition Plasma Display, please consult your local Panasonic dealer.

If using the pedestal (optional accessory), leave a space of at least 10 cm at the top, left and right, at least 6 cm at the bottom, and at least 7 cm at the rear. If using some other setting-up method, leave a space of a least 10 cm at the top, bottom, left and right, and at least 1.9 cm at the rear.

When using the High Definition Plasma Display

The High Definition Plasma Display is designed to operate on 220 - 240 V AC, 50/60 Hz. Do not cover the ventilation holes.

Doing so may cause the High Definition Plasma Display to overheat, which can cause fire or damage to the

•

High Definition Plasma Display.

Do not stick any foreign objects into the High Definition Plasma Display.

Do not insert any metal or flammable objects into the ventilations holes or drop them onto the High Definition

•

Plasma Display, as doing so can cause fire or electric shock.

Do not remove the cover or modify it in any way.

High voltages which can cause severe electric shocks are present inside the High Definition Plasma Display. For

•

any inspection, adjustment and repair work, please contact your local Panasonic dealer.

Securely insert the power cord plug as far as it will go.

If the plug is not fully inserted, heat may be generated which could cause fire. If the plug is damaged or the wall

•

socket plate is loose, they should not be used.

Do not handle the power cord plug with wet hands.

Doing so may cause electric shocks.

•

Do not do anything that may damage the power cable. When disconnecting the power cable, pull on the plug body, not the cable.

Do not damage the cable, make any modifications to it, place heavy objects on top of it, heat it, place it near

•

any hot objects, twist it, bend it excessively or pull it. To do so may cause fire and electric shock. If the power cable is damaged, have it repaired at your local Panasonic dealer.

If the High Definition Plasma Display is not going to be used for any prolonged length of time, unplug the power cord plug from the wall outlet.

Page 6

Warnings and Precautions

If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odour starts to come out from the High Definition Plasma Display, immediately unplug the power cord plug from the wall outlet.

If you continue to use the High Definition Plasma Display in this condition, fire or electric shock could result. After

•

checking that the smoke has stopped, contact y our local Panasonic dealer so that the necessary repairs can be made. Repairing the High Definition Plasma Display yourself is extremely dangerous, and shall never be done.

If water or foreign objects get inside the High Definition Plasma Display, if the High Definition Plasma Display is dropped, or if the cabinet becomes damages, disconnect the power cord plug immediately.

A short circuit may occur, which could cause fire. Contact your local Panasonic dealer for any repairs that need

•

to be made.

CAUTION

When using the High Definition Plasma Display

Do not bring your hands, face or objects c lose to the ventilation holes of the High Definition Plasma Display.

Heated air comes out from the ventilation holes at the top of High Definition Plasma Display will be hot. Do not

•

bring your hands or face, or objects which cannot withstand heat, close to this port, otherwise burns or deformation could result.

Be sure to disconnect all cables before moving the High Definition Plasma Display.

If the High Definition Plasma Display is moved while some of the cables are still connected, the cables may

•

become damaged, and fire or electric shock could result.

Disconnect the power cord plug from the wall socket as a safety precaution before carrying out any cleaning.

Electric shocks can result if this is not done.

•

Clean the power cable regularly to prevent it becoming dusty.

If dust built up on the power cord plug, the resultant humidity can damage the insulation, which could result in

•

fire. Pull the power cord plug out from the wall outlet and wipe the mains lead with a dry cloth.

Cleaning and maintenance

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-free cloth.

If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water

•

to which a small amount of neutral detergent has been added, and then wipe it evenly with a dry cloth of the same type until the surface is dry. Do not scratch or hit the surface of the panel with fingernails or other hard objects, otherwise the surface may

•

become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been

•

added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth. Do not allow any detergent to come into direct contact with the surface of the High Definition Plasma Display .

•

If water droplets get inside the unit, operating problems may result. Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the

•

cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

CAUTION

This appliance is intended for use in environments which are relatively free of electromagnetic fields. Using this appliance near sources of strong electromagnetic fields or where electrical noise may overlap with the input signals could cause the picture and sound to wobble or cause interference such as noise to appear. To avoid the possibility of harm to this appliance, keep it away from sources of strong electromagnetic fields.

Page 7

Accessories

Accessories Supply

Check that you have the accessories and items shown

Operating Instruction book Remote Control Transmitter

EUR646525

SURROUND

VOL


SOUND

PICTURE POS. /SIZE

PLASMA DISPLAY

Guarantee Card (for Model No. TH-50PHW3 only)

RCA-BNC adapter plug (for Model No. TH-50PHW3 only)

Optional Accessories

Batteries for the Remote Control Transmitter (2 × R6 Size)

INPUT

SET UP

ASPECT

OFF TIMER

• Speakers TY-SP50PH3W (for TH-50PHW3) TY-SP50PHD3W (for TH-50PHD3)

• Wall-hanging bracket (vertical) TY-WK42PV1

• Pedestal TY-ST42PT3-S (for TH-50PHW3) TY-ST42PT3-K (for TH-50PHD3)

• Wall-hanging bracket (angled) TY-WK42PR1

• Wall stand TY-ST42PW1

• Ceiling unit TY-CE42PS1

• Mobile stand TY-ST42PF3

• Receiver TU-PTA300B

For assembling

Full instructions are supplied with each optional accessory for use with this High Definition Plasma Display.

Page 8

Remote Control Batteries

Requires two R6 batteries.

1. Turn the transmitter face down. Press and slide off the battery cover.

2. Install the batteries as shown in the battery compartment. (Polarity + or – must match the markings in the compartment).

3. Replace the cover and slide in reverse until the lock snaps.

Two "R6" size

Helpful Hint:

For frequent remote control users, replace old batteries with Alkaline batteries for longer life.

Precaution on battery use

Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.

Observe the following precaution:

1. Batteries shall always be replaced as a pair. Always use new batteries when replacing the old set.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.

5. Battery replacement is necessary when remote control acts sporadically or stops operating the Plasma Display set.

Page 9

Basic Controls

R - STANDBY G POWER ON

TH-50PHW3

Main Power On/Off Switch Volume Adjustment

Power Indicator

The Power Indicator will light.

Power-OFF ...Indicator not illuminated

•

(The unit will still consume some power as long as the power cord is

(VIDEO (S-VIDEO)/COMPONENT, RGB/PC Mode Selection)

Push the “INPUT” button to select VIDEO(S-VIDEO)/COMPONENT or RGB/PC input signal modes sequentially.

INPUT

Input button

–

VOL

Push the Volume Up “+” or Down “–” button to increase or decrease the sound volume level.

still inserted into the wall outlet.)

Stand-by .... Red, Power-ON ... Green

•

Stand-by (ON/OFF) button

The High Definition Plasma Display must first be plugged into the wall outlet and turn on at the power switch (see page 16). Push this button to turn the High Definition Plasma Display

SURROUND button (see page 25)

ON, from ST ANDBY mode . Push it again to turn the High Definition Plasma Display OFF to STANDBY mode.

Status button

Push the “Status” button to display the current system status.

4:3

Off timer 90

1 2

1 VIDEO(S-VIDEO)/

COMPONENT, RGB/PC mode 2 Aspect mode (see page 20) 3 Off timer The off timer indicator is displayed only when the off timer has been set.

N button

INPUT

SURROUND

VOL

Input button (VIDEO(S-VIDEO)/COMPONENT, RGB/PC Mode Selection)

Press to select VIDEO(S-VIDEO)/ COMPONENT or RGB/PC input signal modes sequentially. (see page 17)

Sound mute On/Off (see page 24)

Volume Adjustment

Press the Volume Up “+” or Down “–” button to increase or decrease

the sound volume level.

R button

Access button

Press to make selections

(see page 23, 24, 26, 27)

POSITION buttons SET UP button (see page 28)

SOUND button (see page 24)

ASPECT button

Press to adjust the aspect. (see page 20)

PICTURE button

(see page 26)

PICTURE POS./SIZE button

(see page 22)


POS. /SIZE

SOUND

SET UP

ASPECT

OFF TIMER

PC button

Push the “PC” mode selection button to select the PC mode. This button is used to switch directly to PC mode.

OFF TIMER button

The High Definition Plasma Display may be preset to switch to stand-by after a fixed period. The setting changes to 30 minutes, 60 minutes, 90 minutes and 0 minutes (off timer cancelled) each time the button is pressed.

30 60

When three minutes remain, “Off timer 3” will flash. The off timer is cancelled if the main supply fails.

Page 10

Connections

When connecting the speakers, be sure to use only the optional accessory speakers. Refer to the speaker’s Installation Manual for details on speaker installation.

Speakers (Optional accessories)

SPEAKERS Terminals (R)

SPEAKERS Terminals (L)

– Cable fixing bands

Secure any excess cables with bands as required.

To tighten:

Pull

To loosen:

Push the knob

VIDEO

S-VIDEO

AV IN

AV IN Terminals (see page 11, 12)

From EXIT monitor Ter minal on Computer (see page 14)

AUDIO AUDIO

VD HD P

R/CR

/R PB/CB/B Y/G

COMPONENT/RGB IN and Audio IN Terminals (see page 13)

Pull

The TUNER IN terminal is reserved for future use

From SERIAL Terminal on Computer (see page 15)

AUDIO

PC INCOMPONENT/RGB IN

SERIALTUNER IN

Page 11

How to connect the AV Input Terminals

S-VIDEO Signal Connection

(Example) When connecting a S-Video VCR

(DVD Player / S-VIDEO VCR)

Connections

Audio

OUT

Video

OUT

AUDIO

S-Video

OUT

VIDEO

2×RCA Audio cables

VIDEO Signal Connection

(VCR)

AV2

21P Scart Plug

S-VIDEO

Video input to S-VIDEO socket

Audio input to L/R sockets

Video input to BNC socket

VIDEO

AV IN

AUDIO

S-VIDEO 4 pin socket

Luminance earth

Luminance in

Chrominance earth

Chrominance in

Audio input to L/R sockets

(DVD / Satellite Receiver)

AV1/TV

Video input to

21P Scart Plug

BNC socket

RCA-BNC adapter plug

Audio input to L/R sockets

Note:

21 pin connectors and 21 pin scart plugs are connectors used in Europe.

S-VIDEO

VIDEO

AV IN

AUDIO

Page 12

Connections

How to connect the COMPONENT/RGB Input Terminals

COMPONENT signal Connection

Example of input signal source

Video input to

, PR sockets

Y, P

HDTV-compatible VCR

3 × BNC cables

VD HD PR/CR/R PB/CB/B Y/G

RGB camera

AUDIO

2×RCA Audio cables

Audio input to L/R sockets

RGB signal (R, G, B, HD, VD) Connection

The TUNER input terminal is reserved for use with future external compatible components.

COMPONENT/RGB IN

AUDIO

Example of input signal source

TUNER TU-PTA300B

VD HD PR/CR/R PB/CB/B Y/G

COMPONENT/RGB IN

3×BNC

Video

cables

RGB L

HD VD R

AUDIO

2×RCA

Audio

cables

Notes:

(1) Change the “Component/RGB in” setting in the “Setup” menu to “RGB”. (see page 28, 30) (2) Additional equipment and cables shown are not supplied with this set.

Page 13

VIDEO Signal Connection

Connections

(DVD / Satellite Receiver)

AV2

Video input to BNC socket

RCA-BNC adapter plug

VIDEO

S-VIDEO

AV IN

VD HD PR/CR/R PB/CB/B Y/G

RCA-BNC adapter plug

AUDIO

COMPONENT/RGB IN

AUDIO

The cable shown is for connection detail only. If you wish to use this connection method, please consult your Dealer for the cable. Select sync oj VIDEO (see page 30).

Notes:

(1) Additional equipment and cables shown are not supplied with this set. (2) 21 pin connectors and 21 pin scart plugs are connectors used in Europe.

Page 14

Connections

67839

1514131211

How to connect the PC Input Terminals

COMPUTER

—

VOL

INPUT

POWER /

R - STANDBY G POWER ON

AUDIO

PC IN

Conversion adapter (if necessary)

D-sub 15p

RGB

PC cable

Audio

1/8" (3mm) Stereo Plug

Connect a cable which matches the audio output terminal on the computer.

Notes:

(1) Computer signals which can be input are those with a horizontal scanning frequency of 15.5 to 110 kHz and

vertical scanning frequency of 48 to 120 Hz. (However, signals exceeding 1200 lines will not be displayed properly.)

(2) The display resolution is a maximum 640 × 480 dots when the aspect mode is set to “4:3”, and 852 × 480 dots

when the aspect mode is set to “16:9”. If the display resolution exceeds these maximums, it may not be possible to show fine detail with sufficient clarity.

(3) The PC input terminals are DDC1/2B-compatible. If the computer being connected is not DDC1/2B-compatible,

you will need to make setting changes to the computer at the time of connection. (4) Some PC models cannot be connected to the set. (5) An adapter is required to use the PC cable (D-sub 15P) to connect a Macintosh computer to the set. (6) There is no need to use an adapter for computers with DOS/V compatible D-sub 15P terminal. (7) The computer shown in the illustration is for example purposes only. (8) Additional equipment and cables shown are not supplied with this set. (9) Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the

specified frequency range.

Signal Names for D-sub 15P Connector

Pin Layout for PC Input Terminal

Pin No.

1 2 3 4 5

Signal Name

B GND (Ground) GND (Ground)

Pin No.

6 7 8 9

Signal Name GND (Ground) GND (Ground) GND (Ground)

NC (not connected)

GND (Ground)

Pin No.

11 12 13 14 15

Signal Name

GND (Ground)

SDA

HD/SYNC

SCL

Page 15

Connections

How to connect the SERIAL Terminals

The SERIAL terminal is used when the High Definition Plasma Display is controlled by a computer.

COMPUTER

SERIAL

RS-232C cable

13452

6789

Pin layout for RS-232C

D-sub 9p

Conversion cable

Notes:

(1) Use the RS-232C cable to connect the computer to the High Definition Plasma Display. (2) The computers shown is for example purposes only. (3) Additional equipment and cables shown are not supplied with this set.

The SERIAL terminal conforms to the RS-232C interface specification, so that the High Definition Plasma Display can be controlled by a computer which is connected to this terminal. The computer will require software which allows the sending and receiving of control data which satisfies the conditions given below. Use a computer application such as a programming language to software. Refer to the documentation for the computer application for details.

Communication parameters

Signal level

Synchronization method

Baud rate

Parity

Character length

Stop bit X parameter S parameter

RS-232C compliant

Asynchronous

9600 bps

None 8 bits

1 bit None None

RS-232C Conversion cable

D-sub 9-pin female

2 3 5 4 6 7 8

1 • 9

Details

R X D

T X D

GND

Shorted

Basic format for control data

The transmission of control data from the computer starts with a STX signal, followed by the command, the parameters, and lastly an ETX signal in that order. If there are no parameters, then the parameter signal does not need to be sent.

STX

Start (02h)

Colon Parameter(s)

3-character command (3bytes)

(1 - 5 bytes)

ETX:C2C1 C3 P2P1 P3 P4 P5

End (03h)

Note:

If multiple commands are transmitted, be sure to wait for the response for the first command to come from this unit before sending the next command.

Command

Command PON POF AUU AUD AMT IIS

DAM

Parameter None None None None None None VID YP1

RG1 None NORM ZOOM FULL JUST SELF

Control details Power ON Power OFF Volume increase Volume decrease Mute (toggle) Input select (toggle) AV Mode Component / RGB mode (processed as a Y/PB/PR or RGB signals as set by this unit) PC mode Screen mode select (toggle) Normal (4:3) Zoom Full Just Panasonic Auto

Page 16

Power On/Off and input signal selection

Power On/Off

Connecting the plug to the Wall Outlet

Push the Power switch on the High Definition Plasma Display to turn the set on Power-On

Power Indicator: Green

Example: The screen below is displayed for a while

after the High Definition Plasma Display is turned on. (setting condition is an example.)

When the Power is turned on for the first time, the

INPUT

–

VOL

R - STANDBY G POWER ON

TH-50PHW3

Power Indicator

Remote Control Sensor

Language selection screen is displayed. From the second time on, language selection can be

done from the setup menu. (see page 19) Select the desired language using the

and press the store

button.

OSD Language

English (UK

Deutsch

Fran ais

Italiano

a ol

ENGLISH (US

)

and

keys

INPUT

SURROUND

VOL

Select

Set

From the second time on, the below screen is displayed for a while (setting condition is an example).

4:3

Press the

button on the remote control to turn the

High Definition Plasma Display off

Power Indicator: Red (standby)

Press the

button on the remote control to turn the

High Definition Plasma Display on

Power Indicator: Green

Turn the power to the High Definition Plasma Display set off by pressing the

switch on the High Definition Plasma Display, when the High Definition Plasma Display is on or in standby mode.

Page 17

Power On/Off and input signal selection

Select the input signal

INPUT

— VOL +

R - STANDBY G POWER ON

INPUT

Press the INPUT button to select the input video signal to be played back from the equipment such as a VCR which has been connected to the High Definition Plasma Display.

Input signals will change as follows: For Component INPUT (see page 28)

AV Component PC

INPUT

— VOL +

For RGB INPUT (see page 28)

AV RGB PC

INPUT

SURROUND

VOL

Page 18

On screen Menu Display from Remote Control

To Picture adjust menu (see page 26)

For model No.TH-50PHD3 For model No.TH-50PHW3


Normalise

Normal

Picture Mode Contrast

Bri

htness Colour Tint

ness

Shar White balance

Advanced settin

Normalise

Adjust Select

To Advanced settings menu (see page 27)

Advanced settings

h R

h B

Normalise

Select

Normal

Normalise Black extension W/B Hi W/B Hi W/B Low R W/B Low B Gamma

0 0 0 0 0

Return

0 0 0 0 0

ReturnAdjust

Normal

2. 2


Normalise

Normal

Picture Mode Contrast

Bri

htness Colour Tint

Shar

ness

White balance

Normalise

Adjust Select

Normal 0 0 0 0 0

Normal

Return

INPUT

SURROUND

VOL


POS. /SIZE

SOUND

SET UP

ASPECT

OFF TIMER

To Picture Pos./Size adjust menu (see page 22)

Picture Pos./Size

Normalise

Adjust Select

Normal

Return

Normalise

H-Pos

H-Size V-Pos V-Size

PLASMA DISPLAY

Page 19

On screen Menu Display from Remote Control

To Sound adjust screen (see page 24)

Sound

Normalise

Adjust Select

Normal

Normal 0 0 0

Return

Normalise Sound Mode Bass Treble Balance Surround

To Signal screen for AV (see page 29)

Auto

4:3

[

Signal 3D Y/C Filter (NTSC

stem

Colour s Panasonic Auto (4:3

) )

To Signal screen for Component (see page 30)

Signal

[

Component

]

Clamp position

To Signal screen for RGB (see page 30)

Signal

S Pull-in ran Clamp position

To Signal screen for PC (see page 30)

Signal

nc Pull-in ran Clamp position

To Setup menu screen (see page 28)

Setup

Component/RGB-in select

nal

guag

OSD Lan

Select

Note:

Return

RGB

lish (UK

Press to select “Signal” menu

Press to access

)

“Signal” setup menu

Press R button to return to “Setup” menu

“Signal” setup menu is displayed by different setting condition for each input signals. (see page 17)

Selecting the On-Screen Menu Language

Freq. kHz

31.5

H V

60.0

Freq. Hz

Freq. kHz

31.5

60.0

Freq. Hz

[

RGB

H & V

Narrow

[

H & V

Narrow

]

SET UP

Press to display the Setup menu.

Press to select OSD Language.

Press to select your preferred Language.

English (UK)

Selectable languages

Deutsch Français Italiano Español ENGLISH (US)

.....

(Japanese)

Setup

Component/RGB-in select

nal

guag

OSD Lan

Select

Return

RGB

lish (UK

)

Page 20

ASPECT Controls

High Definition Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format picture.

INPUT

SURROUND

VOL


POS. /SIZE

SOUND

SET UP

ASPECT

OFF TIMER

ASPECT

ASPECT button

The aspect mode changes each time the ASPECT button is pressed.

4:3 Zoom 16:9

Panasonic Auto Just

Notes:

(1) During RGB and PC input signal mode, the mode switches

between “4:3” and “16:9” only.

(2) For a 525p (480p) signal input during “Component” input

signal mode, the mode switches between “Zoom” and “16:9” only.

(3) For a 1125i (1080i), 750p (720p) signal input during

“Component” input signal mode, the mode is set to “16:9” mode, and switching is not possible. For a 525i (480i), 625i (575i) signal input during “Component” input signal mode, “Panasonic Auto” can not be selected.

(4) The aspect mode is memorized separately for each input

terminal (AV, Component, RGB and PC).

PLASMA DISPLAY

Page 21

ASPECT Controls

Mode

4:3

Zoom

16:9

Just


4:3

3 9

Zoom

16:9

Just

4:3 will display a 4:3 picture at its standard 4:3 size.

Zoom mode magnifies the central section of the picture.

16:9 will display the picture at its maximum size but with sight elongation.

Just mode will display a 4:3 picture at its maximum size but with aspect correction applied to the center of the screen so that elongation is only apparent at the left and right edges of the screen. The size of

Explanation

the picture will depend on the original signal.

416

Panasonic Auto

The display will automatically become enlarged (depending on the picture source), allowing you to view the picture at its maximum size.

Note:

Panasonic

Auto

For an elongated image

For a 4:3 image

Image is expanded

Changes in accordance with the Panasonic Auto mode setting (see page

29)

Panasonic Auto Mode is designed to automatically adjust the aspect ratio to handle a mix of 16:9 and 4:3 program material. Certain 4:3 program material, such as stock market data screens, may occasionally cause the image size to change unexpectedly. When viewing such programs, it is recommended that the ASPECT be set to 4:3.

Notes:

(1) Do not allow the picture displayed in 4:3 mode for an extended period, as this can cause a parmanent after-image

to remain on the Plasma Display Panel.

(2) The S-VIDEO terminal on this set can detect specially encoded signals that are compatible with a wide screen

monitor. When a full image from the S-VIDEO terminal of specially encoded video is detected by the set, the screen size is automatically set to 16:9 mode.

Page 22

Adjusting Picture Pos./Size

Adjusting screen

ASPECT


POS. /SIZE

During “AV” and “Component”

input signal modes.

Picture Pos./Size

Normalise

H-Pos H-Size V-Pos V-Size

Normalise

Adjust Select

Normal

Press to select the screen mode to adjust. (see next page)

Press to display the Picture Pos./Size menu.

Press to select H-Pos/H-Size/V-Pos/VSize/Clock Phase.

During “RGB” and “PC”

input signal modes.

Picture Pos./Size

Normalise

Return

Normal

H-Pos H-Size V-Pos V-Size Clock Phase

Normalise

Adjust Select

Return


POS. /SIZE

PLASMA DISPLAY

SURROUND

SOUND

INPUT

VOL

SET UP

ASPECT

OFF TIMER

Press to adjust screen/position. (see next page)

Press to exit from adjust mode.

Notes:

(1) Adjustment details are memorized separately for different input signal formats (Adjustments for component

signals are memorized for 525i (480i), 625i (575i), 525p (480p), 1125i (1080i) and 750p (720p) each, and RGB/ PC signals are memorized for each frequency.)

(2) If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture position will shift up or down. This

picture position movement cannot be controlled by the Picture Pos./Size function.

Page 23

Adjusting Picture Pos./Size

H-Pos

H-Size

V-Pos

When the Position Left

“ ”

button is pressed

“ ”

button is pressed

“ ”

button is pressed

When the Position Right

“ ”

button is pressed

“ ”

button is pressed

“ ”

button is pressed

“ ”

button is pressed

or Right

“ ”

button

“ ”

button is pressed

Normalise

Normalisation)

When the Position Left

V-Size

Clock Phase

(RGB/PC in Mode)

Helpful Hint (

On the remote control unit, while the Picture Pos./Size display is active, if either the N button is pressed at any time or the settings.

(Access button) is pressed during “Normalize”, then all adjustment values are returned to the factory

Flickering and distortion can be eliminated by using the Position Left to carry out adjustment.

When the Position Right

Page 24

Sound Adjustment

Press the SOUND

Select to adjust each item.

Bass

Adjusts low sounds

Treble

Adjusts high sounds

Balance

Adjusts left and right volumes

Surround (see next page)

button to display the Sound Menu.

Press to select the desired adjustment menu to adjust.

Select the desired level by listening to the sound.

Sound

Normalise

Adjust Select

Normal

Normal 0 0 0

Return

Normalise Sound Mode Bass Treble Balance Surround

Normal

Auto

INPUT

SURROUND

VOL

PICTURE SET UP


POS. /SIZE

SOUND

ASPECT

Emits the original sound.

Automatically proper controls volume level.

To end adjustments

•

Press R button

Note:

Press the Surround button to directly turn the surround effect On and Off. (see next page)

Helpful Hint (

On the remote control unit, while the “Sound” menu is displayed, if either the N button is pressed at any time or the

(Access button) is pressed during “Normalise”, then all adjustment values are returned to the factory settings.

Normalise

Normalisation)

Mute

Useful when answering the phone or receiving unexpected visitors

Press this button to mute the sound. Press again to reactivate sound. Sound is also reactivated when power is turned off or volume level is changed.

Page 25

Surround Controls

INPUT

SURROUND

VOL

PICTURE SET UP


POS. /SIZE

SOUND

ASPECT

OFF TIMER

SURROUND

SURROUND Button

The benefits of surround sound are enormous. You can be completely enveloped in sound; just as if you were at a concert hall or cinema.

The surround setting switches on and off each time the SURROUND button is pressed.

On Off

Surround

Note:

The surround setting are memorized separately for each Sound Mode (Auto, Normal).

PLASMA DISPLAY

Page 26

Picture Adjustments

Select to adjust each item.



ness

Normalise

Adjust Select

Normal

Normalise Picture Mode Contrast

Bri

htness Colour Tint

Shar White balance Advanced settin

Normal

0 0 0 0 0

Normal

Return

“TH-50PHD3” only Press the left

or right select “On”. Press the down enter Advanced Settings mode. Advanced settings On Enables fine picture adjustment at a professional level. (see next page)

Advanced settings

h R

h B

Normal

0 0 0 0 0

Normalise Black extension W/B Hi W/B Hi W/B Low R W/B Low B Gamma

Advanced settings Off Displays images with the selected setting of the Picture menu.

Press to display the Picture menu.

Press to select the menu to adjust.

Select the desired level by looking at the picture behind the menu.

Press the left

or right

modes.

Normal Dynamic

Normal

Dynamic

button to

2. 2

Cinema

Note:

If you would like to change the picture and colour of the selected Picture menu to something else, adjust using the “Picture” menu command in the Menu. (see next page)

Press the left modes.

or right

Normal Cool Warm


ness

Normalise

Adjust Select

Normal

Normal 0 0 0 0 0

Normal

Return

Normalise Picture Mode Contrast

Bri

htness Colour Tint

Shar White balance Advanced settin

button to switch between

Cinema

Normal

For viewing in standard (evening lighting) environments. This menu selects the normal levels of Brightness and Contrast.

Dynamic

For viewing in brighter environments. This menu select higher than normal levels of Brightness Contrast.

Cinema

Ideal for movies.

Can be selected for AV/Component.

•

button to switch between

Helpful Hint (

Normalise

Normalisation)

On the remote control unit, while the “Picture” menu is displayed, if either the N button is pressed at any time or the

(Access button) is pressed during “Normalise”, then all adjustment values are returned to the factory settings.

Page 27

Picture Adjustments

Item

Contrast

Brightness

Colour

Tint

(NTSC only)

Sharpness

Note:

There is little change when contrast is increased with a bright picture or reduced with a dark picture.

Effect Adjustments

Selects proper brightness and

Less More

Darker Brighter

Less More

Reddish Greenish

Less More

density for the room. Adjusts for easier viewing of dark

pictures such as night scenes and hair. Adjusts slightly to a lighter colour.

Adjust for nice skin colour.

Displays a sharp image.

Notes:

(1) “Colour” and “Tint” and

“Sharpness” settings cannot be adjusted “RGB” and “PC” input signal modes.

(2) You can change the level of each

Function (Contrast, Brightness, Colour, Tint, Sharpness) for each Picture Menu.

(3) The setting details for Normal,

Dynamic and Cinema respectively are memorized separately for each input terminal (AV, Component, RGB and PC).

(4) The “Tint” setting can be adjusted

for NTSC signal only.

Advanced setings (Model “TH-50PHD3” only)

Item

Black

Extension

Effect

Adjusts the dark shades of the image in gradation.

Less More

Details

W/B High R

W/B High B

W/B Low R

W/B Low B

Gamma

Notes:

(1) Carry out “W/B” adjustment as follows.

A Adjust the white balance of the bright sections using the “W/B High R” and “W/B High B” settings. B Adjust the white balance of the dark sections using the “W/B Low R” and “W/B Low B” settings. C Repeat steps A and B to adjust.

Steps A and B affect each other’s settings, so repeat each step in turn to make the adjustment. (2) The adjustment values are memorized separately for each input terminal (AV, Component, RGB and PC). (3) The adjustment range values should be used as an adjustment reference.

Helpful Hint (

Less More

Down Up

Adjusts the white balance for light red areas.

Adjusts the white balance for light blue areas.

Adjusts the white balance for dark red areas.

Adjusts the white balance for dark blue areas.

2.0

2.2

Normalise

2.5

Normalisation)

On the remote control unit, while the “Advanced settings” menu is displayed, if either the N button is pressed at any time or the settings.

(Access button) is pressed during “Normalise”, then all adjustment values are returned to the factory

Page 28

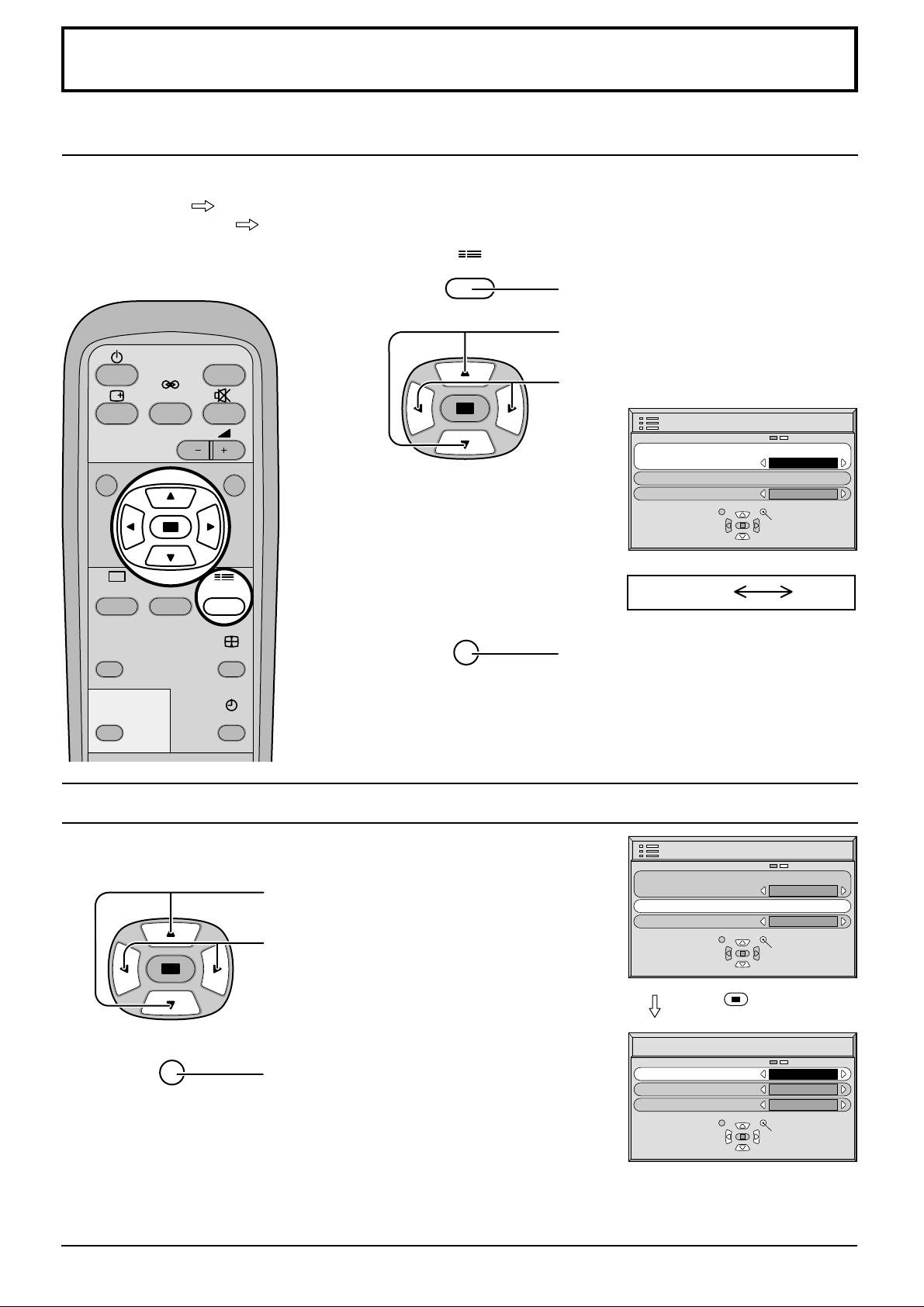

Setup for input signals

Component/RGB-in select

Select to match the signals from the source connected to the Component/RGB input terminals. Y, PB, PR signals R, G, B, HD, VD signals

“Component”

“RGB”

SET UP

Press to display the Setup menu screen.

Press to select the “Component/RGB-in

INPUT

SURROUND

VOL

PICTURE SET UP


POS. /SIZE

SOUND

ASPECT

select”.

Press to select the required mode.

Setup

Component/RGB-in select

guag

OSD Lan

Select

Component RGB

Press to exit from adjust mode.

Return

RGB

lish (UK

)

nal

OFF TIMER

Adjusting unnatural video images (3D Y/C Filter)

Select the Signal from the “Setup” menu during AV (S-Video) input signal mode. (“Signal [AV]” menu is displayed.)

Press to select the “3D Y/C Filter (NTSC)”

Press to set On/Off.

Press to exit from adjust mode.

Setup

Component/RGB-in select

nal

guag

OSD Lan

Signal 3D Y/C Filter (NTSC

Colour s Panasonic Auto (4:3

Select

Press

stem

Change

Select

) )

RGB

lish (UK

)

Return

(store) button

[

Auto

4:3

Return

]

Page 29

Colour system / Panasonic Auto

Setup for input signals

Select the Signal from the “Setup” menu during AV (S-Video) input signal mode. (“Signal [AV]” menu is displayed.)

Press to select the “Colour system” or “Panasonic Auto”.

Press to select each Functions.

Mode

Colour system

Set the colour system to match the input signal. If set to “Auto”, the

Function

colour system is determined automatically.

Auto PAL SECAM M NTSC NTSC

Setup

Component/RGB-in select

nal

guag

OSD Lan

SIGNAL 3D Y/C Filter (NTSC

Colour s Panasonic Auto (4:3

Select

Press

stem

Change

Select

Return

(store) button

)

Return

RGB

lish (UK

Auto

4:3

[

)

]

Pansonic Auto (4:3)

Set to “4:3” to view 4:3 images in an unchanged format when Panasonic Auto is selected. If you would like to view 4:3 images in “Just” format, set to “Just”.

Page 30

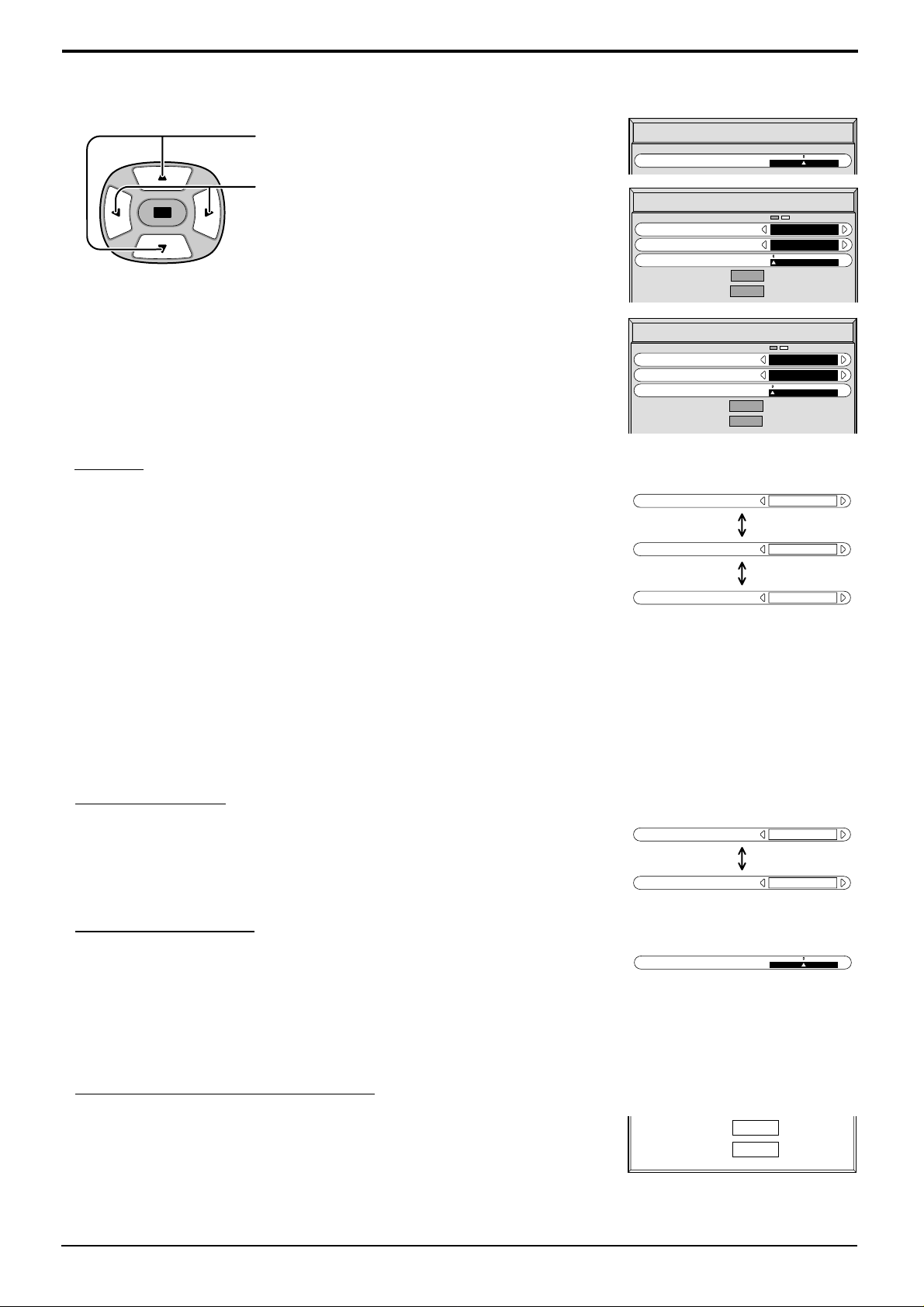

Setup for input signals

Select the Signal from the “Setup” menu during RGB or PC input signal mode.

Press to select each item.

Press to adjust.

The following operation methods are the same for both the Signal [RGB] and Signal [PC].

SYNC

Setting RGB sync signal setting:

Confirm that the input is set to RGB input (this setting is valid only for RGB input).

H&V: The H and V sync signals are input from the HD/VD (BNC)

connector.

On G: Uses a synchronized signal on the Video G signal, which is

input from the G (BNC) connector.

On VIDEO: Compatible with the scart plug (Europe)

The composite video signal input from the VIDEO input terminal is used by dividing the sync signals.

(TH-50PHD3 only)

Signal Clamp position

Signal

S Pull-in ran Clamp position

Signal S

Pull-in ran Clamp position

Sync

Freq. kHz

Freq. Hz

Freq. kHz

Freq. Hz

31.5

60.0

31.5

60.0

[

Component

H & V

Narrow

H & V

Narrow

H & V

on G

on VIDEO

[

RGB

[

]

Setting PC sync signal setting:

Confirm that the input is set to PC input (this setting is valid only for PC input).

H&V: The H and V sync signals are input from the HD/VD (BNC) connector. ON G: Uses a synchronized signal on the Video G signal, which is input from the G (BNC) connector.

Pull-in range

Sets the width for different frequencies.

(This setting is the same for both Signal [RGB] and Signal [PC].)

Pull-in range

Clamp position

Adjusts the clamp position.

The following operation methods are the same for “Signal” menu during Component (TH-50PHD3 only), RGB and PC input signal mode. Normally, these adjustments are set to appropriate levels and therefore do not need to be altered.

Clamp position

H-Freq. (kHz)/V-Freq. (Hz)

Displays the H (horizontal)/V ( vertical) frequencies.

This display is valid only for RGB input and PC input. Display range:

Horizontal 15.5 - 110 kHz Vertical 48 - 120 Hz

H-Freq. kHz

Freq. Hz

Narrow

Wide

31.5

60.0

Page 31

Troubleshooting

Before you call for service, determine the symptoms and make a few simple checks as shown below.


Interface

Normal Picture

No Picture

Symptoms

Sound

Noisy Sound

No Sound

Normal Sound

Checks

Electrical Appliances Cars/Motorcycles Fluorescent light

Volume (Check whether the mute function has been activated on the Remote Control.)

Not plugged into AC outlet Not switched on Contrast and Brightness/Volume setting (Check by pushing the Power Switch or Stand-by Button on the Remote Control.)

If a signal with a non-applicable colour system format, or frequency is input, only the input terminal indication is displayed.

No Colour

Plasma Display panel

Symptoms

Some parts of the screen do not light up

Afterimages appear

Colour controls set at minimum level. Colour System (see page 26, 27)

Normal Sound

Check

The plasma display panel is manufactured using an extremely high level of precision technology, however sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image to remain on the High Definition Plasma Display . Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

Page 32

Specifications

Power Source Power Consumption

Normal use Stand-by condition Power off condition

Plasma Display panel

Contrast Ratio

Brightness Capability

Screen size

Operating condition

Temperature Humidity

Applicable signals

Colour System Scanning format PC signals

TH-50PHW3

220 – 240 V AC, 50/60 Hz

Drive method AC type

50-inch, 16:9 aspect ratio

(Panel only) 500 cd / m

(As a set) 300 cd / m

1106 mm (W) × 622 mm (H) × 1269 mm (diagonal)

No. of pixels

1,049,088 (1366 (W) × 768 (H)) [4,098 × 768 dots]

0 °C - 40 °C

20 % - 80 %

NTSC, PAL, PAL60, SECAM, Modified NTSC 525i (480i), 625i (575i), 525p (480p), 750p (720p), 1125i(1080i) XGA display VGA, SVGA SXGA, UXGA (compressed) Horizontal scanning frequency 15.5 - 110 kHz Vertical scanning frequency 48 - 120 Hz

TH-50PHD3

530 W

3.0 W

1.4 W

3000:1

Connection terminals

COMPONENT/RGB

TUNER SERIAL

SPEAKERS (6 Ω)

Accessories Supplied

Remote control Transmitter Batteries RCA-BNC adaptor plug

Video IN (BNC) S-Video IN (MINI DIN 4PIN) AUDIO IN (RCA PIN JACK × 2) Y/G (BNC)

PB/B (BNC) PR/R (BNC) HD (BNC) VD (BNC) AUDIO IN (RCA PIN JACK × 2) (HIGH-DENSITY D-SUB 15PIN)

AUDIO IN (M3.5 JACK) OPTIONAL (HIGH-DENSITY D-SUB 26PIN) EXTERNAL CONTROL TERMINAL (D-SUB 9PIN) 16W [8 W + 8 W] (10 % THD) For TY-SP50PH3W only

EUR646525 2 × R6 Size K1SBAABZ0001

1.0 Vp-p (75-ohm) Y: 1 Vp-p (75-ohm), C: 0.286 Vp-p (75-ohm)

0.5 Vrms (high impedance)

1.0 Vp-p/composite (75-ohm)

0.7 Vp-p/non-composite (75-ohm)

0.7 Vp-p (75-ohm)

1.0 - 5.0 Vp-p (high impedance)

0.5 Vrms (high impedance) R,G,B/0.7 Vp-p (75-ohm) HD, VD/1.0 - 5.0 Vp-p (high impedance)

0.5 Vrms (high impedance)

RS-232C COMPATIBLE 16W [8 W + 8 W] (10 % THD) For TY-SP50PHD3W only

EUR646525 2 × R6 Size

–

Page 33

Specifications

Optional Supplied

Speakers

Pedestal

Wall stand

Mobile stand

Wall-hanging bracket

(vertical)

Wall-hanging bracket

(angled)

Ceiling unit

Terminal Cover

Dimensions (W × D × H)

TH-50PHW3

TY-SP50PH3W TY-ST42PT3-S

–

1210 mm × 724 mm × 98 mm

1210 mm

–

VOL

INPUT

POWER /

R - STANDBY G POWER ON

TH-50PHD3

TY-SP50PHD3W TY-ST42PT3-K

TY-ST42PW1

TY-ST42PF3

TY-WK42PV1

TY-WK42PR1

TY-CE42PS1

TY-UPS200

98 mm

724 mm

Weight (Mass)

approx. 45.0 kg net (main unit only) approx. 49.6 kg (with speakers)

Notes:

(1) Design and specifications are subject to change without notice. Weight and dimensions shown are approximate. (2) This equipment complies with the EMC standards listed below.

EN55022, EN61000-3-2, EN61000-3-3, EN61000-6-2.

Page 34

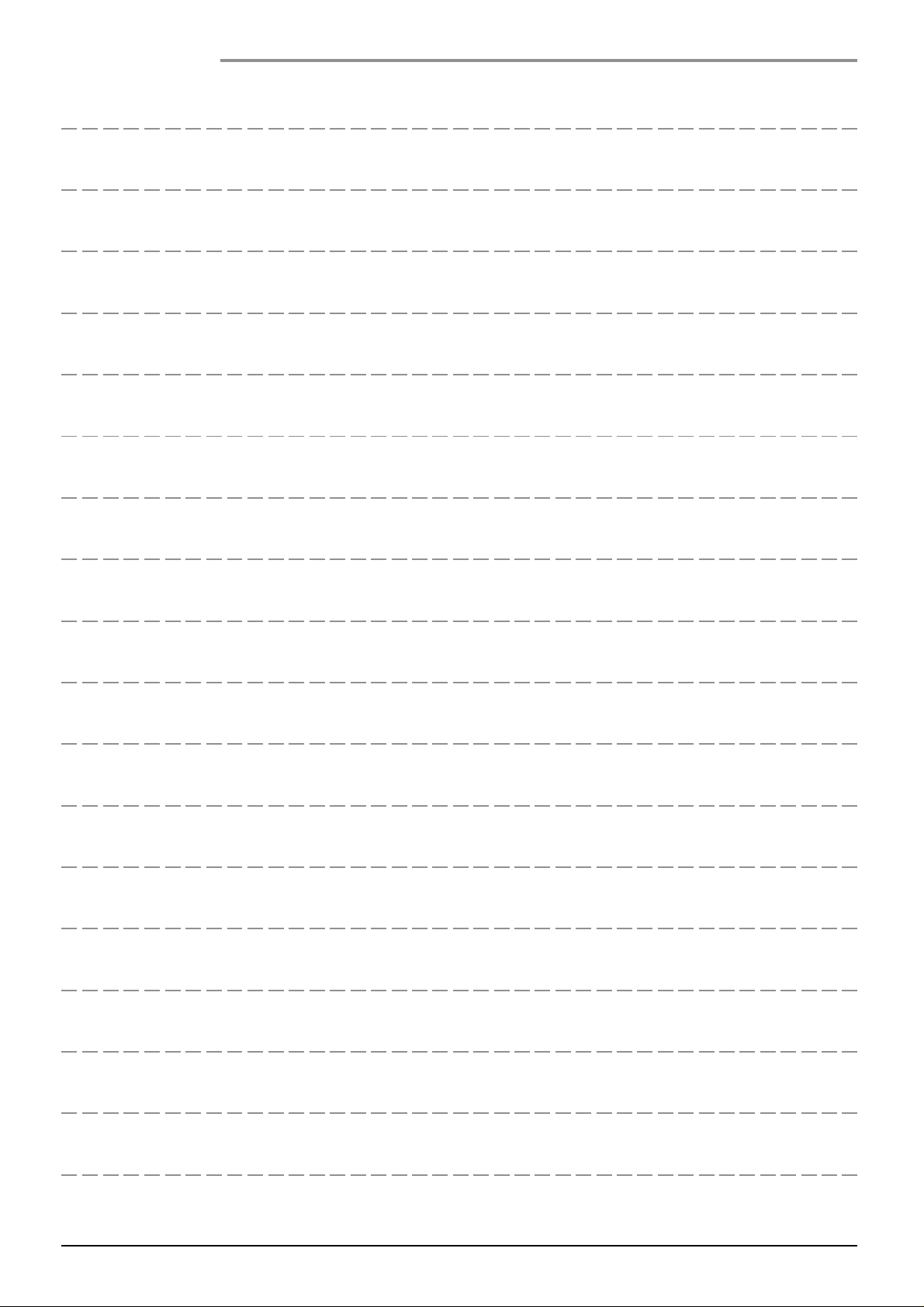

MEMO

Page 35

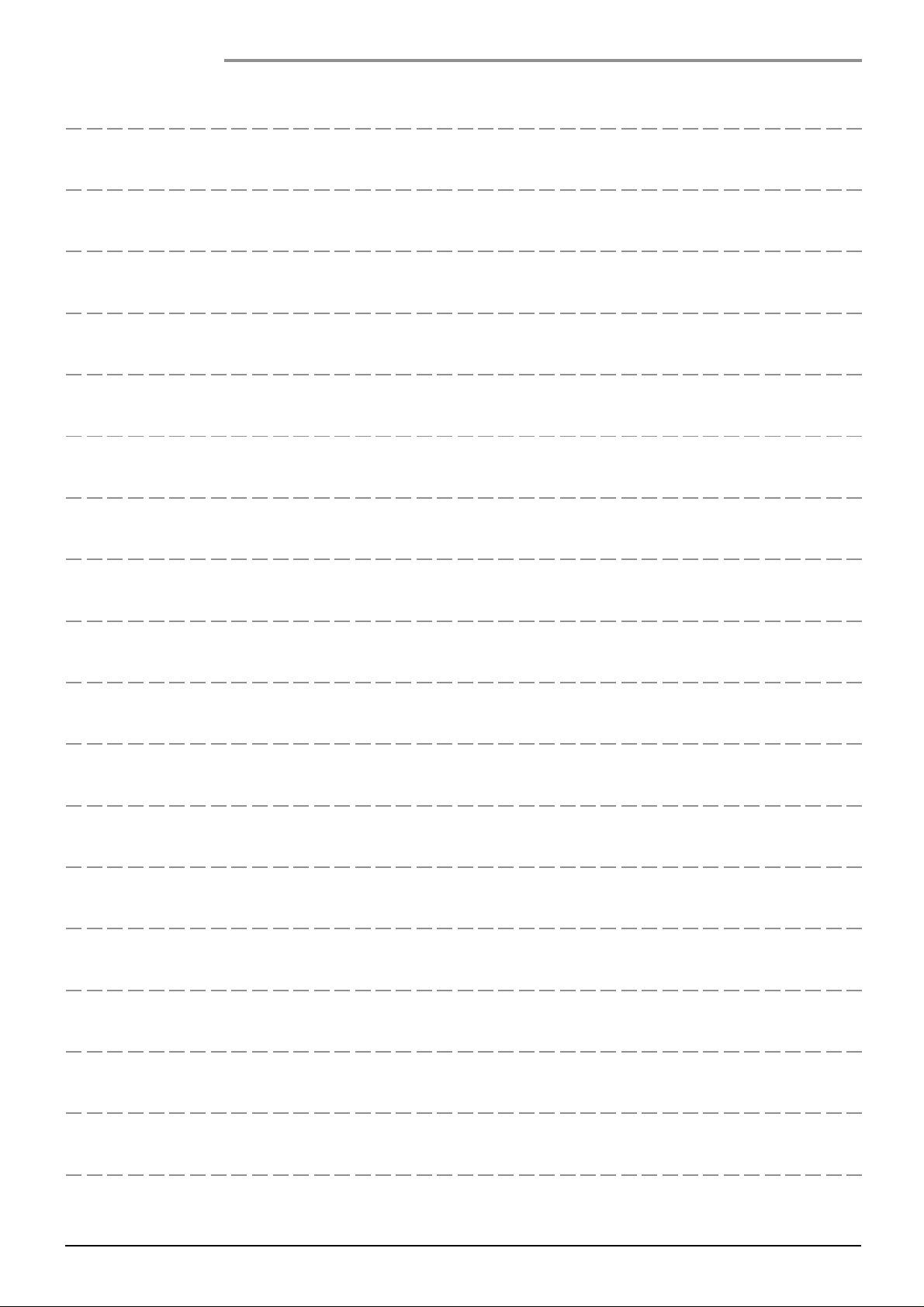

MEMO

Page 36

Customer’ Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Panasonic (U.K.) Ltd.

Willoughby Road, Bracknell,

Berks RG12 8FP

Matsushita Electric Industrial Co., Ltd.

Central P.O. Box 288, Osaka 530-8692, Japan

Printed in Japan

MBS0301S0(MS)
