Panasonic TH 50PH9UK User Manual

P 2 4

High Deﬁ nition Plasma Display

Pantalla de Plasma de Alta Deﬁ nición

English

TH-42PS9

TQB2AA0691

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualiﬁ ed service personnel.

The lightning flash with arrow-head within a triangle is in tended to tell the user that parts inside the product are a risk of electric shock to per sons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the ap pliance.

WARNING : To prevent damage which may result in ﬁ re or shock hazard, do not expose this apparatus to rain

or mois ture. Do not place containers with water (ﬂ ower vase, cups, cosmetics, etc.) above the set. (including on shelves above, etc.)

WARNING : 1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to

qualiﬁ ed service personnel.

2) Do not remove the grounding pin on the power plug. This apparatus is equipped with a three pin grounding-type power plug. This plug will only ﬁ t a grounding-type power outlet. This is a safety fea ture. If you are unable to insert the plug into the outlet, contact an electrician.

Do not defeat the purpose of the grounding plug.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁ ers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁ t into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments / accessories speciﬁ ed by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table speciﬁ ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment

from your new Plasma Display.

To obtain maximum benefit from your set, please read these Instructions before making any adjustments,

and retain them for future reference.

Retain your purchase receipt as well, and record the model number and serial number of your set in the

space provided on the rear cover of these instructions.

Important Safety Instructions .................................. 3

FCC STATEMENT ...................................................... 5

Safety Precautions ................................................... 6

Maintenance .............................................................. 7

Accessories .............................................................. 8

Accessories Supplied .............................................. 8

Remote Control Batteries ........................................ 8

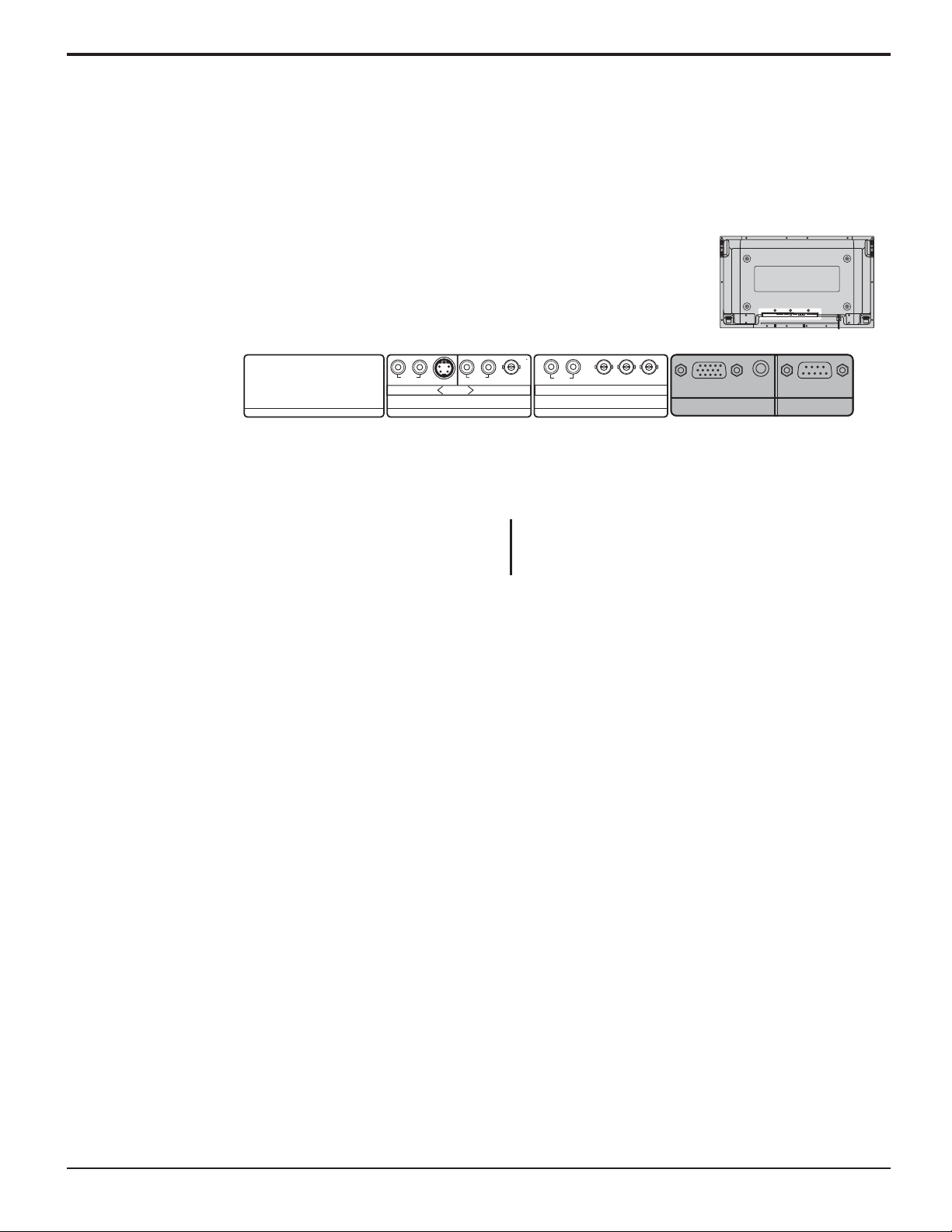

Connections .............................................................. 9

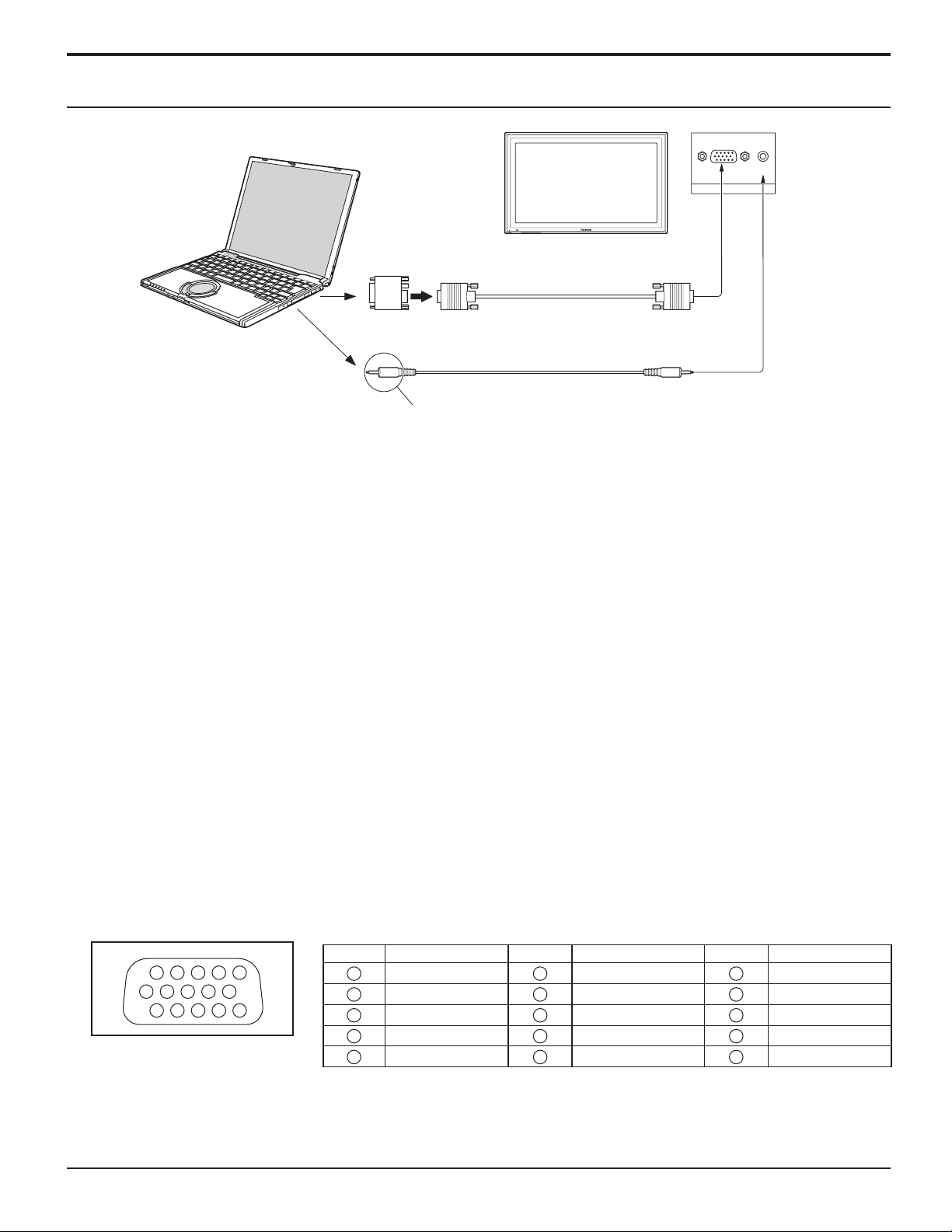

PC Input Terminals connection .............................. 10

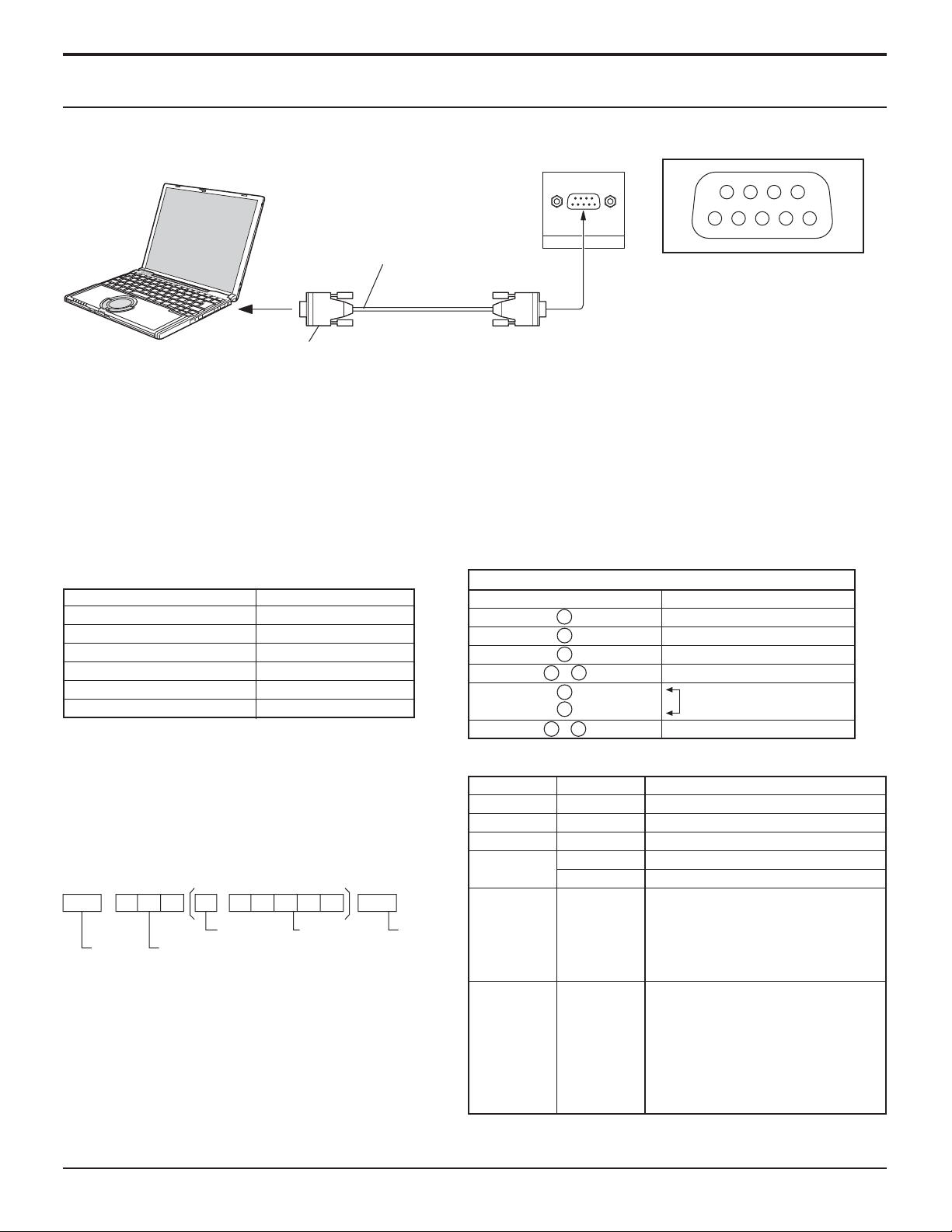

SERIAL Terminals connection ............................... 11

AV & COMPONENT / RGB connection ................. 12

RGB signal (R, G, B) ............................................. 12

Power ON / OFF ..................................................... 13

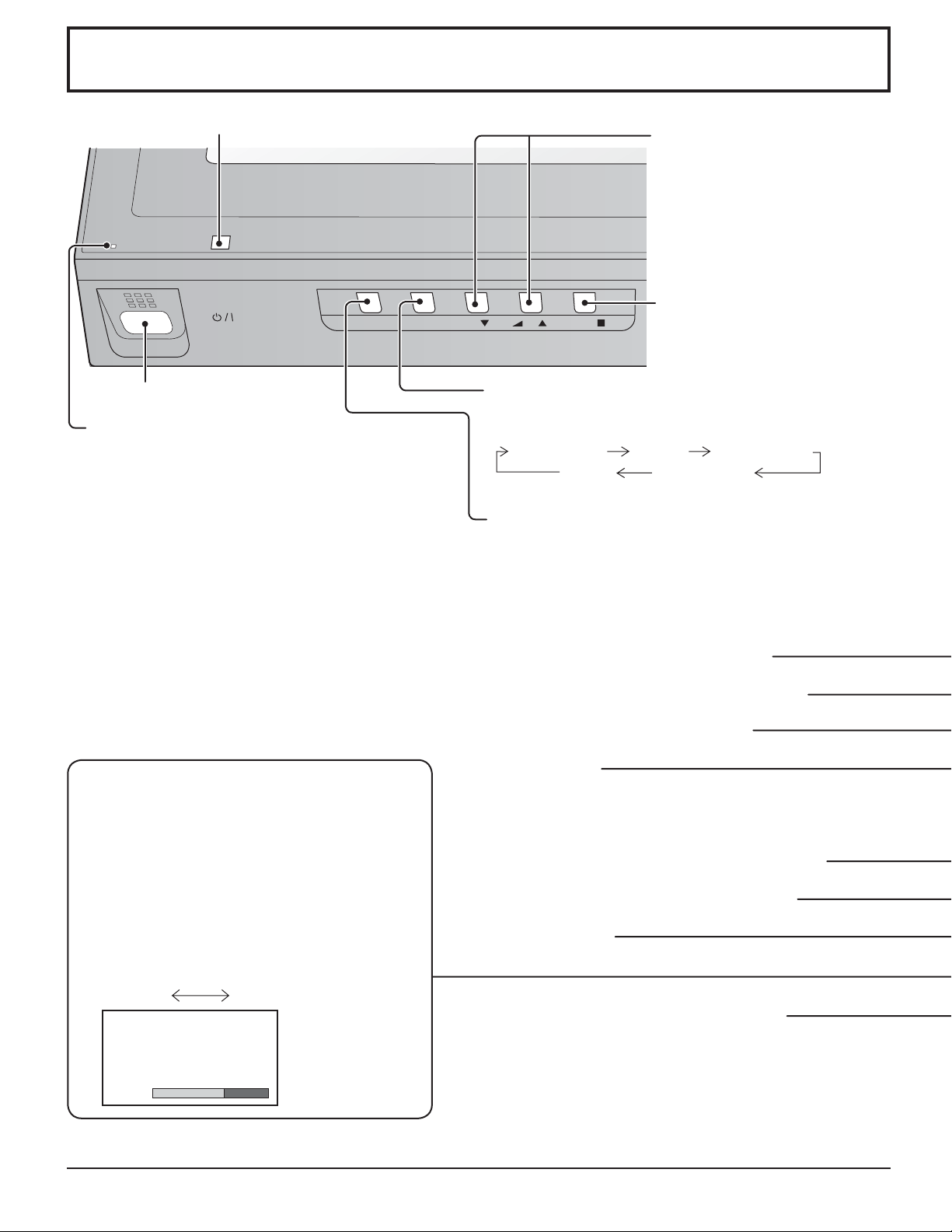

Basic Controls ........................................................ 14

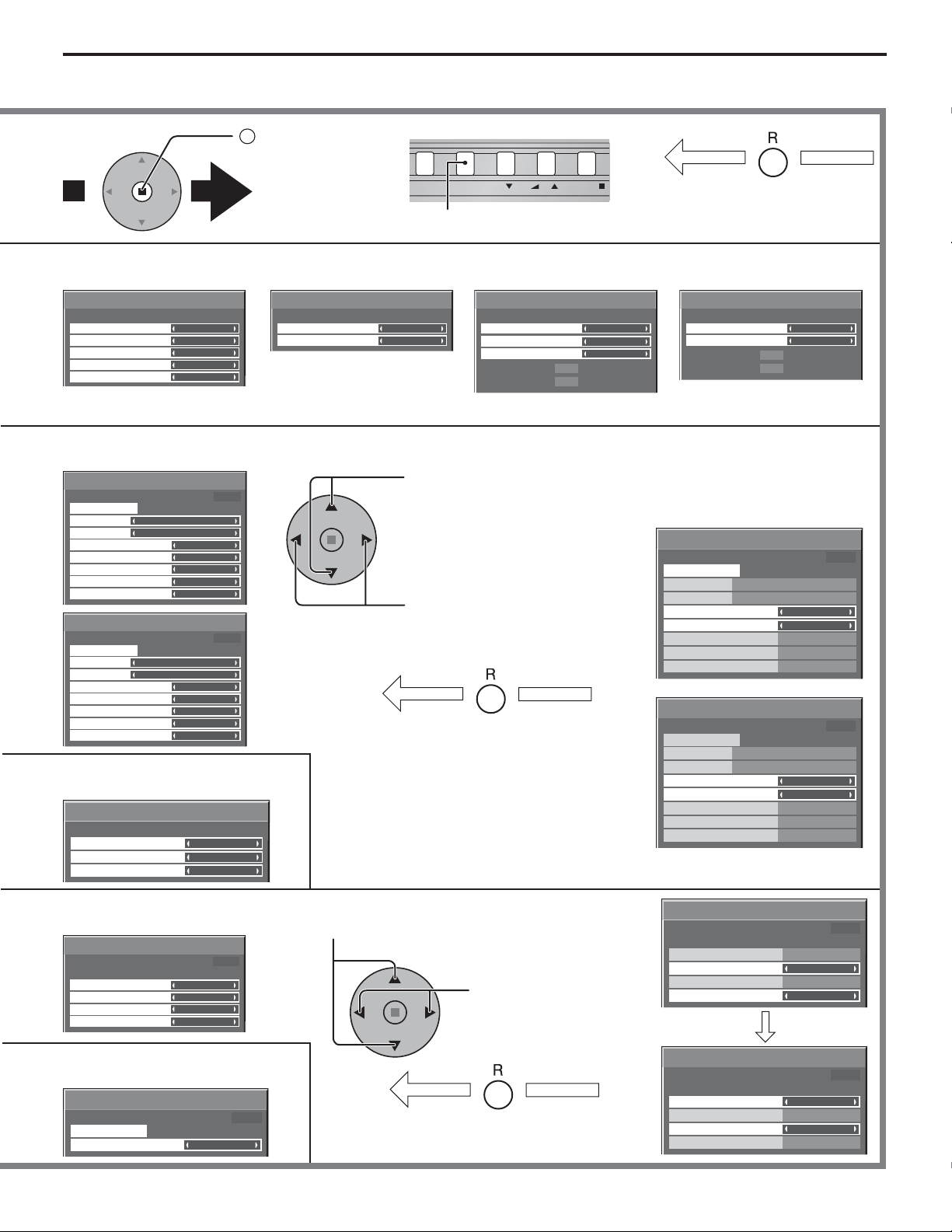

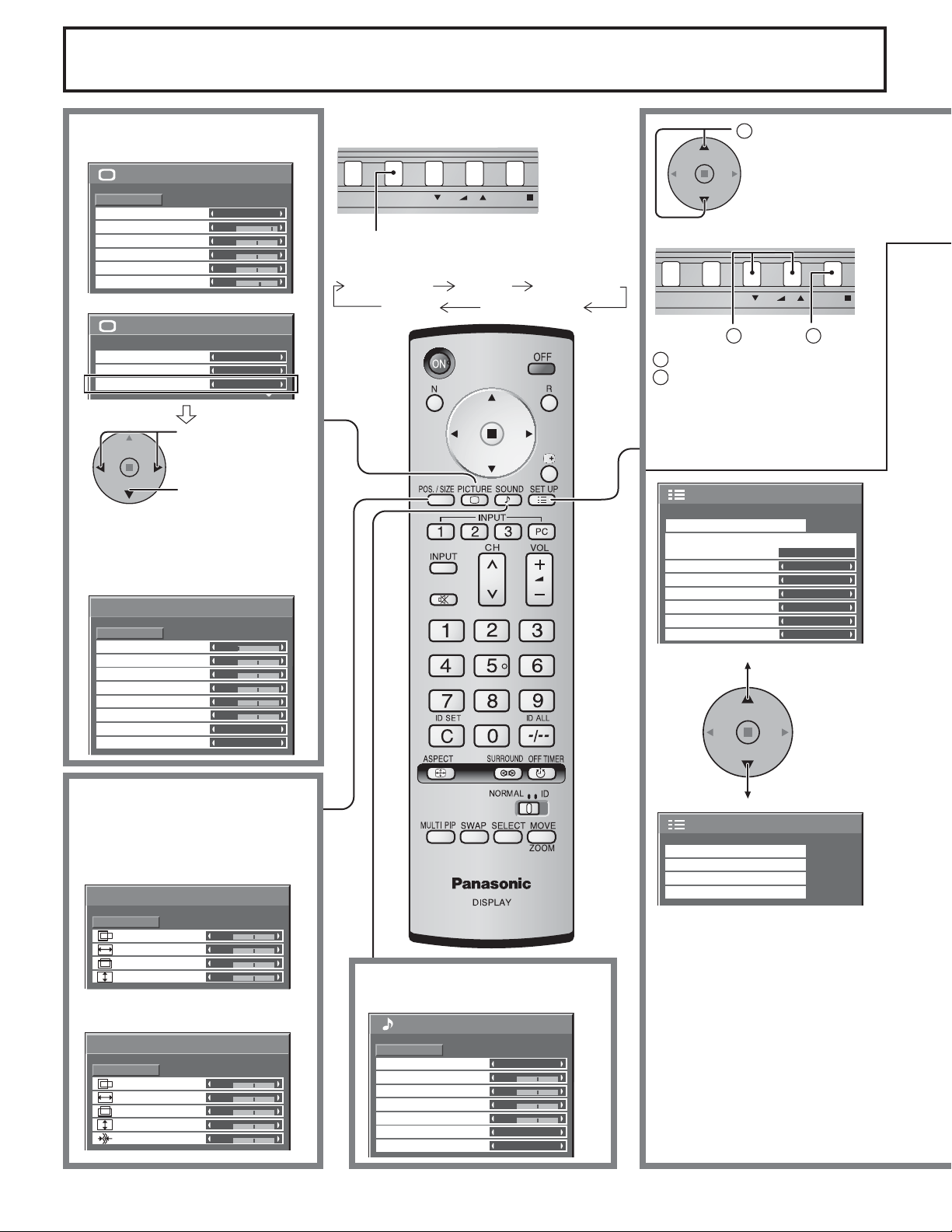

On-Screen Menu Displays ..................................... 16

Initial selections ..................................................... 18

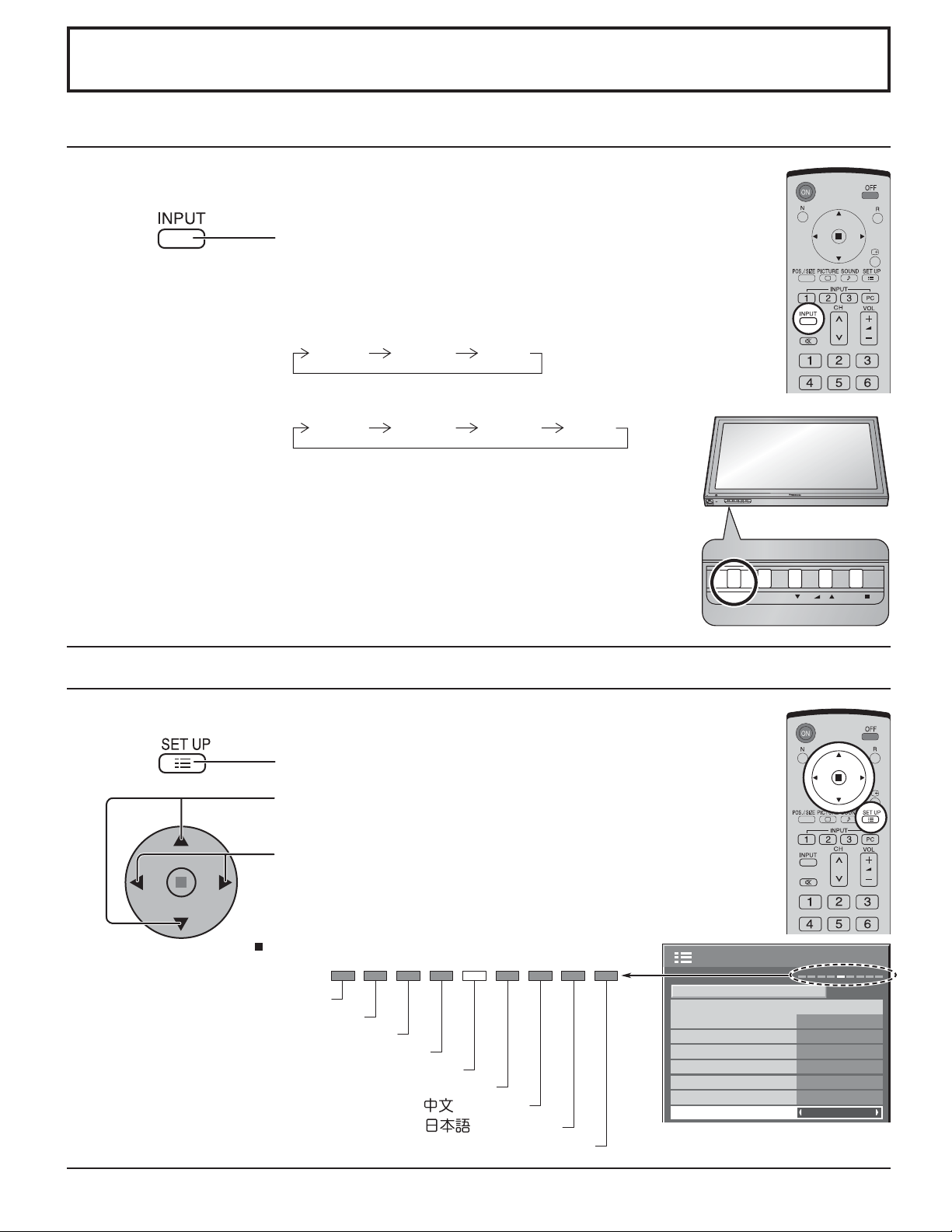

Selecting the input signal ...................................... 18

Selecting the On-Screen Menu Language ............ 18

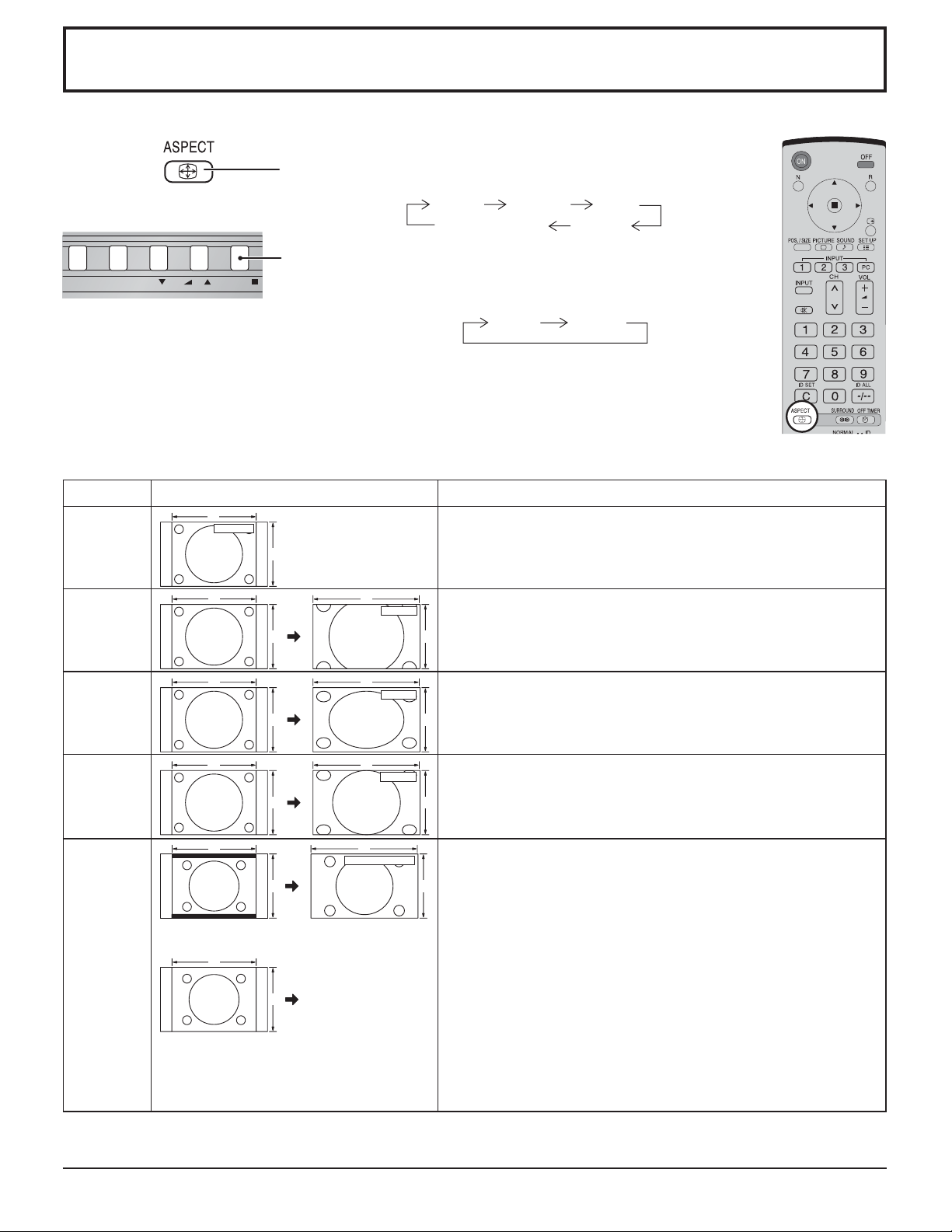

ASPECT Controls ................................................... 19

Adjusting POS. /SIZE ............................................. 20

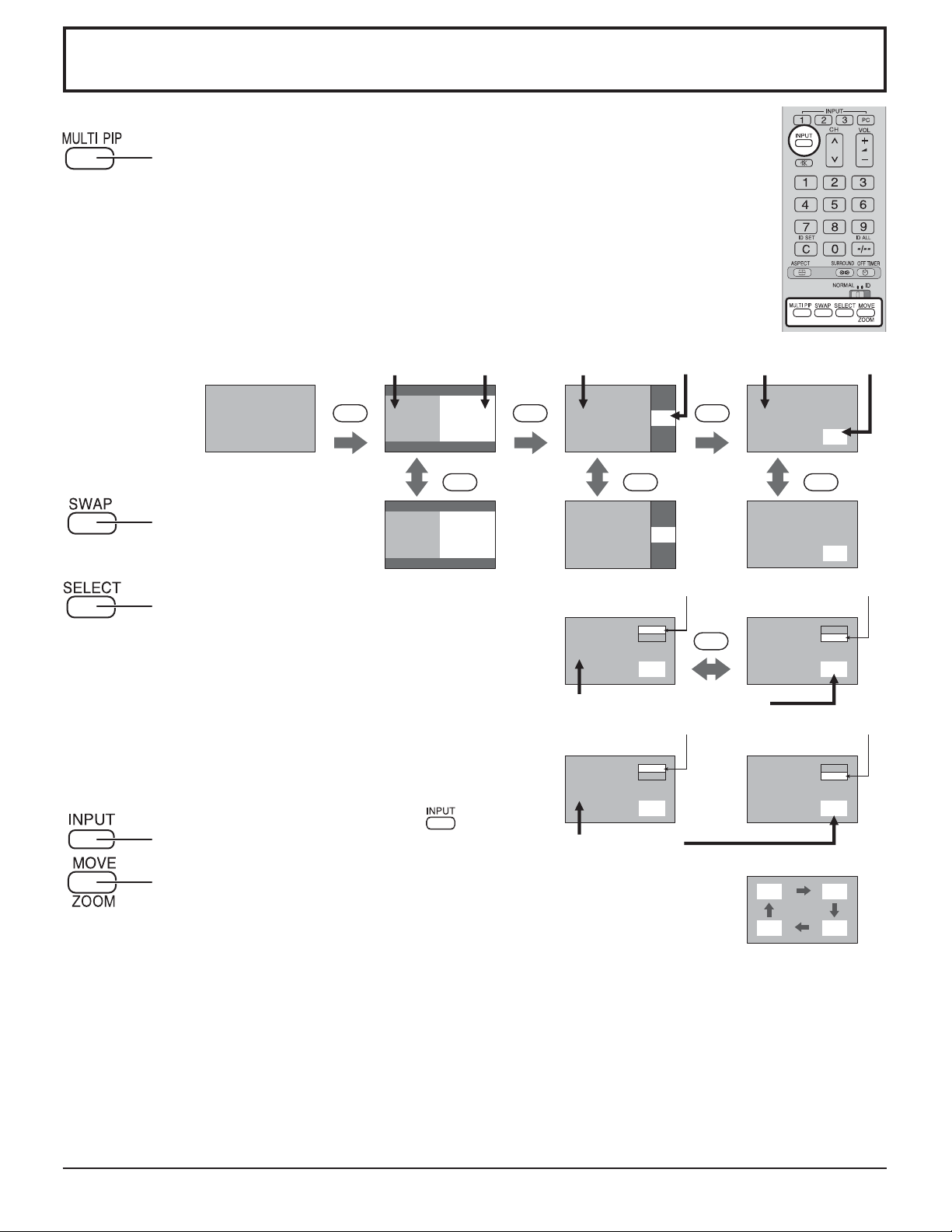

MULTI PIP ................................................................ 21

Advanced PIP .......................................................... 22

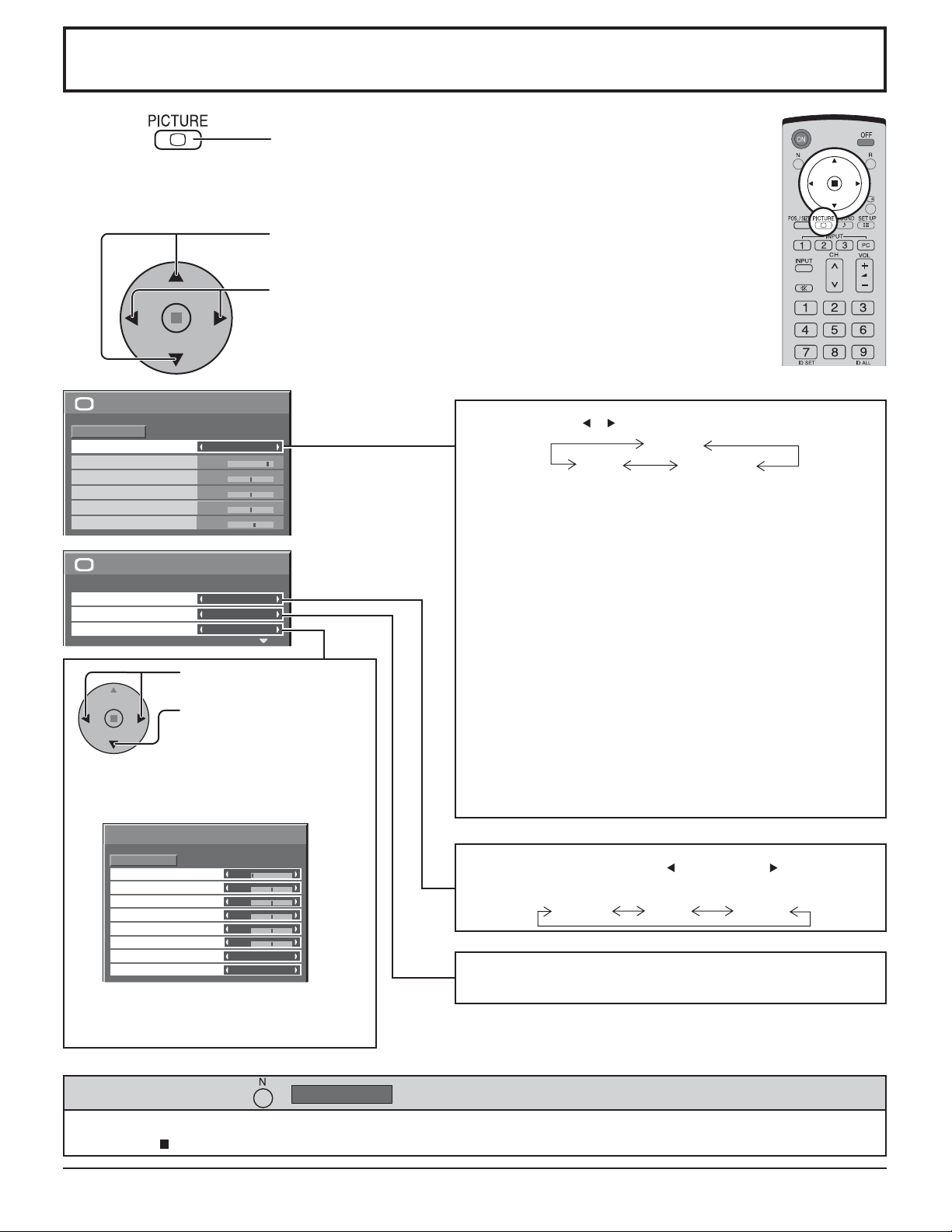

PICTURE Adjustments ........................................... 23

ADVANCED SETTINGS ........................................ 24

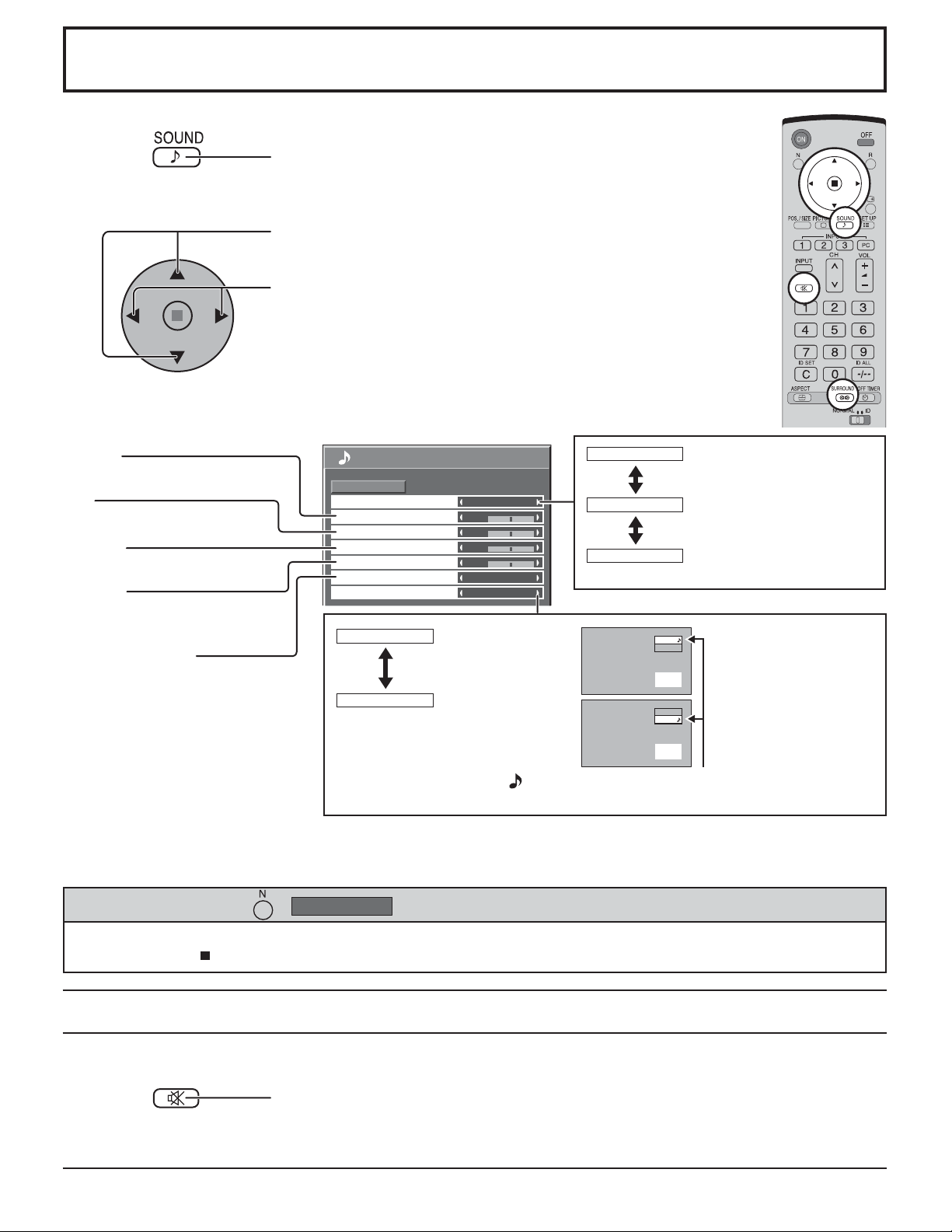

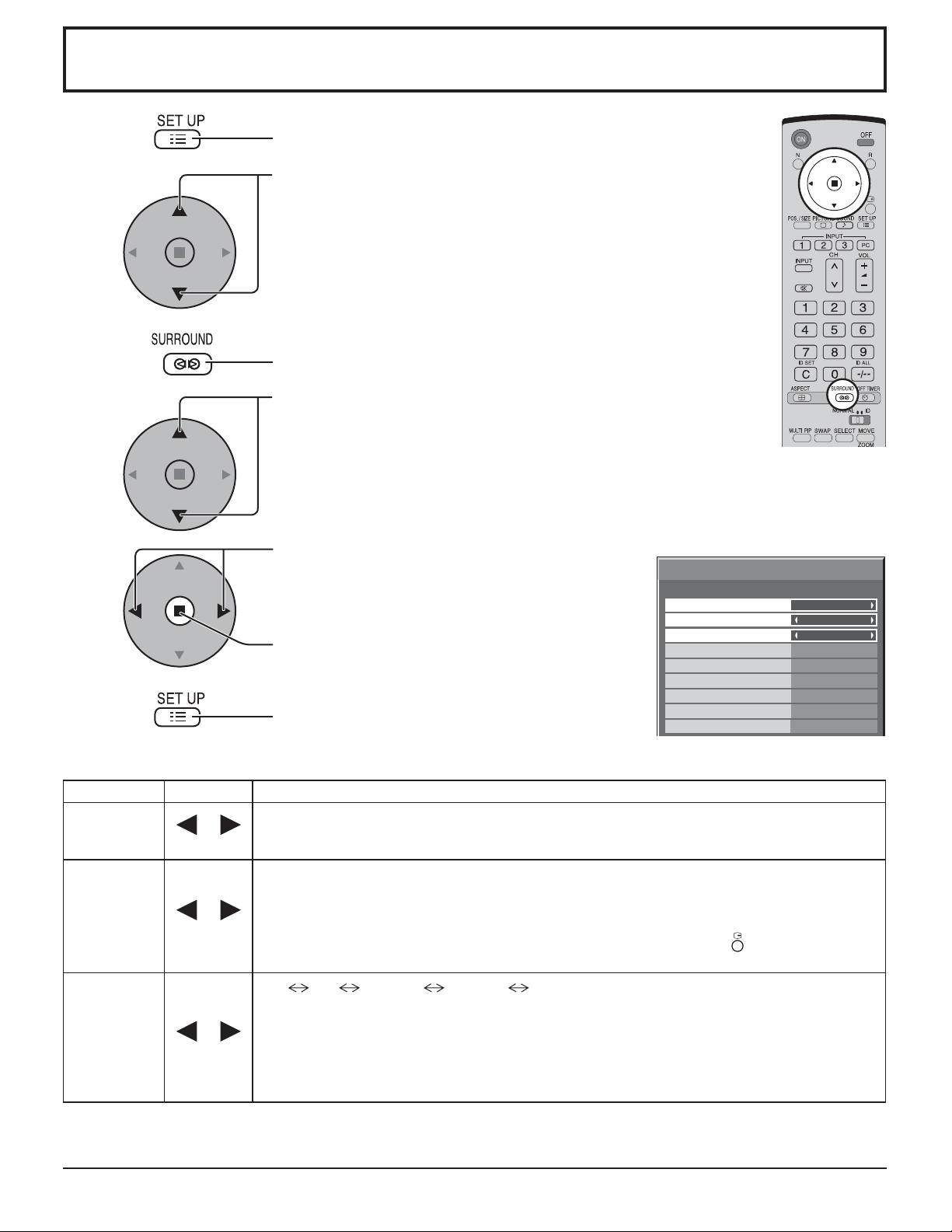

SOUND Adjustment ................................................ 25

MUTE .................................................................... 25

Digital Zoom ............................................................ 26

PRESENT TIME SETUP / SET UP TIMER .............. 27

PRESENT TIME SETUP ....................................... 27

SET UP TIMER ..................................................... 28

SCREENSAVER (For preventing after-images) ... 29

Setup of SCREENSAVER Time ............................ 30

Reduces screen after-image ................................. 30

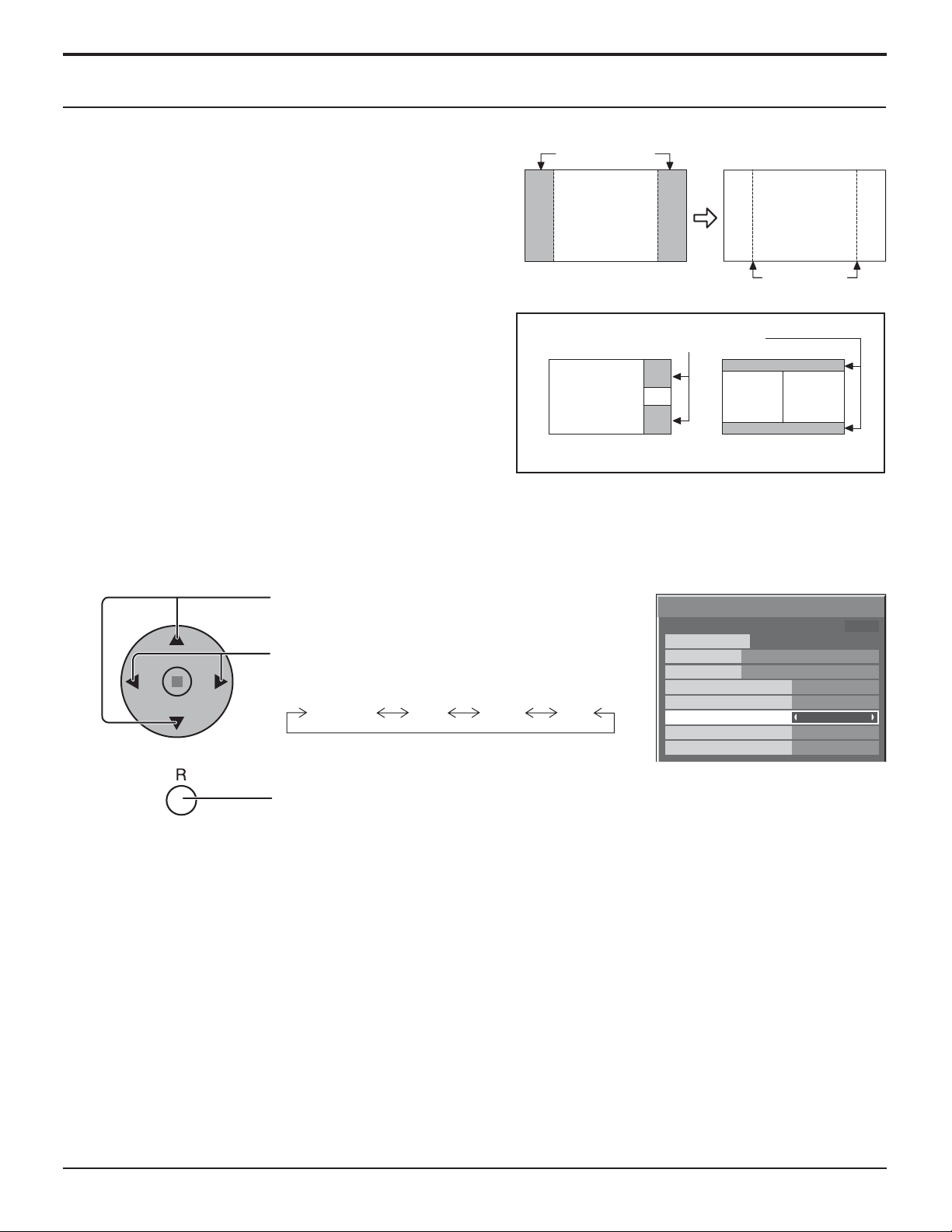

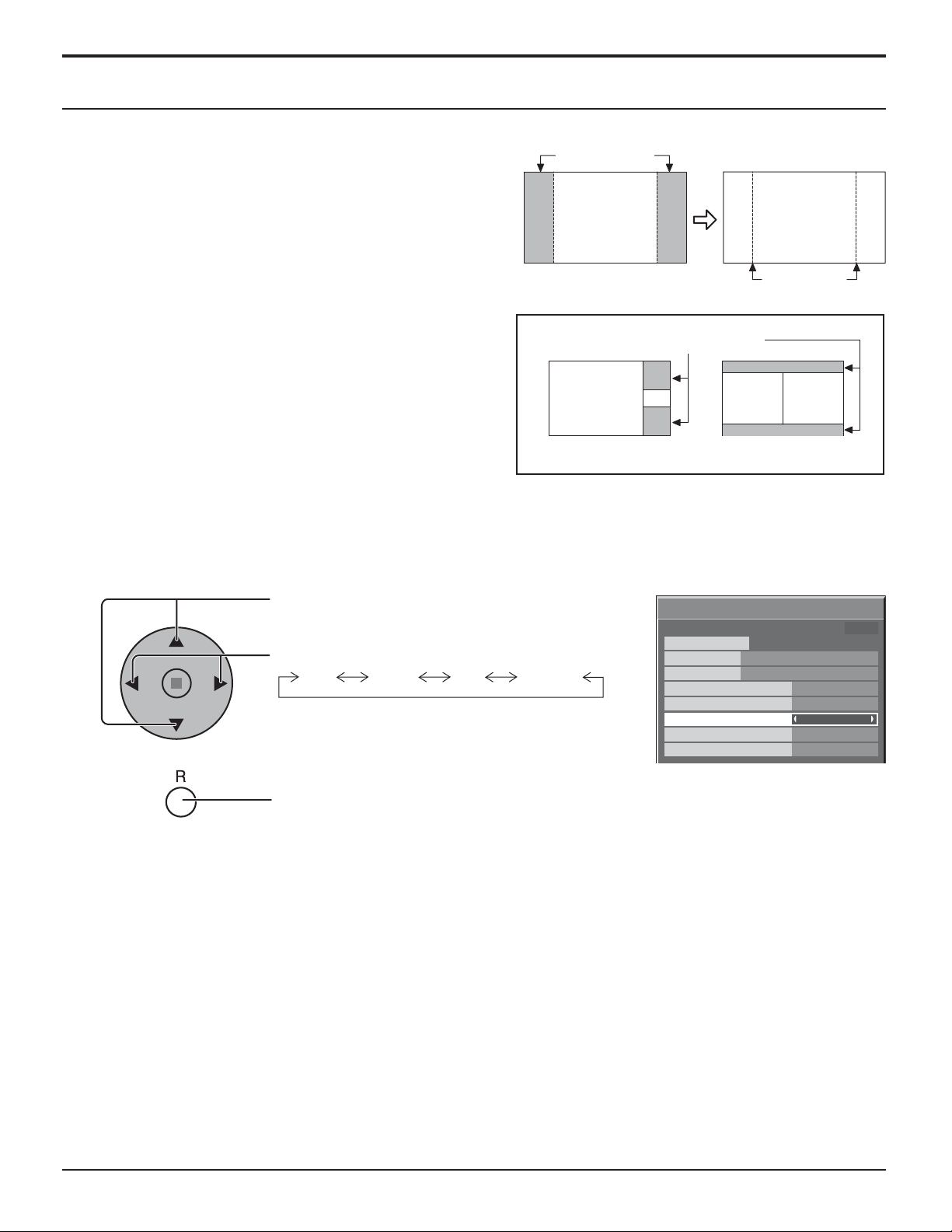

SIDE BAR ADJUST ............................................... 31

Reduces power consumption ............................... 32

Customizing the Input labels ................................. 32

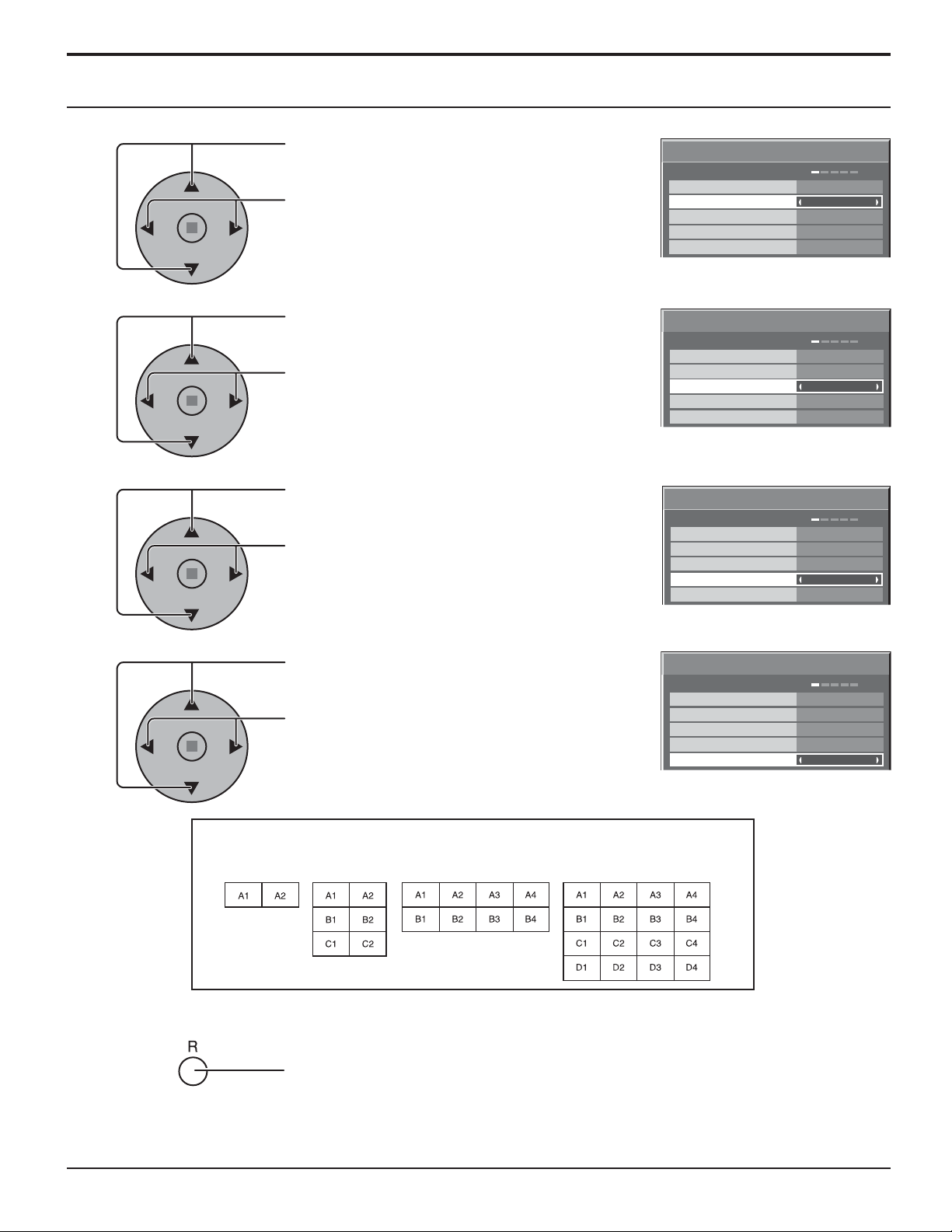

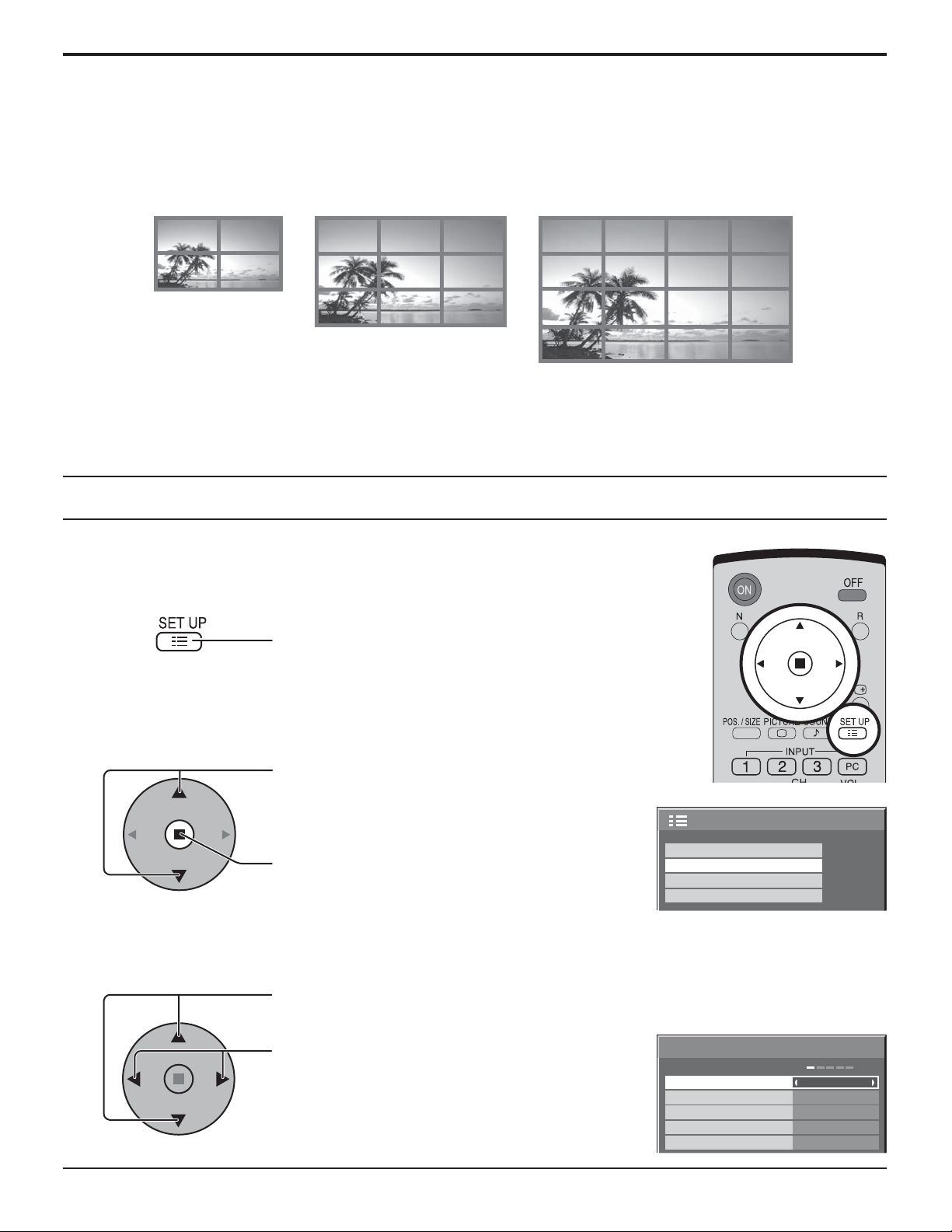

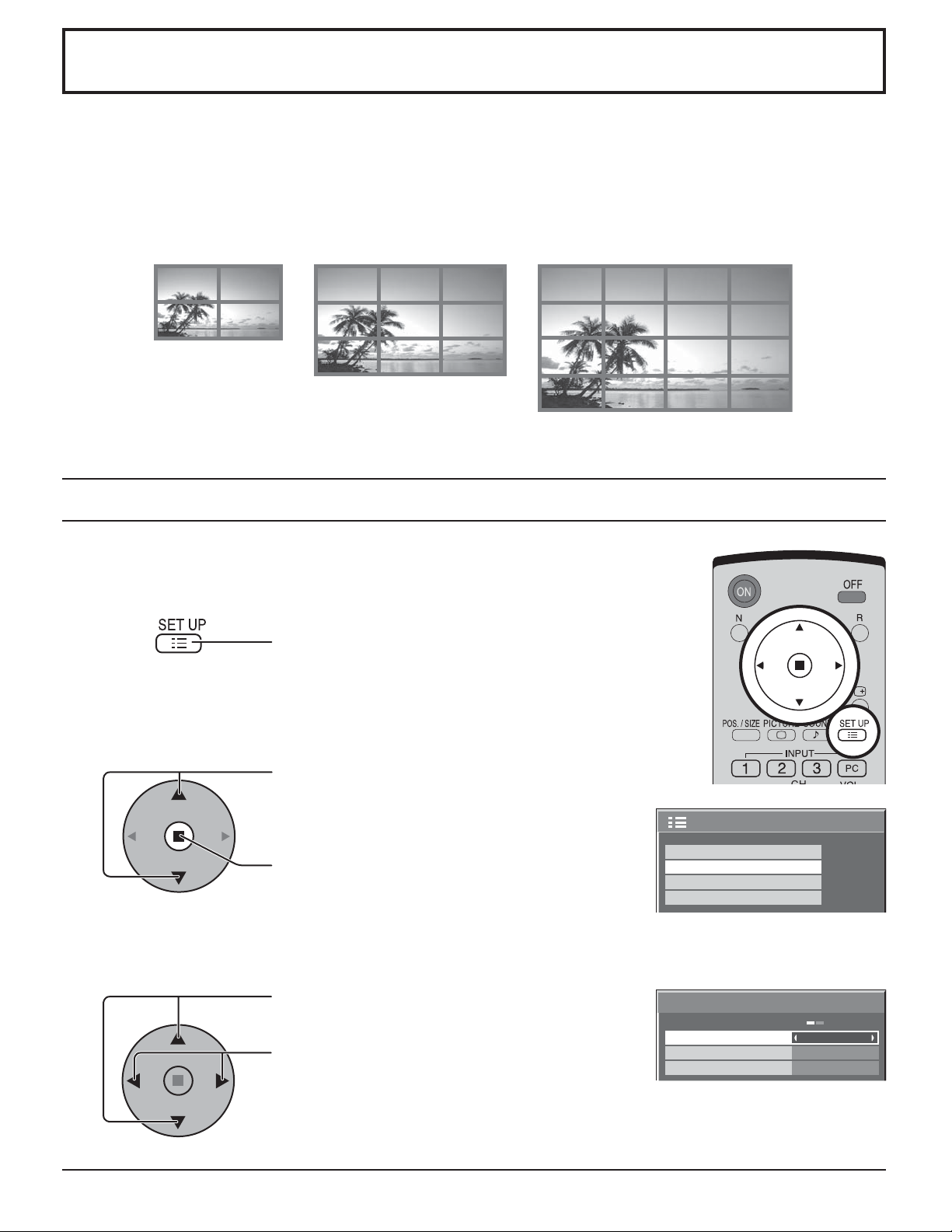

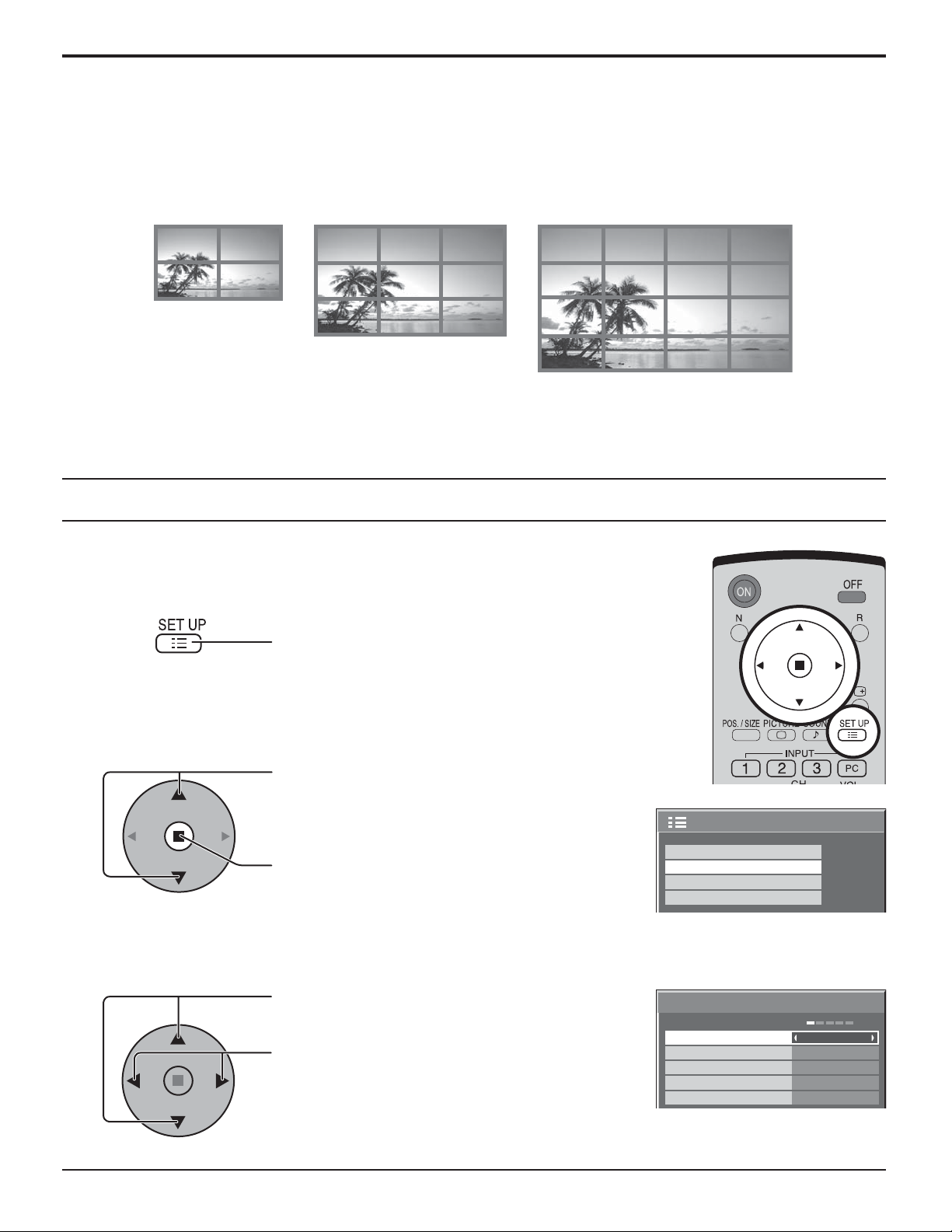

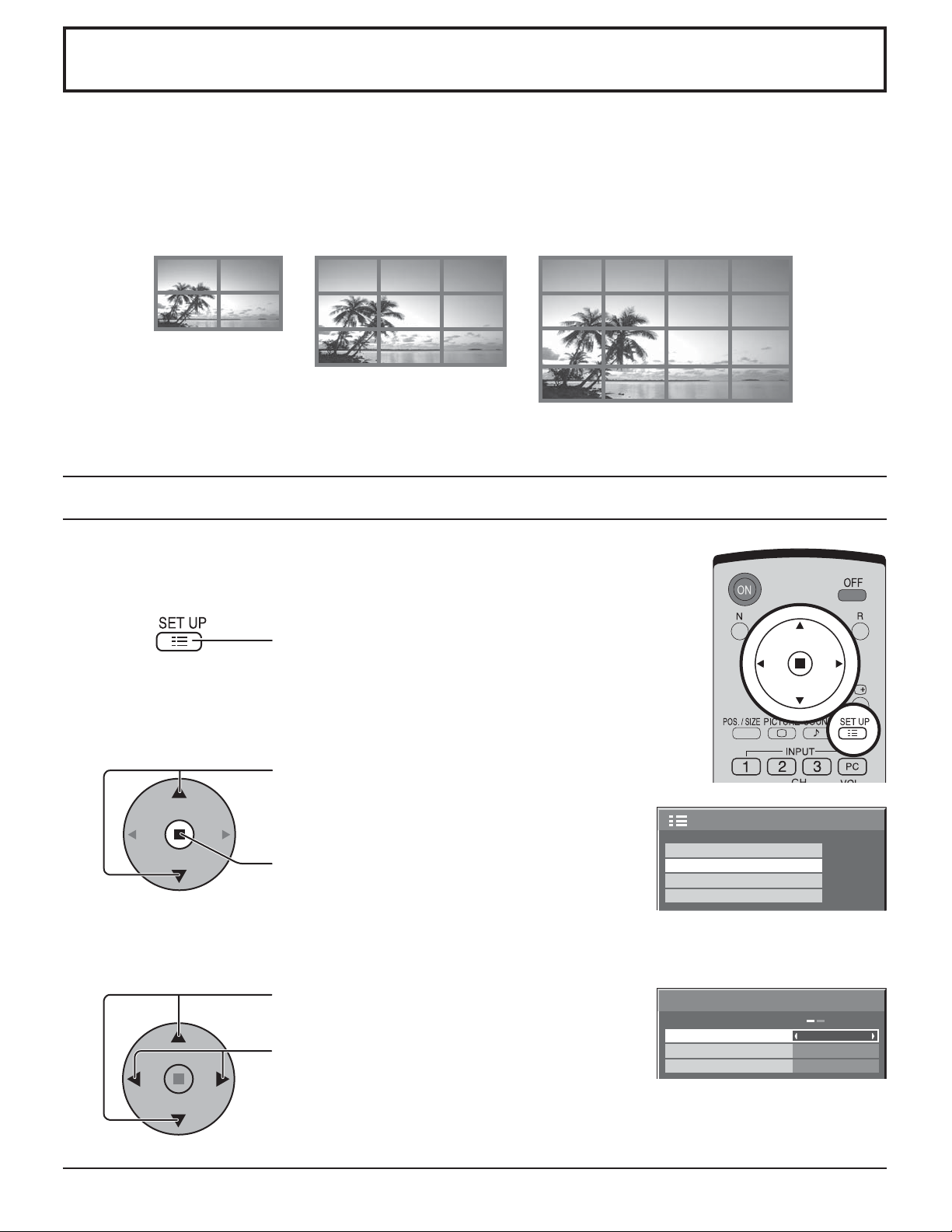

SET UP for MULTI DISPLAY ................................... 33

(For TH-42PS9UK)

How to setup MULTI DISPLAY .............................. 33

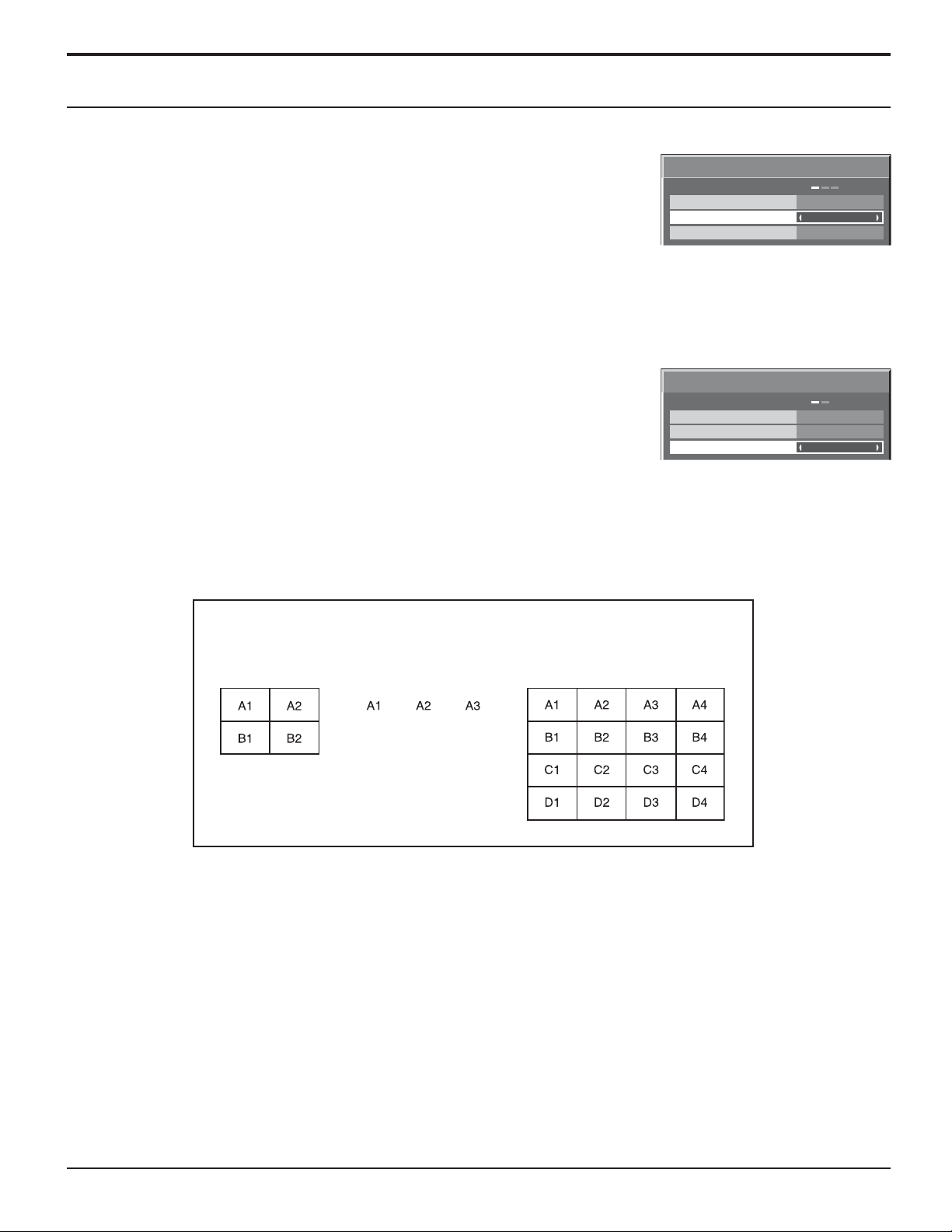

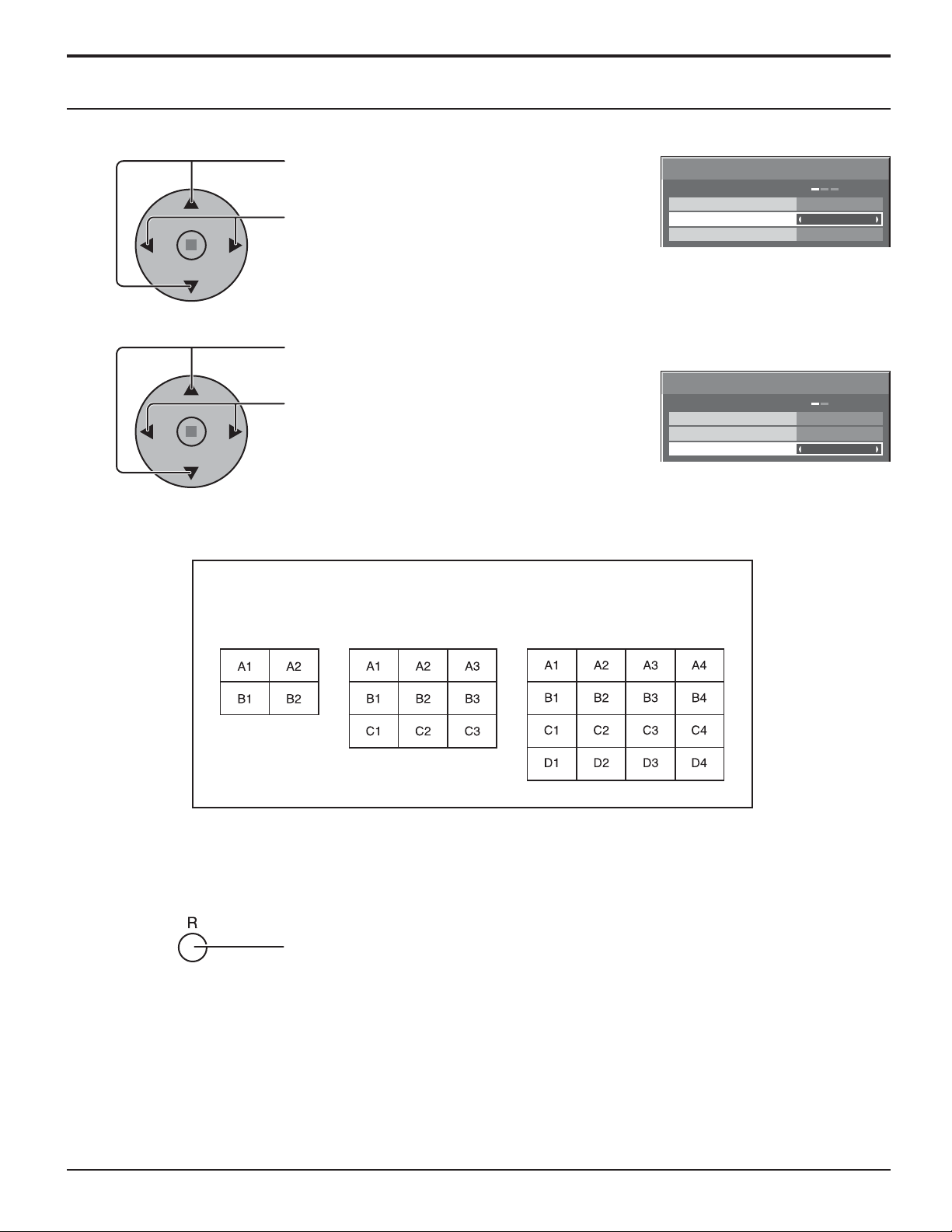

How to set the Display location number

for each Plasma Display ....................................... 34

(For TH-37PH9UK, TH-42PH9UK, TH-50PH9UK)

How to setup MULTI DISPLAY ............................. 35

How to set the Display location number

for each Plasma Display ....................................... 36

F (SEAM HIDES VIDEO) Setting ......................... 37

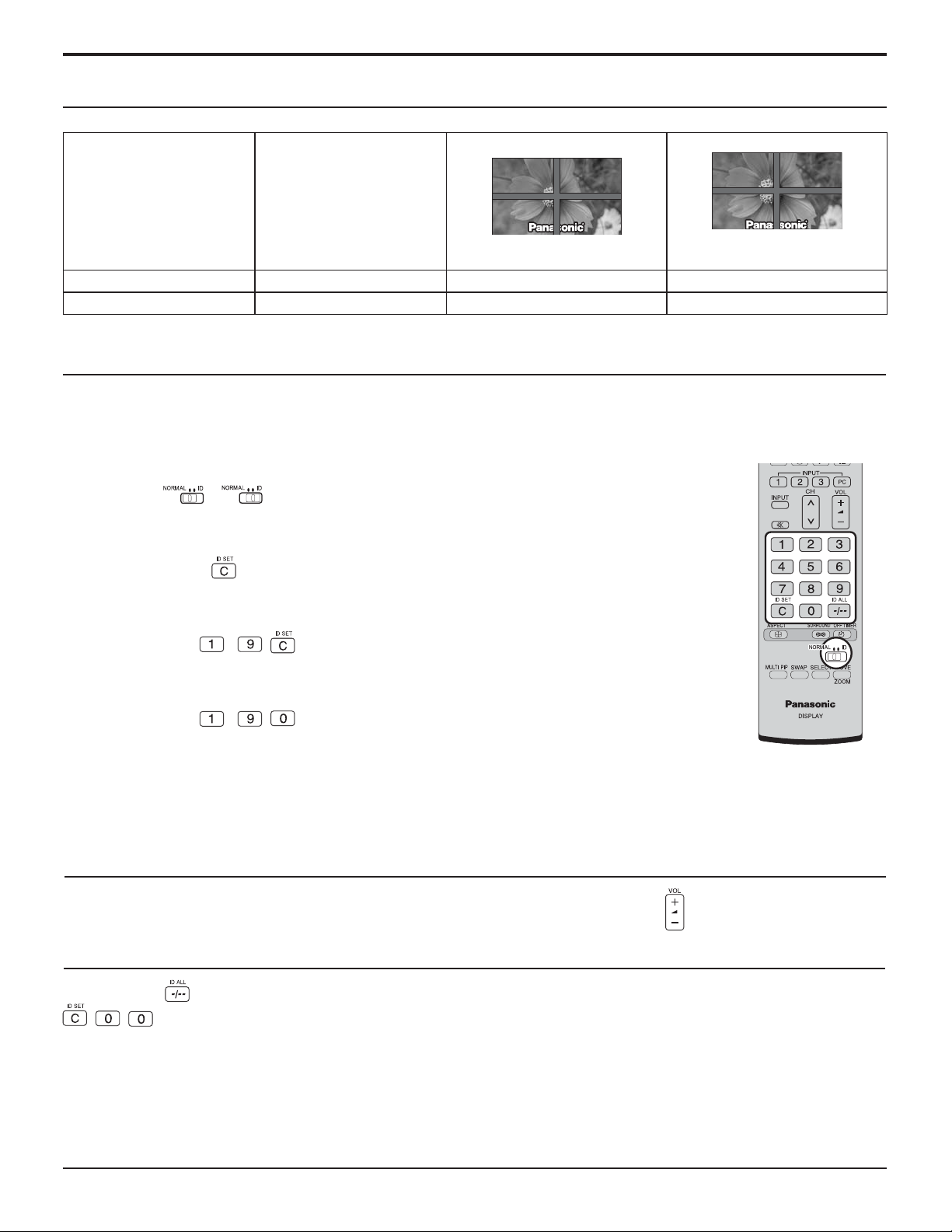

ID Remote Control Function .................................. 37

SET UP for Input Signals ....................................... 38

COMPONENT / RGB IN SELECT ......................... 38

3D Y/C FILTER ...................................................... 38

COLOR SYSTEM / Panasonic AUTO ................... 39

3:2 PULLDOWN / VIDEO NR ................................ 39

SYNC .................................................................... 40

H-FREQ. (kHz) / V-FREQ. (Hz) ............................. 40

Options Adjustments ............................................. 41

Shipping condition ................................................. 44

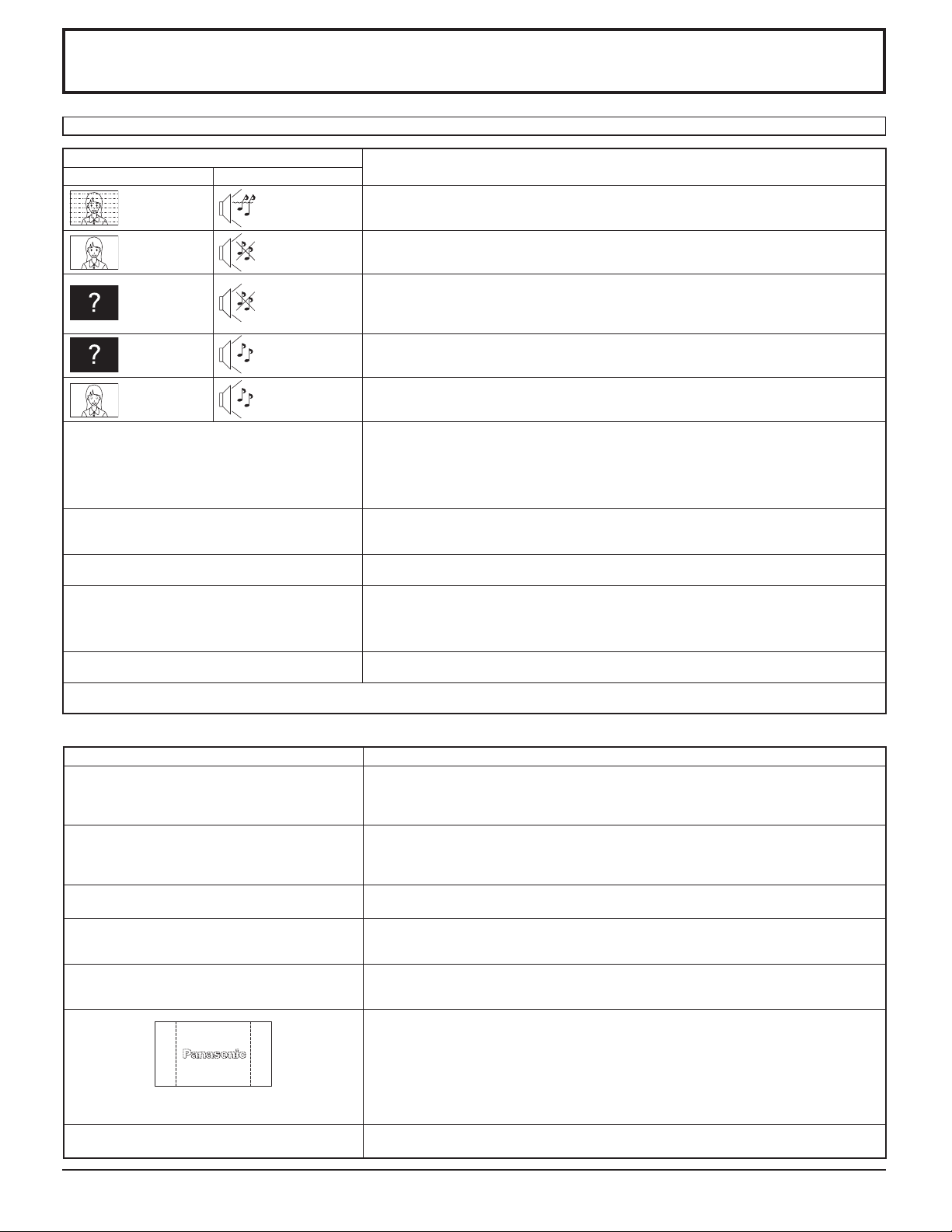

Troubleshooting ..................................................... 45

VIDEO/COMPONENT/RGB/PC input signals ........ 46

Speciﬁ cations ......................................................... 47

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced technician for help.

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION: Pursuant to 47CFR, Part 15.21 of the FCC rules, any changes or modiﬁ cations to this monitor not expressly approved by Panasonic Corporation of North America could cause harmful interference and would void the user’s authority to operate this device.

FCC Declaration of Conformity

Model No. TH-42PS9UK, TH-37PH9UK, TH-42PH9UK, TH-50PH9UK

Responsible Party: Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094 Contact Source: Panasonic Broadcast & Television Systems Company 1-800-524-1448 email: pbtscservice@us.panasonic.com

CANADIAN NOTICE:

This Class B digital apparatus complies with Canadian ICES-003.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause permanent after-image to remain on the Plasma Display. Examples of still pictures include logos, video games, computer images, teletext and images displayed in NORMAL mode.

Trademark Credits

• VGA is a trademark of International Business Machines Corporation.

• Macintosh is a registered trademark of Apple Computer, USA.

• S-VGA is a registered trademark of the Video Electronics Standard Association. Even if no special notation has been made of company or product trademarks, these trademarks have been fully

respected.

Safety Precautions

CAUTION

This Plasma Display is for use only with the following optional accessories. Use with any other type of optional accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.)

• Speakers .................................................................. TY-SP37P8W-K (TH-37PH9UK),

TY-SP42P8W-K (TH-42PS9UK, TH-42PH9UK), TY-SP50P8W-K (TH-50PH9UK)

• Pedestal .................................................................... TY-ST07-K, TY-ST08-K

• Wall stand ................................................................. TY-ST42PW1

• Mobile stand ............................................................. TY-ST42PF3

• Wall-hanging bracket (vertical) ................................. TY-WK37PV3, TY-WK42PV7

• Wall-hanging bracket (angled) .................................. TY-WK42PR7

• Wall-hanging bracket (drawer type) .......................... TY-WK42DR1

• Ceiling-hanging bracket ............................................ TY-CE42PS7

• BNC Component Video Terminal Board ................... TY-42TM6A

• BNC Composite Video Terminal Board ..................... TY-42TM6B

• BNC Dual Video Terminal Board .............................. TY-FB9BD

• RCA Component Video Terminal Board ................... TY-42TM6Z

• RCA Composite Video Terminal Board ..................... TY-42TM6V

• RGB (Digital) Terminal Board ................................... TY-42TM6D

• RGB Active Through Terminal Board ........................ TY-42TM6G

• PC Input Terminal Board .......................................... TY-42TM6P

• Composite / Component Video Terminal Board ........ TY-42TM6Y

• SDI Terminal Board................................................... TY-FB7SD

• HD-SDI Terminal Board ........................................... TY-FB7HD, TY-FB9HD

• HDMI Terminal Board ............................................... TY-FB8HM

• Touch Panel .............................................................. TY-TP42P8-S (TH-42PS9UK, TH-42PH9UK),

TY-TP50P8-S (TH-50PH9UK)

Always be sure to ask a qualiﬁ ed technician to carry out set-up.

Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being played with by young children, creating the potential risk of suffocation.

When using the Plasma Display

Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.

• Top of the Plasma Display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries can happen if any body parts are brought too close. Placing any object near the top of the display could also result in heat damages to the object as well as to the Display if its ventilation holes are blocked.

Be sure to disconnect all cables before moving the Plasma Display.

• Moving the Display with its cables attached might

damage the cables which, in turn, can cause ﬁ re or electric shock.

Disconnect the power plug from the wall outlet as a safety precaution before carrying out any cleaning.

• Electric shocks can result if this is not done.

Clean the power cable regularly to prevent it from becoming dusty.

• Built-up dust on the power cord plug can increase humidity which might damage the insulation and cause ﬁ re. Unplug the cord from the wall outlet and clean it with a dry cloth.

This Plasma Display radiates infrared rays, therefore it may affect other infrared communication equipment. Install your infrared sensor in a place away from direct or reﬂ ected light from your Plasma Display.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image to remain on the Plasma Display. Examples of still pictures include logos, video games, computer images, teletext and images displayed in NORMAL mode.

WARNING

Safety Precautions / Maintenance

Setup

Do not place the Plasma Display on sloped or unstable surfaces.

• The Plasma Display may fall off or tip over.

Do not place any objects on top of the Plasma Display.

• If water spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result in ﬁ re or electric shock. If any foreign objects get inside the Plasma Display, please consult an Authorized Service Center.

Do not cover the ventilation holes.

• Doing so may cause the Plasma Display to overheat, which can cause fire or damage to the Plasma Display.

If using the pedestal (optional accessory), leave a space of 3

15/16” (10 cm) or more at the top, left and right, 2 3/8”

(6 cm) or more at the bottom, and 2 3/4” (7 cm) or more at the rear. If using some other setting-up method, leave a space of 3 15/16” (10 cm) or more at the top, bottom, left and right, and 2 3/4” (7 cm) or more at the rear.

AC Power Supply Cord

The Plasma Display is designed to operate on 120 V AC, 50/60 Hz.

Securely insert the power cord plug as far as it will go.

• If the plug is not fully inserted, heat may be generated which could cause ﬁ re. If the plug is damaged or the wall socket plate is loose, they should not be used.

Do not handle the power cord plug with wet hands.

• Doing so may cause electric shocks.

Do not do anything that might damage the power cable. When disconnecting the power cable, hold the plug, not the cable.

• Do not make any modiﬁ cations, place heavy objects on, place near hot objects, heat, bend, twist or forcefully pull the power cable. Doing so may cause damage to the power cable which can cause ﬁ re or electric shock. If damage to the cable is suspected, have it repaired at an Authorized Service Center.

If the Plasma Display will not be used for a long period of time, unplug the power cord from the wall outlet.

If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from the Plasma Display, unplug the power cord immediately.

• Continuous use of the Display under these conditions might cause ﬁ re or permanent damage to the unit. Have the Display evaluated at an Authorized Service Center. Services to the Display by any unauthorized personnel are strongly discouraged due to its high voltage dangerous nature.

If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet becomes damaged, disconnect the power cord plug immediately.

• A short may occur, which could cause ﬁ re. Contact an Authorized Service Center for any repairs that need to be made.

Maintenance

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-free cloth.

• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water to which a small amount of neutral detergent has been added, and then wipe it evenly with a dry cloth of the same type until the surface is dry.

• Do not scratch or hit the surface of the panel with ﬁ ngernails or other hard objects, otherwise the surface may become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.

• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get inside the unit, operating problems may result.

• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

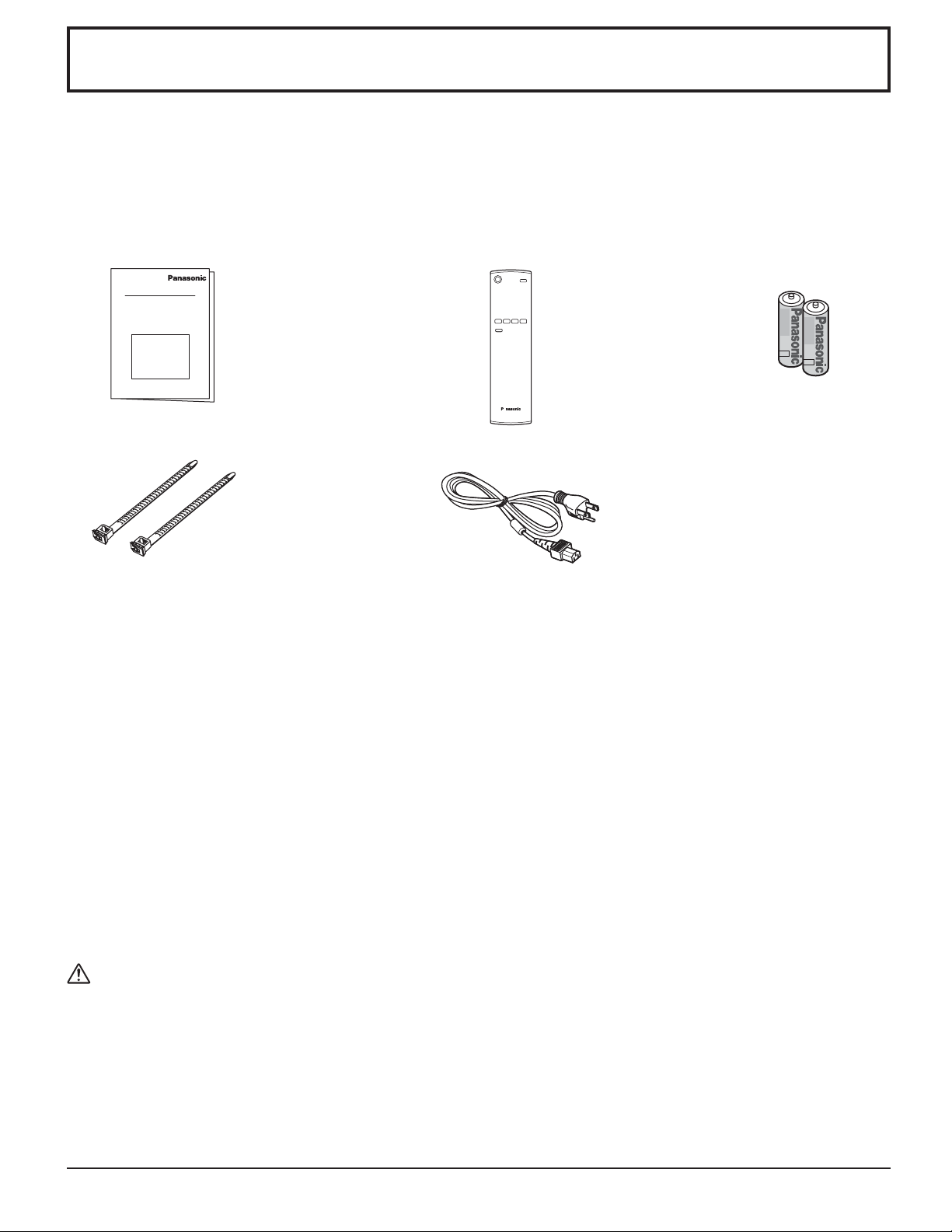

Accessories

Requires two AA batteries.

2. Insert batteries - note correct polarity ( + and -).

3. Replace the cover.

Precaution on battery use

Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter. Disposal of batteries should be in an environment-friendly manner.

Observe the following precautions:

1. Batteries should always be replaced as a pair. Always use new batteries when replacing the old set.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.

5. Battery replacement is necessary when the remote control acts sporadically or stops operating the Plasma Display.

Connections

PC Input Terminals connection

AUDIO

PC IN

TH-42PS9

Notes:

• Due to space limitations, occasionally you may have trouble connecting Mini D-sub 15P cable with ferrite core to PC input Terminal.

• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)

• The display resolution is a maximum of 640 × 480 dots (TH-42PS9UK), 768 × 720 dots (TH-37PH9UK), 768 × 768 dots (TH-42PH9UK), 1,024 × 768 dots (TH-50PH9UK) when the aspect mode is set to “NORMAL”, and 852 × 480 dots (TH-42PS9UK), 1,024 × 720 dots (TH-37PH9UK), 1,024 × 768 dots (TH-42PH9UK), 1,366 × 768 dots (TH-50PH9UK) when the aspect mode is set to “FULL”. If the display resolution exceeds these maximums, it may not be possible to show ﬁ ne detail with sufﬁ cient clarity.

• The PC input terminals are DDC1/2B-compatible. If the computer being connected is not DDC1/2B-compatible, you will need to make setting changes to the computer at the time of connection.

• Some PC models cannot be connected to the set.

• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.

• The computer shown in the illustration is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the speciﬁ ed frequency range.

• Component Input is possible with the pin 1, 2, 3 of the D-sub 15P Connector.

Signal Names for Mini D-sub 15P Connector

Pin Layout for PC Input Terminal

SERIAL Terminals connection

The SERIAL terminal is used when the Plasma Display is controlled by a computer.

Connections

COMPUTER

RS-232C Straight cable

SERIAL

Pin layout for RS-232C

9876

53214

D-sub 9p

Notes:

• Use the RS-232C cable to connect the computer to the Plasma Display.

• The computer shown is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

The SERIAL terminal conforms to the RS-232C interface speciﬁ cation, so that the Plasma Display can be controlled by a computer which is connected to this terminal. The computer will require software which allows the sending and receiving of control data which satisﬁ es the conditions given below. Use a computer application such as programming language software. Refer to the documentation for the computer application for details.

Communication parameters

Signal level

Synchronization method

Baud rate

Parity

Character length

Stop bit

Flow control

RS-232C compliant

Asynchronous

9600 bps

None 8 bits

1 bit

D-sub 9-pin female Details R X D T X D GND

• Non use

•

RS-232C Conversion cable

3 5

Shorted

Basic format for control data

The transmission of control data from the computer starts with a STX signal, followed by the command, the parameters, and lastly an ETX signal in that order. If there are no parameters, then the parameter signal

Command

Command PON POF AVL

does not need to be sent.

AMT

STX C1 C2 C3 P1 P2 P3 P4:P5ETX

Start

(02h)

Colon Parameter(s) 3-character command (3 bytes)

(1 - 5 bytes)

End (03h)

IMS

DAM

Notes:

• If multiple commands are transmitted, be sure to wait for the response for the ﬁ rst command to come from this unit before sending the next command.

• If an incorrect command is sent by mistake, this unit will send an “ER401” command back to the computer.

With the power off, this display responds to PON command only.

Parameter None None

** 0

1 None

SL1 SL2 SL3

PC1 None NORM ZOOM FULL JUST SELF

Control details Power ON Power OFF Volume 00 - 63 Audio MUTE OFF Audio MUTE ON Input select (toggle)

Slot1 input Slot2 input Slot3 input

PC input Screen mode select (toggle) NORMAL (4 : 3) ZOOM FULL JUST Panasonic AUTO

Connections

AV & COMPONENT / RGB connection

COMPONENT VIDEO OUT

Example of input signal source

Y, P

DVD

Digital TV-SET-TOP-BOX (DTV-STB)

B, PR,

OUT

AUDIO

OUT

RCA-BNC adapter plug

AUDIO

SLOT1 SLOT2 SLOT3

AUDIO

S VIDEO

AV IN

B A

VIDEO

AUDIO

PR/CR/R PB/CB/B

COMPONENT/RGB IN

Y/G

AUDIO

SERIALPC IN

Example of input signal source

S VIDEO VCR

CAMCORDER

VCR

AUDIO

OUT

S VIDEO

OUT

RL AUDIO

OUT

VIDEO

OUT

Notes:

• Change the “COMPONENT/RGB-IN SELECT” setting in the “SET UP” menu to “COMPONENT”. (see page 38)

• Additional equipment, cables and adapter plugs shown are not supplied with this set.

RGB signal (R, G, B)

Computer

RGB Camcorder

VIDEO

AUDIO

PR/CR/R PB/CB/B

COMPONENT/RGB IN

Y/G

Notes:

• Change the “COMPONENT/RGB-IN SELECT” setting in the “SET UP” menu to “RGB”. (see page 38)

• Additional equipment, cables and adapter plugs shown are not supplied with this set.

Power ON / OFF

TH-42PS9

Connecting the AC cord plug to the Plasma Display.

Fix the AC cord plug securely to the Plasma Display with the clamper. (see page 9)

Connecting the plug to the Wall Outlet

Press the Power switch on the Plasma Display to turn the set on: Power-On.

Power Indicator: Green

Example: The screen below is displayed for a while after the

Plasma Display is turned on. (setting condition is an example.)

TH-42PWD8

INPUT MENU ENTER/+/VOL-/

Power Indicator

Remote Control Sensor

When the POWER is turned on for the ﬁ rst time, the LANGUAGE selection screen is displayed.

From the second time on, language selection can be done from the setup menu. (see page 18)

Select the desired language using the or

button and press the ACTION ( ) button.

Press the

button on the remote control to turn the Plasma Display off.

Power Indicator: Red (standby)

Press the

button on the remote control to turn the Plasma Display on.

Power Indicator: Green

Turn the power to the Plasma Display off by pressing the switch on the unit, when the Plasma Display is on or in standby mode.

OSD Language

English (UK)

ENGLISH (US)

Deutsch

Français

Italiano

Español

Русский

From the second time on, the screen shown below is displayed for a while (setting condition is an example).

FULL

SetSelect

Note:

During operation of the power management function, the power indicator turns orange in the power off state.

Basic Controls

Remote control sensor

TH-42PS9

INPUT MENU ENTER/

Main Power On / Off Switch

Power Indicator

The Power Indicator will light.

• Power-OFF .... Indicator not illuminated (The unit

will still consume some power as long as the power cord is still inserted into the wall outlet.)

• Standby ......... Red

• Power-ON ...... Green

• DPMS ............. Orange (With PC input signal

and during operation of PC’s screensaver.)

Volume Adjustment

Volume Up “+” Down “–” When the menu screen is displayed: “+” :

press to move the cursor up

“–” :

press to move the cursor down

(see page 16)

Enter / Aspect button

/VOL

(see page 16, 19)

MENU Screen ON / OFF

Each time the MENU button is pressed, the menu screen will switch. (see page 16)

Normal Viewing PICTURE SET UP

SOUND POS. /SIZE

INPUT button (INPUT1, INPUT2, INPUT3 and PC IN selection)

(see page 18)

SURROUND button

The surround setting switches on and off each time the SURROUND button is pressed. The beneﬁ ts of surround sound are enormous. You can be completely enveloped in sound; just as if you were at a concert hall or cinema.

Note:

The surround settings are memorized separately for each AUDIO MENU (STANDARD, DYNAMIC, CLEAR).

ON OFF

SURROUND

N button (see page 20, 23, 24, 25)

POS. /SIZE button (see page 20)

PICTURE button (see page 23)

INPUT button (INPUT1, INPUT2, INPUT3 and PC IN selection)

Press to select INPUT1, INPUT2, INPUT3 and PC IN input SLOTS sequentially. (see page 18)

Sound mute On / Off (see page 25)

Numeric buttons (see page 37, 43)

ASPECT button

Press to adjust the aspect. (see page 19)

MULTI Window buttons (see page 21)

On-Screen Menu Displays

INPUT MENU ENTER/+/VOL-/

To PICTURE adjust menu (see page 23)

1/2PICTURE


NORMAL

STANDARD

0 0 0 3

2/2

NORMAL

OFF

NORMALIZE

PICTURE MENU PICTURE BRIGHTNESS COLOR TINT SHARPNESS

COLOR TEMP COLOR MANAGEMENT ADVANCED SETTINGS

Press to select “ON”.

Press to enter ADVANCED SETTINGS.

To ADVANCED SETTINGS (see page 23, 24)

ADVANCED SETTINGS

NORMALIZE

BLACK EXTENSION INPUT LEVEL W/B HIGH R W/B HIGH B W/B LOW R W/B LOW B GAMMA AGC

NORMAL

0 0 0 0 0 0

2.2

OFF

The MENU button on the unit can also be pressed.

Each time the MENU button is pressed, the menu screen will switch.

Normal Viewing PICTURE SETUP

SOUND

POS. /SIZE

Press to select .

[ from the unit ]

Press to select.

Press to access each adjust

screen.

SET UP

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

RGB

PC OFF OFF OFF OFF

1/2

)

To PO S. /SIZE adjust menu (see page 20)

During “VIDEO (S VIDEO)”, “COMPONENT” and “DVI” input signal.

POS. /SIZE

H-POS H-SIZE

V-POS V-SIZE

NORMAL

0 0 0 0

NORMALIZE

During “RGB/PC” input signal.

POS. /SIZE

NORMALIZE

NORMAL

H-POS H-SIZE

V-POS V-SIZE

CLOCK PHASE

0 0 0 0 0

To SOUND adjust menu (see page 25)

SOUND

NORMALIZE

AUDIO MENU BASS MID TREBLE BALANCE SURROUND AUDIO OUT (PIP)

NORMAL

STANDARD 0 0 0 0

OFF

MAIN

2/2SET UP

SCREENSAVER

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

On-Screen Menu Displays

INPUT MENU ENTER/+/VOL-/

Press to access

[ from the unit ]

each adjust screen.

Press the R button to return to previous menu.

[

]

RGB

OFF OFF

To SIGNAL screen for DVI (see page 39, 40)

SIGNAL

3 : 2 PULLDOWN VIDEO NR

H-FREQ.

V-FREQ.

To SIGNAL screen for VIDEO (S VIDEO) (see page 38, 39)

[

SIGNAL

3D Y/C FILTER (NTSC) COLOR SYSTEM 3 : 2 PULLDOWN Panasonic AUTO (4 : 3) VIDEO NR

VIDEO

AUTO

OFF

NORMAL

OFF

]

Press to return to next menu screen.

To SIGNAL screen for COMPONENT (see page 39)

SIGNAL

3 : 2 PULLDOWN VIDEO NR

[

COMPONENT

OFF OFF

]

To SIGNAL screen for RGB (see page 39, 40)

SIGNAL

SYNC 3 : 2 PULLDOWN VIDEO NR

H-FREQ.

V-FREQ.

33.8

60.0

AUTO

kHz

Note: “SIGNAL” setup menu displays a different setting condition for each input signal. (see page 18)

To setup SCREENSAVER (See page 29-31)

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

SCREENSAVER

START FUNCTION MODE SHOW DURATION SAVER DURATION SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

TIME OF DAY

6:15

12:30

BRIGHT

OFF OFF

PRESENT TIME OF DAY 99:99

WHITE BAR SCROLL

INTERVAL

6:15

12:30

BRIGHT

OFF OFF

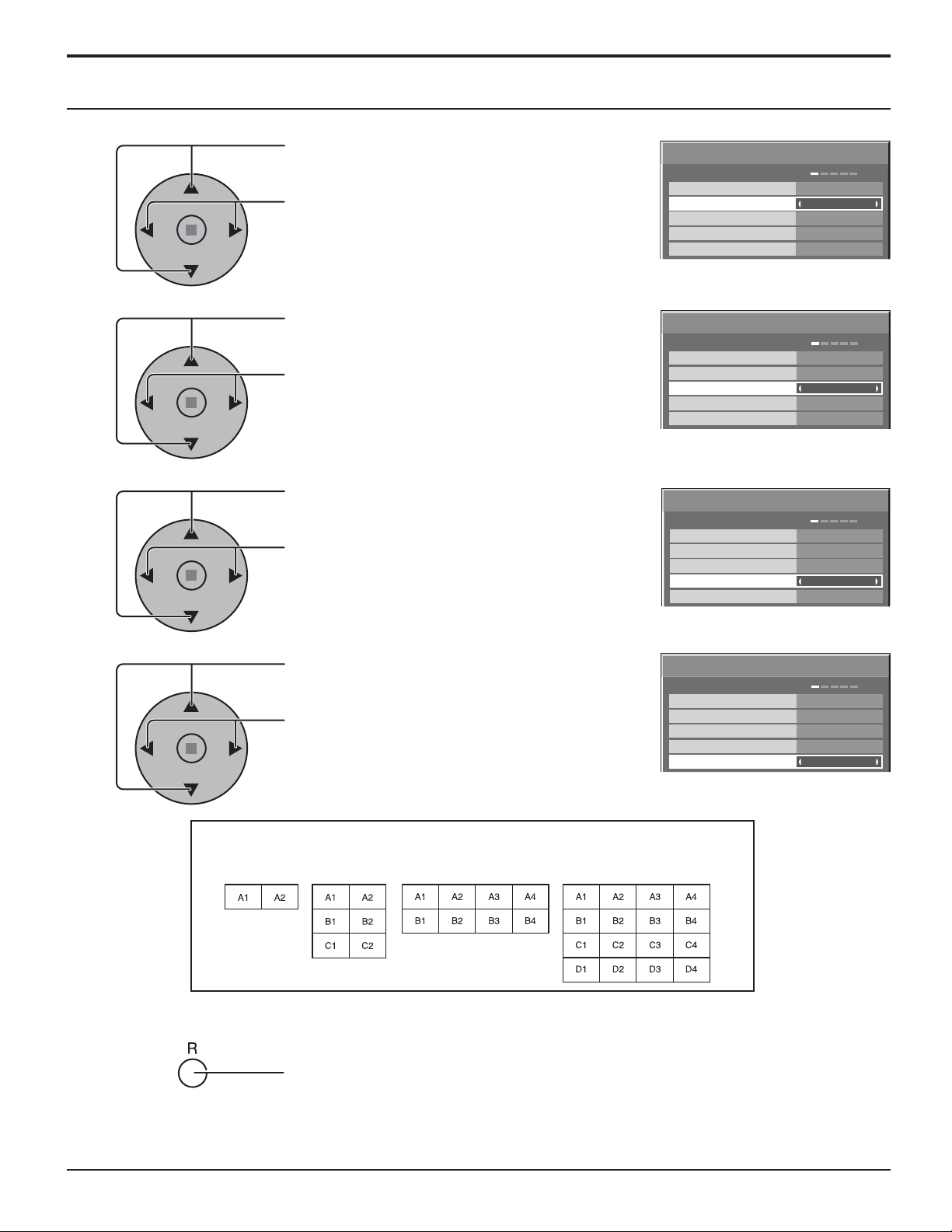

To setup MULTIDISPLAY screen. (See page 33)

MULTI DISPLAY SETUP

MULTI DISPLAY SETUP ARRANGEMENT LOCATION

OFF

2 × 2

Press to select START TIME/ FINISH TIME (When TIME OF DAY is selected). Press to select SHOW DURATION/ SAVER DURATION (When INTERVAL is selected).

Press to set up.

Press the R button to return to “SET UP” menu.

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE SHOW DURATION SAVER DURATION SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

kHz

33.8

60.0

TIME OF DAY

6:15

12:30

BRIGHT

OFF OFF

INTERVAL

6:15

12:30

BRIGHT

OFF OFF

[

OFF OFF

Digital

]

To SET UP TIMER selection screen. (see page 27, 28)

SET UP TIMER

POWER ON FUNCTION POWER ON TIME POWER OFF FUNCTION POWER OFF TIME

To PRESENT TIME SETUP. (see page 27)

PRESENT TIME SETUP

PRESENT TIME OF DAY

PRESENT TIME OF DAY 99:99

OFF 0:00 OFF 0:00

PRESENT TIME OF DAY 99:99

SET

99:99

Press to select POWER ON TIME / POWER OFF TIME.

Press to set up POWER ON TIME / POWER OFF TIME.

Press the R button to return to “SET UP” menu.

SET UP TIMER

PRESENT TIME OF DAY 99:99

POWER ON FUNCTION POWER ON TIME POWER OFF FUNCTION POWER OFF TIME

SET UP TIMER

PRESENT TIME OF DAY 99:99

POWER ON FUNCTION POWER ON TIME POWER OFF FUNCTION POWER OFF TIME

OFF 0:00 OFF 0:00

Initial selections

INPUT MENU ENTER/+/VOL-/

Selecting the input signal

Select the input signals to be connected by installing the optional Terminal Boards.

Press to select the input signal to be played back from the equipment which has been connected to the Plasma Display.

Input signals will change as follows:

• TH-37PH9UK

• TH-42PS9UK, TH-42PH9UK, TH-50PH9UK

Notes:

• Selecting is also possible by pressing the INPUT button on the unit.

• Input terminal will not be selected if the terminal board is not installed into the SLOT.

• Select to match the signals from the source connected to the component/RGB input terminals. (see page 38)

• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.

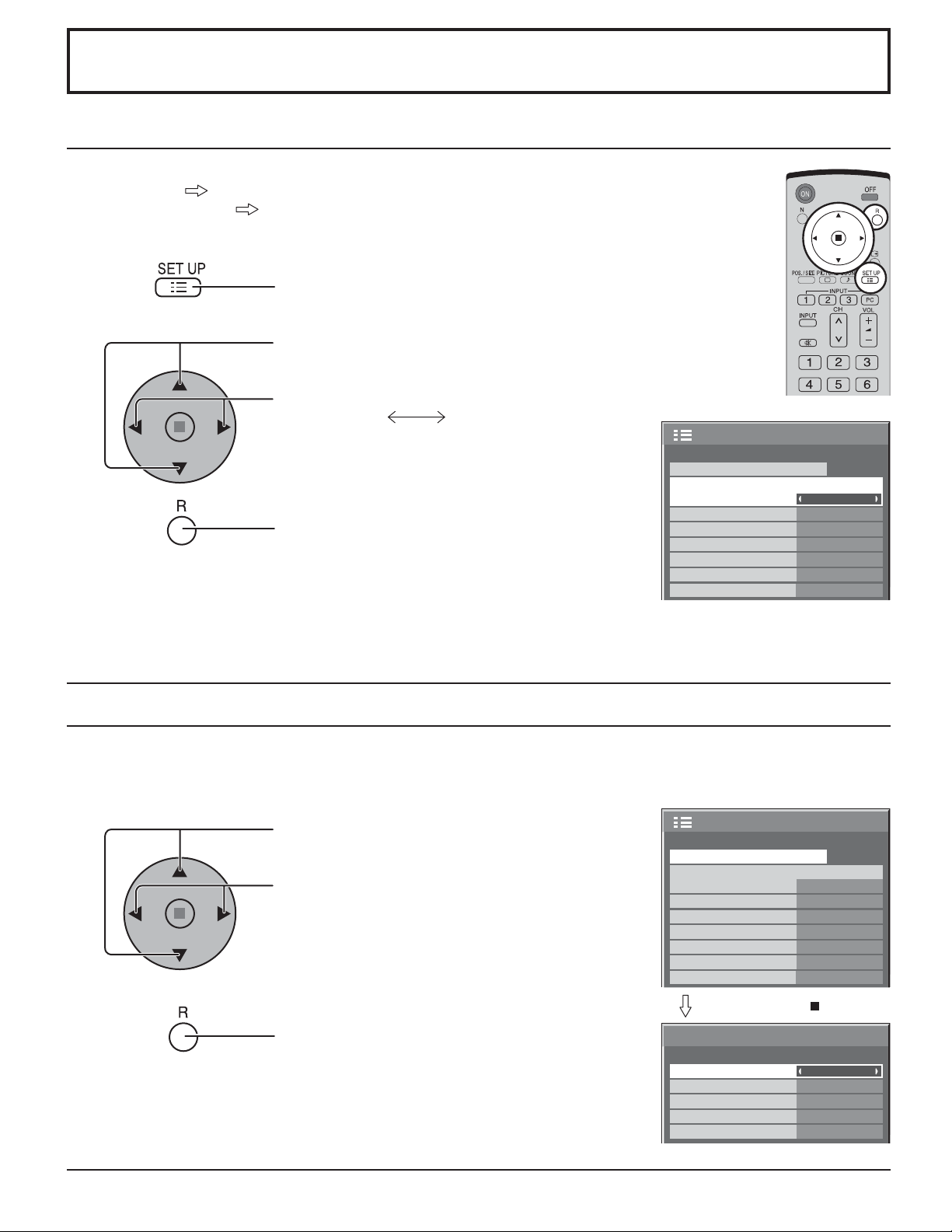

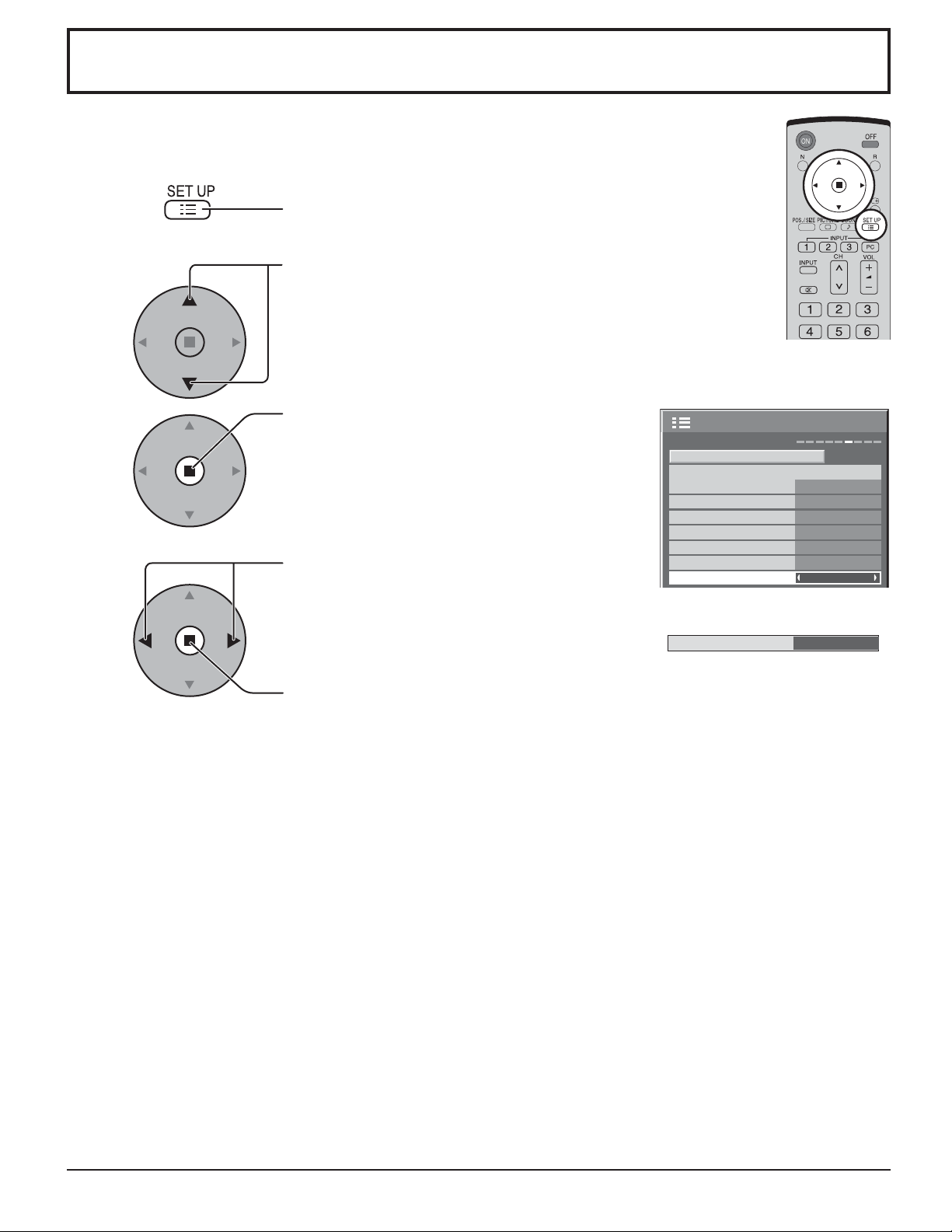

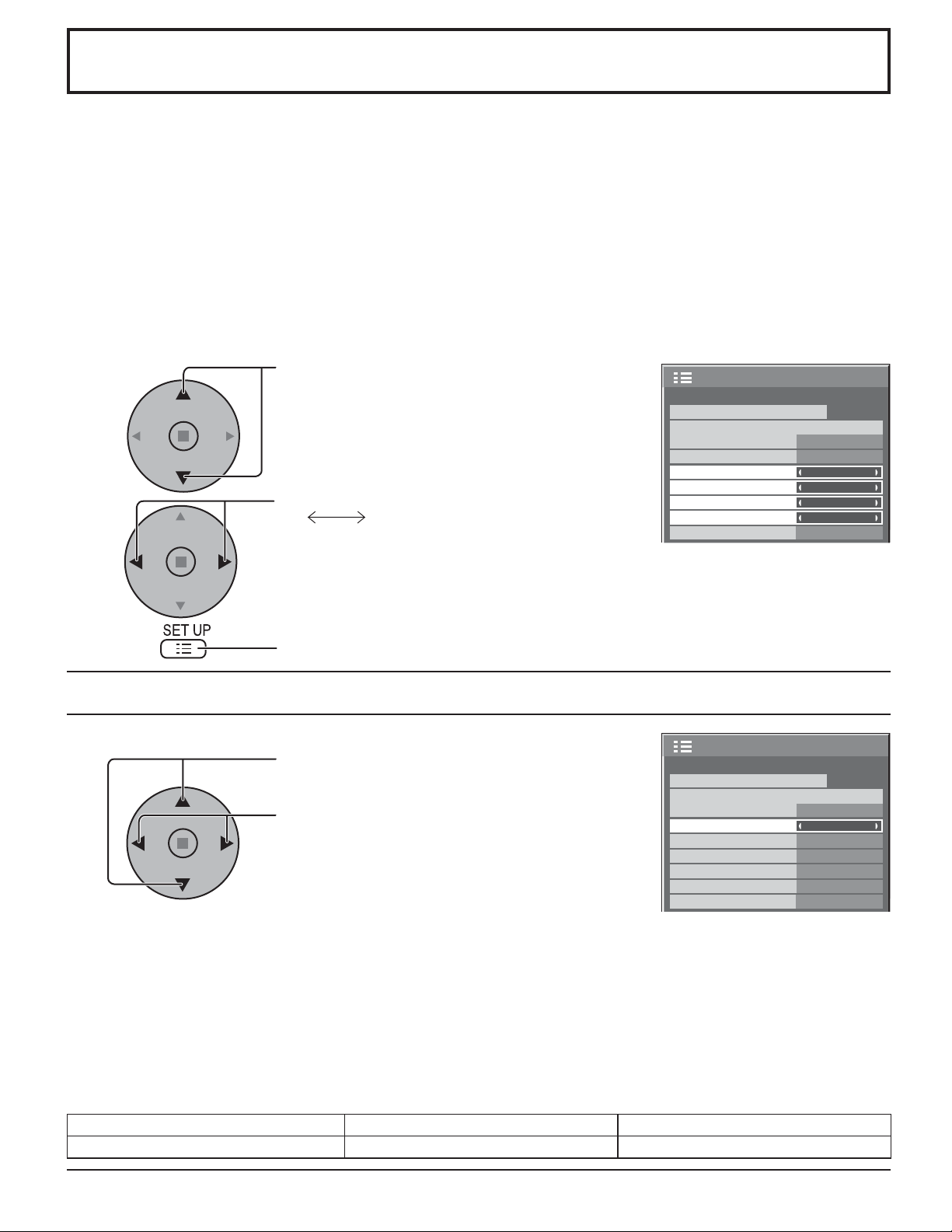

Selecting the On-Screen Menu Language

Press to display the SET UP menu.

Press to select OSD LANGUAGE.

Press to select your preferred language.

TH-42PS9

INPUT MENU ENTER/+/VOL-/

Selectable languages

SET UP

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

1/2

RGB

PC OFF OFF OFF OFF

)

ASPECT Controls

INPUT MENU ENTER/+/VOL-/

The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format picture.

Press repeatedly to move through the aspect options:

NORMAL ZOOM FULL

[from the unit]

The aspect mode changes each time the ENTER button is pressed.

Panasonic AUTO JUST

[During MULTI PIP Operations]

• Picture and Picture, Picture in Picture :

NORMAL FULL

• Others : Aspect switching is not possible.

Notes:

• For PC signal input, the mode switches between “NORMAL”, “ZOOM” and “FULL” only.

• For a 1125 (1080) / 60i · 50i · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i, 750 (720) / 60p · 50p signal input, the mode is set to “FULL” mode, and switching is not possible.

• Panasonic AUTO can be selected only during Video signal input.

• The aspect mode is memorized separately for each input terminal.

Mode Picture Explanation

NORMAL

ZOOM

FULL

NORMAL

ZOOM

FULL

NORMAL will display a 4:3 picture at its standard 4:3 size.

ZOOM mode magniﬁ es the central section of the picture.

FULL will display the picture at its maximum size but with slight elongation.

Panasonic

Note: Do not allow the picture to be displayed in NORMAL mode for an extended period, as this can cause a permanent

JUST

AUTO

3 9

416

For an elongated image

Image is expanded Changes in accordance with the Panasonic AUTO mode setting (see

JUST

Panasonic AUTO

page 39).

For a 4:3 image

after-image to remain on the Plasma Display Panel.

JUST mode will display a 4:3 picture at its maximum size but with aspect correction applied to the center of the screen so that elongation is only apparent at the left and right edges of the screen. The size of the picture will depend on the original signal.

The display will automatically become enlarged (depending on the picture source), allowing you to view the picture at its maximum size.

Notes:

• Panasonic AUTO mode is designed to automatically adjust the aspect ratio to handle a mix of 16:9 and 4:3 program material. Certain 4:3 program material, such as stock market data screens, may occasionally cause the image size to change unexpectedly. When viewing such programs, it is recommended that the ASPECT be set to NORMAL.

• If adjusting the PICTURE V-POS/V-SIZE in Panasonic AUTO with FULL mode, the adjustment is not memorized. When exiting the mode, the screen will return to a former adjustment.

• Panasonic AUTO can not be selected while TY-FB9BD (optional BNC Dual Video Terminal Board) is installed.

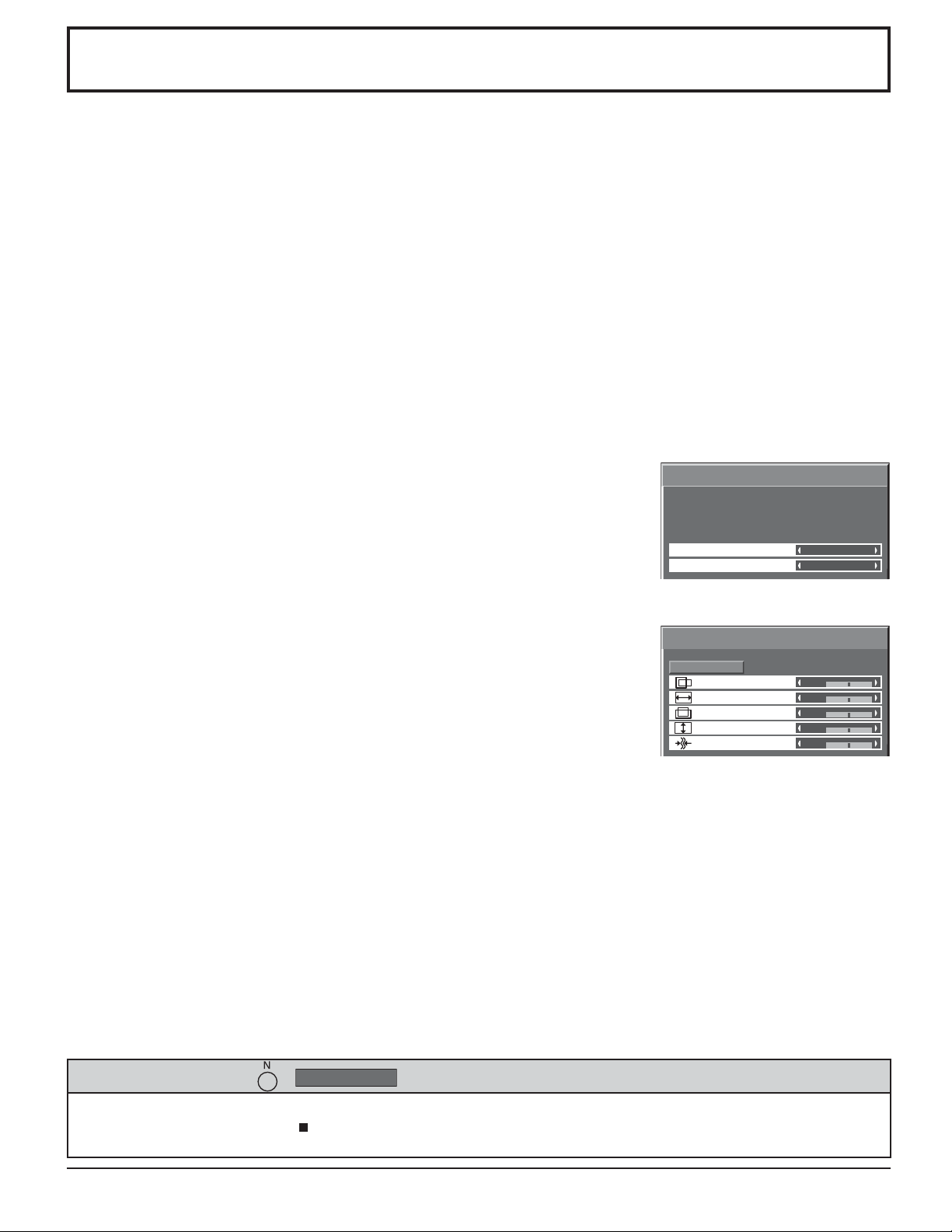

Adjusting POS. /SIZE

Press to display the POS. /SIZE menu.

Press to select H-POS / H-SIZE / V-POS / V-SIZE / CLOCK PHASE.

Press to adjust POS. /SIZE.

Notes:

• Adjustment details are memorized separately for different input signal formats (Adjustments for component signals are memorized for 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 1125 (1080) / 60i · 50i · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC/DVI signals are memorized for each frequency.)

• If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture position will shift up or down. This picture position movement cannot be controlled by the POS. /SIZE function.

• If adjusting the PICTURE V-POS / V-SIZE in Panasonic AUTO with FULL mode, the adjustment is not memorized. When exiting the mode, the screen will return to a former adjustment.

Press to exit from adjust mode.

During “VIDEO (S VIDEO)”, “COMPONENT” and “DVI” input signal.

POS. /SIZE

NORMALIZE

H-POS H-SIZE

V-POS V-SIZE

During “RGB / PC” input signal.

POS. /SIZE

NORMALIZE

H-POS H-SIZE

V-POS V-SIZE

CLOCK PHASE

NORMAL

0 0 0 0

NORMAL

0 0 0 0 0

H-POS Adjust the horizontal position. H-SIZE Adjust the horizontal size.

V-POS Adjust the vertical position. V-SIZE Adjust the vertical size.

CLOCK PHASE (RGB/PC in mode)

Helpful Hint ( /

While the POS. /SIZE display is active, if either the N button on the remote control is pressed at any time or the ACTION ( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

Eliminate the ﬂ ickering and distortion.

NORMALIZE

Normalization)

MULTI PIP

Press repeatedly. Each time pressing this button main picture and sub picture will be displayed as follows below.

[Picture and Picture] [Picture in Picture]

Main picture Sub picture

MULTI

Normal

Viewing

Press to swap main picture and sub picture.

Press to select the input mode. Under main Picture and sub picture display, select the picture which you would like to change input modes.

Notes:

• The sub picture sound is heard while a sub picture operation is underway.

• The sub picture operation automatically returns to the main picture operation if a sub picture operation has not been performed for about 3 seconds or if any of the remote control buttons is pressed (except

button).

PIP

A B

SWAP SWAP SWAP

B A

[Example]

[Picture out Picture]

Main picture Sub picture Main picture Sub picture

MULTI

PIP

MULTI

PIP

Main picture label is bright Sub picture label is bright

PC1

VIDEO2

Input modes switching is possible

Main picture label is changed Sub picture label is changed

VIDEO2 VIDEO1

SELECT

PC1

VIDEO2

PC1

VIDEO2

Press to change input signal.

Press to move the sub picture. Each time the location of the sub picture will be moved.

Notes:

• This button is effective only in the picture in picture.

• The sub picture may be hidden by the on screen display, depending on its position.

Notes:

• Sound output is from the picture which is selected in Audio OUT(PIP) (See page 25).

• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.

• The main picture and sub picture are processed by different circuits, resulting in a slight difference in the clarity of the pictures. There may also be a difference in the picture quality of the sub picture depending on the type of signals displayed on the main picture and depending on the 2-picture display mode.

• Due to the small dimensions of the sub pictures, these sub pictures cannot be shown in detail.

• Computer screen picture is displayed in a simpliﬁ ed format, and it may not be possible to discern details on them satisfactorily.

•

Following combinations of two analog signals cannot be displayed simultaneously;

Component - Component, Component - PC (RGB), PC (RGB) - Component, PC (RGB) - PC (RGB)

Picture is changed

Advanced PIP

1 2

Press to display the Setup menu.

Press to select “OSD Language”.

Press and hold until the Options menu is displayed.

Press to select Advanced PIP.

Press to adjust the menu. Off : Sets normal two screen display mode (see page 21). On : Sets Advanced PIP mode.

Press to conﬁ rm.

One screen Advanced PIP

Options

Off-timer function

Onscreen display Initial INPUT Initial VOL level Maximum VOL level INPUT lock Studio W/B Advanced PIP Display size

Enable

Off Off

1/3

On Off

0 Off Off Off Off

Notes:

• Advanced PIP corresponding signal

Sub screen Main screen

NTSC, PAL, SECAM (tuner, video) 525i, 525p, 625i, 625p, 750/60p, 750/50p, 1125/60i, 1125/50i, 1250/50i (Component Video, RGB, DVI, SDI, HDMI)

• Sound output is from the picture which is selected in Audio OUT (PIP) (See page 25).

• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.

• Due to the small dimensions of the sub pictures, these sub pictures cannot be shown in detail.

• Computer screen picture is displayed in a simpliﬁ ed format, and it may not be possible to discern details on them satisfactorily. Following combinations of two analog signals cannot be displayed simultaneously;

•

Component - Component, Component - PC (RGB), PC (RGB) - Component, PC (RGB) - PC (RGB)

• Refer to each board's operating instruction for DVI, SDI, HDMI's corresponding signals.

Press to exit from Options menu.

Main screenSub screen

640x480@60Hz, 852x480@60Hz, 1024x768@60Hz, 1366x768@60Hz (RGB, DVI, HDMI) 1280x768@60Hz (DVI)

PICTURE Adjustments

1 2


NORMALIZE

PICTURE MENU PICTURE BRIGHTNESS COLOR TINT SHARPNESS


COLOR TEMP COLOR MANAGEMENT ADVANCED SETTINGS

NORMAL

STANDARD

0 0 0 3

1/2

2/2

NORMAL

OFF

Press to select “ON”.

Press to enter Advanced Settings.

ADVANCED SETTINGS ON Enables fine picture adjustment at a professional level (see next page).

ADVANCED SETTINGS

NORMALIZE

BLACK EXTENSION INPUT LEVEL W/B HIGH R W/B HIGH B W/B LOW R W/B LOW B GAMMA AGC

NORMAL

0 0 0 0 0 0

2.2

OFF

ADVANCED SETTINGS OFF Displays images with settings of the PICTURE menu.

Press the left or right button to switch between modes.

STANDARD

For viewing in standard (evening lighting) environments. This menu selects the normal levels of BRIGHTNESS and PICTURE.

DYNAMIC

For viewing in brighter environments. This menu selects higher than normal levels of BRIGHTNESS and PICTURE.

CINEMA

Ideal for movies.

Note:

If you would like to change the picture and color of the selected PICTURE menu to something else, adjust using the items in the PICTURE menu. (see next page)

Press the left or right button to switch between modes.

COLOR MANAGEMENT ON Enables vivid color adjustment automatically.

Helpful Hint ( /

While the “PICTURE” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION ( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

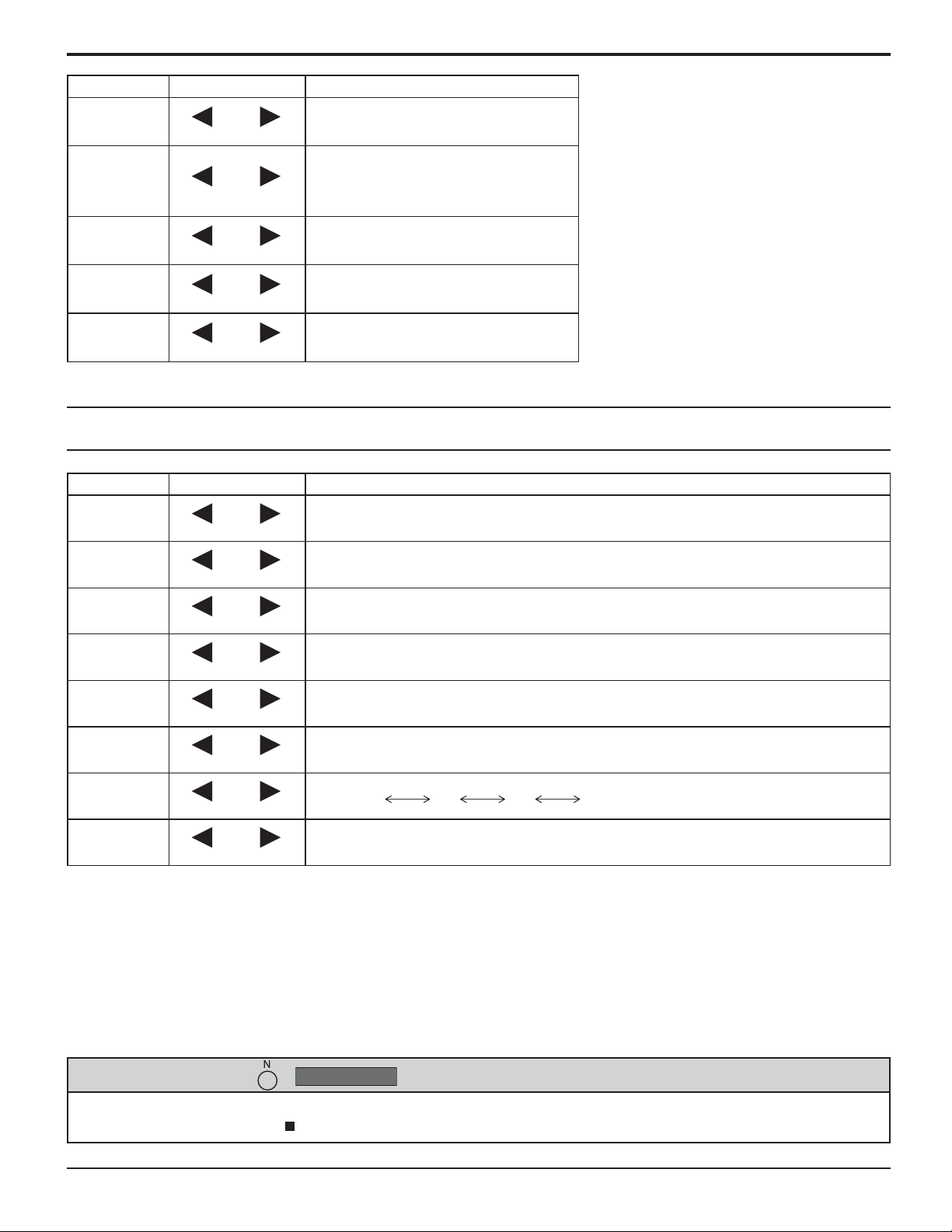

PICTURE Adjustments

Item Effect Adjustments


BRIGHTNESS

COLOR

TINT

SHARPNESS

Less More

Darker Brighter

Less More

Reddish Greenish

Less More

Adjusts the proper picture contrast.

Adjusts for easier viewing of dark pictures such as night scenes and black hair.

Adjusts color saturation.

Adjusts for natural ﬂ esh tones.

Adjusts picture sharpness.

ADVANCED SETTINGS

Item Effect Details

BLACK

EXTENSION

Less More

Adjusts the dark shades of the image in gradation.

Notes:

• “COLOR” and “TINT” settings cannot be adjusted for “RGB/PC” and “DVI” input signal.

•

You can change the level of each function

(PICTURE, BRIGHTNESS, COLOR, TINT, SHARPNESS) for each PICTURE MENU.

• The setting details for STANDARD, DYNAMIC and CINEMA respectively are memorized separately for each input terminal.

• The “TINT” setting can be adjusted for NTSC signal only during “VIDEO (S VIDEO)” input signal.

• In PICTURE, there is not a noticeable change even when contrast is increased with a bright picture or reduced with a dark picture.

INPUT

LEVEL

W/B HIGH R

W/B HIGH B

W/B LOW R

W/B LOW B

GAMMA

AGC

Notes:

• Carry out “W/B” adjustment as follows.

1. Adjust the white balance of the bright sections using the “W/B HIGH R” and “W/B HIGH B” settings.

2. Adjust the white balance of the dark sections using the “W/B LOW R” and “W/B LOW B” settings.

3. Repeat steps 1 and 2 to adjust.

Steps 1 and 2 affect each other’s settings, so repeat each step in turn to make the adjustment.

• The adjustment values are memorized separately for each input terminal.

• The adjustment range values should be used as an adjustment reference.

Less More

Down Up

OFF ON

Adjustment of parts which are extremely bright and hard to see. (This cannot be adjusted when the input signal is DVI.)

Adjusts the white balance for light red areas.

Adjusts the white balance for light blue areas.

Adjusts the white balance for dark red areas.

Adjusts the white balance for dark blue areas.

S CURVE 2.0 2.2 2.5

Increases the brightness of dark signal automatically.

Helpful Hint ( /

On the remote control unit, while the “ADVANCED SETTINGS” menu is displayed, if either the N button is pressed at any time or the ACTION ( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

NORMALIZE

Normalization)

SOUND Adjustment

Press to display the SOUND menu.

Select to adjust each item.

Press to select the menu to adjust.

Select the desired level by listening to the sound.

BASS

Adjusts low pitch sounds

MID

Adjusts normal sounds

TREBLE

Adjusts pitch sounds

BALANCE

SOUND

NORMALIZE

AUDIO MENU BASS MID TREBLE BALANCE SURROUND AUDIO OUT (PIP)

NORMAL

STANDARD

0 0 0 0

OFF

MAIN

STANDARD

DYNAMIC

CLEAR

Emits the original sound.

Accentuates sharp sound.

Attenuates human voice.

Adjusts left and right volumes

SURROUND

Select On or Off

MAIN

Selects Main picture sound.

INPUT1

(When Main picture sound is chosen.)

SUB

Selects PIP frame

sound.

INPUT1 PC

(When PIP frame sound is chosen.)

Musical note is displayed on right side of the audio output screen label.

Notes:

• Press the SURROUND button to directly turn the surround effect ON and OFF. (see page 14)

• BASS, MID, TREBLE and SURROUND settings are memorized separately for each AUDIO MENU.

Helpful Hint ( /

NORMALIZE

Normalization)

While the “SOUND” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION ( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

MUTE

Useful when answering the phone or receiving unexpected visitors.

Press this button to mute the sound. Press again to reactivate sound. Sound is also reactivated when power is turned off or volume level is changed.

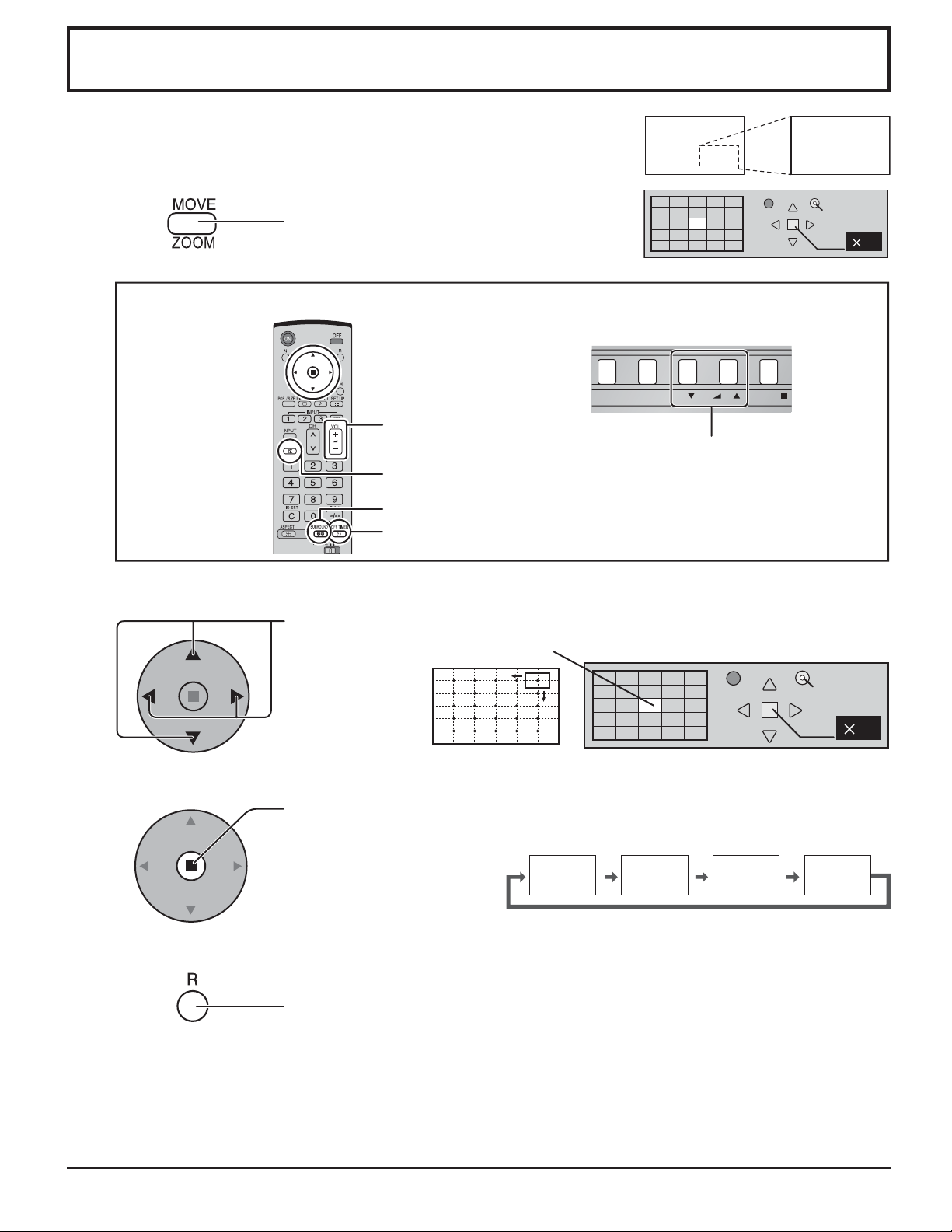

Digital Zoom

INPUT MENU ENTER/+/VOL-/

This displays an enlargement of the designated part of the displayed image.

Display the “Operation Guide”.

Press to access Digital Zoom. The “Operation Guide” will be displayed.

During Digital Zoom, only the following buttons can be operated.

[Remote control]

Select the area of the image to be enlarged.

EXIT

[Unit]

VOL button

Press on the enlargement location to select.

The cursor will move.

Notes:

• When power goes OFF (including “Off Timer” operation), Digital Zoom terminates.

• The Digital Zoom function cannot be selected while in the following operation state: “Multi-viewer” (Picture in Picture, Picture out Picture, Picture and Picture) operation. (see page 21)

• While Digital Zoom is in operation, “Adjusting POS. /SIZE” cannot be used.

Select the magniﬁ cation required for the enlarged display.

Each time this is pressed, the magniﬁ cation factor changes. This is shown in the image being displayed.

Return to normal display (quit Digital Zoom).

Press to exit from the Digital Zoom.

EXIT

PRESENT TIME SETUP / SET UP TIMER

The timer can switch the Plasma Display ON or OFF.

Before attempting Timer Set, conﬁ rm the PRESENT TIME OF DAY and adjust if necessary. Then set POWER ON TIME / POWER OFF TIME.

Press to display the SET UP menu.

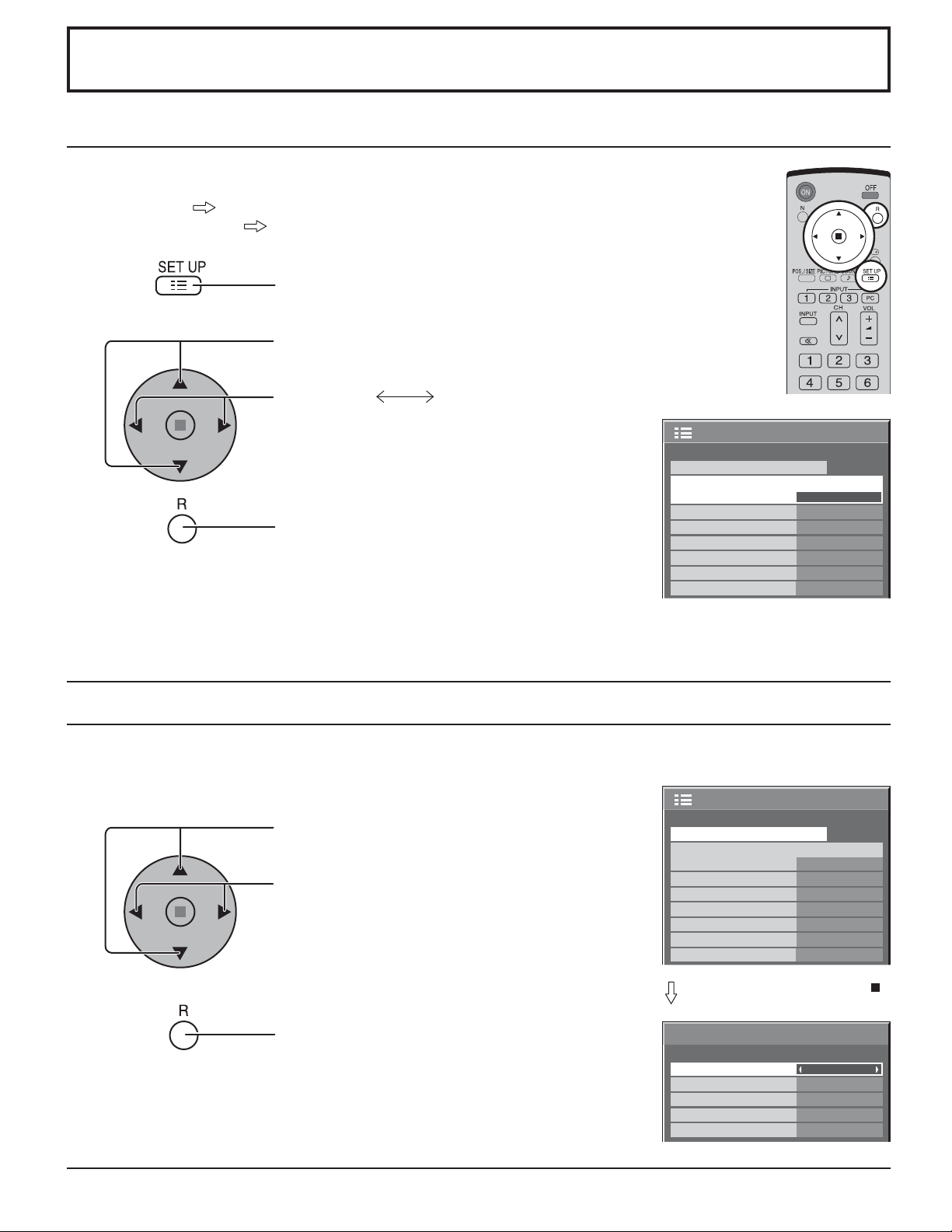

Press to select SET UP TIMER or PRESENT TIME SETUP.

Press to display the SET UP TIMER screen or PRESENT TIME SETUP screen.

PRESENT TIME SETUP

Display the PRESENT TIME SETUP screen.

SET UP

SIGNAL

COMPONENT/RGB-IN SELECT

INPUT LABEL

POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

SCREENSAVER

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

1/2

RGB

PC OFF OFF OFF OFF

2/2SET UP

)

To set up PRESENT TIME OF DAY, follow the procedure described below.

Press to select PRESENT TIME OF DAY.

Press to set up PRESENT TIME OF DAY.

button: Forward button: Back

Notes:

• Pressing “ ” or “ ” button once changes PRESENT TIME OF DAY 1minute.

• Pressing “ ” or “ ” button continuously changes PRESENT TIME OF DAY by 15 minutes.

Press to select Set.

Press to store PRESENT TIME SETUP.

Note:

Set cannot be selected unless PRESENT TIME OF DAY is set.

Press to exit from PRESENT TIME SETUP.

PRESENT TIME SETUP

PRESENT TIME OF DAY 99:99

SET

PRESENT TIME OF DAY

PRESENT TIME SETUP

PRESENT TIME OF DAY 99:99

SET

PRESENT TIME OF DAY

99:99

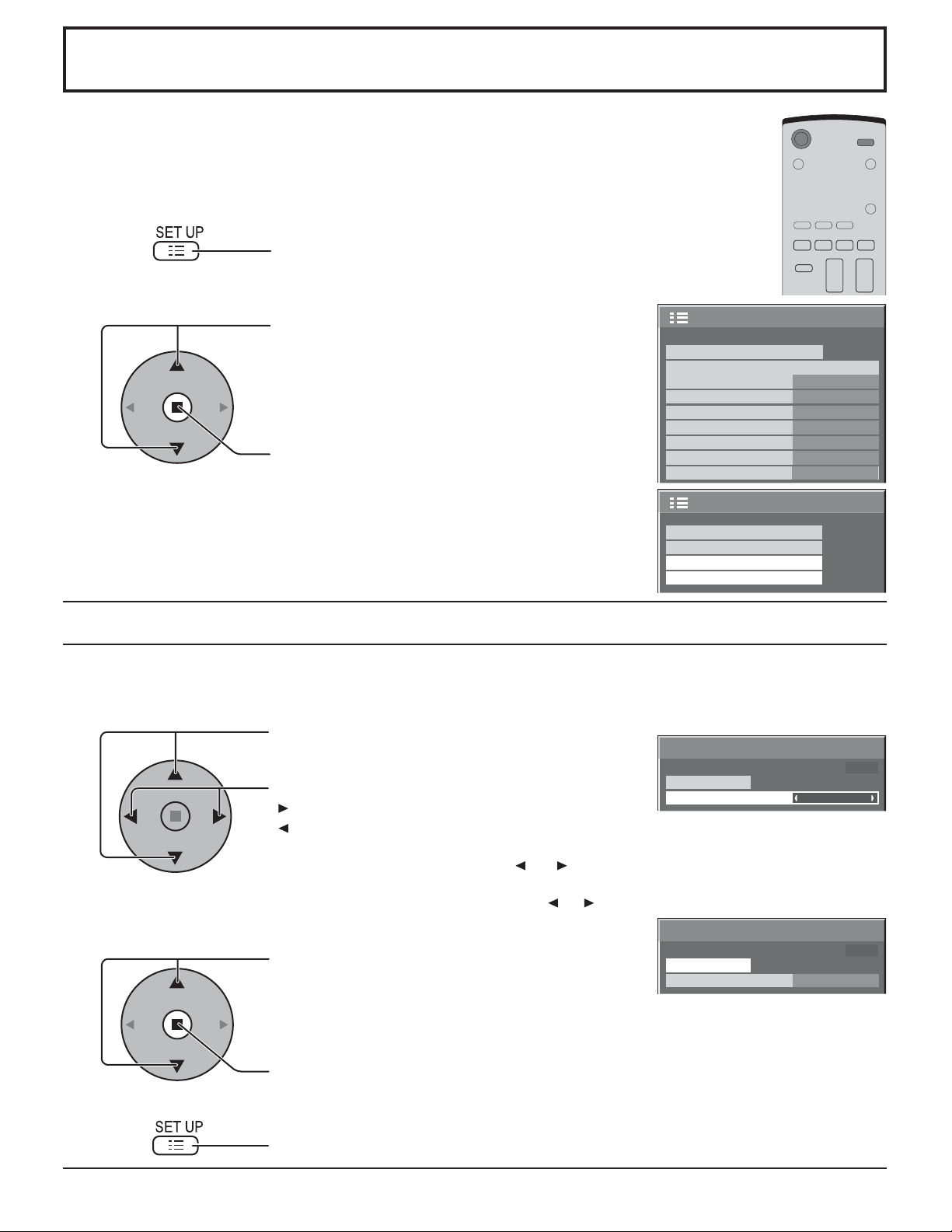

PRESENT TIME SETUP / SET UP TIMER

SET UP TIMER

Display the SET UP TIMER SCREEN.

Press to select POWER ON TIME / POWER OFF TIME.

Press to set up POWER ON TIME / POWER OFF TIME.

button: Forward button: Back

Notes:

• Pressing “ ” or “ ” button once changes POWER ON TIME / POWER OFF TIME 1minute.

• Pressing “ ” or “ ” button continuously changes POWER ON TIME / POWER OFF TIME by 15 minutes.

Press to select POWER ON FUNCTION / POWER OFF FUNCTION.

Press to select ON.

SET UP TIMER

PRESENT TIME OF DAY 99:99

POWER ON FUNCTION POWER ON TIME POWER OFF FUNCTION POWER OFF TIME

SET UP TIMER

PRESENT TIME OF DAY 99:99

POWER ON FUNCTION POWER ON TIME POWER OFF FUNCTION POWER OFF TIME

OFF 0:00 OFF 0:00

Note:

Timer function will not work unless “PRESENT TIME OF DAY” is set.

Press twice to exit from SET UP.

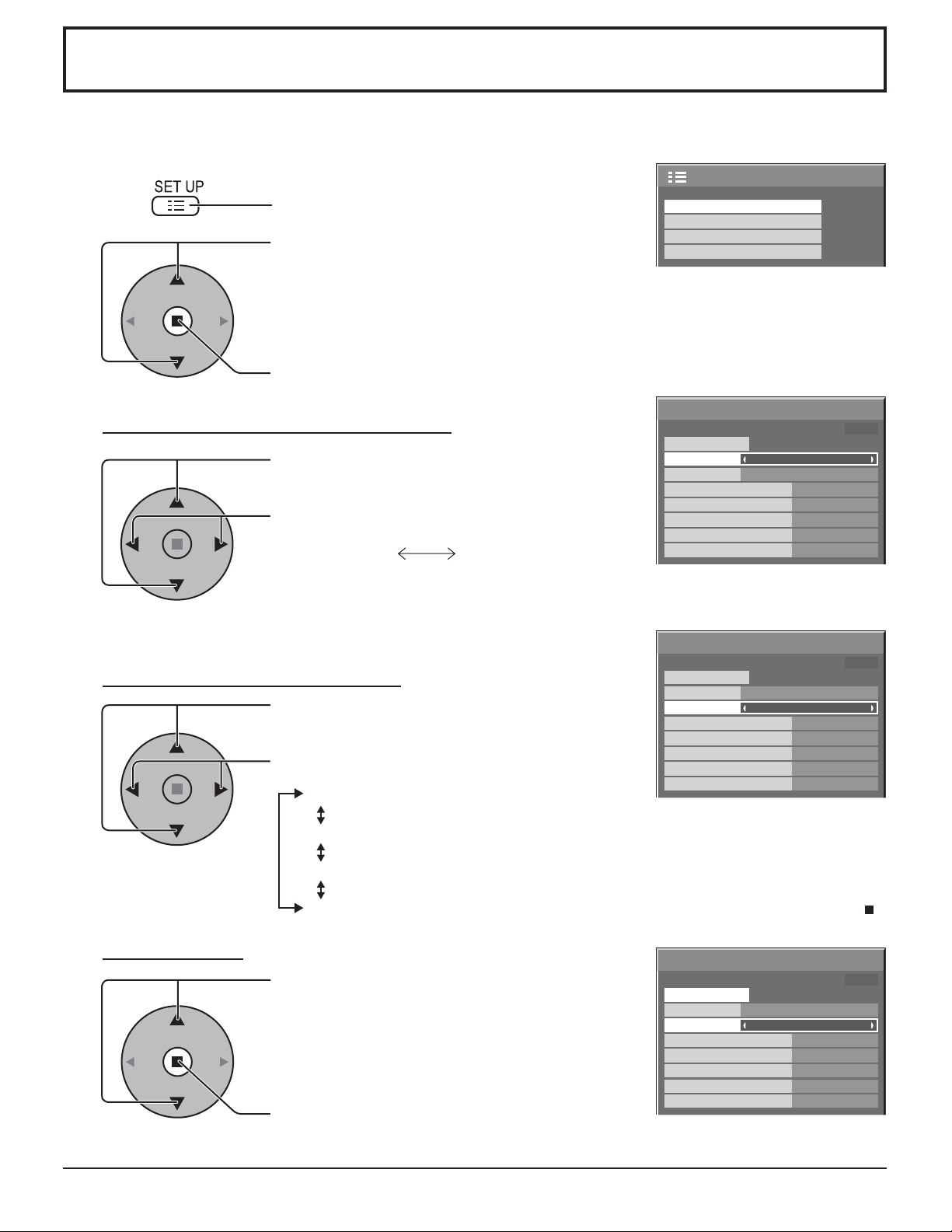

SCREENSAVER (For preventing after-images)

Do not display a still picture, especially in NORMAL mode, for any length of time. If the display must remain on, a SCREENSAVER should be used.

Press to display the SET UP menu.

Press to select the SCREENSAVER.

Press to select the SCREENSAVER screen.

SCREENSAVER

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

2/2SET UP

NEGATIVE / SCROLL selection

Press to select the FUNCTION.

Press to select the desired function.

WHITE BAR SCROLL NEGATIVE

WHITE BAR SCROLL : A white bar will scroll from left to right. NEGATIVE : A negative image will be displayed on the screen.

MODE selection

Press to select the MODE.

Press to select each mode items.

START setting

When the MODE is set to ON, press to select START.

Press to start SCREENSAVER. The menu screen will disappear and the SCREENSAVER will be activated. To stop the

SCREENSAVER under ON, press the R button.

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

SCREENSAVER

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

OFF

6:15

12:30

BRIGHT

OFF OFF

PRESENT TIME OF DAY 99:99

WHITE BAR SCROLL

OFF

6:15

12:30

BRIGHT

OFF OFF

OFF

INTERVAL : Operates when SHOW DURATION and SAVER DURATION are

set up and those times arrive.

TIME OF DAY : Operates when START TIME and FINISH TIME are set up and

those times arrive.

ON : Operates when START is selected and the ACTION ( ) button is

pressed.

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

6:15

12:30

BRIGHT

OFF OFF

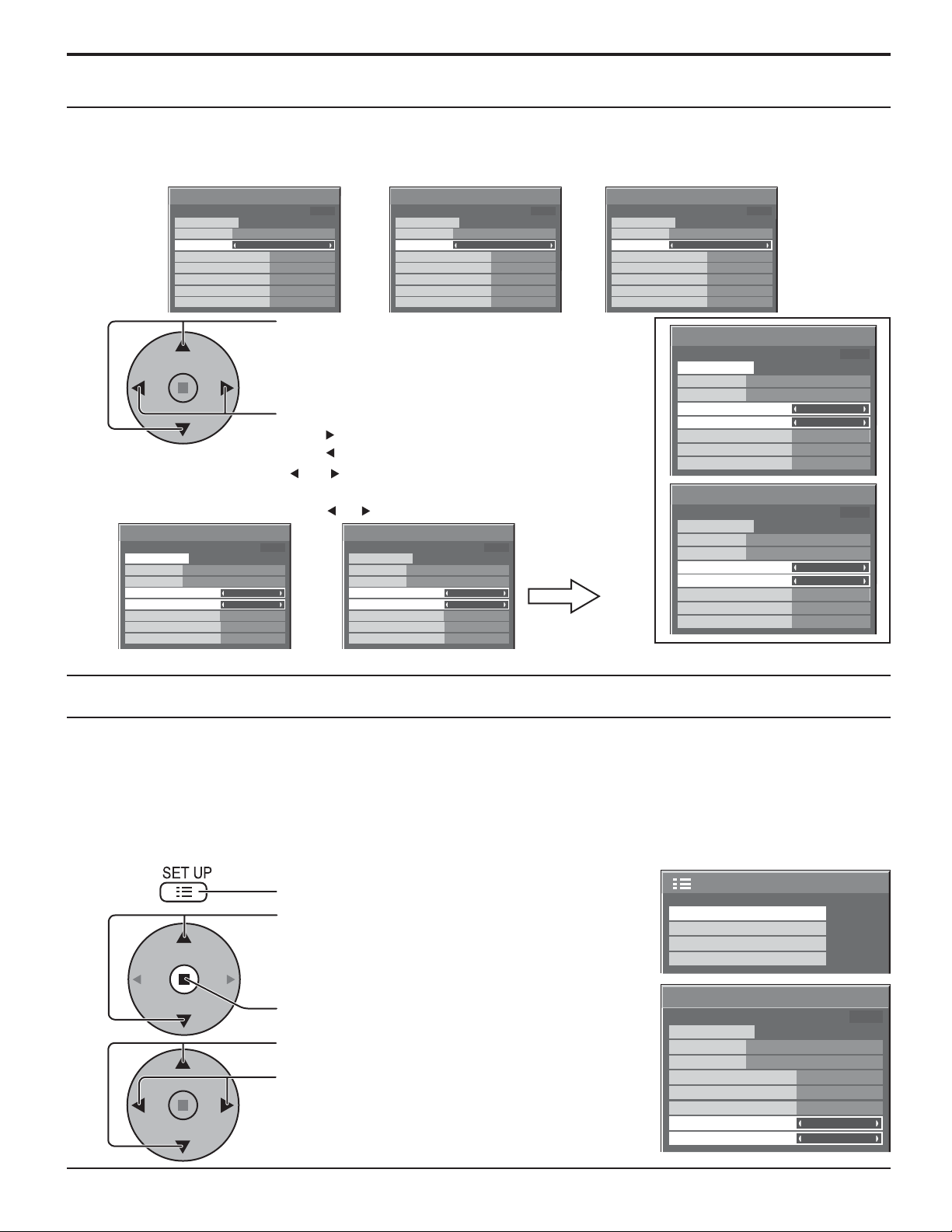

SCREENSAVER (For preventing after-images)

Setup of SCREENSAVER Time

After selecting TIME OF DAY or INTERVAL, the relevant Time Setup will become available for selection and the Operating Time may be set. (Time cannot be set when “MODE” is “ON” or “OFF”.)

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

TIME OF DAY

6:15

12:30

BRIGHT

OFF OFF

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE SHOW DURATION SAVER DURATION SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

INTERVAL

BRIGHT

6:15

12:30

OFF OFF

Press to select START TIME / FINISH TIME (When TIME OF DAY is selected). Press to select SHOW DURATION / SAVER DURATION (When INTERVAL is selected).

Press to setup. button: Forward

Notes:

button: Back

• Pressing “ ” or “ ” button once changes the Time 1minute. [However, switching occurs every 15 minutes when Periodic Time is selected.]

• Pressing “ ” or “ ” button continuously changes the Time by 15 minutes.

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

TIME OF DAY

0:00 0:00

BRIGHT

OFF OFF

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE SHOW DURATION SAVER DURATION SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

INTERVAL

BRIGHT

0:00 0:00

OFF OFF

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

SCREENSAVER

FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

SCREENSAVER

FUNCTION MODE SHOW DURATION SAVER DURATION SIDE BAR ADJUST WOBBLING PEAK LIMIT

OFF

6:15

12:30

BRIGHT

OFF OFF

PRESENT TIME OF DAY 99:99

START

WHITE BAR SCROLL

TIME OF DAY

PRESENT TIME OF DAY 99:99

WHITE BAR SCROLL

INTERVAL

6:15

12:30

BRIGHT

OFF OFF

6:15

12:30

BRIGHT

OFF OFF

Note: Timer function will not work unless “PRESENT TIME OF DAY” is set.

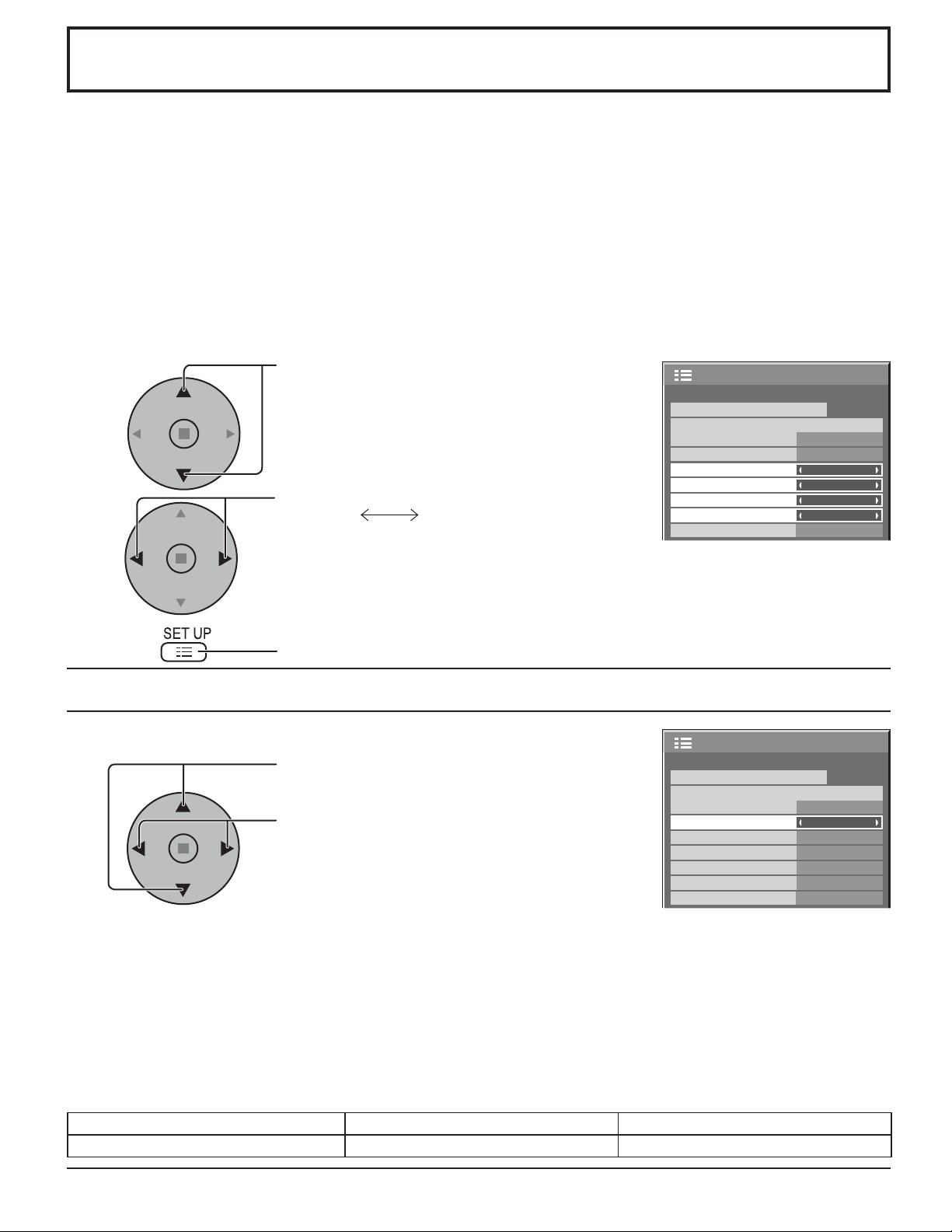

Reduces screen after-image

These functions prevent the occurrence of an “after image” on the display when turned ON.

WOBBLING: Automatically shifts the display image at a dot level pitch (therefore unnoticeable to the eye) to prevent

after image of sharper contour of image. ON1: Shifts the image over time. ON2: Shifts the image depending on screen-detection.

PEAK LIMIT: Suppresses image contrast (peak brightness).

Note:

When a still picture is viewed for an extended time, the screen may become slightly darker. (see page 45)

1 2

Press to display the SET UP menu. Press to select “SCREENSAVER”.

Press to display SCREENSAVER menu.

Press to select “WOBBLING” or “PEAK LIMIT”.

Press to select “ON1”, ”ON2” or ”OFF” (WOBBLING).

“ON” or “OFF” (PEAK LIMIT).

SCREENSAVER

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

WHITE BAR SCROLL

OFF

6:15

12:30

BRIGHT

OFF OFF

2/2SET UP

+ 70 hidden pages

Panasonic TH 50PH9UK User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important Safety Instructions

Table of Contents

FCC STATEMENT

Safety Precautions

Maintenance

Accessories

Connections

PC Input Terminals connection

SERIAL Terminals connection

RGB signal (R, G, B)

Power ON / OFF

Basic Controls

On-Screen Menu Displays

Initial selections

Selecting the input signal

Selecting the On-Screen Menu Language

ASPECT Controls

Adjusting POS. /SIZE

MULTI PIP

Advanced PIP

PICTURE Adjustments

ADVANCED SETTINGS

SOUND Adjustment

MUTE

Digital Zoom

PRESENT TIME SETUP / SET UP TIMER

PRESENT TIME SETUP

SET UP TIMER

Setup of SCREENSAVER Time

Reduces screen after-image
