Page 1

Operating Instructions

Manual de instrucciones

High Deﬁ nition Plasma Display

Pantalla de Plasma de Alta Deﬁ nición

Model No.

Número de modelo

TH-42PH11UK TH-50PH11UK

English

Español

The illustration shown is an image.

Before connecting, operating or adjusting this product, please read these instructions completely.

Please keep this manual for future reference.

La ilustración mostrada es una imagen.

Antes de conectar, utilizar o ajustar este producto, lea completamente este manual de instrucciones;

y guárdelo para consultarlo en el futuro en caso de ser necesario.

TQB2AA0783

Page 2

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualiﬁ ed service personnel.

The lightning flash with arrow-head within a triangle is in tend ed to tell the user that parts inside the product are a risk of electric shock to per sons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the ap pli ance.

WARNING : To prevent damage which may result in ﬁ re or shock hazard, do not expose this apparatus to rain

or mois ture. Do not place containers with water (ﬂ ower vase, cups, cosmetics, etc.) above the set. (including on shelves above, etc.)

WARNING : 1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to

qualiﬁ ed service personnel.

2) Do not remove the grounding pin on the power plug. This apparatus is equipped with a three pin grounding-type power plug. This plug will only ﬁ t a grounding-type power outlet. This is a safety fea ture. If you are unable to insert the plug into the outlet, contact an electrician.

Do not defeat the purpose of the grounding plug.

This video monitor is designed to display television content from a separate TV tuner. Full-power analog TV broadcasting in the United States will end (as required by law) on February 17, 2009, after which full-power TV broadcasts will be digital only. If this device is used after that date to record or display programming from a product with a TV tuner that relies on a TV antenna, that product would need to contain a digital tuner, or a TV Converter would be necessary to tune the digital signal received with a TV antenna. Analog TVs should continue to work as before for other purposes (e.g., for watching low-power TV stations still broadcasting in analog, watching pre-recorded movies, or playing video games). When a Converter is used with an older television receiver or directly with this product, a signal splitter might be necessary to continue to receive low-power analog broadcasts via an antenna. For more information, please see www.DTV.gov or 1-888-CALL-FCC. For information on the TV Converter program, and on government coupons that may be used toward the purchase of one, see www.dtv2009.gov, or call the NTIA at 1-888-DTV-2009. Please check with your cable or satellite service provider if you have questions about your cable or satellite set-top box.

Page 3

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁ ers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁ t into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments / accessories speciﬁ ed by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table speciﬁ ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

Page 4

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment

from your new Plasma Display.

To obtain maximum benefit from your set, please read these Instructions before making any adjustments,

and retain them for future reference.

Retain your purchase receipt as well, and record the model number and serial number of your set in the

space provided on the rear cover of these instructions.

Table of Contents

Important Safety Instructions .................................. 3

FCC STATEMENT ...................................................... 5

Safety Precautions ................................................... 6

Maintenance .............................................................. 7

Accessories .............................................................. 8

Accessories Supplied .............................................. 8

Remote Control Batteries ........................................ 8

Connections .............................................................. 9

PC Input Terminals connection .............................. 10

SERIAL Terminals connection ............................... 11

HDMI connection ................................................... 12

COMPONENT / RGB connection .......................... 12

Power ON / OFF ..................................................... 13

Initial selections ..................................................... 15

Selecting the input signal ...................................... 15

Selecting the On-Screen Menu Language ............ 15

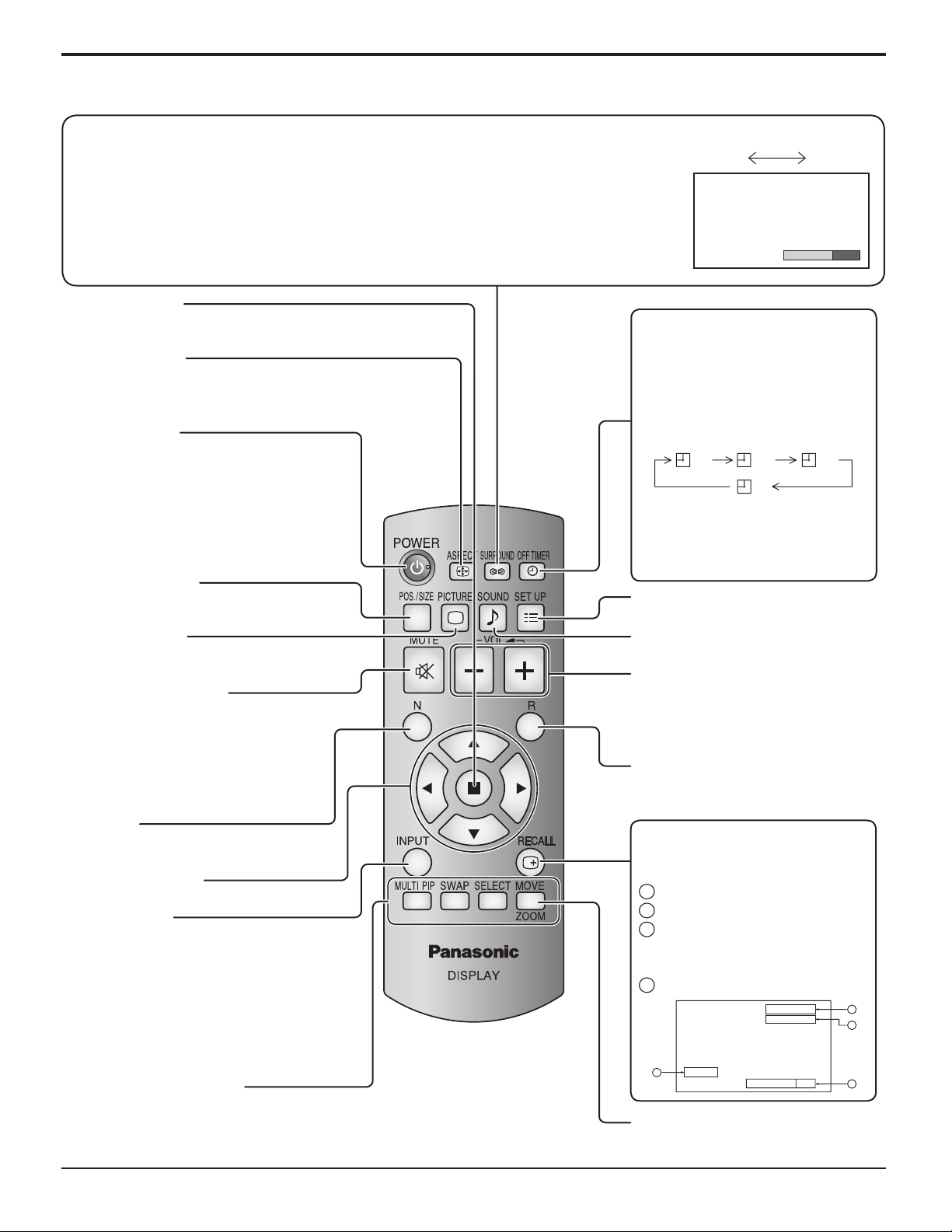

Basic Controls ........................................................ 16

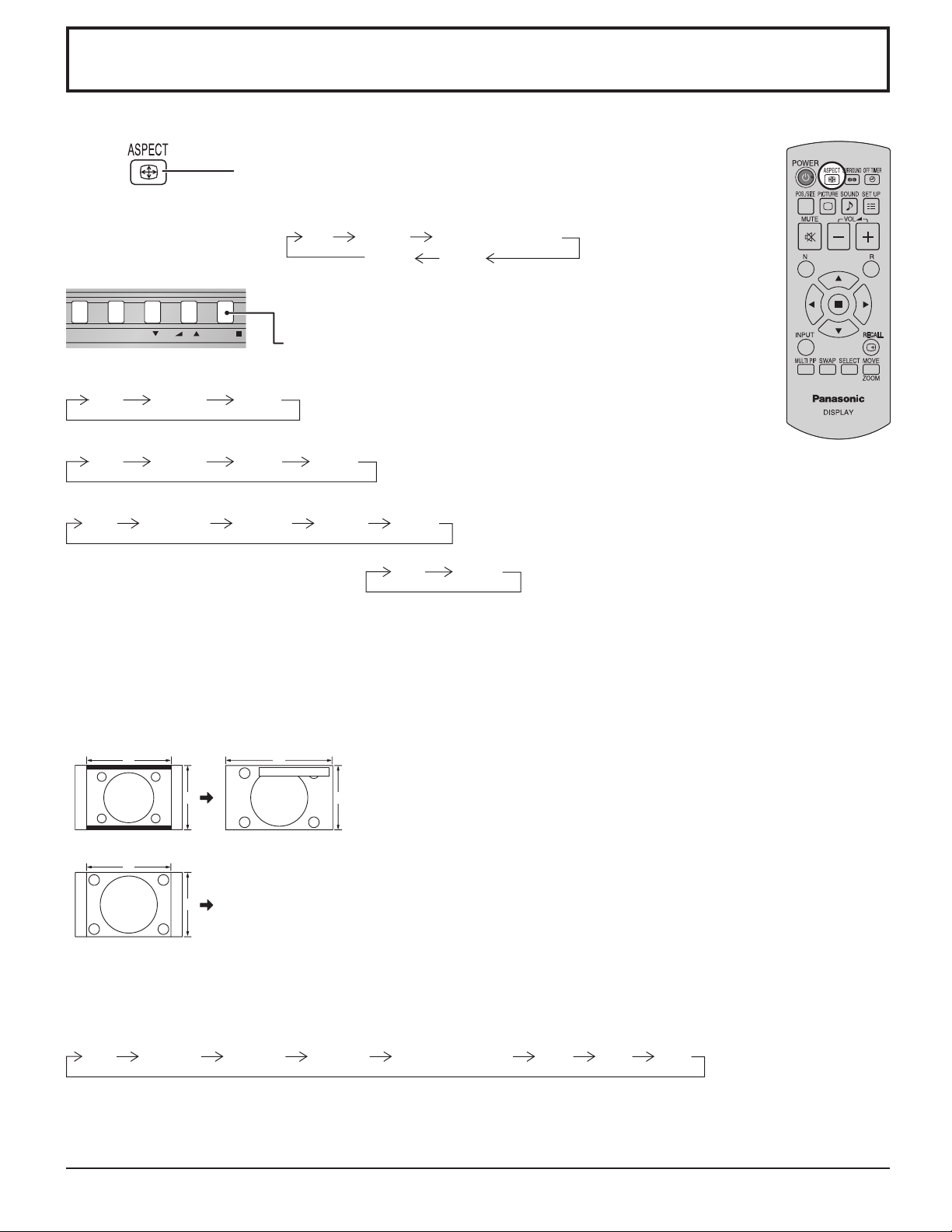

ASPECT Controls ................................................... 18

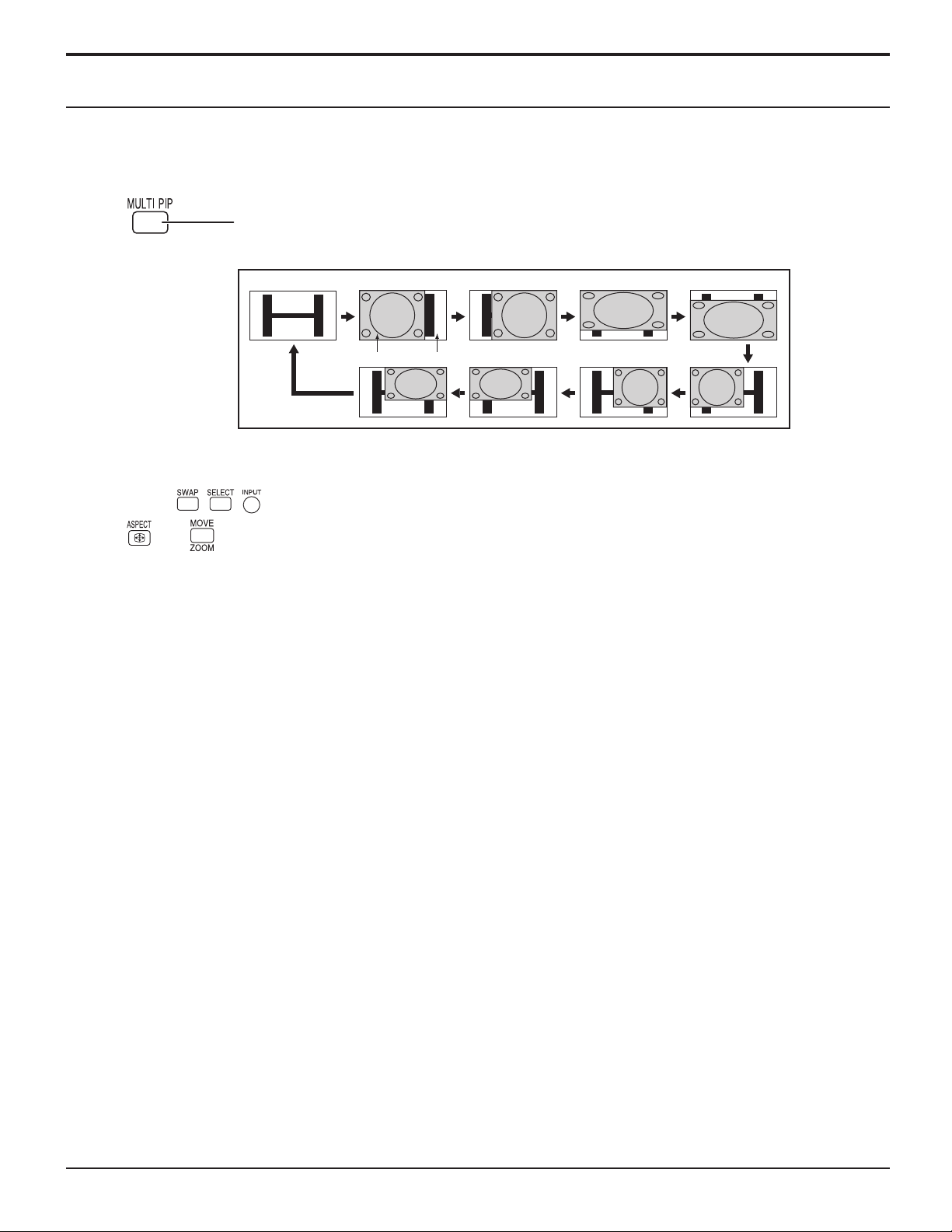

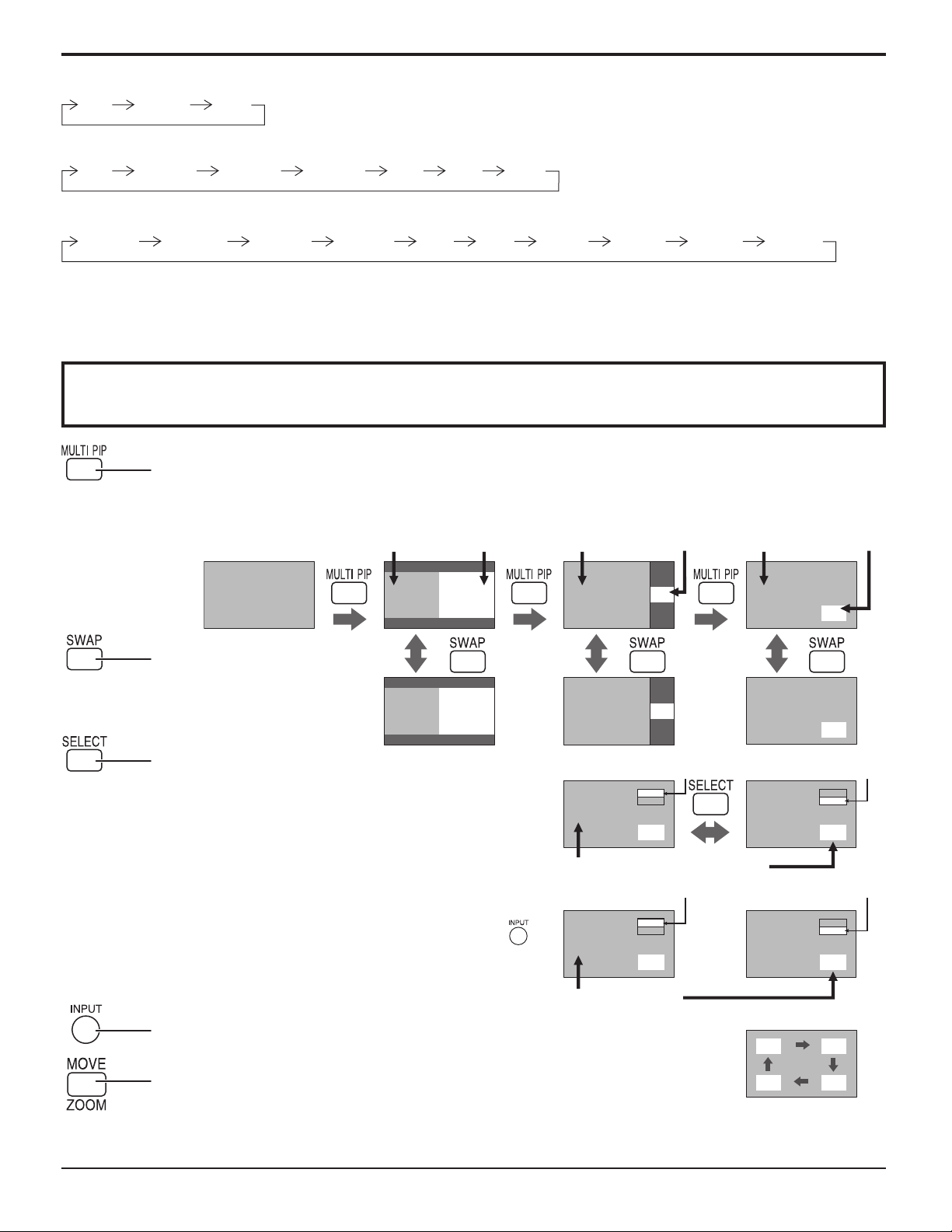

MULTI PIP ................................................................ 19

Advanced PIP ........................................................ 20

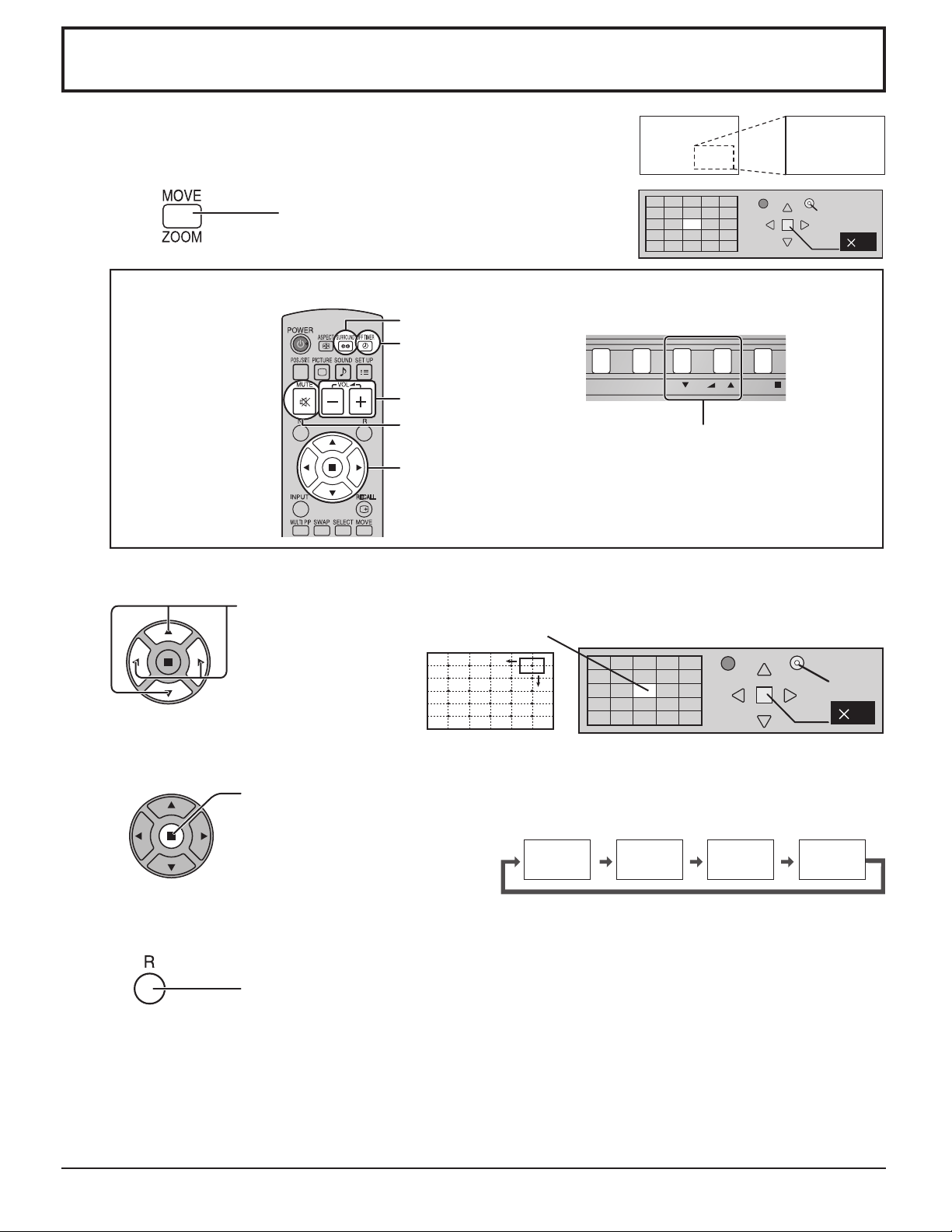

Digital Zoom ............................................................ 21

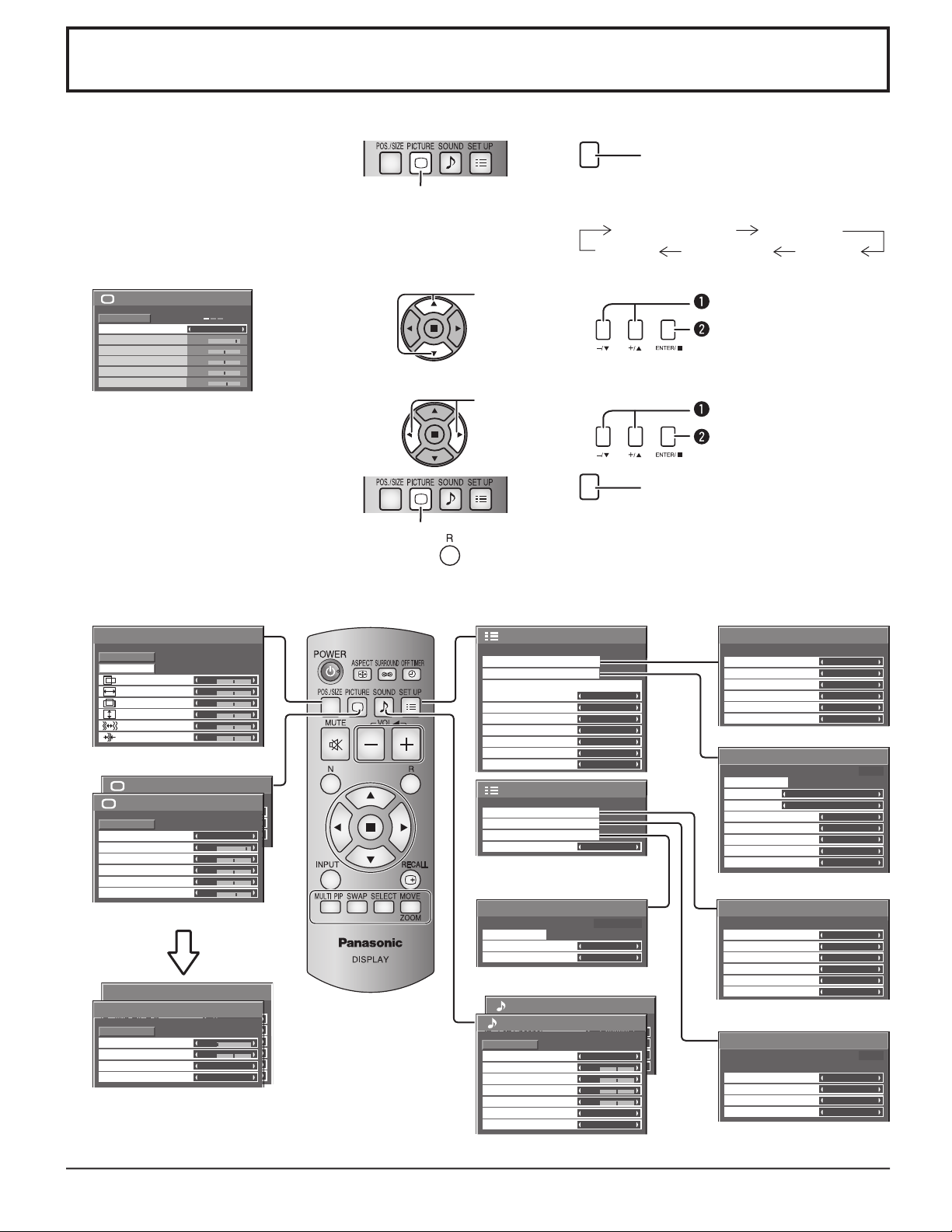

On-Screen Menu Displays ..................................... 22

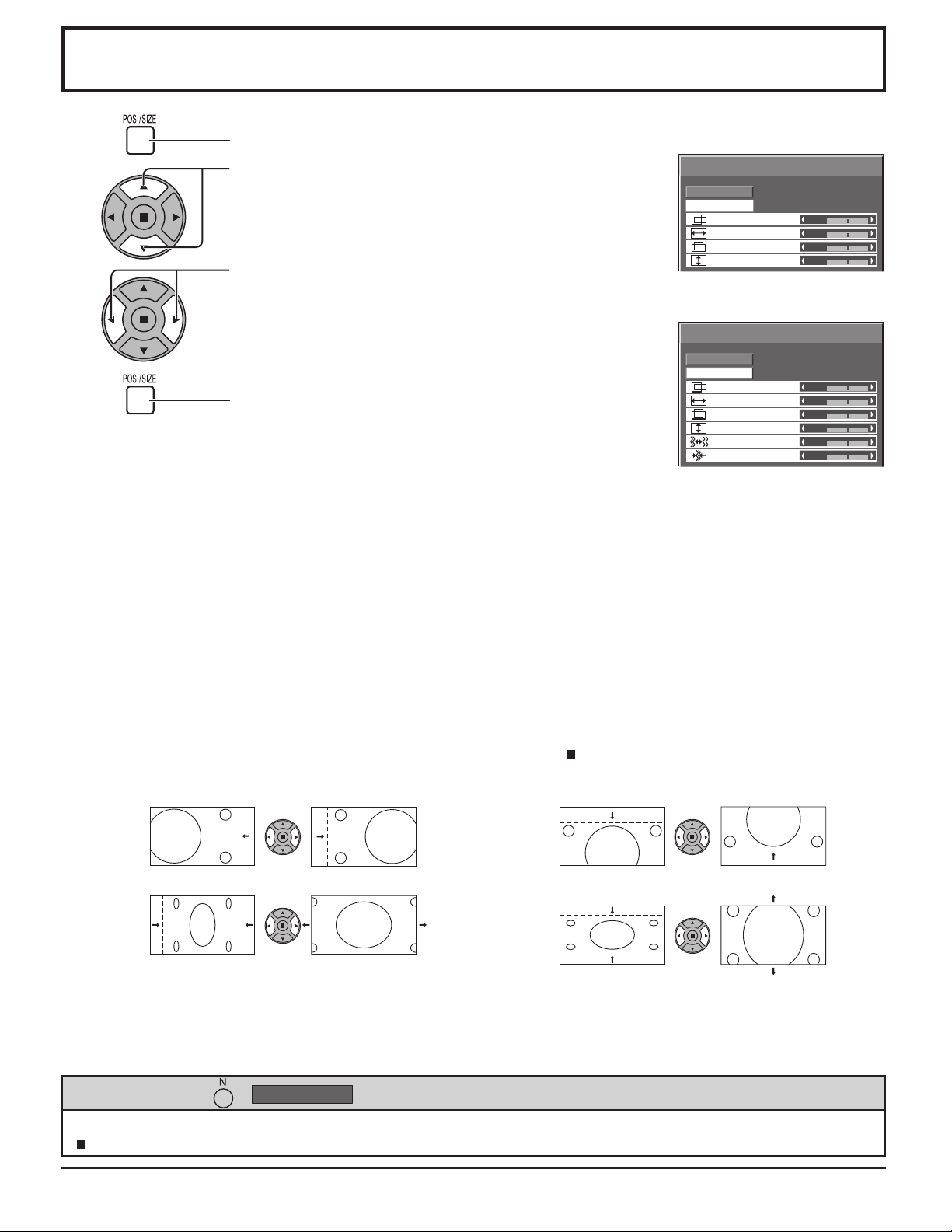

Adjusting POS. /SIZE ............................................. 23

PICTURE Adjustments ........................................... 24

ADVANCED SETTINGS ........................................ 25

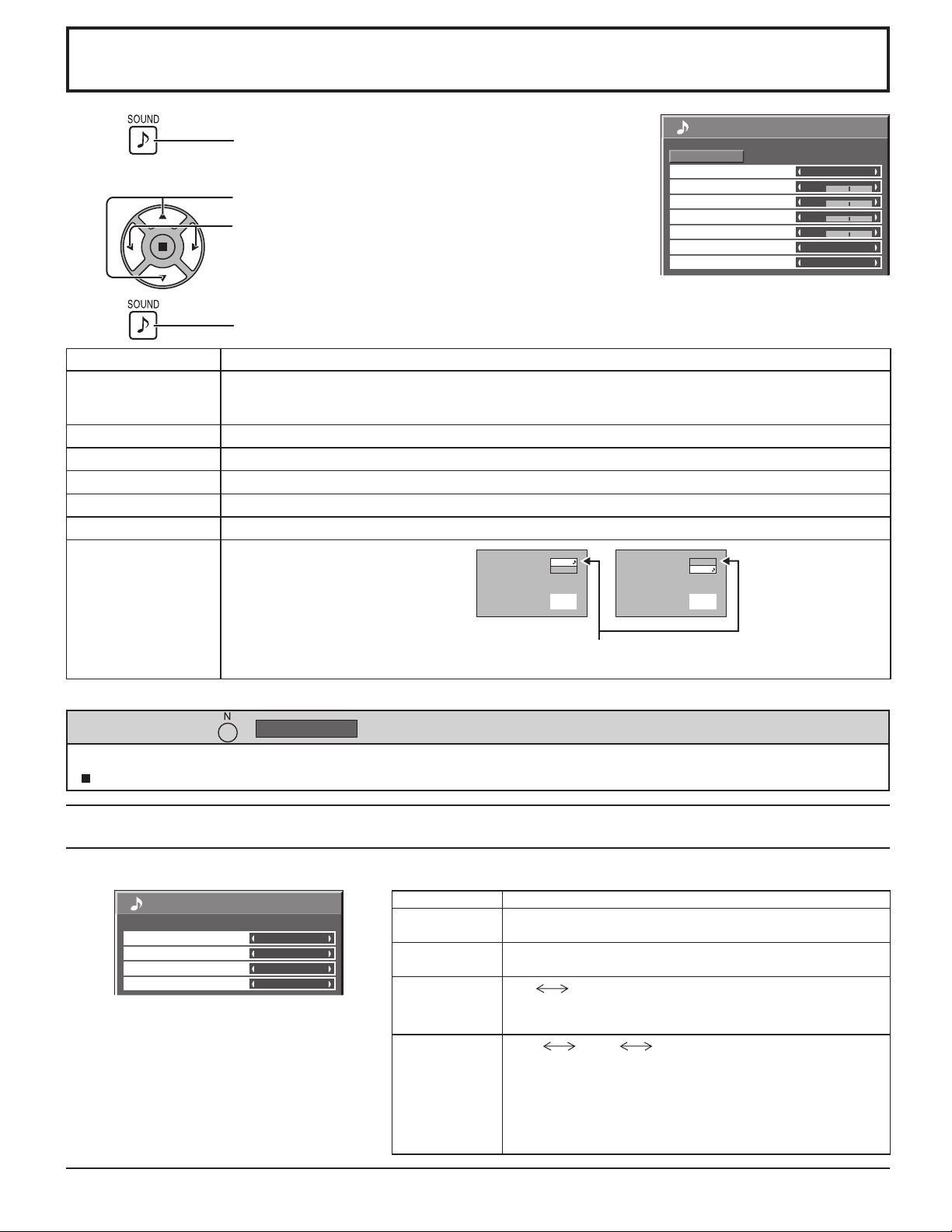

SOUND Adjustment ................................................ 26

SDI sound Output .................................................. 26

PRESENT TIME SETUP / SET UP TIMER .............. 27

PRESENT TIME SETUP ....................................... 27

SET UP TIMER ..................................................... 27

SCREENSAVER (For preventing image retention)

Setup of SCREENSAVER Time ............................ 28

Reduces screen image retention ........................... 29

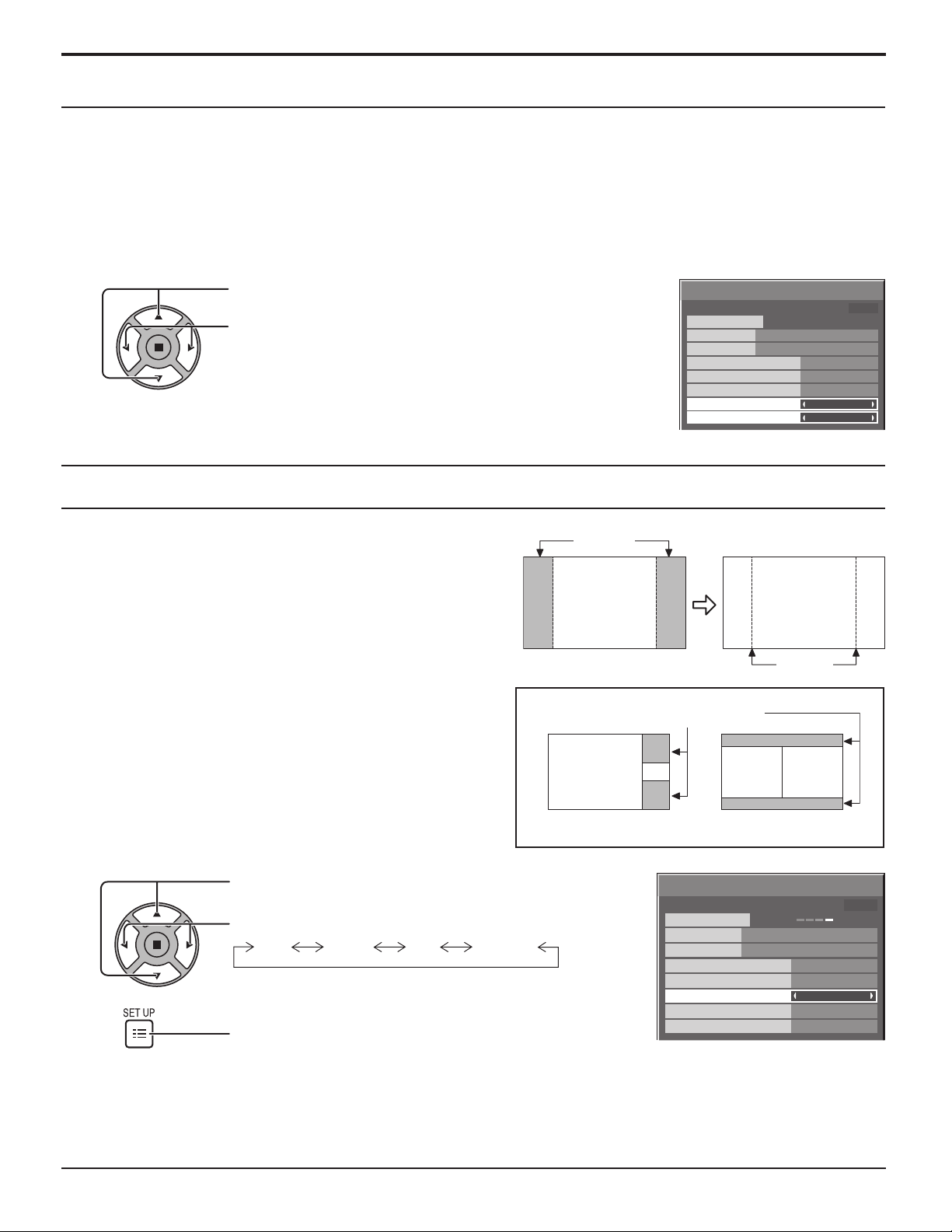

SIDE BAR ADJUST ............................................... 29

.. 28

Reduces power consumption ............................... 30

Customizing the Input labels ................................. 31

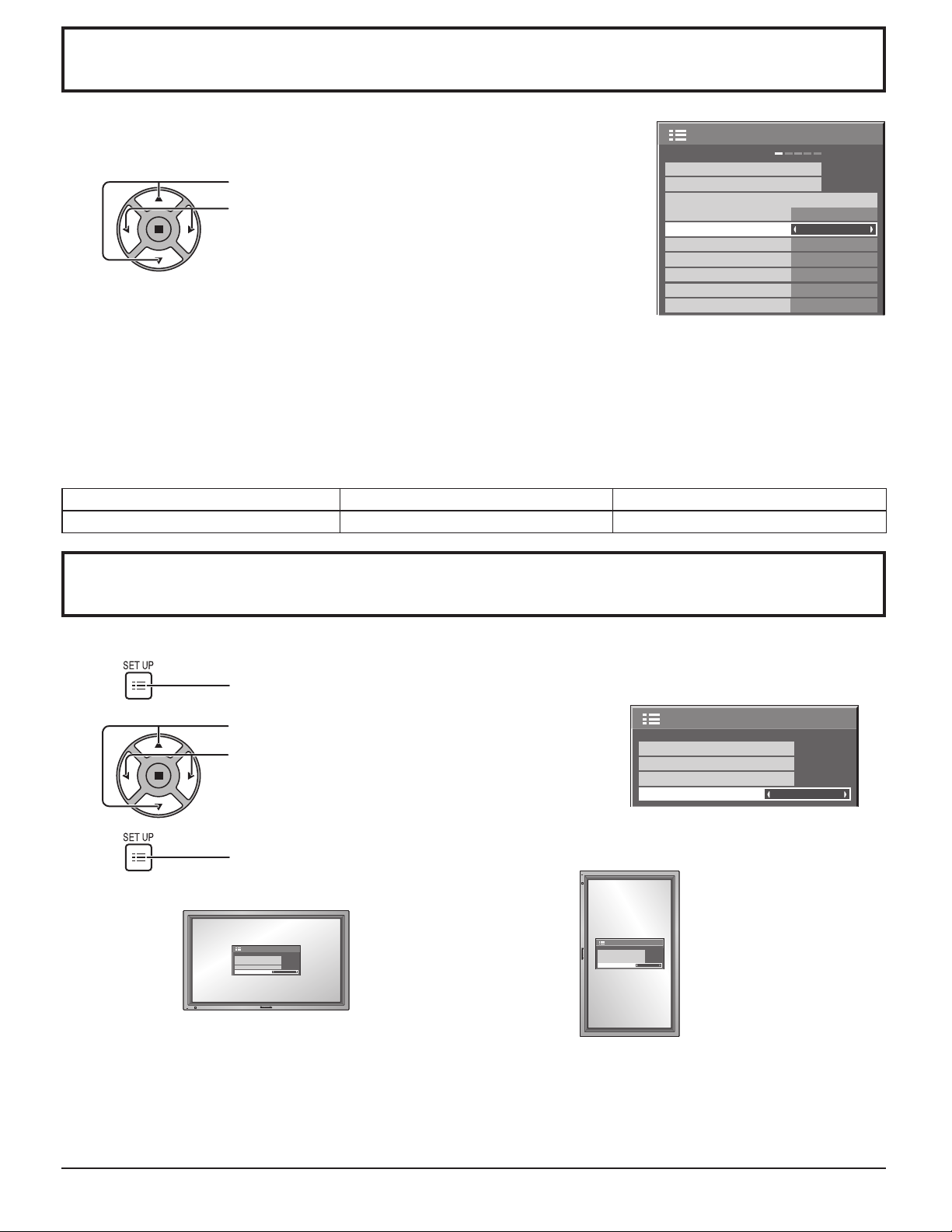

DISPLAY ORIENTATION ......................................... 31

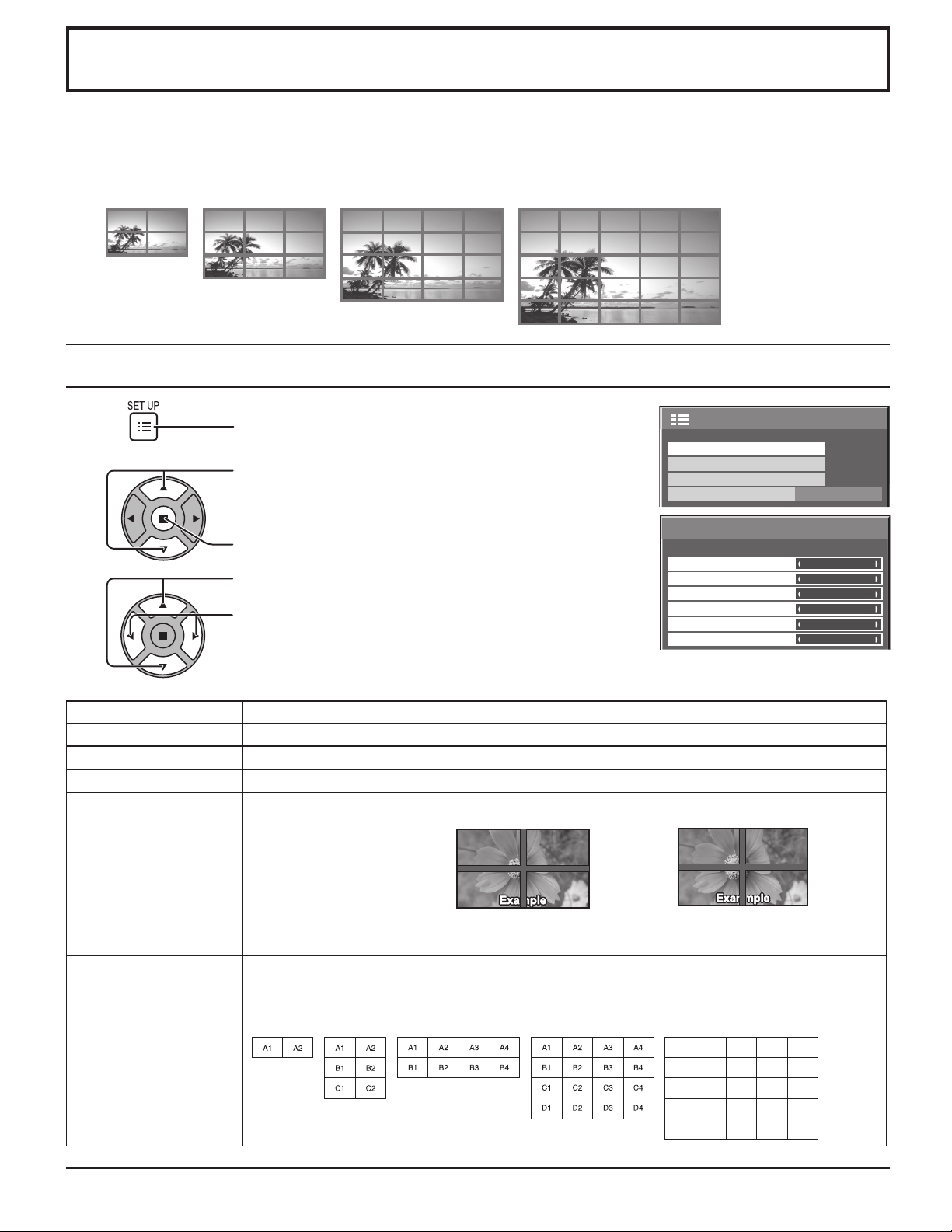

SET UP for MULTI DISPLAY ................................... 32

How to setup MULTI DISPLAY .............................. 32

ID Remote Control Function .................................. 33

SET UP for Input Signals ....................................... 34

COMPONENT / RGB IN SELECT ......................... 34

YUV / RGB IN SELECT ......................................... 34

SIGNAL menu ....................................................... 35

3D Y/C FILTER ...................................................... 35

COLOR SYSTEM / Panasonic AUTO ................... 36

3:2 PULLDOWN .................................................... 36

XGA MODE ........................................................... 36

REFRESH RATE ................................................... 37

NOISE REDUCTION ............................................. 37

SYNC .................................................................... 38

Input signal display ................................................ 38

Options Adjustments ............................................. 39

Weekly Command Timer ....................................... 42

Shipping condition ................................................. 43

Troubleshooting ..................................................... 44

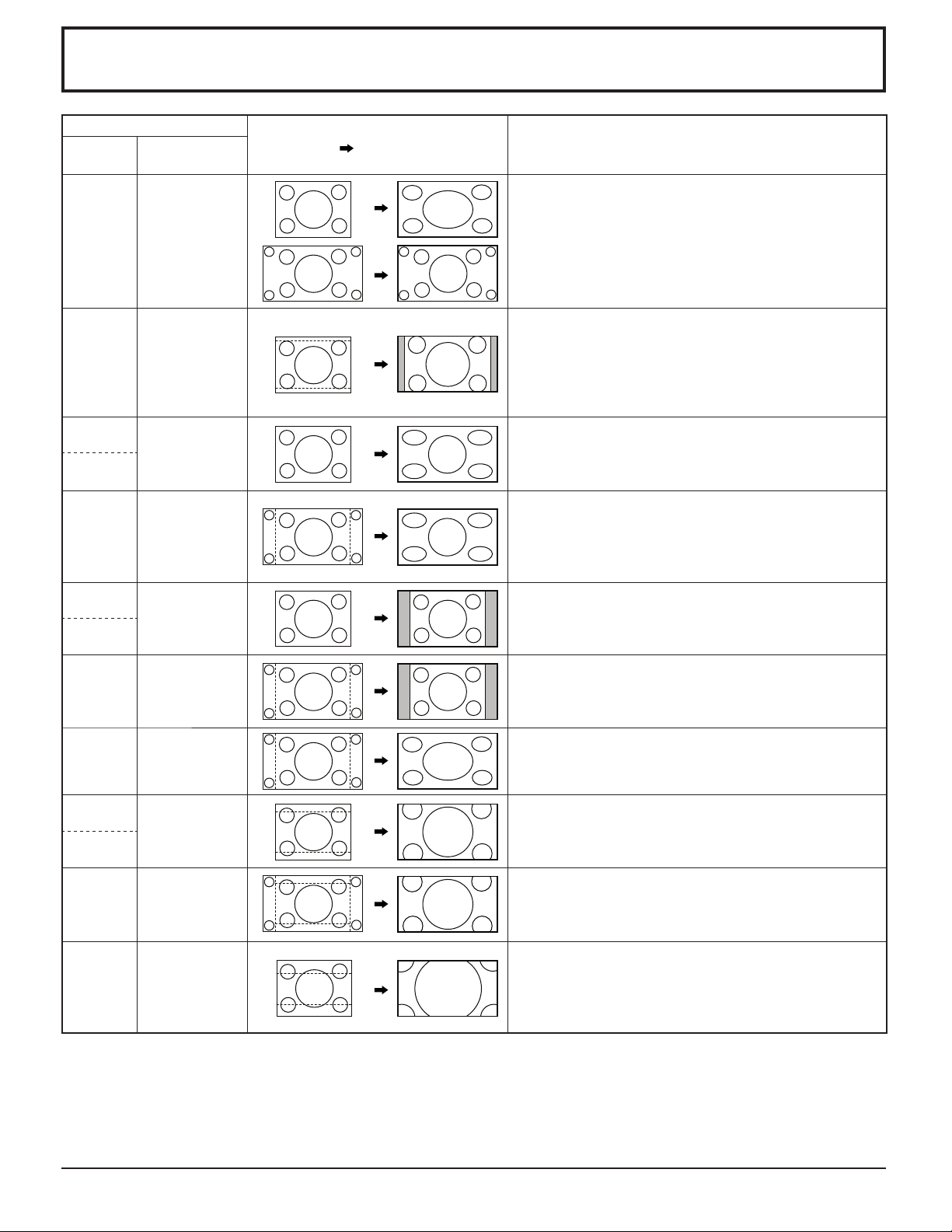

List of Aspect Modes ............................................. 45

VIDEO/COMPONENT/RGB/PC input signals ........ 46

Command list of Weekly Command Timer ........... 47

Speciﬁ cations ......................................................... 48

Panasonic Professional Flat Panel Display Limited Warranty

LIMITED WARRANTY STATEMENT ....................... 50

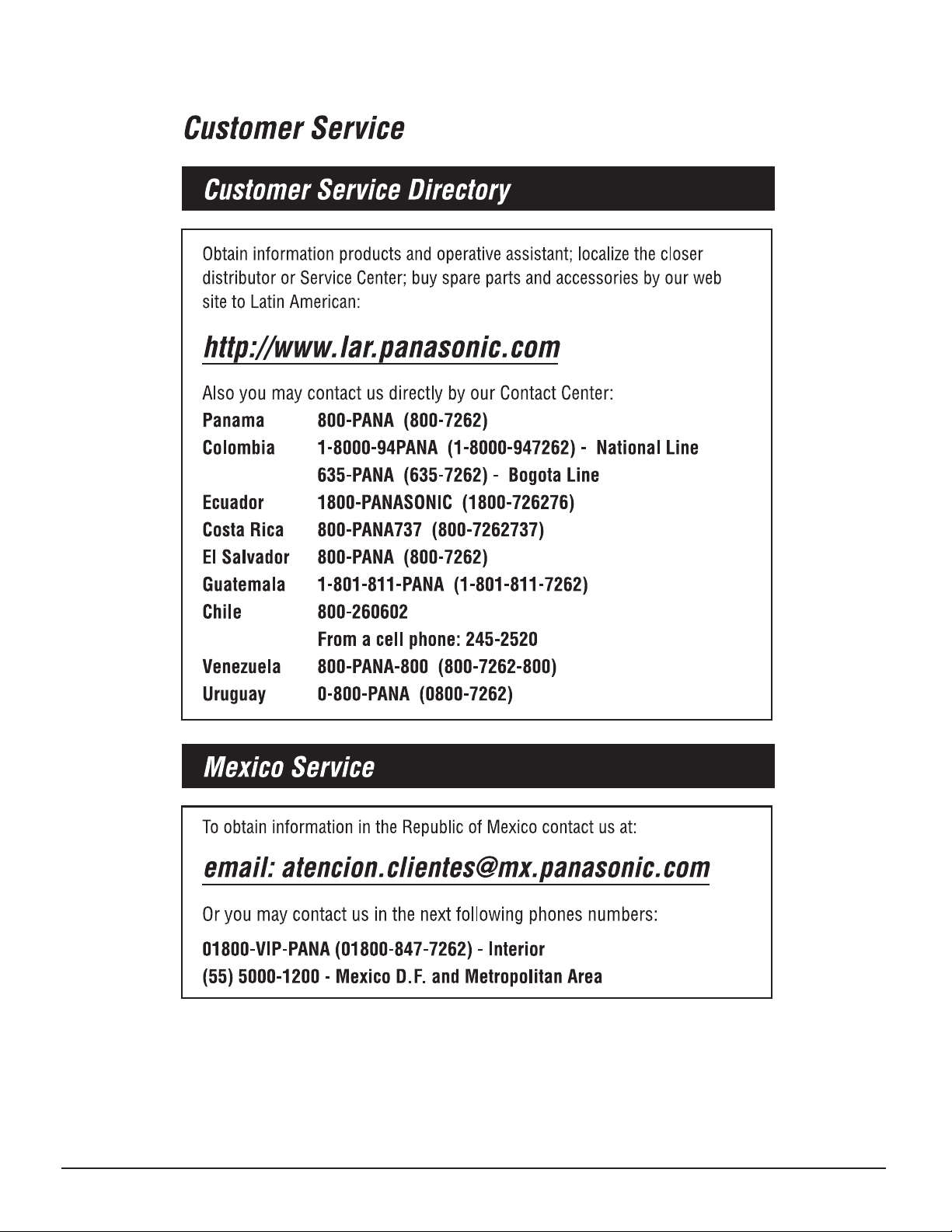

Customer Service ................................................... 51

.. 49

Page 5

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced technician for help.

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to computer or peripheral devices. Any changes or modiﬁ cations not expressly approved by Panasonic Corp. of North America could void the user's authority to operate this device.

FCC Declaration of Conformity

Model No. TH-42PH11UK, TH-50PH11UK

Responsible Party: Panasonic Corporation of North America One Panasonic Way 1F-10, Secaucus, NJ 07094 Contact Source: Panasonic Professional Display Company Panasonic Plasma Concierge 1-888-VIEW-PTV (1-888-843-9788) email: PCCCCConcierge@us.panasonic.com

CANADIAN NOTICE:

This Class B digital apparatus complies with Canadian ICES-003.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention to remain on the Plasma Display. Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

Trademark Credits

• VGA is a trademark of International Business Machines Corporation.

• Macintosh is a registered trademark of Apple Computer, USA.

• SVGA, XGA, SXGA and UXGA are registered trademarks of the Video Electronics Standard Association. Even if no special notation has been made of company or product trademarks, these trademarks have been fully

respected.

• HDMI, the HDMI logo and High-Deﬁ nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Page 6

Safety Precautions

CAUTION

This Plasma Display is for use only with the following optional accessories. Use with any other type of optional accessories may cause instability which could result in the possibility of injury.

• Speakers ..................................................TY-SP42P8W-K (for TH-42PH11UK), TY-SP50P8W-K (for TH-50PH11UK),

• Pedestal ...................................................

• Mobile stand .............................................

• Wall-hanging bracket (vertical) ................. TY-WK42PV7

• Wall-hanging bracket (angled) ................. TY-WK42PR7

• Wall-hanging bracket (drawer type) ......... TY-WK42DR1

• Ceiling-hanging bracket ........................... TY-CE42PS7

• BNC Component Video Terminal Board ... TY-42TM6A

• BNC Composite Video Terminal Board .... TY-42TM6B

• BNC Dual Video Terminal Board ..............TY-FB9BD

• RCA Component Video Terminal Board ... TY-42TM6Z

• RCA Composite Video Terminal Board ....TY-42TM6V

• RGB (Digital) Terminal Board ...................TY-42TM6D

• RGB Active Through Terminal Board ....... TY-42TM6G

• PC Input Terminal Board .......................... TY-42TM6P

•

Composite / Component Video Terminal Board

• SDI Terminal Board ..................................TY-FB7SD

• HD-SDI Terminal Board ........................... TY-FB9HD

• HD-SDI Terminal Board with audio .......... TY-FB10HD

• HDMI Terminal Board ............................... TY-FB8HM

• Dual HDMI Terminal Board ...................... TY-FB10HMD

• DVI-D Terminal Board .............................. TY-FB11DD

• Touch Panel ............................................. TY-TP42P10S (for TH-42PH11UK), TY-TP50P10S (for TH-50PH11UK)

• Ir Through Terminal Board .......................TY-FB9RT

• Wireless Presentation Board .................. TY-FB10WPU

• AV Terminal Box ....................................... TY-TB10AV

• U/V Tuner Board with MATE I/F ............... TY-FB9TU

(Except for Canada and United States of America, only Mexico)

(All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.)

TY-ST07-K (for TH-42PH11UK), TY-ST08-K (for TH-42PH11UK, TH-50PH11UK) TY-ST42PF3 (for TH-42PH11UK), TY-ST58PF10 (for TH-42PH11UK, TH-50PH11UK)

.. TY-42TM6Y

Always be sure to ask a qualiﬁ ed technician to carry out set-up.

Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being played with by young children, creating the potential risk of suffocation.

When using the Plasma Display

Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.

•

Top of the Plasma Display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries can happen if any body parts are brought too close. Placing any object near the top of the display could also result in heat damages to the object as well as to the Display if its ventilation holes are blocked.

Be sure to disconnect all cables before moving the Plasma Display.

•

Moving the Display with its cables attached might damage the cables which, in turn, can cause ﬁ re or electric shock.

Disconnect the power plug from the wall outlet as a safety precaution before carrying out any cleaning.

• Electric shocks can result if this is not done.

Clean the power cable regularly to prevent it from becoming dusty.

• Built-up dust on the power cord plug can increase humidity which might damage the insulation and cause ﬁ re. Unplug the cord from the wall outlet and clean it with a dry cloth.

This Plasma Display radiates infrared rays, therefore it may affect other infrared communication equipment. Install your infrared sensor in a place away from direct or reﬂ ected light from your Plasma Display.

Note:

Page 7

Safety Precautions / Maintenance

WARNING

Setup

Do not place the Plasma Display on sloped or unstable surfaces.

• The Plasma Display may fall off or tip over.

Do not place any objects on top of the Plasma Display.

• If water spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result in ﬁ re or electric shock. If any foreign objects get inside the Plasma Display, please consult an Authorized Service Center.

Do not cover the ventilation holes.

• Doing so may cause the Plasma Display to overheat, which can cause fire or damage to the Plasma Display.

Transport only in upright position!

• Transporting the unit with its display panel facing upright or downward may cause damage to the internal circuitry.

If using the pedestal (optional accessory), leave a space of 3

15/16” (10 cm) or more at the top, left and right, and

2 3/4” (7 cm) or more at the rear, and also keep the space between the bottom of the display and the ﬂ oor surface. If using some other setting-up method, follow the manual of it. (If there is no speciﬁ c indication of installation dimension in the installation manual, leave a space of 3 15/16” (10 cm) or more at the top, bottom, left and right, and 2 3/4” (7 cm) or more at the rear.)

AC Power Supply Cord

The Plasma Display is designed to operate on 110 - 127 V AC, 50/60 Hz.

Do not use any power supply cord other than that provided with this unit.

• Doing so may cause ﬁ re or electric shocks.

Securely insert the power cord plug as far as it will go.

• If the plug is not fully inserted, heat may be generated which could cause ﬁ re. If the plug is damaged or the wall socket plate is loose, they should not be used.

Do not handle the power cord plug with wet hands.

• Doing so may cause electric shocks.

Do not do anything that might damage the power cable. When disconnecting the power cable, hold the plug, not the cable.

• Do not make any modiﬁ cations, place heavy objects on, place near hot objects, heat, bend, twist or forcefully pull the power cable. Doing so may cause damage to the power cable which can cause ﬁ re or electric shock. If damage to the cable is suspected, have it repaired at an Authorized Service Center.

If the Plasma Display will not be used for a long period of time, unplug the power cord from the wall outlet.

If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from the Plasma Display, unplug the power cord immediately.

• Continuous use of the Display under these conditions might cause ﬁ re or permanent damage to the unit. Have the Display evaluated at an Authorized Service Center. Services to the Display by any unauthorized personnel are strongly discouraged due to its high voltage dangerous nature.

If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet becomes damaged, disconnect the power cord plug immediately.

• A short may occur, which could cause ﬁ re. Contact an Authorized Service Center for any repairs that need to be made.

Maintenance

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-free cloth.

• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in which neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until the surface is dry.

• Do not scratch or hit the surface of the panel with ﬁ ngernails or other hard objects, otherwise the surface may become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.

• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get inside the unit, operating problems may result.

• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

Page 8

Accessories

Accessories Supplied

Check that you have the Accessories and items shown

Operating Instruction book

Remote Control Batteries

Requires two AA batteries.

1. Pull and hold the hook, then open the battery cover.

2. Insert batteries - note correct polarity ( + and -).

Remote Control Transmitter N2QAYB000178

AC cordFixing band × 1

Batteries for the Remote Control Transmitter (2 × AA Size)

3. Replace the cover.

“AA” size

Helpful Hint:

For frequent remote control users, replace old batteries with Alkaline batteries for longer life.

Precaution on battery use

Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter. Disposal of batteries should be in an environment-friendly manner.

Observe the following precautions:

1. Batteries should always be replaced as a pair. Always use new batteries when replacing the old set.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.

5. Battery replacement is necessary when the remote control acts sporadically or stops operating the Plasma Display.

6. Do not burn or breakup batteries. Batteries must not be exposed to excessive heat such as sunshine, ﬁ re or the like.

Page 9

Connections

When connecting the speakers, be sure to use only the optional accessory speakers. Refer to the speaker’s Installation Manual for details on speaker installation.

Speakers (Optional accessories)

Speaker

Speaker terminal (R)

Note:

Make sure that the AC cord is locked on both the left and right sides.

– AC cord ﬁ xing

AC cord connection (see page 13)

Plug the AC cord into

the display unit.

Plug the AC cord until

it clicks.

Fix the AC cord with

the clamper which is attached to the unit.

Open

terminal (L)

Push until the hook clicks.

2. Pull off.

1. Keep the

knob pressed.

Unplug the AC cord

Note:

When disconnecting the AC cord, be absolutely sure to disconnect the AC cord plug at the socket outlet ﬁ rst.

Unplug the AC cord pressing the two knobs.

– Cable ﬁ xing band

Secure any excess cables with band as required. Note:

One ﬁ xing band is supplied with this unit. In case of securing cables at two positions, please purchase it separately.

Pass the attached cable ﬁ xing band through the clip as shown in the ﬁ gure.

To secure cables connected to Terminals, wrap the cable ﬁ xing band around them then pass the pointed end through the locking block, as shown in the ﬁ gure.

While ensuring there is sufﬁ cient slack in cables to minimize stress (especially in the power cord), ﬁ rmly bind all cables with the supplied ﬁ xing band.

To tighten:

Pull

SLOT1 SLOT3

Optional Terminal Board Insert Slot (covered)

Dual HDMI Terminals (equivalent of Dual HDMI Terminal Board (TY-FB10HMD)) (see page 12)

AUDIO

SLOT2

COMPONENT/RGB IN and Audio IN Terminals (equivalent of BNC Component Video Terminal Board (TY-42TM6A)) (see page 12)

PR/CR/R PB/CB/B

COMPONENT/RGB IN

Y/G

From EXTERNAL monitor terminal on Computer (see page 10)

Note: At factory shipment, Terminal boards are installed in SLOT 2 and SLOT 3.

To loosen: Push the catch

Pull

AUDIO

SERIALPC IN

From SERIAL Terminal on Computer (see page 11)

Page 10

Connections

PC Input Terminals connection

COMPUTER

Conversion adapter (if necessary)

RGB

PC cable

(Female)

AUDIO

PC IN

Mini D-sub 15p

(Male)

Audio

Connect a cable which matches the audio output terminal on the computer.

Stereo plug

Notes:

• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)

• The display resolution is a maximum of 768 × 768 dots (TH-42PH11UK), 1,024 × 768 dots (TH-50PH11UK) when the aspect mode is set to “4:3”, and 1,024 × 768 dots (TH-42PH11UK), 1,366 × 768 dots (TH-50PH11UK) when the aspect mode is set to “FULL”. If the display resolution exceeds these maximums, it may not be possible to show ﬁ ne detail with sufﬁ cient clarity.

• The PC input terminals are DDC2B-compatible. If the computer being connected is not DDC2B-compatible, you will need to make setting changes to the computer at the time of connection.

• Some PC models cannot be connected to the set.

• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.

• The computer shown in the illustration is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the speciﬁ ed frequency range.

• Component Input is possible with the pin 1, 2, 3 of the Mini D-sub 15P Connector.

• Change the “COMPONENT/RGB-IN SELECT” setting in the “SET UP” menu to “COMPONENT”

(when COMPONENT signal connection) or “RGB” (when RGB signal connection). (see page 34)

Signal Names for Mini D-sub 15P Connector

Pin No.

15 14 13 12 11

Pin Layout for PC Input Terminal

67839

NC (not connected)

Signal Name

R (PR/CR)

G (Y)

B (PB/CB)

GND (Ground)

Pin No.

Signal Name

GND (Ground)

+5 V DC

GND (Ground)

Pin No.

Signal Name

NC (not connected)

SDA

HD/SYNC

SCL

Page 11

SERIAL Terminals connection

The SERIAL terminal is used when the Plasma Display is controlled by a computer.

COMPUTER

(Male)

Connections

13452

6789

RS-232C Straight cable

D-sub 9p

Notes:

• Use the RS-232C straight cable to connect the computer to the Plasma Display.

• The computer shown is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

The SERIAL terminal conforms to the RS-232C interface speciﬁ cation, so that the Plasma Display can be controlled by a computer which is connected to this terminal. The computer will require software which allows the sending and receiving of control data which satisﬁ es the conditions given below. Use a computer application such as programming language software. Refer to the documentation for the computer application for details.

Communication parameters

Signal level RS-232C compliant

Synchronization method Asynchronous

Baud rate 9600 bps

Parity None

Character length 8 bits

Stop bit 1 bit

Flow control -

Basic format for control data

The transmission of control data from the computer starts with a STX signal, followed by the command, the parameters, and lastly an ETX signal in that order. If there are no parameters, then the parameter signal does not need to be sent.

STX C1 C2 C3 P1 P2 P3 P4:P5ETX

Start (02h)

Colon Parameter(s) 3-character command (3 bytes)

(1 - 5 bytes)

End (03h)

Notes:

• If multiple commands are transmitted, be sure to wait for the response for the ﬁ rst command to come from this unit before sending the next command.

• If an incorrect command is sent by mistake, this unit will send an “ER401” command back to the computer.

• SL1A, SL1B, SL2A and SL2B of Command IMS are available only when a dual input terminal board is attached.

SERIAL

Pin layout for SERIAL Terminal

(Female)

Signal names for D-sub 9P connector

Pin No.

•

7 8

•

Details

R X D T X D

GND

Non use

(Shorted in this set)

These signal names are those of computer speciﬁ cations.

Command

Command Parameter Control details PON None Power ON POF None Power OFF AVL ** Volume 00 - 63 AMT 0 Audio MUTE OFF

1 Audio MUTE ON

IMS None

SL1 SL2 SL3 PC1 SL1A SL1B SL2A SL2B

DAM None

ZOOM FULL JUST NORM SELF SJST SNOM SFUL

Input select (toggle) Slot1 input Slot2 input Slot3 input PC input Slot1 input (INPUT1A) Slot1 input (INPUT1B) Slot2 input (INPUT2A) Slot2 input (INPUT2B)

Screen mode select (toggle) ZOOM FULL JUST 4:3 Panasonic Auto JUST 4:3

H-FILL With the power off, this display responds to PON command only.

Page 12

Connections

HDMI connection

This unit has terminal boards equivalent to Dual HDMI Terminal Board (TY-FB10HMD) and BNC Component Video Terminal Board (TY-42TM6A) as standard equipment.

[Pin assignments and signal names]

Pin No.

3 4

6 7

Signal

T.M.D.S Data2+

T.M.D.S Data2 Shield

T.M.D.S Data2T.M.D.S Data1+ T.M.D.S Data1

Shield T.M.D.S Data1T.M.D.S Data0+ T.M.D.S Data0

Shield T.M.D.S Data0T.M.D.S Clock+

Pin No.

15 16

18 19

Signal

T.M.D.S Clock Shield

T.M.D.S Clock-

CEC

Reserved (N.C. on device)

SCL SDA DDC/CEC

Ground +5V Power Hot Plug Detect

AUDIO

SLOT1 SLOT2 SLOT3

PR/CR/R PB/CB/B

COMPONENT/RGB IN

HDMI cables

Y/G

Note:

Additional equipment and HDMI cables shown are not supplied with this set.

COMPONENT / RGB connection

COMPONEN T VIDEO OUT

Example of input signal source

DVD

Digital TV-SET-TOP-BOX (DTV-STB)

Y , P

P B

B , P R ,

OUT

AUDIO

OUT

Computer RGB Camcorder

HDMI

AV OUT

HDMI

AV OUT

DVD player DVD player

AUDIO

PR/CR/R PB/CB/B

COMPONENT/RGB IN

SLOT3

Y/G

RCA-BNC adapter plug

Notes:

• Change the “COMPONENT/RGB-IN SELECT” setting in the “SET UP” menu to “COMPONENT” (when COMPONENT signal connection) or “RGB” (when RGB signal connection). (see page 34)

• Additional equipment, cables and adapter plugs shown are not supplied with this set.

• SYNC ON G signal is needed. (see page 38)

Page 13

Power ON / OFF

Connecting the AC cord plug to the Plasma Display.

Fix the AC cord plug securely to the Plasma Display with the clamper. (see page 9)

Connecting the plug to the Wall Outlet.

Note:

When disconnecting the AC cord, be absolutely sure to disconnect the AC cord plug at the socket outlet ﬁ rst.

Press the Power switch on the Plasma Display to turn the set on: Power-On.

Power Indicator: Green

INPUT MENU ENTER/+/VOL-/

Power Indicator

Remote Control Sensor

Press the

Power Indicator: Red (standby)

Press the

Power Indicator: Green

Turn the power to the Plasma Display off by pressing the switch on the unit, when the Plasma Display is on or in standby mode.

Note:

During operation of the power management function, the power indicator turns orange in the power off state.

button on the remote control to turn the Plasma Display off.

button on the remote control to turn the Plasma Display on.

Page 14

Power ON / OFF

When ﬁ rst switching on the unit

Following screen will be displayed when the unit is turned on for the ﬁ rst time. Select the items with the remote control. Unit buttons are invalid.

OSD LANGUAGE

Select the language.

Set.

OSD LANGUAGE

English (UK)

Deutsch

Français

Italiano

Español

ENGLISH (US)

Русский

PRESENT TIME SETUP

Select “DAY” or “PRESENT TIME OF DAY”.

Setup “DAY” or “PRESENT TIME OF DAY”.

Select “SET”.

Set.

PRESENT TIME SETUP

PRESENT TIME OF DAY MON 99:99

SET DAY PRESENT TIME OF DAY

PRESENT TIME SETUP

PRESENT TIME OF DAY MON 99:99

SET DAY PRESENT TIME OF DAY

DISPLAY ORIENTATION

For vertical installation, select “PORTRAIT”.

DISPLAY ORIENTATION

Set.

LANDSCAPE

PORTRAIT

Notes:

• Once the items are set, the screens won't be displayed when switching on the unit next time.

• After the setting, the items can be changed in the following menus. OSD LANGUAGE (see page 15) PRESENT TIME SETUP (see page 27) DISPLAY ORIENTATION (see page 31)

SETSELECT

MON 99:99

TUE

10:00

From the second time on, the below screen is displayed for a while (setting condition is an example).

FULL

Page 15

INPUT MENU ENTER/ + / VOL - /

Initial selections

Selecting the input signal

Select the input signals to be connected by installing the optional Terminal Boards.

Press to select the input signal to be played back from the equipment which has been connected to the Plasma Display.

Input signals will change as follows:

INPUT1

SLOT2 is for dual input so that you can select INPUT2A or INPUT2B for INPUT2. INPUT2A : HDMI signal terminal in SLOT2 INPUT2B : HDMI signal terminal in SLOT2

Notes:

• Selecting is also possible by pressing the INPUT button on the unit.

• Input terminal will not be selected if the terminal board is not installed into the SLOT.

• Select to match the signals from the source connected to the component/RGB input terminals. (see page 34)

• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.

• Image retention (image lag) may occur on the plasma display panel when a still picture is kept on the panel for an extended period. The function that darkens the screen slightly is activated to prevent image retention (see page 44), but this function is not the perfect solution to image retention.

INPUT2A

INPUT2B

PCINPUT3

INPUT MENU ENTER/+/VOL-/

Selecting the On-Screen Menu Language

Press to display the SET UP menu.

Press to select OSD LANGUAGE.

Press to select your preferred language.

Selectable languages

English(UK)

Deutsch

Français

Italiano

Español

ENGLISH(US)

.......(Chinese)

.......(Japanese)

Русский

.......(Russian)

COMPONENT/RGB-IN SELECT

INPUT LABEL POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

SET UP

SIGNAL

SCREENSAVER

1/2

RGB

PC OFF OFF OFF OFF

)

Page 16

INPUT MENU ENTER/

/VOL

Basic Controls

Main Unit

Remote control sensor

Main Power On / Off Switch

Power Indicator

The Power Indicator will light.

• Power-OFF .... Indicator not illuminated (The unit will still

consume some power as long as the power cord is still inserted into the wall outlet.)

• Standby ......... Red

• Power-ON ...... Green

• DPMS ............. Orange (With PC input signal and during

operation of PC’s screensaver.)

Volume Adjustment

Volume Up “+” Down “–” When the menu screen is displayed: “+” :

press to move the cursor up

“–” :

press to move the cursor down

(see page 22)

Enter / Aspect button

(see page 18, 22)

MENU Screen ON / OFF

Each time the MENU button is pressed, the menu screen will switch. (see page 22)

Normal Viewing PICTURE SET UP

SOUND POS. /SIZE

INPUT button (INPUT1, INPUT2, INPUT3 and PC selection)

(see page 15)

Page 17

Remote Control Transmitter

SURROUND button

The surround setting switches on and off each time the SURROUND button is pressed. The beneﬁ ts of surround sound are enormous. You can be completely enveloped in sound; just as if you were at a concert hall or cinema.

Note:

The surround settings are memorized separately for each AUDIO MENU (STANDARD, DYNAMIC, CLEAR).

ACTION button

Press to make selections.

ASPECT button

Press to adjust the aspect. (see page 18)

POWER button

The Plasma Display must ﬁ rst be plugged into the wall outlet and turned on at the power switch (see page 13). Press this button to turn the Plasma Display On, from Standby mode. Press it again to turn the Plasma Display Off to Standby mode.

POS. /SIZE button

(see page 23)

Basic Controls

ON OFF

SURROUND

OFF TIMER button

The Plasma Display can be preset to switch to stand-by after a ﬁ xed period. The setting changes to 30 minutes, 60 minutes, 90 minutes and 0 minutes (off timer cancelled) each time the button is pressed.

30 60

When three minutes remain, “OFF TIMER 3” will ﬂ ash. The off timer is cancelled if a power interruption occurs.

SET UP button (see page 22)

PICTURE button (see page 24)

Sound mute On / Off Press this button to mute the sound. Press again to reactivate sound. Sound is also reactivated when power is turned off or volume level is changed.

N button (see page 23, 24, 25, 26)

POSITION buttons

INPUT button

Press to select INPUT1, INPUT2, INPUT3 and PC input SLOTS sequentially. (see page 15) When a dual input terminal board is attached, A or B is displayed depending on the selected input signal. (Ex. INPUT1A, INPUT1B)

MULTI Window buttons (see page 19)

SOUND button (see page 26)

Volume Adjustment

Press the Volume Up “+” or Down “–” button to increase or decrease the sound volume level.

R button (see page 22) Press the R button to return to previous menu screen.

RECALL button

Press the “RECALL” button to display the current system status.

Input label

Aspect mode (see page 18)

Off timer

The off timer indicator is displayed only when the off timer has been set.

Clock display (see page 37)

4:3

10:00

OFF TIMER 90

Digital Zoom (see page 21)

Page 18

INPUT MENU ENTER/+/VOL-/

ASPECT Controls

The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format picture.

Press repeatedly to move through the aspect options: For details about the aspect mode, please see “List of Aspect Modes” (page 45).

For VIDEO (S VIDEO) signal input:

4:3 ZOOM Panasonic AUTO

JUST FULL

[from the unit]

For PC signal input:

4:3 ZOOM FULL

For SD signal input (525 (480) / 60i • 60p, 625 (575) / 50i • 50p):

4:3 ZOOM JUSTFULL

For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i, 750 (720) / 60p • 50p]:

4:3 H-FILL ZOOM FULL JUST

Note:

When selecting an input slot that attaches BNC Dual Video Terminal Board (TY-FB9BD), Panasonic AUTO cannot be selected.

The aspect mode changes each time the ENTER button is pressed.

[During MULTI PIP Operations]

• Picture and Picture, Picture in Picture :

4:3 FULL

• Others : Aspect switching is not possible.

Notes:

• Panasonic AUTO can be selected only during Video signal input.

• The aspect mode is memorized separately for each input terminal.

• Do not allow the picture to be displayed in 4:3 mode for an extended period, as this can cause a permanent image retention to remain on the Plasma Display Panel.

Panasonic AUTO

The display will automatically become enlarged (depending on the picture source), allowing you to view the picture at its maximum size.

416

Panasonic AUTO

Notes:

• Panasonic AUTO mode is designed to automatically adjust the aspect ratio to handle a mix of 16:9 and 4:3 program material. Certain 4:3 program material, such as stock market data screens,

For letter box image Image is expanded

Changes in accordance with the Panasonic AUTO mode

setting (see page 36).

may occasionally cause the image size to change unexpectedly. When viewing such programs, it is recommended that the ASPECT be set to 4:3.

• If adjusting the PICTURE V-POS/V-SIZE in Panasonic AUTO with FULL mode, the adjustment is not memorized. When exiting the mode, the screen will return to a former adjustment.

For a 4:3 image

All Aspect mode

Set “All Aspect” to “On” in Options menu to enable the extended aspect mode (page 41). When All Aspect mode, the aspect mode of pictures is switched as follows. For details about the aspect mode, please see “List of Aspect Modes” (page 45).

For VIDEO (S VIDEO) signal input:

4:3 Zoom1 16:9 JustZoom2 Zoom3 Panasonic Auto 14:9

Notes:

• When selecting an input slot that attaches BNC Dual Video Terminal Board (TY-FB9BD), Panasonic Auto cannot be

• In All Aspect mode, “Panasonic AUTO” is displayed as “Panasonic Auto”.

selected.

Page 19

For PC signal input:

4:3 Zoom 16:9

ASPECT Controls

For SD signal input (525 (480) / 60i

4:3 Zoom1 16:9 JustZoom2 Zoom3 14:9

For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i, 750 (720) / 60p • 50p]:

4:3 Full Zoom1 16:9 Just1Zoom2 Zoom3 14:9 Just2 4:3 (1) 4:3 (2)

•

60p, 625 (575) / 50i

•

50p):

MULTI PIP

Press repeatedly. Each time pressing this button main picture and sub picture will be displayed as follows below.

[Picture out Picture]

Main picture Sub picture Main picture Sub picture

Normal

Viewing

[Picture and Picture] [Picture in Picture]

Main picture Sub picture

A B

Press to swap main picture and sub picture.

PC1

VIDEO2

VIDEO2 VIDEO1

Sub picture label is changed

B A

Press to select the input mode. Under main Picture and sub picture display, select the picture which you would like to change input modes.

Notes:

• The sub picture sound is heard while a sub picture operation is underway.

• The sub picture operation automatically returns to the main picture operation if a sub picture operation has not been performed for about 5 seconds∗ or if any of the remote control buttons is pressed (except button).

When selecting a slot that Dual HDMI Terminal

∗

Board (TY-FB10HMD) is installed, the time period becomes longer than 5 seconds.

Press to change input signal.

Press to move the sub picture. Each time the location of the sub picture will be moved.

Notes:

• This button is effective only in the picture in picture.

• The sub picture may be hidden by the on screen display, depending on its position.

Main picture label is changed

[Example]

Main picture label is bright Sub picture label is bright

Input modes switching is possible

Picture is changed

PC1

VIDEO2

PC1

VIDEO2

Page 20

MULTI PIP

Advanced PIP

Notes:

• If “INPUT lock” in Options menu is set to other than “Off”, MULTI PIP function isn’t available.

• Sound output is from the picture which is selected in AUDIO OUT (PIP) (see page 26).

• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.

• The main picture and sub picture are processed by different circuits, resulting in a slight difference in the clarity of the pictures. There may also be a difference in the picture quality of the sub picture depending on the type of signals displayed on the main picture and depending on the 2-picture display mode.

• Due to the small dimensions of the sub pictures, these sub pictures cannot be shown in detail.

•

Computer screen picture is displayed in a simpliﬁ ed format, and it may not be possible to discern details on them satisfactorily.

•

Following combinations of two analog signals cannot be displayed simultaneously;

Component - Component, Component - PC (RGB), PC (RGB) - Component, PC (RGB) - PC (RGB)

Set “Advanced PIP” to “On” in Options menu. (see page 40)

Press repeatedly. Each time pressing this button main picture and sub picture will be displayed as follows.

One screen Advanced PIP

Sub screen Main screen

Notes:

• To use , , , buttons for the screen operations, follow the procedures in the previous page.

• , and buttons are invalid during Advanced PIP operation.

Page 21

INPUT MENU ENTER/+/VOL-/

Digital Zoom

This displays an enlargement of the designated part of the displayed image.

Display the operation guide.

Press to access Digital Zoom. The operation guide will be displayed.

During Digital Zoom, only the following buttons can be operated.

[Remote control]

Select the area of the image to be enlarged.

Press on the enlargement location to select.

SURROUND button

OFF TIMER button

VOL button

MUTE button

POSITION / ACTION button

The cursor will move.

EXIT

[Unit]

VOL button

Notes:

• When power goes OFF (including “Off Timer” operation), Digital Zoom terminates.

• The Digital Zoom function cannot be selected while in the following operation state: “Multi-viewer” (Picture in Picture, Picture out Picture, Picture and Picture) operation. (see page 19) When MULTI DISPLAY SETUP is ON (see page 32). When SCREENSAVER (except for NEGATIVE IMAGE) is running. (see page 28)

• While Digital Zoom is in operation, “Adjusting POS. /SIZE” cannot be used.

Select the magniﬁ cation required for the enlarged display.

Each time this is pressed, the magniﬁ cation factor changes. This is shown in the image being displayed.

× 1 × 2 × 3 × 4

Return to normal display (quit Digital Zoom).

Press to exit from the Digital Zoom.

EXIT

Page 22

On-Screen Menu Display

Remote Control Unit

Display the menu screen.

Press to select. (Example: PICTURE menu)

Each time the MENU button is pressed, the menu screen will switch.

Press several times.

Normal Viewing PICTURE

SET UP

Select the item.


NORMALIZE

PICTURE MENU PICTURE BRIGHTNESS COLOR TINT SHARPNESS

Set.

NORMAL

STANDARD

0 0 0 5

1/2

( Example:

PICTURE menu)

Select.

Set.

SOUND POS. /SIZE

Select.

Press.

Set.

Press.

Exit the menu.

Press several times.

Press.

Press to return to the previous menu.

Overview

Note: Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.

POS. /SIZE

NORMALIZE

AUTO SETUP

NORMAL

H-POS H-SIZE V-POS V-SIZE DOT CLOCK CLOCK PHASE

(see page 23)


COLOR TEMP COLOR MANAGEMENT

NORMALIZE

PICTURE MENU PICTURE BRIGHTNESS COLOR TINT SHARPNESS

NORMAL

ADVANCED SETTINGS

(see page 24, 25)

ADVANCED SETTINGS

W/B HIGH R W/B HIGH G W/B HIGH B W/B LOW R W/B LOW G W/B LOW B

NORMAL

NORMALIZE

BLACK EXTENSION INPUT LEVEL GAMMA AGC

(see page 24, 25)

0 0 0 0 0 0

NORMAL

OFF ON

STANDARD

0 0 0 5

0 0 0

2.2

OFF

1/2 PICTURE

1/2

2/2

SET UP

SIGNAL

SCREENSAVER

COMPONENT/RGB-IN SELECT

INPUT LABEL POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

DISPLAY ORIENTATION

PRESENT TIME SETUP

PRESENT TIME OF DAY MON 99:99

SET DAY PRESENT TIME OF DAY

RGB

PC OFF OFF OFF OFF

LANDSCAPE

MON 99:99

(see page 27)

SDI Sound Output

SOUND

Left Channel Right Channel Sound Out Level Meter

NORMAL

NORMALIZE

AUDIO MENU BASS MID TREBLE BALANCE SURROUND AUDIO OUT (PIP)

Channel 1 Channel 1

OFF

STANDARD

OFF

0 0 0 0

OFF

MAIN

(see page 26)

1/2

2/2 SET UP

1/2

)

2/2

SIGNAL

3D Y/C FILTER (NTSC) COLOR SYSTEM 3 : 2 PULLDOWN Panasonic AUTO (4 : 3) REFRESH RATE NOISE REDUCTION

(see page 35-37)

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

SCROLLING BAR ONLY

(see page 28-29)

MULTI DISPLAY SETUP

MULTI DISPLAY SETUP HORIZONTAL SCALE VERTICAL SCALE SEAM HIDES VIDEO LOCATION AI-SYNCHRONIZATION

(see page 32, 33)

SET UP TIMER

PRESENT TIME OF DAY 99:99

POWER ON FUNCTION POWER ON TIME POWER OFF FUNCTION POWER OFF TIME

(see page 27)

[

AUTO

OFF

4:3

100 Hz

OFF

TIME OF DAY

6:15

12:30

BRIGHT

OFF OFF

OFF

× 2 × 2

OFF

OFF 0:00 OFF 0:00

VIDEO

]

Page 23

Adjusting POS. /SIZE

Press to display the POS. /SIZE menu.

Press to select the menu to adjust.

Press to adjust the menu.

During “VIDEO (S VIDEO)”, “Digital”, “SDI” and “HDMI” input signal.

POS. /SIZE

H-POS H-SIZE V-POS V-SIZE

NORMAL

0 0 0 0

NORMALIZE

AUTO SETUP

During “COMPONENT”, “RGB” and “PC” input signal.

POS. /SIZE

NORMAL

H-POS H-SIZE V-POS V-SIZE DOT CLOCK CLOCK PHASE

0 0 0 0 0 0

Press to exit from adjust mode.

Notes:

• Unadjustable items are grayed out. Adjustable items differ depending on the input signal and the display mode.

NORMALIZE

AUTO SETUP

• Adjustment details are memorized separately for different input signal formats. (Adjustments for component signals are memorized for 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 1125 (1080) / 60i · 50i · 60p · 50p · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC/Digital signals are memorized for each frequency.)

• If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture position will shift up or down. This picture position movement cannot be controlled by the POS. /SIZE function.

• If adjusting the PICTURE V-POS / V-SIZE in Panasonic AUTO with FULL mode, the adjustment is not memorized. When exiting the mode, the screen will return to a former adjustment.

AUTO SETUP

Automatically adjust H-POS / V-POS / CLOCK PHASE / DOT CLOCK and set H-SIZE / V-SIZE the standard value when RGB signal is input.

Notes:

• If the dot clock frequency is 108 MHz or higher, DOT CLOCK cannot be made.

• If the image is that the edge is hardly ﬁ gured out or shadowy, that cannot be adjusted automatically. In such case, press AUTO SETUP again after changing the image to the clearer one.

• When DVI-D is input, CLOCK PHASE cannot be adjusted automatically.

• Select NORMALIZE in POS. /SIZE and press the ACTION ( ) button when appropriate adjustment cannot be made.

H-POS Adjust the horizontal position. V-POS Adjust the vertical position.

H-SIZE Adjust the horizontal size. V-SIZE Adjust the vertical size.

DOT CLOCK

(During “COMPONENT”, “RGB” and “PC” input signal)

Periodic striped pattern interference (noise) may occur when a striped pattern is displayed. If this happens, adjust so that any such noise is minimized.

CLOCK PHASE

(During “COMPONENT”, “RGB” and “PC” input signal)

Eliminate the ﬂ ickering and distortion.

Helpful Hint ( /

NORMALIZE

Normalization)

While the POS. /SIZE display is active, if either the N button on the remote control is pressed at any time or the ACTION ( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

Page 24

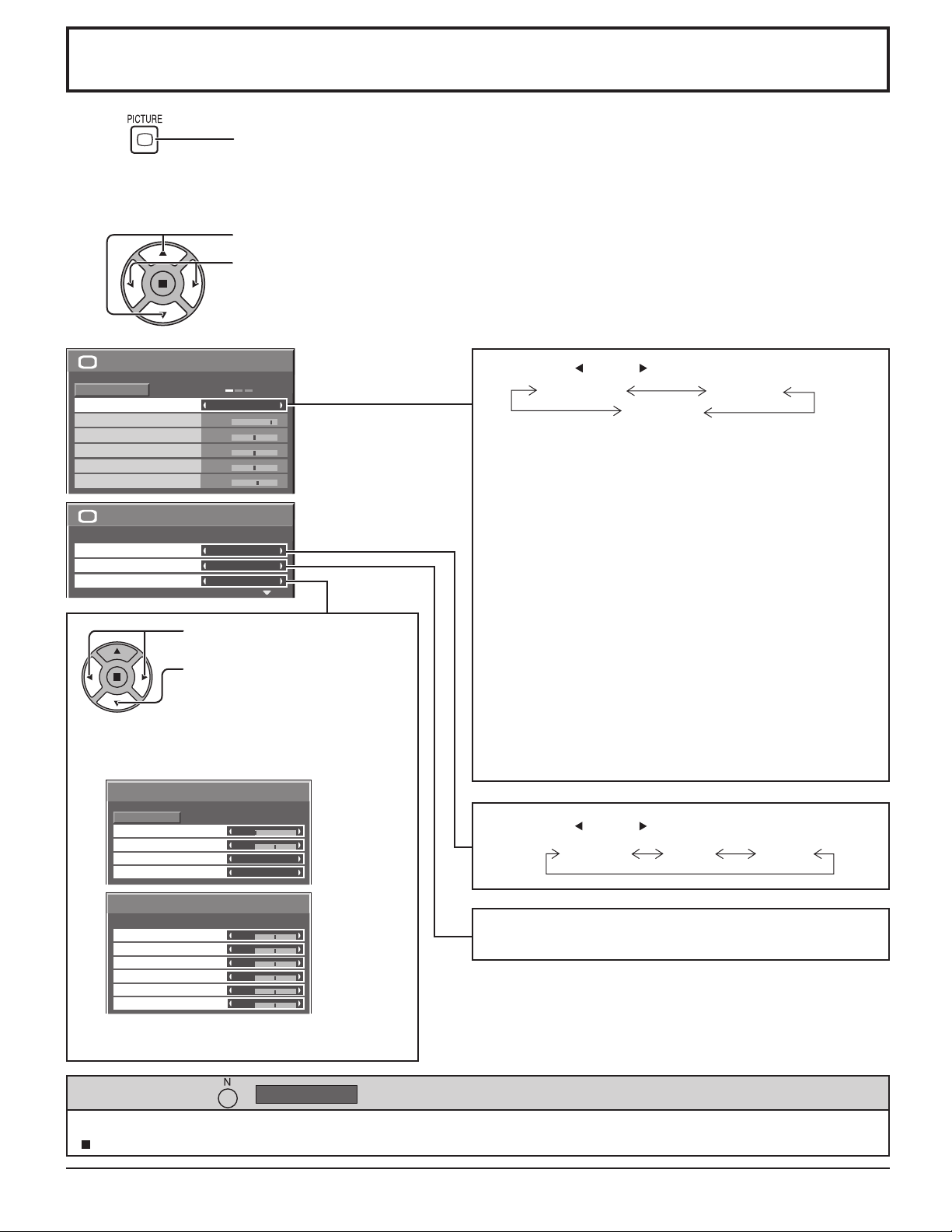

PICTURE Adjustments

Select to adjust each item.


NORMALIZE

PICTURE MENU PICTURE BRIGHTNESS COLOR TINT SHARPNESS


COLOR TEMP COLOR MANAGEMENT ADVANCED SETTINGS

NORMAL

Press to display the PICTURE menu.

Press to select the menu to adjust.

Select the desired level by looking at the picture behind the menu.

Note:

Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.

1/2

STANDARD

0 0 0 5

Press the left or right button to switch between modes.

STANDARD

For viewing in standard (evening lighting) environments. This menu selects the normal levels of BRIGHTNESS and PICTURE.

2/2

DYNAMIC

NORMAL

OFF

For viewing in brighter environments. This menu selects higher than normal levels of BRIGHTNESS and PICTURE.

DYNAMIC

CINEMA

Press to select “ON”.

Press to enter Advanced Settings.

ADVANCED SETTINGS ON Enables ﬁ ne picture adjustment at a professional level (see next page).

ADVANCED SETTINGS

NORMALIZE

BLACK EXTENSION INPUT LEVEL GAMMA AGC

ADVANCED SETTINGS

W/B HIGH R W/B HIGH G W/B HIGH B W/B LOW R W/B LOW G W/B LOW B

NORMAL

1/2

0 0

2.2

OFF

2/2

0 0 0 0 0 0

ADVANCED SETTINGS OFF Displays images with settings of the PICTURE menu.

CINEMA

Ideal for movies.

Note:

If you would like to change the picture and color of the

selected PICTURE menu to something else, adjust using the items in the PICTURE menu. (see next page)

Press the left or right button to switch between modes.

NORMAL COOL WARM

COLOR MANAGEMENT ON Enables vivid color adjustment automatically.

Helpful Hint ( /

NORMALIZE

Normalization)

While the “PICTURE” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION ( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

Page 25

PICTURE Adjustments

Item Effect Adjustments


BRIGHTNESS

COLOR

TINT

SHARPNESS

Less More

Darker Brighter

Less More

Reddish Greenish

Less More

Adjusts the proper picture contrast.

Adjusts for easier viewing of dark pictures such as night scenes and black hair.

Adjusts color saturation.

Adjusts for natural ﬂ esh tones.

Adjusts picture sharpness.

ADVANCED SETTINGS

Item Effect Details

BLACK

EXTENSION

INPUT

LEVEL

Less More

Adjusts the dark shades of the image in gradation.

Adjustment of parts which are extremely bright and hard to see. (This cannot be adjusted when the input signal is Digital.)

Notes:

• “COLOR” and “TINT” settings cannot be adjusted for “RGB/PC” and “Digital” input signal.

•

You can change the level of each function

(PICTURE, BRIGHTNESS, COLOR, TINT, SHARPNESS) for each PICTURE MENU.

• The setting details for STANDARD, DYNAMIC and CINEMA respectively are memorized separately for each input terminal.

• The “TINT” setting can be adjusted for NTSC signal only during “VIDEO (S VIDEO)” input signal.

• In PICTURE, there is not a noticeable change even when contrast is increased with a bright picture or reduced with a dark picture.

GAMMA

AGC

W/B HIGH R

W/B HIGH G

W/B HIGH B

W/B LOW R

W/B LOW G

W/B LOW B

Notes:

• Carry out “W/B” adjustment as follows. Adjust the white balance of the bright sections using the “W/B HIGH R” , “W/B HIGH G” and “W/B HIGH B” settings.

2. Adjust the white balance of the dark sections using the “W/B LOW R” , “W/B LOW G” and “W/B LOW B” settings.

3. Repeat steps 1 and 2 to adjust.

Steps 1 and 2 affect each other’s settings, so repeat each step in turn to make the adjustment.

• The adjustment values are memorized separately for each input terminal.

• The adjustment range values should be used as an adjustment reference.

Down Up

OFF ON

Less More

S CURVE 2.0 2.2 2.5

Increases the brightness of dark signal automatically.

Adjusts the white balance for light red areas.

Adjusts the white balance for light green areas.

Adjusts the white balance for light blue areas.

Adjusts the white balance for dark red areas.

Adjusts the white balance for dark green areas.

Adjusts the white balance for dark blue areas.

Helpful Hint ( /

On the remote control unit, while the “ADVANCED SETTINGS” menu is displayed, if either the N button is pressed at any time or the ACTION ( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

NORMALIZE

Normalization)

Page 26

SOUND Adjustment

Select to adjust each item.

Press to display the SOUND menu.

Press to select the menu to adjust.

Select the desired level by listening to the sound.

Press to exit from adjust mode.

Item Details

AUDIO MENU

BASS Adjusts low pitch sounds.

MID Adjusts normal sounds.

TREBLE Adjusts pitch sound.

BALANCE Adjusts left and right volumes.

SURROUND Select ON or OFF.

AUDIO OUT (PIP)

STANDARD: Emits the original sound. DYNAMIC: Accentuates sharp sound. CLEAR: Attenuates human voice.

MAIN: Selects main picture sound. SUB: Selects PIP frame sound.

INPUT1

SOUND

NORMALIZE

AUDIO MENU BASS MID TREBLE BALANCE SURROUND AUDIO OUT (PIP)

INPUT1

1/2

NORMAL

STANDARD 0 0 0 0

OFF

MAIN

Musical note ♪ is displayed on right side of the audio output screen label.

Note: BASS, MID, TREBLE and SURROUND settings are memorized separately for each AUDIO MENU.

Helpful Hint ( /

NORMALIZE

Normalization)

While the “SOUND” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION ( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

SDI Sound Output

This menu is displayed when HD-SDI Terminal Board with audio (TY-FB10HD) is installed to the unit.

SDI Sound Output

Left Channel Right Channel Sound Out Level Meter

2/2

Channel 1 Channel 1

OFF OFF

Notes:

• This menu is available only when selecting a slot that HD-SDI Terminal Board with audio (TY-FB10HD) is installed.

• This menu is unavailable when 2-picture display mode is active.

Item Details

Left Channel

Right Channel

Sound Out

Level Meter

Channel 1 to Channel 16

Selects left audio channel.

Channel 1 to Channel 16

Selects right audio channel.

ON OFF ON: Enables audio output. OFF: Disables audio output.

OFF 1-8ch 9-16ch

Sets audio channels to show in the audio level meter. 8 channels are displayed in the audio level meter; 4 channels each on both right and left sides of the display.

OFF: Hides the audio level meter. 1-8ch: Displays the audio level meter (1-8ch) 9-16ch

: Displays the audio level meter (9-16ch)

Page 27

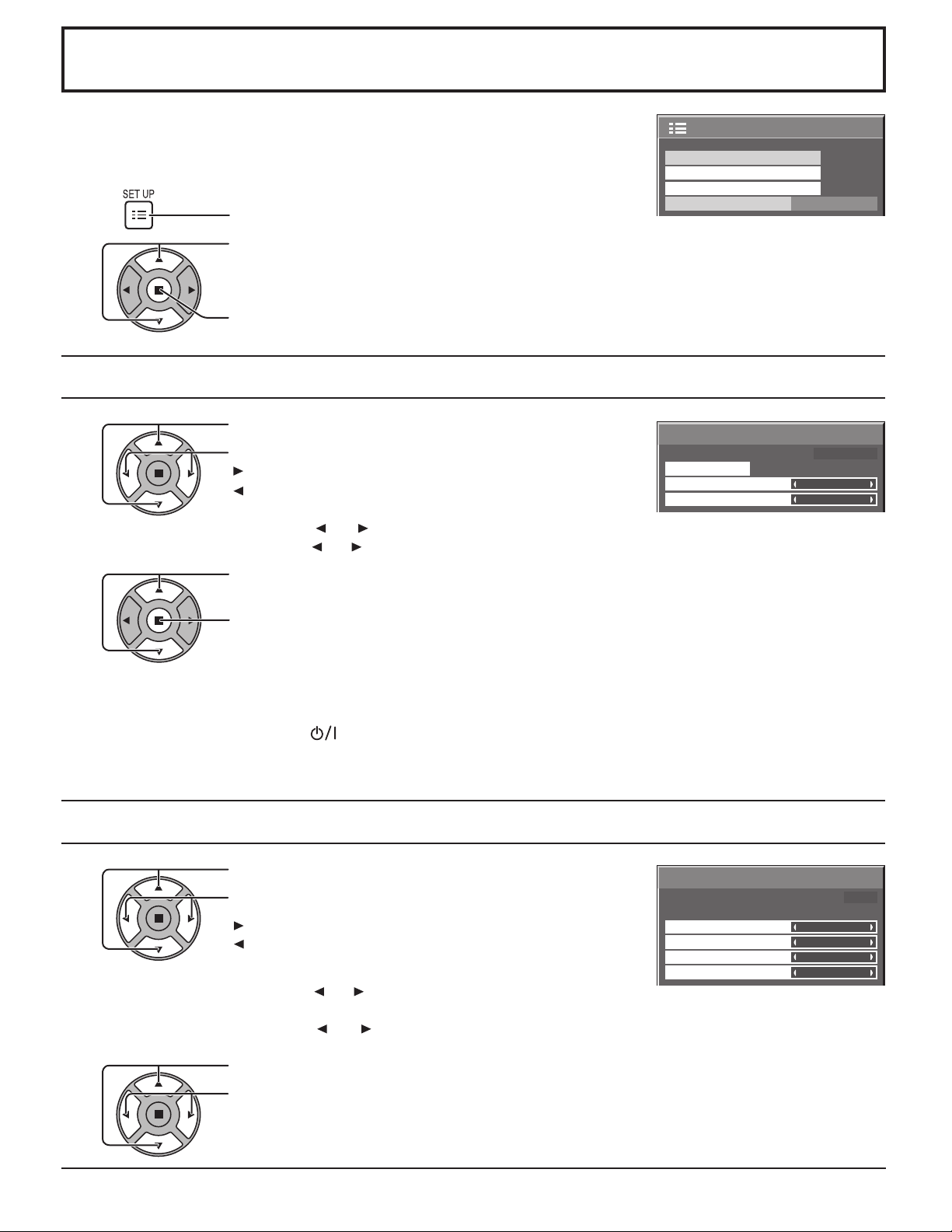

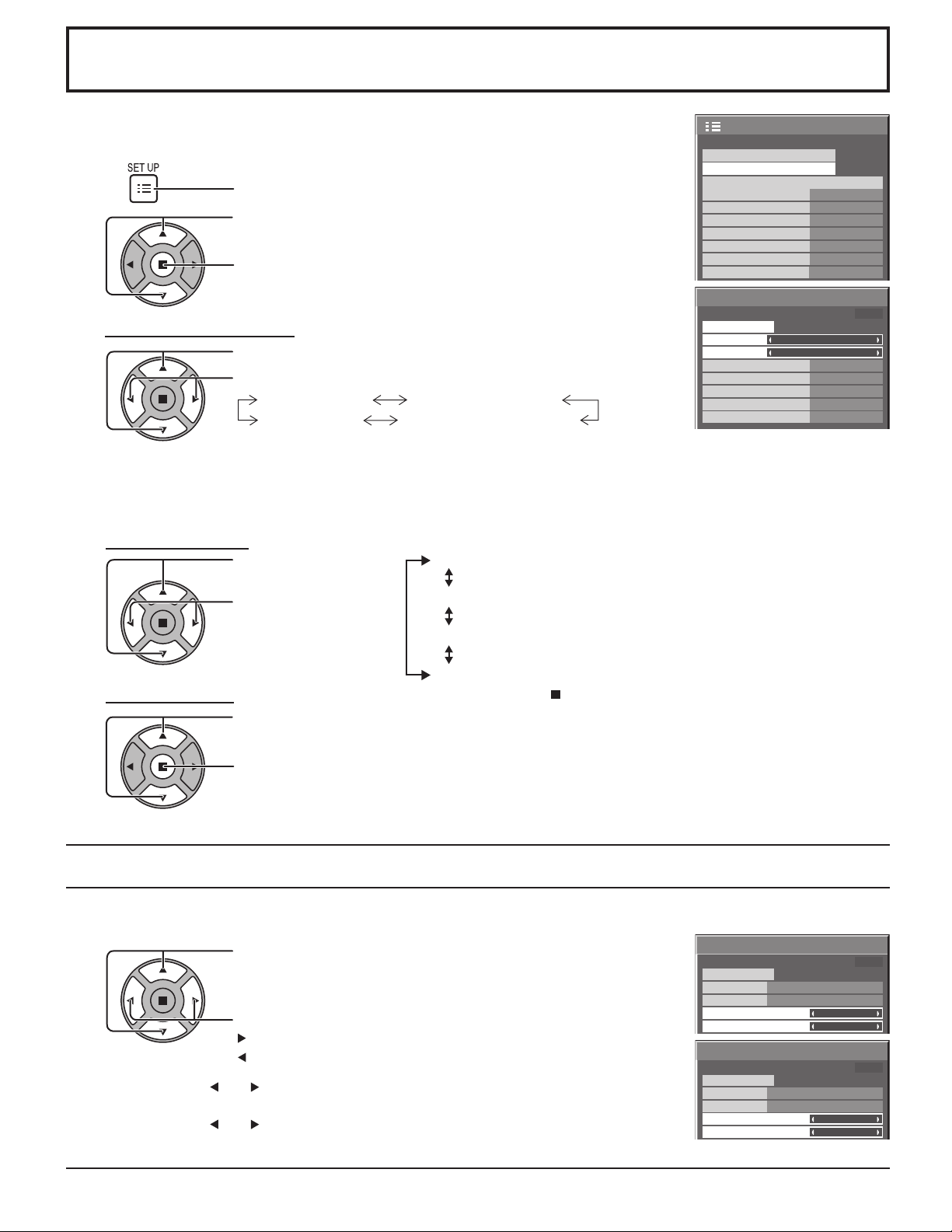

PRESENT TIME SETUP / SET UP TIMER

The timer can switch the Plasma Display ON or OFF.

Before attempting Timer Set, conﬁ rm the PRESENT TIME OF DAY and adjust if necessary. Then set POWER ON TIME / POWER OFF TIME.

Press to display the SET UP menu.

Press to select SET UP TIMER or PRESENT TIME SETUP.

Press to display the SET UP TIMER screen or PRESENT TIME SETUP screen.

PRESENT TIME SETUP

Press to select DAY or PRESENT TIME OF DAY.

Press to set up DAY or PRESENT TIME OF DAY.

button: Forward button: Back

Notes:

• Pressing “ ” or “ ” button once changes PRESENT TIME OF DAY 1 minute.

• Pressing “ ” or “ ” button continuously changes PRESENT TIME OF DAY by 15 minutes.

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

DISPLAY ORIENTATION

PRESENT TIME SETUP

PRESENT TIME OF DAY MON 99:99

SET DAY PRESENT TIME OF DAY

LANDSCAPE

MON 99:99

2/2 SET UP

Press to select SET.

Press to store PRESENT TIME SETUP.

Notes:

• SET cannot be selected unless PRESENT TIME OF DAY is set.

• Unless setting the present time other than “99:99”, DAY setting is invalid.

• The settings of “DAY” and “PRESENT TIME OF DAY” are reset when leaving the display turned

Pressing Disconnecting the AC cord. Interruption of power supply.

SET UP TIMER

Press to select POWER ON TIME / POWER OFF TIME.

Press to set up POWER ON TIME / POWER OFF TIME.

Notes:

• Pressing “ ” or “ ” button once changes POWER ON TIME

• Pressing “ ” or “ ” button continuously changes POWER ON TIME / POWER OFF

Press to select POWER ON FUNCTION / POWER OFF FUNCTION.

Press to select ON.

off for about 7 days for the following reasons:

switch of the unit to turn off the display.

button: Forward button: Back

/ POWER OFF TIME 1 minute.

TIME by 15 minutes.

SET UP TIMER

PRESENT TIME OF DAY 99:99

POWER ON FUNCTION POWER ON TIME POWER OFF FUNCTION POWER OFF TIME

OFF 0:00 OFF 0:00

Note:

Timer function will not work unless “PRESENT TIME OF DAY” is set.

Page 28

SCREENSAVER (For preventing image retention)

Do not display a still picture, especially in 4:3 mode, for any length of time. If the display must remain on, a SCREENSAVER should be used.

Press to display the SET UP menu.

Press to select the SCREENSAVER.

Press to select the SCREENSAVER screen.

FUNCTION selection

Press to select the FUNCTION.

Press to select the desired function.

SCROLLING BAR ONLY

OVERLAY SCROLLING BAR

A white bar will scroll from left to right. The image won't be displayed.

The brightness of the image will be decreased and a white bar will scroll on it.

Off

INTERVAL : Operates when SHOW DURATION and SAVER

DURATION are set up and those times arrive.

TIME OF DAY : Operates when START TIME and FINISH TIME are

set up and those times arrive.

ON : Operates when START is selected and the ACTION

( ) button is pressed.

MODE selection

START setting

NEGATIVE IMAGE WHITE SCREEN

NEGATIVE IMAGE : A negative image will be displayed on the screen. SCROLLING BAR ONLY : OVERLAY SCROLLING BAR WHITE SCREEN : The whole screen will be white. Note: OVERLAY SCROLLING BAR is not effective during two screen display.

Press to select the MODE. Press to select each mode items.

When the MODE is set to ON, press to select START.

SET UP

SIGNAL

SCREENSAVER

COMPONENT/RGB-IN SELECT

INPUT LABEL POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

SCROLLING BAR ONLY

RGB

PC OFF OFF OFF OFF

OFF

6:15

12:30

BRIGHT

OFF OFF

1/2

)

Press to start SCREENSAVER. The menu screen will disappear and the SCREENSAVER will be activated. To stop the

SCREENSAVER under ON, press the R button or any buttons on the main unit. Note: When the display is turned off, the SCREENSAVER will be deactivated.

Setup of SCREENSAVER Time

After selecting TIME OF DAY or INTERVAL, the relevant Time Setup will become available for selection and the Operating Time may be set. (Time cannot be set when “MODE” is “ON” or “OFF”.)

SCREENSAVER

PRESENT TIME OF DAY 15:00

START FUNCTION MODE START TIME FINISH TIME

SCREENSAVER

START FUNCTION MODE SHOW DURATION SAVER DURATION

SCROLLING BAR ONLY

PRESENT TIME OF DAY 15:00

SCROLLING BAR ONLY

TIME OF DAY

6:15

12:30

INTERVAL

12:00

3:00

Press to select START TIME / FINISH TIME (When TIME OF DAY is selected). Press to select SHOW DURATION / SAVER DURATION (When INTERVAL is selected). Press to setup.

button: Forward

Notes:

button: Back

• Pressing “ ” or “ ” button once changes the Time 1 minute. [However, switching occurs every 15 minutes when Periodic Time is selected.]

• Pressing “ ” or “ ” button continuously changes the Time by 15 minutes.

Note: Timer function will not work unless “PRESENT TIME OF DAY” is set.

Page 29

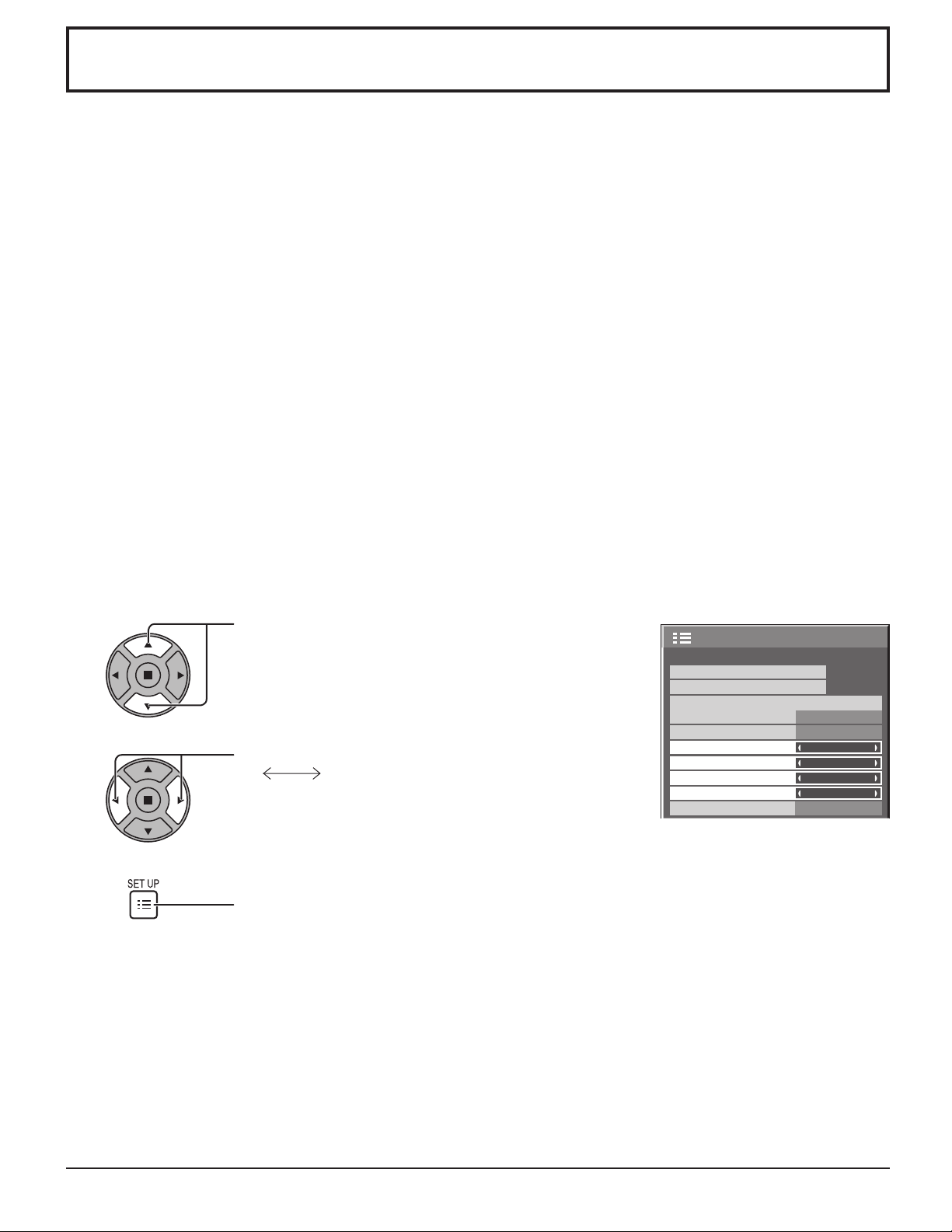

SCREENSAVER (For preventing image retention)

Reduces screen image retention

These functions prevent the occurrence of an “image retention” on the display when turned ON.

WOBBLING: Automatically shifts the display image (therefore unnoticeable to the eye) to prevent image retention of

sharper contour of image. ON1: Shifts the image every 30 seconds.

ON2: Shifts the image at a dot level pitch depending on screen-detection. PEAK LIMIT: Suppresses image contrast (peak brightness). Note:

When a still picture is viewed for an extended time, the screen may become slightly darker. (see page 44)

Press to select “WOBBLING” or “PEAK LIMIT”.

Press to select “ON1”, “ON2” or “OFF” (WOBBLING).

“ON” or “OFF” (PEAK LIMIT).

SIDE BAR ADJUST

Do not display a picture in 4:3 mode for an extended period, as this can cause an image retention to remain on the side bars on either side of the display ﬁ eld. To reduce the risk of such an image retention, illuminate the side bars.

This function may be applicable to the non-picture area.

side bars

4:3 mode

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

Non picture area

SCROLLING BAR ONLY

OFF

6:15

12:30

BRIGHT

OFF OFF


retention

Picture out Picture Picture and Picture

Press to select the SIDE BAR ADJUST.

Press to select OFF, DARK, MID, BRIGHT.

OFF MID BRIGHTDARK

Press to exit from SCREENSAVER.

SCREENSAVER

PRESENT TIME OF DAY 99:99

START FUNCTION MODE START TIME FINISH TIME SIDE BAR ADJUST WOBBLING PEAK LIMIT

SCROLLING BAR ONLY

OFF

6:15

12:30

BRIGHT

OFF OFF

Notes:

• To reduce the occurrence of image retention, set the SIDE BAR ADJUST to BRIGHT.

• The side bar may ﬂ ash (alternate black/white) depending on the picture being shown on the screen. Using Cinema mode will reduce such ﬂ ashing.

Page 30

Reduces power consumption

• POWER SAVE: When this function is turned ON, luminous level of the Plasma Display is suppressed, so power consumption is reduced.

• STANDBY SAVE: When this function is turned ON, power consumption of the microcomputer is reduced during power supply standby (see page 13, 16, 17), so standby power of the set is reduced.

• POWER MANAGEMENT: When this function is set to ON, it operates under the following conditions to turn the power on or off automatically.

When no pictures (sync signals) are detected for 30 or so seconds during PC IN signal

input:

→ Power is turned off (standby); the power indicator lights up orange. The power is not turned off when the SYNC ON G sync signal has been detected. When pictures (sync signals) are subsequently detected: → Power is turned on; the power indicator lights up green. The power is not turned on when only the SYNC ON G sync signal has been

detected.

Notes:

• This function operates only during PC IN signal input.

• This function is invalid during input from PC Input Terminal Board (TY-42TM6P).

• This function is effective when “SYNC” is set to “AUTO”, “COMPONENT / RGB-IN SELECT”

is set to “RGB” and during normal viewing (one picture screen).

• AUTO POWER OFF: Equipment power supply is turned OFF when there is no signal.

When this is set to On, the power supply of the unit goes Off 10 minutes after the input

signals stop.

Notes:

• This function operates only during PC IN signal input.

• This function is effective when “SYNC” is set to “AUTO”, “COMPONENT / RGB-IN SELECT”

is set to “RGB” and during normal viewing (one picture screen).

Press to select “POWER SAVE” “STANDBY SAVE” “POWER MANAGEMENT” “AUTO POWER OFF”.

Press to select “ON” or “OFF”. On Off

Press to exit from SET UP.

SET UP

SIGNAL

SCREENSAVER

COMPONENT/RGB-IN SELECT

INPUT LABEL POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

1/2

RGB

PC OFF OFF OFF OFF

)

Page 31

Customizing the Input labels

This function can change the label of the Input signal to be displayed. Select the input signal which you would like to change its label before customizing the Input labels. (see page 15, 17)

Press to select INPUT LABEL.

Press to change the INPUT LABEL.

Note:

While selecting a Input signal through Optional Terminal Board connected to Slot 1,

SET UP

SIGNAL

SCREENSAVER

COMPONENT/RGB-IN SELECT

INPUT LABEL POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

1/2

RGB

PC OFF OFF OFF OFF

)

Slot 2 and Slot 3, the Input label will depend on each Optional Terminal Board.

INPUT LABELS for Slot 1, Slot 2, Slot 3 and Mini D-sub:

[Slot1 Input] INPUT1/VIDEO1/COMPONENT1/RGB1/DIGITAL1/PC1/DVD1/CATV1/VCR1/STB1 [Slot2 Input] INPUT2/VIDEO2/COMPONENT2/RGB2/DIGITAL2/PC2/DVD2/CATV2/VCR2/STB2 [Slot3 Input] INPUT3/VIDEO3/COMPONENT3/RGB3/PC3/DVD3/CATV3/VCR3/STB3 [PC (Mini D-sub) input] PC/COMPONENT/RGB/DVD/STB

When BNC Dual Video Terminal Board (TY-FB9BD) is used, an “A” or “B” is added at the end of each input label, depending on the input selected (see below).

Addition sign “A” “B” Selected Input Composite S VIDEO

DISPLAY ORIENTATION

Sets the fan control and the display style of on-screen menu for vertical installation.

Press to display the SET UP menu.

Press to select DISPLAY ORIENTATION.

Press to select “LANDSCAPE” or “PORTRAIT”.

Press to exit from adjust mode

SET UP TIMER

2/2 SET UP

LANDSCAPE

MULTI DISPLAY SETUP

PRESENT TIME SETUP

DISPLAY ORIENTATION

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

DISPLAY ORIENTATION

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

DISPLAY ORIENTATION

2/2 SET UP

PORTRAIT

2/2 SET UP

LANDSCAPE

LANDSCAPE PORTRAIT

Fan control for horizontal installation. Fan control for vertical installation. On-screen menu will be rotated

90 degrees counterclockwise to be suitable for the setting.

Notes:

• Turn up the power switch for the upward direction when you set Display vertically.

• Fan control will be switched when turning on the unit next time.

Page 32

SET UP for MULTI DISPLAY

By lining up Plasma Displays in groups, for example, as illustrated below, an enlarged picture may be displayed across all screens.

For this mode of operation, each plasma display has to be set up with a Display number to determine its location.

(Example)

group of 16 (4 × 4)group of 4 (2 × 2) group of 9 (3 × 3)

How to setup MULTI DISPLAY

Press to display the SET UP menu.

Press to select the MULTI DISPLAY SETUP.

Press to display the “MULTI DISPLAY SETUP” menu.

Press to select the MULTI DISPLAY SETUP.

Press to select “ON” or “OFF”.

group of 25 (5 × 5)

MULTI DISPLAY SETUP

SET UP TIMER

PRESENT TIME SETUP

DISPLAY ORIENTATION

MULTI DISPLAY SETUP

MULTI DISPLAY SETUP HORIZONTAL SCALE VERTICAL SCALE SEAM HIDES VIDEO LOCATION AI-SYNCHRONIZATION

2/2 SET UP

LANDSCAPE

OFF

× 2 × 2

OFF

Item Details

MULTI DISPLAY SETUP Select “ON” or “OFF”.

HORIZONTAL SCALE Select “× 1”, “× 2”, “× 3”, “× 4”, “× 5”.

VERTICAL SCALE Select “× 1”, “× 2”, “× 3”, “× 4”, “× 5”.

Select “ON” or “OFF”.

SEAM HIDES VIDEO

Select the required arrangement number. (A1-E5 : Refer to the following)

To hide joints between displays.

Suitable for moving image display.

Display Number locations for each arrangement. (Examples)

( 2 × 1) ( 2 × 3 ) ( 4 × 4 )( 4 × 2 ) ( 5 × 5 )

LOCATION

To show joints between displays.

Suitable for still image display.

ON OFF

A1 A2 A3 A4 A5

B1 B2 B3 B4 B5

C1 C2 C3 C4 C5

D1 D2 D3 D4 D5

E1 E2 E3 E4 E5

Page 33

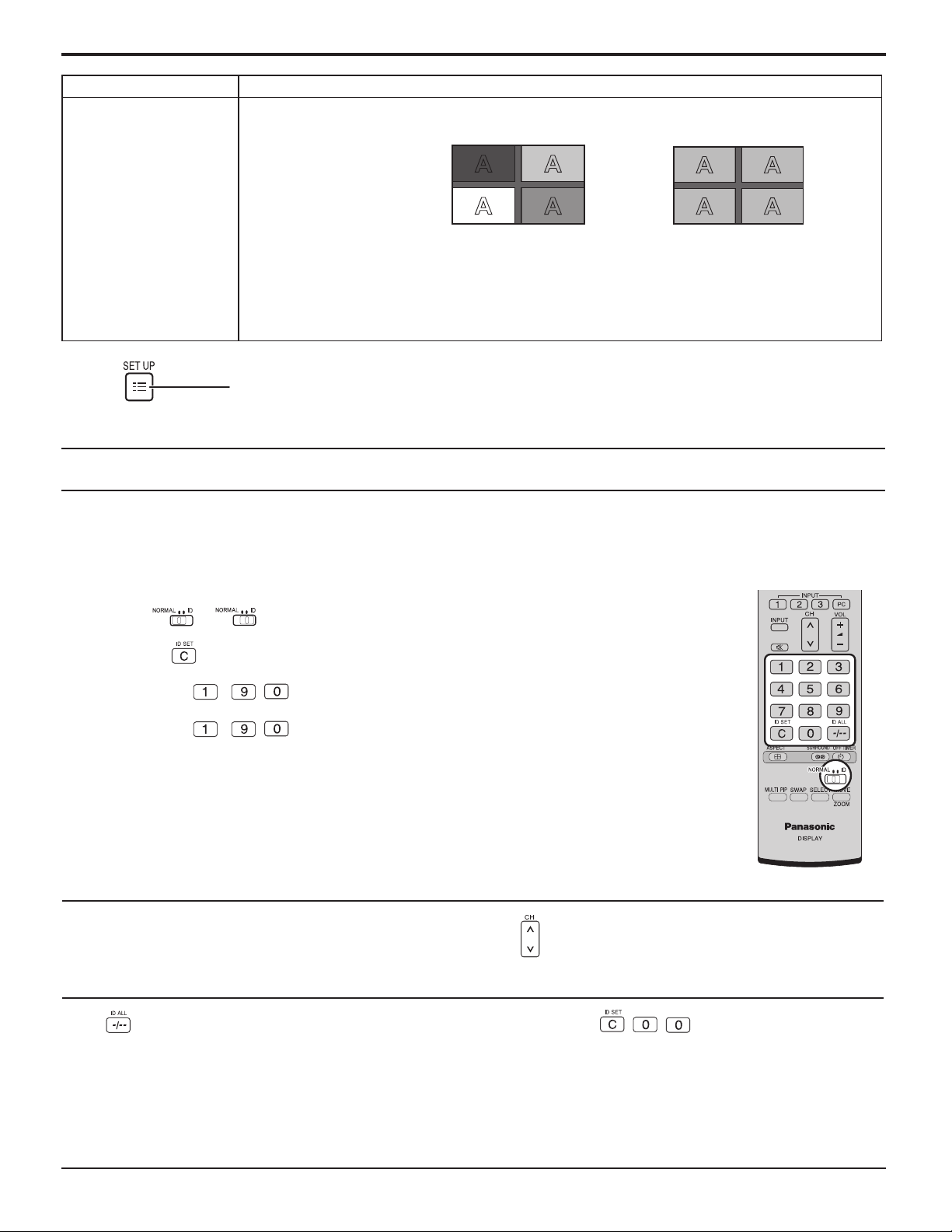

Item Details

AI-SYNCRONIZATION

SET UP for MULTI DISPLAY

Select “OFF” or “ON”.

Note:

If you set AI-SYNCRONIZATION to ON, the following menus will be unavailable and these settings will be ﬁ xed to the initial values. PICTURE menu: COLOR, TINT, INPUT LEVEL (ADVANCED SETTINGS)

The brightness depends on each

display’s setting.

OFF ON

Equalize the brightness of all the

displays.

Press to exit from adjust mode.

ID Remote Control Function

You can set the remote control ID when you want to use this remote control on one of several different displays.

Note:

To operate this function, please purchase ID remote controller sold separately. Object model : EUR7636070R

Switch to on the right side.

Press the button on the remote control.

Press one of - , for the tens digit setting.

Press one of - , for the units digit setting.

Notes:

• The numbers in 2, 3 and 4 should be set up quickly.

• Adjustable ID number range is 0 - 99.

• If a number button is pressed more than two times, the ﬁ rst two numbers become the ID number for the remote control.

ID remote control button operation

The operation is the same as normal remote control except for the button.

ID Cancellation

Press button on remote control. (This has the same effect as pressing the , , buttons at the same time.)

Notes:

• Set the Remote ID “On” to operate the ID remote control.

If remote ID is set to “On”, you can use the remote control without identical ID number during option menu display. (see page 40)

• The ID remote control cannot be used when ID select is set to anything other than 0, and the remote control ID is not the same as the ID select number (see page 40).

Page 34

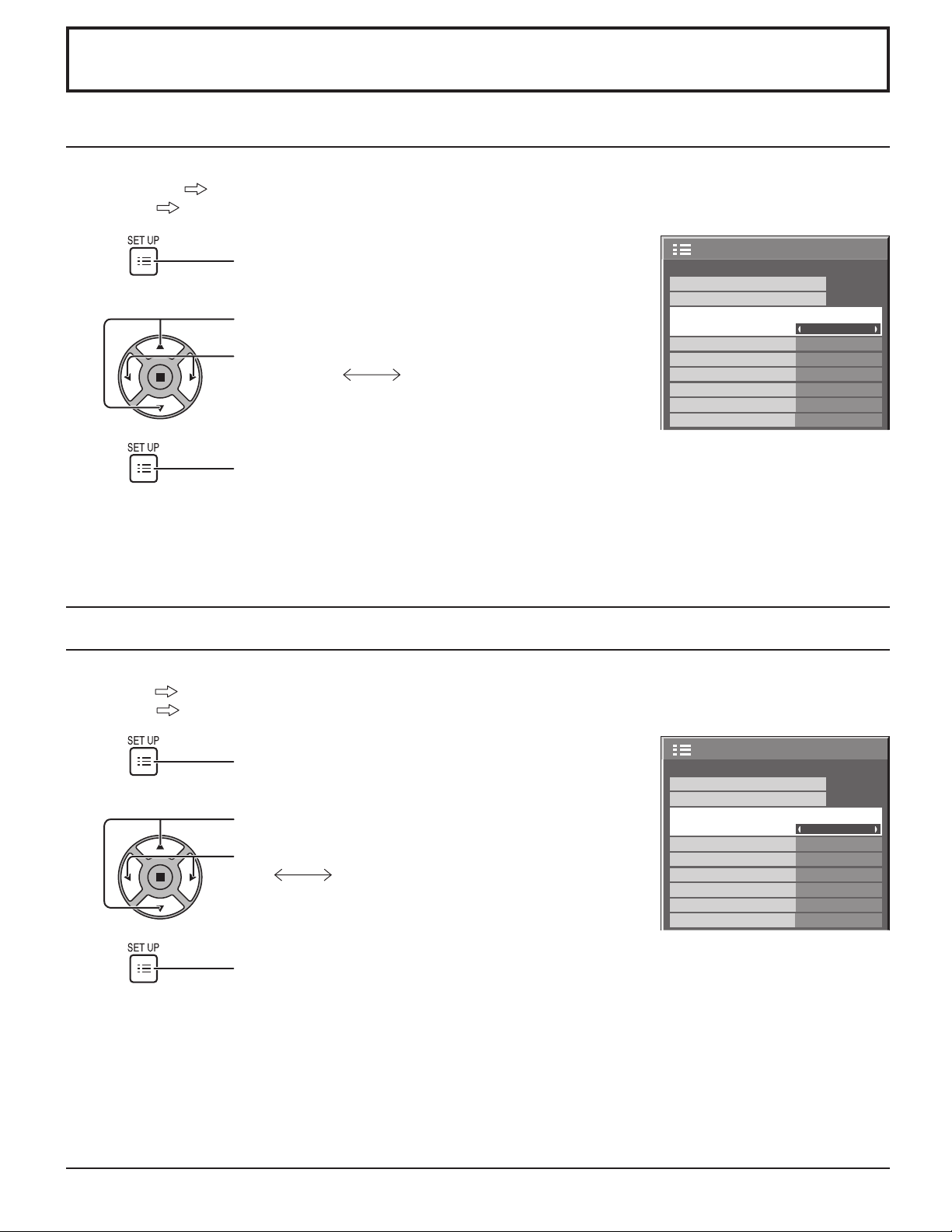

SET UP for Input Signals

COMPONENT / RGB IN SELECT

Select to match the signals from the source connected to the COMPONENT / RGB input terminals. Y, PB, PR signals “COMPONENT” RGB signals “RGB”

Press to display the SET UP menu.

Press to select the “COMPONENT / RGB-IN SELECT”.

Press to select the desired mode. COMPONENT RGB

Notes:

• Selection may not be possible, depending on which optional board is installed.

• Make setting of the selected input terminal (SLOT1, SLOT2, SLOT3 or PC IN).

Press to exit from adjust mode.

YUV / RGB IN SELECT

Select to match the signals from the source connected to the DVI input terminals. YUV signals “YUV” RGB signals “RGB”

SET UP

SIGNAL

SCREENSAVER

COMPONENT/RGB-IN SELECT

INPUT LABEL POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

1/2

RGB

PC OFF OFF OFF OFF

)

Press to display the SET UP menu.

Press to select the “YUV / RGB-IN SELECT”.

Press to select the desired mode. YUV RGB

Notes:

• Selection may not be possible, depending on which optional board is installed.

• Make setting of the selected input terminal (SLOT1 or SLOT2).

Press to exit from adjust mode.

SET UP

SIGNAL

SCREENSAVER

YUV/RGB-IN SELECT

INPUT LABEL POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

1/2

RGB

PC OFF OFF OFF OFF

)

Page 35

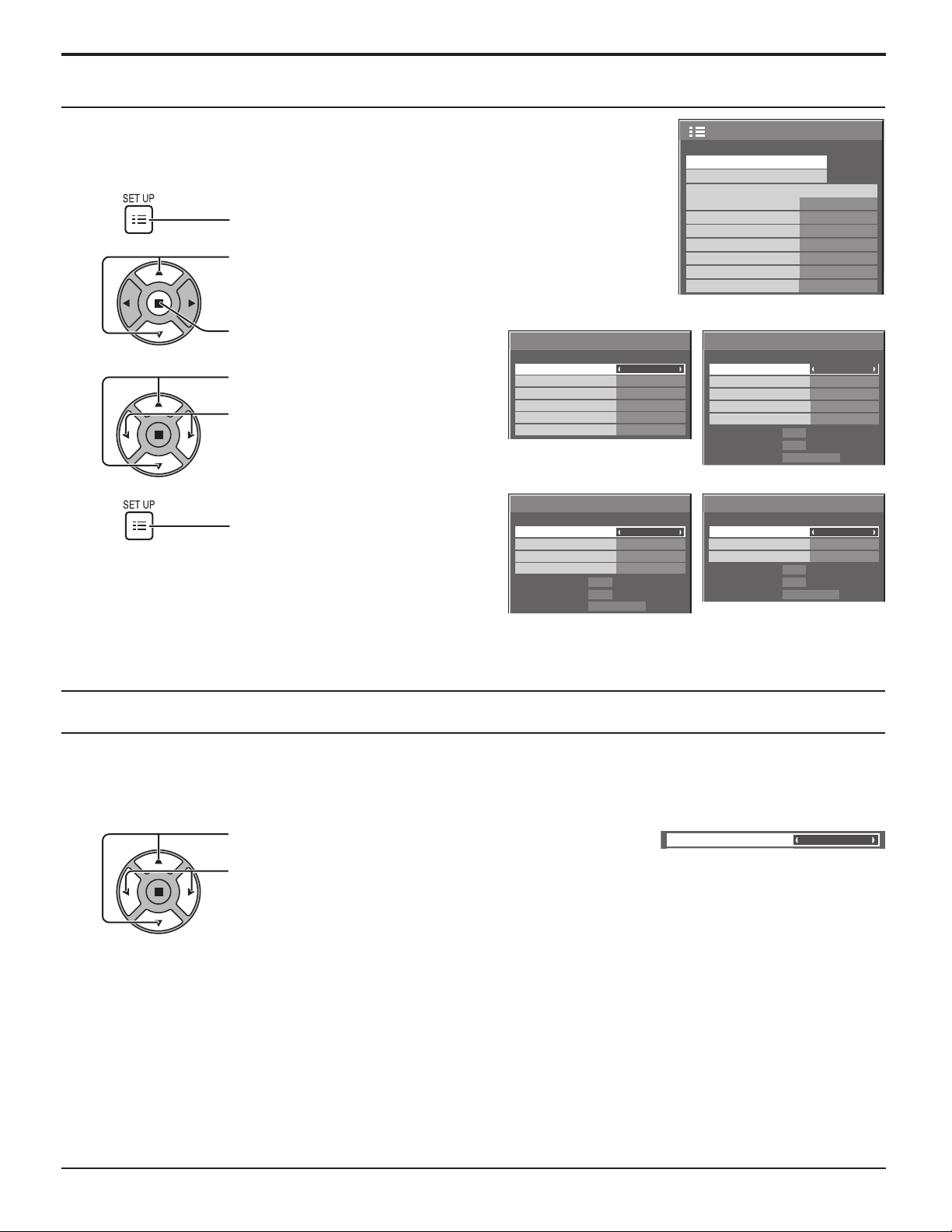

SIGNAL menu

SET UP for Input Signals

Note:

“SIGNAL” setup menu displays a different setting condition for each input signal.

Press to display the SET UP menu.

Press to select the “SIGNAL”.

For VIDEO (S VIDEO)

SIGNAL

3D Y/C FILTER (NTSC) COLOR SYSTEM 3 : 2 PULLDOWN Panasonic AUTO (4 : 3) REFRESH RATE NOISE REDUCTION

For COMPONENT For Digital

SIGNAL

3 : 2 PULLDOWN XGA MODE REFRESH RATE NOISE REDUCTION

H-FREQ.

63.98

V-FREQ.

SIGNAL FORMAT 1280×1024/60

60.02

Press to display the SIGNAL menu.

Press to select the menu to adjust.

Press to adjust the menu.

Press to exit from adjust mode.

[

VIDEO

AUTO

OFF

4:3

100 Hz

OFF

[

COMPONENT

OFF

1024 × 768

100 Hz

OFF

kHz

SET UP

SIGNAL

SCREENSAVER

COMPONENT/RGB-IN SELECT

INPUT LABEL POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

For RGB

]

SIGNAL

SYNC 3 : 2 PULLDOWN XGA MODE REFRESH RATE NOISE REDUCTION

H-FREQ.

V-FREQ.

SIGNAL FORMAT 1280×1024/60

]

SIGNAL

3 : 2 PULLDOWN REFRESH RATE NOISE REDUCTION

H-FREQ.

V-FREQ.

SIGNAL FORMAT 1280×1024/60

63.98

60.02

63.98

60.02

1024 × 768

kHz

RGB

PC OFF OFF OFF OFF

AUTO

OFF

100 Hz

OFF

[

OFF

100 Hz

OFF

1/2

[

RGB

Digital

)

]

3D Y/C FILTER – For NTSC AV images

Select “SIGNAL” from the “SET UP” menu during VIDEO (S VIDEO) input signal mode. (“SIGNAL [VIDEO]” menu is displayed.)

Press to select the “3D Y/C FILTER (NTSC)”.

Press to set ON / OFF.

Note:

When ON, this setting only affects NTSC input signals.

3D Y/C FILTER (NTSC)

Page 36

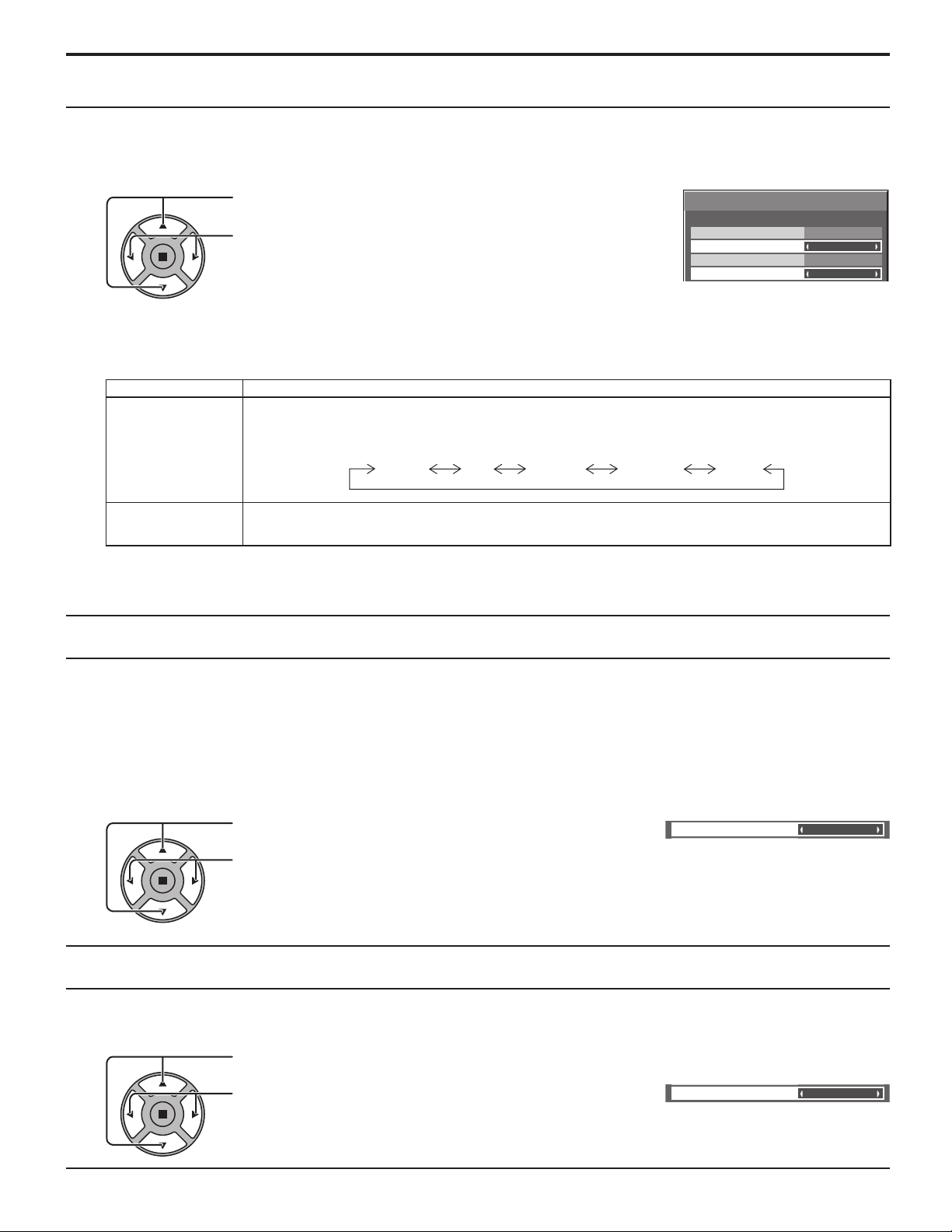

SET UP for Input Signals

COLOR SYSTEM / Panasonic AUTO

Select SIGNAL from the “SET UP” menu during VIDEO (S VIDEO) input signal mode.(“SIGNAL [VIDEO]” menu is displayed.)

Press to select the “COLOR SYSTEM” or “Panasonic AUTO”.

Press to select each function.

If the image becomes unstable:

SIGNAL

3D Y/C FILTER (NTSC) COLOR SYSTEM 3 : 2 PULLDOWN Panasonic AUTO (4 : 3)

With the system set on Auto, under conditions of low level or noisy input signals the image may in rare cases become unstable. Should this occur, set the system to match the format of the input signal.

Mode Function

COLOR SYSTEM

Set the color system to match the input signal. When selecting “AUTO”, the color system is automatically selected from NTSC/PAL/SECAM, however, M.NTSC signal is not displayed properly depending on the attached terminal board. To display M.NTSC signal, select “M.NTSC” in COLOR SYSTEM.

AUTO SECAM M.NTSC NTSCPAL

Panasonic AUTO (4 : 3 )

Set to “4:3” to view 4:3 images in an unchanged format when Panasonic AUTO is selected. If you would like to view 4:3 images in Just format, set to “JUST”.

Note:

Panasonic AUTO does not function when BNC Dual Video Terminal Board (TY-FB9BD) is used.

3:2 PULLDOWN

[

VIDEO

AUTO

OFF

4:3

]

3:2 PULLDOWN: When ON, the display attempts to reproduce a more natural interpretation of sources such as movie

pictures, which are recorded at 24 frames per second.

If the picture is not stable, turn the setting to OFF.

Notes:

When ON, this setting only affects the following signal input:

• NTSC / PAL signal input during “VIDEO (S VIDEO)” input signal.

• 525i(480i), 625i(575i), 1125(1080)/60i signal input during “COMPONENT” input signal.

Press to select “3:2 PULLDOWN”.

3 : 2 PULLDOWN

OFF

Press to set ON/OFF.

XGA MODE

This menu is displayed when the input signal is Analogue (Component/PC). It allows switching between different XGA signal settings for ﬁ eld angle/sampling.

Press to select “XGA MODE”.

Press to select “1024×768”, “1280×768” , “1366×768”.

XGA MODE

1024 × 768

Page 37

()

SET UP for Input Signals

REFRESH RATE

This function sets the refresh rate of the display. This menu is displayed when the input signal is 50 Hz system (50i, 50p, 25p, 24p, 24sF) of vertical scan rate.

100 Hz: Reduce screen ﬂ icker. 50 Hz: Enhance the resolution of moving images.

Note:

It is recommended to set to 100 Hz normally.

Press to select REFRESH RATE.

REFRESH RATE

Press to adjust.

NOISE REDUCTION

100 Hz

Sets the following three NR (Noise Reduction) functions together. VIDEO NR, MOSQUITO NR, BLOCK NR

Press to select “NOISE REDUCTION”.

Press to select “OFF”, “MIN”, “MID”, “MAX”, “ADVANCED”.

Advanced NR

Sets the three NR functions separately.

Press to select “ADVANCED”.

Press to enter ADVANCED NR.

Press to select VIDEO NR, MOSQUITO NR or BLOCK NR. Press to select “OFF”, “MIN”, “MID”, “MAX”.

ADVANCED NR

VIDEO NR MOSQUITO NR BLOCK NR

ADVANCED NR

VIDEO NR MOSQUITO NR BLOCK NR

[

VIDEO

OFF OFF OFF

[

COMPONENT

OFF OFF OFF

NOISE REDUCTION

]

ADVANCED NR

VIDEO NR MOSQUITO NR BLOCK NR

]

ADVANCED NR

VIDEO NR MOSQUITO NR BLOCK NR

OFF

ADVANCED

[

RGB

OFF OFF OFF

[

Digital

OFF OFF OFF

▼

]

VIDEO NR: Automatically reduces unwanted picture noise. MOSQUITO NR

: Reduces mosquito noise around subtitles on MPEG videos.

BLOCK NR: Reduces block noise when playing MPEG videos.

Notes:

• NOISE REDUCTION cannot be adjusted while a PC signal is being applied.

• BLOCK NR cannot be adjusted while a HD signal is being applied.

Page 38

SET UP for Input Signals

SYNC

Select SIGNAL from the “SET UP” menu during RGB input signal.

Press to select the “SYNC”.

Press to adjust.

Setting RGB sync signal

Conﬁ rm that the input is set to RGB INPUT (this setting is valid only for RGB INPUT signal).

AUTO: The H and V sync or synchronized signal are automatically selected.

If both input, it is selected the H and V sync.

ON G: Uses a synchronized signal on the Video G signal, which is input from

the G connector.

VBS: Uses a synchronized signal of Composite Sync input, which is input

from the HD connector.

SIGNAL

SYNC 3 : 2 PULLDOWN XGA MODE

SYNC

[

RGB

AUTO

OFF

1024 × 768

AUTO

ON G

VBS

]

Input signal display

Displays the frequency and the type of the current input signal.

This display is valid only for COMPONENT/RGB/PC and Digital input signal. Display range:

Horizontal 15 - 110 kHz Vertical 48 - 120 Hz

H-FREQ.

V-FREQ.

SIGNAL FORMAT 1280×1024/60

63.98

60.02

kHz

Page 39

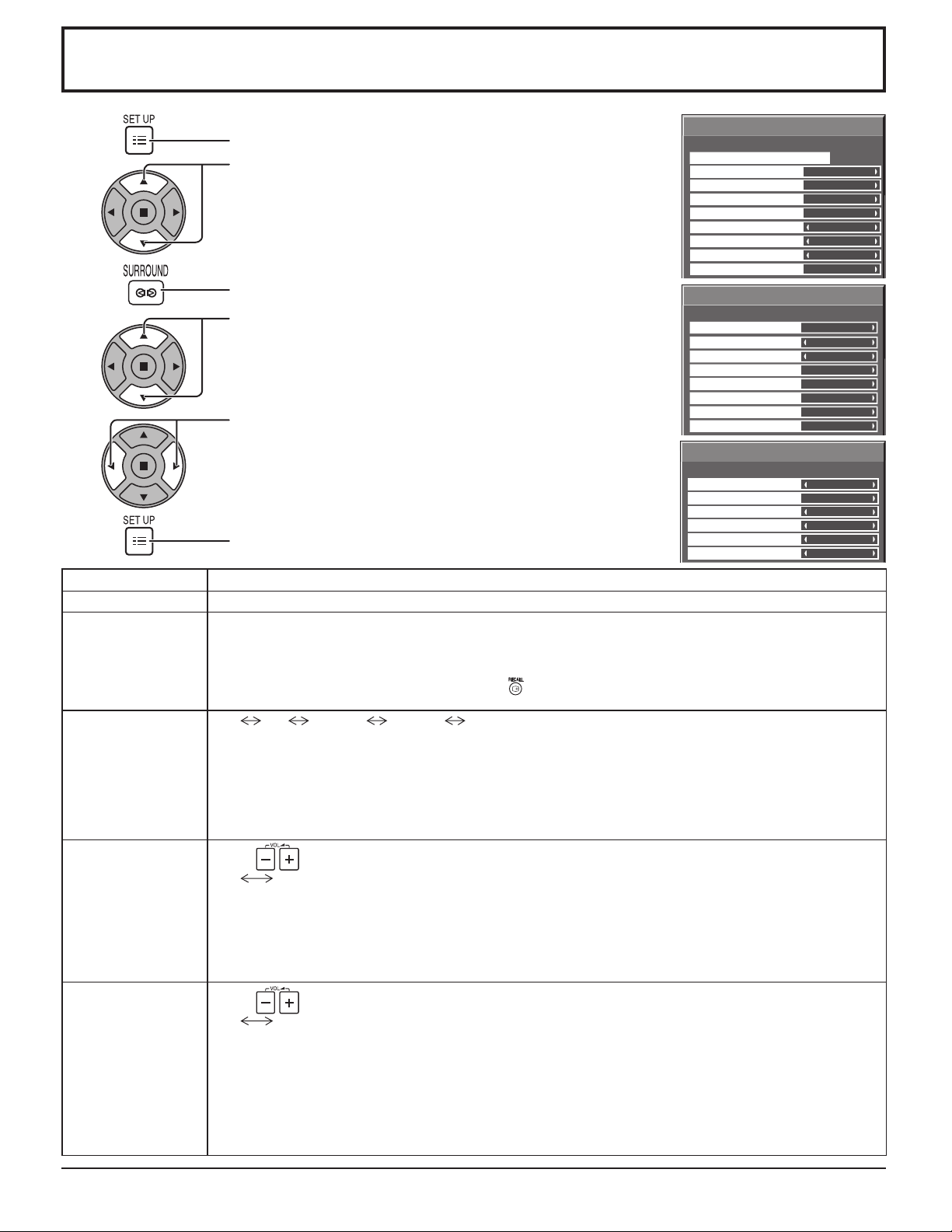

Options Adjustments

Press to display the Setup menu.

Press to select “OSD Language”.

Press and hold until the Options menu is displayed.

Press to select your preferred menu.

Press to adjust the menu.

Press to exit from Options menu.

Options

Weekly Command Timer

Onscreen display Initial INPUT

Initial VOL level

Maximum VOL level INPUT lock Button lock Remocon User level Advanced PIP

Options

Off-timer function

Initial Power Mode ID select Remote ID Serial ID Display size Studio W/B Studio Gain

Options

Slot power Power On Screen Delay Clock Display All Aspect Rotate Serial Slot Select

1/3

On O f f

Off00

Off

2/3

Enable

Normal

Off

3/3

O f f

Off Off Off Off

Slot1

Item Adjustments

Weekly Command Timer

Onscreen display

Initial INPUT

Initial VOL level

Maximum VOL level

Sets Weekly Command Timer. (see page 42)

On: Displays all the following on screen.

• Power on display

• Input signal switch display

• No signal display

• Mute and the remaining time of off-timer after

was pressed.

Off: Hides all the items above from view.

Off PC INPUT1 INPUT2 INPUT3

Adjusts the input signal when the unit is turned on.

Notes:

• Only the adjusted signal is displayed. (see page 15)

• Signal can be displayed when the Terminal board is installed.

• This menu is available only when “INPUT lock” is “Off”.

• When a dual input terminal board is attached, A or B is displayed depending on the selected input signal. (Ex. INPUT1A, INPUT1B)

Press

button to adjust the volume when the unit is turned on.

Off On Off: Sets normal volume. On: Sets your preferred volume. Notes:

•

When “Maximum VOL level” is “On”, the volume can only be adjusted between 0 and your maximum range.

• You can hear the changed volume regardless of your volume setting before opening the options menu if you adjust the volume when “Initial VOL level” is “On” and cursor is on the menu.

Press button to adjust the maximum volume.

Off On Off: Sets auto maximum volume. On: Sets your preferred maximum volume. Notes:

• If the “Maximum VOL level” is set lower than the “Initial VOL level”, the “Initial VOL level” automatically becomes the same as the “Maximum VOL level”.

• The volume display can go up to 63 regardless of the settings.

• You can hear the changed volume regardless of your volume setting before opening the options menu if you adjust the volume when “Maximum VOL level” is “On” and cursor is on the menu.

Page 40

Options Adjustments

Item Adjustments

Off PC INPUT1 INPUT2 INPUT3

Locks the input switch operation.

Notes:

• Only the adjusted signal is displayed (see page 15).

INPUT lock

Button lock

Remocon User level

Advanced PIP

Off-timer function

Initial Power Mode

ID select

Remote ID

Serial ID

• Signal can be displayed when the Terminal board is installed.

• Input switch can be used when this is set to “Off”.

• In two screen display mode, if anything other than “Off” is set, the value will be ﬁ xed as the value input in the single screen display mode.

• When a dual input terminal board is attached, A or B is displayed depending on the selected input signal. (Ex. INPUT1A, INPUT1B)

Off MENU&ENTER On Off: All the buttons on main unit can be used.

MENU&ENTER: Locks On: Locks all the button on main unit.

Sets Button lock with the unit buttons in the following procedure.

Off: Press MENU&ENTER: Press On: Press four times→Press

Off User1 User2 User3 Off: You can use all of the buttons on the remote control. User1: You can only use , , , , , buttons on the remote control.

User2: You can only use User3:

Locks all the buttons on remote control.

Off: Sets normal two screen display mode (see page 19). On: Sets Advanced PIP mode (see page 20). Notes:

• When “INPUT lock” is “On”, you cannot use all the two screen display functions.

•

, buttons are unavailable during Advanced PIP mode operation.

Enable: Enables the “Off-timer function”. Disable: Disables the “Off-timer function”. Note: When “Disable” is set, the Off-timer is cancelled.

Normal Standby On

Sets the power mode of the unit for when the power recovers from failure or after plugging off and in again.

Normal: Power returns in as the same state as before the power interruption. Standby: Power returns in standby mode. (Power Indicator : red/orange) On: Power returns in power On. (Power Indicator : green) Note:

When using multiple displays, “Standby” is preferred to be set in order to reduce a power load.

Sets panel ID number when panel is used in “Remote ID” or “Serial ID”. Set value range: 0 - 100 (Standard value: 0)

The setting of this menu is valid only when using ID remote control.

Off: Disables ID remote control functions. You can use normal remote control operations. On: Enable ID remote control functions.

Sets the panel ID Control.

Off: Disables external control by the ID. On: Enables the external control by the ID.

Adjusts the image display size on screen.

Off: Sets the normal image display size on screen. On: Sets the image display size approximately 95 % of the normal image display. Off On

and

four times→Press

four times→Press four times→Press

ENTER/

button on the remote control.

buttons on main unit.

ENTER/

four times→Press four times→Press

INPUT

four times→Press four times→Press

ENTER/

four times→Press

INPUT

ENTER/

Display size

Notes:

• This setting is valid only when the input signals are as follows;

NTSC, PAL, SECAM, M.NTSC, PAL60, PAL-M, PAL-N (BNC Dual Video Terminal Board (TY-FB9BD))

525i, 525p, 625i, 625p, 750/60p, 750/50p, 1125/60i, 1125/50i, 1125/24sF, 1125/25p, 1125/24p, 1125/30p, 1125/60p, 1125/50p, 1250/50i (Component Video, RGB, DVI, SDI, HDMI)

• This setting is invalid when two screen display, digital zoom or Multi display is selected.

• When “Display size” is set to “On”, “H-POS” and “V-POS” in “POS. /SIZE” can be adjusted.

• Refer to each board’s operating instruction for DVI, SDI, HDMI’s corresponding signals.

Page 41

Item Adjustments

Studio W/B

Studio Gain

Slot Power

Power On Screen

Delay

Off: Nullify all the settings adjusted. On: Sets the color temperature for TV studio. Note: Valid only when the low is set as color temperature on screen adjustment.

Sharpens the contrast for a better view when a part of the image is too light to see.

Off: Disables “Studio Gain”. On: Enables “Studio Gain”. Note: This setting is valid only when the input signals are as follows:

Component Video, RGB (analog), SDI, HDMI

Off Auto On Off: Power is not transmitted to the slot power. Auto: Power is transmitted to the slot power only when main power is on. On: Power is transmitted to the slot power when main power is on or in the standby state. Note: In some cases, power is transmitted to the slot power when main power is on or in the standby state

regardless of the slot power setting.

Off 1 2 3.... 30

You can set the power-on delay time of the displays to reduce the power load, when you press on the multiple displays that are set together, for example, on MULTI DISPLAY system. Set each display’s setting individually.

Off: The display will be turned on at the same time as 1 to 30 (sec.)

After pressing

Notes:

• During this function is working, the power indicator is blinking green.

•

This function also works when the power recovers from failure or after plugging off and in again the power cord.

After you unplug and plug the power cord in while the unit is in standby mode and also the power is being

supplied to a terminal board, the unit will start supplying the power to the board with time delay according to the setting. The power indicator lights up red ﬁ rst and it turns orange when the power starts being supplied to the board.

Off: Not display the clock. On: Display the clock.

The clock is displayed at the lower left of the screen when

: Set the power-on delay time (second).

, the display will be powered on with time delay depending on this setting.

Options Adjustments

to turn

is pressed.

button is pressed.

Clock Display

10:00

Note: When “PRESENT TIME SETUP” is not set, the clock is not displayed even if “Clock Display” is “On”

(see page 27)

Sets All Aspect mode (advanced aspect setting) or default aspect mode.

All Aspect

Rotate

Serial Slot

Select

With each press of

Off: Default aspect mode On: All Aspect mode

Aspect mode of each setting is as follows: (Example: HD signal)

Off 4:3→H-FILL→ZOOM→FULL→JUST On 4:3 (1)→4:3 (2)→4:3 Full→Zoom1→Zoom2→Zoom3→16:9→14:9→Just1→Just2

Off: Does not rotate the image. On: Rotates the image 180 degrees.

Slot1 Slot2 Slot3

Selects the slot which communicates serial. Note: The setting of an external command can be set only from the ﬁ xed serial terminal. (see page 11)

button, the aspect changes in the selected mode.

Normalization

When both main unit buttons and remote control are disabled due to the “Button lock”, “Remocon User level” or “Remote ID” adjustments, set all the values “Off” so that all the buttons are enabled again.

Press the

button on main unit together with button on the remote control and hold for more than 5 seconds. The

“SHIPPING” menu is displayed and the lock is released when it disappears.

Page 42

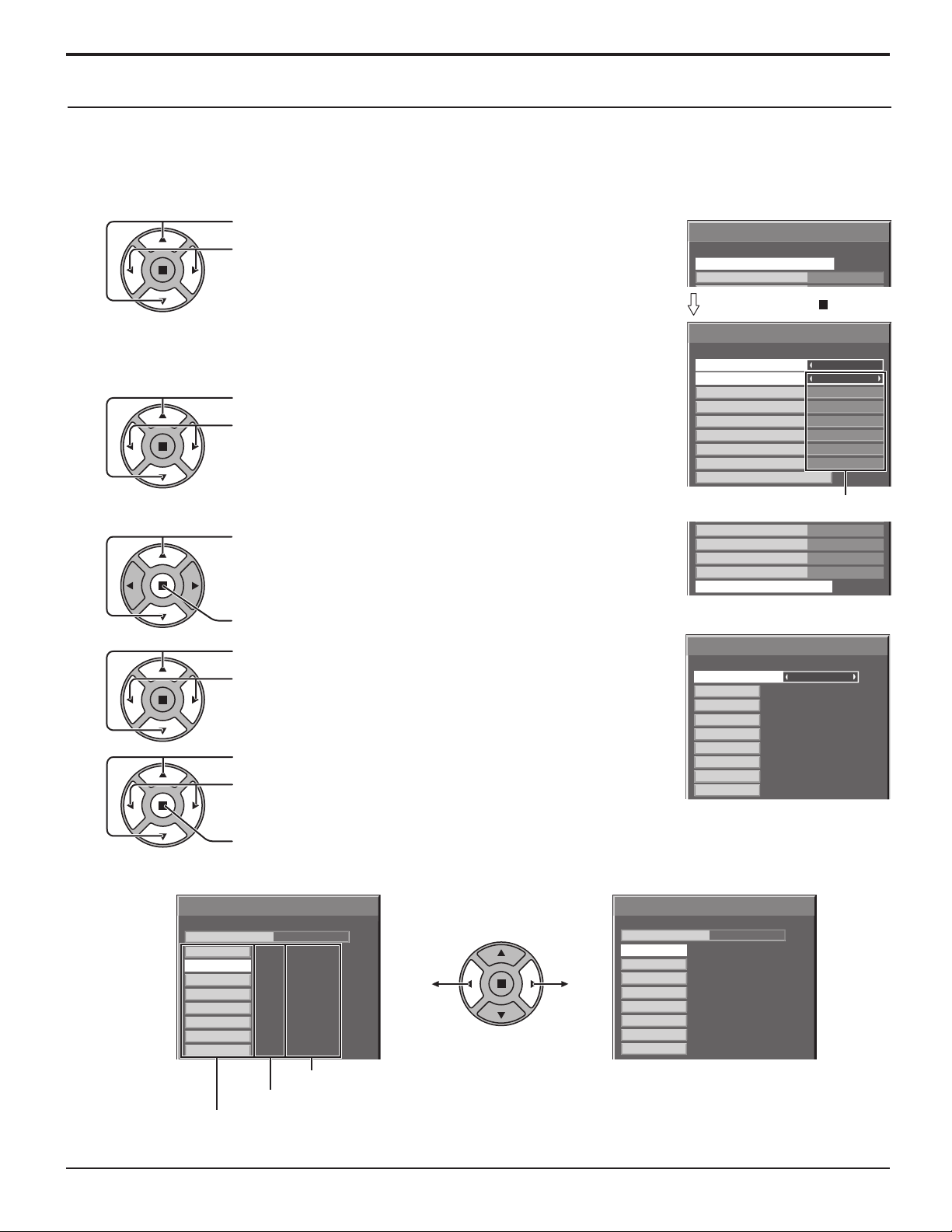

Options Adjustments

Weekly Command Timer

You can set 7-day timer programming by setting time and command.

Note:

Before setting Weekly Command Timer, set PRESENT TIME SETUP. (see page 27)

Press to select Function.

Press to select “On”.

Note:

• When Function is set to On, SET UP TIMER (see page 27) is unavailable and INTERVAL / TIME OF DAY in MODE of SCREENSAVER (see page 28) cannot be selected.

Press to select a day.

Press to select a program number.

Note:

• You can set the program from 1 to 7.

--- indicates unset.

Press to select Program Edit.

Press to show the Program Edit screen.

Press to select Program.

Press to change the program numbers (1-7).

Press to select a command number.

Press to show the previous / next command pages (1-8) of the selected program.

Options

Weekly Command Timer

Onscreen display

Press ACTION ( ) button

Weekly Command Timer

Function

Monday Tuesday

Wednesday Thursday Friday Saturday Sunday

Program Edit

Program number

Thursday Friday Saturday Sunday

Program Edit

Program Edit screen

Weekly Command Timer

--:--

PON

IMS:SL1

---

DAM:ZOOM

AVL:10

---

Program

01 02 03 04 05 06 07 08

8:00

10:30

12:00

9:12

1/3

Program1

Program3

---

Program3

---

Program6

Program4

Program3

---

Program6

Program4

1/8

Press to show the command setting screen.

Weekly Command Timer

Program

01 02 03 04 05 06 07 08

8:00

10:30

--:--

12:00

9:12

--:--

PON

IMS:SL1

---

DAM:ZOOM

AVL:10

---

Command (--- indicates unset)

Set time of timer (--:-- indicates unset)

Command numbers

1/8

Weekly Command Timer

Program

57 58

62 63 64

20:00

20:30

22:00

--:--

AVL:00

DAM:NORM

POF

---

8/8

Page 43

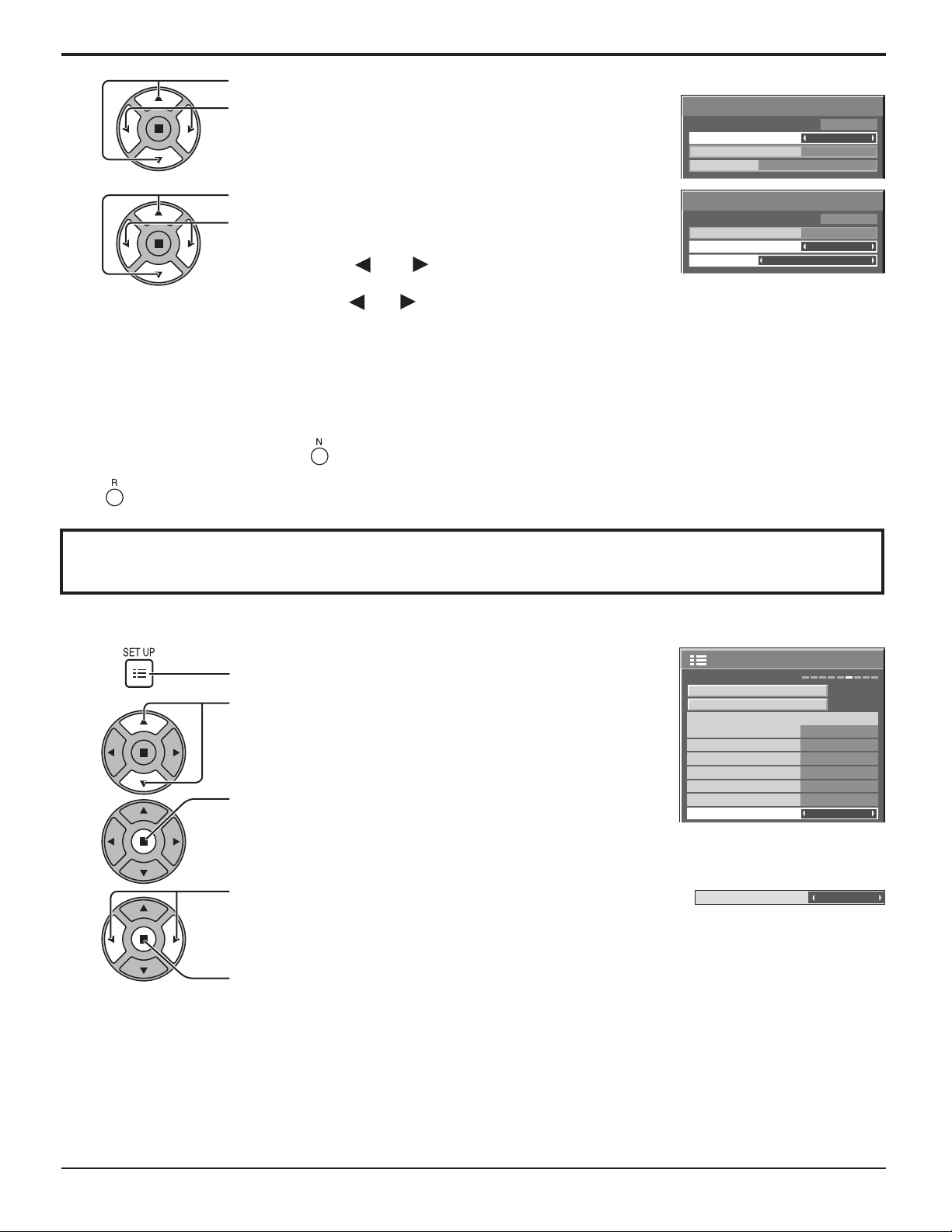

Options Adjustments

Press to select Command No.

Press to select a command number.

Press to select Time / Command.

Press to set each item. Time: Set the time to execute a command program. Pressing “ ” or “ ” button once changes “Time” 1

minute. Pressing “ ” or “ ” button continuously changes “Time” by 15 minutes. Command:Select a command to execute at the set time. This unit has 64 commands to set. (see page 47)

Notes:

•

Command is performed in order of execution time, regardless of the command number.

• If a command execution time overlaps with that of other commands, these commands are

performed in number order.

• Pressing , Time becomes --:-- and Command becomes ---.

Note:

Press to return to the previous screen.

Command setting screen

Weekly Command Timer

Command No

Program

Time Command

Weekly Command Timer

Program

Command No Time

Command

IMS:SL1

10:30

Shipping condition

This function allows you to reset the unit to the factory setting.

[from the unit]

1 Press the MENU button till the SET UP menu is displayed. 2 Press the Volume Up “+” or Down “–” button to select “OSD LANGUAGE”. 3 Press and hold the ENTER button till the SHIPPING menu is displayed. 4 Press the Volume Up “+” or Down “–” button to select “YES”. 5 Press the ENTER button and wait for 10 sec.

Press to display the SET UP menu.

Press to select “OSD LANGUAGE”.

Press and hold till the SHIPPING menu is displayed.

Press to select “YES”.

Press to conﬁ rm.

SET UP

SIGNAL

SCREENSAVER

COMPONENT/RGB-IN SELECT

INPUT LABEL POWER SAVE STANDBY SAVE POWER MANAGEMENT AUTO POWER OFF OSD LANGUAGE ENGLISH (US

SHIPPING

RGB

PC OFF OFF OFF OFF

YES

1/2

)

Note:

Press the R button to return to SET UP menu when SHIPPING menu is displayed.

Page 44

Troubleshooting

Before you call for service, determine the symptoms and make a few simple checks as shown below.

Symptoms

Picture Sound

Interference Noisy Sound

Normal Picture No Sound

No Picture No Sound

No Picture Normal Sound

No Color Normal Sound

No remote control operations can be performed. Check whether the batteries have discharged completely and, if they have not, whether they

A cracking sound is sometimes heard from the unit. If there is nothing wrong with the picture or sound, this is the sound of the cabinet undergoing

The top or bottom of the picture on the screen is cut off when I use the zoom function.

Areas at the top and bottom of the screen where the image is missing appear when I use the zoom function.

Electrical Appliances Cars / Motorcycles Fluorescent light

Volume (Check whether the mute function has been activated on the remote control.)

Not plugged into AC outlet Not switched on PICTURE and BRIGHTNESS/Volume setting (Check by pressing the power switch or stand-by button on the remote control.)

If a signal with a non-applicable color system format, or frequency is input, only the input terminal indication is displayed.

Color controls set at minimum level. (see page 24, 25) COLOR SYSTEM (see page 36)

were inserted properly. Check whether the remote control sensor is exposed to an outdoor light or a strong ﬂ uorescent light. Check whether the remote control designed speciﬁ cally for use with the unit is being used. (The unit cannot be operated by any other remote control.)

very slight contractions in response to changes in the room temperature. There are no adverse effects on the performance or other aspects.

Adjust the position of the picture on the screen.

When using a video software program (such as a cinema size program) with a screen wider than one in the 16:9 mode, blank areas separate from the images are formed at the top and bottom of the screen.

Checks

I can hear sounds coming from inside the unit. When the power is turned on, a sound of the display panel being driven may be heard: This is

This Plasma Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the type of input signal. However, this is not a malfunction.

normal and not indicative of malfunctioning.

Plasma Display panel

Symptoms Check

The screen darkens slightly when bright pictures with minimal movements are shown.

It takes a while for the picture to appear. The unit digitally processes the various signals in order to reproduce esthetically pleasing

The edges of the images ﬂ icker. Due to the characteristics of the system used to drive the panel, the edges may appear to ﬂ icker

The brightness on both sides of images in 4:3 mode changes.

Some parts of the screen do not light up. The plasma display panel is manufactured using an extremely high level of precision technology,

Image retention appears

Whirring sounds can be heard from the display unit. The display unit is ﬁ tted with a cooling fan to dissipate heat generated during normal use. The

The screen will darken slightly when photos, still images of a computer or other pictures with minimal movements are shown for an extended period. This is done to reduce image retention on the screen and the shortening of the screen’s service life: It is normal and not indicative of malfunctioning.

images. As such, it sometimes takes a few moments for the picture to appear when the power has been turned on, when the input has been switched or when the images for the main picture and sub picture on the two screens are swapped.

in the fast-moving parts of the images: This is normal and not indicative of malfunctioning.

When viewing the side panels at the “BRIGHT” or “MID” setting, the brightness on both sides may change depending on the kind of program shown: This is normal and not indicative of malfunctioning.

however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a malfunction.

Note:

The permanent image retention on the Plasma Display resulting from ﬁ xed image use is not an operating defect and as such is not covered by the Warranty. This product is not designed to display ﬁ xed images for extended periods of time.

whirring sound is caused by rotation of the fan and is not a malfunction.

Page 45

List of Aspect Modes

Aspect mode

All Aspect: OnFactory setting

All Aspect: Off

16:9 FULL

14:9 –

Just

JUST

Just1

Just2 JUST

4:3

4:3 (1)


Enlarged screen

Description

The display of the pictures ﬁ lls the screen. In the case of SD signals, pictures with a 4:3 aspect ratio are enlarged horizontally, and displayed. This mode is suited to displaying anamorphic pictures with a 16:9 aspect ratio.

Letterbox pictures with a 14:9 aspect ratio are enlarged vertically and horizontally so that their display ﬁ lls the screen vertically and is slightly smaller than the screen horizontally. The top and bottom edges of the pictures are cut off. Side panels are displayed at the left and right edges of the screen.

Pictures with a 4:3 aspect ratio are enlarged horizontally so that the picture distortion is minimized. The display of the areas around the left and right edges of the screen is slightly elongated.

Pictures with a 4:3 aspect ratio are enlarged horizontally so that the picture distortion is minimized. The left and right edges of the pictures are cut off. The display of the areas around the left and right edges of the screen is slightly elongated.

Pictures with a 4:3 aspect ratio are displayed with their original aspect ratio. Side panels are displayed at the left and right edges of the screen.

4:3 (2) 4:3

4:3 Full H-FILL

Zoom

ZOOM

Zoom1

Zoom2 ZOOM

Zoom3 –

Pictures with a 4:3 aspect ratio are displayed with their original aspect ratio. The left and right edges of the pictures are masked by side panels.

Pictures with a 4:3 aspect ratio are enlarged horizontally so that their display ﬁ lls the screen. The left and right edges of the pictures are cut off.

Letterbox pictures with a 16:9 aspect ratio are enlarged vertically and horizontally so that their display ﬁ lls the screen. The top and bottom edges of the pictures are cut off.

Letterbox pictures with a 16:9 aspect ratio are enlarged vertically and horizontally so that their display ﬁ lls the screen. The top and bottom edges as well as the left and right edges of the pictures are cut off.

Letterbox pictures with a 2.35:1 aspect ratio are enlarged vertically and horizontally so that their display ﬁ lls the screen vertically and is slightly larger than the screen horizontally. The top and bottom edges as well as the left and right edges of the pictures are cut off.

Page 46

VIDEO/COMPONENT/RGB/PC input signals

VIDEO input (HDMI)

Signal format

1 VGA60 59.94 31.47 25.18 640 800 480 525 2 525 (480)/60p 59.94 31.47 27.00 720 858 480 525 3 625 (575)/50p 50.00 31.25 27.00 720 864 576 625 4 750 (720)/60p 60.00 45.00 74.25 1280 1650 720 750 5 750 (720)/50p 50.00 37.50 74.25 1280 1980 720 750 6 1,125 (1,080)/60i 60.00 33.75 74.25 1920 2200 1080 1125 7 1,125 (1,080)/50i 50.00 28.13 74.25 1920 2640 1080 1125 8

1,125 (1,080)/60p

1,125 (1,080)/50p

1,125 (1,080)/24p

Not compatible with HDMI Terminal Board (TY-FB8HM). Audio signal Linear PCM : 48/44.1/32 kHz

∗

Applicable input signals for Component / Mini D-sub 15P (Component) / RGB / Mini D-sub 15P (RGB) (*

Signal name

1 525 (480) / 60i 15.73 59.94 13.5 2 525 (480) / 60p 31.47 59.94 27.0 3 625 (575) / 50i 15.63 50.00 13.5 4 625 (575) / 50p 31.25 50.00 27.0 5 750 (720) / 60p 45.00 60.00 74.25 6 750 (720) / 50p 37.50 50.00 74.25 7 1,125 (1,080) / 60p 67.50 60.00 148.5 8 1,125 (1,080) / 60i 33.75 60.00 74.25

9 1,125 (1,080) / 50p 56.26 50.00 148.5 10 1,125 (1,080) / 50i 28.13 50.00 74.25 11 1,125 (1,080) / 24sF 27.00 47.92 74.25 12 1,125 (1,080) / 30p 33.75 30.00 74.25 13 1,125 (1,080) / 25p 28.13 25.00 74.25 14 1,125 (1,080) / 24p 27.00 24.00 74.25 15 1,250 (1,080) / 50i 31.25 50.00 74.25 16 640 × 400 @70 Hz 31.46 70.07 25.17 17 640 × 480 @60 Hz 31.47 59.94 25.18 18 640 × 480 @72 Hz 37.86 72.81 31.5 19 640 × 480 @75 Hz 37.50 75.00 31.5 20 640 × 480 @85 Hz 43.27 85.01 36.0 21 852 × 480 @60 Hz 31.47 59.94 33.54 22 800 × 600 @56 Hz 35.16 56.25 36.0 23 800 × 600 @60 Hz 37.88 60.32 40.0 24 800 × 600 @72 Hz 48.08 72.19 50.0 25 800 × 600 @75 Hz 46.88 75.00 49.5 26 800 × 600 @85 Hz 53.67 85.06 56.25 27 1,024 × 768 @60 Hz 48.36 60.00 65.0 28 1,024 × 768 @70 Hz 56.48 70.07 75.0 29 1,024 × 768 @75 Hz 60.02 75.03 78.75 30 1,024 × 768 @85 Hz 68.68 85.00 94.5 31 1,152 × 864 @75 Hz 67.50 75.00 108.0 32 1,280 × 768 @60 Hz 47.70 60.00 80.14 33 1,280 × 960 @60 Hz 60.00 60.00 108.0 34 1,280 × 960 @85 Hz 85.94 85.00 148.5 35 1,280 × 1,024 @60 Hz 63.98 60.02 108.0 36 1,280 × 1,024 @75 Hz 79.98 75.03 135.0 37 1,280 × 1,024 @85 Hz 91.15 85.02 157.5 38 1,600 × 1,200 @60 Hz 75.00 60.00 162.0 39 1,600 × 1,200 @65 Hz 81.25 65.00 175.5 40 1,066 × 600 @60 Hz 37.64 59.94 53.0 41 1,366 × 768 @60 Hz 48.36 60.00 86.71 42 Macintosh13” (640 × 480) 35.00 66.67 30.24 43 Macintosh16” (832 × 624) 49.72 74.54 57.28 44 Macintosh21” (1,152 × 870) 68.68 75.06 100.0

∗1:

Based on SMPTE 274M standard.

∗

2: Based on SMPTE RP211 standard.

∗

3: Based on SMPTE 295M standard.

∗4:

When selected the RGB format and 525p signal input to the Mini D-sub 15P terminal, it is recognized as VGA 60Hz signal.

∗5:

When inputted VGA 60Hz format signal from the other than Mini D-sub 15P terminal, it is recognized as 525p signal.

Note: Signals without above speciﬁ cation may not be displayed properly.

∗ ∗ ∗

Vertical

frequency (Hz)

60.00 67.50 148.50 1920 2200 1080 1125

50.00 56.26 148.50 1920 2640 1080 1125

24.00 27.00 74.25 1920 2750 1080 1125

Horizontal

frequency (kHz)

Horizontal

frequency (kHz)

Vertical frequency

Dot clock

(MHz)

(Hz)

Number of

active pixels

Dot clock

frequency (MHz)

Total number of

pixels

Component / Mini D-sub

15P (Component)

Number of

active lines

RGB / Mini D-sub

** ** ** ** ** ** ** ** ** ** ** ** ** ** **

Total number

of lines

Mark)

15P (RGB)

* * * * * * * * * * * * * * * * * * * * * * * * * * * * *

∗

Page 47

Command list of Weekly Command Timer

No. Command Control details

1 AAC:MENCLR Audio Menu (Clear) 2 AAC:MENDYN Audio Menu (Dynamic) 3 AAC:MENSTD Audio Menu (Standard) 4 AAC:SURMON Surround (ON) 5 AAC:SUROFF Surround (OFF) 6 AMT:0 Audio Mute (OFF) 7 AMT:1 Audio Mute (ON) 8 ASO:M Audio out when PIP mode (Main Picture) 9 ASO:S Audio out when PIP mode (Sub Picture)

10 AVL:00 Audio Volume (00)

11 AVL:10 Audio Volume (10) 12 AVL:20 Audio Volume (20) 13 AVL:30 Audio Volume (30) 14 AVL:40 Audio Volume (40) 15 AVL:50 Audio Volume (50) 16 AVL:60 Audio Volume (60) 17 DAM:FULL Aspect (FULL) 18 DAM:JUST Aspect (JUST) 19 DAM:NORM Aspect (4:3) 20 DAM:SELF Aspect (Panasonic Auto) 21 DAM:ZOOM Aspect (ZOOM) 22 DWA:OFF Dual Picture mode (OFF) 23 DWA:OVL1 Advanced PIP mode (1) (see page 20) 24 DWA:OVL2 Advanced PIP mode (2) (see page 20) 25 DWA:OVL3 Advanced PIP mode (3) (see page 20) 26 DWA:OVL4 Advanced PIP mode (4) (see page 20) 27 DWA:OVL5 Advanced PIP mode (5) (see page 20) 28 DWA:OVL6 Advanced PIP mode (6) (see page 20) 29 DWA:OVLOF Advanced PIP mode (OFF) (normal two screen display mode) 30 DWA:OVLON Advanced PIP mode (ON) 31 DWA:PIN0 The location of the sub picture (lower right) 32 DWA:PIN1 The location of the sub picture (lower left) 33 DWA:PIN2 The location of the sub picture (upper left) 34 DWA:PIN3 The location of the sub picture (upper right) 35 DWA:PIP Dual Picture mode (Picture in Picture) 36 DWA:POP Dual Picture mode (Picture out Picture) 37 DWA:SWP Swap main picture and sub picture when PIP mode 38 DWA:TWN Dual Picture mode (Picture and Picture) 39 IMS:PC1 Input select (PC1) (Main Picture when PIP mode) 40 IMS:SL1 Input select (SLOT1) (Main Picture when PIP mode) 41 IMS:SL1A Input select (SLOT1A) (Main Picture when PIP mode) 42 IMS:SL1B Input select (SLOT1B) (Main Picture when PIP mode) 43 IMS:SL2 Input select (SLOT2) (Main Picture when PIP mode) 44 IMS:SL2A Input select (SLOT2A) (Main Picture when PIP mode) 45 IMS:SL2B Input select (SLOT2B) (Main Picture when PIP mode) 46 IMS:SL3 Input select (SLOT3) (Main Picture when PIP mode) 47 ISS:PC1 Sub Picture Input Select (PC1) 48 ISS:SL1 Sub Picture Input Select (SLOT1) 49 ISS:SL1A Sub Picture Input Select (SLOT1A) 50 ISS:SL1B Sub Picture Input Select (SLOT1B) 51 ISS:SL2 Sub Picture Input Select (SLOT2) 52 ISS:SL2A Sub Picture Input Select (SLOT2A) 53 ISS:SL2B Sub Picture Input Select (SLOT2B) 54 ISS:SL3 Sub Picture Input Select (SLOT3)

OSP:SCR0 Screen Saver SCROLLING BAR ONLY (OFF)

OSP:SCR1 Screen Saver SCROLLING BAR ONLY (ON)

56 57 POF Power OFF 58 PON Power ON

SSC:FNC0 Screen Saver function (SCROLLING BAR ONLY)

SSC:FNC1 Screen Saver function (NEGATIVE IMAGE)

SSC:MOD0 Screen Saver (Mode (OFF))

SSC:MOD3 Screen Saver (Mode (ON))

62 63 64

Picture Mute cannot be unlocked by powering off/on with the remote control. Turn off and on again with the button on

∗

the unit or enter the command VMT:0 to unlock Picture Mute.

VMT:0 VMT:1

∗ ∗

Picture Mute (OFF) Picture Mute (ON)

Page 48

Speciﬁ cations

Power Source Power Consumption

Power on

Stand-by condition

Power off condition

Plasma Display panel

Screen size

(No.of pixels)

Operating condition

Temperature

Humidity

Applicable signals

Scanning format

PC signals

Connection terminals

HDMI A-B TYPE A Connector × 2

COMPONENT/RGB IN

PC IN

SERIAL

SPEAKERS

Accessories Supplied

Remote Control Transmitter

Batteries

Fixing band

Dimensions (W × H × D)

Mass (weight)

main unit only with speakers

525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i · 60p · 50i · 50p

· 24p · 25p · 30p · 24sF, 1250 (1080) / 50i

Y/G (BNC) P

B/B (BNC), PR/R (BNC)

AUDIO IN (RCA PIN JACK × 2) (HIGH-DENSITY MINI D-SUB 15PIN)

AUDIO IN (M3 JACK) EXTERNAL CONTROL TERMINAL (D-SUB 9PIN) RS-232C COMPATIBLE

40.2” (1,020 mm) × 24.1” (610 mm) × 3.5” (89 mm)

TH-42PH11UK TH-50PH11UK

110 - 127 V AC, 50/60 Hz

365 W 455 W

Save OFF 1.5 W, Save ON 0.6 W Save OFF 1.4 W, Save ON 0.6 W

0.2 W 0.1 W

Drive method : AC type 42-inch,

16:9 aspect ratio

36.2” (922 mm) (W) × 20.4” (518 mm) (H) × 41.6” (1,057 mm) (diagonal) 786,432 (1,024 (W) × 768 (H))

[3,072 × 768 dots]

32 °F - 104 °F (0 °C - 40 °C) 32 °F - 104 °F (0 °C - 40 °C)

20 % - 80 % 20 % - 80 %

VGA, SVGA, XGA

SXGA, UXGA ···· (compressed)

Horizontal scanning frequency 15 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

with sync 1.0 Vp-p (75 Ω)

0.7 Vp-p (75 Ω)

0.5 Vrms Y or G with sync 1.0 Vp-p (75 Ω) Y or G without sync 0.7 Vp-p (75 Ω)

B/P

R/P

HD/VD:

6 Ω, 16 W [8 W + 8 W] (10 % THD)

N2QAYB000178

TMME203 × 1

(excluding handle portion)

approx. 55.0 lbs approx. 74.8 lbs approx. 63.8 lbs approx. 83.6 lbs

0.7 Vp-p (75 Ω)

B/CB :

0.7 Vp-p (75 Ω)

R/CR :

1.0 - 5.0 Vp-p (high impedance)

0.5 Vrms

AA Size × 2

47.7” (1,210 mm) × 28.5” (724 mm) × 3.8” (95 mm)

Drive method : AC type 50-inch,

16:9 aspect ratio

43.5” (1,106 mm) (W) × 24.4” (622 mm) (H) × 49.9” (1,269 mm) (diagonal)

1,049,088 (1,366 (W) × 768 (H))

[4,098 × 768 dots]

(excluding handle portion)

Note:

Design and speciﬁ cations are subject to change without notice. Mass and dimensions shown are approximate.

Page 49

(for the U.S.A)

Panasonic Professional Display Company Unit of Panasonic Corporation of North America

One Panasonic Way 1F-10 Secaucus, NJ 07094

Panasonic Professional Flat Panel Display

Limited Warranty

Panasonic Professional Display Company or Panasonic Puerto Rico, Inc. (collectively referred to as “the Warrantor”) will repair this product and all included accessories with new or refurbished parts, free of charge in the USA or Puerto Rico, of the original purchase in the event of a defect in materials or workmanship as follows:

Models or Parts

Professional Flat Panel Display

On-site or carry-in service in the USA may be obtained during the warranty period by contacting Panasonic Professional Display Company Service toll free at 1-888-VIEW-PTV (1-888-843-9788).

For service in Puerto Rico call 787-750-5135.

Part

Warranty

2 Years 2 Years

Labor

Warranty

Panasonic Puerto Rico, Inc. Ave. 65de Infanteria, Km.9.5 San Gabriel Industrial Park Carolina, Puerto Rico 00985

inadequate signal pickup, maladjustment of consumer controls, improper operation, power line surge, improper voltage supply, lighting damage, or service by anyone other than an authorized repair facility, or damaged this attributable to acts of God.

LIMITS AND EXCLUSIONS

There are no express warranties except as listed above.

THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING, WITHOUT LIMITION, DAMAGE TO DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THE WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.

This warranty is extended only to the original purchaser and is non transferable. A purchase receipt or other proof of date of original purchase will be required before warranty service is rendered.

This warranty only covers failures due to defects in materials or workmanship, which occur during normal use. The warranty does not cover damage which occur in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result installation, set-up adjustments, improper antenna,

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may nor apply to you. This warranty gives you specific legal rights and you may other rights, which vary from state to state.

If you have a problem with this product that is not handled to your satisfaction, then write the Consumer Affairs Department at the Company address indicated above.

In the USA

FOR SERVICE

CALL TOLL FREE

1-888-VIEW-PTV

(1-888-843-9788)

In Puerto Rico

For service call 787-750-5135

Page 50

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

LIMITED WARRANTY STATEMENT

(for Canada)

Panasonic Canada Inc. (also known as PCI) warrants this product to be free of defects in material and workmanship under normal use during the applicable warranty coverage period described below. PCI agrees to repair, or at its option, exchange, any part that becomes defective. However, the product must be purchased and serviced in Canada. The product or part that shows evidence of defect must be delivered prepaid or carried in to an authorized Panasonic Broadcast Service Center. This warranty does not cover shipping costs.

The warranty coverage period is one year for both parts and labour beginning with the date of original end user purchase, subject to the exceptions as stated below. Repaired or replacement parts supplied during the warranty coverage period carry the unexpired portion of the original warranty coverage period. Proof of product purchase is a condition of warranty service. The owner must produce the product purchase receipt or other satisfactory evidence of date of original purchase.

This warranty does not apply to external appearance items, such as handles, knobs, safety windows, etc. This warranty does not apply to any part, or parts, of the product, installed, altered, repaired or misused in any way that, in the opinion of PCI, affects the reliability of or detracts from the performance of the product.

For products requiring routine preventive maintenance, that maintenance must be performed in order to maintain warranty coverage.

Serial numbers that have been altered, defaced or removed void this warranty. This warranty does not cover replacements or repairs necessitated by loss or damage resulting from any cause beyond the control of PCI.

Marking or retained images (sometimes called “burn-in”) resulting from the display of fixed images on video display products are not defects and are not covered under this warranty.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

WARRANTY COVERAGE PERIOD EXCEPTIONS

Item

Video Tape

P2/SD Cards

Video Heads

D5 Video heads

Maintenance Items

Colour Camera CCD Imaging Block

BT-H Series LCD Monitors

* DLP™ Projectors

* LCD Projectors above

2,500 ANSI Lumens

* LCD Projectors below

2,500 ANSI Lumens

Projector Lamps

103 inch Plasma displays

Hard Drive Disk Unit

• Dust, smoke, rental/staging environment and twenty-four/seven operation, dramatically decreases the interval between performances of routine preventive maintenance required to maintain this warranty coverage.

Warranty Service

If the product needs to be shipped for service, carefully pack (preferably in the original carton) and enclose a letter, detailing the complaint. Send prepaid and adequately insured to the local authorized Panasonic Service Centre in your area or to Panasonic Technical Support and Product Services Department, 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3. Shipping to the latter location requires a return authorization before shipment. No liability is assumed for loss or damage to the product while in transit.

Parts

30 days— Replacement only (content not covered)

(Content not covered)

1 year or 2,000 hrs. (prorated) Whichever comes first

1 year or

1,0

Whichever comes first

90 days

2 years

3 years or 17,000 hrs. Whichever comes first

3 years or 2,500 hrs. Whichever comes first

3 years or 1,500 hrs. Whichever comes first

50% of the rated lamp life or 1 year. Whichever comes first

3 year (burn-in not covered)

1 year plus balance (if any) of the original Manufacturer’s Limited Warranty. (Content not covered)

00 hrs.

Labour

N/A

1 year or 2,000 hrs. Whichever comes first

1 year or 1,000 hrs. Whichever comes first

90 days

1 year

3 years or 17,000 hrs. Whichever comes first

3 years or 2,500 hrs. Whichever comes first.

3 years or 1,500 hrs. Whichever comes first

50% of the rated lamp life or 1 year. Whichever comes first.

3 year

1 year

Page 51

Page 52

Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identiﬁ cation in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Panasonic Professional Display Company

Unit of Panasonic Corporation of North America

Executive Ofﬁ ce :

One Panasonic Way 1F-10, Secaucus, NJ 07094

EASTERN ZONE : One Panasonic Way 4E-7 Secaucus, NJ 07094 (201) 348-7621 Mid-Atlantic/New England : One Panasonic Way 4E-7 Secaucus, NJ 07094 (201) 348-7621 Southeast Region : 1225 Northbrook Parkway, Ste 1-160 Suwanee GA 30024 (770)338-6835 Central Region : 1707 N Randall Road E1-C-1, Elgin, IL 60123 (847)468-5200

WESTERN ZONE : 3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500 Dallas Region : 6226 Abington Way, Houston, TX 77008 (713) 802-2726 No. CA/Northwest Region : 5870 Stone Ridge, #3, Pleasanton, CA (925) 416-5108

Government Marketing Department : 52 West Gude Drive, Rockville, MD 20850 (301) 738-3840

Panasonic Canada Inc.

5770 Ambler Drive Mississauga, Ontario L4W 2T3

Printed in U.S.A.

Panasonic TH 50PH11UK User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
