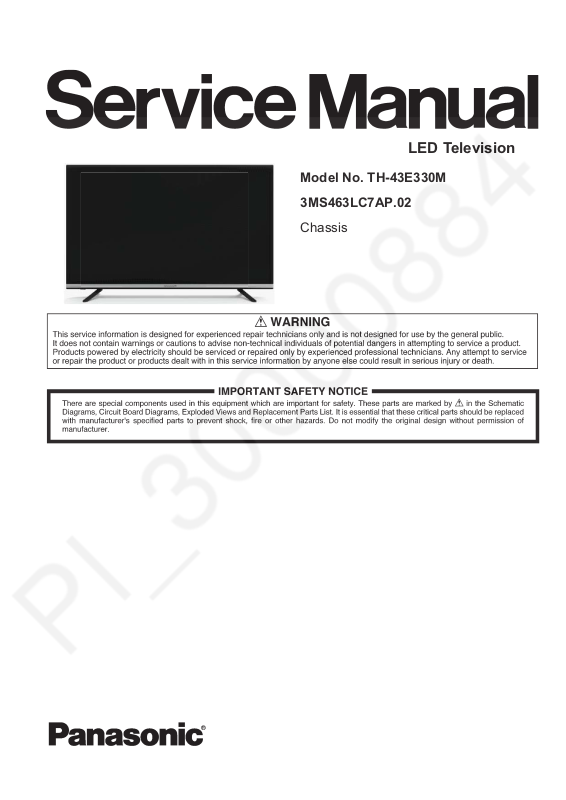

Page 1
/('7HOHYLVLRQ
0RGHO1R7+(0
06/&$3
&KDVVLV
3DQDVRQLF&RUSRUDWLRQ
8QDXWKRUL]HG FRS\LQJ DQG GLVWULEXWLRQ LV D YLRODWLRQ
RIODZ
Page 2
RISK OF
ELECTRIC
SHOCK DO
NOT
OPEN.
SCHNEIDER ELECTRONICS GMBH-GERMANY
1. CAUTION
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CA UTION: TO RE DUCE THE RIS K OF
CA U T IO N
RISK
SHOCK
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
ELECTRI
NOT
OPEN.
ELECTR ICAL SHOCK , DO NOT RE MOVE
COVER (OR BACK). NO USER SERVICEABLE
PAR TS INS IDE . RE FE R SER VIC ING T O
QUALIFIE D SERVIC E PERSON NEL.
dangerous
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
2
Page 3
SCHNEIDER ELECTRONICS GMBH-GERMANY
IMPORTANT SAFETY INSTRUCTIONS
CAUTION:
Read all of these instructions. Sa ve these instructions for later use . Follo w all W arnings and
Instructions marked on the audio equipment.
1. Read Instructions-All the safety and operatinginstructionsshouldbe read before the productis operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.

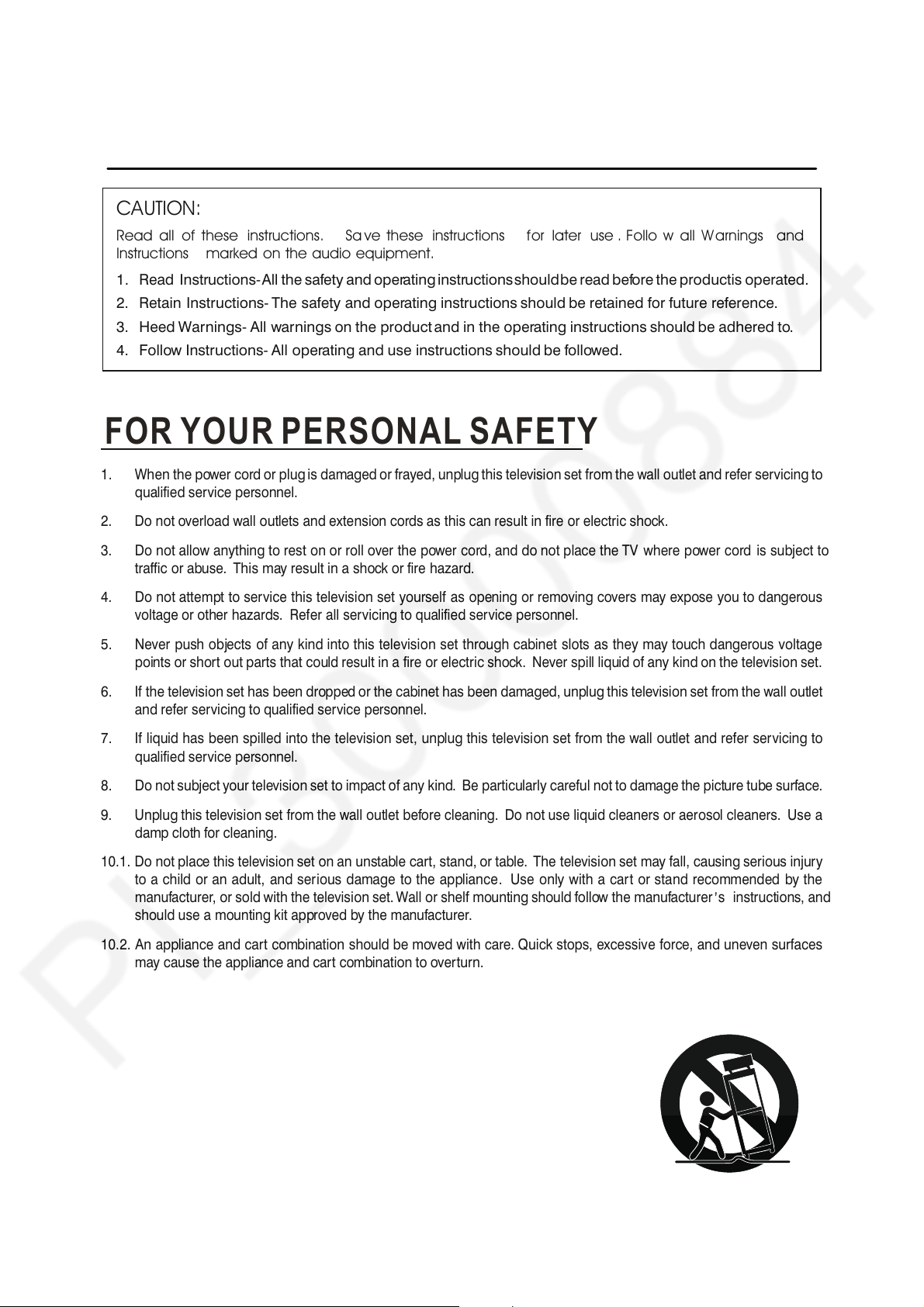

FOR YOUR PERSONAL SAFETY
1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this tele vision set from the wall outlet and refer ser vicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
3
3
Page 4
SCHNEIDER ELECTRONICS GMBH-GERMANY

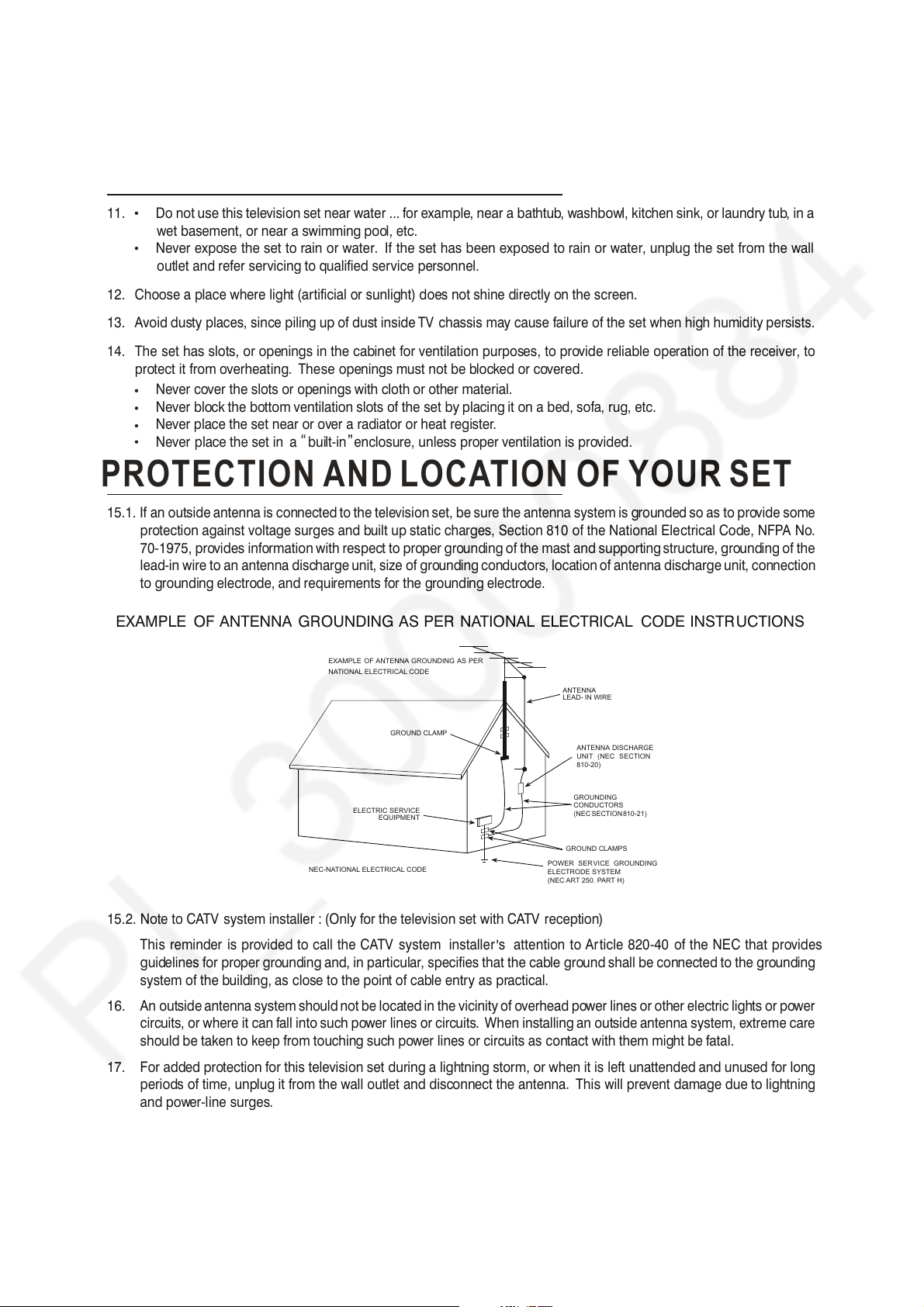

PROTECTION AND LOCATION OF YOUR SET
11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
a built-in
PROTECTION AND LOCATION OF YOUR SET
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supportingstructure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTR UCTIONS
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICALCODE
ANTENNA
LEAD- IN WIRE
GROUND CLAMP
ELECTRIC SERVICE
EQUIPMENT
NEC-NATIONAL ELECTRICALCODE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NECSECTION 810-21)
GROUND CLAMPS
POWER SER VICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
installer s
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or po wer
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fata l.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
4
4
Page 5
SCHNEIDER ELECTRONICS GMBH-GERMANY
OPERATION OF YOUR SET
18.
This television set should be operated only from the type of power source indicated on the marking label.If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For televisi on
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplugthis television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
off

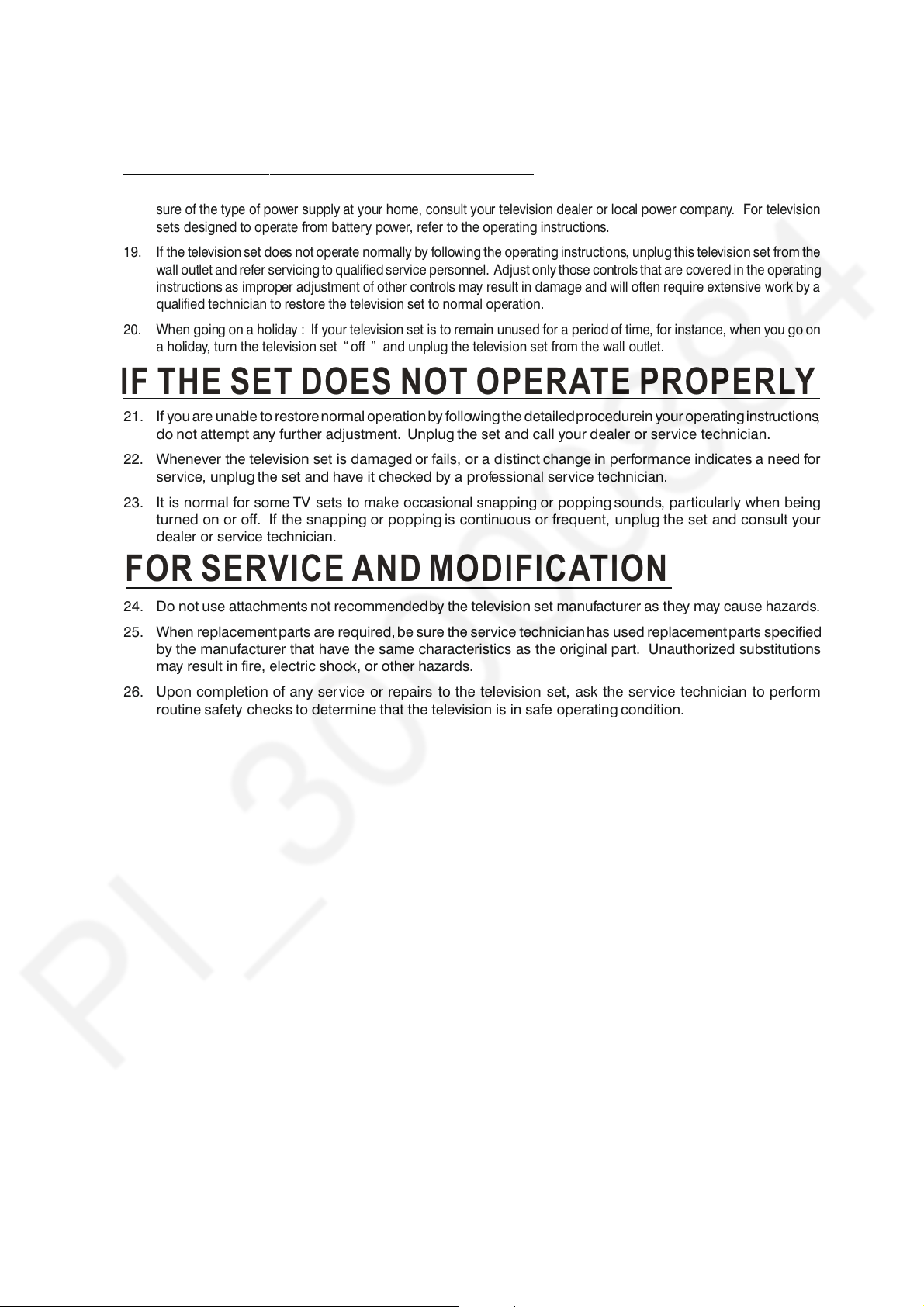

IF THE SET DOES NOT OPERATE PROPERLY
21. If youare unable to restore normaloperation by following the detailedprocedureiny ouroperatinginstructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
FOR SERVICE AND MODIFICATION
24. Do not use attachments not recommendedby the television set manufacturer as they may cause hazards.
25. When replacementparts are required, be sure the service technician has used replacement parts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any ser vice or repairs to the television set, ask the ser vice technician to perform
routine safety checks to determine that the television is in safe operating condition.
5
5
Page 6
DOC NO: Date:10-Jan-2017
REV.NO: Rev No. 1.0
DATE :
PARAMETERS SPECIFICATIONS REMARKS (IF ANY)
ENGLISH/ FRENCH/ARABIC/PORTUGUESE
CBU
ME/AF
DECO IS METAL SILVER
ATV:99; DVB-T/T2 600
BG / I / DK
1920*1080
4:3, 16:9, Zoom1, Zoom2, Full Just Scan in HDMI source
BACKLIGHT ADJUST NO
AUDIO OUTPUT POWER (RMS) 8W x 2
YES Can be activated by Menu+7906
YES
Sound Out (ARC)
YES
DIGITAL DOLBY
YES
ANY OTHER (PLEASE SPECIFY)
YES
YES
NO
YES Mini
YES Audio share with AV in
USB INPUT (2.0 SUPPORT) YES
2 Ports
2 Ports
YES
NO
PC(VGA IN) YES
MHL NO
USB DEVICE SUPPORT 2TB (max.)
HDD reading thru USB
PICTURE FORMAT JPG、JPEG、BMP、PNG
AUDIO FORMAT MP3/AAC
PANEL MODEL NO. AND TYPE
LGD LC430DUY-SHA1/IPS
43” / 109CM
RESOLUTION
1920(H) X 1080 (V)
953mm x 543mm
0.1634 mm x 0.4902 mm
16.7M (8bit)
800:1 Typical
OPERATING VOLTAGE 110V-240V~ at 50/60Hz
STD BY POWER CONSUM PTION
06-IRPT39-A0818 PANASONIC SPECIAL REMOTE CONTROL
ODM PROMOTION QA
S & M
MULTIMEDIA SUP
IDGENERAL ITEMSTUNNING
ID PHOTO REMOTE: Add Picture
PRODUCT SPECIFICATIONS LED TV
CATEGORY: 43" LED TV FHD
MODEL NO: TH-43E330M
REFERENCE MODEL (PANASONIC/COMPETITION): TH-43D330M
SUPPLIER MODEL NO : L43D1390
SUPPLIER: TCL
ASSEMBLER TCL
CHASSIS / Main Board: MS3463S.PB782
OSD LANGUAGES
MANUAL LANGUAGES
SUPPLY TYPE
DESTINATION
FC COLOUR
NUMBER OF PROGRAMS
COLOUR SYSTEM
SOUND SYSTEM
RESOLUTION
ASPECT RATIO
DNR (Noise Reduction)
ENGLISH/FARSI/ FRENCH/ARABIC/PORTUGUESE
NTSC / PAL; DVB-T/T2
YES
SPEAKER TYPE BOX
HOTEL MODE
PANASONIC LOGO
CEC
RF IN
DTV IN
AV1 IN
AV2 IN
AV OUT
DVD COMPATIBILITY (YPbPr/YCbCr)
HDMI INPUT
HEADPHONE OUT
PC AUDIO IN
NO
YES
YES
ANY OTHER (PLEASE SPECIFY) SPDIF
－Side
－Bottom
VIDEO FORMAT H.264、MPEG4、MPEG2、HEVC FHD、MKV w/o Divx
SCREEN SIZE & DIAGONAL
ASPECT RATIO
DISPLAY AREA(H x V)
PIXEL PITCH
DISPLAY COLOURS
CONTRAST RATIO
MAX BRIGHTNESS
PANEL SPECIFICATIONSWEIGHT AND DIMN.RATINGACCESSORIESREGULATION PICTUREAUDIO FEATURESCONNECTIVITY
VIEWING ANGLE (HORIZONTAL / VERTICAL)
16:9
240cd/m2 Typical
178°/178°
NET WEIGHT WITH PEDESTAL 7.6KG
NET WEIGHT W/O PEDESTAL 7.4KG
NET DIMENSIONS WITH PEDESTAL 977*625.7*221.3MM
NET DIMENSIONS W/O PEDESTAL 977*574.2*92MM
GROSS DIMENSIONS (PACKING BOX) 1128*660*142MM
GROSS WEIGHT (WITH PACKING BOX) 10.7KG
POWER CONSUMPTIO N 75 W
REMOTE
BATTERY 2 "AA" Batteries
POWER CORD TYPE Integrated
POWER CORD -
POWER PLUG 2 pin
ANY OTHER (PLEASE SPECIFY) Mini AV adapator cable
BIS
CB YES
ERP YES
EMC YES
BEE NO
ANY OTHER (PLEASE SPECIFY) Dolby, SIPSI
PERSON IN CHARGE
≤0.5W
NO
Power cord intergrated on TV
