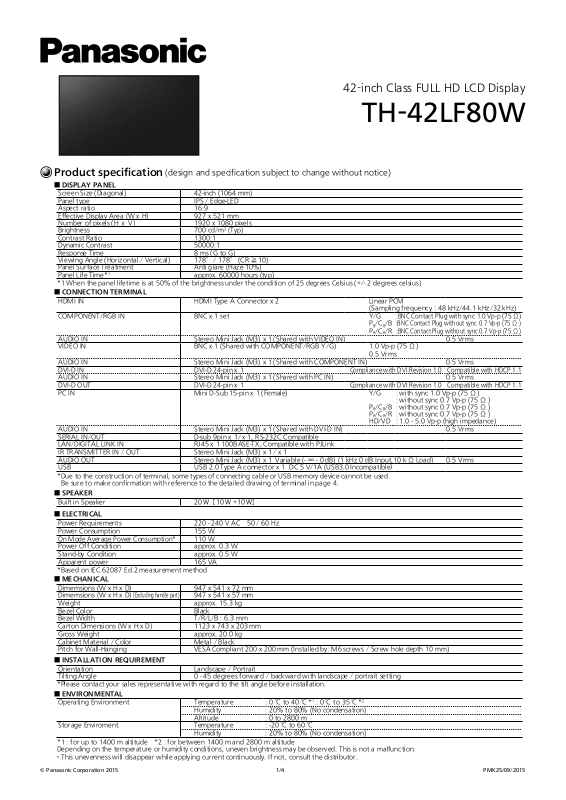

Page 1

42-inch Class FULL HD LCD Display

TH-42LF80W

(design and specification subject to change without notice)

Product specification

■ DISPLAY PANEL

Screen Size (Diagonal) 42-inch (1064 mm) Panel type IPS / Edge-LED Aspect ratio 16:9 Effective Display Area (W x H) 927 x 521 mm Number of pixels (H ｘ V) 1920 x 1080 pixels Brightness 700 cd/m Contrast Ratio 1300:1 Dynamic Contrast 50000:1 Response Time 8 ms (G to G) Viewing Angle (Horizontal / Vertical) 178° / 178° (CR ≧ 10) Panel Surface Treatment Anti glare (Haze 10%) Panel Life Time*

*1 When the panel lifetime is at 50% of the brightness under the condition of 25 degrees Celsius (+/- 2 degrees celsius).

■ CONNECTION TERMINAL

HDMI IN HDMI Type A Connector x 2 Linear PCM

COMPONENT/RGB IN BNC x 1 set Y/G :

AUDIO IN Stereo Mini Jack (M3) x 1 (Shared with VIDEO IN) VIDEO IN BNC x 1 (Shared with COMPONENT/RGB Y/G) 1.0 Vp-p (75 Ω )

AUDIO IN Stereo Mini Jack (M3) x 1 (Shared with COMPONENT IN) DVI-D IN DVI-D 24-pin x 1 AUDIO IN Stereo Mini Jack (M3) x 1 (Shared with PC IN) DVI-D OUT DVI-D 24-pin x 1 PC IN Mini D-Sub 15-pin x 1 (Female) Y/G

AUDIO IN Stereo Mini Jack (M3) x 1 (Shared with DVI-D IN) SERIAL IN/OUT D-sub 9pin x 1/ x 1, RS-232C Compatible LAN/DIGITAL LINK IN RJ45 x 1 100BASE-TX, Compatible with PJLink IR TRANSMITTER IN / OUT Stereo Mini Jack (M3) x 1 / x 1 AUDIO OUT Stereo Mini Jack (M3) x 1 Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 k Ω Load) 0.5 Vrms USB USB 2.0 Type A connector x 1 DC 5 V/1A (USB3.0 Incompatible）

*Due to the construction of terminal, some types of connecting cable or USB memory device cannot be used. Be sure to make confirmation with reference to the detailed drawing of terminal in page 4.

■ SPEAKER

Built in Speaker 20 Ｗ［10 Ｗ +10 Ｗ］

■ ELECTRICAL

Power Requirements 220 - 240 V AC　50 / 60 Hz Power Consumption 155 W On Mode Average Power Consumption* Power Off Condition approx. 0.3 W Stand-by Condition approx. 0.5 W Apparent power 165 VA

*Based on IEC 62087 Ed.2 measurement method

■ MECHANICAL

Dimemsions (W x H x D) 947 x 541 x 72 mm Dimemsions (W x H x D) Weight approx. 15.3 kg Bezel Color Black Bezel Width T/R/L/B : 6.3 mm Carton Dimensions (W x H x D) 1123 x 743 x 203 mm Gross Weight approx. 20.0 kg Cabinet Material / Color Metal / Black Pitch for Wall-Hanging

■ INSTALLATION REQUIREMENT

Orientation Landscape / Portrait Tilting Angle 0 - 45 degrees forward / backward with landscape / portrait setting

*Please contact your sales representative with regard to the tilt angle before installation.

■ ENVIRONMENTAL

Operating Environment Temperature : 0 ℃ to 40 ℃*1 : 0 ℃ to 35 ℃*

Storage Enviroment Temperature : -20 ℃ to 60 ℃

*1 : for up to 1400 m altitude　*2 : for between 1400 m and 2800 m altitude Depending on the temperature or humidity conditions, uneven brightness may be observed. This is not a malfunction.

・This unevenness will disappear while applying current continuously. If not, consult the distributor.

(Excluding handle part)

(Typ)

approx. 60000 hours (typ)

(Sampling frequency：48 kHz/44.1 kHz/32 kHz)

PB/CB/B:BNC Contact Plug without sync 0.7 Vp-p (75 Ω ) PR/CR/R :

0.5 Vrms

Compliance with DVI Revision 1.0　Compatible with HDCP 1.1

P P HD/VD

110 W

947 x 541 x 57 mm

VESA Compliant 200 x 200 mm (Installed by: M6 screws / Screw hole depth 10 mm)

Humidity : 20% to 80% (No condensation) Altitude : 0 to 2800 m

Humidity : 20% to 80% (No condensation)

BNC Contact Plug with sync 1.0 Vp-p (75 Ω)

BNC Contact Plug without sync 0.7 Vp-p (75 Ω )

: with sync 1.0 Vp-p (75 Ω ) : without sync 0.7 Vp-p (75 Ω ) : without sync 0.7 Vp-p (75 Ω )

B/CB

: without sync 0.7 Vp-p (75 Ω )

R/CR

: 1.0 - 5.0 Vp-p (high impedance)

0.5 Vrms

Page 2

42-inch Class FULL HD LCD Display

TH-42LF80W

MAIN FEATURE

USB Media Player Yes Fail back ＆ Fail over Yes Data Cloning Yes Early Warning Software compatible

Multi Monitoring & Control Software compatible

Operating Time 24h / 7d Digital Zoom Multi Display Yes Power ON Screen Delay Yes 1:1 Pixel mode Yes Auto setup Yes Screen Saver Yes HDMI Power Management Yes DIGITAL LINK Power Management Yes PC Power Management Yes DVI-D Power Management Yes Input Lock Yes Button Lock Yes Remote-control User Level Yes Input Search Yes

In case of running for a long time, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.

Yes

DIMENSIONS

65.7186 695.3

STANDARD (CERTIFICATIONS)

SAFETY REGULATIONS IEC60950-1 RADIATION REGULATIONS EN55022:2010 Class A

EN55024:2010 EN61000-3-2:2006+A1:2009+A2:2009 class D EN61000-3-3:2013 AS/NZS CISPR22:2009

REMOTE CONTROL TRANSMITTER

Power Requirements

Operating distance approx. 7 m* Weight

Dimemsions (W x H x D)

*When operated directly in front of receptor.

DC 3 V (2 x AAA Size batteries)

approx. 63 g including batteries 44 x 105 x 20.5 mm

INCLUDED ACCESSORIES

- AC cord (2.0 m)　- Remote Control　- Batteries (AAA size) x 2

- Clamper x 3　- Operating instruction book

OPTIONAL ACCESSORIES

Pedestal Stand TY-ST43PE8

Cautions: This drawing is not a scale

Units : mm

947

6.3

927

CONNECTION TERMINAL

521

6.3

106

6.3

541

200

* Specifications and appearance are subject to change without notice.

Page 3

42-inch Class FULL HD LCD Display

List of correspondence signals

The picture signal which can indicate a this machine is as it is the following table.

Correspondence signal

NTSC/NTSC4.43/

PAL-M/PAL60

PAL/PAL-N/SECAM 720 x 576i 15.63 50.00 - V

525i (480i) 720 x 480 15.73 59.94 13.50 R/Y 625i (576i) 720 x 576i 15.63 50.00 13.50 R/Y 525i (480i) 720 (1440) x 480

625i (576i) 720 (1440) x 576i 525p (480p) 720 x 483 31.47 59.94 27.00 R/Y/D/H DL 625p (576p) 720 x 576 31.25 50.00 27.00 R/Y/D/H DL

750 (720) /60p 1280 x 720 45.00 60.00 74.25 R/Y/D/H DL 750 (720) /50p 1280 x 720 37.50 50.00 74.25 R/Y/D/H DL

1125 (1080) /60i

1125 (1080) /50i 1920 x 1080i 28.13 50.00 74.25 R/Y/D/H DL

1125 (1080) /24p 1920 x 1080 27.00 24.00 74.25 R/Y/D/H DL

1125 (1080) /24PsF 1920 x 1080i 27.00 48.00 74.25 R/Y

1125 (1080) /25p 1920 x 1080 28.13 25.00 74.25 R/Y/D/H DL 1125 (1080) /30p 1920 x 1080 33.75 30.00 74.25 R/Y/D/H DL 1125 (1080) /60p 1920 x 1080 67.50 60.00 148.50 R/Y/D/H DL 1125 (1080) /50p 1920 x 1080 56.25 50.00 148.50 R/Y/D/H DL

VESA400

SVGA

MAC16 832 x 624 49.72 74.55 57.28 R/Y/D/H DL

852 x 480 852 x 480 31.47 59.94 34.24 D/H DL

WSVGA 1066 x 600 37.64 59.94 53.00 D/H DL

MXGA

MAC21 1152 x 870 68.68 75.06 100.00 R/Y/D/H DL

1280 x 720 1280 x 720 44.76 60.00 74.48 R/Y/D/H DL

1280 x 768

1280 x 800

MSXGA

SXGA

1360 x 768

1366 x 768

SXGA+

WXGA+

1600 x 900

WSXGA+ 1680 x 1050 65.29 59.95 146.25 R/Y/D/H DL

UXGA 1600 x 1200

1920 x 1080

WUXGA 1920 x 1200

VGA

XGA

Resolution

(dot)

720 x 480i 15.73 59.94 - V

i*2

1920 x 1080i 33.75 60.00 74.25 R/Y/D/H DL

640 x 400 31.47 70.09 25.18 R/Y/D/H DL 640 x 400 31.50 85.08 31.50 R/Y/D/H DL 640 x 480 31.47 59.94 25.18 R/Y/D/H DL 640 x 480 35.00 66.67 30.24 R/Y/D/H DL 640 x 480 37.86 72.81 31.50 R/Y/D/H DL 640 x 480 37.50 75.00 31.50 R/Y/D/H DL 640 x 480 43.27 85.01 36.00 R/Y/D/H DL 800 x 600 35.16 56.25 36.00 R/Y/D/H DL 800 x 600 37.88 60.32 40.00 R/Y/D/H DL 800 x 600 48.08 72.19 50.00 R/Y/D/H DL 800 x 600 46.88 75.00 49.50 R/Y/D/H DL 800 x 600 53.67 85.06 56.25 R/Y/D/H DL

1024 x 768 39.55 50.00 51.89 D/H DL 1024 x 768 48.36 60.00 65.00 R/Y/D/H DL 1024 x 768 56.48 70.07 75.00 R/Y/D/H DL 1024 x 768 60.02 75.03 78.75 R/Y/D/H DL 1024 x 768 65.55 81.63 86.00 R/Y/D/H DL 1024 x 768 68.68 85.00 94.50 R/Y/D/H DL

1152 x 864 53.70 60.00 81.62 D/H DL 1152 x 864 63.99 70.02 94.20 R/Y/D/H DL 1152 x 864 67.50 75.00 108.00 R/Y/D/H DL 1152 x 864 77.09 85.00 119.65 R/Y/D/H DL

1280 x 768 39.55 49.94 65.18 R/Y/D/H DL 1280 x 768 47.70 60.00 80.14 R/Y/D/H DL 1280 x 768 47.78 59.87 79.50 R/Y/D/H DL 1280 x 800 41.20 50.00 68.56 R/Y/D/H DL 1280 x 800 49.31 59.91 71.00 R/Y/D/H DL 1280 x 800 49.70 59.81 83.50 R/Y/D/H DL 1280 x 960 60.00 60.00 108.00 R/Y/D/H DL

1280 x 960 85.94 85.00 148.50 R/Y 1280 x 1024 63.98 60.02 108.00 R/Y/D/H DL 1280 x 1024 79.98 75.02 135.00 R/Y/D/H DL 1280 x 1024 91.15 85.02 157.50 R/Y/D/H DL

1360 x 768 47.71 60.02 85.50 D/H DL

1360 x 768 47.70 60.00 84.72 D/H DL

1360 x 768 47.72 59.80 84.75 D/H DL

1366 x 768 39.55 50.00 69.92

1366 x 768 48.39 60.03 86.71 R/Y/D/H DL 1366 x 768 48.00 60.00 72.00 R/Y/D/H DL 1366 x 768 39.56 49.89 69.00 R/Y/D/H DL

1366 x 768 47.71 59.79 85.50 R/Y/D/H DL 1400 x 1050 65.22 60.00 122.61 D/H DL 1400 x 1050 82.20 75.00 155.85 R/Y/D/H DL

1440 x 900 55.47 59.90 88.75 R/Y/D/H DL

1440 x 900 55.92 60.00 106.47 R/Y/D/H DL

1600 x 900 46.30 50.00 97.05 D/H DL

1600 x 900 60.00 60.00 108.00 D/H DL

1600 x 900 55.99 59.95 118.25 D/H DL

1600 x 900 55.92 60.00 119.00 D/H DL

1920 x 1080

1920 x 1080 67.50 60.00 148.50 R/Y/D/H DL

Horizontal(kHz) Vertical(Hz)

15.73 59.94 27.00 D/H DL

15.63 50.00 27.00 D/H DL

75.00 60.00 162.00 R/Y/D/H DL

66.59 59.93 138.50 R/Y/D/H DL

74.04 59.95 154.00 R/Y/D/H DL

Scan rate

Dot clock rate

(MHz)

V：VIDEO R：D-sub RGB Y：YCbCr/YPbPr

TH-42LF80W

D：DVI-D H：HDMI DL：DIGITAL LINK

Input format

D/H DL

DIGITAL LINK

● The signal format distinguished automatically will be sometimes indication different from an actual input signal. *1: When 1125 (1035) /60i signal is input, it is displayed as 1125 (1080) /60i signal. *3: Displayed with image elements thinned out in the image processing circuit. *2: Pixel-Repetition signal (dot clock frequency 27.0 MHz) only *4: Based on VESA CVT-RB (Reduced Blanking) standard

Page 4

42-inch Class FULL HD LCD Display

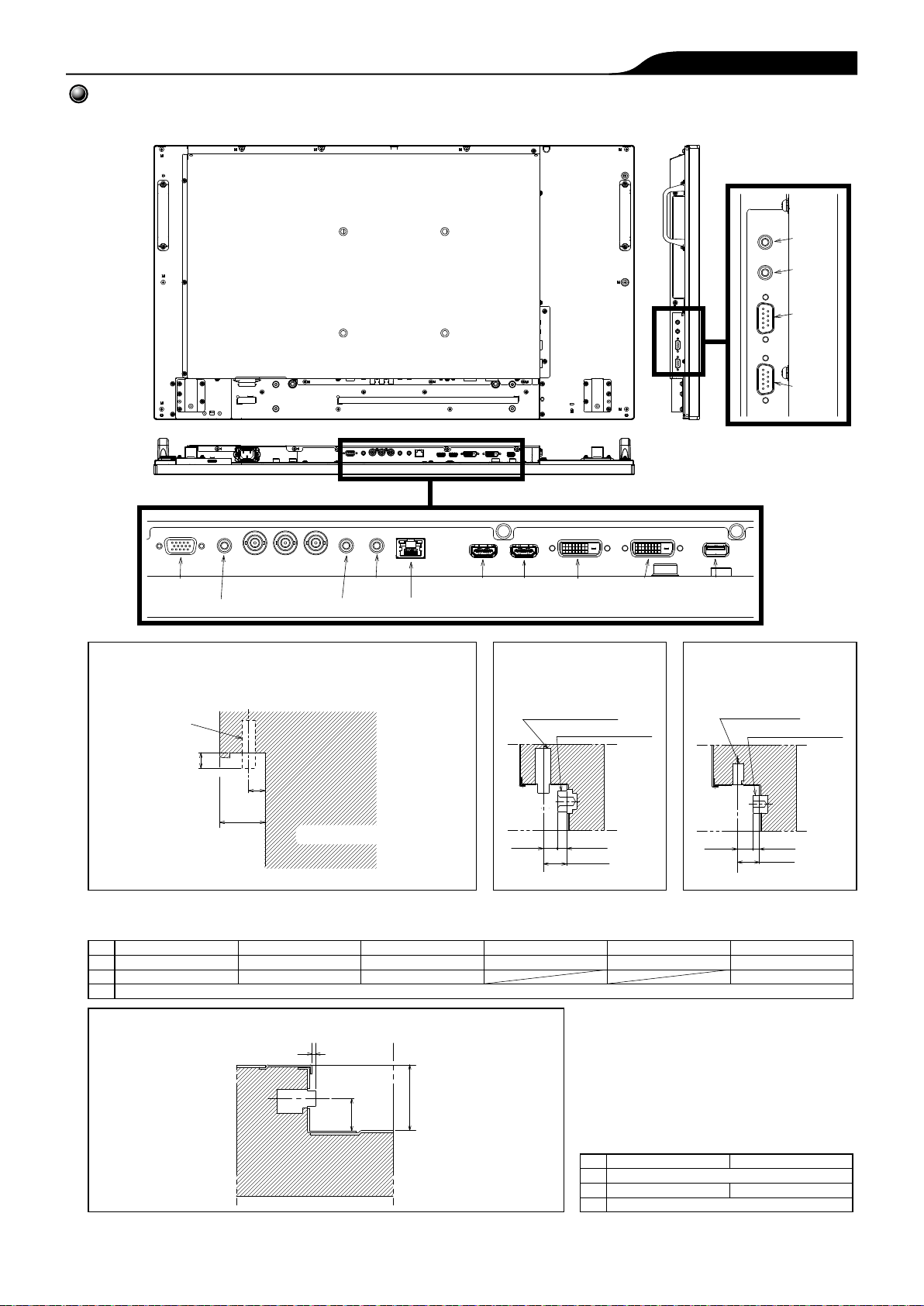

Drawing of terminals

View from back

Magnified figure of terminal a

TH-42LF80W

Magnified figure of terminal b

IR IN

IR OUT

SERIAL IN

SERIAL OUT

PC IN

COMPONENT/RGB/VIDEO IN

AUDIO2 INAUDIO1 IN

AUDIO OUT

DIGITAL LINK/LAN

Sectional view of terminal a

（PC/AUDIO/COMPONENT/DIGITAL LINK/LAN/HDMI/DVI-D IN）

Terminals

(on the product side)

DVI-D OUTDVI-D INHDMI2HDMI1

Sectional view of terminal

(DVI-D OUT)

DVI-D terminal

Boss projection

9.3

（6.5）

15.8

USB

Sectional view of terminal

(USB)

USB terminal

Boss projection

10.4

（4.4）

14.8

Terminal a 42LF8/80

A 17.1 17.3 18.9 15.2 14.2 15.8 B 4.3 1.7 10.8 4.7 C 32

Terminal (

PC AUDIO COMPONENT DIGITAL LINK/LAN HDMI DVI-D IN

Bottom

Sectional view of terminal b

)

（IR IN/IR OUT/SERIAL）

Units : mm

*Due to the construction of terminal, some types of connecting cable or USB memory device cannot be used.

Be sure to use connecting cable or USB memory device after confirmation in this drawing.

Terminal b 42LF8/80 T

A 14.2 B 1.5 4 C 28.7

erminal (

IR IN/OUT SERIAL

Side

)

Units : mm
