Page 1

Operating Instructions

Plasma Television

Model No. TH-37PX70BA

TH-42PX70BA TH-50PX70BA

INPUT

OPTION

DIRECT TV REC

EXIT

RETURN

U.K. Standard

English

Please read these instructions before operating your set and retain them for future reference.

The images shown in this manual are for illustrative purposes only.

Page 2

Turn your living room into a home theatre!

Experience an amazing level of multi-media excitement

Receive digital terrestrial broadcastings using an integrated (Digital Video Broadcasting) tuner

(Display DVB programmes with TV Guide (p. 14) / Timer recording (p. 36) / Register and instantly call up favourite programmes with Profile Edit (p. 29))

Sharp pictures with HDMI terminal

Control DVD recorder / VCR via TV with Q-Link connection

Create home theatre and Panasonic equipment link-ups with “VIERA Link” without complicated settings!

Support Audio Description signal

Audio description (AD) is an ancillary component associated with a broadcasting which delivers a verbal description of the visual scene as an aid to understanding and enjoyment particularly, for visually-impaired viewers.

(p. 13 and p. 22)

(p. 40)

(p. 38)

Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996) TH-37PX70BA Declaration of Conformity No 4882, 11 June 2007 TH-42PX70BA Declaration of Conformity No 4883, 11 June 2007 TH-50PX70BA Declaration of Conformity No 4884, 11 June 2007

Page 3

Contents

HD ready

pictures from HDMI and Component video inputs.

V-real 2

V-real 2 technology is the collective name for original technologies developed by Panasonic to enhance total image quality: V-real 2 PROCESSOR: Enhance and output the incoming video signals as high-image-quality signals. The resulting video signals deliver the kind of high resolution that large screens require. V-real 2 DRIVER: Precisely controls panel drive to optimise its performance. Achieves high image quality with the equivalent of high steps of gradation. V-real 2 PANEL: Provide clear, vivid display of the video signal after processing by the V-real 2 Processor and Driver.

MAX.

High contrast

High Contrast

between the brightest white and the darkest black that the VIERA can produce. The ability to express rich, deep blacks is extremely important for displaying beautiful pictures.

High gradation

Gradation refers to the smoothness of colour

Gradation Steps

expression. Rich, fine gradation is extremely important for maximising the high resolution panel.

Lead-free display

lead-free. This reduces the impact on the environment when recycling or disposing of them in the future.

HD ready means the ability to display high-definition

Contrast is the difference in light intensity

All VIERA plasma display panels are

Be Sure to Read

Safety Precautions ······································ 4

•

(Warning & Caution)

Notes ··························································· 5

•

Maintenance ··············································· 5

•

Quick Start Guide

Accessories / Options Identifying Controls Basic Connection Auto Setup

Enjoy your TV!

Basic Features

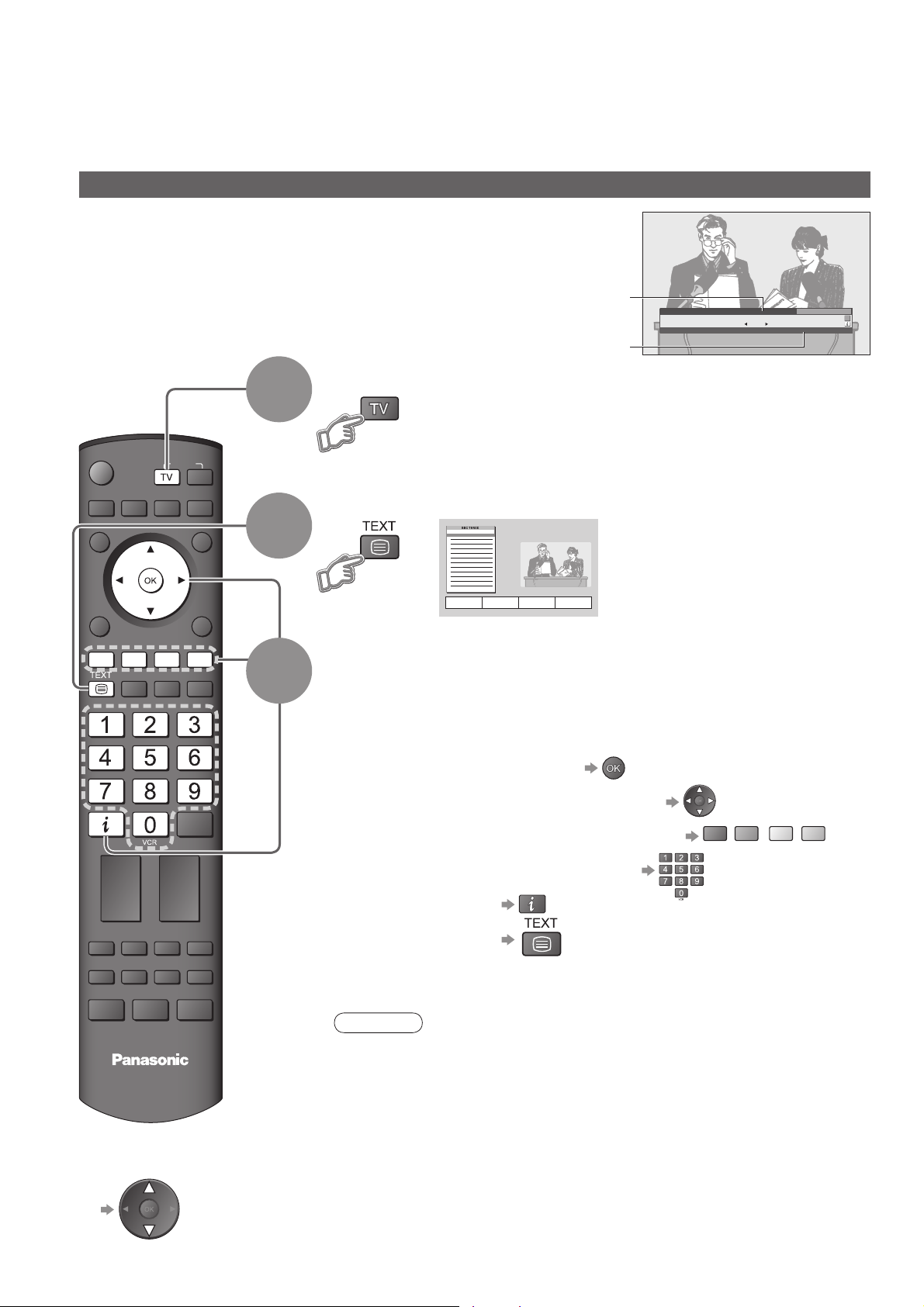

Watching TV ·············································· 12

•

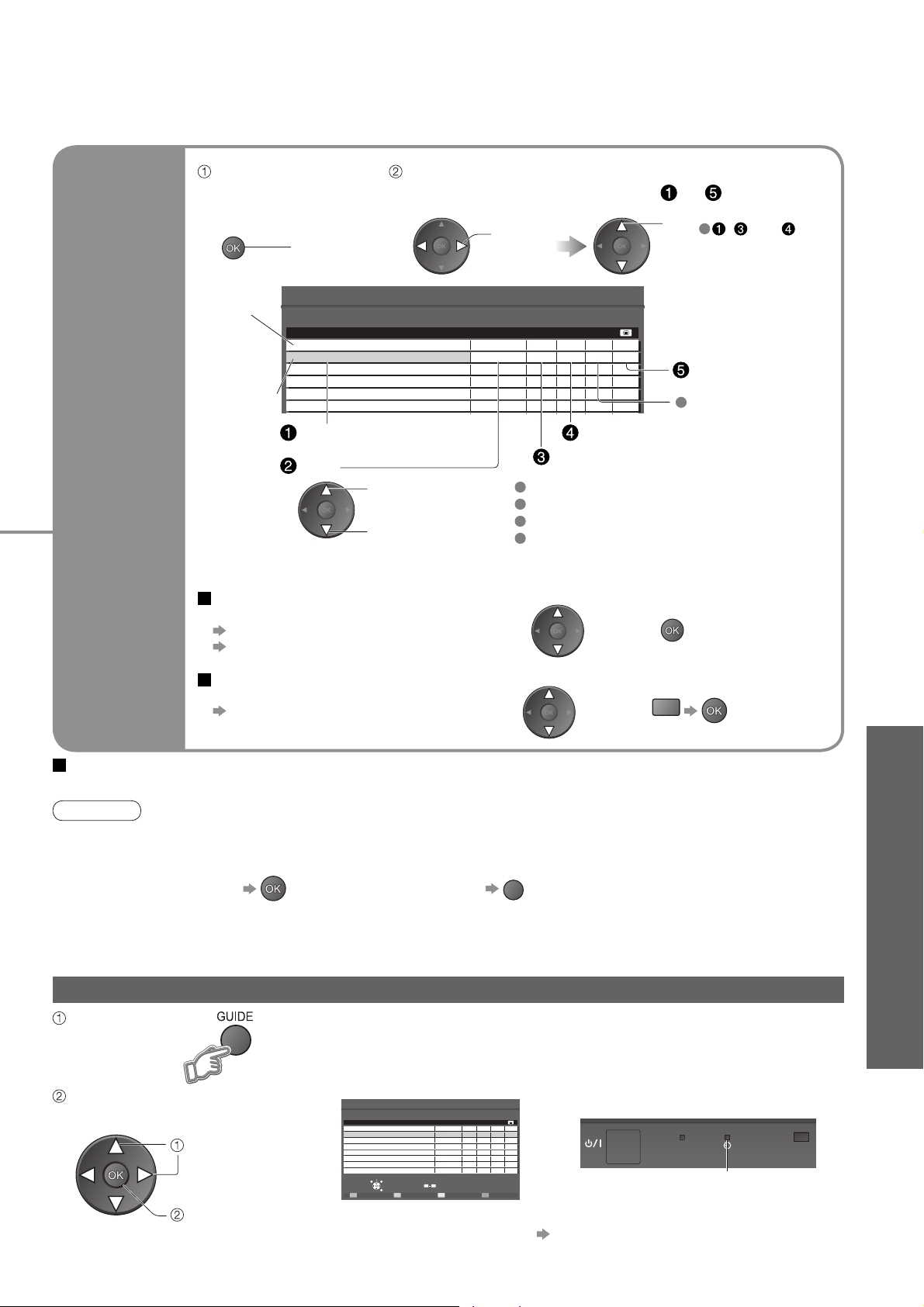

Using TV Guide ········································· 14

•

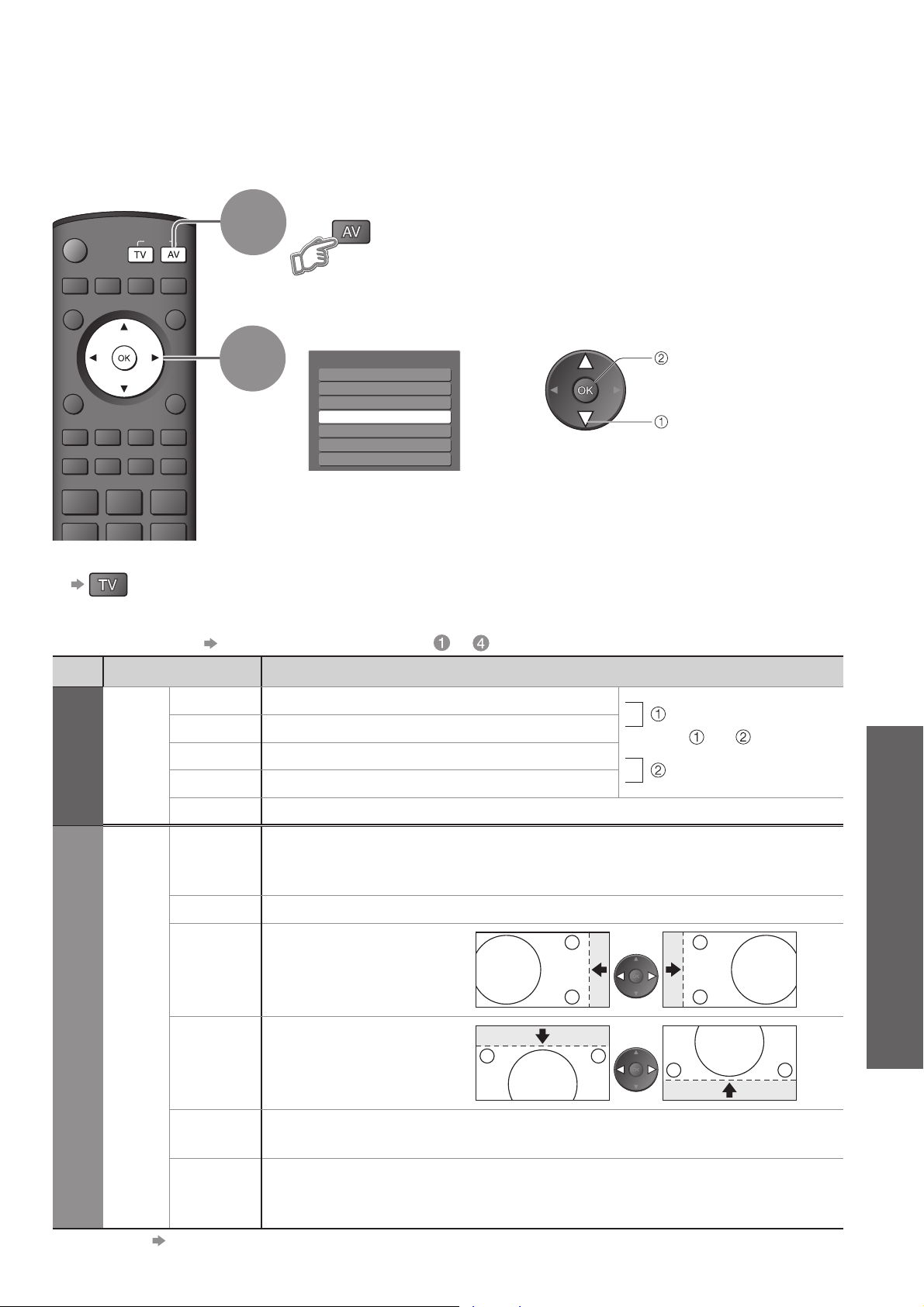

Watching VCR, DVD and Satellites ··········16

•

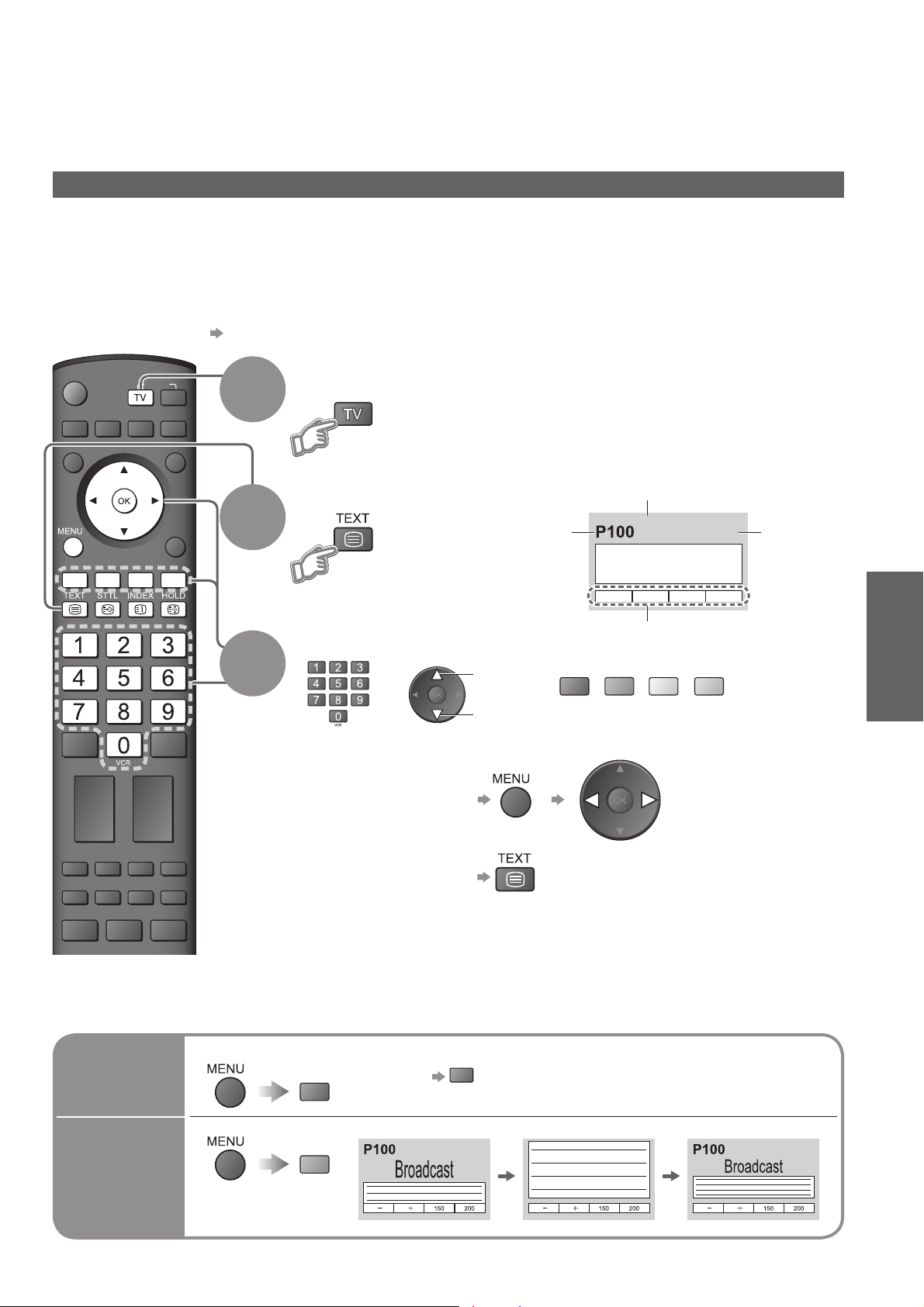

Viewing Teletext ········································18

······························ 10

·················· 8

········· 6

·············· 7

•

Advanced Features

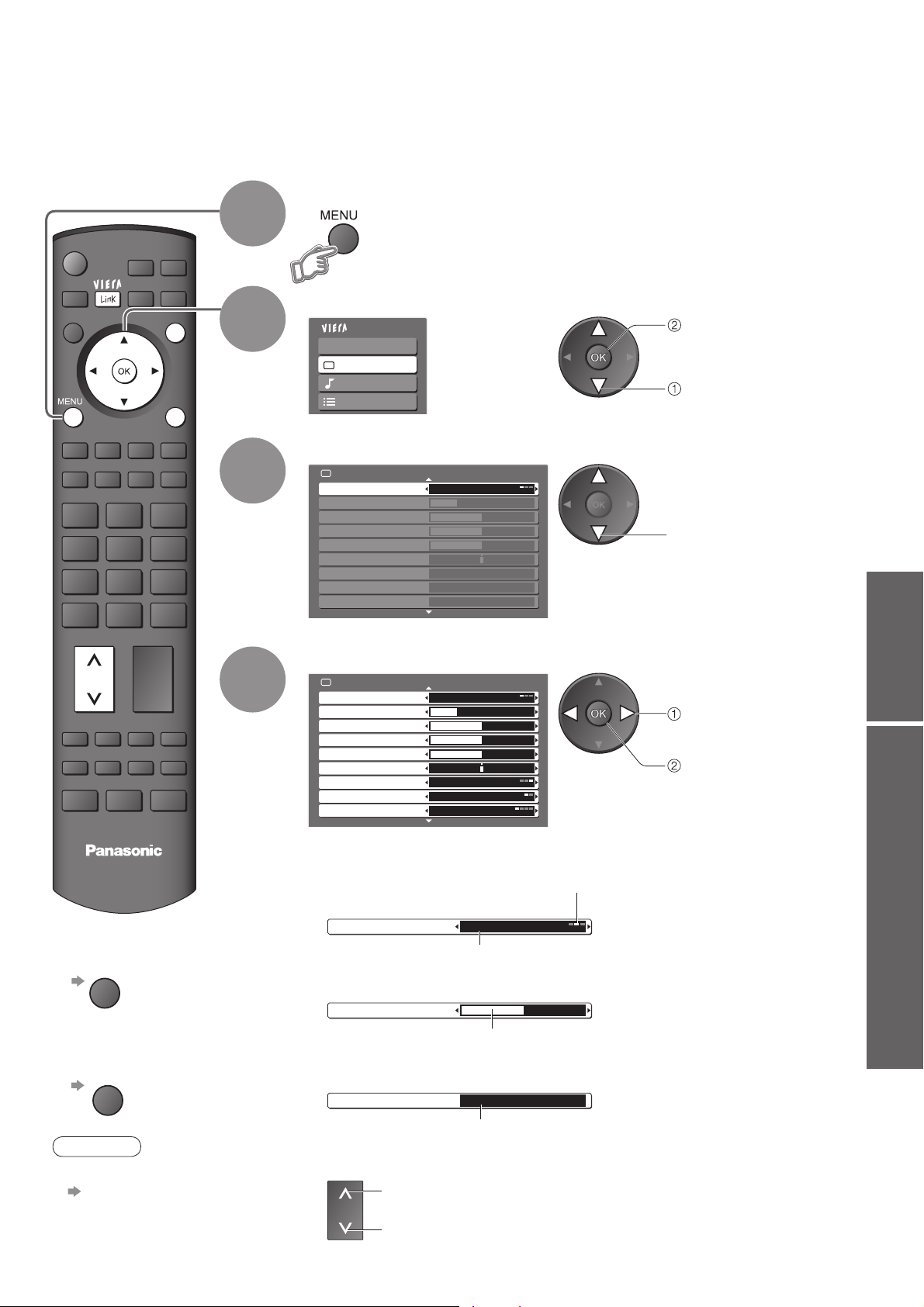

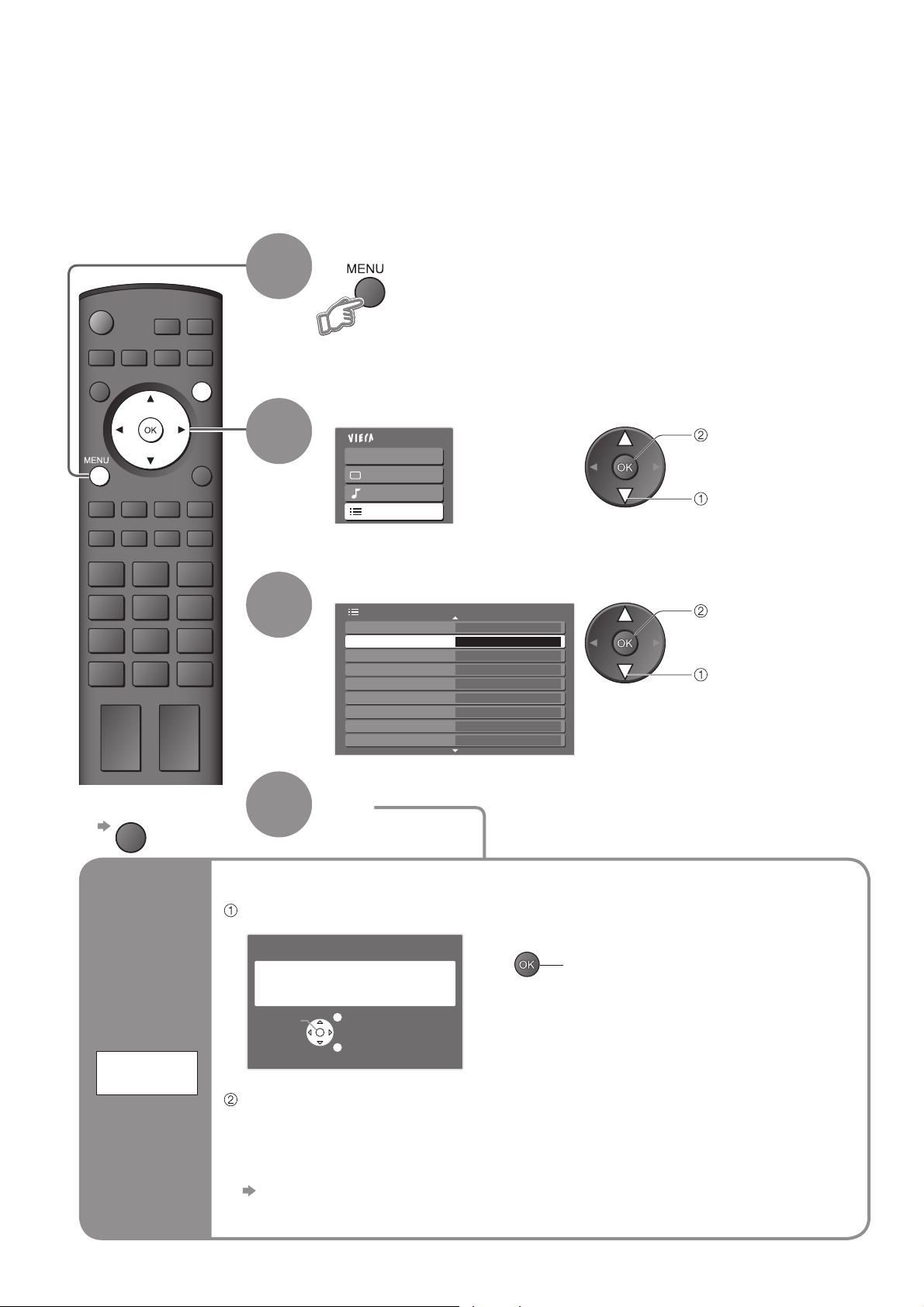

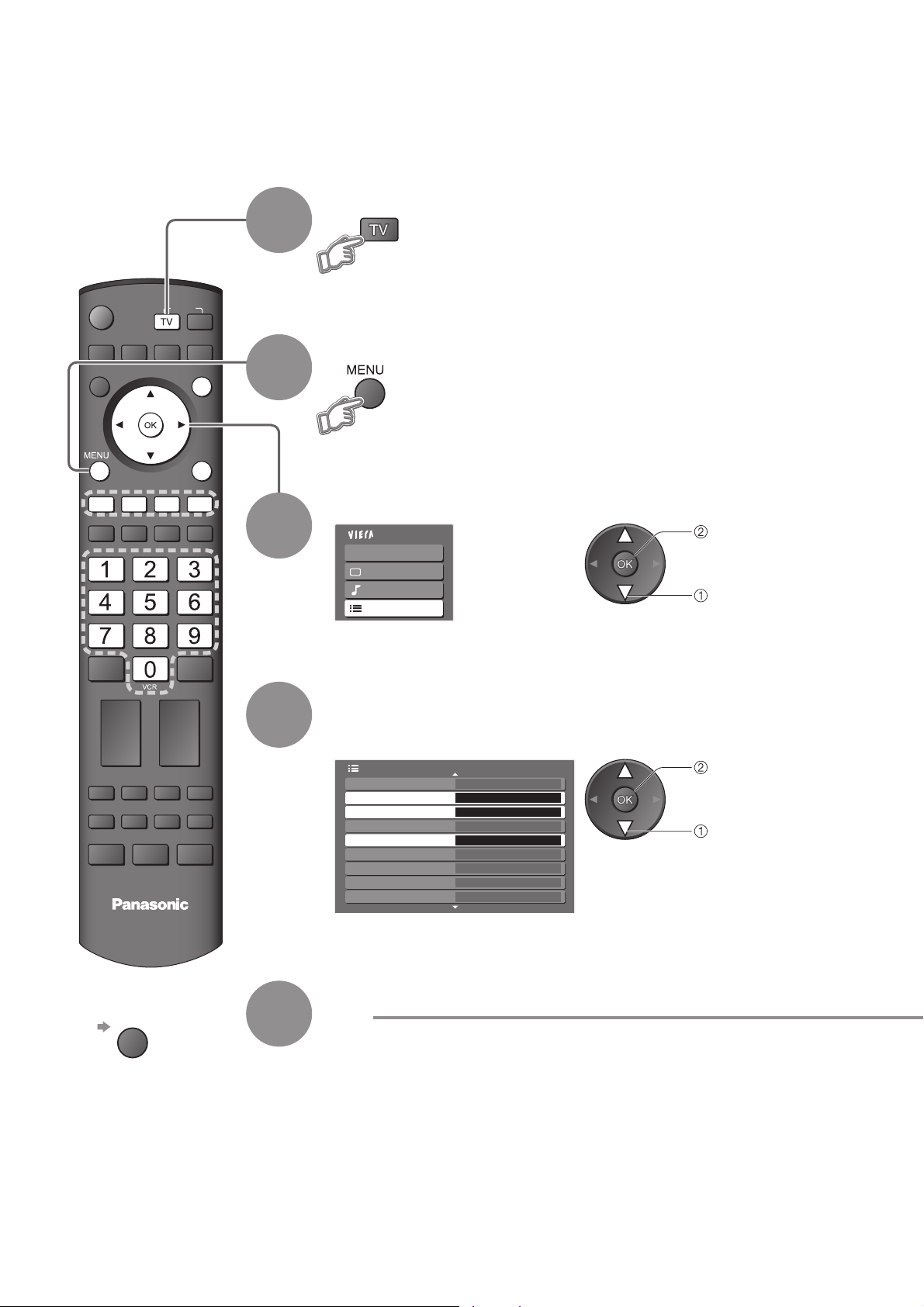

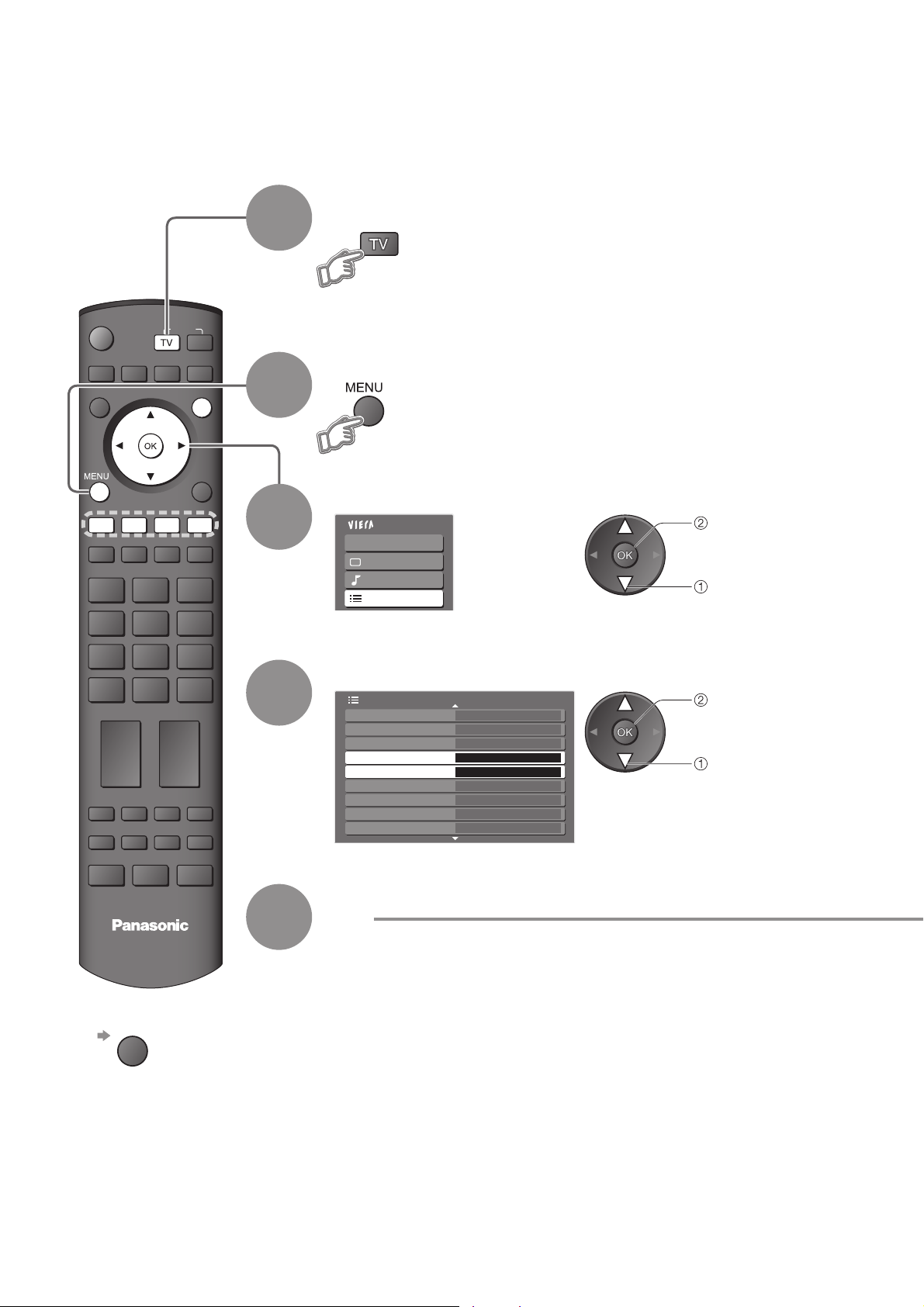

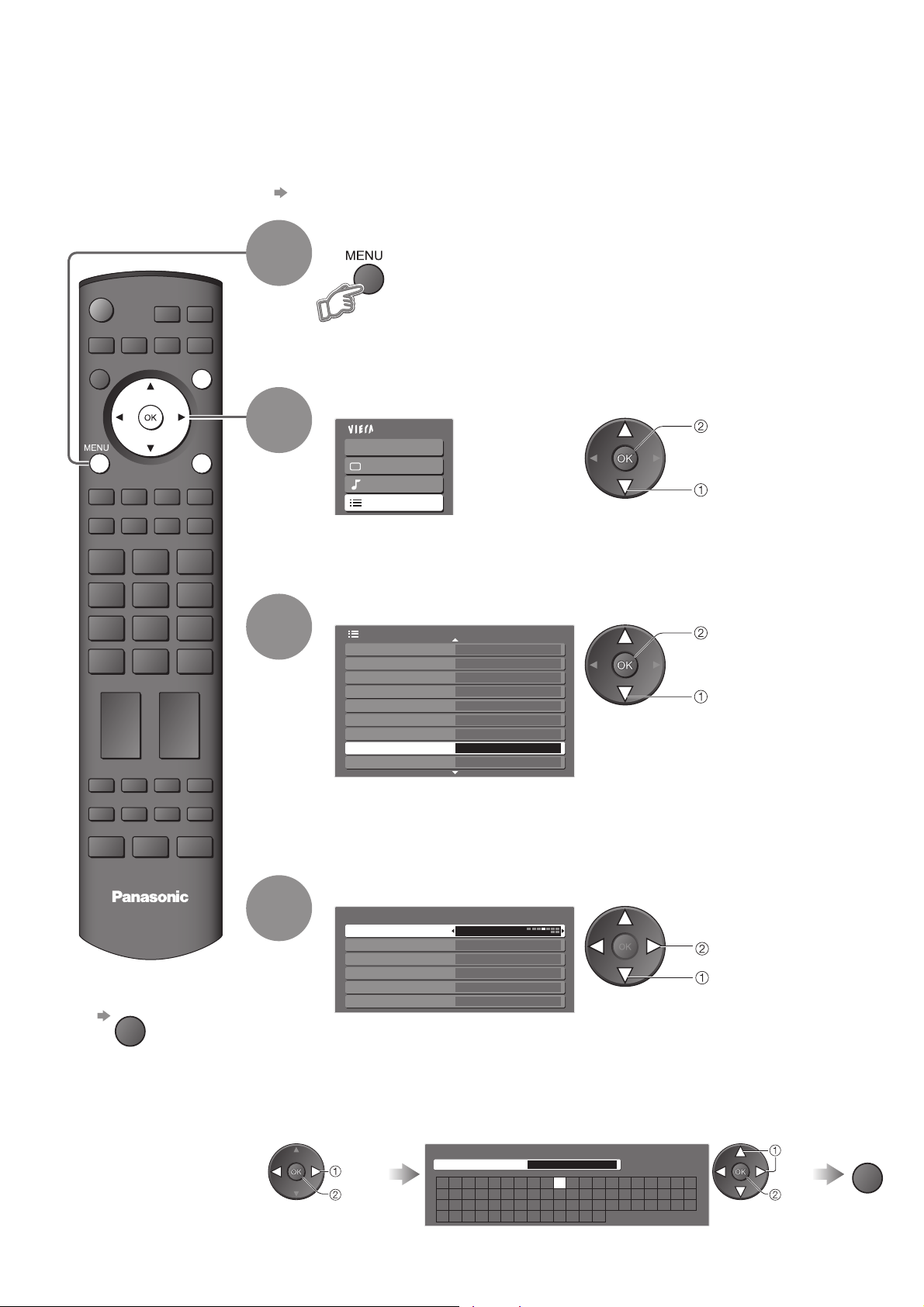

How to Use Menu Functions ····················· 21

•

(picture, sound quality, etc.)

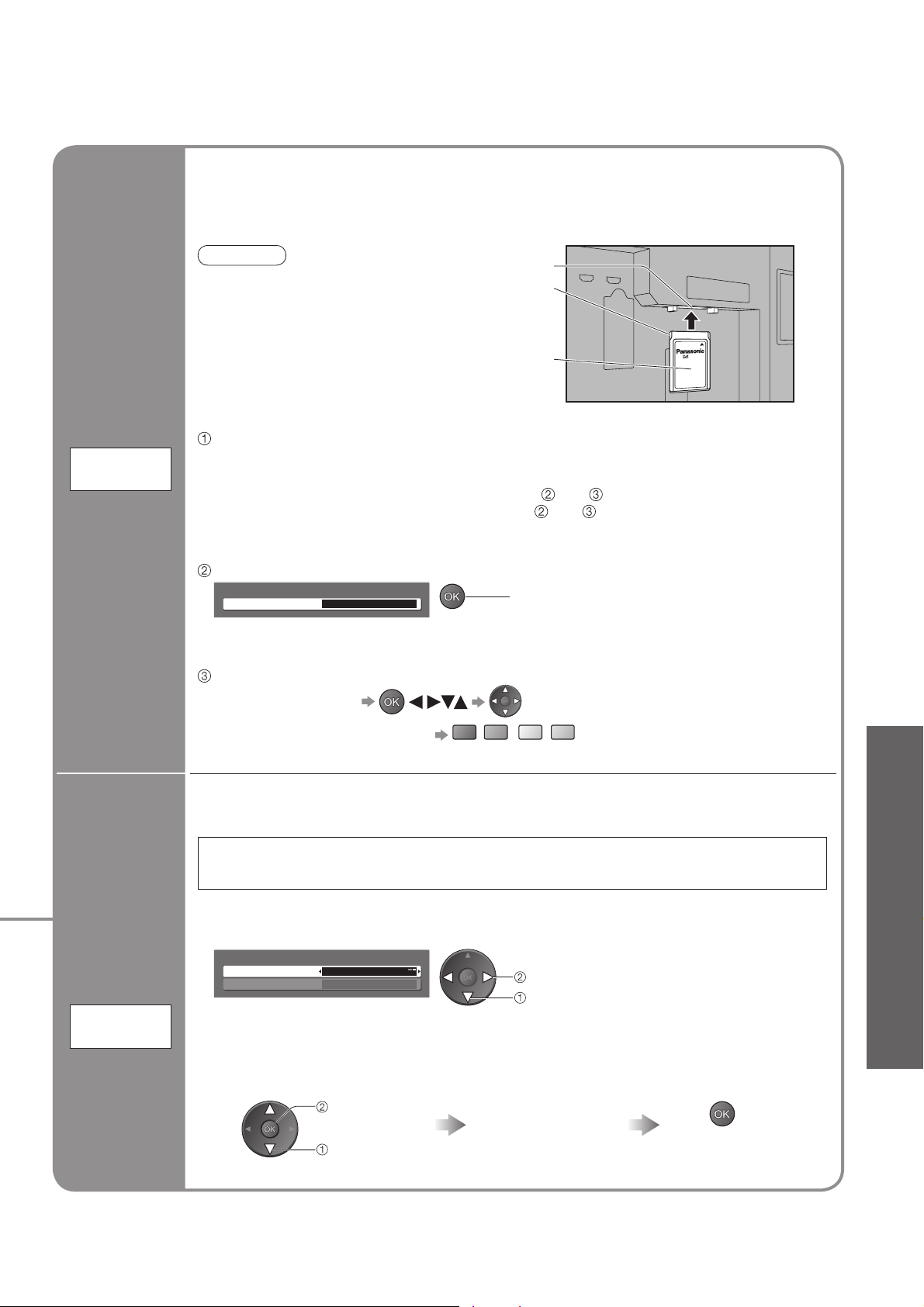

DVB Settings (DVB) ·································· 26

•

(pay-TV, software update)

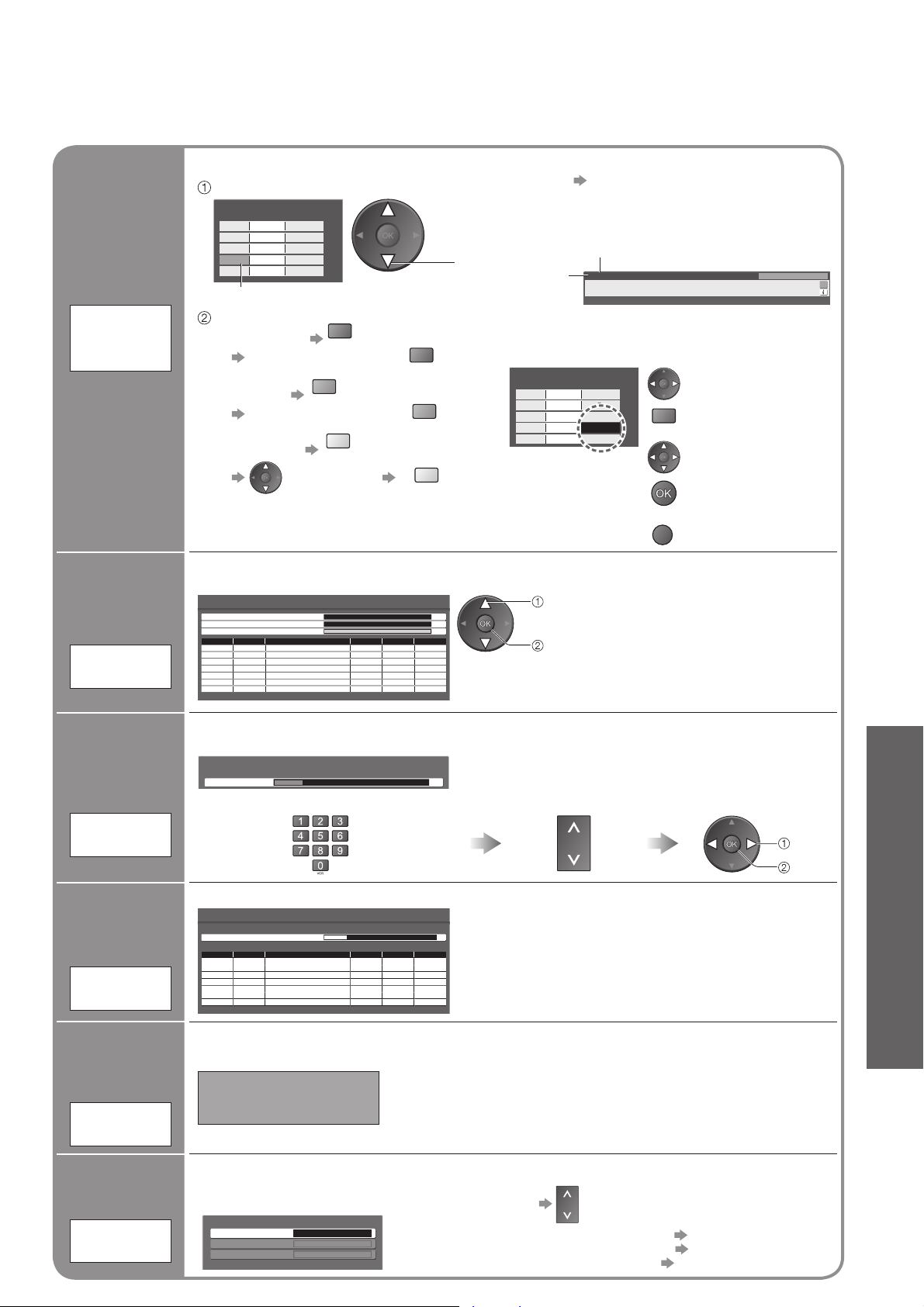

Editing Channels ······································· 28

•

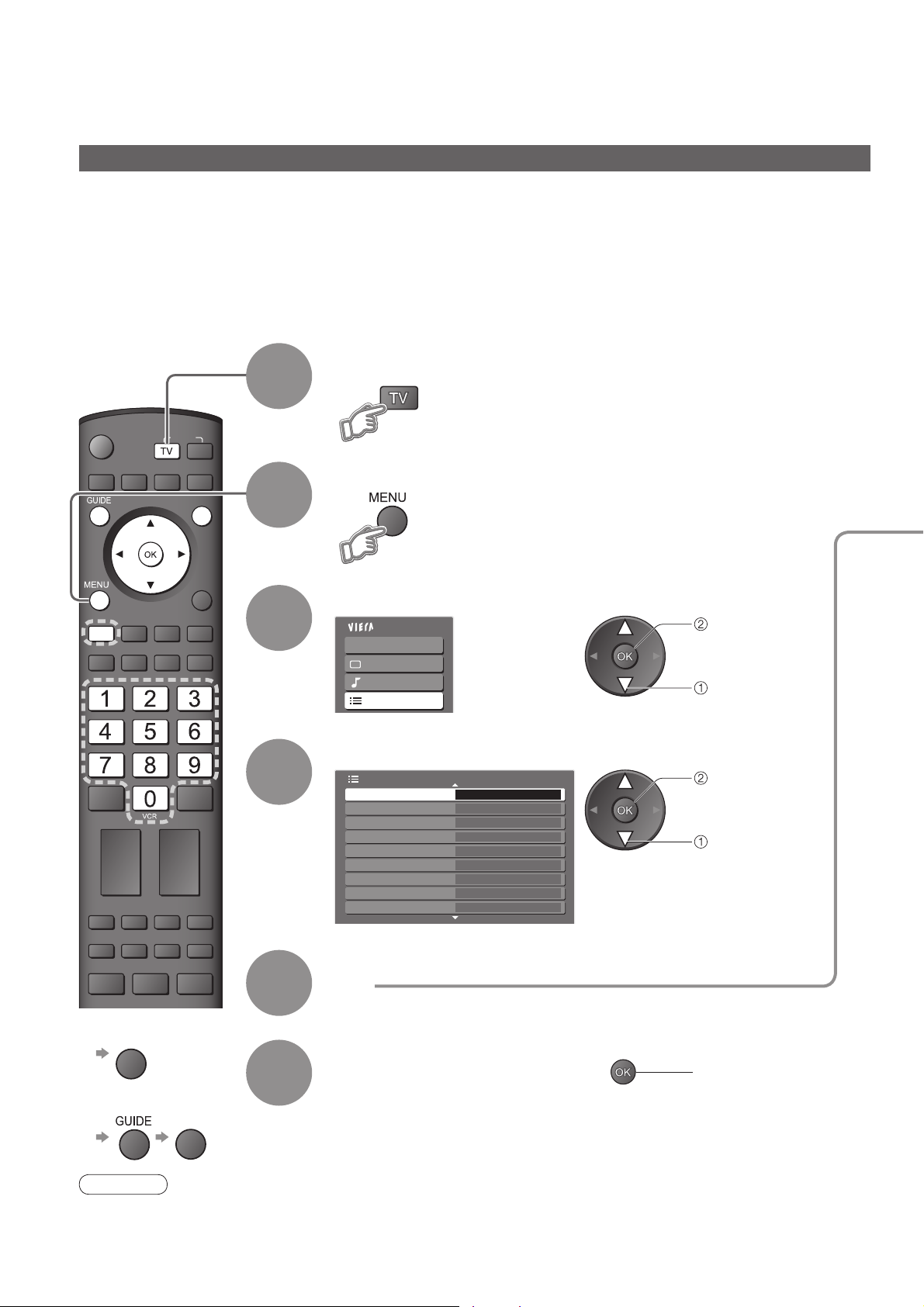

Tuning Channels ······································· 30

•

Restore Settings ······································· 32

•

Owner ID ··················································· 33

•

Input Labels ·············································· 34

•

Displaying PC Screen on TV ····················· 35

•

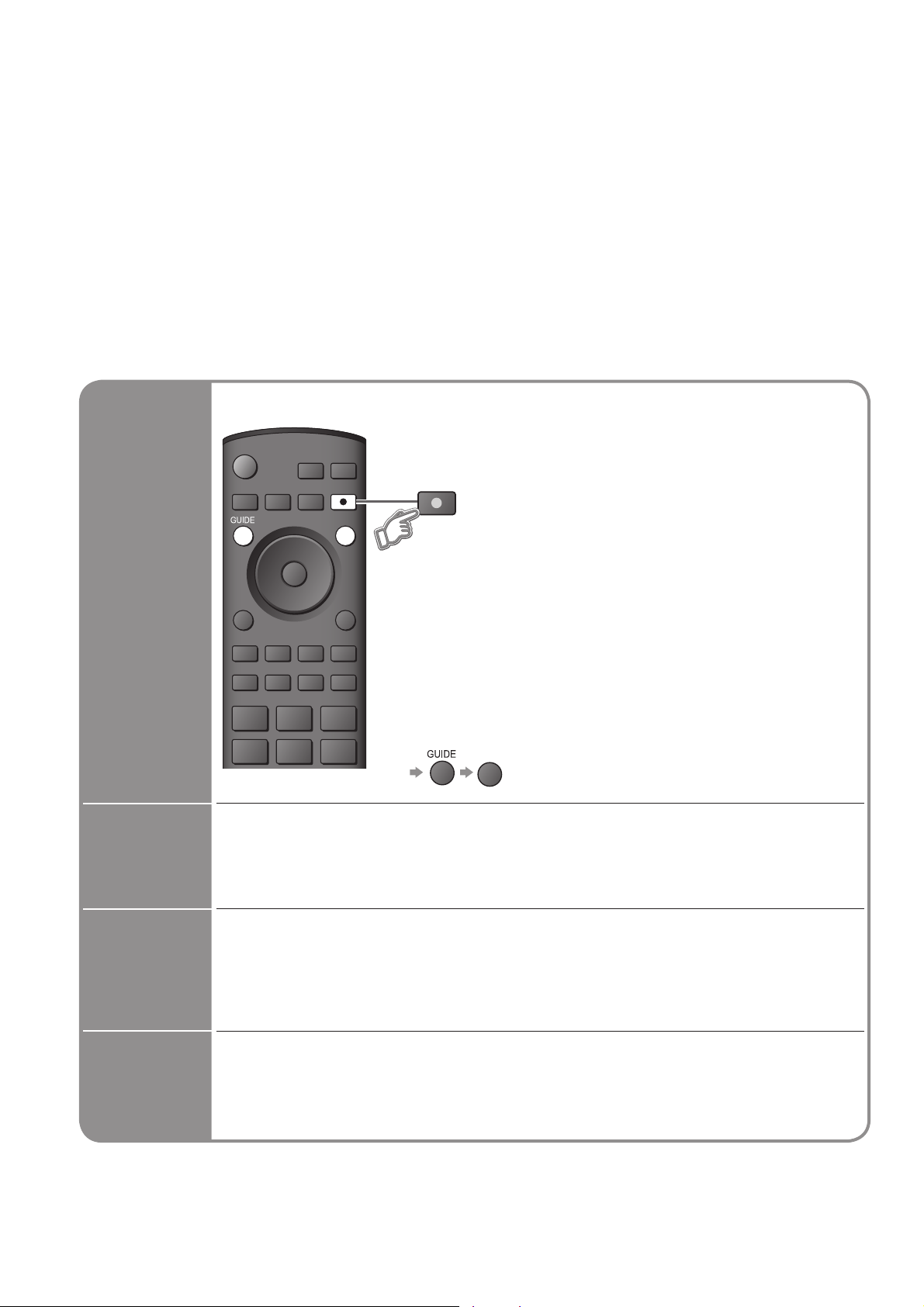

Recording Controls (DVB) ························ 36

•

Q-Link Functions ······································· 38

•

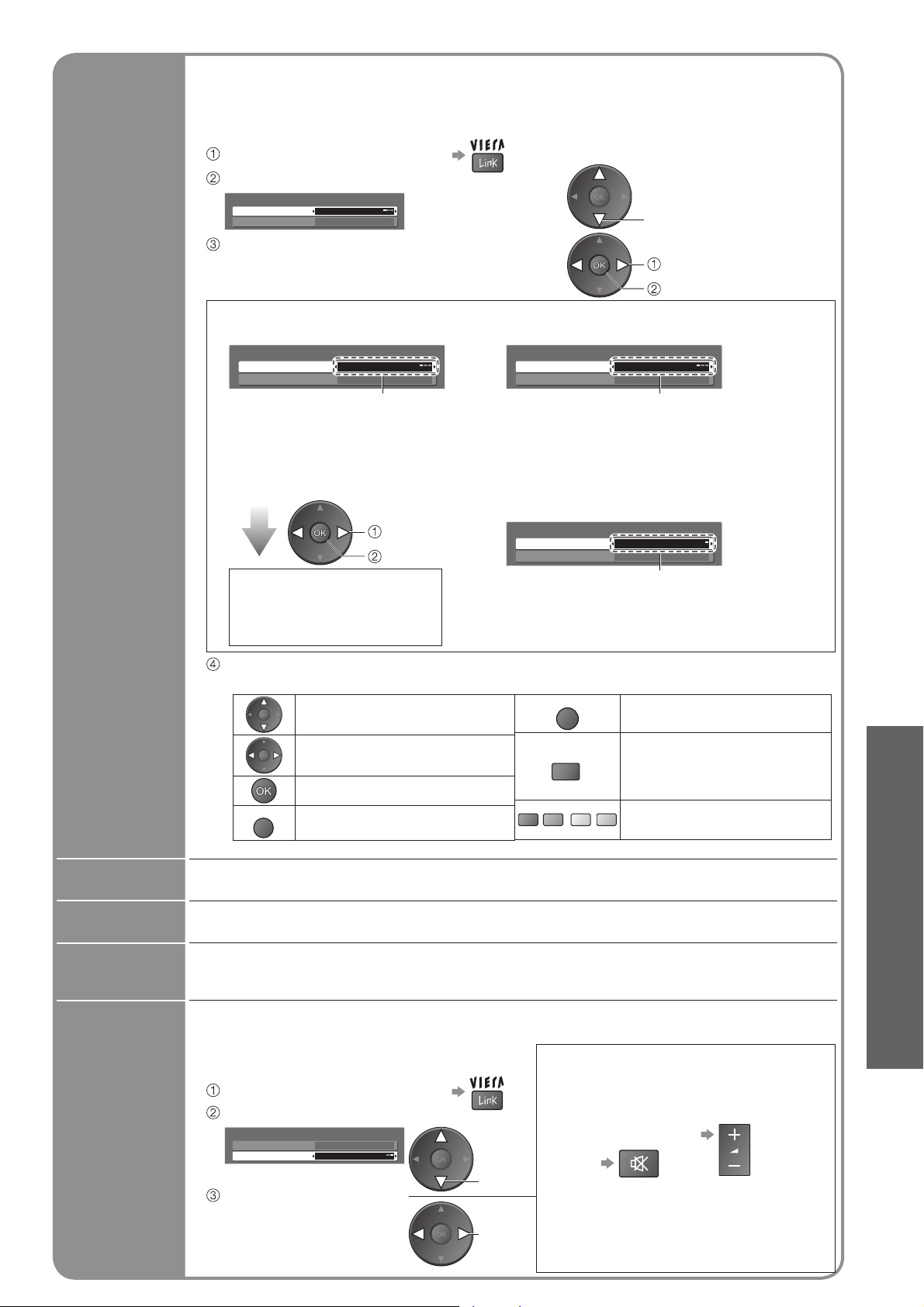

HDMI Functions ·······································39

•

(HDMI terminal / VIERA Link)

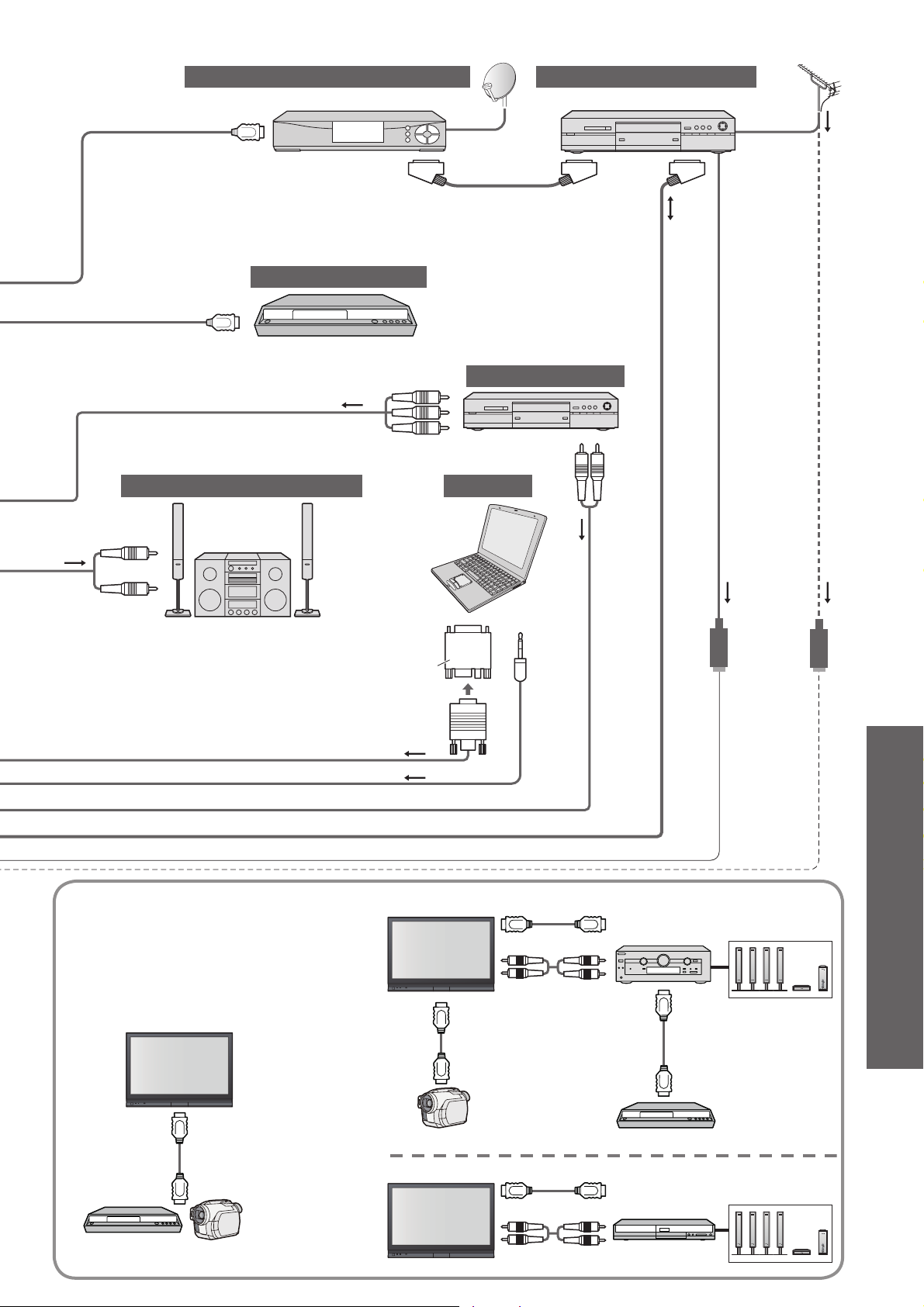

External Equipment ··································· 42

•

Viewing Advanced FAQs, etc.Quick Start Guide

FAQs, etc.

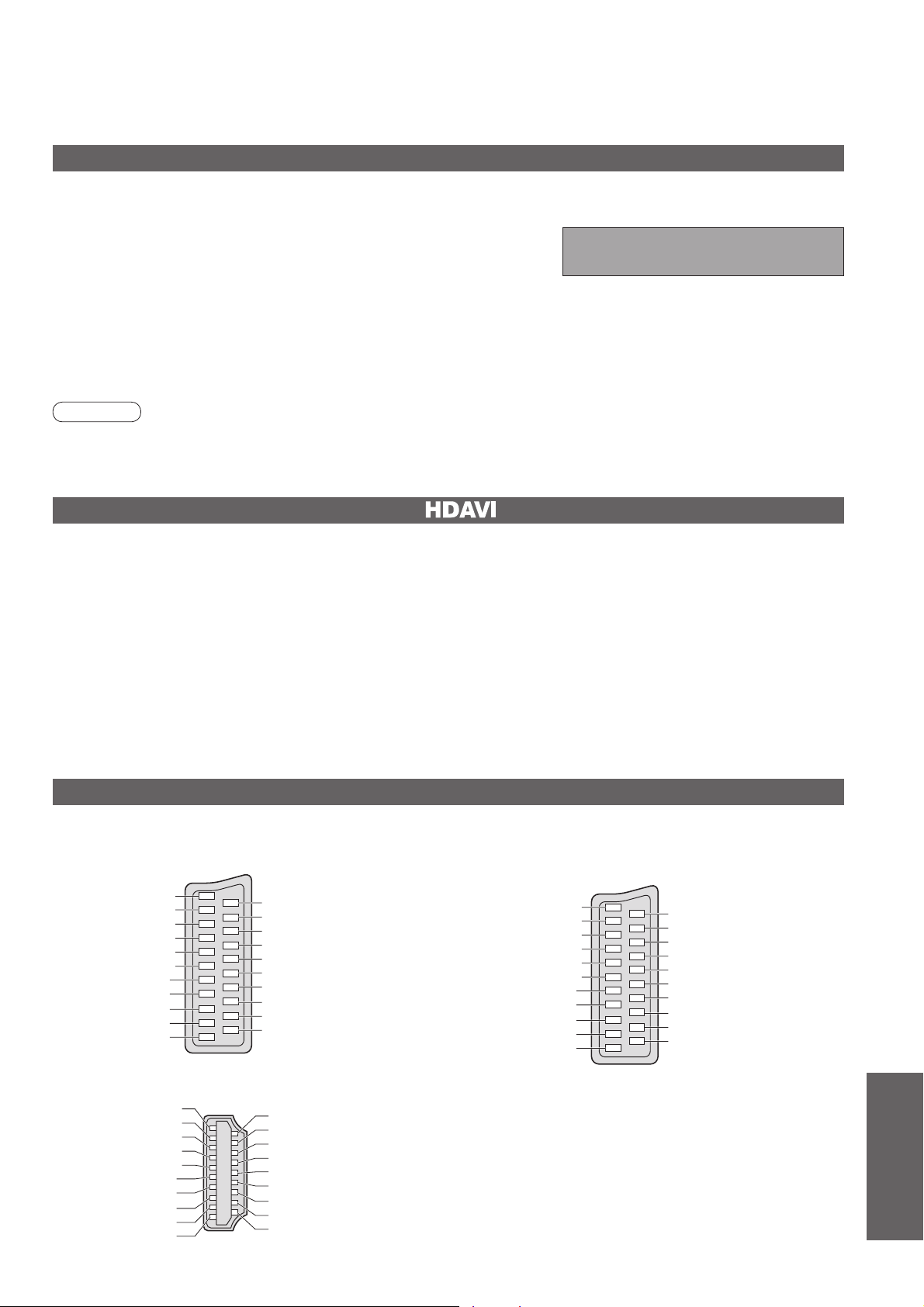

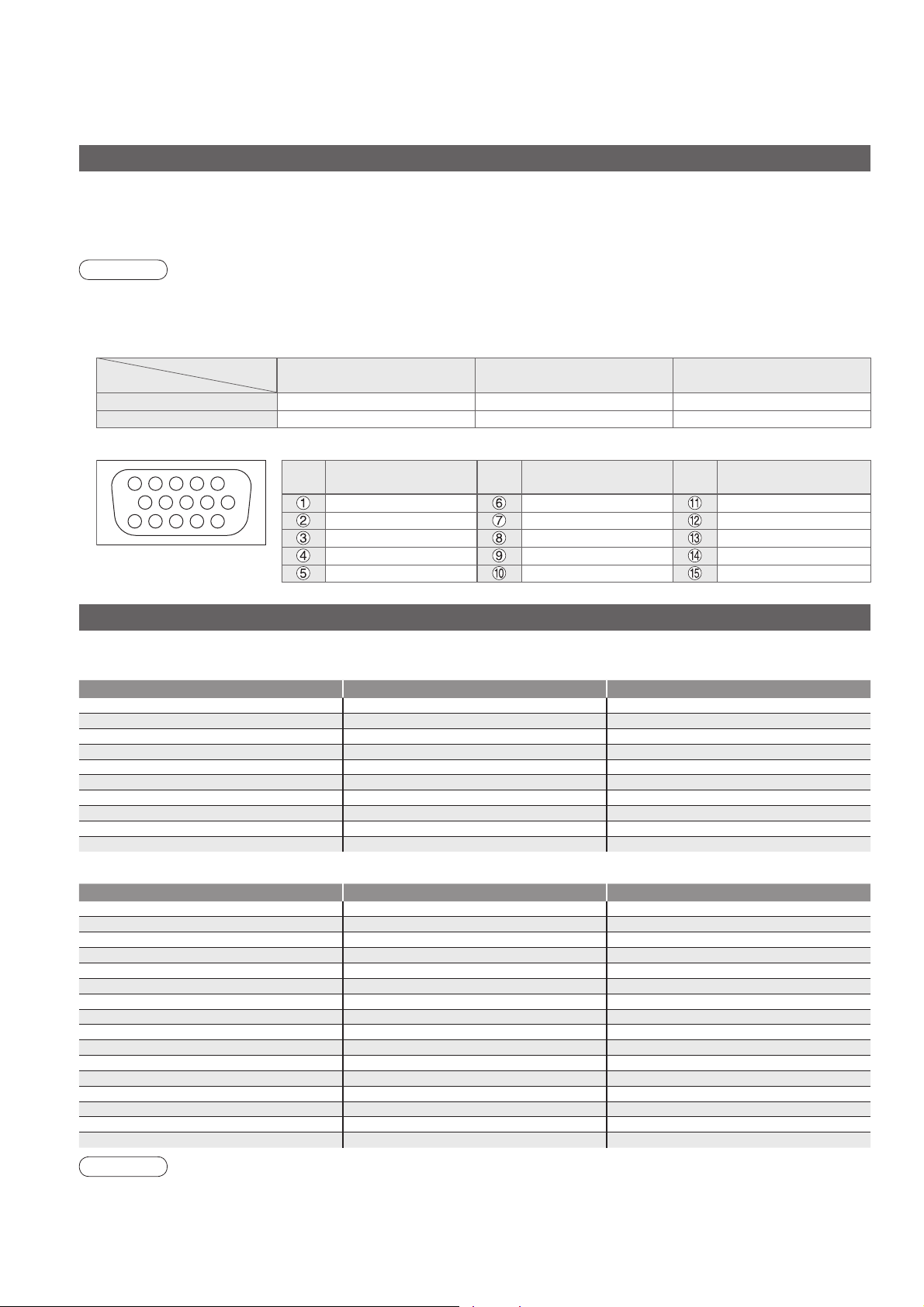

Technical Information ································44

•

FAQs ·························································47

•

On screen messages ································ 49

•

Specifications ············································ 51

•

Index ························································· 51

•

Licence ······················································ 52

•

Page 4

Safety Precautions

Warning & Caution

Handling the mains plug

Ensure that the mains plug is easily accessible at all times. The On / Off switch on this model does not fully disconnect the TV from the mains supply. Remove the mains plug from the wall socket when the TV is not used for a prolonged period of time. Ensure the grounding pin on the mains plug is securely connected to prevent electrical shock.

An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.

Do not use any mains lead other than that provided with this TV. (This may cause fire or electrical shock.)

Power source

This TV is designed to operate on 220-240 V, 50 / 60 Hz AC.

Do not remove the cover

Do not remove the rear cover as live parts are accessible when it is removed. There are no user serviceable parts inside.

AC 220-240 V 50 / 60 Hz

Do not expose to direct sunlight and other sources of heat

Avoid exposing the TV to direct sunlight and other sources of heat. To prevent fire never place any type of candle or naked flame on top or near the TV.

Transport only in upright position

Transporting the TV with its display panel facing upright or downward may cause damage to the internal circuitry.

IMPORTANT: THE MOULDED MAINS PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is

fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

ASA

Check for the ASTA mark If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained. A replacement fuse cover may be purchased from your local Panasonic Dealer.

If the fitted moulded mains plug is unsuitable for the socket outlet in your home, then the fuse shall be removed and the mains plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off mains plug is inserted into any 13 amp socket.

If a new mains plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

WARNING: – THIS APPARATUS MUST BE EARTHED. IMPORTANT: – The wires in this mains lead are coloured in accordance with the following code: –

Green-and-Yellow: Earth Blue: Neutral Brown: Live As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings

identifying the terminals in your mains plug, proceed as follows. The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the mains plug which is

marked with the letter E or by the Earth symbol or coloured GREEN or GREEN-AND-YELLOW. The wire which is coloured BLUE must be connected to the terminal in the mains plug which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the mains plug which is marked with the letter L or coloured RED. How to replace the fuse. Open the fuse compartment with a screwdriver and replace the fuse.

or the BSI mark on the body of the fuse.

Page 5

Do not expose to rain or excessive moisture

To prevent damage which might result in electric shock or fire, do not expose this TV to rain or excessive moisture.

This TV must not be exposed to dripping

or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

Do not block the rear ventilation openings

Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths and curtains.

Notes

Do not display a still picture for a long time

This causes the image to remain on the plasma screen (“image retention”). This is not considered a malfunction and is not covered by the warranty.

Typical still images

Channel number and other logos Image displayed in 4:3 mode Video game Computer image

To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are performed. (p. 47)

Auto power standby function

If no signal is received and no operation is performed in Analogue TV mode for 30 minutes, the TV will automatically go to standby mode.

Keep the TV away from these equipment

Electronic equipment In particular, do not place video equipment near the TV

(electromagnetic interference may distort images / sound). Equipment with an infrared sensor This TV also emits infrared rays (this may affect operation of

other equipment).

Allow sufficient space around the TV for radiated heat

Minimum distance

Do not place the TV on sloped or unstable surfaces

The TV may fall off or tip over.

Use only the dedicated stands / mounting equipment

Using an unauthorized stand or other fixtures may make the TV shaky, risking injury. Be sure to ask your local Panasonic dealer to perform setup. Use optional stands / mounts (p. 6).

(cm)

Maintenance

First, remove the mains plug from the socket outlet.

Display panel

Regular care: Gently wipe the surface clean of dirt by using a soft cloth. Major contamination: Wipe the surface clean using a soft cloth dampened with clean water or diluted neutral detergent by 100 times of water. Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.

Caution

The surface of the display panel has been specially treated and

•

may be easily damaged. Do not tap or scratch the surface with your fingernail or other hard object. Use care not to subject the surface to insect repellent, solvent,

•

thinner, or other volatile substances (this may degrade surface quality).

Cabinet

Regular care: Wipe the surface clean using a soft dry cloth. Major contamination: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent. Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.

Caution

Use care not to subject the TV’s surfaces to detergent.

•

(A liquid inside the TV could lead to product failure.) Use care not to subject surfaces to insect repellent, solvent,

•

thinner, or other volatile substances (this may deteriorate the surface by peeling the paint). Do not allow the cabinet to make contact with a rubber or PVC

•

substance for a long time.

Mains plug

Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to fire or electrical shock.)

Page 6

Accessories / Options

Standard accessories

Remote Control Transmitter

EUR7737Z50

•

Operating Instructions

Pan European Guarantee Card

Check that you have the accessories and items shown

Batteries for the Remote Control Transmitter

R6 (UM3)

•

Installing remote’s batteries

Pull open

Hook

Note the correct polarity (+ or -)

Clamper (2)

(2)

1 Year Guarantee Registration

CRM (Customer Relationship Management)

TMME289

•

Mains Lead

•

Using the clamper

Rear of the TV

Do not bundle the RF cable

•

and mains lead together (could cause distorted image). Fix cables with clampers as

•

necessary. When using the optional

•

accessory, follow the option’s assembly manual to fix cables.

1. Attach the clamper

hole

To remove from the TV:

K2CT3DH00018

snaps

Caution

Incorrect installation may cause battery

•

leakage and corrosion, resulting in damage to the remote control. Do not mix old and new batteries.

•

Do not mix different battery types (such

•

as alkaline and manganese batteries). Do not use rechargeable (Ni-Cd)

•

batteries. Do not burn or breakup batteries.

•

Optional accessories

Pedestal

TY-ST42D1-WG TY-ST42D1-WK TY-ST42D2-WG TY-ST42D2-WK

( TH-37PX70BA,

TH-42PX70BA)

TY-ST50D1-WG TY-ST50D1-WK TY-ST50D2-WG TY-ST50D2-WK

(TH-50PX70BA)

Caution

In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced

•

contractor to secure the wall-hanging brackets. Carefully read the instructions accompanying the plasma TV stand or pedestal, and be absolutely sure to take

•

steps to prevent the TV from tipping over. Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.

•

Plasma TV stand

TY-S37PX70WK

(TH-37PX70BA)

TY-S42PX70WK

(TH-42PX70BA)

TY-S50PX70WK

(TH-50PX70BA)

2. Bundle the cables

hooks

Insert the clamper in a hole

Set the tip

in the hooks

Wall-hanging bracket (vertical)

TY-WK42PV3W

(angle)

TY-WK42PR2W TY-WK42PR3W

To loosen:

knob

Keep pushing

both side snaps

Keep pushing

the knob

Page 7

Identifying Controls

Function select

Volume / Contrast / Brightness /

•

Colour / Sharpness / Tint (NTSC mode) / Bass / Treble / Balance / Auto Setup (p. 30)

Mains power On / Off switch

Remote control signal receiver

DVB LED

Active for Timer Programming or

•

Power LED

Standby: red

•

On: green When using the remote control, indicates the TV has received a command.

Standby On / Off switch

(Switches TV On or Off standby)

Changes aspect ratio (p. 13)

Standby for Direct TV Recording :orange (flash) Timer Programming On :orange

Lift door to open

INPUT

OPTION

DIRECT TV REC

Changes the input mode

Increases or decreases the programme position by one. When a function is already displayed, press to increase or decrease the selected function. When in Standby mode, switches TV On.

Changes the input mode TV -

switches DVB (digital broadcasting) / Analogue mode

AV - changes AV input mode (p. 16)

DIRECT TV Recording

To immediately record programme in VCR / DVD recorder with Q-Link connection (p. 38)

(p. 12)

Quick Start Guide

•

Identifying Controls

Accessories / Options

Access VIERA Link Menu (p. 41) TV Guide (p. 14)

OK button to confirm selections and choices Press after selecting programme positions to quickly change programme.

Main Menu Press to access VIERA Link, Picture, Sound and Setup menus (p. 21)

Teletext

Subtitles Showing subtitles (p. 13)

Programme / channel change buttons (0-9) and Teletext page buttons. When in Standby mode, switches TV On.

Programme Information (p. 13)

Selects programmes in sequence

(p. 18)

(p. 12 and p. 19)

EXIT

RETURN

Option menu Sets the selectable settings of viewing and sound options easily (p. 13)

EXIT (Returns to TV screen)

Cursor buttons to make selections and adjustments

Returns to the previous menu

Coloured buttons used for the selection, navigation and operation of various functions

Still picture (p. 13) Teletext Hold (p. 20)

Teletext Index (p. 20)

Sound mute On / Off

Volume

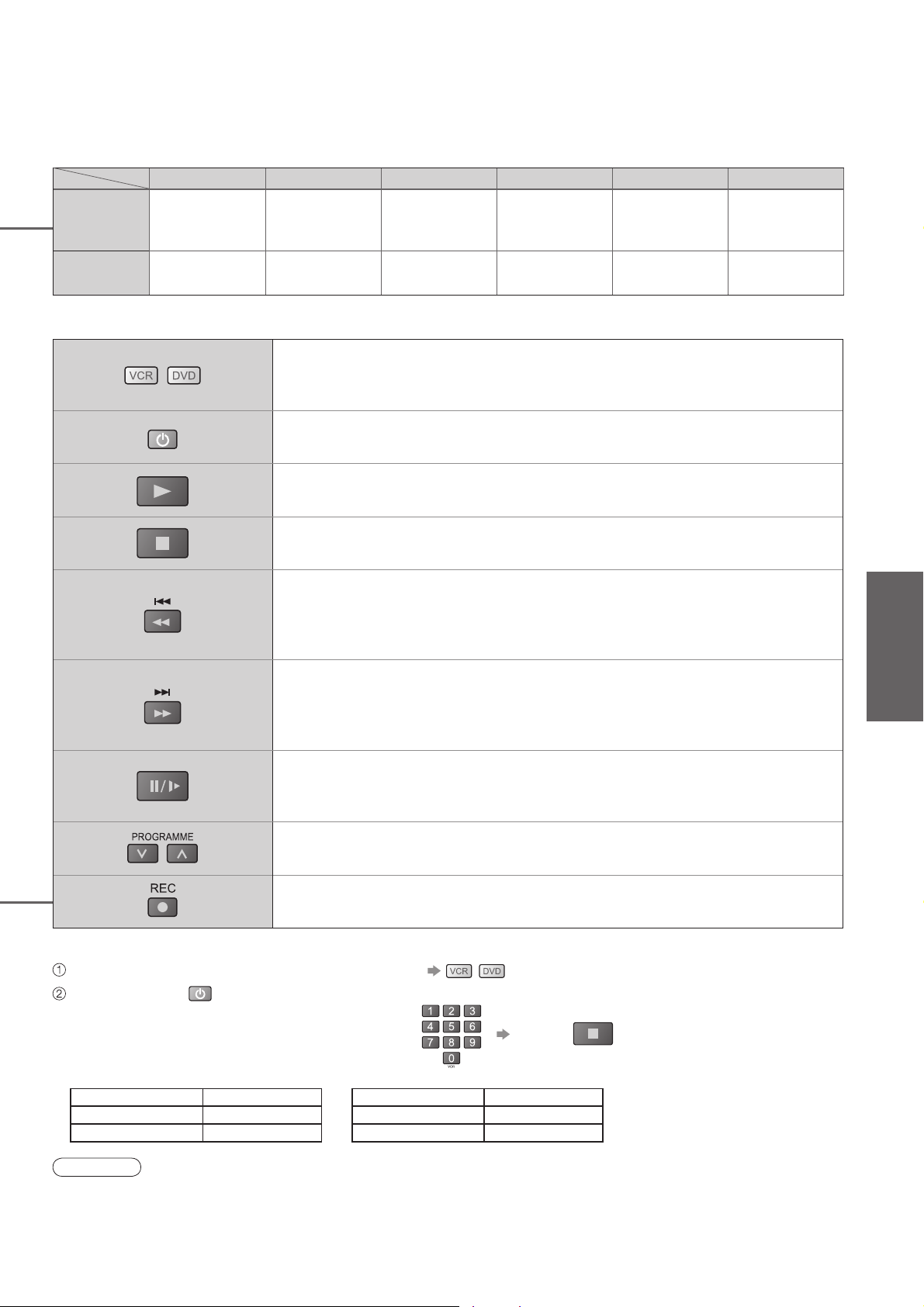

VCR / DVD operations (p. 17)

Page 8

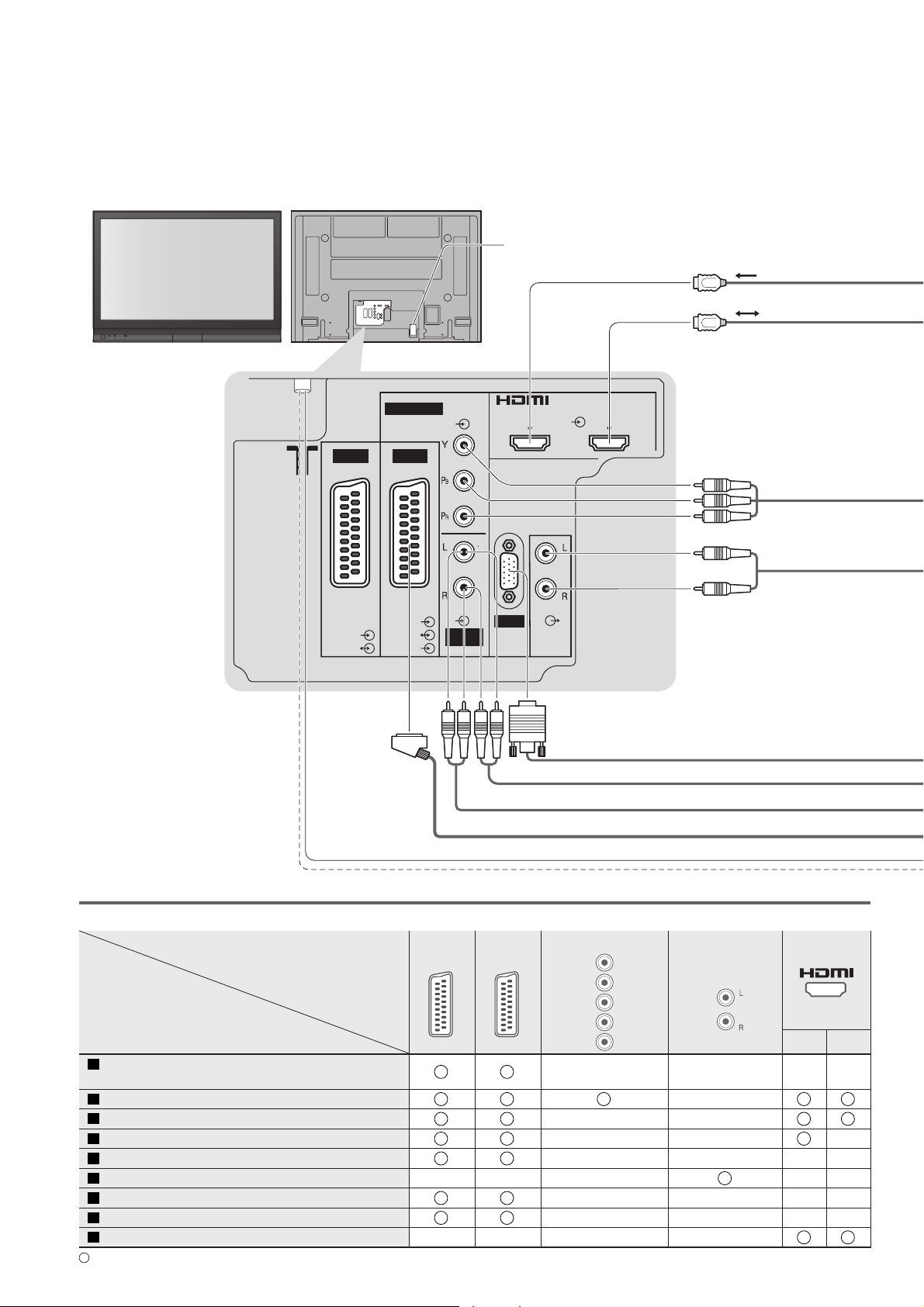

Basic Connection

External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first.

Example 1 Connecting aerial

Example 2 Connecting DVD Recorder / VCR

TV only TV, DVD Recorder or VCR

Aerial AerialRear of the TV Rear of the TV

AC 220-240 V 50 / 60 Hz

RF cable

COMPONENT

AV 1 AV 2

Mains lead (supplied)

VIDEO

COMPONENT

AV 1 AV 2

Mains lead (supplied)

VIDEO

HDMI 1 HDMI 2

AC 220-240 V 50 / 60 Hz

HDMI 1 HDMI 2

AUDIO

RF cable

RF IN

RF OUT

RF cable

AUDIO

RGB

AUDIO

VIDEO

SCART cable (fully wired)

RGB

VIDEO

RGB

VIDEO

S VIDEO

AUDIO

RGB

S VIDEO

VIDEO

DVD Recorder or VCR

Note

Connect to AV2 for a DVD Recorder / VCR supporting Q-Link (p. 38).

•

Connect to AV1 for a Satellite receiver.

•

If connecting the TV and Satellite receiver with SCART cable, you can watch satellite broadcast by RGB input signal.

•

SCART:

21 pin connection used for video, audio and switching signals (Also known as Euro SCART and Peritel) RF: Radio Frequency - Signal received from terrestrial aerial. RGB / S-Video / Video:

Choose between these three video formats depending on personal preference and equipment requirement.

(RGB - Red, Green and Blue) VCR: Video Cassette Recorder DVD: Digital Versatile Disc

Page 9

Example 3 Connecting DVD Recorder / VCR and Satellite receiver

TV, DVD Recorder / VCR and Satellite

Rear of the TV

COMPONENT

AV 1 AV 2

VIDEO

RGB

S VIDEO

VIDEO

RGB

VIDEO

AUDIO

HDMI 1 HDMI 2

AUDIO

Clamper

To unfasten

•

Mains lead (supplied)

Aerial

Quick Start Guide

RF cable

•

Basic Connection

AC 220-240 V 50 / 60 Hz

SCART cable (fully wired)

RF cable

RF OUT

RF IN

DVD Recorder

or VCR

RF cable

SCART cable (fully wired)

RF OUT

RF IN

RF cable

RF IN

Satellite receiver

Page 10

Auto Setup

Search and store TV channels automatically. These steps are not necessary if the setup has been completed by your local dealer.

Plug the TV into mains socket and switch On

(Takes a few seconds to be displayed)

You can now use the remote

•

control to turn On the TV or turn the TV to standby mode. (Power LED: On)

INPUT

OPTION

DIRECT TV REC

EXIT

RETURN

Auto Setup - Digital and Analogue

Digital Scan 21 68 Analogue Scan 21 68

Channel Service Name Type Quality

CBBC Channel DVB 10 62 BBC Radio Wales DVB 10 62

BBC Radio Cymru 62

E4 62

Cartoon Nwk 29 Analogue 33

BBC1

This will take about 3 mins.

EXIT

DOWNLOAD IN PROGRESS

PLEASE WAIT

Programme : 63

Remote control unavailable

When inputting owner ID

■

Please enter new PIN

EXIT Change RETURN

* * * *

DVB 10 DVB 10 DVB 10

Analogue

Page up

0 9

Page down

1 of 2Owner ID

PIN entry

Auto Setup will start to search for

•

TV channels and store them.

The sorted programme order

depends upon the TV signal, the broadcasting system and reception conditions.

If a compatible recording equipment

•

with Q-Link or similar technologies (p. 38) is connected, analogue channel information is automatically downloaded to the equipment.

Following the on-screen operation guide, enter your own choice of PIN number, name, etc.

For detailed procedures

•

“Owner ID” (p. 33)

Make a note of the PIN number

•

in case you forget it.

When inputting owner ID later

■

EXIT

If you input the ID later

•

“Owner ID” (p. 33)

Select the picture setting

Viewing Mode

Please select your preferred viewing mode.

Dynamic Normal Cinema

Also possible to change the setting

•

in Picture Menu (p. 22)

select

set

Auto Setup is now complete and your TV is ready for viewing.

To check programme list

•

at-a-glance

TV Guide (p. 14)

To edit channels

•

Editing Channels (p. 28)

Analogue Programme Edit (p. 31)

Page 11

Using the On Screen Displays

Many features available on this TV can be accessed via the On Screen Display menu.

How to use remote control

■

Open the main menu

Move the cursor / select the menu

Move the cursor / adjust levels / select from a range of options

Access the menu / store settings after adjustments have been made or options have been set

RETURN

Return to the previous menu

EXIT

Exit the menu system and return to the normal viewing screen

Quick Start Guide

•

Auto Setup

ON SCREEN HELP Instructions box

■

(example: Owner ID)

1 of 2Owner ID

Please enter new PIN

EXIT Change RETURN

On-screen operation guide will help you.

Note

If tuning has failed “Auto Setup” (p. 30).

•

If downloading has failed “Download” (p. 23).

•

If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On

•

with Mains power On / Off switch.

* * * *

0 9

Page down

Page up

PIN entry

Page 12

Watching TV

Turn power on

INPUT

OPTION

DIRECT TV REC

EXIT

RETURN

(Press for about 1 second)

Mains power On / Off switch should be On.

Select DVB (Digital Video Broadcasting) or Analogue

1 BBC ONE WALES

Corontation Street 20 : 00 ~ 20 : 55

Information banner

You can also select the mode using the TV button on the front panel

•

of the TV.

Now

Profile 1

23:35

Change category

For info press

Volume

Note

To watch pay-TV

•

(p. 27)

Other useful functions (Operate after )

■

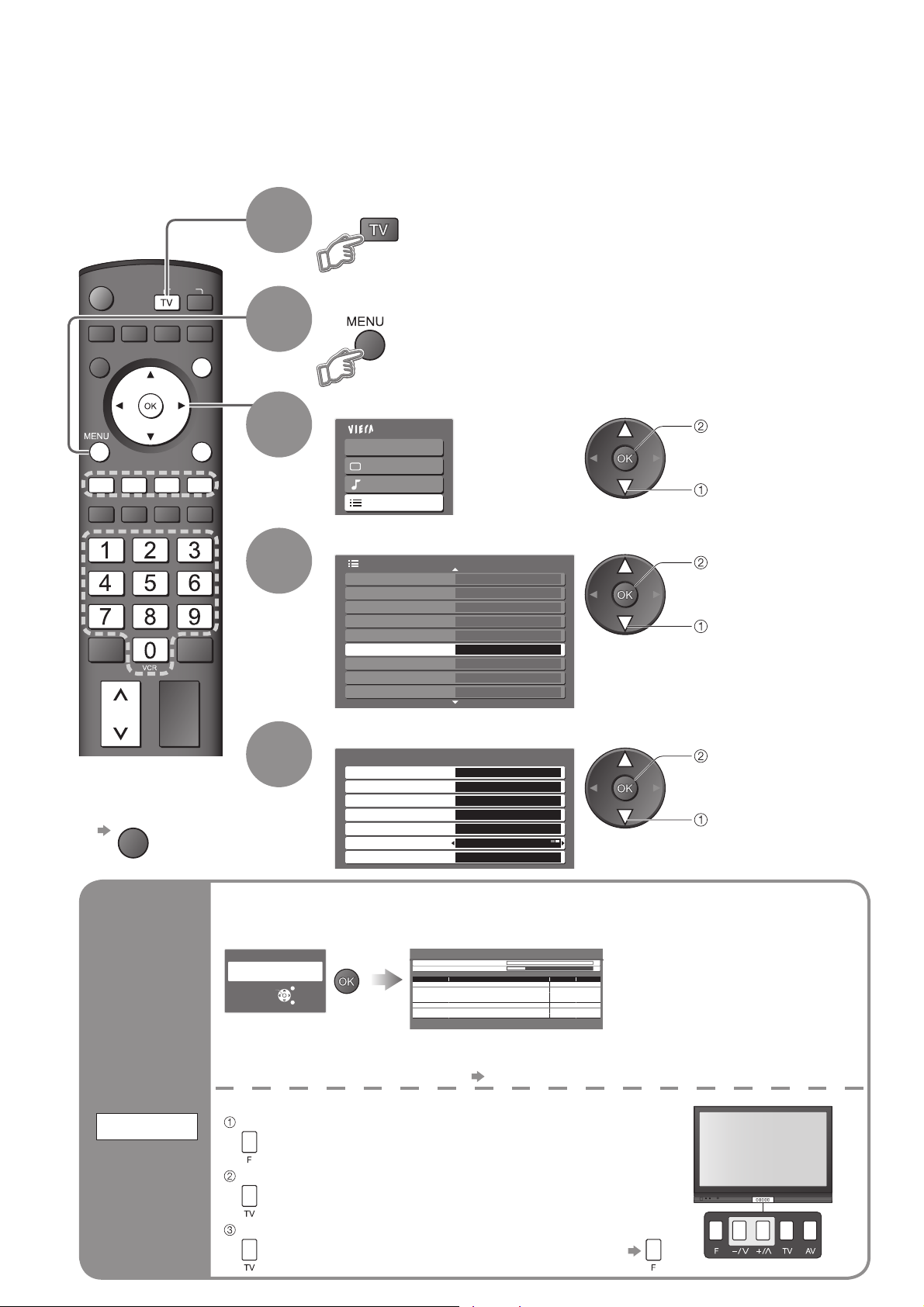

Turn the TV off automatically after a fixed period

Display the menu

Off Timer

Select “Setup”

VIERA Link


Sound

Setup

Select a channel

down

To select the two or three-digit programme number, e.g. 39

•

To select programmes using TV Guide (p. 14)

•

Main Menu

(in a short time)

access

select

Select “Off Timer” and set the time

Setup Menu

DVB Timer Programming

DVB Profile Edit

DVB Service List

Q-Link Settings

Child Lock

Tuning Menu

Off Timer

Power on Preference

Teletext FASTEXT

Off

1/3

set

select

To cancel Set to “Off” or turn the TV off

•

To display the remaining time Information banner (p. 13)

•

When the remaining time is within 3 minutes, the remaining time will flash on screen.

•

Page 13

Other useful functions (Operate after )

■

Hold

Display subtitles

Display the current programme status

Freeze / unfreeze picture

Display / hide subtitles (if available)

To change the language for DVB

•

“Preferred Subtitles” (p. 23) (If available)

Check or change the current

PTION

programme status instantly

To change

•

Subtitle Language (DVB mode)

Possible if the programme has some languages of subtitles

Multi Audio (DVB mode)

Possible if the programme has some languages of sounds

NICAM (Analogue mode)

Sound Menu (p. 22)

Volume Correction

Adjusts volume of individual channel or input mode

Audio Description (DVB mode)

This function can aid visually-impaired viewers by adding an additional audio track to

describe events on-screen. Select “On” if the programme has this signal, then you will hear the description sound

Note

Also possible to change the settings in Menu list (p. 22 and p. 23).

•

change

select

Display programme information

Viewing

Channel Current time Category

Display information banner

Programme DVB: Programme

Start / Finish time

Analogue: Programme

•

(DVB)

•

Press the button twice to confirm availability of these functions.

Status

Information of another channel

Information on next programme

To watch the programme listed in the banner

Information banner operation

1st press Display banner

“AD”, “Subtitles”, “TXT”, “Multi-Audio” indications are displayed as available on particular channels or services, but may not be available for all individual programmes being broadcast.

1 BBC ONE WALES

Corontation Street 20 : 00 ~ 20 : 55

Mute Bad signal Encrypted

Sound mute

Weak TV signal

Scrambled broadcasting

2nd press Banner + programme synopsis (DVB)

Audio description

23:35

Now

SubtitlesAD TXT Multi-Audio 45

Subtitle

Teletext

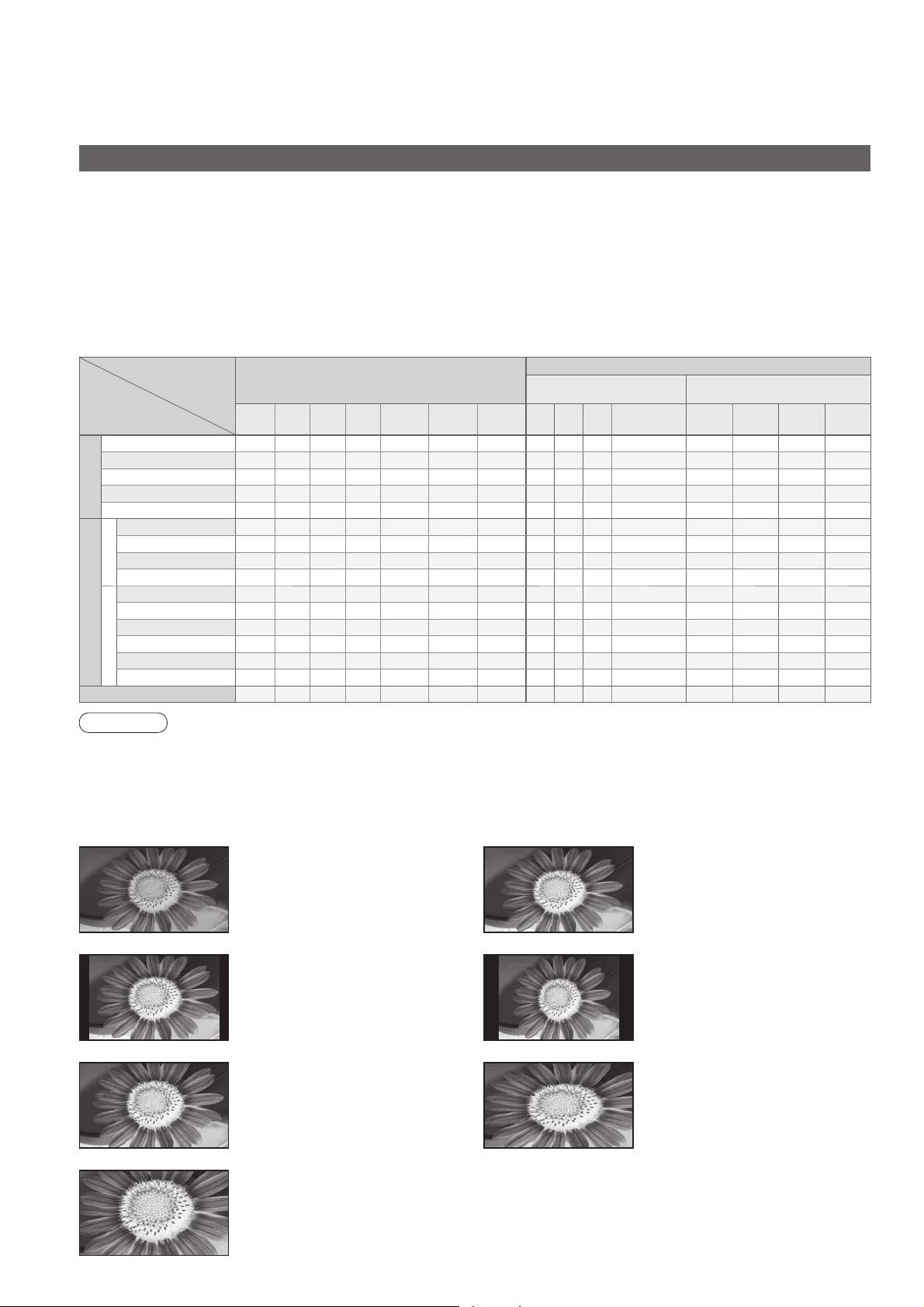

Change the aspect ratio (p. 44)

Enjoy viewing the picture at its optimum size and aspect.

Change aspect ratio

To change the mode

•

Display Aspect Selection list

To change the mode using the ASPECT button only

•

(Press repeatedly until you reach the desired mode)

During the list is displayed, select the mode

Aspect Selection list

Profile 1

Change category

For info press

Multiple audio

To set display timeout

•

To hide

•

Appears also when changing channel.

•

To change the category Features available

Off timer

“Banner Display Timeout” (p. 23)

3rd press Exit

EXIT

Example:

1 BBC ONE WALES

Corontation Street 20 : 00 ~ 20 : 55

Mute Bad Signal Encrypted

[AD]

Store

23:35

Now

Subtitles TXT Multi-Audio 45

All DVB Services

Change category

Exit info

Aspect Selection

Auto

16:9 14:9 4:3 Zoom1 Zoom2 Zoom3

Select

Change

blue

EXIT

RETURN

•

Watching TV

Page 14

Using TV Guide

TV Guide―Electronic Programme Guide (EPG) provides an on-screen listing of programmes currently broadcast and future broadcasts over the next seven days (depending on the broadcaster). Analogue broadcasts will be listed after DVB broadcasts. “D” means DVB channel and “A” means Analogue channel.

View TV Guide (landscape or portrait)

INPUT

OPTION

DIRECT TV REC

EXIT

RETURN

TV Guide date

TV Guide time

Channel

(Displays by

broadcaster)

View “Portrait” to see one channel at a time View “Landscape” to see many channels

Landscape

Programme (TV Guide start page)

TV Guide : Landscape

Fri 14th

20:00 - 20:30 DIY SOS : We open in the Battersbys

Time: 20:00 20:30 21:00 21:30

19:30

BBC ONE

105

719

D Rugby 15 To 1 The Bill

Change display mode

Timer Programming

Eastender DIY SOS The Bill Red Cap

BBC THR

Hot Wars Horiday Program

E4 Emmerdal. Coronation Street

CBBC Cha

10 O’ clock News BBC Pepsi Char. Hello

Cartoon Panorama Sex And The City

BBCi I’m A Celebrity Pop Idol News The

BBC Radi

Select channel

EXIT Select programme Info

-24 Hr +24 Hr Prog.type Category

RETURN

Current date and time

Prog. type

All Types

The Bill

Good bye

Terminator

Wed 12/05/04 10:46

category

view

Page 15

Other useful functions (Operate after viewing TV Guide)

■

Watch the programme

View details of the programme (DVB mode)

Select the channel or programme now on the air

select

access

Select the programme

select

Select “View”

(DVB)

Eastender 19:30- 20:00

View

View details

TV Guide Wed 05/08/04 18:50

EXIT

RETURN

Return to List

Timer Programming

Select the programme to be broadcast

(Timer Programming screen)

select

DVB Timer Programming Wed 05/08/04 18:50

Pos. Name Date Start End min.

13BBC1

ITV1

6/8 FR

18:00

20:00

7/8 SA

12060Off

21:30

22:30

Timer Programming

select

access

Off

(TV screen)

To return to the start page

Details

DVB LED will turn on if Timer Programming is set.

Viewing

Timer programming to record (DVB mode)

set

To check / change / cancel a timer

■

programming event

“Timer Programming” (p. 36)

Edit timer

Delete

Select timer

EXIT

RETURN

0 9

DVB LED

Orange DVB LED

•

(Rapid blinking during recording)

To return to TV Guide

■

RETURN

Note

When recording programmes, you must make the proper settings on the external

•

recording equipment connected to the TV. If a compatible recording equipment with Q-Link or similar technologies is connected to the TV (p. 8) and the “Q-Link Settings” (p. 23) are completed, no setting of the equipment is required. Also read the manual of the recording equipment. If you select the programme now on the air, the confirmation screen whether watching or

•

recording will appear. Select “Timer Programming” to record from the time you finish the Timer Programming setting.

Note

When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time

•

before the TV Guide is completely shown.

•

Using TV Guide

Page 16

Watching VCR, DVD and Satellites

Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch the input. Connect the Satellite receiver and you can watch satellite broadcasts. To connect the equipment (p. 8 and p. 9) The Remote Control is capable of operating some functions of selected Panasonic external equipment.

Turn the TV on

When connecting with SCART as example 2 or 3 (p. 8 and p. 9)

■

Receives input signals automatically when playback starts or

satellite receiver is switched on

Input signals are automatically identified by the SCART (pin 8)

•

terminal. This function is also available for HDMI connections (p. 41).

•

If input mode is not switched automatically

■

Perform and

Dependant on the setup of the equipment

•

INPUT

OPTION

DIRECT TV REC

EXIT

RETURN

Display the Input select menu

Select the input mode connected to the equipment

Input Selection

AV1

AV2/AV2S

COMPONENT

HDMI1

HDMI2

You can also select the input using the AV button on the remote

•

control or the front panel of the TV.

Press the button repeatedly until the desired input is selected.

You can label or skip each input modes “Input Labels” (p. 34)

•

View

Displays the selected mode

watch

select

To return to TV

■

Note

If the external equipment has an aspect adjustment function, set to “16:9”.

•

For details, see the manual of the equipment or ask your local dealer.

•

Page 17

Screen display

Terminal

Manual input

default setting in

( )

“Input Labels”

Auto input EC mode or

( )

VIERA Link

Panasonic equipment connected to the TV can be directly operated with the remote control.

AV1 AV2

AV1

AV1-RGB

EC/AV1

EC/AV1-RGB

AV2

AV2-S-Video

AV2-RGB

EC/AV2

EC/AV2-S-Video

EC/AV2-RGB

Component PC HDMI1 HDMI2

―

EC/HDMI1

Applicable for EC

•

mode and VIERA Link

•

EC/HDMI2 Applicable for VIERA Link

VCR / DVD selection buttons

Select VCR to operate Panasonic VCR or DVD equipment Select DVD to operate Panasonic DVD equipment or Player home theatre

Standby

Set to Standby mode / Turn on

Play

Playback videocassette / DVD

Stop

Stop the operations

Rewind / Skip / Search

VCR: Rewind, view the picture rapidly in reverse DVD: Skip to the previous track or title Press and hold to search backward

Fast-forward / Skip / Search

VCR: Fast-forward, view the picture rapidly forward DVD: Skip to the next track or title Press and hold to search forward

Pause

Pause / Restart DVD: Press and hold to play at slow speed

∗

Viewing

•

Watching VCR, DVD and Satellites

Programme Up / Down

Select programme

Record

Start recording

Setting your remote control to operate Panasonic VCR, DVD, etc.

∗

Select the VCR or DVD button you want to set Press and hold during the following operations

Enter the appropriate code for the equipment to be controlled, see table below

“VCR” button

Equipment Code

VCR 10 (default) DVD 11

Note

Confirm correct operation after the code changed.

•

The codes will be reset to default values if batteries are replaced.

•

“DVD” means DVD player, DVD recorders and Recorder home theatre.

•

Some operations may not be possible on some equipment models.

•

“DVD” button

Equipment Code

DVD 70 (default)

Player home theatre

Press

Page 18

Viewing Teletext

You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)

DVB (digital broadcasting) mode

DVB teletext services

DVB teletext services differ greatly from analogue teletext. When you switch to a DVB teletext service, the images you see can contain graphics and text, laid out and controlled in a manner decided by the broadcaster.

You can check if the programme has teletext information.

•

If in Analogue mode

Select DVB

INPUT

OPTION

DIRECT TV REC

Switch to Teletext

EXIT

Information banner (p. 13)

Displayed if programme has teletext information

17:51 28 Feb

1 BBC ONE WALES

Corontation Street 20 : 00 ~ 20 : 55

Change category

For info press

TXT

Profile 1

23:35

Now

To change the

■

channel

RETURN

How to use

In all cases, it is possible to navigate the pages using buttons on the remote control, but because the commands available must apply to all manufacturers of DVB equipment, some on screen commands may not correspond exactly to the remote control buttons. For example:

When “select” or “go” is displayed

•

When “◄”, “►”, “▲”, “▼” symbol is displayed

•

When the key words are displayed on colour bar

•

When options with numbers are displayed

•

When “i” is displayed (information)

•

To return to TV

■

Note

As soon as you switch to a DVB channel with links to a teletext service,

•

software is downloaded in the background to enable the teletext function. This means that when switching to a DVB channel, you should wait for approximately 5 seconds before pressing the TEXT button - this will allow the software to download. If you press the TEXT button before download is complete, there will be a short delay before the text screen is displayed. While navigating DVB teletext, you will find there is a short delay when

•

moving between pages while the page downloads. There is often a prompt shown somewhere on the page (for example “Loading”) to let you know that this is happening.

red

green

yellow

blue

Page 19

Analogue mode

What is FASTEXT mode (default)?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 20)

To change mode “Teletext” in Setup Menu (p. 23)

■

INPUT

OPTION

DIRECT TV REC

EXIT

RETURN

If in DVB mode

Select Analogue

Switch to Teletext

Displays the

•

index page (content varies depending on the broadcasters)

Select the page

down

To adjust contrast

■

Sub page number

Current page number

<< 01 02 03 04 05 06 07 >>

TELETEXT

INFORMATION

Colour bar

green

red

(Corresponds to the colour bar)

As the blue bar is displayed

yellow

17:51 28 Feb

blue

Time / date

Viewing

•

Viewing Teletext

Using Analogue teletext

■

Reveal

Reveal hidden words e.g. quiz page answers

hidden data

FULL / TOP / BOTTOM

To return to TV

■

Press once to have picture and text.

•

Press again to return to TV.

Re-hide

•

red

green

(Expand the TOP half)

red

(TOP) (BOTTOM) Normal (FULL)

(Press twice)

(Expand the BOTTOM half)

(Continued)

Page 20

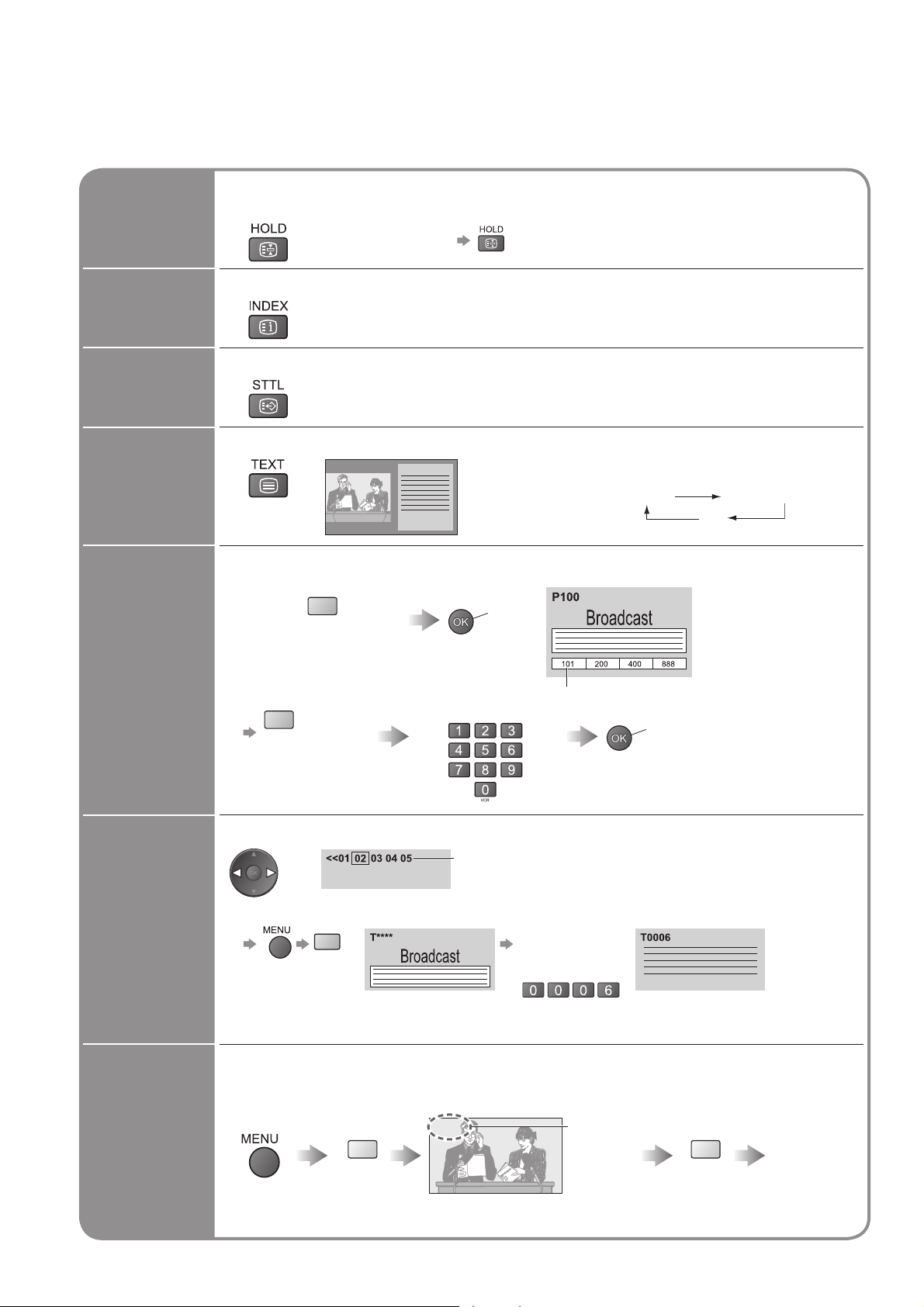

Viewing Teletext

Using Analogue teletext (Continued)

■

If you wish to hold the current page without updating

HOLD

INDEX

Subtitles

View in multi window

Stop automatic updating

To resume

■

Return to the main index page

View subtitles by pressing STTL button

Factory setting is “P888” (subtitle service) on blue button (List mode).

•

Watch TV and Teletext in two windows at once

Operations can be made only in Teletext screen.

•

Each time pressed: Teletext TV and Teletext

•

Store frequently viewed pages

View sub page

Store frequently viewed pages in the colour bar

As page is displayed

To change stored pages

■

View sub page (Only when teletext is more than one page)

To view specific sub page

■

Sub pages:

•

The number of sub pages varies depending on the broadcasters (up to 79 pages). It may take some time for searching, during which time you can watch TV.

Corresponding colour button

Enter new page number

Colour button you want to change

blue

press and hold

The number changes to white.

press and hold

Appears at top of the screen

Enter the 4-digit number

example: P6

(List mode only)

If you wish to use

•

Subtitles, do not change number on blue button.

Watch TV while waiting for update

View the TV picture while searching for a teletext page

Teletext automatically updates itself when new information becomes available.

Changes to TV screen temporarily

P108

yellow yellow

(You cannot change the channel.)

The news page provides a function that indicates arrival of latest news (“News Flash”).

•

Appears when updating is completed

View the updated page

Page 21

How to Use Menu Functions

•

Various menus allow you to make settings for the picture, sound, and other functions.

Display the menu

How to Use Menu Functions (picture, sound quality, etc.)

INPUT

OPTION

To return to TV

■

at any time

EXIT

DIRECT TV REC

EXIT

RETURN

Displays the functions that can be set

•

(varies according to the input signal)

Select the menu

Main Menu

VIERA Link


Sound

Setup

(example: Picture Menu)

Select the item

Picture Menu 1/2

Viewing Mode Dynamic

Contrast

Brightness

Colour

Sharpness

Tint

Colour Balance Warm

Colour Management Off

P-NR Off

(example: Picture Menu)

Adjust or select

Picture Menu 1/2

Viewing Mode Dynamic

Contrast

Brightness

Colour

Sharpness

Tint

Colour Balance Warm

Colour Management Off

P-NR Off

(example: Picture Menu)

Choose from among alternatives

■

Number and positions of alternatives

Colour Balance Normal

Changed

Adjust using the slide bar

■

access

select

change

store or access

(Required by some functions)

•

Viewing Teletext

Viewing

Advanced

To return to the

■

previous screen

RETURN

Note

To initialize all settings

•

“Shipping Condition”

(p. 32)

Sharpness

Moved

Go to the next screen

■

Tuning Menu Access

Displays the next screen

To change menu pages

■

down

Page 22

How to Use Menu Functions

Menu list

■

VIERA Link


Sound

Item Adjustments / Configurations (alternatives)

VIERA Link Control

Speaker Selection

Viewing Mode

Contrast, Brightness, Colour, Sharpness

Tint

Colour Balance

Colour Management

P-NR

3D-COMB

Reset to Default

Mode

Bass Treble Balance

Surround

Volume Correction Preferred Multi Audio

NICAM

HDMI1 Input

Description

Audio

Reset to Default

Audio Description

Volume

Controls the connected Panasonic equipment “Access and control the connected equipment by VIERA remote control” (p. 41) “Speaker control” (p. 41)

You can also access VIERA Link Menu directly using the VIERA Link button on the

•

remote control.

Selects three different screen settings (Dynamic / Normal / Cinema) Dynamic : Normal : Recommended for viewing under normal ambient room lighting conditions Cinema : For watching movies in a darkened room producing a cinema-like picture In each Viewing Mode setting, Contrast, Brightness, Colour, Sharpness, Tint (in NTSC only), Colour Balance, Colour Management and 3D-COMB can be adjusted and stored to suit your particular viewing requirement (e.g., you may require different settings for viewing sports, films, news etc.) Set for each input signal Changes will be stored automatically

Increases or decreases the levels of these options according to your personal preference

With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit your taste

Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)

Automatically adjusts colours to vivid ones (Off / On)

Not valid on PC signal

•

Picture Noise Reduction Automatically reduces unwanted picture noise (Off / Min / Mid / Max)

Not valid on PC signal

•

Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen Set to “On” to display sharper and more accurate colours (Off / On)

For PAL or NTSC signal reception only

•

Not valid on RGB, S-Video, components, PC and HDMI

•

Analogue mode only

•

Press the OK button to reset the present Picture Mode to the default settings

P-NR is reset to Off (Analogue) or Min (DVB)

•

Select two different sound settings (Music / Speech) In each Sound Mode setting, Bass and Treble can be adjusted and stored to suit your particular sound requirement Changes to any settings in a mode will affect all signal sources Sound quality can be improved

Increases or decreases level to enhance or minimise lower, deeper sound output

Increases or decreases level to enhance or minimise sharper, higher sound output

Adjusts volume level of right and left speakers

Surround sound settings (Off / On) Provides a dynamic enhancer to simulate improved spatial effects

Adjusts volume of individual channel or input mode

Selects the preferred language for DVB multi audio (depending on the broadcaster)

NICAM (Near Instantaneous Companded Audio Multiplex) A format for digital sound over television Reproduces stereo sound (Off / On)

Off if reception is poor (FM monaural sound)

•

Analogue mode only

•

Select to fit the input signal (Auto / Digital / Analogue) (p. 39) Auto : Automatic detection of digital or analogue sound source

Digital : HDMI cable connection Analogue : HDMI-DVI adapter cable connection

HDMI input mode only

•

HDMI2 terminal is for digital signal only

•

No setting for HDMI2 available

•

Useful for visually-impaired viewers (Off / On) Select “On” to sound the description sound if the programme has the signal

Adjusts the volume for audio description

Press the OK button to reset the present Sound Mode to the default settings

Effective to Bass, Treble and Balance

•

Provides enhanced picture contrast and sharpness when viewing in a bright room

Page 23

Menu list

■

DVB Timer Programming

DVB Profile Edit

DVB Service List

Q-Link Settings

Child Lock

Tuning Menu

Setup

Off Timer

Power on Preference

Teletext

Preferred Subtitles

Shipping Condition

Owner ID

Common Interface

System Update

Power Save

Side Panel

Input Labels

Banner Display Timeout

VIERA Link

Software Licence

System Information

A different menu will be displayed while PC is used. (p. 35)

•

Only available items can be selected.

•

Item Adjustments / Configurations (alternatives)

Records future programmes (p. 36)

Creates list of favourite programmes (p. 29)

Skips the unwanted DVB channels (p. 29)

Selects which AV terminal is to be used for data communication between this TV and a

Q-Link

AV1 / AV2 out

Download

Auto Setup

Analogue Programme Edit

DVB Manual Tuning

Analogue Manual Tuning

Add New DVB Services

New Service Message

DVB Signal Condition

compatible recording equipment (AV1 / AV2) (p. 38)

Select the connected terminal to the recording equipment even it is not compatible

•

with Q-Link.

Chooses the signal to be transmitted from the TV to Q-Link

(Analogue / DVB / AV1 / AV2 / Monitor)

Monitor: Image displayed on screen

•

Component, PC and HDMI signals cannot be outputted

•

Downloads analogue channel information to a Q-Link compatible equipment connected to the TV

Locks a programme channel to prevent access to it (p. 29)

Automatically sets the channels received in the area (p. 30)

Edits analogue channels (p. 31)

Sets the DVB channels manually (p. 31)

Sets the analogue channels manually (p. 31)

Adds new DVB services (p. 31)

Selects whether to give a notification message when a new DVB service is found (p. 31)

Checks the DVB signal condition (p. 31)

Sets the time the TV automatically turns Off (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)

Set to “TV” to view picture from TV tuner. Set to “AV” to view input from an external equipment connected to a SCART terminal, e.g. satellite receiver (TV / AV)

The external equipment must be switched on and sending a control signal for

•

automatic switching at power on to occur

Analogue teletext display mode (FASTEXT / List) (p. 19)

Selects the preferred language for DVB subtitles (depending on the broadcaster)

To display subtitles p. 13

•

Resets all settings, for example, when moving house (p. 32)

Inputs the owner ID (p. 33)

Uses to watch pay-TV (p. 27)

Downloads new software to TV (p. 27)

Reduces brightness of picture to economise on power consumption (Off / On)

Increases the brightness of the side panel (Off / Low / Mid / High)

The recommended setting is “High” to prevent panel “image retention”

•

Labels or skips each input terminals (p. 34)

Sets how long the information banner (p. 13) stays on screen

0 (No display) to 10 sec. in 1-sec. increments

•

Sets to use VIERA Link functions (Off / On) (p. 40)

Displays the software licence information

Displays the system information of this TV

•

How to Use Menu Functions

(picture, sound quality, etc.)

Advanced

Page 24

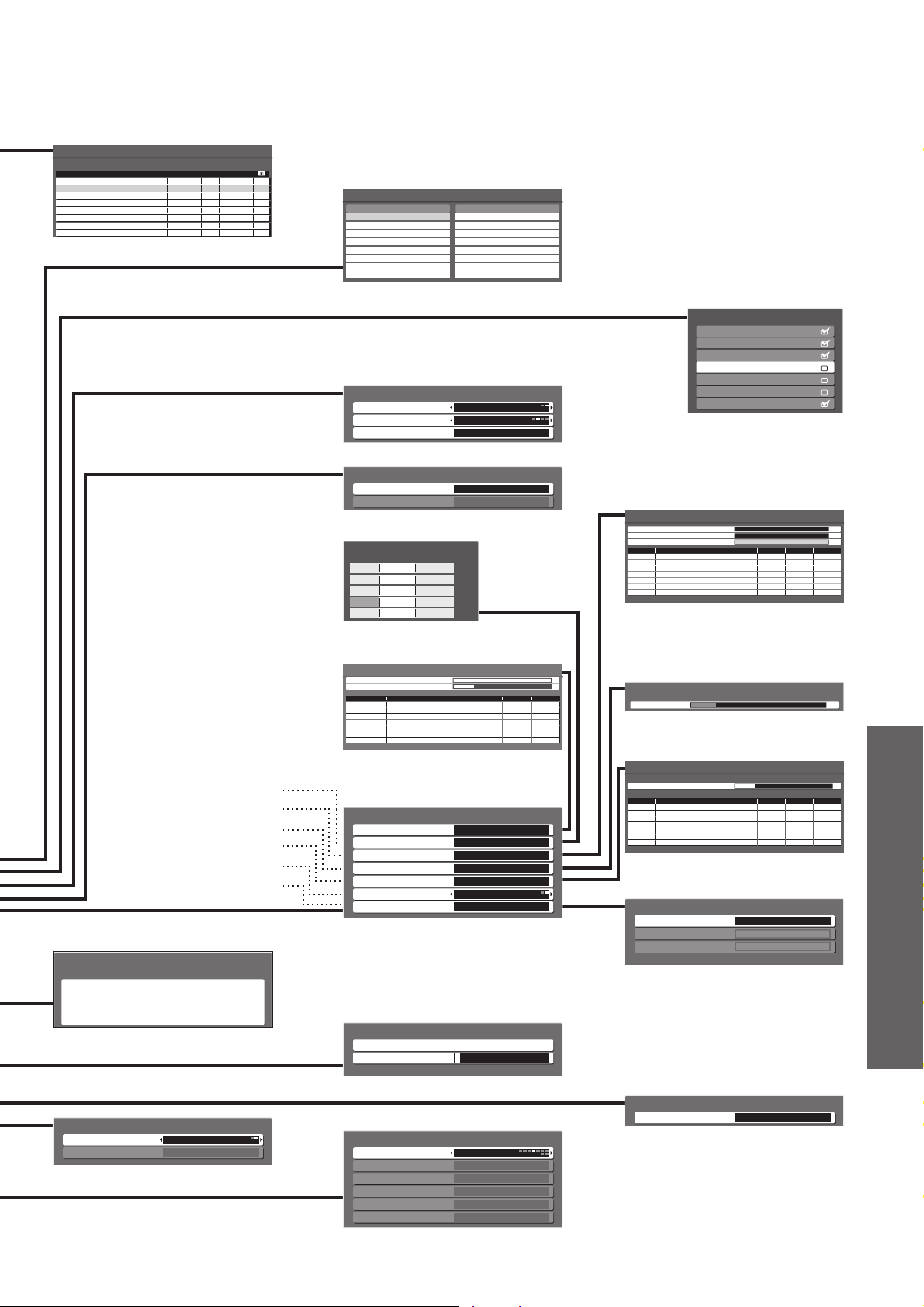

How to Use Menu Functions

Overview

■

How to operate (p. 21)

•

Main Menu

VIERA Link


Sound

Setup

VIERA Link Menu

VIERA Link Control

Speaker Selection

Picture Menu

Viewing Mode Dynamic

Contrast

Brightness

Colour

Sharpness

Tint

Colour Balance Warm

Colour Management Off

P-NR Off

Picture Menu

3D-COMB Off

Advanced PC Settings Access

Reset to Default Set

Recorder

Home Cinema

(p. 41)

1/2

2/2

(p. 22)

The menu of the accessed equipment

Only available in NTSC

Not available in PC Not available in PC

Only available in NTSC / PAL Only available in PC

Advanced PC Settings

W / B High R

W / B High B

W / B Low R

W / B Low B

Gamma 2.2

Reset to Default Set

(p. 35)

Only available in DVB

Only available in DVB Only available in DVB

Only available in Analogue

Only available in DVB

Sound Menu

Mode Music

Bass

Treble

Balance

Surround

Volume Correction

Preferred Multi Audio

NICAM

HDMI1 Input Auto

Sound Menu

Audio Description Access

Reset to Default Set

Setup Menu

PC Setup Access

DVB Timer Programming

DVB Profile Edit Access

DVB Service List

Q-Link Settings Access

Child Lock Access

Tuning Menu

Off Timer Off

Power on Preference

Teletext FASTEXT

Setup Menu

Preferred Subtitles English

Shipping Condition Access

Owner ID

Common Interface Access

System Update Access

Power Save

Side Panel Off

Input Labels

Banner Display Timeout

Setup Menu

VIERA Link

Software Licence Access

System Information Access

Off

English

Off

Access

Off

Access

3 seconds

1/2

2/2

(p. 22)

1/3

2/3

3/3

(p. 23)

Only available in DVB Only available in Analogue Only available in DVB

Audio Description Menu

Audio Description Off

Volume

(p. 22)

Only available in PC

PC Setup

Input Resolution VGA

Clock

H-pos

V-pos

Clock Phase

Sync H & V

Reset to Default Set

(p. 35)

NTSC (National Television System Committee): One of television signal used in USA, etc.

Page 25

DVB Timer Programming Wed 05/08/04 18:50

Pos. Name Date Start End min.

13BBC1

ITV1

6/8 FR

7/8 SA

18:00

21:30

20:00

22:30

12060Off

(p. 37)

Off

All DVB Services

BBC One Wales

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

Profile 1

Wed 12/05/04 10:46Profile Editor

(p. 29)

DVB Service List

CBBC Channel

Cartoon Nwk

105

BBCi

719

BBC Radio Wales

720

BBC Radio Cymru

Q-Link Settings

Q-Link AV2

AV2 out DVB

Download Access

Child Lock

Change PIN Access

Service List

Analogue Programme Edit

Prog. Chan. Name

1 CH33

2 CH21

3 CH21

4 CH60

5 CH21

1 2 3

X Y Z

F T P

4 5 6

(p. 23)

(p. 29)

DVB Manual Tuning

Frequency MHz Signal Quality Signal Strength 010

Prog. Channel Net ID. QualityTS ID.Service Name

BBC ONE Wales

BBC THREE

(p. 29)

•

(picture, sound quality, etc.)

[

]

CH21

010

Stopped

474,00

(p. 31)

How to Use Menu Functions

(p. 31)

Only available in Analogue

Only available in DVB

Only available in Analogue

Only available in DVB Only available in DVB Only available in DVB

Shipping Condition

All tuning data will be erased

Are you sure? Are you sure?

(p. 32)

System Update

Auto Update Search in Standby

System Update Search Now

(p. 27)

Auto Setup - Digital and Analogue

Digital Scan 21 68 Analogue Scan 21 68

Channel Service Name Type Quality

CBBC Channel DVB 10 62 BBC Radio Wales DVB 10 62

BBC Radio Cymru 62

E4 62

Cartoon Nwk 29 Analogue 33

BBC1

This will take about 3 mins.

DVB 10 DVB 10 DVB 10

Analogue

(p. 30)

Tuning Menu

Auto Setup Access

Analogue Programme Edit

DVB Manual Tuning

Analogue Manual Tuning

Add New DVB Services Access

New Service Message

DVB Signal Condition Access

Access

Off

(p. 30)

Please enter new PIN

* * * *

1 of 2Owner ID

(p. 33)

Input Labels

AV1 DVD

AV2/AV2S AV2/AV2S

COMPONENT COMPONENT

PC PC

HDMI1 HDMI1

HDMI2 HDMI2

(p. 34)

Analogue Manual Tuning

Programme 1 [CH33]

Manual Tuning 21 68

(p. 31)

Add New DVB Services

Please wait!

Prog. Channel Service Name Net ID. TS ID. Quality

ZDF ARD

This will take about 3 mins.

21 68

(p. 31)

DVB Signal Condition

DVB Programme

Signal Quality Signal Strength

[70] CBBC Channel

Off

0 5 10

(p. 31)

Common Interface

Slot 1:

Module inserted

(p. 27)

Advanced

Page 26

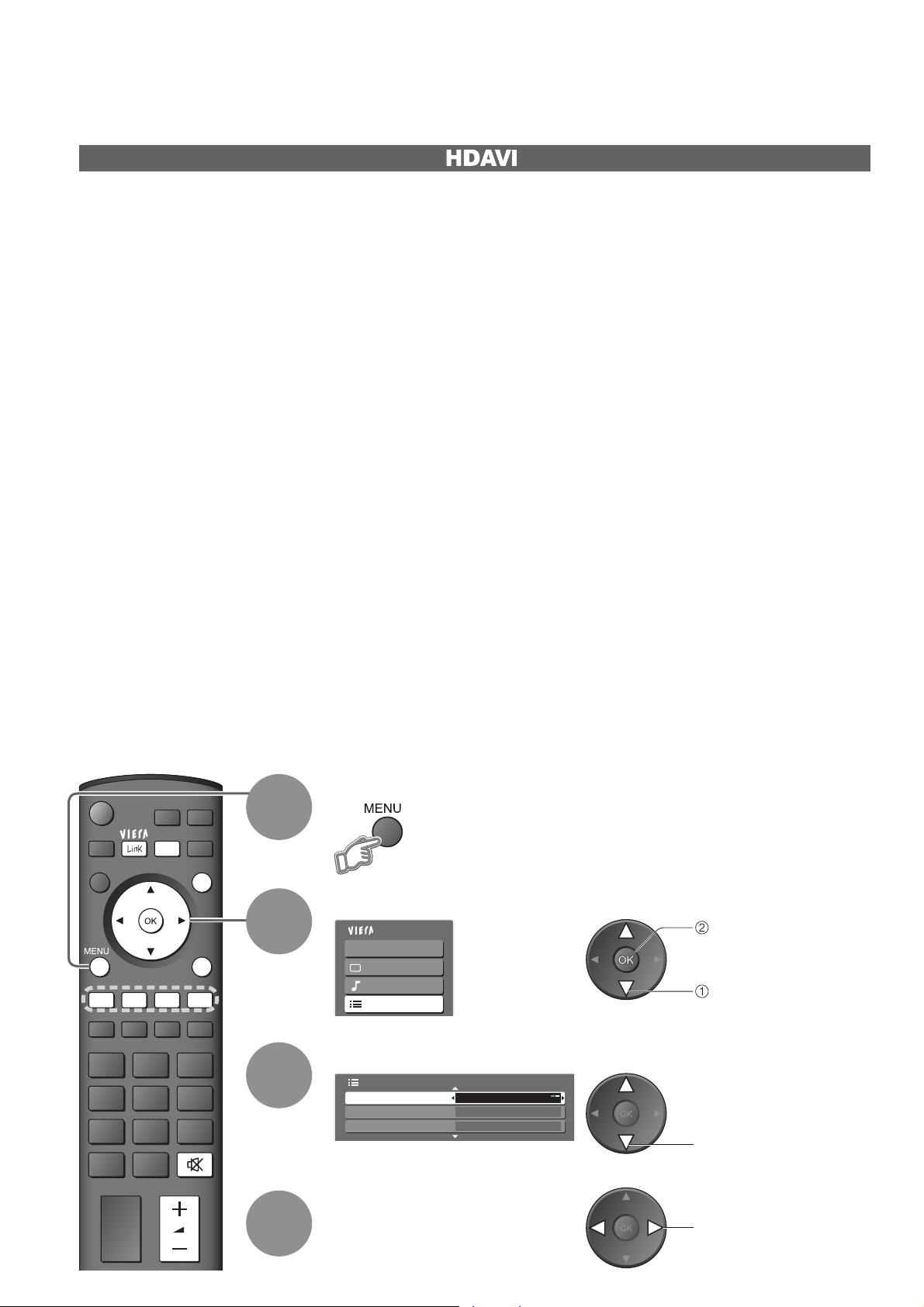

DVB Settings

DVB Settings provide access to various advanced features.

If in Analogue mode

Select DVB

INPUT

OPTION

DIRECT TV REC

EXIT

RETURN

Display the menu

Select “Setup”

Main Menu

VIERA Link


Sound

Setup

(DVB mode)

access

select

To return to TV

■

EXIT

Select “Common Interface” or “System Update”

Setup Menu

Preferred Subtitles English

Shipping Condition

Owner ID

Common Interface Access

System Update Access

Power Save

Side Panel Off

Input Labels

Banner Display Timeout

Off

3 seconds

2/3

access

select

Set

Page 27

The Common Interface Module menu provides access to software contained on Common Interface (CI) Modules. This TV receiver works only Pay TV modules complying with CI standard.

Pay-TV

Common

Interface

Caution

Turn Off Mains power On / Off switch

•

whenever inserting or removing the CI module. If a view card and a card reader

•

come as a set, first insert the card reader, then insert the view card into the card reader. Do not insert the module up side down.

•

Insert the CI module (optional)

The features that appear on screen are dependent on the contents of the selected CI

•

module. Normally pay-TV services will appear without and .

•

If pay-TV services does not appear, perform and . For more details, see the manual of the CI module, or check with the broadcaster.

•

Access “Common Interface”

Common Interface

Slot 1:

Follow the on-screen instructions

example:

Module inserted

select, go

Coloured characters

red

Insert or

straightly

completely

CI module

green

CI slot

remove

and

access

yellow

Rear of the TV

•

blue

On-screen operation guide may not correspond to the remote control buttons.

(pay-TV, software update)

•

DVB Settings (DVB)

Update TV's software system

System

Update

Download new software to TV.

For details (p. 45)

•

If System Update is performed, the software will be updated (it may change TV functions). If you do not wish to do so, set “Auto Update Search in Standby” to Off.

Select “Auto Update Search in Standby” and then set “On” or “Off”

System Update

Auto Update Search in Standby

System Update Search Now

To update immediately

■

Select “System Update Search Now”

access

select

set

select

Searches for an update (for several min.) and displays a corresponding message if any

On: Automatically performs

•

a search in standby and downloads an update, if any software updates are available

Download

Download may take

•

for about 20 min.

Advanced

Page 28

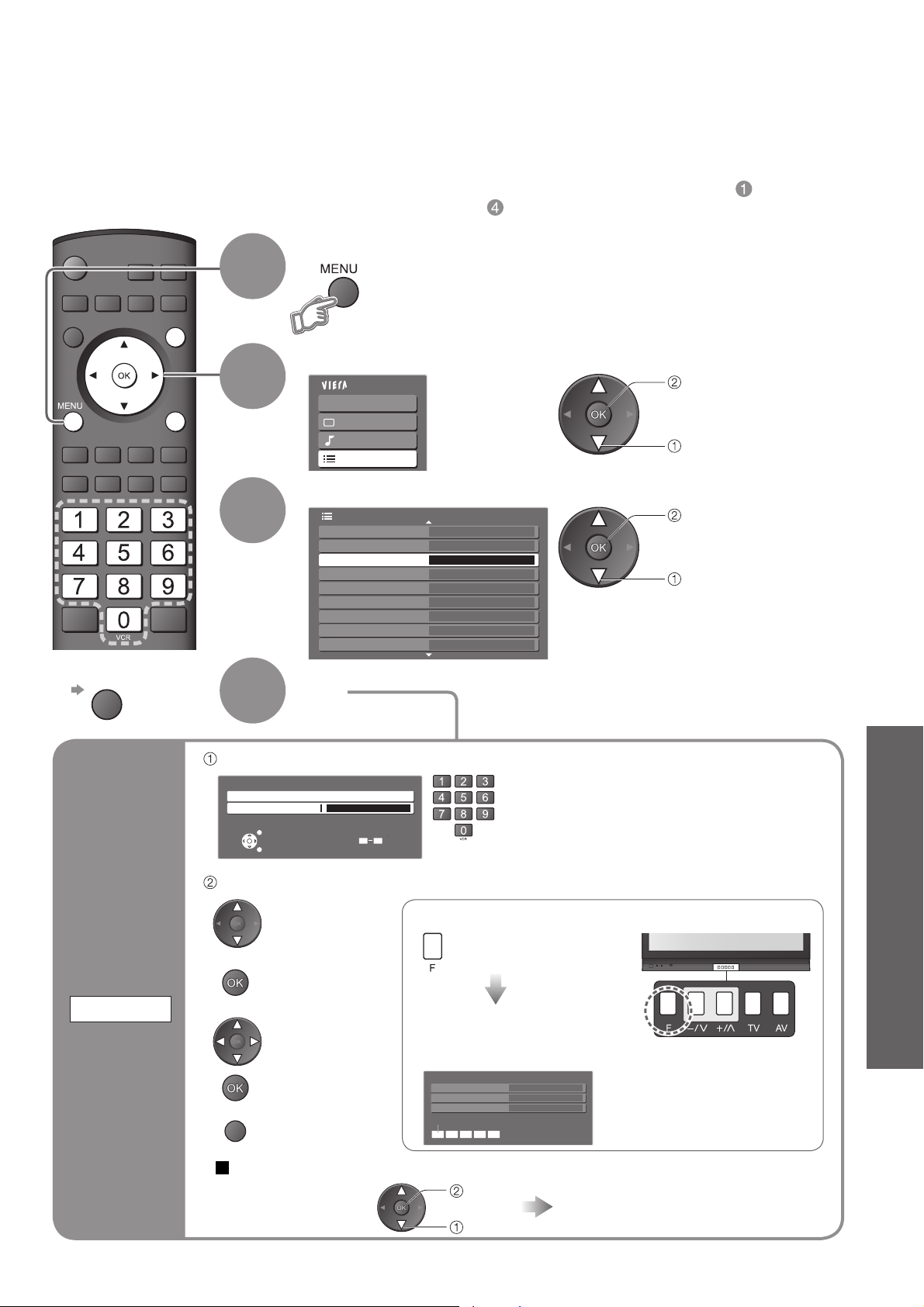

Editing Channels

You can make your favourite channel lists, skip unwanted channels and control channel audience.

Select DVB or Analogue

“DVB Profile Edit” and “DVB Service List” are

INPUT

OPTION

DIRECT TV REC

EXIT

RETURN

•

available in DVB mode only.

Display the menu

Select “Setup”

Main Menu

VIERA Link


Sound

Setup

access

select

To return to TV

■

EXIT

Select “DVB Profile Edit”, “DVB Service List” or “Child Lock”

Setup Menu

DVB Timer Programming

DVB Profile Edit Access

DVB Service List

Q-Link Settings

Child Lock Access

Tuning Menu

Off Timer Off

Power on Preference

Teletext FASTEXT

Access

Off

1/3

Set

access

select

Page 29

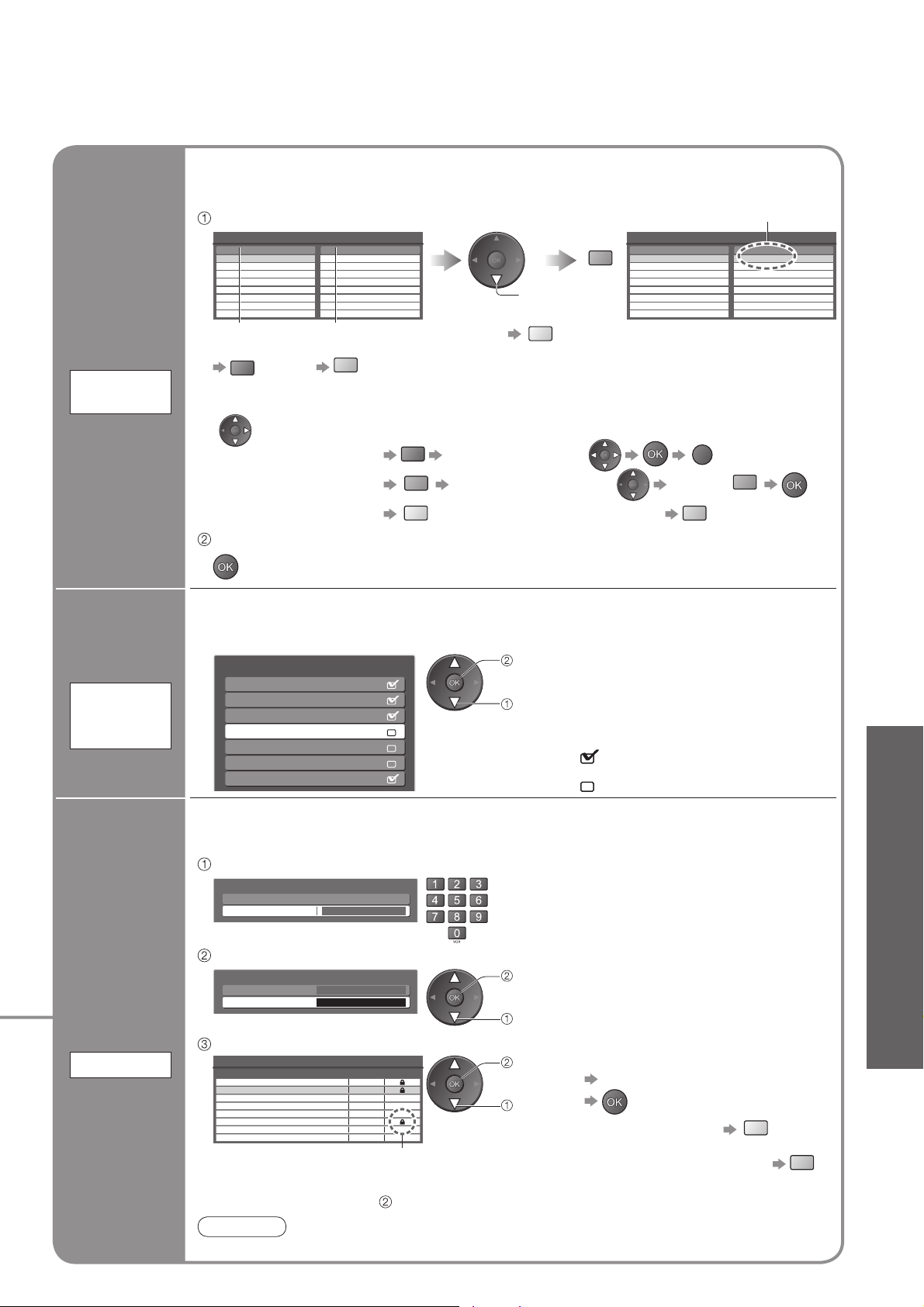

List favourite channels

DVB

Profile Edit

Create your favourite channel list (Profile) from various broadcasters (up to 4: Profile 1 to 4). The list is added to “Category” in TV Guide (p. 14) and information banner (p. 13) and then easily accessed.

Select a channel and add it to the list

blue

Profile 1

Wed 12/05/04 10:46Profile Editor

To add all channels

•

to the list

All DVB Services

BBC One Wales

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

To change the category

red

To edit Profile

■

To display another Profile

green

select

yellow

A channel is added

All DVB Services

BBC One Wales

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

BBC One Wales

Profile 1

Wed 12/05/04 10:46Profile Editor

(DVB mode)

Skip unwanted channels

DVB

Service

List

(DVB mode)

Control channel audience

Child Lock

Select the field of Profile to edit and:

To name the Profile

•

To move the channel

•

To delete the channel

•

Select the character

red

Select the new position Confirm

green

To delete all channels

yellow

•

RETURN

blue

green

Store

Channel numbers (known as logical channel numbers) cannot be changed,

•

due to broadcast restrictions.

You can hide unwanted services. The deleted services cannot be displayed except in this function. Use this function to skip unwanted services.

Select a service and add / delete

DVB Service List

CBBC Channel

Cartoon Nwk

105

BBCi

719

BBC Radio Wales

720

BBC Radio Cymru

BBC ONE Wales

BBC THREE

You can lock specific channels and control who watches them. (When a channel is selected, a message appears; by entering the PIN number, you can watch the channel.)

add / delete

select

:add

:delete (skip)

Enter the PIN number (4 digits)

Please enter new PIN

1 of 2Child Lock-PIN Entry

* * * *

Enter the PIN number twice at first

•

setting. Make a note of the PIN number in

•

case you forget it.

Select “Service List”

Child Lock

Change PIN

Service List

Access

access

select

Select the channel to be locked

Service Name

BBC One Wales

BBC THREE7

E414

CBBC Channel70

Cartoon Nwk72

BBCi105

BBC Radio Wales719

BBC Radio Cymru720

Wed 12/05/04 10:46Child Lock Service List

Lock

Type

DVB

Appears when the channel is locked

To change the PIN number

■

Select “Change PIN” in and enter a new PIN number twice.

set

select

To cancel

•

Select the locked channel

To lock all channels

•

To cancel all channel locks

•

yellow

blue

•

Editing Channels

Advanced

Note

Setting “Shipping Condition” (p. 32) erases the PIN number and all settings.

•

Page 30

Tuning Channels

You can re-tune all TV channels when moving house or search for new services which may have recently started broadcasting.

Select DVB or Analogue

“DVB Manual Tuning”, “Add New DVB Services”, “New Service

•

Message” and “DVB Signal Condition” are available in DVB mode only. “Analogue Programme Edit” and “Analogue Manual Tuning” are

•

available in Analogue mode only.

Main Menu

Access

Off

1/3

access

select

access

select

INPUT

OPTION

DIRECT TV REC

EXIT

RETURN

Display the menu

Select “Setup”

VIERA Link


Sound

Setup

Select “Tuning Menu”

Setup Menu

DVB Timer Programming

DVB Profile Edit

DVB Service List

Q-Link Settings

Child Lock

Tuning Menu

Off Timer Off

Power on Preference

Teletext FASTEXT

To return to TV

■

EXIT

Set DVB and Analogue channels automatically

Auto Setup

Select a function and set

Automatically set the DVB and Analogue channels received in the area. If a Child Lock PIN number (p. 29) has been set, it must be entered.

Tuning Menu

Auto Setup Access

Analogue Programme Edit

DVB Manual Tuning

Analogue Manual Tuning

Add New DVB Services Access

New Service Message

DVB Signal Condition Access

Access

Off

Start Auto Setup Settings are made automatically

Auto Setup

All tuning data will be erased

Start Auto Setup

When the operation is completed, the digital broadcast of programme number “1” will appear.

•

If no DVB services are found, the analogue broadcast will appear.

If tuning has not done completely “DVB Manual Tuning”, “Analogue Manual Tuning”

•

For Auto Setup, using the buttons on the front of the TV

EXIT

RETURN

Auto Setup - Digital and Analogue

Digital Scan 21 68 Analogue Scan 21 68

Channel Service Name Type Quality

CBBC Channel DVB 10 62 BBC Radio Wales DVB 10 62

BBC Radio Cymru 62

E4 62

Cartoon Nwk 29 Analogue 33

BBC1

This will take about 3 mins.

DVB 10 DVB 10 DVB 10

Analogue

All previous settings are erased.

•

The analogue settings are

•

downloaded to a Q-Link compatible equipment connected to the TV.

Press repeatedly until “Auto Setup” appears

Access “Auto Setup”

access

select

Start “Auto Setup”

To return to TV

■

Page 31

Edit Analogue channels

Analogue

Programme

Edit

Delete

■

Add

■

Move

■

Change

■

name

Set DVB channel manually

DVB Manual

Tuning

Edit the analogue programme position settings

Select the channel to edit

Analogue Programme Edit

Prog. Chan. Name

1 CH33

2 CH21

3 CH21

4 CH60

5 CH21

1 2 3

X Y Z

F T P

4 5 6

select

Channel

To change channel number

•

“Analogue Manual Tuning”

Name

3 FTP

Corontation Street

23:35

Cursor

Edit

To change the name of the broadcaster

To delete

■

After confirming, press

To add

■

After confirming, press

To move

■

green

yellow

red

green

Select new

position

Normally use “Auto Setup” or “Add New DVB Services” for the DVB channel setting. If tuning has not done completely, use this function.

DVB Manual Tuning

Frequency MHz Signal Quality Signal Strength 010

Prog. Channel Net ID. QualityTS ID.Service Name

[

]

CH21

010

Stopped

yellow

474,00

■

displayed when selecting channels

Analogue Programme Edit

Prog. Chan. Name

1 CH33

2 CH21

3 CH21

4 CH60

5 CH21

All services found will be added to the

•

DVB Service List (p. 29) automatically.

1 2 3

X Y Z

F T P

4 5 6

select channel

Select the “Name” field

Enter the

red

“User input” mode

Select the character

Set

RETURN

Store

( Maximum:

five characters)

Change category

For info press

Profile 1

•

Tuning Channels

Set Analogue channel manually after Auto Setup.

Set Analogue

If a VCR is connected with only the RF cable, select programme position “0”.

channel manually

Analogue

Manual Tuning

Add

Any new services found will be added to the DVB Service List (p. 29) automatically.

DVB channel automatically

Add New

DVB Services

Display a notification

Selects whether to give a notification message when a new DVB service is found. (Off / On)

message

New Service

Message

Check DVB signal

DVB Signal

Condition

Selects a channel and checks the DVB signal condition. Use for adjusting the direction of the aerial.

•

Analogue Manual Tuning

Programme 1 [CH33]

Manual Tuning 21 68

Select the channel Search and storeSelect the programme position

Add New DVB Services

Please wait!

Prog. Channel Service Name Net ID. TS ID. Quality

ZDF ARD

This will take about 3 mins.

New DVB service found!

Press OK to start Auto Setup.

Press EXIT to lgnore.

Selecting Auto Setup will delete

current Profile and Childlock settings

21 68

•

Selecting OK (Auto Setup) will delete current Profile and Childlock settings.

The new service is added with the current settings

•

saved as they are.

To change the programme during the menu appears

DVB Signal Condition

DVB Programme [70] CBBC Channel

Signal Quality Signal Strength

Off

0 5 10

Signal Quality:

Green bar Good

•

Yellow bar Poor

•

Red bar Bad (Check the aerial)

•

store

Advanced

Page 32

Restore Settings

Resets the TV to its original condition, i.e. no channels tuned in. All settings other than “Owner ID” (channels, picture, sound quality, etc.) are reset.

Display the menu

INPUT

OPTION

DIRECT TV REC

EXIT

Select “Setup”

Main Menu

VIERA Link


Sound

Setup

RETURN

access

select

To return to TV

■

EXIT

Restore Settings

Shipping

Condition

Select “Shipping Condition”

Check the message and initialise

Shipping Condition

All tuning data will be erased

Confirm

Follow the on-screen instructions

“Auto Setup” will automatically start when Mains power On / Off switch is next

•

turned On. (p. 10)

Setup Menu

Preferred Subtitles English

Shipping Condition

Owner ID

Common Interface

System Update

Power Save

Side Panel Off

Input Labels

Banner Display Timeout

Set

Are you sure? Are you sure?

EXIT

RETURN

Access

Off

3 seconds

2/3

set

access

select

To re-tune TV channels only, e.g. after moving house

■

“Auto Setup” (p. 30)

Page 33

Owner ID

Entry of the security code (PIN number) and “personal information” (your name, address and post code). In the unfortunate event of theft it will help the Police to determine the owner. If you have skipped the Owner ID input in “Auto Setup” (p. 10), and input it later, start from If you input the Owner ID in “Auto Setup” (p. 10), perform

OPTION

To return to TV

■

EXIT

INPUT

DIRECT TV REC

EXIT

RETURN

Display the menu

Select “Setup”

Main Menu

VIERA Link


Sound

Setup

Select “Owner ID”

Setup Menu

Preferred Subtitles English

Shipping Condition

Owner ID

Common Interface

System Update

Power Save

Side Panel Off

Input Labels

Banner Display Timeout

Access

Off

3 seconds

Set

2/3

access

select

access

select

•

Restore Settings

•

Owner ID

Input owner ID

Owner ID

Enter the PIN number (4 digits)

Please enter new PIN

EXIT Change RETURN

* * * *

0 9

Page down

Page up

PIN entry

1 of 2Owner ID

Enter the PIN number twice at first setting.

•

Make a note of the PIN number in case you

•

forget it.

Enter your name, address, and post code, in that order

Select the entry field

Enter the “User input” mode

Select the character

Set

RETURN

Store

To change the PIN number

Select the “PIN” field

To check the “personal information” stored

Hold down for about 3 sec.

Displays the information on the screen (for several sec.)

Owner ID

NAME A

HOUSE NO

POSTCODE

EXIT

access

select

Enter a new PIN number twice

The PIN number is

•

not displayed.

Advanced

Page 34

Input Labels

For easier identification and selection of the input mode, you can label each input terminals or skip terminal that is not connected to any equipment. (To select the input mode

INPUT

OPTION

DIRECT TV REC

EXIT

RETURN

p. 16)

Display the menu

Select “Setup”

Main Menu

VIERA Link


Sound

Setup

access

select

To return to TV

■

EXIT

Select “Input Labels”

Setup Menu

Preferred Subtitles English

Shipping Condition

Owner ID

Common Interface

System Update

Power Save

Side Panel Off

Input Labels

Banner Display Timeout

Off

Access

3 seconds

2/3

access

select

Select a input terminal and set

Input Labels

AV1 DVD

AV2/AV2S AV2/AV2S

COMPONENT COMPONENT

PC PC

HDMI1 HDMI1

HDMI2 HDMI2

The labels you set will be displayed in “Input Selection” menu (p. 16) or banner.

If “Skip” is selected, you cannot select the mode.

•

set

select

User input

■

You can name each input terminals freely.

Select “User input”

select

access

Set characters

User input

Name

ABCDEFGH I JKLMN UVWXYZ 0123456 abcde fgh i j k lmn uvwxyz( )+- .*_

(maximum: ten characters)

OPQRST 789 ! :# opqr s t

select

set

Store

RETURN

Page 35

Displaying PC Screen on TV

The screen of the PC connected to the TV can be displayed on the TV. You can also listen to PC sound with the audio cable connected. To connect PC

Select the external input

(p. 42)

INPUT

OPTION

DIRECT TV REC

EXIT

RETURN

To return to TV

■

PC menu setting (changed as desired)

■

To make settings “How to Use Menu Functions” to (p. 21)

•

Item Adjustments / Configurations (options)

Select “PC”

Input Selection

AV1

AV2/AV2S

COMPONENT

HDMI1

HDMI2

access

select

Corresponding signals (p. 46)

•

If “H-freq.” or “V-freq.” is shown in red,

•

the signals may not be supported.

•

Displaying PC Screen on TV

•

Input Labels


Advanced PC Settings

Setup

PC Setup

W/B High R White balance of bright red area

W/B High B White balance of bright blue area

W/B Low R White balance of dark red area

W/B Low B White balance of dark blue area

Gamma (2.0 / 2.2 / 2.5 / S Curve)

Input Resolution

Clock Set to the minimum level if noise occurs

H-pos

V-pos

Clock Phase

Switches to a wide view

VGA (640 × 480 pixels), WVGA (852 × 480 pixels),

•

XGA (1,024 × 768 pixels), WXGA (1,366 × 768 pixels) Options change depending on signals

•

Adjusts horizontal position

Adjusts vertical position

Eliminates flicker and distortion

Adjust after Clock adjustment

•

and

repeatedly adjusted

Set to the minimum level if noise occurs

•

Advanced

Sync

Other items p. 22 and p. 23

•

Chooses another synchronous signal if the image is distorted (H & V / On G)

H & V : by the horizontal and vertical signals from your PC

•

On G : by the green signal from your PC (if available)

Page 36

Recording Controls

(DVB mode)

Timer Programming from Menu

The Timer programming menu allows you to choose programmes that you wish to record. At the correct time, the DVB system will switch on and tune to the correct station (even if the TV is in Standby mode). TV Guide may also be used to set timer programmes. (p. 14)

If the recording equipment is compatible with Q-Link or similar technologies (p. 38), and setup /

•

connection are done completely (p. 38 and p. 42), you do not need to programme the equipment – the DVB system will control the recording progress. If the recording equipment is not compatible with Q-Link or similar technologies, set “Q-Link” in Setup

•

Menu (p. 23) to the connected terminal (AV1 or AV2), and make timer programming of the recording equipment (Read the manuals of the equipment).

If in Analogue mode

Select DVB

INPUT

OPTION

DIRECT TV REC

EXIT

Display the menu

To return to TV

■

EXIT

RETURN

Select “Setup”

Main Menu

VIERA Link


Sound

Setup

Select “DVB Timer Programming”

Setup Menu 1/3

DVB Timer Programming

DVB Profile Edit

DVB Service List

Q-Link Settings

Child Lock

Tuning Menu

Off Timer Off

Power on Preference

Teletext FASTEXT

Set

Access

Off

access

select

access

select

To stop recording

■

Caution

The TV must either be On or in standby.

•

For preparations of a recording equipment, read the manual of equipment.

•

No other DVB channel can be selected during recording. However you can watch analogue channels.

•

It may not be possible to record an encrypted programme (which is copy-protected).

•

EXIT

Store

store

Page 37

Start making

the settings

Repeat the operations as below,

and set items in the order of

Set timer programming details

select the item

6/8 FR

18:00

20:00

7/8 SA

21:30

22:30

12060Off

Ending time

Starting time

Daily SU-SA: Sunday to Saturday Daily MO-SA: Monday to Saturday Daily MO-FR: Monday to Friday Weekly SA/FR/TH/WE/TU/MO/SU: Same time on the same day every week

Previous timer programming event

Current timer programming event

start

DVB Timer Programming Wed 05/08/04 18:50

Pos. Name Date Start End min.

BBC1

ITV1

Channel

Date

one day ahead

daily or weekly (press repeatedly)

To change a timer programming event

Select the programme to be changed using and press Correct as necessary (as above)

set

Off

, and can also be entered with numeric buttons.

Subtitles (Off / Auto)

Recording time (automatic display)

•

Recording Controls (DVB)

To cancel a timer programming event

Select the programme to be deleted using and press

red

Direct TV recording:

You can record the current programme to DVD Recorder or VCR immediately. (p. 38)

Note

Confirm the DVB LED lights (Orange). If not, a timer programming is not available.

•

A message will appear if you try to programme a timer event which overlaps an already programmed event.

•

2 min. before the starting time: a reminder message appears.

•

(To remove the message ; To cancel the programming

10 sec. before the starting time: in DVB mode, the TV automatically selects the programmed channel.

•

Cancelling the programming may not be valid immediately before the starting time. In this case, directly operate

•

the recording equipment to cancel recording.

EXIT

)

TV Guide–Electronic Programme Guide (EPG)–Timer Recording

View TV Guide

There are two styles of display for TV Guide (Landscape / Portrait)

•

Select the programme

to be broadcast

select

DVB Timer Programming Wed 05/08/04 18:50

Pos. Name Date Start End min.

13BBC1

ITV1

6/8 FR

18:00

20:00

7/8 SA

12060Off

21:30

22:30

Off

DVB LED will turn on if Timer Programming is set.

Advanced

Select timer

EXIT

Edit timer

Delete

set

To check / change / cancel a timer programming event “Timer Programming” (above)

■

(Timer Programming screen)

RETURN

0 9

Orange DVB LED

•

(Rapid blinking during recording)

DVB LED

Page 38

Q-Link Functions

Q-Link connects the TV and VCR / DVD recorder, enables easy recording and playback.

Condition

■

Use the VCR / DVD recorder with the following logos:

•

“Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC”, “Easy Link”, “Megalogic”, or “SMARTLINK” Connect the equipment to this TV’s AV1 or AV2 terminal via a “fully-wired” SCART cable. (p. 42)

•

Q-Link terminal setup in Setup Menu (Q-Link, AV1 / AV2 out). (p. 23)

•

Download analogue channel settings

■

Perform Auto Setup. (p. 30)

•

When first using this TV, see “Auto Setup”. (p. 10)

Perform download to the equipment. (p. 23)

•

Features available

■

Some recording equipments are not applicable. Read the manuals of the equipment.

Direct TV Recording:

Recording the current programme in VCR / DVD recorder

INPUT

immediately.

What you see is What you record

Information / Message

OPTION

DIRECT TV REC

EXIT

RETURN

Recording information or if recording is not possible, a message is displayed. (Only when the programme number is “0” or “AV mode” for some equipment.)

DIRECT TV RE

To change DVB channel, stop recording

■

When Direct TV Recording is performed, the

•

recording equipment is automatically turned on if it is in Standby mode. The recording equipment is recording from its own

•

tuner. You can turn the TV off during recording (Analogue only). If you turn the TV off during recording from an AV

•

source, the recording will be stopped. When Direct TV Recording is performed while

•

watching DVB channel, the DVB programme position is locked and no other DVB channel can be selected. However you can watch analogue channels.

EXIT

Power on link and Easy

When VCR or DVD recorder starts playback or direct navigator / function menu for the equipment are activated, the TV is turned on and input mode is switched automatically so that you can view the content. (Only when TV is in Standby mode.)

playback

Power off link

• “DATA LOGIC” (a trademark of Metz Corporation) • “Megalogic” (a trademark of Grundig Corporation)

• “Easy Link” (a trademark of Philips Corporation) • “SMARTLINK” (a trademark of Sony Corporation) Read the manuals of the equipment too.

When TV is set to Standby mode, the recording equipment is also automatically set to Standby. (Only when the videocassette or DVD is not active.)

Page 39

HDMI Functions

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and highquality sound by connecting the TV and the equipment. HDMI-compatible equipment (∗1) with an HDMI or DVI output terminal, such as a set top box or a DVD player, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable. About connections, see “External Equipment” (p. 42).

Note

HDMI is the world’s first complete digital consumer AV interface complying with a non-compression standard.

•

If the external equipment has only a DVI output, connect to the HDMI1 terminal via a DVI to HDMI adapter cable (∗2).

•

When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (HDMI1: use

•

COMPONENT-AUDIO terminals). Audio settings can be made on the “HDMI1 Input” menu screen. (p. 22)

•

Applicable audio signal sampling frequencies (2ch L.PCM): 48 kHz, 44.1 kHz, 32 kHz

•

HDMI2 terminal is for digital audio signal only.

•

Use with a PC is not assumed.

•

If the connected equipment has an aspect adjustment function, set the aspect ratio to “16:9”.

•

These HDMI connectors are “type A”.

•

These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright

•

protection. An equipment having no digital output terminal may be connected to the input terminal of either “Component”,

•

“S-VIDEO”, or “Video” to receive analogue signals. The HDMI input terminal can be used with only the following image signals:

•

480i, 480p, 576i, 576p, 720p, 1080i and 1080p. Match the output setting of the digital equipment. For details of the applicable HDMI signals, see p. 46.

•

(∗1): The HDMI logo is displayed on HDMI-compliant equipment. (∗2): Enquire at your local digital equipment retailer shop.

•

Q-Link Functions

HDMI Functions

Summary of Control functions

■

Connecting with an HDMI cable to Panasonic equipment with VIERA Link function, you can control the equipment (p. 40). You can use VIERA Link and Q-Link functions together.

Function

Connection

Easy playback

Power on link

Power off link

Speaker control

Access and control the connected equipment by VIERA remote control

Direct TV Recording

Analogue channel download

VIERA Link and Q-Link VIERA Link only Q-Link only

(HDMI) (SCART) (HDMI) (SCART)

OOO

(not via SCART)

(not via HDMI)

Advanced

Page 40

HDMI Functions

VIERA Link “ ControlTM”

∗

Enjoy additional HDMI Inter-Operability with Panasonic products which have “HDAVI Control” function. This TV supports “HDAVI Control 2” function. Connections to some Panasonic equipment (DVD Recorder DIGA, HD Video Camera, Player theatre, Amplifier, etc.) with HDMI cables allow you to interface them automatically. The equipment with “HDAVI Control” function enables the following operations:

Easy playback (p. 41)

•

Power on link (p. 41)

•

Power off link (p. 41)

•

Speaker control (p. 41)

•

In addition, the equipment with “HDAVI Control 2” function enables the following operation:

Access and control the connected equipment by VIERA remote control (p. 41)

•

These features are limited to models incorporating Panasonic’s “HDAVI Control” and “VIERA Link”. VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed. Refer to individual manuals for compatibility information. About applicable equipment, consult your local Panasonic dealer or refer to the URL: www.panasonic.co.uk

HDMI cable

■

This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized. It is recommended that you use Panasonic’s HDMI cable. Recommended part number:

RP-CDHG15 (1.5 m)

•

RP-CDHG30 (3.0 m)

•

RP-CDHG50 (5.0 m)

•

Preparations

■

Setup the equipment to enable this function. Read the manuals of the equipment. About connections, see “External Equipment” (p. 43). Read the manuals of the equipment too.

For the first time / When adding new equipment, reconnecting equipment or changing setup

■

After connection turn the equipment on and then switch the TV on. Select the input mode to HDMI1 or HDMI2 (p. 16), and make sure that an image is displayed correctly.

∗

INPUT

OPTION

DIRECT TV REC

EXIT

RETURN

Display the menu

Select “Setup”

Main Menu

VIERA Link


Sound

Setup

Select “VIERA Link”

Setup Menu 3/3

VIERA Link

Software Licence

System Information

Set to “On”

(default is On)

access

select

set

Page 41

You can control some functions of the connected Panasonic equipment with this

TV remote control (point the remote control at the TV’s signal receiver).

If you cannot access the menu, check the settings and the equipment (p. 40).

•

Access and operate the menu of the equipment

Display “VIERA Link Menu” Select “VIERA Link Control”

VIERA Link Menu

VIERA Link Control

Speaker Selection

Select the equipment you want to access

“Home Cinema” means Player theatre,

•

Recorder theatre and Amplifier.

Recorder

Home Cinema

select

select access

When the equipment with “HDAVI

■

Control 2” function is connected

VIERA Link Menu

Access and control the connected equipment by VIERA

VIERA Link Control

Speaker Selection

Recorder / Player / Home Cinema / Video Camera

Displayed the type of the connected equipment. Select the type of the equipment and access.

Recorder

Home Cinema

remote control

The menu of the accessed equipment

(Input mode will be changed automatically)

Operate the menu of the equipment

Available VIERA remote control buttons

•

Move the cursor / select the menu

Move the cursor / access / adjust

Store / set / access

RETURN

About the operations for the equipment, read the manual of the equipment.

•

Easy playback

Power on link

Power off link

Speaker control

Automatic Input switching-When the connected Panasonic equipment is operated, input mode is switched automatically. When it is stopped operating, input mode is returned.

When the connected Panasonic equipment starts playback or direct navigator / function menu for the equipment are activated, the TV is automatically turned on. (Only when TV is in Standby mode.)

When TV is set to Standby mode, the connected Panasonic equipment is also automatically set to Standby.

This function will work even if the TV enters standby mode automatically by Off Timer

•

function or auto power standby function.

You can control the theatre speaker with TV’s remote control. This function is available when Panasonic Amplifier or Player theatre is connected.

If you cannot access the menu, check the

•

settings and the equipment (p. 40).

Display “VIERA Link Menu” Select “Speaker Selection”

VIERA Link Menu

VIERA Link Control

Speaker Selection

Set to “Home Cinema”

or “TV”

Return to the previous menu

Recorder

Home Cinema

select access

When the equipment with

■

“HDAVI Control” function is connected

VIERA Link Menu

VIERA Link Control

Speaker Selection

Recorder / Player / Home Cinema / Video Camera

Displayed the type of the connected equipment. But you cannot access it. Use its own remote control to operate the equipment.

When other type or other manufacturer

■

of the equipment is connected

VIERA Link Menu

VIERA Link Control

Speaker Selection

“Others” is displayed. You cannot access it. Use its own remote control to operate the equipment.

(depending on the connected equipment)

EXIT

PTION

red

green

yellow

Home Cinema

■

Amplifier or Player theatre will be automatically turned on (if it is in Standby mode) and the sound is from theatre speakers connected to the equipment.

Volume up / down

Mute

select

•

set

■

TV speakers are active.

Recorder

Home Cinema

Others

Home Cinema

Others

Exit the menu

Display the operation guide for the equipment The same functions with the OPTION button of the equipment

Access when the key words are displayed on colour bar

blue

The sound of TV speakers is mute. When the equipment is turned off, TV speakers will be active.

•

HDMI Functions

Advanced

Page 42

External Equipment

These diagrams show our recommendations for how to connect the TV to your various equipment. For other connections, consult the instructions for each piece of equipment, the table below, and the specifications (p. 51).

This slot is for services by the Panasonic dealer.

COMPONENT

AV 1 AV 2

RGB

VIDEO

S VIDEO

VIDEO

AUDIO

HDMI 1 HDMI 2

AUDIO

Types of connectable equipment to each connector

■

Connector

Recording / Playback (equipment)

To record / playback videocassettes / DVDs

(VCR / DVD recorder)

To watch DVDs (DVD player) To watch camcorder images (Video camera) To watch satellite broadcasts (Set top box) To play games (Game equipment) To use amplifier with speaker system Q-Link Direct TV Recording VIERA Link

: Recommended Connection

AV1 AV2

COMPONENT

AUDIO OUT

Page 43

Fully wired HDMI compliant cable

To watch satellite broadcasts

HD Satellite receiver

SCART cable

HDMI equipment

DVD Recorder

To watch DVDs

(Viewing)

DVD player

To record / playback

DVD Recorder / VCR

RF cable

SCART

cable

To listen with speakers

RCA cable

Amplifier with speaker system

VIERA Link (p. 40)

Use fully wired HDMI compliant cable.

•

Read the manuals of the equipment too.

•

Easy playback, Access and

■

control the connected equipment by VIERA remote control

Conversion adapter

(if necessary)

(Viewing)

(Listening)

Home Cinema

■

(Listening)

Computer

HDMI cable

Panasonic Amplifier

RCA cable

HDMI cable HDMI cable

•

External Equipment

Advanced

Speaker system

HDMI cable

Panasonic DVD Recorder, HD Video Camera, etc.

HD Video Camera

HDMI cable

RCA cable

Panasonic DVD Recorder

Panasonic Player theatre

Speaker system

Page 44

Technical Information

Aspect Ratio

The optimum size and aspect can be chosen, and you can enjoy finer images. (p. 13)

Auto: Auto aspect determines the best aspect ratio to use to fill your screen. It does this using a four step process

■

to determine if the picture being viewed is a widescreen picture. If Auto aspect detects a widescreen signal it switches into the appropriate 16:9 or 14:9 widescreen mode. If Auto aspect

does not detect a widescreen signal then this advanced TV enhances the picture for optimum viewing pleasure. The text shown on the screen indicates how Auto aspect determined which ratio to use: “WIDE” appears in the top left of the screen if a widescreen identification signal (WSS) is found or a signal found

through a SCART terminal. Auto aspect switches to the appropriate 16:9 or 14:9 widescreen ratio. This function

will also work in any aspect mode. “Auto” appears in the top left of the screen if black stripes above and below

the picture are detected. Auto aspect chooses the best ratio and expands the picture to fill the screen. This

process can take several minutes, depending on the darkness of the picture.

Aspect Control Signal

(WSS)

Component

O O

Control signal through SCART

(pin 8) or HDMI terminal

AV1 AV2

OO OO

HDMI1HDMI

OO OO OO OO OO OO OO OO OO OO

Signal name

TV/AV1/AV2

PAL PAL 525/60 DVB M.NTSC NTSC(AV input only)

525(480)/60i

Component/HDMI

525(480)/60p 625(576)/50i 625(576)/50p 750(720)/50p 750(720)/60p

1125(1080)/50i 1125(1080)/60i 1125(1080)/50p 1125(1080)/60p

PC input

Aspect modes

Auto 16:9 14:9 4:3 Zoom1 Zoom2 Zoom3 TV AV1 AV2

O OOO O O O OOO O OOO O O O O OOO O O O O O OOO O O O O OOO O O O O OOO O O O O OOO O O O O OOO O O O O OOO O O O O OOO O O O O OOO O O O O OOO O O O O OOO O O O O OOO O O O O OOO O O O

------ - ----

Widescreen signal

--- -

-- - ----

--- -

--- - - -

---

--- - - -

Note

The ratio varies depending on the programme, etc. If the ratio is greater than the standard “16:9”, black bands

•

may appear at the top and bottom of the screen.

If the screen size looks unusual when a widescreen-recorded programme is played back on a VCR, adjust the

•

tracking of the VCR. (See the VCR manual.)

Aspect mode can be memorized for SD (Standard definition) and HD (High definition) signals separately.

•

To select the ratio manually: (Only “16:9” or “4:3” in PC mode)

•

Auto

The best ratio is chosen and the picture expanded to fill the screen.

Displays the image at the standard “14:9” without enlargement.

Displays a “16:9” letterbox or “4:3” image without distortion.

Zoom3

Displays a “2.35:1” letterbox (anamorphic) image full-screen without distortion. At “16:9”, displays the image at its maximum (with slight enlargement).

16:9

Directly displays the image at “16:9” without distortion (anamorphic).

4:314:9

Displays the image at the standard “4:3” without distortion.

Zoom2Zoom1

Displays a “16:9” letterbox (anamorphic) image full-screen without distortion.

Page 45

Updating the DVB software

From time to time, a new version of software for DVB mode may become available for download to enhance performance or operations of the TV. A notification banner will appear when you tune to one of the BBC channels, or you can search for a new version software by using the “System Update Search Now” function (p. 27).

To start downloading press “OK”, this may take up to 20 minutes to complete.

Do you really want to update the software and reboot the system?

New version 1.00 found.

Press OK to download the new version

Press EXIT to lgnore

To ignore the new software press “EXIT”, but this banner will keep appearing during the period of new software availability, usually 2 to 3 days.

To download any new software automatically, ensure that the “Auto Update Search in Standby” function in the System Update menu is set to “On” (p. 27). The TV will then download new software automatically at night if it is left in standby without any timer programme in progress.

Note

During software download and update, DO NOT switch off the TV.

•

VIERA Link “ ControlTM”

HDMI connections to some Panasonic equipment allow you to interface them automatically. (p. 40)

This function may not work normally depending on the equipment condition.

•

Image or sound may not be available for the first few seconds when the playback starts.

•

Image or sound may not be available for the first few seconds when Input mode is switched.

•

Volume function will be displayed when adjusting the volume of the equipment.

•

Easy playback is also available by using the remote control for Amplifier or Player theatre. Read the manuals of

•

the equipment. If more than one equipments of the same type are connected to the TV by HDMI cables, for example two DIGA DVD

•

recorders to HDMI1 and 2, VIERA Link will only be available for the lower terminal number, in this case HDMI1. “HDAVI Control 2” is the newest standard (current as of February, 2007) for Panasonic’s HDAVI Control

•

compatible equipment. This standard is compatible with Panasonic’s conventional HDAVI equipment.

SCART and HDMI terminal information

AV1 SCART terminal

■

(RGB, VIDEO, Q-Link)

Suitable inputs for AV1 include RGB (Red / Green / Blue).

Socket Earth CVBS out (video) CVBS earth Red in Red earth Green in Green earth Blue in Blue earth Audio out (L) Audio out (R)

HDMI terminal

■

Hot Plug Detect DDC/CEC Ground SCL CEC TMDS Clock Shield TMDS Data0− TMDS Data0+ TMDS Data1 Shield TMDS Data2− TMDS Data2+

21 19 17 15 13 11 9 7 5 3 1

19 17 15 13 11 9 7 5 3 1

CVBS in (video)

RGB status earth

Status RGB

Earth

Q-Link data

Status CVBS

Audio in (L)

Audio earth

Audio in (R)

+5V Power

SDA

Reserved (in cable but N.C. on device)

TMDS Clock−

TMDS Clock+

TMDS Data0 Shield

TMDS Data1−

TMDS Data1+

TMDS Data2 Shield

AV2 SCART terminal

■

(RGB, VIDEO, S-VIDEO, Q-Link)

AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO switching.

Socket Earth CVBS out (video) CVBS earth Red in, S.C. - in Red earth Green in Green earth Blue in Blue earth Audio out (L) Audio out (R)

21 19 17 15 13 11 9 7 5 3 1

CVBS in (video)

RGB status earth

Status RGB

Earth

Q-Link data

Status CVBS

Audio in (L)

Audio earth

Audio in (R)

•

Technical Information

FAQs, etc.

Page 46

Technical Information

PC connection

A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.

PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning frequency

•

59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image).

A PC adapter is not necessary for the DOS/V-compliant D-sub 15-pin connector.

•

Note

Some PC models cannot be connected to this TV.

•

When using PC, set the colour display quality of PC to the highest position.

•

For details of the applicable PC signals, see below.

•

Max. display resolution

•

Aspect

D-sub 15-pin connector signal

•

15 14 13 12 11

Model No.

4:3 768 × 720 pixels 768 × 768 pixels 1,024 × 768 pixels

16:9 1,024 × 720 pixels 1,024 × 768 pixels 1,366 × 768 pixels

67839

TH-37PX70BA TH-42PX70BA TH-50PX70BA

Pin No.

Signal Name

R GND (Ground) NC (not connected) G GND (Ground) NC (not connected) B GND (Ground) HD

NC (not connected) NC (not connected) VD

GND (Ground) GND (Ground) NC (not connected)

Pin No.

Signal Name

Pin No.

Signal Name

Input signal that can be displayed

COMPONENT (Y, PB, PR), HDMI

∗

Mark: Applicable input signal

Signal name COMPONENT HDMI

525 (480) / 60i 525 (480) / 60p 625 (576) / 50i 625 (576) / 50p 750 (720) / 60p 750 (720) / 50p 1,125 (1,080) / 60i 1,125 (1,080) / 50i 1,125 (1,080) / 60p 1,125 (1,080) / 50p

PC (D-sub 15P)

Signal name Horizontal frequency (kHz) Vertical frequency (Hz)

640 × 400 @70 Hz 31.47 70.07 640 × 480 @60 Hz 31.47 59.94 640 × 480 @75 Hz 37.50 75.00 800 × 600 @60 Hz 37.88 60.32 800 × 600 @75 Hz 46.88 75.00 800 × 600 @85 Hz 53.67 85.06 852 × 480 @60 Hz 31.44 59.89 1,024 × 768 @60 Hz 48.36 60.00 1,024 × 768 @70 Hz 56.48 70.07 1,024 × 768 @75 Hz 60.02 75.03 1,024 × 768 @85 Hz 68.68 85.00 1,280 × 1,024 @60 Hz 63.98 60.02 1,366 × 768 @60 Hz 48.39 60.04 Macintosh13” (640 × 480) 35.00 66.67 Macintosh16” (832 × 624) 49.73 74.55 Macintosh21” (1,152 × 870) 68.68 75.06

Note

Signals other than above may not be displayed properly.

•

The above signals are reformatted for optimal viewing on your display.

•

Applicable input signal for PC is basically compatible to VESA standard timing.

•

PC signal is magnified or compressed for display, so that it may not be possible to show fine detail

•

with sufficient clarity.

∗∗ ∗∗ ∗∗ ∗∗ ∗∗ ∗∗ ∗∗ ∗∗

∗ ∗

Page 47

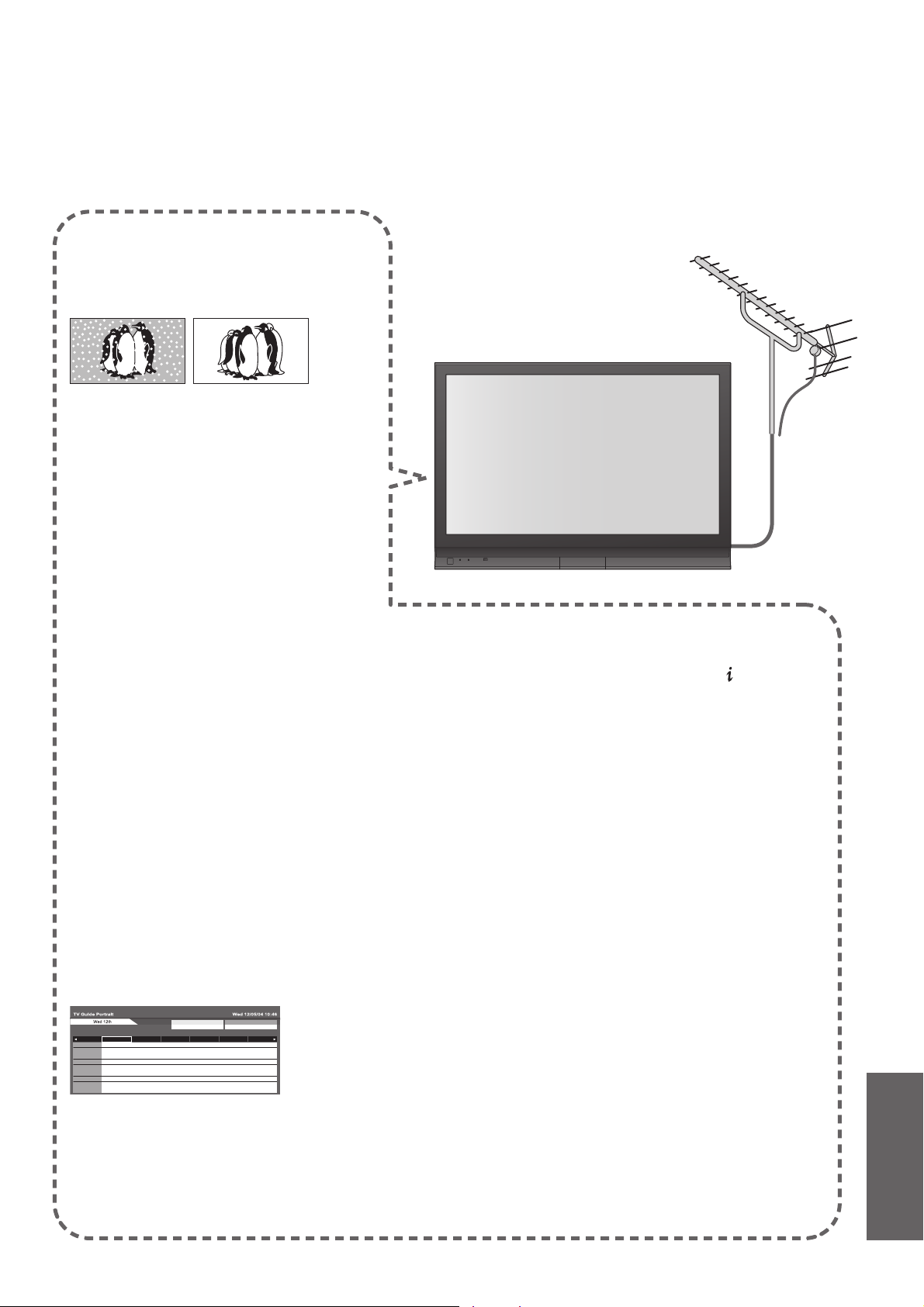

FAQs

Before requesting service or assistance, please follow these simple guides to resolve the problem. If problem still persists, please contact your local Panasonic dealer or Panasonic Customer Care Centre for assistance. For details (p. 52)

White spots or shadow images (noise)

Check the position, direction, and

•

connection of the aerial.

Neither image nor sound is produced

Is the TV in “AV mode”?

•

Is the mains lead plugged into the socket

•

outlet? Is the TV turned On?

•

Check Picture Menu (p. 22) and volume.

•

Check all required SCART cables and

•

connections are firmly in place.

On Screen messages - I.e. EC/AV1

You can simply clear these by pressing the button.

•

Auto aspect

Auto aspect is designed to provide you

•

with the best aspect ratio to use to fill your screen. For user control please see p. 44.

S-Video / black and white picture

Using AV button please confirm your

•

selection is S-Video I.e. AV2/AV2S (p. 16).

No programmes shown on TV Guide

Press again to redisplay.

Direct TV record / Q-Link functions not recording

Please confirm SCART cable and connection. Also

•

please set “AV1 / AV2 out” in the Setup Menu (p. 23).

Permanently lit spots on screen

Due to production process involved in this technology

•

this may result in some pixels which are permanently lit or unlit. This is not a malfunction.

•

Frequently Asked Questions

•

Technical Information

Prog. type

1 BBC ODD DDDDD7 BBC T 14 E4 70 CBBC 105 BBCi72 Cartoo 719 BBC R

POP 100 Rugby Cinema info News

Check the DVB transmitter.

•

Adjust the direction of the aerial to another

•

transmitter installed nearby. Check the analogue broadcast.

•

If the image quality is poor, check the aerial and consult your nearest dealer.

All Types
