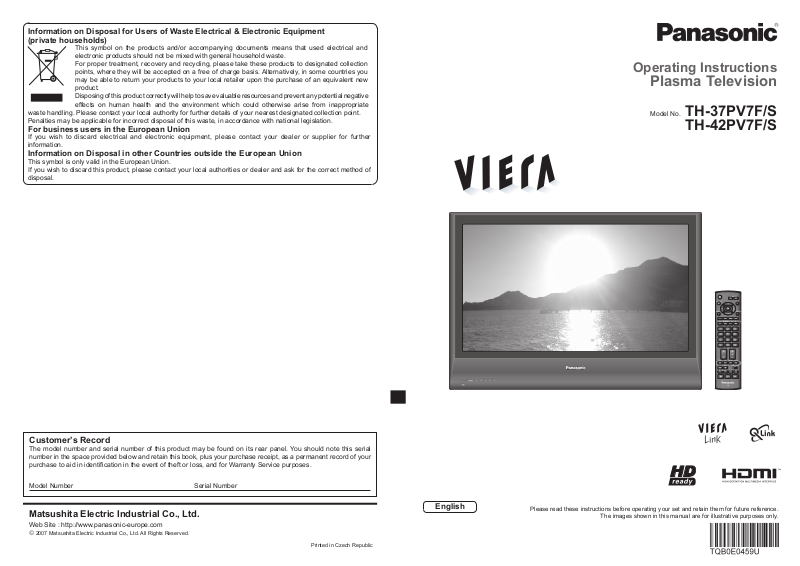

Panasonic TH-37PV7FS, TH-42PV7FS User Manual

Operating Instructions

Plasma Television

English

Please read these instructions before operating your set and retain them for future reference.

The images shown in this manual are for illustrative purposes only.

Information on Disposal for Users of Waste Electrical & Electronic Equipment

Printed in Czech Republic

Model No. TH-37PV7F/S

TH-42PV7F/S

Matsushita Electric Industrial Co., Ltd.

Web Site : http://www.panasonic-europe.com

Customer’s Record

The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identiﬁ cation in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

(private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative

effects

human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

ASPECT

OPTION

132

465

798

VCR

TEXT F.P. INDEX HOLD

REC

PROGRAMME

INPUT

DIRECT TV REC

VCR DVD

EXIT

RETURN

Viewing Advanced FAQs, etc.Quick Start Guide

Turn your own living room into a movie theatre!

Experience an amazing level of multi-

media excitement

Contents

•

Safety Precautions ······································ 4

(Warning / Caution)

•

Notes ··························································· 5

•

Maintenance ··············································· 5

Be Sure to Read

Advanced Features

•

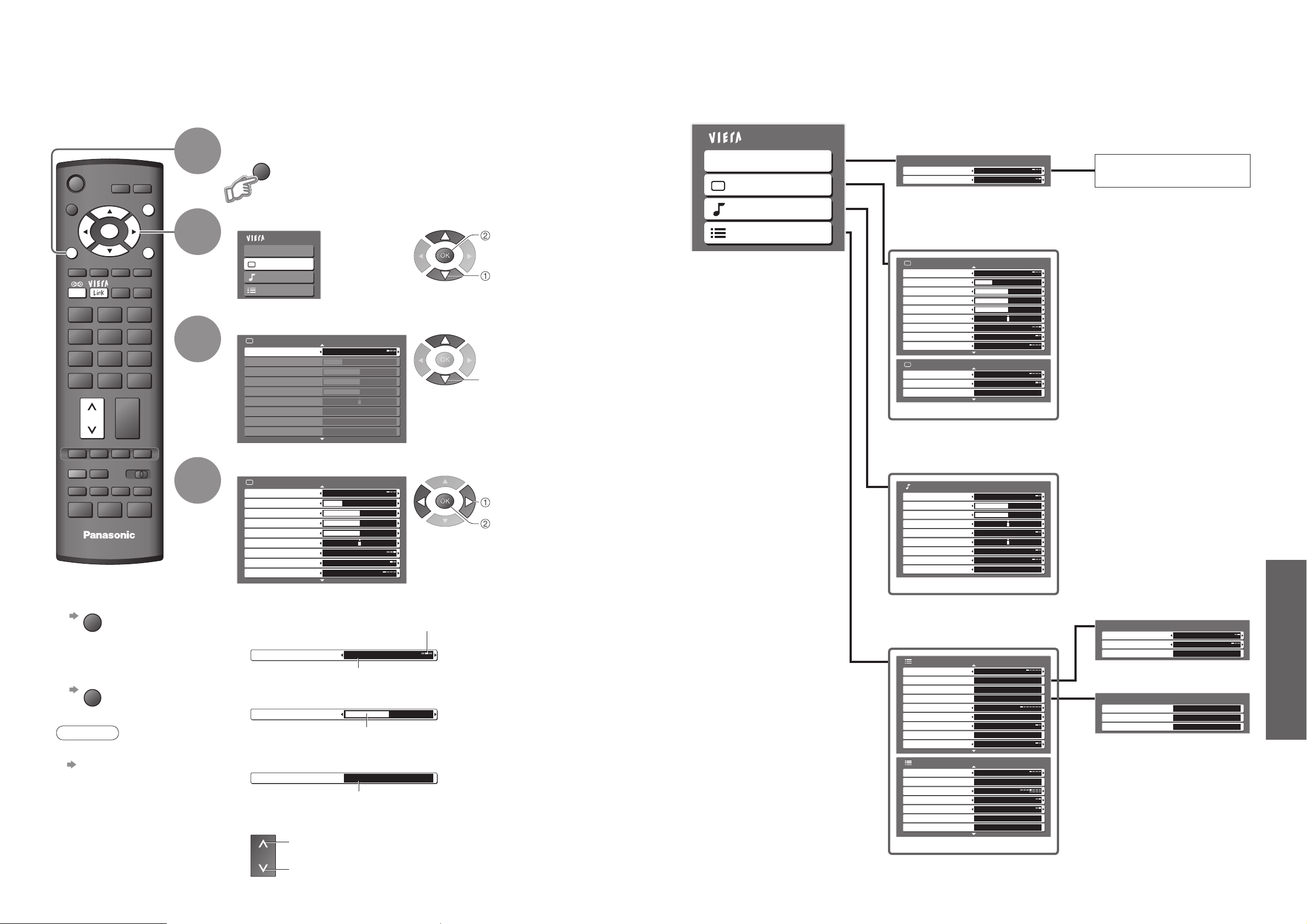

How to Use Menu Functions ····················· 20

(picture, sound quality, etc.)

•

Editing and Setting Channels

······················ 24

•

Control Channel Audience ························ 26

•

Restore Settings ······································ 27

•

Input Labels ·············································· 28

•

Q-Link Functions ······································· 30

•

HDMI Functions ·······································31

(HDMI terminal / VIERA Link)

•

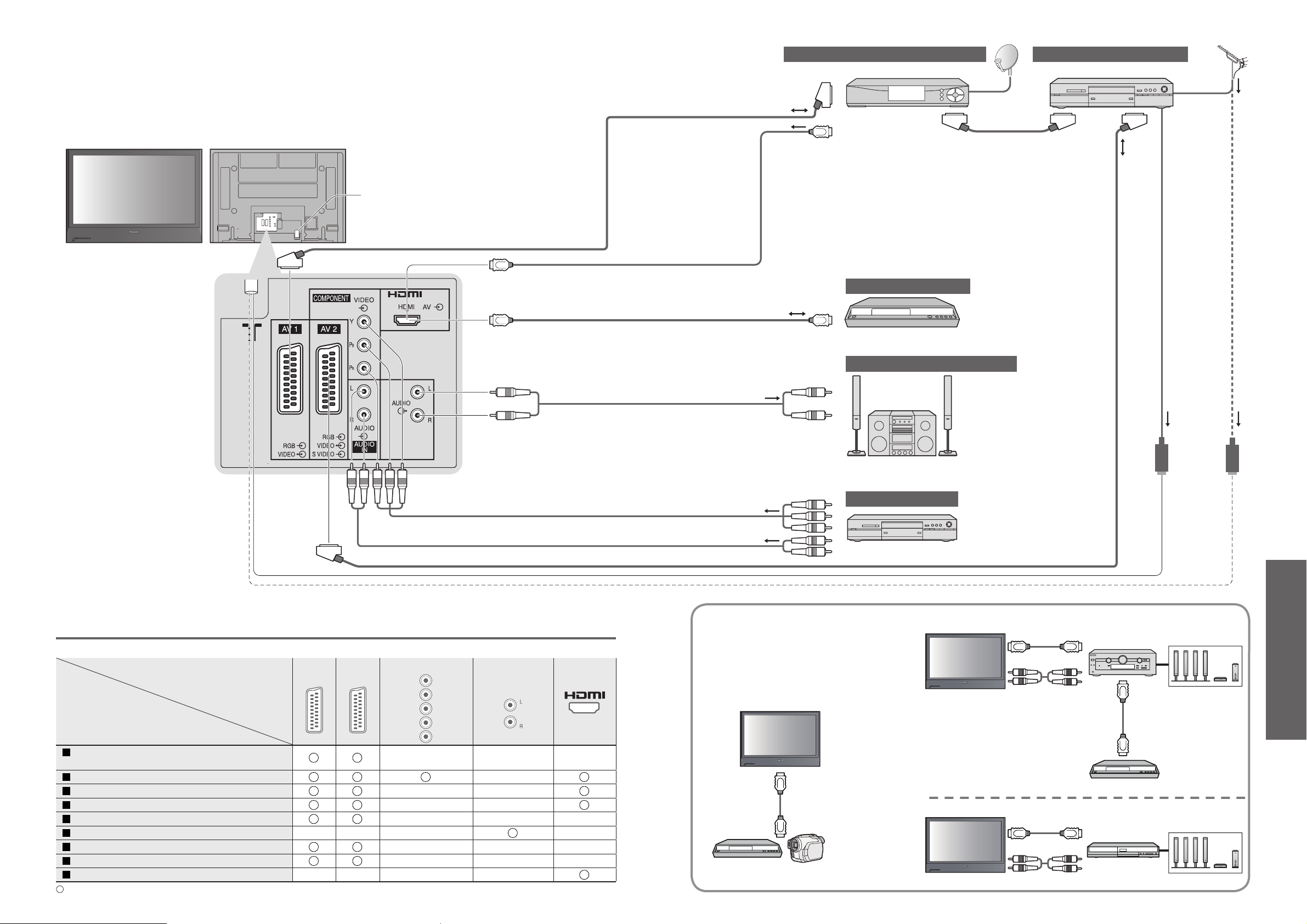

External Equipment ··································· 34

Basic Features

•

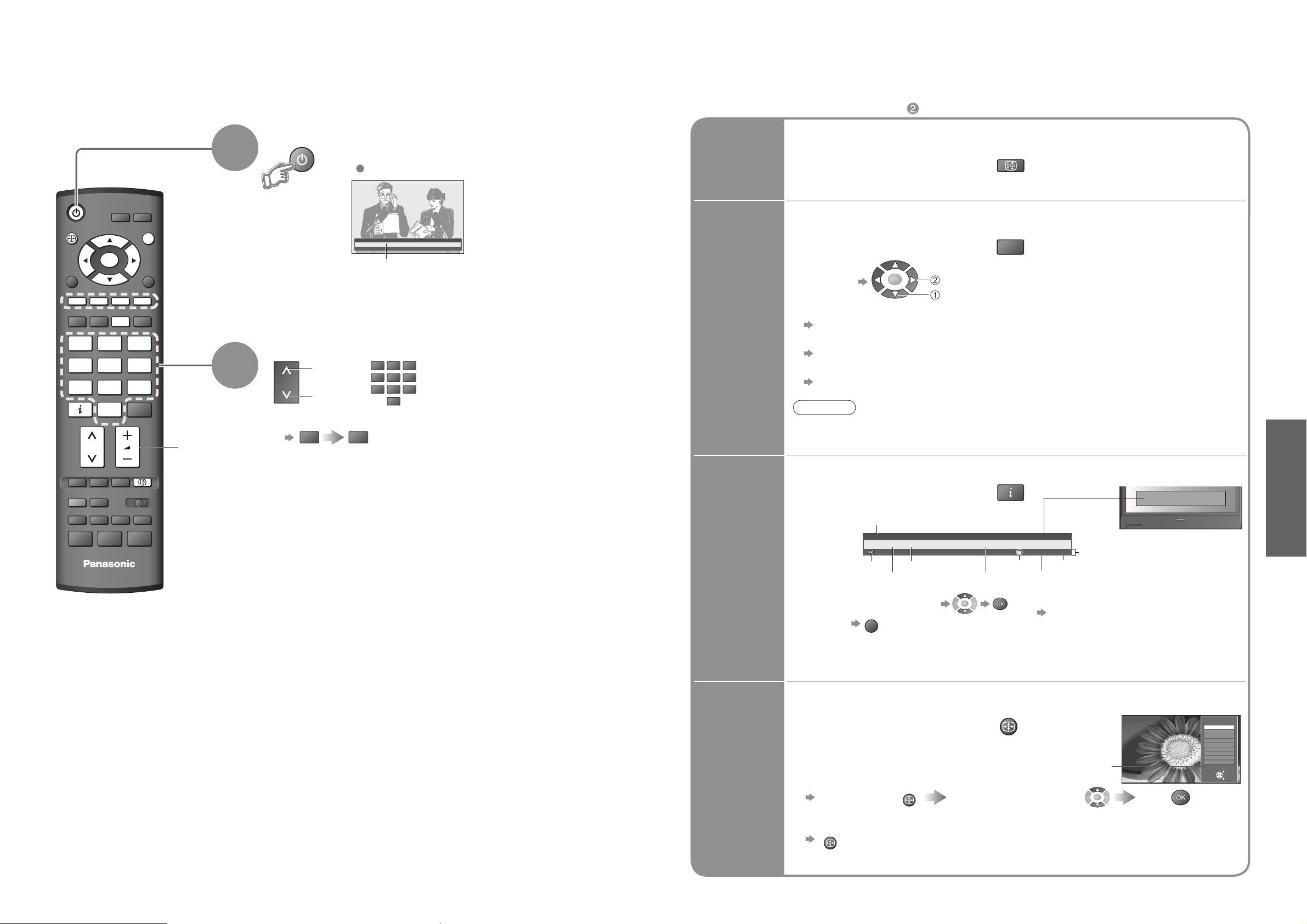

Watching TV ·············································· 14

•

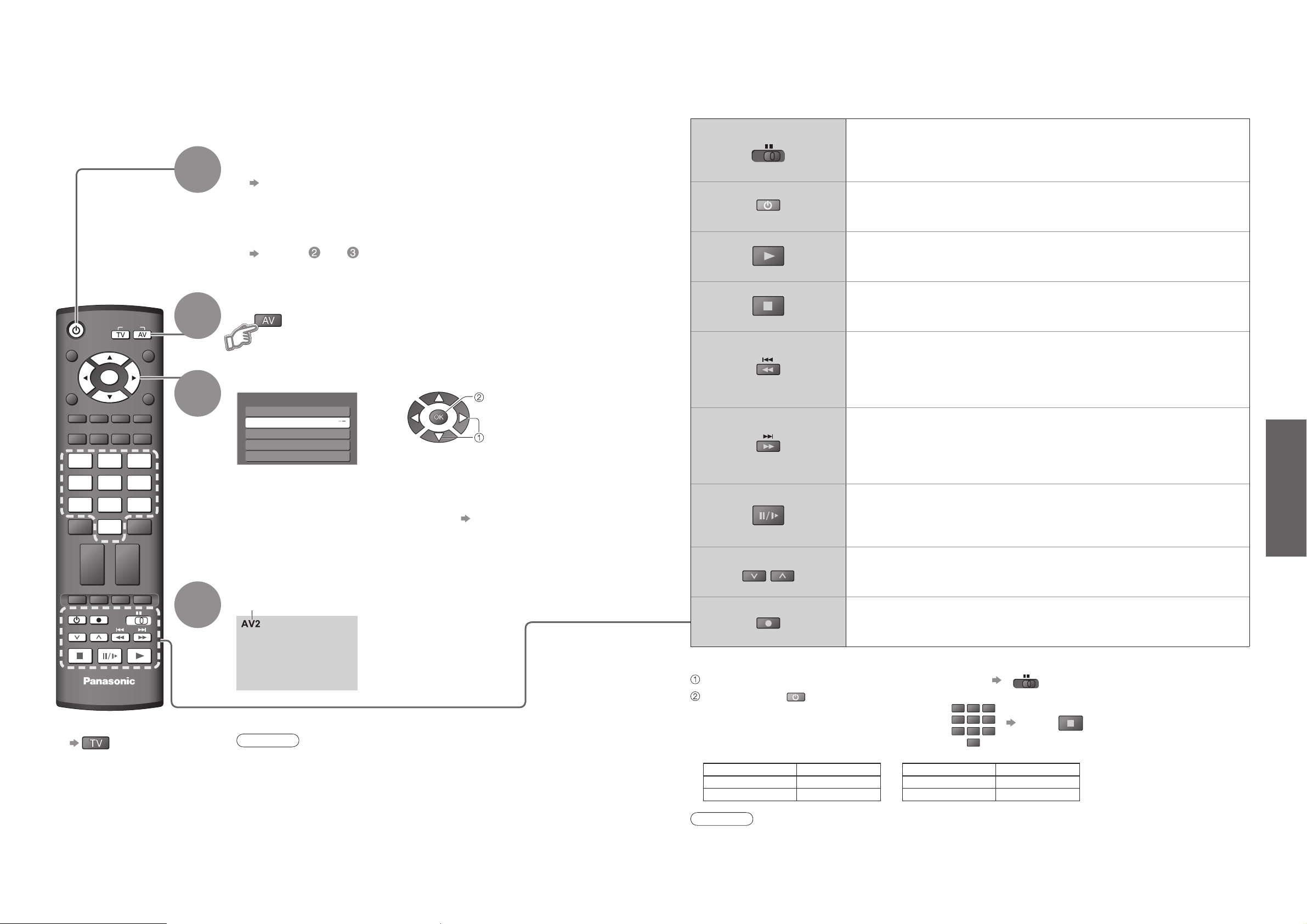

Watching Videos and DVDs ······················ 16

•

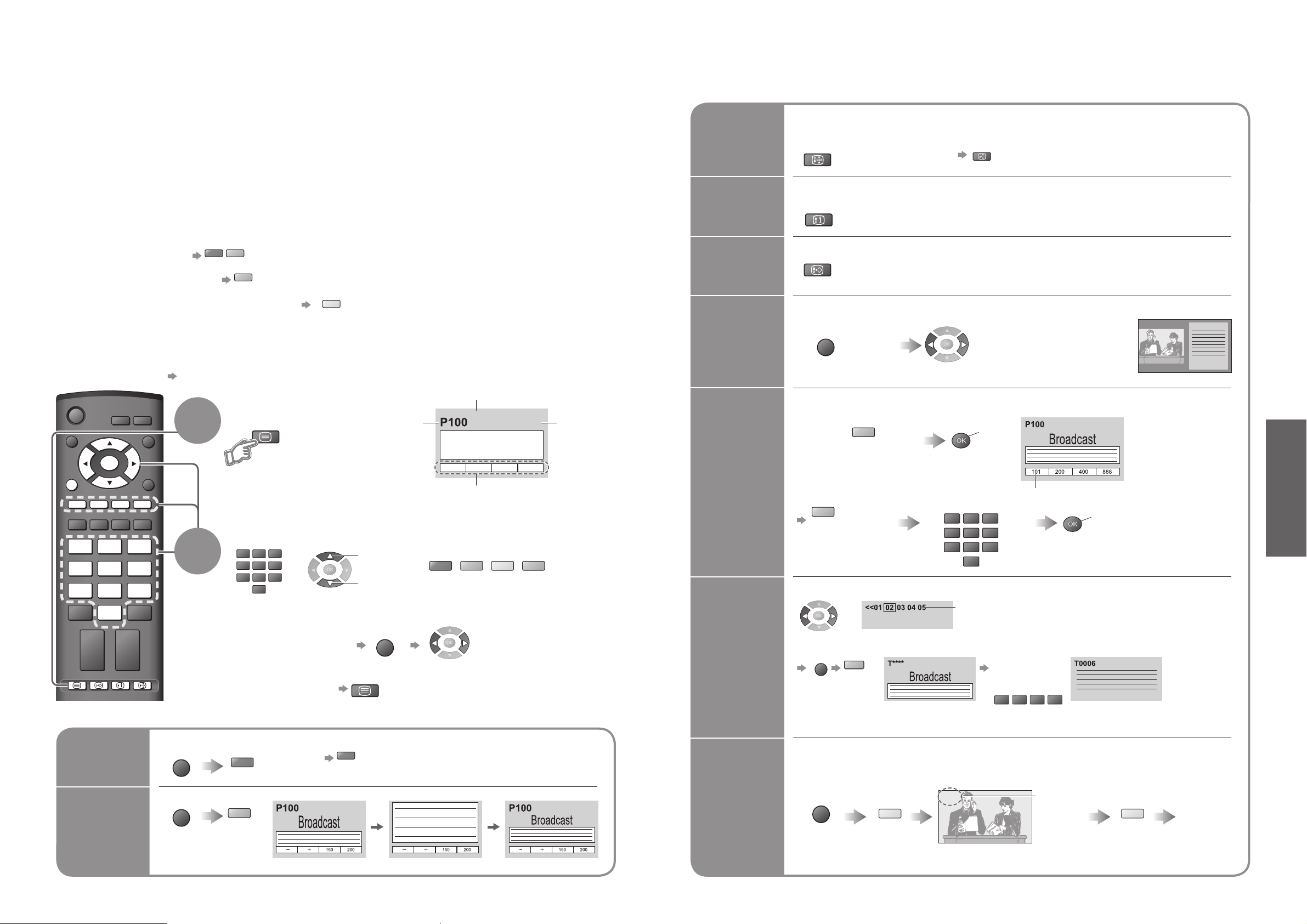

Viewing Teletext ········································18

Enjoy your TV!

•

Technical Information ································36

•

FAQs ·························································38

•

Licence ······················································ 39

•

Speciﬁ cations ············································ 39

FAQs, etc.

Accessories / Options

·········· 6

Attaching the pedestal

········· 7

Identifying Controls

··············· 9

Basic Connection

················· 10

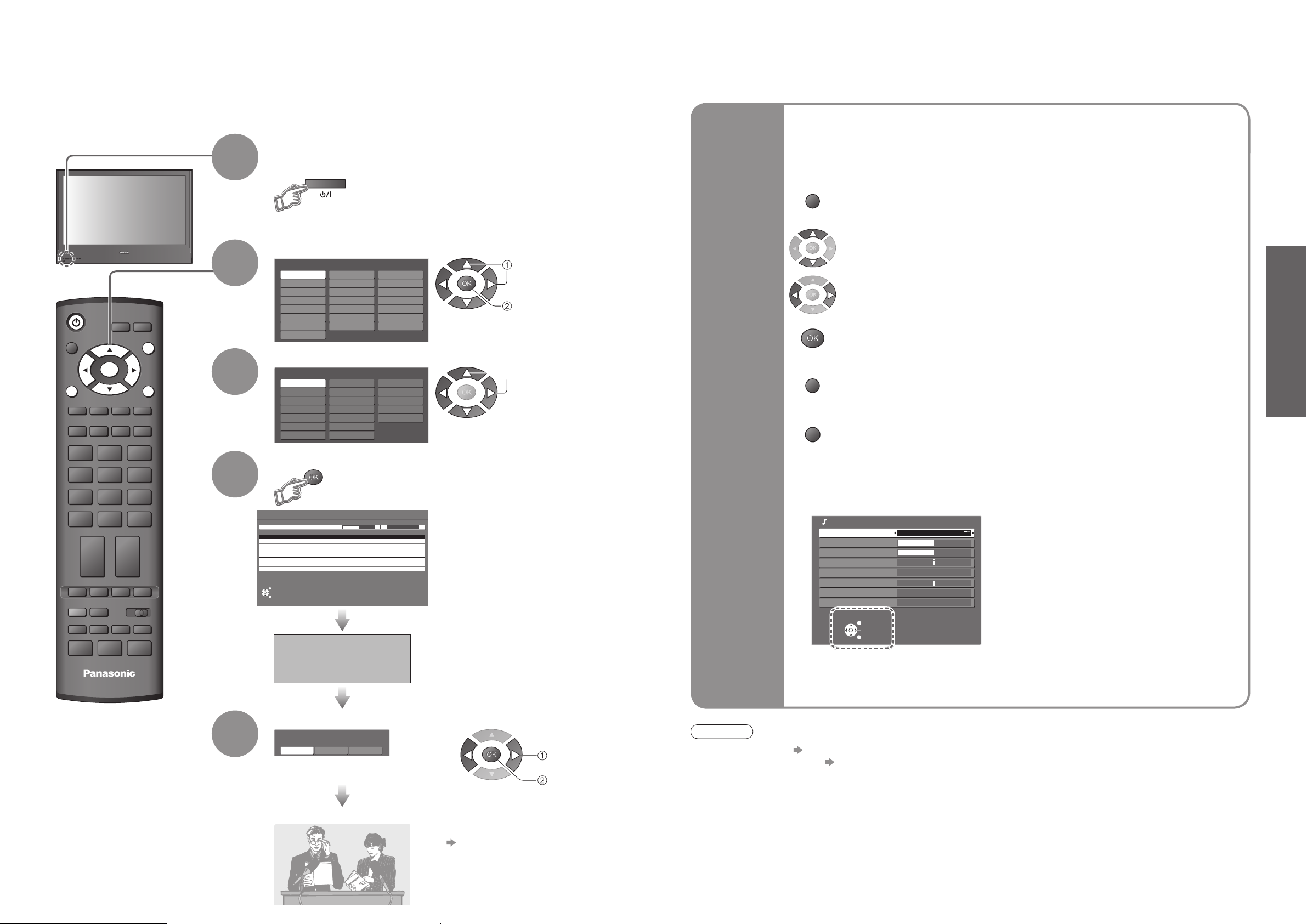

Auto Setup

······························· 12

Quick Start Guide

Camcorder

Set top box

Enjoy rich multi-media

Ampliﬁ er with Speaker system

VCR

DVD player

DVD Recorder

4 5

Safety Precautions

Do not expose to direct sunlight and other sources of heat

Avoid exposing the TV to direct sunlight and other sources of heat. To prevent ﬁ re never place any type of candle or naked ﬂ ame on top or near the TV.

Keep liquids away from the TV

To prevent damage which may result in ﬁ re or shock hazard, do not expose this appliance to dripping or splashing. Do not place containers with water (ﬂ ower vase, cups, cosmetics, etc.) above the TV. (including on shelves above, etc.)

Do not remove covers NEVER modify the TV yourself

(High-voltage components may cause serious electrical shock.)

Have the TV checked, adjusted, or repaired at your local Panasonic dealer.

Do not place foreign objects inside the TV

Do not let metal or ﬂ ammable objects drop into the TV through the air vents (ﬁ re or electrical shock may result).

(Cleaning an energized TV may cause electrical shock.)

When cleaning the TV, remove the

mains plug

Handling the mains plug and lead

Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause ﬁ re.) Ensure that the mains plug is easily accessible. Ensure the grounding pin on the mains plug is securely connected to prevent electrical shock.

An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective

earthing connection. Do not touch the mains plug with a wet hand. (This may cause electrical shock.) Do not use any mains lead other than that provided with this TV. (This may cause ﬁ re or electrical shock.) Do not damage the mains lead. (A damaged lead may cause ﬁ re or electrical shock.)

Do not move the TV with the lead plugged in the socket outlet. Do not place a heavy object on the lead or place the lead near a high-temperature object. Do not twist the lead, bend it excessively, or stretch it. Do not pull on the lead. Hold onto the mains plug body when disconnecting lead. Do not use a damaged mains plug or socket outlet.

Warning Caution

Blocked ventilation by curtains, etc. may cause overheating, ﬁ re or electrical shock.

Do not block the rear air vents

Notes

Maintenance

Display panel

Cabinet

Mains plug

Regular care: Gently wipe the surface clean of dirt by using a soft cloth. Major contamination: Wipe the surface clean using a soft cloth dampened with clean water or diluted neutral detergent by 100 times of water. Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.

Regular care: Wipe the surface clean using a soft dry cloth. Major contamination: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent. Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.

Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to ﬁ re or electrical shock.)

First, remove the mains plug from the socket outlet.

Caution

•

The surface of the display panel has been specially treated and may be easily damaged. Do not tap or scratch the surface with your ﬁ ngernail or other hard object.

•

Use care not to subject the surface to bug repellent, solvent, thinner, or other volatile substances (this may degrade surface quality).

Caution

•

Use care not to subject the TV's surfaces to detergent. (A liquid inside the TV could lead to product failure.)

•

Use care not to subject surfaces to bug repellent, solvent, thinner, or other volatile substances (this may deteriorate the surface by peeling the paint).

•

Do not allow the cabinet to make contact with a rubber or PVC substance for a long time.

When TV will not be used for a

long time, remove the mains plug

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.

Use only the dedicated stands / mounting equipment

Using an unauthorized stand or other ﬁ xtures may make the TV shaky, risking injury. Be sure to ask your local Panasonic dealer to perform setup. Use optional stands / mounts (p. 6).

Do not place the TV on sloped or unstable surfaces

The TV may fall off or tip over.

Electronic equipment In particular, do not place video equipment near the TV (electromagnetic interference may distort images / sound).

Equipment with an infrared sensor This TV also emits infrared rays (this may affect

operation of other equipment).

Keep the TV away from these equipment

If no signal is received and no operation is performed in TV mode for 30 minutes, the TV will automatically go to standby mode.

Auto power standby function

Transporting the TV with its display panel facing upright or downward may cause damage to the internal circuitry.

Transport only in upright position

AC 220-240 V 50 / 60 Hz

Do not display a still picture for a long time

This causes the image to remain on the plasma screen (“image retention”). This is not considered a malfunction and is not covered by the warranty.

To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are performed. (p. 38)

Typical still images

Channel number and other logos Image displayed in 4:3 mode Video game

If you ﬁ nd any abnormality, remove the mains plug immediately!

Allow sufﬁ cient space around the

TV for radiated heat

Minimum distance

(cm)

Quick Start Guide

Accessories / Options

•

Attaching the pedestal

•

Accessories / Options

Installing remote’s batteries

Caution

•

Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.

•

Do not mix old and new batteries.

•

Do not mix different battery types (such as alkaline and manganese batteries).

•

Do not use rechargeable (Ni-Cd) batteries.

•

Do not burn or breakup batteries.

Using the clamper

Batteries for the Remote Control Transmitter

(2)

•

R6 (UM3)

Remote Control Transmitter

•

EUR7651120

Standard accessories

Check that you have the accessories and items shown

Clamper (2)

Mains Lead

•

Do not bundle the RF cable and mains lead together (could cause distorted image).

•

Fix cables with clampers as necessary.

•

When using the optional accessory, follow the option’s assembly manual to ﬁ x cables.

Rear of the TV

snaps

To remove from the TV:

To loosen:

Keep pushing

both side snaps

Set the tip

in the hooks

Insert the clamper in a hole

hole

1. Attach the clamper

2. Bundle the cables

Keep pushing

the knob

knob

hooks

Pull open

Hook

Note the correct polarity (+ or -)

Pedestal (ST-42R2-WS)

•

TBL0E0014

For installation

p. 7 and p. 8

Caution

•

In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets.

•

Carefully read the instructions accompanying the plasma TV stand or pedestal, and be absolutely sure to take steps to prevent the TV from tipping over.

•

Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.

Optional accessories

Wall-hanging bracket (vertical)

TY-WK42PV3W

(angle)

TY-WK42PR2W TY-WK42PR3W

Operating Instructions

Pan European Guarantee Card

Do not disassemble or modify the pedestal.

•

Otherwise the TV may fall over and become damaged, and personal injury may result.

■

Securing the TV

Label

View from the bottom

Arrow mark

Hole for pedestal installation

■

Assembling the pedestal

Insert the poles into the left and right holes in the underside of the base so that they ﬁ t securely as shown in the illustration above.

Installing the poles Securing the poles

Front

Use the assembly screws A to secure the poles ﬁ rmly to the bottom of the base.

•

Forcing the assembly screws the wrong way will strip the threads.

Caution

Do not use any other TV and displays.

•

Otherwise the TV may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

•

If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic Dealer immediately.

During set-up, make sure that all screws are securely tightened.

•

If sufﬁ cient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Use the accessory fall-prevention brackets to secure the TV.

•

If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may result.

Two or more people are required to install and remove the TV.

•

If two or more people are not present, the TV may be dropped, and personal injury may result.

Warning

Attaching the pedestal

Assembly screw (4)

M5 × 20

Assembly screw (4)

M5 × 30

Pole (2) Base

For TH-42PV7F/S (Outside)

For TH-37PV7F/S (Inside)

Carry out work on a horizontal and level surface. Use the assembly screws to fasten securely.

132

465

798

Quick Start Guide

•

Identifying Controls

•

Attaching the pedestal

Cursor buttons to make selections and adjustments

Standby On / Off switch

(Switches TV On or Off standby)

Sound mute On / Off

Changes aspect ratio (p. 15)

Selects programmes in sequence

Access VIERA Link Menu

(p. 33)

OK button to conﬁ rm selections and choices Press after selecting programme positions to quickly change programme.

VCR / DVD operations (p. 17)

Volume

Programme Information (p. 15)

Teletext Index (p. 19)

Coloured buttons used for the selection, navigation and operation of various functions

EXIT (Returns to TV screen)

DIRECT TV Recording

To immediately record programme in VCR / DVD recorder with Q-Link connection

(p. 30)

Programme / channel change buttons (0-9) and Teletext page buttons.

(p. 14 and p. 18)

When in Standby mode, switches TV On.

Option menu Sets the preferred settings of viewing and sound options easily (p. 15)

Main Menu Press to access VIERA Link, Picture, Sound and Setup menus

(p. 20)

Viewing a favourite teletext channel (p. 19)

Surround (p. 22)

Changes the input mode TV -

changes TV mode

(p. 16)

AV - changes AV input mode (p. 16)

Returns to the previous menu

Still picture (p. 15) Teletext Hold (p. 19)

Teletext (p. 18)

The TV must be fastened to both a base and a wall.

Remove the screws at both top corners on the rear of the TV, and attach the clamps to the TV using the removed screws.

Band (2) Screw (2)

Nominal diameter 4 mm × 12

Wood screw (2) Clamp (2)

Attaching the pedestal

■

Securing to a base

Fix pedestal and base together with band.

■

Securing to a wall

Fix to wall or post with strong commercial wire or chain.

Remove Attach

Identifying Controls

Increases or decreases the programme position by one. When a function is already displayed, press to increase or decrease the selected function. When in Standby mode, switches TV On.

Remote control signal receiver

Changes the input mode

Function select

•

Volume / Contrast / Brightness / Colour / Sharpness / Tint (NTSC mode) / Bass / Treble / Balance / Auto Setup (p. 24)

Power LED

•

Standby: red On: green

Mains power On / Off switch

ASPECT

OPTION

132

465

798

VCR

INPUT

DIRECT TV REC

EXIT

RETURN

TEXT F.P. INDEX HOLD

REC

VCR DVD

PROGRAMME

Quick Start Guide

•

Basic Connection

External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet ﬁ rst.

Example 1 Connecting aerial

Example 2 Connecting DVD Recorder / VCR

TV only TV, DVD Recorder or VCR

Note

•

Connect to AV1 / 2 for a DVD Recorder / VCR supporting Q-Link (p. 30).

Example 3 Connecting DVD Recorder / VCR and Set top box

TV, DVD Recorder / VCR and Set top box

Mains lead (supplied)

SCART cable (fully wired)

DVD Recorder or VCR

RF cable

Aerial AerialRear of the TV Rear of the TV

RF cable

AC 220-240 V 50 / 60 Hz

DVD Recorder

or VCR

SCART cable (fully wired)

RF cable

Aerial

Mains lead (supplied)

Rear of the TV

Set top box

AC 220-240 V 50 / 60 Hz

RF cable

SCART cable (fully wired)

RF cable

Clamper

•

To unfasten

AUDIO OUT

I D E O

A U D

I O

C O M P O N E N T

RF IN

RF OUT

RF IN

RF OUT

RF IN

+ 14 hidden pages
