Page 1
Operating Instructions
Manual de instrucciones
High Denition Hospitality LCD Display
Pantalla de LCD de alta denición para la industria hotelera
Model No.
Número de modelo
TH-32LRT12U
TH-37LRT12U
English
Español
The illustration shown is an image.
Before connecting, operating or adjusting this product, please read these instructions completely.
Please keep this manual for future reference.
La ilustración mostrada es una imagen.
Antes de conectar, utilizar o ajustar este producto, lea completamente este manual de instrucciones;
y guárdelo para consultarlo en el futuro en caso de ser necesario.
TQB4CM171
Page 2
WARNING: To reduce the risk of electric shock, do not remove cover or back.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
No user-serviceable parts inside. Refer servicing to qualied service personnel.
The lightning flash with
arrow-head within a triangle
is intended to tell the user
that parts inside the product
are a risk of electric shock
to persons.
The exclamation point within
a triangle is intended to
tell the user that important
operating and servicing
instructions are in the papers
with the appliance.
WARNING : To prevent damage which may result in re or shock hazard, do not expose this apparatus to rain
or moisture.
Do not place containers with water (ower vase, cups, cosmetics, etc.) above the set.
(including on shelves above, etc.)
WARNING : To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualied
service personnel.
This video monitor is designed to display television content from a separate TV tuner. Full-power analog TV broadcasting
in the United States will end (as required by law) on February 17, 2009, after which full-power TV broadcasts will be
digital only. If this device is used after that date to record or display programming from a product with a TV tuner that
relies on a TV antenna, that product would need to contain a digital tuner, or a TV Converter would be necessary to
tune the digital signal received with a TV antenna. Analog TVs should continue to work as before for other purposes
(e.g., for watching low-power TV stations still broadcasting in analog, watching pre-recorded movies, or playing video
games). When a Converter is used with an older television receiver or directly with this product, a signal splitter might
be necessary to continue to receive low-power analog broadcasts via an antenna. For more information, please see
www.DTV.gov or 1-888-CALL-FCC. For information on the TV Converter program, and on government coupons that
may be used toward the purchase of one, see www.dtv2009.gov, or call the NTIA at 1-888-DTV-2009. Please check
with your cable or satellite service provider if you have questions about your cable or satellite set-top box.
2
Page 3
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11) Only use attachments / accessories specied by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart / apparatus combination
to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.
3
Page 4
Dear Panasonic Customer
Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment
from your new LCD Display.
To obtain maximum benefit from your set, please read these Instructions before making any adjustments,
and retain them for future reference.
Retain your purchase receipt as well, and record the model number and serial number of your set in the
space provided on the rear cover of these instructions.
Table of Contents
Important Safety Instructions ..................................3
Table of Contents .....................................................4
FCC STATEMENT ......................................................5
Safety Precautions ................................................... 6
Maintenance .............................................................. 7
Accessories ..............................................................8
Accessories Supplied ..............................................8
Remote Control Batteries ........................................8
Location ...................................................................9
Preparation for Wall-hanging ................................... 9
Connections ............................................................ 10
AV connection.........................................................11
Component (YPbPr) connection .............................11
PC Input Terminals connection .............................. 12
HDMI connection ...................................................13
Audio Out connection ............................................13
Serial Terminals connection...................................14
Power ON / OFF ..................................................... 15
Using the Power Switch ........................................15
Using the Power Button ......................................... 15
Initial selections......................................................16
Selecting the input signal ......................................16
Selecting the On-Screen Menu Language ............ 16

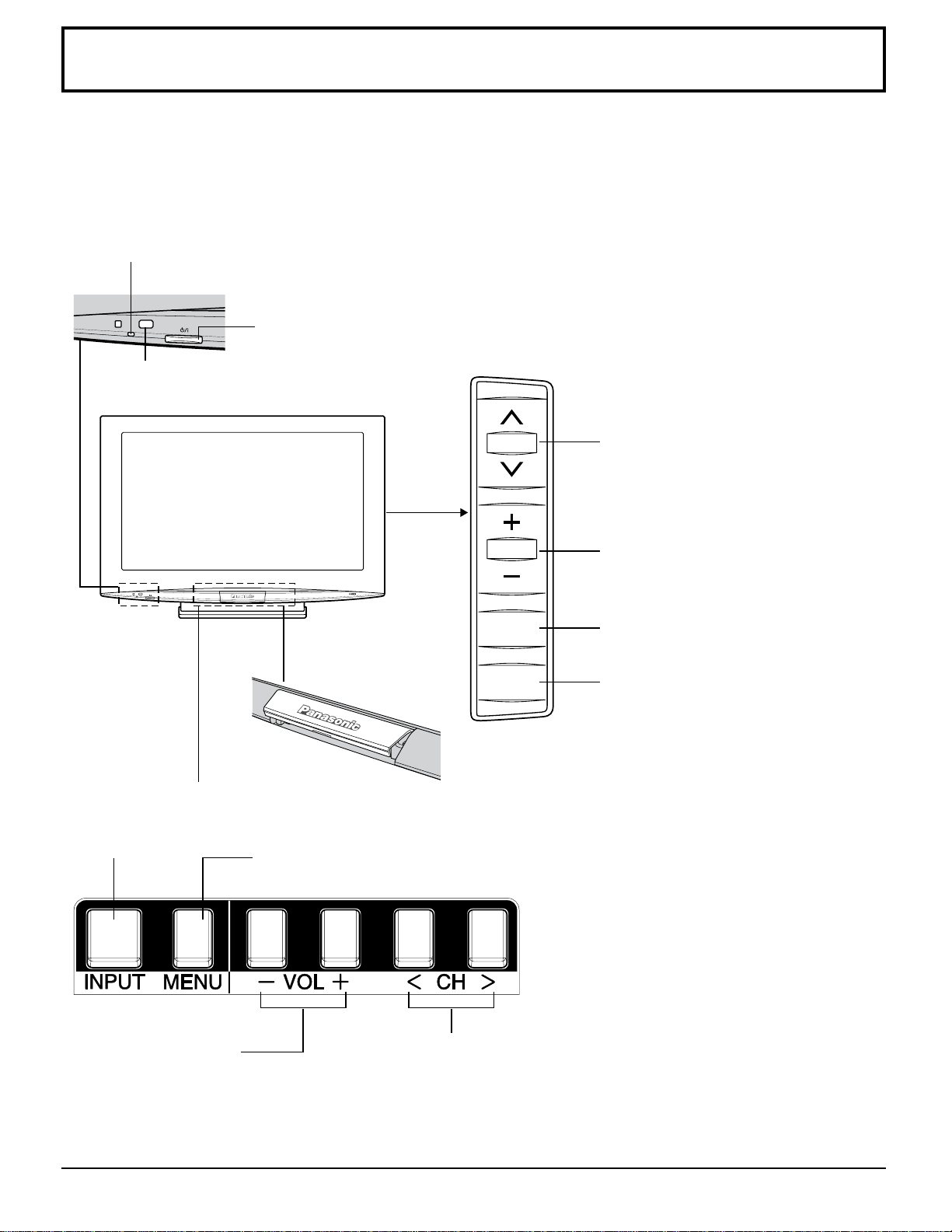

Basic Controls ........................................................ 17

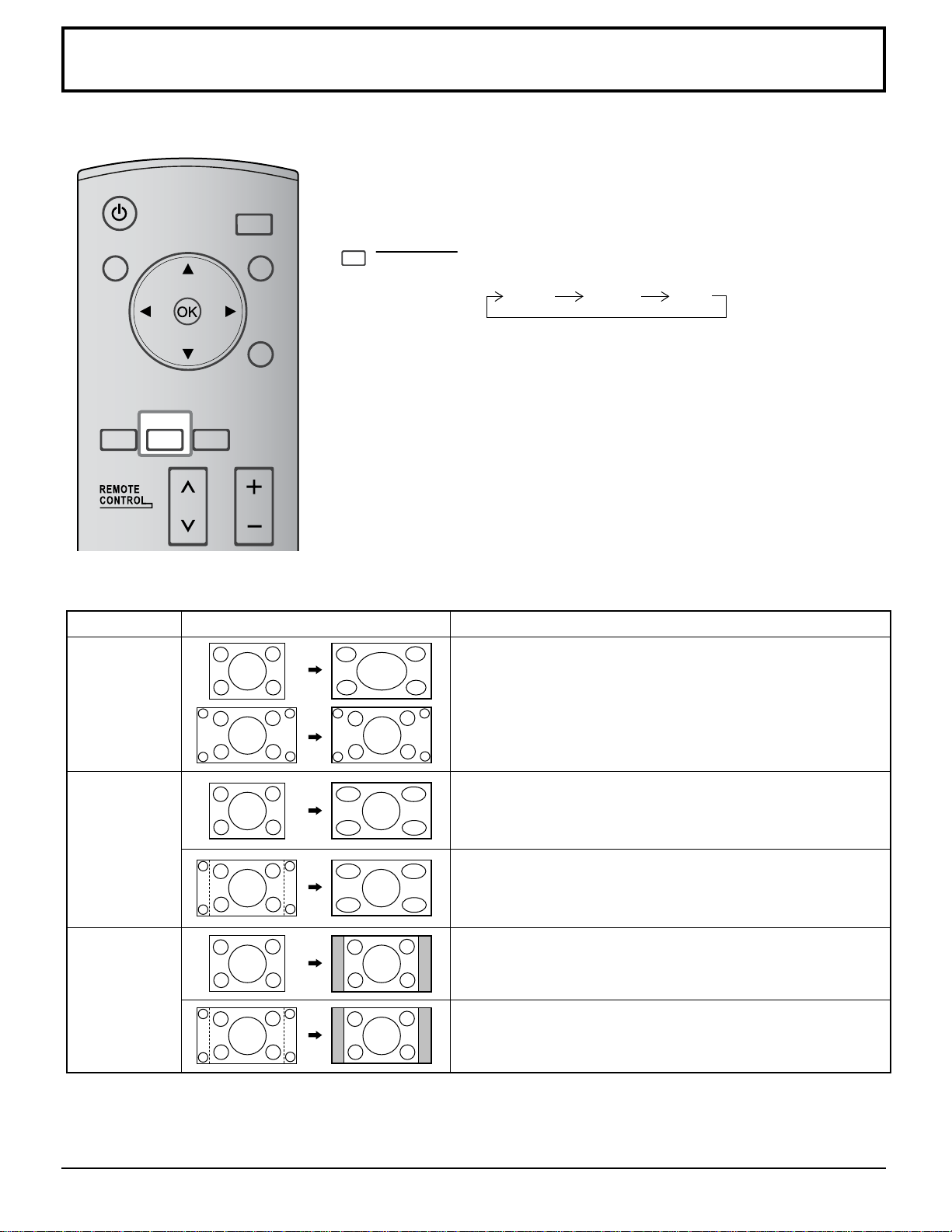

ASPECT Controls ................................................... 19

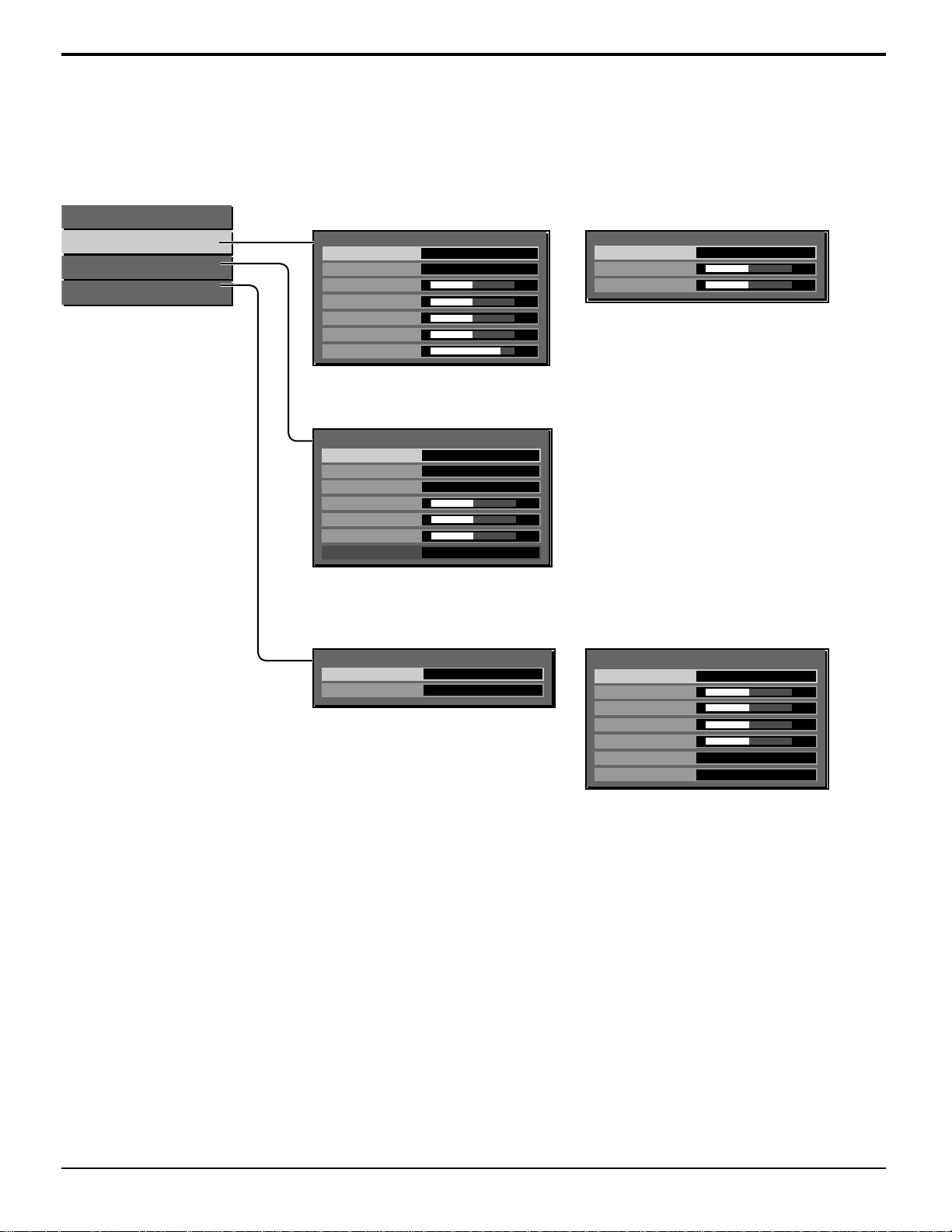

On-Screen Menu Display ....................................... 20

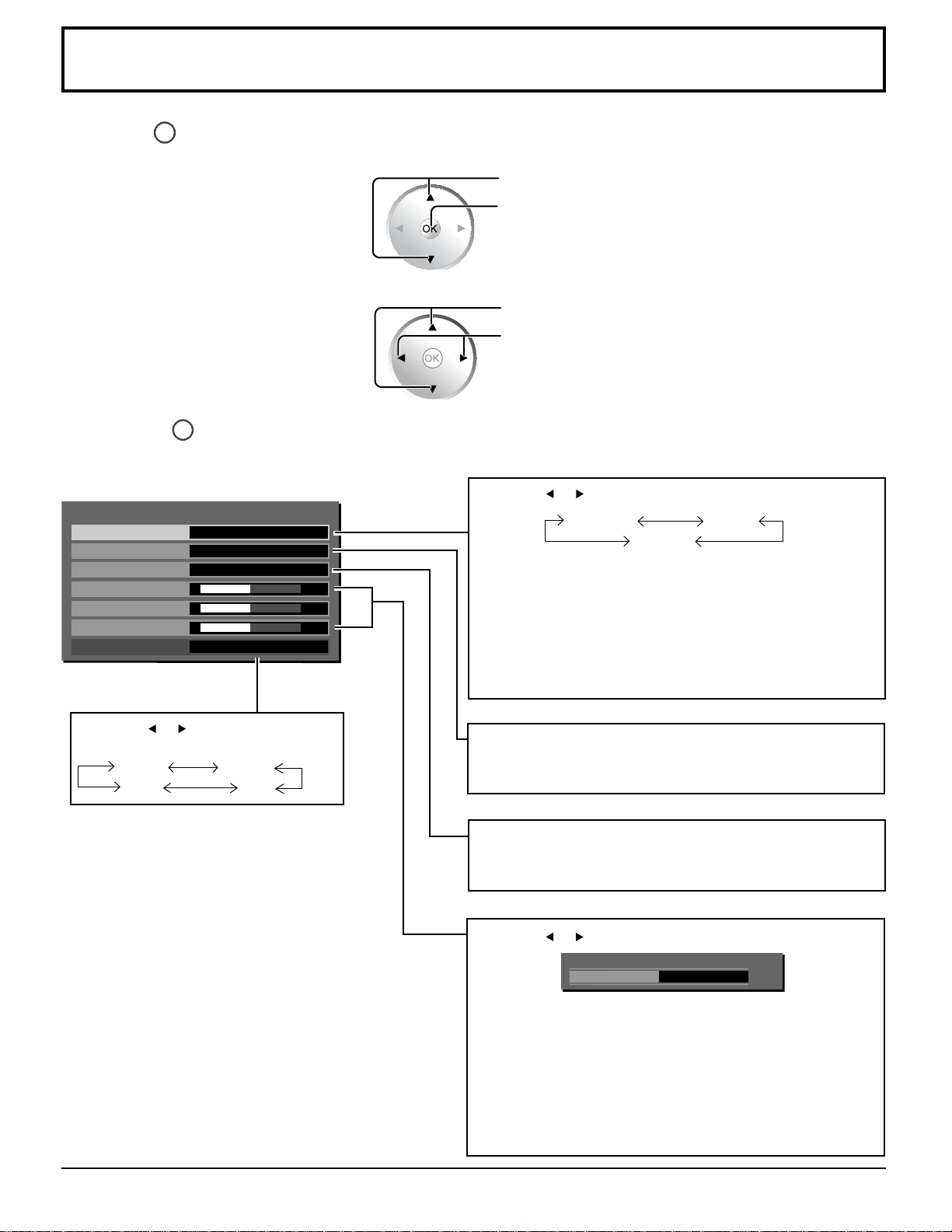

Picture Menu ...........................................................22
Sound Menu ............................................................23
Setup Menu ............................................................. 24
HOTEL MODE Setup ...............................................26
Troubleshooting ..................................................... 28
Applicable Input Signals ........................................ 29
Specications ......................................................... 30
Panasonic Professional Flat Panel
Display Limited Warranty ......................................31
LIMITED WARRANTY STATEMENT .......................32

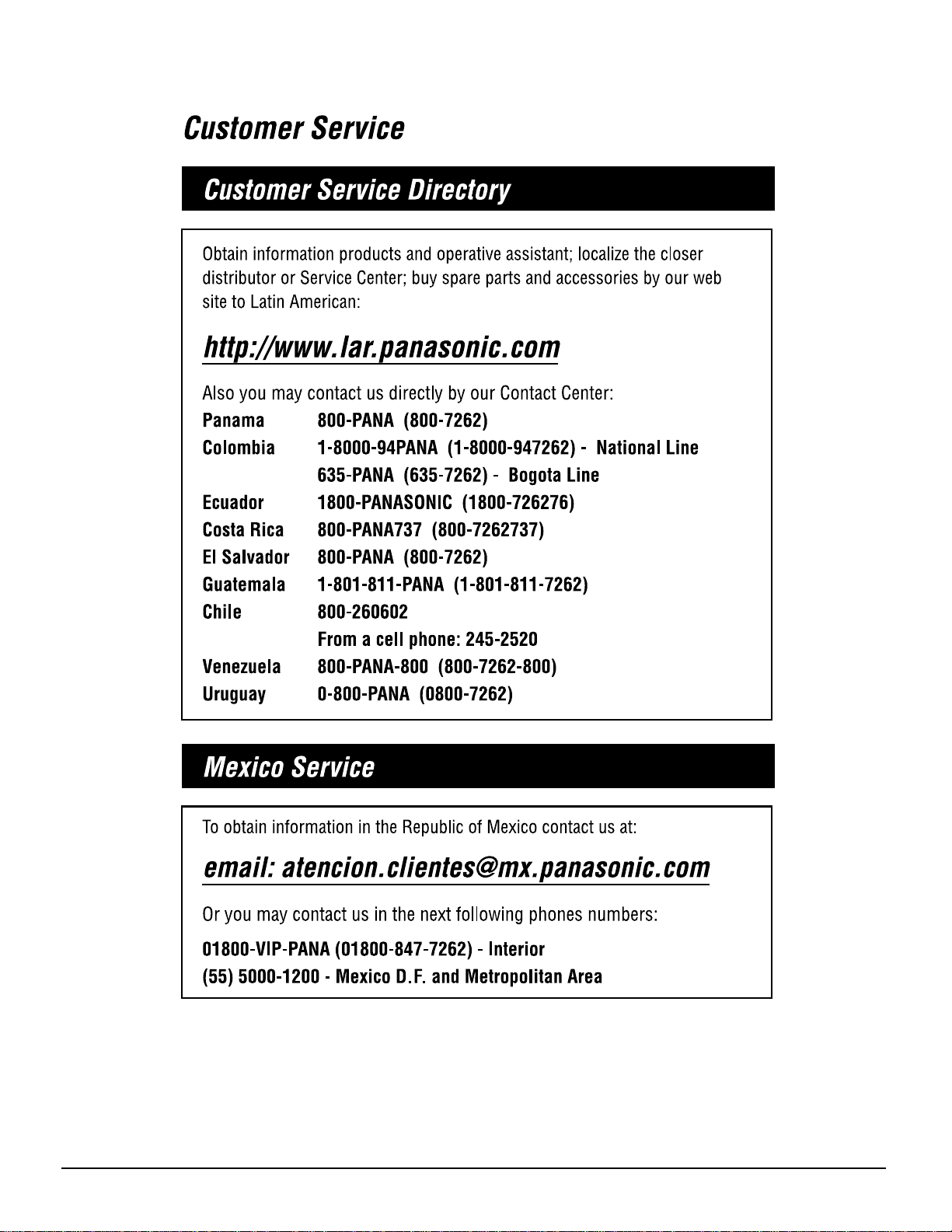

Customer Service ...................................................33
4
Page 5
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.
This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions:(1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC CAUTION:
To assure continued compliance, follow the attached installation instructions and use only shielded interface
cables when connecting to computer or peripheral devices. Any changes or modications not expressly
approved by Panasonic Corp. of North America could void the user's authority to operate this device.
FCC Declaration of Conformity
Model No. TH-32LRT12U, TH-37LRT12U
Responsible Party:
One Panasonic Way 1F-10, Secaucus, NJ 07094
Contact Source: Panasonic Professional Display Company
Panasonic Plasma Concierge 1-800-973-4390
CANADIAN NOTICE:
This Class B digital apparatus complies with Canadian ICES-003.
Note:
•
Image retention may occur. If you display a still picture for an extended period, the image might remain on the screen.
However, it will disappear after a while.
•
Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain
readily operable.
Trademark Credits
VGA is a trademark of International Business Machines Corporation.
•
• Macintosh is a registered trademark of Apple Computer, USA.
• VGA, SVGA, and XGA are registered trademarks of the Video Electronics Standard Association.
Even if no special notation has been made of company or product trademarks, these trademarks have been fully
respected.
• HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
Panasonic Corporation of North America
5
Page 6
Safety Precautions
A
B
C
A
B
C
CAUTION
This LCD Display is for use only with the following optional accessories. Use with any other type of optional
accessories may cause instability which could result in the possibility of injury.
Wall-hanging bracket (angled) ..................................................TY-WK32TM1
•
Wall-hanging bracket ...............................................................TY-WK32TM2
•
• ATSC Tuner for Hospitality .......................................................Enseo DTB1510 / Enseo DTB1510 TB
• Main Board (32") ......................................................................TNM4CD0819FA
•
Main Board (37") ......................................................................TNM4CD0819FB
• Power Board (32") ....................................................................TNM4CD0821F
• Power Board (32"/37") .............................................................TNM4CD0822F
• IR Board ...................................................................................TNM4CD0906F
• RS232 Board ............................................................................TNM4CD0820F
•SW+AV3 Board (37") ................................................................TNM4CD0807F
• Key Board (32") ........................................................................TNM4CD0809F
• AV3 Board (32") .......................................................................TNM4CD0810F
• SPEAKERS ..............................................................................TTX4CM008C
Always be sure to ask a qualied technician to carry out set-up.
Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard
unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being
played with by young children, creating the potential risk of suffocation.
When using the LCD Display
Do not bring your hands, face or objects close to the
ventilation holes of the Display.
• Top of the Display is usually very hot due to the high
temperature of exhaust air being released through the
ventilation holes. Burns or personal injuries can happen if
any body parts are brought too close. Placing any object
near the top of the display could also result in heat damages
to the object as well as to the Display if its ventilation holes
are blocked.
Be sure to disconnect all cables before moving the
Display.
•
Moving the Display with its cables attached might damage
the cables which, in turn, can cause re or electric shock.
Disconnect the power plug from the wall outlet as a
(All of the following accessories are manufactured by Panasonic Corporation.)
safety precaution before carrying out any cleaning.
Electric shocks can result if this is not done.
•
Clean the power cable regularly to prevent it from
becoming dusty.
• Built-up dust on the power cord plug can increase
humidity which might damage the insulation and cause
re. Unplug the cord from the wall outlet and clean it
with a dry cloth.
This Display radiates infrared rays, therefore it may
affect other infrared communication equipment.
Install your infrared sensor in a place away from direct
or reected light from your Display.
Note:
Image retention may occur. If you display a still picture for
an extended period, the image might remain on the screen.
However, it will disappear after a while.
To Prevent the Display From Falling
Required accessories:
1. Use the wood screw to attach the holding strip
to the base table (C).
Note:
If the base table has no hole, align with the hole
on the holding strip and dig one on the base
table.
2. Screw the holding strip to the pedestal (B).
Note:
Make sure that the holes on the holding strip are
properly aligned with the pedestal and the base
table to ensure stability and prevent the Display
from falling down.
Holding Strip (1)
Assembly screw (1)
size: 4 mm x 10
Wood screw (1)
6
Page 7
Safety Precautions / Maintenance
WARNING
Setup
Do not place the Display on sloped or unstable
surfaces.
• The Display may fall off or tip over.
Do not place any objects on top of the Display.
• If water spills onto the Display or foreign objects get
inside it, a short-circuit may occur which could result in
re or electric shock. If any foreign objects get inside the
Display, please consult an Authorized Service Center.
Do not cover the ventilation holes.
• Doing so may cause the Display to overheat, which can
cause re or damage to the Display.
Transport only in upright position!
• Transporting the unit with its display panel facing
upright or downward may cause damage to the internal
circuitry.
When using the pedestal, leave a space of 3 15/16” (10
cm) or more at the top, left and right, and 2 3/4” (7 cm)
or more at the rear, and also keep the space between
the bottom of the display and the oor surface. If using
some other setting-up method, follow the manual of it.
(If there is no specic indication of installation dimension
in the installation manual, leave a space of 3 15/16”
(10 cm) or more at the top, bottom, left and right, and 2 3/4”
(7 cm) or more at the rear.)
AC Power Supply Cord
The Display is designed to operate on 110 - 127 V AC,
50/60 Hz.
Securely insert the power cord plug as far as it will go.
• If the plug is not fully inserted, heat may be generated
which could cause re. If the plug is damaged or the
wall socket plate is loose, they should not be used.
Do not handle the power cord plug with wet hands.
Doing so may cause electric shocks.
•
Do not do anything that might damage the power cable.
When disconnecting the power cable, hold the plug,
not the cable.
• Do not make any modications, place heavy objects on,
place near hot objects, heat, bend, twist or forcefully
pull the power cable. Doing so may cause damage to
the power cable which can cause re or electric shock.
If damage to the cable is suspected, have it repaired at
an Authorized Service Center.
If the Display will not be used for a long period of time,
unplug the power cord from the wall outlet.
If problems occur during use
If a problem occurs (such as no picture or no sound),
or if smoke or an abnormal odor is detected from the
Display, unplug the power cord immediately.
• Continuous use of the Display under these conditions
might cause re or permanent damage to the unit.
Have the Display evaluated at an Authorized Service
Center. Services to the Display by any unauthorized
personnel are strongly discouraged due to its high
voltage dangerous nature.
If water or foreign objects get inside the Display, if the
Display is dropped, or if the cabinet becomes damaged,
disconnect the power cord plug immediately.
• A short may occur, which could cause re. Contact an
Authorized Service Center for any repairs that need to be
made.
Maintenance
The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning
cloth or a soft, lint-free cloth.
• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in which
neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until the surface
is dry.
• Do not scratch or hit the surface of the panel with ngernails or other hard objects, otherwise the surface may become
damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise
the quality of the surface may be adversely affected.
If the cabinet becomes dirty, wipe it with a soft, dry cloth.
• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been added
and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.
• Do not allow any detergent to come into direct contact with the surface of the Display. If water droplets get inside the
unit, operating problems may result.
• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the cabinet
surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact
with articles made from rubber or PVC.
7
Page 8
Accessories
POWER
INPUT
MUTE
RETURN
OFF TIMER
RECALLASPECT
CH VOL
MENU
TNQ4CM051
DISPLAY
Accessories Supplied
Check that you have the Accessories and items shown
Operating Instruction book Remote Control Transmitter
TNQ4CM051
HDMI cable
(for TH-32LRT12U,
TH-37LRT12U)
Remote Control Batteries
Batteries for the Remote Control
Transmitter (AA Size × 2)
Requires two AA batteries.
1. Push the hook to release, then open the battery cover.
2. Insert batteries - note the correct polarity ( + and -).
“AA” size
Open
Close
Hook
Helpful Hint:
For frequent remote control users, replace old batteries with Alkaline batteries for longer life.
Precaution on battery use
Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.
Disposal of batteries should be in an environment-friendly manner.
Observe the following precautions:
1. Batteries should always be replaced as a pair. Always use new batteries when replacing the old set.
2. Do not combine a used battery with a new one.
3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).
4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.
5. Battery replacement is necessary when the remote control acts sporadically or stops operating the Plasma Display.
6. Do not burn or breakup batteries.
Batteries must not be exposed to excessive heat such as sunshine, re or the like.
8
Page 9
Accessories
A
B
B
A
A
Location
Place the display at a comfortable distance for viewing. Avoid placing it where sunlight or other bright light (including
reections) will fall on the screen.
Use of some types of uorescent lighting can reduce remote control transmitter range.
Adequate ventilation is essential to prevent an internal component failure. Keep away from areas of excessive heat or
moisture.
How to use the pedestal
■
Adjust the stand to your desired angle.
The stand angle can be rotated 15 ° to the right / left.
(View from above)
15
°
LCD panel side
Preparation for Wall-hanging
Before mounting the display on the wall, you must remove the pedestal from the display.
Follow the steps below:
Disconnect all the cables from the display.
1
Remove the pedestal.
2
Remove the four screws.
Pull out the pedestal.
15
°
Foam mat or thick
soft cloth
WARNING
Failure to use a Panasonic bracket or choosing to mount the unit yourself will be done at the risk of the consumer.
•
Any damage resulting from not having a professional installer mount will void your unit’s warranty.
Always be sure to ask a qualified technician to carry out set-up.
•
Incorrect fitting may cause equipment to fall, resulting in injury and product damage.
Do not mount this LCD display directly below ceiling lights (such as spotlights, floodlights, or halogen lights) which
•
typically give off high heat. Doing so may warp or damage plastic cabinet parts.
To prevent foreign objects from entering the Display, place the enclosed sticker label on the lower area of the Display
•
to cover the holes.
9
Page 10
Connections
Front side
Back side
Lift door to open
AV connection (see page 11)
Serial Terminals connection (see page 14)
AV connection (see page 11)
Component (YPbPr) connection
(see page 11)
PC input terminals connection
(see page 12)
HDMI connection (see page 13)
10
Audio out connection (see page 13)
Page 11
AV connection
AUDIO
OUT
Y, P
B
, PR,
OUT
P
R
P
B
Y
L
R
Example of input signal source
S VIDEO VCR
CAMCORDER
Connections
S VIDEO
OUT
VIDEO
OUT
AUDIO
OUT
L
R
VCR
Notes:
• Additional equipment and cables shown are not supplied with this set.
If S Video and Video devices are both connected, the S Video input signal is the priority source.•
Component (YPbPr) connection
Back side
Front side
Example of input signal source
COMPONENT VIDEO OUT
DVD
Digital TV-SET-TOP-BOX
(DTV-STB)
Note:
Additional equipment and cables shown are not supplied with this set.
11
Page 12
Connections
1
6
11
2
7
12
3
8
13
4
9
14
5
10
15
1
678
3
9
45
10
15 14 13 12 11
2
PC Input Terminals connection
COMPUTER
Conversion adapter
(if necessary)
(Female)
Mini D-sub 15p
RGB
PC cable
Audio
(Male)
Stereo plug
Connect a cable which matches
the audio output terminal on the computer.
Notes:
• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 79.97 kHz and vertical
scanning frequency of 48 to 75 Hz. (However, the image will not be displayed properly if the signals exceed 1,200
lines.)
• The display resolution is a maximum of 1,024 × 768 dots when the aspect mode is set to “4:3”, and 1,366 × 768 dots
when the aspect mode is set to “FULL”. If the display resolution exceeds these maximums, it may not be possible to show
ne detail with sufcient clarity.
• The PC input terminals are DDC2B-compatible. If the computer being connected is not DDC2B-compatible, you will need
to make setting changes to the computer at the time of connection.
• Some PC models cannot be connected to the set.
• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.
• The computer shown in the illustration is for example purposes only.
• Additional equipment and cables shown are not supplied with this set.
• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specied
frequency range.
• Component Input is possible with the pin 1, 2, 3 of the Mini D-sub 15P Connector.
• Applicable input signals for Mini D-sub 15P (see page 29).
Signal Names for Mini D-sub 15P Connector
Pin No.
Pin Layout for PC Input Terminal
12
Signal Name
R (PR/CR)
G (Y)
B (PB/CB)
NC (not connected)
GND (Ground)
Pin No.
Signal Name
GND (Ground)
GND (Ground)
GND (Ground)
+5 V DC
GND (Ground)
Pin No.
Signal Name
NC (not connected)
SDA
HD/SYNC
VD
SCL
Page 13
HDMI connection
AUDIO
OUT
R
L
HDMI
AV OUT
HDMI cable
Connections
DVD Player or SET-TOP-BOX
(HDMI compatible machines only)
Note:
1. Additional equipment and HDMI cables shown are not supplied with this set.
2. HDMI Version 1.2.
Audio Out connection
Audio equipment
Note:
Additional equipment and cables shown are not supplied with this set.
13
Page 14
Connections
2
3
5
4
7
8
1
9
13
4
5 2
8
7
6 9
Serial Terminals connection
The SERIAL terminal is used when the Display is controlled by a computer.
COMPUTER
RS-232C Straight cable
D-sub 9p
(Female)
Notes:
• Use the RS-232C straight cable to connect the computer to
the Display.
• The computer shown is for example purposes only.
• Additional equipment and cables shown are not supplied with
this set.
The SERIAL terminal conforms to the RS-232C interface
specication, so that the Display can be controlled by a computer
which is connected to this terminal.
The computer will require software which allows the sending
and receiving of control data which satises the conditions
given below. Use a computer application such as programming
language software. Refer to the documentation for the computer
application for details.
Communication parameters
Signal level RS-232C compliant
Synchronization method Asynchronous
Baud rate 9600 bps
Parity None
Character length 8 bits
Stop bit 1 bit
Flow control -
Basic format for control data
The transmission of control data from the computer starts with
an STX signal, followed by the command, the parameters, and
lastly an ETX signal in that order. If there are no parameters,
then the parameter signal does not need to be sent.
STX
C1 C2 C3 P1 P2 P3 P4 P5 ETX:
Start
(02h)
Colon Parameter(s)
3-character
command (3 bytes)
(1-5 bytes)
End
(03h)
Notes
If multiple commands are transmitted, be sure to wait
•
for the response for the rst command to come from this
unit before sending the next command.
If an incorrect command is sent by mistake, this unit will
•
send an ER401 command back to the computer.
Pin layout for SERIAL Terminal
(Male)
Signal names for D-sub 9P connector
Pin No. Details
RXD
TXD
GND
• 6 Non use
•
•
These signal names are those of computer specications.
Non use
NC
Communication parameters
Command Parameter Control details
PON None Power ON
POF None Power OFF
AVL ** Volume 00 - 63
AMT 0 Audio MUTE OFF
1 Audio MUTE ON
IMS None
RF1
AV1
AV2
AV3
YPbPr
HDMI1
HDMI2
HDMI3
PC
DAM None
FULL
JUST
NORM
Input select (toggle)
RF INPUT
AV1 INPUT
AV2 INPUT
AV3 INPUT
YPbPr INPUT
HDMI1 INPUT
HDMI2 INPUT
HDMI3 INPUT
PC INPUT
Screen mode select (toggle)
16:9
JUST
4:3
With the power off, this display responds to PON
command only.
14
Page 15
POWER
INPUT
MUTE
RETURN
MENU
Power ON / OFF
POWER
POWER
POWER
1
2
Using the Power Switch
Connect the plug to the Wall Outlet.
Press the Power switch on the
Display to turn the set on: Power-
On
Power Indicator: Green
Remote Control Sensor
Power Indicator
Power Switch
Using the Power Button
When the Display is on, press the
Power switch on the Display to turn
the set off.
Power Indicator: Red (Standby)
Press the
turn the Display on.
Power Indicator: Green
button on the remote control to
Press the
turn the Display off.
Power Indicator: Red
Note:
The Display will still consume power as long as the AC cord is connected to the wall outlet. Unplug the AC cord to cut-off
power.
button on the remote control to
15
Page 16
Initial selections
MENU
Main Menu
Picture Menu
Sound Menu
Setup Menu
Setup Menu
Language
Movie Mode
English
On
INPUT
POWER
INPUT
MUTE
RETURN
MENU
INPUT
POWER
INPUT
MUTE
RETURN
OFF TIMER
RECALL ASPECT
CH VOL
MENU
TNQ4CM051
1
2
Selecting the input signal
Press repeatedly until the desired input source signal is displayed
on the screen.
Input signals will change as follows:
HDMI1
Note:
Selecting is also possible by pressing the INPUT button on the unit.
HDMI2
AV3YPbPr
Selecting the On-Screen Menu Language
HDMI3 PC
AV1AV2
(TH-32LRT12U)
(TH-37LRT12U)
Display the menu screen.
1
Select “Setup Menu”.
2
3
4
16
Select “Language”.
Select your preferred language.
English Français Español
Select
Action
Select
Adjust
Page 17
Basic Controls
CH
VOL
MENU
INPUT
INPUT button
(see page 16)
INPUT button (see page 16)
Main Unit
Power Indicator
The Power Indicator will light.
• Power-OFF ...Indicator not illuminated
• Standby ........Red (The Monitor will still consume power as long as the AC cord is still connected to the wall outlet.)
• Power-ON .....Green
Power On / Off Switch
(TH-32LRT12U)
Remote control sensor
Channel Adjustment
Press to change to the next or
previous channel.
(TH-37LRT12U)
Lift the door to open
MENU Screen ON (see page 20)
This button is locked by initial setting.
Volume Adjustment
Press "+" to increase volume or press "-"
to reduce volume.
MENU Screen ON (see page 20)
This button is locked by initial setting.
Volume Adjustment
Press "+" to increase volume or
press "-" to reduce volume.
Channel Adjustment
Press to change to the next or
previous channel.
17
Page 18
POWER
INPUT
MUTE
RETURN
OFF TIMER
RECALL ASPECT
CH VOL
MENU
TNQ4CM051
DISPLAY
Basic Controls
Remote Control Transmitter
POWER button
The Monitor must rst be plugged into
the wall outlet.
Press this button to turn the Monitor on,
from standby mode. Press it again to turn
the Monitor Off to standby mode.
MENU button
Displays the menu screen.
(see page 20)
OK button
Press to make selections.
POSITION buttons
INPUT button (see page 16)
Sound mute On / Off
Press this button to mute the sound.
Press again to reactivate sound.
Sound is also reactivated when
power is turned off or volume level
is changed.
RETURN button
Press the RETURN button to return
to previous menu screen.
RECALL button
Press to display the current input signal
mode.
ASPECT button
Press to adjust the aspect.
This button can be used only in AV
input signal. (see page 19)
Channel buttons
Press the buttons to adjust the channel.
These buttons are also used for to
adjusting digital channel when a tuner
pack is installed. For more information,
please refer to the tuner pack's
manual.
OFF TIMER button
The Monitor can be preset to switch
to standby mode after a xed period.
Each time the button is pressed, the
timer is changed with an interval of
10 minutes.
10
OFF
When the timer is set, the Monitor will
display a notication countdown 3
minutes before it switches to standby
mode.
Volume Adjustment
Press the Volume Up “+” or Down “–”
button to increase or decrease the
sound volume level.
20 30
120
40
50
60
18
Page 19
ASPECT Controls
ASPEC
T
POWER
INPUT
MUTE
RETURN
OFF TIMER
RECALL ASPECT
CH VOL
MENU
TNQ4CM051
The Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format picture.
Press repeatedly to change the aspect.
For “AV” signal input:
16:9
For “YPbPr”, “HDMI” and “PC” signal input:
The aspect ratio is xed at 16:9.
JUST 4:3
Aspect mode
16:9
JUST
4:3
Enlarged screen
Description
The display of the pictures lls the screen.
In the case of SD signals, pictures with a 4:3 aspect ratio are
enlarged horizontally, and displayed. This mode is suited to displaying
anamorphic pictures with a 16:9 aspect ratio.
Pictures with a 4:3 aspect ratio are enlarged horizontally so that the
picture distortion is minimized. The display of the areas around the left
and right edges of the screen is slightly elongated.
Pictures with a 4:3 aspect ratio are enlarged horizontally so that the
picture distortion is minimized. The left and right edges of the pictures
are cut off. The display of the areas around the left and right edges of
the screen is slightly elongated.
Pictures with a 4:3 aspect ratio are displayed with their original aspect
ratio. Side panels are displayed at the left and right edges of the
screen.
Pictures with a 4:3 aspect ratio are displayed with their original aspect
ratio. The left and right edges of the pictures are masked by side
panels.
19
Page 20
MENU
1
2
Main Menu
Picture Menu
Sound Menu
Setup Menu
Picture Menu
Picture Mode
Standard
Contrast
Brightness
Color
Tint
Sharpness
32
32
32
00
12
User
Off
32
Contrast
RETURN

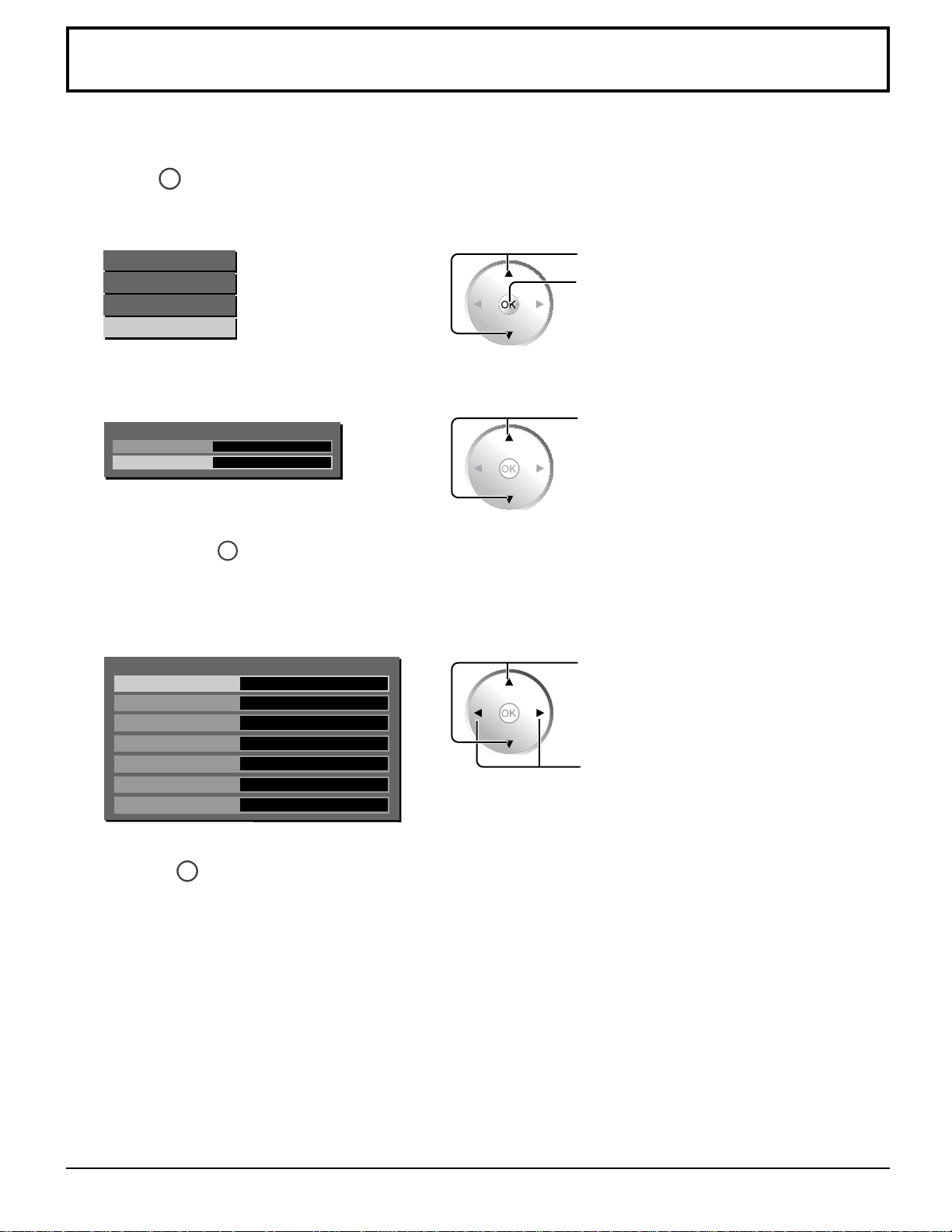

On-Screen Menu Display
1
2
Various menus allow you to make settings for the picture, sound, and other functions so that you can enjoy watching Display
best suited for you.
Remote Control Unit
Display the menu screen.
1
Select the menu.
2
Select the item.
3
Press the menu button.
Select
Action
Select
Press the MENU button.
Press the CH buttons to select the
menu.
Press the MENU button.
Press the CH < or > buttons to select
the item.
(Example: Picture Menu)
Adjust or select.
4
Exit the menu.
5
20
Press the VOL + or – buttons.
Adjust
Press to return to the
previous menu.
Press several times until you exit
the menu.
Press the INPUT button several times
until you exit the menu.
Page 21
On-Screen Menu Display
Main Menu
Picture Menu
Sound Menu
Setup Menu
Picture Menu
Picture Mode
Standard
Contrast
Brightness
Color
Tint
Sharpness
32
32
32
00
12
Vivid
Off
Picture Menu
Standard
Contrast
Brightness
32
32
Off
Sound Menu
00
00
00
Sound Mode
Sound AI
Standard
Bass
Treble
Balance
MPX
Dynamic
Off
Off
Stereo
Setup Menu
Language
Movie Mode
English
On
Setup Menu
00
00
00
32
Auto
H-Pos
V-Pos
Dot_Clock
Clock_Phase
Language
Movie Mode
Off
English
On
Overview
Note:
Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.
During “AV”, “YPbPr” and “HDMI”
input signal.
see page 22
During “PC” input signal.
see page 23
During “AV”, “YPbPr” and “HDMI”
input signal.
see page 24
During “PC” input signal.
see page 25
21
Page 22
Picture Menu
Picture Mode
Standard
Contrast
Brightness
Color
Tint
Sharpness
32
32
32
00
12
User
Off
Picture Menu
Press to select the menu to adjust.
MENU
32
Contrast
Picture Menu
Standard
Contrast
Brightness
32
32
Off
RETURN
Press to display the menu screen.
1
Select Picture Menu.
2
Select to adjust each item.
3
Press repeatedly to exit the menu.
4
During "AV", "YPbPr", "HDMI" input
signal.
Press to select the menu to adjust.
Press to enter menu.
Press to select the desired setting.
Notes:
As you scroll through the settings, the Monitor display
•
changes synchronously.
Menu items that cannot be adjusted are grayed out.
•
Adjustable menu changes depending on signal, input
and menu setting.
Press the or buttons to switch between modes.
Vivid
Vivid
Provides enhanced picture contrast and sharpness for
viewing in a well-lit room.
Normal
User
During "PC" input signal.
Contrast / Brightness / Color / Tint / Sharpness
Depending on the selected Picture Mode, these items
have preset settings.
To adjust each setting according to the user's preference,
set Picture Mode to User, then press the
buttons.
22
Normal
Recommended for normal viewing conditions with
subdued room lighting.
User
Customizes each item according to the user's
preference.
Standard (Off / On)
Select On to reset all picture to the factory default
settings.
Item Details
Contrast Adjusts the white areas.
or
Brightness Adjusts the dark areas.
Color Adjusts the color intensity.
Tint Adjusts the natural esh tones.
Sharpness Adjusts the clarity of outline
detail.
Page 23
Sound Menu
Press to select the menu to adjust.
MENU
Sound Menu
00
00
00
Sound Mode
Sound AI
Standard
Bass
Treble
Balance
MPX
Dynamic
Off
Off
Stereo
Bass
00
RETURN
Press to display the menu screen.
1
Select Sound Menu.
2
Select to adjust each item.
3
Press repeatedly to exit the menu.
4
Press to select the menu to adjust.
Press to enter menu.
Press to select the desired setting.
Press the or buttons to switch between modes.
Dynamic
Normal
Dynamic
Accentuates sharp sounds.
Music
Stresses the sense of sharp sounds.
Music
Press the
between modes.
Note: Adjustable only in RF mode
(when a tuner pack is installed)
or buttons to switch
Mono
M2
Stereo
M1
Normal
Emits the original sound.
Sound AI (Off / On)
Select On to equalize overall volume levels across all
external inputs.
Standard (Off / On)
Select On to reset Bass, Treble, and Balance settings to
factory defaults.
Press the or buttons to adjust settings.
Bass
Adjusts low pitch sounds.
Treble
Adjusts pitch sounds.
Balance
Adjusts the left and right volumes.
23
Page 24

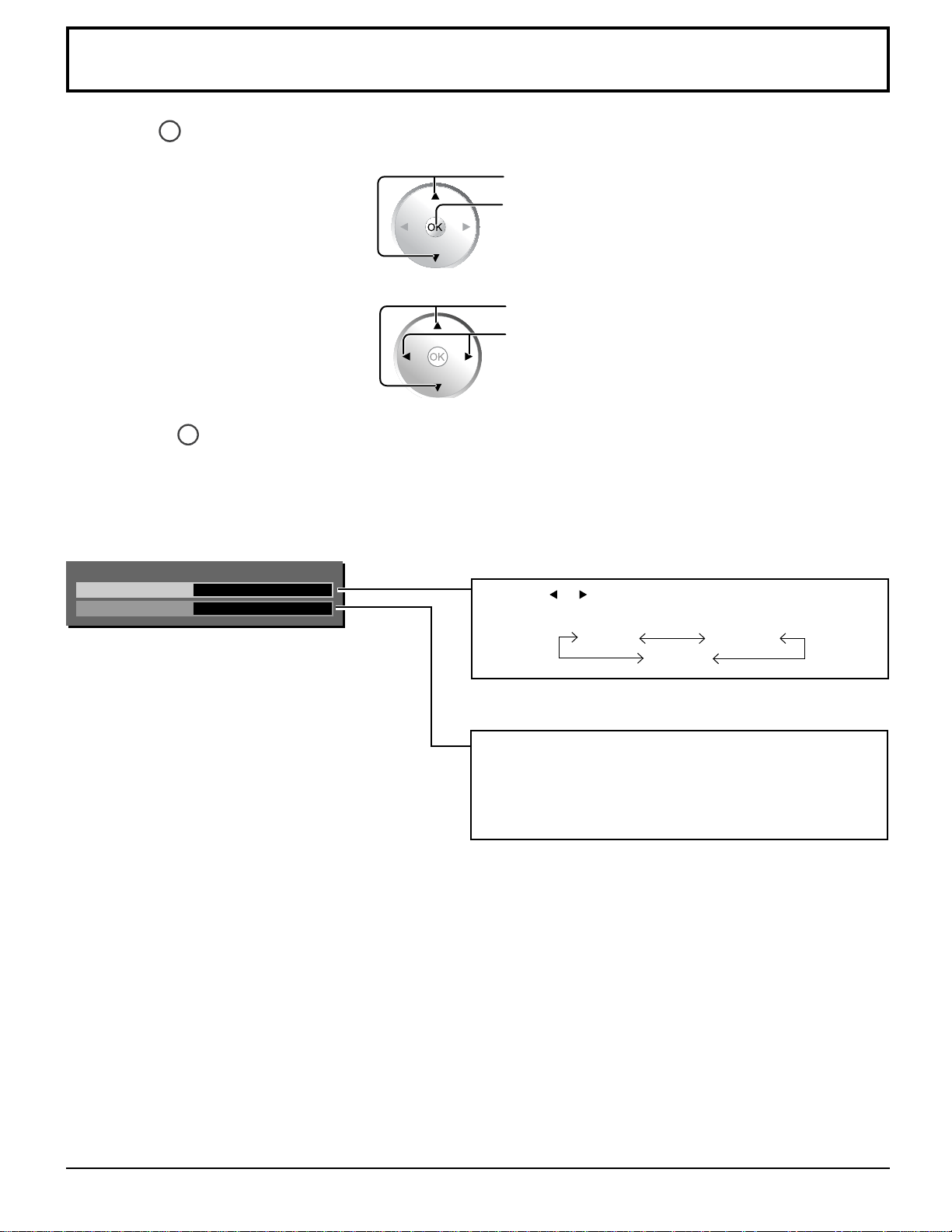

Setup Menu
Press to select the menu to adjust.
MENU
Setup Menu
Language
Movie Mode
English
On
RETURN
Press to display the menu screen.
1
Select Setup Menu.
2
Select to adjust each item.
3
Press repeatedly to exit the menu.
4
During "AV", "YPbPr", and "HDMI" input
signal.
Press to select the menu to adjust.
Press to enter menu.
Press to select the desired setting.
Press the or buttons to switch between menu
languages.
English
Español
Français
24
Movie Mode (Off / On)
When On, the display attempts to reproduce a more
natural interpretation of sources such as movie pictures,
which are recorded at 24 frames per second.
If the picture is not stable, turn this setting to Off.
Page 25
Setup Menu
00
00
00
32
Auto
H-Pos
V-Pos
Dot_Clock
Clock_Phase
Language
Movie Mode
Off
English
On
MENU
PC Setup
00
H-Pos
RETURN
Press to display the menu screen.
1
Setup Menu
Select Setup Menu.
2
Select to adjust each item.
3
Adjust the setting.
4
Press repeatedly to exit the menu.
5
Press to select the Setup menu.
Press to enter menu.
Press to select the item.
Press to select the item.
During "PC" input signal.
Notes:
If the PC is not connected, some items
•
are unadjustable.
Unadjustable items are grayed out.
•
As you scroll through the settings, the
•
TV display changes synchronously.
On / Off
Select On to automatically adjust H-Pos, V-Pos,
Dot_Clock, and Clock_Phase.
Press the or buttons to adjust settings.
H-Pos
Adjust the horizontal position.
V-Pos
Adjust the vertical position.
Dot_Clock
Periodic striped pattern interference (noise) may occur
when a striped pattern is displayed. If this happens, adjust
Dot_Clock to minimize such noise.
Clock_Phase
Eliminate the ickering and distortion.
25
Page 26
HOTEL MODE Setup
MENU
MUTE
Main Menu
Picture Menu
Sound Menu
Setup Menu
Setup Menu
Language
Movie Mode
English
On
Setup Menu
Initial Input
Onscreen Display
Initial VOL Level
Maximum VOL Level
Input Lock
Button Lock
Remocon User Level
Off
On
Off
Off
Off
Menu
Off
RETURN
The Hotel Mode is a special function which allows users to congure settings to suit certain locations or applications.
Press to display the menu screen.
1
Select Setup Menu.
2
Press to select the Setup menu.
Press to enter menu.
Select Movie Mode.
3
Press to select the item.
Press and hold
4
Select the item and set desired settings.
5
Press repeatedly to exit the menu.
6
for more than 3 seconds.
Press to select the item.
Press to adjust settings.
26
Page 27
POWER
INPUT
MUTE
VOL
POWER
Hotel Mode Menu List
Item Details
Off
Adjusts the input signal when the unit is turned on.
HOTEL MODE Setup
RF AV1 AV2 AV3 YPbPr HDMI1 HDMI2 HDMI3 PC
Initial Input
Onscreen Display
Initial VOL Level
Maximum VOL Level
Off: The input signal when the power was last turned off is set.
Note:
This menu is available only when "Input Lock" is "Off".
RF mode is available only when Pal Tuner is connected.
Off: Onscreen information is not displayed.
On: Onscreen information is displayed, such as:
•
Power on display
•
Input signal switch display
•
No signal display
•
Mute and the remaining time of off-timer
On 1: Onscreen information is displayed, except some RS-232C communication information is not
displayed.
Used to set the volume level at power-on.
Off: The volume is set to the same level as when the power was last turned off.
0 to 63: The volume is set to the selected level.
Note:
It is not possible to select an Initial VOL Level setting which is higher than the Maximum VOL Level setting.
Used to set the volume level so that it will not exced the maximum setting.
Off: No restrictions are placed on the volume level.
0 to 63: The volume is restricted to the selected level.
Input Lock
Button Lock
Remocon User Level
Note:
It is not possible to select a Maximum VOL Level setting which is lower than the Initial VOL Level setting.
Off
RF AV1 AV2 AV3 YPbPr HDMI1 HDMI2 HDMI3 PC
Locks the input switch operation.
Off: Input switch can be used.
Note:
RF mode is available only when Pal Tuner is connected.
Used to restrict the operation of the buttons on the main unit.
Off: All the buttons on main unit can be used.
Menu: Locks the Menu button on the main unit.
On:
Locks all the buttons on the main unit except the Power button.
Off
Off: Y
User1:
User2: Y
User3:
User1 User2 User3
ou can use all of the buttons on the remote control.
You can only use
ou can only use
Locks all the buttons on remote control.
,
, ,
,
buttons on the remote control.
button on the remote control.
27
Page 28
Troubleshooting
Example
Before you call for service, determine the symptoms and make a few simple checks as shown below.
Symptoms
Picture Sound
Interference Noisy Sound
Normal Picture No Sound
No Picture No Sound
No Picture Normal Sound
No Color Normal Sound Color controls set at minimum level. (see page 22)
No remote control operations can be performed. Check whether the batteries have discharged completely and, if they have not, whether they
A cracking sound is sometimes heard from the unit. If there is nothing wrong with the picture or sound, this is the sound of the cabinet undergoing
The top or bottom of the picture on the screen is cut
off when I use the zoom function.
Areas at the top and bottom of the screen where
the image is missing appear when I use the zoom
function.
Electrical Appliances
Cars / Motorcycles
Fluorescent light
Volume
(Check whether the mute function has been activated on the remote control.)
Not plugged into AC outlet
Not switched on
PICTURE and BRIGHTNESS/Volume setting
(Check by pressing the power switch or stand-by button on the remote control.)
If a signal with a non-applicable color system format, or frequency is input, only the input
terminal indication is displayed.
were inserted properly.
Check whether the remote control sensor is exposed to an outdoor light or a strong uorescent
light.
Check whether the remote control designed specically for use with the unit is being used.
(The unit cannot be operated by any other remote control.)
very slight contractions in response to changes in the room temperature. There are no adverse
effects on the performance or other aspects.
Adjust the position of the picture on the screen.
When using a video software program (such as a cinema size program) with a screen wider
than one in the 16:9 mode, blank areas separate from the images are formed at the top and
bottom of the screen.
Checks
This LCD Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the type of input signal.
However, this is not a malfunction.
LCD Display panel
Symptoms Check
It takes a while for the picture to appear. The unit digitally processes the various signals in order to reproduce esthetically pleasing
The edges of the images icker. Due to the characteristics of the system used to drive the panel, the edges may appear to icker
The brightness on both sides of images in 4:3 mode
changes.
There may be red spots, blue spots, green spots and
black spots on the screen.
Image retention appears
images. As such, it sometimes takes a few moments for the picture to appear when the power
has been turned on, when the input has been switched or when the images for the main picture
and sub picture on the two screens are swapped.
in the fast-moving parts of the images: This is normal and not indicative of malfunctioning.
When viewing the side panels at the “BRIGHT” or “MID” setting, the brightness on both sides
may change depending on the kind of program shown: This is normal and not indicative of
malfunctioning.
This is a characteristic of liquid crystal panels and is not a problem. The liquid crystal panel
is built with very high precision technology giving you ne picture details. Occasionally, a few
non-active pixels may appear on the screen as xed points of red, blue, green, or black.
Please note this does not affect the performance of your LCD.
Image retention may occur. If you display a still picture for an extended period, the image
might remain on the screen. However, it will disappear after a while. This is not considered
as malfunction.
28
Page 29
Applicable Input Signals
Applicable input signals for Mini D-sub 15P
Signal name Horizontal frequency
(kHz)
1 640 x 480 @ 60 Hz 31.47 59.94 25.18
2 640 x 480 @ 72 Hz 37.86 72.81 31.5
3 640 x 480 @ 75 Hz 37.50 75.00 31.5
4 800 x 600 @ 56 Hz 35.16 56.25 36.0
5 800 x 600 @ 60 Hz 37.88 60.32 40.0
6 800 x 600 @ 72 Hz 48.08 72.19 50.0
7 800 x 600 @ 75 Hz 46.88 75.00 49.5
8 1024 x 768 @ 60 Hz 48.36 60.00 65.0
9 1024 x 768 @ 70 Hz 56.48 70.07 75.0
10 1024 x 768 @ 75 Hz 60.02 75.03 78.75
Note: Signals without the above specications may not be displayed properly.
Vertical frequency
(Hz)
Dot clock frequency
(MHz)
29
Page 30
Specications
TH-32LRT12U TH-37LRT12U
Power Source 110 - 127 V AC, 50/60 Hz
Power Consumption
Power on 155 W 190 W
Stand-by condition 1 W 1 W
Aspect Ratio 16:9
Screen size
(W x H x Diagonal)
(No.of pixels) 1,049,088 (1,366 (W) x 768 (H))
Operating condition
Temperature 32 °F - 104 °F (0 °C - 40 °C)
Humidity 20 % - 80 %
Applicable Input signals
PC signals VGA, SVGA, XGA
Connection terminals
AV1 - AV3 VIDEO IN (RCA PIN JACK x 3) 1.0 Vp-p (75 Ω)
YP
BPR Y (RCA PIN JACK x 1) 1.0 Vp-p (75 Ω)
PC IN (HIGH-DENSITY
HDMI1 - HDMI3 TYPE A Connector x 3
AUDIO OUT RCA PIN JACK x 2 0.5 Vrms
RS-232C EXTERNAL
Dimensions (W × H × D)
Including pedestal 32.4'' x 23" x 9.3"
Display Set only 32.4" x 21.3" x 4.2"
Mass (weight)
Including pedestal 36.4 lbs 47.4 lbs
Display Set only 30.9 lbs 39.7 lbs
Sound
Audio Output 20W [10 W + 10 W] (10 % THD)
S VIDEO IN (MINI DIN 4PIN x 3) Y:1.0 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω)
AUDIO IN (RCA PIN JACK x 3) 0.5 Vrms
P
B/PR (RCA PIN JACK x 1) 0.7 Vp-p (75 Ω)
AUDIO IN (RCA PIN JACK x 1) 0.5 Vrms
Y or G without sync 0.7 Vp-p (75 Ω)
B/P
R/P
HD/VD: 1.0 - 5.0 Vp-p (high impedance)
AUDIO IN (M3 JACK) 0.5 Vrms
27.5" x 15.4" x 31.5"
(698 mm x 392 mm x 800 mm)
Horizontal scanning frequency 31.469 - 60.023
Vertical scanning frequency 56 - 85 Hz
MINI D-SUB 15PIN) Y or G with sync 1.0 Vp-p (75 Ω)
B/CB: 0.7 Vp-p (75 Ω)
R/CR: 0.7 Vp-p (75 Ω)
CONTROL TERMINAL (D-SUB 9PIN) RS-232C COMPATIBLE
(821 mm x 584 mm x 236 mm)
(821 mm x 539 mm x 106 mm)
(819 mm x 460 mm x 940 mm)
(949 mm x 650 mm x 307 mm)
(949 mm x 608 mm x 104 mm)
32.2" x 18.1" x 37.0"
37.4" x 25.6" x 12.1"
37.4" x 25.6" x 4.1"
Note:
Design and specications are subject to change without notice. Mass and dimensions shown are approximate.
30
Page 31
Panasonic Professional Flat Panel Display Limited Warranty
Panasonic Professional Display Company
Unit of Panasonic Corporation of
North America
One Panasonic Way 1F-10
Secaucus, NJ 07094
Panasonic Professional Flat Panel Display
Limited Warranty
Models or Parts
Part
Warranty
Labor
Warranty
Professional Flat
Panel Display
LIMITS AND EXCLUSIONS
There are no express warranties except as listed above.
THE WARRANTOR SHALL NOT BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES
(INCLUDING, WITHOUT LIMITION, DAMAGE
TO DISCS) RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF
THE WARRANTY. ALL EXPRESS AND IMPLIED
WARRANTIES, INCLUDING THE WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR
PARTICULAR PURPOSE, ARE LIMITED TO THE
APPLICABLE WARRANTY PERIOD SET FORTH
ABOVE.
Some states do not allow the exclusion or limitation
of incidental or consequential damages, or limitations
on how long an implied warranty lasts, so the above
exclusions or limitations may nor apply to you. This
warranty gives you specific legal rights and you may
other rights, which vary from state to state.
If you have a problem with this product that is not
handled to your satisfaction, then write the Consumer
Affairs Department at the Company address indicated
above.
Panasonic Professional Display Company. (referred to
as “the Warrantor”) will repair this product and all
included accessories with new or refurbished parts,
free of charge in the USA or Puerto Rico, of the
original purchase in the event of a defect in materials or
workmanship as follows:
In the USA and Puerto Rico
FOR SERVICE
CALL TOLL FREE
1-800-973-4390
2 Years 2 Years
On-site or carry-in service in the USA and Puerto Rico
may be obtained during the warranty period by contacting
Panasonic Professional Display Company Service toll free
at 1-800-973-4390.
This warranty is extended only to the original purchaser
and is non transferable. A purchase receipt or other
proof of date of original purchase will be required before
warranty service is rendered.
This warranty only covers failures due to defects in
materials or workmanship, which occur during normal
use. The warranty does not cover damage which occur
in shipment, or failures which are caused by products
not supplied by the warrantor, or failures which result
from improper installation, set-up adjustments, improper
antenna, inadequate signal pickup, maladjustment of
consumer controls, improper operation, power line surge,
improper voltage supply, lighting damage, or service by
anyone other than an authorized repair facility, or
damage that is attributable to acts of God.
(for the U.S.A and Puerto Rico)
31
Page 32
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
LIMITED WARRANTY STATEMENT
Item
Video Tape
P2/SD Cards
Video Heads
D5 Video heads
Maintenance Items
Colour Camera CCD
Imaging Block
BT-H Series LCD Monitors
* DLP™ Projectors
* LCD Projectors above
2,500 ANSI Lumens
* LCD Projectors below
2,500 ANSI Lumens
Projector Lamps
103 inch Plasma displays
Hard Drive Disk Unit
Parts
30 days—Replacement only
(content not covered)
(Content not covered)
1 year or 2,000 hrs. (prorated)
Whichever comes first
1 year or
1,0
00 hrs.
Whichever comes first
90 days
2 years
2 years
3 years or 17,000 hrs.
Whichever comes first
3 years or 2,500 hrs.
Whichever comes first
3 years or 1,500 hrs.
Whichever comes first
50% of the rated lamp life or 1 year.
Whichever comes first
3 year (burn-in not covered)
1 year plus balance (if any) of
the original Manufacturer’s
Limited Warranty.
(Content not covered)
Labour
N/A
N/A
1 year or 2,000 hrs.
Whichever comes first
1 year or 1,000 hrs.
Whichever comes first
90 days
1 year
1 year
3 years or 17,000 hrs.
Whichever comes first
3 years or 2,500 hrs.
Whichever comes first.
3 years or 1,500 hrs.
Whichever comes first
50% of the rated lamp life or 1 year.
Whichever comes first.
3 year
1 year
WARRANTY COVERAGE PERIOD EXCEPTIONS
Panasonic Canada Inc. (also known as PCI) warrants this product to be free of
defects in material and workmanship under normal use during the applicable
warranty coverage period described below. PCI agrees to repair, or at its option,
exchange, any part that becomes defective. However, the product must be
purchased and serviced in Canada. The product or part that shows evidence of
defect must be delivered prepaid or carried in to an authorized Panasonic Broadcast
Service Center. This warranty does not cover shipping costs.
The warranty coverage period is one year for both parts and labour beginning with
the date of original end user purchase, subject to the exceptions as stated below.
Repaired or replacement parts supplied during the warranty coverage period carry
the unexpired portion of the original warranty coverage period. Proof of product
purchase is a condition of warranty service. The owner must produce the product
purchase receipt or other satisfactory evidence of date of original purchase.
This warranty does not apply to external appearance items, such as handles, knobs,
safety windows, etc. This warranty does not apply to any part, or parts, of the
product, installed, altered, repaired or misused in any way that, in the opinion of PCI,
affects the reliability of or detracts from the performance of the product.
For products requiring routine preventive maintenance, that maintenance must be
performed in order to maintain warranty coverage.
Serial numbers that have been altered, defaced or removed void this warranty. This
warranty does not cover replacements or repairs necessitated by loss or damage
resulting from any cause beyond the control of PCI.
Marking or retained images (sometimes called “burn-in”) resulting from the display of
fixed images on video display products are not defects and are not covered under
this warranty.
In certain instances, some jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages, or the exclusion of implied warranties, so the
above limitations and exclusions may not be applicable.
Warranty Service
If the product needs to be shipped for service, carefully pack (preferably in the
original carton) and enclose a letter, detailing the complaint. Send prepaid and
adequately insured to the local authorized Panasonic Service Centre in your
area or to Panasonic Technical Support and Product Services Department, 5770
Ambler Drive, Mississauga, Ontario, L4W 2T3. Shipping to the latter location
requires a return authorization before shipment. No liability is assumed for loss
or damage to the product while in transit.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR
ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.
• Dust, smoke, rental/staging environment and twenty-four/seven operation,
dramatically decreases the interval between performances of routine preventive
maintenance required to maintain this warranty coverage.
(for Canada)
LIMITED WARRANTY STATEMENT
32
Page 33
Customer Service
33
Page 34
This product has a uorescent lamp that contains mercury.
Disposal may be regulated in your community due to environmental
considerations. For disposal or recycling information, please contact your local
authorities, or the Electronic Industries Alliance:
http://www.eiae.org.
Customer’s Record
The model number and serial number of this product can be found on its back cover. You should note this serial number
in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase
to aid in identication in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
Panasonic Corporation 2009
Panasonic Professional Display Company
Unit of Panasonic Corporation of North America
Executive Ofce :
One Panasonic Way 1F-10, Secaucus, NJ 07094
EASTERN ZONE : One Panasonic Way 4E-7 Secaucus, NJ 07094 (201) 348-7621
Mid-Atlantic/New England : One Panasonic Way 4E-7 Secaucus, NJ 07094 (201) 348-7621
Southeast Region : 1225 Northbrook Parkway, Ste 1-160 Suwanee GA 30024 (770)338-6835
Central Region : 1707 N Randall Road E1-C-1, Elgin, IL 60123 (847)468-5200
WESTERN ZONE : 3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500
Dallas Region : 6226 Abington Way, Houston, TX 77008 (713) 802-2726
No. CA/Northwest Region : 5870 Stone Ridge, #3, Pleasanton, CA (925) 416-5108
Government Marketing Department : 52 West Gude Drive, Rockville, MD 20850 (301) 738-3840
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
Printed in Taiwan
