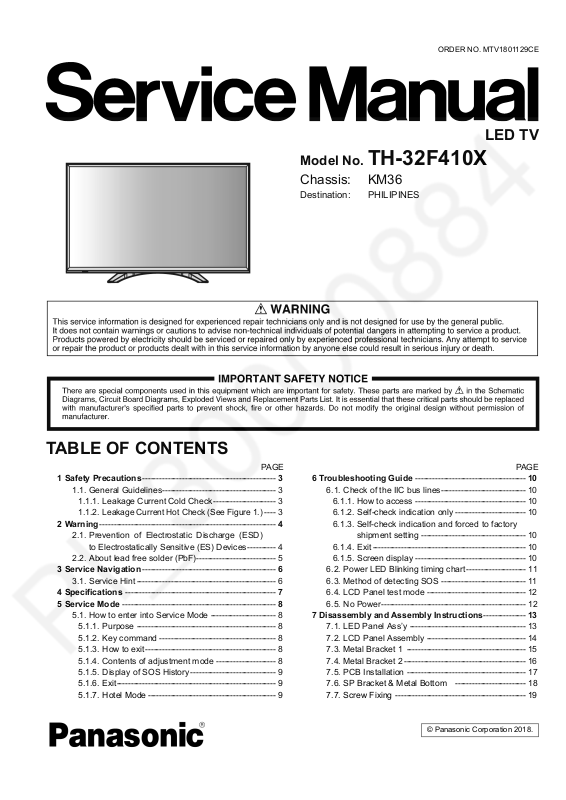

Page 1
ORDER NO. MTV1801129CE
LED TV
Model No. TH-32F410X
Chassis: KM36
Destination: PHILIPINES
TABLE OF CONTENTS
1 Safety Precautions ----------------------------------------------- 3
1.1. General Guidelines---------------------------------------- 3
1.1.1. Leakage Current Cold Check ---------------------- 3
1.1.2.
Leakage Current Hot Check (See Figure 1.)
2 Warning-------------------------------------------------------------- 4
2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatically Sensitive (ES) Devices---------- 4
2.2. About lead free solder (PbF)---------------------------- 5
3 Service Navigation ----------------------------------------------- 6
3.1. Service Hint ------------------------------------------------- 6
4 Specifications ----------------------------------------------------- 7
5 Service Mode ------------------------------------------------------ 8
5.1. How to enter into Service Mode ----------------------- 8
5.1.1. Purpose ------------------------------------------------- 8
5.1.2. Key command ----------------------------------------- 8
5.1.3. How to exit---------------------------------------------- 8
5.1.4. Contents of adjustment mode --------------------- 8
5.1.5. Display of SOS History ------------------------------ 9
5.1.6. Exit-------------------------------------------------------- 9
5.1.7. Hotel Mode --------------------------------------------- 9
PAG E PAG E
6 Troubleshooting Guide --------------------------------------- 10
6.1. Check of the IIC bus lines------------------------------ 10
6.1.1. How to access --------------------------------------- 10
---- 3
6.1.2. Self-check indication only ------------------------- 10
6.1.3. Self-check indication and forced to factory
shipment setting ------------------------------------- 10
6.1.4. Exit ------------------------------------------------------ 10
6.1.5. Screen display --------------------------------------- 10
6.2. Power LED Blinking timing chart --------------------- 11
6.3. Method of detecting SOS ------------------------------ 11
6.4. LCD Panel test mode ----------------------------------- 12
6.5. No Power--------------------------------------------------- 12
7 Disassembly and Assembly Instructions--------------- 13
7.1. LED Panel Ass’y ----------------------------------------- 13
7.2. LCD Panel Assembly ----------------------------------- 14
7.3. Metal Bracket 1 ------------------------------------------ 15
7.4. Metal Bracket 2 ------------------------------------------- 16
7.5. PCB Installation ------------------------------------------ 17
7.6. SP Bracket & Metal Bottom ------------------------- 18

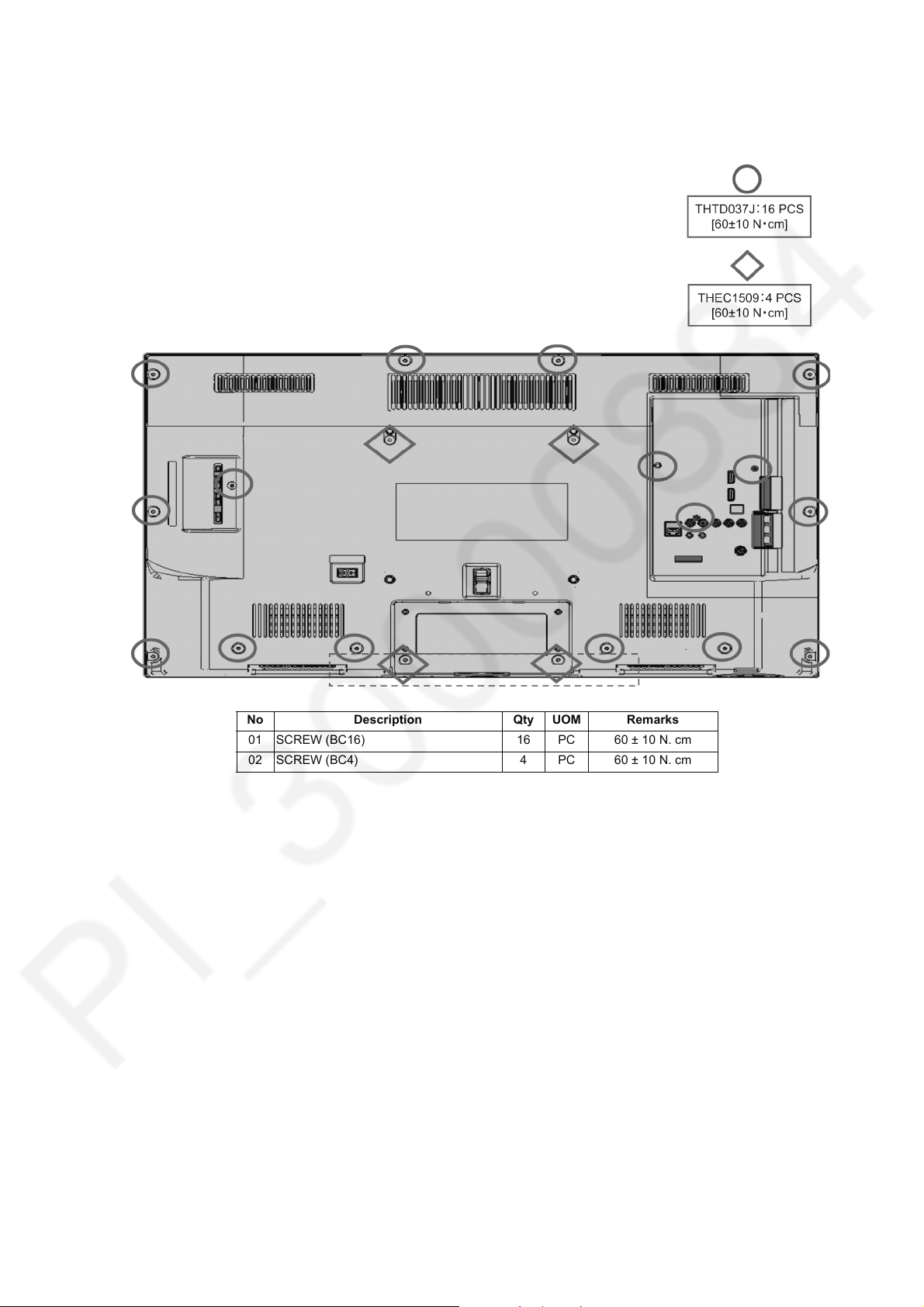

7.7. Screw Fixing ---------------------------------------------- 19
© Panasonic Corporation 2018.
Page 2
TH-32F410X
7.8. Vesa Metal (BC) ------------------------------------------ 20
7.9. Back Cover Installation -------------------------------- 21

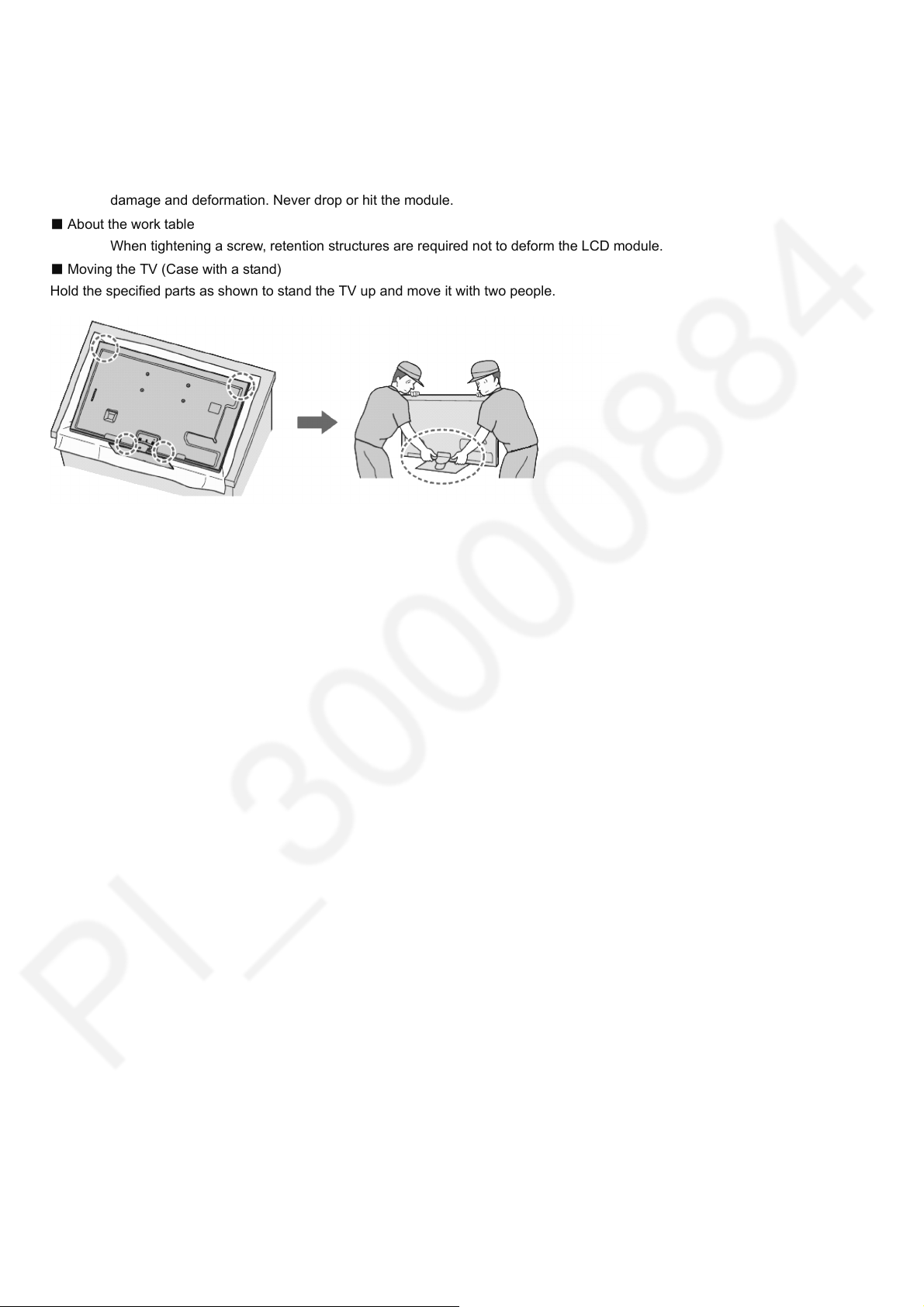

7.10. Handling SPEC ------------------------------------------- 22
8 Measurements and Adjustments -------------------------- 23
8.1. Voltage chart of A-board-------------------------------- 23

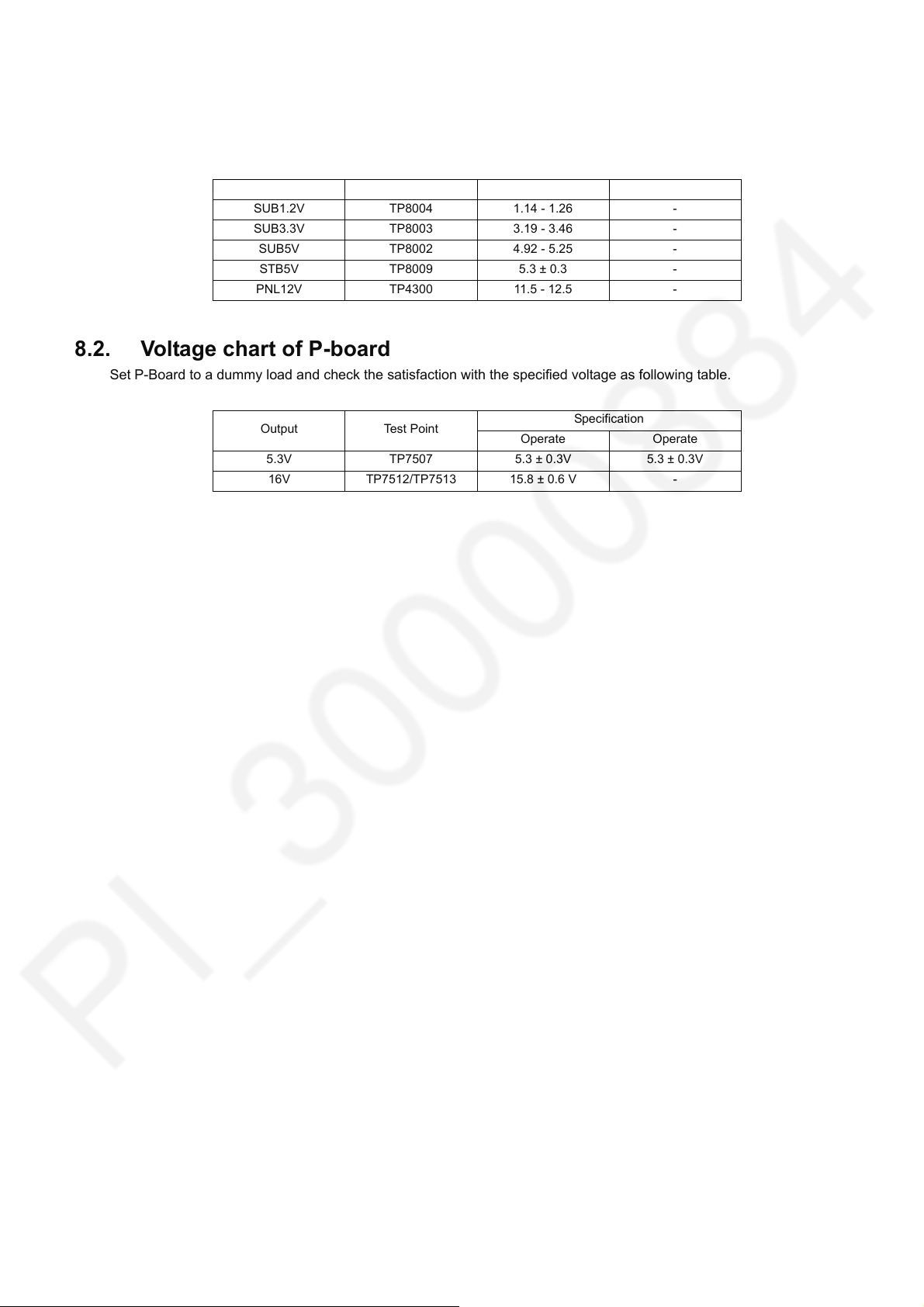

8.2. Voltage chart of P-board-------------------------------- 23
9 Block Diagram --------------------------------------------------- 24

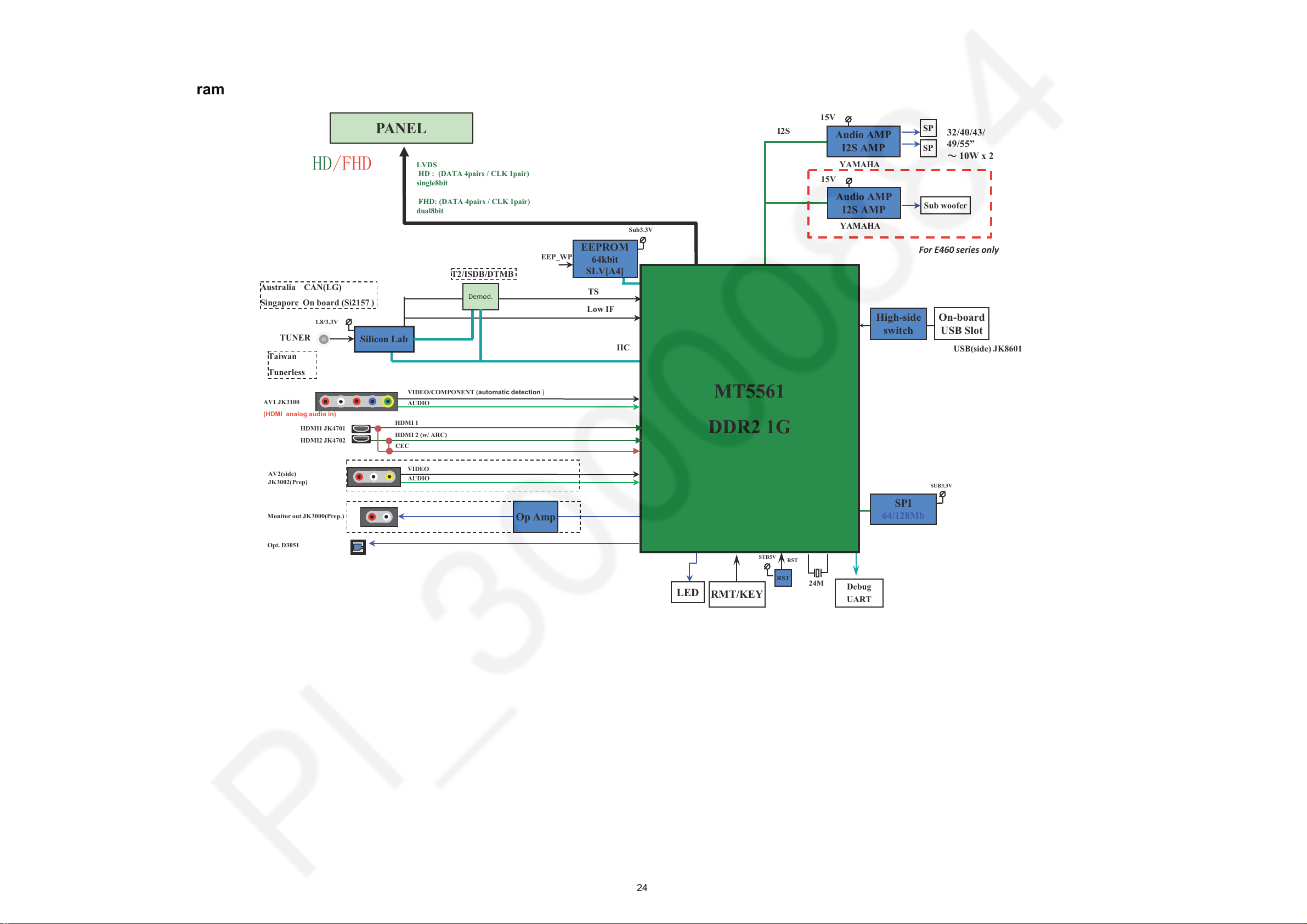

9.1. Main Block Diagram ------------------------------------- 24

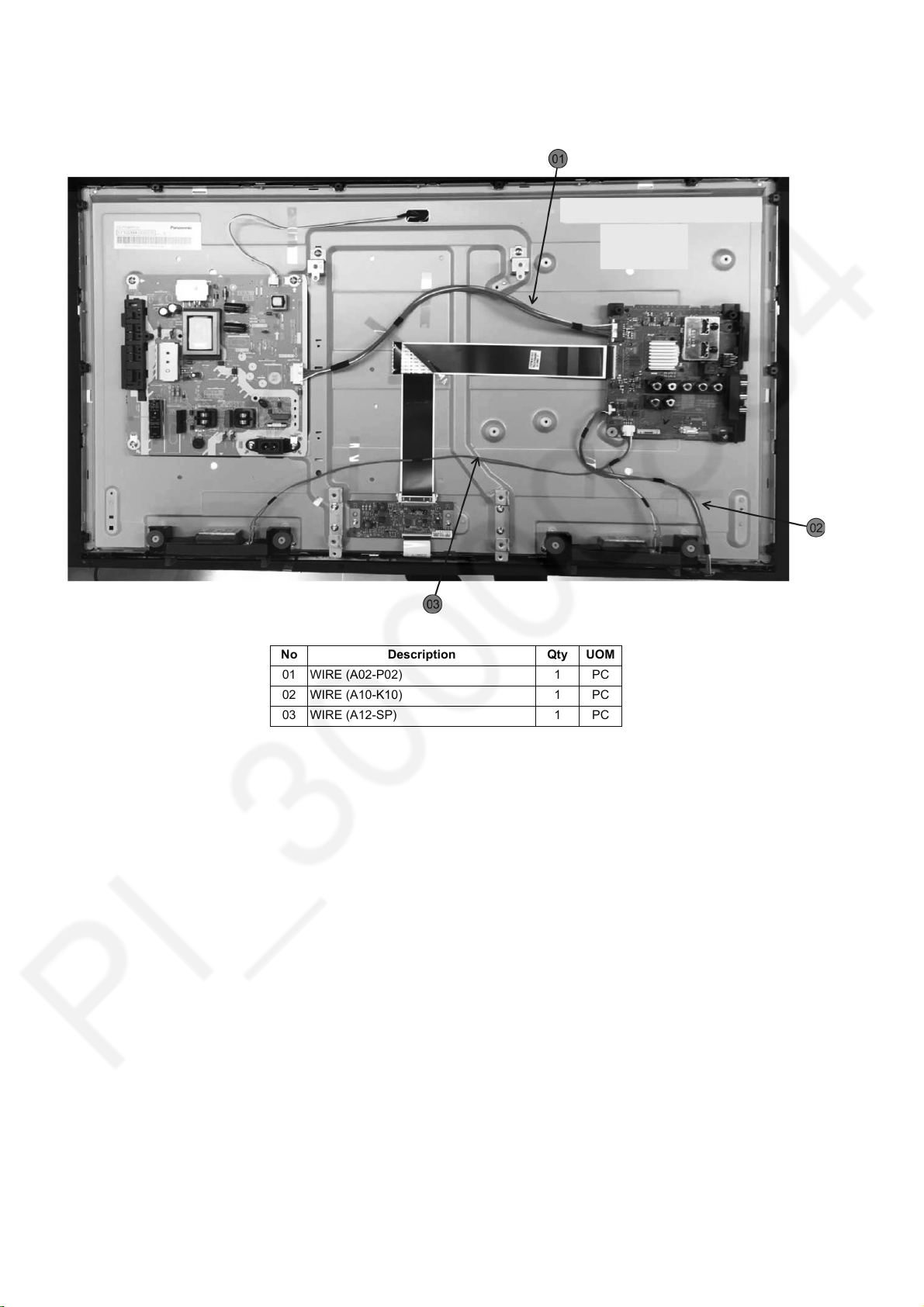

10 Wiring Connection Diagram --------------------------------- 25

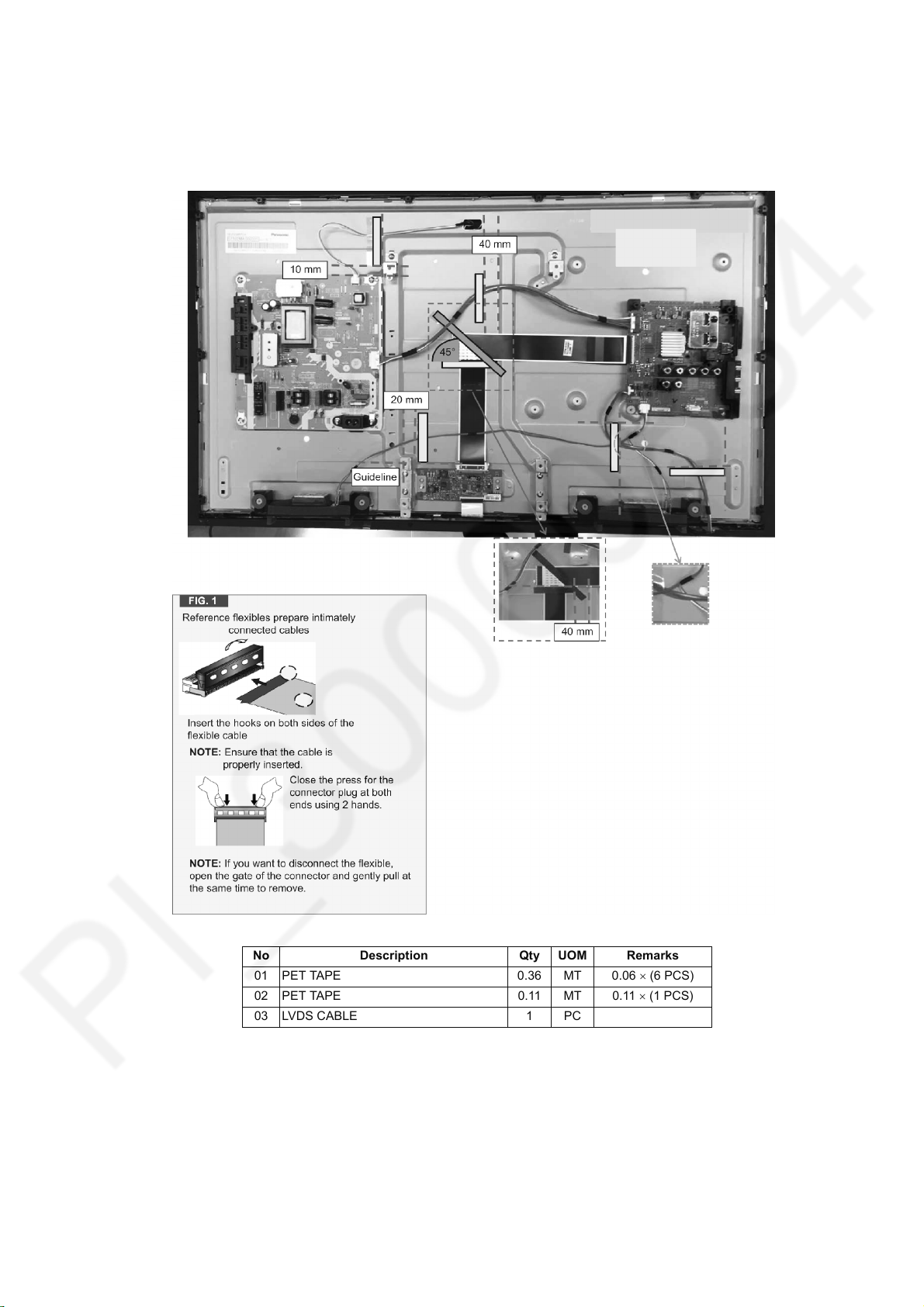

10.1. Wire Dressing 1------------------------------------------- 25
10.2. Wire Dressing 2------------------------------------------- 26

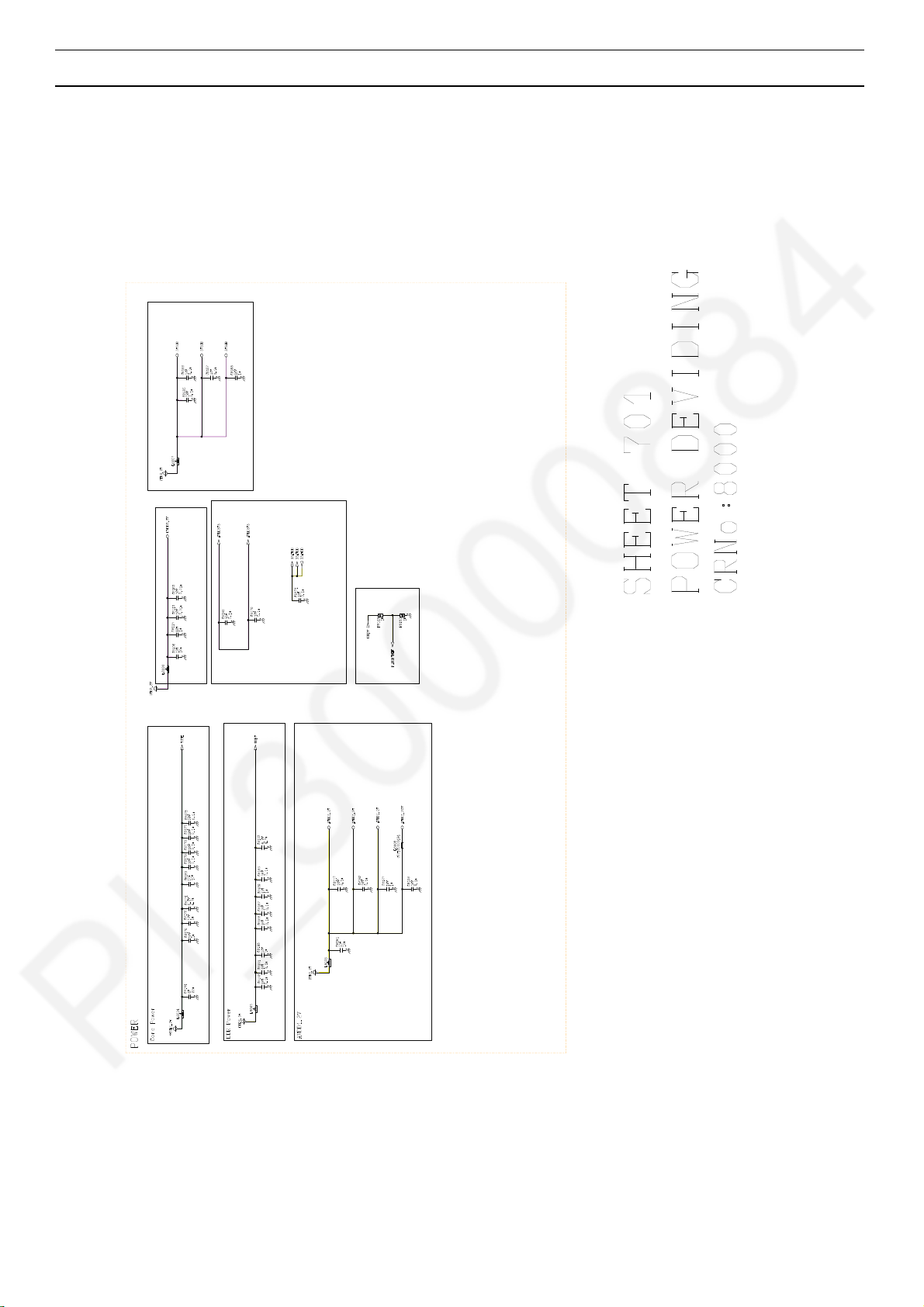

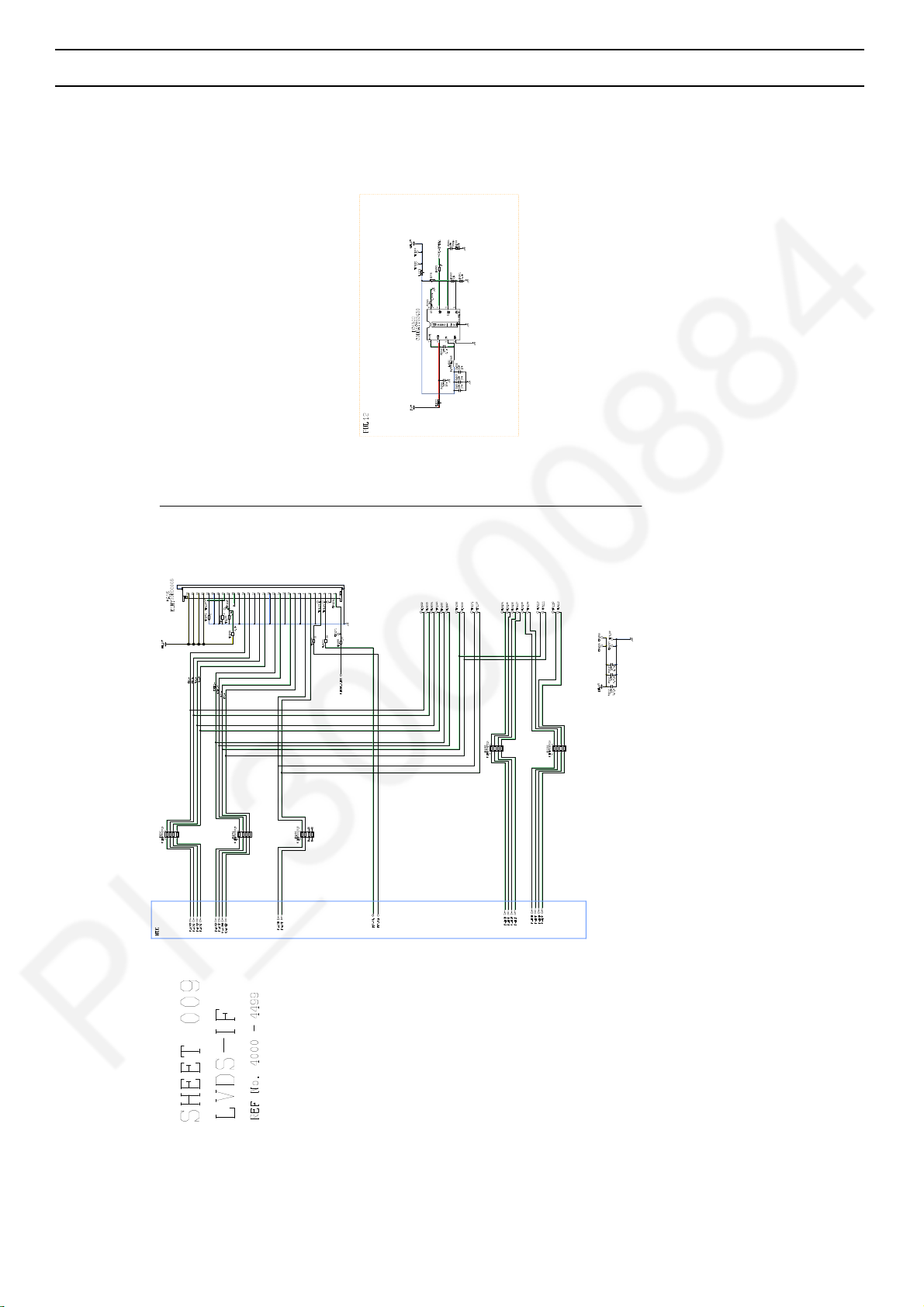

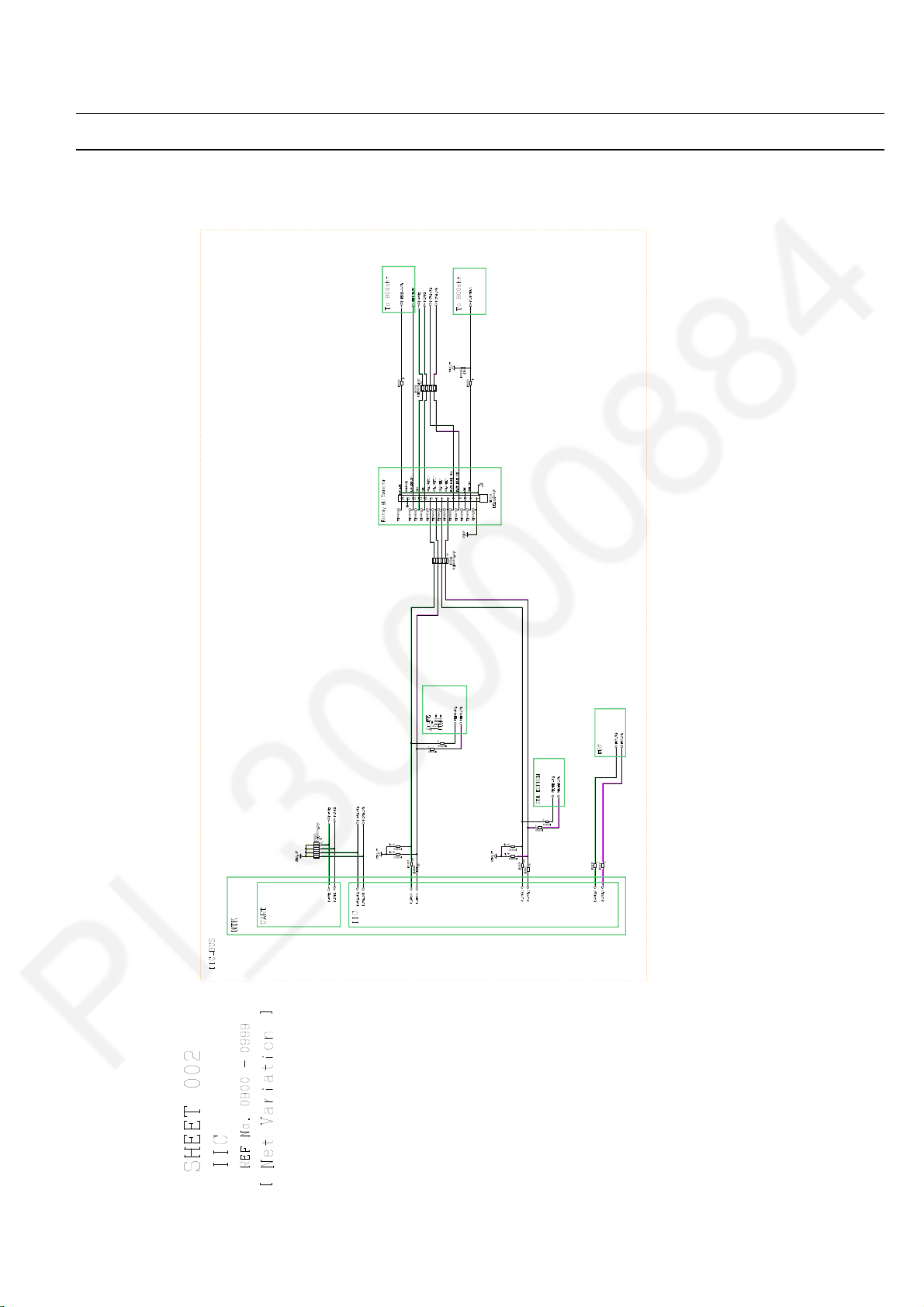

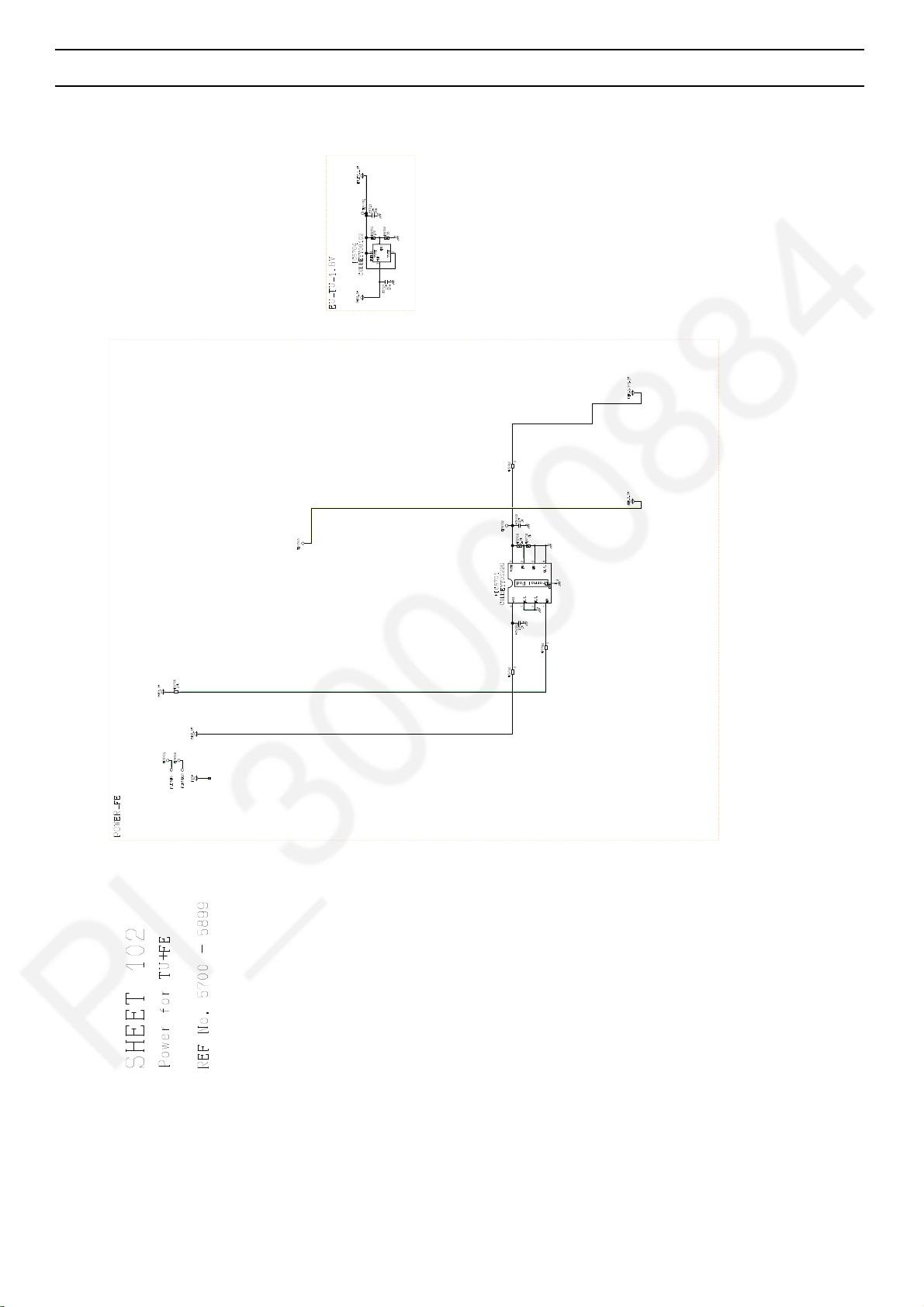

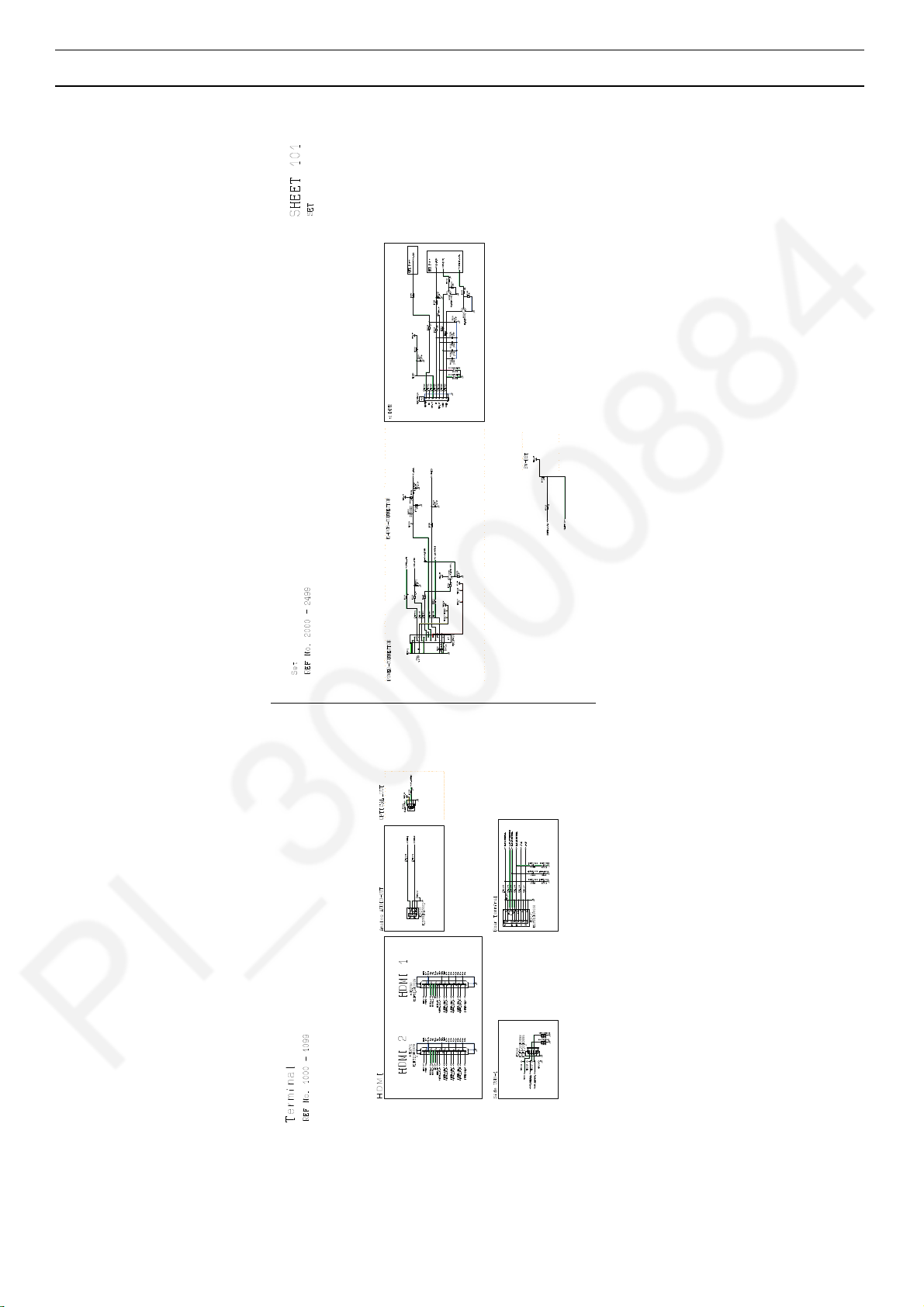

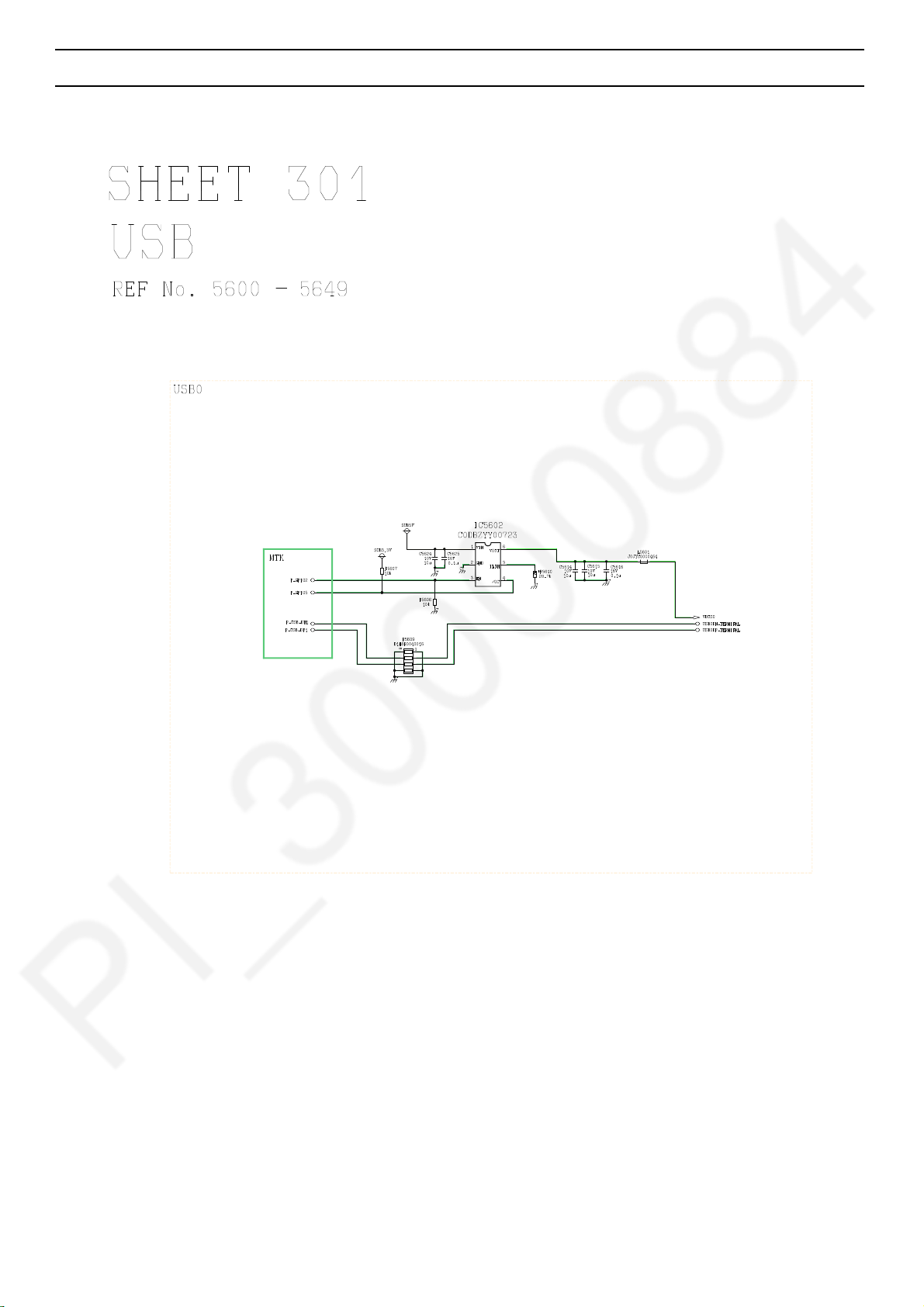

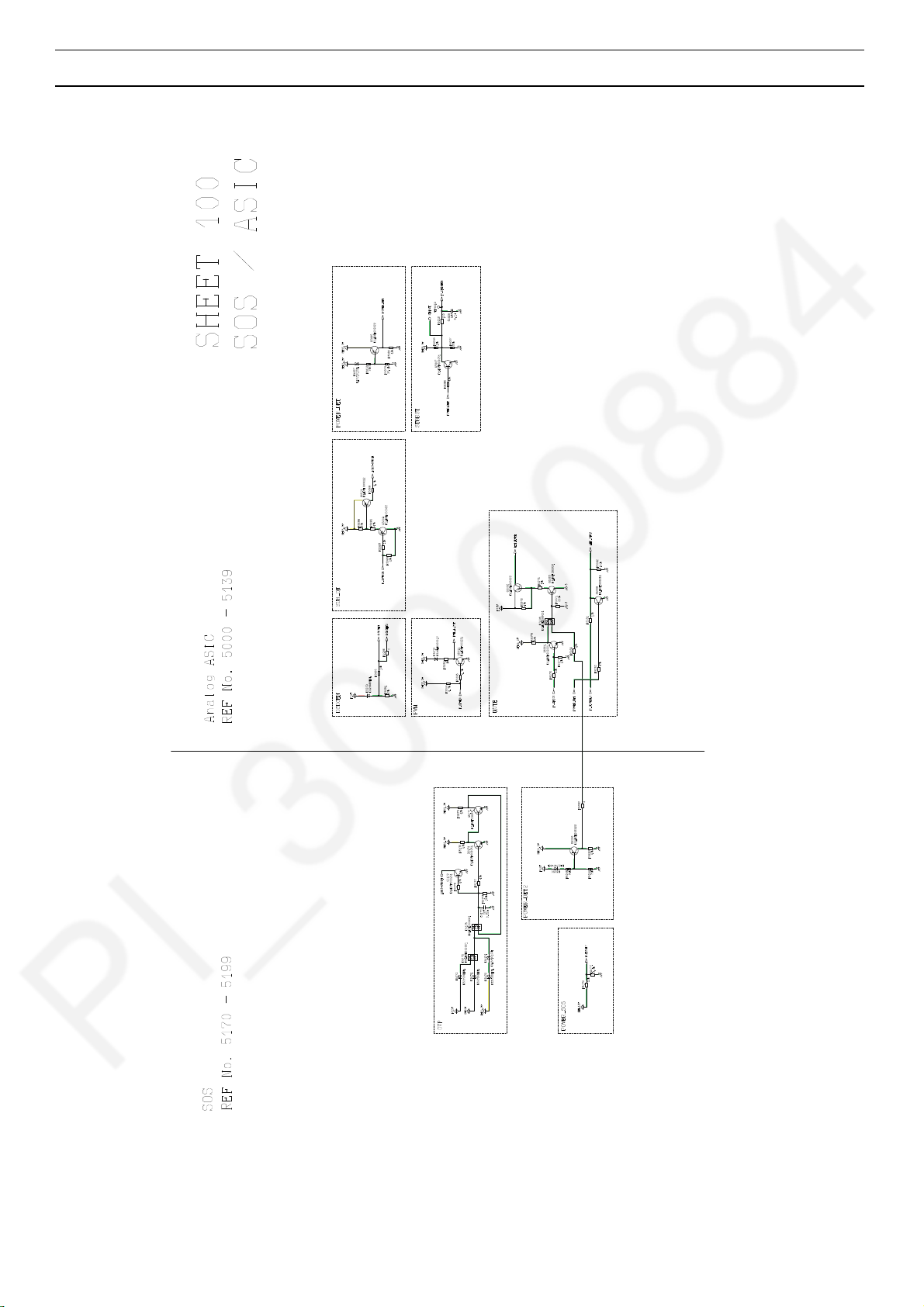

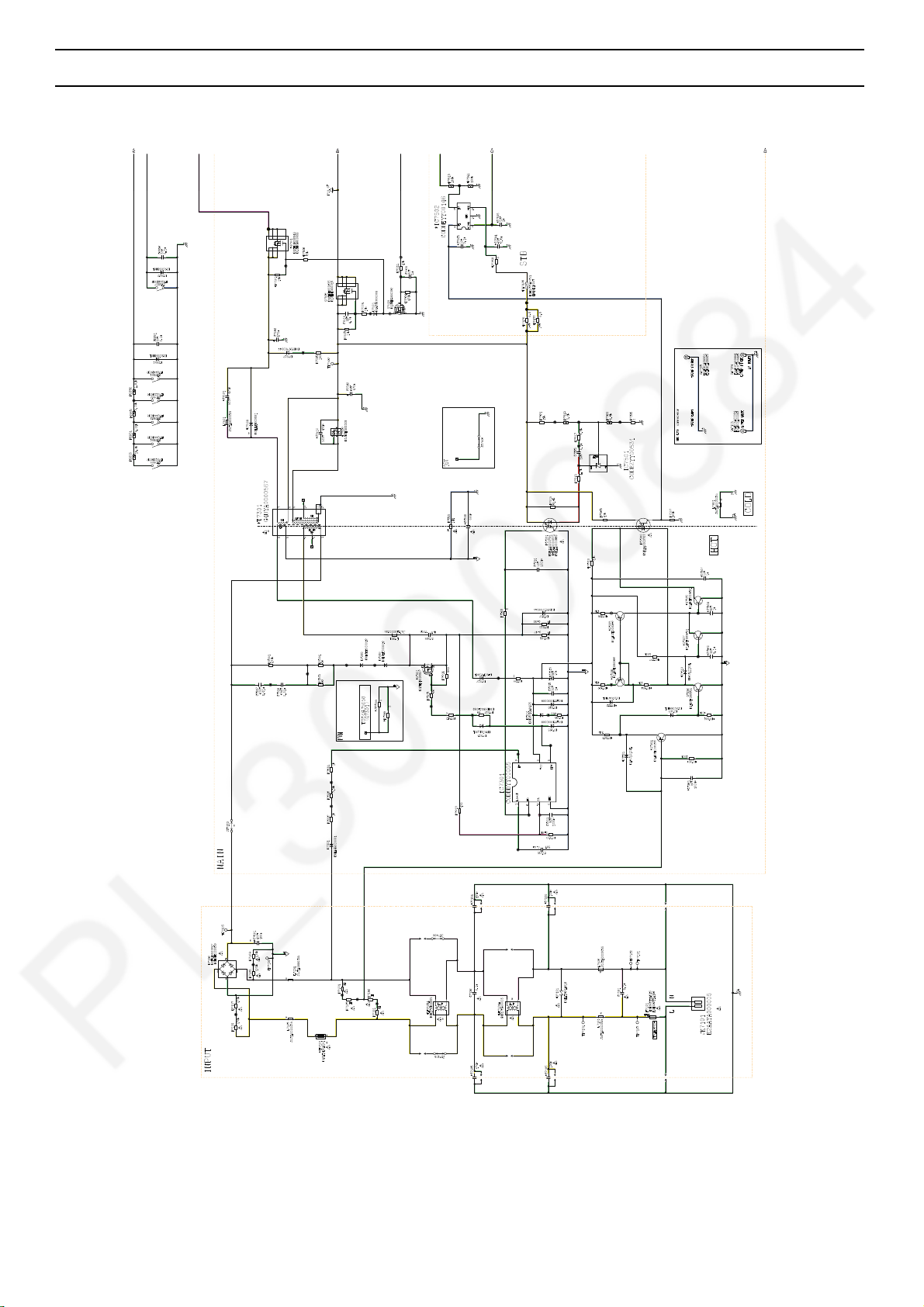

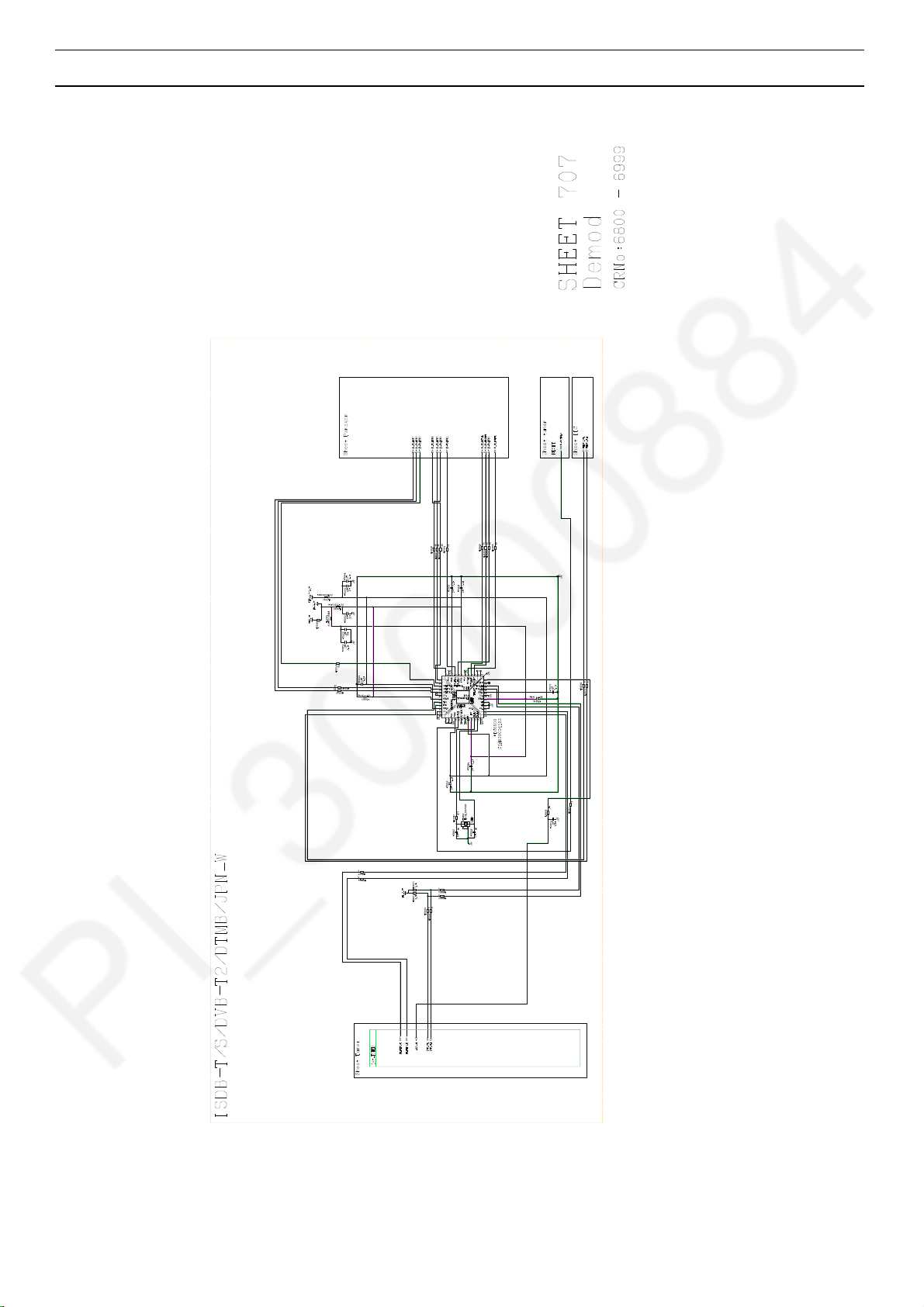

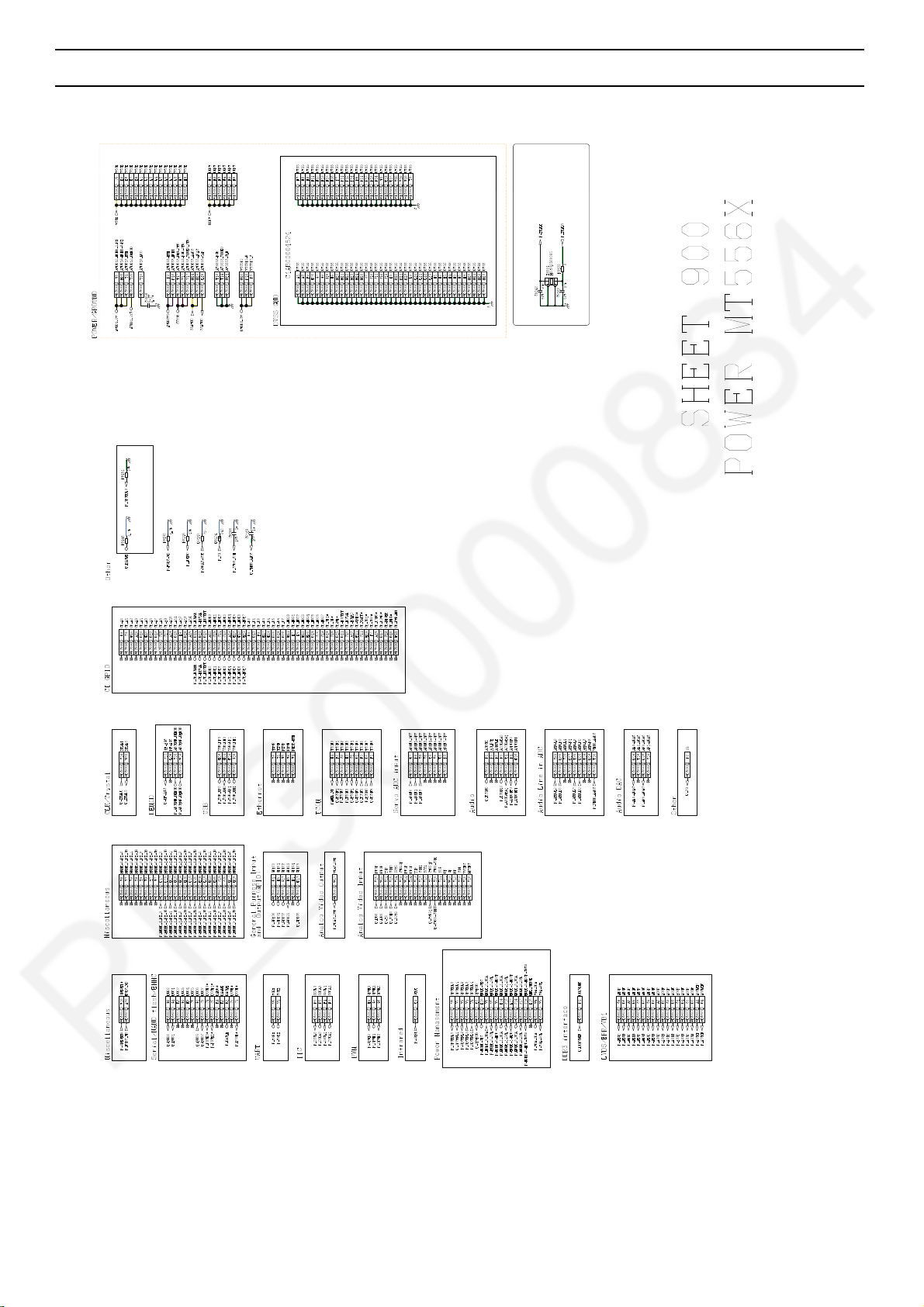

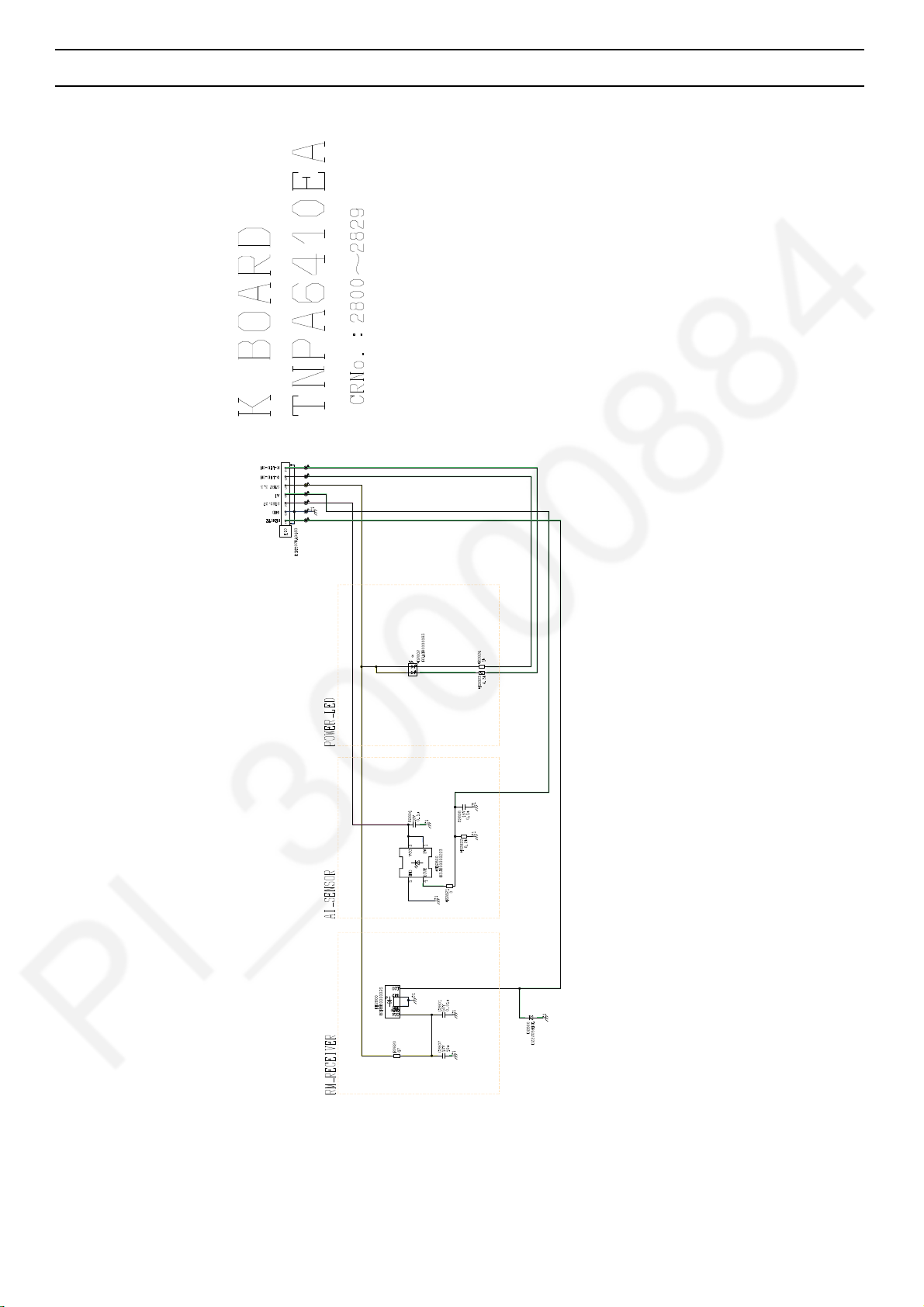

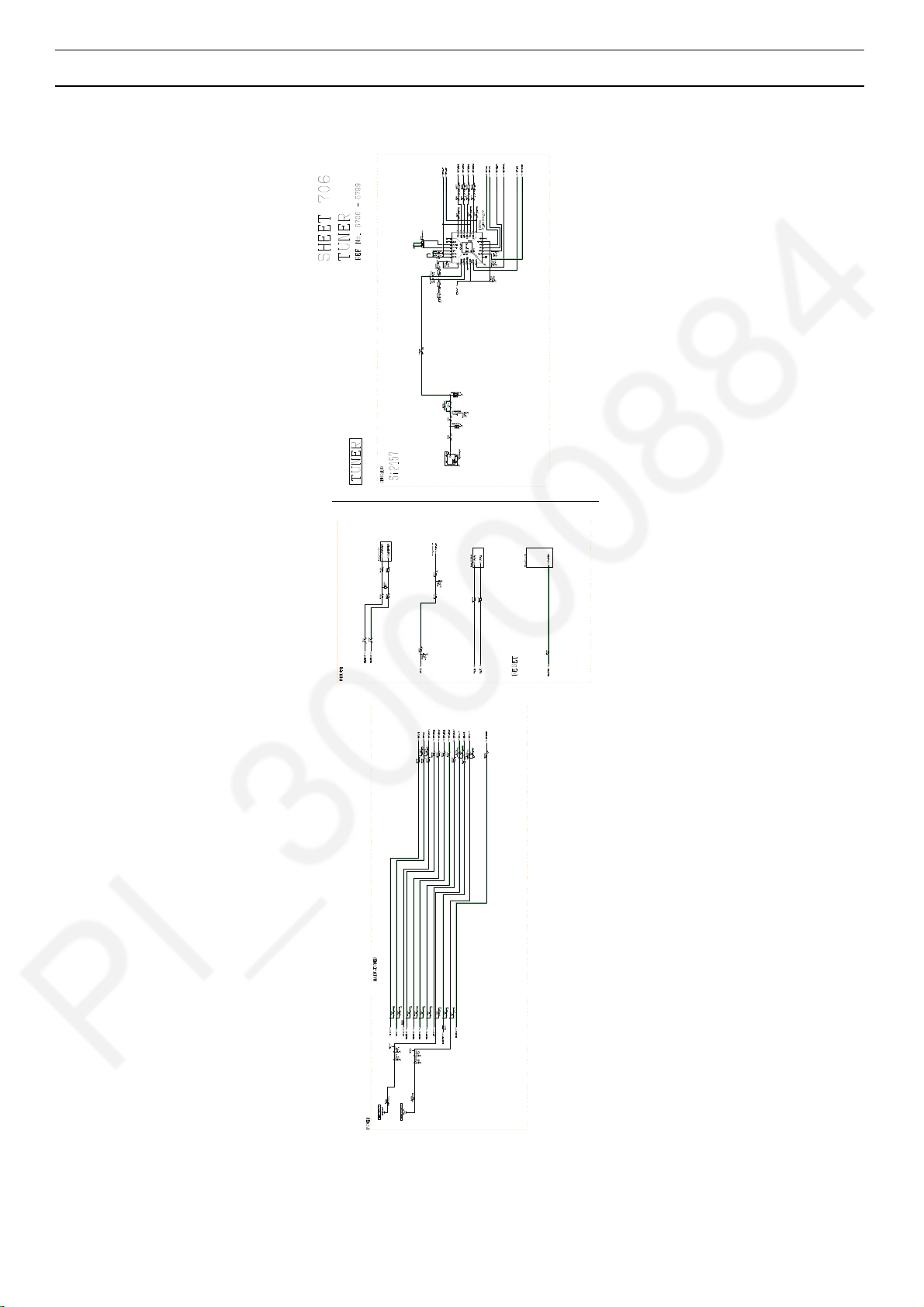

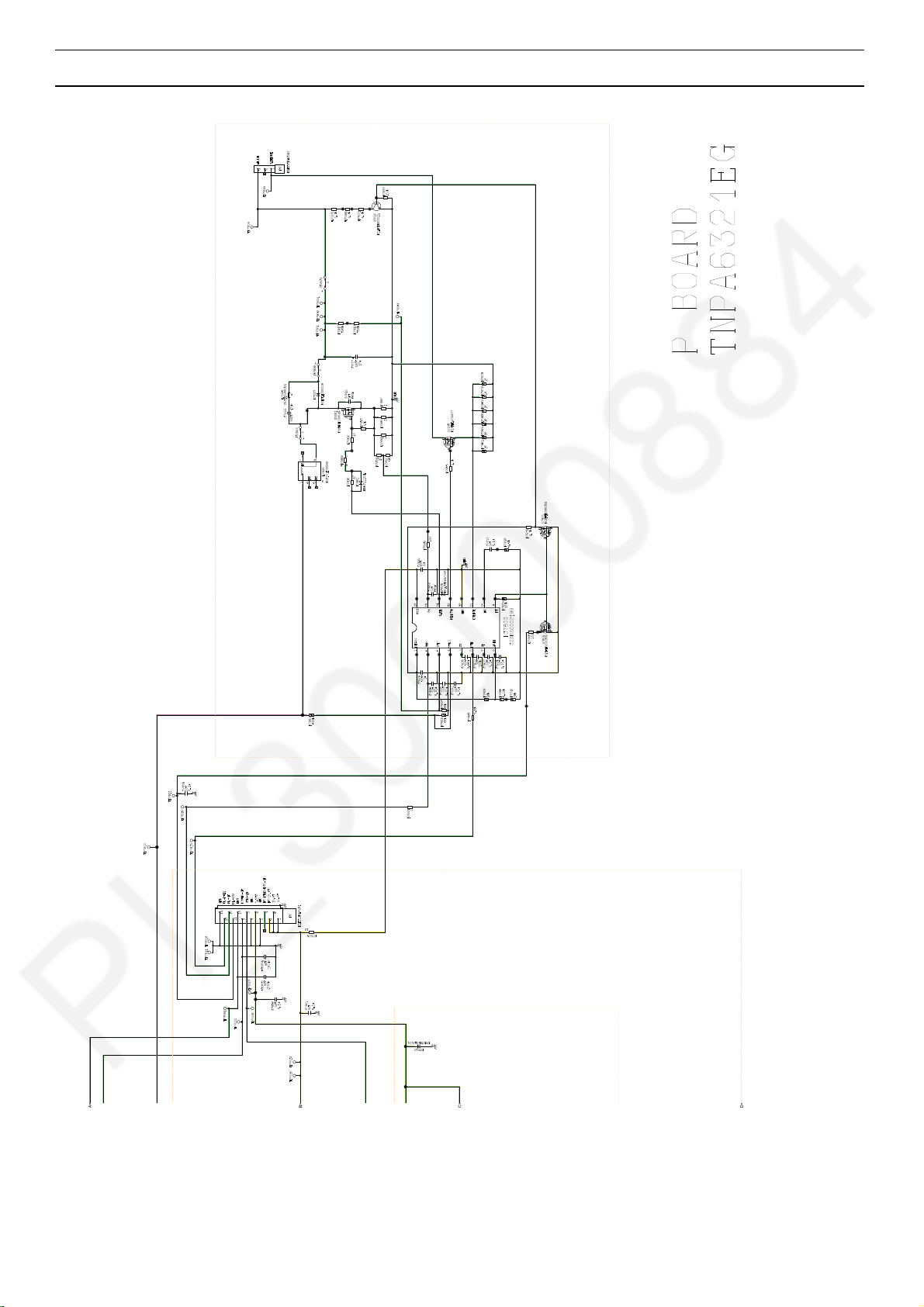

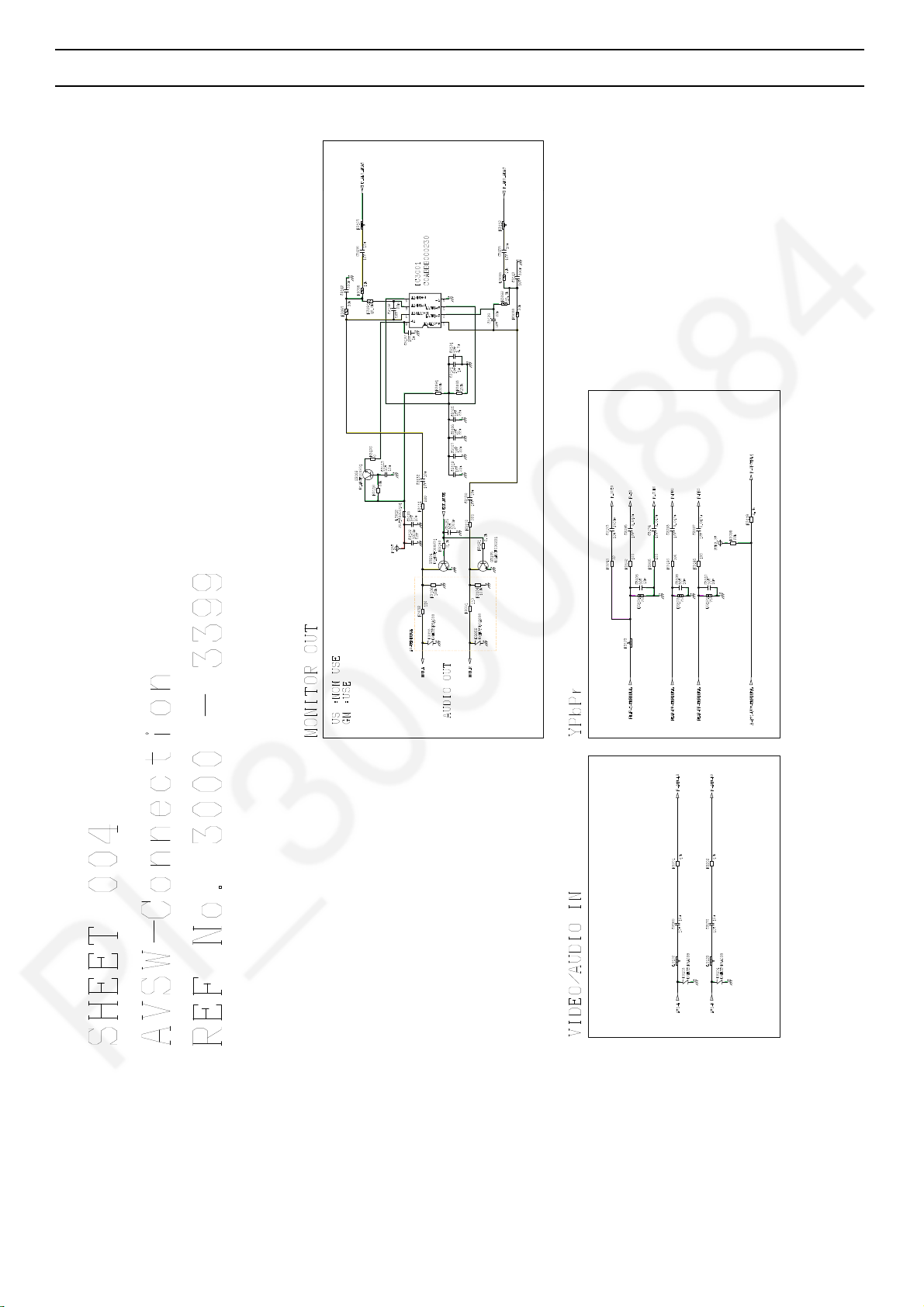

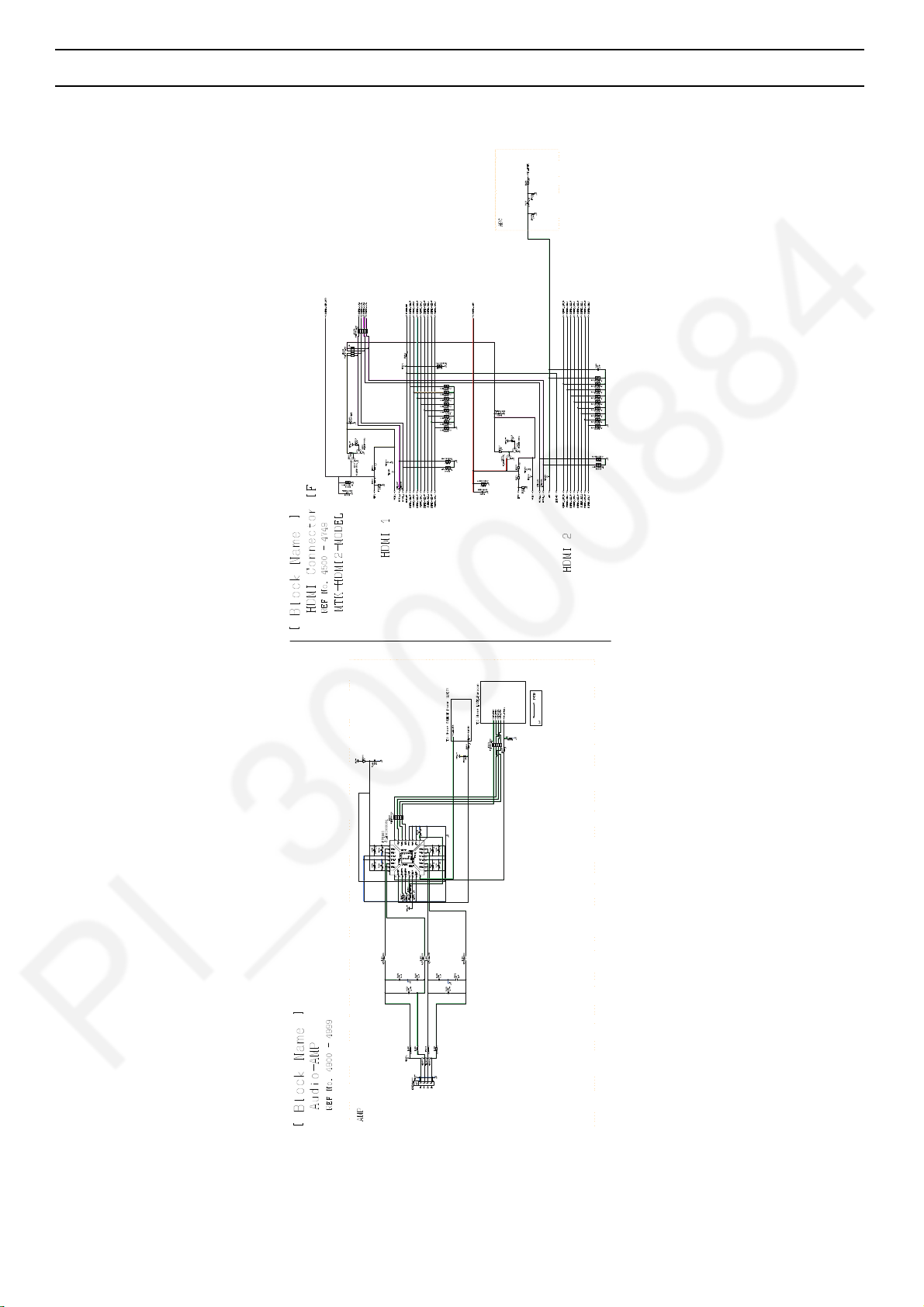

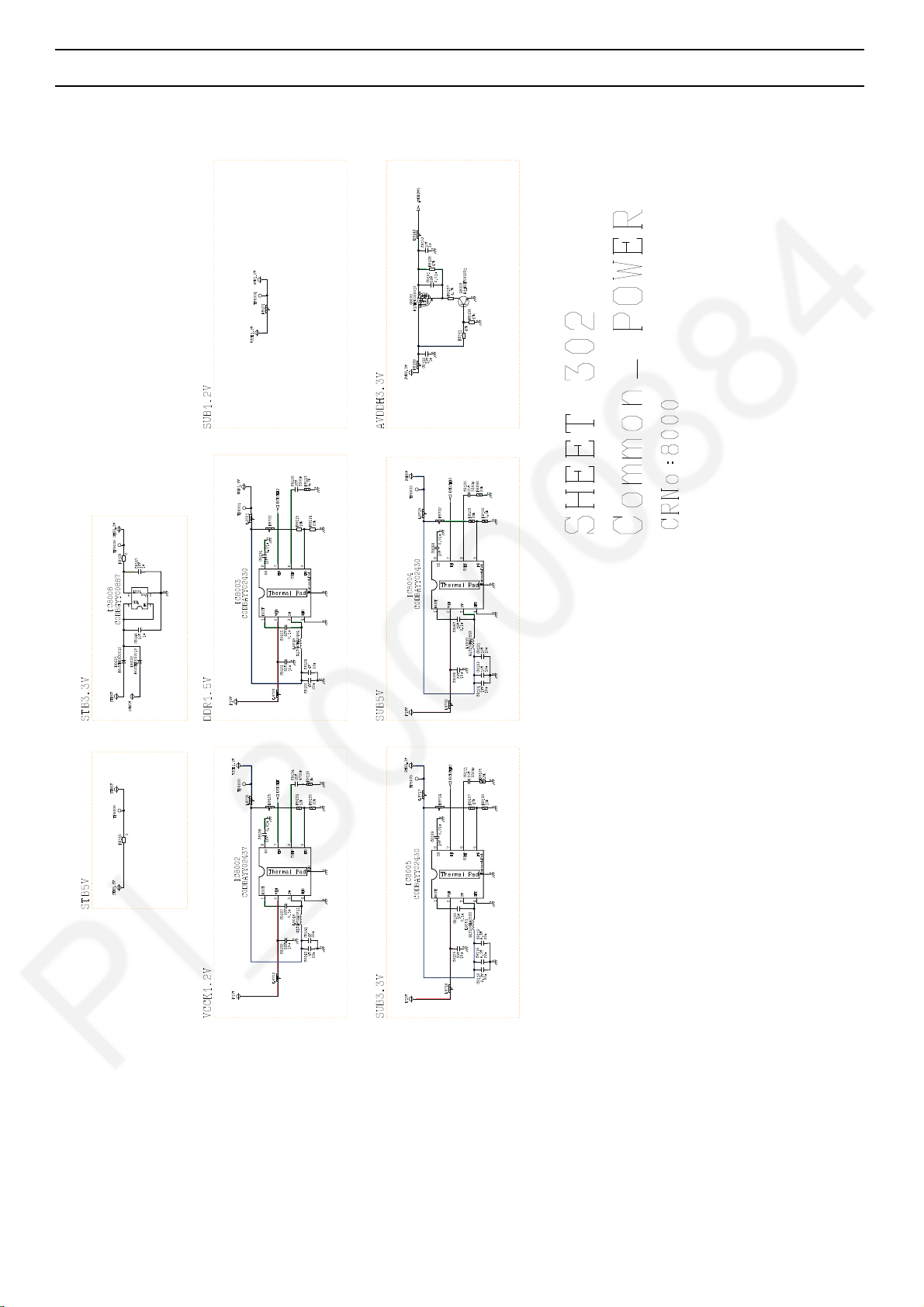

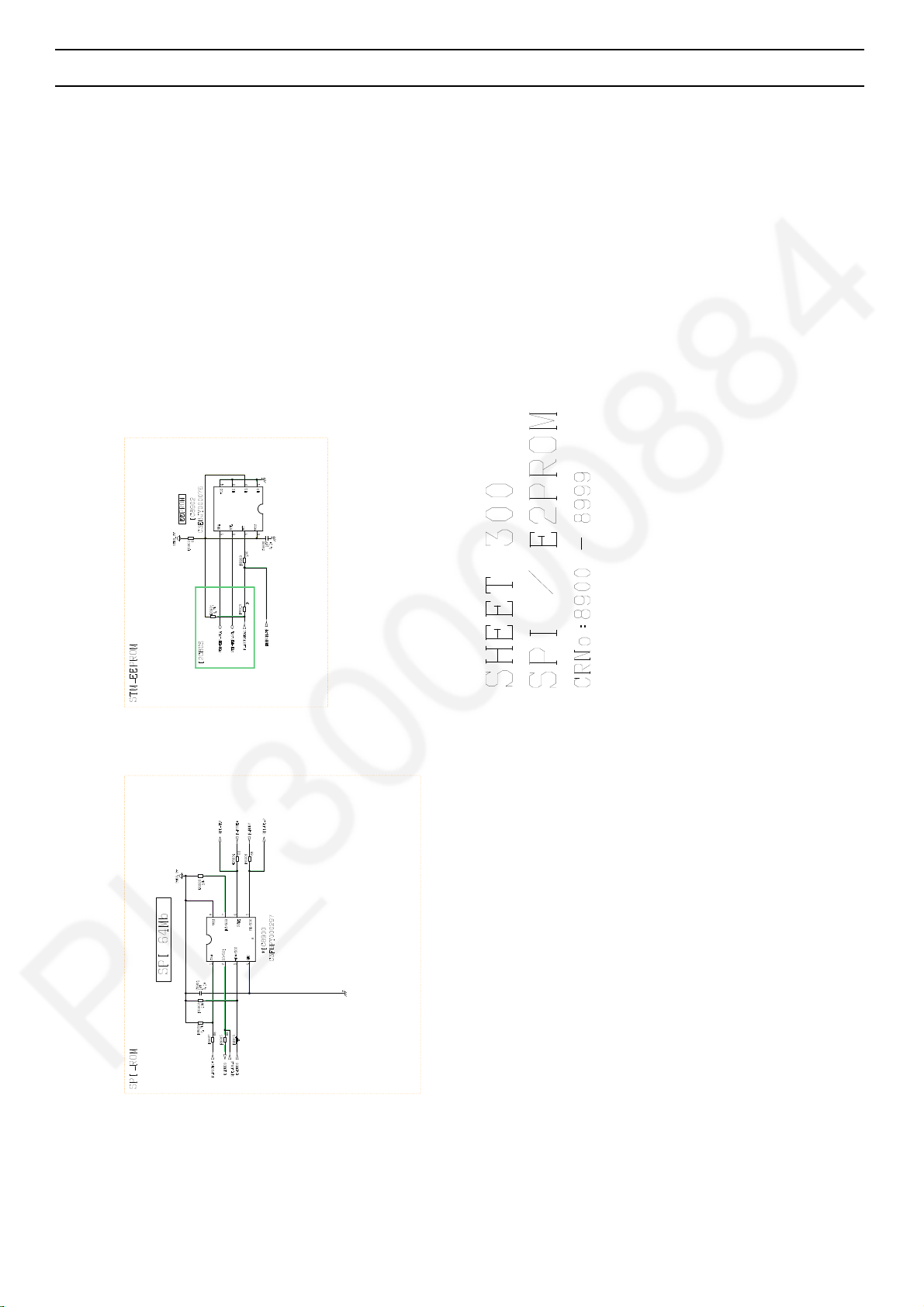

11 Schematic Diagram--------------------------------------------- 27

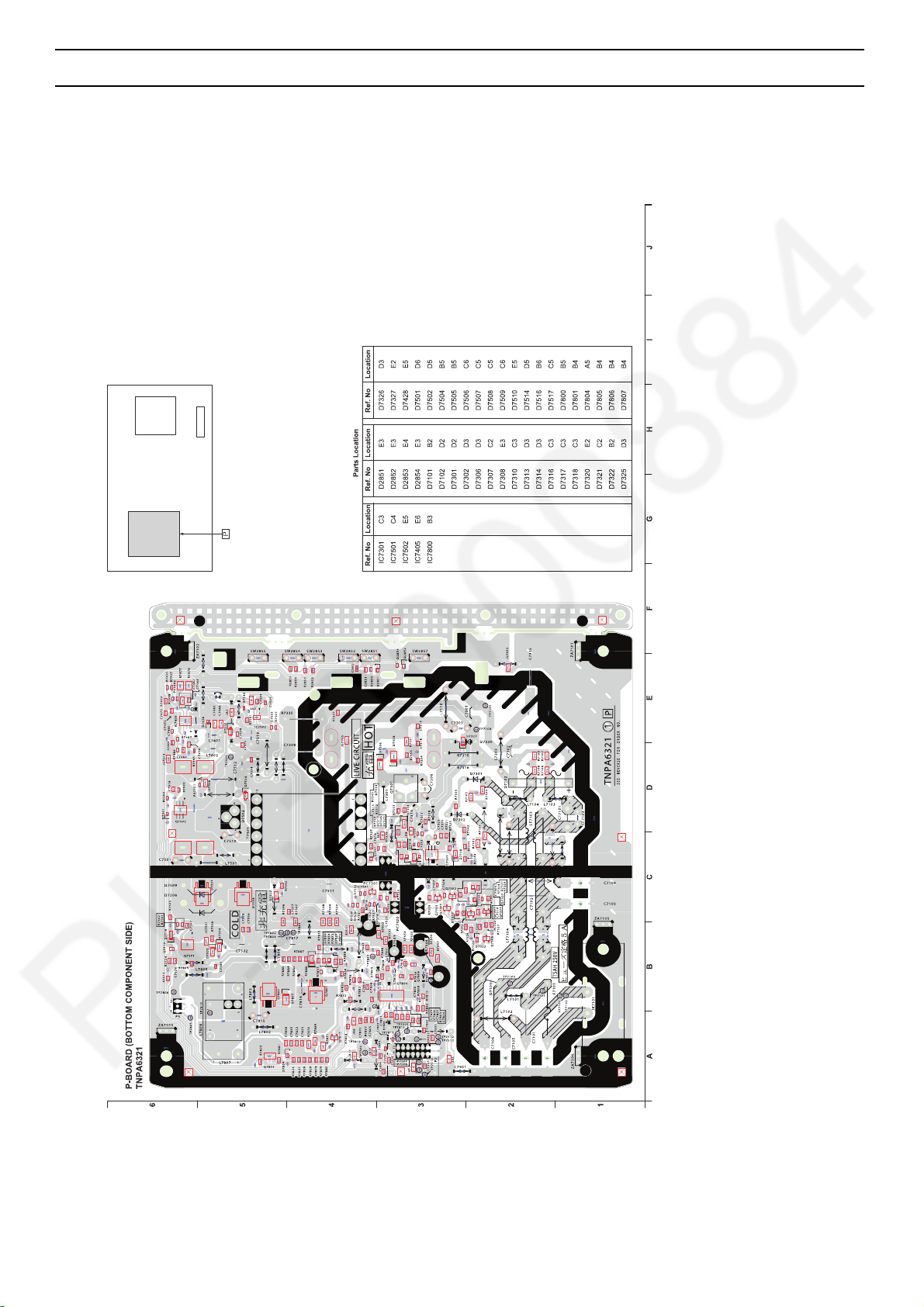

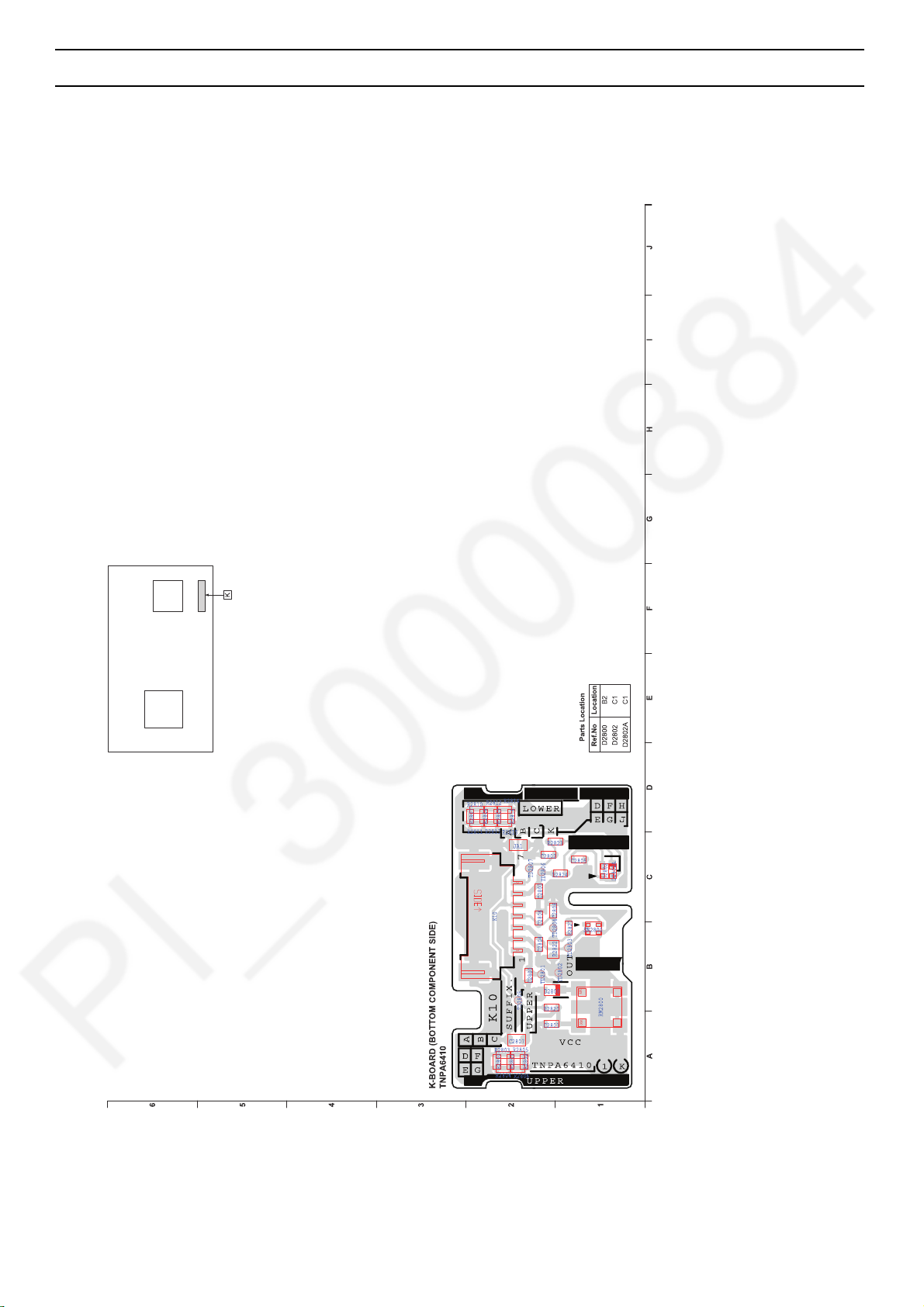

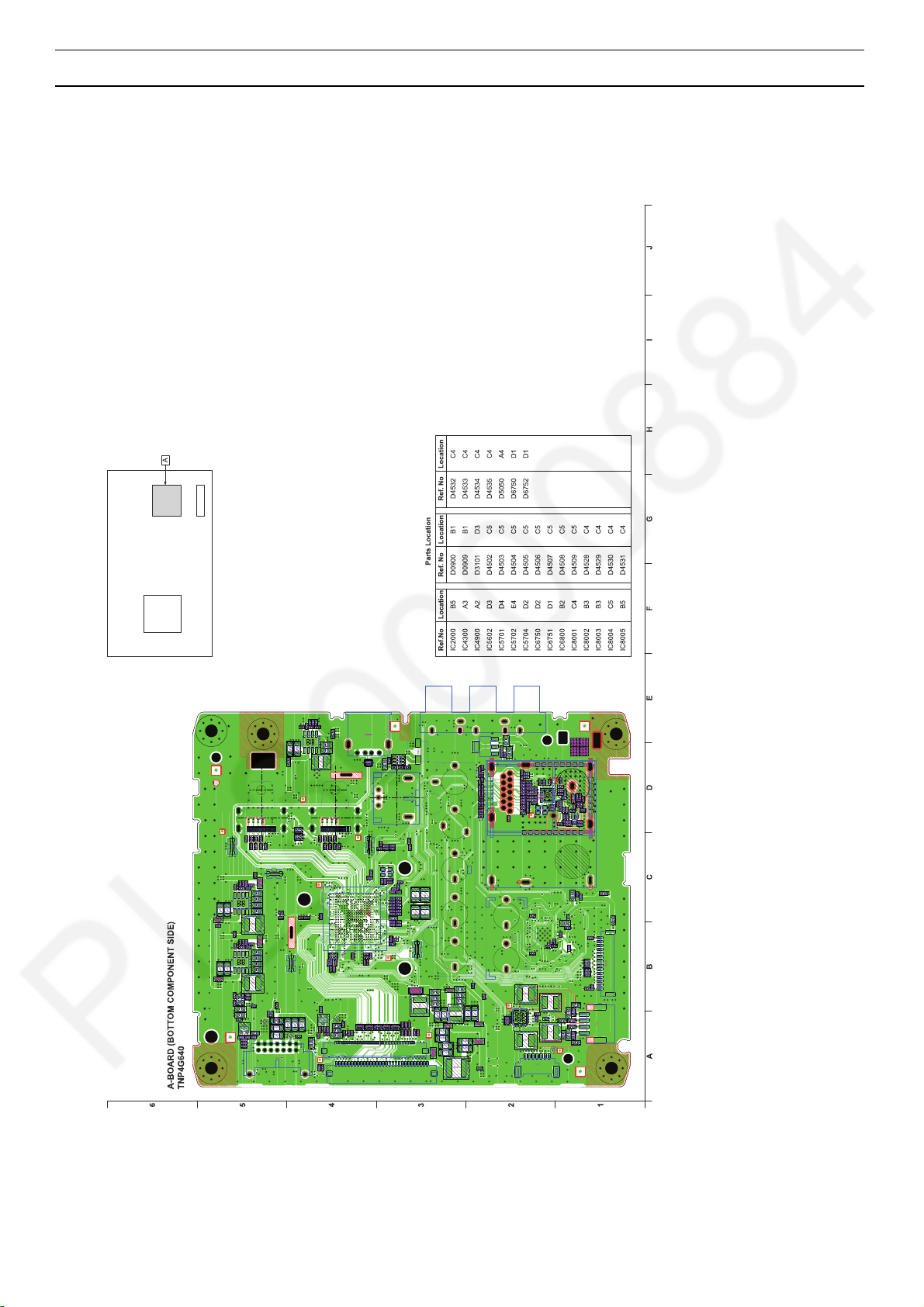

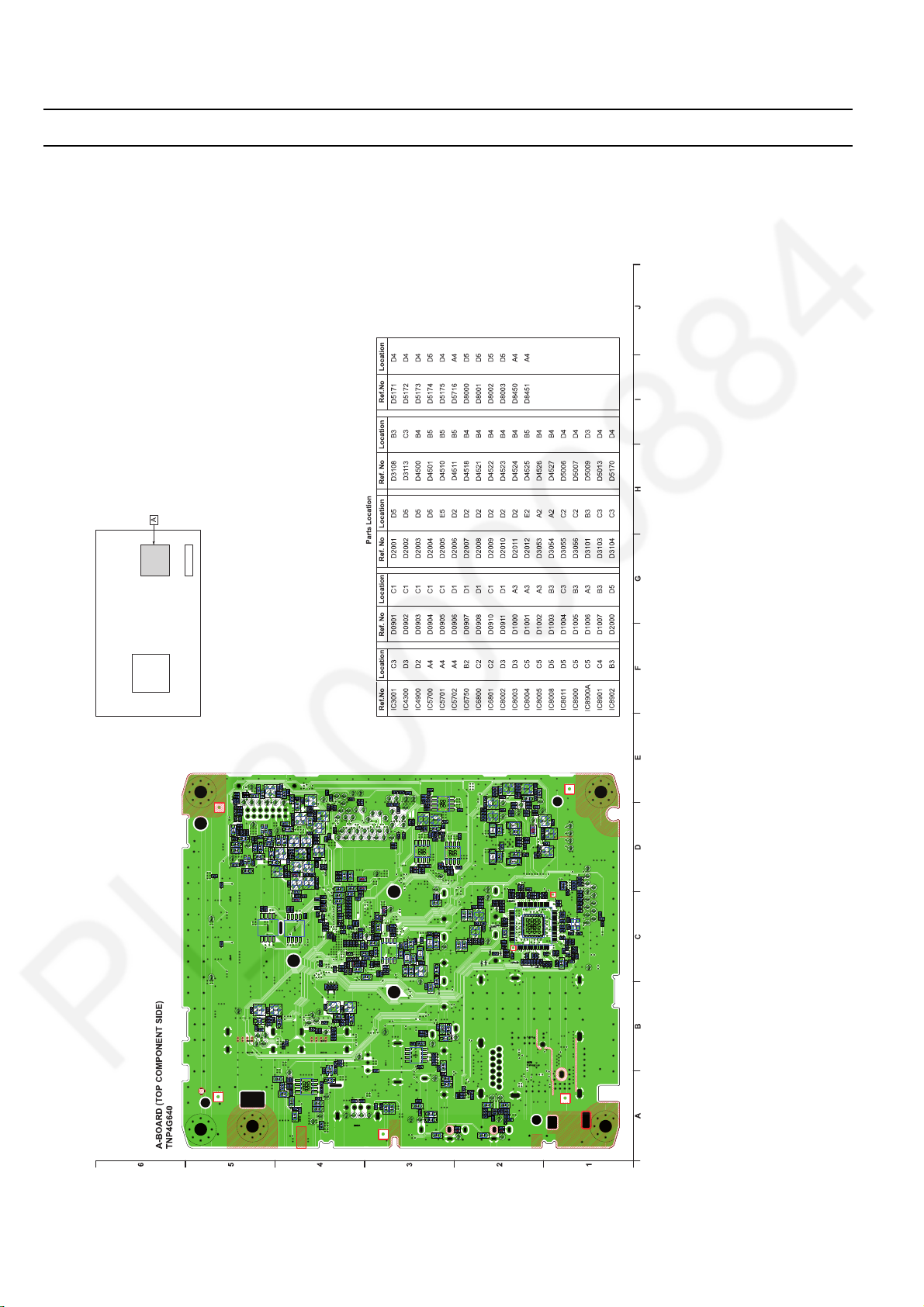

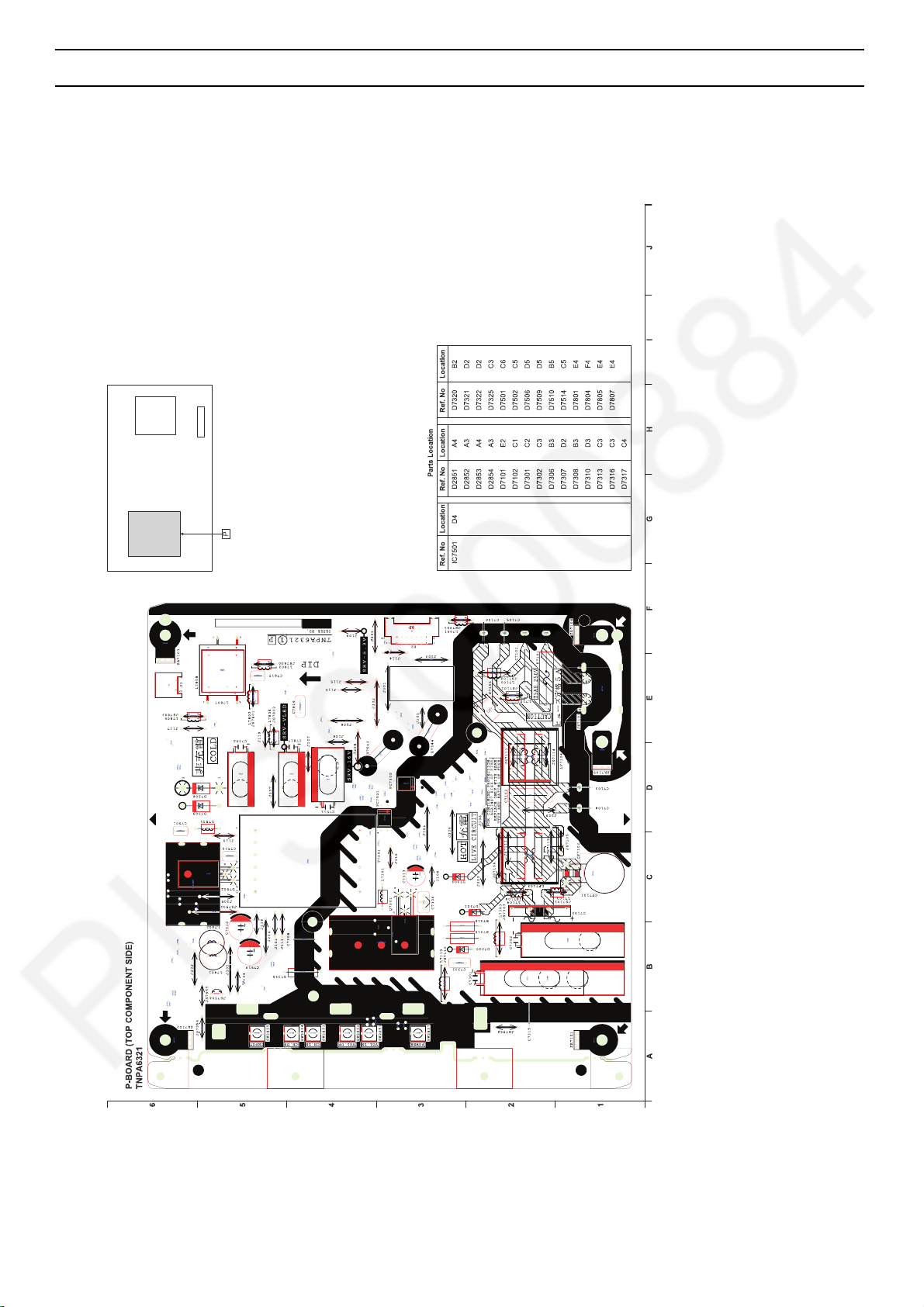

12 Printed Circuit Board ------------------------------------------ 44

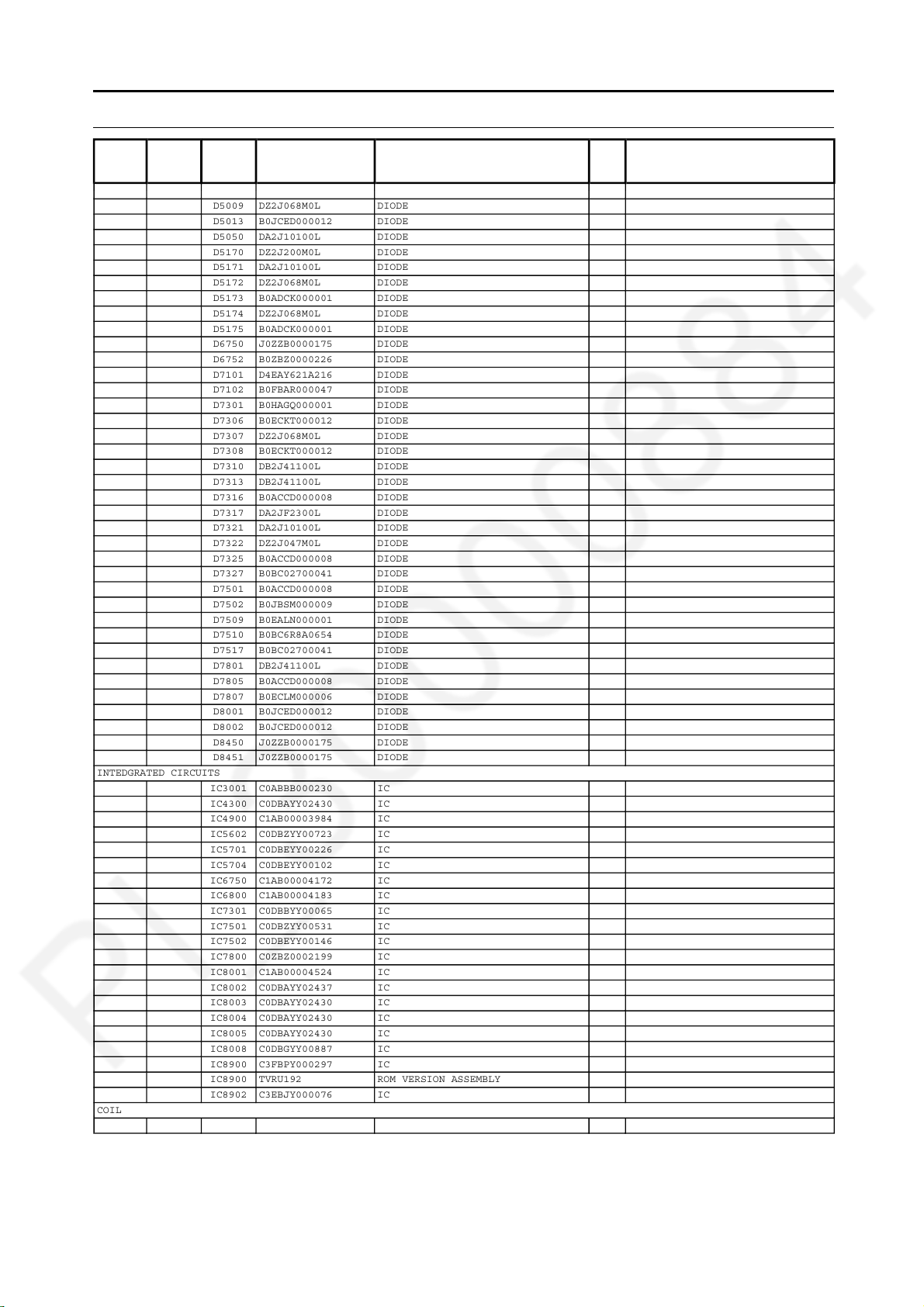

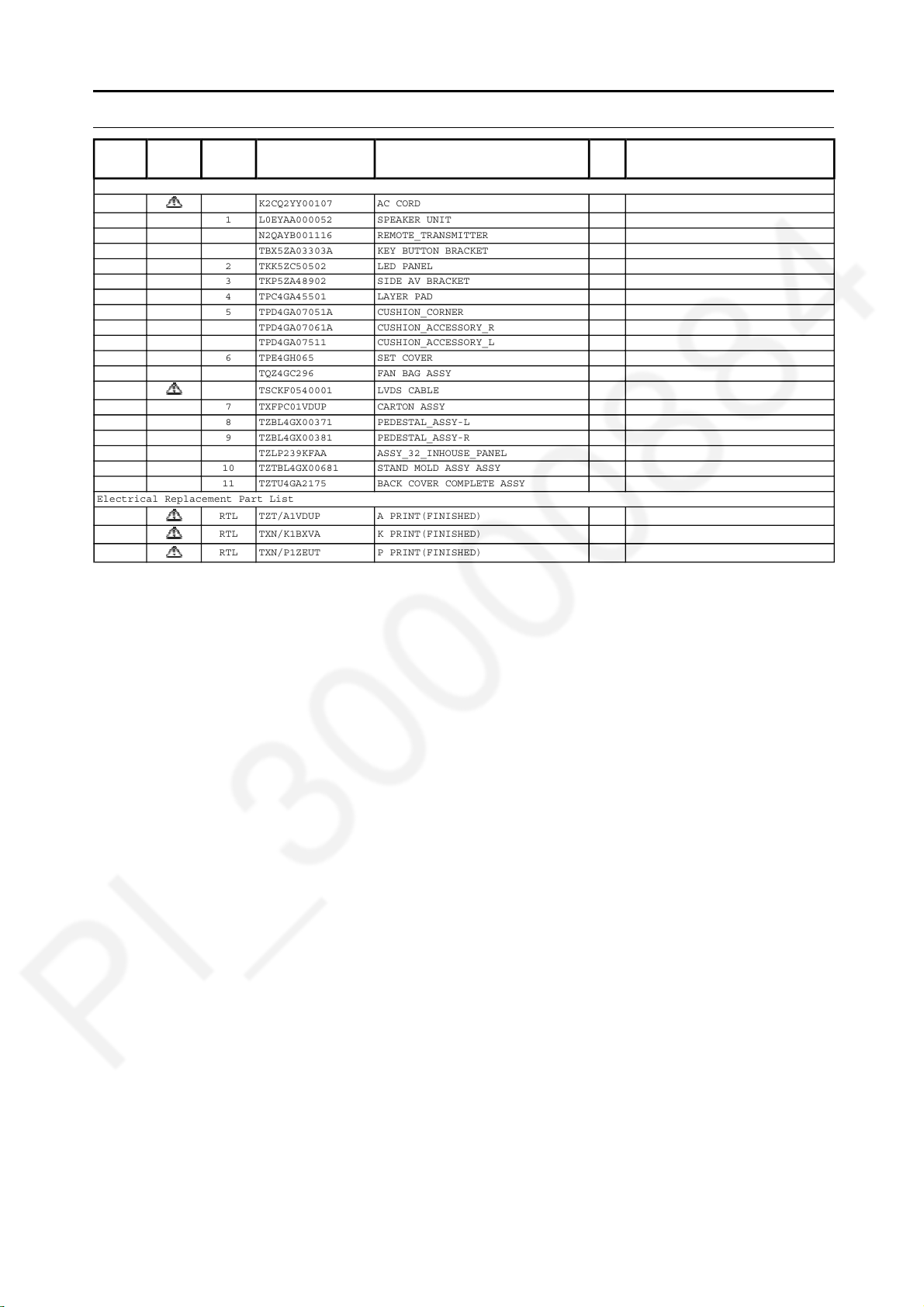

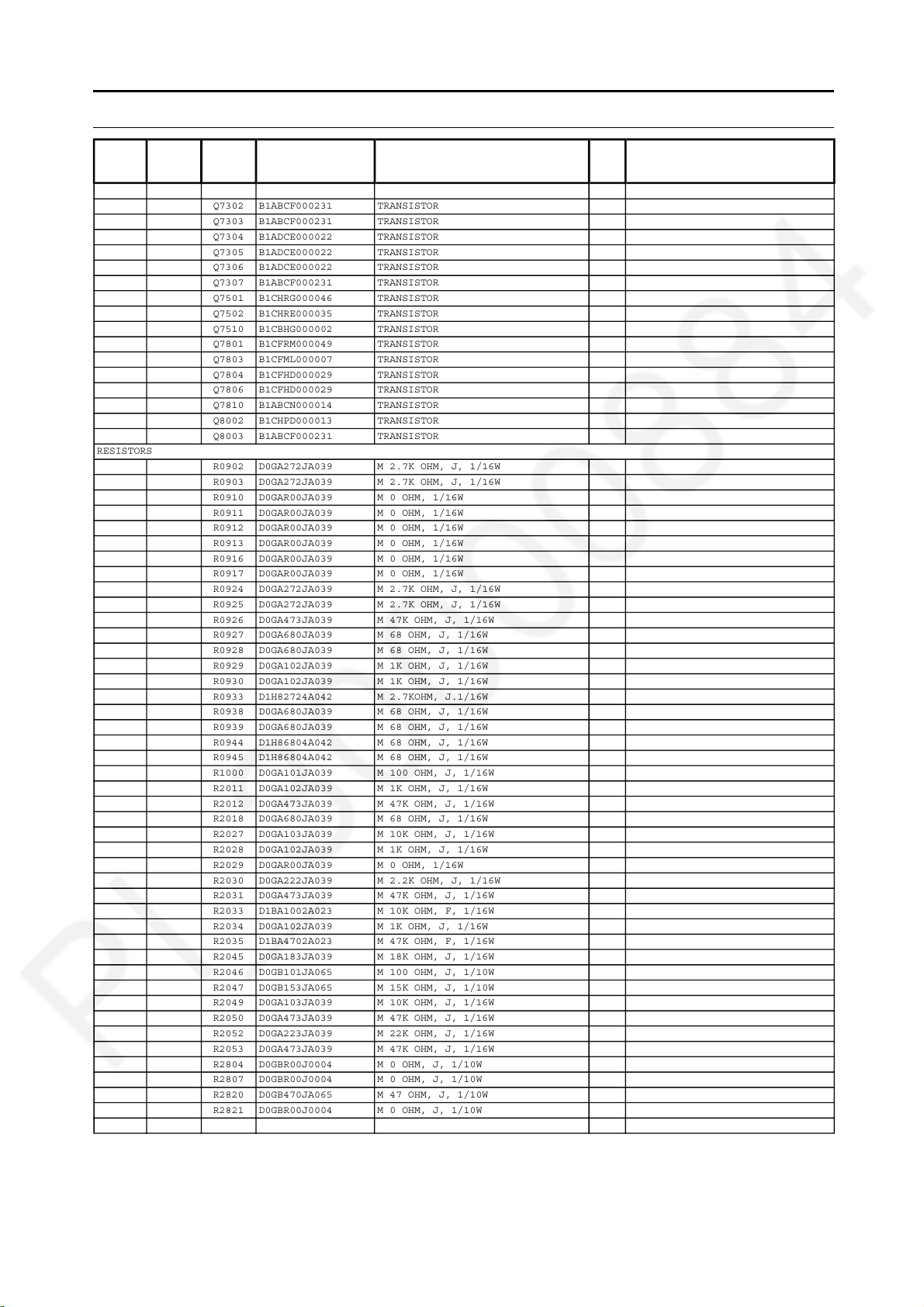

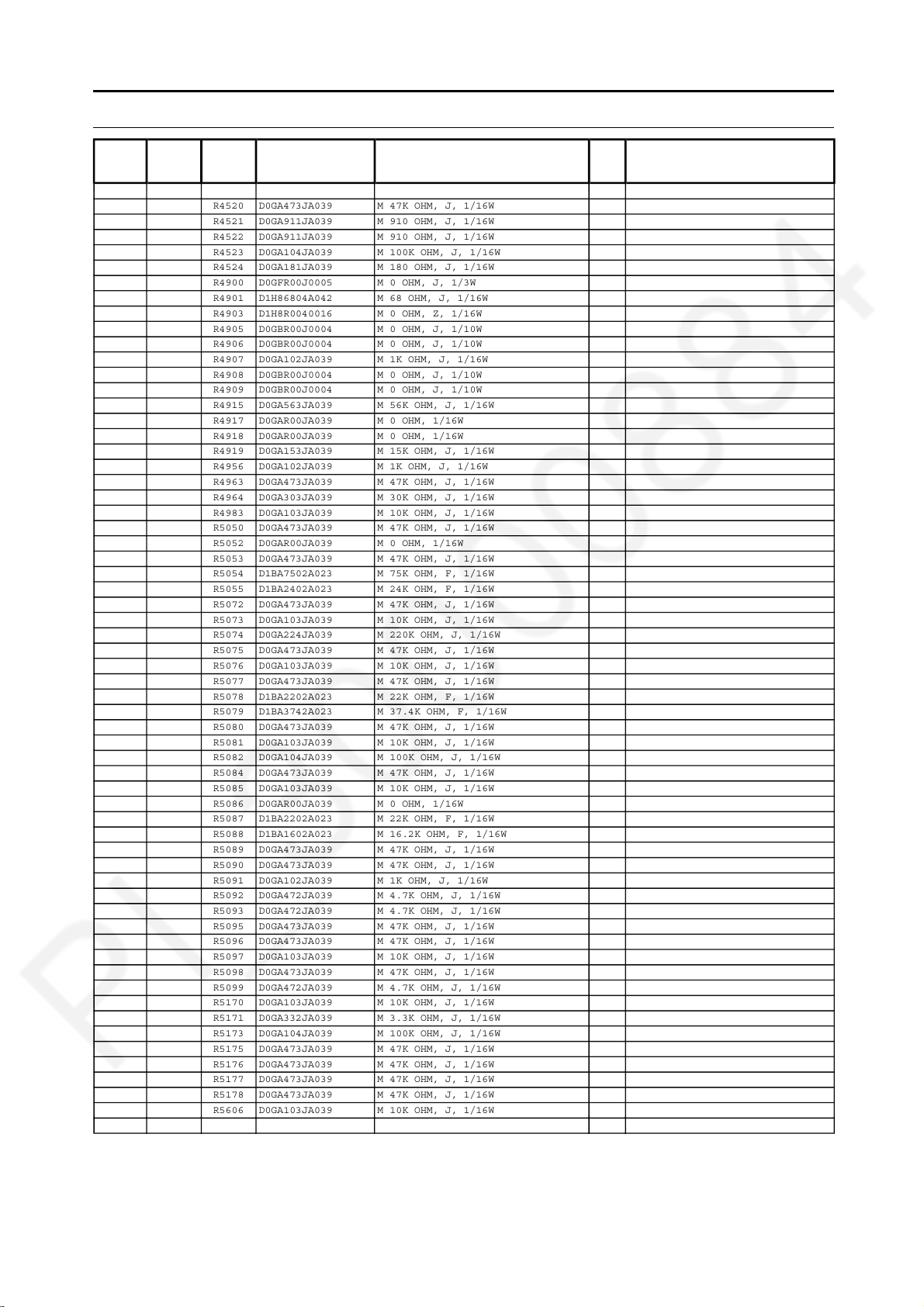

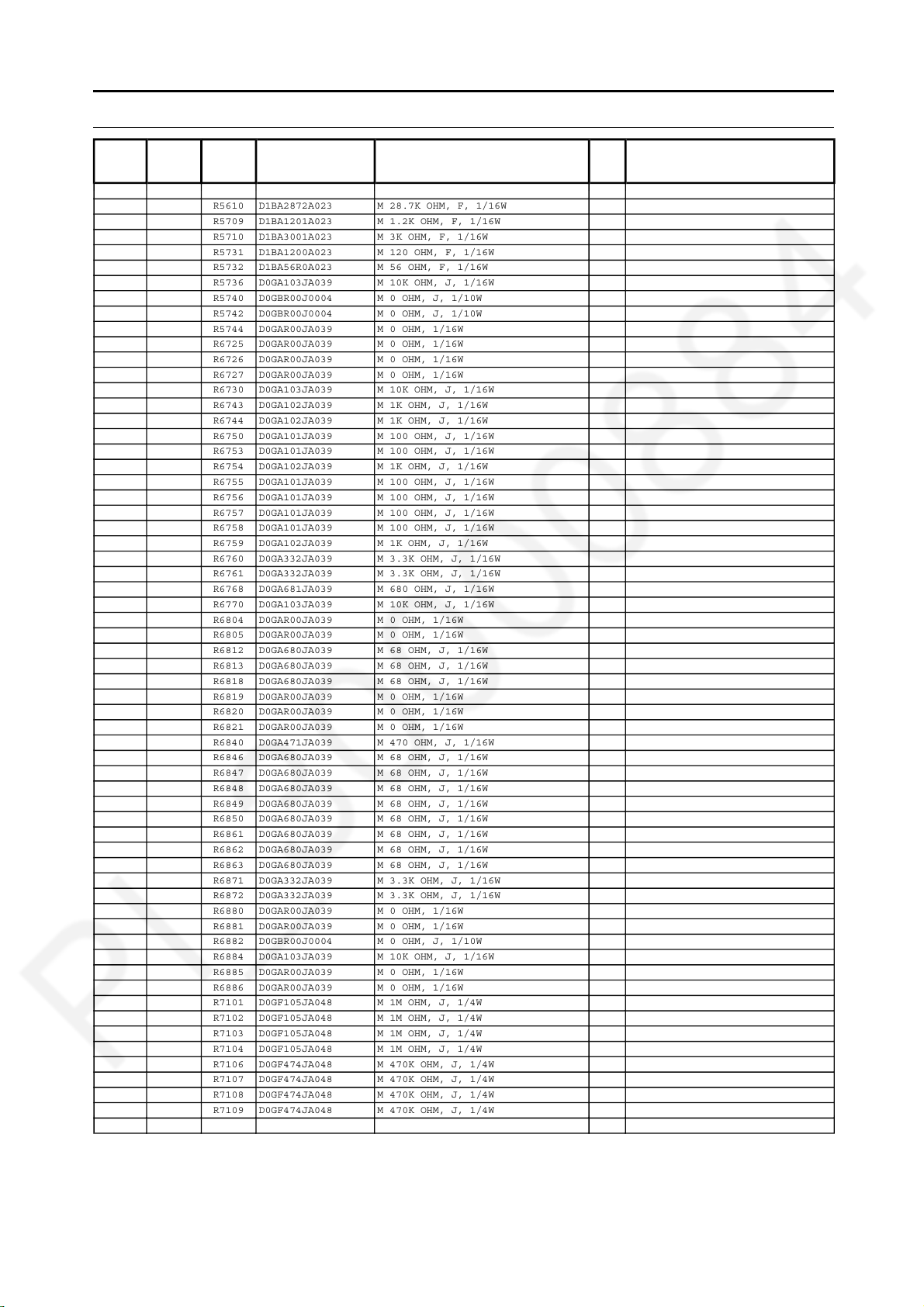

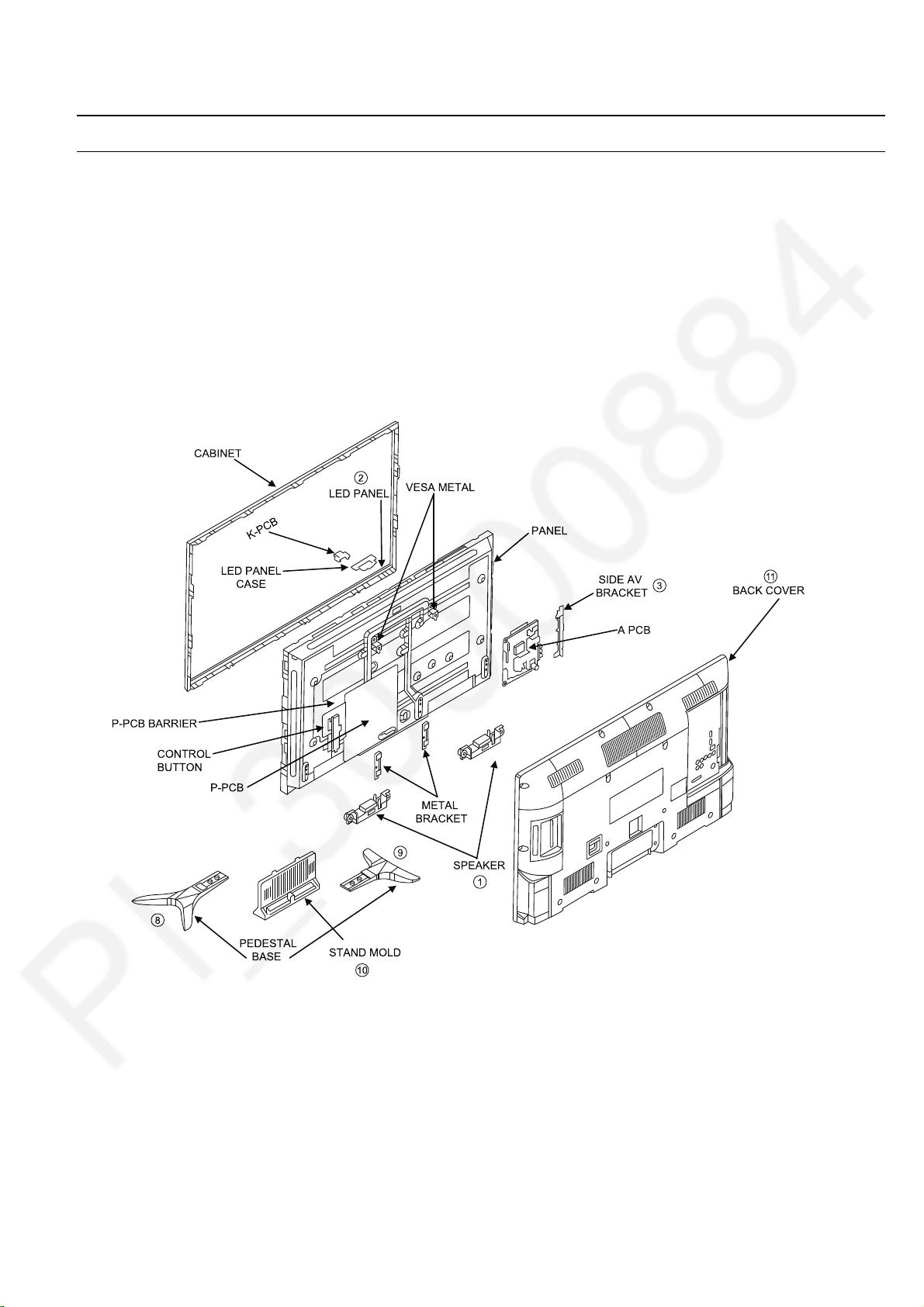

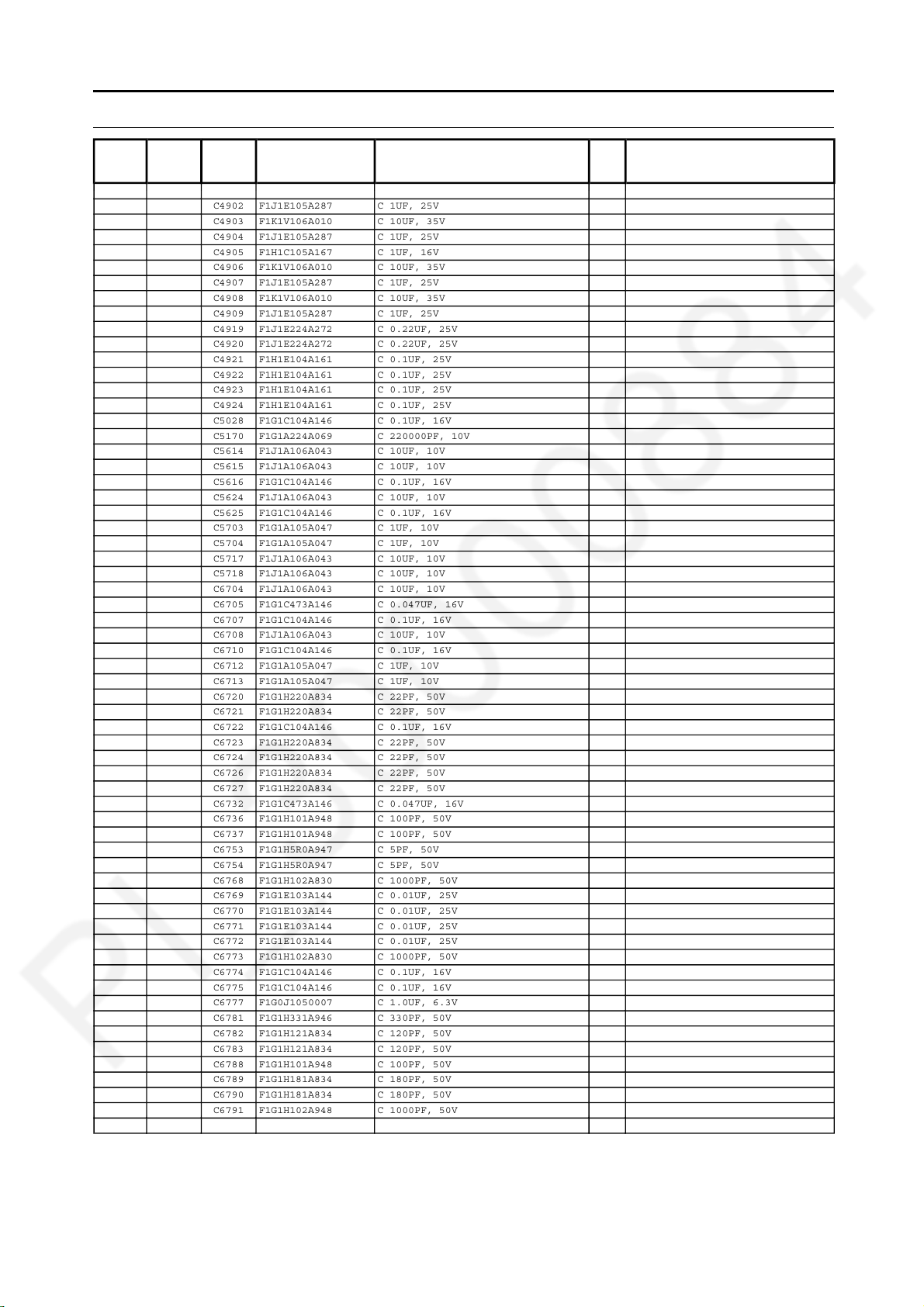

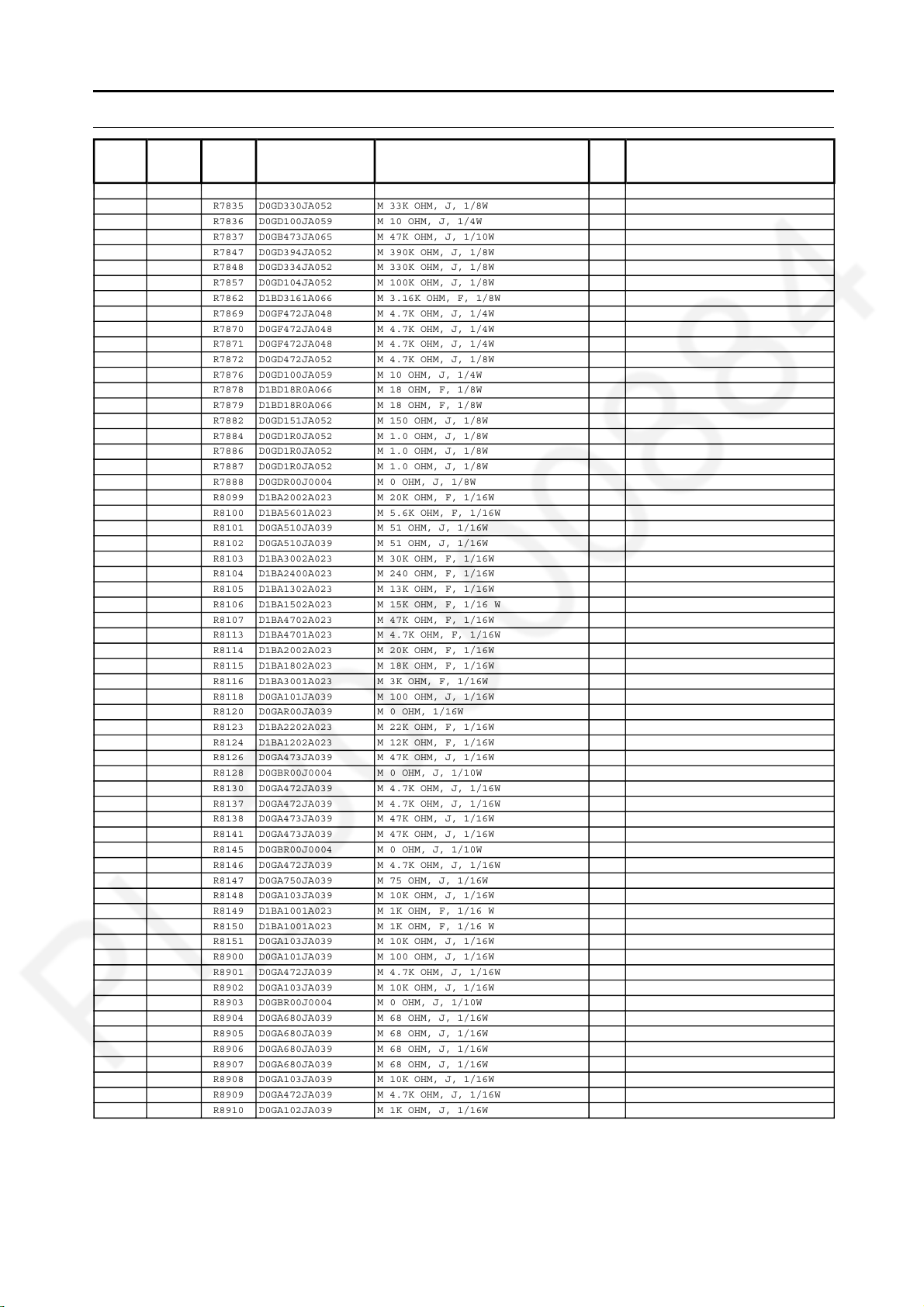

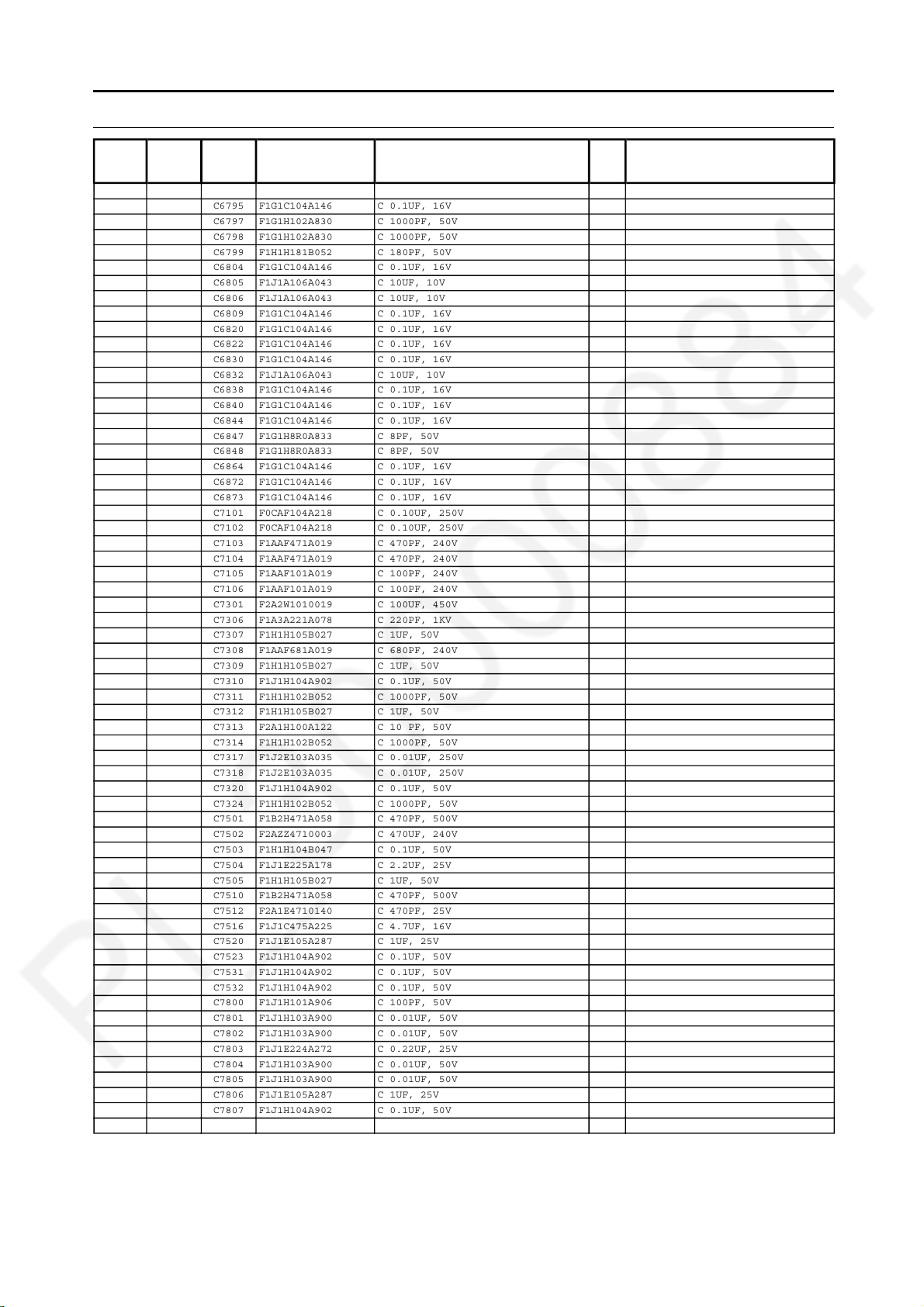

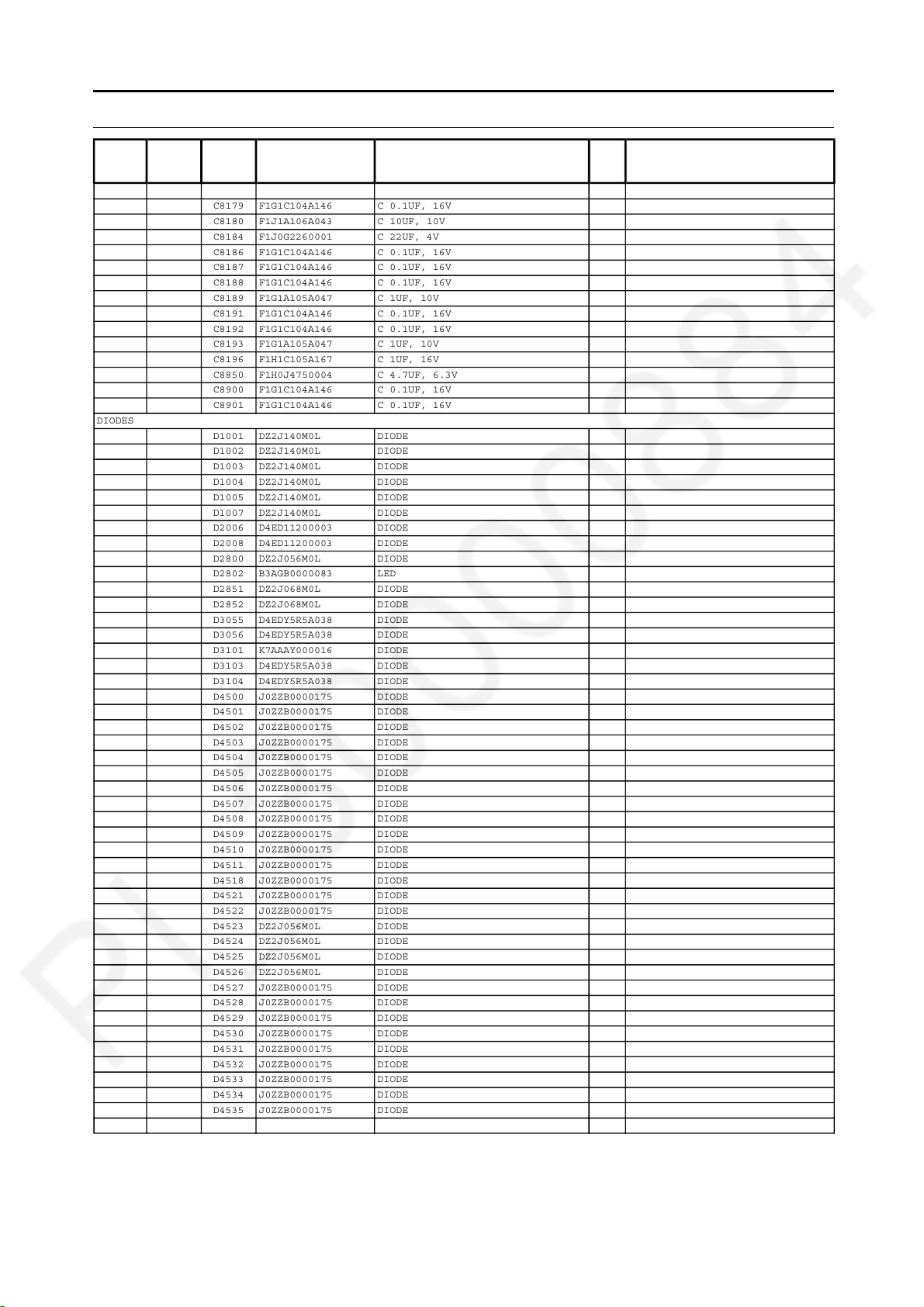

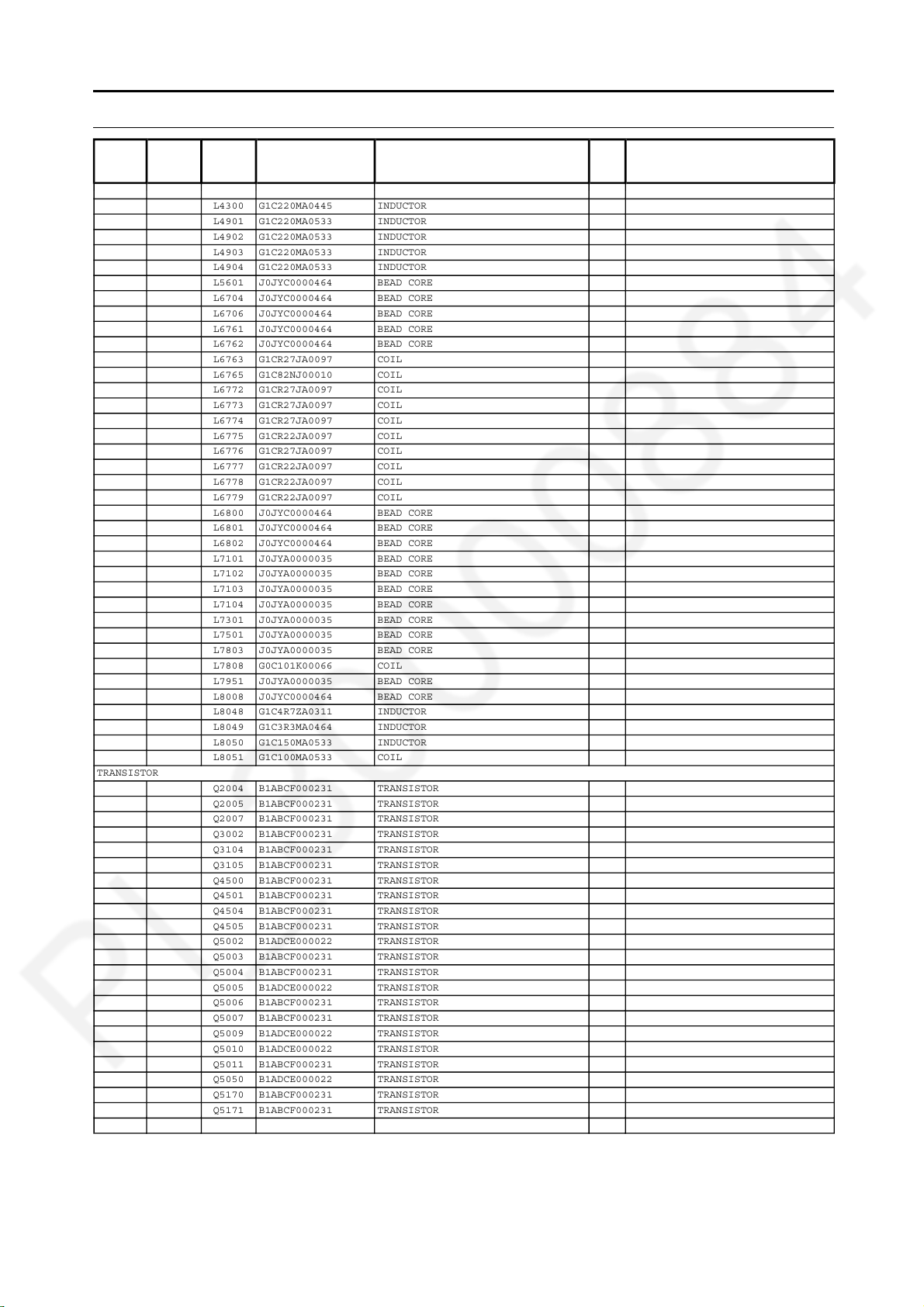

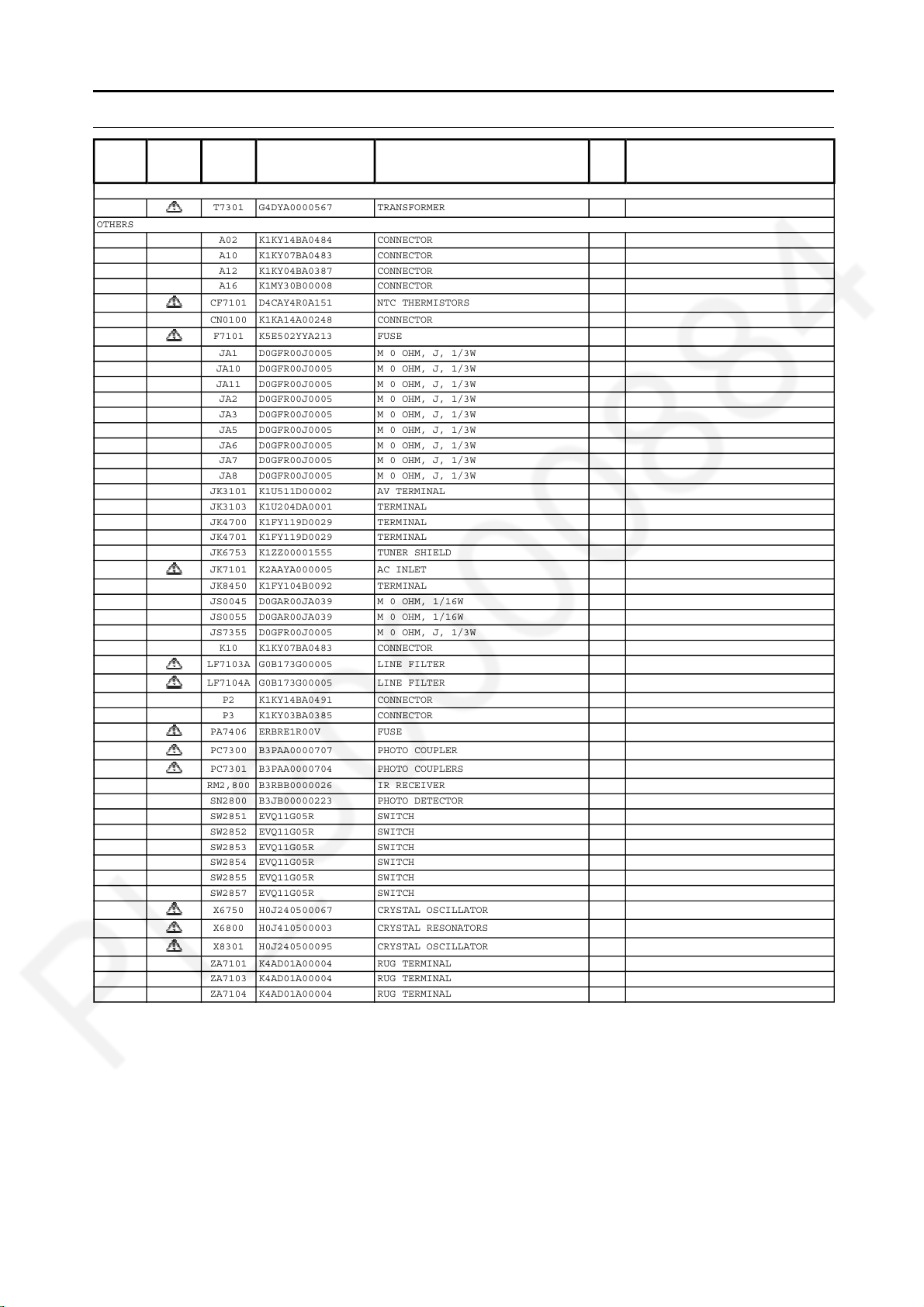

13 Exploded View and Replacement Parts List -----------49
2
Page 3
TH-32F410X
1 Safety Precautions
1.1. General Guidelines
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
4. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.
5. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the
wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.
6. When conducting repairs and servicing, do not twist the Faston connectors but plug them straight in or unplug them straight
out.
1.1.1. Leakage Current Cold Check
1. Unplug the AC cord and connect a jumper between the
two prongs on the plug.
2. Measure the resistance value, with an ohmmeter,
between the jumpered AC plug and each exposed
metallic cabinet part on the equipment such as
screwheads, connectors, control shafts, etc. When the
exposed metallic part has a return path to the chassis, the
reading should be 8.5Mohm to 13Mohm.
When the exposed metal does not have a return path to
the chassis, the reading must be .
1.1.2. Leakage Current Hot Check (See Figure 1.)
1. Plug the AC cord directly into the AC outlet. Do not use
an isolation transformer for this check.
2. Connect a 1.5kohm, 10 watts resistor, in parallel with a
0.15F capacitors, between each exposed metallic part
on the set and a good earth ground such as a water pipe,
as shown in Figure 1.
3. Use an AC voltmeter, with 1000 ohms/volt or more
sensitivity, to measure the potential across the resistor.
4. Check each exposed metallic part, and measure the
voltage at each point.
5. Reverse the AC plug in the AC outlet and repeat each of
the above measurements.
6. The potential at any point should not exceed 0.75 volts
RMS. A leakage current tester (Simpson Model 229 or
equivalent) may be used to make the hot checks, leakage
current must not exceed 1/2 milliamp. In case a
measurement is outside of the limits specified, there is a
possibility of a shock hazard, and the equipment should
be repaired and rechecked before it is returned to the
customer.
Figure 1
3
Page 4
TH-32F410X
2Warning
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can
generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD)
sufficient to damage an ES device).
4
Page 5
TH-32F410X
2.2. About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d
suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.
Caution
• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please
use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb
solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the
opposite side. (see figure below)
5
Page 6
TH-32F410X
3 Service Navigation
3.1. Service Hint
Board Name Main Device Remarks
A BOARD TUN, EEP, SPI, MTK IC Repairable
P BOARD Power Supply, Power switch, Keyscan Repairable
K BOARD Remote, LED, Luminence Sensor Repairable
6
Page 7
4 Specifications
Power source AC Auto 110 - 240 V, 50 / 60 Hz
Power consumption
(Rated power / Standby power) 54 W / 0.35 W
Display panel
Panel LED backlight Liquid Crystal Display
Visible screen size (diagonal) 80 cm
Display resolution 1 366 (W) 768 (H)
Dimensions (W H D) 733 mm 476 mm 179 mm (With Pedestal)
733 mm 437 mm 70 mm (TV only)
Mass
Connection terminals
AV I N V ID EO Pin jack 1, 1.0 V[p-p] (75 )
(COMPONENT / VIDEO) AUDIO L - R Pin jack 2, 0.5 V[rms]
HDMI 1 / 2 input TYPE A Connectors
USB USB 2.0 TYPE A Connectors
DIGITAL AUDIO OUT PCM / Dolby Digital, Fibre optic
AUDIO OUT AUDIO L - R Pin jack 2, 0.5 V[rms]
Sound
Audio output 20 W (10 W + 10 W)
Receiving systems / Band name Digital TV
Receiving channels (Analogue TV)
VHF BAND 2 - 13 (NTSC M USA)
UHF BAND 14 - 69 (NTSC M USA)
CATV 1 - 125 (USA CATV)
Aerial input VHF / UHF
Operating conditions Temperature : 0°C - 40°C
Note
• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
6.0 (With Pedestal)
5.5 (TV only)
Y 1.0 V[p-p] (including synchronisation)
P
B/CB, PR/ CR
DC 5 V, Max. 500 mA
6 MHz VHF / UHF free-to-air TV broadcast reception
Humidity : 20% - 80% RH (non-condensing)
±0.35 V[p-p]
1PAL-M
2PAL-N
3
NTSC
3 SYSTEMS FUNCTION
Reception of broadcast transmissions and Playback
from VCR or DVD
TH-32F410X
7
Page 8
TH-32F410X
5 Service Mode
5.1. How to enter into Service Mode
5.1.1. Purpose
After exchange parts, check and adjust the contents of adjustment mode.
While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds.
5.1.2. Key command
[1] button...Main items Selection in forward direction
[2] button...Main items Selection in reverse direction
[3] button...Sub items Selection in forward direction
[4] button...Sub items Selection in reverse direction
[VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )
5.1.3. How to exit
Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
5.1.4. Contents of adjustment mode
• Value is shown as a hexadecimal number.
• Preset value differs depending on models.
• After entering the adjustment mode, take note of the value in each item before starting adjustment.
Main item Sub item Sample Data
ADJUST H POS
H AMP
V POS
V AMP
V COM
WB-ADJ R-GAIN 8D
G-GAIN AE
B-GAIN FF
R-CENT 6C
G-RENT 80
B-CENT A0
OPTION Boot upgrade NO
STBY-SET 00
EMERGENCY ON
CLK MODE 00
CLOCK FC7
Y/C DELAY DYNAMIC
OPT 1 00000000
OPT 2 11100110
OPT 3 00001001
OPT 4 00000000
EDID-CLK HIGH
8
Page 9
TH-32F410X
5.1.5. Display of SOS History
SOS History (Number of LED blinking) indication.
From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.
This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory
shipment setting].
5.1.6. Exit
1. Disconnect the AC cord from wall outlet.
5.1.7. Hotel Mode
1. Purpose
Restrict a function for hotels.
2. Access command to the Hotel mode setup menu.
In order to display the Hotel mode setup menu:
While pressing [VOLUME (-)] button of the main unit,
press [AV] button of the remote control three times within
2 seconds.
Then, the Hotel mode setup menu is displayed.
3. To exit the Hotel mode setup menu
Disconnect AC power cord from wall outlet.
4. Explain the Hotel mode setup menu
Item Function
Hotel Mode Select hotel mode On/Off
Initial INPUT Select input signal modes.
Set the input, when each time power is switched
on.
Selection :
Off,Analogue,DVB-C,DVB-T,AV1,AV2,HDMI1,
HDMI2
• Off: give priority to a last memory. However,
Euro model is compulsorily set to TV.
Initial POS Select programme number.
Selection :
Off/0 to 99
• Off: give priority to a last memory.
Initial VOL LEVEL Adjust the volume when each time power is
switched on.
Selection Range :
Off/0 to 100
• Off: give priority to a last memory.
Maximum Vol Level Adjust maximum volume.
Range :
0 to 100
Button Lock Select local key conditions.
Selection :
Off/SETUP/MENU/ALL
• OFF: altogether valid
• SETUP: only F-key is invalid
(Tuning guide (menu) can not be selected.)
• MENU: only F-key is invalid
(only Volume/Mute can be selected.)
• ALL: altogether invalid.
Remote Lock Select remote control key conditions.
Selection :
Off/SETUP/MENU
• OFF: altogether valid.
• SETUP: only Setup menu is invalid.
• MENU: Picture/Sound/Setup menu are invalid.
Hotel Mode USB Basically after user already setup the hotel mode
according to their criteria, what they need to do is
• insert USB (while in hotel mode)
• choose ‘Copy TV to USB’ to copy the setting
into the USB (a file will be created to store the
hotel mode setting in the USB)
• switch ‘OFF’ the unit
• pull out USB from unit
To copy the hotel mode setting from USB.
• enter hotel mode
•insert USB
• choose ‘Copy USB to TV’
• follow instruction as shown on the units
• once finish, switch ‘OFF; the unit
• pull out USB from unit
Private Information Select private information for VIERA Cast is Keep
or Reset if Hotel mode is set to [On] when TV
power on
Selection :
Keep/Reset
• Keep: private information for VIERA Cast is
keep
• Reset: private information for VIERA Cast is
reset
9
Page 10
TH-32F410X
6 Troubleshooting Guide
Use the self-check function to test the unit.
1. Checking the IIC bus lines
2. Power LED Blinking timing
6.1. Check of the IIC bus lines
6.1.1. How to access
6.1.2. Self-check indication only
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control
for more than 3 seconds.
6.1.3. Self-check indication and forced to factory shipment setting
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote
control for more than 3 seconds.
6.1.4. Exit
Disconnect the AC cord from wall outlet.
6.1.5. Screen display
10
Page 11
6.2. Power LED Blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When an abnormality occurs, the protection circuit will operate and reset the unit to stand by mode. During this time, the
defective block can be identified by the number of blinking times of the Power LED on the front panel of the unit as follow:
Priority Name Factor R_LED Blink
1 BL_SOS SOS from PANEL inverter 1
2 TV_SOS TCON power down 3
3 SOUND_SOS SOS from audio AMP 9
6.3. Method of detecting SOS
1. BL_SOS
Detection beginning after one second pass from ‘BL_ON’=ON
TH-32F410X
2. TV_SOS
Detection beginning after one second pass from ‘AMP_SHUTDOWN’=ON
3. SOUND_SOS
Detection beginning ‘AMP_SHUTDOWN’=ON
11
Page 12
TH-32F410X
6.4. LCD Panel test mode
Purpose:
To find the possible failure point where in LCD Panel or Printed Circuit Board when the abnormal picture is displayed.
How to Enter:
While pressing [VOLUME ( - )] button of the main unit, press [OPTION] button of the remote control three times within 2
seconds.
How to Exit:
Disconnect AC plug from wall outlet.
How to confirm:
If the abnormal picture is displayed, go into LCD Panel test mode to display the several test patterns.
And then, judge by the following method.
Still abnormal picture is displayed: The cause must be in LCD Panel.
Normal picture is displayed: The cause must be in A board.
Remarks:
The test pattern is created by the circuit in LCD Panel.
In LCD Panel test mode, this test pattern is displayed unaffected by signal processing for RF or input signal.
If the normal picture is displayed, LCD Panel must be okay and the cause of failure must be in A board.
6.5. No Power
First check point
There are following 2 states of No Power indication by power LED.
1. No lit
2. Red is lit then turns red blinking a few seconds later. (See 6.2.)
12
Page 13
7 Disassembly and Assembly Instructions
7.1. LED Panel Ass’y
1. Fix K PCB to LED PANEL CASE.
2. Fix wire A10 to K PCB.
3. Fix LED panel to LED PANEL CASE.
4. Fix LED PANEL ASSY to cabinet.
TH-32F410X
No Description Qty UOM
01 LED PANEL 1 PC
02 LED PANEL CASE 1 PC
13
Page 14
TH-32F410X
7.2. LCD Panel Assembly
Stick barrier on LCD panel.
No Description Qty UOM
01
ASS’Y 32 INHOUSE PANEL
02 BARRIER 1 PC
1PC
14
Page 15
7.3. Metal Bracket 1
1. Install Vesa Metal on panel.
2. Install Pedestal Metal Bracket.
TH-32F410X
No Description Qty UOM
01 VESA METAL 2 PC
02 PEDESTAL METAL BRACKET 2 PC
15
Page 16
TH-32F410X
7.4. Metal Bracket 2
1. Install Key Button Bracket.
2. Install Side AV Bracket.
No Description Qty UOM
01 KEY BUTTON BRACKET 1 PC
02 SIDE AV BRACKET 1 PC
16
Page 17
7.5. PCB Installation
1. Install P & A-Board.
2. Fix A-PCB Bracket.
TH-32F410X
No Description Qty UOM
01 A-PCB BRACKET 1 PC
02 GROUND SPRING 1 PC
17
Page 18
TH-32F410X
7.6. SP Bracket & Metal Bottom
Fix speaker left & right.
No Description Qty UOM
01 SPEAKER UNIT 2 PC
02 SPEAKER BRACKET 4 PC
03 SP SPONGE 4 PC
18
Page 19
7.7. Screw Fixing
Fix all screw follow below picture.
TH-32F410X
No Description Qty UOM Remarks
01 SCREW (A2/P5/VESA2/SP4/MTLBRKT4) 17 PC 60 ± 10 N. cm
19
Page 20
TH-32F410X
7.8. Vesa Metal (BC)
Install vesa metal into back cover.
No Description Qty UOM
01 BACK COVER 1 PC
02 VESA METAL (BC) 2 PC
20
Page 21
7.9. Back Cover Installation
1. Install Back cover.
2. Fix screws according to the back cover screw tourque.
TH-32F410X
No Description Qty UOM Remarks
01 SCREW (BC16) 16 PC 60 ± 10 N. cm
02 SCREW (BC4) 4 PC 60 ± 10 N. cm
21
Page 22
TH-32F410X
7.10. Handling SPEC
■ Moving the LCD module
The module should be handle by two people and hold on that top and bottom long side by both hands without module
warping. Never handle the module with keeping horizontal position when moving the module in order to avoid internal
damage and deformation. Never drop or hit the module.
■ About the work table
When tightening a screw, retention structures are required not to deform the LCD module.
■ Moving the TV (Case with a stand)
Hold the specified parts as shown to stand the TV up and move it with two people.
22
Page 23
8 Measurements and Adjustments
8.1. Voltage chart of A-board
Set A-Board to a dummy set and check the satisfaction with the specified voltage as following table.
Power Supply Name Measurement Point Specification (V) Remark
SUB1.2V TP8004 1.14 - 1.26 -
SUB3.3V TP8003 3.19 - 3.46 -
SUB5V TP8002 4.92 - 5.25 -
STB5V TP8009 5.3 ± 0.3 -
PNL12V TP4300 11.5 - 12.5 -
8.2. Voltage chart of P-board
Set P-Board to a dummy load and check the satisfaction with the specified voltage as following table.
TH-32F410X
Output Test Point
5.3V TP7507 5.3 ± 0.3V 5.3 ± 0.3V
16V TP7512/TP7513 15.8 ± 0.6 V -
Operate Operate
Specification
23
Page 24
TH-32F410X
Debug
UART
RST
STB5V
24M
1.8/3.3V
RST
PANEL
SP
SP
15V
I2S
HDMI 1
TUNER
HDMI 2 (w/ ARC)
MT5561
DDR2 1G
VIDEO/COMPONENT (automatic detection )
AUDIO
Silicon Lab
Low IF
SUB3.3V
SPI
64/128Mb
Sub3.3V
EEP_WP
EEPROM
64kbit
SLV[A4]
On-board
USB Slot
High-side
switch
USB(side) JK8601
Audio AMP
I2S AMP
RMT/KEY
LED
32/40/43/
49/55”
㨪 10W x 2
*&(*&
LVDS
HD : (DATA 4pairs / CLK 1pair)
single8bit
FHD: (DATA 4pairs / CLK 1pair)
dual8bit
Op Amp
IIC
Australia CAN(LG)
Singapore On board (Si2157 )
YAMAHA
VIDEO
AUDIO
AV2(side)
JK3002(Prep)
Monitor out JK3000(Prep.)
AV1 JK3100
(HDMI analog audio in)
HDMI1 JK4701
HDMI2 JK4702
CEC
Opt. D3051
Demod.
T2/ISDB/DTMB
TS
Taiwan
Tunerless
Sub woofer
15V
Audio AMP
I2S AMP
YAMAHA
For E460 series only
9 Block Diagram
9.1. Main Block Diagram
24
Page 25
10 Wiring Connection Diagram
10.1. Wire Dressing 1
Arrange the wire dressing as below spec.
TH-32F410X
No Description Qty UOM Remarks
01 PET TAPE 0.36 MT 0.06 (6 PCS)
02 PET TAPE 0.11 MT 0.11 (1 PCS)
03 LVDS CABLE 1 PC
25
Page 26
TH-32F410X
10.2. Wire Dressing 2
Arrange the wire dressing as below spec.
No Description Qty UOM
01 WIRE (A02-P02) 1 PC
02 WIRE (A10-K10) 1 PC
03 WIRE (A12-SP) 1 PC
26
Page 27
11 Schematic Diagram
Model No. : TH-32F410X A-Board (1/14)
TH-32F410X
27
Page 28
Model No. : TH-32F410X A-Board (2/14)
Page 29
Model No. : TH-32F410X A-Board (3/14)
Page 30
Model No. : TH-32F410X A-Board (4/14)
Page 31
Model No. : TH-32F410X A-Board (5/14)
Page 32
Model No. : TH-32F410X A-Board (6/14)
Page 33
Model No. : TH-32F410X A-Board (7/14)
Page 34
Model No. : TH-32F410X A-Board (8/14)
Page 35
Model No. : TH-32F410X A-Board (9/14)
Page 36
Model No. : TH-32F410X A-Board (10/14)
Page 37
Model No. : TH-32F410X A-Board (11/14)
Page 38
Model No. : TH-32F410X A-Board (12/14)
Page 39
Model No. : TH-32F410X A-Board (13/14)
Page 40
Model No. : TH-32F410X A-Board (14/14)
Page 41
Model No. : TH-32F410X K-Board
Page 42
Model No. : TH-32F410X P-Board (1/2)
Page 43
Model No. : TH-32F410X P-Board (2/2)
Page 44
TH-32F410X
12 Printed Circuit Board
Model No. : TH-32F410X A-Board (Top Component View)
44
Page 45
Model No. : TH-32F410X A-Board (Bottom Component View)
Page 46
Model No. : TH-32F410X K-Board
Page 47
Model No. : TH-32F410X P-Board (Top Component View)
Page 48
Model No. : TH-32F410X P-Board (Bottom Component View)
Page 49
13 Exploded View and Replacement Parts List
Model No. : TH-32F410X Parts Location
TH-32F410X
49
Page 50

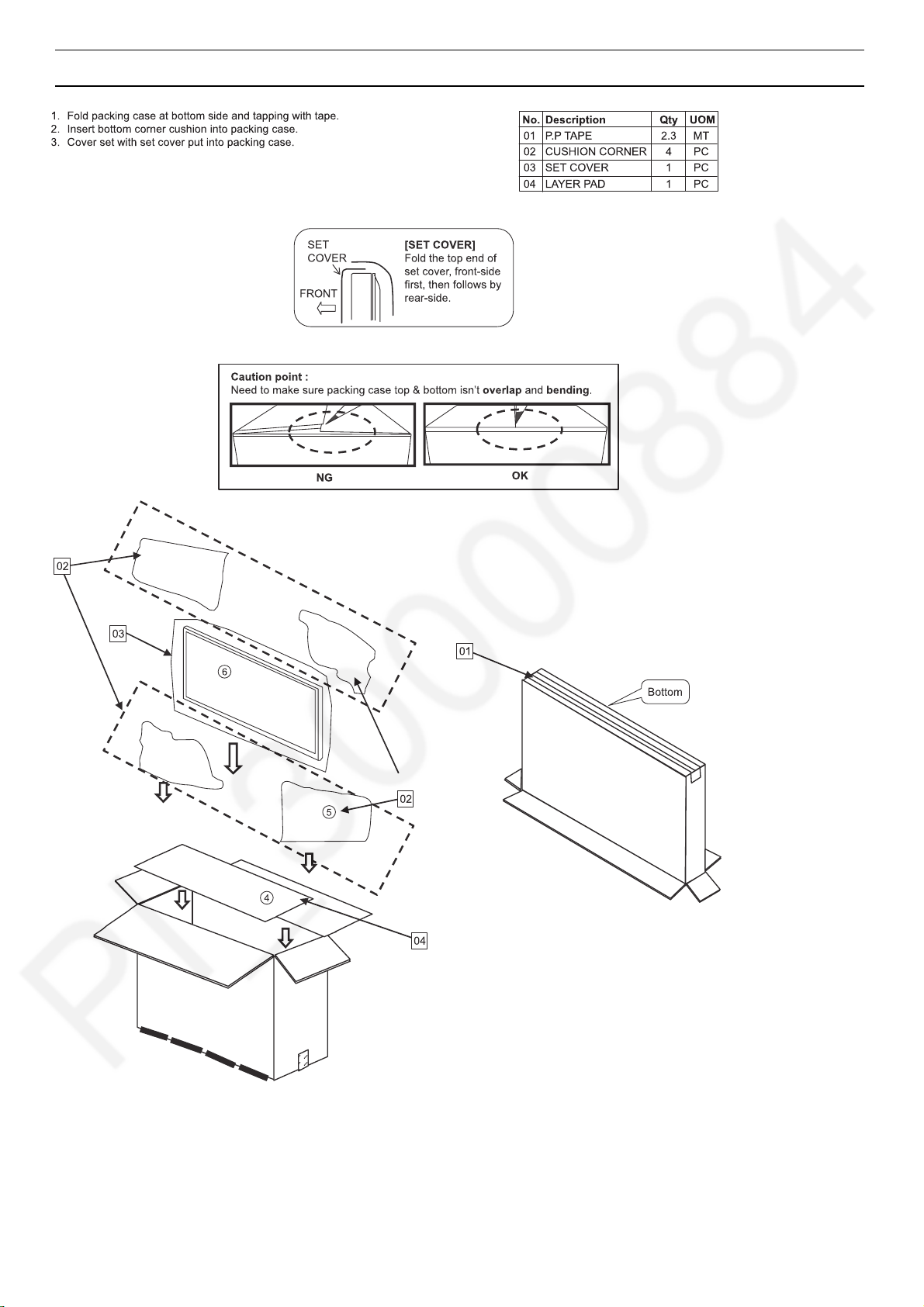

Model No. : TH-32F410X Packing Exploded View 1
Page 51

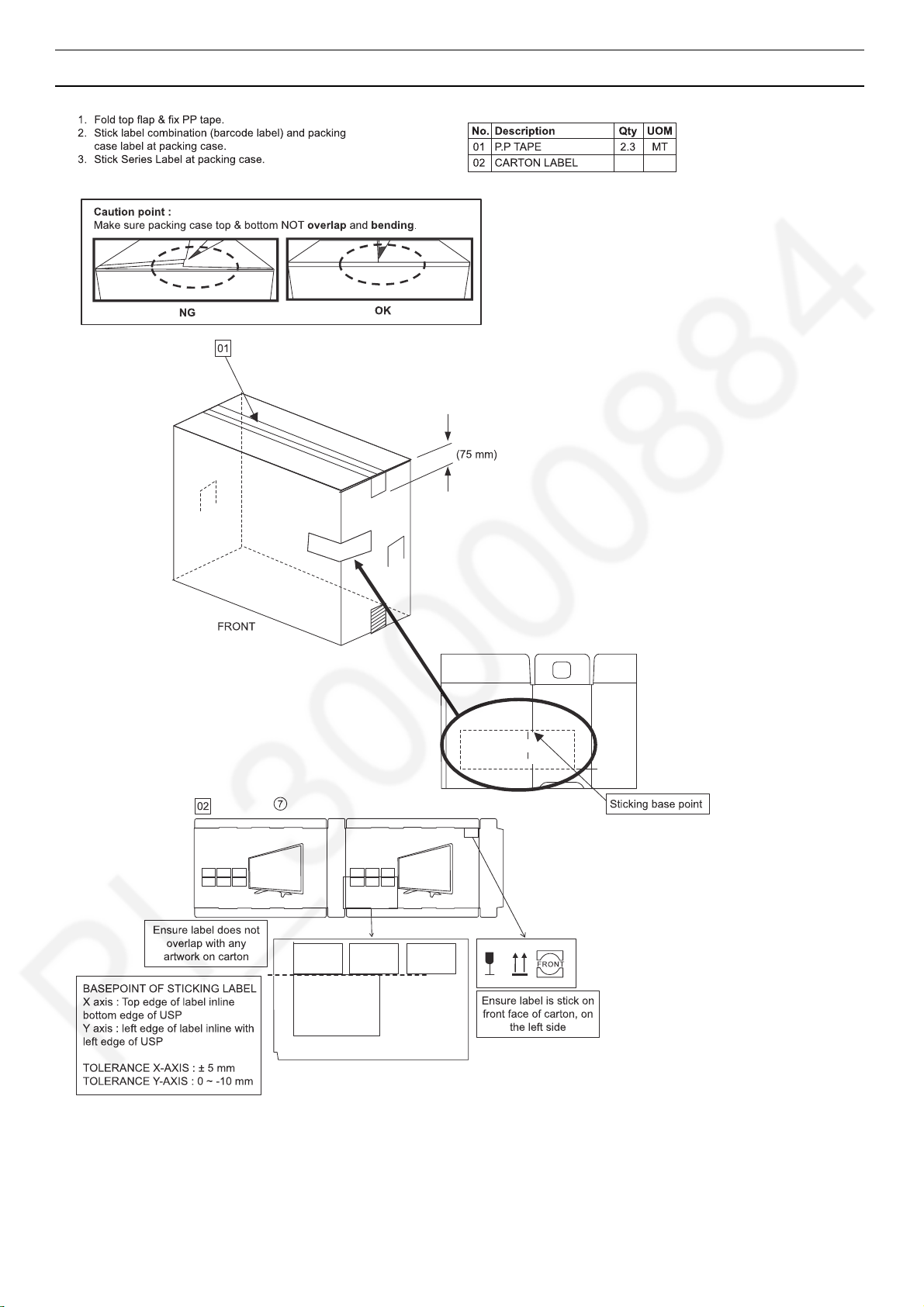

Model No. : TH-32F410X Packing Exploded View 2
Page 52
Model No. : TH-32F410X Parts List
Change Safety
CAPACITORS
Ref.
No.
C2008 F1G1E103A144 C 0.01UF, 25V
C2014 F1H1E104A161 C 0.1UF, 25V
C2015 F1K1V106A010 C 10UF, 35V
C2016 F1G1C104A146 C 0.1UF, 16V
C2017 F1G1C103A173 C 0.01UF, 16V
C2023 F1G1H102A830 C 1000PF, 50V
C2024 F1G1H102A830 C 1000PF, 50V
C2025 F1G1H102A830 C 1000PF, 50V
C2026 F1G1H102A830 C 1000PF, 50V
C2027 F1G1H102A830 C 1000PF, 50V
C2028 F1G1H101A948 C 100PF, 50V
C2801 F1H1H103B047 C 0.01UF, 50V
C2804 F1H1C104A178 C 0.1UF, 16V
C2807 F1J1A106A087 C 10UF, 10V
C2808 F1H1C104A178 C 0.1UF, 16V
C2851 F1J1H104A902 C 0.1UF, 50V
C2852 F1J1H104A902 C 0.1UF, 50V
C2853 F1J1H102A909 C 1000PF, 50V
C2854 F1J1H102A909 C 1000PF, 50V
C3093 F1G1A473A079 C 0.047UF, 10V
C3095 F1G1A473A079 C 0.047UF, 10V
C3097 F1G1A473A079 C 0.047UF, 10V
C3105 F1L1C226A068 C 22UF, 16V
C3106 F1L1C226A068 C 22UF, 16V
C3107 F1L1C226A068 C 22UF, 16V
C3108 F1G1H100A948 C 10PF, 50V
C3109 F1G1H100A948 C 10PF, 50V
C3110 F1G1H100A948 C 10PF, 50V
C3112 F1L1C226A068 C 22UF, 16V
C3113 F1K1V106A010 C 10UF, 35V
C3121 F1H1C105A167 C 1UF, 16V
C3122 F1G1H102A830 C 1000PF, 50V
C3123 F1K1V106A010 C 10UF, 35V
C3124 F1G1H102A830 C 1000PF, 50V
C3130 F1J1A106A043 C 10UF, 10V
C3132 F1J1A106A043 C 10UF, 10V
C3134 F1J1C475A225 C 4.7UF, 16V
C3135 F1J1A106A043 C 10UF, 10V
C3136 F1J1A106A043 C 10UF, 10V
C3137 F1H1C105A167 C 1UF, 16V
C3138 F1G1H220A834 C 22PF, 50V
C3139 F1G1H220A834 C 22PF, 50V
C3142 F1G1H331A946 C 330PF, 50V
C3143 F1G1H331A946 C 330PF, 50V
C3169 F1J1A106A043 C 10UF, 10V
C3170 F1J1A106A043 C 10UF, 10V
C3173 F1G1H152A946 C 1500PF, 50V
C3174 F1G1A473A079 C 0.047UF, 10V
C4010 F1H1H103B047 C 0.01UF, 50V
C4011 F1H1H103B047 C 0.01UF, 50V
C4012 F1J1C475A225 C 4.7UF, 16V
C4300 F1K1V106A010 C 10UF, 35V
C4302 F1G1C104A146 C 0.1UF, 16V
C4303 F1G1C223A173 C 0.022UF, 16V
C4305 F1G1E332A172 C 3300PF, 25V
C4306 F1K1V106A010 C 10UF, 35V
C4307 F1K1V106A010 C 10UF, 35V
C4308 F1K1V106A010 C 10UF, 35V
C4502 F1G1C104A146 C 0.1UF, 16V
C4503 F1G1H101A948 C 100PF, 50V
C4900 F1K1V106A010 C 10UF, 35V
Part No. Part Name & Description Q'ty Remarks
Page 53
Model No. : TH-32F410X Parts List
Change Safety
Ref.
No.
C4901 F1K1V106A010 C 10UF, 35V
C4902 F1J1E105A287 C 1UF, 25V
C4903 F1K1V106A010 C 10UF, 35V
C4904 F1J1E105A287 C 1UF, 25V
C4905 F1H1C105A167 C 1UF, 16V
C4906 F1K1V106A010 C 10UF, 35V
C4907 F1J1E105A287 C 1UF, 25V
C4908 F1K1V106A010 C 10UF, 35V
C4909 F1J1E105A287 C 1UF, 25V
C4919 F1J1E224A272 C 0.22UF, 25V
C4920 F1J1E224A272 C 0.22UF, 25V
C4921 F1H1E104A161 C 0.1UF, 25V
C4922 F1H1E104A161 C 0.1UF, 25V
C4923 F1H1E104A161 C 0.1UF, 25V
C4924 F1H1E104A161 C 0.1UF, 25V
C5028 F1G1C104A146 C 0.1UF, 16V
C5170 F1G1A224A069 C 220000PF, 10V
C5614 F1J1A106A043 C 10UF, 10V
C5615 F1J1A106A043 C 10UF, 10V
C5616 F1G1C104A146 C 0.1UF, 16V
C5624 F1J1A106A043 C 10UF, 10V
C5625 F1G1C104A146 C 0.1UF, 16V
C5703 F1G1A105A047 C 1UF, 10V
C5704 F1G1A105A047 C 1UF, 10V
C5717 F1J1A106A043 C 10UF, 10V
C5718 F1J1A106A043 C 10UF, 10V
C6704 F1J1A106A043 C 10UF, 10V
C6705 F1G1C473A146 C 0.047UF, 16V
C6707 F1G1C104A146 C 0.1UF, 16V
C6708 F1J1A106A043 C 10UF, 10V
C6710 F1G1C104A146 C 0.1UF, 16V
C6712 F1G1A105A047 C 1UF, 10V
C6713 F1G1A105A047 C 1UF, 10V
C6720 F1G1H220A834 C 22PF, 50V
C6721 F1G1H220A834 C 22PF, 50V
C6722 F1G1C104A146 C 0.1UF, 16V
C6723 F1G1H220A834 C 22PF, 50V
C6724 F1G1H220A834 C 22PF, 50V
C6726 F1G1H220A834 C 22PF, 50V
C6727 F1G1H220A834 C 22PF, 50V
C6732 F1G1C473A146 C 0.047UF, 16V
C6736 F1G1H101A948 C 100PF, 50V
C6737 F1G1H101A948 C 100PF, 50V
C6753 F1G1H5R0A947 C 5PF, 50V
C6754 F1G1H5R0A947 C 5PF, 50V
C6768 F1G1H102A830 C 1000PF, 50V
C6769 F1G1E103A144 C 0.01UF, 25V
C6770 F1G1E103A144 C 0.01UF, 25V
C6771 F1G1E103A144 C 0.01UF, 25V
C6772 F1G1E103A144 C 0.01UF, 25V
C6773 F1G1H102A830 C 1000PF, 50V
C6774 F1G1C104A146 C 0.1UF, 16V
C6775 F1G1C104A146 C 0.1UF, 16V
C6777 F1G0J1050007 C 1.0UF, 6.3V
C6781 F1G1H331A946 C 330PF, 50V
C6782 F1G1H121A834 C 120PF, 50V
C6783 F1G1H121A834 C 120PF, 50V
C6788 F1G1H101A948 C 100PF, 50V
C6789 F1G1H181A834 C 180PF, 50V
C6790 F1G1H181A834 C 180PF, 50V
C6791 F1G1H102A948 C 1000PF, 50V
C6793 F1G1H102A948 C 1000PF, 50V
Part No. Part Name & Description Q'ty Remarks
Page 54
Model No. : TH-32F410X Parts List
Change Safety
Ref.
No.
C6794 F1G1C104A146 C 0.1UF, 16V
C6795 F1G1C104A146 C 0.1UF, 16V
C6797 F1G1H102A830 C 1000PF, 50V
C6798 F1G1H102A830 C 1000PF, 50V
C6799 F1H1H181B052 C 180PF, 50V
C6804 F1G1C104A146 C 0.1UF, 16V
C6805 F1J1A106A043 C 10UF, 10V
C6806 F1J1A106A043 C 10UF, 10V
C6809 F1G1C104A146 C 0.1UF, 16V
C6820 F1G1C104A146 C 0.1UF, 16V
C6822 F1G1C104A146 C 0.1UF, 16V
C6830 F1G1C104A146 C 0.1UF, 16V
C6832 F1J1A106A043 C 10UF, 10V
C6838 F1G1C104A146 C 0.1UF, 16V
C6840 F1G1C104A146 C 0.1UF, 16V
C6844 F1G1C104A146 C 0.1UF, 16V
C6847 F1G1H8R0A833 C 8PF, 50V
C6848 F1G1H8R0A833 C 8PF, 50V
C6864 F1G1C104A146 C 0.1UF, 16V
C6872 F1G1C104A146 C 0.1UF, 16V
C6873 F1G1C104A146 C 0.1UF, 16V
C7101 F0CAF104A218 C 0.10UF, 250V
C7102 F0CAF104A218 C 0.10UF, 250V
C7103 F1AAF471A019 C 470PF, 240V
C7104 F1AAF471A019 C 470PF, 240V
C7105 F1AAF101A019 C 100PF, 240V
C7106 F1AAF101A019 C 100PF, 240V
C7301 F2A2W1010019 C 100UF, 450V
C7306 F1A3A221A078 C 220PF, 1KV
C7307 F1H1H105B027 C 1UF, 50V
C7308 F1AAF681A019 C 680PF, 240V
C7309 F1H1H105B027 C 1UF, 50V
C7310 F1J1H104A902 C 0.1UF, 50V
C7311 F1H1H102B052 C 1000PF, 50V
C7312 F1H1H105B027 C 1UF, 50V
C7313 F2A1H100A122 C 10 PF, 50V
C7314 F1H1H102B052 C 1000PF, 50V
C7317 F1J2E103A035 C 0.01UF, 250V
C7318 F1J2E103A035 C 0.01UF, 250V
C7320 F1J1H104A902 C 0.1UF, 50V
C7324 F1H1H102B052 C 1000PF, 50V
C7501 F1B2H471A058 C 470PF, 500V
C7502 F2AZZ4710003 C 470UF, 240V
C7503 F1H1H104B047 C 0.1UF, 50V
C7504 F1J1E225A178 C 2.2UF, 25V
C7505 F1H1H105B027 C 1UF, 50V
C7510 F1B2H471A058 C 470PF, 500V
C7512 F2A1E4710140 C 470PF, 25V
C7516 F1J1C475A225 C 4.7UF, 16V
C7520 F1J1E105A287 C 1UF, 25V
C7523 F1J1H104A902 C 0.1UF, 50V
C7531 F1J1H104A902 C 0.1UF, 50V
C7532 F1J1H104A902 C 0.1UF, 50V
C7800 F1J1H101A906 C 100PF, 50V
C7801 F1J1H103A900 C 0.01UF, 50V
C7802 F1J1H103A900 C 0.01UF, 50V
C7803 F1J1E224A272 C 0.22UF, 25V
C7804 F1J1H103A900 C 0.01UF, 50V
C7805 F1J1H103A900 C 0.01UF, 50V
C7806 F1J1E105A287 C 1UF, 25V
C7807 F1J1H104A902 C 0.1UF, 50V
C7808 F1J1H221A906 C 220PF, 50V
Part No. Part Name & Description Q'ty Remarks
Page 55
Model No. : TH-32F410X Parts List
Change Safety
Ref.
No.
C7809 F1J1E105A287 C 1UF, 25V
C7810 F1J1H104A902 C 0.1UF, 50V
C7815 F1B2H471A058 C 470PF, 500V
C7816 F1A3A221A079 C 220PF, 1KV
C7817 F2A2C470A222 C 47UF, 160V
C7834 F1J1H104A902 C 0.1UF, 50V
C8095 F1K1V106A010 C 10UF, 35V
C8097 F1G1C104A146 C 0.1UF, 16V
C8098 F1G1C103A173 C 0.01UF, 16V
C8100 F1G1E332A172 C 3300PF, 25V
C8101 F1J1A106A043 C 10UF, 10V
C8102 F1J1A106A043 C 10UF, 10V
C8103 F1H0J4750004 C 4.7UF, 6.3V
C8104 F1J1A106A043 C 10UF, 10V
C8105 F1K1V106A010 C 10UF, 35V
C8106 F1J1A106A043 C 10UF, 10V
C8108 F1G1C104A146 C 0.1UF, 16V
C8109 F1G1C103A173 C 0.01UF, 16V
C8111 F1G1E332A172 C 3300PF, 25V
C8112 F1J0J2260004 C 22UF, 6.3V
C8113 F1G1C103A173 C 0.01UF, 16V
C8115 F1H1C105A167 C 1UF, 16V
C8116 F1J0J2260004 C 22UF, 6.3V
C8117 F1G1C104A146 C 0.1UF, 16V
C8118 F1J0J2260004 C 22UF, 6.3V
C8121 F1K1V106A010 C 10UF, 35V
C8123 F1G1C104A146 C 0.1UF, 16V
C8124 F1G1C103A173 C 0.01UF, 16V
C8126 F1G1E332A172 C 3300PF, 25V
C8127 F1H1C105A167 C 1UF, 16V
C8128 F1G1C104A146 C 0.1UF, 16V
C8129 F1J0G2260001 C 22UF, 4V
C8130 F1J0G2260001 C 22UF, 4V
C8134 F1G1E472A172 C 4700PF, 25V
C8135 F1K1V106A010 C 10UF, 35V
C8137 F1G1C104A146 C 0.1UF, 16V
C8138 F1G1C103A173 C 0.01UF, 16V
C8140 F1G1H270A834 C 27PF, 50V
C8141 F1J0G2260001 C 22UF, 4V
C8142 F1G1H270A834 C 27PF, 50V
C8143 F1J0G2260001 C 22UF, 4V
C8146 F1G1A105A047 C 1UF, 10V
C8147 F1G1A105A047 C 1UF, 10V
C8148 F1H1C105A167 C 1UF, 16V
C8151 F1H1H103B047 C 0.01UF, 50V
C8152 F1G1A105A047 C 1UF, 10V
C8153 F1G1A105A047 C 1UF, 10V
C8162 F1G1C104A146 C 0.1UF, 16V
C8163 F1G1C103A173 C 0.01UF, 16V
C8164 F1J1A106A043 C 10UF, 10V
C8165 F1G1C104A146 C 0.1UF, 16V
C8166 F1G1C104A146 C 0.1UF, 16V
C8167 F1G1C104A146 C 0.1UF, 16V
C8168 F1H1C105A167 C 1UF, 16V
C8169 F1G1C104A146 C 0.1UF, 16V
C8170 F1G1C104A146 C 0.1UF, 16V
C8171 F1G1C104A146 C 0.1UF, 16V
C8172 F1G1A105A047 C 1UF, 10V
C8173 F1G1C104A146 C 0.1UF, 16V
C8174 F1H0J4750004 C 4.7UF, 6.3V
C8176 F1G1A105A047 C 1UF, 10V
C8177 F1G1C104A146 C 0.1UF, 16V
Part No. Part Name & Description Q'ty Remarks
Page 56
Model No. : TH-32F410X Parts List
Change Safety
DIODES
Ref.
No.
C8178 F1G1C104A146 C 0.1UF, 16V
C8179 F1G1C104A146 C 0.1UF, 16V
C8180 F1J1A106A043 C 10UF, 10V
C8184 F1J0G2260001 C 22UF, 4V
C8186 F1G1C104A146 C 0.1UF, 16V
C8187 F1G1C104A146 C 0.1UF, 16V
C8188 F1G1C104A146 C 0.1UF, 16V
C8189 F1G1A105A047 C 1UF, 10V
C8191 F1G1C104A146 C 0.1UF, 16V
C8192 F1G1C104A146 C 0.1UF, 16V
C8193 F1G1A105A047 C 1UF, 10V
C8196 F1H1C105A167 C 1UF, 16V
C8850 F1H0J4750004 C 4.7UF, 6.3V
C8900 F1G1C104A146 C 0.1UF, 16V
C8901 F1G1C104A146 C 0.1UF, 16V
D1001 DZ2J140M0L DIODE
D1002 DZ2J140M0L DIODE
D1003 DZ2J140M0L DIODE
D1004 DZ2J140M0L DIODE
D1005 DZ2J140M0L DIODE
D1007 DZ2J140M0L DIODE
D2006 D4ED11200003 DIODE
D2008 D4ED11200003 DIODE
D2800 DZ2J056M0L DIODE
D2802 B3AGB0000083 LED
D2851 DZ2J068M0L DIODE
D2852 DZ2J068M0L DIODE
D3055 D4EDY5R5A038 DIODE
D3056 D4EDY5R5A038 DIODE
D3101 K7AAAY000016 DIODE
D3103 D4EDY5R5A038 DIODE
D3104 D4EDY5R5A038 DIODE
D4500 J0ZZB0000175 DIODE
D4501 J0ZZB0000175 DIODE
D4502 J0ZZB0000175 DIODE
D4503 J0ZZB0000175 DIODE
D4504 J0ZZB0000175 DIODE
D4505 J0ZZB0000175 DIODE
D4506 J0ZZB0000175 DIODE
D4507 J0ZZB0000175 DIODE
D4508 J0ZZB0000175 DIODE
D4509 J0ZZB0000175 DIODE
D4510 J0ZZB0000175 DIODE
D4511 J0ZZB0000175 DIODE
D4518 J0ZZB0000175 DIODE
D4521 J0ZZB0000175 DIODE
D4522 J0ZZB0000175 DIODE
D4523 DZ2J056M0L DIODE
D4524 DZ2J056M0L DIODE
D4525 DZ2J056M0L DIODE
D4526 DZ2J056M0L DIODE
D4527 J0ZZB0000175 DIODE
D4528 J0ZZB0000175 DIODE
D4529 J0ZZB0000175 DIODE
D4530 J0ZZB0000175 DIODE
D4531 J0ZZB0000175 DIODE
D4532 J0ZZB0000175 DIODE
D4533 J0ZZB0000175 DIODE
D4534 J0ZZB0000175 DIODE
D4535 J0ZZB0000175 DIODE
D5006 B0ADCK000001 DIODE
Part No. Part Name & Description Q'ty Remarks
Page 57
Model No. : TH-32F410X Parts List
Change Safety
INTEDGRATED CIRCUITS
COIL
Ref.
No.
D5007 DA2J10100L DIODE
D5009 DZ2J068M0L DIODE
D5013 B0JCED000012 DIODE
D5050 DA2J10100L DIODE
D5170 DZ2J200M0L DIODE
D5171 DA2J10100L DIODE
D5172 DZ2J068M0L DIODE
D5173 B0ADCK000001 DIODE
D5174 DZ2J068M0L DIODE
D5175 B0ADCK000001 DIODE
D6750 J0ZZB0000175 DIODE
D6752 B0ZBZ0000226 DIODE
D7101 D4EAY621A216 DIODE
D7102 B0FBAR000047 DIODE
D7301 B0HAGQ000001 DIODE
D7306 B0ECKT000012 DIODE
D7307 DZ2J068M0L DIODE
D7308 B0ECKT000012 DIODE
D7310 DB2J41100L DIODE
D7313 DB2J41100L DIODE
D7316 B0ACCD000008 DIODE
D7317 DA2JF2300L DIODE
D7321 DA2J10100L DIODE
D7322 DZ2J047M0L DIODE
D7325 B0ACCD000008 DIODE
D7327 B0BC02700041 DIODE
D7501 B0ACCD000008 DIODE
D7502 B0JBSM000009 DIODE
D7509 B0EALN000001 DIODE
D7510 B0BC6R8A0654 DIODE
D7517 B0BC02700041 DIODE
D7801 DB2J41100L DIODE
D7805 B0ACCD000008 DIODE
D7807 B0ECLM000006 DIODE
D8001 B0JCED000012 DIODE
D8002 B0JCED000012 DIODE
D8450 J0ZZB0000175 DIODE
D8451 J0ZZB0000175 DIODE
IC3001 C0ABBB000230 IC
IC4300 C0DBAYY02430 IC
IC4900 C1AB00003984 IC
IC5602 C0DBZYY00723 IC
IC5701 C0DBEYY00226 IC
IC5704 C0DBEYY00102 IC
IC6750 C1AB00004172 IC
IC6800 C1AB00004183 IC
IC7301 C0DBBYY00065 IC
IC7501 C0DBZYY00531 IC
IC7502 C0DBEYY00146 IC
IC7800 C0ZBZ0002199 IC
IC8001 C1AB00004524 IC
IC8002 C0DBAYY02437 IC
IC8003 C0DBAYY02430 IC
IC8004 C0DBAYY02430 IC
IC8005 C0DBAYY02430 IC
IC8008 C0DBGYY00887 IC
IC8900 C3FBPY000297 IC
IC8900 TVRU192 ROM VERSION ASSEMBLY
IC8902 C3EBJY000076 IC
L2000 J0JYC0000328 INDUCTOR
Part No. Part Name & Description Q'ty Remarks
Page 58
Model No. : TH-32F410X Parts List
Change Safety
TRANSISTOR
Ref.
No.
L3012 J0JYC0000464 BEAD CORE
L4300 G1C220MA0445 INDUCTOR
L4901 G1C220MA0533 INDUCTOR
L4902 G1C220MA0533 INDUCTOR
L4903 G1C220MA0533 INDUCTOR
L4904 G1C220MA0533 INDUCTOR
L5601 J0JYC0000464 BEAD CORE
L6704 J0JYC0000464 BEAD CORE
L6706 J0JYC0000464 BEAD CORE
L6761 J0JYC0000464 BEAD CORE
L6762 J0JYC0000464 BEAD CORE
L6763 G1CR27JA0097 COIL
L6765 G1C82NJ00010 COIL
L6772 G1CR27JA0097 COIL
L6773 G1CR27JA0097 COIL
L6774 G1CR27JA0097 COIL
L6775 G1CR22JA0097 COIL
L6776 G1CR27JA0097 COIL
L6777 G1CR22JA0097 COIL
L6778 G1CR22JA0097 COIL
L6779 G1CR22JA0097 COIL
L6800 J0JYC0000464 BEAD CORE
L6801 J0JYC0000464 BEAD CORE
L6802 J0JYC0000464 BEAD CORE
L7101 J0JYA0000035 BEAD CORE
L7102 J0JYA0000035 BEAD CORE
L7103 J0JYA0000035 BEAD CORE
L7104 J0JYA0000035 BEAD CORE
L7301 J0JYA0000035 BEAD CORE
L7501 J0JYA0000035 BEAD CORE
L7803 J0JYA0000035 BEAD CORE
L7808 G0C101K00066 COIL
L7951 J0JYA0000035 BEAD CORE
L8008 J0JYC0000464 BEAD CORE
L8048 G1C4R7ZA0311 INDUCTOR
L8049 G1C3R3MA0464 INDUCTOR
L8050 G1C150MA0533 INDUCTOR
L8051 G1C100MA0533 COIL
Q2004 B1ABCF000231 TRANSISTOR
Q2005 B1ABCF000231 TRANSISTOR
Q2007 B1ABCF000231 TRANSISTOR
Q3002 B1ABCF000231 TRANSISTOR
Q3104 B1ABCF000231 TRANSISTOR
Q3105 B1ABCF000231 TRANSISTOR
Q4500 B1ABCF000231 TRANSISTOR
Q4501 B1ABCF000231 TRANSISTOR
Q4504 B1ABCF000231 TRANSISTOR
Q4505 B1ABCF000231 TRANSISTOR
Q5002 B1ADCE000022 TRANSISTOR
Q5003 B1ABCF000231 TRANSISTOR
Q5004 B1ABCF000231 TRANSISTOR
Q5005 B1ADCE000022 TRANSISTOR
Q5006 B1ABCF000231 TRANSISTOR
Q5007 B1ABCF000231 TRANSISTOR
Q5009 B1ADCE000022 TRANSISTOR
Q5010 B1ADCE000022 TRANSISTOR
Q5011 B1ABCF000231 TRANSISTOR
Q5050 B1ADCE000022 TRANSISTOR
Q5170 B1ABCF000231 TRANSISTOR
Q5171 B1ABCF000231 TRANSISTOR
Q5172 B1ABCF000231 TRANSISTOR
Part No. Part Name & Description Q'ty Remarks
Page 59
Model No. : TH-32F410X Parts List
Change Safety
RESISTORS
Ref.
No.
Q7301 B1CERR000067 TRANSISTOR
Q7302 B1ABCF000231 TRANSISTOR
Q7303 B1ABCF000231 TRANSISTOR
Q7304 B1ADCE000022 TRANSISTOR
Q7305 B1ADCE000022 TRANSISTOR
Q7306 B1ADCE000022 TRANSISTOR
Q7307 B1ABCF000231 TRANSISTOR
Q7501 B1CHRG000046 TRANSISTOR
Q7502 B1CHRE000035 TRANSISTOR
Q7510 B1CBHG000002 TRANSISTOR
Q7801 B1CFRM000049 TRANSISTOR
Q7803 B1CFML000007 TRANSISTOR
Q7804 B1CFHD000029 TRANSISTOR
Q7806 B1CFHD000029 TRANSISTOR
Q7810 B1ABCN000014 TRANSISTOR
Q8002 B1CHPD000013 TRANSISTOR
Q8003 B1ABCF000231 TRANSISTOR
R0902 D0GA272JA039 M 2.7K OHM, J, 1/16W
R0903 D0GA272JA039 M 2.7K OHM, J, 1/16W
R0910 D0GAR00JA039 M 0 OHM, 1/16W
R0911 D0GAR00JA039 M 0 OHM, 1/16W
R0912 D0GAR00JA039 M 0 OHM, 1/16W
R0913 D0GAR00JA039 M 0 OHM, 1/16W
R0916 D0GAR00JA039 M 0 OHM, 1/16W
R0917 D0GAR00JA039 M 0 OHM, 1/16W
R0924 D0GA272JA039 M 2.7K OHM, J, 1/16W
R0925 D0GA272JA039 M 2.7K OHM, J, 1/16W
R0926 D0GA473JA039 M 47K OHM, J, 1/16W
R0927 D0GA680JA039 M 68 OHM, J, 1/16W
R0928 D0GA680JA039 M 68 OHM, J, 1/16W
R0929 D0GA102JA039 M 1K OHM, J, 1/16W
R0930 D0GA102JA039 M 1K OHM, J, 1/16W
R0933 D1H82724A042 M 2.7KOHM, J.1/16W
R0938 D0GA680JA039 M 68 OHM, J, 1/16W
R0939 D0GA680JA039 M 68 OHM, J, 1/16W
R0944 D1H86804A042 M 68 OHM, J, 1/16W
R0945 D1H86804A042 M 68 OHM, J, 1/16W
R1000 D0GA101JA039 M 100 OHM, J, 1/16W
R2011 D0GA102JA039 M 1K OHM, J, 1/16W
R2012 D0GA473JA039 M 47K OHM, J, 1/16W
R2018 D0GA680JA039 M 68 OHM, J, 1/16W
R2027 D0GA103JA039 M 10K OHM, J, 1/16W
R2028 D0GA102JA039 M 1K OHM, J, 1/16W
R2029 D0GAR00JA039 M 0 OHM, 1/16W
R2030 D0GA222JA039 M 2.2K OHM, J, 1/16W
R2031 D0GA473JA039 M 47K OHM, J, 1/16W
R2033 D1BA1002A023 M 10K OHM, F, 1/16W
R2034 D0GA102JA039 M 1K OHM, J, 1/16W
R2035 D1BA4702A023 M 47K OHM, F, 1/16W
R2045 D0GA183JA039 M 18K OHM, J, 1/16W
R2046 D0GB101JA065 M 100 OHM, J, 1/10W
R2047 D0GB153JA065 M 15K OHM, J, 1/10W
R2049 D0GA103JA039 M 10K OHM, J, 1/16W
R2050 D0GA473JA039 M 47K OHM, J, 1/16W
R2052 D0GA223JA039 M 22K OHM, J, 1/16W
R2053 D0GA473JA039 M 47K OHM, J, 1/16W
R2804 D0GBR00J0004 M 0 OHM, J, 1/10W
R2807 D0GBR00J0004 M 0 OHM, J, 1/10W
R2820 D0GB470JA065 M 47 OHM, J, 1/10W
R2821 D0GBR00J0004 M 0 OHM, J, 1/10W
R2822 D0GD822JA052 M 8.2K OHM, J, 1/8W
Part No. Part Name & Description Q'ty Remarks
Page 60
Model No. : TH-32F410X Parts List
Change Safety
Ref.
No.
R2823 D1BB4301A073 M 4.3K OHM, J, 1/10W
R2824 D1BB1001A143 M 1K OHM, F, 1/10W
R2852 D1BD1911A066 M 1.91K OHM, F, 1/8W
R2853 D1BD3091A066 M 3.09K OHM, F, 1/8W
R2854 D1BD6041A066 M 6.04K OHM, F, 1/8W
R2855 D1BD1692A066 M 16.9K OHM, F, 1/8W
R3051 D0GA111JA039 M 110 OHM, J, 1/16W
R3052 D0GA111JA039 M 110 OHM, J, 1/16W
R3091 D1BA4532A023 M 45.3K OHM, F, 1/16W
R3092 D1BA4532A023 M 45.3K OHM, F, 1/16W
R3093 D0GA154JA039 M 150K OHM, J, 1/16W
R3094 D0GA304JA039 M 300K OHM, J, 1/16W
R3095 D1BA1102A023 M 11K OHM, F, 1/16W
R3096 D1BA1102A023 M 11K OHM, F, 1/16W
R3097 D1BA3002A023 M 30K OHM, F, 1/16W
R3098 D1BA3002A023 M 30K OHM, F, 1/16W
R3099 D0GA223JA039 M 22K OHM, J, 1/16W
R3100 D0GDR00J0004 M 0 OHM, J, 1/8W
R3104 D0GA104JA039 M 100K OHM, J, 1/16W
R3106 D0GA104JA039 M 100K OHM, J, 1/16W
R3110 D0GA221JA039 M 220 OHM, J, 1/16W
R3111 D0GA221JA039 M 220 OHM, J, 1/16W
R3118 D0GA683JA039 M 68K OHM, J, 1/16W
R3119 D0GA272JA039 M 2.7K OHM, J, 1/16W
R3122 D1BD75R0A066 M 75 OHM, F, 1/8W
R3124 D1BD75R0A066 M 75 OHM, F, 1/8W
R3190 D0GA222JA039 M 2.2K OHM, J, 1/16W
R3191 D0GA222JA039 M 2.2K OHM, J, 1/16W
R3192 D0GA101JA039 M 100 OHM, J, 1/16W
R3193 D0GA101JA039 M 100 OHM, J, 1/16W
R3194 D1BD75R0A066 M 75 OHM, F, 1/8W
R3196 D0GA101JA039 M 100 OHM, J, 1/16W
R3201 D0GA473JA039 M 47K OHM, J, 1/16W
R3202 D0GA473JA039 M 47K OHM, J, 1/16W
R3205 D0GA101JA039 M 100 OHM, J, 1/16W
R3243 D0GA220JA039 M 22 OHM, J, 1/16W
R4049 D0GA912JA039 M 9.1K OHM, J, 1/16W
R4050 D1H8R0040016 M 0 OHM, Z, 1/16W
R4051 D1H8R0040016 M 0 OHM, Z, 1/16W
R4052 D1H8R0040016 M 0 OHM, Z, 1/16W
R4053 D1H8R0040016 M 0 OHM, Z, 1/16W
R4054 D1H8R0040016 M 0 OHM, Z, 1/16W
R4055 D0GA101JA039 M 100 OHM, J, 1/16W
R4068 D0GAR00JA039 M 0 OHM, 1/16W
R4081 D0GAR00JA039 M 0 OHM, 1/16W
R4085 D0GA680JA039 M 68 OHM, J, 1/16W
R4086 D0GA680JA039 M 68 OHM, J, 1/16W
R4133 D0GA332JA039 M 3.3K OHM, J, 1/16W
R4300 D1BA4702A023 M 47K OHM, F, 1/16W
R4301 D1BA3601A023 M 3.6K OHM, F, 1/16W
R4302 D1BA5102A023 M 51K OHM, F, 1/16W
R4303 D0GA102JA039 M 1K OHM, J, 1/16W
R4500 D0GA750JA039 M 75 OHM, J, 1/16W
R4501 D0GA750JA039 M 75 OHM, J, 1/16W
R4503 D1H84734A042 M 47K OHM, J, 1/16W
R4504 D1H86804A042 M 68 OHM, J, 1/16W
R4513 D0GA820JA039 M 82 OHM, J, 1/16W
R4514 D0GA220JA039 M 22 OHM, J, 1/16W
R4515 D0GA473JA039 M 47K OHM, J, 1/16W
R4516 D0GA473JA039 M 47K OHM, J, 1/16W
R4517 D0GA473JA039 M 47K OHM, J, 1/16W
R4518 D0GA104JA039 M 100K OHM, J, 1/16W
Part No. Part Name & Description Q'ty Remarks
Page 61
Model No. : TH-32F410X Parts List
Change Safety
Ref.
No.
R4519 D0GA104JA039 M 100K OHM, J, 1/16W
R4520 D0GA473JA039 M 47K OHM, J, 1/16W
R4521 D0GA911JA039 M 910 OHM, J, 1/16W
R4522 D0GA911JA039 M 910 OHM, J, 1/16W
R4523 D0GA104JA039 M 100K OHM, J, 1/16W
R4524 D0GA181JA039 M 180 OHM, J, 1/16W
R4900 D0GFR00J0005 M 0 OHM, J, 1/3W
R4901 D1H86804A042 M 68 OHM, J, 1/16W
R4903 D1H8R0040016 M 0 OHM, Z, 1/16W
R4905 D0GBR00J0004 M 0 OHM, J, 1/10W
R4906 D0GBR00J0004 M 0 OHM, J, 1/10W
R4907 D0GA102JA039 M 1K OHM, J, 1/16W
R4908 D0GBR00J0004 M 0 OHM, J, 1/10W
R4909 D0GBR00J0004 M 0 OHM, J, 1/10W
R4915 D0GA563JA039 M 56K OHM, J, 1/16W
R4917 D0GAR00JA039 M 0 OHM, 1/16W
R4918 D0GAR00JA039 M 0 OHM, 1/16W
R4919 D0GA153JA039 M 15K OHM, J, 1/16W
R4956 D0GA102JA039 M 1K OHM, J, 1/16W
R4963 D0GA473JA039 M 47K OHM, J, 1/16W
R4964 D0GA303JA039 M 30K OHM, J, 1/16W
R4983 D0GA103JA039 M 10K OHM, J, 1/16W
R5050 D0GA473JA039 M 47K OHM, J, 1/16W
R5052 D0GAR00JA039 M 0 OHM, 1/16W
R5053 D0GA473JA039 M 47K OHM, J, 1/16W
R5054 D1BA7502A023 M 75K OHM, F, 1/16W
R5055 D1BA2402A023 M 24K OHM, F, 1/16W
R5072 D0GA473JA039 M 47K OHM, J, 1/16W
R5073 D0GA103JA039 M 10K OHM, J, 1/16W
R5074 D0GA224JA039 M 220K OHM, J, 1/16W
R5075 D0GA473JA039 M 47K OHM, J, 1/16W
R5076 D0GA103JA039 M 10K OHM, J, 1/16W
R5077 D0GA473JA039 M 47K OHM, J, 1/16W
R5078 D1BA2202A023 M 22K OHM, F, 1/16W
R5079 D1BA3742A023 M 37.4K OHM, F, 1/16W
R5080 D0GA473JA039 M 47K OHM, J, 1/16W
R5081 D0GA103JA039 M 10K OHM, J, 1/16W
R5082 D0GA104JA039 M 100K OHM, J, 1/16W
R5084 D0GA473JA039 M 47K OHM, J, 1/16W
R5085 D0GA103JA039 M 10K OHM, J, 1/16W
R5086 D0GAR00JA039 M 0 OHM, 1/16W
R5087 D1BA2202A023 M 22K OHM, F, 1/16W
R5088 D1BA1602A023 M 16.2K OHM, F, 1/16W
R5089 D0GA473JA039 M 47K OHM, J, 1/16W
R5090 D0GA473JA039 M 47K OHM, J, 1/16W
R5091 D0GA102JA039 M 1K OHM, J, 1/16W
R5092 D0GA472JA039 M 4.7K OHM, J, 1/16W
R5093 D0GA472JA039 M 4.7K OHM, J, 1/16W
R5095 D0GA473JA039 M 47K OHM, J, 1/16W
R5096 D0GA473JA039 M 47K OHM, J, 1/16W
R5097 D0GA103JA039 M 10K OHM, J, 1/16W
R5098 D0GA473JA039 M 47K OHM, J, 1/16W
R5099 D0GA472JA039 M 4.7K OHM, J, 1/16W
R5170 D0GA103JA039 M 10K OHM, J, 1/16W
R5171 D0GA332JA039 M 3.3K OHM, J, 1/16W
R5173 D0GA104JA039 M 100K OHM, J, 1/16W
R5175 D0GA473JA039 M 47K OHM, J, 1/16W
R5176 D0GA473JA039 M 47K OHM, J, 1/16W
R5177 D0GA473JA039 M 47K OHM, J, 1/16W
R5178 D0GA473JA039 M 47K OHM, J, 1/16W
R5606 D0GA103JA039 M 10K OHM, J, 1/16W
R5607 D0GA103JA039 M 10K OHM, J, 1/16W
Part No. Part Name & Description Q'ty Remarks
Page 62
Model No. : TH-32F410X Parts List
Change Safety
Ref.
No.
R5609 D1H8R0040016 M 0 OHM, Z, 1/16W
R5610 D1BA2872A023 M 28.7K OHM, F, 1/16W
R5709 D1BA1201A023 M 1.2K OHM, F, 1/16W
R5710 D1BA3001A023 M 3K OHM, F, 1/16W
R5731 D1BA1200A023 M 120 OHM, F, 1/16W
R5732 D1BA56R0A023 M 56 OHM, F, 1/16W
R5736 D0GA103JA039 M 10K OHM, J, 1/16W
R5740 D0GBR00J0004 M 0 OHM, J, 1/10W
R5742 D0GBR00J0004 M 0 OHM, J, 1/10W
R5744 D0GAR00JA039 M 0 OHM, 1/16W
R6725 D0GAR00JA039 M 0 OHM, 1/16W
R6726 D0GAR00JA039 M 0 OHM, 1/16W
R6727 D0GAR00JA039 M 0 OHM, 1/16W
R6730 D0GA103JA039 M 10K OHM, J, 1/16W
R6743 D0GA102JA039 M 1K OHM, J, 1/16W
R6744 D0GA102JA039 M 1K OHM, J, 1/16W
R6750 D0GA101JA039 M 100 OHM, J, 1/16W
R6753 D0GA101JA039 M 100 OHM, J, 1/16W
R6754 D0GA102JA039 M 1K OHM, J, 1/16W
R6755 D0GA101JA039 M 100 OHM, J, 1/16W
R6756 D0GA101JA039 M 100 OHM, J, 1/16W
R6757 D0GA101JA039 M 100 OHM, J, 1/16W
R6758 D0GA101JA039 M 100 OHM, J, 1/16W
R6759 D0GA102JA039 M 1K OHM, J, 1/16W
R6760 D0GA332JA039 M 3.3K OHM, J, 1/16W
R6761 D0GA332JA039 M 3.3K OHM, J, 1/16W
R6768 D0GA681JA039 M 680 OHM, J, 1/16W
R6770 D0GA103JA039 M 10K OHM, J, 1/16W
R6804 D0GAR00JA039 M 0 OHM, 1/16W
R6805 D0GAR00JA039 M 0 OHM, 1/16W
R6812 D0GA680JA039 M 68 OHM, J, 1/16W
R6813 D0GA680JA039 M 68 OHM, J, 1/16W
R6818 D0GA680JA039 M 68 OHM, J, 1/16W
R6819 D0GAR00JA039 M 0 OHM, 1/16W
R6820 D0GAR00JA039 M 0 OHM, 1/16W
R6821 D0GAR00JA039 M 0 OHM, 1/16W
R6840 D0GA471JA039 M 470 OHM, J, 1/16W
R6846 D0GA680JA039 M 68 OHM, J, 1/16W
R6847 D0GA680JA039 M 68 OHM, J, 1/16W
R6848 D0GA680JA039 M 68 OHM, J, 1/16W
R6849 D0GA680JA039 M 68 OHM, J, 1/16W
R6850 D0GA680JA039 M 68 OHM, J, 1/16W
R6861 D0GA680JA039 M 68 OHM, J, 1/16W
R6862 D0GA680JA039 M 68 OHM, J, 1/16W
R6863 D0GA680JA039 M 68 OHM, J, 1/16W
R6871 D0GA332JA039 M 3.3K OHM, J, 1/16W
R6872 D0GA332JA039 M 3.3K OHM, J, 1/16W
R6880 D0GAR00JA039 M 0 OHM, 1/16W
R6881 D0GAR00JA039 M 0 OHM, 1/16W
R6882 D0GBR00J0004 M 0 OHM, J, 1/10W
R6884 D0GA103JA039 M 10K OHM, J, 1/16W
R6885 D0GAR00JA039 M 0 OHM, 1/16W
R6886 D0GAR00JA039 M 0 OHM, 1/16W
R7101 D0GF105JA048 M 1M OHM, J, 1/4W
R7102 D0GF105JA048 M 1M OHM, J, 1/4W
R7103 D0GF105JA048 M 1M OHM, J, 1/4W
R7104 D0GF105JA048 M 1M OHM, J, 1/4W
R7106 D0GF474JA048 M 470K OHM, J, 1/4W
R7107 D0GF474JA048 M 470K OHM, J, 1/4W
R7108 D0GF474JA048 M 470K OHM, J, 1/4W
R7109 D0GF474JA048 M 470K OHM, J, 1/4W
R7301 D0GD184JA052 M 180K OHM, J, 1/8W
Part No. Part Name & Description Q'ty Remarks
Page 63
Model No. : TH-32F410X Parts List
Change Safety
Ref.
No.
R7302 D0GD393JA052 M 39K OHM, J, 1/8W
R7304 D0GD104JA052 M 100K OHM, J, 1/8W
R7312 D0GDR00J0004 M 0 OHM, J, 1/8W
R7313 D0GD220JA059 M 22 OHM, J, 1/4W
R7314 D0GD681JA059 M 680 OHM, J, 1/4W
R7315 D0C1R47JA104 M 1.4 OHM, J, 2W
R7316 D0C1R56JA104 M 1.56 OHM, J, 2W
R7317 D0GD680JA059 M 68 OHM, J, 1/4W
R7318 D0GD471JA052 M 470 OHM, J, 1/8W
R7319 D0GD473JA052 M 47K OHM, J, 1/8W
R7320 D0GB562JA065 M 5.6K OHM, J, 1/10W
R7322 D0GD123JA052 M 12K OHM, J, 1/8W
R7324 D0GD103JA052 M 10K OHM, J, 1/8W
R7325 D0GDR00J0004 M 0 OHM, J, 1/8W
R7326 D0GD123JA052 M 12K OHM, J, 1/8W
R7327 D0GD104JA052 M 100K OHM, J, 1/8W
R7329 D0GDR00J0004 M 0 OHM, J, 1/8W
R7335 D0XB106JA018 M 10M OHM, J, 1/16W
R7342 D0GD102JA052 M 1K OHM, J, 1/8W
R7343 D0GD332JA052 M 3.3K OHM, J, 1/8W
R7344 D0GD102JA052 M 1K OHM, J, 1/8W
R7351 D0GF474JA048 M 470K OHM, J, 1/4W
R7353 D0GD220JA059 M 22 OHM, J, 1/4W
R7354 D0GD220JA059 M 22 OHM, J, 1/4W
R7355 D0GDR00J0004 M 0 OHM, J, 1/8W
R7476 D0GZ6R8JA020 M 6.8 OHM, J, 1/2W
R7477 D0GZ6R8JA020 M 6.8 OHM, J, 1/2W
R7501 D0GB153JA065 M 15K OHM, J, 1/10W
R7502 D0GB273JA065 M 27K OHM, J, 1/10W
R7503 D0GB153JA065 M 15K OHM, J, 1/10W
R7504 D0GB153JA065 M 15K OHM, J, 1/10W
R7507 D0GB124JA065 M 120K OHM, J, 1/10W
R7511 D0GD473JA052 M 47K OHM, J, 1/8W
R7515 D0GB222JA065 M 2.2K OHM, J, 1/10W
R7516 D0GD472JA052 M 4.7K OHM, J, 1/8W
R7517 D0GB222JA065 M 2.2K OHM, J, 1/10W
R7519 D1BB5601A073 M 5600 OHM, F, 1/10 W
R7520 D1BB3301A073 M 3.3KOHM, F, 1/10W
R7521 D0GD123JA052 M 12K OHM, J, 1/8W
R7523 D0GD473JA052 M 47K OHM, J, 1/8W
R7524 D0GD474JA052 M 470K OHM, J, 1/8W
R7532 D0GBR00J0004 M 0 OHM, J, 1/10W
R7538 D0GBR00J0004 M 0 OHM, J, 1/10W
R7540 D1BB1803A073 M 180K OHM, D, 1/10 W
R7541 D1BD1603A066 M 160K OHM, F, 1/8W
R7542 D0GD151JA052 M 150 OHM, J, 1/8W
R7802 D0GD101JA052 M 100 OHM, J, 1/8W
R7803 D0GD222JA052 M 2.2K OHM, J, 1/8W
R7804 D0GDR00J0004 M 0 OHM, J, 1/8W
R7805 D1BD2003A066 M 200K OHM, F, 1/8W
R7806 D1BD2202A066 M 22K OHM, D, 1/10 W
R7807 D0GD223JA052 M 22K OHM, J, 1/8W
R7809 D1BD1802A066 M 18K OHM, F, 1/8W
R7810 D1BD1802A066 M 18K OHM, F, 1/8W
R7816 D1BD1503A066 M 150K OHM, F, 1/8W
R7818 D1BD2201A066 M 220 OHM, F, 1/8W
R7823 D0GD152JA052 M 1.5K OHM, J, 1/8W
R7824 D1BD12R0A066 M 12 OHM, F, 1/8W
R7825 D1BD12R0A066 M 12 OHM, F, 1/8W
R7826 D1BD12R0A066 M 12 OHM, F, 1/8W
R7829 D1BD12R0A066 M 12 OHM, F, 1/8W
R7832 D0GD470JA059 M 47 OHM, J, 1/4W
Part No. Part Name & Description Q'ty Remarks
Page 64
Model No. : TH-32F410X Parts List
Change Safety
Ref.
No.
R7834 D0GD470JA052 M 47 OHM, J, 1/8W
R7835 D0GD330JA052 M 33K OHM, J, 1/8W
R7836 D0GD100JA059 M 10 OHM, J, 1/4W
R7837 D0GB473JA065 M 47K OHM, J, 1/10W
R7847 D0GD394JA052 M 390K OHM, J, 1/8W
R7848 D0GD334JA052 M 330K OHM, J, 1/8W
R7857 D0GD104JA052 M 100K OHM, J, 1/8W
R7862 D1BD3161A066 M 3.16K OHM, F, 1/8W
R7869 D0GF472JA048 M 4.7K OHM, J, 1/4W
R7870 D0GF472JA048 M 4.7K OHM, J, 1/4W
R7871 D0GF472JA048 M 4.7K OHM, J, 1/4W
R7872 D0GD472JA052 M 4.7K OHM, J, 1/8W
R7876 D0GD100JA059 M 10 OHM, J, 1/4W
R7878 D1BD18R0A066 M 18 OHM, F, 1/8W
R7879 D1BD18R0A066 M 18 OHM, F, 1/8W
R7882 D0GD151JA052 M 150 OHM, J, 1/8W
R7884 D0GD1R0JA052 M 1.0 OHM, J, 1/8W
R7886 D0GD1R0JA052 M 1.0 OHM, J, 1/8W
R7887 D0GD1R0JA052 M 1.0 OHM, J, 1/8W
R7888 D0GDR00J0004 M 0 OHM, J, 1/8W
R8099 D1BA2002A023 M 20K OHM, F, 1/16W
R8100 D1BA5601A023 M 5.6K OHM, F, 1/16W
R8101 D0GA510JA039 M 51 OHM, J, 1/16W
R8102 D0GA510JA039 M 51 OHM, J, 1/16W
R8103 D1BA3002A023 M 30K OHM, F, 1/16W
R8104 D1BA2400A023 M 240 OHM, F, 1/16W
R8105 D1BA1302A023 M 13K OHM, F, 1/16W
R8106 D1BA1502A023 M 15K OHM, F, 1/16 W
R8107 D1BA4702A023 M 47K OHM, F, 1/16W
R8113 D1BA4701A023 M 4.7K OHM, F, 1/16W
R8114 D1BA2002A023 M 20K OHM, F, 1/16W
R8115 D1BA1802A023 M 18K OHM, F, 1/16W
R8116 D1BA3001A023 M 3K OHM, F, 1/16W
R8118 D0GA101JA039 M 100 OHM, J, 1/16W
R8120 D0GAR00JA039 M 0 OHM, 1/16W
R8123 D1BA2202A023 M 22K OHM, F, 1/16W
R8124 D1BA1202A023 M 12K OHM, F, 1/16W
R8126 D0GA473JA039 M 47K OHM, J, 1/16W
R8128 D0GBR00J0004 M 0 OHM, J, 1/10W
R8130 D0GA472JA039 M 4.7K OHM, J, 1/16W
R8137 D0GA472JA039 M 4.7K OHM, J, 1/16W
R8138 D0GA473JA039 M 47K OHM, J, 1/16W
R8141 D0GA473JA039 M 47K OHM, J, 1/16W
R8145 D0GBR00J0004 M 0 OHM, J, 1/10W
R8146 D0GA472JA039 M 4.7K OHM, J, 1/16W
R8147 D0GA750JA039 M 75 OHM, J, 1/16W
R8148 D0GA103JA039 M 10K OHM, J, 1/16W
R8149 D1BA1001A023 M 1K OHM, F, 1/16 W
R8150 D1BA1001A023 M 1K OHM, F, 1/16 W
R8151 D0GA103JA039 M 10K OHM, J, 1/16W
R8900 D0GA101JA039 M 100 OHM, J, 1/16W
R8901 D0GA472JA039 M 4.7K OHM, J, 1/16W
R8902 D0GA103JA039 M 10K OHM, J, 1/16W
R8903 D0GBR00J0004 M 0 OHM, J, 1/10W
R8904 D0GA680JA039 M 68 OHM, J, 1/16W
R8905 D0GA680JA039 M 68 OHM, J, 1/16W
R8906 D0GA680JA039 M 68 OHM, J, 1/16W
R8907 D0GA680JA039 M 68 OHM, J, 1/16W
R8908 D0GA103JA039 M 10K OHM, J, 1/16W
R8909 D0GA472JA039 M 4.7K OHM, J, 1/16W
R8910 D0GA102JA039 M 1K OHM, J, 1/16W
Part No. Part Name & Description Q'ty Remarks
Page 65
Model No. : TH-32F410X Parts List
Change Safety
TRANSFORMER
OTHERS
Ref.
No.
T7301 G4DYA0000567 TRANSFORMER
A02 K1KY14BA0484 CONNECTOR
A10 K1KY07BA0483 CONNECTOR
A12 K1KY04BA0387 CONNECTOR
A16 K1MY30B00008 CONNECTOR
CF7101 D4CAY4R0A151 NTC THERMISTORS
CN0100 K1KA14A00248 CONNECTOR
F7101 K5E502YYA213 FUSE
JA1 D0GFR00J0005 M 0 OHM, J, 1/3W
JA10 D0GFR00J0005 M 0 OHM, J, 1/3W
JA11 D0GFR00J0005 M 0 OHM, J, 1/3W
JA2 D0GFR00J0005 M 0 OHM, J, 1/3W
JA3 D0GFR00J0005 M 0 OHM, J, 1/3W
JA5 D0GFR00J0005 M 0 OHM, J, 1/3W
JA6 D0GFR00J0005 M 0 OHM, J, 1/3W
JA7 D0GFR00J0005 M 0 OHM, J, 1/3W
JA8 D0GFR00J0005 M 0 OHM, J, 1/3W
JK3101 K1U511D00002 AV TERMINAL
JK3103 K1U204DA0001 TERMINAL
JK4700 K1FY119D0029 TERMINAL
JK4701 K1FY119D0029 TERMINAL
JK6753 K1ZZ00001555 TUNER SHIELD
JK7101 K2AAYA000005 AC INLET
JK8450 K1FY104B0092 TERMINAL
JS0045 D0GAR00JA039 M 0 OHM, 1/16W
JS0055 D0GAR00JA039 M 0 OHM, 1/16W
JS7355 D0GFR00J0005 M 0 OHM, J, 1/3W
K10 K1KY07BA0483 CONNECTOR
LF7103A G0B173G00005 LINE FILTER
LF7104A G0B173G00005 LINE FILTER
P2 K1KY14BA0491 CONNECTOR
P3 K1KY03BA0385 CONNECTOR
PA7406 ERBRE1R00V FUSE
PC7300 B3PAA0000707 PHOTO COUPLER
PC7301 B3PAA0000704 PHOTO COUPLERS
RM2,800 B3RBB0000026 IR RECEIVER
SN2800 B3JB00000223 PHOTO DETECTOR
SW2851 EVQ11G05R SWITCH
SW2852 EVQ11G05R SWITCH
SW2853 EVQ11G05R SWITCH
SW2854 EVQ11G05R SWITCH
SW2855 EVQ11G05R SWITCH
SW2857 EVQ11G05R SWITCH
X6750 H0J240500067 CRYSTAL OSCILLATOR
X6800 H0J410500003 CRYSTAL RESONATORS
X8301 H0J240500095 CRYSTAL OSCILLATOR
ZA7101 K4AD01A00004 RUG TERMINAL
ZA7103 K4AD01A00004 RUG TERMINAL
ZA7104 K4AD01A00004 RUG TERMINAL
Part No. Part Name & Description Q'ty Remarks
Page 66
Model No. : TH-32F410X Parts List
Change Safety
Exploded View
Electrical Replacement Part List
Ref.
No.
K2CQ2YY00107 AC CORD
1 L0EYAA000052 SPEAKER UNIT
N2QAYB001116 REMOTE_TRANSMITTER
TBX5ZA03303A KEY BUTTON BRACKET
2 TKK5ZC50502 LED PANEL
3 TKP5ZA48902 SIDE AV BRACKET
4 TPC4GA45501 LAYER PAD
5 TPD4GA07051A CUSHION_CORNER
TPD4GA07061A CUSHION_ACCESSORY_R
TPD4GA07511 CUSHION_ACCESSORY_L
6 TPE4GH065 SET COVER
TQZ4GC296 FAN BAG ASSY
TSCKF0540001 LVDS CABLE
7 TXFPC01VDUP CARTON ASSY
8 TZBL4GX00371 PEDESTAL_ASSY-L
9 TZBL4GX00381 PEDESTAL_ASSY-R
TZLP239KFAA ASSY_32_INHOUSE_PANEL
10 TZTBL4GX00681 STAND MOLD ASSY ASSY
11 TZTU4GA2175 BACK COVER COMPLETE ASSY
RTL TZT/A1VDUP A PRINT(FINISHED)
RTL TXN/K1BXVA K PRINT(FINISHED)
RTL TXN/P1ZEUT P PRINT(FINISHED)
Part No. Part Name & Description Q'ty Remarks
Loading...
