Panasonic th-103vx200 Operation Manual

Operating Instructions

High Defi nition Plasma Display

Model No.

TH-103VX200U

TH-85VX200U

English

Before connecting, operating or adjusting this product,
please read these instructions completely.
Please keep this manual for future reference.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualifi ed service personnel.

The lightning flash with
arrow-head within a triangle
is in tend ed to tell the user
that parts inside the product
are a risk of electric shock
to per sons.

The exclamation point within
a triangle is intended to
tell the user that important
operating and servicing
instructions are in the papers
with the ap pli ance.

WARNING : To prevent damage which may result in fi re or shock hazard, do not expose this apparatus to rain

or mois ture.
Do not place containers with water (fl ower vase, cups, cosmetics, etc.) above the set.
(including on shelves above, etc.)

WARNING : 1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to

qualifi ed service personnel.

2) Do not remove the grounding pin on the power plug. This apparatus is equipped with a three pin
grounding-type power plug. This plug will only fi t a grounding-type power outlet. This is a safety fea ture.
If you are unable to insert the plug into the outlet, contact an electrician.

Do not defeat the purpose of the grounding plug.

2

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifi ers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for
replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.

11) Only use attachments / accessories specifi ed by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart / apparatus combination
to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

3

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment

from your new Plasma Display.

To obtain maximum benefit from your set, please read these Instructions before making any adjustments,

and retain them for future reference.

Retain your purchase receipt as well, and record the model number and serial number of your set in the

space provided on the rear cover of these instructions.

Visit our Panasonic Web Site http://panasonic.net

Table of Contents

Important Safety Instructions .................................. 3

FCC STATEMENT ...................................................... 5

Safety Precautions ................................................... 6

Maintenance .............................................................. 7

3D Safety Precautions ............................................. 8

Accessories ............................................................ 10

Accessories Supplied ............................................ 10

Remote Control Batteries ...................................... 10

Connections ............................................................ 11

AC cord connection and fi xing, cable fi xing ............11

Video equipment connection ................................. 13

AUDIO OUT connection ........................................ 13

HDMI connection ................................................... 14

COMPONENT / RGB IN connection ..................... 14

PC Input Terminals connection .............................. 15

SERIAL Terminals connection ............................... 16

Power ON / OFF ...................................................... 17

Selecting the input signal ...................................... 19

Basic Controls ........................................................ 20

ASPECT Controls ................................................... 22

Viewing 3D images ................................................. 23

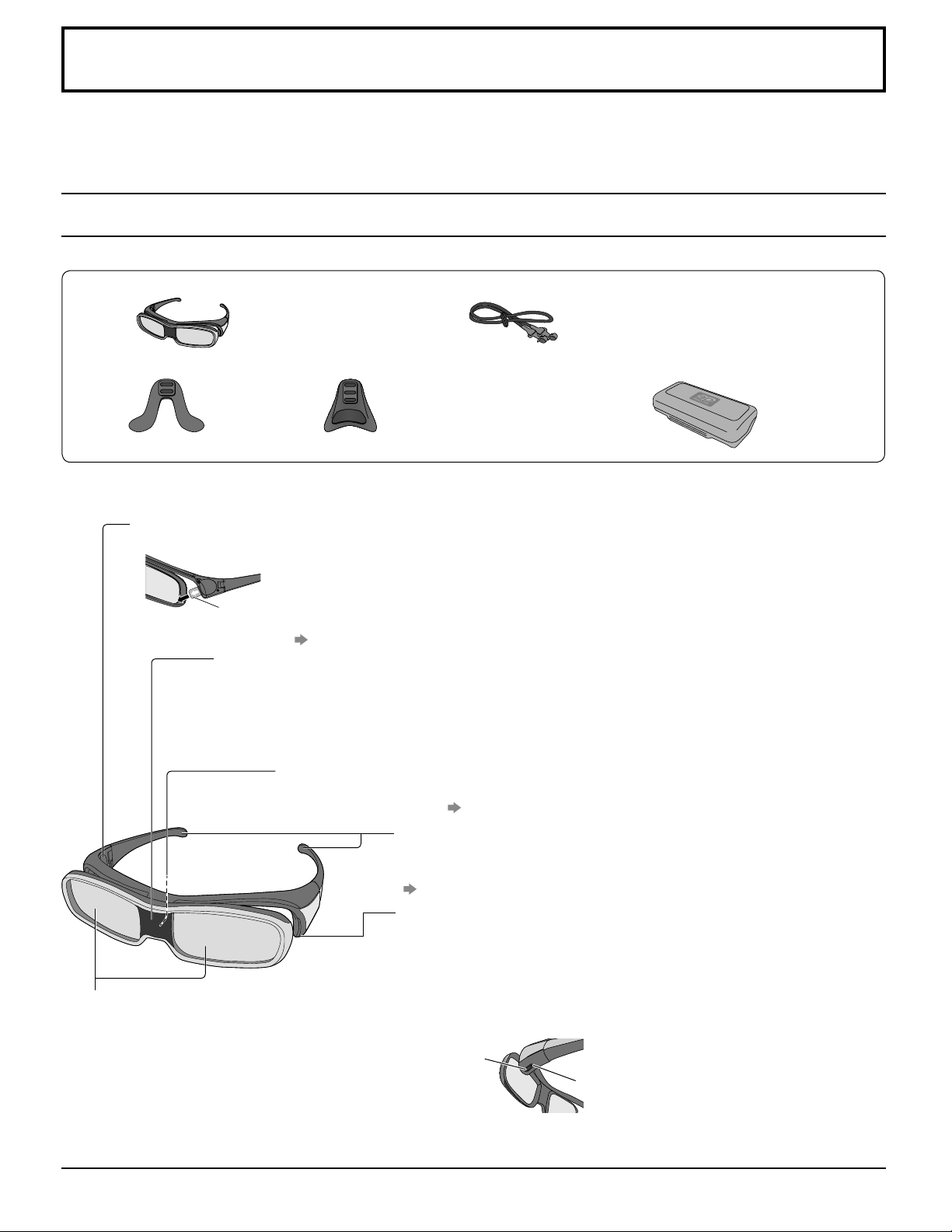

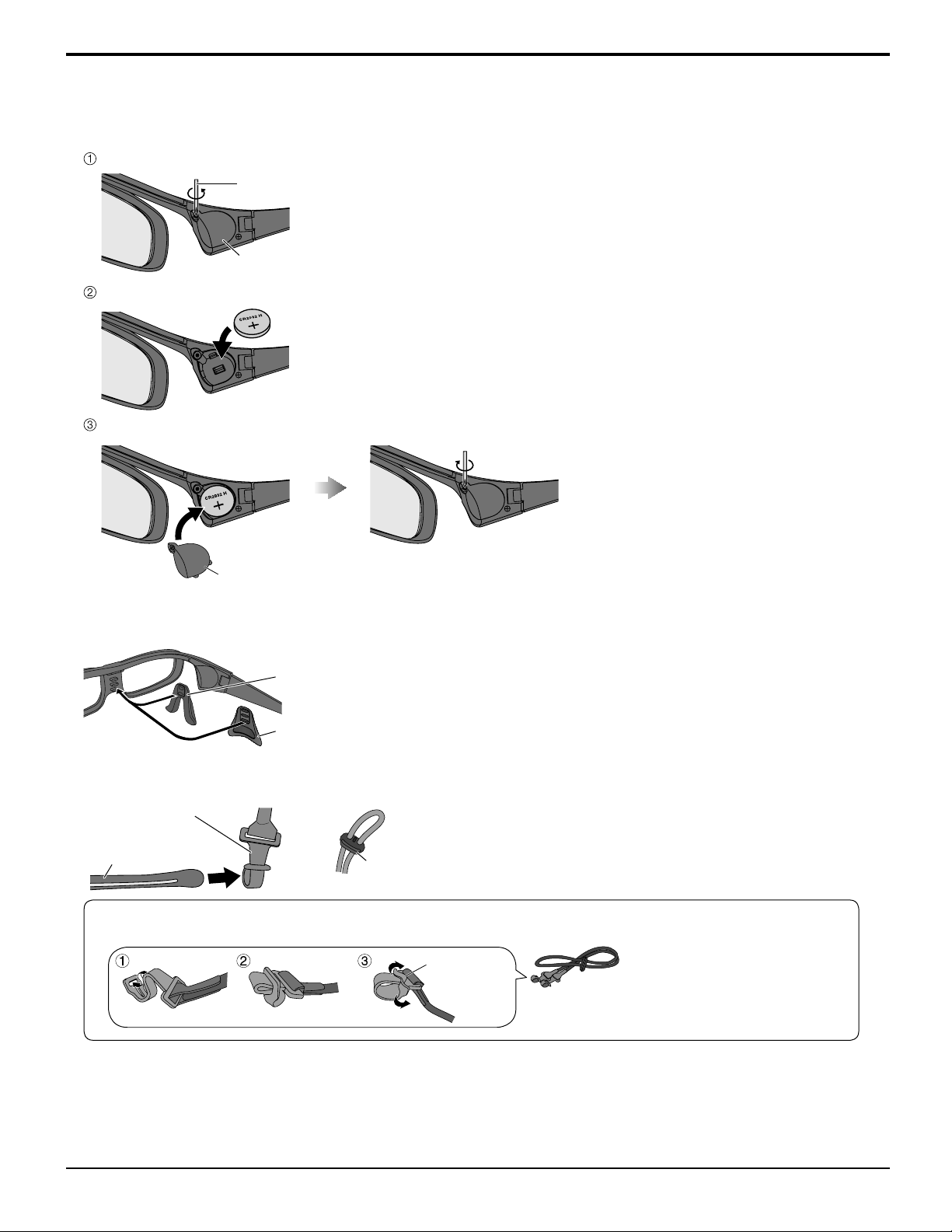

3D Eyewear ........................................................... 23

To view the 3D images .......................................... 25

Troubleshooting for 3D Eyewear .......................... 26

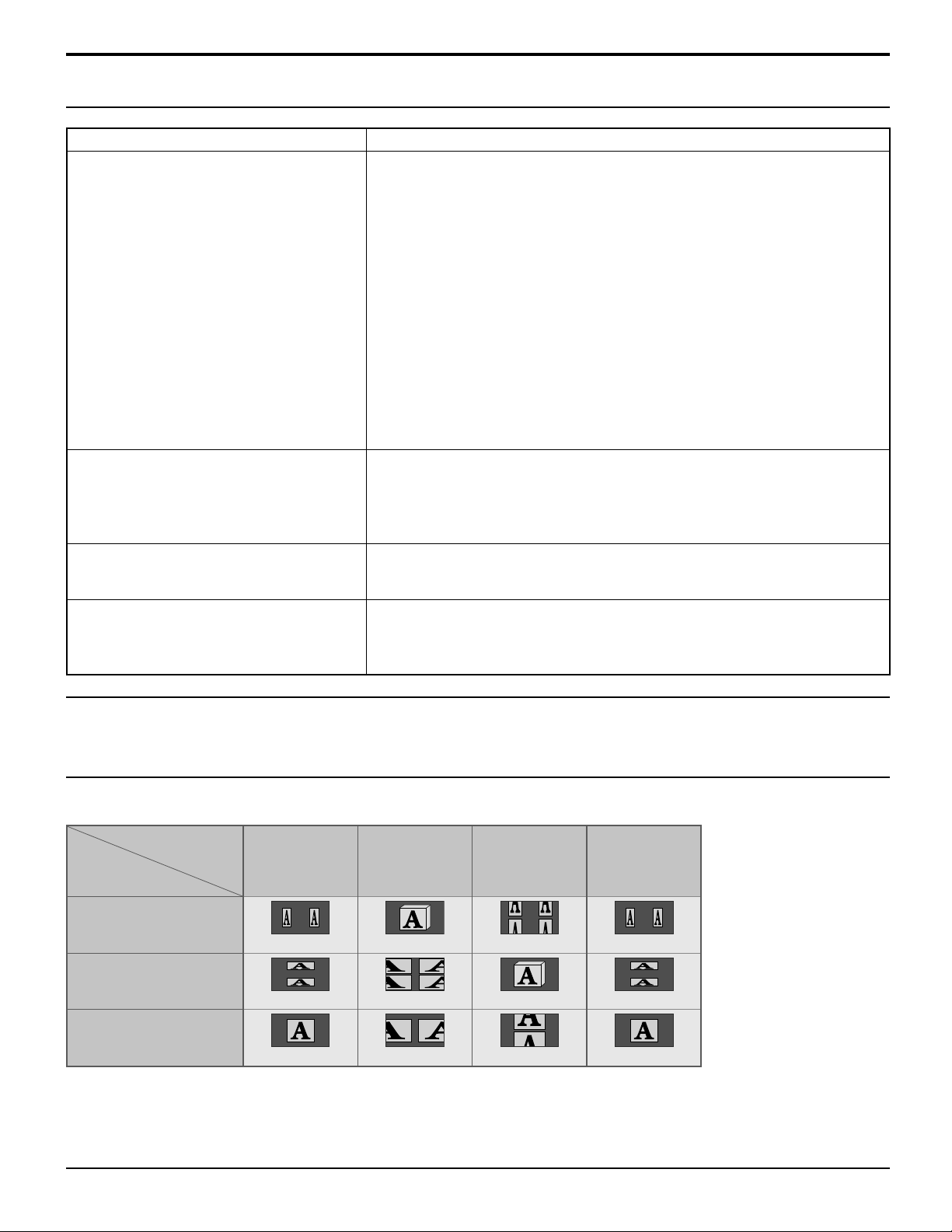

Table of images that can be seen for each 3D

Picture Format and the source image format ........ 26

On-Screen Menu Displays ..................................... 27

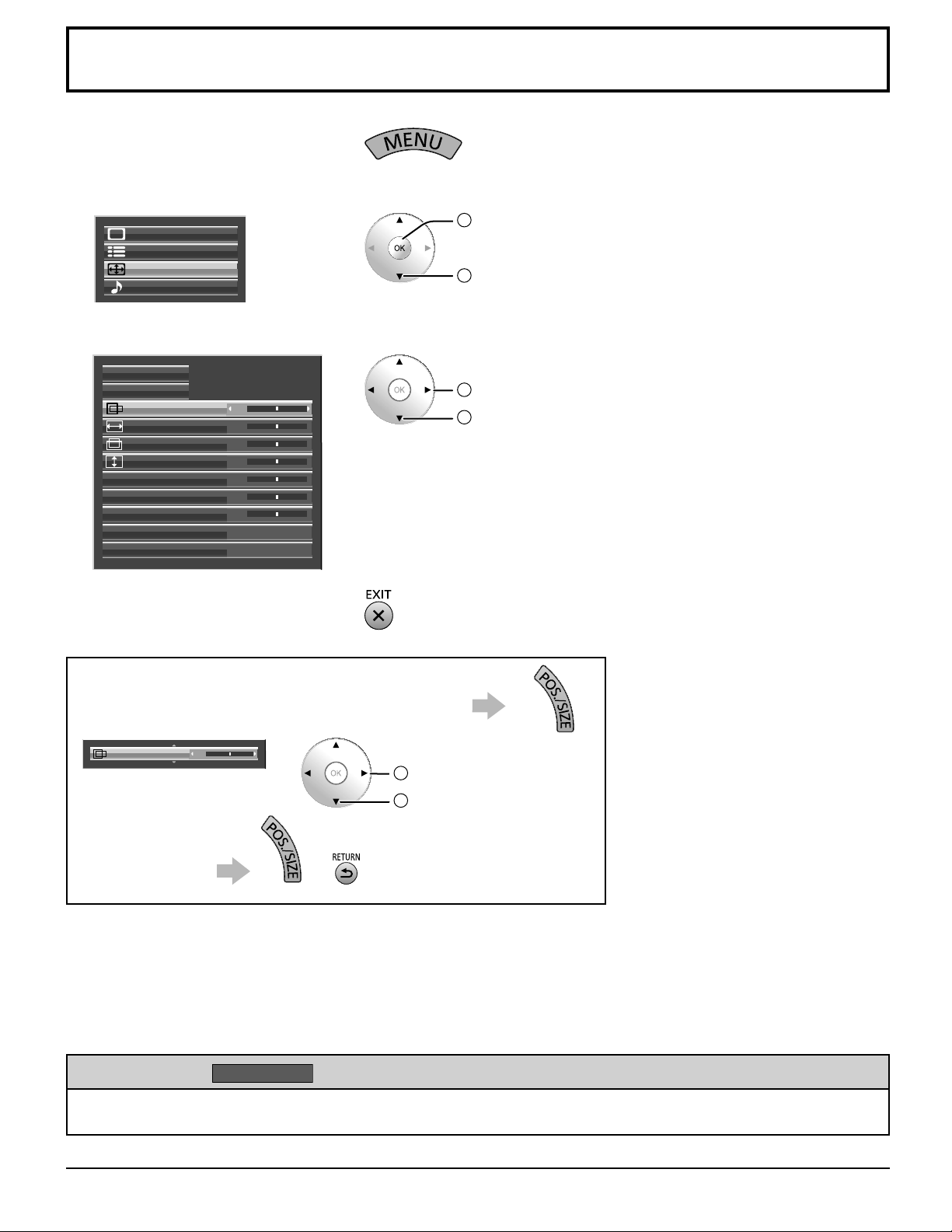

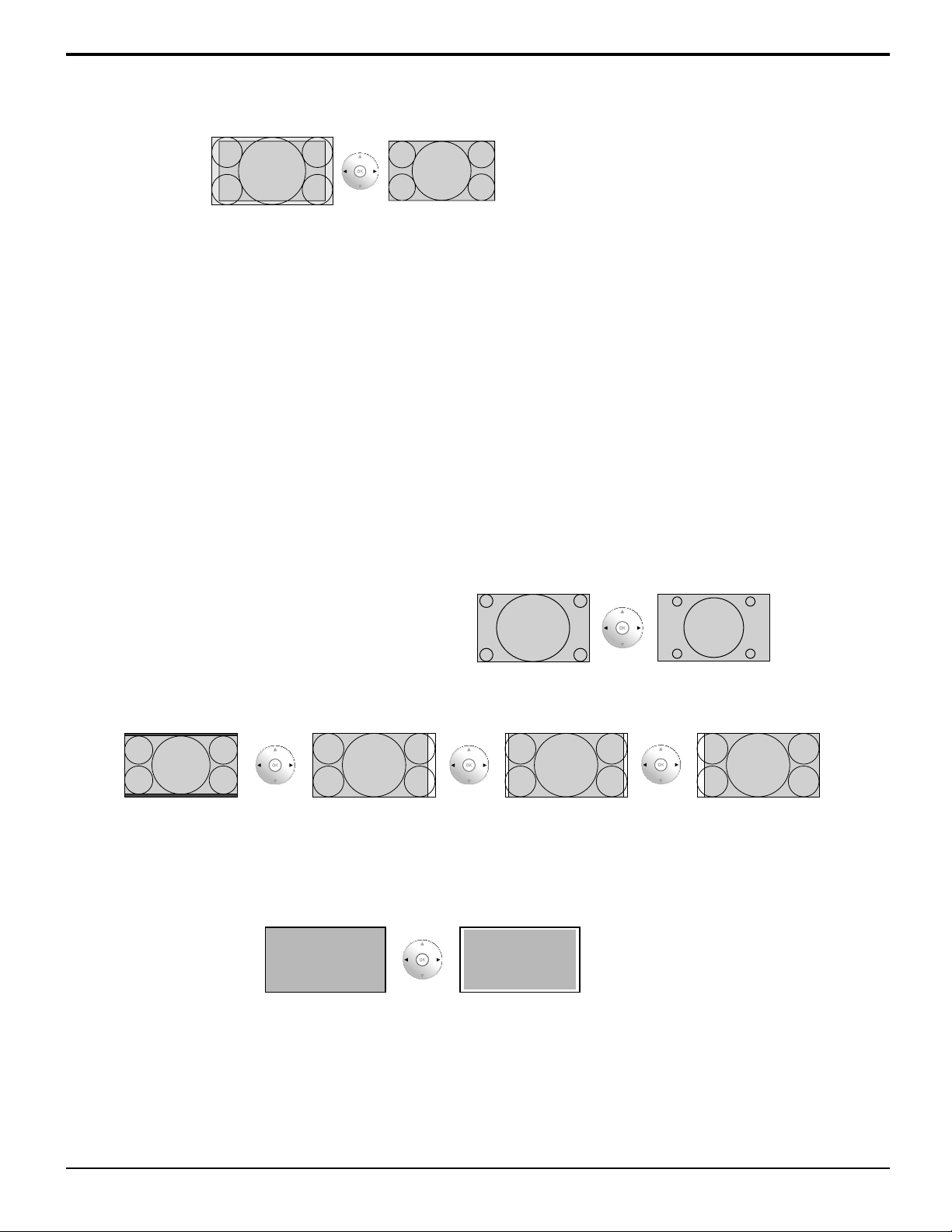

Adjusting POS. /SIZE ............................................. 28

PICTURE Adjustments ........................................... 31

ADVANCED SETTINGS ........................................ 33

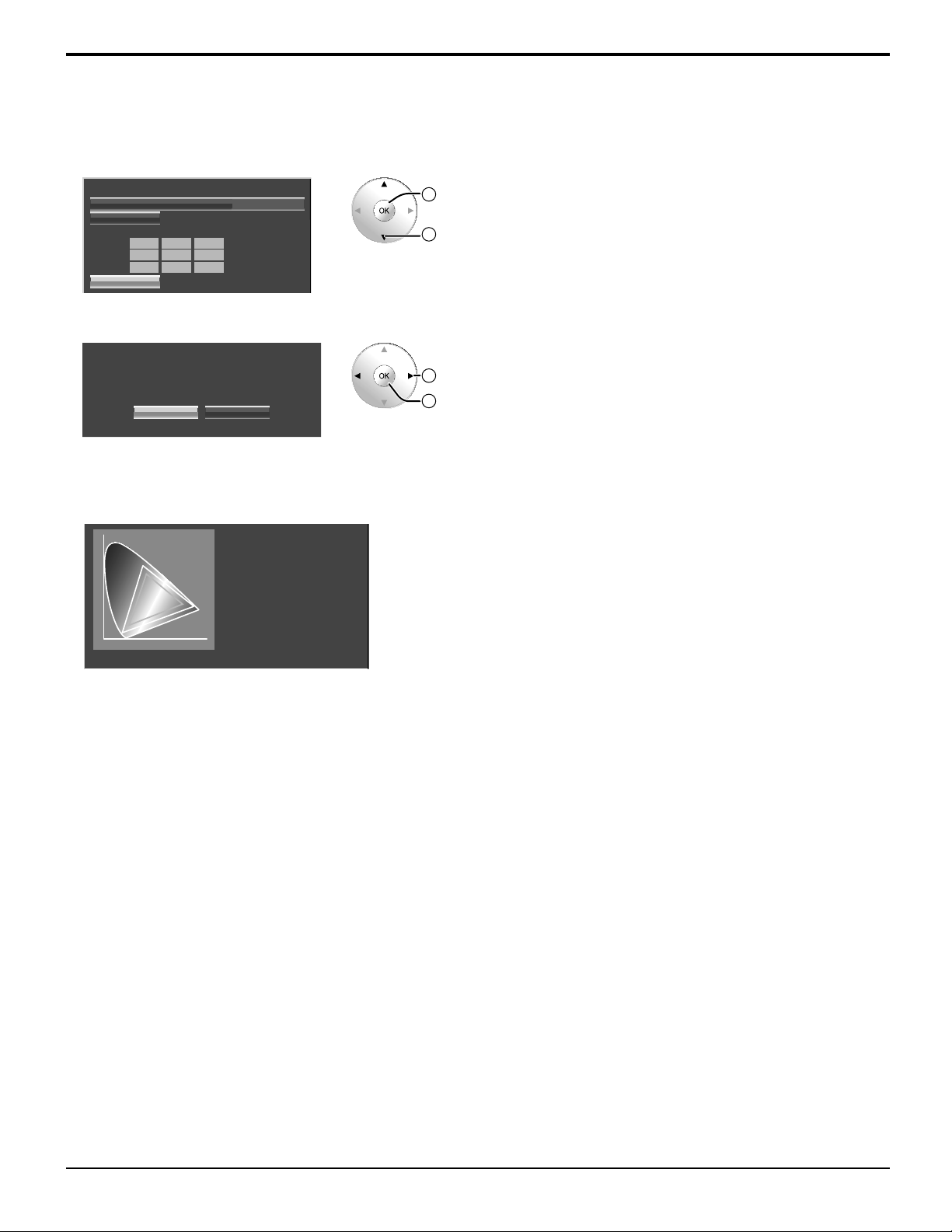

Color space adjustment (COLOR GAMUT) .......... 35

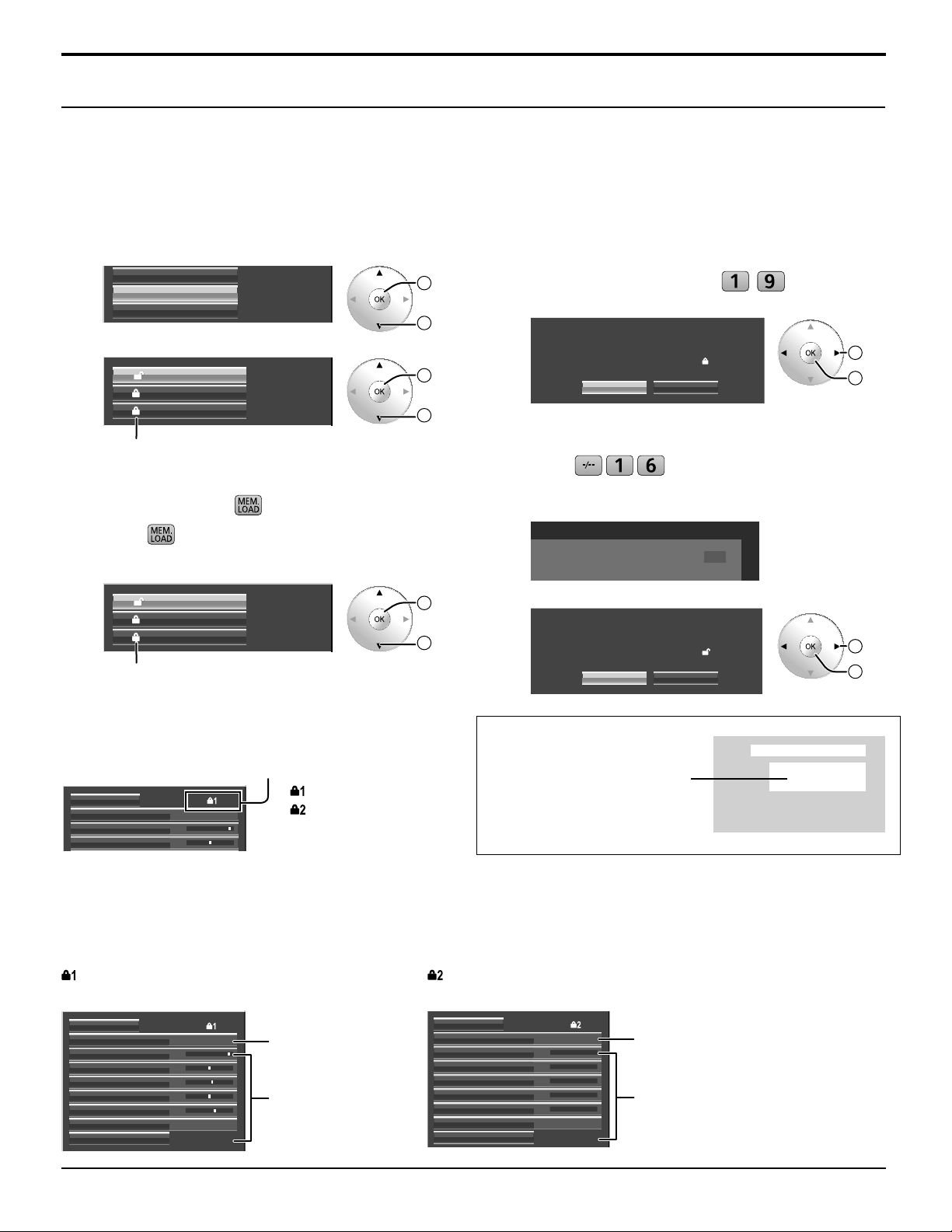

Picture Profi les ....................................................... 37

Saving profi les ....................................................... 38

Loading profi les ..................................................... 39

Editing profi les ....................................................... 40

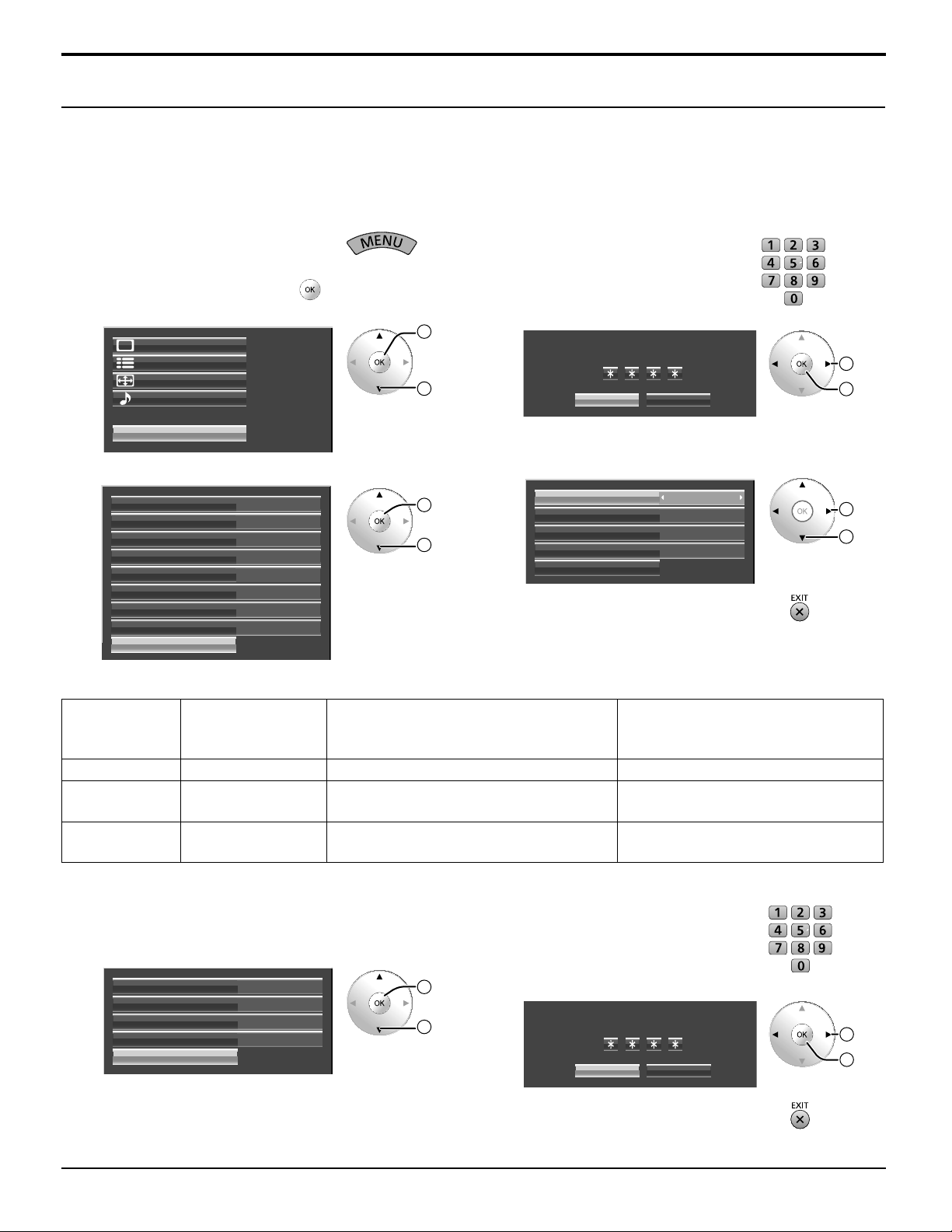

Locking profi les ..................................................... 41

SOUND Adjustment ................................................ 43

SDI SOUND OUTPUT ........................................... 43

SET UP menu .......................................................... 44

COMPONENT / RGB IN SELECT ......................... 44

YUV / RGB IN SELECT ......................................... 44

EXTERNAL SCALER MODE ................................ 45

POWER SAVE ....................................................... 46

PC POWER MANAGEMENT ................................ 46

AUTO POWER OFF .............................................. 46

OSD DESIGN ........................................................ 46

OSD POSITION .................................................... 46

OSD LANGUAGE .................................................. 46

3D SETTINGS ....................................................... 47

SIGNAL menu ....................................................... 48

SCREENSAVER .................................................... 50

EXTENDED LIFE SETTINGS ............................... 51

Customizing the Input labels ................................. 54

Network Setup ....................................................... 55

OPTIONS Adjustments ........................................... 56

3D Safety Precautions (To hide 3D Safety

Precautions) .......................................................... 57

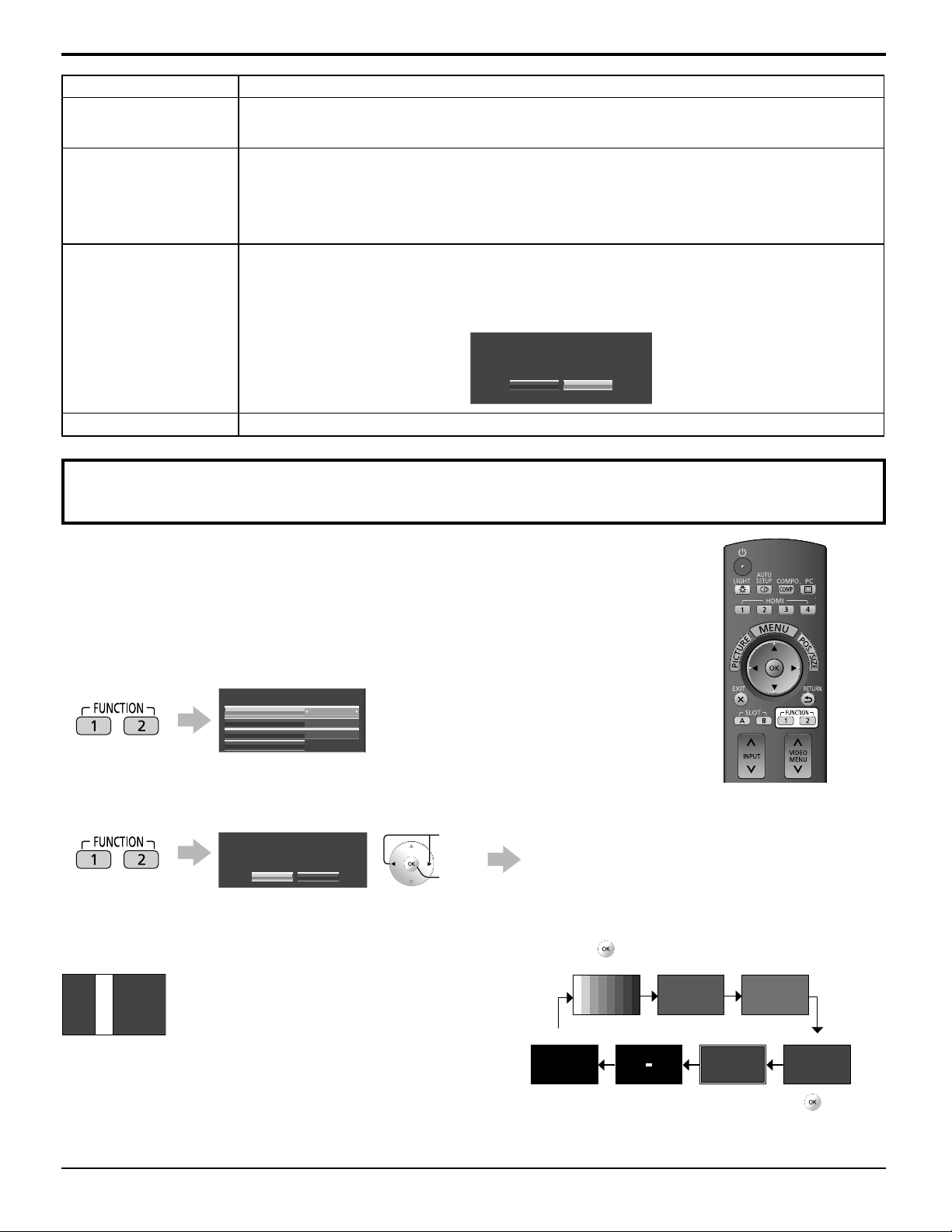

Using FUNCTION button ........................................ 57

Using Network Function ........................................ 58

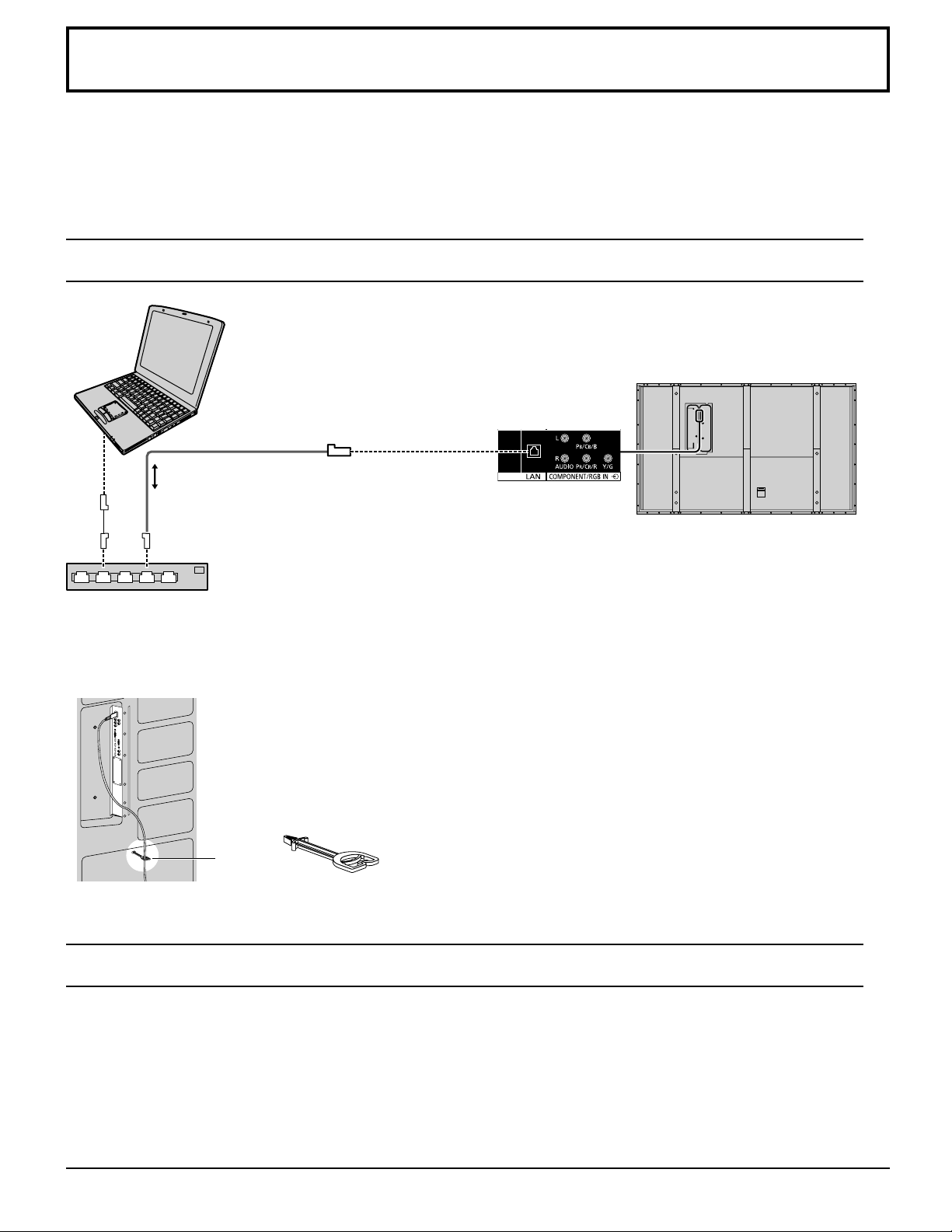

Example of Network Connection ........................... 58

Command Control ................................................. 58

PJLink™ Protocol .................................................. 59

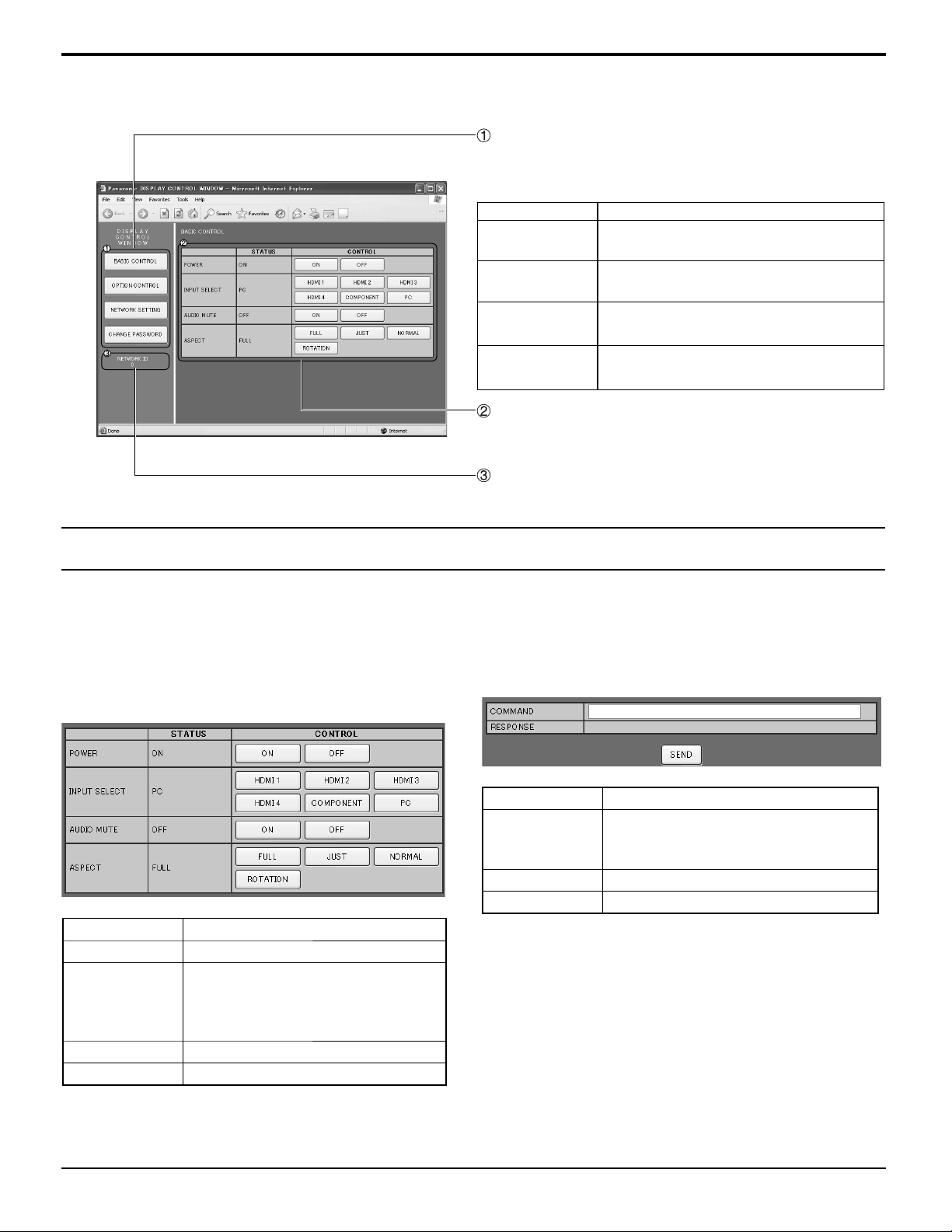

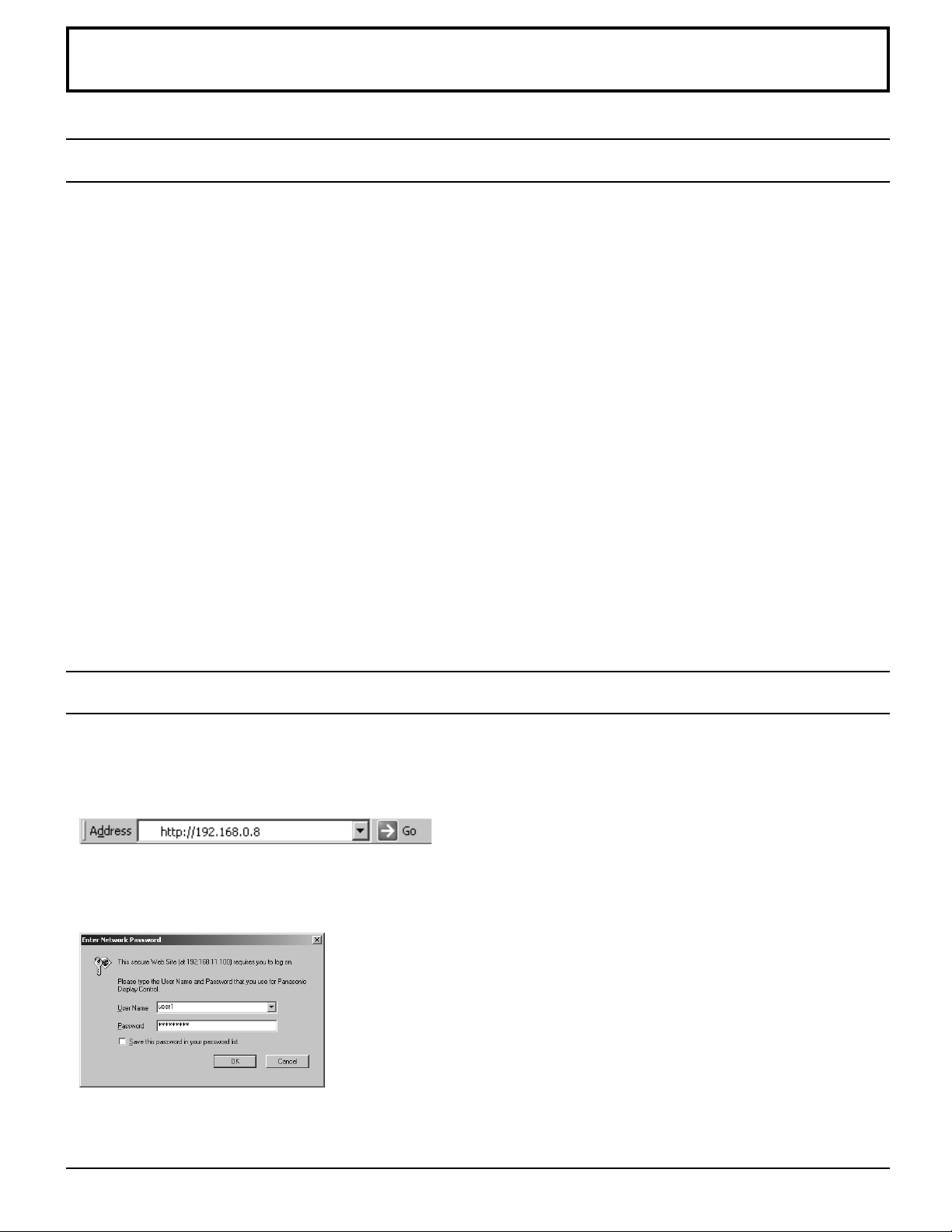

Using Web Browser Control .................................. 60

Before Using Web Browser Control....................... 60

Access from Web Browser .................................... 60

Display Control (BASIC CONTROL/OPTION

CONTROL Screen) ............................................... 61

NETWORK SETTING (Network Setup Screen) .... 62

Password Setting (Password Setup Screen) ........ 62

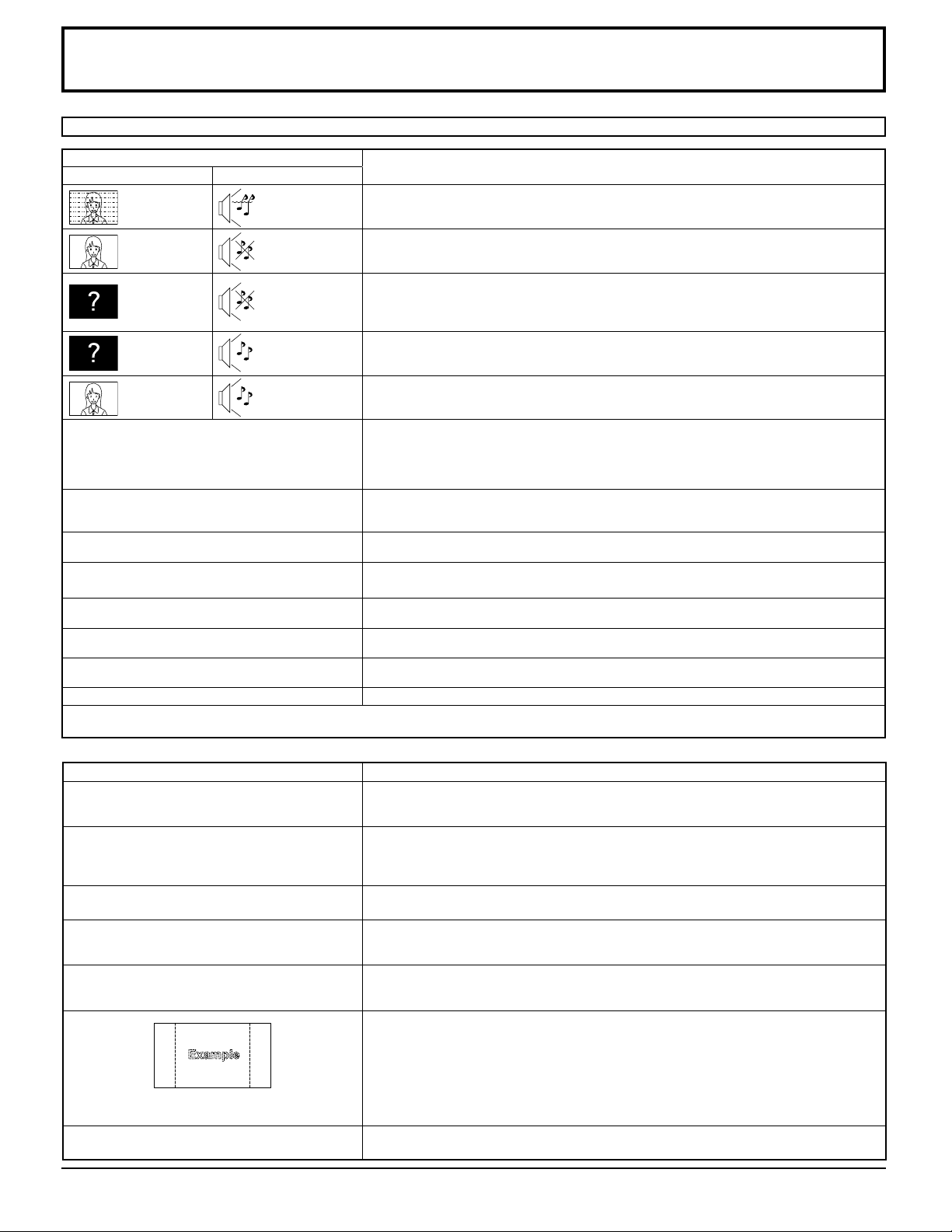

Troubleshooting ..................................................... 63

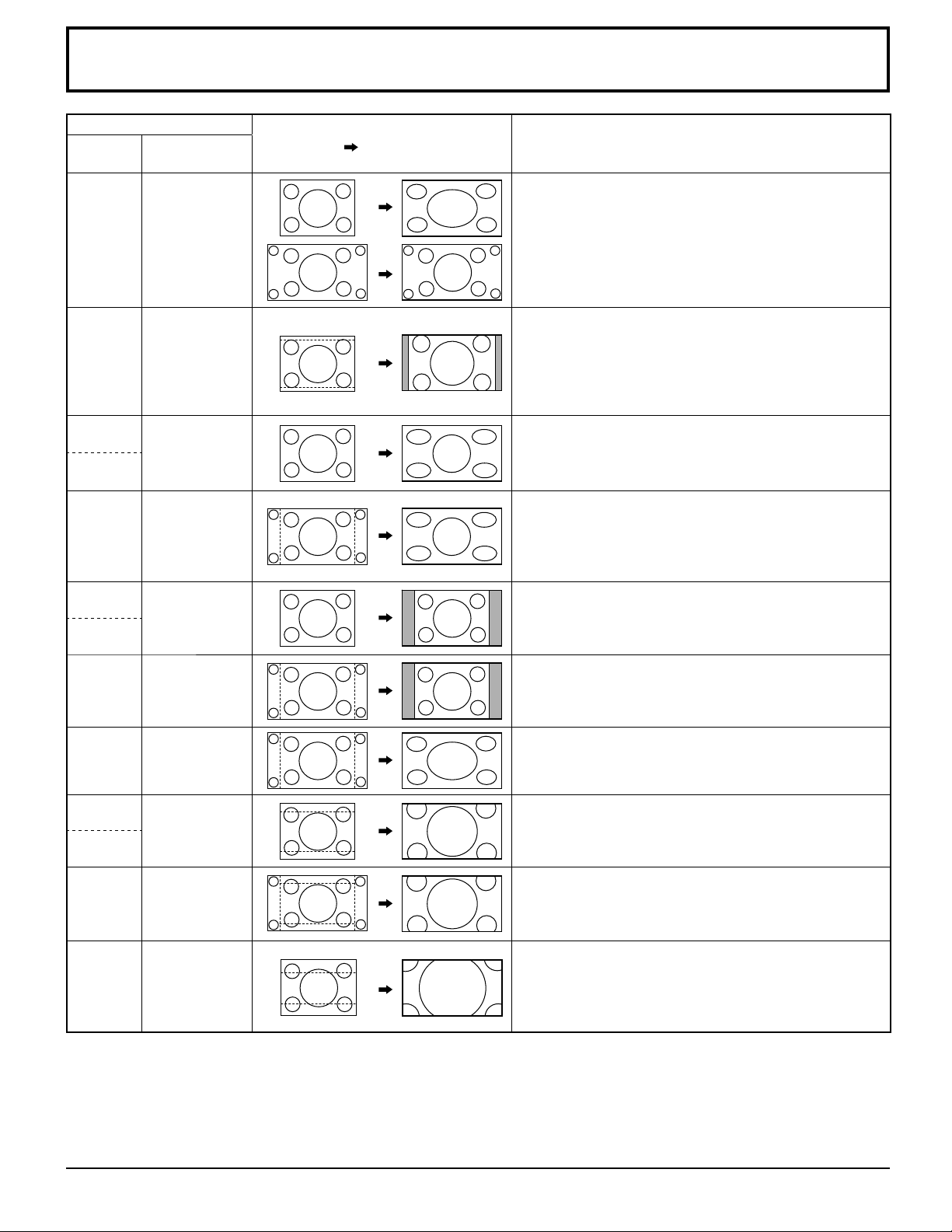

List of Aspect Modes ............................................. 64

Applicable Input Signals ........................................ 65

Shipping condition ................................................. 66

Specifi cations ......................................................... 67

4

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced technician for help.

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions:(1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

FCC CAUTION:
To assure continued compliance, follow the attached installation instructions and use only shielded interface
cables when connecting to computer or peripheral devices. Any changes or modifi cations not expressly
approved by Panasonic Corp. of North America could void the user's authority to operate this device.

FCC Declaration of Conformity

Model No. TH-85VX200U, TH-103VX200U

Responsible Party: Panasonic Corporation of North America
Three Panasonic Way 2F-5, Secaucus, NJ 07094
Contact Source: Panasonic Solutions Company
Panasonic Plasma Concierge 1-800-973-4390

CANADIAN NOTICE:

This Class B digital apparatus complies with Canadian ICES-003.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention to
remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

Trademark Credits

• VGA is a trademark of International Business Machines Corporation.

• Macintosh is a registered trademark of Apple Inc., USA.

• SVGA, XGA, SXGA and UXGA are registered trademarks of the Video Electronics Standard Association.
Even if no special notation has been made of company or product trademarks, these trademarks have been fully

respected.

• HDMI, the HDMI Logo, and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.

5

Safety Precautions

CAUTION

This Plasma Display is for use only with the following optional accessories. Use with any other type of optional
accessories may cause instability which could result in the possibility of injury.

• Pedestal ..................................................... TY-ST85P12 (for TH-85VX200U)

• Floor stand ................................................ TY-ST85PF12 (for TH-85VX200U)

• Wall-hanging bracket (vertical) .................. TY-WK85PV12 (for TH-85VX200U)

• BNC Dual Video Terminal Board ................ TY-FB9BD

• HD-SDI Terminal Board with audio ............ TY-FB10HD

• Dual Link HD-SDI Terminal Board ..............TY-FB11DHD

• DVI-D Terminal Board ................................ TY-FB11DD

• Ir Through Terminal Board ......................... TY-FB9RT

• AV Terminal Box ......................................... TY-TB10AV

Always be sure to ask a qualifi ed technician to carry out set-up.

Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard
unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being
played with by young children, creating the potential risk of suffocation.

(All of the following accessories are manufactured by Panasonic Corporation.)

TY-ST103PF9 (for TH-103VX200U)

TY-WK103PV9 (for TH-103VX200U)

When using the Plasma Display

Do not bring your hands, face or objects close to the
ventilation holes of the Plasma Display.

•

Top of the Plasma Display is usually very hot due to the
high temperature of exhaust air being released through the
ventilation holes. Burns or personal injuries can happen if any
body parts are brought too close. Placing any object near the
top of the display could also result in heat damages to the object
as well as to the Display if its ventilation holes are blocked.

Be sure to disconnect all cables before moving the Plasma Display.

•

Moving the Display with its cables attached might damage
the cables which, in turn, can cause fi re or electric shock.

Disconnect the power plug from the wall outlet as a
safety precaution before carrying out any cleaning.

• Electric shocks can result if this is not done.

WARNING

Setup

Do not place the Plasma Display on sloped or unstable
surfaces.

• The Plasma Display may fall off or tip over.

Do not place any objects on top of the Plasma Display.

•

If water spills onto the Plasma Display or foreign objects get
inside it, a short-circuit may occur which could result in fi re or
electric shock. If any foreign objects get inside the Plasma
Display, please consult an Authorized Service Center.

Clean the power cable regularly to prevent it from
becoming dusty.

• Built-up dust on the power cord plug can increase humidity
which might damage the insulation and cause fi re. Unplug
the cord from the wall outlet and clean it with a dry cloth.

This Plasma Display radiates infrared rays, therefore it
may affect other infrared communication equipment.
Install your infrared sensor in a place away from direct
or refl ected light from your Plasma Display.

Note:

Do not allow a still picture to be displayed for an extended
period, as this can cause a permanent image retention to
remain on the Plasma Display.
Examples of still pictures include logos, video games, computer
images, teletext and images displayed in 4:3 mode.

Do not cover the ventilation holes.

• Doing so may cause the Plasma Display to overheat,
which can cause fi re or damage to the Plasma Display.

Transport only in upright position!

• Transporting the unit with its display panel facing upright or
downward may cause damage to the internal circuitry.

Do not use any power supply cord other than that
provided with this unit.

• Doing so may cause fi re or electric shocks.

6

Safety Precautions

For suffi cient ventilation;
(TH-85VX200U)
If using the pedestal (optional accessory), leave a space
of 3 15/16” (10 cm) or more at the top, left and right,
and 6.0” (15 cm) or more at the rear, and also keep the
space between the bottom of the display and the fl oor
surface.
If using some other setting-up method, follow the manual
of it. (If there is no specifi c indication of installation
dimension in the installation manual, leave a space of
3

15/16” (10 cm) or more at the top, bottom, left and right,

and 6.0” (15 cm) or more at the rear.)
(TH-103VX200U)

If using the pedestal (optional accessory), leave a
space of 12.0” (30 cm) or more at the top, left and right,
and 8.0” (20 cm) or more at the rear, and also keep the
space between the bottom of the display and the fl oor
surface.
If using some other setting-up method, follow the manual
of it. (If there is no specifi c indication of installation
dimension in the installation manual, leave a space of

12.0” (30 cm) or more at the top, bottom, left and right,
and 8.0” (20 cm) or more at the rear.)

An apparatus with CLASS I construction shall be
connected to a mains socket outlet with a protective
earthing connection.

AC Power Supply Cord

The Plasma Display is designed to operate on power
supply as shown below.
TH-85VX200U: 120 V AC, 50/60 Hz
TH-103VX200U: 200 - 240 V AC, 50/60 Hz

Ensure that the mains plug is easily accessible.

Securely insert the power cord plug as far as it will go.

• If the plug is not fully inserted, heat may be generated
which could cause fi re. If the plug is damaged or the
wall socket plate is loose, they should not be used.

Do not handle the power cord plug with wet hands.

• Doing so may cause electric shocks.

Do not do anything that might damage the power cable.
When disconnecting the power cable, hold the plug, not
the cable.

• Do not make any modifi cations, place heavy objects on,
place near hot objects, heat, bend, twist or forcefully
pull the power cable. Doing so may cause damage to
the power cable which can cause fi re or electric shock.
If damage to the cable is suspected, have it repaired at
an Authorized Service Center.

If the Plasma Display will not be used for a long period
of time, unplug the power cord from the wall outlet.

If problems occur during use

If a problem occurs (such as no picture or no sound),
or if smoke or an abnormal odor is detected from the
Plasma Display, unplug the power cord immediately.

• Continuous use of the Display under these conditions
might cause fi re or permanent damage to the unit.
Have the Display evaluated at an Authorized Service
Center. Services to the Display by any unauthorized
personnel are strongly discouraged due to its high
voltage dangerous nature.

If water or foreign objects get inside the Plasma Display,
if the Plasma Display is dropped, or if the cabinet
becomes damaged, disconnect the power cord plug
immediately.

• A short may occur, which could cause fi re. Contact an
Authorized Service Center for any repairs that need to
be made.

Maintenance

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning
cloth or a soft, lint-free cloth.

• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in which
neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until the surface
is dry.

• Do not scratch or hit the surface of the panel with fi ngernails or other hard objects, otherwise the surface may become
damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise
the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been added
and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.

• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get
inside the unit, operating problems may result.

• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the cabinet
surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact
with articles made from rubber or PVC.

7

Safety Precautions

3D Safety Precautions

WARNING

Small Parts

3D Eyewear contains small parts (battery and specialised band, etc.) and must be kept out of reach of small
children to avoid accidental ingestion.

Disassembly

Do not disassemble or modify the 3D Eyewear.

Lithium Battery

Batteries must not be exposed to excessive heat such as sunshine, fi re or the like.

CAUTION

To enjoy 3D images safely and comfortably, please read these instructions fully.

Use for commercial applications and public viewing

Someone in authority should responsibly convey the precautions for use of the 3D Eyewear to the user.

3D Eyewear

Do not drop, exert pressure on, or step on the 3D Eyewear.

Always store the 3D Eyewear in the case provided when not in use.

Be careful of the tips of the frame when putting on the 3D Eyewear.

Be careful not to trap a fi nger in the hinge section of the 3D Eyewear.

Pay special attention when children are using the 3D Eyewear.
3D Eyewear should not be used by children younger than 5 - 6 years old, as a guideline.
All children must be fully supervised by parents or guardians who must ensure their safety and health throughout
the using 3D Eyewear.

8

Safety Precautions

Viewing 3D Content

Content for 3D viewing includes commercially available Blu-ray discs, 3D broadcasts, etc.
When preparing your own 3D content, ensure that it is properly produced.

Do not use the 3D Eyewear if you have a history of over-sensitivity to light, heart problems, or have any other
existing medical conditions.

Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any other
uncomfortable sensation.

Take an appropriate break after viewing a 3D movie.
Take a break of between 30 - 60 minutes after viewing 3D content on interactive devices such as 3D games or

computers.
Be careful not to strike the screen or other people unintentionally. When using the 3D Eyewear the distance

between the user and screen can be misjudged.
The 3D Eyewear must only be worn when viewing 3D content.
If you do not look toward the screen for a while when viewing 3D images, the 3D Eyewear may be turned off

automatically.
If you suffer from any eyesight problems (short / far-sighted, astigmatism, eyesight differences in left and right),

please ensure to correct your vision before using the 3D Eyewear.
Stop using the 3D Eyewear if you can clearly see double images when viewing 3D content.
When the multiple plasma displays are placed side by side, 3D images may be seen doubly due to interference

among them. Place each display at an appropriate location to avoid it.
Do not use the 3D Eyewear at a distance less than the recommended distance.

View from at least the recommended distance (3 times the effective height of the screen).
TH-85VX200U: 126.0” (3.2 m) or more
TH-103VX200U: 154.0” (3.9 m) or more
When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance 3 times
further than the height of the actual image. (That makes the distance closer than above recommended fi gure.)

3D Eyewear Use

Before using the 3D Eyewear, ensure no breakable objects surrounding the user to avoid any accidental damage
or injury.

Remove the 3D Eyewear before moving around to avoid falling or accidental injury.
Always put the 3D Eyewear in the case (supplied) after use.
Use the 3D Eyewear only for the intended purpose and nothing else.
Do not use 3D Eyewear in the condition of high temperature.
Do not use if the 3D Eyewear is physically damaged.
Do not use any devices that emit the infrared signals near the 3D Eyewear, as this may cause the 3D Eyewear

false operations.
Do not use devices (such as mobile phones or personal transceivers) that emit strong electromagnetic waves

near the 3D Eyewear as this may cause the 3D Eyewear to malfunction.
Stop using the 3D Eyewear immediately if a malfunction or fault occurs.
Stop using the 3D Eyewear immediately if you experience any redness, pain, or skin irritation around the nose

or temples.
In rare cases, the materials used in the 3D Eyewear may cause an allergic reaction.

Lithium Battery

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

9

Accessories

Accessories Supplied

Check that you have the Accessories and items shown

Remote Control
Transmitter

N2QAYB000562

3D Eyewear set
(see page 23)

Operating Instructions

Batteries for
the Remote
Control
Transmitter
(AA Size × 2)

Screwdriver

For 3D Eyewear
(see page 24)

Fixing band × 2
TMME203

These accessories will be used by professional installers when
they install the unit.

TH-85VX200U

Eyebolt cap × 1

TH-103VX200U

Eyebolt cap × 1 Eyebolt × 1

TH-85VX200U TH-103VX200U

Clamper × 1
TMM15412-2

Use the clamper when
connecting a LAN cable.
(see page 58)

Eyebolt × 1
(M12)

(M16)

AC cord

Allen wrench

Allen wrench

Remote Control Batteries

Requires two AA batteries.

1. Pull and hold the hook, then
open the battery cover.

Open

Hook

Helpful Hint:

For frequent remote control users, replace old batteries with Alkaline batteries for longer life.

Precaution on battery use

Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.
Disposal of batteries should be in an environment-friendly manner.

Observe the following precautions:

1. Batteries should always be replaced as a pair. Always use new batteries when replacing the old set.

2. Do not combine a used battery with a new one.

3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).

4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.

5. Battery replacement is necessary when the remote control acts sporadically or stops operating the Plasma Display.

6. Do not burn or breakup batteries.

Batteries must not be exposed to excessive heat such as sunshine, fi re or the like.

2. Insert batteries - note correct
polarity (+ and -).

Close

“AA” size

10

Connections

AC cord connection and fi xing, cable fi xing

TH-85VX200U

AC cord of this model is fi xed and connected to the main unit. No AC cord needs to be connected.

– How to Unfasten the AC cord

Loosen the fi xing band securing the AC cord.

To loosen:
Push the catch

Pull

– Cable fi xing bands

Secure any excess cables with bands as required.

Note:

Two fi xing bands are supplied with this unit. In case of securing cables at three positions, please purchase it separately.

Pass the attached cable
fi xing band through the
clip as shown in the
fi gure.

1

To secure cables connected to Terminals, wrap the cable fi xing band around them then
pass the pointed end through the locking block, as shown in the fi gure.

While ensuring there is suffi cient slack in cables to minimize stress (especially
in the power cord), fi rmly bind all cables with the supplied fi xing band.

To tighten:

Pull

2

To loosen:
Push the catch

Pull

11

Connections

TH-103VX200U

– AC cord fi xing

1

Plug the AC cord into

the display unit.

Note:

Make sure that the
AC cord is locked on both
the left and right sides.

– Cable fi xing bands

Plug the AC cord until

it clicks.

2

Fix the AC cord with

the clamper.

Secure any excess cables with bands as required.

Close

Push until
the hook clicks.

Open

2. Pull off.

1. Keep the

knob pressed.

Unplug the AC cord

Unplug the
AC cord
pressing the
two knobs.

Note:

When disconnecting the AC
cord, be absolutely sure to
disconnect the AC cord plug
at the socket outlet fi rst.

Note:

Two fi xing bands are supplied with this unit. In case of securing cables at four positions, please purchase it separately.

Pass the attached cable
fi xing band through the
clip as shown in the
fi gure.

1

To secure cables connected to Terminals, wrap the cable fi xing band around them then
pass the pointed end through the locking block, as shown in the fi gure.

While ensuring there is suffi cient slack in cables to minimize stress (especially
in the power cord), fi rmly bind all cables with the supplied fi xing band.

To tighten:

Pull

2

To loosen:
Push the catch

Pull

12

Video equipment connection

Connections

LAN

Connect to a
network to control
the unit.
(see page 58)

SERIAL

Control the Plasma Display
by connecting to PC.
(see page 16)

COMPONENT/RGB IN

Component/RGB Video
Input Terminal

(see page 14)

PC IN

PC Input Terminal
Connect to video
terminal of PC or
equipment with Y,
P
output.
(see page 15)

3D SHUTTER OUT

Connect the 3D IR
TRANSMITTER
(optional accessory).

B(CB) and PR(CR)

AUDIO OUT connection

Note:

Additional equipment and cables shown are not supplied with this set.

AUDIO OUT

Connect to sound
equipment.
(see below)

AV IN (HDMI 1-4)

HDMI Input Terminal
(see page 14)

SLOT

Terminal board
(optional accessories)
insert slot
(see page 6)

Stereophonic sound code

audio equipment

line-in

13

Connections

HDMI connection

[Pin assignments and signal names]

Pin No.

Signal Name

1

T.M.D.S Data2+

T.M.D.S Data2

2

Shield

3

T.M.D.S Data2-

4

T.M.D.S Data1+
T.M.D.S Data1

5

Shield

6

T.M.D.S Data1-

7

T.M.D.S Data0+
T.M.D.S Data0

8

Shield

9

T.M.D.S Data0-

10

T.M.D.S Clock+

19

Pin No.

11

12

13

14

15

16

17

18

19

3

T.M.D.S Clock
Shield

T.M.D.S Clock-

CEC

Reserved
(N.C. on device)

SCL
SDA
DDC/CEC

Ground
+5V Power
Hot Plug Detect

1

Signal Name

HDMI cables

HDMI

AV OUT

HDMI

AV OUT

HDMI cables

HDMI

AV OUT

HDMI

AV OUT

DVD Player or SET-TOP-BOX
(HDMI compatible machines only)

2

18

4

Note:

Additional equipment and HDMI cable shown are not supplied with this set.

COMPONENT / RGB IN connection

Y

P B

P

L

R

R

AUDIO

, Y , P B , P R

OUT

OUT

DVD Player

Computer RGB Camcorder

Notes:

• Additional equipment and cables shown are not supplied with this set.

• Change the “COMPONENT/RGB-IN SELECT” setting in the “SET UP” menu to “COMPONENT” (when COMPONENT
signal connection) or “RGB” (when RGB signal connection). (see page 44)

• Accepts only RGB signals with “SYNC ON G”.

14

PC Input Terminals connection

COMPUTER

Connections

(Female)

Audio

Connect a cable which matches
the audio output terminal on the computer.

Conversion adapter
(if necessary)

Stereo mini plug (M3)

Mini D-sub 15p

RGB

PC cable

(Male)

Notes:

• With regard to the typical PC input signals that are described in the applicable input signals list (see page 65), adjustment
values such as for the standard picture positions and sizes have already been stored in this unit. You can add up to eight
PC input signal types that are not included in the list.

• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning
frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)

• The display resolution is a maximum of 1,440 × 1,080 dots when the aspect mode is set to “4:3”, and 1,920 × 1,080
dots when the aspect mode is set to “FULL”. If the display resolution exceeds these maximums, it may not be possible
to show fi ne detail with suffi cient clarity.

• The PC input terminals are DDC2B-compatible. If the computer being connected is not DDC2B-compatible, you will need
to make setting changes to the computer at the time of connection.

• Some PC models cannot be connected to the set.

• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.

• The computer shown in the illustration is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specifi ed
frequency range.

• Component Input is possible with the pin 1, 2, 3 of the Mini D-sub 15P Connector.

• Change the “COMPONENT/RGB-IN SELECT” setting in the “SET UP” menu to “COMPONENT”

(when COMPONENT signal connection) or “RGB” (when RGB signal connection). (see page 44)

Signal Names for Mini D-sub 15P Connector

Pin No.

1

3

4 5

2

9

10

15 14 13 12 11

6 7 8

Pin Layout for PC Input
Terminal

1

2

3

4

NC (not connected)

5

Signal Name

R (PR/CR)

G (Y)

B (PB/CB)

GND (Ground)

Pin No.

6

7

8

9

10

Signal Name

GND (Ground)
GND (Ground)
GND (Ground)

+5 V DC

GND (Ground)

Pin No.

11

12

13

14

15

Signal Name

NC (not connected)

SDA

HD/SYNC

VD

SCL

15

Connections

SERIAL Terminals connection

The SERIAL terminal is used when the Plasma Display is controlled by a computer.

Note:

To use serial control for this unit, make sure to set the “CONTROL I/F SELECT” in the “NETWORK SETUP” menu to
“RS-232C”. (see page 55)

COMPUTER

(Male)

RS-232C Straight cable

Notes:

D-sub 9p

• Use the RS-232C straight cable to connect the computer
to the Plasma Display.

• The computer shown is for example purposes only.

• Additional equipment and cables shown are not supplied
with this set.

The SERIAL terminal conforms to the RS-232C interface
specifi cation, so that the Plasma Display can be controlled
by a computer which is connected to this terminal.
The computer will require software which allows the
sending and receiving of control data which satisfi es the
conditions given below. Use a computer application such as
programming language software. Refer to the documentation
for the computer application for details.

Communication parameters

Signal level RS-232C compliant

Synchronization method Asynchronous

Baud rate 9600 bps

Parity None

Character length 8 bits

Stop bit 1 bit

Flow control -

Basic format for control data

The transmission of control data from the computer starts with
a STX signal, followed by the command, the parameters, and
lastly an ETX signal in that order. If there are no parameters,
then the parameter signal does not need to be sent.

STX C1 C2 C3 P1 P2 P3 P4: P5 ETX

Start
(02h)

Colon Parameter(s)
3-character
command (3 bytes)

(1 - 5 bytes)

End
(03h)

Notes:

• If multiple commands are transmitted, be sure to wait for
the response for the fi rst command to come from this unit
before sending the next command.

• If an incorrect command is sent by mistake, this unit will
send an “ER401” command back to the computer.

• S1A and S1B of Command IMS are available only when a
dual input terminal board is attached.

(Female)

6789

13452

Pin layout for SERIAL Terminal

Signal names for D-sub 9P connector

Pin No.

2
3
5

4

6

•

7
8

1

9

•

Details

R X D

T X D

GND

Non use

(Shorted in this set)

NC

These signal names are those of computer specifi cations.

Command

Command Parameter Control details
PON None Power ON
POF None Power OFF
AVL ** Volume 00 - 63
AMT 0 Audio MUTE OFF

1 Audio MUTE ON

IMS None

SL1
S1A
S1B
YP1

Input select (toggle)
SLOT input (SLOT INPUT)
SLOT input (SLOT INPUT A)
SLOT input (SLOT INPUT B)
COMPONENT/RGB IN input

(COMPONENT)
HM1
HM2
HM3
HM4
PC1

DAM None

ZOOM
FULL
JUST
NORM
SJST
SNOM
SFUL
ZOM2

HDMI 1 input (HDMI1)

HDMI 2 input (HDMI2)

HDMI 3 input (HDMI3)

HDMI 4 input (HDMI4)

PC IN input (PC)

Screen mode select (toggle)

ZOOM (For Video/SD/PC signal)

FULL

JUST (For Video/SD signal)

4:3 (For Video/SD/PC signal)

JUST (For HD signal)

4:3 (For HD signal)

H-FILL (For HD signal)

ZOOM (For HD signal)

With the power off, this display responds to PON command only.

16

Power ON / OFF

Connecting the AC cord plug to the Plasma Display.

For TH-103VX200U

Fix the AC cord plug securely to the Plasma Display
with the clamper. (see page 12)

Connecting the plug to the Wall Outlet.

Note:
For TH-103VX200U

When disconnecting the AC cord, be absolutely sure to
disconnect the AC cord plug at the socket outlet fi rst.

Right side surface

Press the Power switch on the Plasma Display to turn the
set on: Power-On.

Power Indicator: Green

Press the button on the remote control to turn the Plasma Display off.

Power Indicator: Red (standby)

Press the button on the remote control to turn the Plasma Display on.

Power Indicator: Green

Turn the power to the Plasma Display off by pressing the switch on the unit,
when the Plasma Display is on or in standby mode.

Note:

During operation of the power management function, the power indicator turns
orange in the power off state.

Remote Control
Sensor

Main Power
On / Off Switch

Power Indicator

17

Power ON / OFF

When fi rst switching on the unit

Following screen will be displayed when the unit is turned on for the fi rst time.
Select the language with the remote control. Unit buttons are invalid.

OSD LANGUAGE

1

Select the language.

2

Set.

Notes:

Once the language is set, this screen won’t be displayed •
when switching on the unit next time.
After the setting, language selection can be done from •
the SET UP menu. (see page 46)

3D Safety Precautions

If the power is turned on for the next and
subsequent times, 3D Safety Precautions
are displayed.
If you do not want to show this message, set
to hide it in the “3D Safety Precautions” on
the OPTIONS menu. (see page 57)

OSD LANGUAGE

English (UK)

Deutsch

Français

Italiano

Español

ENGLISH (US)

Русский

When 3D images will be viewed by unspecifi ed number of
people or used for commercial applications, someone in
authority should convey the following precautions.
These precautions should be followed in the home as well.

To enjoy 3D images safely and comfortably, please refer
to the Operating Instructions for in-depth description.
Please refrain from viewing 3D images if you do not
feel well or are experiencing visual fatigue.

18

Selecting the input signal

Press to select the input signal to be played back from the equipment
which has been connected to the Plasma Display.

INPUT

HDMI1

HDMI2
HDMI3
HDMI4
COMPONENT
PC

When an optional Terminal Board is installed:

INPUT

HDMI1

HDMI2
HDMI3
HDMI4
SLOT INPUT
COMPONENT
PC

HDMI input terminals in HDMI 1 to HDMI 4.

Component or RGB input terminal in COMPONENT/RGB IN.*
PC input terminal in PC IN.

* “COMPONENT” may be displayed as “RGB” depending on the
setting of “COMPONENT/RGB-IN SELECT”. (see page 44)

Input terminal in Terminal Board
When a dual input Terminal Board is installed, “SLOT INPUT A” and “SLOT INPUT B” are
displayed.

Using dedicated buttons for input selection

Press to select HDMI signal terminals in HDMI 1 to HDMI 4.

Press to select component or RGB signal terminal in COMPONENT/RGB IN.

Press to select PC signal terminal in PC IN.

Press to select Input terminal in Terminal Board.
For dual input Terminal Board, you can select either input terminal
using A or B button.

Notes:

• Selecting is also possible by pressing the INPUT button on the unit.

• Select to match the signals from the source connected to the component/
RGB input terminals. (see page 44)

• Image retention (image lag) may occur on the plasma display panel
when a still picture is kept on the panel for an extended period. The
function that darkens the screen slightly is activated to prevent image
retention (see page 63), but this function is not the perfect solution to
image retention.

ENTER/

MENU

INPUT

19

Basic Controls

Main Unit

Infrared transmitter for 3D
Eyewear
Note:

Do not place any objects
between the transmitter and
3D Eyewear.

Remote control sensor

Power Indicator

The Power Indicator will light.

• Power-OFF ...... Indicator not illuminated

(The unit will still consume
some power as long as the
power cord is still inserted
into the wall outlet.)

• Standby ........... Red

Orange (When “CONTROL
I/F SELECT” is set to “LAN”.
See page 55)

• Power-ON ........ Green

• PC POWER MANAGEMENT (DPMS)

................... Orange (With PC input signal.

See page 46)

Right side

surface

ENTER/

MENU

INPUT

Enter / Aspect button

(see page 22, 27)

Up / Down button

When the menu screen is displayed:
“▲” : press to move the cursor up
“▼” : press to move the cursor down
(see page 27)

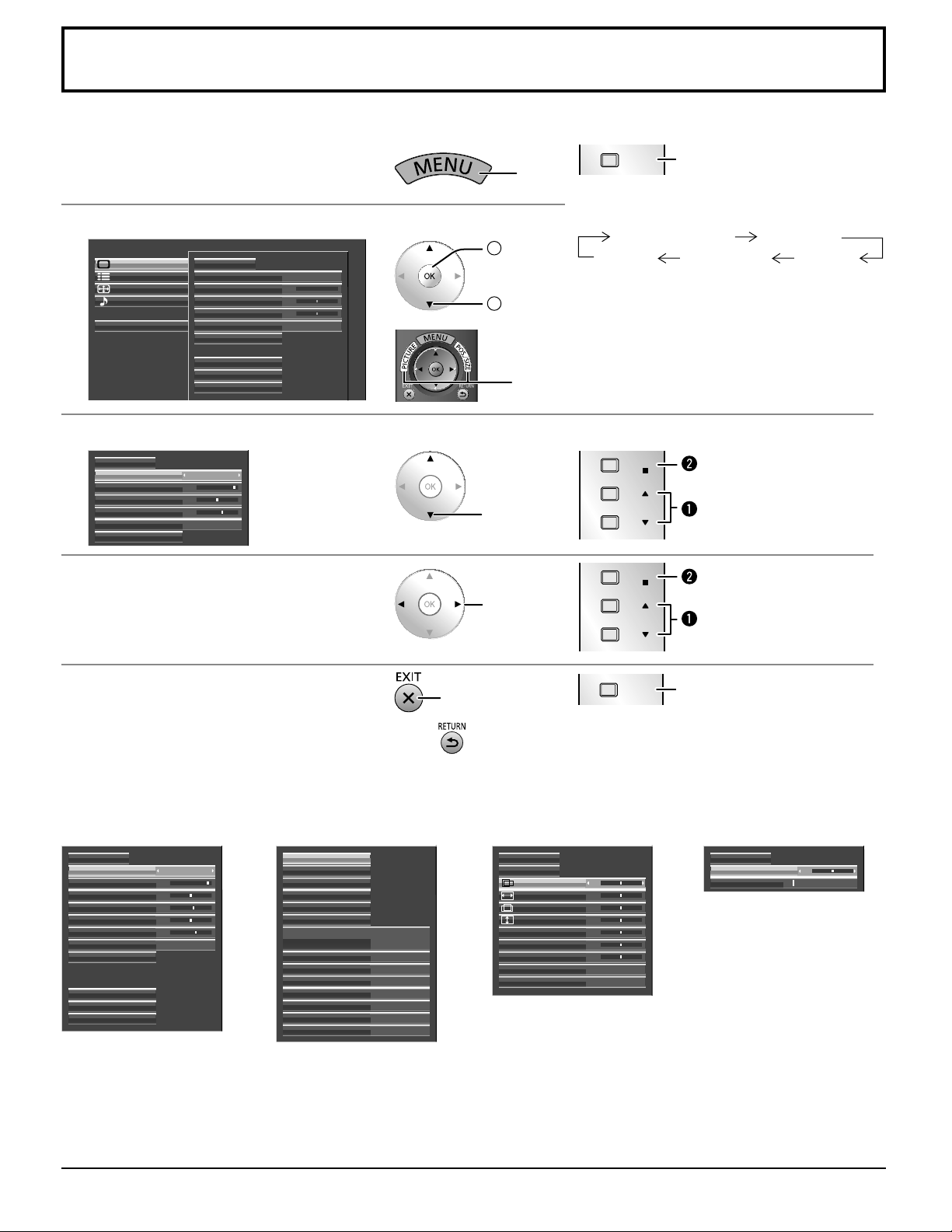

MENU Screen ON / OFF

Each time the MENU button is pressed, the menu
screen will switch. (see page 27)

Normal Viewing PICTURE SETUP

SOUND POS. /SIZE

INPUT button
(INPUT signal selection)

(see page 19)

Main Power On / Off Switch

20

Remote Control Transmitter

Basic Controls

Standby (ON / OFF) button

The Plasma Display must fi rst be plugged
into the wall outlet and turned on at the power
switch (see page 17).
Press this button to turn the Plasma Display
On, from Standby mode. Press it again to turn
the Plasma Display Off to Standby mode.

LIGHT button

The remote control’s buttons illuminate.

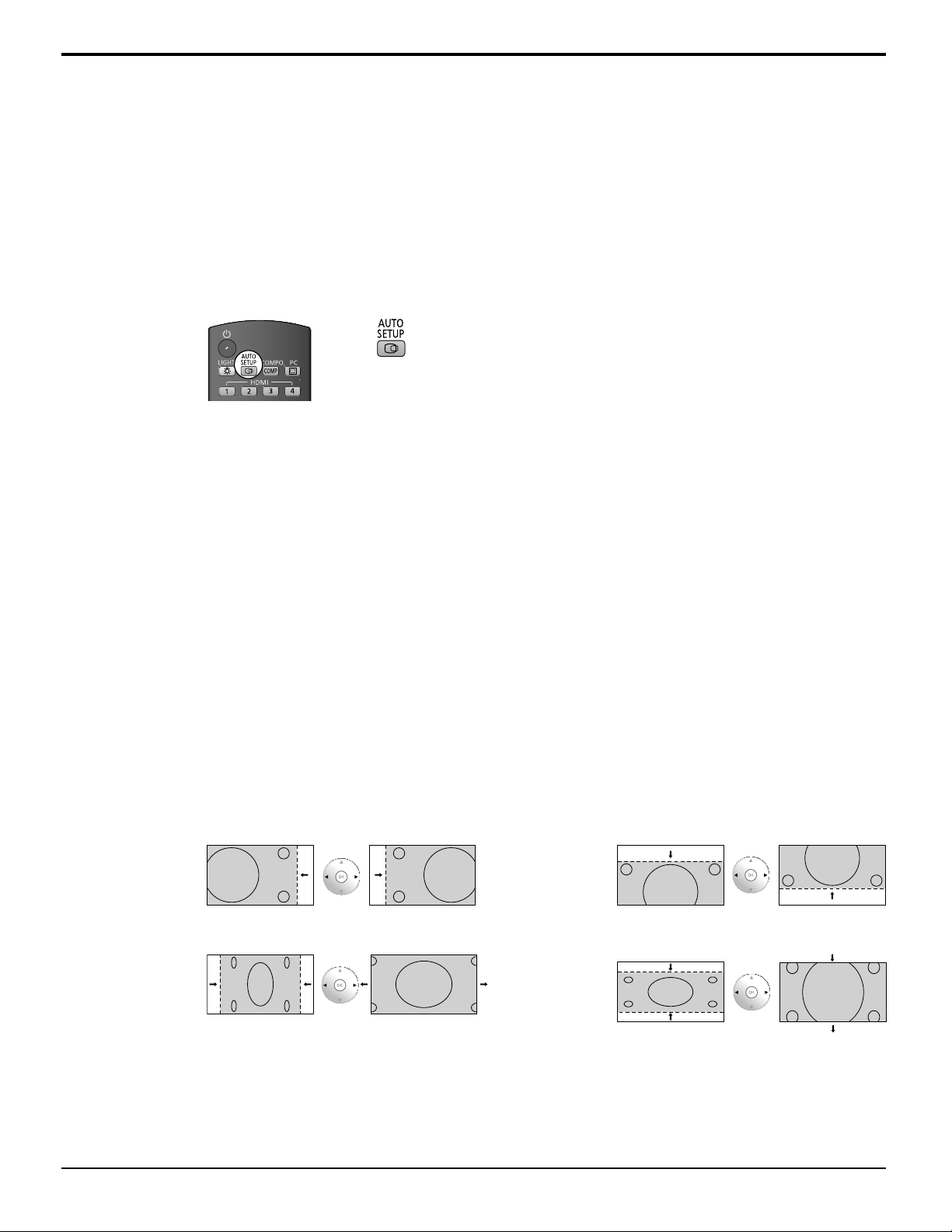

AUTO SETUP button

Automatically adjusts the position/ size of
the screen. (see page 29)

HDMI buttons

Press to select HDMI 1 to HDMI 4 input.
(see page 19)

PICTURE button

(see page 31)

OK button

Press to make selections.

Cursor buttons

EXIT button

Exits from Menu screen.

SLOT buttons

Press to select SLOT Terminal Board.
(see page 19)

INPUT button

Press to select input signal sequentially.
(see page 19)

RECALL button

Press the “RECALL” button to display
the current system status.

Input label

1
2

Aspect mode (see page 22)
During 3D images (see page 47)
Profi le name (see page 39)
NANODRIFT SAVER operating
(see page 52)

Off timer

3

The off timer indicator is displayed

only when the off timer has been set.

3D

PC

MEMORY NAME: MEMORY2

NANODRIFT

4:3

1

2

PC button

Press to select PC input. (see page 19)

COMPO. button

Press to select Component or RGB
input. (see page 19)

MENU button

Displays menu screen. (see page 27)

POS. /SIZE button

(see page 28)

RETURN button (see page 27)
Press the RETURN button to return to
previous menu screen.

FUNCTION buttons

(see page 57)

VIDEO MENU button

Press to select PICTURE MENU.
(see page 32)

STANDARD
MONITOR

DYNAMIC
CINEMA

EX.SCALER button

(see page 45)

OFF TIMER button

The Plasma Display can be preset to
switch to stand-by after a fi xed period.
The setting changes to 30 minutes, 60
minutes, 90 minutes and 0 minutes (off
timer cancelled) each time the button
is pressed.

30 60

90

0

When three minutes remain, “OFF
TIMER 3” will fl ash.
The off timer is cancelled if a power
interruption occurs.

OFF TIMER 90

3

ASPECT button

Press to adjust the aspect. (see page 22)

Numeric buttons

(see page 39)

MEM. LOAD button

(see page 39)

21

ASPECT Controls

The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format
picture.

Note:

Be aware that if you put the display in a public place for commercial purposes or a public showing and
then use the aspect mode select function to shrink or expand the picture, you may be violating the
copyright under copyright law. It is prohibited to show or alter the copyrighted materials of other people
for commercial purposes without the prior permission of the copyright holder.

Press repeatedly to move through the aspect options:
For details about the aspect mode, please see “List of Aspect Modes” (page 64).

[from the unit]

Right side surface

ENTER/

The aspect mode changes each time the ENTER button is pressed.

For VIDEO (S VIDEO) signal input:

4:3 ZOOM JUSTFULL

For PC signal input:

4:3 ZOOM FULL 4:3 ZOOM JUSTFULL

For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i, 750 (720) / 60p • 50p]:

4:3 H-FILL ZOOM

[For 3D images]
The aspect is fi xed as “FULL” and you cannot switch.

Notes:

• The aspect mode is memorized separately for each input terminal.

• Do not allow the picture to be displayed in 4:3 mode for an extended period, as this can cause a permanent image
retention to remain on the Plasma Display Panel.

All Aspect mode

Set “All Aspect” to “On” in OPTIONS menu to enable the extended aspect mode (page 56). When All Aspect mode, the aspect
mode of pictures is switched as follows. For details about the aspect mode, please see “List of Aspect Modes” (page 64).

For VIDEO (S VIDEO) signal input:

4:3 Zoom1 16:9 JustZoom2 Zoom3 14:9

For PC signal input:

4:3 Zoom

16:9

For SD signal input (525 (480) / 60i • 60p, 625 (575) / 50i • 50p):

FULL JUST

•

For SD signal input (525 (480) / 60i

4:3 Zoom1 16:9 JustZoom2 Zoom3 14:9

For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i, 750 (720) / 60p • 50p]:

4:3 Full Zoom1 16:9 Just1Zoom2 Zoom3 14:9 Just2 4:3 (1) 4:3 (2)

60p, 625 (575) / 50i

•

50p):

22

Viewing 3D images

You can enjoy viewing 3D images with contents or programmes corresponding to the 3D effect by wearing the
3D Eyewear (supplied).

This display supports “Frame Sequential*1”, “Side by Side*2” and “Top and Bottom*3” 3D formats.

*

1:

The 3D format that the images for the left and right eyes are recorded with the high defi nition quality and alternately played back

*

2, *3: Other available 3D formats

3D Eyewear

3D Eyewear set

3D Eyewear Specialised band

Nose pad A Nose pad B 3D Eyewear case

• Use either nose pad A or B for your preference.

• 3D Eyewear can be worn over vision correction glasses.

Part names and functions■

Battery cover

When using for the fi rst time, remove the insulating sheet.

Pull the insulating sheet

Insulating sheet

• To replace the battery

Infrared receiver

Receives infrared signals from the display.

•

3D Eyewear is controlled by receiving infrared signals from the display, which allows you to view
3D images.

Note:

Do not soil the infrared receiver section or attach stickers etc. to it.

Lenses - Liquid Crystal Shutter

Controls the images for 3D viewing.

• The left and right liquid crystal shutters are
alternately opened and closed in time with
the images on the display screen to achieve
the 3D effect.

Note:

Do not apply pressure to or scratch the
surface of the liquid crystal shutter.

“Replacing the battery” (see page 24)

Nose pad installation section

If required, attach the nose pad.

• To attach the nose pad “Attaching the nose pad” (see page 24)

Specialised band attaching parts

If required, attach the specialised band.

• To attach the band
“Attaching the specialised band” (see page 24)

Power button of the 3D Eyewear

(bottom side of the 3D Eyewear)
Switches the 3D Eyewear on or off.

• Press the button for about 1 second to turn the power on. The
indicator lamp lights for about 2 seconds and then goes off.

• To turn the power off, press the button for about 1 second again.
The indicator lamp fl ashes 3 times, then the 3D Eyewear turns off.

Power button

Indicator lamp

Note:

If the 3D Eyewear does not receive any signals from the display for
about 5 minutes, the 3D Eyewear will be turned off automatically.

23

Viewing 3D images

Replacing the battery■

When the battery is running low, the indicator lamp fl ashes 5 times on turning the 3D Eyewear on. In this case, early

battery replacement is recommended.

•

Dispose of the old batteries as non-burnable rubbish, or in line with the waste disposal regulations in your local area.

Loosen the screw and remove the battery cover using the supplied screwdriver

Screwdriver (supplied)

Battery cover

Replace the battery

• Use the specifi ed type of battery (coin-shaped lithium battery CR2032).

• Note the correct polarity (+ or -).

Replace and fasten the battery cover

• Make sure that the screw is tightened.

Battery cover

Attaching the nose pad■

Use either nose pad A or B for your preference.

• If you put the 3D Eyewear on vision correction glasses, the nose pad is recommended to be removed.

• You can select the positions of the nose pad A from the 2 levels of height.

Nose pad A

or

Nose pad B

Use upper 2 protrusions or lower 2 protrusions on the 3D Eyewear to attach
the nose pad A.

• Use all 3 protrusions on the 3D Eyewear to attach the nose pad B.

Attaching the specialised band■

If the 3D Eyewear slips out of place, use the supplied specialised band to hold it in place.

• Attach the band to the left and right tips of the frame, and adjust the length.

Specialised band

Frame

When the end of the specialised band is straightened, form a loop at the end of the band, and fi x the twisted
part.

Push to adjust the
length of the band

Fix the
twisted part

• Treat the rubber part carefully not to break it.

Storing and cleaning the 3D Eyewear■

• Use the supplied 3D Eyewear case to store the 3D Eyewear.

• Avoid storing the 3D Eyewear in hot or highly humid locations.

• Use a clean, soft and dry cloth to wipe the 3D Eyewear. Otherwise, dirt or dust may scratch the eyewear.

• Do not use benzene, thinner, or wax on the 3D Eyewear, as doing so may cause the paint to peel off.

• Do not submerge the 3D Eyewear in liquid such as water when cleaning.

24

Viewing 3D images

To view the 3D images

To view the contents of the Frame Sequential format (ex. 3D-compatible Blu-ray Disc, etc.) with 3D effect

Connect the 3D-compatible player via an HDMI cable (see page 14) and playback the contents.

• Use fully wired HDMI compliant cable.

• For the settings of the player, read the manual of the player.

• If you use the non 3D-compatible player, the images will be displayed without 3D effect.

To view the contents of 3D formats other than Frame Sequential with 3D effect.

Match the picture format in “3D INPUT FORMAT” (see page 47) before viewing.

• You can view “SIDE BY SIDE” and “TOP AND BOTTOM” with 3D effect even if you use the non 3D-compatible player.

• Please consult the suppliers of contents or programmes for availability of this service.

Turn the 3D Eyewear on

• Press the power button on the 3D Eyewear for about 1 second. (see page 23)

Put on the 3D Eyewear

• If the 3D Eyewear slips out of place, hold it in place using the specialised band, and adjust the length of the band.
(see page 24)

Watch the 3D images

To turn the 3D Eyewear off■

After using the 3D Eyewear, press the power button on the 3D Eyewear for about 1 second to turn it off. (see page 23)

Notes:

• If the room is lit by fl uorescent lights (50 Hz) and light appears to fl icker when using the 3D Eyewear, switch off the

fl uorescent light.

• 3D content will not be correctly visible if the 3D Eyewear is worn upside down or back-to-front.

• Do not wear the 3D Eyewear when watching anything other than 3D images. Liquid crystal displays (such as computer

screens, digital clocks or calculators, etc.) may be diffi cult to see while wearing the 3D Eyewear.

• Do not use the 3D Eyewear as sunglasses.

• 3D effects may be perceived differently depending on the person.

25

Viewing 3D images

Troubleshooting for 3D Eyewear

Symptoms Checks

Cannot see 3D images • Has the 3D Eyewear been switched On?

• Ensure that “3D EYEWEAR” in “3D SETTINGS” is set to “ON”. (see
page 47)

• Some 3D image signals may not be automatically recognized as 3D
images. Set “3D INPUT FORMAT” in “3D SETTINGS” to match the
picture format. (see page 47)

• Check that there are no obstacles between the infrared sensors on
the display and the 3D Eyewear. If the 3D Eyewear stops receiving the
infrared signal for about 5 minutes, the 3D Eyewear will be turned off
automatically.

• Check the available area to use the 3D Eyewear. (see page 25)

• Depending on the person, the 3D images may be diffi cult to see, or
cannot be seen, especially in users that have a different level of eyesight
between the left and right eyes.
Take the necessary steps (wearing glasses etc.) to correct your eyesight
before use.

3D Eyewear is turned off automatically • Check that there are no obstacles between the infrared sensors on the

display and the 3D Eyewear or that the 3D Eyewear is placed inside
the coverage area (see page 25). If the 3D Eyewear stops receiving the
infrared signal for about 5 minutes, the 3D Eyewear will be turned off
automatically.

There is something wrong with the 3D
images

• Check the setting of “LEFT/RIGHT SWAP”. (see page 47)

The indicator lamp does not light when
pressing the power button on the 3D
Eyewear

• The battery may be running low or fl at. Replace it.

• If the indicator lamp does not light after the power button has been
pressed for more than 1 second, the battery may be running low or fl at.
Replace it.

Table of images that can be seen for each 3D Picture
Format and the source image format

If the picture appears to be abnormal, refer to the table below to choose the correct 3D picture format setting.

3D INPUT FORMAT

Source image
format

Side by side

Top and bottom

Normal format

(2D)

*1

When the source image is not recognized correctly

*2

When “3D EYEWEAR” is set to “ON”, the images will be displayed with 3D effect. When set to “OFF”, displayed

AUTO SIDE BY SIDE

1

*

1

*

Normal

Normal

2

*

TOP AND
BOTTOM

*

Normal

2

without 3D effect.

• Depending on the player or contents, the image may be different from the above illustrations.

NATIVE

Normal

26

On-Screen Menu Displays

Remote Control Unit

Display the menu screen.

1

Select the menu.

2


SET UP
POS. /SIZE
SOUND

OPTIONS

Select the item.

3

NORMALIZE

PICTURE MENU

BRIGHTNESS

COLOR TEMP

ADVANCED SETTINGS

Set.

4

NORMALIZE
PICTURE MENU

SHARPNESS
COLOR TEMP

ADVANCED SETTINGS

MEMORY SAVE
MEMORY LOAD

MEMORY EDIT

MONITOR

25

0
5SHARPNESS

WARM

MONITOR

0BRIGHTNESS
0

WARM

( Example: PICTURE menu)

MENU

Press

Press several times.

Each time the MENU button is pressed, the
menu screen will switch.

2

Access

1

Select

Normal Viewing PICTURE

SOUND POS. /SIZE

The menu can be displayed directly by pressing
these buttons. (see page 28, 31)

ENTER/

Select

ENTER/

Press.

Select.

Press.

Adjust

Adjust.

SET UP

Exit the menu.

5

Menu display list

Picture menu

NORMALIZE

PICTURE MENU

BRIGHTNESS

SHARPNESS
COLOR TEMP

ADVANCED SETTINGS

MEMORY SAVE
MEMORY LOAD

MEMORY EDIT

see page 31-42

STANDARD

25

0
6COLOR
0TINT
5

NORMAL

Press

Press

MENU

to return to the previous menu.

Press several times.

SET UP menu POS./SIZE menu SOUND menu

3D SETTINGS

SIGNAL

SCREENSAVER

EXTENDED LIFE SETTINGS

INPUT LABEL

NETWORK SETUP

COMPONENT/RGB-IN SELECT

EXTERNAL SCALER MODE
POWER SAVE
PC POWER MANAGEMENT
AUTO POWER OFF OFF
OSD DESIGN TYPE1
OSD POSITION UPPER LEFT
OSD LANGUAGE ENGLISH (US

RGB

OFF
OFF
OFF

NORMALIZE

AUTO SETUP

H-POS

H-SIZE
V-POS

CLOCK PHASE
CLAMP POSITION
1:1 PIXEL MODE
UNDER SCAN OFF

0

0
0
0V-SIZE
0DOT CLOCK
0
0

OFF

see page 28-30

)

NORMALIZE

BALANCE

VOLUME

see page 43

1

see page 44-55

0

27

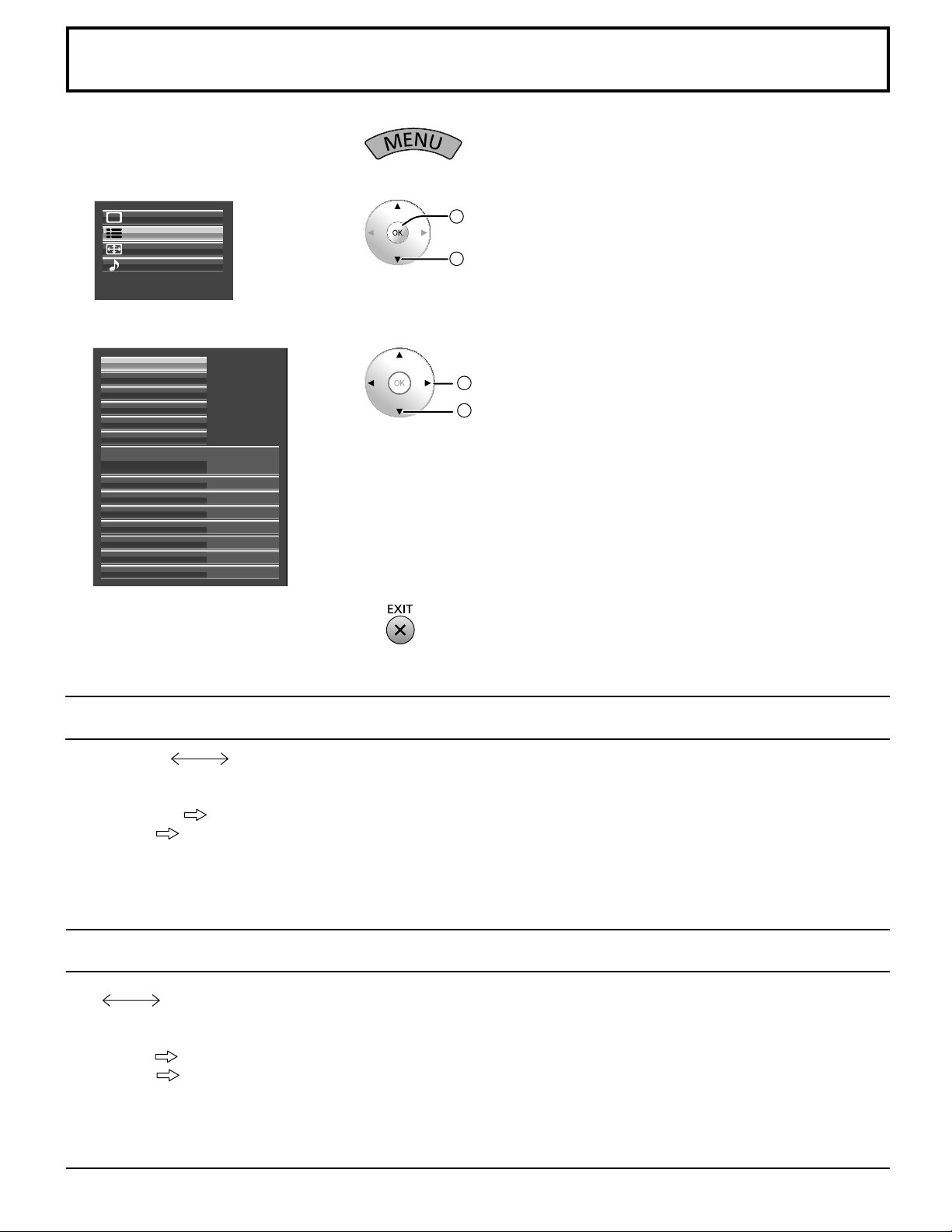

Adjusting POS. /SIZE

Display the menu screen.

1

Select “POS. /SIZE”.

2

SET UP

POS. /SIZE

SOUND

Select the item and set.

3

NORMALIZE

AUTO SETUP

H-POS

H-SIZE
V-POS

CLOCK PHASE
CLAMP POSITION
1:1 PIXEL MODE
UNDER SCAN OFF

0

0
0
0V-SIZE
0DOT CLOCK
0
0

OFF

Note:

Unadjustable items are grayed out. Adjustable items differ depending on the
input signal and the display mode.

2

access

1

select

2

adjust

1

select

Exit the menu.

4

To display a menu for adjustment of the POS. /SIZE
menu on the bottom of the screen

H-POS 0

2

adjust or select

1

select the menu

To hide the menu or

Notes:

• Adjustment details are memorized separately for different input signal formats. (Adjustments for component signals are
memorized for 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 1125 (1080) / 60i · 50i · 60p · 50p · 24p · 25p · 30p · 24sF,
1250 (1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC/Digital signals are memorized for each frequency.)

• If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture position will shift up or down. This picture
position movement cannot be controlled by the POS. /SIZE function.

Helpful Hint (

While the POS. /SIZE display is active, if the OK button is pressed during “NORMALIZE”, then all adjustment values
are returned to the factory settings.

NORMALIZE

Normalization)

28

Adjusting POS. /SIZE

● AUTO SETUP

H-POS/V-POS, H-SIZE/V-SIZE, DOT CLOCK and CLOCK PHASE are automatically adjusted when
the RGB or PC signal is received.
This setting is enabled under the following conditions:

• When “COMPONENT/RGB-IN SELECT” or “YUV/RGB-IN SELECT” in the “SET UP” menu (see
page 44) is set to “RGB”, this setting is enabled.

• When the signal is not PC format, this setting is enabled only if “OVER SCAN” (see page 30)
is “OFF” or “1:1 PIXEL MODE” (see page 30) is “ON”, and H-SIZE/V-SIZE is not automatically
adjusted.

This setting will be invalid and will not work under the following conditions:

• Aspect is set to “JUST”

• “UNDER SCAN” is set to “ON”

Using Remote Control

When on the remote control is pressed, “AUTO SETUP” will be executed.

When AUTO SETUP does not work, “INVALID” is displayed.

Auto mode

When the “Auto Setup“ is set to “Auto” in the OPTIONS menu (see page 56), automatic position
adjustment starts:

• When the display power is turned ON.

• When the input signal is switched.

Notes:

• If the dot clock frequency is 162 MHz or higher, DOT CLOCK and CLOCK PHASE cannot be
made.

• When digital RGB signal input, DOT CLOCK and CLOCK PHASE cannot be made.

• AUTO SETUP may not work when a cropped or dark image is input. In such case, switch to a
bright image with borders and other objects are clearly shown, and then try auto setup again.

• Depending on the signal, out of alignment may occur after AUTO SETUP. Carry out fi ne tuning for
the position/size as required.

• If AUTO SETUP cannot set properly for vertical frequency 60Hz XGA signal (1024×768@60Hz,
1280×768@60Hz, and 1366×768@60Hz), pre-selecting the individual signal in “XGA MODE” (see
page 48) may results in correct AUTO SETUP.

• AUTO SETUP does not work well when a signal such as additional information is superimposed
out of valid image period or intervals between synchronizing and image signals are short, or for
image signal with tri-level synchronizing signal added.

• If AUTO SETUP cannot adjust correctly, select “NORMALIZE” once and press OK button then
adjust POS. /SIZE manually.

● H-POS

● H-SIZE

● DOT CLOCK

●

CLOCK PHASE

Adjust the horizontal position.

Adjust the horizontal size.

(During Component, RGB and PC input signal)

Periodic striped pattern interference (noise) may occur when a striped pattern is displayed. If this
happens, adjust so that any such noise is minimized.

(During Component, RGB and PC input signal)

Eliminate the fl ickering and distortion.

● V-POS

● V-SIZE

Adjust the vertical position.

Adjust the vertical size.

29

Adjusting POS. /SIZE

● OVER SCAN

●

CLAMP POSITION

●

1:1 PIXEL MODE

Turn image over scan ON/OFF.
Confi gurable signals are as follows:
525i, 525p, 625i, 625p, 750/60p, 750/50p (Component Video, RGB, DVI, SDI, HDMI)

ON OFF

Notes:

• When “OFF” is set, “H-SIZE” and “V-SIZE” cannot be adjusted.

•

When the “UNDER SCAN” is set to “ON”, this setting will be invalid.

(During Component and RGB input signal)
Adjusts the clamp position when black parts of the image have no detail due to underexposure or are
tinged with green.

Optimum value for Clamp Position adjustment

When black parts have no detail due to underexposure (blackout)
→Value that causes least blackout is the optimum.
When black parts are tinged with green
→Value that cancels the greenishness without causing blackout is the optimum.

Adjusts the display size when 1125i, 1125p or 1250i signal is input.

Notes:

• Select ON when you would like to replay 1920 × 1080 input signal.

• Applicable input signal;
1125 (1080) / 50i · 60i · 24sF · 24p · 25p · 30p · 50p · 60p, 1250 (1080) / 50i

• Select OFF when fl ickering is shown around the image.

• H-SIZE and V-SIZE cannot be adjusted when ON is selected.

● 1:1 PIXEL MODE (2k1k)

(For 2k1k signals)

OFF ON (LEFT) ON (CENTER) ON (RIGHT)

Note:

2k1k signals can only be received when the Dual Link HD-SDI Terminal Board (TY-FB11DHD) is installed.

● UNDER SCAN

Adjusts the image display size on screen.

OFF: Sets the normal image display size on screen.
ON: Sets the image display size approximately 95 % of the normal image display.

OFF ON

Notes:

“UNDER SCAN” can be modified when “Studio mode” in the OPTIONS menu is “On”. When •
“Studio mode” is “Off”, this setting is “OFF” and cannot be changed. (see page 56)
This setting is valid only when the input signals are as follows; •
525i, 525p, 625i, 625p, 750/60p, 750/50p, 1125/60i, 1125/50i, 1125/24sF, 1125/25p, 1125/24p,
1125/30p, 1125/60p, 1125/50p, 1250/50i (Component Video, RGB, DVI, SDI, HDMI)

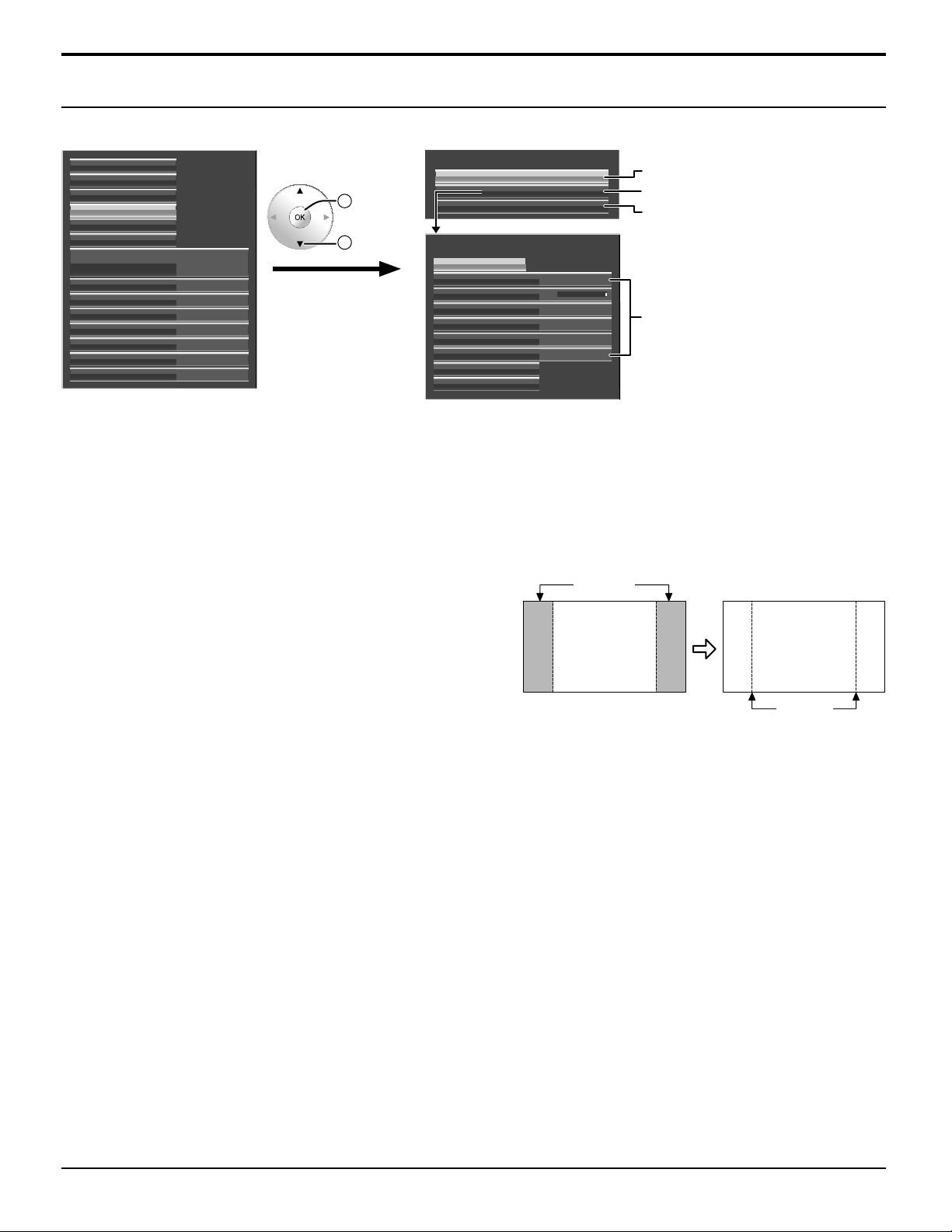

When “UNDER SCAN” is set to “ON”, “H-POS” and “V-POS” in “POS. /SIZE” can be adjusted.•
Refer to each board’s operating instruction for DVI, SDI’s corresponding signals.•

OFF ON

When the input signal is a 2k1k signal (2048×1080 / 24p, 2048×1080 / 24sF), the
display size is adjusted as follows.

30

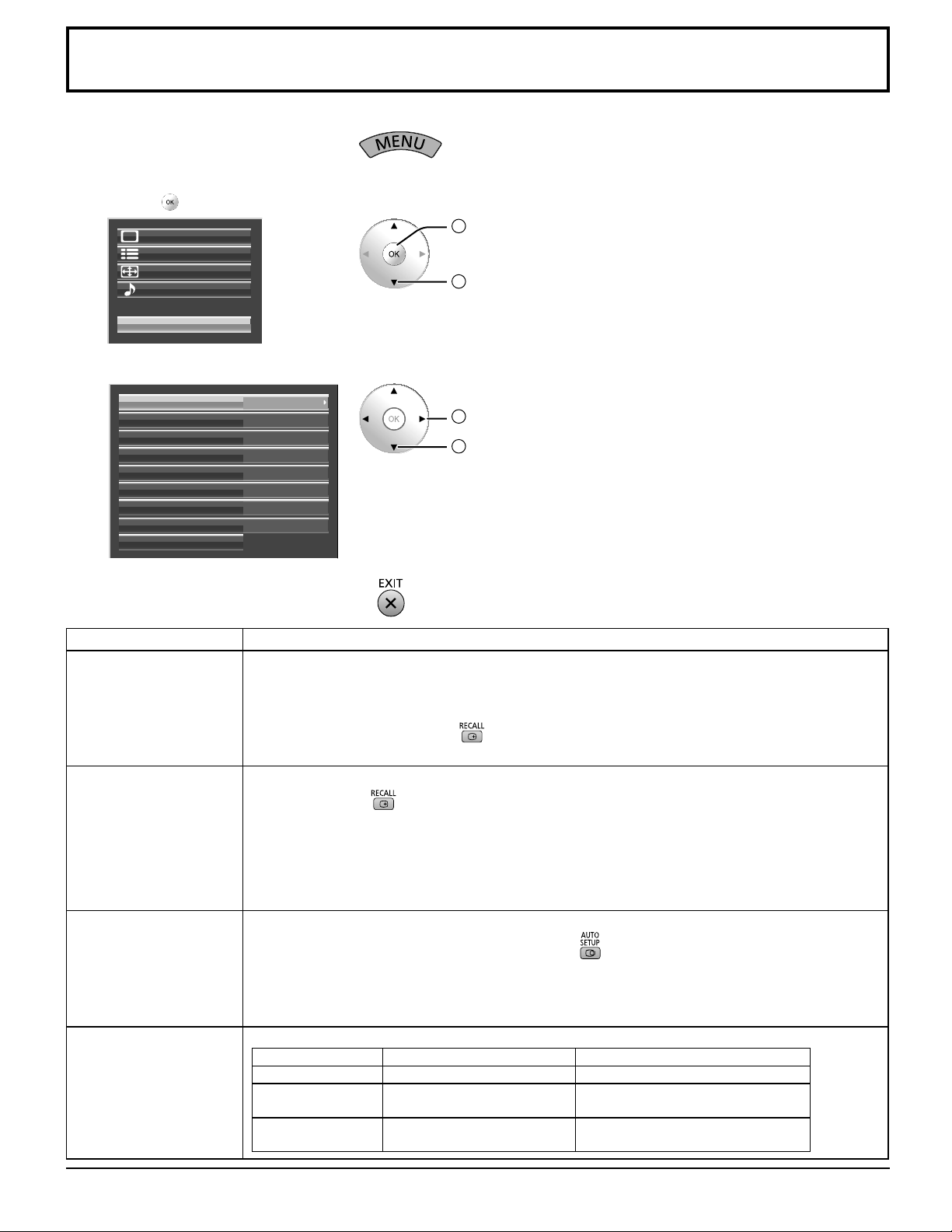

PICTURE Adjustments

Display the menu screen.

1

Select “PICTURE”.

2


SET UP
POS. /SIZE
SOUND

Select the item and set.

3

NORMALIZE

PICTURE MENU

BRIGHTNESS

SHARPNESS
COLOR TEMP

ADVANCED SETTINGS

STANDARD

25

0
6COLOR
0TINT
5

NORMAL

Note:

Menu that cannot be adjusted is grayout. Adjustable menu changes depending
on signal, input and menu setting.

2

access

1

select

2

adjust

1

select

Exit the menu.

4

To display a menu for adjustment of the PICTURE menu on
the bottom of the screen,

adjust or select

25PICTURE

To display a menu for ADVANCED SETTINGS adjustment, press PICTURE button again.

0BLACK EXTENSION

To hide the menu or

2

1

select

Helpful Hint (

While the “PICTURE” menu is displayed, if the OK button is pressed during “NORMALIZE”, then all adjustment
values are returned to the factory settings.

NORMALIZE

Normalization)

31

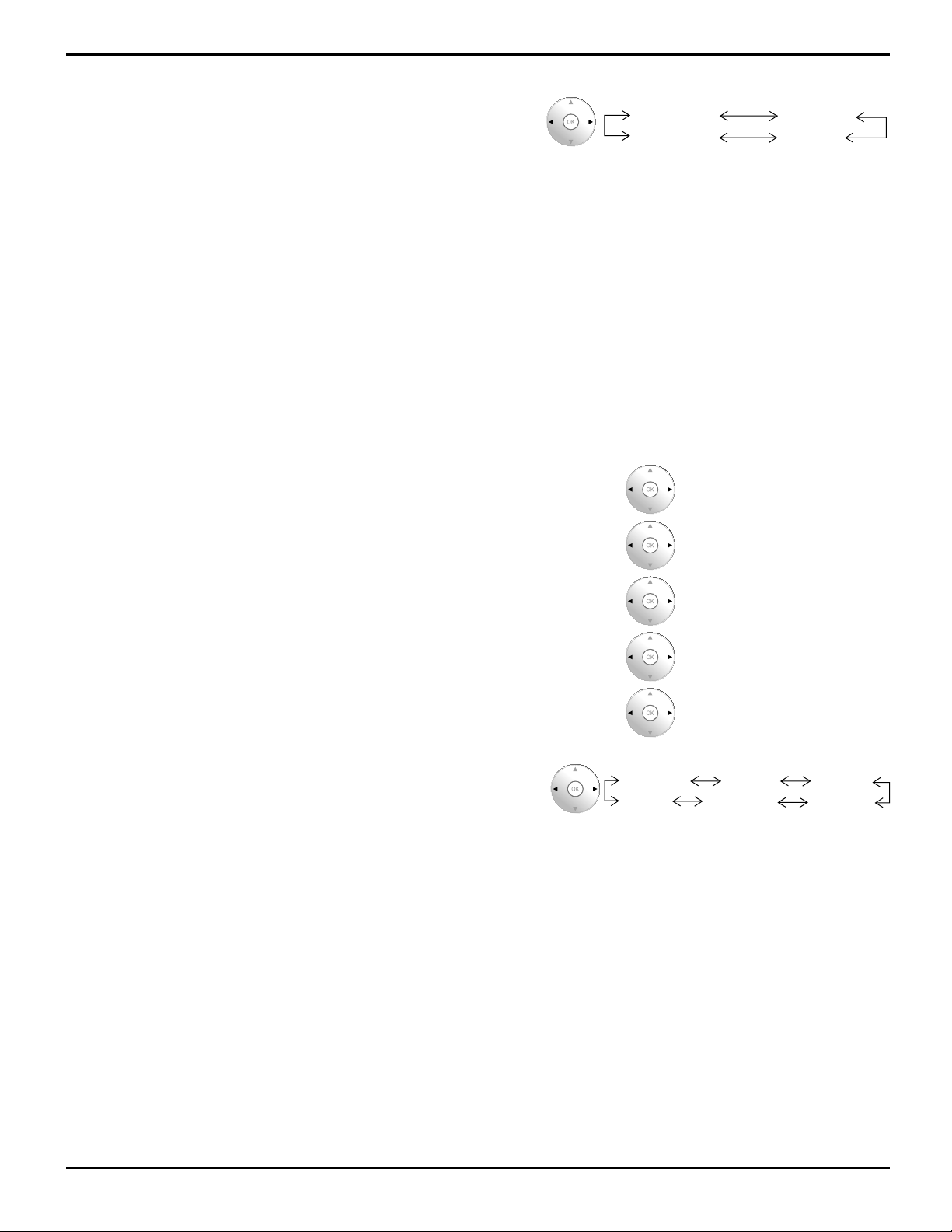

PICTURE Adjustments

● PICTURE MENU

You can switch to the optimal picture mode for the video source
and viewing environment.

STANDARD:

For viewing in standard (evening lighting) environments.
This menu selects the normal levels of BRIGHTNESS
and PICTURE.

DYNAMIC:

For viewing in brighter environments. This menu
selects higher than normal levels of BRIGHTNESS and
PICTURE.

Notes:

When “MONITOR” is selected in PICTURE MENU, the following menu items cannot be set.•
PICTURE menu: PICTURE
EXTENDED LIFE SETTINGS: PEAK LIMIT (see page 52)
SET UP menu: POWER SAVE (see page 46)
If you would like to change the picture and color of the selected PICTURE MENU to something else, adjust using •
the items in the PICTURE menu. (see below)

STANDARD

MONITOR

CINEMA:

Ideal for movies.

MONITOR:

For use when creating broadcast or movie content. With
this picture, even if the overall average picture level
(APL) changes, the brightness of areas with the same
signal level does not change.

DYNAMIC
CINEMA

● PICTURE

● BRIGHTNESS

● COLOR

● TINT

● SHARPNESS

● COLOR TEMP

NORMAL: Intermediate color temperature.
WARM: Colors with a reddish tinge.
WARM2: Colors with a reddish tinge (6100K).
WARM3: Colors with a reddish tinge (5600K).
STUDIO:
COOL: Colors with a bluish tinge.

Notes:

You can change the level of each function (PICTURE, BRIGHTNESS, COLOR, TINT, SHARPNESS) for each •
PICTURE MENU.
The setting details for STANDARD, DYNAMIC, CINEMA and MONITOR respectively are memorized separately for •
each input terminal.
In PICTURE, there is not a noticeable change even when contrast is increased with a bright picture or reduced with •
a dark picture.

Optimal color temperature for studio viewing (3200K).

Adjusts the proper picture contrast.

Adjusts for easier viewing of dark pictures such
as night scenes and black hair.

Adjusts color saturation.

Adjusts for natural fl esh tones.

Adjusts picture sharpness.

Switches to various screen color tones.

Less

Darker

Less

Reddish

Less

COOL

* “STUDIO” can be modified when

“Studio mode” in the OPTIONS menu
is “On”. (see page 56)

More

Brighter

More

Greenish

More

WARMNORMAL

STUDIO*

WARM2
WARM3

32

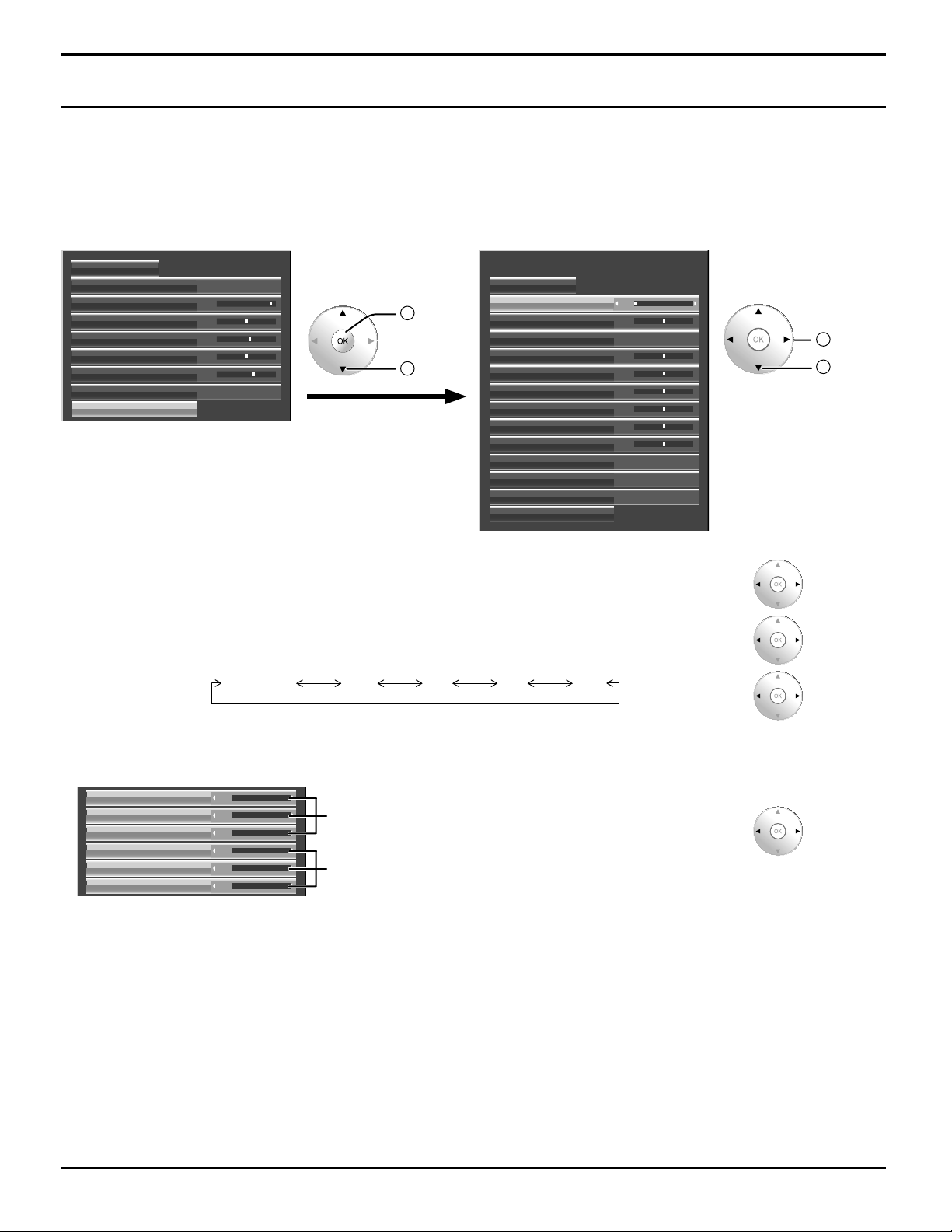

ADVANCED SETTINGS

Enables fi ne picture adjustment at a professional level.

Notes:

The adjustment values are memorized separately for each input terminal.•
The adjustment range values should be used as an adjustment reference.•

PICTURE Adjustments

Select the item and set.

NORMALIZE
PICTURE MENU
BRIGHTNESS

SHARPNESS
COLOR TEMP

ADVANCED SETTINGS

● BLACK

STANDARD

25

0
6COLOR
0TINT
5

NORMAL

Adjusts the dark shades of the image in gradation.

EXTENSION

● INPUT LEVEL

● GAMMA

Adjustment of parts which are extremely bright and hard to see.

S CURVE 1.0* 2.0 2.2 2.6

* When 2k1k signals are received with the Dual Link HD-SDI

Terminal Board (TY-FB11DHD), GAMMA “1.0” cannot be
selected.

● “W/B” adjustment

W/B HIGH R
W/B HIGH G

0
0
0W/B HIGH B
0W/B LOW R
0W/B LOW G
0W/B LOW B

ADVANCED SETTINGS

NORMALIZE

2

access

1

select

INPUT LEVEL
GAMMA
W/B HIGH R
W/B HIGH G

3:2 PULLDOWN

COLOR GAMUT

0BLACK EXTENSION

0

0
0
0W/B HIGH B
0W/B LOW R
0W/B LOW G
0W/B LOW B

OFF
OFFSTUDIO GAIN
OFFNOISE REDUCTION

Adjusts the white balance for light red, light green
or light blue areas.

Adjusts the white balance for dark red, dark green
or dark blue areas.

2.2

Less

Less

Down

Less More

2

change

1

select

More

More

Up

Carry out “W/B” adjustment as follows.

1.

Adjust the white balance of the bright sections using the “W/B HIGH R” , “W/B HIGH G” and “W/B HIGH B” settings.

2. Adjust the white balance of the dark sections using the “W/B LOW R” , “W/B LOW G” and “W/B LOW B” settings.

3. Repeat steps 1 and 2 to adjust.

Steps 1 and 2 affect each other’s settings, so repeat each step in turn to make the adjustment.

33

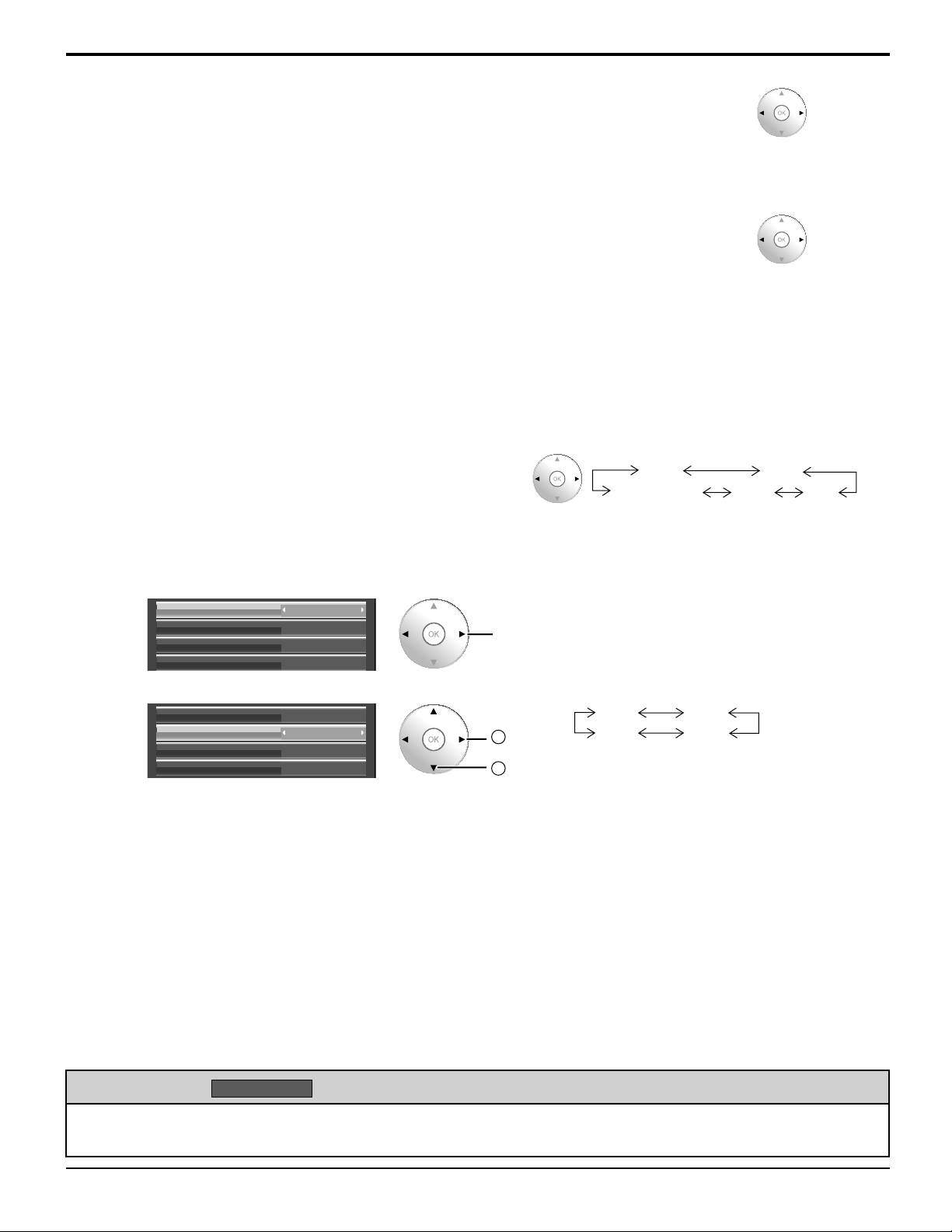

PICTURE Adjustments

● 3:2
PULLDOWN

Note:

When “ON”, this setting only affects the following signal input:

525i (480i), 625i (575i), 1125 (1080) / 60i signal input during “COMPONENT” input signal.•

● STUDIO GAIN

OFF: Disables “STUDIO GAIN”.
ON: Enables “STUDIO GAIN”.

Notes:

“STUDIO GAIN” can be modified when “Studio mode” in the OPTIONS menu is “On”. When “Studio mode” is “Off”, •
this setting is “OFF” and cannot be changed. (see page 56)
This setting is valid only when the input signals are as follows:•
Component Video, RGB (analog), SDI, HDMI

● NOISE REDUCTION

When “ON”, the display attempts to reproduce a more natural
interpretation of sources such as movie pictures, which are
recorded at 24 frames per second.
If the picture is not stable, turn the setting to “OFF”.

Sharpens the contrast for a better view when a part of the image
is too light to see.

Sets the following three NR (Noise Reduction) functions together.
VIDEO NR, BLOCK NR, MOSQUITO NR

OFF

OFF

OFF

ADVANCED MAX

ON

ON

MIN

MID

[Advanced NR]

Sets the three NR functions separately.

Select “ADVANCED”.

1

NOISE REDUCTION

VIDEO NR
BLOCK NR

Select the item and set.

2

Note:

“NOISE REDUCTION” cannot be adjusted while a PC signal is being applied.

NOISE REDUCTION

VIDEO NR

BLOCK NR

VIDEO NR: Automatically reduces unwanted picture noise.
BLOCK NR: Reduces block noise when playing MPEG videos.
MOSQUITO NR: Reduces mosquito noise around subtitles on MPEG videos.

ADVANCED

OFF
OFF
OFFMOSQUITO NR

ADVANCED

OFF

OFF
OFFMOSQUITO NR

select

set

2

1

select

OFF

MAX

MIN
MID

Helpful Hint (

On the remote control unit, while the “ADVANCED SETTINGS” menu is displayed, if the OK button is pressed during
“NORMALIZE”, then all adjustment values are returned to the factory settings.

NORMALIZE

Normalization)

34

PICTURE Adjustments

Color space adjustment (COLOR GAMUT)

Changes the color space to BT.709 signal standard chromaticity point and fi ne-tunes it.

ADVANCED SETTINGS

NORMALIZE

Select the item and set.

COLOR GAMUT

COLOR GAMUT

NATIVE

2

change

1

select

INPUT LEVEL
GAMMA
W/B HIGH R
W/B HIGH G

3:2 PULLDOWN

COLOR GAMUT

0BLACK EXTENSION
0

2.2
0
0
0W/B HIGH B
0W/B LOW R
0W/B LOW G
0W/B LOW B

OFF
OFFSTUDIO GAIN
OFFNOISE REDUCTION

2

access

1

select

● COLOR GAMUT

DIGITAL CINEMA COLOR: Sets color gamut to reproduce the original color of movies.
CUSTOM: Enables the color space adjustment, the color space adjustment (default value: BT.709) set in the “EDIT”

is refl ected.

NATIVE: Disables the color space adjustment, images are displayed in the original color gamut of the panel.
HDTV COLOR: Changes the color space to BT.709 signal standard chromaticity point.
Notes:

• This setting is memorized separately for each input terminal and “PICTUR MENU”.

• For 3D images, this setting becomes “OFF” and no setting is available.

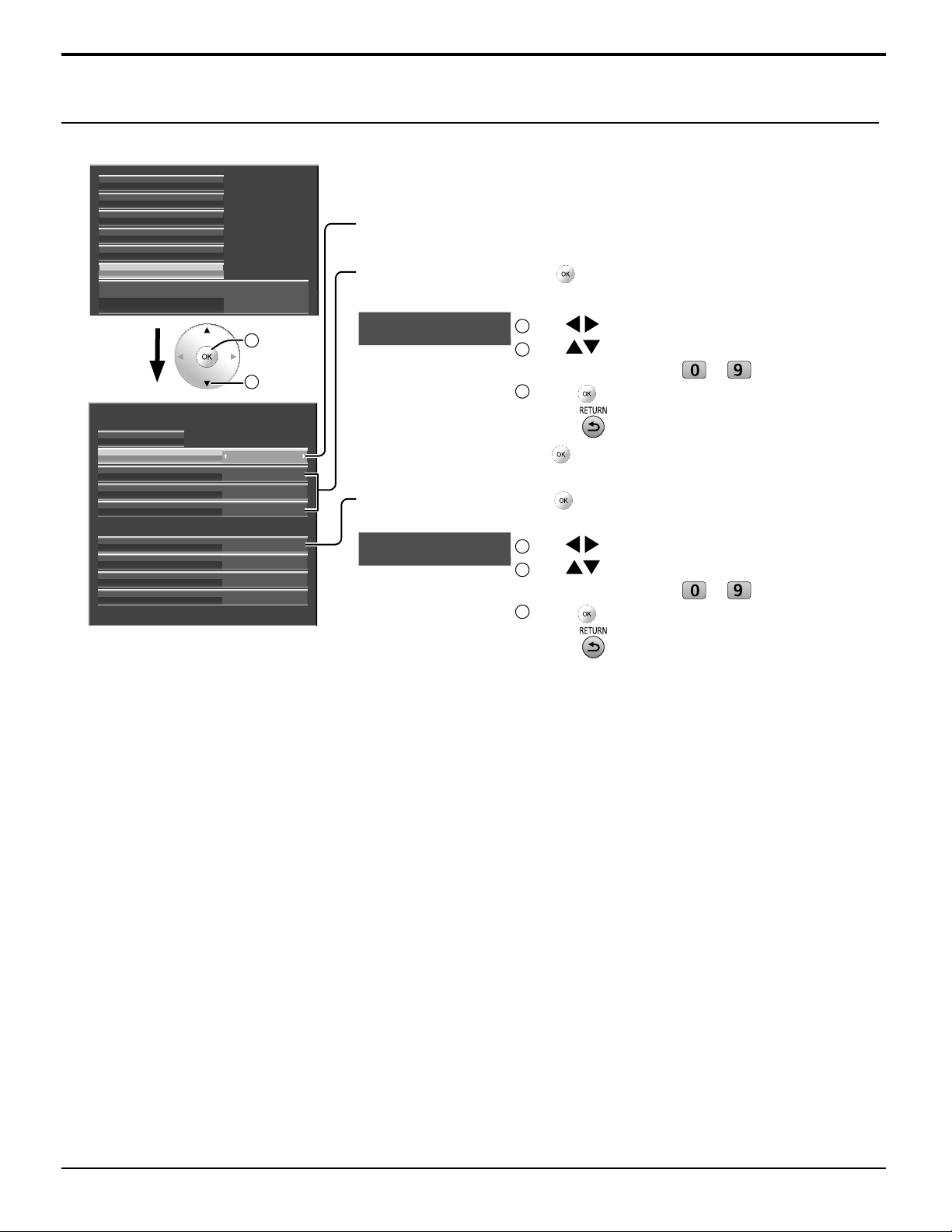

● EDIT

Color space is fi ne-tuned.

Notes:

• This setting is valid when “COLOR GAMUT” is “CUSTOM”.

• This setting is memorized separately for each input terminal and “PICTUR MENU”.

2

Select “EDIT”.

1

Select an adjustment

2

item.

Change the numerical value.

3

[To adjust with the ▲▼ button]

Press the button.
Change the numerical value

with the ▲▼ button.

Press the button.

access

1

select

select

65535

[To input the numerical value directly]

Input the numerical value from to

Pressing the will cancel the value change.

Press the button.

COLOR GAMUT

COLOR GAMUT

EDIT

RG B
R RATIO
G RATIO

65535 2900 0

2110 65535 0

B RATIO

RESET

0 1760 65535

CUSTOM

Press the button.

4

Adjustment is ended.

35

PICTURE Adjustments

● RESET Resets the adjustment value of color space.

Note:

This setting is refl ected only for the selected input terminal and the “PICTUR MENU”.

Select “RESET”.

1

COLOR GAMUT

COLOR GAMUT

EDIT

65535 2900 0

R RATIO
G RATIO

B RATIO

RESET

Select “OK”.

2

COLOR GAMUT

RG B

2110 65535 0

0 1760 65535

RESET

OK CANCEL

CUSTOM

2

access

select

1

select

1

2

set

● Chromaticity diagram

The RGB triangle representing current color space is shown.

COLOR GAMUT: CUSTOM

—

y

NATIVE

— CUSTOM

x

White line: Color gamut with “NATIVE” setting (original color gamut.)
Yellow line: Color gamut with “CUSTOM” setting (current color gamut.)

36

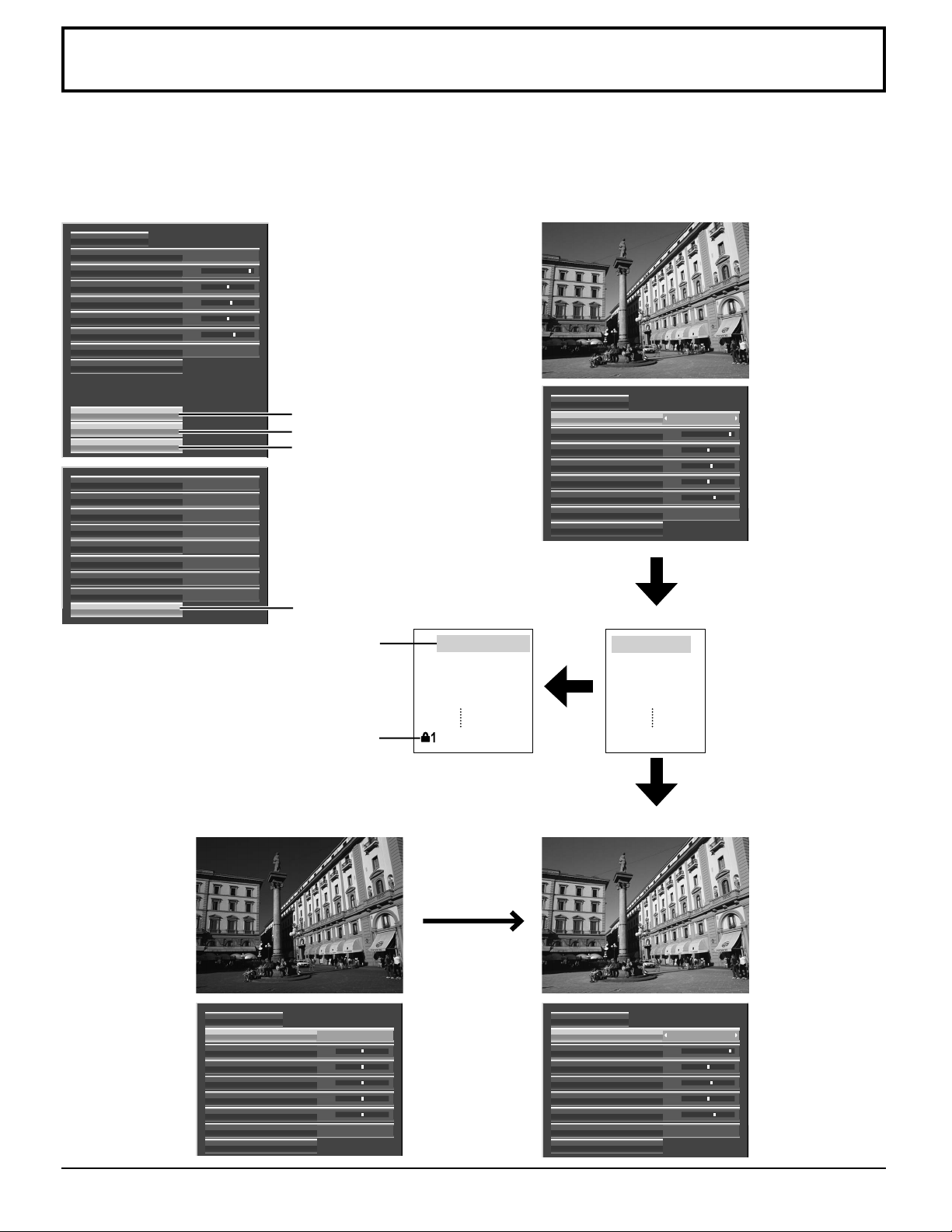

Picture Profi les

Up to 16 combinations of picture adjustment values (in the PICTURE menu and ADVANCED SETTINGS) can be stored
in the display memory as profi les and applied as needed, for a convenient way to enjoy your preferred picture settings.

Note:

If setting items (PITCURE menu and ADVANCED SETTINGS) are set differently between MEMORY SAVE and
MEMORY LOAD, they may not refl ect for MEMORY LOAD.

NORMAL IZE
PICTURE MENU DYNAMIC
BRIGHTNESS

SHARPNESS
COLOR TEMP

ADVANCED SETTINGS

25

0
6COLOR
0TINT
5

NORMAL

MEMORY SAVE

MEMORY LOAD

MEMORY EDIT

Memory lock

Save profi les (page 38)
Load profi les (page 39)
Edit profi les (page 40)

OnOnscreen display
OffAll Aspect
OffAuto Setup
OffStudio mode
INT3D Emitter

3D settingsFunction button assign 1

SignalFunction button assign 2

On3D Safety Precautions

Lock profi les (page 41, 42)

Edit the profi le

Delete or rename
the profi le

Locked profi le

Original picture

My PICTURE

MEMORY2
MEMORY3
MEMORY4

MEMORY16

Load the profi le

NORMAL IZE

BRIGHTNESS

SHARPNESS
COLOR TEMP

ADVANCED SETTINGS

Save profi les

MEMORY1

MEMORY2
MEMORY3
MEMORY4

MEMORY16

Custom picture

CINEMAPICTURE MENU

25

0
6COLOR
0TINT
5

NORMAL

Save the picture
adjustment values in the
MEMORY1 profi le

Apply the MEMORY1
profi le

NORMAL IZE

BRIGHTNESS

SHARPNESS
COLOR TEMP

ADVANCED SETTINGS

STANDARDPICTURE MENU

0
0
0COLOR
0TINT
0

NORMAL

NORMAL IZE

BRIGHTNESS

SHARPNESS
COLOR TEMP

ADVANCED SETTINGS

CINEMAPICTURE MENU

25

0
6COLOR
0TINT
5

NORMAL

37

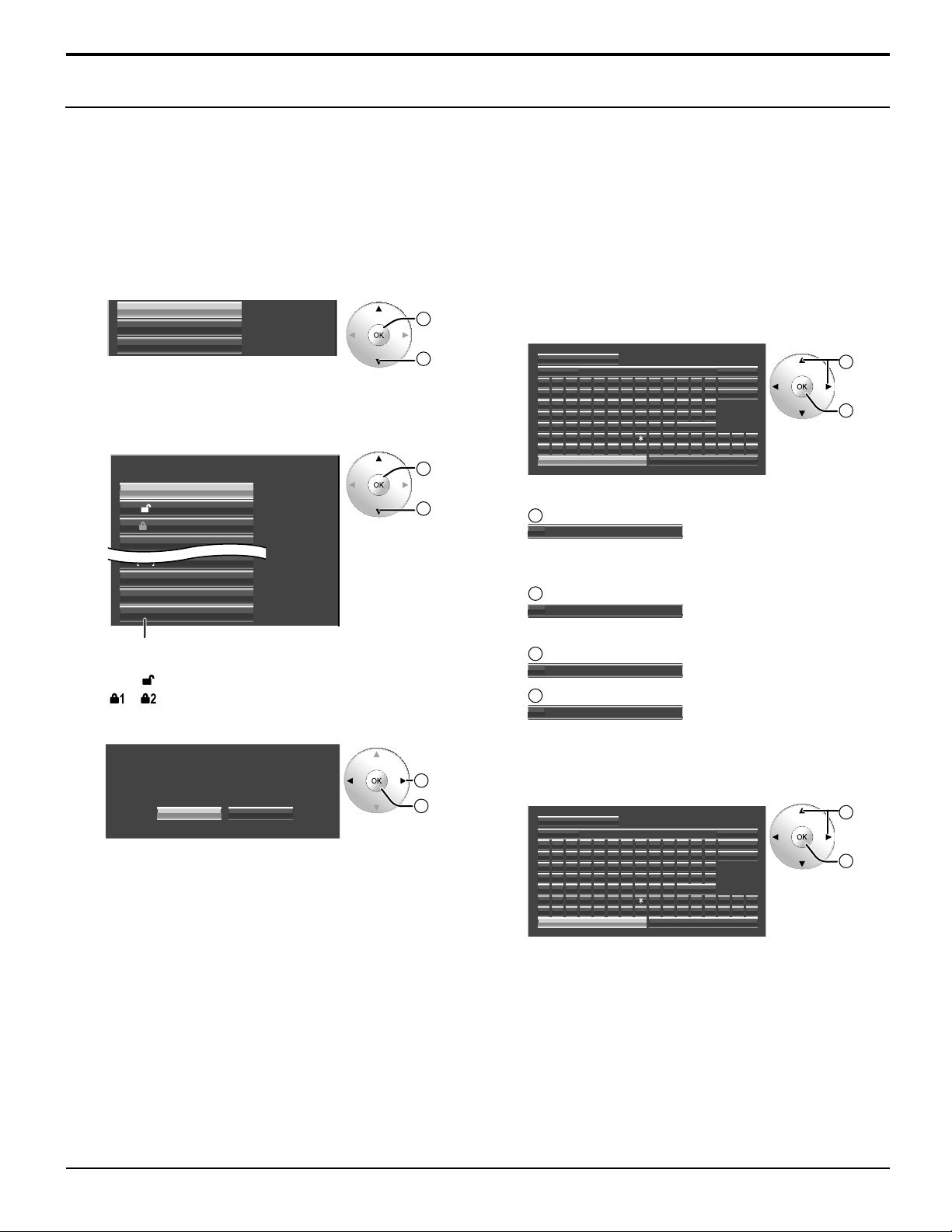

Picture Profi les

Saving profi les

Follow these steps to save picture adjustment values as profi les.

Note:

When the settings are locked in “EXTENDED LIFE SETTINGS”, profi les cannot be saved.

Specify the picture quality in the PICTURE menu

1

and ADVANCED SETTINGS. (see page 31-36)

In the PICTURE menu, select “MEMORY SAVE”.

2

MEMORY SAVE

MEMORY LOAD

MEMORY EDIT

Select a profi le name for saving the picture

3

adjustment values.

MEMORY SAVE

1. [ ]MEMORY1

]

MEMORY22. [

MEMORY33. [ 1]

]

MEMORY44. [

]

MEMORY1313 . [

]

MEMORY1414 . [

]

MEMORY1515 . [

]

MEMORY1616 . [

Profi les are labeled with these icons to indicate their
locked status. (see page 39)
[ ], [

]:Settings can be saved in this profi le.

[ ], [ ]:Settings cannot be saved in this profi le.

Select “OK”.

4

MEMORY SAVE

SAVE THE ADJUSTED VALUE IN ”MEMORY1”

OK CANCEL

2

access

select

1

2

set

select

1

select

1

2

set

Enter a name for the profi le.

5

[Entering profi le names]

Profi le names can be up to 40 characters.
To enter text, select characters in the on-screen
keyboard.
Edit the default profi le name in the text box as
desired.

MEMORY NAME INPUT

BCDEFGH I JKLMALL DELETE

A

N O P Q R S T U V W X Y Z DELETE

abcde f gh i j k lm
nopqr s t uvwxyz
0123456789
!”#$%&’ +–/=?
_` |~<>() [ ] {} ,

MEMORY1

OK

█

SPACE

@\ ˆ

.;:

CANCEL

Example: Specifying “MY PICTURE”

Select “ALL DELETE”.

1

MEMORY1

█

All text is deleted.
To delete individual characters, select “DELETE”.

2

Select “M”.

█

M

Repeat this process to enter the next character.

3

Select “Y”.

█

MY

4

Select “SPACE”.

█

MY

When you fi nished entering the profi le name, select

6

“OK”.
To cancel saving the profi le, select “CANCEL”.

MEMORY NAME INPUT

ABCDEFGH I JK LM

NOPQRS T UVWXYZ

abcdefghi jklm
nopqr s t uvwxyz
0123456789
!”#$%&’ +–/=?
_` |~<>() [ ] {} ,

MY PICTURE

OK

█

SPACE

CANCEL

ALL DELETE

DELETE

@\ ˆ

.;:

select

1

2

set

select

1

2

set

38

Picture Profi les

Loading profi les

Load profi les and apply the picture adjustment values to the display as follows.

Notes:

• Loaded profi les are stored in memory according to the selected input interface. (see page 19)

• When the settings are locked in “EXTENDED LIFE SETTINGS”, profi les cannot be loaded.

<Loading profi les from the PICTURE menu>

In the PICTURE menu, select “MEMORY LOAD”.

1

MEMORY SAVE

MEMORY LOAD

MEMORY EDIT

Select the profi le to load.

2

1. [ ]MEMORY1

]

MEMORY22. [ 1

]

MEMORY1212 . [ 2

Profi les are labeled with these icons to indicate their
locked status. (see below)

<Loading profi les from

on the remote control>

2

access

select

1

2

set

select

1

<Loading profi les directly from the remote control>

To load profi les 1–9

Press a button in the range – .

1

Select “OK”.

2

MEMORY LOAD

LOAD FROM ”MEMORY2”

OK CANCEL

To load profi les 10–16
Example: To load profi le 16

Press .

1

The profi le number is displayed in the upper-right
corner of the screen.

select

1

1

2

set

Press to list the profi les.

1

Select the profi le to load.

2

1. [ ]MEMORY1

]

MEMORY22. [ 1

]

MEMORY1212 . [ 2

Profi les are labeled with these icons to indicate their

2

set

select

1

2

Select “OK”.

MEMORY LOAD

LOAD FROM ”MEMORY16”

OK CANCEL

16

1

2

locked status. (see below)

Loading locked profi les…

In the PICTURE menu, profi les are labeled with these icons
to indicate their locked status.

NORMAL IZE
PICTURE MENU DYNAMIC

BRIGHTNESS

25

0

:Lock1
:Lock2

When

profi le

profi le

name is displayed.

is being loaded,

PC

FULL

MEMORY NAME: MEMORY2

NANODRIFT

Operations with locked profi les are restricted. (see page 41)
Picture adjustment values in the PICTURE menu cannot be changed, except for the “PICTURE MENU”.
Once you edit the “PICTURE MENU” setting, you can edit “PICTURE”, “BRIGHTNESS”, and other picture adjustment
values.

Lock1

Picture adjustment values are shown.

Lock2

Picture adjustment values are hidden.

select

set

NORMAL IZE

PICTURE MENU DYNAMIC

BRIGHTNESS

SHARPNESS
COLOR TEMP

ADVANCED SETTINGS

25

0
6COLOR
0TINT
5

NORMAL

Can be
specifi ed.

Cannot be
specifi ed.

NORMAL IZE
PICTURE MENU DYNAMIC

BRIGHTNESS
COLOR
TINT
SHARPNESS
COLOR TEMP

ADVANCED SETTINGS

Can be
specifi ed.

Cannot be
specifi ed.

39

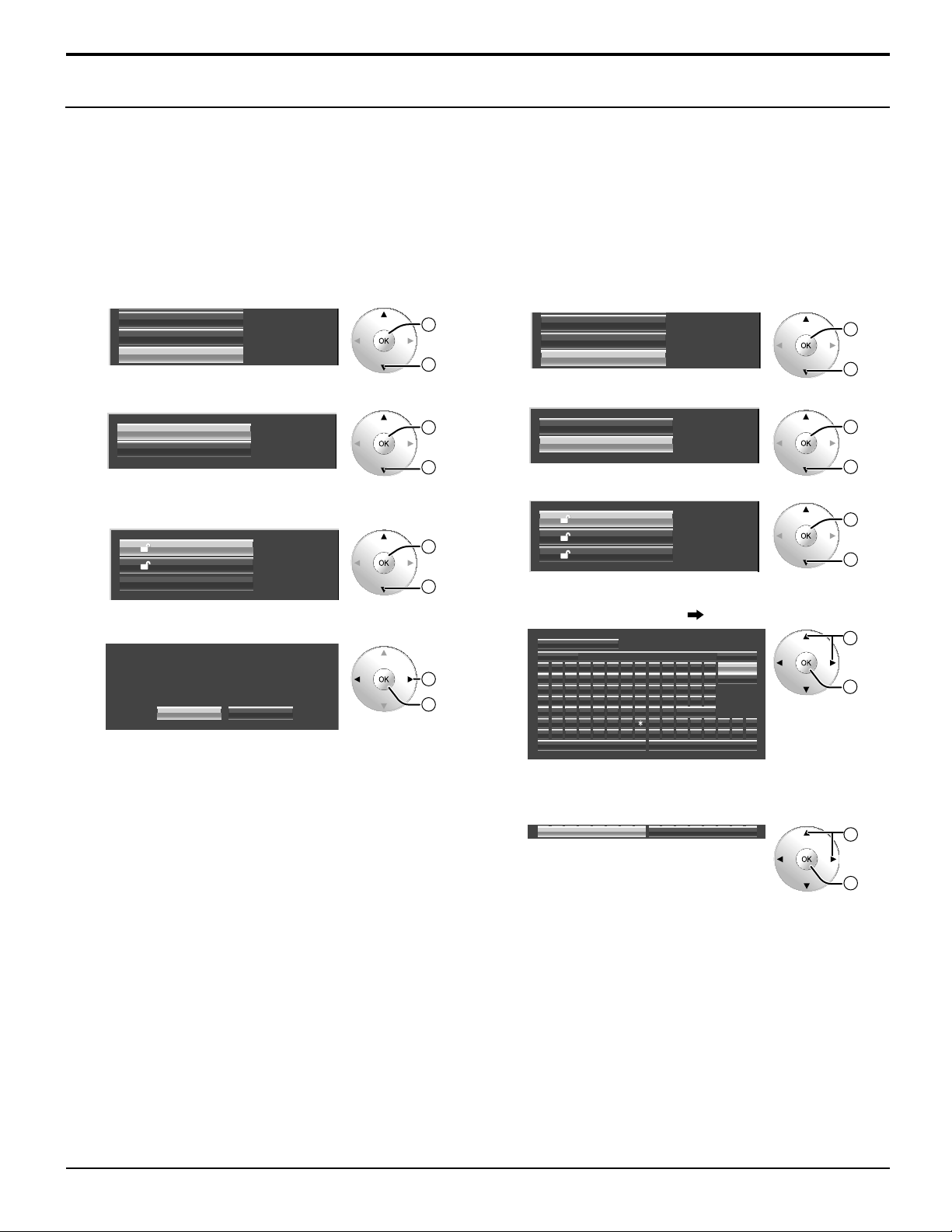

Picture Profi les

Editing profi les

Delete or rename profi les as follows.

<Deleting profi les>
Note:

Locked profi les cannot be deleted.

In the PICTURE menu, select “MEMORY EDIT”.

1

2

MEMORY SAVE
MEMORY LOAD

MEMORY EDIT

Select “MEMORY DELETE”.

MEMORY DELETE

MEMORY NAME CHANGE

Select the profi le to delete.

3

To delete all profi les, select “ALL DELETE”.

1. [ ]MEMORY1

]

2. [

MEMORY2

ALL DELETE

Select “OK”.

4

MEMORY DELETE

DELETE THE ”MEMORY1” DATA.

OK CANCEL

2

access

select

1

2

set

select

1

2

set

select

1

select

1

2

set

<Renaming profi les>
Note:

Locked profi les cannot be renamed.

In the PICTURE menu, select “MEMORY EDIT”.

1

MEMORY SAVE
MEMORY LOAD

MEMORY EDIT

Select “MEMORY NAME CHANGE”.

2

MEMORY DELETE

MEMORY NAME CHANGE

Select the profi le to rename.

3

1. [ ]MEMORY1

]

MEMORY22. [

]

MEMORY1212 . [

Enter a name for the profi le.

4

Entering profi le names page 38

MEMORY NAME INPUT

█

MEMORY1

BCDEFGH I JK LM

A
N O P Q R S T U V W X Y Z DELETE
abcde f gh i j k lm
nopqr s t uvwxyz
0123456789

!

”#$%&’ +–/=?

_` |~<>() [ ] {} ,

OK

SPACE

CANCEL

ALL DELETE

@\ ˆ

.;:

2

access

select

1

2

set

select

1

2

set

select

1

select

1

2

set

40

When you fi nished entering the profi le name, select

5

“OK”.
To cancel renaming the profi le, select “CANCEL”.

OK CANCEL

select

1

2

set

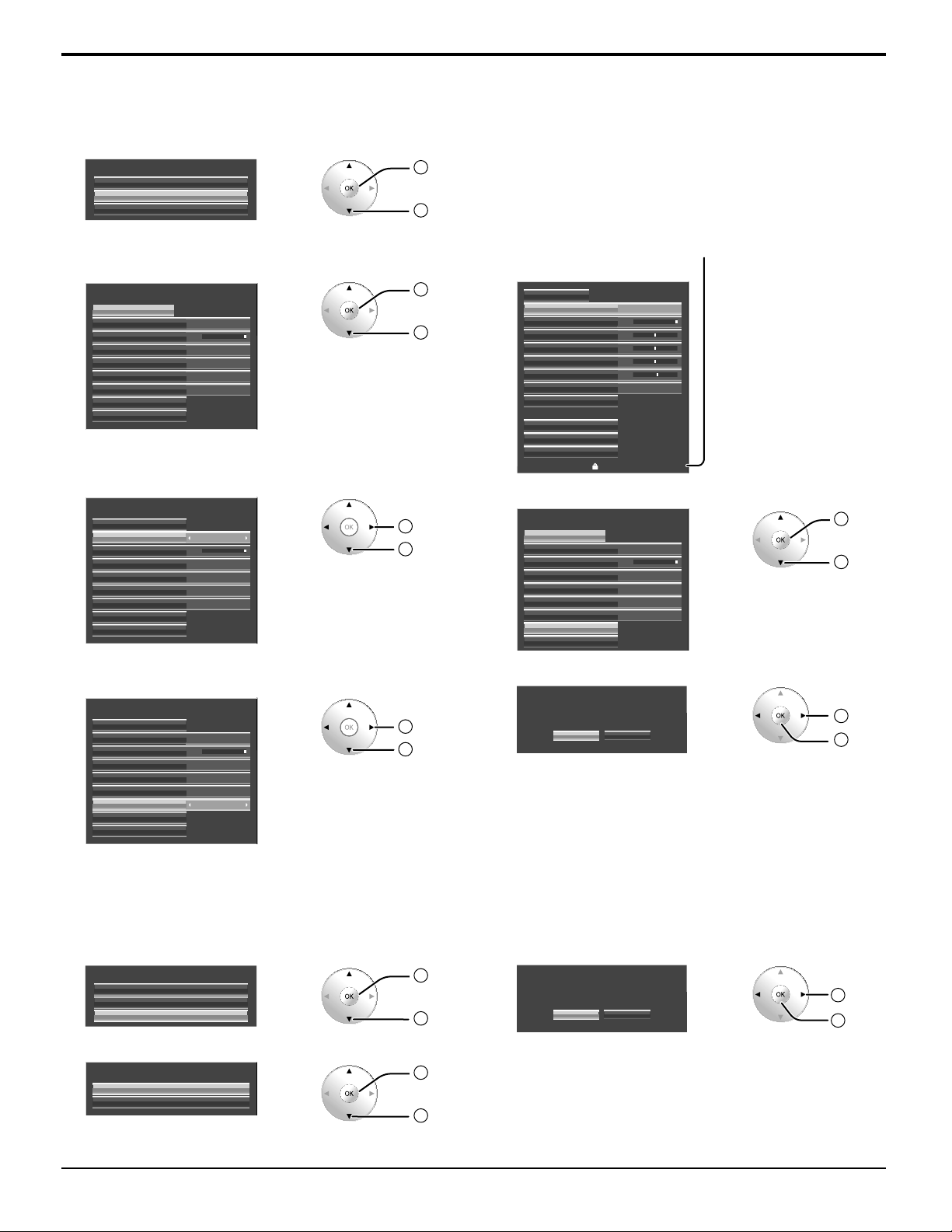

Picture Profi les

Locking profi les

You can lock saved profi les to restrict operations when the profi les are loaded. You can also set passwords.

Notes:

• When the lock is set in “EXTENDED LIFE SETTINGS”, profi le cannot be locked.

• If profi le is locked, the menu operations of “EXTENDED LIFE SETTINGS” are restricted. (see page 52)

<Locking and unlocking profi les>

Display the menu screen.

1

Select “OPTIONS” and hold for 3 seconds or

2

more.

2

SET UP
POS. /SIZE
SOUND

OPTIONS

Select “Memory lock”.

access

(

3 seconds

or more

select

1

)

3

OnOnscreen display
OffAll Aspect
OffAuto Setup
OffStudio mode

INT3D Emitter

3D settingsFunction button assign 1

SignalFunction button assign 2

On3D Safety Precautions

Memory lock

Once a profi le is locked, the following operations are restricted when the profi le is loaded.

Setting Editing the Profi le

(MEMORY EDIT)

Off (unlocked) Allowed Allowed Allowed
Lock1 Prohibited Prohibited (picture adjustment values are

Lock2 Prohibited Prohibited (picture adjustment values are

Editing Picture Adjustment Values via the
Menu
(PICTURE menu, ADVANCED SETTINGS)

shown)

hidden)

2

select

select

1

Enter a 4-digit password.

4

The default password is “0123”.

Select “Ok”.

5

6

Input password

Ok Cancel

Select the profi le and specify the desired lock
setting.

MEMORY1

MEMORY12

Change password

Exit the menu.

7

Saving Picture Adjustment Values
(MEMORY SAVE)

Allowed

Prohibited

Lock1

OffMEMORY2
Off
Offisf Mode

select

1

2

set

2

adjust

select

1

<Changing passwords>

Follow steps 1–5 in the previous procedure,

1

<Locking and unlocking profi les>.

Select “Change password”.

2

MEMORY1

MEMORY12

Change password

Note:

Make a note of the new password to remember it.

Lock1

OffMEMORY2
Off
Offisf Mode

2

access

select

1

Enter a new 4-digit password.

3

Select “Ok”.

4

5

Input new password

Ok Cancel

Exit the menu.

select

1

2

set

41

Picture Profi les

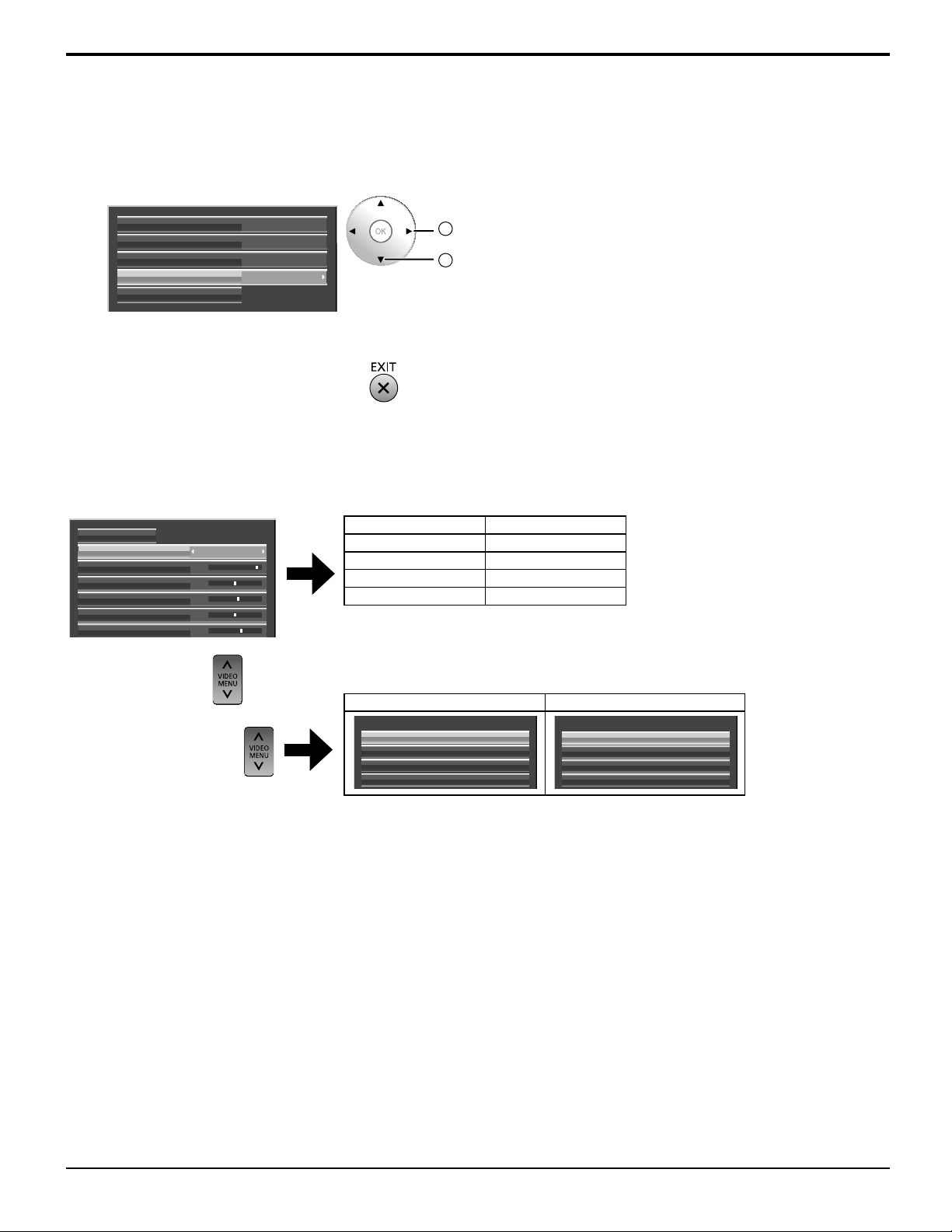

<isf Mode Setting>

Switches to “PICTURE MENU” mode display.

Follow steps 1–5 in the previous procedure,

1

<Locking and unlocking profi les>.
Select “isf Mode”.

2

MEMORY1

MEMORY12

Change password

Specify “On” or “Off”.

Lock1

OffMEMORY2
Off

Offisf Mode

3

adjust

2

1

select

Exit the menu.

4

Specifying “On” for isf Mode changes the “PICTURE MENU” mode display as follows.

“PICTURE MENU” mode display

NORMAL IZE

STANDARDPICTURE MENU

BRIGHTNESS

SHARPNESS

Mode display when

25

0
6COLOR
0TINT
5

is selected

isf Mode: Off isf Mode: On

STANDARD STANDARD
DYNAMIC isf Mode DAY
CINEMA isf Mode NIGHT
MONITOR MONITOR

isf Mode: Off isf Mode: On

PICTURE MENU

STANDARD

DYNAMIC

CINEMA

MONITOR

PICTURE MENU

STANDARD

isf Mode DAY

isf Mode NIGHT

MONITOR

42

SOUND Adjustment

Display the menu screen.

1

Select “SOUND”.

2

SET UP
POS. /SIZE

SOUND

Select the item and set.

3

NORMALIZE

BALANCE

VOLUME

0

1

2

access

1

select

2

adjust

1

select

Exit the menu.

4

Item Details

BALANCE Adjusts left and right volumes.

VOLUME Adjust the sound volume level.

Helpful Hint (

While the “SOUND” menu is displayed, if the OK button is pressed during “NORMALIZE”, then all adjustment values
are returned to the factory settings.

NORMALIZE

Normalization)

SDI SOUND OUTPUT

This menu is displayed when HD-SDI Terminal Board with audio (TY-FB10HD) or Dual Link HD-SDI Terminal Board
(TY-FB11DHD) is installed to the unit.

Item Details

SDI SOUND OUTPUT 2

CHANNEL 1LEFT CHANNEL

CHANNEL 2RIGHT CHANNEL

Note:

This menu is available only when selecting a
slot that HD-SDI Terminal Board with audio
(TY-FB10HD) or Dual Link HD-SDI Terminal
Board (TY-FB11DHD) is installed.

/

2

ONSOUND OUT

OFFLEVEL METER

LEFT CHANNEL

RIGHT CHANNEL

SOUND OUT

LEVEL METER

CHANNEL 1 to CHANNEL 16

Selects left audio channel.

CHANNEL 1 to CHANNEL 16

Selects right audio channel.

ON
ON: Enables audio output.
OFF: Disables audio output.

OFF

Sets audio channels to show in the audio level meter.
8 channels are displayed in the audio level meter; 4
channels each on both right and left sides of the display.

OFF: Hides the audio level meter.
1-8CH: Displays the audio level meter (1-8ch)
9-16CH

OFF

1-8CH 9-16CH

: Displays the audio level meter (9-16ch)

43

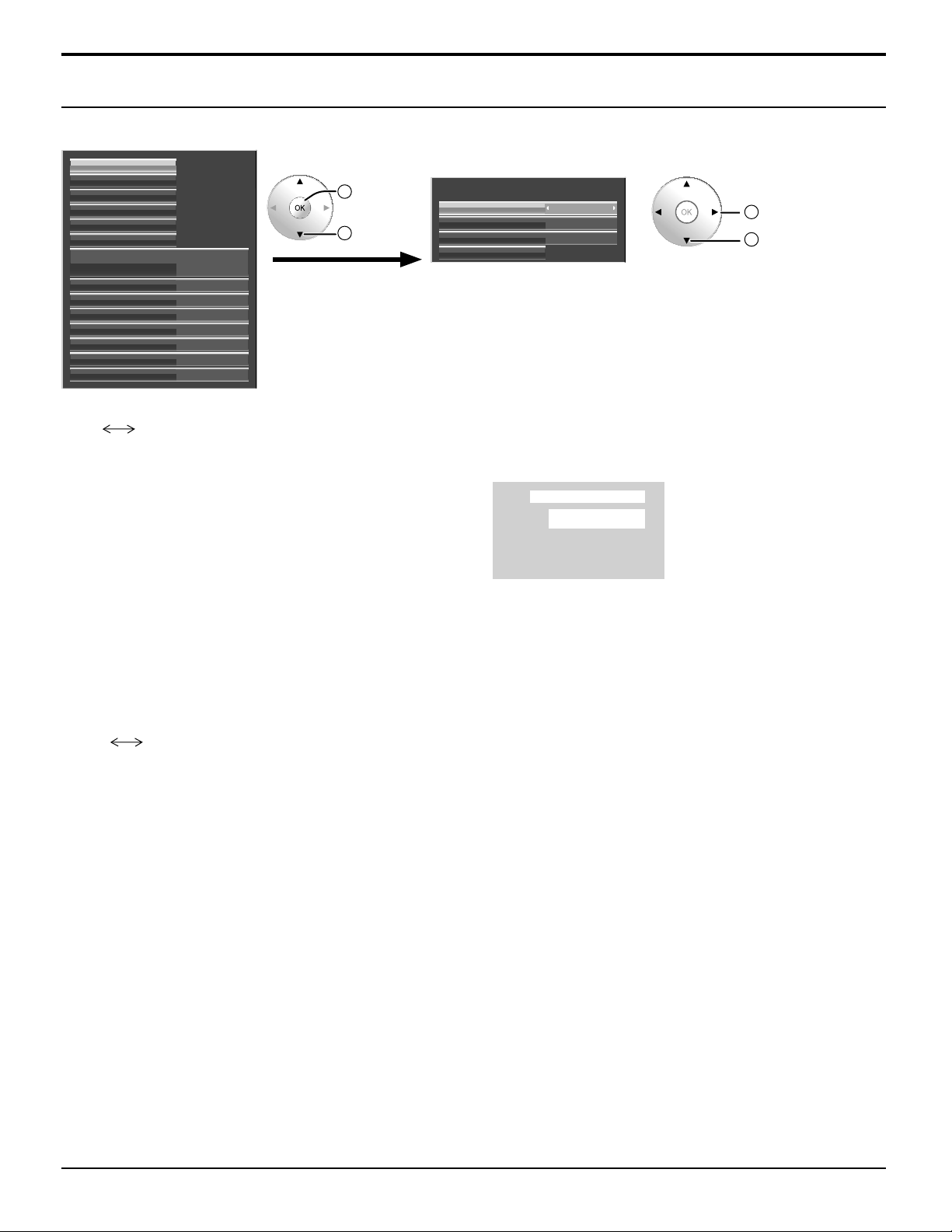

SET UP menu

Display the menu screen.

1

Select “SET UP”.

2


SET UP

POS. /SIZE
SOUND

Select the item and set.

3

3D SETTINGS

SIGNAL

SCREENSAVER

EXTENDED LIFE SETTINGS

INPUT LABEL

NETWORK SETUP

COMPONENT/RGB-IN SELECT

EXTERNAL SCALER MODE
POWER SAVE
PC POWER MANAGEMENT
AUTO POWER OFF OFF
OSD DESIGN TYPE1
OSD POSITION UPPER LEFT
OSD LANGUAGE ENGLISH (US

RGB
OFF
OFF
OFF

)

2

access

select

1

2

adjust

1

select

Exit the menu.

4

COMPONENT / RGB IN SELECT

COMPONENT RGB

Select to match the signals from the source connected to the Component / RGB or PC input terminals.
Y, PB, PR signals “COMPONENT”
RGB signals “RGB”

Note:

Make setting of the selected input terminal (COMPONENT RGB IN or PC IN).

YUV / RGB IN SELECT

YUV RGB

Select to match the signals from the source connected to the DVI input terminals.
YUV signals “YUV”
RGB signals “RGB”

Notes:

• Selection may not be possible, depending on which optional board is installed.

• Make setting of the selected input terminal (SLOT).

44

SET UP menu

EXTERNAL SCALER MODE

OFF ON

This menu can be used to specify whether the built-in scaler or an external scaler is used for scaler functions such as
resizing and picture quality adjustment.
The setting is valid with the following input signals.
1125 (1080) / 24p·25p·30p·50p·60p

OFF: Use the built-in scaler.
ON: Use an external scaler.

Note:

If “ON” is set when other than corresponding signal is input, “Input signal must be 1125p(1080p)”message is displayed.

Using Remote Control

Each time you press , an external scaler is activated or deactivated.

EXTERNAL SCALER MODE

ON

Note:

Selecting “ON” in this setting deactivates the following settings and disables these operations.
POS. /SIZE menu: H-SIZE, V-SIZE, 1:1 PIXEL MODE, DISPLAY SIZE (see page 29, 30)
PICTURE menu: BRIGHTNESS, COLOR, TINT, SHARPNESS, MEMORY SAVE, MEMORY LOAD

(see page 32, 38, 39)
ADVANCED SETTINGS: 3:2 PULLDOWN, NOIZE REDUCTION (see page 34)
SIGNAL menu: XGA MODE (see page 48)
OPTIONS menu: All Aspect (see page 56)
ASPECT Controls
(see page 22)

“EXT. SCALER” is displayed in the menu screen to indicate that an external scaler is in use.

NORMAL IZE

PICTURE MENU

BRIGHTNESS
COLOR
TINT

EXT.SCALER

STANDARD

25PICTURE

45

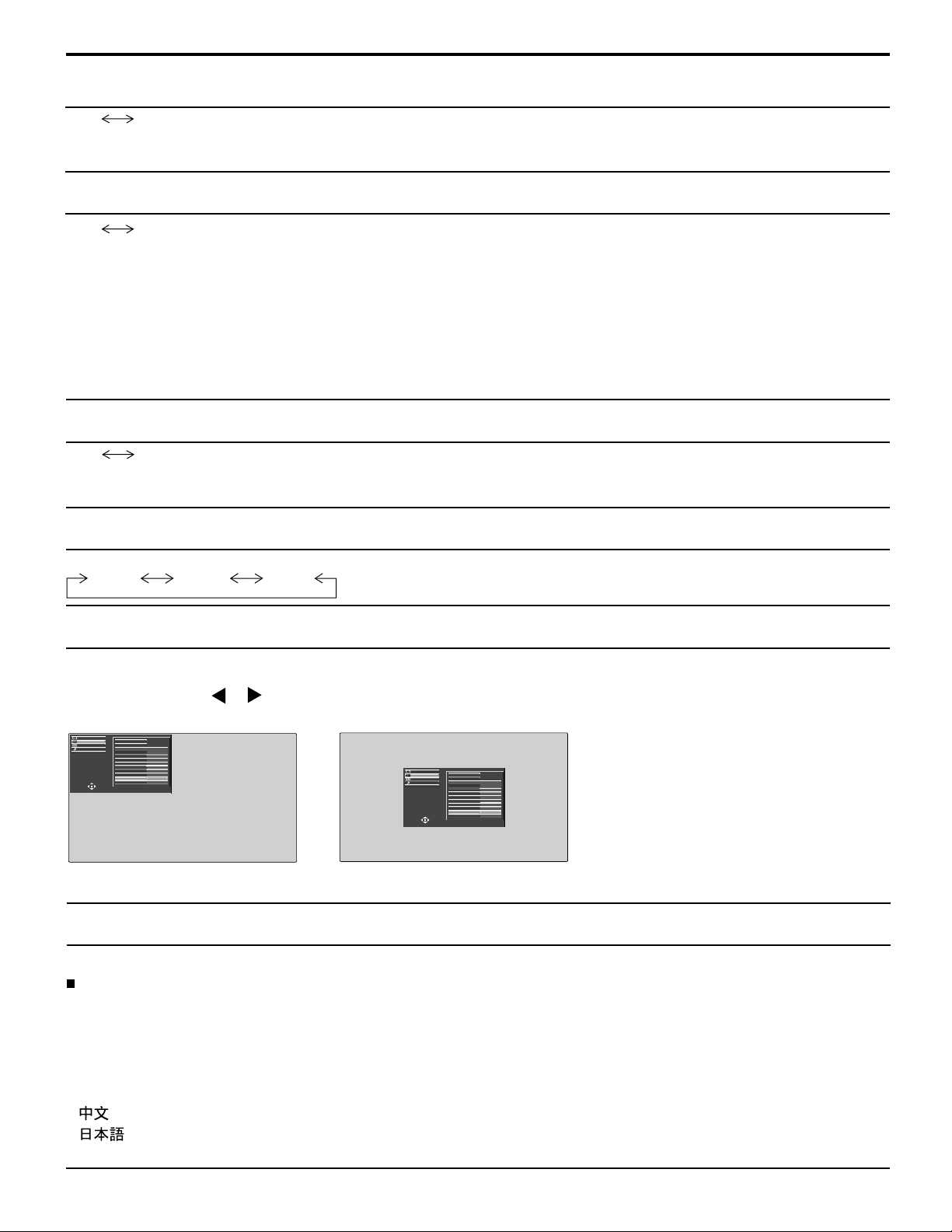

SET UP menu

POWER SAVE

OFF ON

When this function is turned ON, luminous level of the Plasma Display is suppressed, so power consumption is
reduced.

PC POWER MANAGEMENT

OFF ON

When this function is set to ON, it operates under the following conditions to turn the power on or off automatically.
When no pictures (HD/VD sync signals) are detected for 30 or so seconds during PC signal input:
→ Power is turned off (standby); the power indicator lights up orange.
When pictures (HD/VD sync signals) are subsequently detected:
→ Power is turned on; the power indicator lights up green.

Notes:

• This function operates only during PC signal input.

• This function is effective when “SYNC” is set to “AUTO”, “COMPONENT / RGB-IN SELECT” is set to “RGB”.

AUTO POWER OFF

OFF

Equipment power supply is turned OFF when there is no signal.
When this is set to ON, the power supply of the unit goes Off 10 minutes after the input signals stop.

ON

OSD DESIGN

Choose the background color (transparency).

TYPE1

TYPE2 TYPE3

OSD POSITION

Choose the display position.

Note:

Each time you press
Display example

UPPER LEFT

or , the on-screen menu display position changes.

CENTER

OSD LANGUAGE

Select your preferred language.

Selectable languages

English(UK)
Deutsch
Français
Italiano
Español
ENGLISH(US)

(Chinese)

(Japanese)

Русский (Russian)

46

SET UP menu

3D SETTINGS

If the 3D images are not displayed correctly or seem unusual, please adjust and setup the 3D settings.

3D SETTINGS

SIGNAL

SCREENSAVER

EXTENDED LIFE SETTINGS

INPUT LABEL

NETWORK SETUP

COMPONENT/RGB-IN SELECT

EXTERNAL SCALER MODE
POWER SAVE
PC POWER MANAGEMENT
AUTO POWER OFF OFF
OSD DESIGN TYPE1
OSD POSITION UPPER LEFT
OSD LANGUAGE ENGLISH (US

RGB
OFF
OFF
OFF

2

access

select

1

)

Select the item and set.

3D SETTINGS

3D INPUT FORMAT
LEFT/RIGHT SWAP

SAFETY PRECAUTIONS

ON3D EYEWEAR

AUTO

OFF

2

change

1

select

• 3D EYEWEAR

ON OFF
ON: Use of 3D Eyewear. You can see 3D images for 3D image signal and 2D images for 2D image signal.
OFF: No use of 3D Eyewear. You can see 2D images instead of 3D images.

When set to “ON”, “3D” is displayed during 3D images.

3D

PC

FULL

NANODRIFT

• 3D INPUT FORMAT

3D images method is set.

AUTO: 3D images are automatically displayed according to the signal.
SIDE BY SIDE/TOP AND BOTTOM: One of the formats of the 3D standard. Select these formats as necessary.
NATIVE: Displays the input signal as it is. Use to identify the format type of the input signal.

• LEFT/RIGHT SWAP

OFF ON

This function calibrates the timing to switch the right and left images as well as the timing to switch the shutter of right
and left 3D Eyewear.
Selects “ON” if you feel that the sense of depth is unusual.

• SAFETY PRECAUTIONS

Displays the precautions for viewing 3D images.

47

SET UP menu

SIGNAL menu

Note:

“SIGNAL” setup menu displays a different setting condition for each input signal.

3D SETTINGS

SIGNAL

SCREENSAVER

EXTENDED LIFE SETTINGS

INPUT LABEL

NETWORK SETUP

COMPONENT/RGB-IN SELECT

EXTERNAL SCALER MODE
POWER SAVE
PC POWER MANAGEMENT
AUTO POWER OFF OFF
OSD DESIGN TYPE1
OSD POSITION UPPER LEFT
OSD LANGUAGE ENGLISH (US

RGB

OFF
OFF
OFF

Input signal display

2

access

select

1

)

Select the item and set.

For VIDEO (S VIDEO)

SIGNAL

For COMPONENT

SIGNAL

XGA MODE

33.7 kHz

H-FREQ.

60.0 Hz

V-FREQ.

SIGNAL FORMAT

1125(1080)/60i

[

VIDEO

ON3D Y/C FILTER

AUTOCOLOR SYSTEM

[

COMPONENT

ONFRAME CREATION

AUTO

For RGB

]

]

SIGNAL

XGA MODE

SIGNAL FORMAT

For Digital
(Example: HDMI input)

SIGNAL

Displays the frequency and the type of the
current input signal.
This display is valid only for
COMPONENT/RGB/PC and Digital input signal.
Display range:
Horizontal 15 - 110 kHz

SIGNAL FORMAT

Vertical 48 - 120 Hz
The dot clock frequency is displayed during digital signal input.

• 3D Y/C FILTER

This menu is displayed when BNC Dual Video Terminal Board (TY-FB9BD) is installed to the unit.

ON OFF
Note:

When ON, this setting only affects NTSC input signals.

H-FREQ.
V-FREQ.

H-FREQ.
V-FREQ.

2

change

1

select

AUTOSYNC

1024 ×768

33.7 kHz

60.0 Hz
1125(1080)/60i

ON24p SMOOTH FILM

60Hz3D 24p FILM DISPLAY

AUTOHDMI RANGE

33.7 kHz

60.0 Hz

108.0 MHzDOT CLOCK-FREQ.
1125(1080)/60i

[

RGB

[

Digital

]

]

• COLOR SYSTEM

This menu is displayed when BNC Dual Video Terminal Board (TY-FB9BD) is installed to the unit.

AUTO SECAM M.NTSC

NTSCPAL

Set the color system to match the input signal. When “AUTO” is set, COLOR SYSTEM will be automatically selected
from NTSC/PAL/SECAM/M.NTSC.
To display PAL60 signal, select “AUTO” or “PAL”.

If the image becomes unstable:

With the system set on Auto, under conditions of low level or noisy input signals the image may in rare cases become
unstable. Should this occur, set the system to match the format of the input signal.

• XGA MODE

This menu is displayed when the input signal is analog (Component/PC).
This unit supports three types of XGA signals with 60Hz vertical frequency having different aspect ratios and sampling
rates (1,024 × 768 @ 60Hz, 1,280 × 768 @ 60Hz and 1,366 × 768 @ 60Hz).

AUTO 1024×768 1280×768 1366×768
AUTO: Automatically selected from 1024×768/1280×768/1366×768.

Switch the setting to suit the input signal for better display depends on the angle of view or display resolution
condition.

Note:

After making this setting, be sure to make each adjustment (such as “AUTO SETUP”) on the “POS. /SIZE” menu as
necessary. (see page 28)

48

SET UP menu

• SYNC

This function operates only during input from PC IN terminal.

Setting RGB sync signal

Confi rm that the input is set to RGB input (this setting is valid only for RGB input signal).

AUTO:

ON G:

VBS: Uses a synchronized signal of Composite Sync input, which is input from the HD connector.

Setting Component sync signal

Confi rm that the input is set to Component input (this setting is valid only for Component input signal).
AUTO:

ON Y: Uses a synchronized signal on the Video Y signal, which is input from the Y connector.

Note:

Accepts only RGB signals from COMPONENT/RGB IN terminal with “SYNC ON G”.

• SDI THROUGH

Set the active through function of the Dual Link HD-SDI Terminal Board (TY-FB11DHD).

OFF ON
ON: Enables active through.
OFF: Disables active through.
Note:

Settings can only be performed for this menu when a slot mounted with a Dual Link HD-SDI Terminal Board (TY-FB11DHD)
is selected.

The H and V sync or synchronized signal is automatically selected. If both input, it is selected the H and V sync.

Uses a synchronized signal on the Video G signal, which is input from the G connector.

The H and V sync or synchronized signal is automatically selected. If both input, it is selected the H and V sync.

• FRAME CREATION

Displays reducing screen fl icker image for 50Hz/25Hz signal input.

OFF ON
Note:

This function activates only for 50Hz/25Hz signal input with 2D images.

• 24p SMOOTH FILM

During 2D or 3D viewing, images captured at 24 frames per second are provided in a smooth manner.

OFF
Note:

This function can be set only for 24p signal input with 2D or 3D images.

ON

• 3D 24p FILM DISPLAY

For 3D images, images captured at 24 frames per second are set.

60Hz 48Hz
60Hz: Increases the number of frames to reproduce more natural movement images.
48Hz: Reproduces images close to fi lm-specifi c texture.
Note:

This function can be set only for 24p signal input with 3D images.

• HDMI RANGE

Switches the dynamic range according to the input signal from HDMI 1 to 4 terminals.

VIDEO(16-235) FULL(0-255) AUTO
VIDEO(16-235): If the input signal is the video range, Example: HDMI terminal output for DVD player
FULL(0-255): If the input signal is full range, Example: HDMI terminal output for personal computer
AUTO:
Note:

This function can be set only for HDMI 1 to 4 terminal input.

Switches the dynamic range automatically between “VIDEO(16-235)” and “FULL(0-255)” according to the input signal.

49

SET UP menu

SCREENSAVER

Do not display a still picture, especially in 4:3 mode, for any length of time.
If the display must remain on, a SCREENSAVER should be used.

3D SETTINGS

SIGNAL

SCREENSAVER

EXTENDED LIFE SETTINGS

INPUT LABEL

NETWORK SETUP

COMPONENT/RGB-IN SELECT

EXTERNAL SCALER MODE
POWER SAVE
PC POWER MANAGEMENT
AUTO POWER OFF OFF
OSD DESIGN TYPE1
OSD POSITION UPPER LEFT
OSD LANGUAGE ENGLISH (US

FUNCTION selection

1

SCREENSAVER

START

FUNCTION

RGB

OFF
OFF
OFF

NEGATIVE IMAGE

)

2

access

select

1

SCREENSAVER

START

FUNCTION

2

change

1

select

NEGATIVE IMAGE

START setting

2

Select “START”.

SCREENSAVER

START

FUNCTION

NEGATIVE IMAGE

NEGATIVE IMAGE

WHITE SCREEN

SCROLLING BAR ONLY

OVERLAY SCROLLING BAR

NEGATIVE IMAGE : A negative image will be displayed on the screen.
SCROLLING BAR ONLY : A white bar will scroll from left to right. The

image won't be displayed.
OVERLAY SCROLLING BAR : The brightness of the image will be
decreased and a white bar will scroll on it.
WHITE SCREEN : The whole screen will be white.

2

set

1

select

The menu screen will disappear and the SCREENSAVER will be activated.

To stop the SCREENSAVER under ON, press any button.
Note: When the display is turned off, the SCREENSAVER will be

deactivated.

50

EXTENDED LIFE SETTINGS

The following settings are setup to reduce image retention:

SET UP menu

3D SETTINGS

SIGNAL

SCREENSAVER

EXTENDED LIFE SETTINGS

INPUT LABEL

NETWORK SETUP

COMPONENT/RGB-IN SELECT

EXTERNAL SCALER MODE
POWER SAVE
PC POWER MANAGEMENT
AUTO POWER OFF OFF
OSD DESIGN TYPE1
OSD POSITION UPPER LEFT
OSD LANGUAGE ENGLISH (US

RGB
OFF
OFF
OFF

2

access

select

1

)

EXTENDED LIFE SETTINGS

EXTENDED LIFE SETTINGS

EXPRESS SETTINGS

CUSTOM SETTINGS

RESET

RECOMMENDED SETTINGS

PICTURE MENU
SIDE BAR ADJUST
NANODRIFT SAVER
PEAK LIMIT
LOCK SETTINGS
APPLY TO CURRENT INPUT

APPLY TO ALL INPUTS

30

DYNAMIC

BRIGHT

MID
OFF

UNLOCK

Set to the recommended value
Set individually

Reset to the factory settings

Image Retention Reduction Menu

Image Retention Reduction Menu

“EXTENDED LIFE SETTINGS” enables you to set the following 5 menus (Image Retention Reduction Menu) as
recommended values or set them individually.

PICTURE MENU

“PICTURE MENU” and “PICTURE” are same as “PICTURE” menu items (see page 32). The settings of this menu will be
refl ected to the “PICTURE” menu.

SIDE BAR ADJUST

Do not display a picture in 4:3 mode for an extended period,
as this can cause an image retention to remain on the side
bars on either side of the display fi eld.
To reduce the risk of such an image retention, illuminate the
side bars.

This function may be applicable to the non-picture area.

side bars

4:3 mode


retention

OFF: Darken both ends.
DARK: Make it dark gray.
MID: Make it gray.
BRIGHT: Make it light gray.

Notes:

• To reduce the occurrence of image retention, set the SIDE BAR ADJUST to BRIGHT.

• The side bar may fl ash (alternate black/white) depending on the picture being shown on the screen. Using Cinema mode
will reduce such fl ashing.

51

SET UP menu

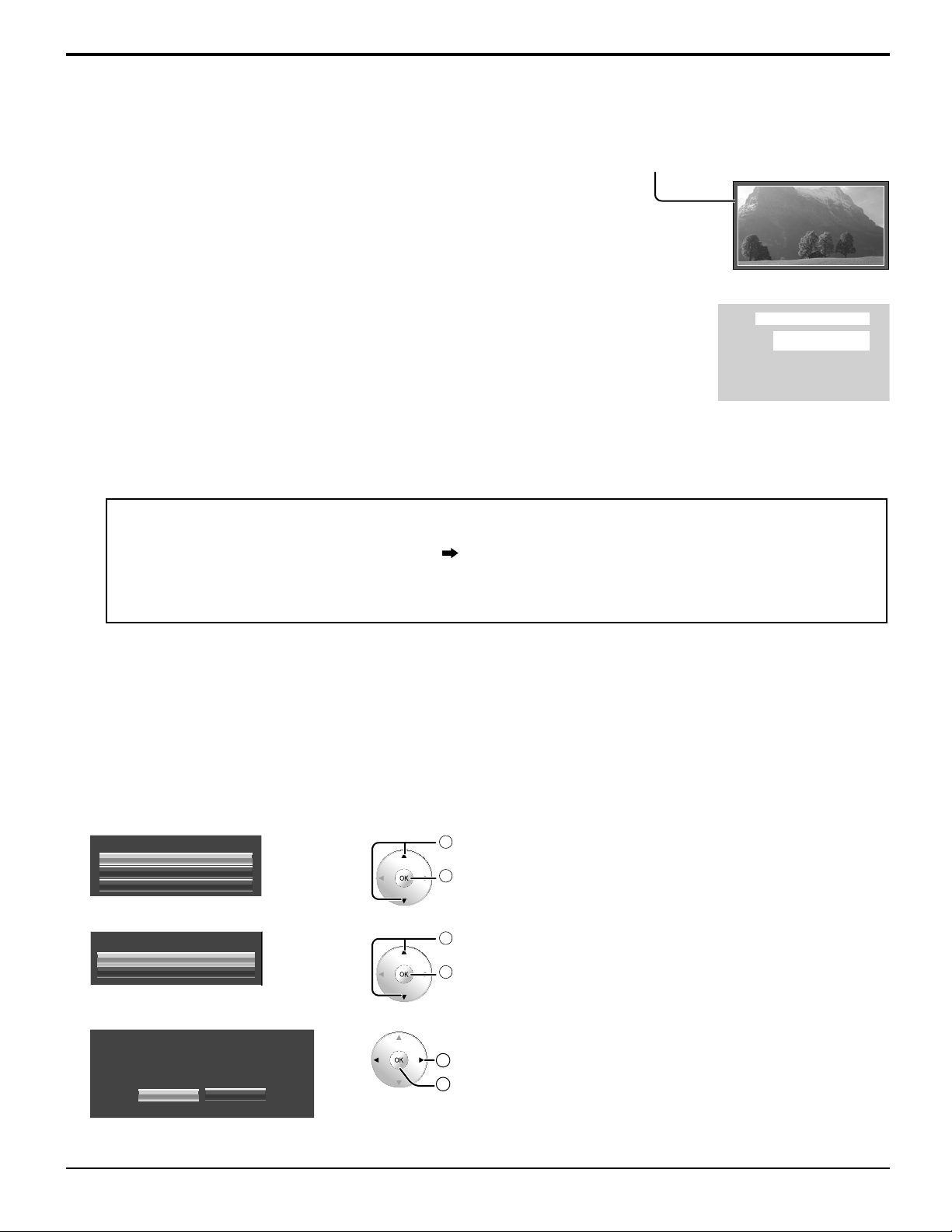

NANODRIFT SAVER

Moves the display position of the screen slightly to reduce image retention on the display panel.
LOW-HIGH: NANODRIFT SAVER operates. The display position of the screen moves at set time intervals. You can set

the screen movement range. Some of the screen may appear to be missing as a result of this operation.
If you change the value, a mask is displayed in the range where the picture is missing as a result of position
movement.

When “NANODRIFT” Image Retention Reduction is operating, “NANODRIFT”

is displayed.

PC

PEAK LIMIT
ON: Suppresses image contrast (peak brightness).

Note: When a still picture is viewed for an extended time, the screen may become slightly darker. (see page 63)

EXTENDED LIFE SETTINGS when profi le is locked

If profi le is locked with “Memory lock” of the OPTIONS menu, the operations of this settings menu are
restricted as shown below. “Locking profi les” page 41
EXPRESS SETTINGS: Cannot be set.
CUSTOM SETTINGS: “PICTURE MENU”, “PICTURE” and “LOCK SETTINGS” cannot be set.
RESET: “PICTURE MENU” and “PICTURE” are not reset.

EXPRESS SETTINGS

Set the “Image Retention Reduction” menu to the recommended settings.
All menus will be locked.
PICTURE MENU: STANDARD
PICTURE: Recommended setting for each model
SIDE BAR ADJUST: BRIGHT
NANODRIFT SAVER: MID
PEAK LIMIT: ON

FULL

NANODRIFT

Select “EXPRESS SETTINGS”.

1

EXTENDED LIFE SETTINGS

EXPRESS SETTINGS

CUSTOM SETTINGS

RESET

Select the input to apply the settings.

2

EXTENDED LIFE SETTINGS

APPLY TO CURRENT INPUT

APPLY TO ALL INPUTS

Select “YES”.

3

EXTENDED LIFE SETTINGS

APPLY TO CURRENT INPUT

YES NO

52

select

1

access

2

select

1

set

2

select

1

2

set

CUSTOM SETTINGS

Set the individual “Image Retention Reduction” menu.

Select “CUSTOM SETTINGS”.

1

EXTENDED LIFE SETTINGS

EXPRESS SETTINGS

CUSTOM SETTINGS

RESET

To set each menu to the recommended setting:

2

Select “RECOMMENDED SETTINGS”.

EXTENDED LIFE SETTINGS

RECOMMENDED SETTINGS

PICTURE MENU
SIDE BAR ADJUST
NANODRIFT SAVER
PEAK LIMIT
LOCK SETTINGS
APPLY TO CURRENT INPUT

APPLY TO ALL INPUTS

Each menu will be set as same as
the “EXPRESS SETTINGS”.

Set each menu.

3

EXTENDED LIFE SETTINGS

RECOMMENDED SETTINGS
PICTURE MENU

PICTURE MENU

SIDE BAR ADJUST
NANODRIFT SAVER
PEAK LIMIT
LOCK SETTINGS
APPLY TO CURRENT INPUT

APPLY TO ALL INPUTS

To lock each menu setting:

4

Set the “LOCK SETTINGS” to “LOCK”.

EXTENDED LIFE SETTINGS

RECOMMENDED SETTINGS
PICTURE MENU

PICTURE MENU
SIDE BAR ADJUST
NANODRIFT SAVER
PEAK LIMIT

LOCK SETTINGS

APPLY TO CURRENT INPUT

APPLY TO ALL INPUTS

DYNAMIC

30

BRIGHT

MID
OFF

UNLOCK

DYNAMIC

30

BRIGHT

MID
OFF

UNLOCK

DYNAMIC

30

BRIGHT

MID
OFF

UNLOCK

2

1

2

1

2

adjust

1

select

2

adjust

1

select

access

select

set

select

SET UP menu

When a menu is locked, it is grayed out and cannot be set.
“PICTURE MENU” and “PICTURE” will no longer
be able to set in the “PICTURE” menu, and they are
labeled with icon to indicate their locked status. Also,
“NORMALIZE”, “MEMORY SAVE” and “MEMORY
LOAD” are not available.

NORMALIZE

PICTURE MENU


BRIGHTNESS
COLOR

SHARPNESS
COLOR TEMP

ADVANCED SETTINGS

MEMORY SAVE
MEMORY LOAD

MEMORY EDIT

Select the input to apply the settings.

5

EXTENDED LIFE SETTINGS

RECOMMENDED SETTINGS

PICTURE MENU
SIDE BAR ADJUST
NANODRIFT SAVER
PEAK LIMIT
LOCK SETTINGS

APPLY TO CURRENT INPUT

APPLY TO ALL INPUTS

Select “YES”.

6

EXTENDED LIFE SETTINGS

APPLY TO CURRENT INPUT

YES NO

DYNAMIC

30

0
0
0TINT
5

NORMAL

EXTENDED LIFE SETTINGS

DYNAMIC

30

BRIGHT

MID
OFF

UNLOCK

2

set

1

select

select

1

2

set

RESET

Reset the “Image Retention Reduction” menu to the factory settings. Each menu will be unlocked.

Select “RESET”.

1

EXTENDED LIFE SETTINGS

EXPRESS SETTINGS

CUSTOM SETTINGS

RESET

Select the input to reset the settings.

2

EXTENDED LIFE SETTINGS

RESET CURRENT INPUT

RESET ALL INPUTS

2

access

1

select

2

set

1

select

Select “YES”.

3

EXTENDED LIFE SETTINGS

RESET CURRENT INPUT

YES NO

select

1

2

set

53

SET UP menu

Customizing the Input labels

This function can change the label of the Input signal to be displayed. (see page 19)

3D SETTINGS

SIGNAL

SCREENSAVER

EXTENDED LIFE SETTINGS

INPUT LABEL

NETWORK SETUP

COMPONENT/RGB-IN SELECT

EXTERNAL SCALER MODE
POWER SAVE
PC POWER MANAGEMENT
AUTO POWER OFF OFF
OSD DESIGN TYPE1
OSD POSITION UPPER LEFT
OSD LANGUAGE ENGLISH (US

RGB

OFF
OFF
OFF

The input label changes as follows each time the ◄ or ► button is pressed.

Original

Select an input terminal and set.

2

access

select

1

)

INPUT LABEL

HDMI1HDMI1

HDMI2HDMI2
HDMI3HDMI3
HDMI4HDMI4

SLOT INPUTSLOT INPUT

COMPONENTCOMPONENT

PCPC

2

change

1

select

Note:

The setting items are the same as the input terminal list of
“Selecting the input signal” (page 19).

Blu-ray2Blu-ray1DVD2DVD1 DVD3 DVD4

Blu-ray3CATV Blu-ray4VCRSTB(SKIP)

(SKIP) : The INPUT button press will skip its input.

54

Network Setup

Make the various settings to use the network function.

3D SETTINGS

SIGNAL

SCREENSAVER

EXTENDED LIFE SETTINGS

INPUT LABEL

NETWORK SETUP

COMPONENT/RGB-IN SELECT

2

1

RGB

access

select

DHCP, IP ADDRESS, SUBNET MASK, and GATEWAY settings

1 Set DHCP.

When “OFF” is selected, IP ADDRESS and other settings can be set manually.

2 Select the item and press .
3 Enter an address.

IP ADDRESS

192.168. 0. 8

I

1

Use to select a digit.

2

Use to change a number or input the

numerical value from to .

3

Press .

NETWORK SETUP

SAVE

DHCP

IP ADDRESS
SUBNET MASK
GATEWAY

OFF

192.168. 0. 8

255.255.255.

192.168.

0.

0
1

4 Select “SAVE” and press .

PORT setting

1 Select “PORT” and press .
2 Enter a port number.

PORT

1024

AUTOLAN SPEED

0NETWORK ID

RS-232CCONTROL I/F SELECT

--:--:--:--:--:--MAC ADDRESS

SAVE

Save the current network Setup. Each value set for DHCP,
IP address, Subnet mask, and Gateway will be saved. If
“NG” is displayed, check the same IP address is not used
within the same network.

DHCP (DHCP client function)

To obtain an IP address automatically using a DHCP server,
set this to “ON”. If DHCP server is not used, set this to
“OFF”.

IP ADDRESS (IP address display and setting)

Enter an IP address if DHCP server is not used.

PORT

01024

I

Pressing

1

Use to select a digit.

2

Use to change a number or input the

will cancel the address change.

numerical value from to .

3

Press .

Pressing will cancel the port number change.

PORT

Set the port number used for command control.
The available setting range is 1024 – 65535.
When the PJLink™ protocol is used, the port setting is not
necessary.

LAN SPEED

Set the connection speed of the LAN environment.
Select the value from Auto, 10 Half, 10 Full, 100 Half or 100 Full.

NETWORK ID

Set the ID to identify this unit.
The available setting range is 0 – 99.

SUBNET MASK (Subnet mask display and setting)

Enter a subnet mask if DHCP server is not used.

CONTROL I/F SELECT

Set whether to control with RS-232C (serial) or LAN. When
“LAN” is set, power is supplied to LAN circuit, and power

GATEWAY (Gateway address display and setting)

Enter a gateway address if DHCP server is not used.

indicator is lit orange under the condition of power off with
remote control (stand-by state).

MAC ADDRESS

Display the MAC address of this unit. However, the MAC
address is not displayed when the “CONTROL I/F SELECT”
is set to “RS-232C”.

Notes:

• To use a DHCP server, make sure the DHCP server is started.

• Contact your network administrator for details on settings.

55

OPTIONS Adjustments

Display the menu screen.

1

Select “OPTIONS”.

2

Press for more than 3 seconds.

3

SET UP
POS. /SIZE
SOUND

OPTIONS

Select the item and set.

4

OnOnscreen display

OffAll Aspect
OffAuto Setup
OffStudio mode

INT3D Emitter

3D settingsFunction button assign 1

SignalFunction button assign 2

On3D Safety Precautions

Memory lock

2

access (more

than 3 seconds)

1

select

set

2

1

select

Exit the menu.

5

Item Adjustments

Onscreen display

All Aspect

Auto Setup

Studio mode

On: Displays all the following on screen.

• Power on display

• Input signal switch display

• No signal display

• Remainig time of off-timer after
Off: Hides all the items above from view.

Sets All Aspect mode (advanced aspect setting) or default aspect mode.
With each press of

Off: Default aspect mode
On: All Aspect mode

Aspect mode of each setting is as follows:
(Example: HD signal)

Off 4:3→H-FILL→ZOOM→FULL→JUST
On 4:3 (1)→4:3 (2)→4:3 Full→Zoom1→Zoom2→Zoom3→16:9→14:9→Just1→Just2

Sets the operational mode of the automatic position adjustment in the POS./SIZE menu.

Manual: Automatic position adjustment starts when

position adjustment is executed from the POS./SIZE menu.

Auto: Other than remote control or menu operation, automatic position adjustment starts:

When the display power is turned ON.
When the input signal is switched.

For switching functions in setting menus used for television studio applications.

COLOR TEMP

STUDIO GAIN

UNDER SCAN

button, the aspect changes in the selected mode.

Studio mode: On Studio mode: Off

“STUDIO” can be selected. “STUDIO” not available.
Can be switched ON and
OFF.
Can be switched ON and
OFF.

was pressed.

is pressed on the remote control or automatic

Cannot be specifi ed (set to “OFF”
and cannot be changed).
Cannot be specifi ed (set to “OFF”
and cannot be changed).

56

OPTIONS Adjustments

Item Adjustments

Set the infrared transmitter for the 3D Eyewear.

3D Emitter

Function button assign 1
Function button assign 2

3D Safety Precautions

Memory lock Locks or unlocks saved profi les. Also for setting passwords. (see page 41)

INT: Use the infrared transmitter of the unit.
EXT: Use the external 3D IR TRANSMITTER (available separately.)

Set the function to operate when the FUNCTION button 1 to 2 on the remote control is pressed.

3D settings: The “3D SETTINGS” menu is displayed.
Scrolling bar:

The screen saver activates, and after 15 minutes, the display power shuts down (standby).

Test patterns: The test pattern is displayed by switching among seven patterns.
Blue only: The screen displays only blue color for image adjustment.

Signal:

The “SIGNAL” menu is displayed.

3D Safety Precautions show/hide is set during power ON.

On: 3D Safety Precaution is shown every time when the power is ON.
Off: 3D Safety Precaution is not shown when the power is ON.

When the setting changes from “On” to “Off”, the confi rmation screen is displayed as below. Pressing
“YES” switches the setting.

3D Safety Precautions

If Off is selected, the 3D safety precautions
will not be displayed when power is turned on.
Change Setting?

YES NO

Using FUNCTION button

Pressing the FUNCTION button activates one of the following fi ve functions. The settings of functions are
performed with the “Function button assign 1” and “Function button assign 2” on the OPTIONS menu. (see above)
The factory preset functions are as described below.
FUNCTION 1 Button: 3D SETTINGS
FUNCTION 2 Button: SIGNAL

3D SETTINGS / SIGNAL

The “3D SETTINGS” menu is displayed.
(Example: 3D SETTINGS)

3D SETTINGS

3D INPUT FORMAT
LEFT/RIGHT SWAP

SAFETY PRECAUTIONS

Pressing the FUNCTION button clears the menu.

SCROLLING BAR / TEST PATTERNS / BLUE ONLY

Confi rmation screen (Example: SCROLLING BAR)

FUNCTION 1

SCROLLING BAR

YES N O

SCROLLING BAR

Activates the SCROLLING BAR ONLY screensaver.

After 15 minutes, the display enters standby mode.

ON3D EYEWEAR

AUTO

OFF

Press to
select
“YES”.

Press.

The operation starts.

TEST PATTERNS

Each time you press , a different test pattern is displayed (seven in all).

Color Bars Red Green

Black

1% window

Frame

(2 lines × 2 dots)

Blue

To exit this mode, press any button.

BLUE ONLY

The screen displays only blue color for image adjustment.
To exit this mode, press FUNCTION button.

Note:

PC POWER MANAGEMENT and AUTO POWER OFF are deactivated during SCROLLING BAR or TEST PATTERNS operation. (see page 46)

To exit this mode, press any button other than .

57

Using Network Function

This unit has a network function to control the network connected display with your computer.

Note:

To use the network function, set each “NETWORK SETUP” setting and make sure to set the “CONTROL I/F SELECT”
to “LAN”. (see page 55)
When “LAN” is set, power is supplied to LAN circuit, and power indicator is lit orange under the condition of power off
with remote control (stand-by state).

Example of Network Connection

COMPUTER

Display (main unit, rear)

LAN cable
(not supplied)

Notes:

• Lay the LAN cable away from other connection cables (excluding the power cord).

• Make sure the broadband router or hub supports 10BASE-T/100BASE-TX.

• To connect a device using 100BASE-TX, use “category 5” LAN cable.

Hub or broadband router

Securing the LAN cable (TH-85VX200U)

Note: In accordance with the Installation Instructions, secure the LAN cable so that it will not become near the

display unit.

• Touching the LAN terminal with a statically charged hand (body) may cause damage due
to its discharge.

Do not touch the LAN terminal or a metal part of the LAN cable.

• For instructions on how to connect, consult your network administrator.

When using a pedestal (TY-ST85P12) for the installation of the display, use a clamper supplied
with the display to secure the LAN cable. For use with another method of installation, refer to
the corresponding Installation Instructions.

Clamper

Command Control

Network function of the unit can control the unit in the same way as serial control from a network.

Supported commands

Commands used in the serial control are supported. (see page 16)

Note:

Consult your local Panasonic dealer for detail instructions on command usage.

58

Using Network Function

PJLink™ Protocol

The network function of the unit conforms with PJLink™ class 1 and you can operate the following actions from your
computer using PJLink™ protocol.

• Display setup

• Display status query

Supported commands

Commands to control the unit with PJLink™ protocol are shown in the table below.

Command Control Remark

POWR Power control

POWR? Power status query

INPT Input switch
INPT? Input switch query
AVMT Shutter control Parameter

AVMT? Shutter control query Parameter

ERST? Error status query Parameter

LAMP? Lamp status query Not supported
INST? Input switch list query Parameter

NAME? Projector name query Returns empty character (no name information)
INF1? Manufacturer name query Returns “Panasonic”
INF2? Model name query Returns “TH-103VX200” (for 103-inch model)
INFO? Other information query Returns version number
CLSS? Class information query Returns “1”

Parameter
0 = Standby 1 = Power “On”

Parameter
0 = Standby 1 = Power “On”

Parameter
See the parameter for command INST?

10 = Picture On (picture mute deactivated), 11 = Picture Off (picture on mute)
20 = Audio On (audio mute deactivated), 21 = Audio Off (audio on mute)
30 = Shutter mode Off (picture and audio mute deactivated)
31 = Shutter mode On (picture and audio on mute)

11 = Picture Off (picture on mute)
21 = Audio Off (audio on mute)
30 = Shutter mode Off (picture and audio mute deactivated)
31 = Shutter mode On (picture and audio on mute)

First byte: Means fan error. 0 or 2.
Second byte: 0
Third byte: 0
Fourth byte: 0
Fifth byte: 0
Sixth byte: Means other error. 0 or 2.
Meaning of the 0 – 2 settings:
0 = Error is not detected, 2 = Error

Numbers 11 to 13 are depending on the slot installation condition
11: PC IN input (PC)

When a single input terminal board
is attached
11: SLOT input (SLOT INPUT)
12: PC IN input (PC)

21: COMPONENT/RGB IN input

(COMPONENT)
31: HDMI 1 input (HDMI1)
33: HDMI 3 input (HDMI3)

When a dual input terminal board is
attached
11: SLOT input (SLOT INPUT A)
12: SLOT input (SLOT INPUT B)
13: PC IN input (PC)

32: HDMI 2 input (HDMI2)
34: HDMI 4 input (HDMI4)

PJLink™ security authentication

Set “Panasonic” for the PJLink™ password.

• PJLink™ is a pending trademark in Japan, the United States, and other countries or areas.

59

Using Web Browser Control

You can use a Web browser to control the unit and set up a network and password.

Before Using Web Browser Control

To use the Web browser control, the unit and computer setups are required.

Unit Setup

Set each “NETWORK SETUP” setting and make sure to set the “CONTROL I/F SELECT” to “LAN”. (see page 55)

Computer Setup

Disable the proxy server settings and enable JavaScript.

(Windows) (Macintosh)

Disable proxy server settings
1 Display [Internet Properties] window.

Click [Start] – [Control Panel] – [Network and Internet
Connections] – [Internet Options].

2 Click the [Connections] tab and then [LAN Settings].
3 Deselect the [Use automatic confi guration script] and

[Use a proxy server for your LAN] boxes.

4 Click [OK].

Enable JavaScript
1 Display [Internet Properties] window.

Click [Start] – [Control Panel] – [Network and Internet
Connections] – [Internet Options].

2 Set the security level on the [Security] tab to [Default

Level]. Alternatively enable [Active scripting] from the
[Custom Level] button.

Disable proxy server settings
1 From the [Safari] menu, click [Preferences].

General screen is displayed.

2 From the [Advanced] tab, click the [Change

Settings…] button next to [Proxies]. Click [Proxies]
and set up a proxy server.

3 Deselect the [Web Proxy] and [Automatic Proxy

Confi guration] boxes.

4 Click [Apply Now].

Enable JavaScript
1 Display [Security] of Safari.
2 Select [Enable JavaScript] under [Web content].

Access from Web Browser

Access to the TOP screen of the Web browser control using a Web browser.

1 Start your Web browser.
2 Enter the IP address set with the “NETWORK SETUP” of

the unit. (see page 55)

3 Enter the user name and password when the

Authentication screen is displayed.

Authentication screen

4 Click [OK].

After logged in, the TOP screen of the Web browser
control is displayed. (see page 61)

Notes:

●

The password used here is the same password

used for command control and the PJLink™
security authentication.

●

Default user name and password are as follows:

User name: user1
Password: Panasonic

●

The password can be changed on the Password

Setup screen after logging in (see page 62). The
user name cannot be changed.

●

Under no circumstances, Panasonic Corporation

or it's associated companies will ask customers
their password directly.
Even if you are asked directly, please do not
reveal your password.

60

Using Web Browser Control

TOP screen structure of the Web browser control

After logging in, the TOP screen of the Web browser control is displayed.

Menu

Menu items are displayed. When a button is clicked,
setup screen of each item is displayed.

Item Details

BASIC
CONTROL

OPTION
CONTROL

NETWORK
SETTING
CHANGE
PASSWORD

According to the selected item from the main menu,

setup status or set items are displayed.

Network ID information

ID to identify the unit is displayed.

BASIC CONTROL screen is displayed.
(see below)

OPTION CONTROL screen is
displayed. (see below)

Network Setup screen is displayed.
(see page 62)
Password setup screen is displayed.
(see page 62)

Display Control (BASIC CONTROL/OPTION CONTROL Screen)

Click BASIC CONTROL or OPTION CONTROL from the menu. Various controls of the unit can be set.

BASIC CONTROL screen OPTION CONTROL screen

Click BASIC CONTROL from the menu. Unit status and
buttons to change settings are displayed.

Item Details

POWER Switch ON/OFF of the unit power.

Switch the input signals. Displayed

INPUT SELECT

AUDIO MUTE Switch ON/OFF of the sound mute.
ASPECT Switch the screen modes

buttons vary according to the
connection status of the video
device.

Click OPTION CONTROL from the menu. Command input
fi eld for command control of the unit is displayed.

Item Details

Enter a command. Use the same

COMMAND

RESPONSE Response from the unit is displayed.
SEND Command is sent and run.

Note:

After the settings are changed, it may take a while till the
display status is displayed.

command used for the serial control.
(see page 16)

61

Using Web Browser Control

NETWORK SETTING (Network Setup Screen)

Click NETWORK SETTING from the menu. Various settings of a network can be set. For the details of the setting
items, please check NETWORK SETUP under the SET UP of the unit. (see page 55)

Item Details

Set to ON when a DHCP server is
used, or OFF when it is not used.

Enter the port number used for
command control. The available
setting range is 1024 - 65535.

Set the connection speed of the LAN
environment.

Set the ID to identify this unit. The
available setting range is 0 - 99.

Notes:

• To use a DHCP server, make sure the DHCP server
is started.

• During a DHCP server is used, IP ADDRESS,
SUBNET MASK, and GATEWAY values cannot be
entered.

• When the set values are changed properly,
“NETWORK SETTING CHANGED.” message and
the changed set items are displayed.

DHCP

IP ADDRESS Enter an IP address.
SUBNET MASK Enter a subnet mask.
GATEWAY Enter a gateway address.

PORT

LAN SPEED

NETWORK ID

SAVE Save the each set value.

Password Setting (Password Setup Screen)

Click CHANGE PASSWORD from the menu. Password to access the Web browser control can be set. When
the password is changed in this screen, the password used for command control and the PJLink™ security
authentication is also changed.

Item Details

Notes:

• The default password is “Panasonic”.

• Up to 32 alphanumeric characters can be used for a
password.

• When the password is changed properly, “Password
has changed.” message is displayed.

OLD
PASSWORD
NEW
PASSWORD

NEW
PASSWORD

(RETYPE)

SAVE

Enter the old password.

Enter the new password.

Enter the password entered in “NEW
PASSWORD” for confi rmation.

Save the new password. The
confi rmation screen is displayed.
Click OK to change the password.

62

Troubleshooting

Before you call for service, determine the symptoms and make a few simple checks as shown below.

Symptoms

Picture Sound

Interference Noisy Sound

Normal Picture No Sound

No Picture No Sound

No Picture Normal Sound

No Color Normal Sound

No remote control operations can be performed. Check whether the batteries have discharged completely and, if they have not, whether they

A cracking sound is sometimes heard from the unit. If there is nothing wrong with the picture or sound, this is the sound of the cabinet undergoing

The top or bottom of the picture on the screen is cut
off when I use the zoom function.

Areas at the top and bottom of the screen where the
image is missing appear when I use the zoom function.

I can hear sounds coming from inside the unit. When the power is turned on, a sound of the display panel being driven may be heard: This is

Parts of the unit become hot. Even when the temperature of parts of the front, top and rear panels has risen, these temperature

Power automatically turns off unexpectedly. Check the settings of “PC POWER MANAGEMENT” and “AUTO POWER OFF” in the SET UP

Power indicator is blinking in red. There is possibility of malfunction. Please contact an Authorized Service Center.
This Plasma Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the type of input

signal. However, this is not a malfunction.

Electrical Appliances
Cars / Motorcycles
Fluorescent light

Volume
(Check whether the mute function has been activated on the remote control.)

Not plugged into AC outlet
Not switched on
PICTURE and BRIGHTNESS/Volume setting
(Check by pressing the power switch or stand-by button on the remote control.)

If a signal with a non-applicable color system format, or frequency is input, only the input
terminal indication is displayed.

Color controls set at minimum level. (see page 31-36)
COLOR SYSTEM (see page 48)

were inserted properly.
Check whether the remote control sensor is exposed to an outdoor light or a strong fl uorescent light.
Check whether the remote control designed specifi cally for use with the unit is being used.
(The unit cannot be operated by any other remote control.)

very slight contractions in response to changes in the room temperature. There are no adverse
effects on the performance or other aspects.

Adjust the position of the picture on the screen.

When using a video software program (such as a cinema size program) with a screen wider than one in
the 16:9 mode, blank areas separate from the images are formed at the top and bottom of the screen.

normal and not indicative of malfunctioning.

rises will not pose any problems in terms of performance or quality.

menu. Any of them may be set to “ON”. (see page 46)

Checks

Plasma Display panel

Symptoms Check

The screen darkens slightly when bright pictures with
minimal movements are shown.

It takes a while for the picture to appear. The unit digitally processes the various signals in order to reproduce esthetically pleasing

The edges of the images fl icker. Due to the characteristics of the system used to drive the panel, the edges may appear to fl icker

The brightness on both sides of images in 4:3 mode
changes.

Some parts of the screen do not light up. The plasma display panel is manufactured using an extremely high level of precision technology,

Image retention appears

Whirring sounds can be heard from the display unit. The display unit is fi tted with a cooling fan to dissipate heat generated during normal use. The

The screen will darken slightly when photos, still images of a computer or other pictures with minimal
movements are shown for an extended period. This is done to reduce image retention on the screen
and the shortening of the screen’s service life: It is normal and not indicative of malfunctioning.

images. As such, it sometimes takes a few moments for the picture to appear when the power
has been turned on, when the input has been switched or when the images for the main picture
and sub picture on the two screens are swapped.

in the fast-moving parts of the images: This is normal and not indicative of malfunctioning.

When viewing the side panels at the “BRIGHT” or “MID” setting, the brightness on both sides
may change depending on the kind of program shown: This is normal and not indicative of
malfunctioning.

however, sometimes some parts of the screen may be missing picture elements or have luminous
spots. This is not a malfunction.

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent
image retention to remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images
displayed in 4:3 mode.

Note:

The permanent image retention on the Plasma Display resulting from fi xed image use is not
an operating defect and as such is not covered by the Warranty.
This product is not designed to display fi xed images for extended periods of time.

whirring sound is caused by rotation of the fan and is not a malfunction.

63

List of Aspect Modes

Aspect mode

All Aspect: OnFactory setting

All Aspect: Off

16:9 FULL

14:9 –

Just

JUST

Just1

Just2 JUST

4:3

4:3

4:3 (1)


Enlarged screen

Description

The display of the pictures fi lls the screen.
In the case of SD signals, pictures with a 4:3 aspect ratio are
enlarged horizontally, and displayed. This mode is suited to
displaying anamorphic pictures with a 16:9 aspect ratio.

Letterbox pictures with a 14:9 aspect ratio are enlarged
vertically and horizontally so that their display fi lls the
screen vertically and is slightly smaller than the screen
horizontally. The top and bottom edges of the pictures are
cut off. Side panels are displayed at the left and right edges
of the screen.

Pictures with a 4:3 aspect ratio are enlarged horizontally
so that the picture distortion is minimized. The display of
the areas around the left and right edges of the screen is
slightly elongated.

Pictures with a 4:3 aspect ratio are enlarged horizontally
so that the picture distortion is minimized. The left and right
edges of the pictures are cut off. The display of the areas
around the left and right edges of the screen is slightly
elongated.

Pictures with a 4:3 aspect ratio are displayed with their
original aspect ratio. Side panels are displayed at the left
and right edges of the screen.

4:3 (2) 4:3

4:3 Full H-FILL

Zoom

ZOOM

Zoom1

Zoom2 ZOOM

Zoom3 –

Pictures with a 4:3 aspect ratio are displayed with their
original aspect ratio. The left and right edges of the pictures
are masked by side panels.

Pictures with a 4:3 aspect ratio are enlarged horizontally so
that their display fi lls the screen. The left and right edges of
the pictures are cut off.

Letterbox pictures with a 16:9 aspect ratio are enlarged
vertically and horizontally so that their display fi lls the screen.
The top and bottom edges of the pictures are cut off.

Letterbox pictures with a 16:9 aspect ratio are enlarged
vertically and horizontally so that their display fi lls the screen.
The top and bottom edges as well as the left and right edges
of the pictures are cut off.

Letterbox pictures with a 2.35:1 aspect ratio are enlarged
vertically and horizontally so that their display fi lls the screen
vertically and is slightly larger than the screen horizontally.
The top and bottom edges as well as the left and right edges
of the pictures are cut off.

64

Applicable Input Signals

*Mark: Applicable input signal

Signal name

1 525 (480) / 60i 15.73 59.94 * (13.5) *
2 525 (480) / 60p 31.47 59.94 * (27.0)
3 625 (575) / 50i 15.63 50.00 * (13.5)
4 625 (576) / 50i 15.63 50.00 *
5 625 (575) / 50p 31.25 50.00 * (27.0)
6 625 (576) / 50p 31.25 50.00 *
7 750 (720) / 60p 45.00 60.00 * (74.25) *
8 750 (720) / 50p 37.50 50.00 * (74.25) *

9 1,125 (1,080) / 60p 67.50 60.00 * (148.5)
10 1,125 (1,080) / 60i 33.75 60.00 * (74.25)
11 1,125 (1,080) / 50p 56.26 50.00 * (148.5)
12 1,125 (1,080) / 50i 28.13 50.00 * (74.25)
13 1,125 (1,080) / 24sF 27.00 48.00 * (74.25)
14 1,125 (1,080) / 30p 33.75 30.00 * (74.25)
15 1,125 (1,080) / 25p 28.13 25.00 * (74.25)
16 1,125 (1,080) / 24p 27.00 24.00 * (74.25)
17 1,250 (1,080) / 50i 31.25 50.00 * (74.25)
18 2,048 × 1,080 / 24sF
19 2,048 × 1,080 / 24p
20 640 × 400 @70 Hz 31.46 70.07 * (25.17)
21 640 × 480 @60 Hz 31.47 59.94 * (25.18) ∗6*
22 640 × 480 @72 Hz 37.86 72.81 * (31.5)
23 640 × 480 @75 Hz 37.50 75.00 * (31.5)
24 640 × 480 @85 Hz 43.27 85.01 * (36.0)
25 800 × 600 @56 Hz 35.16 56.25 * (36.0)
26 800 × 600 @60 Hz 37.88 60.32 * (40.0) *
27 800 × 600 @72 Hz 48.08 72.19 * (50.0)
28 800 × 600 @75 Hz 46.88 75.00 * (49.5)
29 800 × 600 @85 Hz 53.67 85.06 * (56.25)
30 852 × 480 @60 Hz 31.47 59.94 * (33.54)
31 1,024 × 768 @50 Hz 39.55 50.00
32 1,024 × 768 @60 Hz 48.36 60.00 * (65.0) *
33 1,024 × 768 @70 Hz 56.48 70.07 * (75.0)
34 1,024 × 768 @75 Hz 60.02 75.03 * (78.75)
35 1,024 × 768 @85 Hz 68.68 85.00 * (94.5)
36 1,066 × 600 @60 Hz 37.64 59.94 * (53.0)
37 1,152 × 864 @60 Hz 53.70 60.00
38 1,152 × 864 @75 Hz 67.50 75.00 * (108.0)
39 1,280 × 768 @60 Hz 47.70 60.00 * (80.14)
40 1,280 × 960 @60 Hz 60.00 60.00 * (108.0)
41 1,280 × 960 @85 Hz 85.94 85.00 * (148.5)
42 1,280 × 1,024 @60 Hz 63.98 60.02 * (108.0) *
43 1,280 × 1,024 @75 Hz 79.98 75.03 * (135.0)
44 1,280 × 1,024 @85 Hz 91.15 85.02 * (157.5)
45 1,366 × 768 @50 Hz 39.55 50.00
46 1,366 × 768 @60 Hz 48.36 60.00 * (86.71)
47 1,400 × 1,050 @60 Hz 65.22 60.00
48 1,600 × 1,200 @60 Hz 75.00 60.00 * (162.0)
49 1,600 × 1,200 @65 Hz 81.25 65.00 * (175.5)
50 1,920 × 1,080 @60 Hz 67.50 60.00 * (148.5)
51 1,920 × 1,200 @60 Hz 74.04 59.95
52 Macintosh13” (640 × 480) 35.00 66.67 * (30.24)
53 Macintosh16” (832 × 624) 49.72 74.54 * (57.28)
54 Macintosh21” (1,152 × 870) 68.68 75.06 * (100.0)

∗

Horizontal frequency

(kHz)

7 27.00 48.00

∗

7 27.00 24.00

Vertical frequency

(Hz)

COMPONENT / RGB IN / PC IN

(Dot clock (MHz))

5*

∗

1*

∗

1*

∗

1*

∗

1*

∗

2

∗

1

∗

1

∗

1*

∗

3

∗

6

∗

4

∗

HDMI1-4

1:

Based on SMPTE 274M standard.

∗

3:

Based on SMPTE 295M standard.

∗

5: When selected the RGB format and 525p signal input to the PC IN terminal, it is recognized as VGA 60Hz signal.

∗

6:

When inputted VGA 60Hz format signal from the other than

∗

7:

Based on SMPTE 292M and 372M standards. These signals can be received when the Dual Link HD-SDI Terminal Board

∗

2:

Based on SMPTE RP211 standard.

∗

4:

The input signal is recognized as 1,125 (1,080) / 60p.

∗

PC IN

terminal, it is recognized as 525p signal.

(TY-FB11DHD) is installed.

Note: Signals without above specifi cation may not be displayed properly.

65

Shipping condition

This function allows you to reset the unit to the factory setting.

Display the menu screen.

1

Select “SET UP”.

2


SET UP

POS. /SIZE
SOUND

Select “OSD LANGUAGE”.

3

4

3D SETTINGS

SIGNAL

SCREENSAVER

EXTENDED LIFE SETTINGS

INPUT LABEL

NETWORK SETUP

COMPONENT/RGB-IN SELECT

EXTERNAL SCALER MODE
POWER SAVE
PC POWER MANAGEMENT
AUTO POWER OFF OFF
OSD DESIGN TYPE1
OSD POSITION UPPER LEFT

OSD LANGUAGE ENGLISH (US

RGB

OFF
OFF
OFF

)

Press for more than 5 seconds.

2

access

1

select

1

select

Select “YES”.

5

select

Reset to factory default.

YES NO

Select “YES” and wait for 10 sec.

6

All saved data will be erased

CONTINUE?

YES NO

1

2

set

select

1

2

set

Note:

Press to return to SET UP menu when confi rmation screen is displayed.

[from the unit]

1 Press the MENU button till the SET UP menu is displayed.
2 Press the

or button to select “OSD LANGUAGE”.

3 Press the ENTER button for more than 5 seconds.
4 Press the or button to select “YES”.
5 Press the ENTER button.
6 Press the or button to select “YES”.
7 Press the ENTER button and wait for 10 sec.

Executing this function restores all settings and adjustment values in the following menus to the
factory-set default values, as shipped.

On-screen menu: PICTURE, ADVANCED SETTINGS, SET UP, POS. /SIZE, SOUND, OPTIONS
Unlocking profi les (Memory lock: Off, Password: 0123)

66

Specifi cations

Power Source
Power Consumption

Rated Power Consumption

Stand-by condition

Power off condition

Plasma Display panel

Screen size

(No.of pixels)

Operating condition

Temperature

Humidity

Applicable signals

Scanning format

PC signals

Connection terminals

LAN RJ45 10BASE-T/100BASE-TX, compatible with PJLink™

COMPONENT/RGB IN

Y/G

P

B/CB/B

P

R/CR/R

AUDIO L-R

PC IN

AUDIO

AV IN

3D SHUTTER OUT

AUDIO

OUT

Dimensions (W × H × D)

Mass (weight)

HDMI 1-4

SERIAL

L-R

74.3” (1,889 mm) (W) × 41.8” (1,062 mm) (H)

525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i · 60p · 50i · 50p

· 24p · 25p · 30p · 24sF, 1250 (1080) / 50i

RCA Pin jack
RCA Pin jack
RCA Pin jack
RCA Pin jack × 2

High-Density Mini D-sub 15 Pin

Stereo mini jack (M3) × 1
TYPE A Connector × 4
HDMI (Version 1.4 with 3D)

External Control Terminal
D-sub 9 Pin RS-232C compatible
M3 jack × 1, for 3D active shutter eyewear
RCA PIN JACK × 2 (L / R)
Output level: Variable (-∞ ― 0 dB) [INPUT 1 kHz / 0 dB, 10 kΩ Load]

79.4” (2,015 mm) × 47.1” (1,195 mm) × 3.9” (99 mm)

TH-85VX200U TH-103VX200U

120 V AC, 50/60 Hz

1,250 W 1,400 W

0.3 W 0.5 W

0.2 W 0.3 W

Drive method : AC type 85-inch,

16:9 aspect ratio

89.3” (2,269 mm) (W) × 50.2” (1,276 mm) (H)

× 85.3” (2,167 mm) (diagonal)

2,073,600 (1,920 (W) × 1,080 (H))

[5,760 × 1,080 dots]

32 °F - 104 °F (0 °C - 40 °C)

20 % - 80 %

VGA, SVGA, XGA, SXGA

UXGA ···· (compressed)

Horizontal scanning frequency 15 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

with sync 1.0 Vp-p (75 Ω)

0.7 Vp-p (75 Ω)

0.7 Vp-p (75 Ω)

0.5 Vrms
Y or G with sync 1.0 Vp-p (75 Ω)
Y or G without sync 0.7 Vp-p (75 Ω)
P

B/CB

P

R/CR

HD/VD: 1.0 - 5.0 Vp-p (high impedance)

0.5 Vrms

95.0” (2,412 mm) × 55.9” (1,419 mm) × 5.1” (129 mm)

(5.6” (141 mm) when including protruding portion of terminals)

approx. 260.1 lbs approx. 438.7 lbs

200-240 V AC, 50/60 Hz

Drive method : AC type 103-inch,

16:9 aspect ratio

× 102.4” (2,603 mm) (diagonal)

/B: 0.7 Vp-p (75 Ω)

/R: 0.7 Vp-p (75 Ω)

Note:

Design and specifi cations are subject to change without notice. Mass and dimensions shown are approximate.

67

<Software Information for This Product>

This product has software installed partially licensed under the Free BSD LICENSE.
Free BSD LICENSE regulations under the above specifications are as follows:
(These regulations are set by the third party; therefore the original (English) regulations are stated.)
