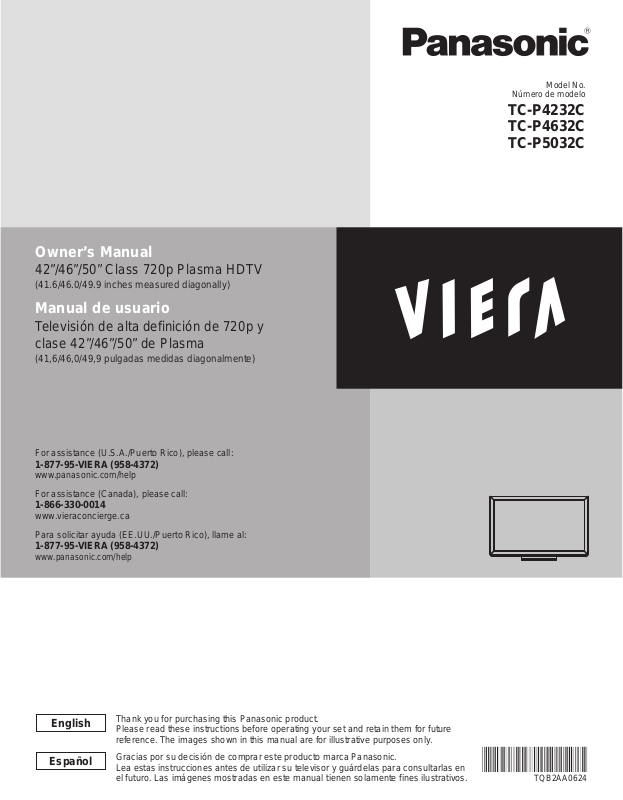

Panasonic TC-P4632C Operating Instruction

Owner’s Manual

42”/46”/50” Class 720p Plasma HDTV

(41.6/46.0/49.9 inches measured diagonally)

Manual de usuario

Televisión de alta definición de 720p y clase 42”/46”/50” de Plasma

(41,6/46,0/49,9 pulgadas medidas diagonalmente)

Model No.

Número de modelo

TC-P4232C TC-P4632C TC-P5032C

For assistance (U.S.A./Puerto Rico), please call:

1-877-95-VIERA (958-4372)

www.panasonic.com/help For assistance (Canada), please call:

1-866-330-0014

www.vieraconcierge.ca Para solicitar ayuda (EE.UU./Puerto Rico), llame al:

1-877-95-VIERA (958-4372)

www.panasonic.com/help

English

Español

Thank you for purchasing this Panasonic product. Please read these instructions before operating your set and retain them for future reference. The images shown in this manual are for illustrative purposes only.

Gracias por su decisión de comprar este producto marca Panasonic. Lea estas instrucciones antes de utilizar su televisor y guárdelas para consultarlas en el futuro. Las imágenes mostradas en este manual tienen solamente fines ilustrativos.

TQB2AA0624

Experience an amazing level of multimedia excitement

Enjoy rich multimedia

SD memory card

VCR

Amplifier with

Speaker system

DVD player/

DVD recorder/

Blu-ray Disc recorder

Blu-ray Disc player

■Do not display a still picture for a long time

This causes the image to remain on the plasma screen (“Image retention”). This is not considered a malfunction and is not covered by the warranty.

4 : 3

To prevent the “Image retention”, the screen saver is automatically activated after a few minutes if no signals are sent or no operations are performed.

Camcorder

Cable box

Typical still images

Channel number and other logos

●

Image displayed in 4:3 mode

●

SD Card photo ●Video game ●Computer image

●

■Set up

Do not place the unit where it’s exposed to sunlight or other bright light (including reflections).

●

Use of some types of fluorescent lighting may reduce the remote control’s transmission range.

●

VIERA Link™ is a trademark of Panasonic Corporation.

HDMI, the HDMI logo and HighDefinition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Contents

SDXC Logo is a trademark of SD3C, LLC.

This product qualifies for ENERGY STAR in the “Home Use” setting and this is the setting in which energy savings will be achieved. Any modifications to the “Home Use” setting or other factory default settings could result in greater energy consumption beyond levels that meet ENERGY STAR qualifications.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

HDAVI Control™ is a trademark of Panasonic Corporation.

Please read before using the unit

Safety Precautions··········································4

•

Getting started

Accessories/Optional Accessory·····················7

•

Connections ··················································10

•

Identifying Controls ·······································12

•

First Time Setup············································13

•

Basic Features

Watching TV ·················································16

•

Using VIERA TOOLS ····································19

•

Watching content from external devices ·······20

•

Viewing photo with VIERA IMAGE VIEWER

•

·······21

Advanced Features

VIERA LinkTM “HDAVI ControlTM” ····················24

•

Editing and Setting Channels ·······················30

•

How to Use Menu Functions·························32

•

Picture settings ···········································33

•

Audio settings ·············································34

•

Timer settings ·············································34

•

Lock ····························································35

•

Closed caption ············································35

•

Setup ··························································36

•

Getting started

Basic Advanced Support Information

Support Information

Ratings List for parental control ····················37

•

Technical Information ····································38

•

Care and Cleaning ········································41

•

Frequently Asked Questions (FAQ) ··············42

•

Specifications················································44

•

Index ·····························································45

•

Limited Warranty

•

(for U.S.A. and Puerto Rico only) ·················46 Customer Services Directory

•

(for U.S.A. and Puerto Rico) ·························47 Limited Warranty (for Canada) ·····················48

•

Safety Precautions

CAUTION

RISK OF ELECTRIC SHOCK

WARNING: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel.

WARNING:

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not place liquid containers (flower vase, cups, cosmetics, etc.) above the set (including on shelves above, etc.).

DO NOT OPEN

Important Safety Instructions

11) Only use attachments / accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

The lightning flash with arrowhead within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.

WARNING

Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being played with by young children, creating the potential risk of suffocation.

■Set up

This Plasma TV may fall and can cause personal injury or

even death if not installed correctly. To prevent personal injury or death, follow these warnings:

Install the Plasma TV in accordance with the

●

manufacturer’s recommended pedestal or stand, corresponding hardware and installation instructions.

This Plasma TV is for use only with the following

optional accessories. Use with any other type of optional accessories may cause instability. The following accessories are manufactured by Panasonic Corporation.

• Wall-hanging bracket (Angled)

TY-WK4P1RW

WARNING/CAUTION (TV set)

Be sure to ask a qualified technician to carry out the

●

installation and set-up.

Two or more people are required to install or remove the

television.

Some wall mounts (wall-hanging brackets) are not

●

designed to be mounted to walls with steel studs or old cinder block constructions.

Ask your dealer or licensed contractor to properly secure

the wall-hanging bracket.

Do not route the TV’s power cord inside the wall.

●

The power cord was not designed for in-wall mounting.

Doing so can lead to fire hazard.

Do not place the Plasma TV or its stand on a sloped or

●

unstable surface.

The Plasma TV may fall or tip over.

Do not support the Plasma TV on a non-specified

●

pedestal. Do not place the Plasma TV on furniture that can easily

●

be used as steps, such as a chest of drawers. Do not climb or allow children to climb on the Plasma TV

●

Place or install the Plasma TV where it cannot be

●

pushed, pulled over or knocked down. Route all cords and cables such that they cannot be

●

tripped over or pulled by curious children.

Do not place any objects on top of the Plasma TV.

●

If water spills onto the Plasma TV or foreign objects get

inside it, a short-circuit may occur which could result in fire or electric shock. If any foreign objects get inside the Plasma TV, please consult an Authorized Service Center.

In the unlikely event that you receive a shock from this

product it is possible that your household outlet may be wired improperly. Have an electrician verify that the TV’s outlet is properly wired. If the symptom persists, have the TV serviced by a qualified authorized technician.

To prevent the spread of fire, keep candles

●

or other open flames away from this product at all times

■AC Power Supply Cord

To prevent fire or electric shock:

The Plasma TV is designed to operate on a 120 V AC,

●

60 Hz service. Insert the power cord plug as far as it will go into the wall socket.

If the plug is not fully inserted, heat may generate, which

could cause a fire.

The included power cord is for use with this unit only.

●

Do not use any power cord other than that provided

●

with this TV. Do not handle the power cord plug with wet hands.

●

Do not do anything that might damage the power

●

supply cord. When disconnecting the power supply cord, hold the

●

plug, not the cord. Do not use the power supply cord if the plug or cord is

●

damaged.

Replace the cord or contact your Authorized Service Center.

Do not use a 3-prong to 2-prong AC plug adapters to

●

connect your TV’s plug to the wall outlet.

Doing so will defeat the TV plug’s safety feature, which

can lead to a shock hazard. If the wall outlet does not accommodate a 3-prong plug, have a qualified electrician replace your outlet and check the associated wiring.

■Handling the power supply cord

Insert the power plug fully into the socket outlet. (If the

●

power plug is loose, it could generate heat and cause fire.) Ensure that the power plug is easily accessible.

●

Ensure the earth pin on the power plug is securely

●

connected to prevent electrical shock.

• An apparatus with CLASS I construction shall be connected to a power socket outlet with a protective earthing connection.

Do not touch the power plug with a wet hand. (This may

●

cause electrical shock.) Do not use any power cord other than that provided

●

with this TV. (This may cause fire or electrical shock.) Do not damage the power cord. (A damaged cord may

●

cause fire or electrical shock.)

• Do not move the TV with the cord plugged in the socket outlet.

• Do not place a heavy object on the cord or place the cord near a high-temperature object.

• Do not twist the cord, bend it excessively, or stretch it.

• Do not pull on the cord. Hold onto the power plug body when disconnecting cord.

• Do not use a damaged power plug or socket outlet.

If a problem occurs (such as no picture or no sound),

●

or if smoke or an abnormal odor is detected from the Plasma TV, unplug the power supply cord immediately.

Continued use of the TV under these conditions might

cause a fire or permanent damage to the TV. Have the TV evaluated by an Authorized Service Center. Servicing of the TV by unauthorized personnel is strongly discouraged due to its high voltage.

If water or an object gets inside the Plasma TV, if the

●

Plasma TV is dropped, or if the enclosure becomes damaged, unplug the power supply cord immediately.

A short-circuit may occur, which could cause a fire. Contact

an Authorized Service Center for an evaluation.

CAUTION

Do not cover the ventilation holes.

●

Doing so may cause the Plasma TV to overheat, which can

cause a fire or damage to the Plasma TV.

Leave a space of 3 15/16” (10 cm) or more at the top,

●

left and right, and 2 3/4” (7 cm) or more at the rear. When using the pedestal, keep the space between the

●

bottom of the TV and the pedestal or stand surface clear from objects that may obstruct ventilation.

■When Moving the Plasma TV

Be sure to disconnect all cables before moving the

●

Plasma TV.

Moving the TV with its cables attached might damage the

cables which, in turn, can cause fire or electric shock.

To prevent an electric shock, disconnect the power

●

plug from the wall outlet as a safety precaution before carrying out any cleaning.

Transport only in upright position.

●

Transporting the unit with its display panel facing upright or

downward may cause damage to the internal circuitry.

Using a dry cloth, clean any dust from the power supply

●

cord and plug regularly.

Build-up of dust on the power cord plug can increase

humidity, which might damage the insulation and cause a fire.

This Plasma TV radiates infrared rays;

therefore, it may affect other infrared communication

equipment. Install your infrared sensor in a place away from direct or reflected light from your Plasma TV.

The TV will still consume some power as long as the power supply cord is connected to the wall outlet.

Display panel is made of glass. Do not apply strong

●

force or impact to the display panel.

This may cause damage resulting in injury.

The TV is heavy. TV should be handled by 2 or more

●

people. Support as shown to avoid injury by the TV tipping or falling.

CEA CHILD SAFETY NOTICES

WARNING

Flat panel displays are not always supported on the proper stands or installed according to the manufacturer’s recommendations. Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and may cause personal injury or even death.

The consumer electronics industry (of which Panasonic is a member) is committed to making home entertainment enjoyable and safe. To prevent personal injury or death, be sure to follow the following safety guidelines:

TUNE INTO SAFETY:

• One size does NOT fit all. Follow the manufacturer’s recommendations for the safe installation and use of your flat panel display.

• Carefully read and understand all enclosed instructions for proper use of this product.

• Don’t allow children to climb on or play with furniture and television sets.

• Don’t place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.

• Remember that children can become excited while watching a program, especially on “larger than life” flat panel displays. Care should be taken to install the display where it cannot be pushed, pulled over, or knocked down.

• Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:

• Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA, ETL).

• Follow all instructions supplied by the display and wall mount manufacturers.

• If you have any doubts about your ability to safely install your flat panel display, contact your retailer about professional installation.

• Make sure the wall where you are mounting the display is appropriate. Some wall mounts are not designed to be mounted to walls with steel studs or old cinder block construction. If you are unsure, contact a professional installer.

• A minimum of two people are required for installation. Flat panel displays can be heavy.

Panasonic recommends that a qualified installer perform the wall-mount installation. See page 4.

The American Academy of Pediatrics discourages television viewing for children younger than two years of age.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for an Other Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the Panasonic Service Center or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to peripheral devices. Any changes or modifications not expressly approved by Panasonic Corp. of North America could void the user’s authority to operate this device.

Responsible Party: Panasonic Corporation of North America

Contact Source: Panasonic Consumer Electronics Company

email: consumerproducts@panasonic.com

CANADIAN NOTICE:

For Model TC-P4232C, TC-P4632C, TC-P5032C This Class B digital apparatus complies with Canadian ICES-003.

One Panasonic Way, Secaucus, NJ 07094

1-877-95-VIERA (958-4372)

Accessories/Optional Accessory

Accessories

Check you have all the items shown.

Accessories

Remote Control Transmitter

N2QAYB000570

Owner’s Manual Quick start guide

Batteries for the Remote Control Transmitter (2)

AA Battery

Pedestal

TBLX0134 (TC-P4232C) TBLX0135

(TC-P4632C, TC-5032C)

Child safety Product Registration Card (U.S.A.)

AC cord

Getting started

How to assemble (p. 8)

Accessories/Optional Accessory

Optional Accessory

Wall-hanging bracket

(angled)

TY-WK4P1RW

a: 15.7” (400 mm) b: 11.8” (300 mm)

Warning

In order to maintain the TV’s performance and safety, be absolutely sure to ask your dealer or a licensed

contractor to secure the wall-hanging brackets.

Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to

prevent the TV from tipping over.

Handle the TV carefully during installation since subjecting it to impact or other forces may cause product

damage.

Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the

wall before hanging the bracket.

When using the angled-type wall hanging bracket, please ensure that there is sufficient space for the connecting

cables not to press against the wall when the TV is tilted forward.

For safety reasons, remove units no longer being used from their wall-mounted locations.

Please contact your nearest Panasonic dealer to purchase the recommended wall-hanging bracket. For additional details, please refer to the wall-hanging bracket installation manual.

Rear of the TV

Holes for wall-hanging bracket installation

Screw for fixing the TV onto the wall-hanging bracket (not supplied with the TV)

Depth of screw: minimum 0.59” (15.0 mm), maximum 1.18” (30.0 mm)

(View from the side)

Attaching the pedestal to TV

■

Assembling the pedestal

Fix securely with assembly screws A (Total 4 screws). Tighten screws firmly.

Pole

(image: TBLX0134)

■

Set-up

Carry out work on a horizontal and level surface. Tighten screws firmly.

Arrow mark

Pole

Front

Base

Bottom view

Rear side

Hole for pedestal installation

Pole

Accessories

Assembly screws (4 of each)

XYN5+F18FN size (M5 × 18) (Silver)

THEL078N (for 42”)

THEL080N (for 46”/50”)

size (M5 × 30) (Black)

Poles (2)

or R is printed at the

bottom of the poles.

Base (1)

Pole

Base

(image: TC-P4232C)

Warning

Do not disassemble or modify the pedestal.

Otherwise the TV may fall over and become damaged, and personal injury may result.

Caution

Do not use any pedestal other than that provided with this TV.

Otherwise the TV may fall over and become damaged, and personal injury may result.

Fix securely with assembly

screws B (Total 4 screws).

Do not use the pedestal if it becomes warped or physically damaged.

If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic

Dealer immediately.

During set-up, make sure that all screws are securely tightened.

If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong

enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Hook

Open

Installing the remote’s batteries

Caution

Note the correct polarity (+ or -).

Incorrect installation may cause

battery leakage and corrosion, resulting in damage to the remote control.

Do not mix old and new batteries.

•

Do not mix different battery types (such

•

as alkaline and manganese batteries).

Do not use rechargeable (Ni-Cd)

•

batteries.

Do not burn or break batteries.

Power cord connection

To attach To remove

Insert it firmly until the tabs on both sides click into place.

Getting started

Accessories/Optional Accessory

Keep pushing both sides until they snap and pull.

Connections

Connection Panels

Front of the TV

SD card slot (p.21)

Back of the TV

DIGITAL AUDIO OUT

Antenna or Cable connection

* See page 9

(Power cord connection)

Power Cord (Connect after all the other connections have been made.)

Cable

You need to subscribe to a cable TV service to enjoy viewing their programming.

●

You may need to subscribe to a high-definition (HD) cable service to enjoy HD programming.

●

The connection for high-definition can be done with the use of an HDMI or Component Video cable. (p. 11)

Note

When using a Cable box, external equipment and video cables shown in this manual are not supplied with the TV.

●

When disconnecting the power cord, be absolutely sure to disconnect the power cord plug from the wall outlet first.

●

For additional assistance, visit us at: www.panasonic.com/help

●

Back of the TV

VHF/UHF Antenna

• NTSC (National Television System Committee): ATSC (Advanced Television Systems Committee): Digital TV Standards include digital high-definition television (HDTV), standard-definition television (SDTV), data broadcasting, multichannel surround-sound audio and interactive television.

www.panasonic.ca

VHF/UHF Antenna

Cable TV

Connection references

■

Antenna terminal

Firmly tighten by hand.

●

■

Pin terminals

greenbluered

green

Match colors of plugs and terminals.

●

Insert firmly.

●

■

HDMI terminal

Insert firmly.

●

AV cable connection

Best

Good

Basic

(Not HD)

To use HDMI terminals

HDMI-DVI Conversion cable

VIERA Link connection, please refer to p. 25

●

The HDMI connection is required for a 1080p signal.

●

To use COMPONENT terminals

red

blue

green

white

red

To use COMPOSITE terminals

yellow

white

red

green

blue

red

white

red

yellow

white

red

green

blue

red

white

red

yellow

white

red

HDMI AV OUT

DVI OUT

AUDIO OUT

COMPONENT VIDEO OUT

AUDIO OUT

COMPOSITE OUT

AV Equipment

e.g. Blu-ray Disc player

AV Equipment

e.g. Blu-ray Disc player

AV Equipment

e.g. Blu-ray Disc player

AV Equipment

e.g. DVD Recorder

e.g. VCR

Getting started

Connections

Audio connection

Optical cable

For HDMI-ARC (Audio Return Channel) connection, see p. 24

●

Audio equipment

DIGITAL AUDIO IN

e.g. Amplifier

Identifying Controls

TV controls/indicators

Front of the TV Back of the TV

Selects channels in sequence

Volume up/down Displays the Main

Remote control sensor Within about 23 feet (7 meters) in front of the TV set

Power indicator (on: red, off: no light)

C.A.T.S. sensor Plasma C.A.T.S. (Contrast Automatic Tracking System) (p. 33)

Note

The TV consumes a small amount of electric energy even when turned off.

●

Do not place any objects between the TV remote control sensor and remote control.

●

Switches TV On or Off (Standby) Select source to watch (p. 20)

Displays Main Menu (p. 32)

Displays Sub Menu for special functions (when available) (p. 17)

Colored buttons (used for various functions)

Volume up/down

Sound mute On/Off

Changes aspect ratio and zoom(p. 17, 38)

Switches to previously viewed channel or input

External equipment operations (p. 29)

Changes the input mode Chooses Menu and Submenu entries

Remote control

Closed Caption On/Off (p. 16) Selects Secondary Audio Programming

(p. 16) Exits from menu screen

VIERA Link menu (p. 28-29) Display VIERA TOOLS Menu (p. 19) Viewing from SD Card (p. 21-23) Selects/OK/Change Go back to previous menu Channel up/down, when viewing from

ANT/Cable source Displays or removes the channel

banner (p. 16) Operates the Favorite channel list

function (p. 17) Numeric keypad to select any channel

or press to enter alphanumeric input in menus

Use for digital channels. (p. 16)

POWER button

First Time Setup

The first time setup screen is displayed only when the TV is turned on for the first time after the power cord is inserted into a wall outlet and when “Auto power on” (p. 36) is set to “No”.

Turn the TV On with the POWER button

(TV)

(Remote)

Configure your viewing mode

Select your language

Language / Idioma / Langue

Select your language Seleccione su idioma Sélection de la langue

English Español Français

Step 1 of 5 / Paso 1 de 5 / Étape 1 de 5

select

Getting started

Select Selección Sélection

Select your viewing mode (Be sure to select “Home use”)

Set viewing mode

Select your viewing environment

Home use Store Demonstration

Step 2 of 5

select

First Time Setup

Identifying Controls

Select

RETURN

Please confirm your selection (Home Use) before pressing OK button.

●

■If you select “ Store Demonstration” by mistake in ,

confirmation screen will be displayed.

You are selecting the store demonstration mode.

Yes

If you select “Yes”, the picture mode will regularly reset to “Vivid” and a Picture Refresh message will be displayed on the screen.

Select “No” and return to previous screen .

●

If you select “Yes”, Screen enters the store demonstration mode.

●

To display the “Set viewing mode” screen again as shown above and select “Home Use”, do one of the following:

• Press and hold down the side POWER button for at least five seconds.

• Unplug power cord for 30 seconds and plug it again.

select

Note

If you use any other step other than

●

then turn the TV off, or if you used the EXIT button to quit before completing the settings, the next time you turn the TV on, “First time setup” will not be automatically displayed.

• The settings up to that point are saved.

• You can start “First time setup”. (p. 36) Language, ANT/Cable setup, Input labels and Clock can also be changed in

●

the Settings Menu. (p. 36)

Press to exit from

a menu screen

Press to go back to the previous screen

ANT/Cable setup

Do you use a Cable, Satellite or Fiber Optic box with this TV?

ANT/Cable setup

Do you use a Cable, Satellite or Fiber Optic box with this TV?

Yes No

Select

Return

a Select signal type

(Cable/Antenna)

ANT/Cable setup

How does the TV receive its programming content?

Cable service

Over-the-Air Antenna

(No box)

Select

Return

Select scan type

Auto program

Start scanning for available channels in your area?

Yes No

Select

Return

Start scanning

Auto program

Progress

Number of analog channels Number of digital channels

This may take some time to complete. Press RETURN to quit

RETURN

Complete scanning

Auto program completed. Press OK to continue.

Number of analog channels

Number of digital channels

OK RETURN

Antenna Cable In

Yes

Step 3 of 5

Yes

select

Select connection type for Cable or Satellite box and go to

ANT/Cable setup

Which wiring method is used to connect your box to the TV?

Select

Return

Component

Composite

(Input labels)

Step 3 of 5

Antenna/Cable in

AV IN

HDMI

Antenna Cable In

Note

About broadcasting

systems

Analog (NTSC): Conventional

Digital (ATSC): New

broadcasting

programming that allows you to view more channels featuring high-quality video and sound

Label the inputs for easy identification (Label inputs)

RETURN

Select

GHI

PQRS

ABC

JKL

TUV

DEF

MNO

WXYZ

- ,

LAST

ABC abc

GAME

Video

GAME

RETURN

0 9

DST

Minutes

To name each input, follow the instructions on screen. When done, select NEXT and press OK to go to the next step.

Label inputs

What is connected to HDMI 1 ? For your convenience, you may name each input for easy identification. The labels will be shown in the “Input select” menu.

HDMI 1

HDMI 2 Component Video Next

Select

Return

Customize label

--> To edit the labels to match your connected devices.

Label: [BLANK] Blu-ray/CABLE/SATELLITE/DVD/DVD REC/DVR/GAME/HOME

THTR/RECEIVER/COMPUTER/MEDIA CTR/MEDIA EXT/VCR/CAMERA/ MONITOR/AUX/OTHER/Not used

• Select “Not used” for any back-panel input that has no device connected to it. Afterward, the input will be skipped when pressing INPUT, for your convenience.

• The input labels can be changed at any time from the TV’s setup menu

Step 4 of 5

HDMI

select set

Follow the instructions on screen to complete the following operations.

Adjust the Clock (Set clock)

When done, select NEXT and press OK to go to the next step.

Set clock

Adjust the TV's date and time

Year

Month Day Hour Minute Next

Edit

Select

Change

RETURN

0-9

- - -

Step 5 of 5

select set

Follow the instructions on screen to complete the following operations.

Complete First time setup

Congratulations! You are done.

Getting started

First Time Setup

Press to exit from

a menu screen

■

Press to go back to the previous screen

The First time setup can be repeated at any time. Press MENU and select SETUP; then “First time setup”.

Congratulations! Setup is complete.

Enjoy your Panasonic VIERA TV.

RETURN

To watch TV via a Cable box, Satellite receiver, or any other source (DVD, DVR, gaming device, etc.), press the INPUT button and select the appropriate input.

Watching TV

Turn power on

(Remote)

(TV)

Note

Please select correct input --> (p. 20)

Select a channel number

down

• Also available side CH button on the unit.

[For Cable/Satellite box connection]

- Use your connected box’s remote control.

Note

Reselect “Cable” or “Antenna” in “ANT in” of “ANT/Cable setup” to switch the signal

reception between cable TV and antenna. (p. 14, 30)

The channel number and volume level remain the same even after the TV is turned

off.

■Other Useful Functions

Listen with SAP (Secondary Audio Programming)

■Select the Audio mode for watching TV

Digital mode

Press SAP to select next Audio track (if available) when receiving a digital channel.

Audio track 1 of 2

Analog mode

Press SAP to select the desired Audio mode.

• Each press of SAP will change the Audio mode. (Stereo/SAP/Mono) SAP is not available when watching TV with a Cable or Satellite box connected via HDMI.

Contact your Cable or Satellite operator for instructions on enabling SAP with their box.

(English)

Closed Caption

■Switches the Closed Caption mode On or Off

Closed caption OnClosed caption Off

Closed caption On mute

To directly enter the digital channel

number

When tuning to a digital channel, press the button to enter the minor number in a compound channel number.

example: CH15-1:

Closed Caption is not available when watching TV with a Cable or Satellite box connected via HDMI. Contact your Cable or Satellite operator for instructions on enabling CC with their box.

Displaying Information

■Displays and removes information. When watching programming via the Antenna/Cable input,

shows the channel banner.

Channel

15-2 12:30 PM ABC-HD

Station identifier

THE NEWS

CC SAP

SAP indication

TV-G 1080i Standard 4:3

Signal resolution

Rating Level

Picture mode

Aspect ratioClosed caption

Clock

Sleep timer remaining time

+ 37 hidden pages
