Panasonic tc-lxxwt50 ehelp

WT50 series
M0212-0
Watching TV
2
Cable / Satellite / Fiber with a box
Antenna / Cable service without a box
Blu-ray, DVD, Game Console, etc.
For best picture
For best audio
3
3D
Change 3D ⇔ 2D
Computer on TV

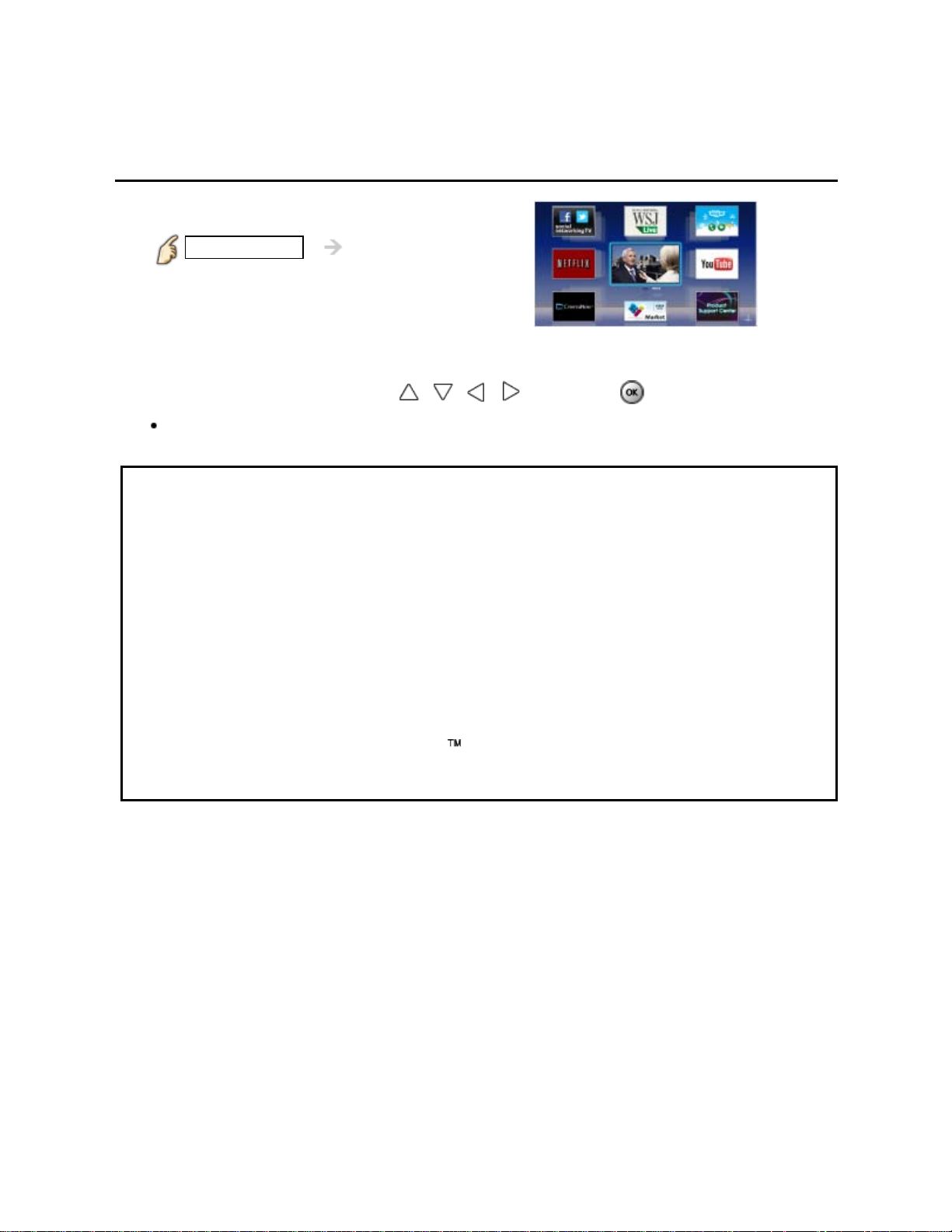

Internet services "VIERA Connect"

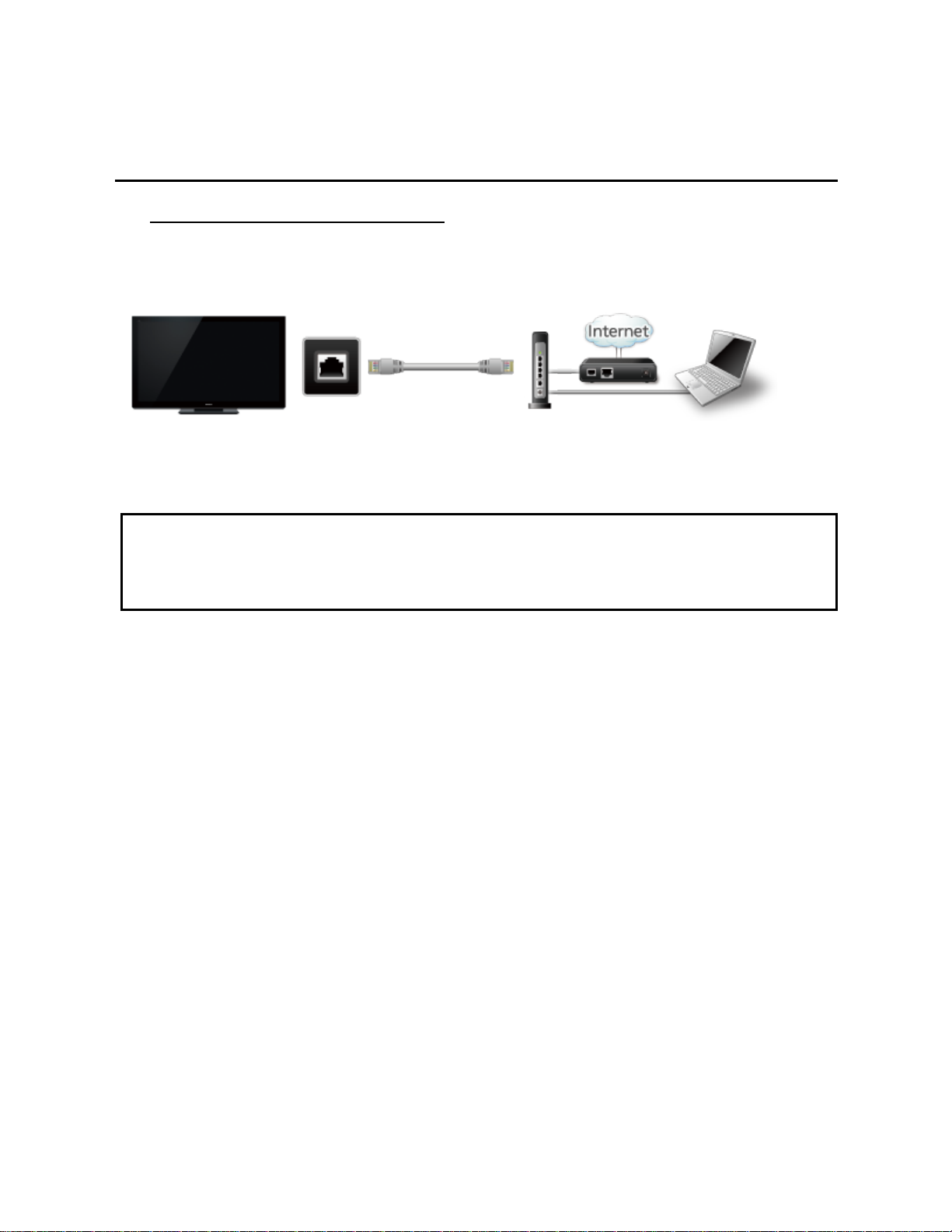

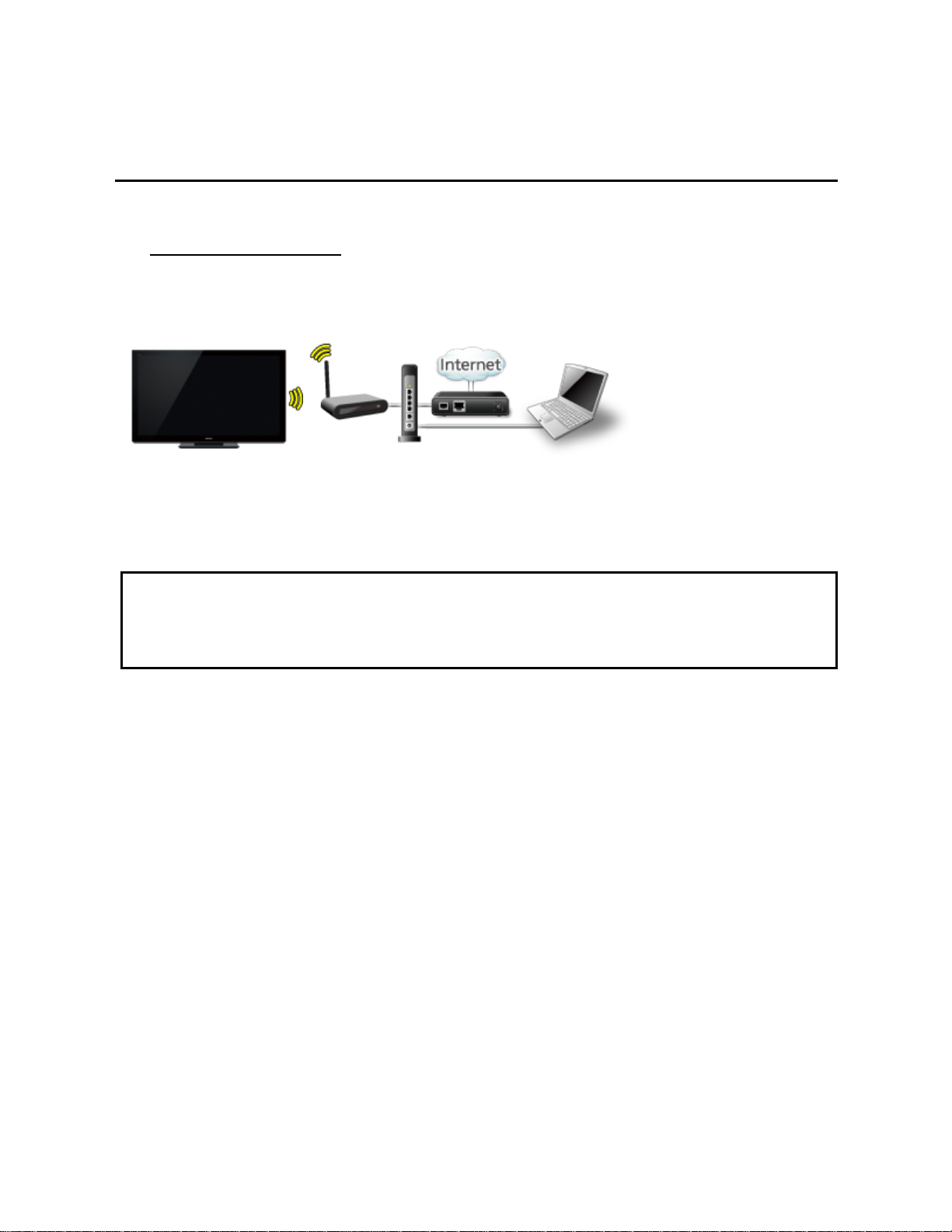

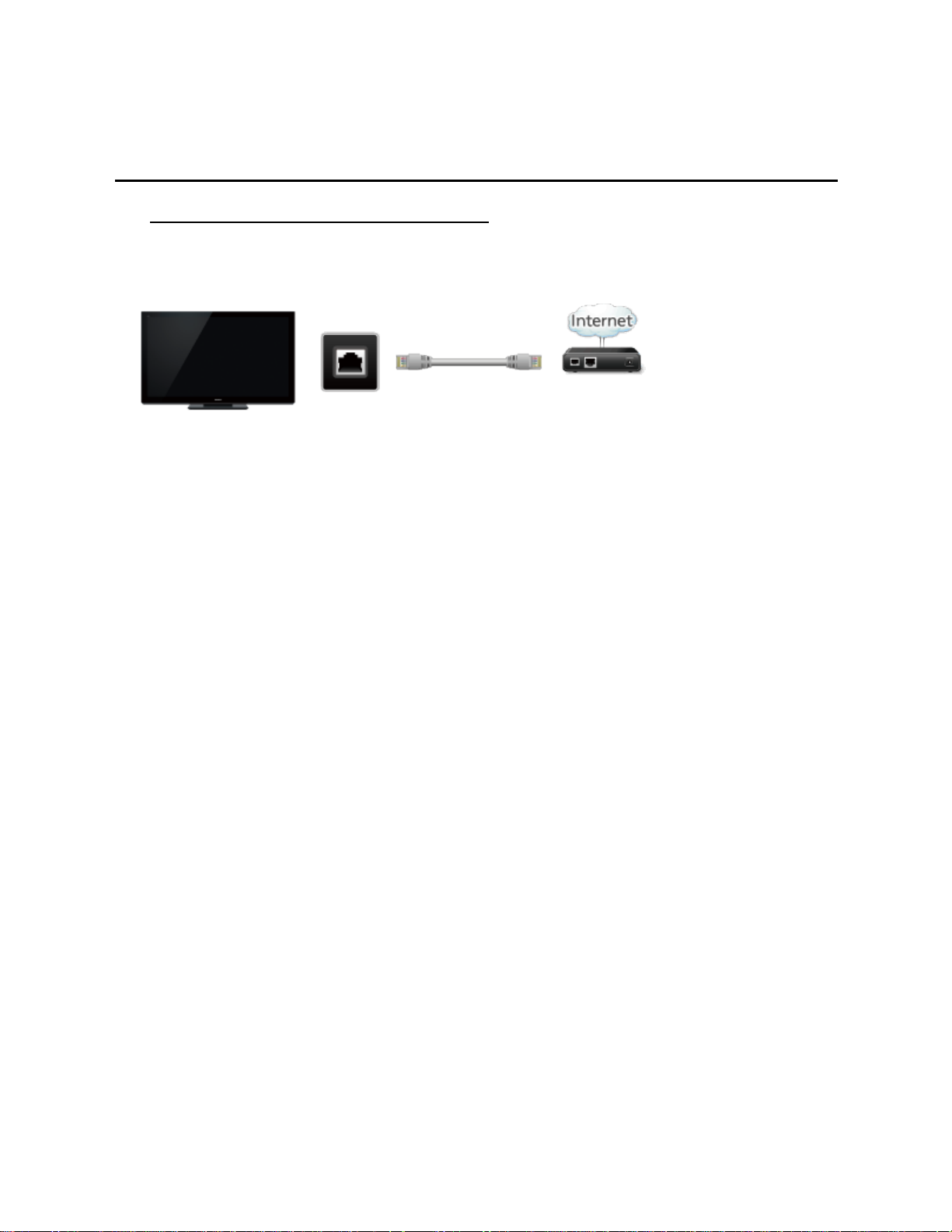

Connect to network
36
Network settings
4
How to use
Home network "DLNA"
Get started
Connect to network
Network settings
5
Photos
Videos
Music
Data information
Media player
Get started
Photos
6
Multi shot 3D / Thumbnails size 100
Using slideshow 101
Slideshow settings 102
Soundtrack settings 103
Videos
Viewing Videos 104
Video view 105
Options menu 106
Music
Playing Music 107
Music view 108
Options menu 109
Data information
Compatible Data format (1) 110
Compatible Data format (2) 111
Compatible Data format (3) 112
Notice 113
Convenience features
Using VIERA TOOLS
Using VIERA TOOLS 114
Timer
Setting menu 115
Sleep (Off timer) 116
Timer (On/Off timer) 117
7
Lock (parental control)
Setting menu 118
Lock (1) 119
Lock (2) 120
Password setting 121
Parental control ratings (1) 122
Parental control ratings (2) 123
Parental control ratings (3) 124
Closed caption
Setting menu 125
Closed caption (1) 126
Closed caption (2) 127
Closed caption notice 128
VIERA Link ™ "HDAVI Control ™"
Basic feature 129
Connecting note (1) 130
Connecting note (2) 131
VIERA Link connections (1) 132
VIERA Link connections (2) 133
VIERA Link connections (3) 134
VIERA Link settings 135
VIERA Link settings feature (1) 136
VIERA Link settings feature (2) 137
VIERA Link settings feature (3) 138
VIERA Link 139
VIERA Link menu (1) 140
8
VIERA Link menu (2) 141
Control by smartphone, etc.
Smartphone remote 142
Remote control via IP 143
Using USB Keyboard / Gamepad
Keyboard 144
Gamepad 145
Using Bluetooth devices
Bluetooth settings 146
All settings
Setting menu 147
Basic settings (1) 148
Basic settings (2) 149
Pro settings (1) 150
Pro settings (2) 151
Pro settings (3) 152
Aspect adjustments 153
PC adjustments (1) 154
PC adjustments (2) 155
HDMI settings 156
Advanced picture (1) 157
Advanced picture (2) 158
Audio
Setting menu 159
Basic settings 160
Advanced audio 161
9
DTV language and SAP settings 162
DIGITAL AUDIO OUT terminal 163
Network
Network settings (1) 164
Network settings (2) 165
Network settings (3) 166
Network settings (4) 167
Network settings (5) 168
Timer
Setting menu 169
Sleep (Off timer) 170
Timer (On/Off timer) 171
Lock (parental control)
Setting menu 172
Lock (1) 173
Lock (2) 174
Password setting 175
Parental control ratings (1) 176
Parental control ratings (2) 177
Parental control ratings (3) 178
Setup
Setting menu 179
3D settings (1) 180
3D settings (2) 181
ANT/Cable setup (1) 182
ANT/Cable setup (2) 183
Closed caption (1) 184
10
Closed caption (2) 185
Closed caption notice 186
VIERA Link settings (1) 187
VIERA Link settings (2) 188
ECO/energy saving (1) 189
ECO/energy saving (2) 190
Advanced setup 191
Other settings (1) 192
Other settings (2) 193
Support / FAQ
FAQ
Picture - Viewing 194
Picture - Snowy / none 195
Picture - Distortion 196
Picture - Continue 197
Sound - none 198
Sound - Unusual 199
Networking 200
Software update 201
3D - Viewing 202
3D - Format 203
Other 204
Menu - Gray-out 205
Reset to default 206
Care and Cleaning
Display panel 207
11
Cabinet 208
Pedestal / Power cord 209
Meaning of signs :
Press the Remote control button
INFO Letters in box : Remote control button
MENU Letters in Cyan : Menus on screen display

Watching TV

12

Cable / Satellite / Fiber with a box

Initial setting

Connecting
1.
Select the wiring method connecting your box to the TV, AV IN or Antenna/Cable in.
Tip: HDMI will provide the best HD picture
2. Change INPUT
INPUT
Press the INPUT button to select the proper connection. Wait 2 seconds.
3. Power on your Cable , Satellite or Fiber box
Use the box's remote control to change channels.
* If the box is connected to the TV using a COAX cable (Antenna/Cable in), then
set the TV channel to CH3 or CH4. Note that the picture will not be in HD.
* CC/SAP is not available when watching TV with a Cable or Satellite box
connected via HDMI.
* If your box is a high definition, then check that it is outputting 720p or 1080i
signal. Tip: press the TV's INFO button to verify.
* Check your box "aspect" or "format" settings. It should be set to 16:9,
Widescreen or FULL.
* If the audio volume is too low, check the box's audio settings. * Contact your Cable or Satellite provider for instructions on any box settings.
Watching TV
13

Antenna / Cable service without a box

Initial setting

Connect coax
1.
Connect a COAX wire from either an antenna or Basic Cable service to the TV's "ANTENNA/CABLE IN" screw terminal.
ANTENNA/
TV
CABLE IN
2. Scan the channel
MENU Setup > ANT/Cable setup > ANT in, Auto program
1. Select Programming source Cable or Antenna in Ant in.
2. Select Auto program and select scan mode (All channels / Analog only / Digital only).
3. Start scanning.
Antenna
* If at the end of the scanning no channels are found, then check:
Antenna's position - or Availability of Cable service. Cable, Satellite or Fiber services with a box are typically connected to the TV's A/V inputs, preferably HDMI, for best HD picture. In such a case, the channel scanning is not needed (set ANT IN to Not used).
Watching TV
14
Antenna / Cable service without a box

Select channels

Select desired channel
or
CH buttons are also available on the TV.
Select desired digital channel
To directly enter a digital channel number use
When turning to a digital channel, press the button to enter the minor number in a compound channel number. (e.g. CH15-1 )
* This TV has a "Channel transition effect" function that displays transition picture
images when tuning the channels. Set to Off to disable this function. Menu > Setup > Advanced setup > Channel transition effect
This function is not available depending on the input signal.
Watching TV
15
Antenna / Cable service without a box

Favorite channels (Set)

Channel numbers registered in Favorite are displayed on the favorite tune screen. Select the desired broadcast station with the cursor or use the number buttons.
Favorite channels cannot be set when using Cable or Satellite box
Set the Favorite channel
OPTION Options menu > Set favorite
Select the list number using / and or directly to save the
displayed channel.
Delete a Favorite channel
OPTION Options menu > Set favorite
Select the list number using
* To change the page in Set favorite FAVORITE or / repeatedly
/ and (press and hold) to delete.
Watching TV
16
Antenna / Cable service without a box

Favorite channels (Display)

Channel numbers registered in Favorite are displayed on the favorite tune screen. Select the desired broadcast station with the cursor or use the number buttons.
Favorite channels cannot be set when using Cable or Satellite box.
To display a Favorite channel
FAVORITE Favorite channels
Select the list number using / and or directly to displayed
on favorite screen.
* To change the page in Favorite channels
FAVORITE or / repeatedly
Watching TV
17
Antenna / Cable service without a box

Closed caption

Viewing with Closed caption
CC
Switches the Closed caption mode. ( Closed caption Off / Closed caption On / Closed caption On mute )
* CC is not available when watching TV with a Cable or Satellite box connected
via HDMI.
* Contact your Cable or Satellite operator for instructions on enabling CC with
their box. * The TV's CC button does not operate the Satellite or Cable box's CC function. * For viewing the CC of digital broadcasting, set the aspect to FULL (If viewing
with H-FILL, JUST, ZOOM or 4:3; characters might be cut off). * If the CC is set to On on both the receiver and TV when the signal is 480i
(except for the HDMI connection), the CC may overlap on the TV. * If a digital program is being output in analog format, the CC data will also be
output in analog format. * If the recorder or output monitor is connected to the TV, the CC needs to be set
up on the recorder or output monitor.
Watching TV
18
Antenna / Cable service without a box
SAP
Listen with SAP (Secondary Audio Programming)
SAP is not available when watching TV with a Cable or Satellite box connected
via HDMI.
Contact your Cable or Satellite operator for instructions on enabling SAP with
their box.
The TV's SAP button does not operate the Satellite or Cable box's SAP
function.
Select the Audio mode for watching TV.
SAP
Digital mode: Select available audio service when receiving a digital channel. Audio track is automatically selected as DTV language and SAP settings in
Audio menu. Menu > Audio > DTV language and SAP settings
* If you change the audio settings with the
SAP settings will not change.
Audio track 1 of 7 Track number / Number of tracks
English (Main
Audio)
English audio Audio service information
(example)
Analog mode: Select the desired Audio mode. ( Stereo / SAP / Mono )
Current audio track information (language, audio
type)
SAP button, the DTV language and
Watching TV
19
Antenna / Cable service without a box

Other

Information banner
1.
Displays TV status information. Also, when watching programs via the Antenna/Cable input, INFO will include the channel banner.
INFO
Channel / Station identifier / Program title / Closed caption / SAP / Rating level / Signal resolution / Picture mode / Aspect ratio / Sleep timer remaining time / Clock
2. Options menu
This menu consists of shortcuts to convenient functions.
OPTION
Channel surf mode: Specify favorites or type of channels to view when
pressing the channel up/down button.
Set favorite: Set favorite channel Edit CH caption: Edit the channel identifier Signal meter: Check the antenna's signal strength
* Options menu is only available when the TV is using the Antenna/Cable input,
not when using Cable or Satellite box.
Watching TV
20

Blu-ray, DVD, Game Console, etc.

Connecting and viewing (1)

Connect device
1.
Verify that the device is connected to the TV properly and connect to desired terminal. Note which terminal the device is connected to (HDMI 1, HDMI 2,... Component or Video)
Component and Composite (Video) in terminals are shared. Please be careful not to confuse the connection when you use Component or Video.
Watching TV
21
Blu-ray, DVD, Game Console, etc.

Connecting and viewing (2)

Select Input
2.
1. Display Input select menu (With the connected equipment turned ON) INPUT
2. Select the input used in step 1
Select correct input source, using / and press You can also press the corresponding NUMBER button or press INPUT
repeatedly to cycle through the available inputs. If you are unsure which input to select, wait 2 seconds between each selection.
Component and Composite (Video) IN terminals are shared and must be connected using the supplied adapter. NOTE: One red connector is for video and the other audio.
AUDIO
You need to select Video or Component. (Default: Video)
Press INPUT and select Video <->
Comp.
Press / to choose Video or
Component.
For your convenience, you can edit the inputs with labels that are easy to remember.
Edit Labels Set ANT/Cable in
3. Operate using your device's remote control.
VIDEO
Watching TV
22
Blu-ray, DVD, Game Console, etc.

HDMI connection notice

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and high-quality sound by connecting the TV unit and HD devices. HDMI-compatible equipment (*1) with an HDMI or DVI output terminal, such as a Cable or Satellite box or a DVD player, can be connected to the HDMI connector using an HDMI compliant (fully wired) cable.
HDMI is the world's first complete digital consumer AV interface complying with a non-compression standard. If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable (*2). When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal. Audio settings can be made on the HDMI in menu screen. Applicable audio signal sampling frequencies (L.PCM): 48 kHz, 44.1 kHz, 32 kHz
(*1): The HDMI logo is displayed on an HDMI-compliant device. (*2): Inquire at your local digital equipment retailer shop.
Watching TV
23
Blu-ray, DVD, Game Console, etc.

HDMI connection caution

Caution
The HDMI terminals on this TV were not specifically designed for use with a PC. If the connected device has an aspect adjustment function, set the aspect ratio to "16:9". The HDMI connectors are "type A". The HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection. Devices with no digital output terminal may be connected to the input terminal of either "COMPONENT IN", or "VIDEO IN" to receive analog signals. The HDMI input terminal can be used only with the following video signals: 480i, 480p, 720p, 1080i and 1080p. Ensure that the device being connected to the TV can produce one of these video signals.
Watching TV
24
Blu-ray, DVD, Game Console, etc.

Input signal

Signals other than below may not be displayed properly. The signals are reformatted for optimal viewing on your display.
Component and HDMI (* HDMI only)
Input signal Horizontal frequency (kHz) Vertical frequency (Hz)
525 (480) / 60i 15.73 59.94 525 (480) /60p 31.47 59.94 750 (720) /60p 45.00 59.94 1,125 (1,080) /60i 33.75 59.94 1,125 (1,080)/60p 67.43 59.94 1,125 (1,080)/60p 67.50 60.00 1,125 (1,080)/24p * 26.97 23.98 1,125 (1,080)/24p * 27.00 24.00
Watching TV
25

For best picture

Picture mode

Change picture mode to suite your settings and taste
1.
1. Select Picture mode
MENU Menu > Picture > Picture mode
Select desired menu using
2. Adjust using /
Tip: HDMI will provide the best HD picture
2. Picture mode type
Vivid: Provides enhanced picture contrast and sharpness for viewing
in a well-lit room.
Standard: Recommended for normal viewing conditions with subdued
room lighting.
Cinema: For watching movies in a darkened room. It provides a soft,
film-like picture.
Game: For playing video games. Custom: Customizes each item according to your taste.

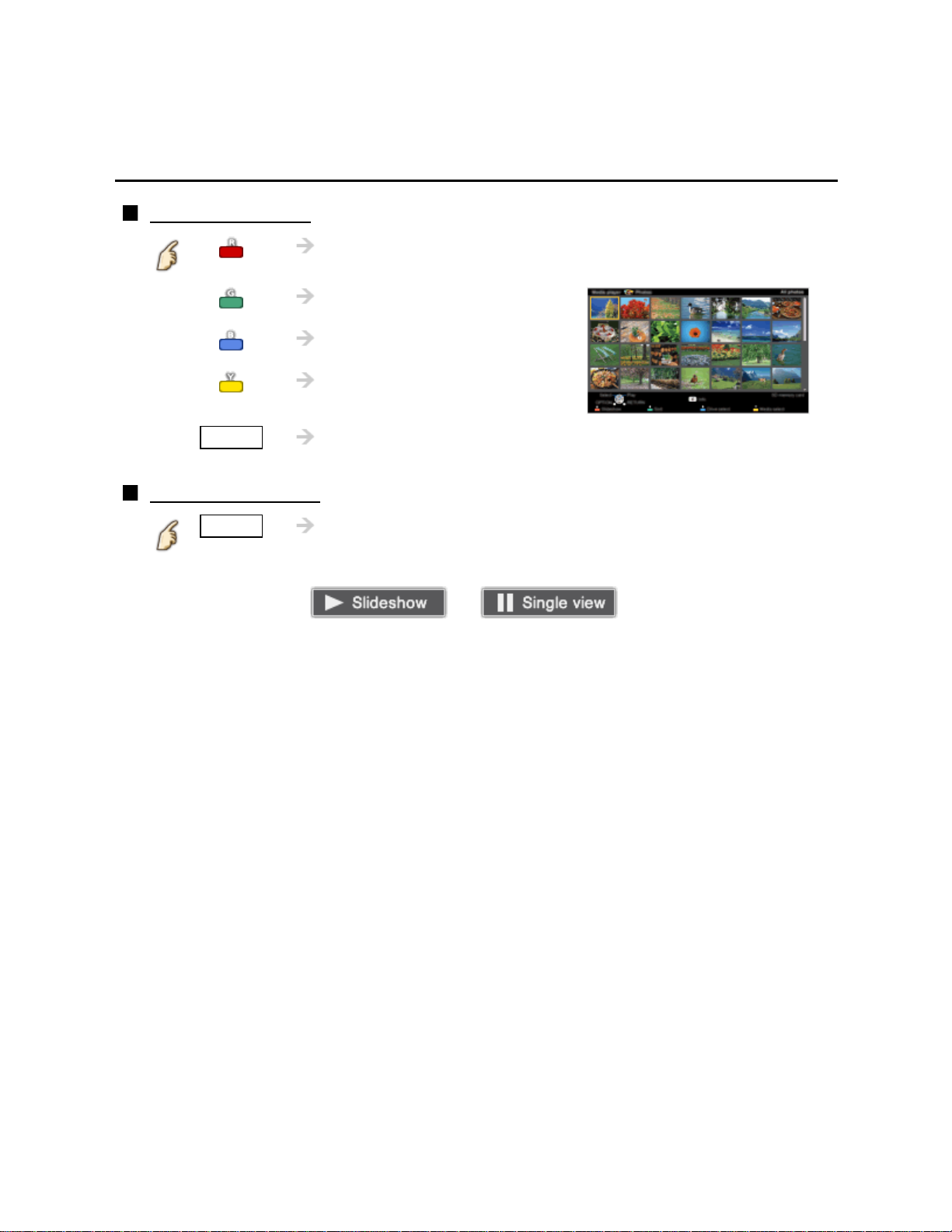

Photo is displayed in JPEG menu.
/ from menu bar and press
Watching TV
26
For best picture

Auto brightness (ECO)

Contrast Automatic Tracking System (C.A.T.S.) adjusts the screen brightness and contrast according to the room's ambient light conditions. This ECO feature automatically dims the brightness of the screen when the room lighting is lowered.
C.A.T.S. features a built-in delay when the lighting conditions change. The adjustment happens gradually.
If you prefer a consistent brightness, disable C.A.T.S. by:
Menu > Picture > scroll down to C.A.T.S. and turn it off.
Or
Menu > Picture > Picture mode then select viewing mode such as Custom.
* Standard picture mode automatically sets C.A.T.S. to On.
Watching TV
27
For best picture

Aspect

Use FORMAT button to change the aspect ratio
1.
Use when the picture has bars (sides or top/bottom) and to zoom.
FORMAT ( to cycle through the aspect modes )
480i, 480p: FULL/JUST/4:3/ ZOOM 1080p, 1080i, 720p: FULL/H-FILL/JUST/4:3/ZOOM
* Use when the picture does not fill the whole screen or portions of the picture
are trimmed.
* Some content, such as film-based movies, are available in extra-wide format.
Top and bottom bars are unavoidable.
* Connected devices, such as Cable/Satellite box, DVD/Blu-ray players and
game consoles have their own aspect (format) settings. Adjust the device's aspect settings.
Watching TV
28
For best picture

Aspect info.

FULL: Enlarges the 4:3 image horizontally to the screen's side edges. (Recommended for anamorphic picture) JUST: Stretches to justify the 4:3 image to the four corners of the screen. (Recommended for normal TV broadcast) H-FILL: Enlarges the 4:3 image horizontally to the screen's side edges. The side edges of the image are cut off. 4:3: Standard (Note that "Image retention" of the side bar may occur from displaying it for a long time.) ZOOM: Enlarges the 4:3 image to the entire screen. (Recommended for Letter Box)
Zoom adjustments
Vertical image position and size can be adjusted in "ZOOM"
Select Zoom adjustments in the Picture menu.
MENU Picture > Aspect adjustments > Zoom
adjustments
V-position: Vertical position adjustment Adjust using / to desired position.
V-size: Vertical size adjustment Adjust using / to desired size.
* Press OK to reset
Watching TV
29
For best picture

Pro settings (1)

Adjust the picture mode in more detail
1.
Set Custom in Picture mode first.
MENU Menu > Picture > Pro settings
Settings Options Description
Reset to defaults
W/B high R, B -50 - 0 - +50 Adjusts the white balance for light red/blue
W/B low R, B -50 - 0 - +50
Resets all Pro setting adjustments to factory
default settings.
areas.
Adjusts the white balance for dark red/blue
areas.
Watching TV
30
For best picture

Pro settings (2)

MENU Menu > Picture > Pro settings
Settings Options Description
Red, Green, Blue hue
Red, Green, Blue Saturation
Color detail adjustment
Black extension
-50 - 0 - +50
-50 - 0 - +50
Yellow, Cyan, Magenta hue
Yellow, Cyan, Magenta Saturation
Red, Green, Blue, Yellow, Cyan, Magenta luminance
0-15
Adjusts the red/green/blue hue between light,
pastel and vivid.
Adjusts the difference of the red/green/blue
color against its own brightness.
Adjusts the yellow/cyan/magenta hue between
light, pastel and vivid.
Adjusts the difference of the yellow/cyan/
magenta color against its own brightness.
Adjusts the luminance of red/green/
blue/yellow/cyan/magenta areas.
Adjusts the dark shades of the image in
gradation.
Loading...
+ 179 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
