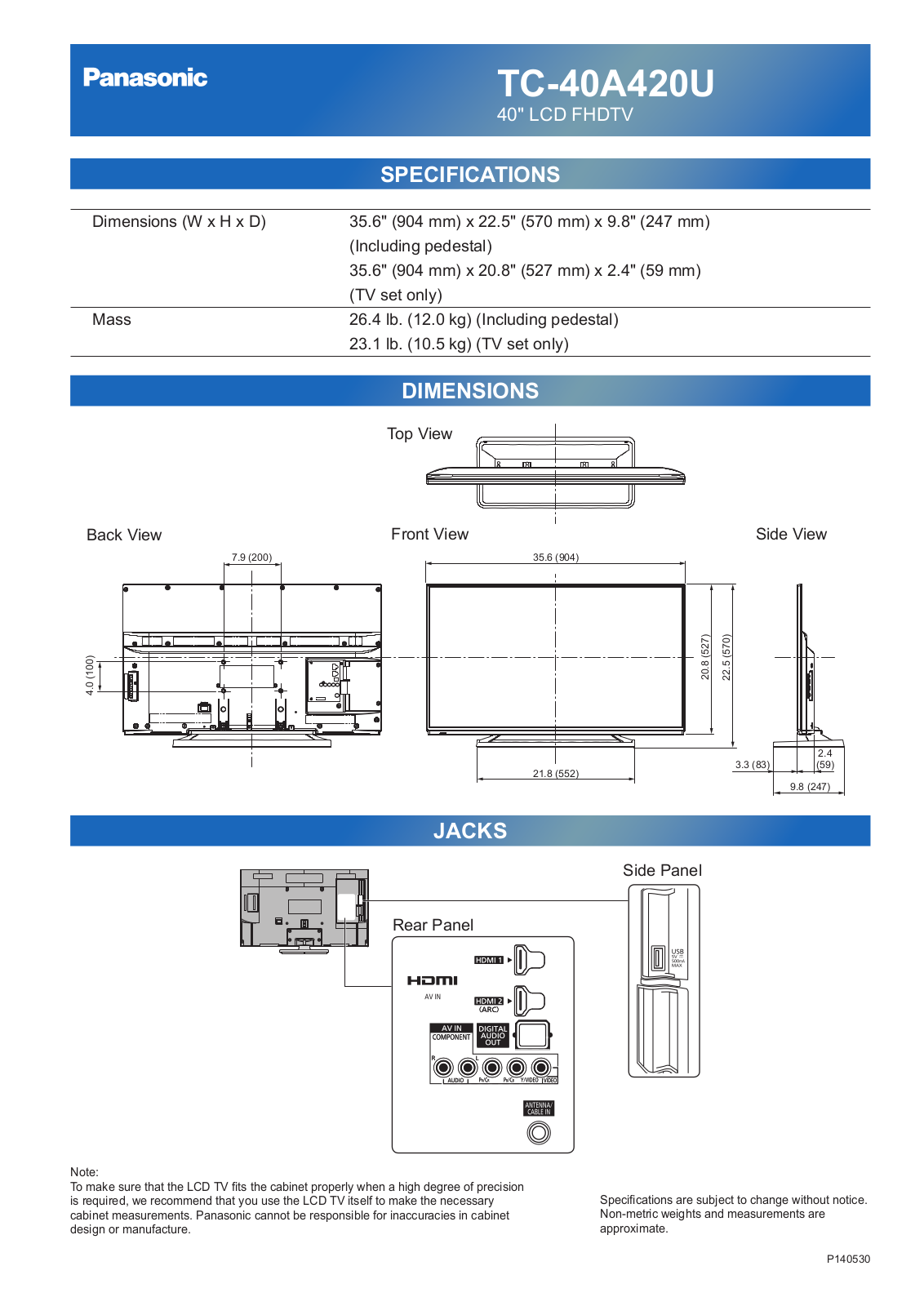

Panasonic tc-40a420 cut sheet

TC-40A420U

40" LCD FHDTV

SPECIFICATIONS

Dimensions (W x H x D) 35.6" (904 mm) x 22.5" (570 mm) x 9.8" (247 mm)

(Including pedestal)

35.6" (904 mm) x 20.8" (527 mm) x 2.4" (59 mm)

(TV set only)

Mass 26.4 lb. (12.0 kg) (Including pedestal)

23.1 lb. (10.5 kg) (TV set only)

DIMENSIONS

Top View

Back View

4.0 (100)

7.9 (200)

Front View

JACKS

Rear Panel

35.6 (904)

21.8 (552)

Side Panel

20.8 (527)

22.5 (570)

3.3 (83)

Side View

9.8 (247)

2.4

(59)

Note:
To make sure that the LCD TV fits the cabinet properly when a high degree of precision
is required, we recommend that you use the LCD TV itself to make the necessary
cabinet measurements. Panasonic cannot be responsible for inaccuracies in cabinet
design or manufacture.

Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.

P140530
