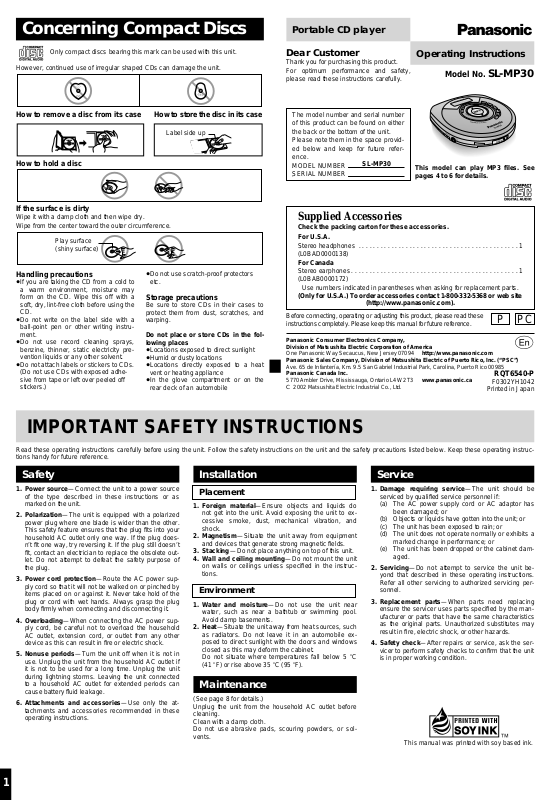

Concerning Compact Discs

This manual was printed with soy based ink.

Portable CD player

Only compact discs bearing this mark can be used with this unit.

However, continued use of irregular shaped CDs can damage the unit.

How to store the disc in its caseHow to remove a disc from its case

Label side up

How to hold a disc

If the surface is dirty

Wipe it with a damp cloth and then wipe dry. Wipe from the center toward the outer circumference.

Play surface (shiny surface)

Handling precautions

≥If you are taking the CD from a cold to

a warm environment, moisture may form on the CD. Wipe this off with a soft, dry, lint-free cloth before using the CD.

≥Do not write on the label side with a

ball-point pen or other writing instrument.

≥Do not use record cleaning sprays,

benzine, thinner, static electricity prevention liquids or any other solvent.

≥Do not attach labels or stickers to CDs.

(Do not use CDs with exposed adhesive from tape or left over peeled off stickers.)

≥Do not use scratch-proof protectors

etc.

Storage precautions

Be sure to store CDs in their cases to protect them from dust, scratches, and warping.

Do not place or store CDs in the following places

≥Locations exposed to direct sunlight ≥Humid or dusty locations ≥Locations directly exposed to a heat

vent or heating appliance

≥In the glove compartment or on the

rear deck of an automobile

Dear Customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.

The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference. MODEL NUMBER SERIAL NUMBER

SL-MP30

Operating Instructions

Model No. SL-MP30

OLD

This model can play MP3 ﬁles. See pages 4 to 6 for details.

Supplied Accessories

Check the packing carton for these accessories.

For U.S.A.

Stereo headphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

(L0BAD0000138)

For Canada

Stereo earphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

(L0BAB0000172)

Use numbers indicated in parentheses when asking for replacement parts.

(Only for U.S.A.) To order accessories contact 1-800-332-5368 or web site

Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.

Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus, New Jersey 07094 http://www.panasonic.com

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc. (“PSC”)

Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3 www.panasonic.ca C 2002 Matsushita Electric Industrial Co., Ltd.

(http://www.panasonic.com).

P PC

RQT6540-P

F0302YH1042

Printed in Japan

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the safety precautions listed below. Keep these operating instructions handy for future reference.

Safety

1. Power source—Connect the unit to a power source of the type described in these instructions or as marked on the unit.

2. Polarization—The unit is equipped with a polarized power plug where one blade is wider than the other. This safety feature ensures that the plug ﬁts into your household AC outlet only one way. If the plug doesn’t ﬁt one way, try reversing it. If the plug still doesn’t ﬁt, contact an electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the plug.

3. Power cord protection—Route the AC power supply cord so that it will not be walked on or pinched by items placed on or against it. Never take hold of the plug or cord with wet hands. Always grasp the plug body ﬁrmly when connecting and disconnecting it.

4. Overloading—When connecting the AC power sup- ply cord, be careful not to overload the household AC outlet, extension cord, or outlet from any other device as this can result in ﬁre or electric shock.

5. Nonuse periods—Turn the unit off when it is not in use. Unplug the unit from the household AC outlet if it is not to be used for a long time. Unplug the unit during lightning storms. Leaving the unit connected to a household AC outlet for extended periods can cause battery ﬂuid leakage.

6. Attachments and accessories—Use only the attachments and accessories recommended in these operating instructions.

Installation

Placement

1. Foreign material—Ensure objects and liquids do not get into the unit. Avoid exposing the unit to excessive smoke, dust, mechanical vibration, and shock.

2. Magnetism—Situate the unit away from equipment and devices that generate strong magnetic ﬁelds.

3. Stacking—Do not place anything on top of this unit.

4. Wall and ceiling mounting—Do not mount the unit

on walls or ceilings unless speciﬁed in the instructions.

Environment

1. Water and moisture—Do not use the unit near water, such as near a bathtub or swimming pool. Avoid damp basements.

2. Heat—Situate the unit away from heat sources, such as radiators. Do not leave it in an automobile exposed to direct sunlight with the doors and windows closed as this may deform the cabinet.

2. Do not situate where temperatures fall below 5 oC

(41 oF) or rise above 35 oC (95 oF).

Maintenance

(See page 8 for details.) Unplug the unit from the household AC outlet before cleaning. Clean with a damp cloth. Do not use abrasive pads, scouring powders, or solvents.

Service

1. Damage requiring service—The unit should be serviced by qualiﬁed service personnel if:

1. (a) The AC power supply cord or AC adaptor has

been damaged; or

1. (b) Objects or liquids have gotten into the unit; or

1. (c) The unit has been exposed to rain; or

1. (d) The unit does not operate normally or exhibits a

marked change in performance; or

1. (e) The unit has been dropped or the cabinet dam-

aged.

2. Servicing—Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel.

3. Replacement parts—When parts need replacing ensure the servicer uses parts speciﬁed by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in ﬁre, electric shock, or other hazards.

4. Safety check—After repairs or service, ask the servicer to perform safety checks to conﬁrm that the unit is in proper working condition.

Page 2

Power Supply Preparations

DC IN 4.5 V

S-XBS

HOLD

B D E F

CEG

DC IN 4.5 V

HOLD

Refer to the speciﬁcations (page 8) for information on operating times when using rechargeable batteries or dry cell batteries.

Using the AC adaptor (not included)

Use only the recommended AC adaptor. Using other AC adaptors can damage the unit.

For U.S.A

To order the optional AC adaptor RP-AC46 contact 1800-332-5368 or web site (http://www.panasonic.com).

For Canada

Be sure to obtain the optional AC adaptor RP-AC46. It is available through your Panasonic dealer.

Connect the AC adaptor.

DC IN jack (DC IN 4.5 V K)

Back panel of the unit

AC adaptor

Conserving power

To save power when the unit is not to be used for a long time, unplug the AC adaptor from the household AC outlet.

Note!

Turn the unit off before connecting or disconnecting the AC adaptor.

Household AC outlet (AC 120 V)

Using rechargeable batteries (not included)

Obtain the optional rechargeable batteries. Make sure to recharge the batteries before using them. The unit cannot be used to charge rechargeable batteries other than those specially designed for it.

Optional batteries: P-3GAVA/2B

Recharging procedure

1 Insert the special rechargeable bat-

teries into the unit.

2 Connect the AC adaptor.

(Refer to “Using the AC adaptor” for connection instructions.) Recharging starts and the “H charging indicator ﬂashes on the display. When the rechargeable batteries fully recharge the charging indicator disappears.

When charging is complete, unplug

the AC adaptor from the household AC outlet and DC IN jack.

≥Never mix dry cell and rechargeable batteries. ≥Turn the unit off before replacing the recharge-

able batteries.

Note!

≥Rechargeable batteries have a service life of approxi-

mately 300 charge-discharge cycles. The batteries have reached the end of their operational life if they last for a noticeably shorter time after recharging, or if they cannot be recharged at all. Replace the batteries.

≥Recharging may only be performed when the unit is

off.

≥The AC adaptor and rechargeable batteries may be-

come warm while recharging is in progress. This is not a malfunction.

≥Leaving the AC adaptor connected can cause the bat-

teries to go ﬂat. After recharging the batteries and disconnecting the AC adaptor from the household AC outlet, ensure you disconnect the AC adaptor from the unit’s [DC IN 4.5 V

If the battery lid comes loose

Slide the lid back into place horizontally.

Using dry cell batteries (not included)

] terminal.

Removing batteries

Push up on the battery in the direction indicated by the arrow. Then lift it out.

Battery indicator

”

Battery indicator

This indicator ﬂashes when the batteries are almost out of power. Power is cut off completely a short while later.

Rechargeable batteries: Recharge batteries. Dry cell batteries: Replace batteries with new ones.

Note!

≥The length of time the unit will continue to operate be-

tween when the battery indicator starts ﬂashing and when the power is cut off differs depending on the type of batteries used.

≥The battery indicator may not ﬂash if rechargeable

batteries other than those designated by Panasonic are used.

Using the car adaptor (not included)

Obtain the car adaptor (SH-CDC9) available as an optional accessory. The car adaptor can be used to recharge the unit’s batteries while in the car. Use only the recommended car adaptor. Use of other car adaptors can damage the unit.

CAUTION:

Use only car adaptor, Model: SH-CDC9 manufactured by Matsushita Electric Industrial Co., Ltd.

If the unit malfunctions or freezes during use, disconnect the power source (the AC adaptor or batteries). Re-connect the power source and continue operation.

HOLD Function

HOLD mode

This function causes the unit to ignore short, accidental button presses. (The disc lid can still be opened and closed.)

The HOLD function prevents the following:

≥The unit is powered on accidentally

when not in use, causing the batteries to run down.

≥A button is accidentally pressed during

play, interrupting the operation.

To use the HOLD function

Set [HOLD] to the HOLD position.

After disconnecting the AC adaptor, insert two “LR6, AA, UM-3” alkaline batteries.

The procedure for inserting and removing dry cell batteries is identical to that for rechargeable batteries.

Location of Controls

“(” indication

When the unit is in HOLD mode, pressing any button causes the indication, “(” to appear on the display.

When the unit is off

The “(” indication appears only when [1/;] is pressed.

A Memory/recall button

(MEMORY)

B Mode button (MODE) C Display D S-XBS button (S-XBS) E Headphone volume control

Before operating the buttons

Be sure to move [HOLD] to release the unit from the HOLD mode.

(i, VOLUME, j)

F Skip/search buttons

(:, 9)

G Play/pause button (1/;) H Stop/operation off button (∫) I Open switch (OPEN 1)

Back panel of the unit

J Album skip buttons

(MALBUM L)

K Display button (DISPLAY) L Album mode button

(ALBUM MODE)

M Headphone jack (Ë) N Hold switch (HOLD) O CD release button (PUSH) P Hole for car mounting base Q DC IN jack

(DC IN 4.5 V K)

Page 3

Sequential Play

OPEN

HOLD

OPEN

S-XBS

HOLD

H O

L D

S-XBS

Label must face upward.

Close the lid.

Basic Play

Track number in play

Plug type:

3.5 mm (1/8 in.) stereo

Follow steps 1–5.

In step 2: Connect the stereo headphones or stereo earphones to the [Ë] jack. (Plug in ﬁrmly.) In step 5: The volume range is 0-25. Press and hold to change the volume successively. The volume changes when

≥Play stops automatically when all the tracks have been played.

pressed while the level is displayed. If any other display is shown, it changes to show the current level.

Operation

Press during play.

Button Display/reference

Press again to restart play.

To pause play

To stop play

Stop mode

To turn off the

Press during play.

Resume function

Play starts from the beginning of the current track the next time you press [1/;].

Press during stop mode.

Total number of tracks

Total playing time

No indicator is shown.

unit

Off mode

Skip forward/

backward

(skip function)

Rapid forward/

backward

(search function)

Press during play. (Press [:] twice to skip to the beginning of the previous track.)

Forward

Backward

Press and hold during play.

≥During program play (page 4), these buttons are

used to skip forward or backward through the programmed sequence of tracks.

≥You cannot skip to tracks that have been played

in random or random repeat play (page 4).

≥During program play, 1-track repeat play, random

play and random repeat play (page 4), search operation is limited to the current track only.

Resume function notes

≥Opening the lid while in the stop mode or replacing the disc while in the off mode cancels the function. (It may re-

main active if you replace a disc in the off mode.)

≥Play may resume from the beginning of the next track if you stopped play near the end of a track. ≥The resume function works automatically and cannot be turned off.

Elapsed playing time of each track

For your reference: “)” indication

This indication appears for about 30 seconds if [1/;] is pressed when no disc is loaded in the unit or if the disc is not properly secured.

“*” indication

This indication appears for about 10 minutes when the lid is opened. (However, the indication does not appear when the unit is off.)

Removing discs

1 Press [∫] to stop play and disc rotation. 2 Slide [OPEN 1] to open the lid.

Press [PUSH] to release the disc.

Do not stop the disc by hand or try to remove it before it stops rotating. This can damage CDs.

Note!

Never insert foreign objects into the unit.

Auto-off function

If you leave the unit in stop mode for about 10 minutes (30 seconds if disc is not loaded), it turns off to save the batteries.

Note on CD-R and CD-RW

This unit can play CD-DA format audio CD-R and CD-RW that have been ﬁnalized§upon completion of recording. It may not be able to play some CD-R or CD-RW due to the condition of the recording.

Finalizing is a process that enables CD-R/CD-RW players to play audio CD-R and CD-RW.

Page 4

001track.mp3 002track.mp3 003track.mp3

001album

002album

003album

004track.mp3 005track.mp3 006track.mp3

007track.mp3 008track.mp3 009track.mp3 010track.mp3

CD-ROM drive

Aalbum

????.mp3 ????.mp3

CD-ROM drive

Dalbum

????.mp3 ????.mp3

Calbum

????.mp3 ????.mp3

Galbum

????.wav ????.wav

Falbum

Balbum

????.mp3 ????.mp3

Ealbum

(Skipped)

Anti-Skip System

S-XBS

This system deals with skipping in a variety of ways:

≥An anti-skip mechanism prevents skipping caused

when play speed changes due to swinging of the unit.

≥A recovery system immediately returns the laser pick-

up to its original position if it is knocked off the track by a strong shock.

≥The anti-skip memory (maximum 45 seconds when

playing CD-DA and maximum 100 seconds when playing 128 kbps MP3) ﬁlls in interruptions caused by bumps and vibrations.

The anti-skip system works automatically while the system is on and cannot be canceled.

When bumps continue repeatedly

The elapsed playing time disappears and sound is interrupted.

Note!

The anti-skip memory compresses digital signals.

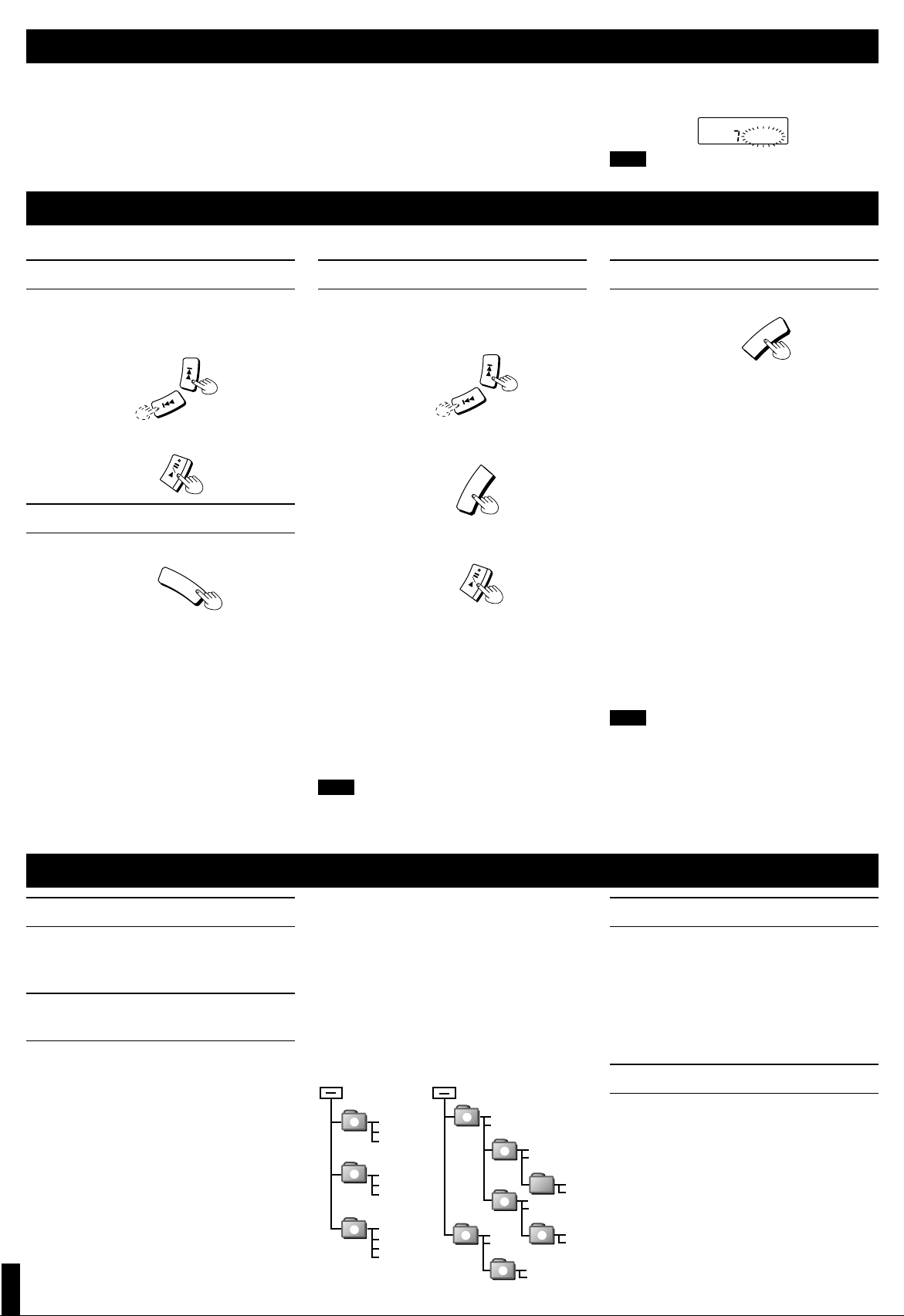

Other Play Methods

The letters such as F in the various illustrations refer to the descriptions in the “Location of Controls” section (see page 2).

Skip play

The disc plays from the speciﬁed track through to the end, then play stops automatically.

Preparation: Put unit in stop mode.

1 Select the desired track.

Changing the sound quality

Press during play or stop mode.

The setting switches as shown below each time you press the button.

S-XBS <>Cancel (no indicator is shown)

S-XBS:

Select this setting to boost the low frequency range response.

Program play

Up to 20 tracks can be entered in the programmed sequence.

Preparation: Put unit in stop mode.

1 Select the desired track.

(The indication “M” and the programmed sequence appear on the display.)

Repeat steps 1 and 2 to program all

the desired tracks.

∫ To program the same track in the se-

quence more than once

∫ After step 2, press [MEMORY] the desired number of

times.

∫ If “'” is displayed

∫ No more tracks can be programmed.

∫ To conﬁrm the contents of the program

∫ Press [MEMORY] while the disc is playing. (The

track numbers and their sequence appear in order, one after the other.)

∫ To delete the entire programmed se-

quence

∫ Press [∫].

Note!

The repeat and random play modes are canceled after steps 1 and 2.

Repeat play/Random play

Press during play or stop mode.

The setting switches as shown below each time you press the button.

1-track repeat (1 `)(----------------]

One track is repeated. |

All-track repeat (`) |

All the tracks on the disc are repeated. |

Random (RANDOM) |

The tracks play once each in random | order and then play stops. |

Random repeat (RANDOM `) |

The tracks play repeatedly in random | order. |

Cancel (no indicator is shown)

When pressed during program play

The setting switches as shown below each time you press the button.

1-track repeat (1 `M)(------------]

One track is repeated. |

Memory repeat (`M) |

The programmed tracks are repeated. |

v |

M) -------------------------------------------}

Cancel (

Note!

≥You can select the ﬁrst track to play in random play

and random repeat play by pressing [9] while the disc is stopped. All the tracks are played.

≥You cannot select random play or random repeat play

during program play.

≥The resume function does not work when random or

random repeat are on.

≥The mode is canceled when you disconnect the power

source or open the lid.

--------------}

Playing MP3 ﬁles

What is MP3?

A method of compressing audio, MPEG Audio Layer 3 (MP3) allows audio to be reduced to up to one tenth its original size when a compression rate of 128 kbps is used, without overtly hurting audio quality.

When creating MP3 ﬁles to play on this unit

≥Disc formats: ISO9660 level 1 and level 2 (except for

≥Files: MP3 ﬁles with the suffix “.mp3” or “.MP3”

≥MP3 ﬁles may not be played in the order you recorded

them. Note the following if you want the ﬁles to play in the order you record them.

≥1 Use software that records the ﬁles to the disc in ﬁle

name order.

≥2 Preﬁx folder and ﬁle names with 3-digit numbers in

the order you want to play them.

≥3 Give the ﬁles and folders names with 8 characters

or less, including the 3-digit preﬁx.

≥4 It is better not to create folders (albums) within fold-

ers (such as shown in example 2).

extended formats)

This unit plays MP3 ﬁles in the following order.

Numbers such as 1 show the order folders (albums) and ﬁles (tracks) within them are played. Example1: Recommended method when creating MP3

discs. Example2: A disc not created in the recommended way. ≥Play will be in the order shown in the below diagram,

irrespective of folder and track names, so the order of play in this example will be A#C#G#D, not A#B#C#D. Folders and ﬁles in the same level will be played in order according to their names.

≥Folders that do not contain MP3 ﬁles ( “Falbum” in the

example) are skipped.

Example2Example1

Limitations on MP3

≥This unit cannot play ﬁles if they have a suffix other

than “.mp3” or “.MP3”.

≥This unit cannot play ﬁles that have the suffix “.mp3”

or “.MP3” if they are not MP3 ﬁles.

≥This unit is not compatible with ID3 tags. ≥This unit is compatible with multi-session but if there

are a lot of sessions it takes more time for play to start. Keep the number of sessions to a minimum to

avoid this. ≥This unit cannot play ﬁles recorded using packet write. .

Frequently asked questions

Q. Can I play a disc if it has both audio data and

MP3 data?

Yes, but only the data type used for the ﬁrst track is played.

Q. Is there a limit on the number of albums and tracks?

This unit can play a maximum of 999 albums and 999 tracks. The unit cannot play albums or tracks beyond these limits.

Q. Why is sound interrupted between tracks?

The pick-up lens has to move to ﬁnd the next track so a few seconds of silence is normal.

Q. Can I use 700-MB data?

Yes, you can.

Page 5

Sequential Play with MP3 ﬁles

S-XBS

MP3

S-XBS

ALBUM

TRACK

MP3

OPEN

DISPLAY

ALBUM

HOLD

OPEN

S-XBS

MP3

S-XBS

TRACK

MP3

S-XBS

ALBUM

TRACK

MP3

S-XBS

MP3

HOLD

H O L

DISPLAY

ALBUM

ERROR

VOL

S-XBS

RANDOM

ALBUM

TRACK

MP3

ALBUM

ERROR

VOL

S-XBS

RANDOM

ALBUM

TRACK

MP3

DISPLAY

ALBUM

ERROR

VOL

S-XBS

RANDOM

ALBUM

TRACK

MP3

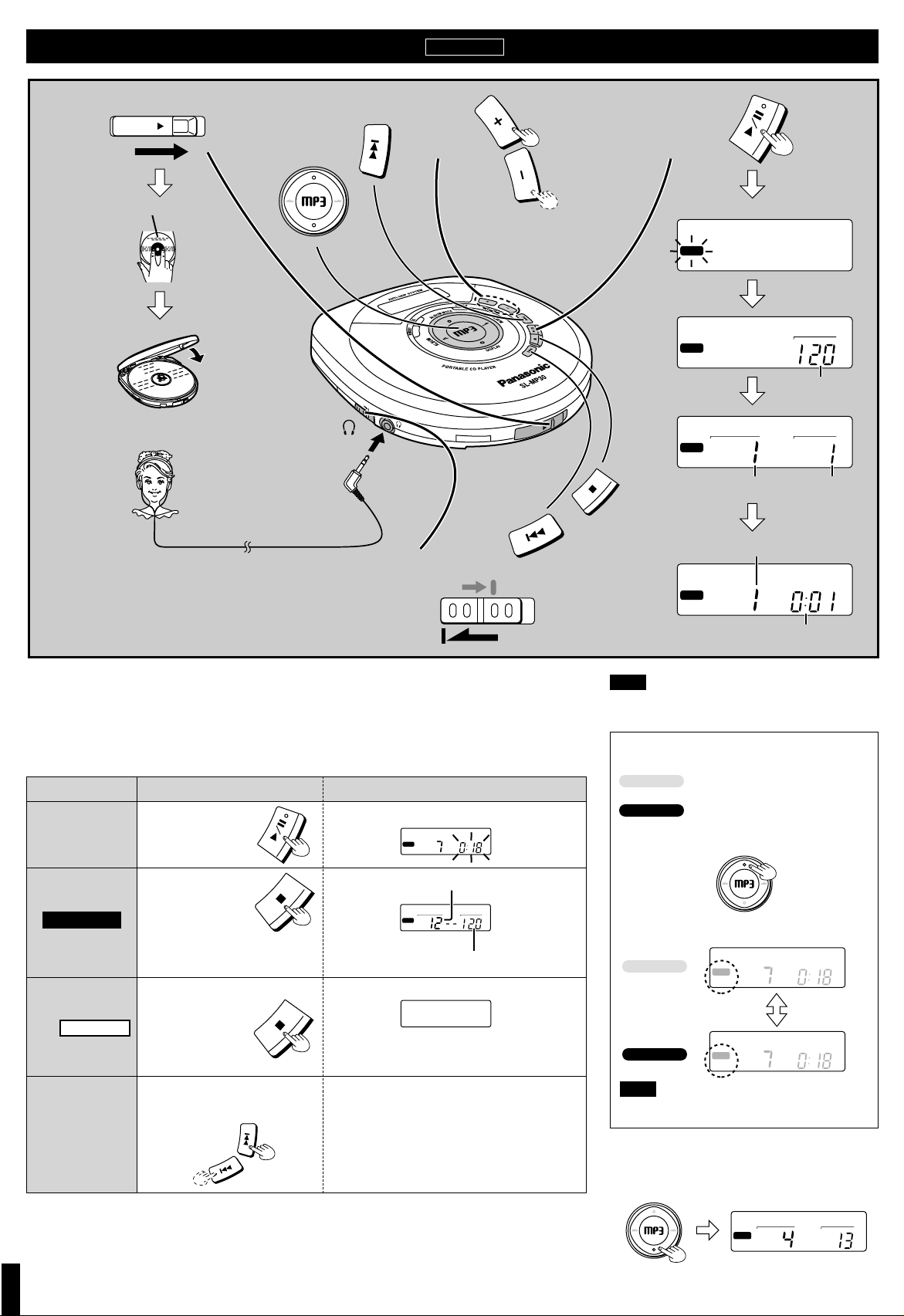

Basic Play

Label must face upward.

Close the lid.

Plug type:

3.5 mm (1/8 in.) stereo

Display while reading ﬁles

Counts the ﬁles (tracks) on the disc

Album number Track number

Track number in play

Elapsed playing time of each track

Follow steps 1–5.

In step 2: Connect the stereo headphones or stereo earphones to the [Ë] jack. (Plug in ﬁrmly.) In step 4: The time until play starts depends on the number of ﬁles on the disc. If the unit cannot read the disc cor-

≥If in Disc mode, play stops after the last track on the disc. If in Album mode, play stops after the last track in the

Resume function notes

≥Opening the lid while in the stop mode or replacing the disc while in the off mode cancels the function. (It may re- ≥Play may resume from the beginning of the next track if you stopped play near the end of a track.

≥The resume function works automatically and cannot be turned off.

rectly (it is scratched or dirty or the unit is bumped), some ﬁles may be left unread or the disc may not be read at all.

album.

To pause play

To stop play

Stop mode

Press during play.

Resume function

Button Display/referenceOperation

Press again to restart play.

Total number of albums

Play starts from the beginning of the current track the next time you press [1/;].

Press during stop mode.

Total number of tracks

No indicator is shown

To turn off the

unit

Off mode

Press during play. (Press [:] twice to skip to the

Track skip

forward/

backward

main active if you replace a disc in the off mode.)

beginning of the previous track.)

Backward

Forward

The unit stores data it has read so play can start again immediately when you press [1/;]. (This stored data is lost after 10 minutes when using batteries.)

≥You can only skip tracks in the current album

when in album mode.

≥During program play (page 6), these buttons are

used to skip forward or back through the programmed sequence of tracks.

≥During random repeat play (page 6), the skip but-

tons cannot be used to skip back to tracks that were played previously in the random sequence.

Note!

≥You cannot search when playing MP3 ﬁles. ≥If the disc is scratched or the condition of the recording is poor,

some noise may occur before the unit goes to stop mode.

To switch between Disc and Album mode

Disc mode

Plays all the tracks on the disc.

Album mode

Plays all the tracks in the current album.

Press during play or stop mode.

The setting switches as shown below each time you press the button.

Disc mode

Album mode

Note!

You cannot do the operation above during program play (page 6).

To conﬁrm the album number

You can see which album the current track is in.

Press during play.

The album number is displayed for about 1 second.

RQT6540

Page 6

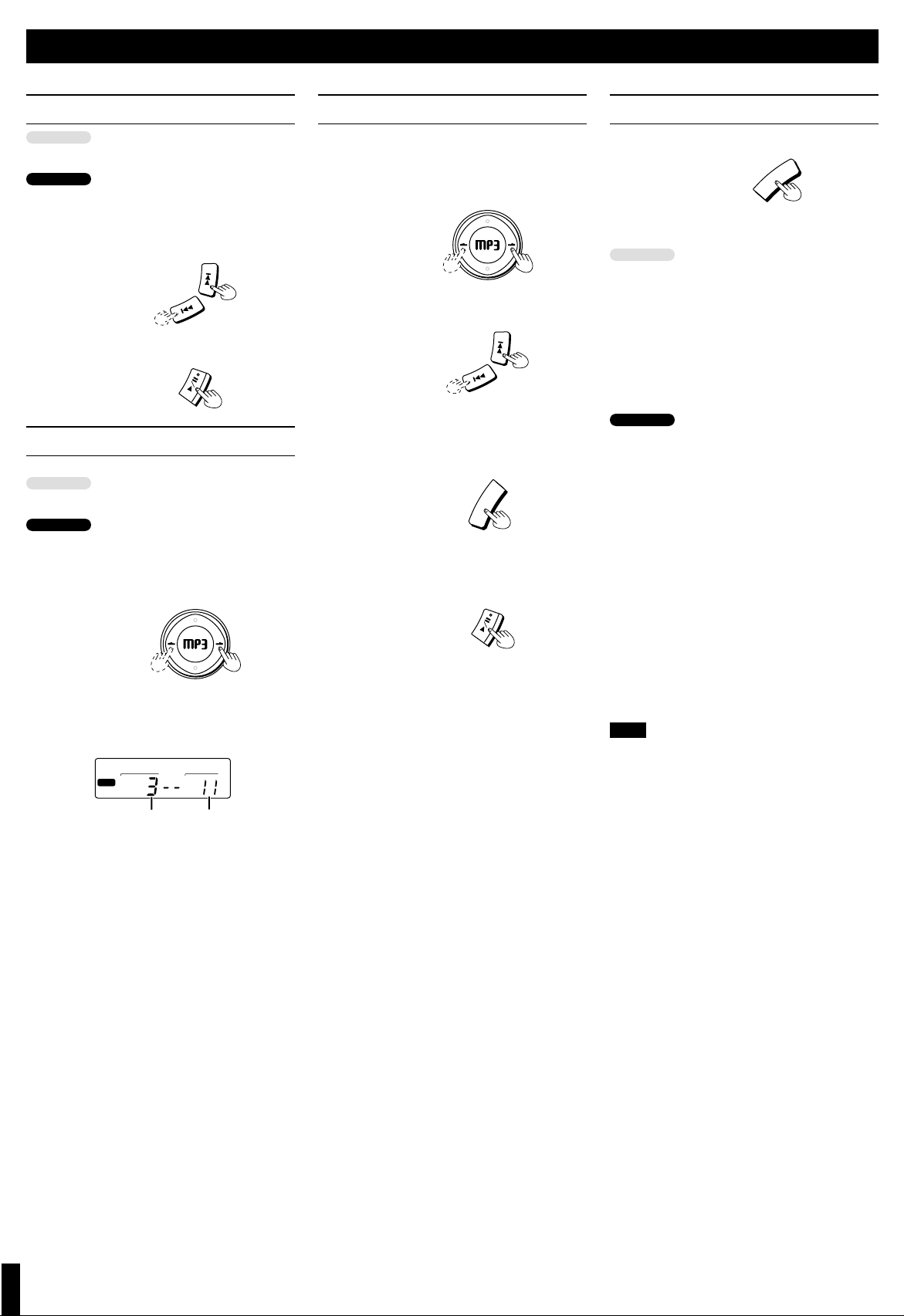

Other Play Methods with MP3 ﬁles

F G

DISPLAY

ALBUM

DISPLAY

ALBUM

ERROR

VOL

S-XBS

RANDOM

ALBUM

TRACK

MP3

The letters such as F in the various illustrations refer to the descriptions in the “Location of Controls” section (see page 2).

Track skip play

Disc mode

Plays from the selected track through to the last track on the disc.

Album mode

Plays from the selected track through to the last track in the current album.

Preparation: Put unit in stop mode.

Select the desired track.

Album skip play

You can skip album to album.

Disc mode

Plays from the ﬁrst track of the selected album through to the last track on the disc.

Album mode

Plays from the ﬁrst track of the selected album through to the last track in the current album.

Press during play or stop mode to select the desired album.

When pressed while stopped

The album number and the total number of tracks within it appear on the display.

Album number Number of tracks

Press [1/;] to start play from the ﬁrst track in the album. Press [:] or [9] ﬁrst to select another track to start play.

in album 3

Program play

Up to 20 tracks can be entered in the programmed sequence.

Preparation: Put unit in stop mode.

1 Select the desired album.

2 Select the desired track.

3 Register in sequence.

(The indication “M” and the programmed sequence appear on the display.)

4 Repeat steps 1, 2 and 3 to program

all the desired tracks.

∫ To program the same track in the se-

quence more than once

∫ After step 3, press [MEMORY] the desired number

of times.

∫ If “'” is displayed

∫ No more tracks can be programmed.

∫ To conﬁrm the contents of the program

∫ Press [MEMORY] while the disc is playing. (The

album and track numbers and their sequence appear in order, one after the other.)

∫ To delete the entire programmed se-

quence

∫ Press [∫].

For your reference:

≥If album mode was engaged, disc mode is engaged

automatically when you press [MEMORY].

≥The random repeat play mode is canceled after steps

1, 2 and 3.

Repeat play/Random play

Press during play or stop mode.

The setting switches as shown below each time you press the button.

Disc mode

1-track repeat (1 `)(----------------]

One track is repeated. |

All-track repeat (`) |

All the tracks on the disc are repeated. |

v |

Random repeat (RANDOM `) |

The tracks on the disc play repeatedly | in random order. |

v |

Cancel (no indicator is shown)

Album mode

1-track repeat (1 `)(----------------]

One track is repeated. |

All-track repeat (`) |

All the tracks in the album are repeated.|

Random repeat (RANDOM

The tracks in the current album play | repeatedly in random order. |

Cancel (no indicator is shown)

When pressed during program play

The setting switches as shown below each time you press the button.

1-track repeat (1 `M)(------------]

One track is repeated. |

Memory repeat (`M) |

The programmed tracks are repeated. |

Cancel (

M) -------------------------------------------}

Note!

≥You can select the ﬁrst track to play in random repeat

play by pressing [MALBUM L] and [9] while the

disc is stopped. ≥Tracks in an album or disc are played randomly until

you release the mode or press [∫] in random repeat

play. ≥You cannot select random repeat play during program

play. ≥The resume function does not work when random re-

peat is on. ≥The mode is canceled when you disconnect the power

source or open the lid.

--------------}

)

--------------}

Page 7

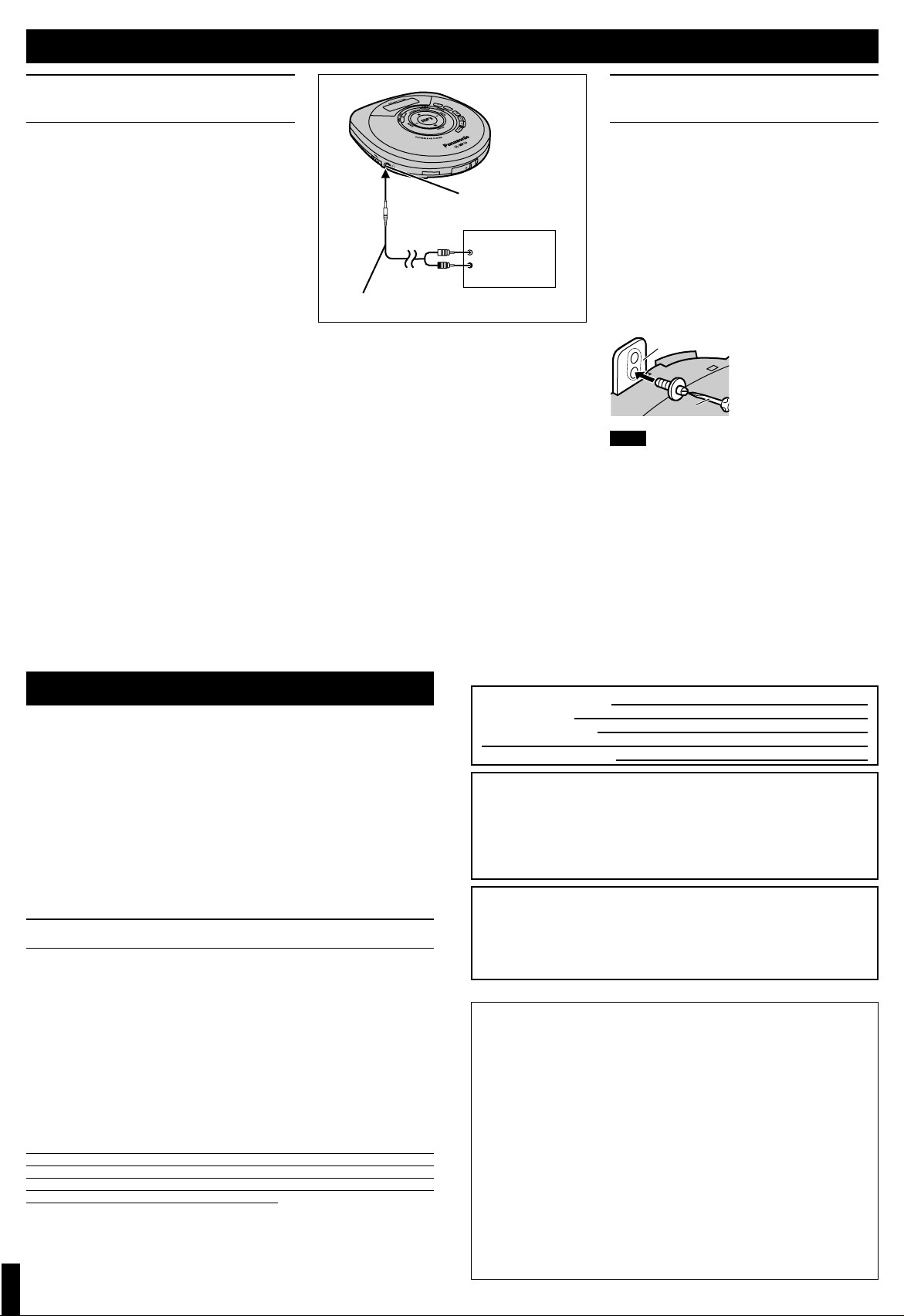

Using the Unit with Optional Accessories

Using the unit with an audio system

Using stereo connection cable (not included), you can listen to CDs on your audio system.

≥Turn off this unit and the other equipment before con-

nection.

≥Do not connect the cable to the PHONO jacks on the

ampliﬁer.

≥Obtain the optional connecting cable if the other

equipment comes with mini-phone jacks.

≥Adjust the volume on the other equipment.

Stereo connection cable (not included)

Headphone jack [Ë]

Other equipment

(White)

(Red)

To CD or AUX terminals

Using the unit with a car audio system

Obtain the following, available as optional accessories (part numbers are indicated in parentheses). Use only the recommended car adaptor. Use of other car adaptors can damage the unit.

For connection to the car audio system

Car stereo cassette adaptor (SH-CDM10A)

Connect the car stereo cassette adaptor to [Ë] on the unit.

For securing the unit and connecting to the power supply

≥Car adaptor (SH-CDC9) ≥Car mounting kit (SH-CDF20)

Note when using the car mounting kit (SH-CDF20)

Bracket

Screwdriver

Note!

≥When you switch off the car, the resume function may

work even if you change the disc. ≥It may not be possible to use the unit with some types

of car stereos owing to restrictions imposed by the

construction of the car stereo cassette adaptor. For further details, refer to the instructions of the part concerned.

1Remove the screw from

the bracket at the rear of the car mounting base.

2Replace the screw in the

lower hole of the bracket.

Product Service

1. Damage requiring service—The unit should be serviced by qualiﬁed service per-

sonnel if:

1. (a) The AC power supply cord or AC adaptor has been damaged; or

1. (b) Objects or liquids have gotten into the unit; or

1. (c) The unit has been exposed to rain; or

1. (d) The unit does not operate normally or exhibits a marked change in perfor-

mance; or

1. (e) The unit has been dropped or the cabinet damaged.

2. Servicing—Do not attempt to service the unit beyond that described in these op-

erating instructions. Refer all other servicing to authorized servicing personnel.

4. Safety check—After repairs or service, ask the servicer to perform safety checks to conﬁrm that the unit is in proper working condition.

Product information

For product information or assistance with product operation: In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail [email protected], or web site (http://www.panasonic.com). For assistance in the continental U.S.A. in obtaining repairs please ship the product to:

Panasonic Services Company - Customer Servicenter Suite B 4900 George McVay Drive McAllen, TX 78503

In Puerto Rico contact the Panasonic Sales Company.

Tel. (787) 750-4300 Fax. (787) 768-2910

When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Also, the purchaser will be responsible for shipping the unit to the above address. In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624-5505,

web site (www.panasonic.ca), or an authorized Servicentre close to you.

User memo:

DATE OF PURCHASE DEALER NAME DEALER ADDRESS

TELEPHONE NUMBER

CAUTION!

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

CAUTION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

≥Reorient or relocate the receiving antenna. ≥Increase the separation between the equipment and receiver. ≥Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected. ≥Consult the dealer or an experienced radio/TV technician for help. Any unauthorized changes or modiﬁcations to this equipment would void the user’s authority to operate this device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 8

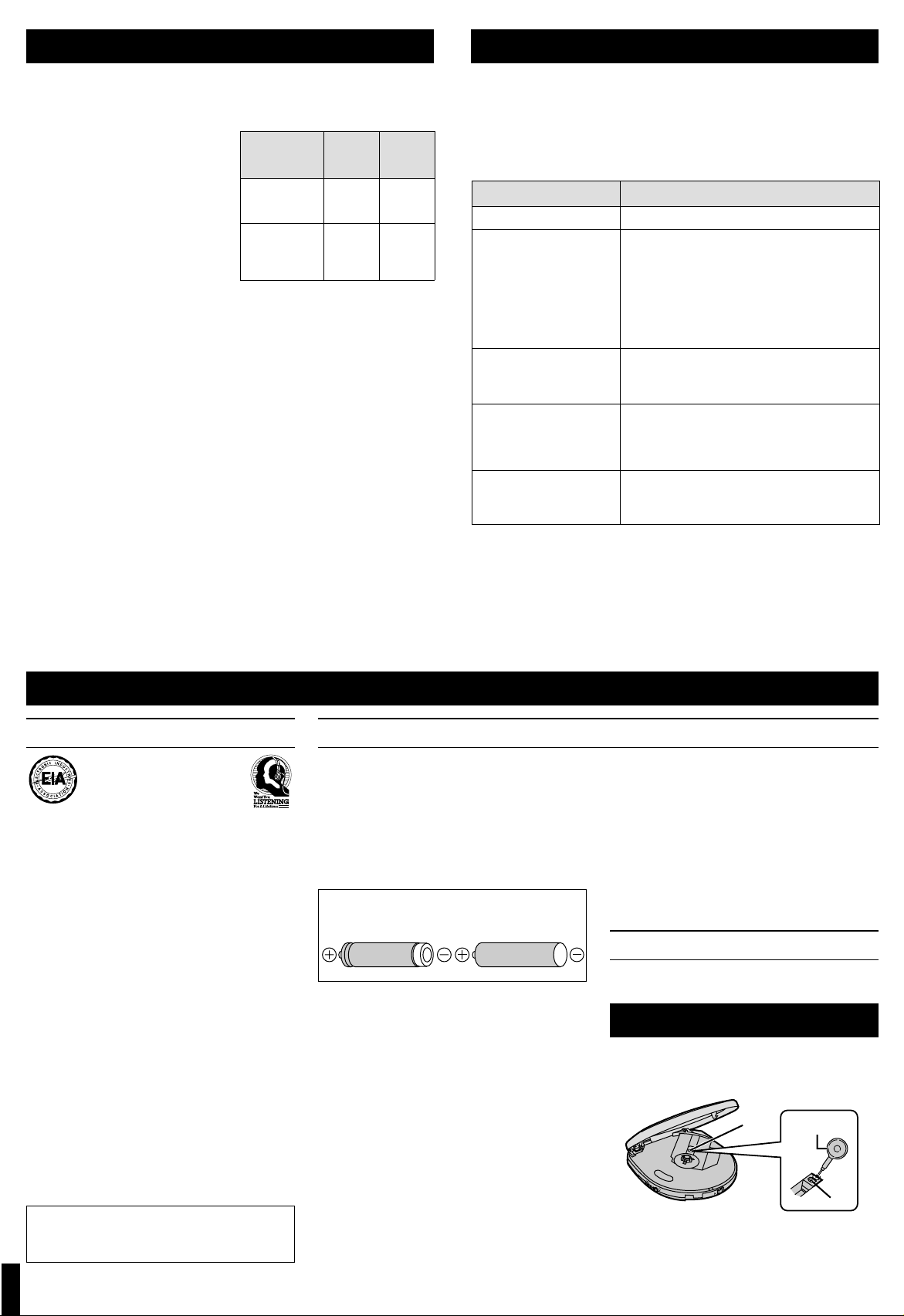

Speciﬁcations Troubleshooting Guide

HOLD

Audio (CD-DA)

No. of channels: 2 (left and right, stereo) Frequency response: 20 to 20,000 Hz

(i0.5 dB to j7 dB) DA converter: 1 bit, MASH Headphone

output level: RMS max. 6 mWi6 mW/

16 ≠ (adjustable)

Pickup

Light source: Semiconductor laser Wavelength: 780 nm

MP3

Maximum number of items

(sum of folders and ﬁles): 999 Maximum album levels: 100 Supported bit-rates: 32 kbps to 320 kbps

(128 kbps is recommended)

General

Operational temperature

range: 0 eC–40 eC

(32 eF–104 eF)

Rechargeable temperature

range: 5 eC–40 eC

(41 eF–104 eF)

Power supply:

Batteries

(two LR6, AA, UM-3 alkaline): DC 3 V

DC input

(via optional AC adaptor): DC 4.5 V

Play time: [Approximate operating time in hours (in hold mode with S-XBS canceled, at 25 oC (77 oF) on a ﬂat, stable surface)]

Batteries

used

2 optional alkaline batteries

2 optional rechargeable batteries (P-3GAVA/2B)

≥The play time may be less depending

on the operating conditions.

≥Play time will be considerably reduced

when playing CD-RW. Recharging time: 3 to 4 hours Dimensions

(WaHaD): 128a29.1a131.5 mm

Mass: 259 g (9.1 oz.)

Note:

Speciﬁcations are subject to change without notice. Mass and dimensions are approximate.

CD-DA

disc

⁄32za15⁄32za53⁄16z)

(with batteries)

213 g (7.5 oz.)

(without batteries)

MP3 disc

Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem:

In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail [email protected], or web site (http://www.panasonic.com). In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-6245505, web site (www.panasonic.ca), or an authorized Servicentre close to you.

Problem

Cannot close the lid. Cannot play discs.

Tracks on disc do not play in order, starting with the ﬁrst track.

Cannot hear music— too noisy.

TV picture is distorted. Radio reception is

Is the disc properly secured in place?

≥Is the unit in HOLD mode? ≥Is the disc properly secured in place? ≥Is there condensation on the lens?

≥(Wait for about an hour and then try again.)

≥Is the disc dirty or scratched or the lens dirty?

(Wipe the disc clean and clean the lens. If it is an MP3 disc and it is badly scratched, rerecord the ﬁles onto a fresh disc.)

≥Is the random play mode on? ≥Did you stop play in the middle of the disc last

time?

≥Is the headphone/earphone plug inserted all the

way?

≥Is the plug dirty? (Wipe away dirt on plug.) ≥Separate the unit from mobile phones.

Are you using the unit too near a TV or tuner? (Keep the unit away from the TV or tuner.)

Check this

noisy.

Cautions

Listening caution

EST. 1924

Do not play your headphones or earphones at a high volume. Hearing experts advise against continuous extended play.

If you experience a ringing in your ears, reduce volume or discontinue use.

Do not use while operating a motorized vehicle. It may create a traffic hazard and is illegal in many areas.

You should use extreme caution or temporarily discontinue use in potentially hazardous situations.

Even if your headphones or earphones are the open-air type designed to let you hear outside sounds, don’t turn up the volume so high that you can’t hear what’s around you.

Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. To establish a safe level:

≥Start your volume control at a low setting. ≥Slowly increase the sound until you can hear it com-

fortably and clearly, and without distortion.

Once you have established a comfortable sound level:

≥Leave it there.

Discontinue use if you experience discomfort with the headphones, earphones or any other parts that directly contact your skin. Continued use may cause rashes or other allergic reactions.

Selection and care of rechargeable/dry cell batteries

∫ Selection

As a safety precaution, the portable CD players made by Panasonic are constructed so it is impossible to recharge ordinary batteries. Only batteries especially designed for this unit can be recharged.

Special rechargeable Ni-Cd batteries:

P-3GAVA/2B (set of 2)

For details, check with your dealer.

Special rechargeable batteries

Ordinary dry cell batteries/rechargeable batteries

≥Remove the batteries if you do not intend to use the

unit for a long time.

≥Do not throw into ﬁre, short-circuit, disassemble, or

subject to excessive heat.

≥Do not attempt to recharge dry cell batteries. ≥Do not allow metal objects to touch the battery termi-

nals as this may cause short-circuiting which is dangerous.

≥When carrying batteries in a pocket or bag, ensure no

metal objects such as necklaces are placed together with them. Contact with metal may cause short-circuiting which can cause a ﬁre.

When driving a car

In the interest of traffic safety, do not operate the unit

≥If rechargeable battery play time is short after recharg-

ing, the batteries have reached the end of their service life. Replace them with the recommended replacements.

≥Play time may be shorter than usual after recharging

batteries for the ﬁrst time or after they have been unused for a long time. Repeatedly recharge and discharge the batteries if this occurs to restore them to normal.

∫ Care

To prevent battery damage, electrolyte leakage and short-circuiting, heed the following points. ≥Do not peel off the covering on batteries and do not

use if the covering has been peeled off.

≥Align the poles + and - correctly when inserting the

batteries.

≥Do not mix different types or of batteries or old and

new batteries.

while driving.

Maintaining the Lens

Open the lid and clean the lens as shown in the ﬁgure. Use a cotton swab to gently wipe off any ﬁnger-prints. Recommended product: Lens cleaner kit (SZZP1038C)

Lens

Air blower for camera lens

Lens
