Page 1
CD Stereo System
Operating Instructions
Model No. SC-PM11
P
PC
Before connecting, operating or adjusting this product, please read these
instructions completely.
Please keep this manual for future reference.
RQT5706-2P
Page 2
Dear customer
Table of contents
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions
carefully.
These operating instructions are applicable to the following system.
System SC-PM11
Main unit SA-PM11
Speakers SB-PM11
The model number and serial number of this product can be
Before using
found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for
future reference.
MODEL NUMBER
SERIAL NUMBER
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
Before using
Supplied accessories .............................................. 2
IMPORTANT SAFETY INSTRUCTIONS ................... 4
Placement of speakers ............................................ 5
Concerning the remote control .............................. 5
Battery installation .......................................................... 5
Correct method of use ................................................... 5
Connections ............................................................. 6
Basic connections (for supplied accessories) ................. 6
Optional antenna connections ........................................ 7
External unit connection ................................................. 7
Front panel controls ................................................ 8
Setting the time........................................................ 9
Turning the demo function off ................................ 9
Auto-off function ...................................................... 9
Compact disc operations
Concerning compact discs ................................... 10
Listening to compact discs .................................. 11
Direct access play ........................................................ 12
Repeat play .................................................................. 12
Random play ................................................................ 12
Program play ............................................................... 13
To listen to special CDs and tracks
(CD Manager function) .............................................. 14
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS
TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.
CAUTION:
TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
CAUTION!
DO NOT INSTALL, OR PLACE THIS UNIT, IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
Radio operations
Listening to radio broadcasts ............................... 15
Presetting radio broadcasts ................................. 16
Cassette deck operations
Listening to tapes .................................................. 17
Supplied accessories
Please check and identify the supplied
accessories.
Use numbers indicated in parentheses when
asking for replacement parts.
(Only for U.S.A.)
To order accessories contact 1-800-332-5368
or web site (http://www.panasonic.com).
AC power supply cord . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
(RJA0065-A)
RQT5706
FM indoor antenna (RSA0006-L) . . . . . . . . . . . . . . . . . 1 pc.
2
Page 3
Recording operations
Before recording .................................................... 18
Recording the radio ............................................... 19
Recording discs ..................................................... 20
Recording with CD Manager ........................................ 20
Other functions
Using the built-in sound quality/
sound field settings .......................................... 21
Enhancing the sound quality ................................ 21
To mute the volume .............................................. 21
Timer operations
Using the timer ...................................................... 22
Using the play/record timer .......................................... 22
Using the sleep timer ................................................... 24
Reference
THE FOLLOWING APPLIES ONLY IN THE U.S.A.:
CAUTION:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
¡Reorient or relocate the receiving antenna.
¡Increase the separation between the equipment and re-
ceiver.
¡Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
¡Consult the dealer or an experienced radio/TV technician
for help.
Before using
Using an external unit ........................................... 24
Troubleshooting guide .......................................... 25

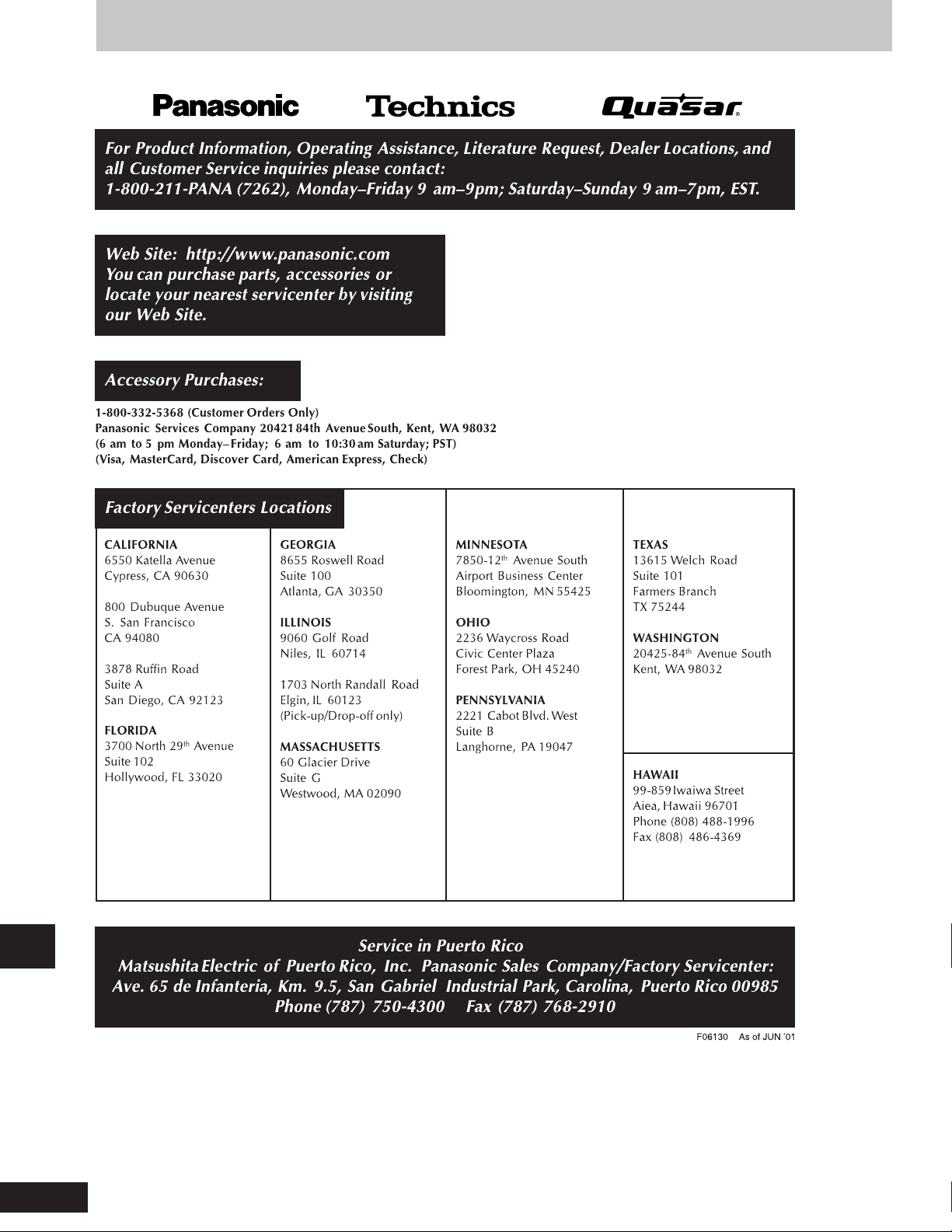

Servicenter List (U.S.A.) ........................................ 26
Warranty (U.S.A.) ................................................... 27
Specifications ......................................... Back Cover
Maintenance ............................................ Back Cover
Product Service ...................................... Back Cover
AM loop antenna
(RSA0033A) ................... 1 pc.
Batteries ........... 2 pcs.
(R6, AA, UM-3)
Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
Remote control transmitter .............................................. 1 pc.
(N2QAGB000007)
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
3
RQT5706
Page 4
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the safety precautions listed below.
Keep these operating instructions handy for future reference.
Safety
1. Power source—Connect the unit to a power source of the type
described in these instructions or as marked on the unit.
2. Polarization—The unit is equipped with a polarized power plug
where one blade is wider than the other. This safety feature
ensures that the plug fits into your household AC outlet only one
way. If the plug doesn’t fit one way, try reversing it. If the plug
still doesn’t fit, contact an electrician to replace the obsolete
outlet. Do not attempt to defeat the safety purpose of the plug.
3. Power cord protection—Route the AC power supply cord so
Before using
that it will not be walked on or pinched by items placed on or
against it. Never take hold of the plug or cord wih wet hands.
Always grasp the plug body firmly when connecting and
disconnecting it.
4. Overloading—When connecting the AC power supply cord, be
careful not to overload the household AC outlet, extension cord,
or outlet from any other device as this can result in fire or electric
shock.
5. Nonuse periods—Turn the unit off when it is not in use. Unplug
the unit from the household AC outlet if it is not to be used for a
long time. Unplug the unit during lightning storms.
6. Attachments and accessories—Use only the attachments and
accessories recommended in these operating instructions.
Installation
4. Outdoor antenna grounding—If you connect an outdoor an-
tenna, ground the antenna system to protect against voltage
surges and built-up static charges. Section 810 of the National
Electrical Code, ANSI/NFPA No. 70-1990, provides information
about grounding of the mast and supporting structure, grounding
of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode. Refer to this diagram.
ANTENNA LEAD
IN WIRE
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
NEC–NATIONAL ELECTRICAL CODE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
Placement
1. Ventilation—Situate the unit so that it receives proper ventilation.
Do not install in a confined space such as a bookcase or cabinet.
Allow at least 10 cm (4 inches) clearance from the rear of the
unit. To prevent the risk of electric shock or fire due to overheating
ensure curtains and other materials do not obstruct the unit’s
ventilation.
2. Foreign material—Ensure objects and liquids do not get into
the unit. Avoid exposing the unit to excessive smoke, dust,
mechanical vibration, and shock.
3. Magnetism—Situate the unit away from equipment and devices
that generate strong magnetic fields.
4. Stacking—Do not place heavy objects on top of this unit.
5. Surface—Place the unit on a flat, level surface.
6. Carts and stands—Use the unit only with carts
and stands recommended by the manufacturer.
Move carts with care. Sudden stops, excessive
force, and uneven surfaces can cause carts to
overturn.
7. Wall and ceiling mounting—Do not mount the unit on walls or
ceilings unless specified in the instructions.
Environment
1. Water and moisture—Do not use the unit near water, such as
near a bathtub or swimming pool. Avoid damp basements.
2. Heat—Situate the unit away from heat sources, such as radiators.
Do not situate where temperatures fall below 5°C (41°F) or rise
above 35°C (95°F).
3. Power lines—Take care when setting up an outdoor antenna
that it is not near overhead power lines, electric lights, or electrical circuits, and that there is no danger of the antenna falling on
power lines, electric lights, or electrical circuits. When installing
an outdoor antenna, take extreme care not to touch such power
lines or circuits, as contact with them can be fatal.
Maintenance
(See back cover for details.)
Unplug the unit from the household AC outlet before cleaning.
Clean with a damp cloth.
Do not use abrasive pads, scouring powders, or solvents.
Service
1. Damage requiring service —The unit should be serviced by
qualified service personnel if:
(a) The AC power supply cord or the plug has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked
change in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing —Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing
to authorized servicing personnel.
3. Replacement parts —When parts need replacing ensure the
servicer uses parts specified by the manufacturer or parts that
have the same characteristics as the original parts. Unauthorized
substitutes may result in fire, electric shock, or other hazards.
4. Safety check —After repairs or service, ask the servicer to
perform safety checks to confirm that the unit is in proper working
condition.
RQT5706
4
Page 5
Concerning the remote control
Listening caution
Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to
consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of
your equipment by playing it at a safe level. One that lets the sound
come through loud and clear without annoying blaring or
distortion—and, most importantly, without affecting your sensitive
hearing.
We recommend you to avoid prolonged exposure to excessive noise.
Sound can be deceiving. Over time your hearing “comfort level”
adapts to higher volumes of sound. So what sounds “normal” can
actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level BEFORE
your hearing adapts.
To establish a safe level:
Start your volume control at a low setting.
•
Slowly increase the sound until you can hear it comfortably and
•
clearly, and without distortion.
Once you have established a comfortable sound level:
Set the dial and leave it there.
•
Taking a minute to do this now will help to prevent hearing damage
or loss in the future. After all, we want you listening for a lifetime.
Battery installation
R6, AA, UM-3
Insert the batteries observing the correct polarities (e, d).
Use of batteries
Align the poles (+ and –) properly when inserting the batteries.
•
Do not mix old and new batteries or different types of batteries.
•
Do not recharge ordinary dry cell batteries.
•
Do not heat or disassemble the batteries. Do not allow them to
•
contact flame or water.
Remove the batteries if the unit is not to be used for a long time.
•
Do not keep together with metallic objects such as necklaces.
•
Do not use rechargeable type batteries.
•
Do not use batteries if the covering has been peeled off.
•
Mishandling of batteries can cause electrolyte leakage which can
damage items the fluid contacts and may cause a fire.
If electrolyte leaks from the batteries, consult your dealer.
Wash thoroughly with water if electrolyte comes in contact with any
part of your body.
Correct method of use
Before using
Placement of speakers
Speakers are designed identically so that no left or right channel
orientation is necessary.S
Notes
Keep your speakers at least 10 mm (13/32˝) away from the system
•
for proper ventilation.
These speakers do not have magnetic shielding. Do not place
•
them near televisions, personal computers or other devices easily
influenced by magnetism.
To avoid damage to the speakers, do not touch the speakers
•
cones if you have taken the nets off.
Remote control
signal sensor
Transmission
window
Operation notes
Do not place obstacles between the remote control signal sensor
•
and remote control unit.
Do not expose the remote control signal sensor to direct sunlight
•
or to the bright light of a fluorescent light.
Take care to keep the remote control signal sensor and end of the
•
remote control unit free from dust.
If this system is installed in a rack with glass doors, the glass
•
doors’ thickness or color might make it necessary to use the remote
control a shorter distance from the system.
To prevent damage
Never place heavy items on top of the unit.
•
Do not disassemble or reconstruct the unit.
•
Do not spill water or other liquids into the unit.
•
30°
30°
About 7 meters in front of
the signal sensor
5
RQT5706
Page 6
Before using
1
1
2
3
Adhesive tape
4
Connections
Basic connections (for supplied accessories)
Plug the AC power cord into a household AC outlet only after all
•
other connections have been made.
To prepare the antenna wires and speaker cords, twist the vinyl
•
cover tip and pull off.
Connect the FM indoor antenna.
Tape the antenna to a wall or column, in a position where radio
signals are received with the least amount of interference.
Note
For best reception sound quality:
An FM outdoor antenna is recommended. (See page 7.)
Connect the AM loop antenna.
After attaching the antenna, turn on the system and tune in a
broadcast station. Then, turn the antenna to the angle of best
reception and least interference.
2
3
1
FM ANT
( )
GND
AM ANT
LOOP
EXT
TO SB-PM11
L
R
Black (–)
2
AM loop antenna
Red (+)
FM indoor antenna
Red (+)
TO SB-PM11
R
Black (–)
Connect the speaker cables.
Connect each end of the speaker cables to the terminal lever of
the same color so (+) and (–) are correct. Never allow the
exposed wires to contact each other when connected.
Incorrect connection can damage the unit.
Caution
Use only the supplied speakers.
•
The combination of the main unit and speakers provide the
best sound. Using other speakers can damage the unit and
sound quality will be negatively affected.
Caution
• Use the speakers only with the re-
commended system.
Failure to do so may lead to damage to the
amplifier and/or the speakers, and may result
in the risk of fire.
Consult a qualified service person if damage
has occurred or if you experience a sudden
change in performance.
• Do not attach these speakers to walls or
ceilings.
Connect the AC power cord.
L
Note
The included AC power supply cord is for use with this unit
only. Do not use it with other equipment.
RQT5706
6
Page 7
Connections
A
B
75 Ω coaxial cable (not included)
FM ANT
( )
GND
1
2
(
3
AM outdoor antenna (not included)
5 -12 m
(16 – 40
ft.)
AM ANT
LOOP
EXT
FM outdoor antenna
(not included)
30 mm
3/
˝
)
(1
16
Shield braid
15 mm
19
/
˝
)
32
Core wire
AM loop
antenna
(included)
Optional antenna connections
You may need an outdoor antenna if you use this system in a
mountainous region or inside a reinforced-concrete building, etc.
FM outdoor antenna
A
Disconnect the FM indoor antenna if an FM outdoor antenna is installed.
1 Remove a piece of the outer vinyl insulator.
2 Twist the shield braid.
3 Expose the core wire.
Note
An outdoor antenna should be installed by a qualified technician only.
AM outdoor antenna
B
Connect the outdoor antenna without removing the AM loop antenna.
Run 5 to 12 m of vinyl-covered wire horizontally along a window or
other convenient location.
Note
When the unit is not in use, disconnect the outdoor antenna to prevent
possible damage that may be caused by lightning. Never use an
outdoor antenna during an electrical storm.
C
External unit connection
An analog player with a built-in phono equalizer can be connected.
•
For details, refer to the instruction manual of the units which are to
•
be connected.
When units other than those described above are to be connected,
•
please consult with your audio dealer.
Before using
C
R L
Analog player (not included)
(L)(R)
Rear panel of this unit
7
RQT5706
Page 8
A
4
Before using
B
C
1
2
3
5
6
25
26
Front panel controls
7
Main unit
8
9
10
11
12
13
14
15
16
17
18
/ REW /
19
TAPE
STOP
23
20
CD /TUNER/ BAND
/ FF/
21
SELECTOR
TUNE MODE
24
22
31
2
32
A
No. Name Ref. page
1 AC supply indicator (AC IN)
This indicator lights when the unit is connected to the AC power
supply.
2 Standby/on switch (f/I, POWER)
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
3 Clock/timer and demonstration button
(CLOCK/TIMER, –DEMO) ................................ 9, 22, 23
4 Display
5 Play timer/record timer button (rPLAY/rREC)...... 22
6 Cassette holder .......................................................... 17
7 CD manager button (CD MANAGER) ................ 14, 20
8 CD tray open/close button (c CD OPEN/CLOSE) .. 11
9 Disc tray
! Super sound equalizer button
(SUPER SOUND EQ) .................................................. 21
Sound equalizer control (SOUND EQ) ..................... 21
# Disc direct play button (CD 1 ~ CD 5) ..................... 11
$ Volume control (VOLUME Down, Up) ..................... 11
% Deck open button (c DECK OPEN) ........................ 17
& Reverse mode select button (REV MODE) .............. 17
( Recording start/pause button (a REC/ J) ............... 19
) Headphone jack (PHONES) ...................................... 24
Center console
B
~ Tuner/band select button (TUNER/BAND) .............. 15
+ Tape play/direction button (TAPE ;:) ................... 17
, CD play/pause button (CD :/ J) .............................. 11
- CD, Tuner, Tape, Aux select button
(SELECTOR) ......................................................... 13, 24
. Skip/Search/Preset channel button
(g/REW/3, 4/FF/f) ............................. 11, 16, 18
/ CD, Tape stop button (STOP L) ........................ 11, 17
: Tuning mode select button (TUNE MODE) ............. 15
RQT5706
27
28
19
22
18
24
TUNE
MODE
MUTING
CLEAR
REW/3
FM MODE/BP
REV MODE
FF/4
SOUND EQ
29
30
13
8
20
23
11
33
34
21
15
Remote control
C
Buttons such as 2 functions in exactly the same way as the buttons
on the main unit.
No. Name Ref. page
; Auto off button (AUTO OFF) ...................................... 9
< Numeric buttons (j, 1–9, 0) ............................ 12, 13
= Cancel button (CANCEL) ...........................................13
> Program button (PROGRAM) ................................... 13
? Muting button (MUTING) ........................................... 21
@ FM mode/BP button (FM MODE/BP) .................. 15, 19
[ Sleep button (SLEEP) ................................................24
\ Disc button (DISC) .....................................................12
] Repeat button (REPEAT) ........................................... 12
^ Random button (RANDOM) ...................................... 12
Page 9
1
Setting the time
This is a 12-hour display clock.
This example in the figure shows how to set the time for 4:25p.m..
Switch on the power.
1
2
3
2
4
DEMO
/ REW /
/ FF/
3
Press [CLOCK/TIMER] to select “CLOCK”.
Every time you press the button:
CLOCK RECPLAY
Previous display
(within 7 seconds or so)
Press [
present time.
Press [CLOCK/TIMER] to finish setting the time.
The display will return to whatever was displayed before you
set the time.
To display the time when system is ON
Press [CLOCK/TIMER] to select “CLOCK”.
The time will be displayed for about 5 seconds and then the display
will return to whatever was previously displayed.
Note
The clock may lose or gain some time over a period. Readjust if
necessary.
A
Turning the demo function off
gg
g/REW/3] or [4/FF/
gg
ff
f] to show the
ff
Before using
4
A
B
DEMO
DEMO
CD MANAGER
AUTO OFF
If the clock has not been set, a demonstration of the display is shown
when the unit is switched to standby.
This function is set to on at the time of purchase.
Press and hold [–DEMO] until “NO DEMO” is displayed.
This display changes each time the button is held down.
NO DEMO (off) ↔ DEMO (on).
B
Auto-off function
by remote control only
When CD or tape is selected as the source
To save power, the unit turns off if it is left unused for ten minutes.
Note
This function does not work if the source is tuner or AUX.
Press [AUTO OFF].
“AUTO OFF” is shown on the display.
To cancel
Press [AUTO OFF] again to clear “AUTO OFF” from the display.
For your reference
The setting is maintained even if the unit is turned off. When the unit is
EQ-ON
FWD
REV
REC
turned on again, “AUTO OFF” is displayed and the unit functions as
described above.
“AUTO OFF” disappears from the display if either tuner or AUX is
selected as the source but continues to function normally.
“AUTO OFF” remains displayed if CD or tape is selected as the source.
9
RQT5706
Page 10
Concerning compact discs
A
XXXX XXXX XXXXX XXXX XX
XXXX XXXX XXXXX
XXXX XXXX XXXXX
XXXX XXXX
B
How to hold CDs
Do not touch the recorded surface.
C
How to clean CDs
Compact disc operations
With this system, you can only play compact
discs having this mark.
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
A However, do not use irregular shaped CDs.
CDs of the sort can damage the unit.
~ Handling precautions
B D
If you are taking the disc from a cold to a warm environment,
•
moisture may form on the disc. Wipe this off with a soft, dry, lint-free
cloth before using the disc.
Do not write on the label side with a ball-point pen or other writing
•
instrument.
Do not use record cleaning sprays, benzine, thinner, static elec-
•
tricity prevention liquids or any other solvent.
Do not attach labels or stickers to CDs. (Do not use CDs with
•
exposed adhesive from tape or left over peeled off stickers.)
Do not use scratch-proof protectors or covers other than those
•
specified for use with this system.
Do not use CDs printed with label printers available on the market.
•
Storage precautions
Be sure to store discs in their cases to protect them from dust,
scratches, and warping.
Do not place or store discs in the following places
Locations exposed to direct sunlight
•
Humid or dusty locations
•
Locations directly exposed to a heat vent or heating appliance
•
In the glove compartment or on the rear deck of an automobile
•
D
E
F
Wipe from inside outward.
XXX XXXX
XXXX
X
X
X X
XX
X
X
XX
X
XX
X
X
X
X
XX
XX
X
X
X
X
XXX
X
X
XX
XX
X
X
XX
X
XXX
X
XX
XX
XXXX
XX
XXX XXXX
XXXXXXXX XXXX
XXX XXX XXXXX
To prevent damage
Always observe the following points.
E Load only 1 CD on the tray.
•
F Load CDs as shown in figure
•
The adapter is not needed with 8 cm CDs (singles).
Set the system on a flat, level surface.
•
Do not set it on top of magazines, inclined surfaces, etc.
Do not move the system while tray is opening/closing, or when
•
loaded.
Always unload all CDs before moving the system.
Do not put anything except CD in tray.
•
Do not use cleaning CDs or CDs which are badly warped or
•
cracked.
Do not disconnect the power cord from the household AC outlet
•
during disc changing operation.
XXXX
XXX XXXX
XXXX
XXX XXXX
8 cm CD
10
RQT5706
XXXX XX XXXXX
XXXX XXXX XXXXX
XXXXXX XXX XXXXXXX
XXXX XX XXXXX
XXXXXX XXX XXXXXXX
XXXX XX XXXXX
XXXX XXXX XXXXX
XXXX XX XXXXX
XXXX XXXX XXXXX
XXXX XX XXXXX
XXXX XX XXXXX
XXXX XXXX XXXXX
12 cm CD
Page 11
Listening to compact discs
1
2
2
3
CD
OPEN
/ REW /
CLOSE
STOP
Label must face upward.
CD
/ FF/
4
1
This unit can play CD-DA format audio CD-R and CD-RW that have
been finalized❈ upon completion of recording.
It may not be able to play some CD-R or CD-RW due to the condition
of the recording.
❈
Finalizing is a process that enables CD-R/ CD-RW players to play
audio CD-R and CD-RW.
Press [c CD OPEN/CLOSE].
The unit will come on automatically and the tray opens.
Set CD in the tray.
To continue loading CDs in the other trays
Press another [(CD 1) ~ (CD 5)] to select the required tray and
press [c CD OPEN/CLOSE] to open the tray.
The current tray closes and the selected tray automatically
opens.
Press [c CD OPEN/CLOSE] to close the tray.
Press [(CD 1) ~ (CD 5)] to play your desired disc.
(If the desired CD is indicated on the display panel, the same
operation can be accomplished by pressing [CD -/J].)
Play will start from the first track on the disc and will continue
until the last track of the final disc is played (see below).
Adjust the volume.
A To stop the disc play
Press [STOP L].
What is meant by “final disc”?
For example, if play starts from disc 4, disc 3 will be the “final disc”.
Order of progression:
Disc 4➞5➞1➞2➞3
Compact disc operations
3
4
A
CD2CD1 CD3 CD4 CD5
Track number
VOLUME
UP
DOWN
Number of tracks
3
21
3
2
1
Elapsed playing time
(Of current track number)
5
4
5
4
dB
Total playing
time
One touch play
If the unit is in standby mode and a CD is loaded, press [CD -/ J] or
[(CD 1) ~ (CD 5)].
The unit will come on automatically and play will start.
To pause Press [CD -/ J] during playback.
To search forward/ Hold down [g/REW/3] (backward)
backward (Search) or [4/FF/ f] (forward) during
To skip forward/ Press [g/REW/3] (backward) or
backward [4/FF/ f] (forward) during
Notes
During random play (z page 12), you cannot skip to tracks which
•
have already been played.
During program play (z page 13) or random play, you can search
•
forward or backward only within the current track.
During program play, skipping is always in the programmed order,
•
whether forward or backward.
Always stop the changer before loading or changing CDs. You
•
cannot change CDs while a disc is playing.
To resume playback, press [CD -/ J].
playback or pause mode.
playback or pause mode.
STOP
3
21
Disc number
5
4
11
RQT5706
Page 12
Listening to compact discs
Direct access play
2
1
2
Compact disc operations
TUNE
MODE
MUTING
CLEAR
REW/3
FM MODE/BP
REV MODE
FF/4
SOUND EQ
1
1
3
by remote control only
Press [DISC].
(within 10 seconds or so)
Press [1] – [5] to select the disc you want.
Press the numeric button to select the desired track
number.
The CD will be played from the selected track to the last track
of the final disc (z page 11).
To select a two-digit track
Press [≥10] and then the two numbers you want within 10 seconds or
so.
For example
Track no. 20: [≥10] ➞ [2] ➞ [0]
Track no. 35: [≥10] ➞ [3] ➞ [5]
3
2
5
4
Repeat play
by remote control only
A Press [REPEAT] before or during play.
All tracks on the loaded CDs are repeated.
3
21
5
4
To cancel repeat play
Press [REPEAT] once again.
3
A
B
To repeat your favorite tracks
1. Program the tracks you want (perform steps 1 ~ 6 on page 13).
2. Press [REPEAT] and make sure “ ” is displayed.
3. Press [CD -/J]. Playback will start.
3
2
1
5
4
To repeat just one track
Set the 1-TRACK mode (z page 14), press [REPEAT] before or
during playback, and make sure “ ” is displayed.
Random play
by remote control only
B Press [RANDOM].
Every time you press the button:
RANDOM
1-DISC → ALL
↑
Previous display
To random play just one disc
Select the CD you want to random play with [(CD 1) ~ (CD 5)] and
press [RANDOM] to select “1-DISC”.
To random play all the loaded CDs
Press [RANDOM] to select “ALL”.
All tracks on the CD(s) will be played in random order. Playback will
stop automatically when all tracks have been played.
12
RQT5706
To cancel random play
Press [RANDOM] to clear “RANDOM” display.
Note
You can use random play with your program. Only the programmed
tracks will be played, but in random order.
Page 13
1
2
4
2
PRGM
3
5
7
CLEAR
1
Listening to compact discs
Program play
by remote control only
You can program up to 24 tracks.
Press [SELECTOR] to select “CD”.
Every time you press the button:
CD → TAPE → TUNER → AUX
↑
Press [PROGRAM].
Press [DISC].
(within 10 seconds or so)
Press [1] – [5] to select the disc you want.
Press the numeric button to select the desired track.
Repeat steps 3 through 5 until you have programmed all the tracks you want.
Press [CD
Play will start in the programmed sequence.
--
-/J].
--
3
4
5
7
3
21
3
21
Specified disc number
Specified track number
Program order
3
21
To cancel program play mode
Press [PROGRAM] in the stop mode.
5
4
5
4
5
4
Programmed contents will be saved in memory.
Pressing [L CLEAR] will cancel program play, but it will also erase the
entire program.
To select a two-digit track
Press [≥10] and then the two numbers you want.
A When “CD FULL” appears
The number of programmed tracks is limited to 24. No further tracks
can be programmed.
B You can do the following during program mode
Check program contents.
•
Press [g] or [f].
Every time you press one of the buttons, the track and program No.
are shown on the display.
Add to the program.
•
Repeat steps 3 through 5.
Cancel entries.
•
From the last Press [CANCEL].
programmed track
A specified track Select the track with [g] or [f], and
only press [CANCEL] within 3 seconds.
All tracks Press [L CLEAR].
Memory retention
Your program is retained in memory for about 2 weeks while the
system is unplugged.
Compact disc operations
A
B
Indicates program mode
To replay your program
If you turned OFF your program with [PROGRAM], you can play it
again as explained below.
1. Press [PROGRAM].
2. Press [CD -/J].
If you program a track not on your CDs
The track is initially programmed, but during program play, the player
will skip that track and will continue playing from the next programmed
item.
13
RQT5706
Page 14
Listening to compact discs
3
STOP
1
2
Compact disc operations
CD MANAGER
CD MANAGER
2
1
5
4
To listen to special CDs and tracks
(CD Manager function)
This function makes it easier for you to select special CDs and tracks
from amongst those loaded in the player.
You can use this function to make recordings as well.
There are 3 CD/track selection modes.
For playing back 1 track only from all loaded CDs
•
1-Track mode (1-TRACK)
For playing back 1 CD only from all loaded CDs
•
1-Disc mode (1-DISC)
For playing back 1 track on all loaded CDs
•
1-Track All-Disc mode (1-ALL)
Press [SELECTOR] to select “CD”.
Press [CD MANAGER] to select the desired mode.
Every time you press the button:
1-TRACK
1-TRACK: Only one particular track is played.
1-DISC: The tracks on only one particular disc are played.
1-ALL: The same track numbers on each of the CDs are
(NORMAL: The original display is restored in about 3
1-DISC 1-ALL
NORMAL
(OFF)
played in succession.
seconds.)
3
Specified disc number
CD2CD1 CD3 CD4 CD5
4
/ REW /
CD MANAGER
CD MANAGER
/ FF/
CD MANAGER
3
21
Specified track number
5
4
Press [(CD 1) ~ (CD 5)] to select the disc you want.
Note
This step is not required if 1-ALL was selected in step 2.
Press [g/REW/3] or [4/FF/f] to select the de-
sired track.
Note
This step is not required if 1-DISC was selected in step 2.
Press [CD -/
The selected track will start.
To stop play
Press [STOP L].
When playback ends
“NORMAL” will appear on the display for about 3 seconds, then the
CD MANAGER function will turn OFF automatically.
During play in the 1-ALL mode:
It is not possible to skip back to a CD whose track has already
•
been played.
If a CD does not have the designated track number, it is skipped
•
and play continues.
Notes
You can use the CD Manager function together with repeat play.
•
CD Manager function will be cancelled when you press the
•
[RANDOM] button.
JJ
J].
JJ
14
RQT5706
5
CD
CD MANAGER
Page 15
1
3
1
TUNER/ BAND
4
2
Listening to radio broadcasts
Press [TUNER/BAND] to select “FM” or “AM”.
The unit comes on automatically.
Every time you press the button:
FMGAM
Press [TUNE MODE] to select “MANUAL”.
Every time you press the button:
MANUALGPRESET.
Press [g/REW/3] or [4/FF/f] to select the
frequency of the required station.
“TUNED” is displayed when a radio station is tuned.
“ST” is displayed when a stereo FM broadcast is being received.
Adjust the volume.
Auto tuning
Press and hold [g/REW/3] or [4/FF/f] for a moment until the
frequency starts changing rapidly. The unit begins auto tuning, stopping
when it finds a station.
Auto tuning may not function when there is excessive interference.
•
To cancel auto tuning, press [g/REW/3] or [4/FF/f] once
•
again.
2
3
4
A
TUNE MODE
/ REW /
VOLUME
UP
DOWN
/ FF/
TUNED
ST
dB
If noise is excessive in FM
A
by remote control only
Press [FM MODE/BP] to display “MONO”.
This mode improves sound quality if reception is weak, but broadcasts
will be heard in monaural.
Press [FM MODE/BP] again to cancel the mode.
“MONO” goes out. MONO is also canceled if the frequency is changed.
Turn off “MONO” for normal listening. Stereo and monaural broadcasts are automatically played as they are received.
FM allocation setting
By adjusting the allocation, you can enable this tuner to receive FM
broadcasts allocated in 0.1 MHz steps.
Press and hold [TUNER/BAND]. After a few seconds, the display will
change to a flashing display of the current minimum FM frequency.
If you continue to hold the button down, the minimum frequency will
change. Release the button at this time.
To return to the original frequency indication, repeat above.
Note
After changing the “allocation” setting, the frequencies you previously
•
preset in the memory will be cleared.
Sound is momentarily interrupted if you load/unload tapes while
•
listening to an AM broadcast.
Radio operations
TUNE
MODE
MUTING
CLEAR
REW/3
FM MODE/BP
REV MODE
FF/4
SOUND EQ
FM MODE/BP
TUNED
MONO
15
RQT5706
Page 16
A
B
Radio operations
2
TUNE
MODE
MUTING
CLEAR
REW/3
FM MODE/BP
REV MODE
PRGM
FF/4
SOUND EQ
Presetting radio broadcasts
by remote control only
There are two methods of presetting stations.
Automatic presetting : All the stations the tuner can receive are
Manual presetting : You can select the stations to preset and the
Up to 12 stations each can be set in the FM and AM bands.
A
Automatic presetting
Do the following once each for FM and AM.
Preparation:
Tune to the frequency where presetting is to begin (z page 15).
Press and hold [PROGRAM].
Release the button when frequency begins to change.
The tuner presets all the stations it can receive into the channels in
ascending order. When finished, the last station memorized is tuned
in.
Manual presetting
Preset the stations one at a time.
1 Press [TUNER] to select “FM” or “AM”.
2 Press [PROGRAM] then press [g, REW/3] or
[f, FF/4] to tune to the require station.
3 Press [PROGRAM] then press [g, REW/3] or
[f, FF/4] to select a channel.
4 Press [PROGRAM].
The station occupying a channel is erased if another station is preset
in that channel.
B
Selecting channels
preset.
order they are preset in.
1
2
1
TUNE
MODE
MUTING
CLEAR
REW/3
FM MODE/BP
REV MODE
FF/4
SOUND EQ
Preset channel
3
Press [TUNER] to select “FM” or “AM”.
The unit comes on automatically.
Every time you press the button:
FMGAM
Press the numbered buttons to select the channel.
• To enter channel 10 or over.
Press [j], then the two digits.
Adjust the volume.
On the main unit
1 Press [TUNER/BAND] to select “FM” or “AM”.
2 Press [TUNE MODE] to select “PRESET”.
3 Press [g/REW/3] or [4/FF/f] to select the preset channel.
16
RQT5706
3
Page 17
Listening to tapes
Press [c DECK OPEN].
The unit will come on automatically.
Insert the tape with the exposed tape facing down.
Close the holder by hand.
Tape direction is automatically set to “a”.
Press [REV MODE] to select the reverse mode.
Every time you press the button:
1
2
3
3
STOP
DECK OPEN
REV MODE
TAPE
Front side
FWD
Tape direction
FWD
4
1
2
: One side is played.
: Both sides are played.
: Both sides are played repeatedly until [STOP L] is
pressed.
Press [TAPE / -] to start playback.
Every time you press the button; b ↔ a
a : The forward side (front side) will play.
b : The reverse side will play.
Adjust the volume.
To stop tape playback
Press [STOP L].
One-touch play
When the system is OFF and a tape is already inserted, play starts
automatically when you press [TAPE / -].
Cassette tape selection and care
The unit can correctly play the following types. It identifies the type
automatically.
Normal position/TYPE I ✔
High position/TYPE II ✔
Metal position/TYPE IV ✔
Tapes exceeding 100 minutes are thin and can break or get
•
caught in the mechanism.
Tape slack can get caught up in the mechanism and should be
•
wound up before the tape is played.
Endless tapes can get caught up in the deck’s moving parts if used
•
incorrectly. Use tapes appropriate to this unit’s auto-reverse
mechanism.
Cassette deck operations
4
VOLUME
UP
DOWN
dB
17
RQT5706
Page 18
A
/ REW /
B
Cassette deck operations
/ FF/
Listening to tapes
To fast-forward or rewind the tape
A
Press [g/REW/3] or [4/FF/f] in the stop mode.
Tape direction To rewind To fast-forward
“ a ” [g/REW/3][4/FF/f]
“ b ” [g/REW/3][4/FF/f]
To find the beginning of a program
A
(TPS: Tape Program Sensor)
TPS finds the beginning of a track and resumes play from there. Each
press increases the number of tracks skipped, up to a maximum of 9.
Press [g/REW/3] or [4/FF/f] during play.
Notes
The TPS function searches for silent parts of about 4 seconds in
length which are normally found between tunes. As a result, it may not
function properly in the following cases:
With short silent parts
•
When noise occurs between tunes
•
With silent parts found within tunes
•
Side A
Tab for side “B”
Normal tape
Recording operations
C
Tab for side “A”
To re-record
Hi-position tape
Discrimination hole
1
2
3
4
Before recording
Selection of tapes for recording
The unit automatically identifies the type of tape.
Normal position/TYPE I ✔
High position/TYPE II ✔
Metal position/TYPE IV ✕
Metal position tapes can be used, but the unit will not be able to
record or erase them correctly.
Erasure prevention
B
The illustration shows how to remove the tabs to prevent recording.
To record on the tape again, cover as shown, being careful not to
cover the high position discrimination hole.
How volume, sound quality/ field affect recording
Recording level is set automatically.
•
All sound effects are automatically set to flat.
•
Erasing recordings
C
1 Press [SELECTOR] to select “TAPE”.
Every time you press the button:
CD → TAPE → TUNER → AUX
↑
2 Insert the recorded tape into deck.
3 Press [REV MODE] to select the reverse mode.
4 Press [[ REC/J].
18
RQT5706
Page 19
A
REW/3
FF/4
CLEAR
MUTING
FM MODE/BP
REV MODE
SOUND EQ
TUNE
MODE
, POWER
Before recording
Preparatory steps
A
Do these steps before each recording.
Wind up the leader tape so recording can begin immediately.
Preparation: Press [f/7, POWER] to turn the unit on.
1
2
3
3
DECK OPEN
REV MODE
TAPE
STOP
Front
side
FWD
Selected direction
REV
1
2
Press [c DECK OPEN] and insert the cassette to
be recorded on.
Insert with the tape facing down.
Press [REV MODE] to select the reverse mode.
Every time you press the button:
: One side only records.
, : Both sides record (forward → reverse).
“ ” automatically changes to “ ” when [a REC/J] is
pressed.
Set the tape direction.
a : To record on the forward side.
b : To record on the reverse side.
To change the direction
Press [TAPE ; :] twice and then [STOP L].
B
Recording the radio
Preparation: Do the preparatory steps above.
Tune to the required station.
(z page 15 or 16).
Press [a REC/ J] to start recording.
B
2
C
REC
FM MODE/BP
REC
2
FWD
To stop recording
Press [STOP L].
To pause recording
Press [a REC/ J]. Press [a REC/ J] again to resume play.
c To reduce noise while recording an AM broadcast (Beat proof
function)
by remote control only
Press [FM MODE/BP] while recording.
Every time you press the button:
BP1 ↔ BP2
Select the position where there is less noise.
Recording operations
REC
FWD
19
RQT5706
Page 20
Recording discs
Preparation:
Do the preparatory steps (z page 19).
•
Press [SELECTOR] to select disc as the source and insert the disc(s)
•
you want to record (z page 11).
Normal recording
1
2
1
CD2CD1 CD3 CD4 CD5
STOP
REC
Press [(CD 1) ~ (CD 5)] to select the disc to be recorded, then [STOP L] to stop play.
Press [a REC/ J] to start recording.
The CD starts.
2
3
2
1
REC
5
4
FWD
To stop recording
Press [STOP L].
The CD stops, and the tape stops after making a 4 second silent
interval.
To record programmed tracks
1 Program the tracks (z page 13).
2 Press [a REC/ J] to start recording.
Play starts.
To stop recording, press [STOP L].
Disc play stops automatically.
Recording with CD Manager (z page 14)
Record discs after selecting the required CD MANAGER mode
(1-TRACK, 1-DISC, 1-ALL)
If a track is cut off in the middle at the end of the front side while
•
recording, the track will be recorded from the beginning on the
reverse side.
At the end of the reverse side, recording stops and the current track
•
will be interrupted.
Recording pauses while discs are changing and resumes when the
•
disc is ready.
Recording operations
1 Do steps 1 to 4 on page 14.
2 Press [a REC/J] to start recording.
Play starts.
To stop recording
Press [STOP L].
Disc play stops automatically.
20
RQT5706
Page 21
A
SOUND EQ
Using the built-in sound quality/
A
sound field settings
Press [SOUND EQ] to select the sound quality or sound field.
When it is pressed, the settings are selected in the following sequence.
1 HEAVY (sound quality)
Select this when playing rock or other kinds of music that sound
better with an added punch.
2 CLEAR (sound quality)
Select this for jazz or other kinds of music for which clarity in the
treble range is desired.
3 SOFT (sound quality)
Select this when listening to background music.
4 DISCO (sound field)
Select this to produce sound with the same kind of lengthy
reverberations heard at a disco.
5 LIVE (sound field)
Select this to make vocals more alive.
6 HALL (sound field)
Select this to add an expansiveness to the sound to produce the
atmosphere of a great concert hall.
The original display is restored on the display panel in about 5 seconds.
B
C
SOUND EQ
EQ-ON
SUPER
SOUND EQ
Note
All recordings are performed at the flat setting even if an alternative
sound quality/sound field setting has been selected.
B
Enhancing the sound quality
This feature enhances the bass and treble effect of the sound.
Press [SUPER SOUND EQ].
Press the button again to cancel.
The button light goes out.
Note
You cannot record Super Sound EQ effect, but you can use it for
playback sound.
C
To mute the volume
by remote control only
This feature is convenient when you have a telephone call, etc.
Press [MUTING].
Press the button again to cancel.
“MUTING” goes out.
Muting can also be canceled by lowering the volume all the way
(--dB).
Other functions
MUTING
TUNE
MODE
MUTING
CLEAR
REW/3
FM MODE/BP
REV MODE
When the system is turned off, the muting operation will be automatically
canceled.
FF/4
SOUND EQ
21
RQT5706
Page 22
Using the timer
Using the play/record timer
1
2
5
1
2
3
4
2
2
DEMO
1
FOR PLAY TIMER
2
FOR PLAY TIMER
/ REW /
The timer has two functions. It can be set to on at a certain time to
wake you up, or it can be set to record the radio or from the aux
source.
The play timer cannot be used in combination with the record timer.
Preparations:
Turn the unit on and set the clock (A page 9).
•
For the play timer, prepare the music source you want to listen
•
to; tape, CD, radio or aux, and set the volume.
For the record timer, check the cassette’s erasure prevention
1
2
1
3
FOR RECORD TIMER
/ FF/
FOR RECORD TIMER
ON
PLAY
ON
REC
•
tabs (A page 18: B), insert the tape in deck, select the reverse
mode (A page 19) and tune to the radio station (A page 15) or
select the aux source (A page 24).
Press [CLOCK/TIMER] to select the timer function.
Every time you press the button:
CLOCK RECPLAY
Previous display
rPLAY : to set the play timer
rREC : to set the record timer
Setting the start and finish times
(Within 8 seconds or so)
1 Press [g/REW/3] or [4/FF/f] to select the
starting time.
2 Press [CLOCK/TIMER].
1 Press [g/REW/3] or [4/FF/f] to select the
finishing time.
2 Press [CLOCK/TIMER].
The start and finish times are now set.
Turning the timer on
3
1
FOR PLAY TIMER
2
Timer operations
4
PLAY /
REC
5
DEMO
DEMO
/ REW /
/ FF/
OFF
PLAY
FOR PLAY TIMER
PLAY
FOR RECORD TIMER
FOR RECORD TIMER
OFF
REC
REC
Press [rPLAY/rREC].
Every time you press the button:
RECPLAY
(OFF)
rPLAY : to turn the play timer on
rREC : to turn the record timer on
Press [f/I, POWER] to turn the unit off.
The unit must be off for the timers to operate.
For play timer
•
The timer play will start at the preset time with volume
increasing gradually up to the volume level you preset.
For record timer
•
The record timer comes on about 30 seconds earlier than
the set time.
To cancel the timer
Press [rPLAY/rREC] to clear the timer indicators from the display.
The timer comes on at the set time everyday if the timer is on.
To change the settings (when unit is on)
To change the play/record times
•
Do steps 1, 2, 3 and 5.
To change the source or volume
•
1. Press [rPLAY/rREC] to clear the timer indicator from the
display.
2. Make changes to the source or volume.
3. Do steps 4 to 5.
22
RQT5706
(Continued on next page)
Page 23
DEMO
PLAY /
REC
Using the timer
Using the play/record timer
To change the timer
Press [rPLAY/rREC] to select the desired timer (when the unit is
on).
Every time the button is pressed the setting changes as follow:
RECPLAY
(OFF)
To check settings
While the unit is on and the “rPLAY” (or “rREC”) indicator is on,
press [CLOCK/TIMER] so “rPLAY” (or “rREC”) appears on the
display.
Two seconds after “rPLAY” (or “rREC”) appear, the settings are
displayed in the following order:
For play timer
•
1 Play start time 1 Recording start time
2 Play finish time 2 Recording finish time
3 Play source 3 Recording source
4 Playback volume
You can check the settings even when the system is OFF by pressing
[CLOCK/TIMER].
To enjoy the desired source after the timer setting is completed
The volume level (for play timer) and music source are stored in the
timer memory and the timer will start in these preset conditions.
However, the Disc numbers and reverse mode do not get stored in
the timer memory.
1. After step 4, start playing the desired source.
2. Reset the Disc numbers and reverse mode if you have changed
any of them, confirm that a Disc or cassette is inserted, then press
[f/7, POWER] to put the unit on standby.
Notes
If you switch the system to the standby mode while the play/record
•
timer is functioning, the OFF time setting will not be activated.
If AUX is selected as the source, when the timer comes ON, the
•
system will turn ON and will engage “AUX” as the source. If you
want to playback or record from a connected component, set the
component’s timer to the same time. (See the instruction manual
that came with the component.)
For record timer
•
Timer operations
23
RQT5706
Page 24
A
B
TUNE
MODE
MUTING
REW/3
FM MODE/BP
SLEEP
CLEAR
REV MODE
FF/4
SOUND EQ
SELECTOR
Using the timer
A
Using the sleep timer
This timer turns your system OFF at the set time (Max. 2 hours,
settable at 30-minute intervals). It lets you fall asleep listening to
music.
by remote control only
Preparation:
Switch on the power.
The figure shows how to set the system to standby mode after 30
minutes.
While enjoying the desired source:
Press [SLEEP] to select the desired time.
Every time you press the button:
→ 30 → 60 → 90 → 120 → OFF
The system is turned off after the set time has elapsed.
To cancel the sleep timer:
Press [SLEEP] to select “OFF”.
To confirm the remaining time:
(only while system is ON)
Press [SLEEP].
To change the time remaining during operation:
Press [SLEEP] to show the remaining time then press [SLEEP] to
select the desired time.
Notes
The sleep timer turns OFF automatically the moment you attempt
•
to edit-record a CD using CD Manager function.
The sleep timer can be used in combination with the play/record
•
timer.
The sleep timer always has priority.
Be sure not to overlap timer settings.
Timer operations
C
Reference
REC
Headphones
(not included)
B
Using an external unit
Listening to an external source
(See page 7 for external unit connection)
1. Press [f/ 7, POWER] to turn the unit on.
2. Press [SELECTOR] to select “AUX”.
Every time you press the button:
CD → TAPE → TUNER → AUX
↑
3. Start playback from the external source. (For details, refer to the
owner’s manual of the equipment.)
Recording from an external source
1. Follow steps 1–3 on page 19.
2. Press [SELECTOR] to select “AUX”.
3. Press [a REC/J] (recording starts).
4. Start playback from the external source. (For details, refer to the
owner’s manual of the equipment.)
Listening with headphones
C
Reduce the volume level, and connect the headphones.
Plug type: 3.5 mm (1/8˝) stereo
Note
Avoid listening for prolonged periods of time to prevent hearing damage.
24
RQT5706
Page 25
Troubleshooting guide
Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a
minor adjustment on your part may eliminate the problem and restore proper operation.
If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of
Authorized Service Centers (enclosed with this unit) to locate a convenient service center, or consult your dealer for instructions.
For detailed instructions, contact an authorized servicenter in the U.S.A. and Panasonic Canada Inc. Customer Care Centre in Canada.
In the U.S.A., call 1-800-211-7262, e-mail [email protected], or visit www.panasonic.com
In Canada, call 905-624-5505 or visit www.panasonic.ca
Reference pages are shown as black circled numbers 6.
Common Problems
No sound.
Sound is unfixed, reversed
or comes from one speaker
only.
Humming heard during play.
“ERROR” is displayed.
“– –:– –” appears on the
display.
“F61” is displayed.
Turn the volume up.
The speaker cables may be shorted. Turn the unit off, check and correct the connections and turn the
unit on. 6
Check the speaker connections. 6
An AC power supply cord or fluorescent light is near the cables. Keep other appliances and cords away
from this unit’s cables.
Incorrect operation performed. Read the instructions and try again.
You plugged the power supply cord in for the first time or there was a power failure recently. Set the time.
9
Check and correct the speaker cords connection.
If this does not fix the problem, there is a power supply problem. Consult the dealer.
Listening to the radio
Noise is heard.
The stereo indicator flickers
or doesn’t light.
Sound is distorted.
A beat sound is heard.
A low hum is heard during
AM broadcasts.
Use an outdoor antenna. 7
Turn the TV off or separate it from the unit.
Separate the antenna from other cables and cords.
Where there is a television set nearby
The picture on the TV
disappears or stripes
appear on the screen.
The location and orientation of the antenna are incorrect. If you are using an indoor antenna, change to
an outdoor antenna.
The TV antenna wire is too close to the unit. Separate the antenna wire of the TV set from the unit.
Using the cassette deck
Poor quality sound.
Recording is not possible.
Clean the heads. Back cover
If the erasure prevention tabs have been removed, cover the holes with adhesive tape. ~
Playing discs
The display is wrong or
play won’t start.
“TAKE OUT/DISC” appears
on the display.
The disc may be upside down.
Wipe the disc.
Replace the disc if it is scratched, warped, or non-standard.
Condensation may have formed inside the unit due to a sudden change in temperature. Wait about an
hour for it to clear and try again.
There is a problem with the disc mechanism. (A power failure may have occurred.)
The tray will open automatically. Remove the disc from the tray, and after ensuring there is no disc in the tray,
close it. The unit will make the disc changing noises for a few moments and then it should operate normally.
The remote control
The remote control doesn’t
work.
Check the batteries are inserted correctly. 5
Replace the batteries if they are worn.
Reference
25
RQT5706
Page 26
Servicenter List (U.S.A.)
Reference
26
RQT5706
Page 27
Warranty (U.S.A.)
ONLY FOR U.S.A.
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation
of America
One Panasonic Way,
Secaucus, New Jersey 07094
Panasonic/Technics Audio Products
Limited Warranty
Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the warrantor”) will repair this product with
new or refurbished parts in the event of a defect in materials or workmanship, free of charge, in the U.S.A. or Puerto Rico as follows (all time
periods start from the date of original purchase):
COMPACT DISC PLAYERS, DIGITAL VERSATILE DISC PLAYERS, RADIOS, RADIO CASSETTE PLAYERS/RECORDERS (with and without CD
Players), CASSETTE RECORDERS, MICROCASSETTE RECORDERS/
TRANSCRIBERS, IC RECORDERS, RECEIVERS, TUNERS, AMPLIFIERS, SUBWOOFER AMPLIFIERS, TURNTABLES, CASSETTE DECKS,
AUDIO PROCESSORS, EQUALIZERS, AUDIO MIXERS, REMOTE CONTROLS, HOME THEATER SYSTEMS (receiver/amplifiers, speakers),
RACK SYSTEMS (receivers, tuners, amplifiers, cassette decks, CD players, equalizers, rack system speakers, EXCLUDING; audio racks)— labor
and parts for one (1) year.
ALL AUDIO RACKS (cabinets)— parts only 30 days.
TECHNICS STAND ALONE SPEAKERS, SUBWOOFER SPEAKERS—
labor and parts for three (3) years.
ACCESSORIES—HEADPHONES, CARTRIDGES, MICROPHONES,
ADAPTERS— labor and parts for ninety (90) days.
BATTERIES— (when applicable)—New rechargeable batteries in exchange for defective rechargeable batteries for ten (10) days. Nonrechargeable batteries are not warranted.
RECHARGEABLE BATTERY PACKS— (when applicable)—New rechargeable battery packs in exchange for defective rechargeable battery
packs for ninety (90) days. Non-rechargeable battery packs are not warranted.
Carry-in or mail-in service in the U.S.A. can be obtained during the
warranty period by contacting a Panasonic Services Company (PASC)
Factory Servicenter listed in the Servicenter Directory. Or call toll free,
1-800-211-7262 to locate a PASC authorized Servicenter. Carry-in or mailin service in Puerto Rico can be obtained during the warranty period by
calling the Panasonic Sales Company telephone number listed in the
Servicenter Directory.
This warranty is extended only to the original purchaser. A purchase
receipt or other proof of date of original purchase will be required before
warranty service is rendered.
Panasonic Sales Company, Division of Matsushita Electric
Corporation of Puerto Rico, Inc.
Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial
Park, Carolina, Puerto Rico 00985
This warranty only covers failures due to defects in materials and workmanship which occur during normal use and does not cover normal wear
to the stylus (when applicable) or a dealer installed cartridge or stylus. The
warranty does not cover damages which occur in shipment or failures
which are caused by products not supplied by the warrantor, or failures
which result from accident, misuse, abuse, neglect, mishandling, faulty installation, misapplication, set-up adjustments, maladjustment of consumer
controls, improper operation or maintenance, improper antenna, inadequate signal reception or pick-up, alteration, modification, power line surge,
improper voltage supply, lightning damage, commercial use, such as; hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a PASC Factory Servicenter or a PASC authorized Servicenter, or damage that is attributable to acts of God.
LIMITS AND EXCLUSIONS
There are no express warranties except as listed above.
THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY,
INCLUDING WITHOUT LIMITATION, DAMAGE TO TAPES, RECORDS
OR DISCS. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING
THE WARRANTIES OF MERCHANTABILITY, AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE APPLICABLE
WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the
exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the above exclusions
or limitations may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
If a problem with this product develops during or after the warranty
period, you may contact your dealer or Servicenter. If the problem is not
handled to your satisfaction, then write to the Consumer Affairs Department at the company address indicated above.
If you ship the product
Carefully pack and send it prepaid, adequately insured and preferably in the original carton.
Attach a postage-affixed letter, detailing the complaint, to the outside of the carton.
Do NOT send the product to the Executive or Regional Sales offices. They are NOT equipped to make repairs.
Customer’s Record
Model
No.
Serial
No.
or
Code
No.
Date
of
Purchase
Dealer’s
Name
Dealer’s
Address
Reference
27
RQT5706
Page 28
Specifications
AMPLIFIER SECTION
Power output
10% Total harmonic distortion
1 kHz, both channels driven 45 W per channel (6 Ω)
70 Hz–16 kHz, both channels driven 40 W per channel (6 Ω)
Input sensitivity
AUX 250 mV
Input Impedance
AUX 13 kΩ
FM TUNER SECTION
Frequency range 87.9 – 107.9 MHz (200 kHz steps)
87.5 – 108.0 MHz (100 kHz steps)
Sensitivity 2.5 µV (IHF)
S/N 26 dB 2.2 µV
Antenna terminal(s) 75 Ω (unbalanced)
AM TUNER SECTION
Frequency range
AM 520 – 1710 kHz (10 kHz steps)
Sensitivity
AM
S/N 20 dB (at 1000 kHz) 560 µV/m
CASSETTE DECK SECTION
Track system 4 track, 2 channel
Heads
Record/playback Solid permalloy head
Erasure Double gap ferrite head
Motor DC servo motor
Recording system AC bias 100 kHz
Erasing system AC erase 100 kHz
Tape speed 4.8 cm/s
Frequency response
(+3 dB, –6 dB at DECK OUT)
NORMAL (TYPE I) 50 Hz – 13 kHz
HIGH (TYPE II) 50 Hz – 13 kHz
S/N 50 dB (A weighted)
Wow and flutter 0.18% (WRMS)
Fast forward and rewind time Approx. 120 seconds with
C-60 cassette tape
CD SECTION
Sampling frequency 44.1 kHz
Decoding 16 bit linear
Beam source/wave length Semiconductor laser/780 nm
Number of channels Stereo
Frequency response 20 Hz–20 kHz (+1, –2 dB)
Wow and flutter Below measurable limit
Digital filter 8 fs
D/A converter MASH (1 bit DAC)
SPEAKER SECTION
Type 2 way speaker system
Speaker(s)
Woofer 12 cm (43/4˝) cone type
Tweeter 6 cm (23/8˝) cone type
Impedance 6 Ω
Input power 100 W (Music)
Output sound pressure level 84 dB/W (1.0 m)
Cross over frequency 5 kHz
Frequency range 50 Hz–22 kHz (–16 dB)
65 Hz–20 kHz (–10 dB)
Dimensions (WxHxD) 150 x 260 x 267 mm
(529/32˝ x 101/4˝ x 101/2˝)
Mass 2.5 kg (5.5 lb)
GENERAL
Power supply AC 120 V, 60 Hz
Power consumption 125 W
Dimensions (WxHxD) 200 x 260 x 345 mm
(77/8˝ x 101/4˝ x 1319/32˝)
Mass 5.6 kg (12.3 lb)
Notes:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Reference
28
RQT5706
Maintenance
If the surfaces are dirty
To clean this unit, wipe with a soft, dry cloth.
If the surfaces are extremely dirty, use a soft cloth dipped in a soapand-water solution or a weak detergent solution.
• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using a chemically treated cloth, carefully read the instruc-
tions that came with the cloth.
For a cleaner, crisper sound
Clean the heads regularly to assure good quality playback and
recording.
Use a cleaning tape (not included).
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
One Panasonic Way Secaucus,
New Jersey 07094
http://www.panasonic.com
©2000 Matsushita Electric Industrial Co., Ltd.
Printed in Malaysia
Panasonic Sales Company,
Division of Matsushita Electric of
Puerto Rico, Inc. (“PSC”)
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
Product Service
Do not attempt to remove the cover(s) or repair the unit yourself.
Refer servicing to qualified personnel only.
Product information
For product service, product information or assistance with product
operation, refer to the servicenter directory.
In the U.S.A., contact the Panasonic Customer Call Center at 1800-211-7262, or email [email protected], or
web site (http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre
at 905-624-5505, web site (www.panasonic.ca), or an authorized
Servicentre closest to you.
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
En
RQT5706-2P
P1100KL2071
Loading...
