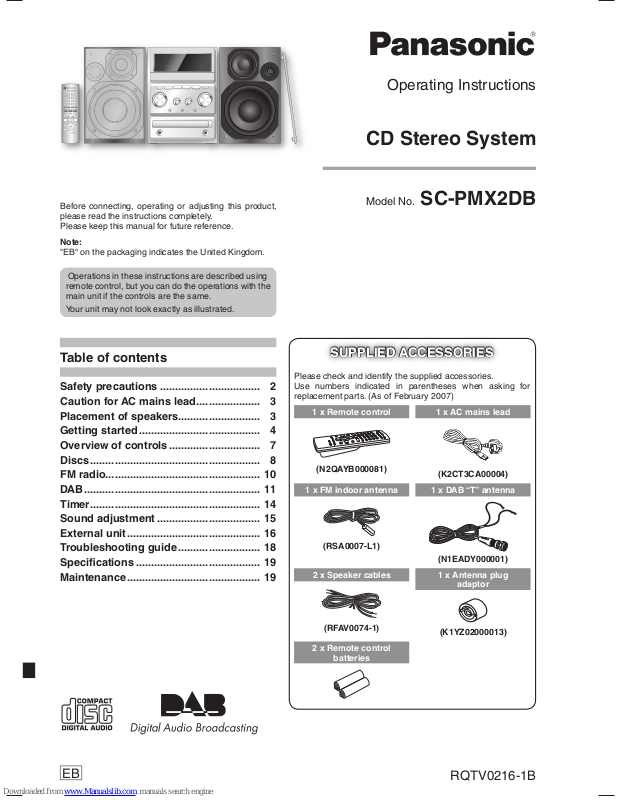

Panasonic SA-PMX2DB, SB-PMX2 Operating Instructions Manual

Page 1

CD Stereo System

Model No. SC-PMX2DB

RQTV0216-1B

Operating Instructions

Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.

Note:

"EB" on the packaging indicates the United Kingdom.

Operations in these instructions are described using remote control, but you can do the operations with the main unit if the controls are the same.

Your unit may not look exactly as illustrated.

SUPPLIED ACCESSORIES

Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts. (As of February 2007)

1 x Remote control

(N2QAYB000081)

1 x AC mains lead

(K2CT3CA00004)

1 x FM indoor antenna

(RSA0007-L1)

1 x DAB “T” antenna

(N1EADY000001)

2 x Speaker cables

(RFAV0074-1)

1 x Antenna plug

adaptor

(K1YZ02000013)

2 x Remote control

batteries

Table of contents

Safety precautions ................................. 2

Caution for AC mains lead ..................... 3

Placement of speakers ........................... 3

Getting started ........................................ 4

Overview of controls .............................. 7

Discs ........................................................ 8

FM radio ................................................... 10

DAB .......................................................... 11

Timer ........................................................ 14

Sound adjustment .................................. 15

External unit ............................................ 16

Troubleshooting guide ........................... 18

Speciﬁ cations ......................................... 19

Maintenance ............................................ 19

Page 2

RQTV0216

Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.

These operating instructions are applicable to the following system.

System SC-PMX2DB

Main unit SA-PMX2DB

Speakers SB-PMX2

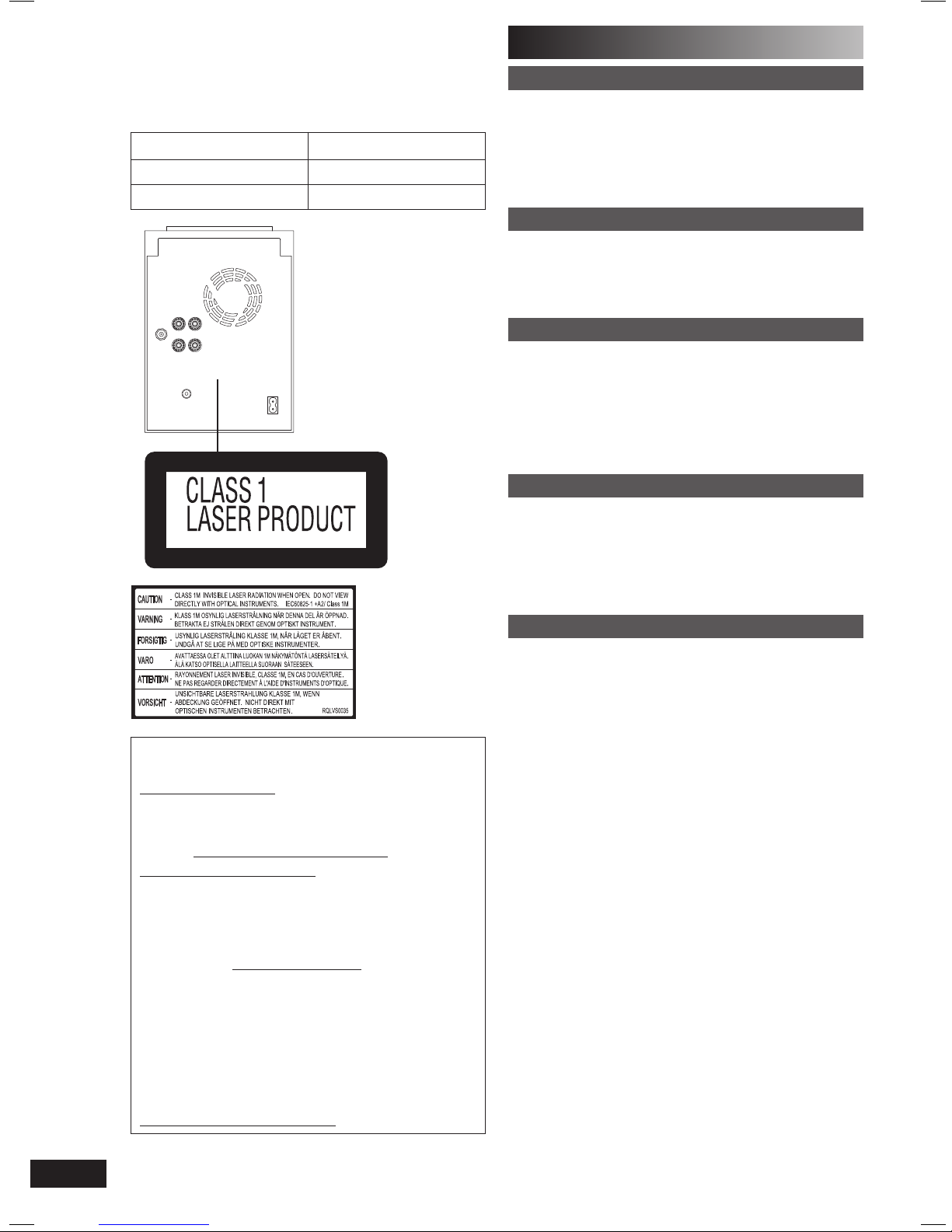

Back of product

Inside of product

■ Sales and Support Information (For the United Kingdom and Republic of Ireland)

Customer Care Centre

• For UK customers: 08705 357357

• For Republic of Ireland customers: 01 289 8333

• Visit our website for product information

• E-mail: [email protected] Direct Sales at Panasonic UK

• Order accessory and consumable items for your product with ease and conﬁ dence by phoning our Customer Care Centre Monday-Friday 9:00am-5:30pm. (Excluding public holidays)

• Or go on line through our Internet Accessory ordering application at www.panasonic.co.uk

• Most major credit and debit cards accepted.

• All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.

• It couldn’t be simpler!

• Also available through our Internet is direct shopping for a wide range of ﬁ nished products, take a browse on our website for further details.

Interested in purchasing an extended guarantee? Please call 0870 240 6284 or visit our website www.panasonic.co.uk/guarantee.

Safety precautions

Placement

Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit’s service life.

Place it at least 15 cm away from wall surfaces to avoid distortion and unwanted acoustical effects.

Do not place heavy items on the unit.

Voltage

Do not use high voltage power sources. This can overload the unit and cause a ﬁ re.

Do not use a DC power source. Check the source carefully when setting the unit up on a ship or other place where DC is used.

AC mains lead protection

Ensure the AC mains lead is connected correctly and not damaged. Poor connection and lead damage can cause ﬁ re or electric shock. Do not pull, bend, or place heavy items on the lead.

Grasp the plug ﬁ rmly when unplugging the lead. Pulling the AC mains lead can cause electric shock.

Do not handle the plug with wet hands. This can cause electric shock.

Foreign matter

Do not let metal objects fall inside the unit. This can cause electric shock or malfunction.

Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer.

Do not spray insecticides onto or into the unit. They contain ﬂ ammable gases which can ignite if sprayed into the unit.

Service

Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these instructions occurs, disconnect the AC mains lead and contact your dealer or an authorized service center. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unqualiﬁ ed persons.

Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time.

Page 3

RQTV0216

ENGLISH

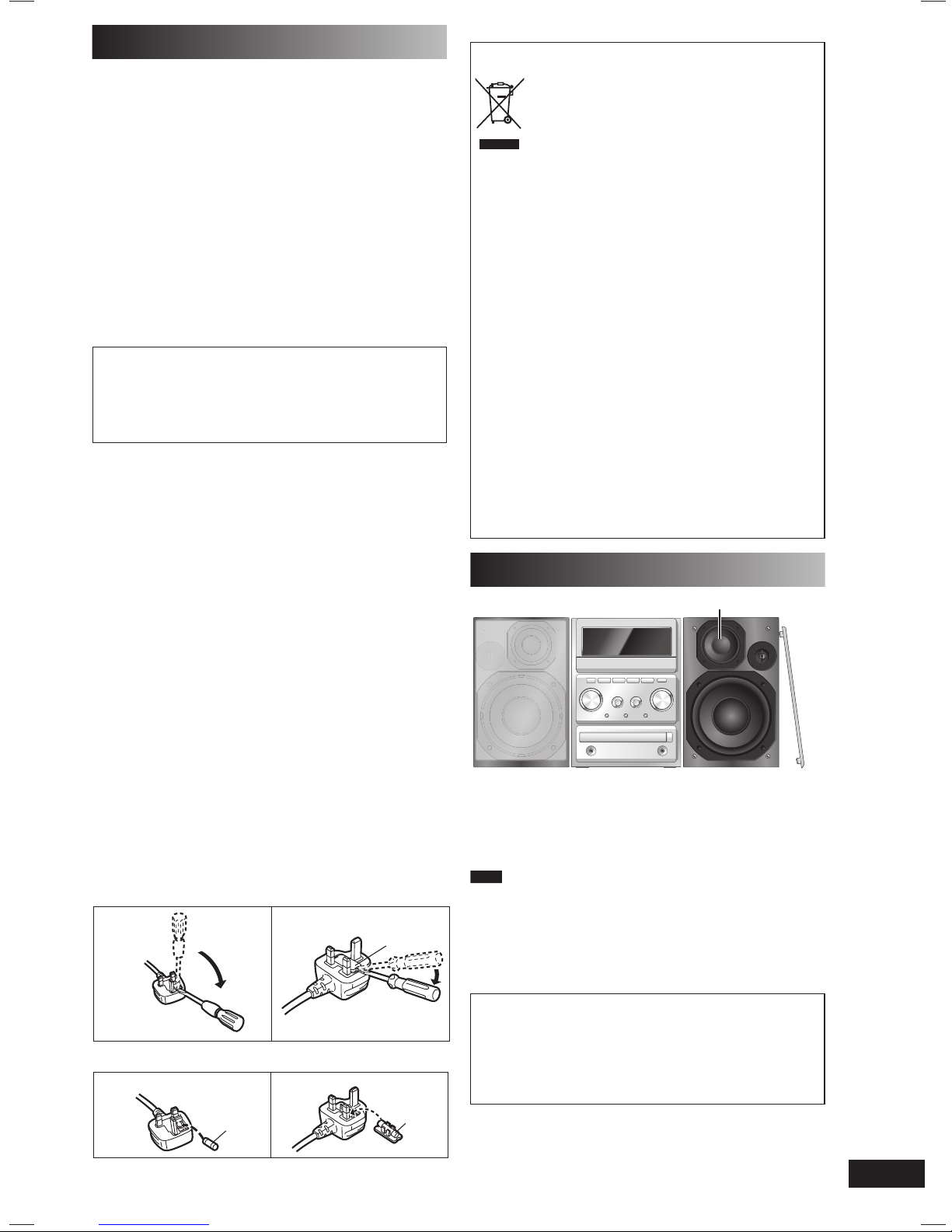

Placement of speakers

Tweeter

Place the speakers so that the tweeter is on the inside.

Use only the supplied speakers.

The combination of the main unit and speakers provide the best sound. Using other speakers can damage the unit and sound quality will be negatively affected.

Note

• Keep your speakers at least 10 mm away from the system for proper ventilation.

• These speakers do not have magnetic shielding. Do not place them near televisions, personal computers or other devices easily inﬂ uenced by magnetism.

• To avoid damage to the speakers, do not touch the speaker cones if you have taken the nets off.

Caution

• Use the speakers only with the recommended system. Failure to do so can damage the ampliﬁ er and speakers, and can cause ﬁ re. Consult a qualiﬁ ed service person if damage occurs or if a sudden change in performance is apparent.

• Do not attach these speakers to walls or ceilings.

– If you see this symbol –

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Caution for AC mains lead

(For United Kingdom)

(“EB” area code model only)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5-ampere fuse is ﬁ tted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark m or the BSI mark o on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is reﬁ tted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUI T ABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE RE MOVED AND THE PLUG CUT OFF AND DIS POSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRI CAL SHOCK IF THE CUT OFF PLUG IS IN SERTED INTO ANY 13-AMPERE SOCKET.

If a new plug is to be ﬁ tted please observe the wiring code as stated below. If in any doubt please consult a qualiﬁ ed electrician.

IMPORTANT

The wires in this mains lead are coloured in accor dance with the following code: Blue: Neutral, Brown: Live. As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or col oured Black or Blue. The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL n OR COLOURED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF—KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (ﬁ gures A and B). Conﬁ rm the AC mains plug ﬁ tted and follow the instructions below. Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

Fuse cover

Figure A Figure B

2. Replace the fuse and close or attach the fuse cover.

Fuse (5 ampere)

Figure A Figure B

Page 4

RQTV0216

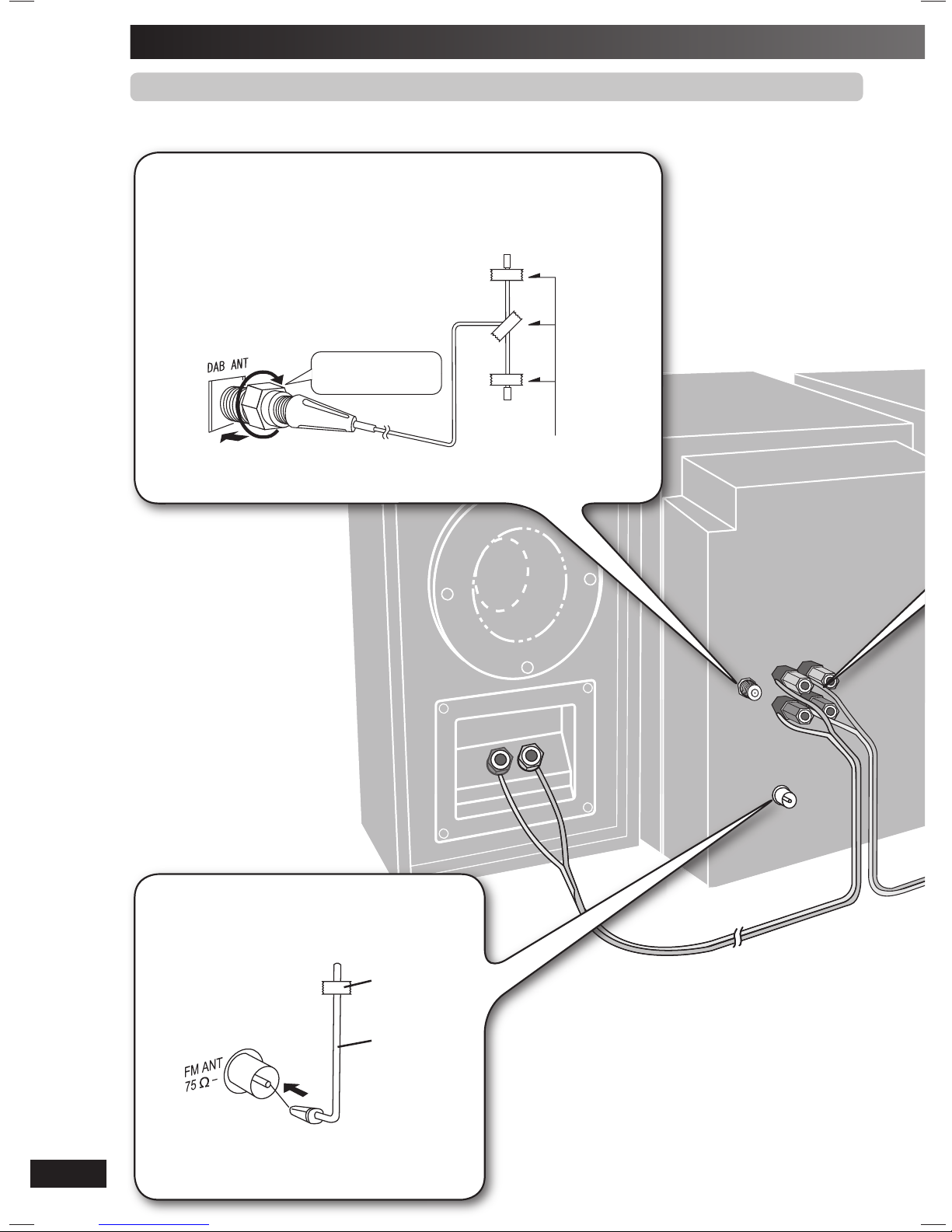

Getting started

Step 1

- Making the connections

Connect the AC mains lead only after all other connections have been made.

Connect the DAB “T” antenna

The cross bar of the T should be kept ﬁ rmly stretched. Find a position with good reception. There is a function on the unit to check signal quality.

For best reception

A DAB outdoor antenna is recommended (➡ page 6).

Be sure to fully tighten the screw.

Tape the antenna to a wall or column, in a position with least amount of interference.

Connect the FM indoor antenna.

Adhesive tape

FM indoor antenna

Page 5

RQTV0216

ENGLISH

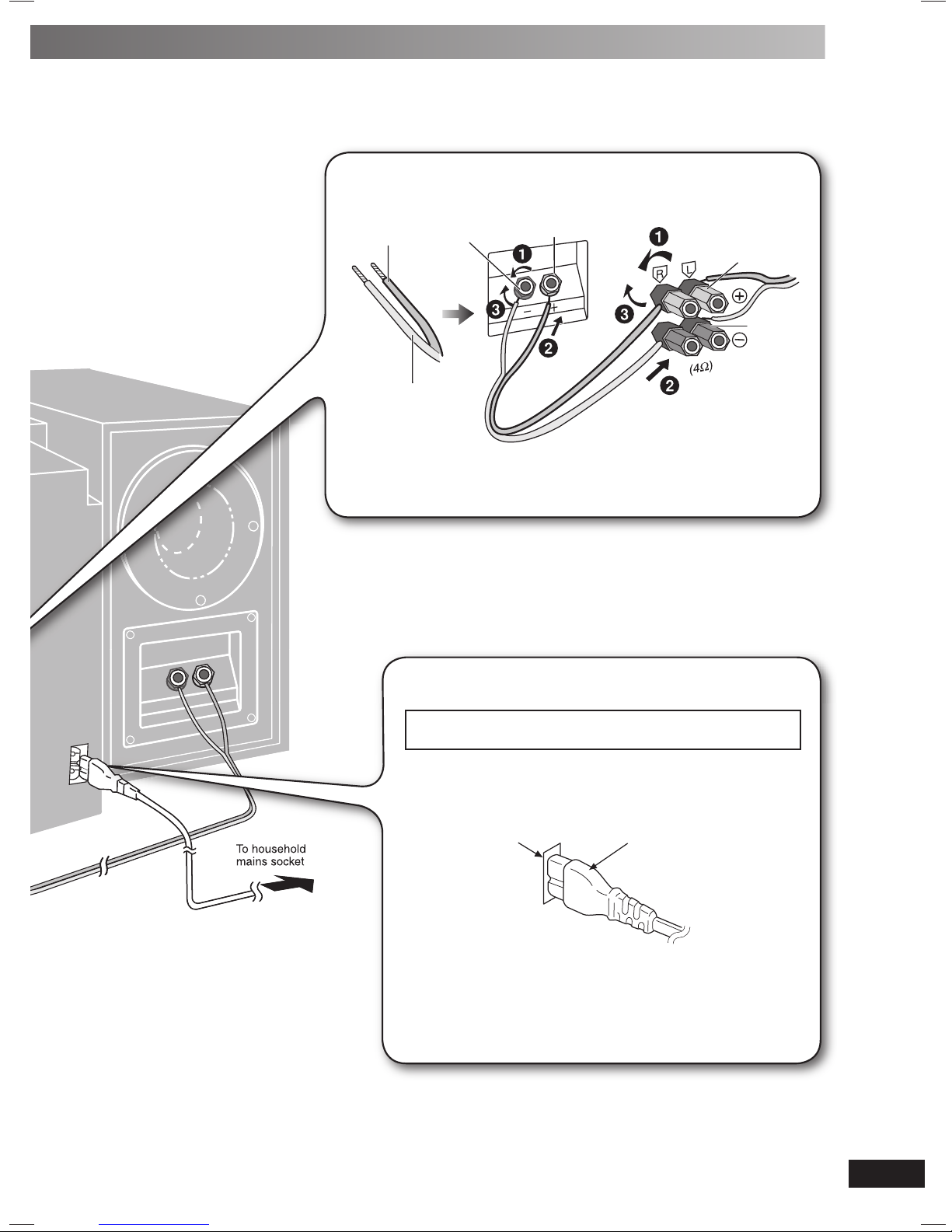

To household mains socket

Connect the AC mains lead.

READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 3 BEFORE CONNECTION.

The included AC mains lead is for use with this unit only. Do not use it with other equipment.

Insertion of connector

Even when the connector is perfectly inserted, depending on the type of inlet used, the front part of the connector may jut out as shown in the drawing. However there is no problem using the unit.

Connect the speaker cables.

Incorrect connection can damage the unit.

Copper (ª)

Silver (·)

Red (ª)

Black (·)

Red (ª)

Black (·)

Connector

Appliance inlet

Page 6

RQTV0216

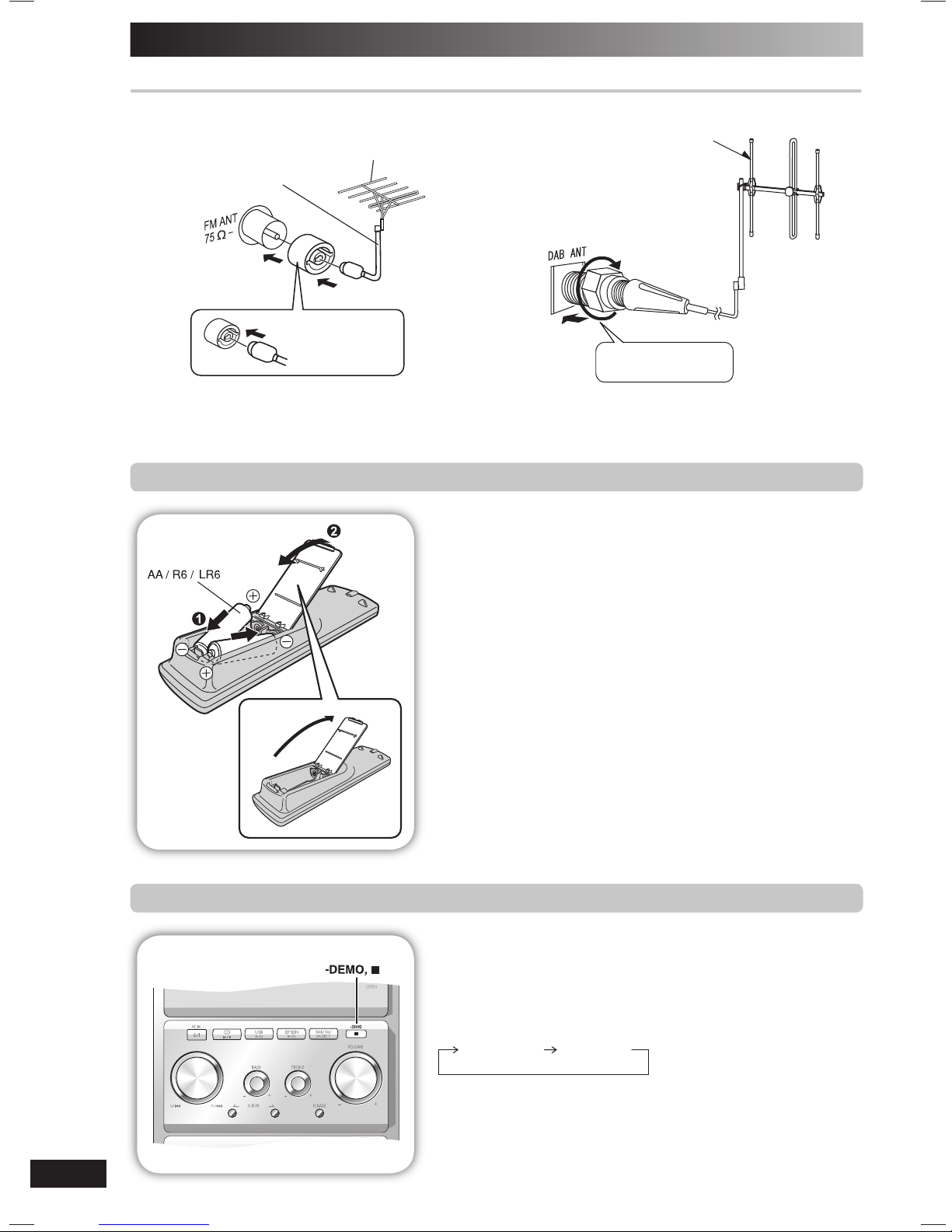

Optional antenna connections

FM outdoor antenna DAB outdoor antenna

5SETHEANTENNA PLUGADAPTOR

INCLUDED

FM outdoor antenna

(not included)

75 Ω coaxial cable

(not included)

Be sure to fully tighten the screw.

DAB outdoor antenna

(not included)

• Never use an outdoor antenna during a lightning storm.

• You can connect the FM outdoor antenna for better reception. Please consult your dealer for installation.

• Disconnect the FM indoor antenna if an FM outdoor antenna is installed.

Step 2

- Inserting batteries into the remote control

■ Batteries

• Insert so the poles (+ and –) match those in the remote control.

• Remove if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

• Do not use rechargeable type batteries.

• Mishandling of batteries in the remote control can cause electrolyte leakage, which may cause a ﬁ re.

Do not:

• mix old and new batteries;

• use different types of batteries at the same time;

• heat or expose to ﬂ ame;

• take apart or short-circuit;

• attempt to recharge alkaline or manganese batteries;

• use batteries if their covering has been peeled off.

■ Use

Aim at the remote control sensor, avoiding obstacles, at a maximum range of 7

m directly in front of the unit.

Refer to page 7 for remote control signal sensor position.

Step 3

- DEMO function

When the unit is ﬁ rst plugged in, a demonstration of its functions may be shown on the display. If the demo setting is off, you can show a demonstration by selecting “DEMO ON”.

Press and hold [–DEMO, 7].

The display changes each time the button is held down.

$%-//&& $%-//.

While in standby mode, select “DEMO OFF” to reduce power consumption.

Getting started (continued)

Page 7

RQTV0216

ENGLISH

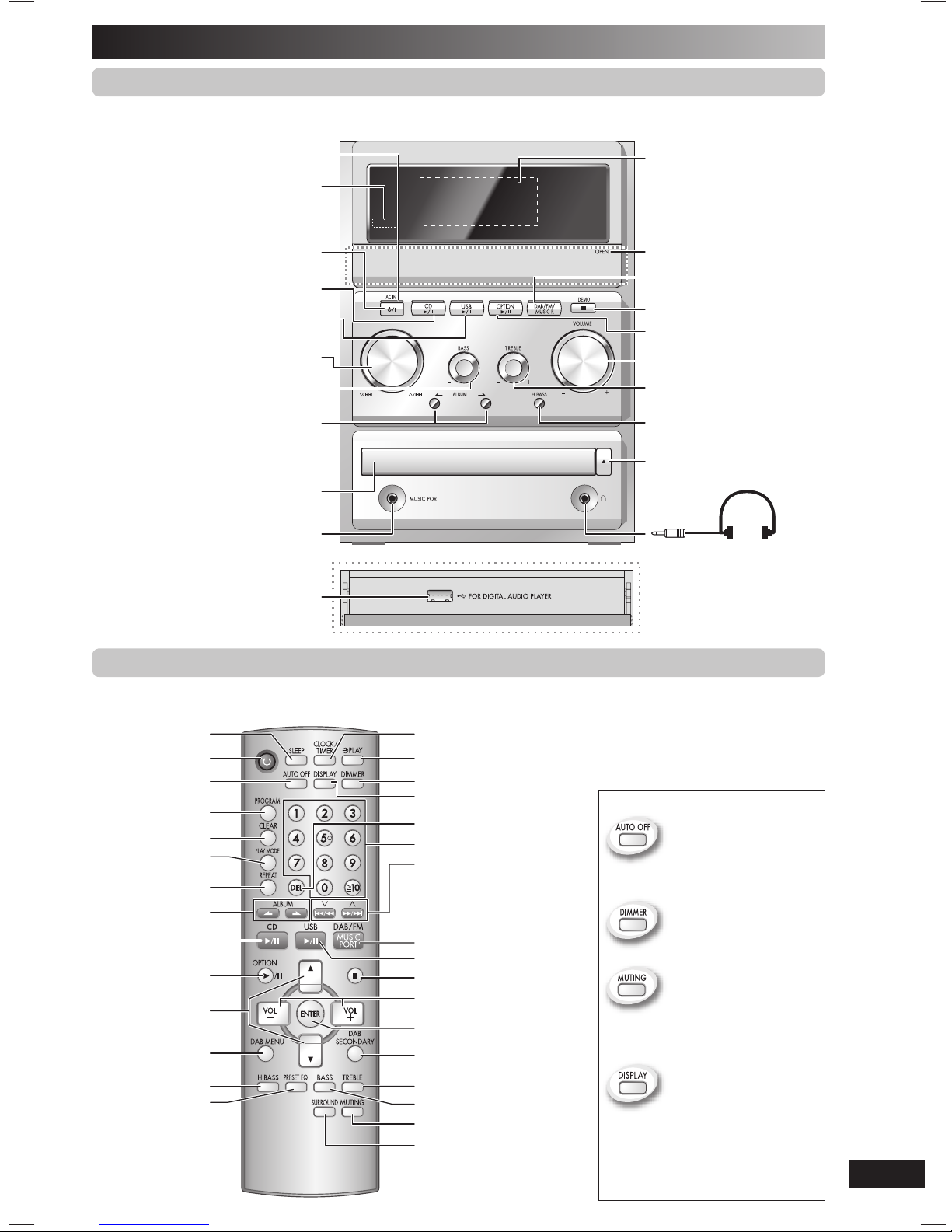

Main unit

Refer to the numbers in parentheses for page reference.

Remote control

Buttons such as 1 function the same as the controls on the main unit.

Overview of controls

This function allows you to turn off the unit in disc or USB mode only after left unused for 10 minutes.

The setting is maintained even if the unit is turned off.

Dims the display panel.

Mutes the sound.

• Press the button to activate.

• Press again to cancel.

This function allows you to scroll the display setting faster than current setting.

• Press and hold [DISPLAY] untill the “FAST SCROLLING ON” is displayed.

• To cancel, press and hold [DISPLAY] again unit “FAST SCROLLING OFF” is displayed.

6 Option play/pause (17)

Disc tray (8)

7 Volume control

Disc tray open/close (8)

Track skip, tune/preset channel

selections, time adjustment

Remote control sensor

Stop/Demo (6, 8, 9, 16, 17)

5 DAB/FM radio, music port selection (10, 12, 17)

Music port jack (17)

Display panel

1 Standby/on switch (y/l) (8, 15)

Press to switch the unit from on

to standby mode or vice versa.

In standby mode, the unit is still

consuming a small

amount of power.

3 USB play/pause (16)

Bass adjustment (15)

Treble adjustment (15)

2 Disc play/pause (8, 9)

8 H.BASS selection (15)

4 Album selection (8, 9, 13, 16)

USB jack cover open (16)

Headphone jack (

Avoid listening for prolonged periods of time to prevent hearing damage. Plug type: 3.5 mm stereo (not included)

AC supply indicator (AC IN)

This indicator lights when the unit is

connected to the AC mains supply.

USB jack (16)

Clock/Timer (14, 15)

Play timer (15)

Numeric (8, 9, 10, 12, 16, 17)

Delete (9)

Surround (15)

Program (9, 10, 12)

Clear (9)

Play mode (8, 10, 12)

Preset EQ (15)

Sleep timer (14)

Treble (15)

Track skip/search, tune/ preset channel selections, time adjustment (8, 9, 10, 12, 14 to 17)

Repeat (9)

Bass/Treble

adjustment (15)

Dimmer Display (8)

5 3

Stop (8, 9, 16, 17)

Bass (15)

Auto off

Enter (9, ,13, 17)

Muting

DAB secondary (12)

DAB menu (13)

Page 8

RQTV0216

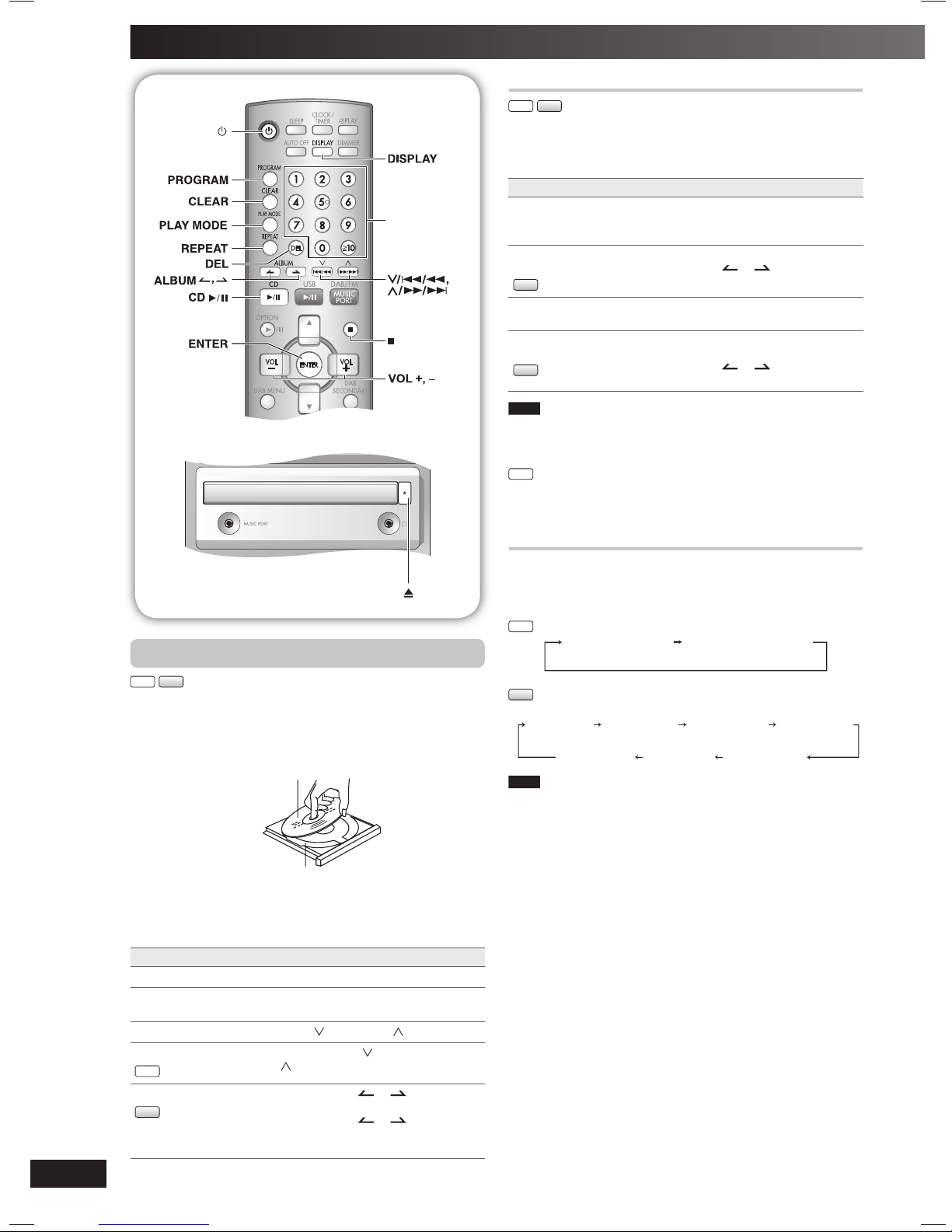

Discs

Numeric buttons

Basic play

MP3

Press [y] to turn the unit on.

Press [0] to open the disc tray and then load the disc. Press [0] again to close the tray.

Label must face upward

Disc tray

Press [CD 6] to start play.

Adjust the volume.

To Action

stop the disc

Press [7].

pause play Press [CD 6]. Press again to

resume play.

skip tracks

Press

[ /4/1] or [ /¡/¢].

search through tracks

Press and hold [ /4/1] or [ /¡/¢] during play or pause.

skip album

MP3

Press [ALBUM or ] in the play mode. Press [ALBUM

or ] once and then the numeric buttons in the stop mode.

Play Mode function

MP3

Press [CD 6].

Press [PLAY MODE] to select the desired mode.

Mode To play

1-TRACK

1TR

one selected track on the disc. Press the numeric buttons to select the track.

1-ALBUM

1ALBUM

MP3

one selected album on the disc. Press [ALBUM

or ] to select the

album.

RANDOM

RND

a disc randomly.

1-ALBUM RANDOM

1ALBUM RND

MP3

all tracks in one selected album randomly. Press [ALBUM

or ] to select the

album.

Note

• During RANDOM or 1-ALBUM RANDOM play, you cannot skip to tracks that have been played.

• The current play mode is cleared when you open the disc tray.

• During RANDOM play, you can search backward or forward only within the current track.

Display function

This function allows you to display the information of the current track.

Press [DISPLAY] repeatedly during play or pause mode.

Elapsed play time Remaining play time

MP3

Elapsed

play time

Remaining

play time

Album name Track name

ID3 (Artist) ID3 (Track) ID3 (Album)

Note

• Maximum number of displayable characters: approximately 30

• This unit supports ver. 1.0 & 1.1 ID3 tags. Text data that is not supported will not be displayed.

• ID3 is a tag embedded in MP3 tracks to provide information about the track.

Page 9

RQTV0216

ENGLISH

Advanced play

Repeat play

You can repeat program play or other selected play mode.

CD MP3

Press [REPEAT] before or during play.

“ ” is displayed.

To cancel

Press [REPEAT] again.

“

” is cleared.

Program play

This function allows you to program up to 24 tracks.

Press [CD 6] and then [7].

Press [PROGRAM].

Press the numeric buttons to select your desired track.

Repeat this step to program other tracks.

Press [CD 6] to start play.

MP3

Press [CD 6] and then [7].

Press [PROGRAM].

Press [ALBUM or ] to select your desired album.

Press [ /¡/¢] once and then the numeric buttons to select your desired track.

Press [ENTER].

Repeat steps 3 to 5 to program other tracks.

Press [CD 6] to start play.

For two-digit track, press [h10] once, and then the two digits. For three-digit track, press [h

10]

twice, and then the three digits.

To Action

cancel program mode

Press [PROGRAM] in the stop mode.

replay the program Press [PROGRAM] then [CD 6].

check program contents

Press

[ /4/1] or [ /¡/¢] when

“PGM” is displayed in the stop mode. To check while programming, press [PROGRAM] twice after “PGM” appears, then press

[ /4/1] or [ /¡/¢].

add to the program

Repeat step 3 in the stop mode.

MP3

Repeat steps 3 to 5 in the stop mode.

clear the last track Press [DEL] in the stop mode.

clear all programmed tracks

Press [CLEAR] in the stop mode. “CLEAR ALL” is displayed.

Note

• When you try to program more than 24 tracks “PROGRAM FULL” appears.

• The program memory is cleared when you open the disc tray.

• During program play, you can search backward or forward only within the current track.

Note

• This unit can play MP3 ﬁ les and CD-DA format audio CD-R/RW that have been ﬁ nalized.

• It may not be able to play some CD-R/RW depending on the condition of the recording.

• Do not use irregularly shaped discs.

• Do not use discs with labels and stickers that are coming off or with adhesive exuding from under labels and stickers.

• Do not attach extra labels or stickers on the disc.

• Do not write anything on the disc.

• This unit can access up to 99 tracks.

• Choose a CD with this mark:

Using DualDiscs

The “CD” sides of DualDiscs do not meet the CD-DA standard so it may not be possible to play them on this unit.

MP3

• Files are treated as tracks and folders are treated as albums.

• This unit can access up to 999 tracks, 255 albums and 20 sessions.

• Files must have the extension: “.MP3” or “.mp3”.

• Disc must conform to ISO9660 level 1 or 2 (except for extended formats).

• To play in a certain order, preﬁ x the folder and ﬁ le names with the 3-digit numbers in the order you want to play them.

Page 10

RQTV0216

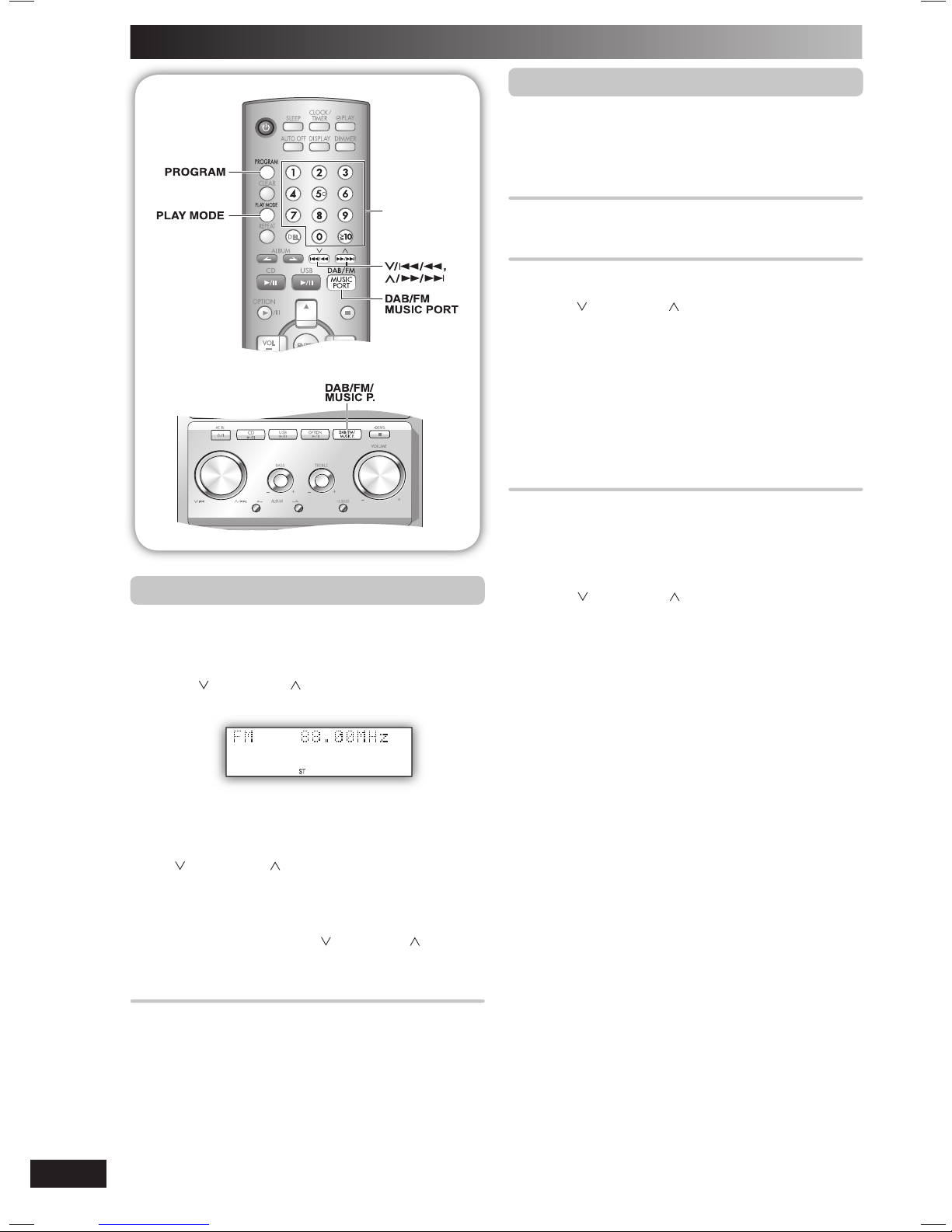

FM radio

Numeric buttons

Manual tuning

Press [DAB/FM/MUSIC PORT] repeatedly to enter FM mode.

Press [PLAY MODE] to select “MANUAL”.

Press [ /4/1] or [/¡/¢] to select the frequency of the required station.

“

” is displayed when a stereo FM broadcast is being

received.

To tune automatically

Press

[ /4/1] or [ /¡/¢] for a moment until the

frequency starts changing rapidly. The unit begins auto tuning, stopping when it ﬁ nds a station.

• Auto tuning may not function when there is excessive interference.

• To cancel auto tuning, press [ /4/1] or [ /¡/¢] once again.

To improve FM sound quality

Press and hold [PLAY MODE] to display “MONO”.

To cancel

Press and hold [PLAY MODE] again until “MONO” disappears.

• MONO is also cancelled if the frequency is changed.

• Turn off “MONO” for normal listening.

Memory preset

Up to 20 stations can be set in the FM band.

Preparation

Press [DAB/FM/MUSIC PORT] repeatedly to select “FM”.

Automatic presetting

Press and hold [PROGRAM] to start presetting.

Manual presetting

Press [PLAY MODE] to select “MANUAL”.

Press [ /4/1] or [/¡/¢] to tune to the required station.

Press [PROGRAM].

Press numeric buttons to select a channel.

The station occupying a channel is erased if another station is preset in that channel.

Repeat steps 2 to 4 to preset more stations.

Selecting a preset station

Press numeric buttons to select the channel.

For two-digit channel, press [h10], then the two digits.

Press [PLAY MODE] to select “PRESET”.

Press [ /4/1] or [/¡/¢] to select the channel.

Page 11

RQTV0216

ENGLISH

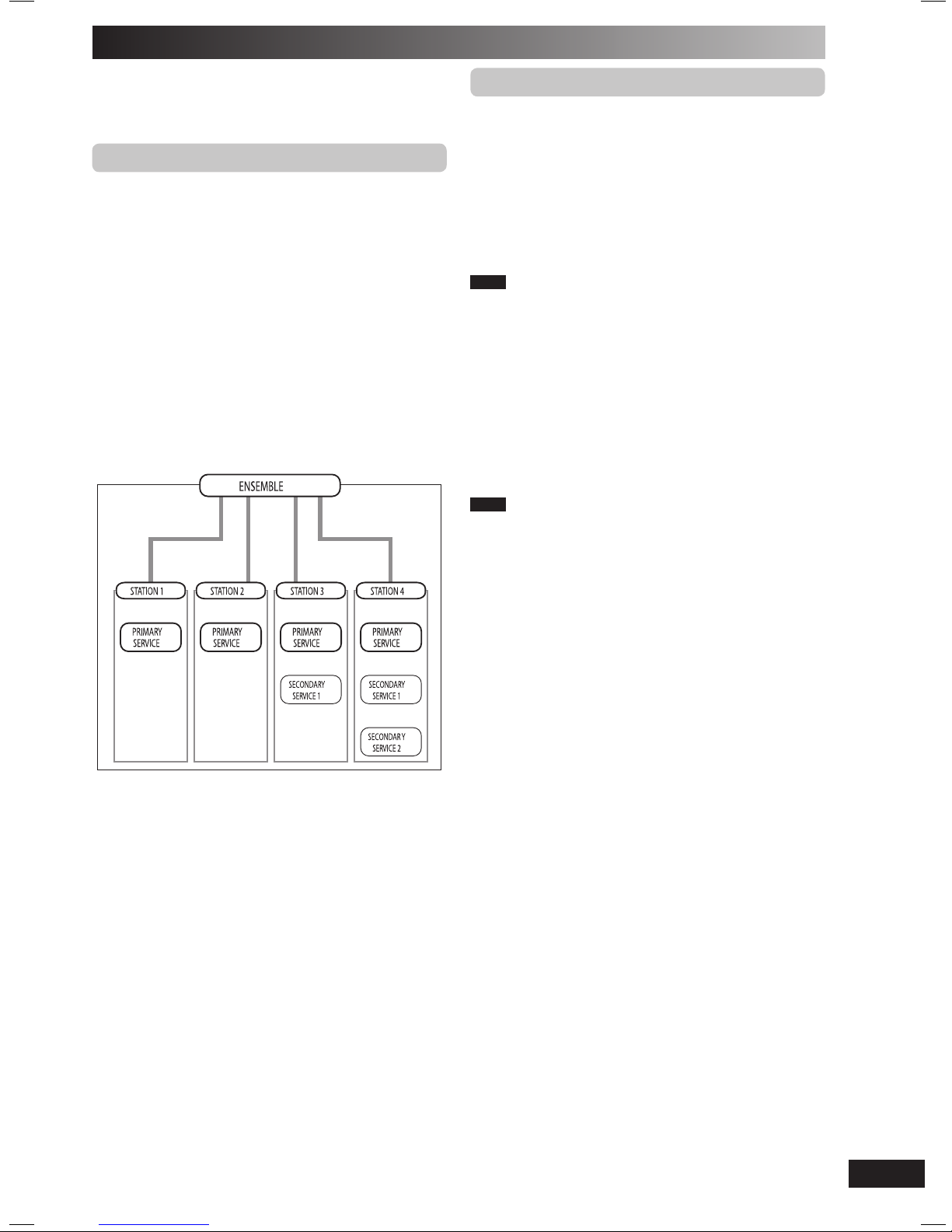

DAB

DAB stands for digital audio broadcasting. It is a new form of radio that is broadcast digitally. Unlike regular analogue broadcasting, digital radio deteriorates less, and is thus able to provide quality sound close to that of a disc.

DAB structure

Bands

There are two types of DAB bands, “BAND III” (Receivable in this unit) and “L BAND”(Not broadcast in the United Kingdom, and not receivable on this unit).

Frequencies

There are 41 frequencies on BAND III. Among those frequencies, 7 are used in the United Kingdom (current as of February, 2007).

Ensemble, station and service

The number of stations that make up one frequency differ between DAB and analogue radio. Analogue stations all broadcast on different frequencies, even if it is the same company doing the broadcasting. With DAB however, it is possible to broadcast a number of stations on the same frequency. In DAB terminology, a group of stations on the same frequency is called an ensemble.

As shown in the diagram, an ensemble consists of a group of stations which have primary services, they can also have secondary services. This means, for example, that commentary on sports events from different areas can all be broadcast at once.

DAB reception method on this unit

Depending on the region there is a difference between broadcast frequency and stations broadcast along the same frequency. For this reason, a memory of receivable stations should ﬁ rst be created and then select from those memorized stations as the reception method.

DAB Auto Scan

This function searches for currently receivable stations and inputs them into unit memory. When DAB is selected for the ﬁ rst time, this function starts automatically.

Note

Even if the station is stored into memory, some stations may not broadcast depending on the time of day etc. If this occurs,“NO SERVICE” is displayed.

Station Memory Updating

When there is a station name change, or a new station begins broadcasting, the unit memory is automatically updated when:

• The previous station name is displayed by selecting “STATION TUNE”.

• One of the stations already broadcasting on the same frequency with the new station is displayed by selecting “STATION TUNE”.

Note

• Deleting stations that are no longer broadcasting is not automatic. If

you want to delete a station, perform Auto scan again and the new memory is created.

• When a new frequency begins broadcasting, stations on that new

frequency are not automatically added to memory. Perform Auto scan to add them to memory. Also, you may need to change the Auto scan range if the new frequency is outside the factory set Auto

scan range (

➡ page 13).

STATION TUNE

You can select stations from the memory created as shown above in alphanumeric order. You can easily select your favorite stations by using presets (➡ page 12).

Page 12

RQTV0216

Numeric buttons

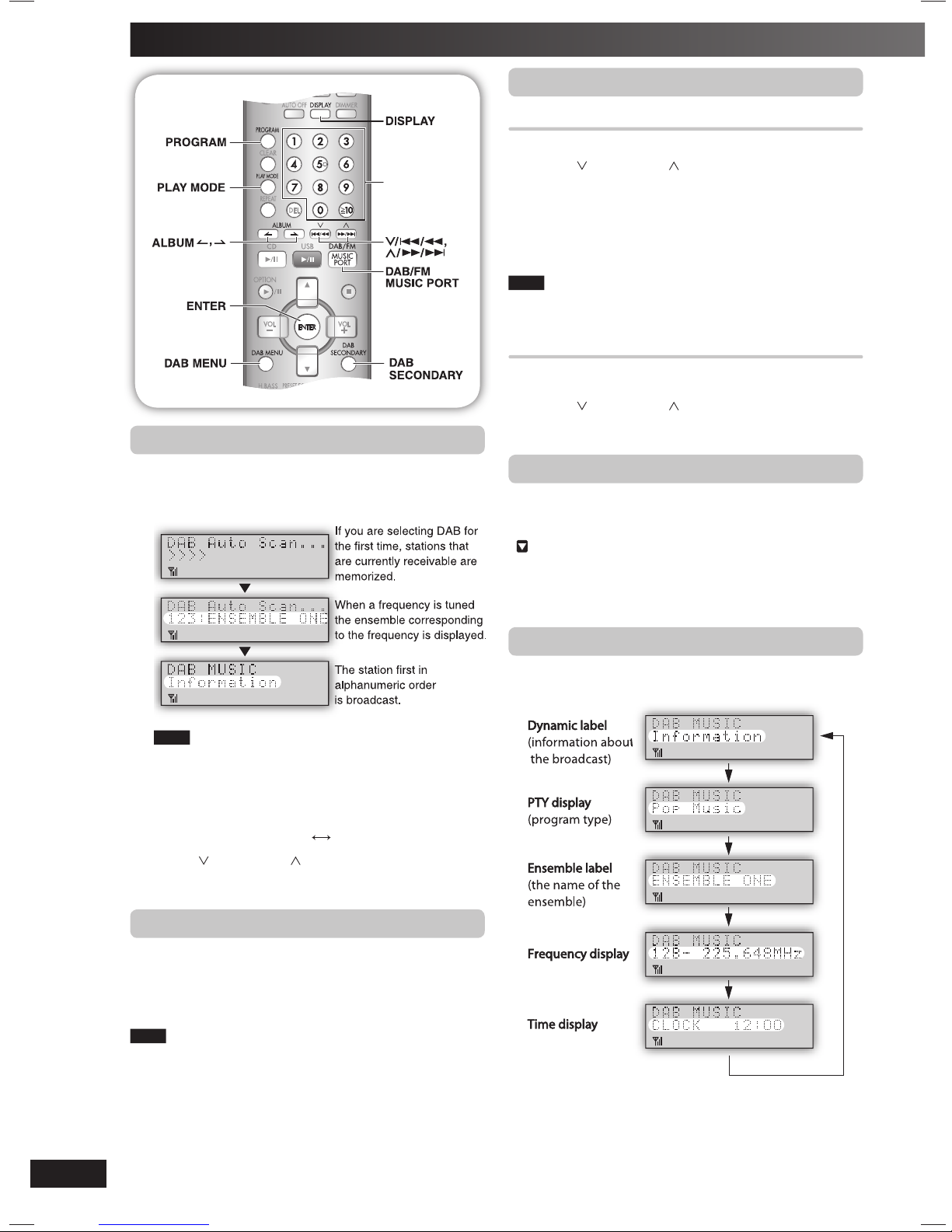

DAB operation

Press [DAB/FM/MUSIC PORT] repeatedly to enter DAB mode.

The unit comes on.

Note

“Scan Failed.” appears if no stations are memorized. If this occurs, adjust the antenna and try Auto scanning or change the Auto scan frequency range. (➡ page 13)

Press [PLAY MODE] to select “STATION TUNE”.

Each time you press the button:

“STATION TUNE”

“PRESET TUNE”

Press [ /4/1] or [ /¡/¢] to select a station.

The station name changes in alphanumeric order.

DAB Auto Scan

Press and hold [PLAY MODE] until “DAB Auto Scan” appears.

When a frequency is tuned by Auto scanning on this unit, the ensemble corresponding to the frequency is displayed for approximately 2 seconds.

Note

• When updating memory with Auto scan, preset stations are not erased or changed.

• When a frequency cannot be received, the previous memory is restored.

• Total stations received is displayed for approximately 2 seconds.

Presetting

Presetting channel

Up to 20 channels can be set.

Press [ /4/1] or [ /¡/¢] to select a station.

Press [PROGRAM].

Press the numeric buttons to select a channel.

To preset more stations, press [PLAY MODE] to select “STATION TUNE” and then repeat steps 1 to 3.

Note

You cannot preset stations when the station is not broadcasting or when you are selecting a secondary service.

Selecting a preset channel

Press [PLAY MODE] to select “PRESET TUNE”.

Press [ /4/1] or [ /¡/¢] or numeric buttons to select a channel.

Listening to the secondary service

Press the [DAB SECONDARY] to select the secondary service.

“

” is displayed if there is a secondary service broadcast.

The secondary services are selected each time the button is pressed. The primary service is returned to after the last secondary service.

Display

Press [DISPLAY] to select the display.

Each time you press the button:

DAB (continued)

Page 13

RQTV0216

ENGLISH

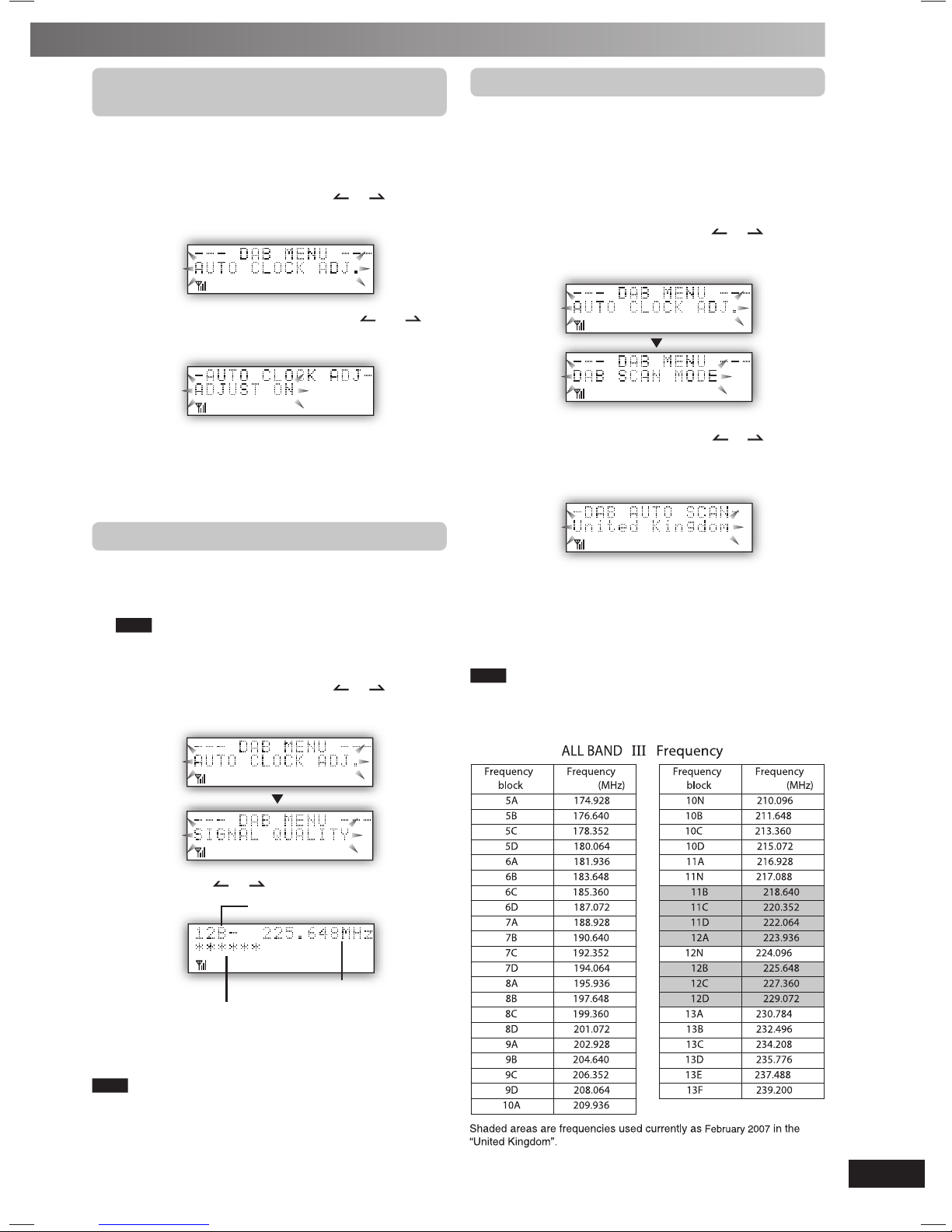

Changing the Auto scan frequency range

Only the frequencies currently used in the UK as of February 2007 on BAND III are Auto scanned (“United Kingdom”, factory setting).

Select “ALL BAND III” when you want to store stations on other frequencies to memory.

Press [DAB MENU] to enter menu mode.

Within 10 seconds, press [ALBUM or ] to select “DAB SCAN MODE” and then press [ENTER].

Within 10 seconds, press [ALBUM or ] to select “United Kingdom” or “ALL BAND III” and then press [ENTER].

Auto scan begins automatically after the change has been made.

To exit

Press [DAB MENU] again

Note

When the “DAB SCAN MODE” is changed, the DAB preset channels are erased and if the DAB play timer has been set the timer switches to off.

Turning automatic clock adjustment

function on

To adjust the time information during DAB broadcasting and automatic time adjustment.

Press [DAB MENU] to enter menu mode.

Within 10 seconds, press [ALBUM or ] to select “AUTO CLOCK ADJ.” and then press [ENTER].

Within 10 seconds, press [ALBUM or ] to select “ADJUST ON” and then press [ENTER].

Select “ADJUST OFF” to turn the automatic clock adjustment function off.

To exit

Press [DAB MENU] again.

Checking the DAB signal quality

To improve reception by adjusting the antenna while monitoring signal quality on the display.

Press [DAB MENU] to enter menu mode.

Note

“Scan Failed.”appears if no stations are memorized. If this occurs, adjust the antenna and try Auto scanning or change the Auto scan frequency range.

Within 10 seconds, press [ALBUM or ] to select “SIGNAL QUALITY” and then press [ENTER].

Press [ALBUM or ] to select the frequency.

Frequency block

Reception quality

0 (poor) − 16 (excellent)

Frequency

To exit

Press [DAB MENU] again.

Note

In order to enjoy the new stations after adjusting the antenna, it is necessary to perform Auto scanning to update the station memory.

Page 14

RQTV0216

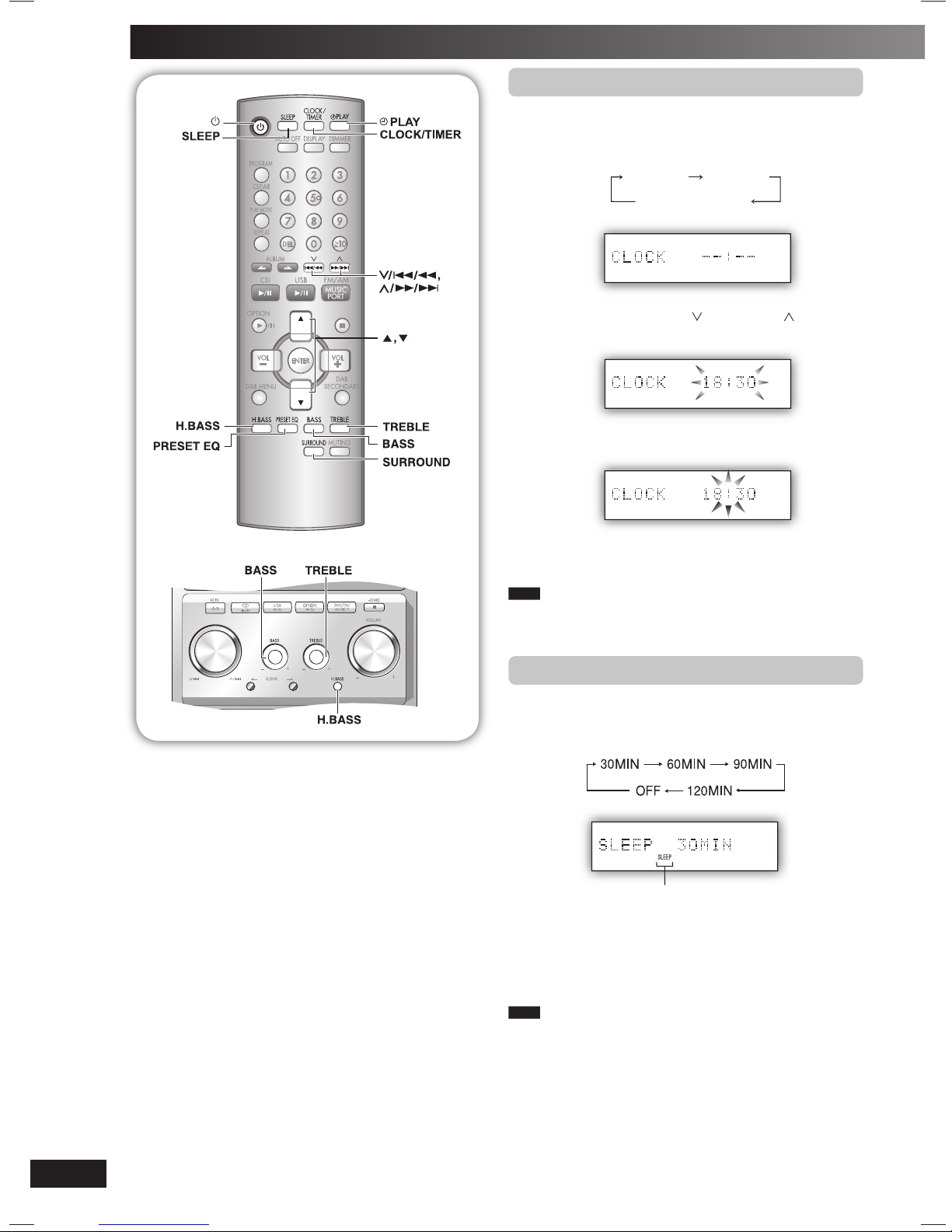

Timer

Setting the clock

This is a 24-hour clock.

Press [CLOCK/TIMER] to select “CLOCK”.

Each time you press the button:

CLOCK

˚ PLAY

Original display

Within 5 seconds, press

[ /4/1] or [/¡/¢]

to set the time.

Press [CLOCK/TIMER] again to confirm.

Displaying the clock

Press [CLOCK/TIMER] to display the clock for few seconds.

Note

The clock may lose or gain minutes over a period of time. Readjust as necessary.

Using the sleep timer

This function enables you to turn off the unit automatically after the set time.

Press [SLEEP] repeatedly to select your desired time.

Sleep timer indicator

To cancel

Press [SLEEP] to select “OFF”.

Changing the remaining time

Press [SLEEP] to show the remaining time, and press [SLEEP] again to select your desired time.

Note

• The play and sleep timer can be used together.

• The sleep timer always has priority. Be sure not to overlap timer settings.

Page 15

RQTV0216

ENGLISH

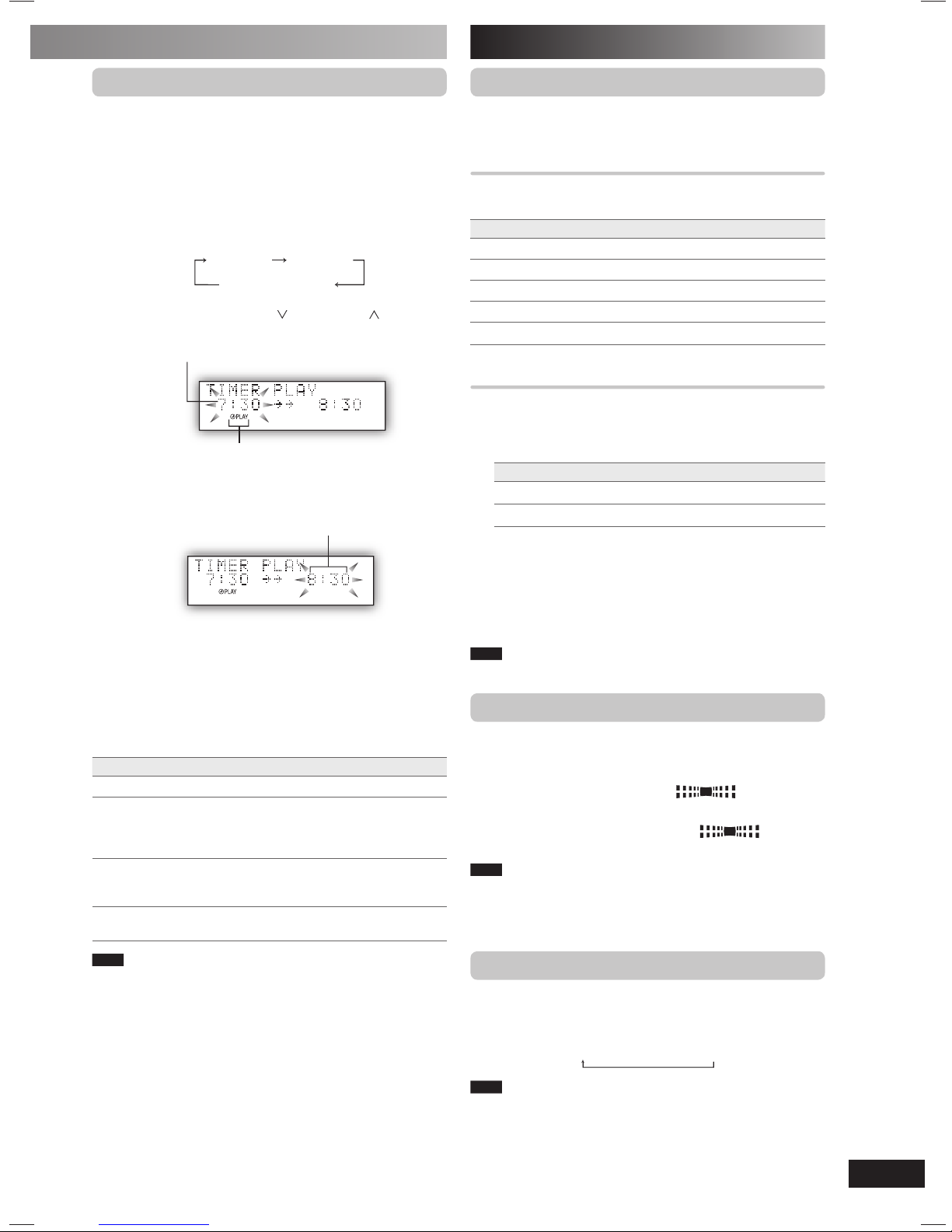

Selecting sound effects

You can change the sound effect by selecting Preset EQ or adjusting the bass or treble effect.

Preset EQ

Press [PRESET EQ] repeatedly to select your desired setting.

Setting Effect

HEAVY Adds punch to rock

CLEAR Clariﬁ es higher frequencies

SOFT For background music

VOCAL Adds gloss to vocal

EQ-OFF No effect

Bass or treble

Enable you to enjoy the lower or higher pitch sound.

Press [BASS] or [TREBLE] to select your desired setting.

Setting Effect

BASS For lower pitch sound

TREBLE For higher pitch sound

Press [5] or [∞] to adjust the level.

To adjust bass or treble using the main unit.

Turn [BASS] or [TREBLE] to adjust the level.

Note

The tone level can be varied within -4 to +4.

Enjoying surround sound

Enable you to add natural width and depth to the stereo sound.

To activate

Press [SURROUND] to display “

” indicator.

To cancel

Press [SURROUND] again to clear “

”

indicator.

Note

• Surround sound is less discernible when listening through headphones.

• If interference in FM stereo reception increases, cancel the surround sound effect.

Enchacing the bass

Enable you to enjoy the powerful bass effect.

Press [H.BASS] repeatedly to select your desired setting.

LEVEL 1

→

LEVEL 2 → OFF

Note

The actual effect depends on the disc.

Sound adjustment

Using the play timer

You can set the play timer to come on at a certain time to wake you up.

Preparation

Turn the unit on and set the clock. Prepare the music source you want to listen to; disc, radio, USB, option port or music port source, and set the volume.

Press [CLOCK/TIMER] repeatedly to select play timer.

CLOCK

˚ PLAY

Original display

Within 5 seconds, press [ /4/1] or [/¡/¢] to set the starting time.

Play timer indicator

Start time

Press [CLOCK/TIMER] to confirm.

Repeat steps 2 and 3 to set the finishing time.

Finish time

To activate the timer

Press [˚PLAY] to turn on the timer.

“˚PLAY” is displayed.

Press [y] to turn off the unit.

The unit must be off for the timer to operate.

To Action

change the settings Repeat steps 1 to 4 and 6.

change the source or volume

1) Press [

˚PLAY] to clear the timer

indicator from the display.

2) Make changes to the source or volume.

3) Perform steps 5 and 6.

check the settings (when the unit is on or in standby mode)

Press [CLOCK/TIMER] repeatedly to select

˚PLAY.

cancel Press [˚PLAY] to clear the timer indicators

from the display.

Note

• The play timer will start at the preset time, with the volume increasing gradually to the preset level.

• The timer comes on at the set time every day if the timer is on.

• The unit must be in the standby mode for the timer to function.

• If you turn the unit off and on again while a timer is functioning, the ﬁ nish time setting will not be activated.

• If MUSIC PORT or OPTION port is selected as the source when the timer comes on, the system turns on and engages MUSIC PORT or OPTION port as the source. If you wish to playback from the portable audio equipment, activate the equipment’s play mode and increase the volume. (See the portable audio equipment’s instruction manual.)

Page 16

RQTV0216

Numeric buttons

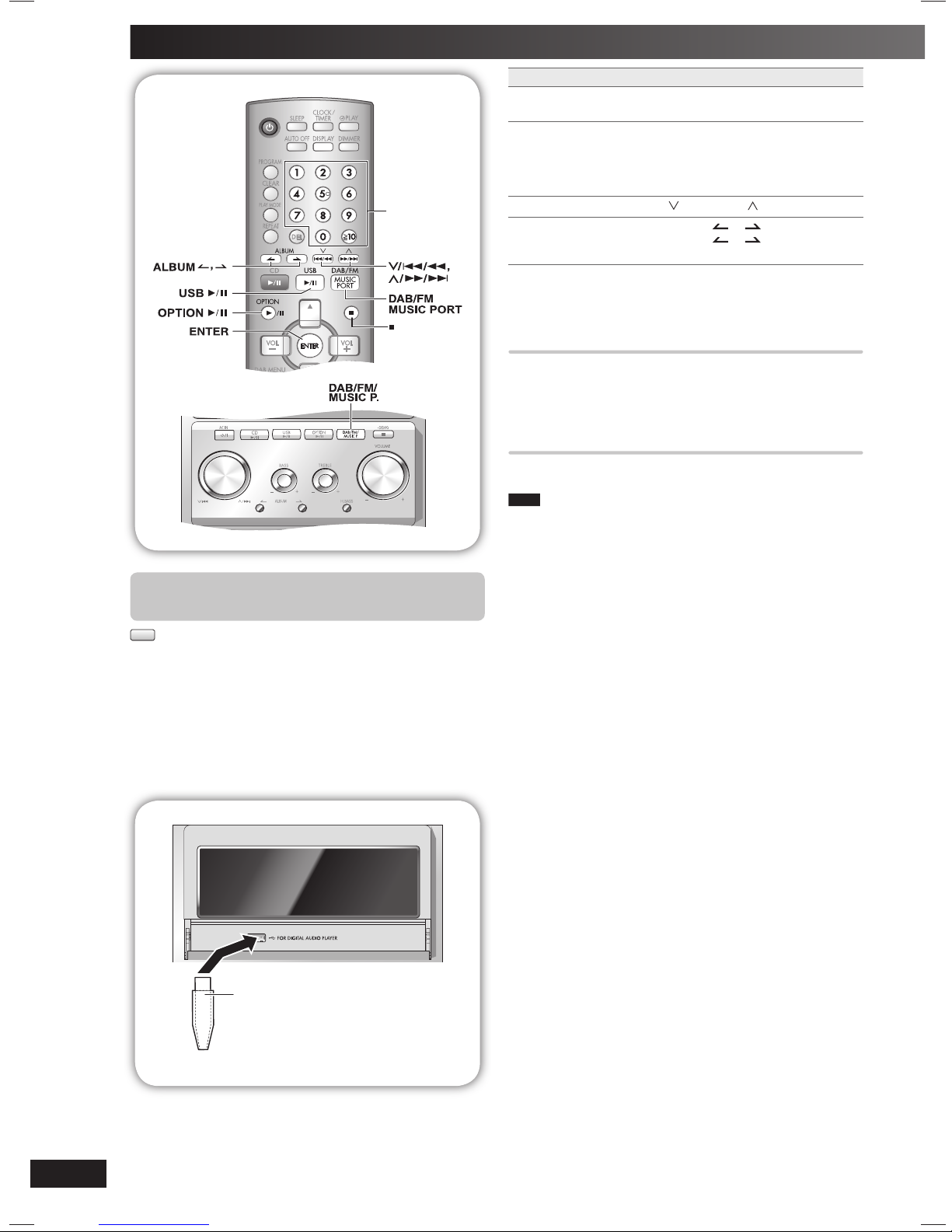

Connecting and playing a USB mass

storage class device

MP3

The USB connectivity enables you to connect and play MP3 tracks from USB mass storage class. Typically, USB memory devices. (Bulk only transfer)

Preparation

Before connecting any USB mass storage device to the unit, ensure that the data stored therein has been backed up.

It is not recommended to use a USB extension cable. The USB device is not recognised by this unit.

USB enabled device

(not included) It is not recommended to use a USB extension cable. The device connected via the cable will not be recognised by this unit.

Slide open the USB jack cover.

Reduce the volume and connect the USB mass storage device.

Press [USB 6] to start play.

External unit

To Action

pause play Press [USB 6].

Press again to resume play.

stop play Press [7].

“RESUME” is displayed. The position is memorized. Press [USB 6] to resume. Press [7] again to clear the position.

skip track Press [ /4/1] or [ /¡/¢].

skip album Press [ALBUM

or ] in the play mode.

Press [ALBUM

or ] once and then

the numeric buttons in the stop mode.

For other operating functions, they are similar as those described in “Discs” (➡ page 8 and 9).

Compatible devices

Devices which are deﬁ ned as USB mass storage class:

• USB devices that support bulk only transfer.

• USB devices that support USB 2.0 full speed.

Supported format

Files must have the extension “.mp3” or “.MP3”.

Note

• CBI (Control/Bulk/Interrupt) is not supported.

• A device using NTFS ﬁ le system is not supported [Only FAT 16/32 (File Allocation Table 16/32) ﬁ le system is supported].

• Depending on the sector size, some ﬁ les may not work.

• This unit can access up to 255 albums (including blank folders) and 2500 tracks.

• The maximum number of tracks in a folder are 999 tracks.

• Only one memory card will be selected when connecting a multiport USB card reader. Typically the ﬁ rst memory card inserted.

• Do not unplug the USB device during reading or playback.

• Disconnect the USB card reader from the unit when you remove the memory card. Failure to do so may cause malfunction to the device.

• When you connect a compatible digital audio player to the USB jack, charging maybe activated. It will not charge when the unit is switch to standby mode or during option port charging.

Page 17

RQTV0216

ENGLISH

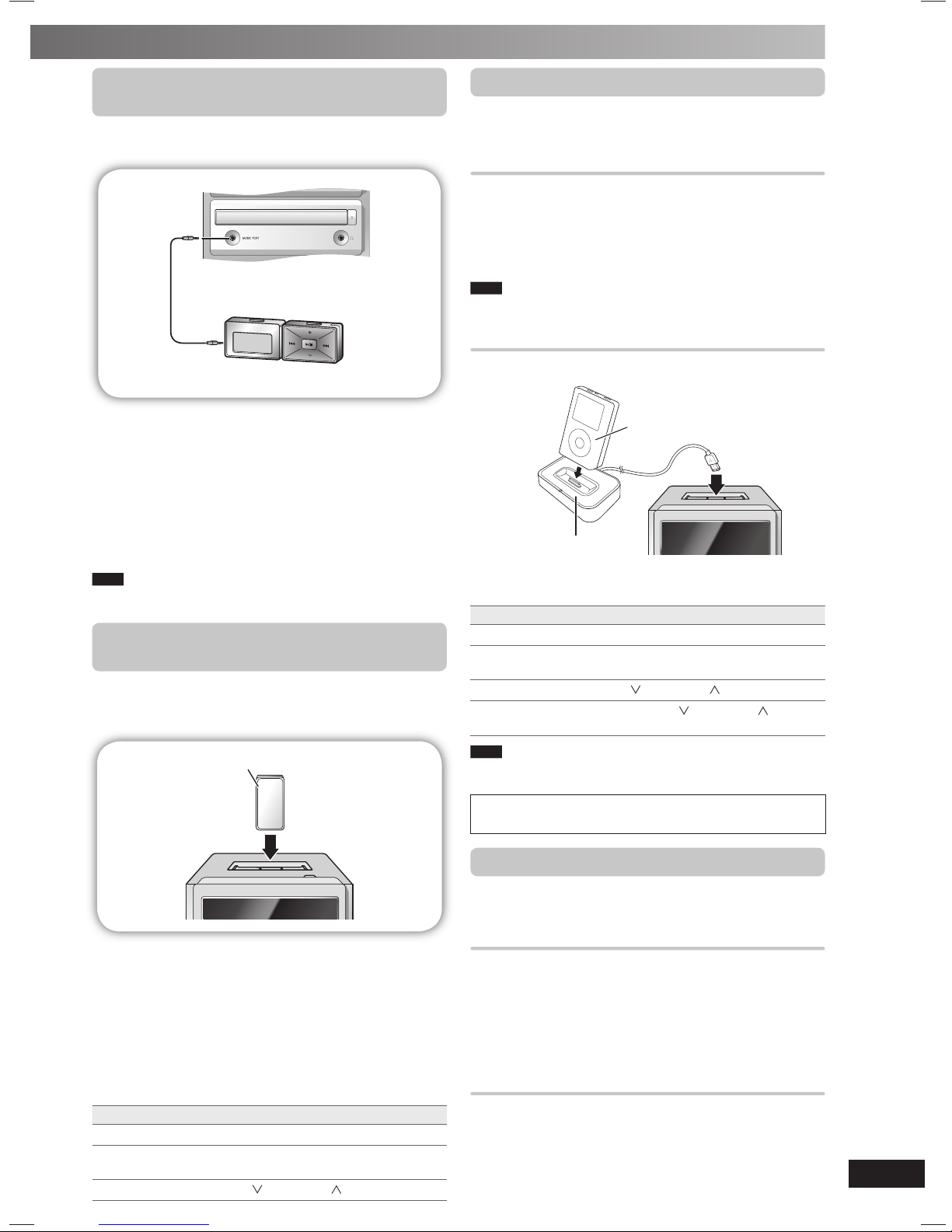

Charging and playing an iPod

You can charge and play your iPod by connecting a Universal Dock for iPod (SH-PD10, sold separately) to this unit.

Connecting and charging the iPod

Connect the Universal Dock for iPod into the Option port.

Insert the appropriate adapter and place your iPod into the Universal Dock (See the SH-PD10’s instruction manual).

Note

• The iPod is not charging when you are in the USB mode.

Playing the iPod

Connect the iPod as described above.

iPod (not included)

SH-PD10

(not included)

Press [OPTION 6] to select option as the source.

To Action

stop Press and hold [OPTION 6]

pause Press [OPTION 6] or [7].

Press [OPTION 6] to resume.

skip tracks Press

[ /4/1] or [ /¡/¢].

search within tracks

Press and hold

[ /4/1] or [ /¡/¢].

Note

Refer to the SH-PD10’s instruction manual for the compatible iPod models.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

Changing the remote control code

Change the code if you ﬁ nd the remote control unintentionally also controls other equipments.

Change the main unit’s code

Press [DAB/FM/MUSIC P.] to select “FM”.

Press and hold [DAB/FM/MUSIC P.] on the main unit and then press and hold [2] (or [1]) on the remote control.

“REMOTE 2” is displayed.

Change the remote control’s code

Press and hold [ENTER] and [2] (or [1]) on the remote control for at least 2 second.

If the remote control and main unit are using different codes, a message appears on the main unit’s display showing the main unit’s current code. Follow the above step to change the remote control’s code to match it.

Connecting and playing a portable audio

equipment

This feature enables you to enjoy music from portable audio equipment.

Audio cord (not included)

Portable audio equipment (not included)

Switch off the equalizer function (if there is any) of the portable audio equipment before you plug into the MUSIC PORT jack. Otherwise, sound from the speaker may be distorted.

Plug the audio cord into the MUSIC PORT jack and press [DAB/FM/MUSIC PORT] repeatedly to select MUSIC PORT.

Play the portable audio equipment. (See the portable audio equipment’s instruction manual.)

Note

All peripheral components and cables are sold separately.

Connecting and playing a Bluetooth

device

By connecting a Bluetooth Receiver (e.g SH-FX570R, sold separately), you can receive and play the audio stored in your Bluetooth audio source device (personal computer, etc).

Bluetooth Receiver (not included)

Slide open the docking mechanism cover.

Connect the Bluetooth Receiver into the option port (see the Bluetooth Receiver’s instruction manual).

Press [OPTION 6] to select “OPTION” as the source.

Press [7].

Pairing and play your Bluetooth audio device (see the device’s instruction manual).

To Action

stop Press [

pause Press [OPTION 6].

Press [OPTION 6] to resume.

skip tracks Press

[ /4/1] or [ /¡/¢].

Page 18

RQTV0216

Troubleshooting guide

Before requesting service, make the below checks. If you can’t ﬁ x the system as described below, or if something not listed here occurs, refer to the enclosed directory to locate an Authorized Service Center convenient to you or contact your dealer.

Common problems

No sound.

Turn the volume up. The speaker cords may not be connected properly. Turn the unit off, check and correct the connections and turn the unit on (

➡

page 5).

Sounds unﬁ xed, reversed or come from one speaker only.

Check the speaker connections (

➡

page 5).

Humming heard during play.

An AC mains lead or ﬂ uorescent light is near the cables. Keep other appliances and leads away from this unit’s cables. If possible in your area, turn the AC mains lead’s plug or connector over to reverse the lead’s polarity.

“ERROR” is displayed.

Incorrect operation performed. Read the instructions and try again.

“- -:- -” appears on the display.

You plugged the AC mains lead in for the ﬁ rst time or there was a power failure recently. Set the time (

➡

page 14).

“F61” is displayed.

Check and correct the speaker cord connections (

➡

page 4).

If this does not ﬁ x the problem, there is a power supply problem. Consult the dealer.

Listening to the radio

Noise is heard. The stereo indicator ﬂ ickers or doesn’t light. Sound is distorted.

Use an outdoor antenna (

➡

page 6).

A beat sound is heard.

Turn the TV off or separate it from the unit.

When there is a television set nearby

The picture on the TV disappears or stripes appear on the screen.

The location and direction of the antenna are incorrect. If you are using an indoor antenna, change to an outdoor antenna (

➡

page 6). The TV antenna wire is too close to the unit. Separate the antenna wire of the TV set from the unit.

Listening to DAB

DAB reception is poor

Keep the antenna away from computers, televisions, other cables and cords. Use an outdoor antennas (

➡

page 6).

DATA

Data broadcast being received over the DAB broadcast signal. Cannot be used on this unit.

SCRAMBLED

The broadcast station being received cannot be accessed.

NO SERVICE

The station is currently not broadcasting.

NO SIGNAL

This station cannot be received. Check your antenna (

➡

page 6).

Scan Failed

Stations are not receivable. Check your antenna and try Auto scanning (

➡

page 6 and 12).

STATION FULL

DAB station memory is full. Use the following method to clear station memory.

1. Press [DAB MENU].

2. Press [ALBUM

or ] to select “STATION CLEAR”.

3. Press [ENTER].“OK? Push ENTER” is displayed.

4. Press [ENTER]. Station memory is erased and the unit automatically begins Auto scanning.

Playing discs

The display is wrong or play won’t start.

The disc may be upside down (

➡

page 8). Wipe the disc. Replace the disc if it is scratched, warped, or non-standard. Condensation may have formed inside the unit due to a sudden change in temperature. Wait about an hour for it to clear and try again.

The remote control

Remote control doesn’t work.

Check that the batteries are inserted correctly (

➡

page 6).

Replace the batteries if they are worn.

USB

The USB drive or its contents cannot be read.

The USB drive format or its contents is/are not compatible with the system (

➡

page 16). The USB host function of this product may not work with some USB devices. USB devices with storage capacity of more than 8 gigabytes may not work in some instances.

Slow operation of the USB ﬂ ash drive.

Large ﬁ le size or high memory USB ﬂ ash drive takes longer time to read.

“USB OVER CURRENT ERROR”

The USB mass storage device rating exceeds 500mA. Disconnect the USB device. Turn the unit off and then back on.

“NO PLAY”

Check the content. Only MP3 format ﬁ les can be played.

Page 19

RQTV0216

ENGLISH

Speciﬁ cations

AMPLIFIER SECTION

RMS OUTPUT POWER both channel driven simultaneously

10 % Total harmonic distortion 80 W per channel (4

)

Input impedance MUSIC PORT 250 mV 13 k Output impedance HEADPHONE 16 to 32 Phone jack Terminal Stereo, 3.5 mm Music Port jack Terminal Stereo, 3.5 mm Option Port Version 1

FM TUNER SECTION

Frequency range

87.50 to 108.00 MHz (50 kHz step) Sensitivity 10 dBµV (IHF) S/N 30 dB 10 dBµV

Antenna terminal(s) 75 (unbalanced) Preset station FM 20 stations

DAB SECTION

Frequency Band (Wavelength) Band III (UK Only)

11B to 12D (218.640 MHz to 229.072 MHz)

Band III (Europe)

5A to 13F (174.928 MHz to 239.200 MHz)

L Band LA to LW (1452.960 MHz to 1490.624 MHz) Intermediate frequency

1st : 38.912MHz, 2nd : 2.048 MHz

Sensitivity *BER 4x10

-2

MAX. input power 0 dBm Min requirement -96 dBm

Selectivity

Adjacent channel (Band III) 33 dB Far-Off channel (Band III) 45 dB

DAB memories 20 channels

Maintenance

If the surfaces are dirty

To clean this unit, wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this unit.

• Before using chemically treated cloth, read the instructions that came with the cloth carefully.

CD SECTION

Disc played [8 cm or 12 cm] (1) CD-Audio (CD-DA)

(2) CD-R/RW (CD-DA, MP3 formatted disc) (3) MP3

Sampling frequency

CD 44.1 kHz MP3 32 kHz, 44.1 kHz, 48 kHz

Bit rate MP3 32 kbps to 384 kbps Decoding 16/20/24 bit linear Pickup Beam source Semiconductor laser Wavelength 785 nm Laser power CLASS 1

(For Norge) Bølgelengde 785 nm Laserstyrke Ingen farlig stråling sendes ut

Audio output (Disc) Number of channels 2 channel Frequency response

20 Hz to 20 kHz (+1, -2 dB)

Wow and ﬂ utter Below measurable limit Digital ﬁ lter 8 fs D/A converter MASH (1 bit DAC)

USB SECTION

Playable USB Storage Media (1) HDD

(2) USB MP3 player/Digital audio player (3) USB Thumbdrives

Supported audio ﬁ le format

MP3

USB memory port Maximum current 500 mA Bit rate MP3 32 kbps to 320 kbps Audio output (MP3) Number of channels 2 channel Frequency response (MP3) 20 Hz to 20 kHz

SPEAKER SECTION

Typ e 3 way, 3 speaker system Speaker(s) Woofer 14 cm Cone type 4

Tweeter 2.5 cm Soft dome type 4 Super Tweeter 1.2 cm Dome type 11

Impedance 4 Input power (IEC) 80 W (MAX)

40 W (RATED) Output sound pressure 81 dB/W (1.0 m)

Cross over frequency 3.5 kHz, 15 kHz Frequency range

41 Hz to 100 kHz (-16 dB) 46 Hz to 90 kHz (-10 dB) Dimensions (W x H x D) 160 mm x 242 mm x 258 mm Mass 3.3 kg

GENERAL

Power supply AC 230 to 240 V, 50 Hz Power consumption 80 W Dimensions (W x H x D)

174 mm x 244 mm x 318 mm

Mass 4.6 kg Operating temperature range +5 to +35˚C Operating humidity range 5 to 90 % RH (no condensation)

Power consumption in standby mode 0.5 W (approx.)

Note

1. Speciﬁ cations are subject to change

without notice.

Mass and dimensions are approximate.

2. Total harmonic distortion is measured by

the digital spectrum analyzer.

Page 20

Matsushita Electric Industrial Co., Ltd. Web Site: http://panasonic.net

RQTV0216-1B

L0207CH1027

This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.

The socket outlet shall be installed near the equipment and easily accessible. The mains plug of the power supply cord shall remain readily operable. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from AC receptacle.

THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE,

• DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

• USE ONLY THE RECOMMENDED ACCESSORIES.

• DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION!

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CAUTION!

• DO NOT INSTALL OR PLACE THIS UNIT IN A BOOK CASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

• DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.

• DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED CANDLES, ON THE UNIT.

• DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER.
