Operating Instructions
CD Stereo System
Model No. SC-EN35
SC-EN33
Dear customer
Thank you for purchasing this product.
Before connecting, operating or adjusting this product, please read the instructions completely.
Please keep this manual for future reference.
System SC-EN35 SC-EN33
Main unit SA-EN35 SA-EN33
Speakers
SB-EN35
SB-EN35A
SB-EN33
SB-EN33A
Matsushita Electric Industrial Co., Ltd.
Web Site: http://panasonic.net
RQTV0167-2B
H0107FL2047
En
E GN
SC-EN35 is used in the illustrations unless
otherwise mentioned.
These instructions are applicable to the following systems.

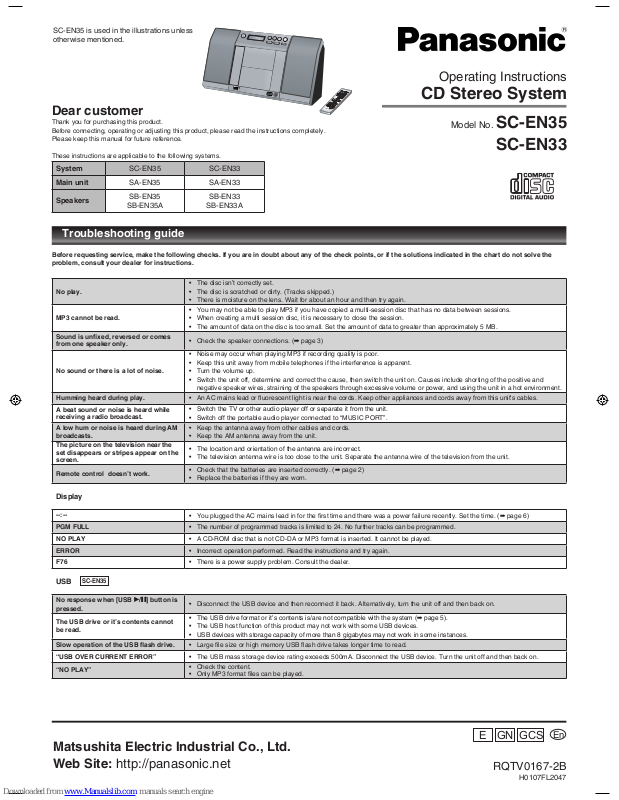

Before requesting service, make the following checks. If you are in doubt about any of the check points, or if the solutions indicated in the chart do not solve the
problem, consult your dealer for instructions.
No play.
The disc isn’t correctly set.
The disc is scratched or dirty. (Tracks skipped.)
There is moisture on the lens. Wait for about an hour and then try again.
•
•
•
MP3 cannot be read.
You may not be able to play MP3 if you have copied a multi-session disc that has no data between sessions.
When creating a multi session disc, it is necessary to close the session.
The amount of data on the disc is too small. Set the amount of data to greater than approximately 5 MB.
•
•
•
Sound is unfixed, reversed or comes
from one speaker only.
Check the speaker connections. (➡ page 3)•
No sound or there is a lot of noise.
Noise may occur when playing MP3 if recording quality is poor.
Keep this unit away from mobile telephones if the interference is apparent.
Turn the volume up.
Switch the unit off, determine and correct the cause, then switch the unit on. Causes include shorting of the positive and
negative speaker wires, straining of the speakers through excessive volume or power, and using the unit in a hot environment.
•
•
•
•
Humming heard during play. An AC mains lead or fluorescent light is near the cords. Keep other appliances and cords away from this unit’s cables.•
A beat sound or noise is heard while
receiving a radio broadcast.
Switch the TV or other audio player off or separate it from the unit.
Switch off the portable audio player connected to “MUSIC PORT”.
•
•
A low hum or noise is heard during AM
broadcasts.
Keep the antenna away from other cables and cords.
Keep the AM antenna away from the unit.
•
•
The picture on the television near the
set disappears or stripes appear on the
screen.
The location and orientation of the antenna are incorrect.
The television antenna wire is too close to the unit. Separate the antenna wire of the television from the unit.
•
•
Remote control doesn’t work.
Check that the batteries are inserted correctly. (➡ page 2)
Replace the batteries if they are worn.
•
•
Display
--:--
You plugged the AC mains lead in for the first time and there was a power failure recently. Set the time. (
➡ page 6)•
PGM FULL The number of programmed tracks is limited to 24. No further tracks can be programmed.•
NO PLAY A CD-ROM disc that is not CD-DA or MP3 format is inserted. It cannot be played.•
ERROR Incorrect operation performed. Read the instructions and try again.•
F76 There is a power supply problem. Consult the dealer.•
USB
No response when [USB q/h] button is
pressed.
Disconnect the USB device and then reconnect it back. Alternatively, turn the unit off and then back on.•
The USB drive or it’s contents cannot
be read.
The USB drive format or it’s contents is/are not compatible with the system (➡ page 5).
The USB host function of this product may not work with some USB devices.
USB devices with storage capacity of more than 8 gigabytes may not work in some instances.
•
•
•
Slow operation of the USB flash drive. Large file size or high memory USB flash drive takes longer time to read.•
“USB OVER CURRENT ERROR” The USB mass storage device rating exceeds 500mA. Disconnect the USB device. Turn the unit off and then back on.•
“NO PLAY”
Check the content.
Only MP3 format files can be played.
•
•
Troubleshooting guide
SC-EN35
GCS
R
L
3
2
1
4
R6/LR6, AA
Aim at the sensor, avoiding obstacles, at a
maximum range of 7 m directly in front of
the unit.
Operation can be affected by strong light
sources, such as direct sunlight, and the
glass doors on cabinets.
•
•
Keep your speakers at least 10 mm away from the
system for proper ventilation.
These speakers do not have magnetic shielding. Do
not place them near televisions, personal computers
or other devices easily influenced by magnetism.
You cannot take the front net off the speakers.
•
•
•
Note
Left and right speakers are different.
Insert so the poles (+ and – ) match those
in the remote control.
Do not use rechargeable type batteries.
•
•
Standby/on switch [8]
Press to switch the unit from on to
standby mode or vice versa.
In standby mode, the unit is still
consuming a small amount of power.
[SLEEP]
SLEEP timer operation ON/OFF or SLEEP time setting
CD/MP3 Program, Tuner Preset (Manual) [PGM, -AUTO PRESET]
[Long press] Tuner Preset (Auto)
CD/MP3/USB: Delete all programs [CLEAR]
[PLAY MODE] Play mode button
[CD q/h] Selector switch to CD.
Direct CD Play/CD Pause
[TUNER/BAND]
Selector switch to Tuner
for FM and AM.
Turn the volume up/down [VOL-], [+VOL]
[z PLAY] Timer PLAY ON/OFF
Clock and Timer setting [CLOCK/TIMER]
[1-9, 0, ≧10] Numbered buttons
To select a 2-digit number
e.g. 16: [≧10] [1] [6]
To select a 3-digit number
e.g. 226: [≧10] [≧10] [2] [2] [6]
[MUSIC PORT] Selector switch to MUSIC PORT
[g] Stop button
[2/u, 1\i] CD: Skip/Search
MP3/USB: Track Skip
TUNER: Tune up/down, [Long press] Auto tuning
SA-EN35
[REPEAT] Repeat ON/OFF
[SURROUND] SURROUND mode ON/OFF
Delete last programmed track [DEL]
[DISPLAY]
CD: CD Display (Elapsed play time/Remaining play time)
MP3: MP3 Display (Elapsed time/Album name/Track name/
ID3 [Album]/ID3 [Track]/ID3 [Artist])
USB: USB Display (Elapsed time/Remaining time/Album
name/Track name/ID3 [Album]/ID3 [Track]/ID3 [Artist])
RDS: RDS Display (Station Name/Program Type/Frequency)
Preset EQ mode selector [PRESET EQ]
SA-EN35
Remote control signal sensor
■ Use
■ Batteries
The remote control
Control guide
Display
Standby/on switch
[^]
Remote control signal sensor
Placement of speakers
Caution
Use the speakers only with the
recommended system. Failure to do so
may lead to damage to the amplifier and/or
speakers, and may result in the risk of
fire. Consult a qualified service person if
damage has occurred or if you experience
a sudden change in performance.
Do not attach these speakers to walls or
ceilings.
•
•
Music port jack
[- VOLUME +] To adjust the volume
[2/u, 1\i] CD: Skip/Search
MP3/USB: Track Skip
TUNER: Tune up/down, [Long press] Auto tuning
[g] Stop button
[CD q/h] Selector switch to CD. Direct CD Play/CD Pause
[MUSIC PORT] Selector switch to MUSIC PORT
[; OPEN/CLOSE] Open and Close CD lid
FM/AM/MUSIC PORT select button [FM/AM/MUSIC P.]
FM/AM select button [TUNER/BAND]
2 3
SC-EN35
SC-EN33
[;, OPEN/CLOSE] Open and Close CD lid
SC-EN35
SC-EN33
Previous/Next Album [ , ALBUM]
Confirm track selection during MP3/USB Program Mode [ENTER]
0
(Minimum)
50
(Maximum)
Use the numbers indicated in parentheses when asking for replacement
parts.
Supplied accessories
(As of January 2007)
1 Remote control [➡ page 2]
1 FM/AM antenna [➡ page 3]
2 Batteries [➡ page 2]
1 AC mains lead [➡ page 3]
(N2QAYB000107)
(N2QAYB000108)
SC-EN35
SC-EN33
AC mains lead
Right Speaker
Left Speaker
DC in cord to connect to main set
For other areas
For Australia and N.Z.
Selector switch to Tuner for
FM and AM.
[FM/AM]
Selector switch to USB. Direct USB Play/USB Pause [USB
q/h]
SC-EN35
SC-EN33
USB port
The included AC mains lead is for use with this unit only. Do not use it with other
equipment.
Do not use an AC mains lead from other equipment.
•
•
[USB q/h] Selector switch to USB. Direct USB Play/USB Pause
SC-EN35
3
Press [8] to turn the unit on.
Press [; OPEN/CLOSE] to open the CD lid and then set the CD in place.
Press [; OPEN/CLOSE] again to close the lid.
Keep fingers away from the CD lid when it is closing to avoid possible minor injury.
Label must face outward.
Press until you hear it click into place.
Press [CD q/h] to start play.
Adjust the volume.
Be sure to press the [; OPEN/CLOSE] button to open and close the CD lid.
Damage may occur if the lid is forced closed.
During standby, if the CD is ready in the unit, the unit comes on and play begins.
(One touch play)
•
•
•
Basic play
Discs operations
Connections
R
L
SA-EN35
2. FM/AM antenna
Stand the antenna up on its base.
Taped part
FM antenna
AM antenna
3. AC mains lead
AC IN
To household mains socket
If the unit is left unplugged for longer than
approximately two weeks, all settings will
revert to the factory settings.
Remember to reset the radio stations and
any other memory items before using the unit
again.
Connect the AC mains lead after all other
connections are complete.
Note
Headphones
(not included)
Reduce the volume level and connect the
headphones.
Plug type: 3.5 mm stereo.
To prevent hearing damage, avoid listening
for prolonged periods of time .
Note
Portable audio equipment
(Cords and equipment not included)
Use
Adjust the volume and sound quality of this unit and the other equipment.
For details, refer to the instruction manual of the other equipment.
•
•
Portable audio player Plug type:
3.5 mm stereo
➡
Start Playback from the
Portable audio source.
Stop
Press [g].
Pause
Press [CD q/h]. Press again to resume play.
Skip/Search
Press [2/u] or [1/i] to skip/
Press and hold [2/u] or [1/i] to search.
You can search during play or while paused.
You cannot search through MP3 files.
You can only search within the current track during
program play, one track repeat, and random play.
•
•
•
Skip album Press [ALBUM or ] in the play mode.
Press [ALBUM or ] once and then the numbered buttons
in the stop mode.
Direct access play
(Play starts with the
track you select.)
Press the numbered buttons to select the desired track.
Press [ALBUM or ] to select the album.
Press [1/i] once and then press the numbered buttons
to
select the desired track.
Note
Note
1. Speakers
R
L
1
2
Copper (+)
Silver (-)
Silver (-)
Copper (+)
➡
Page 2 for the position of remote control and
main unit buttons.
The function allows you to program up to 24 tracks.
Press [PGM, -AUTO PRESET] while stopped.
Press the numbered buttons to select tracks. (Maximum 24 tracks)
Repeat this step to program other tracks.
Press [CD q/h] to start play.
Press [PGM, -AUTO PRESET] while stopped.
Press[ALBUM or ] to select your desired album.
Press [1/i] once and then press the numbered buttons to select tracks.
(Maximum 24 tracks)
Press [ENTER].
Repeat step 2 to 4 to program other tracks.
Press [CD q/h] to start play.
g Confirm a programmed
track
Press [2/u] or [1/i] when “PGM” is displayed
in the stop mode. To check while programming,
press [PGM, -AUTO PRESET] twice after “PGM”
appears, then press [2/u] or [1/i] .
g Delete all programs
Press [CLEAR] in the stop mode.
“CLR ALL” is displayed.
g Cancel program mode
Press [PGM, -AUTO PRESET] in the stop mode to
clear “PGM” indicator from the display.
Program contents are stored in the unit’s memory even after changing to a different
function or turning the unit off. All program contents are erased by pressing [CLEAR]
or by opening the CD lid.
Program play
Track number
Program number
Note
PGM
Album number Track number
MP3
CD
MP3
CD
MP3
Note
Connect the DC in cord from
left speaker to main set.
Connect the AC mains lead.
Red
Red
Black
Black
Unplug the antenna connector by holding the taped
part.
MAIN UNIT REMOTE CONTROL
SC-EN35 SC-EN33
Ferrite core ( )
For continental Europe
Loading...
