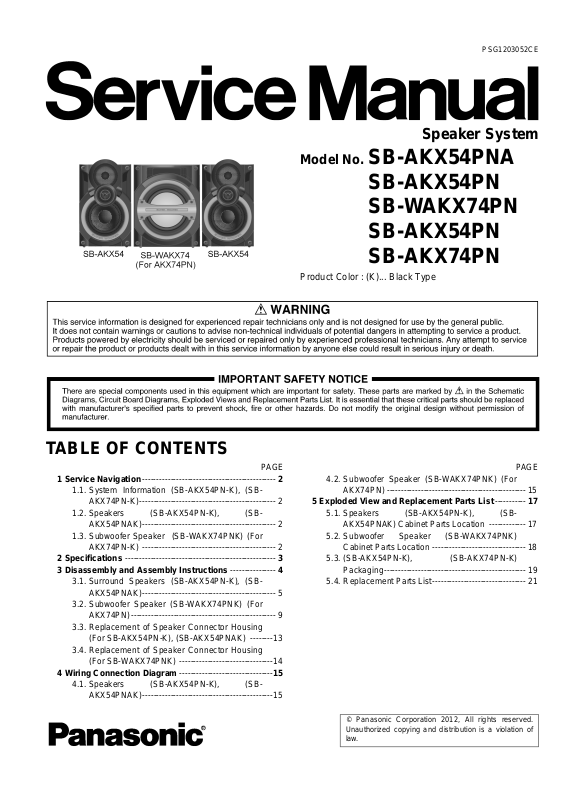

Page 1
PSG1203052CE
Speaker System
Model No. SB-AKX54PNA
SB-AKX54PN
SB-WAKX74PN
SB-AKX54PN
SB-AKX74PN
Product Color : (K)... Black Type
TABLE OF CONTENTS
1 Service Navigation----------------------------------------------- 2
1.1. System Information (SB-AKX54PN-K), (SBAKX74PN-K)------------------------------------------------ 2
1.2. Speakers (SB-AKX54PN-K), (SBAKX54PNAK)----------------------------------------------- 2
1.3. Subwoofer Speaker (SB-WAKX74PNK) (For
AKX74PN-K) ----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 3
3 Disassembly and Assembly Instructions ---------------- 4
3.1. Surround Speakers (SB-AKX54PN-K), (SBAKX54PNAK)----------------------------------------------- 5
3.2. Subwoofer Speaker (SB-WAKX74PNK) (For
AKX74PN)--------------------------------------------------- 9
3.3. Replacement of Speaker Connector Housing
(For SB-AKX54PN-K), (SB-AKX54PNAK) --------13
3.4. Replacement of Speaker Connector Housing
(For SB-WAKX74PNK) ---------------------------------14
4 Wiring Connection Diagram ---------------------------------15
4.1. Speakers (SB-AKX54PN-K), (SBAKX54PNAK)----------------------------------------------15
PAGE PAGE
4.2. Subwoofer Speaker (SB-WAKX74PNK) (For
AKX74PN) -------------------------------------------------15
5 Exploded View and Replacement Parts List----------- 17
5.1. Speakers (SB-AKX54PN-K), (SBAKX54PNAK) Cabinet Parts Location -------------17
5.2. Subwoofer Speaker (SB-WAKX74PNK)
Cabinet Parts Location --------------------------------- 18
5.3. (SB-AKX54PN-K), (SB-AKX74PN-K)
Packaging-------------------------------------------------- 19
5.4. Replacement Parts List--------------------------------- 21
© Panasonic Corporation 2012, All rights reserved.
Unauthorized copying and distribution is a violation of
law.
Page 2
1 Service Navigation
1.1. System Information (SB-AKX54PN-K), (SB-AKX74PN-K)
Below is the System breakdown:
Speaker System SB-AKX54PN-K SB-AKX74PN-K
Speakers SB-AKX54PNAK SB-AKX54PN-K
Subwoofer Speaker - SB-WAKX74PNK
SB-AKX54PN-K is use for the following main models:
SC-AKX54GN-K
SC-AKX54PH-K
SC-AKX54PN-K
SB-AKX74PN-K is use for the following main models:
SC-AKX74PH-K
SC-AKX74PN-K
SC-AKX74PR-K
1.2. Speakers (SB-AKX54PN-K), (SB-AKX54PNAK)
The illustrations for the speakers will be described in this manual.
• Disassembly and Assembly Instructions
• Wiring Connection Diagram
• Exploded View
• Replacement Parts List
1.3. Subwoofer Speaker (SB-WAKX74PNK) (For AKX74PN-K)
The illustrations for the speaker will be described in this manual.
• Disassembly and Assembly Instructions
• Wiring Connection Diagram
• Exploded View
• Replacement Parts List
2
Page 3
2 Specifications
Speakers (SB-AKX54PN-K), (SB-AKX54PNAK)
Type 3 way, 3 speaker system (Bass reflex)
Speaker unit(s)
Super Woofer 20 cm cone type
Woofer 10 cm cone type
Tweeter 6 cm cone type
Impedance 5 Ω (high), 4 Ω (low)
Output sound pressure 87 dB/W (1 m)
Frequency range 48 Hz to 26 kHz (-16 dB)
66 Hz to 20 kHz (-10 dB)
Dimensions (W x H x D) 250 mm x 429 mm x 274 mm
Mass 5.2 kg
Subwoofer Speaker (SB-WAKX74PNK), (For AKX74PN-K)
Type 1 way, 1 speaker system (Bass reflex)
Speaker unit(s)
Super Woofer 25 cm Cone type
Impedance 8 Ω
Output sound pressure 83 dB/W (1 m)
Frequency range 48 Hz to 250 Hz (-16 dB)
50 Hz to 200 Hz (-10 dB)
Dimensions (W x H x D) 320 mm x 400 mm x 274 mm
Mass 6.9 kg
Notes:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum analyzer.
3
Page 4
3 Disassembly and Assembly Instructions
Caution Note:
• This section describes procedures for checking the operation and replacing the main components.
• For reassembly after operation checks or replacement, reverse the respective procedures.
• Special reassembly procedures are described only when required.
• Before carrying out the disassembly process, please ensure all the safety precautions & procedures are followed.
• During the disassembly and/or assembly process, please handle with care as there may be cha ssis components with sharp
edges.
• During replacement of component parts, please refer to the section of “Replacement Parts List” as described in the service manual.
• Select items from the following indexes when disassembly or replacement are required.
Speakers (SB-AKX54PN-K), (SB-AKX54PNAK)
Disassembly of Front Panel Assembly
Disassembly of Tweeter Speaker (SP1)
Disassembly of Full Range Speaker (SP2)
Disassembly of Woofer Speaker (SP3)
Woofer Speaker (SB-WAKX74PNK) (For AKX74PN)
Disassembly of Front Panel Assembly
Disassembly of Woofer Speaker (SP61)
Disassembly of Lighting Bar Assembly
4
Page 5
3.1. Surround Speakers (SB-AKX54PN-K), (SB-AKX54PNAK)
3.1.1. Disassembly of Front Panel Assembly
Step 3 : Detach the Front Panel Assembly slightly as arrow
Step 1 : Remove 4 screws.
shown.
Caution : Do not exert strong force as it may damage the
wiring within.
Step 2 : Slightly push the Front Panel Assembly as arrow
shown.
Caution : Do not exert strong force as it may damage the
Front Panel Assembly.
Step 4 : Detach the (+) and (-) speaker wires.
5
Page 6
Step 5 : Remove the Front Panel Assembly.
3.1.2. Disassembly of Tweeter Speaker (SP1)
• Refer to “Disassembly of Front Panel Assembly”.
Step 1: Remove 4 screws.
Step 2: Remove the Tweeter Speaker (SP1).
6
Page 7
3.1.3. Disassembly of Full Range Speaker (SP2)
• Refer to “Disassembly of Front Panel Assembly”
Step 1 : Remove 4 screws.
Step 4 : Remove the Full Range Speaker (SP2).
Step 2 : Slightly lift up Full Range Speaker (SP2) as shown.
Step 3 : Detach the (+) and (-) speaker wires.
7
Page 8

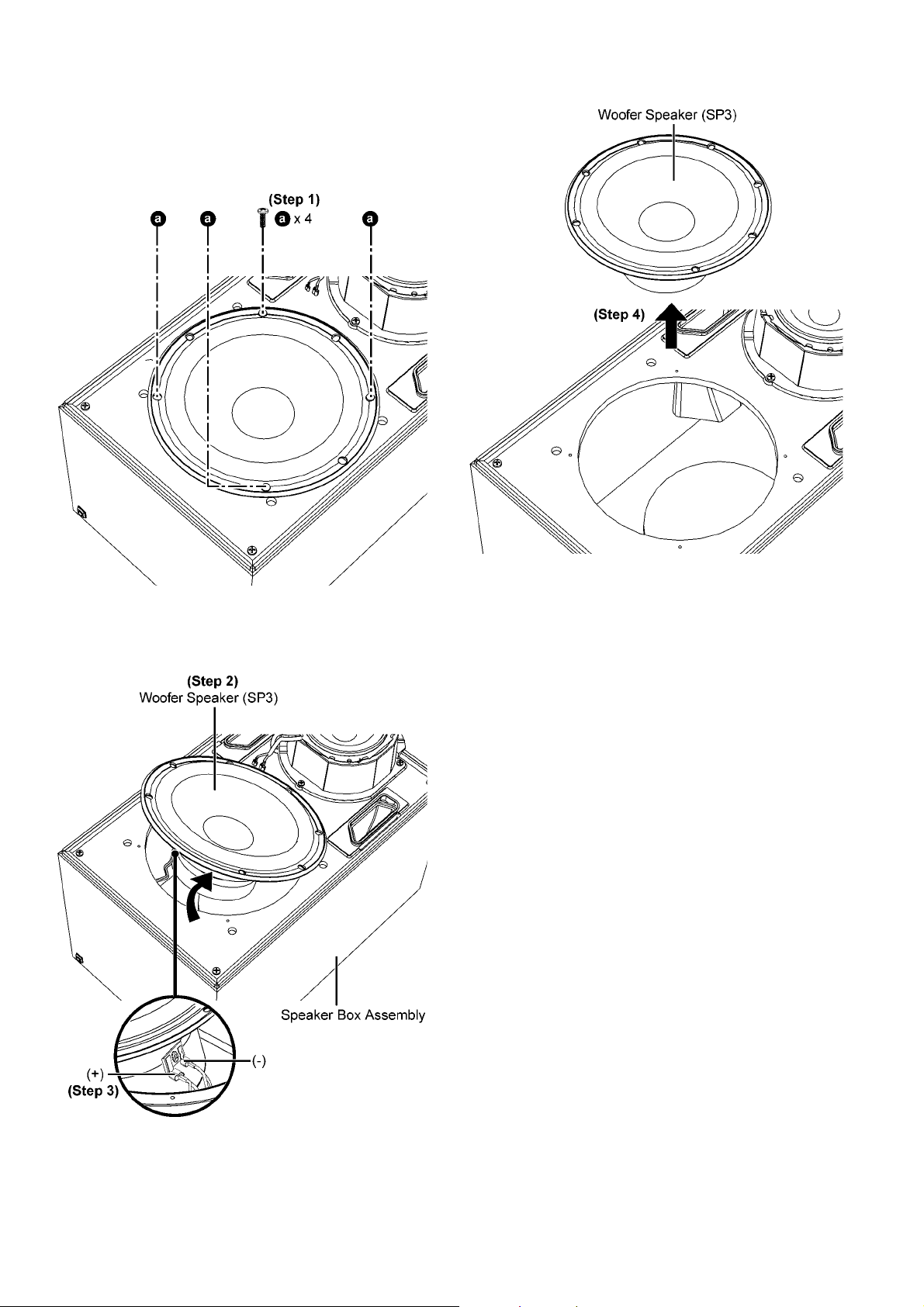

3.1.4. Disassembly of Woofer Speaker (SP3)
• Refer to “Disassembly of Front Panel Assembly”
Step 1 : Remove 4 screws.
Step 4 : Remove the Woofer Speaker (SP3).
Step 2 : Slightly lift up Woofer Speaker (SP3) as shown.
Step 3 : Detach the (+) and (-) speaker wires.
8
Page 9

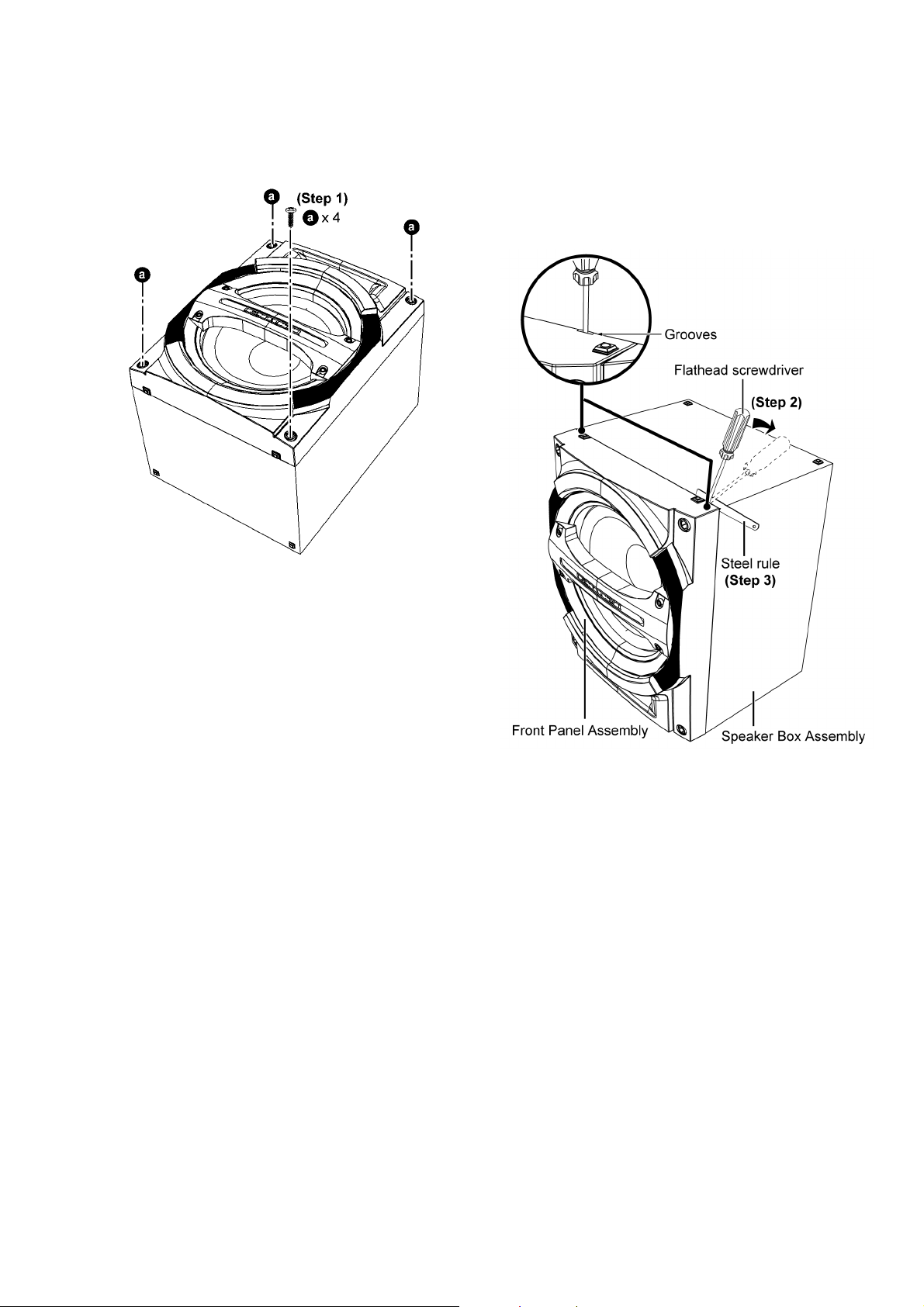

3.2. Subwoofer Speaker (SB-WAKX74PNK) (For AKX74PN)
3.2.1. Disassembly of Front Panel Assembly
Step 2 : Insert flathead screwdriver into the grooves and apply
Step 1 : Remove 4 screws.
light force to push the Front Panel Unit as arrow shown.
Step 3 : Insert a steel rule in between the Front Panel Unit an d
Speaker Box Assembly.
Caution : Do not exert strong force as it may damage the
Front Panel Assembly.
9
Page 10

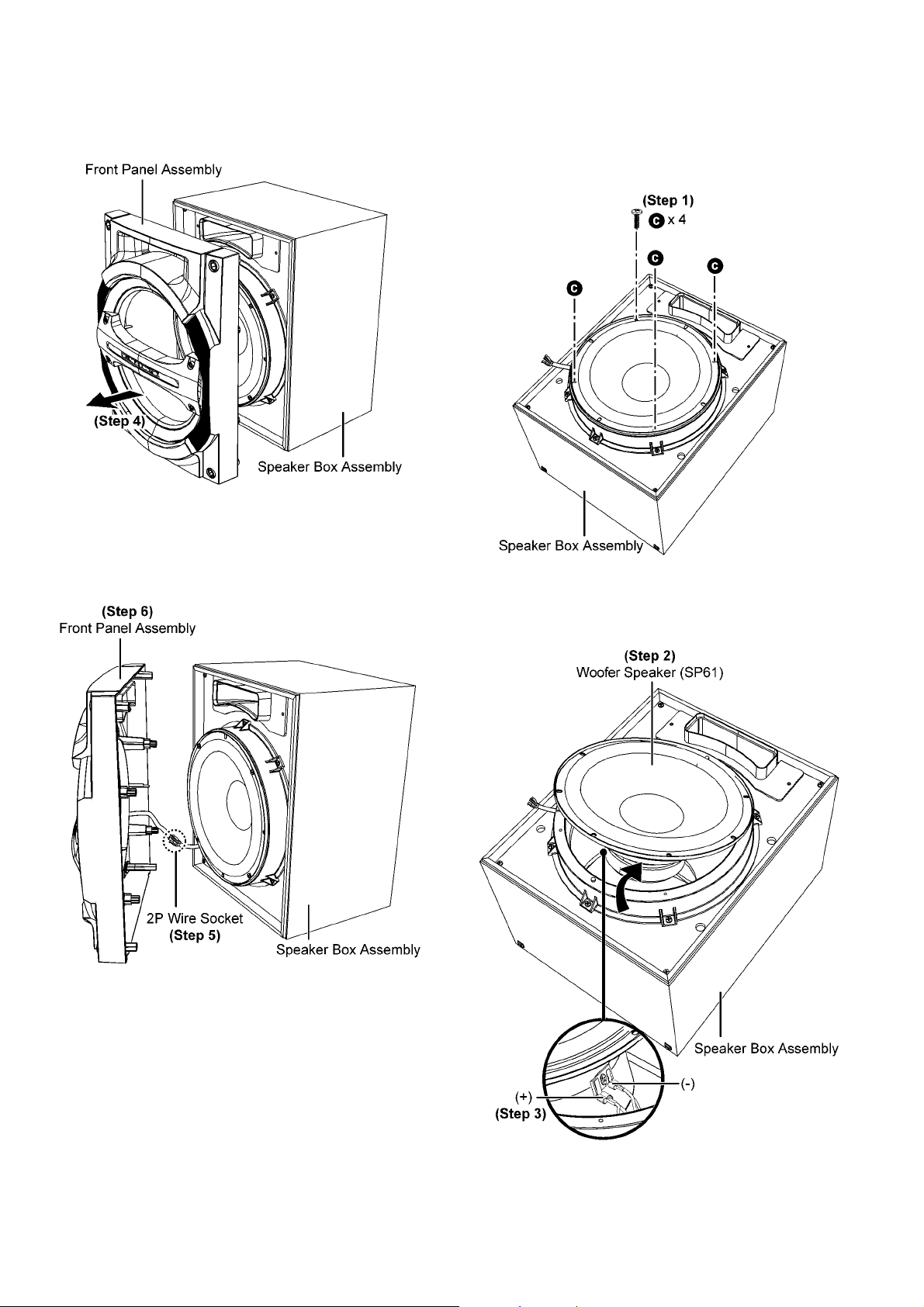

Step 4 : Detach the Front Panel Assembly slightly as arrow
shown.
Caution : Do not exert strong force as it may damage the
wiring within.
3.2.2. Disassembly of Woofer Speaker (SP61)
• Refer to “Disassembly of Front Panel Assembly”
Step 1 : Remove 4 screws.
Step 5 : Disconnector 2P Wire Socket.
Step 6 : Remove the Front Panel Assembly.
Step 2 : Slightly lift up Woofer Speaker (SP61) as shown.
Step 3 : Detach the (+) and (-) speaker wires.
10
Page 11

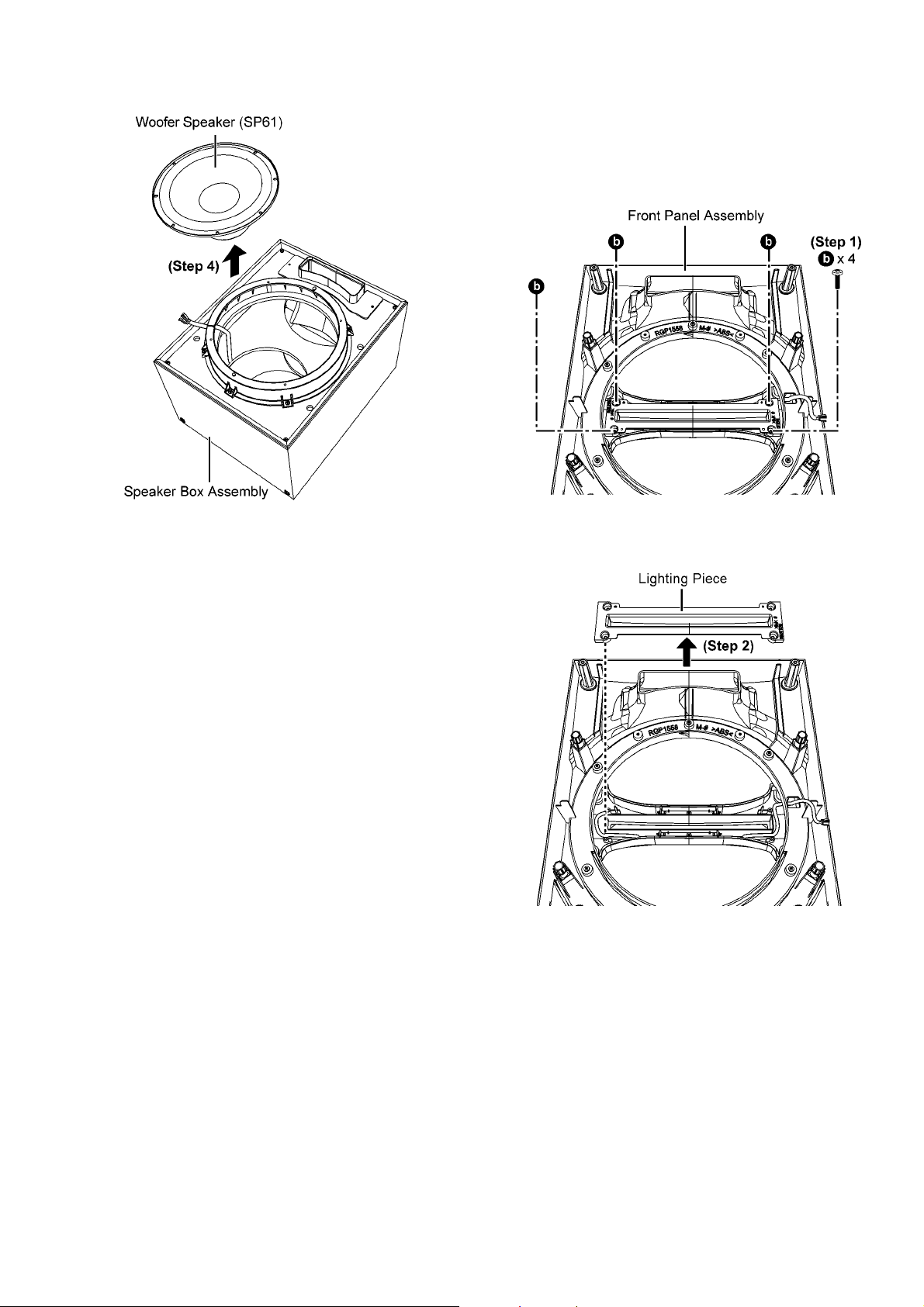

Step 4 : Remove the Woofer Speaker (SP61).
3.2.3. Disassembly of Lighting Bar Assembly
• Refer to “Disassembly of Front Panel Assembly”
Step 1 : Remove 4 screws.
Step 2 : Remove Lighting Piece.
11
Page 12

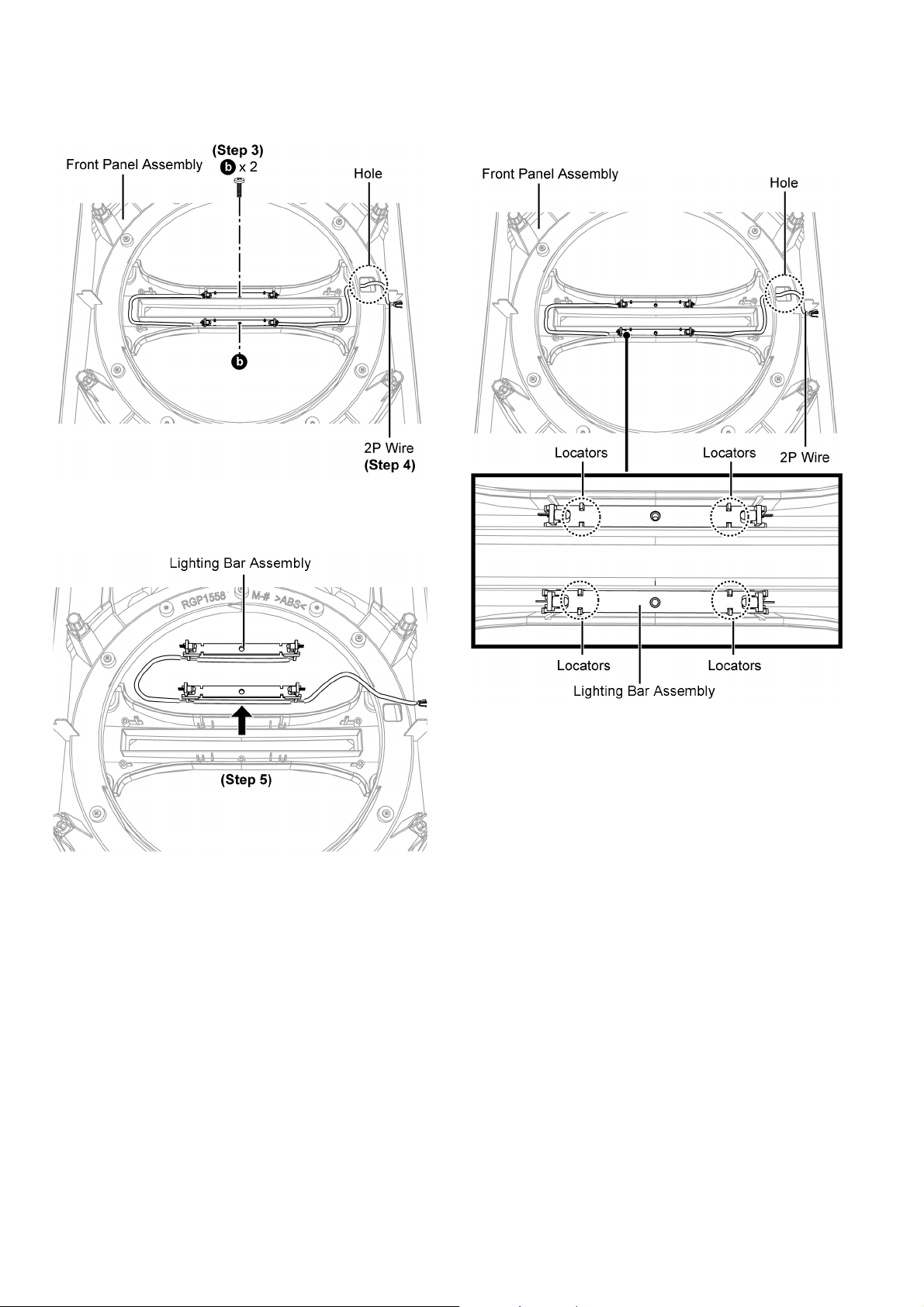

Step 3 : Remove 2 screws.
Step 4 : Release the wire from the hol e of Front Panel Assem-
bly.
Step 5 : Remove Lighting Bar Assembly.
Caution 1 : During assembling, ensure the 2P wire is
dressing through the hole of Front Panel Assembly as
shown.
Caution 2 : During assembling, ensure that the L ighting
Bar Assembly is fixed & properly seated on the locators.
12
Page 13

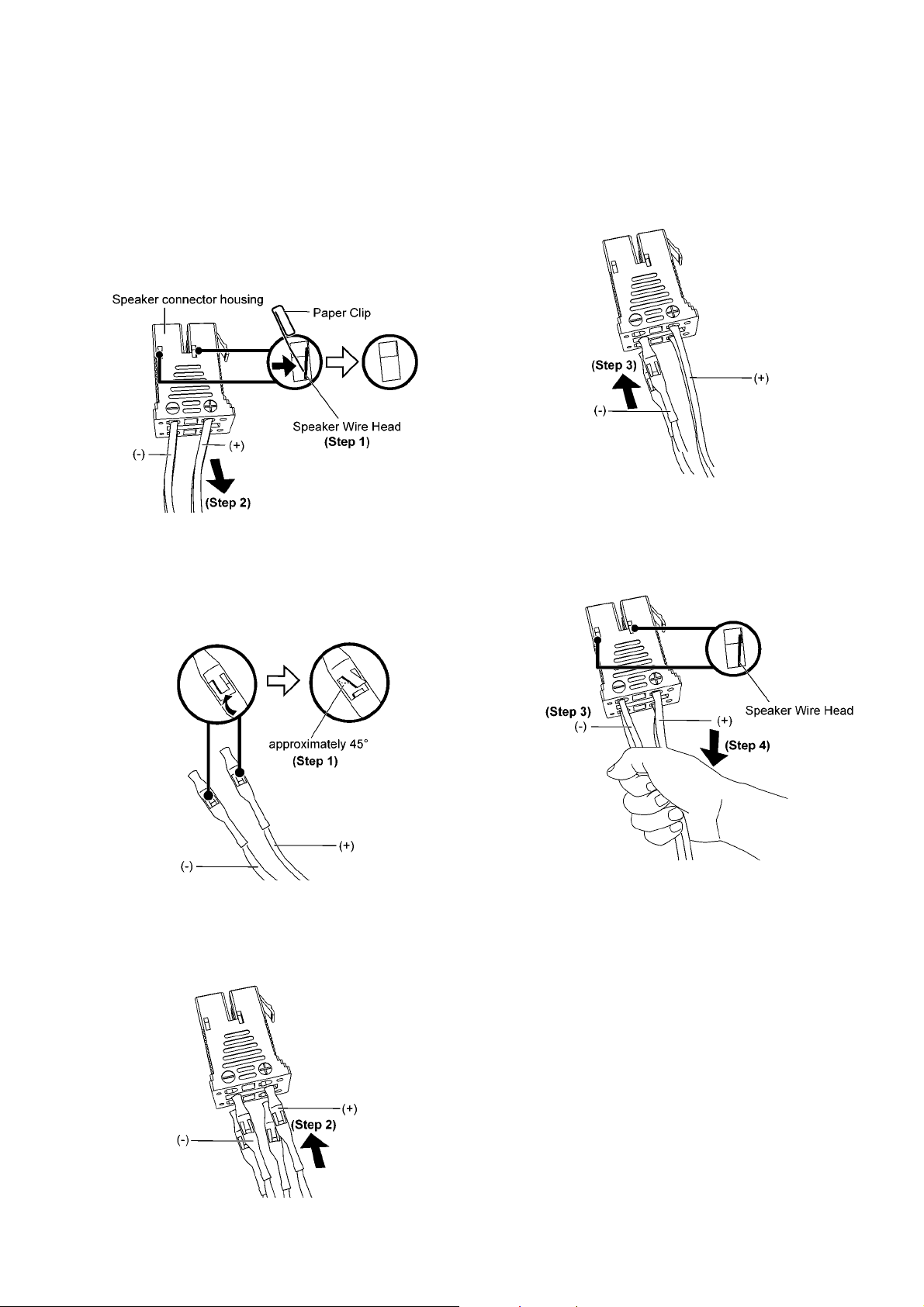

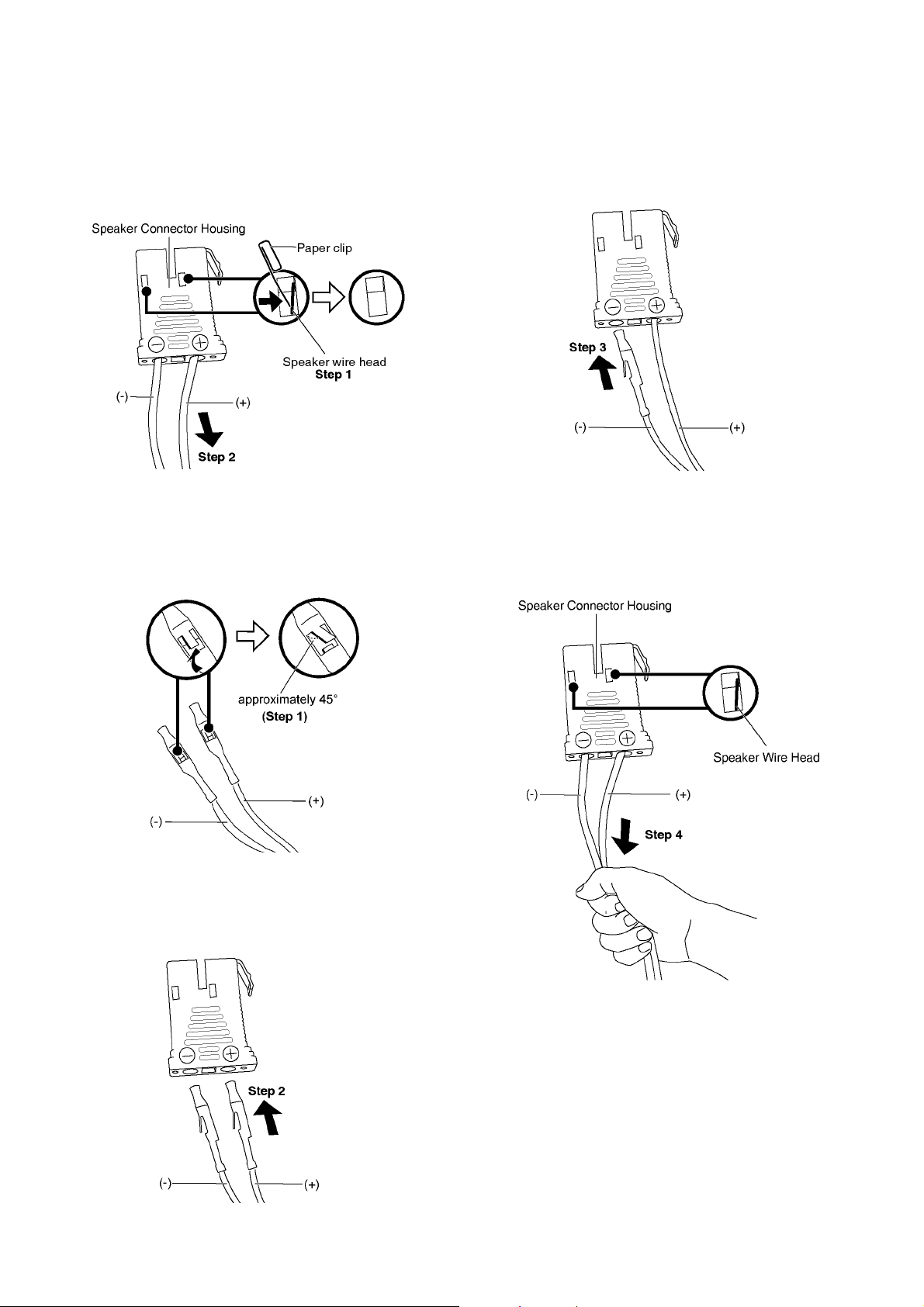

3.3. Replacement of Speaker Connector Housing (For SB-AKX54PN-K), (SBAKX54PNAK)
3.3.1. Disassembly
Step 1: Use a paper clip push the Speaker Wire head until it
hide inside the Speaker Connector Housing.
Step 2: Pull out the (+) and (-) speaker wire.
Note : Repeat step 1 to 2 for the Speaker connector housing
other side.
3.3.2. Assembly
Cautions: Follow the following procedure during assemble.
Step 1 : Slightly push up the sp eaker wire head approximately
45° as shown.
Step 3: Insert the (-) speaker wire into the (-) hole of the
speaker connector housing.
Note: Push in the speaker wire until hear the “click” sound.
Step 4: Pull both speaker wires gently to ensure they lock-in
firmly.
Note: Repeat step1 to 3 if the speaker wires come out.
Step 2: Insert the (+) speaker wire into the (+) hole of the
Speaker Connector Housing.
Note: Push in the speaker wire until hear the “click” sound.
13
Page 14
3.4. Replacement of Speaker Connector Housing (For SB-WAKX74PNK)
3.4.1. Disassembly
Step 3: Insert the (-) speaker wire into the (-) hole of the
Step 1: Use a paper clip push the Speaker Wire head until it
hide inside the Speaker Connector Housing.
Step 2: Pull out the (+) and (-) speaker wire.
speaker connector housing.
Note: Push in the speaker wire until hear the “click” sound.
3.4.2. Assembly
Cautions: Follow the following procedure during assemble.
Step 1: Slightly push up the s peaker wire head approximately
45° as shown.
Step 2: Insert the (+) speaker wire into the (+) hole of the
Speaker Connector Housing.
Note: Push in the speaker wire until hear the “click” sound.
Step 4 : Pull both speaker wires gently to ensure they lock-in
firmly.
Note: Repeat step1 to 3 if the speaker wires come out.
14
Page 15

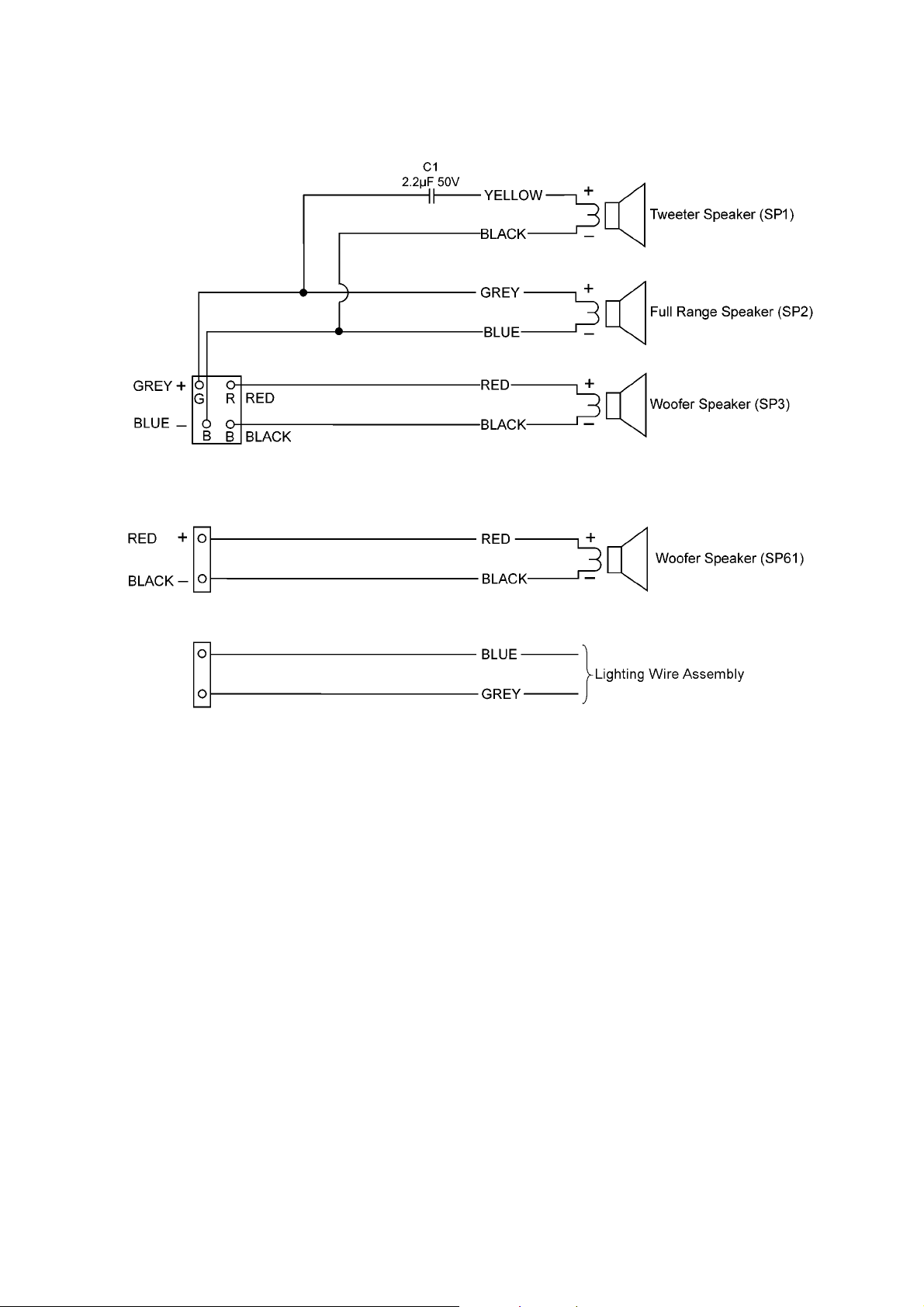

4 Wiring Connection Diagram
4.1. Speakers (SB-AKX54PN-K), (SB-AKX54PNAK)
4.2. Subwoofer Speaker (SB-WAKX74PNK) (For AKX74PN)
15
Page 16
16
Page 17
5 Exploded View and Replacement Parts List
SP3
SP2
SP1
9
9
9
9
8
8
8
8
7
7
7
7
7
7
7
7
6
5
5
5
5
4
3
2-1
2
1-2
1-2
1-2
1-2
1-2
1-2
1-1
1
a
e
f
d
d
b
a
e
f
b
c
cdc
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
G
H
10 11 12 13
SB-AKX54PNAK
SB-AKX54PN-K
CABINET DRAWINGS

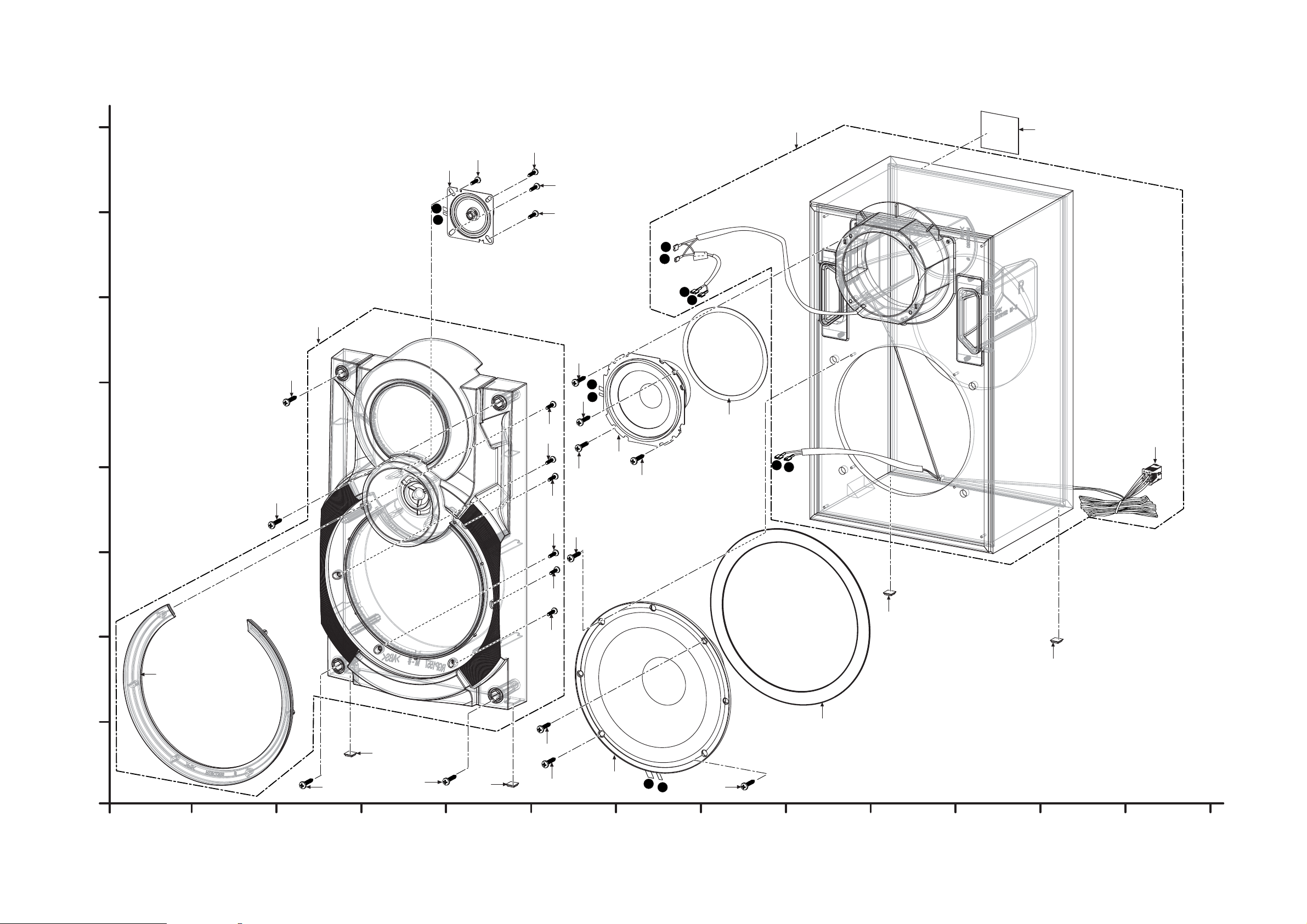

5.1. Speakers (SB-AKX54PN-K), (SB-AKX54PNAK) Cabinet Parts Location
17
Page 18
SP61
72
72
72
72
71
71
71
71
70
69
69
69
69
68
67
(LIGHTING
P.C.B.)
(LIGHTING
P.C.B.)
(LIGHTING
P.C.B.)
CN700
CN700
CN700
CN700
(LIGHTING
P.C.B.)
66-1
66
65
65
65
65
65
65
65
65
65
65
65
65
64
64
63
62
61
a
b
a
b
c
c
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
G
H
10 11 12 13
SB-WAKX74PNK
CABINET DRAWINGS

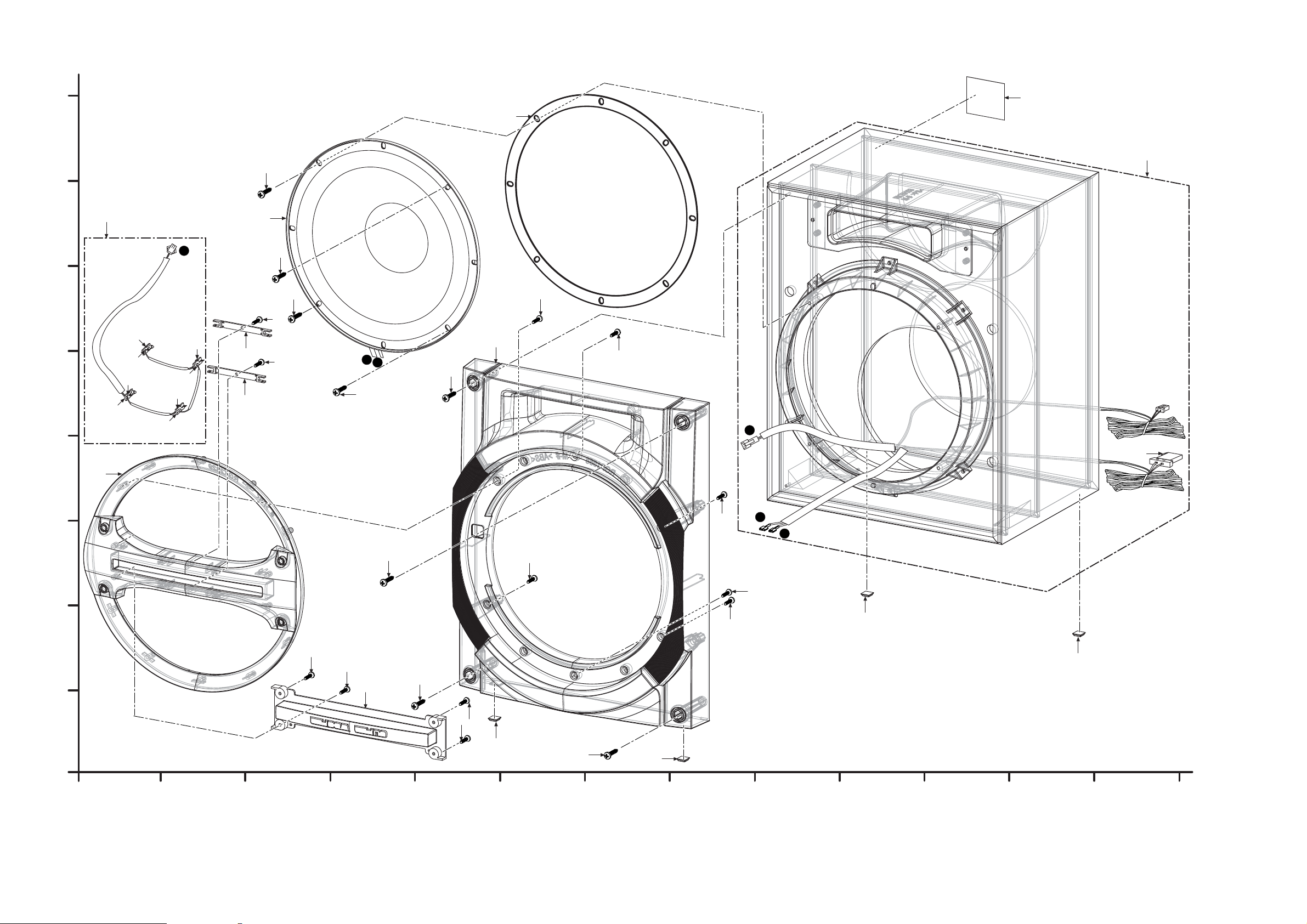

5.2. Subwoofer Speaker (SB-WAKX74PNK) Cabinet Parts Location
18
Page 19
SB-AKX54PN/PNA
SB-AKX54PN/PNA
SB-WAKX74PN
P4
*P3
*P3
P2
P2
*P1
*P1
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
G
H
10 11 12 13
*P3
POLYFOAM (TOP)
POLYFOAM (BOTTOM)
*P1
POLYFOAM (TOP)
POLYFOAM (BOTTOM)
SB-AKX54PNAK
SB-AKX54
FOR SC-AKX54
SB-AKX54PN-K
SB-WAKX74PNK
SB-AKX74
FOR SC-AKX74
PACKAGING DRAWINGS
SB-WAKX74PNK
SB-AKX74
FOR SC-AKX74
PACKAGING DRAWINGS

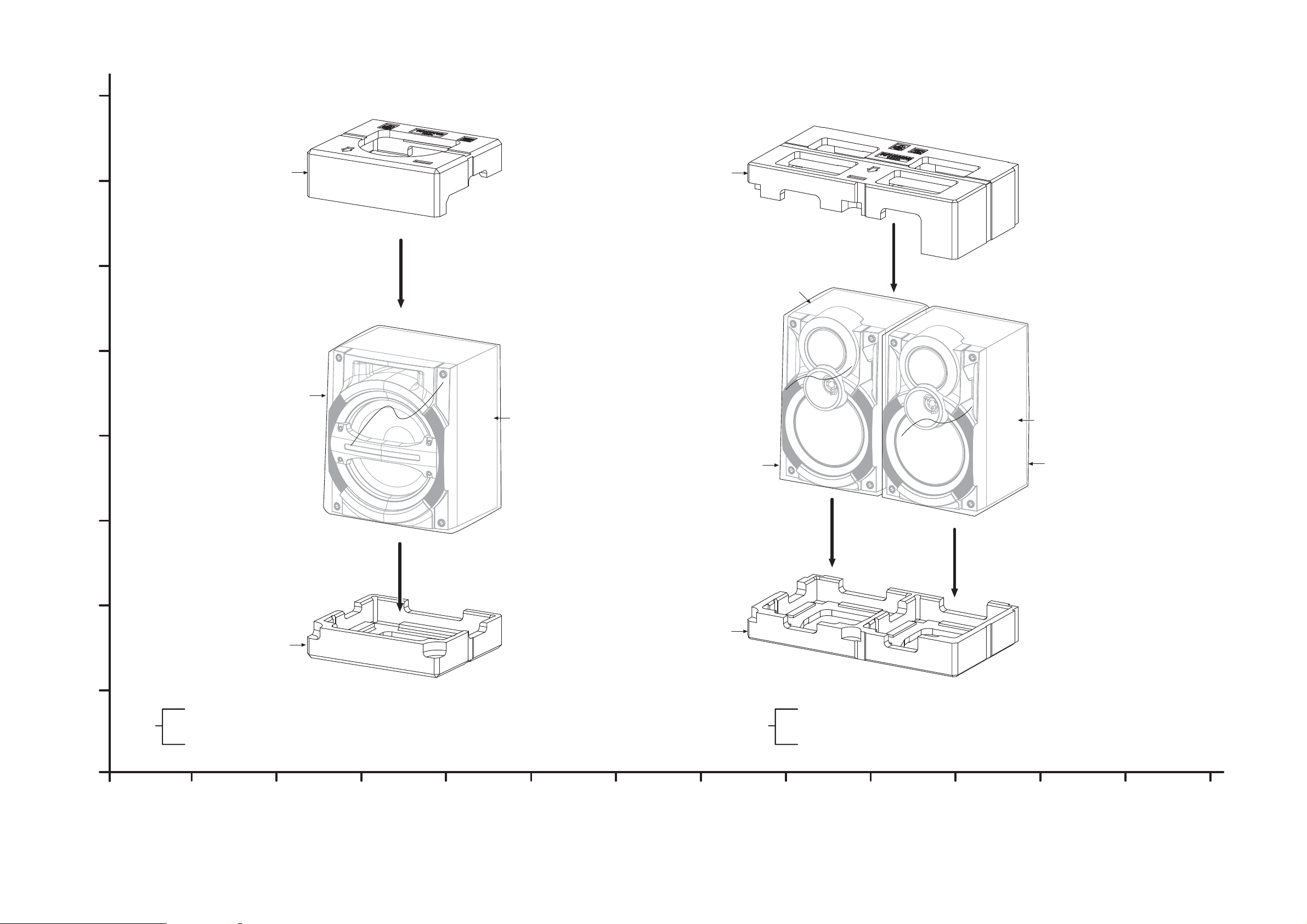

5.3. (SB-AKX54PN-K), (SB-AKX74PN-K) Packaging
19
Page 20
20
Page 21

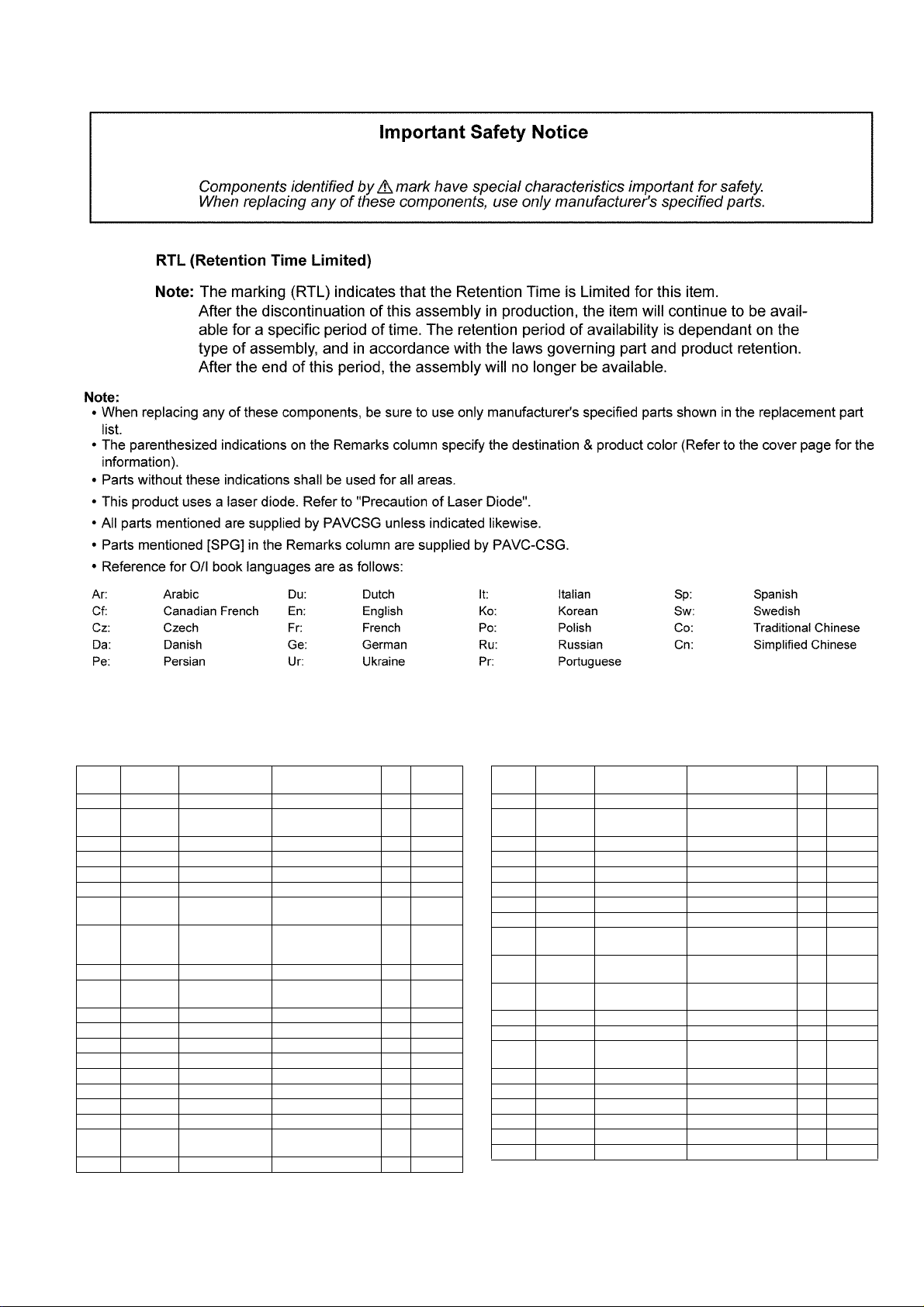

5.4. Replacement Parts List
5.4.1. Speakers (SB-AKX54PN-K), (SB-
AKX54PNAK)
Safety Ref. No. Part No. Part Name &
1 RYP1737-K FRONT PANEL ASSY 1
1-1 RGK2356-S FRONT ORNAMENT 1
1-2 XTB3+10GFJ SCREW 6
2 RFKHBAKX54PN SPEAKER CABINET
2-1 RFKVBPT760-W SPEAKER CONNEC-
3 RMQX0285-K EVA PACKING 1
4 RMQ0819 EVA PACKING
5 RKA0072-KJ LEG CUSHION 4
6 RGN3119-K SPEC LABEL 1 (PN)
6 RGN3124-K SPEC LABEL 1 (PNA)
7 XTB4+16AFJK SCREW 8
8 XTB3+10GFJ SCREW 4
9 XTB4+10GFJ SCREW 4
SP1 EAS6PH124K TWEETER SPEAKER 1
SP2 L0AA20A00021 FULL RANGE
SP3 EAS10P661B WOOFER 1
Description
CABINET AND
CHASSIS
ASS’Y
TOR HOUSING
(WHITE)
(WOOFER)
SPEAKER
Qty Remarks
1
1
1
1
5.4.2. Subwoofer Speaker (SBWAKX74PNK) (For AKX74PN)
Safety Ref. No. Part No. Part Name &
61 RGK2329-S FRONT ORNAMENT 1
62 RGL0766-Q LIGHTING PIECE 1
63 RGP1558-K FRONT PANEL 1
64 RMR2063-W LIGHTING BAR 2
65 XTB3+10GFJ SCREW 12
66 RFKHBAKX74PN SPEAKER CABINET
66-1 RFKVBPT760-P C0NNECTOR HOUS-
67 REE1709 LIGHTING WIRE
68 RGN3120-K SPEC LABEL 1
69 RKA0072-KJ LEG RUBBER 4
70 RMQX0292-K EVA PACKING
71 XTB4+16AFJK SCREW 4
72 XTB4+10GFJ SCREW 4
SP61 L0AA25A00015 WOOFER 1
Description
CABINET AND
CHASSIS
ASSY
ING (PURPLE)
ASSY
(WOOFER)
SPEAKER
Qty Remarks
1
1
1
1
21
Page 22
5.4.3. Packing Materials (SB-AKX54PNK), (SB-AKX74PN-K)
Safety Ref. No. Part No. Part Name &
Description
PACKING MATERIALS
Qty Remarks
Safety Ref. No. Part No. Part Name &
P1 RPN2353 POLYFOAM 1 (PN)
P1 RPN2377 POLYFOAM 1 (PNA)
P2 RPF0570 MIRAMAT BAG 2
P3 RPN2378 POLYFOAM(WAKX) 1
P4 RPF0572 MIRAMAT
Description
BAG(WAKX)
Qty Remarks
1
IPSG1203
22
Loading...
