Panasonic SAEN7, SAEN6 User Manual

Dear customer

Thank you for purchasing this product. Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.

CD Stereo System

Operating Instructions

Model No. SC-EN7

SC-EN6

These instructions are applicable to the following systems.

System SC-EN7 SC-EN6

Main unit SA-EN7 SA-EN6

Speakers SB-EN7

SC-EN7 is used in the illustrations unless otherwise mentioned.

Troubleshooting guide

Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem:

In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or the website (http://www.panasonic.com/contactinfo), or the website (http:// www.panasonic.com/support). In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or visit the website (www.panasonic.ca), or an authorized Servicentre closest to you.

A beat sound is heard while receiving a radio broadcast.

A low hum or noise is heard during AM broadcasts.

The picture on the television near the set disappears or stripes appear on the screen.

Remote control doesn’t work.

• Turn the TV off or separate it from the unit.

• Keep the antenna away from other cables and cords.

• Keep the AM antenna away from the unit.

• The location and orientation of the antenna are incorrect.

• The TV antenna wire is too close to the unit. Separate the antenna wire of the TV set from the unit.

• Check that the battery is inserted correctly. (→ page 2)

• Replace the battery if it is worn.

Display

• You plugged the AC adaptor in for the first time or there

– –:– –

PGM FULL

NOT MP3

ERROR

F76 • There is a power supply problem. Consult the dealer.

was a power failure recently. Set the time. (→ page 5)

• The total programmed play time is more than 200 minutes. Tracks can still be programmed and played.

• The number of programmed tracks is limited to 24. No further tracks can be programmed.

• A non-CD-DA or non-MP3 CD-ROM disc is inserted. Cannot be played.

• Incorrect operation performed. Read the instructions and try again.

No play.

MP3 cannot be read (SC-EN7).

Sound is unfixed, reversed or comes from one speaker only.

No sound or there is a lot of noise.

Humming heard during play.

• The disc isn’t correctly set.

• The disc is scratched or dirty. (Tracks skipped.)

• There is moisture on the lens. Wait for about an hour and then try again.

• You may not be able to play MP3 if you have copied a multi-session disc that has no data between sessions.

• When creating a multi session disc, it is necessary to close the session.

• The amount of data on the disc is too small. Set the amount of data to greater than approximately 5MB.

• Check the speaker connections. (→ page 2)

• Noise may occur when playing MP3 if recording quality is poor (SC-EN7).

• Keep this unit away from mobile telephones.

• Turn the volume up.

• Switch off the unit, determine and correct the cause, then switch the unit on. Causes include shorting of the positive and negative speaker wires, straining of the speakers through excessive volume or power, and using the unit in a hot environment.

• An AC power supply cord or fluorescent light is near the cables. Keep other appliances and cords away from this unit’s cables.

Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus, New Jersey 07094

http://www.panasonic.com

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc. (“PSC”)

Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Panasonic Canada Inc.

5770 Ambler Drive Mississauga, Ontario L4W 2T3

www.panasonic.ca

P PC

RQT7316-P

H1103ZZ0

Supplied accessories

The remote control

Use the numbers indicated in parentheses when asking for replacement parts.

(Only for U.S.A.) To order accessories contact 1-800-332-5368 or the website (http://www.pasc.panasonic.com).

1 Remote control

SC-EN7 SC-EN6

(EUR7711110) (EUR7711120)

1 AC adaptor

(RFEA206C-T)

Note

The included AC adaptor is for use with this unit only. Do not use with other equipment.

2 Batteries

1 AM loop antenna

(G0ZZ00002036)

Placements

Placement of speakers

You can remove the speaker cover netting. Left and right speakers are exactly the same.

Note

• Keep your speakers at least 10 mm (13/32") away from the system for proper ventilation.

• These speakers do not have magnetic shielding. Do not place them near televisions, personal computers or other devices easily influenced by

Place this unit in an area with more than 300 mm

(11

/16″) of vertical space. The CD lid may become damaged if it cannot open completely.

magnetism.

• To avoid damage to the speakers, do not touch the speaker cones if you have taken the nets off.

Batteries

g Use

(R6, AA, UM-3)

Remote control signal sensor

• Aim at the sensor, avoiding obstacles, at a maximum range of 7 m directly in front of the unit.

• Operation can be affected by strong light sources, such as direct sunlight, and the glass doors on cabinets.

• Insert so the poles (+ and –) match those in the remote control.

• Do not use rechargeable type batteries.

Caution

• Use the speakers only with the recommended system. Failure to do so may lead to damage to the amplifier and/or the speakers, and may result in the risk of fire. Consult a qualified service person if damage has occurred or if you experience a sudden change in performance.

• Do not attach these speakers to walls or ceilings.

Connections

1 Speakers

Before connecting, twist and pull off the vinyl tip of the speaker cords.

Red

Black

Red

Copper (+)

Silver (–)

Other equipment

(Cables and equipment not included.)

OUT

(L) (R)

Tape deck, etc.

Use

Main unit

AUX

Note

• An analog player with a built-in phono equalizer can be connected.

• For details, refer to the instruction manual of the other equipment.

Remote control

AUX

Select “AUX”

2 AM loop antenna

Stand the antenna up on its base.

AUX

Plug type:

3.5 mm (

Start Playback from the other source.

/8″) stereo

3 AC adaptor

Connect the AC adaptor only after all other connections have been

made.

Household AC outlet (AC 120 V/ 60 Hz)

Headphones

(Not included)

PHONES

Conserving power

The AC adaptor consumes 2.6 W even when the unit is turned off. To save power when the unit is not to be used for a long time, unplug the AC adaptor from the household AC

13VDC IN

outlet. If the unit is left unplugged for longer than approximately two weeks, all settings will revert to the factory settings. Do the settings again if this occurs.

Reduce the volume before connection. Plug type: 3.5 mm (

Note

Avoid listening for prolonged periods of time to prevent hearing damage.

/8″) stereo

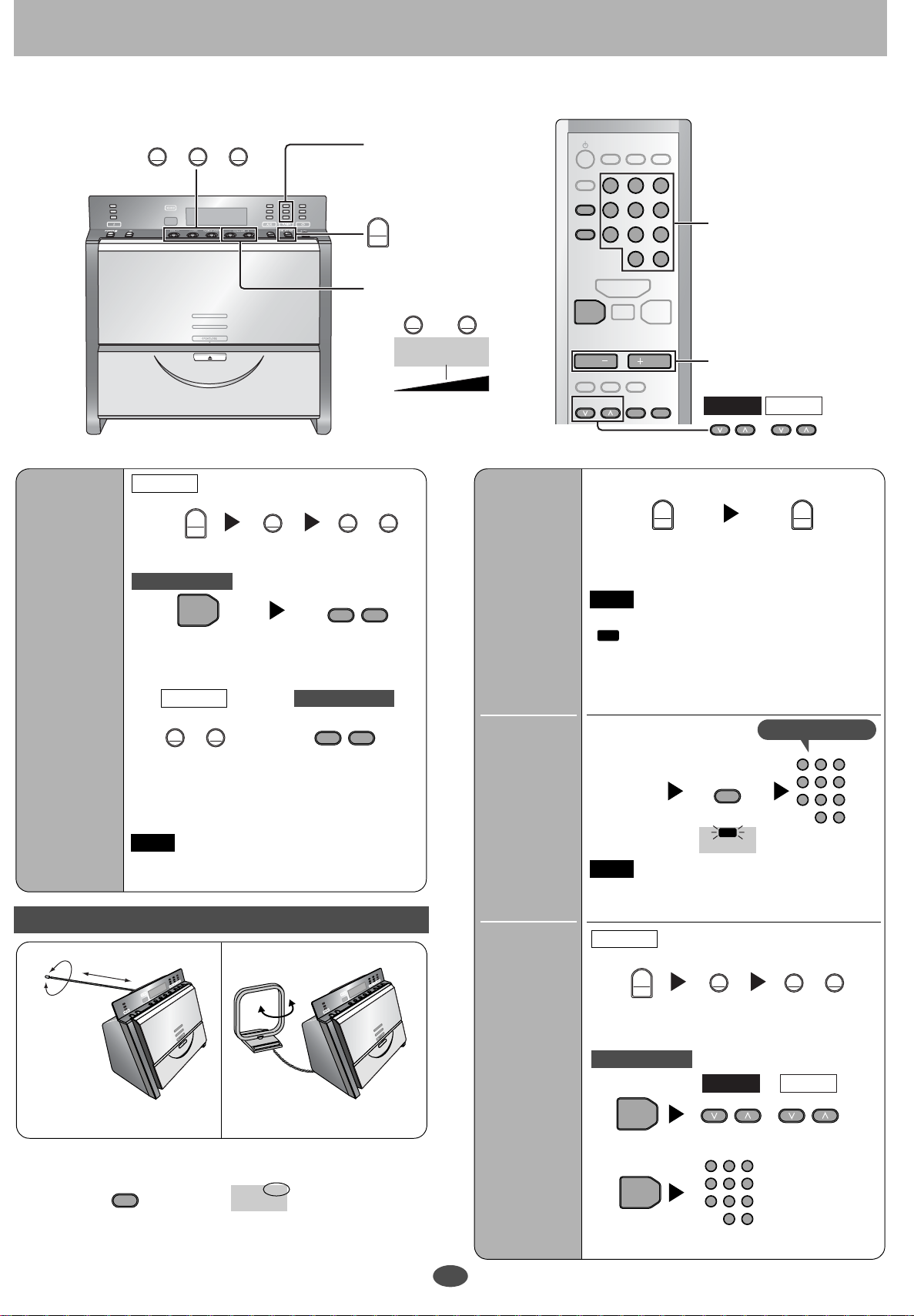

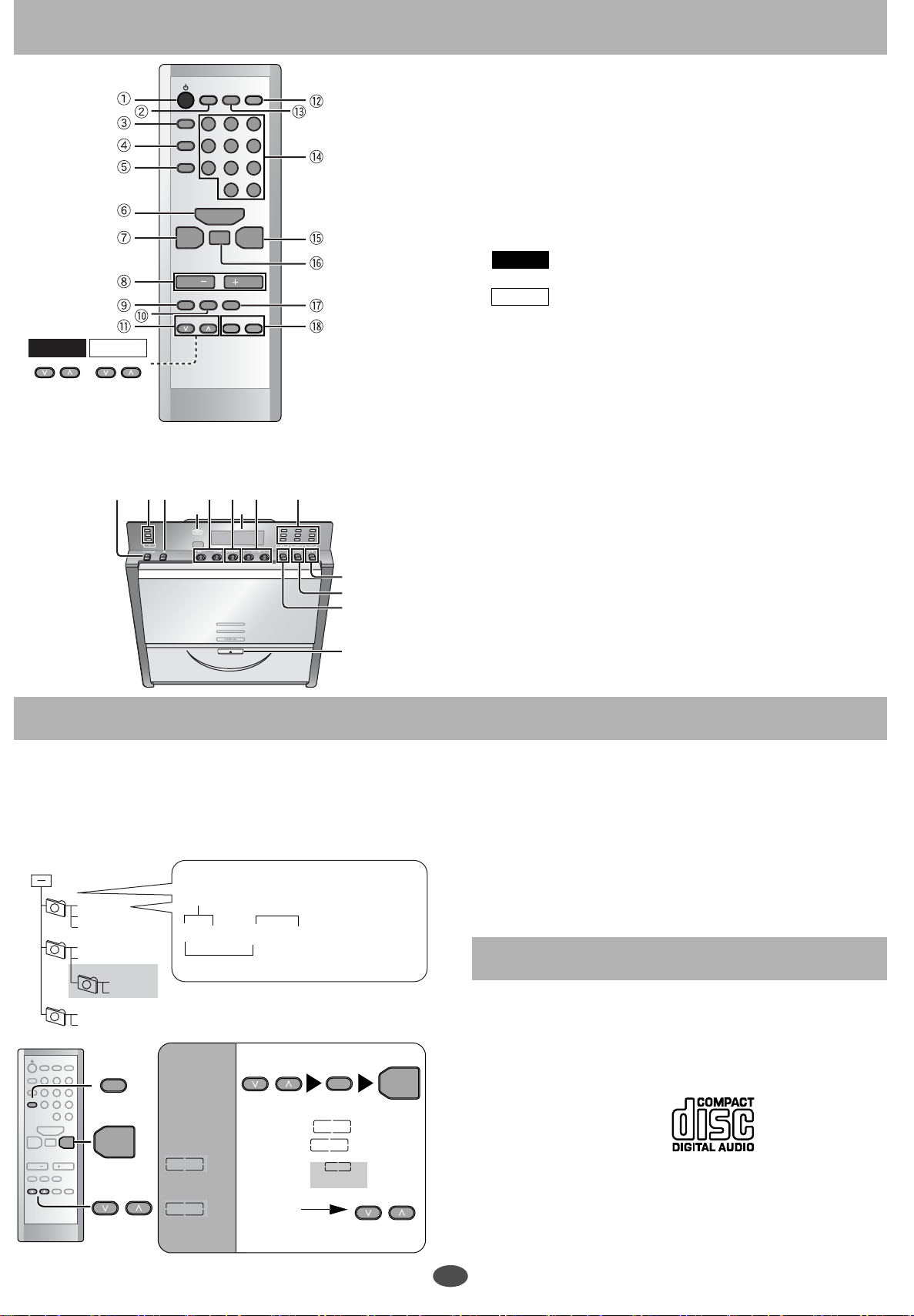

CD operations

CLOCK/

TIMER ADJ

SLEEP

PGM/CLEAR

PLAY MODE

TIMER

SET/CHECK

DISPLAY

123

> =

AUX

TUNER/

BAND

q/h

EXTRA

D.BASS

SOUNDEQLIVE

VIRTUALIZER

ALBUM

4 VOL

VOL

>=>=> =

1 Set the CD in place.

;

The CD lid opens and the unit comes on.

Label must face outward.

Press until you hear it click into place.

Press again to close.

Keep fingers away from the CD lid when it is closing to avoid possible minor injury.

To turn on

the unit

POWER

– +

2 Start play.

Remote controlMain unit

q/h

If the CD is already in the unit, the unit comes on and play begins.

(One touch play)

Function indicator

The color changes when using the CD mode.

To adjust the volume

–

VOLUME

VOL

(Minimum)

(Maximum)

Elapsed playing time of track

Track number

1 0:01

Input using the numbered buttons

To select a 2-digit number

e.g. 16: [ 10] → [1] → [6]

To select 3-digit number

e.g. 226: [ 10] → [ 10] → [2] → [2] → [6]

To adjust the volume

Stop

Number of tracks

Main unit

Pause

q/h

Press again to resume play.

Skip/ Search

Note

• You cannot search through MP3 files (SC-EN7).

• Perform search during play or while paused.

• You can search only within the current track during program, one track repeat, or random play.

Direct access play

Play starts with the track you select.

Refer to page 6 regarding MP3 play (SC-EN7 only).

Remote control

14 40:21

MP3

Number of albums

2 18

10 2:16

(SC-EN7)

Remote control

q/h

Main unit Remote control

– +

Press to skip/

Press and hold to search

123

Select the desired track

Tra ck p l a y t im e

Number of tracks

MP3

Repeat play/ random play

1-&:

& : All track

RND: Random

Program play

This function allows you to program up to 24 tracks.

One track repeat

repeat

play

PLAY MODE

Select the play mode

• Each time you press the button:

1-& →

↑

& → RND

(While stopped)

No display (Canceled)←

Note

• During random play, you cannot skip to the previous track.

• You cannot select “RND” while playing MP3 (SCEN7).

• You cannot use random play and program play at the same time.

123

PGM/CLEAR

Press while

stopped

PGM

(CD only)

(Maximum 24 tracks)

Select tracks

6 --

6 4:01

q/h

Start play

Track number

Sequence number

Track number

Total play time

PGM/CLEAR

• Erase a program

(While stopped)

Note

Program contents are stored in memory even after the function has been changed or the unit is turned off. All program contents are erased by pressing [PGM/ CLEAR] or by opening the CD lid.

• Confirm a programmed

(While stopped)

track

• Add a program track

(While stopped)

Note

• You cannot use random play and program play at the same time.

CLEAR

123

Select the track you want to add
