Panasonic SC-EN26, SC-EN25, EN26 - Micro System - Radio, SA-EN25, SA-EN26 Operating Instructions Manual

Operating Instructions

CD Stereo System

Model No.

SC-EN27

SC-EN26
SC-EN25

System SC-EN25 SC-EN26 SC-EN27

Main unit SA-EN25 SA-EN26 SA-EN27

Speakers SB-EN25 SB-EN26 SB-EN25

SC-EN27 is used in
the illustrations unless otherwise mentioned.

These instructions are applicable to the following systems.

Dear Customer

Thank you for purchasing this product.
Before connecting, operating or adjusting this product, please read the
instructions completely.
Please keep this manual for future reference.

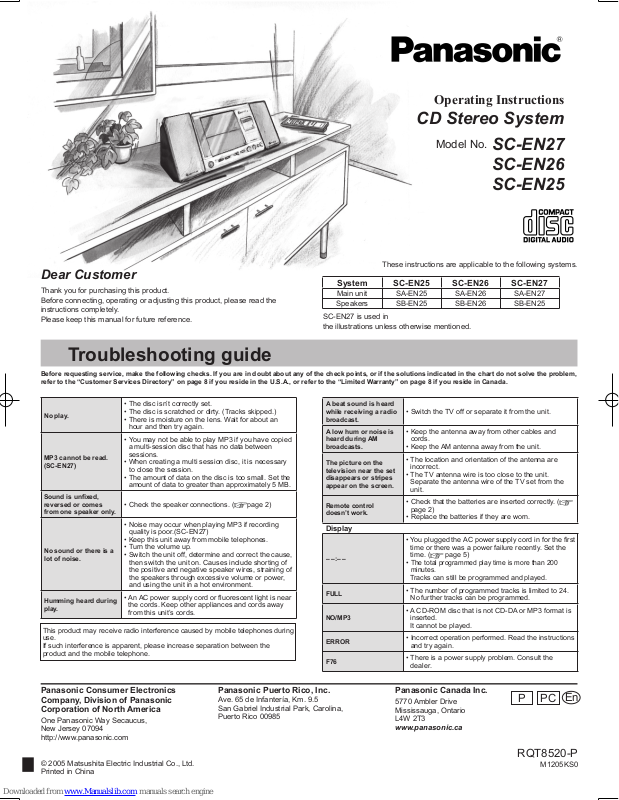

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about any of the check points, or if the solutions indicated in the chart do not solve the problem,
refer to the “Customer Services Directory” on page 8 if you reside in the U.S.A., or refer to the “Limited Warranty” on page 8 if you reside in Canada.

No play.

• The disc isn’t correctly set.

• The disc is scratched or dirty. (Tracks skipped.)

• There is moisture on the lens. Wait for about an
hour and then try again.

MP3 cannot be read.
(SC-EN27)

• You may not be able to play MP3 if you have copied
a multi-session disc that has no data between
sessions.

• When creating a multi session disc, it is necessary
to close the session.

• The amount of data on the disc is too small. Set the
amount of data to greater than approximately 5 MB.

Sound is unfi xed,
reversed or comes
from one speaker only.

• Check the speaker connections. ( page 2)

No sound or there is a
lot of noise.

• Noise may occur when playing MP3 if recording
quality is poor.(SC-EN27)

• Keep this unit away from mobile telephones.

• Turn the volume up.

• Switch the unit off, determine and correct the cause,
then switch the unit on. Causes include shorting of
the positive and negative speaker wires, straining of
the speakers through excessive volume or power,
and using the unit in a hot environment.

Humming heard during
play.

• An AC power supply cord or fl uorescent light is near
the cords. Keep other appliances and cords away
from this unit’s cords.

This product may receive radio interference caused by mobile telephones during
use.
If such interference is apparent, please increase separation between the
product and the mobile telephone.

A beat sound is heard
while receiving a radio
broadcast.

• Switch the TV off or separate it from the unit.

A low hum or noise is
heard during AM
broadcasts.

• Keep the antenna away from other cables and
cords.

• Keep the AM antenna away from the unit.

The picture on the
television near the set
disappears or stripes
appear on the screen.

• The location and orientation of the antenna are
incorrect.

• The TV antenna wire is too close to the unit.
Separate the antenna wire of the TV set from the
unit.

Remote control
doesn’t work.

• Check that the batteries are inserted correctly. (
page 2)

• Replace the batteries if they are worn.

Display

– –:– –

• You plugged the AC power supply cord in for the fi rst
time or there was a power failure recently. Set the
time. (

page 5)

•

The total programmed play time is more than 200
minutes.

Tracks can still be programmed and played.

FULL

• The number of programmed tracks is limited to 24.
No further tracks can be programmed.

NO/MP3

• A CD-ROM disc that is not CD-DA or MP3 format is

inserted.
It cannot be played.

ERROR

• Incorrect operation performed. Read the instructions
and try again.

F76

• There is a power supply problem. Consult the
dealer.

Panasonic Consumer Electronics
Company, Division of Panasonic
Corporation of North America

One Panasonic Way Secaucus,
New Jersey 07094
http://www.panasonic.com

Panasonic Puerto Rico, Inc.

Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985

Panasonic Canada Inc.

5770 Ambler Drive
Mississauga, Ontario
L4W 2T3

www.panasonic.ca

© 2005 Matsushita Electric Industrial Co., Ltd.
Printed in China

RQT8520-P

M1205KS0

PPC

En

2

MUSIC PORT

3

2

1

4

Supplied accessories

The remote control

Use the numbers indicated in parentheses when asking for
replacement parts.

(As of December 2005)
In U.S.A. to order accessories, refer to “Accessory Purchases” on page 8.

1 Remote control
(N2QAGB000037)

(N2QAGB000038)

2 Batteries

1 FM/AM antenna
(N1DADYY00003)

1 AC power supply cord
(RJA0065-1D)

The included AC power supply cord is for use with this unit only. Do not
use it with other equipment.

Note

Batteries

• Insert so the poles (+ and –) 
match those in the remote 
control.

• Do not use rechargeable type 
batteries.

Use

Remote control signal sensor

• Aim at the sensor, avoiding obstacles, at a
maximum range of 7 m directly in front of the
unit.

• Operation can be affected by strong light
sources, such as direct sunlight, and the glass
doors on cabinets.

Maintenance

To clean this unit, wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this unit.

• Before using chemically treated cloth, read the instructions that came with
the cloth carefully.

Placement of speakers

Connections

1 Speakers

Before connecting, twist off
the tip.

Red

Black

Black

Red

Copper (+)

Silver (–)

Silver (–)

Copper (+)

2 FM/AM antenna

Stand the antenna up on its base.

3 AC power supply cord

Connect the AC power
supply cord only after all
other connections have been
made.

Conserving power

The unit consumes 2.0 W even when it is turned
off with [POWER8]. To save power when the
unit is not to be used for a long time, unplug it
from the household AC outlet.
Remember to reset the radio stations and any
other memory items before using the unit again.

If the unit is left unplugged for longer than
approximately two weeks, all settings will revert
to the factory settings.

To household AC outlet

Portable audio equipment

(Cords and equipment not included.)

Portable audio player

Plug type:

3.5 mm (1/8″ )
stereo

Use

Start Playback from the
Portable audio source.

Note

• Adjust the volume and sound quality of this unit and

the other equipment.

• For details, refer to the instruction manual of the other

equipment.

Select

“MUSIC P”

Headphones

(Not included)

Reduce the volume before connection.
Plug type: 3.5 mm (1/8″ ) stereo

Avoid listening for prolonged periods of
time to prevent hearing damage.

Note

(R6, AA)

The socket outlet shall be installed near the equipment and easily accessible or the mains plug or an appliance coupler shall remain readily operable.

Care of the CD lens

• Clean the lens regularly to prevent malfunctions. Use a blower to remove
dust and a cotton swab if it is extremely dirty.
Recommended product: Lens cleaner kit (part no. SZZP1038C).

• Do not use the lens cleaner of the CD type.

Place this unit in an area with more than 240 mm (9
7/16″) of vertical space.
The CD lid may become damaged if it cannot open
completely.

Placement of speakers

Left and right speakers are exactly the same.

• Keep your speakers at least 10 mm (13/32″) away

from the system for proper ventilation.

• These speakers do not have magnetic shielding.
Do not place them near televisions, personal
computers or other devices easily infl uenced by
magnetism.

•

To avoid damage to the speakers, do not touch
the speaker cones if you have taken the nets off.

Caution

• Use the speakers only with the
recommended system. Failure
to do so may lead to damage to
the amplifi er and/or the speakers,
and may result in the risk of
fi re. Consult a qualifi ed service
person if damage has occurred
or if you experience a sudden
change in performance.

• Do not attach these speakers to
walls or ceilings.

Note

Note

Remote control

Unplug the antenna connector by
holding the taped part.

SC-EN27

SC-EN25/SC-EN26

Taped part

FM antenna

AM antenna

1

L

2

R

FM/AM ANT

AC IN

HAU

PHONES

SPEAKERS(6

P

T-

)



L

R

ARLEURS

3

CD

q/h

SLEEP

CLOCK/

TIMER ADJ

DISPLAY

TIMER

SET/CHECK

PGM/CLEAR

-

AUTO PRESET

OPEN/
CLOSE

123

4

5

6

7

8

0

9

>
=

10

MUSIC PORT

TUNER/

BAND

CD

SOUNDEQLIVE

VIRTUALIZER

PLAY

MODE

ALBUM

VOL

VOL

g

CD

q/h

MPMP

3

TRTRACKACK

ALBUMALBUM

CD operations

1 Set the CD in place.

Main unit

Remote control

The unit comes on and the CD lid opens.

Label must face outward.

Press until you hear it click into place.
Press [;] again to close.

Keep fi ngers away from the CD lid when it is closing to avoid possible minor injury.

2 Start play.

Main unit

Remote control

Elapsed playing time of track

Track number

Note

If the CD is already in the unit, the unit comes on and play begins.

(One touch play)

To turn on

the unit

To stop play

To skip/

search

To adjust the volume

0

(Minimum)

50

(Maximum)

1

Input using the
numbered buttons
To select a 2-digit number

e.g. 16: [ 10] → [1] → [6]

To select a 3-digit number

e.g. 226:
[ 10] → [ 10]
→ [2] → [2] → [6]

2

To adjust the volume

Stop

Pause

Skip/
Search

Direct
access
play

Play starts
with the track
you select.

Main unit

Remote control

Main unit

Remote control

Main unit

Remote control

Number of tracks

Total play time

Number of albums

Number of tracks

MP3

Press again to resume play.

Press to skip/

Press and hold to search

Note

• You can search during play or while paused.

• You cannot search through MP3 fi les. (SC-EN27)

• You can only search within the current track during
program play, one track repeat, and random play.

Select the desired track

Refer to page 6 regarding MP3 play. (SC-EN27 only)

Repeat play/
random play

1-&

: One track

repeat

&

: All track

repeat

RND : Random

play

• Each time you press the button:
1-& → & → RND

(While stopped)

No display (Canceled)

Select the
play mode

Note

• During random play, you cannot skip to the previous
track.

•

You cannot select “RND” while playing MP3. (SC-EN27)

• You cannot use random play and program play at the
same time.

Program
play

This function
allows you to
program up to 24
tracks.

Press while

stopped

Select tracks

(Maximum 24 tracks)

Start play

Track number

Sequence number

Track number

Total play time

(CD only)

• Erase a program

(While stopped)

Note

Program contents are stored in the unit’s memory
even after changing to a different function or turning
the unit off. All program contents are erased by
pressing [PGM/CLEAR] or by opening the CD lid.

• Confi rm a programmed
track

(While stopped)

• Add a program track

(While stopped)

Select the track
you want to add

Note

• You cannot use random play and program play at

the same time.

(SC-EN27)

• Be sure to press the [OPEN/CLOSE]
button to open and close the CD lid.

•

Damage may occur if the lid is forced closed.

Note

OPEN/
CLOSE

PGM

4

TUNER/

BAND

ui

3

4

TUNER/

BAND

ui

3

4

TUNER/

BAND

123

4

5

6

7

8

0

9

>
=

10

Within 10 seconds

Radio operations

Radio stations can be tuned manually by selecting the station’s frequency or they can be preset into channels to make it easy to tune.
You can preset up to 20 FM channels and up to 12 AM channels.

To adjust the volume

0

(Minimum)

50

(Maximum)

Input using the numbered
buttons
To select a 2-digit number

e.g. 11: [ 10] → [1] → [1]

To adjust the volume

Allocation settings

Each country allocates broadcast bands according to their particular system.

You can change the FM step. The step is factory-set to 0.2 MHz, but you
can change it to receive broadcasts allocated 0.1-MHz steps.
Any FM frequencies preset in channels will be changed by this procedure.
Preset them again.

1. Select the AM band with [TUNER/BAND].

2. Press and hold [TUNER/BAND] on the unit.

After a few seconds the display changes to show the current minimum

frequency. Continue to hold the button down. The minimum frequency
changes and the step is changed.

To return to the original step, repeat the above steps.

Note

The preset memory will be initialized when you change the frequency step.

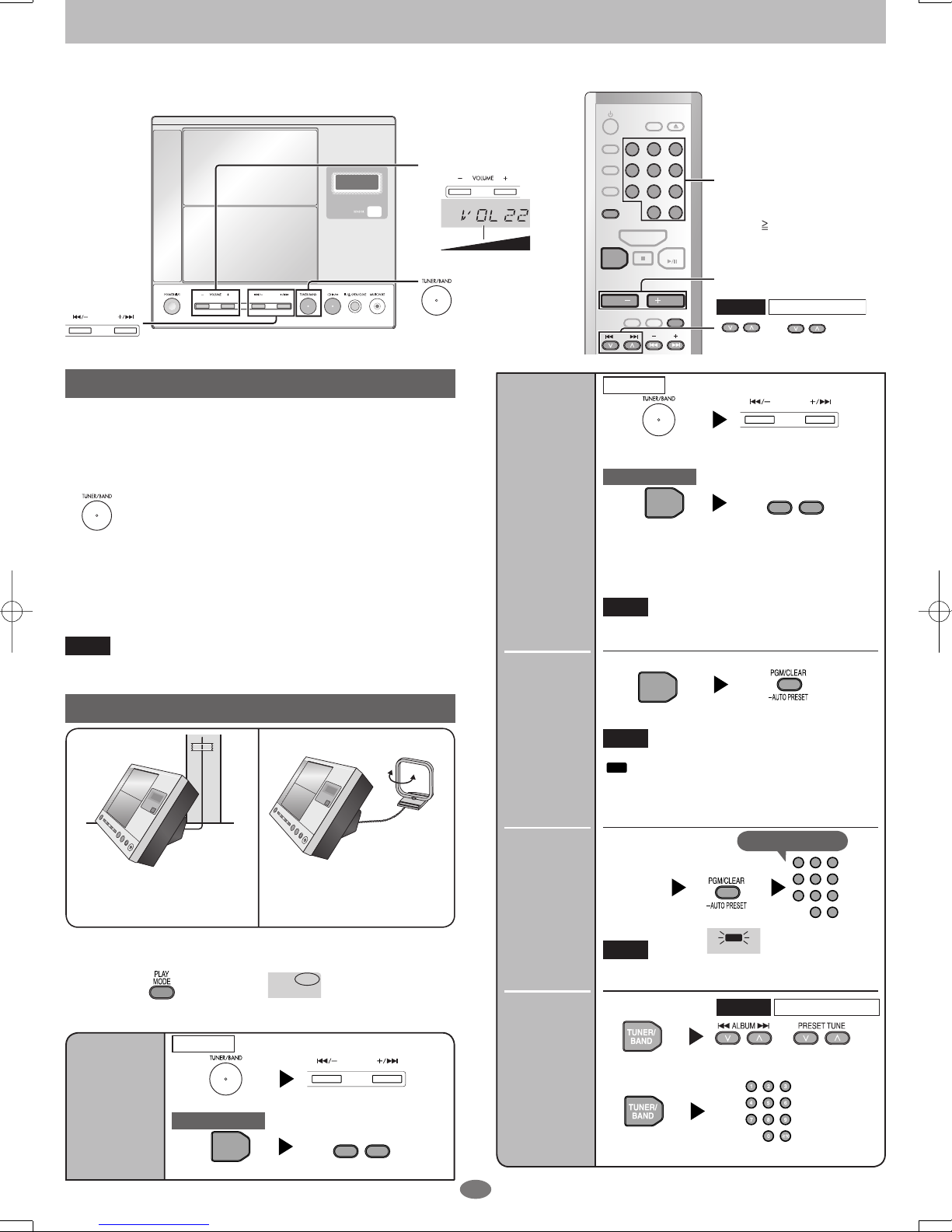

To improve reception

FM AM

Receive the radio stations after
connecting the antenna. Then
attach the antenna code on the wall
or pillar in the good reception.

Change the direction and location
of the antenna.

If noise is excessive in FM

You can improve FM reception by switching reception to monaural.

Press to turn the MONO

mode ON/OFF

Manual
tuning

Main unit

Remote control

Select “FM” or “AM”

Select the frequency

Select “FM” or “AM”

Select the frequency

Automatic
presetting

The tuner
presets the
stations it can
receive into
channels in
ascending order.

Auto
tuning

Manual
presetting

Preset the
stations one at a
time.

Selecting
channels

Main unit

Remote control

Select “FM” or “AM”

Press and hold until the
frequency starts changing
rapidly

Select “FM” or “AM”

Press and hold until the
frequency starts changing
rapidly

• Auto tuning stops when it fi nds a station.

• To cancel auto tuning press the same button again.

• Auto tuning may not function when there is
excessive interference.

Note

Perform once for FM stations and once for AM stations.

Select “FM” or “AM”

Press and hold until

“AUTO” appears

During automatic presetting, the memory indicator
(

PGM

) fl ashes and the frequency scrolls. The memory
indicator and channel numbers are displayed for a
second when a station is preset.
The fi rst station to be preset is displayed when
presetting fi nishes.

Note

Tune to the
signal you
want to
set as the
preset.

Enter preset mode

Select a channel

The station occupying a channel is erased if another
station is preset over that channel.

Note

Select “FM” or “AM” Select a channel

Select “FM” or “AM” Select a channel

OPEN/

DISPLAY

CLOSE

SLEEP

123

CLOCK/

TIMER ADJ

TIMER

SET/CHECK

PGM/CLEAR

-

AUTO PRESET

TUNER/

BAND

4

7

MUSIC PORT

6

5

8

9

>

10

0

=

CD

VOL

ALBUM

SOUNDEQLIVE

VIRTUALIZER

VOL

PLAY
MODE

ALBUM

SC-EN25/SC-EN26SC-EN27

i

PRESET TUNE

u

MONO

PGM

SC-EN25/SC-EN26SC-EN27

5

CLOCK/

TIMER ADJ

ui

3

4

CLOCK/

TIMER ADJ

Within 10 seconds

CLOCK/

TIMER ADJ

TIMER

SET/CHECK

SLEEP

SLEEP

SOUND

EQ

LIVE

VIRTUALIZER

CLOCK/

TIMER ADJ

ui

3

4

Within 10 seconds

CLOCK/

TIMER ADJ

ui

3

4

CLOCK/

TIMER ADJ

MUSIC PORT

TUNER/

BAND

CD

q/h

4 VOL

VOL

3

TIMER

SET/CHECK

TIMER

SET/CHECK

TIMER

SET/CHECK

TIMER

SET/CHECK

DISPLAY

Timers and others

Setting
the time

This is a 12-hour
clock.

SLEEP
timer

The SLEEP
timer can turn
the unit off after
a set time.

Sound
quality

You can choose
one of four types
of sound quality.

Live
Virtualizer

You can create a
three-dimensional
sound fi eld when
listening to stereo
sound.

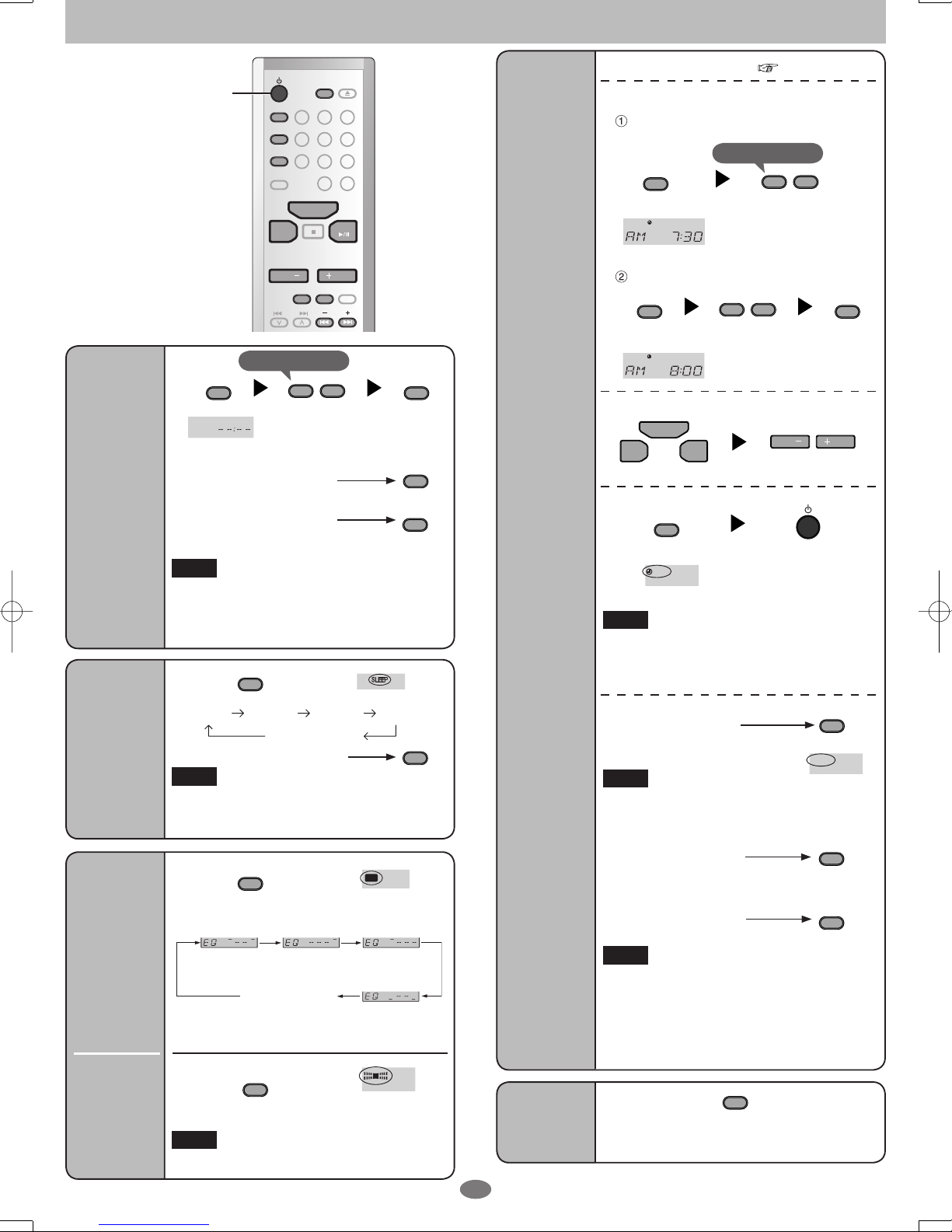

Select the time

• Press and hold to
change the time faster.

• To display the clock
when the unit is on

• To check the time when
the unit is off

The clock is accurate to within ±60 seconds a month.
Readjust if necessary.
Set again after disconnecting the AC power supply
cord or power failure.

Note

•

To check the remaining time

The play timer and sleep timer can be used together.
The sleep timer always has priority. Be sure not to
overlap timer settings.

Note

• Each time you press the button:
SLEEP 30 SLEEP 60 SLEEP 90 SLEEP 120

OFF (Canceled)

Press once

Set the clock

Select the sound quality

• Each time you press the button:

Press to turn the Live

Virtualizer ON/OFF

The actual effect depends on the source played.

Note

Play timer

This timer starts
play of the
selected source
at the selected
time.

Preparation: Set the clock (

left).

1 Perform timer settings

Set the start time

While the time is displayed

Select

“zPLAY ON”

Select the start time

• Press and hold to
change the time
faster.

Set the end time

Select

“zPLAY OFF”

Select the end time

• Press and hold to
change the time
faster.

2

Select the source and adjust the volume

Select the source Adjust the volume

Display “zPLAY” Turn the unit off

3 Turn the timer on

The unit must be off for the timer to be operated.

You can enjoy any sources while the play timer is set.
The timer function will be canceled when you change
the frequency step. Follow the step 3 again while the
unit is on.

Note

•

To cancel the timer
while the unit is on

Clear “zPLAY”

• To change the timer

• To check the setting
while the unit is off

The timer function will be canceled, but the settings
stay in the memory.
The timer comes on every day if the timer is on.

Note

Clear “zPLAY”and
set the timer again

• If you turn the unit off and on again while the timer

is functioning, the fi nish time setting will not be
activated.

• When the “MUSIC P” source is selected, set the

timer on the connected equipment to the same time.

Note

Display

You can change
the display.

The following types of information are displayed.

• Original display

• Time display

RQT8520

Press[^] to turn the unit
on.

SLEEP

CLOCK/

TIMER ADJ

TIMER

SET/CHECK

PGM/CLEAR

-

AUTO PRESET

TUNER/

BAND

OPEN/

DISPLAY

CLOSE

123

4

5

8

7

0

MUSIC PORT

CD

6

9

>

10

=

PLAY

ON

VOL

ALBUM

SOUNDEQLIVE

VIRTUALIZER

VOL

PLAY

MODE

PLAY

OFF

PLAY

XBS
(Adds punch
to rock)

CLEAR
(

Clarifies higher

sounds)

EQ OFF (Canceled)

EQ

SOFT
(

For background

music)

VOCAL
(

Adds gloss to

vocals

)

6

DISPLAY

001album

001track.mp3
002track.mp3
003track.MP3

008track.MP3
009track.MP3

002album

004track.mp3
005track.mp3

004album

003album

006track.mp3
007track.MP3

CD-ROM drive

3

u

ALBUM

i

PLAY

MODE

CD

q/h

u

ALBUM

i

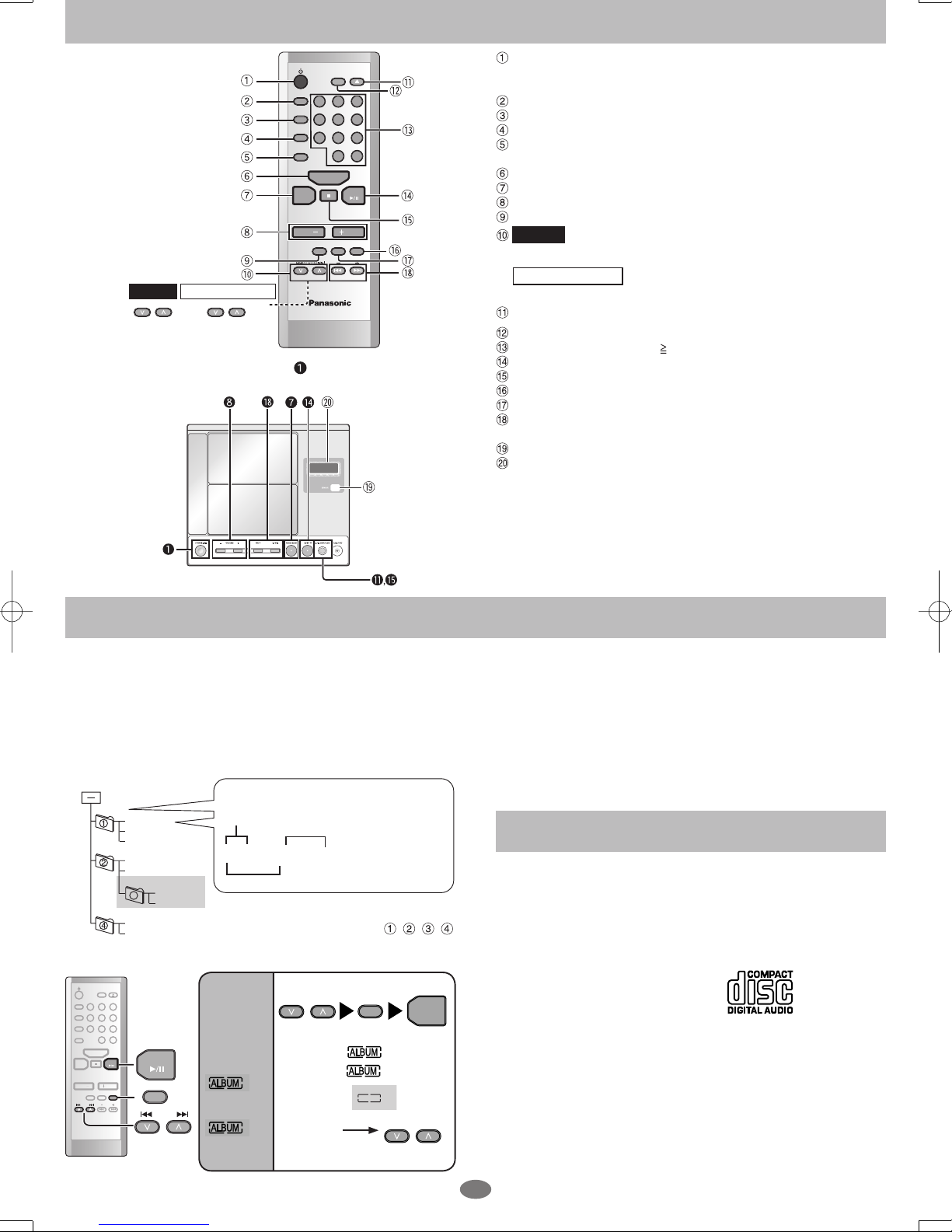

Control guide

The shaded buttons, such as , function in the
same way as the buttons on the remote control.

Standby/on switch [^, POWER ^/l] ..................................................... 3

Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of power.

SLEEP timer button [SLEEP] ............................................................... 5

Clock/timer adjust button [CLOCK/TIMER ADJ] ................................ 5

Timer set/check button [TIMER SET/CHECK] .................................... 5

CD program/clear, tuner preset button

[PGM/CLEAR, –AUTO PRESET] ..................................................... 3, 4

MUSIC PORT button [MUSIC PORT] ................................................... 2

Tuner/band select button [TUNER/BAND] .......................................... 4

Volume buttons [VOL –, + VOL, – VOLUME +] .................................. 3

Sound EQ button [SOUND EQ] ........................................................... 5

SC-EN27

Album skip, preset channel select buttons

[2, 1, u ALBUM i] .................................................................... 4, 6

SC-EN25/SC-EN26

Preset channel select buttons

[2, 1, PRESET TUNE] .......................................................................... 4

CD open/close button [;, OPEN/CLOSE] ........................................... 3

Display button [DISPLAY] .................................................................... 5

Numbered buttons [1–9, 0, 10] .......................................................... 3

CD play/pause button [CD q/h] .......................................................... 3

CD stop button [g] ............................................................................... 3

Play mode button [PLAY MODE] ................................................. 3, 4, 6

Live virtualizer button [LIVE VIRTUALIZER] ...................................... 5

CD skip/search, frequency select, time adjust buttons

[u, i, –, +, u/–, +/i] ........................................................ 3, 4, 5

Remote control signal sensor
Display

MP3 operations (SC-EN27 only)

This unit can play MP3, a method of compressing audio without overly
hurting audio quality.

When creating MP3 fi les to play on this unit

• Maximum number of tracks and albums: 999 tracks and 256 albums.

• Compatible compression rate: Between 64 kbps and 320 kbps (stereo).
128 kbps (stereo) is recommended.

• Disc formats: ISO9660 level 1 and level 2 (except for extended formats).

• It is better not to create folders (album) within folders (004album below).

• The time for reading TOC depends on the number of the tracks, the folders

or folder structures.

Naming tracks and albums

Prefi x with 3-digit numbers in the order you
want to play

001track.mp3 (or.MP3)

If you created an album such as 004album on the
left, the fi les may not play in order.
The albums would play in the order

, , , .
Title names and album names are not
displayable on this unit.

Album
play

You can
listen to
tracks within
albums.

:

Album play

&

:

Album
repeat

Select the

album

Select

“

” or

“ &”

Start

play

• Skip the
album

Regarding CDs

Limitations on MP3

• This unit is compatible with multi-session but if there are a lot of sessions
it takes more time for play to start. Keep the number of sessions to a
minimum to avoid this.

• This unit cannot play fi les recorded using packet write.

• If the disc includes both MP3 and normal audio data (CD-DA), the unit
plays the type recorded in the inner part of the disc.

If the disc includes both MP3 and other types of audio data (e.g. WMA or

WAV), the unit plays only the MP3.

• Depending on how you create MP3 fi les, they may not play in the order

you numbered them or may not play at all.

Note on CD-R and CD-RW

This unit can play CD-R and CD-RW recorded with CD-DA or MP3 (MP3:
SC-EN27 only). Use an audio recording disc for CD-DA and fi nalize∗ it when
you fi nish recording.
The unit may not be able to play some discs due to the condition of the
recording.

∗

A process performed after recording that enables CD-R/CD-RW players to
play audio CD-R and CD-RW.

Caution

Choose discs with this mark:
Do not;

• use irregularly shaped CDs.

• attach extra labels and stickers.

• use CDs with labels and stickers that are coming off or with adhesive

exuding from under labels and stickers.

• attach scratch-proof covers or any other kind of accessory.

• write anything on the CD.

• clean CDs with liquids (Wipe with a soft, dry cloth.).

Note about using a DualDisc

• The digital audio content side of a DualDisc does not meet the technical

specifi cations of the Compact Disc Digital Audio (CD-DA) format so play
may not be possible.

• Do not use a DualDisc in this unit as it may not be possible to insert it

correctly and it may get scratched or scraped.

Extension

SLEEP

123

CLOCK/

TIMER ADJ

4

5

TIMER

SET/CHECK

8

7

PGM/CLEAR

-

AUTO PRESET

SC-EN25/SC-EN26SC-EN27

u

ALBUM

i

PRESET TUNE

TUNER/

BAND

VOL

MUSIC PORT

SOUNDEQLIVE

ALBUM

0

VIRTUALIZER

VOL

OPEN/
CLOSE

>
=

CD

PLAY

MODE

6

9

10

OPEN/

DISPLAY

CLOSE

SLEEP

123

CLOCK/
TIMER ADJ

4

6

5

TIMER

SET/CHECK

8

7

9

PGM/CLEAR

>

10

0

=

-

AUTO PRESET

MUSIC PORT

TUNER/

CD

BAND

VOL

VOL

SOUNDEQLIVE

PLAY

VIRTUALIZER

MODE

ALBUM

CD

PLAY MODE

ALBUM

ALBUM

7

EST. 1924

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these
operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifi ers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding-type plug has two blades and
a third grounding prong. The wide blade or the third prong are provided for your safety. If
the provided plug does not fi t into your outlet, consult an electrician for replacement of the
obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

Listening caution

Selecting fi ne audio equipment such as the unit you’ve just purchased is only the start of your
musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement
your equipment offers. This manufacturer and the Electronic Industries Association’s
Consumer Electronics Group want you to get the most out of your equipment by playing it at
a safe level. One that lets the sound come through loud and clear without annoying blaring or
distortion–and, most importantly, without affecting your sensitive hearing.
We recommend that you avoid prolonged exposure to excessive noise.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of
sound. So what sounds “normal” can actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:

• Start your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, and without

distortion.

Once you have established a comfortable sound level:

• Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After
all, we want you listening for a lifetime.

11) Only use attachments/accessories specifi ed by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specifi ed by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid
injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for
long periods of time.

14) Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.

Specifi cations

Main unit

Radio

Frequency range

FM 87.9 to 107.9 MHz (200 kHz steps)

87.5 to 108.0 MHz (100 kHz steps)

AM 520 to 1710 kHz (10 kHz steps)

CD player

Sampling frequency 44.1 kHz
Decoding 16 bit linear
Beam source

Semiconductor laser (wavelength 795 nm)

Number of channels 2 channel, stereo
Wow and fl utter

Less than possible measurement data

D/A converter MASH(1 bit DAC)

Terminals

Input MUSIC PORT: 3.5 mm stereo (33 kΩ)
Output PHONES: 3.5 mm stereo (32 Ω)

General

Power supply AC 120 V, 60 Hz
Power consumption 16 W
Dimensions (W×H×D) 241 mm×206 mm×206 mm

(9 1/2″ ×8 1/8″ ×8 1/8″)

Mass

With speakers 3.1 kg (6 lb. 13 oz.)

Without speakers 1.8 kg (3 lb. 15 oz.)

Speakers

Full range 8 cm (3 1/8″ ), 6 Ω×2

Dimensions (W×H×D) 91 mm×206 mm×176 mm

(3 19/32″ ×8 1/8″ ×6 15/16″ )

Specifi cations are subject to change without notice.
Mass and dimensions are approximate.

Power consumption in standby mode: 2.0 W

Note

MPEG Layer-3 audio decoding technology
licensed from Fraunhofer IIS and Thomson
multimedia.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT
DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS
FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON
THE APPARATUS.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN
CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD
DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

CAUTION!

THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER
SERVICING TO QUALIFIED PERSONNEL.

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Any unauthorized changes or modifi cations to this equipment would void the user’s
authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.

Responsible Party:
Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Telephone No.: 1-800-211-7262

ONLY FOR CANADA

(Inside of product)

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local
authorities or dealer and ask for the correct method of disposal.

-If you see this symbol-

8

Product Service

1. Damage requiring service — The unit should be serviced by qualifi ed service

personnel if:
(a) The AC power supply cord or the plug has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked change in

performance; or

(e) The unit has been dropped or the cabinet damaged.

2. Servicing — Do not attempt to service the unit beyond that described in

these operating instructions. Refer all other servicing to authorized servicing

personnel.

3. Replacement parts — When parts need replacing ensure the servicer uses

parts specifi ed by the manufacturer or parts that have the same characteristics

as the original parts. Unauthorized substitutes may result in fi re, electric shock,

or other hazards.

4. Safety check — After repairs or service, ask the servicer to perform safety

checks to confi rm that the unit is in proper working condition.
The servicer will require all components to service your system.
Therefore, should service ever be necessary, be sure to bring the entire system.

Product information

For product information or assistance with product operation:
In the U.S.A., refer to “Customer Services Directory” above.
In Canada, refer to “Limited Warranty” on the left.

The model number and serial number of this product can be found on either the
back or the bottom of the unit.
Please note them in the space provided below and keep for future reference.

MODEL NUMBER

SERIAL NUMBER

DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS

TELEPHONE NUMBER

User memo:
