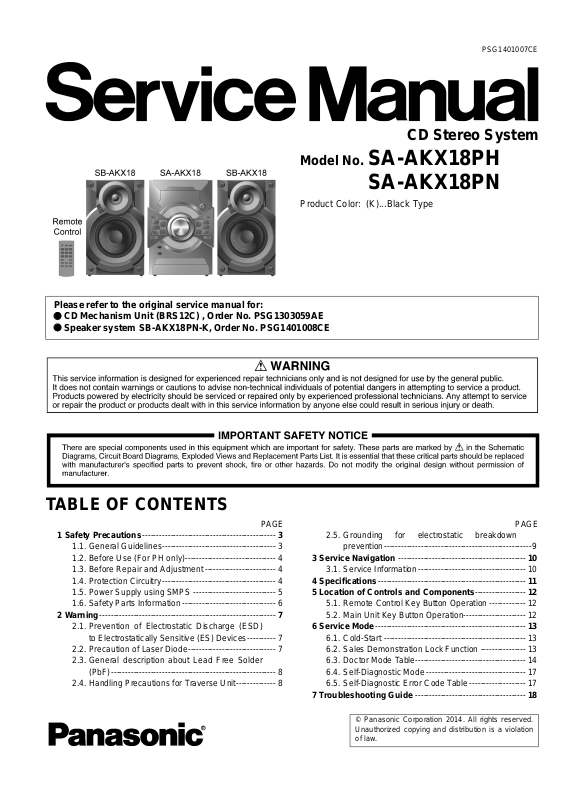

Panasonic SA-AKX18PH Schematic

Model No. SA-AKX18PH

Product Color: (K)...Black Type

Please refer to the original service manual for:

O CD Mechanism Unit (BRS12C) , Order No. PSG1303059AE O Speaker system SB-AKX18PN-K, Order No. PSG1401008CE

PSG1401007CE

CD Stereo System

SA-AKX18PN

TABLE OF CONTENTS

1 Safety Precautions----------------------------------------------- 3

1.1. General Guidelines---------------------------------------- 3

1.2. Before Use (For PH only)-------------------------------- 4

1.3. Before Repair and Adjustment ------------------------- 4

1.4. Protection Circuitry---------------------------------------- 4

1.5. Power Supply using SMPS ----------------------------- 5

1.6. Safety Parts Information --------------------------------- 6

2 Warning-------------------------------------------------------------- 7

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices---------- 7

2.2. Precaution of Laser Diode------------------------------- 7

2.3. General description about Lead Free Solder (PbF)---------------------------------------------------------- 8

2.4. Handling Precautions for Traverse Unit-------------- 8

PAGE PAGE

2.5. Grounding for electrostatic breakdown prevention----------------------------------------------------9

3 Se rvice Navigation ---------------------------------------------10

3.1. Service Information--------------------------------------10

4 Specifications ----------------------------------------------------11 5 Location of Controls and Components------------------ 12

5.1. Remote Control Key Button Operation ------------- 12

5.2. Main Unit Key Button Operation----------------------12

6 Service Mode ----------------------------------------------------- 13

6.1. Cold-Start --------------------------------------------------13

6.2. Sales Demonstration Lock Function ---------------- 13

6.3. Doctor Mode Table---------------------------------------14

6.4. Self-Diagnostic Mode -----------------------------------17

6.5. Self-Diagnostic Error Code Table--------------------17

7 Troubleshooting Guide ---------------------------------------18

8 Disassembly and Assembly Instructions---------------19

8.1. Type of Screws -------------------------------------------19

8.2. Disassembly Flow Chart--------------------------------19

8.3. Main Components and P.C.B. Locations-----------20

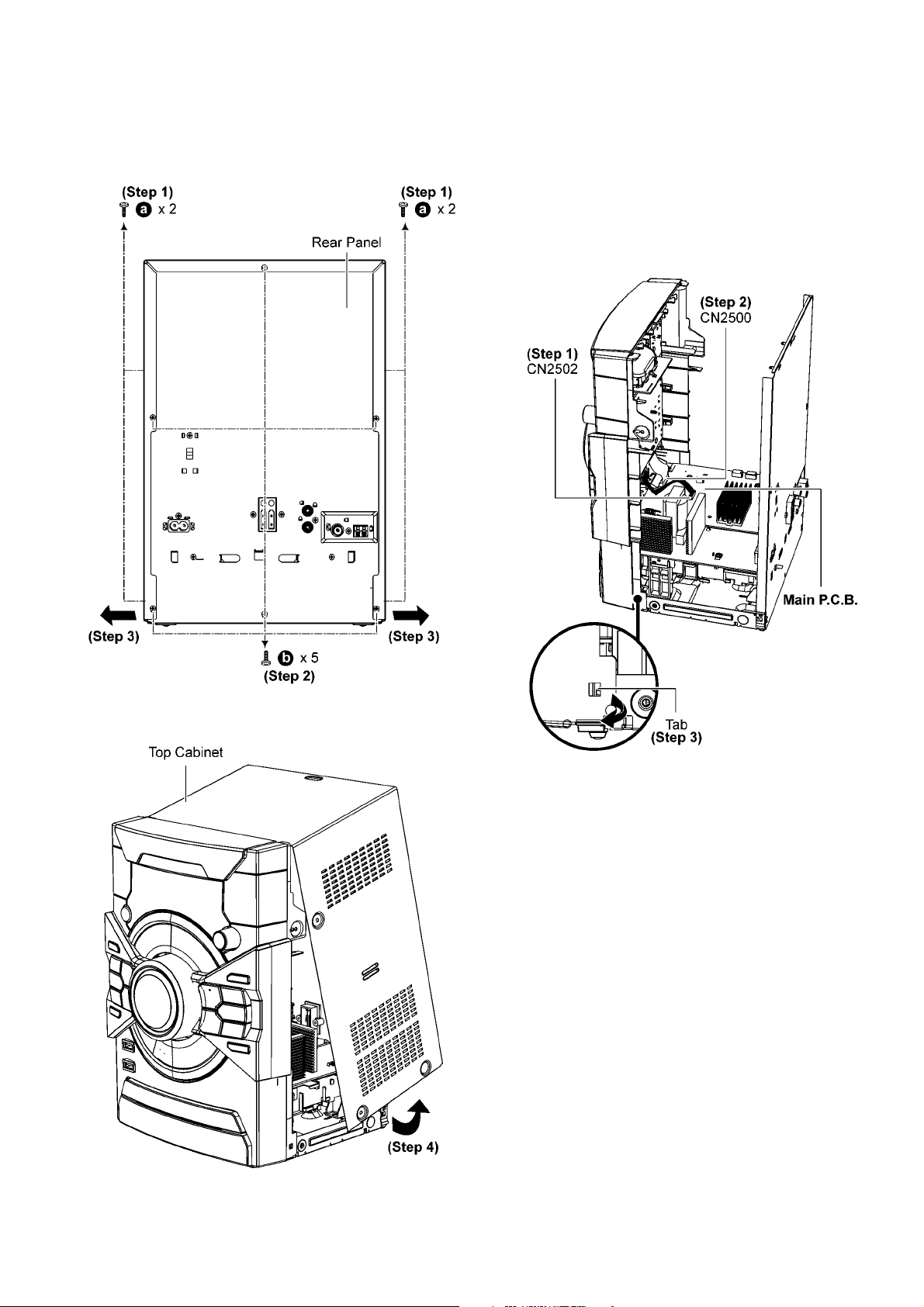

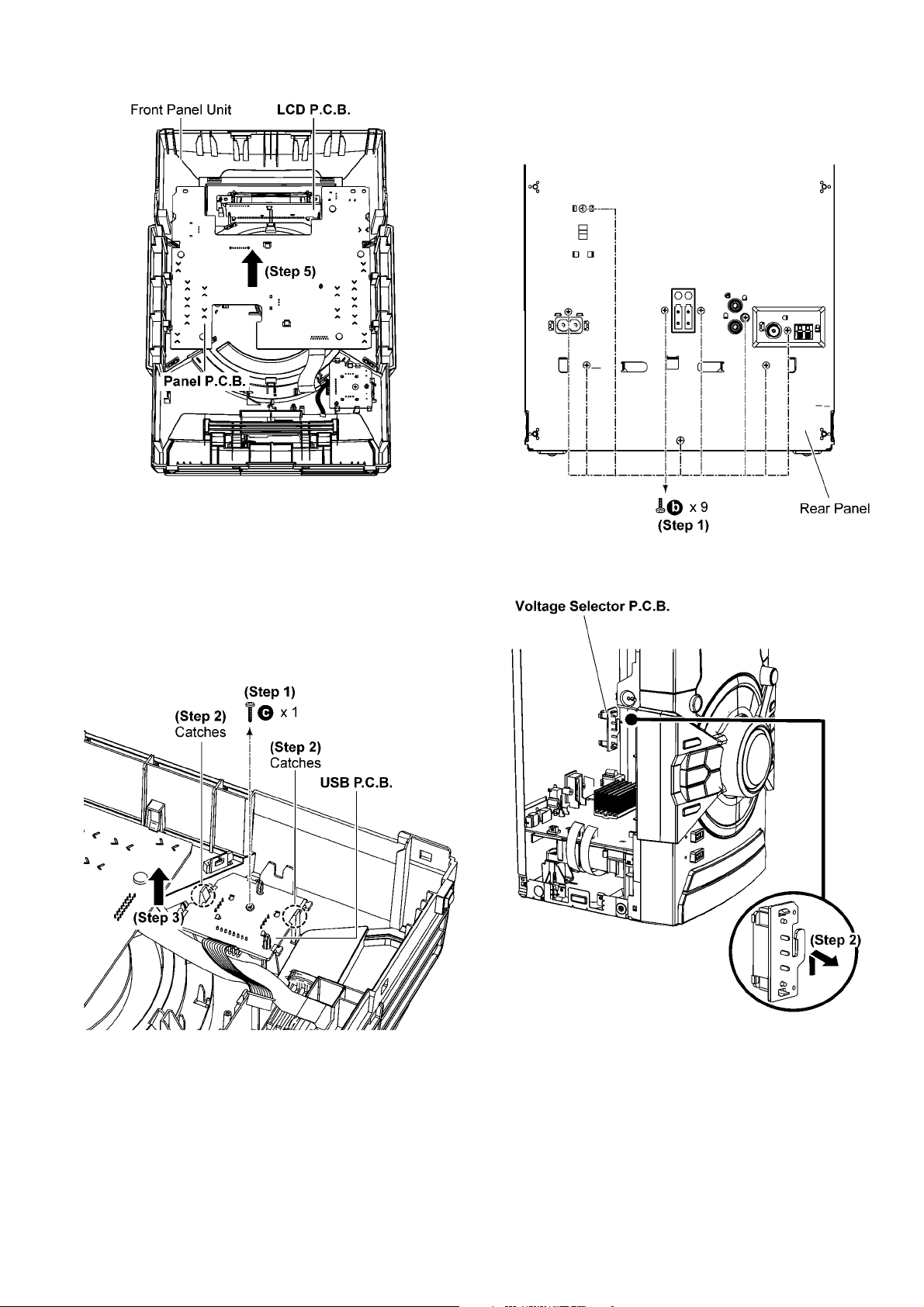

8.4. Disassembly of Top Cabinet---------------------------21

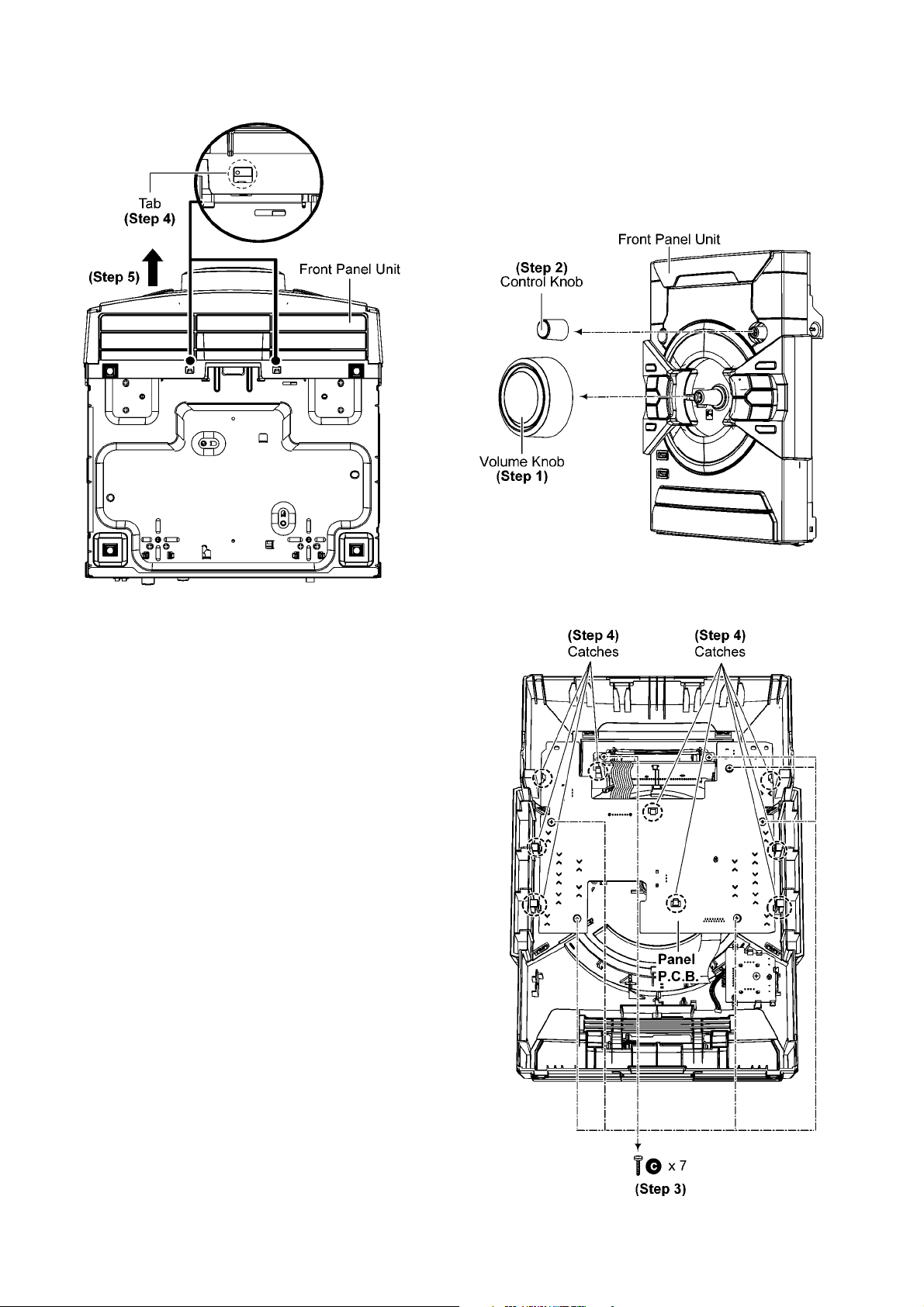

8.5. Disassembly of Front Panel Unit-----------------21

8.6. Disassembly of Panel P.C.B. and LCD P.C.B. ----22

8.7. Disassembly of USB P.C.B. ---------------------------23

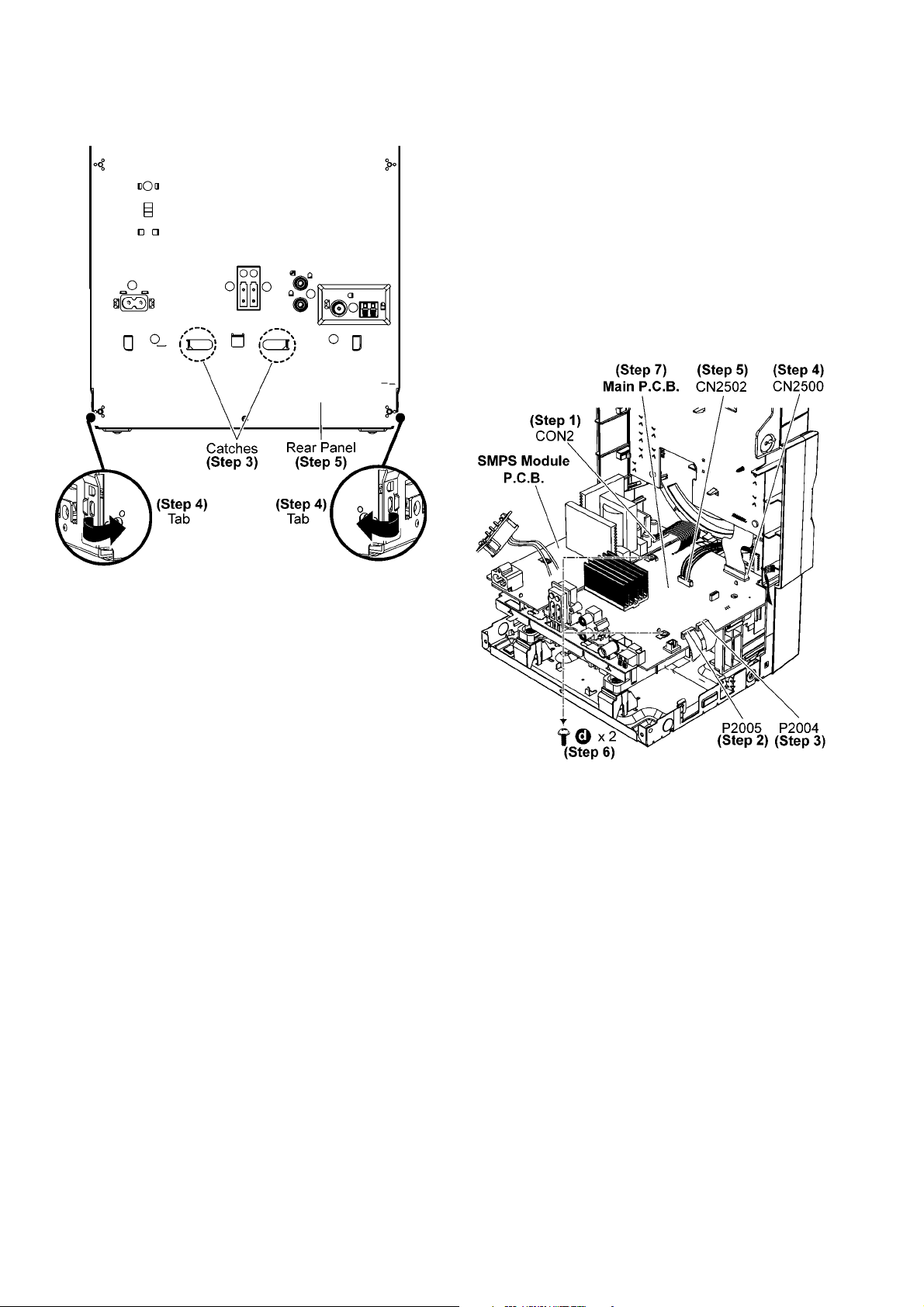

8.8. Disassembly of Rear Panel.---------------------------23

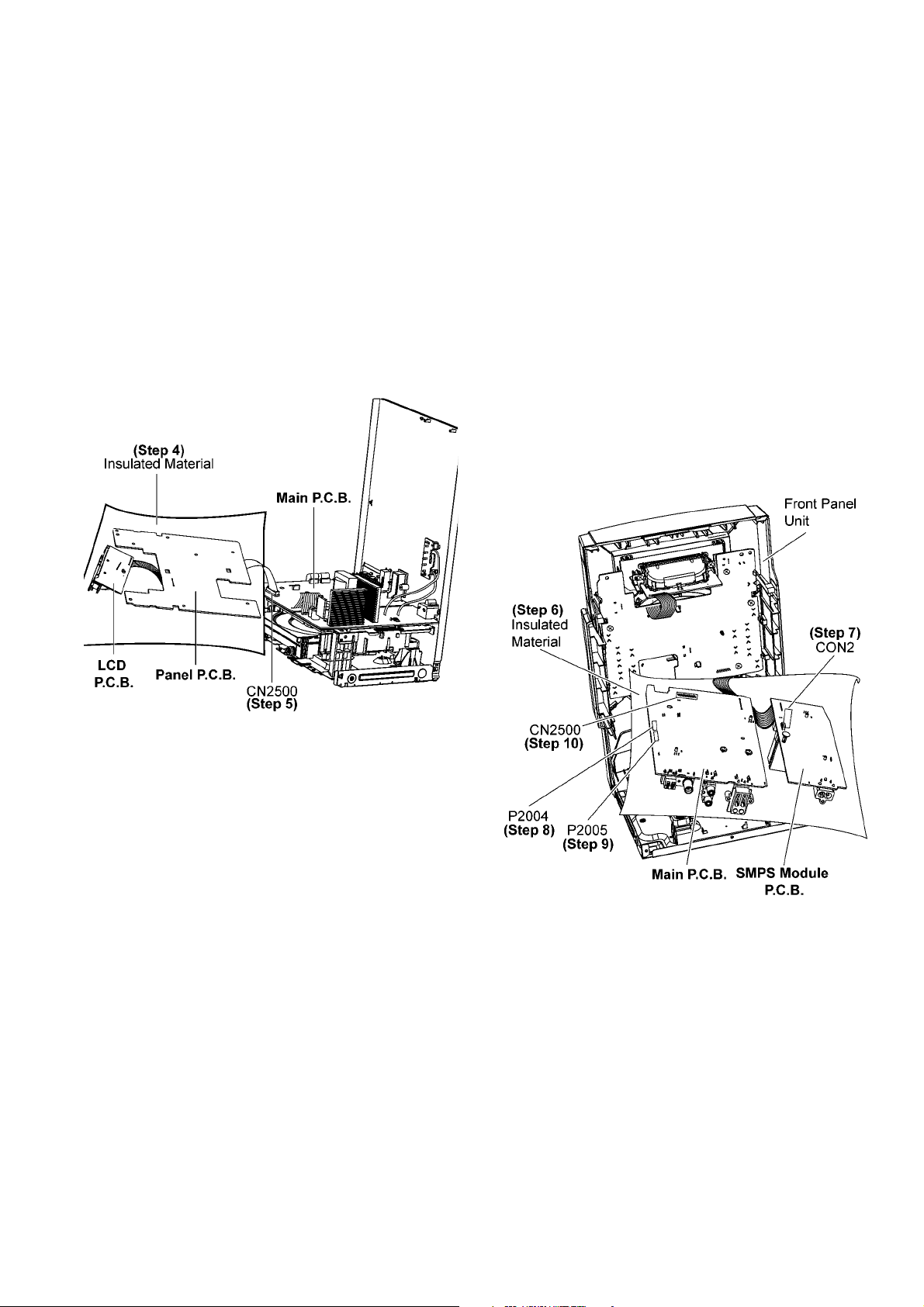

8.9. Disassembly of Main P.C.B.---------------------------24

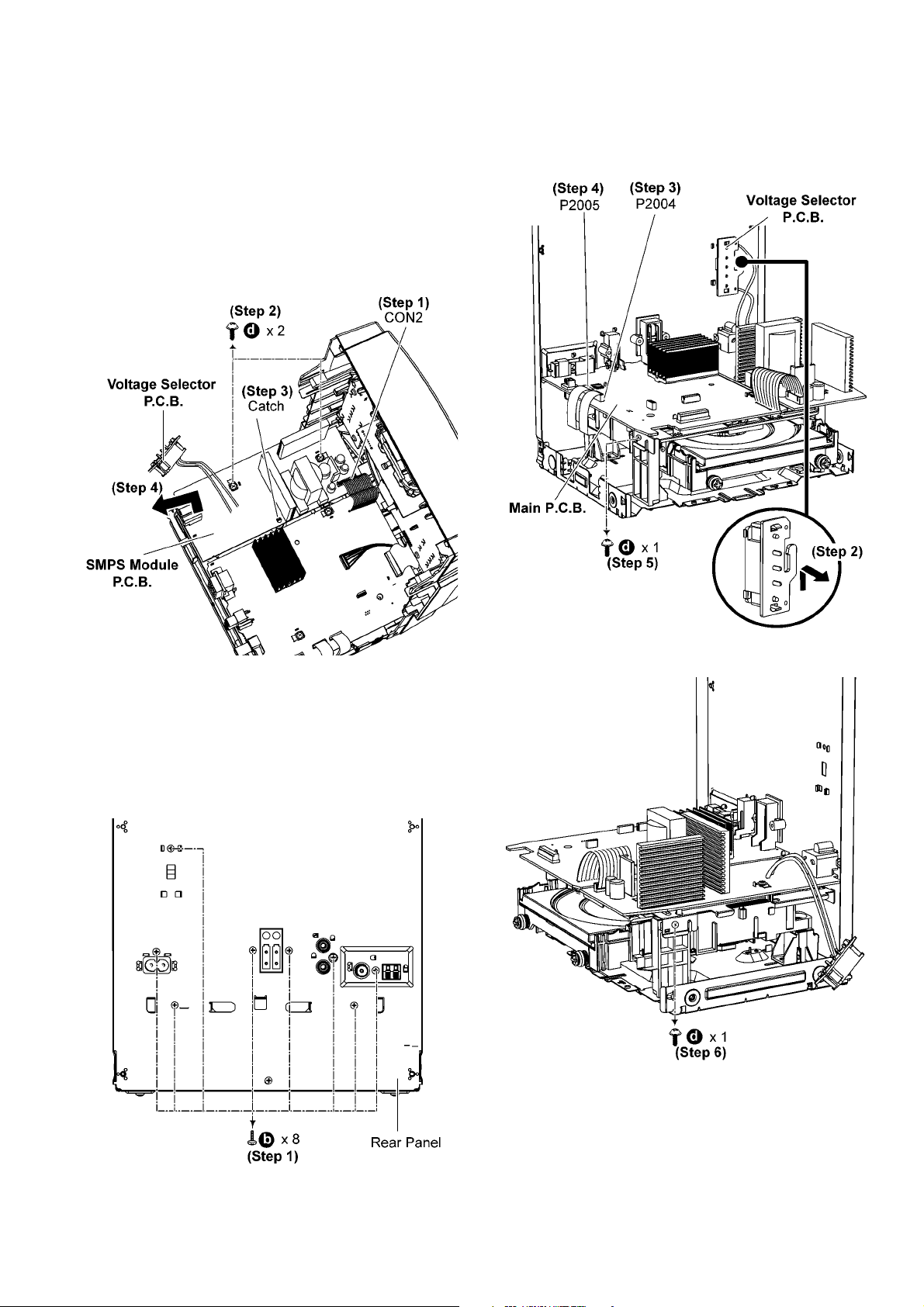

8.10. Disassembly of SMPS Module and Voltage Selector P.C.B.--------------------------------------------25

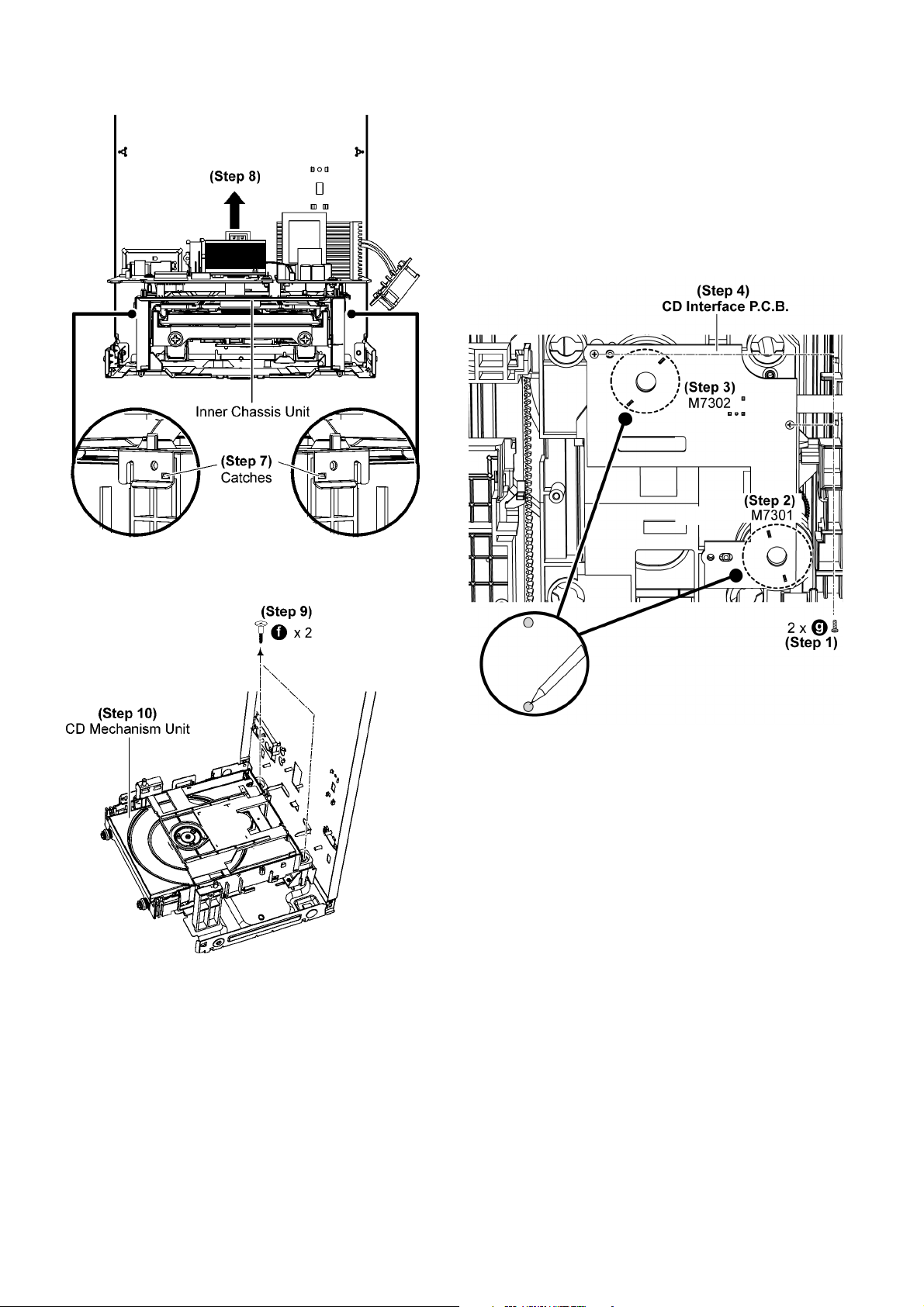

8.11. Disassembly of CD Mechanism Unit-----------25

8.12. Disassembly of CD Interface P.C.B.-----------------26

9 Service Position-------------------------------------------------27

9.1. Checking of Panel P.C.B. and LCD P.C.B.--------- 27

9.2. Checking and Repairing of Main P.C.B. and SMPS P.C.B. ----------------------------------------------27

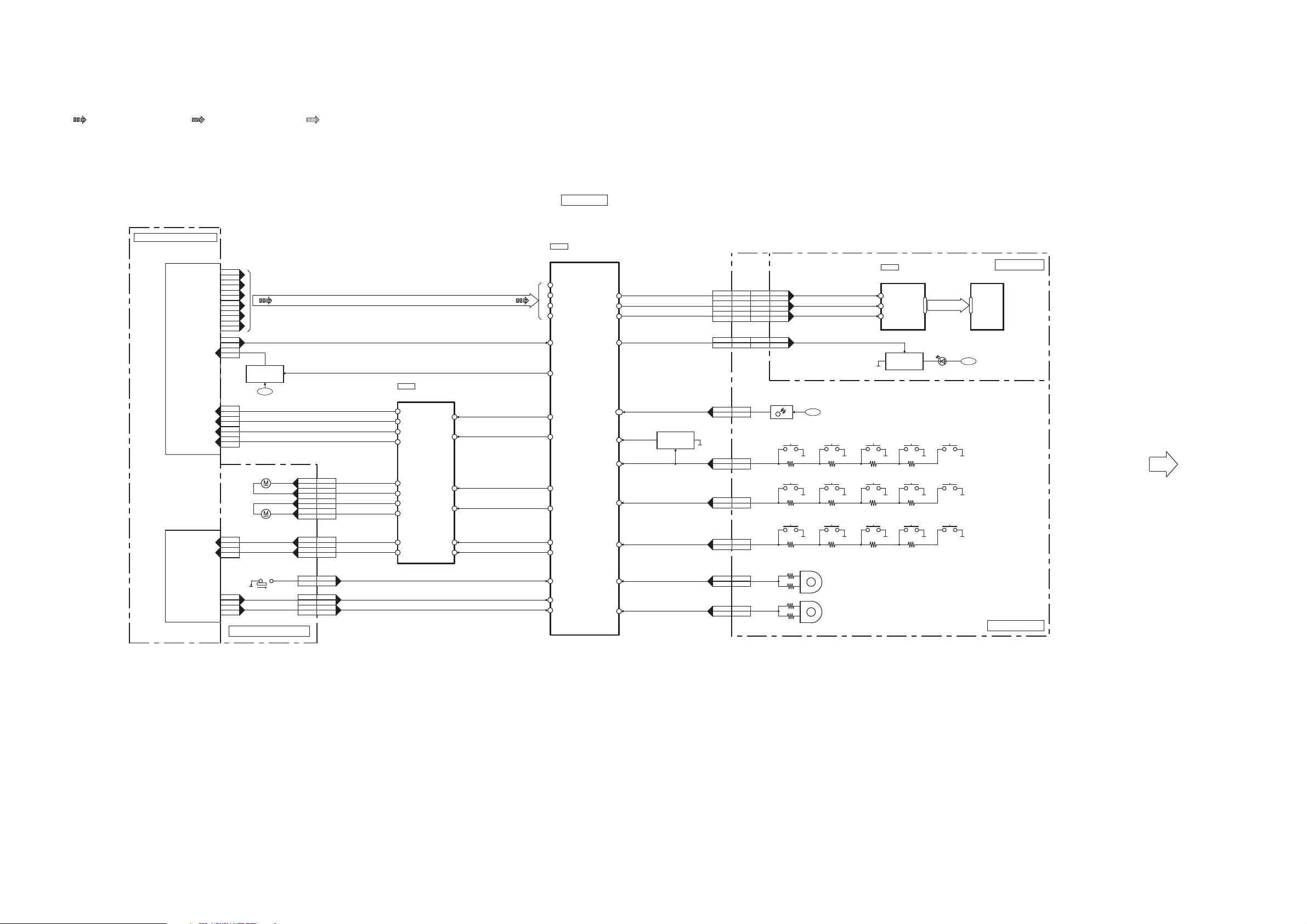

10 Block Diagram ---------------------------------------------------29

10.1. System Control -------------------------------------------29

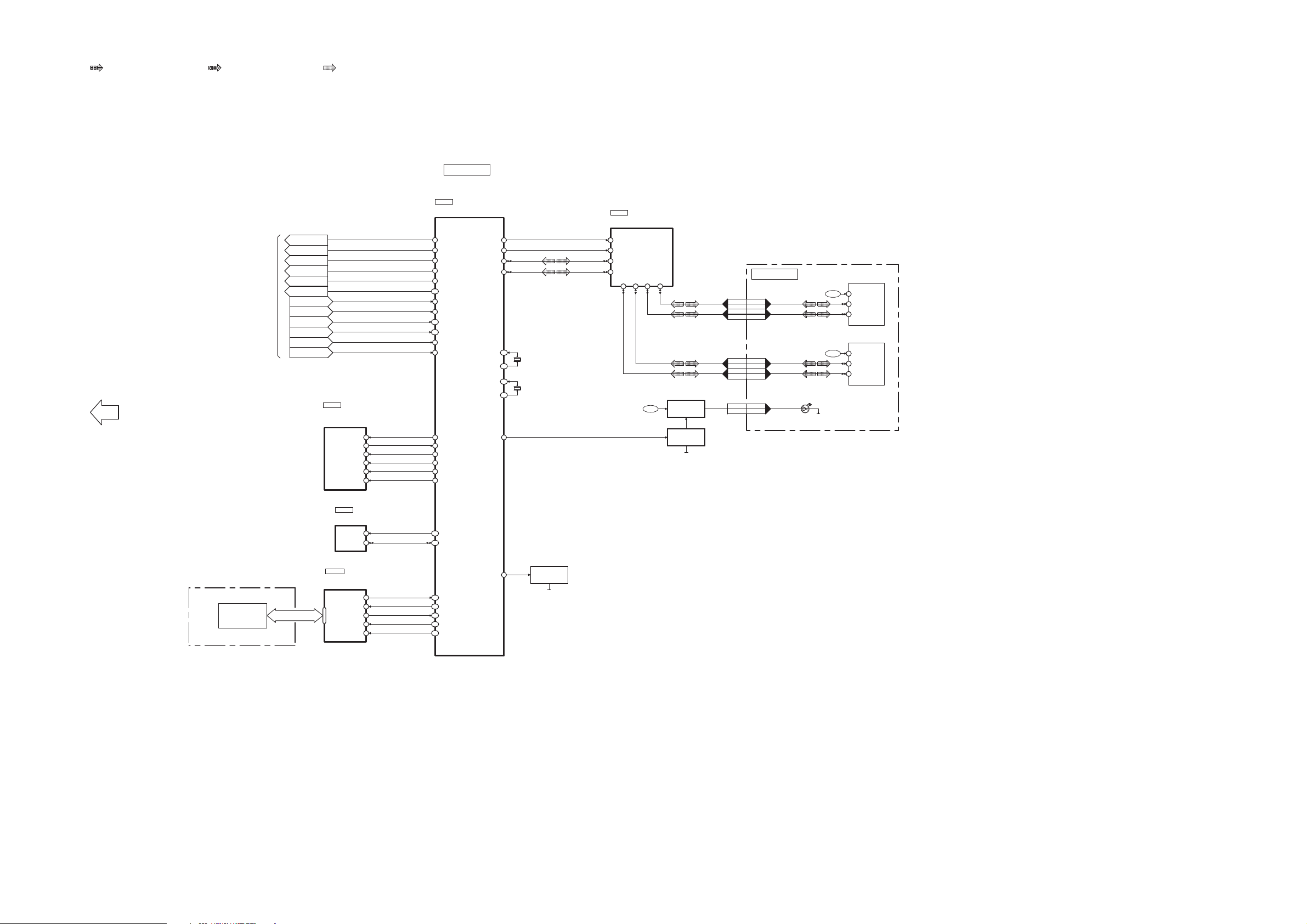

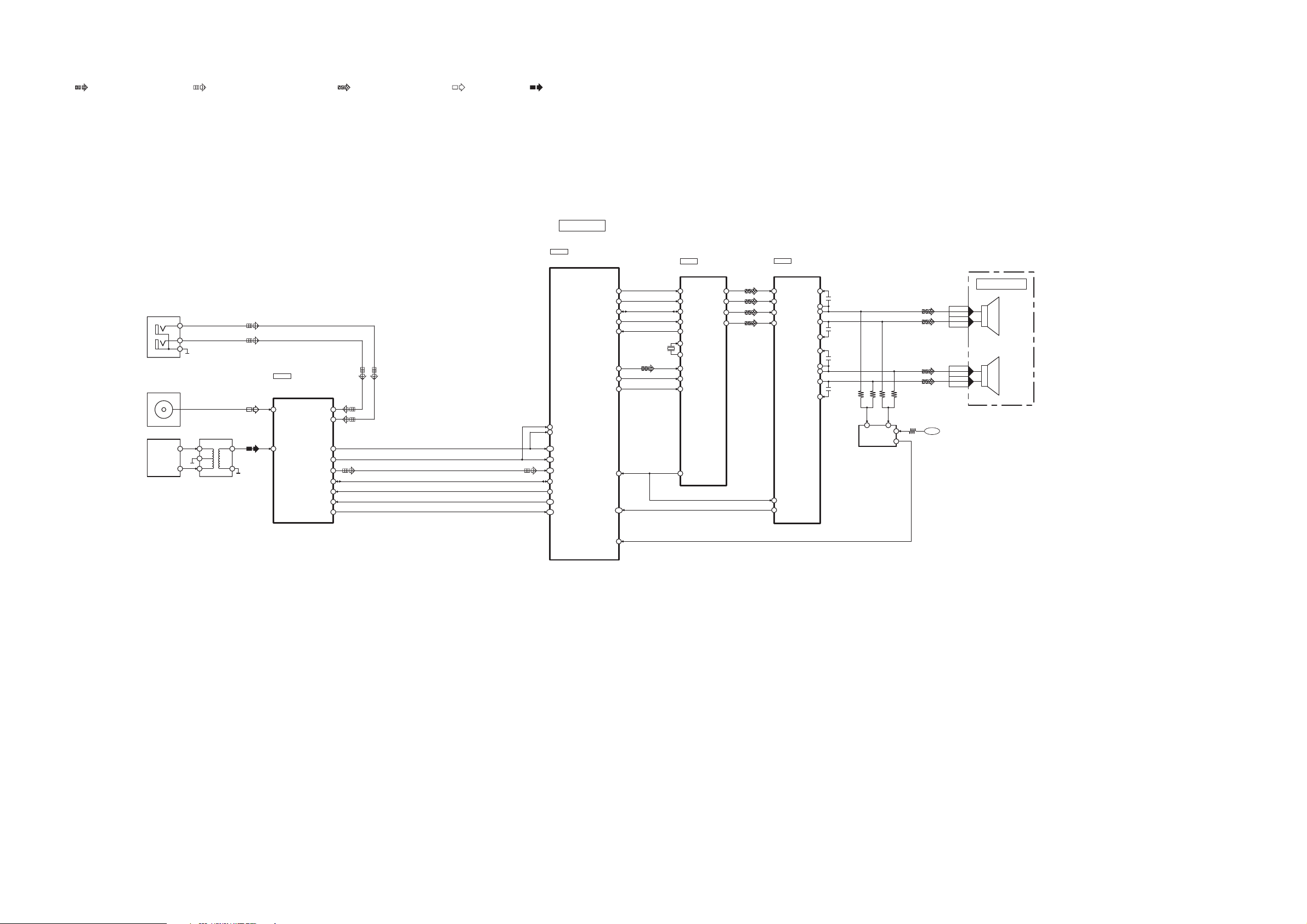

10.2. Audio --------------------------------------------------------31

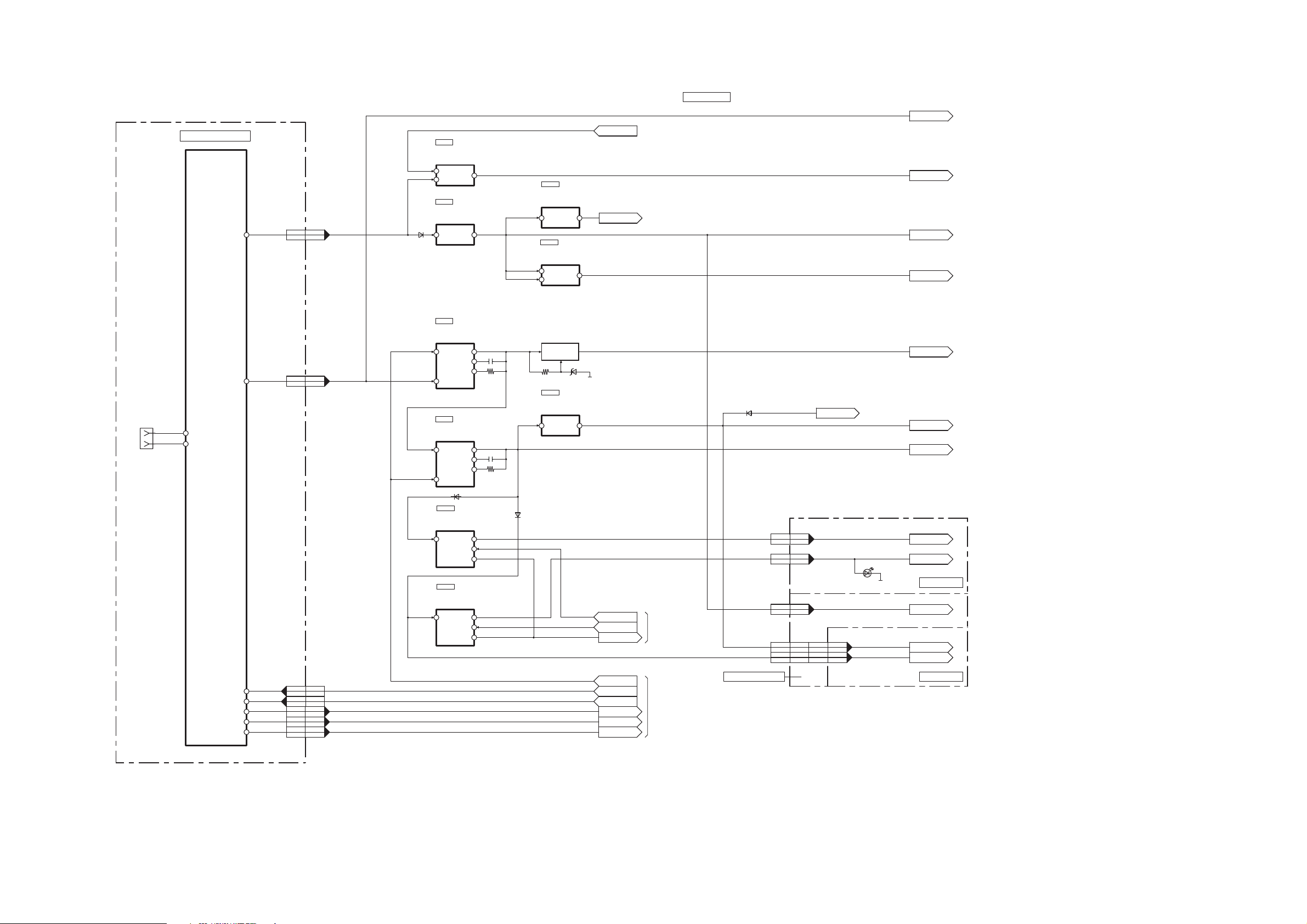

10.3. Power Supply ---------------------------------------------32

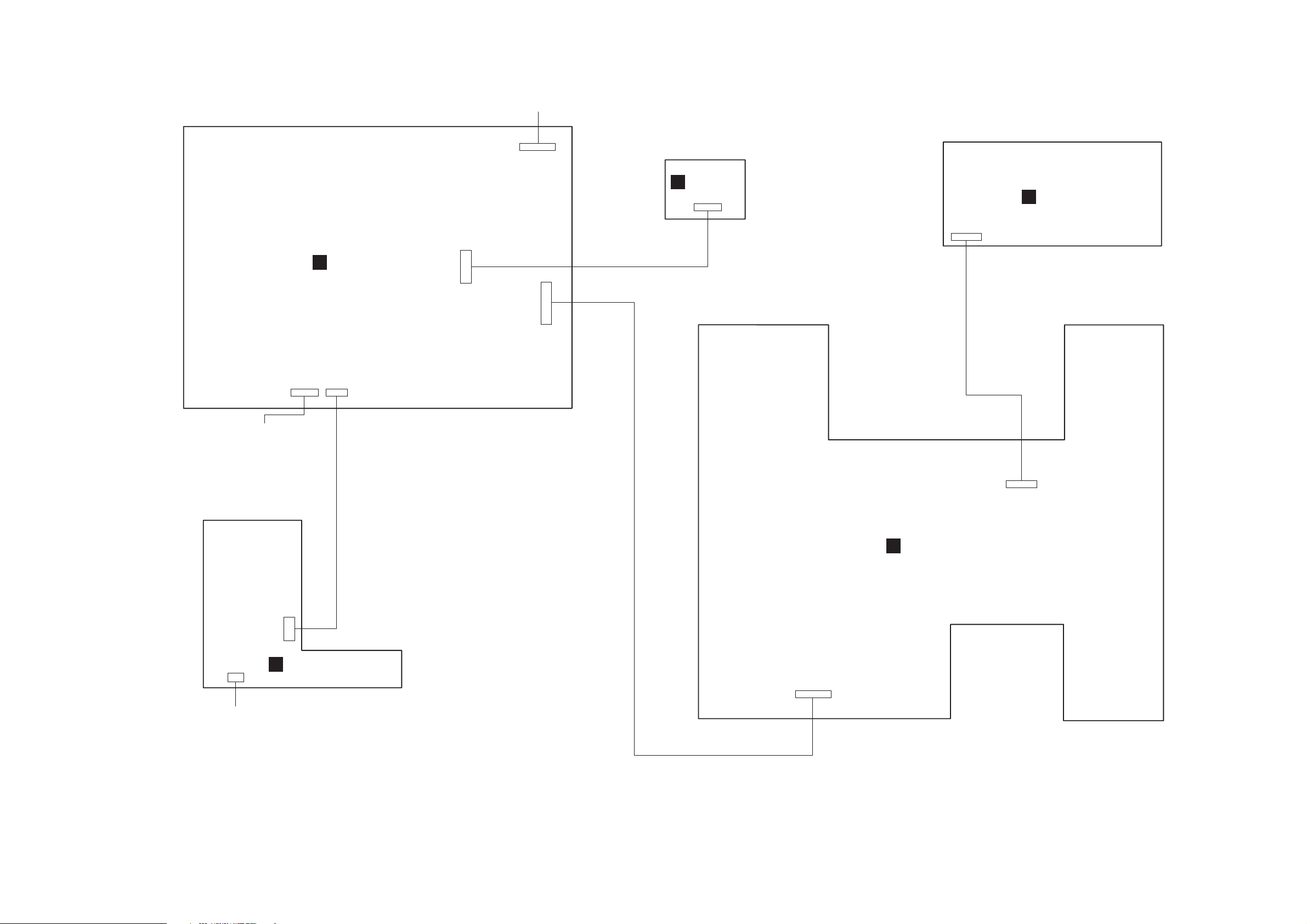

11 Wiring Connection Diagram---------------------------------33 12 Schematic Diagram---------------------------------------------35

12.1. Schematic Diagram Notes -----------------------------35

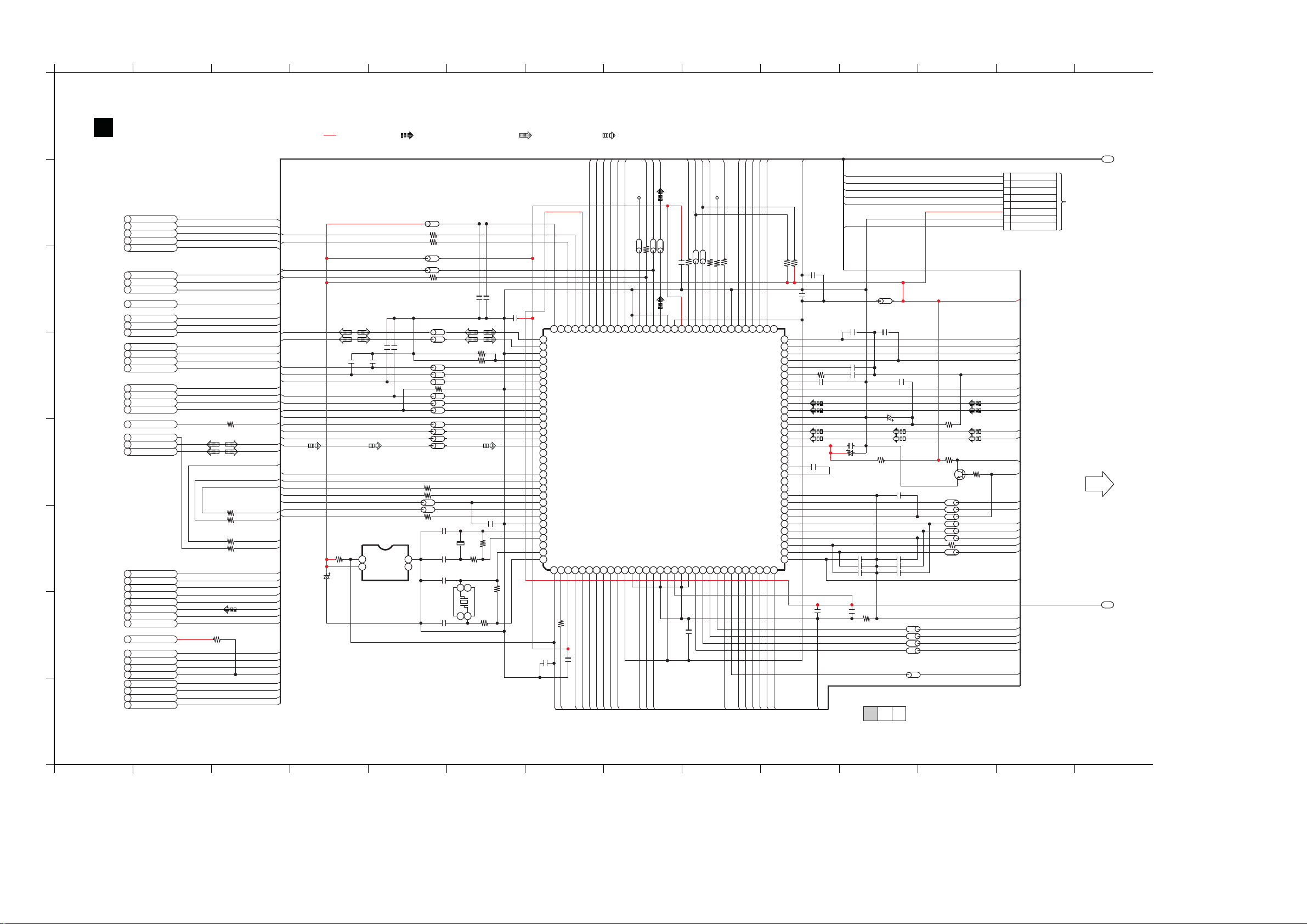

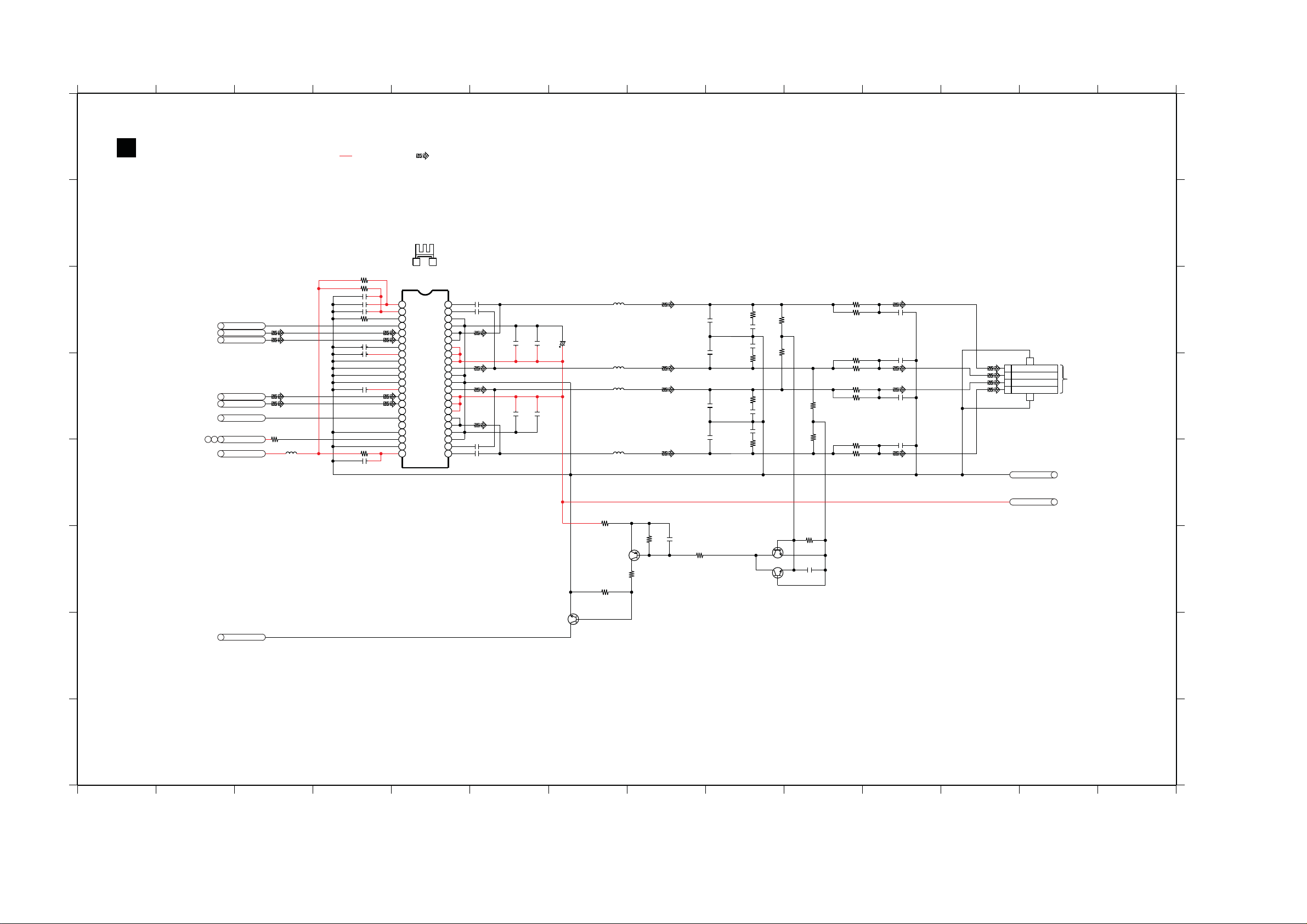

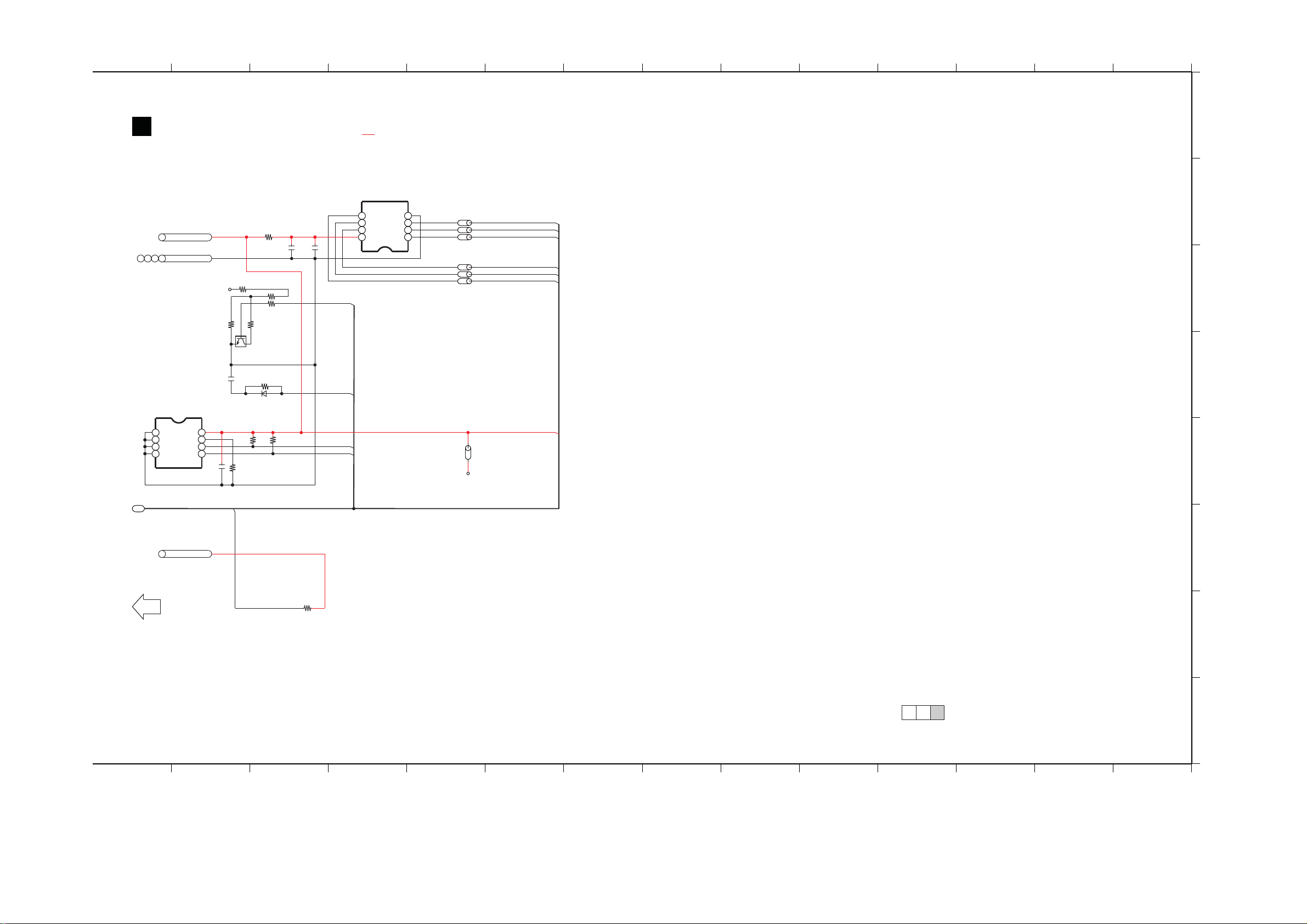

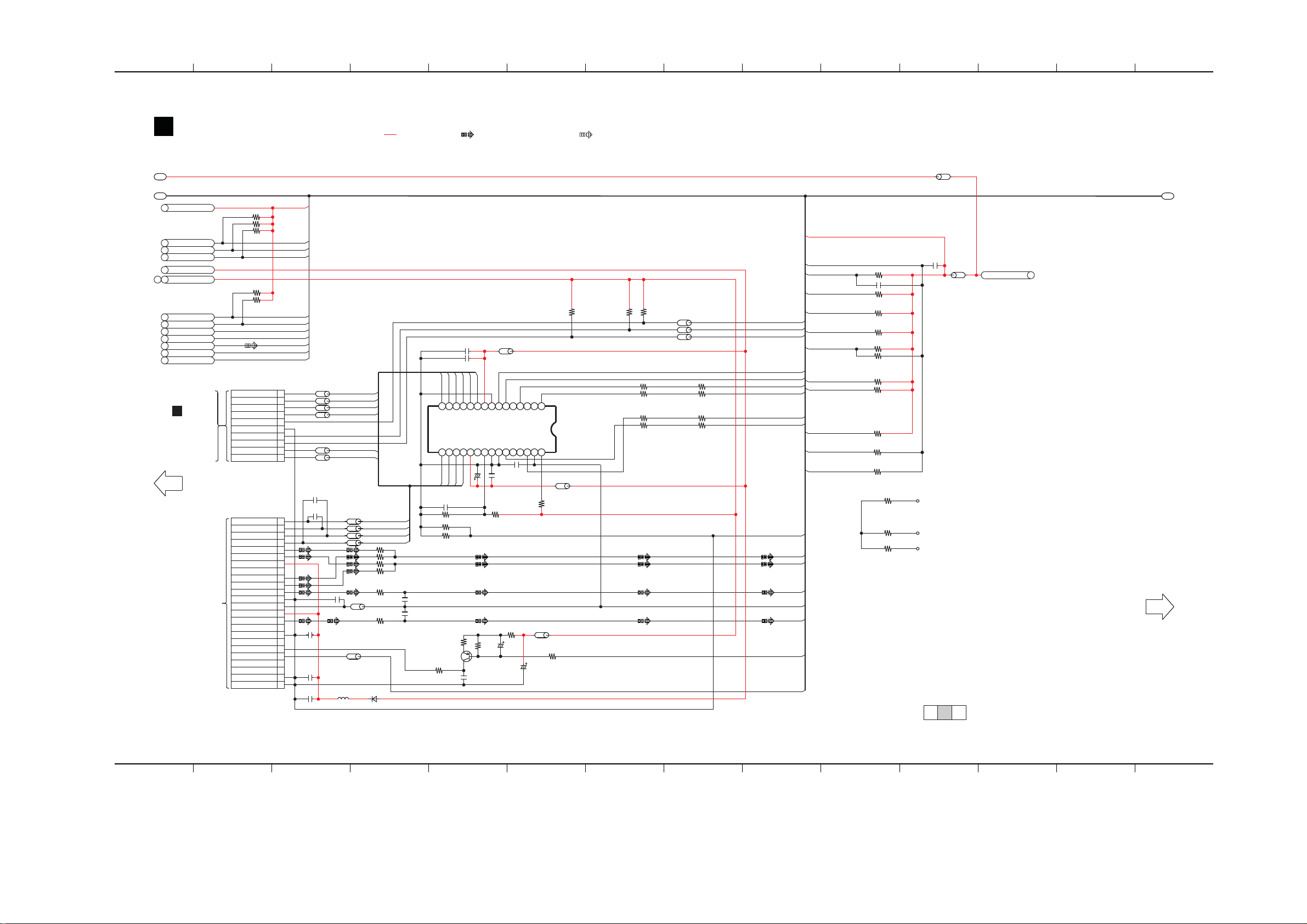

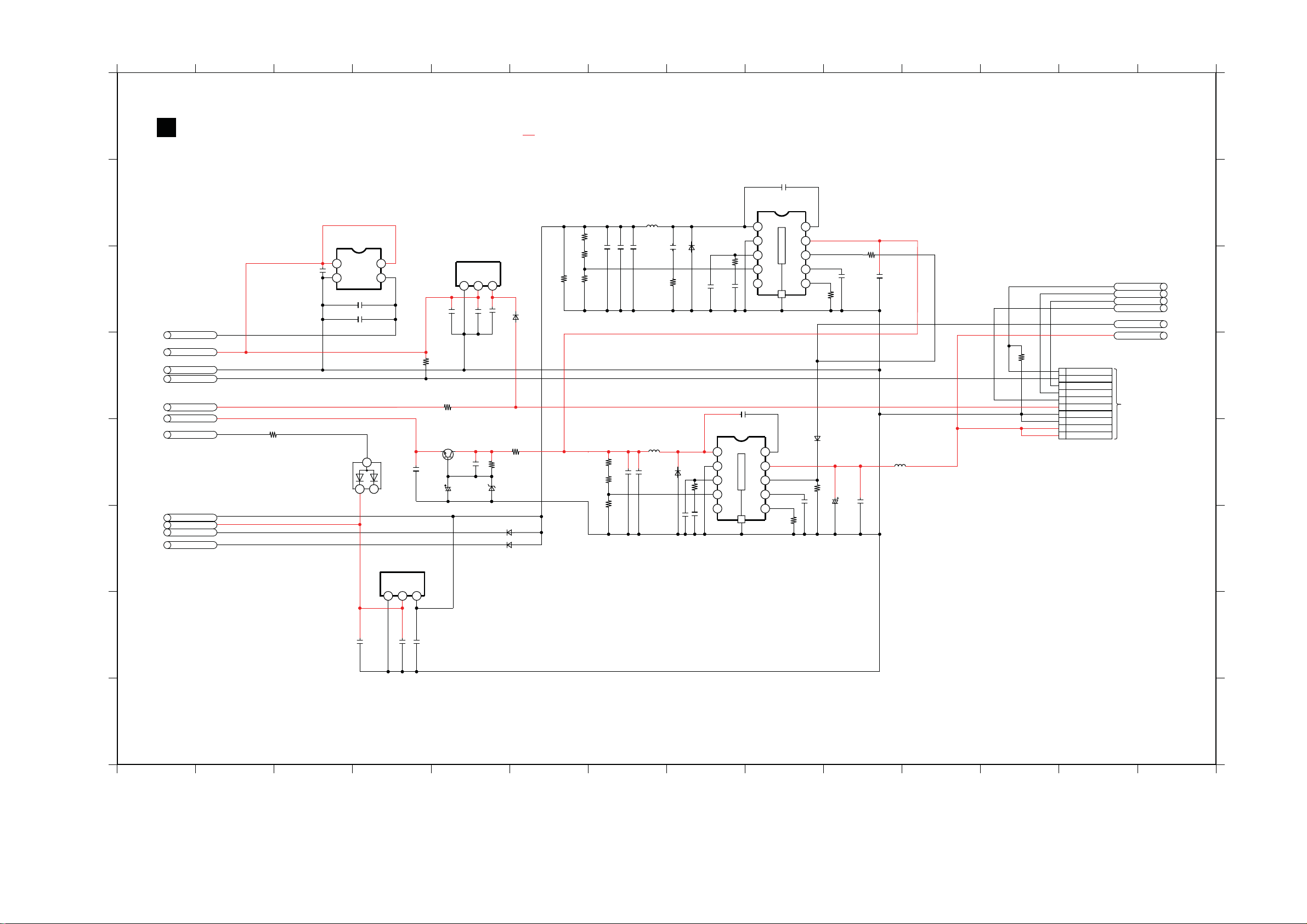

12.2. MAIN (Damp/Tuner/AUX/USB/DSP/ Bluetooth/Voltage Regulators/Micon) Circuit------37

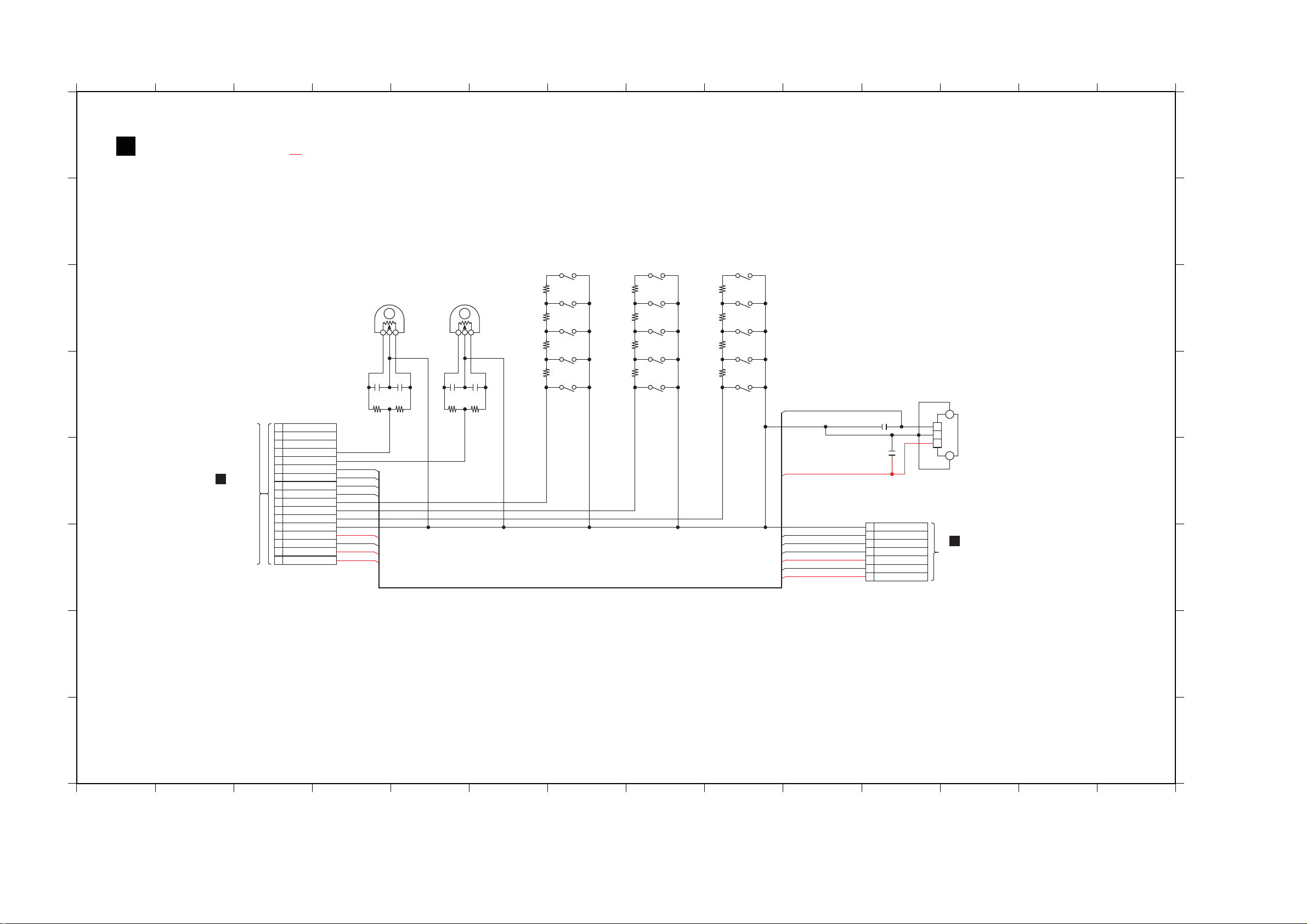

12.3. Panel Circuit-----------------------------------------------45

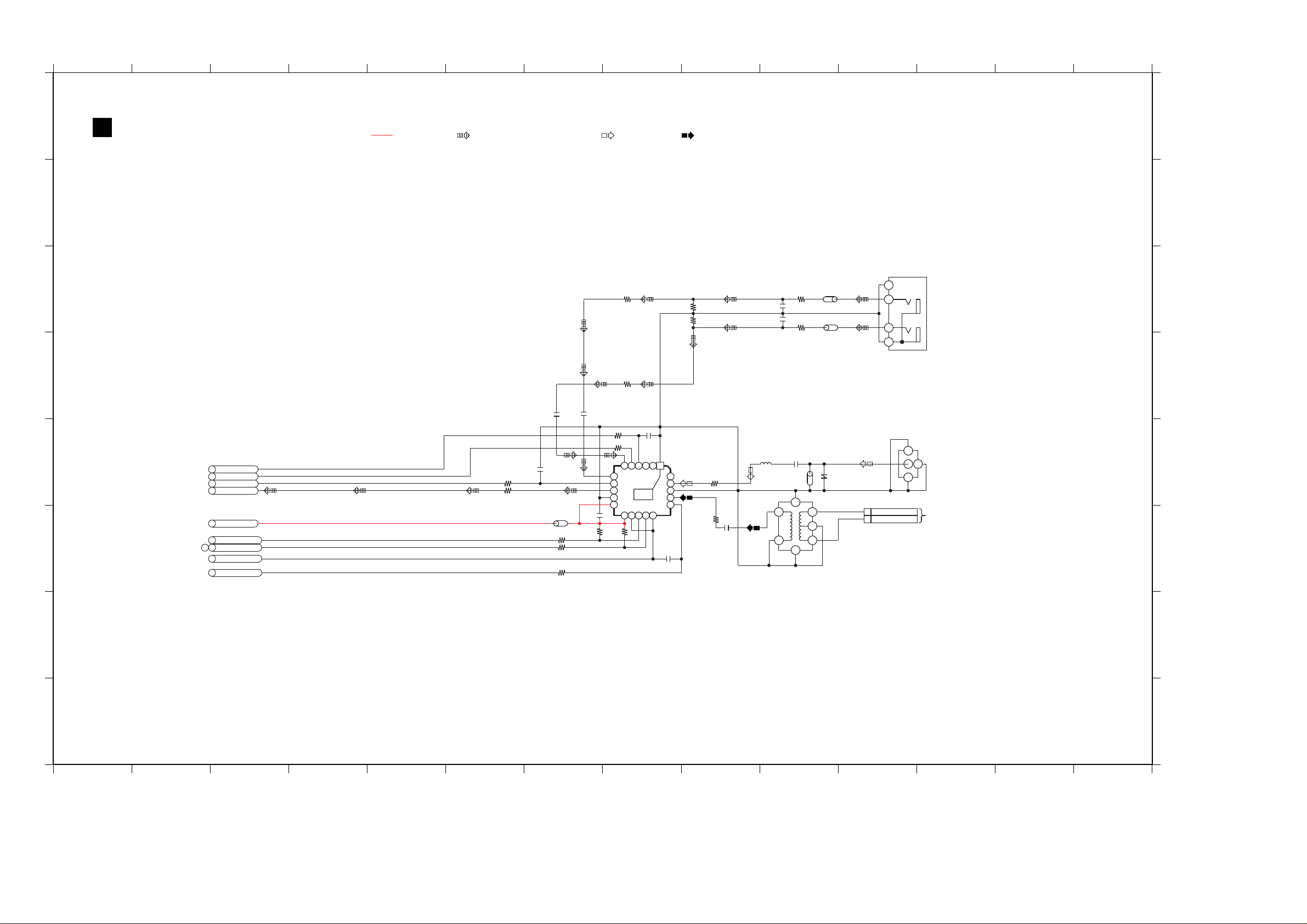

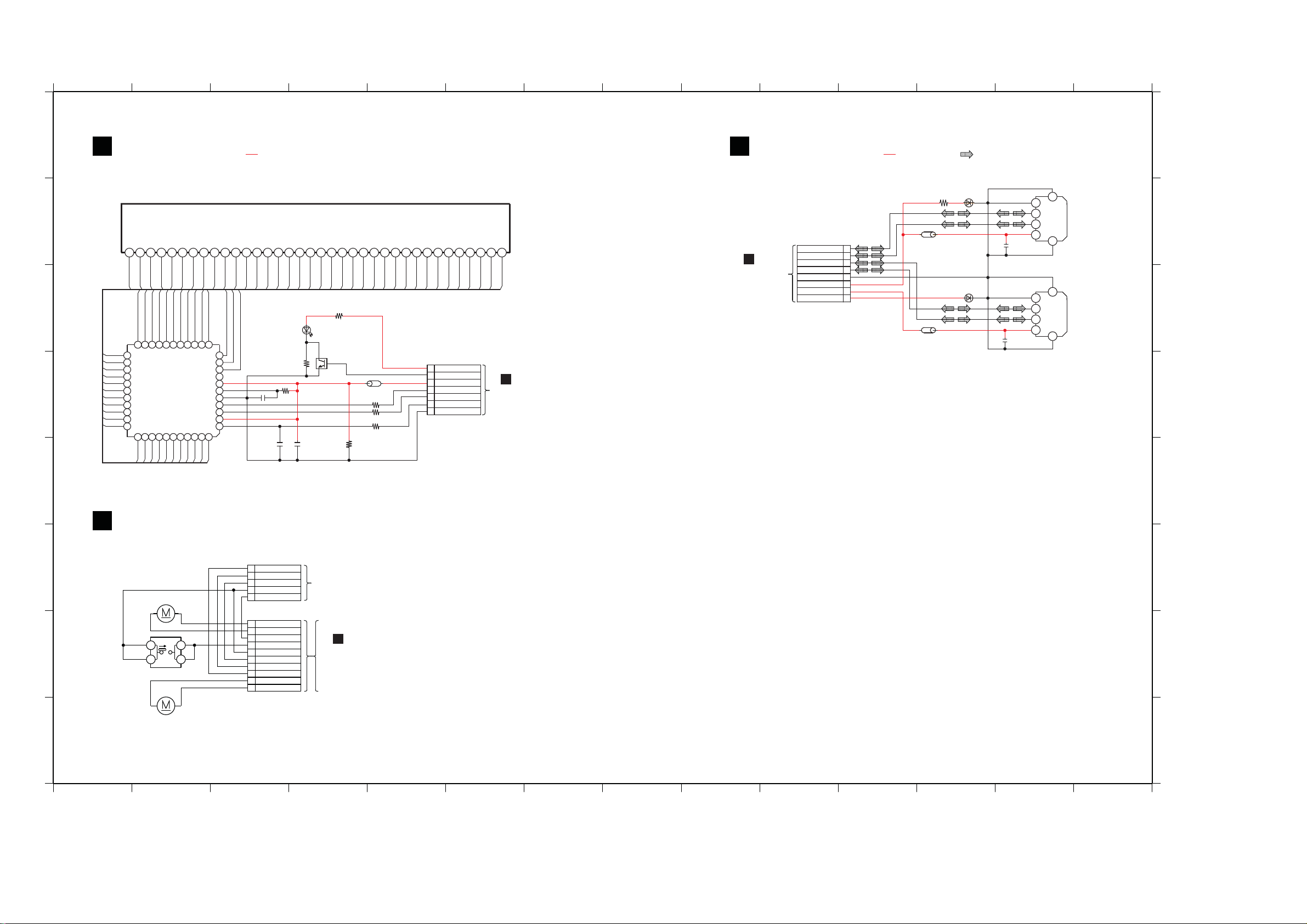

12.4. LCD, USB & CD Interface Circuit --------------------46

13 Printed Circuit Board ------------------------------------------47

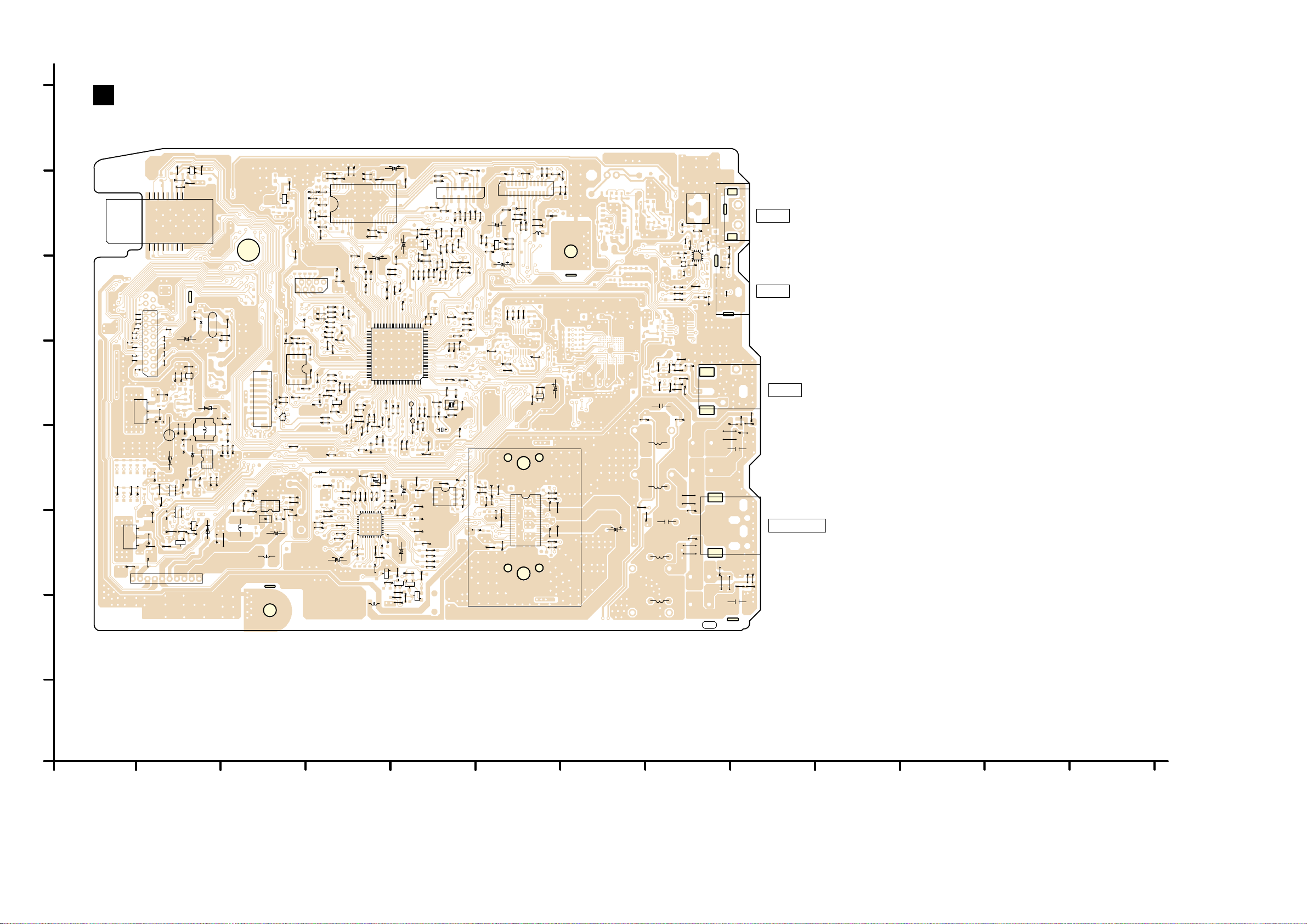

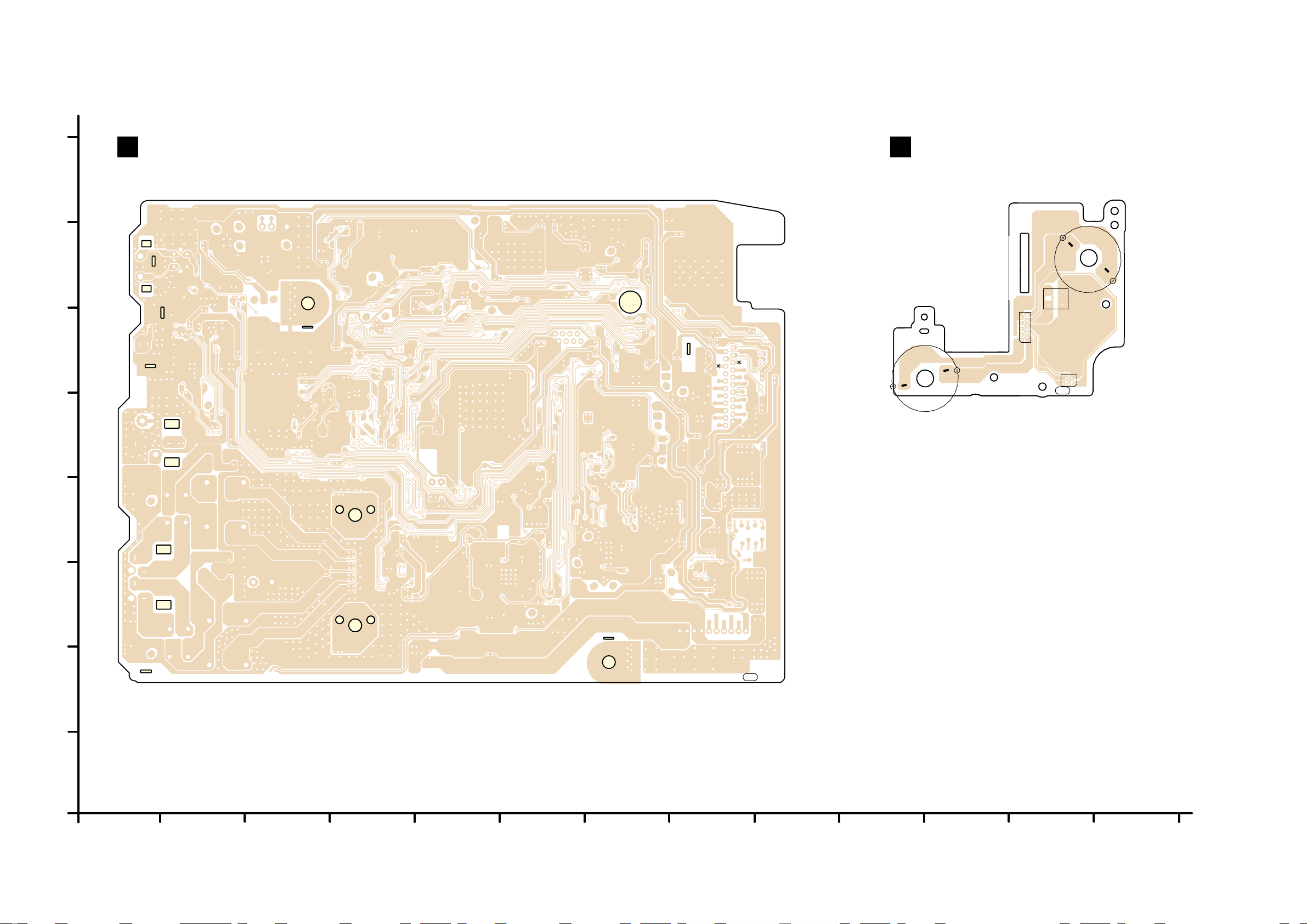

13.1. Main P.C.B. & CD Interface P.C.B.-------------------47

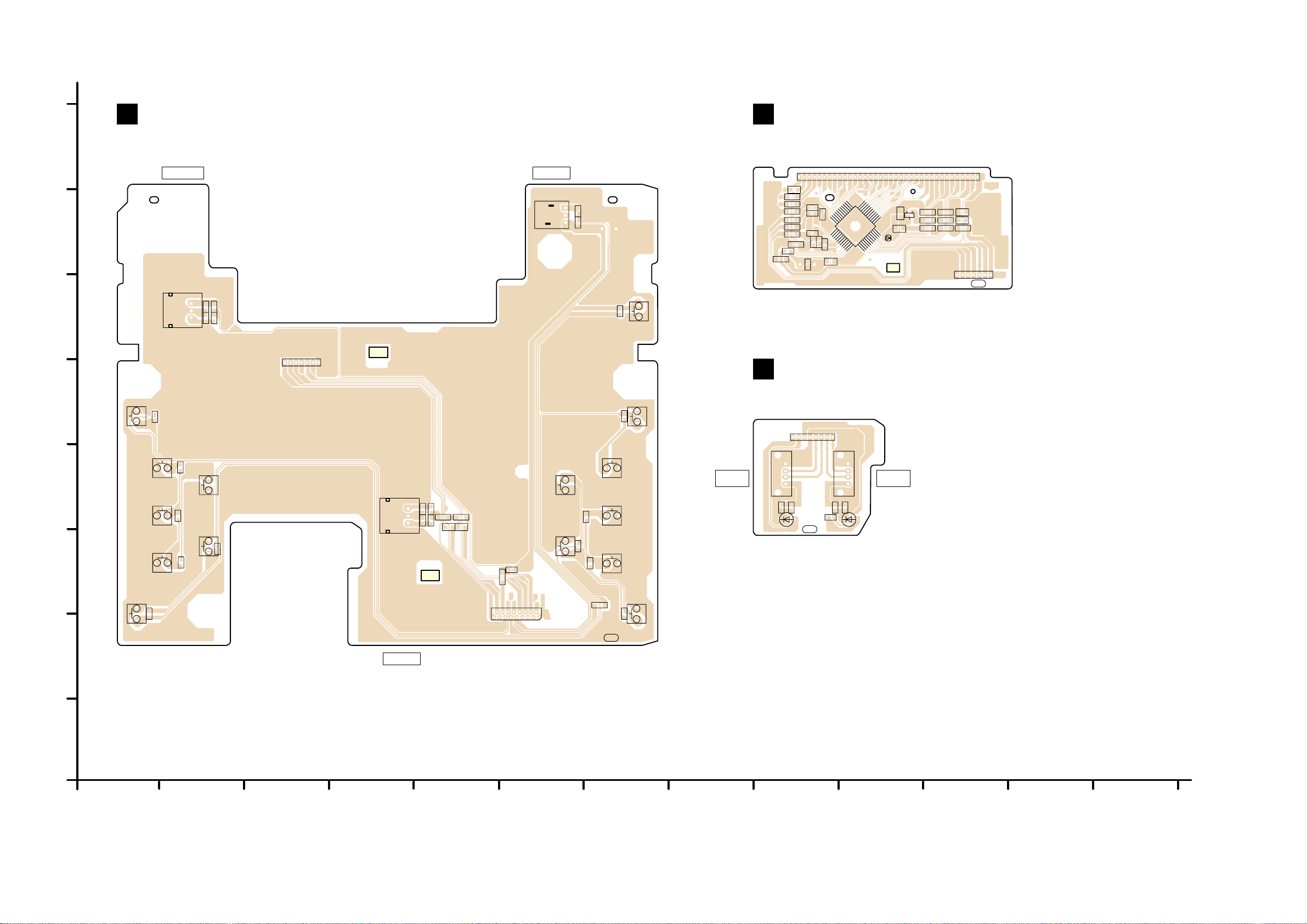

13.2. Panel, LCD & USB P.C.B.------------------------------49

14 Appendix Information of Schematic Diagram --------- 51

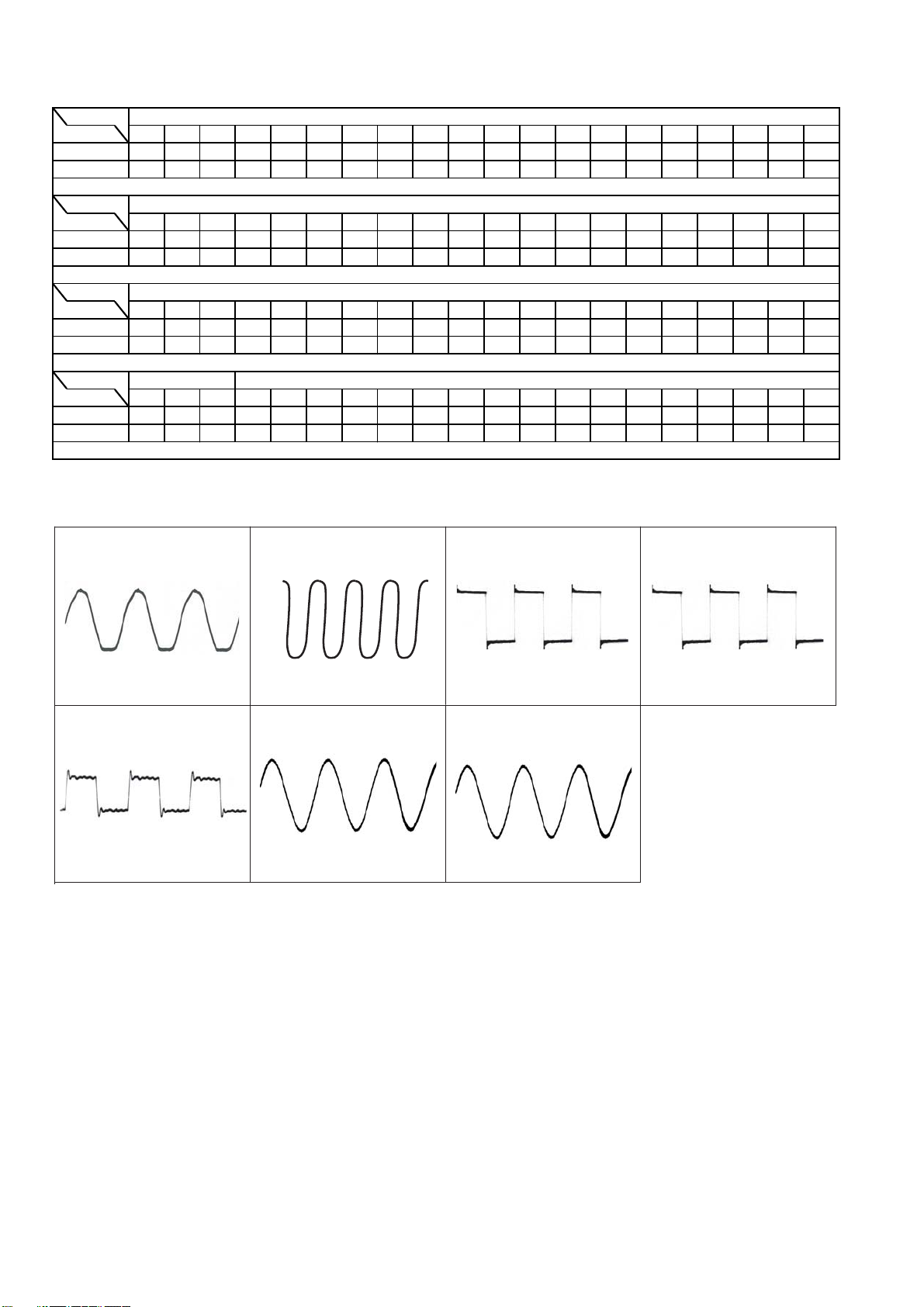

14.1. Voltage Chart----------- -------- --------- ------------------51

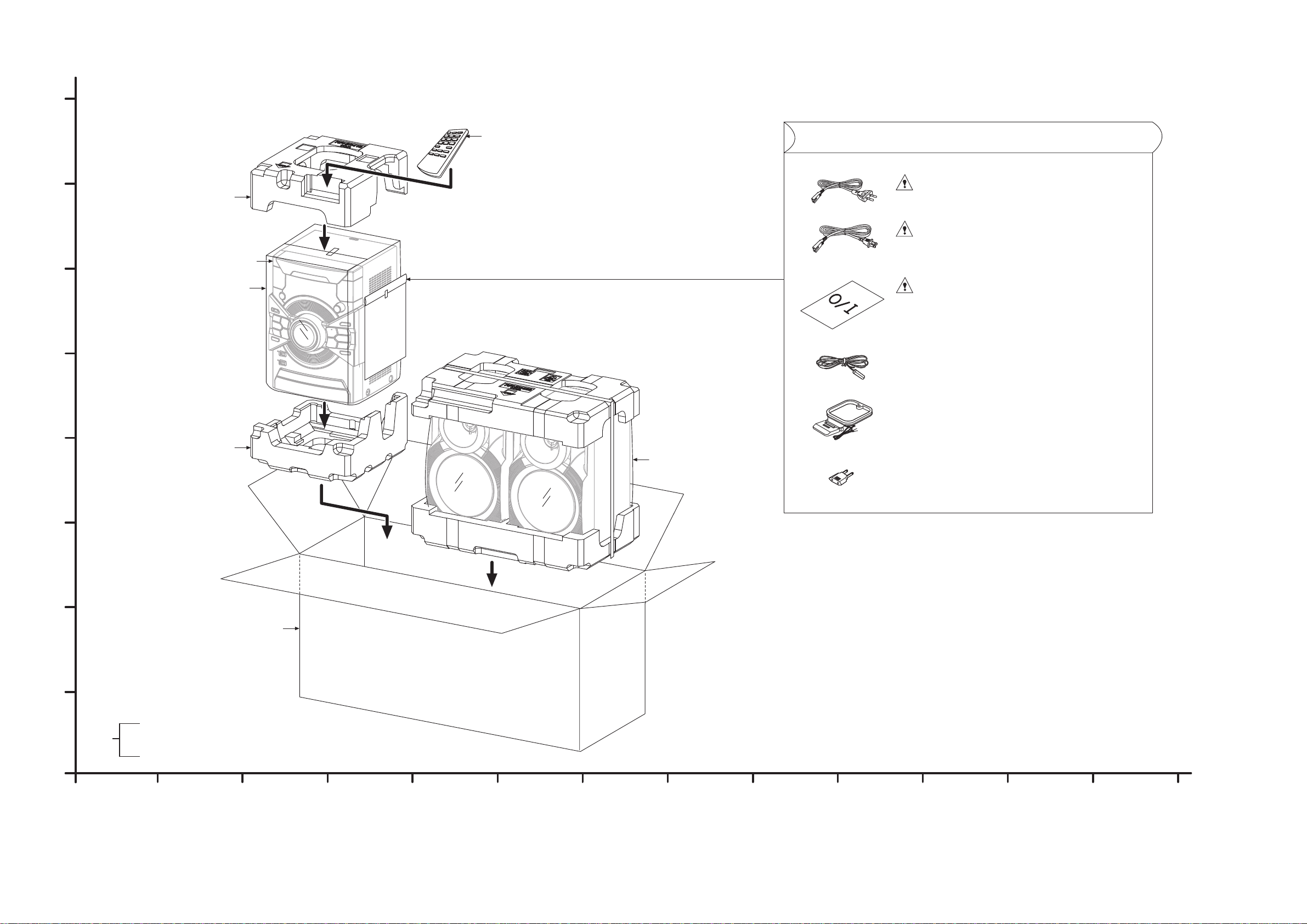

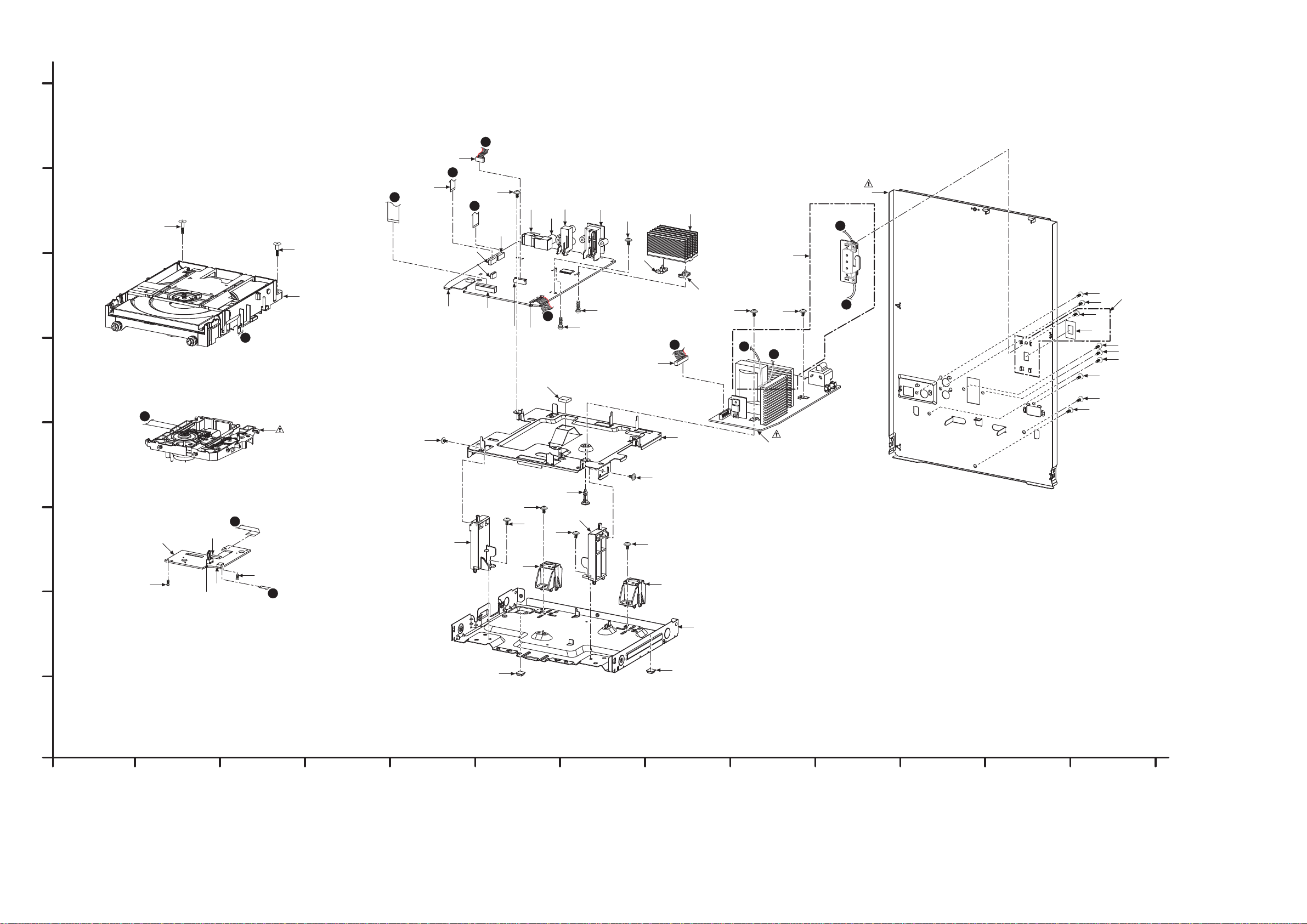

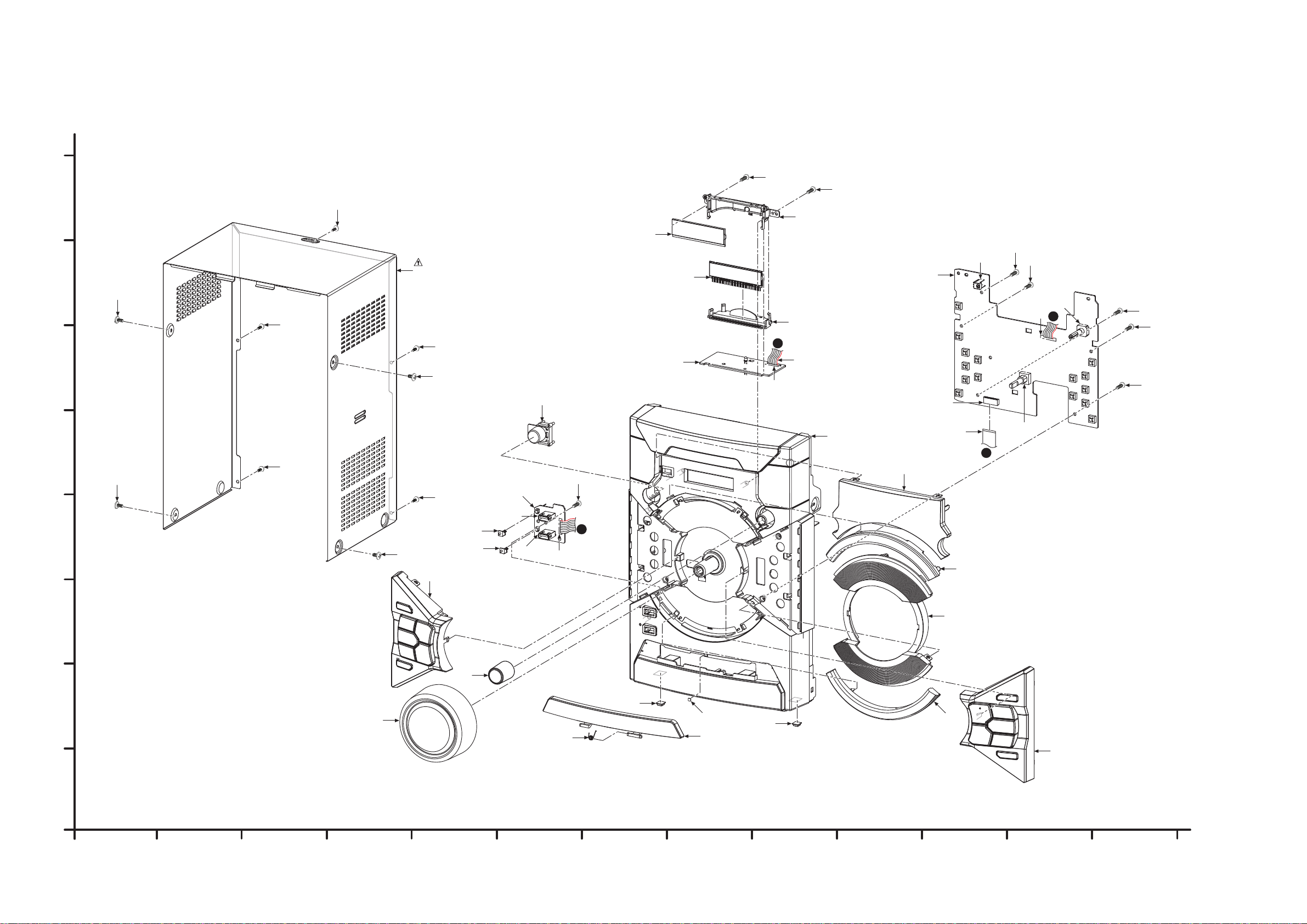

15 Exploded View and Replacement Parts List-----------55

15.1. Explo ded View and Mechanical Replacement Part List-----------------------------------------------------55

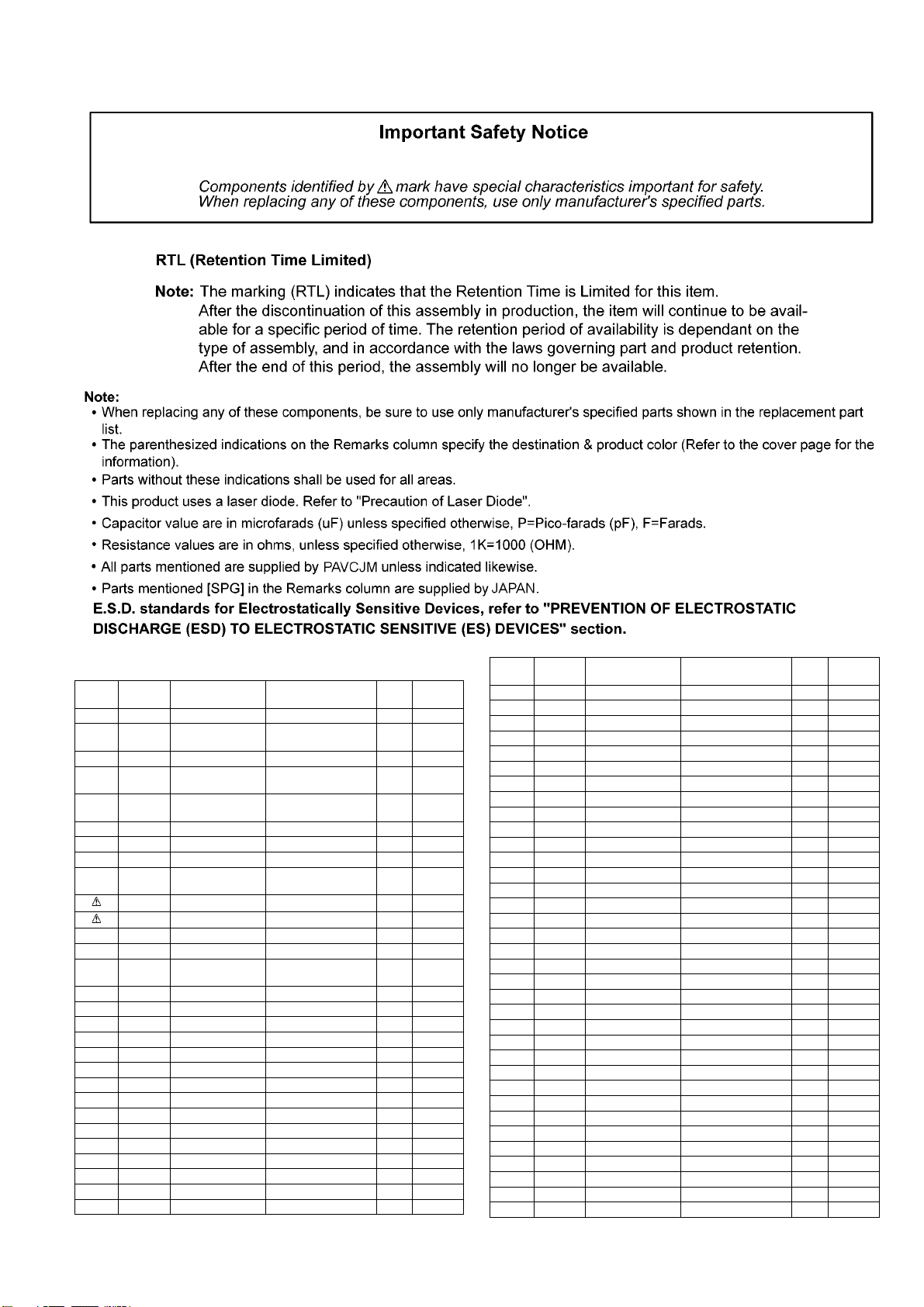

15.2. Electrical Replacement Parts List--------------------61

2

1 Safety Precautions

1.1. General Guidelines

1. IMPORTANT SAFETY NOTICE There are special components used in this equipment which a re important for safety. These parts are marked by in the Schematic Diagrams, Circuit Board Layout, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent X-RADIATION, shock, fire, or other hazards. Do not modify the original design without permission of manufacturer.

2. An Isolation Transformer should always be used during the servicing of AC Adaptor whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks. It will also protect AC Adaptor from being damaged by accidental shorting that may occur during servicing.

3. Wh en servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

4. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

5. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.1.1. Leakage Current Cold Check

1. Unplug the AC cord and connect a jumper between the two prongs on the plug.

2. Measure the resistance value, with an o hmmeter, between the jumpered AC plug and each exposed metallic cabinet part on the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to th e chassis, the reading should be between 1MΩ and 5.2MΩ. When the exposed metal does not have a return path to the chassis, the reading must be

1.1.2. Leakage Current Hot Check

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a 1.5kΩ, 10 watts resistor, in parallel with a 0.15μF capacitors, between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1-1.

3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to measure the potential across the resistor.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reverse the AC plug in the AC outlet and repeat each of the above measurements.

6. Th e potential at any point should not exceed 0.75 volts RMS. A leakage current tester (Simpson Model 229 or equivalent) may be used to make the hot checks, leakage current must not exceed 1/2 milliamp. In case a measurement is outside of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer.

Figure 1-1

3

1.2. Before Use (For PH only)

Be sure to disconnect the mains cord before adjusting the voltage selector as shown in Figure 1-2. Use a minus(-) screwdriver to set the voltage selector (on the rear panel) to the voltage setting for the area in which the unit will be used. Note that this unit will be seriously damaged if this setting is not made correctly. (There is no voltage selector for some countries, the correct voltage is already set.)

Figure 1-2

1.3. Before Repair and Adjustment

Caution:

DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid st ate devices. After repairs are completed, restore power gradually using a variac to avoid overcurrent. Current consumption at AC 110~127 V / 220~240 V, 50/60 Hz in Power ON, FM Tuner at volume minimal mode should be ~ 250 mA (PH). Current consumption at AC 120 V, 60 Hz in Power ON, FM Tuner at volume minimal mode should be ~ 250 mA (PN).

1.4. Protection Circuitry

The protection circuitry may have operated if either of the following conditions are noticed:

• No sound is heard when the power is turned on.

• Sound stops during a performance. The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are “shorted”, or if speaker systems with an impedance less than the indicated rated impedance of the amplifier are used. If this occurs, follow the procedure outlines below:

1. Turn off the power.

2. Determine the cause of the problem and correct it.

3. Turn on the power once again after one minute.

Note:

When the protection circuitry functions, the unit will not operate unless the power is first turned off and then on again.

4

1.5. Power Supply using SMPS

This model uses Switching Mode Power Supply (SMPS) to provide the power supply to the unit. Here is the supplied part no. for the SMPS Module

1) N0AB2GK00001 (For PN)

2) N0AD2GK00001 (For PH) Disconnect AC power to discharge the AC Capacitors (C1 (PH), C2) through a 10 Ω, 10 W resistor to ground.

1.5.1. For PN

1.5.2. For PH

5

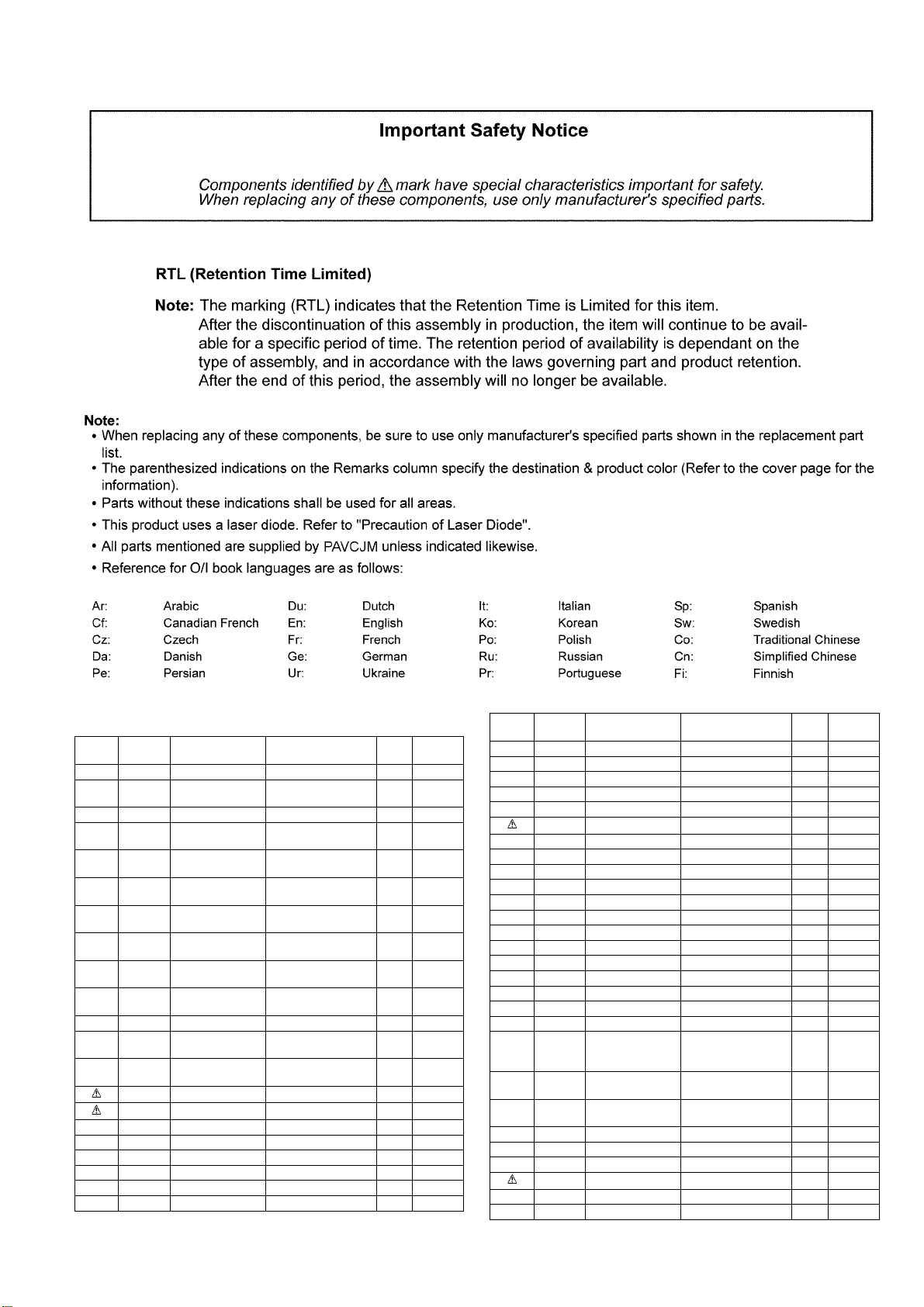

1.6. Safety Parts Information

Safety Parts List:

There are special components used in this equipment which are important for safety. These parts are marked by in the Schematic Diagrams, Exploded View & Replacement Parts List. It is essential that these

critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of manufacturer.

Safety Ref No. Part No. Part Name & Description Remarks

13 RGR0443M-A1A REAR APNEL PN

13 RGR0443N-A2A REAR PANEL PH

26 RKM07132-K1 TOP CABINET

301 RAE1044Z-V TRAVERSE UNIT

A2 K2CB2CB00022 AC CORD PN

A2 K2CQ2YY00119 AC CORD PH

A3 RQT9894-M O/I BOOK(En/Sp)

PCB6 N0AB2GK00001 SMPS MODULE PN

PCB6 N0AD2GK00001 SMPS MODULE PH

6

2Warning

2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices.

The following techniques should be used to help reduce the incid ence of component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an e lectrical a ssembly equip ped with ES d evices, plac e the assembly o n a conductive surface such as al uminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static (ESD protected)” can generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

CAUTION:

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device).

2.2. Precaution of Laser Diode

Caution:

This product utilizes a laser diode with the unit turned “on”, invisible laser radiation is emitted from the pickup lens. Wavelength: 790 nm (CD) Maximum output radiation power from pickup: 100 μW/VDE Laser radiation from the pickup unit is safety level, but be sure the followings:

1. Do not disassemble the pickup unit, since radiation from exposed laser diode is dangerous.

2. Do not adjust the variable resistor on the pickup unit. It was already adjusted.

3. Do not look at the focus lens using optical instruments.

4. Recommend not to look at pickup lens for a long time.

7

2.3. General description about Lead Free Solder (PbF)

The lead free solder has been used in the mounting process of all electrical compone nts on the printed circuit boards used for this equipment in considering the globally environmental conservation.

The normal solder is the alloy of tin (Sn) and lead (Pb). On the other hand, the lead free solder is the alloy mainl y consists of tin (Sn), silver (Ag) and Copper (Cu), and the melting point of the lead free solder is higher approx.30 degrees C (86°F) more than that of the normal solder.

Definition of PCB Lead Free Solder being used

The letter of “PbF” is printed either foil side or components side on the PCB using the lead free solder.

(See right figure)

Service caution for repair work using Lead Free Solder (PbF)

• The lead free solder has to be used when repairing the equipment for which the lead free solder is used. (Definition: The letter of “PbF” is printed on the PCB using the lead free solder.)

• To pu t lead free solder, it should be well molten and mixed with the original lead free solder.

• Remove the remaining lead free solder on the PCB cleanly for soldering of the new IC.

• Since the melting point of the lead free solder is higher than that of the normal lead solder, it takes the longer time to melt the lead free solder.

• Use the soldering iron (more than 70W) equi pped with the temperature co ntrol after setting the temp erature at 350±30 degrees C (662±86°F).

Recommended Lead Free Solder (Service Parts Route.)

• The following 3 types of lead free solder are available through the service parts route. RFKZ03D01K-----------(0.3mm 100g Reel) RFKZ06D01K-----------(0.6mm 100g Reel) RFKZ10D01K-----------(1.0mm 100g Reel)

Note

* Ingredient: tin (Sn), 96.5%, silver (Ag) 3.0%, Copper (Cu) 0.5%, Cobalt (Co) / Germanium (Ge) 0.1 to 0.3%

2.4. Handling Precautions for Traverse Unit

The laser diode in the optical pickup unit may break down due to static electricity of clothes or human body. Special care must be taken avoid caution to electrostatic breakdown when servicing and handling the laser diode in the traverse unit.

2.4.1. Cautions to Be Taken in Handling the Optical Pickup Unit

The laser diode in the optical pickup unit may be damaged due to electrostatic discharge gene rating from clothes or human body. Special care must be taken avoid caution to electrostatic discharge damage when servicing the laser diode.

1. Do not give a considerable shock to the optical pickup unit as it has an extremely high-precise structure.

2. To prevent the laser diode from the electrostatic discharge damage, the flexible cable of the optical pickup uni t removed

should be short-circuited with a short pin or a clip.

3. The flexible cable may be cut off if an excessive force is applied to it. Use caution when handling the flexible cable.

4. The antistatic FPC is connected to the new optical pickup unit. After replacing the optical pickup unit and connecting the flexi-

8

ble cable, cut off the antistatic FPC.

2.5. Grounding for electrostatic breakdown prevention

• As for parts that use optical pick-up (laser diode), the optical pick-up is destroyed by the static electricity of the working environment. Repair in the working environment that is grounded.

2.5.1. Worktable grounding

• Put a conductive material (sheet) or iron sheet on the area where the optical pickup is placed and ground the sheet.

2.5.2. Human body grounding

• Use the anti-static wrist strap to discharge the static electricity form your body Figure 2-3.

Figure 2-3

9

3 Service Navigation

Start

Write encrypted UPD bin to CD-R

Turn On main set

Insert CD-R (with UPD bin) and

close

TOC reading

Writing starts:

"0%" -> "20%" -> "40%" ->

"60%" -> "80%" -> 100%"

"CHECKING"

"GOOD" display 3 sec

Set auto turn Off -> Cold Start

End

NG

"NO PLAY"

process end

3.1. Service Information

This service manual contains technical information which will allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, this information will be follow ed by supplement service manual to be filed with origi nal service manual.

3.1.1. Firmware Update Procedure

10

4 Specifications

Q Amplifier section RMS output power stereo mode

Front Ch (both ch driven) 175 W per channel (4 Ω),

1 kHz, 30% THD

Total RMS stereo mode power 350 W

Q Tuner, terminals section Preset memory FM 30 stations AM 15 stations

Frequency modulation (FM)

Frequency range 87.50 MHz to 108.00 MHz

(50 kHz step) (for PH)

87.5 MHz to 108.0 MHz (100 kHz step) (for PN)

87.9 MHz to 107.9 MHz (200 kHz step) (for PN)

Antenna terminals 75 Ω (unbalanced)

Operating temperature range 0 °C to +40 °C

Operating humidity range 35% to 80% RH

(no condensation)

Power Consumption in standby mode

0.4 W (approximate) (for PN)

Power Consumption in standby mode (With "STANDBY BLUETOOTH" set to "ON")

0.5 W (approximate) (for PN)

1. Specifications are subject to change without notice. Mass and dimension are appropriate

2. Total harmonic distortion is measured by the digital spectrum analyzer.

Q System: SC-AKX18PN-K

Front Speakers: SB-AKX18PN-K

0.5 W (approximate)

0.6 W (approximate)

Main Unit: SA-AKX18PN-K

(for PH)

Amplitude modulation (AM)

Frequency range 522 kHz to 1629 kHz

(9 kHz step) (for PH)

520 kHz to 1630 kHz

(10 kHz step) (for PH)

520 kHz to 1710 kHz

(10 kHz step) (for PN)

Aux Input Pin jack

Q Disc section Discs played (8 cm or 12 cm) CD, CD-R/RW(CD-DA, MP3*)

Pick up

Wavelength 790 nm(CD)

Q Bluetooth section Version

Output Class 2 Supported profile A2DP, AVRCP, SPP Operating frequency 2402 MHz to 2480 MHz Operating distance 10 m line of sight

Q USB section USB Port

USB standard USB 2.0 full speed Media file format support MP3 (*.mp3) USB device file system FAT12, FAT16, FAT32 USB port power 500 mA (max)

Bluetooth

®

Ver.2.1 +EDR

Q System: SC-AKX18PH-K

Main Unit: SA-AKX18PH-K

Front Speakers: SB-AKX18PN-K

USB recording

Bit rate 128 kbps USB recording speed 1x, 3x (CD only) Recording file format MP3 (*.mp3)

Q General

Power supply AC 110 to 127/220 to 240 V,

50/60 Hz (for PH)

AC 120 V, 60 Hz (for PN)

Power consumption 50 W

Dimensions (W x H x D) 230 mm x 335 mm x 243 mm

Mass 2.7 kg

11

5 Location of Controls and Components

5.1. Remote Control Key Button Operation

5.2. Main Unit Key Button Operation

12

6 Service Mode

6.1. Cold-Start

Here is the procedure to carry out cold-start or initialize to shipping mode.

1. Unplug AC power cord

2. Press & hold [POWER] button

3. Plug AC power cord while [POWER] button being pressed FL Display will show “_ _ _ _ _ _ _ _”

4. Release [POWER] button

6.2. Sales Demonstration Lock Function

6.2.1. Entering into Sales demonstration lock mode

Here is the procedures to enter into the Sales demonstration lock mode. Step 1: Turn on the unit. Step 2: Select to any mode function. Step 3: Press and hold [ The display will show upon entering into this mode for 2 sec..

OPEN/CLOSE] and [CD] keys for 5 sec or more.

Note: [

OPEN/CLOSE] button is invalid and the main unit displays “LOCKED” while the lock function mode is entered.

6.2.2. Cancellation of Sales demonstration lock mode

Step 1: Turn on the unit. Step 2: Select to any mode function. Step 3: Set volume to Vol 19. Step 4: Press and hold [ The display will show upon entering into this mode for 2 sec..

OPEN/CLOSE] and [CD] keys for 5 sec or more.

13

6.3. Doctor Mode Table

FL Display

Key Operation

Front Key

Item

DescriptionMode Name

Doctor Mode

EEPROM checksum check

To enter into Doctor Mode In CD Mode:

1. Press [ ] button on main unit follow by [4] and [7] on remote control.

In CD mode:

1. Enter into Doctor Mode

2. To exit, press [DELETE] button on remote control or, press [POWER, /I] button on Main Unit

Displaying of

1. Year Develop.

2. Model Type.

3. ROM Type.

4. Firmware Version.

(Display 1)

(Display 2)

Checksum (Hex)

Cold Start

To active cold start upon next AC power up when reset start is execute the next time.

In Doctor Mode:

1. Press [SLEEP] button on the remote control.

Version No. (001 ~ 999) specific for each firmware

(Decimal)1 2 3 4

6.3.1. Doctor Mode Table 1

14

6.3.2. Doctor Mode Table 2

FL Display

Key Operation

Front Key

Item

DescriptionMode Name

Volume Setting Check

FL Display Check

To check the volume setting of the main unit.

To check the FL segment display. All segments will light up while all LED blink at 0.5s intervals.

In Doctor Mode:

1. Press [7], [8], [9] button on the remote control.

In Doctor mode:

1. Press [1] button on the remote control.

2. To cancel this mode, press [0] button on the remote control.

Press [7]: VOL50 Press [8]: VOL35 Press [9]: VOL0

Volume

In this mode, the tray will open & close automatically.

Cancellation Display

Loading Test To determine the open & close

operation of the CD Mechanism Unit.

The counter will increment by one. When reach 99999999 will change to 00000000

Cancellation Display

Traverse Test To determine the traverse unit

operation for inner & outer access track.

The counter will increment by one. When reach 99999999 will change to 00000000

Cancellation Display

Reliability Test (Combination)

In this mode, ensure the CD is in the main unit.

To determine the traverse unit operation & open/close operation of the mechanism.

In this mode, ensure the CD is in the main unit.

In Doctor Mode:

1. Press [10] [2] [1] button on the remote control.

In Doctor Mode:

2. To cancel this mode, press [0] button on the remote control.

1. Press [10] [1] [2] button on the remote control.

In Doctor Mode:

1. Press [10] [1] [5] button on the remote control.

2. To cancel this mode, press [0] button on the remote control.

15

6.3.3. Doctor Mode Table 3

CD

Self- Adjustment

Test

Item

DescriptionMode Name

To display result of self-adjustment for CD.

FL Display

Display of auto adjustment result

Reference table:

ERROR Code Status Condition

0 1 2 4 6 8 A C E F

AOC1/AOC2 O O O O O O O O -

ABC2/ABC1 O - X O X O X O X -

nd

AOC1 O - O X X O O X X -

2

FAGC/TAGC O - O O O X X X X -

AGC2 O - O O O O O O O

O : OK; X : NG (In case that time out happens.) : Either one of FO AOC, TR AOC and FO coarse AGC is NG. : If the AGC is NG (ignore others).

Key Operation

Front Key

In Doctor Mode

:

1. Press [10] [1] [4] button on the remote control.

To cancel this mode, press [0] button on the remote control.

CD LSI Version Check

For checking CD LSI Version and checksum information.

(Display 1)

Year Develop

(Display 2)

ROM Type

Checksum (Hex)

In Doctor Mode:

1. Press [4] button on the remote control.

Version (Decimal)

after 2 sec

To cancel this mode, press [0] button on the remote control.

16

6.4. Self-Diagnostic Mode

FL Display

Key Operation

Front Key

Item

DescriptionMode Name

Self Diagnostic Mode

To enter into self diagnostic checking Step 1: Select CD mode

(Ensure no disc is inserted).

To exit, press [8] on main unit or remote control.

Step 2: Press & hold [g] button follow by [y/i] on main unit for 2 seconds.

Error Code Information

System will perform a check on any unusual/error code from the memory

Example: Step 1: In self diagnostic mode,

Press [g] on main unit.

To exit, press [8] on main unit or remote control.

Delete error code To clear the stored in memory

(EEPROM IC)

Step 1: In self diagnostic mode, Press [0] on remote control.

Error Code Diagnostic Contents Description of error Automatic FL Display Remarks

CD H15 CD Open Abnormal During operation

POS_SW_R On fail to be detected with 4 sec. Error No. shall be clear by force or during cold start.

Press [

] on main unit for

next error.

CD H16 CD Closing Abnormal During operation

POS_SW_CEN On fail to be detected with 4 sec. Error No. shall be clear by force or during cold start.

Press [

] on main unit for

next error.

F26 Communication between

CD servo LSI and micro-p abnormal.

During switch to CD function, if SENSE = “L” within failsafe time of 20ms.

Press [

] on main unit for

next error.

6.5. Self-Diagnostic Error Code Table

Self-Diagnostic Function provides information on any problems occurring for the unit and its respective components by displaying the error codes. These error code such as U**, H** and F** are stored in memory and held unless it is cleared. The error code is automatically display after entering into self-diagnostic mode.

6.5.1. Power Supply Error Code Table

6.5.2. CD Mechanism Error Code Table

17

7 Troubleshooting Guide

“Contents for this section is not available at time of issue”

18

8 Disassembly and Assembly Instructions

• Illustration is based on SA-AKX18PH-K.

• This section describes the disassembly and/or assembly procedures for all major printed circuit boards & main components for the unit. (You may refer to the section of “Main component s an d P.C.B Locations” as descr ibed in this se rvi ce manual)

• Before carrying out the disassembly process, please ensure all the safety precautions & procedures are followed.

• During the disassembly and/or assembly process, please handle with care as there may be chassis components with sharp edges.

• Avoid touching heatsinks due to its high temperature after prolong use.

• Be sure to use proper service tools, equipments or jigs during repair.

• Select items from the following indexes when disassembly or replacement are required.

• Disassembly of Top Cabinet

• Disassembly of Front Panel Unit

• Disassembly of Panel P.C.B. and LCD P.C.B.

• Disassembly of USB P.C.B.

• Disassembly of Rear Panel

• Disassembly of Main P.C.B.

• Disassembly of SMPS Module and Voltage Selector P.C.B.

• Disassembly of CD Mechanism Unit

• Disassembly of CD Interface P.C.B.

8.1. Type of Screws

8.2. Disassembly Flow Chart

19

8.3. Main Components and P.C.B. Locations

20

8.4. Disassembly of Top Cabinet

Step 1 Remove 4 screws. Step 2 Remove 5 screws. Step 3 Release both sides of Top Cabinet outwards as arrow

shown.

8.5. Disassembly of Front Panel Unit

• Refer to “Disassembly of Top Cabinet”.

Step 1 Detach 8P Cable Wire at the connector (CN2502) on

Main P.C.B.. Step 2 Detach 17P FFC at the connector (CN2500) on Main P.C.B..

Step 3 Release tabs on both side of the Front Panel Unit.

Step 4 Slightly lift up to remove Top Cabinet.

21

Step 4 Release tabs at bottom of unit. Step 5 Detach to remove Front Panel Unit

8.6. Disassembly of Panel P.C.B. and LCD P.C.B.

• Refer to “Disassembly of Top Cabinet”.

• Refer to “Disassembly of Front Panel Unit”.

Step 1 Remove Volume Knob. Step 2 Remove Control Knob.

Step 3 Remove 7 screws. Step 4 Release catches.

22

Step 5 Remove Panel P.C.B. and LCD P.C.B..

8.7. Disassembly of USB P.C.B.

• Refer to “Disassembly of Top Cabinet”.

• Refer to “Disassembly of Front Panel Unit”.

• Refer to “Disassembly of Panel P.C.B. and LCD P.C.B.

8.8. Disassembly of Rear Panel.

• Refer to “Disassembly of Top Cabinet”.

Step 1 Remove 9 screws.

Step 2 Detach Voltage Selector P.C.B..

Step 1 Remove 1 screw. Step 2 Remove catches. Step 3 Remove USB P.C.B..

23

Step 3 Lift up Inner Chassis Unit to release the catches between the Inner Chassis Unit and the Rear Panel.

Step 4 Release tabs. Step 5 Release Rear Panel.

8.9. Disassembly of Main P.C.B.

• Refer to “Disassembly of Top Cabinet”.

• Refer to “Disassembly of Rear Panel”.

Step 1 Detach 10P Cable Wire at the connector (CON2) on SMPS P.C.B.. Step 2 Detach 24P FFC at the connector (P2005) on Main P.C.B.. Step 3 Detach 10P FFC at the connector (P2004) on Main P.C.B.. Step 4 Detach 17P FFC at the connector (CN2500) on Main P.C.B.. Step 5 Detach 8P Cable at the connector (CN2502) on Main P.C.B..

Step 6 Remove 2 screws. Step 7 Remove Main P.C.B..

24

8.10. Disassembly of SMPS Module and Voltage Selector P.C.B.

• Refer to “Disassembly of Top Cabinet”.

• Refer to “Disassembly of Rear Panel”.

Step 1 Detach 10P Cable Wire at the connector (CON2) on SMPS Module.

Step 2 Remove 2 screws. Step 3 Release catch. Step 4 Remove SMPS Module and Voltage Selector P.C.B..

Step 2 Detach Voltage Selector P.C.B.. Step 3 Detach 10P FFC at a connector (P2004) on Main

P.C.B.. Step 4 Detach 24P FFC at a connector (P2005) on Main P.C.B..

Step 5 Remove 1 screw.

8.11. Disassembly of CD Mechanism Unit

• Refer to “Disassembly of Top Cabinet”.

• Refer to “Disassembly of Front Panel Unit”.

Step 1 Remove 8 screws.

Step 6 Remove 1 screw.

25

Step 7 Release catches. Step 8 Detach Inner Chassis Unit.

8.12. Disassembly of CD Interface P.C.B.

• Refer to “Disassembly of Top Cabinet”.

• Refer to “Disassembly of Front Panel Unit”.

• Refer to “Disassembly of CD Mechanism Unit”.

Step 1 Remove 2 screws. Step 2 Desolder pins of the motor (M7301). Step 3 Desolder pins of the motor (M7302). Step 4 Remove CD Interface P.C.B..

Step 9 Remove 2 screws. Step 10 Remove CD Mechanism Unit.

26

9 Service Position

Note: For description of the disassembly procedures, see the Section 8.

9.1. Checking of Panel P.C.B. and LCD P.C.B.

Step 1 Remove Top Cabinet. Step 2 Remove Front Panel Unit. Step 3 Remove the Panel P.C.B. and the LCD P.C.B.. Step 4 Positioned the Panel P.C.B. and LCD P.C.B. on the

insulated material as shown. Step 5 Attach 17P FFC at a connector (CN2500) on the Main P.C.B.. Step 6 Panel P.C.B. and LCD P.C.B. can be checked as diagram shown.

9.2. Checking and Repairing of Main P.C.B. and SMPS P.C.B.

Step 1 Remove Top Cabinet. Step 2 Remove Front Panel Unit. Step 3 Remove Rear Panel. Step 4 Remove Main P.C.B.. Step 5 Remove SMPS Module and Voltage Selector P.C.B.. Step 6 Positioned the Main P.C.B., SMPS Module and the Volt-

age Selector P.C.B. on the insulated material. Step 7 Attach 10P Cable at a connector (CON2) on the SMPS Module. Step 8 Attach 10P FFC at a connector (P2004) on the main P.C.B.. Step 9 Attach 24P FFC at a connector (P2005) on the Main P.C.B.. Step 10 Attach 17P FFC at a connector (CN2500) on the Main P.C.B.. Step 11 Main P.C.B. and SMPS P.C.B. can be checked as diagram shown.

27

28

10 Block Diagram

SA-AKX18PH/PN SYSTEM CONTROL (1/2) BLOCK DIAGRAM

TO SYSTEM CONTROL

BLOCK (2/2)

: AUDIO OUTPUT SIGNAL LINE

: CD AUDIO INPUT SIGNAL LINE

: USB SIGNAL LINE

+

117

CN9000CN2500

KEY2

KEY2 34

KEY2

MANUAL EQ

S9006

USB REC/PAUSE

S9008

RWD

S9009

FWD

S9010

D.BASS

S9007

126

CN9000CN2500

KEY3

KEY3 38

KEY3

ALBUM/TRACK

S9011

USB/CD

S9013

RADIO/AUX

S9014

PLAY/PAUSE

S9015

BT

S9012

513

CN9000CN2500

VOL JOG

VOL JOG 36

VOL JOG

VOLUME

VR9000

414

CN9000CN2500

ROT JOG

ROT JOG 41

ROT JOG

CONTROL

VR9001

108

CN9000CN2500

KEY1

KEY1 39

KEY INT 32

KEY1

POWER

S9001

TUNE MODE/STOP

S9003

DJ JUKEBOX

S9004

LATIN/PRESET EQ

S9005

OPEN/CLOSE

S9002

PANEL P.C.B.

6

12

CN9000CN2500

LCD DRIVER

C0HBA0000295

IC900

LCD DATA 24

4

DATA

810

CN9000CN2500

LCD WR 23

711

CN9000CN2500

LCD CE 21

44

ZJ6000*ZJ9001*

LCD DATA

55

ZJ6000*ZJ9001*

LCD WR

66

ZJ6000*ZJ9001*

LCD CE

LCD DATA

LCD WR

LCD CE

153

CN9000CN2500

LED DIMMER 22

22

ZJ6000*ZJ9001*

LED DIMMERLED DIMMER

3

/WR

1

/CS

DP900

LCD

+5V

Q900

LED DRIVE

Q2002

SWITCH

LCD P.C.B.

COM0 ~ COM3 SEG0 ~ SEG31

D993

99

CN9000CN2500

+3.3V

REMOTE SENSOR

IR9000

RMT RMT

SOC

C1AB00004188

IC2001

MAIN P.C.B.

NOTE: “ * ” REF IS FOR INDICATION ONLY

REM IN

120

AC50

BD51

E54

F55

MD56

LDO57

TRDRV62

SPDRV64

TRVDRV63

INNER SW31

OPEN SW29

CLOSE SW30

LD CCW6

LD CW5

FODRV61

56

CN7002 P2004

OPEN SW

83

CN7002 P2004

CLOSE SW

SPM-

92

CN7002 P2004

SPM+

10 1

CN7002 P2004

TRV+

110

CN7002 P2004

TRV-

29

CN7002 P2004

LDM+

38

CN7002 P2004

LDM-

LDM+

LDM-

47

CN7002 P2004

SPINDLEMOTOR

M7302*

TRAVERSE MOTOR

M7301*

CD INTERFACE P.C.B.

+3.3V

Q2001

LASER DRIVE

23VINLD

5CH MOTOR DRIVER

C0GBY0000117

IC2004

VOLD+17

VOLD-18

VOSL+11

VOSL-12

VOFC+14

VOFC-13

VOTK-16

VOTK+

F+

F-

T-

T+

CD-LD

MD/LPD

15

VOTR+10

VOTR-9

26VINTK

7REV

6FWD

23

P2005

24

P2005

21

P2005

22

P2005

6

P2005

5

P2005

OPEN SW

3

CN7001

CLOSE SW

1

CN7001

1VINFC

16

P2005

15

P2005

20

P2005

19

P2005

10

P2005

14

P2005

4VINSL+

OPTICAL PICKUP UNIT

LOADING P.C.B.

CLOSE SW

OPEN SW

74

CN7002 P2004

RESET SW RESET SW

5

CN7001

LDM+

4

CN7001

LDM-

SPM-

SPM+

TRV+

TRV-

CD MECHANISM UNIT

CD TRACKING SIGNAL

RESET

S7201

10.1. System Control

29

: CD AUDIO INPUT SIGNAL LINE

TO SYSTEM CONTROL BLOCK (1/2)

: AUDIO OUTPUT SIGNAL LINE

FROM/TO POWER SUPPLY

USB-B USB-A

BT PCONT

PCONT1 PCONT2

PROTECT

SMPS ID

TEMP DET

SYNC

DC DET PWR

NRST

USB OVC

: USB SIGNAL LINE

USB-B

USB-A

BT PCONT

PCONT1

PCONT2

PROTECT

SMPS-ID

TEMP DET

SYNC

DC DET PWR

NRST

USB OVC

IC2003

RFKWFAKX18LM

16MB FLASH MEMORY

1CS# 2DO(DQ1)

WP#(DQ2)

DI(DQ0)

CLK

HOLD#(DQ3)

MAIN P.C.B.

IC2001

C1AB00004188

SOC

USB-B

4

USB-A

10

9

BT PCONT

PCONT1(POWER)

25

26

PCONT2(PCONT)

107

PROTECT

37

SMPS ID

40

TEMP DET

121

SYNC

109

DC DET PWR

1

NRST

USB OVC

94

FLASH CS

88

FLASH DAT1

87

FLASH DAT2386

FLASH DAT0591

FLASH CLK690

FLASH DAT3789

USB MUX OE 13

XTAL32.768K

XTAL16.9344M

USB REC LED 14

USB SEL 2

USB D- 97

USB D+ 98

IC2500

C1CB00003106

SELECTOR

SELECT

10

OE

8

D-

5

D+

3

2

124

X2002

125

127

X2001

128

USB-7USB+1iPod-6iPod+

USB A D-

USB A D+

USB B D-

USB B D+

Q2500

+5V

SWITCH

PW D5V

ZJ9301*CN2502

22

ZJ9301*CN2502

11

ZJ9301*CN2502

33

ZJ9301*CN2502

44

CN2502 ZJ9301*

88

USB P.C.B.

USB A D-

USB A D+

USB B D-

USB B D+

PW D5V

D9300

+5V

JK9300

USB PORT A

1 VBUS

2D-

3D+

JK9301

USB PORT B

1 VBUS

2D-

3D+

QR2500

LED DRIVE

BLUETOOTH

DEVICE

NOTE: “ * ” REF IS FOR INDICATION ONLY

FREQUENCY

IC2002

RFKWEAKX18LM

EEPROM

IC7000*

BLUETOOTH MODULE

UART TX

UART RX

HOST WAKE

LDO ON

BT CTS

118

6SCL

5SDA

I2C SCL

119

I2C SDA

QR2002

FAN OUT2 15

101

2

4

11

13

15

102

106

105

103

BT UART RX

BT UART TX

HOST WAKE

BT WAKE

BT UART RTS

SWITCH

SA-AKX18PH/PN SYSTEM CONTROL (2/2) BLOCK DIAGRAM

30

10.2. Audio

SA-AKX18PH/PN AUDIO BLOCK DIAGRAM

: TUNER/AUX AUDIO INPUT SIGNAL LINE : AUDIO OUTPUT SIGNAL LINE: CD AUDIO INPUT SIGNAL LINE

: FM SIGNAL LINE : AM SIGNAL LINE

2

1

X6500

42 XO

41 XI

81

83

81

I2S SDO0

82 I2S BCK

82 DSP SDA

75 DSP SCL

83 I2S WCK

I2S WCK

I2S BCK

10 BCK

8 SDIN1

9 LRCK

3 SMUTE

272 RST NDSP RESET

77DSP MUTE

76DSP SDA

75DSP SCL

4 SDA

73DSP ERROR

16 ERRIN

93DAMP VALID

74DC DET AMP FAN

24 VALID

5 SCL

DSP

VUEALLPT090

IC6500

MAIN P.C.B.

+32V

Q6007,Q6300

DC DETECT

CIRCUIT

Q6001,Q6002

SPEAKERS

OUT D

27

OUT D

28

OUT C

32

BST D

23

BST C

24

OUT A

40

OUT A

39

OUT B

35

BST A

44

BST B

43

-

+

4

JK6000

3

JK6000

+

-

RIGHT

LEFT

1

JK6000

2

JK6000

POWER AMPLIFIER

C1AB00003994

IC6000

6

INPUT B

PWM1B 27

5

INPUT A

PWM1A 28

14

INPUT C

PWM2A 30

15

INPUT D

PWM2B 29

DOUT

FM ANT

JK51

FM/AM RADIO RECEIVER

VUEALLPT087

IC52

LIN 15

RIN 16

GCGPIO2 18

DCLK 17

DFS 14

SDIO 8

SCLK 7

RST 5

2 FMI

AM ANT

JK52

L52

4

6

3

1

2

4 AMI

13

SOC

C1AB00004188

IC2001

4 /RESET

17 DAMP OTW

DAMP OTW

122

TUN SDO

112

TUN WCK

110

TUN RST

117

TUN INT

116

TUN BCK

111

L

R

AUX IN

JK6002

3 1

2

AUX-R

AUX-L

31

10.3. Power Supply

SA-AKX18PH/PN POWER SUPPLY BLOCK DIAGRAM

D9301

D1007

D1006

D1001

PW SYS 3R3V

PW SYS 3R3V PW SYS 3R3V

3 VIN

+3.3V VOLTAGE REGULATOR

C0DBGYY03909

IC1005

VOUT 2

4 VIN

1CE

+5V VOLTAGE REGULATOR

C0DBGYY00969

IC7001

VOUT 3

2 VIN

VOLTAGE DETECTOR

C0EBY0000861

IC2005

VOUT 1

3 VIN

+3.3V VOLTAGE REGULATOR

C0DBGYY03909

IC1000

VOUT 2

PW SYS 3R3V

+3.3V

PW SOC 1R5V

+1.5V

PW 32V

+32V

PW 12V

+12V

PW 3R3V

+3.3V

PW 6V

+6V

+5V

PROTECT

PCONT2

NRST

BT PCONT

PCONT1

FROM/TO SYSTEM CONTROL

MAIN P.C.B.

NOTE: “ * ” REF IS FOR INDICATION ONLY

-10

- ZJ1002*

PCONT2

-6

- ZJ1002*

PROTECT

1,2-

ZJ1002*-

32.5V

5-

ZJ1002*-

5V

PW BT 5V

+5V

4 VIN

1CN

+1.5V VOLTAGE REGULATOR

C0DBGYY00911

IC1004

VO 3

PW SOC 1R5V

9-

ZJ1002*-

SYNC

7-

ZJ1002*-

SMPS-ID

8-

ZJ1002*-

TEMP DET

SWITCHING MODE

POWER SUPPLY

CIRCUIT

AC INLET

SMPS MODULE

DC DET PWR

66

ZJ9301*CN2502

+5V

USB P.C.B.

LCD P.C.B.PANEL P.C.B.

PW USBA 5VPW USBA 5V

77

ZJ9301*CN2502

+5V

PW USBB 5V

PW USBA 5V

PW USBB 5V

+5V

PW 5V

+3.3V

PW 3R3V

PW USBB 5V

144

CN9000CN2500

+3.3V

PW SYS 3R3V PW SYS 3R3VPW SYS 3R3V

171

CN9000CN2500

11

ZJ6000*ZJ9001*

PW 5VPW 5V

162

CN9000CN2500

33

ZJ6000*ZJ9001*

PW 3R3VPW 3R3V

PW 16V

PW 6V

10PH3EN

1BOOT

7VSENSE

2

3

2

VIN

+16V DC-DC CONVERTER

C0DBAYY01594

IC1002

10PH

EN

1BOOT

7VSENSE

VIN

+6V DC-DC CONVERTER

C0DBAYY01594

IC1003

32.5V

16V

USB OVC

SMPS-ID

SMPS ID

TEMP-DET

TEMP DET

SYNC

USB-B

USB-A

D1005

Q1000

D1002

+12V VOLTAGE

REGULATOR

PW 12V

PW 3R3V

PW 16V

HIGH SIDE SWITCH

C0DBZYY00716

IC2502

PW USBB 5V

PW USBA 5V

PW USB5V

PW 5V

5 VIN 1VOUT

3/OC

4EN

HIGH SIDE SWITCH

C0DBZYY00716

IC2501

5 VIN 1VOUT

3/OC

4EN

32

11 Wiring Connection Diagram

SA-AKX18PH/PN WIRING CONNECTION DIAGRAM

NOTE: " * " REF IS FOR INDICATION ONLY.

TO CD LOADING P.C.B. (CD MECHANISM UNIT)

CN7002

CN7001

10P

5P

TO OPTICAL PICKUP UNIT

(CD MECHANISM UNIT)

TO SMPS MODULE P.C.B.

CN2502

P2005 P2004

CN1000

ZJ9301*

ZJ6000*

ZJ9001*

CN9000

8P

CN2500

17P

10P

8P

7P

17P

10P24P

MAIN P.C.B.

A

PANEL P.C.B.

B

LCD P.C.B.

C

USB P.C.B.

D

CD INTERFACE P.C.B.

E

33

34

12 Schematic Diagram

12.1. Schematic Diagram Notes

• This schematic diagram may be modified at any time

with the development of new technology.

Notes:

S7201: Reset switch S9001: S9002: S9003: Tune Mode / Stop ( ) switch. S9004: DJ Jukebox switch. S9005: Latin Preset EQ switch. S9006: MANUAL EQ switch. S9007: D.BASS switch. S9008: USB REC / PAUSE switch. S9009: Rewind ( / ) switch. S9010: Forward ( / ) switch. S9011: Album Track switch. S9012: Bluetooth Pairing switch. S9013: USB / CD switch. S9014: RADIO / AUX switch. S9015: VR9000: Volume Jog. VR9001: Control Jog.

• Important safety notice: Components identified by mark have special characteris-

tics important for safety. Furthermore, special parts which have purposes of fire-retardant (resistors), high quality sound (capacitors), low-noise (resistors), etc are used. When replacing any of components, be sure to use only manufacturer’s specified parts shown in the parts list.

Power switch ( ). Open/Close switch ( ).

Play/Pause ( / ) switch.

• Resistor Unit of resistance is OHM [Ω] (K=1,000, M=1,000,000).

• Capacitor Unit of capacitance is μF, unless otherwise noted. F=Farads, pF=pico-Farad.

• Coil Unit of inductance is H, unless otherwise noted.

• * REF IS FOR INDICATION ONL Y.

• Voltage and signal line

: +B signal line : CD Audio input signal line : AUX/Tuner Audio input signal line : Audio output signal line : USB signal line : AM signal line : FM signal line

35

36

12.2. MAIN (Damp/Tuner/AUX/USB/DSP/Bluetooth/Voltage Regulators/Micon) Circuit

A

1

2 3 4 5 6 7 8 9 10 11 12 13 14

1 2 3 4 5 6 7 8 9 10 11 12 13 14

C

D

B

E

G

H

F

A

C

D

B

E

G

H

F

A

MAIN (DAMP) CIRCUIT

SCHEMATIC DIAGRAM - 1

SA-AKX18PH/PN MAIN (DAMP) CIRCUIT

TO SPEAKERS

: +B SIGNAL LINE : AUDIO OUTPUT SIGNAL LINE

US: MAIN (USB) SCHEMATIC DIAGRAM - 3 DS: MAIN (DSP) SCHEMATIC DIAGRAM - 4 VO: MAIN (VOLTAGE REGULATORS) SCHEMATIC DIAGRAM - 5 MI: MAIN (MICON) SCHEMATIC DIAGRAM - 6 ~ 8

1

G1

3

4

2

G2

JK6000

C6069

0.1

C6071

0.1

C6074

0.1

C6070

0.1

0R6302 0R6303

0R6305

R6304 0

0R6307

R6306 0

R6300

0 0

R6301

0.033C6024

0.033C6028

0.033C6025

0.033C6030

1

C6045

1

C6046

0.01

C6061

0.01

C6062

3.3

R6058

3.3

R6060

G0A100K00006

L6000

G0A100K00006

L6001

G0A100K00006

L6002

G0A100K00006

L6005

R6070

12K

Q6001

B1ABCF000011

DC DETECT

R6056

4.7K

R6054

56K

R6132 220K

SPEAKER PROTECTION

SWITCH

Q6300

B1ABCF000011

SPEAKER PROTECTION

SWITCH

Q6007

B1ABCF000011

47K

R6055

C6027

0.1

R6057

220K

B1ADGD000019

Q6002

0.1

C60361C6039

1

C6031

0.1

C6032

50V1000

C6033

C6022

10R6011

G1C4R7MA0172

L6006

10K

R6072

1

C6047

1

C6048

100K

R6067

100K

R6069

100K

R6066

100K

R6068

0.01

C6063

0.01

C6064

3.3

R6061

3.3

R6062

0.1 1

1

C6023

0.1C6021

0.1C6018

10C6005

0.1C6019 22KR6046

10R6007

10R6050

C6020

43

11

9

10

34

36 35

12 33

6

5

39 38

41 40

837

2322

20

18

16

14

13

15

17

19

31

32

28

26 25

27

30 29

21 24

342

44

2

7

4

1

IC6000

M3 BST_C GVDD_CD BST_D

M1

/OTW

OUT_D

GND

/CLIP

INPUT_D

PVDD_CD

/FAULT

OUT_D

PVDD_CD

M2 GND

LEFT+

LEFT-

RIGHTRIGHT+

AVDD INPUT_C

GND

VDD

C_START DVDD

/RESET

OC_ADJ

GVDD_AB

INPUT_B

INPUT_A

GND

GND GND

OUT_B

PVDD_AB

GND

GND OUT_A OUT_A

PVDD_CD

GND

OUT_C

GND

BST_A BST_B

C1AB00003994

HEATSINK

ZA6000*

POWER AMPLIFIER

G2G1

DAMP_VALID

DS

PWM_P_1

DS

PWM_M_1

DS

PWM_P_2

DS

PWM_M_2

DS

DAMP_OTW

MI

PW_12V

VO

PW_3R3V

MIDSUS

DC_DET_AMP_FAN

MI

DGND

MI

NOTE: “ * ” REF IS FOR INDICATION ONLY

C6068

10

PW_32V

VO

37

A

1

2 3 4 5 6 7 8 9 10 11 12 13 14

1 2 3 4 5 6 7 8 9 10 11 12 13 14

C

D

B

E

G

H

F

A

C

D

B

E

G

H

F

A

MAIN (TUNER / AUX) CIRCUIT

SCHEMATIC DIAGRAM - 2

SA-AKX18PH/PN MAIN (TUNER / AUX) CIRCUIT

: +B SIGNAL LINE

: TUNER/AUX AUDIO INPUT SIGNAL LINE

: AM SIGNAL LINE: FM SIGNAL LINE

DS: MAIN (DSP) SCHEMATIC DIAGRAM - 4 MI: MAIN (MICON) SCHEMATIC DIAGRAM - 6 ~ 8

NOTE: “ * ” REF IS FOR INDICATION ONLY

J0JBC0000010

LB54

C6108

1

C6109

R6136

R59 2.2K

R613500

33P

C66

J0JBC0000010

LB55

R6147

10K

4.7K

R6134

10K

R6146

C6099

680P

C6100

1

3

4

2

JK6002

4.7K

R6133

J0JBC0000118

LB53

C62

0.1

R56 220

R57 1K

2.2KR60

C67

3P

C51

1000P

LB51

J0JYC0000656

L51

G1CR18JA0020

LB52

0

VA51

EZAEG2A50AX

G2

G3

G1

JK51

L53

0

0.47

C52

4.7K

R54

R53

4.7K

1

2

JK52

0.1

C61

412

1 214

T117 191816

15

20

313

THERMAL

PAD

511

10 8976

IC52

4

G2

G1

6

2

3

1

G2A380Y00002

L52

R52

560

R51

2.2K

R55 220

DSP_SCL

TUN_RST

TUN_BCK

PW_3R3V

TUN_WCK TUN_SDO

TUN_INT

DSP_SDA

DGND

DSMI

MI

DS

MI MI MI MI

MI

LIN

DCLK

RIN

NC

VUEALLPT087

FM/AM RADIO RECEIVER

NC

SDIO

VDD

GND

DOUT

VIO

RCLK

GCGPO2

DFS

RFGND

AMI

SEN

RST

SCLK

FMI

GCGPO1

AM ANT AM ANT

AUX_IN

FM ANT

AM ANT

38

A

1

2 3 4 5 6 7 8 9 10 11 12 13 14

1 2 3 4 5 6 7 8 9 10 11 12 13 14

C

D

B

E

G

H

F

A

C

D

B

E

G

H

F

A

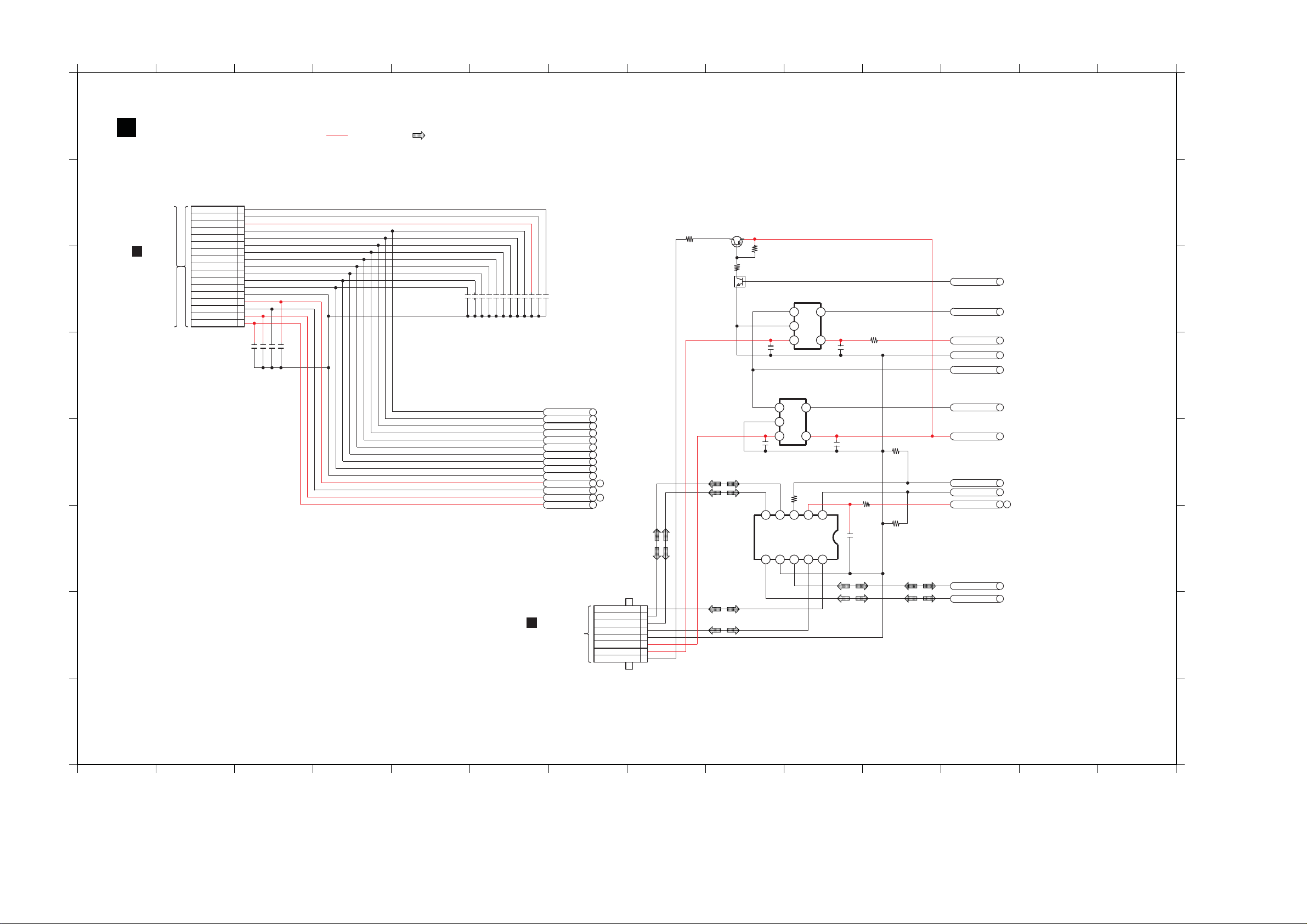

MAIN (USB) CIRCUIT

SCHEMATIC DIAGRAM - 3

SA-AKX18PH/PN MAIN (USB) CIRCUIT

: +B SIGNAL LINE

B

TO PANEL CIRCUIT (CN9000) IN SCHEMATIC DIAGRAM - 9

D

TO USB CIRCUIT (ZJ9301*) IN SCHEMATIC DIAGRAM - 10

NOTE: “ * ” REF IS FOR INDICATION ONLY

: USB SIGNAL LINE

DA: MAIN (DAMP) SCHEMATIC DIAGRAM - 1 VO: MAIN (VOLTAGE REGULATORS) SCHEMATIC DIAGRAM - 5 MI: MAIN (MICON) SCHEMATIC DIAGRAM - 6 ~ 8

PW_SYS_3R3V

MI

VO

MI

VO

MI

DA

USB_D+

USB-B

USB_REC_LED

DGND

PW_USB5V

PW_5V

USB_SEL

USB_MUX_OE

USB_OVC

USB-A

0

LB2503

R2514

2.2K

USB_D-

MI

DGND

KEY2 KEY3

0.01

C2522

0.01

C2524

0.01

C2523

0.01

C2521

PW_5V

PW_3R3V

PW_SYS_3R3V

LED_DIMMER

0.01

C2527

470P

C2532

0.01

C2533

470P

C2531

0.01

C2535

0.01

C2537

0.01

C2536

0.01

C2534

0.01

C2528

470P

C2530

470P

C2529

0.01

C2526

KEY1

RMT

VOL_JOG

ROT_JOG

NC NC

6 5

8

9

11

12

10

15

17

16

13

14

7

2 1

1

4 3

CN2500

100

R2501

B1GBCFGN0016

LED DRIVE

QR2500

330

R2503

DSA200100L

SWITCH

Q2500

R2510

100K

3

1

2

4

5

C0DBZYY00716

HIGH SIDE SWITCH

IC2502

R2504

10K

0.1

C2506

C2507

4.7

0.1

C2504

3

1

2

4

5

C0DBZYY00716

HIGH SIDE SWITCH

IC2501

C2508

4.7

2

4

3

1

G1

6

8

7

5

G2

CN2502

KEY1 KEY2

FL_CLK

RMT

PW_3R3V

LED_DIMMER

PW_5V

DGND

KEY3

PW_SYS_3R3V

ROT_JOG

MI MI MI MI MI MI MI MI MI MI MI MI

VO

MI VO

VO

FL_CS

VOL_JOG

FL_DAT

USB_B_D-

PW_D5V

USB_A_D+

USB_B_D+

USB_A_D-

PW_USBA_5V PW_USBB_5V

C2505

0.1

DGND

0

R2507

6

51

10

342

897

C1CB00003106

SELECTOR

IC2500

NC

LCD_DATA

LCD_CE

LCD_WR

SELECT

GND

EN

GND

VIN

/OC

VOUT

iPod-

VCC

OE/

USB-

D+

GNDD-iPod+

USB+

R2520

2.2K

39

A

1

2 3 4 5 6 7 8 9 10 11 12 13 14

1 2 3 4 5 6 7 8 9 10 11 12 13 14

C

D

B

E

G

H

F

A

C

D

B

E

G

H

F

A

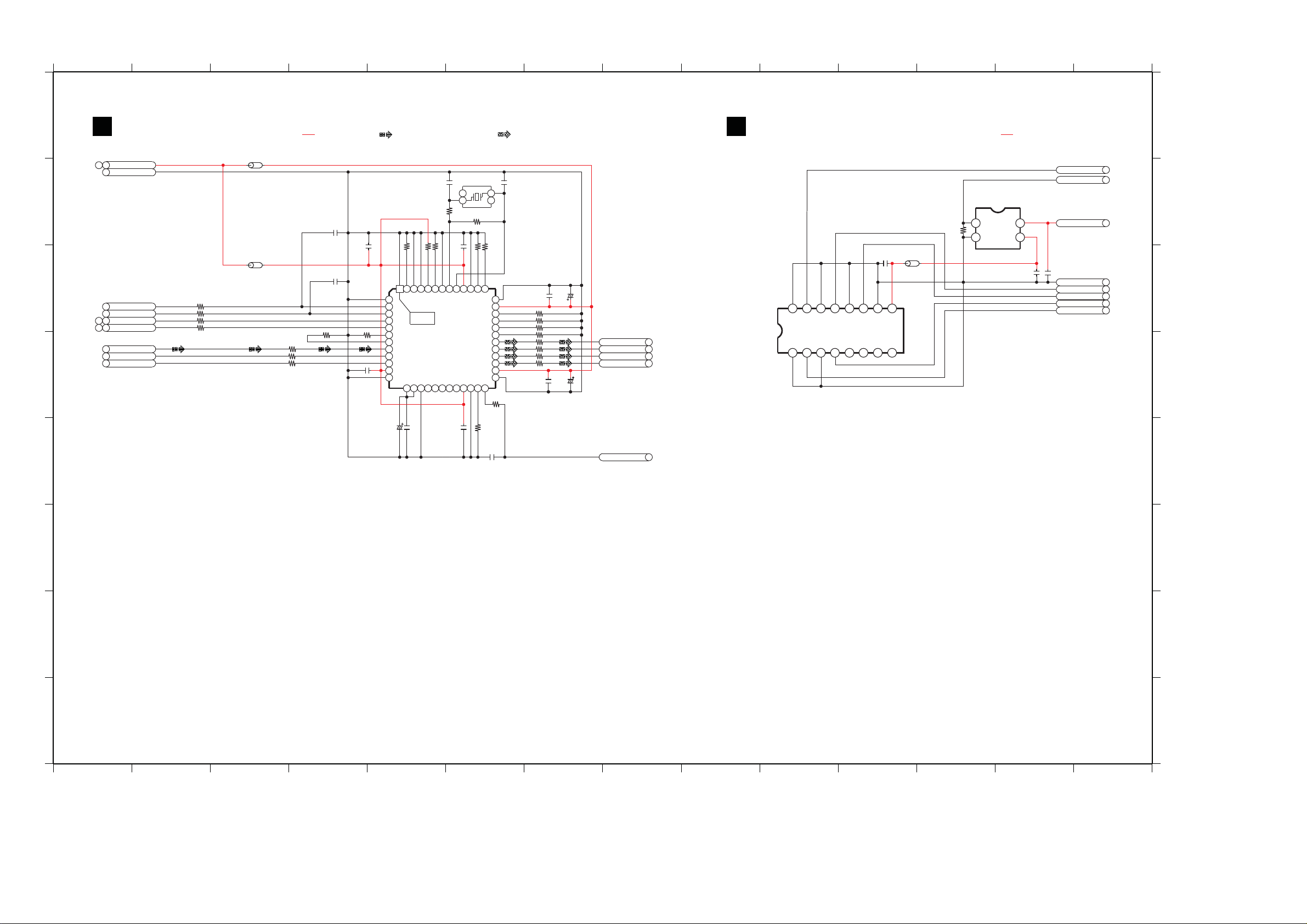

MAIN (DSP) CIRCUIT

SCHEMATIC DIAGRAM - 4

SA-AKX18PH/PN MAIN (DSP) / MAIN (BLUETOOTH) CIRCUIT

: +B SIGNAL LINE

A

MAIN (BLUETOOTH) CIRCUIT

: +B SIGNAL LINE

: CD AUDIO INPUT SIGNAL LINE

: AUDIO OUTPUT SIGNAL LINE

DA: MAIN (DAMP) SCHEMATIC DIAGRAM - 1 TU: MAIN (TUNER/AUX) SCHEMATIC DIAGRAM - 2 VO: MAIN (VOLTAGE REGULATORS) SCHEMATIC DIAGRAM - 5 MI: MAIN (MICON) SCHEMATIC DIAGRAM - 6 ~ 8

NOTE: “ * ” REF IS FOR INDICATION ONLY

C6528

10

R6504

R6503 0

LB6500

J0JBC0000010

LB6501

C6561

12P

R6594

R6501

1.5K

C6560

12P

2 3

1 4

H0J245500110

X6500

R6502

1M

C6529 1

R6505

10K

0

R6506

0

R6550 R6551

C6550

C6551

R6542

C6525 C6502

1 16V22

R6553

R6552

220 220

0

I2S_SDO0

DAMP_VALID

0.1

C6592

PWM_P_1

PWM_P_2

DA DA DA DA

DA

PWM_M_2

R6522 R6521

R6511

R6512

47 47

47

PWM_M_1

R6581

R6582

1000P

R6556

R6554

R6557

100

C6527

10K

1

R6541 R6532 R6531

10K 10K 10K 10K

R6587

10K

C6591

C6500

10K

4 5

T1 4445464748

2

1

3

32

34

36 35

33

40414243 373839

8

16 17151413

9

6 7

27

25

22 232019 21 24

26

18

30

31

28

29

THERMAL

PAD

11 12

10

IC6500

VUEALLPT090

DSP

C6521

1

16V47

0.47

R6559

100

C6501C6523 16V221

DSP_RESET

DSP_SCL

DSP_MUTE

DSP_SDA

DGND

MI

MI MI MITU

TU

MI

DATU

PW_3R3V

I2S_WCK

I2S_BCK

BCK

PWM1A

LRCK

DVDD1

[12]DVSSCORE

LDOPOFF

ERRIN

SDOUT1

SDOUT2

REG15

DVDDCORE

BCKO

LRCK

DVSS2

DVDD2

CLKO

VALID

PWM1B

DVDD_PWM1

DVSS_PWM1[25]

SDA SCL

SMUTE

PWM3A

PWM4B

[1]DVSS1 [2]RST_N

DVSS_PWM2[36] DVDD_PWM1[35]

PWM4A

CLK110M

ANATEST

BSSEL

ADDR

XI

XO

AVSS

AVDD

XINSEL

TST

DIVSEL

DVSS_OSC

PWM2B

SDIN1

PWM3B PWM2A

SDIN3 SDIN2

2.2K

R7001

14

23

C0DBGYY00969

+5V VOLTAGE REGULATOR

IC7001

BT_HOST_WAKE

DGND

MI

MI MI

MI

MI MI

VO

BT_WAKE

BT_UART_RX BT_UART_TX

BT_UART_RTS

BT_PCONT

PW_BT_5V

1

C7001

1

C7002

L7000

J0JYC0000305

0.1

C7000

75612 43

1012141516 13 11

8

9

RSNE031B0

BLUETOOTH MODULE

IC7000*

GNDNCGND

NCNCNC

BT_CTS

GND

+5V

GND

LDO_ON

UART_RX

UART_TX

GND

HOST_

WAKEUP

CE

VOUT

VDD

GND

40

A

1

2 3 4 5 6 7 8 9 10 11 12 13 14

1 2 3 4 5 6 7 8 9 10 11 12 13 14

C

D

B

E

G

H

F

A

C

D

B

E

G

H

F

A

MAIN (VOLTAGE REGULATORS) CIRCUIT

SCHEMATIC DIAGRAM - 5

SA-AKX18PH/PN MAIN (VOLTAGE REGULATORS) CIRCUIT

: +B SIGNAL LINE

NOTE: “ * ” REF IS FOR INDICATION ONLY

DA: MAIN (DAMP) SCHEMATIC DIAGRAM - 1 US: MAIN (USB) SCHEMATIC DIAGRAM - 3 BT: MAIN (BLUETOOTH) SCHEMATIC DIAGRAM - 4 MI: MAIN (MICON) SCHEMATIC DIAGRAM - 6 ~ 8

C1018

0.01

C1019

C1031

0.1

PCONT2

R1070

2.2K

6

8

9

7

2 1

4

5

3

10

ZJ1002*

TO SMPS MODULE P.C.B.

L1002

G1C100MA0291

R1069

0

R1044

2.2K

C1020

4.7

D1007

B0EAKM000117

50V22

C1021

R1031

56K

10

C1044

C1045

10

213

C0DBGYY03909

+3.3V VOLTAGE CONVERTER

IC1005

56K

R1016

R1008

15K

820P

C1015

C1004

1000P

R1030

15K

C1048

0.1

1

C1025

R1033

0

D1005

DZ2J130M0L

C1033

0.01

C1032 16V100

D1006

B0EAKM000117

D1001

B0EAKM000117

R1007

68K

R1027

10K

R1026

120K

R1038

390

C1023

0.1

3

12

B0ADDJ000032

D1002

B1AAKD000012

+12V VOLTAGE REGULATOR

Q1000

0.1

C1047

C1000 10

7.5K

R1004

10K

R1006R1068

47

56K

R1005

C1001

10

213

IC1000

C0DBGYY03909

+3.3V VOLTAGE CONVERTER

DC_DET_PWR

PW_12V

PW_SYS_3R3V

PW_SOC_1R5V

MI

BT

DA

MI

US

MI

PW_BT_5V

PROTECT

PW_32V

PCONT1

PCONT2

MI MI MI MI

MI

DA

SMPS_ID

DGND SYNC

PW_3R3V

PW_6V

PW_USB5V

PW_5V

14

23

IC1004

C0DBGYY00911

+1.5V VOLTAGE REGULATOR

C1024

1

R1025

0

10K

R1064

L1001

G1C100MA0445

L1000

G1C4R7MA0445

C1002

10

DZ1000

B0JCPD000025

C1030 1800P

D1000

B0JCPG000032

D1008

DA2J10100L

C1003

47P

R1067

0

R1066

4.7

C1013

47P

10C1009

C1022

0.1

C1046

0.1

10C1008

C1016

0.1

C1005

0.1

C1049

0.1

83

T1

4

56

7

9

10

2

1

THERMAL PAD

IC1003

C0DBAYY01594

+6V DC-DC CONVERTER

8 3

T1

4

56

7

9

10

2

1

THERMAL PAD

IC1002

C0DBAYY01594

+16V DC-DC CONVERTER

32.5V

SYNC

32.5V

5V

PROTECT

SMPS-ID

TEMP-DET

PWR_GND

BOOT

EN

VIN

GND

PH

COMP

PWRGD

VSENSE

SS/TR

EN

VIN

GND

SS/TR

BOOT

RT/CLK

GND

PH

COMP

PWRGD

VSENSE

RT/CLK

VINVOUT

VIN

GND VOUT

CN

VIN

GND

VO

TEMP DET

41

A

1

2 3 4 5 6 7 8 9 10 11 12 13 14

1 2 3 4 5 6 7 8 9 10 11 12 13 14

C

D

B

E

G

H

F

A

MAIN (MICON) CIRCUIT

SCHEMATIC DIAGRAM - 6

SA-AKX18PH/PN MAIN (MICON) CIRCUIT

3/32/31/3

TO MAIN (MICON)

CIRCUIT (2/3)

: +B SIGNAL LINE

P1

1

: CD AUDIO INPUT SIGNAL LINE

: USB SIGNAL LINE

: TUNER/AUX AUDIO INPUT SIGNAL LINE

US: MAIN (USB) SCHEMATIC DIAGRAM - 3 BT: MAIN (BLUETOOTH) SCHEMATIC DIAGRAM - 4 VO: MAIN (VOLTAGE REGULATORS) SCHEMATIC DIAGRAM - 5

USB_D-

USB-A

USB_D+

USB_OVC

USB-B

R2055

LD-CW

EMMC_NRST

R2067

0

EMMC_DAT3 EMMC_DAT2

LD-CCW

I2S_BCK

I2S_SDO0

R2034

0

I2S_WCK

R2311

J0JCC0000309

R2023

J0JCC0000309

EMMC_DAT1

EMMC_DAT0

1M

R2036

R2004

J0JCC0000309

R2006

J0JCC0000309

R2105

J0JCC0000309

R2104

J0JCC0000309

R2005

J0JCC0000309

R2103

2.2K

R2499

R2074

R2075

68K

15K

C2123

10

C2124

0.1

C2111

100P

C2006

100P

C2007

R2107 J0JCC0000309

R2051

0

C2132

100P

100K

R2037

R2038

10M

BT_UART_RX

BT_WAKE

BT_UART_RTS

USB_D+

USB_D-

C2005

BT_UART_TX

100P 100P

C2004

R2202

J0JCC0000117

R2201

J0JCC0000117

LB2007 J0JBC0000010

DC_DET_PWR

BT_HOST_WAKE

LB2004 J0JBC0000010

TUN_BCK TUN_WCK

X2002

H0A327200181

R2029 J0JCC0000215

R2027 J0JCC0000215 R2028 J0JCC0000215

R2039 J0JCC0000309 R2053 J0JCC0000309

R2054

0

R2052

0

I2C_SCL

TUN_SDO

TUN_WCK TUN_BCK

C2130 22P

SYNC DAMP_OTW

RMT

I2C_SDA

23

14

X2001

H0J169500044

C2131 27P

C2128

8P

R2102

0

R2024

0

R2033

J0JCC0000309

R2100

0

DAMP_VALID USB_OVC

TUN_INT TUN_RST

CR_TIMER

0

C2147 0.1

14 23

IC2005

C0EBY0000861

VOLTAGE DETECTOR

NRST

GND

C2140 16V33

R2026

1K

C2129

8P

R2035

100

C2141

0.1

R2065 R2063 0

R2057 0

0R2086

LB2005

10

C2119 6.3V330

680P

C2118

C2112 0.1

0.1

C2120

68P

C2183

C2114 0.22 C2115 3.3

KEY2

KEY3

PW_SYS_3R3V

RMT

MPORT_DET

KEY1

ROT_JOG

LED_DIMMER

LCD_CE

LCD_DATA

LCD_WR

VOL_JOG

KEY2

KEY3

RMT

MPORT_DET

KEY1

ROT_JOG

LED_DIMMER

LCD_CE

LCD_DATA

LCD_WR

VOL_JOG

R2012 470

C2113

0.1

LB2003

J0JBC0000010

10

C2127

C2116

16V100

C2117

0.1

KEY_INT

330K

R2002

KEY1

10K

R2001

AC

Q2002

B1ABCF000011

SWITCH

5

6

1

3

4

2

8 7

P2002

VBIAS

FODRV

LDO

F E

MD

SPDRV

TRVDRV

TRDRV

0

R2192

BD

10

C2125

R2050 0 R2048 J0JCC0000309

R2189 J0JCC0000309

REGION1

KEY2

R2076

0

C2138

1000P

C2110

0.1

C2136

1000P

C2135

1000P

C2133

1000P

C2137

1000P

C2134

1000P

R2013 J0JCC0000309

ROT_JOG

R2014 J0JCC0000309

SMPS_ID

KEY3

R2187 J0JCC0000309 R2188 J0JCC0000309

R2049 J0JCC0000309

C2107 0.1

R2022

J0JCC0000215

DC_DET_AMP_FAN

DSP_SCL

DSP_MUTE

R2496

0

R2073

J0JCC0000309

DSP_RESET

NRST

R22220R2099

0

0.1

C2105

C2104

0.1

DSP_SDA

R2111

2.2K

R2072

J0JCC0000309

R2021

0

R2110 2.2K

127

125

123

117

116

118

115

120 121

119

98

97

99

105

104

106

102

100 101

103

113

111

109

108

110

112

114

107

122

124

126

63

50

52 51

45

47 46

41

42

38

34

36

37

35

40 39

44 43

49 48

60

62 61

56

57

53

55 54

59 58

64

95 9293 8889 8485 8081 72 67 656671 69 6870767879 77 7375 7483 8287 8691 909496

9107 8 12 15 1613 14111423 65

128

312923 26 2724 2518 1917 2220 21 28 30 32

33

C1AB00004188

SOC

IC2001

C2108

0.1

LCD_CE

LED_DIMMER

R2068

J0JCC0000309

R2070

J0JCC0000309

LCD_DATA

LCD_WR

R2071

J0JCC0000309

PCONT2

J0JCC0000309

LB2024

R2069

J0JCC0000309

BT_UART_TX

BT_UART_RTS

BT_HOST_WAKE

BT_WAKE

BT_UART_RX

BT_WAKE

BT_HOST_WAKE

BT_UART_RTS

BT_UART_TX

USB_SEL

USB_MUX_OE

USB_REC_LED

USB_D-

USB_D+

USB_OVC

USB_SEL

USB_MUX_OE

USB_REC_LED

I2S_WCK

I2S_BCK

I2S_WCK

I2S_SDO0

I2S_BCK

DSP_SDA

DSP_ERROR

DSP_MUTE

DSP_RESET

DSP_SCL

DSP_RESET

I2S_SDO0

DSP_SDA

DSP_ERROR

DSP_SCL

DSP_MUTE

PCONT1

PCONT2

PCONT2 PCONT1

DC_DET_PWR

SYNC

DC_DET_AMP_FAN

SYNC

DC_DET_PWR

PW_SYS_3R3V

47K

R2498

LCD_WR

REGION3

OPEN_SW

LCD_DATA

REGION2

KEY_INT

INNER_SW

REGION1[35]

KEY2[34]

VDD_ADC[33]

VDD_ADC

DSP_RESET

DSP_SCL

DSP_ERROR

JTAG

DVSS

JTAG

DC_DET_AMP_FAN

JTAG[68] JTAG[67] JTAG[66]

NC[65]

PCONT2(PCONT)

LED DIMMER/FL DAT1

PCONT1(POWER)

CLOSE_SW

KEY1 KEY3

F

E

-

NC

BD AC

NC

VBIAS

AVDD3

LDO

MD

TRDRV FODRV

SPDRV

AGND4

NC

NC NC

FOR DEBUG

TDO

GND

3R3V

RESET

TMS

TDI

TRST

TCK

TDO

TMS

TDI

TRST

TCK

TDO

TMS

TDI

TRST

TCK

US US US

US

US US US

US US US US

US

TRVDRV

SMPS_ID

VOL_JOG

VSS_ADC

ROT_JOG

TEMP_DET

NCVIN

VSSVOUT

US

BT BT BT BT BT

VO

VO VO

VO

VO VO

DS DS DS DS DS DS DS DS

VSSQ

USB_MUX_OE

USB_REC_LED

LD-CW/EMMC_DAT1

USB-B/EMMC_NRST

LD_CCW/EMMC_DAT0

EMMC_CMD

VDDQ

EMMC_CLK

USB-A/EMMC_DAT2

BT_PCONT/EMMC_DAT3

GND

LCD_CE

SVSS

SVDD

DVDD_M1

FAN_OUT2

SYNC

NC

NRST

USB_SEL

REGION3

OPEN_SW

REGION2

KEY_INT

INNER_SW

PCONT

CLOSE_SW

USB_MUX_OE

USB_REC_LED

EMMC_DAT1

EMMC_NRST

EMMC_DAT0

EMMC_CMD

EMMC_CLK

EMMC_DAT2

EMMC_DAT3

FAN_OUT2

USB_SEL

DVDDIO

FLASH_DAT3

FLASH_CLK

FLASH_DAT0

I2S_WCK

I2S_BCK

DVSS

DVDDI3

DSP_SDA

VSS

VDD

FLASH_DAT1

I2S_SDO0

DSP_MUTE

ANAL_SEL

FLASH_DAT2

FLASH_CS

FLASH_DAT3

FLASH_CLK

FLASH_DAT0

FLASH_DAT1

FLASH_DAT2

FLASH_CS

[122] DAMP_OTW [124] XTAL32.768K [125] XTAL32.768K [127] XTAL16.9344M [128] XTAL16.9344M

I2C_SCL

REM_IN

I2C_SDA

-

BT_UART_TX

TUN_WCK

BT_WAKE

PROTECT

DC_DET_PWR

HOST_WAKE

CR_TIMER

USB_D+ AVSSC

USB_D-

BT_UART_RX

TUN_RST

SP_SDA SP_INT

SP_SCL

TUN_SDO

TUN_BCK

TUN_INT

DVDD_M2

[96] AVDDC [95] FAN_OUT1 [94] USB_OVC [93] DAMP_VALID

BT_UART_CTS

BT_UART_RTS

BT_PCONT

VOL_JOG

TEMP_DET

PROTECT

SMPS_ID

TEMP_DET

VO

VO VO

TEMP_DET

SMPS_ID

PROTECT

42

15 16 17 18 19 20 21 22 23 24 25 26 27 28

A

MAIN (MICON) CIRCUIT

SCHEMATIC DIAGRAM - 7

SA-AKX18PH/PN MAIN (MICON) CIRCUIT

3/32/31/3

TO MAIN (MICON)

CIRCUIT (3/3)

TO MAIN (MICON) CIRCUIT (1/3)

: +B SIGNAL LINE

P1

1

E

TO CD INTERFACE CIRCUIT (CN7002) IN SCHEMATIC DIAGRAM - 10

: CD AUDIO INPUT SIGNAL LINE

TO OPTICAL

PICKUP UNIT

: TUNER/AUX AUDIO INPUT SIGNAL LINE

DA: MAIN (DAMP) SCHEMATIC DIAGRAM - 1 TU: MAIN (TUNER/AUX) SCHEMATIC DIAGRAM - 2 US: MAIN (USB) SCHEMATIC DIAGRAM - 3 BT: MAIN (BLUETOOTH) SCHEMATIC DIAGRAM - 4 VO: MAIN (VOLTAGE REGULATORS) SCHEMATIC DIAGRAM - 5

VOL_JOG

REGION1

R2131

0...PN

2.7K...PH 10K

SMPS_ID

R2135 33K...PH 12K...PN

LB2002

J0JBC0000010

KEY3

TEMP_DET

KEY1

KEY2

PW_SOC_1R5V

R2118 10K

C2184

R2123

10K

R2127

10K

R2129

R2121

10K

LB2015

J0JBC0000010

10

C2126

R2114 33K

R2108 10K

REGION3

R2139 10K

R2106 10K

ROT_JOG

REGION2

GND

R2183

10K

DAMP_OTW

DAMP_VALID

R2422

10K

R2423

10K

BT_PCONT

R2421

10K

PW_3R3V

DAMP_OTW

BT_PCONT

DAMP_VALID

TRV+

TRV-

LDM-

LDM+

SPM+

SPM-

C2178

1

J0JHC0000045

LB2012

C2180

16V100P

R2158

1K

R2168

100K

4.7

R2169

C2182

16V100P

C2181

16V100P

0.1

C2172

1.2K

R2157

1000P

C2173

T+

T-

F+

F-

R2152

10K

68K

R2154

68K

R2153

R2150

10K

2200P

C2168

2200P

C2169

R2151

10K

R2149

10K

6

8

9

7

2 1

1

4

5

3

10

P2004

R2172 J0JCC0000309

LDM+

TRV+

TRV-

R2176 J0JCC0000309

SPM-

SPM+

LDM-

R2177 J0JCC0000309

R2175 J0JCC0000309

R2174 J0JCC0000309

R2173 J0JCC0000309

C2166

0.01

C2167

0.01

C2162 10

J0JBC0000134

LB2010

R2178 J0JCC0000309

F+

F-

R2181 J0JCC0000309

R2179 J0JCC0000309

T+

T-

R2180 J0JCC0000309

C2171

0.01

10

C2170

LB2011

G1C100KA0101

10

C2164

C2165

0.1

0.01

C2163

6

7

5

9

13

15 14

11 10

12

21

22

18

16

17

20 19

8

1

3

4

2

24 23

P2005

0

R2171

C2179

0.01

D2002

DA2J10100L

R2167

4.7

Q2001

B1ADCF000001

LASER DRIVE

J0JCC0000309

R2155

PW_SYS_3R3V

R2156

100

J0JHC0000045

LB2013

PW_6V

R2182

10K

R2162 0

R2163 0 R2165

0

R2160 0

1K

R2170

LB2014

J0JBC0000134

R2185

0

R2186

0

21

27

5

24 25

2217 191815 16 3020 21

711 101314 12 8 299

23

634

26

28

IC2004

C0GBY0000117

5CH MOTOR DRIVER

TUN_RST

R2419

10K

R2420

10K

TUN_INT

TUN_RST

TUN_BCK

TUN_WCK

DSP_SDA

TUN_SDO DSP_SCL

TUN_BCK TUN_SDO

DSP_SDA

DSP_SCL

TUN_WCK

R2166 15K

TRDRV

TRVDRV

FODRV

SPDRV

VBIAS

R2161 47K

R2164 100K

INNER_SW

OPEN_SW

CLOSE_SW

R2159 6.8K

LD-CW

LD-CCW

R2097 J0JCC0000309

R2095 J0JCC0000309

R2096 J0JCC0000309

R2184

10K

LDO

E

BD AC

F

MD

VDD_ADC

VSS_ADC

E

NC

VREF

VCC(5V)

NC NC

CD-LD

NC

GND

DVD-LD GND-LD

MD/LPD

LDM-

TRV+

LDM+

TRV-

FIN

VCC

REV

VOTR-

TRB_1

VINFC

REGO1

FWD

REGO2

VOFC-

VOSL-

VOFC+

VOTR+

VOSL+

SPM+

F

D

C

A B

RF

F+

T-

T+

F-

SPM-

DGND

VINTK

MUTE

BIAS

VOLD+NCVCTL

PVCC

VOLD-

VOTK+

VOTK-

NC

TRB_2

GND

FIN

VINLD

VINSL+

OPEN_SW

PD GND

CLOSE_SW

CD/DVD SW

RESET_SW

DA

DA BT

VO

VOUS

TU TU TU TU TU TU TU

0

R2312...AKX18

0

R2314...PN

R2315...PH

43

29 30 31 32 33 34 35 36 37 38 39 40 41 42

A

C

D

B

E

G

H

F

A

MAIN (MICON) CIRCUIT

SCHEMATIC DIAGRAM - 8

SA-AKX18PH/PN MAIN (MICON) CIRCUIT

3/32/31/3

TO MAIN (MICON) CIRCUIT (2/3)

: +B SIGNAL LINE

P1

DA: MAIN (DAMP) SCHEMATIC DIAGRAM - 1 TU: MAIN (TUNER/AUX) SCHEMATIC DIAGRAM - 2 DS: MAIN (DSP) SCHEMATIC DIAGRAM - 4 VO: MAIN (VOLTAGE REGULATORS) SCHEMATIC DIAGRAM - 5

R2417

10K

MPORT_DET

R2018

J0JCC0000301

R2020

J0JCC0000301

R2019

J0JCC0000301

R2016

J0JCC0000301

R2015

J0JCC0000301

R2017

J0JCC0000301

C2122

10

LB2006

0

D2001

DA2J10100L

R2117

R2093

560K

R2089

CR_TIMER

FAN_OUT2

C2121

0.1

2 1

7 8

5

4 36

IC2003

RFKWFAKX18LM

16MB FLASH MEMORY

PW_3R3V

LB2016

J0JBC0000010

PW_SYS_3R3V

VO

VOTUDADADS

PW_SYS_3R3V

DGND

6.8K

R2338

R2115

2.7K2.7K

R233004.7K

100

R2340

C2148

10

B1GBCFJJ0051

SWITCH

QR2002

2

1

7

8

54

36

IC2002

RFKWEAKX18LM

EEPROM

68K

R2339

0.022

C2144

R2119

0

WP

A1

A0 VCC

GND

SDA

A2

SCL

I2S_SDA

I2S_SCL

FLASH_DAT3

FLASH_CLK

FLASH_DAT0

FLASH_DAT1

FLASH_DAT2

FLASH_CS

CLK

VCC

DI(DQ0)

CS#

DO(DQ1)

VSS

WP#(DQ2)

44

12.3. Panel Circuit

A

1

2 3 4 5 6 7 8 9 10 11 12 13 14

1 2 3 4 5 6 7 8 9 10 11 12 13 14

C

D

B

E

G

H

F

A

C

D

B

E

G

H

F

B

PANEL CIRCUIT

SCHEMATIC DIAGRAM - 9

SA-AKX18PH/PN PANEL CIRCUIT

C

TO LCD CIRCUIT (ZJ6000*) IN SCHEMATIC DIAGRAM - 10

A

TO MAIN (USB) CIRCUIT (CN2500) IN SCHEMATIC DIAGRAM - 3

: +B SIGNAL LINE

NOTE: “ * ” REF IS FOR INDICATION ONLY

PW_SYS_3R3V

G2

2

1

3

G1

IR9000

REMOTE SENSOR

PW_3R3V

KEY3

RMT KEY1

LCD_CE LCD_WR

KEY2

DGND

LED_DIMMER

LCD_DATA

PW_SYS_3R3V

PW_5V

PW_3R3V

RMT

LCD_CE LCD_WR

LED_DIMMER

LCD_DATA

PW_SYS_3R3V

PW_5V

LCD_DATA

PW_5V

LED_DIMMER

PW_3V3

LCD_CE LCD_WR

22K

R9023

6

5

8 9

11 12

10

14 15

13

7

2

1

4

3

17

16

CN9000

C9001

100P

R9022

12K

ROT_JOG VOL_JOG

C9000

100P

R9011

2.7K

S9015

S9013

S9012

S9014

R9014

18K

R9012

3.9K

R9013

7.5K

S9011

RMT

4

5

1

3 2

7 6

ZJ9001*

100P

C9004

VR9000

C9005 1000P

LCD_CE LCD_WR

DGND

VOLUME

PW_5V

ALBUM/TRACK

FL_DAT PW_3V3 LED_DIMMER

NC

NC NC

BT-PAIRING

RADIO/AUX

USB/CD

PLAY/PAUSE

R9006

2.7K

S9010

S9008

S9007

S9009

R9009

18K

R9007

3.9K

R9008

7.5K

S9006

MANUAL EQ

D BASS

RWD

USB REC/PAUSE

FWD

R9001

2.7K

S9005

S9003

S9002

S9004

R9004

18K

R9002

3.9K

R9003

7.5K

S9001

POWER

OPEN/CLOSE

DJ JUKEBOX

TUNE MODE/STOP

LATIN/PRESET EQ

123

12K

R9021

C9010

100P

R9020

22K

C9009 100P

VR9001

CONTROL

123

45

12.4. LCD, USB & CD Interface Circuit

A

1

2 3 4 5 6 7 8 9 10 11 12 13 14

1 2 3 4 5 6 7 8 9 10 11 12 13 14

C

D

B

E

G

H

F

A

C

D

B

E

G

H

F

C

LCD CIRCUIT

E

CD INTERFACE CIRCUIT

D

USB CIRCUIT

SCHEMATIC DIAGRAM - 10

SA-AKX18PH/PN LCD / USB / CD INTERFACE CIRCUIT

A

TO MAIN (MICON) CIRCUIT (P2004) IN SCHEMATIC DIAGRAM - 7

TO LOADING P.C.B. (CD MECHANISM UNIT BRS12C)

1

10

USB PORT A

USB PORT B

A

TO MAIN (USB) CIRCUIT (CN2502) IN SCHEMATIC DIAGRAM - 3

B

TO PANEL CIRCUIT(ZJ9001*) IN SCHEMATIC DIAGRAM - 9

: +B SIGNAL LINE

NOTE: “ * ” REF IS FOR INDICATION ONLY

: USB SIGNAL LINE

+

2

3

1

5 4

CN7001

6

8

9

7

2 1

4

5

3

10

CN7002

4

31

2

S7201

RESET

M7302*

DGND

OPEN_SW

SPM+ SPM-

LDM+

CLOSE_SW

TRV+

LDMLDM+

OPEN_SW

DGND

REST_SW

TRV-

LDM-

CLOSE_SW

SPINDLE MOTOR

M7301*

TRAVERSE MOTOR

C907

SEG13

SEG15

SEG14

R901

SEG9

COM2

SEG7

SEG8

SEG31

COM3

B3AFA0000131

D993

SEG11

SEG12

SEG10

COM1

COM0

R935

B1GBCFJN0033

LED DRIVE

Q900

SEG18

SEG24

SEG22

SEG23

SEG28

SEG27

SEG31

SEG30

SEG29

SEG25

SEG26

SEG19

SEG21

SEG20

R906 R905

LB900 J0JBC0000019

R933

SEG16

SEG17

SEG1

SEG0

C901

C902

4 5

1

3

2

7

6

ZJ6000*

R908

R903

SEG25

SEG26

SEG23

SEG24

SEG29

SEG28

SEG30

SEG27

SEG22

SEG12

SEG13

SEG11

SEG16

SEG18 SEG17

SEG15

SEG21

SEG19

SEG20

SEG14

21

5

6

3

1

2

4

19

9

7

8

1617

11 10

1215 14 131820

35 37 38 42 444339 40 4136

33

22

31

29

27

24

23

26

25

28

30

32

34

IC900

C0HBA0000295

LED DRIVER

COM2

SEG3

SEG5

SEG6

SEG4

COM3

SEG0

SEG2

SEG1

SEG13

SEG15

SEG14

SEG9

SEG7

SEG8

SEG11

SEG12

SEG10

SEG18

SEG24

SEG22

SEG23

SEG28

SEG27

SEG31

SEG30

SEG29

SEG25

SEG26

SEG19

SEG21

SEG20

SEG16

SEG17

SEG3

SEG5

SEG6

SEG4

SEG0

SEG2

SEG1

COM0

COM1

323022 2320 21 829181 27 292524 261711

10987654321

14 15 1612 13 31 34 363533

DP900

L5AYAYY00061

SEG8

SEG5

SEG4

SEG7

SEG6

SEG10

SEG9

SEG2

SEG3

1K

470

DGND

PW_5V

LCD_CE

PW_3V3

LCD_WR

LED_DIMMER

LCD_DATA

4 5

1

3

2

7 8

6

0

BZ

SEG17

SEG18

[22]SEG22

SEG16

COM3

COM0

SEG21

SEG24

SEG26

SEG25

COM2

COM0

COM1

COM3

[21]SEG23

SEG29

SEG30

SEG27

SEG28

SEG31

SEG19

SEG20

[10]COM1 [11]COM2

0.01

180

LCD DISPLAY

VDD

VLCD

RD

WR

CS

SEG13

SEG3

SEG2

SEG11

SEG6

SEG8

SEG7

SEG4

SEG1

SEG12

SEG5

SEG0

VSS

[34]SEG10 [35]SEG9

SEG14

SEG15

DATA

1000P

220P

15K

C9300

0.1

2

G

1

4

G

3

JK9300

C9301

0.1

JK9301

ZJ9301*

PW_USBA_5V

PW_D5V

D9301

B3AAA0000487

R9300

330

DGND

LB9300

J0JHC0000118

USB_A_D-

USB_A_D+

D9300

B3AAA0000487

PW_USBB_5V

LB9301

J0JHC0000118

USB_B_D+

USB_B_D-

USB5V

-D

DGND +D

2

G

1

4

G

3

USB5V

-D

DGND +D

46

13 Printed Circuit Board

13.1. Main P.C.B. & CD Interface P.C.B.

H

G

F

E

A

MAIN P.C.B. (REP5061B...PH) (REP5061A...PN)

TP2501

TP2500

E

CD INTERFACE P.C.B. (REP4945A)

M7302*

(SPINDLE MOTOR)

1

12345

3556A

2

S7201

(RESET)

24

CN7002

10

9

8

7

6

5

4

3

2

1

M7301*

(TRAVERSE

2

MOTOR)

1

31

CN7001

TO LOADING P.C.B. (CD MECHANISM UNIT BRS12C)

PbF

D

C

B

A

(SIDE A)

1

PbF

3760A

SA-AKX18PH/PN

MAIN / CD INTERFACE P.C.B.

2

3

4

5

6

7

8

9

10 1 12 13

1

47

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

G

H

10 1 12 13

SA-AKX18PH/PN

MAIN P.C.B.

NOTE: " * " REF IS FOR INDICATION ONLY

A

MAIN P.C.B. (REP5061B...PH) (REP5061A...PN)

(SIDE B)

PbF

C6023

C6048

IC6000

C6032

C6031

C6036

C6039

C6024

C6028

C6030

C6025

R6007

C6020C6022

R6046

C6018

C6019

R6050

C6021

R6011

L6000

L6005

L6001

L6002

C6033

C6005

JK6000

R6300

R6301

C6069

R6069R6068

R6302

R6303

C6070

R6304

R6305

C6071

R6307

C6074

R6306

R6058

C6061

R6060

C6062

R6062

C6064

R6066

R6067

C1008

C1009

R1004

R1005

R1006

DZ1000

C1013

R1008

C1015

R1016

C1019

IC1003

C1020

C1030

C1016

C1001

C1000

IC1000

IC1004

C1024

C1025

C1032

IC2004

C2172

C2180

C2178

LB2013

C2170

C2171

LB2012

C2173

R2158

P2004

P2005

(TO OPTICAL PICKUP UNIT)

R2162

R2160

R2161

R2159

R2163

R2164

R2165

R2166

R2156

R2157

R2173

R2172

R2174

R2175

R2176

R2177

R2178

R2179

R2180

R2181

C2166

C2167

R2185

R2186

R2095

R2096

R2097

R2182

R2183

R2184

R2154

R2153

C2168

C2169

LB2010

C2162

C2163R2155

LB2011

D2002

C2165

C2164

Q2001

R2167 R2168

R2169

C2182

C2179

R2171

R2170

C2181

LB2014

C2183

R2086

R2067

R2057

IC2001

C2120

C2114

C2115

R2012

C2113

C2116

C2117R2192

C2112

C2119

LB2005

R2001

Q2002

R2002

C2118

R2013

R2014

C2137

C2135

C2134

C2133

C2138

C2136

C2110

R2049

R2187

R2188

R2189

R2050

R2048

LB2002

C2125

R2076

R2068

R2069

R2070

R2071

C2108

C2107

C2147 R2055

R2103

R2104

R2105

R2107

R2027

R2028

R2029

R2051

R2052

C2132

R2039

R2053

R2054

X2001

R2036

R2035

C2129

C2128

C2131

X2002

R2037

R2038

C2130

R2074

R2075

R2201 R2202

R2018

R2020

R2019

R2016

R2017

R2015

R2100

R2102

R2024

R2033

C2111

C2124

LB2007

LB2004

C2123

R2311

R2034

R2023

R2022

C2104

C2105

R2021

R2072

R2110

R2073

R2111

R2496

R2222

R2099

C2127

LB2003

P2002

(FOR DEBUG)

IC2003

C2121

C2122

LB2006

C2126

LB2015

R2114

C2184

R2118

R2121

R2123

R2127

R2129

R2131

R2135

R2139

D2001

R2093

C2148

QR2002

R2338

R2339

R2340

R2330

R2089

R2420

R2423

R2421

R2419

CN2500

R1007

C1022

C1002

R1031

C1018

R1044

C1021

C1031

L1002

R1027

R1026

C1004

L1001

D1000

R1030

C1003

IC1002

C1005

C6109

R2063

R2422

R2065

D1006

D1007

C6108

R60

R56

C61

C62

C67

IC52

JK51

JK52

LB52

L52

L53

R51

R52

R53

R54 R55

R57

R59

VA51

JK6002

R6146

C6099

R6147

C6100

R6134

R6136

R6135

R6133

C66

C52

LB51

C51 L51

L6006

Q6001

Q6002

R6054

R6055

R6056

R6057

C6027

R6070

R6132

C6068

Q6007

Q6300

C6500

C6521

C6592

C6591

R6559

LB6501

R6542

R6541

R6532

R6531

R6511

R6512

R6521

R6522

C6501

C6523

C6502

C6525

C6561

C6560

X6500

R6502

R6501

C6529

R6506

R6505

R6504

R6503

C6528

LB6500

R6553

R6552

R6551

R6550

C6527

R6557

R6556

R6554

C6551

C6550

IC6500

R2117R2115

R2119

C2144

IC2002

IC2005

R2026

C2141

C2140

QR2500

R2504

R2510

Q2500

R2503

C2508

IC2501

C2504

LB2503

C2507

IC2502

C2506

L1000

R6594

R2498

LB2016

R2507

C2505

IC2500

R2501

CN2502

HEATSINK

ZA6000*

R2149 R2150

R2151

R2152

IC7000*

(BLUETOOTH MODULE)

R6587

R6582

R6581

R2106

R2108

R6072

C6047

C6045

C7000

L7000

R2006

C2006

C2007

R1025

D1002

D1001

C1023

Q1000

D1005

C1033

R1038

R1033

R2004

R2005

C2004

C2005

C6046

C1044

IC1005

LB53

C1045

R2499

R1064

R1066

R2514

R1067

IC7001

C7001

C7002

R7001

R1069

C1049

R1070

R1068

C1046

C1048

C1047

C2536

C2537

C2535

C2534 C2533

C2532

C2530

C2528

C2526 C2524

C2522

C2531

C2529

C2527

C2523

C2521

LB2024

LB54

LB55

ZJ1002*

(TO SMPS MODULE P.C.B.)

FM ANT

AM ANT

AUX IN

TO SPEAKERS

3760A

R6061 C6063

R2417

D1008

R2312...AKX18

R2314...PN

R2315...PH

R2520

1-R+

2-R-

3-L+

4-L-

44

40

35

30

25 2322

20

15

10

5

1

15

610

3

2

1

12

34

2827262524 2322 21201918171615

1413121110987654321

30

29

1375

246810

9

24232221201918171615141312111098765432

1

5

10

15

20

25

30

32

3335404550556064

65

70

75

80

85

90

95 96

97100 105 110 115 120 125128

43

21

1234567

8

1234

56

78

1

2

3

4

5

6

7

8

9

11

10

13

12

15

14

17

16

1

56

10

2

1

20

16

15

11

10

6

5

1

6

43

1

3

21

4

4321

48 45 40 37

36 35

30

25

24201513

12

10

5

1

2

3

45

6

7

8

12

34

541 2 3

541

2

3

10 8

53

216

7

1

2

3

4

5

6

7

8

910111213141516

87654321

3

2

1

2

3

4

12345678910

B

C

E

B

C

E

B

C

E

B

C

E

B

C

E

B

C

E

B

C

E

B

C

E

B

C

E

B

C

E

A

C

CA

48

13.2. Panel, LCD & USB P.C.B.

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

G

H

10 1 12 13

SA-AKX18PH/PN

PANEL / LCD / USB P.C.B.

NOTE: " * " REF IS FOR INDICATION ONLY

B

PANEL P.C.B. (REP5062AA)

C

LCD P.C.B. (REP5062AA)

D

USB P.C.B. (REP5062AC)

PbF

C907

R906

R905

C902

R903

R901

R933

Q900

LB900

IC900

R935

C901

R908

W209

W212

W213

W210

W208 W205

W206 W201

W207 W203 W202

W200

W204

W211

W215

W214

R9300

LB9300

LB9301

C9300

C9301

C9000C9001

R9007

R9013

R9004

R9006

R9008

R9002

R9003

C9004C9005

C9009C9010

R9020R9021

R9022R9023

R9001

R9009

R9011

R9012

R9014

W100

W106 W105

W104 W103

W102

W101

1

11

12

22

23

33

34

44

DP900

D993

ZJ6000*

D9301D9300

JK9300

JK9301

ZJ9301*

S9001

S9003

S9005

S9007

S9009

S9011

S9013

S9008

S9006

S9004

S9002

CN9000

ZJ9001*

IR9000

VR9001

S9010

S9015

S9012

S9014

VOLUME

SENSOR

USB PORT B

USB PORT A

CONTROL

VR9000

(ALBUM/TRACK)

(BT/PAIRING)

(PLAY/PAUSE)

(TUNE MODE/ STOP)

(RADIO/AUX)

(OPEN/CLOSE)

(POWER)

(DJ JUKEBOX/ DISPLAY)

(LATIN/PRESET/EQ)

(FWD)

(REW)

(USB REC/ PAUSE)

(MANUAL/EQ)

(D.BASS)

(USB/CD)

3761AA

3761AC

3761AB

W216

W217

W218

3635302520151051

1765432

4

3

2

1

G

4

3

2

1

G

12345678

12345679

8

17161514131211

10

1234 675

1

2

3

1

2

3

B

C

E

1

2

3

49

50

14 Appendix Information of Schematic Diagram

REF NO.

MODE 1234567891011121314151617181920

TUNER 0 0.6 0 0 3.2 0 3.2 3.2 0 3.3 3.3 0 1.5 1.6 0 0 1.6 3.3 0 0

STANDBY 00003.203.23.203.23.301.61.6001.63.300

REF NO.

MODE 1 2 3

CD PLAY 0 3.3 5.9

STANDBY 0 3.3 5.9

REF NO.

MODE 12345678910

CD PLAY 21.8 32.7 2.9 2.3 0.5 2.6 0.8 0.9 0 15.6

STANDBY 21.8 32.7 2.9 2.3 0.5 2.6 0.8 0.9 0 15.6

REF NO.

MODE 12345678910

CD PLAY 12 13.4 2.9 2.4 0.5 2.6 0.8 0.8 0 5.9

STANDBY 12 13.4 2.9 2.4 0.5 2.6 0.8 0.8 0 5.9

REF NO.

MODE 1234

CD PLAY 3.2 0 1.6 3.2

STANDBY 3.2 0 1.6 3.2

REF NO.

MODE 1 2 3

CD PLAY 0 3.2 4.2

STANDBY 0 3.2 4.2

REF NO.

MODE 1234567891011121314151617181920

CD PLAY 3.2 3.2 3.2 3.2 3.1 3.2 0 0 0 1.1 3.2 0 00003.21.600

STANDBY 3.2 3.2 3.2 3.2 00003.103.2000003.21.600

REF NO.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

CD PLAY 2.6 3.2 0.1 3.2 2.9 2.9 0 0 3.3 0 3.3 0.1 1.6 1.6 0.5 0.9 0.8 1.6 1.6 1

STANDBY 2.6 3.2 0 3.2 2.9 2.9 0 0 3.3 0 3.3 0 1.6 1.6 0 1.6 0.8 1.6 1.6 1

REF NO.

MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

CD PLAY 0 0 1.6 1.6 2 2 3.2 3.2 3.2 3.2 1.6 1.6 0 1.6 1.6 0 1.9 1.6 1.7 1.7

STANDBY 1 0 1.6 1.6 1.6 2 3.2 1.5 3.2 1.6 1.6 1.6 0 1.6 1.6 0 3.3 0 1.6 1.6

REF NO.

MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

CD PLAY 1.6 1.6 1.6 1.6 1.6 0 1.6 1.6 1.6 1.6 0 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 0

STANDBY 1.6 1.6 1.6 1.6 1.6 0 1.6 1.5 1.5 1.3 0 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 0

SA-AKX18PH/PN MAIN P.C.B

.

IC1004

IC1005

IC52

IC1000

IC2001

IC1002

IC1003

14.1. Voltage Chart

Note:

• Indication Voltage Values are in standard values for the unit mea sured by the DC electronic circuit tester (hig h-impedance) with the chassis taken as standard. Therefore, there may exist some errors in voltage values, depending on the internal impedance of the DC circuit tester.

• Circuit voltage and waveform described herein shall be regarded as reference information when probing defect poi nt because it may differ from actual measuring value due to difference of Measuring instrument and its measuring condition and product itself.

14.1.1. Main P.C.B. (1/3)

51

14.1.2. Main P.C.B. (2/3)

.

REF NO.

MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

CD PLAY 0.7 1.6 1.6 0 0 2.9 1.1 2.7 2.9 0.2 0.2 1.6 3.3 3.3 0 3.2 0000

STANDBY 0 1.6 1.6 0 0 3.2 1.6 3.2 3.2 0 0 1.6 3.3 3.3 0 3.2 0 0 0 1.2

REF NO.

MODE 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120

CD PLAY 3.2 3.2 0 0 3.2 0 0 3.2 3.2 1.6 1.6 1.6 0 0 0 3.3 3.2 3.2 3.2 3.2

STANDBY 22203.120.23.21.21.21.11.23.23.23.21.21.43.23.23.2

REF NO.

MODE 121 122 123 124 125 126 127 128

CD PLAY 1.8 3.3 0 1.5 1.4 0 1.4 1.4

STANDBY 1.8 1 0 1.4 1.5 1.5 1.4 1.4

REF NO.

MODE 1234567891011121314151617181920

CD PLAY 1.6 5.9 2.6 1.6 2.6 0 0 5.9 0 0 3.1 2.9 2.9 3.1 3 3.1 3.6 2.5 5.9 2.4

STANDBY 1.6 5.9 2.6 1.6 2.6 0 0 5.9 00333333335.92.4

REF NO.

MODE 21 22 23 24 25 26 27 28 29 30

CD PLAY 1.5 0 1.8 5.9 5.9 1.6 1.6 3.3 0 0

STANDBY 1.5 0 1.6 5.9 5.9 1.6 1.6 3.3 0 0

REF NO.

MODE 1234

CD PLAY 3.2 3.2 0 0

STANDBY 3.2 3.2 0 0

IC2001

IC2004

IC2005

REF NO.

MODE 12345678910

CD PLAY 1.6 1.5 1.5 0 1.5 1.5 1.5 0 3.3 3.2

STANDBY 1.5 1.5 1.5 0 1.5 1.5 1.5 0 3.3 3.2

REF NO.

MODE 12345

CD PLAY 0 0 1.5 2.3 5.2

STANDBY 0 0 1.5 2.4 5.2

REF NO.

MODE 12345

CD PLAY 5.5 0 1.5 3.2 5.5

STANDBY 5.5 0 1.5 3.2 5.5

REF NO.

MODE 1234567891011121314151617181920

CD PLAY 12.5 12.5 1.2 3.3 1.7 1.7 2.7 2.7 3.3 0 0 0 7.8 1.7 1.7 3.3 3.3 3.3 0 2.8

STANDBY 12.6 12.5 1.2 3.3 1.7 1.7 2.7 3.3 00007.81.71.73.33.33.302.8

IC2500

IC2501

IC2502

IC6000

SA-AKX18PH/PN MAIN P.C.B

52

14.1.3. Main P.C.B. (3/3)

.

REF NO.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

CD PLAY 0 12.6 27.9 27.7 0 0 16.3 16.3 32.6 32.6 1.4 16.3 0 0 16.3 32.6 32.6 32.6 16.3 16.3

STANDBY 0 12.6 27.9 27.9 0 0 16.3 16.3 32.6 32.6 2.3 16.3 0 0 16.3 32.6 32.6 32.6 16.3 16.3

REF NO.

MODE 41 42 43 44

CD PLAY 0 0 27.8 27.8

STANDBY 0 0 27.9 27.9

REF NO.

MODE 1234567891011121314151617181920

CD PLAY 0 3.2 3.2 3.2 3.2 0 0 0.8 1.6 1.6 3.3 0 1.5 1.5 00001.71.7

STANDBY 0 3.2 3.2 3.2 3.2 0 0 0 1.6 1.6 3.3 0 1.5 1.5 00001.71.7

REF NO.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

CD PLAY 3.3 0 1.5 3.3 0 3.3 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 3.3 00003.3

STANDBY 3.3 0 1.5 3.3 0 3.3 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 3.3 00003.3

REF NO.

MODE 41 42 43 44 45 46 47 48

CD PLAY 1.4 1.5 0 0 3.3 0 0 0

STANDBY 1.4 1.5 000000

REF NO.

MODE 12345678910111213141516

CD PLAY 0 3.2 0 3.2 00004.60003.2000

STANDBY 0 3.2 0 3.2 00004.60003.2000

IC6000

IC6500

IC7000

REF NO.

MODE 1234

CD PLAY 3.1 0 4.6 5

STANDBY 3.1 0 4.6 5

REF NO.

MODE E C B E C B E C B E C B E C B

CD PLAY 12.8 16.1 13.4 3.3 3.3 0.3 2.9 1.9 2.2 0 0.1 0.6 5.2 0 5.2

STANDBY 12.8 16.1 13.4 3.3 3.3 0.3 2.9 1.9 2.2 0 0.1 0.6 5.2 0 5.2

REF NO.

MODE E C B E C B E C B E C B E C B

CD PLAY 0 3.2 0 32.6 0 12 16.3 11.7 0 16.3 11.7 0 0 0 2.2

STANDBY 0 3.2 0 32.6 0 12 16.3 11.7 0 16.3 11.7 0 0 0 2.2

REF NO.

MODE E C B E C B

CD PLAY 0 0 0 0 5.2 0

STANDBY 0 0 0 0 5.2 0

Q6001 Q6002

QR2002

Q1700Q1000 Q2001 Q2002

QR2500

IC7001

Q2500

Q6007 Q6300 QR1003

SA-AKX18PH/PN MAIN P.C.B

53

14.1.4. LCD P.C.B.

REF NO.

MODE 1234567891011121314151617181920

CD PLAY 2.6 3.3 0.1 3.2 0 2.9 3.3 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5

STANDBY 2.6 3.3 0.1 3.2 0 2.9 3.3 1.3 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5

REF NO.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

CD PLAY 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5

STANDBY 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5

REF NO.

MODE 41 42 43 44

CD PLAY 1.5 1.5 1.5 1.5

STANDBY 1.5 1.5 1.5 1.5

REF NO.

MODE E C B

CD PLAY 0 0.1 3.2

STANDBY 0 0.1 3.2

SA-AKX18PH/PN LCD P.C.B

.

Q900

IC900

WF No. IC2001-124 (PLAY)

2.1Vp-p(10msec/div)

WF No. IC2001-125 (PLAY)

3.4Vp-p(20usec/div)

WF No. IC6000-5,6,14,15 (PLAY)

4.2Vp-p(5msec/div)

WF No. IC6000-27 (PLAY)

58Vp-p(1usec/div)

WF No. IC6500-27,30 (PLAY)

5Vp-p(1usec/div)

WF No. IC6500-41 (PLAY)

250Vp-p(20nsec/div)

WF No. IC6500-42 (PLAY)

1.5Vp-p(2nsec/div)

14.1.5. Waveform Table

54

(USB P.C.B.)

(PANEL P.C.B.)

(LCD P.C.B.)

VR9001

VR9000

*ZJ9301

*ZJ9001

*ZJ6000

JK9301

JK9300

IR9000

DP900

CN9000

42

41

36

35

31

30

28

27

26

25

23

21

20

18

17

14

12

11

8

7

6

3

2

a

b

c

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

G

H

10 11 12 13

NOTE: " * " PART IS NOT SUPPLIED / REF IS FOR INDICATION ONLY.

SA-AKX18PH/PN-K CABINET DRAWINGS

15 Exploded View and Replacement Parts List

15.1. Exploded View and Mechanical Replacement Part List

15.1.1. Cabinet Parts Location

55

(BRS12C)

(SMPS MODULE P.C.B.)

(FOR PH ONLY)

(MAIN P.C.B.)

(CD INTERFACE P.C.B.)

*ZJ1002

S7201

P2005

P2004

P2002

JK6002

JK6000

JK52

JK51

*D-AMP HEATSINK UNIT

CN7002

CN7001

CN2502

CN2500

40

39

312

301

38

37

34

33

32

29

25

24

23

22

19

13

5

4

1

a

b

d

e

f

g

h

i

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

G

H

10 11 12 13

NOTE: " * " PART IS NOT SUPPLIED / REF IS FOR INDICATION ONLY.

SA-AKX18PH/PN-K CABINET DRAWINGS

56

15.1.2. Packaging

SB-AKX18PN

SA-AKX18PH/PN

ACCESSORIES BAG

AC PLUG ADAPTOR

(FOR PH ONLY)

A6

AM LOOP ANTENNAA5

FM INDOOR ANTENNAA4

A3 OI BOOK

AC CORD

(FOR PN ONLY)

AC CORD

(FOR PH ONLY)

A2

A1-1

A1

P3

*P2

FRONT

P1

SC-AKX18PH/PN-K PACKAGING DRAWINGS

POLYFOAM (TOP)

POLYFOAM (BOTTOM)

*P2

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

G

H

10 11 12 13

57

58

15.1.3. Mechanical Replacement Part List

Safety Ref.

No.

1 REE1730 10P FFC (MAIN-CD

2 REE1733 17P FFC (MAIN-

3 REX1588 7P WIRE (PANEL-

4 REX1683 10P WIRE (SMPS-

5 REX1688 8P WIRE (USB-

6 RMXX1008-2 LCD DIFFUSER

7 RFKGAKX18LK FRONT PANEL

8 RGK2544-K CD LID 1

11 RGL0800-Q USB REC LIGHT

12 RGK2449-K RING ORNAMENT

13 RGR0443M-A1A REAR PANEL 1 PN

13 RGR0443N-A2A REAR PANEL 1 PH

14 RGU2948-K POWER BUTTON 1

17 RGW0428-S2 VOLUME KNOB 1

18 RGW0435-K SKIP KNOB 1

19 RHD26043-1 SCREW 2

20 RHD26046-L SCREW 8

21 RHD30007-K2J SCREW 4

Part No. Part Name &

Description

CABINET AND CHASSIS

INTERFACE)

PANEL)

LCD)

MAIN)

SHEET

ASS'Y

PIECE

TOP/BOTTOM

Qty Remarks

1

2

Safety Ref.

No.

22 RHD30111-31 SCREW 10

23 RHD30119-S SCREW 13 PN

23 RHD30119-S SCREW 14 PH

24 RHDX031008 SCREW 2

25 RKAX0042-K LEG CUSHION 4

26 RKM0713-K1 TOP CABINET 1

27 RKW1027-Q CENTER ORNAMENT 1

28 RKW1063-Q FL WINDOW 1

29 RMA2442 CHASSIS SUPPORT 2

30 RMB0930 CD LID SPRING 1

31 RMGX0033A-K CD LID CUSHION 1

32 RMK0837-1 INNER CHASSIS 1

33 RMKX1031A-1 BOTTOM CHASSIS 1

34 RMNX0298 PCB SPACER 1

35 RMNX1011-W2 LCD HOLDER BASE 1

36 RMNX1012A-W2 LCD HOLDER COVER 1

37 RMQ2134 MECHA HOLDER 2

38 RMZX1022-1 HEATSINK SPACER 2

39 RSC1228 RADIATOR SHEET 1

40 RMN1079 VOLTAGE SELEC-

41 RFKNAKX18PNL LEFT BUTTON

42 RFKNAKX18PNR RIGHT BUTTON

301 RAE1044Z-V TRAVERSE UNIT 1

312 XTN2+6GFJ SCREW 2

Part No. Part Name &

Description

TOR COVER PC SHEET

ASS’Y

TRAVERSE DECK

Qty Remarks

1PH

1

59

Safety Ref.

No.

P1 RPG0K57 PACKING CASE 1 PN

P1 RPG0K58 PACKING CASE 1 PH

P2 RPN2641 POLYFOAM 1

P3 RPFX0198-1 BAG (MIRAMAT

A1 N2QAYB000944 REMOTE CONTROL 1

A1-1 RKK-AKX18PHK R/C BATTERY

A2 K2CB2CB00022 AC CORD 1 PN

A2 K2CQ2YY00119 AC CORD 1 PH

A3 RQT9894-1M O/I BOOK(En/Sp) 1

A4 RSAX0002 FM INDOOR

A5 N1DYYYY00011 AM LOOP ANTENNA 1

A6 K2DAYYY00002 AC PLUG ADAPTOR 1 PH

Part No. Part Name &

Description

PACKING MATERIALS

SHEET)

ACCESSORIES

COVER

ANTENNA

Qty Remarks

1

60

15.2. Electrical Replacement Parts List

Safety Ref.

No.

PCB1 REP5061A MAIN P.C.B. 1 (RTL),

PCB1 REP5061B MAIN P.C.B. 1 (RTL),

PCB2 REP5062AA PANEL P.C.B. 1 (RTL)

PCB3 REP5062AA LCD P.C.B. 1 (RTL)

PCB4 REP5062AC USB P.C.B. 1 (RTL)

PCB5 REP4945A CD INTERFACE

PCB6 N0AB2GK00001 SMPS MODULE 1 PN

PCB6 N0AD2GK00001 SMPS MODULE 1 PH

PCB7 RSNE031B0 BLUETOOTH MODULE 1 (E.S.D)

IC52 VUEALLPT087 IC 1 (E.S.D)

IC900 C0HBA0000295 IC 1 (E.S.D)

IC1000 C0DBGYY03909 IC 1 (E.S.D)

IC1002 C0DBAYY01594 IC 1 (E.S.D)

IC1003 C0DBAYY01594 IC 1 (E.S.D)

IC1004 C0DBGYY00911 IC 1 (E.S.D)

IC1005 C0DBGYY03909 IC 1 (E.S.D)

IC2001 C1AB00004188 IC 1 (E.S.D)

IC2002 RFKWEAKX18LM IC 1 (E.S.D)

IC2003 RFKWFAKX18LM IC 1 (E.S.D)

IC2004 C0GBY0000117 IC 1 (E.S.D)

IC2005 C0EBY0000861 IC 1 (E.S.D)

IC2500 C1CB00003106 IC 1 (E.S.D)

IC2501 C0DBZYY00716 IC 1 (E.S.D)

Part No. Part Name &

Description

PRINTED CIRCUIT BOARDS

P.C.B.

INTEGRATED CIRCUITS

Qty Remarks

PN

PH

1 (RTL)

Safety Ref.

No.

IC2502 C0DBZYY00716 IC 1 (E.S.D)

IC6000 C1AB00003994 IC 1 (E.S.D)

IC6500 VUEALLPT090 IC 1 (E.S.D)

IC7001 C0DBGYY00969 IC 1 (E.S.D)

Q900 B1GBCFJN0033 TRANSISTOR 1 (E.S.D)

Q1000 B1AAKD000012 TRANSISTOR 1 (E.S.D)

Q2001 B1ADCF000001 TRANSISTOR 1 (E.S.D)

Q2002 B1ABCF000011 TRANSISTOR 1 (E.S.D)

Q2500 DSA200100L TRANSISTOR 1 (E.S.D)

Q6001 B1ABCF000011 TRANSISTOR 1 (E.S.D)

Q6002 B1ADGD000019 TRANSISTOR 1 (E.S.D)

Q6007 B1ABCF000011 TRANSISTOR 1 (E.S.D)

Q6300 B1ABCF000011 TRANSISTOR 1 (E.S.D)

QR2002 B1GBCFJJ0051 TRANSISTOR 1 (E.S.D)

QR2500 B1GBCFGN0016 TRANSISTOR 1 (E.S.D)

D993 B3AFA0000131 DIODE 1 (E.S.D)

D1000 B0JCPG000032 DIODE 1 (E.S.D)

D1001 B0EAKM000117 DIODE 1 (E.S.D)

D1002 B0ADDJ000032 DIODE 1 (E.S.D)

D1005 DZ2J130M0L DIODE 1 (E.S.D)

D1006 B0EAKM000117 DIODE 1 (E.S.D)

D1007 B0EAKM000117 DIODE 1 (E.S.D)

D1008 DA2J10100L DIODE 1 (E.S.D)

D2001 DA2J10100L DIODE 1 (E.S.D)

D2002 DA2J10100L DIODE 1 (E.S.D)

D9300 B3AAA0000487 DIODE 1 (E.S.D)

D9301 B3AAA0000487 DIODE 1 (E.S.D)

DZ1000 B0JCPD000025 DIODE 1 (E.S.D)

Part No. Part Name &

Description

TRANSISTORS

DIODES

Qty Remarks

61

Safety Ref.

No.

VR9000 EVEKE2F3524B VOLUME JOG 1

VR9001 K9AA012Y0012 SELECTOR JOG 1

VA51 EZAEG2A50AX ESD SUPRESSOR 1

S7201 K0L1BA000158 SW RESET 1

S9001 EVQ21405RJ SW POWER 1

S9002 EVQ21405RJ SW OPEN/CLOSE 1

S9003 EVQ21405RJ SW TUNE MODE/

S9004 EVQ21405RJ SW DJ JUKEBOX 1

S9005 EVQ21405RJ SW LATIN PRESETEQ1

S9006 EVQ21405RJ SW MANUAL EQ 1

S9007 EVQ21405RJ SW D BASS 1

S9008 EVQ21405RJ SW USB REC 1

S9009 EVQ21405RJ SW RWD 1

S9010 EVQ21405RJ SW FWD 1

S9011 EVQ21405RJ SW ALBUM TRACK

S9012 EVQ21405RJ SW BT 1

S9013 EVQ21405RJ SW USB/CD 1

S9014 EVQ21405RJ SW RADIO/AUX 1

S9015 EVQ21405RJ SW PLAY/PAUSE 1

CN2500 K1MY17AA0124 17P CONNECTOR 1

CN2502 K1KA08AA0104 8P CONNECTOR 1

CN7001 K1MY05BA0539 5P CONNECTOR 1

CN7002 K1MN10B00016 10P CONNECTOR 1

CN9000 K1MN17B00032 17P CONNECTOR 1

P2002 K1MN08A00048 8P CONNECTOR 1

P2004 K1MN10AA0076 10P CONNECTOR 1

P2005 K1MY24A00001 24P CONNECTOR 1

L51 G1CR18JA0020 INDUCTOR 1

L52 G2A380Y00002 ANTENNA COIL 1

L1000 G1C4R7MA0445 INDUCTOR 1

L1001 G1C100MA0445 INDUCTOR 1

L1002 G1C100MA0291 INDUCTOR 1

L6000 G0A100K00006 CHOKE COIL 1

L6001 G0A100K00006 CHOKE COIL 1

L6002 G0A100K00006 CHOKE COIL 1

L6005 G0A100K00006 CHOKE COIL 1

L6006 G1C4R7MA0172 INDUCTOR 1

L7000 J0JYC0000305 INDUCTOR 1

LB51 J0JYC0000656 INDUCTOR 1

LB53 J0JBC0000118 INDUCTOR 1

LB54 J0JBC0000010 INDUCTOR 1

LB55 J0JBC0000010 INDUCTOR 1

LB900 J0JBC0000019 INDUCTOR 1

LB2002 J0JBC0000010 INDUCTOR 1

LB2003 J0JBC0000010 INDUCTOR 1

LB2004 J0JBC0000010 INDUCTOR 1

LB2005 D0GB100JA065 INDUCTOR 1

LB2006 D0GBR00J0004 INDUCTOR 1

LB2007 J0JBC0000010 INDUCTOR 1

LB2010 J0JBC0000134 INDUCTOR 1

LB2011 G1C100KA0101 INDUCTOR 1

LB2012 J0JHC0000045 INDUCTOR 1

LB2013 J0JHC0000045 INDUCTOR 1

LB2014 J0JBC0000134 INDUCTOR 1

LB2015 J0JBC0000010 INDUCTOR 1

LB2016 J0JBC0000010 INDUCTOR 1

LB2024 J0JCC0000309 INDUCTOR 1

LB6500 J0JBC0000010 INDUCTOR 1

LB6501 J0JBC0000010 INDUCTOR 1

Part No. Part Name &

Description

VARISTORS

SWITCHES

STOP

PAIRING

CONNECTORS

COILS AND INDUCTORS

Qty Remarks

1

Safety Ref.

No.

LB9300 J0JHC0000118 INDUCTOR 1

LB9301 J0JHC0000118 INDUCTOR 1

R2004 J0JCC0000309 INDUCTOR 1

R2005 J0JCC0000309 INDUCTOR 1

R2006 J0JCC0000309 INDUCTOR 1

R2013 J0JCC0000309 INDUCTOR 1

R2014 J0JCC0000309 INDUCTOR 1

R2015 J0JCC0000301 INDUCTOR 1

R2016 J0JCC0000301 INDUCTOR 1

R2017 J0JCC0000301 INDUCTOR 1

R2018 J0JCC0000301 INDUCTOR 1

R2019 J0JCC0000301 INDUCTOR 1

R2020 J0JCC0000301 INDUCTOR 1

R2022 J0JCC0000215 INDUCTOR 1

R2023 J0JCC0000309 INDUCTOR 1

R2024 D0GBR00J0004 INDUCTOR 1

R2027 J0JCC0000215 INDUCTOR 1

R2028 J0JCC0000215 INDUCTOR 1

R2029 J0JCC0000215 INDUCTOR 1

R2033 J0JCC0000309 INDUCTOR 1

R2034 D0GBR00J0004 INDUCTOR 1

R2039 J0JCC0000309 INDUCTOR 1

R2048 J0JCC0000309 INDUCTOR 1

R2049 J0JCC0000309 INDUCTOR 1

R2053 J0JCC0000309 INDUCTOR 1

R2068 J0JCC0000309 INDUCTOR 1

R2069 J0JCC0000309 INDUCTOR 1

R2070 J0JCC0000309 INDUCTOR 1

R2071 J0JCC0000309 INDUCTOR 1

R2072 J0JCC0000309 INDUCTOR 1

R2073 J0JCC0000309 INDUCTOR 1

R2095 J0JCC0000309 INDUCTOR 1

R2096 J0JCC0000309 INDUCTOR 1

R2097 J0JCC0000309 INDUCTOR 1

R2103 J0JCC0000309 INDUCTOR 1

R2104 J0JCC0000309 INDUCTOR 1

R2105 J0JCC0000309 INDUCTOR 1

R2107 J0JCC0000309 INDUCTOR 1

R2155 J0JCC0000309 INDUCTOR 1

R2172 J0JCC0000309 INDUCTOR 1

R2173 J0JCC0000309 INDUCTOR 1

R2174 J0JCC0000309 INDUCTOR 1

R2175 J0JCC0000309 INDUCTOR 1

R2176 J0JCC0000309 INDUCTOR 1

R2177 J0JCC0000309 INDUCTOR 1

R2178 J0JCC0000309 INDUCTOR 1

R2179 J0JCC0000309 INDUCTOR 1

R2180 J0JCC0000309 INDUCTOR 1

R2181 J0JCC0000309 INDUCTOR 1

R2187 J0JCC0000309 INDUCTOR 1

R2188 J0JCC0000309 INDUCTOR 1

R2189 J0JCC0000309 INDUCTOR 1

R2201 J0JCC0000117 INDUCTOR 1

R2202 J0JCC0000117 INDUCTOR 1

R2311 J0JCC0000309 INDUCTOR 1

X2001 H0J169500044 OSCILLATOR 1

X2002 H0A327200181 OSCILLATOR 1

X6500 H0J245500110 OSCILLATOR 1

DP900 L5AYAYY00061 LCD DISPLAY 1

IR9000 B3RAD0000204 REMOTE SENSOR 1

JK51 K4ZZ02000103 JK FM ANTENNA 1

Part No. Part Name &

Description

OSCILLATORS

LCD DISPLAY

REMOTE SENSOR

JACKS

Qty Remarks

62

Safety Ref.

No.

JK52 K4AC02B00042 JK AM ANTENNA 1

JK6000 K4AL04B00001 JK SPEAKERS 1

JK6002 K2HA2YYA0009 JK AUX IN 1

JK9300 K1FY104A0034 USB PORT A 1

JK9301 K1FY104A0034 USB PORT B 1

L53 D0GBR00J0004 0 1/10W 1

LB52 D0GBR00J0004 0 1/10W 1

LB2503 D0GBR00J0004 0 1/10W 1

W100 D0GFR00JA017 0 1/4W 1

W101 D0GBR00JA008 0 1/10W 1

W102 D0GFR00JA017 0 1/4W 1

W103 D0GDR00JA017 0 1/8W 1

W104 D0GDR00JA017 0 1/8W 1

W105 D0GFR00JA017 0 1/4W 1

W106 D0GFR00JA017 0 1/4W 1

W200 D0GDR00JA017 0 1/8W 1

W201 D0GFR00JA017 0 1/4W 1

W202 D0GDR00JA017 0 1/8W 1

W203 D0GFR00JA017 0 1/4W 1

W204 D0GFR00JA017 0 1/4W 1

W205 D0GFR00JA017 0 1/4W 1

W206 D0GFR00JA017 0 1/4W 1

W207 D0GFR00JA017 0 1/4W 1

W208 D0GFR00JA017 0 1/4W 1

W209 D0GDR00JA017 0 1/8W 1

W210 D0GFR00JA017 0 1/4W 1

W211 D0GFR00JA017 0 1/4W 1

W212 D0GFR00JA017 0 1/4W 1

W213 D0GFR00JA017 0 1/4W 1

W214 D0GFR00JA017 0 1/4W 1

W215 D0GFR00JA017 0 1/4W 1

W216 ERJ8GEY0R00V 0 1/4W 1

W217 ERJ8GEY0R00V 0 1/4W 1

W218 ERJ8GEY0R00V 0 1/4W 1

R51 D0GB222JA065 2.2K 1/10W 1

R52 D0GB561JA065 560 1/10W 1

R53 D0GA472JA023 4.7K 1/16W 1

R54 D0GA472JA023 4.7K 1/16W 1

R55 D0GA221JA023 220 1/16W 1

R56 D0GB221JA065 220 1/10W 1

R57 D0GA102JA023 1K 1/16W 1

R59 D0GB222JA065 2.2K 1/10W 1

R60 D0GB222JA065 2.2K 1/10W 1

R901 D0GB153JA065 15K 1/10W 1

R903 D0GB471JA065 470 1/10W 1

R905 D0GBR00J0004 0 1/10W 1

R906 D0GBR00J0004 0 1/10W 1

R908 D0GB102JA065 1K 1/10W 1

R933 D0GD181JA052 180 1/8W 1

R935 D0GD181JA052 180 1/8W 1

R1004 D1BB7501A074 7.5K 1/10W 1

R1005 D1BB5602A074 56K 1/10W 1

R1006 D1BB1002A074 10K 1/10W 1

R1007 D0GB683JA065 68K 1/10W 1

R1008 D0GB153JA065 15K 1/10W 1

R1016 D0GB563JA065 56K 1/10W 1

R1025 D0GBR00J0004 0 1/10W 1

R1026 D0GB124JA065 120K 1/10W 1

R1027 D1BB1002A074 10K 1/10W 1

R1030 D0GB153JA065 15K 1/10W 1

R1031 D0GB563JA065 56K 1/10W 1

R1033 D0GBR00J0004 0 1/10W 1

R1038 D0GB391JA065 390 1/10W 1

R1044 D0GB222JA065 2.2K 1/10W 1

R1064 D0GB103JA065 10K 1/10W 1

R1066 D0GB4R7JA065 4.7 1/10W 1

R1067 D0GBR00J0004 0 1/10W 1

Part No. Part Name &

Description

CHIP JUMPERS

RESISTORS

Qty Remarks

Safety Ref.

No.

R1068 ERG2SJ470E 47 2W 1

R1069 D0GBR00J0004 0 1/10W 1

R1070 D0GB222JA065 2.2K 1/10W 1

R2001 D0GB103JA065 10K 1/10W 1

R2002 D0GB334JA065 330K 1/10W 1

R2012 D0GB471JA065 470 1/10W 1

R2021 D0GBR00J0004 0 1/10W 1

R2026 D0GB102JA065 1K 1/10W 1

R2035 D0GB101JA065 100 1/10W 1

R2036 D0GB105JA065 1M 1/10W 1

R2037 D0GB104JA065 100K 1/10W 1

R2038 D0GB106JA065 10M 1/10W 1

R2050 D0GBR00J0004 0 1/10W 1

R2051 D0GBR00J0004 0 1/10W 1

R2052 D0GBR00J0004 0 1/10W 1

R2054 D0GBR00J0004 0 1/10W 1

R2055 D0GBR00J0004 0 1/10W 1

R2057 D0GBR00J0004 0 1/10W 1

R2063 D0GBR00J0004 0 1/10W 1

R2065 D0GBR00J0004 0 1/10W 1

R2067 D0GBR00J0004 0 1/10W 1

R2074 D0GB683JA065 68K 1/10W 1

R2075 D0GB153JA065 15K 1/10W 1

R2076 D0GBR00J0004 0 1/10W 1

R2086 D0GBR00J0004 0 1/10W 1

R2089 D0GBR00J0004 0 1/10W 1

R2093 D0GB564JA065 560K 1/10W 1

R2099 D0GBR00J0004 0 1/10W 1

R2100 D0GBR00J0004 0 1/10W 1

R2102 D0GBR00J0004 0 1/10W 1

R2106 D0GB103JA065 10K 1/10W 1

R2108 D0GB103JA065 10K 1/10W 1

R2110 D0GB222JA065 2.2K 1/10W 1

R2111 D0GB222JA065 2.2K 1/10W 1

R2114 D0GB333JA065 33K 1/10W 1

R2115 D0GB272JA065 2.7K 1/10W 1

R2117 D0GB272JA065 2.7K 1/10W 1

R2118 D0GB103JA065 10K 1/10W 1

R2119 D0GBR00J0004 0 1/10W 1

R2121 D0GB103JA065 10K 1/10W 1

R2123 D0GB103JA065 10K 1/10W 1

R2127 D0GB103JA065 10K 1/10W 1

R2129 D0GB272JA065 2.7K 1/10W 1 PH

R2129 D0GBR00J0004 0 1/10W 1 PN

R2131 D0GB103JA065 10K 1/10W 1

R2135 D0GB123JA065 12K 1/10W 1 PN

R2135 D0GB333JA065 33K 1/10W 1 PH

R2139 D0GB103JA065 10K 1/10W 1

R2149 D0GB103JA065 10K 1/10W 1

R2150 D0GB103JA065 10K 1/10W 1

R2151 D0GB103JA065 10K 1/10W 1

R2152 D0GB103JA065 10K 1/10W 1

R2153 D0GB683JA065 68K 1/10W 1

R2154 D0GB683JA065 68K 1/10W 1

R2156 D0GB101JA065 100 1/10W 1

R2157 D0GB122JA065 1.2K 1/10W 1

R2158 D0GB102JA065 1K 1/10W 1

R2159 D0GB682JA065 6.8K 1/10W 1

R2160 D0GBR00J0004 0 1/10W 1

R2161 D0GB473JA065 47K 1/10W 1

R2162 D0GBR00J0004 0 1/10W 1

R2163 D0GBR00J0004 0 1/10W 1

R2164 D0GB104JA065 100K 1/10W 1

R2165 D0GBR00J0004 0 1/10W 1

R2166 D0GB153JA065 15K 1/10W 1

R2167 D0GB4R7JA065 4.7 1/10W 1

R2168 D0GB104JA065 100K 1/10W 1

R2169 D0GB4R7JA065 4.7 1/10W 1

R2170 D0GB102JA065 1K 1/10W 1

R2171 D0GBR00J0004 0 1/10W 1

R2182 D0GB103JA065 10K 1/10W 1

R2183 D0GB103JA065 10K 1/10W 1

R2184 D0GB103JA065 10K 1/10W 1

Part No. Part Name &

Description

Qty Remarks

63

Safety Ref.

No.

R2185 D0GBR00J0004 0 1/10W 1

R2186 D0GBR00J0004 0 1/10W 1

R2192 D0GBR00J0004 0 1/10W 1

R2222 D0GBR00J0004 0 1/10W 1

R2312 D0GBR00J0004 0 1/10W 1

R2314 D0GBR00J0004 0 1/10W 1 PN

R2315 D0GBR00J0004 0 1/10W 1 PH

R2520 D0GB222JA065 2.2K 1/10W 1

R2330 D0GB472JA065 4.7K 1/10W 1

R2338 D0GB682JA065 6.8K 1/10W 1

R2339 D0GB683JA065 68K 1/10W 1

R2340 D0GB101JA065 100 1/10W 1

R2417 D0GB103JA065 10K 1/10W 1

R2419 D0GB103JA065 10K 1/10W 1

R2420 D0GB103JA065 10K 1/10W 1

R2421 D0GB103JA065 10K 1/10W 1

R2422 D0GB103JA065 10K 1/10W 1

R2423 D0GB103JA065 10K 1/10W 1

R2496 D0GBR00J0004 0 1/10W 1

R2498 D0GB473JA065 47K 1/10W 1

R2499 D0GB222JA065 2.2K 1/10W 1

R2501 D0GB101JA065 100 1/10W 1

R2503 D0GB331JA065 330 1/10W 1

R2504 D0GB103JA065 10K 1/10W 1

R2507 D0GBR00J0004 0 1/10W 1

R2510 D0GB104JA065 100K 1/10W 1

R2514 D0GB222JA065 2.2K 1/10W 1

R6007 D0GB100JA065 10 1/10W 1

R6011 D0GB100JA065 10 1/10W 1

R6046 D0GB223JA065 22K 1/10W 1

R6050 D0GB100JA065 10 1/10W 1

R6054 D0GB563JA065 56K 1/10W 1

R6055 D0GB473JA065 47K 1/10W 1

R6056 D0GB472JA065 4.7K 1/10W 1

R6057 D0GB224JA065 220K 1/10W 1

R6058 D0GB3R3JA065 3.3 1/10W 1

R6060 D0GB3R3JA065 3.3 1/10W 1

R6061 D0GB3R3JA065 3.3 1/10W 1

R6062 D0GB3R3JA065 3.3 1/10W 1

R6066 D0GB104JA065 100K 1/10W 1

R6067 D0GB104JA065 100K 1/10W 1

R6068 D0GB104JA065 100K 1/10W 1

R6069 D0GB104JA065 100K 1/10W 1

R6070 D0GB123JA065 12K 1/10W 1

R6072 D0GB103JA065 10K 1/10W 1

R6132 D0GB224JA065 220K 1/10W 1

R6133 D0GB472JA065 4.7K 1/10W 1

R6134 D0GB472JA065 4.7K 1/10W 1

R6135 D0GBR00J0004 0 1/10W 1

R6136 D0GBR00J0004 0 1/10W 1

R6146 D0GB103JA065 10K 1/10W 1

R6147 D0GB103JA065 10K 1/10W 1

R6300 D0GFR00J0005 0 1/4W 1

R6301 D0GFR00J0005 0 1/4W 1

R6302 D0GFR00J0005 0 1/4W 1

R6303 D0GFR00J0005 0 1/4W 1

R6304 D0GFR00J0005 0 1/4W 1

R6305 D0GFR00J0005 0 1/4W 1

R6306 D0GFR00J0005 0 1/4W 1

R6307 D0GFR00J0005 0 1/4W 1

R6501 D0GB152JA065 1.5K 1/10W 1

R6502 D0GB105JA065 1M 1/10W 1

R6503 D0GBR00J0004 0 1/10W 1

R6504 D0GB103JA065 10K 1/10W 1

R6505 D0GBR00J0004 0 1/10W 1

R6506 D0GBR00J0004 0 1/10W 1

R6511 D0GB470JA065 47 1/10W 1

R6512 D0GB470JA065 47 1/10W 1

R6521 D0GB470JA065 47 1/10W 1

R6522 D0GB470JA065 47 1/10W 1

R6531 D0GB103JA065 10K 1/10W 1

R6532 D0GB103JA065 10K 1/10W 1

R6541 D0GB103JA065 10K 1/10W 1

Part No. Part Name &

Description

Qty Remarks

Safety Ref.

No.

R6542 D0GB103JA065 10K 1/10W 1

R6550 D0GB221JA065 220 1/10W 1

R6551 D0GB221JA065 220 1/10W 1

R6552 D0GBR00J0004 0 1/10W 1

R6553 D0GBR00J0004 0 1/10W 1

R6554 D0GB101JA065 100 1/10W 1

R6556 D0GB101JA065 100 1/10W 1

R6557 D0GB101JA065 100 1/10W 1

R6559 D0GB101JA065 100 1/10W 1

R6581 D0GB103JA065 10K 1/10W 1

R6582 D0GB103JA065 10K 1/10W 1

R6587 D0GB103JA065 10K 1/10W 1

R6594 D0GBR00J0004 0 1/10W 1

R7001 D0GB222JA065 2.2K 1/10W 1

R9001 D0GB272JA065 2.7K 1/10W 1

R9002 D0GB392JA065 3.9K 1/10W 1

R9003 D0GB752JA065 7.5K 1/10W 1

R9004 D0GB183JA065 18K 1/10W 1

R9006 D0GB272JA065 2.7K 1/10W 1

R9007 D0GB392JA065 3.9K 1/10W 1

R9008 D0GB752JA065 7.5K 1/10W 1

R9009 D0GB183JA065 18K 1/10W 1

R9011 D0GB272JA065 2.7K 1/10W 1

R9012 D0GB392JA065 3.9K 1/10W 1

R9013 D0GB752JA065 7.5K 1/10W 1

R9014 D0GB183JA065 18K 1/10W 1

R9020 D0GB223JA065 22K 1/10W 1

R9021 D0GB123JA065 12K 1/10W 1

R9022 D0GB123JA065 12K 1/10W 1

R9023 D0GB223JA065 22K 1/10W 1

R9300 D0GB331JA065 330 1/10W 1

C51 F1H1H102A831 1000pF 50V 1

C52 F1H1A474A107 0.47uF 10V 1

C61 F1H1H104B047 0.1uF 50V 1

C62 F1H1H104B047 0.1uF 50V 1

C66 F1H1H330B052 33pF 50V 1

C67 F1H1H3R0B050 3pF 50V 1

C901 F1H1H102B047 1000pF 50V 1

C902 F1H1H221B047 220pF 50V 1

C907 F1H1H103B047 0.01uF 50V 1

C1000 F1J1A106A043 10uF 10V 1

C1001 F1J1A106A043 10uF 10V 1

C1002 F1K1E1060001 10uF 25V 1

C1003 F1H1H470B052 47pF 50V 1

C1004 F1H1H102A831 1000pF 50V 1

C1005 F1H1H104B047 0.1uF 50V 1

C1008 F1J1A106A043 10uF 10V 1

C1009 F1J1A106A043 10uF 10V 1

C1013 F1H1H470B052 47pF 50V 1

C1015 F1H1H821B052 820pF 50V 1

C1016 F1H1H104B047 0.1uF 50V 1

C1018 F1H1H103B047 0.01uF 50V 1

C1019 F1H1H103B047 0.01uF 50V 1

C1020 F1J1E4750002 4.7uF 25V 1

C1021 F2A1H220A216 22uF 50V 1

C1022 F1H1H104B047 0.1uF 50V 1

C1023 F1H1H104B047 0.1uF 50V 1

C1024 F1H1A105A028 1uF 10V 1

C1025 F1H1A105A028 1uF 10V 1

C1030 F1H1H182B047 1800pF 50V 1

C1031 F1H1H104B047 0.1uF 50V 1

C1032 F2A1C101A208 100uF 16V 1

C1033 F1H1H103B047 0.01uF 50V 1

C1044 F1J1A106A043 10uF 10V 1

C1045 F1J1A106A043 10uF 10V 1

C1046 F1H1H104B047 0.1uF 50V 1

C1047 F1H1H104B047 0.1uF 50V 1

C1048 F1H1H104B047 0.1uF 50V 1

C1049 F1H1H104B047 0.1uF 50V 1

C2004 F1H1H1010005 100pF 50V 1

Part No. Part Name &

Description

CAPACITORS

Qty Remarks

64

Safety Ref.

No.

C2005 F1H1H1010005 100pF 50V 1

C2006 F1H1H1010005 100pF 50V 1

C2007 F1H1H1010005 100pF 50V 1

C2104 F1H1C104A041 0.1uF 16V 1

C2105 F1H1C104A041 0.1uF 16V 1

C2107 F1H1C104A041 0.1uF 16V 1

C2108 F1H1C104A041 0.1uF 16V 1

C2110 F1H1C104A041 0.1uF 16V 1

C2111 F1H1C104A041 0.1uF 16V 1

C2112 F1H1C104A041 0.1uF 16V 1

C2113 F1H1C104A041 0.1uF 16V 1

C2114 F1H1C2240011 0.22uF 16V 1

C2115 F1J1A335A005 3.3uF 10V 1

C2116 F2A1C101A208 100uF 16V 1

C2117 F1H1C104A041 0.1uF 16V 1

C2118 F1H1H681B052 680pF 50V 1

C2119 F2A0J331A183 330uF 6.3V 1

C2120 F1H1C104A041 0.1uF 16V 1

C2121 F1H1C104A041 0.1uF 16V 1

C2122 F1H0J1060006 10uF 6.3V 1

C2123 F1H0J1060006 10uF 6.3V 1

C2124 F1H0J1060006 10uF 6.3V 1

C2125 F1H0J1060006 10uF 6.3V 1

C2126 F1H0J1060006 10uF 6.3V 1

C2127 F1H0J1060006 10uF 6.3V 1

C2128 F1H1H8R0B051 8pF 50V 1

C2129 F1H1H8R0B051 8pF 50V 1

C2130 F1H1H220B052 22pF 50V 1

C2131 F1H1H270B052 27pF 50V 1

C2132 F1H1H1010005 100pF 50V 1

C2133 F1H1H102A831 1000pF 50V 1

C2134 F1H1H102A831 1000pF 50V 1

C2135 F1H1H102A831 1000pF 50V 1

C2136 F1H1H102A831 1000pF 50V 1

C2137 F1H1H102A831 1000pF 50V 1

C2138 F1H1H102A831 1000pF 50V 1

C2140 F2A1C330A243 33uF 16V 1

C2141 F1H1C104A041 0.1uF 16V 1

C2144 F1H1H223A219 0.022uF 50V 1

C2147 F1H1C104A041 0.1uF 16V 1

C2148 F1J1A106A043 10uF 10V 1

C2162 F1J1A106A043 10uF 10V 1

C2163 F1H1H103B047 0.01uF 50V 1

C2164 F1J1A106A043 10uF 10V 1

C2165 F1H1C104A041 0.1uF 16V 1

C2166 F1H1H103B047 0.01uF 50V 1

C2167 F1H1H103B047 0.01uF 50V 1

C2168 F1H1H222A219 2200pF 50V 1

C2169 F1H1H222A219 2200pF 50V 1

C2170 F1J1A106A043 10uF 10V 1

C2171 F1H1H103B047 0.01uF 50V 1

C2172 F1H1C104A041 0.1uF 16V 1

C2173 F1H1H102A831 1000pF 50V 1

C2178 F1H1E105A153 1uF 25V 1

C2179 F1H1H103B047 0.01uF 50V 1

C2180 F2A1C101A208 100uF 16V 1

C2181 F2A1C101A208 100uF 16V 1

C2182 F2A1C101A208 100uF 16V 1

C2183 F1H1H680A831 68pF 50V 1

C2184 F1J1A106A043 10uF 10V 1

C2504 F1H1C104A041 0.1uF 16V 1

C2505 F1H1H104B047 0.1uF 50V 1

C2506 F1H1C104A041 0.1uF 16V 1

C2507 F1J1A475A112 4.7uF 10V 1

C2508 F1J1A475A112 4.7uF 10V 1

C2521 F1G1H103A835 0.01uF 50V 1

C2522 F1G1H103A835 0.01uF 50V 1

C2523 F1G1H103A835 0.01uF 50V 1

C2524 F1G1H103A835 0.01uF 50V 1

C2526 F1G1H103A835 0.01uF 50V 1

C2527 F1G1H103A835 0.01uF 50V 1

C2528 F1G1H103A835 0.01uF 50V 1

C2529 F1G1H471A830 470pF 50V 1

Part No. Part Name &

Description

Qty Remarks

Safety Ref.

No.

C2530 F1G1H471A830 470pF 50V 1

C2531 F1G1H471A830 470pF 50V 1

C2532 F1G1H471A830 470pF 50V 1

C2533 F1G1H103A835 0.01uF 50V 1

C2534 F1G1H103A835 0.01uF 50V 1

C2535 F1G1H103A835 0.01uF 50V 1

C2536 F1G1H103A835 0.01uF 50V 1

C2537 F1G1H103A835 0.01uF 50V 1

C6005 F1J1C106A059 10uF 16V 1

C6018 F1H1H104B047 0.1uF 50V 1

C6019 F1H1H104B047 0.1uF 50V 1

C6020 F1H1E105A153 1uF 25V 1

C6021 F1H1H104B047 0.1uF 50V 1

C6022 F1H1E105A153 1uF 25V 1

C6023 F1H1H104B047 0.1uF 50V 1

C6024 F1H1H333B055 0.033uF 50V 1

C6025 F1H1H333B055 0.033uF 50V 1

C6027 F1H1H104B047 0.1uF 50V 1

C6028 F1H1H333B055 0.033uF 50V 1

C6030 F1H1H333B055 0.033uF 50V 1

C6031 F1J1H105A918 1uF 50V 1

C6032 F1H1H104B047 0.1uF 50V 1

C6033 F2A1H102A201 1000uF 50V 1

C6036 F1H1H104B047 0.1uF 50V 1

C6039 F1J1H105A918 1uF 50V 1

C6045 ECQV1H105JL3 1uF 50V 1

C6046 ECQV1H105JL3 1uF 50V 1

C6047 ECQV1H105JL3 1uF 50V 1

C6048 ECQV1H105JL3 1uF 50V 1

C6061 F1H1H103B047 0.01uF 50V 1

C6062 F1H1H103B047 0.01uF 50V 1

C6063 F1H1H103B047 0.01uF 50V 1

C6064 F1H1H103B047 0.01uF 50V 1

C6068 F1J1A106A043 10uF 10V 1

C6069 F1H1H104B047 0.1uF 50V 1

C6070 F1H1H104B047 0.1uF 50V 1

C6071 F1H1H104B047 0.1uF 50V 1

C6074 F1H1H104B047 0.1uF 50V 1

C6099 F1H1H681B052 680pF 50V 1

C6100 F1H1H681B052 680pF 50V 1

C6108 F1H1A105A028 1uF 10V 1

C6109 F1H1A105A028 1uF 10V 1

C6500 F2A1C470A722 47uF 16V 1

C6501 F2A1C220A243 22uF 16V 1

C6502 F2A1C220A243 22uF 16V 1

C6521 F1H1C474A140 0.47uF 16V 1

C6523 F1H0J1050012 1uF 6.3V 1

C6525 F1H0J1050012 1uF 6.3V 1

C6527 F1H0J1050012 1uF 6.3V 1

C6528 F1H0J1060006 10uF 6.3V 1

C6529 F1H0J1050012 1uF 6.3V 1

C6550 F1H1H102A831 1000pF 50V 1

C6551 F1H1H102A831 1000pF 50V 1

C6560 F1H1H1200004 12pF 50V 1

C6561 F1H1H1200004 12pF 50V 1

C6591 F1H0J1050012 1uF 6.3V 1

C6592 F1H1H104B047 0.1uF 50V 1

C7000 F1H1H104B047 0.1uF 50V 1

C7001 F1H1A105A113 1uF 10V 1

C7002 F1H1A105A113 1uF 10V 1

C9000 F1H1H101B052 100pF 50V 1

C9001 F1H1H101B052 100pF 50V 1

C9004 F1H1H101B052 100pF 50V 1

C9005 F1H1H102B047 1000pF 50V 1

C9009 F1H1H101B052 100pF 50V 1

C9010 F1H1H101B052 100pF 50V 1

C9300 F1H1H104B047 0.1uF 50V 1

C9301 F1H1H104B047 0.1uF 50V 1

Part No. Part Name &

Description

Qty Remarks

65

MMH1401

66
