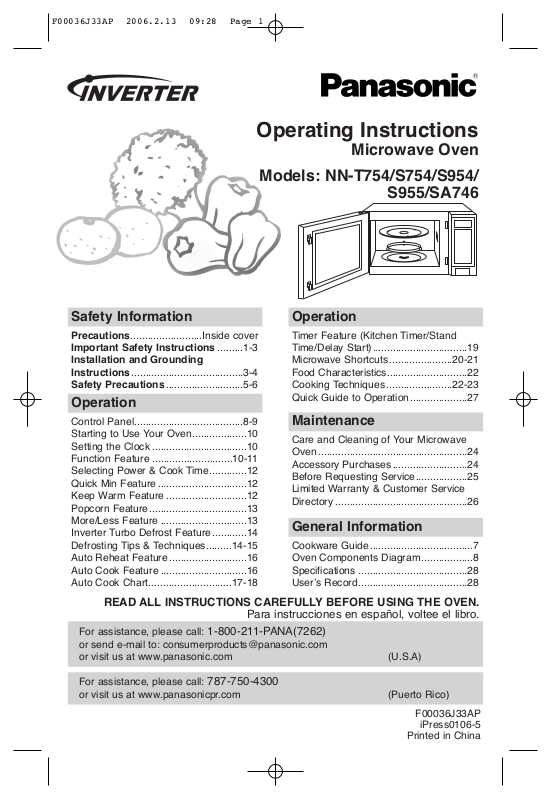

Panasonic S954 User Manual
Operating Instructions
Microwave Oven
Models: NN-T754/S754/S954/
S955/SA746
Safety Information
Precautions.........................Inside cover
Important Safety Instructions .........1-3
Installation and Grounding
Instructions.......................................3-4
Safety Precautions...........................5-6
Operation
Control Panel......................................8-9
Starting to Use Your Oven...................10
Setting the Clock .................................10
Function Feature ............................10-11
Selecting Power & Cook Time.............12
Quick Min Feature ...............................12
Keep Warm Feature ............................12
Popcorn Feature..................................13
More/Less Feature ..............................13
Inverter Turbo Defrost Feature............14
Defrosting Tips & Techniques.........14-15
Auto Reheat Feature ...........................16
Auto Cook Feature ..............................16
Auto Cook Chart.............................17-18
Operation
Timer Feature (Kitchen Timer/Stand
Time/Delay Start).................................19
Microwave Shortcuts......................20-21
Food Characteristics............................22
Cooking Techniques .......................22-23
Quick Guide to Operation....................27
Maintenance
Care and Cleaning of Your Microwave
Oven ....................................................24
Accessory Purchases..........................24
Before Requesting Service..................25
Limited Warranty & Customer Service
Directory ..............................................26
General Information
Cookware Guide....................................7
Oven Components Diagram..................8
Specifications ......................................28
User’s Record......................................28
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.
Para instrucciones en español, voltee el libro.
For assistance, please call: 1-800-211-PANA(7262)
or send e-mail to: consumerproducts@panasonic.com
or visit us at www.panasonic.com (U.S.A)
For assistance, please call:
or visit us at www.panasonicpr.com (Puerto Rico)
787-750-4300
F00036J33AP
iPress0106-5
Printed in China
Microwave Oven Safety
Your safety and the safety of others are very important.
We have provided important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol. It is used to alert you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and
either the word “DANGER”, “WARNING” or “CAUTION”. These
words mean:
DDAANNGGEERR
WWAARRNNIINNGG
CCAAUUTTIIOONN
All safety messages will tell you what the potential hazard is, tell you how to
reduce the chance of injury, and tell you what can happen if the instructions
are not followed.
You can be killed or seriously injured if
you don’t immediately
You can be killed or seriously injured if
you don’t follow instructions.
You can be exposed to a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
follow instructions.
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door
operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that
the oven door close properly and that there is no damage to the:
(1) door (bent),
(2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
© Copyrighted by Matsushita Electric Industrial Co., Ltd. 2006.
Thank you for purchasing a Panasonic Microwave Oven.
Your microwave oven is a cooking appliance and you should use as much care
as you use with a stove or any other cooking appliance. When using this electric
appliance, basic safety precautions should be followed, including the following:
IMPORTANT SAFETY INSTRUCTIONS
WWAARRNNIINNGG
shock, fire, injury to persons, or exposure to excessive microwave energy:
1. Read all instructions before using this appliance.
2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY,” found on the inside front
cover.
3. This appliance must be grounded. Connect only to a properly grounded outlet.
See “GROUNDING INSTRUCTIONS” found on page 4.
4. As with any cooking appliance, DO NOT leave oven unattended while in use.
5. Install or locate this appliance only in accordance with the installation instructions found on page 3.
6. DO NOT cover or block any openings on this appliance.
7. DO NOT store this appliance outdoors. DO NOT use this product near water—
for example, near a kitchen sink, in a wet basement, or near a swimming pool
or similar locations.
8. Use this appliance only for its intended use as described in this manual. DO
NOT use corrosive chemicals, vapors, or non-food products in this appliance.
This type of oven is specifically designed to heat, or cook food. It is not
designed for industrial or laboratory use. The use of corrosive chemicals in
heating or cleaning will damage the appliance and may result in radiation
leaks.
9. When cleaning surfaces of the door and oven that come together on closing
the door, use only mild, non-abrasive soaps or detergents applied with a
sponge or soft cloth.
10. DO NOT allow children to use this appliance, unless closely supervised by an
adult. DO NOT assume that because a child has mastered one cooking skill
he/she can cook everything.
11. DO NOT operate this appliance if it has a damaged cord or plug, if it is not
working properly, or if it has been damaged or dropped.
12. DO NOT immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. DO NOT let cord hang over edge of a table or counter.
15. This appliance should be serviced only by qualified service personnel. Contact
the nearest authorized service center for examination, repair or adjustment.
16. Some products such as whole eggs with or without shell, narrow neck bottles
and sealed containers—for example, closed glass jars—may explode and
should not be heated in this oven.
17. To reduce the risk of fire in the oven cavity:
(a) Do not overcook food. Carefully attend appliance when paper, plastic, or
other combustible materials are placed inside the oven to facilitate cooking.
(b) Remove wire twist-ties from paper or plastic bags before placing bag in
oven.
(c) If material inside the oven ignites, keep oven door closed, turn oven
off, and disconnect the power cord, or shut off power at the fuse or
circuit breaker panel.
(d) DO NOT use the cavity for storage purposes. DO NOT leave paper
products, cooking utensils or food in the cavity when not in use.
—To reduce the risk of burns, electric
1
IMPORTANT SAFETY INSTRUCTIONS
(continued)
18.
Superheated Liquids
Liquids, such as water, coffee, or tea are able to be overheated beyond the
boiling point without showing evidence (or signs) of boiling. Visible bubbling
is not always present when the container is removed from the microwave
oven. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING
OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS
INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
(a) STIR THE LIQUID BOTH BEFORE AND HALFWAY THROUGH
HEATING IT.
(b) Do not heat water and oil, or fats together. The film of oil will trap
steam, and may cause a violent eruption.
(c) Do not use straight-sided containers with narrow necks.
(d) After heating, allow the container to stand in the microwave oven for a
short time before removing the container.
19. DO NOT cook directly on the turntable. It can crack, and cause injury or
damage to the oven.
WWAARRNNIINNGG
TO AVOID THE RISK OF SHOCK:
DO NOT remove outer panel from oven. Repairs must be done only by a qualified serv-
ice person.
TO REDUCE THE RISK OF EXPOSURE TO MICROWAVE
ENERGY:
DO NOT tamper with, or make any adjustments or repairs to Door,
Control Panel Frame, Safety Interlock Switches, or any other part
of oven, microwave leakage may result.
TO AVOID THE RISK OF FIRE:
1. DO NOT operate the oven empty. The microwave energy will
reflect continuously throughout the oven causing overheating and
damage, if food or water is not present to absorb energy.
2. DO NOT store flammable materials next to, on top of, or in the
oven.
3. DO NOT dry clothes, newspapers or other materials in the oven, or use newspaper or
paper bags for cooking.
4. DO NOT hit or strike Control Panel. Damage to controls may occur.
5. DO NOT use recycled paper products unless the paper product is labeled as safe for
microwave oven use. Recyled paper products may contain impurities which may
cause sparking.
TO AVOID THE RISK OF SCALDING:
POT HOLDERS should always be used when removing items from the oven. Heat is
transferred from the HOT food to the cooking container and from the container to the
Glass Tray. The Glass Tray can also be very HOT after removing the cooking container
from the oven.
SAVE THESE INSTRUCTIONS
For proper use of your oven read remaining safety cautions and operating instructions.
2
IMPORTANT SAFETY INSTRUCTIONS
(continued)
Glass Tray
1. DO NOT operate the oven without the Roller Ring and the Glass Tray in
place.
2. DO NOT operate the oven without the Glass Tray fully engaged on the drive
hub. Improper cooking or damage to the oven could result. Verify that the
Glass Tray is properly engaged and rotating by observing its rotation when
you press Start. Note: The Glass Tray can turn in either direction.
3. Use only the Glass Tray specifically designed for this oven. DO NOT substi-
tute any other glass tray.
4. If the Glass Tray is hot, allow to cool before cleaning or placing in water.
5. DO NOT cook directly on the Glass Tray. Always place food in a microwave
safe dish, or on a rack set in a microwave safe dish.
6. If food or utensil on the Glass Tray touches oven walls, causing the tray to
stop moving, the tray will automatically rotate in the opposite direction.
Roller Ring
1. The Roller Ring and oven floor should be cleaned frequently to prevent
excessive noise.
2. Always replace the Roller Ring and the Glass Tray in their proper positions.
3. The Roller Ring must always be used for cooking along with the Glass Tray.
INSTALLATION AND
GROUNDING INSTRUCTIONS
Examine Your Oven
Unpack oven, remove all packing material and examine the oven for any damage such as dents, broken door latches or cracks in the door. Notify dealer
immediately if oven is damaged. DO NOT install if oven is damaged.
Placement of Oven
1. The oven must be placed on a flat, stable surface. Place the front surface of
the door three inches or more from the counter top edge to avoid accidental
tipping of the microwave oven during normal use. For proper operation, the
oven must have sufficient air flow. Allow 3-inches (7.6 cm) of space on both
sides of the oven and 1-inch (2.5 cm) of space on top of the oven.
(a) DO NOT block air vents. If they are blocked during operation, the oven
may be overheated and damaged.
(b) DO NOT place oven near a hot, damp surface such as a gas or electric
range, or dishwasher.
(c) DO NOT operate oven when room humidity is excessive.
2. This oven is manufactured for household use only. It is not approved or tested
for mobile vehicle, marine, or commercial use.
Installation
1. DO NOT block air vents. If they are blocked during operation, the oven may
overheat. If the oven overheats, a thermal safety device will turn the oven off.
The oven will remain inoperable until it has cooled.
2. If the oven is designed for installation into a wall cabinet by using the proper
trim kit available from a local Panasonic dealer, follow all instructions packed
with the kit.
3
INSTALLATION AND GROUNDING
INSTRUCTIONS
WWAARRNNIINNGG
CAN RESULT IN A RISK OF ELECTRIC SHOCK.
Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. If it
is necessary to use an extension cord, use only a three wire extension cord that has a
three prong polarized grounding plug, and a three slot receptacle that will accept the plug
on the appliance. The marked rating of the extension cord should be equal to or greater
than the electrical rating of the appliance.
—IMPROPER USE OF THE GROUNDING PLUG
(continued)
Grounding Instructions
THIS APPLIANCE MUST BE GROUNDED. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire for the electric
current. This appliance is equipped with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is properly installed and grounded.
• Plug into properly installed and grounded 3 prong outlet.
• DO NOT remove ground prong.
• DO NOT use an adapter.
Power Supply
1. A short power-supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised
in their use. Do not let cord hang over edge of a table or counter.
3. If a long cord or extension cord is used, (1) the marked electrical rating of the cord set
or extension cord should be at least as great as the electrical rating of the appliance, (2)
the extension cord must be a grounding-type 3-wire cord, and (3) the longer cord
should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over accidentally.
Wiring Requirements
The oven must be operated on a SEPARATE CIRCUIT. No other appliance should share
the circuit with the microwave oven. If it does, the branch circuit fuse may blow or the circuit breaker may trip. The oven must be plugged into at least a 20 AMP, 120 VOLT, 60 Hz
GROUNDED OUTLET. Where a standard two-prong outlet is encountered, it is the
personal responsibility and obligation of the consumer to have it replaced with a properly
grounded three-prong outlet. The VOLTAGE used must be the same as specified on this
microwave oven (120 V, 60 Hz). Using a higher voltage is dangerous and may result in a
fire or oven damage. Using a lower voltage will cause slow cooking. Panasonic is NOT
responsible for any damages resulting from the use of the oven with any voltage other
than specified.
TV / Radio Interference
1. Operation of the microwave oven may cause interference to your radio, TV or similar
equipment.
2. When there is interference, it may be reduced or eliminated by taking the following
measures:
(a) Place the radio, TV, etc. away from the microwave oven as far as possible.
(b) Use a properly installed antenna to obtain stronger signal reception.
(c) Clean door and sealing surfaces of the oven. (See Care and Cleaning of Your
Microwave Oven)
4
Safety Precautions
Follow These Safety Precautions When Cooking in Your Oven.
IMPORT
Proper cooking depends upon the power, the time setting and quantity of
food. If you use a smaller portion than recommended but cook at the time
for the recommended portion, fire could result.
1) HOME CANNING / STERILIZING / DRYING FOODS /
• DO NOT use your oven for home canning. Your oven cannot maintain the food
at the proper canning temperature. The food may be contaminated and then
spoil.
• DO NOT use the microwave oven to sterilize objects (baby bottles, etc.). It is
difficult to keep the oven at the high temperature needed for sterilization.
• DO NOT dry meats, herbs, fruits or vegetables in your oven. Small quantities
of food or foods with low moisture content can dry out, scorch or catch on fire if
overheated.
2) POPCORN
Popcorn may be popped in a microwave oven corn popper. Microwave popcorn which pops in its own package is also available. Follow popcorn manufacturers’ directions and use a brand suitable for the cooking power of your
microwave oven.
CAUTION: When using pre-packaged microwave popcorn, you can follow
recommended package instructions or use the popcorn pad (refer to page 13).
Otherwise, the popcorn may not pop adequately or may ignite and cause a
fire. Never leave oven unattended when popping popcorn. Allow the popcorn
bag to cool before opening, always open the bag facing away from your face
and body to prevent steam burns.
ANT
SMALL QUANTITIES OF FOODS
3) DEEP FAT FRYING
• DO NOT deep fat fry in your microwave oven. Cooking oils may burst into flames
and may cause damage to the oven and perhaps result in burns. Microwave utensils
may not withstand the temperature of the hot oil, and can shatter or melt.
4) FOODS WITH NONPOROUS SKINS
• DO NOT COOK/REHEAT WHOLE EGGS, WITH OR WITHOUT THE SHELL.
Steam buildup in whole eggs may cause them to explode, and possibly damage the
oven or cause injury. Reheating SLICED hard-boiled eggs and cooking SCRAMBLED
eggs is safe.
• Potatoes, apples, whole squash and sausages are examples of foods with non-
porous skins. These types of foods must be pierced before microwave cooking to
prevent them from exploding.
CAUTION: Cooking dry or old potatoes can cause fire.
5
Safety Precautions (continued)
5) GLASS TRAY / COOKING CONTAINERS / FOIL
• Cooking containers get hot during microwaving. Heat is transferred from the
HOT food to the container and the Glass Tray. Use pot holders when removing
containers from the oven or when removing lids or plastic wrap covers from
cooking containers, to avoid burns.
• The Glass Tray will get hot during cooking. It should be allowed to cool before
handling or before paper products, such as paper plates or microwave popcorn
bags, are placed in the oven for microwave cooking.
• When using foil in the oven, allow at least 1-inch (2.5 cm) of space between
foil and interior oven walls or door.
• Dishes with metallic trim should not be used, as arcing may occur.
6) PAPER TOWELS / CLOTHS
• DO NOT use paper towels or cloths which contain a synthetic fiber woven into
them. The synthetic fiber may cause the towel to ignite. Use paper toweling
under supervision.
7) BROWNING DISHES / OVEN COOKING BAGS
• Browning dishes or grills are designed for microwave cooking only. Always fol-
low instructions provided by the manufacturer. DO NOT preheat browning dish
more than 6 minutes.
• If an oven cooking bag is used for microwave cooking, prepare according to
package directions. DO NOT use a wire twist-tie to close bag, instead use
plastic ties, cotton string or a strip cut from the open end of the bag.
8) THERMOMETERS
• DO NOT use a conventional meat thermometer in your oven. Arcing may
occur. Microwave safe thermometers are available for both meat and candy.
9) BABY FORMULA / BABY FOOD
• DO NOT heat baby formula or baby food in the microwave oven. The glass jar
or surface of the food may appear warm while the interior can be so hot as to
burn the infant’s mouth and esophagus.
10) REHEATING PASTRY PRODUCTS
• When reheating pastry products, check temperatures of any fillings before eat-
ing. Some foods have fillings which heat faster and can be extremely hot, while
the surface remains warm to the touch (ex. Jelly Donuts).
11) GENERAL OVEN USAGE GUIDELINES
• DO NOT use the oven for any purpose other than the preparation of food.
6
Cookware Guide
ITEM MICROWAVE COMMENTS
Aluminum Foil Shielding meat or poultry to prevent overcooking. Arcing can occur
Browning Dish Yes only. Check browning dish information for instructions
Brown paper bags No May cause a fire in the oven.
Dinnerware: Check manufacturers' use and care directions for use in
Labeled Yes microwave heating. Some dinnerware may state on the
“Microwave Safe” back of the dish, “Oven-Microwave Safe”.
Unlabeled Dinnerware ? Use CONTAINER TEST below.
Disposable polyester Yes Some frozen foods are packaged in these dishes. Can be
Paperboard Dishes purchased in grocery stores.
Fast Food Carton
with Metal Handle
Frozen Dinner Tray
Metal
Frozen Dinner Tray
Microwave safe
Glass Jars No
Heat Resistant Oven
Glassware & Ceramics (See CONTAINER TEST below)
Metal Bakeware
Metal Twist-Ties No May cause arcing which could cause a fire in the oven.
Oven Cooking Bag Yes
Paper Plates & Cups Yes
Paper Towels & Napkins Yes
Recycled Paper Towels
& Napkins cause sparks.
Parchment Paper
Plastic: Should be labeled, "Suitable for Microwave Heating." Check
Microwave Safe Yes, manufacturers’ directions for recommended uses.
Cookware use caution Some microwave safe plastic containers are not suitable for
Plastic, Melamine No This material absorbs microwave energy. Dishes get HOT!
Plastic Foam Cups
Plastic Wrap Yes prevent spattering. Should be labeled “Suitable for
Straw, Wicker, Wood
Thermometers-
Microwave safe
Thermometers-
Conventional and get hot.
Wax paper Yes Use as a cover to prevent spattering and to retain moisture.
TO TEST A CONTAINER FOR SAFE MICROWAVE OVEN USE: Fill a microwave safe cup with cool water
and place it in the microwave oven alongside the empty container to be tested; heat one (1) minute at P10
(HIGH). If the container is microwave oven safe (transparent to microwave energy), the empty container
should remain comfortably cool and the water should be hot. If the container is hot, it has absorbed some
microwave energy and should NOT be used. This test cannot be used for plastic containers.
Yes for Small strips of foil can be molded around thin parts of
only if foil is too close to oven wall or door and damage to your
No Metal handle may cause arcing.
No Metal can cause arcing and damage to your oven.
Yes Heat only 1 tray in the oven at one time.
Yes
No
No
Yes
Yes, Plastic foam will melt if foods reach a high temperature. Use
use caution to reheat foods to a low serving temperature only.
Yes,
use caution
Yes
No
oven will result.
Browning dishes are designed for microwave cooking
and heating chart. Do not preheat for more than 6 minutes.
Most glass jars are not heat resistant. Do not use for
cooking or reheating.
Ideal for microwave cooking and browning.
Not recommended for use in microwave ovens. Metal can
cause arcing and damage to your oven.
Follow manufacturers' directions. Close bag with the nylon
tie provided, a strip cut from the end of the bag, or a piece
of cotton string. Do not close with metal twist-tie. Make six
1
/2-inch (1 cm) slits near the closure.
Use to warm cooked foods, and to cook foods that require
short cooking times such as hot dogs.
Use to warm rolls and sandwiches, only if labeled safe for
microwave use.
Recycled paper products may contain impurities which may
Use as a cover to prevent spattering. Safe for use in
microwave, microwave/convection and conventional ovens.
cooking foods with high fat or sugar content. The heat from
hot food may cause the plastic to warp.
Use to cover food during cooking to retain moisture and
Microwave Heating”. Check package directions.
Use only for short term reheating and to bring food to a low
serving temperature. Wood may dry out & split or crack
when used.
Use only microwave safe meat and candy thermometers.
Not suitable for use in microwave oven, will cause sparks
CONTAINER TEST
7
Oven Components Diagram
fjd h k ab
e
l
i
c
aa
External Air Vent
bb
Internal Air Vent
cc
Door Safety Lock System
dd
Exhaust Air Vent
ee
Control Panel
ff
Identification Plate
(Alternate location)
Control Panel
(1) Display Window
Step by step instructions scroll
for easy operation.
(2) Power Level
(3) Power Level Pad (☛ page 12)
(4) Number Pads
(5) Popcorn Pad (☛ page 13)
(6) Auto Reheat Pad (☛ page 16)
(7) Auto Cook Pads (☛ page 16)
(8) Inverter Turbo Defrost Pad
(☛ page 14)
(9)Keep Warm Pad (☛ page 12)
(10) Serving/Weight Pad
(☛ page 13)
(11) Timer Pad (☛ page 19)
(12) Clock Pad (☛ page 10)
(13) Quick Min Pad (☛ page 12)
d g
gg
Identification Plate
(Alternate location)
hh
Glass Tray
ii
Roller Ring
jj
Heat/Vapor Barrier Film
(do not remove)
kk
Waveguide Cover (do not remove)
ll
Door Release Button
(14) Function Pad (☛ page 10)
(15) More/Less Pad (☛ page 13)
(16) Start Pad
One tap allows oven to begin
functioning. If door is opened or
Stop/Reset Pad is pressed once
during oven operation, Start Pad
must be pressed again to restart
oven.
(17) Stop/Reset Pad
Before cooking: One tap clears
memory.
During cooking: One tap temporarily stops the cooking process.
Another tap cancels all your
instructions and time of day or colon
appears in the Display Window.
Beep Sound:
When a pad is pressed correctly, a beep will be heard.
If a pad is pressed and no beep is heard, the unit did not or cannot accept the instruction.
When operating, the oven will beep twice between programmed stages. At the end of any
complete program, the oven will beep 5 times.
8
Control Panel
100
%
50
%
100
%
50
%
(continued)
(1)
(2)
(3)
(4)
(11)
(12)
(13)
(14)
(16)
(17)
NN-T754
NN-S754/S954/S955/SA746
(1)
(2)
(5)
(6)
(7)
(5)
(7)
(8)
(6)
(9)
(3)
(15)
(10)
(8)
(15)
(4)
(9)
(10)
(11)
(12)
(13)
(14)
(16)
(17)
9
Starting to Use
Function Features
Your Oven
1.
2.
“WELCOME TO PANASONIC...”
message scrolls across display
window.
At the end of the “WELCOME...”
message, a colon appears in the
display window.
• Plug into a properly
grounded electrical
outlet.
Setting the Clock
Example: To set 11:25 a.m. or p.m.
1.
2.
3.
NOTES:
1. To reset the clock, repeat step 1-3.
2. The clock will retain the time of day as
long as the oven is plugged in and
electricity is supplied.
3. Clock is a 12 hour display.
4. Oven will not operate while colon is
flashing.
• Press Clock once.
➤ Colon flashes.
• Enter time of day using
the number pads.
➤ Time appears in
the display window;
colon continues
flashing.
• Press Clock.
➤ Colon stops flash-
ing; time of day is
entered.
This unique function of your PANASONIC
microwave oven allows you to establish
the initial non-cooking features of your
oven such as CHILD LOCK, WORD
SPEED, LANGUAGE CHOICE (ENGLISH, FRENCH OR SPANISH), plus
many more. See next page.
1.
2.
3.
to
Press
to
Press
• Press Function.
• Press selection by
number pad (see
chart on next page).
• Press selection.
4. If other options are desired, repeat
steps 1-3 for additional selections.
10
Function Features
1 LANGUAGE CHOICE
The oven has a choice of English, French or Spanish display. The
display appears in English when you plug-in.
1 ENGLISH ➻ Display appears in English.
*
2 FRANCAIS ➻ Display appears in French.
3 ESPANOL ➻ Display appears in Spanish.
LB/KG CHOICE
2
The oven has both imperial and metric weight measurements. The
oven displays the weight in imperial when you plug it in.
1 LB ➻ Weight can be set in oz/lb, (Imperial).
*
2 KG ➻ Weight can be set in g/kg, (Metric).
3 WORD SPEED
The speed of word scrolling on the Display Window can be sped up
or slowed down.
1 QUICK ➻ Words scroll quickly.
2 MEDIUM ➻ Scrolling speed returns to initial setting.
*
3 SLOW ➻ Words scroll slowly.
4 MENU ACTION ON/OFF
MENU ACTION SCREEN helps you to program your oven by
prompting the next step to be taken. When you become familiar
with your oven, the prompt can be turned off.
1 ON ➻ Prompting Guide will appear.
*
2 OFF ➻ Prompting Guide will not appear.
5 CHILD LOCK ON/OFF
The oven has a Child Safety Lock feature which prevents use by
children. It does not lock the door.
1 ON ➻ Child Lock has been set and operation will not
2 OFF ➻ Child Lock has been cancelled.
*
6 BEEP ON/OFF
If you wish to have the oven operate with no beep, it can be
eliminated.
1 ON ➻ Beep sound will reactivate.
*
2 OFF ➻ Beep sound will not be heard.
7 REMINDER BEEP ON/OFF
A reminder beep works to remind you to remove the food from the
oven after the completion of cooking. It will occur every 15 seconds.
1 ON ➻ Reminder beep will work.
2 OFF ➻ Reminder beep will not work.
*
8 DAYLIGHT SAVING ON/OFF
1 ON ➻ Time of day will advance one hour.
2 OFF ➻ Time of day returns to original setting.
*
9 CLOCK ON/OFF
Clock display can be turned off.
1 ON ➻ Clock display will appear on the Display Window.
*
2 OFF ➻ Clock display will not appear on the Display
Time of day will be stored in memory while the display is off.
0 DEMO MODE ON/OFF
Demo mode is designed for retail store display. In this mode, the
oven can be demonstrated with no power in the oven.
1 ON ➻ The oven is in Demo mode.
2 OFF ➻ The oven is not in Demo mode.
*
* DEFAULT MODE
be accepted.
Window.
11
Selecting Power
Quick Min Feature
& Cook Time
Example: To cook at P 6 (MEDIUM)
1.
Press 5 times.
2.
3.
3 times
4 times
5 times
6 times
7 times
8 times
9 times
10 times
NOTES:
1. For more than one stage cooking, repeat
steps 1 and 2 for each stage of cooking
before pressing Start Pad. The maximum number of stages for cooking is 5.
When operating, two beeps will sound
between each stage. Five beeps will
sound at the end of the entire sequence.
2. When selecting P10 (HIGH) power for
the first stage, you may begin at step 2.
3. When selecting P10 (HIGH) power, the
maximum programmable time is 30 minutes. For other power levels, the maximum time is 99 minutes and 99 seconds.
4. For reheating, use P10 (HIGH) for liquids, P7 (MEDIUM-HIGH) for most foods
and P6 (MEDIUM) for dense foods.
5. For defrosting, use P3 (MEDIUM-LOW).
DO NOT OVER COOK. This oven requires
less time to cook than an older unit. Over
cooking will cause food to dry out and may
cause a fire. A microwave oven’s cooking
power tells you the amount of microwave
power available for cooking.
power for 1 minute 30 seconds
• Press Power Level
until the desired
power level appears
in the display window.
• Set Cooking Time
using number pads.
• Press Start.
➤Cooking will start.
The time in the
display window will
count down.
Press
once
twice
P3
Power Level
P10 (HIGH)
P9
P8
P7 (MEDIUM-HIGH)
P6 (MEDIUM)
P5
P4
(MEDIUM-LOW)/DEFROST
P2
P1 (LOW)
This feature allows you to set or add
cooking time in 1 minute increments up to
10 minutes.
To Set Cooking Time:
1.
2.
NOTES:
1. If desired, you can use other power
levels. Select desired power level
before setting cooking time.
2. After setting the time by Quick Min
Pad, you cannot use Number Pads.
3. Quick Min Pad can be used to add
more time during manual cooking.
• Press Quick Min until
the desired cooking
time (up to 10 minutes) appears in the
display window.
Power Level is pre-set
at P10.
Press Start.
Cooking begins and the
time will count down.
At the end of cooking,
5 beeps sound.
Keep Warm Feature
This feature will keep food warm for up to
30 minutes after cooking.
Example: To keep 2 cups of gravy warm
1.
2.
to
3.
NOTE:
Keep Warm can be programmed as the
final stage after cook time/s have been
manually entered. It cannot be used in
combination with sensor or auto features.
12
• Press Keep Warm.
• Set warming time, up
to 30 minutes.
• Press Start.
➤ Keep Warm will
start. The time in
the display window
will count down.
Popcorn Feature
More/Less Feature
Example: To pop 3.5 oz. of popcorn
1.
2.
Optional
3.
NOTES ON POPCORN FEATURE:
1. Pop one bag at a time.
2. Place bag in oven according to manufacturers’ directions.
3. Start with popcorn at room temperature.
4. Allow popped corn to sit unopened for
a few minutes.
5. Open bag carefully to prevent burns,
because steam will escape.
6. Do not reheat unpopped kernels or
reuse bag.
• Press Popcorn until
the desired size
appears in the display
window.
Press
once
twice
3 times
(see More/Less
Feature.)
• Press Start .
➤ After several
seconds, cooking
time appears in the
display window and
begins to count
down.
Weight
3.5 oz (99 g)
3.0 oz (85 g)
1.75 oz (50 g)
For Popcorn:
By using the More/Less Pad, the programs
can be adjusted to cook popcorn for a
longer or shorter time if desired.
1 tap = Adds Approx. 10 secs.
2 taps = Adds Approx. 20 secs.
3 taps = Subtracts Approx. 10 secs.
4 taps = Subtracts Approx. 20 secs.
5 taps = original setting
Press More/Less pad before pressing Start.
For Auto Reheat/Cook:
Preferences for food doneness vary with
each individual. After having used the Auto
Reheat/Cook feature a few times, you may
decide you would prefer your food cooked
to a different doneness.
1 tap = More (Adds Approx. 10% time)
2 taps = Less (Subtracts Approx. 10% time)
3 taps = original setting
Press More/Less pad before pressing Start.
NOTE:
If popcorn is of a different weight than listed, follow instructions on popcorn package. Never leave the oven unattended.
If popping slows to 2 to 3 seconds
between pops, stop oven. Overcooking
can cause fire.
REMARKS:
When popping multiple bags one right
after the other, the cooking times may
vary slightly. This does not affect the popcorn results.
13
Inverter Turbo Defrost Feature
This feature allows you to defrost foods such as: meat, poultry and seafood simply by
entering the weight.
Example: To defrost 1.5 pounds of meat
Place food on microwave safe dish.
1.
2.
3.
• Press Inverter Turbo
Defrost.
• Enter weight of the
food using the number pads.
• Press Start.
Defrosting will start.
The time will count
down. Larger weight
foods will cause a signal midway through
defrosting. If 2 beeps
sound, turn over,
rearrange foods or
shield with aluminum
foil.
Conversion Chart:
Follow the chart to convert ounces or
hundredths of a pound into tenths of a
pound. To use Inverter Turbo Defrost,
enter the weight of the food in lbs. (1.0)
and tenths of a lb. (0.1). If a piece of
meat weighs 1.95 lbs. or 1 lb. 14 oz.,
enter 1.9 lbs.
Ounces
0
1 - 2
3 - 4
5
6 - 7
8
9 - 10
11 - 12
13
14 - 15
Hundredths
of a Pound
.01 - .05
.06 - .15
.16 - .25
.26 - .35
.36 - .45
.46 - .55
.56 - .65
.66 - .75
.76 - .85
.86 - .95
Tenths of
a Pound
Defrosting Tips & Techniques
Preparation For Freezing:
1. Freeze meats, poultry, and fish in packages with only 1 or 2 layers of food. Place
wax paper between layers.
2. Package in heavy-duty plastic wraps, bags (labeled “For Freezer”), or freezer paper.
3. Remove as much air as possible.
4. Seal securely, date, and label.
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
To Defrost:
1. Remove wrapper. This helps moisture to evaporate. Juices from food can get hot and
cook the food.
2. Set food in microwave safe dish.
3. Place roasts fat-side down. Place whole poultry breast-side down.
4. Select power and minimum time so that items will be under-defrosted.
5. Drain liquids during defrosting.
6. Turn over (invert) items during defrosting.
7. Shield edges and ends if needed. (See Cooking Techniques).
After Defrosting:
1. Large items may be icy in the center. Defrosting will complete during STANDING TIME.
2. Let stand, covered, following stand time directions on page 15.
3. Rinse foods indicated in the chart.
4. Items which have been layered should be rinsed separately or have a longer stand time.
14
Defrosting Tips & Technique
s
(continued)
FOOD TIME at P3 DURING DEFROSTING
Fish and Seafood
[up to 3 lbs. (1.4 kg)]
Crabmeat 6 Break apart/Rearrange
Fish Steaks 4 to 6 Turn over
Fish Fillets 4 to 6 Turn over/Rearrange/Shield ends
Sea Scallops 4 to 6
Whole fish 4 to 6 Turn over
Meat Turn over/Remove defrosted
Ground Meat 4 to 5 portion/Shield edges
Roasts 4 to 8 Turn over/Shield ends and
-4 lbs. (1.1-1.8 kg)] defrosted surface
[21/2
Chops/Steak 6 to 8 Turn over/Rearrange/Shield ends
Ribs/T-bone 6 to 8 Turn over/Rearrange/Shield ends
Stew Meat 4 to 8 Break apart/Rearrange/
Liver (thinly sliced) 4 to 6 Drain liquid/Turn over/
Bacon (sliced) 4 Turn over - - - -
Poultry
Chicken, Whole 4 to 6 Turn over/Shield
[up to 3 lbs. (1.4 kg)]
Cutlets 4 to 6 Break apart/Turn over/
Pieces 4 to 6 Break apart/Turn over/Shield
Cornish Hens 6 to 8 Turn over/Shield
Turkey Breast 6 Turn over/Shield
[5-6 lbs. (2.3-2.7 kg)]
DEFROST AFTER DEFROSTING
mins (per lb) Stand Time Rinse
5 min. YES
Break apart/Remove defrosted pieces
10 min.
30 min. in refrig.
and defrosted surface
and defrosted surface
Remove defrosted pieces
Separate pieces
Remove defrosted Pieces
5 min. NO
20 min. in refrig.
5 min.
10 min.
20 min. in refrig.
YES
15
Auto Reheat
Auto Cook
Feature
This feature allows you to reheat 1 to 4
servings of cook, refrigerated food without
setting power and time.
Example: To reheat 2 servings of casserole
1.
Press twice
2.
Optional
3.
Press Auto
Reheat pad to
indicate num-
ber or servings
once
twice
3 times
4 times
• Press Auto Reheat
until the desired number of servings
appears in the display
window.
(see More/Less
Feature)
(☛page 13)
• Press Start.
➤ Cooking begins and
the time will count
down.
Average
Serving
Size
4-6 oz.
8 oz.
12 oz.
16 oz.
Time
will vary
depending on
size and
wattage of oven
Feature
These are tested and pre-timed (based
on the power rating of this oven) for the
quantity of food listed in the chart on page
17. Locale, power fluctuations and personal tastes are not taken into account.
Should you prefer your food cooked differently, use power and time method
shown on page 12.
Example: To cook a 10 oz. Frozen Entrées
1.
Press 3 times
2.
Press twice
3.
Optional
4.
• Press until the desired
food appears in the
display window.
• Press Serving/Weight
until the desired serving/weight appears in
the display window.
(see More/Less
Feature)
(☛page 13)
• Press Start.
➤ Cooking begins and
the time will count
down.
NOTES: For best results, follow these
recommendations:
1. All foods must be previously cooked.
2. Foods should always be covered loosely with plastic wrap, wax paper or
casserole lid.
3. All foods should have a covered stand
time of 3 to 5 minutes.
4. DO NOT reheat bread and pastry products using Auto Reheat. Use manual
power and time instead.
5. DO NOT reheat beverages.
6. Times are based on an approximate
serving size of 4 oz.
7. A plate of food is normally 3-4 servings.
16
Loading...
