Panasonic S54E7E User Manual

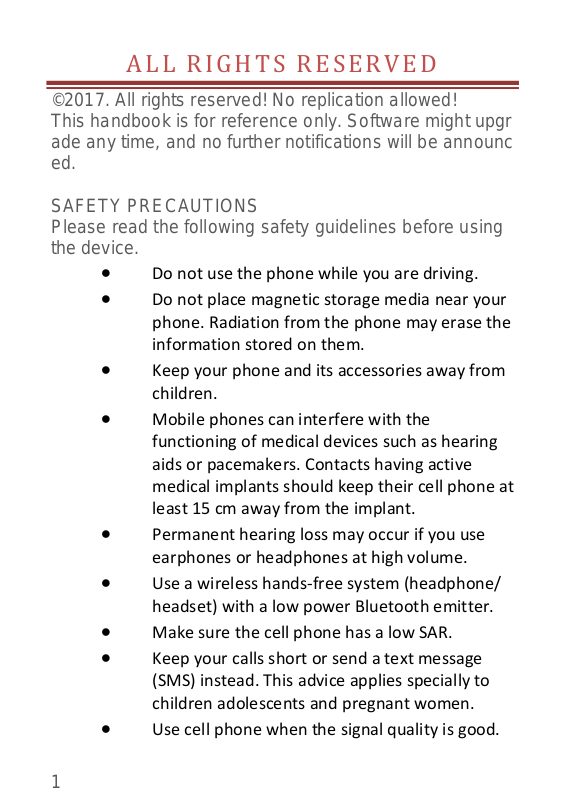

ALL RIGHTS RESERVED
©2017. All rights reserved! No replication allowed!
This handbook is for reference only. Software might upgr ade any time, and no further notifications will be announc ed.
SAFETY PRECAUTIONS
Please read the following safety guidelines before using the device.
Do not use the phone while you are driving.
Do not place magnetic storage media near your phone. Radiation from the phone may erase the information stored on them.
Keep your phone and its accessories away from children.
Mobile phones can interfere with the functioning of medical devices such as hearing aids or pacemakers. Contacts having active medical implants should keep their cell phone at least 15 cm away from the implant.
Permanent hearing loss may occur if you use earphones or headphones at high volume.
Use a wireless hands free system (headphone/ headset) with a low power Bluetooth emitter.
Make sure the cell phone has a low SAR.
Keep your calls short or send a text message (SMS) instead. This advice applies specially to children adolescents and pregnant women.
Use cell phone when the signal quality is good.
1
1. UNDERSTANDING YOUR DEVICE
1.1 DEVICE OVERVIE
Position of keys
|
|
1. |
USB port |
|
|
2. |
Earphone jack |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
3. |
Front camera |
4. |
Earpiece |
||||
|
|
5. |
Breathe light |
|
|
6. |
Touch screen |
|
|
|
7. Volume key |
|
8. Microphone |
||||
|
|
|
|
|
||||
|
|
9. Power key |
|
10. Back camera |
||||
|
|
11. Flash |
|
12. Fingerprint |
||||
|
|
13. Speaker |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2
2.INSTALLING CARDS
Please power off your device before inserting or removing the SIM card and memory card.
Installing SIM card or Memory card
Remove the back cover of the device.
Insert the Nano card or TF card correctly.
Push the Nano card to the correct position.
3
4
3.POWERING ON/OFF THE DEVICE
Turning On the Device
After installing the SIM cards and charging the battery, you are now ready to turn on your device.
Long press the Power key to turn on the device.
The first screen that appears is known as the Home/Idle Screen.
Drag up the unlock icon to release the screen.
If the screen turns off, then short press the Power key to turn on the display.
Turning Off the Device
Long press the Power key.
A pop-up window appears, select “Power off”.
5
3. SYSTEM GUIDE
3.1 MAIN SCREEN OPERATING
Notification Panel
The table below lists various icons that might appear on the notification Panel of the device.
Network intensity of SIM card 1 or SIM card 2
Battery level of the device
New short message
Headset is plugged in
Wi-Fi is connected
Bluetooth is activated
3.2 USING YOUR PHONE
Enter main menu
In idle mode slide up the
key to enter the main menu on the desktop and press the Home or Back key to return.
Enter sub menu
6
