Panasonic PV-S9670 User Manual [en, es]

Panasonic^

Vídeo Cassette Recorder

Omni viBlan ^

Operating Instructions

MODEL PV-S9670

Please read these insiniciions carefully before attempting to connect, operate or adjust this product. Please save this manual.

Spanish Quick Use Guide is included (Guía para rápida consulta en español esta incluida.)

Quick Use Guide is on the back cover.

For assistance, call 1-800-211-PANA(7262).

AUTO

@@@ FRONI/W

IWÜT

12:30AM

AUTO

Q0CX5CT

FRONT

CLOCK

Important Safeguards and Precautions

FOR YOUR SAFETY, READ AND RETAIN ALL SAFETY AND OPERATING INSTRUCTIONS. HEED ALL WARNINGS IN THE MANUAL AND ON THE UNIT

INSTALLATION

1 POWER SOURCE CAUTION

Operate only from a power source indicated on the unit or in this manual. If necessary, have your Electric Utility Service Company or Video Products Dealer verify the power source in your home.

2 POLARIZED OR GROUNDING PLUG

As a safety feature, this Video product comes with either a polarized power cord plug (one blade is wider than the other), or a three-wire grounding type plug.

POLARIZED PLUG CAUTION:

This plug will only fit into an outlet one way. It you cannot fully insert the plug, try reversing it. If it still will not fit, have an electrician install the proper wall outlet. Do not defeat the safety feature by tampering with the plug.

GROUNDING PLUG CAUTION:

This plug will only fit into a three-hole grounding outlet. If necessary, have an electrician install the proper outlet. Do not defeat the safety feature by tampering with the plug.

3 POWER CORD

Make sure power cords are routed so that they are not likely to have anything rest on them, roll over them, or be in the way of walking traffic. If an extension cord is used, make sure it also has either a polarized or grounded plug and that the cords can be securely connected. Frayed cords, damaged plugs, and damaged or cracked wire insulation are hazardous and should be replaced by a qualified service technician. Overloaded outlets and extension cords are fire hazards and should be avoided.

4 DO NOT BLOCK VENTILATION HOLES

Ventilation openings in the cabinet release heat generated during (deration. If they are blocked, heat build-up inside the unit can cause tailures that may result in a fire hazard or heat damage to cassettes. For protection, follow these rules; a. Never cover ventilation slots or the unit

while in use, or operate the unit when placed

on a bed, sofa, mg, or other soft surface.

b. Avoid built-in installation, such as a book case

or rack, unless proper ventilation is provided,

5 AVOID EXTREMELY HOT LOCATIONS OR

SUDDEN TEMPERATURE CHANGES

Do not place the unit over or near any kind of heater or regulator, in direct sunlight, inside a dosed vehicle, etc.. Do not move the unit suddenly between areas of extreme temperature variation. If the unit is suddenly moved from a cold place to a warm place, moisture may condense in the unit and on the tape.

6 TO AVOID PERSONAL INJURY

• Do not place unsecured equipment on a sloping surface.

• Do not place this unit on any support that is not firm, level, and adequately strong. The unit could fall causing serious injury to a child or adult and damage to the unit.

• An appliance and cart combination should be moved with care. Quick stops, excessive force, and

uneven surfaces may cause the

appliance and cart combination to overturn.

• Carefully follow all operating instructions and use the manufacturer's recommended accessories when operating this unit or connecting it to any other equipment.

Safety Precautions

If the unit has been in storage or moved to a new location, i refer first to the INSTALLATION section of these safeguards. 1 KEEP THIS VIDEO UNIT AWAY FROM WATER OR

2 IF EQUIPMENT IS EXPOSED TO RAIN, MOISTURE,

3 DURING AN ELECTRICAL STORM

4 WHEN THE UNIT IS PLUGGED IN

5 USING ACCESSORIES i

6 CLEANING THE UNIT

OUTDOOR ANTENNA INSTALLATION

SAFE ANTENNA AND CABLE CONNECTION

If an outside antenna or cable system is connected to the equipment, be sure the antenna or cable system is grounded so as to provide some protection against built up static charges and voltage surges. Section 810 of the National Electrical Code, ANSI/NFPA 70 (in Canada, part 1 of the Canadian Electrical Code) provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

KEEP ANTENNA CLEAR OF HIGH VOLTAGE POWER LINES

OR CIRCUITS

An outside antenna system should be located well away from power lines, electric light or power circuits and where it virill never come into contact with these power sources if it should happen to fall. When installing an outside antenna, extreme care should be taken to avoid touching power lines, circuits or other power sources as this could be fatal. Because of the hazards involved, antenna installation should be left to a protessional.

USING THE VIDEO UNIT

MOISTURE OF ANY KIND. .

OR STRONG IMPACT, unplug the unit and have it inspected

by a qualified service technician before use.

During a lightning storm, whether indoors or outdoors, or before leaving the ¡ unit unused for extended periods of time, disconnect all equipment from the power source as well as the antenna and cable system,

• Never expose the unit to rain or water, DO NOT OPERATE if liquid has been spilled into the unit. Immediately unplug the unit, and have it inspected by a service technician. Fire and shock hazards can result from electrical shorts caused by liquid contact inside.

• Never drop or push any object through openings in the unit. Some infernal parts ' carry hazardous voltages and contact can cause electric shock or fire hazard.

• Avoid placing the unit directly above or below your TV set as this may cause ' electrical interference. Keep ail magnets away from electronic equipment. ,

Use only accessories recommended by the manufacturer i

to avoid risk of fire, shock, or other hazards.

Unplug the unit. Then, use a clean, dry, chemically untreated doth to gently

remove dust or debris. DO NOT USE cleaning fluids, aerosols, or forced air ! that could over-spray, or seep into the unit and cause electrical shock. Any substance such as wax, adhesive tape, etc. may mar the cabinet surface, i

Exposure to greasy, humid, or dusty areas may adversely affect internal parts.

SERVICE

DO NOT SERVICE THIS PRODUCT YOURSELF

If, after carefully following the detailed operating instructions, this Video product does not operate propedy, do not attempt to open or remove covers,

or make any adjustments not described in the manual.

Unplug the unit and contact a qualified sen/ice technician.

IF REPLACEMENT PARTS ARE REQUIRED

Make sure the service technician uses only parts specified by the manufacturer, or those having the same safety characteristics as the original parts. The use of unauthorized substitutes may result in fire, electric shock, or other hazards.

HAVE THE SERVICE TECHNICIAN PERFORM A SAFETY CHECK

After any service or repairs to the unit, request the service technician to conduct a thorough safety check as described in the manufacture’s service literature to insure that the video unit is in safe operating condition.

Vi/arning: To prevent fire or shock hazard, do not expose this equipment to rain or moisture.

This symbol warns the user that uninsulated voltage within the unit may

have sufficient magnitude to cause electric shock. Therefore, it is

dangerous to make any kind of contact with any inside part of this unit.

CAimOH TORiECUCElHEntSKOf EUCmC^fOCK

00 NOT REMOVE COVER [OR SACKJ

NO USER-6ERVCEABLE RARTS INSIOE

REFER SERVtCMO TO OUAUFiED SERVICE PERSONNEL

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

For assistance, call 1-800-211-PANA(7262).

&£CTMectiTTO

(NCCJlftT3M,P4IITH)

Table of Contents

/Use

Now!^

Enjoy

more!

Important Safeguards and Precautions

................................

Accessories.............................................................................4

Loading the Batteries.............................................................4

Basic Connections (Antenna, VCR, TV)......................................4, 5

One Time VCR Setup (Language, Cable/ DSS, Channels, Clock) ...6 - 11 Playback a Tape (Slow Motion, Stlll picture. Frame by Frame)

.................

Record On a Tape..................................................................13

• One Touch Recording...................13

Advanced Connections (Cabie/oss, AudioA/ideo)

............................

14, 15

Timer Recording................................................................16, 17

• Timer Recording • Review, Replace or Clear Using VCR Buttons

......................

16 Program Contents

........................:......

Timer Recording Using VCR Plus+ System................18-21

• Auto VCR Plus+ System • Manual VCR Plus+ System

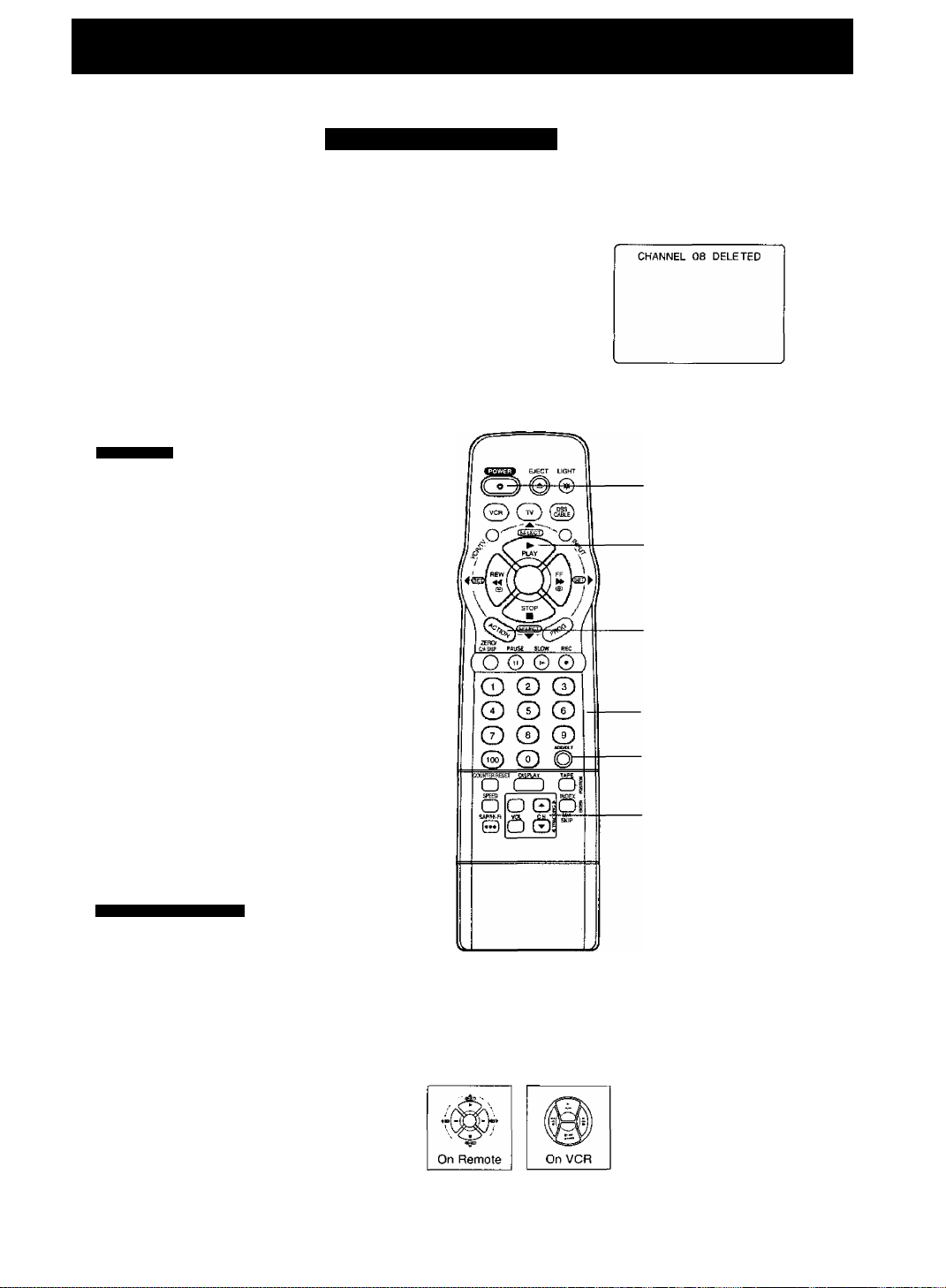

Channel Setup..........................18,19 Channel Setup

Multi-Brand Control Feature

■ Programming

............................................

..........................

............................

22, 23

Tape Operation..............................................................24 - 30

• Commercial Advance

• Movie Advance..............................27 • Repeat Play...............................30

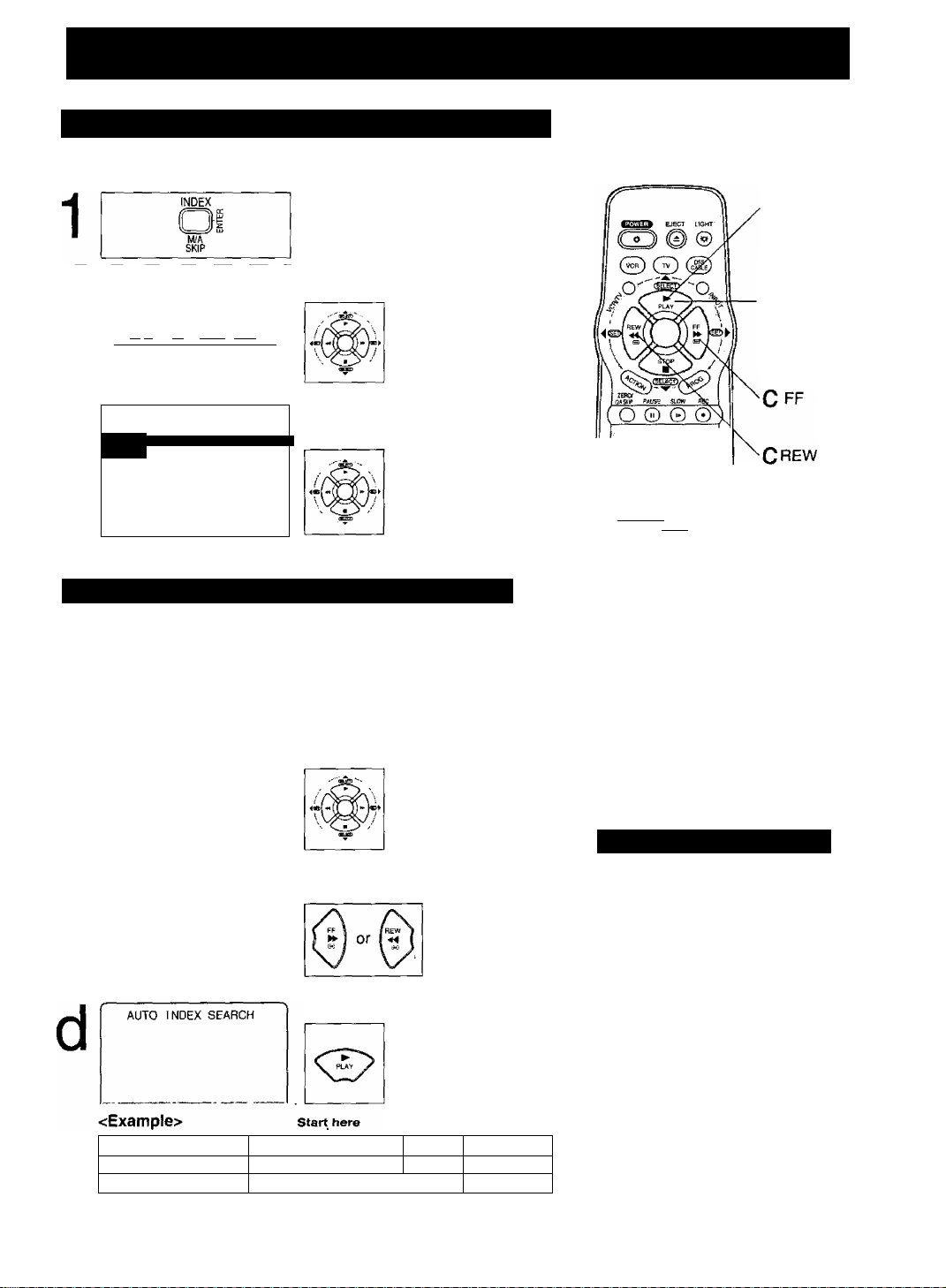

• VMS Index Search System.... 28, 29 • Zero Search

Copying Your Tapes (Dubbing)

MTS Broadcast/ VMS Hi-Fi Stereo System

• Stereo/SAP/Mono Broadcast

• Select Audio Mode

Special VCR Features

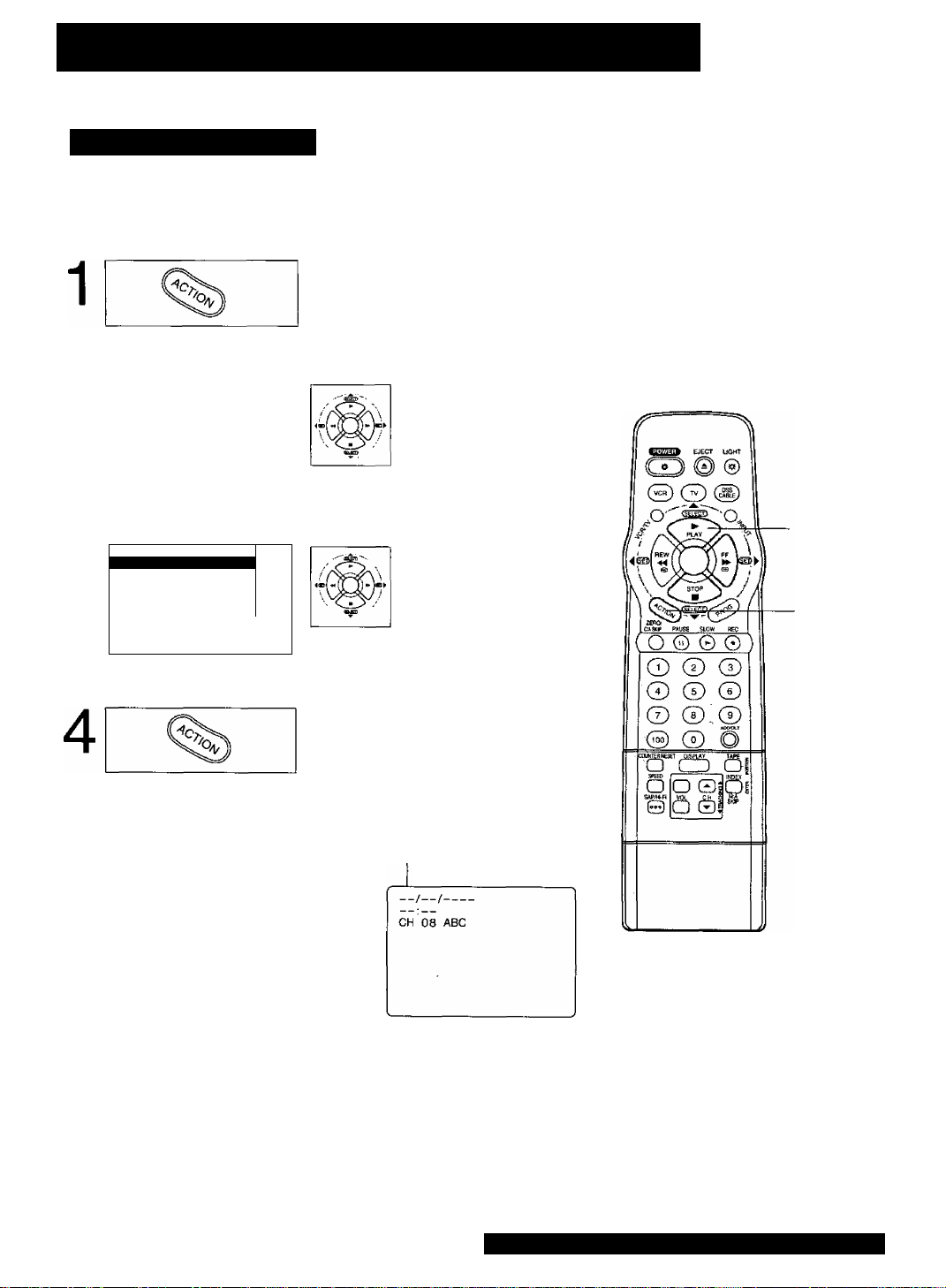

• Channel Caption.....................34, 35 • VCR Lock

• Time Stamp

• Tape Position Display....................38 • Auto Shut-Off

• Remote Warning ON/OFF

............................

.........

24-26 • Auto Operation Functions ....... 29

......................

.......

...................................................

36, 37 • Weak Signal Display ON/OFF.. 39

...........

..............................

................................................................

32 • Spatializer..................................33

...................

32, 33

34 - 39

...........................................

..............................

Super (S) VHS System....................................................40, 41

Other

Information!

Declaration of Conformity.................................................. 41

Reset Language, Channels, Clock

VCR & Cassette Information

• Reset All VCR Memory Functions.. 44 • HeadCieaning

• DST (Daylight Saving Time).... 44 • Cleaning the VCR

• Prevent Accidental Tape Erasure... 44 • Specifications...............................45

• Record/Playback Time

.................

On-Screen Displays (OSD)

• Function & Channel Display .... 46 • Warning and

• VCR Status & Clock Display... 46 Instruction Displays...................................46

Before Requesting Service

..........................................

44 • Features for Quality

..................................................

.................................................

................................

..............................

........................

.....................

42, 43 44, 45

45 45

Service Center List...............................................................48

Warranty................................................................................49

Spanish (Español) Quick Use Guide Location of Controls

.......................................................

...........................

50 - 53

54, 55

Quick Use Guide (Playback, Recording)................................Back Cover

Congratulations

on your purchase of one of the most sophisticated and reliable products on the market today. Used properly, it will bring you and your family years of enjoyment. Please fill in the information below. The serial number is on the tag located on the back of your VCR.

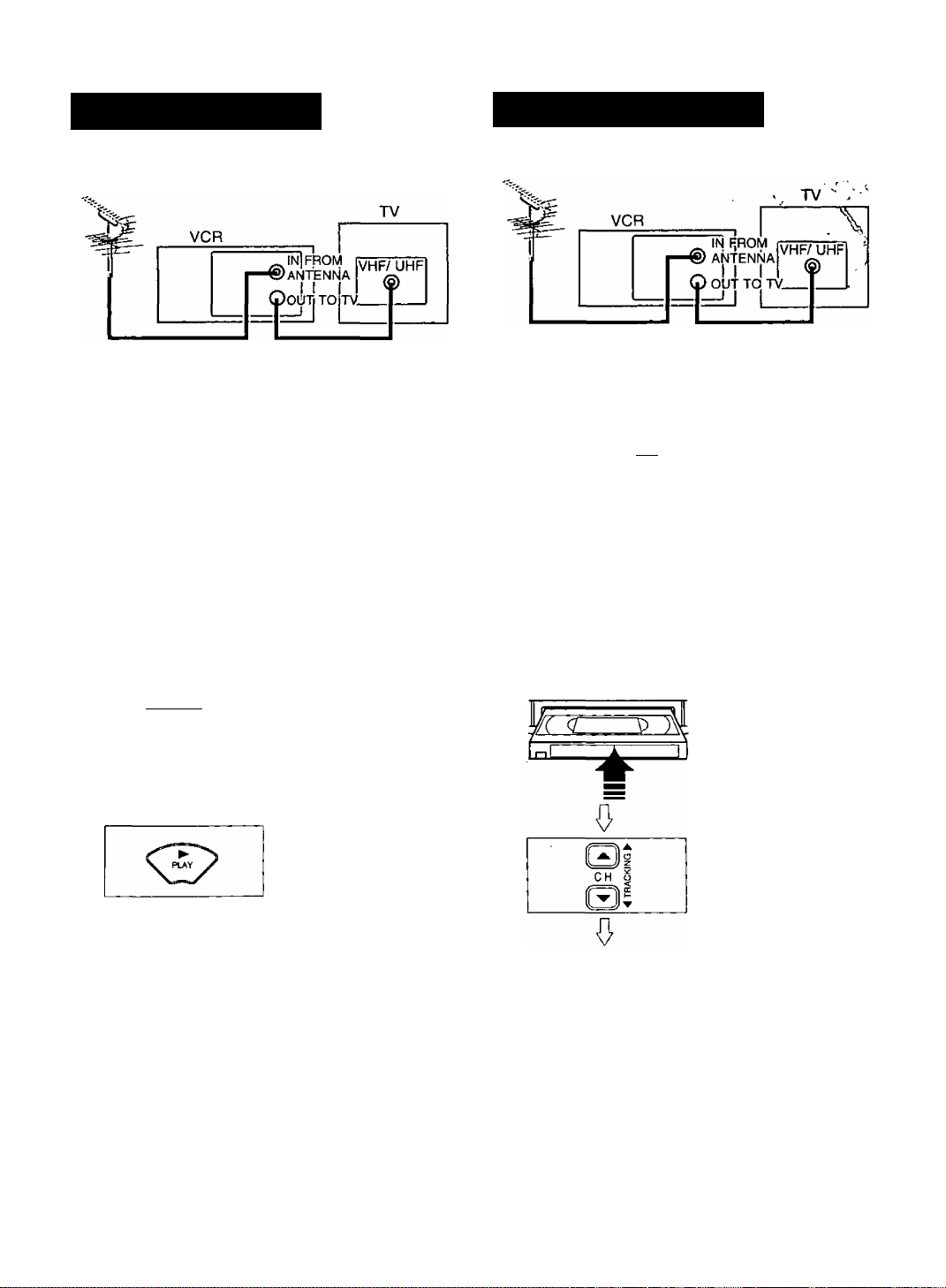

Basic Connection

ANTENNA (See page 5)

• Date of Purchase

• Dealer Purchased From

• Dealer Address------------------------------------------Dealer Phone No Model No. PV-S9670 Serial No

_________________

---------------------------------------__________________

___________

Accessories

□ Remote Control

VSQS1598

O Batteries 2 “AA”

(p)

□ RF Coaxial Cable

VJAS0196

) )

To order accessories, call toll free

1-800-332-5368.

Loading the Batteries

1) Open the cover.

2) Insert the batteries as marked.

3) Close the cover.

Q Battery replacement caution

• Do not mix old and new batteries.

• Do not mix alkaline with manganese batteries.

the same one you set in step 3.

-WARNING

When using "Nut type" RF coaxial cables, tighten with fingers only. Overtightening may damage terminals.

For assistance, call 1-800-211-PANA(7262).

Between ANT. and VCR

2 Between VCR and TV

Case 1: Screvtf & Plug Type Terminal

UHFA/HF Band Separator (not supplied)

RF Coaxial Cable

Case 2; Screw Type Terminal

75-300 ohm Transformer (not supplied)

=1^

Case 3: Double Screw Type Terminal

UHFA/HF Band Separator (not supplied)

I Case 4: Complex TV Terminal

TERMINALS ON BACK OF TV SET

Connect to one of the ANT terminals and select the same antenna number on the TV.

ANT2

One Time VCR Setup

The setup on pages 8 through 11 is vital for proper VCR operation. Please read the instructions carefully and in the order presented.

NOTE: These first two pages contain reference material needed for setup on pages 8~11. Please look over the information before you begin setup procedure.

Setup Overview You will be performing the following tasks:

• Setting the language you want on-screen displays to appear in (English, Spanish, French.)

• Telling the VCR what kind of equipment you are using to receive channels and how it is connected.

• Entering pertinent cable box or DSS receiver information if used.

• Entering a local PBS channel so that the VCR can receive auto clock set data. (Not available in all areas.)

• Placing channels in memory and setting the clock.

Please Note Which Connection Type You are Using.

Make sure all equipment is hooked up as described on pages 8~11. The diagrams below illustrate some of the basic connection types. Confirm which type you used for later reference.

ONE TIME SETUP IMPORTANT NOTES:

• For detailed DSS receiver connection instruction, please see your DSS operating manual.

• The DSS receiver must be turned off to view programs from the cable box or antenna.

• If you use a DSS receiver, it must be turned off for auto clock set.

• If your cable box is not remote controllable, it must be tuned to your PBS channel.

• If you use Audio/ Video Jack connection between the VCR and cable box or DSS receiver, you must also connect the RF coaxial cable in order to use auto clock set and channel auto set features.

For assistance, call 1-800-211-PANA(7262).

‘Important: if the remote control POWER, ACTION, PROG, CHA/T, INDEX/ M/A SKIP, NUMBERED keys,

INPUT, TAPE POSITION, or ADD/DLT button does not work when pressed, press the VCR button

on the remote and try the button again.

Cable Box/ DSS Receiver Code Number List

If your cable box or DSS receiver is remote controllable, refer to this list during setup on page 8.

Cable Box

Brand_________________________________Code Number Brand

Archer.......................................................... 01, 05, 06, 44, 63

Cabletenna................................................................01, 44, 63

Cableview

Century................................................................44, 51, 59, 75

Citizen Components

Curtis...................................................................08, 09, 53, 61

Diamond Eagle

Eastern...................................................................................28

GC Brand

Gemini....................................................................................04

Genera! Electric..............................................................01, 57

General Instruments

....................................

Hamlin

Hitachi..............................................................................31, 79

Jasco......................................................................................04

Jerrold

Macom...................................................................................31

Magnavox Matsushita

Movietime...........................................................32, 39, 42, 44

NEC............................................................................ 32, 38, 40

NOVAVISION......................................................08, 09, 53, 61 .

NSC............................................................................32, 38, 40

Oak Oak Sigma

Panasonic.........................................................................16, 17

Philips

Pioneer..............................................................................05, 06

Pulsar....................................................04, 30, 42, 44, 52, 63

Quest.................................................................................05, 06

Radio Shack.......................................................44, 51, 59, 75

RCA................................................................................... 16, 17

Realistic..............................................................44, 51, 59, 75

.....................................

...................................................

.......................................................

....................................................................

...............................................

..............................................

......................................

........................

..............................................................................

.......................................................................

..........................................................................

..............................................................

...................................................

01, 02, 03, 04, 34, 55, 65, 67, 68,83

01, 02, 03, 04, 34, 55, 65, 67, 68, 83

........

04, 30, 42, 44, 52, 63

13, 20, 22, 26, 40, 58, 62

04, 30, 42, 44, 52, 63

14, 15, 28, 41, 102, 103, 104

07, 13, 20, 23, 24, 50

32, 39, 42, 44

01, 44, 63

16, 17

11, 46, 101 11,46, 101

___________________________________ Recoton Regal Regency Rembran

■ Samsung

Scientific Atlanta................................................08, 09, 53, 61

Sheritech................................................................................27

Signal......................................................................................26

SL Marx Spucer

Standard Components......................................32, 39, 42, 44

Stargate

Sylvania..................................................................................19

Teknika...................................................................................74

Telecaption............................................................................77

Teleview Texscan

Tocom.......................................................... 01, 33, 34, 42, 66

Toshiba..................................................................................3'6

Unika...........................................................................01, 44, 63

Universal

Videoway.................................................................... 07, 23, 50

Vid Tech..................................................................................64

Vidtek.................................................................................36, 64

Viewstar.......................................... 13, 20, 22, 26, 40, 58, 62

Zenith..........................................................................07, 23, 50

.......■....

.......................................

..............................................................................

^...............................................44, 51, 59, 75

..................................................................................

.........................................

...................................................

....................................

............................

..............................................................

.............................................................................

....................................................

14, 15, 28, 41, 102, 103, 104

01,29, 32, 39, 42, 44, 63

05, 06, 32, 40, 42

06, 32, 40, 42, 43, 44, 52, 63

04, 06, 30, 32, 40, 42, 44, 52, 63

06, 32, 40, 42

42, 43, 44, 52, 63

DSS (Digital Satellite System Receiver)

Toshiba

..............................................................................

Hitachi

....................................................................................

Hughes...................................................................................93

Magnavox/ Uniden 1 ............................................................94

Magnavox/ Uniden 2

Panasonic..............................................................................96

RCA.........................................................................................97

Sony............................................................................... 98, 105

............................................................

Code Number

16, 17

18, 19

■ 92 93

During setup you will be instructed to enter your brand code number. As some brands have multiple codes, it may be necessary to try different codes to attain the proper results. These codes are for Cable box or DSS Box setup for Auto Clock and VCR Plus+ recording only. For TV/ Cable Box Multi-Brand Control operation, please see page 22.

Positioning Your Cable Box or DSS Receiver

If your cable box or DSS receiver is remote controllable, place it on or near the VCR as shown in the example right. The VCR transmits an infrared signal from two locations. Be sure not to cover the transmitter windows.

One Time VCR Setup (continued)

When VCR is turned on the first time.

• Setup mode is entered automatically.

• Self Demo Mode is started automatically on Multi Function Display. When you set the clock, it is canceled. (For details, see page 55.)

Turn the TV and VCR on.

■ SELECT LANGUAGE .

PUSH VCR CH A; ENGLISH OPRIMIR VCR CH T: ESPAÑOL APP. VCR/TV : FRANÇAIS

(TV Screen)

Press POWER.

Tune to VCR output channel.

Tune TV to CH3 or CH4.

(Same as back of VCR)

■ Always tune TV to this channel to

monitor the VCR.

• If you used audio/video jack connection, tune the TV to its video input.

Select the language.

Use remote or VCR buttons. If wrong language is set, do

“Reset All VCR Memory Functions” steps on page 44.

Process of Setup

Language Cable/DSS Receiver

Channels Clock

1 3

for English

for Spanish (ESPAÑOL)

for French

(FRANQAIS)

1 POWER

3 VCRn'V

SELECT HOOKUP

CABLE/DSS BOX^VCR^TV

VCR^CABLE/DSS BOXIt-TV

VCn^TV

SELECT

A ▼ KEY ► KEY

SET

ACTION KEY

END

SELECT HOOKUP

CABLE/DSS BOX^VCR^TV

CABLE/DSS BOX OUTPUT CH

:A T KEY

SELECT SET END

• If necessary, refer to cable box manual.

• If you used Audio/ Video jack connection to cable box, set

“VIDEO OUT.”

• If both cable box and DSS receiver are used, set output channel

of DSS receiver.

► KEY

¡ACTION KEY

Select hookup.

1) Press AT to

2) Press ► to set.

If you selected “CABLE/ DSS BOX

► VCR ► TV,” continue with step 5.

(Only cable box output channel will be placed in memory.) If not, go to “Alternate Instructions” on page 11.

Select cable box or DSS receiver output channel.

1) Press AT to

2) Press ► to

select.

enter.

4 SELECT/

A .-PLAY

3 CHAT

For assistance, call 1-800-211-PANA(7262).

SET

T ¡STOP ► :FF

Important: If the remote control POWER, ACTION, PROG, CHA/T, INDEX/ M/A SKIP, NUMBERED keys,

INPUT, TAPE POSITION, or ADD/DLT button does not work when pressed, press the VCR button on the remote and try the button again.

ENTER CODE NUMBER

REFERRING TO MANUAL

SELECT:* T KEY SET :► KEY END :ACT I ON KEY

If cable box or DSS receiver has no remote control, select “NO REMOTE.” Then, go to “Alternate Instructions” on page 11.

This determines whether VCR will control cable box or DSS receiver.

PLEASE TUNE YOUR CABLE BOX TO CH02.

PLEASE TUNE YOUR DSS RECEIVER TO CH 270.

PROCEED:► KEY END : ACTION KEY

----------

i If Cable Box

(S YOUR CABLE BOX

RECEIVING CH 09 ?

IS YOUR DSS RECEIVER

RECEIVING CH 200?

SELECT:* ▼ KEY SET :► KEY

END ;ACTION KEY

If Cable Box

If OSS Receiver

YES

(SSI

If DSS Receiver

YES

'I Select cable box or

DSS receiver code.

(Refer to the list on page 7.)

1) Press AT to

select.

2) Press ► to enter.

Tune Cable box or DSS

Receiver channel.

1) If Cable box, tune it to channel 02. If DSS receiver, tune it to channel 270.

2) Press ► to continue.

“NOW TRANSMITTING" appears.

Set receiver channel.

1) Press AT to

select “YES” or “NO.”

2) Press ► to enter.

If “YES” with cable box, go to step 9.

If “YES” with DSS receiver, go to “Alternate Instructions” on page 11.

If “NO,” the screen in step 6 will appear. Try entering a different code and/ or repositioning the equipment (see page 7.) It still “NO,” cable box or DSS receiver is not available.

For channel and clock auto set, press ACTION to display the “SET UP CHANNEL” screen. Then, press AW to select “AUTO SET.”

Now, press ► and CHA to start.

PLEASE ENTER YOUR LOCAL PBS CHANNEL ON CABLE BOX

* ▼ KEY

SELECT SET END

► KEY

ACTION KEY

saa

Confirm that cable box is on and that DSS receiver is off.

Select local PBS channel

on cable box.

1) Press AT to

select.

2) Press ► to set.

Continued on the next page...

One Time VCR Setup (continued)

Start Clock Auto Set.

CLOCK AUTO SET

CONNECT ANTENNA CABLE AND IF YOU USE A CABLE BOX,TUNE IT TO YOUR

LOCAL PBS CH THEN. . . PLEASE PUSH CH UP KEY

Press CHA.

• “AUTO CLOCK SET PROCEEDING” appears.

Confirm that time is

SETTING ; CH 02 AUTO CLOCK SET

COMPLETED

; PUSH CH UP KEY

END

DST:ON

correct.

Press CHA

to exit.

4/2000 TUE 12:00PM

If displayed time is incorrect...

If your area observes DST (daylight saving time), but the

time is incorrect: do ‘Time Zone Adjust” steps on page 43. Or, if you use cable box and receive more than one PBS

station, try auto clock set again entering the one you have

not tried yet {See “Clock” on page 42.)

If the screen below appears...

Auto clock set data is not available in your area. Press ACTION to display Manual Clock Set screen, and then do steps b) ~ d) on page 11.

Process of Setup

LEanguageESiGable/D.SSiReaejyeri^

1 II-4^

loi

3 U-

-------------------------

/fŒh

^..1. ,

10-11

SELECT/ SET

A:PUY ▼ :STOP ► :FF

ACTION

AUTO CLOCK SET

IS INCOMPLETE

PUSH ACTION TO SET CLOCK

To Setup VCR in Case a Cable Box or DSS

Receiver was Installed or Replaced.

a Press ACTION to display Menu.

------------------

b Press AT to select “SET UP

CHANNEL,” then press ►.

c Press AT to select “CABLE/ DSS

BOX SET UP,” then press ►.

d Press AT to select “CABLE/ DSS

BOX ► VCR ► TV,” then press ► to set.

e Continue with steps 5-8 oh '

pages 8~9.

Auto dock set will be performed when VCR is turned off the first time each day. Therefore, cable box must be left on and tuned to

PBS channel before VCR power is turned off.

------ANTENNA : CABLE AUTO SET CHANNEL CAPTION WEAK SIGNAL DISPLAY : OFF

VCR PIUS+ CH SET UP

--------------------

SET UP VCR SET UP FEATURE SET CLOCK

SET UP CHANNEL

ID IОМД/ LANGUE: ENGL I SH

SELECT:A ▼ KEY SET :► KEY END : ACT I ON KEY

SET UP CHANNEL

SELECT:* T KEY SET :► KEY END lACTtON KEY

-------------

Ю CH A

---------

Using AWM ► keys -

You can also operate the menu screen using VCR buttons.

If you use VCR buttons,

press CHA and CHV together to display the menu screen.

A : PLAY ▼ ; STOP ◄ ; REW ► : FF

When menu screens are displayed, PLAY, STOP, REWIND, and FF buttons function as ATM ► only.

For assistance, cali 1-800-211-PANA(7262).

‘Important: If the remote control POWER, ACTION, PROG, CH A/T, INDEX/ M/A SKIP, NUMBERED keys,

INPUT, TAPE POSITION, or ADD/DLT button does not work when pressed, press the VCR button on the remote and try the button again.

Alternate Instructions

complete steps below if any of the following applies:

• Selected connection type B (VCR ► CABLE/DSS BOX ► TV or VCR ► TV) in step 4, page 8.

• Selected “NO REMOTE” in step 6, page 9.

• Selected “YES” with DSS receiver in step 8, page 9.

CHANNEL/CLOCK AUTO SET

CONNECT ANTENNA CABLE AND IF YOU USE A CABLE BOX, TUNE I T TO YOUR LOCAL PBS CH THEN. . .

PLEASE PUSH CH UP KEY

4/2000 TUE 12:00PM

SETTING : CH 02 AUTO CLOCK SET

END : PUSH CH UP KEY

COMPLETED

DST:ON

Clock Setup Incomplete...

AUTO CLOCK SET

IS INCOMPLETE

PUSH ACTION TO SET CLOCK

Start Channel Auto Set and Clock Auto Set.

• The following messages appear. “CH AUTO SET PROCEEDING” “AUTO CLOCK SET PROCEEDING"

Confirm that time Is correct.

Press CHA to exit.

Set the clock manually.

a) Press ACTION.

b) Press AT to

select month.

SELECT/ SET

A:PLAY

T iSTOP

◄ :REW ► :FF

ACTION

CHA

SELECT MONTH

SELECT:A ▼ KEY SET :► KEY END :ACTION KEY

----------

SET CLOCK

1/ 4/2000 TUE 12:00PM

ET COMPLETED

SET :•< ► KEY START : ACT I ON KEY

------------

DST:ON

• Likewise, set date, year, time,

To Make Corrections,

DST (Daylight Saving Time).

repeatedly press ◄ ► to move

to error, then correct.

c) Press ► to set.

d) Press ACTION.

(Clock starts.)

• To exit this mode,

press ACTION again.

If you use a DSS receiver, it must be turned off.

If displayed time and DST are incorrect...

If you use cable box and receive more than one PBS station, try auto clock set again entering the one you have not tried yet. (See “Clock” on page 42.) If you happen to live close to two time zones, VCR may have recognized PBS channel (setting channel) in the wrong time zone. Please do the following to correct the situation.

1) Make a note of SETTING ; CH number shown on screen and press CHA to exit,

2) Delete the channel from VCR memory. (See “Add or Delete a Channel” on page 43.)

3) Press ACTION to display the menu.

4) Press AT to select “SET CLOCK,” and then press ► to display the SET CLOCK screen.

5) Press AT and ► to select and set “AUTO CLOCK SET.”

6) Follow One Time VCR Setup instructions on page 8~11.

• If you use cable box and have multiple PBS stations, tune cable box to a different PBS station and try

auto clock set using the menu.

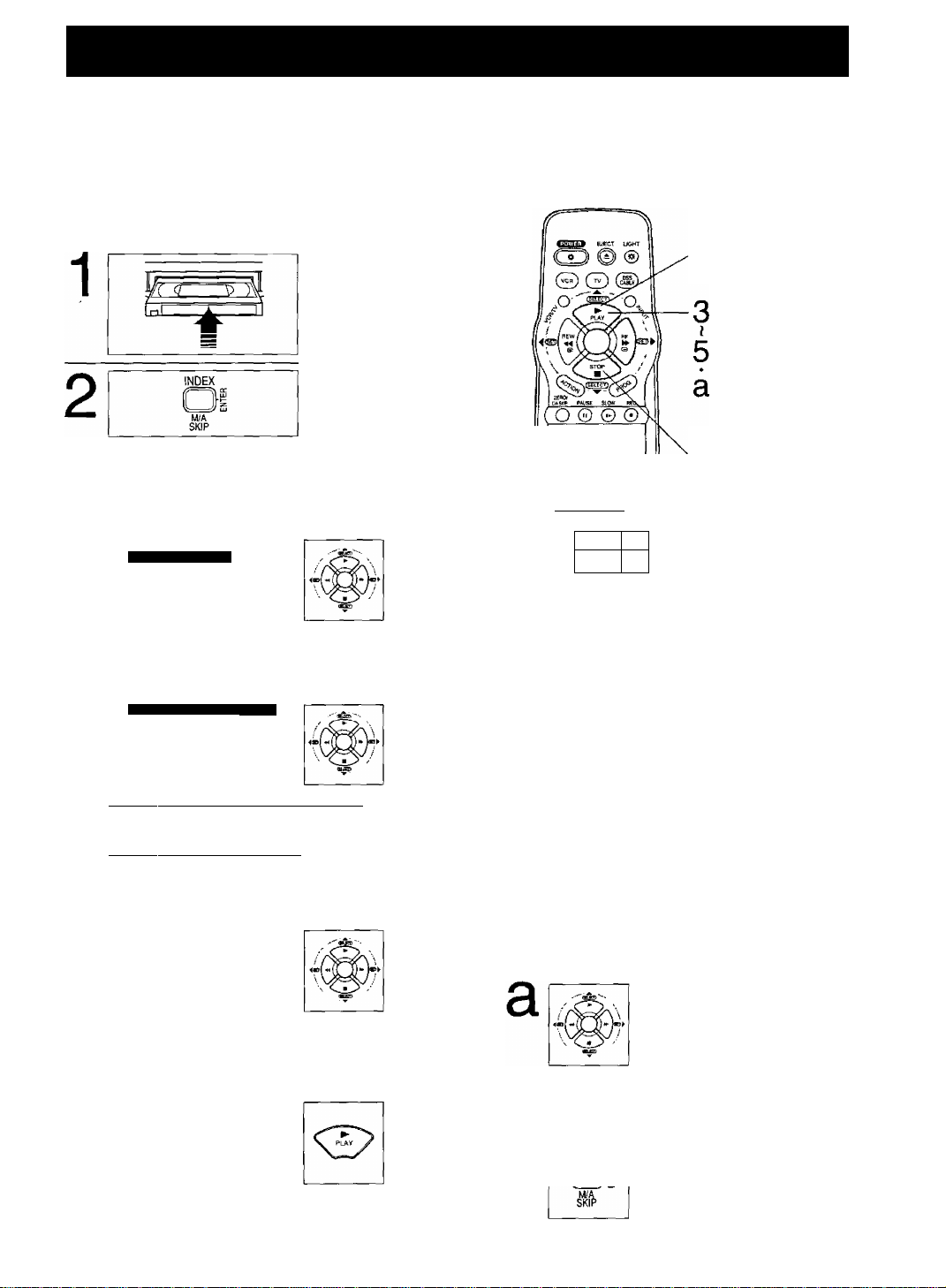

Playback a Tape

Check list before you begin.

[^c

□ All connections are made. Q TV and VCR are plugged in.

'D TV is turned on and set to the VCR channel (CH 3 or 4).

□ Remote is in VCR mode.

insert a cassette.

• VCR power comes on and VCR appears on Multi Function Display.

Press PLAY.

• Playback begins if cassette has

no record tab.

To Find a Particular Scene

Forward Search --> Press FF. Reverse Search --> Press REW.

For Slow Motion --> Press SLOW.

(To release, press SLOW.)

For Still (Freeze) picture --> Press PAUSE.

(To release, press PAUSE.)

For Frame by Frame picture --> Press SLOW in Stilt mode.

(To release, press PAUSE.)

To reduce picture noise, see “Manual Tracking Control" on page 45. After the VCR is in Still or Slow mode for 3 minutes, it will switch to Stop mode automatically to protect the tape and the video head.

• To prevent tape jam

Inspect your cassette tapes and remove any loose or peeling labels.

I To stop --> Press STOP.

I To rewind tape --> Press REW in Stop mode. I To fast forward tape --> Press FF in Stop mode.

I To eject tape --> Press EJECT on the remote or

STOP/ EJECT on the VCR.

Piayback using VCR controis

11nsert a cassette.

2 Press PLAY.

©©0 a L_

I Press to stop

and/ or eject tape.

For assistance, cali 1-800-211-PANA(7262).

Record On a Tape

‘Important:

If the remote control POWER, ACTION,

PROG, CH MfW, INDEX/ M/A SKIP, NUMBERED keys, INPUT. TAPE POSITION, or ADD/DLT button does not work when pressed, press the VCR button on the remote and try the button again.

Check list before you begin.,

[^C

□ All connections are made.

IZI TV is turned on and set to the VCR channel (CH 3 or 4).

D Cassette with record tab in place.

□ Remote in VCR mode.

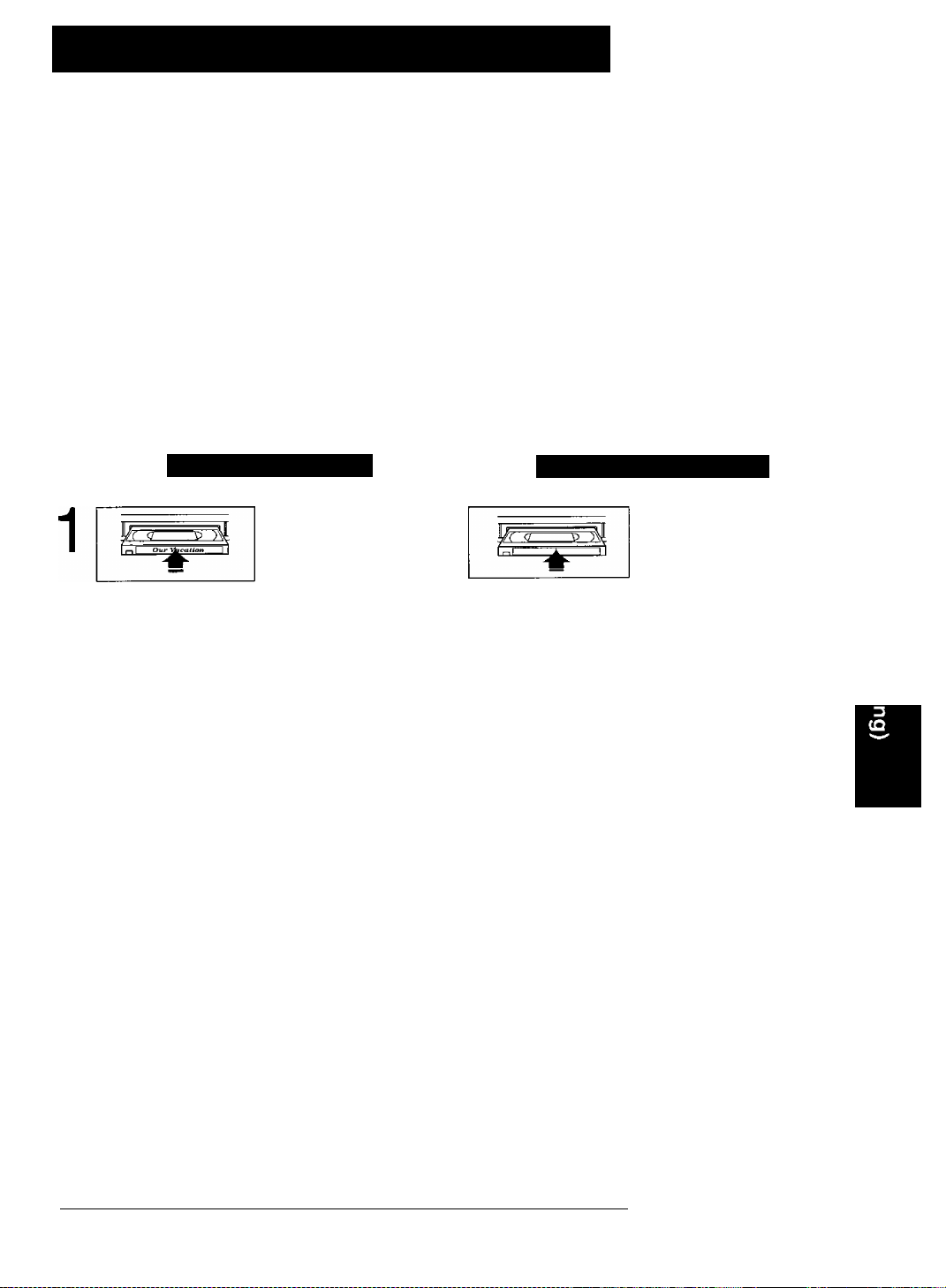

Insert a cassette.

* VCR power comes on

automatically.

Select Channel.

O © ©

©©©,,yi

Press CH ¿HJW* or NUMBERED keys.

• To select “LINE”, see page 31.

• To select channels over 100, first press 100 key, then enter remaining two digits.

Select Recording speed.

(See page 44.)

Press SPEED.

• SP = Standard Play SLP = Super Long Play

• Selected speed is displayed on TV screen and Multi Function Display.

After the VCR has been in Pause mode for 5 minutes, it will stop automatically to protect the tape and the video head.

Start Recording.

Press REC.

• To edit out unwanted portions,

press PAUSE to pause and resume recording.

I To stop --> Press STOP I One Touch Recording

Press REC repeatedly to set the recording length (30 min. - 4 hours).

* The VCR turns itself off at a preset time.

►Normal Rec—►0:30—►1:00^

(

4:00-*—3:00-^2:00-^ 1:30-^

I Record One Program While Watching Another

Press VCR/TV--> “VCR” disappears on Multi Function Display

--> Select Channel at the TV.

I Selecting Channel at the VCR

Press VCR/TV-> ‘VCR” appears on Multi Function Display

--> Select Channel at the VCR.

Advanced Connections

# /^ .• Make sure to tune TV to VCR output channel the same one you set on

CATV Connoction back of VCR; CH3 or CH4.

With a Cable Box (Cable Box^VCR)

/ ANT \

\ CATV /

With a Cable Box (VCR-^ Cable Box)

CABLE BOX

All connections on these pages are made with 75 Ohm coaxial cables.

CABLE BOX

With Two Cable Boxes

r' ANT \

\ CATV /

DSS RECEIVER

IN IN

^ OUT(^

SATELLITE I

L f

* DSS® is a registered trademark of DIRECTV,

INC., a unit of GM Hughed Electronics.

VCR

IN FROM ANT.i OUT TO TV

Lf_

For assistance, call 1-800-211-PANA(7262).

You Can

You Cannot 1

AudioA/ideo Connections

• record or view any (including scrambled) channei.

• use VCR Remote Control to select channels using Multi- recording of a brand control feature.

^ • view any (including

' scrambled) channel.

• use VCR Remote Control to select

channels without

using Multi-brand

' control feature.

• record and view both scrambled and

unscrambled channels if additional equipment is added. This connection

requires: two converter boxes. an A/B switch, and a 2-way splitter.

• view channel other than the one selected for any type of recording.

• do a Timer channel unless you

select it at the cable box.

• record scrambled channels.

• view channel other than the one selected for any type of recording.

• do a Timer recording of a channel unless you select it at the cable box.

To use your TV as a VCR monitor, set the VIDEO/TV selector on the TV (Monitor/Receiver) to “VIDEO.”

Use the L Audio IN jack for proper sound reproduction when connectiong to a monaural TV.

• record and view any (including scrambled)

channel.

• use your VCR Remote Control to

select channels

using Multi-brand

control feature.

NOTE;

DSS receiver must be turned off to view cable

box or antenna programs.

• view channel other than the one selected for any type of recording.

• do a Timer recording of a channel unless you select it at the DSS receiver,

Note to CABLE system installer:

This reminder is provided to call the CABLE system installer’s attention to Article 820-40 of the NEC in USA (and to the Canadian Electrical Code in Canada) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

FCC Warning: Any unauthorized changes or modifications to this equipment would void the user’s authority to operate.

This video recorder, equipped with the HQ (High Quaiity) System, is compatible with existing VHS

equipment. Only use those tapes with the iVHSi

mark, it is recommended that only cassette tapes

that have been tested and inspected for use in 2,

4. 6, and 8 hour VCR machines be used.

Timer Recording

You can set up to 8 programs to be recorded while you are away.

1 Display SET PROGRAM.

Press PROG.^

■— SET PROGRAM --

VCR Plus^ PROGRAM

TIMER PROGRAM

:A T KEY

SELECT SET

:► KEY :PROG KEY

END

You may not use the VCR buttons on “SET PROGRAM” screen.

Example 9

Today—7 SELECTA/T Selection Order

(SAT)

■■■31— 1 —2'

(^WEEKLY _WEEKLY WEEKLY _J

Display Program screen.

1) Press AT to select

2) Press ► to display.

• If a program is already in

Set the recording DATE.

1) Press AT to select.

2) Press ► or ◄ to set.

• 1~31 = One time

'• DAILY = MON-FRI

• WEEKLY = Same time

Channel {or LINE for

(MON)

(SUN)

outside source), Category*' tape speed (SP, LP, SLP).

TIMER PROGRAM.

memory, press AT and

► to select an unused

program number.

once a week

Repeat step 3 to set:

s^op time

Check list before you begin.

All connections are made.

□

(See pages 4-5.) TV and VCR are plugged in and turned on,

□

VCR/TV selector is set to “VCR.”

□

Clock is set to correct time.

□

Record tab in place. (See page 44.)

□

Remote in VCR mode.

□

у POWER

SELECT/

0 SET

AiPLAY

1 T :STOP

5 -^;REW

► :FF

DATE START STOP CH

8 SAT 10:00P 12;OOP 02

TODAY ABC CATEGORY: MOV IE SP

SET COMPLETED

WISH TO make NOTES:a KEY

SET ► KEY

DATE START STOP

8 SAT 10:0OP 12:00P 02

TODAY CATEGORY:MOVIE NOTES :H

MAKE NOTES

iMJblltl«lAMIiliMli>,^Etg

If you use DSS receiver and enter a channel number of 1{X)~125, select “DSS” or CABLE.

--------------

SELECT:A T KEY SET :► KEY END :PROG/ACTION KEY

P DT START STOP CH SPd' 2

-----------

---------

SELECT

ADD/Dl 1 -S:a

CANCEL

-T KEY T KEY

ABC

Make the notes.

'• If not wanted, go to step 5.

1) Press A to begin.

2) Press AT to select.

3) Press ► to set.

• Characters will change in

the following order.

|—A** B** C♦ Z« BLANK---^

-------------

4) Press PROG (or

End the program.

Press PROG

{or ACTION).

• If start time of programs overlap, these programs will flash.

■2—1—0’V—!’

ACTION) to end.

-------

1) Press AT to

IS IT CABLE OR DSS

RECEIVER?

ВЕЯ

CABLE

SELECT;A T KEY

SET :► KEY

To Enter More Programs

Press AT to select, and ► to display a blank program number.

Then repeat steps 3 and 4,

The confirmation screen appears above left after this selection.

select.

2) Press ► to enter.

For assistance, call 1-800-211-PANA(7262).

Category Items

N/A(not applicable),'SPORTS, MOVIE, COMEDY, MUSIC, DRAMA

Using AT^ ► keys

You can also operate the menu screen using VCR buttons.

If you use VCR buttons, press CH Aand CHTtogether to display the menu screen.

A; PLAY T:STOP ◄ : REW

► :FF

When menu screens are displayed, PLAY, STOP, REWIND, and FF buttons function as AT-4 ► only.

Important; If the remote control POWER, ACTION, PROG, CHA/T, INDEX/ M/A SKIP, NUMBERED keys,

INPUT, TAPE POSITION, or ADD/DLT button does not work when pressed, press the VCR button on the remote and try the button again.

-To cancel Timer Recording-

Exit program mode.

Press PROG {or ACTION).

Set timer.

Press POWER OFF.

• When recording programs via a cable box, make sure the cable box is left ON and tuned to the desired channel.

TIMEP

Multi Function Display

(Recording is in progress)

Press POWER and then STOP within 10 seconds to cancel the Timer recording. (“TIMER” goes out on Multi Function Display.)

— To review program —

contents on the VCR

Recording is not in progress

— You can also display Program screen from Menu

1) Press ACTION to display Menu.

• You can also set up using VCR buttons. See the bottom right of the page 16.

2) Press AW and ► to select and set SET UP FEATURE.

3) Press AT to select TIMER PROGRAM and press ► to display Program screen,

4) Go to step 3 on the page 16.

---------------

Press PROG in Power Off mode. Every time that butoon is pressed, the program contents are indicated in turn on the Multi Function Display.

Recording is in progress

Press PROG. The program content which advances at present is indicated on the Multi Function Display.

-------Important notes when using a DSS receiver

When recording programs via a DSS receiver, the DSS receiver must be left on.

When recording programs via an antenna or cable, the DSS receiver

must be turned off.

Review, Replace or Clear Program Contents:

(Recording is not in progress)

Repeat steps 1-2 on page 16.

• If necessary, press POWER ON.

P DT START STOP CH SPD 2 8 10 : OOP 12 : OOP 02 SP

3 10 8:OOP 9:OOP 10 SP 4 SU 9:OOP 10:OOP LI LP

CANCEL:ADD/DLT KEY SELECT 1-8:i T KEY

To Replace program...

bAtSI/ START STOP

8 SAT 10:OOP 12:00P 02

rOBAYN ABC CATEGORY:MOV IE SP

NOTES-STAND BY ME

SELECT START DATE

SELECT:A ▼ KEY SET :■ * > KEY.

To Clear program...

ip DT START STOP

□

-----------

2 8 10:00P12:00P 3 10 8:OOP 9:OOP 4 SU 9;00P10:00P

—

02 10

Select program.

SPD

SP SP

1) Press AT to select number.

1) Press ► to display.

2) Press AT ◄ ► to set new program contents.

1 ) Press ADD/DLT.

-------

( lli-1 1 i

Multi Function Display

______

h SELECT/

•^SET

A:PLAY

C T:STOP

◄ :REW ► :FF

d PROG

d ACTION

C add/

DELETE

SELECT 1-8:* T KEY

_ENTER_:^„ KEY

_________

End the program.

1) Press PROG (or ACTION).

• If there are programs, press POWER OFF.

Timer Recording Using VCR Plus+ System

Auto VCR Plus+ System Channel Setup (Part

In order for VCR to read VCR Plus+ code, some set up is required. Guide (VCR Plus+) channel number is assigned to each local broadcast and cable station. Because this number sometimes differs from channel TV receives station on, it is necessary to program the VCR with local channel information. To receive VCR Plus+ channels automatically, perform the steps below. Or, see “Manual VCR Plus+ System Channel Setup" section on page 20.

SET UP VCR SET UP FEATURE SET CLOCK

SET UP CHANNEL

ID I ОМА/LANGUE:ENGL ISH

SELECT:A T KEY SET :► KEY

-------

SET UP CHANNEL ANTENNA : CABLE AUTO SET CHANNEL CAPTION WEAK SIGNAL DISPLAY : OFF CABLE/DSS BOX SET UP

VCR PIUS+ CH SET UP

SELECT:A T KEY SET

A T KEY

SELECT

► KEY

SET END

ACTION KEY

VCR Plus+ CH SET UP

ЫН1>».ЧЯ1

MANUAL SET

___

:^_KEY

----------

___

)

Display menu.

Press ACTION.*

Display SET UP CHANNEL

1) Press AW to

select.

2) Press ► to display.

Display VCR Plus+ CH

SET UP.

1) Press AT to select.

2) Press ► to display.

Select AUTO SET.

1) Press AT to select.

2) Press ► to set.

VCR Plus+ System is ...

a feature that allows you to set most items of a timer recording by simply entering a special code number (PlusCode programming number) found in TV GUIDE and selected newspaper TV listings.

Process of Recording

Programming

Important Note

• “One Time VCR Setup” on pages 6-11 must be completed before “Auto VCR Plus+ System Channel Setup” can be done.

If any part of setup is incomplete, a warning screen appears.

• If your VCR connection type changes from type A to B, on page 6, perform “To Setup VCR in Case a Cable Box or DSS Receiver was Installed or Replaced” section on page 10 before proceeding with these steps.

• Complete this page only if type B connection (see page 6.) is used.

SELECT/

SET

I A :PLAY

T :STOP

◄ :REW ► :FF

VCR PIUS+ CH SET UP

PLEASE ENTER ZIP CODE

ZIP CODE: B----------SELECT:A T KEY

SET :► KEY END :ACTION KEY

PLEASE SELECT HOW OFTEN TO UPDATE

EVERY NIGHT EVERY MONDAY NIGHT

Enter Zip Code.

1) Press AT ◄ ►

to select and enter each

number,

2) Press ► or ACTION to set.

Select When to Update.

1) Press AT to

select.

2) Press ► to set.

End setup.

Press ACTION.

Make sure to leave VCR off (overnight.) If controllable, leave your cable box on.

1 ACTION

5 7

Make each entry within 5 minutes or VCR will leave this mode.

Once local channels have been programmed, they will stay in memory, even in the case of a power failure.

“ALL SET’ will flash on Multi Function Display during Auto VCR Plus+ System Setup.

If the start time for a timer recording comes

up during Auto VCR Pius+ System Setup, the timer recording will have priority.

For assistance, call 1 -800-211 -PANA(7262).

‘Important: If the remote control POWER, ACTION, PROG, CHA/v, INDEX/ M/A SKIP, NUMBERED keys,

INPUT, TAPE POSITION, or ADD/DLT button does not work when pressed, press the VCR

button on the remote and try the button again.

Auto VCR Plus+ System Channel Setup (Part

Before you perform the following steps, you should have:

•completed “Auto VCR Plus+ System Channel

Setup (Part 1)” on page 18.

•left VCR off overnight, and turned it back on

after 9:00 AM the next day.

If channel updating was

successful.■■

Exit this mode.

VCR PIUS+ CH SET UP

VCR PIUS+ CH SET COMPLETED

END :ACTI ON KEY

Press

ACTION.

SELECT VCR Plus+ CH

KMEX KCAL KWHY KVCR ►

110

101

SELECT;A T ► KEY SET :ADD/DLT KEY END :ACT I ON KEY

)

If VCR could not distinguish channel map...

VCR PIUS+ CH SET UP

PLEASE SELECT VCR PIUS+ CHANNEL

NEXT :ACTION KEY

Display SELECT VCR PIUS+ CH.

Select channel map for your area.

1) Press ACTION to display.

2) Continue with step 2.

1) Press AT ◄ ►to select.

2) Press ADD/ DLT to set.

Process of Recording

Programming

SELECT/ SET

A :PLAY

T :STOP

◄ :REW

► :FF

*| ACTION

ADD/ DELETE

VCR PIUS+ CH SET UP

PLEASE LEAVE VCR OFF

AND CABLE BOX ON OVERNIGHT

: ACT I ON KEY

END

Channel map will be updated overnight.

If it was successful. “VCR Plus+ CH SET COMPLETED"

appears on screen. And then, press ACTION to exit.

Repeat these steps as necessary.

If Auto Setup fails, do “Manual VCR Plus+ System Channel,Setup” on page 20.

End Setup.

Press ACTION.

Make sure to leave VCR off

overnight. If controllable,

leave your cable box'on.

To Change or Update Auto VCR

Plus+ System Channel Setup

(E.g. you selected wrong channel map or

zip code.)

a Do “Auto VCR Plus+ System Channel

Setup (Part 1)" steps 1-4 on page 18.

VCR PIUS+ CH SET UP

SELECT VCR PIJS+ CH

SELECT:A T KEY SET :► KEY END :ACT I ON KEY

b Press AT to select UPDATE VCR Plus+

or SELECT VCR Plus+ CH, then press ►.

C If you selected UPDATE VCR Plus+ CH,

perform steps 5-7 in the “Auto VCR Plus+ System Channel Setup (Part 1)” section on page 18.

If you selected SELECT VCR Plus+ CH. perform steps 2-3 in the “Auto VCR Plus+ System Channel Setup (Part 2)” section on this page.

Timer Recording Using VCR Plus+ System

(continued)

Manual VCR Plus+ System Channel Setup

• Before you begin, complete “Channel Setup

Preparations” below right.

Important Note

Do “Auto VCR Plus+ System Channel Setup (Part 1),” steps 1-3 on page 18.

VCR PIUS+ CH SET UP

IMPORTANT NOTE: For step 3, use the list you prepared. You may leave lines blank if you do not receive that station, or If the GUIDE CH number and the CABLE (or TV) CH numbers are the same.

To make corrections.

Press AT and ► to move to error, then AT to change, or ADD/DLT* to erase number.

Make each entry within 5 minutes or the VCR will leave this mode. Once local channels have been programmed, they will stay in

memory, even in the case of a power failure.

VCR P1US+, C^ ALL SET, and PlusCode are registered trademarks of Gemstar Development Corporation. The VCR PlusH- system is manufactured under license from Gemstar Development Corporation.

AUTO SET

MANUAL SET

SELECT

* ▼ KEY ► KEY

SET

ACTION KEY

END

VCR Plus+ CH SET UP GUIDE CH CABLE CH

► EB

SELECT

i ▼ KEY

SET

► KEY

END

ACTION KEY

VCR PIUS+ CH SET UP GUIDE CH CABLE CH

SELECT

A ▼ l«Y

SET

<■ KEY

ACTION KEY

END

Select MANUAL SET.

1) Press AW

to select.

2) Press ► to set.

Select VCR Plus+ channels.

1) Press ► to move cursor

to right column.

2) Press AT to change CABLE (or TV) CH number.

3) Press ◄ to set.

4) Press AT to scroll up/down GUIDE CH column.

• Repeat step 3 until list is

complete.

End setup.

Press ACTION

three times.

Process of Recording

c> Programming

SELECT/

SET

AiPLAY

T :STOP

◄ :REW ► :FF

4 ACTION

ADD/DELETE

Channel Setup Preparations

In order to complete step 3 left, make a local channel list (see example below).

You will need the following:

• A line up of normal TV and/ or Cable stations and

the channel number you receive them on.

• A list of Guide (VCR Plus+) channel numbers for the stations you receive found in TV Guide and selected newspapers.

1 Make a 3-column chart. In the left column, write

the name of all the stations you receive.

2 In the middle column, write each station’s Guide

(VCR Plus+) number from TV Guide.

3 In the right column, write the channel number

your TV receives the station on.

EXAMPLE ONLY

Broadcast or

Cable

Station Name

HBO

Nickelodeon

CBS 04

FOX

Assigned

Guide

(VCR Plus-i-)

channel no.

33 38

Channel no.

your TV

receives the

station on

20 04

For assistance, call 1-800-211-PANA(7262).

•Important: If the remote control POWER, ACTION, PROG, CHA/v, INDEX/ M/A SKIP, NUMBERED keys, INPUT, TAPE POSITION, or ADD/DLT button does not work when pressed, press the VCR button

on the remote and try the button again.

Check list before you begin.

Q The clock is set. □ VCR Plus+ System Setup is complete (see pages 18-20).

Display SET PROGRAM.

Press PROG.

..........

SET PROGRAM

VCR Plus+ PROGRAM

TIMER PROGRAM

SELECT SET

ENTER PLUSCODE NUMBER

To make corrections,

press A repeatedly to delete the PlusCode programming number.

TO SELECT PUSH 1,2 OR 3

* ▼ KEY ► KEY

END

PROG KEY

VCR Plus+

\ I / / I \

USING 0-9 KEYS

VCR Plus+

1 ONE TIME 2 DAILY(MON-FRI) 3 WEEKLY

--------

Display VCR Plus-iscreen.

1 ) Press AT

2) Press ►

Enter PlusCode programming number.

О © ©

0 © 0

О © ®

1) Press

2) Press PROG

Enter record frequency.

3) Press 1,2, or

to select.

to display.

Numbered keys.

to lock in the program.

3 key to select program type.'

Process of Recording

Setup i=>

7 POWER

SELECT/

SET

PROG

CD © О © ©

^ TAPE ^

О C__J O!

SPEE&

о Qi

S/WH-R

a®

0 ACTION q NUMBERED

keys

ADD/ DELETE

A:PLAY

T :STOP

◄ :REW ► ;FF

DATE START STOP

8 SAT 10:00P 12:00P 02

TODAY \ I / CATEGORY:N/A

............

SELECT CATEGORY

SELECT:* T KEY SET ► KEY END ;PROG/ACTION KEY

-/-f-V-

Select Category.**

Change record speed.

Repeat 1) and 2).

Make notes. —> Do step 4 on page 16.

• If not wanted, go to step 6.

P DT START STOP OH SPD 1 DAY 9:00A12:00A 08 SP

к»;ШДГ|МА1Д|1«|!Ш|У.ЖТЗ

---------:----------

---------;----------

CANCEL;ADD/DLT KEY SELECT 1-8;* T KEY ENTER :► KEY END :PROG/ACTION KEY

__ __ __ __

End programming.

these programs will flash.

Set timer.

Press POWER OFF.

1) Press AT to change.

2) Press ► set.

1) Press PROG

(or ACTION).

To cancel,

press ADD/DLT.

2) Press PROG

(or ACTION)

again to exit.

If start time of programs overlap,

riffP

Multi Function Display

** Category Items

N/A(not applicable), SPORTS, MOVIE, COMEDY, MUSIC. DRAMA

Use nonnal Timer Recording steps if:

• the PlusCode programming number for a

program is not listed.

• you anticipate the program, such as a sporting

event, to run over the scheduled stop time.

See page 17 to:

• cancel a timer recording in progress.

• replace program contents.

• review or clear program contents once set.

Important notes for DSS/Cable Box users

• When recording via DSS, the receiver,

must be left on,

• When recording via cable or antenna, DSS

receiver must be off.

Avoid overlapping program times. VCR PlusCode programming numbers

can not be used to program the VCR to record DSS channels.

Multi-Brand Control Feature

The Remote Control may be set up to control some TV. or Cable/DSS Box functions.

Multi-Brand Control Setup

Find your TV, Cable or DSS Receiver Brand Code Number on following page.

Setup for TV

and

O © ©

Setup remote.

Hold down TV and enter code

with NUMBERED keys.

Setup for Cable or DSS

Hold down DSS/CABLE and enter code with NUMBERED keys.

' For code 100 or greater, press the

100 key first, then remaining digit, e.g. for 102, press 100, then press 0, and then press 2.

Confirm code entry.

Please repeat Multi-Brand Control setup after replacing remote control batteries.

The remote control will not operate all TVs, Cable Boxes, and

DSS receivers made by manufacturers listed. If you get no

results, your particular brand cannot be controlled.

Using the Multi-Brand Control

After remote control is setup, you can select VCR, TV, or DSS/CABLE for the desired function.

Press VCR or TV or DSS/CABLE on the remote control.

This table shows which buttons are available for each mode.

Available

Press POWER to turn

selected unit ON or OFF.

See table below for list of controllable functions in each mode.

VCR

CABLE/ DSS

VCR TV

CABLE/ DSS

All Functions

VCR/TV, PLAY, STOP

EJECT, SAP/ Hi-Fi, DISPLAY, FF, REW,

PAUSE, SLOW, REC, SPEED, ZERO/ C/A SKIP, COUNTER RESET

VCR/TV, PLAY, STOP

EJECT, SAP/ Hi-Fi,

DISPLAY,FF, REW,

PAUSE,'SLOW. REC.

SPEED. ZERO/ C/A SKIP,

COUNTER RESET

In TV or DSS/ CABLE mode, it may be necessary to press ENTER after pressing NUMBERED keys for channel selection.

VOL UP/DOWN

POWER, INPUT, NUMBERED keys,

ENTER, CH UP/ DOWN.

VOL UP/DOWN

VOL UP/ DOWN POWER, ENTER,

NUMBERED keys (except lOOkey), CH UP/ DOWN

For assistance, call 1-800-211-PANA(7262).

TV Brand Code Numbers

Panasonic Quasar

RCA...........................

GE..............................

Zenith

Magnavox

................

......................

........................

.................

................

......................

01, 02 Sylvania 01,02 Sharp

03 Sony 03 Toshiba 04 Sanyo 05 Fisher

.........................

...................

.......................

....................

......................

.......................

Cable Box Brand Code Numbers

Archer

.....................................

Cabtetenna...........................................01,44, 63, 91, 126

Cableview Century Citizen

Curtis......................................................08, 09, 53, 61,87

Diamond...............................................01, 44, 63, 91, 126

Drake.................................................................................67

Eagle

Eastern.....................................................................28, 130

GC Brand

Gemini......................................................................04, 124

General Electric.........................................................01, 57

General Instruments

Hamlin

Hitachi...............................................................................31

Jasco Jerrold

Macom..............................................................................31

Magnavox...................................................................26, 112

Matsushita..................................................16, 17, 97, 109

Movietime .............................. 32, 38, 39, 40, 42, 44, 126

NEC...................................................................... 32, 38, 40

N0VAVIS10N NSC Oak Oak Sigma Panasonic Philips Pioneer Pulsar

......................

........................................................

............................

................................

.......................

..............

14, 15, 28, 41, 102, 103, 104, 108, 130

..........................................................................

...............................

...............................................

.....................................................................

....................................................................

........................................................

..................................................

...........................

.......................................................................

.............................

01,05, 06, 44, 63, 91, 126

04, 30, 42, 44, 52, 63, 124, 126

13, 20, 22, 26, 40, 58, 62, 107

04, 30, 42, 44, 52, 63, 124, 126

........

01, 02, 03, 04, 34, 55, 65, 67,

68, 83, 91, 115, 117, 118, 124

01, 02, 03, 04, 34, 55, 65, 67,

68, 83, 91, 115, 117, 118, 124

07, 13, 20, 23, 24, 50, 128, 129

04, 30, 42, 44, 52, 63, 124, 126

44, 51, 59, 75

08, 09, 53, 61

11, 46, 129 11,46, 129

16, 17, 97, 109

04, 124

32, 38, 40

05, 06

........................05 JVC...................................................11

.................

........................08 Mitsubishi

.......................

........................ 10 Gold Star

........................ 10

Quest...........................................

Radio Shack

RCA............................................................. 16, 17, 97, 109

Realistic

Recoton................................................44, 51, 59, 75, 126

Regal

Regency.....................................................................28, 130

Rembran................................. 01, 32, 39, 42, 44, 63, 126

Salora................................................................................68

Samsung

Scientific Atlanta...................................08, 09, 53, 61,87

Sheritech...........................................................................27

Signal

SL Marx......................06, 32, 40, 42, 43, 44, 52, 63, 126

Spucer.........................................................16, 17, 97, 109

Standard Components

Stargate ...........04, 06, 30, 32, 40, 42, 44, 52, 63, 124, 126

Sylvania............................................................................19

Teknika Telecaption

Teleview........................................................ 06, 32, 40, 42

Texscan Tocom

Toshiba.............................................................................36

Uniden Satélite

Unika

Universal

Videoway..................................................... 07, 23, 50, 129

Vid Tech............................................................................64

Vidter.................................................................................64

Viewstar Zenith

06, 07

...............................................

................

................................................

.........................................................................

.............................................................................

................................................................

......................................................................

..............................................

....................................................

.......................................

...........................

..........................................................

Hitachi

...................

Samsung

.................................................

14, 15, 28,41, 102, 103, 104, 108, 130

................................................................

...............

.......................

13, 20, 22, 26, 40, 58, 62, 107

..........................

...................

.............

..........................

.............

...............................

42, 43, 44, 52, 63, 126

44, 51,59, 75

44, 51, 59, 75, 126

05, 06, 32, 40, 42

32, 39, 42, 44, 126

01,33, 34, 42, 66, 91

01, 44, 63, 91, 126

07, 23, 50, 129

07. 13

15, 16, 17

05, 06

26, 112

77, 127

18, 19

Toshiba............................................................................ 92

Hitachi/ Hughes Magnavox/ Uniden 1 Magnavox/ Uniden 2 95

Due to changes in infra-red commands used by manufacturers, some brands have several codes. If your unit does not respond to the first code, please try the next one.

Some TV, Cable Box and DSS Receiver brands require you to turn on the power manually. Not all functions listed may be controlled by this remote control.

...............................................................

......................................................

93 94

Panasonic.........................................................................96

RCA...................................................................................97

Sony..........................................................................98, 105

Tape Operation

COMMERCIAi-'^AaVAftCB^

ccwwEfiOAi-^'-AOWWce* detects and marks the beginning and end points of commercials on your tape for recordings over 15 minutes in length. When COMMERCIAL-^^ABVAMCE* marked tape is played back, the VCR

automatically advances through the commercial segments at high speed.

You can also set this feature to Manual so as to have more control over

the advance process. The effectiveness of this system can vary due to differences in the \way television stations broadcast. See page 26 for answers to the most commonly asked questions about this feature.

------------------

!-------------------------------------

----------------------------------------------------

-----------------

coMMEKiAL-^-JkDVANCB^ Marking

When C/A RECORD; ON, VCR automatically rewinds the tape after a recording has been made and marks the beginning and end of any detected commercial blocks. After marking is done, the tape is returned to the end of recording. Commercials are not erased from the tape.

Display menu.

Press ACTION.*

Display SET UP FEATURE.

1) Press AT to select.

2) Press ► to display.

Display SET UP COMMERCIAL ADV.

1) Press AT to select.

2) Press ► to display.

-----------

SET UP VCR

SET UP FEATURE

SET CLOCK

SET UP CHANNEL

IDI ОМА / LONGUE;ENGL ISH

SELECT

------

A T KEY

SET

► KEY

END

ACTION KEY

SET UP FEATURE

TIMER PROGRAM

SET UP COMMERCIAL ADV.

A V KEY

SELECT SET

► KEY ACTION KEY

END

1^^Check list before you begin.

□ All connections are made. O One time Setup completed. □ VCR is plugged in. Q TV is turned on and set to the VCR channel

(CH 3 or 4).

4--

1 ACTION

NUMBERED keys

SELECT/

SET

А PLAY

▼ :STOP

SET UP COMMERCIAL ADV.

C/A PLAYBACK

A ▼ KEY

SELECT SET

► KEY ACTION KEY

END

ON Timer, VCR Plus+ System, and One Touch recordings are marked automatically.

THE VCR IS WAITING TO

MARK COMMERCIALS IN THE PROGRAM YOU RECORDED.

MARKING NOW LATER CANCEL

OFF The VCR will not mark commercials.

PUSH 1 KEY PUSH 2 KEY PUSH'ACTION KEY

When you are editing or dubbing a tape, or when you do not wish to use this feature, OFF should be selected.

ON AUTO

Set ON or OFF.

1) Press AT to select.

2) Press ► to set.

When STOP is pressed during norma! recording, Select one of a) or b) or c). a) Press 1 key to mark the recording now.

“NOW MARKING COMMERCIALS” appears.

b) Press 2 key to mark the recording later (after the power has been turned off).

• If the tape is rewound and another recording started before the power is turned off, commercials may not be marked correctly.

c) Press ACTION to cancel the marking of this recording.

Return to normal screen.

Press ACTION three times.

For assistance, call 1-800-211-PANA(7262).

When using the timer to record two adjacent shows on the same channel, better accuracy can be obtained by programming each shows separately.

‘Important: If the remote control POWER, ACTION, PROG, CHA/v, INDEX/ M/A SKIP, NUMBERED keys,

INPUT, TAPE POSITION, or ADD/DLT button does not work when pressed, press the VCR button on the remote and try the button again.

COMMEROAL'^'^ADVANCE^ Playback

When playing back recording which have been marked using cOMMe/?a4t*^*AmBiMCff*feature, you can either set VCR to automatically advance through marked commercial blocks, or set it so that commercials are only skipped on your command.

Display menu.

Press ACTION.*

1 ‘114.1 \

:©c©0L

PLAY

J [(iiji

Display SET UP FEATURE.

Display SET UP COMMERCIAL ADV.

Set AUTO or MANUAL.

-----------

SET UP VCR

SET UP FEATURE

SET CLOCK

SET UP CHANNEL

ID1OMA/ UNGUE: ENGL I SH SELECT;* ▼ KEY SET :► KEY END ;ACT I ON KEY

------

SET UP FEATURE

TIMER PROGRAM

SET UP COMMERCIAL ADV.

SELECT

* ▼ KEY ► KEY

SET

ACTION KEY

END

SET UP COMMERCIAL ADV. C/A RECORD : ON

C/A PLAYBACK

SELECT;* T KEY SET :► KEY END :ACT I ON KEY

AUTO VCR will automatically advance through

marked commercial blocks recorded on the tape and then resume playback.

MANUAL VCR will advance through commercials only

when ZERO/ C/A SKIP is pressed. Playback will resume when the end mark of a commercial

block is found, or a new recording or blank

portion is detected, or after 8 minutes.

Return to normal screen.

Press ACTION three times.

1) Press AW to

select.

2) Press ► to set.

1) Press AW to

select.

2) Press ► to set.

1) Press AW to

select:

2) Press ► to set.

SELECT/

SET

A :PLAY

▼ :STOP

► ;FF

CQUWTiPft£SEi OfSPUlf TAPE ,

O □ O

SPEED

O 0?

CQMMBROAL^-^-ADVANCE* Is a trademark of SRT, Inc.

A Jerry Iggulden invention licensed in association with Arthur D. Little Enterprises, Inc.

SKIP

GS!

U.S.Pat. No. 5,333,091

other patents pending

ZERO/ C/A SKIP

The selection mode in step 4 remains set unless there is a power outage in which case the original factory

setting will be restored. If playback is started in the middle of a commercial, only a single commercial is shown, or an individual

commercial is longer than 1 minute, a commercial may not be skipped. Press FF to quickly advance through the commercial.

Part of a recorded program may be skipped over if the program portion between commercials is less than one minute or there are frequent dark and quiet scenes during the program. To view the portion of tape being incorrectly skipped, press PLAY while the VCR is skipping, reverse the tape to a point just prior to where the skipping began and press PLAY again. This time the group will not be automatically skipped. Automatic skipping will be re-enabled when the end of the marked group is detected.

Tape Operation (continued)

The most commonly asked questions about commercl‘^--advance* are answered below.

Question

How fast does the VCR advance through commercials?

Are commercials advanced through only when 1 playback a recording?

Are commercials still recorded on the tape in case I choose to view them sometime?

Does coMMERCiAL--ABVAN€E* work In all recording speeds?

Does the VCR advance through commercials

each time f playback tapes which were

recorded using COMMERaAL<-ABWkBKE*?

After marking commercials, does the VCR stop at the end of the tape, or rewind to the beginning?

Can 1 play my COMMERCtAL'^'^JUJVANeE* recordings in non-comEROAL--AavANCE* VCRs?

Answer

The VCR advances through a 3-minute commercial block

in about 8 to 12 seconds if the tape speed is SLP. In SP, it takes about 25 to 35 seconds.

Yes. The commercials are not marked until after the recording is finished.

Yes. By setting the C/A PLAYBACK to MANUAL, see page 25, you can view or advance through commercials as desired.

Yes. COMMEROAL--ABVANCE* works in SP, LP, and SLP.

Yes. As long as C/A PLAYBACK is set to AUTO, see page 25, the VCR should advance through commercials each time the tape is played back.

The tape stops at the end of the recording so that any additional timer recordings can be performed.

Yes. CQMMEiiaAL'''^ABnMN€E* marked recordings will play in non-coMAif/sciAt^-iiDMaMCE* VCRs, but commercials will not be advanced through.

Does the marking process interfere with other programmed recordings?

What happens if 1 cancel the marking in progress so 1 can use the VCR?

What if part of my program is advanced through along with the commercials?

Additional Notes:

• Because of the various ways in which commercials are broadcast, the VCR may not be able to recognize all commercials.

• If a timer recording is scheduled for the middle of the night, please be aware that the VCR will make

some noise as it rewinds and fast forwards the tape while marking commercials.

CCMMERCtAL-’-ADtauiCE* is a trademark of SRT, Inc.

A Jerry Iggulden invention licensed in association with Arthur D. Little Enterprises, Inc.

U.S.Pat. No. 5,333,091 other patents pending

No. If the interval between 2 or more timer programs is not sufficient to mark the recording, marking will be done after all recordings are complete and the power goes off.

Marking will be resumed when the VCR's power is turned off as long as the tape has not been ejected.

Please see the 3rd note on page 25.

For assistance, call 1-800-211-PANA(7262).

‘Important: If the remote control POWER, ACTION, PROG, CHA/T, INDEX/ M/A SKIP, NUMBERED keys,

’ ^ INPUT, TAPE POSITION, or ADD/DLT button does not work when pressed, press the VCR button

' on the remote and try the button again.

MOViE ADVANCE

AACME^-JumoMCE "

movies (rented or purchased). The feature works in two ways. ■

• You can go to the beginning of the movie.

• You can skip from one preview to the next.

MOVIE

works only on cassette recorded in SP speed

with the record tab removed.

If you inserted a cassette with the record tab or if you selected “INDEX SEARCH" go to page 28.

SELECT SEARCH MODE

SELECT SET END

helps you locate certain parts of prerecorded

Insert a cassette without record tab.

Display “SELECT SEARCH MODE.”

1) Press INDEX/ M/A SKIP.*

Display MOVIE

INDEX SEARCH

MOVIE ADVANCE

4 T KEY

► KEY

INDEX M/A SKIP

ADVANCE.

1) Press AT

2) Press ►

to select. to set.

Check list before you begin.

~ All connections are made. J One time Setup completed. D VCR is plugged in.

TV is turned on and set to the VCR channel (CH 3 or 4).

6 PLAY

SELECT/ SET

A :PI_AY T :STOP

► iFF

CD © © © © ©

STOP

2 INDEX

. M/A SKIP

MOVIE ADVANCE

SELECT SEARCH MODE

GO TO START OF MOVIE

GO TO PHEVI EW

SELECT

4 T KEY ► KEY

SET

END

Select “GO TO START OF MOVIE." if you want to advance directly to beginning of the movie.

-> continue with step 5. Select “GO TO PREVIEW.” if you want to view the

first (next) preview.

--> go to “To Search for Preview” at right.

SEARCHING FOR START OF MOVIE

CANCEL;STOP KEY

INDEX M/A SKIP

MOVIE ADVANCE

Select GO TO START OF MOVIE or GO TO PREVIEW.

Start searching.

When the movie is found...

Start playback.

MOVIE ADVANCE

THE MOVIE IS READY. PUSH PLAY TO START

CANCEL:STOP KEY

Press AT

to select.

Press ►.

• To cancel,

press STOP.

Press PLAY.

• To cancel,

press STOP.

• The display will time out after 3 minutes and the VCR will enter the Stop mode..

To Search for Preview.

You can override the operation of

MOVIE^^APVANeE"‘

mode by pressing MA SKIP during tape searching.

MOVIE‘"^ABVMicE “

past each preview and then reversing back to the start of the detected preview. While the tape is reversing back, if INDEX/

MOVIE•‘•^jwmNCE"'

preview. While searching for the next preview, if you see the start of a preview which you wish to watch,

press MA SKIP and

immediately reverse back to the start of that preview,

instead of searching further past the preview start point.

Once the VCR is playing a preview, press MA SKIP to advance to the next preview, long commercial or the start of the movie (wnichever is next}.

SEARCH FOR PREVIEWS

works by searching the tape

MÌA

SKIP is pressed,

will begin searching for the next

movie-abvmke"

will

Start preview searching.

1) In step 4 at left, select Go To PREVIEW.

2) Press ►.

• If you want to playback, press PLAY.

When a preview is detected, VCR will start playback.

©t Start next preview

searching

II—if. Press INDEX/ M/A SKIP.

• To cancel, press STOP.

Tape Operation (continued)

VMS Index Search System

Each time recording is made, an invisible index mark is placed on the tape. ,When timer recordings are made, program index and information are also included. These index marks can be used to access or scan recordings.

DirOCt ACCGSS (For normal and /or timer recordings)

Go directly to desired recording.

Display SELECT SEARCH MODE.

Press INDEX/ M/A SKIP.*

• If there are no timer recordings on the

Program Index List, go to step 3.

REW

SELECT SEARCH MODE

PROGRAM INDEX SEARCH

SELECT:A ▼ KEY SET ;► KEY END '. INDEX M/A SKIP

Display INDEX.

1) Press AT to select.

2) Press ► to display.

• This screen appears only if

there are timer recordings.

Select the recording number

Press NUMBERED keys.

To calculate number,

see below.

Press FF or REW.

• When search is finished, playback begins.

INDEX 04

INDEX SEARCH 04

O © ©

0 © ©

0 0 0

Start search.

■ To Calculate Index Number

Example 1 :

If you are watching recording 4 and you want to watch recording 2, enter 3 in step “3” and press REW.

SELECT/ SET

A'.PLAY ▼ •.STOP ► :FF

4 FF

NUMBERED keys

1 INDEX

1 2

Example 2:

If you are watching recording 2 and you want to watch recording 6, enter 4 in step “3” and press FF.

NOTE: I indicates start points of each recording.

3 4

Make each entry within 10 seconds, or

the Index Search mode will be canceled.

If Direct Access or Index Scan is started

very close to an index mark, that index mark may not be counted in the search.

For assistance, call 1-800-211-PANA(7262).

important: If the remote control POWER, ACTION, PROG, CHA/r, INDEX/ M/A SKIP, NUMBERED keys,

INPUT, TAPE POSITION, or ADD/DLT button does not work when pressed, press the VCR button on the remote and try the button again.

Pr09r3m lnd6X SG3rch (For timer recordings only)

Choose a timer recorded program from a Program Index List. When the tape is

ejected or normal recording is started, all program index data is deleted.

Display SELECT SEARCH MODE.

Press INDEX/ M/A SKIP.

Display PROGRAM INDEX.

SELECT SEARCH MODE

INDEX SEARCH

i’gAidEnwniiibMa3a:5i!i

PROGRAM INDEX

DATE START CATEGORY

It 2/28

InKl

1/ 4 1/ 7

SELECT:* T KEY SEARCH:► KEY

( END

10:00A SPORTS ABCDI

12:30P MOVIE

8: OOP COMEDY CBC 3:OOP MUSIC

; INDEX M/A SKI IP

NBC NBC

Select the desired recorded program.

1) Press AT to select.

2) Press ► to display.

1) Press AT to select.

2) Press ► to start the forward or

rewind search.

• When search is finished,

playback begins.

o © © © © ©

)lW_rEfl flE&fr iJtSPLAV TAPE ■

O C^O!

SPEED

IndGX Scan (For normal and /or timer recordings)

In Play mode, the first 10 seconds of each recording can be scanned (forward or reverse).

INDEX ^ 1 Display SELECT SEARCH MODE.

ni Press INDEX/ M/A SKIP.

M/A

SKIP

• If there are no timer recordings on the

Program Index List, go to step c.

O Sli

CJplay

2 SELECT/

.SET

O A;PLAY ^ ▼:STOP

¿►:FF

-1 INDEX

SELECT SEARCH MODE

PROGRAM INDEX SEARCH

SELECT;A ▼ KEY

...SET . .r^.KEY

I 1 ^

t t

____

Display INDEX.

2) Press ► to display.

Start scan.

Cancel scan, start playback.

Current ! program

t Indexed Point

Play (for about 10 seconds)

— Fast Forward or Rewind

1) Press AT to select.

Press FF or REW.

Press PLAY.

• To stop, press STOP.

T ~

--------

Auto Operation Functions

■ Auto Playback

Tape insert --> Power turn on -->

--> Start playback if record tab (see page 44.) is removed.

■ Auto Rewind

Playback Manual Record j-> Tape end -> Fast Forward

->Rewind (Auto)

i)..=

■ Playback Auto Eject

(Repeat Play is “OFF”)

Playback -> Rewind -->

-->Tape eject (Without record tab)

■ Memory Rewind Off

Rewind -> Press POWER ->

->Turn off after complete

ape Operation (continued)

Repeat Play

Set to see a recording over and over.

SET UP FEATURE SET CLOCK SET UP CHANNEL

IDI ОМА/ LANGUE: ENGL ISH

SELECT гA T KEY SET ;► KEY

[REPEAT PLAYIHHH

SET UP VCR

TIME.STAMP ON SPATIAL!ZER . REMOTE WARNING .ON AUTO SHUT-OFF ' ON S-VHS AUTO

SELECT:* T KEY

SET ;► KEY END :ACTION KEY

OFF ON

Display menu.

Press ACTION.^

Display SET UP VCR.

1) Press AT to select.

2) Press ► to display.

Set ON or OFF.

1) Press AT to select “REPEAT PLAY.”

2) Press ► to set.

• Playback repeats when tape end is . reached or unrecorded portion over

30 seconds is detected.

Return to normal screen.

Press ACTION twice.

*lmportant:

If the remote control POWER, ACTION, PROG, CH A/T, INDEX/ M/A SKIP, NUMBERED keys, INPUT, TAPE POSITION, or ADD/ DLT button does not work when pressed, press the VCR button on the remote and try the button

again.

SELECT/

SET'

▲ :PIAY

T -.STOP

► :FF

1 ACTION

Zero Search

To quickly return to specific tape counter location.

■ DISPLAY

□

PLAY 12;00AU

SPAT I AL IZER ON SP

Continue playback, rewind, or fast forward.

12;00AM ABC

STOP

0:00:00

0:00:30

Display Counter.

Press DISPLAY during playback.

Reset to “0:00:00.”

Return to “0:00:00.”

Press COUNTER RESET at the desired position.

Press ZERO/ C/A SKIP in Stop mode.

• The VCR will go into FF

or REW mode and stop at the last point the Counter was set to 0:00:00.

H ZERO/

C/A SKIP

a DISPLAY

h COUNTER

RESET

For assistance, call 1-800-211-PANA(7262).

Copying Your Tapes (Dubbing)

Connections you’ll need to make. (Choose front or rear connection.)

Playing (Source) VCR Recording (Editing) VCR TV for Monitoring

OLjrOs-VIDEoO'N

S-VHS Connecting Cable

OUT0S-VIDEO©IN J

OUT

INlO

Playing (Source) VCR Recording (Editing) VCR

M^OI

V^EO ®

OUT TO TWi

Insert pre-recorded

tape.

OUT

IN1Q

Front of VCR

R^UDIgL ^EO ^ (a|nT|;

MONO _

OUT TO Wi

VIDEO IN 2 L-AUDI0IN2-R

o o o

Insert blank tape

with record tab.

Select LINE mode.

Press INPUT. (See “Selecting

the Input Mode" below.)

“I

___________

VHF/ audio in UHF

^ VIDEO IN

REC PAUSE

and (fTT^

PAUSE

((Mil

Selecting the Input Mode

Method 1: Press INPUT.

Method 2: Press CH A/T. Display will change as below.

When LINE! or LINE2 is selected, “LINEI” or “LINE2” appears on Multi-Function Display (about 4 sec.)

LINEI : For rear audio/video connection. LINE2: For front audio/video connection.

Channel Number <--> LINE1 <--> LINE2

'♦I INF?

LINE2-^UNE1^-^125 or 69

4 5

PAUSE

and

PAUSE

Put in standby mode.

Press PLAY, then PAUSE at starting point.

Start dubbing.

Press PAUSE.

Stop dubbing.

Press STOP.

To Monitor Dubbing on Your TV

1 Turn your TV on and tune to the Recording

VCR channel (CH3 or CH4).

2 Set the VCR/ TV Selector on the Recording

VCR to “VCR.”

Dubbing tapes protected with Copy Guard will have poor quality results.

If one of the VCRs you are using is a conventional VMS VCR, connect the VIDEO OUT terminal of the Source VCR and the VIDEO IN terminal of the Editing VCR using the

Video Cable, instead of the S-VHS Connecting Cable. Refer to the TV Operating Instructions for connection of the TV.

(^Caution: unauthorized exchanging and/or copying of copyrighted recordings may be copyright mfringement. ^

Put in standby mode.

Press REC, then PAUSE immediately.

Start dubbing.

Press PAUSE.

Stop dubbing.

Press STOP.

(CABLE) (TV)

MTS Broadcast/VHS Hi-Fi Stereo System

Check list before you begin.

0".

Receivable Broadcast Types

The following are possible audio broadcast types and on-screen displays.

The signal being received is indicated with an “[{t" mark while the selected

audio mode is indicated with an arrow.

Display the broadcast signal being received.

Press DISPLAY.

MTS stereo and SAP broadcast

Multi-channel Television Sound Stereo (main language) and Secondary Audio Program (sub language) broadcasts are both being received simultaneously. Select STEREO or SAP audio mode.

MTS Stereo broadcast

Multi-channel Television Sound Stereo

broadcast. Select STEREO audio mode.

• If stereo broadcast is weak and display flickers, select MONO audio mode for possibly better results.

SAP broadcast

Secondary Audio Program (sub language) broadcast. Select SAP audio mode for the sub language.

MONO broadcast

Normal monaura! sound broadcast.

STOP

ESTEREO &SAP

MONO

STOP 12:00AM ABC

(t< STEREO

SAP MONO

—

STOP 12:00AM ABC STEREO

([(SAP

MONO

STOP

STEREO

iiAP

MONO ^

12:00AM•4ABC

•4

—

12:00AM ABC

0:00:00

---------

0:00:00

---------------

0:00:00

—

CD © ® © © ©

Equipped with dbx*-TV Noise Reduction

for true MTS reproduction. jbx®-TV Noise

Reduction is required for good stereo separation and audio fidelity. Jbx* is a registered trademark, and is licensed by

dbx* Technology Licensing.

DISPLAY

For assistance, call 1-800-211-PANA(7262).

Audio Mode for Recording

SAP/Hi-R

ESTEREO

^SAP ^

MONO

• The arrow indicates your selection. Broadcast Types” on page 32,

Do a recording.

See page 13.

Display audio mode.

o|j I

Press SAP/ Hi-Fi.

Select desired mode.

Press SAP/ Hi-Fi repeatedly (each press within 5 seconds).

' Refer to the “Receivable

Audio Mode for Playback

start playback.

See page 12.

Display audio mode.

Press SAP/ Hi-Fi.

Select desired mode.

HIFI (L/R)-* HIFl(L) HIFI(R) NORMAL

The arrow indicates your selection. ■

Select “HIR(L;R)” or “HIFI(L)” or “HIFI(R)" to listen to stereo recordings in stereo sound. Select “NORMAL" for monaural sound.

Press SAP/ Hi-Fi repeatedly (each press within 5 seconds).

When set to proper audio mode VCR can:

1) record/playback MTS stereo broadcasts

(main language) in Hi-Fi stereo.

2) record/playback mono (main language)

or SAP (sub language) broadcasts.

3) playback non Hi-Fi tapes in monaural.

• The selected broadcast sound is

always recorded on left and right Hi-Fi track as well as the normal monaural track. This means tapes can be played back on Hi-Fi and non-Hi-Fi VCRs.

Spatializer Feature

This feafore allows you to enhance the stereo sound so th^ it seems to surround you.

Note: Your VCR needs to be hooked up to a stereo TV or stereo amp/ receiver with speakers (see page 32). For playback, tapes must be recorded in Hi-Fi stereo. For TV viewing, programs must be broadcast in stereo.

Display menu.

Press ACTION.

You can select “ON" or “OFP by pressing PLAY key on the VCR during playback.

SET UP FEATURE SET CLOCK SET UP CHANNEL

IDI ОМА/ UNGUE; ENGL I SH

SET UP VCR

REPEAT PLAY

TIME STAMP

SPAT I AL I ZER^^H

REMOTE WARNING AUTO SHUT-OFF S-VHS AUTO

Display SET UP VCR.

1) Press AT to select.

2) Press ► to display.

Set ON or OFF.

: OFF : ON : ON ; ON : ON г ON

1) Press AT to select.

2) Press ► to set.

Return to normal screen.

Press ACTION twice.

Portions of this product manufactured unde a licence from Desper Products,

square device are trademarks owned by Desper Products, Inc.

Inc. SPATIALIZER, and the circle-in

Only tapes recorded in HFH stereo will play back with true stereo sound. Standard stereo tapes wtH play back in monaural sound.

To listen to Hi-Fi stereo playback, the VCR AUDIO (L/R) jacks must be connected to a stereo TV or an external stereo amp and speakers. (See page 32.)

If tracking is adjusted during playback, Hi-R audio may revert to normal audio.

Hi-R and normal audio playback volume level may differ.

Special VCR Features

Channel Caption

When set, station name, e.g. ABC, CBS, and channel number appear on-screen.

Set up to 24 preset captions, and/or 10 manually created captions.

Q You need a list of stations and the channel numbers you receive them on.

Preset Caption

Display menu.

Press ACTION.*

---------------

SET UP VCR SET UP FEATURE SET CLOCK

SET UP CHANNEL

IDlOMA/LANGUE; ENGLISH SELECT SET END

------

SET UP CHANNEL ANTENNA : CABLE AUTO SET

CHANNEL CAPTION

WEAK SIGNAL DISPLAY : CABLE/DSS BOX SET UP VCR PIUS+ CH SET UP

SELECT SET END

--- CHANNEL CAPTION

PRESET CAPTION

MANUAL CAPTION

SELECT SET END

------

PRESET CAPTION —

CBS FOX — ESPN — NBC -- HBO

SELECT A T KEY SET ► KEY

------

PRESET CAPTION

TNT UPN -- CTN 21

WB 35 TSN 52

DSC

CLEAR ADD/DLT KEY

SELECT SET 4 KEY END ACTION KEY

----------------

i ▼ KEY ► KEY ACTION KEY

:* T KEY :► KEY : ACTION KEY

A ▼ KEY

► KEY ACTION KEY

-- PBS — CNN

42 CBC 62

-- GLOB tFRl

A T KEY

--------

OFF

--------

Display SET UP CHANNEL.

1) Press AT to select.

2) Press ► to display.

Display CHANNEL CAPTION.

1) Press AT to select.

2) Press ► to display.

Display PRESET CAPTION.

1) Press AT to select.

2) Press ► to display.

• To create your own captions, go to “Manual Caption" on page 35.

Assign preset captions.

1) Press AT to

highlight caption.

2) Press ► to move

cursor to the right.

3) Press AT to select

CH number.

4) Press ◄ to set.

• Repeat step 5 until the list is complete.

To make corrections,

Press AT and ► to select the channel

number, then press AT to change, or

ADD/DLT to delete the number.

O © © © © ® © ® © © ®

^ DtSPlAir^ ^TAFE^

SPEffi

O Q|

SELECT/

qSET

^ A:PLAY

L ▼:STOP

O ◄:REW

► :FF

ADD/ DLT

End setup.

Press ACTION four times.

For assistance, call 1-800-211-PANA(7262).

Important: If the remote control POWER, ACTION, PROG, CHA/V, INDEX/ M/A SKIP, NUMBERED keys,

INPUT, TAPE POSITION, or ADD/DLT button does not work when pressed, press the VCR button

on the remote and try the button again.

Manual Caption

Do “Preset Caption” steps 1-3 on page 34.

—- CHANNEL CAPTION

SELECT SET

END

------

CH NUMBER CAPTION

SELECT SET END

-----CH NUMBER CAPTION

CLEAR SELECT

_SET_,.

PRESET CAPTION

MANUAL CAPTION

A ▼ KEY ► KEY ACTION KEY

MANUAL CAPTION —

A ▼ KEY ► KEY ACTION KEY

MANUAL CAPTION

02 B—-

ADD/DLT KEY

A T KEY

A..KEY.

-----

........

-------

Display MANUAL CAPTION.

1) Press AT to select.

2) Press ► to display.

Select channel number.

1) Press AT to select CH

NUMBER.

2) Press ► to move cursor to the right.

Channels already set and channels deleted from Channel Memory are not displayed.

You can set a total of ten channel captions.

Enter CAPTION.

1) Press AT to select.

2) Press ► to enter.

• Characters change in

following order.

O © ® © © © © ® © © © &

^ piSPUY^ ^TAfE ,

SPïfO '

ooiSi

ôd

p SELECT/ TSET

0 A:PLAY

5 ACTION

ADD/ DLT

3) Press ◄ to set.

• Repeat steps 3 and 4 as desired.

To make corrections,

Press ► to move to the incorrect entry, then press AT to

make correction. Or, press ADD/DLT to clear the caption.

End input.

Press ACTION four times.

Special VCR Features (continued)

Time Stamp Feature

The VCR writes program data (see example below) about the first 10

seconds of every recording! The information is then displayed the first 10 seconds of playback. To change the data, see “Changing Time Stamp Data” on page 37.

Display menu.

Press ACTION.*

Display SET UP VCR.

Set ON or OFF.

OFF ON

ON ON

When “OFF" is selected, the program data is written on the tape, but will not be displayed.

1) Press AT to select.

2) Press ► to display.

1) Press AT to select.

2) Press ► to set.

SET UP FEATURE SET CLOCK

SET UP CHANNEL

ID10МА/LANGUE:ENGL ISH SELECT;* T'KEY SET ;► KEY END :ACT I ON KEY

REPEAT PLAY

It I ME STAMP^^^^H

SPAT IALIZER ON REMOTE WARNING AUTO SHUT-OFF S-VHS AUTO ON

SET UP VCR

SELECT:* V KEY SET :► KEY

END :ACT I ON KEY

Check list before you begin.

Q Clock is set to correct time. D Record tab in place. (See page 44.)

^ SELECT/

2 SET

A:PLAY

2 T:STOP

► iFF

1 ACTION

One Touch Recording

12/27/1999 MON 12:00PM

CH 08 ABC

Return to normal screen.

Press ACTION twice.

Timer Recording

12/27/1999 MON 12:00PM - 1:00PM CH 08 ABC MOVIE MEMORIAL MOVIE

When Clock is not set.

For assistance, call 1-800-211-PANA(7262).

‘Important; If the remote control POWER, ACTION, PROG, CHA/v, INDEX/ M/A SKIP, NUMBERED keys,

INPUT, TAPE POSITION, or ADD/DLT button does not work when pressed, press the VCR button on the remote and try the button again.

Changing Time Stamp Data

You may change the Date, Time, Channel, Category, and Notes.

Display Time Stamp Data.

1) Insert cassette with record tab.

2) Press PLAY.

12/27/1999 MON 12:00PM - 1:00PM

CH 08 ABC MOVIE

MEMORIAL MOVIE

TIME STAMP EDIT — DATE : 12/27/1999 MON TIME : 12:00PM - 1:00PM CH : 08 ABC CATEGORY : MOVIE NOTES:I3itMORIAL MOVIE

SELECT:A ▼ KEY SET ► KEY END :PR0G KEY

To make corrections,

Press ► to move to the incorrect entry, then press AT to make the correction.

Display TIME STAMP EDIT.

Press PROG while the data is displayed in Playback mode.

Change Time Stamp Data.

1 ) Press AT to

select.

-----

Characters in NOTES will change in the following order.

■ B *+CZ** B LA N K*-*'

3) Repeat 1) and 2) as needed.

2) Press ► to enter and continue.

1 ®0©d

® ® © © ® © ® d

aUHTEP RESET

O O O

SPiBO -

O ©

PLAY

1 PLAY

.....

O ©iQi

Write the new data.

Press PROG.

When data is written, VCR

returns to Stop mode.

Special VCR Features (continued)

Tape Position Display Feature

To find out the present tape position.

Tape position cannot be found for C-Cassette type and tape of less than 60 minutes.

TAPE

DETECTING TAPE POSITION

TAPE

Detect Tape Position.

Press TAPE POSITION.*

• Detecting tape position is only displayed when cassette is first

inserted.

• It takes several seconds for correct indication to appear.

• Indication is standard.

Return to normal screen.

Press TAPE POSITION.

Check list before you begin.

□ All connections are made. (See pages 4-5. □ VCR is plugged in. □ TV is turned on and set to the VCR channel

(CH 3or 4).

...

i ll-M

■—'

REC

■ SELECT/ PSET

. A:PLAY

p Т;ЗТОР

a ACTION

Remote Warning ON/OFF Feature

If Multi-brand feature is used (page 22),and this feature is set to on, a warning appears whenever an invalid key is pressed in TV, DSS, or Cable mode.

Display menu.

Press ACTION.

Display SET UP VCR.

Set ON or OFF.

ON ON

“OFF' ”> Remote Warning will

not appear even if invalid key is pressed.

1) Press AT to select.

2) Press ► to display.

1) Press AT to select.

2) Press ► to set.

SET UP FEATURE SET CLOCK SET UP CHANNEL

IDI ОМА/LANGUE: ENGLlSH

SELECT;A T KEY

.SET

___

;^„KEY_____________

SET UP VCR REPEAT PLAY TIME STAMP ON SPATIALIZER ON

REMOTE WARNING^^H

AUTO SHUT-OFF ON S-VHS AUTO

SELECT:* ▼ KEY SET ;► KEY END :ACT I ON KEY

: OFF

Return to normal

screen.

Press ACTION twice.

TAPE

2 POSITION

VCR Lock Feature

All operations are prohibited except timer recording and tape eject. Useful for families w/ith small children.

To turn ON:

In Stop mode,

hold down REC on the VCR without a cassette inserted for 7 seconds.

To turn OFF;

Repeat above.

VCR Lock is canceled automatically after 24 hours if clock is set.

For assistance, call 1-800-211-PANA(7262).

‘Important: If the remote control POWER, ACTION, PROG, CHA/T, INDEX/ M/A SKIP, NUMBERED keys,

INPUT, TAPE POSITION, or ADD/DLT button does not work when pressed, press the VCR button on the remote and try the button again.

Weak Signal Display ON/OFF Feature

When “ON” is selected, picture is displayed even when broadcast signal is weak or nonexistent.

Display menu.

Press ACTION.

SET UP VCR SET UP FEATURE SET CLOCK

SET UP CHANNEL

ID10МА/LANGUE:ENGL ISH

SELECT:* ▼ KEY

.SET . ,:^..KEY

------

SET UP CHANNEL -------ANTENNA : CABLE AUTO SET CHANNEL CAPTION

CABLE/DSS BOX SET UP VCR Plus+ CH SET UP

SELECT:* ▼ KEY

..SET .,.:K_KEY

ON --> Picture is displayed regardless of signal condition, and

OFF ->Screen turns solid blue when signal is absent or weak.

If VCR is connected to equipment which has blue back feature, selecting ON will have no effect on the other equipment.

_____________

___________

may not always be clearly visible.

Display SET UP CHANNEL.

1) Press AT to

select.

2) Press ► to

display.

Set ON or OFF.

1) Press AT to

:OFF

Return to normal

screen.

Press ACTION twice.

select.

2) Press ► to set.

Auto Shut-Off Feature

When “ON” is selected, VCR shuts itself off when playback of a blank portion of tape continues or no signal (except when LINE is selected) is detected for over 5 minutes.

2 SELECT/

•SET

3 A:PLAY

,• T:STOP

1 ACTION

Repeat step “a” and “b” on page 38 to

display SET UP VCR.

---------REPEAT PLAY

TIME STAMP

SPAT IALIZER

REMOTE WARN ING

AUTO SHUT-OFF

S-VHS AUTO

SET UP VCR

SELECT:* ▼ KEY SET :► KEY END :ACT I ON KEY

Set ON or OFF.

OFF ON ON

i ■

ON ON

Return to normal screen.

Press ACTION twice.

1) Press AT to

select.

2) Press ► to set.

Super (S) VHS System

S-VHS tape playback is superior to VHS, even when using a conventional TV. And, your S-VHS VCR can also playback VHS format tapes.

Selection the S-VHS/VHS System

Display menu.

Press ACTION.*

SELECT:A T KEY SET ;► KEY END :ACTION KEY

---------REPEAT PLAY

TIME STAMP

SPAT IAL12ER REMOTE WARNING AUTO SHUT-OFF

S-VHS AUTO

SELECT:* т KEY SET ;► KEY END :ACTION KEY

When you select that “S-VHS AUTO” is “ON,” the recording mode is

automatically set according to the type of cassette tape used, S-VHS or VHS. When you select that “S-VHS AUTO" is “OFF,” recording is done in the normal VHS mode, regardless of the type of

cassette tape inserted. Select “OFF” when recording on an S-VHS tape in VHS mode to be played back on a VHS VCR.

SET UP FEATURE SET CLOCK SET UP CHANNEL

ID ЮМА/ LANGUE; ENGL ISH

SET UP VCR

SUPER VHS

ON S-VHS RECORDING

OFF

VHS RECORDING

Display SET UP VCR.

Set ON or OFF.

OFF ON ON ON ON ON

Cassette Tape

1) Press AT to select.

2) Press ► to display.

1) Press AT to select.

2) Press ► to set.

VHS

VHS RECORDING VHS RECORDING

SELECT/

2 SET

• A:PLAY

3 ViSTOP

► TF

1 ACTION

Return to normal

screen.

Press ACTION twice.

For assistance, call 1-800-211-PANA(7262).

‘Important: If the remote control POWER, ACTION, PROG, CHA/T, INDEX/ M/A SKIP; NUMBERED keys,

INPUT, TAPE POSITION, or ADD/DLT button does not work when pressed, press the VCR button

on the remote and try the button again.

S-VHS and VHS Tapes

Both Super-VHS and VHS recordings can be made on an S-VHS tape. Tapes recorded in VHS may be played back on either an S-VHS or VHS type VCR. Tapes recorded in S-VHS cannot be played back on a conventional VHS VCR.

• When a VHS recorded tape is played back on your S-VHS VCR, the VHS mode is automatically selected. Playback and

Recording operations are described on pages 12 and 13.

Compatiblity

RECORDING

A conventional VCR will not be able to play back your S-VHS recordings. To make recordings that are compatible with conventional VHS VCR’s select “S-VHS AUTO: OFF’ on the “SET UP VCR” screen,

“S-VHS” displayed on the screen when the DISPLAY button is pressed, when using an S-VHS tape to make an S-VHS recording and during S-VHS tape playback.

PLAYBACK

S-VHS RECORDED VIDEOTAPE

VHSRECORDED

Declaration of Conformity

Trade Name:

Responsibility Party: Address: Telephone Number:

This device complies with Part 15 of FCC Rules. Operation is subject to the

following two conditions; (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undersired operation.

Panasonic

Matsushita Electric Corporation of America One Panasonic Way Secaucus New Jersey 07094

1-800-211-PANA (7262)

Reset Language, Channels, Clock

SET UP FEATURE SET CLOCK SET UP CHANNEL

IDIOMA/LANGUE:ENGLISH

SELECT

:A ▼ KEY

SET

:► KEY : ACTI ON KEY

END

Ш Language

1) Press ЖТ to highlight

language item.

SET UP VCR SET UP FEATURE SET CLOCK SET UP CHANNEL

ibira^gaftniirciiid: engl i sh

SELECTT KEY SET :► KEY END ;ACT I ON KEY

2) Press ► repeatedly.

SET UP VCR SET UP FEATURE SET CLOCK SET UP CHANNEL

SELECT:* ▼ KEY SET :► KEY END :ACT I ON KEY

For English

PREPARAR VCR FIJACION DE FUNCIONES FIJAR RELOJ FIJAR CANAL

liJiMIIJJWaMIFJcld: ESPAÑOL

ELEGIR:* T FIJAR :►

TERMINAR:ACTION

For Spanish

REGLAGE MAGNETOSCOPE REGLAGE MAGNETO SUPPLEM REGLAGE HORLOGE REGLAGE CANAL

SEL. :* ▼ REGLER:► FIN :ACTI ON

For French

ENGL t SH

FRANÇAIS

Display menu.

Press ACTION.*

■ Channels

1) Press AT to select

SET UP CHANNEL.

---------------

SELECT SET END

----------------

SET UP VCR

SET UP FEATURE SET CLOCK

SET UP CHANNEL

ID ЮМА/ LANGUE: ENGL I SH

:A ▼ KEY :► KEY : ACT I ON KEY

2) Press ►.

------

SEl

AUTO SEl CHANNEL WEAK SIC CABLE/DS VCR Plus-

SELECT SET END

___^____

UP CHANNEL

: CABLEE!!iI33I3EI

CAPTION 3NAL DISPLAY : OFF 3S BOX SET UP

I- CH SET UP

* ▼ KEY ► KEY ACTION KEY

------

3) Press AT to select

“ANTENNA,” then press ► to set your antenna system

(TV or CABLE).

4) Press AT to select

“AUTO SET,” then press►.

■ !f you use a cable box, set it to the PBS channel in your time zone.

CHANNEL/CLOCK AUTO SET

CONNECT ANTENNA CABLE AND IF YOU USE A CABLE BOX,TUNE IT TO YOUR LOCAL PBS CH THEN.,.

PLEASE PUSH CH UP KEY

(This screen appears only

when auto clock is set.)

5) Press CH A.

• Clock Auto Set will be '

performed when channels are replaced in memory.

For assistance, cali 1-800-211-PANA(7262).

■ Clock

1 ) Press AT to select

SET CLOCK.

SET UP VCR SET UP FEATURE

SET CLOCK

SET UP CHANNEL

IDI ОМА/LANGUE:ENGL ISH SELECT:* ▼ KEY SET :► KEY END :ACT I ON KEY

2) Press ►. r

----------

SET CLOCK

AUTO CLOCK SET

IBFJÜIHI

TIME ZONE ADJUST

* ▼ KEY

SELECT SET

► KEY

END

ACTION KEY

(“TIME ZONE ADJUST’

appears only when clock is set automatically.)

3) Press AT to select

MANUAL and press ►.

• For Auto Clock Set, select

“AUTO CLOCK SET,” then

press CH A.

----------

SET CLOCKNhA—Vh/

1/ 4/2000 TUE 12:00PM

ELECT HOUR

SELECT:* T KEY SET :•* ► KEY END :ACTION KEY

4) Press AT and ◄ ► to

select and set the date, time, and DST

(Daylight Saving Time).

5) Press ACTION twice

to start the clock and

exit this mode.

• For Auto Clock Set, select

AUTO CLOCK SET, then follow One Time VCR Setup instructions on page 8-11.

------------

CeT:ON\

‘Important: If the remote control POWER, ACTION, PROG, CHA/t, INDEX/ M/A SKIP, NUMBERED keys,

INPUT, TAPE POSITION, or ADD/DLT button does not work when pressed,'press the VCR button

on the remote and try the button again.

Add or Delete a Channel

■ Time Zone Adjust

{When Auto Clock is set only.)

1) Press AT to select

SET CLOCK.

---------------

SELECT:A T KEY SET :► KEY END '.ACTION KEY

2) Press ►.

----------

SELECT:A t KEY SET :•* ► KEY END : ACT I ON KEY

----------------

SET UP VCR SET UP FEATURE

SET CLOCK

SET UP CHANNEL

ID I ОМА/LANGUE:ENGL ISH

SET CLOCK

AUTO CLOCK SET MANUAL

-----------

To add channel:

Select channel with NUMBERED keys and press ADD/DLT.

CHANNEL 08 ADDED

To delete channel:

Select channel with CH A/T or NUMBERED keys and press

ADD/DLT.

POWER

SELECT/ SET

A PLAY T :STOP

◄ :REW ► ;FF

ACTION

NUMBERED keys

3) Press AT to select

TIME ZONE ADJUST

and press ◄ or ► to subtract or add hour(s) as necessary.

----------

SET CLOCK

AUTO CLOCK SET MANUAL

TIME ZONE ADJUST :+1

SELECT:A T KEY SET KEY END ¡ACTION KEY

-----------

4) Press ACTION twice.

5) Press POWER off to perform AUTO CLOCK SET.

• TIME ZONE ADJUST returns to “0” if clock is set manually.

ADD/DELETE

CHA/T

-----

Using AT^ ► keys

You can also operate the menu screen using VCR buttons.

If you use VCR buttons, press CH A and CH T together to

display the menu screen.

When menu screens are displayed, PLAY, STOP, REWIND, and FF buttons function as AT^ ► only.

-----------------------

A : PLAY

▼ : STOP

◄ : REW

► ; FF

---------

VCR & Cassette Information

Reset All VCR Memory Functions

Use when moving VCR to new location, or if a mistake

was made in the One Time VCR Setup section.

• Make sure a tape is not inserted in the VCR.

Press and hold both PLAY and CHANNEL A on the VCR for more than 5 seconds.

• The power will shut off.

3 Do “One Time VCR Setup” steps on page 8.

Prevent Accidental Tape Erasure

Break off the tab.

Tab

Screw driver

DST (Daylight Saving Time)

VCR auto adjusts clock for DST. (Page 11.)

Spring (First Sunday in April)

DST:ON --> sets clock ahead one hour.

NORMAL TIME

DAYLIGHT SAVING TIME

Autumn (Last Sunday in October)

DST:ON --> Turns clock back one hour.

DAYLIGHT SAVING TIME

NORMAL TIME

If your area does not observe Daylight Saving Time, select DST:OFF.

Keep these time changes in mind when programming the VCR for timer recordings.

1:00 a.m. 2:00 a.m.

3:00 a.m. 4:00 a.m.

1:00 a.m. 2:00 a.m.

Record/Playback Time

Only use tapes with the mark in this unit.

T60

1 Hour

Type of Video Cassette

2 Hours

4 Hours

Tape Speed

Setting

(Standard Play)

(Long Play)

SLP

(Super Long Play)

2 Hours

3 Hours 6 Hours

T120

T160

2 Hours

40 Minutes

5 Hours

20 Minutes

8 Hours

For assistance, call 1-800-211-PANA(7262).

Head Cleaning

Playing older or damaged tapes may eventually cause video heads to become clogged.

Video Head Clog Sensor

During playback this

screen appears if clogging is detected. To remove screen, press PLAY on the remote or VCR.

Use “dry” type head cleaning cassette only.

{Part No. NV-TCL30PT is recommended.)

Follow cleaning tape instructions carefully. Excessive use of tape can shorten head life.

If head clog symptoms persist, contact your nearest Factory Service Center or authorized Service Center. (See page 48.)

VIDEO HEADS MAY NEED CLEANING PLEASE INSERT HEAD CLEANING CASSETTE on REFER TO MANUAL

END:PLAY KEY

Specifications

Power Source: Power Consumption:

Video Signal:

Video Recording System;

Audio Track:

Tuner: Broadcast Channels: CABLE Channels:

Operating Temperature

Operating Humidity:

Weight:

Dimensions;

Note: Designs and specifications are subject to change

without notice.

120V AC, 60 Hz

Approx. 28 watts (Power On) Approx. 7 watts (Power Off)

EIA Standard NTSC color 4 rotary heads helical

scanning system 1 track (Normal)

2 channel (Hi-Fi Audio Sound) VHF 2~13, UHF 14-69

Midband A through I (14-22) Superband J through W (23-36) Hyperband AA-EEE (37-64) Lowband A-5-A-1 (95-99) Special CABLE channel 5A (01) Ultraband 65-94, 100-125

:41T-104‘’F (5X~40°C)

10%-75%

9.9 lbs. (4.5 kg) 16-15/16” (W)x 3-7/8” (H)x

11-13/16” (D)

430 (W) x 98 (H) X 300 (D) mm

Built-in Head Cleaner

A dean video head helps produce a clear

picture. So, we have equipped your VCR with a builtin, non-chemical head cleaning system that helps prevent clogging of the video heads. Cleaning is performed each time you load or unload a video cassette.

• This feature is preventative only, If your video heads are seriously clogged, consider the use of a chemical non-abrasive head cleaning kit or

take your VCR to a Service Center.

Cleaning the VCR

Use a soft cloth or dusting attachment of your vacuum cleaner to dust your VCR. Remove dust from the ventilation holes on

the back sides and bottom of the cabinet.

Plastic surfaces are easily scratched and can be marred by alcohol and various solvents. Avoid excessive use of oil-based furniture polishes since the materials used in the cabinet will accumulate more dust. We recommend using a nonabrasive, antistatic cleaner and polisher.

Features for a Quality Picture

Digital Auto Picture

Automatically controls the video output signal for

less noise depending on the tape condition.

Digital Auto Tracking

Continuously analyzes the signal and adjusts for optimum picture quality.

Manual Tracking Control (to reduce picture noise)

Use during Playback and Slow Motion mode to reduce picture noise. To return to Auto Tracking, press POWER off, then on again.

V-Lock Control ftp reduce picture jitter^

In Still mode, CH (TRACKING) jkfW operate as

a V-Lock control.

On-Screen Displays (OSD)

Function & Channel Display

When a function button is pressed, e.g. PLAY, or you change channels, a 4 second display appears first in iarge and then smail characters. {Some Station

names may also appear if

Channel Caption is set.

See page 34, 35.)

VCR Status &

Clock Display

To display or remove the overlay.

DtSPLftY

Press DISPLAY..

Rec Time Remaining

(OTR mode only,

see page 13.)

Spatializer

(See page 33.

Warning and Instruction Displays

Function Status

Broadcast Audio Being Received

(See page 32.)

Blank Tape/ No Video

Signal Indication

Whenever a blank section of a tape comes up in Play mode, or when the selected channel has no broadcast signal with the Weak Signal

Display Feature (page 39) set to OFF, the TV

screen will turn solid blue.

Channel Caption

Current Time

REC 12:00AU ABC 0:25 -0:12:34 SPATIALIZER ON SP

(S STEREO S-VriS

12/27/1999 MON 12:00PM - 1:00PM CH 08 ABC MOVIE MEMORIAL MOVIE

Time Stamp Data

(See pages 36, 37.)

• This is not displayed in Rec mode.

These displays will alert you of a missed operation or provide further instructions.

(See pages 34, 35.)

or Channel

Counter

Tape Speed

(See page 42.)

S-VHS

(See pages 40, 41.)

OSD

NO CH POUND

PLEASE CHECK ANTENNA

CABLE CONNECTION THEN

PUSH VCR CH UP KEY AGAIN

PLEASE SET CLOCK BEFORE PROGRAMMING

TURN VCR OFF

FOR TIMER RECORDING

LEAVE CABLE BOX POWER ON

CHECK CASSETTE RECORD TAB

NO CASSETTE PLEASE INSERT A CASSEHE

AND

Caution

If no active channeis

are found for CHANNEL

MEMORY...

if you attempt to set or review a Timer Recording and the Ciock is not set...

After a Timer Program has been set...

if you press REC on the remote controi or VCR, and a cassette is inserted with no record tab...

If you press PLAY, FF, REW, or REC on the remote control or VCR .

without a cassette

inserted...

TO CANCEL TIMER REC PUSH POWER THEN STOP KEY

OSD

VIDEO HEADS MAY NEED CLEANING

PLEASE INSERT HEAD

CLEANING CASSETTE

OR REFER TO MANUAL

END: PLAY KEY

VCR LOCK ACTIVATED

REMOTE CONTROL IS SET

TO CABLE/DSS MODE

USE VCR : VCR KEY USE TV : TV KEY

REMOTE CONTROL IS SET

TO TV MODE

USE VCR : VCR KEY USE CABLE/OSS; CABLE/DSS

Caution

If you press POWER or STOP during a Timer Recording... (visible in VCR mode only)

If head cleaning becomes necessary while playing back a tape...

If you press a function button other than STOP/ EJECT or POWER while

the VCR is in VCR Lock

mode...

if you press any invalid keys on the remote while in CABLE/DSS mode...

If you press any invalid keys on the remote while in TV mode...

22 23

For assistance, call 1-800-211-PANA(7262).

Before Requesting Service

Check the following points once again if you are having trouble with your VCR.

Power

No power...

Recording & Playback

TV program cannot be recorded...

Timer recording cannot be performed...

There is no playback picture, or the playback

picture is noisy or contains streaks...

Special effects playback, picture may contain some vertical jitter when using a TV with an Automatic Vertical Hold Control...

VCR cannot be controlled...

Correction

• Completely insert Power Plug into an AC outlet.

• Set POWER button to ON.

• Make sure power source is active.

Correction

• Check connections between VCR, external antenna, and TV.

• Check hook up selection, (P.4-5)

• Make sure your antenna system (CABLE or TV) is correctly set.

(Channels [P,42])

• Make sure cassette record tab is intact. (P.44)

• Check clock is set to current time and date.

• Make sure Cable/DSS box (if used) is left on and tuned to channel

to be recorded.

• Set recording start/stop times correctly. (P.16)

• Make sure POWER button is set to OFF. (P.17)

• Timer recording may not be performed or continued if a power interruption of more than 1 minute occurs before or during, a

Timer Recording, even after power is restored.

• Select channel 3 or 4 on TV to match Channel 3/4 switch on rear

panel of VCR (P.4) or select LINE.

• Set VCR/TV selector to “VCR."

• Adjust TRACKING control in either direction. (P.45)

• Try Head Cleaning. (P.45)

• Set TV’s Vertical Hold Control to “MANUAL” then adjust.

• Make sure VCR LOCK is set to off, (P.38)

• Make sure remote is in proper mode.

• Make sure unit is not in a Timer Record operation.

Remote Control

VCR cannot be remote controlled...

ACTION and PROG buttons cannot be used...

Miscellaneous

Programs cannot be viewed on TV...

Video cassette cannot be inserted...

Video cassette cannot be removed... Video cassette ejects when a recording is started

or the power is turned off for timer recording... In Stop mode, the motor (CYLINDER) continues

to rotate...

The top of the playback picture waves back and forth excessively...

Correction

• Aim Remote Control directly at remote sensor on VCR. (P.54)

• Avoid any object blocking signal path.

• Inspect remote batteries. (P.4)

• Make sure VCR LOCK is set to off, (P.38)

• Exposing VCR remote sensor to direct fluorescent or outdoor light

may cause signal interference.

• Press VCR button for VCR mode. (P.22)

• Check Batteries.

Correction

• Set VCR/TV selector to “TV.” (P. 13)

'• Make sure proper signal source is selected.

• Insert the cassette with window side up; record tab facing you.

• Insure no other tape is inside unit.

• Completely insert Power Plug into AC outlet.

• Make sure cassette rec tab is intact. (P.44)

• To enable Quick play mechanism, the cylinder will rotate for about

5 minutes. This reduces response time from Stop to Play mode and from Play to Rewind Search mode.

• Because VCR playback signal is not as stable as off-the-air TV

signal, top of TV screen may be bent or unstable during playback. Slowly turn TV horizontal Hold control to correct. If your TV has no horizontal Hold control or adjusting control is ineffective, contact your nearest TV service center.

If you cannot resolve the problem, please call the Customer Satisfaction Center for product assistance at 201-348-9090.

To locate an authorized servicenter, please call toll free 1-800-211-PANA (7262).

Service Center List

For Product Information, Operating Assistance, Literature Request, Dealer Locations, and all Customer Service inquiries please contact:

1 -800-211 -PANA (7262), Monday-Friday 9am-9pm Saturday-Sunday 9am-7pm, EST.

Web Site: http://www.panasonic.com

You can purchase parts, accessories or locate your nearest servicenter by visiting

our Web Site.

Accessory Purchases:

Customer Orders Only 800-332-5368 (Customer Orders Only)

Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032

(6 am to 5 pm Monday - Friday; 6 am to 10:30 am Saturday; PST) (Visa, MasterCard, Discover Card, American Express, Check)

Factory Servicenters Locations

CALIFORNIA

6550 Katella Avenue Cypress, CA 90630

800 Dubuque Avenue S. San Francisco, CA 94080

20201 Sherman Way Suite 102

Canoga Park, CA 91306 Road 3878 Ruffin Road

Suite A San Diego, CA 92123

COLORADO

1640 South Abilene Street Suite D Aurora, CO 80012

FLORIDA

3700 North 29th Avenue Suite 102 Hollywood, FL 33020

GEORGIA

8655 Roswell Road Suite 100 Atlanta, GA 30350

ILLINOIS

9060 Golf Road Niles, IL 60714

1703 North Randall Elgin, IL 60123

(Pick-up / Drop-off only)

MARYLAND

62 Mountain Road Glen Burnie, MD 21061

MASSACHUSETTS

60 Glacier Drive

Suite G

Westwood, MA 02090 ^

MICHIGAN

37048 Van Dyke Avenue Sterling Heights, Ml 48312

MINNESOTA

7850-12th Avenue South Airport Business Center Bloomington, MN 55425

OHIO

2236 Waycross Road Civic Center Plaza Forest Park, OH 45240

PENNSYLVANIA

2221 Cabot Blvd. West Suite B Langhorne, PA 19047

Chartiers Valley Shopping Center 1025 Washington Pike Bridgeville, PA 15017

TENNESSEE

3800 Ezell Road Suite 806

Nashville, TN 37203

TEXAS

7482 Harwin Drive

Houston, TX 77036 13615 Welch Road

Suite 101

Farmers Branch,

TX 75244

WASHINGTON

20425-84th Avenue South

Kent, WA 98032

HAWAII

99-859 Iwaiwa Street Aiea, Hawaii 96701 Phone (808)488-1996 Fax (808)486-4369

Service in Puerto Rico

Matsushita Electric of Puerto rico, Inc. Panasonic Sales Company/ Factory Servicenter:

Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Phone (787)750-4300 Fax (787)768-2910

As of April '98

For assistance, call 1-800-211-PANA(7262).

Warranty

Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America, One Panasonic Way Secaucus, New Jersey 07094

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc. AVE. 65 de Infantería, Km. 9.5 San Gahriel Industrial Park Carolina, Puerto Rico 00985

PANASONIC Vídeo Products

Limited Warranty

Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the Warrantor”) will repair this product with new or refurbished parts, free of charge, in the USA or Puerto Rico, in the event of a defect in materials or workmanship as follows (all time periods commence from the date of the original purchase):

PRODUCT CAMCORDER

VCR A/V MIXER MONITOR-VCR

Batteries (if included) - New rechargeable batteries in exchange for defective rechargeable batteries for ten (10) days. Non-rechargeable batteries are not warranted.

Tape (if included) - New video cassette tape in exchange for a defective video cassette tape for five (5) days. In-home, carry-in or mail-in service, as applicable, in the USA can be obtained during the warranty period by contacting a

Panasonic Services Company (PASC) Factory Servicenter listed in the Service Directory. Or call toll free 1-800-211-PANA (7262), to locate an authorized PASC Servicenter. Carry-in or mail-in service in Puerto Rico can be obtained during the warranty period by calling the Panasonic Sales Company telephone number listed in the Servicenter Directory.

This warranty is extended only to the original purchaser. A purchase receipt or other proof of the date of the original purchase is required before warranty service is rendered.

This warranty only covers failures due to defects in materials and workmanship which occur during normal use and does not cover normal maintenance, including, but not limited to, video and audio head cleaning. The warranty does not cover damage which occurs in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, faulty installation, set-up adjustments, improper antenna, inadequate signal pickup, maladjustment of consumer controls, improper operation, power line surge, improper voltage supply, lightning damage, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a PASC Factory Servicenter or a PASC authorized Servicenter, or damage that is attributable to acts of God.

LIMITS AND F.XCLUSIONS There are no express warranties except as listed above, THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING,

WITHOUT LIMITATION, DAMAGE TO TAPES) RESULTING FROM THE USE OF THIS PRODUCTS. OR ARISING OUT

OF ANY BREACH OF THE WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE APPLICABLE WAR RANTY PERIOD SET FORTH ABOVE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you.

PARTS

ONE (t) YEAR, EXCEPT CCD IMAGE SENSOR ONE (1) YEAR NINETY (90) DAYS

ONE (1) YEAR NINETY (90) DAYS ONE (1) YEAR, EXCEPT CRT

CCD IMAGE SENSOR - SIX (6) MONTHS

CRT - TWO (2) YEARS

LABOR NINETY (90) DAYS

NINETY (90) DAYS

NINETY (90) DAYS CRT - NINETY (90) DAYS CUSTOMER PAYS ALL LABOR CHARGES AFTER 90 DAYS

Monitor-VCR In-bome or carry-iii Service: 22” (diagonal) CRT / LCD and Larger

Monitor-VCR Carry-in Service: 21” (diagonal) CRT / LCD and smaller

'*■ 7

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the

problem is not handled to your satisfaction, then write to the Customer Satisfaction Center at the Panasonic Consumer Electronics Company address above.

SERVICE CALLS WHICH DO NOT INVOLVE DEFECTIVE MATERIALS OR WORKMANSHIP AS DETERMINED BY THE WARRANTOR, IN ITS SOLE DISCRETION, ARE NOT COVERED, COSTS OF SUCH SERVICE CALLS ARE THE RESPONSIBILITY OF THE PURCHASER, warvid 10/20/97

Spanish

Quick

Use

Guide/Guia para rápida consulta

Para ajustar el idioma, canal y reloj

1 Encienda el televisor y la videograbadora.

Presione POWER.

2 Sintonice el televisor al canal de salida de la

videograbadora.

(el mismo canal que ha ajustado en la parte trasera

de la videograbadora; canal 3 o 4).

• Sintonice siempre el televisor en este canal para obtener

la pantalla de videograbadora.

• Si esta usando los terminales de audio/ video para su

conexión, ajuste el televisor al modo de entrada de video.

SELECT LANGUAGE

PUSH vea CH A: ENGLISH OPRIMIR VCR CH ▼:ESPAÑOL APR. VCB/TV : FRANÇAIS

ELEGIR LA COMFXIQN

CABLE/DSS^VCR»-TV

VCRaCABLE/DSSATV

VCR^TV

ELEO IR;A ▼ FIJAR :► TERMINAR:ACT ION

Si ud. ha elegido CABLE/ DSS ► VCR ► TV, continue al paso 5 y sólo el canal de salida del cable será memorizado. Si no, a la sección “Instrucciones alternativas" en la página 51,

ELEGIR LA CONEXION

CABLE/DSSAveRATV

SALIDA DEL CABLE/DSS

ELEGIRIA ▼ FIJAR ■.< ► TERMINARiACTION

Si es necesario, consulte su manual de la caja de TV por cable. Si esta usando los terminales de audio/ video para su conexión

para la caja de TV por cable, ajuste “SALIDA DE VIDEO”.

INTRODUCIR NUMERO/CODI00

REFERI ENDO AL MANUAL

ELEGIRIA ▼ FIJAR ;► TERMINARiACTION

• Si su caja de TV por cable o su receptor DSS no tiene un

control remoto, elija “SIN CONTROL REMOTO."

• Luego, vaya a la sección “Instrucciones alternativas” en la

página 51.

• De esta manera se determina si el videograbador va a

controlar el sintonizador de cable o DSS.

Seleccione el lenguaje.

Presione CH A para elegir el idioma de la pantalla en inglés.

Presione CH T para elegir el idioma de la pantalla en español.

Presione VCR/ TV para elegir el idioma de la pantalla en francés.

Seleccione la conexión.

1) Presione AT para

seleccionar.

2) Presione ► para ajustar.

Seleccione la caja de TV por cable o su receptor el canal de salida.

1) Presione AT para

seleccionar.

2) Presione ► para fijar.

Seleccione el número de código de la caja de TV por cable o el receptor DSS.

(Consulte su lista de la página 7.)

1) Presione AT para

seleccionar.

2) Presione ► para fijar.

caja de TV

POR FAVOR SINTONICE SU CAJA DE TV POR CABLE AL CANAL 02.

— Receptor DSS -

Sintonizar la TV por cable o el canal receptor DSS.

1) Si ud. usa una caja de TV por cable, sintonice al canal 2. Si usa un receptor DSS.

POR FAVOR SUTTON ICE SU RECEPTOR DSS AL CANAL270

PROCEDER >

TERMINARiACTION

------

caja de TV

3 caja de TV —^ Ajustar canal de

ESTA RECIBIENDO SU CAJA

■ recepción.

DE TV POR CABLE EL CANAL 09 ?

----------------

ESI

— Receptor DSS ~

sintonice al canal 270.

2) Presione ► para continuar.

• "ESTA TRANSMITIENDO"

aparece.

1) Presione AT para

elegir “SI” o “NO.”

2) Presione ► para fijar. Si ud. usa una caja de TV

ESTA RECIBIENDO SU

RECEPTOR DSS EL CA.

ELEGIRIA ▼ FIJAR !►

TERMINARiACTION

por cable y ha elegido “SI,” siga al paso 9. Si ud. usa un receptor DSS

y ha elegido “SI,” siga las

instrucciones alternativas de la página 51.

ha elegi do “NO,” aparecerá de nuevo la pantalla del paso 6.

Intente fijar un código diferente para su marca y/o cambie

le conexión de su equipo. Si su respuesta es todavía "NO,” el control de la caja de

TV por cable o el receptor DSS no es disponible.

FIJAR EL CANAL PBS DE TV POR CABLE DE SU LOCAL

Wi.Wi4

ELEGIRIA » FIJAR !► TERM INARi ACT ION

Verifique que su caja de TV por cable esté encendido y su receptor DSS esté apagado.

Seleccione el canal PBS de su local gue está recibiendo en su caja de TV por cable.

1) Presione AT para

seleccionar.

2) Presione ► para ajustar.

FIJACION AUTO. (RELOJ)

CONECTE EL CABLE DE LA

ANTENA Y SI ESTA USANDO

UNA CAJA DE TV POR CABLE SINTONICE AL CANAL PBS DE SU LOCAL LUEGO. . .

POR FAVOR OPRIMIR CH UP

1/ 4/2000 MAR 12;OOPM

HORA VERAN I EGA IACT

CANAL FIJADO i CA 02

FIJACION AUTOMATICA

COMPLETO

TERMINARiOPRIMIR CH UP

Iniciar la fijación automática del reloj

Presione A.

- “FIJACION AUTOMATICA DE

RELOJ EN PROCESO” aparece.

Comprobas si la hora está fijada correctamente.

Presione CH A para terminar la fijación.

Por ayuda llame al 1-800-211-PANA(7262).

Si la hora que aparece no es correcta...

Si en su región se combia la hora para ahorrar energía, y la hora que aparece es incorrecta, siga los pasos “Ajuste Horario

de la Zona.” O, si utiliza la caja de TV por cable y recibe

más de una emisora PBS, intente nuevamente-el ajuste automático del reloj donde antes no hubiera probado.

Si aparece la pantalla inferior...

La instalación automática del reloj no es de aplicación para su zona horaria. Pulse ACTION para que aparezca la pantalla “Fijación Manual del Reloj” y siga los pasos b), c) y d) de la página 51.

Instrucciones alternativas

Complete los siguientes pasos si ha efectuado una de las siguientes explicaciones.

• Ud.ha elegido la segunda conexión (VCR ► CABLE/

DSS ► TV o VCR ► TV) en el paso 4 de la página 50.

• Ud. ha elegido "SIN CONTROL REMOTO” en el paso 6

de la página 50.

• Ud. Si está usando un receptor DSS y ha elegido "SI" en

el paso 8 de la página 50.

FIJACION AUTO. (CA/RELOJ)

CONECTE EL CABLE DE LA ANTENA Y SI ESTA USANDO UNA CAJA DE TV POR CAB..E SINTONICE AL CANAL P8S DE SU LOCAL LUEGO. . .

POR FAVOR OPRIMIR CH UP

Aparace las siguientes informaciones; “AUTOPROGRAMACION EN PROCESO" “FIJACION

AUTOMATICA DEL RELOJ EN PROCESO”

Comience el ajuste automático de canales y el ajuste automático del reloj.

FIJACION AUTOMATICA

DEL RELOJ

INCOMPLETO

OPRIMIR ACTION PARA FIJAR EL RELOJ

La fijación auto mática de la hora se efectuará cada día al apagar la videograbadora por primera vez.

there fore, la caja de TV por cable de be permanecer encendido y sintonizado al canal PBS cuando la video grabadora se apaga.

1/ 4/2000 MAR 12:OOPM

HORA VERANIEGAiACT

CANAL FIJADO : CA 02

FIJACION AUTOMATICA

COMPLETO

TERMINAR;OPRIMIR CH UP

Comprobar si la hora está fijada correctamente.

Presione CH ▲ para salir.

El ajuste del reloj es incompleto.

Ajuste el reloj

FIJACI ON AUTOMAT ICA

DEL RELOJ

INCOMPLETO

OPRIMIR ACTION PARA FI JAR EL RELOJ

!-\V- FIJAR RELOJ---------------------

/|\ VERANOlACT

ELEGIRIA ▼ FIJAR ;►

TERMINAR:ACT ION

---------- FIJAR RELOJ

1/ 4/2000 Ш 12:(

FIJACION ES COMPLETO

FIJAR :•* ►

INICIAR:ACTION

----------------

VERANOlACT

manualmente.

a) Presione ACTION, b) Presione AT para

seleccionar el mes.

c) Presione ► para ajustar.

• De la misma manera, ajuste el día, el año, la hora y la hora de ahorro de energía (VERANO). Para hacer correcciones, presione repetidamente ^

para moverse hasta el

error, luego corríjalo.

d) Presione ACTION.

(El reloj se activa.)

• Para salir de este modo,

pulse la tecla ACTION nuevamente.

Spanish Qui ck Use Guide /Gui a pa ra rápi da co nsul ta

Si la hora y la hora veraniega es incorrecta,

Si utiliza la caja de TV por cable y recibe más de una emisora PBS, intente nuevamente el ajuste automático del reloj donde antes no hubiera probado, {vea “Como Reinstalar el Reloj" en la página 42.)

Raras veces, en caso de que ud. vive cerca de dos zonas con hora diferente, el aparato puede elegir un canal PBS con diferente hora de su zona. En este caso, haga los siguientes pasos:

1) Tome nota del canal que está fijado en la pantalla y salga desde este modo presione el botón CH ▲.

2) Anule este canal desde los canales memorizados en la combinación de VCR/ TV.

3) Presione el botón ACTION para que aparezca la

pantalla del ACTION.

4) Presione AT para elegir “FIJAR RELOJ” y luego

presione ► para que aparezca la pantalla de “FIJAR RELOJ.”

5) Presione AT y para elegir y fijar “FIJACION

AUTOMATICA.”

6) Siga las instruccions en la páginas 50 y 51,

• Si ud.esta usando una caja de TV por cable y tiene muchos

canales PBS, sintonize la caja de TV por cable a un canal PBS diferente e intente la fijación automática otravez.

Ajustar de nuevo el reloj

1 Presione ACTION para exhiba el menú.

Operaciones básicas para la reproducción

1 Inserte un casete.

• La videogrababora se enciende automáticamente.

2 Presione PLAY.

• La reproducción comienza si el casete no tiene la

lengüeta para prevención de grabación.

■ Para encontrar una escena en particular Búsqueda hacia adelante —> Presione FF. Búsqueda hacia atrás —> Presione REW.

■ Para ver en cámara lenta --*> Presione SLOW.

■ Para ver una imagen fija (congelada) —>

Presione PAUSE.

■ Para ver imágenes cuadro a cuadro —>

Presione SLOW en el modo de imagen fija.

■ Para parar —> Presione STOP.

■ Para rebobinar la cinta —> Presione REW.

■ Para expulsar la cinta —> Presione STOP/EJECT

en el videogrababora.

------------------

--------------------

PREPARAR VCR FIJACION DE FUNCIONES

FIJAR CANAL LANGUE/ LANGUAGE: ESPAÑOL

ELEGIR:A T FIJAR ;►

TERMINAR:ACT ION

----------

FIJAR RELOJ

FIJACION AUTOMATICA

I.VJ81ini

AJUSTE ZONA HORA : 0

ELEGIR:A ▼ FIJAR :► TERMINAR: ACTION

-FIJAR RELOJ|-/--v|-/

------------------

VERANa:ÍACT/|V

ЦВЭЕВЕШ

ELEGIR:* ▼ FIJAR :•* ►

TERMINAR:ACTION

Presione AT para

seleccionar “FIJAR

RELOJ” y luego presione ►.

Presione AW para seleccionar “MANUAL” y luego presione ►.

Presione AV y ◄ ► para

seleccionar y ajustar la hora y la fecha.

5 Presione AT y ► para seleccionar y fijar la

hora y la fecha.

6 Presione ACTION dos veces para que el reloj

comience a funcionar y salir desde este modo.

• Para ajustar el reloj automático, seleccione “FIJACION AUTOMATICA” y luego siga las instrucciones de ajuste de una vez del videograbador en las páginas 50 y 51.

Por ayuda llame al 1-800-211-PANA(7262).

Operaciones básicas para la grabación

Inserte un casete.

• La videogrababora se

enciende automáticamente.

2 Seleccione el canal.

Presione CH A/T o las teclas numéricas correspondiente.

3 Seleccione la velocidad de grabación.

Presione SPEED.

• SP = Reproducción estándar,

• LP = Larga duración,

• SLP = Superlarga duración.

4 Comience la grabación.

Presione REC.

• Presione PAUSE para hacer una pausa en la

grabación en progreso.

■ Para parar ---> Presione STOP.

■ Grabación de un toque Presione REC repetidamente para ajustar la

hora de grabación (30 min - 4 horas).

• La videograbadora termina la grabación a una

hora programada.

Grabación normal

4:00^—3:00^«—2:00-<— 1:30'4-^

Programación fácil para la

grabación con temporizador

1 Exhiba FIJAR PROGRAMACION.

Presione PROG.

— FIJAR PROGRAMACION —

VCñ PIUS+

ажшпЕЕза

ELEGIRIA ▼ FIJAR :►

TERMINARiACTION

-►0:30-*-i :00'v

Exhiba “TEMPORIZADOR”.

1 ) Presione AT para

seleccionar.

2) Presione ► para exhibir.

• Si ya existe un programa en la memoria, presione AT y ► para seleccionar un número de programa sin usar.

INICIO PARADA CA Ajustc l3 fscha ds

i(DV/|\

CATEGOniAiNO

ELEGIRIA FIJAR >

ТЕНЫ INAHIPROG/ACTI ON

• 1~31 = Grabación única

• DIARIO = a la misma hora de lunes a viernes

• SEMANA = a la misma hora una vez a la semana

ПЛ^

Ejemplo |^3-9

Fecha de hoy — ? a / T orden para elegir DIARIO

Repita el paso 3 para ajustar:

hora de comienzo, hora de parada, canal (o LINEA para una fuente exterior), categoría*, velocidad (SP, LP, SLP).

• Categoría NO, DEPORTE, CINE, COMEDIA, MUSICA, DRAMA

FECHA INICIO PARADA CA

8 SAB 10:OOP 12:00P 02

HOY CATEGORIAiCINE

FIJACION ES COMPLETO

PARA REGISTRAR NOTAS

FIJAR 1-4 »•

FECHA INICIO PAHADA CA

8 SAB 10;O0P 12;00P 02

HOY CATEGOHIAiCINE NOTASiB

-----------------

REGISTRAR NOTAS

ELEGIRi* ▼ FIJAR '!► TERM I NAH : PROG/ACT I ON

P FE INIC PAHADA CA VEL

2----------------;

---------------

: —

CANCELARiADDÍDLT ELEGIR 1-8iA ▼ ENTRAR :► TERM INAR:PROG/ACT ION

Si usa un receptor DSS y fija un canal de 100-125, seleccione "DSS" o “CABLE."

ES ESTE EL CANAL DEL TV POR CABLE O DEL RECEPTOR DEL CANAL DSS?

TV POR CABLE

ELEGIRIA ▼ FIJAR IP

Para introducir más programas, presione AT y ► para seleccionar y ajustar el número de programa en blanco. Luego repita los pasos 3 y 4.

6 Salir del Programa.

Presione PROG (o ACTION).

TI nhfí

Pantalla multifuncinal

Si la fuente de la grabación es una caja de TV por cable, asegúrese de que la caja de TV por cable esté encendida y esté sintonizada al canal que desea grabar.

grabación.

SLP

1 ) Presione AT para

seleccionar.

2) Presione ► o para ajustar.

...........

31— 1 - 2 6—^

L SEMANAL SBWNAL SEMANAL

(SAB) (LUN) (DOM)

Haga las anotaciones necesarias.

ABC

• Si no fueran necesarias,

vaya al paso 5.

1) Presione A para

hacerlas.

2) Presione AT para

ABC

seleccionar.

3) Presione < para

ajustar.

4) Presione PROG

(o ACTION) para salir.

Termine el programa.

Presione PROG (o ACTION).

• Si la hora de comienzo de los programas coincide,

estos programas se

iluminarán.

1) Presione AT para

seleccionar.

2) Presione A para fijar.

La pantalla para la confirmación como demuestra arriba aparecerá luego de la fijación.

Grabación con temporizador.

Presione POWER para apagar.

Location of Controls

Remote control Buttons

EJECT

See pages 12, 54.

POWER

VCR

See page 22

PLAY

See pages 12, 25, 27, 29, 31,37, 45.

SELECT UP

See pages 8~11,16-21,24, 25, 27-30,33-40,42, 43

REWIND/ SEARCH

See pages 12, 28, 29.

SET

See pages 11, 16-21, 34, 35, 37, 42, 43,

ACTION

See pages 9-11,16, 17-21. 24, 25, 30, 33-36, 38-40, 42, 43.

ZERO SEARCH/ COMMERCIAL ADVANCE-

See pages 25, 30.

PAUSE

See pages 12, 13, 31.

NUMBERED KEYS

See pages 13, 21,22, 24, 28, 43.

COUNTER RESET

See page 30.

SPEED

See page 13.

SAP/Hi-Fi

See page 33.

VOLUME UP/ DOWN

See page 22.

0 0 0. j '

^ ^(LAi.'ULI '

® ® Ok

LIGHT

See page 54.

See page 22.

DSS/ CABLE

Seepage 22,

INPUT ^ V.

See page 31.

FAST FORWARD/ SEARCH

See pages 12, 25, 28, 29.

SET

See pages 8-11,16-21,24, 25, 27-30, 33-40,42, 43.

STOP

See pages 12, 13, 27, 31.

SELECT DOWN

See pages 8-11,16-21, 24, 25, 27-30, 33-40, 42, 43.

PROGRAM

See pages 16, 17, 21, 37.

--------------------------

RECORD

See pages 13, 31.

SLOW

See page 12.

ADD/ DELETE

See pages 17, 19-21, 34, 35, 43.

TAPE POSITION

See page 38.

INDEX/ MOVIE ADVANCE

See pages 27-29.

DISPLAY

See pages 30, 32, 46.

CHANNEL UP/ DOWN

See pages 8-11, 13, 31, 42, 43, 45.

Light Tower Universal Remote Control

Light button: When the LIGHT button is pressed, the buttons which can be activated in the seiected mode will light and the

EJECT button: When EJECT is pressed, the tape is ejected from Cassette Compartment.

selected mode button (TV/VCR or CABLE/DSS) will flash for 5 seconds. If no buttons are pressed within 5 seconds, the light will turn off in order to conserve battery power. Also while holding down the buttons, the selected mode button will flash so you will be able to see, in the dark, which mode has been selected.

If EJECT is pressed during recording, the VCR will not respond to the command.

Front View of the VCR

CHANNEL UP/ DOWN Cassette Compartment TRACKING/ V-LOCK/ ACTION/ PROG See pages 12, 13, 31,45.

See pages 8-10, 13, 16, 43, 44.

POWER

See pages 8, 17, 21,22, 43, 44

VIDEO Input Connecter

See page 31.

AUDIO Input

Connecter(L/R)

See page 31. VCR/TV selector

_____

See pages 8, 13.

Multi Function Display

See pages 12, 13, 17, 21, 31, 55.

For assistance, call 1-800-211-PANA(7262).

Remote Sensor

PLAY/ SELECT UP

See pages 10, 12, 16, 25, 37, 43-45.

FAST FORWARD/ SEARCH/ SET

See pages 10,16, 25,43.

STOP/ EJECT/ SELECT DOWN

See pages 10, 12, 13, 16, 43.

RECORD

See pages 13, 38.

REWIND/ SEARCH/ SET

See pages 10, 16, 43.

Multi Function Display

Displays the current time. Briefly displays VCR status when a function button is pressed.

Briefly displays the channel number, or “LINE1” or “LINE2" when a channel or line input is selected.

In demonstration mode, featured items are displayed. (See below.)

Self Demo Mode-----------------------------------------

After first power on or VCR memory reset (page44), Self Demo mode is started after 5 seconds. This mode is cancelled when clock is set. To restart, hold down PLAY on VCR for 5 seconds. To cancel, hold down PLAY again for 5 seconds.

• This mode is only possible when cassette is not inserted and clock is not set.

------------------------------------------------------

Rear View of the VCR

AC Power Plug

While plugged into an AC outlet, the VCR consumes 3.3 W of

Video Input

Connector

See page 31.

See pages 15, 31, 32.

Quick Use Guide

Playback a Tape

1 Make all connections (page 4).

Set VCR Channel on VCR Rear Panel.

Slide the VCR

flAUWO-L

>P^ OUTtOTV,

i® 5f5

Tune your TV..to the channel selected above (3 or 4) whenever you want to see the picture from the VCR

on your TV screen.

Play your Tape.

Channel selector switch to the channel number not used by local broadcast companies (CH3 or 4).

Record on a Tape

*1 Make all connections (page 4).

Set VCR Channel on VCR Rear Panel.

Slide the VCR

^ R-AUD«-“yiCiEO

OUT TO TV

a CH 4

(ED

Tune your TV to the channel selected above (3 or 4) whenever you want to see the picture from the VCR on your TV screen.

Do “One Time VCR Setup” on page 6.

In order for the VCR to properly interface with your

equipment, some setup is necessary.

Channel selector switch to the channel number not used by local broadcast companies (CH3 or 4).

<1 \> )\

Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus,

New Jersey 07094

Printed in Japan VQTS3521A

Insert a tape.

Press PLAY.

(Start playback)

Record on a Tape.

SPEED

REC

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc. (“PSC”)

Ave. 65 de Infanterfa. Km, 9.5 San Gabriel Industrial Park, Carolina,

Puerto Rico 00985

Insert a tape

with Record Tab.

Press CH Up/Down.

(Select Channel)

Press SPEED, (Select speed)

Press REC.

(Start Recording)

Panasonic PV-S9670 User Manual [en, es]

Specifications and Main Features

Frequently Asked Questions

User Manual

Quick Use Guide is on the back cover.

Accessories

Loading the Batteries

Please Note Which Connection Type You are Using.

Cable Box/ DSS Receiver Code Number List

Cable Box

Positioning Your Cable Box or DSS Receiver

Turn the TV and VCR on.

Tune to VCR output channel.

Select the language.

Language Cable/DSS Receiver

Channels Clock

Select hookup.

Select cable box or DSS receiver output channel.

Set receiver channel.

Confirm that cable box is on and that DSS receiver is off.

Start Clock Auto Set.

If displayed time is incorrect...

If the screen below appears...

LEanguageESiGable/D.SSiReaejyeri^

Using AWM ► keys -

Clock Setup Incomplete...

Confirm that time Is correct.

Set the clock manually.

If displayed time and DST are incorrect...

Insert a cassette.

Select Channel.

Select Recording speed.

Start Recording.

With a Cable Box (Cable Box^VCR)

With a Cable Box (VCR-^ Cable Box)

With Two Cable Boxes

1 Display SET PROGRAM.

Display Program screen.

Set the recording DATE.

Make the notes.

End the program.

Using AT^ ► keys

Review, Replace or Clear Program Contents:

Repeat steps 1-2 on page 16.

To Replace program...

To Clear program...

Select program.

Display menu.

Display SET UP CHANNEL

Select AUTO SET.

Programming

Enter Zip Code.

Select When to Update.

End setup.

Programming

Do “Auto VCR Plus+ System Channel Setup (Part 1),” steps 1-3 on page 18.

Select MANUAL SET.

Select VCR Plus+ channels.

End setup.

c> Programming

Channel Setup Preparations

Check list before you begin.

Display SET PROGRAM.

Enter PlusCode programming number.

Enter record frequency.

Setup i=>

Select Category.**

Change record speed.

Make notes. —> Do step 4 on page 16.

End programming.

Set timer.

Use nonnal Timer Recording steps if:

See page 17 to:

Find your TV, Cable or DSS Receiver Brand Code Number on following page.

Setup remote.

Confirm code entry.

Cable Box Brand Code Numbers

Display menu.

Display SET UP FEATURE.

Display SET UP COMMERCIAL ADV.
