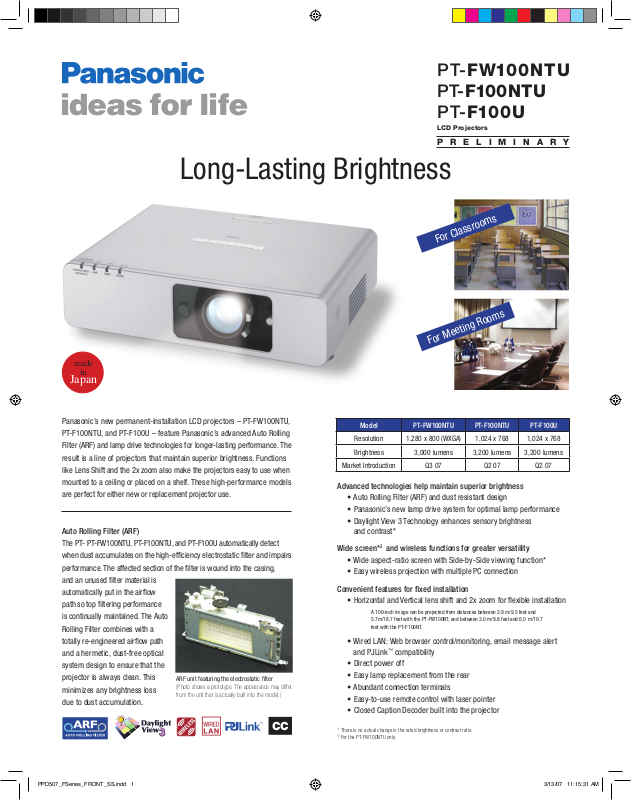

Panasonic PT-F100NT, PT-FW100NT, PT-F100 Product Sheet

Advanced technologies help maintain superior brightness

• Auto Rolling Filter (ARF) and dust resistant design

• Panasonic’s new lamp drive system for optimal lamp performance

• Daylight View 3 Technology enhances sensory brightness and contrast*

Wide screen*2 and wireless functions for greater versatility

• Wide aspect-ratio screen with Side-by-Side viewing function*

• Easy wireless projection with multiple PC connection

Convenient features for ﬁxed installation

• Horizontal and Vertical lens shift and 2x zoom for ﬂexible installation

A 100-inch image can be projected from distances between 2.9 m/9.5 feet and

5.7m/18.7 feet with the PT-FW100NT, and between 3.0 m/9.8 feet and 6.0 m/19.7 feet with the PT-F100NT.

• Wired LAN: Web browser control/monitoring, email message alert and PJLink™ compatibility

• Direct power off

• Easy lamp replacement from the rear

• Abundant connection terminals

• Easy-to-use remote control with laser pointer

• Closed Caption Decoder built into the projector

Panasonic’s new permanent-installation LCD projectors – PT-FW100NTU, PT-F100NTU, and PT-F100U – feature Panasonic’s advanced Auto Rolling Filter (ARF) and lamp drive technologies for longer-lasting performance. The result is a line of projectors that maintain superior brightness. Functions like Lens Shift and the 2x zoom also make the projectors easy to use when mounted to a ceiling or placed on a shelf. These high-performance models are perfect for either new or replacement projector use.

Auto Rolling Filter (ARF)

The PT- PT-FW100NTU, PT-F100NTU, and PT-F100U automatically detect when dust accumulates on the high-efﬁciency electrostatic ﬁlter and impairs performance. The affected section of the ﬁlter is wound into the casing, and an unused ﬁlter material is automatically put in the airﬂow path so top ﬁltering performance is continually maintained. The Auto Rolling Filter combines with a totally re-engineered airﬂow path and a hermetic, dust-free optical system design to ensure that the projector is always clean. This minimizes any brightness loss due to dust accumulation.

ARF unit featuring the electrostatic ﬁlter

(Photo shows a prototype. The appearance may differ from the unit that is actually built into the model.)

Long-Lasting Brightness

There is no actual change in the rated brightness or contrast ratio.

For the PT-FW100NTU only.

For Classrooms

For Meeting Rooms

PT-FW100NTU PT-F100NTU PT-F100U

LCD Projectors

P R E L I M I N A R Y

made

Japan

Model PT-FW100NTU PT-F100NTU PT-F100U

Resolution 1,280 x 800 (WXGA) 1,024 x 768 1,024 x 768

Brightness 3,000 lumens 3,200 lumens 3,200 lumens

Market Introduction Q3 07 Q2 07 Q2 07

PPD507_FSeries_FRONT_SS.indd 1 3/13/07 11:15:31 AM

Specifications (Tentative)

Power supply Power consumption

LCD panel

Panel size

PT-FW100NTU

PT-F100NTU/ PT-F100U

Display method Drive method Pixels

PT-FW100NTU

PT-F100NTU/ PT-F100U

Pixel configuration

Lens

Lamp Projection size

Colors Brightness

PT-FW100NTU PT-F100NTU/

PT-F100U

Resolution (RGB)

PT-FW100NTU PT-F100NTU/ PT-F100U

Scanning frequency

RGB

BPR

S-Video/Video

Throw distance

PT-FW100NTU PT-F100NTU/

PT-F100U

100-24 0 V AC, 50/60 Hz 360 W (Approx. 4 W in standby mode with fan stopped)

0.74" (18.8 mm) diagonal (16:10 aspect ratio)

0.7" (17.78 mm) diagonal (4:3 aspect ratio) Transparent LCD panel (x 3, R/G/B) Active matrix

1,024, 000 (1,280 x 800) x 3, total of 3,072,000 pixels 786,43 2 (1,024 x 768) x 3, total of 2,359,296 pixels Stripe Manual zoom (1:1-1:2), manual focus, F 1.7-2.6, f 21.6-43.0 mm 250 W UHM™ lamp 33-300 inches/838-7,620 mm diagon ally (16:10 aspect ratio) Full color (16,777,216 colors)

3,000 lumens 3,200 lumens

1,280 x 800 pixels (1,600 x 1,200 pixels with compression) 1,024 x 768 pixels (1,600 x 1,200 pixels with compression)

Horizo ntal: 15 -91 kHz, Vertical: 50-85 Hz 480i (525i): f

H 15.75 kHz; fV 60 Hz

576i (625i): fH 15.63 kHz; fV 50 Hz

480p (525p): fH 31.5 kHz; fV 60 Hz 576p (625p): fH 31.25 kHz; fV 50 Hz 720/60 p (750/60p):

fH 45 kHz; fV 60 Hz

1080/6 0i (1125/60i):

fH 33.75 kHz; fV 60 Hz

1080/5 0i (1125/50i):

28.125 kHz; fV50 Hz

NTSC, NTSC4.4 3, PAL-M, PAL60:

fH 15.75 kHz; fV 60 Hz

PAL, SECAM, PAL-N:

fH15.63 kHz; fV50 Hz

1.1 m-17.2 m (3'7"-56'5") (16:10)

1.2 m-18.1 m (3'11"-59'4") (4:3)

Optical axis shift

PT-FW100NTU PT-F100NTU/

PT-F100U

Keystone correction range

On-screen menu

Installation

Built-in speakers

Terminals

COMPUTER 1 IN

COMPUTER 2 IN/COMPUTER 1 OUT

COMPONENT IN

VIDEO IN S-VIDEO IN

AUDIO IN (COMPUTER 1)

AUDIO IN (COMPUTER 2)

AUDIO IN (COMPONENT/VIDEO/S-VIDEO)

AUDIO OUT

SERIAL REMOTE LAN

Power cord length Cabinet material Dimensions (W x H x D)*

Weight Operating environment

Temperature Humidity

Vertical: ±51%, horizontal: ±24%

Vertical: ±50%, horizontal: ±32%

Vertical: ±30° 17 languages: English, French, German , Spanish, Italian, Korean, Russia n, Chinese, Japanese, Swedis h, Norwegian, Danish, Portuguese, Polish, Hungarian, Czech, and Thai Front/rear ceiling/desk (menu selection) 4 cm (round), x 1,

3.0 W (monaural) output power

D-sub HD 15-pin x 1 R, G, B: 0.7 Vp-p, 75 ohms, Sync on green: 1.0 Vp-p, 75 ohms HD/SYN C, VD: TTL (positive/negative polari ty compatible)

D-sub HD 15-pin x 1 (input/output select able using on-screen menu) R, G, B: 0.7 Vp-p, 75 ohms, Sync on green: 1.0 Vp-p, 75 ohms HD/SYN C, VD: TTL (positive/negative polari ty compatible) RCA pin x 3, Y: 1.0 Vp-p (including sync signal), 75 ohms; P

B/CB, PR/CR:

0.7 Vp-p, 75 ohms RCA pin x 1, 1.0 Vp-p, 75 ohms Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms

M3 (stereo) x 1, 0.5 Vrms

RCA pin (L, R) x 1, 0.5 Vrms M3 (stereo) x 1, 0 -2.0 Vrms (varia ble) D-sub 9-pin x 1 (RS-232C) D-sub 9-pin x 1 RJ-45 x 1, 10BASE -T/100BASE-TX/1000BASE-T 2 m (6'7") Molded plastic (ABS/PC)

432 x 124.5 x 319 mm (17" x 4-29/32" x 12-9/16")

6.2 kg (13.7 lbs.)

0°-40°C (32°-104°F) 20%-80% (no condensation)

Wireless remote control unit

Power supply Operation range*

Dimensions (W x H x D)

Weight

Wireless LAN

Standard Transmission

IEEE802.11b

IEEE802.11g

Modulation system

IEEE802.11b

IEEE802.11g

Transmission speed

IEEE 802.11b IEEE 802.11g

Operation range*

Frequency range

PT-FW100NTE/FW100NTEA/F100NTE/F100NTEA

PT-FW100NTU/F100NTU

Channels

PT-FW100NTE/FW100NTEA/F100NTE/F100NTEA

PT-FW100NTU/F100NTU

3 V DC (AA battery x 2) Approx. 10 m (32.8 feet) when operated from directly in front of the signal receptor

48 x 1 63 x 24.5 mm (1-7/8 " x 6-13/32" x 31/32") 145 g (5.1 oz) (including batteries)

IEEE80 2.11b/g

Direct sequence spread spectrum (DSSS) system Orthog onal frequency division multi-plex (OFDM) system

CCK (11/5.5 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps) 64-QAM (54/48 Mbps), 16-QAM (36/24 Mbps), QPSK (18/12 Mbps), BPSK (9/6 Mbps)

11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps Approx. 30 m (98'5")

2,412 MHz-2,472 MHz

2,412 MHz-2,462 MHz

1-13 ch

1-11 ch

To use wir eless f unctions, a PC is req uired th at meet s the cond ition s given b elow:

OS: Micro soft® W indows® 2000 Profession al, Wi ndows® XP P rofession al,

Windo ws® XP H ome Edition

CPU: Intel® Pentium® III or h igher, o r ot her c ompatible pr ocessor (1 GHz or

highe r is rec ommended) Memor y: 256 MB or m ore Free hard disk space: 60 MB or mo re CD-RO M dr ive: CD-ROM drive or DVD drive Wirel ess LAN: IEEE 802.11b/g compa tible (Built-i n w ireless LAN system or external IEE E

802.1 1b/g LAN card must be i nstalled and running no rmally.)

NOTE: So me IEEE 80 2.11g /b wirel ess LAN ma y not allo w c onnec tion to th e projec tor.

Wired LAN con nector: RJ-45

NOTE: Us e Categ ory 5e (or hi gher) c ables fo r 1 000BA SE-T co nnect ion.

Supplied Accessories

• Pow er cord

• Wireless remote control

• Ba tteries for remote control

• Wireless Manager ME 4.0 (CD-ROM)

• Safety wire rope

Optional Accessories

ET-LAF100 Replacement lamp unit ET-RFF100 Replac ement filter unit ET-PKF100H Ceiling mount bracket for high ceilings ET-PKF100S Ceiling mount bracket for low ceilings

N O T E S O N U S E

• The projector uses a high-vo ltage mercury lamp that contains high internal pressu re. This lamp may break, emitti ng a lar ge so und, o r fa il to ill uminate, due to impact or e xtended use. T he length of time that it takes for t he lam p to brea k or fail to illuminate varies greatl y de pending on ind ividual lamp characteris tics and u sage conditions.

• The brightnes s of the lamp will gradually dec rease with use.

• The projector includes consumable part s. The frequen cy of replac ement for t he l amp and o ther consum able parts will increase if the projector is subjected to extended, cont inuous use. Fo r detail s, plea se c onsult a se rvice representa tive.

*1: In A I m ode. *2 : Includ ing prot rudin g parts .

*3: Op erati on rang e d iffer s d epend ing on the e nviron ment.

Weights and dimensions shown are ap proximate. Specification s are subject to change w ithout no tice. Produ ct availabi lity diff ers depen ding on region and country. This product may be su bject to export control regulatio ns. UHM is a trademark of Matsushita Electric Industria l Co., Ltd. Intel and Pent ium are registere d tradema rks of Intel Corporation. Windows is either a regis tered tra demark o r tradema rk of Microsoft Corporatio n in the United States and/or other countries. All o ther trad emarks a re the property of their r espective trademark owners.
