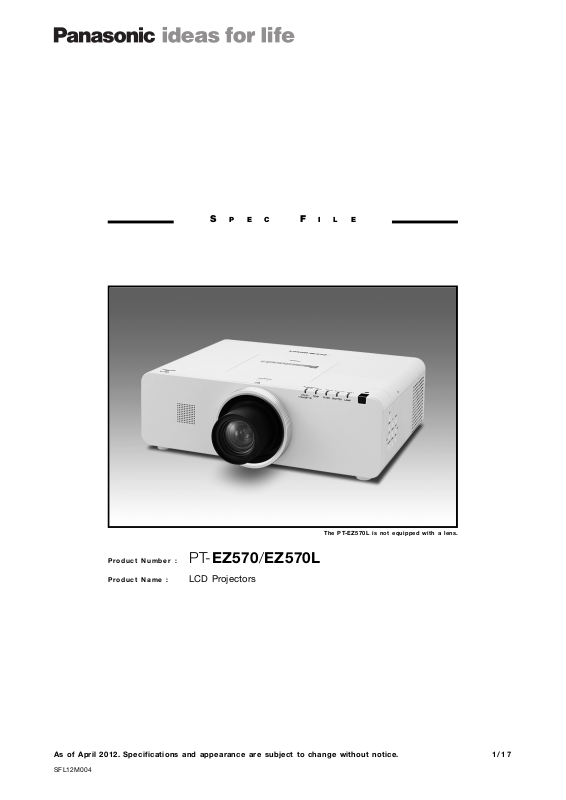

Panasonic PT-EZ570U, PT-EZ570UL Specification
S P E C F I L E
The PT-EZ5 70L is not equ ip ped with a len s.
Pro du c t Nu mb e r : PT-EZ570/EZ570L
Pro du c t Na me : LCD Projectors
As of A pril 2012. Specifications and appeara nce are subject to change without notice.
SFL 12M 004
1 / 1 7
S P E C F I L E
LCD Projectors
Specifi cat ions
Main unit
Power supply
Power consumption
Optical system
LCD panel Panel size
Display method
Pixels
Pixel configuration
Lens PT-EZ570
PT-EZ570L
Lamp
Screen size
Brightness*
Center-to-corner uniformity*
Contrast*
Resolution
Scanning frequency HDMI/DVI-I
Optical axis shift
Keystone correction range
Installation
Built-in speaker Size
2
2
2
RGB
YPBPR (YCB CR)
Video/S-Video
Output power
P T-EZ570/EZ570L
100 – 240 V AC, 50/60 Hz
490 W (492 VA) (0.4 W with STANDB Y MODE set to ECO*1, 11 W with
STANDB Y MODE set to NETWO RK.)
Dichroic mirror separation/prism synthesis system
19.2 mm (0.76 inches) diagonal (16:10 aspect ratio)
Transparent LCD panel (× 3, R/G/B)
2,304,000 (1,920 × 1,200) × 3, total of 6,912,000 pixels
Stripe
Powered zoom/focus lens (1.7– 2.8:1), F 1.7–2.3, f 26.9 –45.4 mm
Optional powered zoom/focus lenses and fixed-focus lens
330 W UHM lamp
1.02–10.16 m (40–400 inches), 16:10 aspect ratio
5,000 lumens (LAMP POWER: AU TO/N ORM AL)
90%
5,000:1 (full on / full off, LAMP POW ER: AUTO)
1,920 × 1,200 pixels
fH: 26 kHz – 80 kHz, fV : 23 Hz–85 Hz, dot clock: 162 MHz or lower
fH: 15 kHz–120 kHz, fV: 48 Hz–100 Hz, dot clock: 230 MHz or lower
(Signals above 163 MHz are downsampled.)
525i (480i): fH 15.75 kHz; fV 60 Hz,
625i (576i): fH 15.63 kHz; fV 50 Hz,
525p (480p): fH 31.50 kHz; fV 60 Hz,
625p (576p): fH 31.25 kHz; fV 50 Hz,
750 (720)/60p: fH 45.00 kHz; fV 60 Hz,
750 (720)/50p: fH 37.50 kHz; fV 50 Hz,
1035/60i: fH 33.75 kHz; fV 60 Hz,
1125 (1080)/60i: fH 33.75 kHz; fV 60 Hz,
1125 (1080)/50i: fH 28.13 kHz; fV 50 Hz,
1080/25p: fH 28.13 kHz; fV 25 Hz,
1080/25sF: fH 28.13 kHz; fV 50 Hz,
1080/24p: fH 27.00 kHz; fV 24 Hz,
1080/24sF: fH 27.00 kHz; fV 48 Hz,
1080/30p: fH 33.75 kHz; fV 30 Hz,
1080/30sF: fH 33.75 kHz; fV 60 Hz,
1080/60p: fH 67.50 kHz; fV 60 Hz,
1080/50p: fH 56.25 kHz; fV 50 Hz
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Vertical: ±60% (powered), horizontal: ±10% (powered)
NOT E: Opti cal axis shif t func ti on ca nnot be ope ra ted when used wi th th e ET-ELW2 1.
Vertical: ±30° (with vertical correction only)
Horizontal: ±30° (with horizontal correction only)
Ceiling/floor, front/rear
3.7 cm (1-15/32 inches) (round) × 1
10 W (monaural)
As of A pril 2012
SFL12M 004
2 / 1 7
S P E C F I L E
LCD Projectors
Terminals INPUT 1
HDMI IN
DVI-D IN
RGB IN
R, G, B
INPUT 2
[RGB input]
R, G, B
Y, P
VIDEO
INPUT 3
[Component input]
Y, PB (CB), PR (CR)
VIDEO
S-VIDEO
MONITOR OUT (RGB output)
AUDIO IN 1
AUDIO IN 2
AUDIO IN 3
VARIABLE AUDIO OUT
SERIAL IN
REMOTE IN
LAN
Power cord length
Cabinet materials
Dimensions (W × H × D) PT-EZ570
PT-EZ570L
Weight PT-EZ570
Operation noise*
2
Operating temperature
PT-EZ570L
B (CB), PR (CR)
P T-EZ570/EZ570L
Menu selection
HDMI 19-pin × 1, Deep Color, HDCP compatible
525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1035/60i,
1125 (1080)/60i, 1125 (1080)/50i,
1080/25p, 1080/25sF, 1080/24p, 1080/24sF, 1080/30p, 1080/30sF,
1080/60p, 1080/50p, VGA (640 × 480) – WUXGA*
Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz,
32 kHz)
DVI-D 24-pin × 1, DVI 1.0 compliant, compatible with HDCP, compati-
ble with single link only
525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1035/60i,
1125 (1080)/60i, 1125 (1080)/50i,
1080/25p, 1080/25sF, 1080/24p, 1080/24sF, 1080/30p, 1080/30sF,
1080/60p, 1080/50p, VGA (640 × 480) – WUXGA*2(1,920 × 1,200)
D-sub HD 15-pin (female) ×1
R: 0.7 Vp-p, 75 ohms;
G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms;
B: 0.7 Vp-p, 75 ohms;
HD/VD, SYNC: high impedance, TTL (positive/negative)
NOT E: SYNC /HD and VD ter mi nal s do not accept tri -l evel syn c sig nal s.
Menu selection
BNC × 5 (RGB/YPBPR/YCB CR × 1)
R: 0.7 Vp-p, 75 ohms;
G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms;
B: 0.7 Vp-p, 75 ohms;
HD/VD, SYNC: high impedance, TTL (positive/negative)
NOT E: SYNC /HD and VD ter mi nal s do not accept tri -l evel syn c sig nal s.
Y: 1.0 Vp-p (including sync signal);
PB (CB), PR (CR): 0.7 Vp-p, 75 ohms
BNC × 1, 1.0 Vp-p, 75 ohms
Menu selection
RCA pin × 3 (YPBPR/YCB CR × 1)
Y: 1.0 Vp-p (including sync signal);
PB (CB), PR (CR): 0.7 Vp-p, 75 ohms
RCA pin × 1, 1.0 Vp-p, 75 ohms
Mini DIN 4-pin × 1, Y: 1.0 Vp-p; C: 0.286 Vp-p, 75 ohms
D-sub HD 15-pin (female) ×1
R: 0.7 Vp-p, 75 ohms;
G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms;
B: 0.7 Vp-p, 75 ohms;
HD/VD, SYNC: high impedance, TTL (positive/negative)
M3 (L, R) × 1, 0.5 Vrms, input impedance: 22 kilohms or more
M3 (L, R) × 1, 0.5 Vrms, input impedance: 22 kilohms or more
RCA (L, R) × 2, 0.5 Vrms, input impedance: 22 kilohms or more
M3 (L, R) × 1 (monitor out: 0 – 2.0 Vrms, variable)
D-sub 9-pin (female) × 1, for external control (RS-232C compliant)
M3 jack × 1 for wired remote control or link control
RJ-45 × 1, for network connection, 100Base-TX/10Base-T, compliant
with PJLink™
3.0 m (9 ft10 in)
Molded plastic
489.5 mm × 164 mm*
4
× 434 mm*
5
(19-9/32 × 6-15/32 *4× 17-3/32 *5inches) (with supplied lens)
489.5 mm × 164 mm*4× 370 mm*
5
(19-9/32 × 6-15/32 *4× 14-9/16 *5inches) (without lens)
Approx. 10.3 kg (22.7 lbs) (with supplied lens)
Approx. 9.6 kg (21.2 lbs) (without lens)
37 dB (LA MP POW ER: NO RMAL ), 31 dB (LA MP PO WER: EC O 1 / E CO 2)
0– 40 °C (32–104 °F) up to 1,000 m (3,280 ft) above sea level, with fan
control set to OFF,
0– 30 °C (32–86 °F) between 1,000 m and 2,000 m (3,280 ft and 6,561
ft) above sea level, with fan control set to ON 1,
2
(1,920 × 1,200)
As of A pril 2012
SFL12M 004
3 / 1 7
S P E C F I L E
LCD Projectors
Operating humidity
Remote control unit
Power supply
Operation range*
Dimensions (W × H × D)
Weight
Supplied accessories
Optional accessories
Zoom lens (1.3–1.7:1)
Zoom lens (2.8– 4.6:1)
Zoom lens (4.6 – 7.2:1)
Fixed-focus lens (0.8:1)
Ceiling mount bracket
Bracket assembly
Replacement lamp unit
Replacement filter unit
6
P T-EZ570/EZ570L
0– 30 °C (32–86 °F) between 2,000 m and 2,700 m (6,561 ft and 8,858
ft) above sea level, with fan control set to ON 2.
20%– 80% (no condensation)
3 V DC (R03/LR03/AAA type battery × 2)
Approx. 5 m (16 ft5 in) when operated from directly in front of the signal receptor
48 × 145 × 27 mm (1-7/8 × 5-23/32 × 1-1/16 inches)
Approx. 102 g (3.6 oz) (including batteries)
Power cord (× 1)
Power cord holder (× 1)
Wireless/wireled remote control unit (× 1)
Batteries for remote control (AAA/R03/LR03 type × 2)
Computer cable (× 1)
Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring
& Control Software) (× 1)
ET-ELW20
ET-ELT20
ET-ELT21
ET-ELW21
ET-PKE200H (for high ceilings)
ET-PKE200S (for low ceilings)
ET-PKE200B
ET-LAE200
ET-RFE200
Wei ght s and dime nsi on s sho wn are appro xi ma te. Spec ifica ti ons and app ea ran ce are subj ec t to cha nge with ou t noti ce .
*1 Whe n the stan dby mode is set to eco, netw or k func ti on s such as powe r on ove r the LAN netw ork wi ll not ope rat e, and the se ri al out pu t termi-
nal cann ot be used . Also , onl y cer tai n com mands can be receiv ed for exte rn al cont rol usin g the ser ia l termin al .
*2 Measu remen t, me as uri ng cond iti on s, an d met hod of nota tion all comp ly wit h ISO 2111 8 inte rn at ional stan dar ds .
*3 WUX GA resol ut io n is supp or te d only when the sign al s are com pl ia nt wit h VES A CVT-RB (Coo rdi na ted Vide o Timi ng -R edu ce d Bla nki ng ).
*4 Wit h leg s at sho rte st posi tio n.
*5 Pro tr udi ng part s not inc lu de d.
*6 Ope ra ti on ran ge diffe rs depe ndi ng on envi ron me nts .
As of A pril 2012
SFL12M 004
4 / 1 7
370 ( 14-9 /16)64 ( 2-17/32 )
345 (13-19/32)
43 4 ( 17- 3 / 32 )
412 (16-7/32) 286 (11-1/4)
489.5 (19-9/32 )
164
(6-15/32 )
155
(6-3 /32)
9
(11 / 32 )
S P E C F I L E
INPUT 2
SYNC/HD VD
R/PR
S-VIDEO PB/CB
1
23
L
REMOTE IN
SERIAL IN
DVI-D
RGBMONITOR OUT
LAN
R
VIDEO/Y PR/CR
B/PBVIDEO/G/Y
INPUT 3 AUDIO IN
INPUT 1
VAEI AB LE
AUDIO OUT
1
6789
10 12
11 13 14
23 4 5
LCD Projectors
Dimensi ons
P T-EZ570/EZ570L
uni t : m m (in ch)
NOT E: This il lu str at io n is not dra wn to sc al e.
The illu st rat io n sho ws the PT-EZ5 70.
Terminals
1 LAN conne ctor
2 RGB outpu t
3 RGB input
4 HDMI In put
5 DVI-D inp ut
6 RGB/co mponent/vid eo inp ut
7 S-Video
8 Compon ent/video in put
9 Audio 1 in put
10 Au dio 2 inpu t
11 Au dio 3 inpu t
12 Re mot e input
13 Au dio output
14 Se rial inpu t
As of A pril 2012
SFL12M 004
5 / 1 7
S P E C F I L E
Upper edge of proje cted image
Lower e dge of projected image
Projected image
L
L
L
Projected image
HH
∅54
(2-1/8)
60
(2-3/8)
60
(2-3/8)
120
(4-23/32)
60
(2-3/ 8)
60
(2-3/8 )
120
(4-23/32)
860–1,460
*
2
*
2
*
2
*
2
(33 -27/32–
57-15 / 32 )
951– 1,5 51
(37-7/ 16 –61-1/16 )
184. 5
(7-1 /4 )
185. 5A*
1
(7- 5 /16 )
LCD Projectors
Standard s ett ing-up po sit ion
P T-EZ570/EZ570L
*1 Wh en the len s prot ru des to the max imum.
A: 83. 5 mm (3- 9/ 32 in) with the ET-ELW2 0
64 mm (2- 17 /3 2 in) wit h the supplie d len s
88 mm (3- 15 /3 2 in) wit h the ET- ELT20
84 mm (3- 5/ 16 in ) wit h the ET-ELT2 1
54 mm (2- 1/ 8 in) wi th th e ET-ELW2 1
*2 Adj us ta ble in 30 mm (1-3 /1 6 in) ste ps .
NOT E:
Ill us tr ati on s sho w the pro je cto r
i ns talle d usi ng op tio na l cei lin g mou nt
bra ck et ET-P KE2 00 H and br ac ket asse mb ly
ET-PK E2 00B .
Thi s ill us tra ti on is not dra wn to sca le .
C a u t io n :
• All c on struction work should be done by a q ua lified tech ni ci an.
• When mounting to the ceiling, use the special moun ti ng brac ke t. To prevent the p roject or fro m swaying or dropping, attach the wire betw ee n the m ou nt in g brack et and the ceiling.
uni t : m m (in ch)
