Panasonic NR-BY602, NR-BY552 User Manual

Operating Instructions

Terima kasih banyak untuk membeli produk Panasonic

Produk ini direka untuk kegunaan rumah sahaja

Panduan Pengendalian

Refrigerator ఇᔉ Peti Sejuk

Model No:

ܔ༚

No Model:

NR-BY552 / NR-BY602

Thank you very much for purchasing Panasonic product

This product is intended for household use only

ێઘึᒨલᒰඛPanasonicୖ܈

Terima kasih banyak untuk membeli produk Panasonic

Terima kasih banyak untuk membeli produk Panasonic

Produk ini direka untuk kegunaan rumah sahaja

Produk ini direka untuk kegunaan rumah sahaja

͵ୖ܈෯բࣂࣙՠΈ

NR-BY552 NR-BY602

Before operating this unit, please completely read these instructions especially the safety precautions.

MAL

NR-BY552-BY602_Cover.indd 1NR-BY552-BY602_Cover.indd 1 6/30/11 10:45:14 AM6/30/11 10:45:14 AM

Sebelum menggunakan unit ini, sila baca panduan ini khasnya amaran keselamatan.

PARTS IDENTIFICATION

1

2

3

4

5

6

7

8

9

10

11

18

19

NR-BY552

A. REFRIGERATOR COMPARTMENT
B. FREEZER COMPARTMENT

1. LED Lamp

2. Refrigerator Temperature Control

3. Small Tempered Glass Tray

4. Large Tempered Glass Tray

5. Tempered Glass Tray Crisper

6. Vegetable Case

7. Tempered Glass Tray Chilled

8. Chilled Case

9. Ice Tray

10. Ice Box

11. Bottom Freezer Case

12. Egg Shelf

13. Egg Shelf with Egg Tray

14. Left Provision Compartment Shelf

15. Right Provision Compartment Shelf

16. Bottle Shelf

17. Slide Bottle Stopper

18. Top Freezer Case

19. Adjustable Bolt

20. Freezer Temperature Control

21. Drain Tray

22. Compressor

1

2

12

13

14

15

16

17

For only model.

- NR-BY552

- NR-BY602

This portion is shown at front of the product.

3

4

5

6

7

8

9

10

11

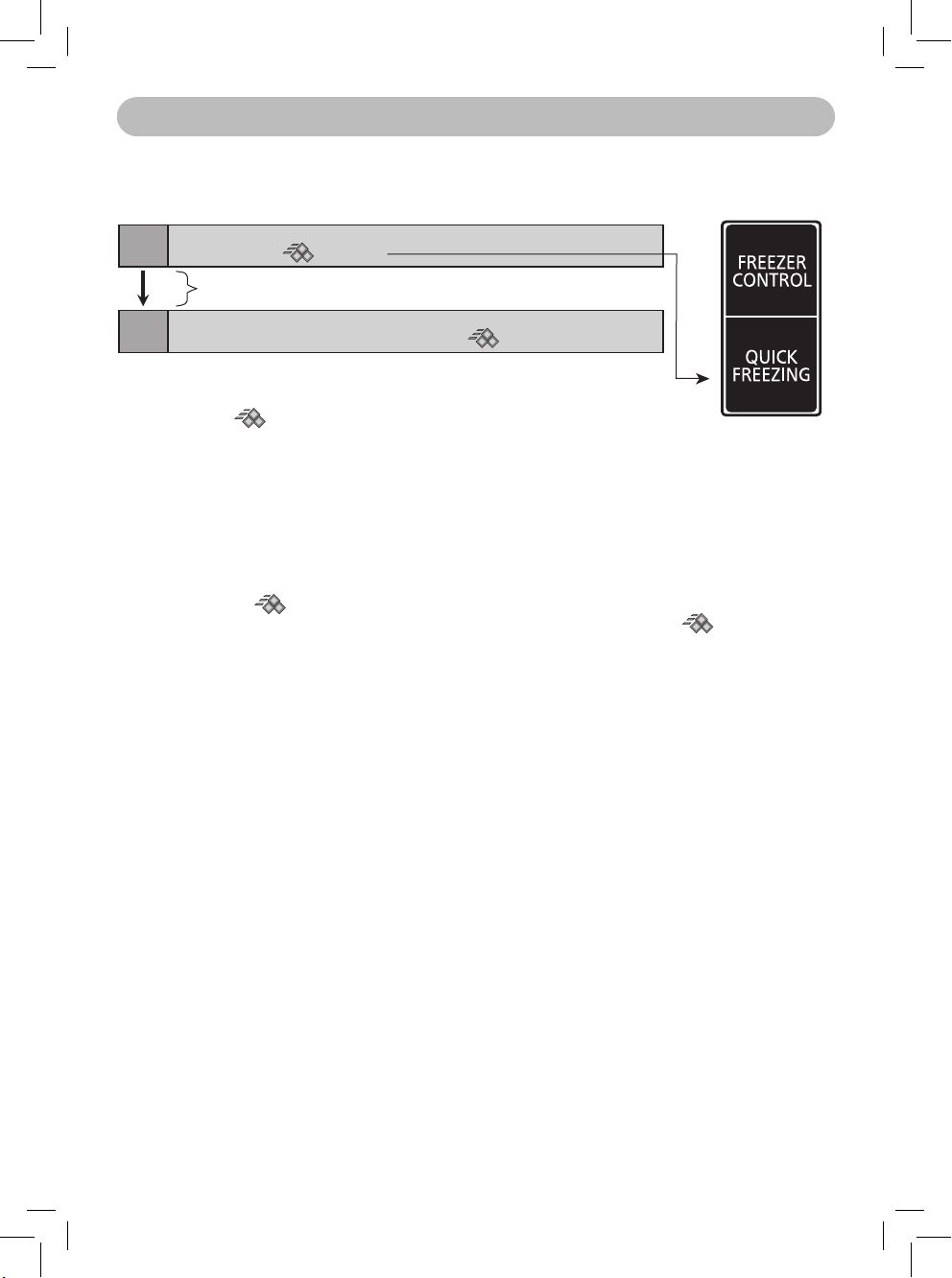

FREEZER CONTROL button

QUICK FREEZING button

18

19

NR-BY602

Product view from behind .

12

13

14

15

16

17

21

22

20

SPECIAL FEATURE

1) NON-FLON

This unit uses totally NON-FLON MATERIALS both for refrigerant (Iso-butane (R600a) and for insulation

(Cyclo-Pentane). So, this refrigerator does not damage the earth’s ozone layer and has almost no effect
on global warming.

2) INVERTER

In accordance with temperature change inside the compartment, the motor runs at different speed.
When the temperature is stable, the motor runs at a lower speed (energy saving & lower noise).
When powerful cooling is required, the motor runs at a higher speed.

2

NR-BY552-BY602-EN.indd Sec1:2NR-BY552-BY602-EN.indd Sec1:2 6/24/11 5:26:40 PM6/24/11 5:26:40 PM

CONTENTS

Parts Identifi cation ................................................ 2

Contents, Installation ............................................ 3

Safety precautions ................................................ 4

Caution for using .................................................. 6

Temperature control ............................................. 7

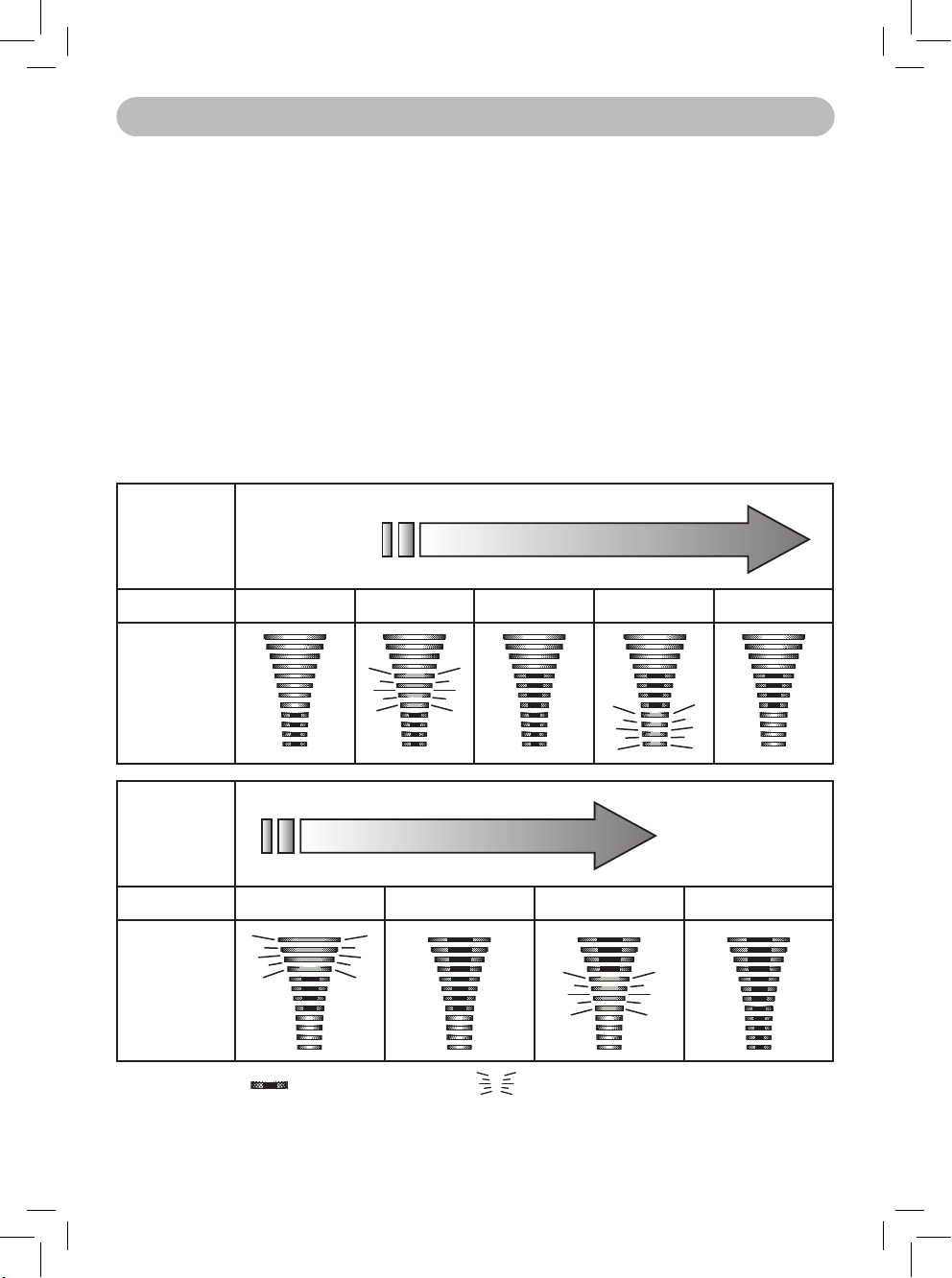

Inverter Control Display ........................................ 9

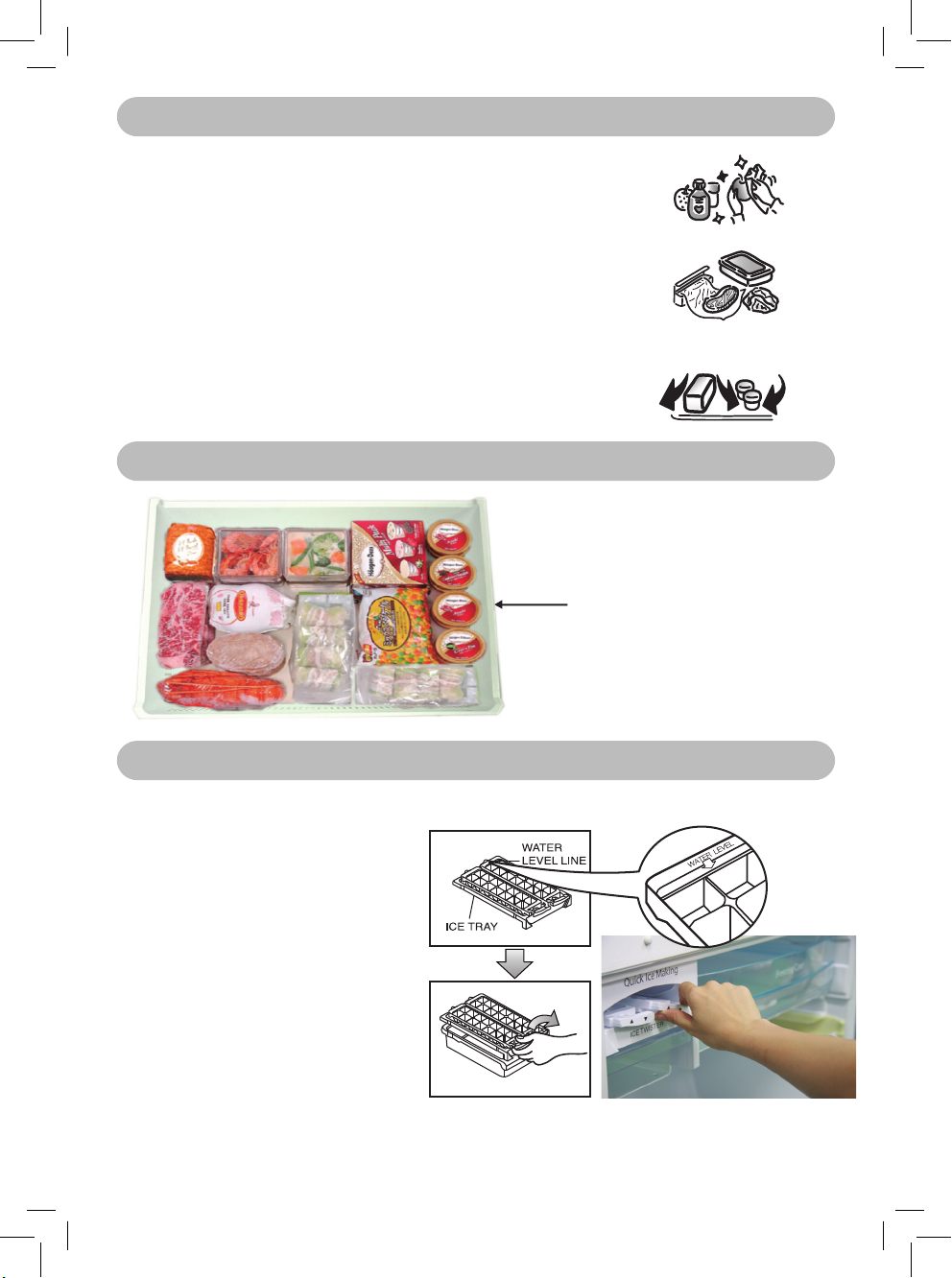

Food Storage, Food storage in the freezer

compartment, How to make ice cubes .............. 10

How to clean the refrigerator ...............................11

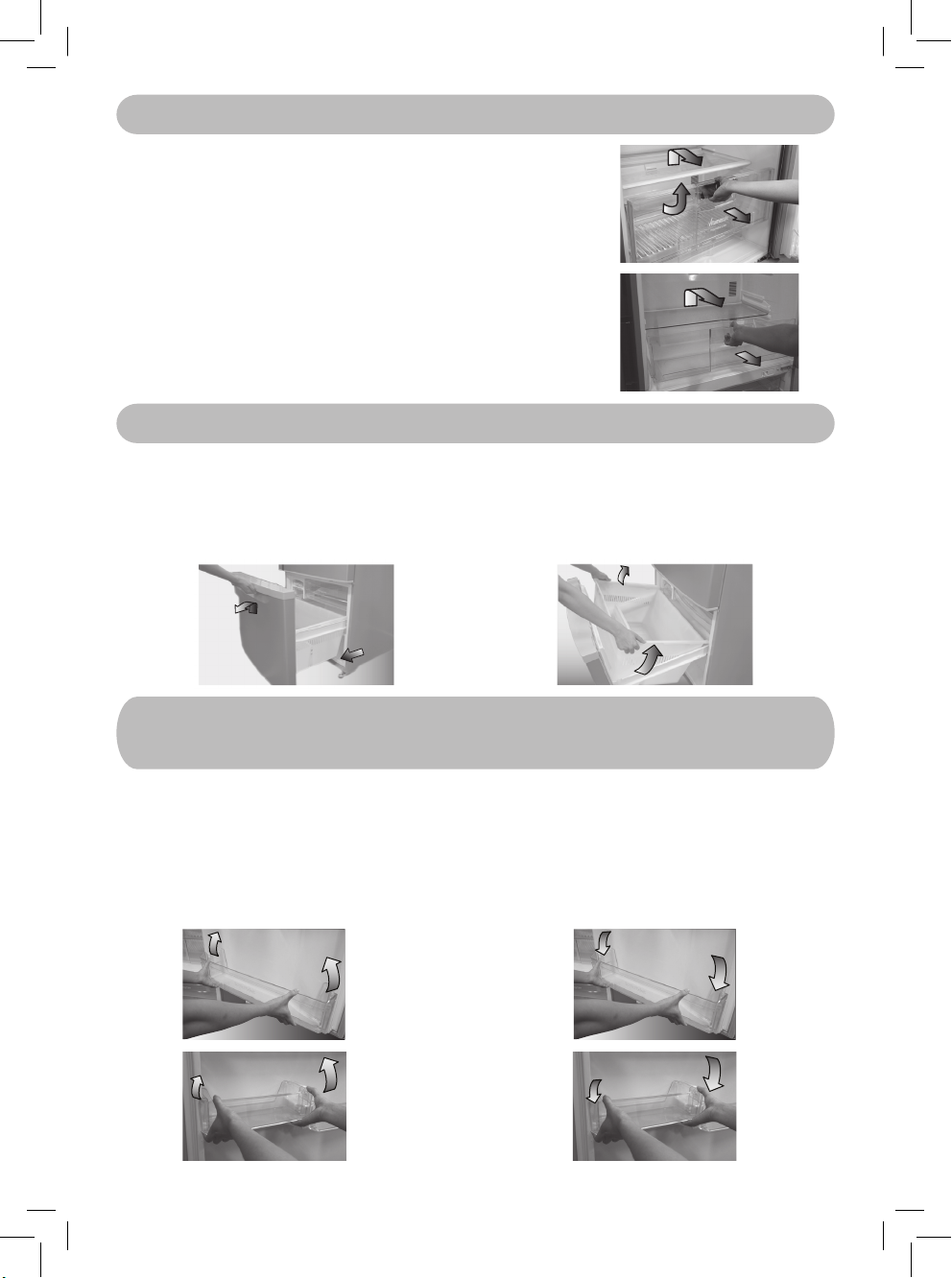

Removing trays for cleaning ................................11

Removing the vegetable case and chilled case

for cleaning ........................................................ 12

Removing the bottom freezer case for cleaning ........

Removing egg shelf, bottle shelf and left/right

provision compartment shelf for cleaning ........... 12

Refrigerator instruction guidelines ...................... 13

Troubleshooting .................................................. 13

Specifi cation, Memo .......................................... 14

INSTALLATION

● The refrigerator must be located in the place where
there is good air circulation.

There should be a space between the top
of the refrigerator and the ceiling at least
30 cm as well as the space between the wall and

the back of the refrigerator at least

10 cm and the side of the refrigerator and the

wall at least 5 cm.

● Do not locate the refrigerator in a humid

place as rust may form and may cause electric

leakage.

● Do not locate the refrigerator exposing to
direct sunlight as the heat and sunlight

will increase the temperature.

● When moving or shifting the refrigerator,
remove all trays and check to be sure

that there is no water in the refrigerator,

adjust the leveling stand of refrigerator,
then move the refrigetator and install in the
location, adjust leveling stand for locking.

● In case of placing the refrigerator on an uneven
surface, adjust the leveling stand to make the refrigerator
stands stably.

● If there is no ground wiring plug in refrigerator, it should be
connected with ground connection to prevent hazard from electric
leakage.

● Bring power cord set for use should be lift up left drain tray until
locked off and then take out power cord set from drain tray after
that insert drain tray into the block as well as press-fi tting both
sides.

● The refrigerator LED lamp, specially designed for this
refrigerator, does not function on individual replacing. If you
need replacement, please contact Panasonic Service Center.

Remark
The lamp in vegetable case is fl ashing LED which have function to keep freshness and increase

vitamin C in vegetable and fruits. If you need replacing or have problem with

this lamp, please contact Panasonic Service Center.

12

3

NR-BY552-BY602-EN.indd Sec1:3NR-BY552-BY602-EN.indd Sec1:3 6/24/11 5:26:42 PM6/24/11 5:26:42 PM

SAFETY PRECAUTIONS

This sign means

WARNING
CAUTION

The samples of symbols used in this manual are described below.

WARNING

Use proper voltage and keep it
close to the outlet.

Your refrigerator’s rated voltage is indicated
on a label put at the door or at the inside of
cabinet.
And place your refrigerator close enough to
electrical outlet so that you do not have to
use an extension cord.

Do not plug or unplug with wet
hands.

Doing so can result in an electrical shock.

Remove dust periodically from
the power plug.

Dust accumulation on the power plug may
cause an Insulation failure with humidity and
possible fi re.
Unplug the power cord and wipe with dry
cloth.

[It may result in severe injuries or death]

This sign means
[It may result in injuries or malfunction]

These signs mean prohibited action.

This sign means required action.

Do not touch compressor or pipe.

This area become high temperature, and
will have an accident when you touch it.

Compressor

Reserve one plug for the
refrigerator only.

Avoid connecting many appliances to the
same plug for the refrigerator. Do not use
a plug of bad quality. Avoid using damaged
plug or electric cord. Unroll through the length
of the cord in order to ventilate the heat.

Do not let the cord or plug be
damaged.

If the cord or plug is damaged, it may cause
fi re or electric shock. Please consult your
dealer or service center when the refrigera­tor has to be repaired.

Do not try to disassemble,
repair or modify the refrigerator
by yourself.

You may get injured from doing so or the
refrigerator may result in malfunction.
If you want to repair the refrigerator,
please consult your dealer or nearest service
center.

Do not open the controller box
except by a service personnel.

There is a danger of getting electrical shock.

In case of refrigerator with ground wiring
plug, It must be used the socket outlet with
ground connection to prevent hazard from
electric leakage.

Make Sure to push the plug completely

into the socket outlet.

4

NR-BY552-BY602-EN.indd Sec1:4NR-BY552-BY602-EN.indd Sec1:4 6/24/11 5:26:43 PM6/24/11 5:26:43 PM

SAFETY PRECAUTIONS

WARNING

Do not damage the cooling circuit

(piping on the back). The fl ammable refrigerant
may catch fi re and may lead to an explosion.

Do not use electrical appliances such as a deodorizer

in the refrigerator. (If the refrigerant leaks, then it may
catch fi re due to sparks on the contacts.)

Do not fi ll the gaps around the refrigerator.

(If the refrigerant leaks, then it may catch fi re.)

Do not let any kid hang from the refrigerator’s door.

The refrigerator may overturn to the kid. Children should
be supervised to ensure that they do not play with the
refrigerator.

Do not place any water container such as fi sh-tank or

fl ower vase on the top of the refrigerator. Spilled water

may damage insulation of electrical components and
cause electrical leakage fi re or electrical shocks.

● If you detect a burning smell, disconnect the power

plug.

● If you detect a gas (such as city gas) leak, ventilate

the kitchen.

● A flammable refrigerant is used. If you have dam-

aged the cooling circuit (piping), open the windows
to ventilate the kitchen and contact your dealer.
(Otherwise it may cause an electrical shock, ignition
or explosion.)

● Maintenance work must only be done at workshop

by competent person.

Do not store chemicals or scientifi c specimen. Home-

Use refrigerator cannot store those requiring a strict
control.

Do not use mechanical devices or other means to

accelerate the defrosting process, other than those
recommended by the manufacturer.

Before taking the refrigerator to be recycled, please
remove all the door opening seal to prevent locking a
child in it.

Regarding to local laws, Cyclo-Pentane is used for
insulation of this refrigerator and fl amable gas is used
for refrigerant. When you throw away this unit, please
discard it by proper method, and do not dispose it by
burning.

5

NR-BY552-BY602-EN.indd Sec1:5NR-BY552-BY602-EN.indd Sec1:5 6/24/11 5:26:47 PM6/24/11 5:26:47 PM

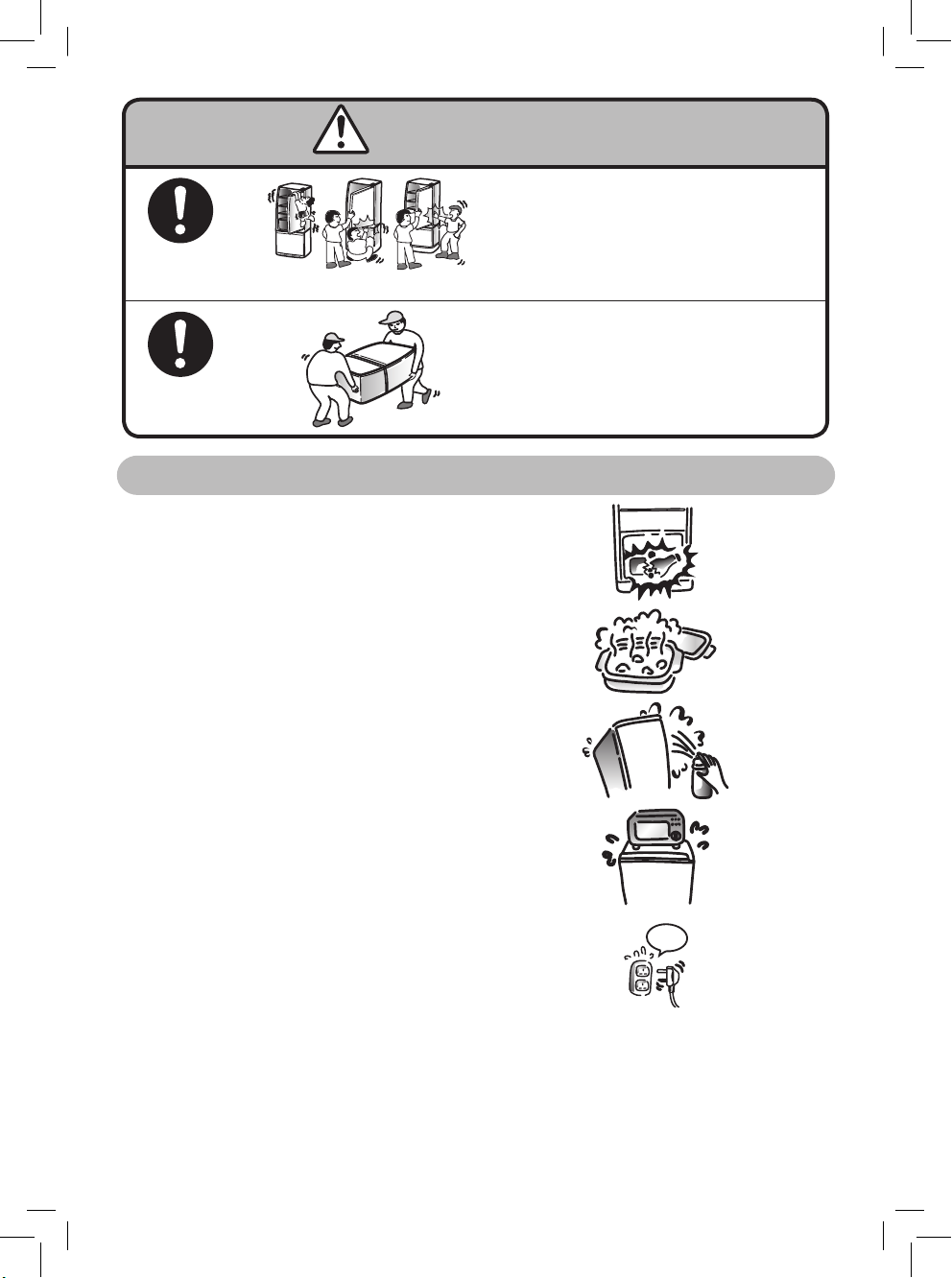

CAUTION

CAUTION FOR USING

■ Do not freeze glass bottles in the freezer.
The glass bottle may explode or break.

■ Do not place warm/ hot foodstuff in the
refrigerator.

■ While opening the refrigerator,

be careful not to pinch other one’s hand
holding the door.

■ Mind the gap between the doors.

They may nip your hand while closing the door.

■ Hold the carrying handles when transporting

the refrigerator.

■ Do not clean the refrigerator with chemical
substance or liquid. It will occur damage
and have corrosion on the surface.

■ Do not place things with temperature
higher than 60ºC on the top of the
refrigerator, it may damage the top of the
refrigerator.

■ When the plug is disconnected, leave it for
10 minutes before pluging again. If not,
the compressor may not work.

■ This refrigerator is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have supervision or
instruction by a person responsible for their safety.

10

minutes

6

NR-BY552-BY602-EN.indd Sec1:6NR-BY552-BY602-EN.indd Sec1:6 6/24/11 5:26:49 PM6/24/11 5:26:49 PM

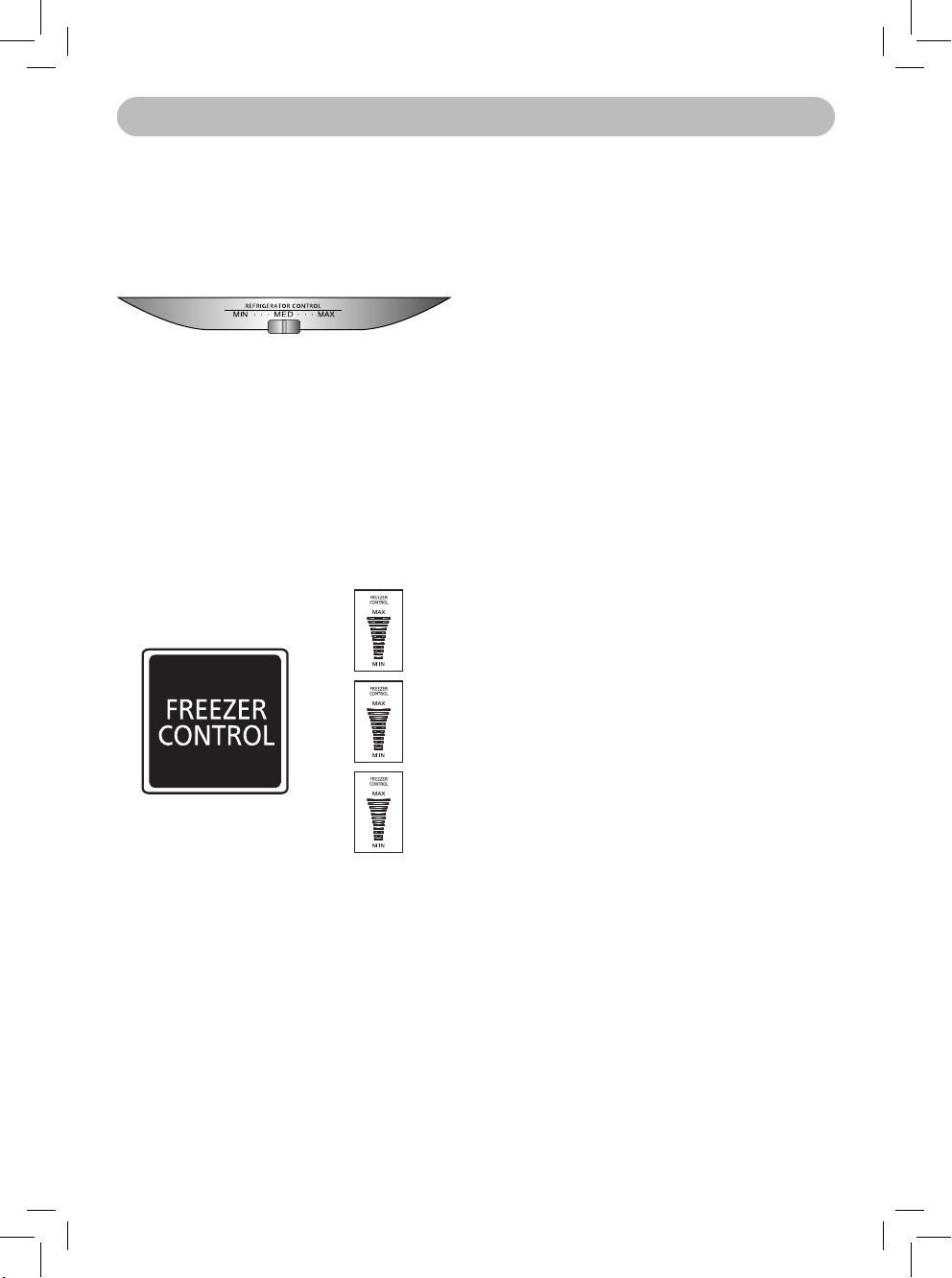

TEMPERATURE CONTROL

Refrigerator compartment temperature control

The temperature can be adjusted for 1 - 3 levels.
Indicating number and cool level.

“MIN” Higher by approx. 5°C ~ 10°C

“MED” Approx. 2°C ~ 7°C

“MAX” Lower by approx. -1°C ~ 4°C

Freezer compartment temperature control

The temperature can be adjusted for
MIN - MAX levels. Indicating operate and
cool level.

“MAX” Lower by approx. -19°C ~ -24°C

Approx. -17°C ~ -22°C

“MIN” Higher by approx. -13°C ~ -18°C

Remark

While operating the refrigerator for the fi rst time, after connecting the plug, adjust the
temperature to “MIDDLE” position of each control and leave it for 24 hours for the
effective cooling operation. After that, adjust the temperature as you prefer. If you want to
save the energy, do not adjust the temperature lower than the actual operating condition.

7

NR-BY552-BY602-EN.indd Sec1:7NR-BY552-BY602-EN.indd Sec1:7 6/24/11 5:26:51 PM6/24/11 5:26:51 PM

TEMPERATURE CONTROL

This refrigerator is specially designed for appropriate use, which can adjust the
temperature level to detailed 9 levels with the following details.

How to operate the “9 levels” mode

1. Set LED display to “MIN” with the “Freezer control” button.

2. Press the “Freezer control” button (for 10 seconds) until the LED display return
to show at “MIN” position.

3. Set “9 levels” mode following below table mentioned by pressing the “Freezer
control” button.

To reset the setting “9 levels” mode

Repeat step 1 and 2 , then the refrigerator return to normal operation mode.

Cooling

Level

Step 12345

FREEZER

CONTROL

LED

DISPLAY

Cooling

Level

Step 6 7 8 9

FREEZER

CONTROL

LED

DISPLAY

Minimum

Maximum

Lighting Blinking

8

NR-BY552-BY602-EN.indd Sec1:8NR-BY552-BY602-EN.indd Sec1:8 6/24/11 5:26:52 PM6/24/11 5:26:52 PM

INVERTER CONTROL DISPLAY

How to operate the “QUICK FREEZING” mode

■

QUICK FREEZING

Press the button “QUICK FREEZING”

ON

(Blue light LED

150 min “QUICK FREEZING” mode.

The system will stop operating automatically when it runs for 150 min

OFF

and return to normal mode (Blue light LED

Remarks

- If you want to stop the operation, press the button “QUICK FREEZING”.

- Blue light LED

“QUICK FREEZING” mode will start right after the defrosting operation

is fi nished.

- Freezer temp. control does not operate during “QUICK FREEZING” mode.

(The compressor rotation is at the maximum level for “QUICK FREEZING”
mode)

■

Others

- When pressing the buttons of both “QUICK FREEZING” and “ENERGY SAVING” at the same time

1. Blue light LED

2. After “QUICK FREEZING” mode for 150 min is fi nished and its Blue light LED
“ENERGY SAVING” mode starts to operate.

turns on)

turns off)

fl ashing means that the defrosting system is now working

(“QUICK FREEZING”) turns on.

turns off,

9

NR-BY552-BY602-EN.indd Sec1:9NR-BY552-BY602-EN.indd Sec1:9 6/24/11 5:26:54 PM6/24/11 5:26:54 PM

FOOD STORAGE

1. Clean the food and its package or container
before placing it into the refrigerator.

2. Foodstuff such as vegetable, meat, fi sh should be
wrapped with plastic fi lm or pack in box before freezing
or refrigerating in the refrigerator. This is to maintain
their freshness and to prevent unpleasant odor.

3. Do not overload the refrigerator. Gap must be provided
between foodstuffs to maintain the cooling effect.

FOOD STORAGE IN THE FREEZER COMPARTMENT

Maximum Storage

If the inserted food exceeds edge of
container, the cooling performance
may be reduced or the compartment
may become frosted.

HOW TO MAKE ICE CUBES

STEP

1. Pull out the ice tray.

2. Fill water in the ice tray
untill the water level line,
then place it back.

3. To remove ice cubes,
TWIST the ice tray CLOCK WISE

The ice cubes will drop
into the ice box.

Remark

Do not pour water into the ice

box for ice making, otherwise
the ice box may get cracked.

10

NR-BY552-BY602-EN.indd Sec1:10NR-BY552-BY602-EN.indd Sec1:10 6/24/11 5:26:55 PM6/24/11 5:26:55 PM

.

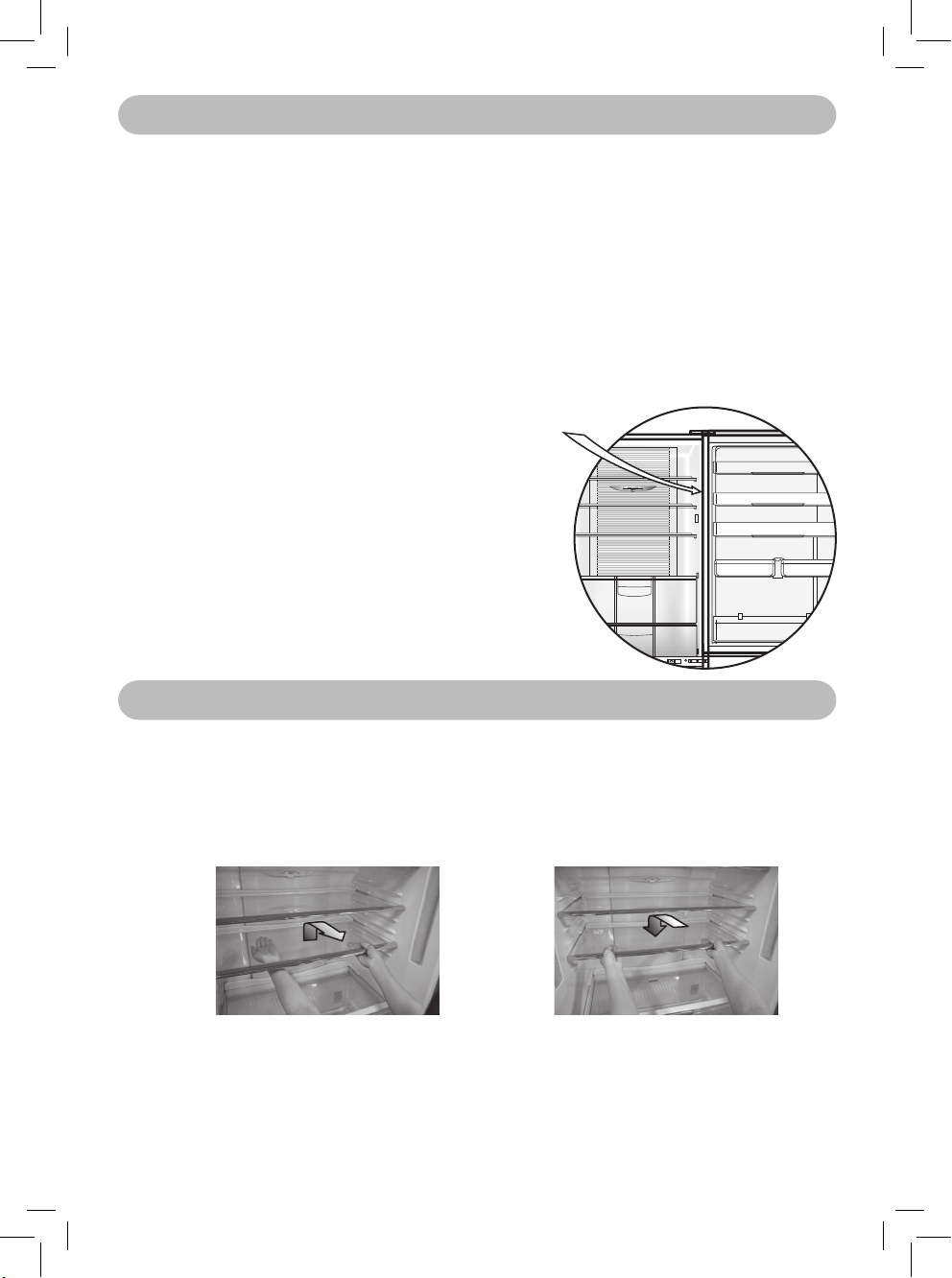

HOW TO CLEAN THE REFRIGERATOR

Interior cleaning

Always disconnect the plug before cleaning. After that, clean the refrigerator with warm water.
If the refrigerator is very dirty, clean it with warm water and soap using a soft cloth.
Then wipe the soap off using damp soft cloth.

Exterior cleaning

Clean the outer side of the refrigerator with warm water and soap using a soft cloth.
After that wipe the soap off using soft cloth and wipe it with dry soft cloth.
Do not use cleaner with chemical mixture or soap with acid mixture
as it will leave stain on the refrigerator. Clean the refrigerator at least once a month.

How to clean the door opening seal

• At the area of inner door opening seal,
petroleum gel was applied to reduce the
friction to the refrigerator body. You can
clean the door opening seal by wiping it
softly and be careful not to wipe off the
petroleum gel.

• The door opening seal fi xing is designed
to be replaceable when it reaches its end
of life.

• While cleaning, if the seal is off from its
groove, push it back into the groove.

Point where petroleum
gel was applied

REMOVING TRAYS FOR CLEANING

■ When removing the tray,

slightly lift up the innermost of the tray
to release the side claws off the locking
cavity at cabinet wall. Then pull the
tray toward yourself.

■ When attaching the tray,

push until it reaches the end and
then push the innermost downward
to lock its side claws with the locking
cavity at cabinet wall.

Remark

• When removing tray above vegetable case, please pull out the vegetable case fi rst

(Please following page 12) and then follow to removing the tray as above details.

• In case of attaching the tray and it does not lock, make sure that you did not

attach it the wrong tray.

11

NR-BY552-BY602-EN.indd Sec1:11NR-BY552-BY602-EN.indd Sec1:11 6/24/11 5:26:58 PM6/24/11 5:26:58 PM

REMOVING THE VEGETABLE CASE AND CHILLED CASE FOR CLEANING

■ Removing the vegetable case for cleaning.

1. Pull the handle of vegetable case up a little.

2. Pull the vegetable case toward yourself.

3. Raise it up, then completely take out the vegetable case.

Note

To keep vegetable and fruit and to maintain its vitamins,
please push until it locks properly after use or clean the
vegetable case.

■ Removing the chilled case for cleaning.

1. Pull the chilled case toward yourself.

2. Raise it up, then completely take out the chilled case.











REMOVING THE BOTTOM FREEZER CASE FOR CLEANING

1. Pull the freezer drawer toward yourself.

2. Raise up a bit the front of the freezer drawer
Then pull the freezer drawer until stopper.

3. Lift both sides of bottom freezer case and
move it upward to remove.

2

1

3

REMOVING EGG SHELF, BOTTLE SHELF AND LEFT/RIGHT
PROVISION COMPARTMENT SHELF FOR CLEANING

■ When removing egg shelf,

bottle shelf, left/right provision
compartment shelf

Lift up from left and right side and

pull it upward yourself.

12

NR-BY552-BY602-EN.indd Sec1:12NR-BY552-BY602-EN.indd Sec1:12 6/24/11 5:27:00 PM6/24/11 5:27:00 PM

■ When attaching egg shelf,

bottle shelf, left/right provision

compartment shelf

Put in the egg shelf, bottle shelf, left/right

provision compartment shelf placing it on
both supporter, then press until it reaches

the end of supporter.

REFRIGERATOR INSTRUCTION GUIDELINES

1. Do not open the refrigerator frequently or leave it open for a long time. This is to prevent water
dripping inside the refrigerator and will cause the waste of coolness and consumption of energy.

2. Do not refrigerate unnecessary items or hard-to-rot foodstuff such as pumpkin, shallot, garlic,
potato as it will make the refrigerator to work overload and waste the storage space without
necessity.

3. Adjust the temperature according to the actual operating condition for energy saving.

4. Do not refrigerate bottles bigger than the door shelf or the tray as the door will not close
completely causing coolness to leak.

5. Frequently check the door opening seal, it must be closed to the refrigerator’s body completely.
Do not leave the seal dirty or damaged or deteriorated as the coolness will leak and will cause
unnecessary consumption of energy.

6. If you will not be at home for several days or there are nothing refrigerated in the refrigerator, the
plug should be disconnected for energy saving, In this case, clean the refrigerator and leave it
half-open to prevent bad odour.

7. Clean the drain tray located over the compressor at the back of the refrigerator every three
months to prevent the odour generated from humidity.

8. Energy saving dryer pipes and heating pipes embedded around the refrigerator cabinet are
helping to prevent “condensation” on the outer surface of the cabinet without consuming energy.

This will make the outer wall of the refrigerator get warm and that is not a malfunction.

9. Drinking water bottles, beverage bottles such as soft drinks and fruit juices should be sealed
closely to prevent odour to get into the bottles.

TROUBLESHOOTING

Before calling for servicing, please check the following.

The refrigerator does not operate.

* Check that the plug and its socket are in good condition.
* Check if there is any problem on main fuse and electrical system of the house.

The refrigerator does not cool properly.

* Check to be sure that the temperature control button is at the proper position.
* Check to see if the refrigerator is overloaded with stuff or there is any hot foodstuff refrigerated

inside.
* Is the refrigerator exposed directly to sunlight or heat source?
* Is the refrigerator door completely closed? Is the refrigerator door opened frequently?

Vapor generated inside and outside the cabinet.

* Condensation may appear on the surface of cabinet when humidity is high, e.g. during rainy

season or the air circulation is not good.
* If there is condensation inside, check if the door is completely closed. Is the refrigerator

frequently opened or left open for a long time? Is there any hot foodstuff refrigerated inside?

The refrigerator generates noise.

* Check if the refrigerator is located on a stable fl oor or is installed properly.
* Check if there is any object in contact with the refrigerator.

13

NR-BY552-BY602-EN.indd Sec1:13NR-BY552-BY602-EN.indd Sec1:13 6/24/11 5:27:02 PM6/24/11 5:27:02 PM

SPECIFICATION

Model No.

Freezer Star Rating

Total 551 602

Capacity (L)

Outside Dimensions
Width x Depth x Height (mm)

Net Weight (kg/lb) 80 / 176 86 / 190

Refrigerant Type R-600a

Rated Voltage (V)
Rated Frequency (Hz)

Freezer 153 153

Refrigerator 398 449

NR-BY552 NR-BY602

775 x 745 x 1,714 775 x 745 x 1,846

Refer to the rating label attached inside the cabinet

MEMO

14

NR-BY552-BY602-EN.indd Sec1:14NR-BY552-BY602-EN.indd Sec1:14 6/24/11 5:27:03 PM6/24/11 5:27:03 PM
